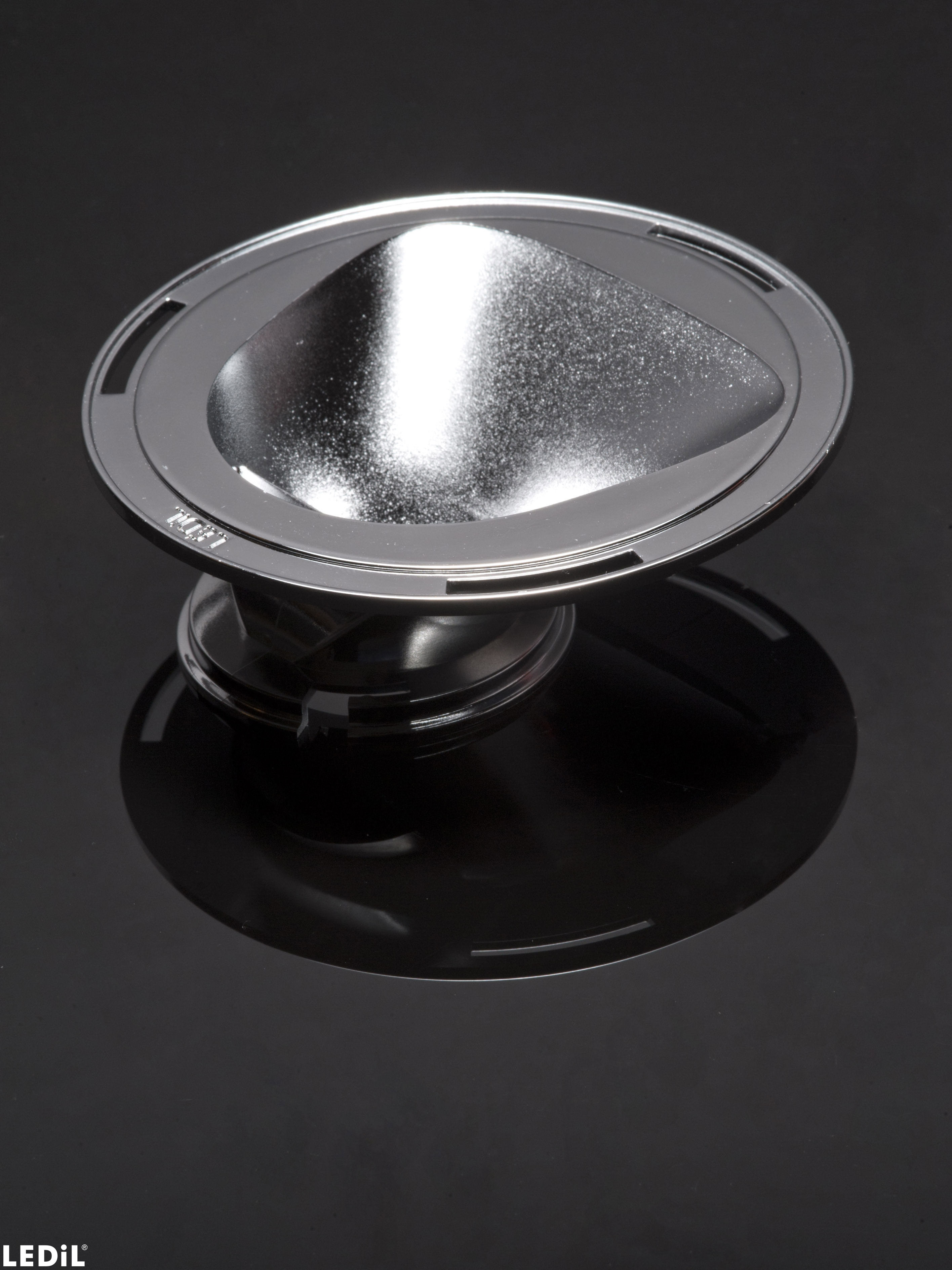

C12948_LENA-WAS
Print
Asymmetric beam for wall-washing
Specification
-
Dimensions:111 mm
-
Height:37.00 mm
-
Fastening:glue
-
Colour:metal
-
RoHS and REACH compliant:Yes
Component Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:56 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:3.1 kg
-
MPQ:56 pcs
-
MOQ:56 pcs
-
MOQ size:480 x 280 x 300 mm
-
MOQ weight:3.1 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
AVAILABLE LEDiL ACCESSORIES

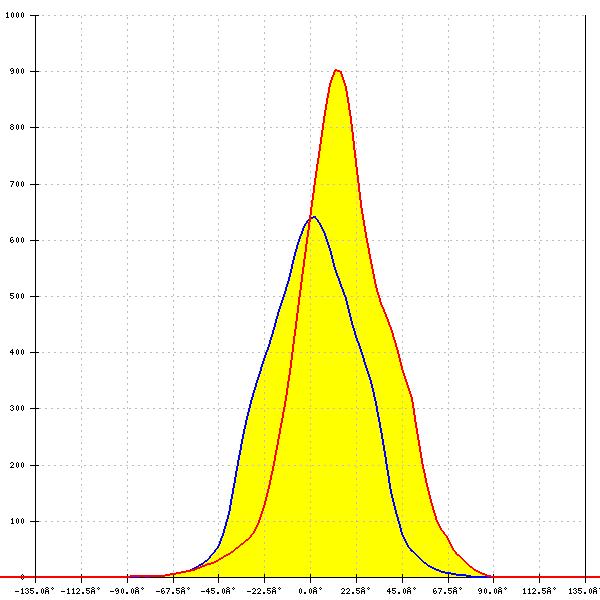

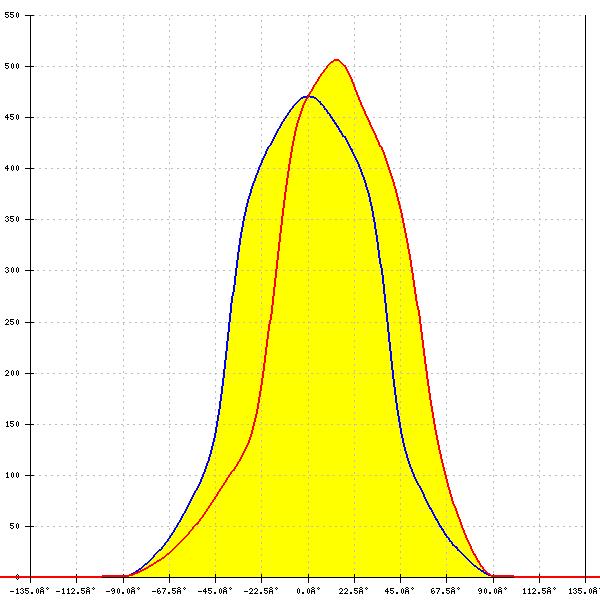

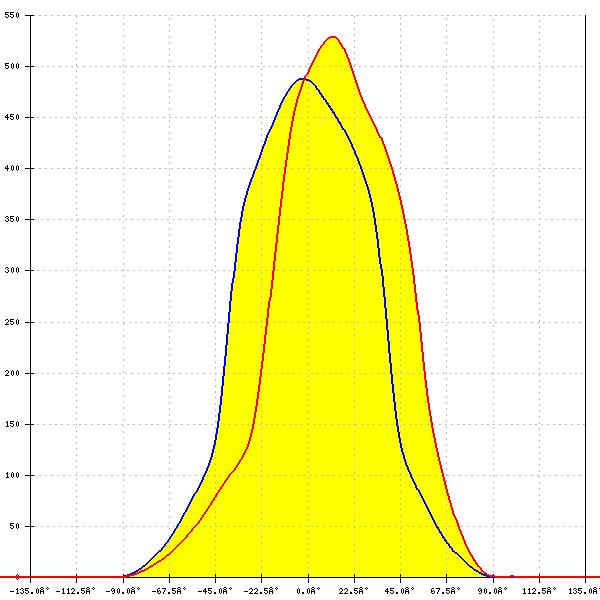

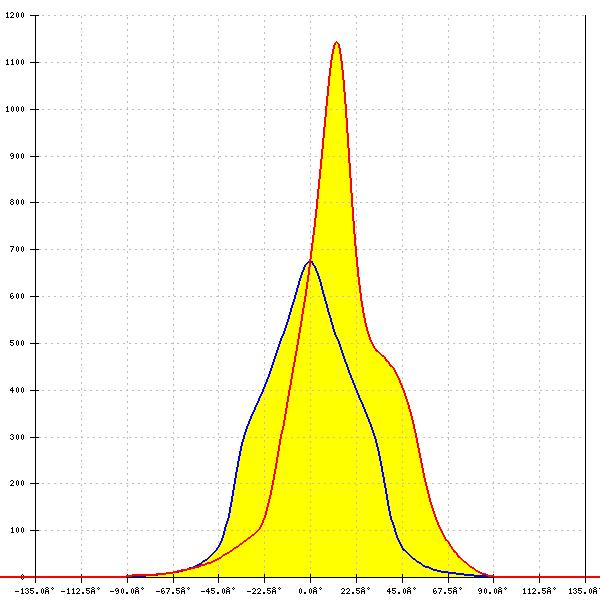

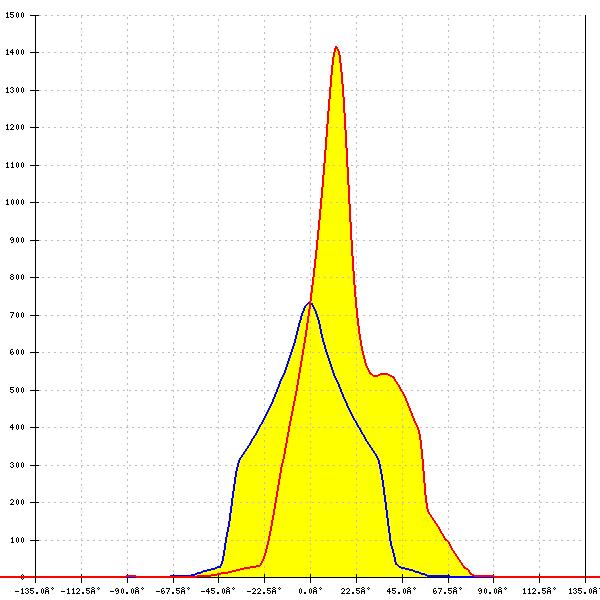

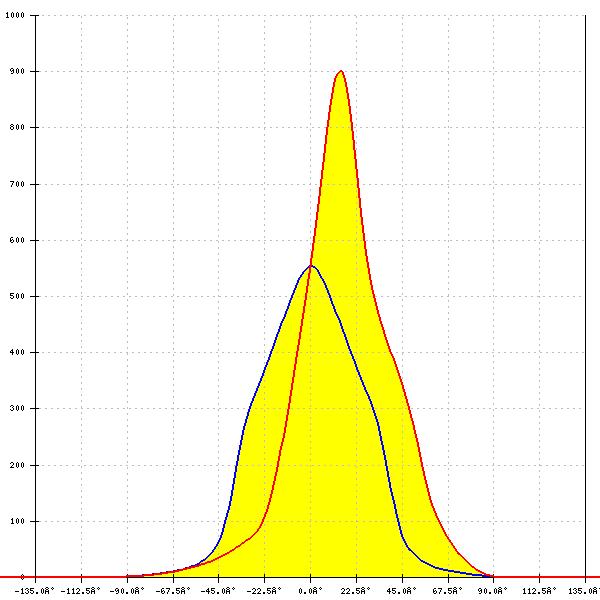

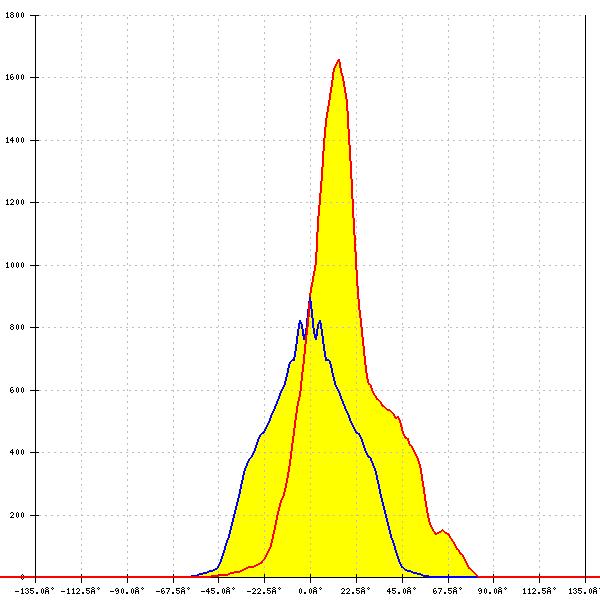

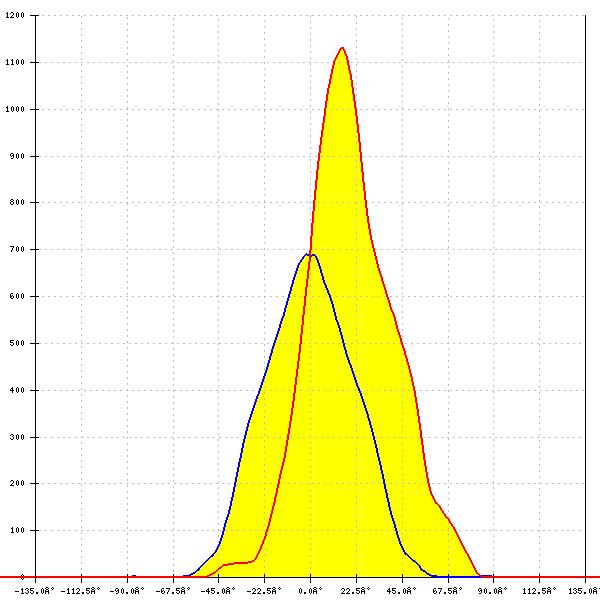

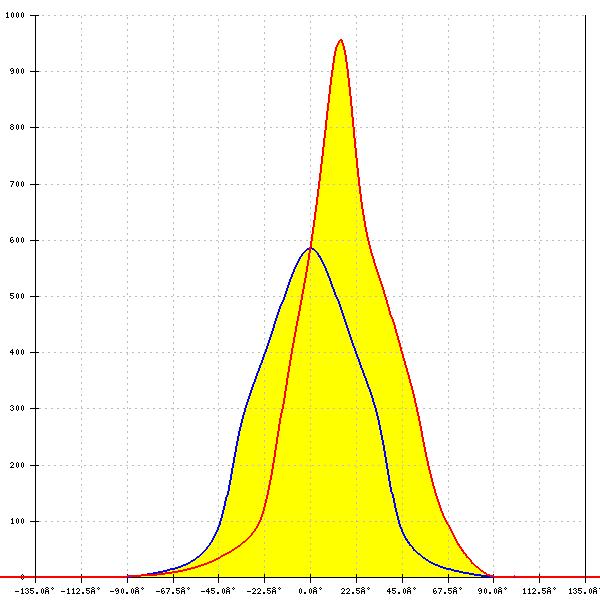

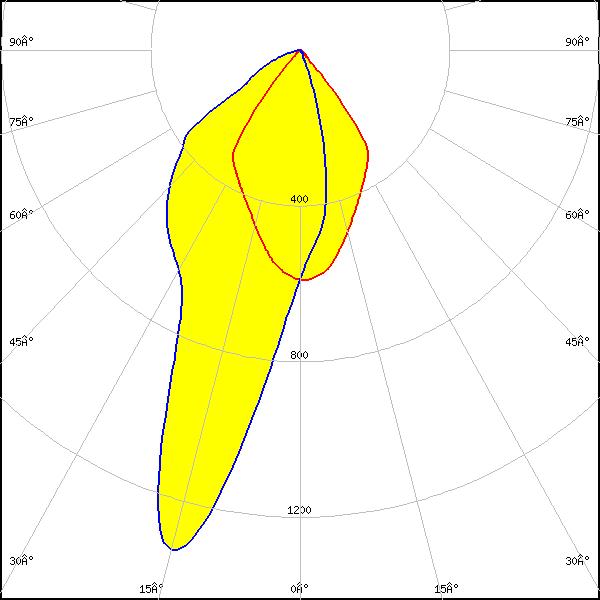

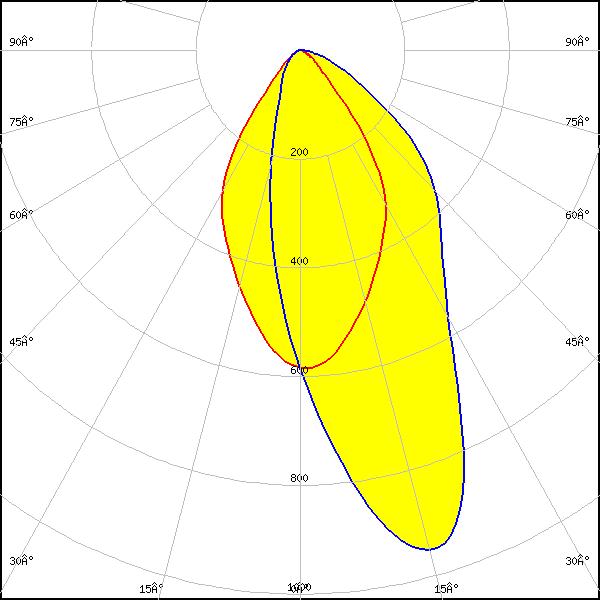

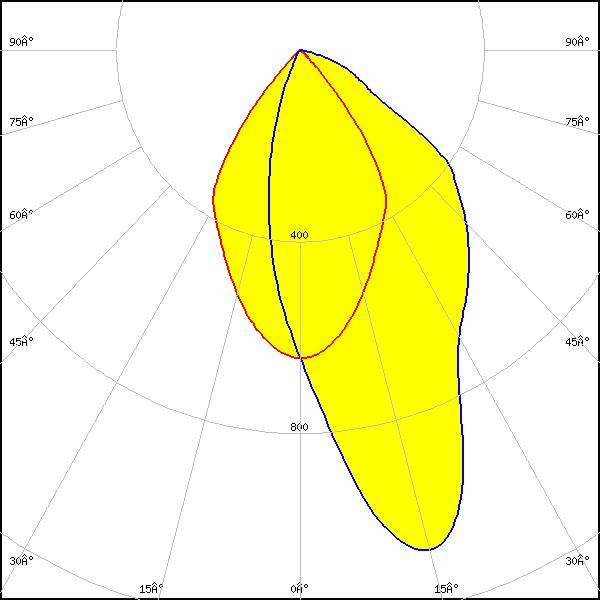

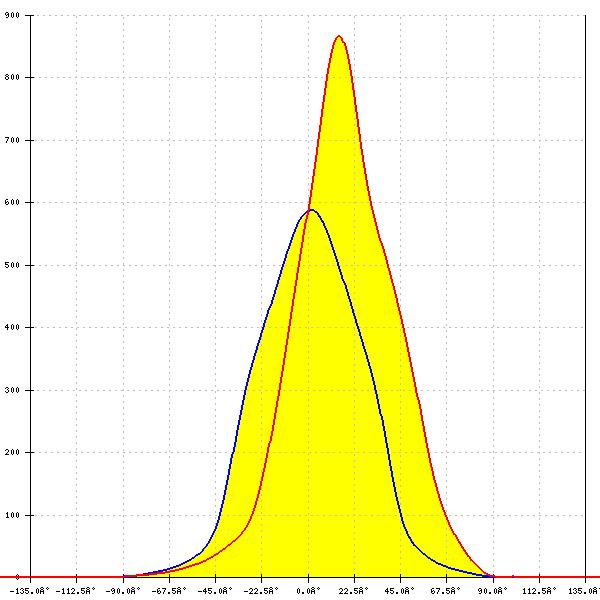

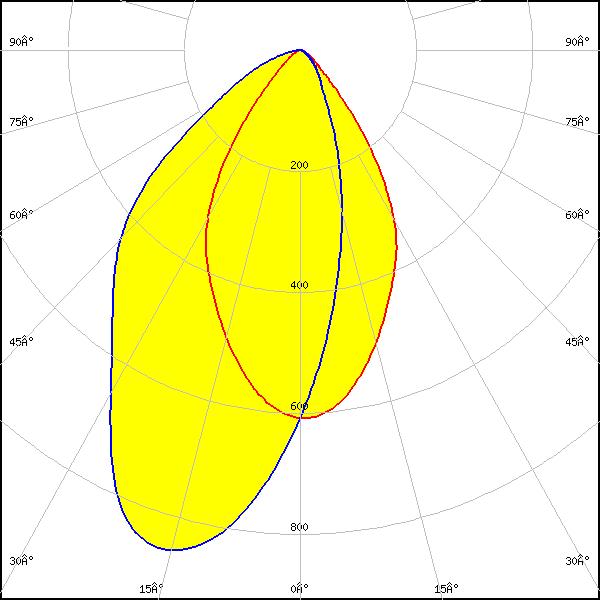

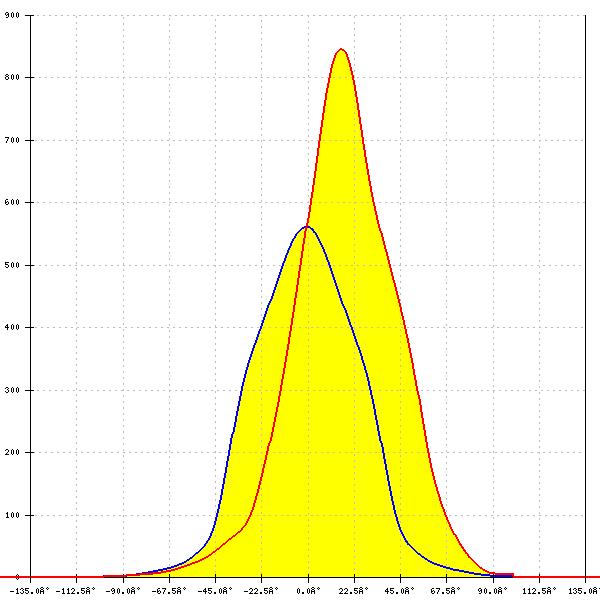

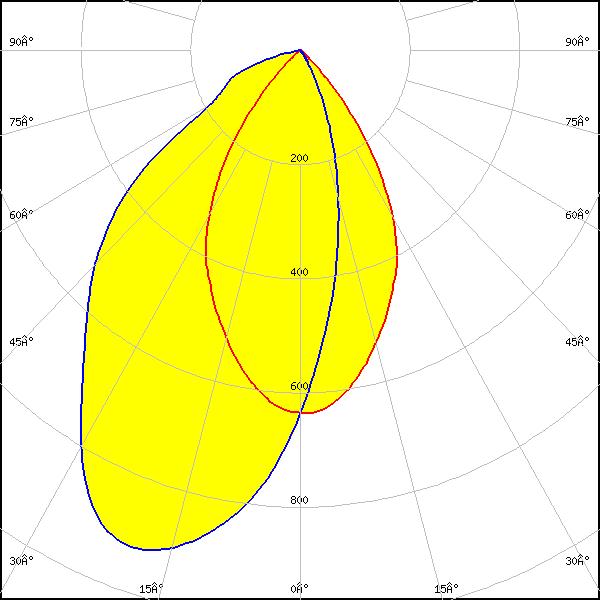

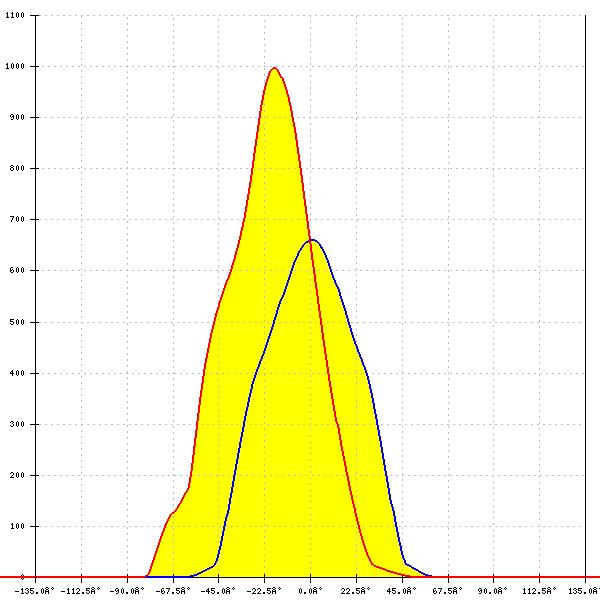

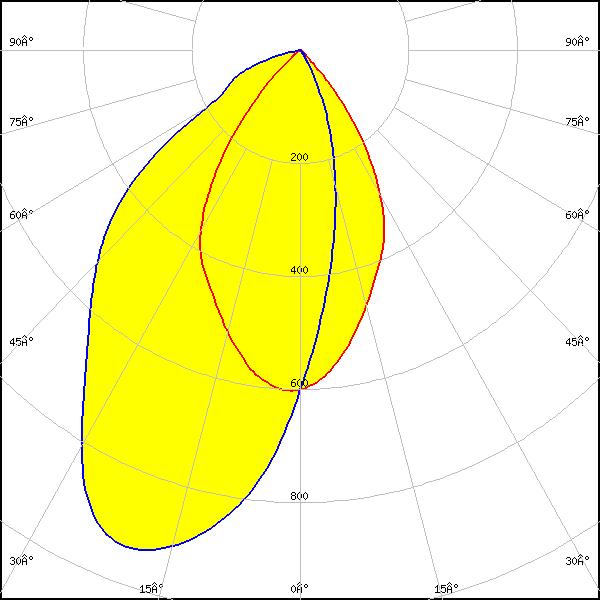

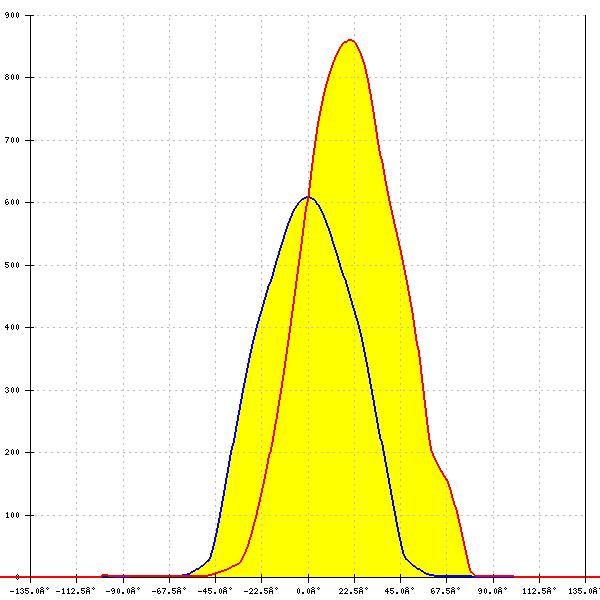

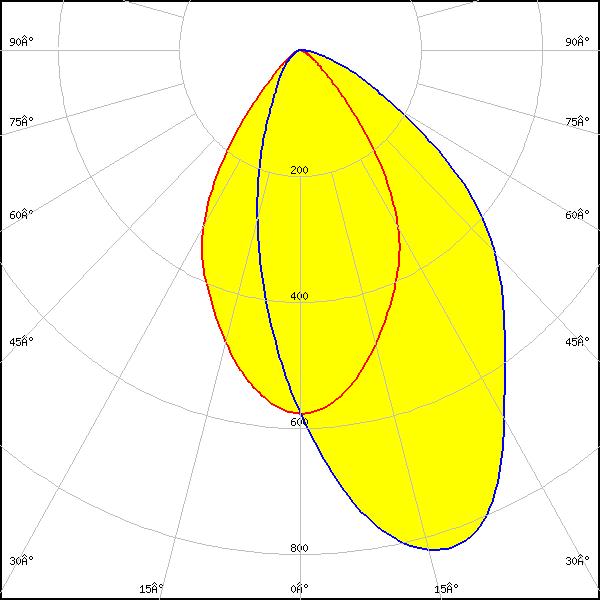

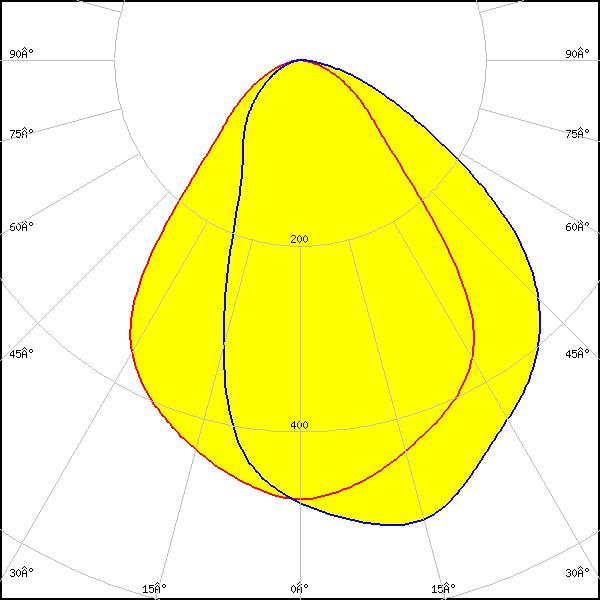

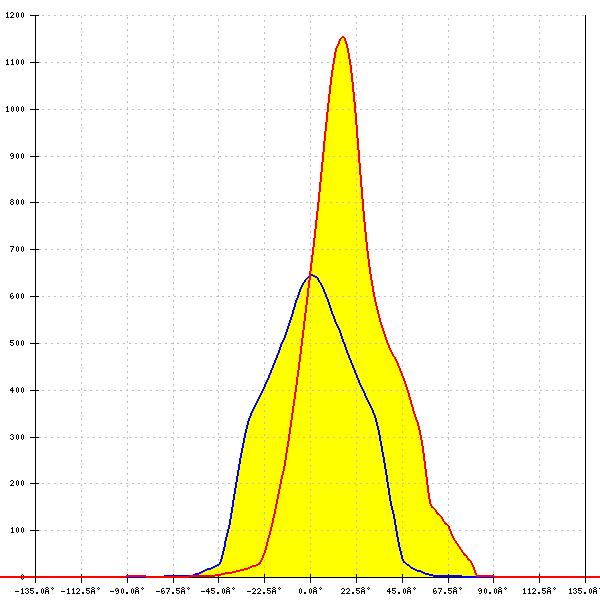

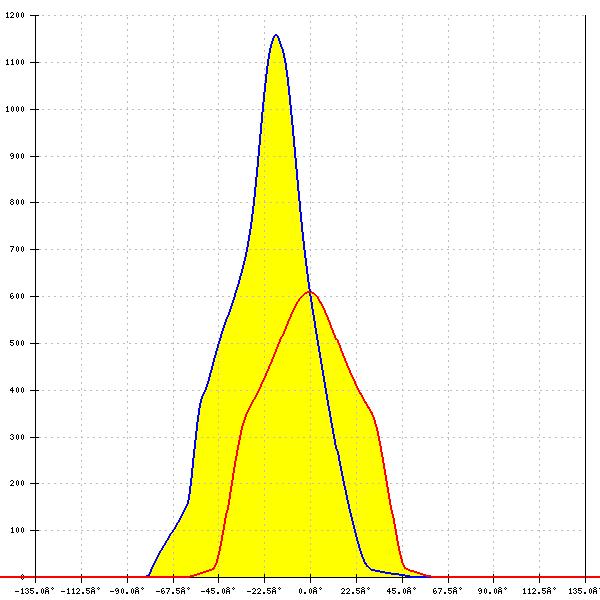

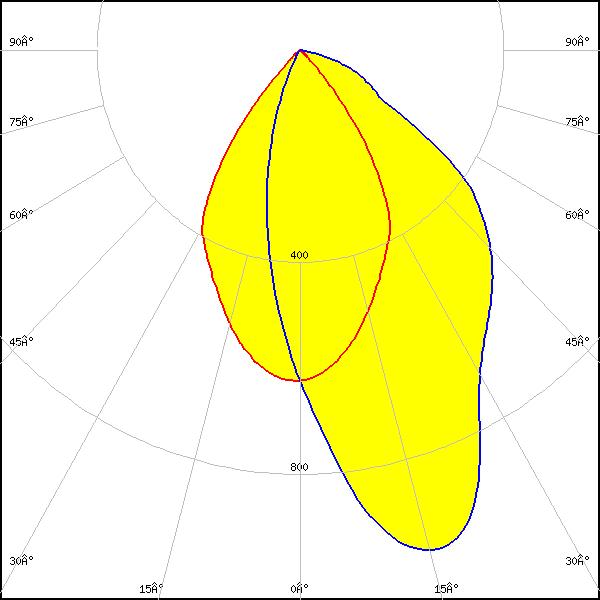

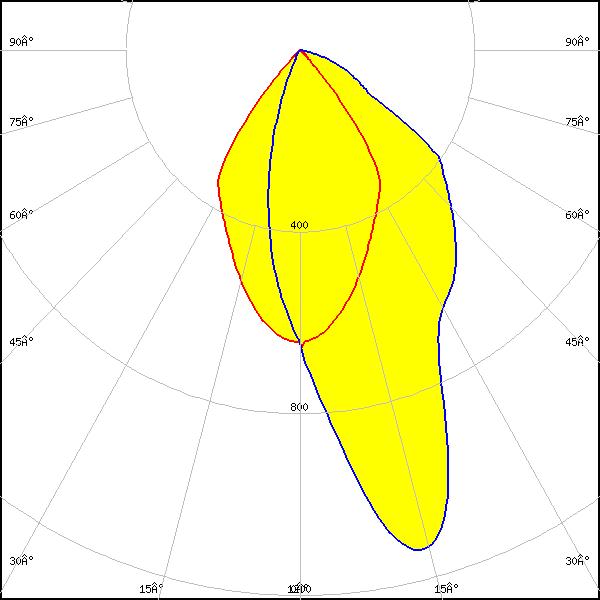

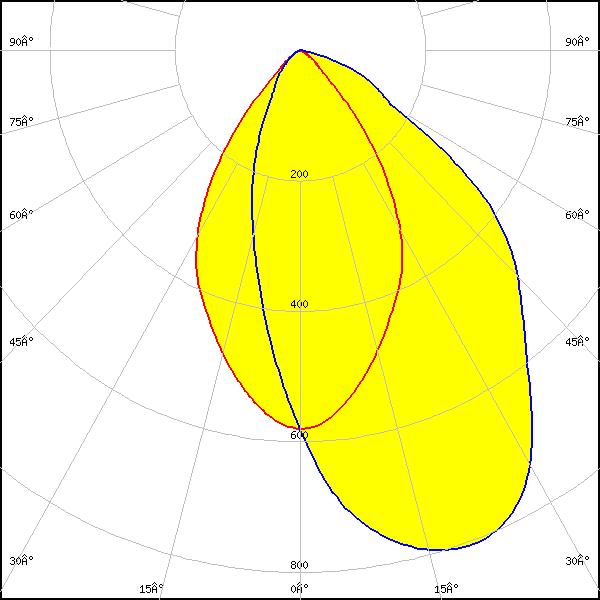

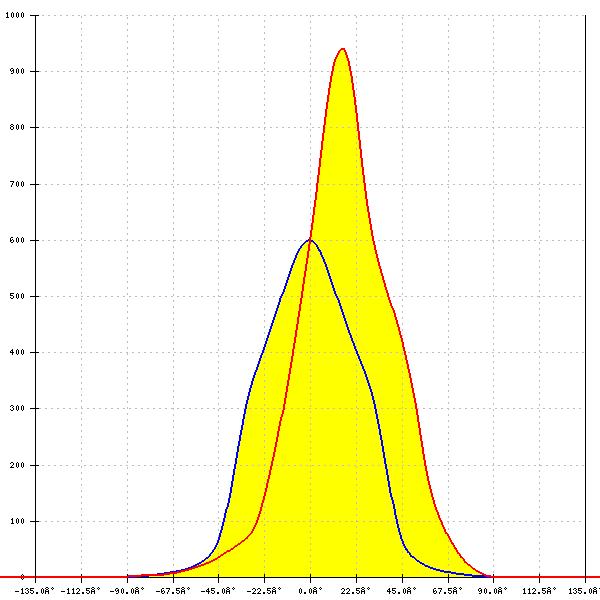

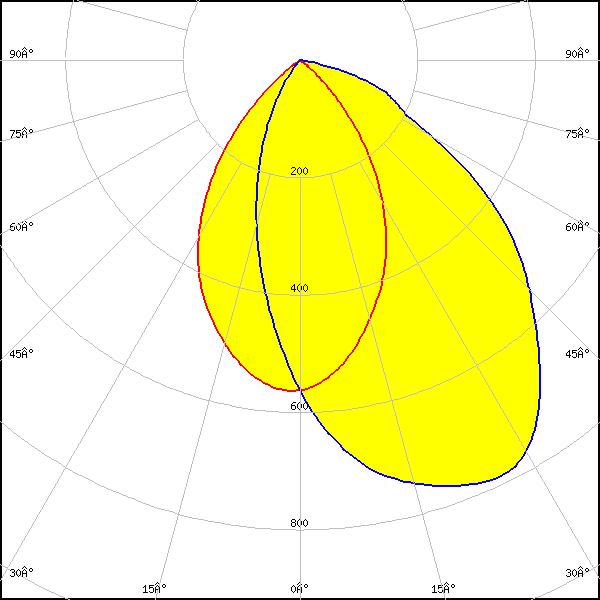

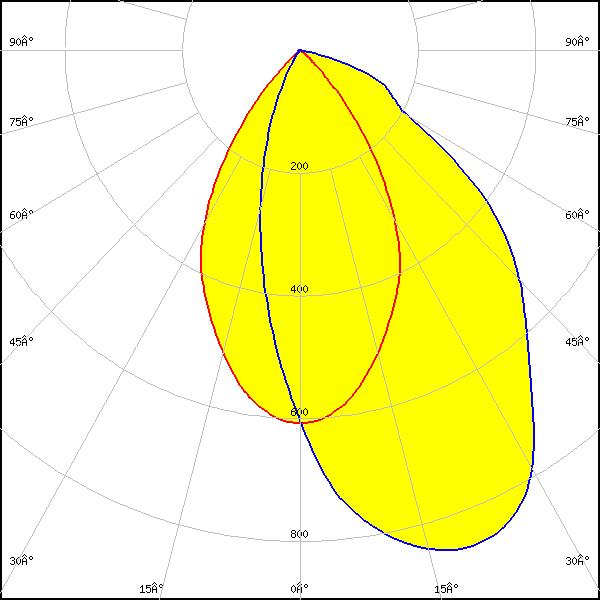

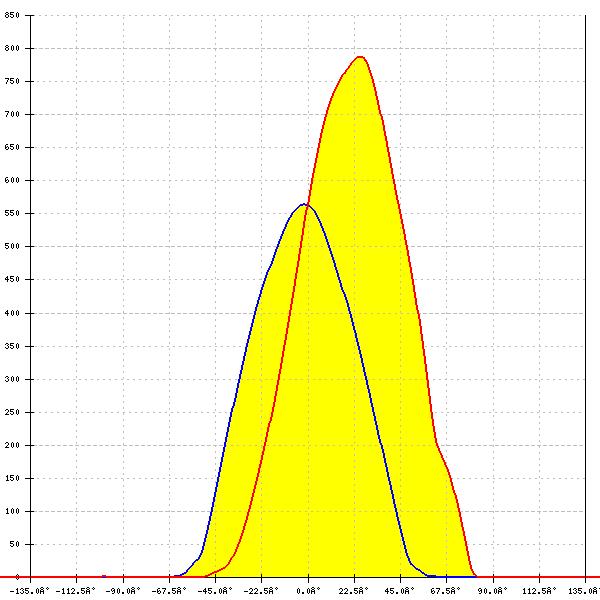

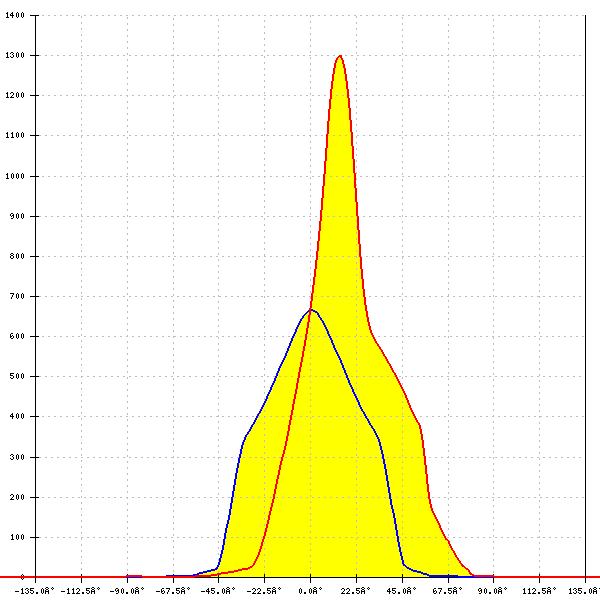

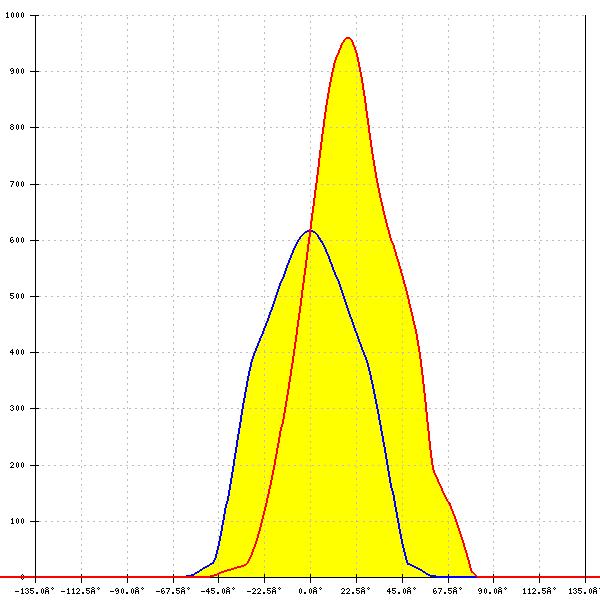

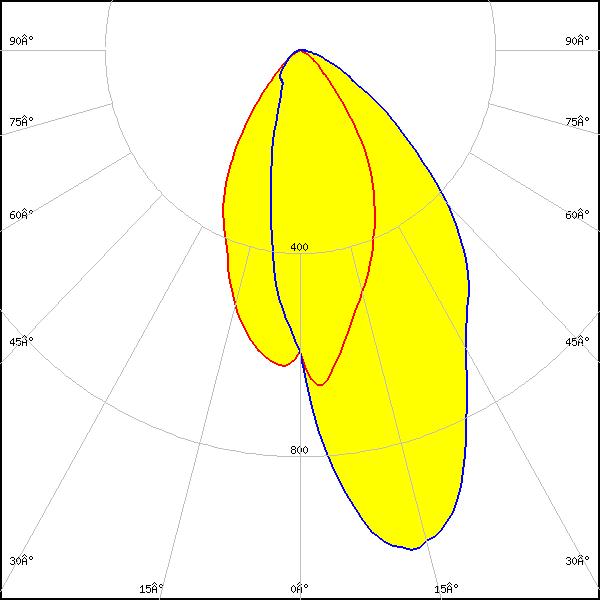

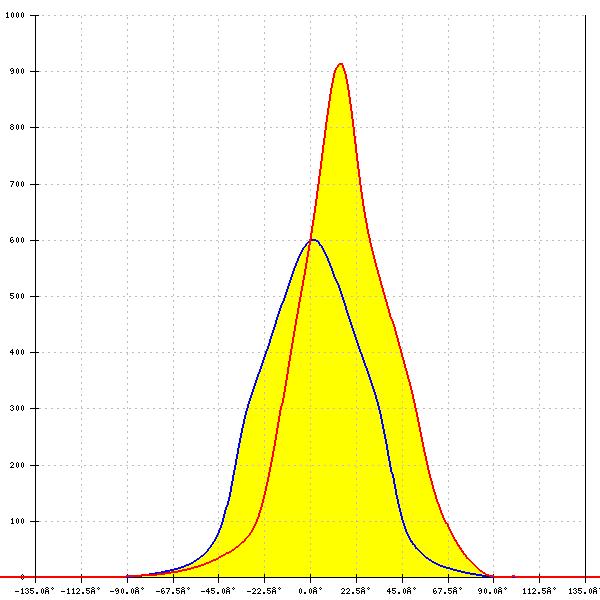

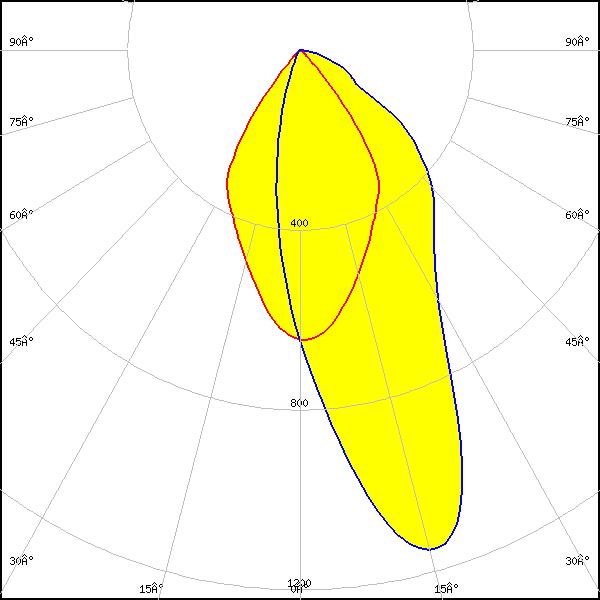

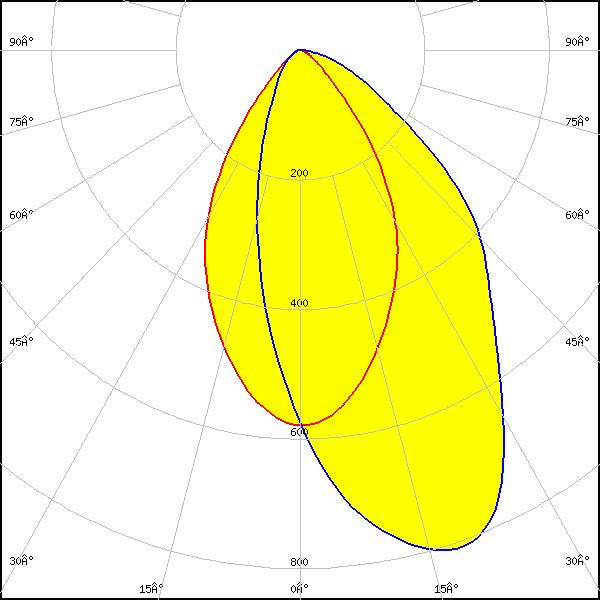

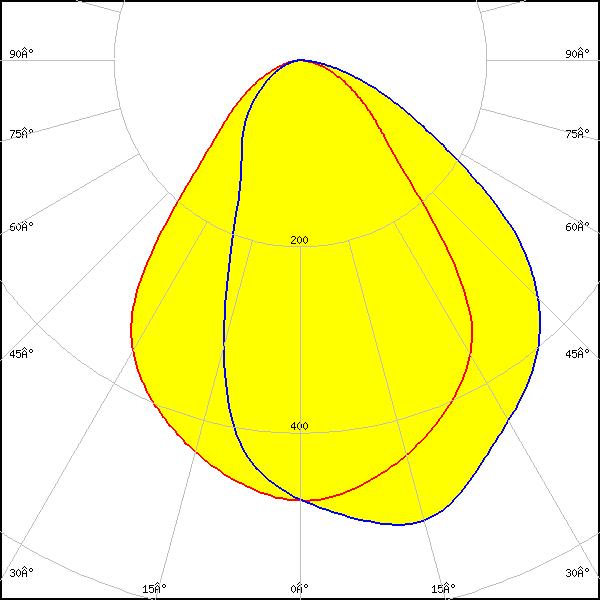

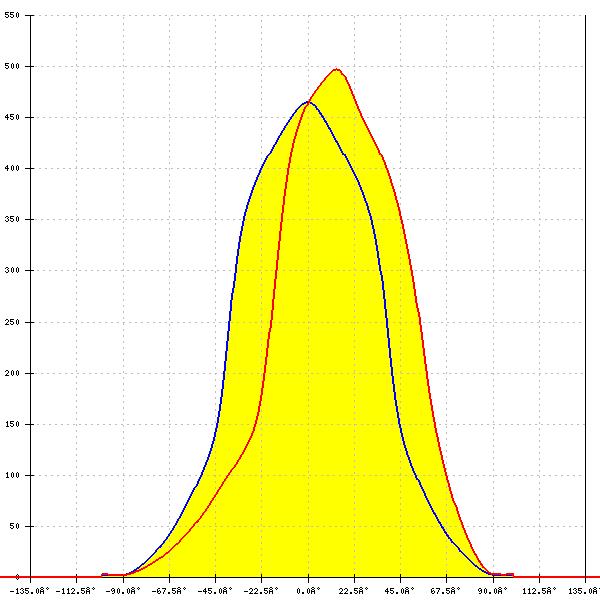

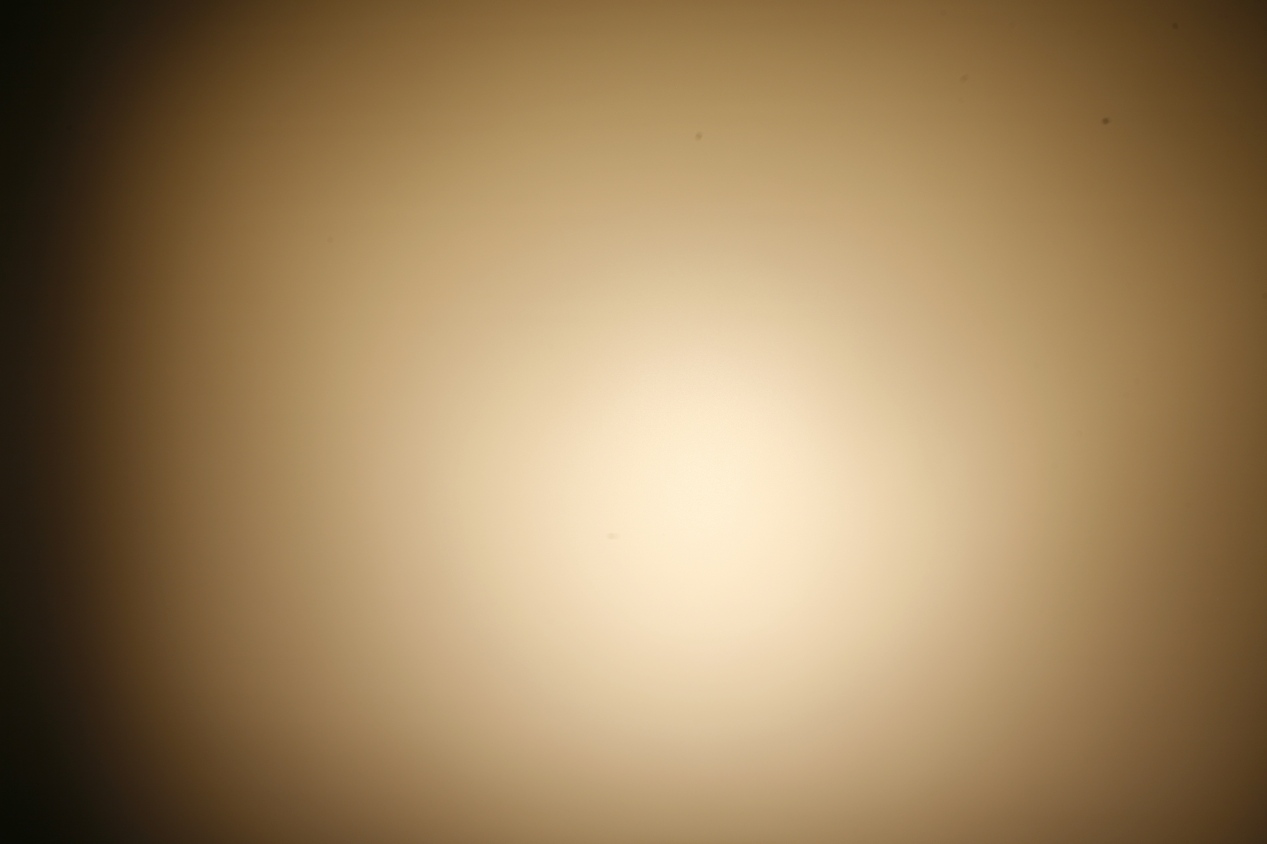

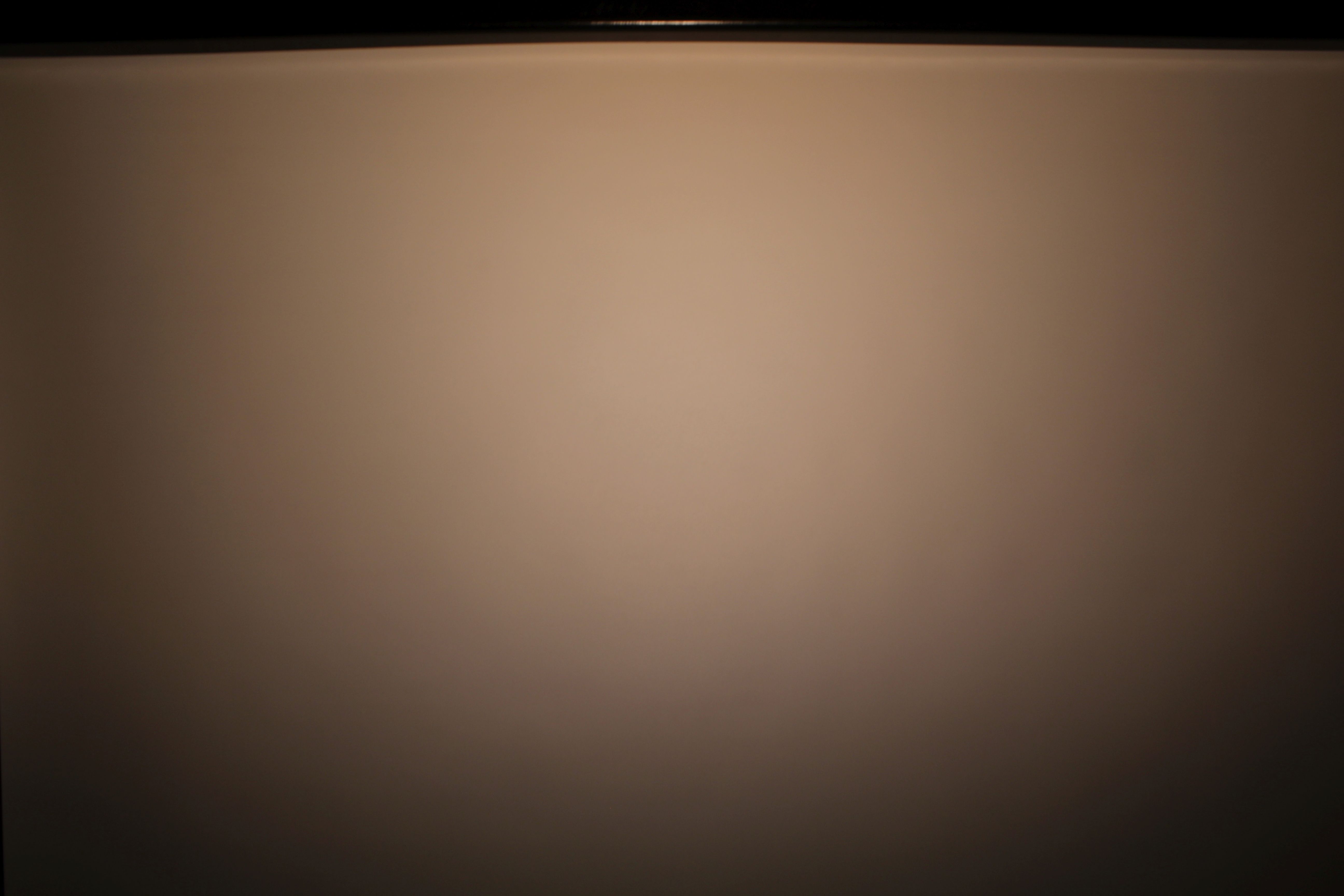

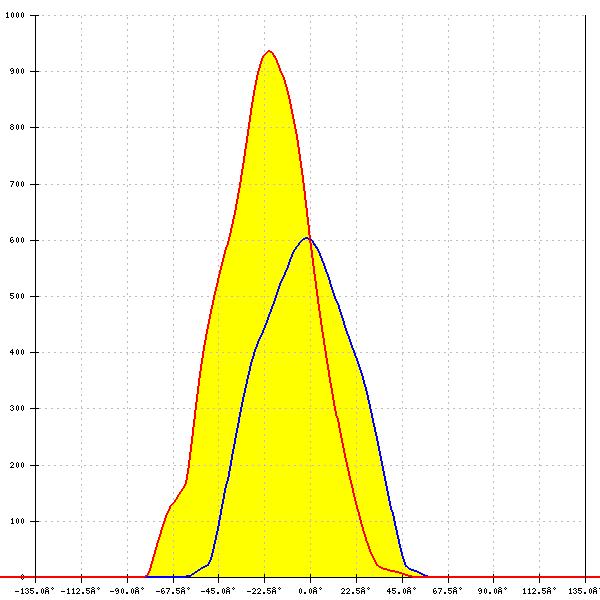

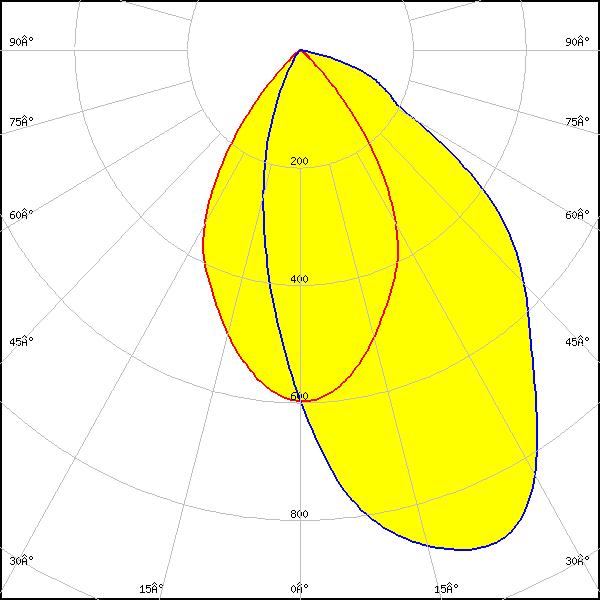

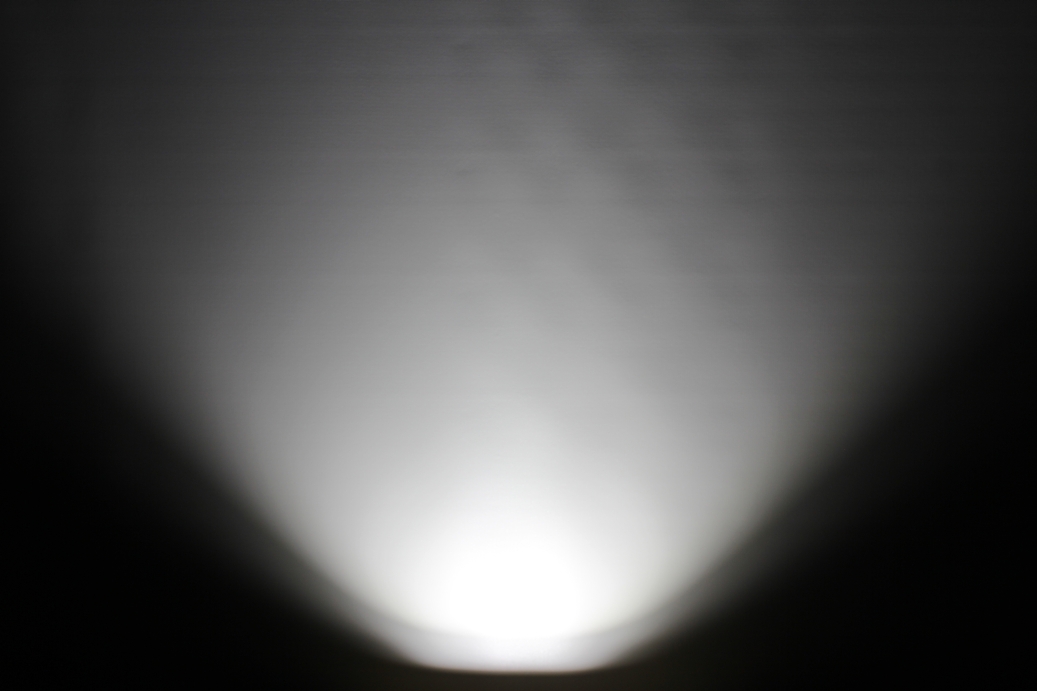

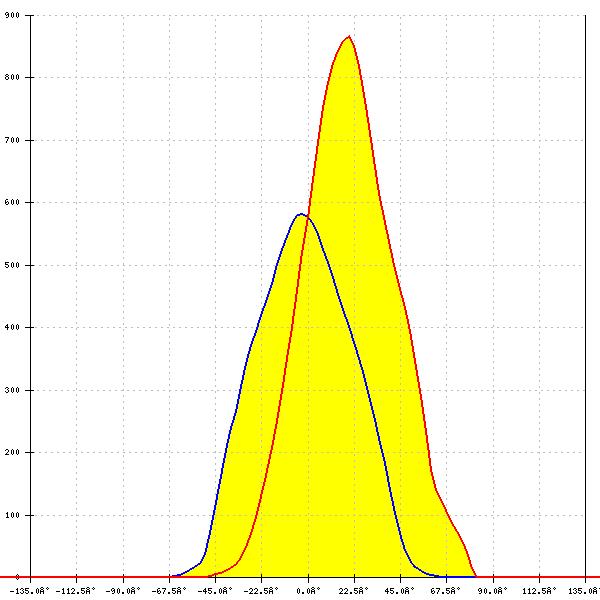

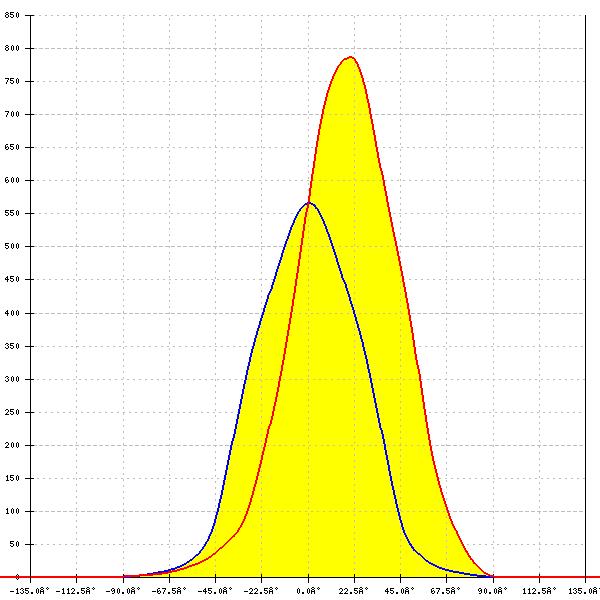

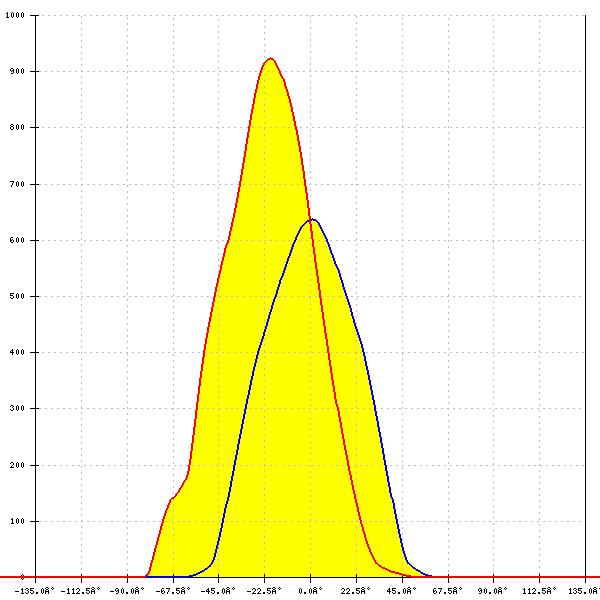

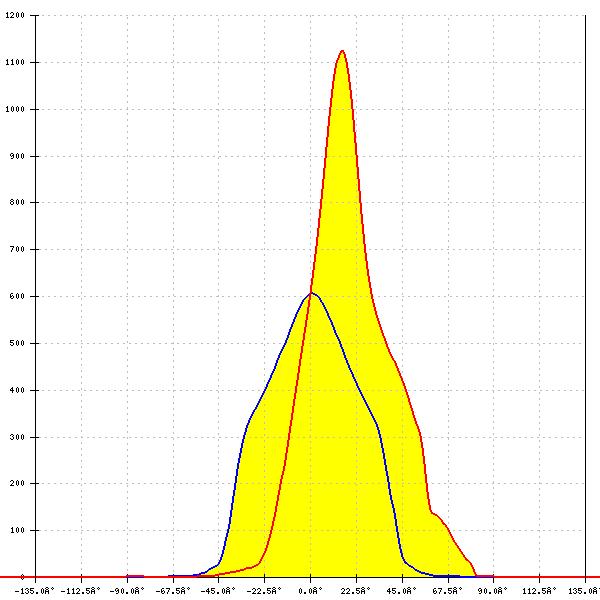

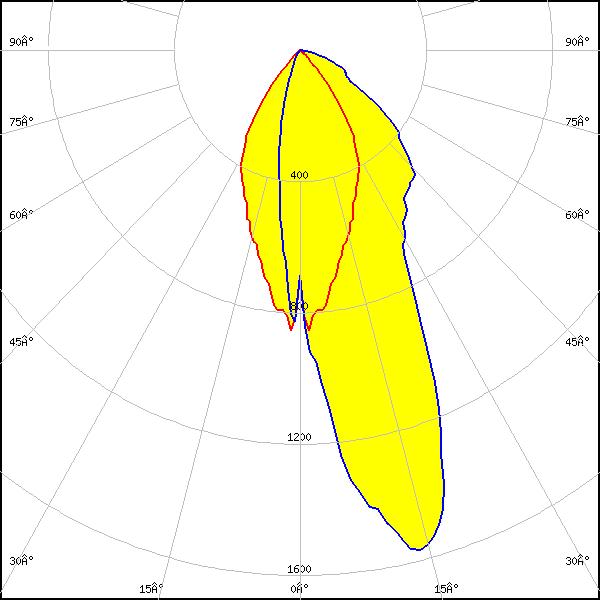

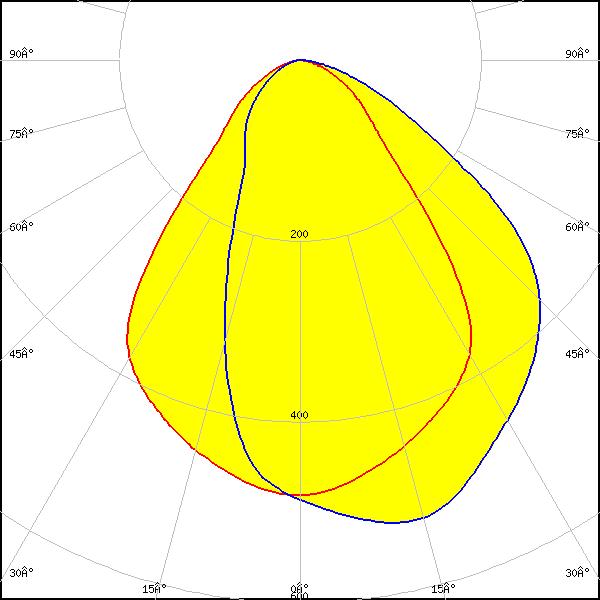

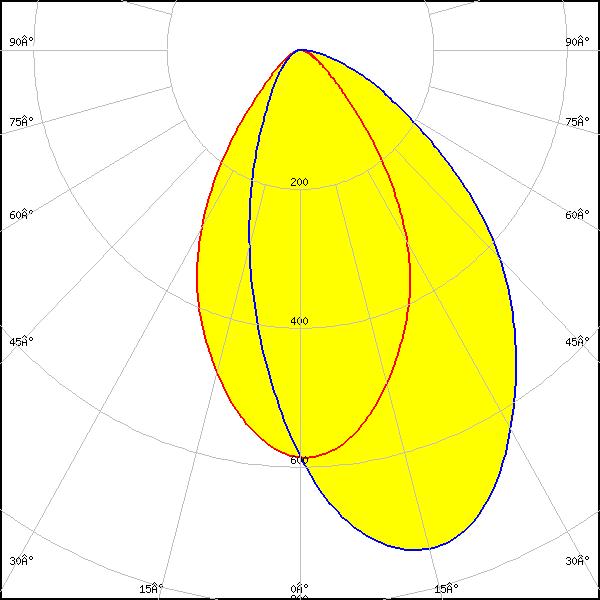

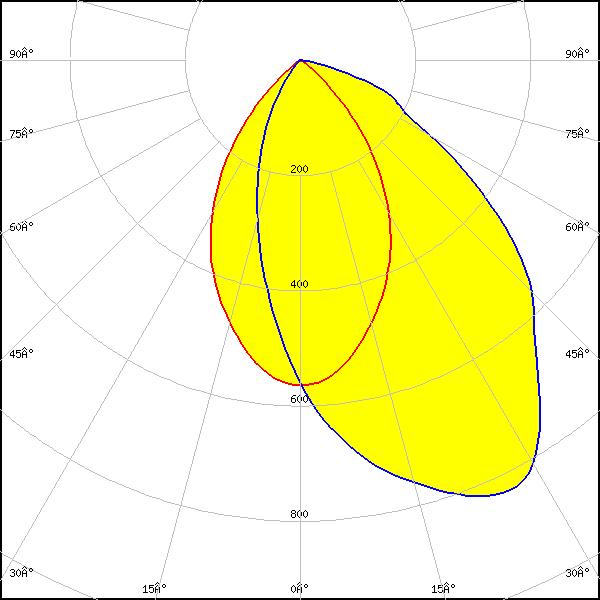

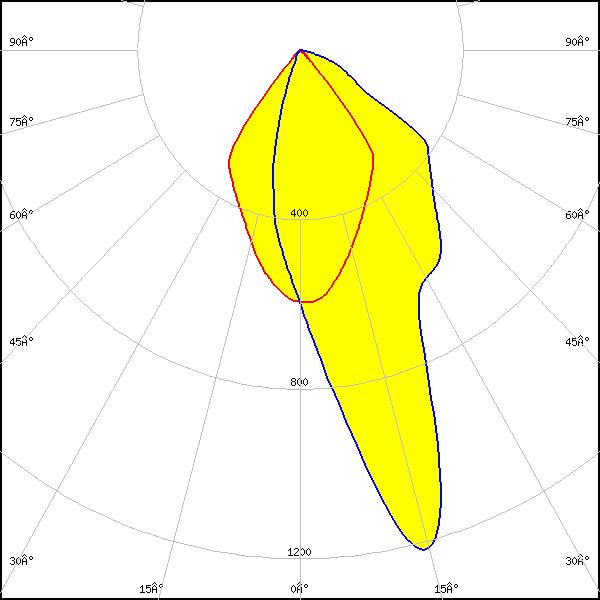

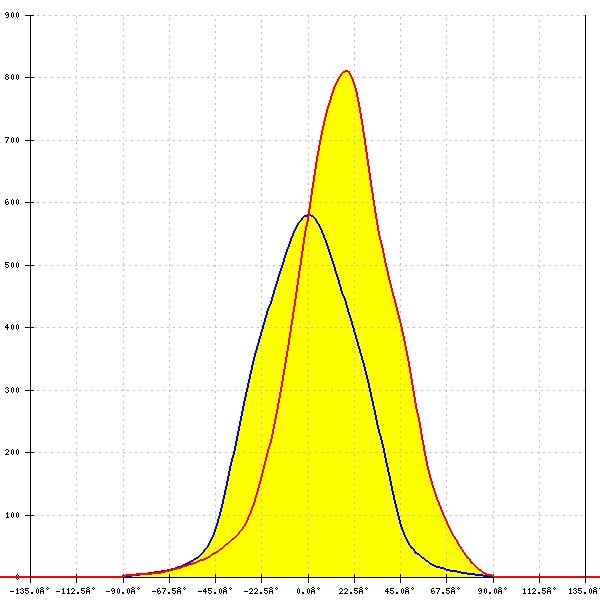

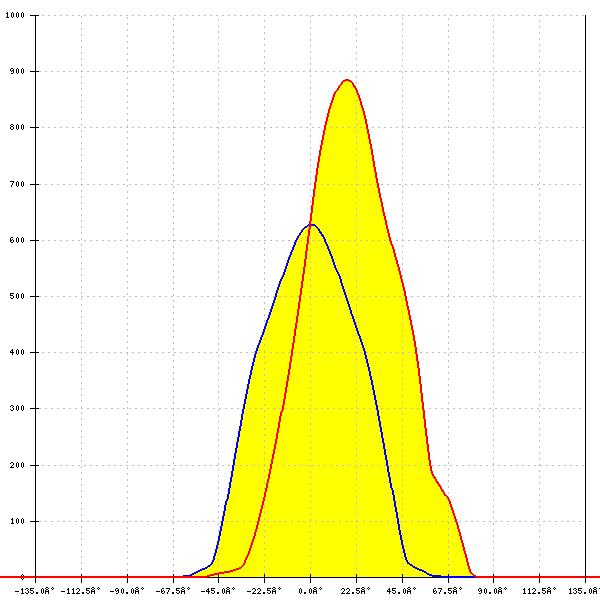

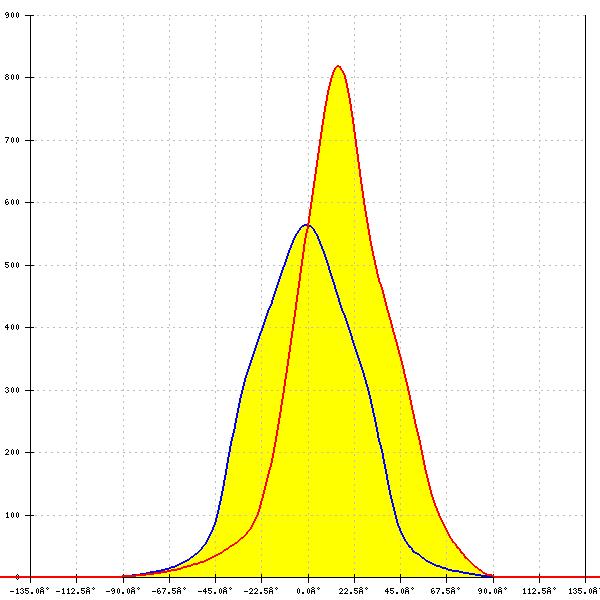

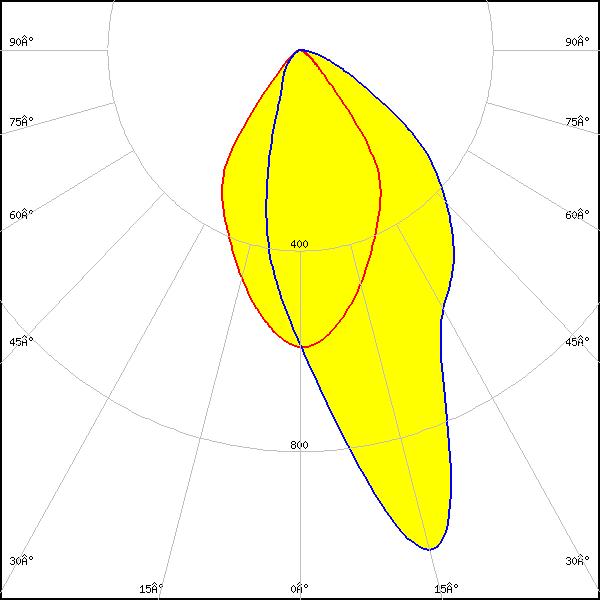

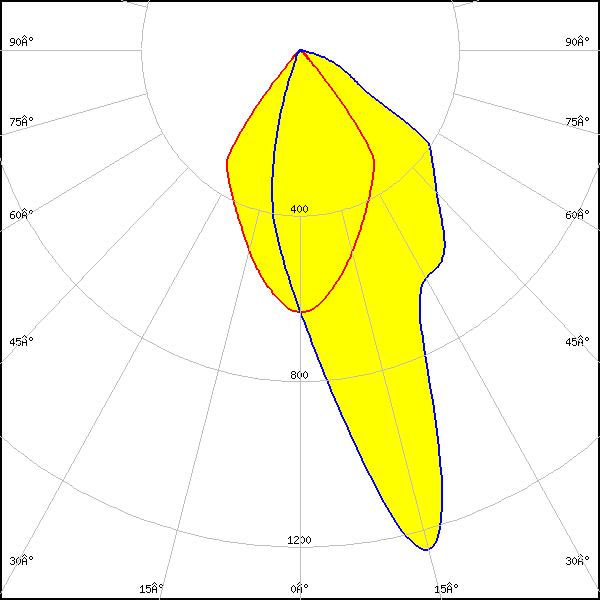

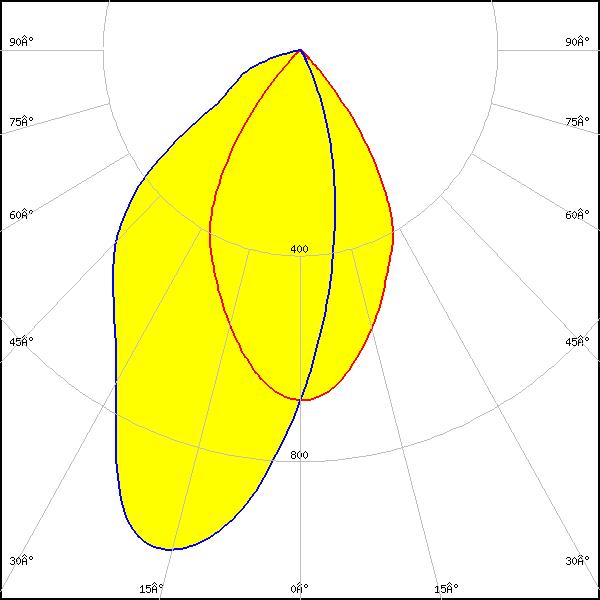

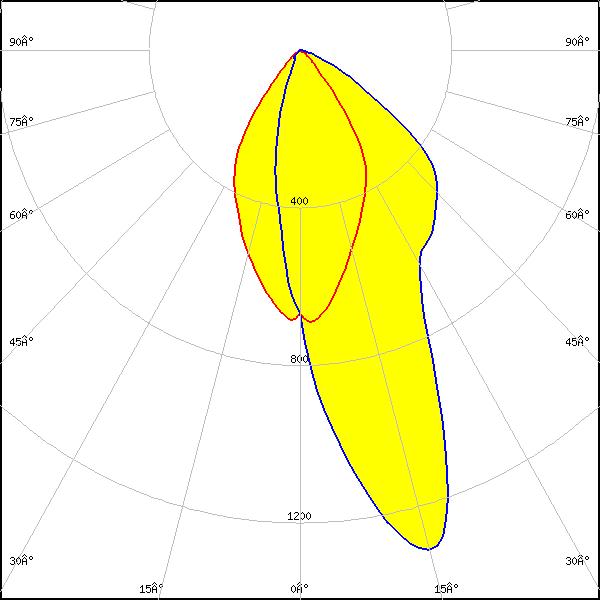

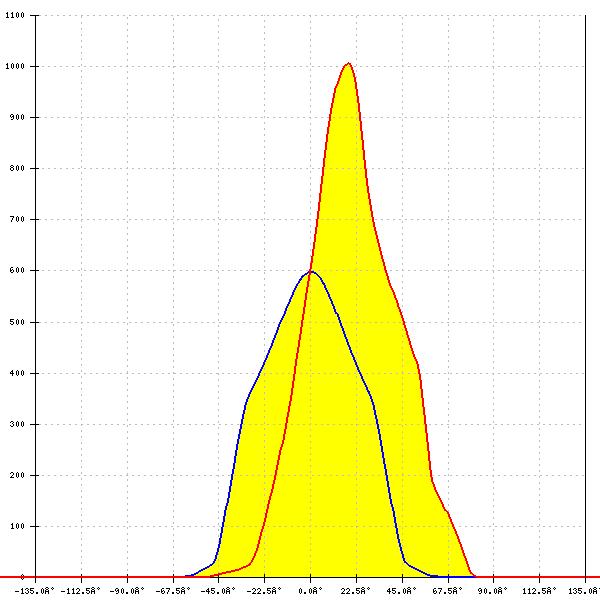

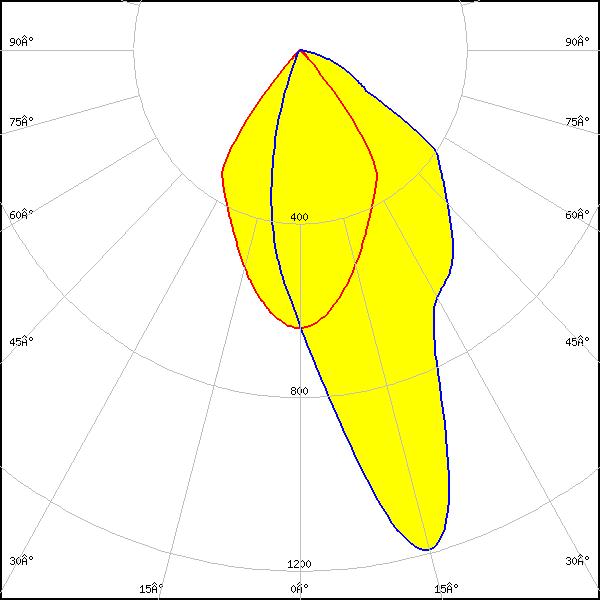

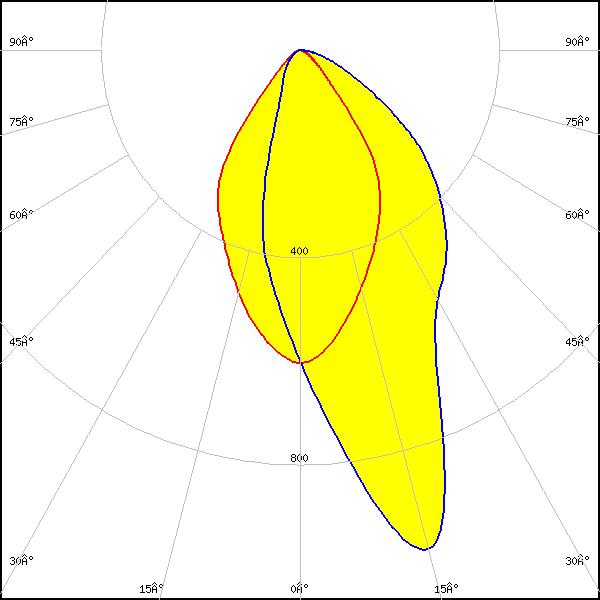

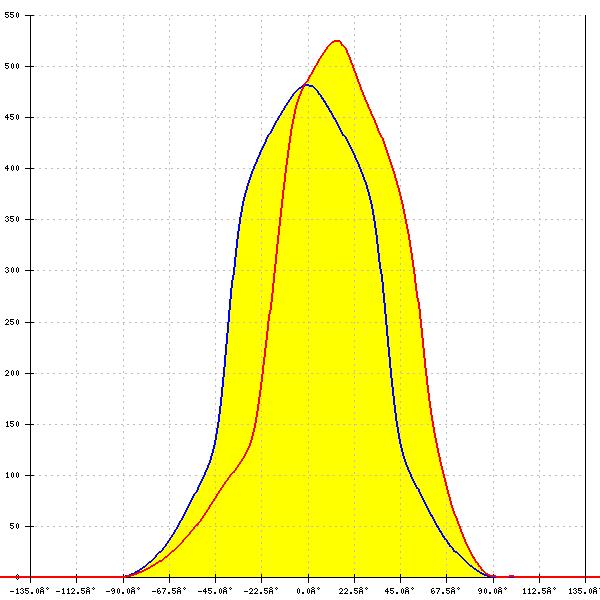

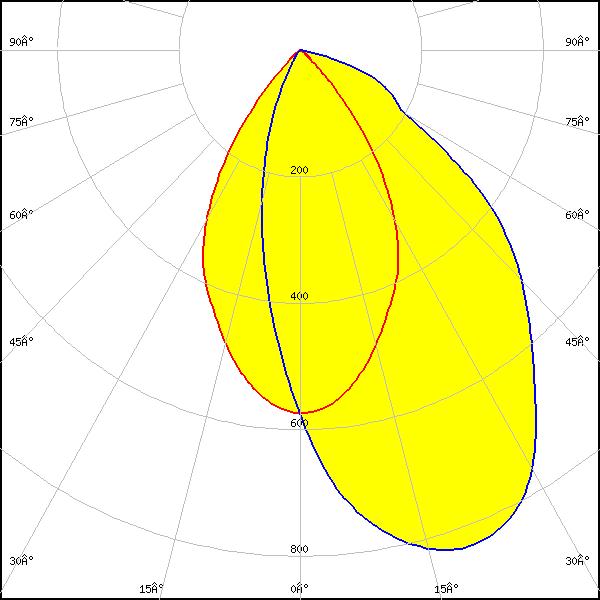

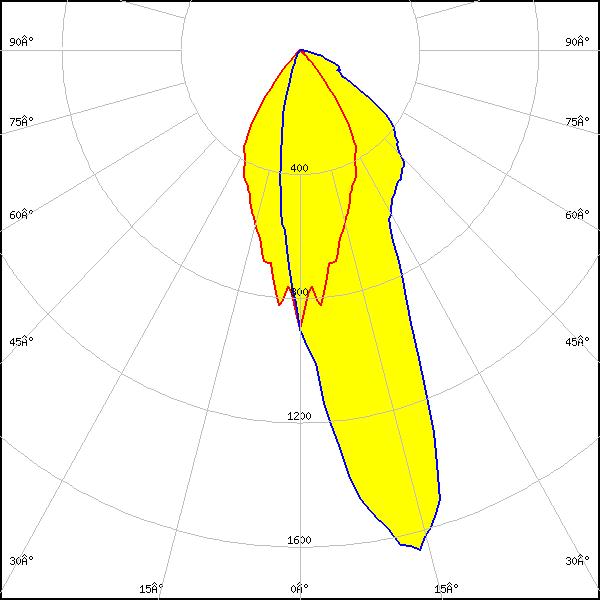

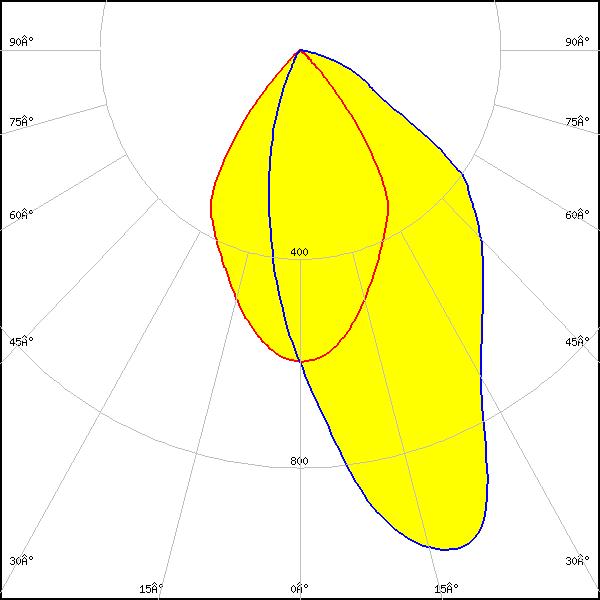

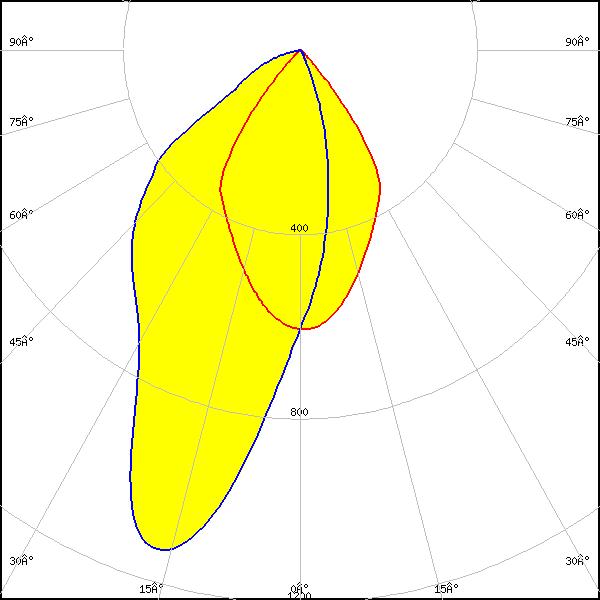

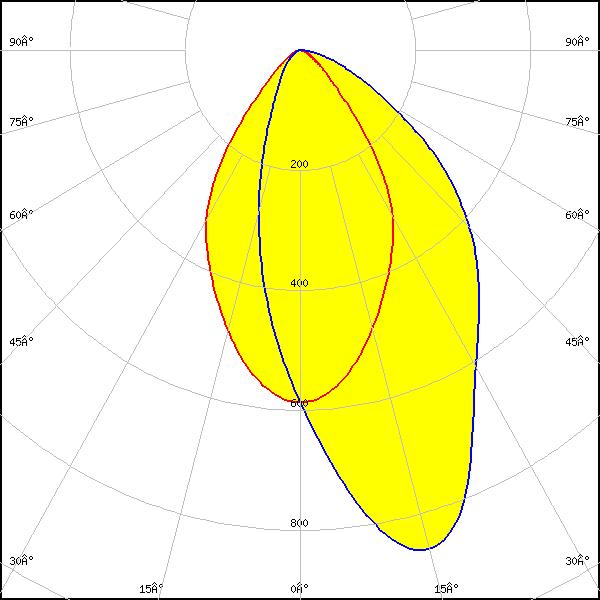

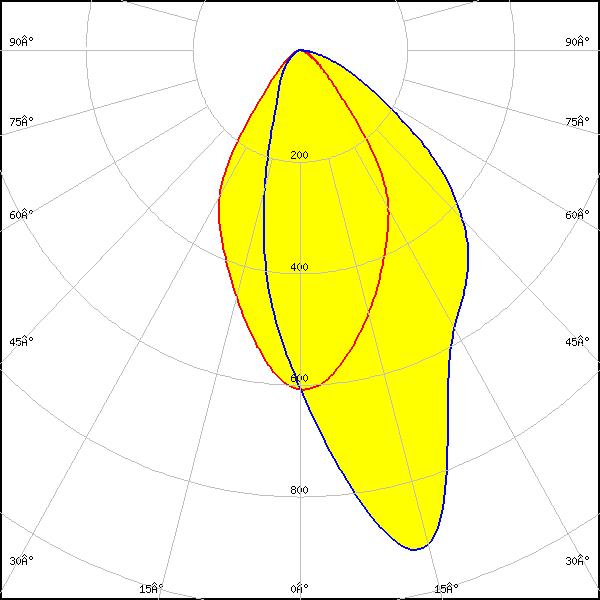

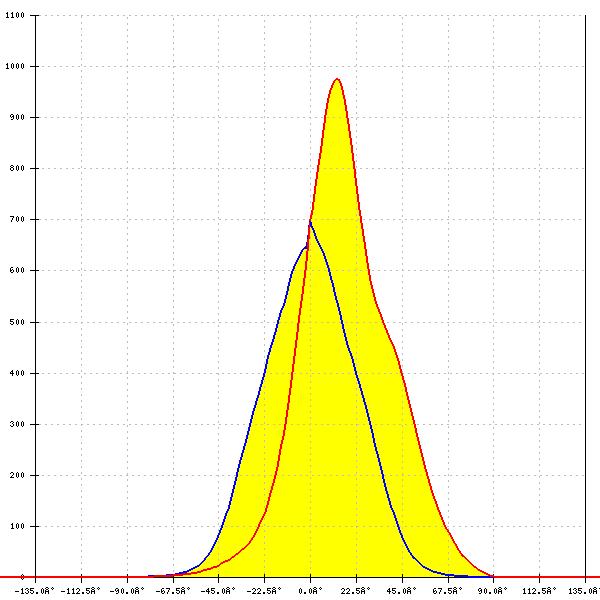

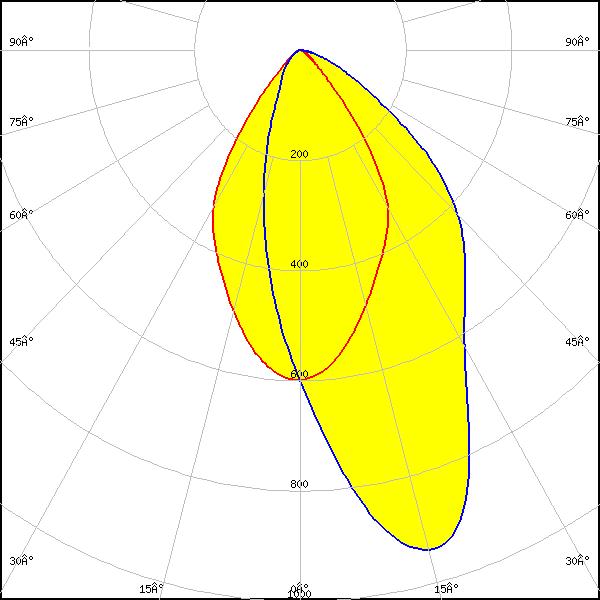

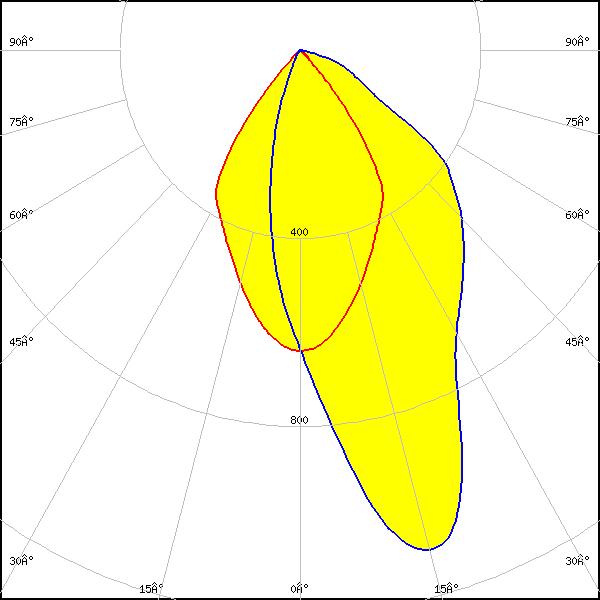

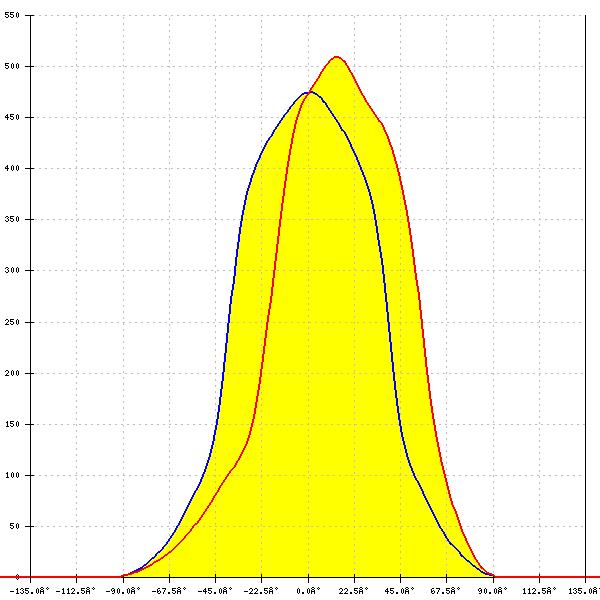

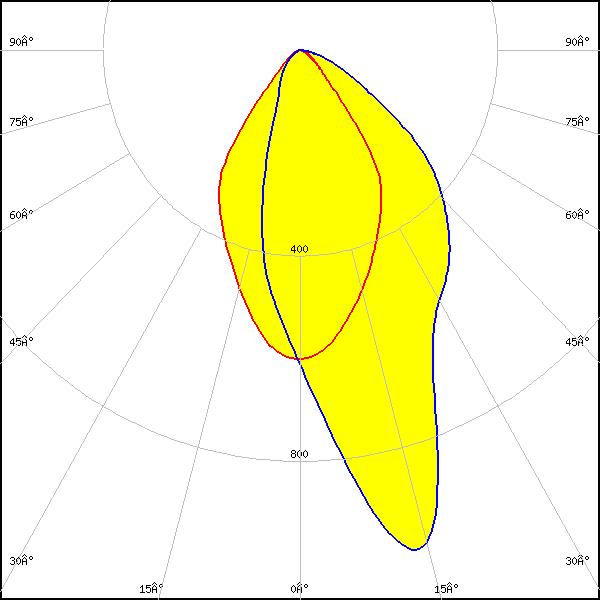

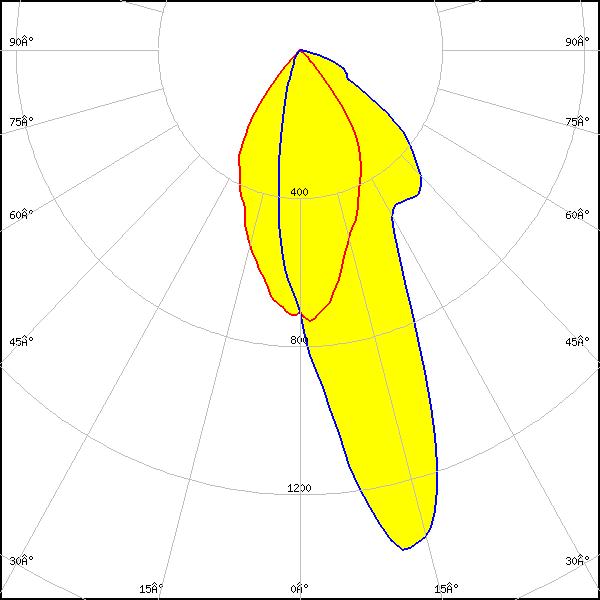

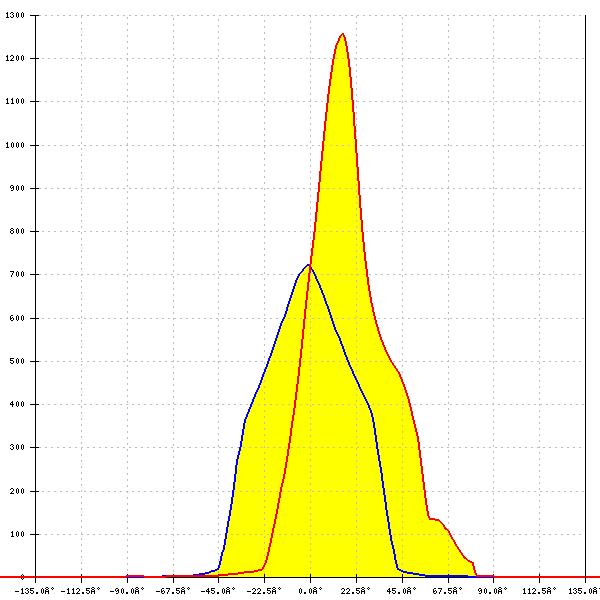

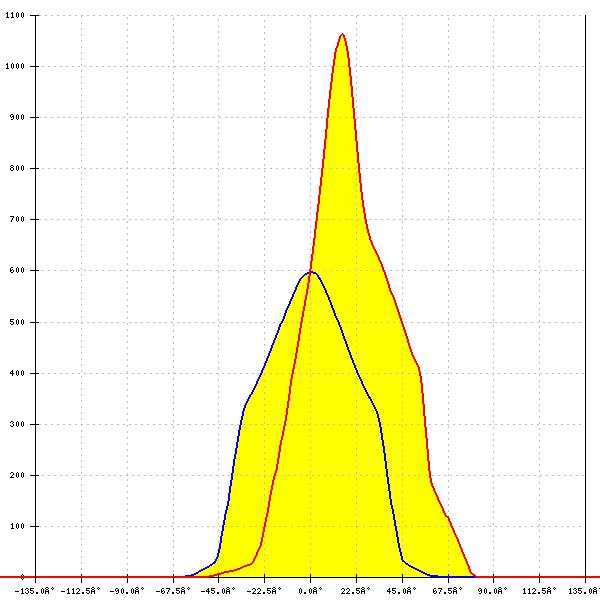

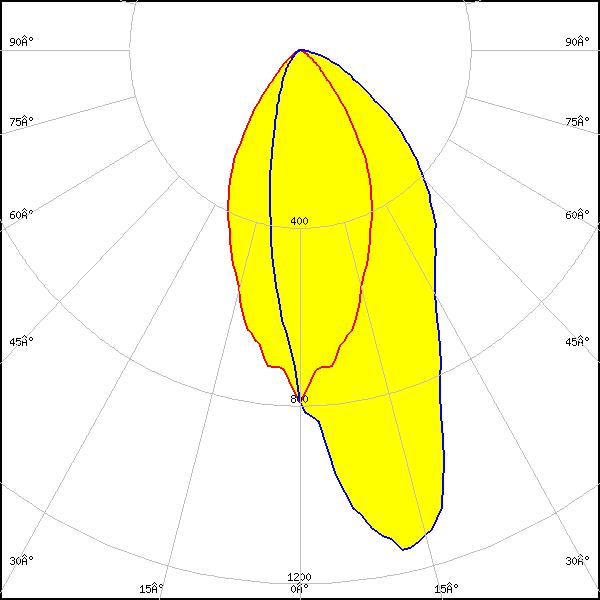

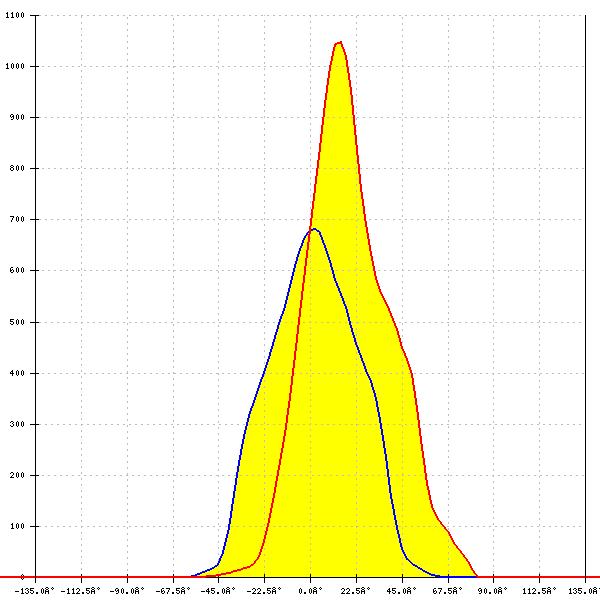

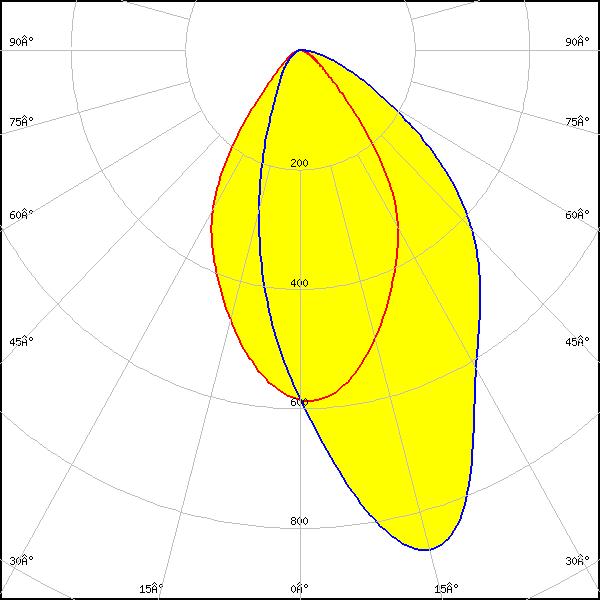

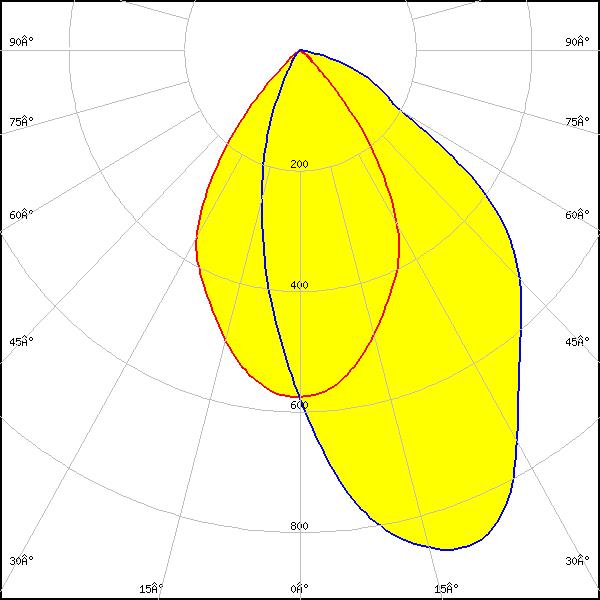

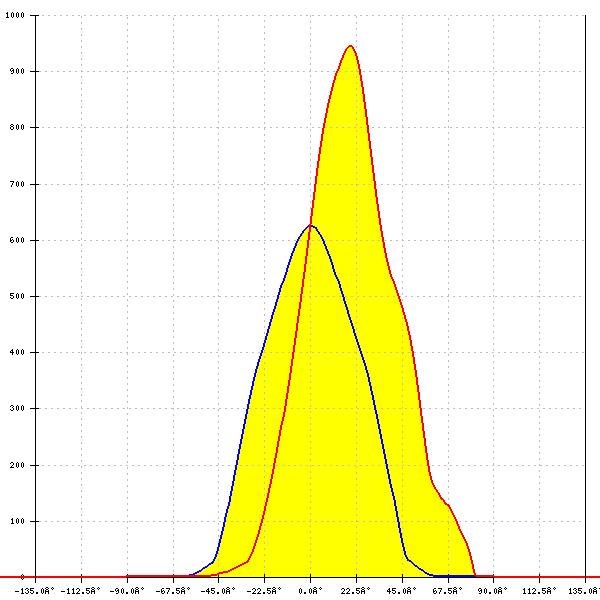

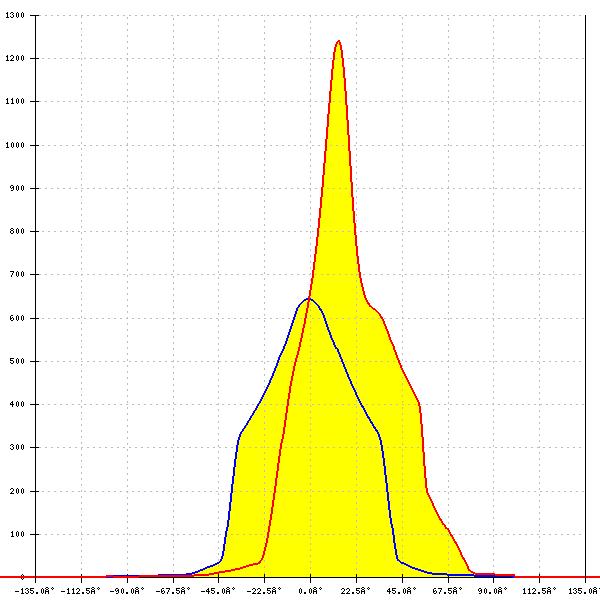

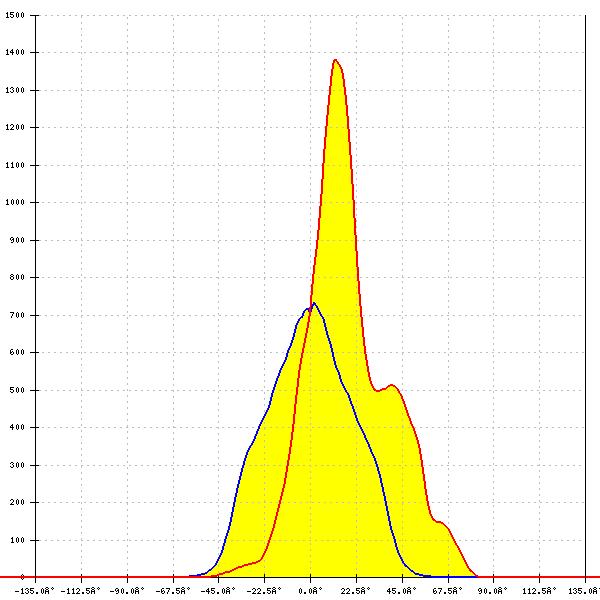

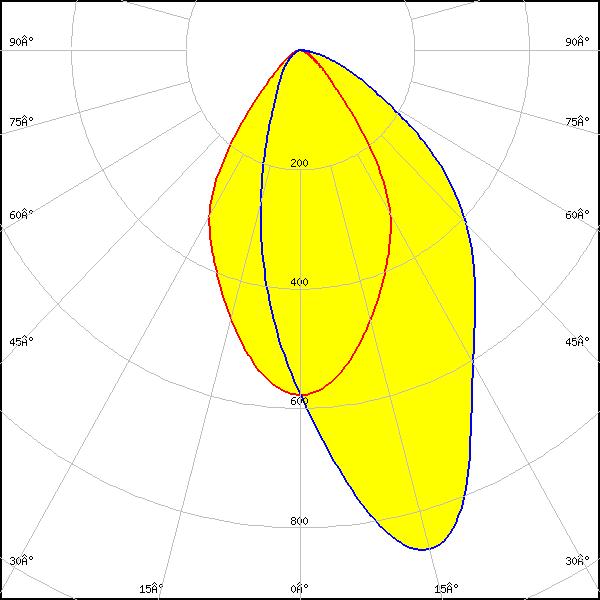

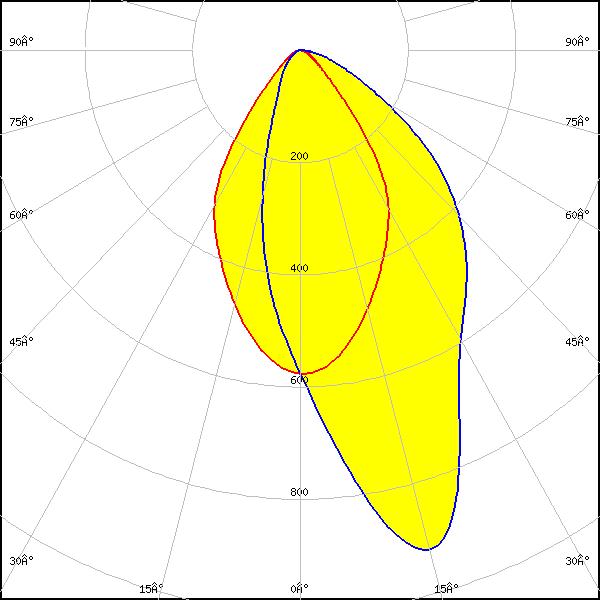

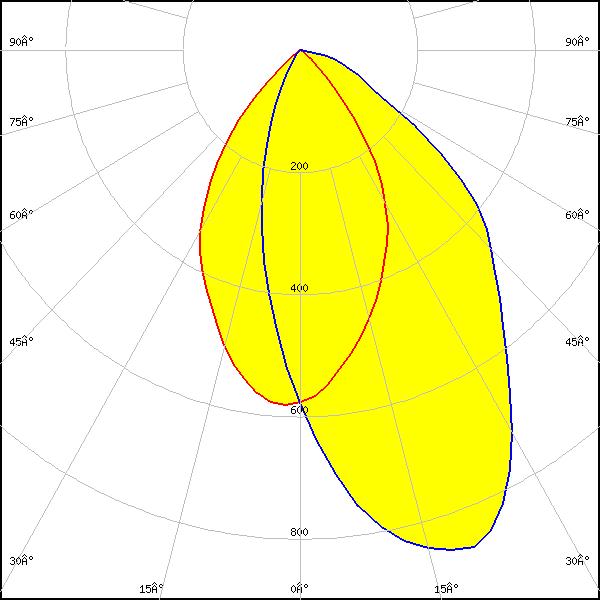

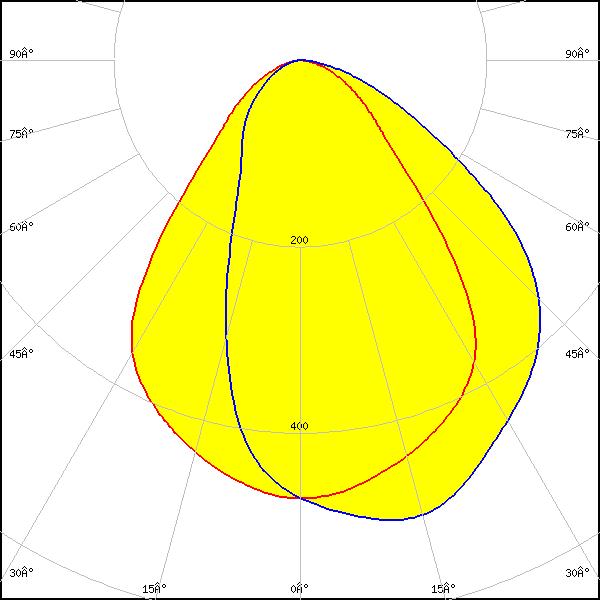

Optical results

LED:
BXRA ES Rectangle
LES size: 19.2 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.130 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

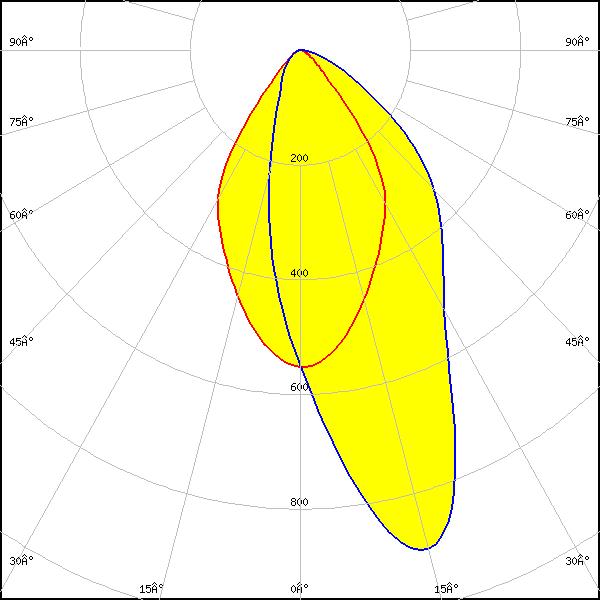

LED:
BXRA ES Rectangle
LES size: 19.2 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.460 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

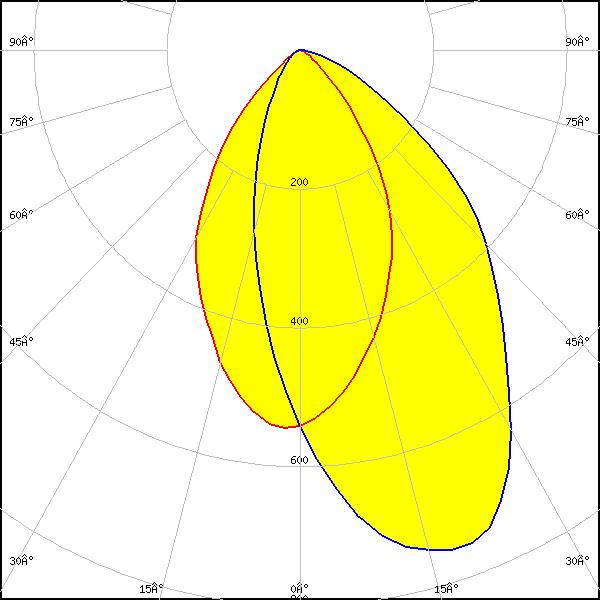

LED:
BXRA RS
LES size: 35.3 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.900 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

LED:
BXRA RS
LES size: 35.3 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.800 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

LED:
V10 Gen6
LES size: 9.9 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.920 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.350 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.110 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.630 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

LED:
V13 Gen7
LES size: 14.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.090 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
V13 Gen7
LES size: 14.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

LED:
V13 Gen7
LES size: 14.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.230 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
V13 Gen7
LES size: 14.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.030 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

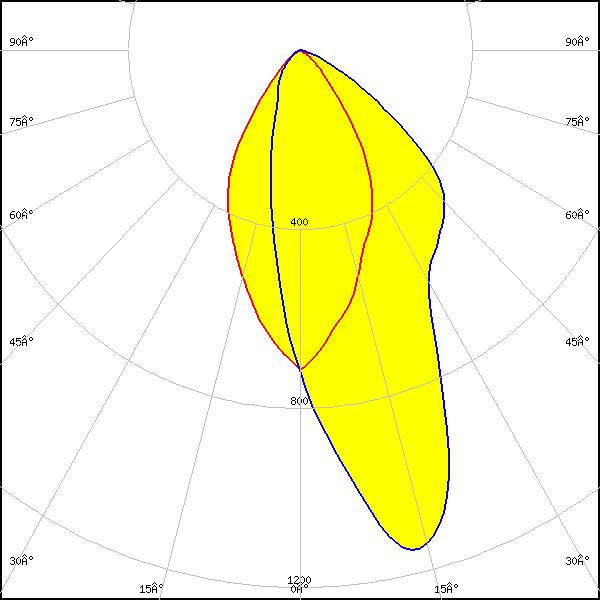

LED:
V13 Gen7
LES size: 14.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100LN
IDEAL: 50-2100LN
FWHM: asymmetric
Peak intensity:
1.310 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
V22 Gen7
LES size: 22.6 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.800 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
V22 Gen7
LES size: 22.6 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.800 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Vero SE 29
LES size: 29.2 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.800 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

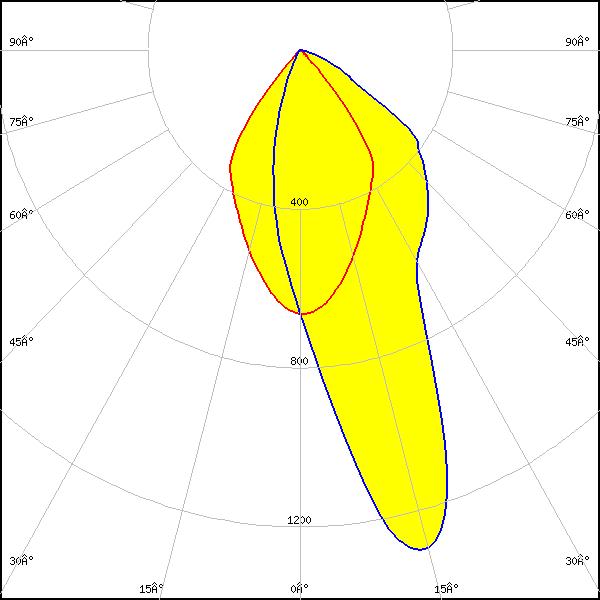

LED:
VERO13
LES size: 13.4 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.300 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

LED:
VERO13
LES size: 13.4 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.050 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:
VERO13
LES size: 13.4 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.510 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:
VERO18
LES size: 18.6 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

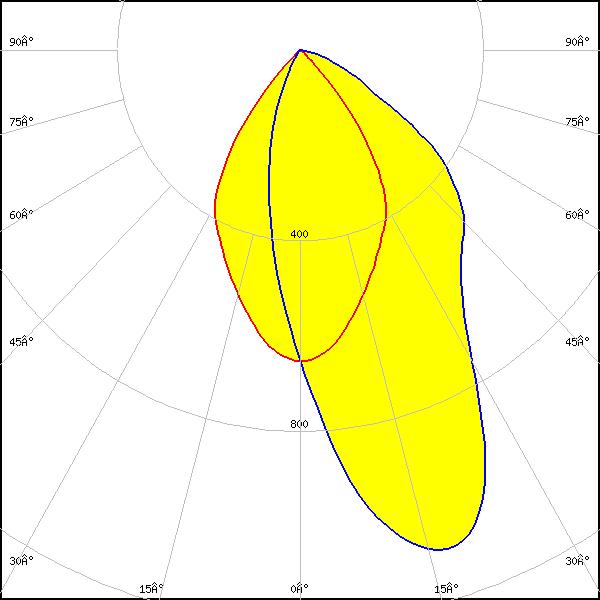

LED:
VERO18
LES size: 18.6 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.930 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
VERO18
LES size: 18.6 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.510 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:

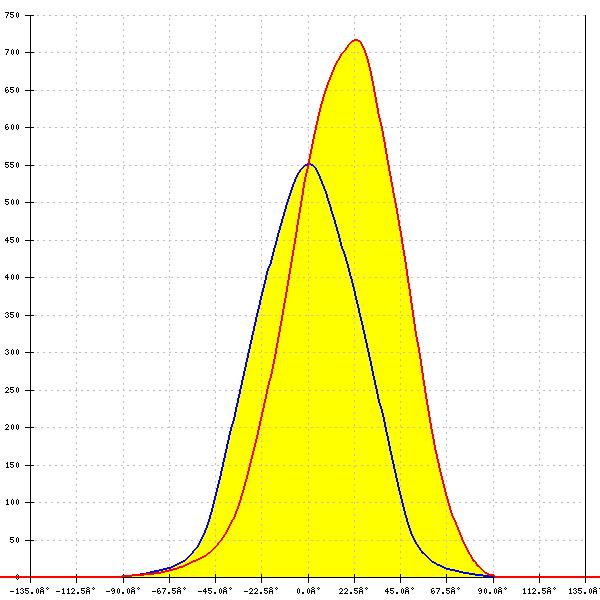

VERO29
LES size: 29.2 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.830 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:
VERO29
LES size: 29.2 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.720 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CL-L340
LES size: 20.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.170 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CL-L340
LES size: 20.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.900 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White

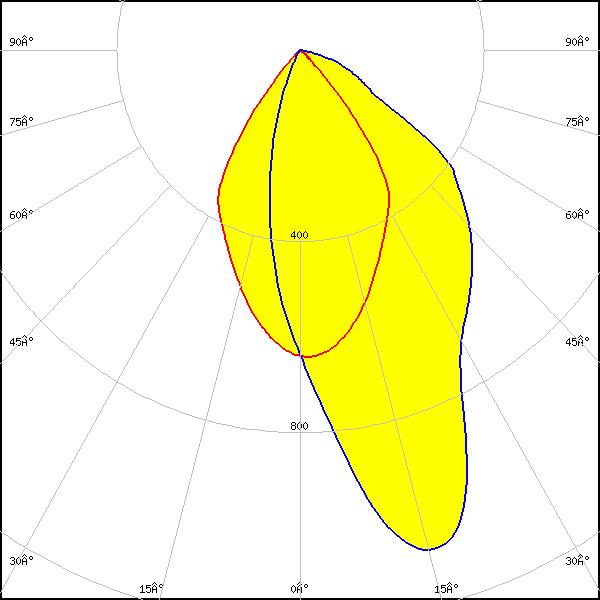

LED:
CLU03x
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.160 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

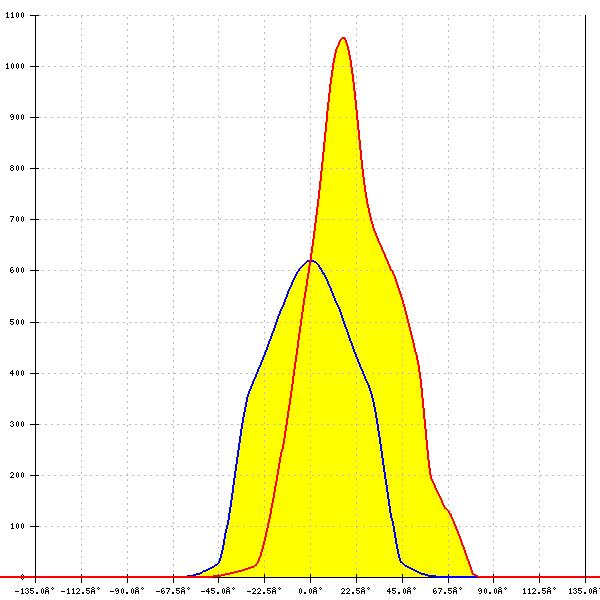

LED:
CLU03x
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
A.A.G. STUCCHI: S-8000-11
A.A.G. STUCCHI: S-8000-11
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU03x
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.960 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU03x
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.090 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU03x
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU03x
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.870 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU03x
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.530 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

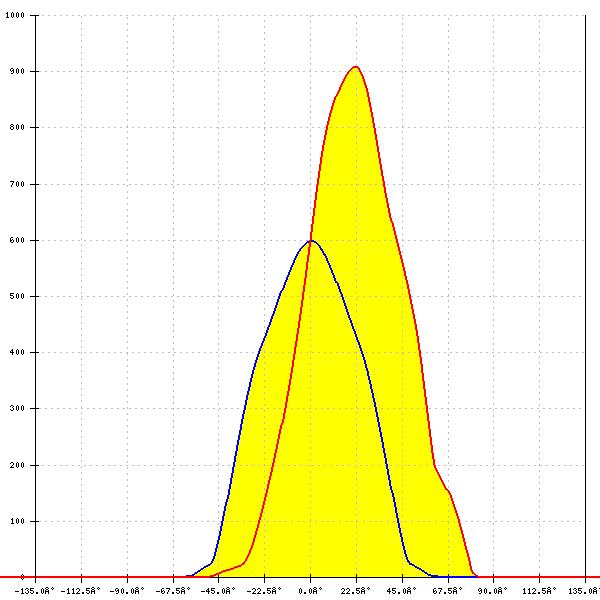

LED:
CLU04x
LES size: 22.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.700 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU04x
LES size: 22.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.600 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU04x
LES size: 22.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.950 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

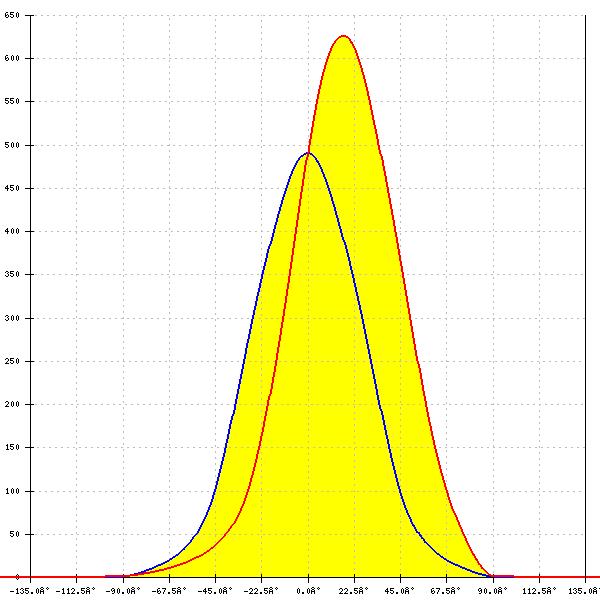

LED:
CLU04x
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
A.A.G. STUCCHI: S-8000-12
A.A.G. STUCCHI: S-8000-12
FWHM: asymmetric
Peak intensity:
0.800 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU04x
LES size: 22.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.810 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU04x
LES size: 22.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.910 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU04x
LES size: 22.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.790 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU710/711
LES size: 8.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU710/711
LES size: 8.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.940 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.510 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CMA1840
LES size: 14.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.200 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

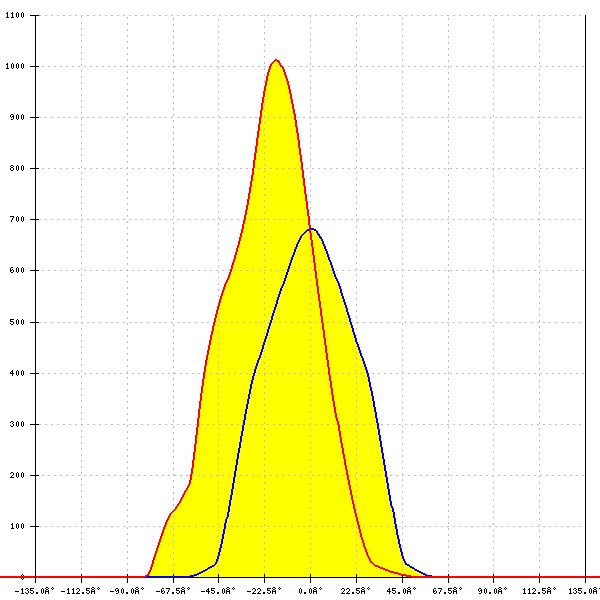

LED:
CMA2550
LES size: 19.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CMT14xx
LES size: 9.8 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.300 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CMT19xx
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.158 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CMT19xx
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.131 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CMT28xx
LES size: 22.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.950 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CMT28xx
LES size: 22.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.930 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.420 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.140 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.510 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.200 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.920 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.520 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.900 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CXA/B 30xx
LES size: 23.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CXA/B 30xx
LES size: 23.0 mm
Required components:
IDEAL: 50-2234C
IDEAL: 50-2100LN
IDEAL: 50-2100LN
FWHM: asymmetric
Peak intensity:
1.130 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CXA2011
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CXA2011
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.900 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.330 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

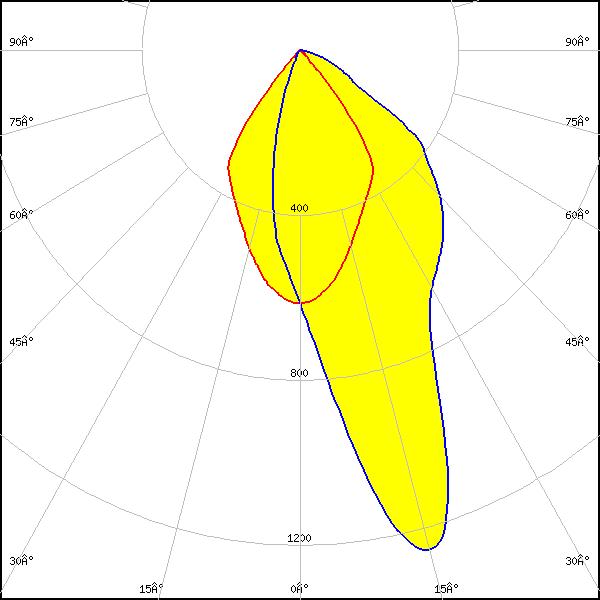

LED:
LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.300 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.960 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.830 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.720 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.890 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.780 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
A.A.G. STUCCHI: S-8000-12
A.A.G. STUCCHI: S-8000-12
FWHM:
60°
FWTM:
95°
Peak intensity:
0.830 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON K12
LES size: 13.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.300 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON K12
LES size: 13.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.050 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON K16
LES size: 17.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.140 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON K16
LES size: 17.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.970 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CDM-14 (Dim-To-Warm)
LES size: 15.5 mm
Required components:
FWHM:
59°
FWTM:
90°
Peak intensity:
1.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CDM-14 (Dim-To-Warm)
LES size: 15.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.900 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CDM-18 (Dim-To-Warm)
LES size: 16.8 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CDM-18 (Dim-To-Warm)
LES size: 16.8 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.800 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.960 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CTM-14 (Tunable White)
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CTM-14 (Tunable White)
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CTM-18 (Tunable White)
LES size: 17.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CTM-18 (Tunable White)
LES size: 17.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.800 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CTM-22 (Tunable White)
LES size: 22.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.870 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CTM-22 (Tunable White)
LES size: 22.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.760 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.870 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.530 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.870 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CxM-22 (28x28)
LES size: 22.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.900 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CxM-22 (28x28)
LES size: 22.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.700 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.860 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.510 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.920 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.510 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.250 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.930 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.500 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.900 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Soleriq S13
LES size: 13.2 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Soleriq S13
LES size: 13.2 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Soleriq S13
LES size: 13.2 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.530 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Soleriq S15
LES size: 14.7 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.170 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Soleriq S19
LES size: 17.9 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Soleriq S19
LES size: 17.9 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.900 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.940 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.900 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.900 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.800 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.880 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LC040D / LC060D / LC080D
LES size: 22.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.970 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.530 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.400 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM: asymmetric
LEDs/each optic:
1
Light colour/type:
White

LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.870 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Mega Zenigata (GW5DGC)
LES size: 16.0 mm
Required components:
FWHM: asymmetric
LEDs/each optic:
1
Light colour/type:
White

LED:
Mega Zenigata (GW5DGC)
LES size: 16.0 mm
Required components:
FWHM: asymmetric
LEDs/each optic:
1
Light colour/type:
White

LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.040 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.820 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

LED:
SLE G7 LES15
LES size: 15.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

LED:
SLE G7 LES17 H
Required components:
FWHM: asymmetric
Peak intensity:
0.980 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

LED:
SLE G7 LES21 H
Required components:
FWHM: asymmetric
Peak intensity:
0.880 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
XOB 14.5 mm
LES size: 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.210 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
Manage Consent
To provide the best experiences, we use technologies like cookies to store and/or access device information. Consenting to these technologies will allow us to process data such as browsing behavior or unique IDs on this site. Not consenting or withdrawing consent, may adversely affect certain features and functions.
Functional Always active
The technical storage or access is strictly necessary for the legitimate purpose of enabling the use of a specific service explicitly requested by the subscriber or user, or for the sole purpose of carrying out the transmission of a communication over an electronic communications network.
Preferences
The technical storage or access is necessary for the legitimate purpose of storing preferences that are not requested by the subscriber or user.
Statistics
The technical storage or access that is used exclusively for statistical purposes.
The technical storage or access that is used exclusively for anonymous statistical purposes. Without a subpoena, voluntary compliance on the part of your Internet Service Provider, or additional records from a third party, information stored or retrieved for this purpose alone cannot usually be used to identify you.
Marketing
The technical storage or access is required to create user profiles to send advertising, or to track the user on a website or across several websites for similar marketing purposes.
