C13299_STRADA-2X2-ME

Print

Beam with excellent longitudinal luminance uniformity fulfilling EN13201 M-class requirements where road width is equal to or less the pole height

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    7.10 mm
  • Fastening:
    glue, pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    7.9 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.8 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C13299_STRADA-2X2-ME

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

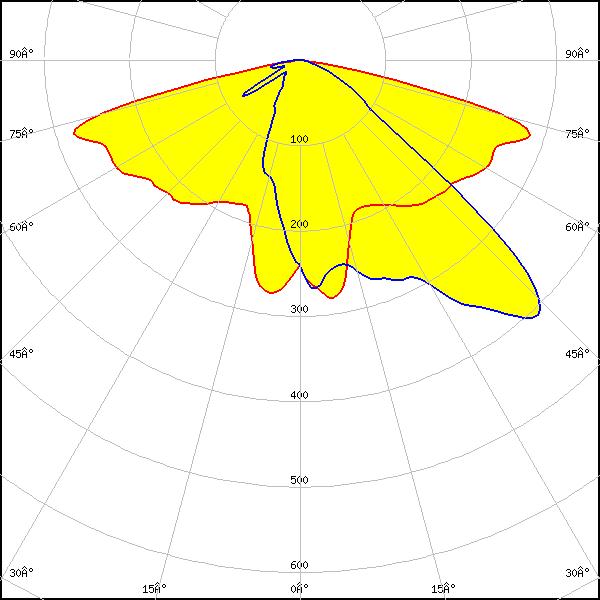

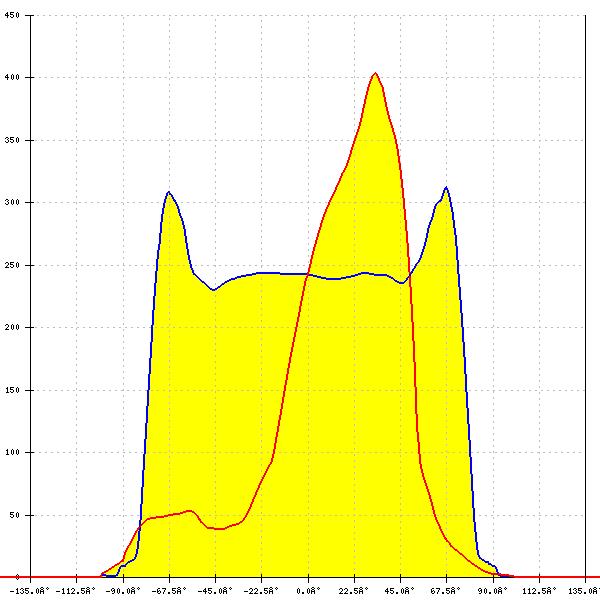

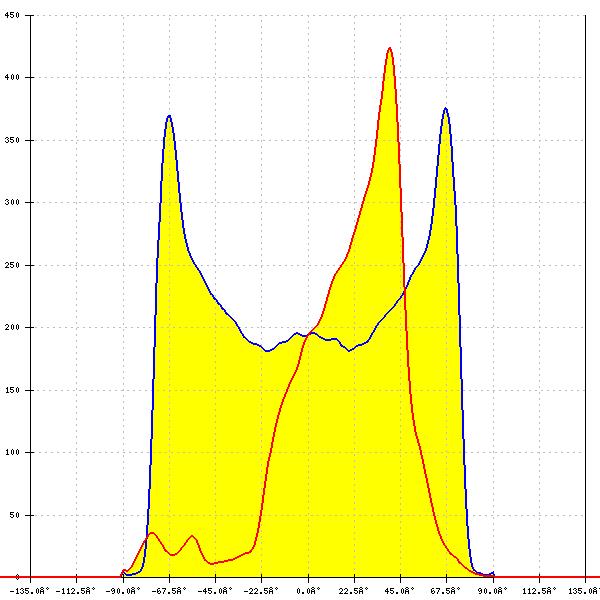

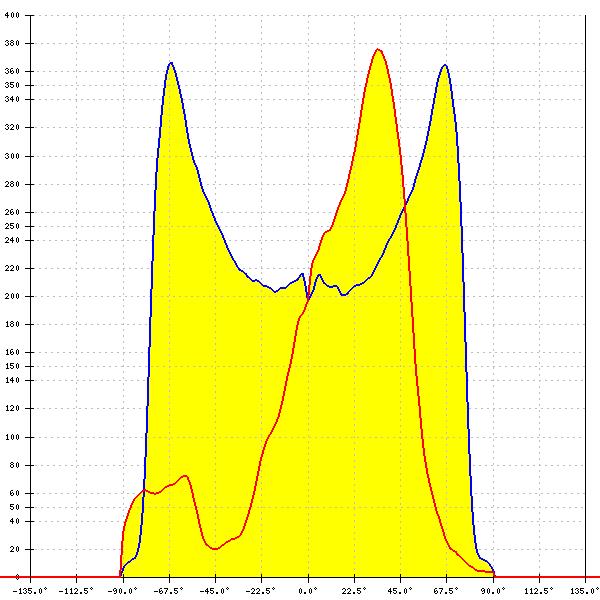

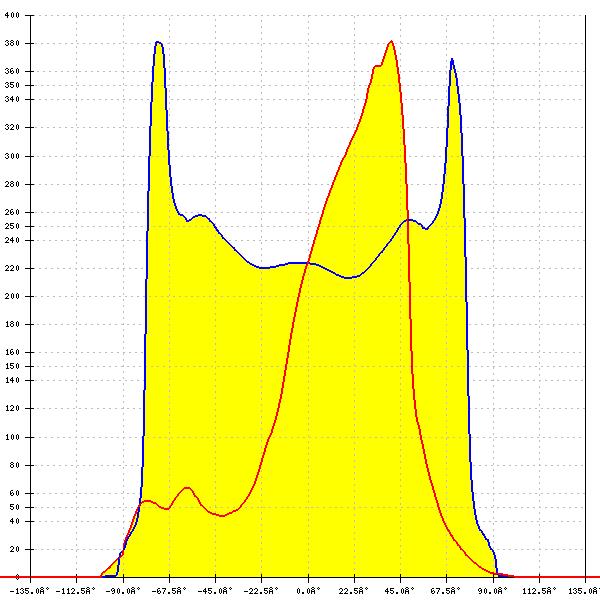

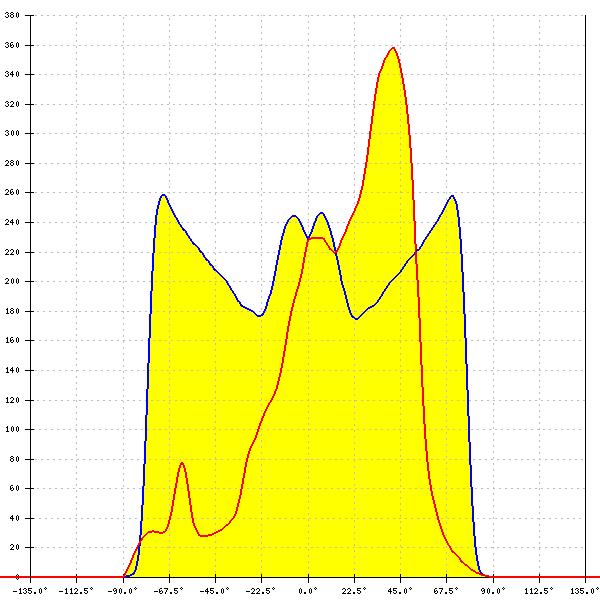

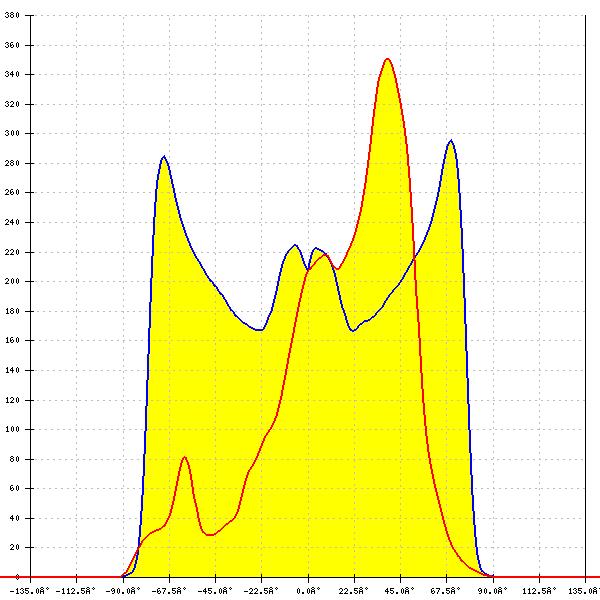

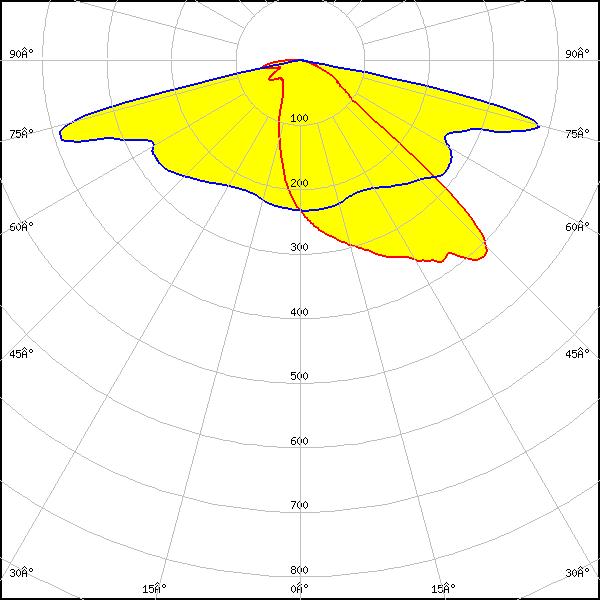

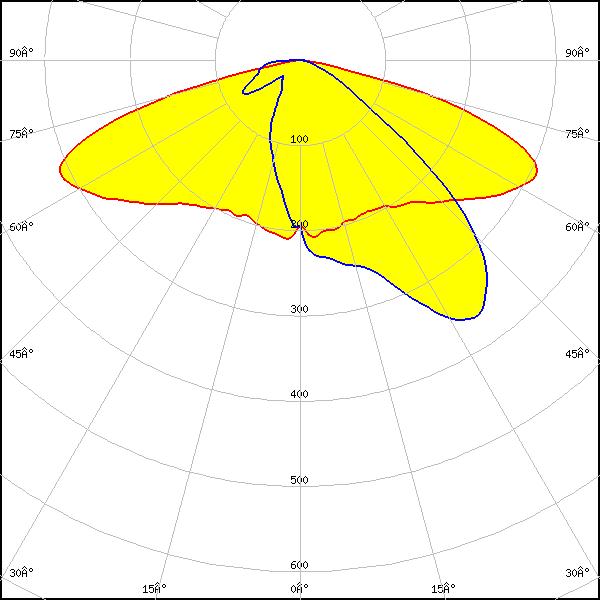

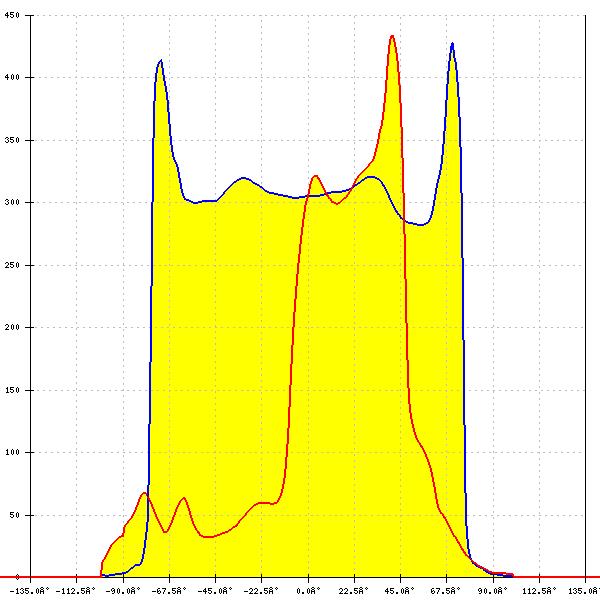

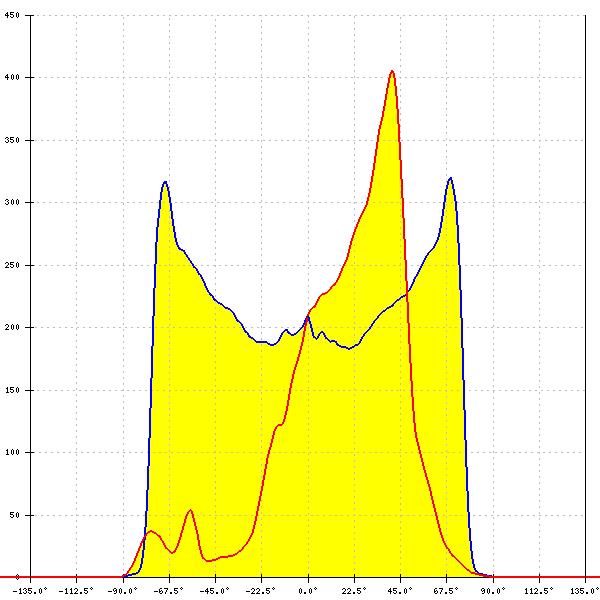

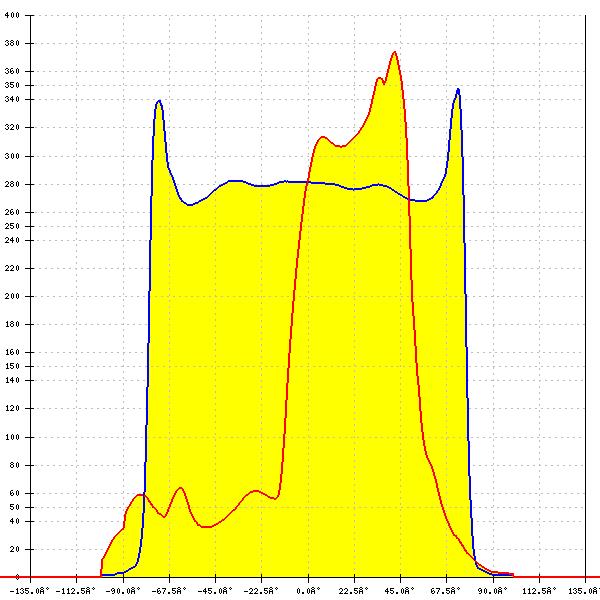

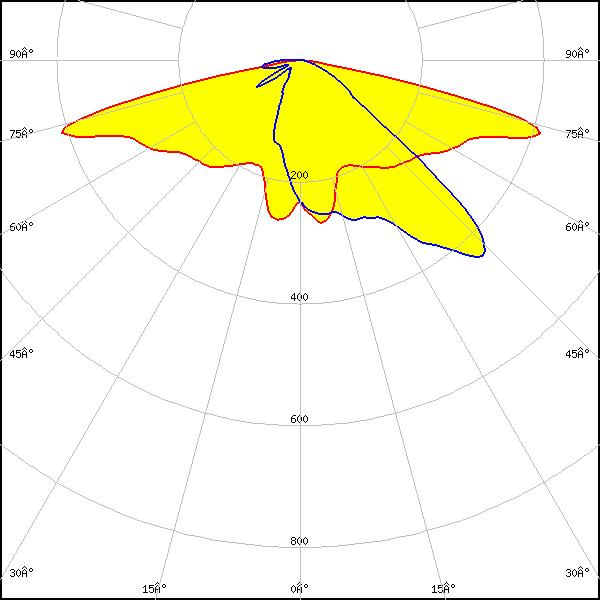

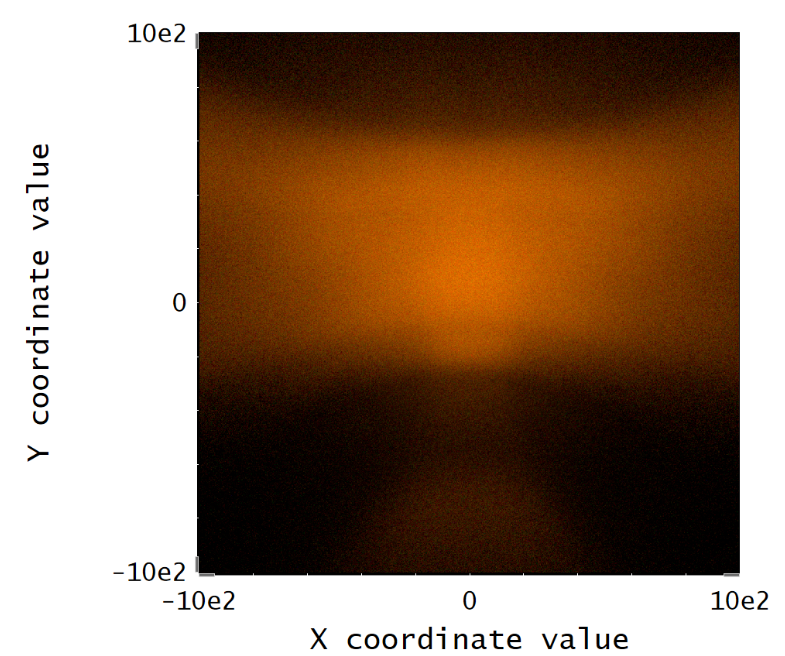

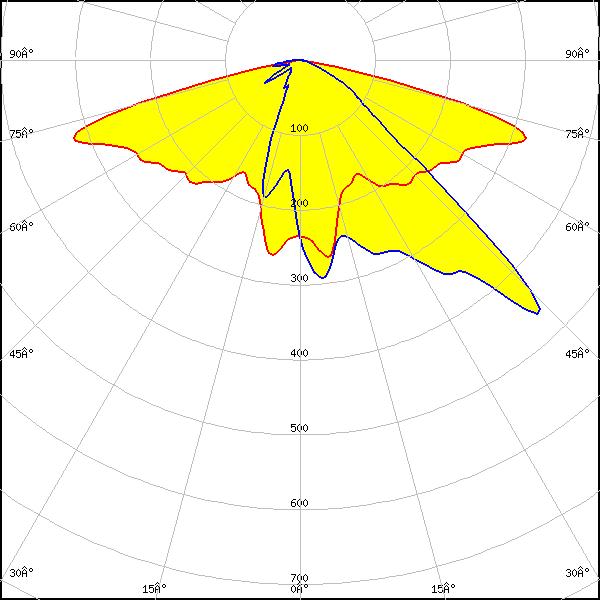

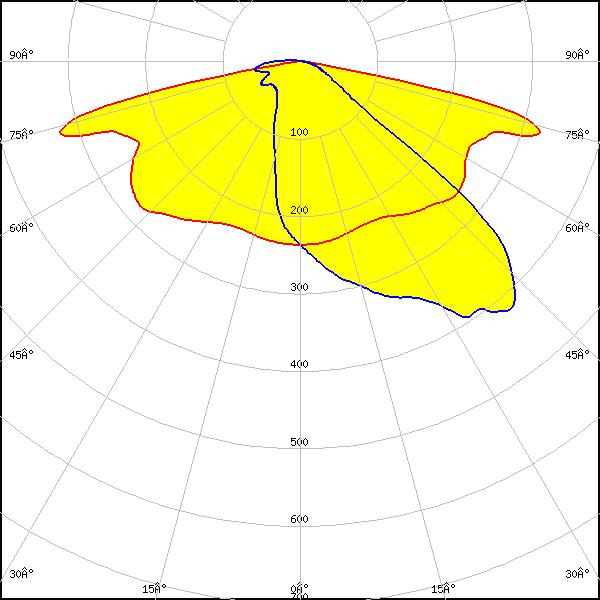

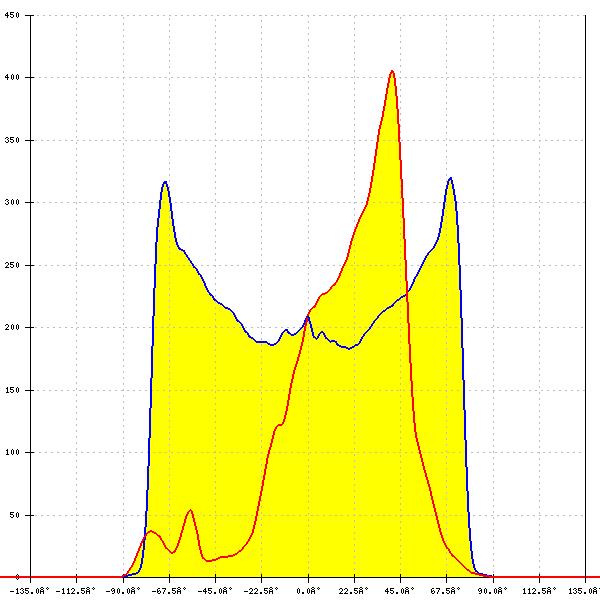

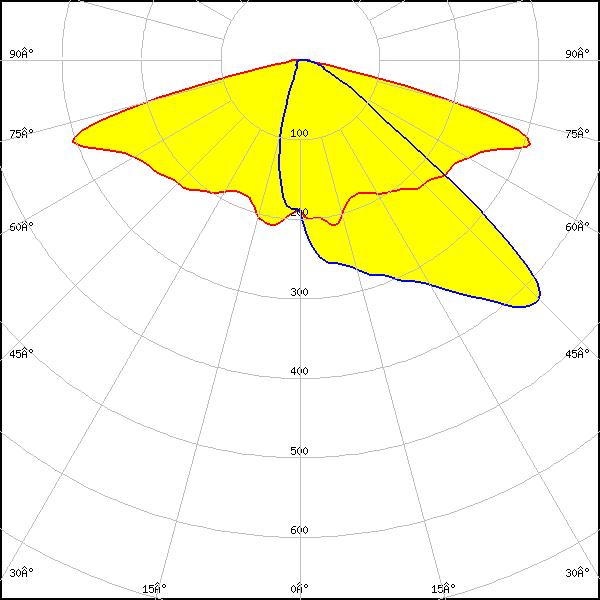

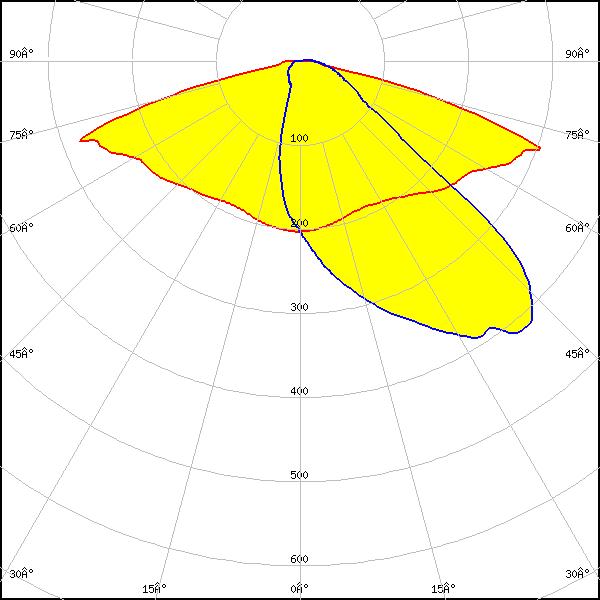

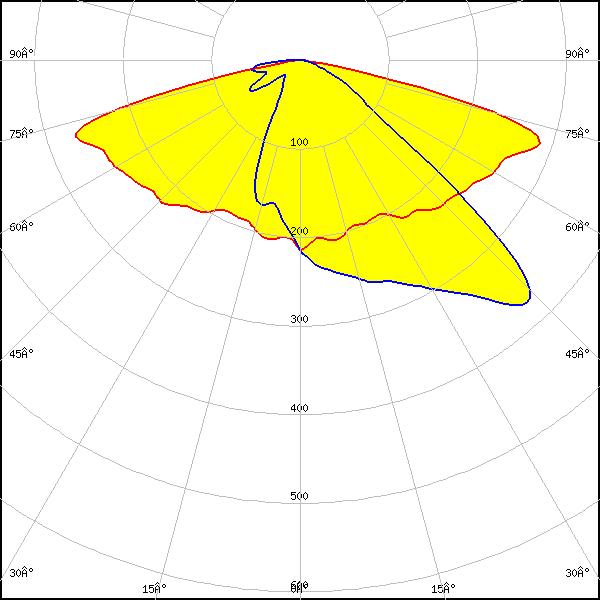

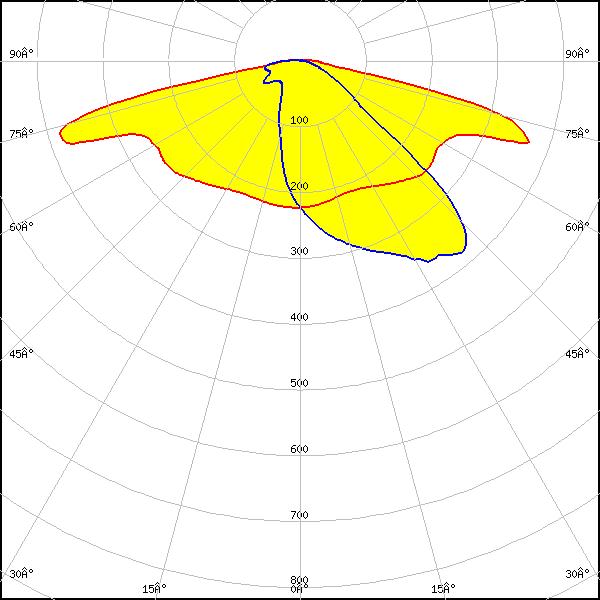

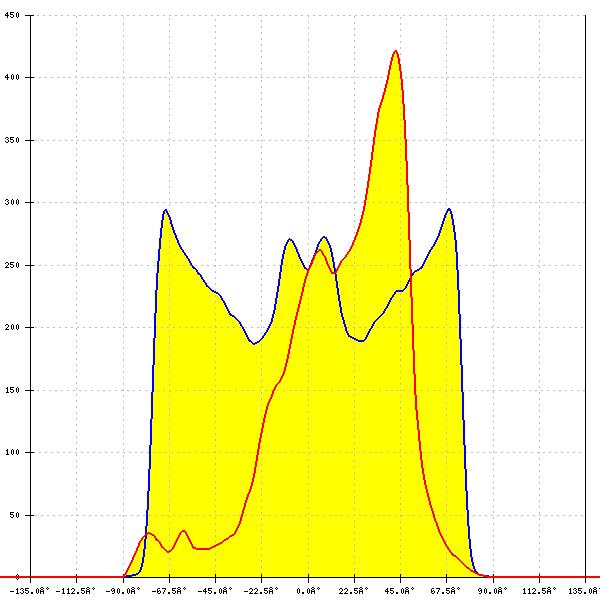

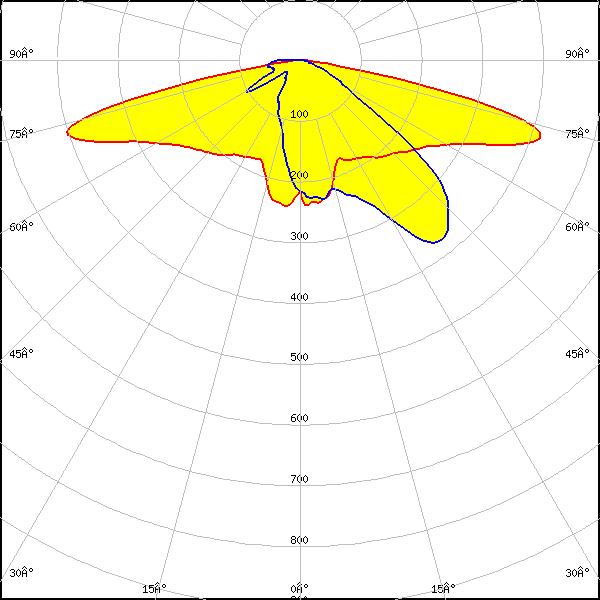

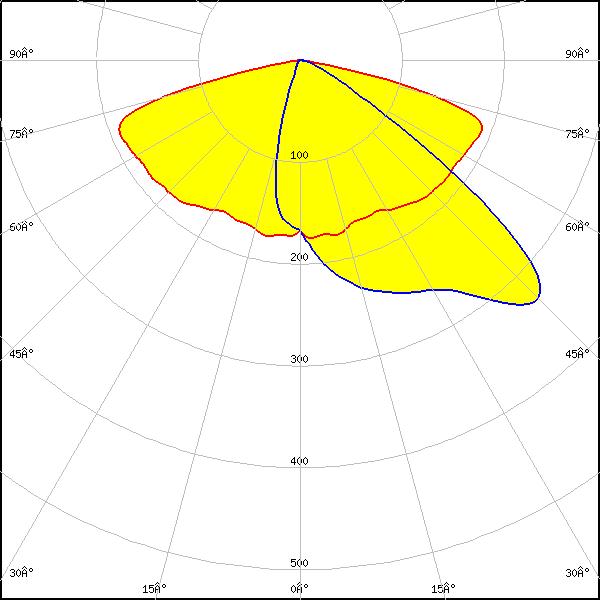

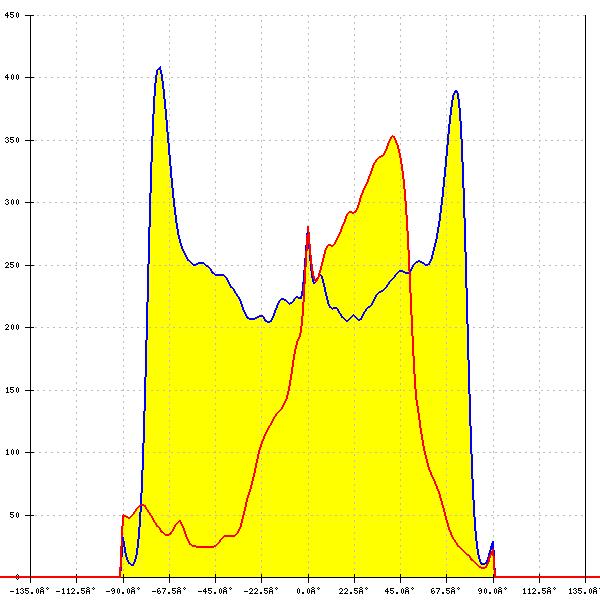

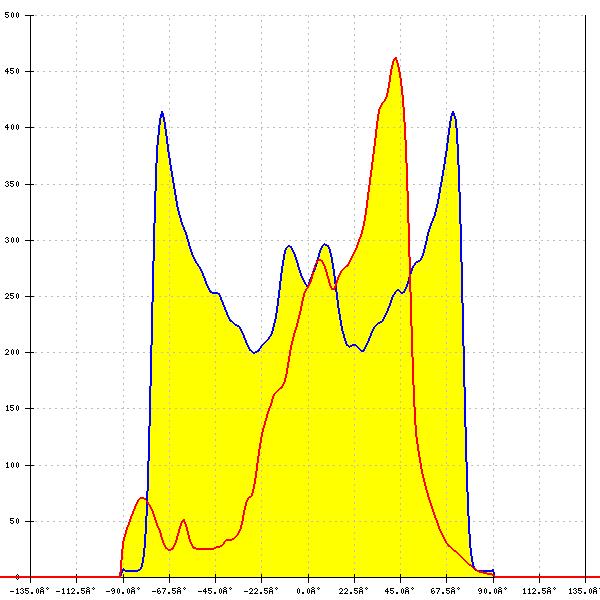

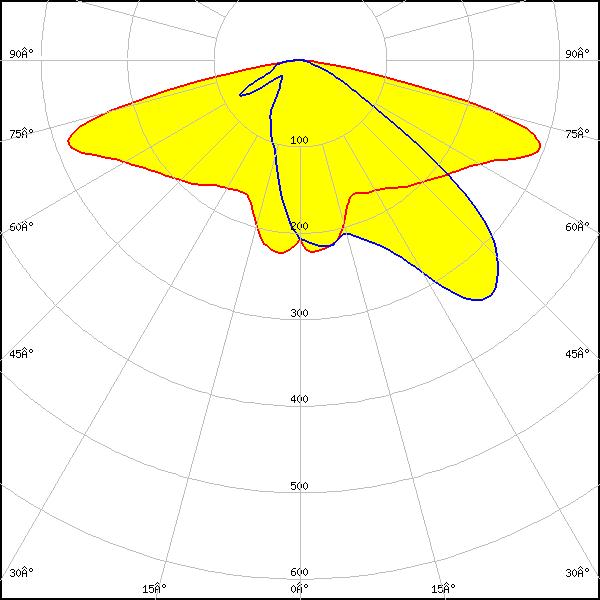

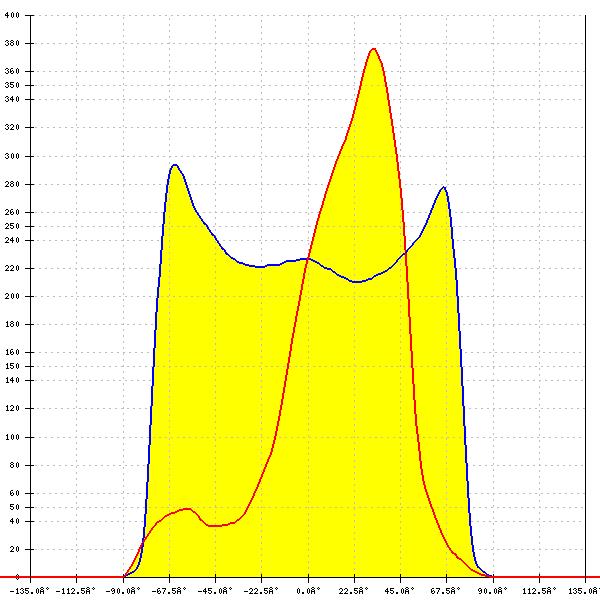

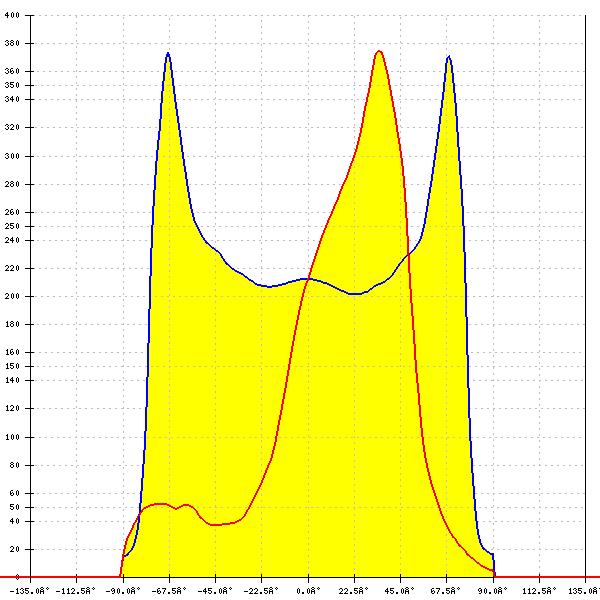

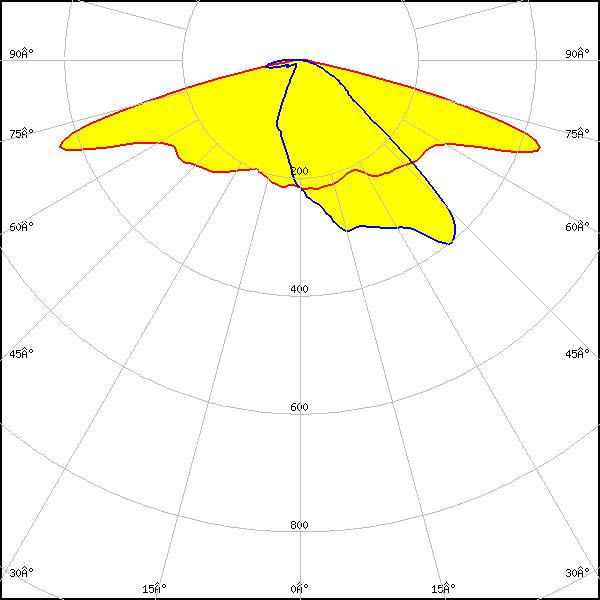

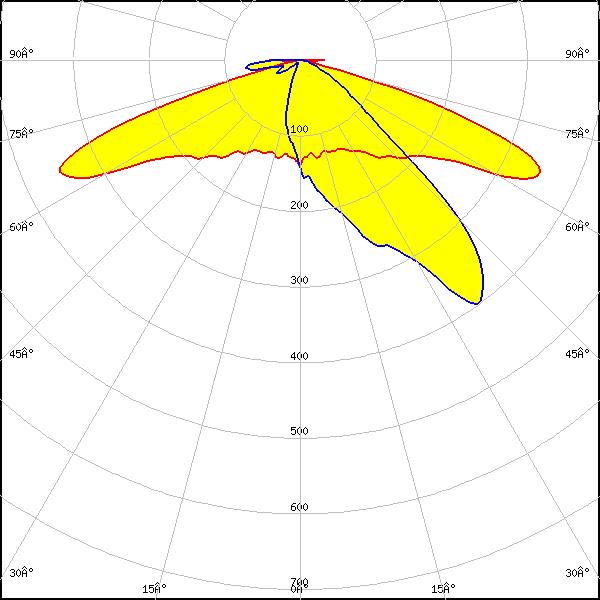

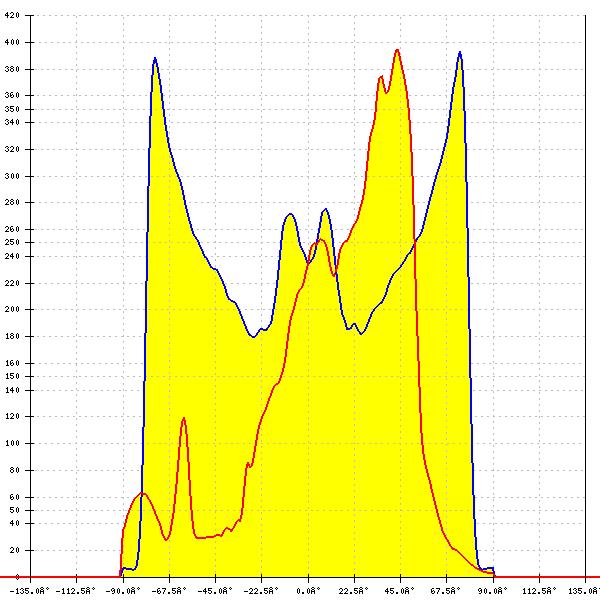

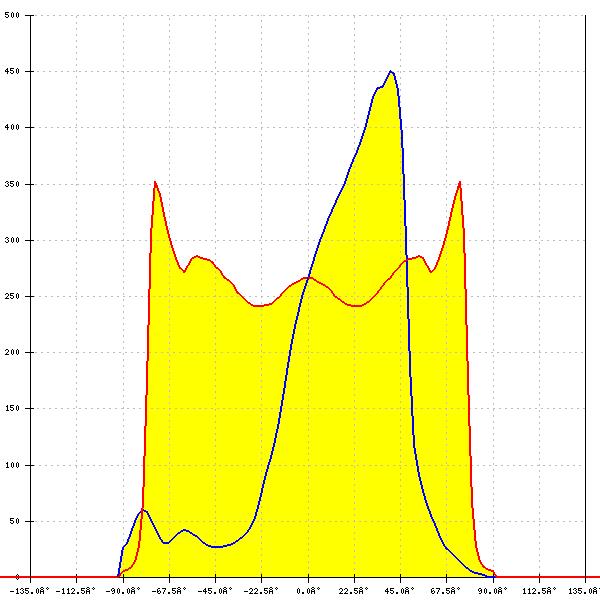

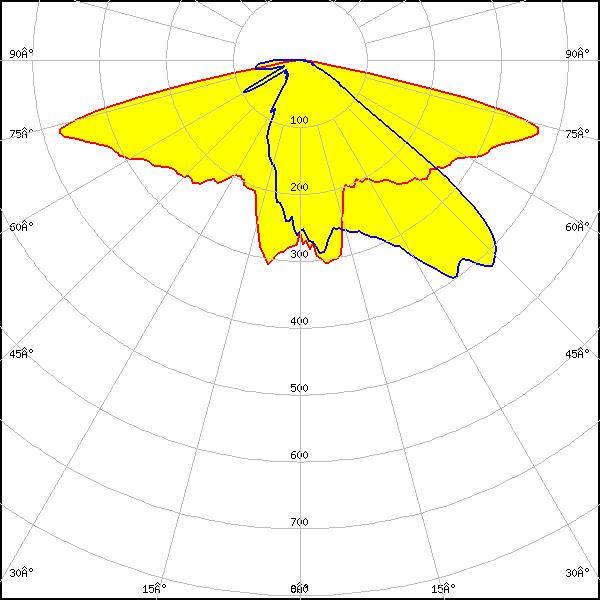

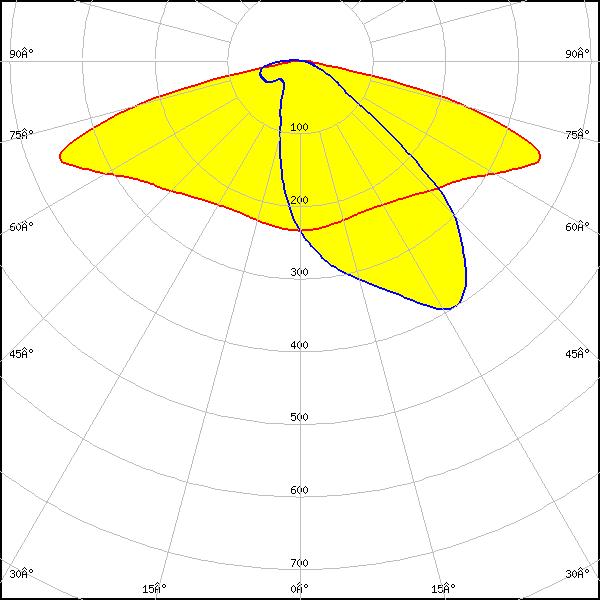

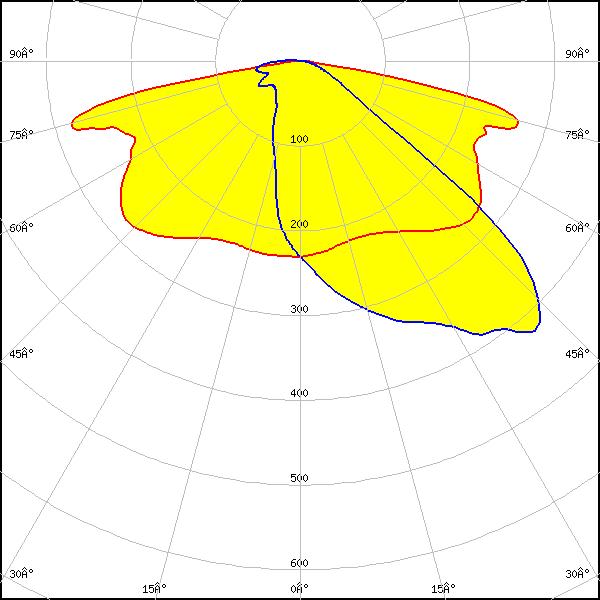

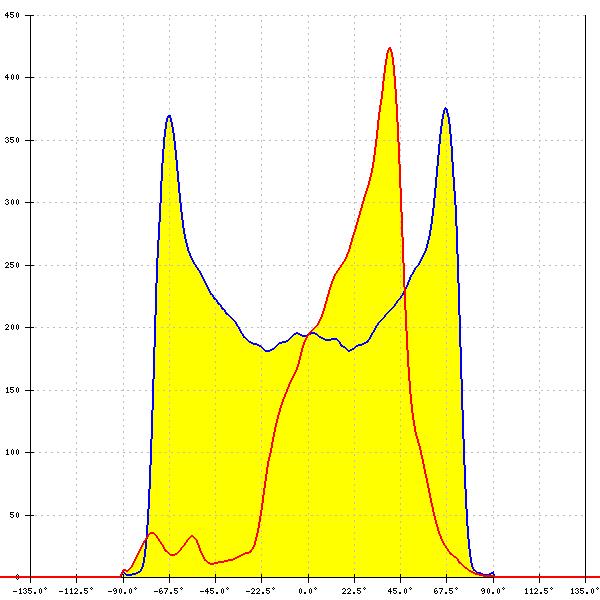

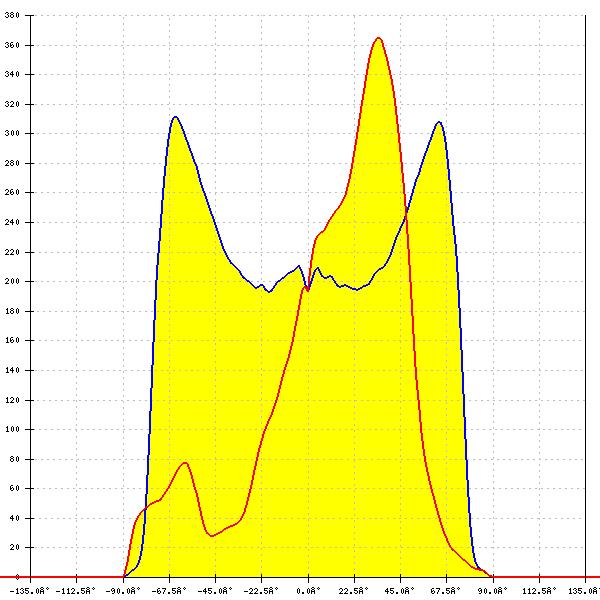

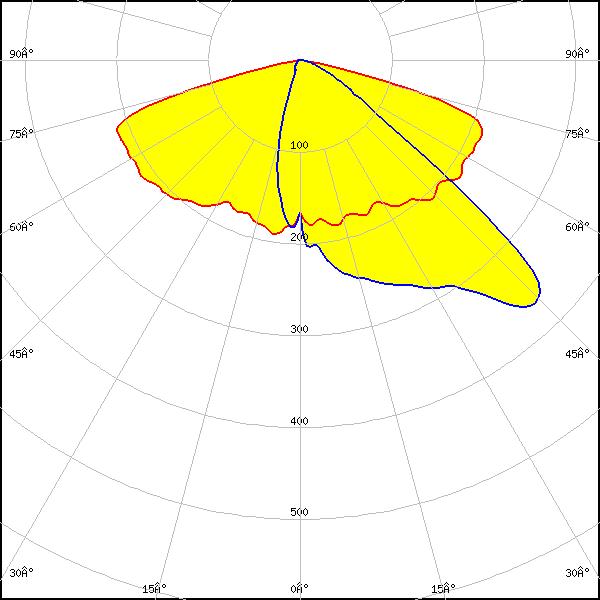

Optical results

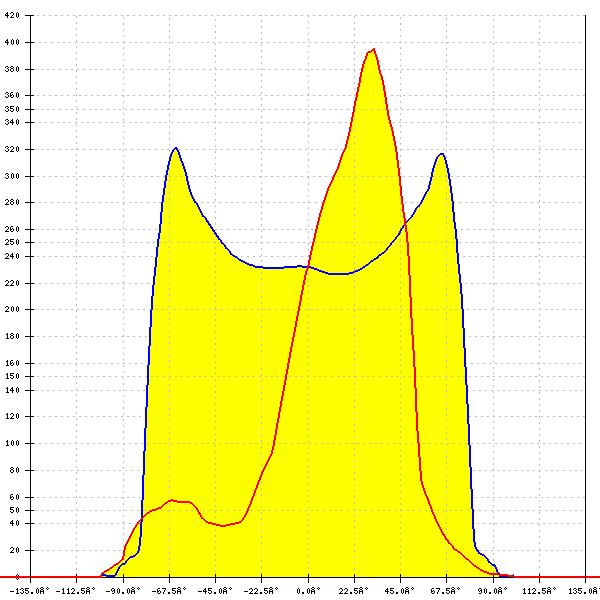

LED: Bridgelux SMD 5050
FWHM: asymmetric
Peak intensity: 0.530 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

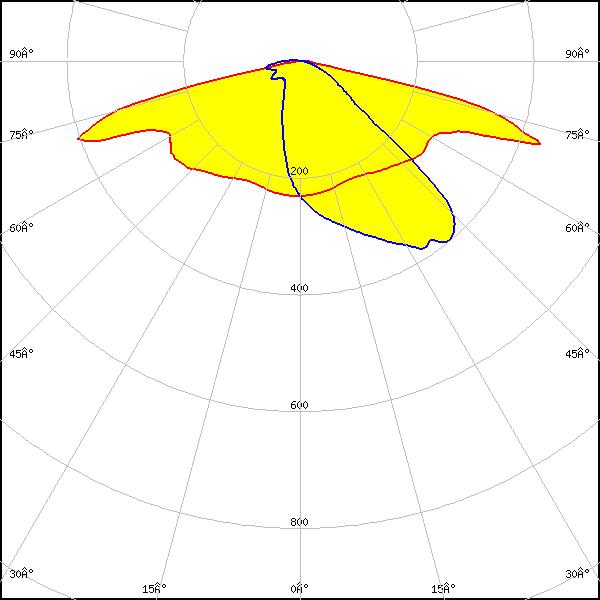

LED: QUICK FLUX XTP 2x4 xxx LS G5
FWHM: asymmetric
Peak intensity: 0.920 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

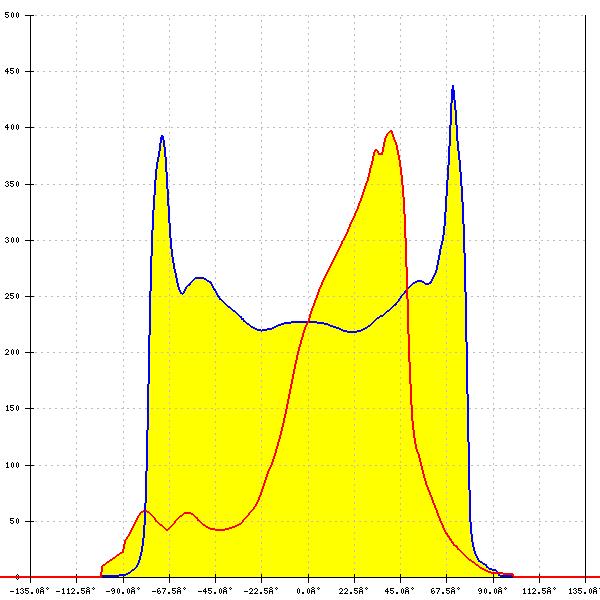

LED: QUICK FLUX XTP 2x6 xxx LS G5
FWHM: asymmetric
Peak intensity: 0.920 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: QUICK FLUX XTP 2x8 xxx LS G5
FWHM: asymmetric
Peak intensity: 0.930 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

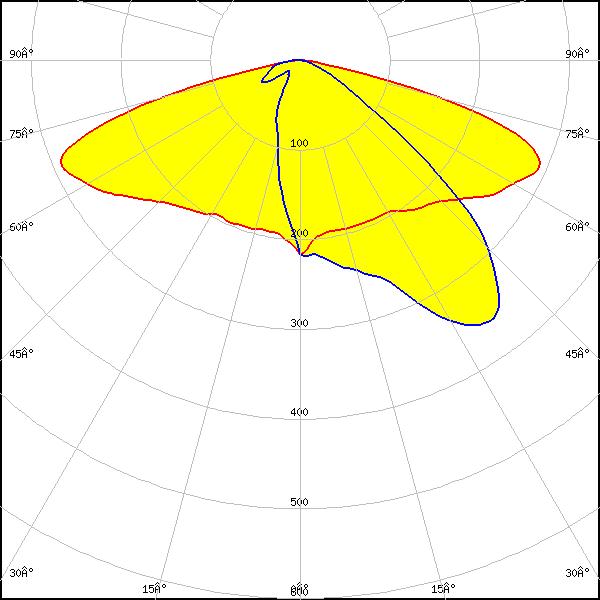

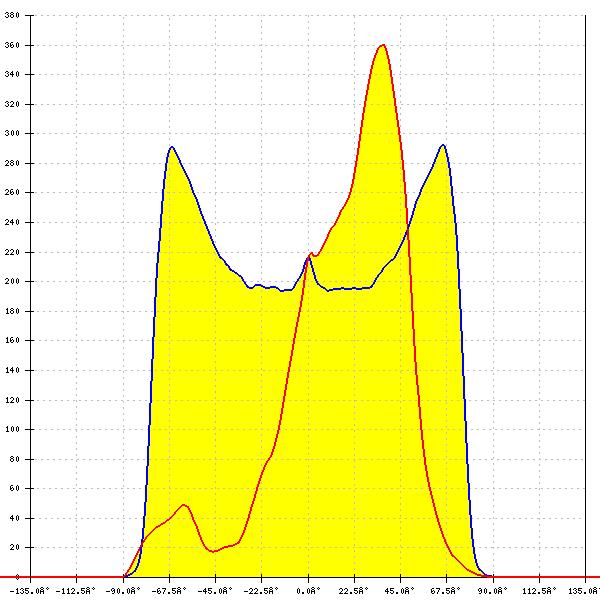

LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.570 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.441 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: XB-D
FWHM: asymmetric
Peak intensity: 1.150 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

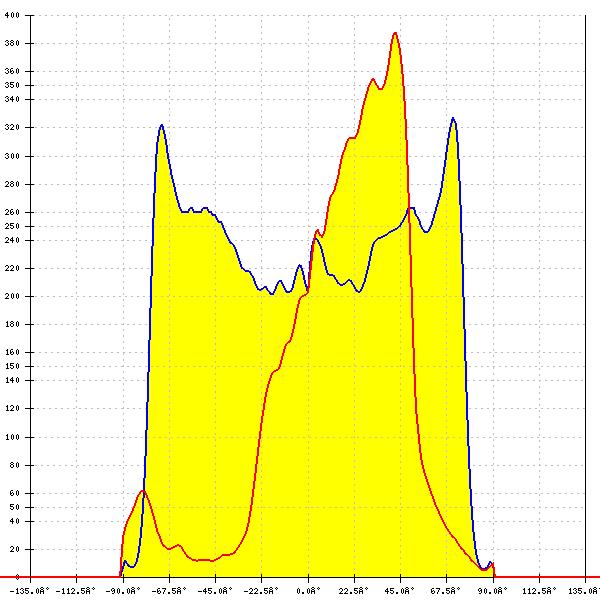

LED: XB-H
FWHM: asymmetric
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: XD16
FWHM: asymmetric
Peak intensity: 0.767 cd/lm
Efficiency: 93 %
LEDs/each optic: 2
Light colour: White
LED: XD16
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XD16
FWHM: asymmetric
Peak intensity: 0.560 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White

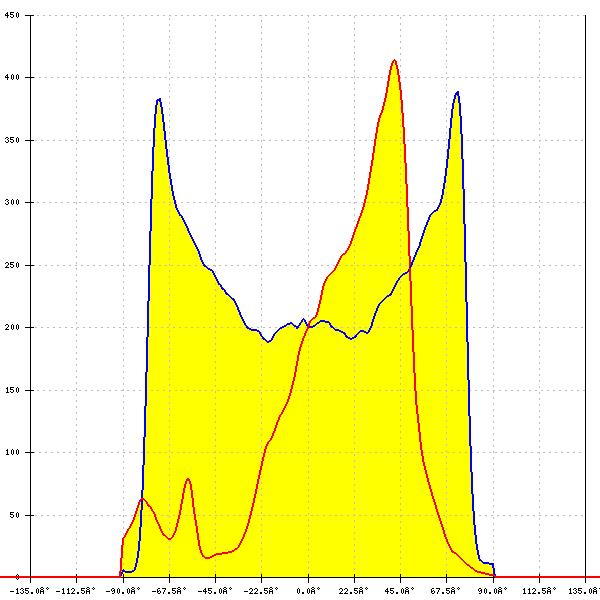

LED: XE-G
FWHM: asymmetric
Peak intensity: 0.702 cd/lm
Efficiency: 94 %
LEDs/each optic: 2
Light colour: White

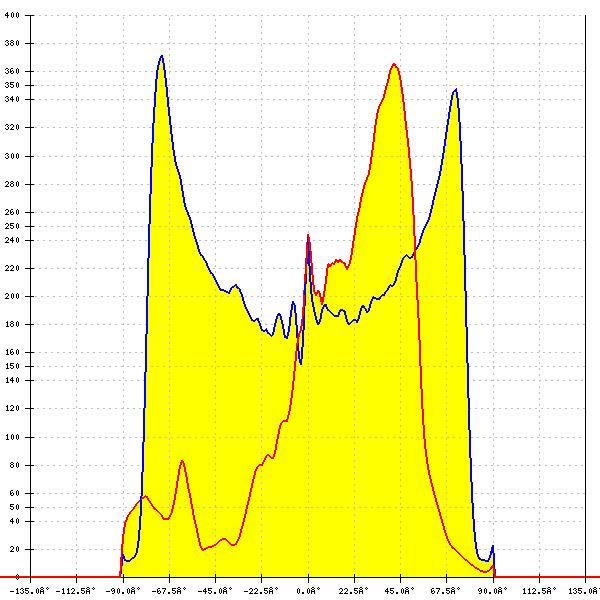

LED: XHP35 HD
FWHM: asymmetric
Peak intensity: 0.640 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: XHP35 HI
FWHM: asymmetric
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

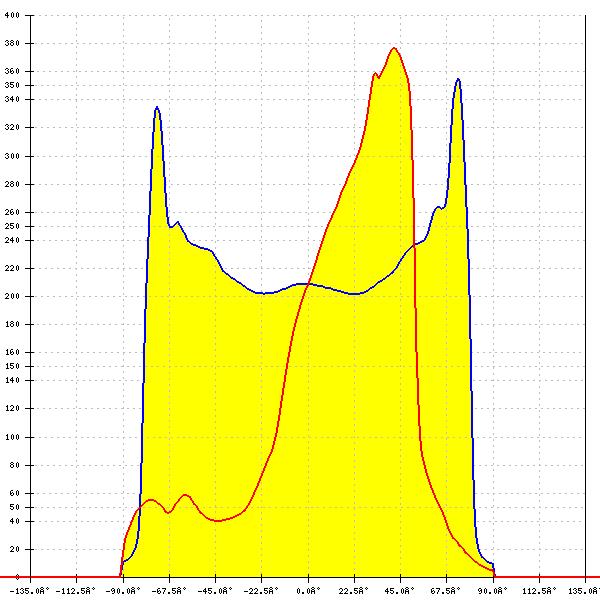

LED: XM-L
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

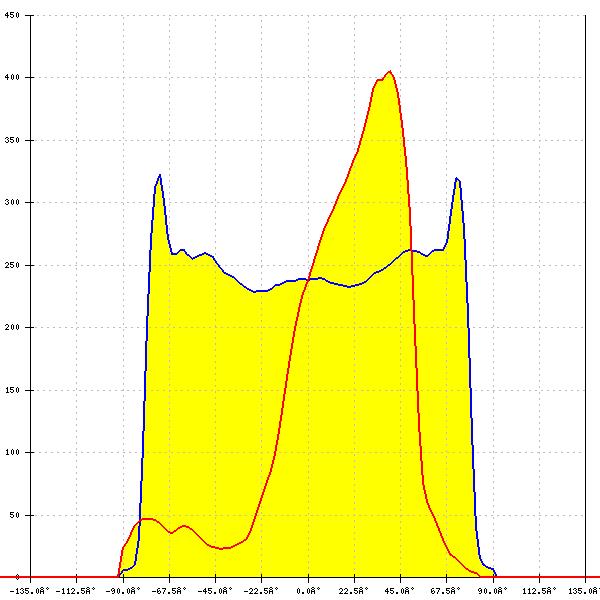

LED: XM-L2
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

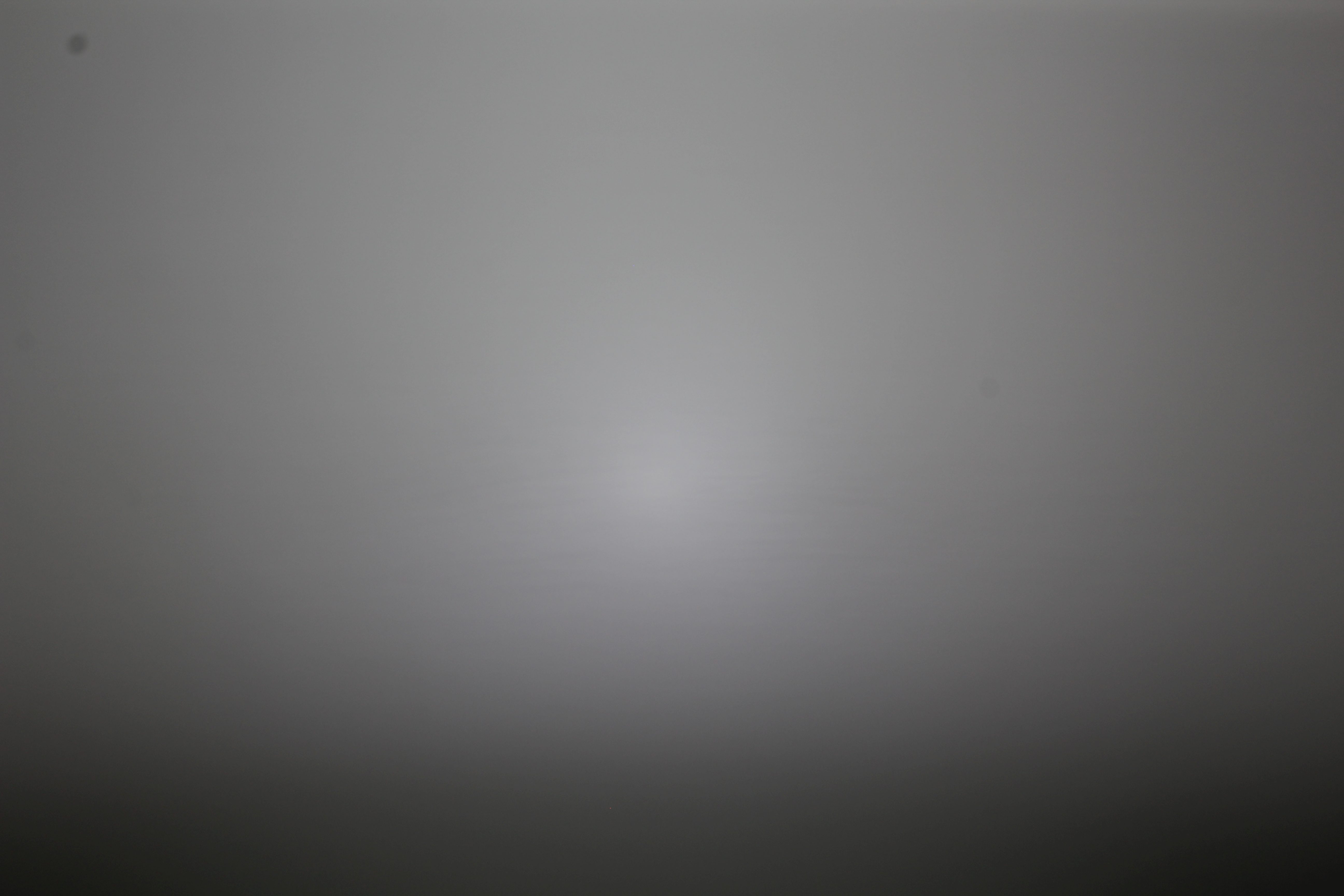

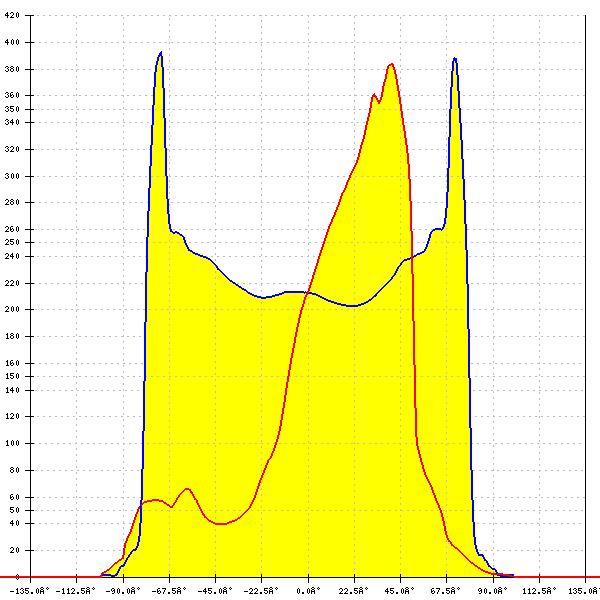

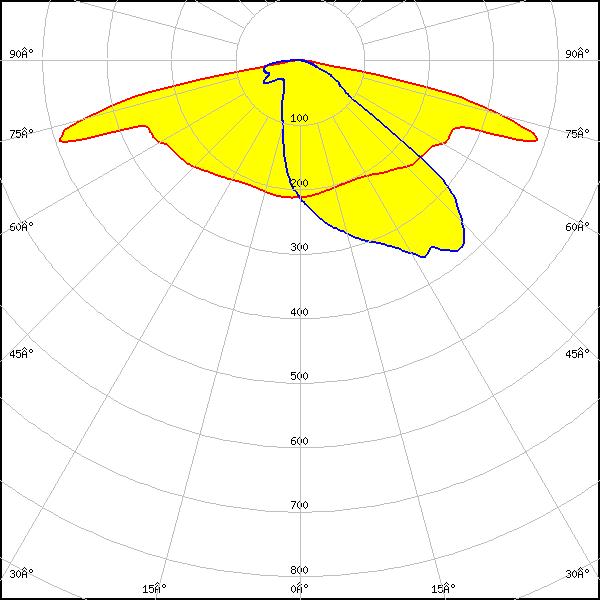

LED: XM-L3
FWHM: asymmetric
Peak intensity: 0.849 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

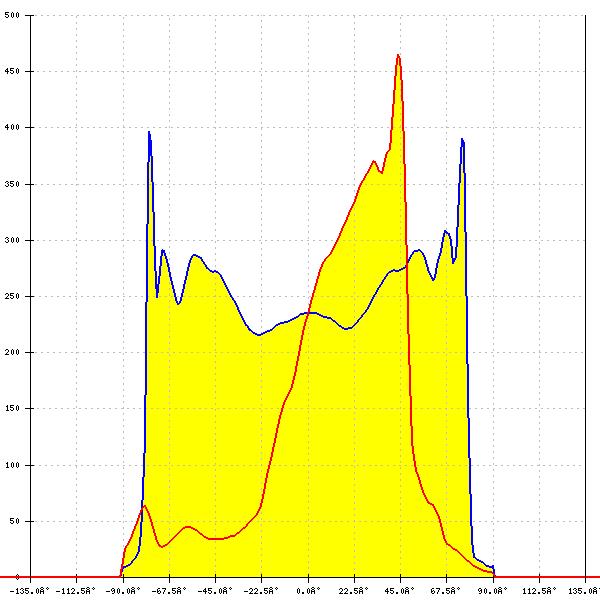

LED: XP-E2
FWHM: asymmetric
Peak intensity: 1.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XP-G
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

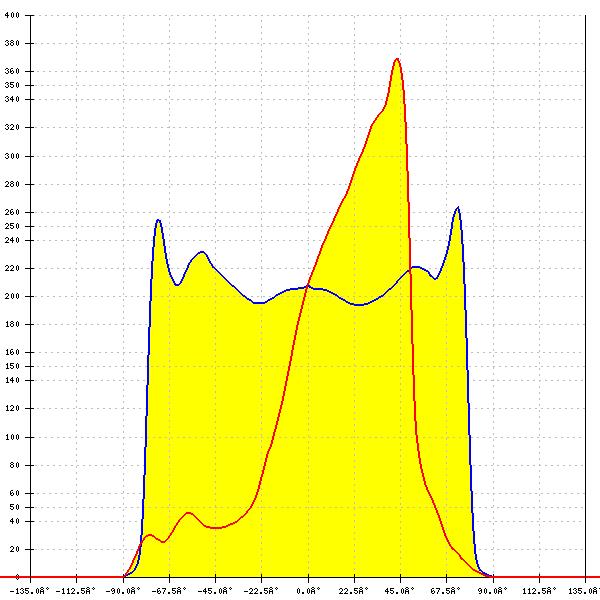

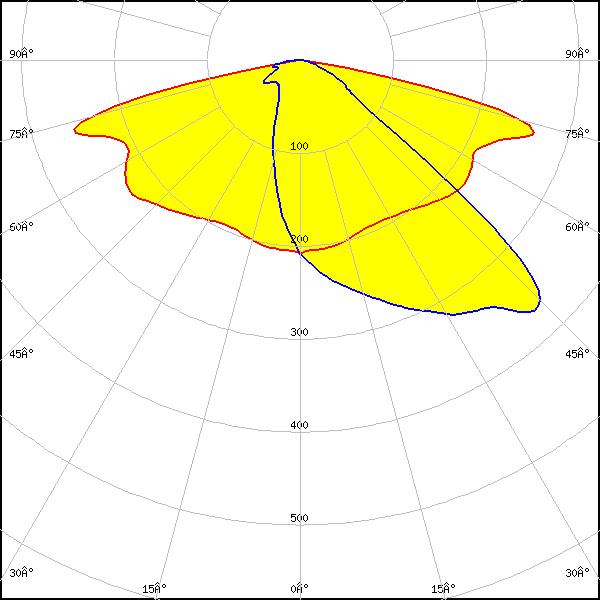

LED: XP-G2
FWHM: asymmetric
Peak intensity: 0.567 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White
LED: XP-G2
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XP-G2 HE
FWHM: asymmetric
Peak intensity: 0.626 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

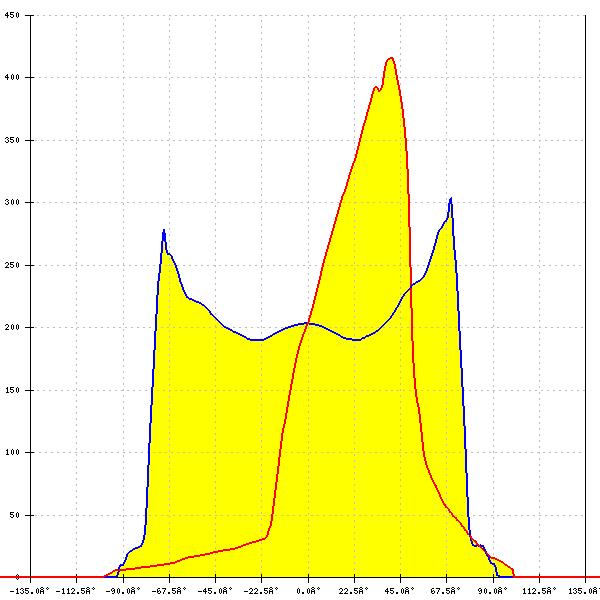

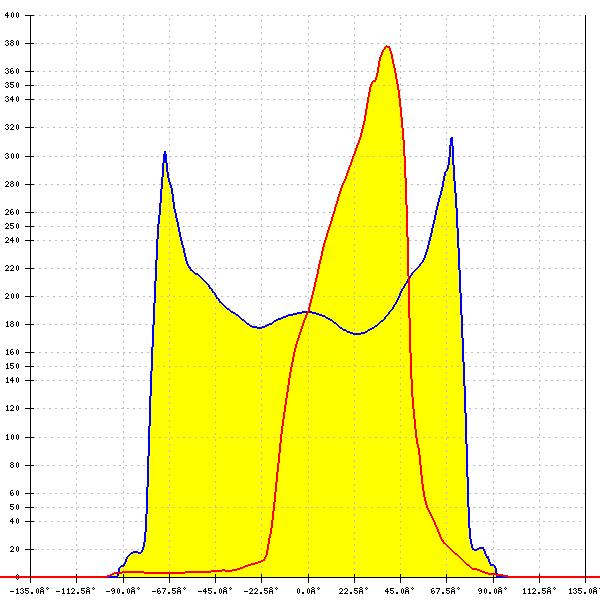

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.458 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White
LED: XP-G3
Required components:
FWHM: asymmetric
Peak intensity: 0.559 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.900 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XP-G3
Required components:
FWHM: asymmetric
Peak intensity: 0.788 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White
LED: XP-G3
Required components:
FWHM: asymmetric
Peak intensity: 0.844 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: XP-L HD
FWHM: asymmetric
Peak intensity: 0.720 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XP-L HI
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XP-L2
FWHM: asymmetric
Peak intensity: 0.440 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: XP-L2
FWHM: asymmetric
Peak intensity: 0.630 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XQ-E HD
FWHM: asymmetric
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

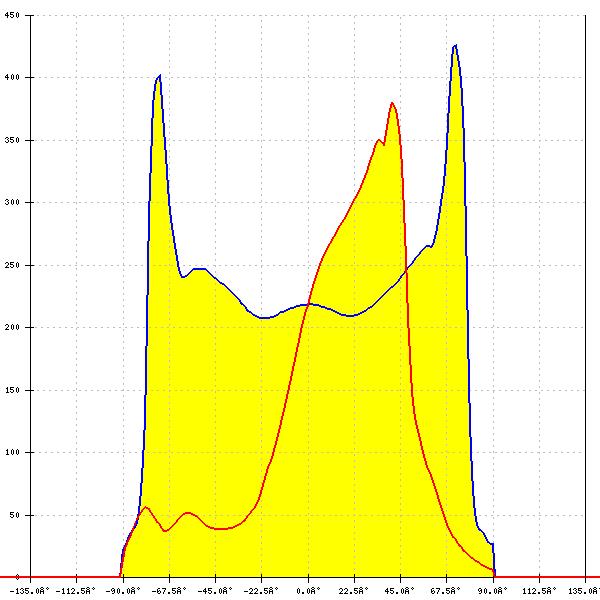

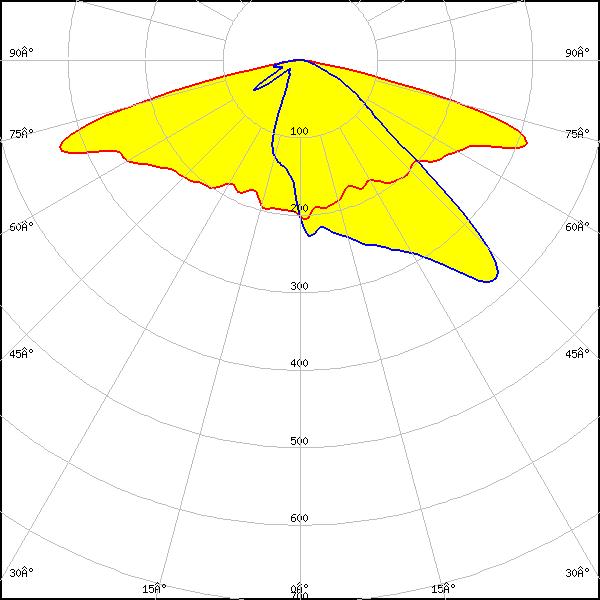

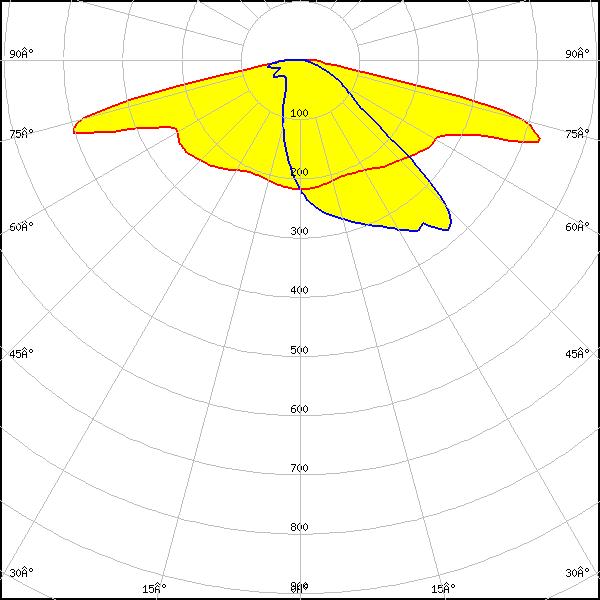

LED: XT-E
FWHM: asymmetric
Peak intensity: 0.630 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: XT-E
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

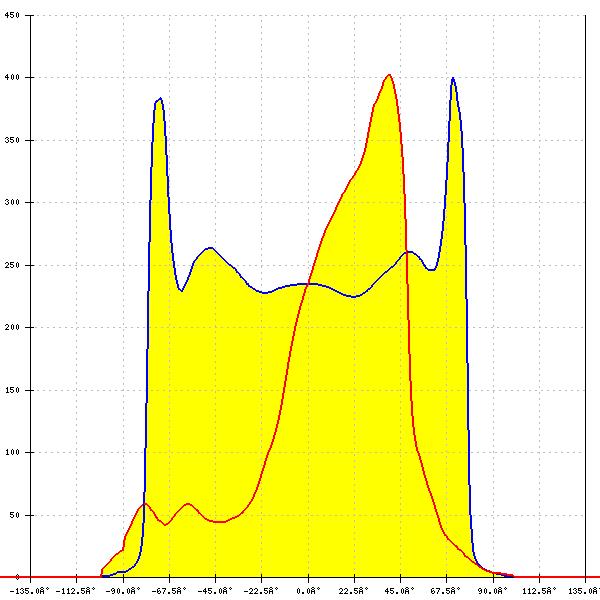

LED: EHP-2x8-3535
FWHM: asymmetric
Peak intensity: 0.887 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

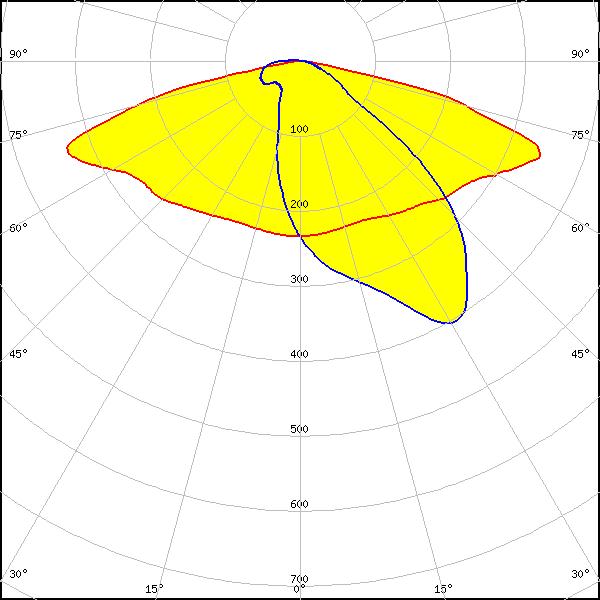

LED: EHP-2x8-5050
FWHM: asymmetric
Peak intensity: 0.530 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

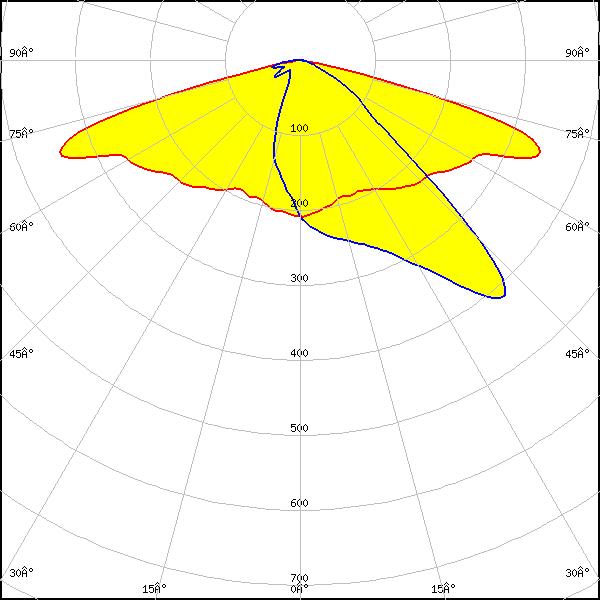

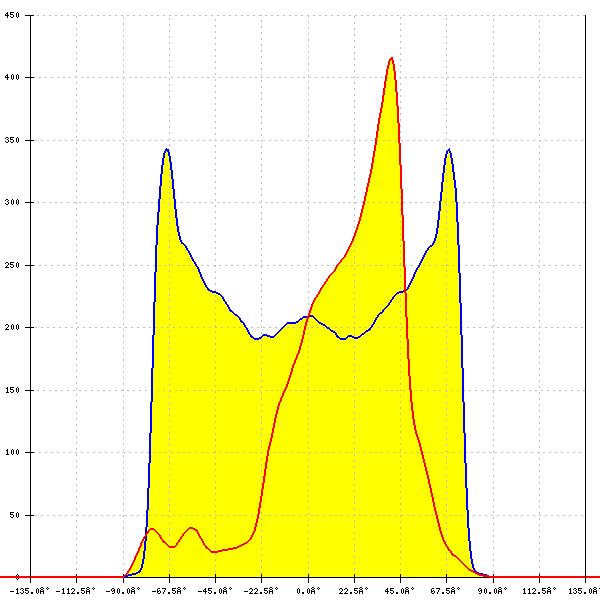

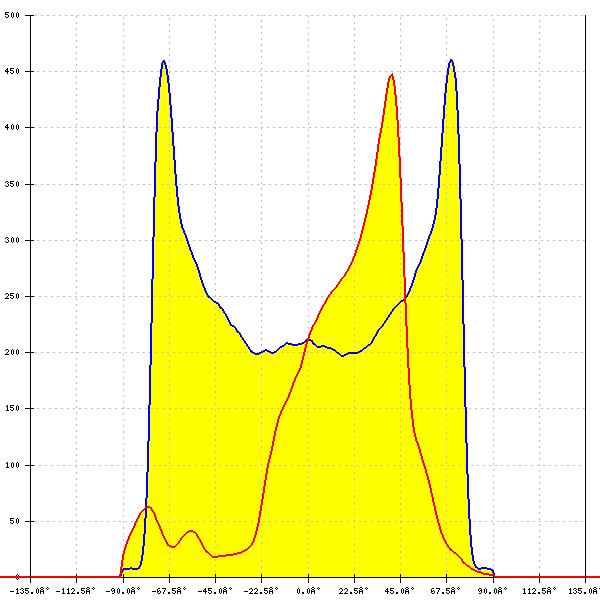

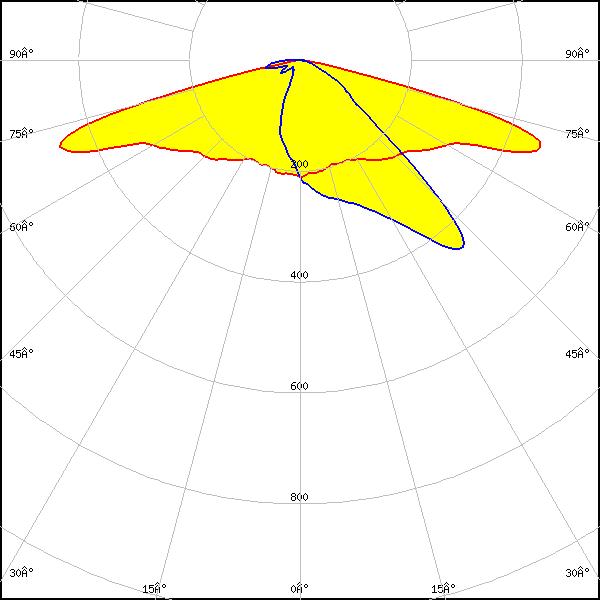

LED: LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity: 0.870 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity: 0.671 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity: 0.472 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White

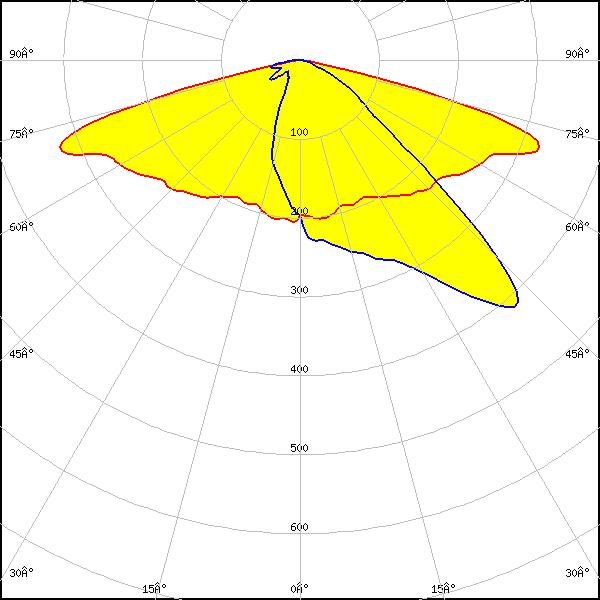

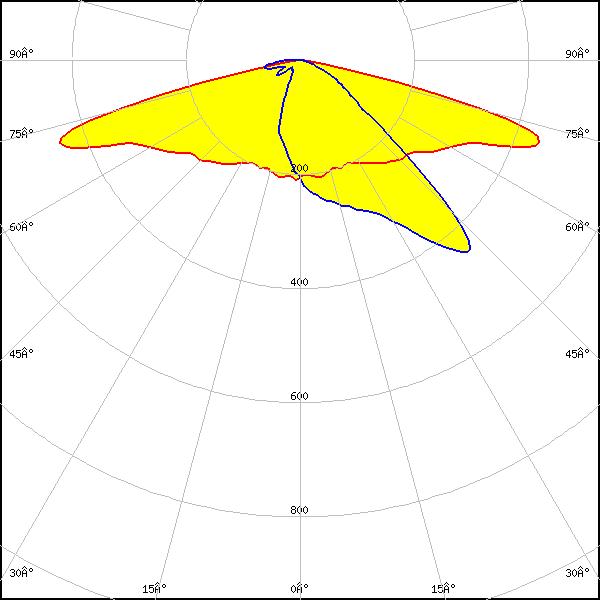

LED: LUXEON 3030 2D (Square LES)
FWHM: asymmetric
Peak intensity: 0.631 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 3030 2D (Square LES)
FWHM: asymmetric
Peak intensity: 0.841 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

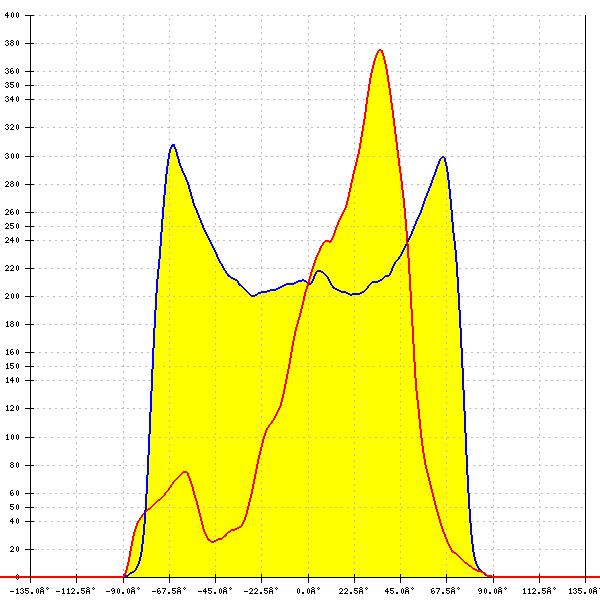

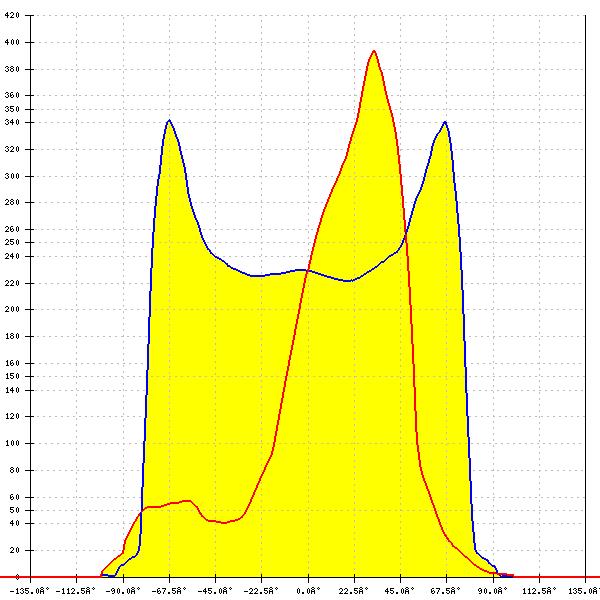

LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.482 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.570 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

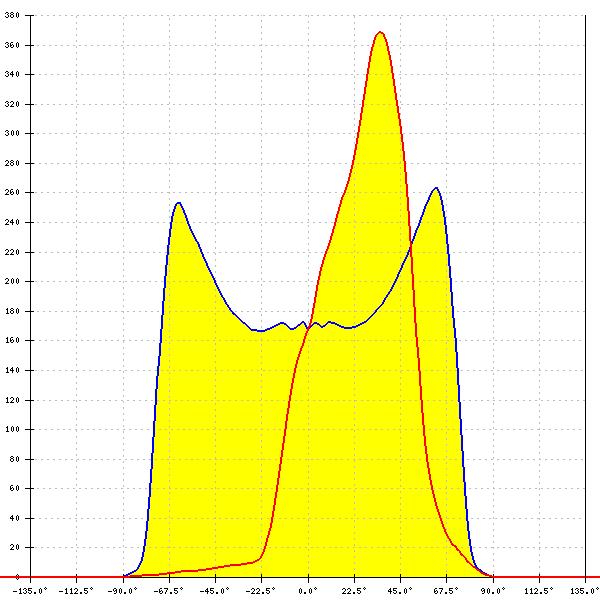

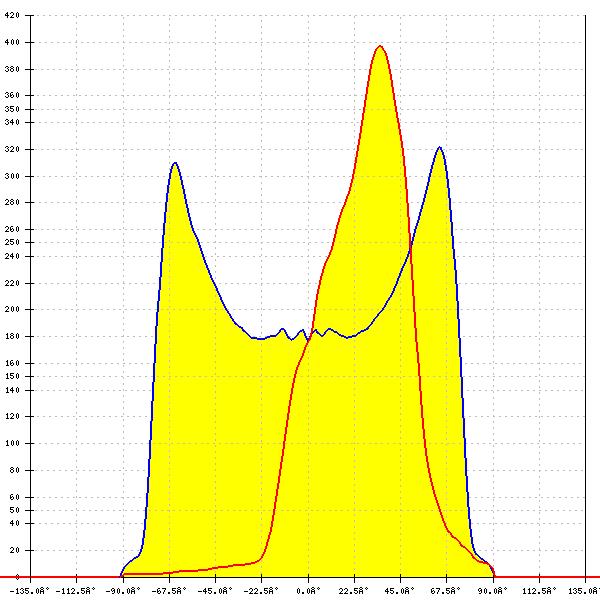

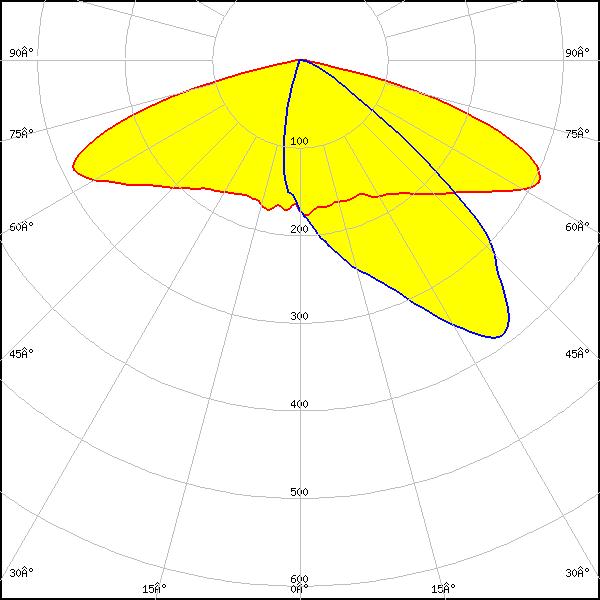

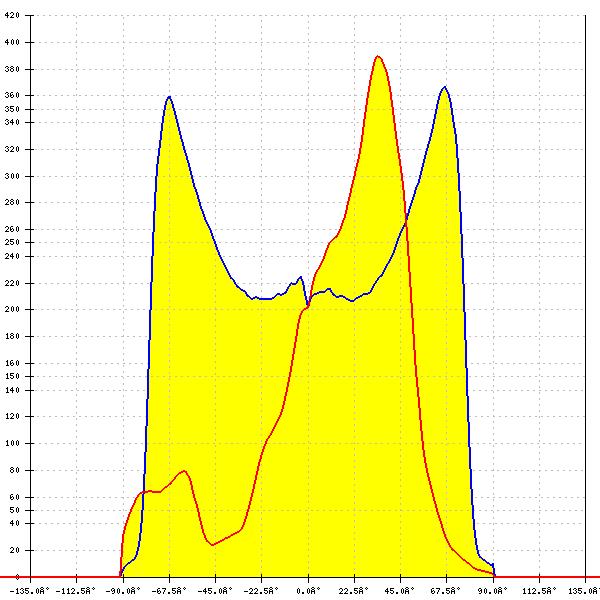

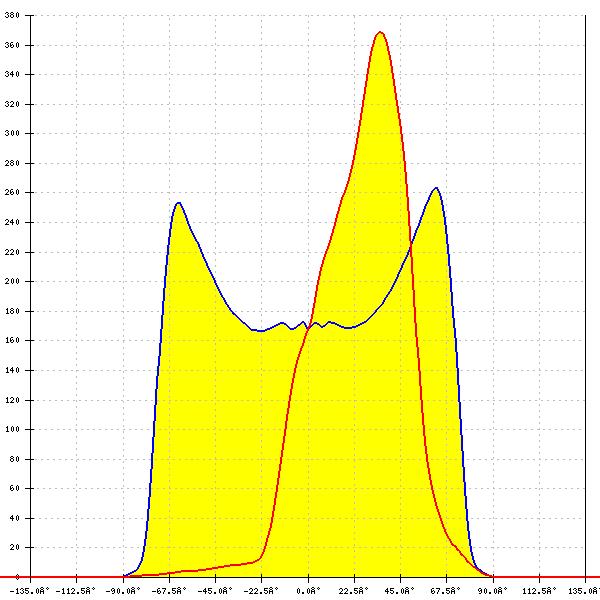

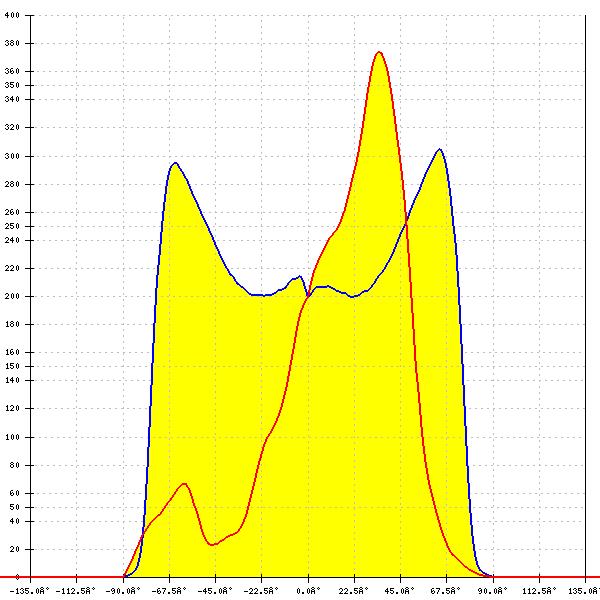

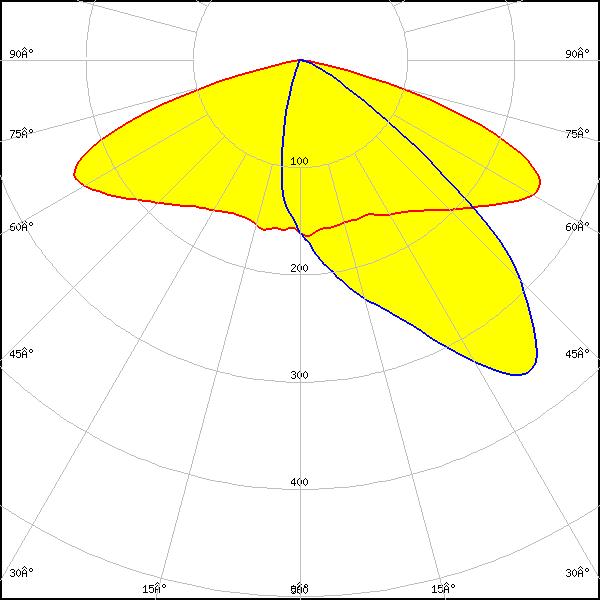

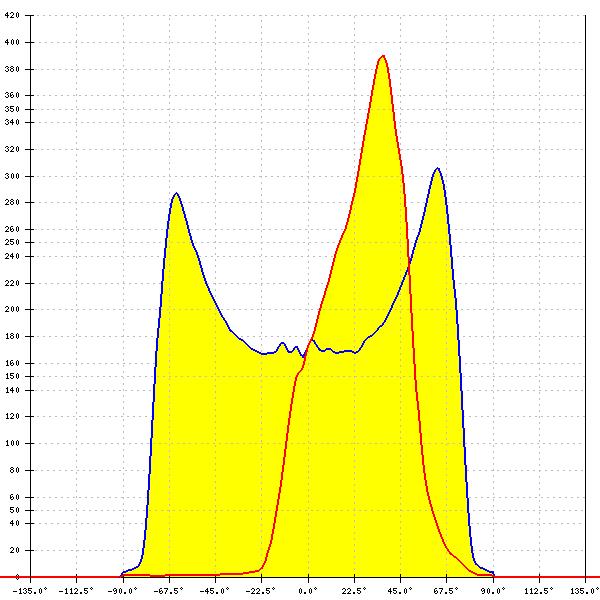

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.562 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.455 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

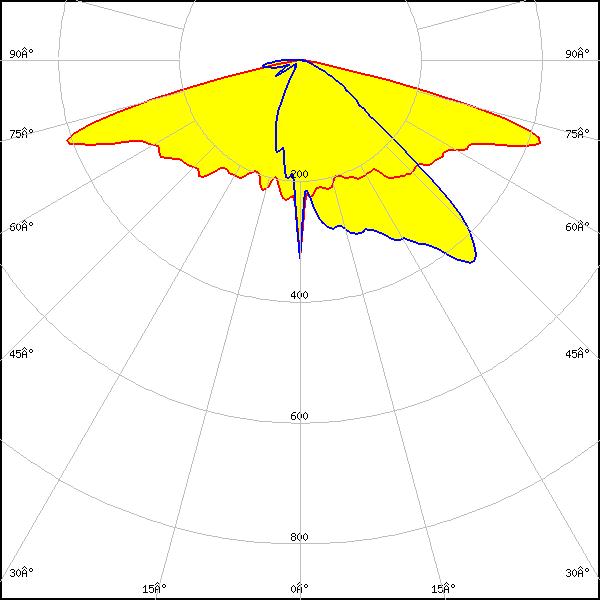

LED: LUXEON H50-2
FWHM: asymmetric
LEDs/each optic: 1
Light colour: White

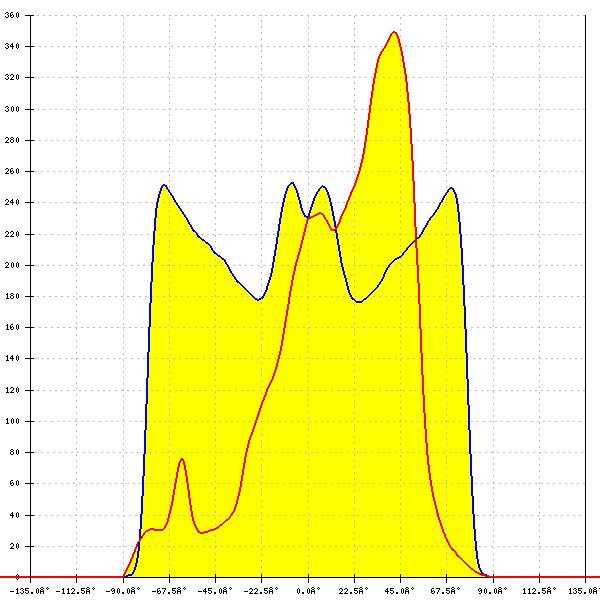

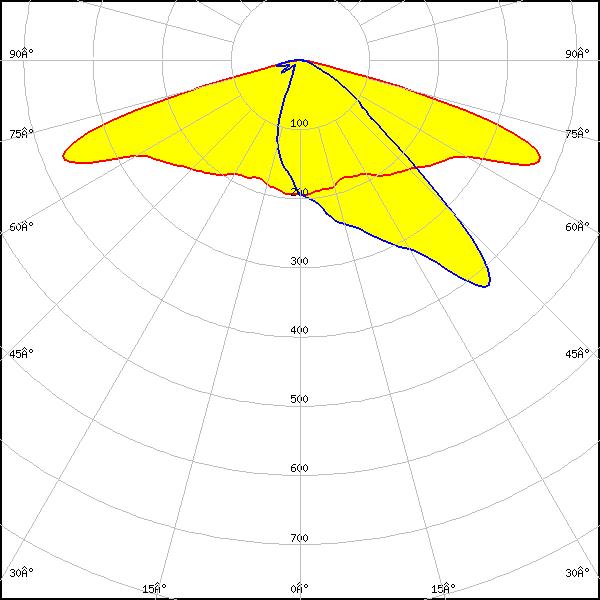

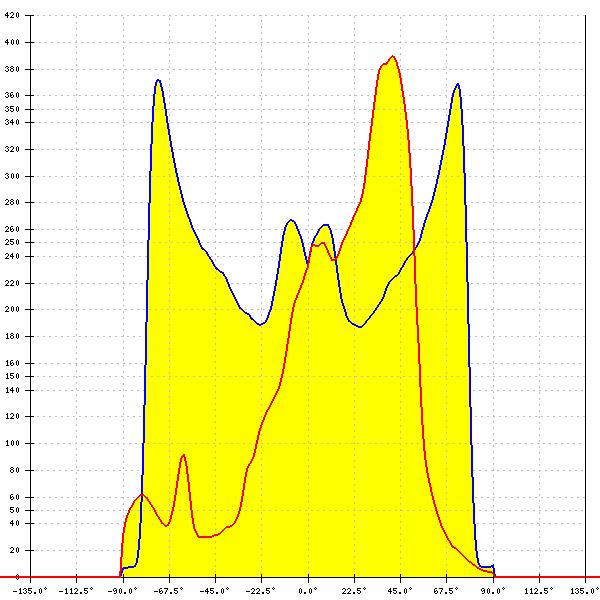

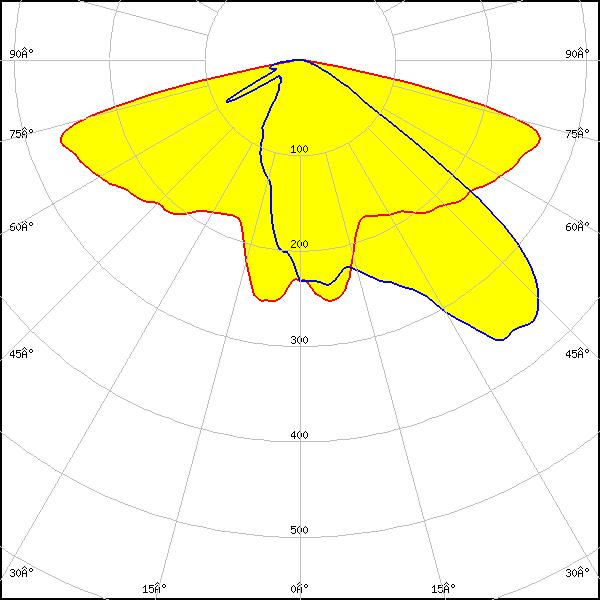

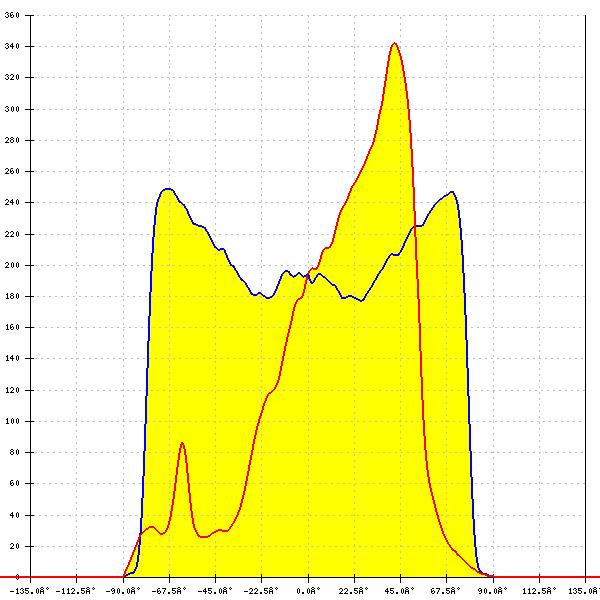

LED: LUXEON HL2X-P
FWHM: asymmetric
Peak intensity: 0.402 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON HL2X-P
FWHM: asymmetric
Peak intensity: 0.605 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

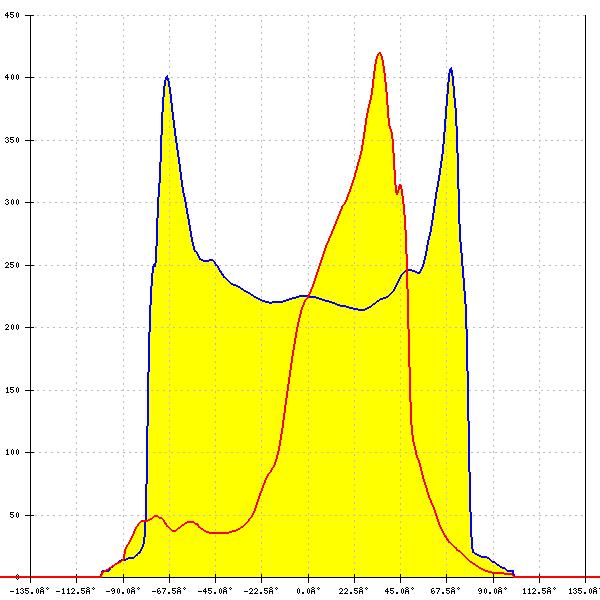

LED: LUXEON MZ
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

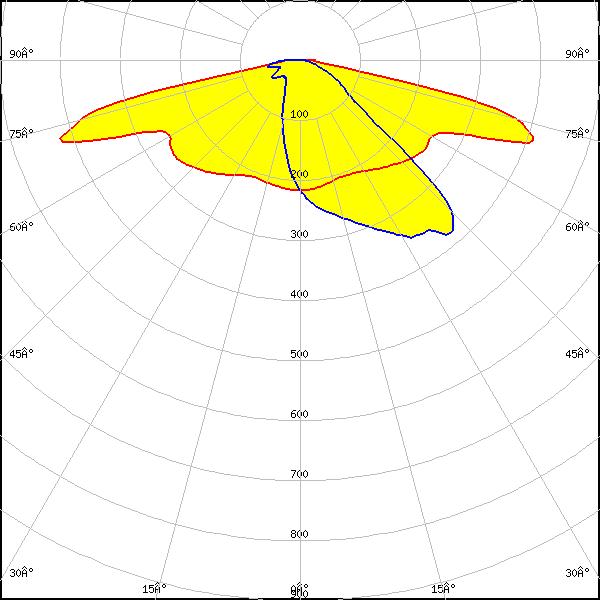

LED: LUXEON Q
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON R
FWHM: asymmetric
Peak intensity: 0.900 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

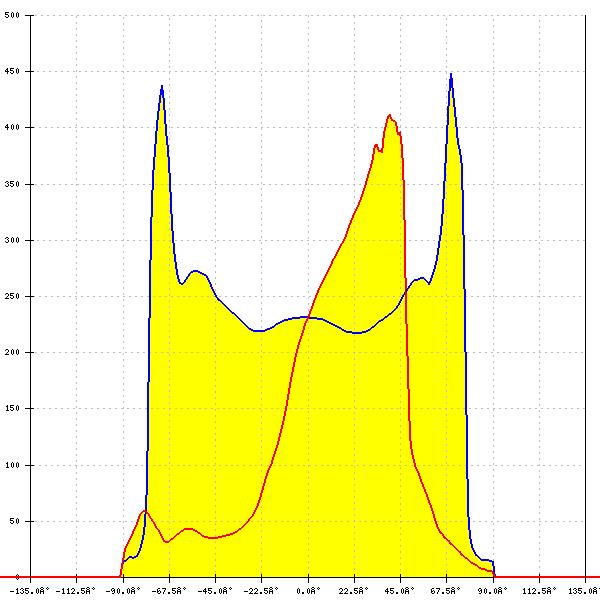

LED: LUXEON Rebel ES
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON T
FWHM: asymmetric
Peak intensity: 0.970 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON TX
FWHM: asymmetric
Peak intensity: 0.960 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

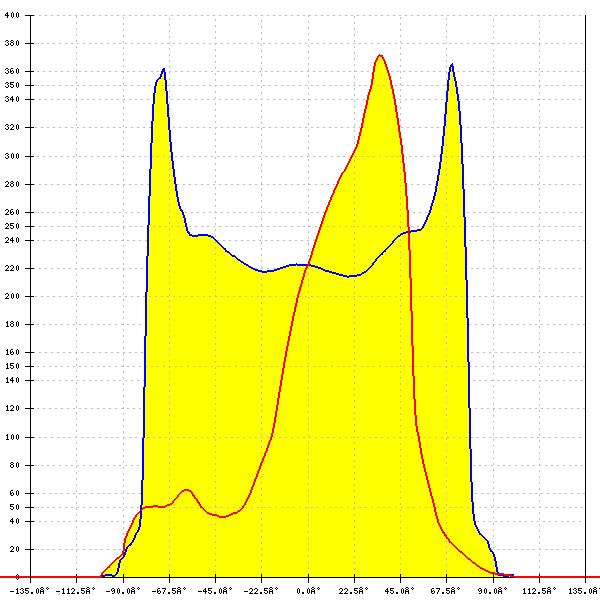

LED: LUXEON V
FWHM: asymmetric
Peak intensity: 0.660 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

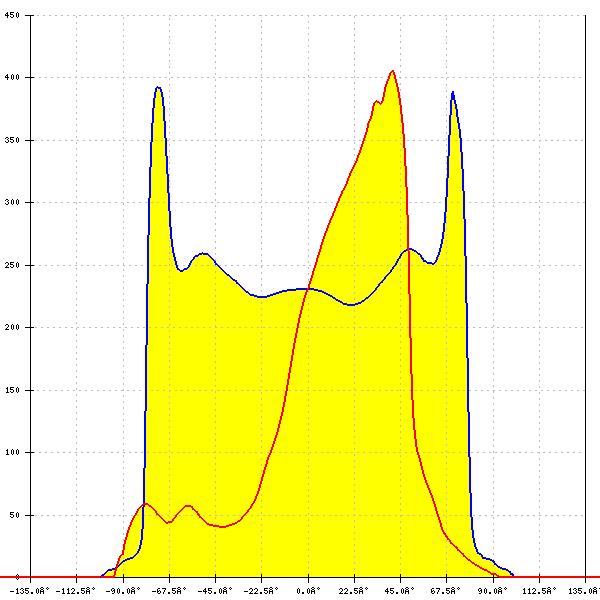

LED: LUXEON V2
FWHM: asymmetric
Peak intensity: 0.930 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

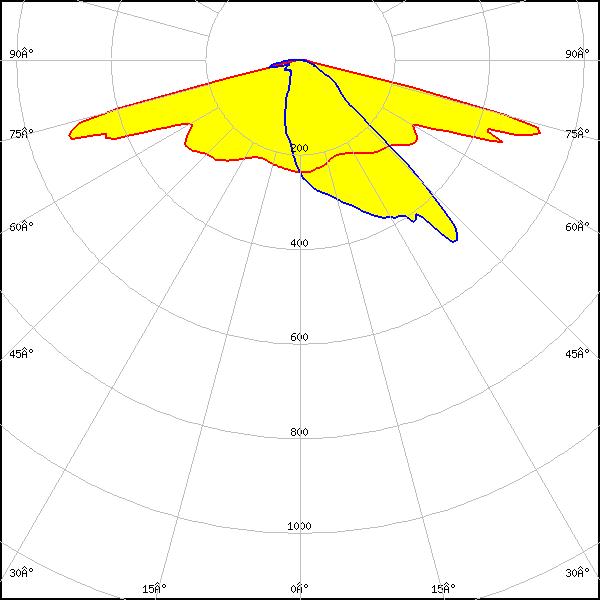

LED: LUXEON Z ES
FWHM: asymmetric
Peak intensity: 1.400 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

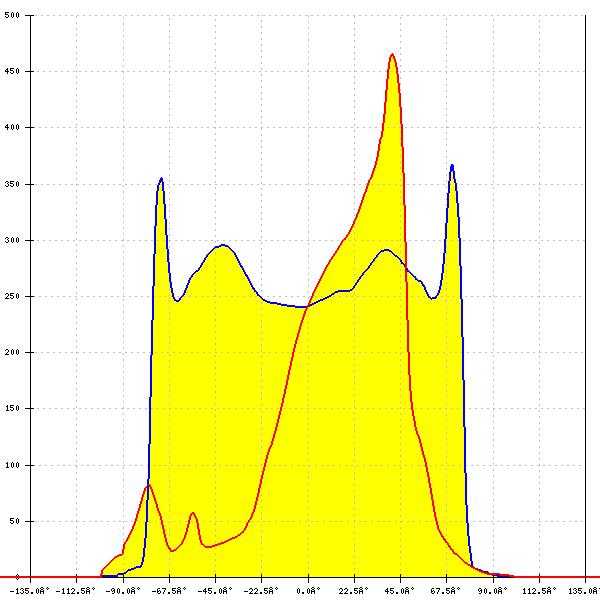

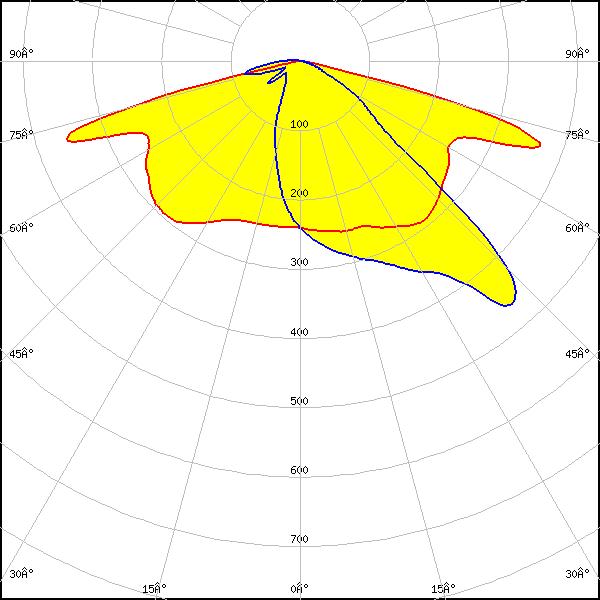

LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: asymmetric
Peak intensity: 0.929 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White
LED: NS9x383
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

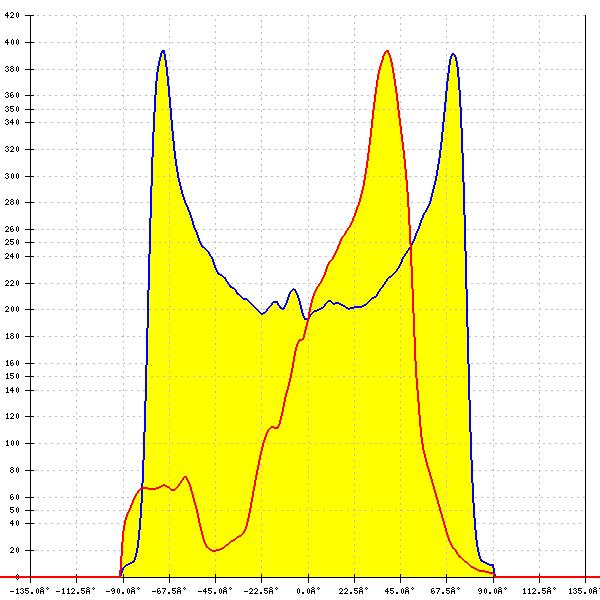

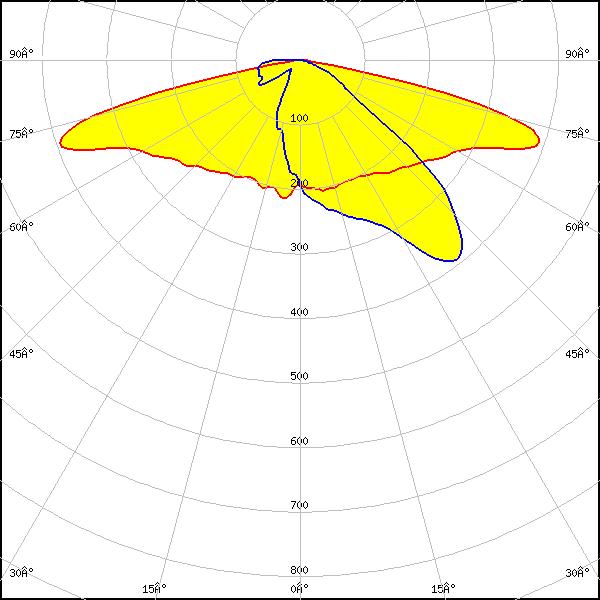

LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 0.663 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

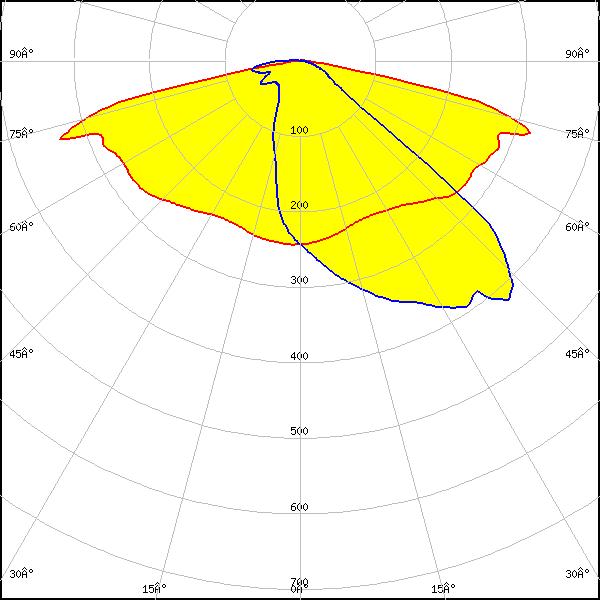

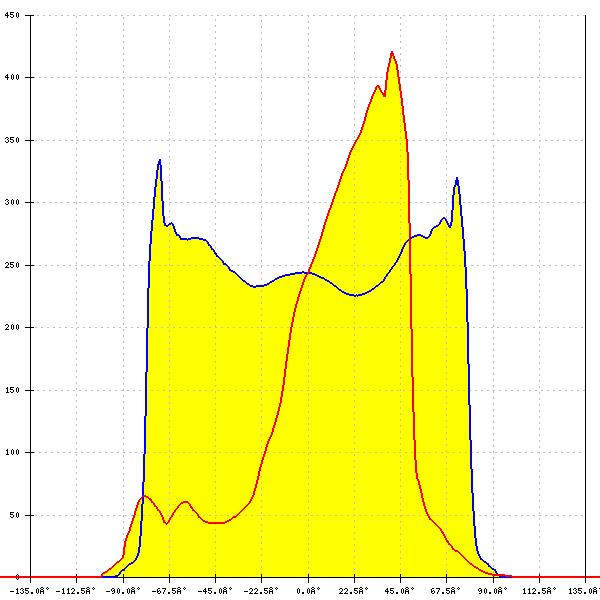

LED: NVSW219D
FWHM: asymmetric
Peak intensity: 0.788 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NVSW219D
FWHM: asymmetric
Peak intensity: 0.607 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

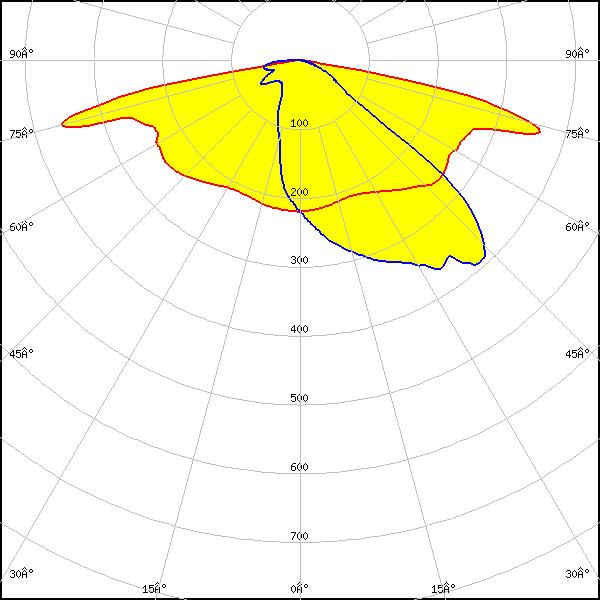

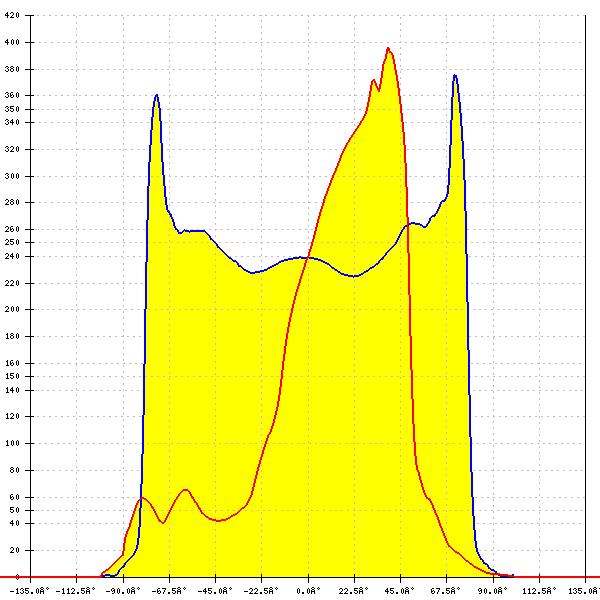

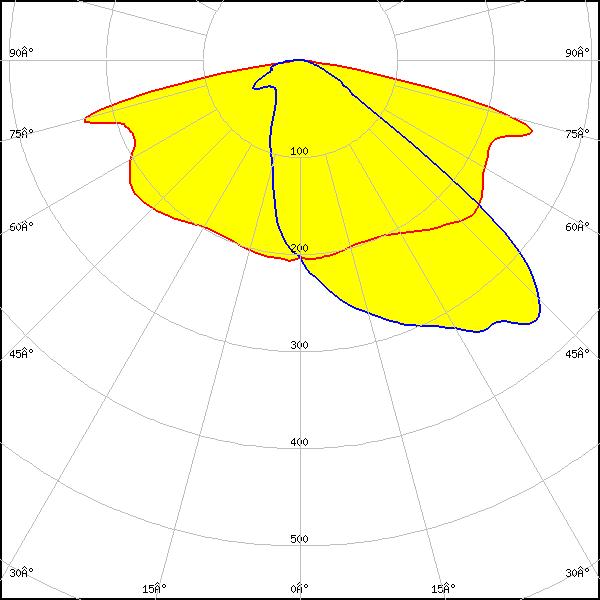

LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.535 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.871 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White
LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.880 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

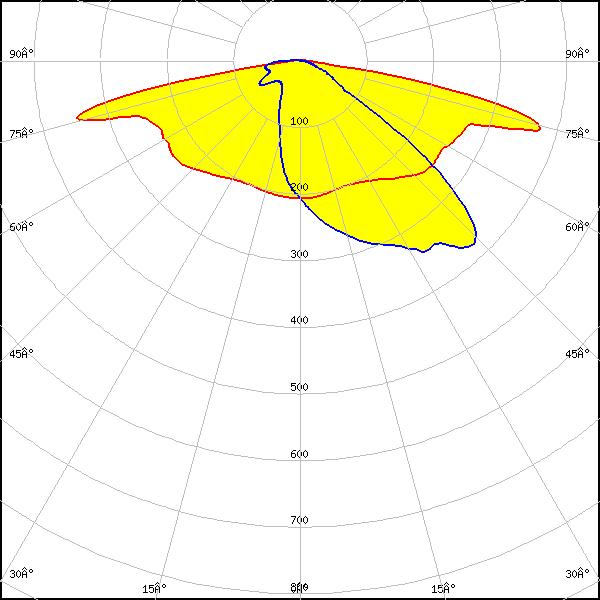

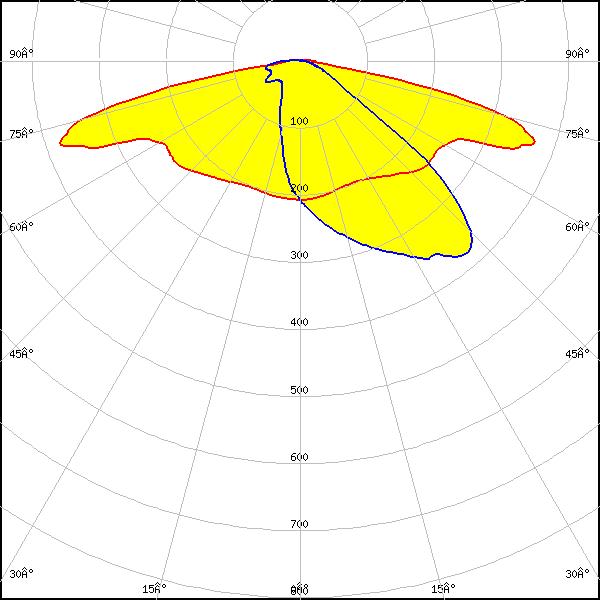

LED: NVSW319B
FWHM: asymmetric
Peak intensity: 0.800 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NVSW3x9A
FWHM: asymmetric
Peak intensity: 0.770 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

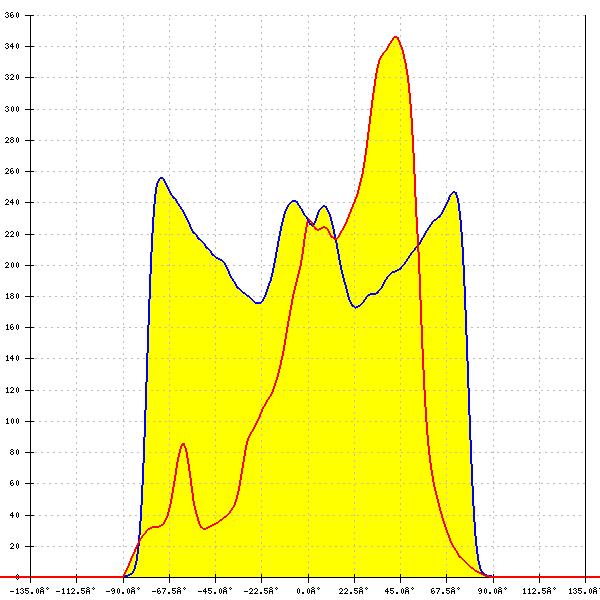

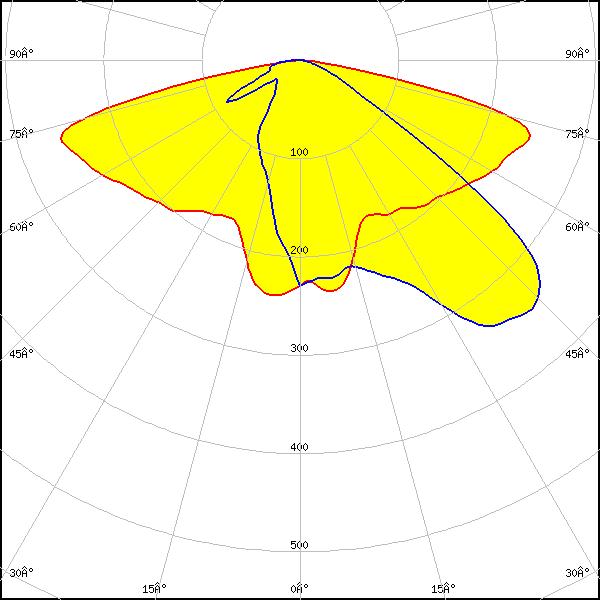

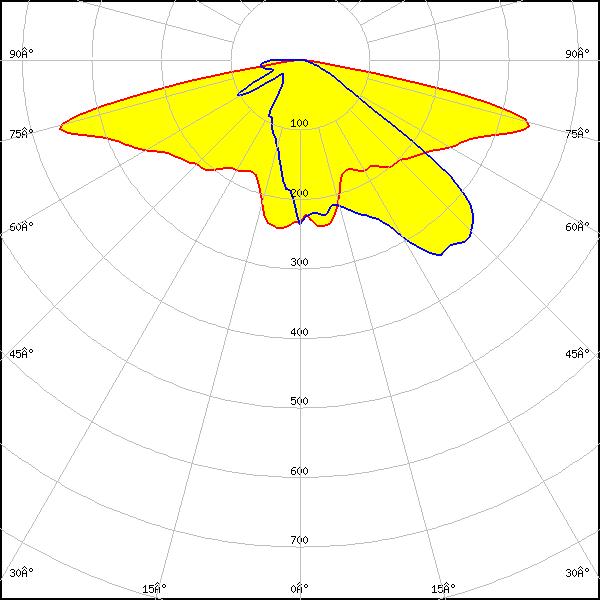

LED: NVSW519A
FWHM: asymmetric
Peak intensity: 0.619 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: NVSW519A
FWHM: asymmetric
Peak intensity: 0.408 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

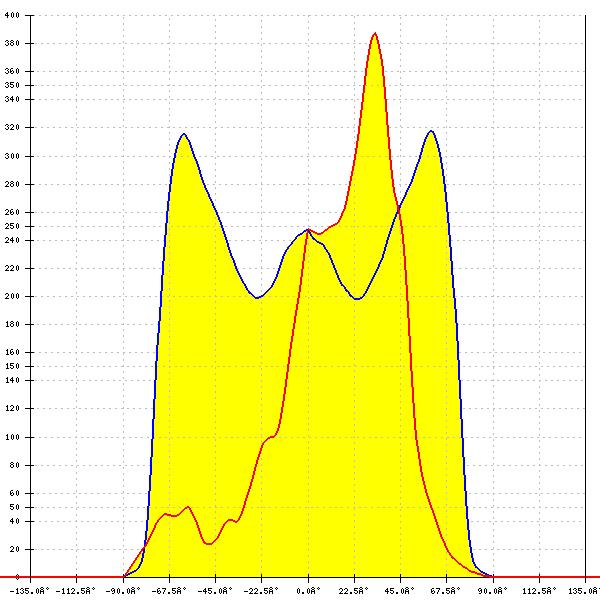

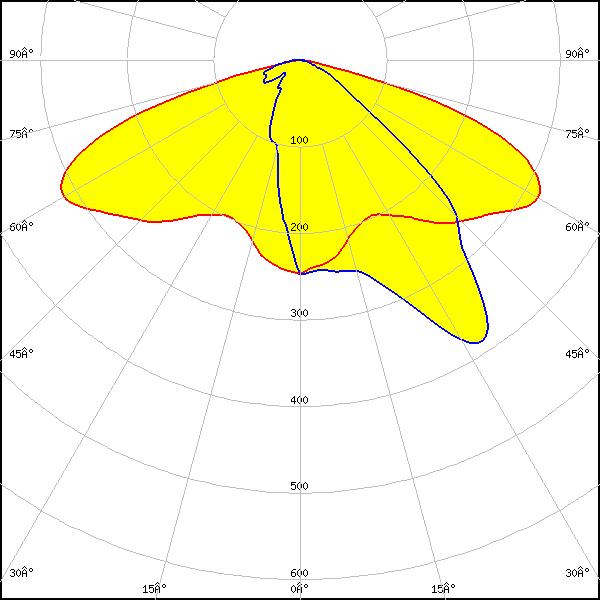

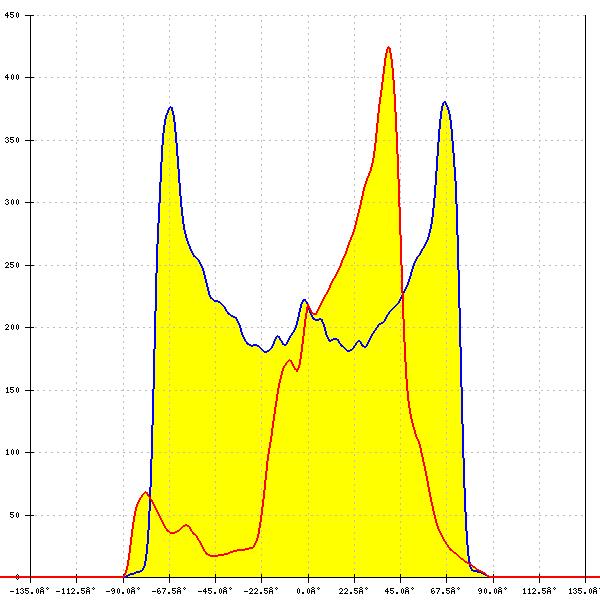

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.534 cd/lm
Efficiency: 96 %
LEDs/each optic: 4
Light colour: White
LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.440 cd/lm
Efficiency: 83 %
LEDs/each optic: 4
Light colour: White
LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.739 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

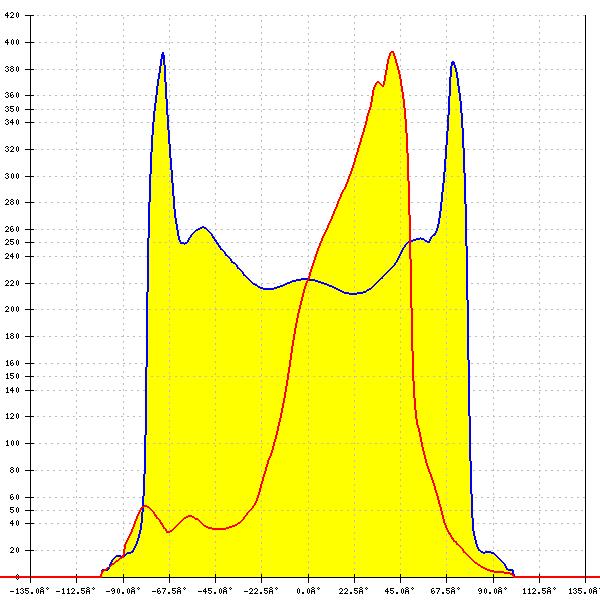

LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 0.724 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: Amber
LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 0.542 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 0.900 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

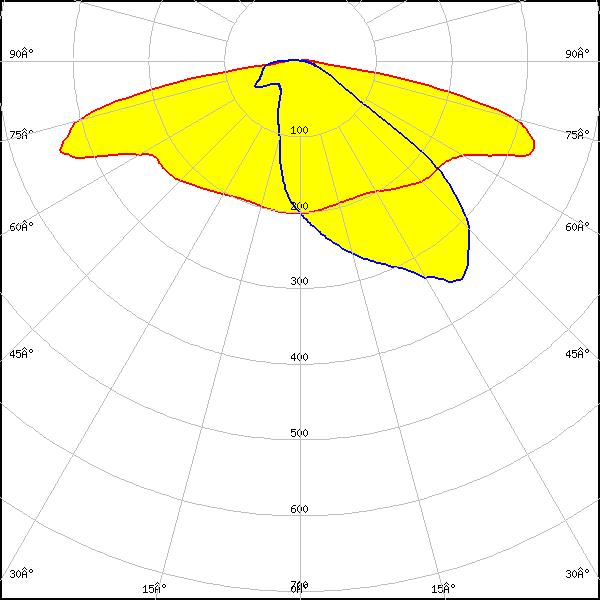

LED: NWSx229A
FWHM: asymmetric
Peak intensity: 0.620 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

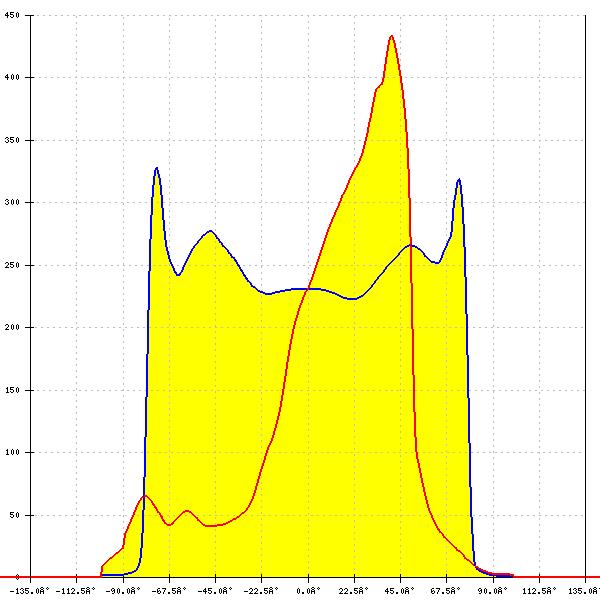

LED: PL-BRICK HP 3800 2x8 SSG
FWHM: asymmetric
Peak intensity: 0.766 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

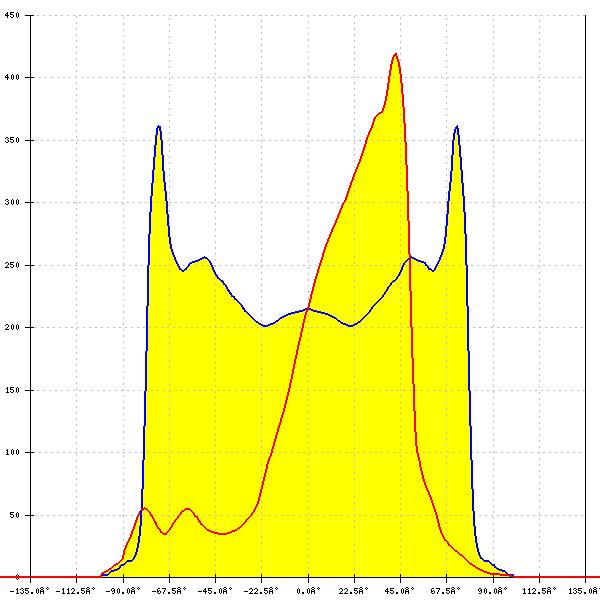

LED: PrevaLED Brick HP 2x8
FWHM: asymmetric
Peak intensity: 0.980 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

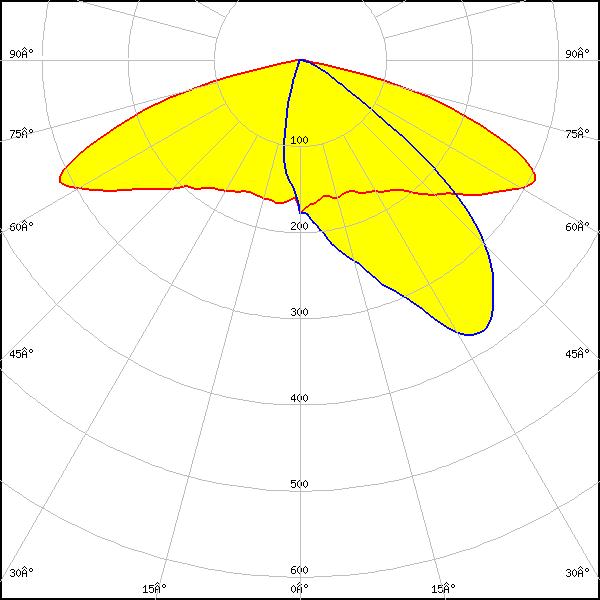

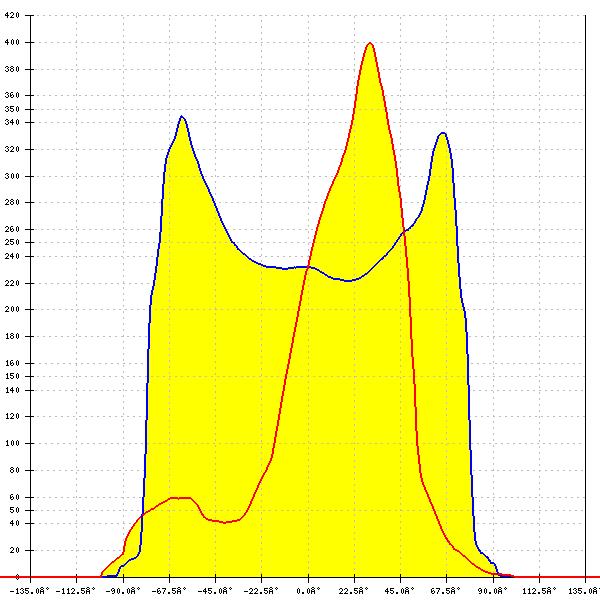

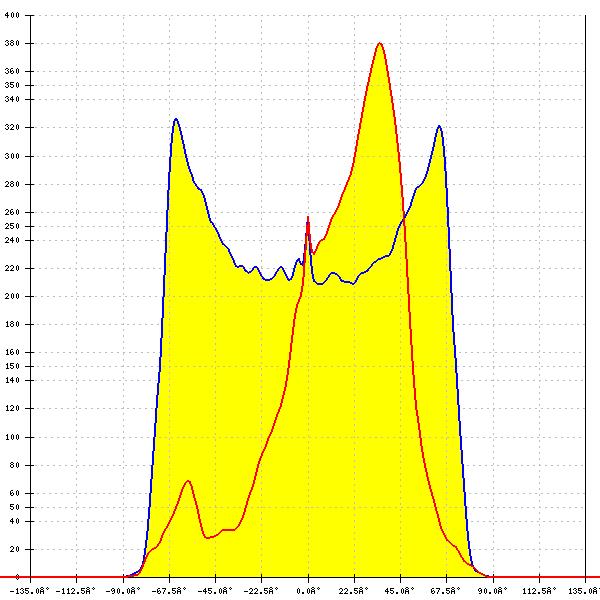

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.520 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: Duris S8
Required components:
FWHM: asymmetric
Peak intensity: 0.524 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White
LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.530 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 3737 (2W version)
FWHM: asymmetric
Peak intensity: 0.740 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 3737 (3W version)
FWHM: asymmetric
Peak intensity: 0.680 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 0.625 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 0.611 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

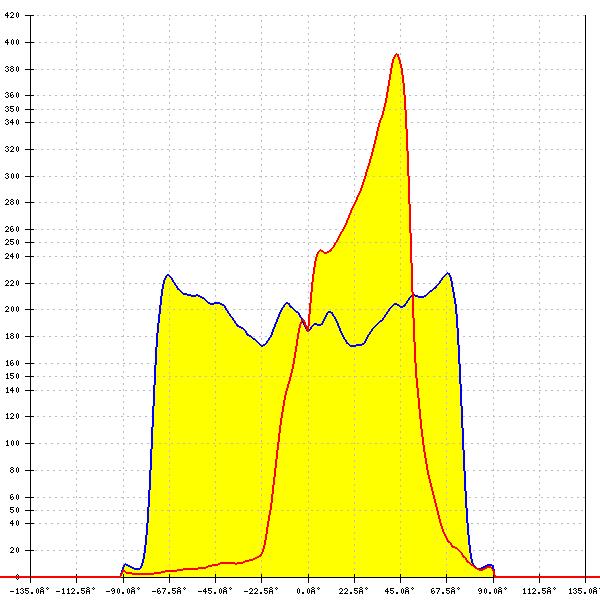

LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 0.462 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 0.447 cd/lm
Efficiency: 68 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.490 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.980 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

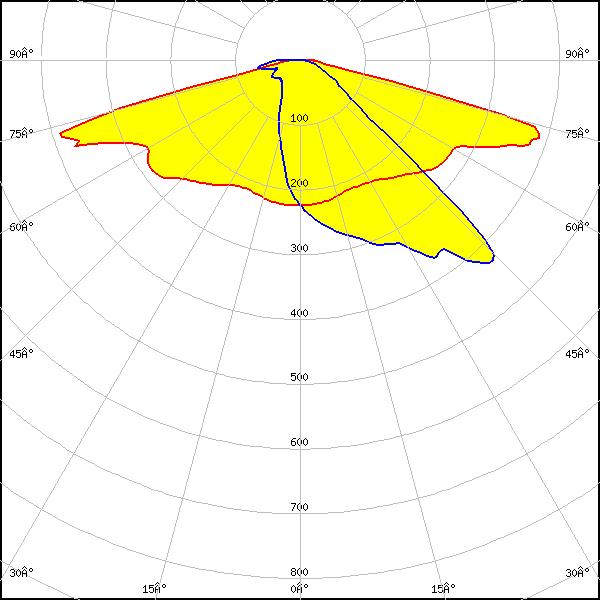

LED: OSLON Square PC
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x2 DA G5
Required components:
FWHM: asymmetric
Peak intensity: 0.691 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x2 DA G5
Required components:
FWHM: asymmetric
Peak intensity: 0.467 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x8 DA G4
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

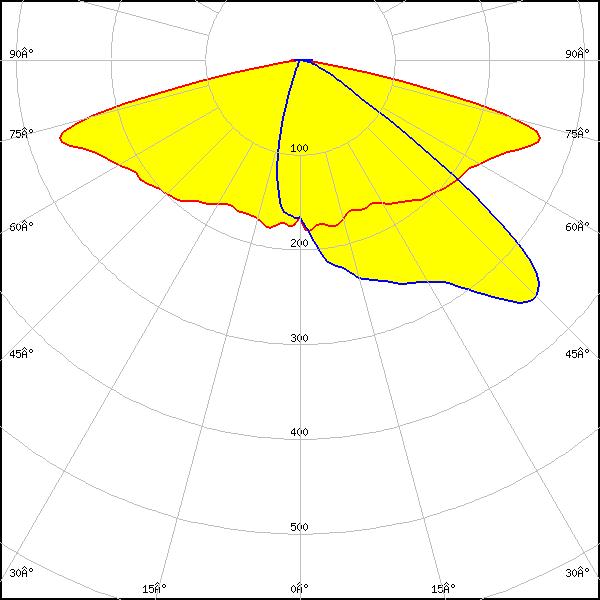

LED: Fortimo FastFlex LED 2x8 DA G4+
Required components:
FWHM: asymmetric
Peak intensity: 0.574 cd/lm
Efficiency: 75 %
LEDs/each optic: 1

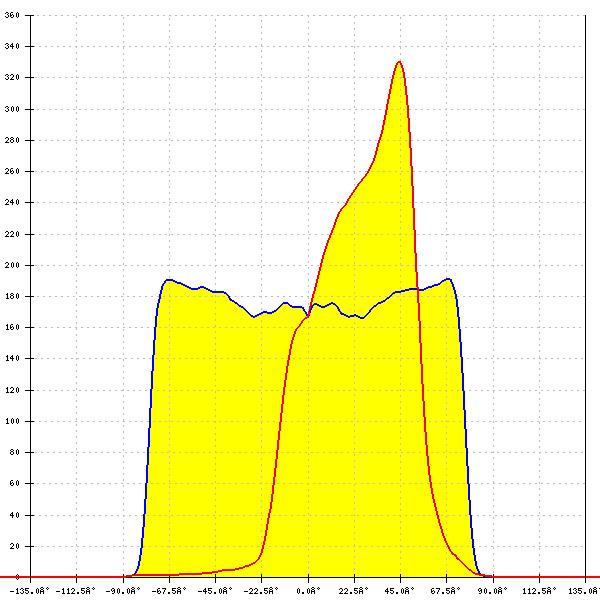

Light colour: White
LED: Fortimo FastFlex LED 2x8 DA G4+
Required components:
FWHM: asymmetric
Peak intensity: 0.386 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x8 DA G4+
FWHM: asymmetric
Peak intensity: 0.819 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x8 DA G5
FWHM: asymmetric
Peak intensity: 0.494 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x8 DA G5
FWHM: asymmetric
Peak intensity: 0.556 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x8 DA G5
FWHM: asymmetric
Peak intensity: 0.922 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x8 DAX G4
FWHM: asymmetric
Peak intensity: 0.000 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: HiLOM RC12 Z (LH181B)
FWHM: asymmetric
Peak intensity: 1.158 cd/lm
Efficiency: 99 %
LEDs/each optic: 1
Light colour: White

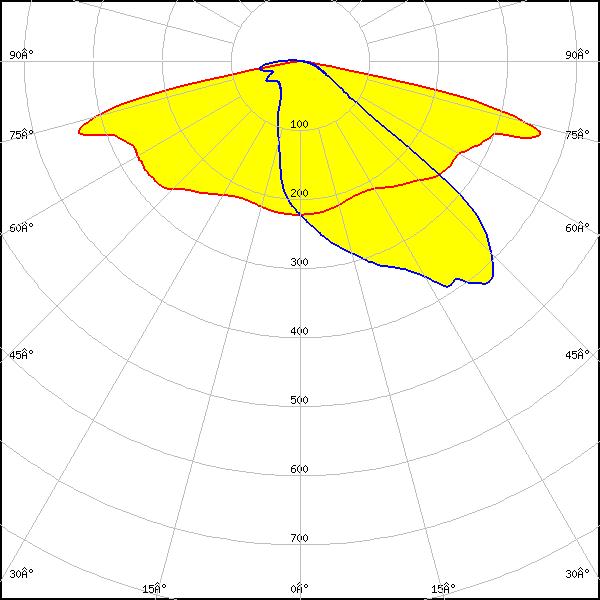

LED: HiLOM RH12 Z (LH351C)
FWHM: asymmetric
Peak intensity: 0.497 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: HiLOM RH12 Z (LH351C)
FWHM: asymmetric
Peak intensity: 0.800 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White
LED: HiLOM RH16 (LH351C)
FWHM: asymmetric
LEDs/each optic: 1
Light colour: White
LED: HiLOM RM12 Z (LH502C)
FWHM: asymmetric
Peak intensity: 0.556 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White
LED: HiLOM RM16 Z (LH502C)
FWHM: asymmetric
Peak intensity: 0.565 cd/lm
Efficiency: 99 %
LEDs/each optic: 1
Light colour: White
LED: HiLOM RM8 Z (LH502C)
FWHM: asymmetric
Peak intensity: 0.575 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

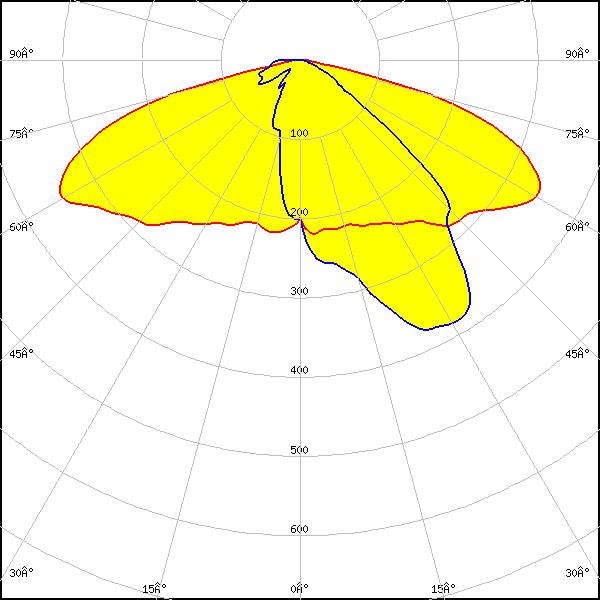

LED: LH181B
FWHM: asymmetric
Peak intensity: 0.491 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White
LED: LH351B
FWHM: asymmetric
Peak intensity: 0.446 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White
LED: LH351B
FWHM: asymmetric
Peak intensity: 0.740 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LH351C
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LH351D
FWHM: asymmetric
Peak intensity: 0.590 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LH508A
FWHM: asymmetric
Peak intensity: 0.472 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White
LED: LH508A
FWHM: asymmetric
Peak intensity: 0.530 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

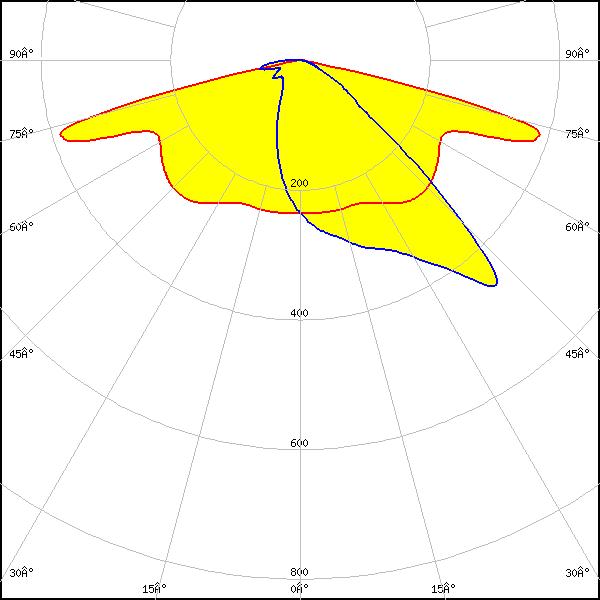

LED: LED-Pa-L15c2W11c2-xxx-C050-01
FWHM: asymmetric
Peak intensity: 0.968 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour: White

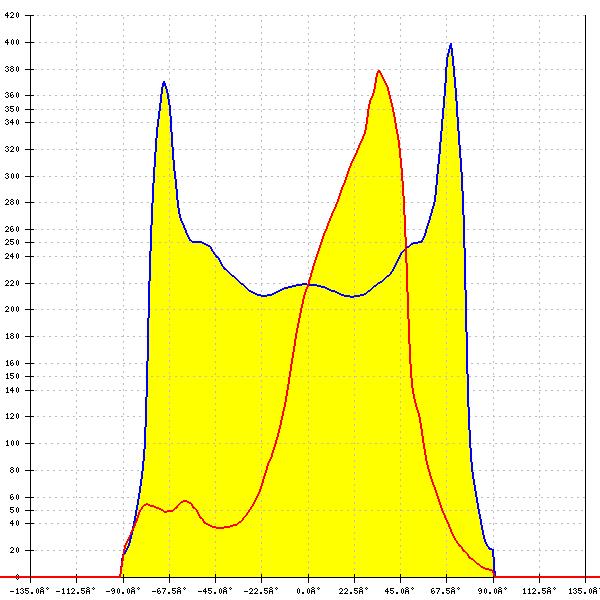

LED: Acrich MJT 4040
FWHM: asymmetric
Peak intensity: 0.800 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

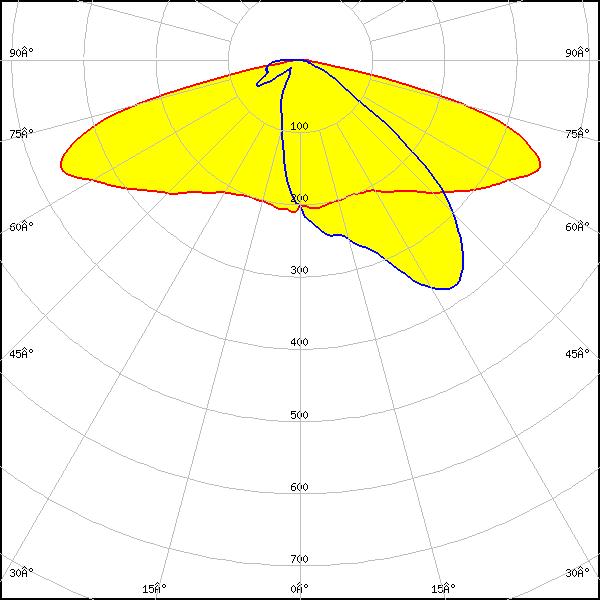

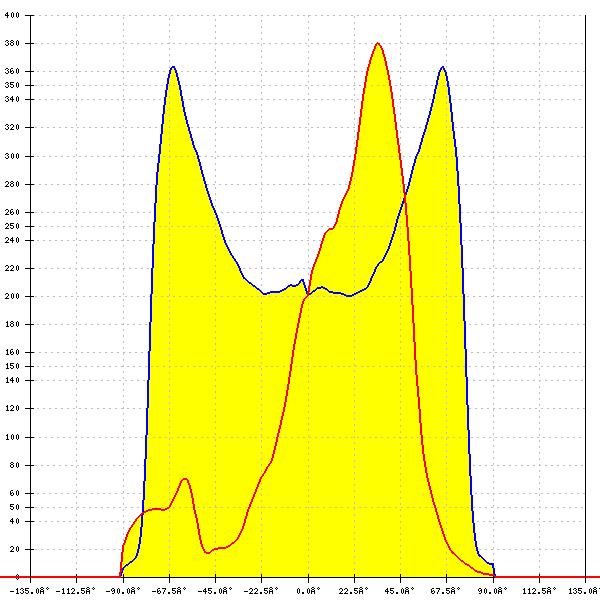

LED: MJT 5050
FWHM: asymmetric
Peak intensity: 0.536 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

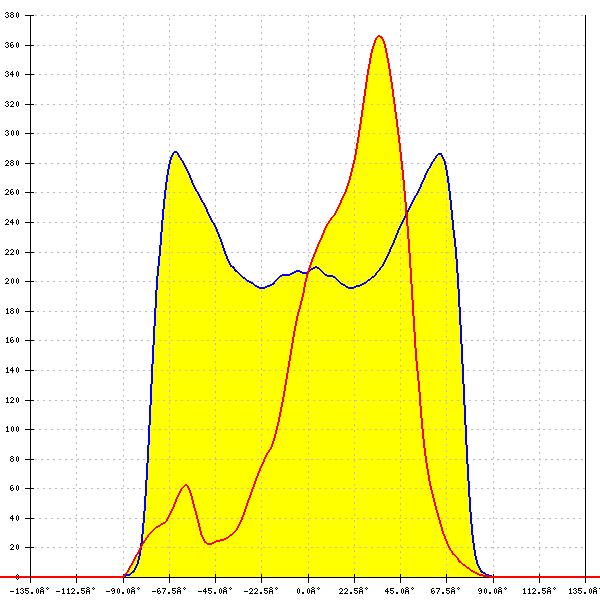

LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.558 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: Z5M
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Z5M1/Z5M2
FWHM: asymmetric
Peak intensity: 0.800 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

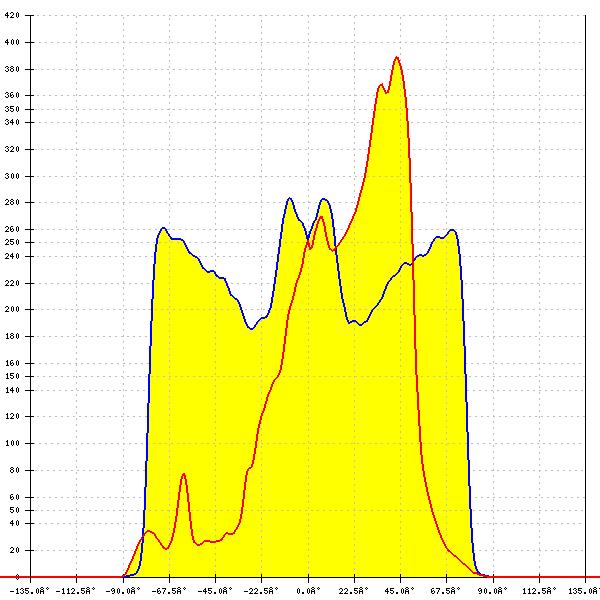

LED: Z5M3
FWHM: asymmetric
Peak intensity: 0.529 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: Z5M3
FWHM: asymmetric
Peak intensity: 0.840 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Z5M4
FWHM: asymmetric
Peak intensity: 0.520 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: Z5M4
FWHM: asymmetric
Peak intensity: 0.810 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White
LED: Z5P
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

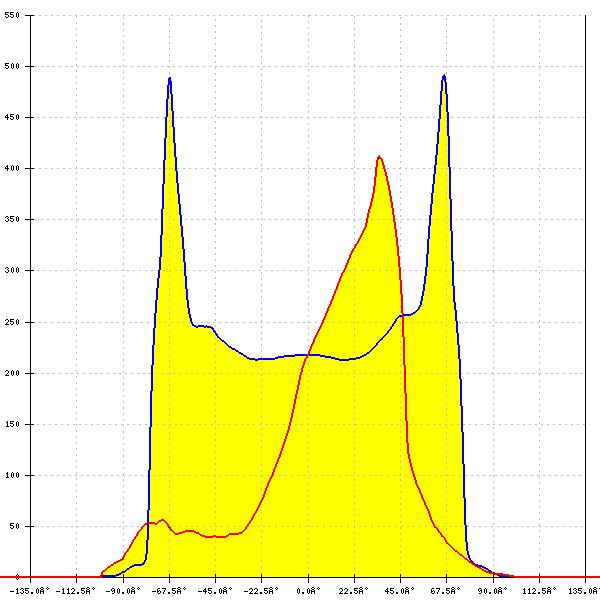

LED: Z8Y22
Required components:
FWHM: asymmetric
Peak intensity: 0.786 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White
LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.990 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

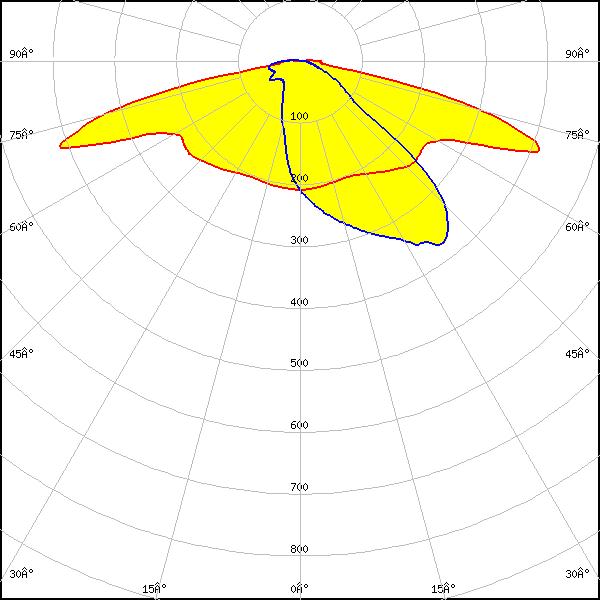

LED: Z8Y22P
FWHM: asymmetric
Peak intensity: 0.840 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

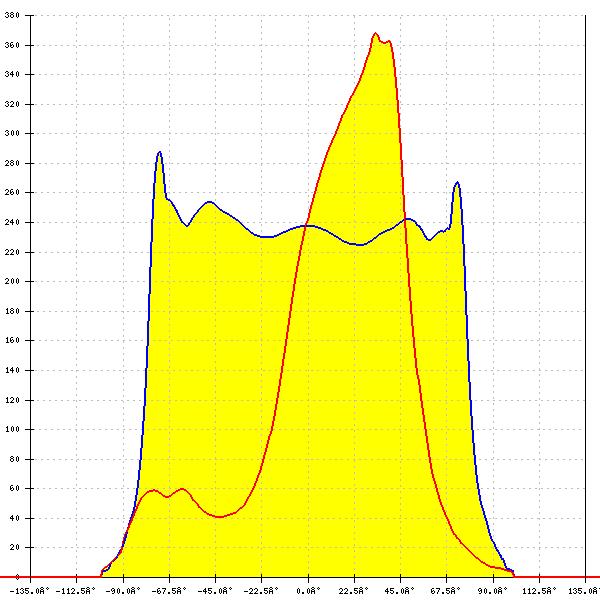

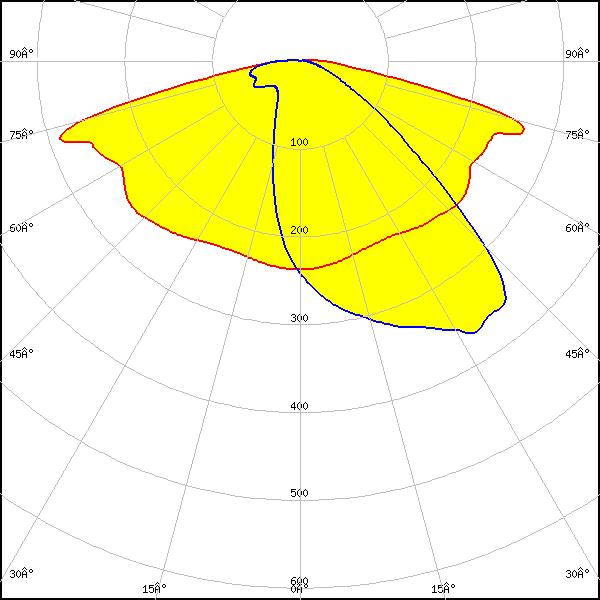

LED: TL1L3
FWHM: asymmetric
Peak intensity: 0.680 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: TL1L4
FWHM: asymmetric
Peak intensity: 0.880 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: RLE 2x4 2000lm HP EXC2 OTD
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: RLE 2x8 4000lm HP EXC2 OTD
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: RLE G1 49x121mm 2000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: RLE G1 49x133mm 2000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: RLE G1 49x223mm 4000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: RLE G1 49x245mm 4000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
