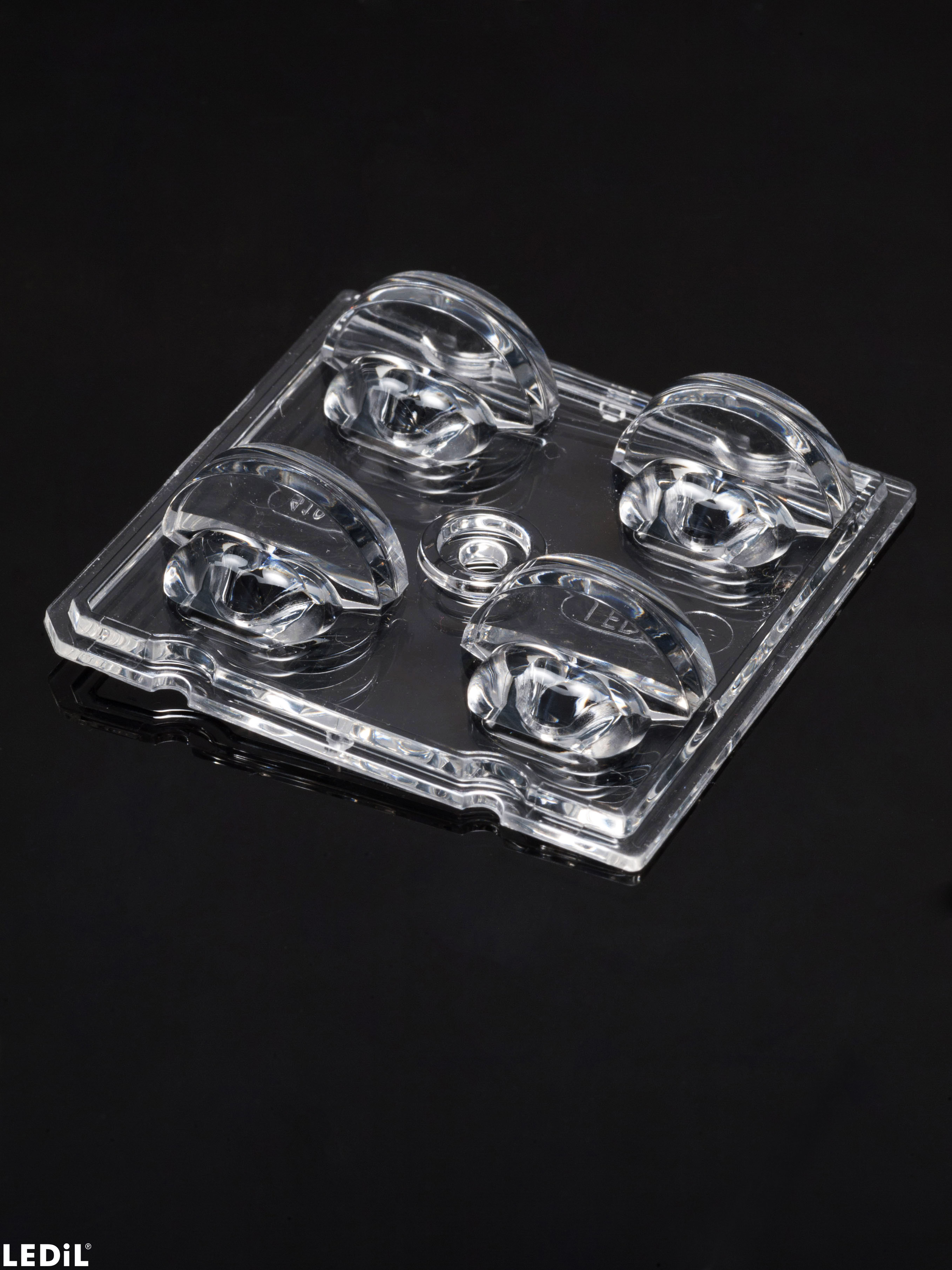

C14109_STRADA-2X2-NHS

Print

Narrow beam with minimal house side backlight

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    10.13 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.5 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.5 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C14109_STRADA-2X2-NHS

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

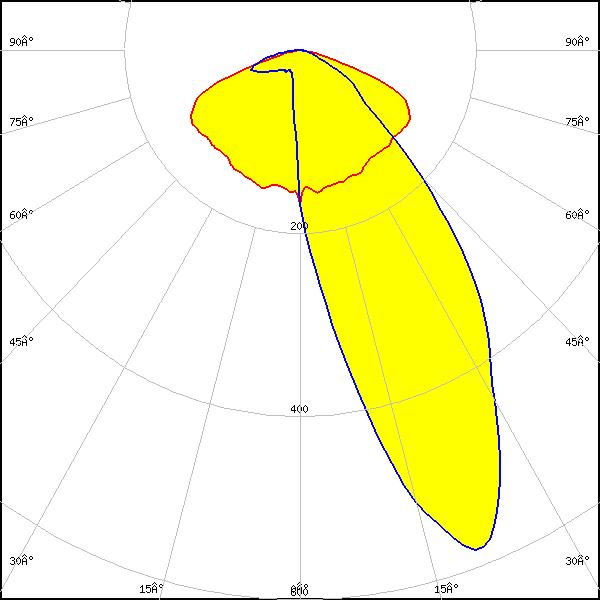

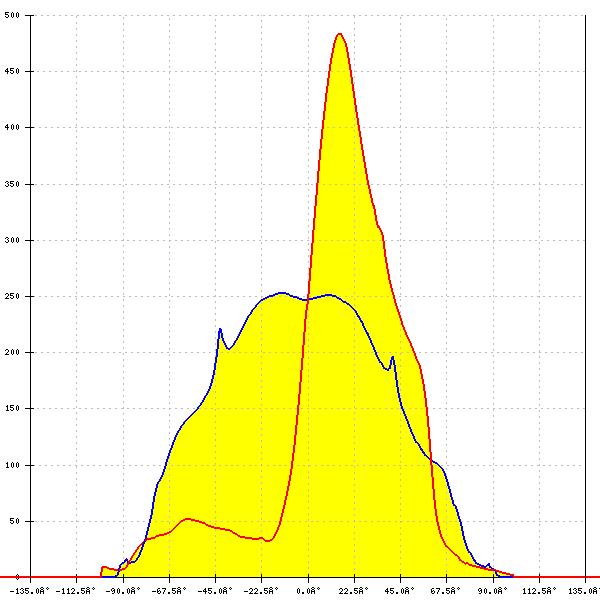

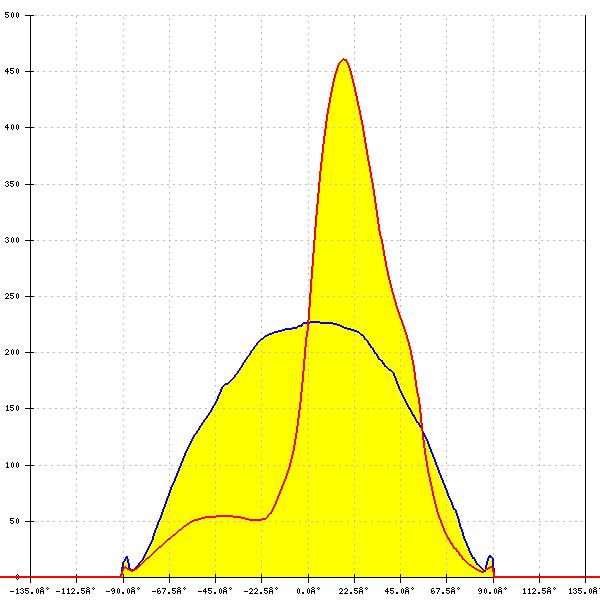

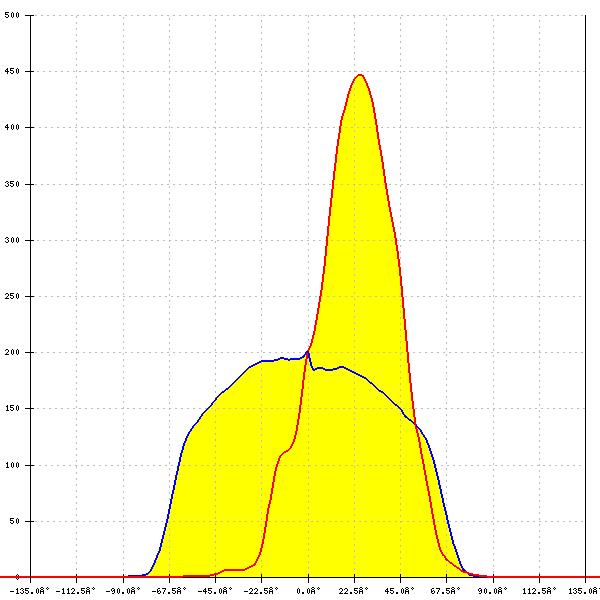

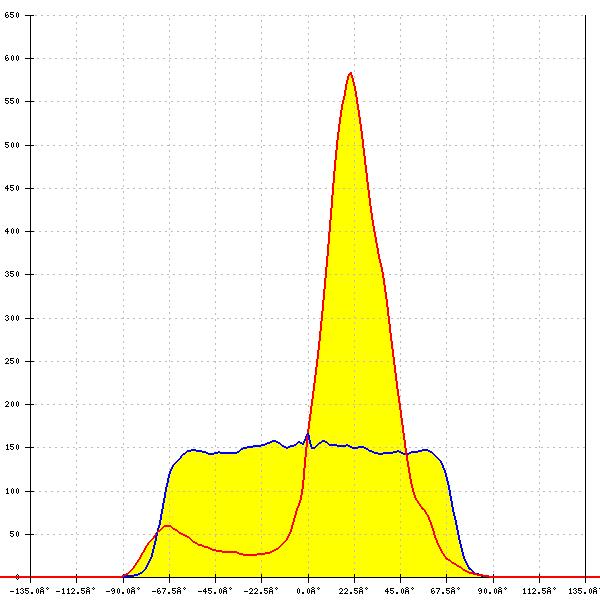

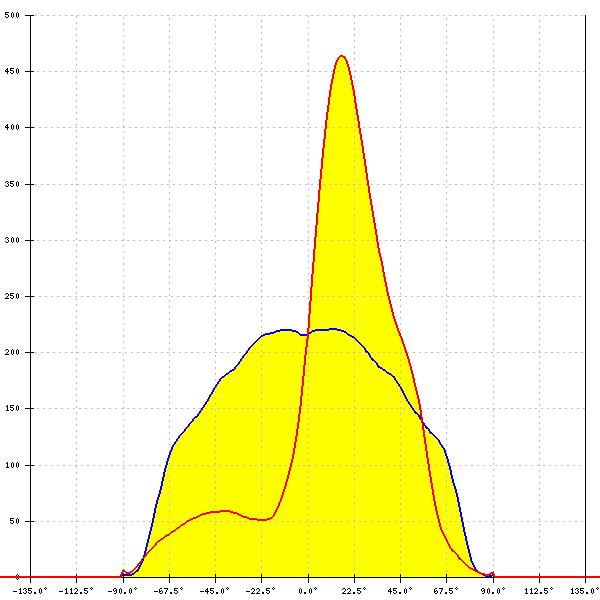

Optical results

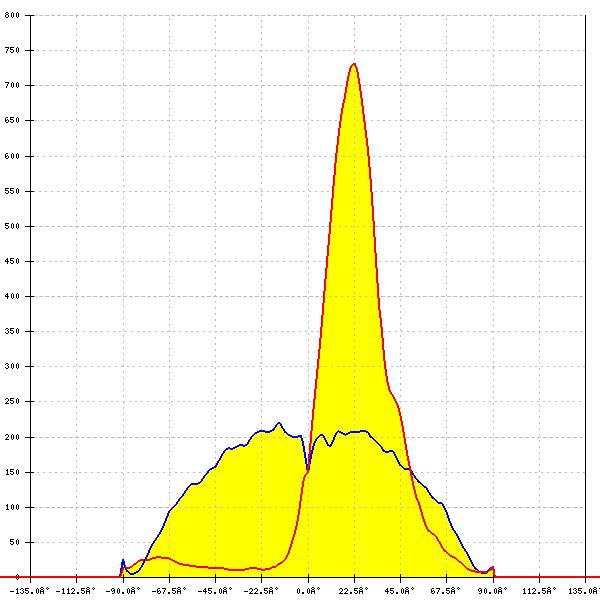

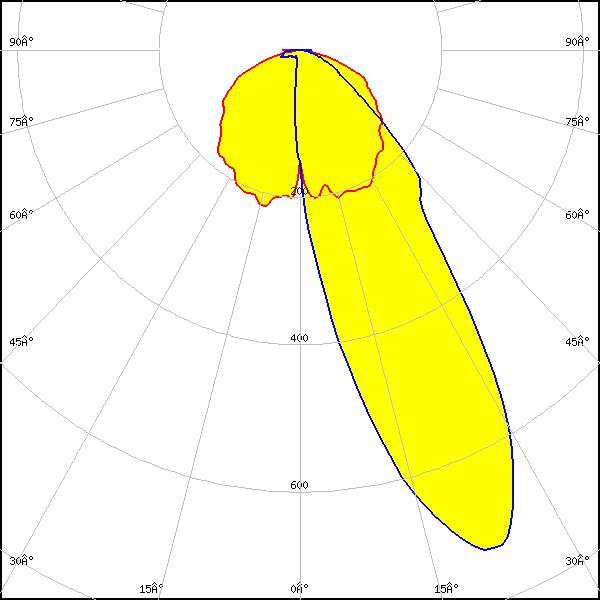

LED: XB-H
FWHM: asymmetric
Peak intensity: 0.750 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

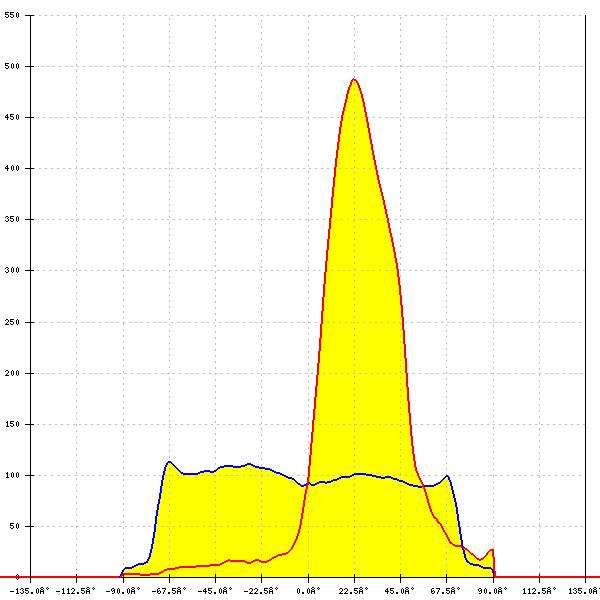

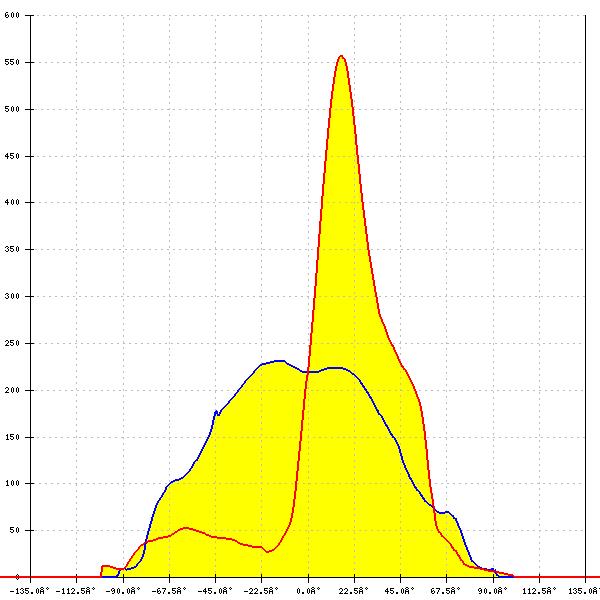

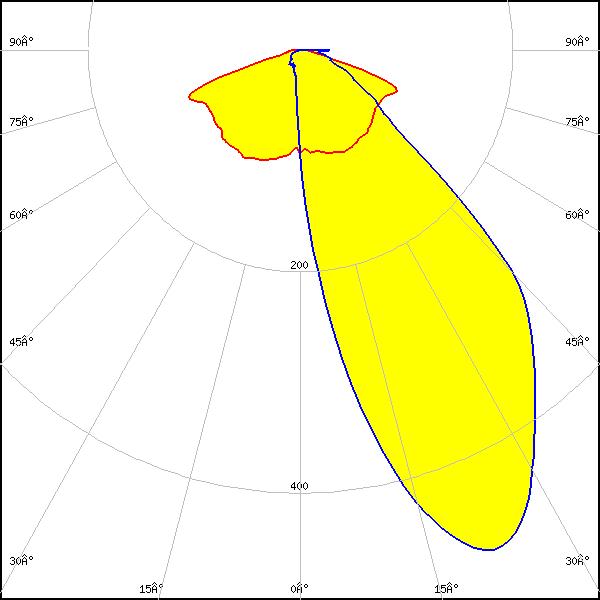

LED: XP-G2
Required components:
FWHM: asymmetric
Peak intensity: 0.702 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

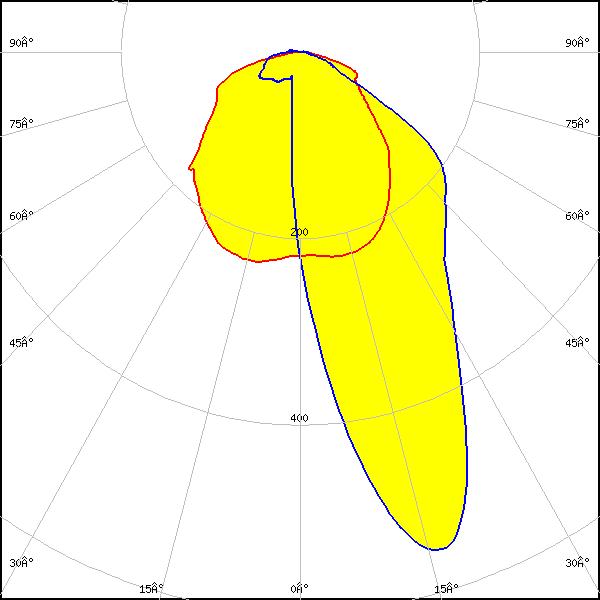

LED: XP-G2
FWHM: asymmetric
Peak intensity: 0.800 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

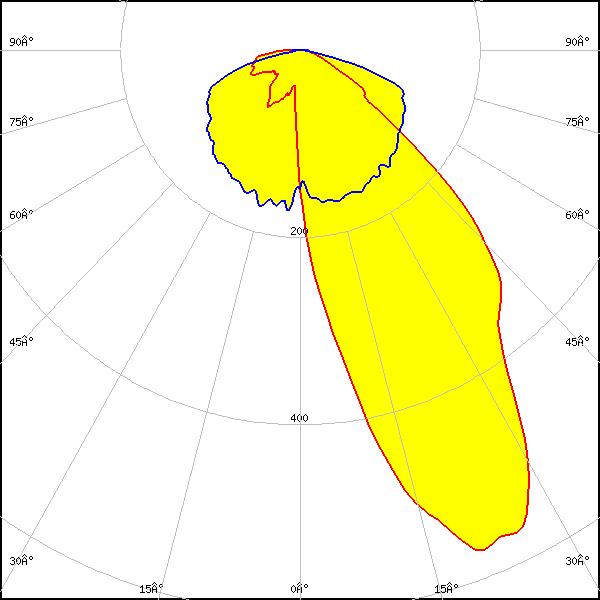

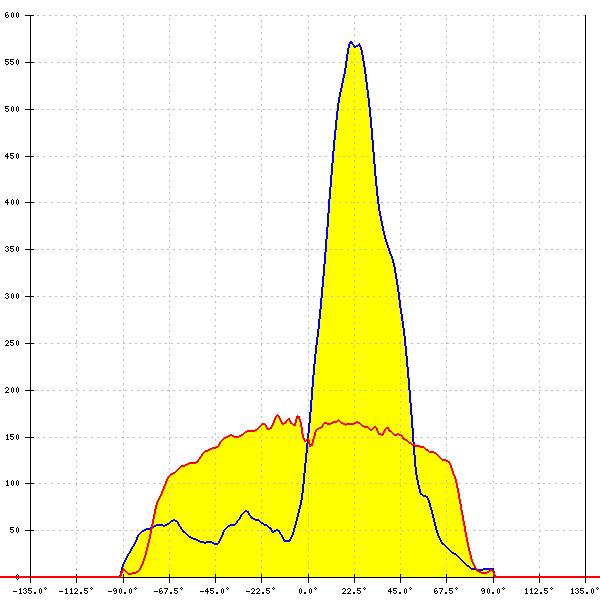

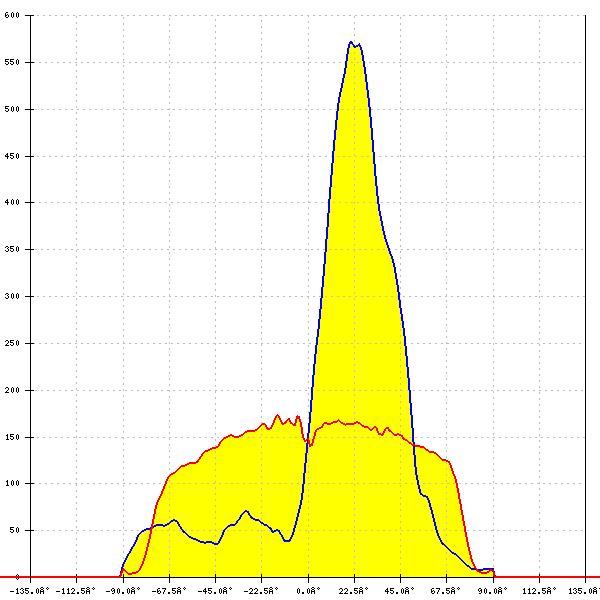

LED: XP-G2 HE
FWHM: asymmetric
Peak intensity: 0.630 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

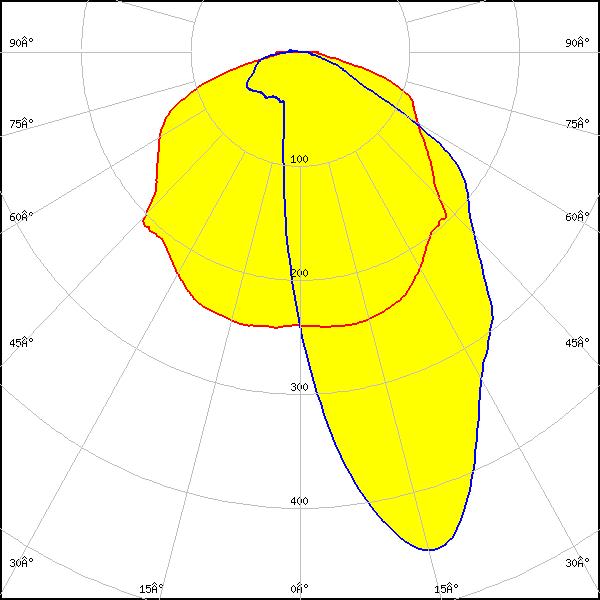

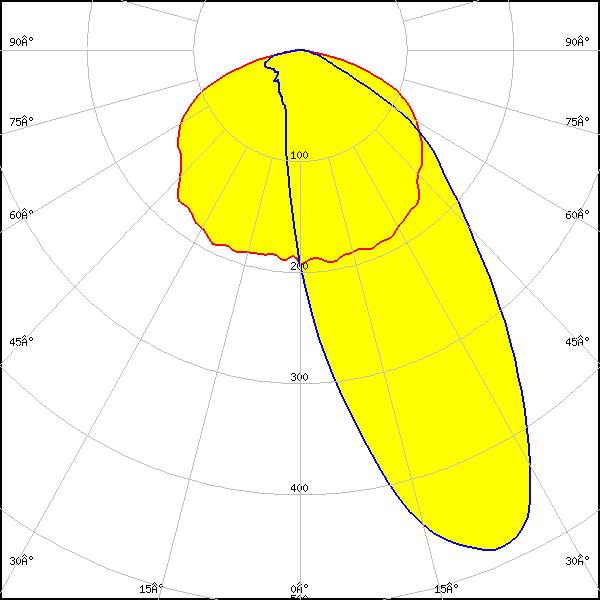

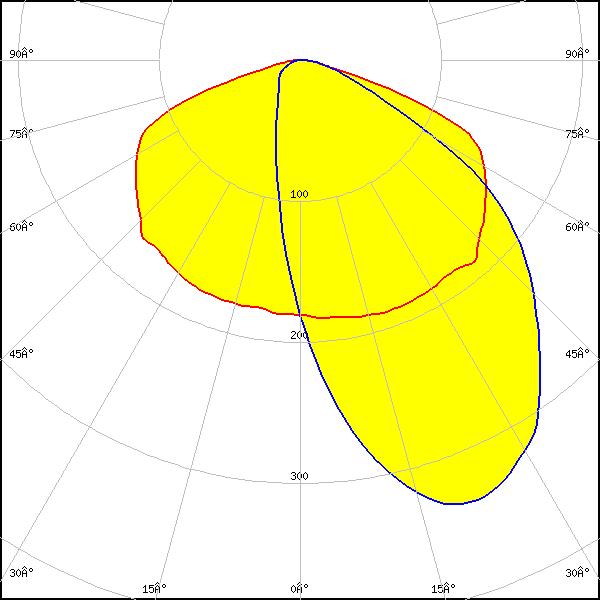

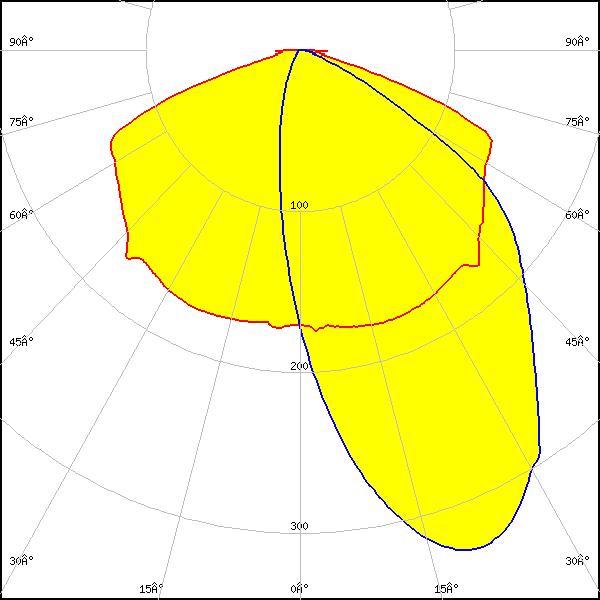

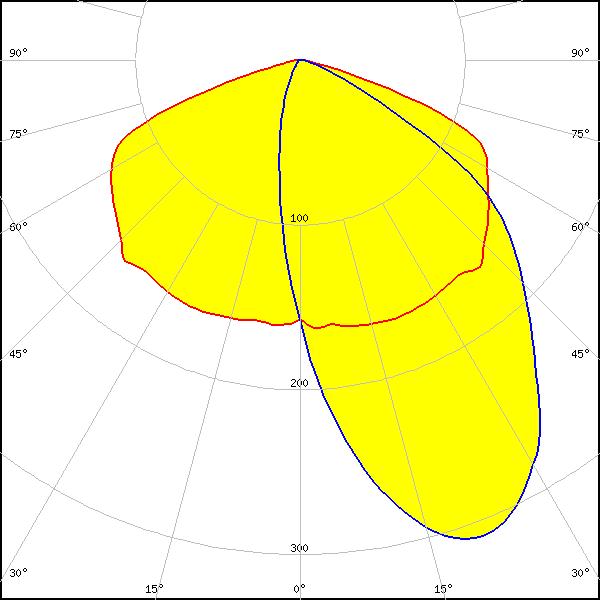

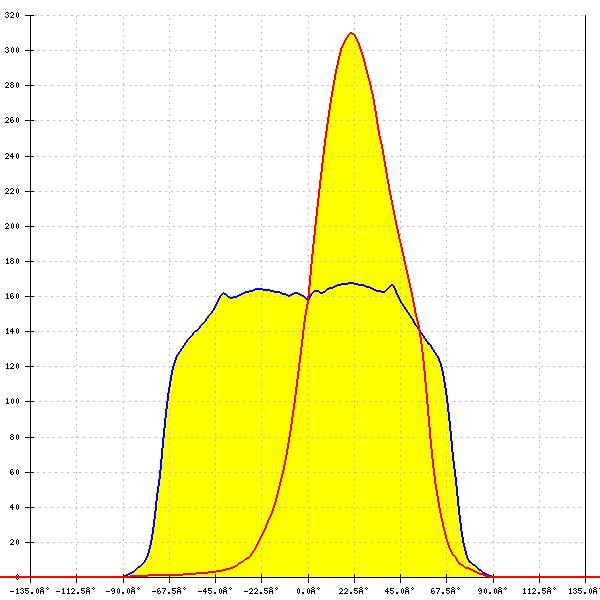

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.501 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

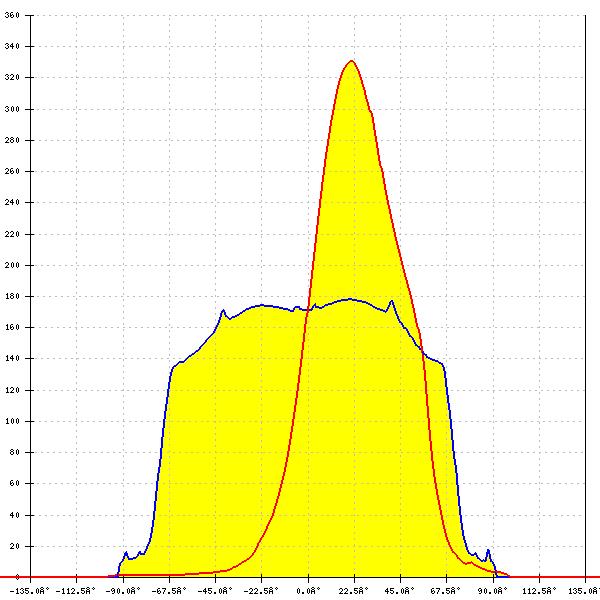

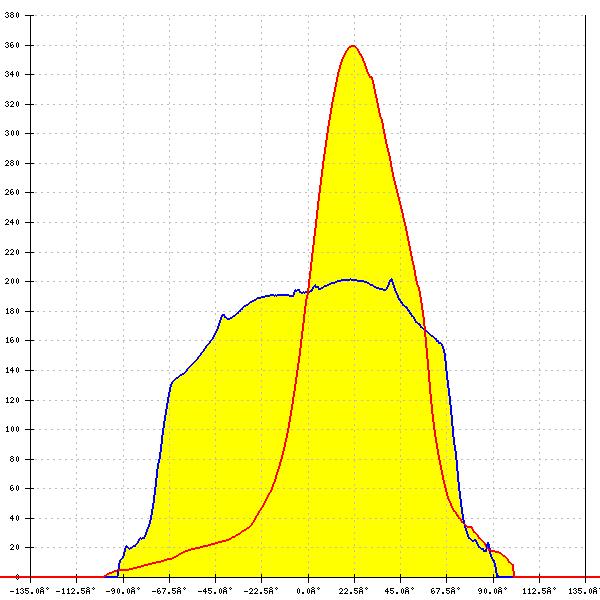

LED: XP-G3
Required components:
FWHM: asymmetric
Peak intensity: 0.474 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.660 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

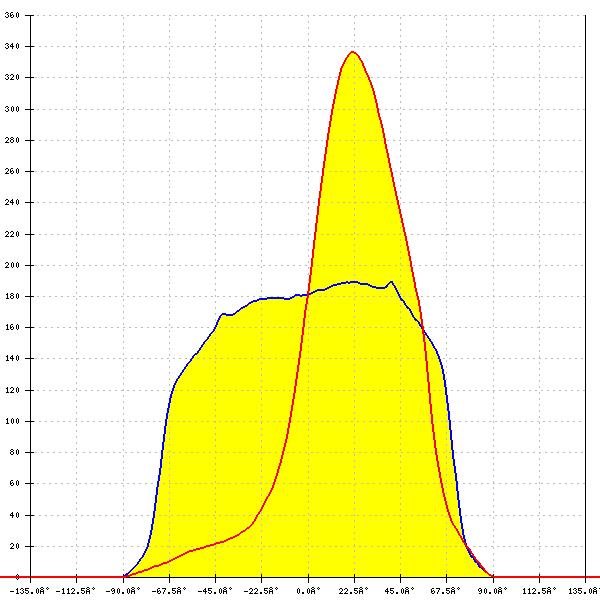

LED: XP-G3
Required components:
FWHM: asymmetric
Peak intensity: 0.555 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White
LED: XP-G3
Required components:
FWHM: asymmetric
Peak intensity: 0.596 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

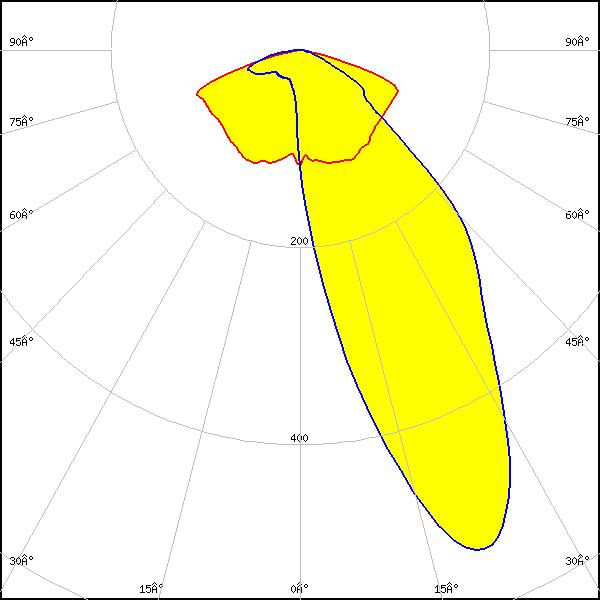

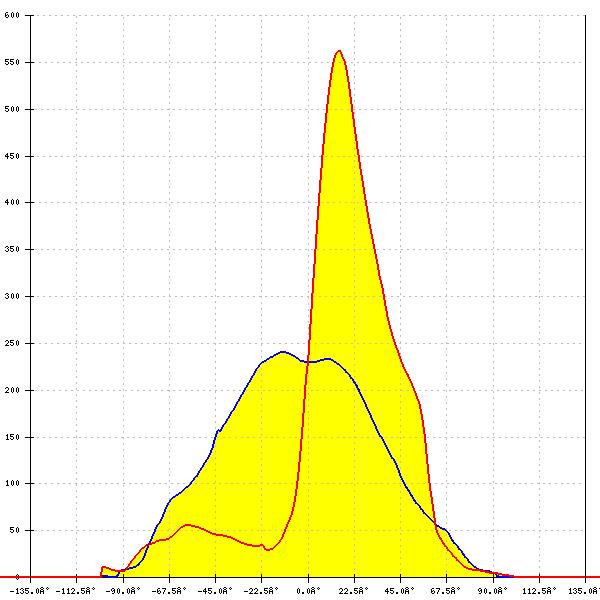

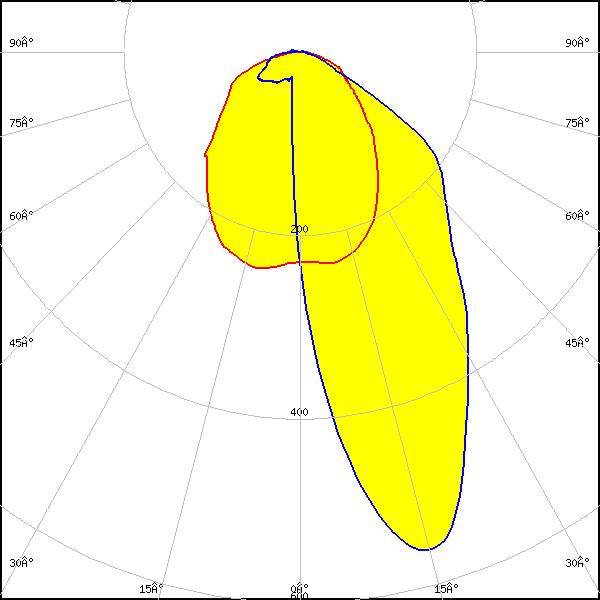

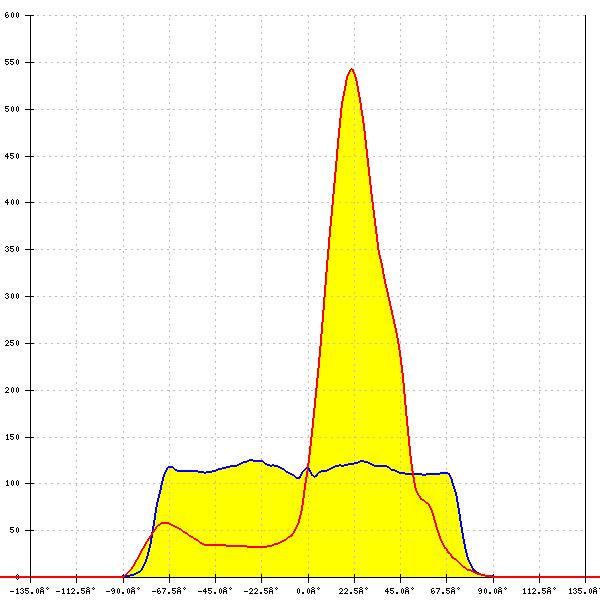

LED: LUXEON TX
FWHM: asymmetric
Peak intensity: 0.810 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

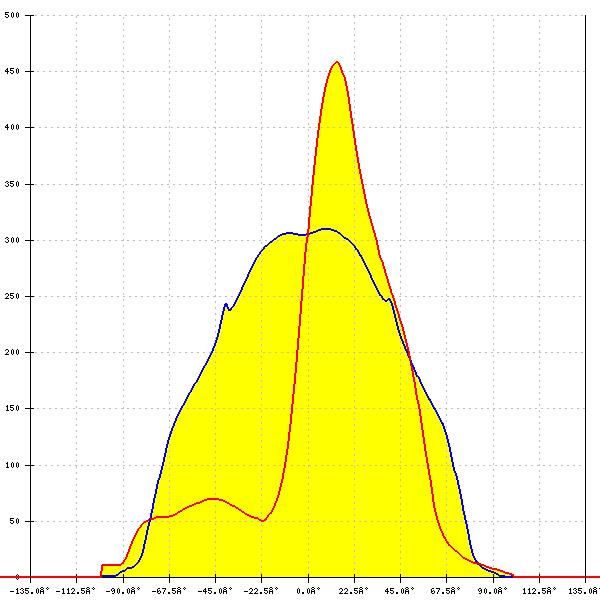

LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: asymmetric
Peak intensity: 0.723 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

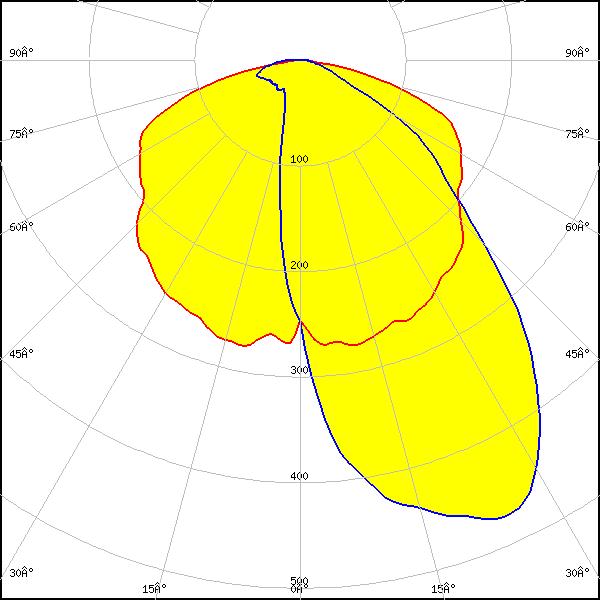

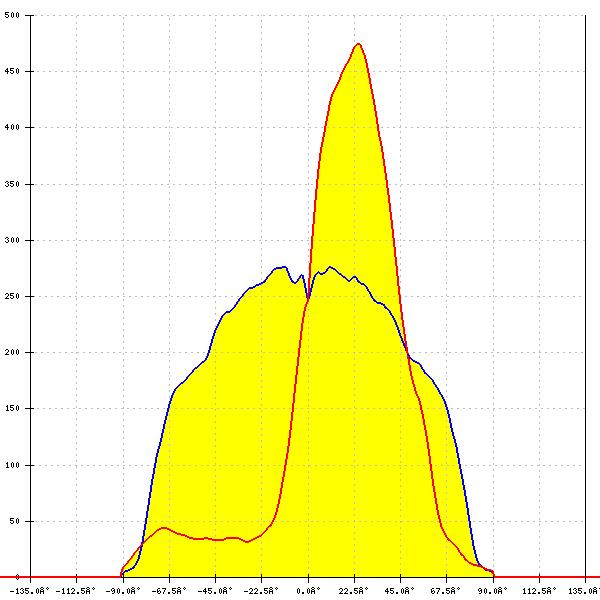

LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 0.517 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

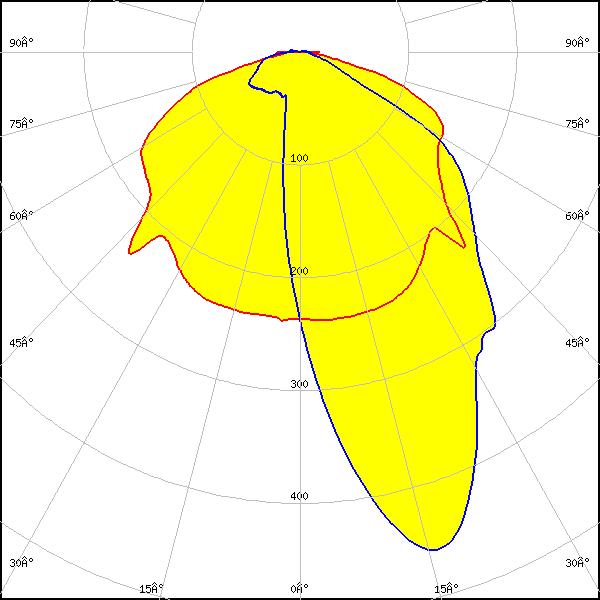

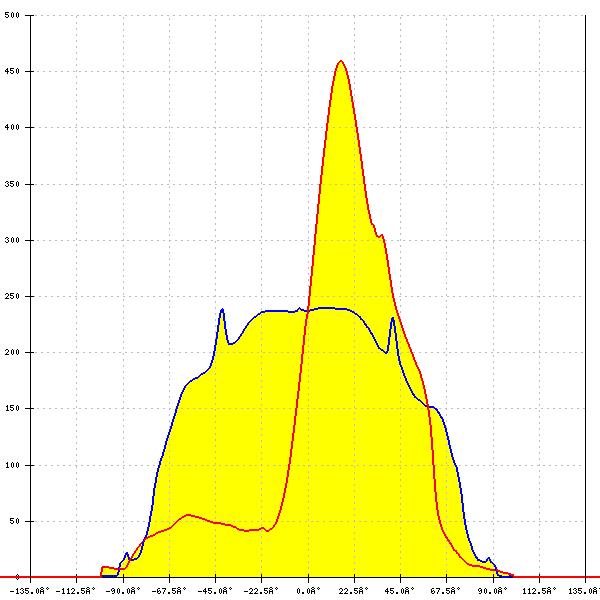

LED: NVSW3x9A
FWHM: asymmetric
Peak intensity: 0.670 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

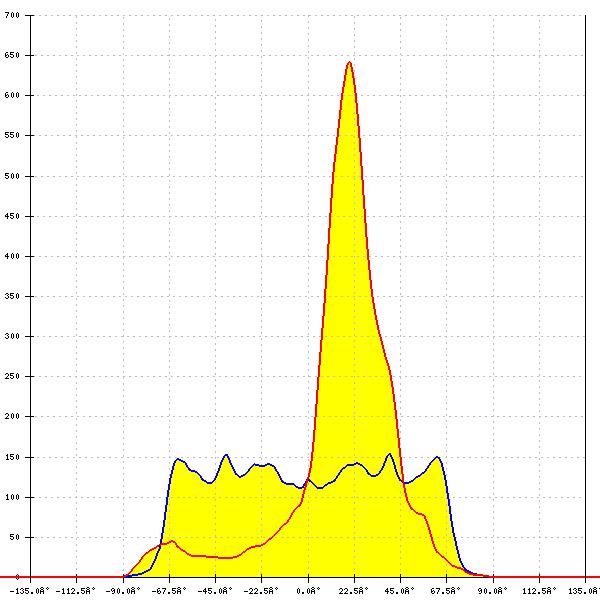

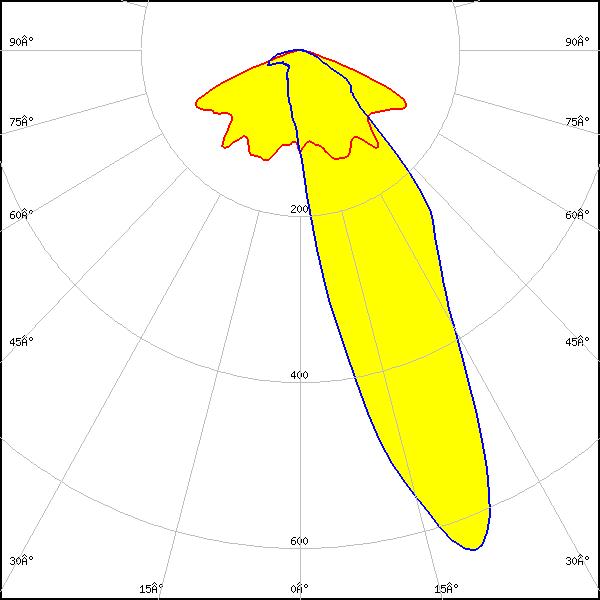

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.767 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

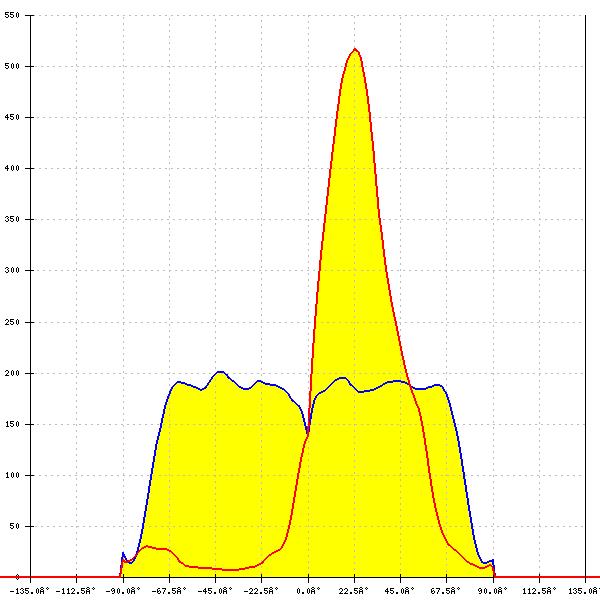

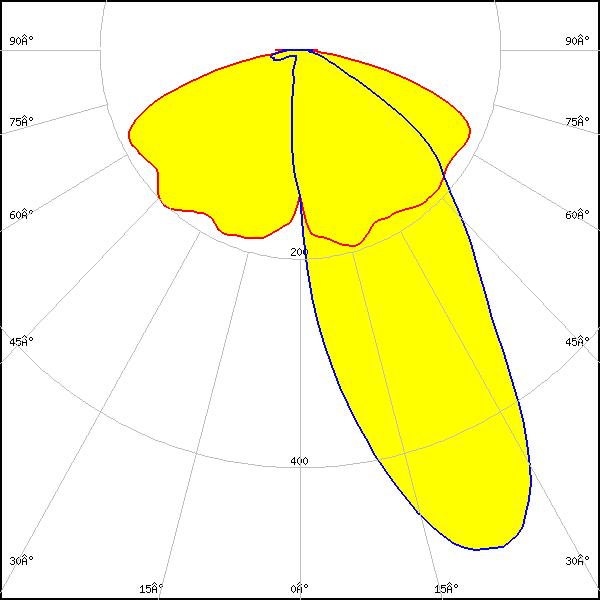

LED: NVSxx19A
FWHM: asymmetric
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 0.720 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

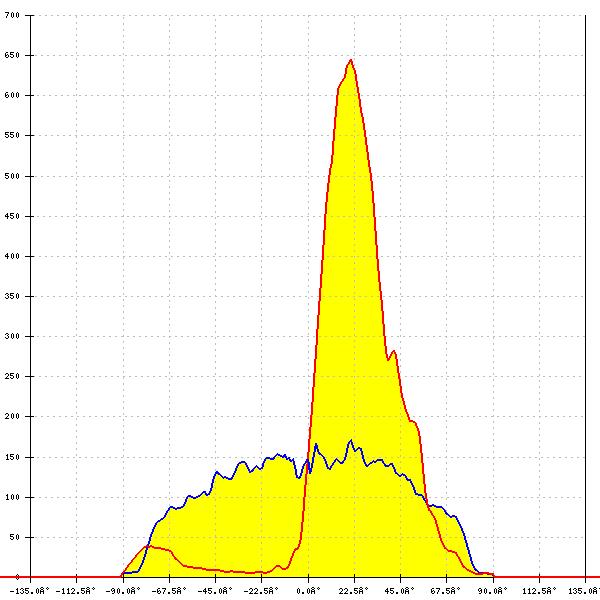

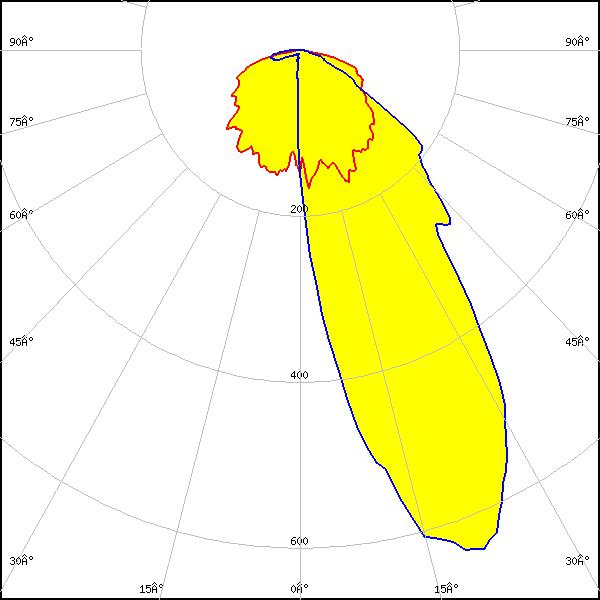

LED: PrevaLED Brick HP 2x8
FWHM: asymmetric
Peak intensity: 0.000 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

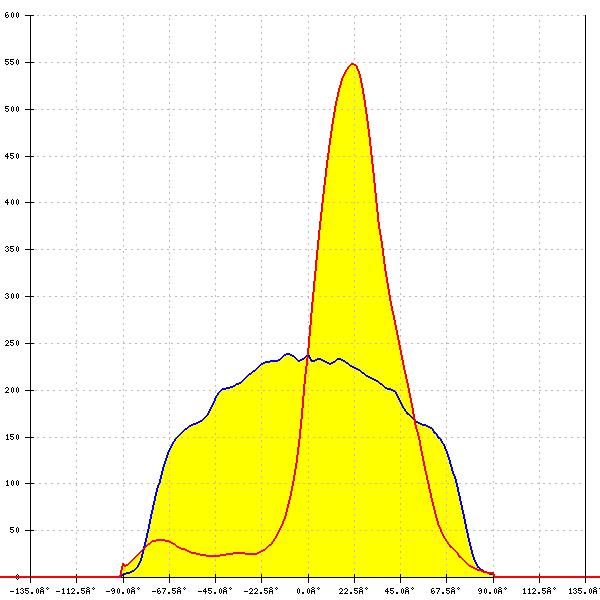

LED: OSCONIQ P 3737 Flat
FWHM: asymmetric
Peak intensity: 0.624 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

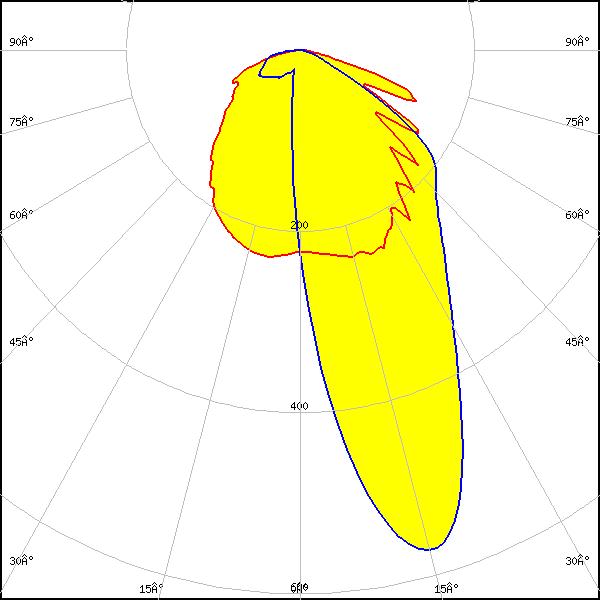

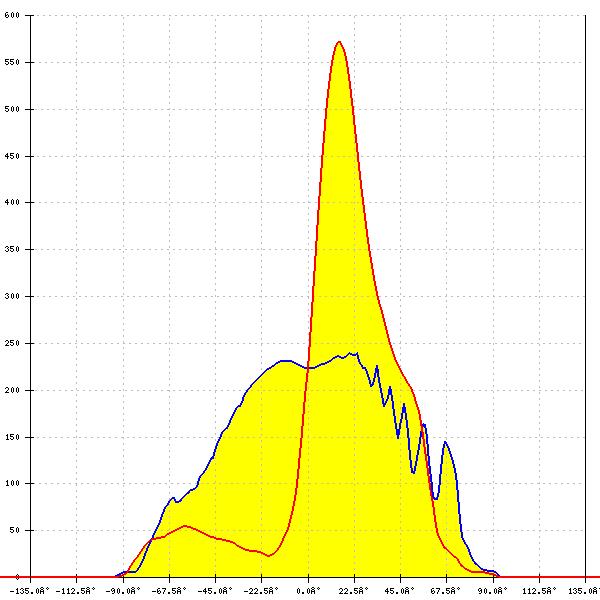

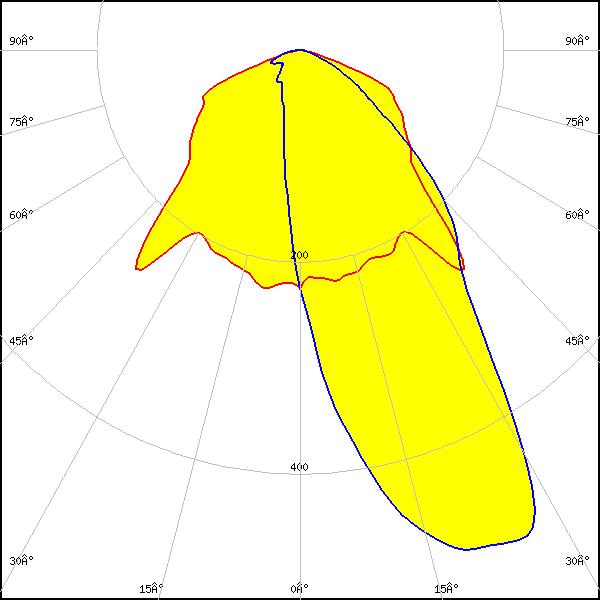

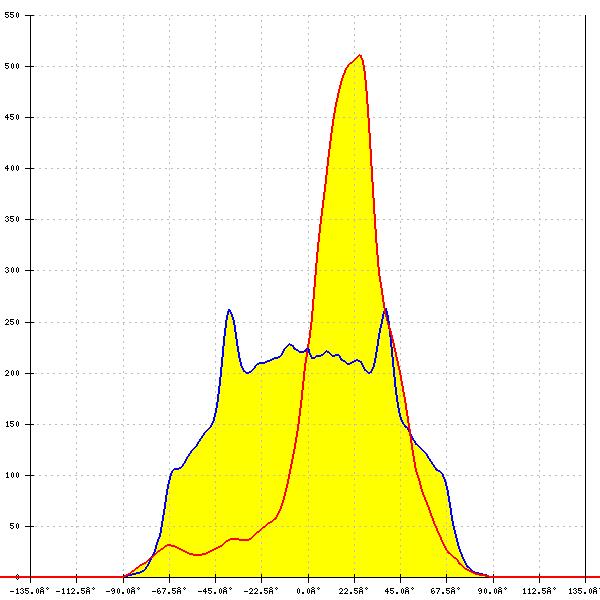

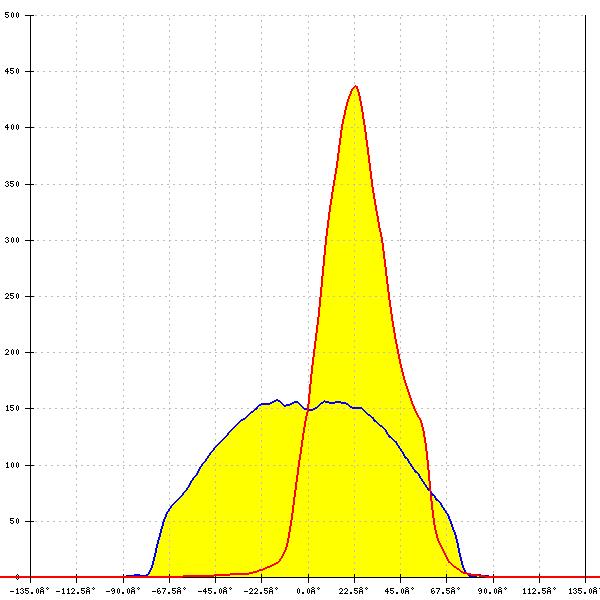

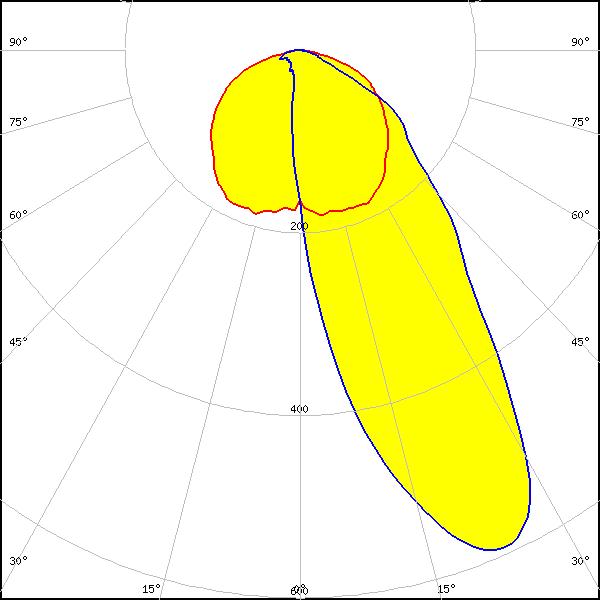

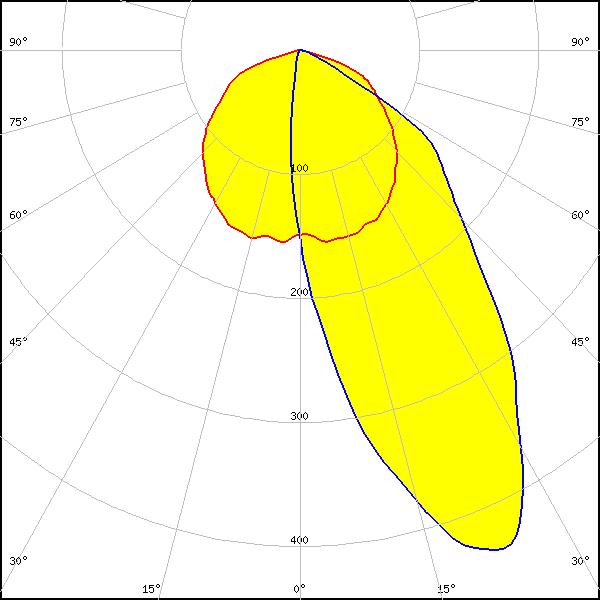

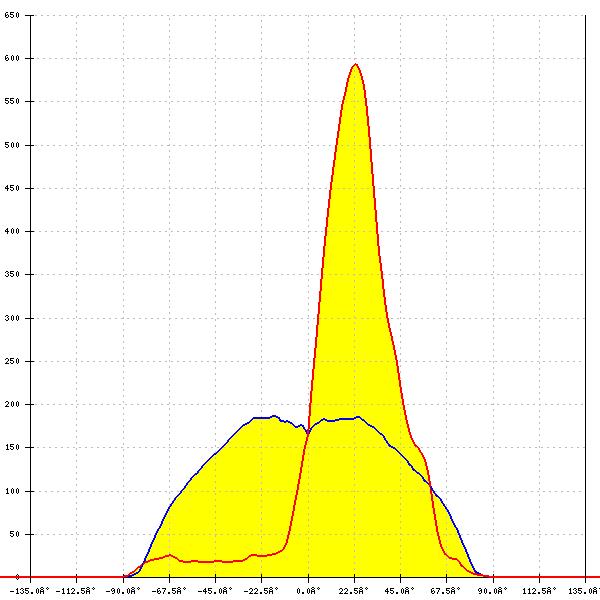

LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 0.574 cd/lm
Efficiency: 60 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.752 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.770 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

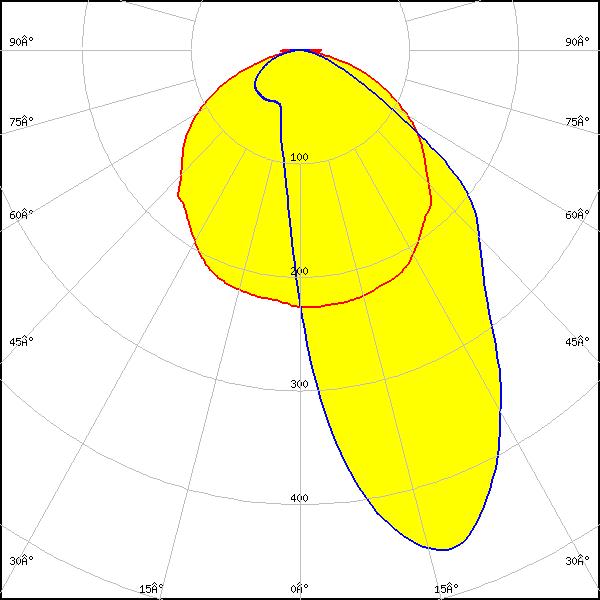

LED: OSLON Square PC
FWHM: asymmetric
Peak intensity: 0.580 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

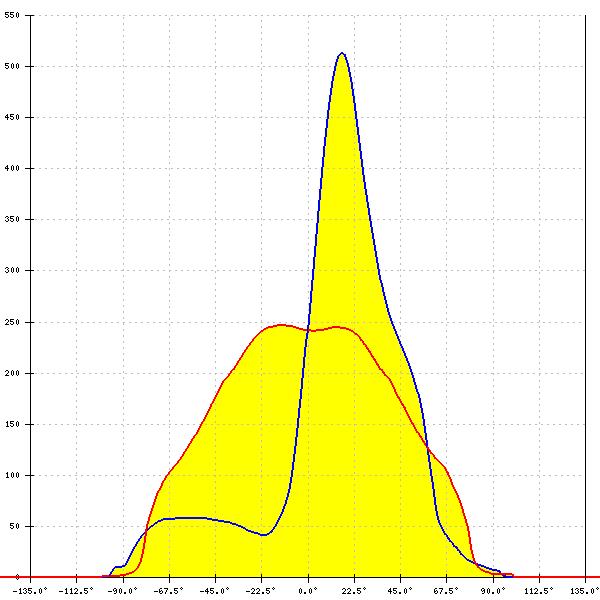

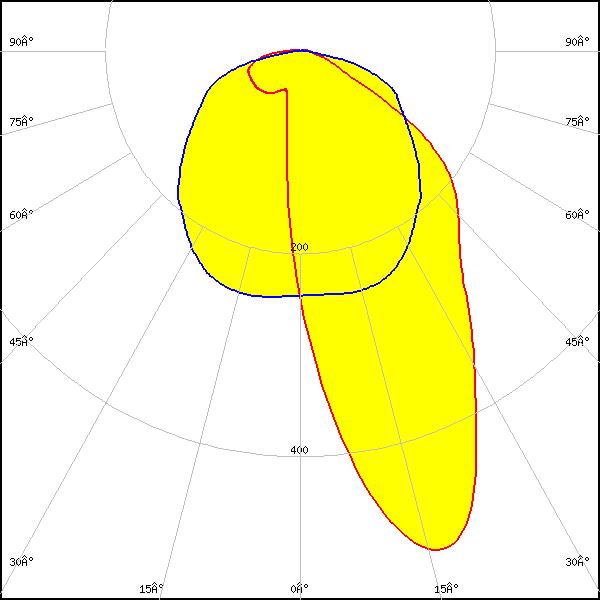

LED: Fortimo FastFlex LED 2x8 DA G4
FWHM: asymmetric
Peak intensity: 0.720 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x8 DA G4+
FWHM: asymmetric
Peak intensity: 0.604 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

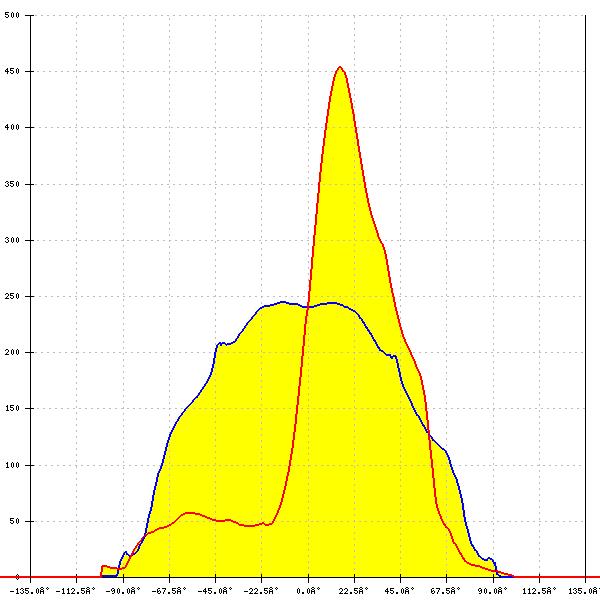

LED: Fortimo FastFlex LED 2x8 DAX G4
FWHM: asymmetric
Peak intensity: 0.660 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

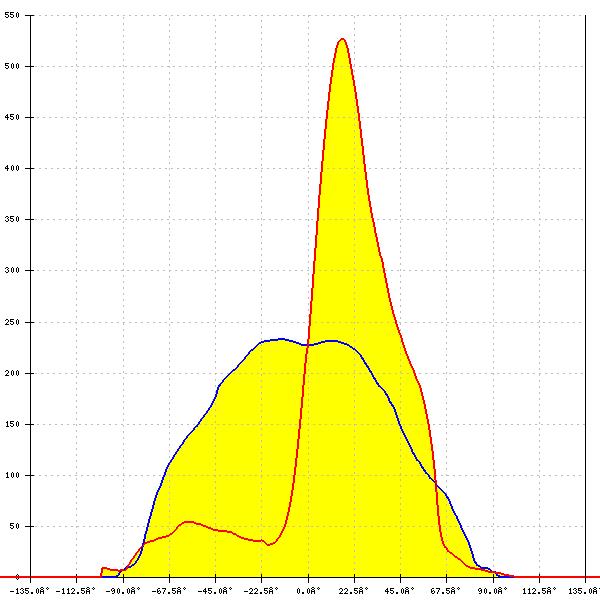

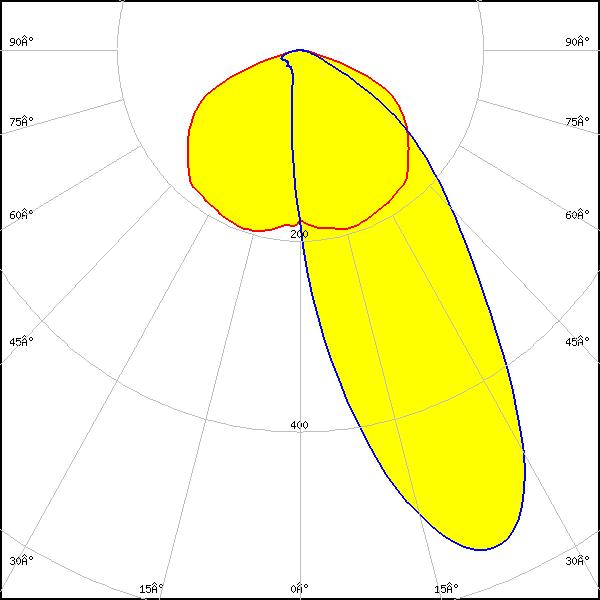

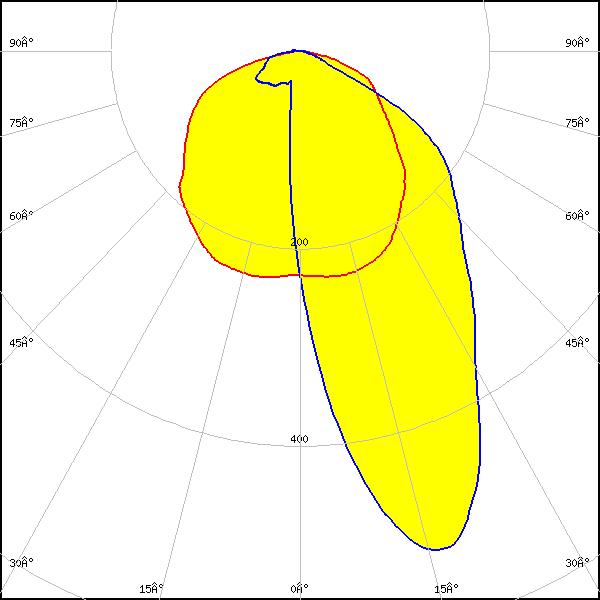

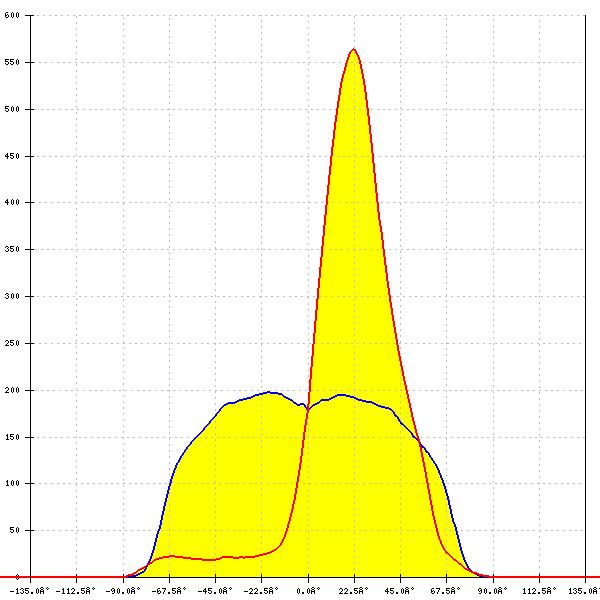

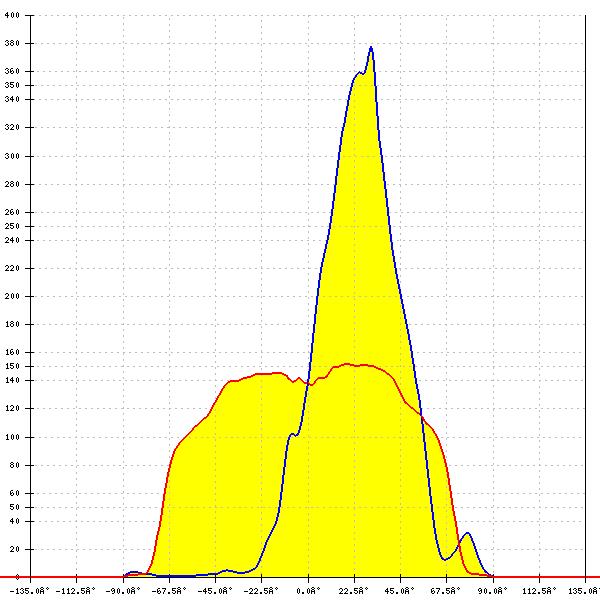

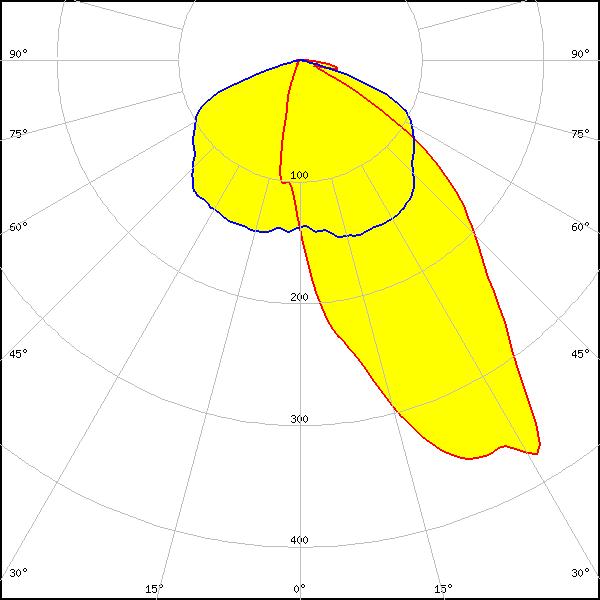

LED: LH351B
FWHM: asymmetric
Peak intensity: 0.680 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

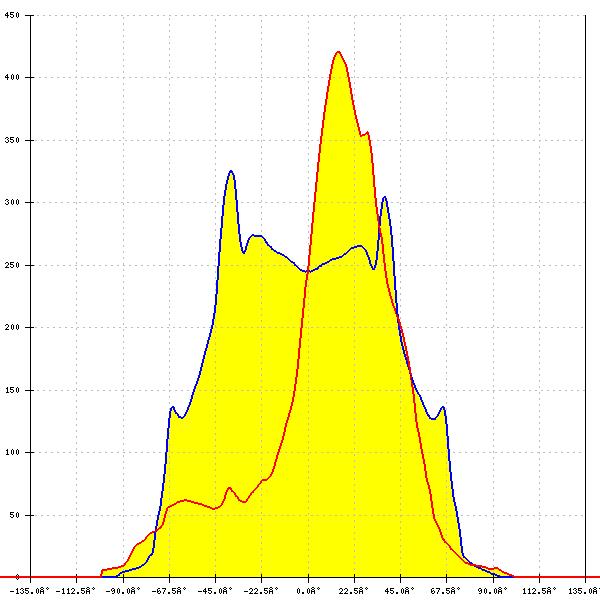

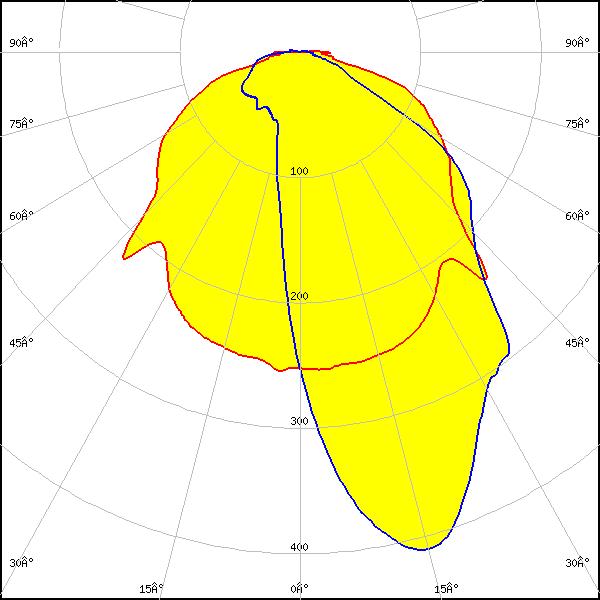

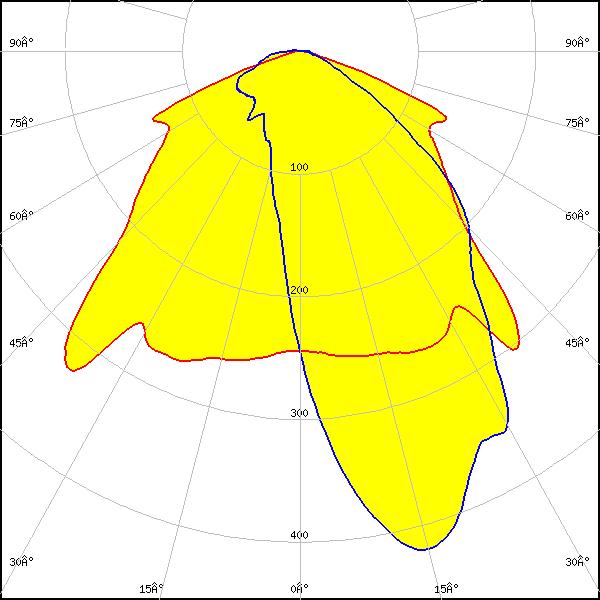

LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.830 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

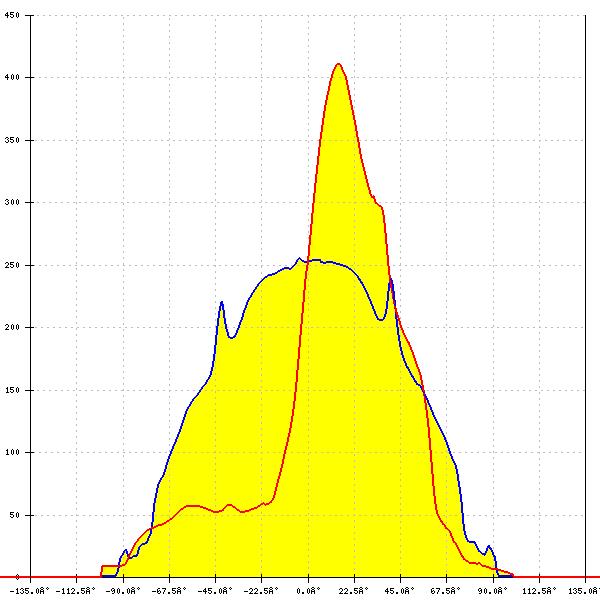

LED: Z8Y22P
FWHM: asymmetric
Peak intensity: 0.650 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

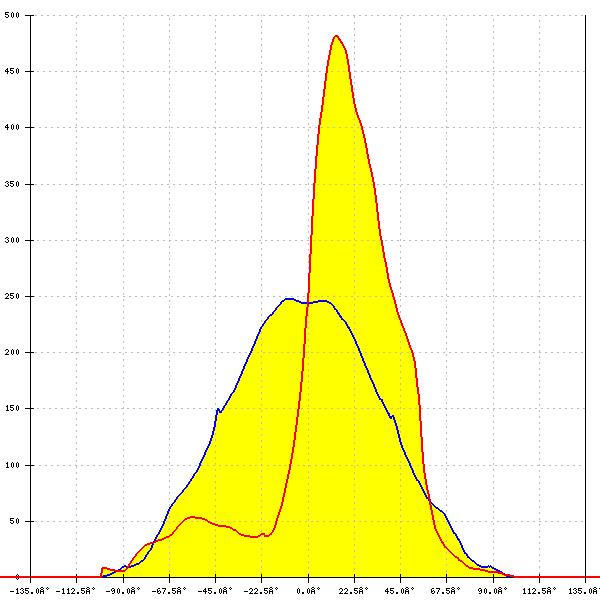

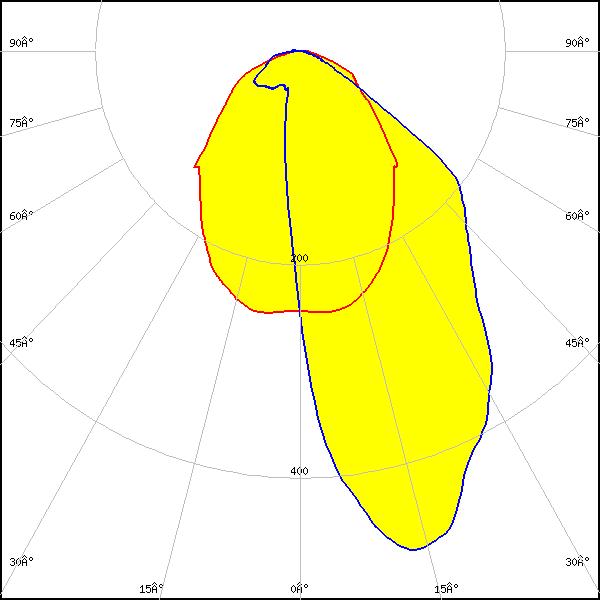

LED: TL1L4
FWHM: asymmetric
Peak intensity: 0.720 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

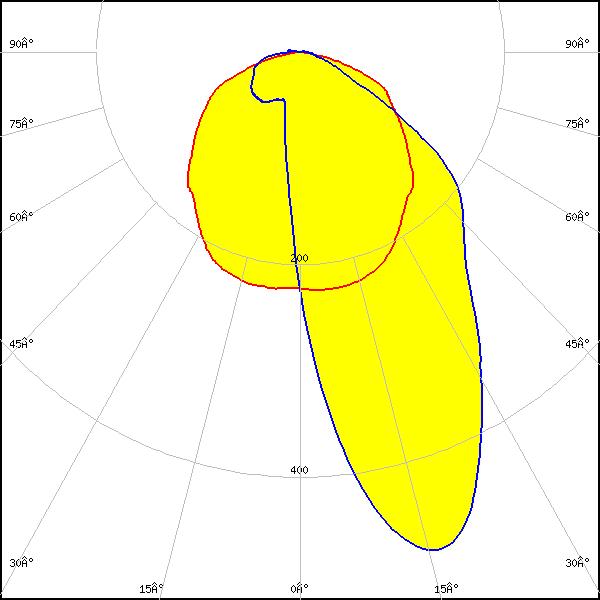

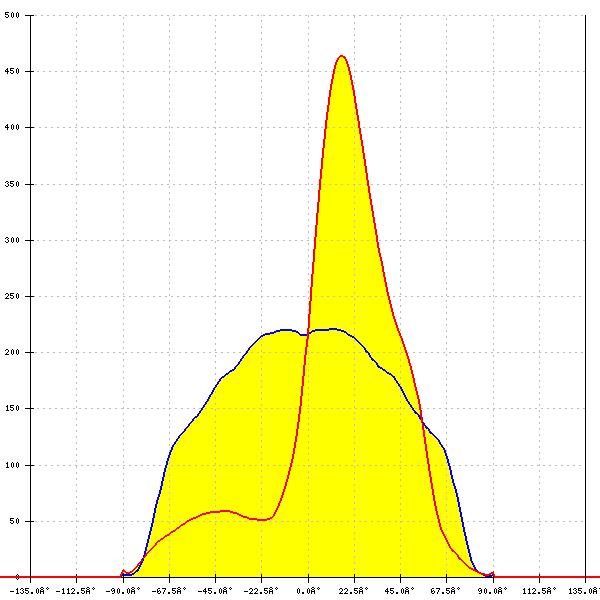

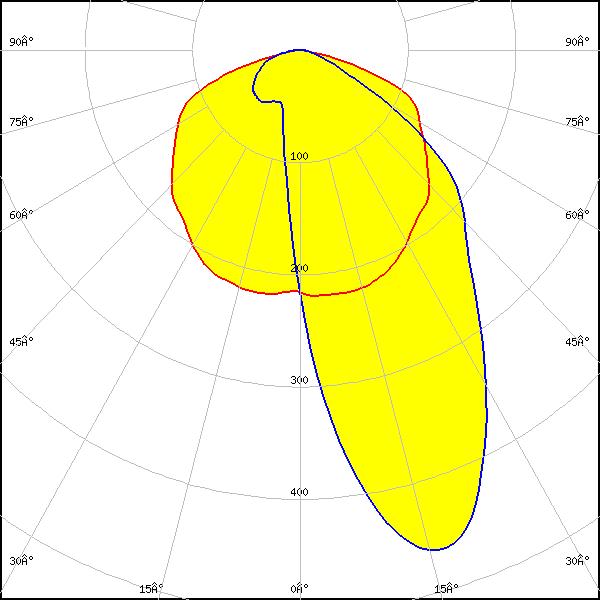

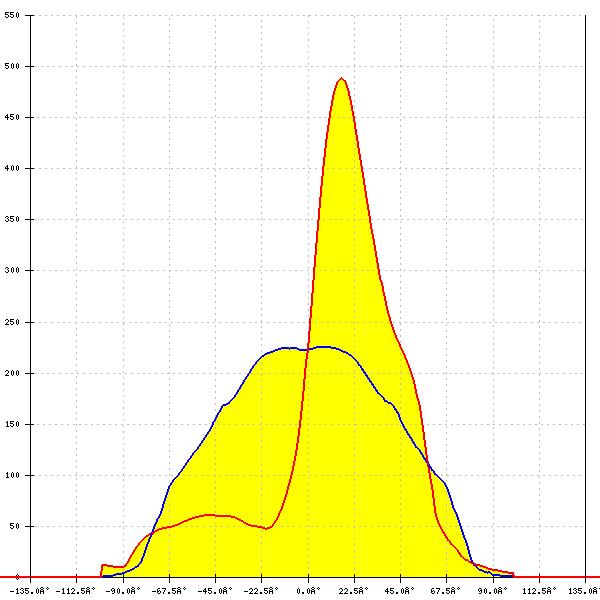

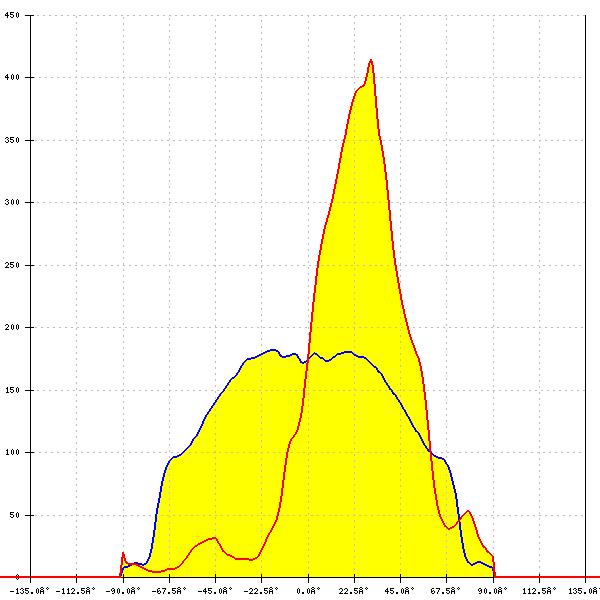

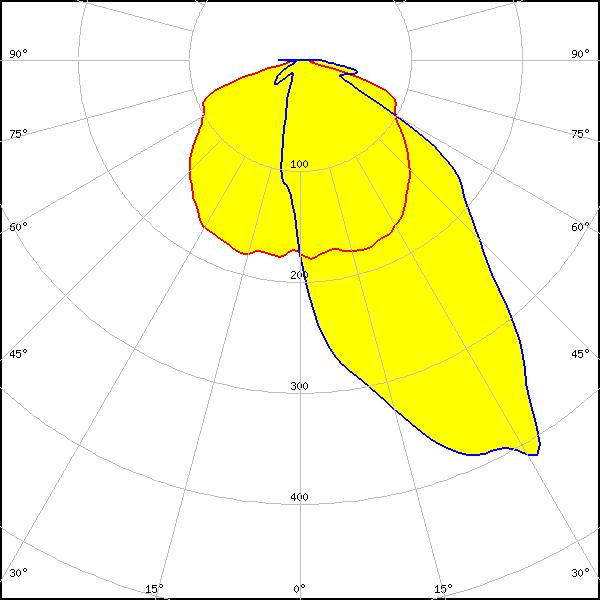

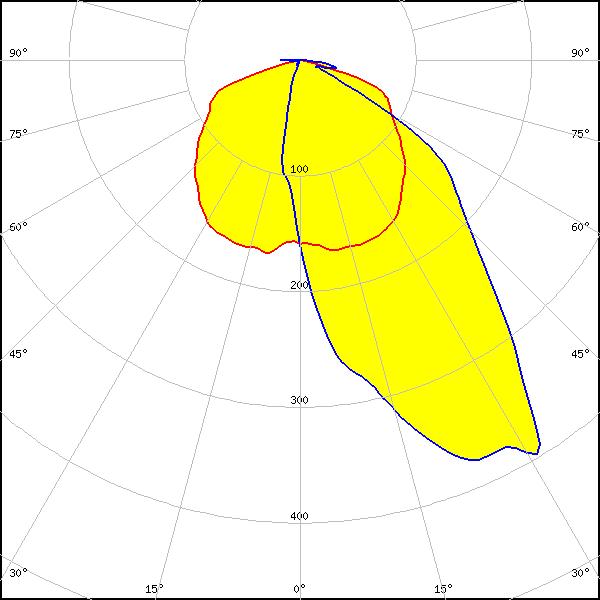

LED: RLE 2x8 4000lm HP EXC2 OTD
FWHM: asymmetric
Peak intensity: 0.800 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

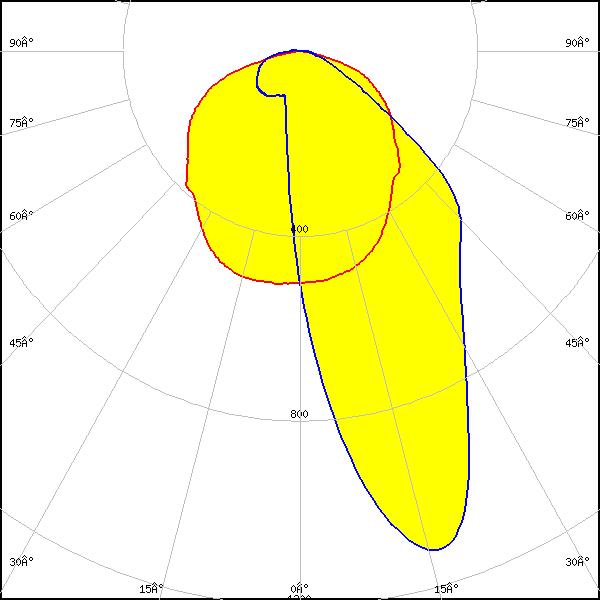

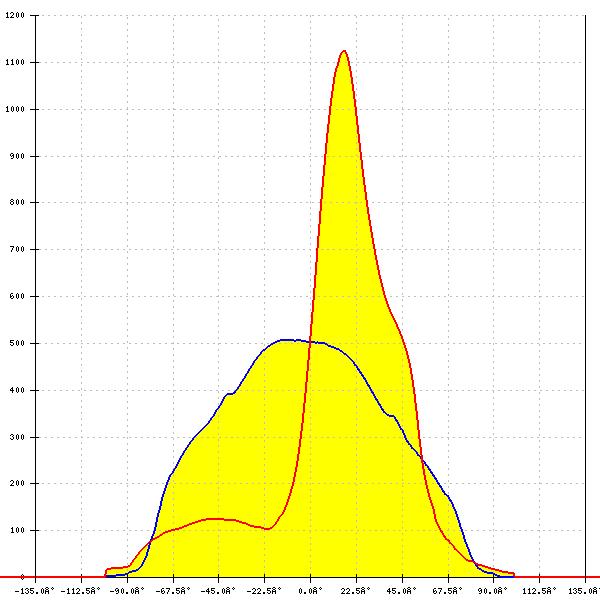

LED: RLE G1 49x121mm 2000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity: 0.760 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: RLE G1 49x133mm 2000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity: 0.760 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: RLE G1 49x223mm 4000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity: 0.760 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: RLE G1 49x245mm 4000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity: 0.760 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
