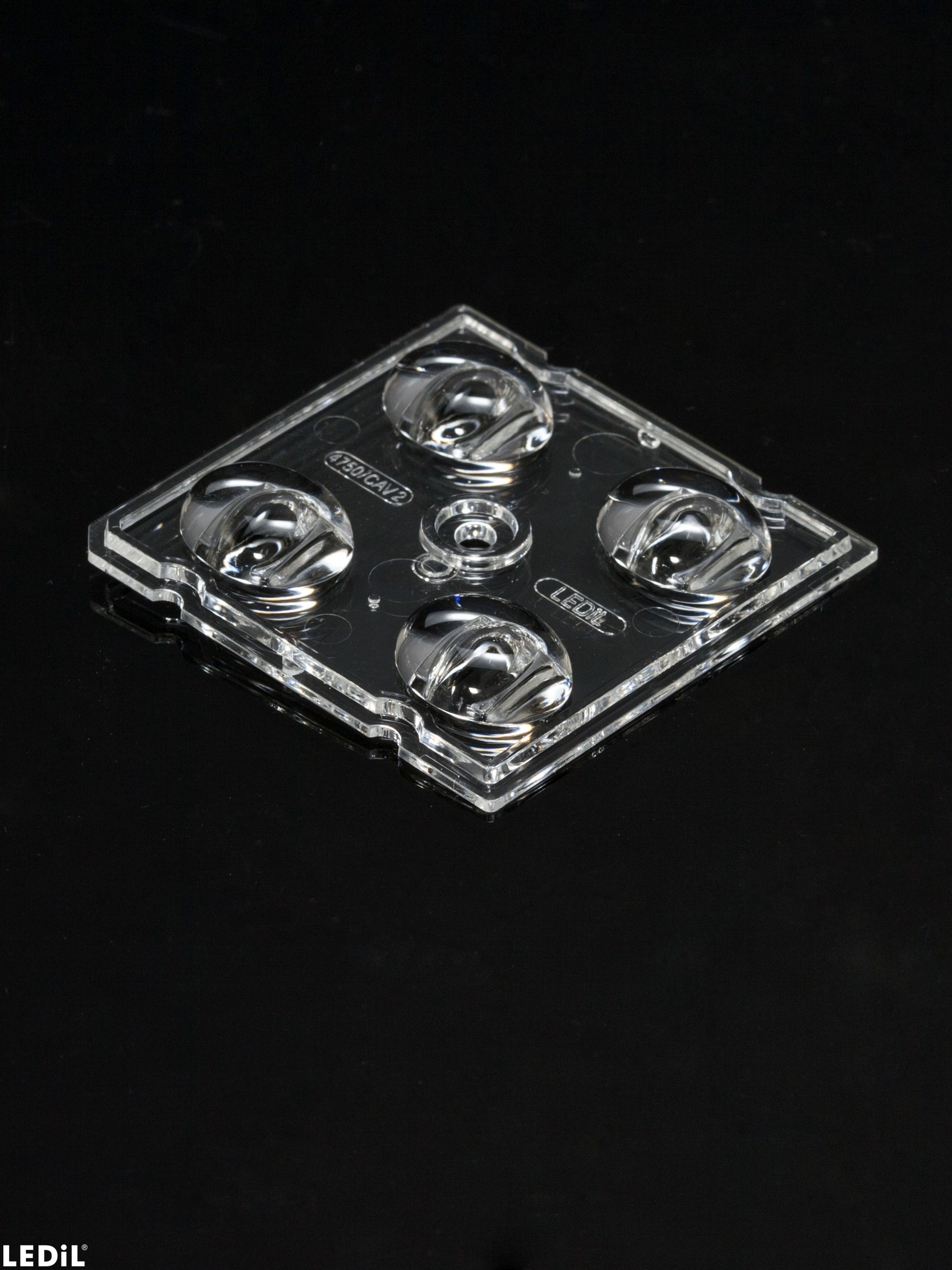

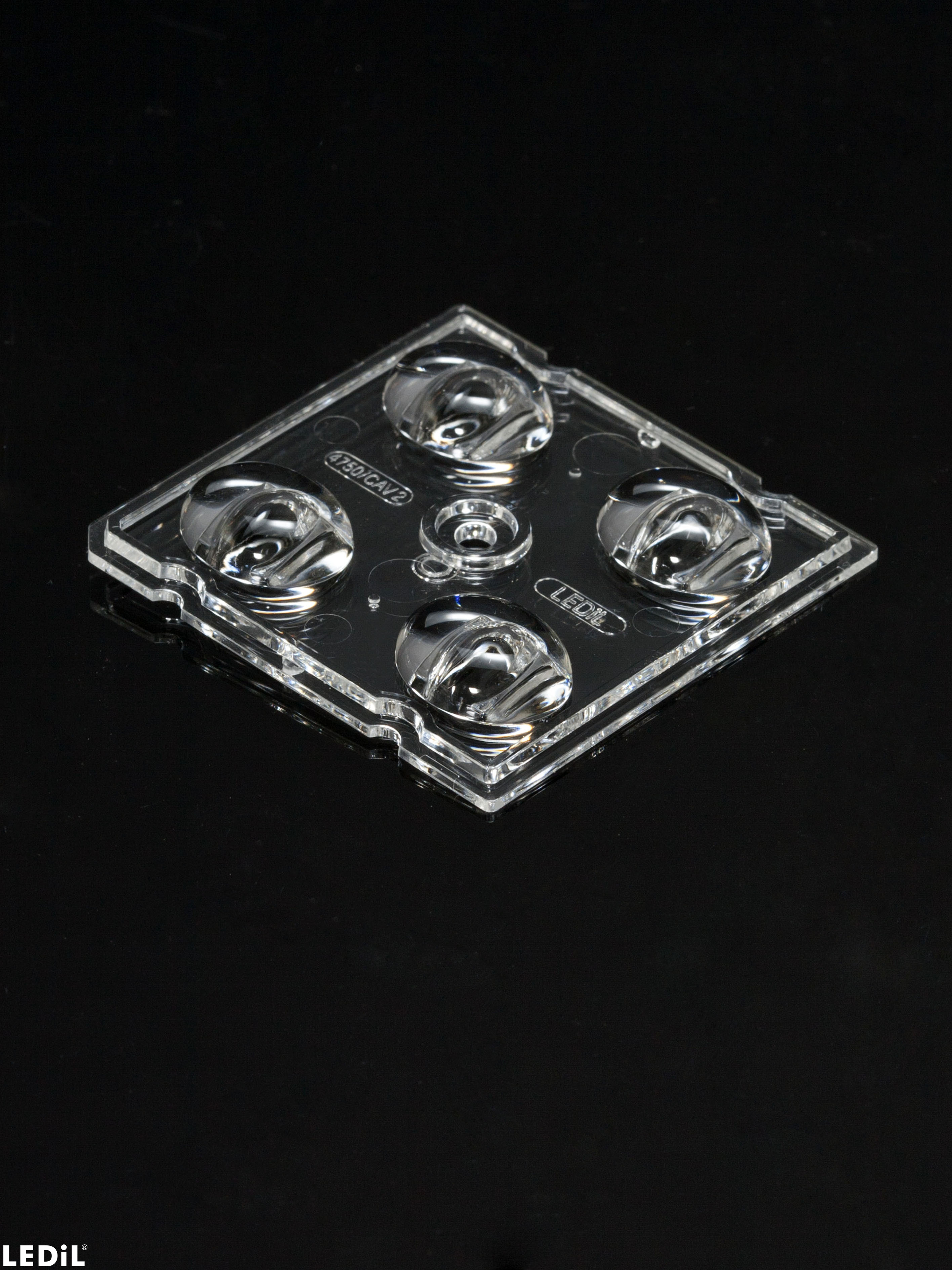

C14750_STRADA-2X2-CAT

Print

Catenary street light beam optimized for EN13201 M-classes

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    6.20 mm
  • Fastening:
    glue, pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.3 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.5 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C14750_STRADA-2X2-CAT

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

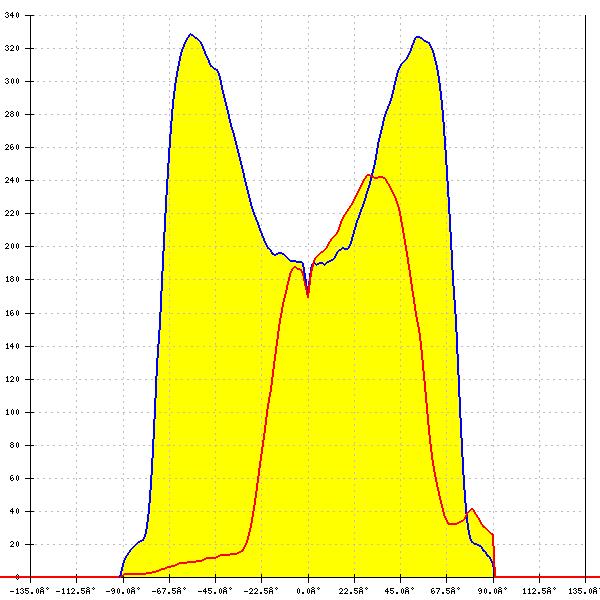

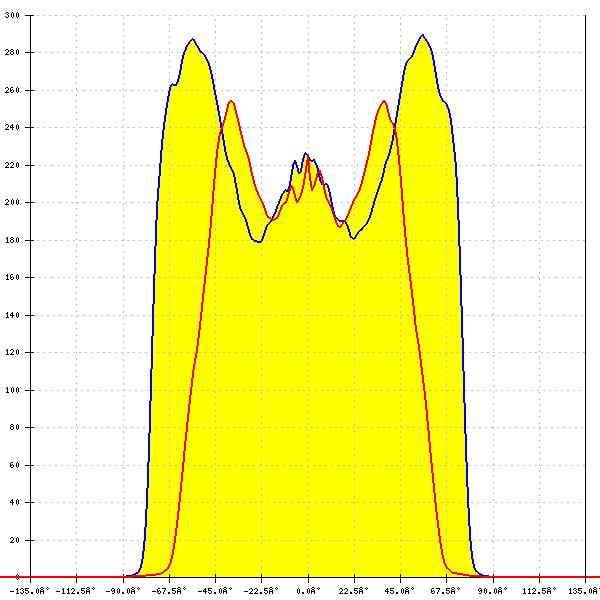

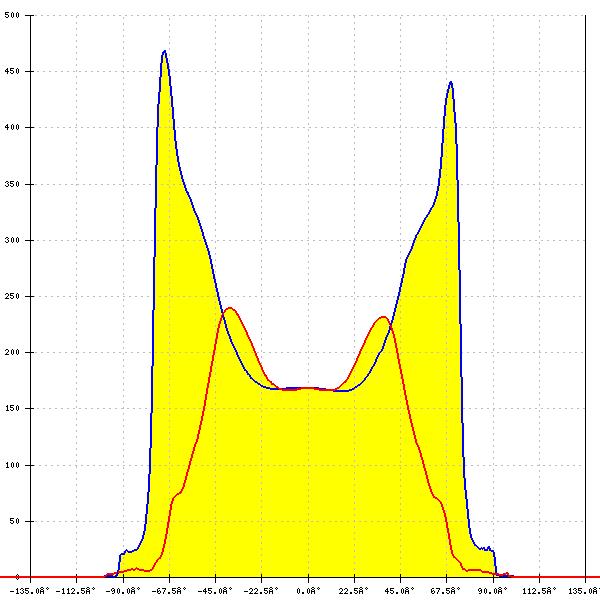

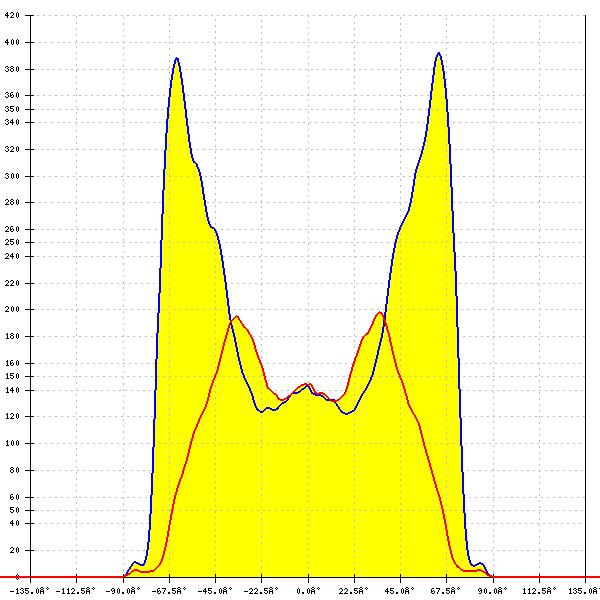

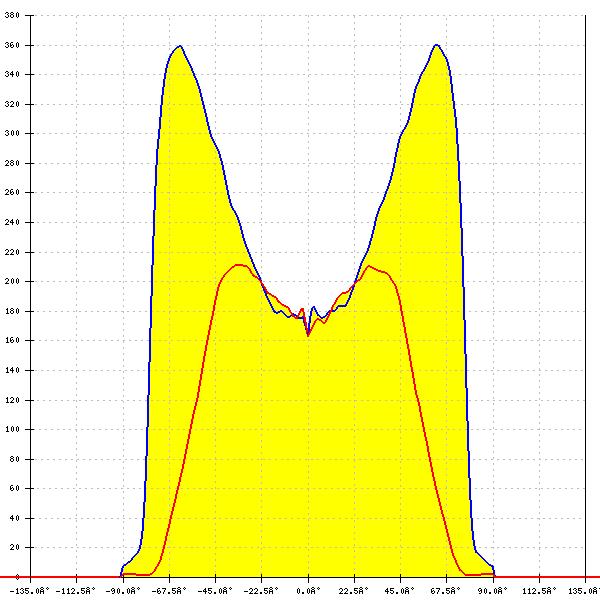

Optical results

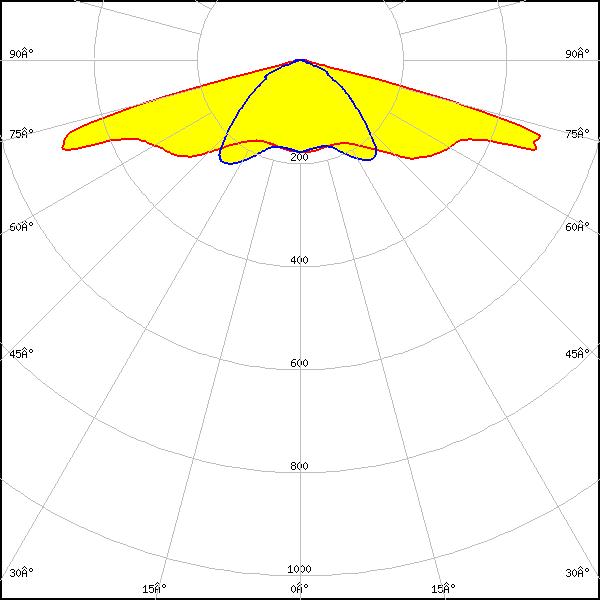

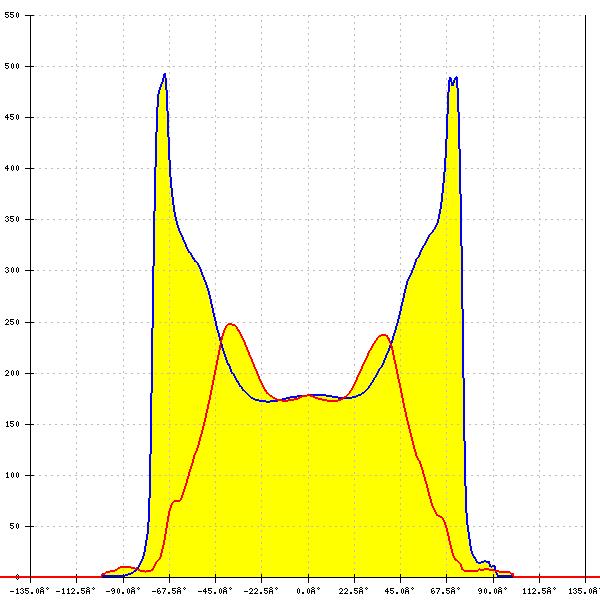

LED: QUICK FLUX XTP 2x4 xxx LS G5
FWHM: 152° + 117°
FWTM: 158° + 144°
Peak intensity: 0.490 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

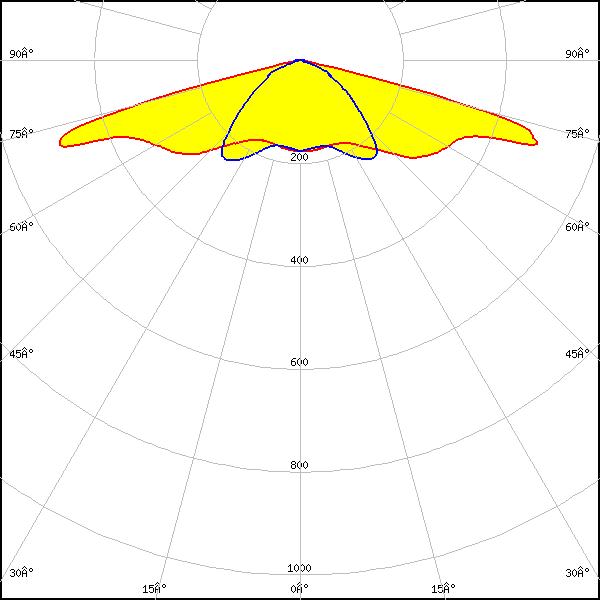

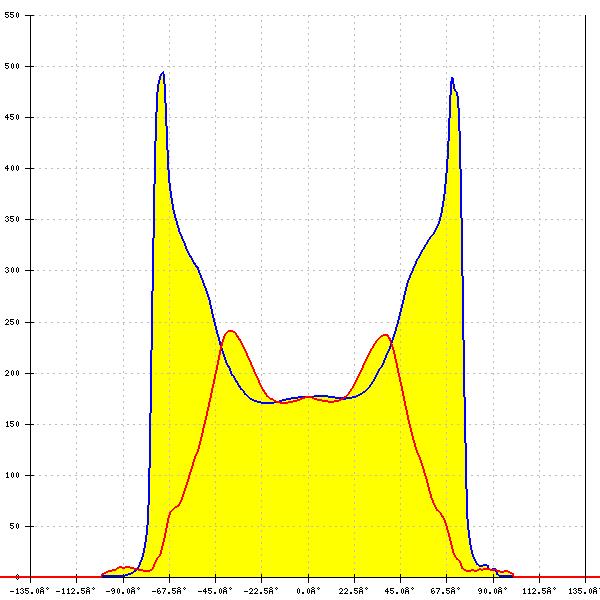

LED: QUICK FLUX XTP 2x6 xxx LS G5
FWHM: 153° + 118°
FWTM: 158° + 145°
Peak intensity: 0.490 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

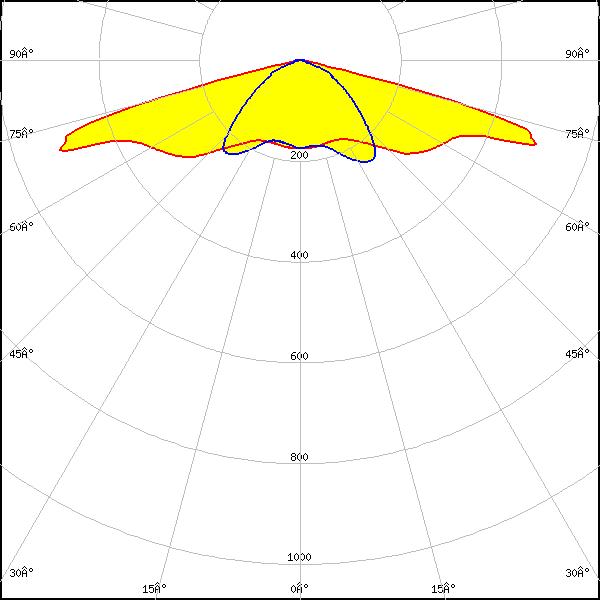

LED: QUICK FLUX XTP 2x8 xxx LS G5
FWHM: 152° + 118°
FWTM: 157° + 145°
Peak intensity: 0.510 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

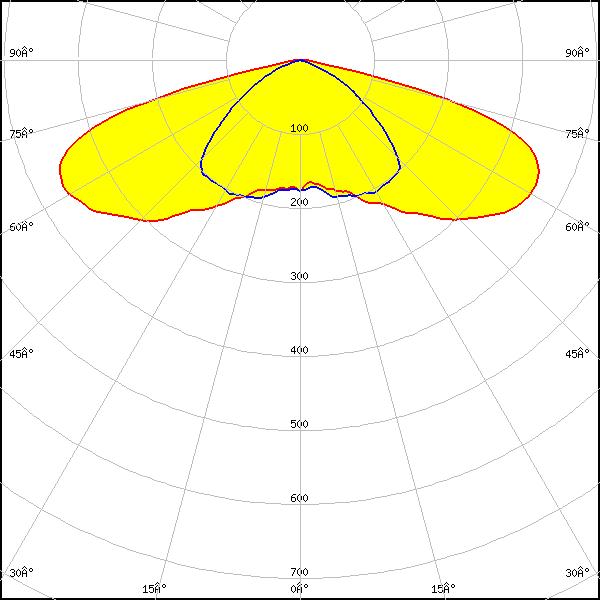

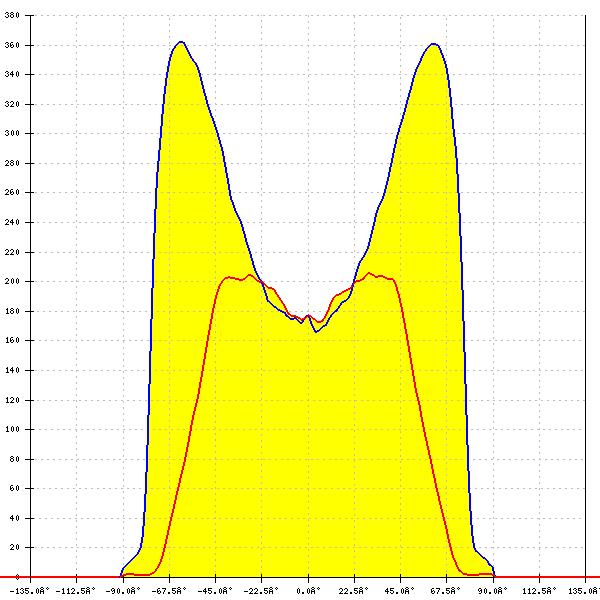

LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.363 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

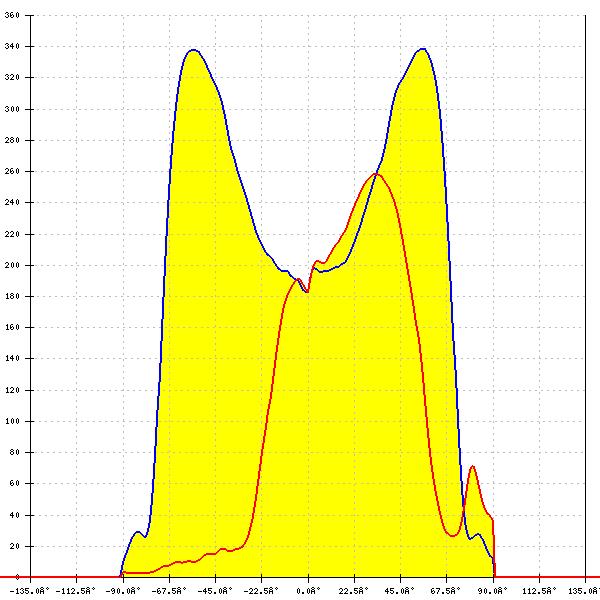

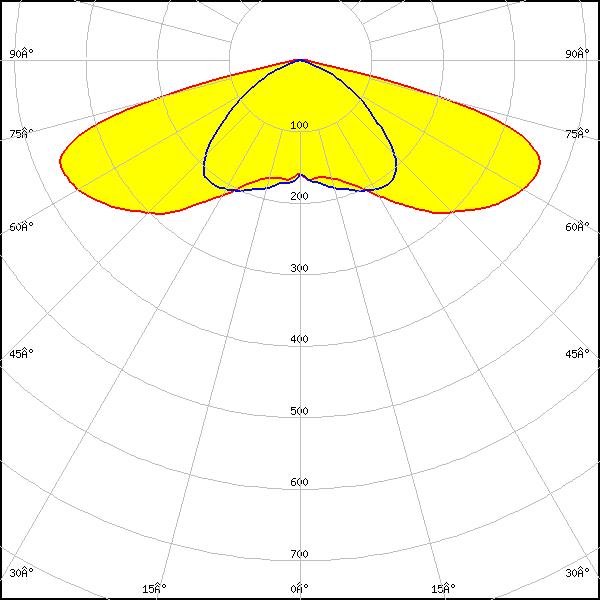

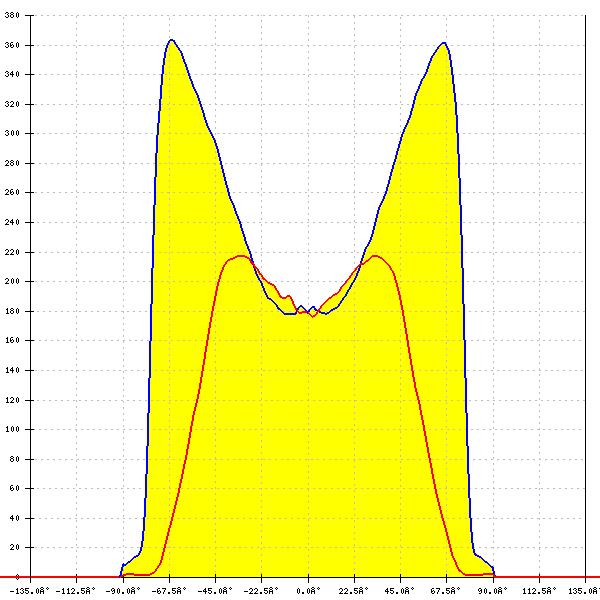

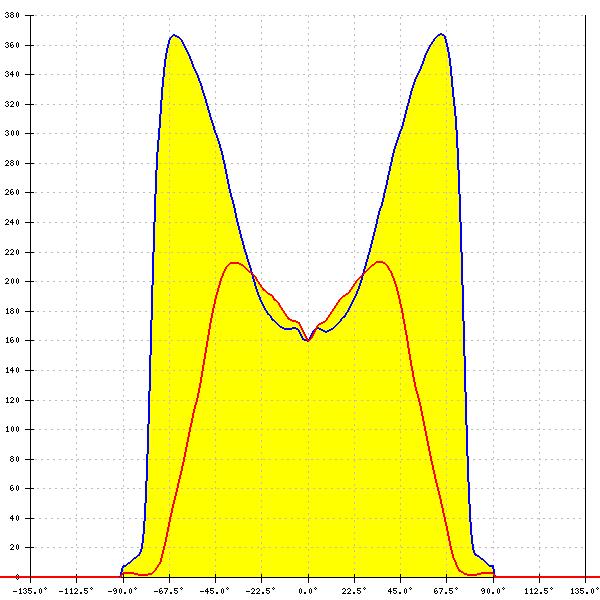

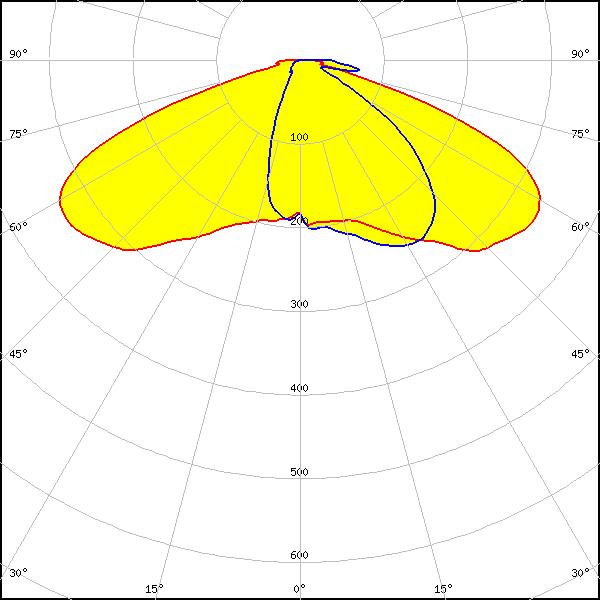

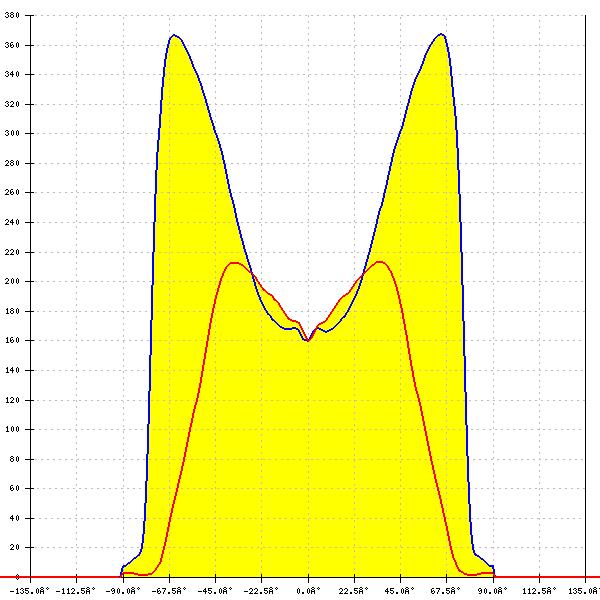

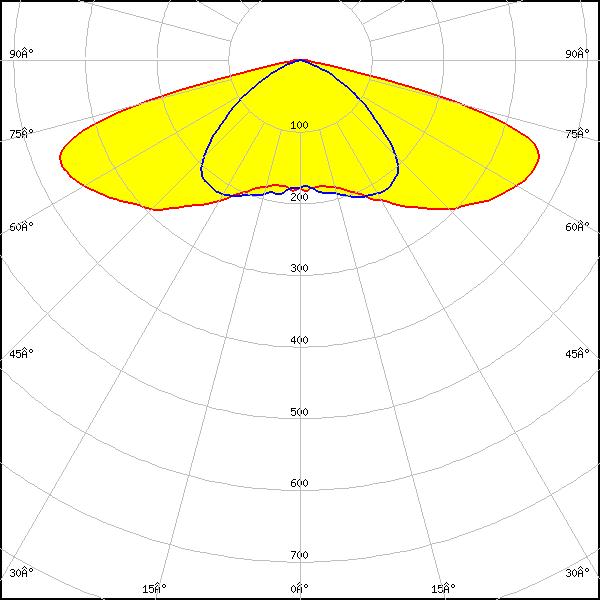

LED: J Series 5050C 6V E Class
FWHM: 152° + 112°
FWTM: 158° + 140°
Peak intensity: 0.367 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: XB-D
FWHM: 154° + 107°
FWTM: 180° + 180°
Peak intensity: 0.456 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

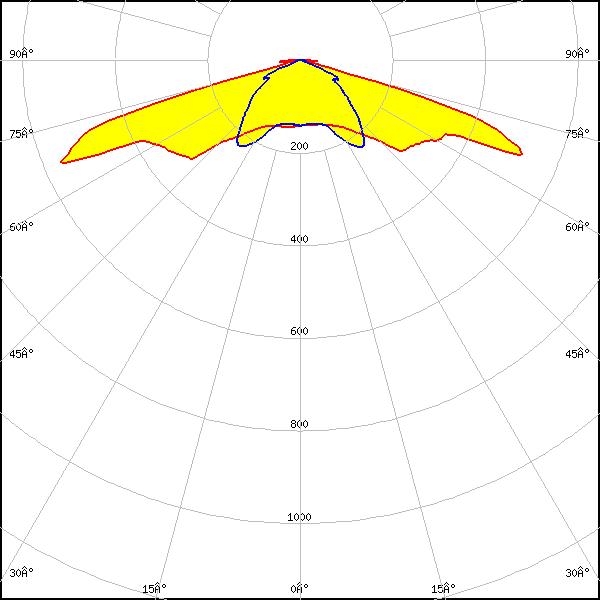

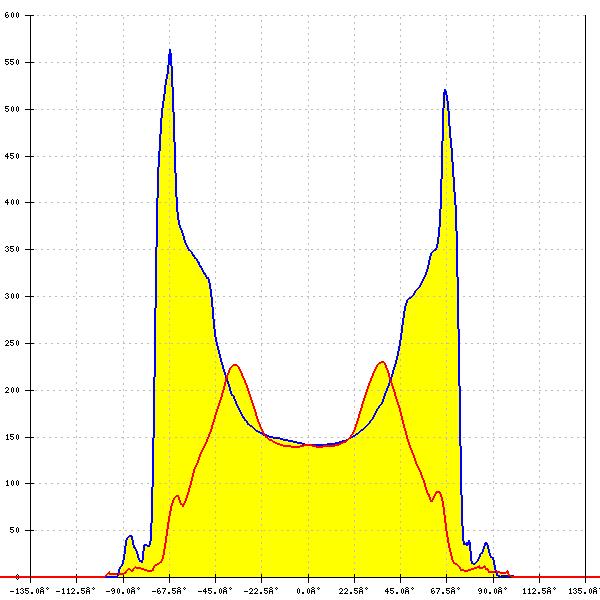

LED: XD16
FWHM: 148° + 133°
FWTM: 176° + 145°
Peak intensity: 0.570 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

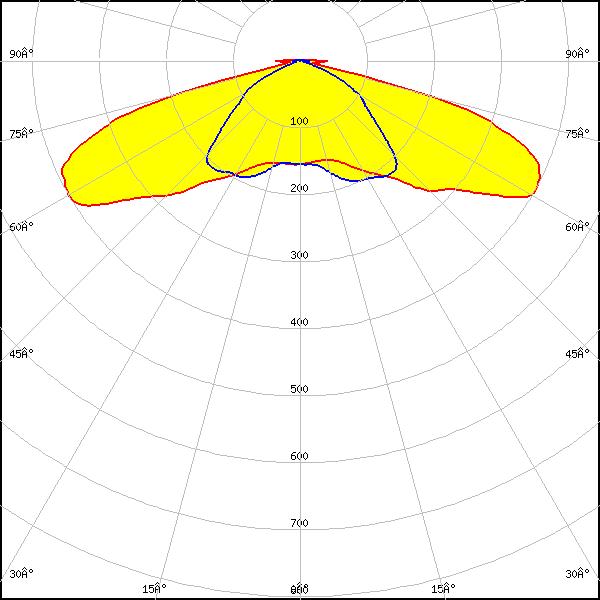

LED: XD16
FWHM: 150° + 126°
FWTM: 178° + 142°
Peak intensity: 0.400 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

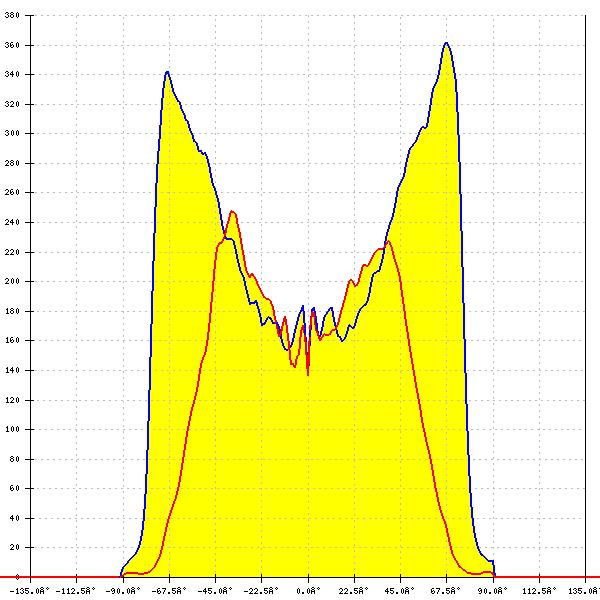

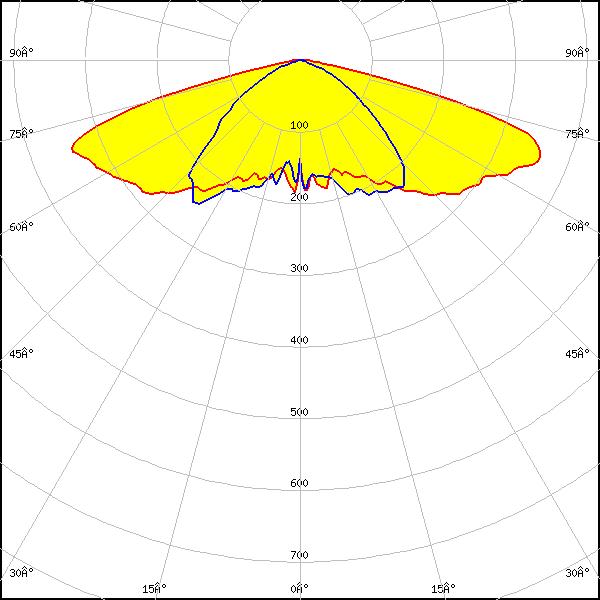

LED: XM-L
FWHM: 109° + 152°
FWTM: 142° + 162°
Peak intensity: 0.360 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: XM-L2
FWHM: 153° + 112°
FWTM: 159° + 139°
Peak intensity: 0.423 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: XM-L3
FWHM: asymmetric
Peak intensity: 0.482 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G
FWHM: 156° + 112°
FWTM: 161° + 144°
Peak intensity: 0.430 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

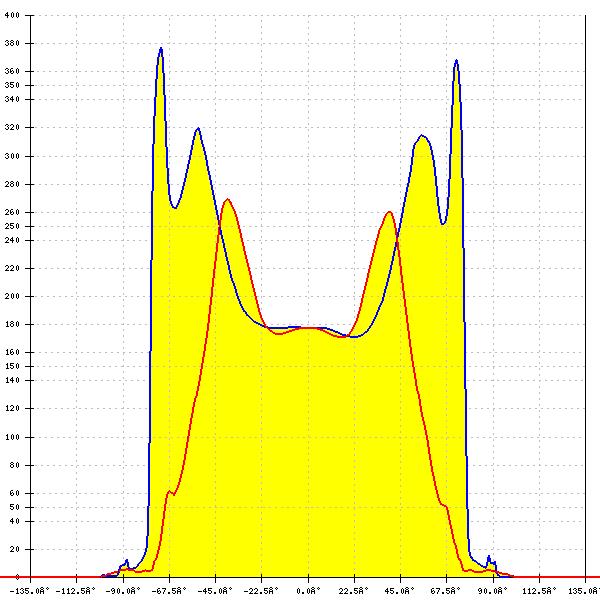

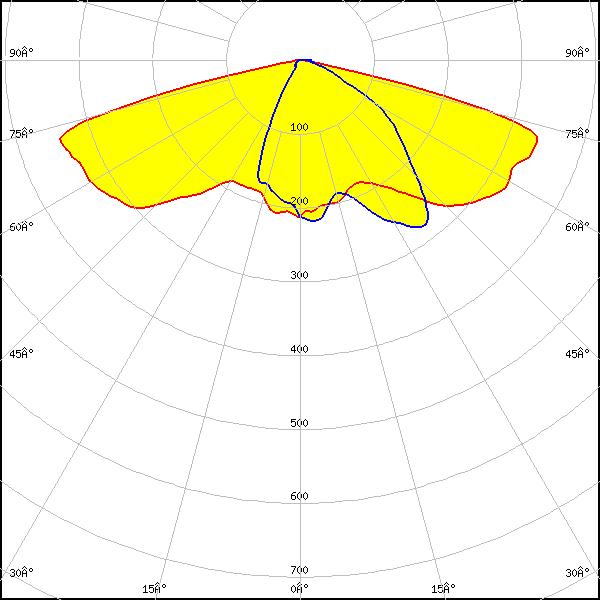

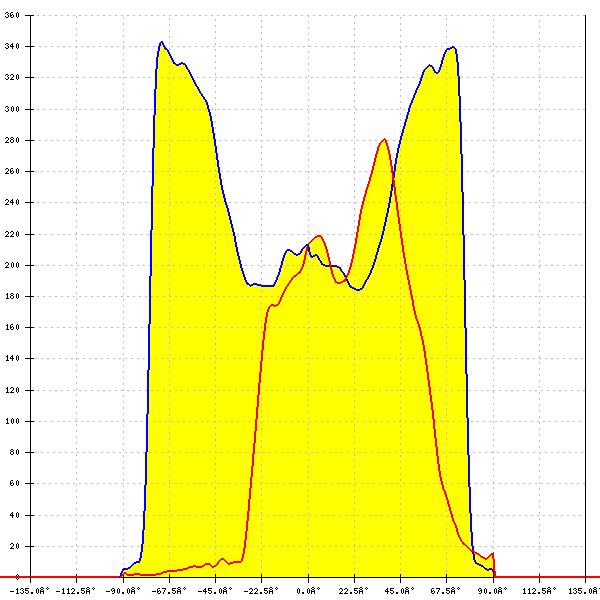

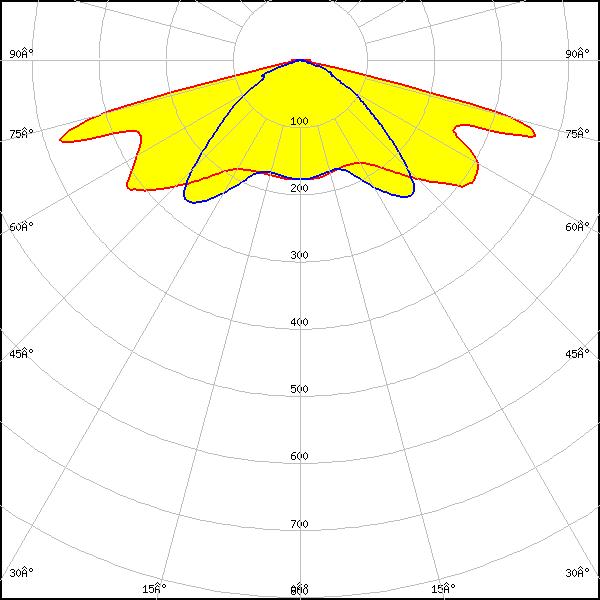

LED: XP-G2
Required components:
FWHM: asymmetric
Peak intensity: 0.373 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G2
FWHM: 153° + 118°
FWTM: 156° + 142°
Peak intensity: 0.380 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

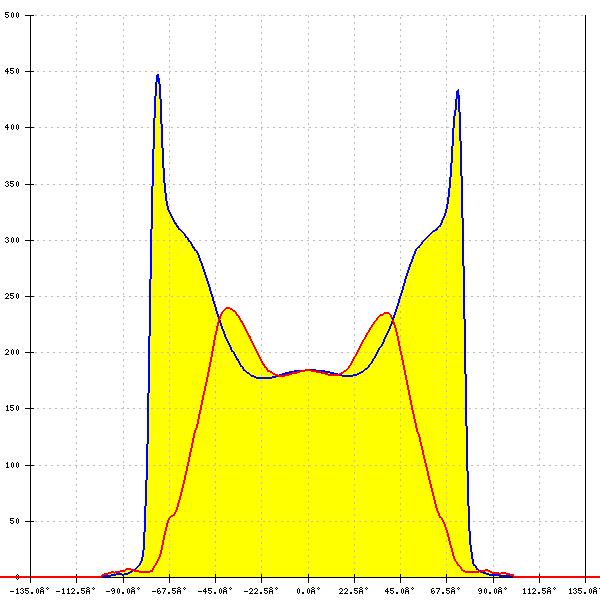

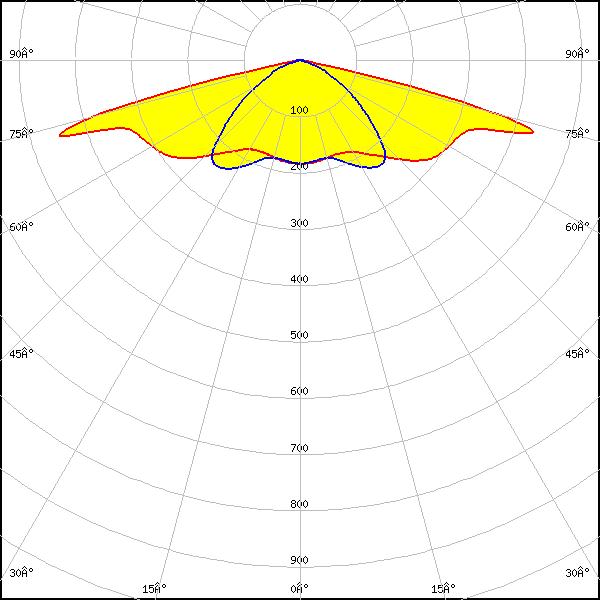

LED: XP-G2 HE
FWHM: asymmetric
Peak intensity: 0.447 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

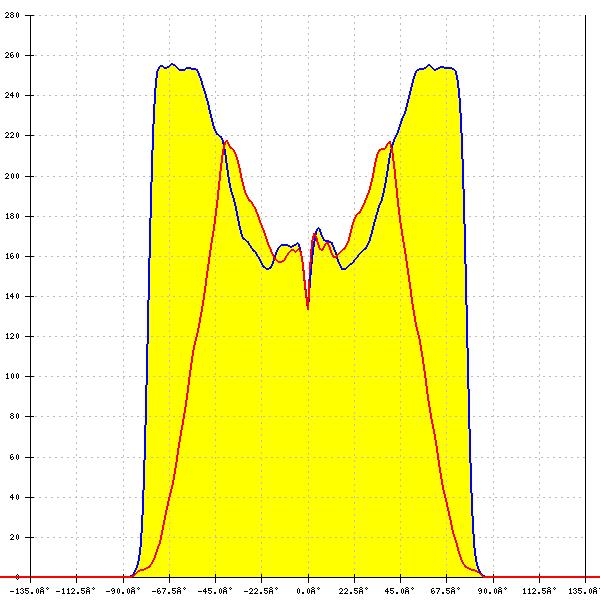

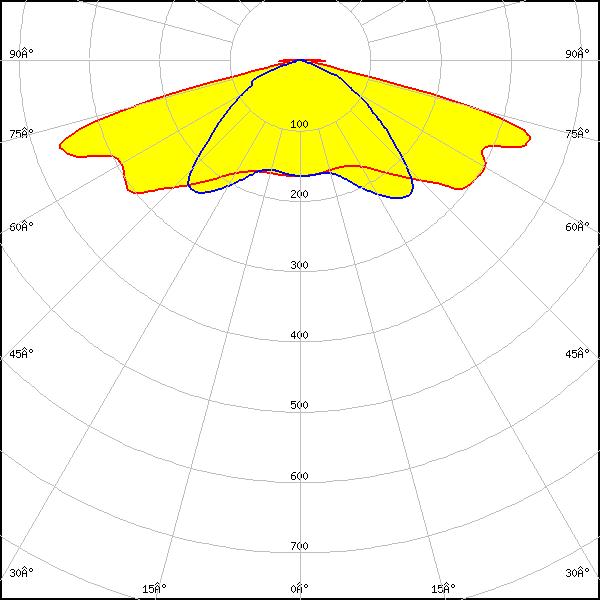

LED: XP-G3
FWHM: 154° + 112°
FWTM: 162° + 142°
Peak intensity: 0.256 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.360 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

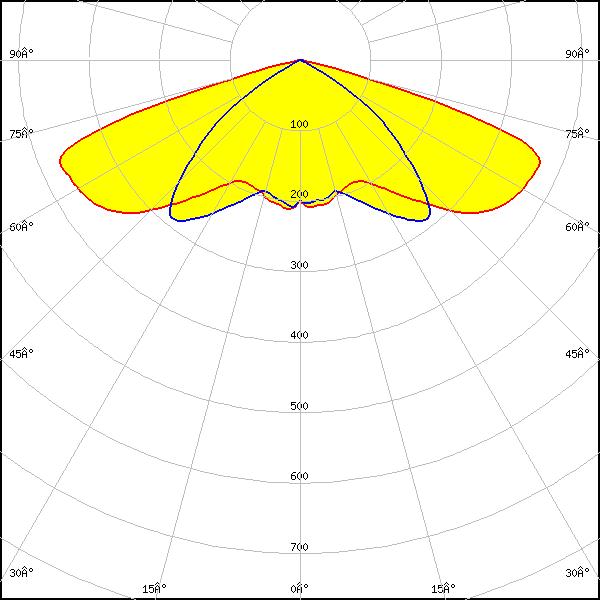

LED: XP-G4
FWHM: 146° + 106°
FWTM: 154° + 122°
Peak intensity: 0.371 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L HD
FWHM: 155° + 109°
FWTM: 161° + 132°
Peak intensity: 0.321 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

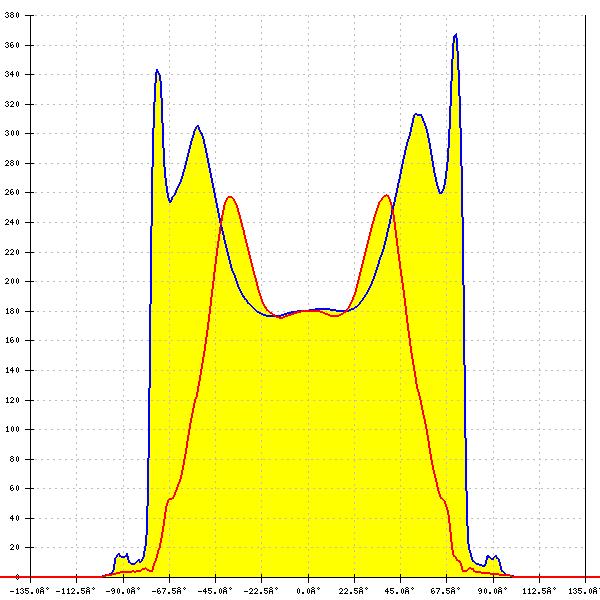

LED: XP-L HI
FWHM: 153° + 118°
FWTM: 156° + 143°
Peak intensity: 0.370 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

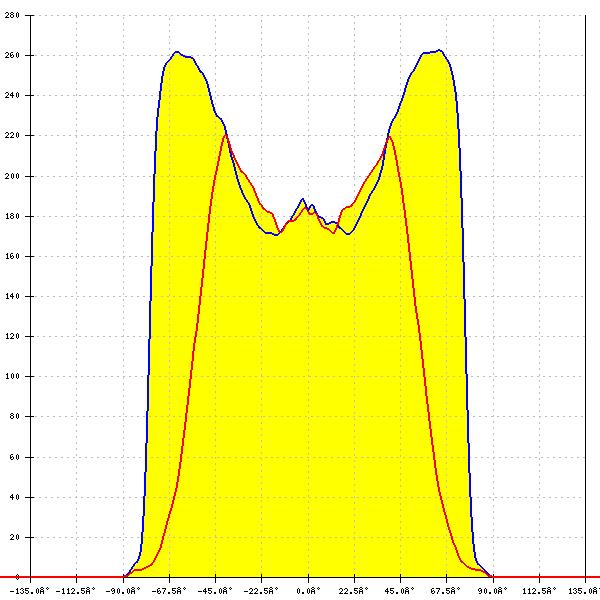

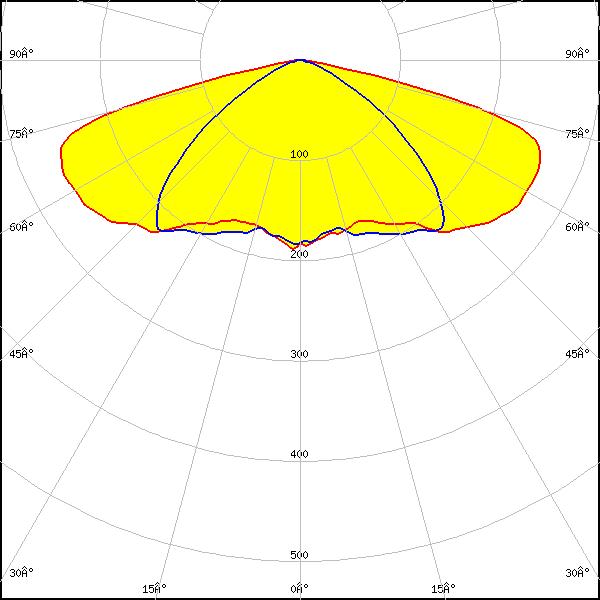

LED: XP-L2
FWHM: asymmetric
Peak intensity: 0.262 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

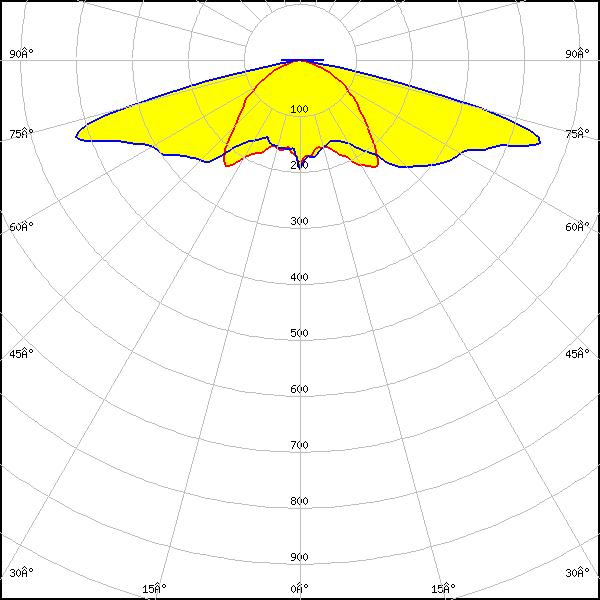

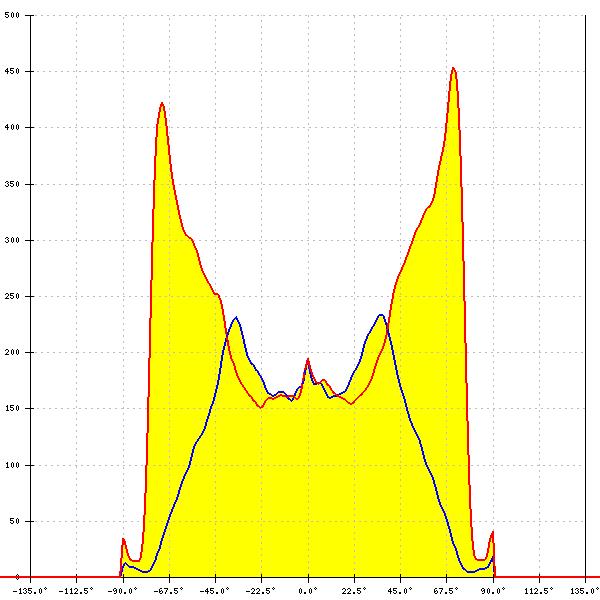

LED: XT-E
FWHM: 153° + 110°
FWTM: 180° + 145°
Peak intensity: 0.454 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: XT-E
FWHM: 155° + 110°
FWTM: 170° + 146°
Peak intensity: 0.433 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

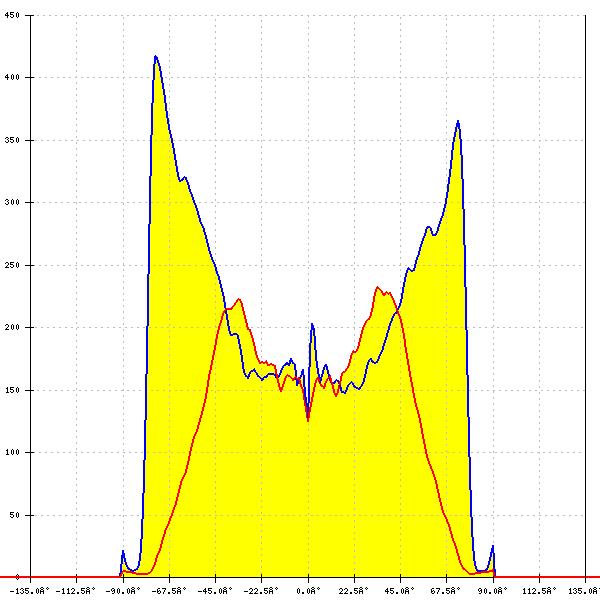

LED: XT-E HVW
FWHM: 155° + 110°
FWTM: 160° + 144°
Peak intensity: 0.417 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

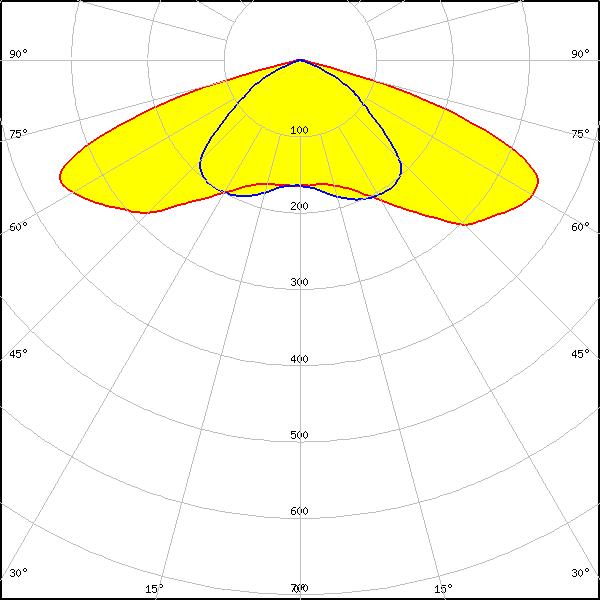

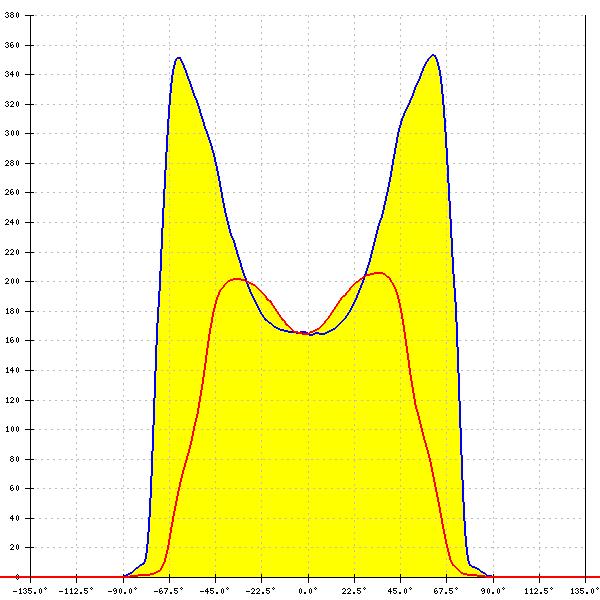

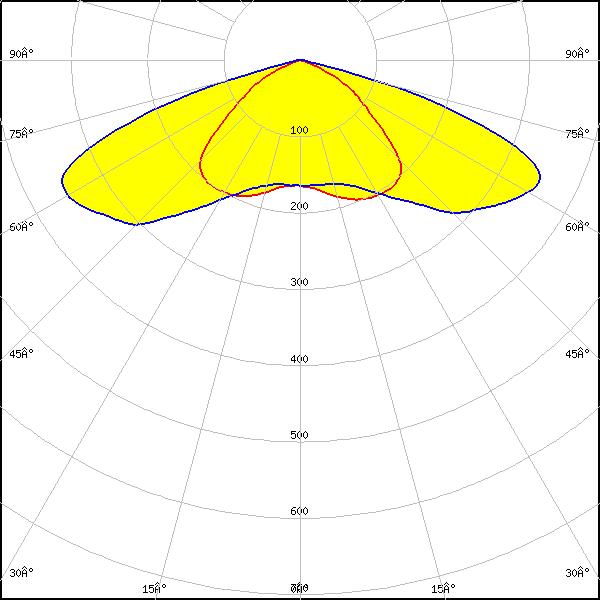

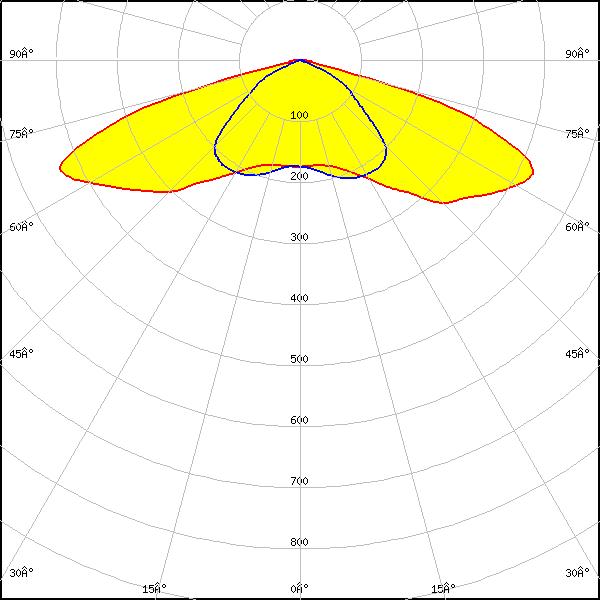

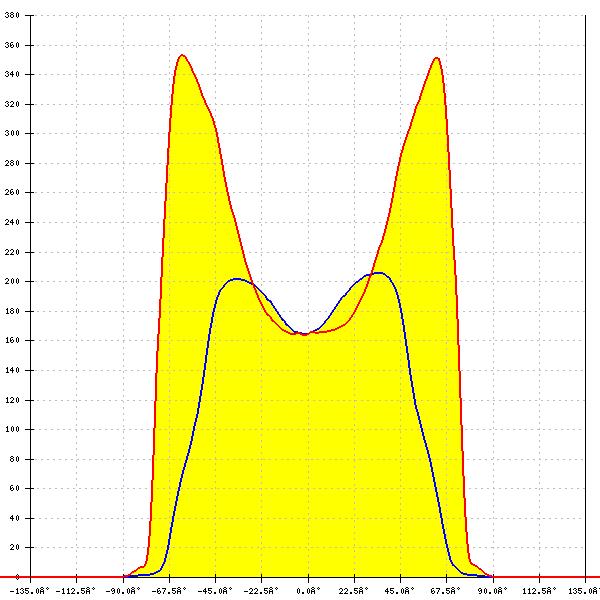

LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.353 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Round LES
FWHM: 149° + 119°
FWTM: 154° + 138°
Peak intensity: 0.430 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

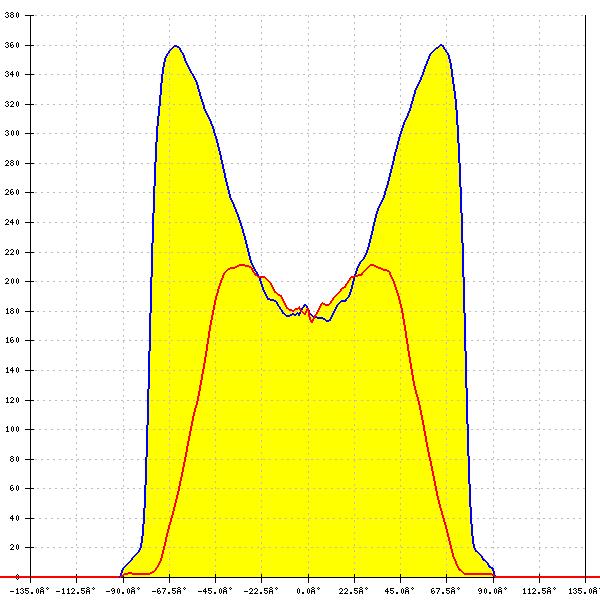

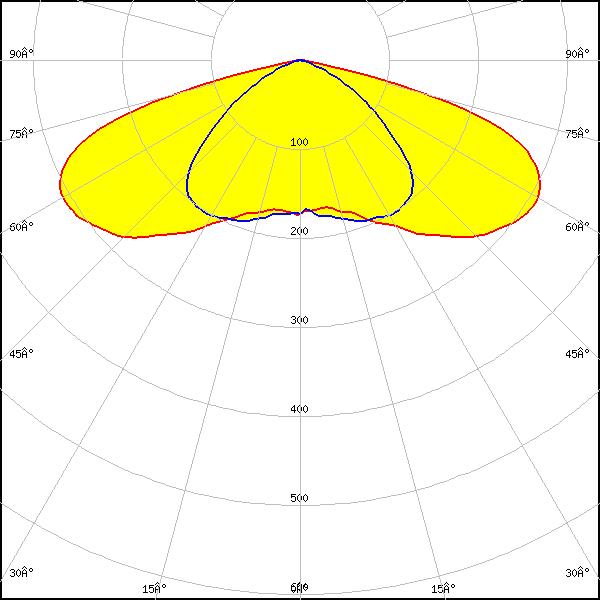

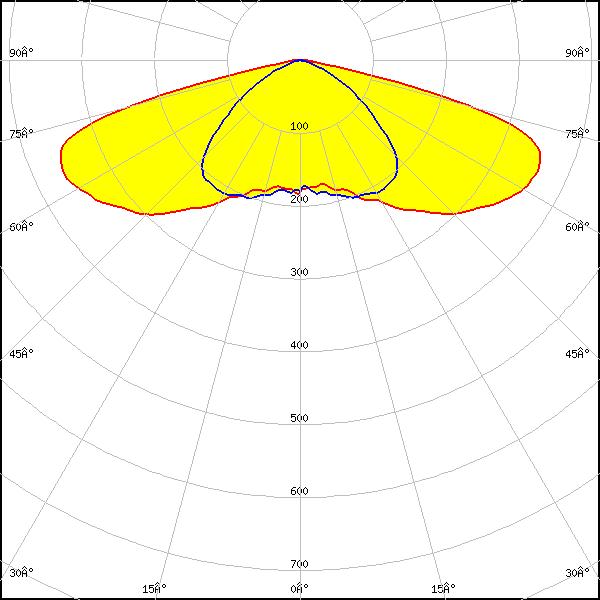

LED: LUXEON 5050 Square LES
FWHM: 152° + 112°
FWTM: 160° + 140°
Peak intensity: 0.360 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

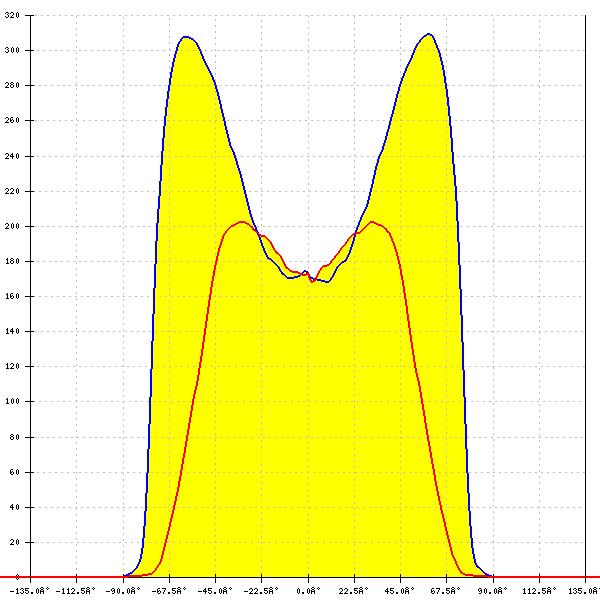

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.309 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON R
FWHM: 150° + 107°
FWTM: 156° + 138°
Peak intensity: 0.421 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON Rebel ES
FWHM: 151° + 106°
FWTM: 157° + 139°
Peak intensity: 0.424 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

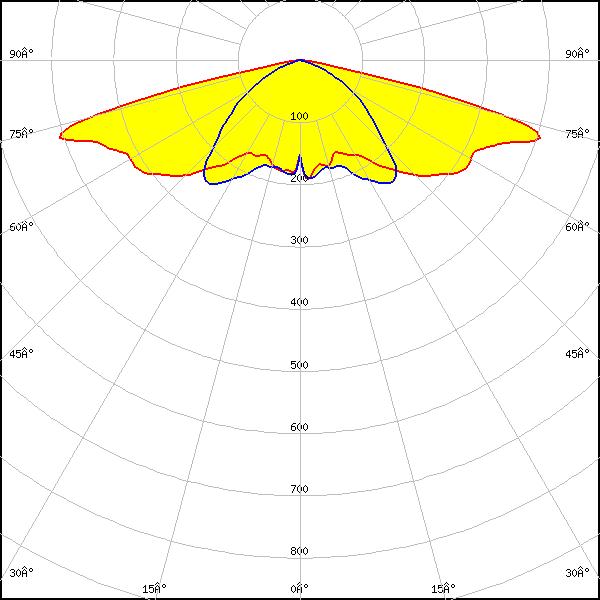

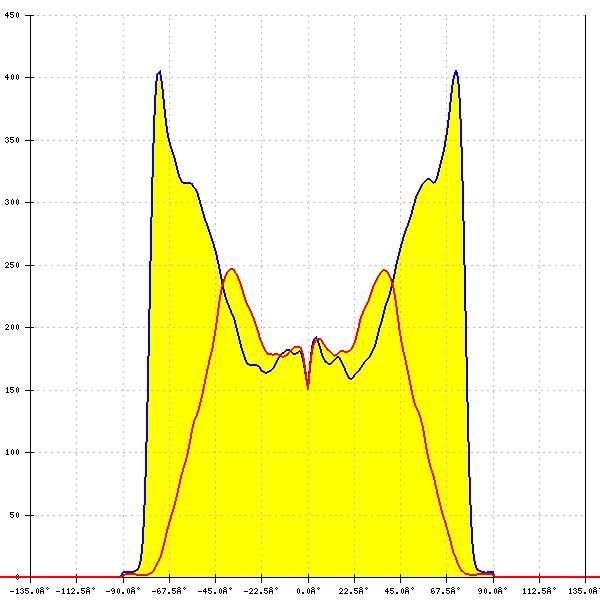

LED: LUXEON T
FWHM: 154° + 110°
FWTM: 160° + 140°
Peak intensity: 0.406 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON TX
FWHM: 153° + 108°
FWTM: 158° + 143°
Peak intensity: 0.468 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

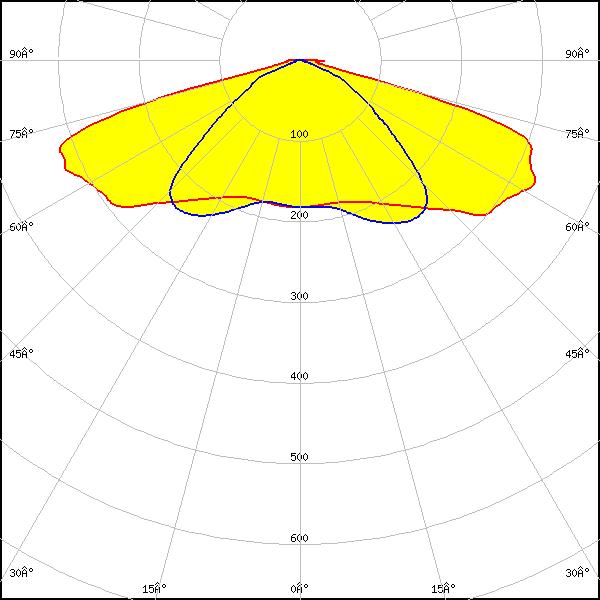

LED: LUXEON V
FWHM: 152° + 117°
FWTM: 174° + 141°
Peak intensity: 0.330 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

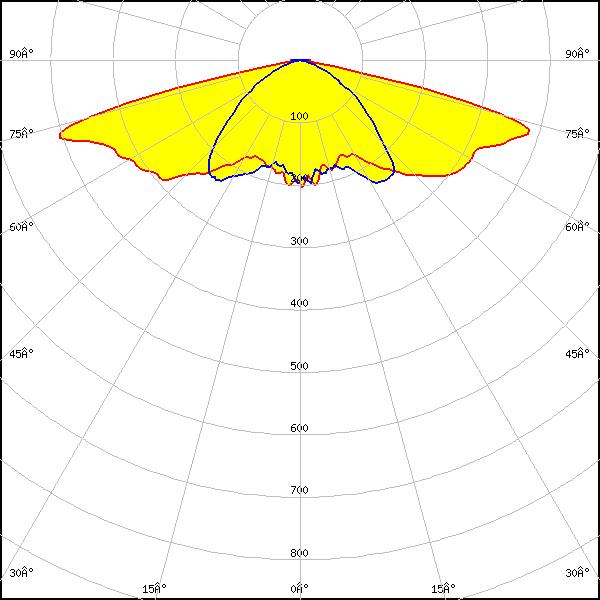

LED: LUXEON V2
FWHM: 154° + 110°
FWTM: 160° + 141°
Peak intensity: 0.400 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

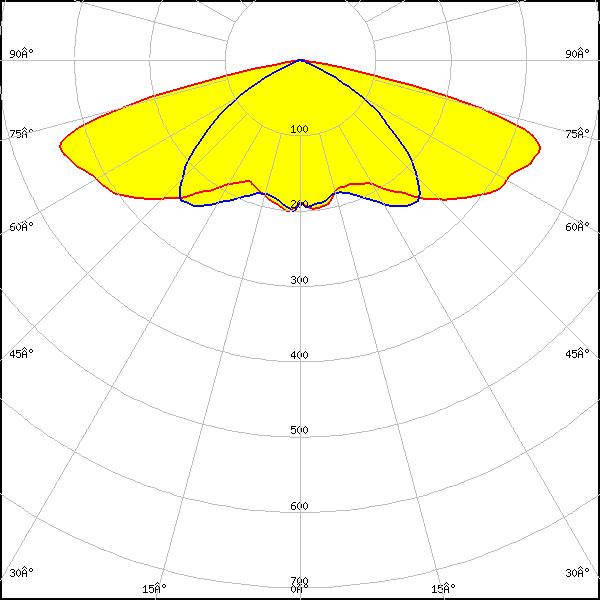

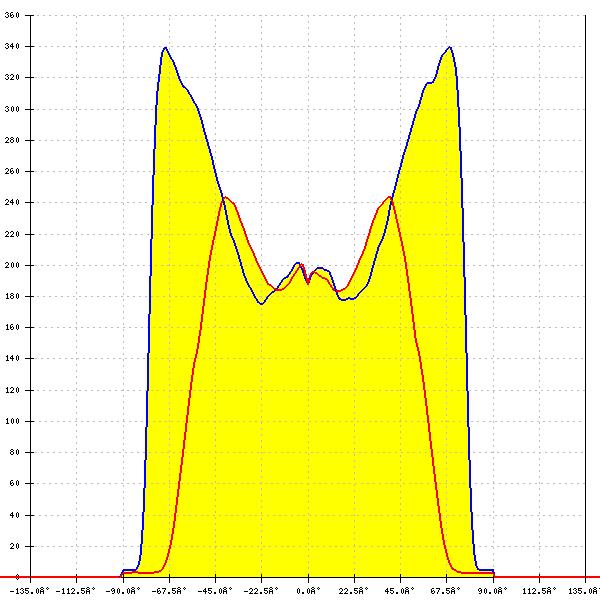

LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM: 154° + 114°
FWTM: 160° + 132°
Peak intensity: 0.339 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM: 150° + 112°
FWTM: 160° + 132°
Peak intensity: 0.273 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

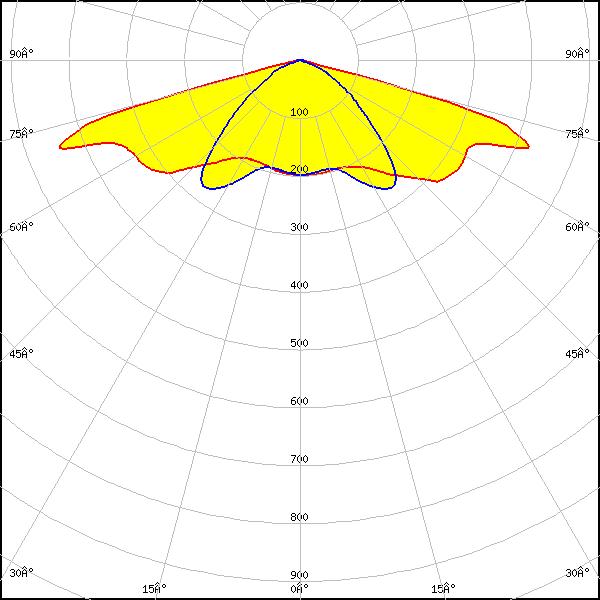

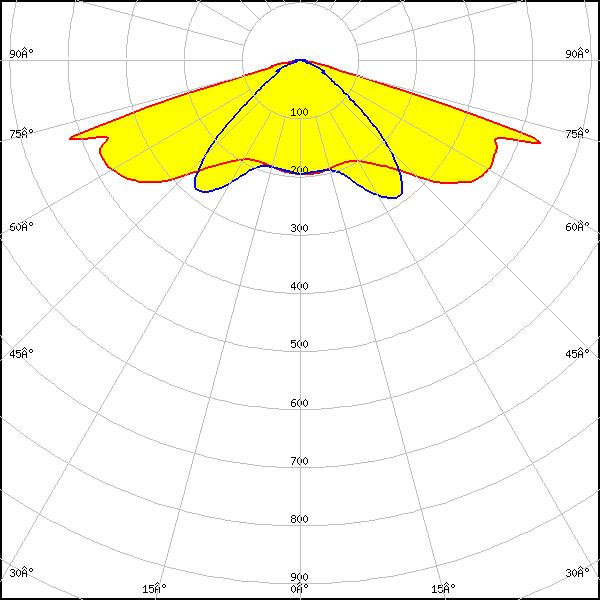

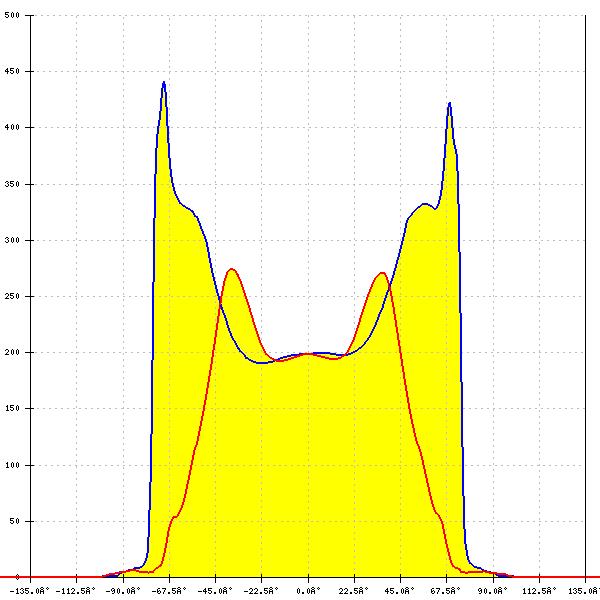

LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: asymmetric
Peak intensity: 0.441 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White
LED: NCSxx19B
FWHM: 152° + 111°
FWTM: 156° + 162°
Peak intensity: 0.511 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

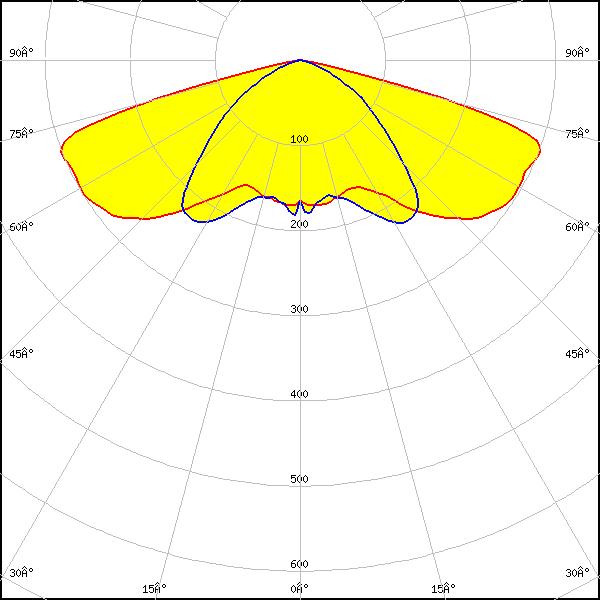

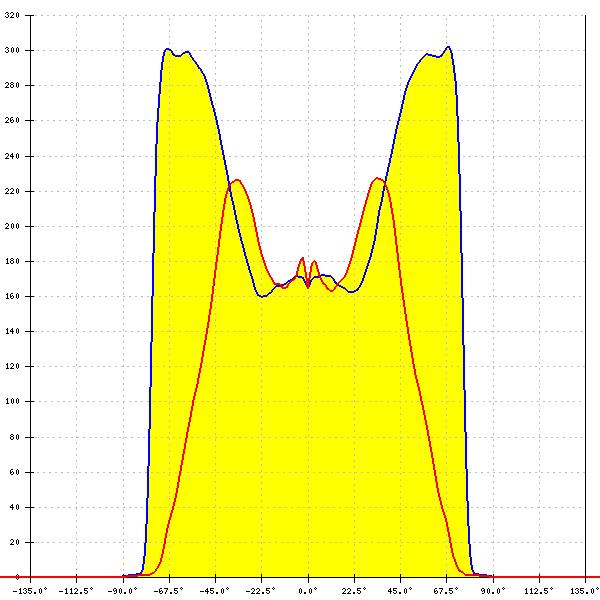

LED: NF2x757G
FWHM: 150° + 106°
FWTM: 156° + 138°
Peak intensity: 0.302 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: NS9x383
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

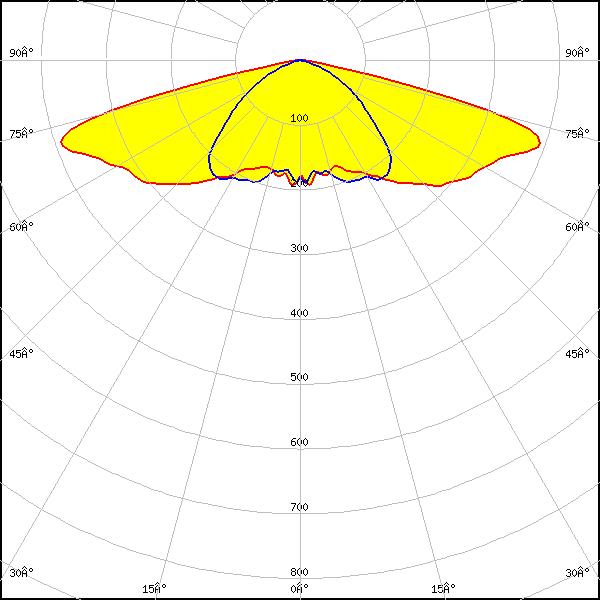

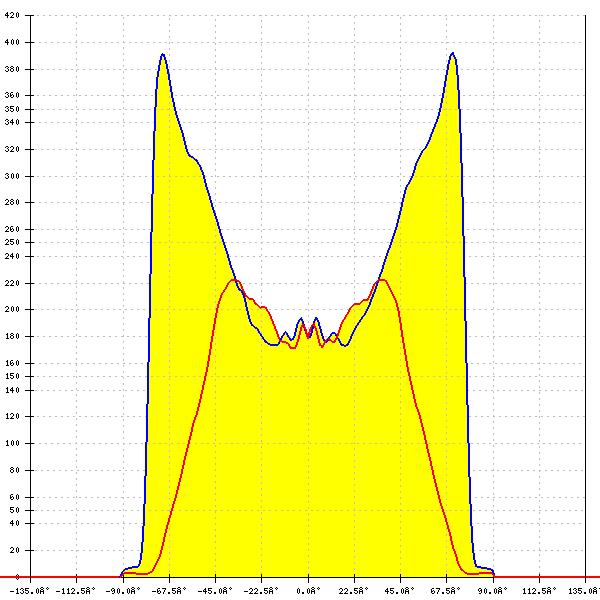

LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 0.392 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

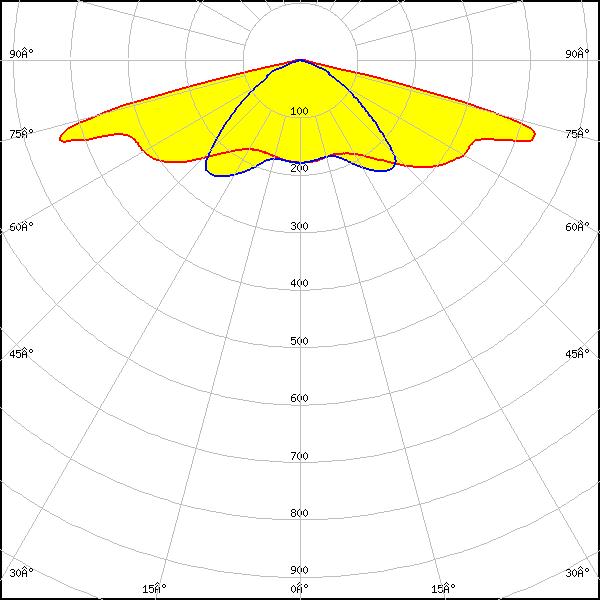

LED: NVSW219F
FWHM: 154° + 118°
FWTM: 156° + 142°
Peak intensity: 0.440 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

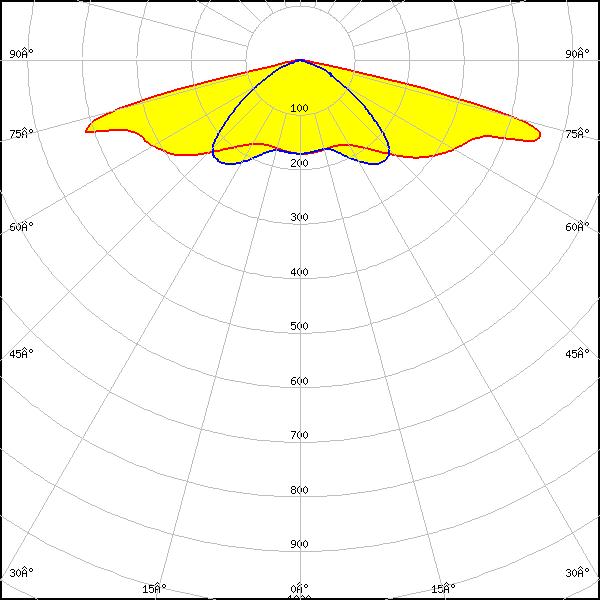

LED: NVSW319B
FWHM: 155° + 120°
FWTM: 158° + 142°
Peak intensity: 0.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW3x9A
FWHM: 152° + 125°
FWTM: 157° + 140°
Peak intensity: 0.490 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

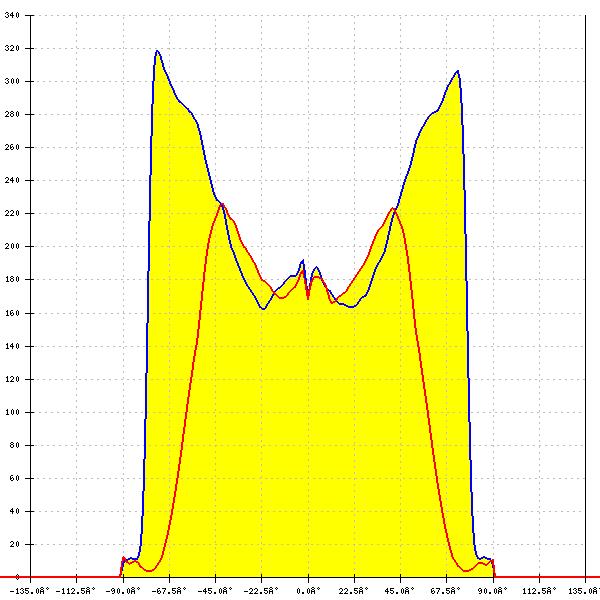

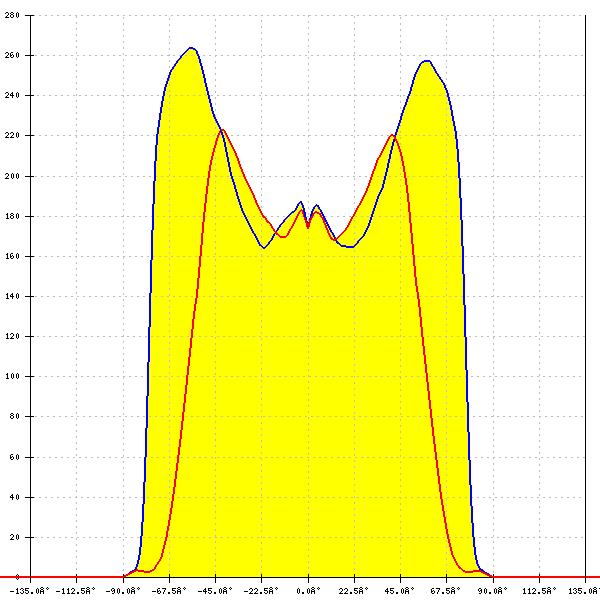

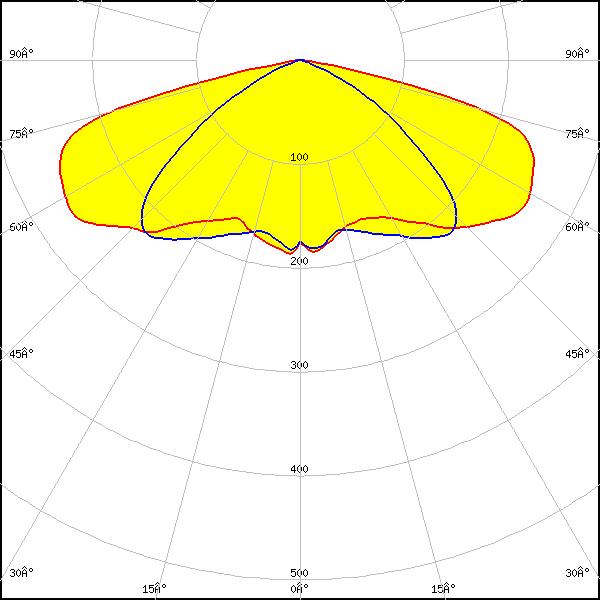

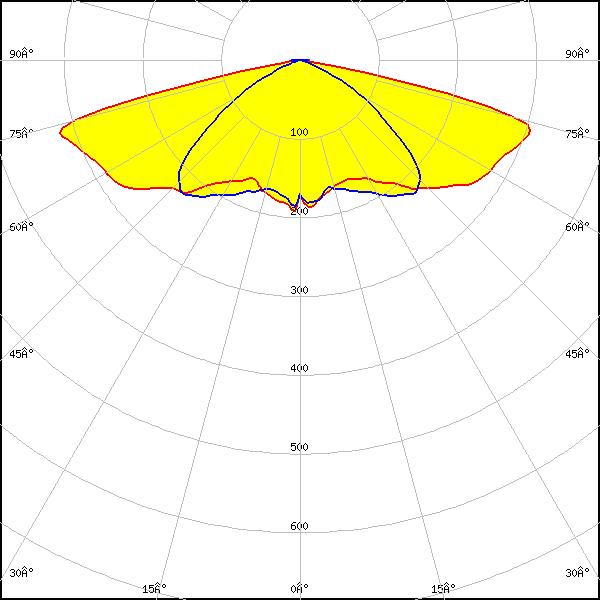

LED: NVSW519A
FWHM: 156° + 114°
FWTM: 162° + 138°
Peak intensity: 0.319 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW519A
FWHM: asymmetric
Peak intensity: 0.264 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

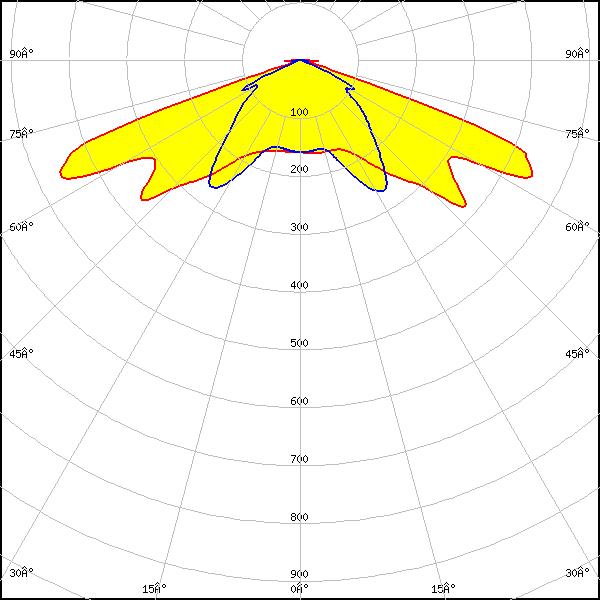

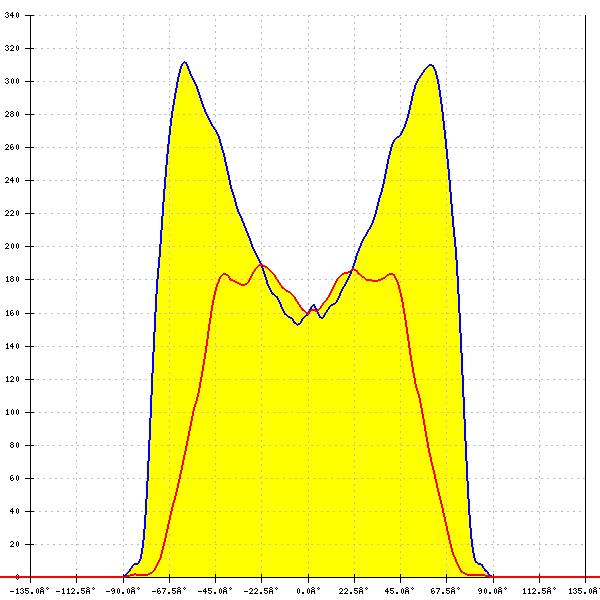

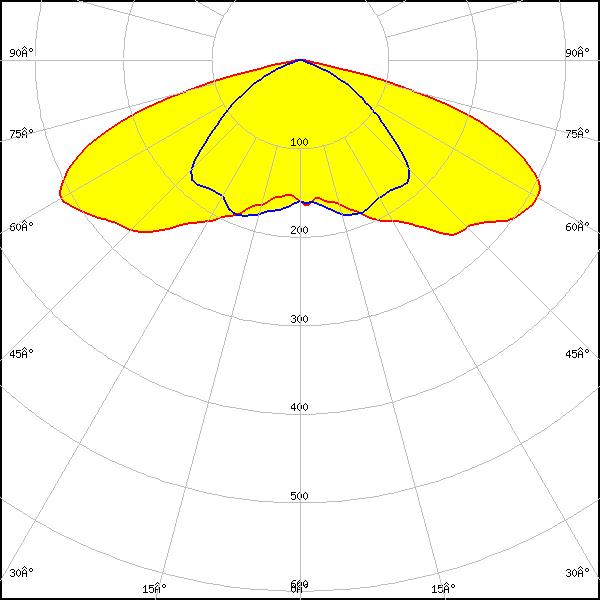

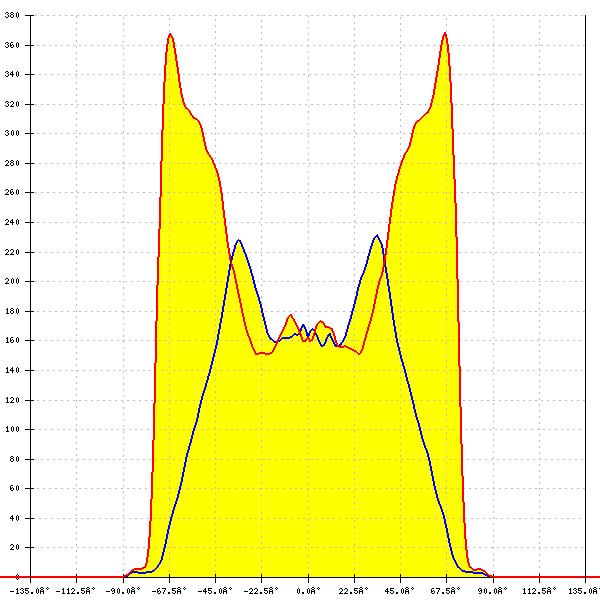

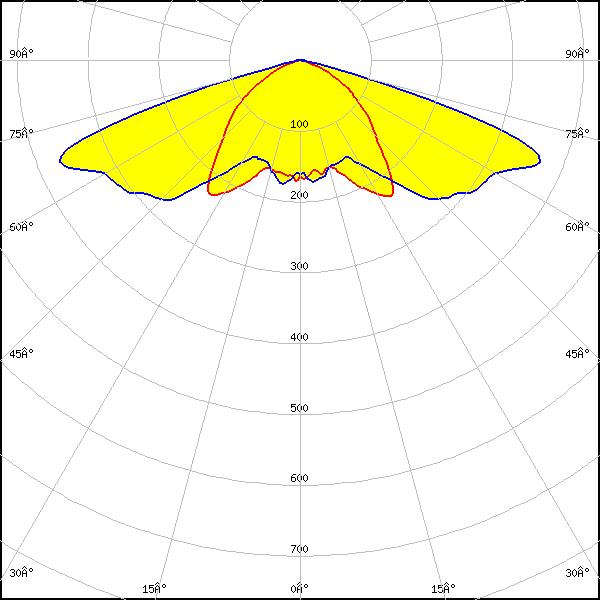

LED: NVSxE21A
FWHM: 148° + 112°
FWTM: 158° + 140°
Peak intensity: 0.312 cd/lm
Efficiency: 84 %
LEDs/each optic: 4
Light colour/type: White
LED: NVSxE21A
FWHM: 105° + 146°
FWTM: 138° + 152°
Peak intensity: 0.368 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxE21A
FWHM: 142° + 130°
FWTM: 147° + 140°
Peak intensity: 0.470 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

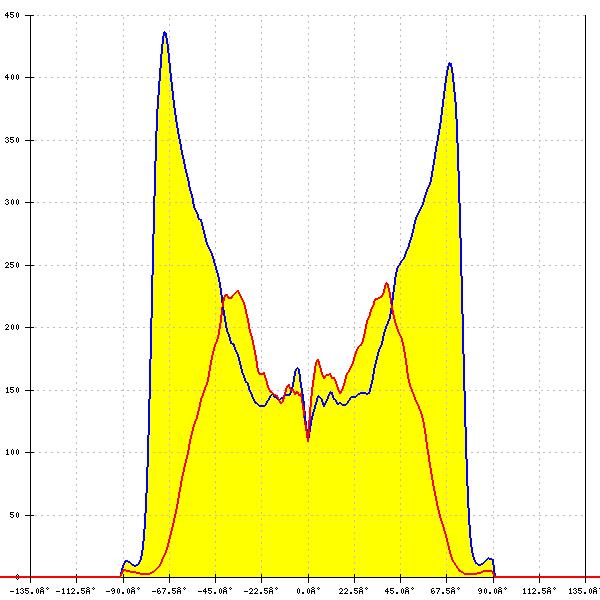

LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 0.440 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

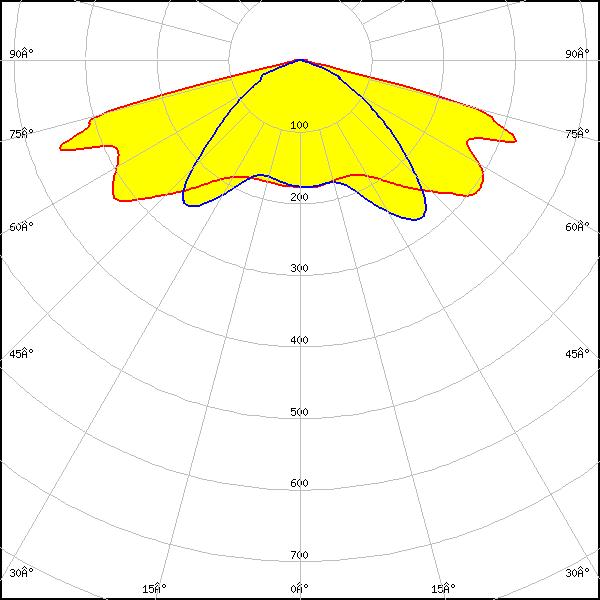

LED: PrevaLED Brick HP 2x8
FWHM: 152° + 119°
FWTM: 155° + 144°
Peak intensity: 0.360 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

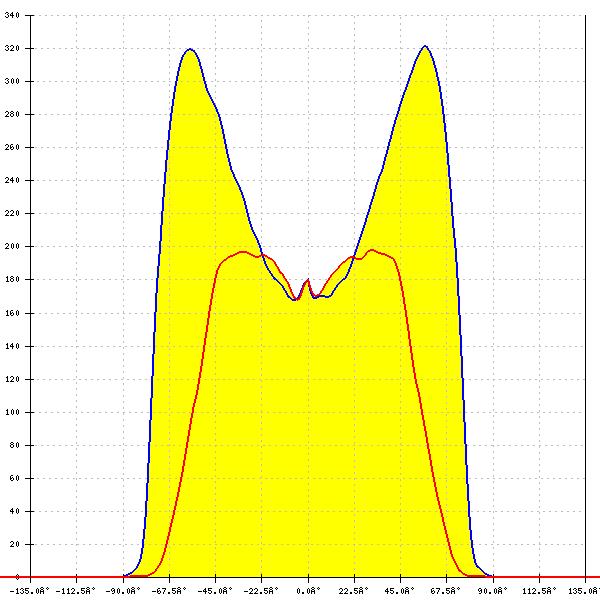

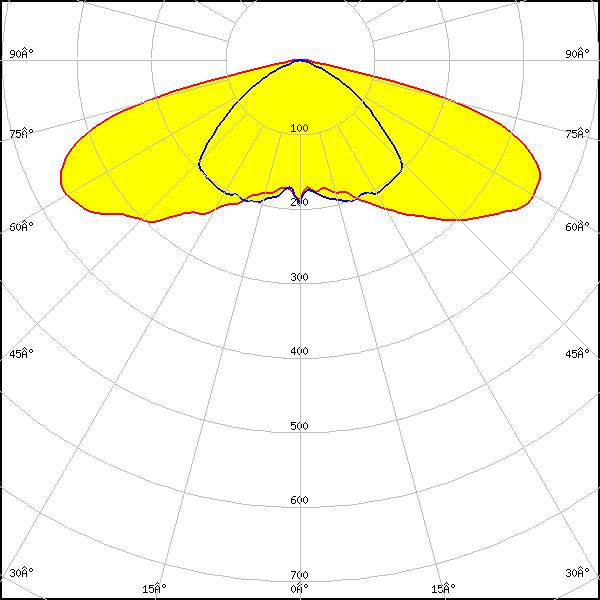

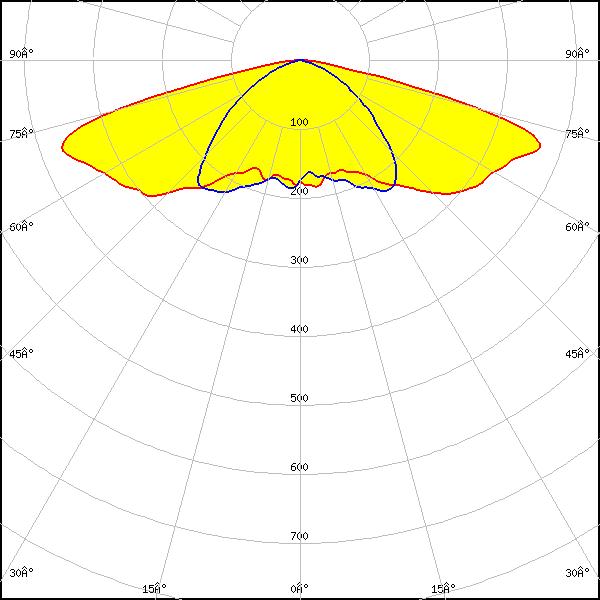

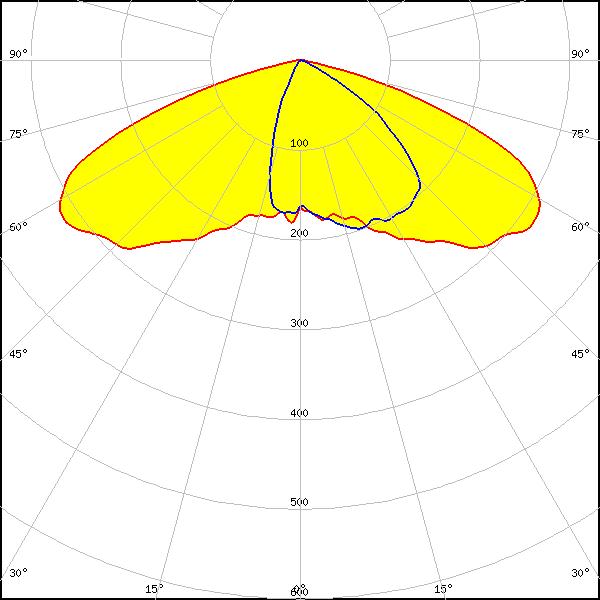

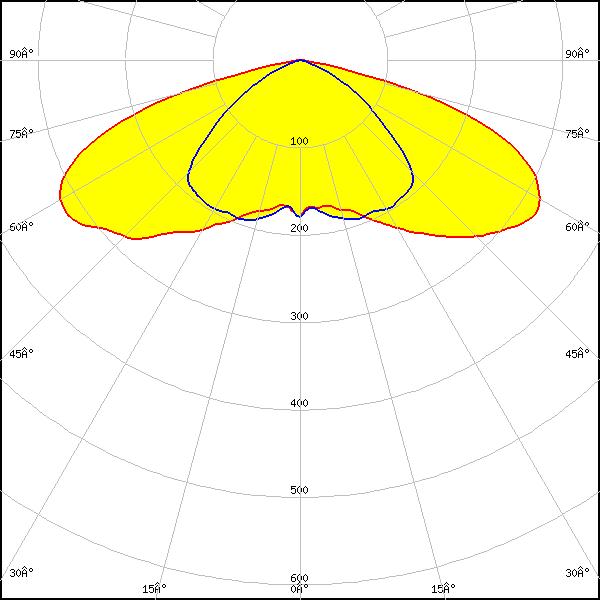

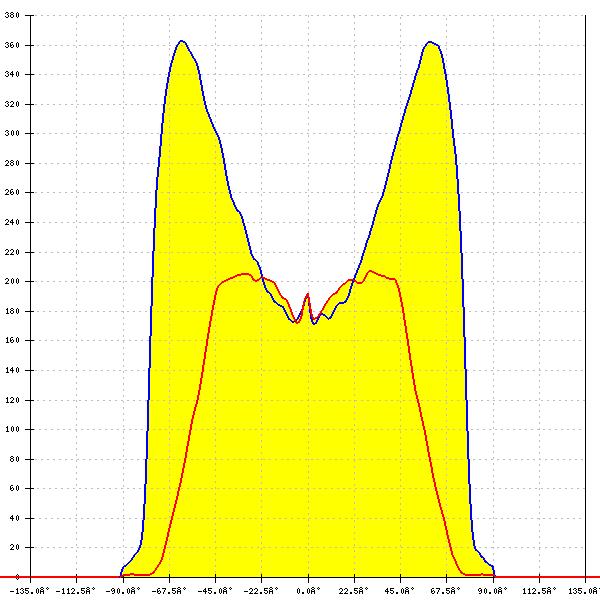

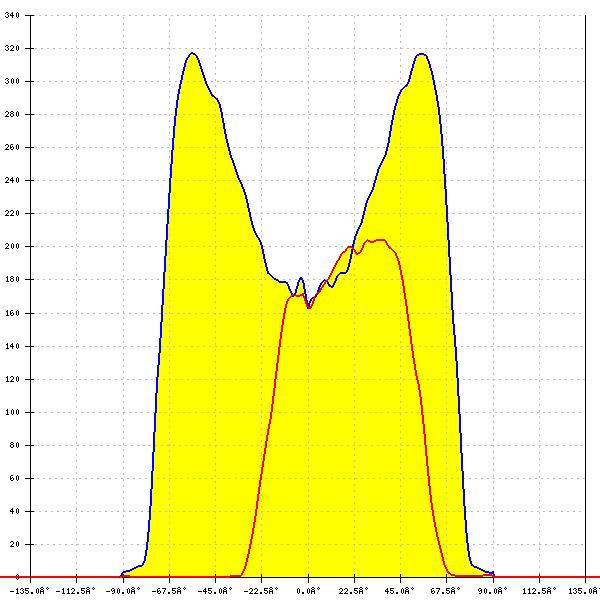

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.363 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.321 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (3W version)
FWHM: 153° + 92°
FWTM: 163° + 137°
Peak intensity: 0.370 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

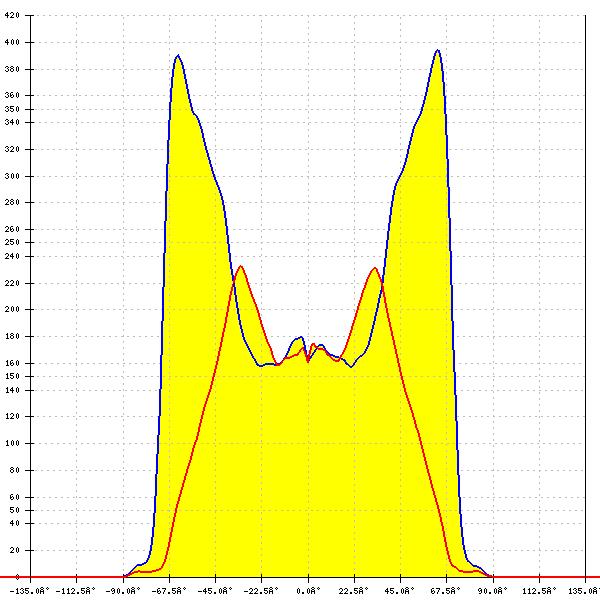

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.394 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

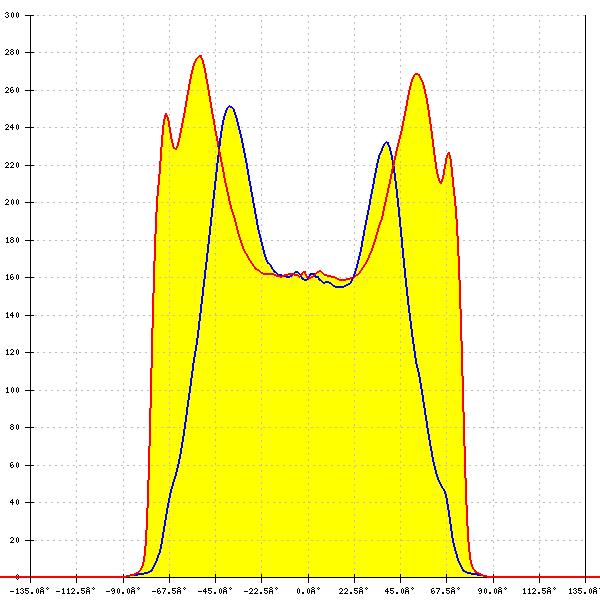

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 148° + 116°
FWTM: 0° + 0°
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: 152° + 119°
FWTM: 155° + 144°
Peak intensity: 0.360 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

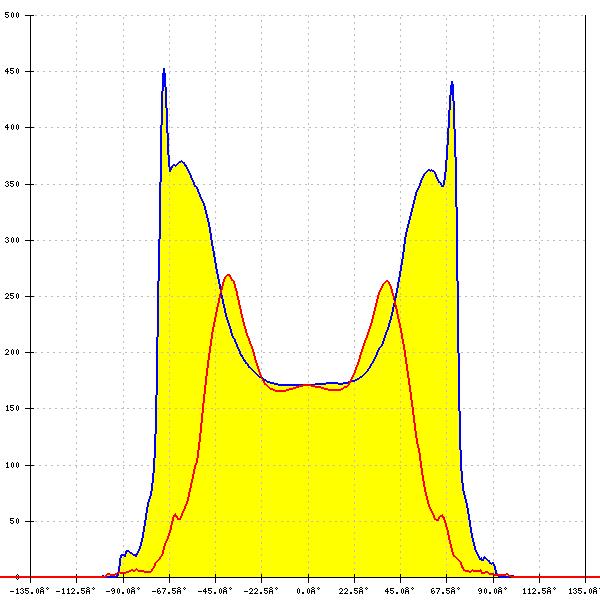

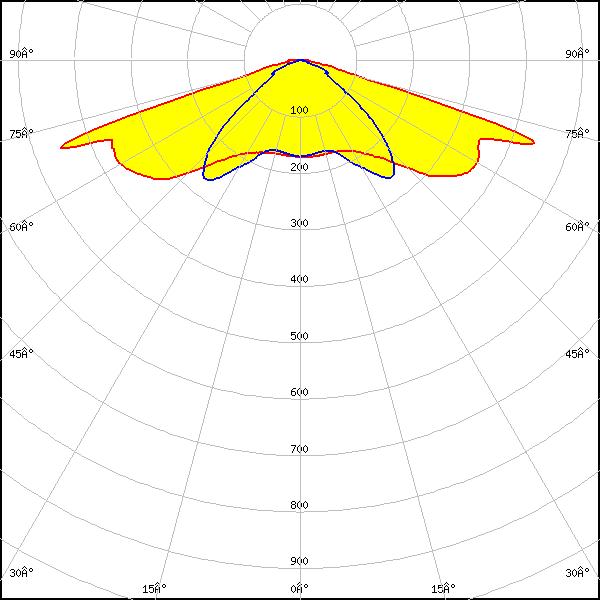

LED: OSLON Square PC
FWHM: asymmetric
Peak intensity: 0.460 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

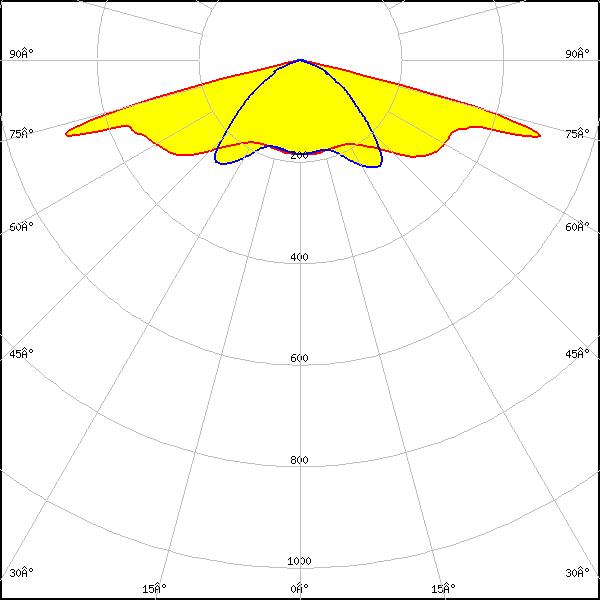

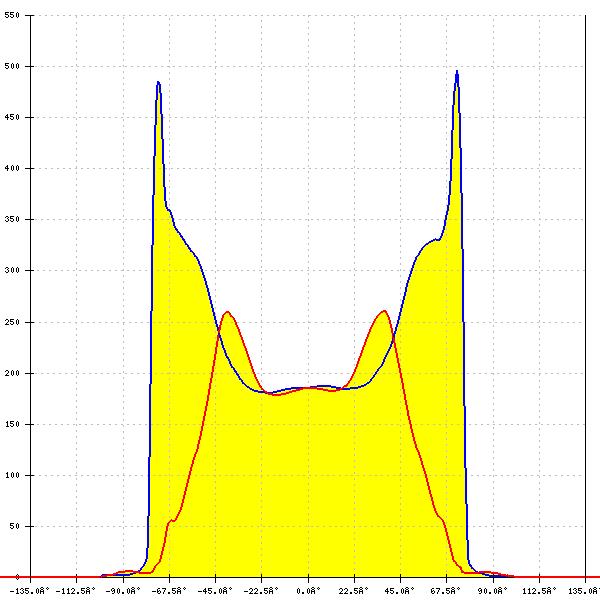

LED: Fortimo FastFlex LED 2x8 DA G4
FWHM: 117° + 153°
FWTM: 143° + 155°
Peak intensity: 0.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA G4+
FWHM: asymmetric
Peak intensity: 0.447 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA G5
FWHM: asymmetric
Peak intensity: 0.452 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White

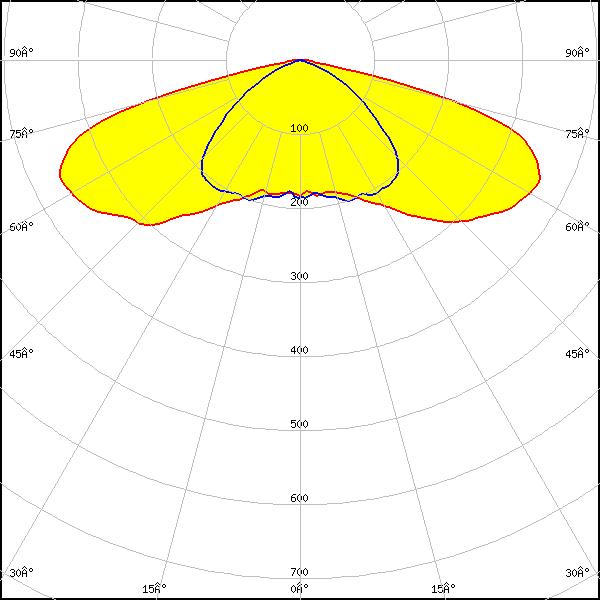

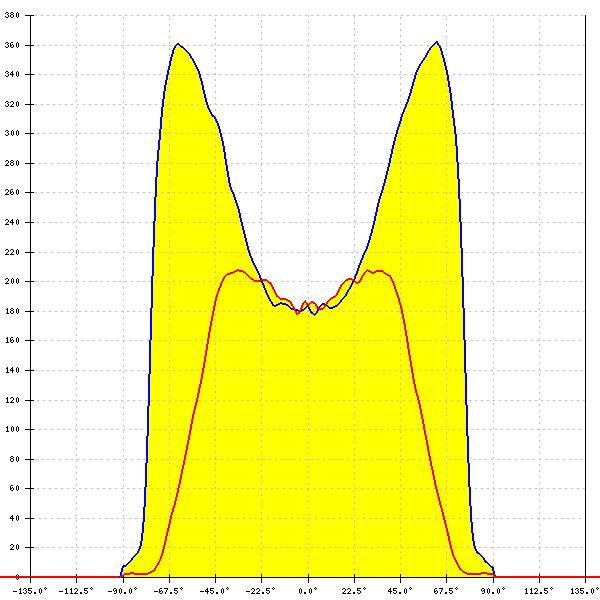

LED: Fortimo FastFlex LED 2x8 DA HE
FWHM: 152° + 112°
FWTM: 160° + 140°
Peak intensity: 0.362 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA HE
FWHM: 148° + 112°
FWTM: 158° + 138°
Peak intensity: 0.306 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

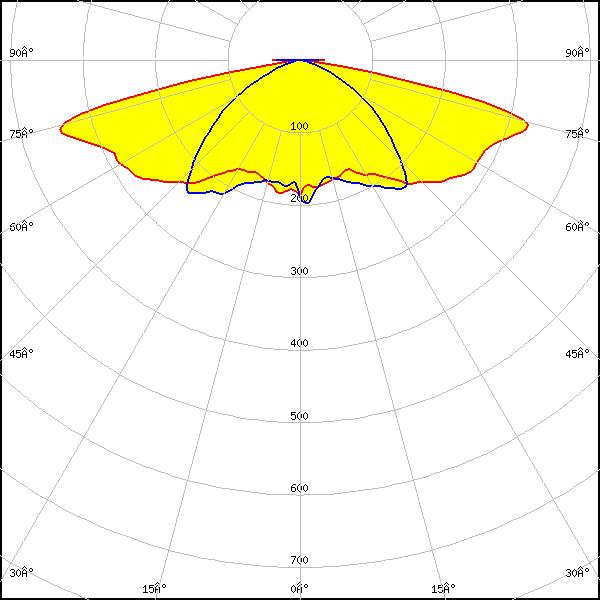

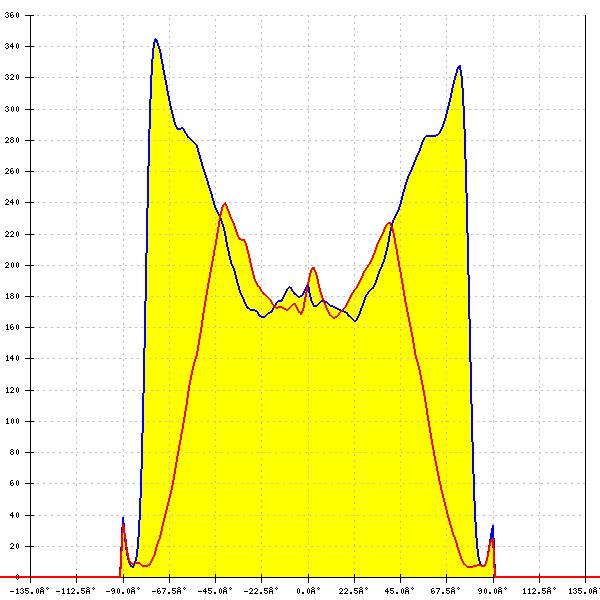

LED: Fortimo FastFlex LED 2x8 DAX G4
FWHM: 157° + 94°
FWTM: 164° + 120°
Peak intensity: 0.350 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

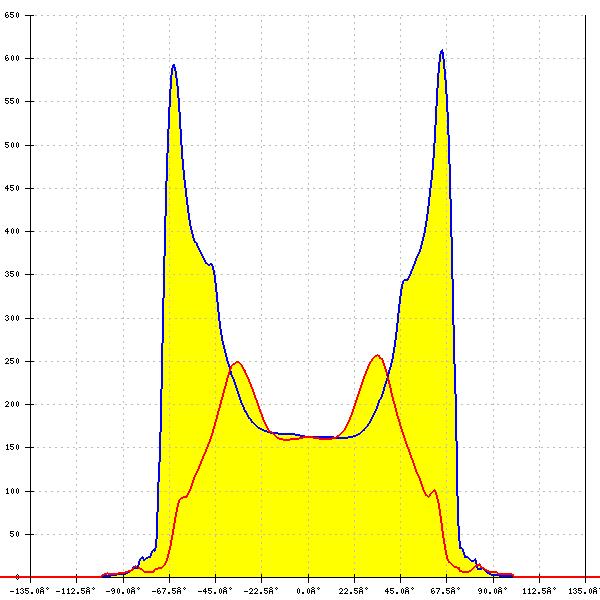

LED: HiLOM RC12 Z (LH181B)
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White

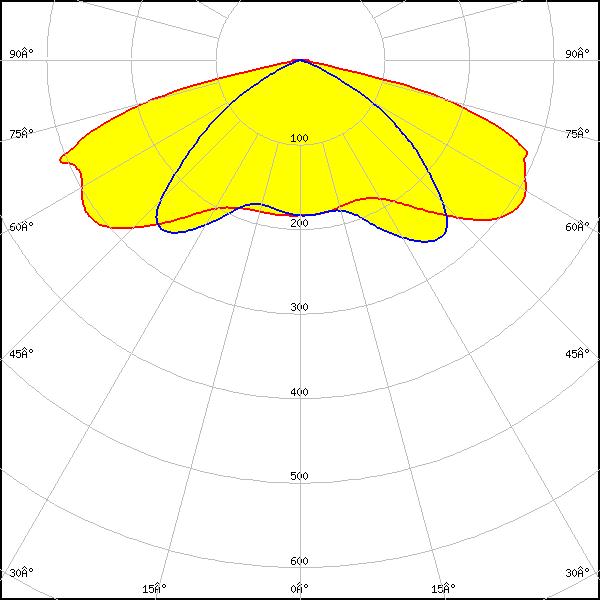

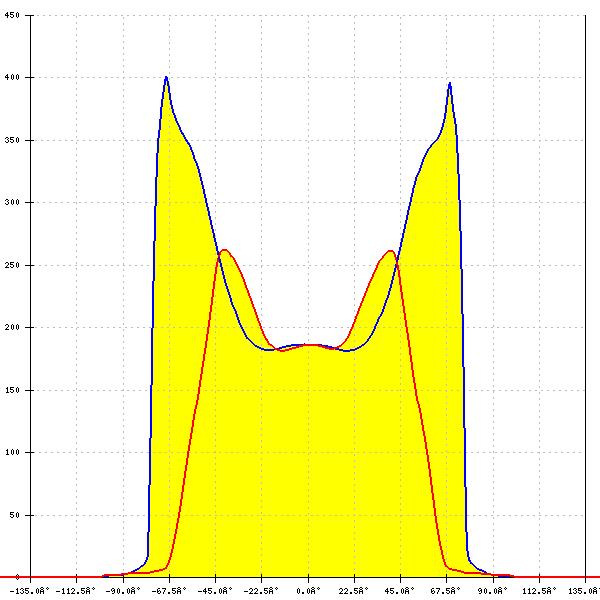

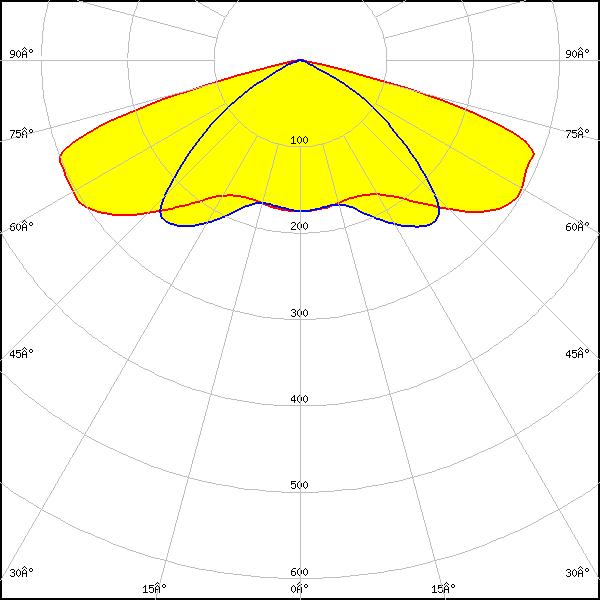

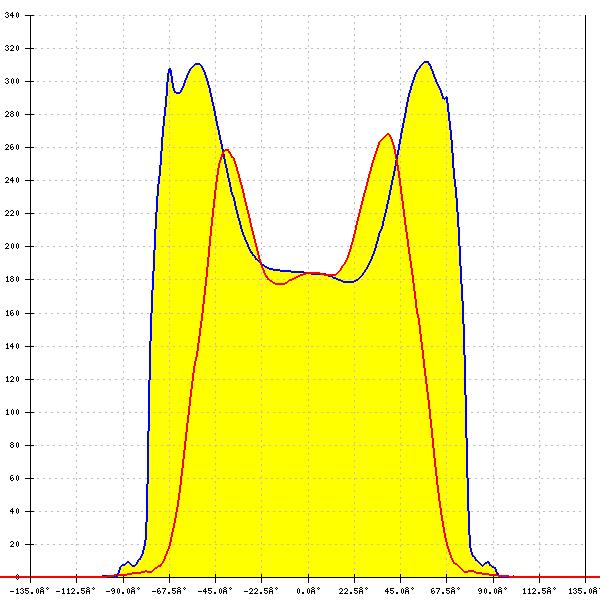

LED: HiLOM RH12 Z (LH351C)
FWHM: asymmetric
Peak intensity: 0.304 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

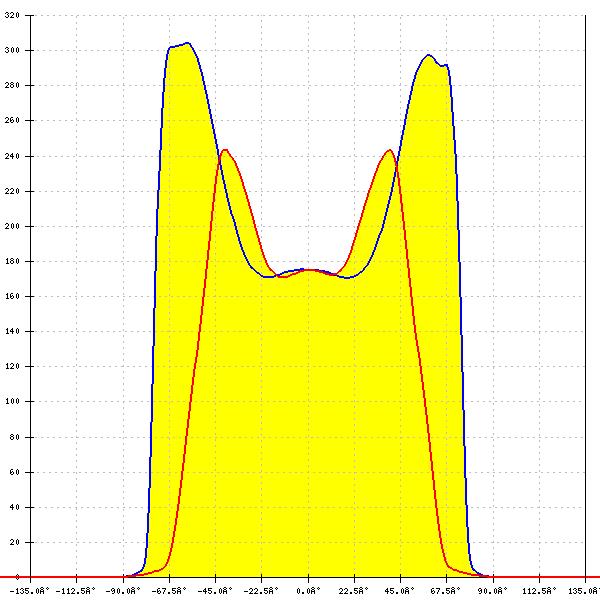

LED: HiLOM RH12 Z (LH351C)
FWHM: asymmetric
Peak intensity: 0.401 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

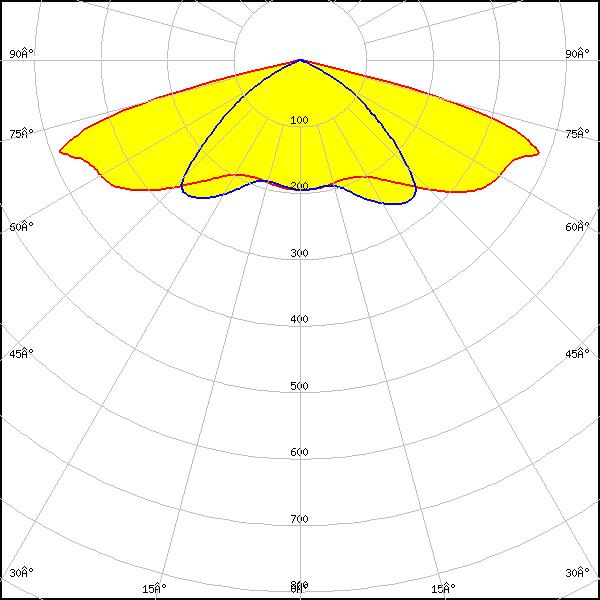

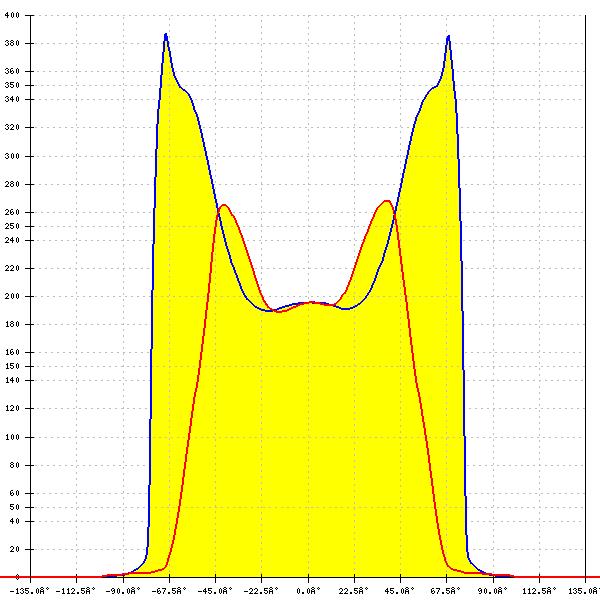

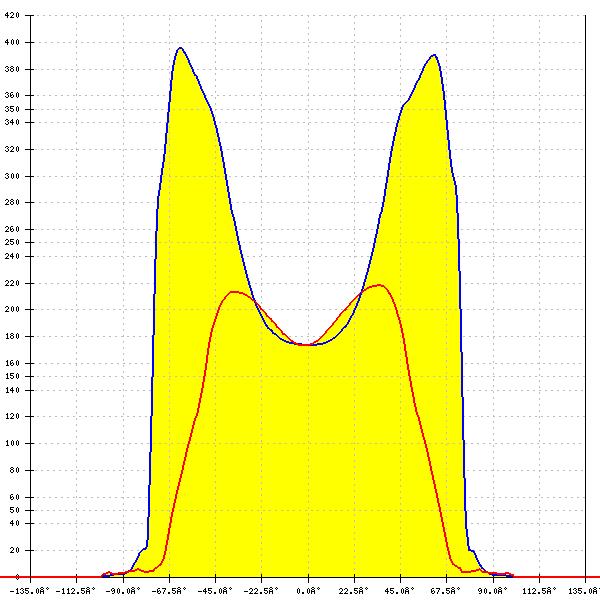

LED: HiLOM RH16 (LH351C)
FWHM: asymmetric
Peak intensity: 0.390 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: HiLOM RM12 Z (LH502C)
FWHM: asymmetric
Peak intensity: 0.392 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: HiLOM RM16 Z (LH502C)
FWHM: asymmetric
Peak intensity: 0.396 cd/lm
Efficiency: 99 %
LEDs/each optic: 1
Light colour/type: White

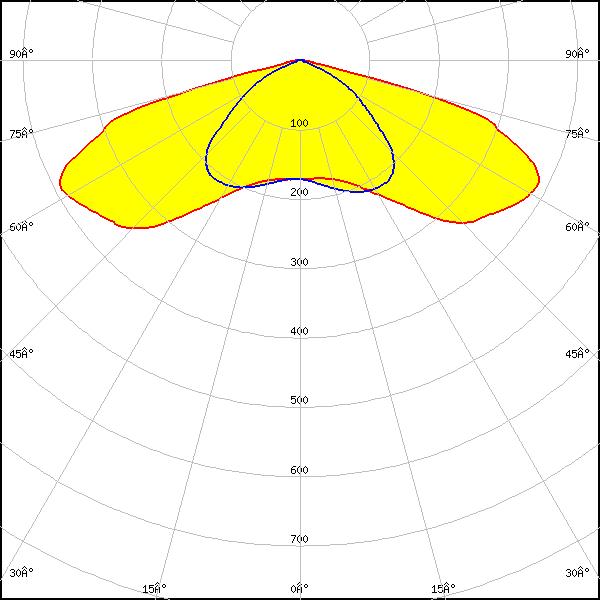

LED: HiLOM RM8 Z (LH502C)
FWHM: asymmetric
Peak intensity: 0.391 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351A
FWHM: 158° + 116°
FWTM: 172° + 163°
Peak intensity: 0.413 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

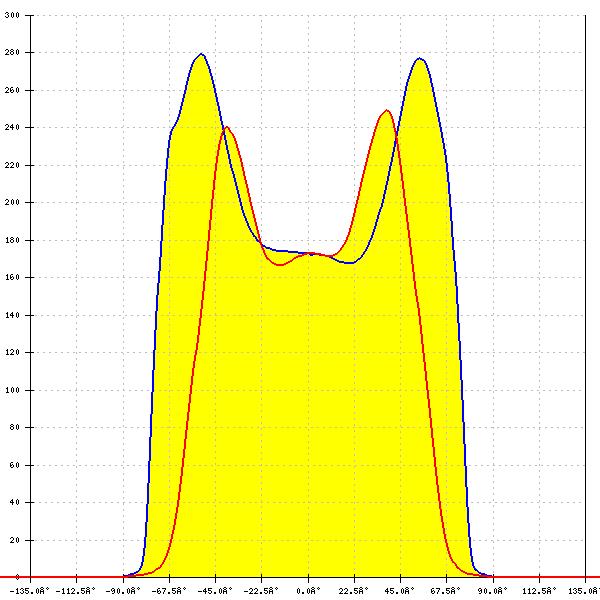

LED: LH351B
FWHM: asymmetric
Peak intensity: 0.285 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

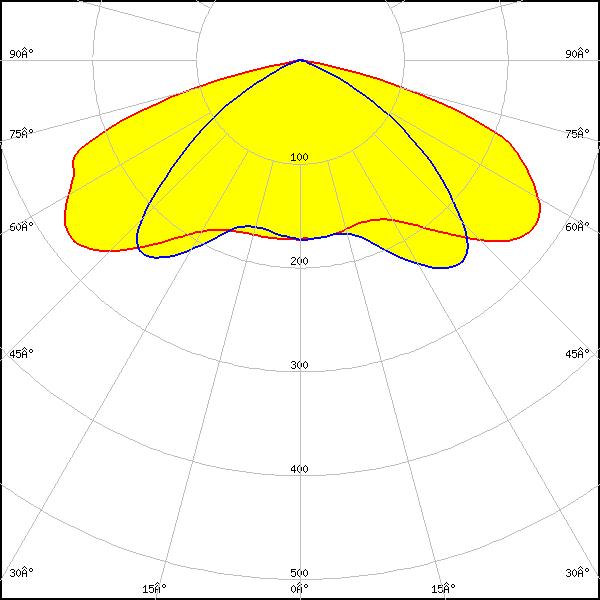

LED: LH351B
FWHM: 154° + 119°
FWTM: 158° + 136°
Peak intensity: 0.320 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

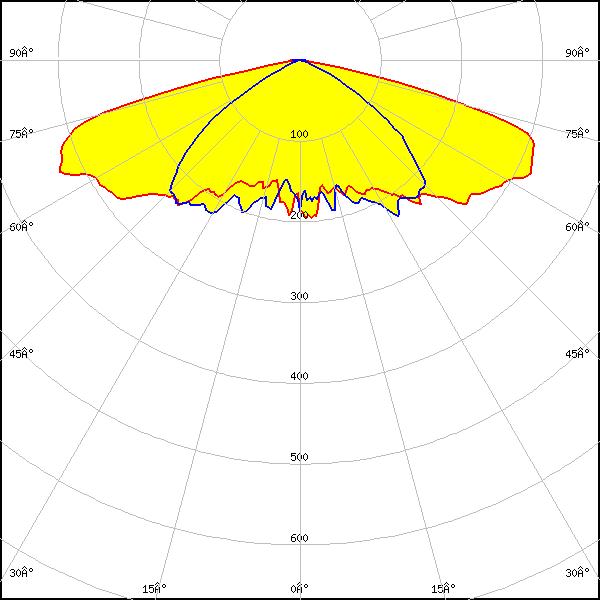

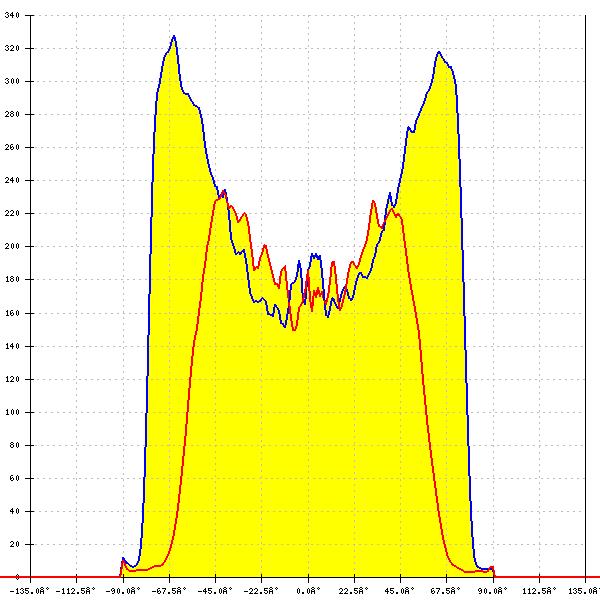

LED: LH351D
FWHM: 153° + 113°
FWTM: 160° + 132°
Peak intensity: 0.331 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351Z
FWHM: 150° + 105°
FWTM: 156° + 126°
Peak intensity: 0.356 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

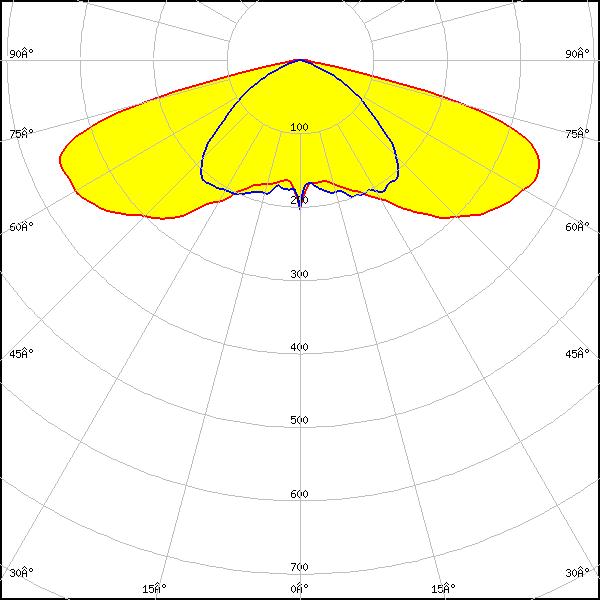

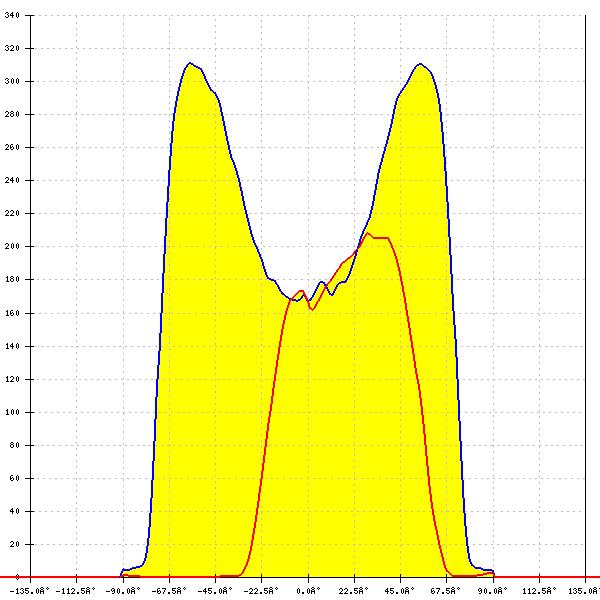

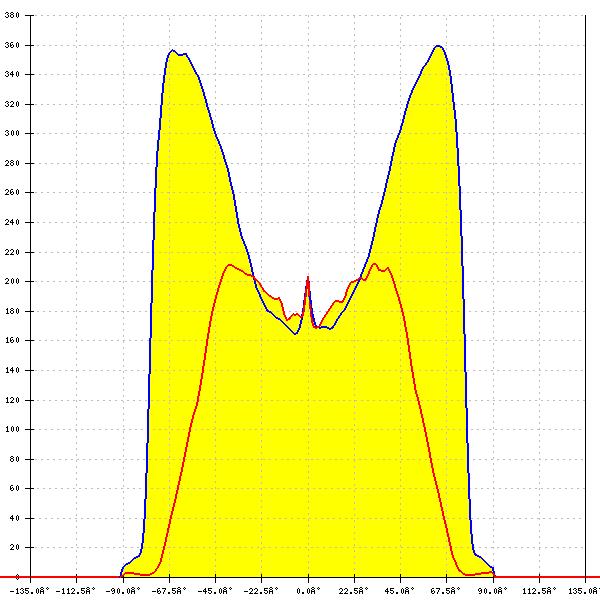

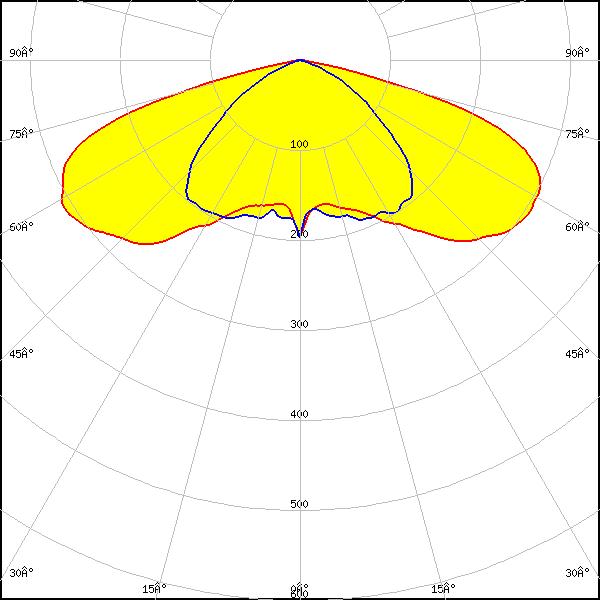

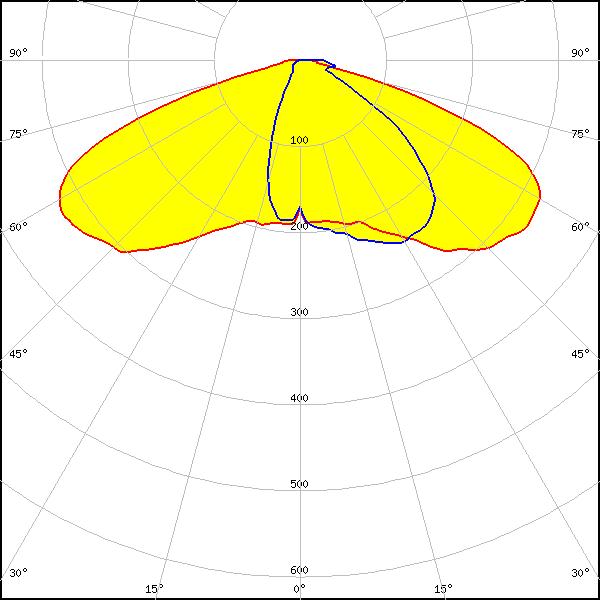

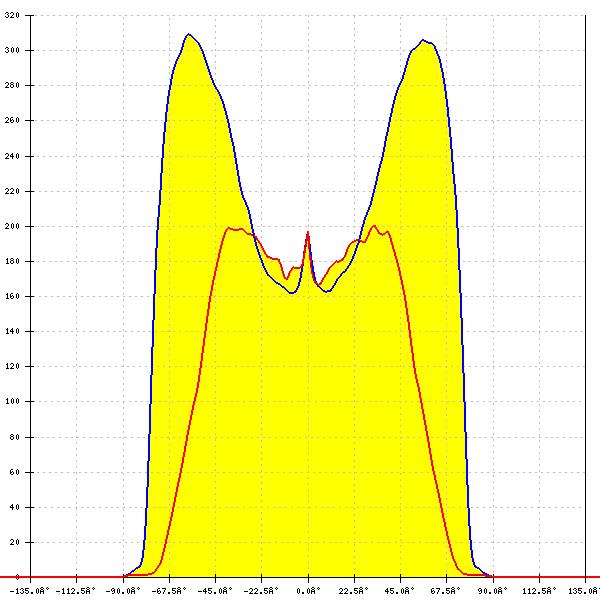

LED: LH502D
FWHM: 152° + 112°
FWTM: 158° + 140°
Peak intensity: 0.359 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: LH502D
FWHM: 149° + 110°
FWTM: 158° + 138°
Peak intensity: 0.309 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: LED-Pa-L15c2W11c2-xxx-C050-01
FWHM: asymmetric
Peak intensity: 0.496 cd/lm
Efficiency: 99 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT 5050
FWHM: asymmetric
Peak intensity: 0.362 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.360 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.308 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

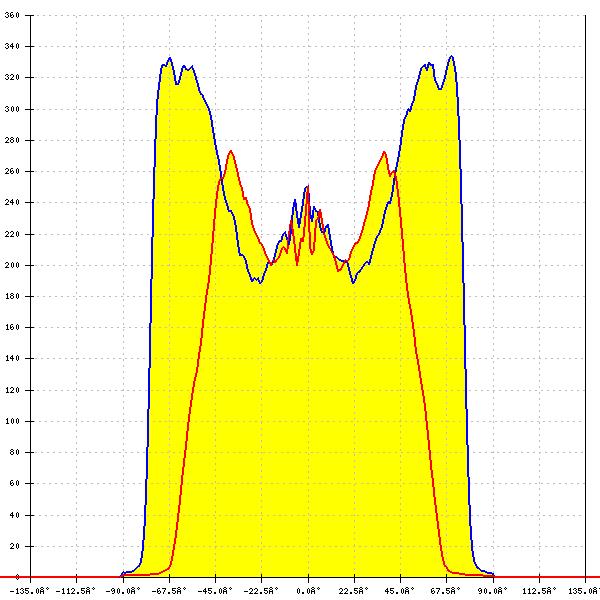

LED: Z5M
FWHM: 153° + 110°
FWTM: 159° + 143°
Peak intensity: 0.428 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

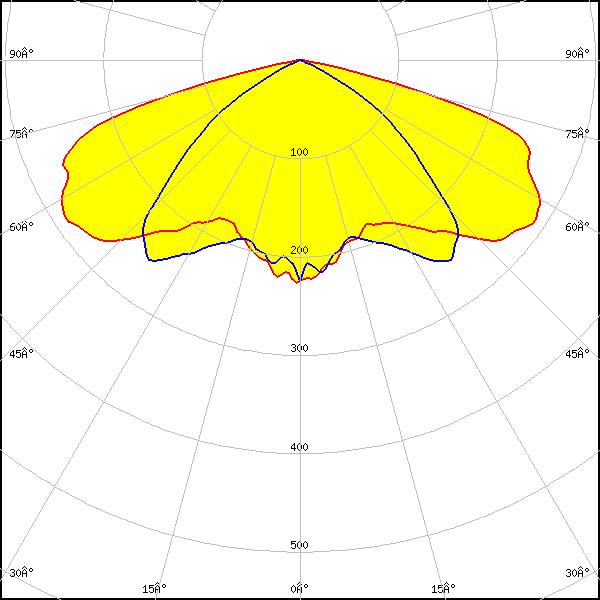

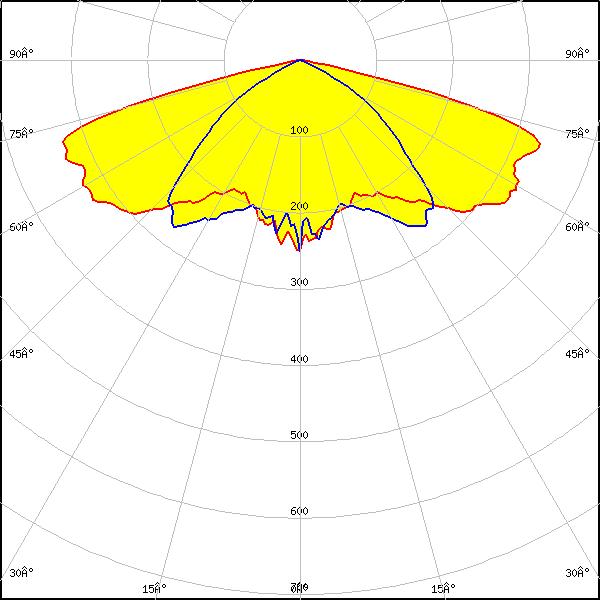

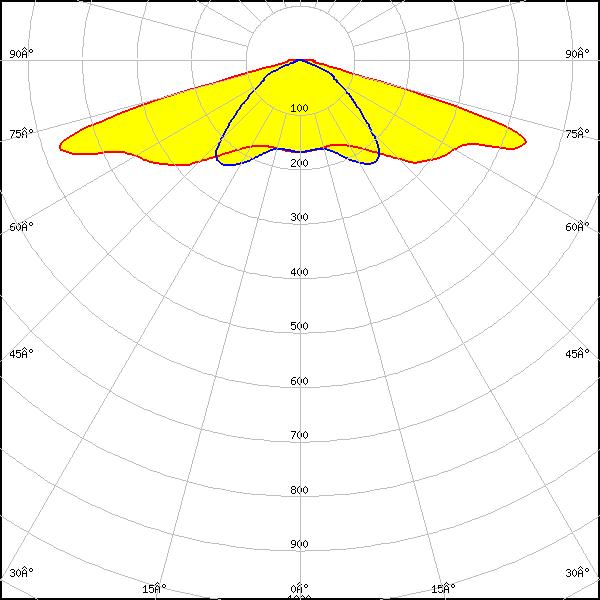

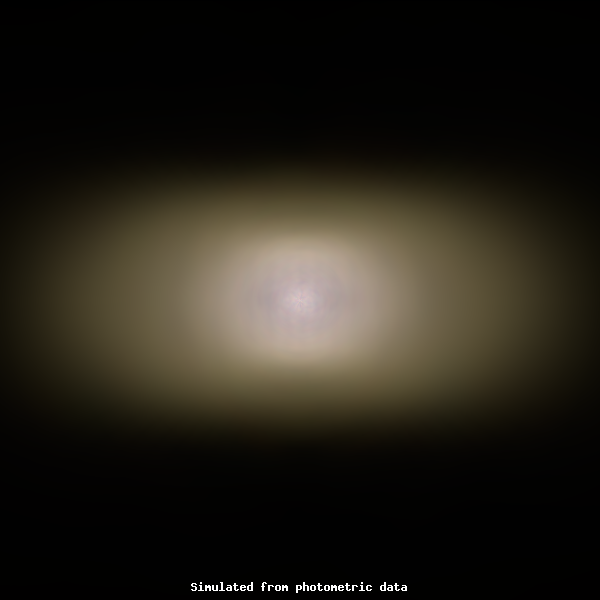

LED: Z5M3
FWHM: asymmetric
Peak intensity: 0.470 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

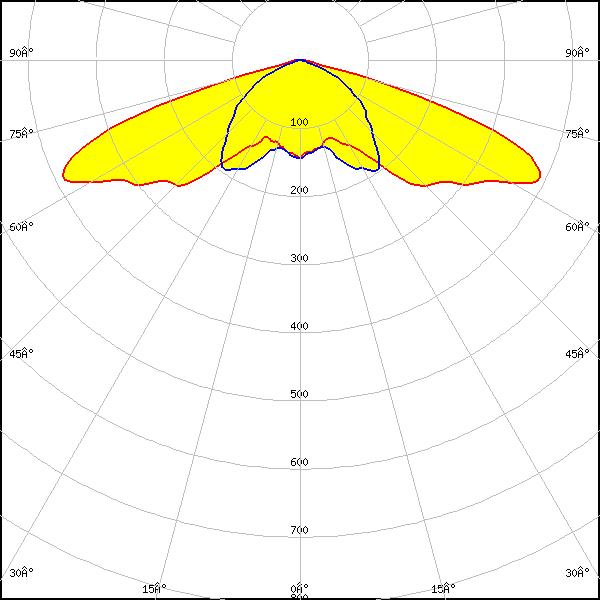

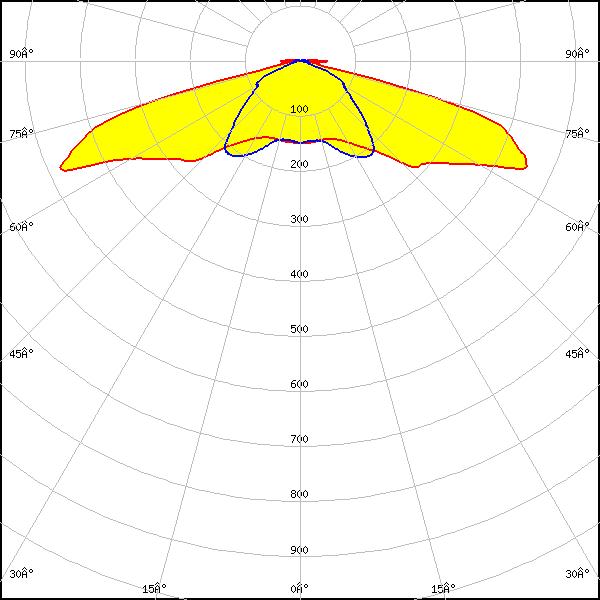

LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.392 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

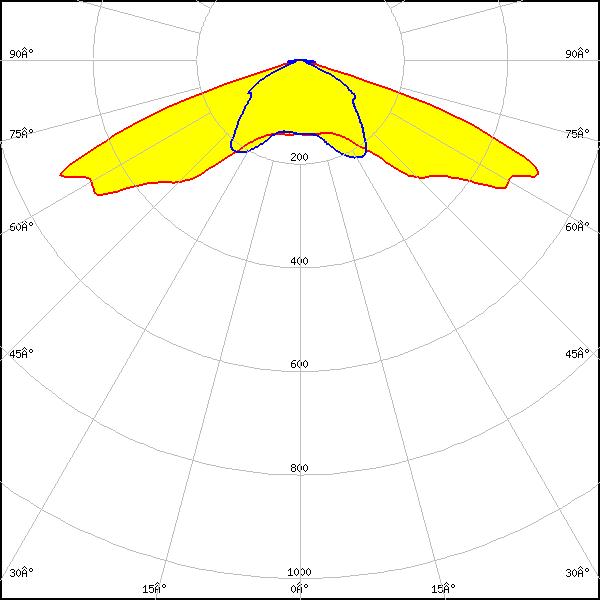

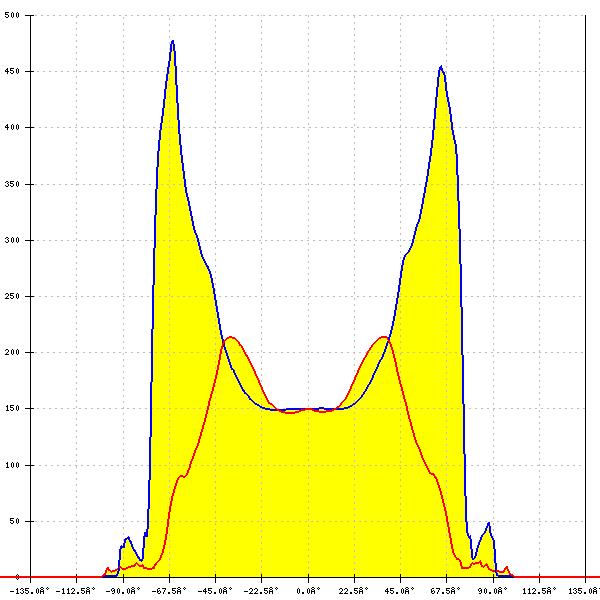

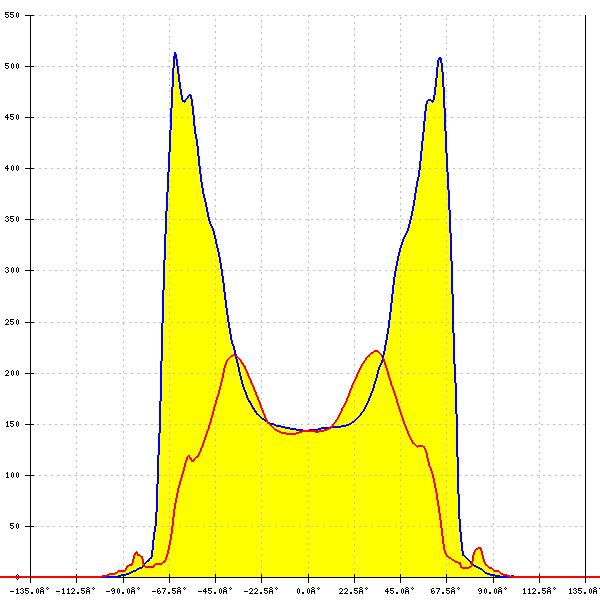

LED: Z8Y22
FWHM: 143° + 128°
FWTM: 149° + 172°
Peak intensity: 0.520 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Z8Y22P
FWHM: 151° + 130°
FWTM: 169° + 146°
Peak intensity: 0.480 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE 2x4 2000lm HP EXC2 OTD
FWHM: 151° + 119°
FWTM: 155° + 142°
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

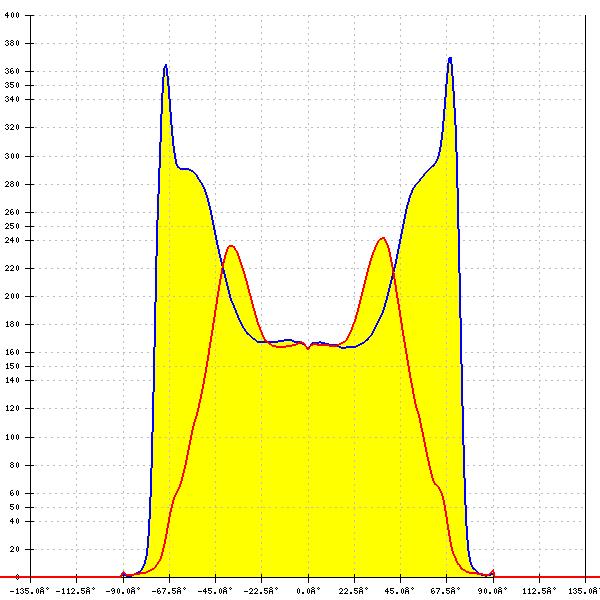

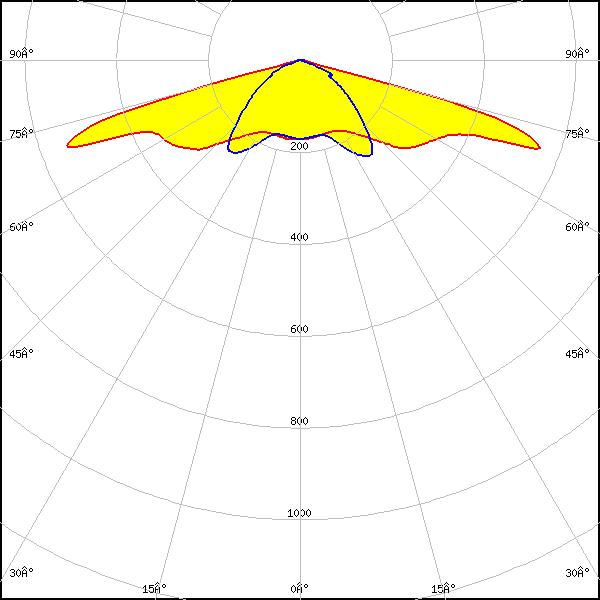

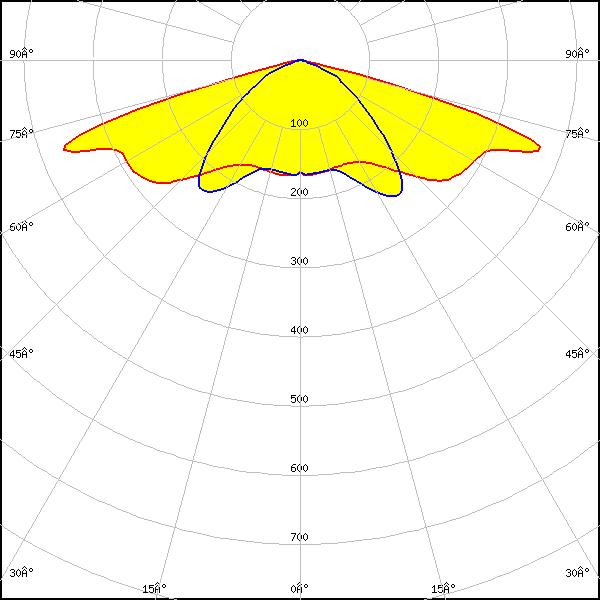

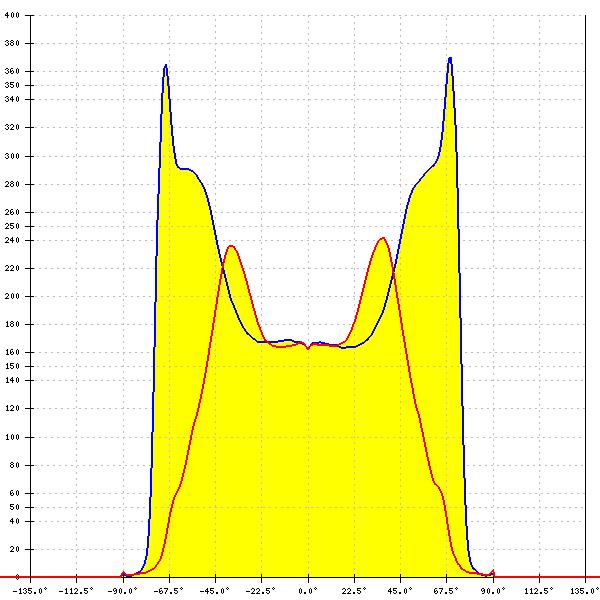

LED: RLE 2x8 4000lm HP EXC2 OTD
FWHM: asymmetric
Peak intensity: 0.369 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

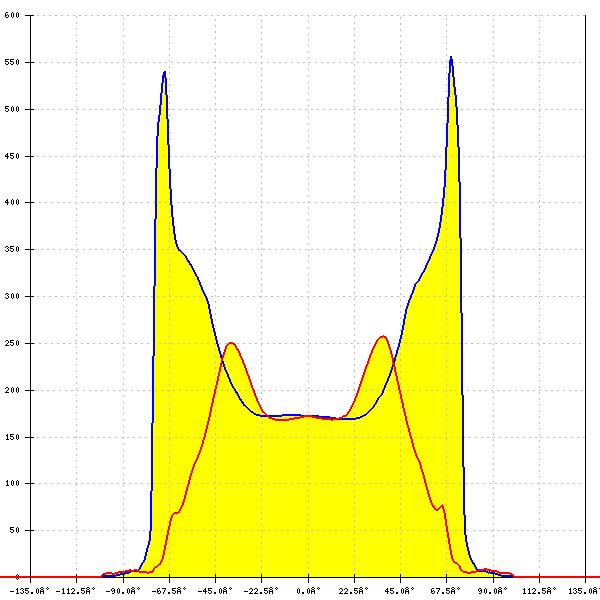

LED: RLE 2x8 4000lm HP EXC2 OTD
FWHM: 151° + 119°
FWTM: 155° + 142°
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE G1 49x121mm 2000lm xxx EXC OTD
FWHM: 147° + 107°
FWTM: 159° + 142°
Peak intensity: 0.440 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE G1 49x133mm 2000lm xxx EXC OTD
FWHM: 147° + 107°
FWTM: 159° + 142°
Peak intensity: 0.440 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE G1 49x223mm 4000lm xxx EXC OTD
FWHM: 147° + 107°
FWTM: 159° + 142°
Peak intensity: 0.440 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE G1 49x245mm 4000lm xxx EXC OTD
FWHM: 147° + 107°
FWTM: 159° + 142°
Peak intensity: 0.440 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
