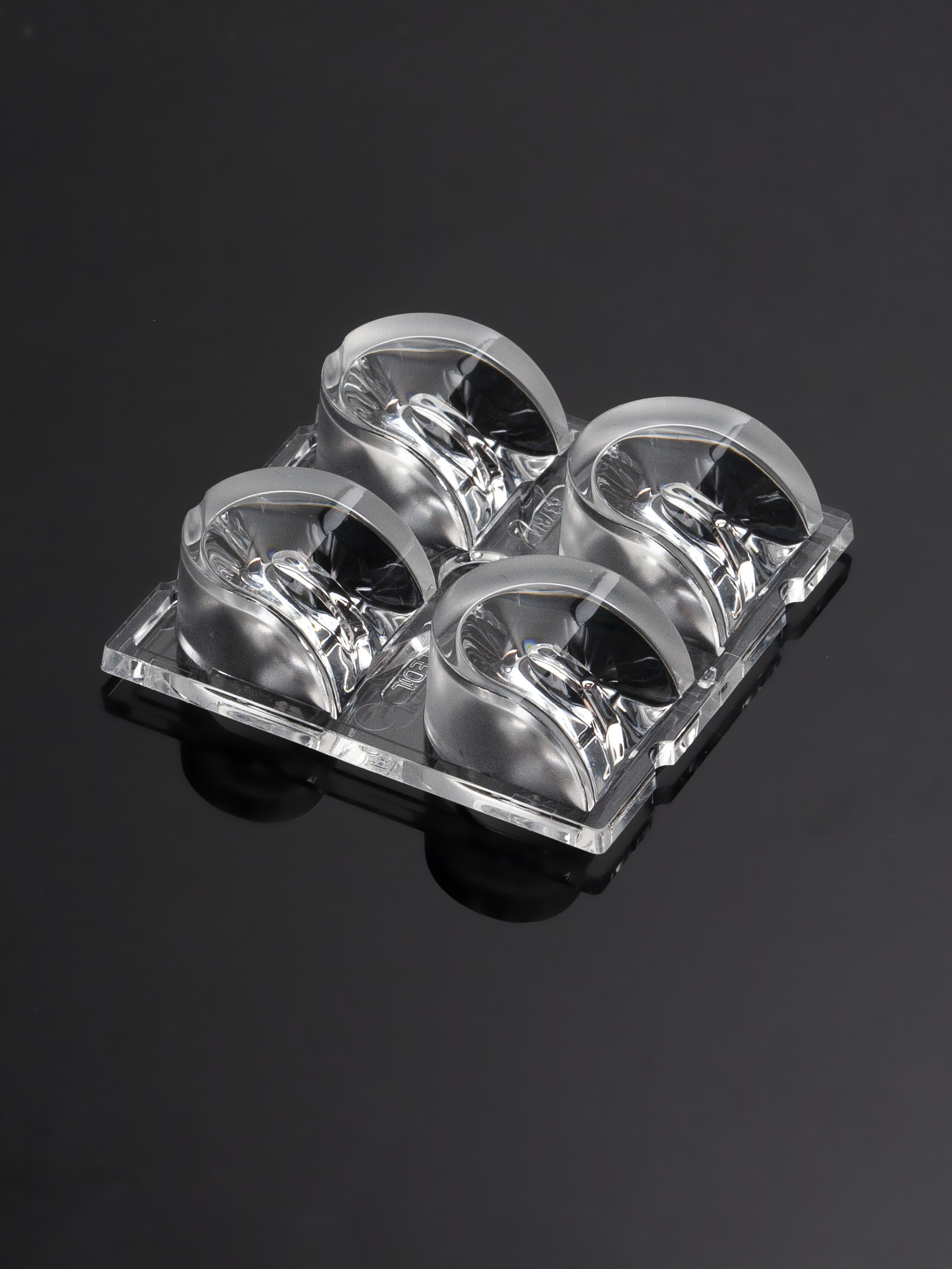

C16378_STRADA-2X2-FR

Print

Asymmetric spotlight beam for floodlighting railway tracks according to Russian normative

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    11.8 mm
  • Fastening:
    glue, pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
  • PMMA
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    476 x 273 x 292 mm
  • Box weight:
    11.7 kg
  • MPQ:
    160 pcs
  • MOQ weight:
    0.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C16378_STRADA-2X2-FR

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

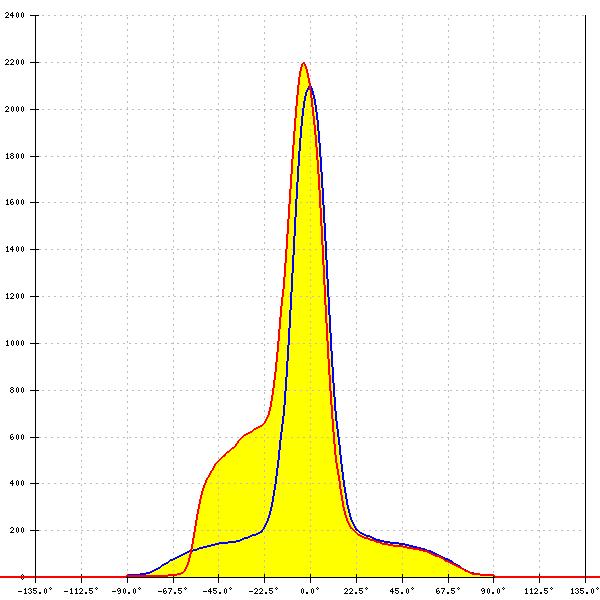

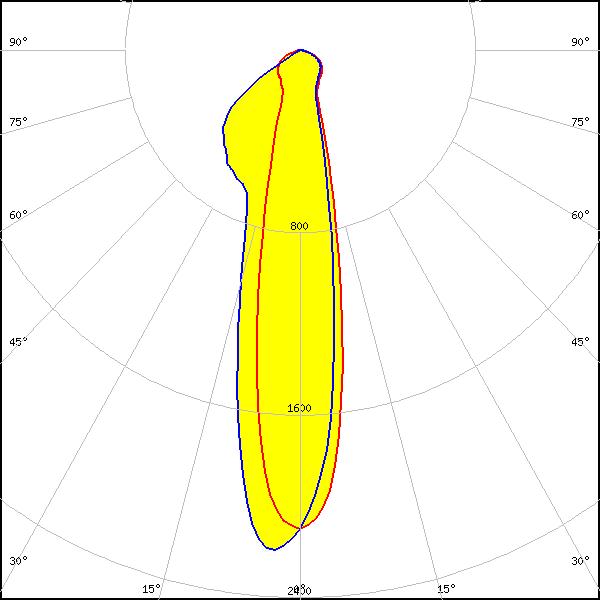

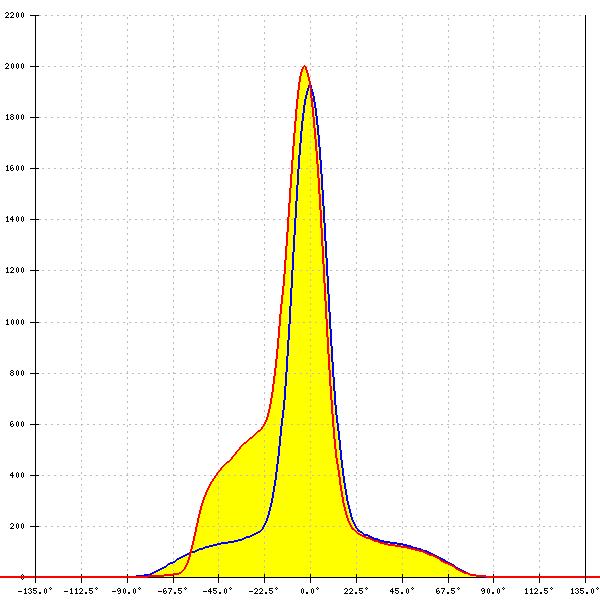

Optical results

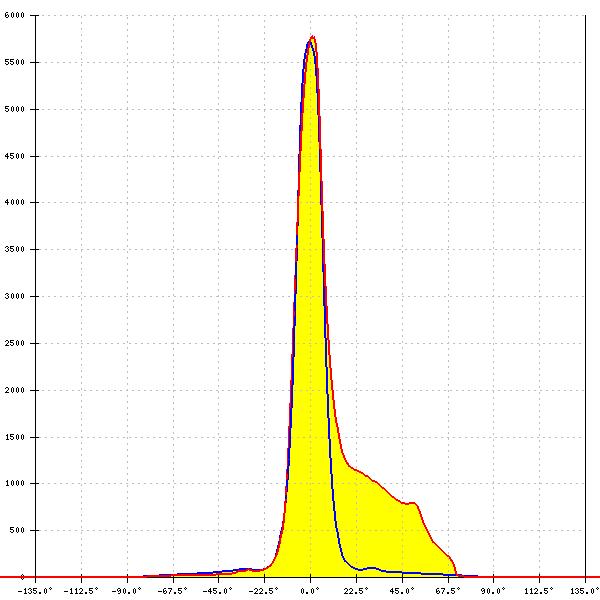

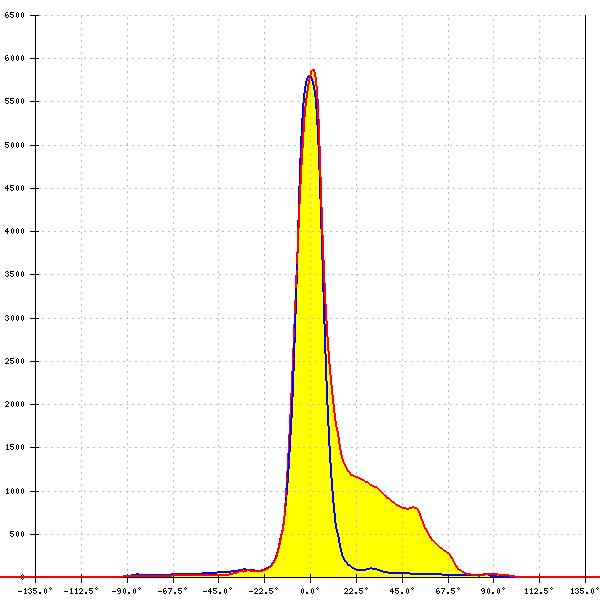

LED: XP-G2
FWHM: 15° + 16°
FWTM: 27° + 70°
Peak intensity: 5.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

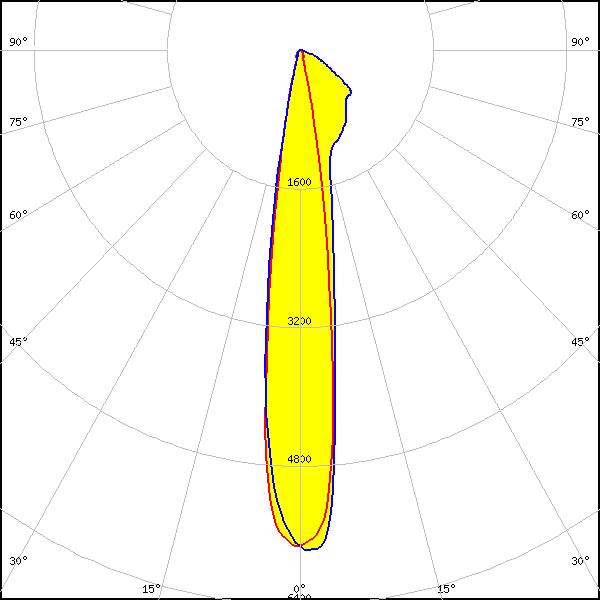

LED: XP-G2
FWHM: 15° + 16°
FWTM: 26° + 69°
Peak intensity: 5.8 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

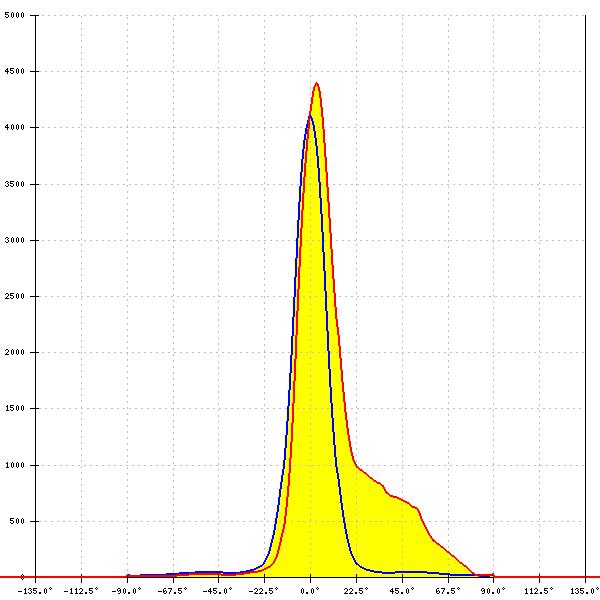

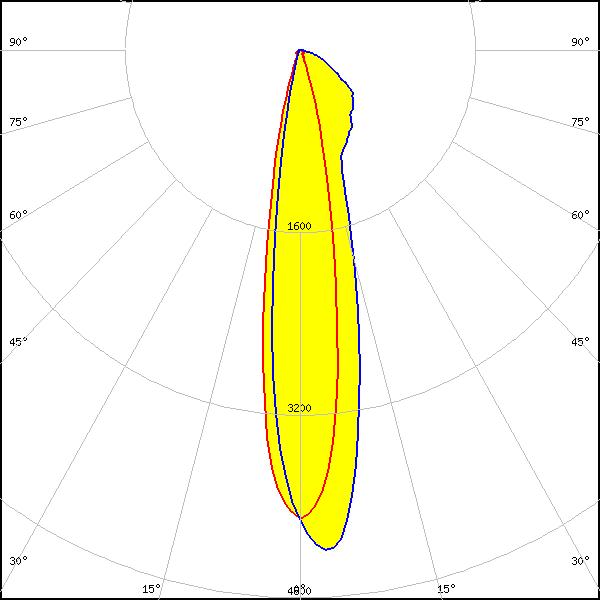

LED: XP-G2 HE
FWHM: 18° + 21°
FWTM: 34° + 70°
Peak intensity: 4.4 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

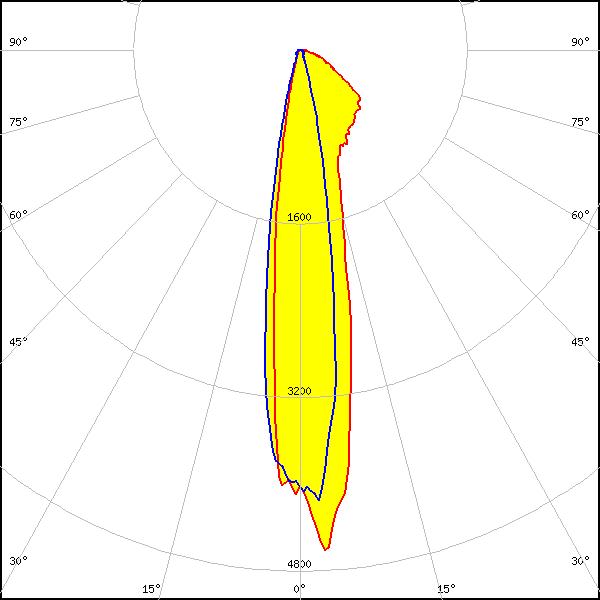

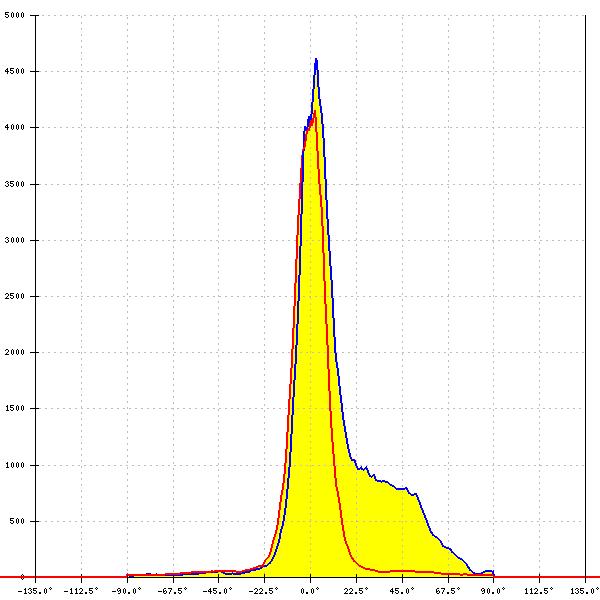

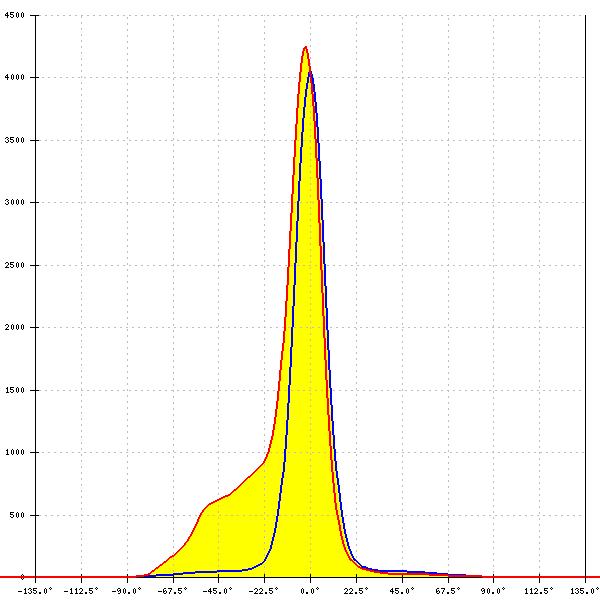

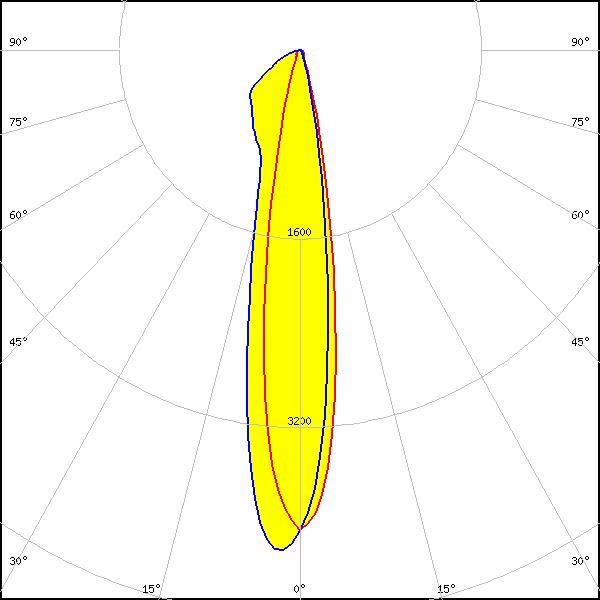

LED: XP-G3
FWHM: asymmetric
Peak intensity: 4.2 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: XP-G3
FWHM: 17° + 18°
FWTM: 32° + 72°
Peak intensity: 4.8 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

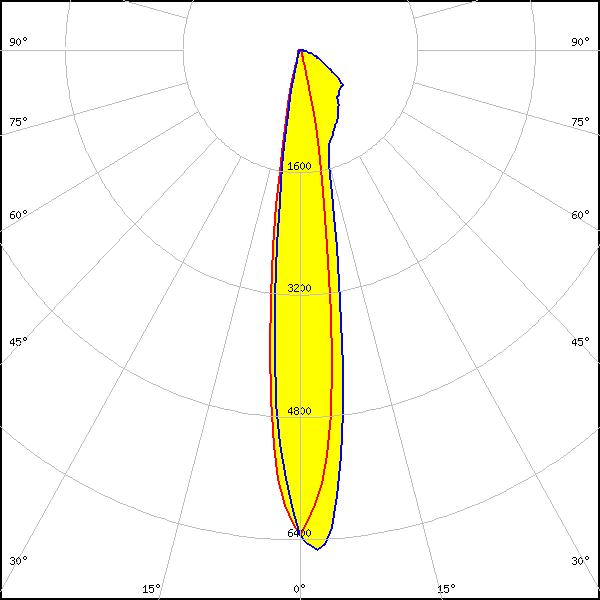

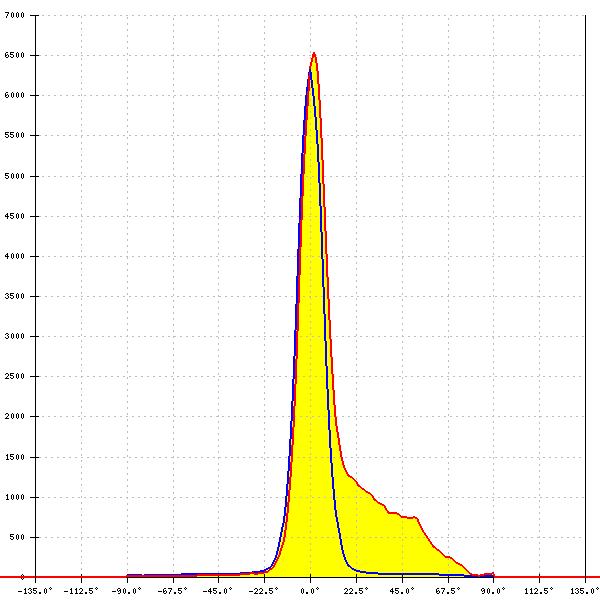

LED: LUXEON TX
FWHM: 15° + 16°
FWTM: 28° + 66°
Peak intensity: 6.6 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

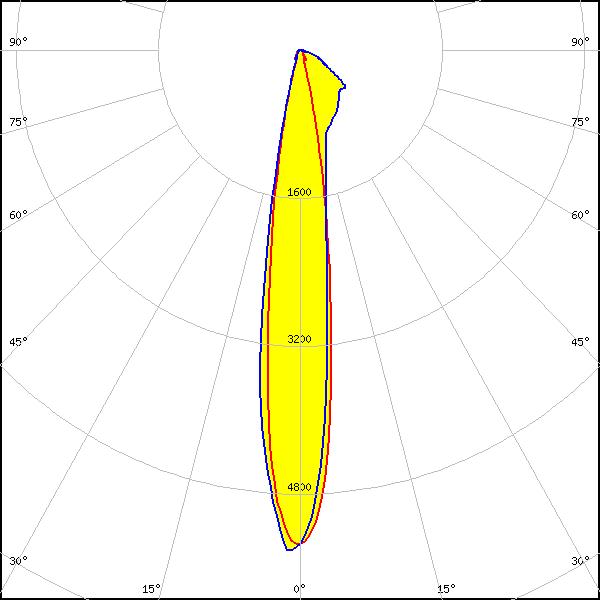

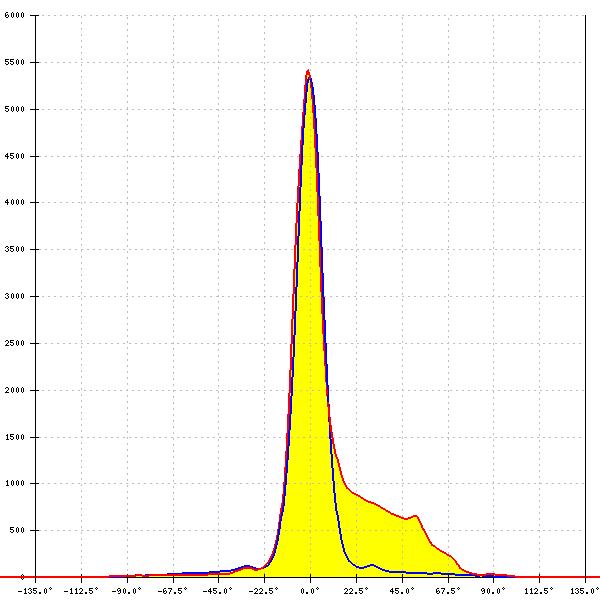

LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: asymmetric
Peak intensity: 5.4 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

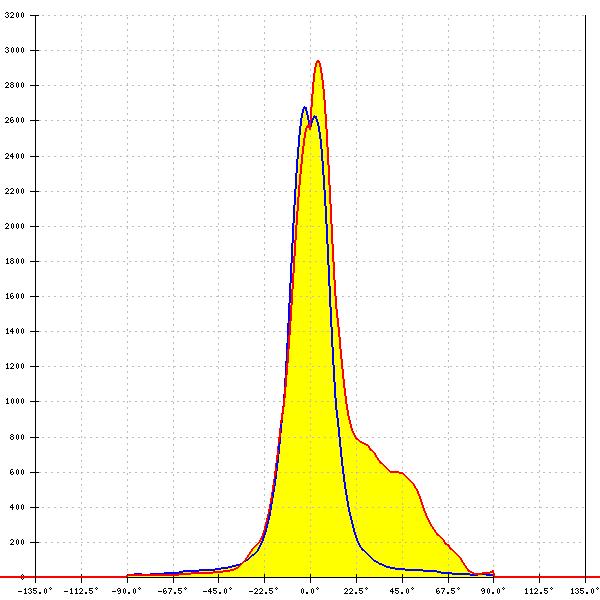

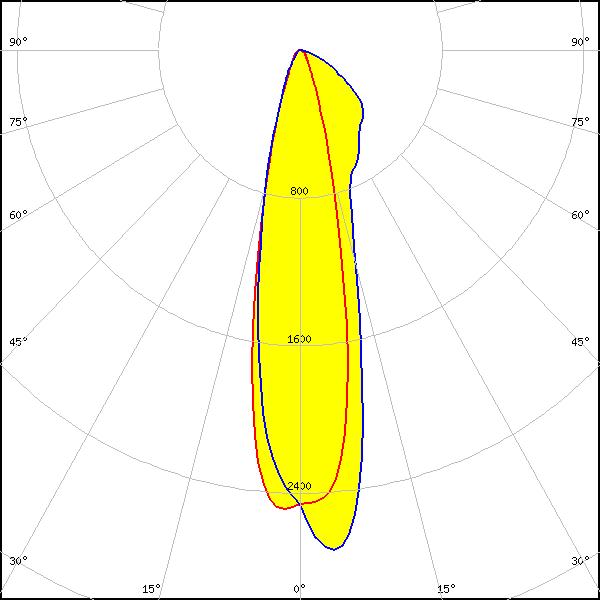

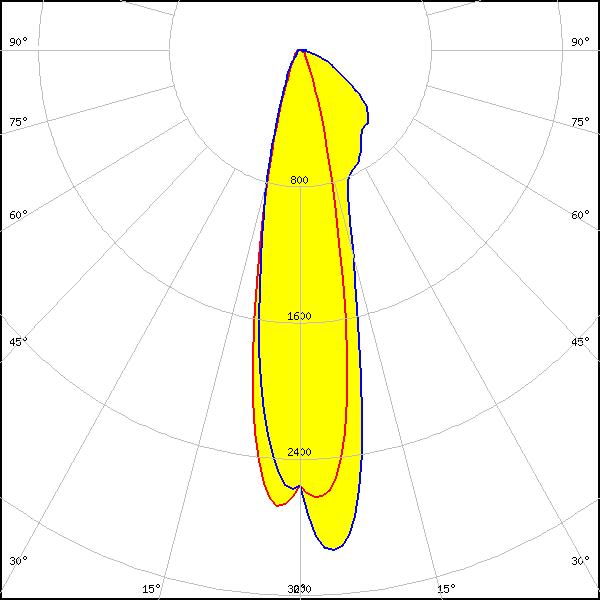

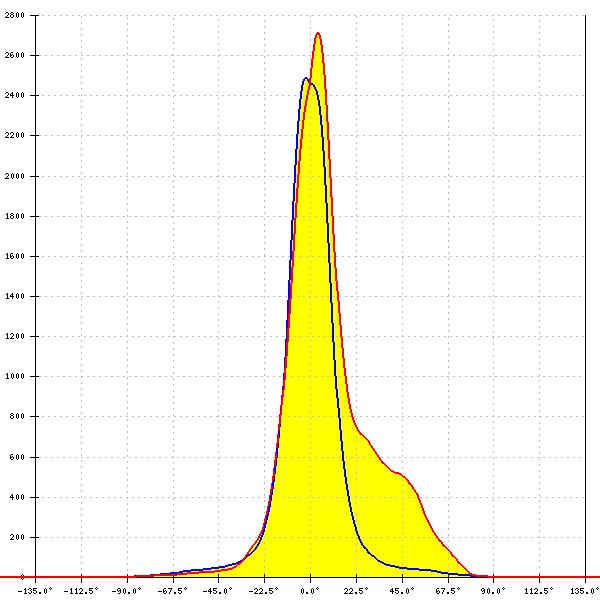

LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 2.7 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: NV4WB35AM
FWHM: 22° + 24°
FWTM: 44° + 82°
Peak intensity: 3.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

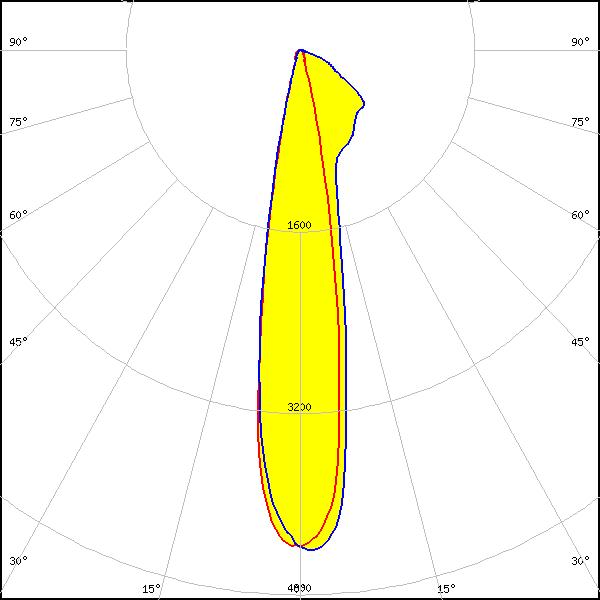

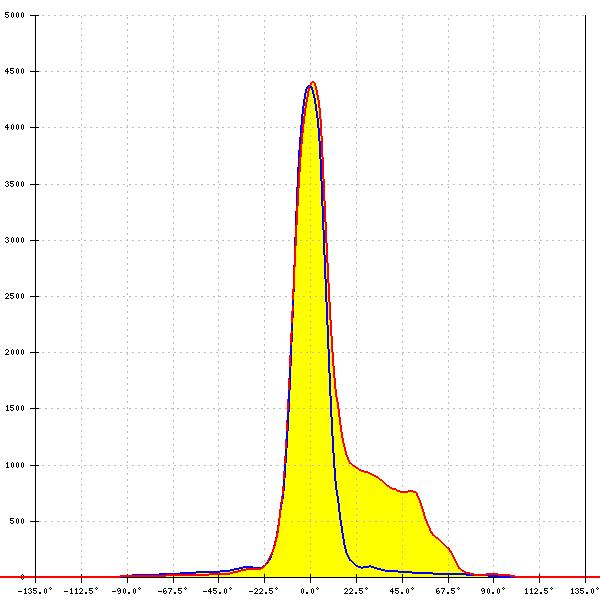

LED: NVSW219F
FWHM: 18° + 20°
FWTM: 31° + 74°
Peak intensity: 4.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

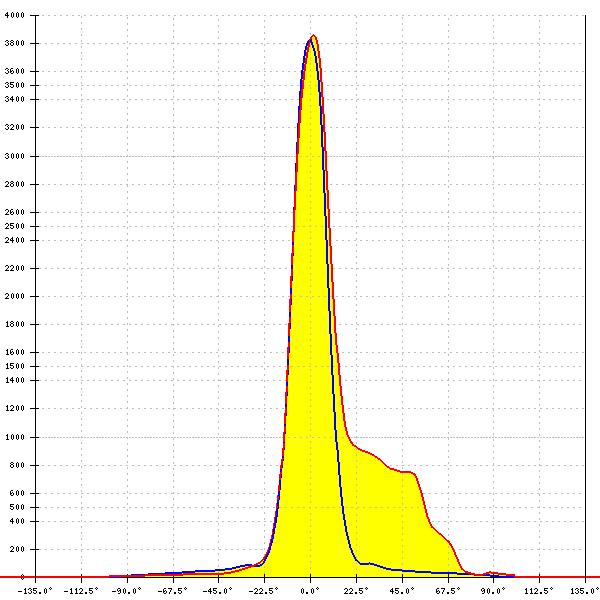

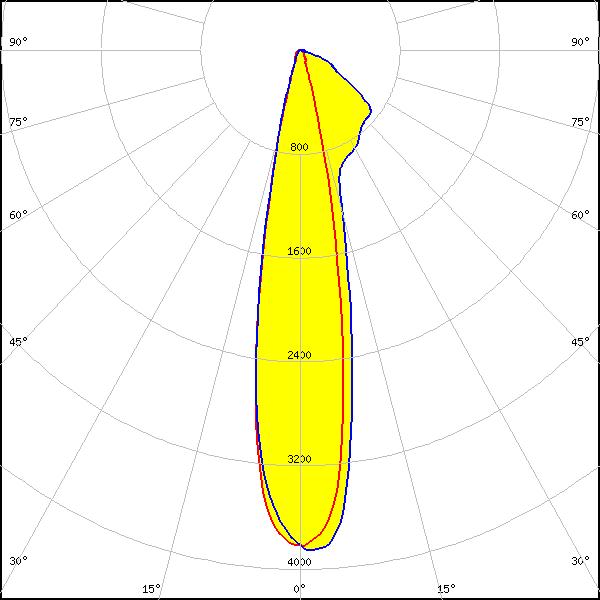

LED: NVSW319B
FWHM: 20° + 22°
FWTM: 34° + 76°
Peak intensity: 3.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

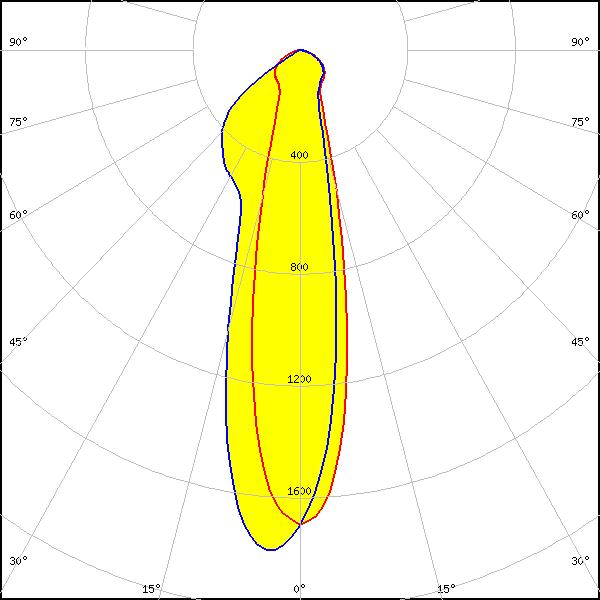

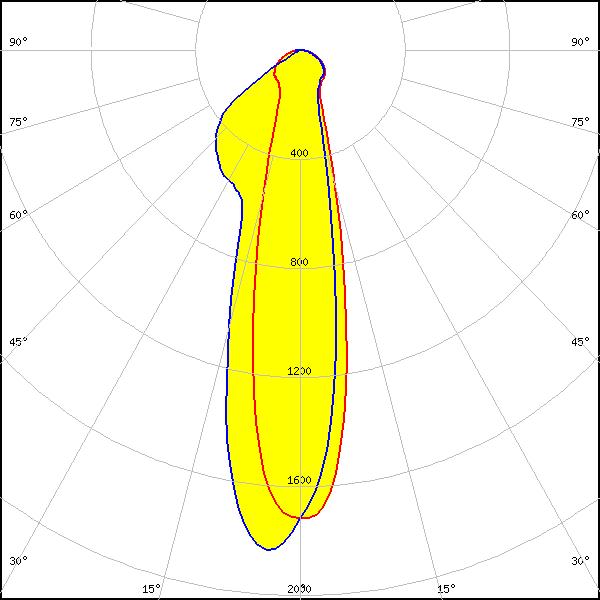

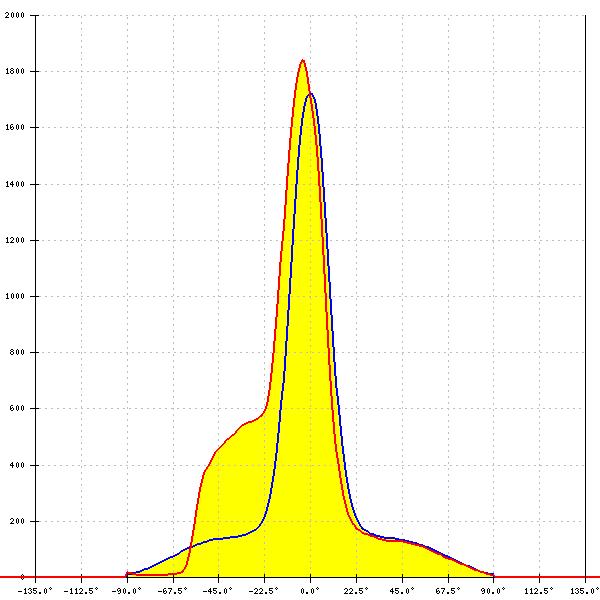

LED: NVSW519A
FWHM: 23° + 24°
FWTM: 52° + 79°
Peak intensity: 1.8 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

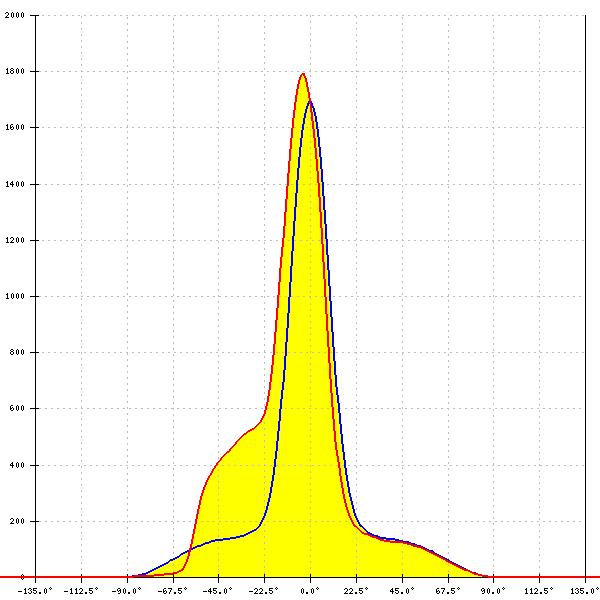

LED: NVSW519A
FWHM: 23° + 25°
FWTM: 53° + 79°
Peak intensity: 1.8 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

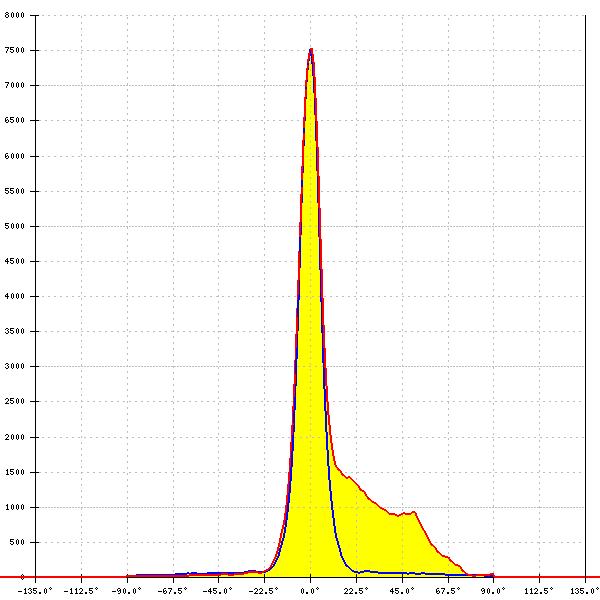

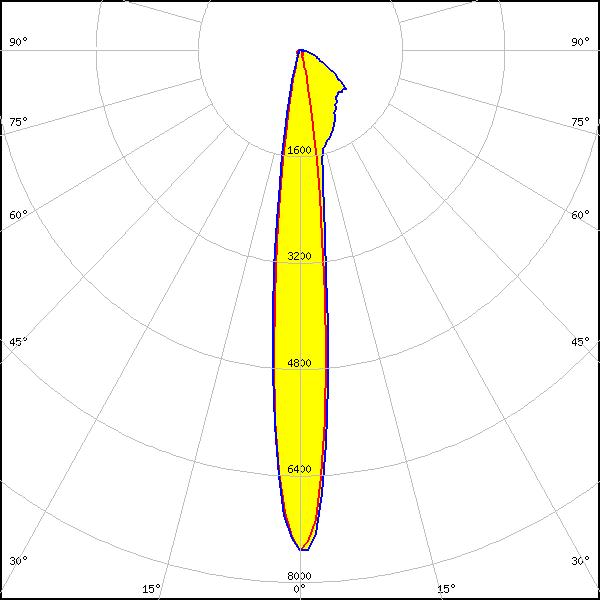

LED: NVSxE21A
FWHM: 12° + 13°
FWTM: 25° + 67°
Peak intensity: 7.6 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

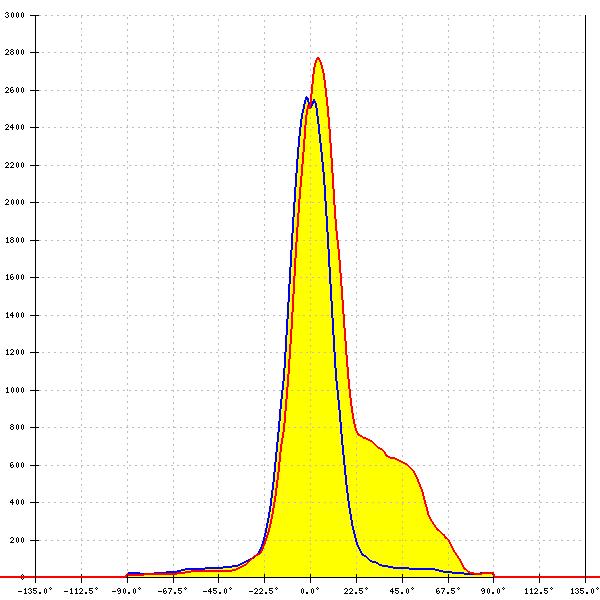

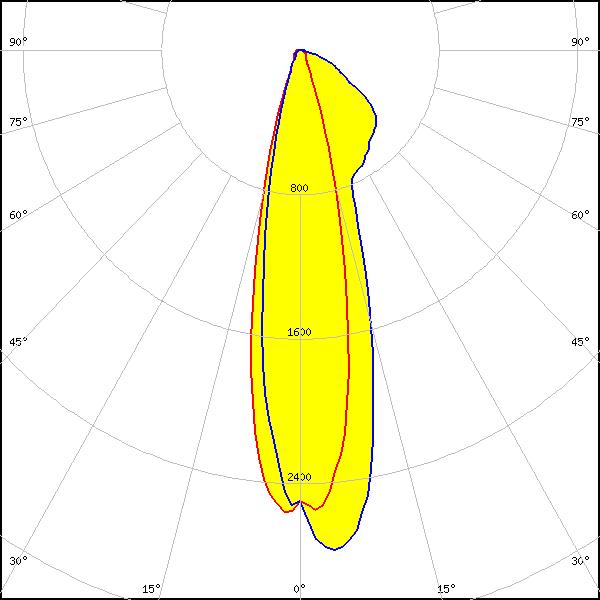

LED: NWSx229A
FWHM: 24° + 25°
FWTM: 42° + 81°
Peak intensity: 2.8 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

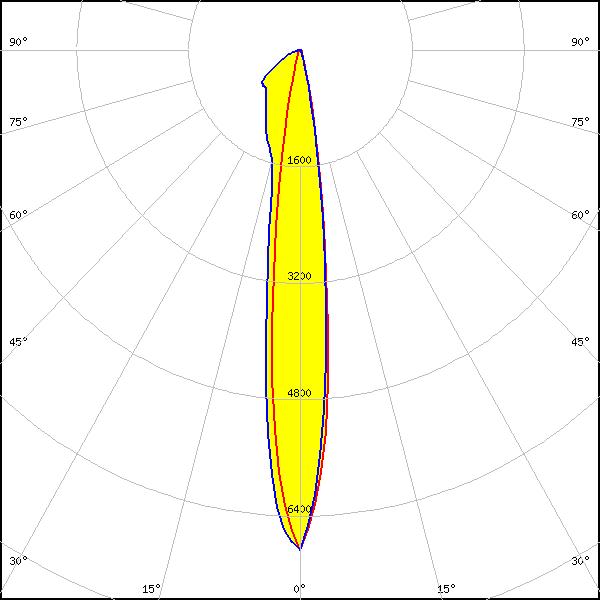

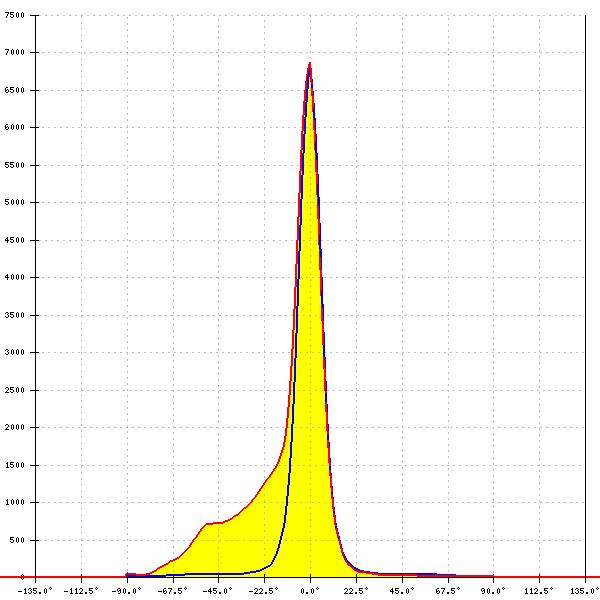

LED: OSCONIQ P 3737 (2W version)
FWHM: 14°
FWTM: 26°
Peak intensity: 6.9 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

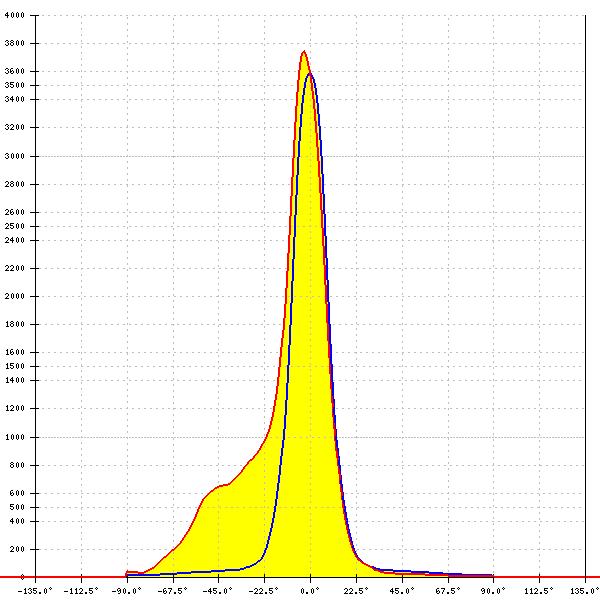

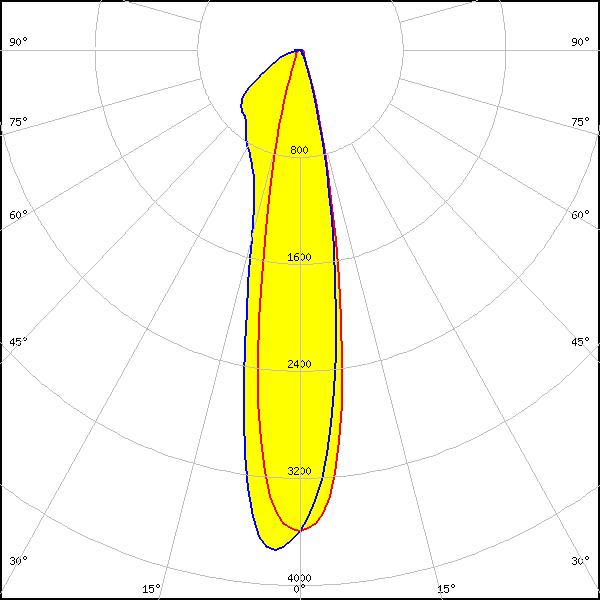

LED: OSCONIQ P 3737 (3W version)
FWHM: 20° + 22°
FWTM: 38° + 76°
Peak intensity: 3.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

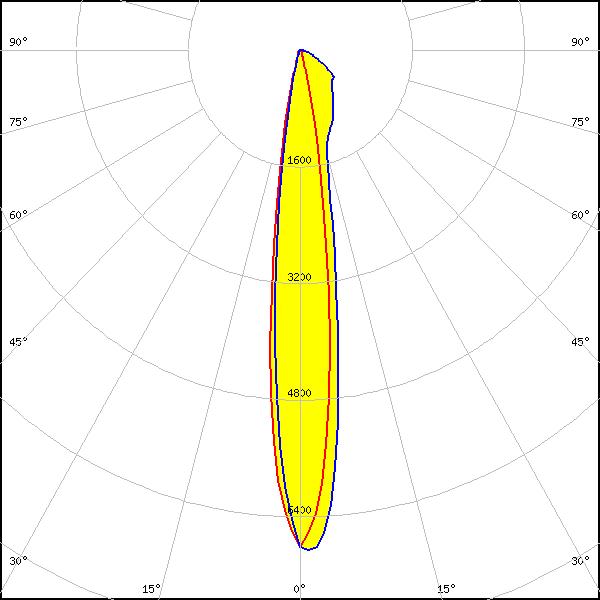

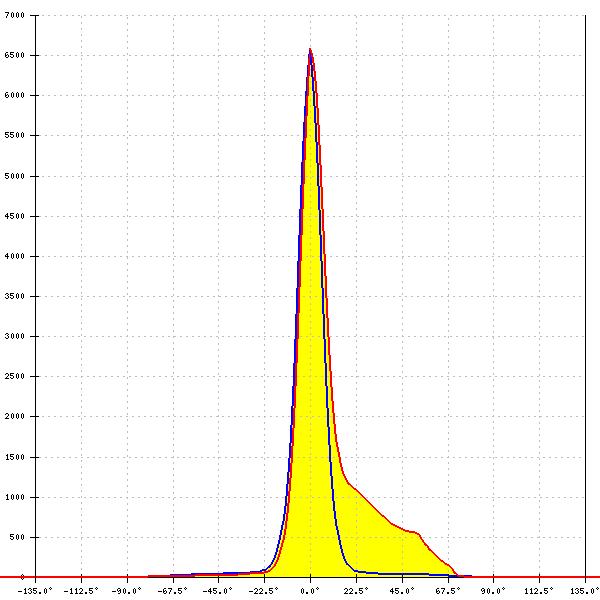

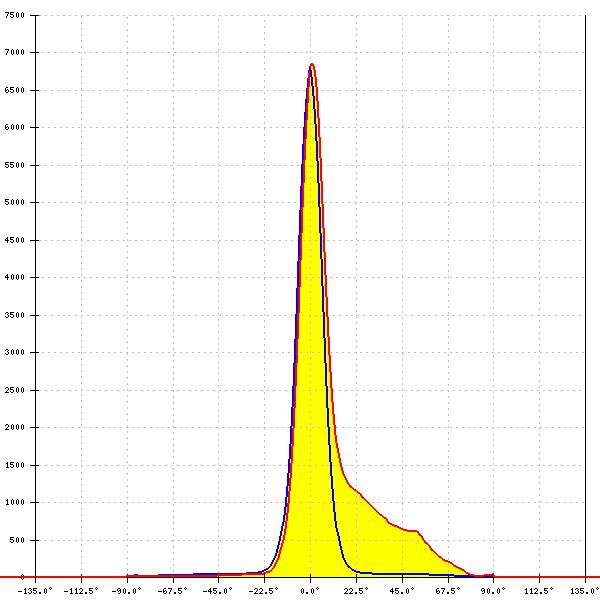

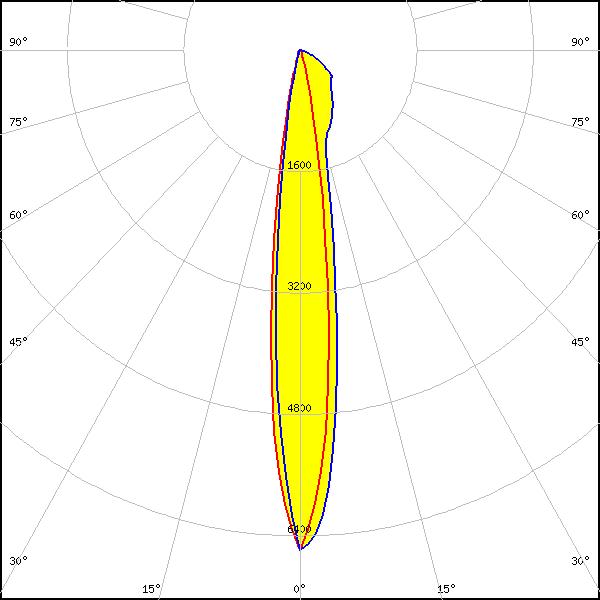

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 13° + 14°
FWTM: 26° + 53°
Peak intensity: 6.9 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: 13° + 14°
FWTM: 26° + 52°
Peak intensity: 6.6 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

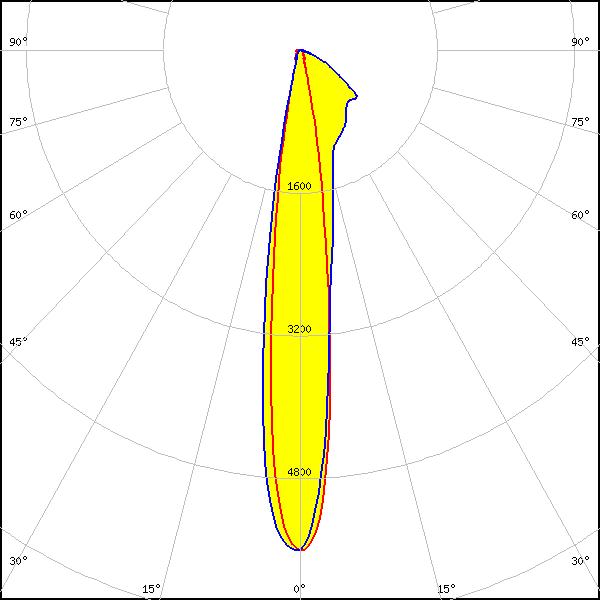

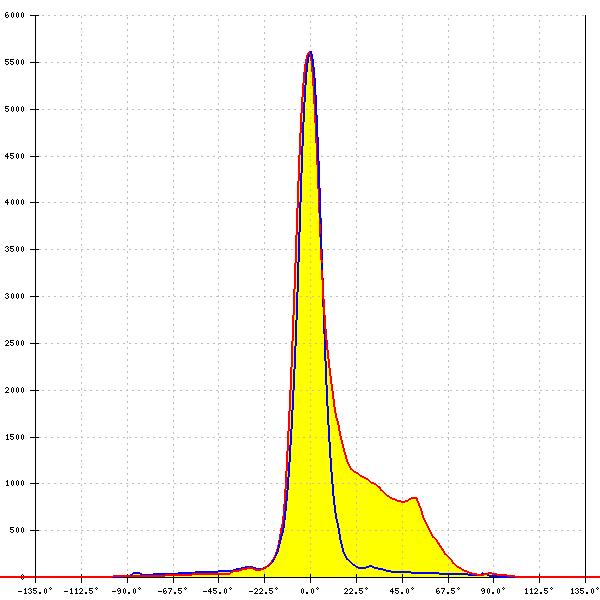

LED: OSLON Square PC
FWHM: 14° + 15°
FWTM: 27° + 71°
Peak intensity: 5.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

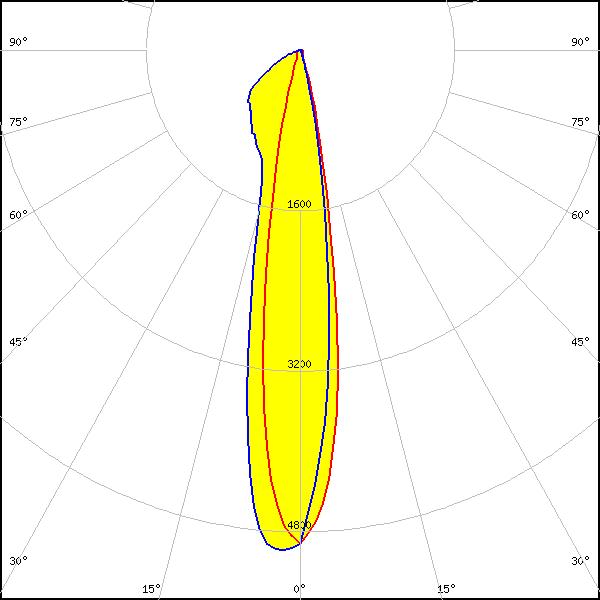

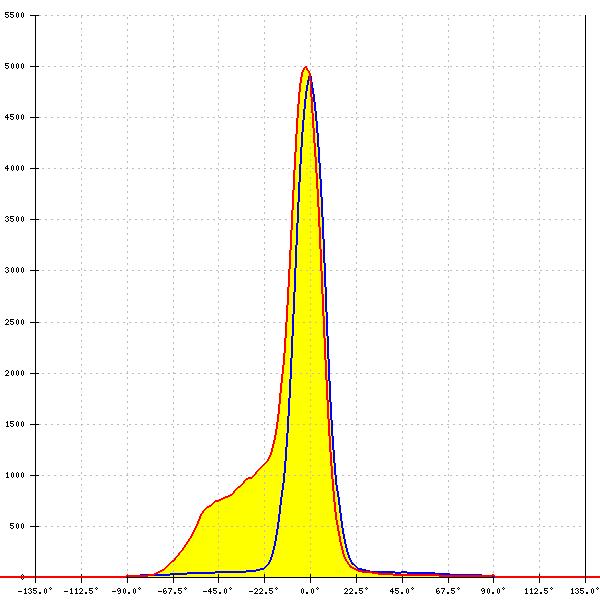

LED: LH351B
FWHM: 18° + 19°
FWTM: 32° + 70°
Peak intensity: 5.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

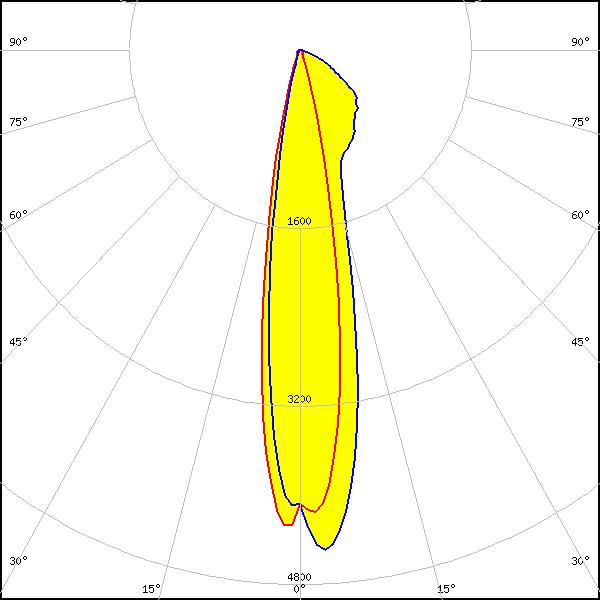

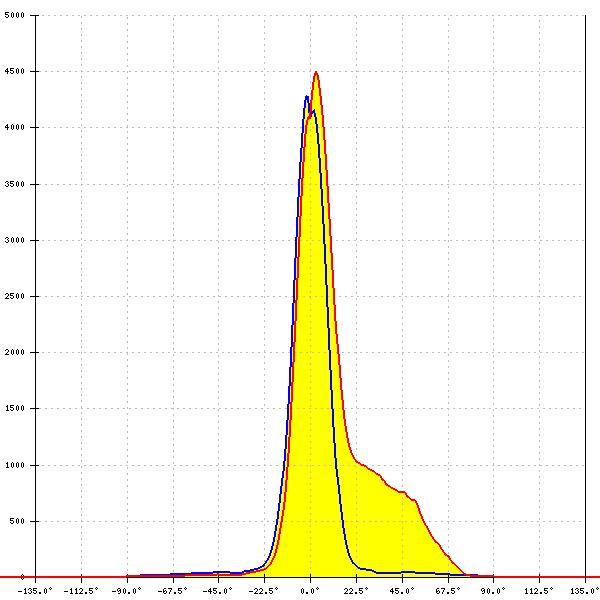

LED: LH351C
FWHM: 18° + 20°
FWTM: 33° + 71°
Peak intensity: 4.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

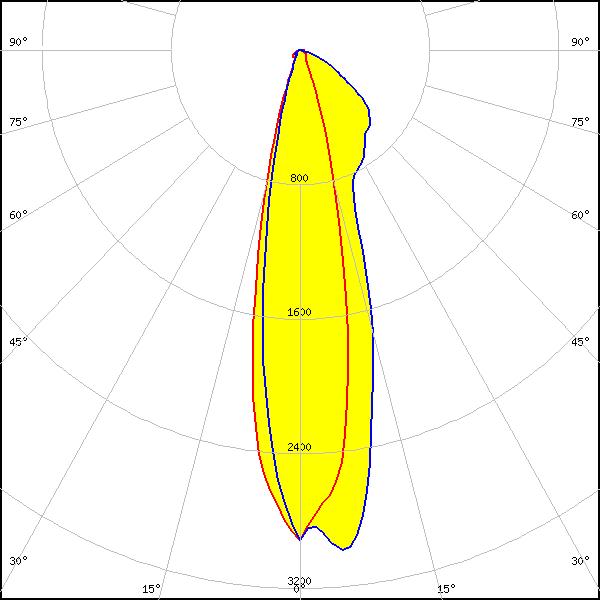

LED: LH351D
FWHM: 22° + 26°
FWTM: 41° + 77°
Peak intensity: 3.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

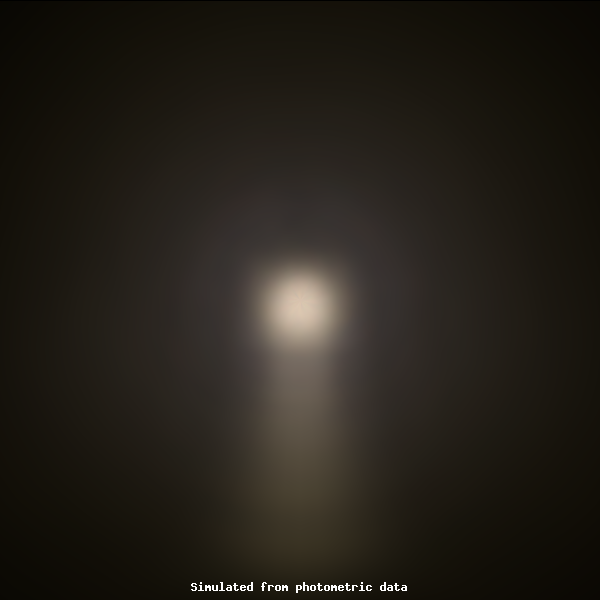

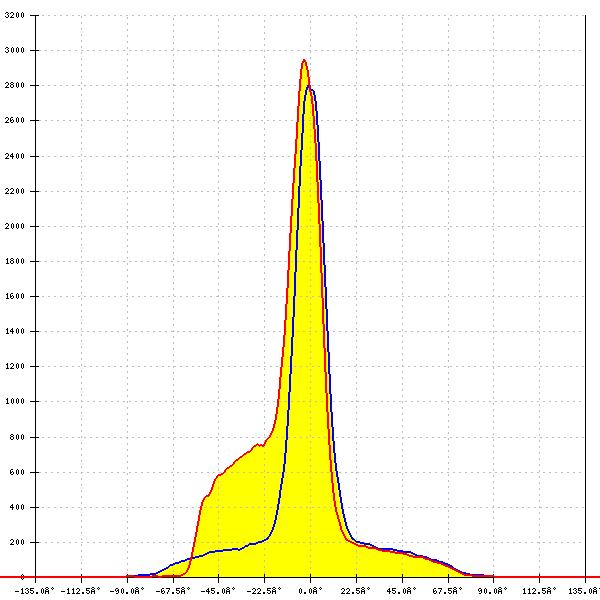

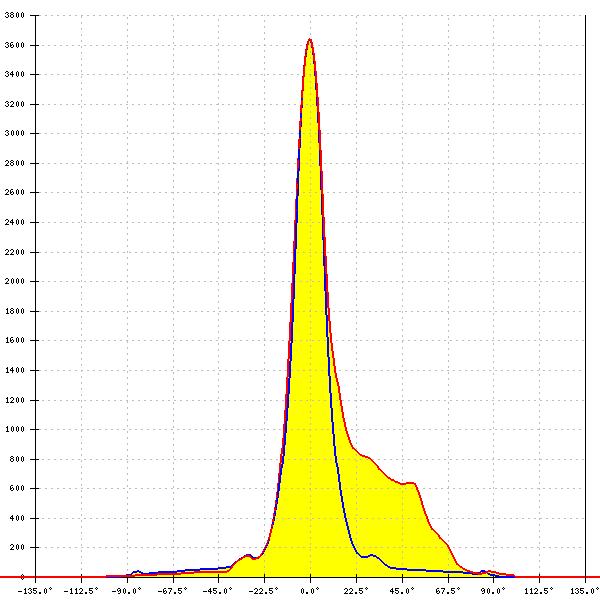

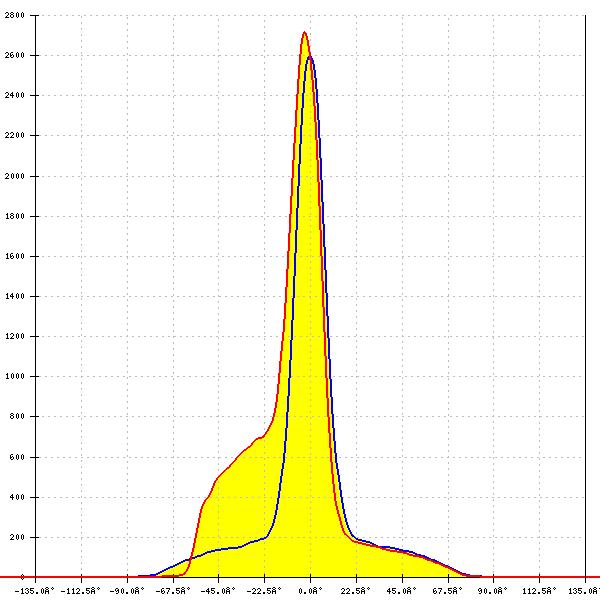

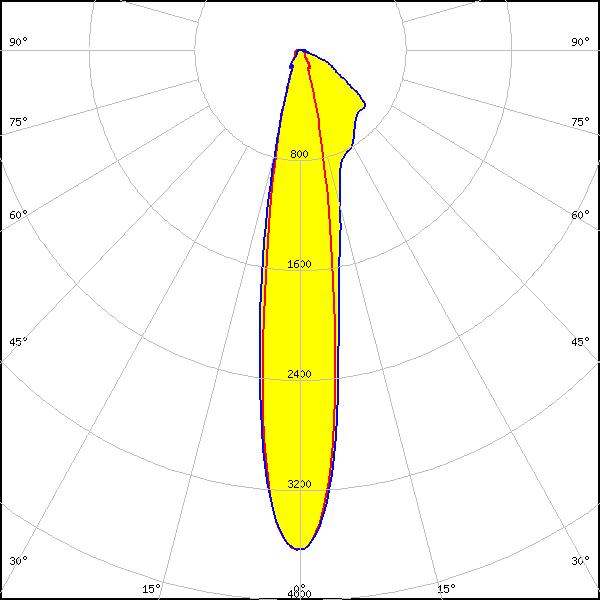

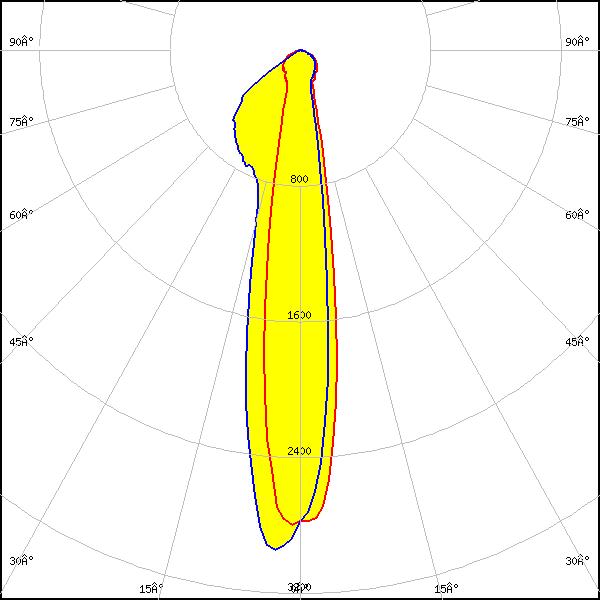

LED: Z5M3
FWHM: asymmetric
Peak intensity: 3.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
