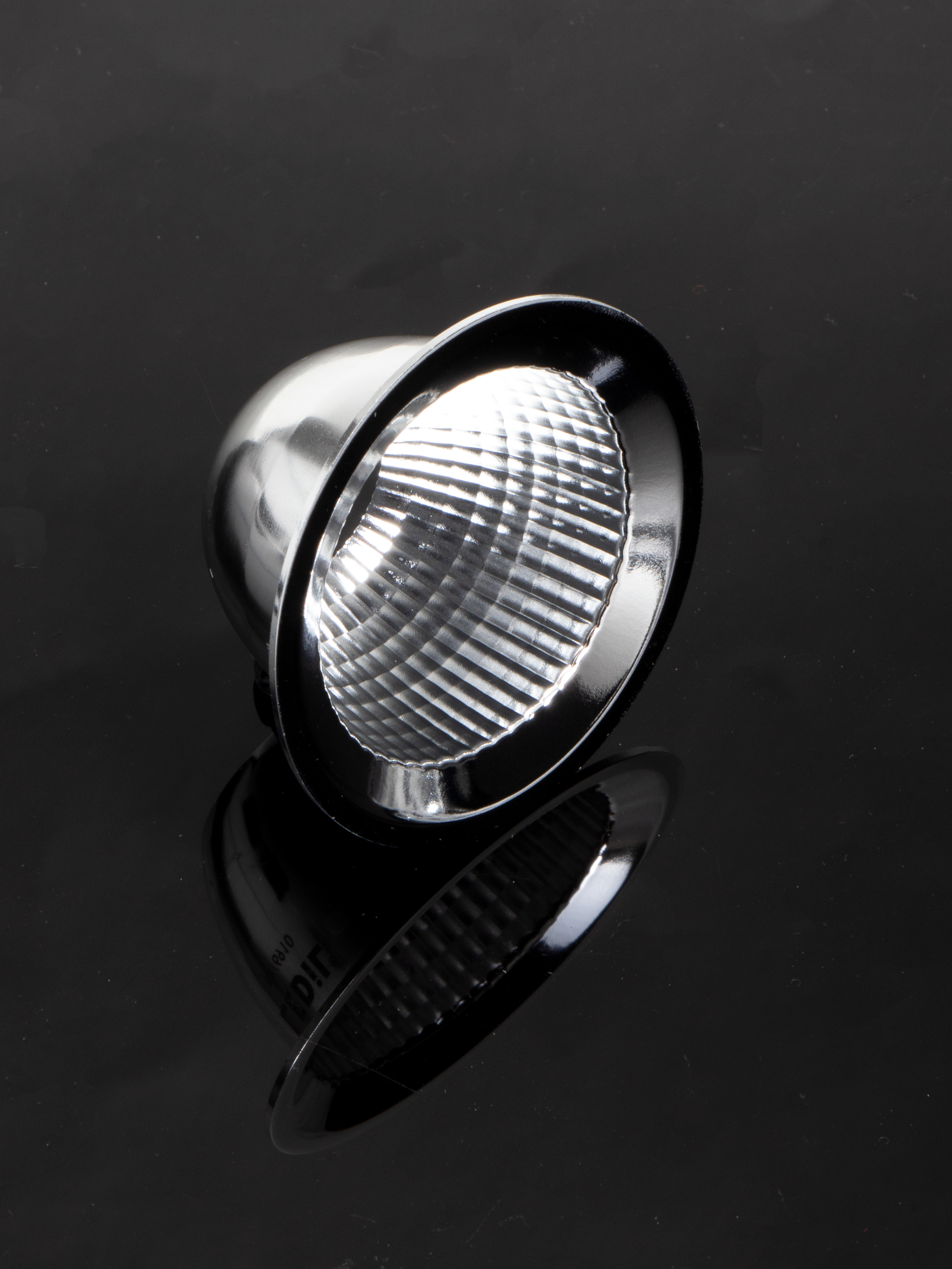

C16910_ALISE-50-WW

Print

~60° wide beam

Specification
  • Dimensions:
    50 mm
  • Height:
    25.00 mm
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    750 pcs
  • Box size:
    370 x 320 x 210 mm
  • Box weight:
    5.0 kg
  • MPQ:
    25 pcs
  • MOQ:
    100 pcs
  • MOQ size:
    310 x 230 x 100 mm
  • MOQ weight:
    0.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C16910_ALISE-50-WW

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

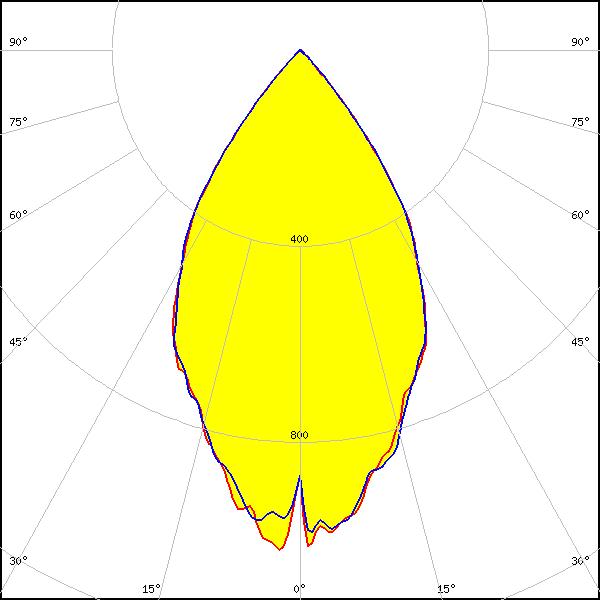

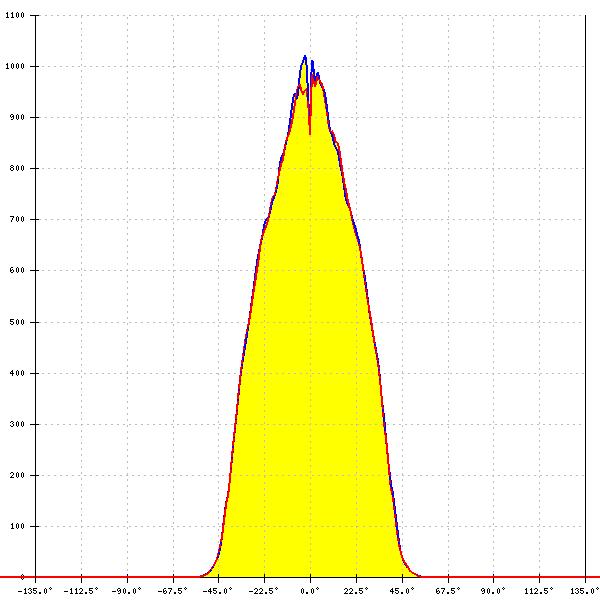

LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM: 54°
FWTM: 78°
Peak intensity: 0.984 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White

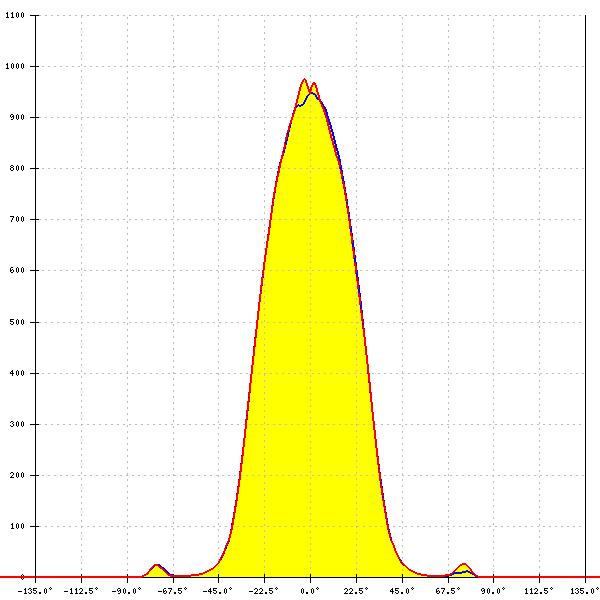

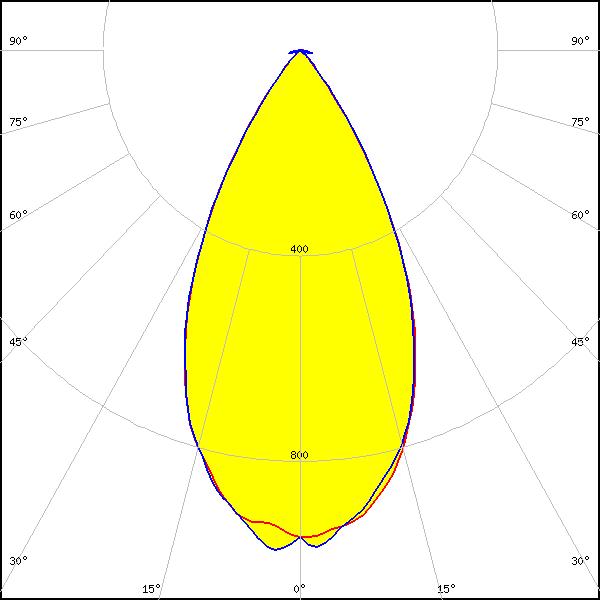

LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
FWHM: 61°
FWTM: 85°
Peak intensity: 1.079 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

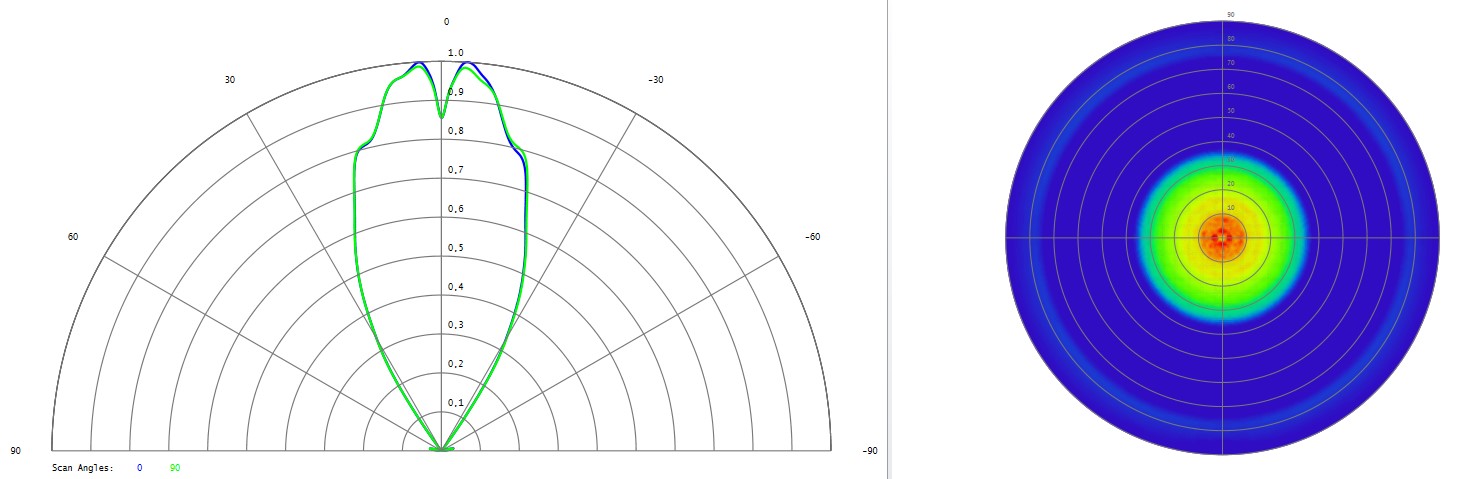

LED: XFM-5050 4 Die
LES size: 0.0 mm
FWHM: 50°
FWTM: 70°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: UV-C

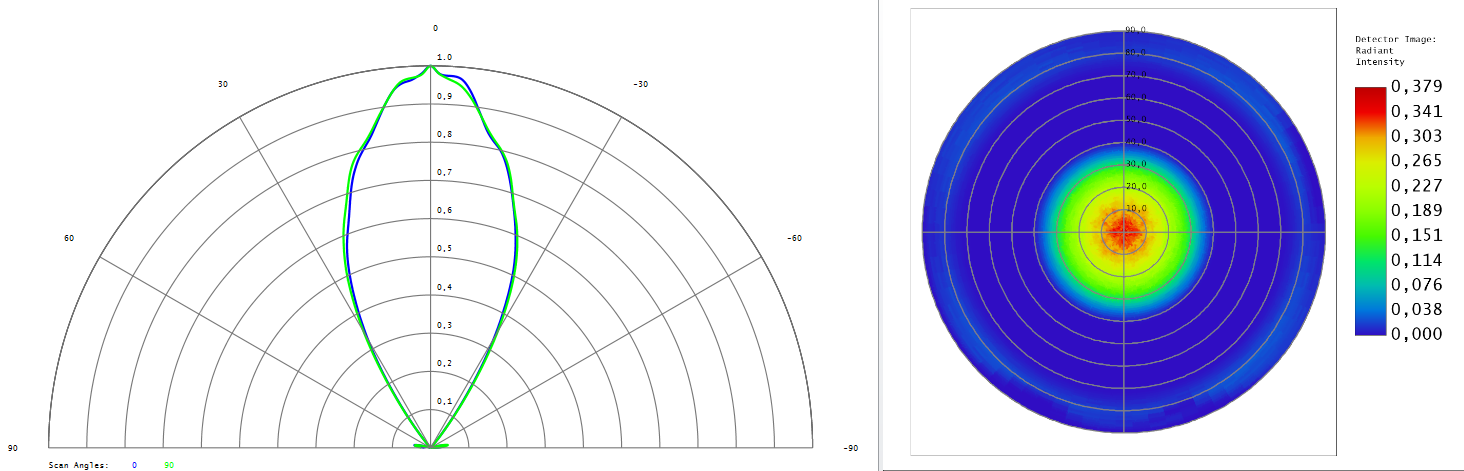

LED: WICOP DY9560-27
LES size: 0.0 mm
FWHM: 52°
FWTM: 73°
Efficiency: 88 %
LEDs/each optic: 24
Light colour/type: UV-C
LED: ZEUBE265 Series
LES size: 0.0 mm
FWHM: 71°
FWTM: 79°
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: UV-C
