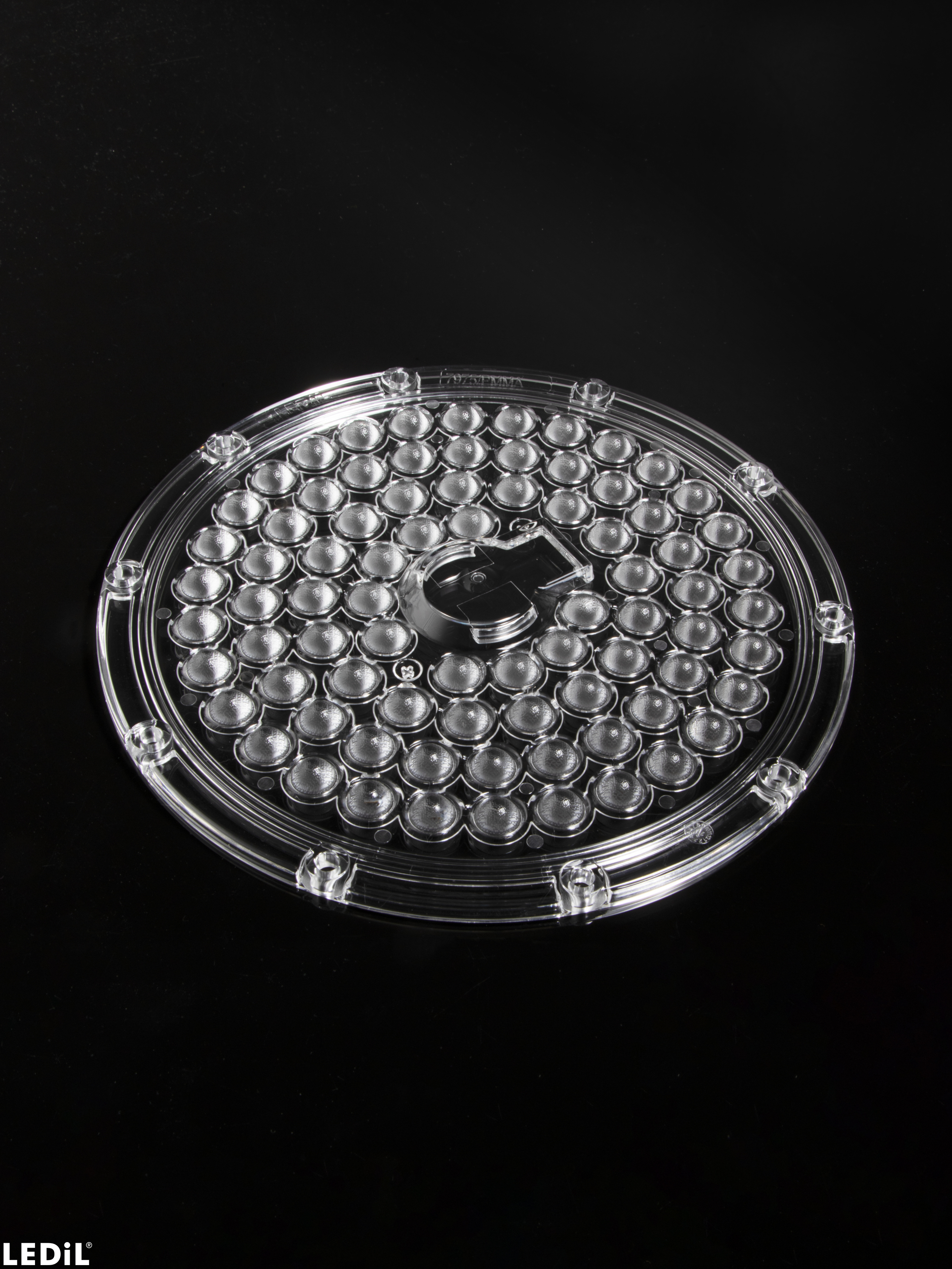

    C17975_VICTORIA-MINI-W

    Print

    ~60° wide beam.

    Specification
    • Dimensions:
      180 mm
    • Height:
      10.75 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      92 pcs
    • Box size:
      400 x 400 x 275 mm
    • Box weight:
      9.8 kg
    • MPQ:
      4 pcs
    • MOQ:
      92 pcs
    • MOQ size:
      400 x 400 x 275 mm
    • MOQ weight:
      9.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C17975_VICTORIA-MINI-W
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application example

    Factory floor lighting with VICTORIA-MINI-W

    News

    VICTORIA-MINI – High lumens in a smaller size

    News

    New products – August 12, 2021

    Luminaire, example

    Highbay luminaire with VICTORIA-MINI

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Luminaire, example

    Highbay luminaire with VICTORIA

    Reference product

    High Bay E+ HB380 V

    News

    NEW PRODUCTS - 2018-09-13

    News

    VICTORIA - LED optic for industrial LED lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    AVAILABLE LEDiL ACCESSORIES

    VICTORIA-MINI-CLIP

    Optional installation clip to maintain VICTORIA-MINI performance, even at high temperatures.

    Optical results

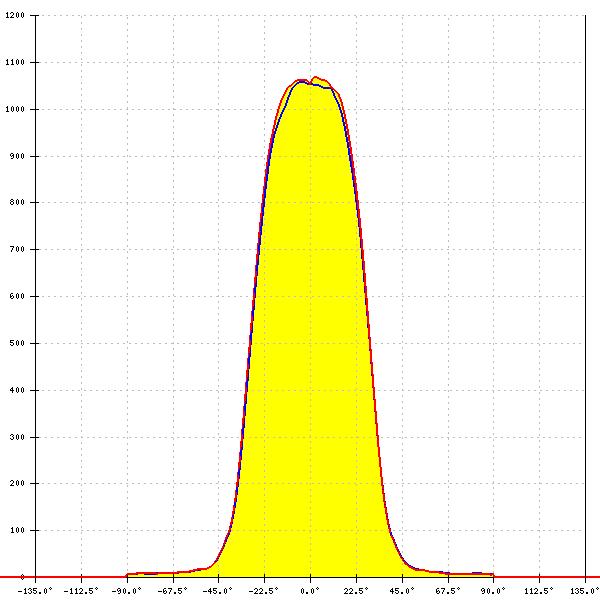

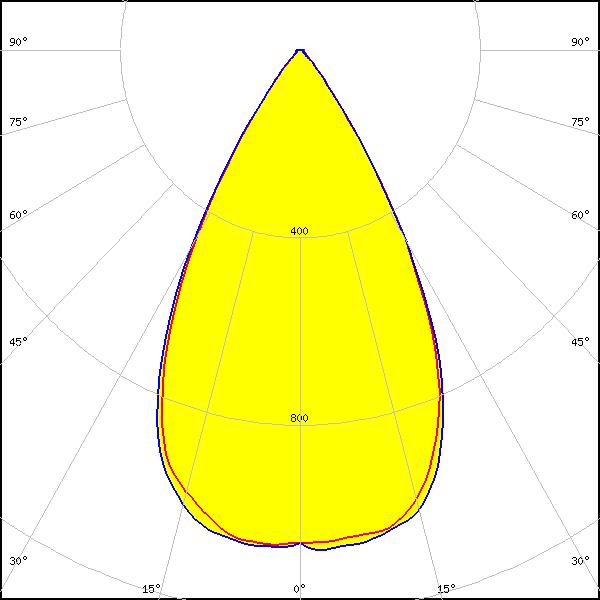

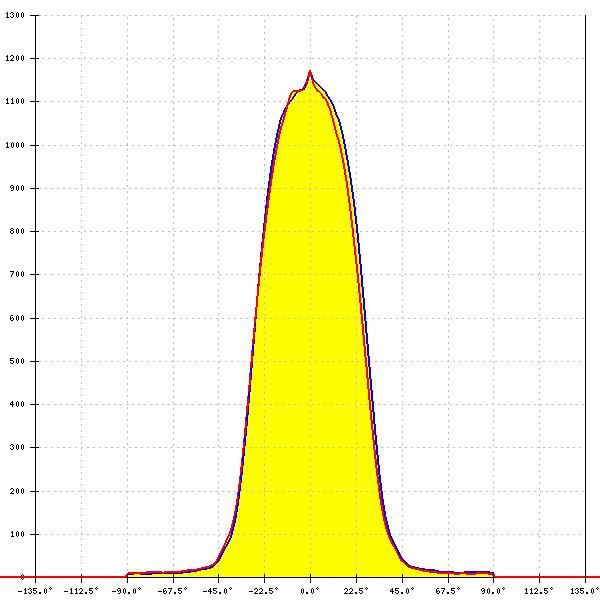

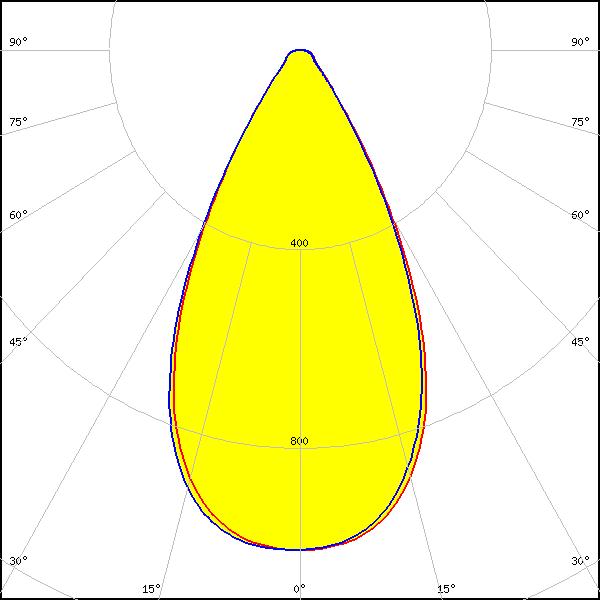

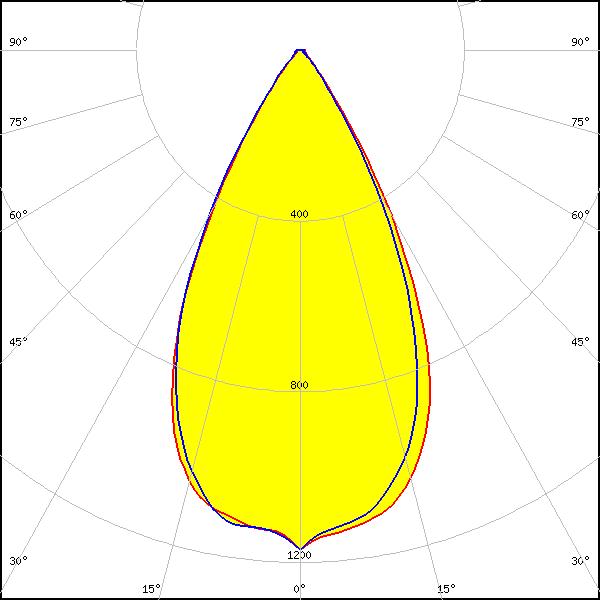

    LED: J Series 5050 6V P Class
    FWHM: 58°
    FWTM: 78°
    Peak intensity: 1.076 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050 6V P Class
    Required components:
    C18057_VICTORIA-MINI-CLIP
    FWHM: 53°
    FWTM: 81°
    Peak intensity: 1.109 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

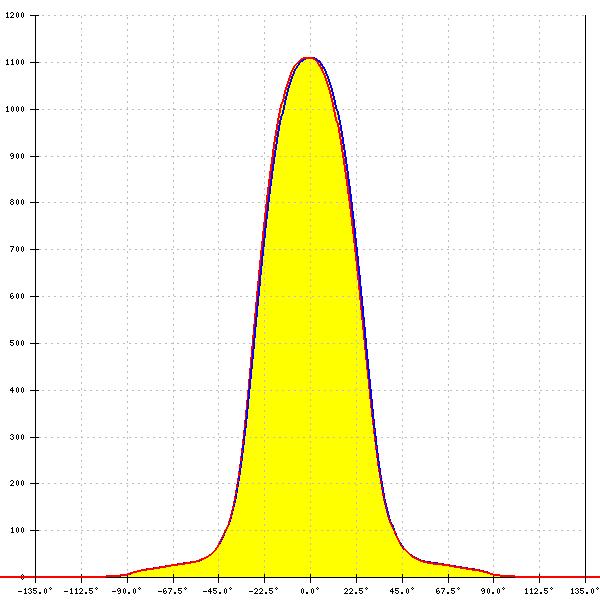

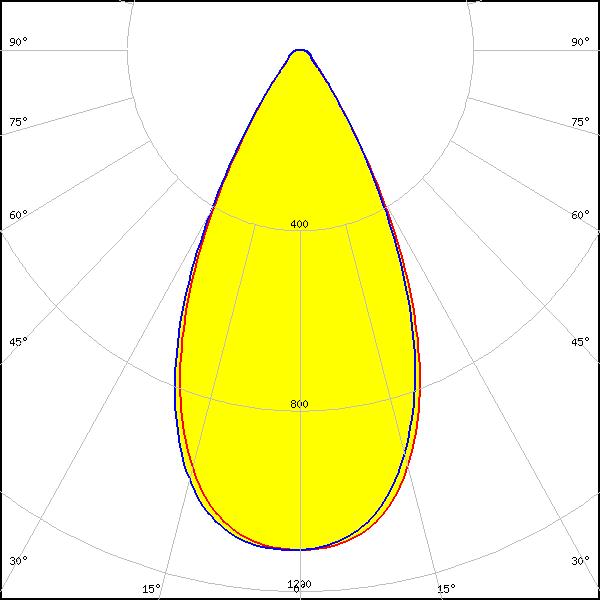

    LED: J Series 5050B 6V K Class
    FWHM: 54°
    FWTM: 77°
    Peak intensity: 1.172 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050B 6V K Class
    Required components:
    C18057_VICTORIA-MINI-CLIP
    FWHM: 55°
    FWTM: 83°
    Peak intensity: 1.007 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

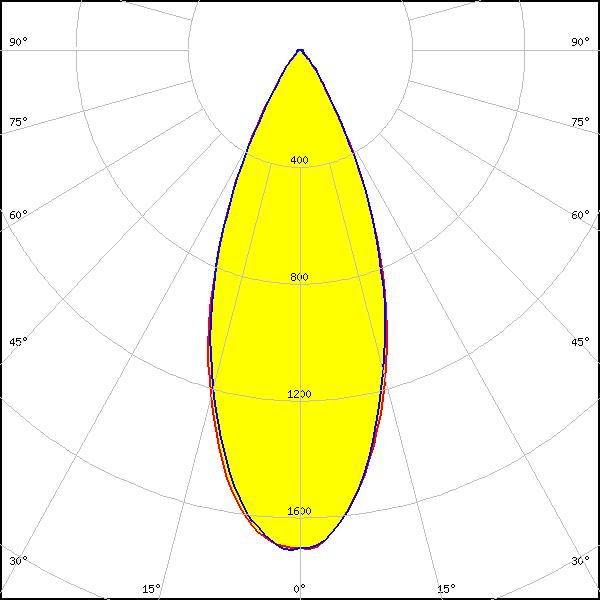

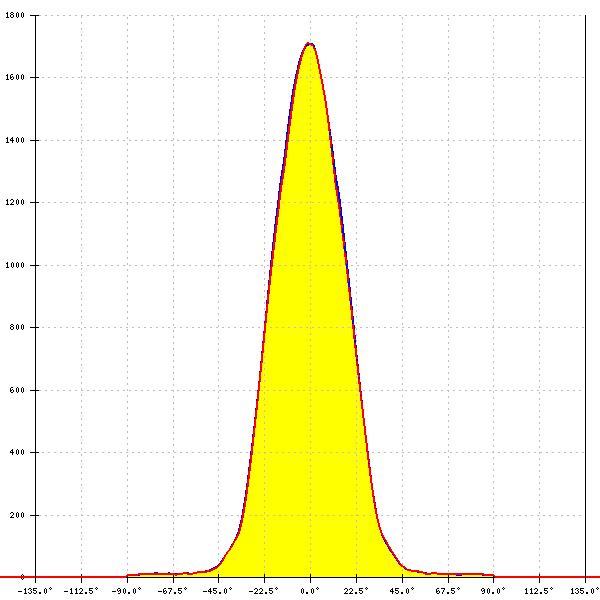

    LED: JB3030 HE B Class
    FWHM: 41°
    FWTM: 68°
    Peak intensity: 1.721 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

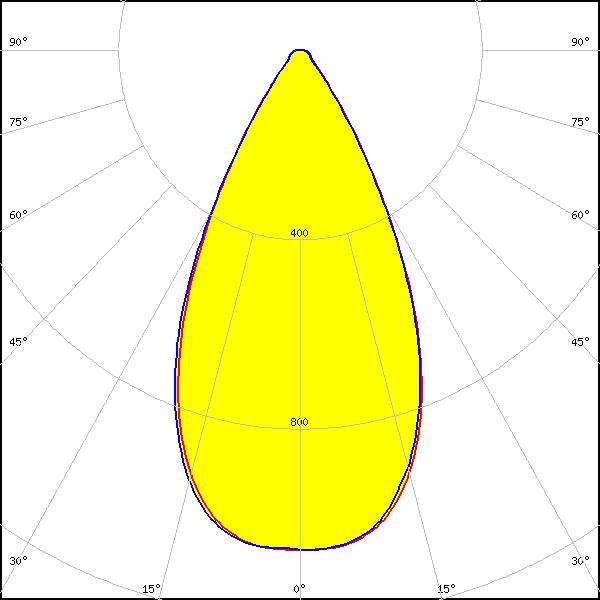

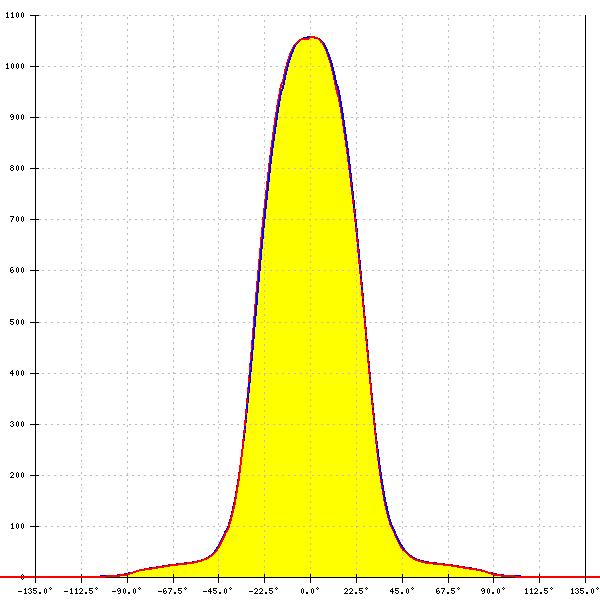

    LED: LUXEON 5050 Square LES
    FWHM: 53°
    FWTM: 80°
    Peak intensity: 1.056 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

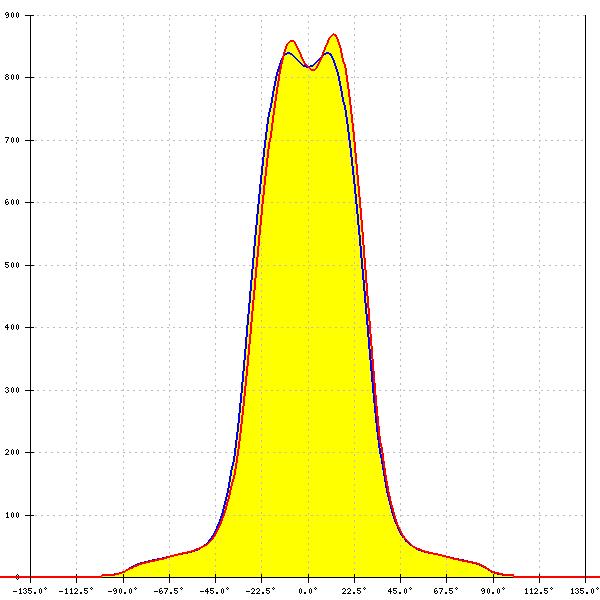

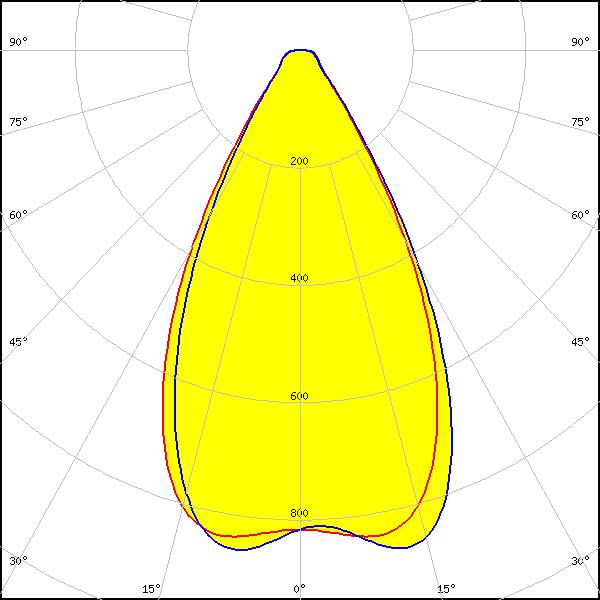

    LED: RdLED 150mm 7000lm 8x0 120V VICTORIA-MINI
    Required components:
    C18057_VICTORIA-MINI-CLIP
    FWHM: 56°
    FWTM: 86°
    Peak intensity: 0.910 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 2
    Light colour/type: White

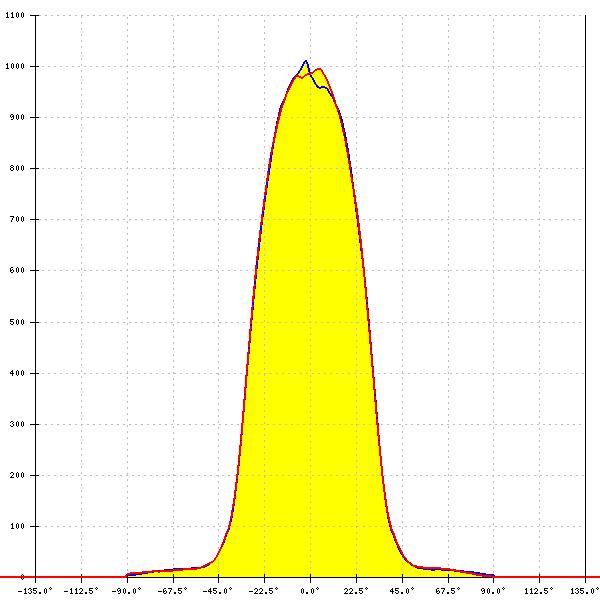

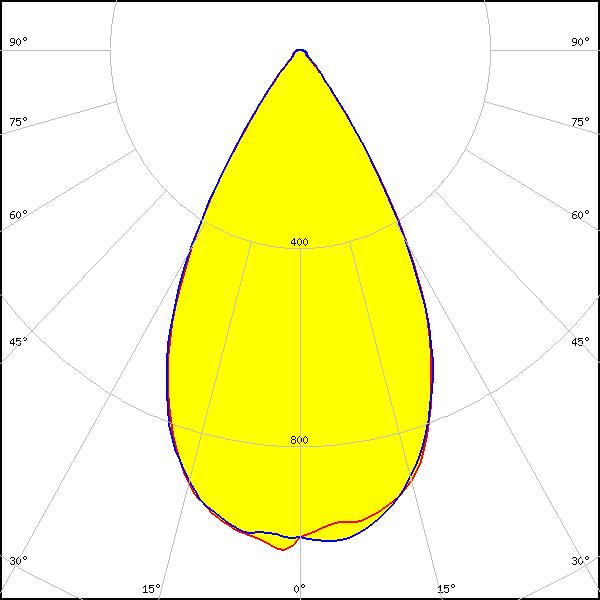

    LED: OSCONIQ S 5050 (Q9LR32)
    FWHM: 58°
    FWTM: 80°
    Peak intensity: 1.031 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

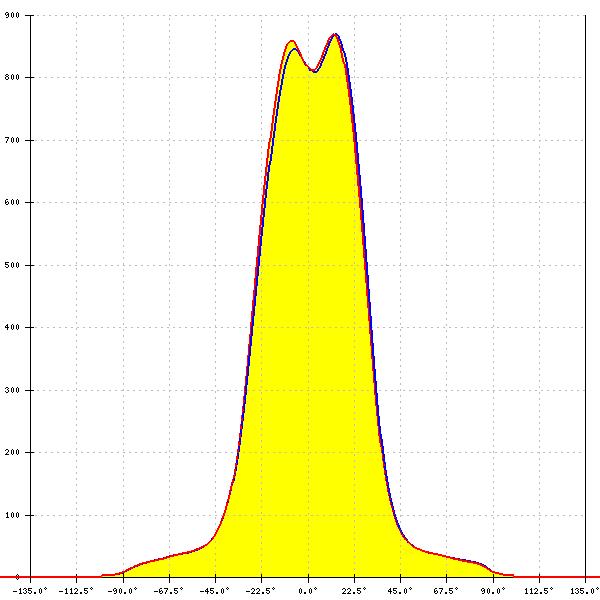

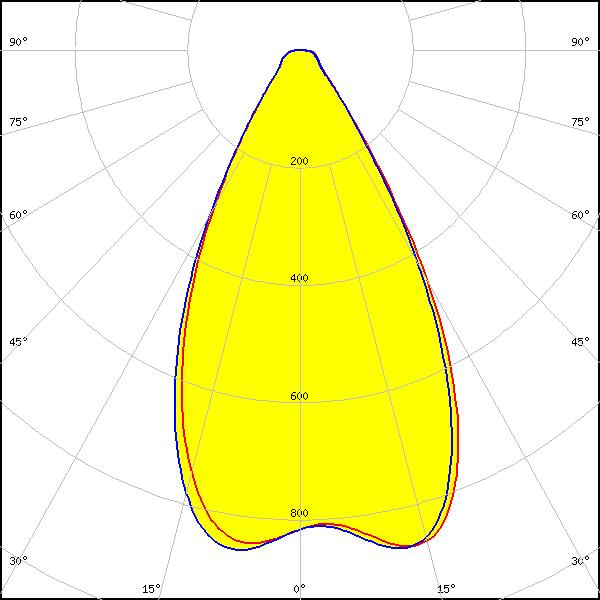

    LED: LM28xB Series
    Required components:
    C18057_VICTORIA-MINI-CLIP
    FWHM: 56°
    FWTM: 86°
    Peak intensity: 0.910 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 2
    Light colour/type: White

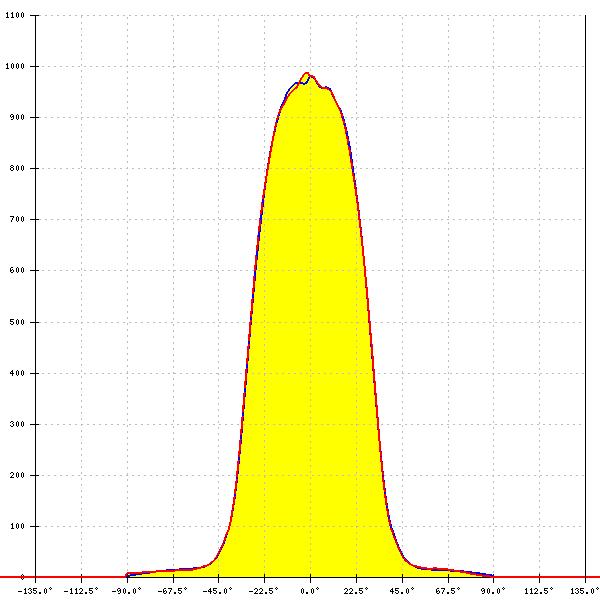

    LED: SEOUL DC 5050 6V
    FWHM: 58°
    FWTM: 80°
    Peak intensity: 0.991 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
