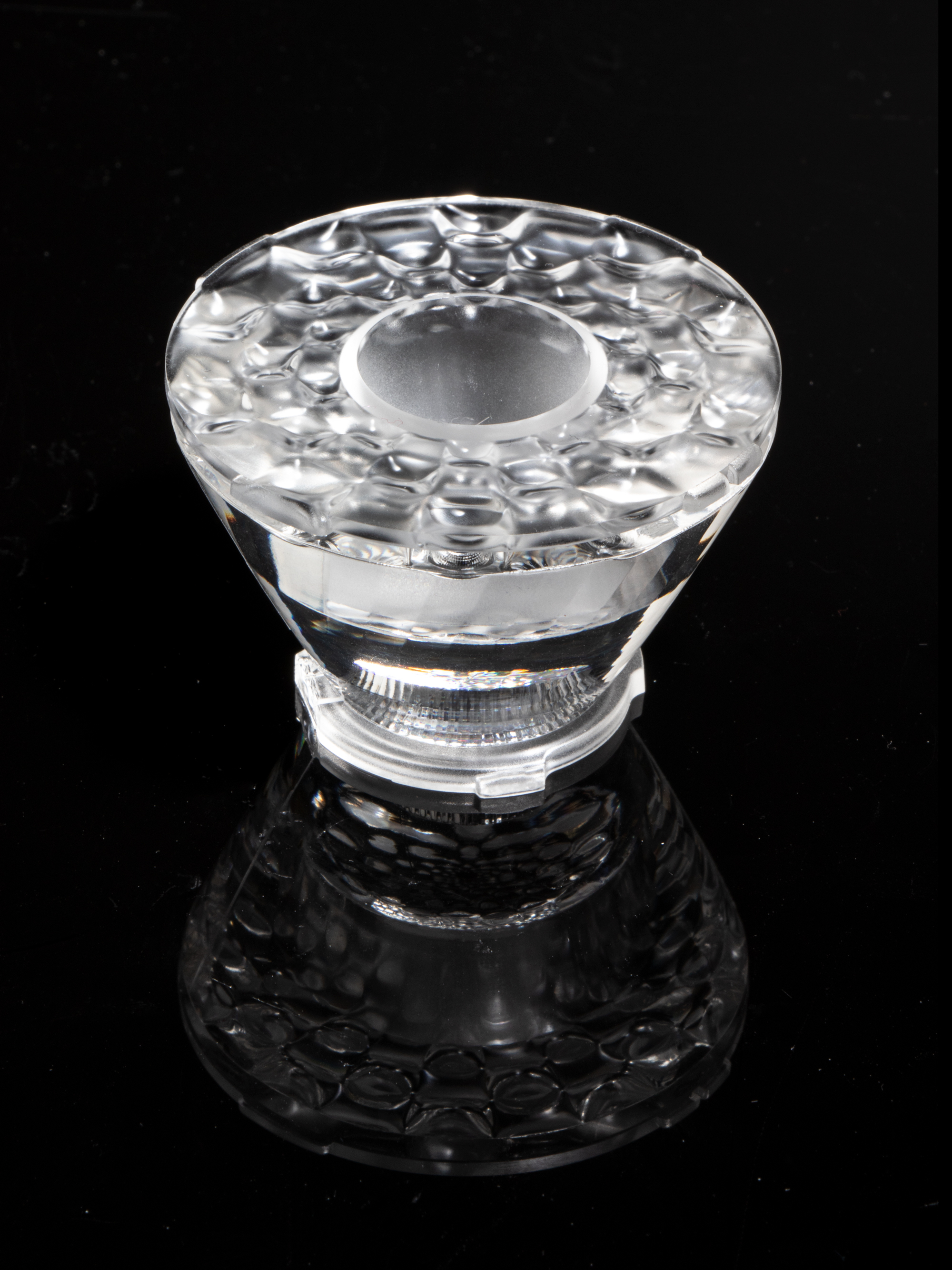

ILONA-ZOOM

Print

An infinitely adjustable beam from 13 to 48 degrees.

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    53 mm
  • Height:
    33.22 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Sublens
    1 pcs
  • Single lens
  • C17295_ILONA-ZOOM
    clear
  • Quantity in box:
    264 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    9.70 kg
  • MPQ:
    33 pcs
  • MOQ:
    33 pcs
  • MOQ Size:
    480 x 280 x 50 mm
  • MOQ Weight:
    1.30 kg
  • Sublens
  • C17296_ILONA-ZOOM-SUB
    clear
  • Quantity in box:
    264 pcs
  • Box size:
    480 x 280 x 185 mm
  • Box weight:
    2.40 kg
  • MPQ:
    33 pcs
  • MOQ:
    33 pcs
  • MOQ Size:
    480 x 280 x 40 mm
  • MOQ Weight:
    0.50 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C17295_ILONA-ZOOM
    C17296_ILONA-ZOOM-SUB
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

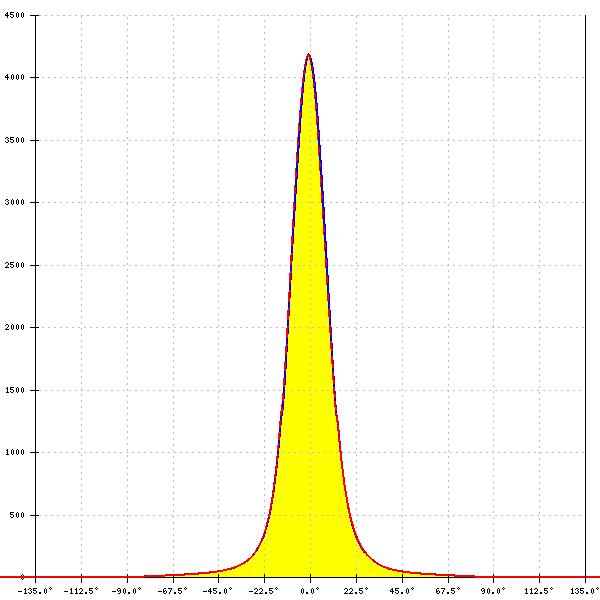

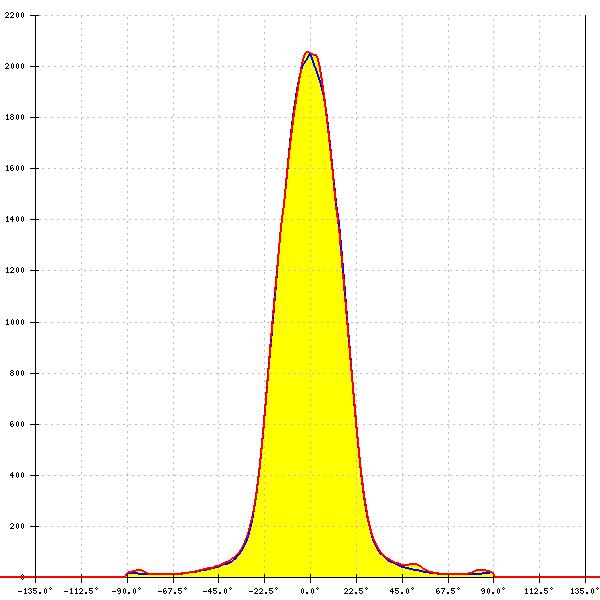

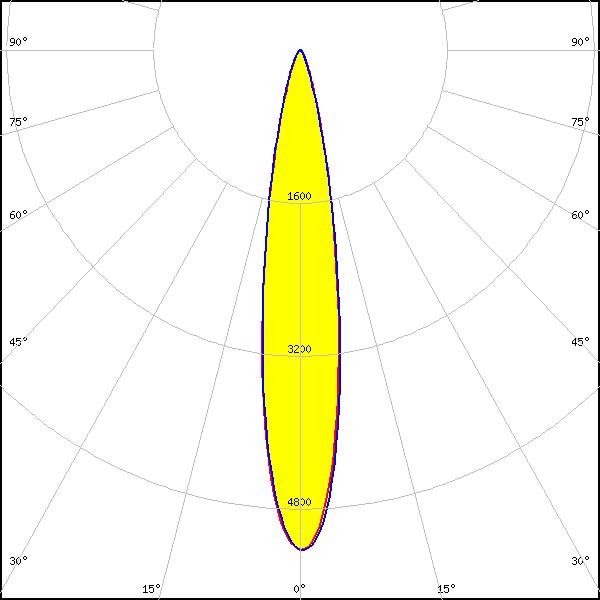

Optical results

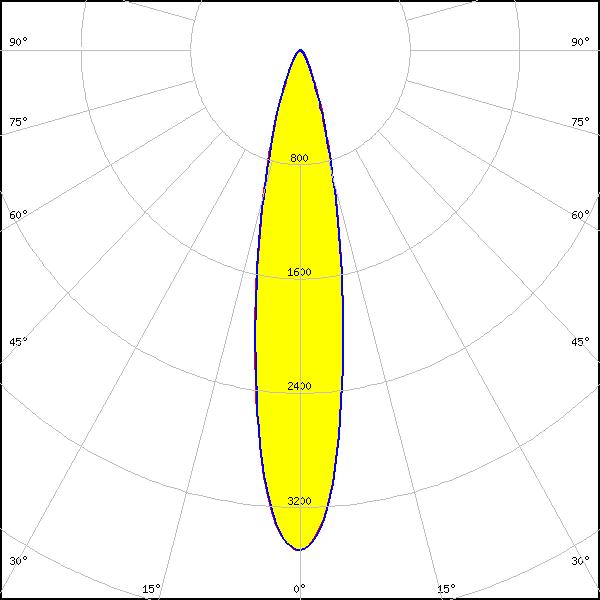

LED: V11 HD Gen 8
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM: 21° - 46°
FWTM: 45° - 88°
Peak intensity: 3.500 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

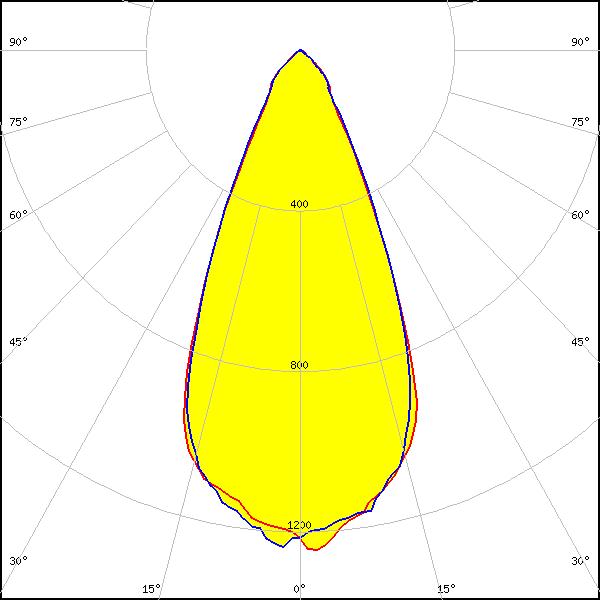

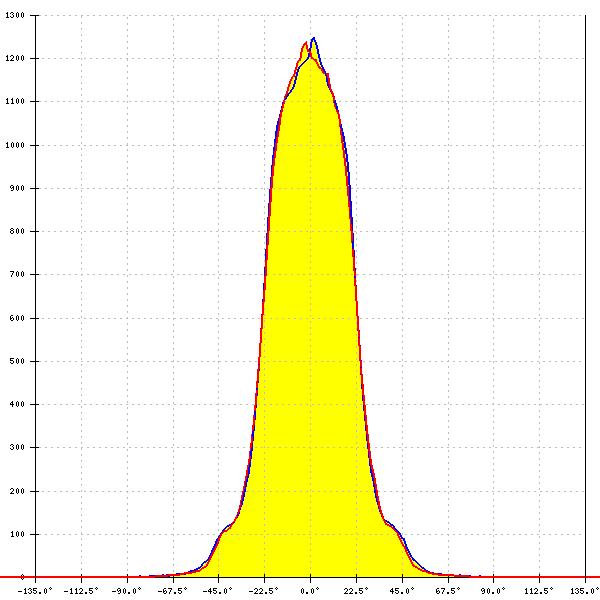

LED: V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM: 12° - 46°
FWTM: 25° - 76°
Peak intensity: 12.300 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

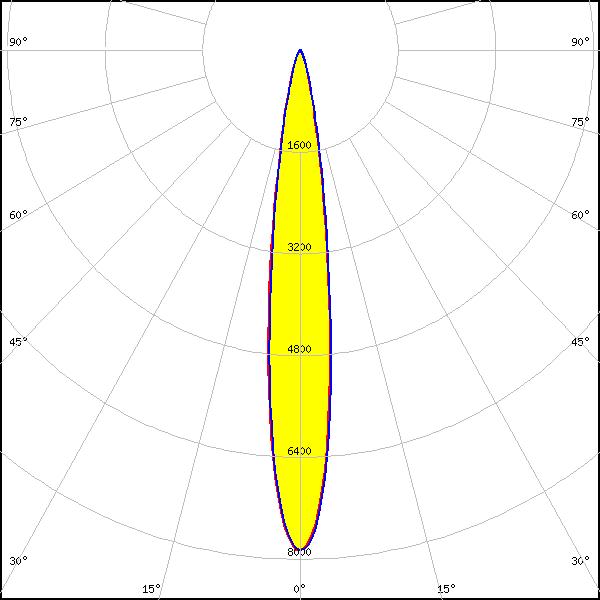

LED: V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM: 14° - 48°
FWTM: 30° - 84°
Peak intensity: 7.862 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

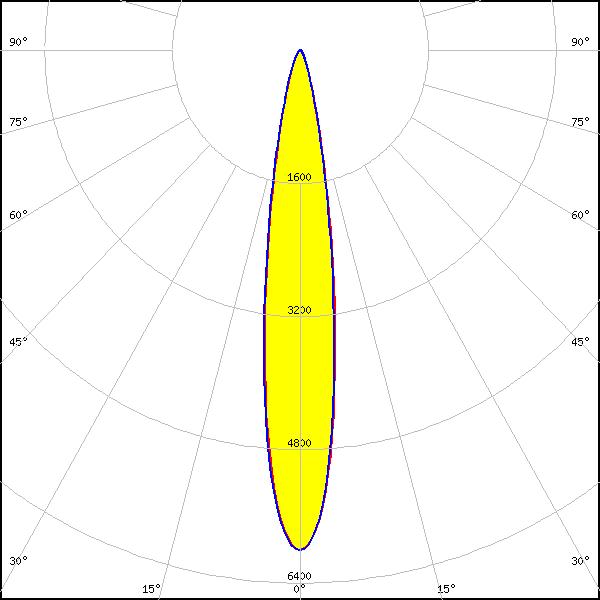

LED: V8 Gen7
LES size: 8.1 mm
Required components:
FWHM: 16° - 46°
FWTM: 35° - 83°
Peak intensity: 6.008 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

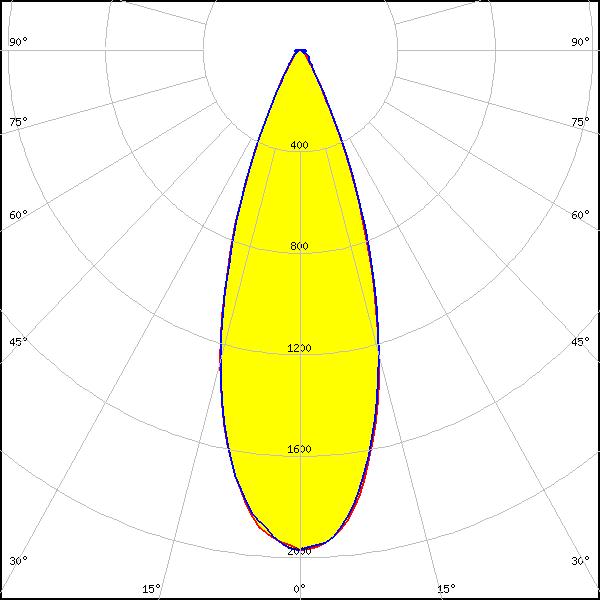

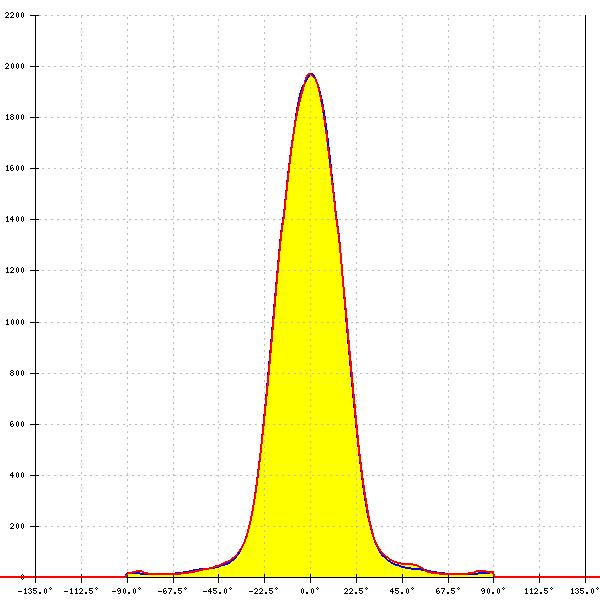

LED: V9 HD Gen7
LES size: 9.2 mm
Required components:
FWHM: 18° - 46°
FWTM: 34° - 82°
Peak intensity: 6.200 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

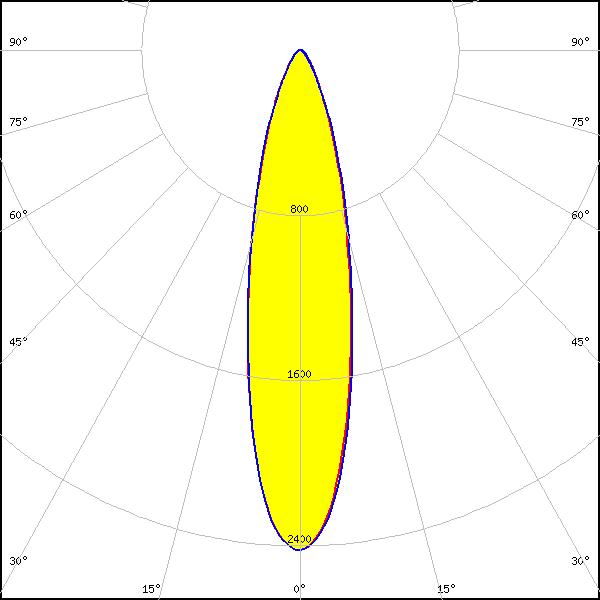

LED: Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 25° - 46°
FWTM: 55° - 90°
Peak intensity: 2.422 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Vesta DTW 9mm (4W/6W/12W)
LES size: 9.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 18° - 46°
FWTM: 36° - 84°
Peak intensity: 5.537 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 15° - 48°
FWTM: 32° - 84°
Peak intensity: 7.262 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

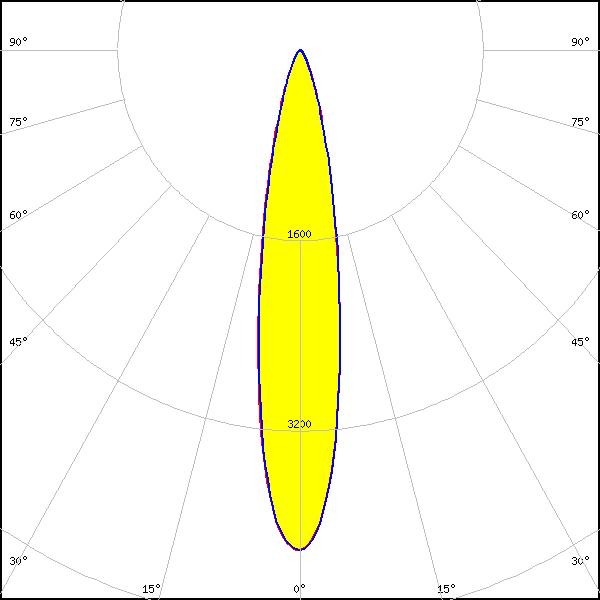

LED: Vesta TW 9mm (9W) DP
LES size: 10.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 489 Typ L8
FWHM: 19° - 46°
FWTM: 42° - 86°
Peak intensity: 4.203 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM: 21° - 47°
FWTM: 42° - 86°
Peak intensity: 4.201 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

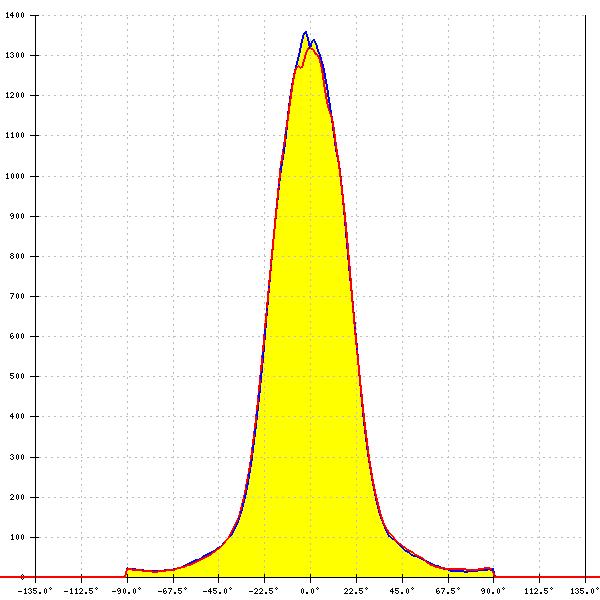

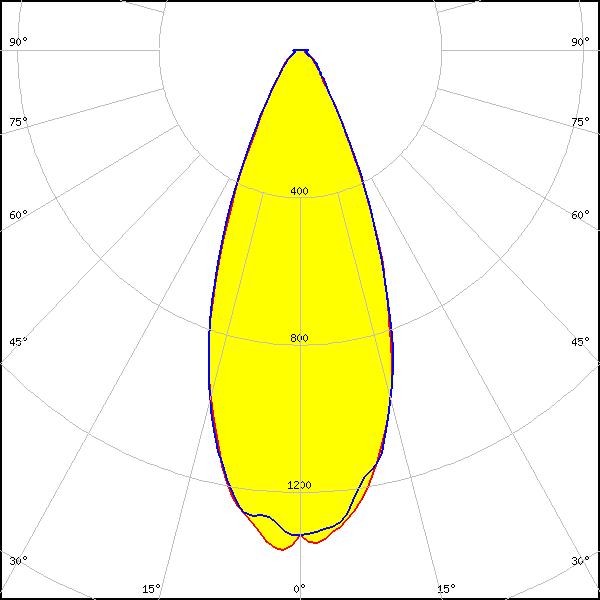

LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM: 25° - 46°
FWTM: 51° - 92°
Peak intensity: 2.761 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

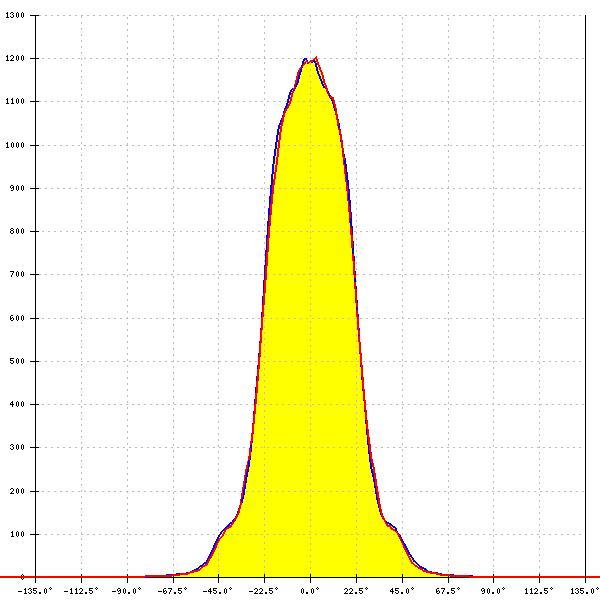

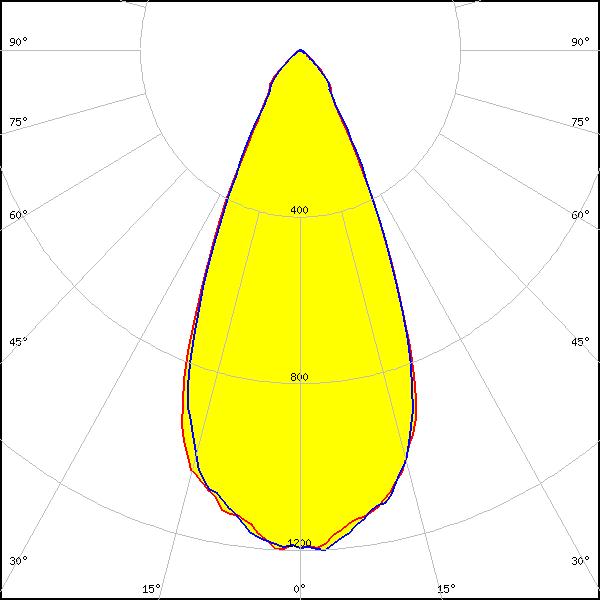

LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM: 13° - 47°
FWTM: 27° - 78°
Peak intensity: 10.000 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

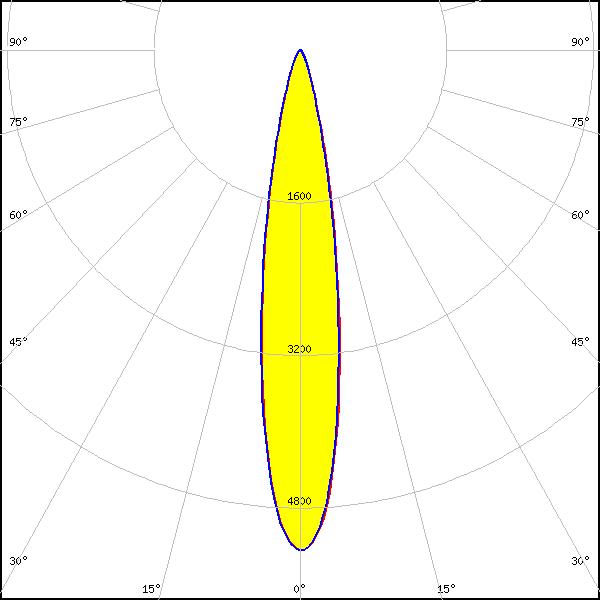

LED: CLU712/713
LES size: 8.5 mm
Required components:
FWHM: 19° - 47°
FWTM: 37° - 84°
Peak intensity: 5.243 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

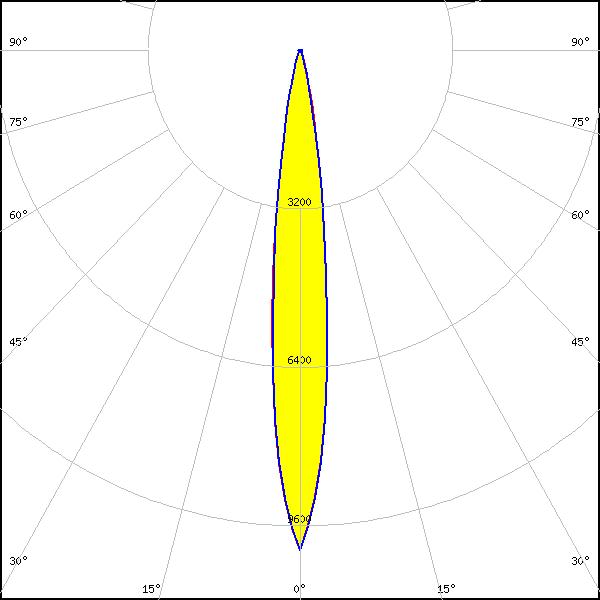

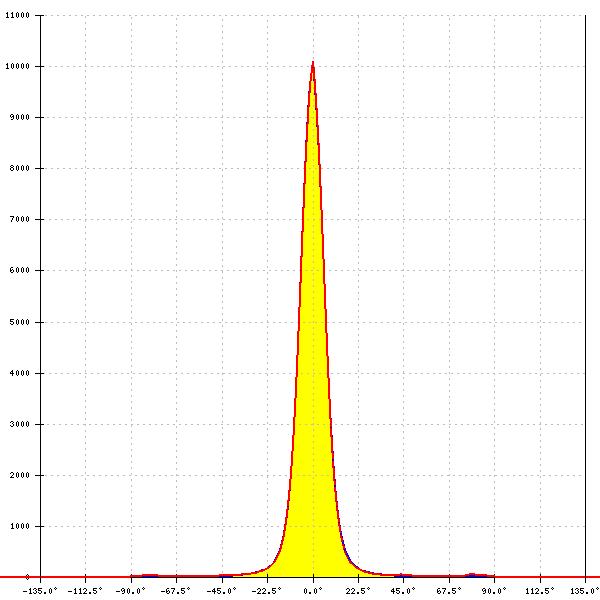

LED: CLU7A2/7A3
LES size: 4.2 mm
Required components:
FWHM: 13° - 48°
FWTM: 26° - 83°
Peak intensity: 10.096 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

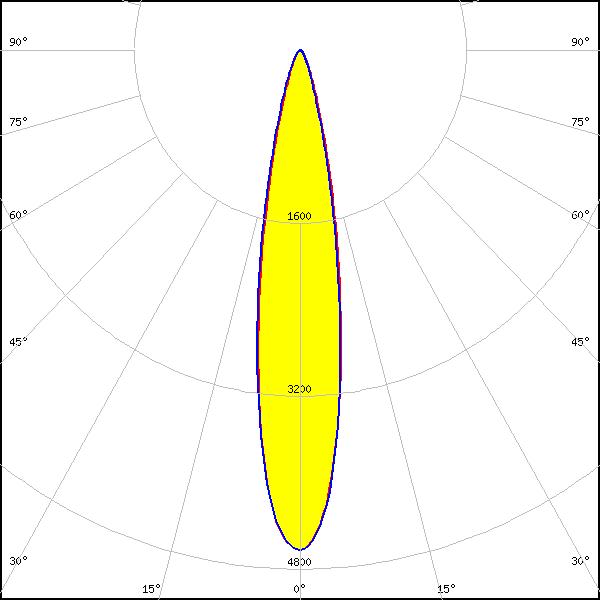

LED: CMA1516
LES size: 9.0 mm
Required components:
FWHM: 19° - 47°
FWTM: 39° - 85°
Peak intensity: 4.627 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

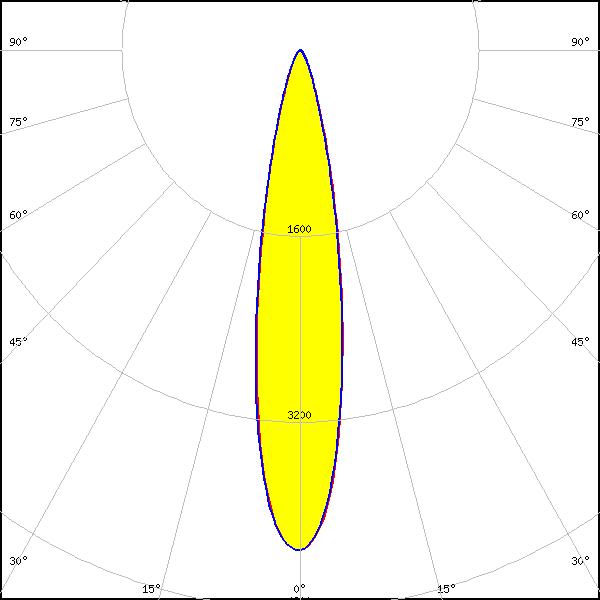

LED: CMT14xx
LES size: 9.8 mm
Required components:
FWHM: 20° - 46°
FWTM: 41° - 85°
Peak intensity: 4.302 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM: 14° - 47°
FWTM: 28° - 80°
Peak intensity: 9.600 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

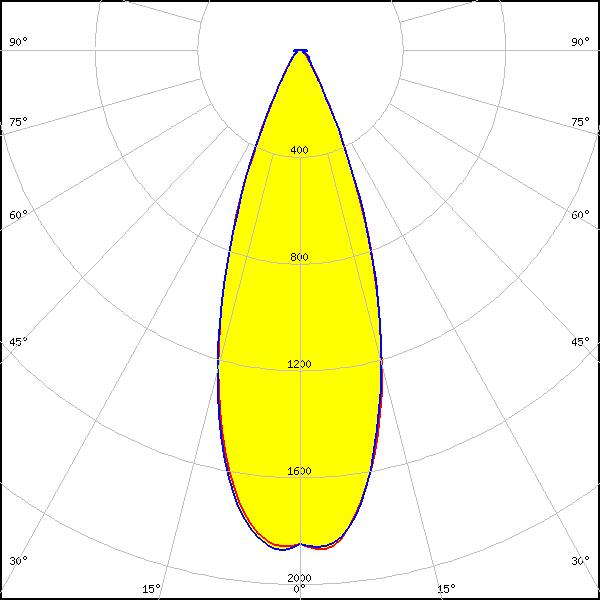

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 18° - 46°
FWTM: 36° - 81°
Peak intensity: 5.520 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

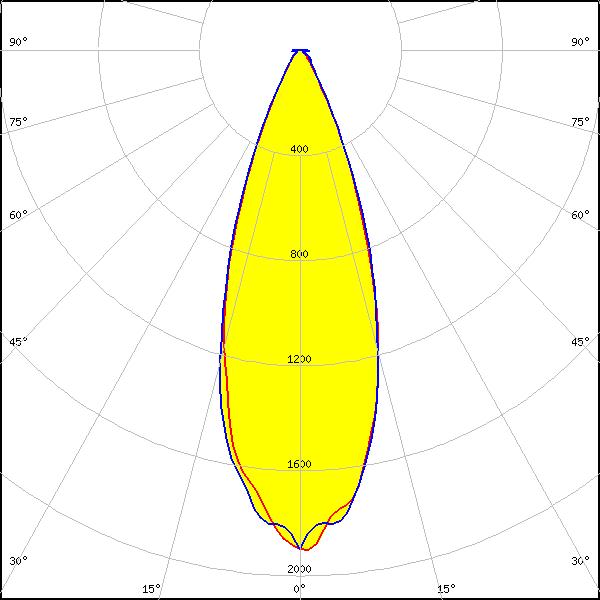

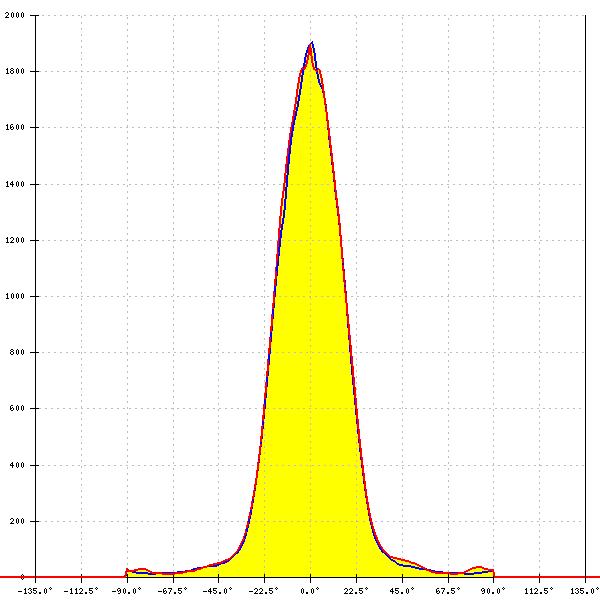

LED: LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM: 20° - 44°
FWTM: 37° - 80°
Peak intensity: 5.260 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 437 Typ L8
FWHM: 24° - 46°
FWTM: 50° - 95°
Peak intensity: 2.855 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

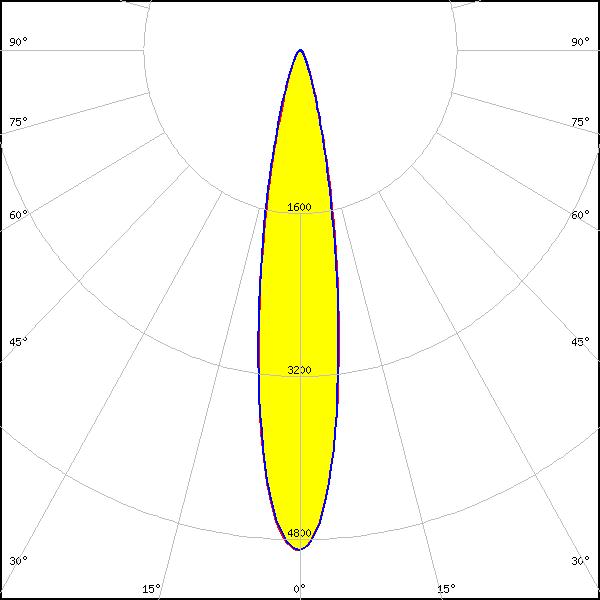

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
FWHM: 19° - 47°
FWTM: 39° - 85°
Peak intensity: 4.905 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

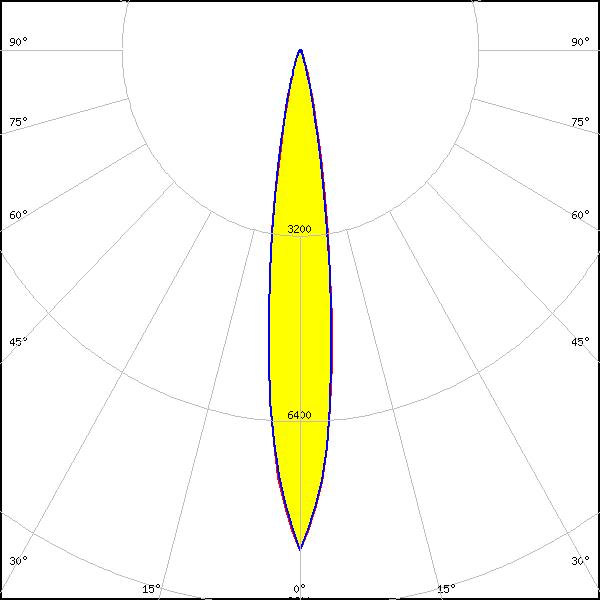

LED: CxM-6 (13.5x13.5)
LES size: 6.3 mm
Required components:
FWHM: 14° - 46°
FWTM: 30° - 81°
Peak intensity: 8.615 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

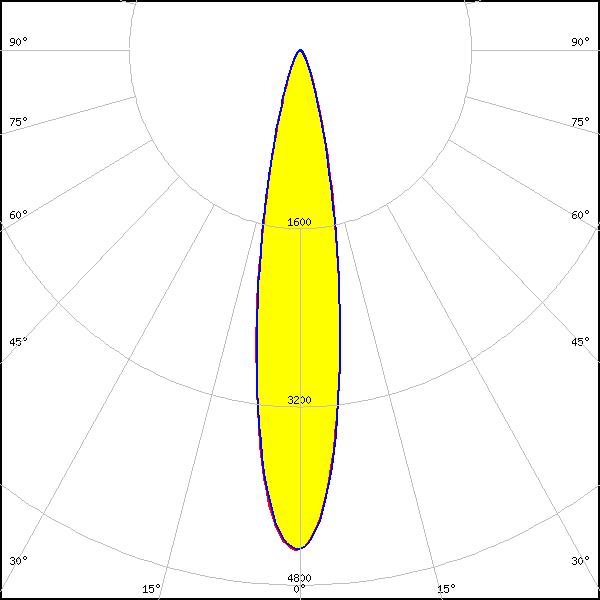

LED: CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM: 20° - 46°
FWTM: 41° - 85°
Peak intensity: 4.488 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM: 19° - 47°
FWTM: 38° - 84°
Peak intensity: 5.232 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
FWHM: 16° - 48°
FWTM: 30° - 80°
Peak intensity: 7.900 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

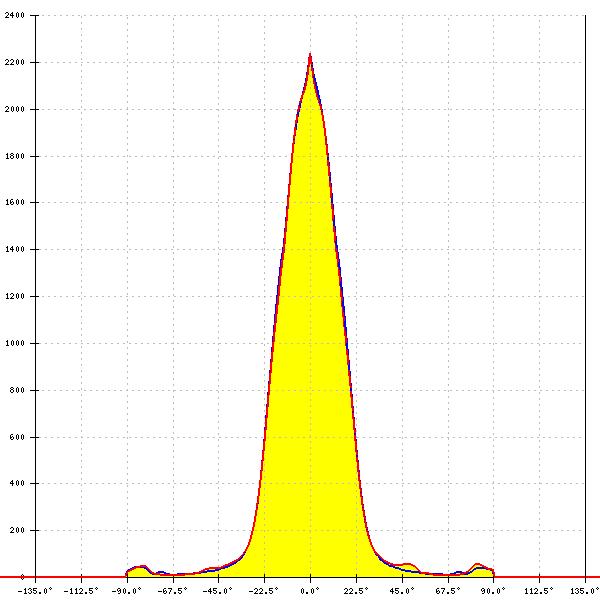

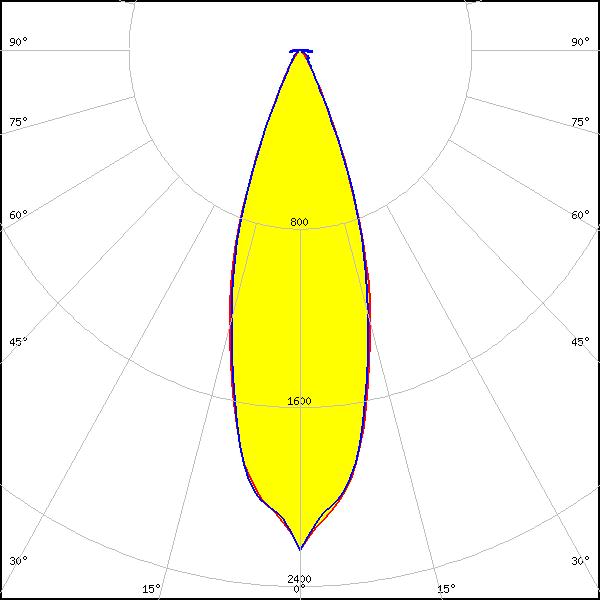

LED: NCSxE17A
LES size: 0.0 mm
FWHM: 13° - 47°
FWTM: 27° - 75°
Peak intensity: 10.020 cd/lm
Efficiency: 88 %
LEDs/each optic: 7
Light colour/type: White

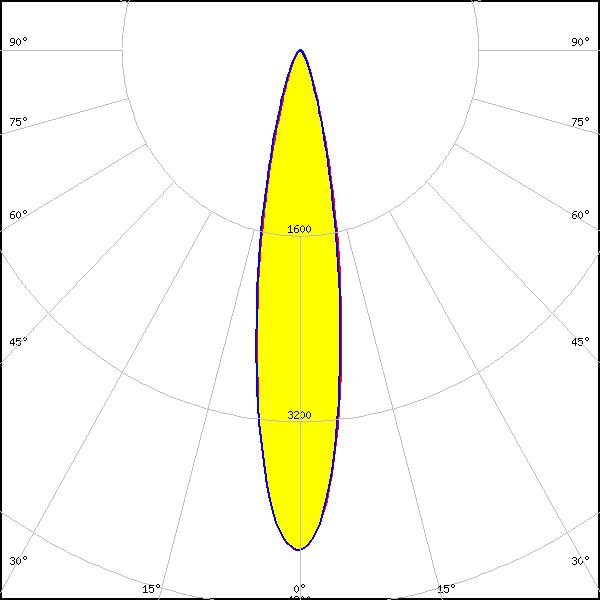

LED: LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
FWHM: 20° - 47°
FWTM: 42° - 85°
Peak intensity: 4.310 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

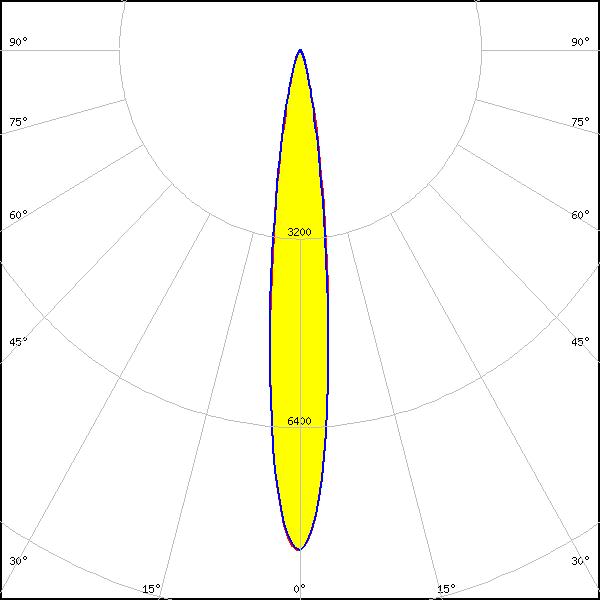

LED: LC010C G2
LES size: 6.0 mm
Required components:
FWHM: 14° - 48°
FWTM: 30° - 84°
Peak intensity: 8.487 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

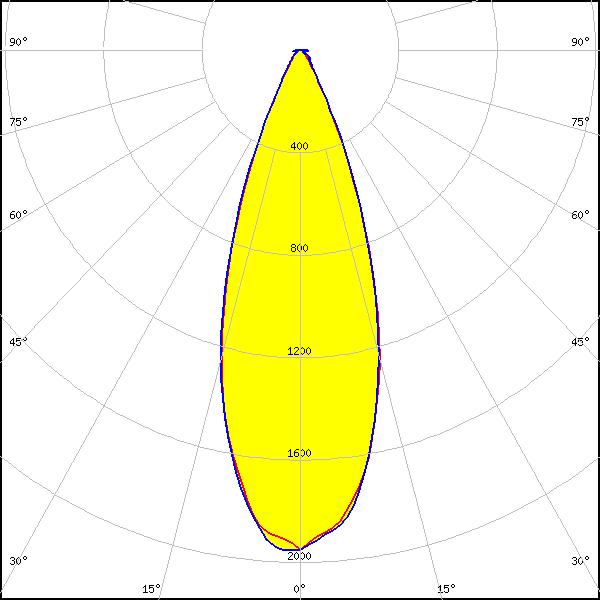

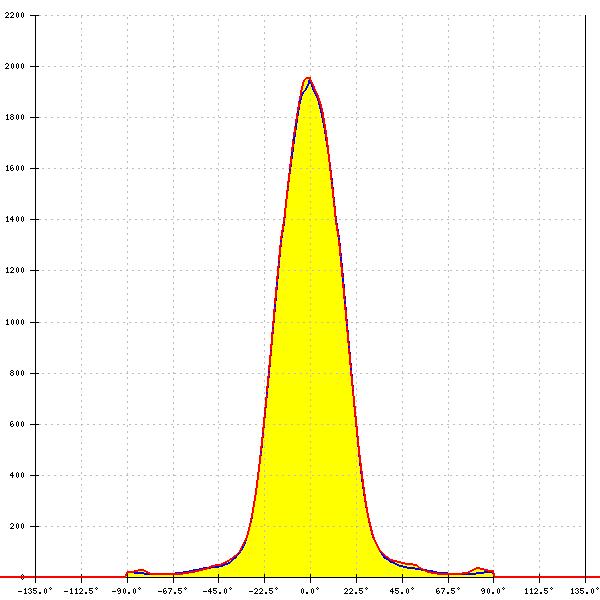

LED: LC010T (Tunable White)
LES size: 9.8 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 18° - 46°
FWTM: 34° - 83°
Peak intensity: 6.390 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

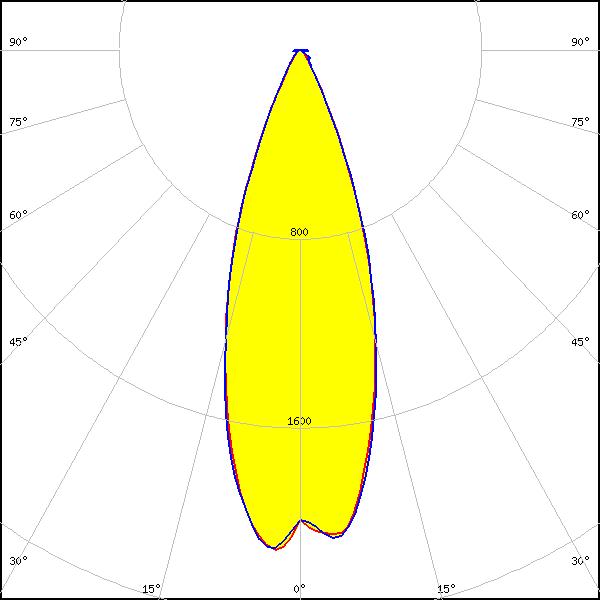

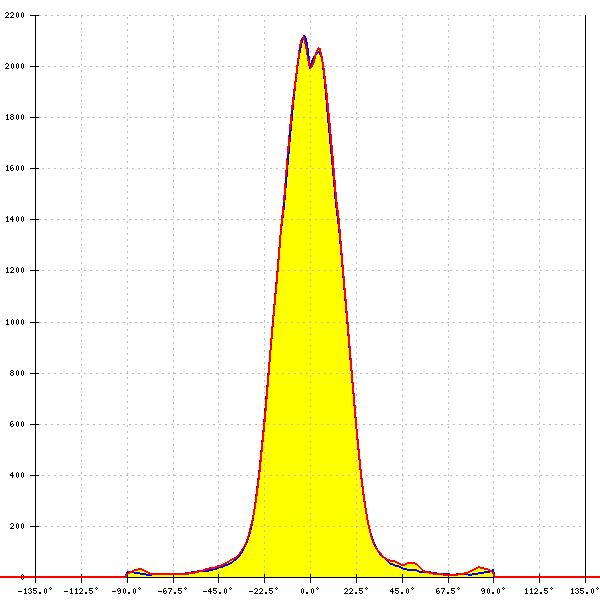

LED: LC020C
LES size: 8.0 mm
Required components:
FWHM: 14° - 46°
FWTM: 28° - 77°
Peak intensity: 9.150 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

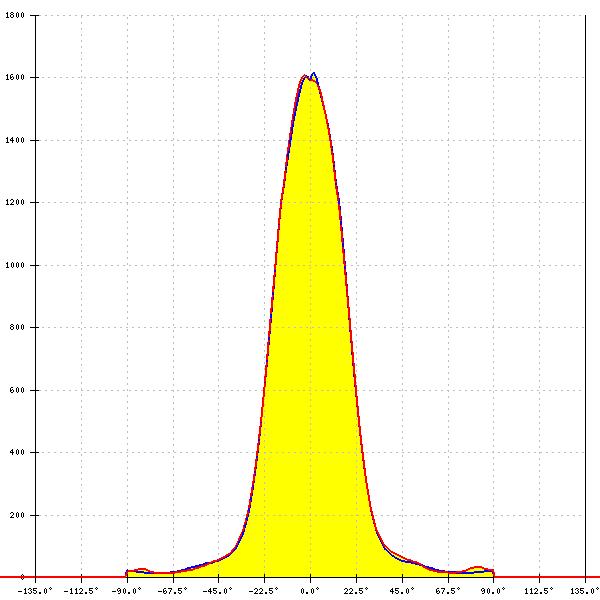

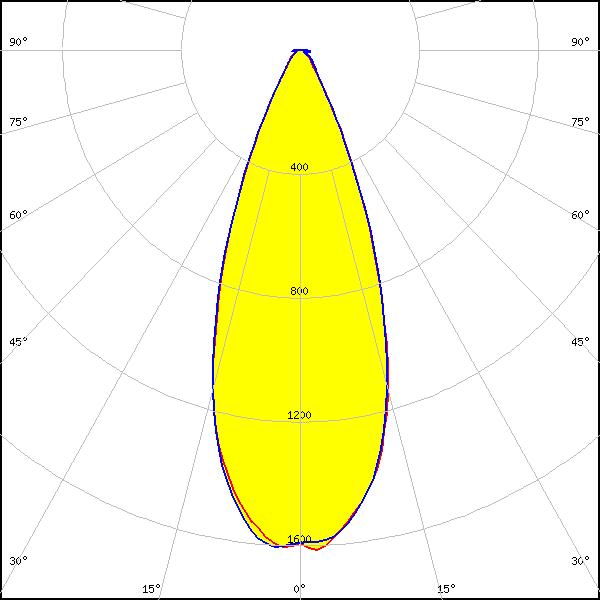

LED: LC020T (Tunable white)
LES size: 13.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 22° - 46°
FWTM: 42° - 85°
Peak intensity: 4.090 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

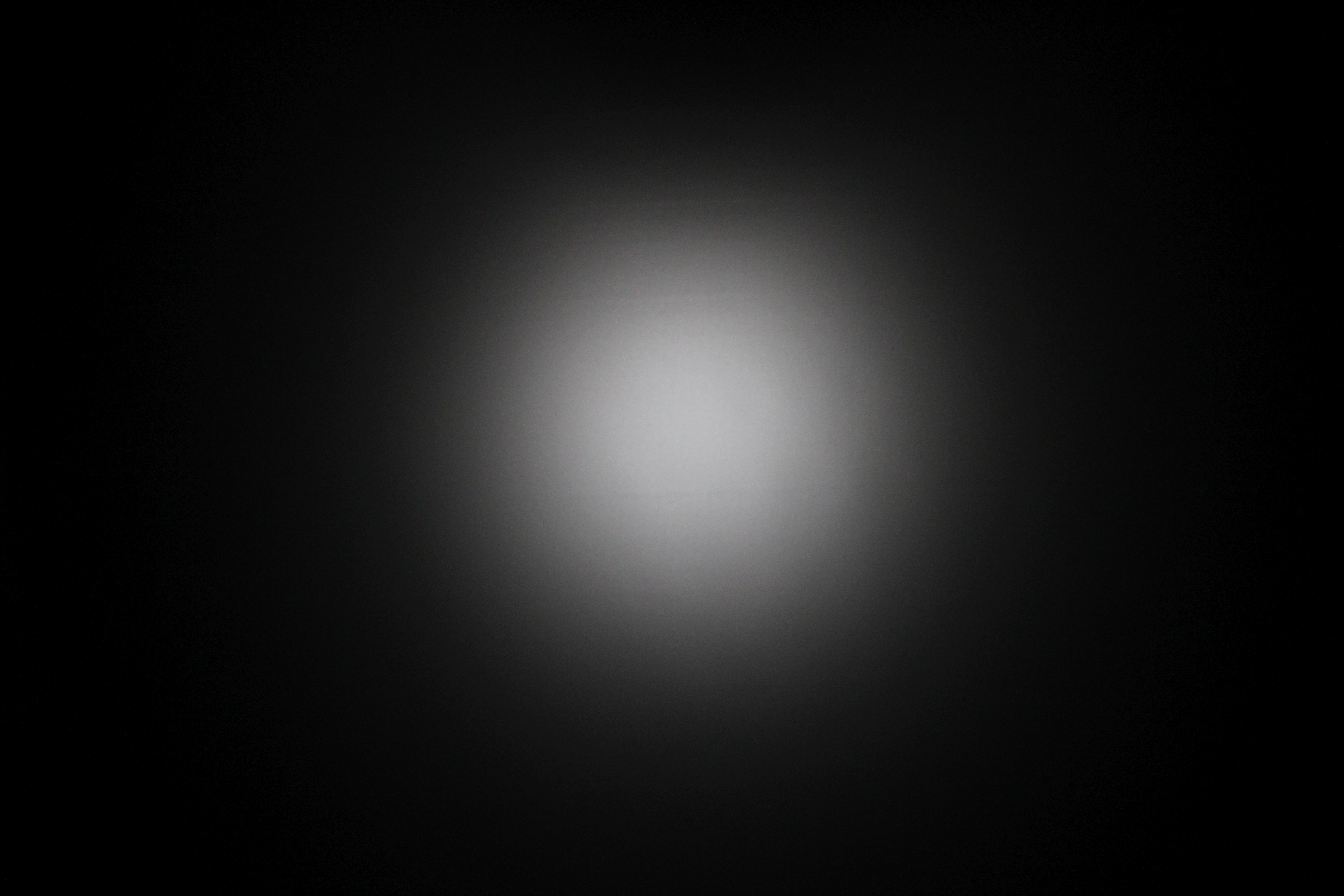

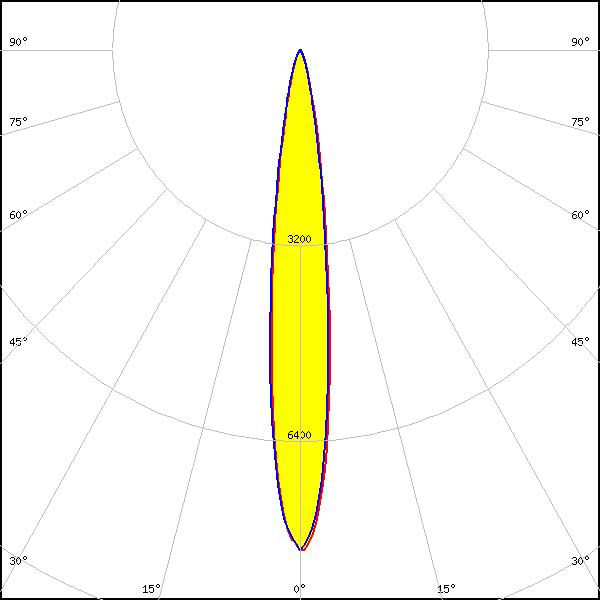

LED: MJT COB LES 6
LES size: 6.0 mm
Required components:
FWHM: 14° - 48°
FWTM: 30° - 85°
Peak intensity: 1.145 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

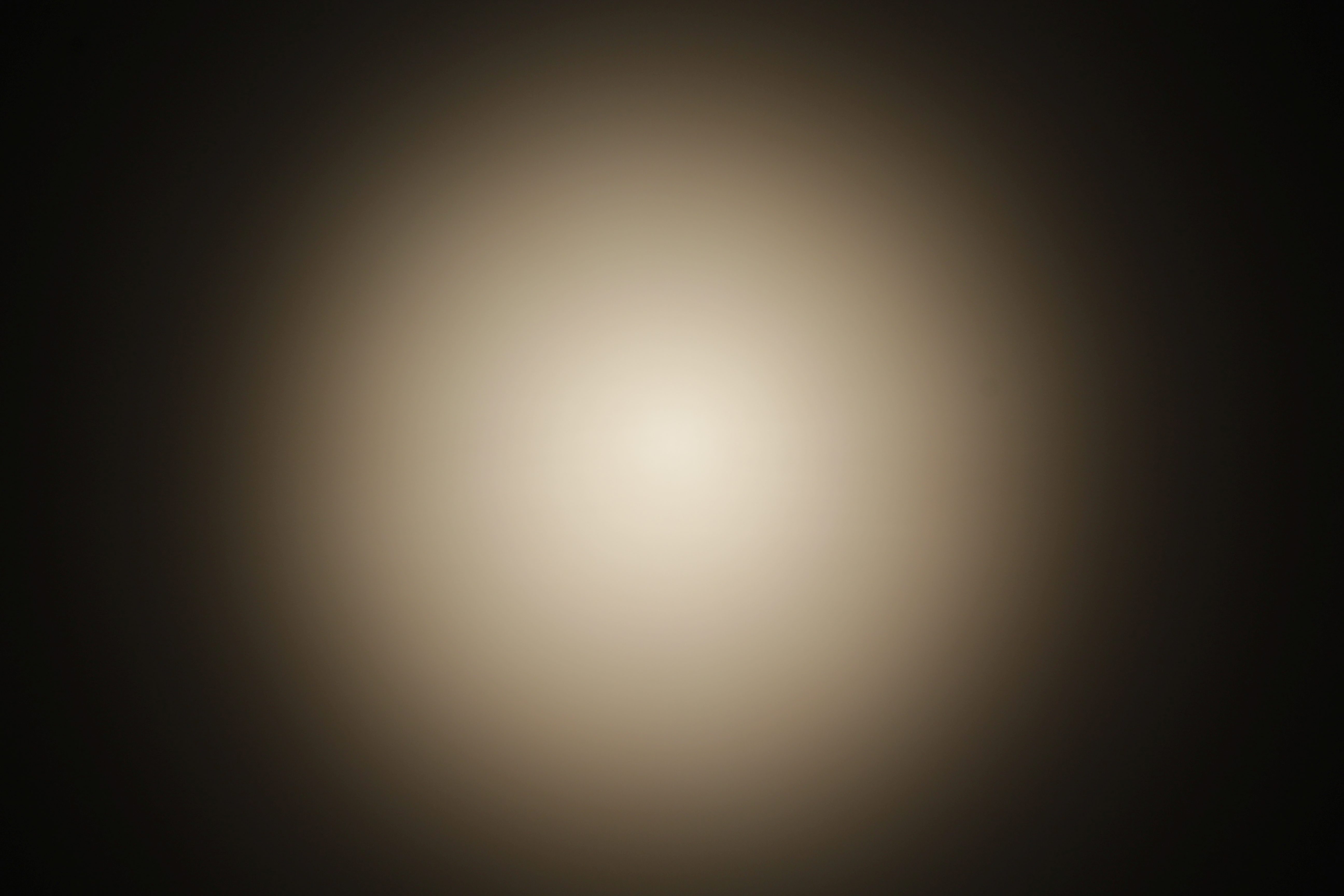

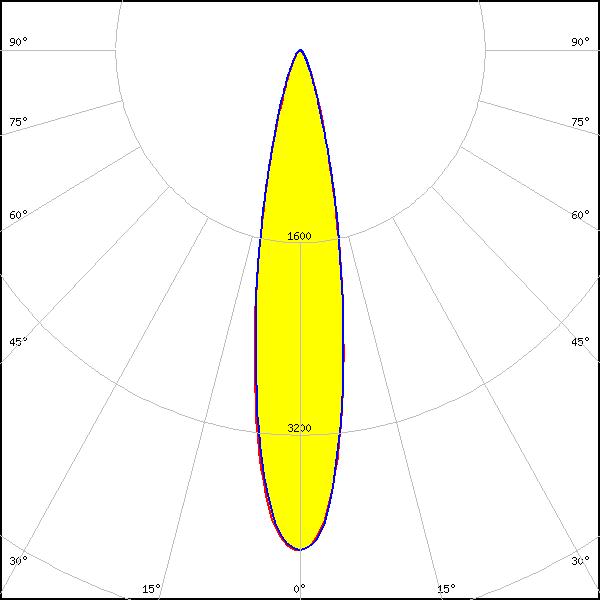

LED: MJT COB LES 9.8
LES size: 9.8 mm
Required components:
FWHM: 21° - 47°
FWTM: 43° - 86°
Peak intensity: 4.160 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

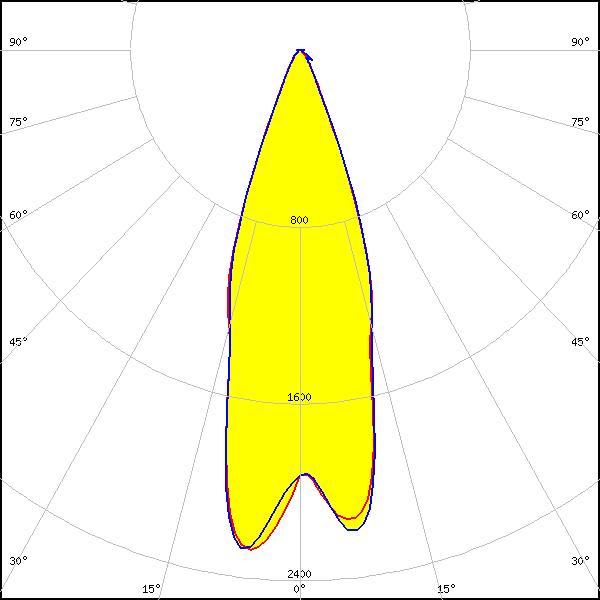

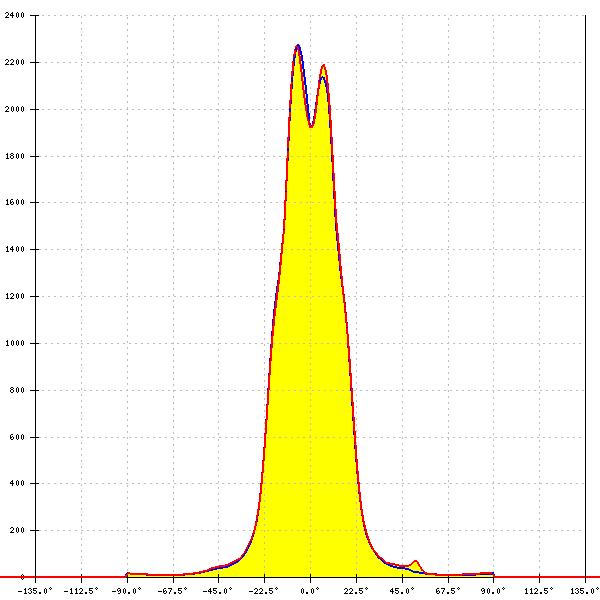

LED: SLE G7 LES13
LES size: 13.0 mm
Required components:
FWHM: 12° - 45°
FWTM: 21° - 71°
Peak intensity: 16.310 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

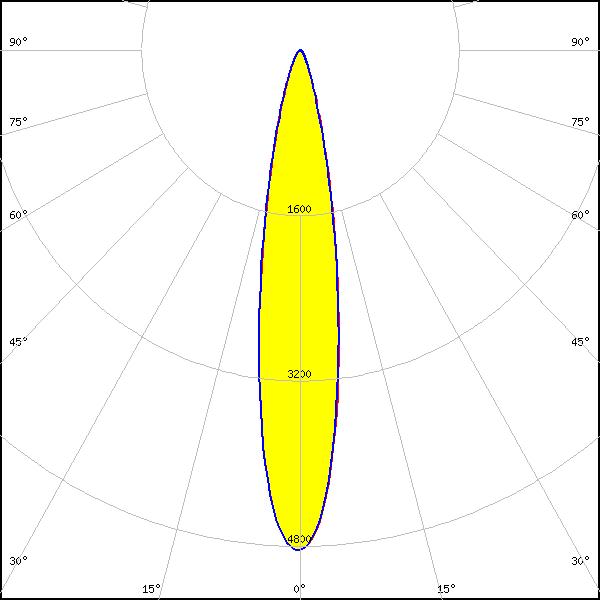

LED: XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM: 19° - 47°
FWTM: 40° - 85°
Peak intensity: 4.840 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
