CS17082_STRADA-IP-2X6-VSM-PC

Print

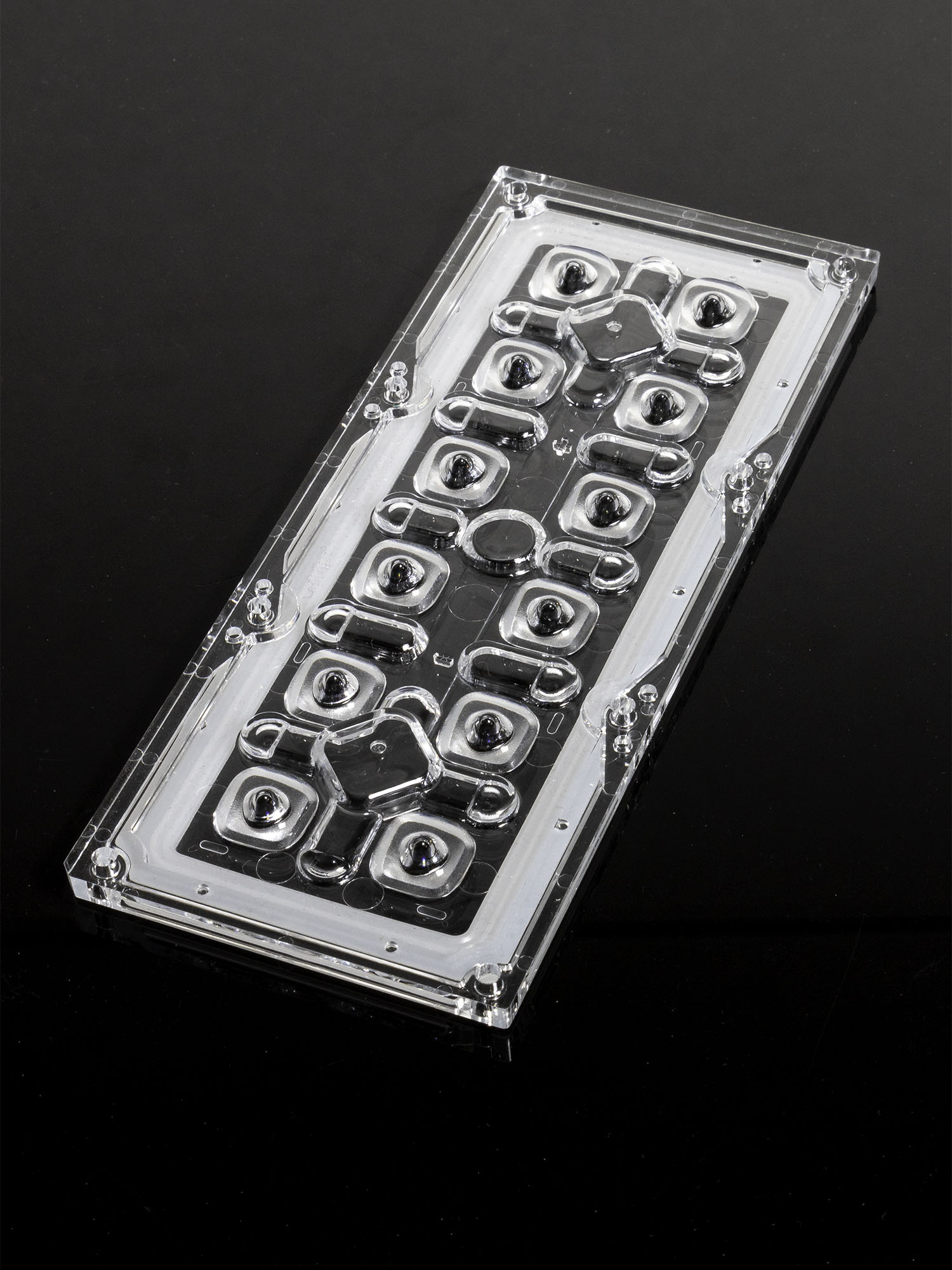

IESNA Type V (square) beam for wide area lighting such as car parks. Variant made from PC.

Specification
  • Dimensions:
    173 x  71 mm
  • Height:
    8.0 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    120 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    6.8 kg
  • MPQ:
    40 pcs
  • MOQ:
    40 pcs
  • MOQ size:
    480 x 280 x 100 mm
  • MOQ weight:
    2.6 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS17082_STRADA-IP-2X6-VSM-PC

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

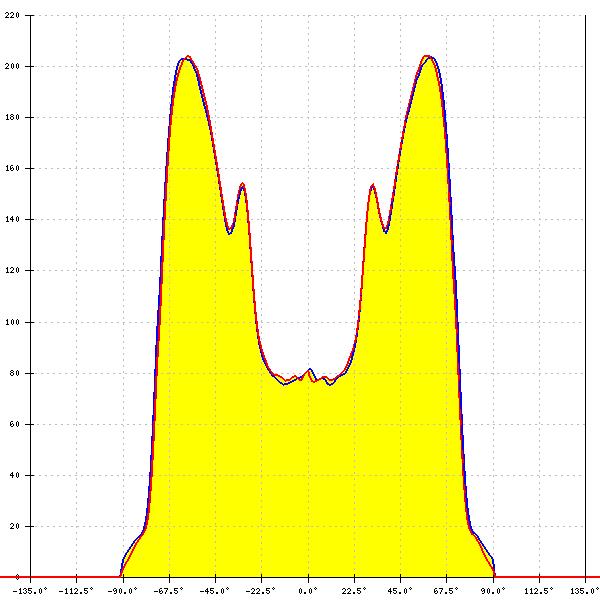

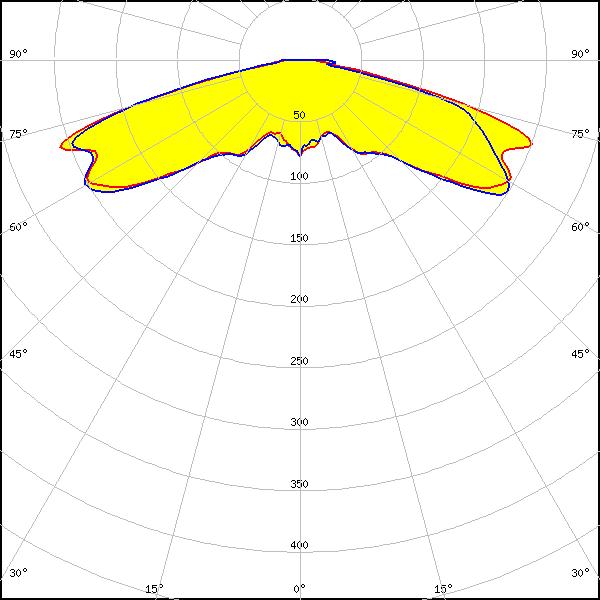

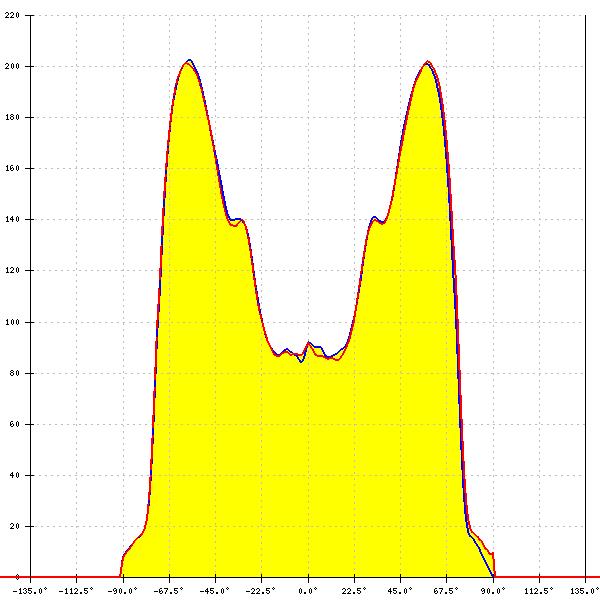

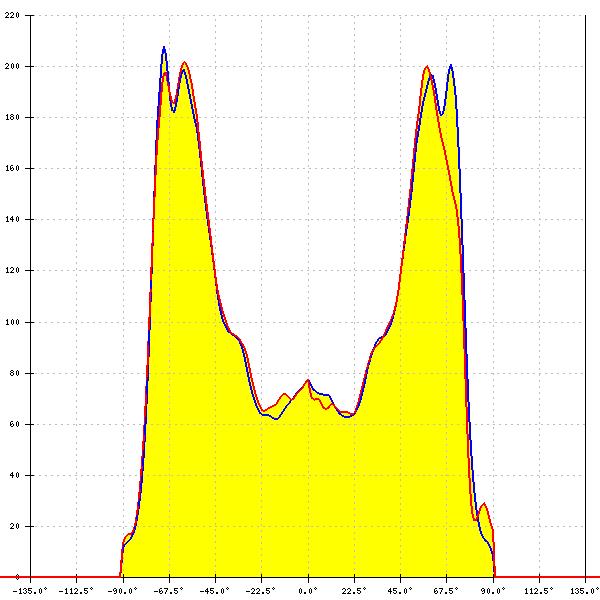

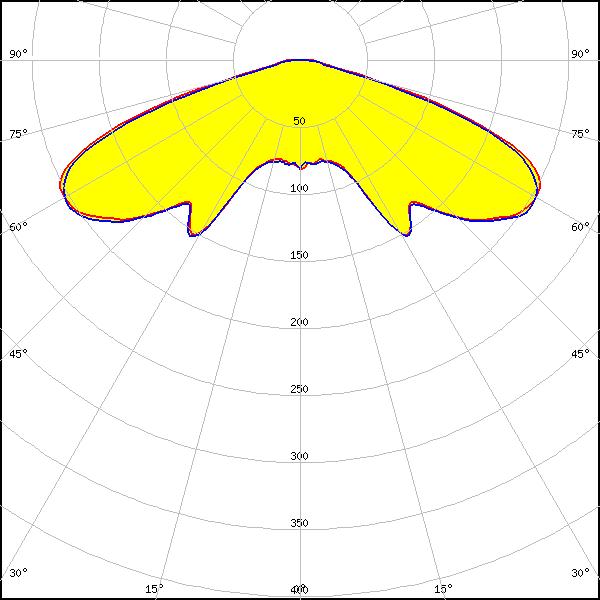

Optical results

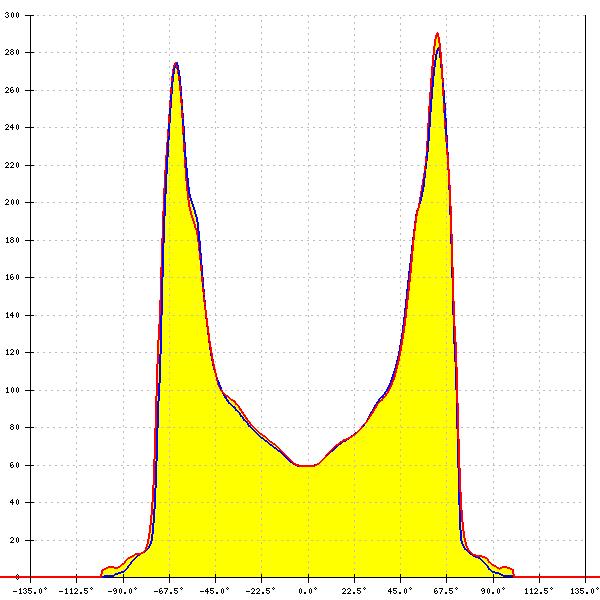

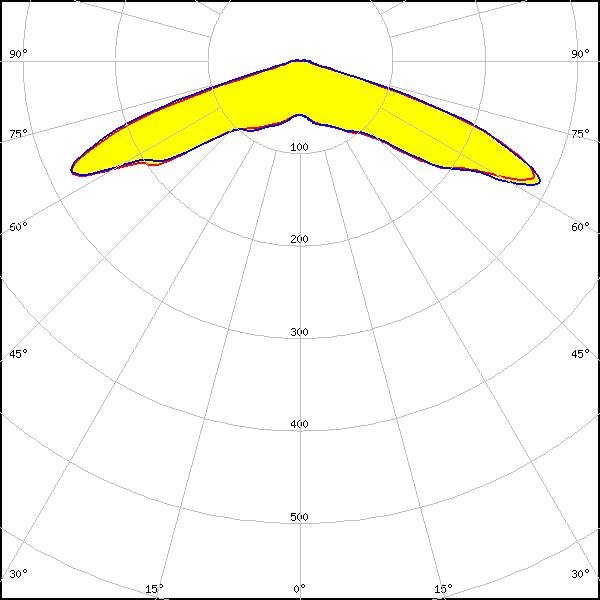

LED: XP-G2
FWHM: 143°
FWTM: 150°
Peak intensity: 0.5 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

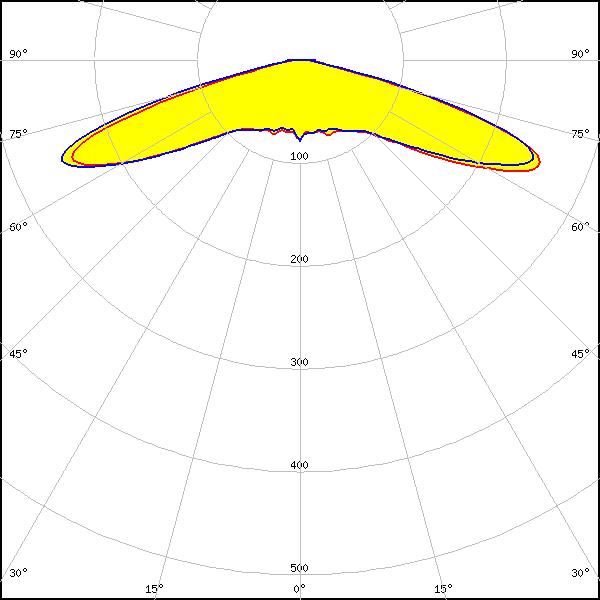

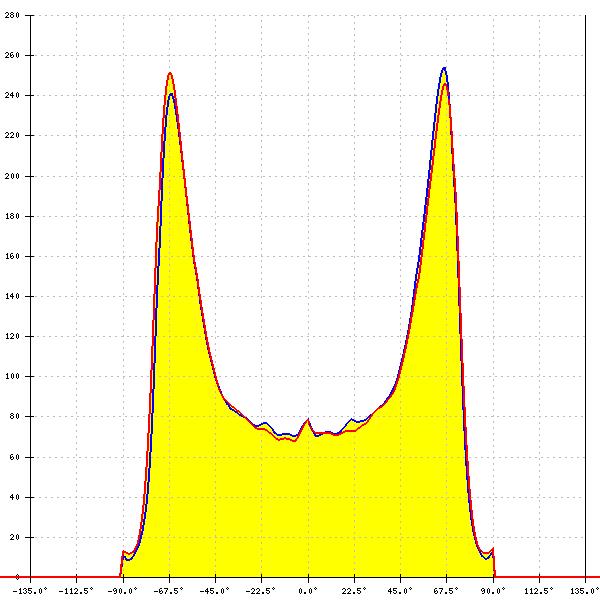

LED: XP-G3
FWHM: 148°
FWTM: 160°
Peak intensity: 0.4 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

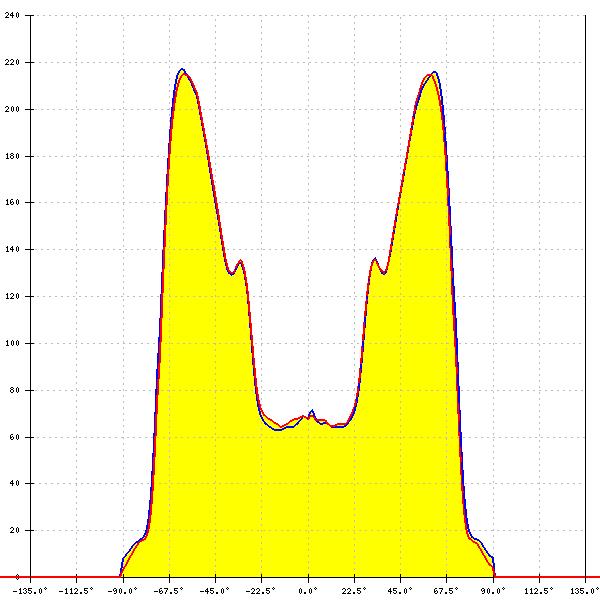

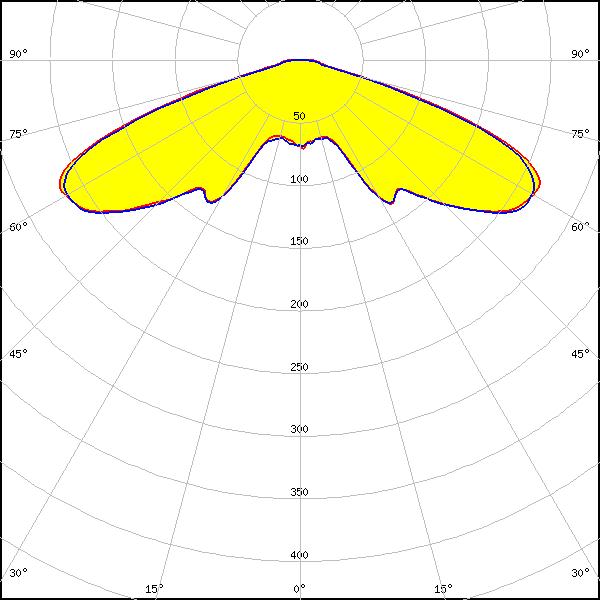

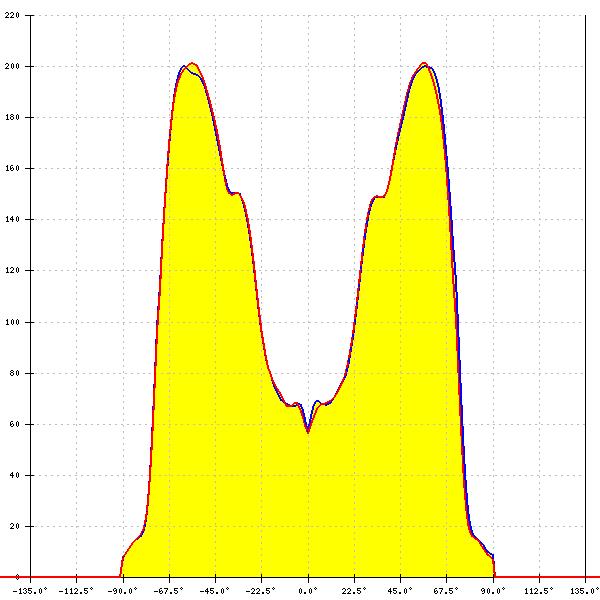

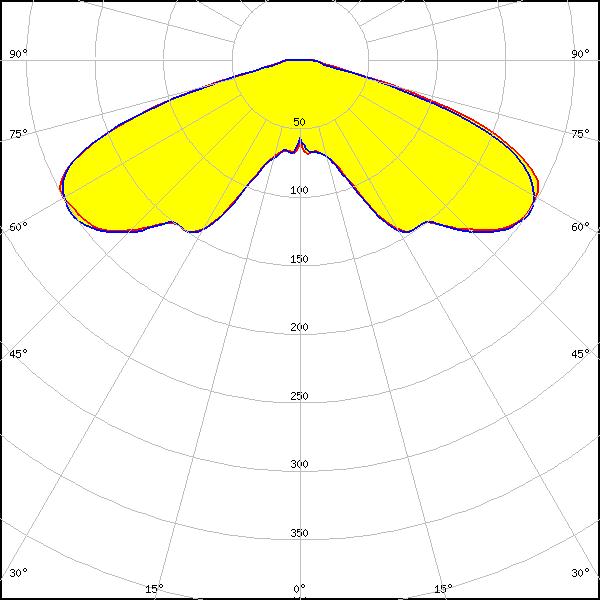

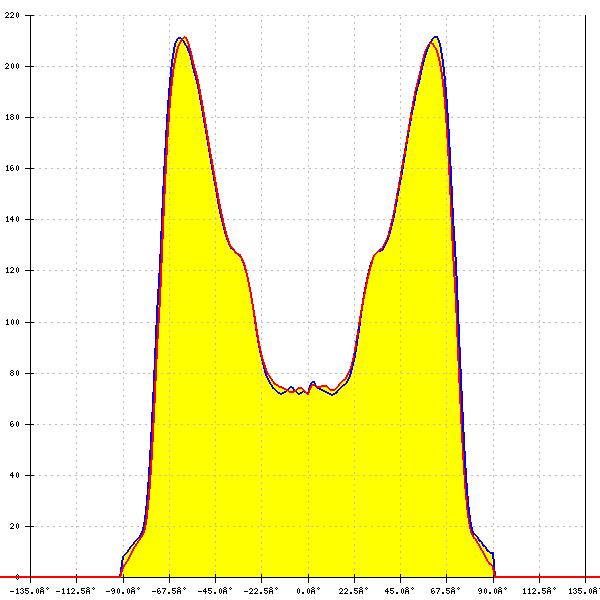

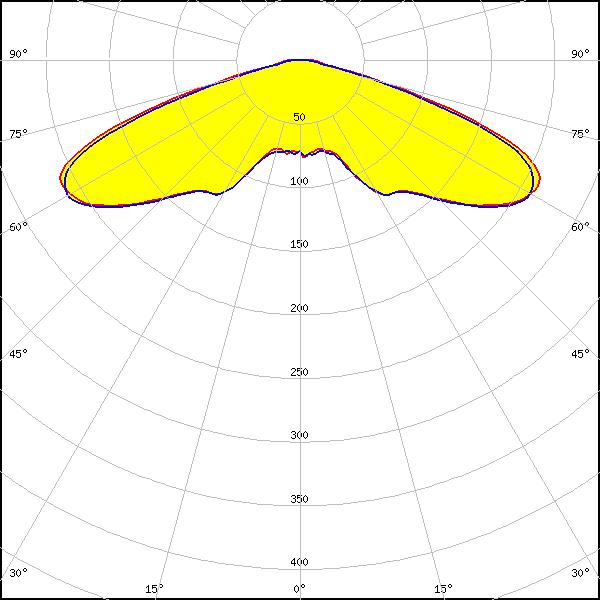

LED: LUXEON 5050 Square LES
FWHM: 145°
FWTM: 158°
Peak intensity: 0.3 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

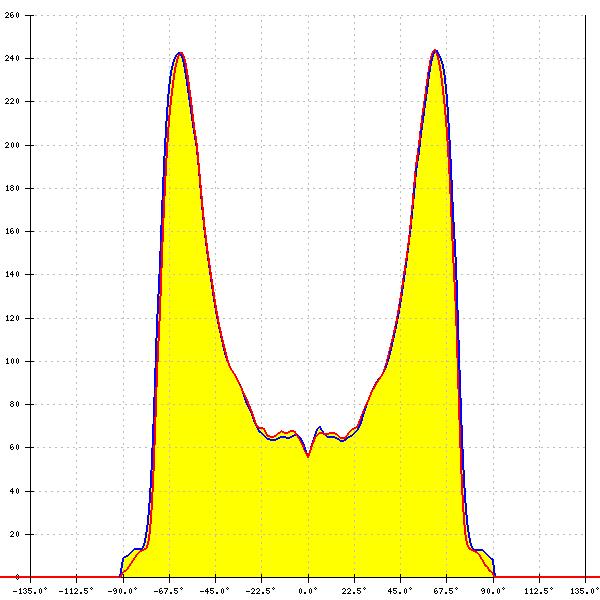

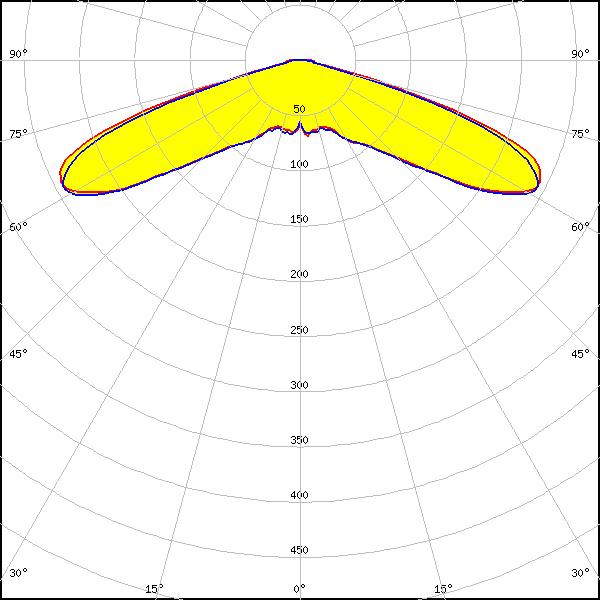

LED: NV4WB35AM
FWHM: 145°
FWTM: 154°
Peak intensity: 0.4 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

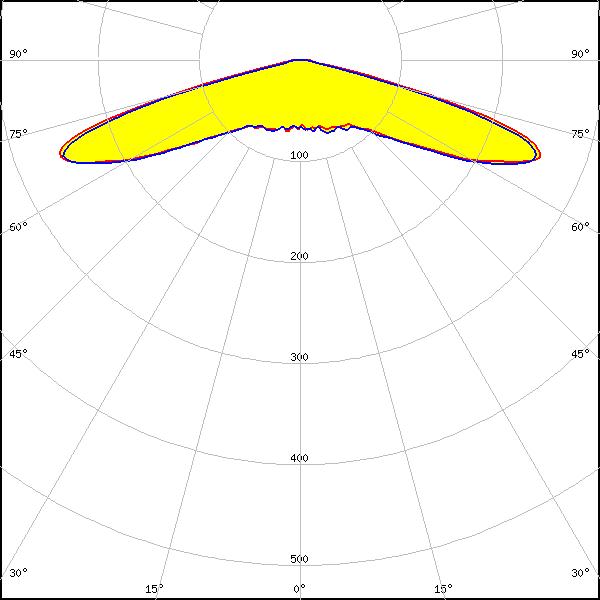

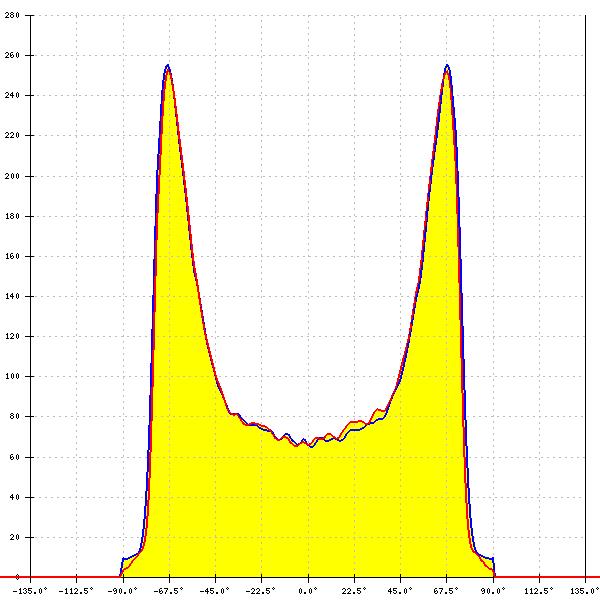

LED: NVSW219F
FWHM: 149°
FWTM: 158°
Peak intensity: 0.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: NVSW319B
FWHM: 151°
FWTM: 160°
Peak intensity: 0.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19B/NVSxx19C
FWHM: 146°
FWTM: 155°
Peak intensity: 0.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

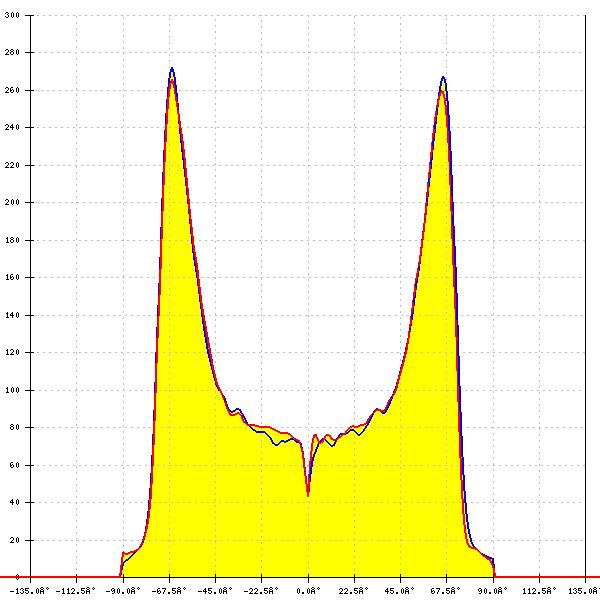

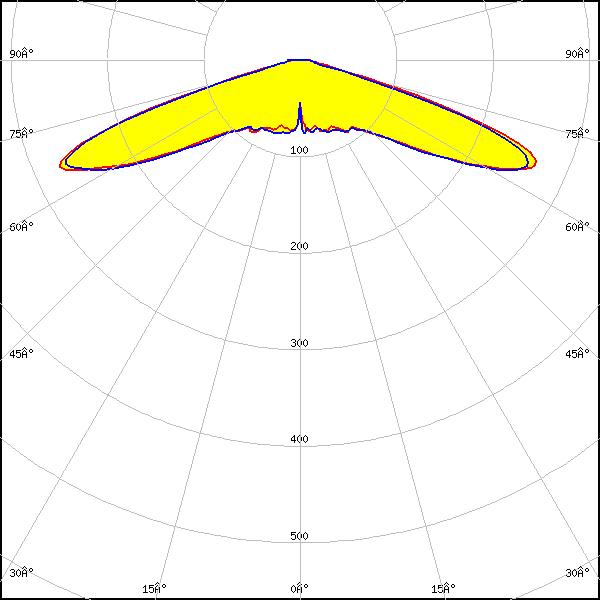

LED: PrevaLED Brick HP IP 2x6
FWHM: 146°
FWTM: 155°
Peak intensity: 0.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

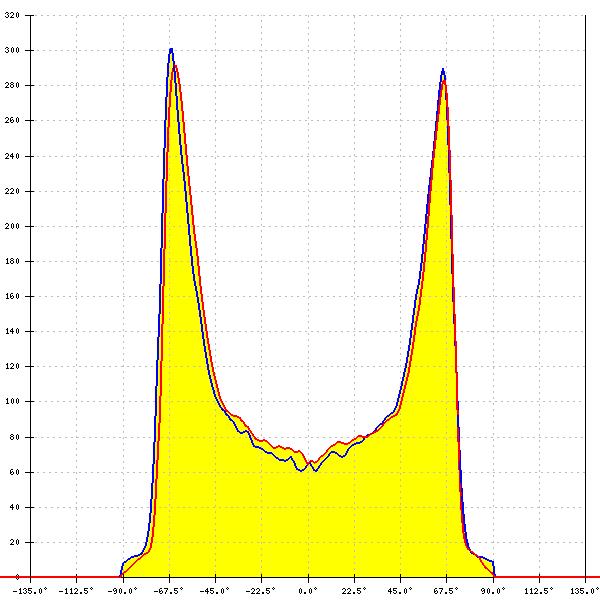

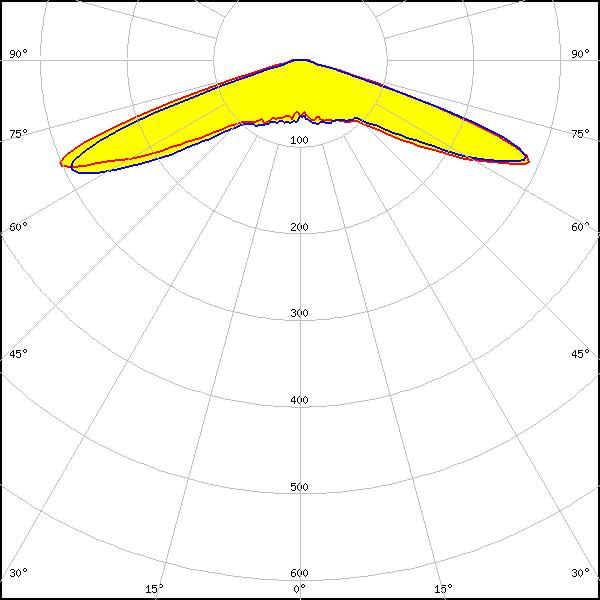

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 143°
FWTM: 152°
Peak intensity: 0.5 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

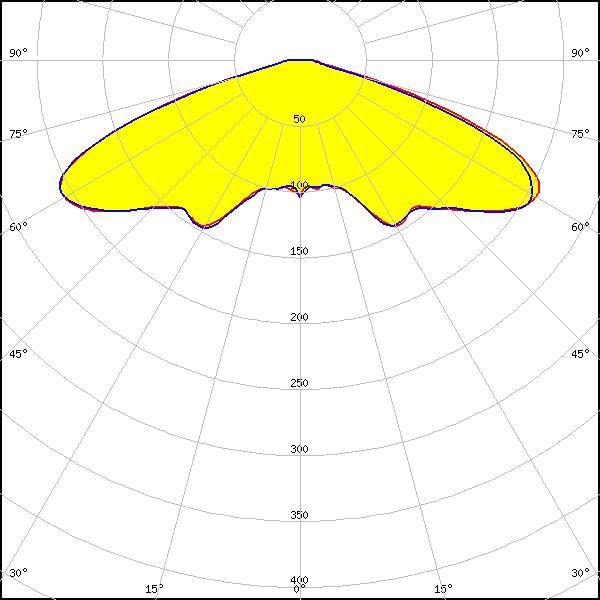

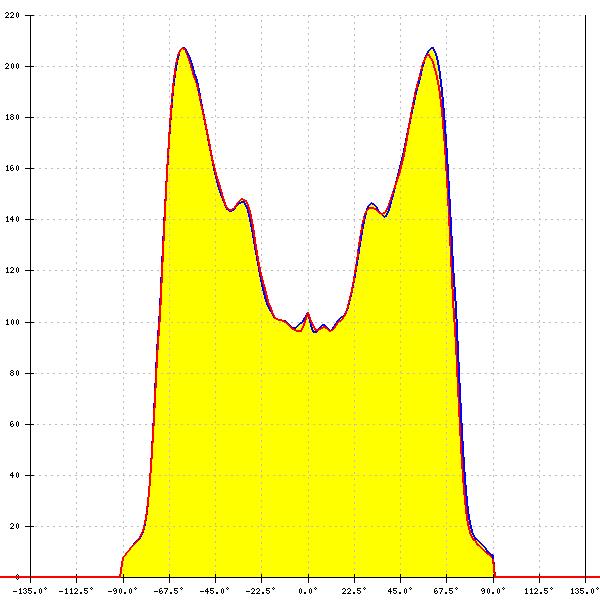

LED: LH508A Plus
FWHM: 144°
FWTM: 158°
Peak intensity: 0.3 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

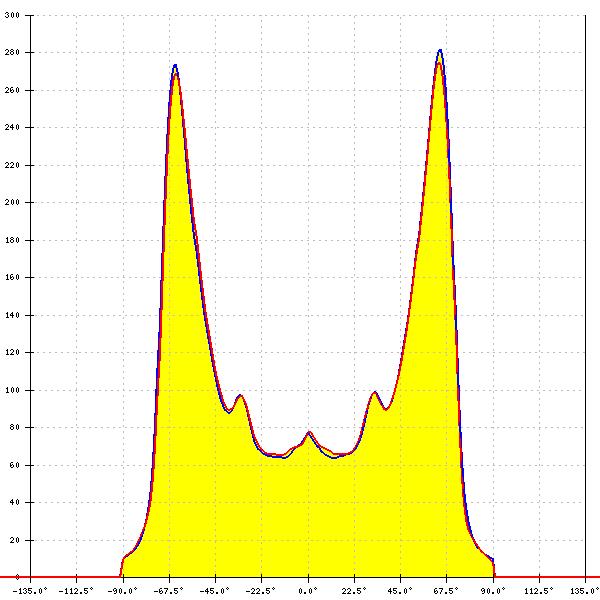

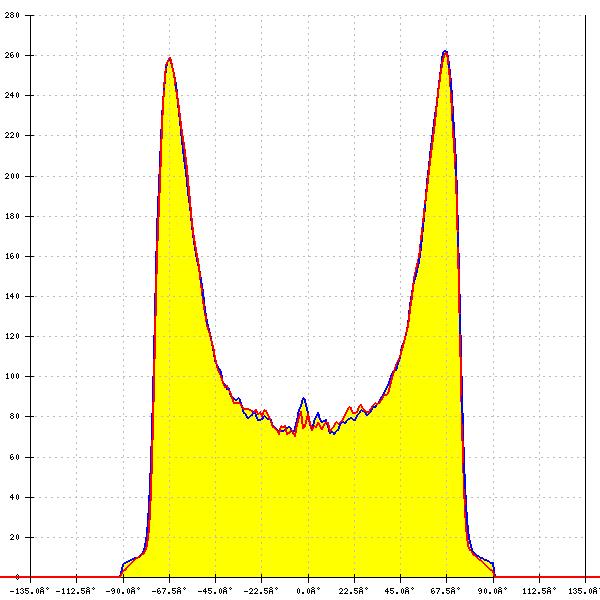

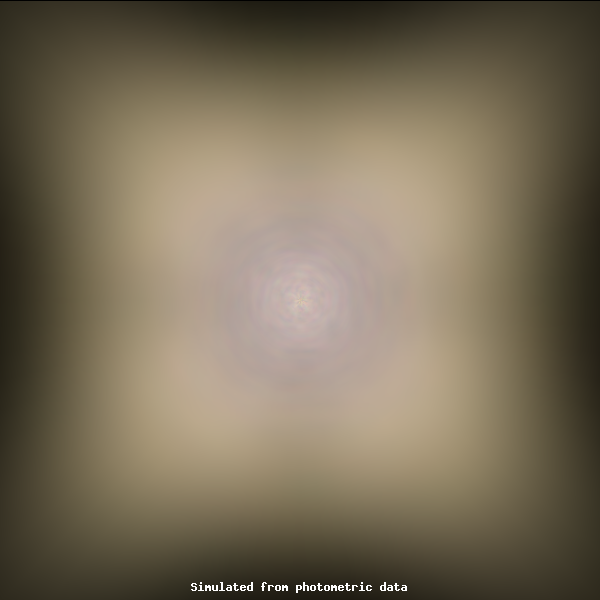

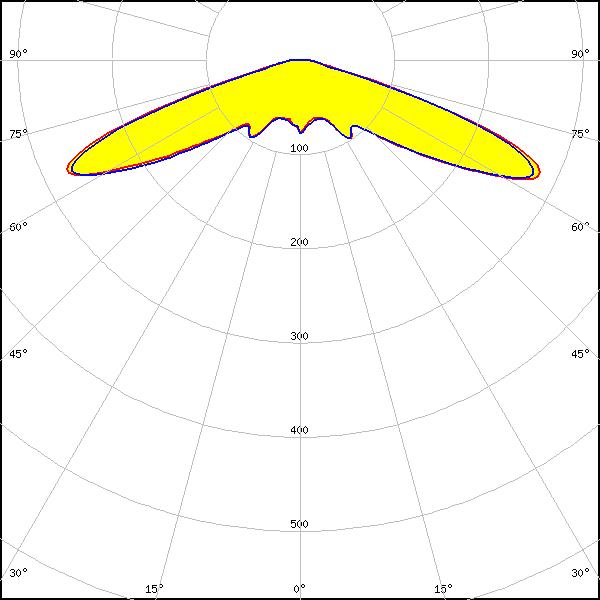

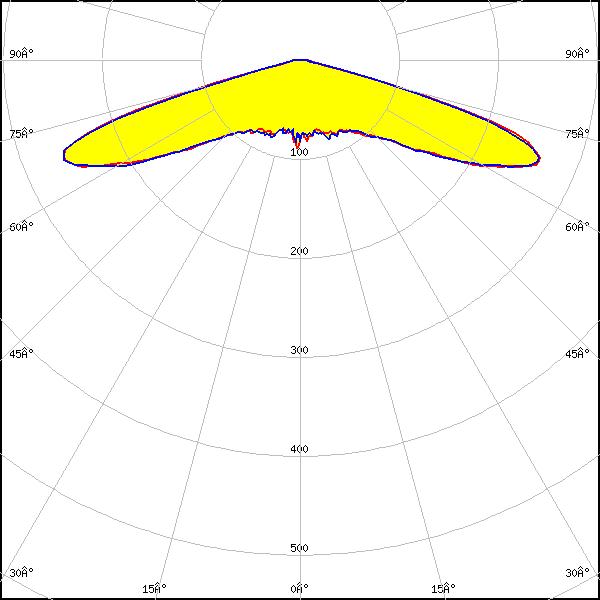

LED: Z5M3
FWHM: 142°
FWTM: 158°
Peak intensity: 0.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

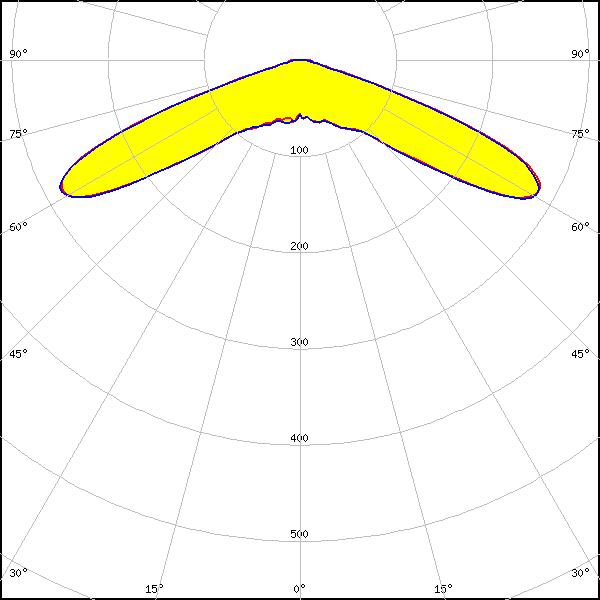

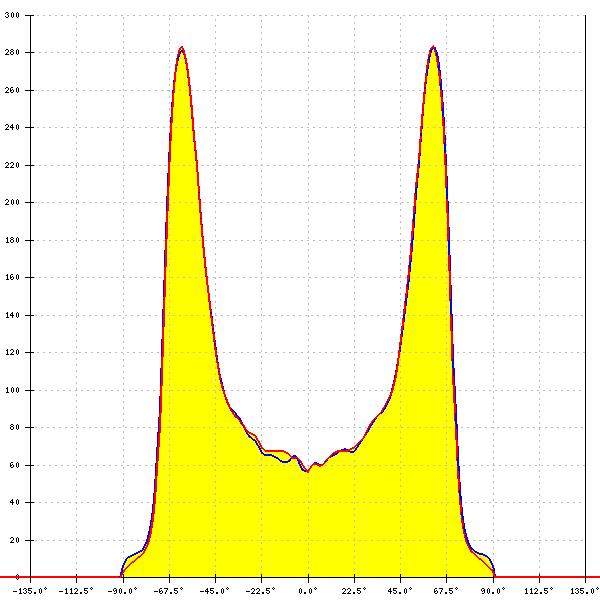

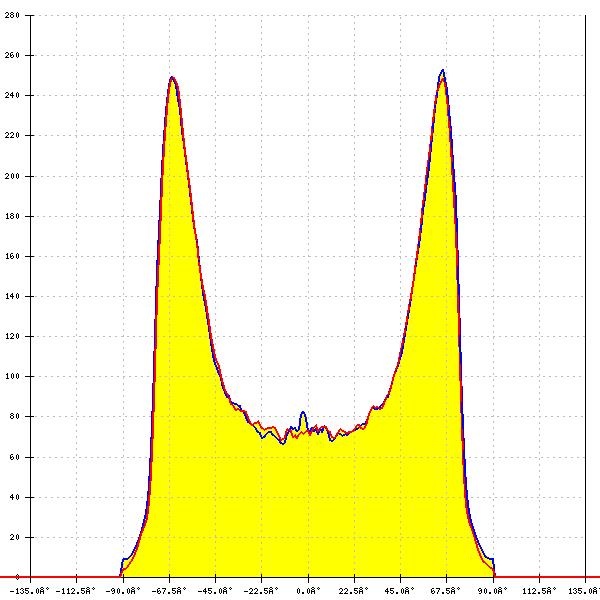

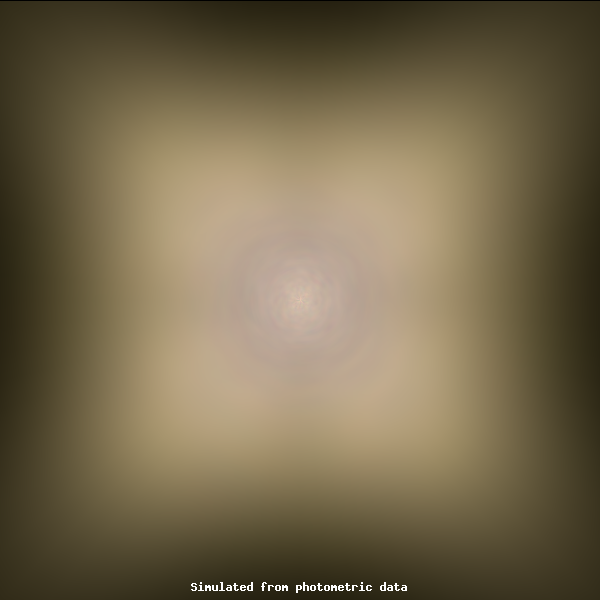

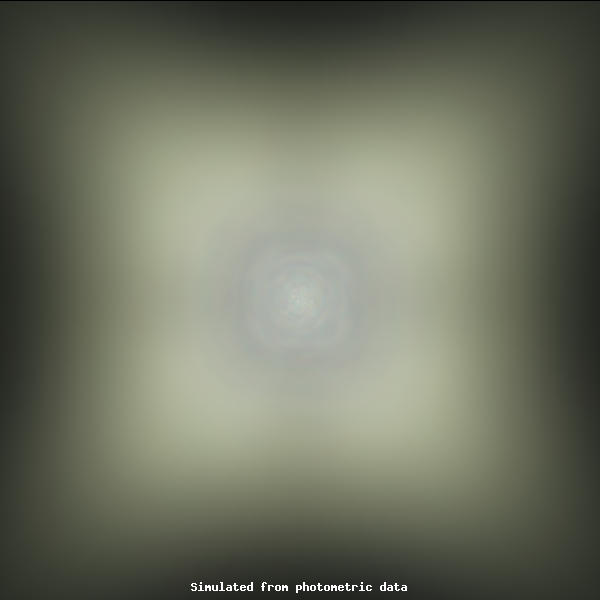

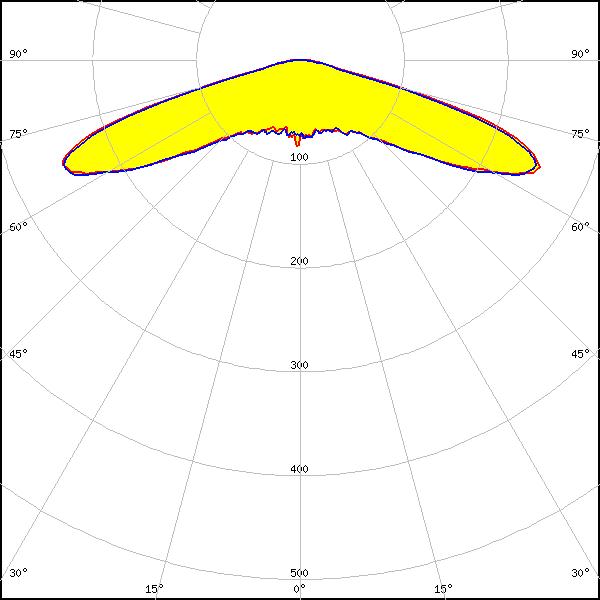

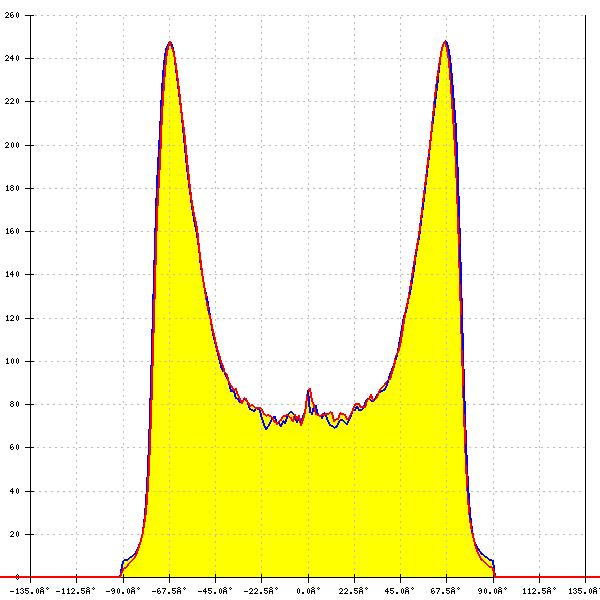

LED: Z5M4
FWHM: 140°
FWTM: 151°
Peak intensity: 0.5 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
