CS17255_STRADA-IP-2X6-T3-L-PC

Print

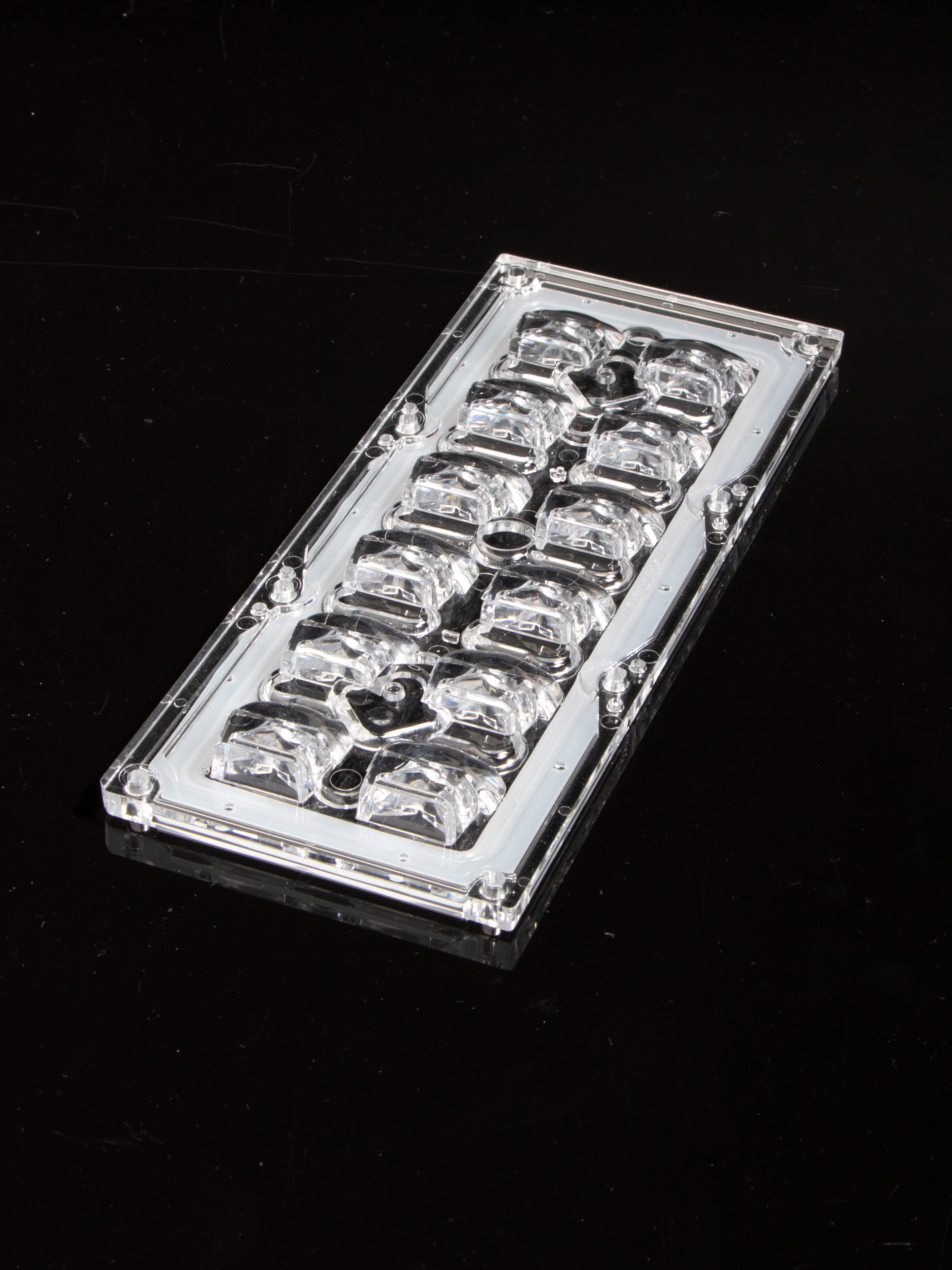

IESNA Type III Medium beam for long pole distances and up to 8x mounting height. Suitable for European P-class and pathway lighting. Variant made from PC.

Specification
  • Dimensions:
    173 x  71 mm
  • Height:
    13.00 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    120 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    8.8 kg
  • MPQ:
    40 pcs
  • MOQ:
    40 pcs
  • MOQ size:
    480 x 280 x 100 mm
  • MOQ weight:
    3.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS17255_STRADA-IP-2X6-T3-L-PC

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

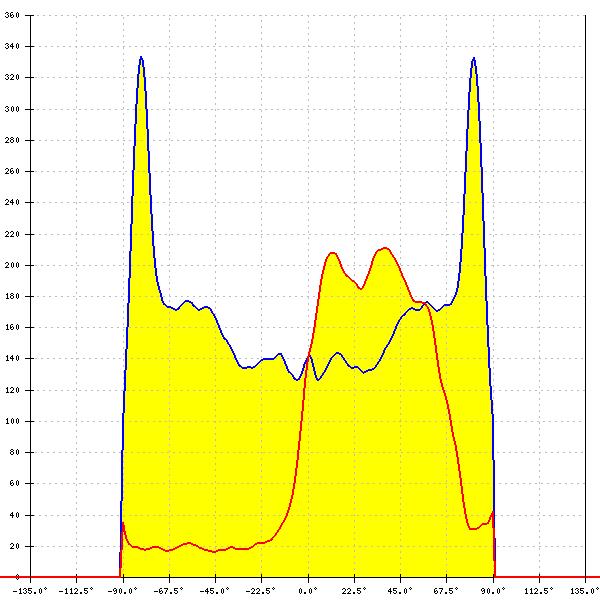

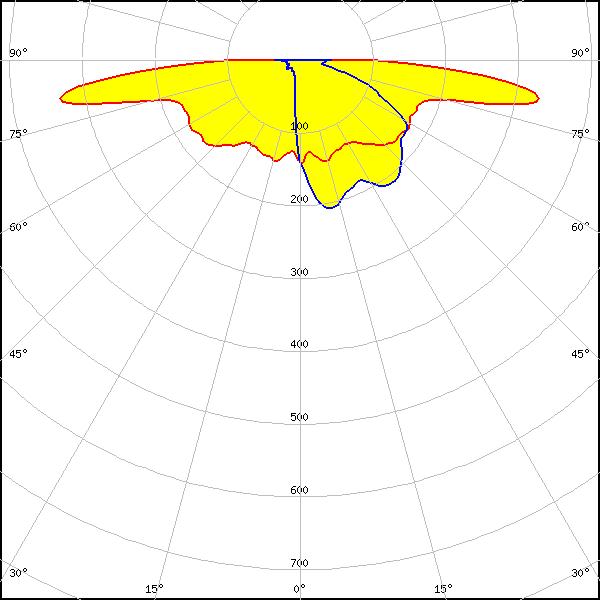

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.580 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

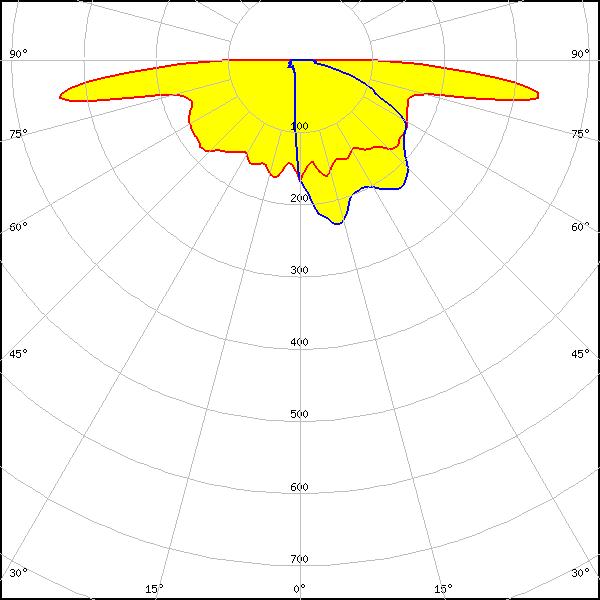

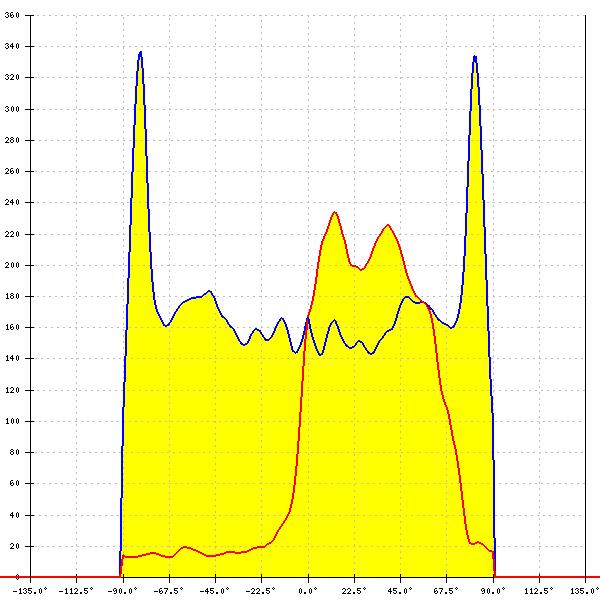

LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.573 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

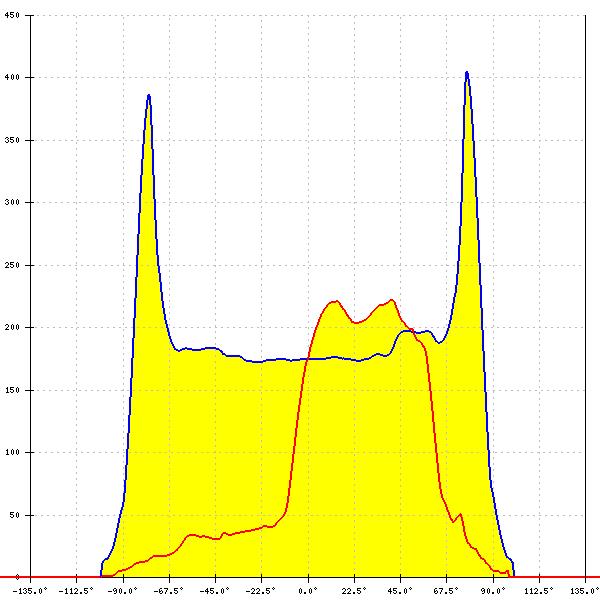

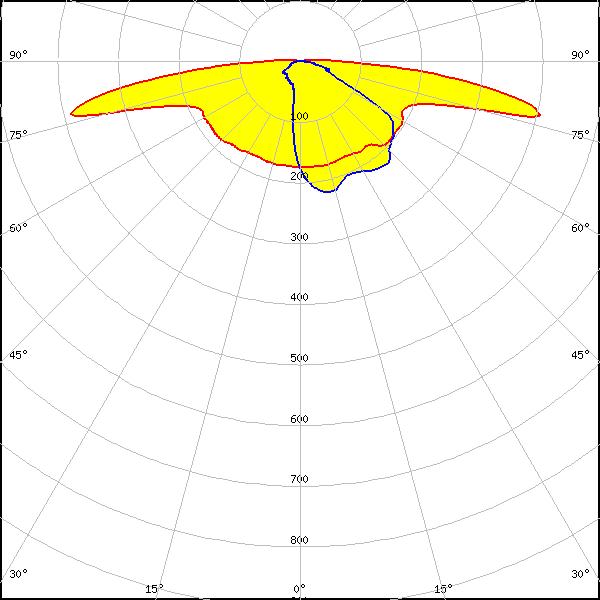

LED: NVSW519A
FWHM: asymmetric
Peak intensity: 0.719 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

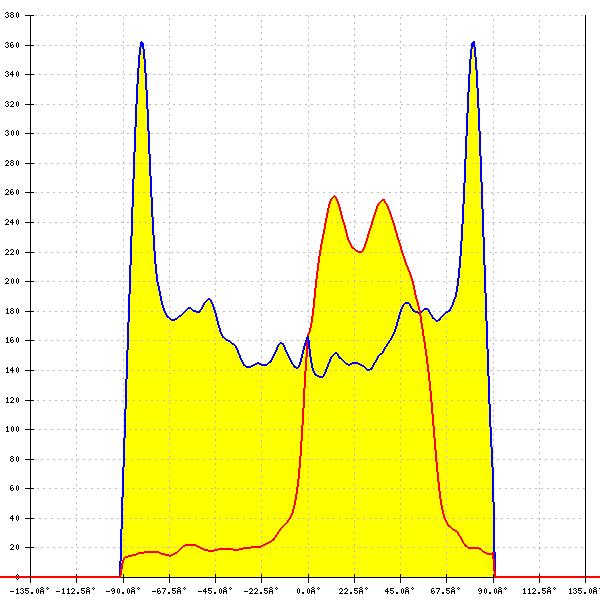

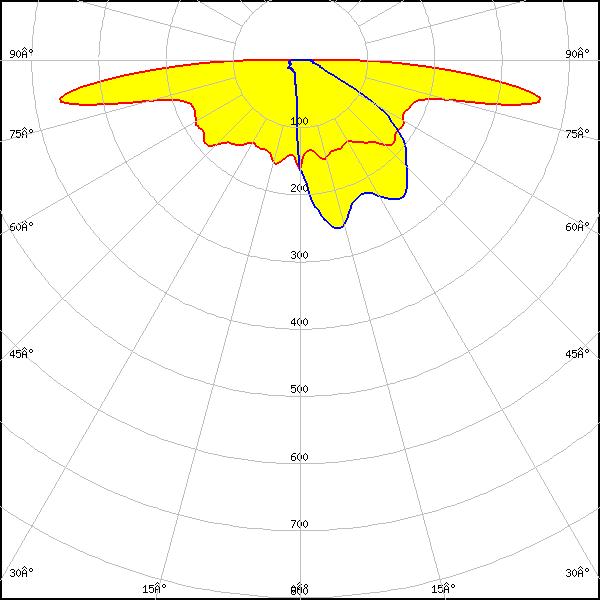

LED: PrevaLED Brick HP IP 2x6
FWHM: asymmetric
Peak intensity: 0.555 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

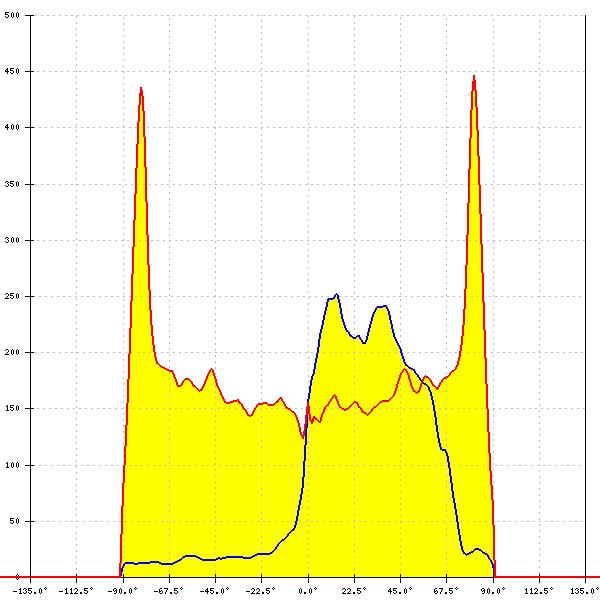

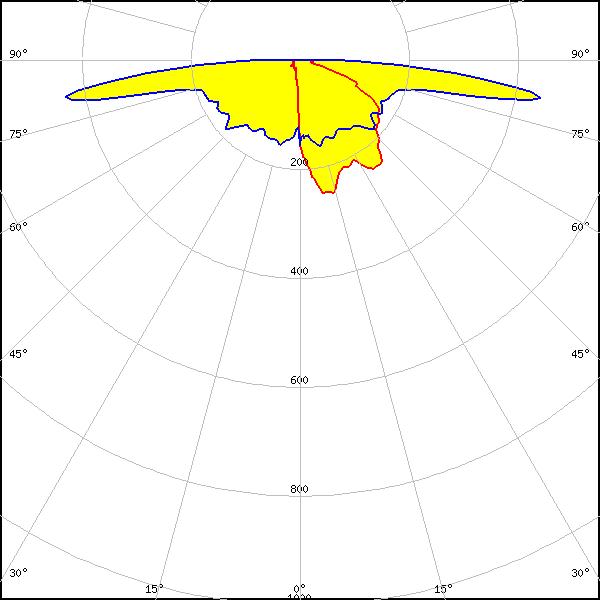

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.776 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

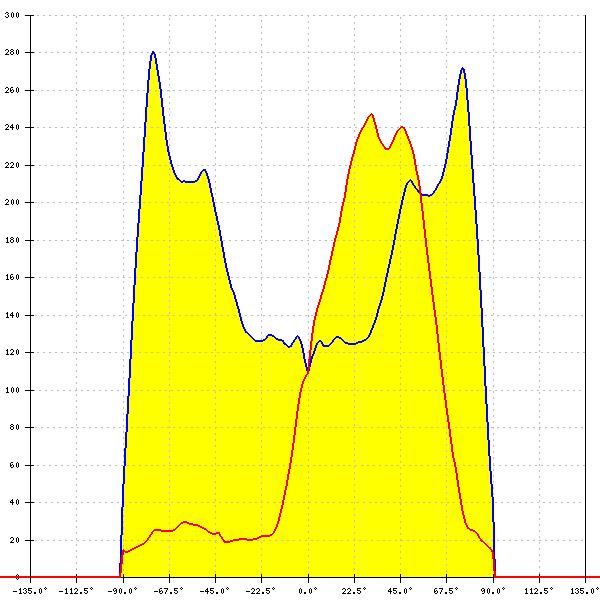

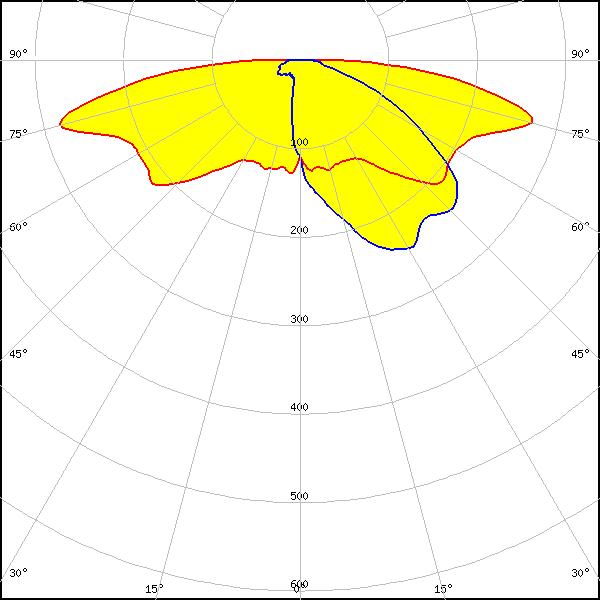

LED: LH502C
FWHM: asymmetric
Peak intensity: 0.414 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

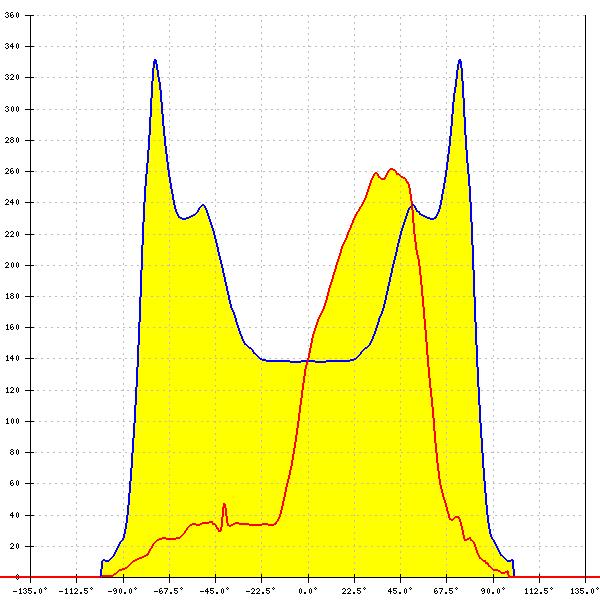

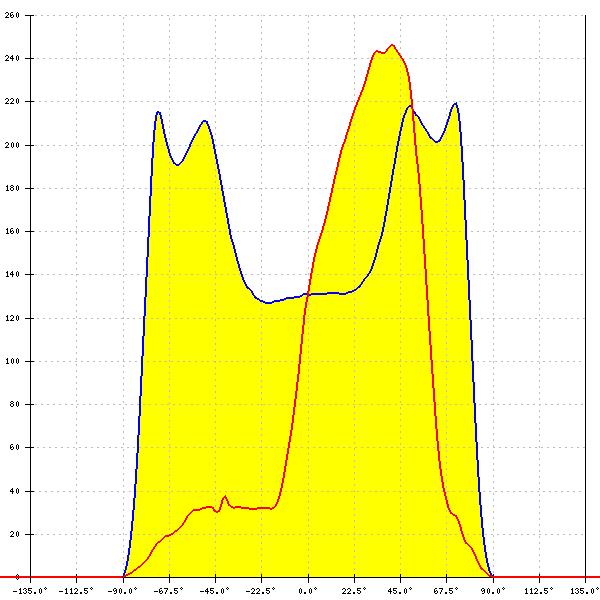

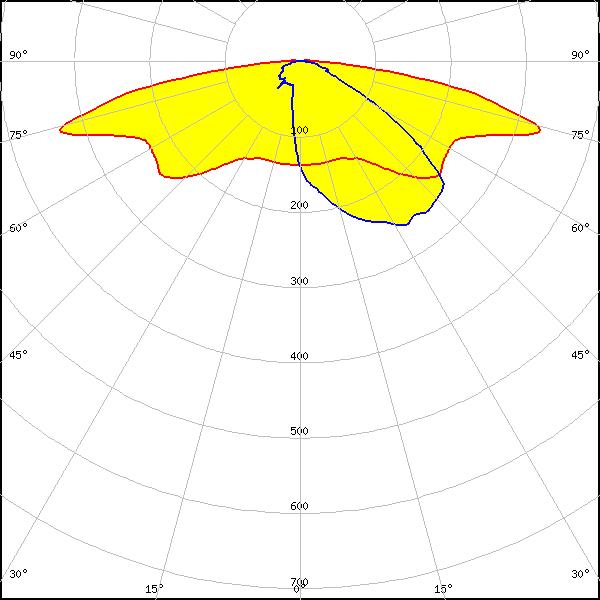

LED: LH502D
FWHM: asymmetric
Peak intensity: 0.352 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour/type: White

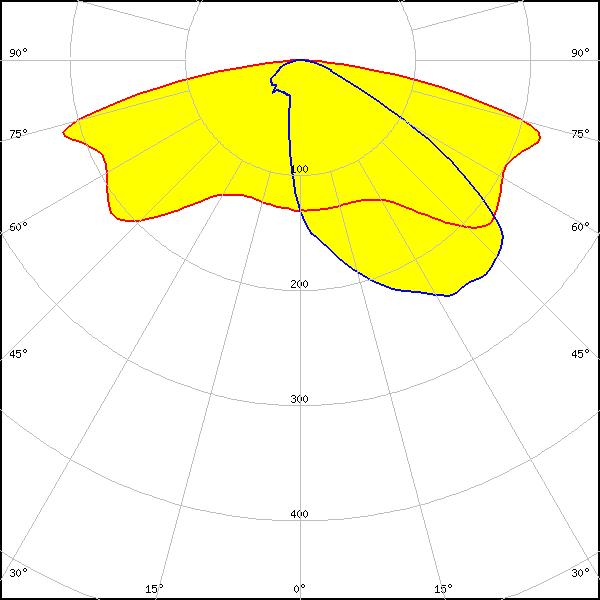

LED: LH502D
FWHM: asymmetric
Peak intensity: 0.563 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

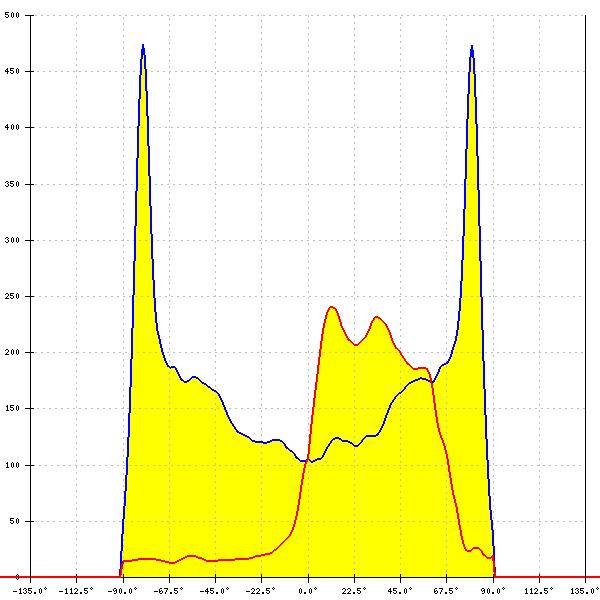

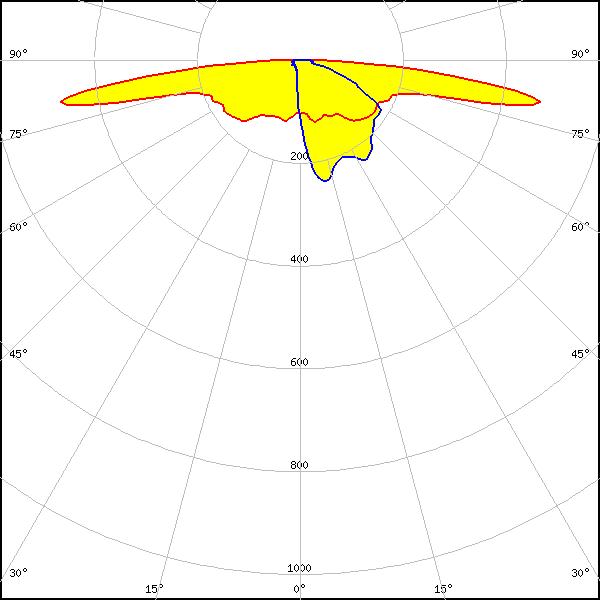

LED: SEOUL DC 3030C
FWHM: asymmetric
Peak intensity: 0.794 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
