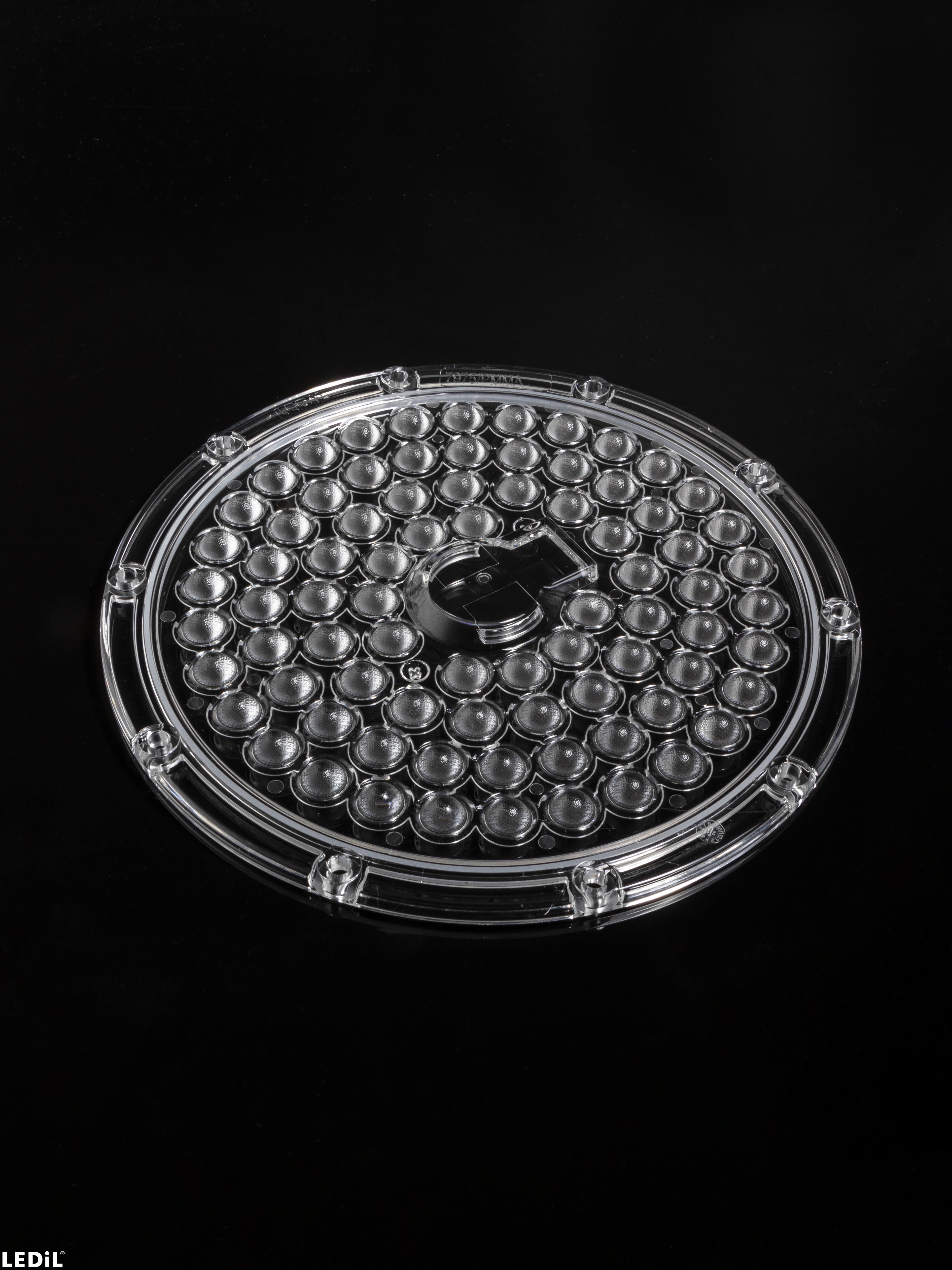

CS17977_VICTORIA-MINI-W

Print

~60° wide beam. Ingress protected version.

Specification
  • Dimensions:
    180 mm
  • Height:
    10.75 mm
  • Colour:
    clear
  • Ingress protection classes:
    IP66, IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    92 pcs
  • Box size:
    400 x 400 x 275 mm
  • Box weight:
    9.9 kg
  • MPQ:
    4 pcs
  • MOQ:
    92 pcs
  • MOQ size:
    400 x 400 x 275 mm
  • MOQ weight:
    9.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    CS17977_VICTORIA-MINI-W

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

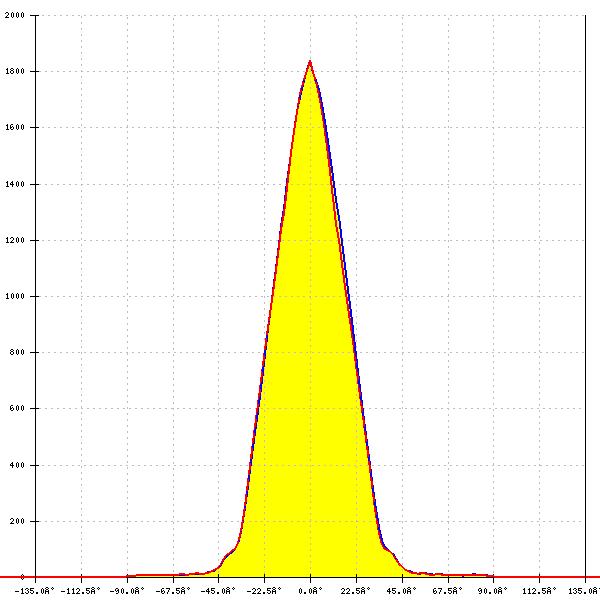

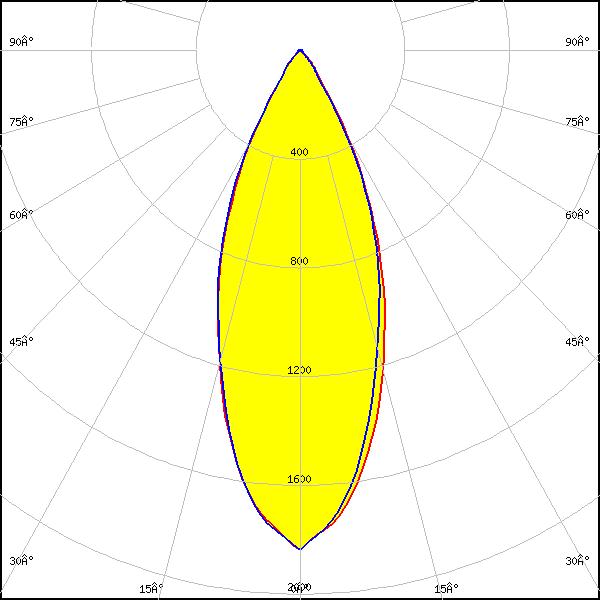

LED: J Series 2835
FWHM: 40°
FWTM: 67°
Peak intensity: 1.839 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

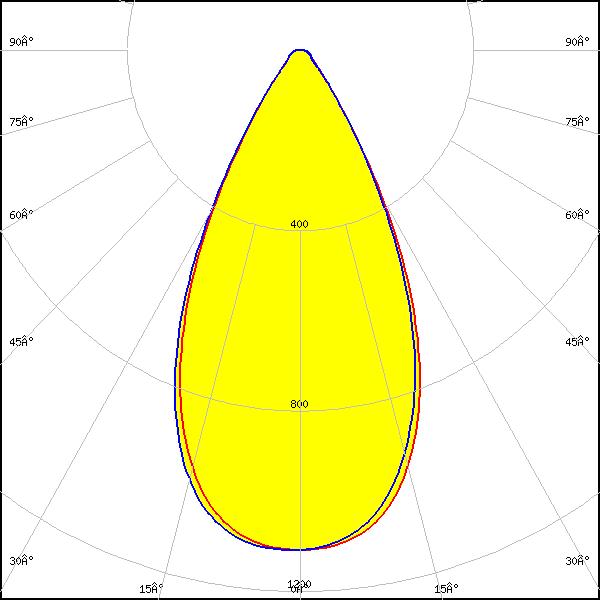

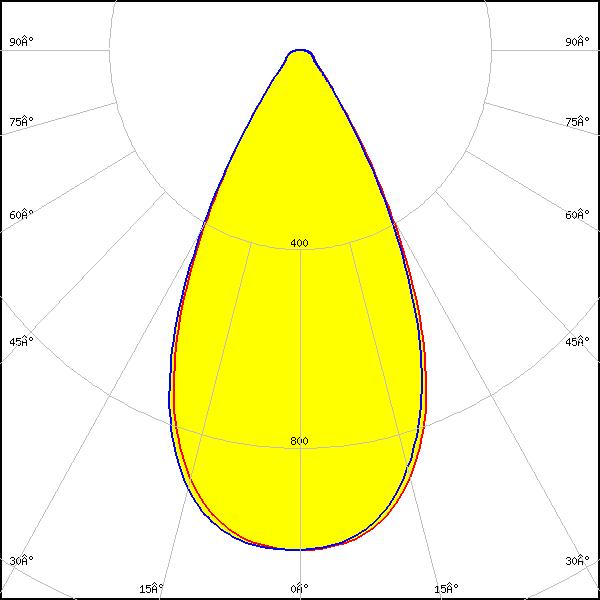

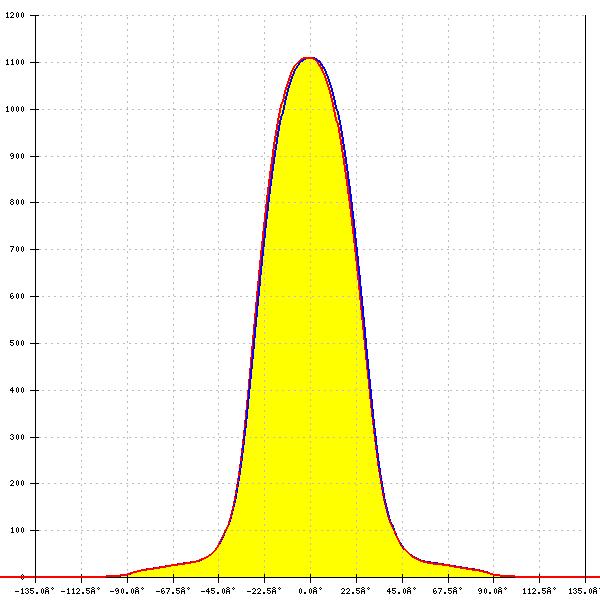

LED: J Series 5050 Round LES
Required components:
FWHM: 53°
FWTM: 81°
Peak intensity: 1.109 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050B 6V K Class
Required components:
FWHM: 55°
FWTM: 83°
Peak intensity: 1.007 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

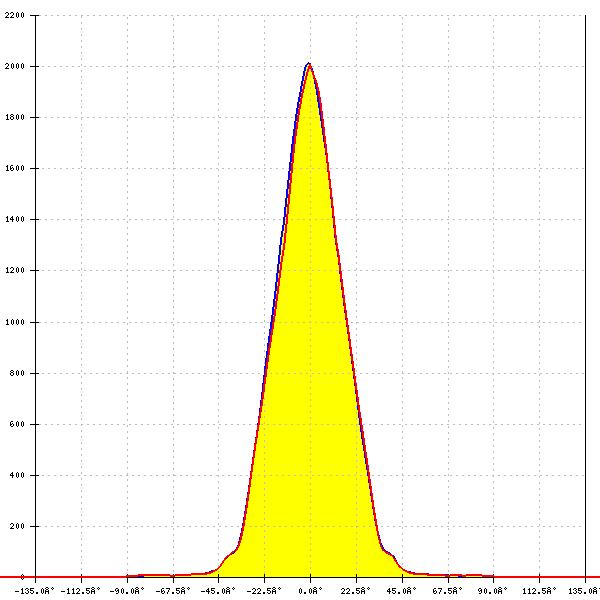

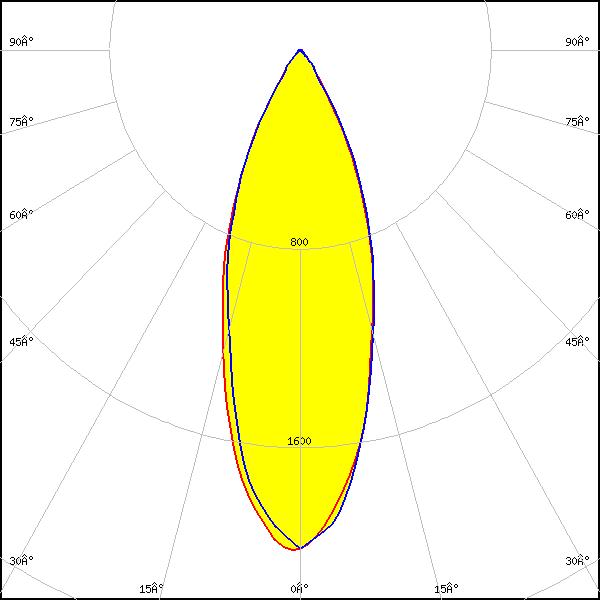

LED: LUXEON 2835 Line
FWHM: 37°
FWTM: 66°
Peak intensity: 2.019 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

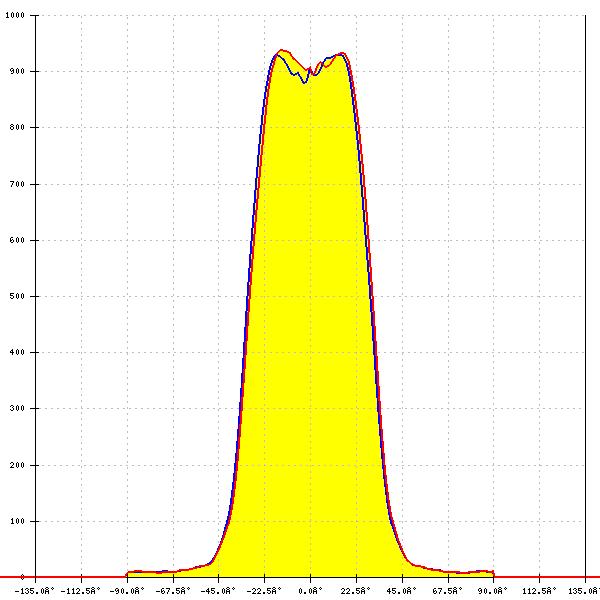

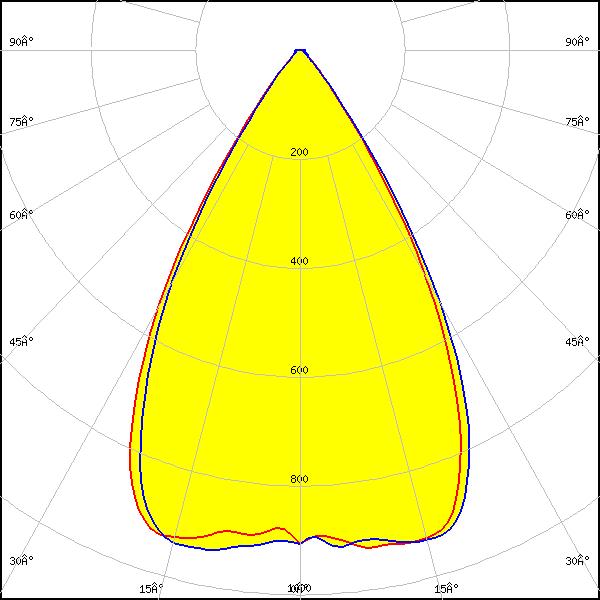

LED: LUXEON 2835 Line
FWHM: 61°
FWTM: 81°
Peak intensity: 0.941 cd/lm
Efficiency: 90 %
LEDs/each optic: 2
Light colour/type: White

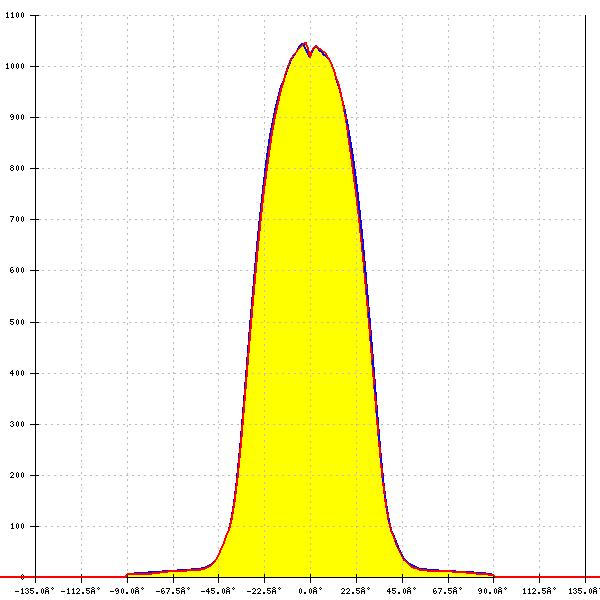

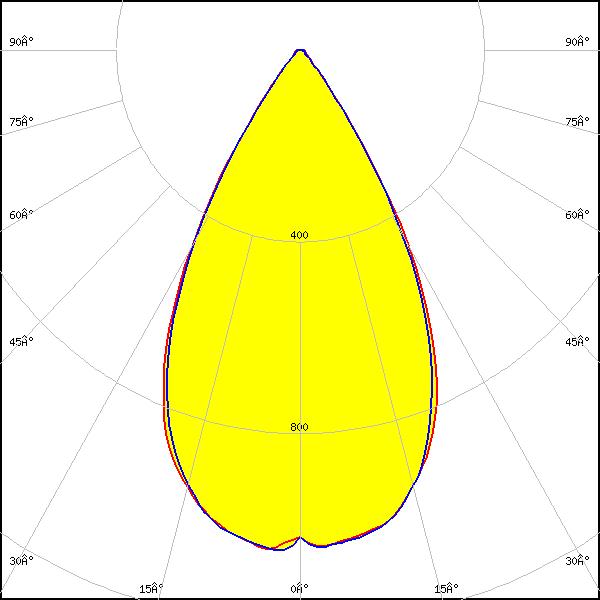

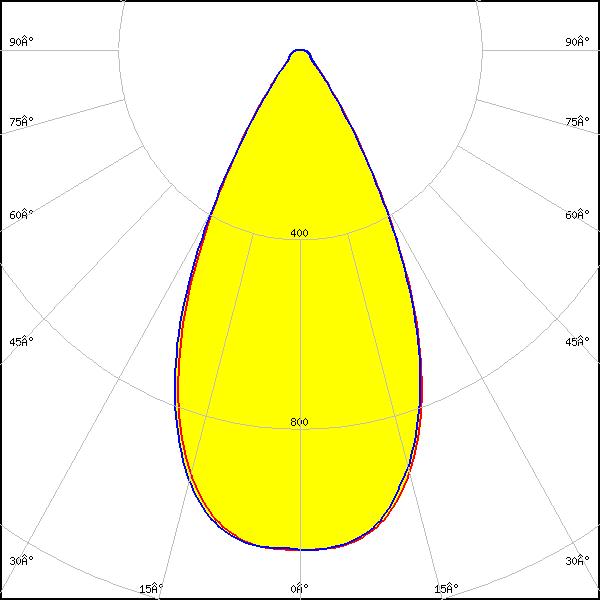

LED: LUXEON 5050 Square LES
FWHM: 57°
FWTM: 78°
Peak intensity: 1.063 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

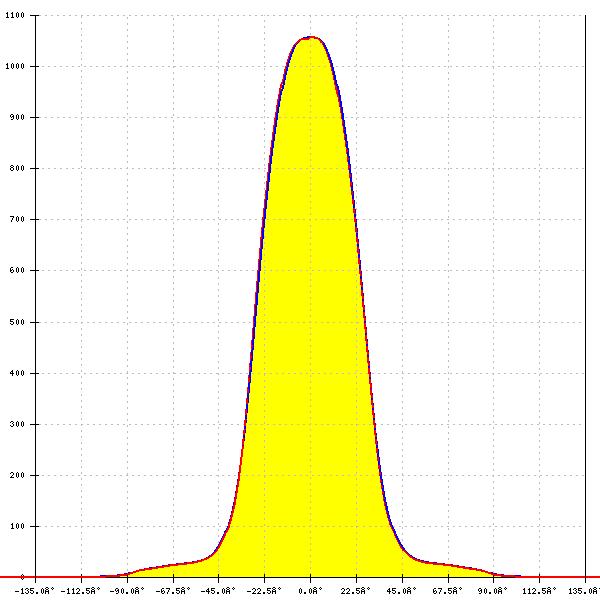

LED: LUXEON 5050 Square LES
Required components:
FWHM: 53°
FWTM: 80°
Peak intensity: 1.056 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

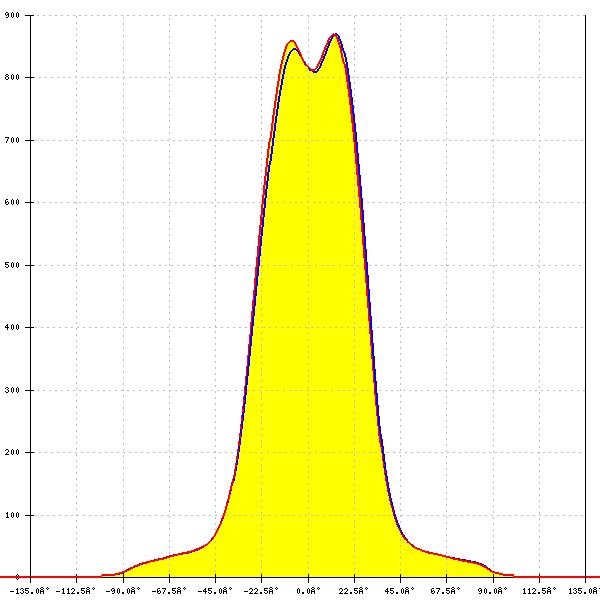

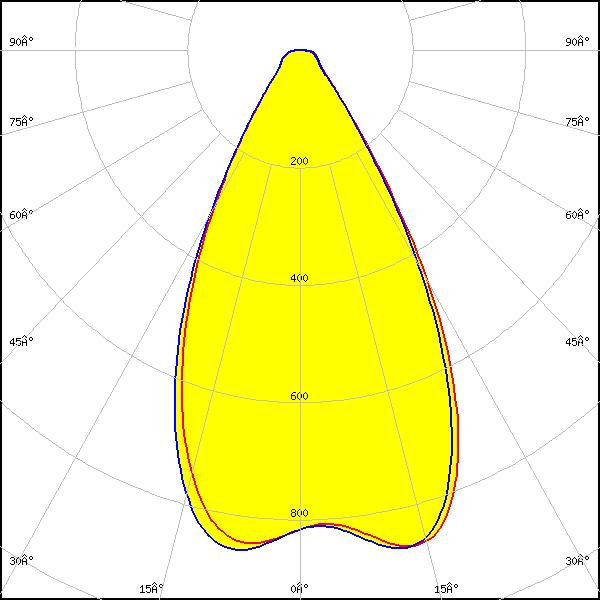

LED: RdLED 150mm 7000lm 8x0 120V VICTORIA-MINI
Required components:
FWHM: 56°
FWTM: 86°
Peak intensity: 0.910 cd/lm
Efficiency: 91 %
LEDs/each optic: 2
Light colour/type: White
LED: Duris E 2835
FWHM: 37°
FWTM: 66°
Peak intensity: 1.962 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

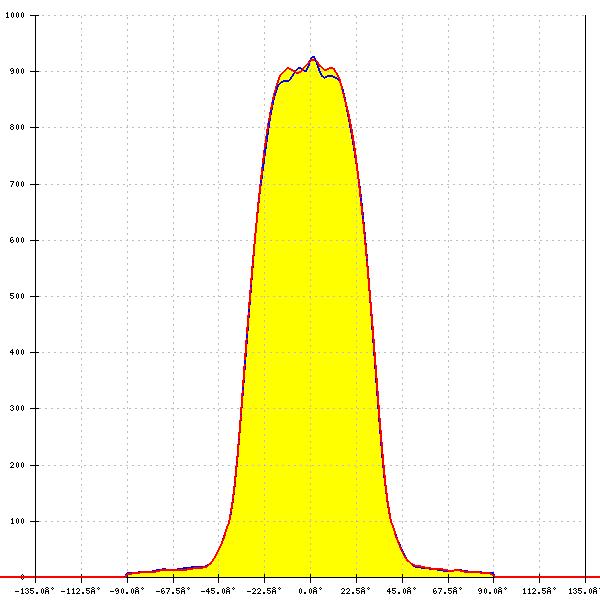

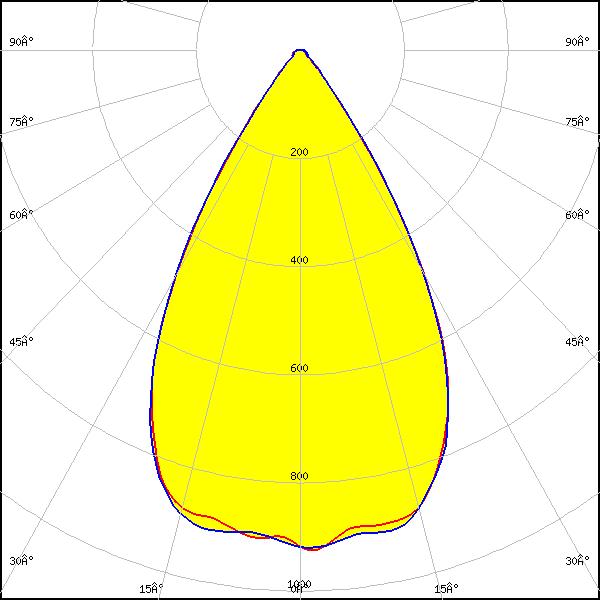

LED: Duris S8
FWHM: 60°
FWTM: 81°
Peak intensity: 0.939 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

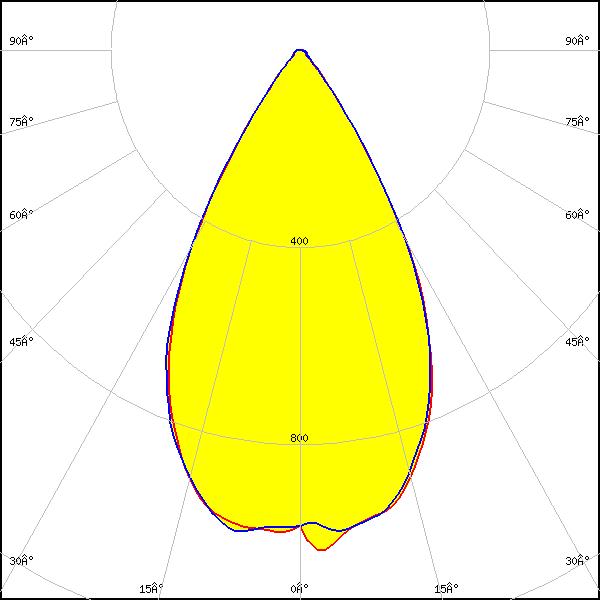

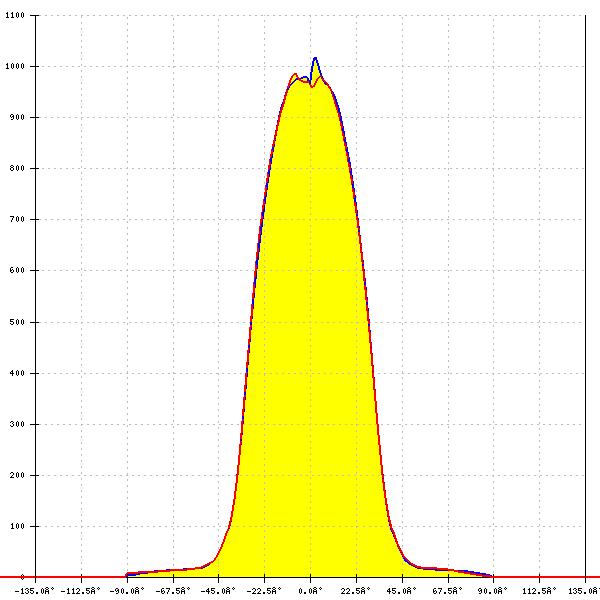

LED: OSCONIQ S 5050
FWHM: 58°
FWTM: 80°
Peak intensity: 1.029 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

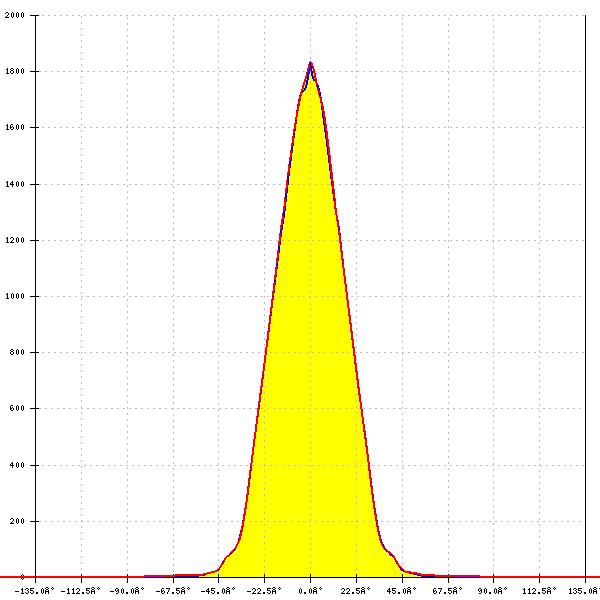

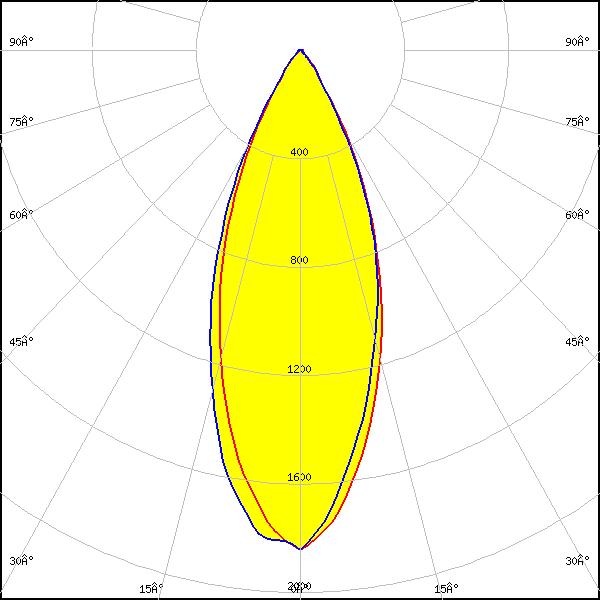

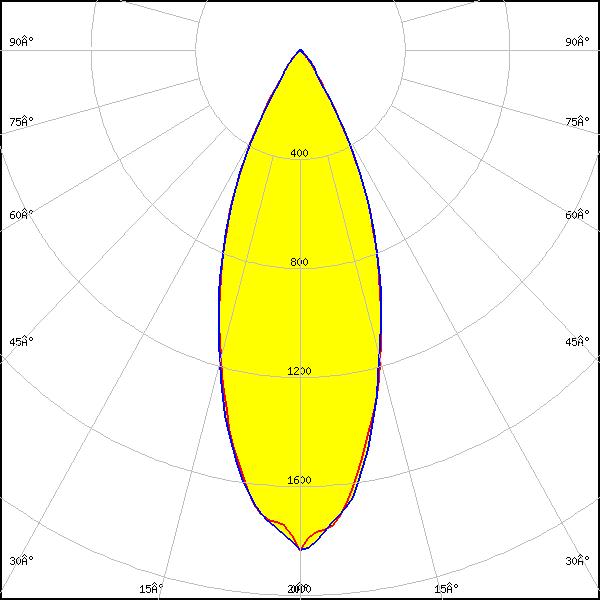

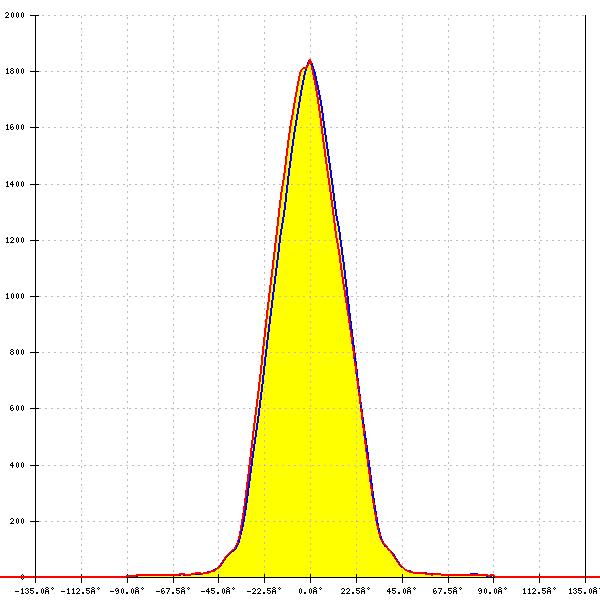

LED: LM28xB Series
FWHM: 39°
FWTM: 66°
Peak intensity: 1.853 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LM28xB Series
FWHM: 40°
FWTM: 67°
Peak intensity: 1.867 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LM28xB Series
Required components:
FWHM: 56°
FWTM: 86°
Peak intensity: 0.910 cd/lm
Efficiency: 91 %
LEDs/each optic: 2
Light colour/type: White

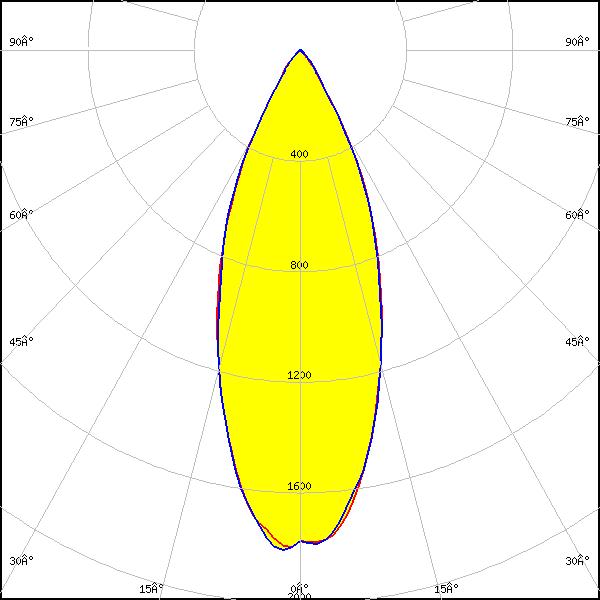

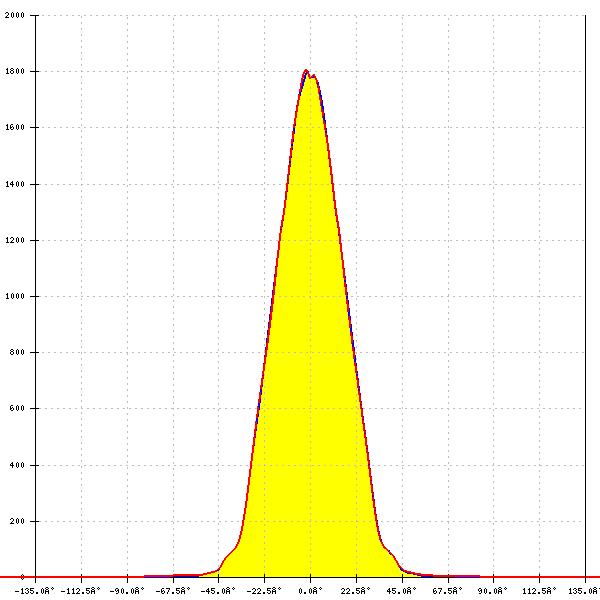

LED: LM301B
FWHM: 39°
FWTM: 66°
Peak intensity: 1.838 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

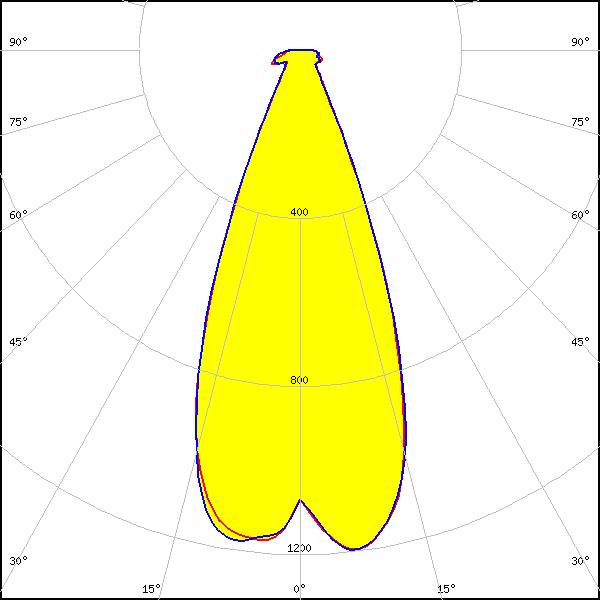

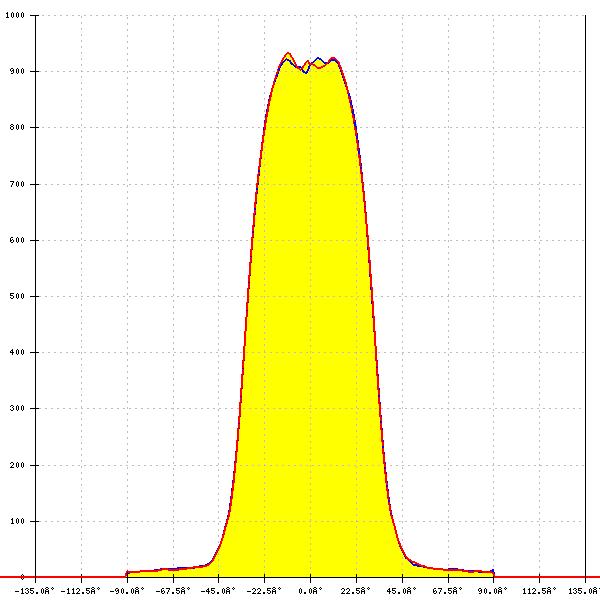

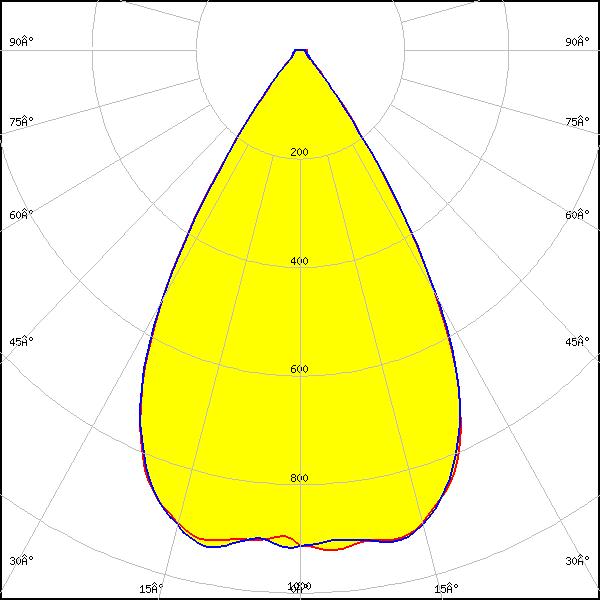

LED: SEOUL DC 3528
FWHM: 62°
FWTM: 82°
Peak intensity: 0.934 cd/lm
Efficiency: 92 %
LEDs/each optic: 2
Light colour/type: White

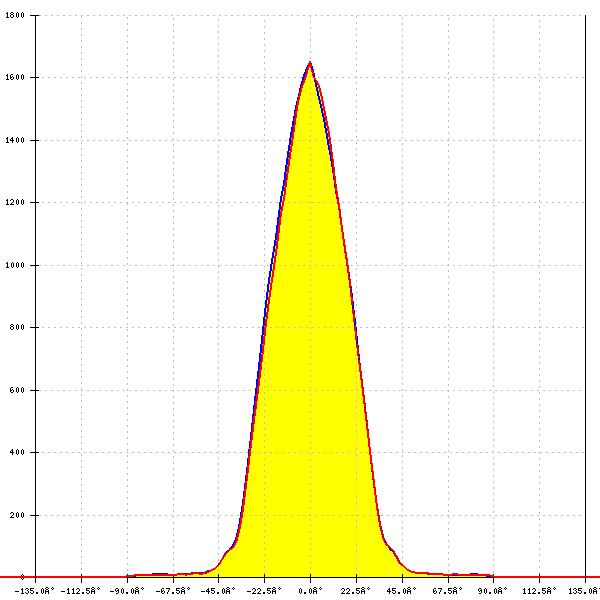

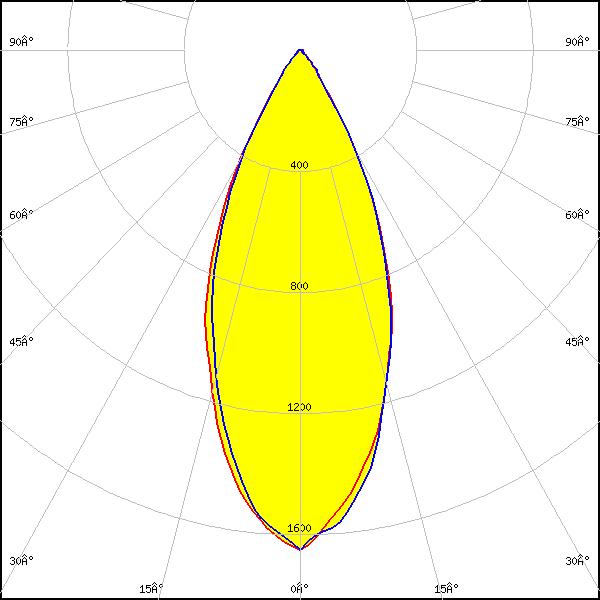

LED: SEOUL DC 3528
FWHM: 42°
FWTM: 70°
Peak intensity: 1.690 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 3528
FWHM: 44°
FWTM: 70°
Peak intensity: 1.651 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

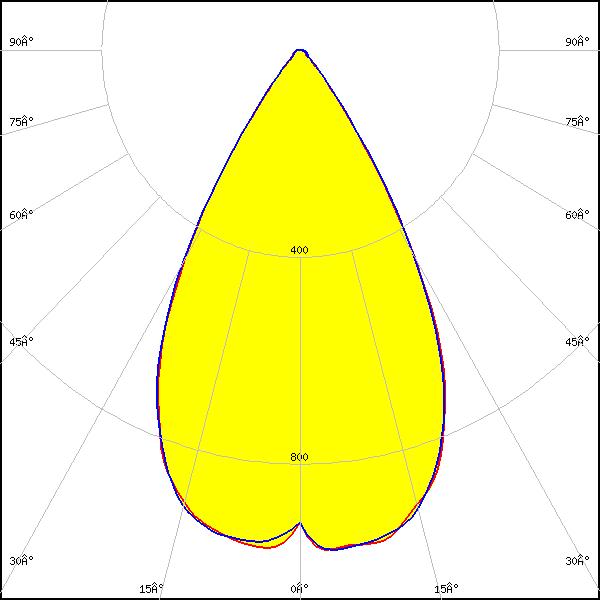

LED: SEOUL DC 5050 6V
FWHM: 59°
FWTM: 80°
Peak intensity: 0.981 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
