CS17978_VICTORIA-MINI-WWW
Print

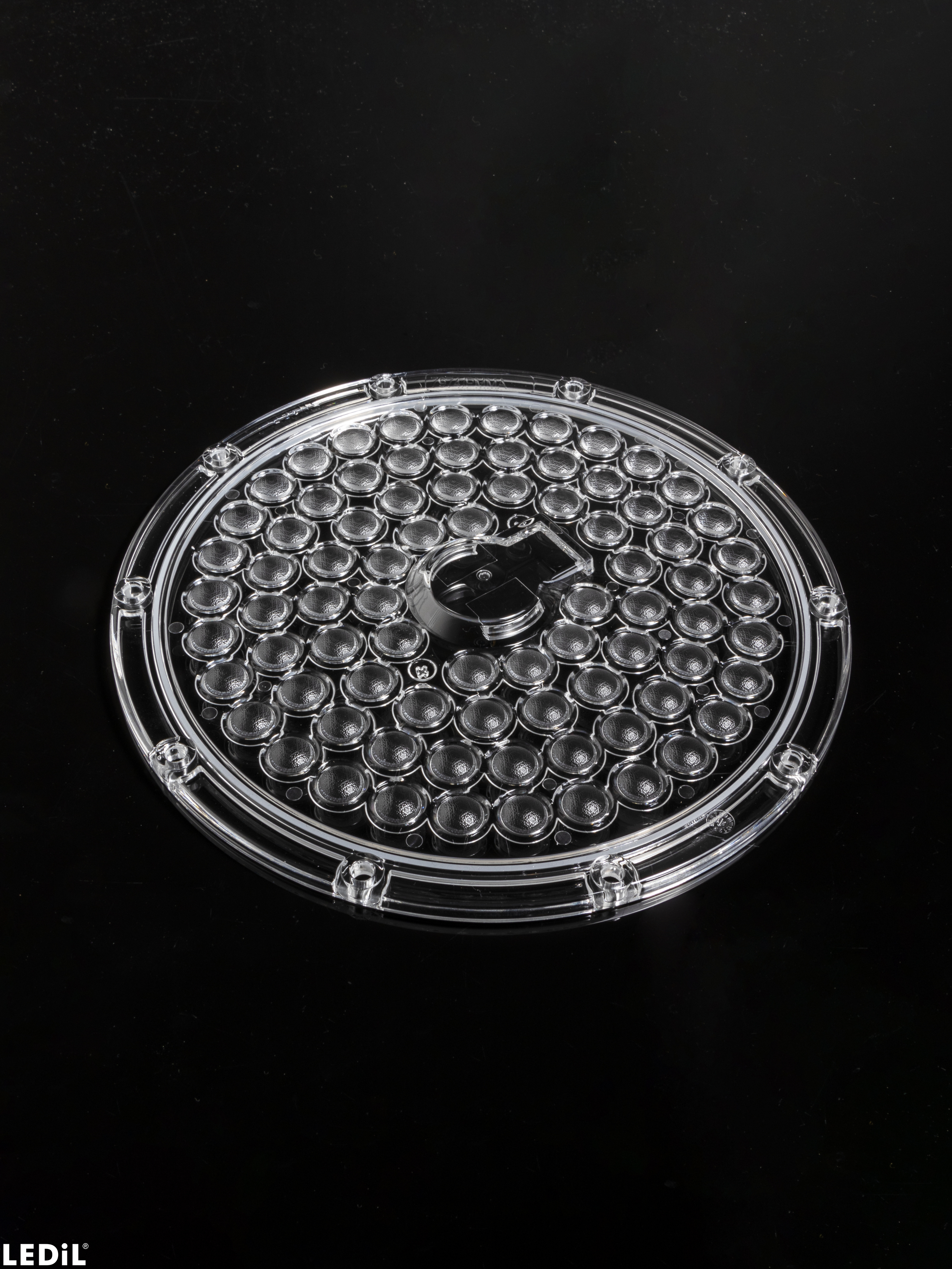

~90° wide beam. Ingress protected version.
Component Materials
- VICTORIA-MINI-WWWMulti-lensPMMA
- VICTORIA-MINI-SEALSealSilicone
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

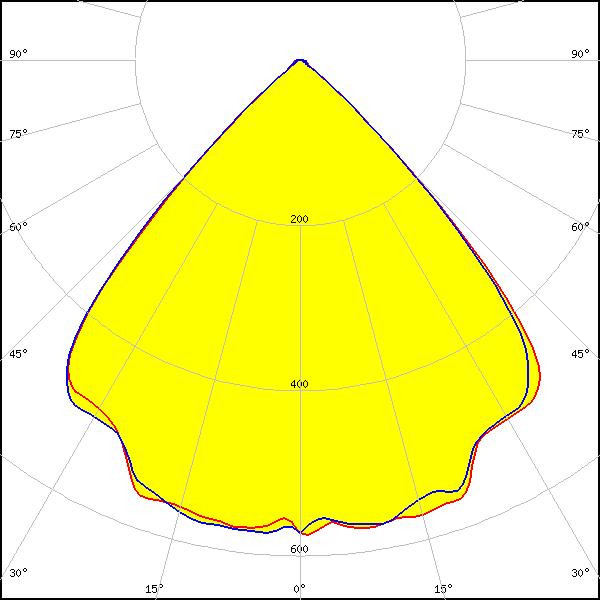

LED:

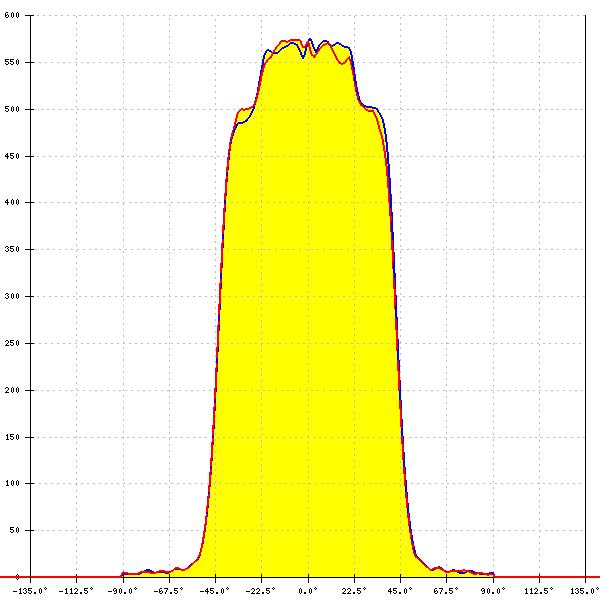

J Series 2835
FWHM:
86°
FWTM:
100°
Peak intensity:
0.588 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

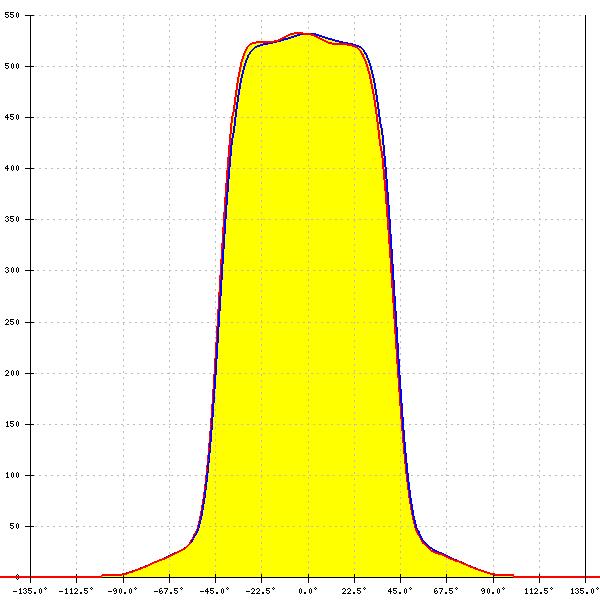

J Series 5050 6V P Class
Required components:
FWHM:
85°
FWTM:
105°
Peak intensity:
0.533 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

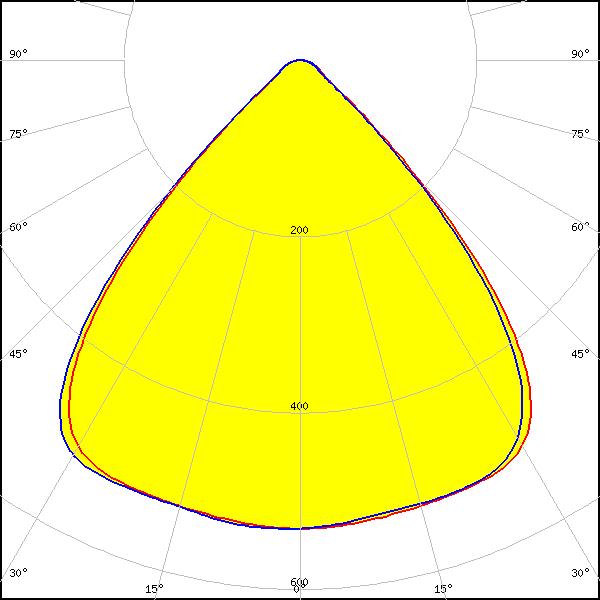

LED:

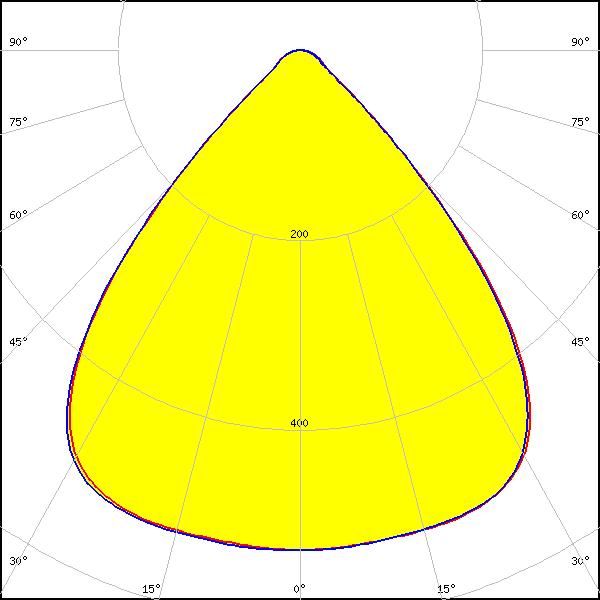

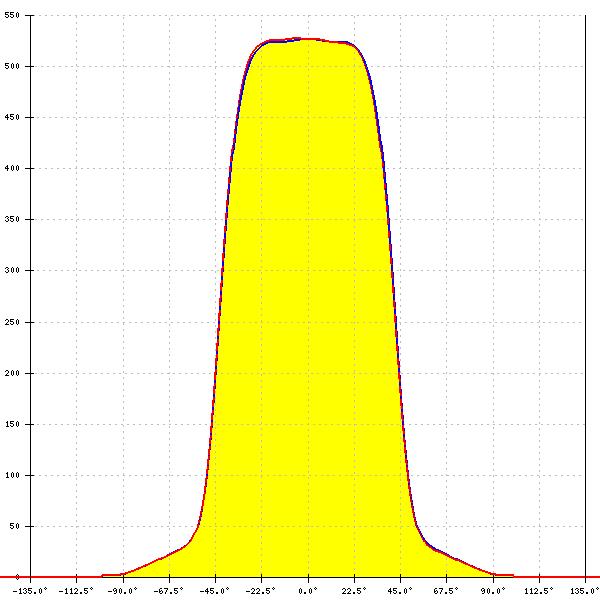

J Series 5050B 6V K Class
Required components:
FWHM:
85°
FWTM:
106°
Peak intensity:
0.528 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

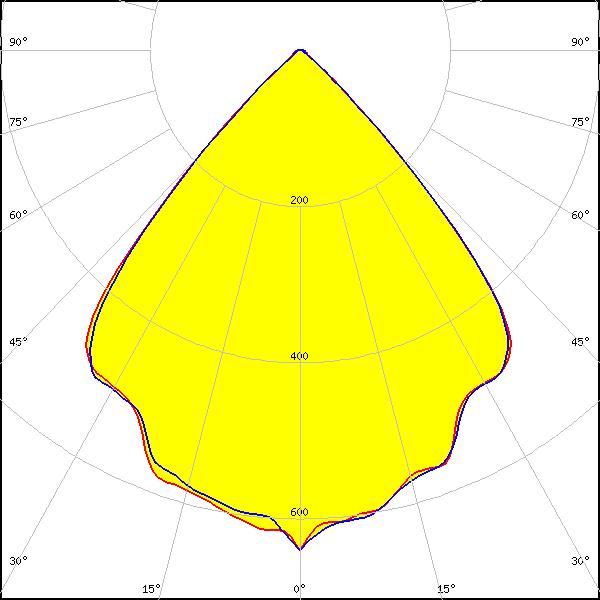

LED:

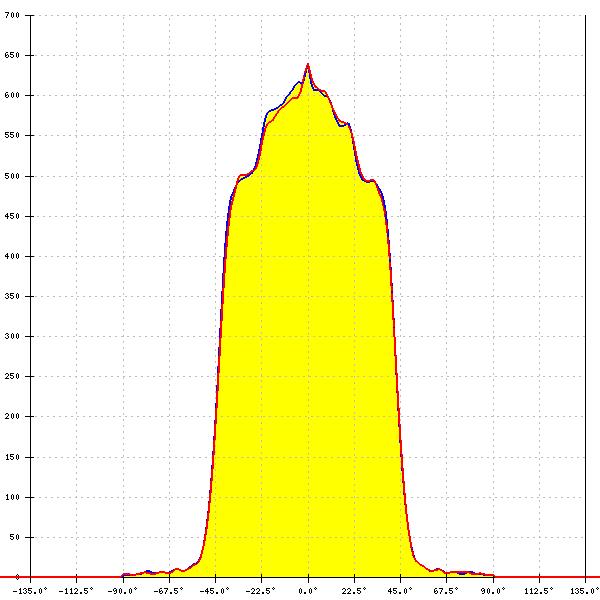

LUXEON 2835 Architectural
FWHM:
84°
FWTM:
98°
Peak intensity:
0.642 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

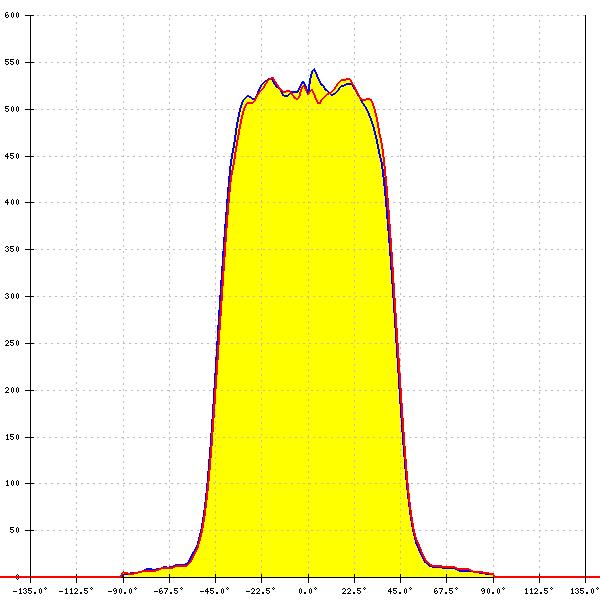

LED:

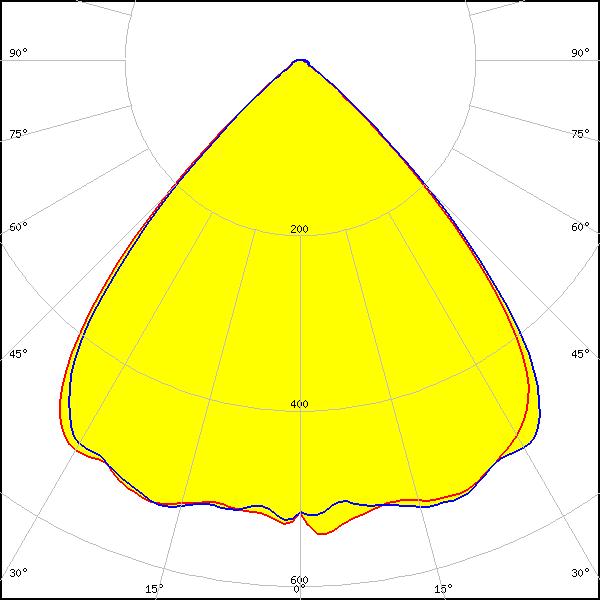

LUXEON 2835 Architectural
FWHM:
86°
FWTM:
103°
Peak intensity:
0.542 cd/lm
Efficiency:
93 %
LEDs/each optic:
2
Light colour/type:
White

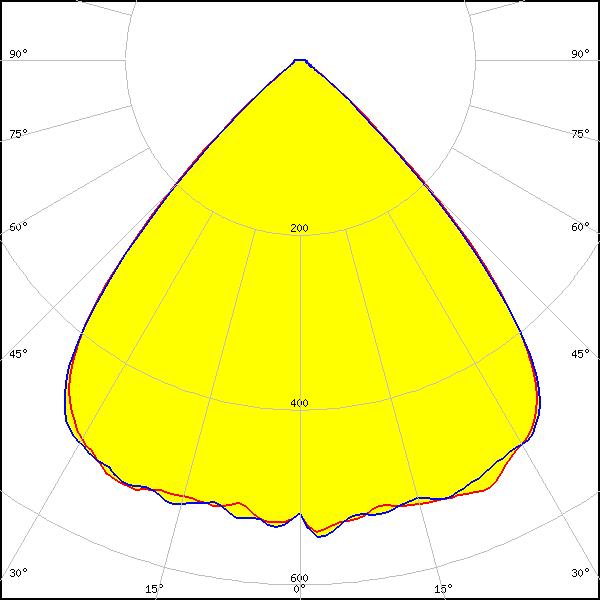

LED:

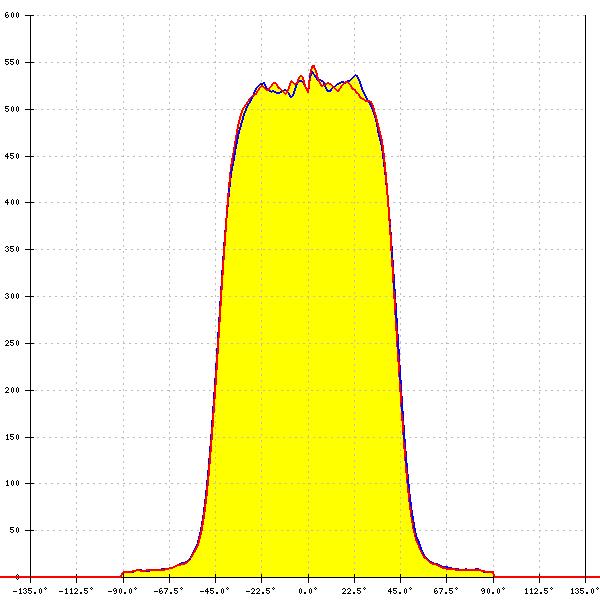

LUXEON 5050 Square LES
FWHM:
86°
FWTM:
104°
Peak intensity:
0.546 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

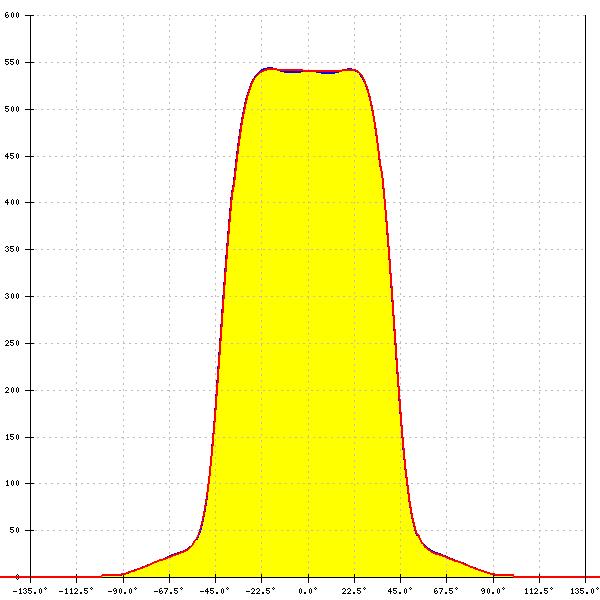

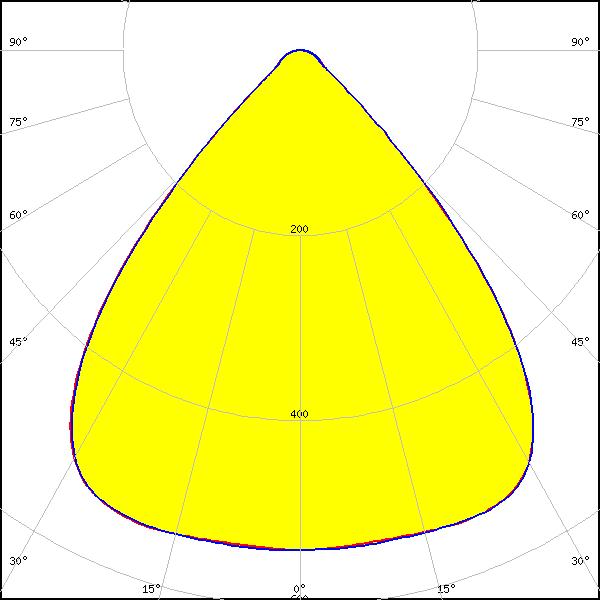

LUXEON 5050 Square LES
Required components:
FWHM:
84°
FWTM:
104°
Peak intensity:
0.543 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RdLED 150mm 7000lm 8x0 120V VICTORIA-MINI
Required components:
FWHM:
84°
FWTM:
106°
Peak intensity:
0.533 cd/lm
Efficiency:
94 %
LEDs/each optic:
2
Light colour/type:
White
LED:
Duris E 2835
FWHM:
85°
FWTM:
98°
Peak intensity:
0.601 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

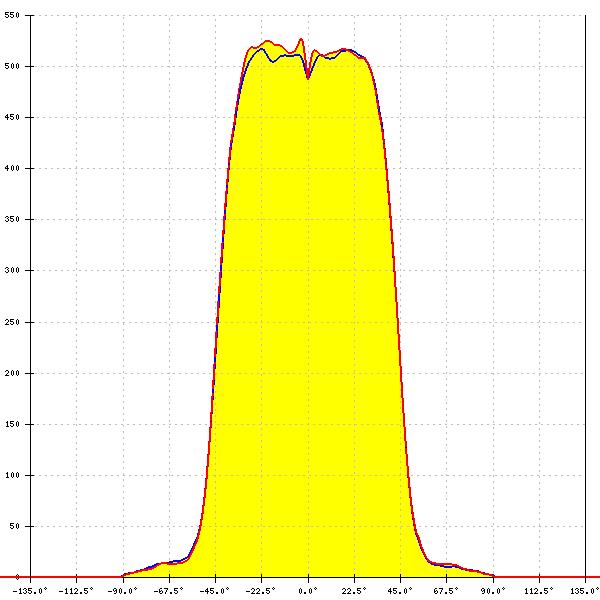

LED:

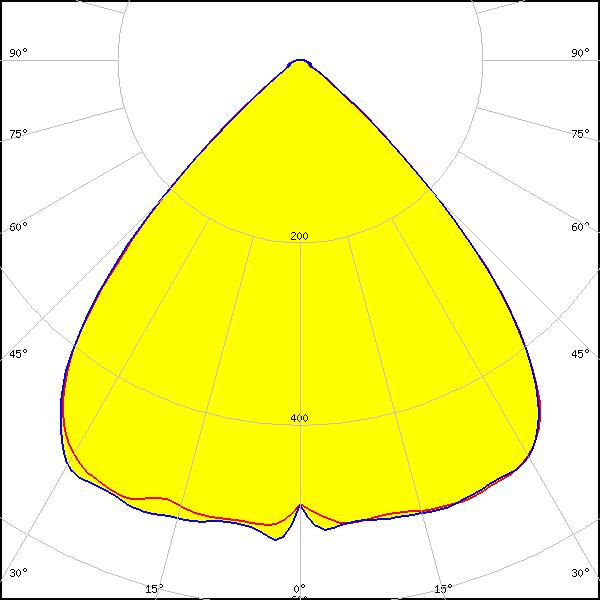

Duris S8
FWHM:
87°
FWTM:
104°
Peak intensity:
0.541 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

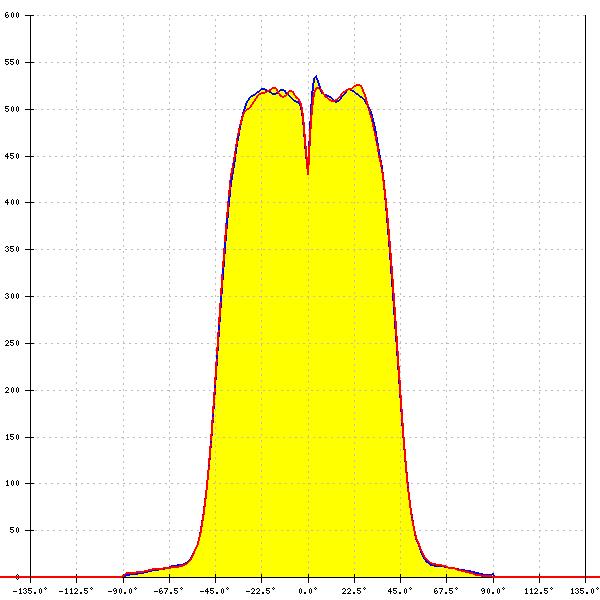

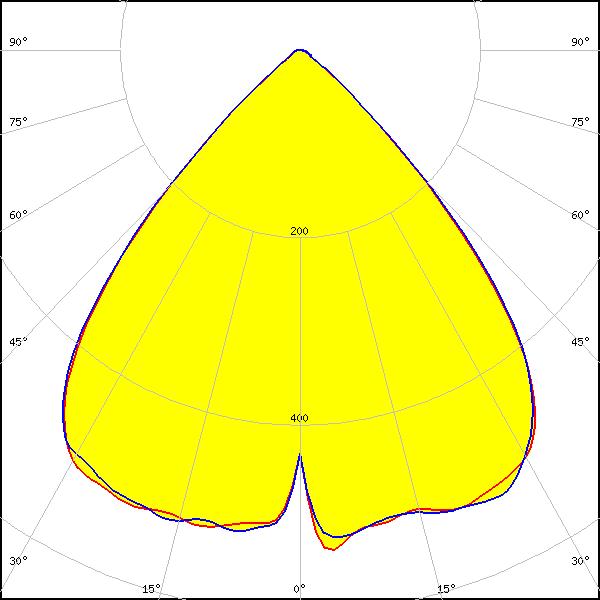

OSCONIQ S 5050 (Q9LR32)
FWHM:
86°
FWTM:
104°
Peak intensity:
0.541 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

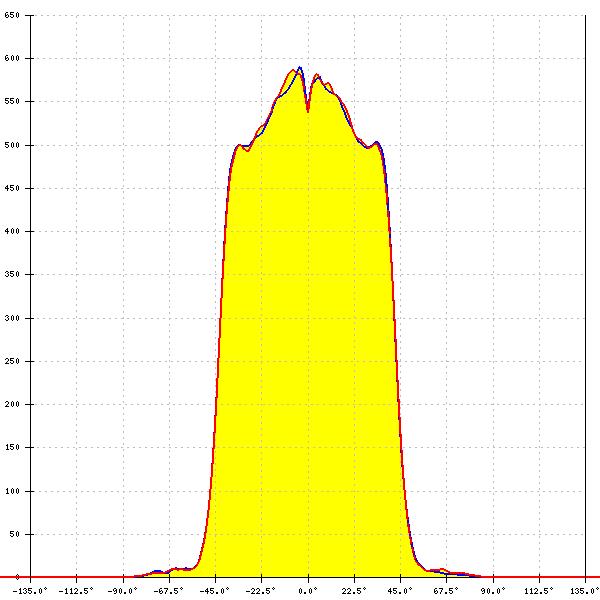

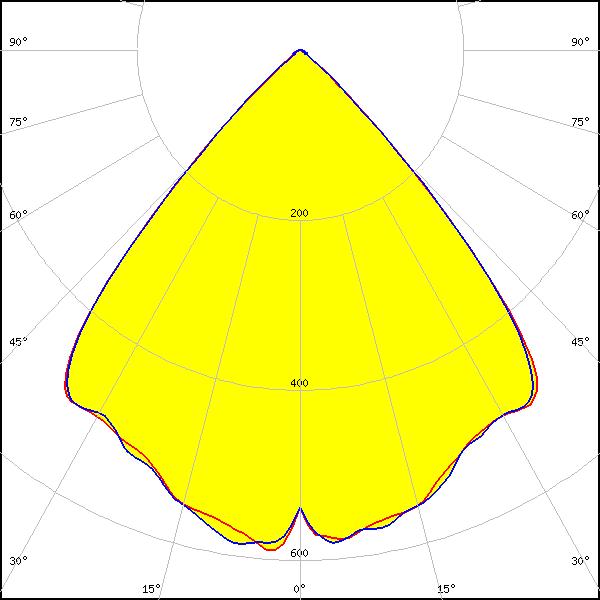

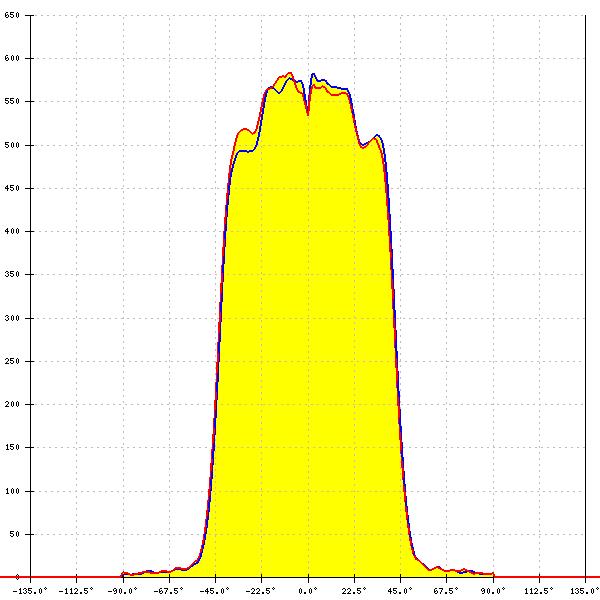

LED:

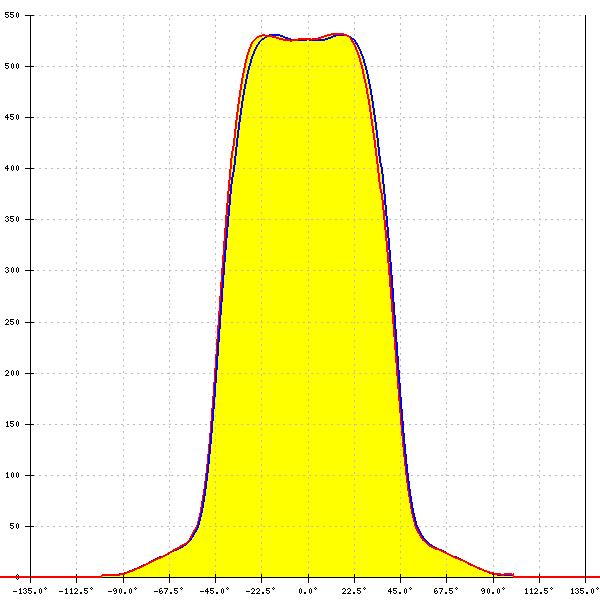

LM28xB Series
FWHM:
84°
FWTM:
98°
Peak intensity:
0.609 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM28xB Series
FWHM:
85°
FWTM:
99°
Peak intensity:
0.592 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM28xB Series
Required components:
FWHM:
84°
FWTM:
106°
Peak intensity:
0.533 cd/lm
Efficiency:
94 %
LEDs/each optic:
2
Light colour/type:
White

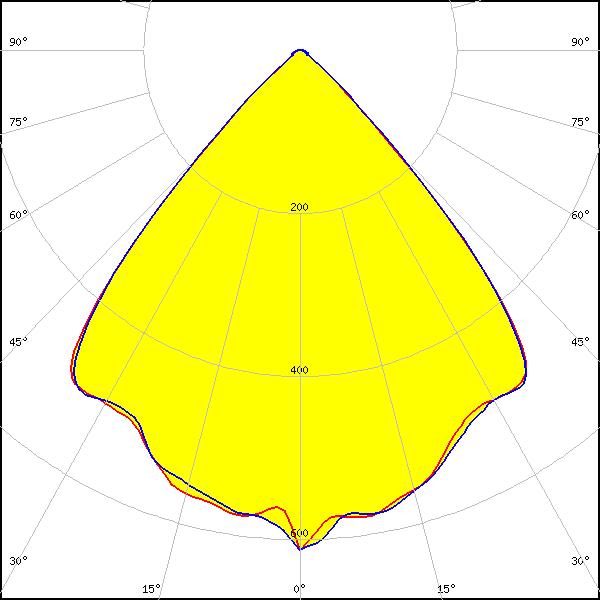

LED:

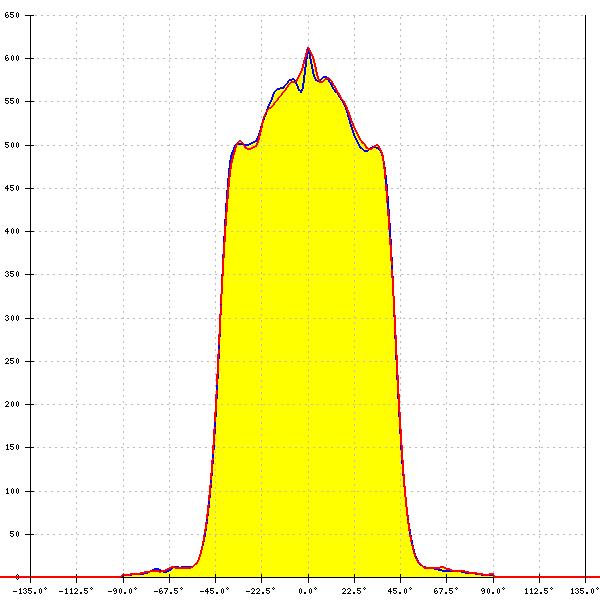

LM301B
FWHM:
84°
FWTM:
98°
Peak intensity:
0.615 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

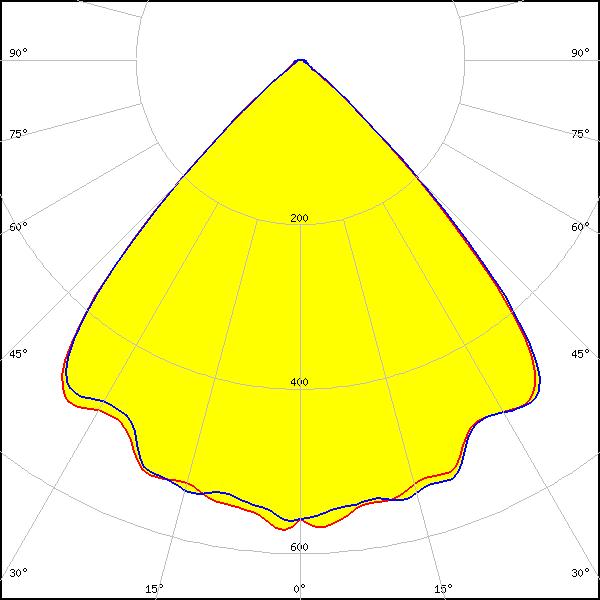

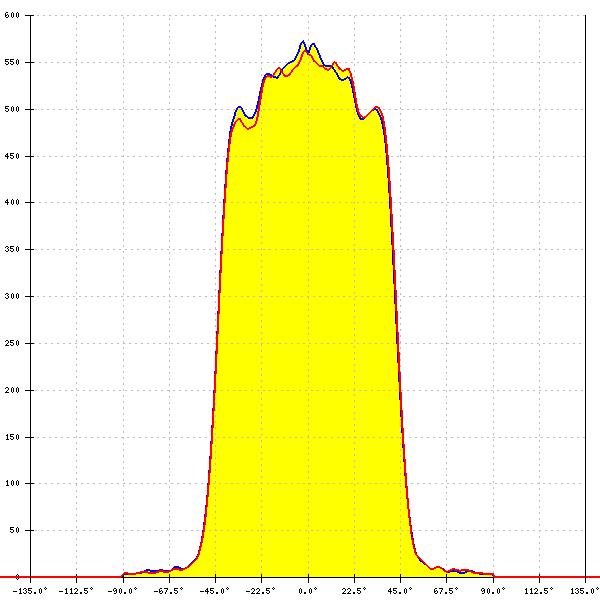

SEOUL DC 3528
FWHM:
86°
FWTM:
100°
Peak intensity:
0.572 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 5050 6V
FWHM:
86°
FWTM:
104°
Peak intensity:
0.539 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
