    F15523_LINNEA-90

    Print

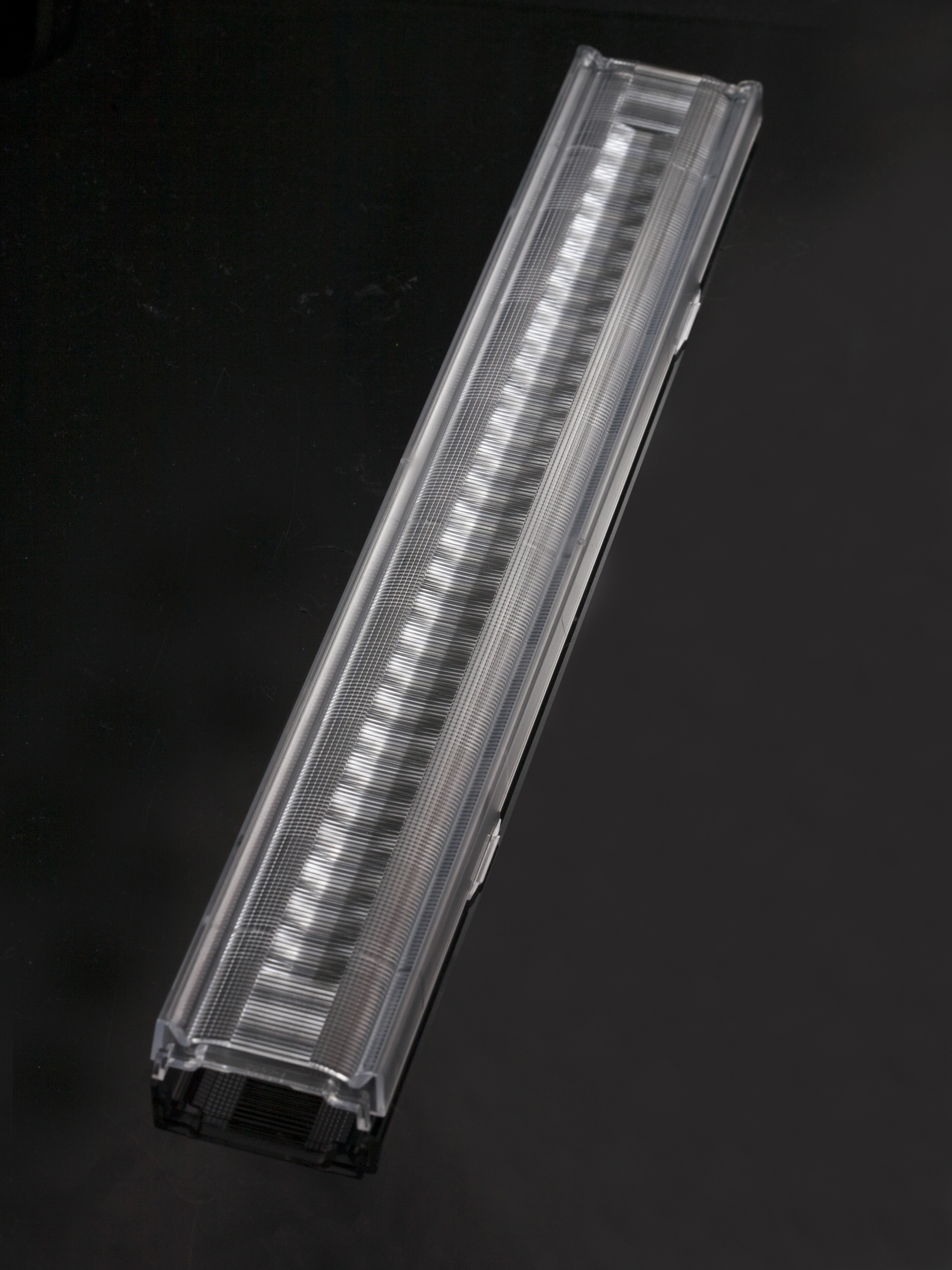

    ~90° + 90° wide beam optimized for 1.0 mm metal sheet or profile. Variant made from PC.

    Specification
    • Dimensions:
      285 x  40 mm
    • Height:
      9.50 mm
    • Fastening:
      clips
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      162 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      7.3 kg
    • MPQ:
      9 pcs
    • MOQ:
      36 pcs
    • MOQ size:
      400 x 300 x 70 mm
    • MOQ weight:
      1.7 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F15523_LINNEA-90
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Case story

    Metro Zero One cash and carry

    PCN

    Product change notification NR165 - Change of packaging method and packaging amounts

    PCN

    Product change notification NR158- Change of design of LINNEA family

    News

    PRODUCT NEWS - LINNEA-90

    Application example

    Warehouse lighting with LINNEA-90

    Application example

    Office lighting with LINNEA-90 and FLORENCE-1R-GC-ZT25

    Application example

    Troffer hallway lighting with LINNEA-90

    Application example

    Linear hallway lighting with LINNEA-90

    Application guide

    LEDiL Guide for Retail Lighting Optics

    PCN

    Product change notification NR180 – Update for PCN 158-Change of design in LINNEA product family

    News

    Effective fashion retail lighting

    Luminaire, example

    Linear luminaire with LINNEA

    Article

    Illuminating supermarkets with LEDiL optics

    News

    Linear lighting solutions

    Article

    Understanding the standards but aiming higher

    Article

    Stylish yet functional LED office lighting

    2D Mechanical drawing

    C16056_LINNEA-METAL-PROFILE_20161215

    3D Mechanical model

    C16056_LINNEA-METAL-PROFILE_20161215

    2D Mechanical drawing

    C16057_ALUMINIUM-EXTRUSION-PROFILE_20161215

    3D Mechanical model

    C16057_ALUMINIUM-EXTRUSION-PROFILE_20161215

    3D Mechanical model

    C16055_LINNEA-METAL-SHEET_20161215

    2D Mechanical drawing

    C16055_LINNEA-METAL-SHEET_20161215

    News

    New Products - 2018-05-09

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application area

    Office Lighting

    Customer story

    Greenled

    AVAILABLE LEDiL ACCESSORIES

    LINNEA-END-MS

    Short, male end cap compatible with LINNEA

    LINNEA-END-FS

    Short, female end cap compatible with LINNEA

    LINNEA-90-END-ML

    Long, male end cap compatible with LINNEA-90

    LINNEA-90-END-FL

    Long, female end cap compatible with LINNEA-90

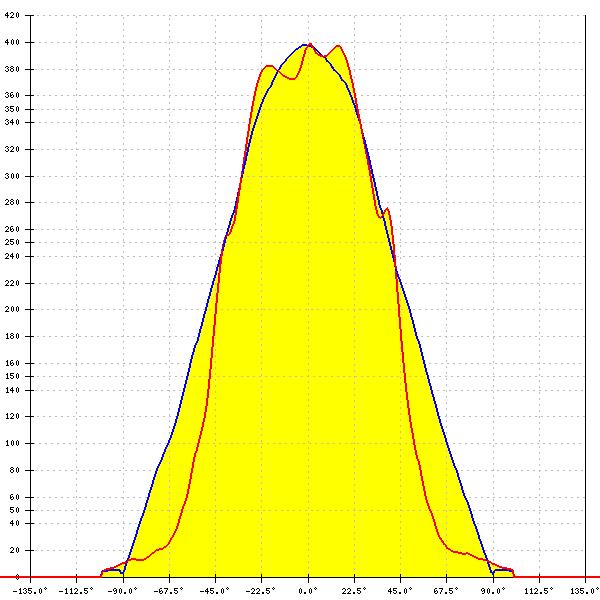

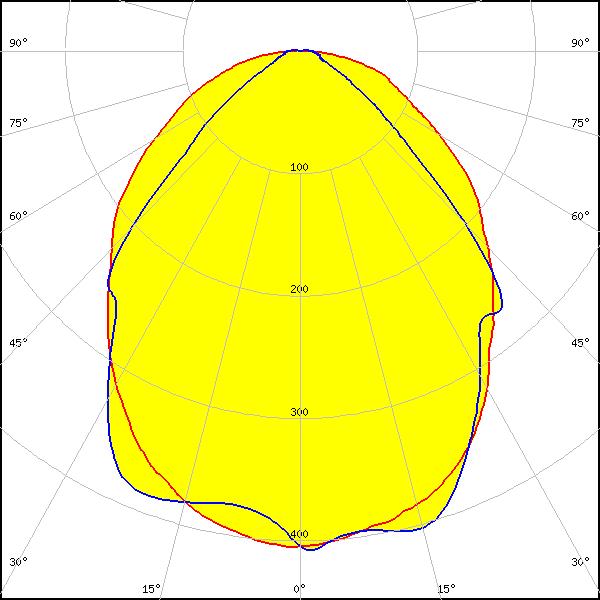

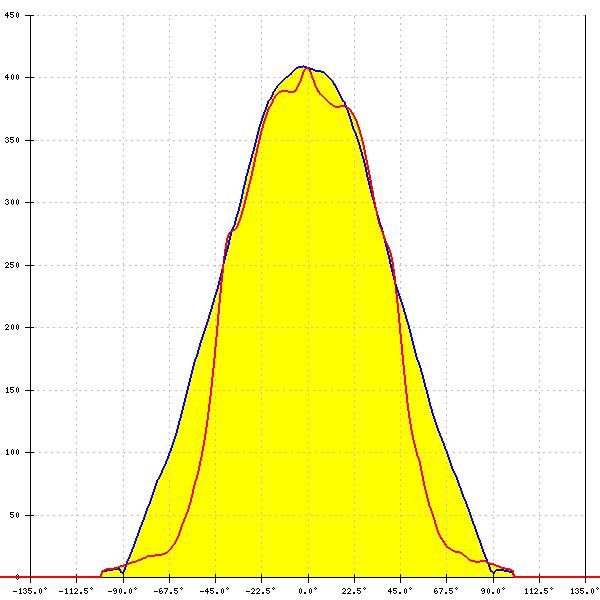

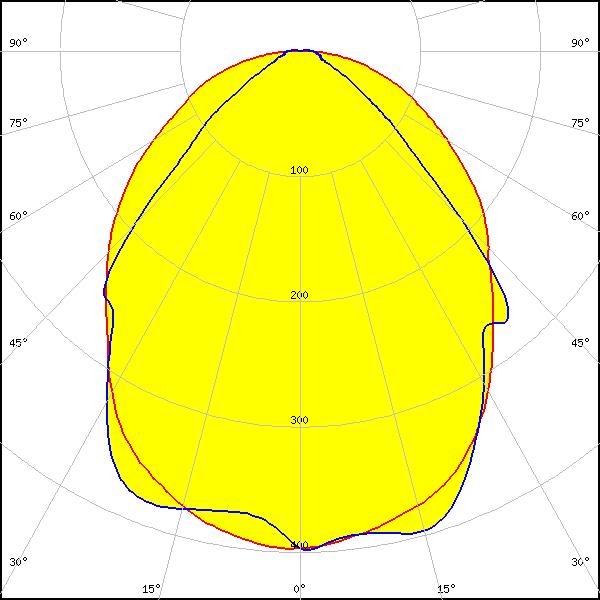

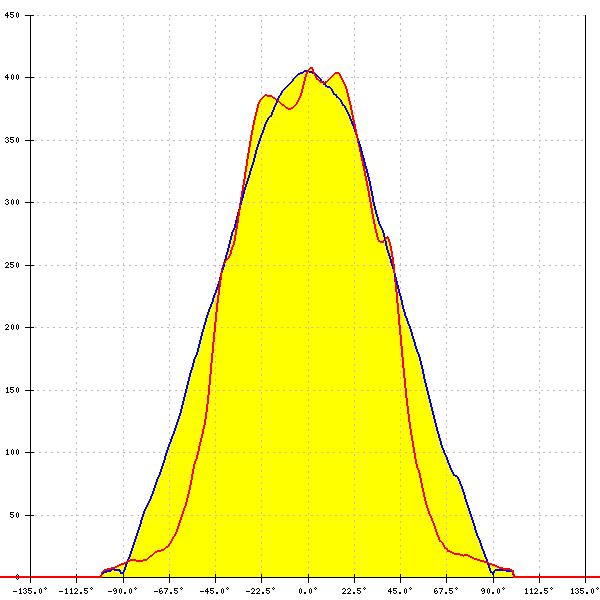

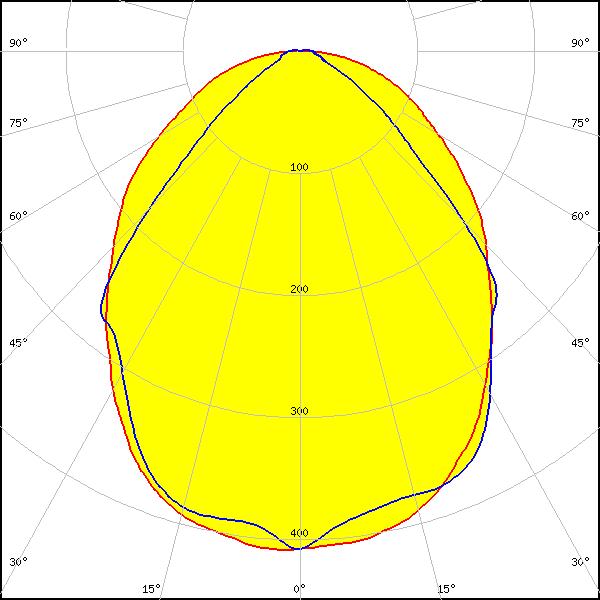

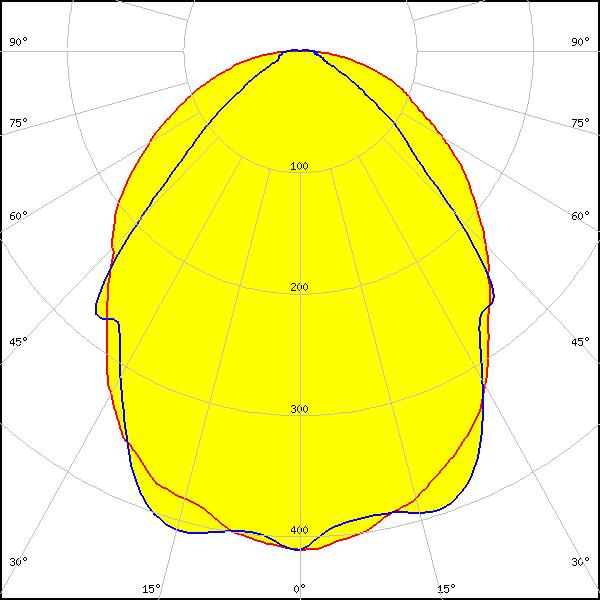

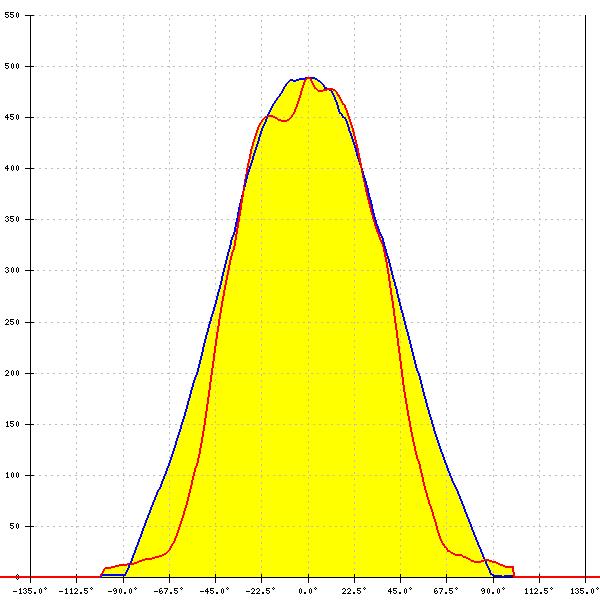

    Optical results

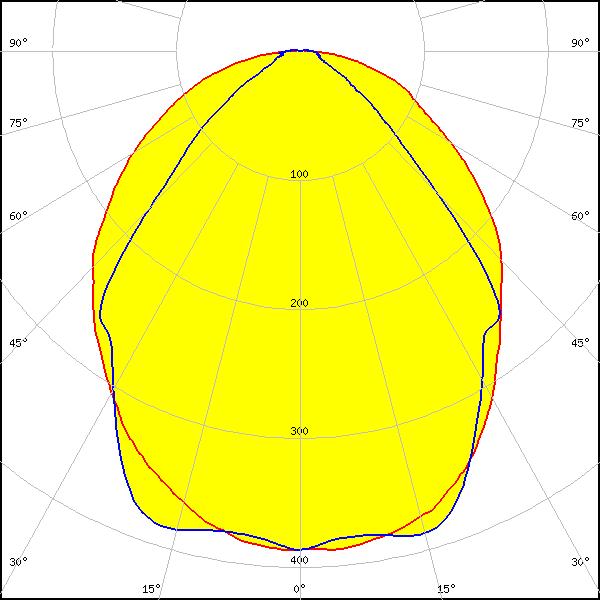

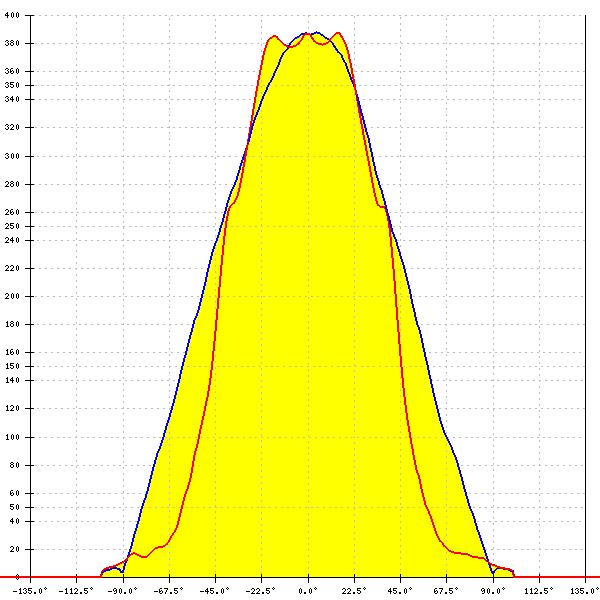

    LED: CALOSNU405-M7W1
    FWHM: 104° + 87°
    FWTM: 164° + 124°
    Peak intensity: 0.390 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

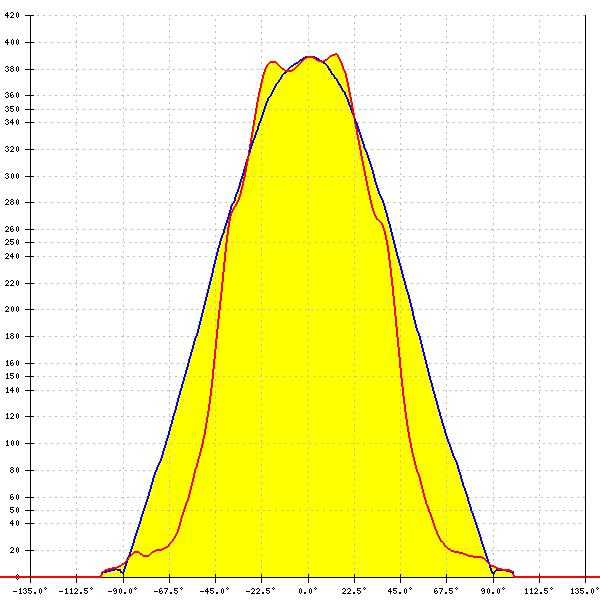

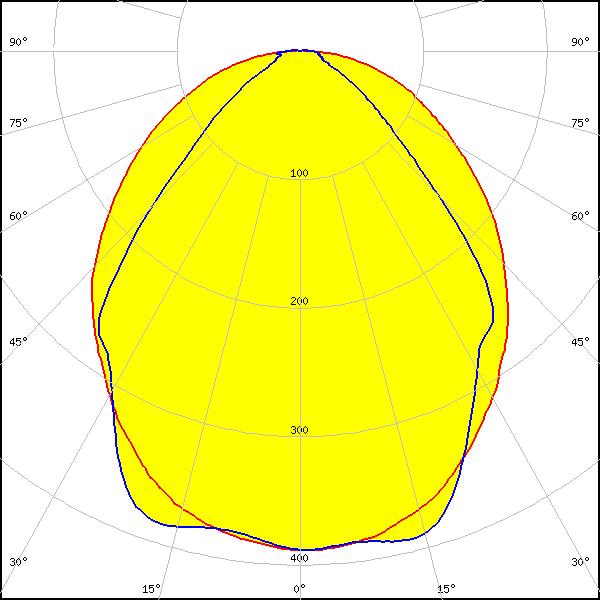

    LED: CALOSNU410-M7W1
    FWHM: 104° + 86°
    FWTM: 164° + 124°
    Peak intensity: 0.390 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

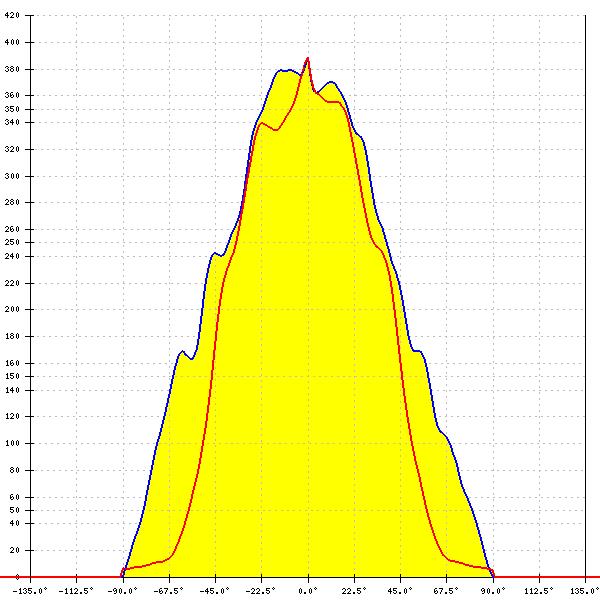

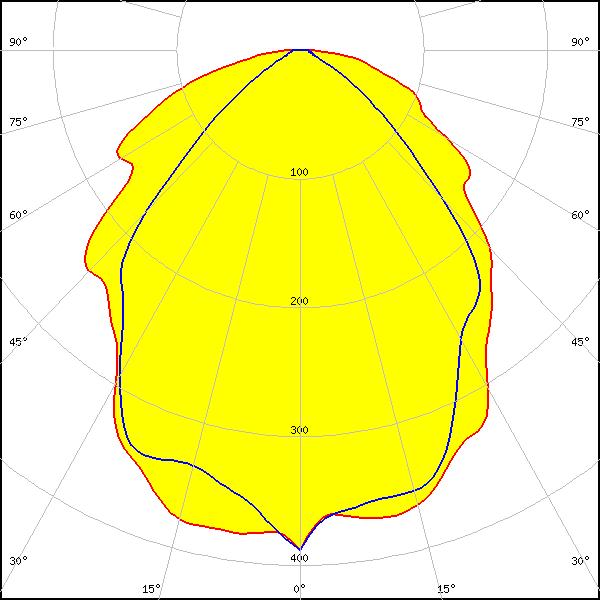

    LED: Bridgelux SMD 2835
    FWHM: 100° + 86°
    FWTM: 165° + 120°
    Peak intensity: 0.388 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

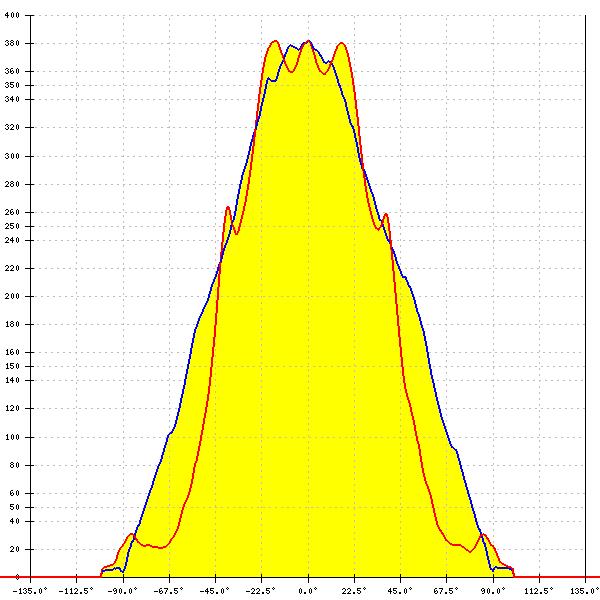

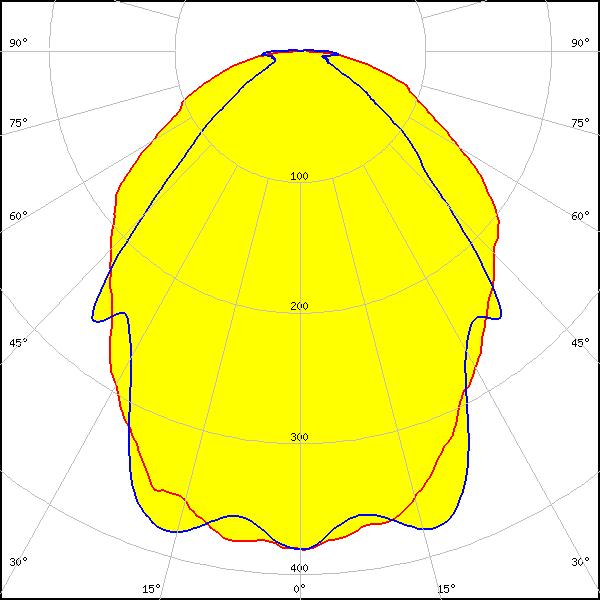

    LED: XP-E
    FWHM: 104° + 88°
    FWTM: 164° + 126°
    Peak intensity: 0.390 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

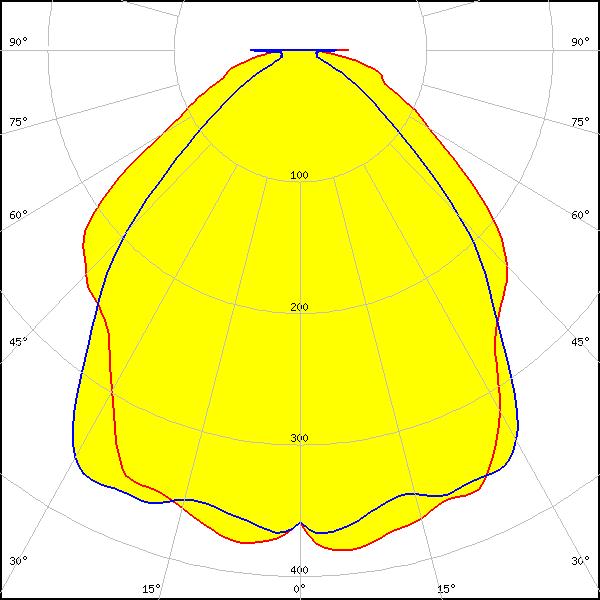

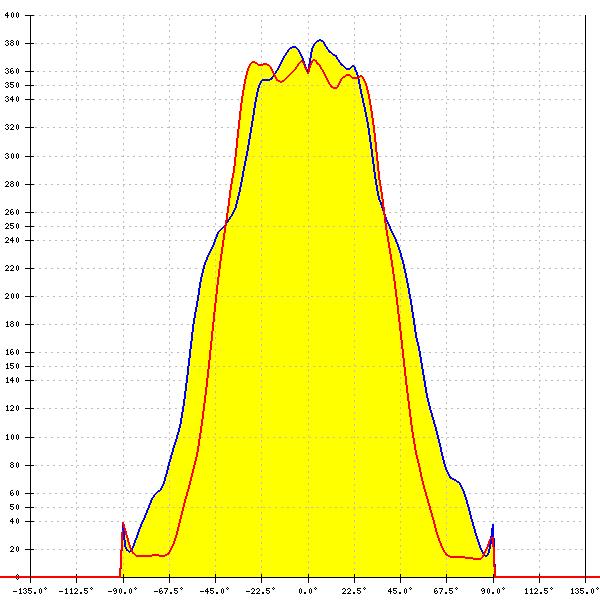

    LED: XP-G3
    FWHM: 105° + 89°
    FWTM: 161° + 124°
    Peak intensity: 0.380 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

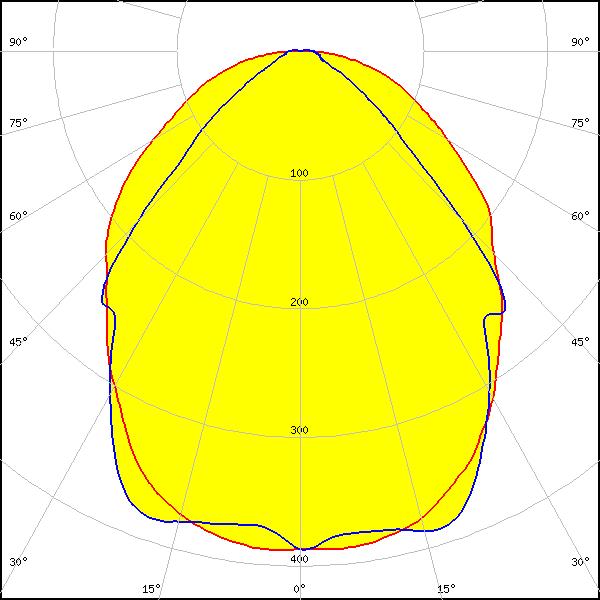

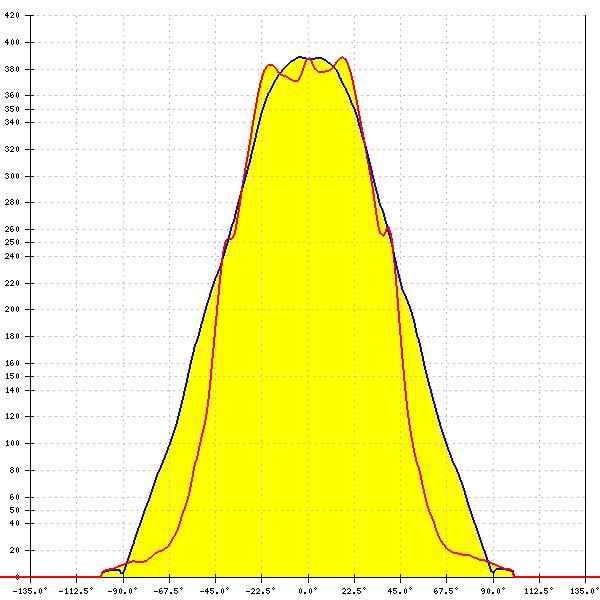

    LED: L-iC-282-827-865-011A
    FWHM: 102° + 89°
    FWTM: 164° + 124°
    Peak intensity: 0.390 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

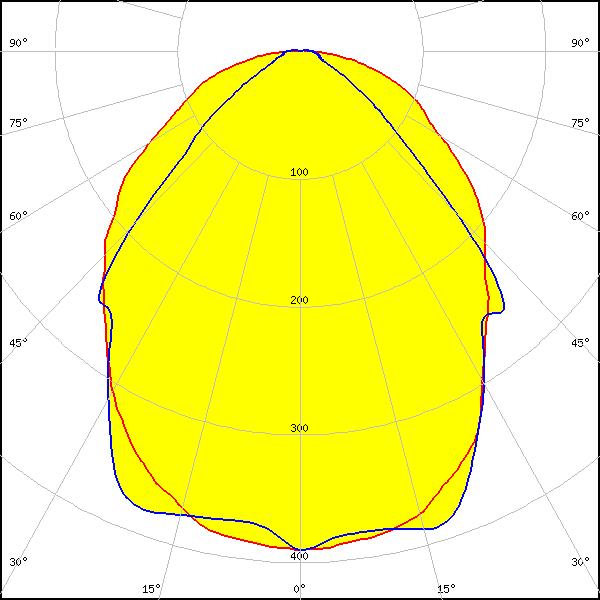

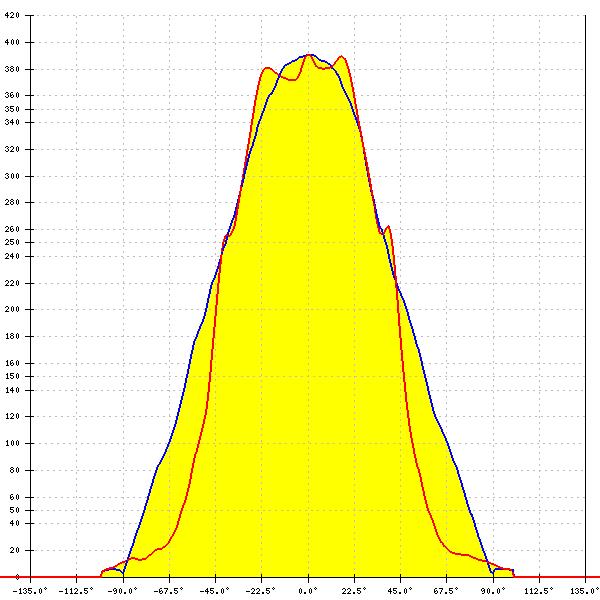

    LED: LP-282-840-009A 60/300
    FWHM: 100° + 89°
    FWTM: 163° + 125°
    Peak intensity: 0.390 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

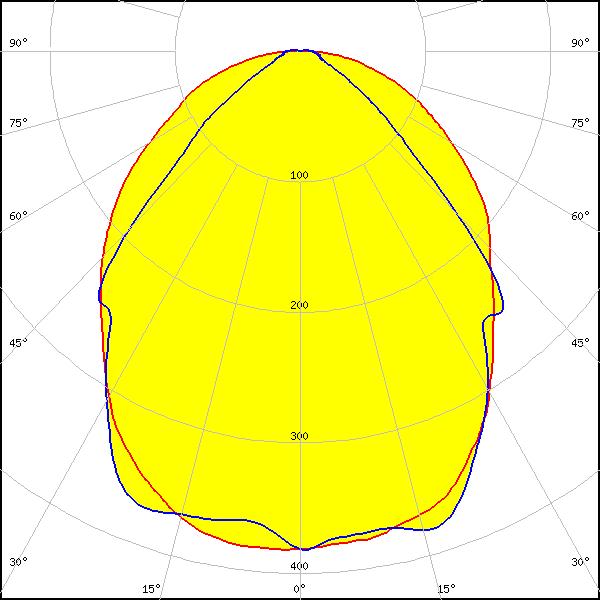

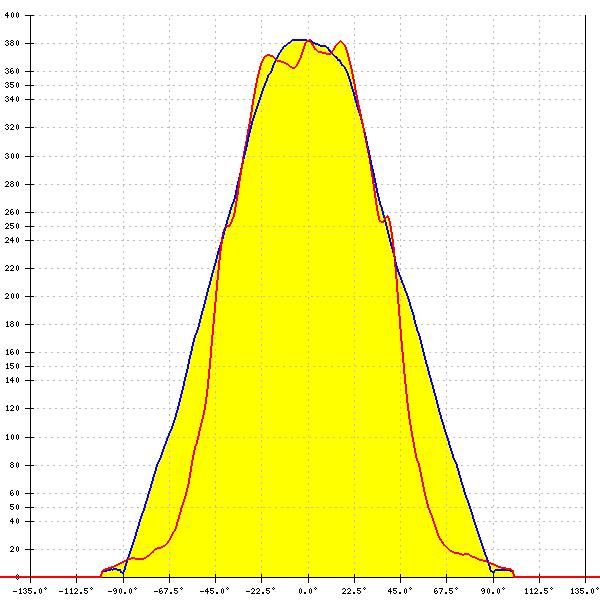

    LED: LS-282-840-011A
    FWHM: 102° + 90°
    FWTM: 164° + 125°
    Peak intensity: 0.380 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

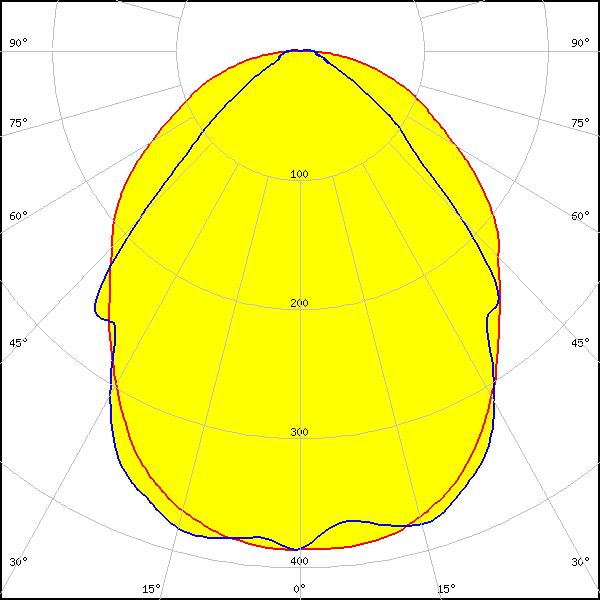

    LED: LX-282-840-023A
    FWHM: 102° + 89°
    FWTM: 164° + 125°
    Peak intensity: 0.390 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

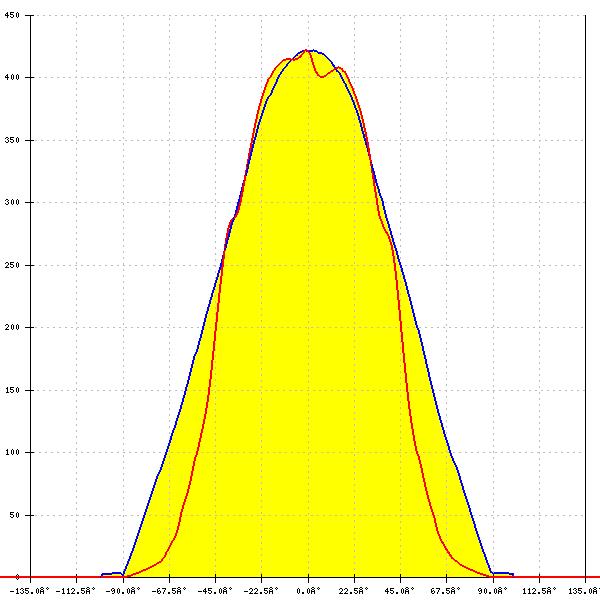

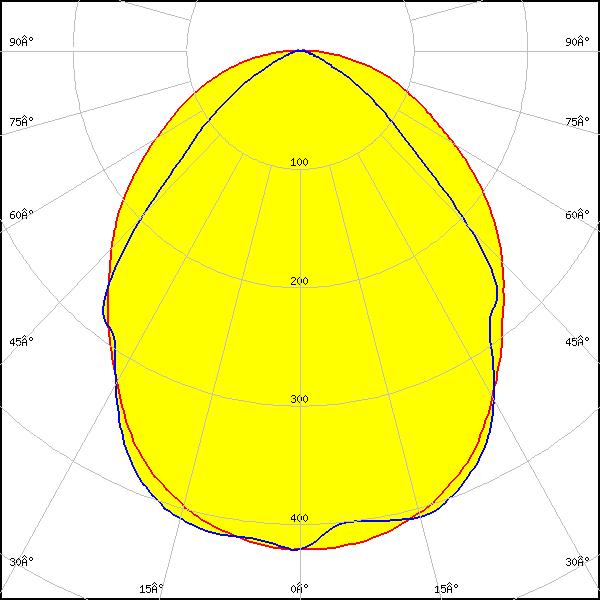

    LED: PL-LIN-IND-Z1 2800 560x24
    FWHM: 101° + 89°
    FWTM: 163° + 125°
    Peak intensity: 0.422 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

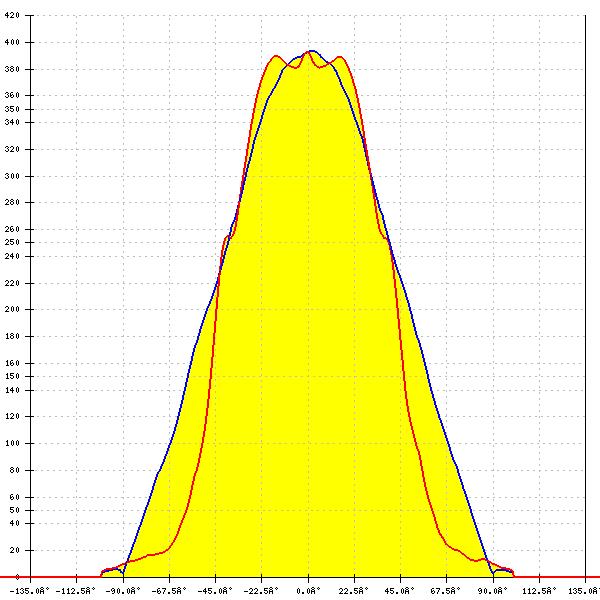

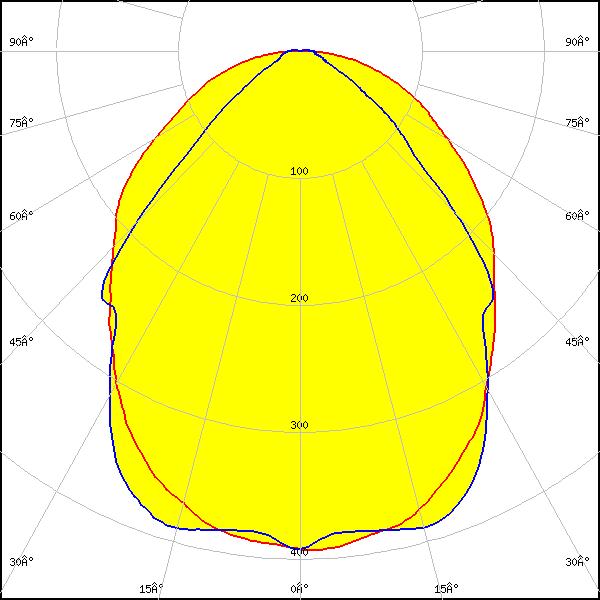

    LED: PL-LIN-Z5 1100 280x20
    FWHM: 101° + 89°
    FWTM: 164° + 125°
    Peak intensity: 0.393 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

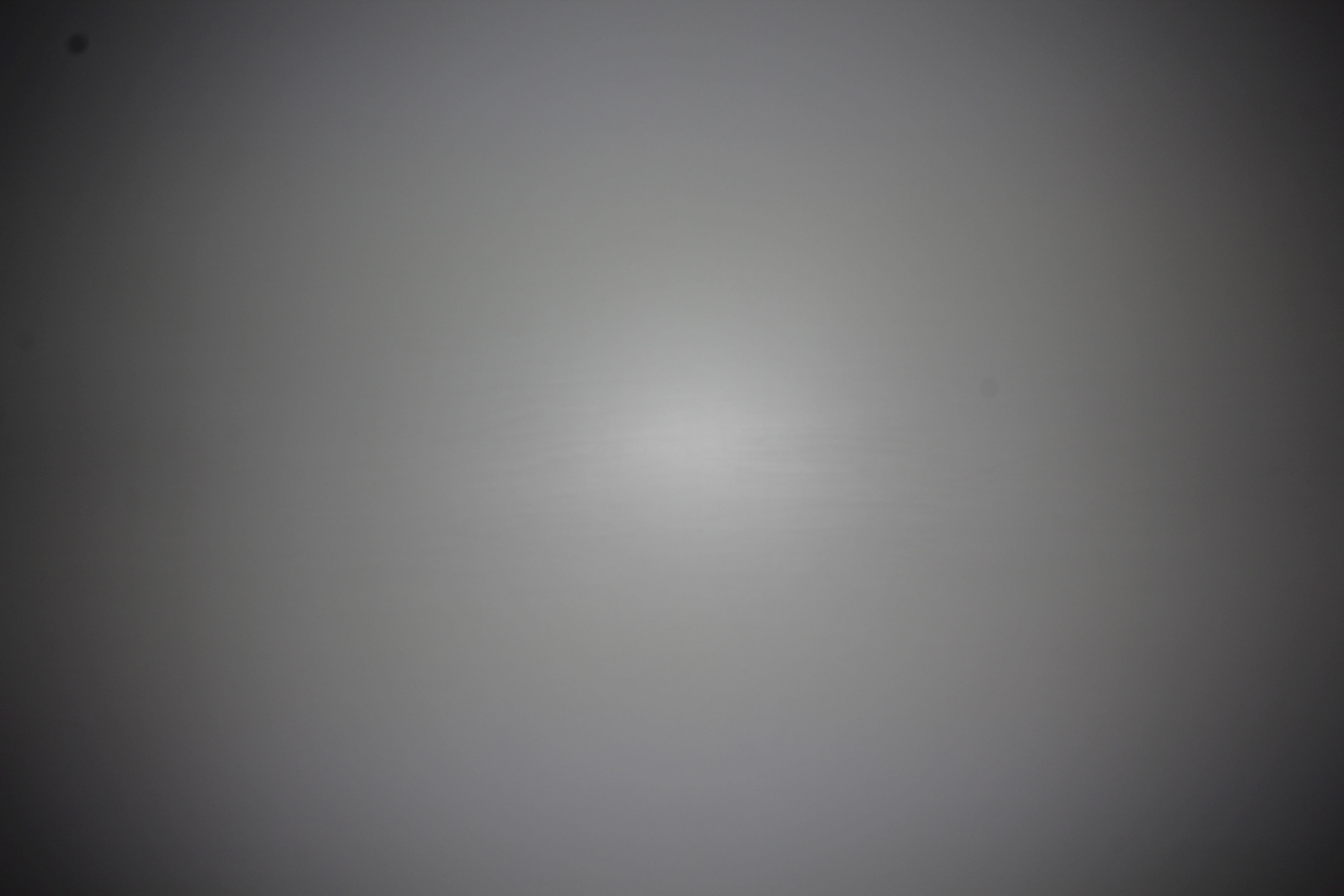

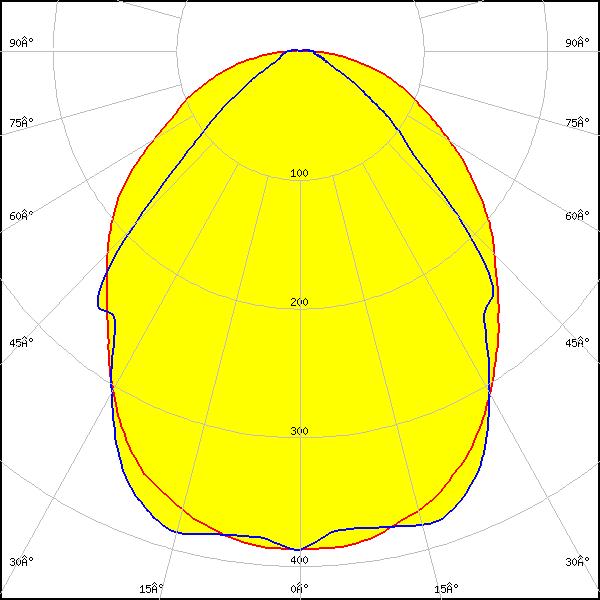

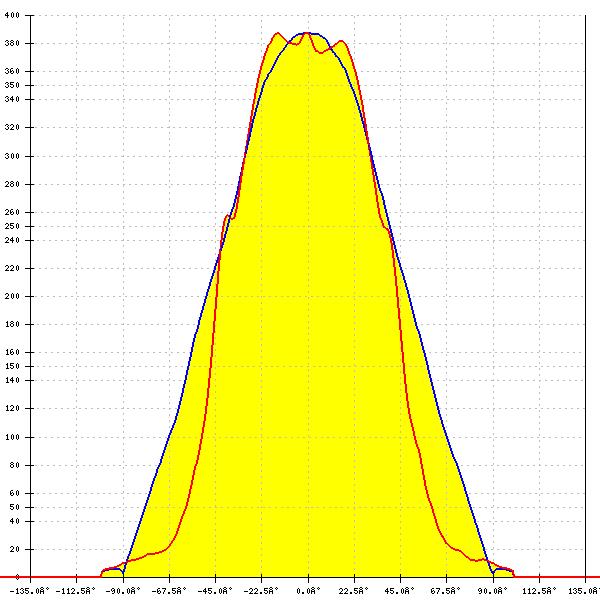

    LED: PL-LIN-Z5 2000 280x20
    FWHM: 101° + 89°
    FWTM: 164° + 125°
    Peak intensity: 0.388 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

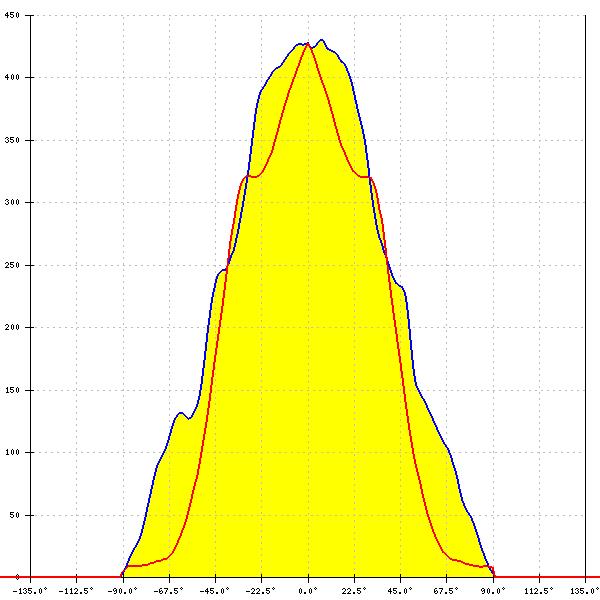

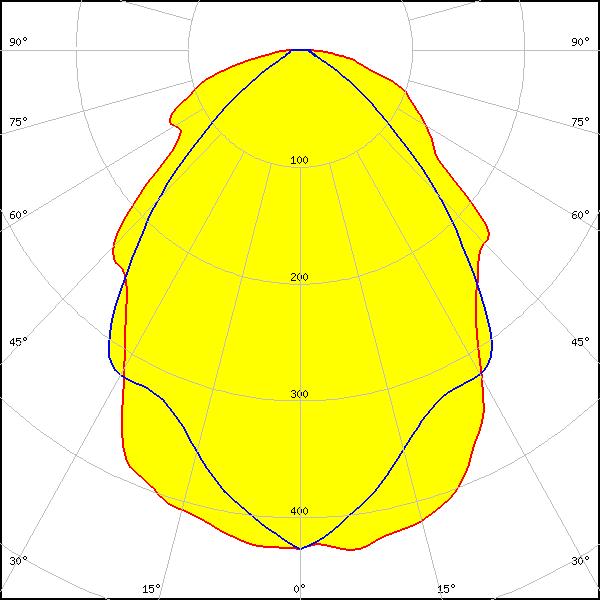

    LED: LUXEON 2835 Architectural
    FWHM: 96° + 84°
    FWTM: 161° + 120°
    Peak intensity: 0.431 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 2
    Light colour/type: White

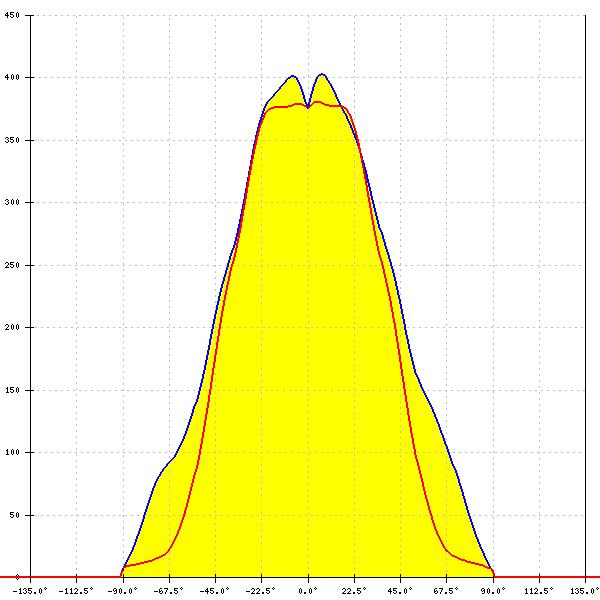

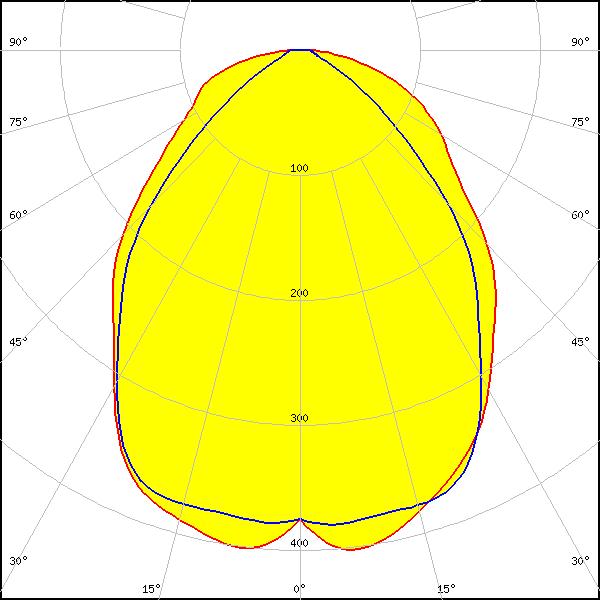

    LED: LUXEON 3030 2D (Round LES)
    FWHM: 93° + 84°
    FWTM: 162° + 124°
    Peak intensity: 0.400 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

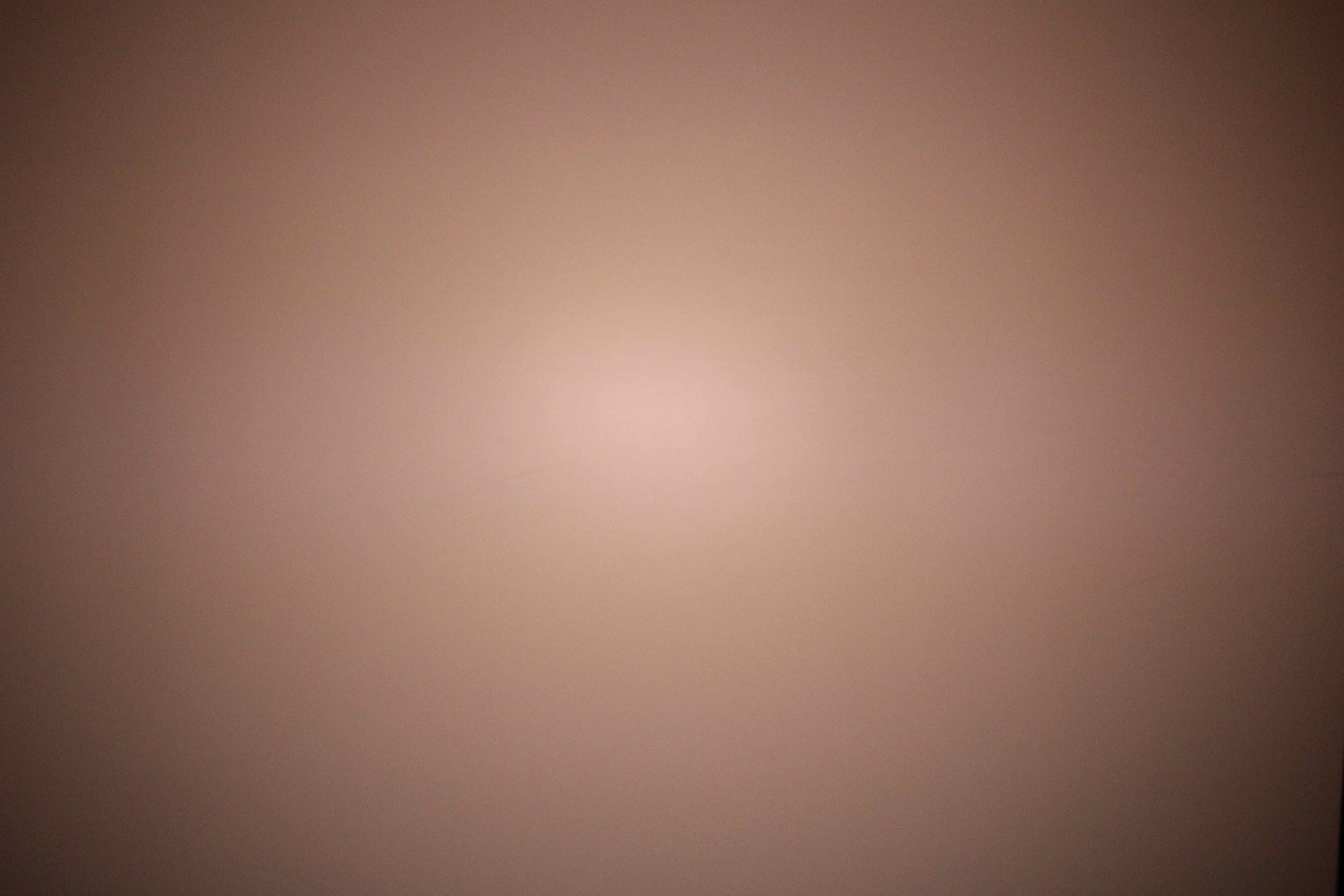

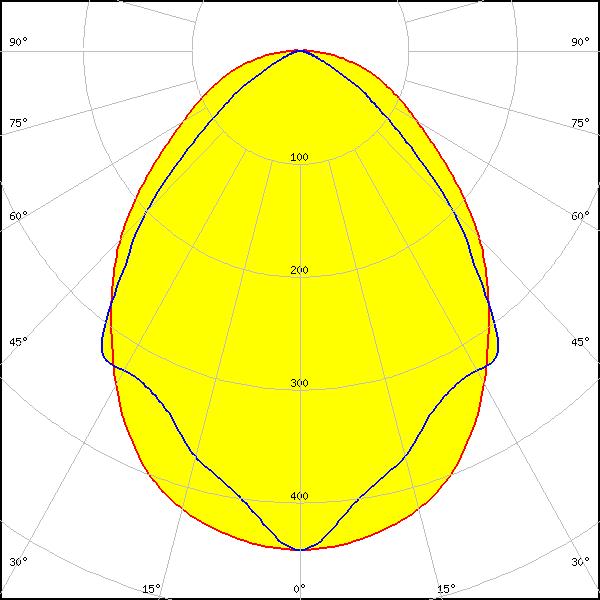

    LED: LinearZ 280-112 Circadian TW
    FWHM: 93° + 87°
    FWTM: 159° + 122°
    Peak intensity: 0.442 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

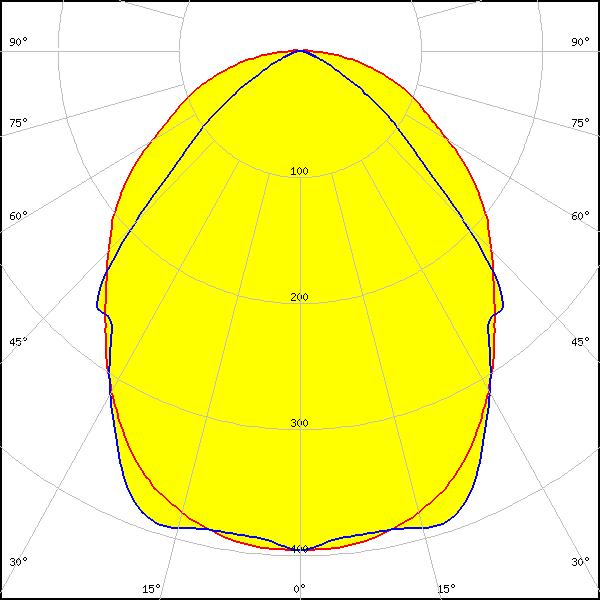

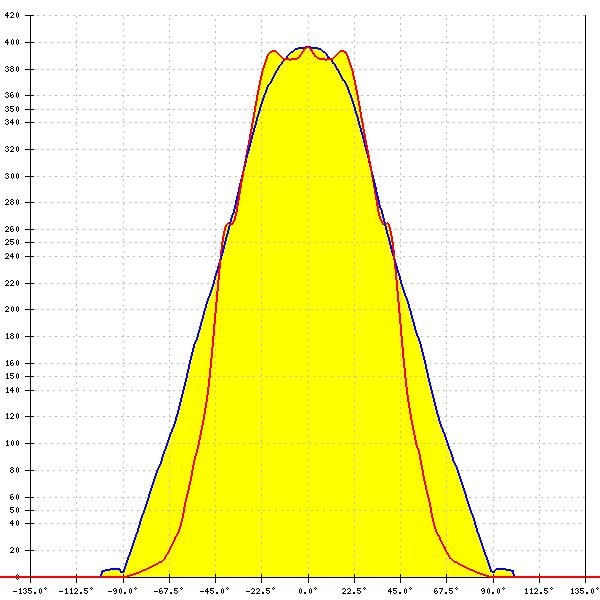

    LED: LinearZ 280-26
    FWHM: 101° + 89°
    FWTM: 164° + 124°
    Peak intensity: 0.398 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

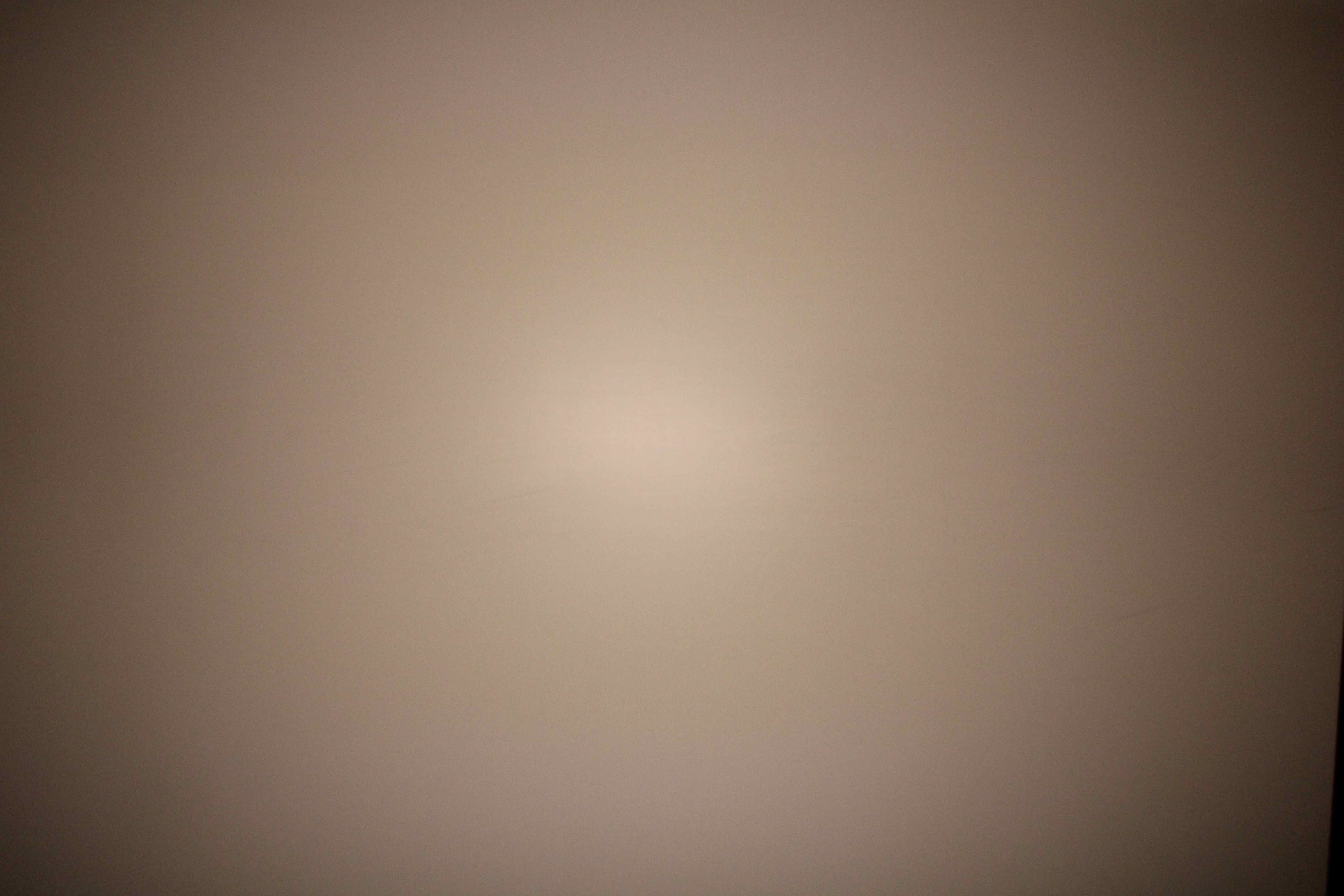

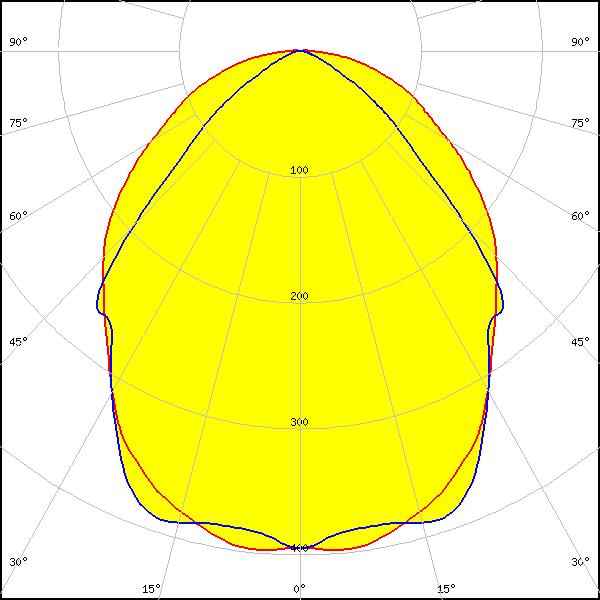

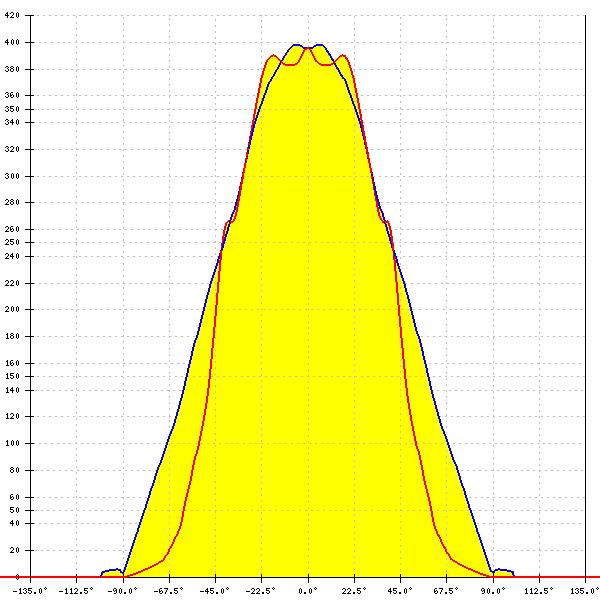

    LED: LinearZ 280-40 TW
    FWHM: 101° + 89°
    FWTM: 163° + 123°
    Peak intensity: 0.402 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

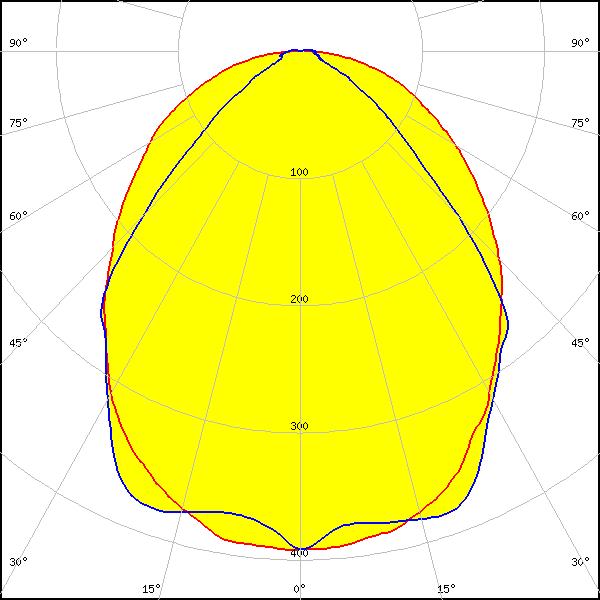

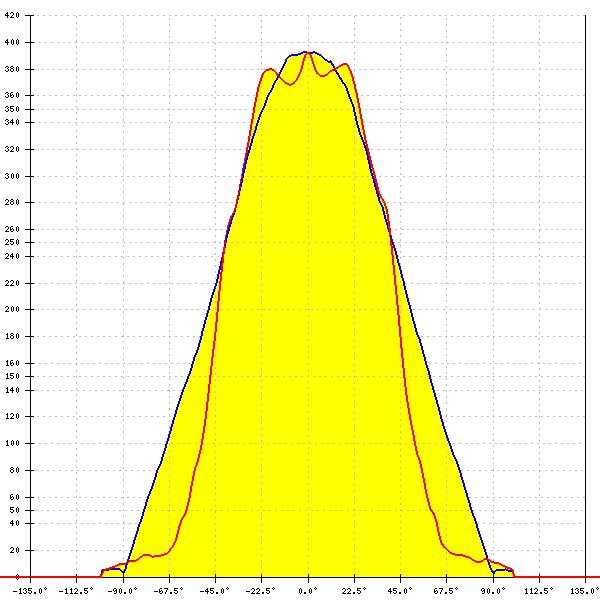

    LED: LinLED 280x24mm 1100lm 830 2C 30V LINNEA-GC G1
    FWHM: 88° + 100°
    FWTM: 125° + 164°
    Peak intensity: 0.390 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

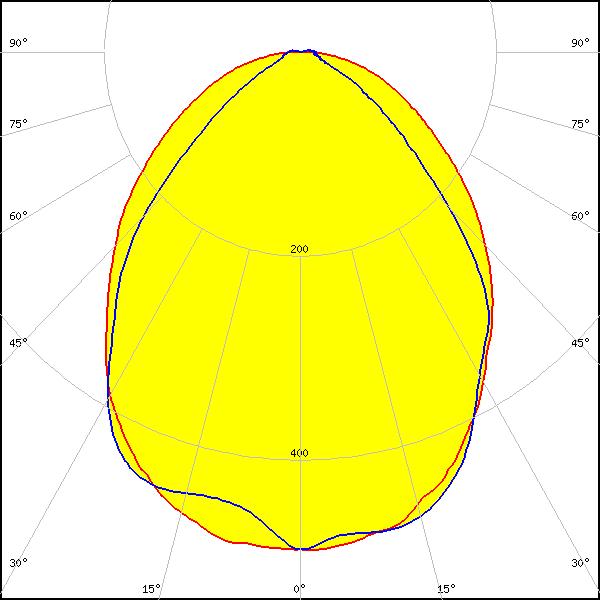

    LED: NF2x757D
    FWHM: 86° + 99°
    FWTM: 125° + 159°
    Peak intensity: 0.480 cd/lm
    LEDs/each optic: 1
    Light colour/type: White

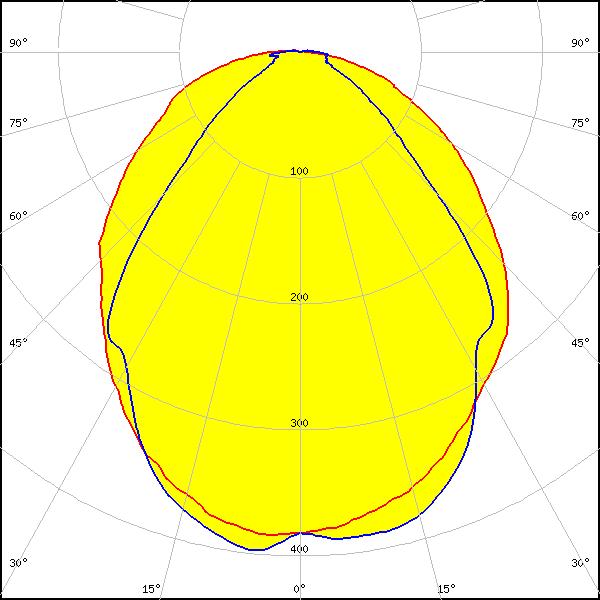

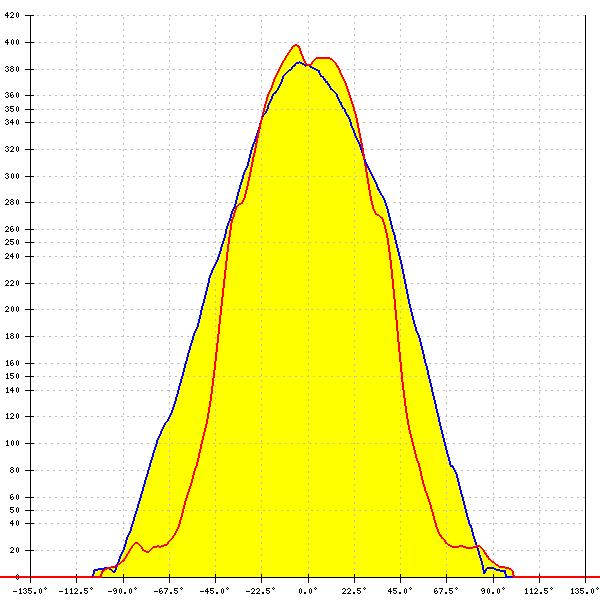

    LED: NF2x757G
    FWHM: 105° + 85°
    FWTM: 165° + 125°
    Peak intensity: 0.400 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

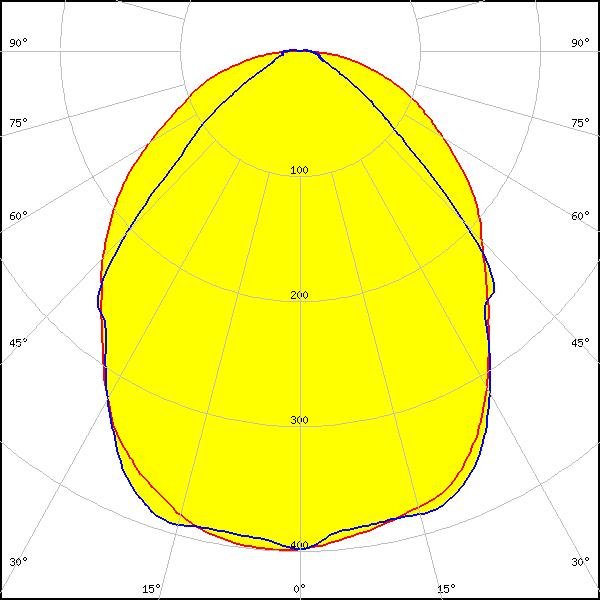

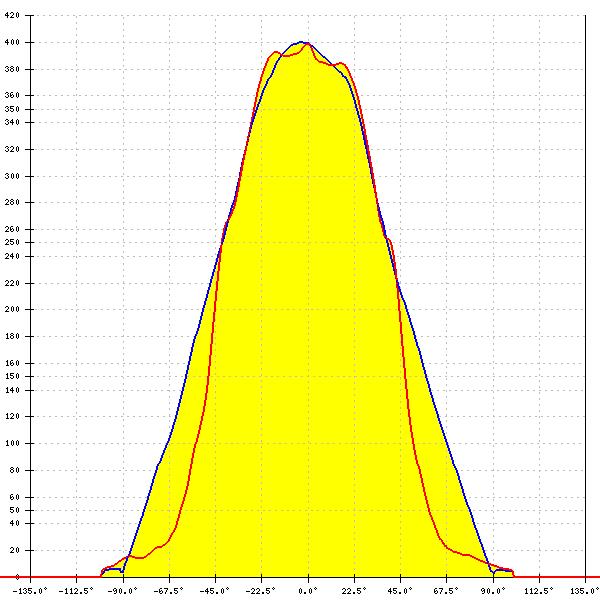

    LED: NFSW757H
    FWHM: 100° + 90°
    FWTM: 163° + 125°
    Peak intensity: 0.400 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

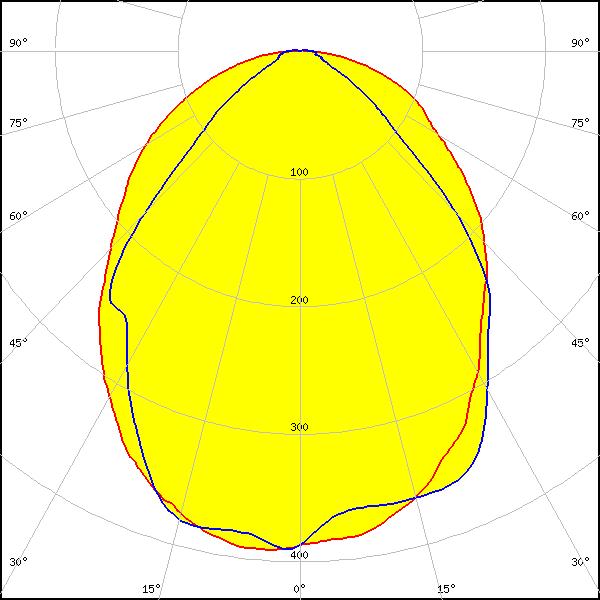

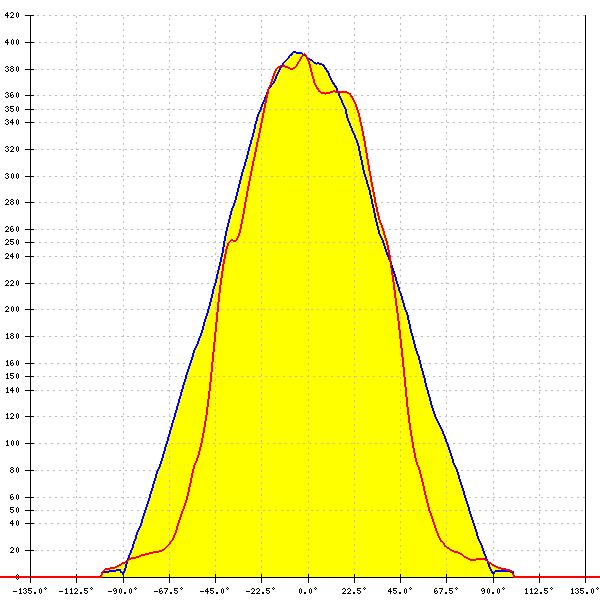

    LED: NFSx757G
    FWHM: 98° + 88°
    FWTM: 162° + 125°
    Peak intensity: 0.390 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

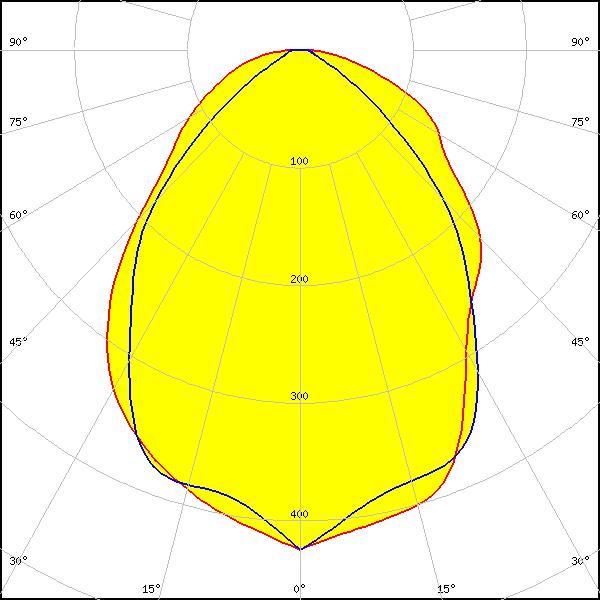

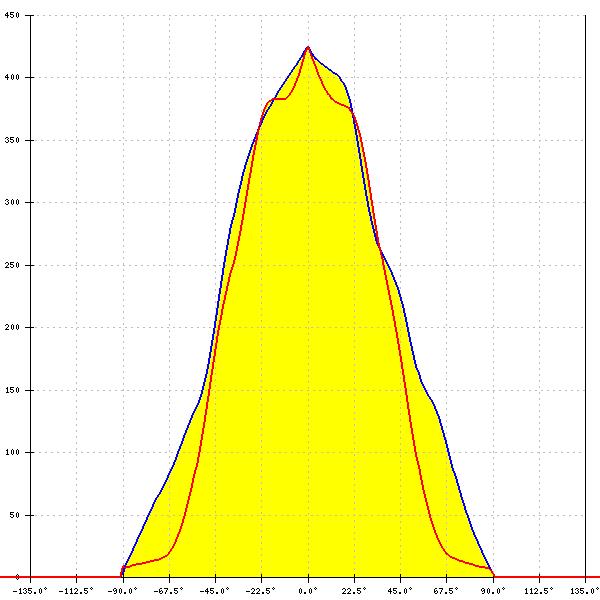

    LED: Duris E 2835
    FWHM: 83° + 91°
    FWTM: 122° + 159°
    Peak intensity: 0.430 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

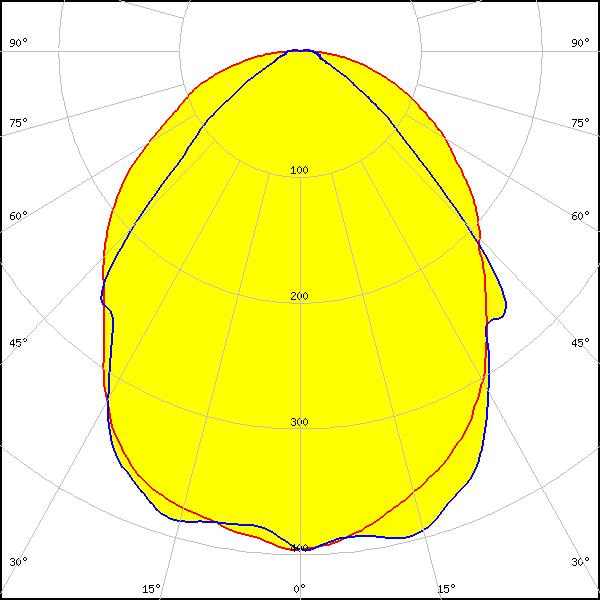

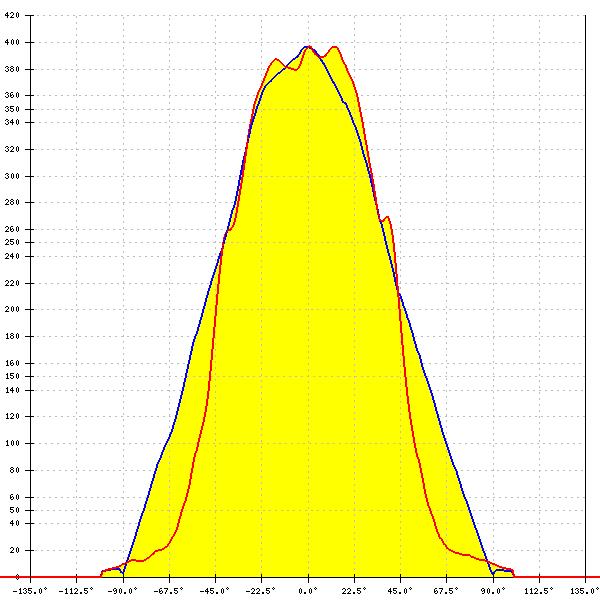

    LED: DURIS S5 (2 chip)
    FWHM: 99° + 89°
    FWTM: 163° + 125°
    Peak intensity: 0.400 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

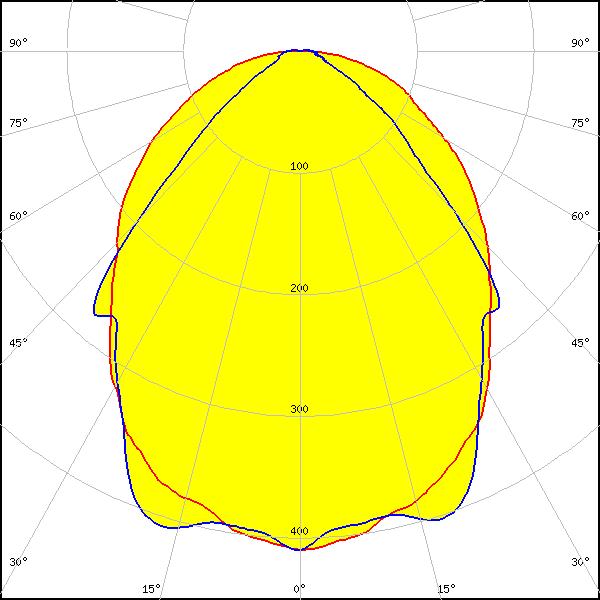

    LED: DURIS S5 (Single chip)
    FWHM: 98° + 89°
    FWTM: 163° + 125°
    Peak intensity: 0.410 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

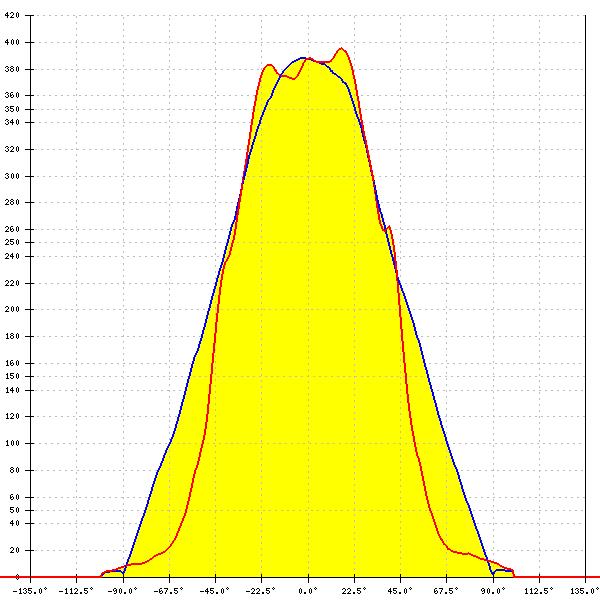

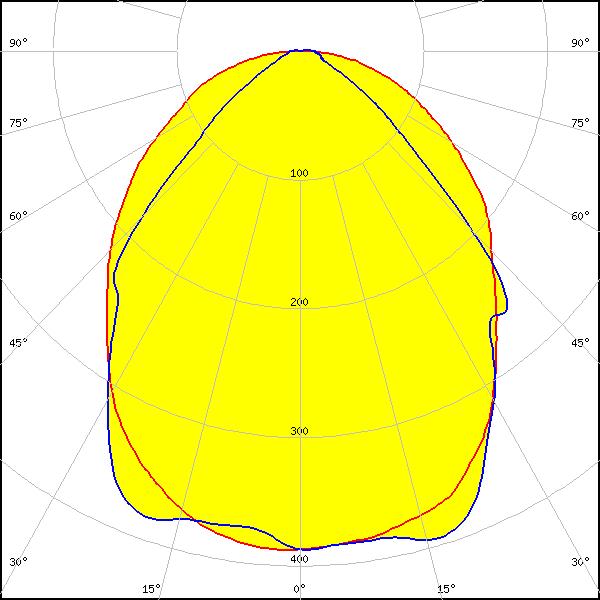

    LED: Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
    FWHM: 100° + 89°
    FWTM: 163° + 124°
    Peak intensity: 0.400 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Strip 1ft 1100lm FC HV5 & LV5
    FWHM: 99° + 85°
    FWTM: 163° + 123°
    Peak intensity: 0.440 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

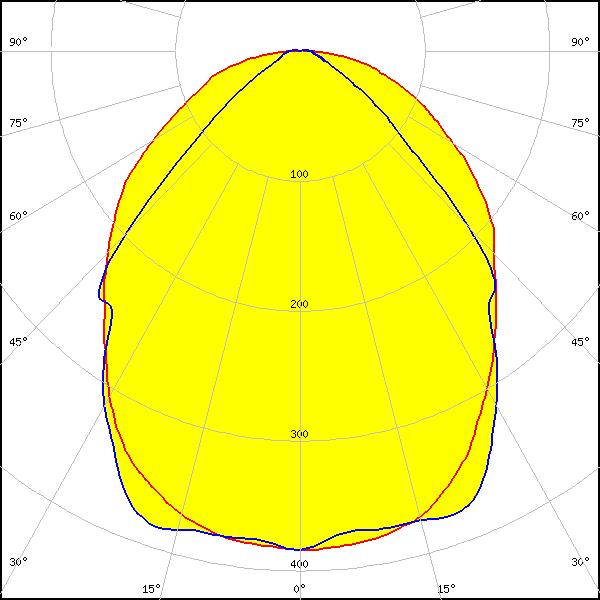

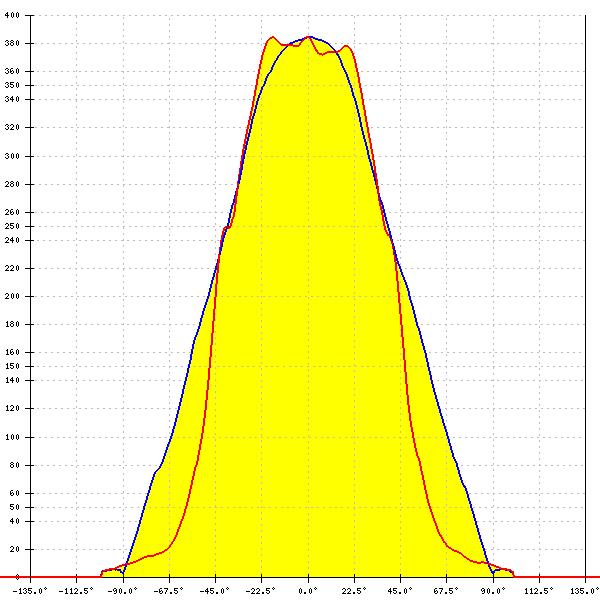

    LED: Fortimo LED Strip 1ft 650lm FC HV4 & LV4
    FWHM: 102° + 90°
    FWTM: 164° + 124°
    Peak intensity: 0.380 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Strip 1ft 650lm FC HV5 & LV5
    FWHM: 101° + 87°
    FWTM: 163° + 123°
    Peak intensity: 0.417 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

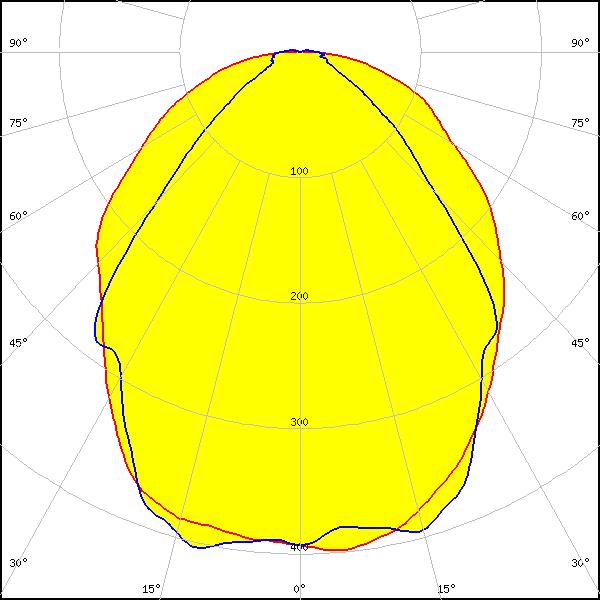

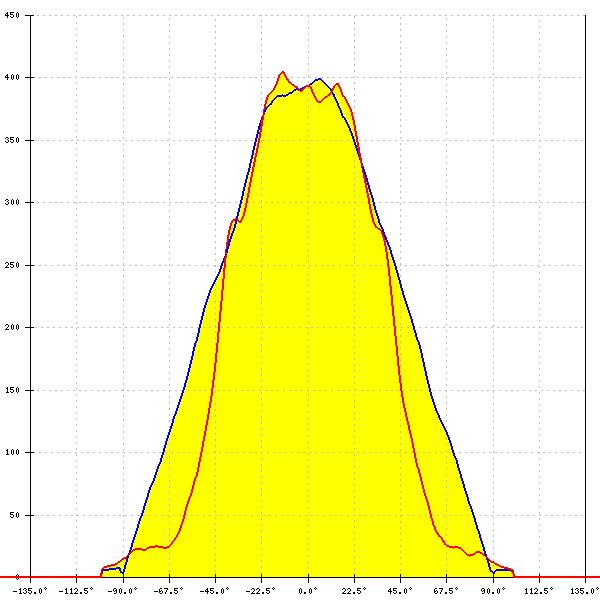

    LED: LM28xB Series
    FWHM: 105° + 86°
    FWTM: 165° + 124°
    Peak intensity: 0.290 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM561B Plus
    FWHM: 88° + 100°
    FWTM: 125° + 164°
    Peak intensity: 0.390 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

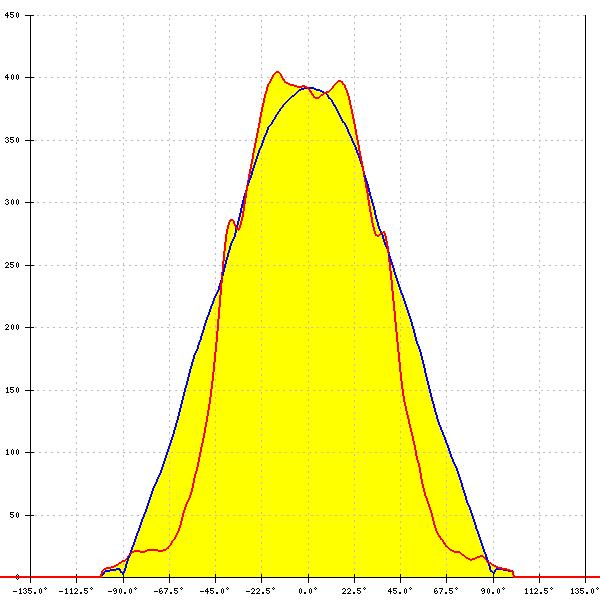

    LED: LT-H282C
    FWHM: 103° + 87°
    FWTM: 164° + 125°
    Peak intensity: 0.400 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

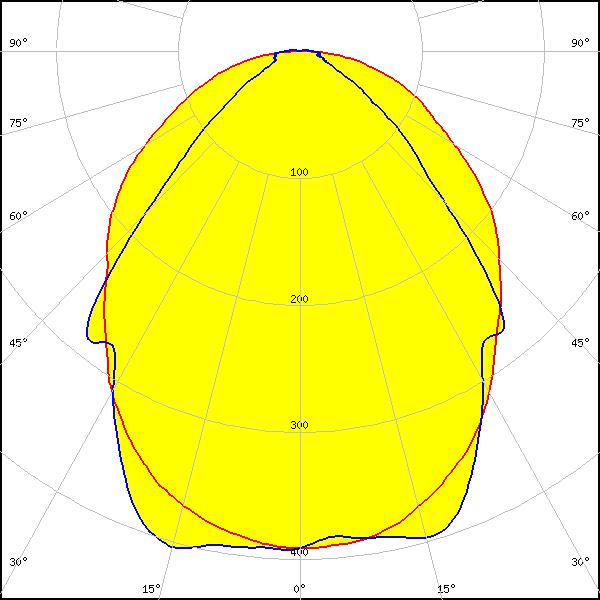

    LED: LT-H562C
    FWHM: 103° + 87°
    FWTM: 164° + 125°
    Peak intensity: 0.400 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

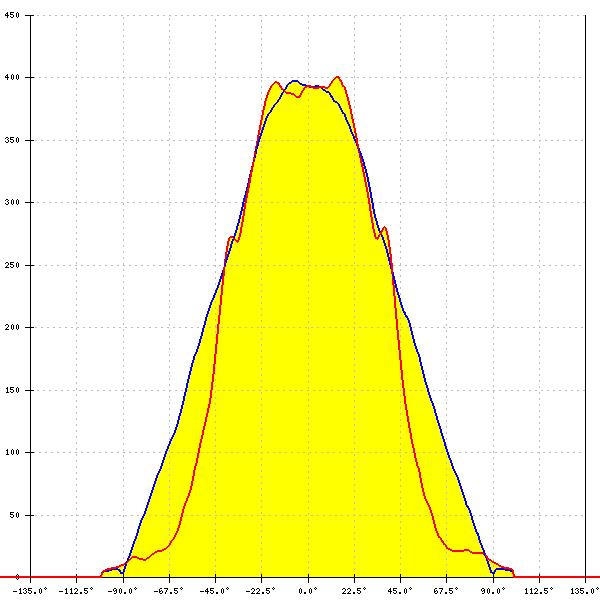

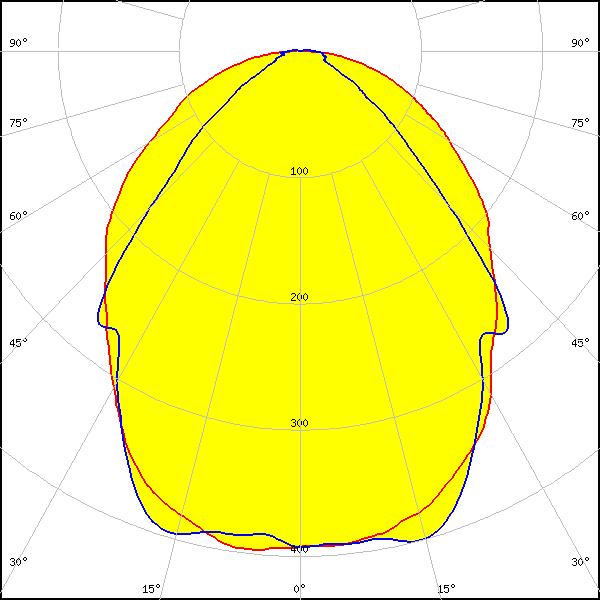

    LED: LT-Q282B
    FWHM: 101° + 87°
    FWTM: 164° + 125°
    Peak intensity: 0.400 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LT-S282H
    FWHM: 104° + 86°
    FWTM: 165° + 125°
    Peak intensity: 0.400 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

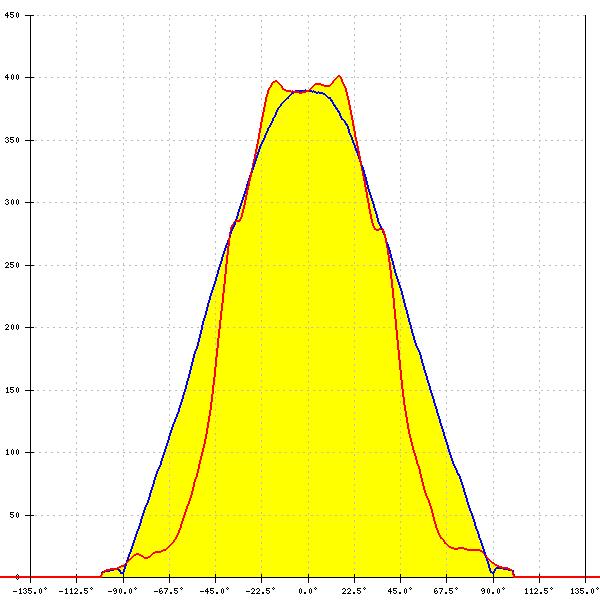

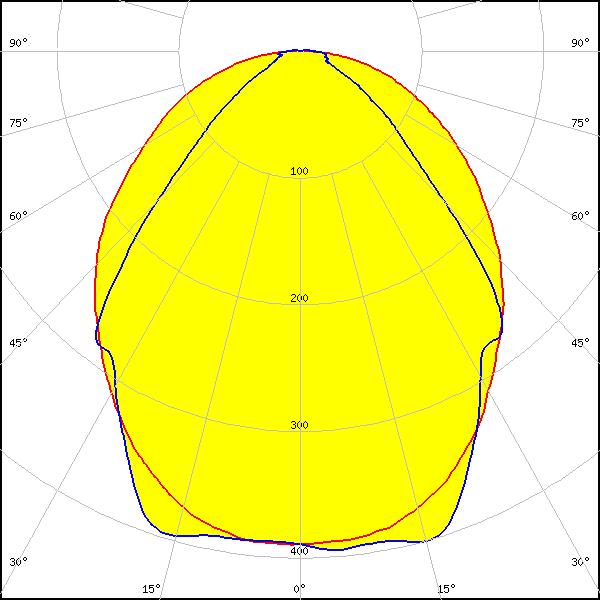

    LED: LT-S562H
    FWHM: 104° + 86°
    FWTM: 165° + 125°
    Peak intensity: 0.400 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

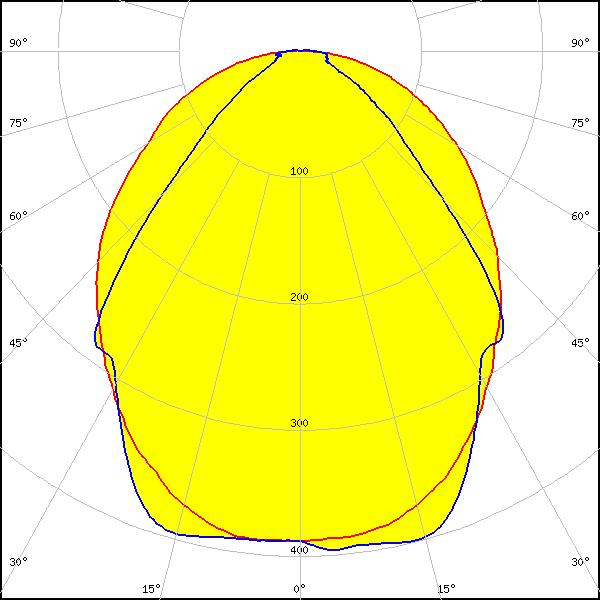

    LED: LT-V282E
    FWHM: 103° + 86°
    FWTM: 164° + 125°
    Peak intensity: 0.400 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

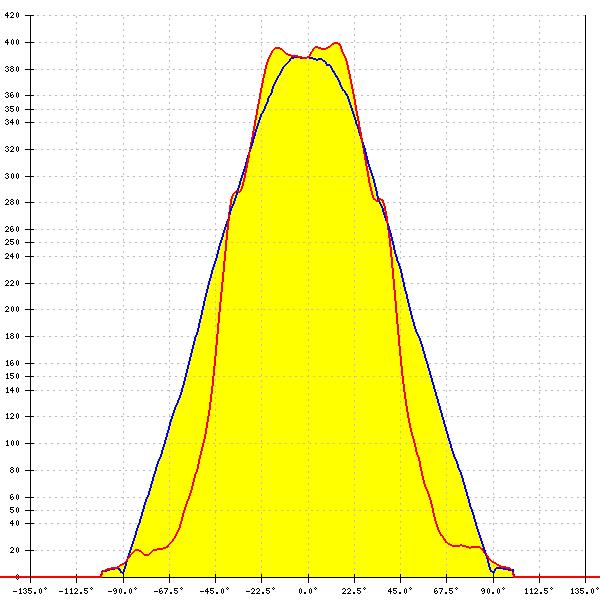

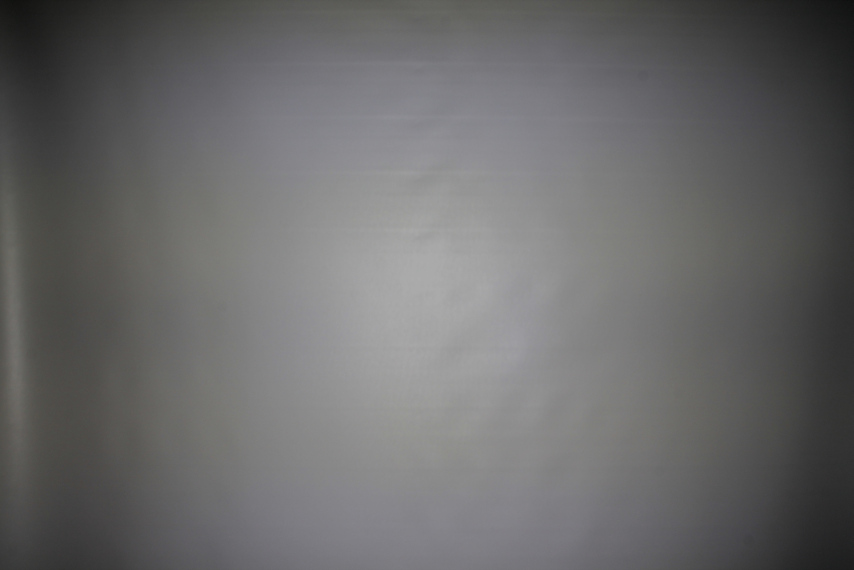

    LED: LT-V562E
    FWHM: 103° + 86°
    FWTM: 164° + 125°
    Peak intensity: 0.400 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

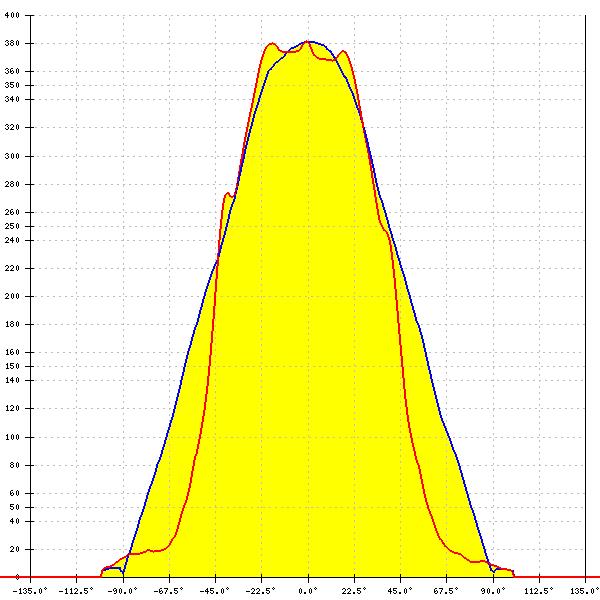

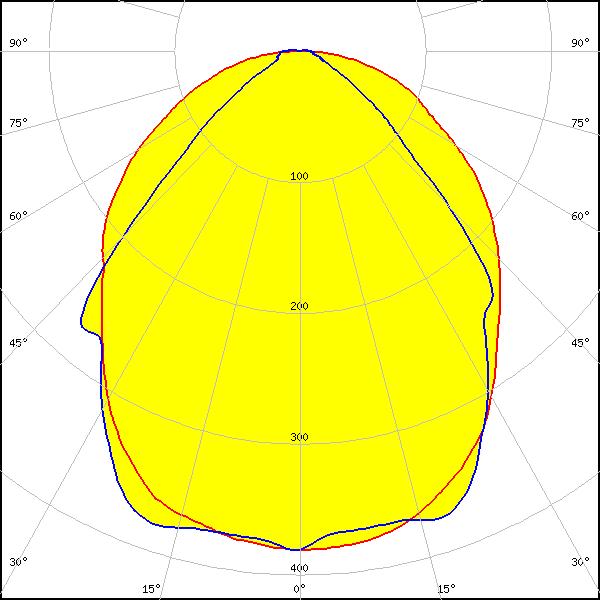

    LED: SEOUL 5630D
    FWHM: 93°
    FWTM: 141°
    Peak intensity: 0.380 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3030
    FWHM: 99° + 88°
    FWTM: 163° + 125°
    Peak intensity: 0.410 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

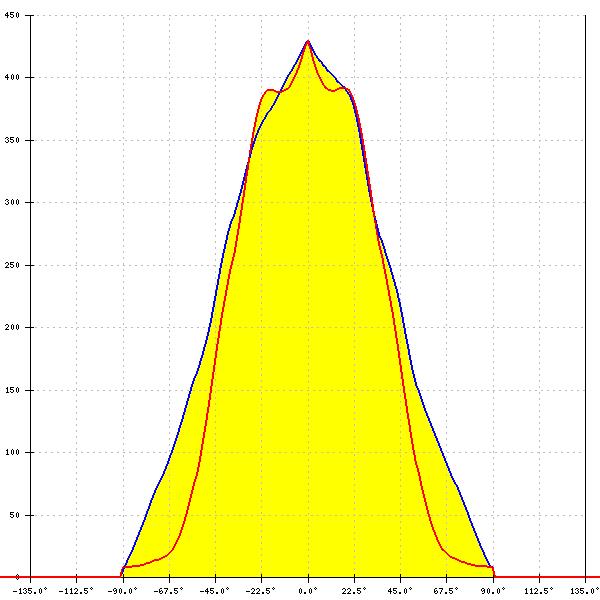

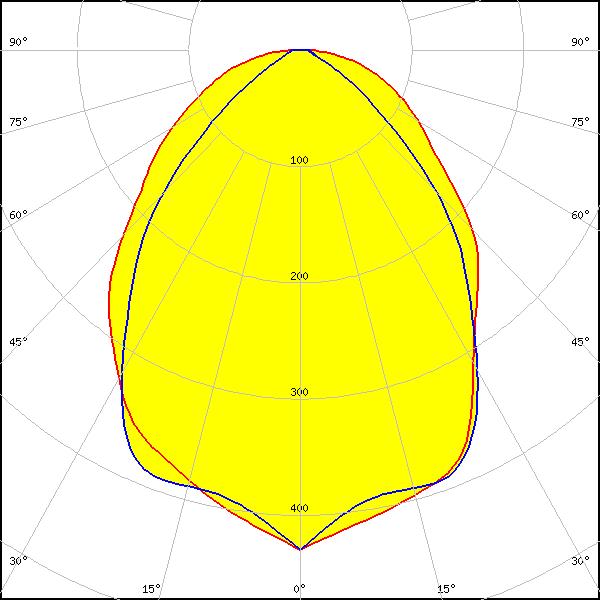

    LED: SEOUL DC 3030C
    FWHM: 91° + 82°
    FWTM: 160° + 120°
    Peak intensity: 0.430 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

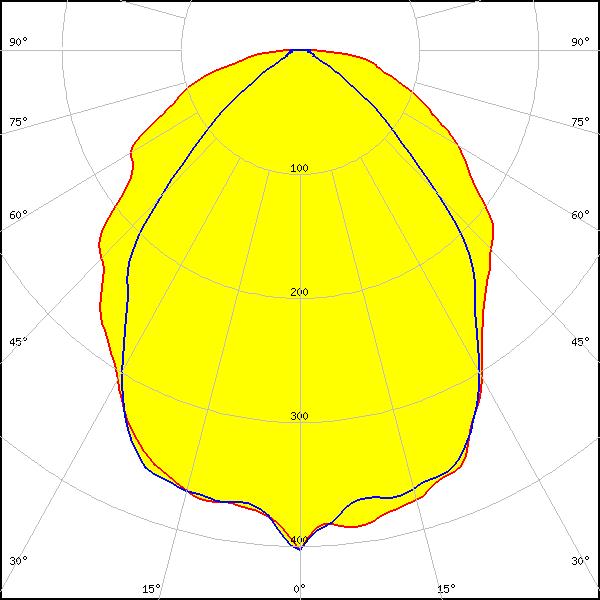

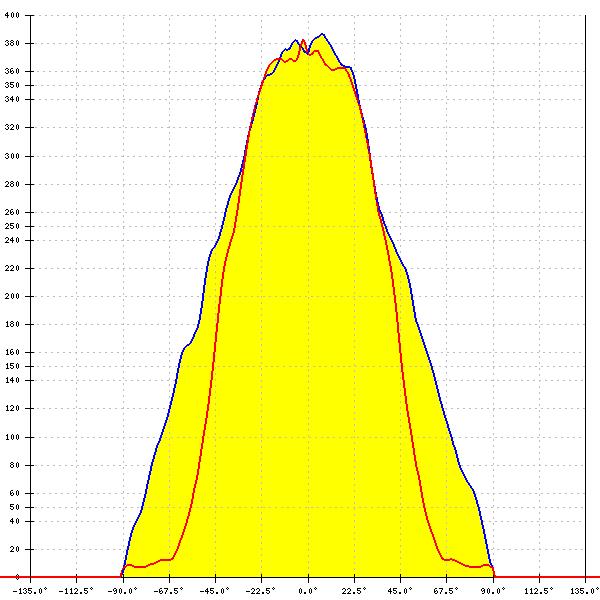

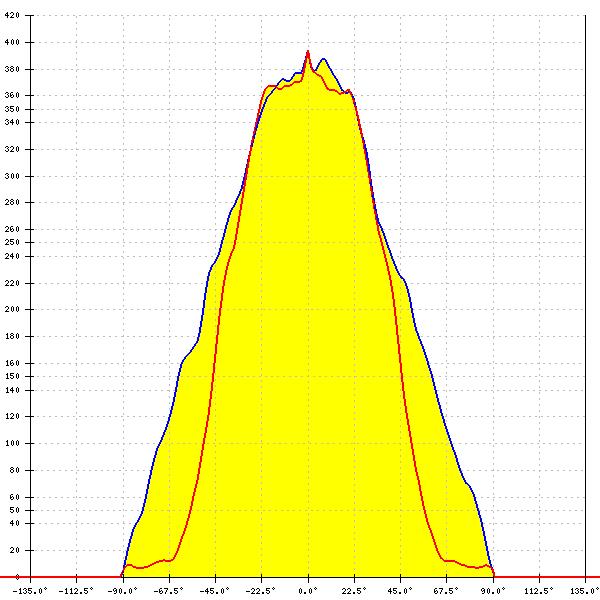

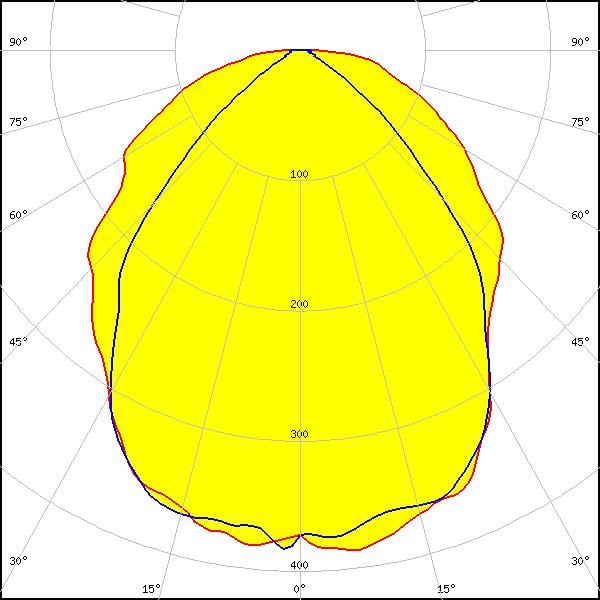

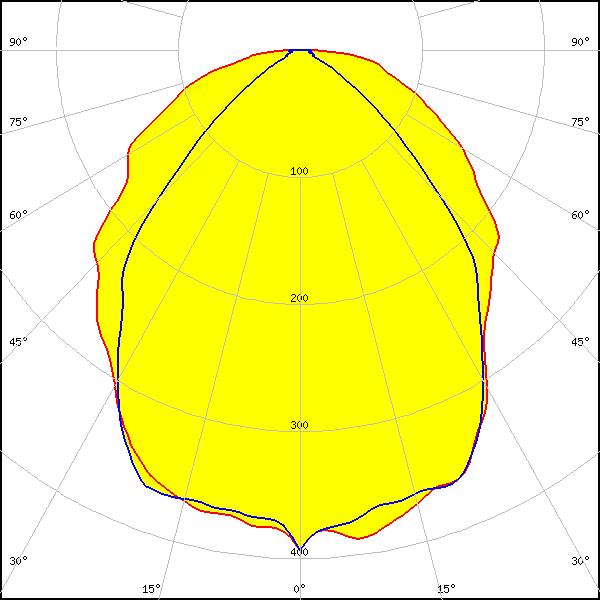

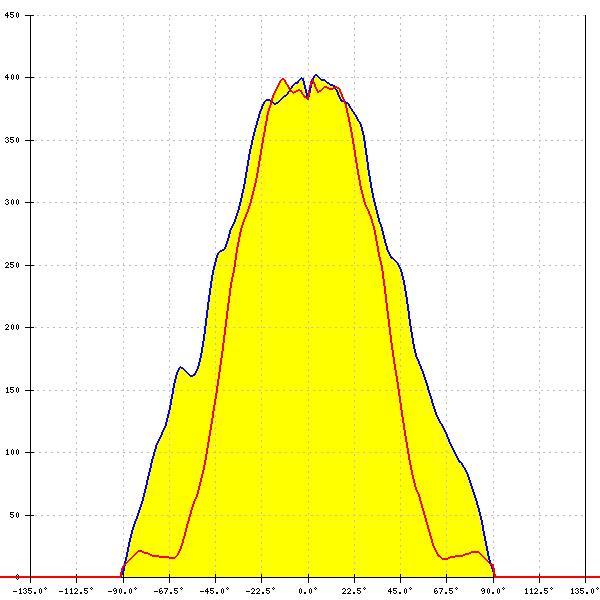

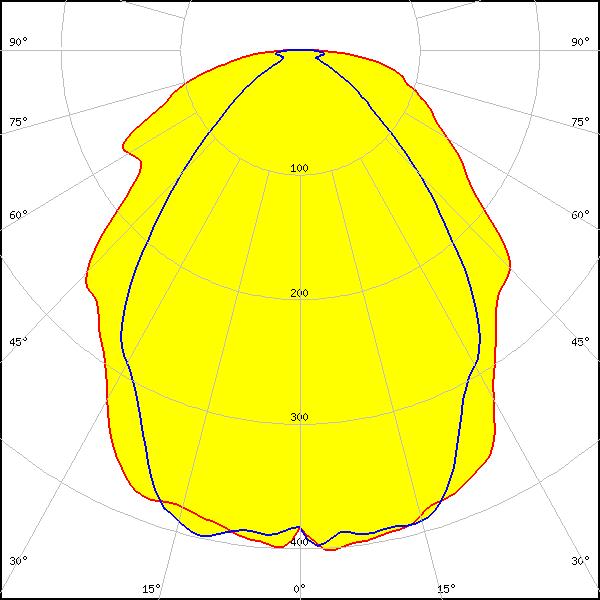

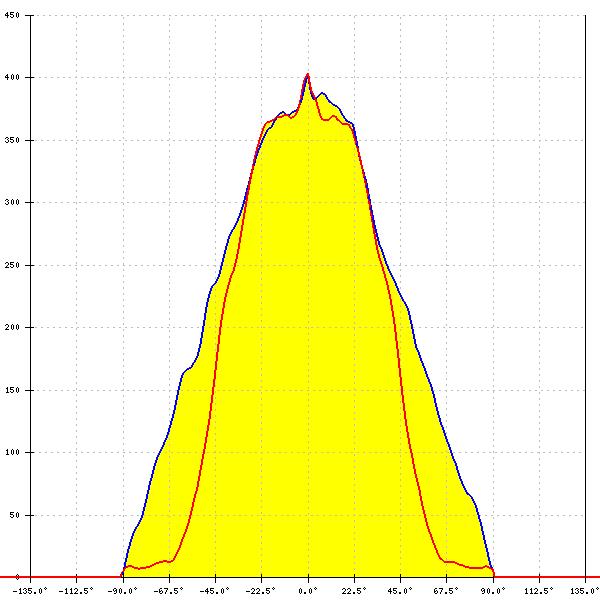

    LED: SEOUL DC 3528
    FWHM: 102° + 86°
    FWTM: 169° + 118°
    Peak intensity: 0.394 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

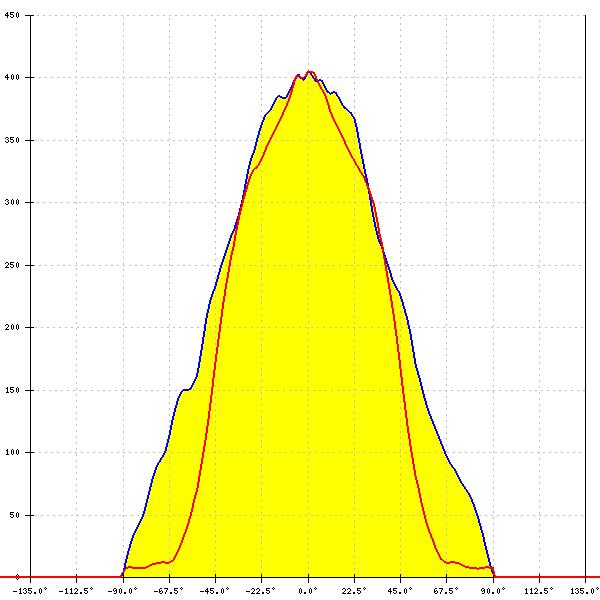

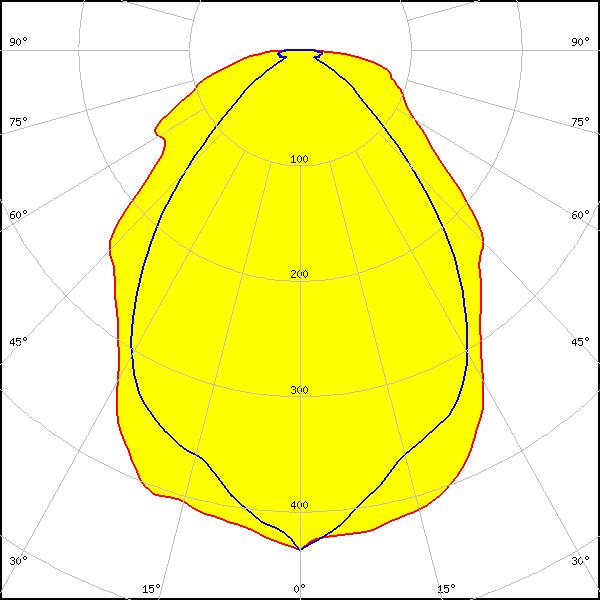

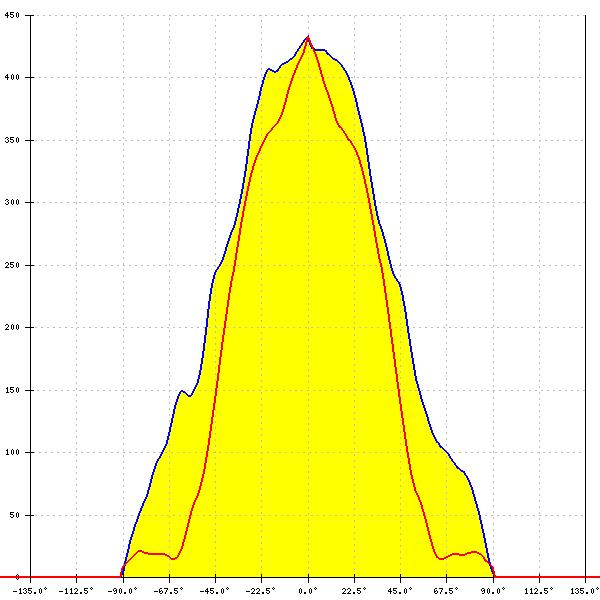

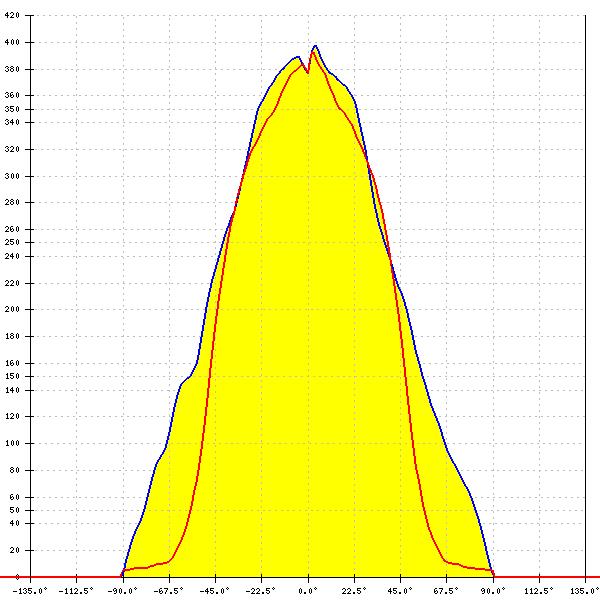

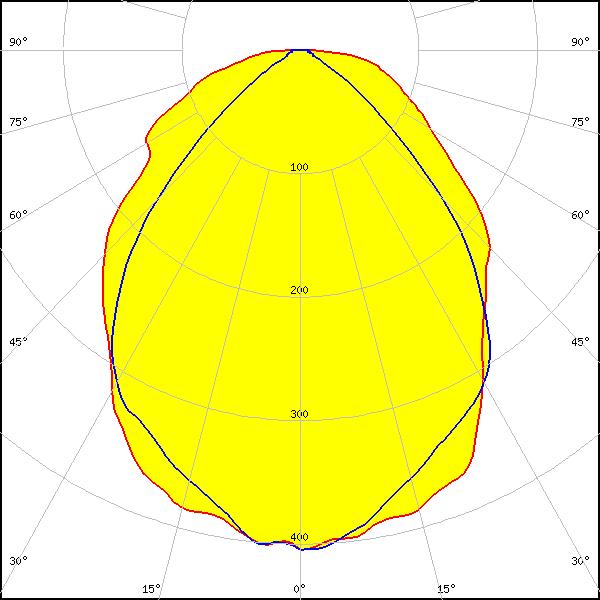

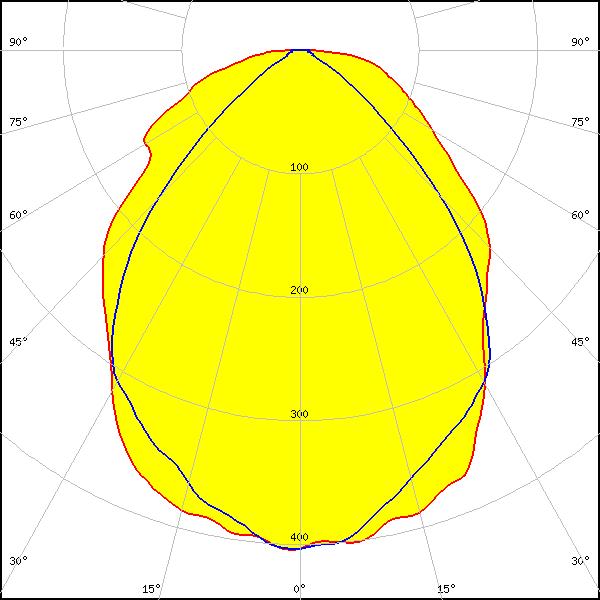

    LED: SEOUL DC 3528
    FWHM: 99° + 84°
    FWTM: 167° + 117°
    Peak intensity: 0.415 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: White

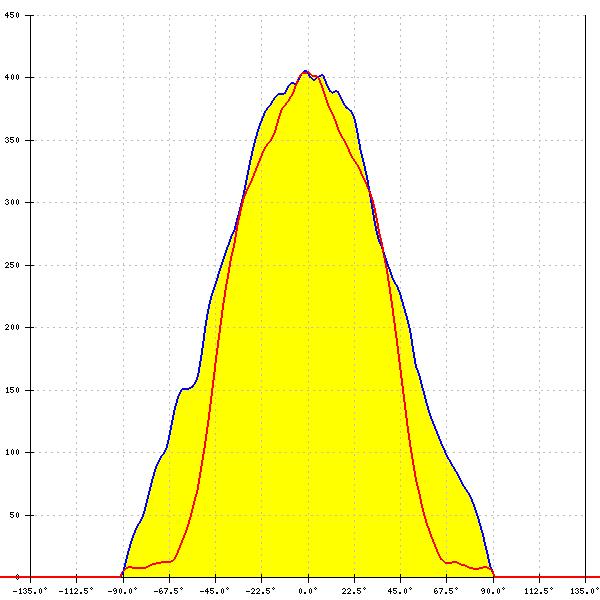

    LED: SEOUL DC 3528
    FWHM: 99° + 88°
    FWTM: 166° + 118°
    Peak intensity: 0.402 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: SEOUL DC 3528
    FWHM: 102° + 84°
    FWTM: 168° + 117°
    Peak intensity: 0.403 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3528
    FWHM: 100° + 80°
    FWTM: 170° + 118°
    Peak intensity: 0.405 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

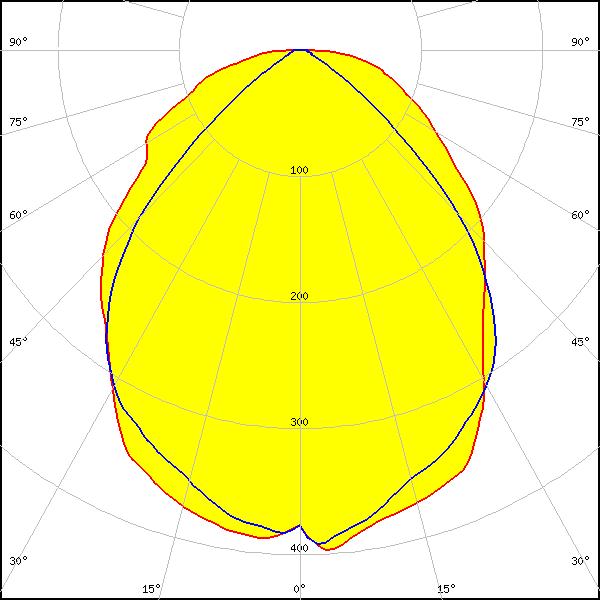

    LED: SEOUL DC 3528
    FWHM: 95° + 78°
    FWTM: 169° + 116°
    Peak intensity: 0.433 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: SEOUL DC 3528
    FWHM: 104° + 86°
    FWTM: 169° + 118°
    Peak intensity: 0.389 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3528
    FWHM: 99° + 84°
    FWTM: 167° + 116°
    Peak intensity: 0.408 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LLE G4 24x280mm 1250lm
    FWHM: 100° + 89°
    FWTM: 163° + 125°
    Peak intensity: 0.400 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LLE G4 24x280mm 2000lm ADV
    FWHM: 98° + 88°
    FWTM: 162° + 124°
    Peak intensity: 0.410 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LLE G4 24x280mm 650lm
    FWHM: 99° + 89°
    FWTM: 163° + 125°
    Peak intensity: 0.410 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
