F15941_LINNEA-60-B
Print

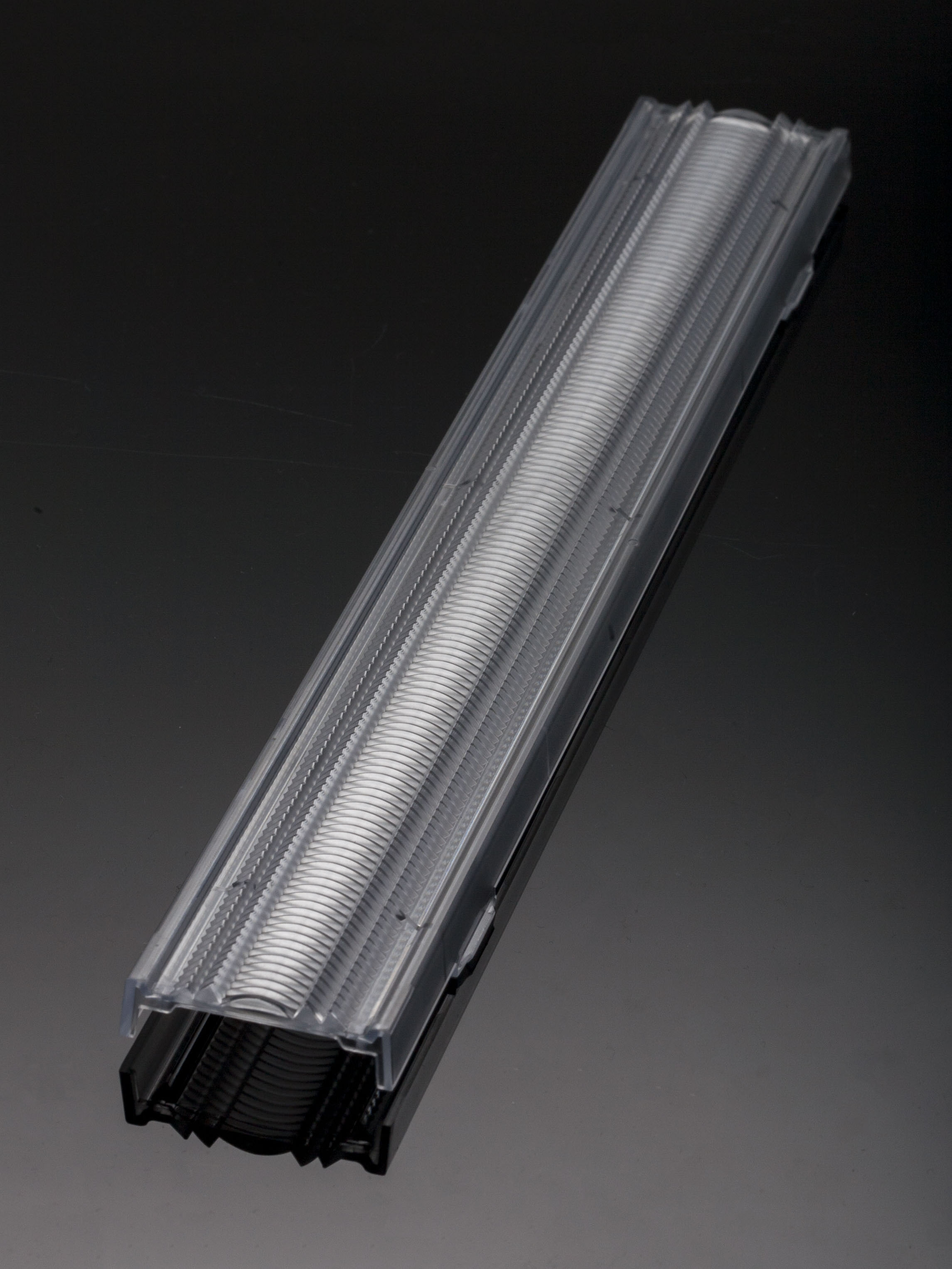

~60° + 90° beam optimized for 0.5 mm metal sheet or profile. Variant made from PC.
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

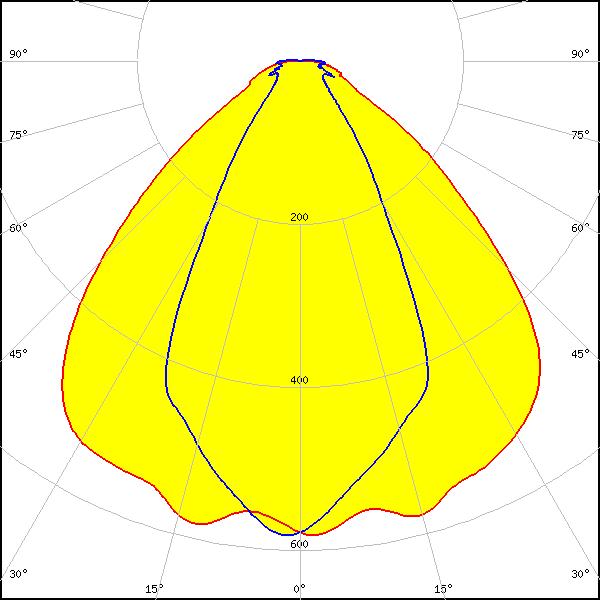

LED:

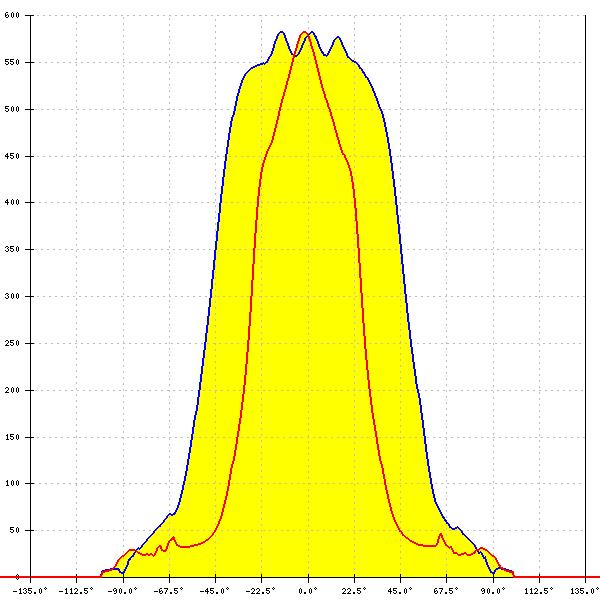

XP-E
FWHM:
96° + 54°
FWTM:
139° + 86°
Peak intensity:
0.590 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

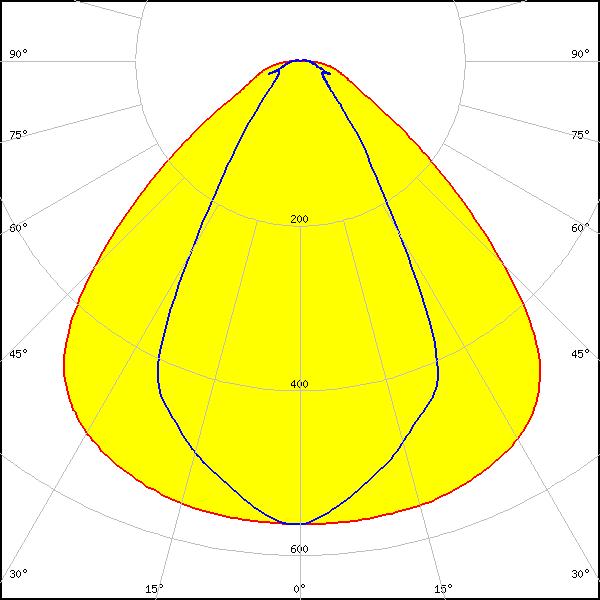

LED:

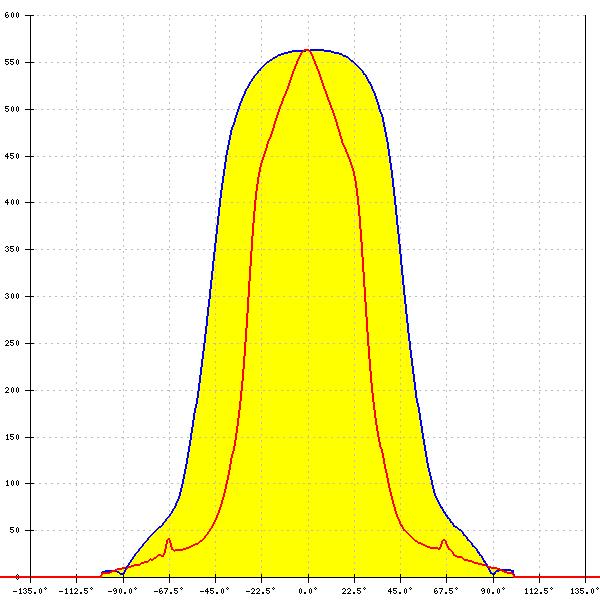

L-iC-282-827-865-011A
FWHM:
97° + 58°
FWTM:
142° + 91°
Peak intensity:
0.560 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

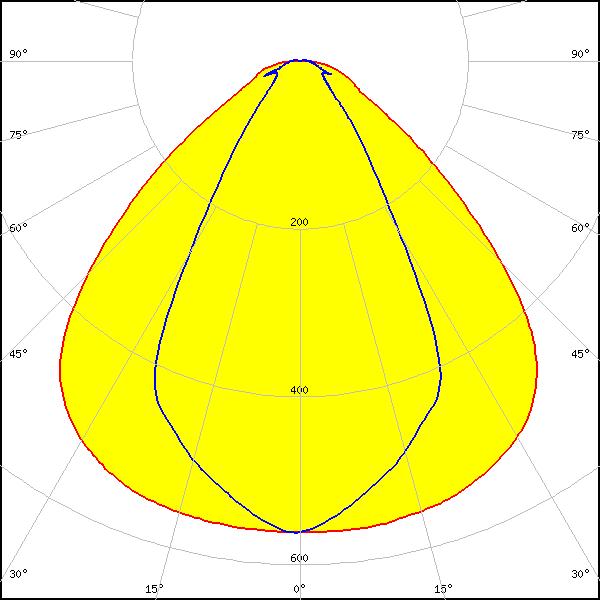

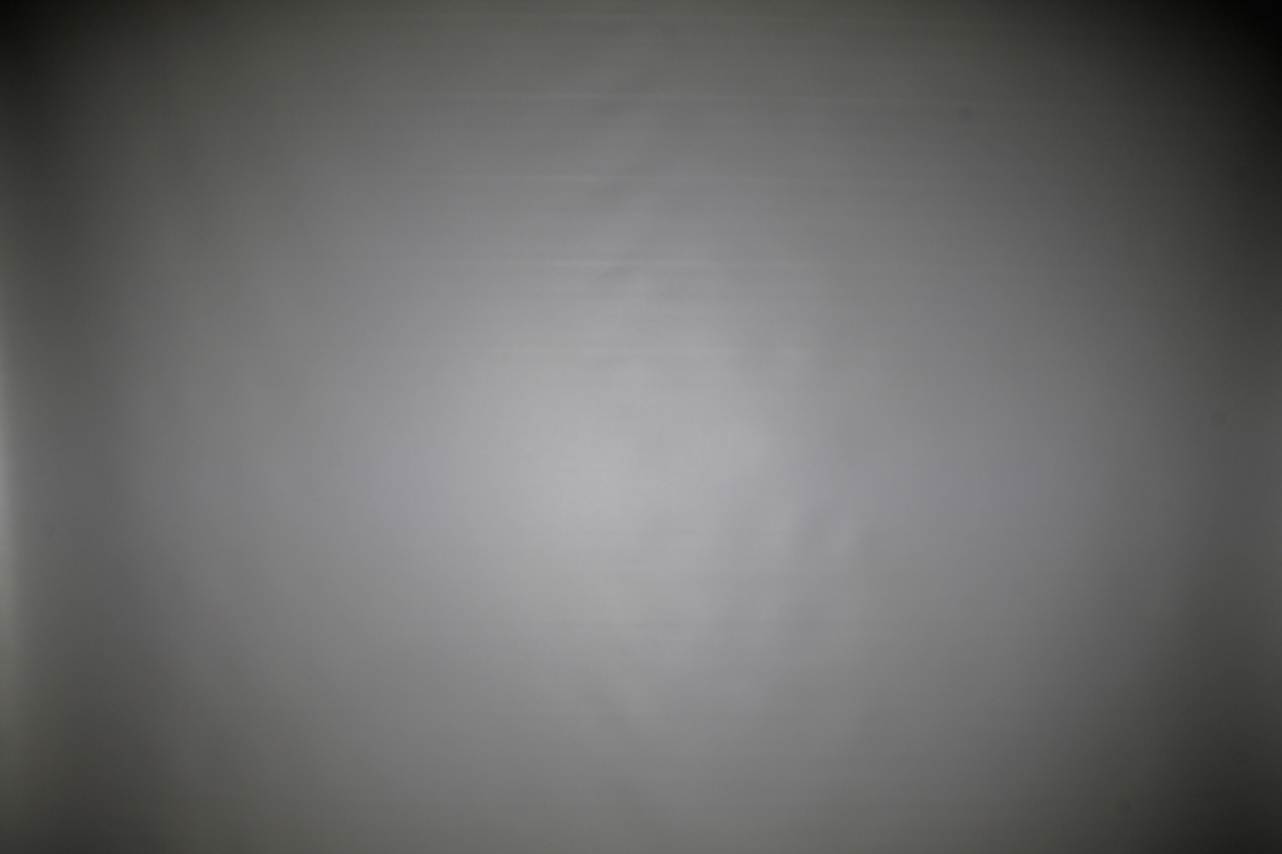

LED:

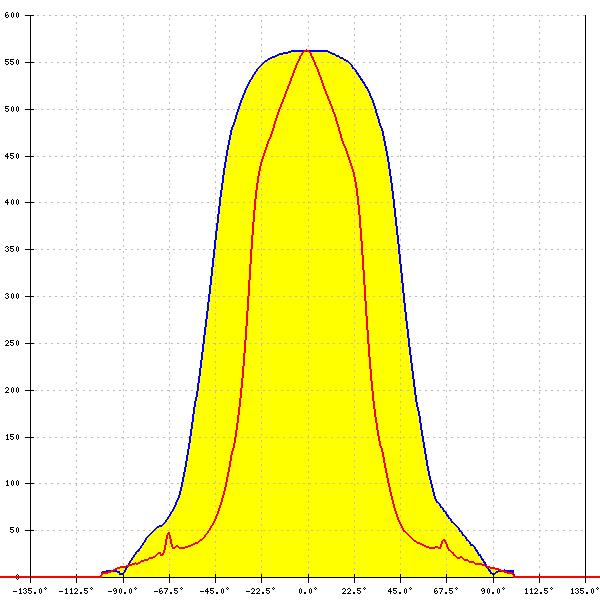

LP-282-840-009A 60/300
FWHM:
97° + 58°
FWTM:
142° + 91°
Peak intensity:
0.560 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

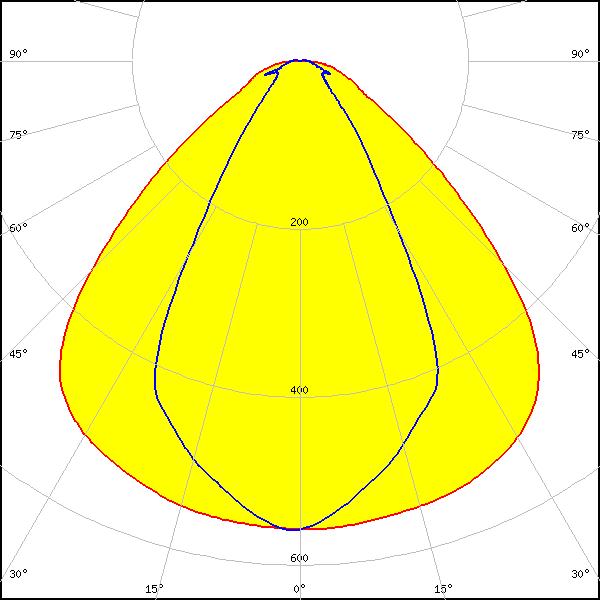

LED:
LS-282-840-011A
FWHM:
97° + 58°
FWTM:
145° + 91°
Peak intensity:
0.560 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

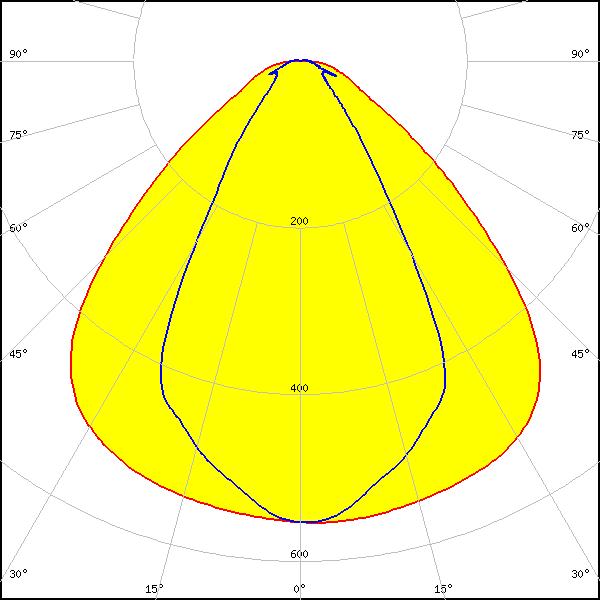

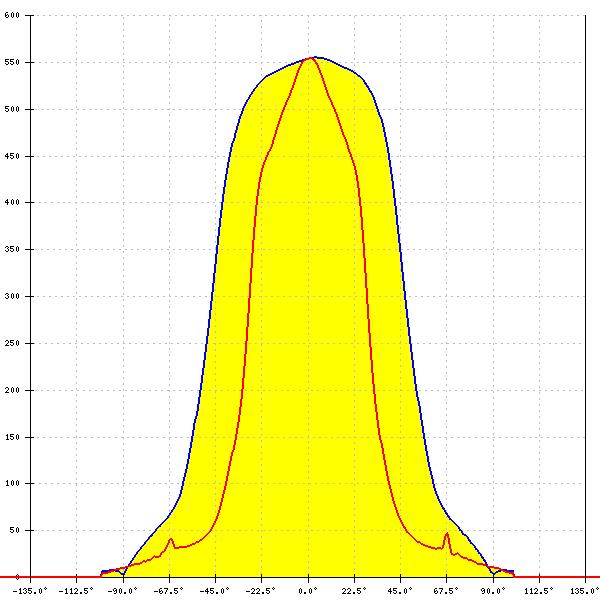

LED:
LX-282-840-023A
FWHM:
96° + 59°
FWTM:
144° + 92°
Peak intensity:
0.550 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

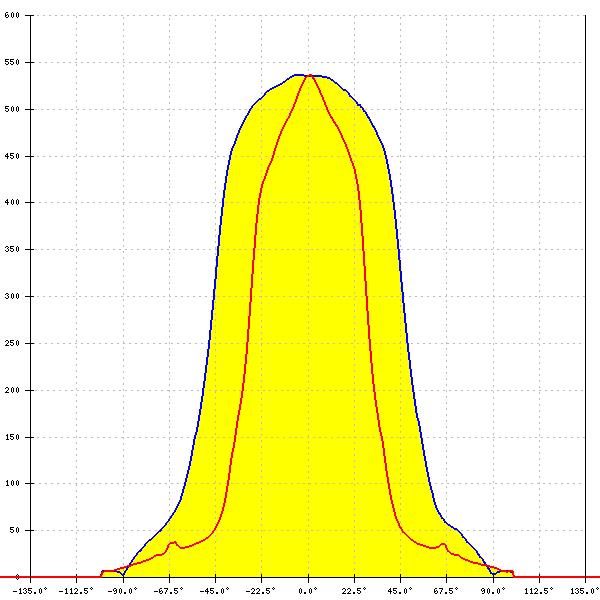

LED:

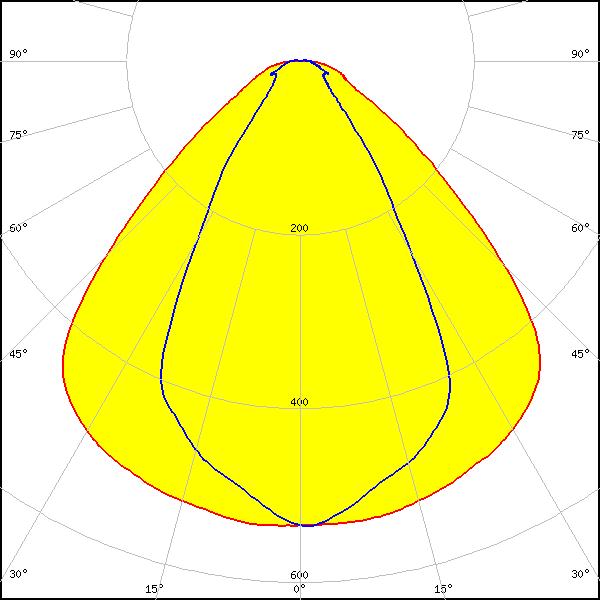

LinLED 280x24mm 1100lm 830 2C 30V LINNEA-GC G1
FWHM:
95° + 58°
FWTM:
141° + 90°
Peak intensity:
0.560 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

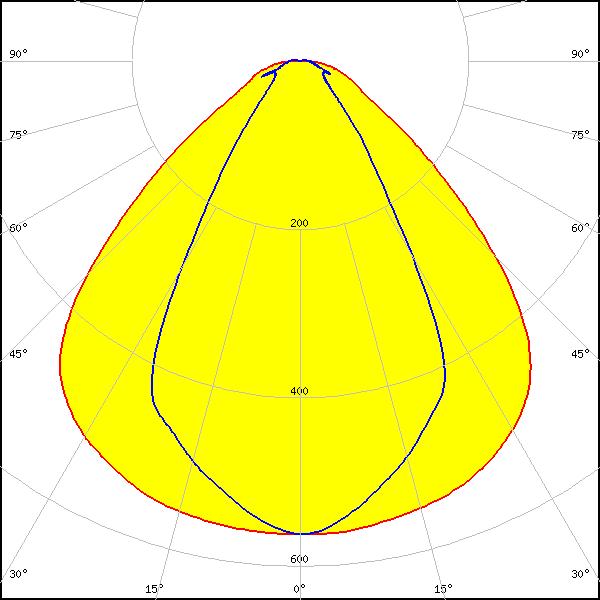

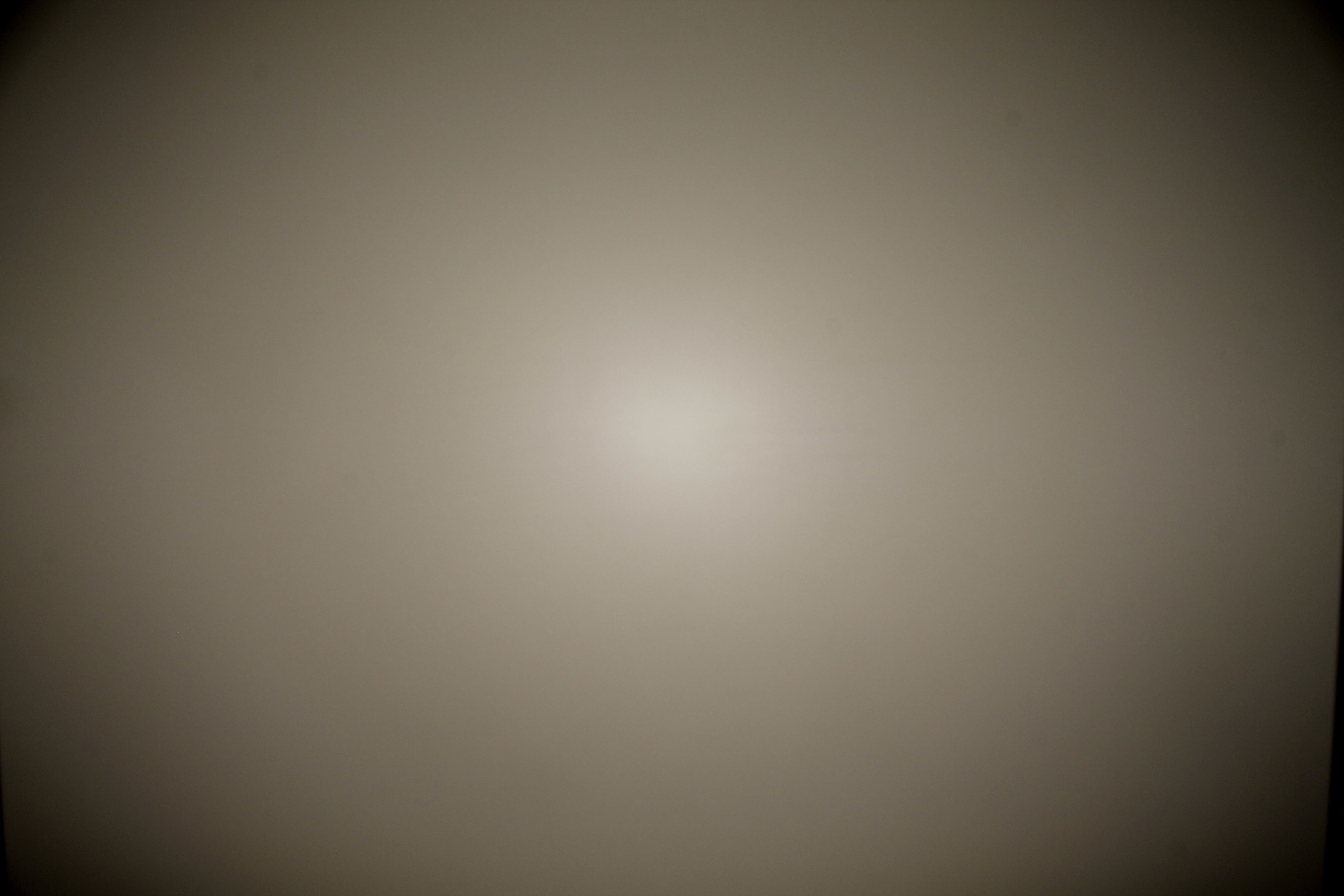

LED:
NFSW757H
FWHM:
96° + 60°
FWTM:
145° + 93°
Peak intensity:
0.563 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

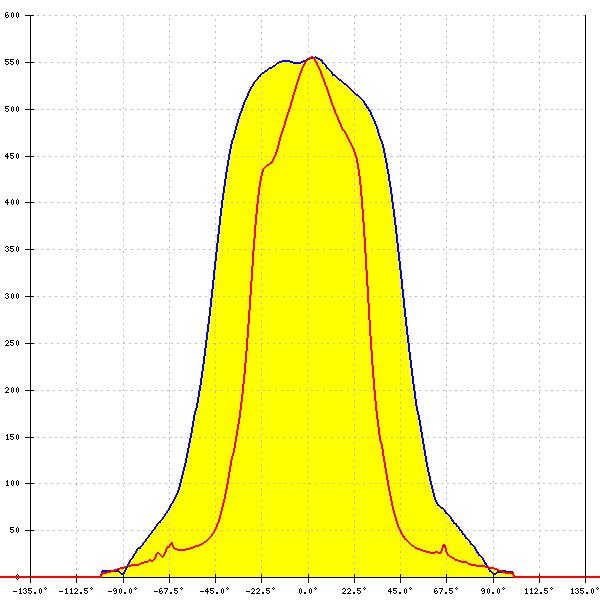

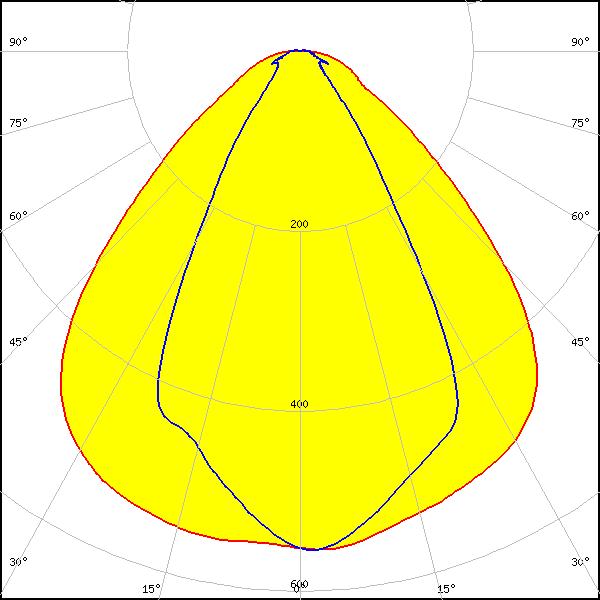

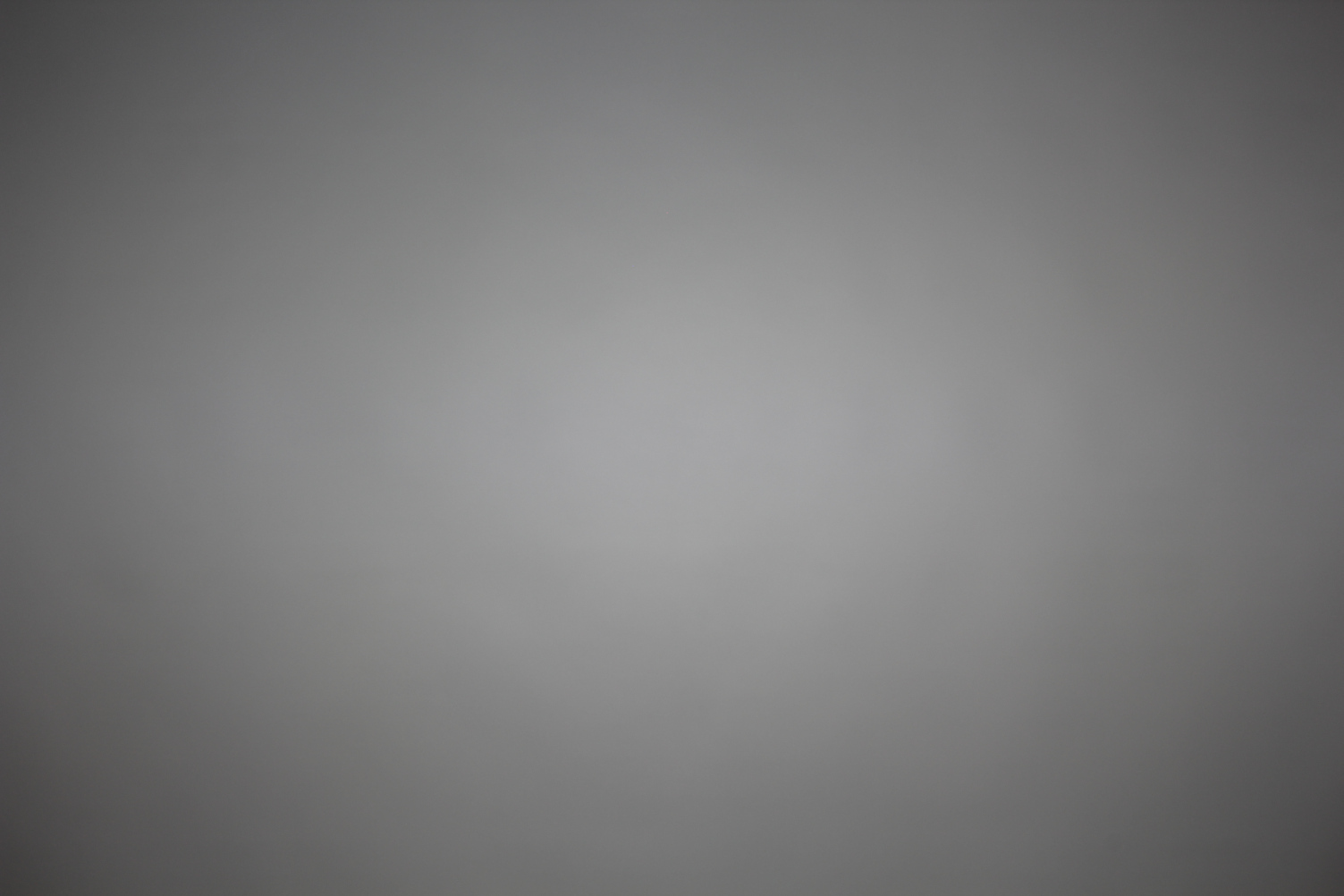

LED:
NFSx757G
FWHM:
96° + 59°
FWTM:
145° + 88°
Peak intensity:
0.560 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

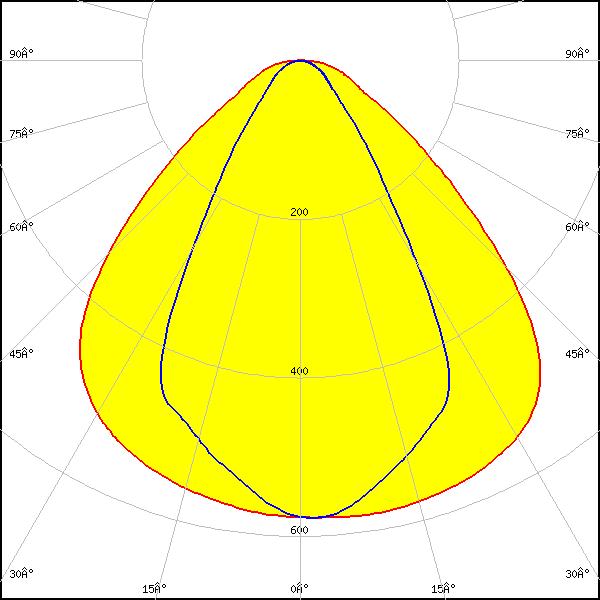

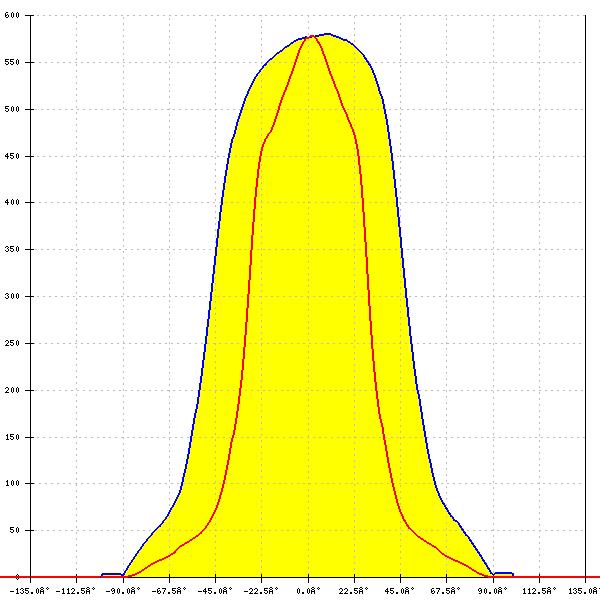

PL-LIN-IND-Z1 2800 560x24
FWHM:
96° + 60°
FWTM:
144° + 96°
Peak intensity:
0.581 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

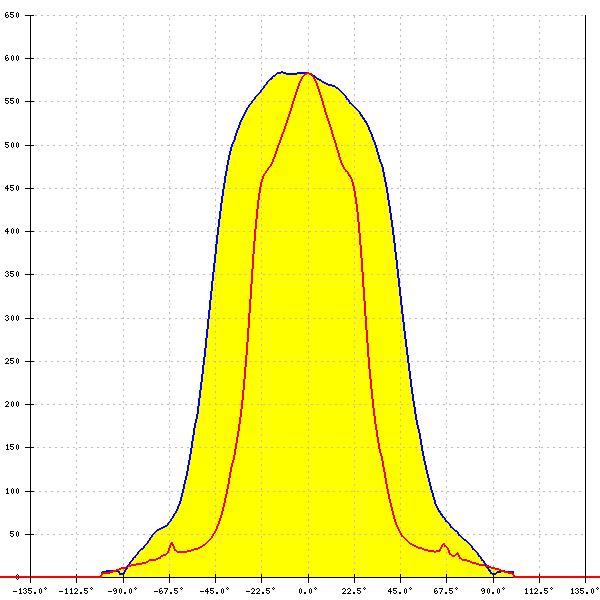

LED:

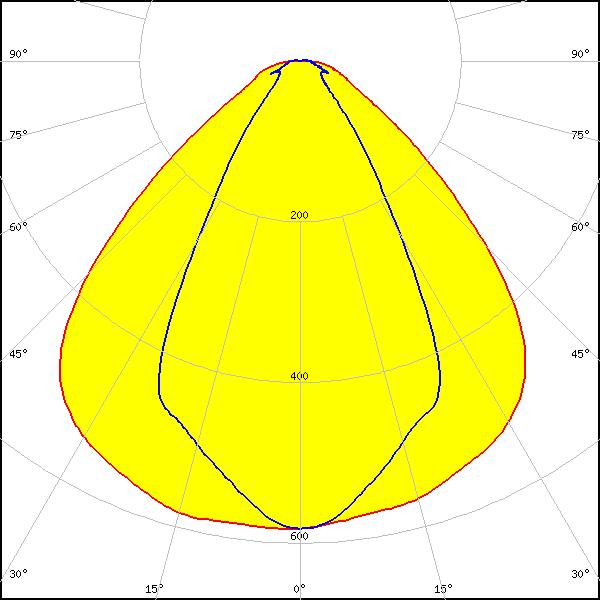

Duris S5 (2 chip)
FWHM:
95° + 57°
FWTM:
140° + 88°
Peak intensity:
0.580 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

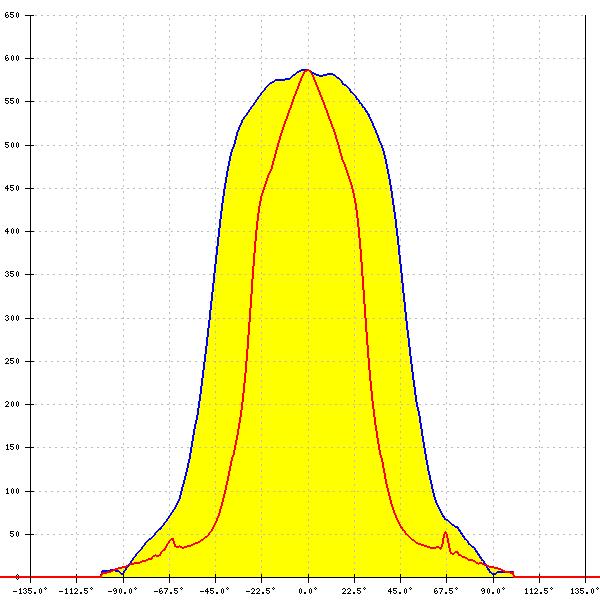

LED:

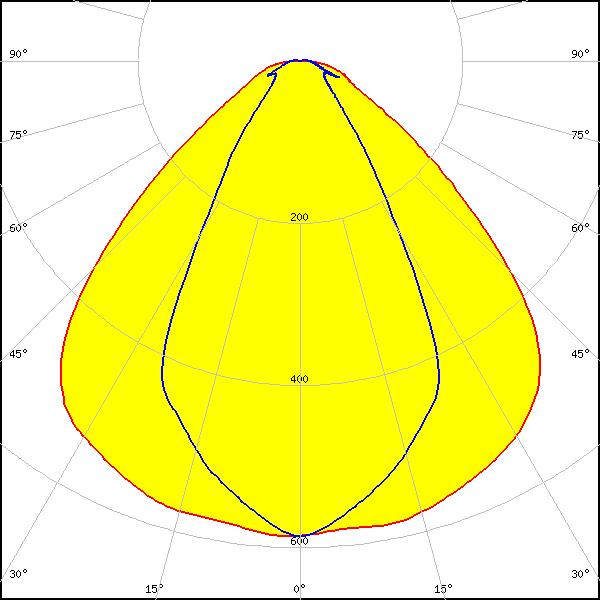

Duris S5 (Single chip)
FWHM:
96° + 57°
FWTM:
143° + 91°
Peak intensity:
0.590 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

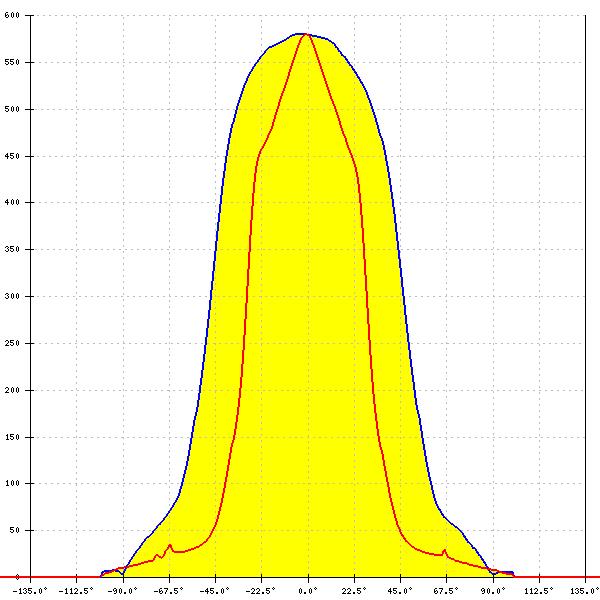

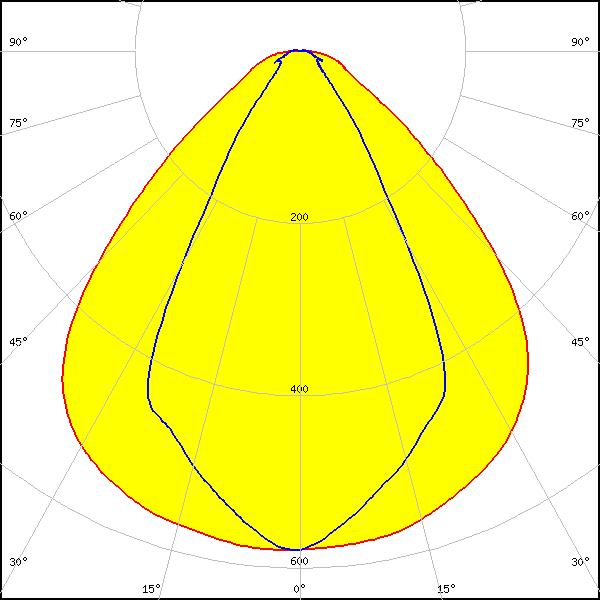

LED:
Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
FWHM:
95° + 59°
FWTM:
141° + 88°
Peak intensity:
0.580 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Strip 1ft 1100lm FC HV5 & LV5
FWHM:
97° + 58°
FWTM:
145° + 95°
Peak intensity:
0.588 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

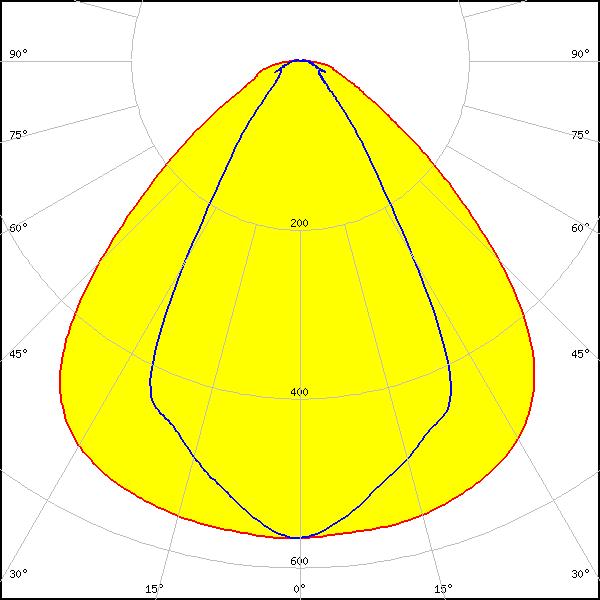

LED:

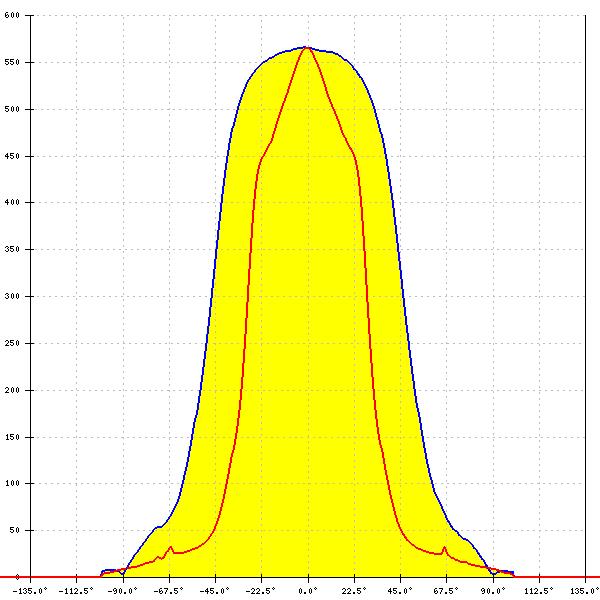

Fortimo LED Strip 1ft 650lm FC HV4 & LV4
FWHM:
95° + 59°
FWTM:
139° + 89°
Peak intensity:
0.570 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Strip 1ft 650lm FC HV5 & LV5
FWHM:
96° + 58°
FWTM:
143° + 94°
Peak intensity:
0.607 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

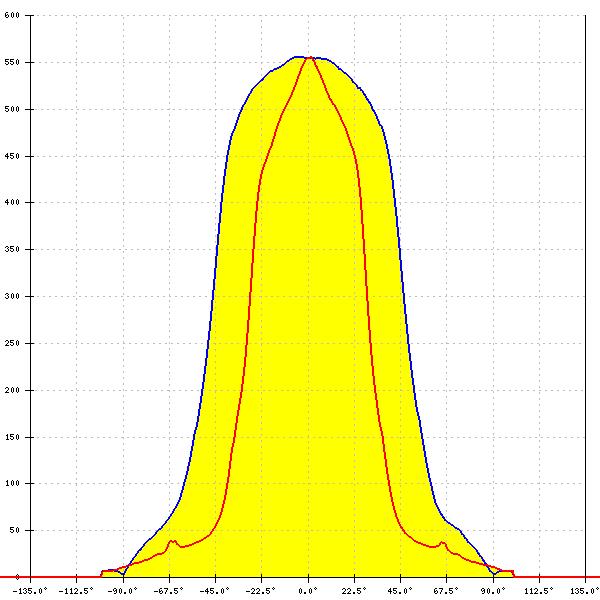

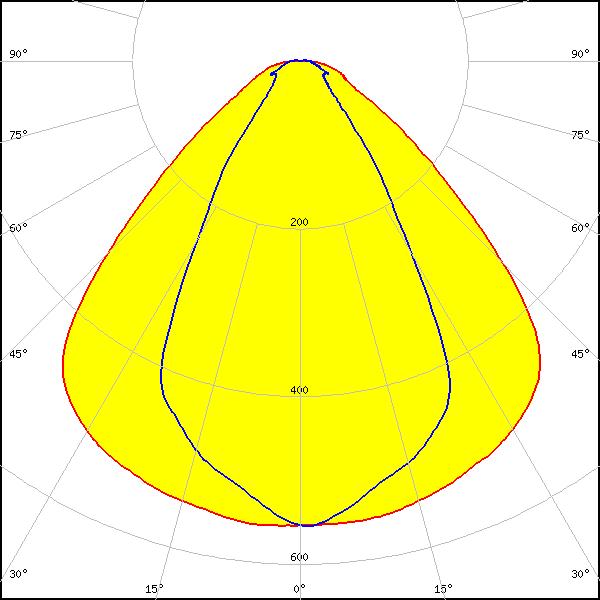

LED:
LM561B Plus
FWHM:
95° + 58°
FWTM:
141° + 90°
Peak intensity:
0.560 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

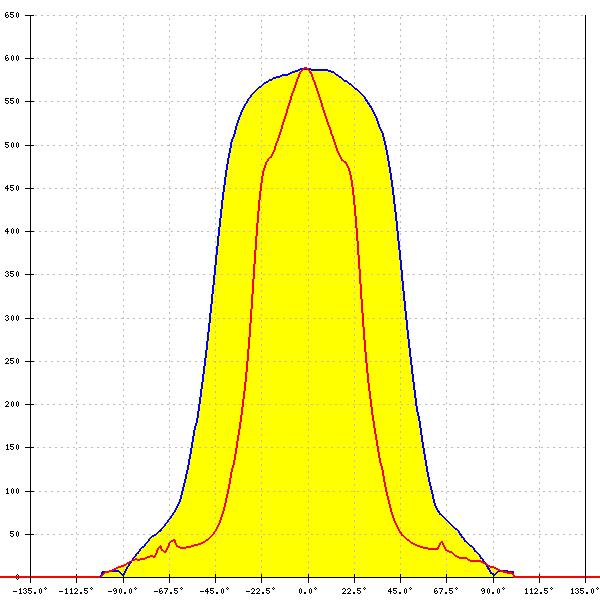

LED:
LT-H282C
FWHM:
96° + 55°
FWTM:
141° + 87°
Peak intensity:
0.600 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

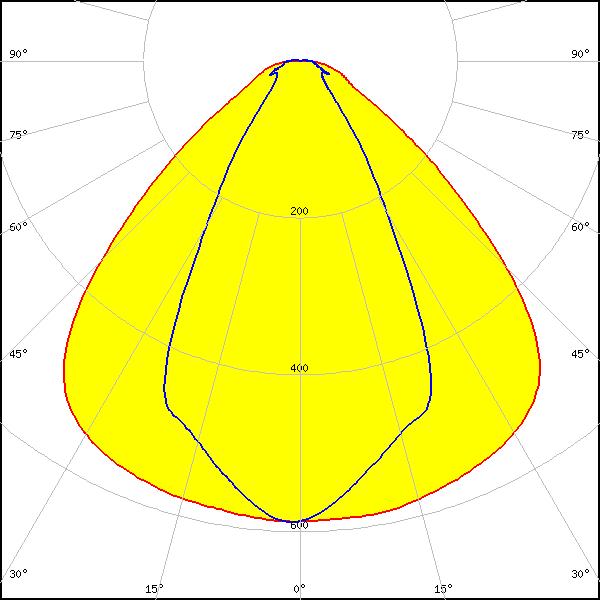

LED:
LT-H562C
FWHM:
96° + 55°
FWTM:
141° + 87°
Peak intensity:
0.600 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

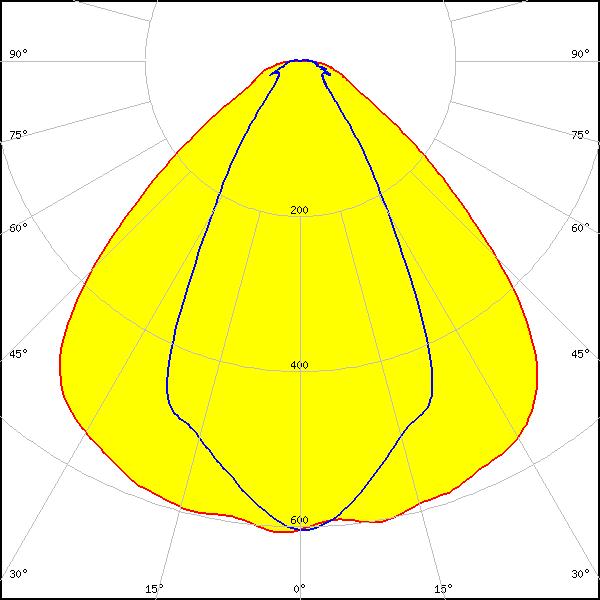

LED:
LT-Q282B
FWHM:
95° + 54°
FWTM:
138° + 86°
Peak intensity:
0.610 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

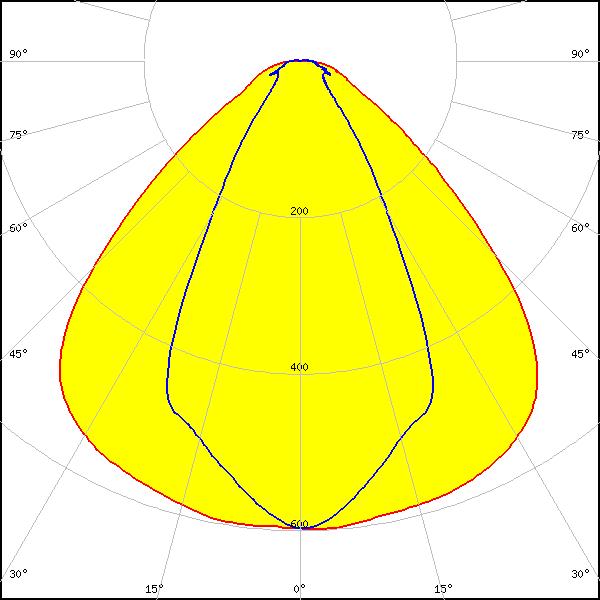

LT-S282H
FWHM:
96° + 54°
FWTM:
140° + 86°
Peak intensity:
0.600 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

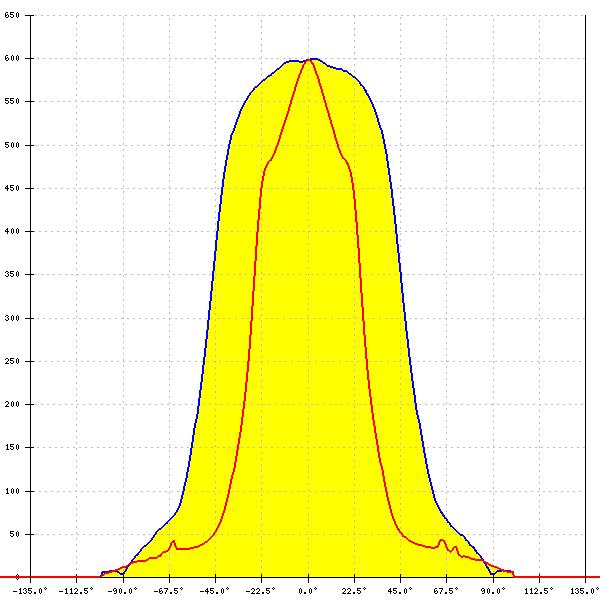

LT-S562H
FWHM:
96° + 54°
FWTM:
140° + 86°
Peak intensity:
0.600 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

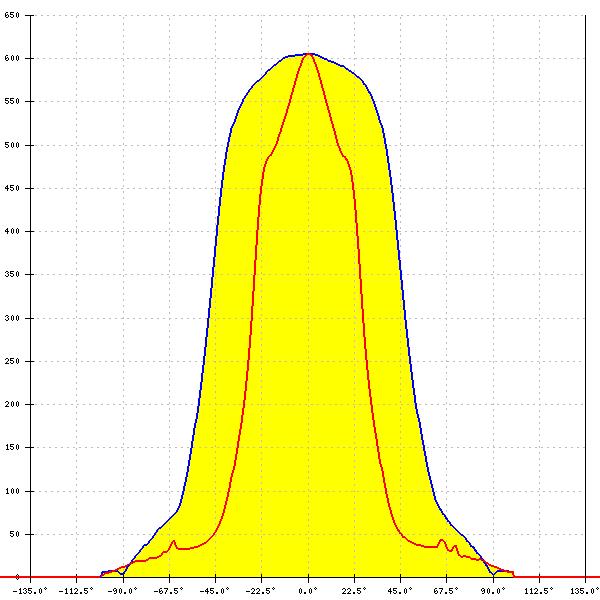

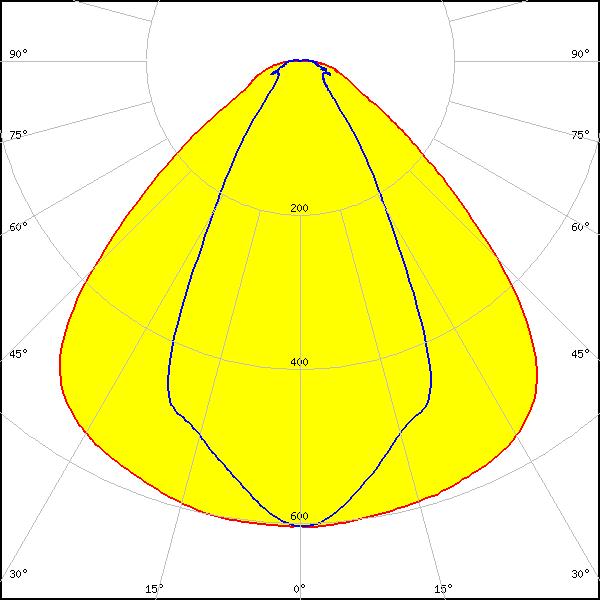

LED:
LT-V282E
FWHM:
96° + 54°
FWTM:
140° + 86°
Peak intensity:
0.610 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LT-V562E
FWHM:
96° + 54°
FWTM:
140° + 86°
Peak intensity:
0.610 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030
FWHM:
96° + 57°
FWTM:
139° + 88°
Peak intensity:
0.600 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

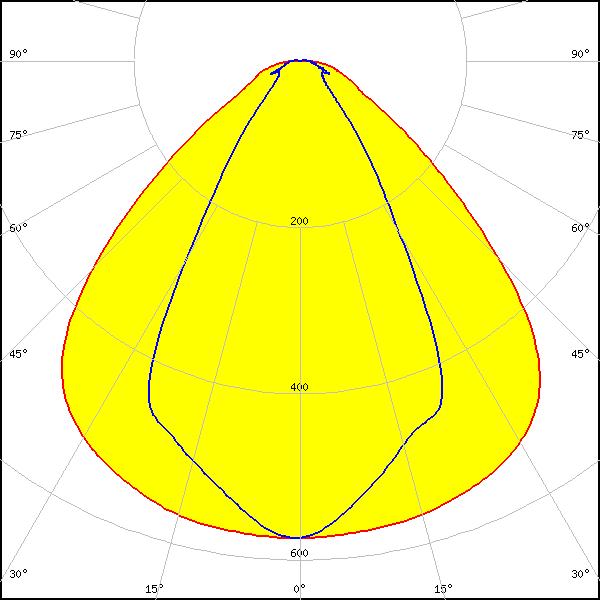

LLE G4 24x280mm 1250lm
FWHM:
96° + 58°
FWTM:
141° + 88°
Peak intensity:
0.570 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

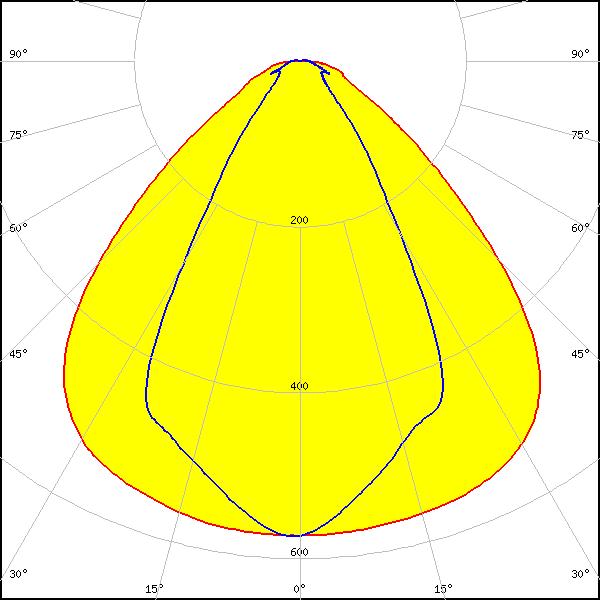

LED:
LLE G4 24x280mm 650lm
FWHM:
95° + 59°
FWTM:
140° + 89°
Peak intensity:
0.570 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
