    F16048_LINNEA-UP

    Print

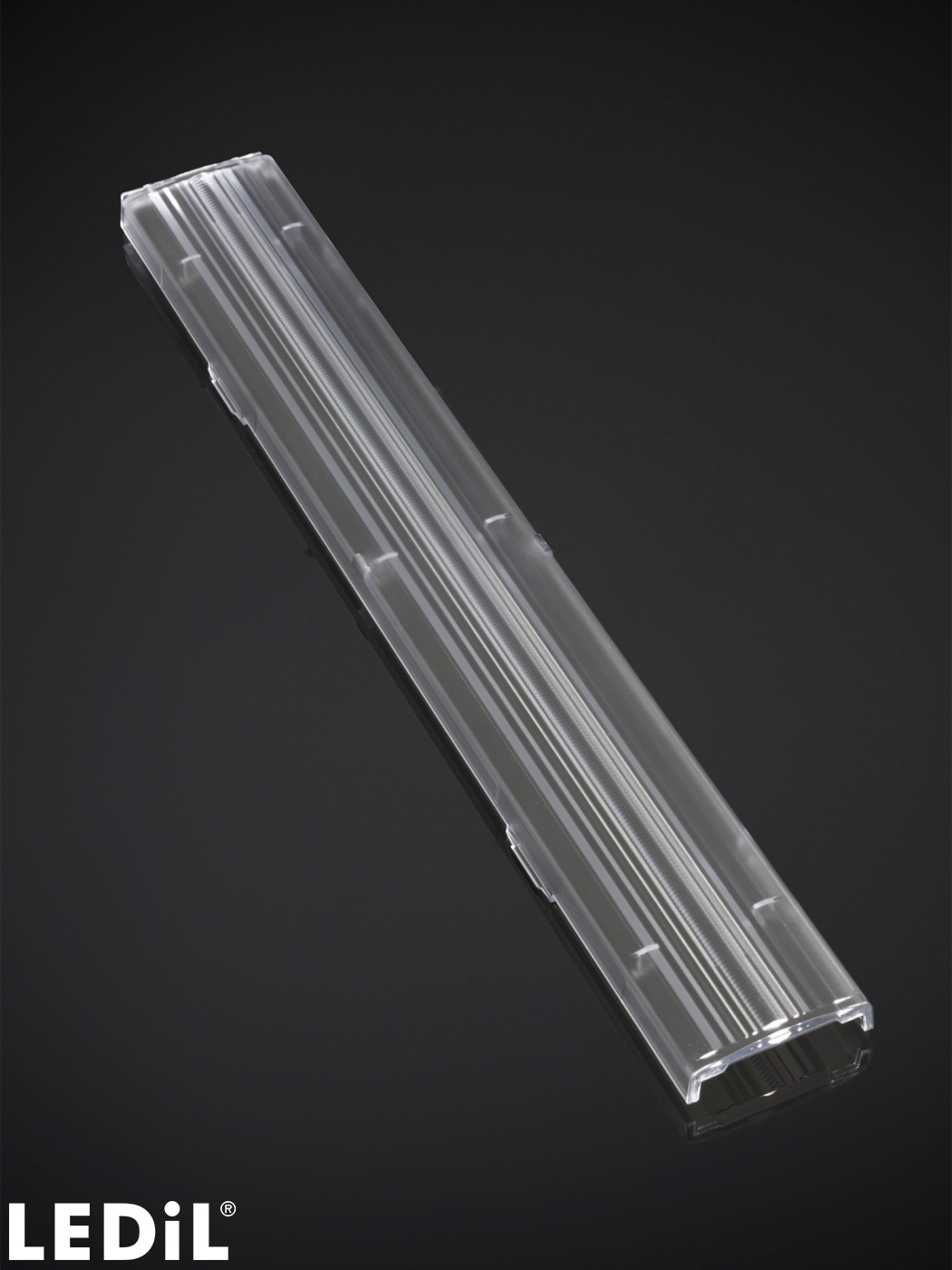

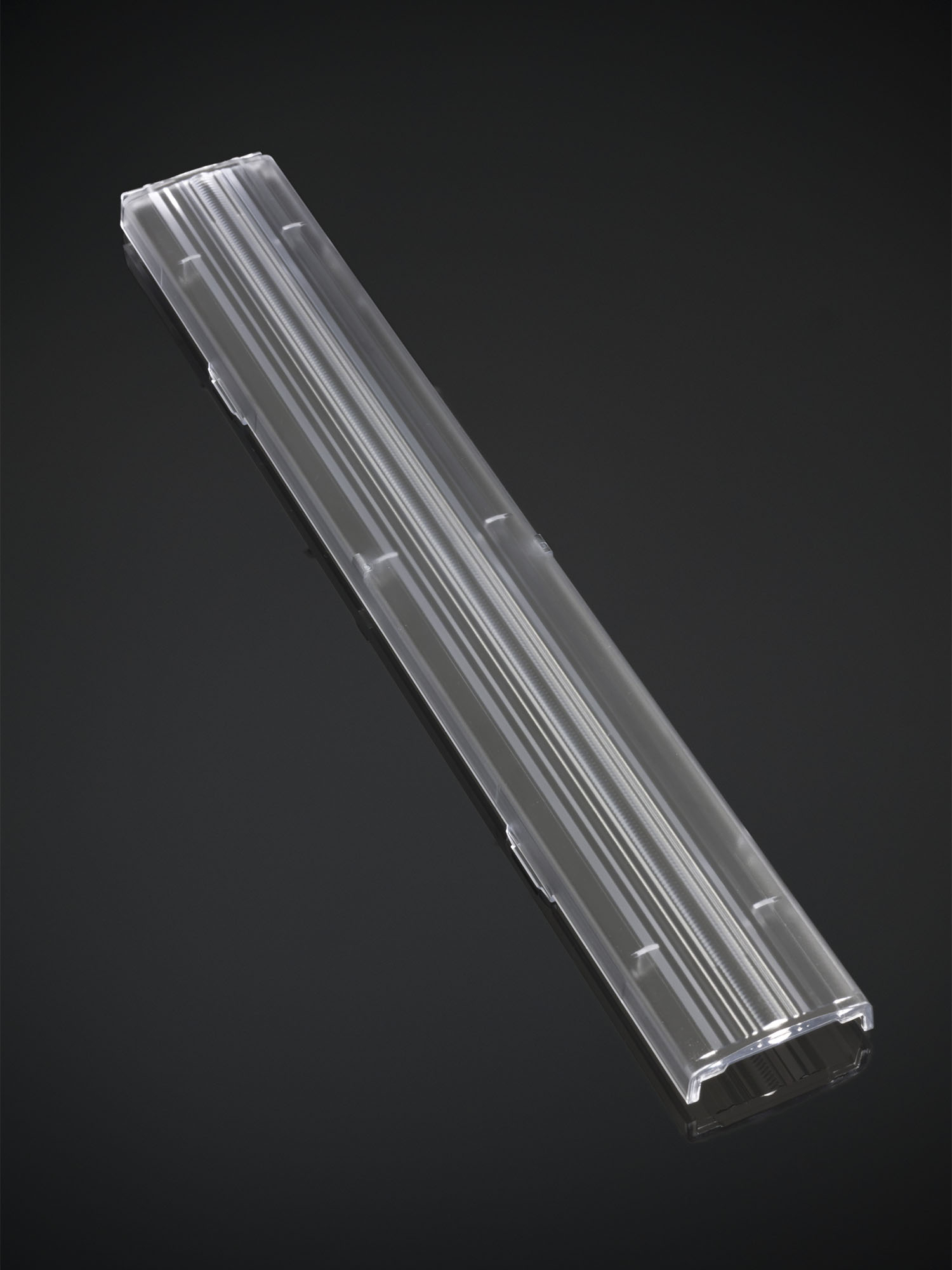

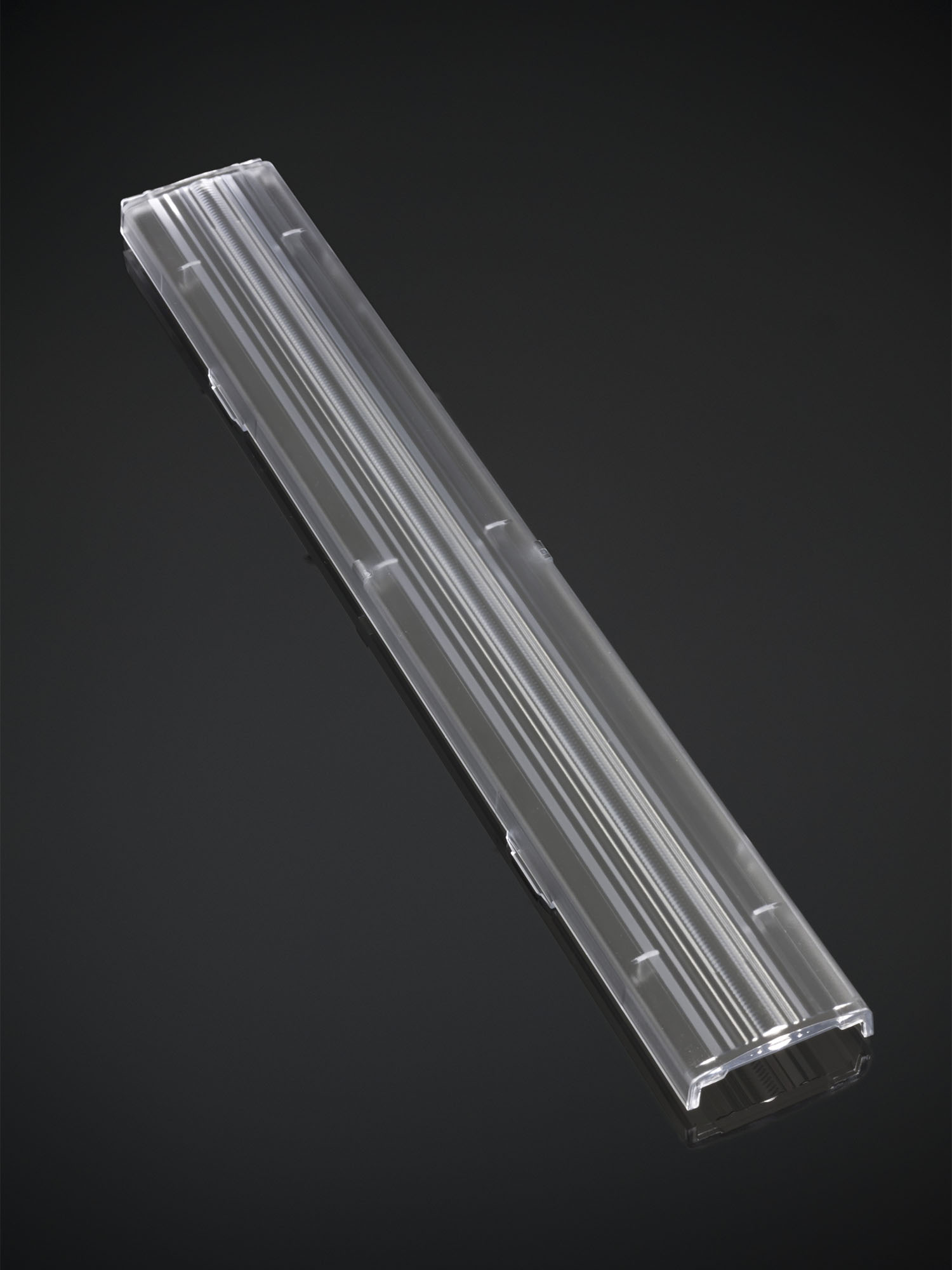

    Asymmetric beam for uplighting optimized for 1.0 mm metal sheet or profile. Variant made from PC.

    Specification
    • Dimensions:
      285 x  40 mm
    • Height:
      10.30 mm
    • Fastening:
      clips
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      162 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      8.2 kg
    • MPQ:
      9 pcs
    • MOQ:
      36 pcs
    • MOQ size:
      400 x 300 x 70 mm
    • MOQ weight:
      1.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F16048_LINNEA-UP
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    Guide for Office Lighting Optics

    PCN

    Product change notification NR165 - Change of packaging method and packaging amounts

    PCN

    Product change notification NR158- Change of design of LINNEA family

    Reference product

    Dazzle light office lighting

    Article

    Office luminaire examples from LEDiL

    Application example

    Office meeting room lighting with DAISY

    Application example

    Open office lighting with DAISY (Task related)

    News

    PRODUCT NEWS - LINNEA-UP

    Application example

    Industrial lighting with FLORENCE2-Z90 and LINNEA-UP

    Application guide

    Guide for Retail Lighting Optics

    PCN

    Product change notification NR180 – Update for PCN 158-Change of design in LINNEA product family

    News

    Effective fashion retail lighting

    Luminaire, example

    Linear luminaire with LINNEA

    Article

    Illuminating supermarkets with LEDiL optics

    News

    Linear lighting solutions

    Article

    Understanding the standards but aiming higher

    Article

    Stylish yet functional LED office lighting

    2D Mechanical drawing

    C16056_LINNEA-METAL-PROFILE_20161215

    3D Mechanical model

    C16056_LINNEA-METAL-PROFILE_20161215

    2D Mechanical drawing

    C16057_ALUMINIUM-EXTRUSION-PROFILE_20161215

    3D Mechanical model

    C16057_ALUMINIUM-EXTRUSION-PROFILE_20161215

    3D Mechanical model

    C16055_LINNEA-METAL-SHEET_20161215

    2D Mechanical drawing

    C16055_LINNEA-METAL-SHEET_20161215

    News

    New Products - 2018-05-09

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application area

    Office Lighting

    Customer story

    Greenled

    AVAILABLE LEDiL ACCESSORIES

    LINNEA-END-MS

    Short, male end cap compatible with LINNEA

    LINNEA-END-FS

    Short, female end cap compatible with LINNEA

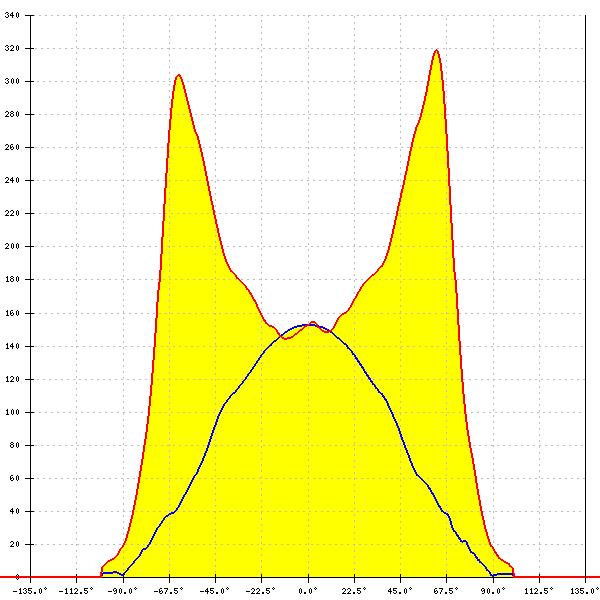

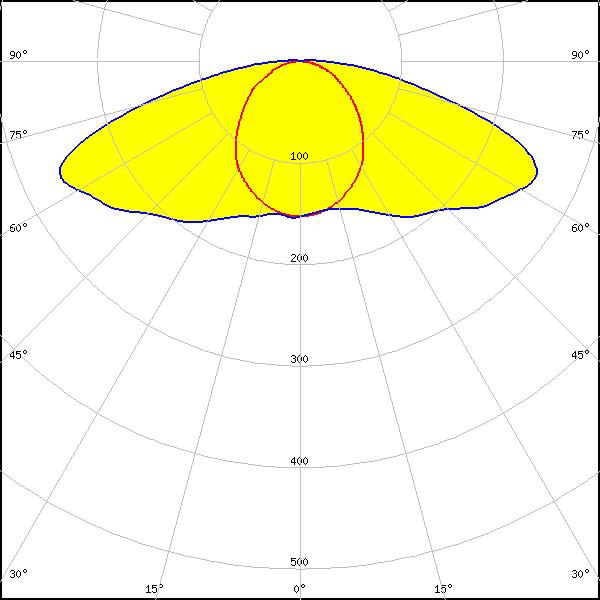

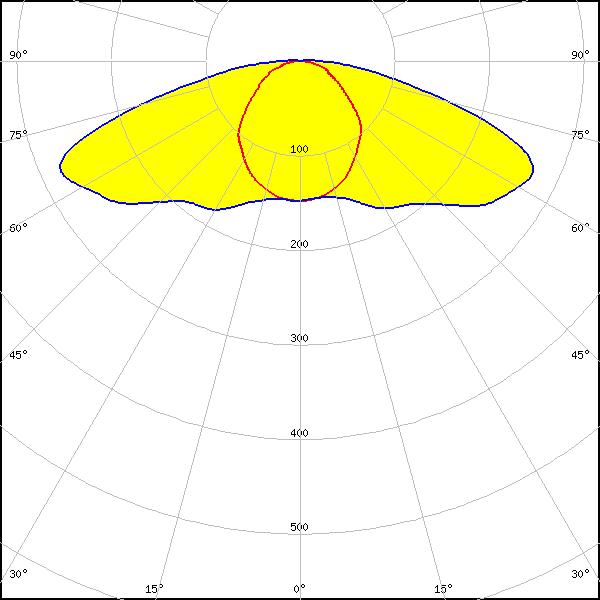

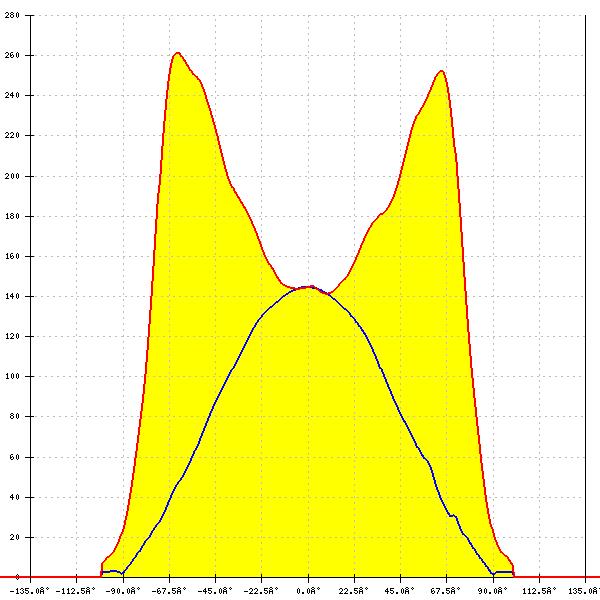

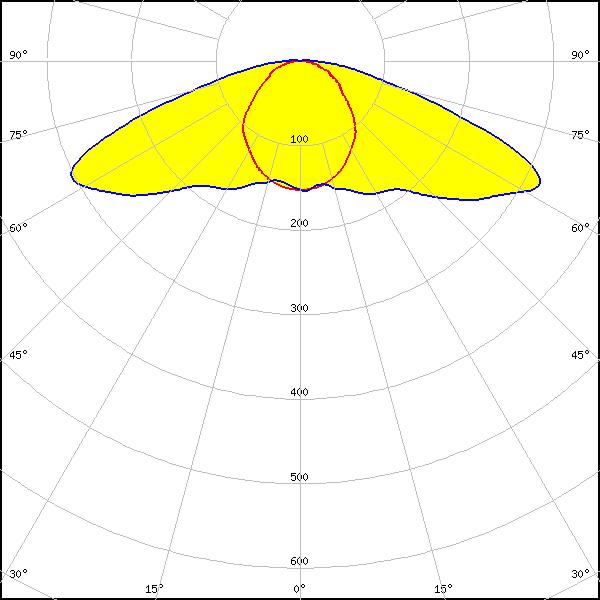

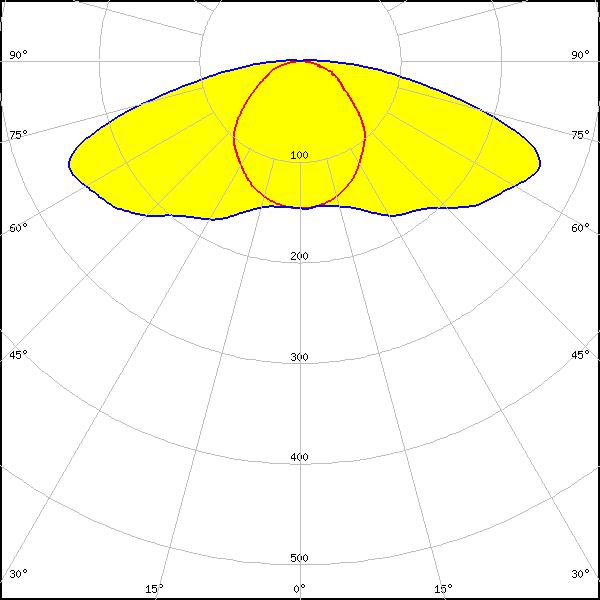

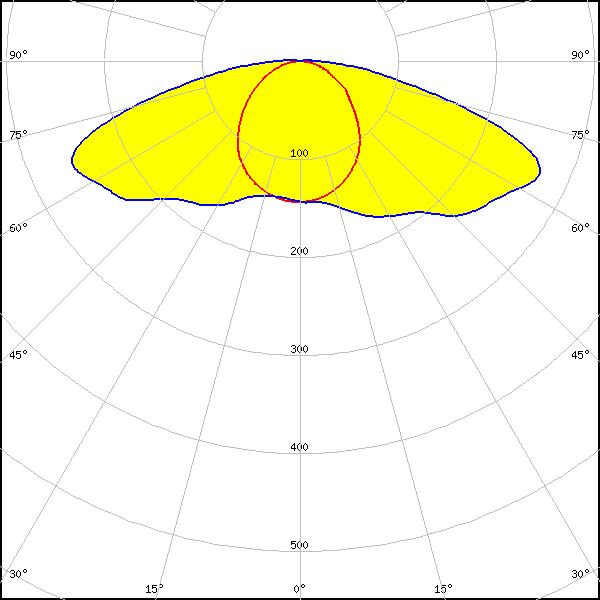

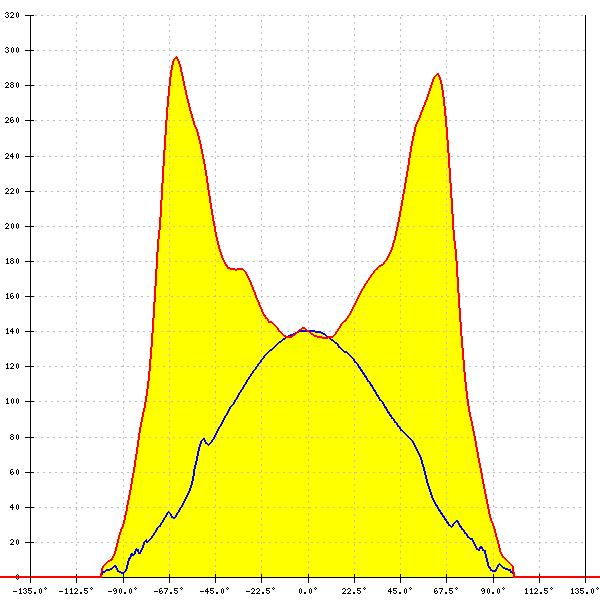

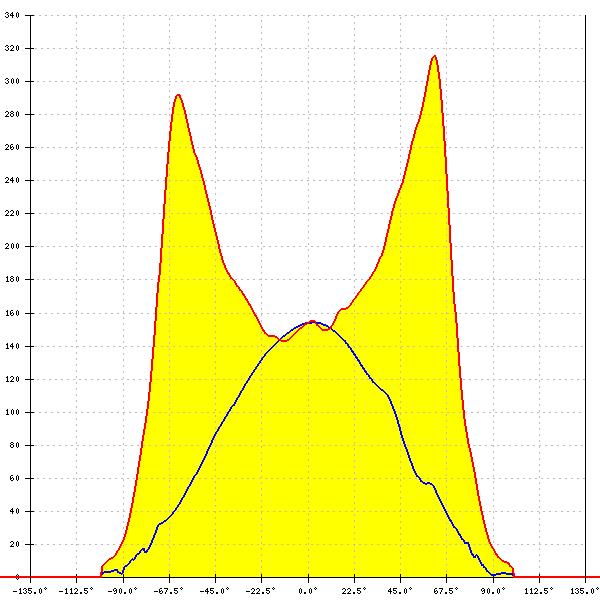

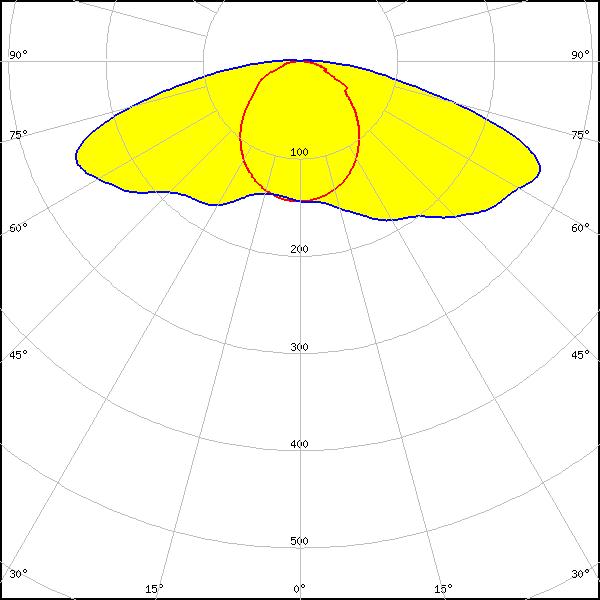

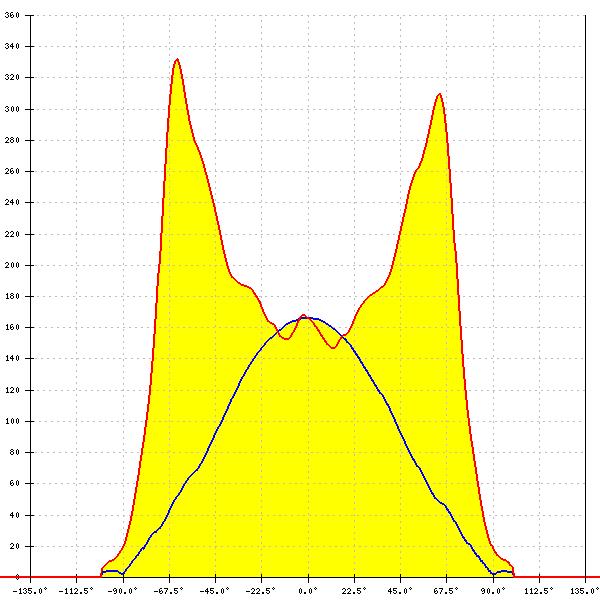

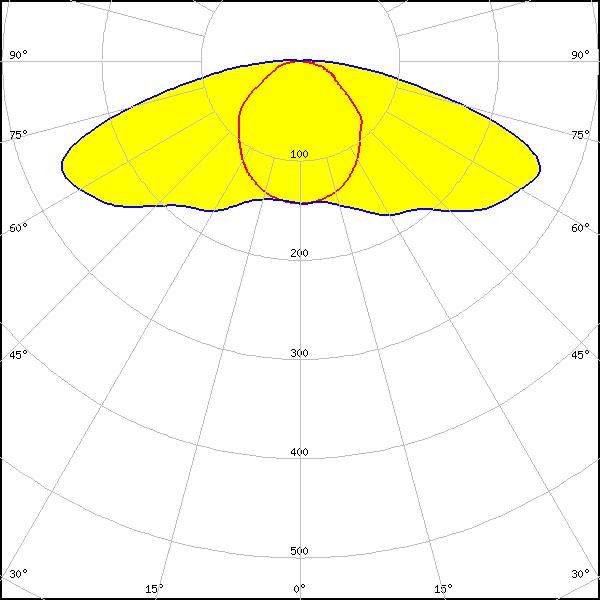

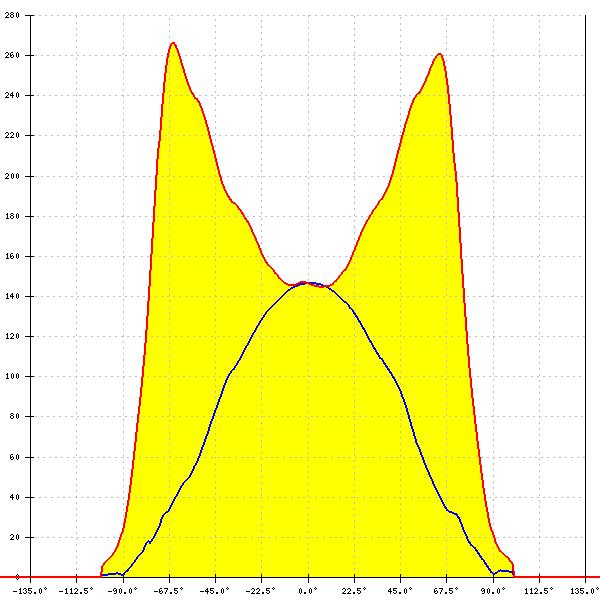

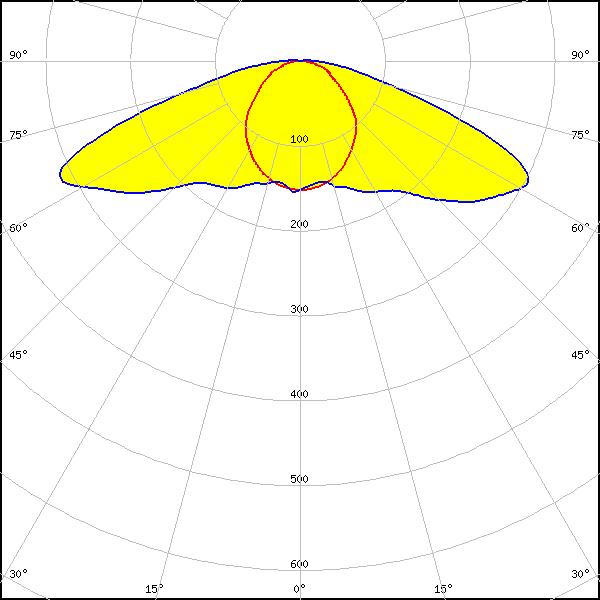

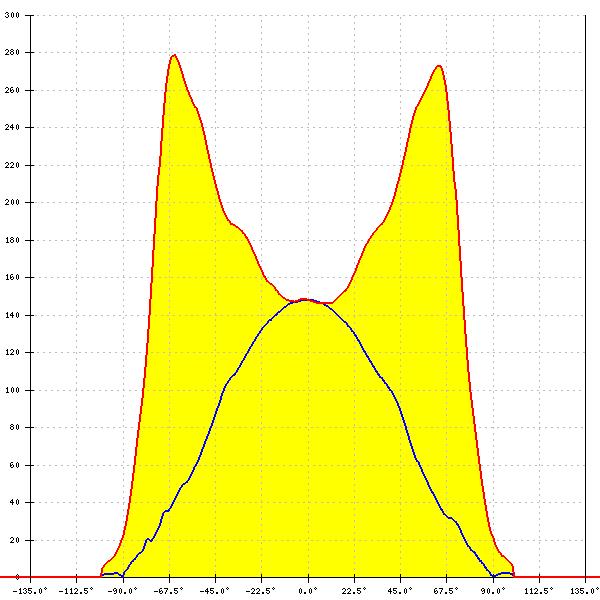

    Optical results

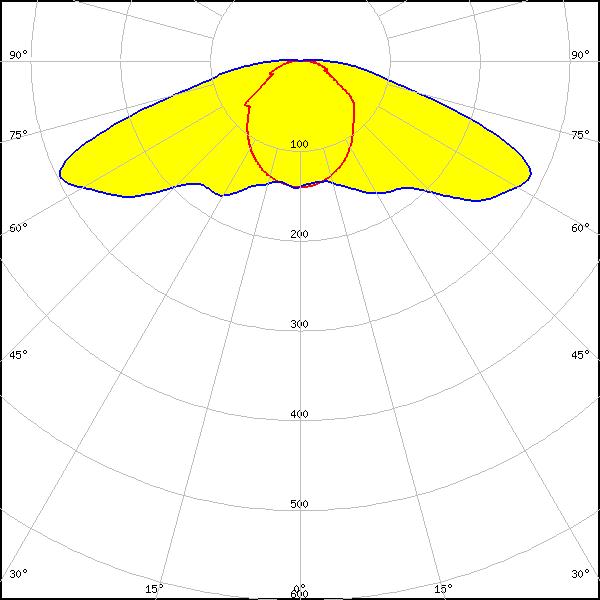

    LED: XP-E
    FWHM: asymmetric
    Peak intensity: 0.300 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

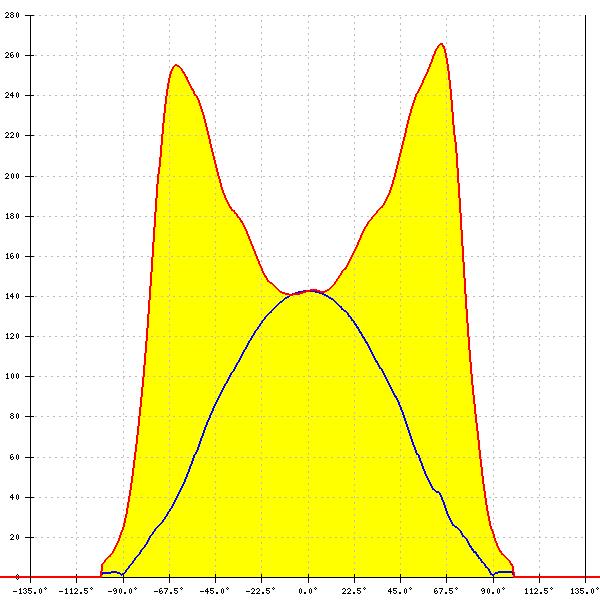

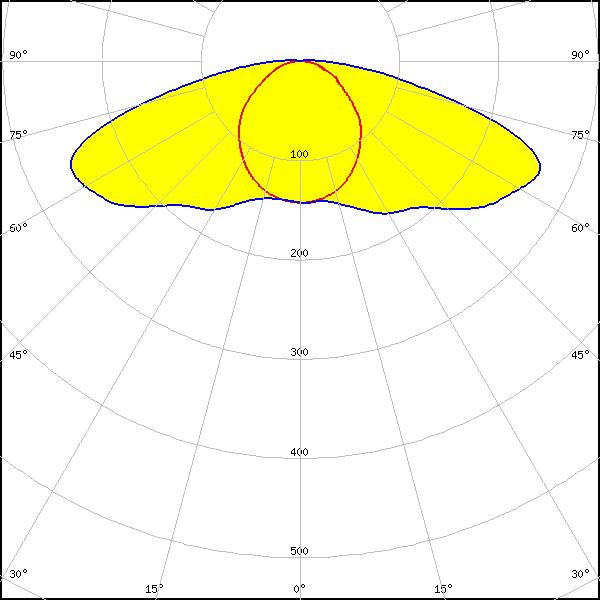

    LED: L-iC-282-827-865-011A
    FWHM: asymmetric
    Peak intensity: 0.270 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

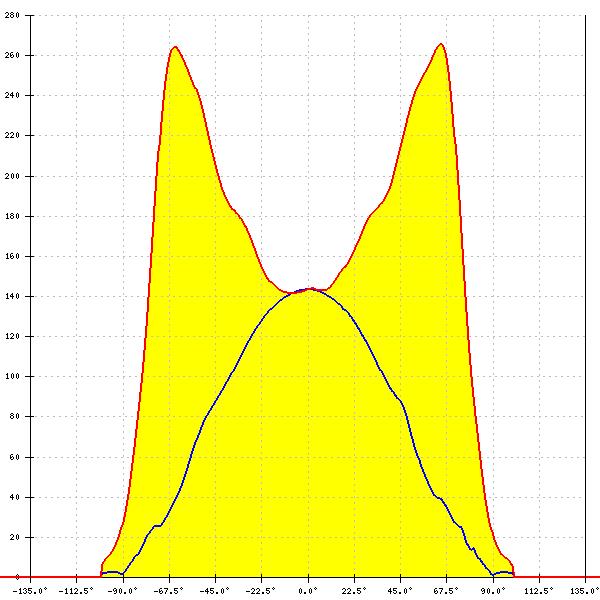

    LED: LP-282-840-009A 60/300
    FWHM: asymmetric
    Peak intensity: 0.270 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

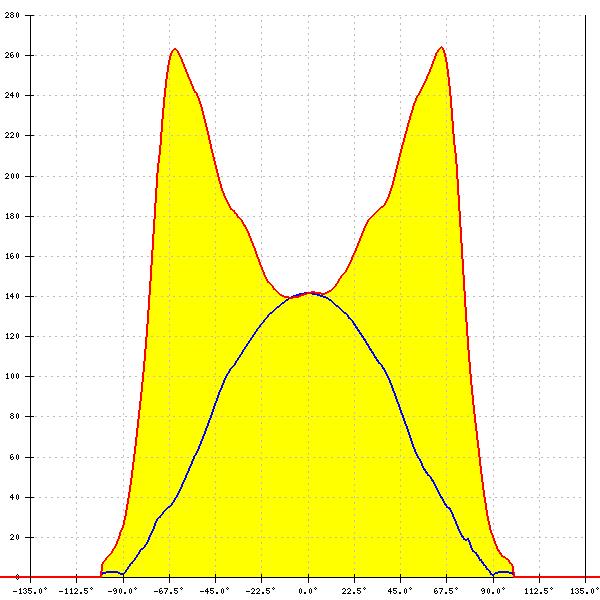

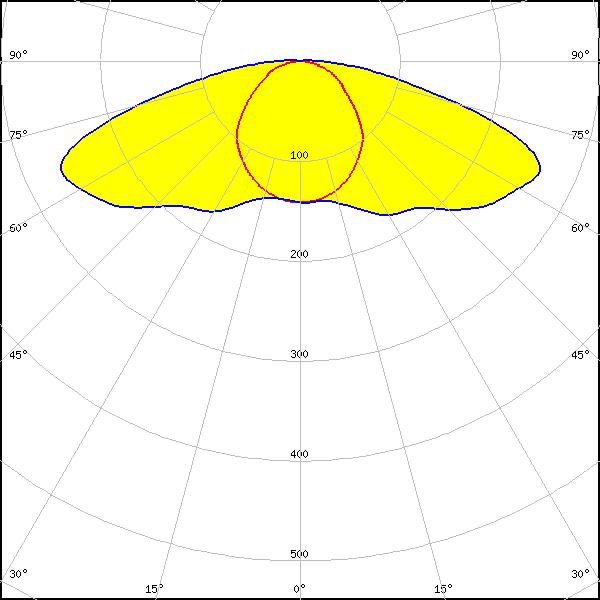

    LED: LS-282-840-011A
    FWHM: asymmetric
    Peak intensity: 0.260 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

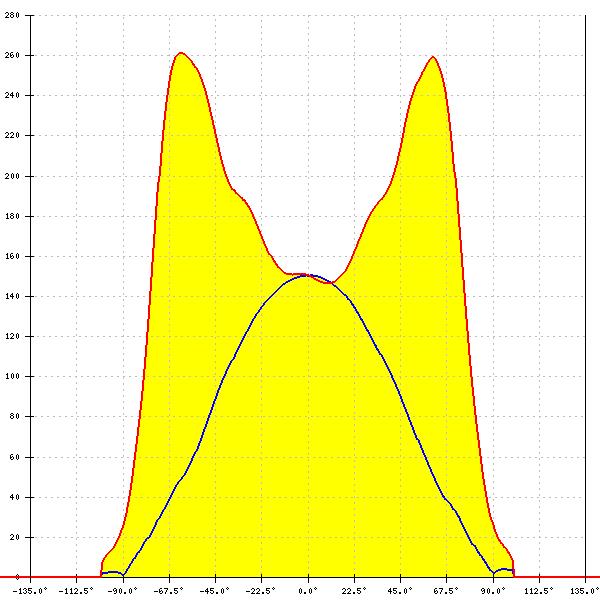

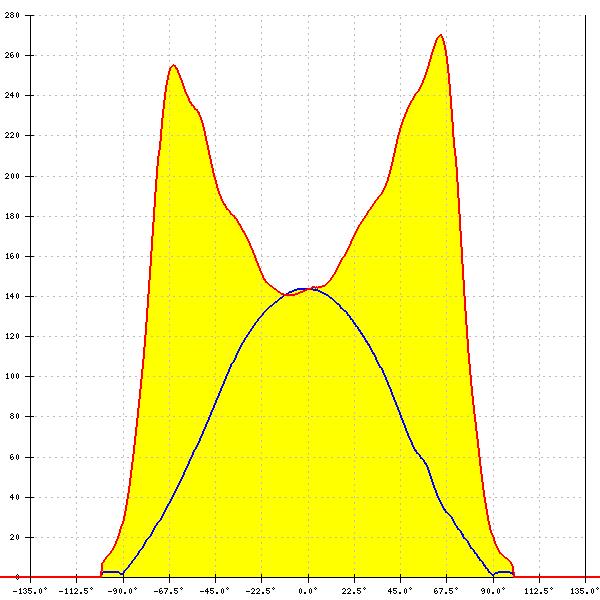

    LED: LX-282-840-023A
    FWHM: asymmetric
    Peak intensity: 0.270 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

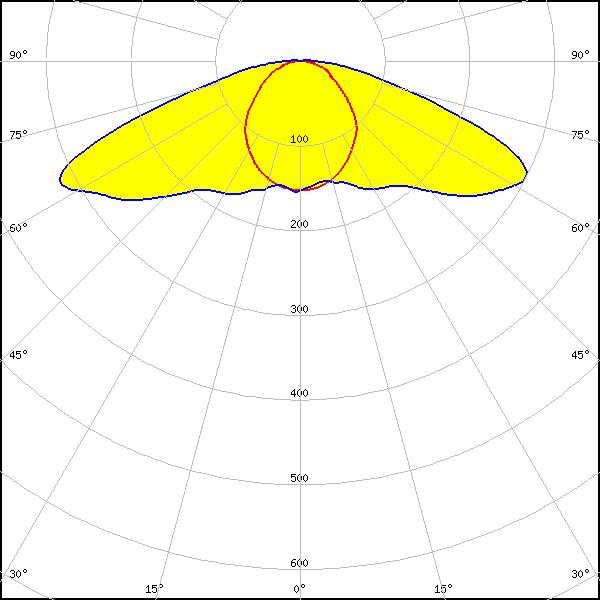

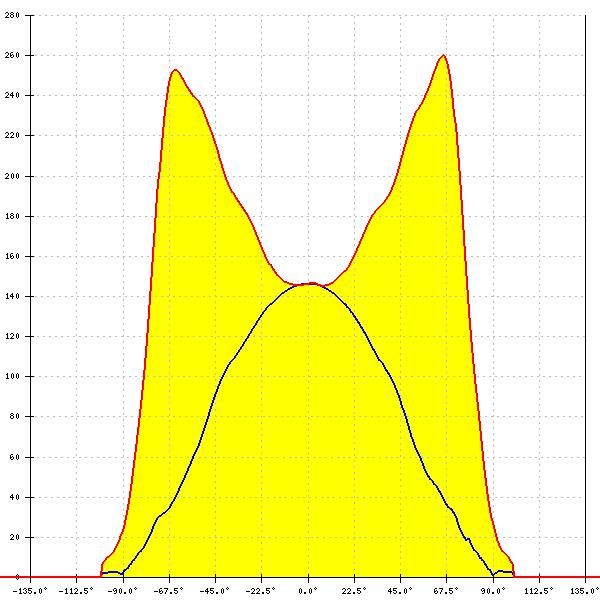

    LED: PL-LIN-IND-Z1 2800 560x24
    FWHM: asymmetric
    Peak intensity: 0.256 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PL-LIN-Z5 1100 280x20
    FWHM: asymmetric
    Peak intensity: 0.261 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

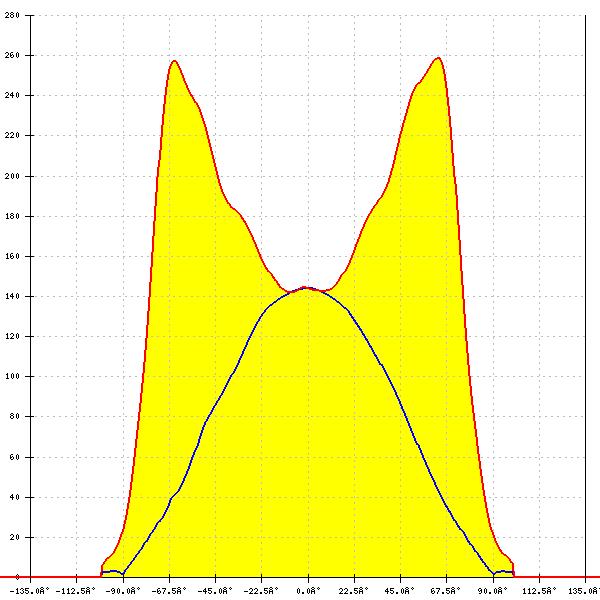

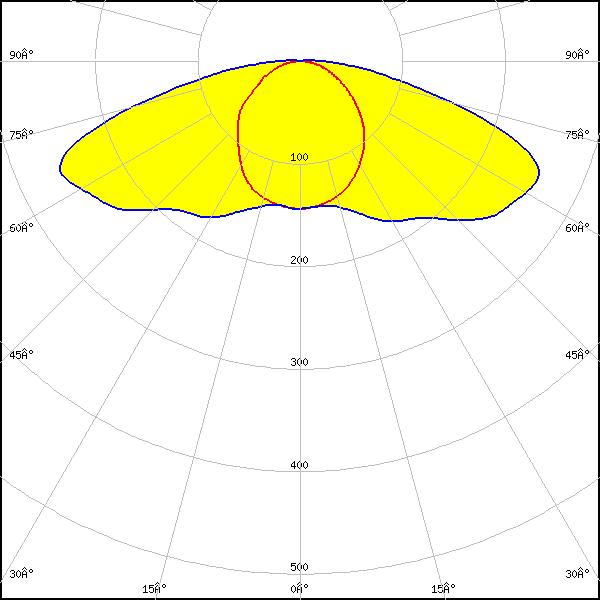

    LED: PL-LIN-Z5 2000 280x20
    FWHM: asymmetric
    Peak intensity: 0.259 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

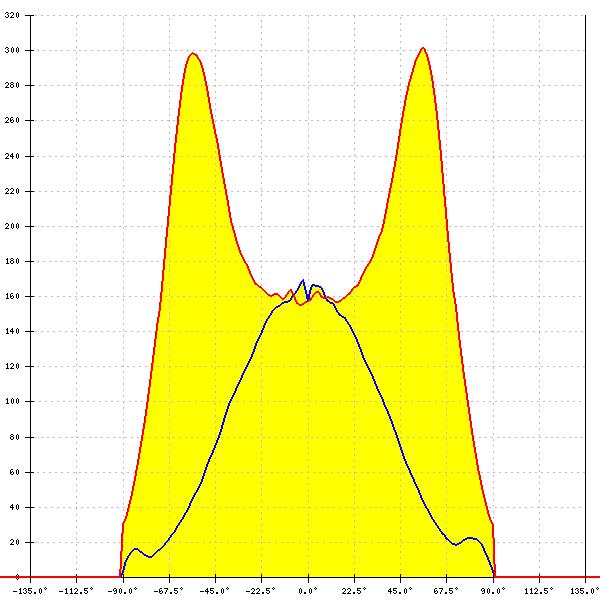

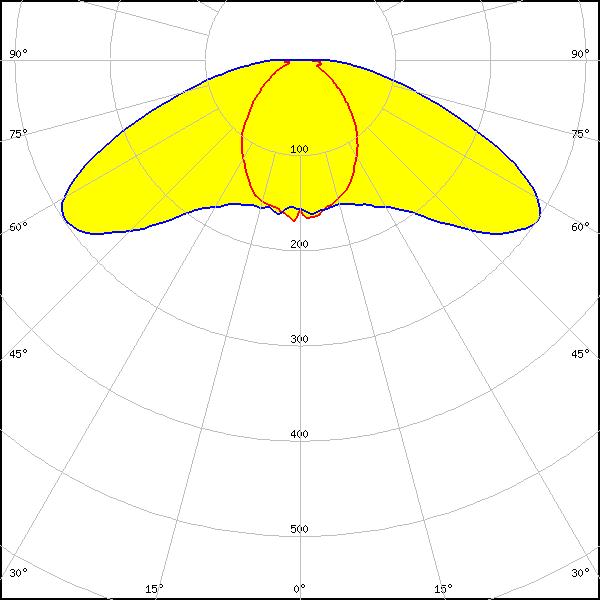

    LED: LUXEON 3030 2D (Round LES)
    FWHM: asymmetric
    Peak intensity: 0.301 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

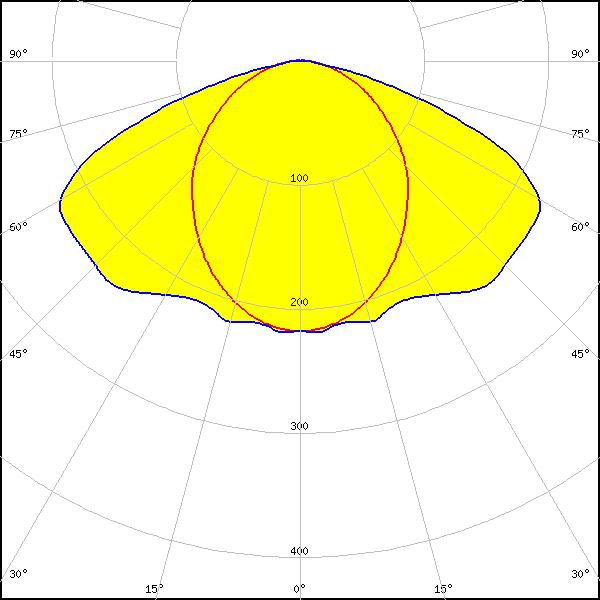

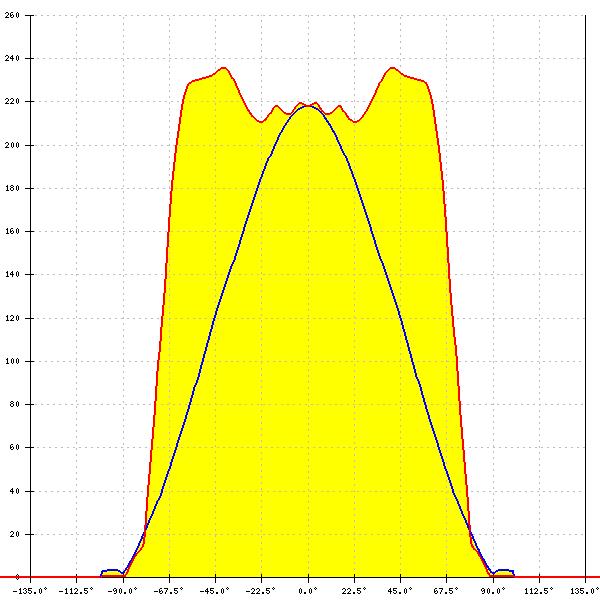

    LED: LinearZ 280-112 Circadian TW
    FWHM: asymmetric
    Peak intensity: 0.237 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

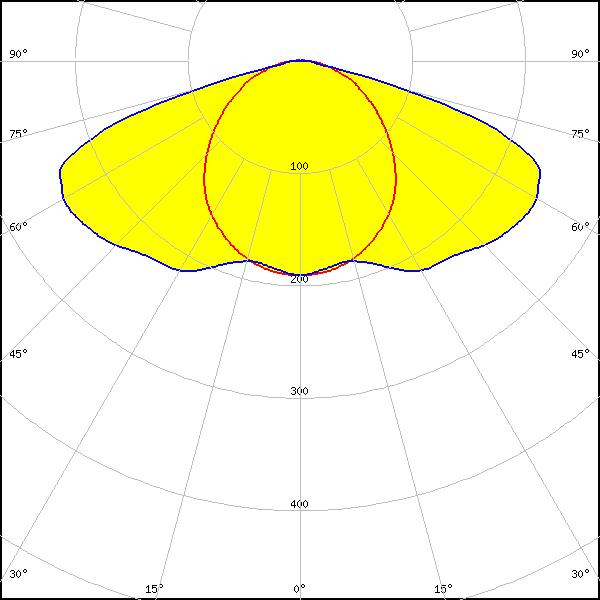

    LED: LinearZ 280-26
    FWHM: asymmetric
    Peak intensity: 0.248 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

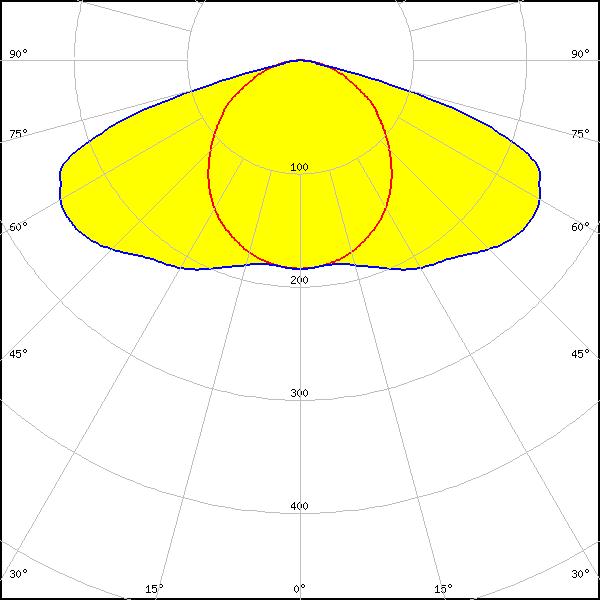

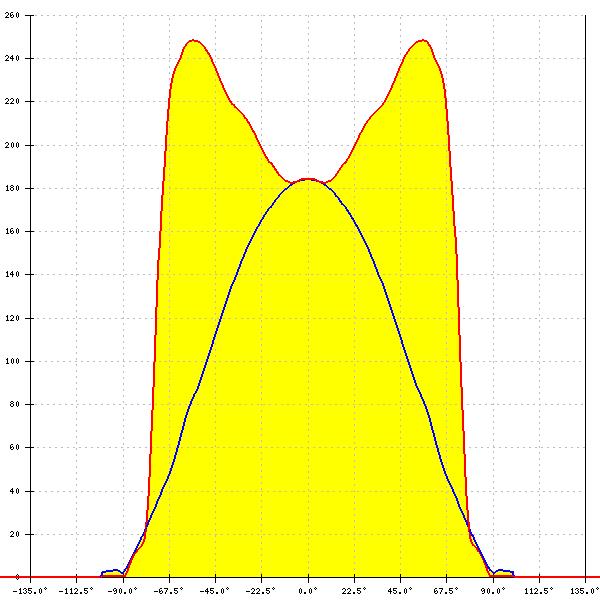

    LED: LinearZ 280-40 TW
    FWHM: asymmetric
    Peak intensity: 0.259 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

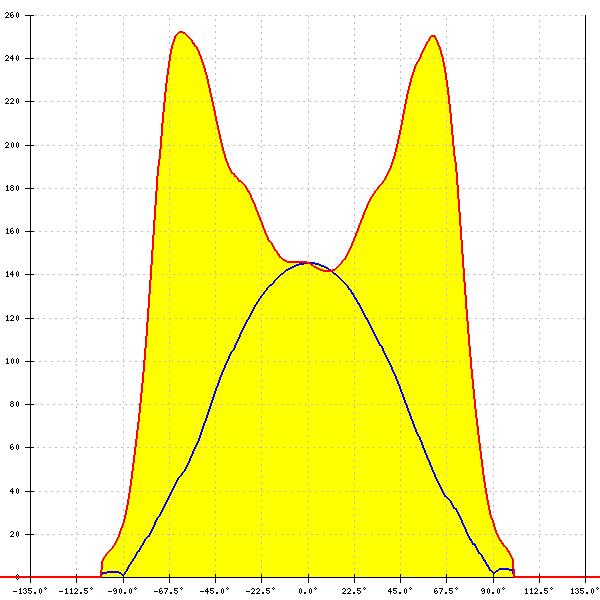

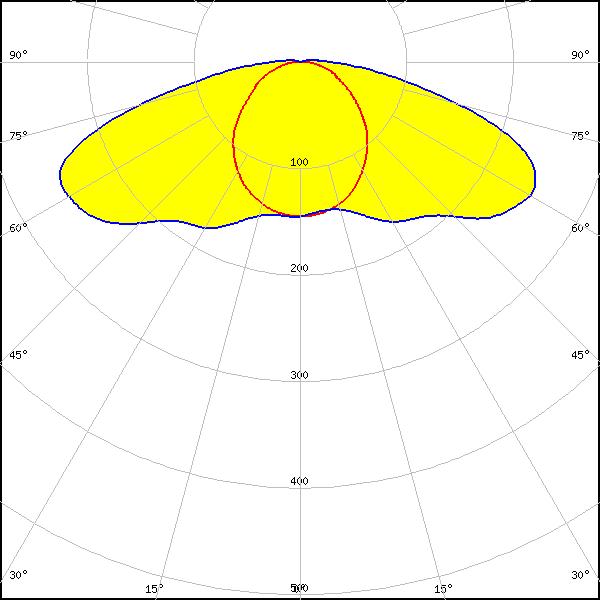

    LED: LinLED 280x24mm 1100lm 830 2C 30V LINNEA-GC G1
    FWHM: asymmetric
    Peak intensity: 0.300 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

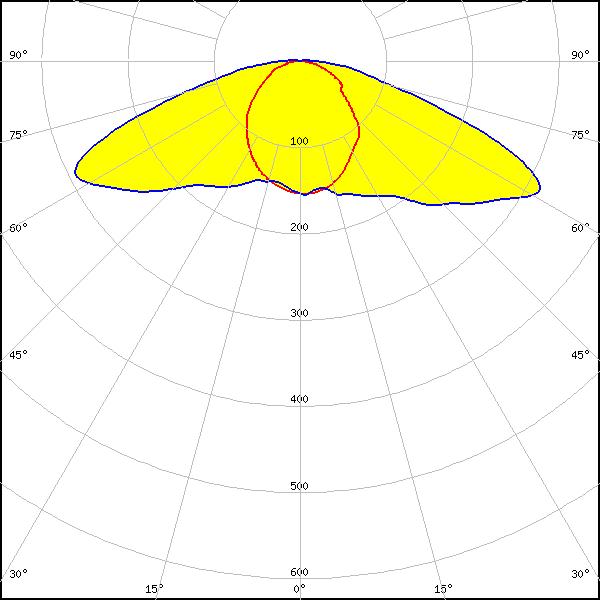

    LED: NF2x757G
    FWHM: asymmetric
    Peak intensity: 0.320 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

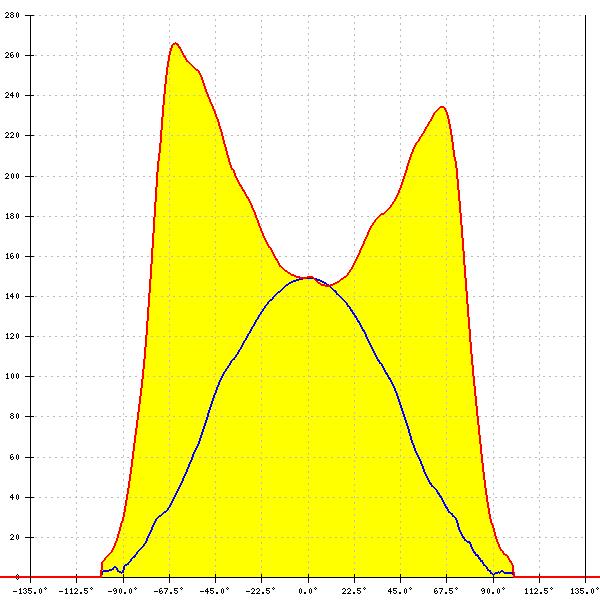

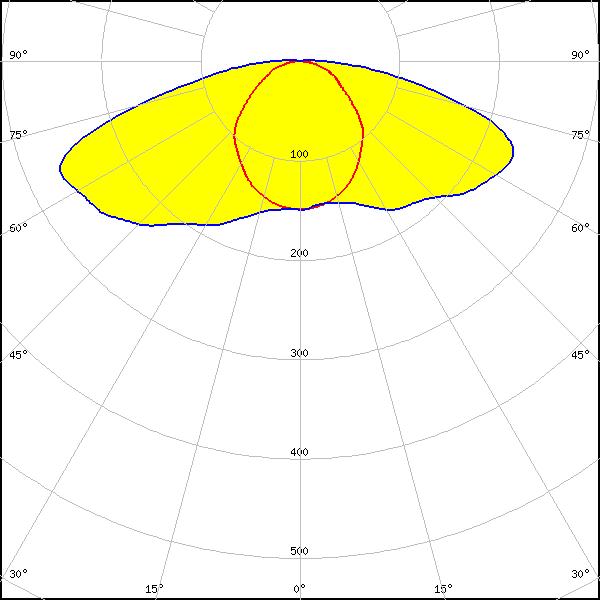

    LED: NFSW757H
    FWHM: asymmetric
    Peak intensity: 0.266 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

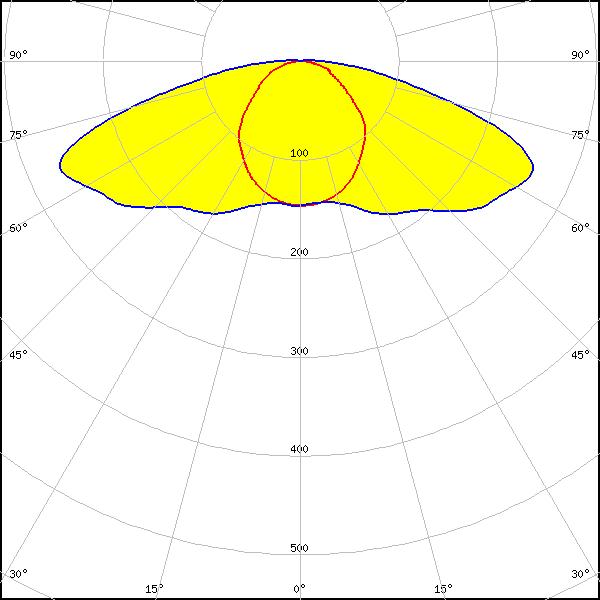

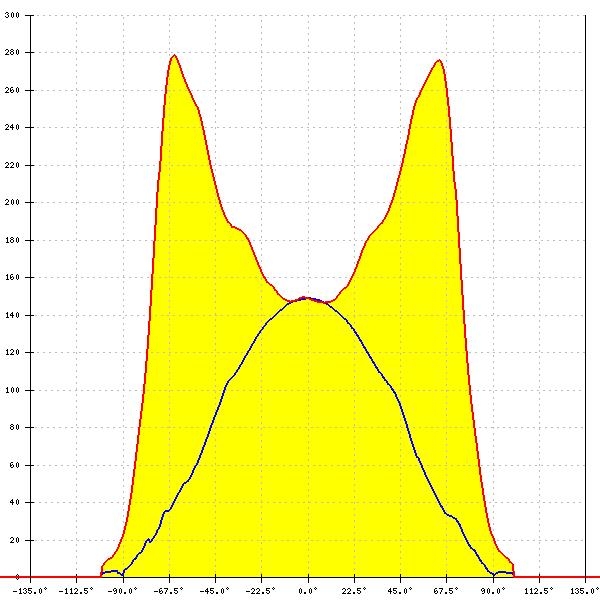

    LED: DURIS S5 (2 chip)
    FWHM: asymmetric
    Peak intensity: 0.270 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

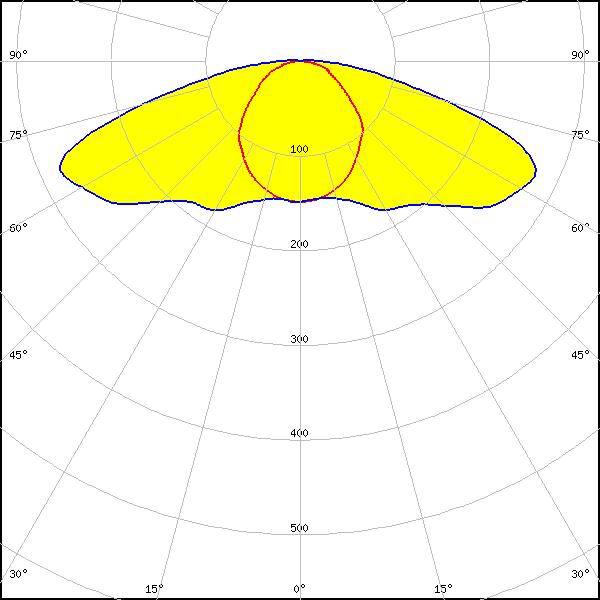

    LED: DURIS S5 (Single chip)
    FWHM: asymmetric
    Peak intensity: 0.280 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

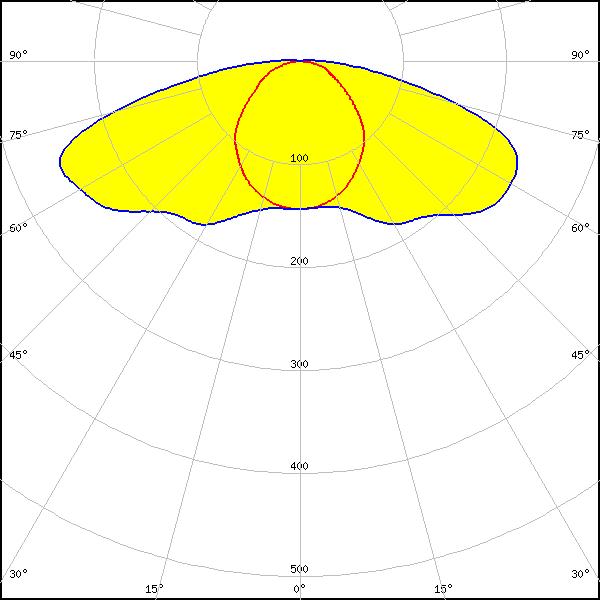

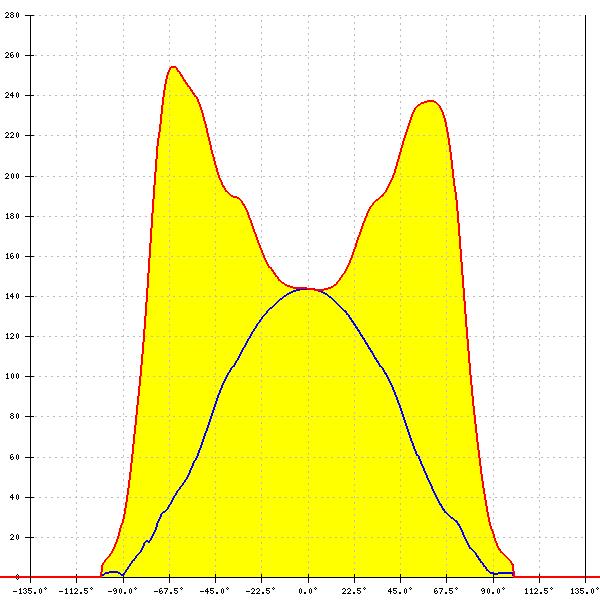

    LED: Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
    FWHM: asymmetric
    Peak intensity: 0.250 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Strip 1ft 1100lm FC HV5 & LV5
    FWHM: asymmetric
    Peak intensity: 0.260 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

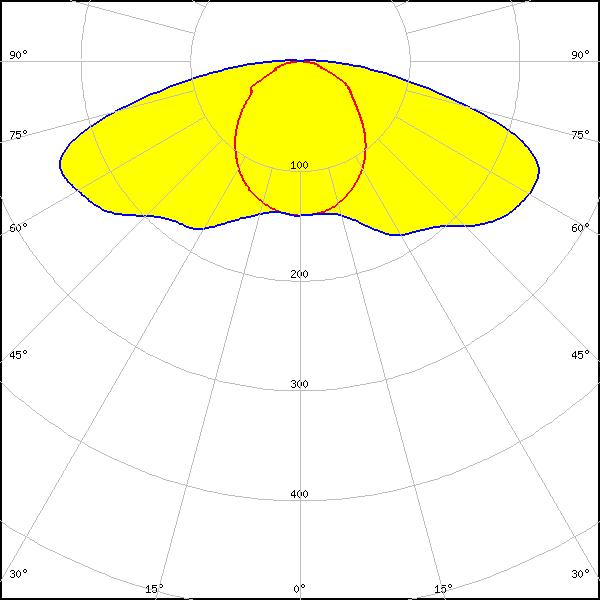

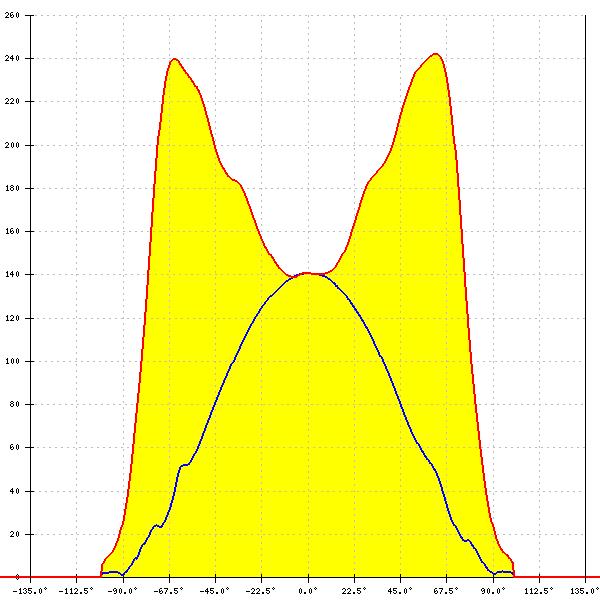

    LED: Fortimo LED Strip 1ft 650lm FC HV4 & LV4
    FWHM: asymmetric
    Peak intensity: 0.240 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Strip 1ft 650lm FC HV5 & LV5
    FWHM: asymmetric
    Peak intensity: 0.257 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

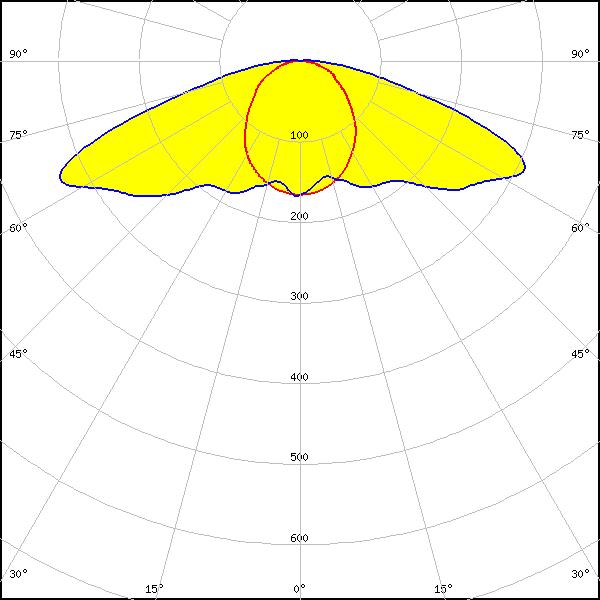

    LED: LM28xB Series
    FWHM: asymmetric
    Peak intensity: 0.240 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM301B
    FWHM: asymmetric
    Peak intensity: 0.260 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

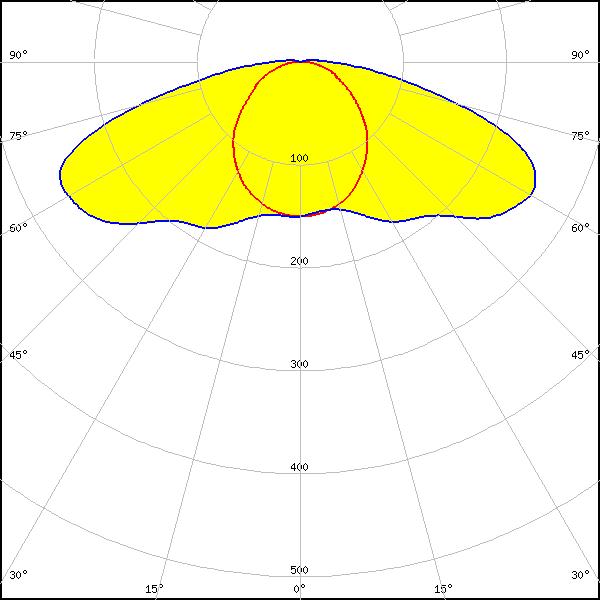

    LED: LM561B Plus
    FWHM: asymmetric
    Peak intensity: 0.300 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

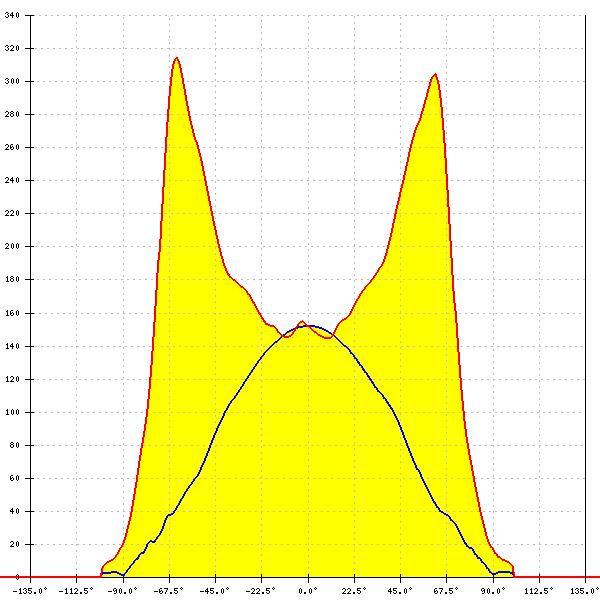

    LED: LT-H282C
    FWHM: asymmetric
    Peak intensity: 0.310 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

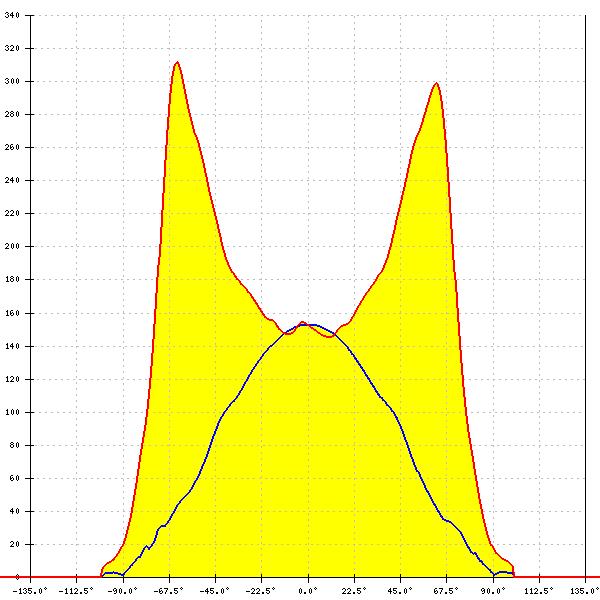

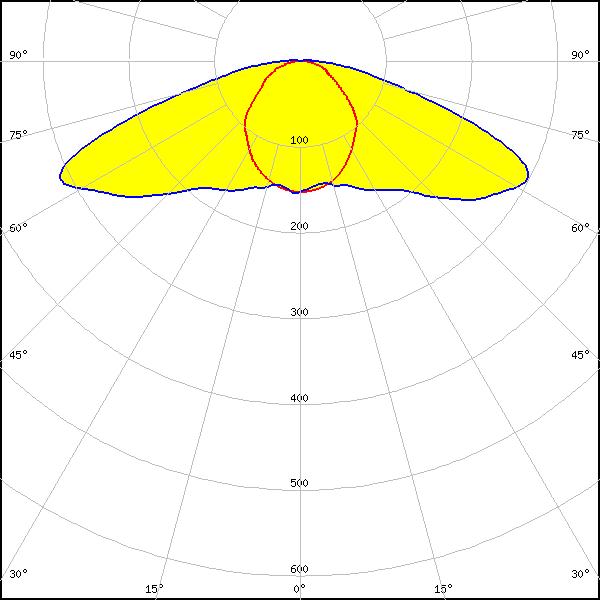

    LED: LT-Q282B
    FWHM: asymmetric
    Peak intensity: 0.310 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

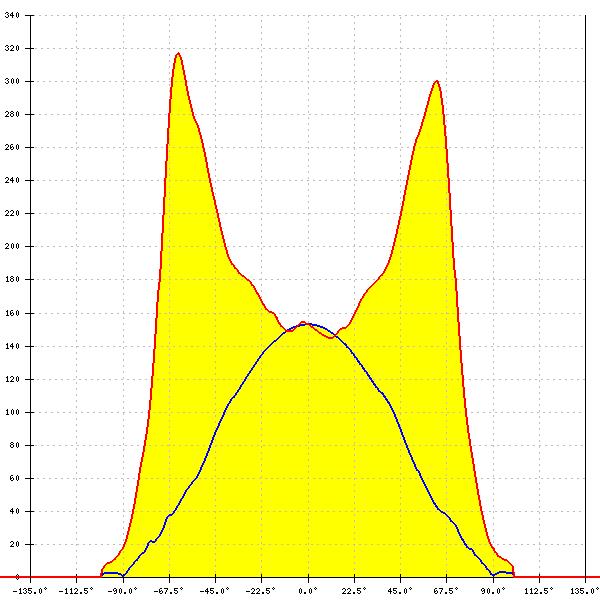

    LED: LT-S282H
    FWHM: asymmetric
    Peak intensity: 0.320 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LT-V282E
    FWHM: asymmetric
    Peak intensity: 0.320 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3030
    FWHM: asymmetric
    Peak intensity: 0.280 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

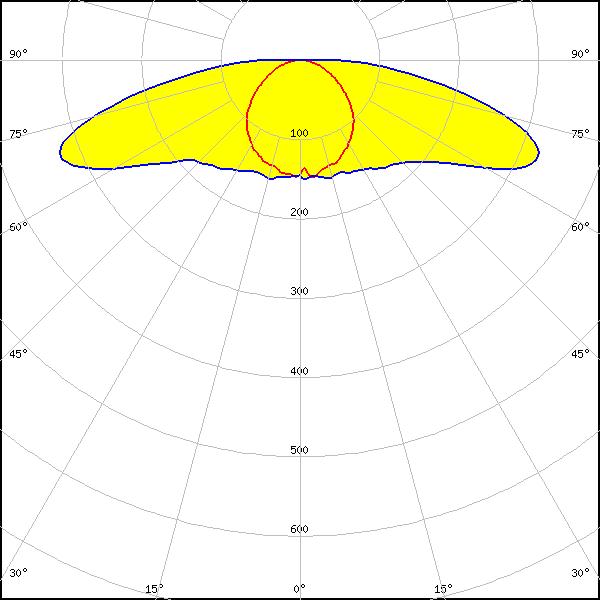

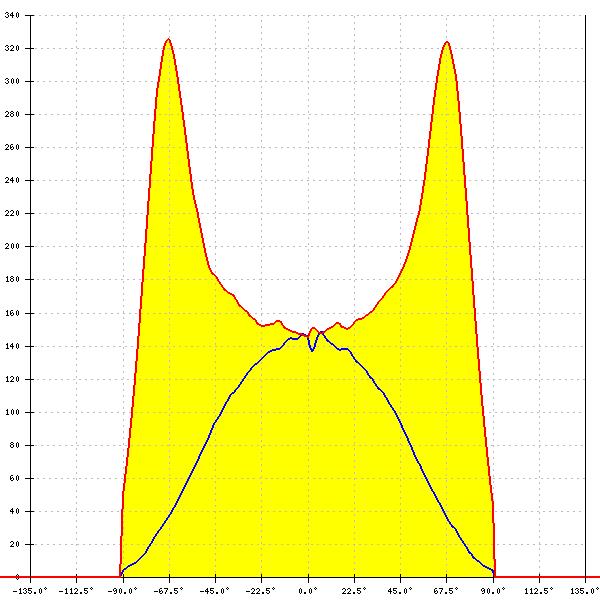

    LED: SEOUL DC 3030C
    FWHM: asymmetric
    Peak intensity: 0.326 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

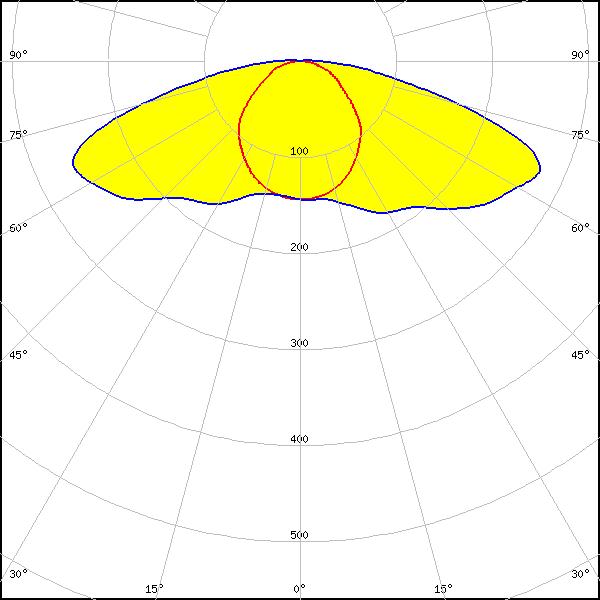

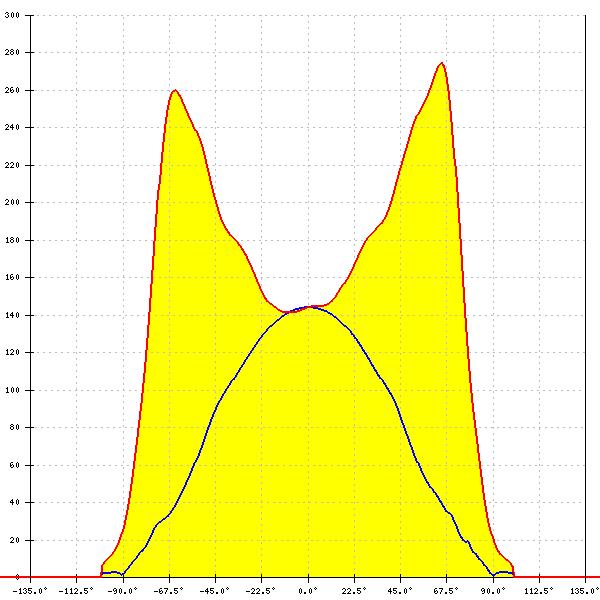

    LED: LLE G4 24x280mm 1250lm
    FWHM: asymmetric
    Peak intensity: 0.270 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

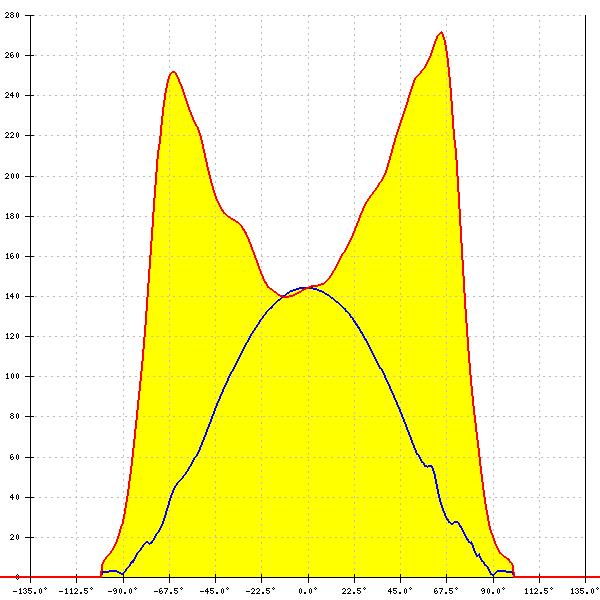

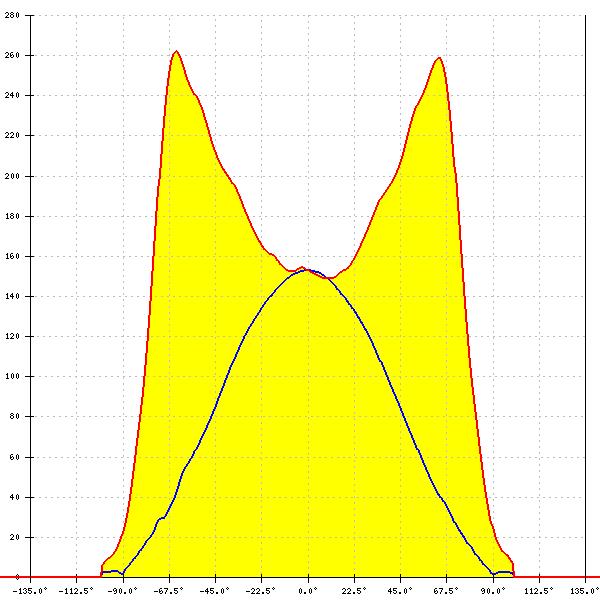

    LED: LLE G4 24x280mm 2000lm ADV
