FP11429_LISA2-WWW-PIN
Print

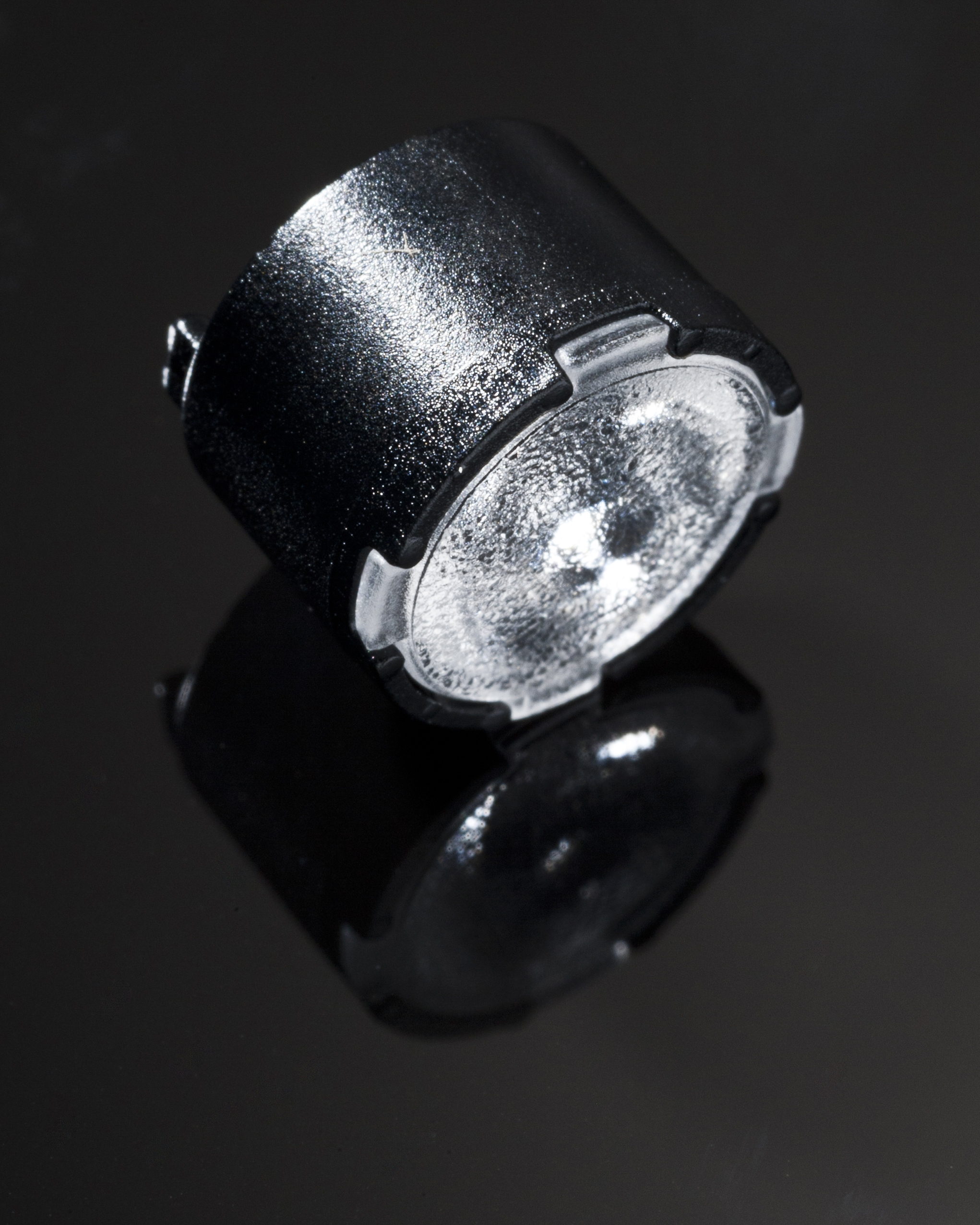

~80° wide beam. 7.0 mm high variant with location pin installation.
Component Materials
- LISA2-WWWSingle lensPMMA
- LISA2-HLD-PINHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

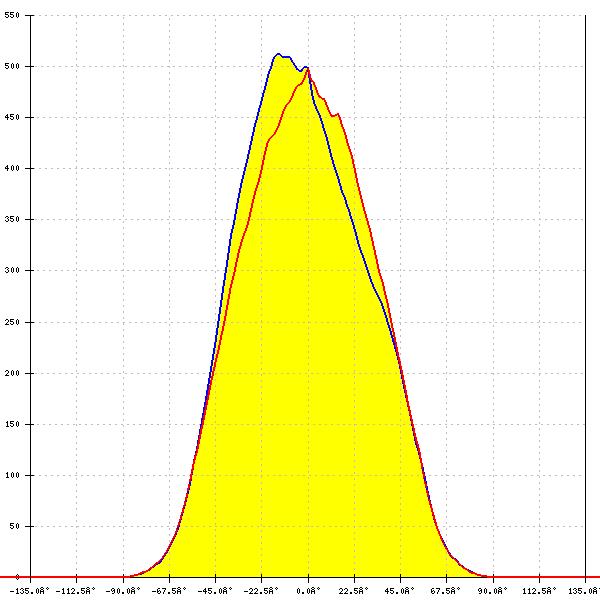

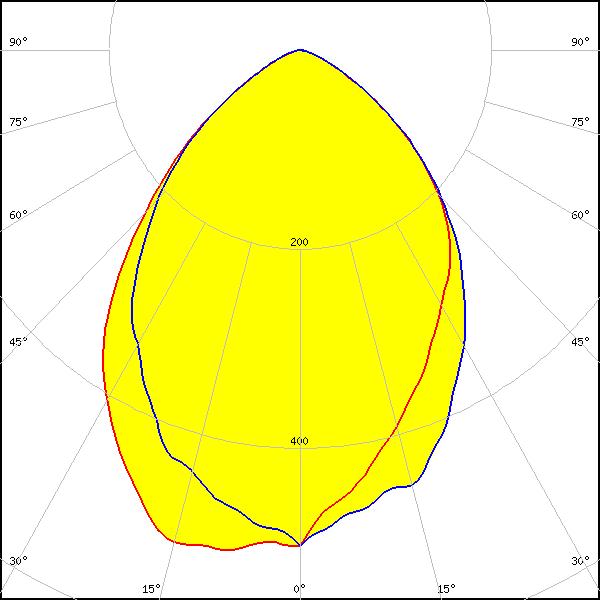

Optical results

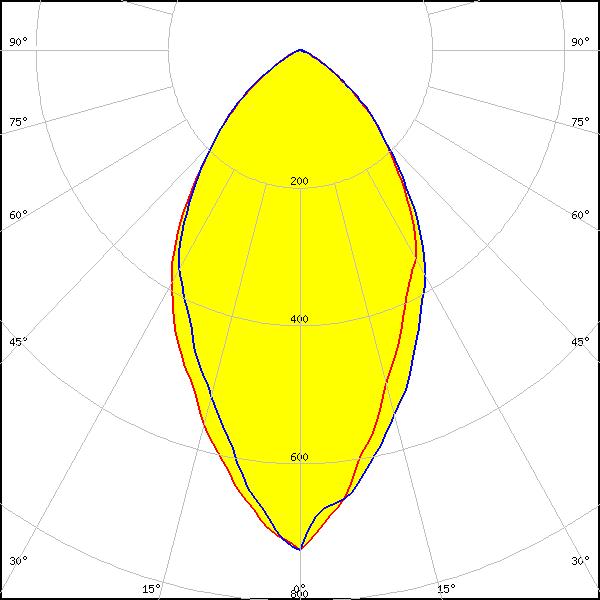

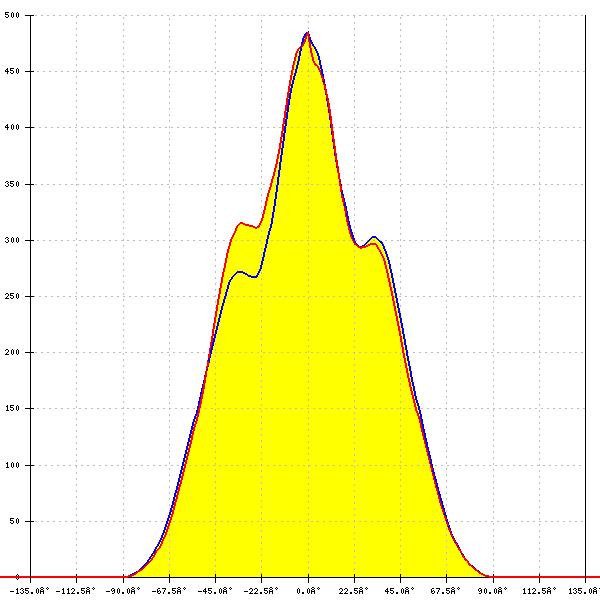

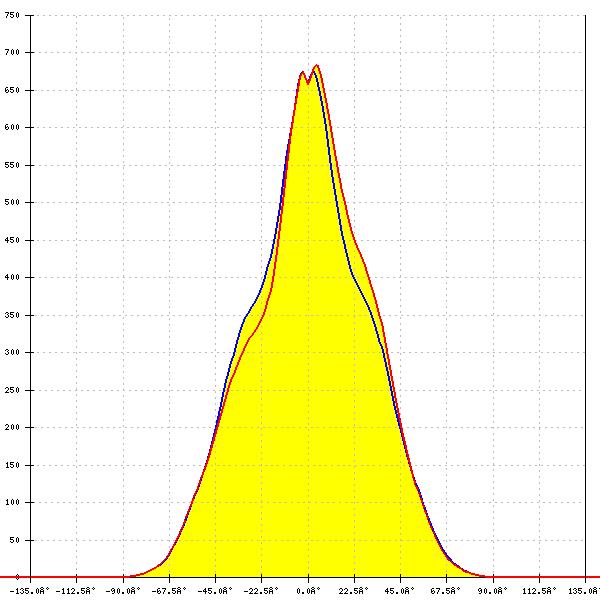

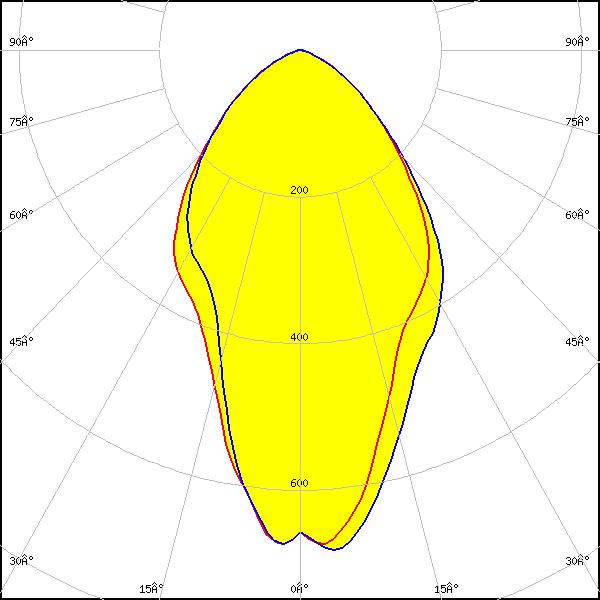

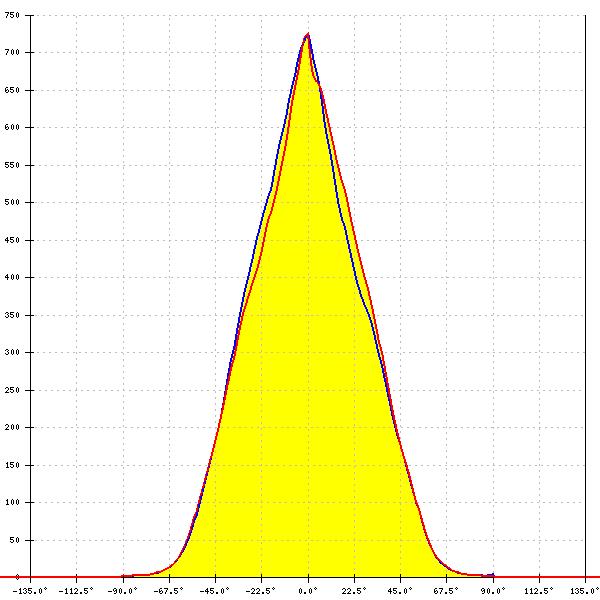

LED:
CSP 2323 (BXCP)
FWHM:
61°
FWTM:
111°
Peak intensity:
0.726 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

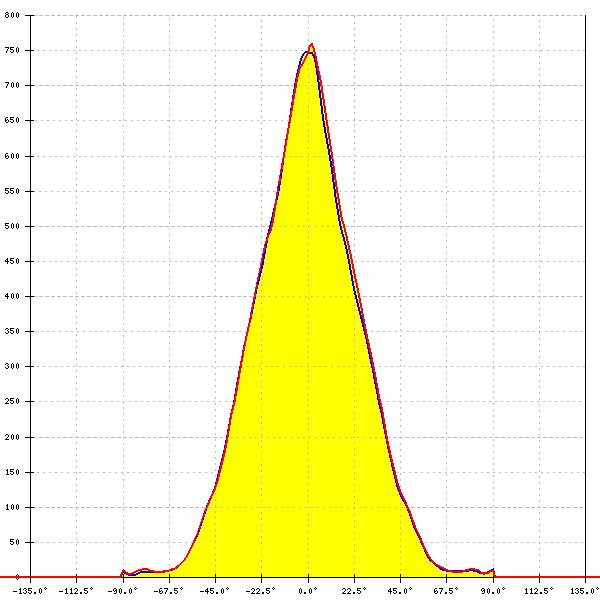

LED:

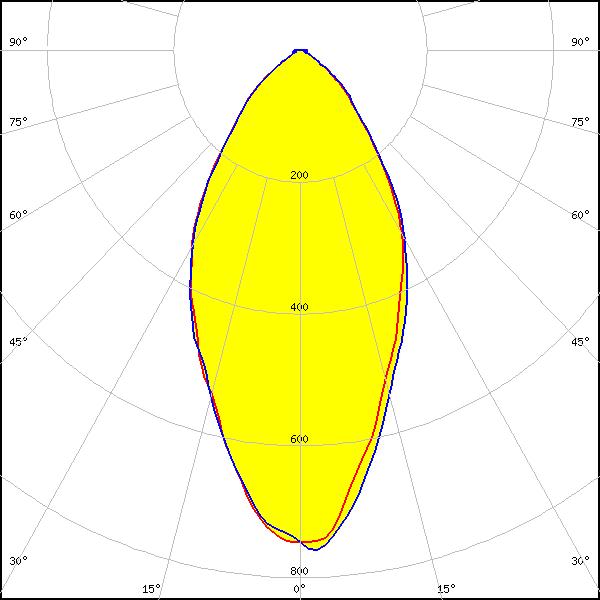

XB-D
FWHM:
53°
FWTM:
104°
Peak intensity:
0.775 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White

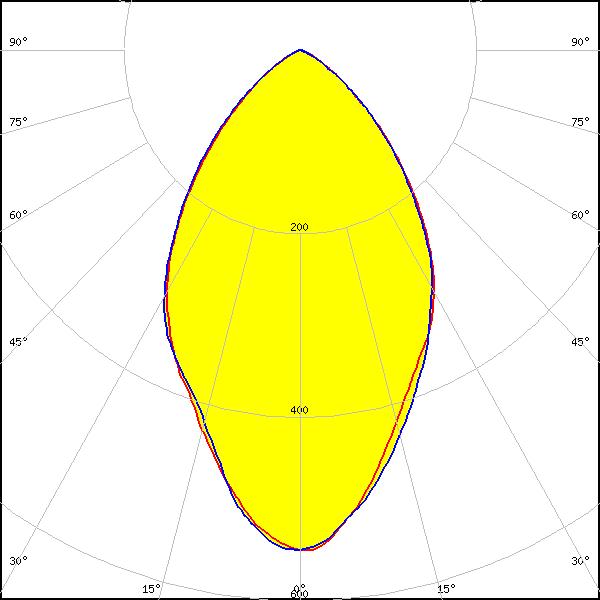

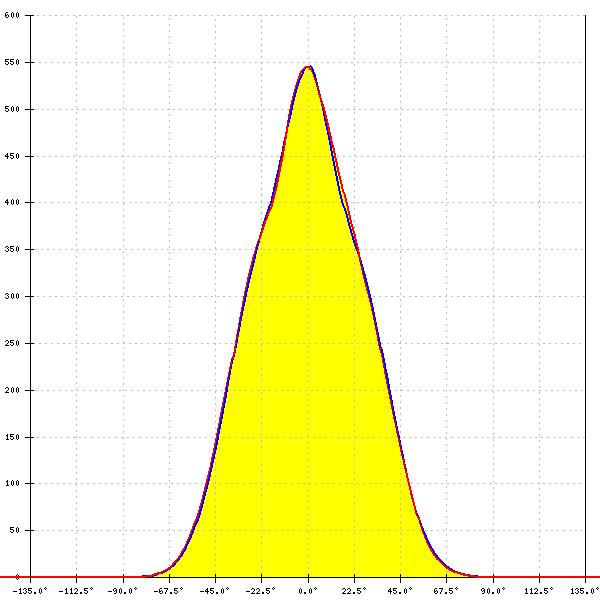

LED:
XD16
FWHM:
66°
FWTM:
110°
Peak intensity:
0.550 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White

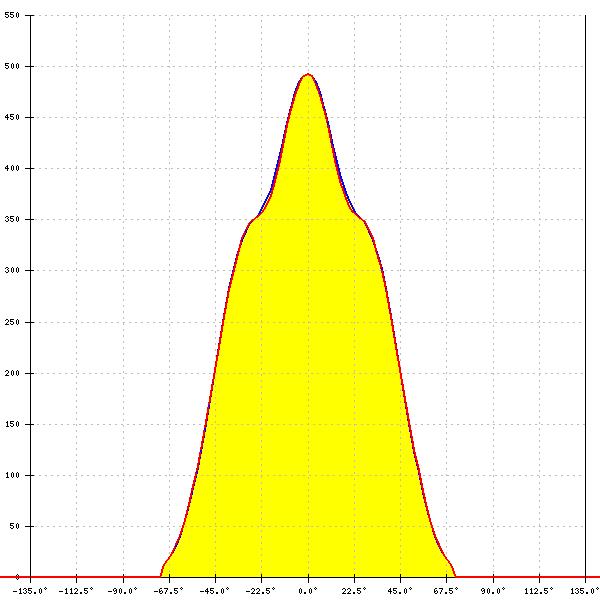

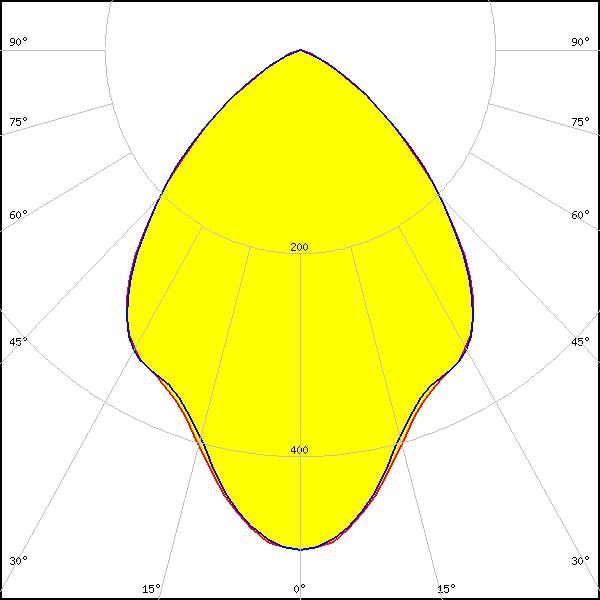

LED:
XP-E
FWHM:
84°
FWTM:
-
Peak intensity:
0.500 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

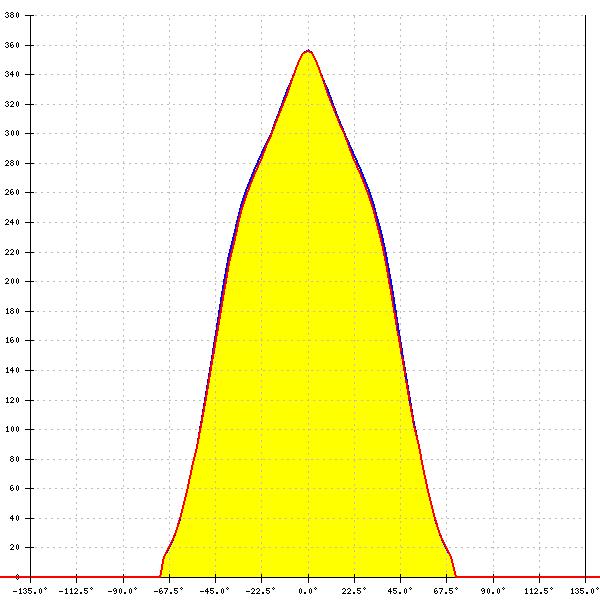

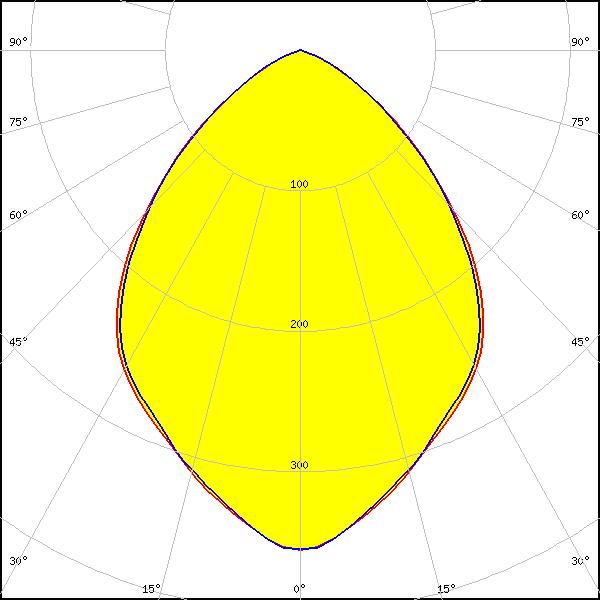

LED:
XP-G
FWHM:
86°
FWTM:
126°
Peak intensity:
0.400 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XQ-E HD
FWHM:
70°
FWTM:
126°
Peak intensity:
0.600 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON A
FWHM:
86°
FWTM:
122°
Peak intensity:
0.300 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

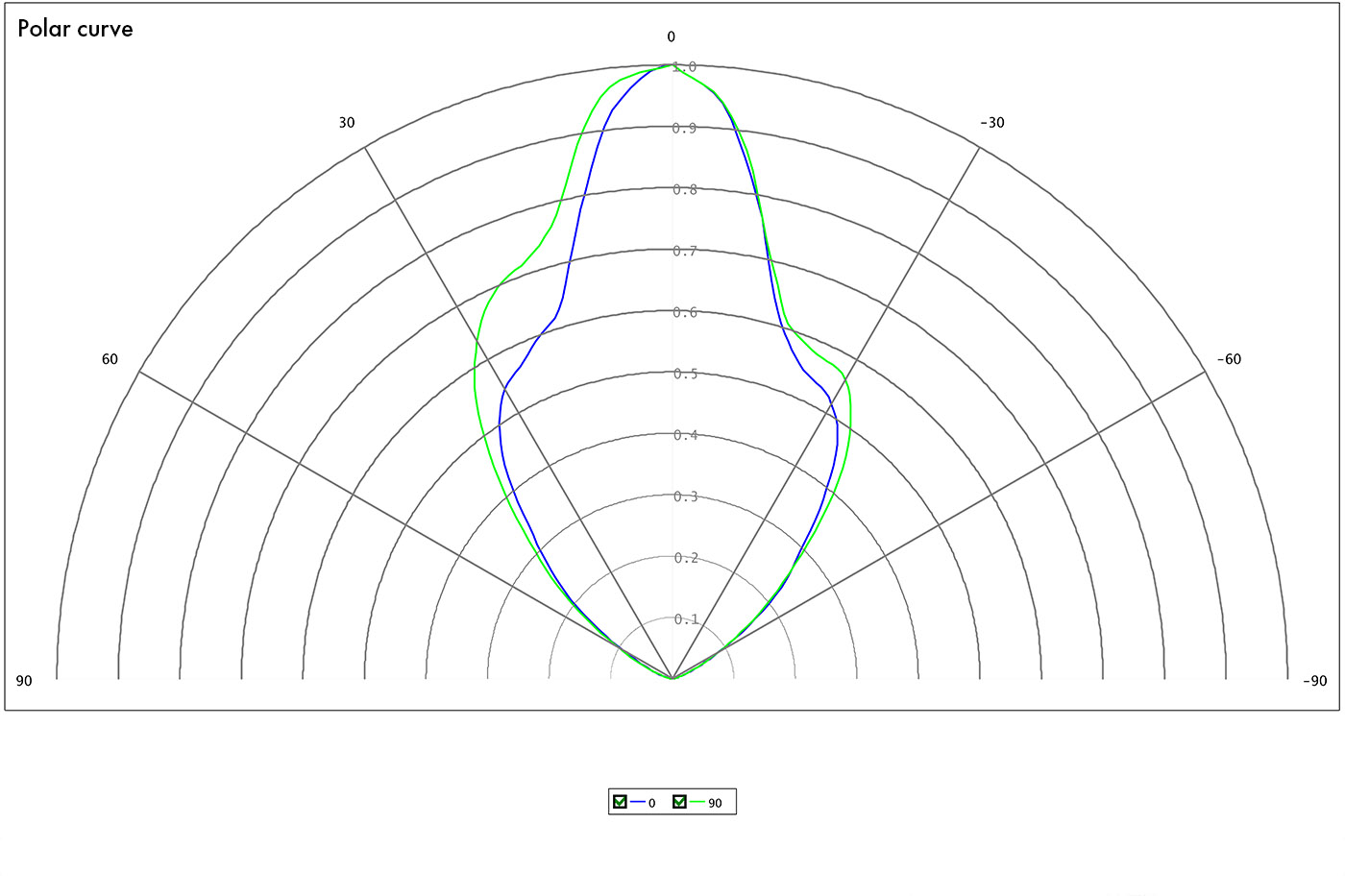

LED:
LUXEON IR 2720
FWHM:
68°
FWTM:
120°
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
IR

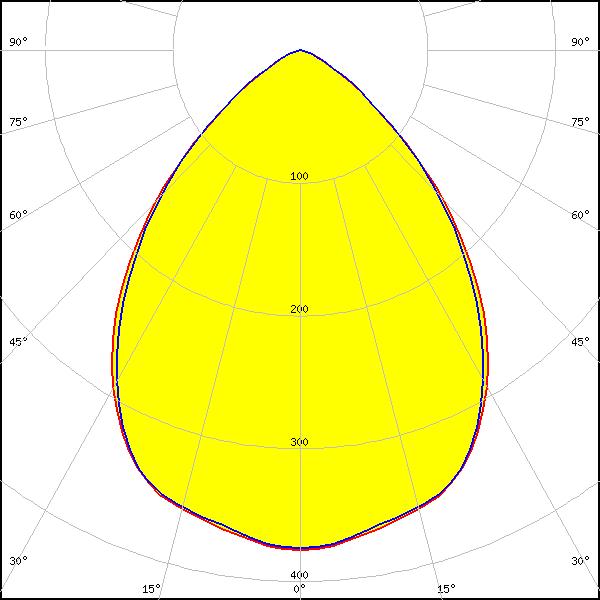

LED:

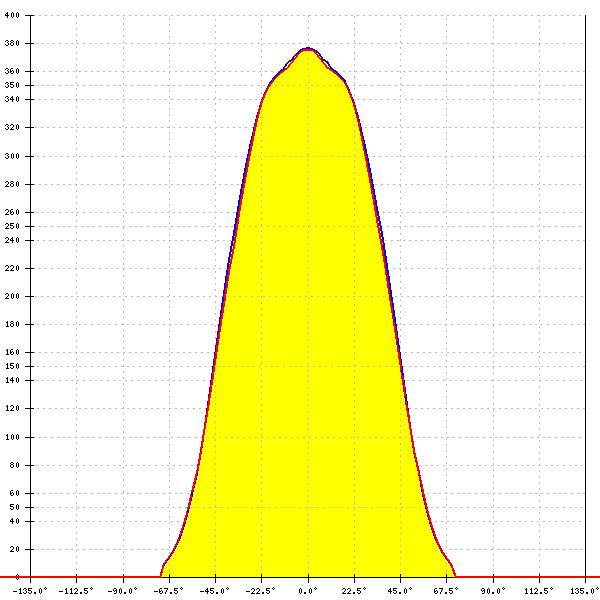

LUXEON Rebel ES
FWHM:
88°
FWTM:
-
LEDs/each optic:
1
Light colour/type:
White

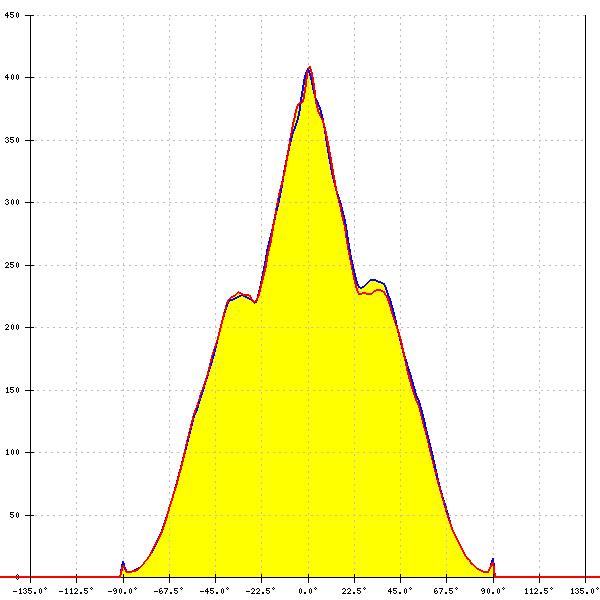

LED:

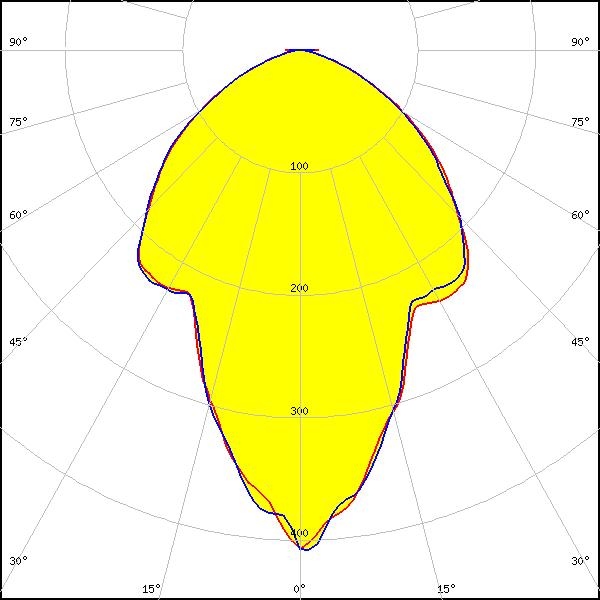

LUXEON SunPlus 20 Line (150 deg)
FWHM:
84°
FWTM:
140°
Peak intensity:
0.420 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White

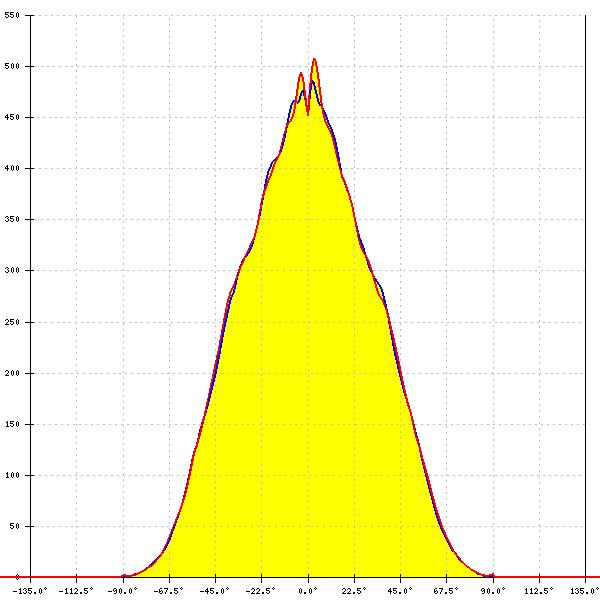

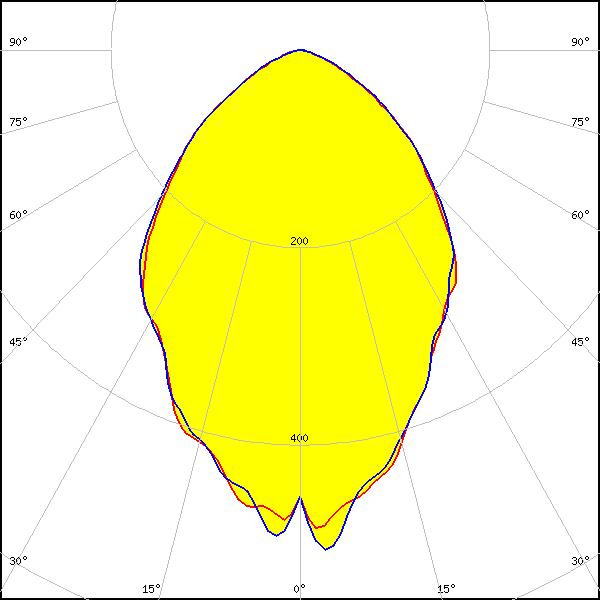

LED:
LUXEON TX
FWHM:
80°
FWTM:
130°
Peak intensity:
0.512 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Z
FWHM:
73°
FWTM:
106°
Peak intensity:
0.600 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

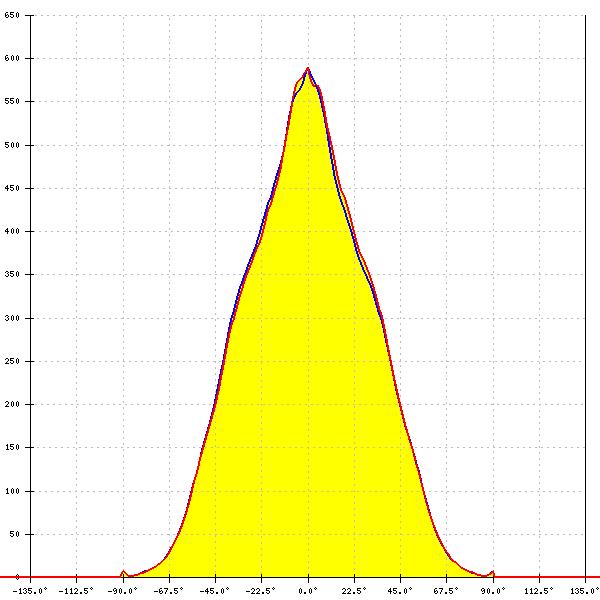

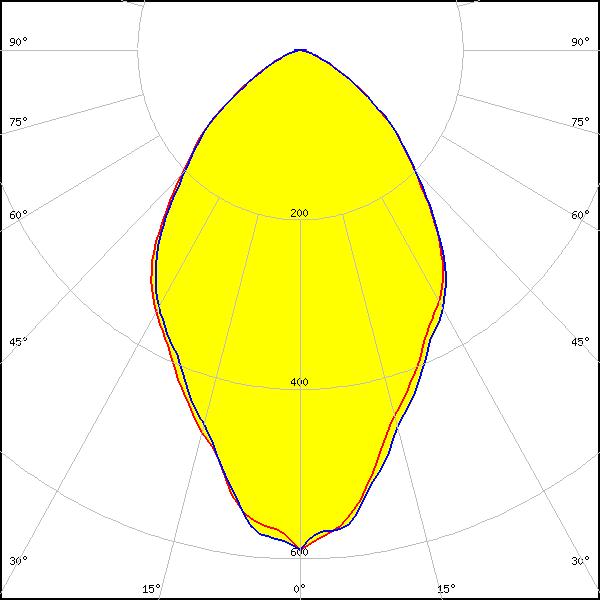

LED:
SST-20 Gen1
FWHM:
73°
FWTM:
122°
Peak intensity:
0.592 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

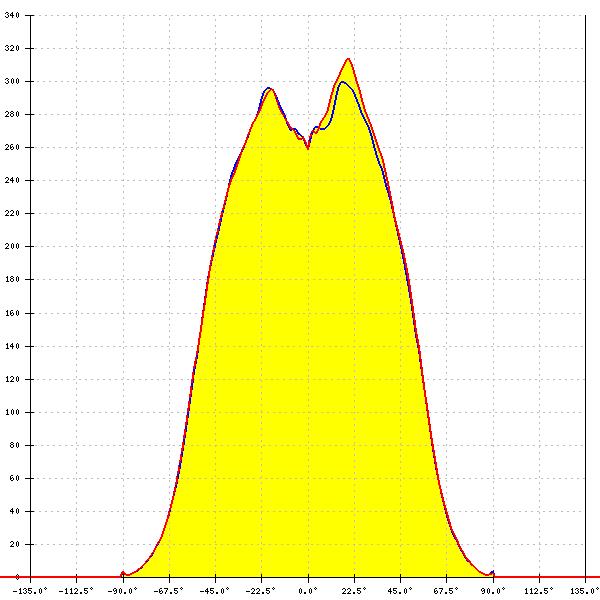

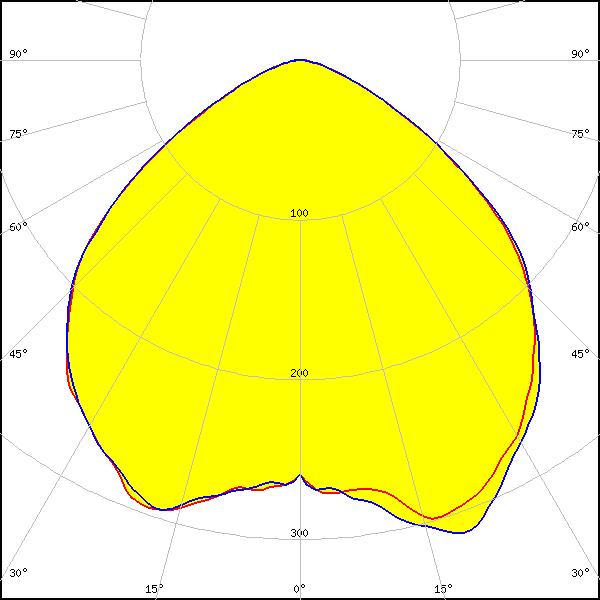

LED:
NVSW519A
FWHM:
104°
FWTM:
140°
Peak intensity:
0.326 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

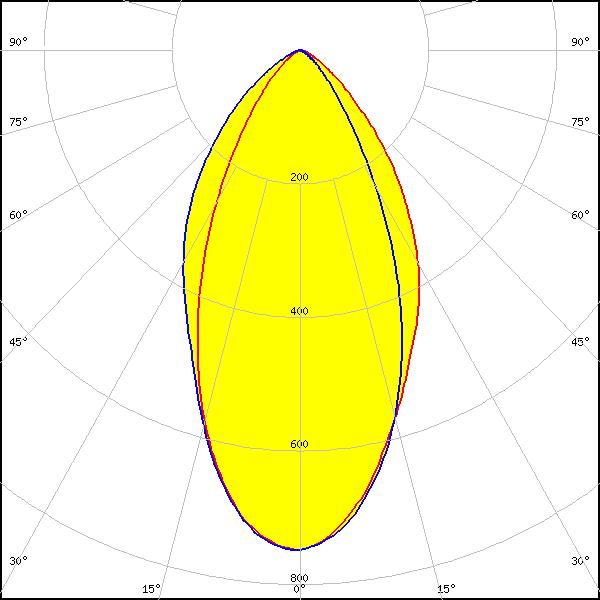

LED:

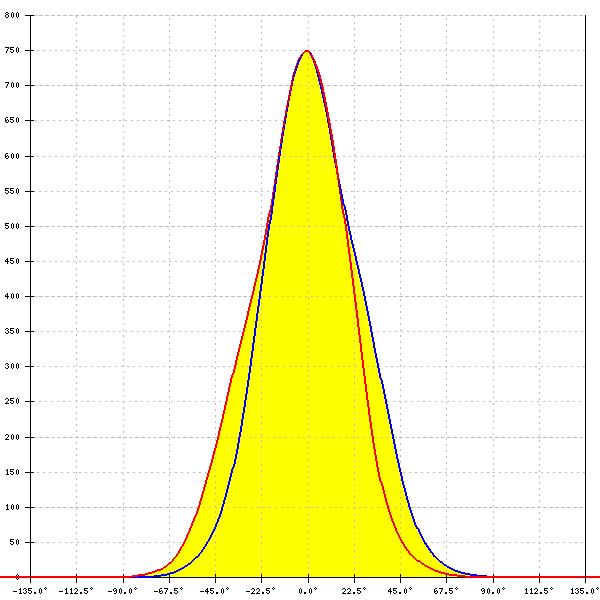

NVSxE21A
FWHM:
53°
FWTM:
98°
Peak intensity:
0.750 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White

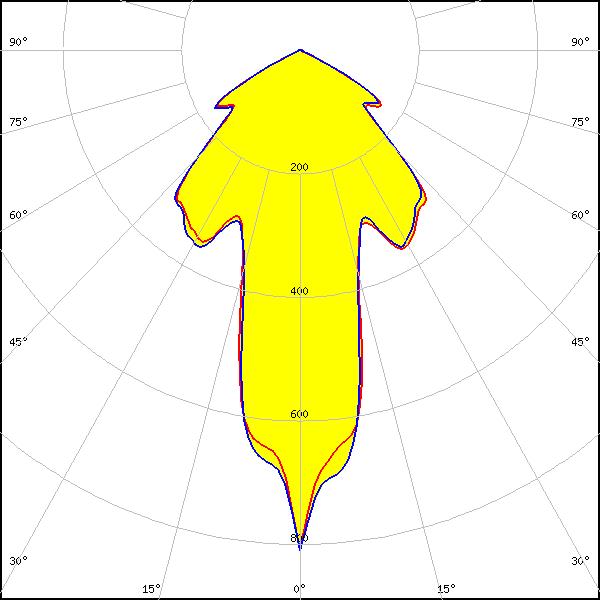

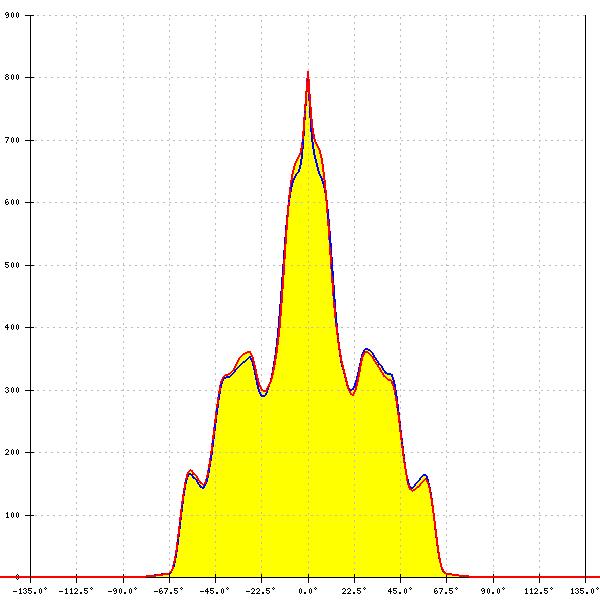

LED:
OSLON Pure 1414
FWHM:
28°
FWTM:
124°
Peak intensity:
0.810 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Signal
FWHM:
85°
FWTM:
129°
Peak intensity:
0.524 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Green
LED:
OSLON Signal
FWHM:
65° + 59°
FWTM:
121° + 121°
Peak intensity:
0.691 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Yellow
LED:
OSLON Signal
FWHM:
86°
FWTM:
136°
Peak intensity:
0.489 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
Red

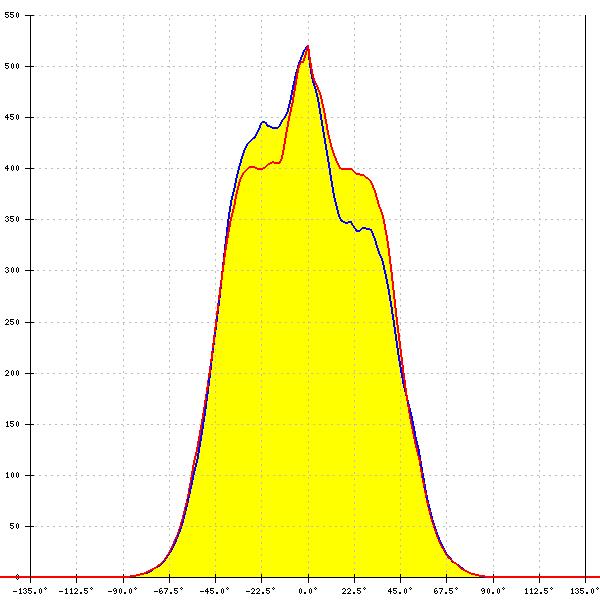

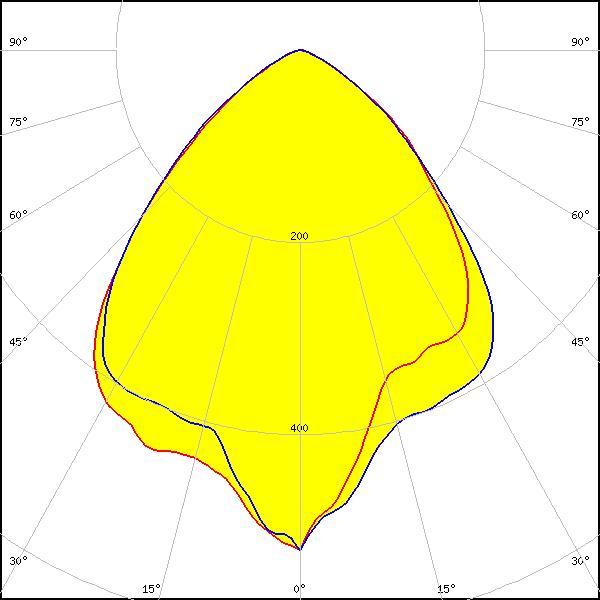

LED:
OSLON SSL 120
FWHM:
86°
FWTM:
123°
Peak intensity:
0.520 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Amber
LED:
SFH 4170S
FWHM:
58°
FWTM:
114°
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4180S
FWHM:
57°
FWTM:
112°
LEDs/each optic:
1
Light colour/type:
IR

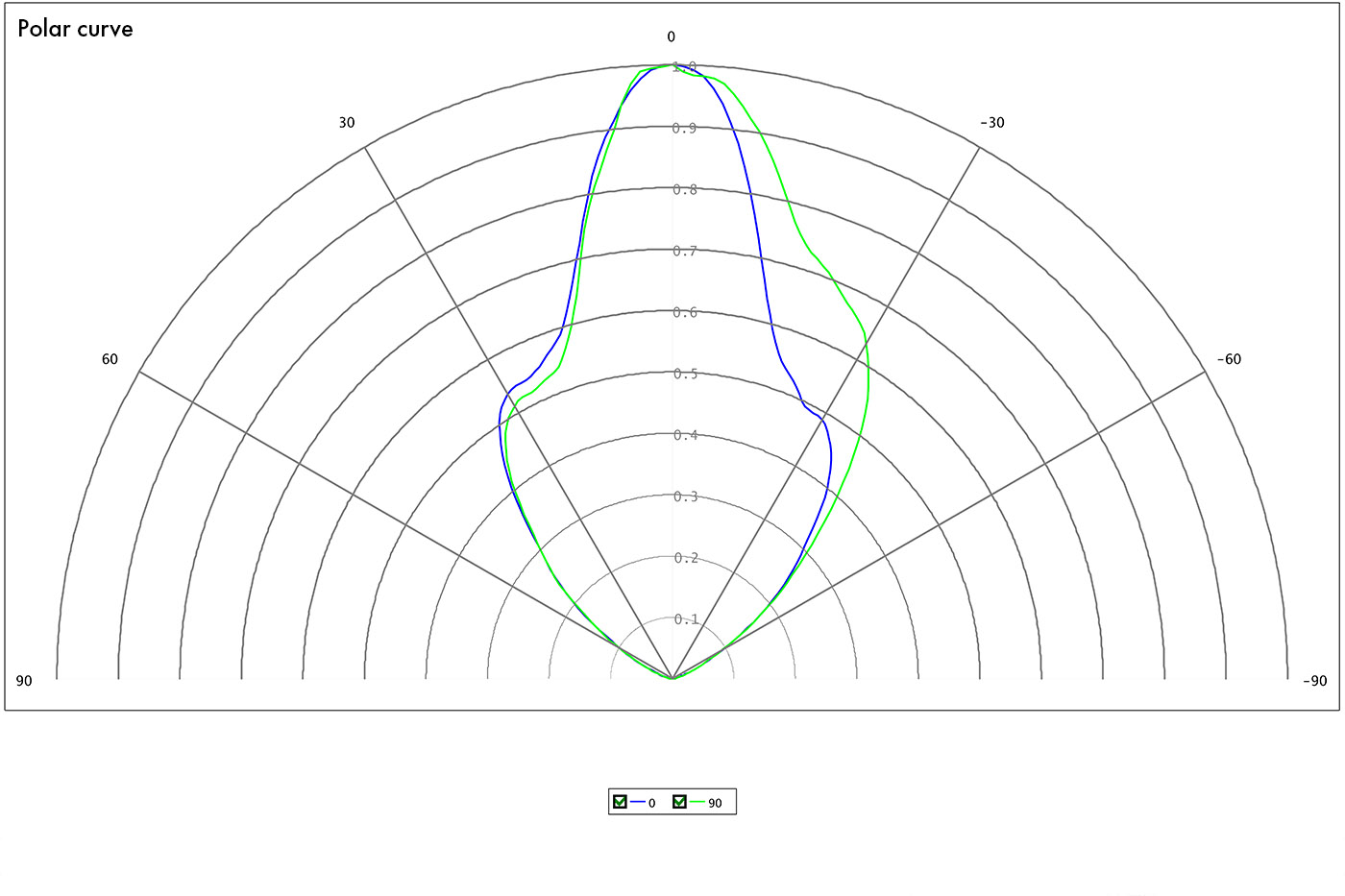

LED:

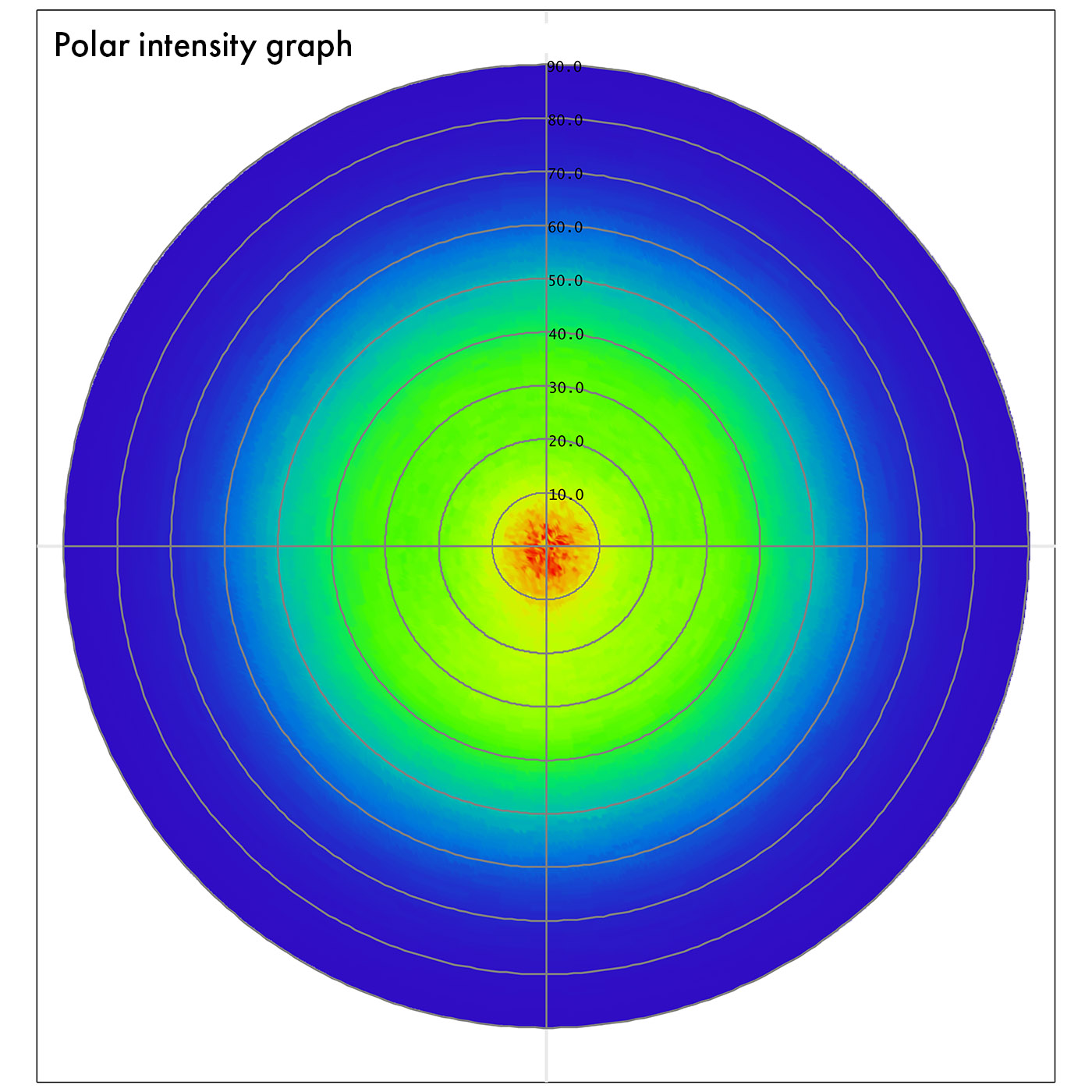

SFH 4770S
FWHM:
65°
FWTM:
118°
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
IR

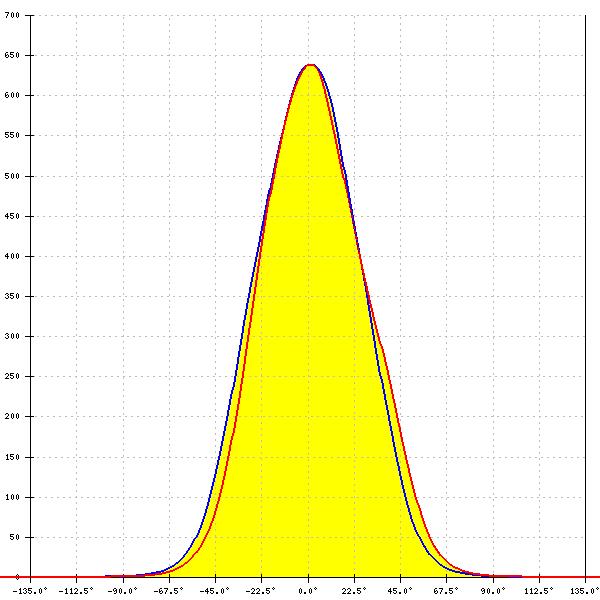

LED:

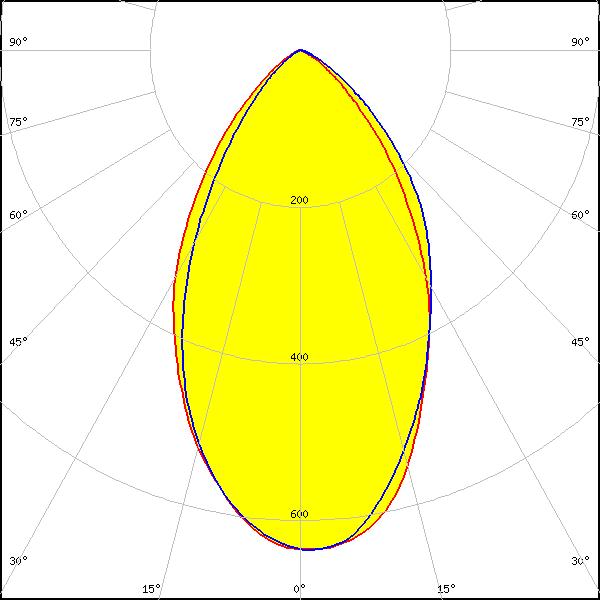

LH181B
FWHM:
62°
FWTM:
104°
Peak intensity:
0.640 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

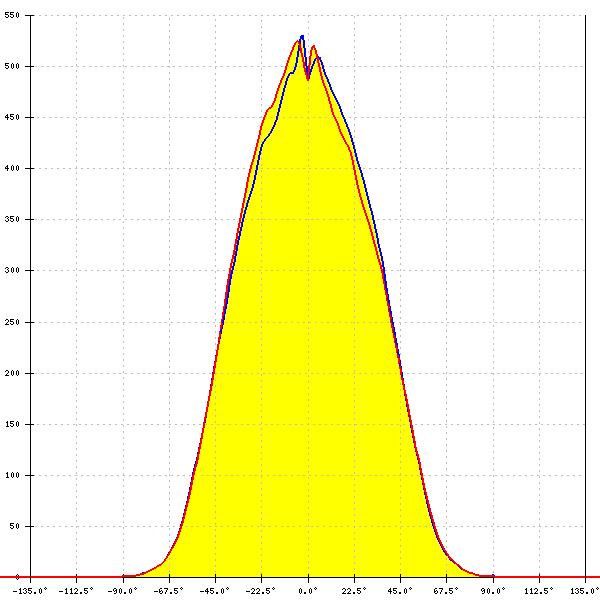

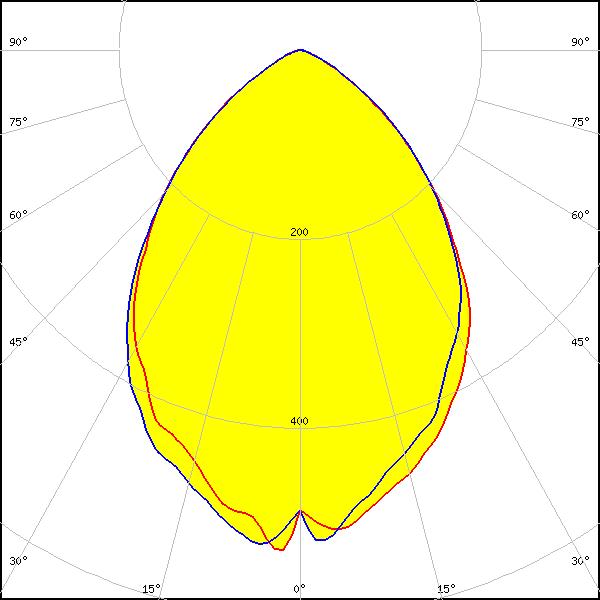

LED:
LM301B
FWHM:
80°
FWTM:
122°
Peak intensity:
0.536 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3528
FWHM:
81°
FWTM:
126°
Peak intensity:
0.512 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5
FWHM:
70°
FWTM:
-
LEDs/each optic:
1
Light colour/type:
White
