NEW PRODUCTS - JANUARY 24, 2020

Four new street lighting beams in different footprints and a new uplight beam for the LINDA extrusion.

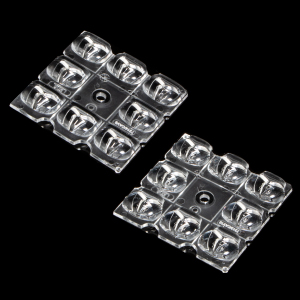

STRADELLA-8-HV-CSP-SCL & -T3-M LEDiL new STRADELLA-8-CSP street lighting beams

50 x 50 mm 8 lens array for CSP LEDs with type II/III (long) beam for very wide pole to pole distances (ideal for pedestrian paths and residential roads, EN13201 P-classes), and IESNA Type III Medium beam with excellent backlight control, illuminance uniformity and cutoff. These new variants come with improved creepage distance for high voltage circuit design.

On a luminaire level they provide up to 150 lm/w* when used with the latest Fortimo FastFlex Gen 5 from Signify.

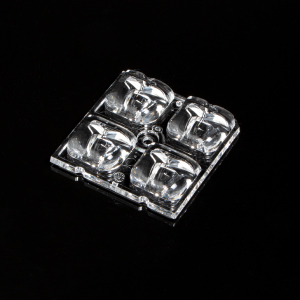

STRADA-2X2-5050-T3-M LEDiL new STRADA-2x2-5050-T3-M street lighting beam

50 x 50 mm 2X2 lens array with IESNA Type III Medium beam with excellent backlight control, illuminance uniformity and cutoff. Compatible with flat 5050 size LED packages.

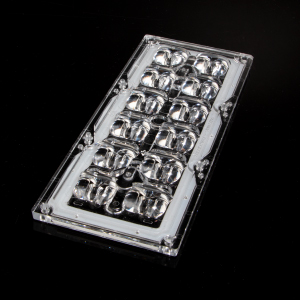

STRADA-IP-2X6-SCL-PC LEDiL STRADA-IP-2X6-SCL street lighting optics in PC

173 x 71.4 mm ingress protected 2X6 array with type II/III (long) beam for very wide pole to pole distances. Ideal for pedestrian paths and residential roads. EN13201 P-classes. Variant made from PC and compatible with up to 5050 size LED packages.

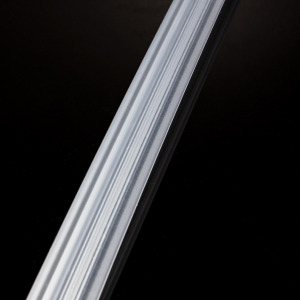

LINDA-UP2 LEDiL new LINDA-UP2 uplight optic

Seamless linear extrusion lens with excellent optical control now available with a wider uplight light distribution (~165° + 130°). Easy to install and comes in various lengths (1140 mm, 3010 mm, 48 inches). Compatible with up to 24 mm wide Zhaga PCBs.

STRADELLA-8-HV-CSP-SCL

STRADELLA-8-HV-CSP-T3-M

STRADA-2X2-5050-T3-M

STRADA-IP-2X6-SCL-PC

LINDA-UP2
