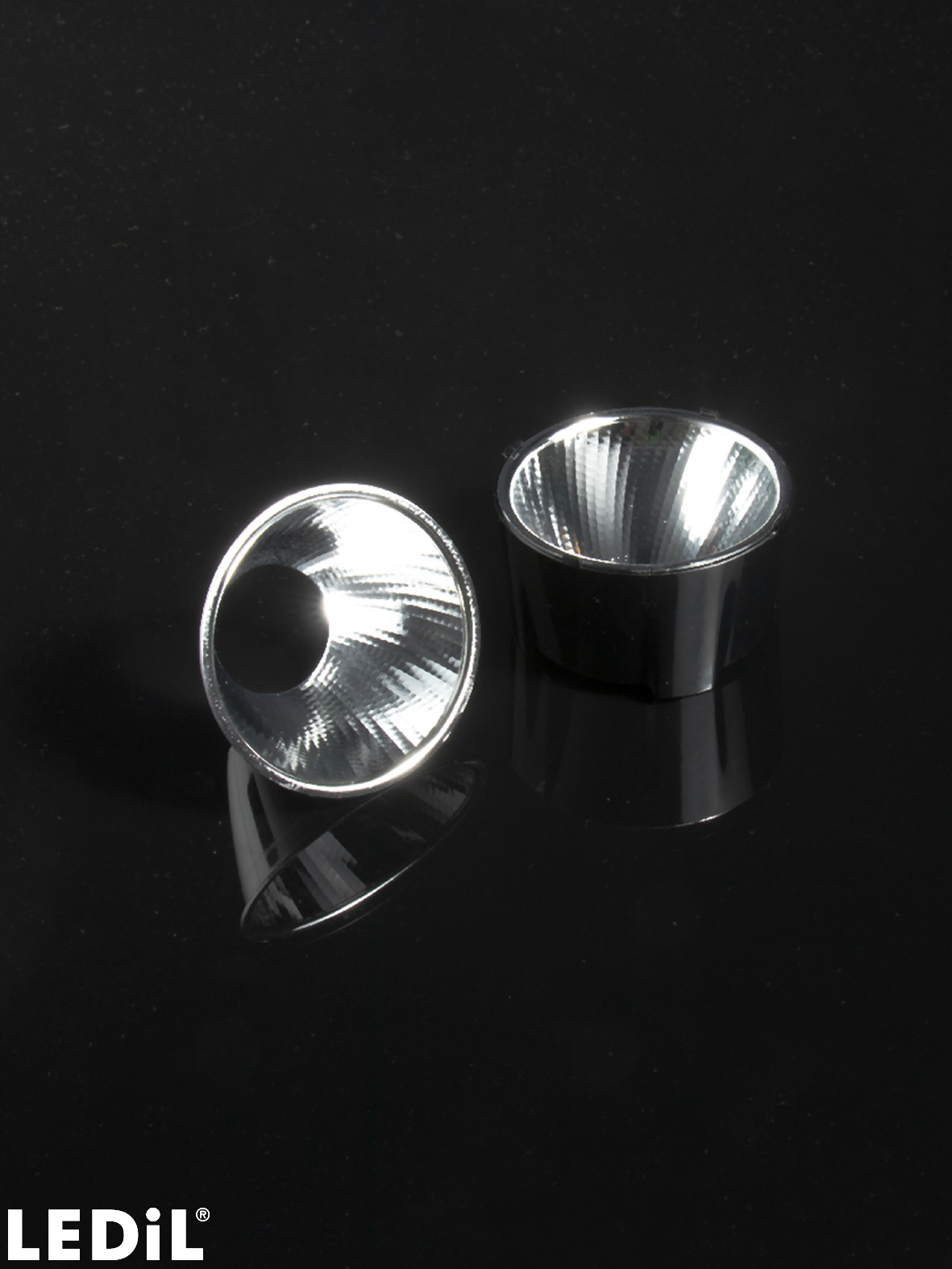

ADELY-50-S
Print~15° spot beam
Parts may have different packaging information. Contact us for details.
This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
-
Dimensions:50 mm
-
Height:28.10 mm
-
Fastening:clips, socket
-
RoHS and REACH compliant:Yes
Component Materials
- YASMEEN-50-HLD2-CHolderPC
- YASMEEN-50-HLD2-BHolderPC
- ADELY-50-SReflectorAluminium
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
- Quantities for one set:
- Reflector1 pcs
- Holder1 pcs
- Reflector
- C18891_ADELY-50-Smetal
- Quantity in box:1600 pcs
- Box size:370 x 300 x 310 mm
- Box weight:12.60 kg
- MPQ:80 pcs
- MOQ:80 pcs
- MOQ Size:310 x 230 x 100 mm
- MOQ Weight:0.80 kg
- Holder
- C18691_YASMEEN-50-HLD2-Cblack
- C18694_YASMEEN-50-HLD2-Bblack
- Quantity in box:500 pcs
- Box size:400 x 300 x 300 mm
- Box weight:3.70 kg
- MPQ:10 pcs
- MOQ:60 pcs
- MOQ Size:320 x 230 x 70 mm
- MOQ Weight:0.70 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

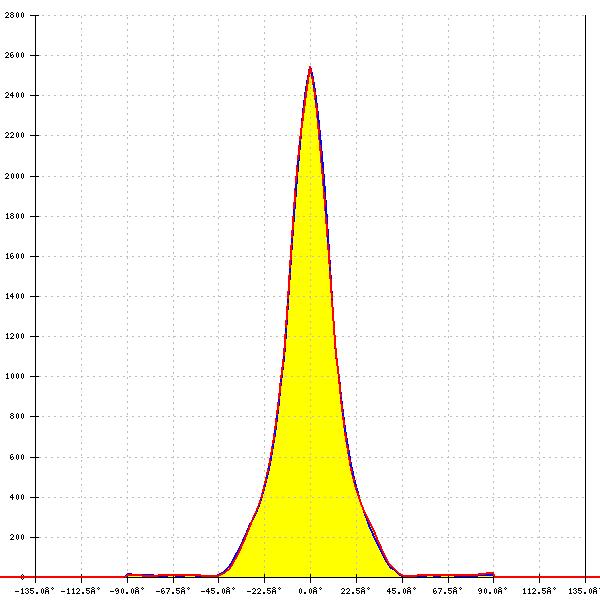

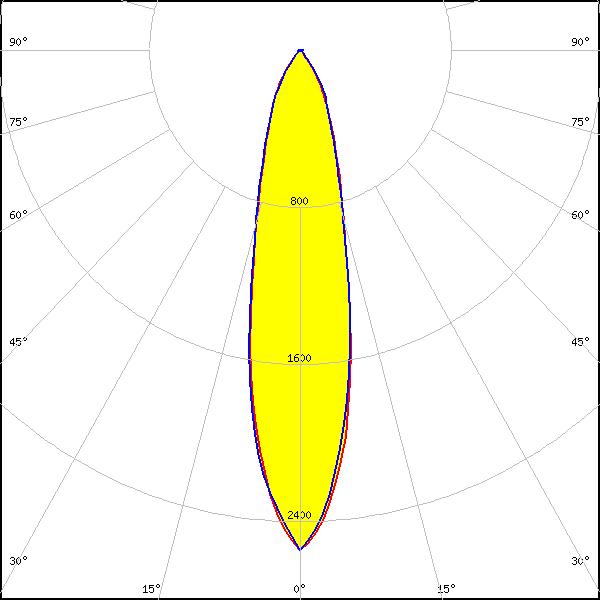

LED:
BXRV-D13-RGBW3000-A3
LES size: 13.0 mm
Required components:
FWHM:
24°
FWTM:
60°
Peak intensity:
2.546 cd/lm
Efficiency:
73 %
LEDs/each optic:
48
Light colour/type:
RGBW

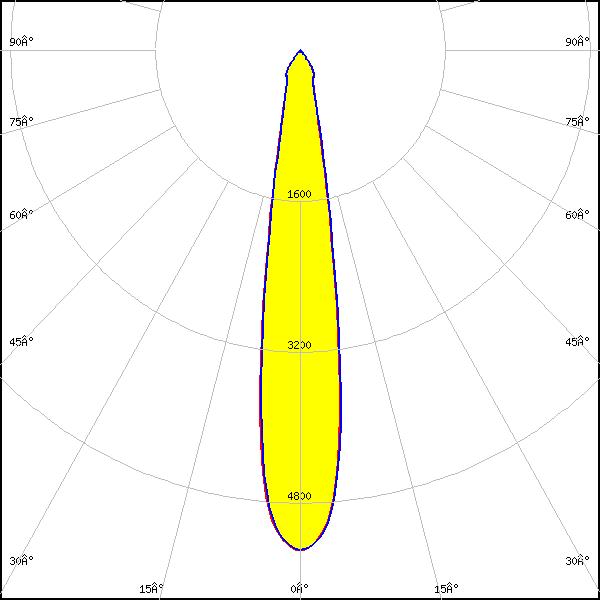

LED:
V10 Gen 8-9
LES size: 10.0 mm
Required components:
FWHM:
18°
FWTM:
37°
Peak intensity:
5.303 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

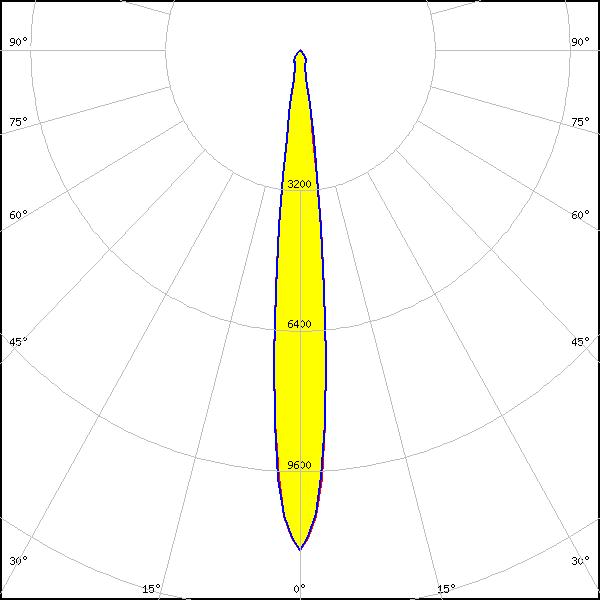

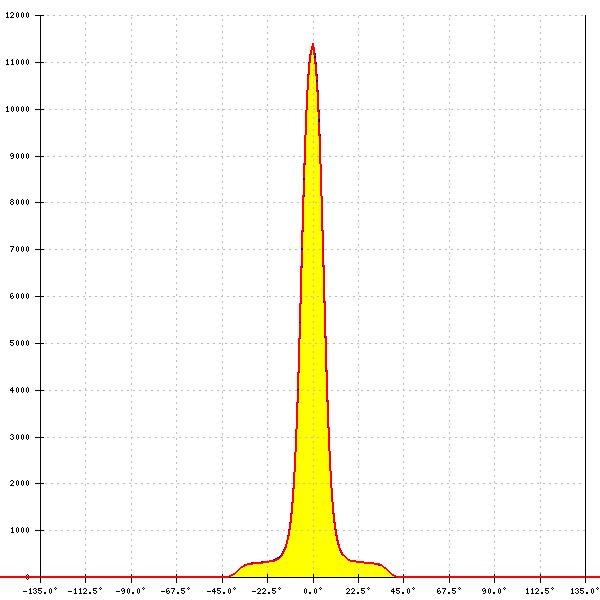

LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
11.395 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

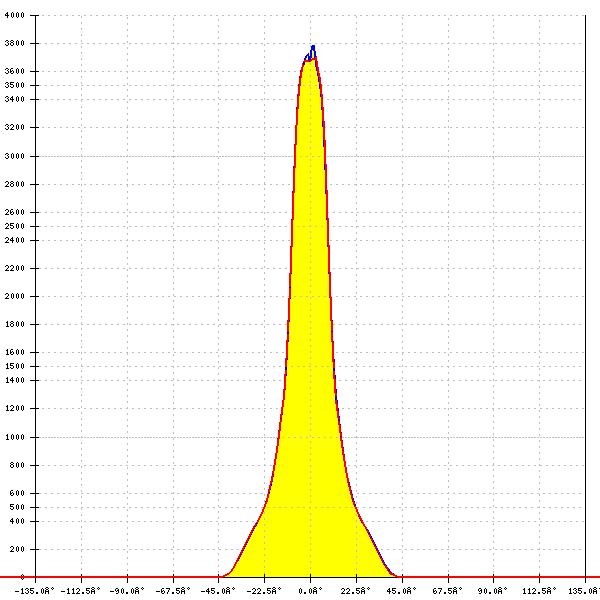

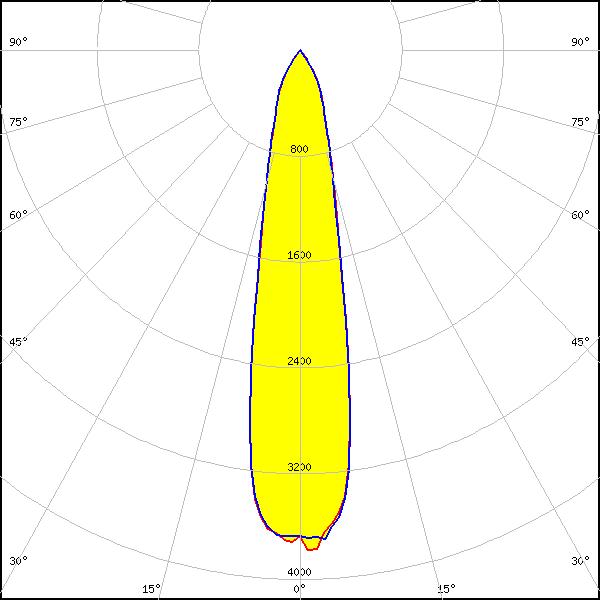

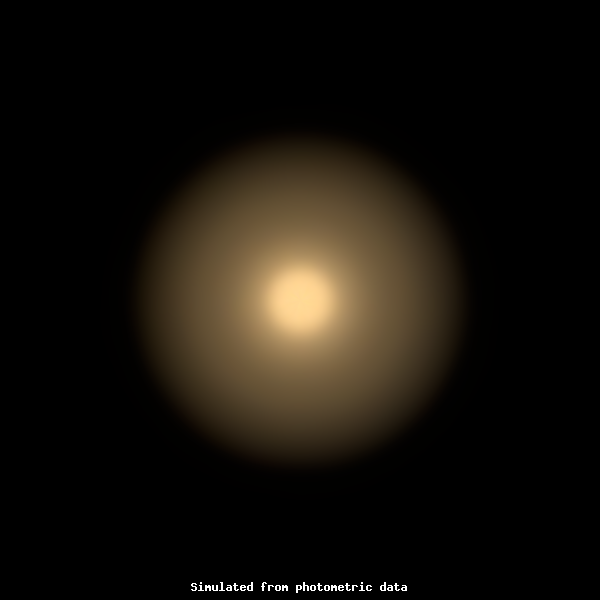

LED:
CxM-11 (19x19)
LES size: 11.7 mm
Required components:
FWHM:
22°
FWTM:
52°
Peak intensity:
3.781 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

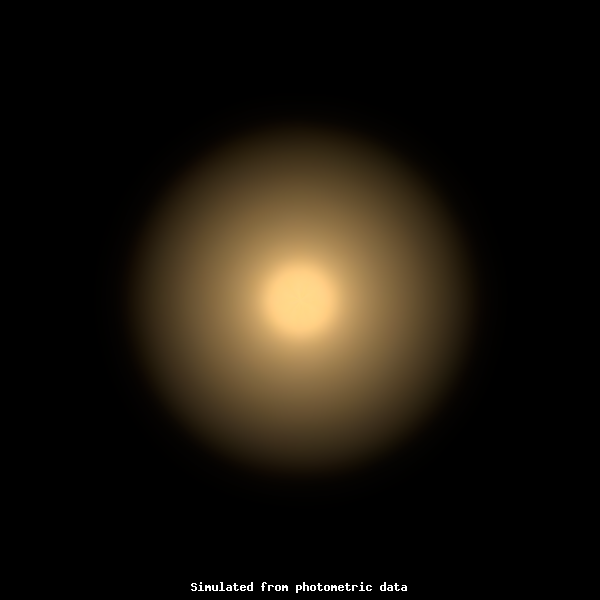

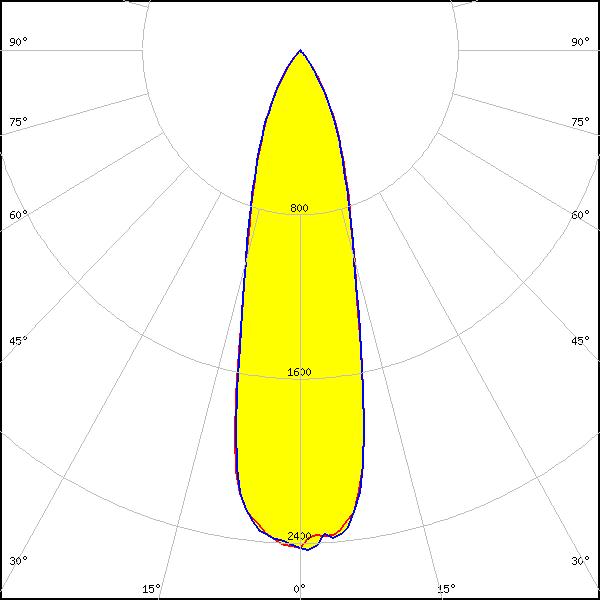

LED:
CxM-14 (19x19)
LES size: 14.3 mm
Required components:
FWHM:
28°
FWTM:
63°
Peak intensity:
2.458 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

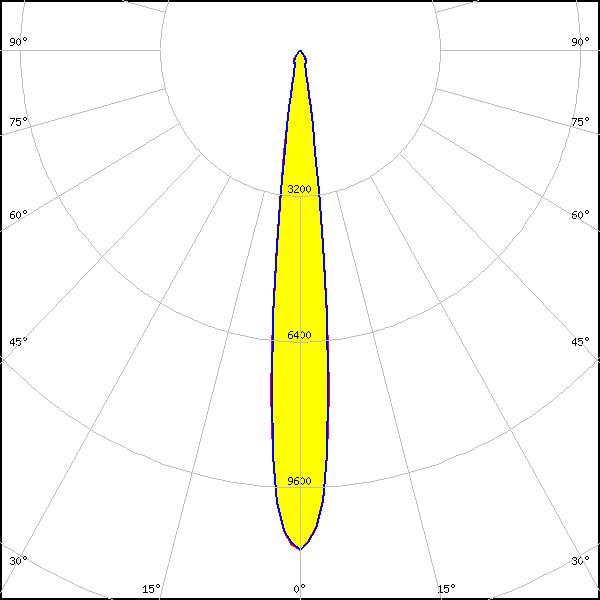

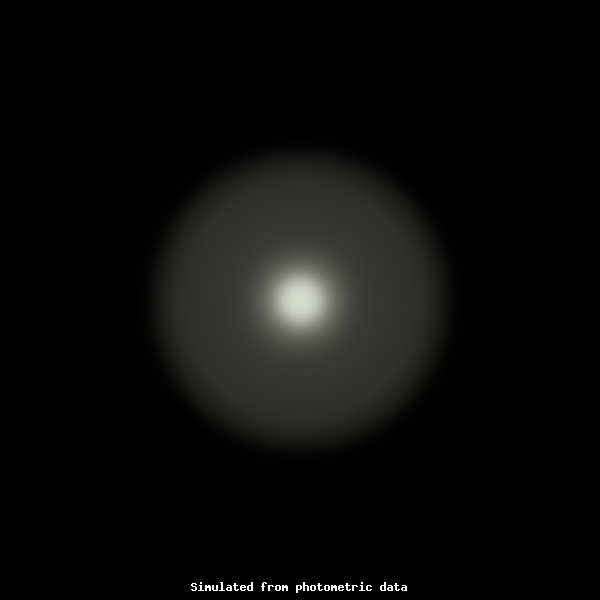

LED:
NF1202EFC-V5
LES size: 6.0 mm
Required components:
FWHM:
12°
FWTM:
24°
Peak intensity:
10.975 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

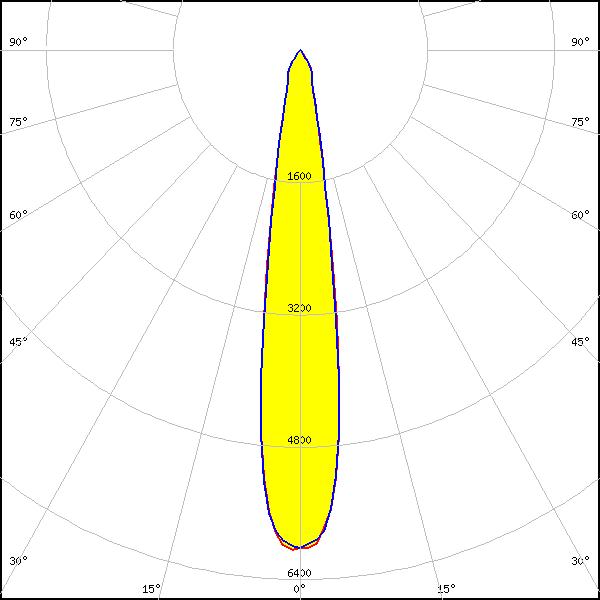

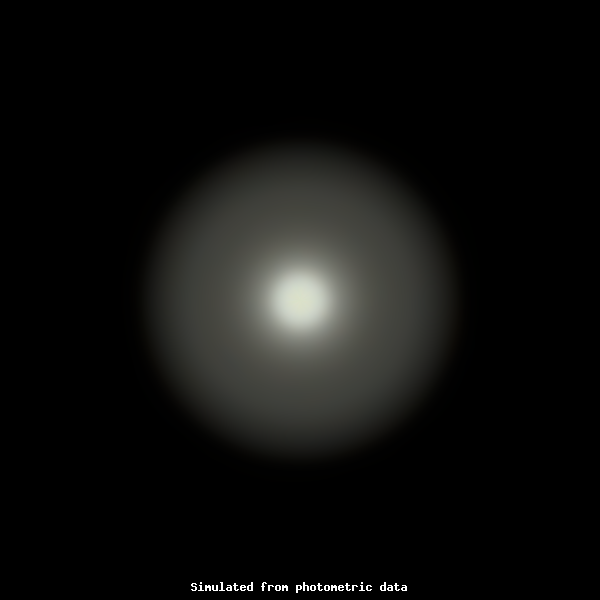

LED:
NF1203EJC-V5
LES size: 9.0 mm
Required components:
FWHM:
16°
FWTM:
36°
Peak intensity:
6.098 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

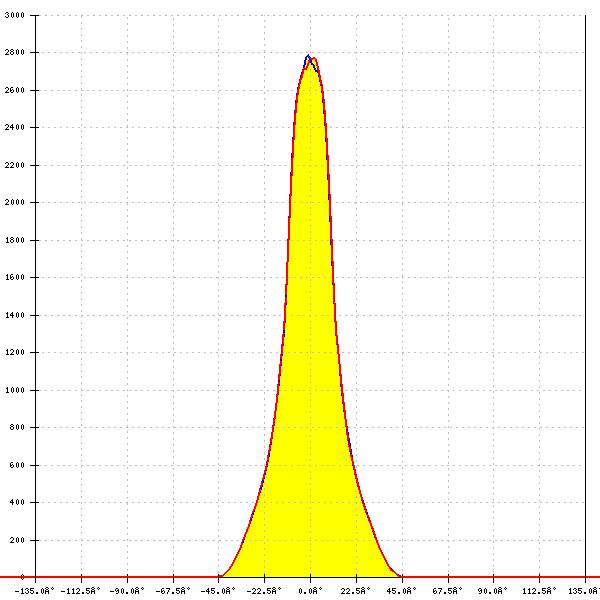

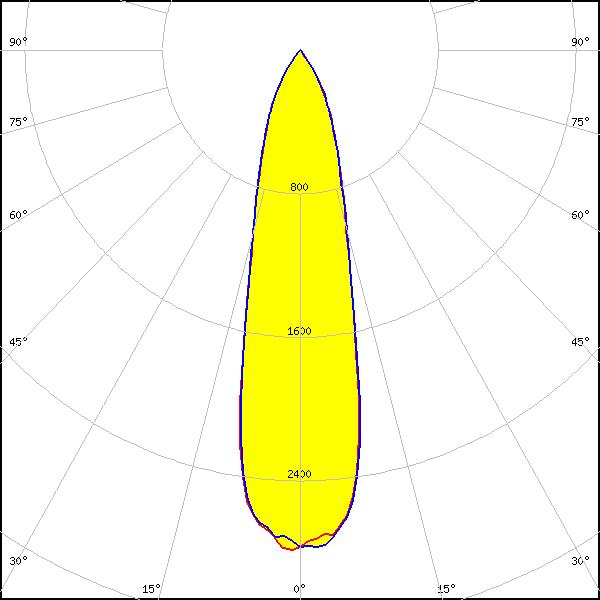

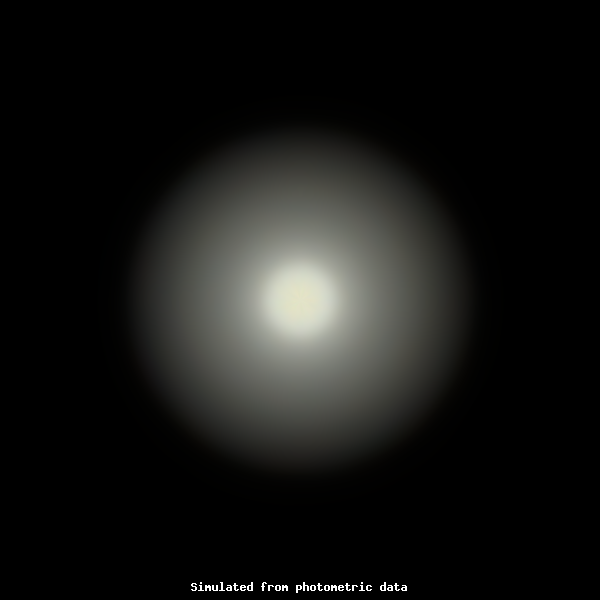

LED:
NF1206JLC-V5
LES size: 14.0 mm
Required components:
FWHM:
26°
FWTM:
60°
Peak intensity:
2.824 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
