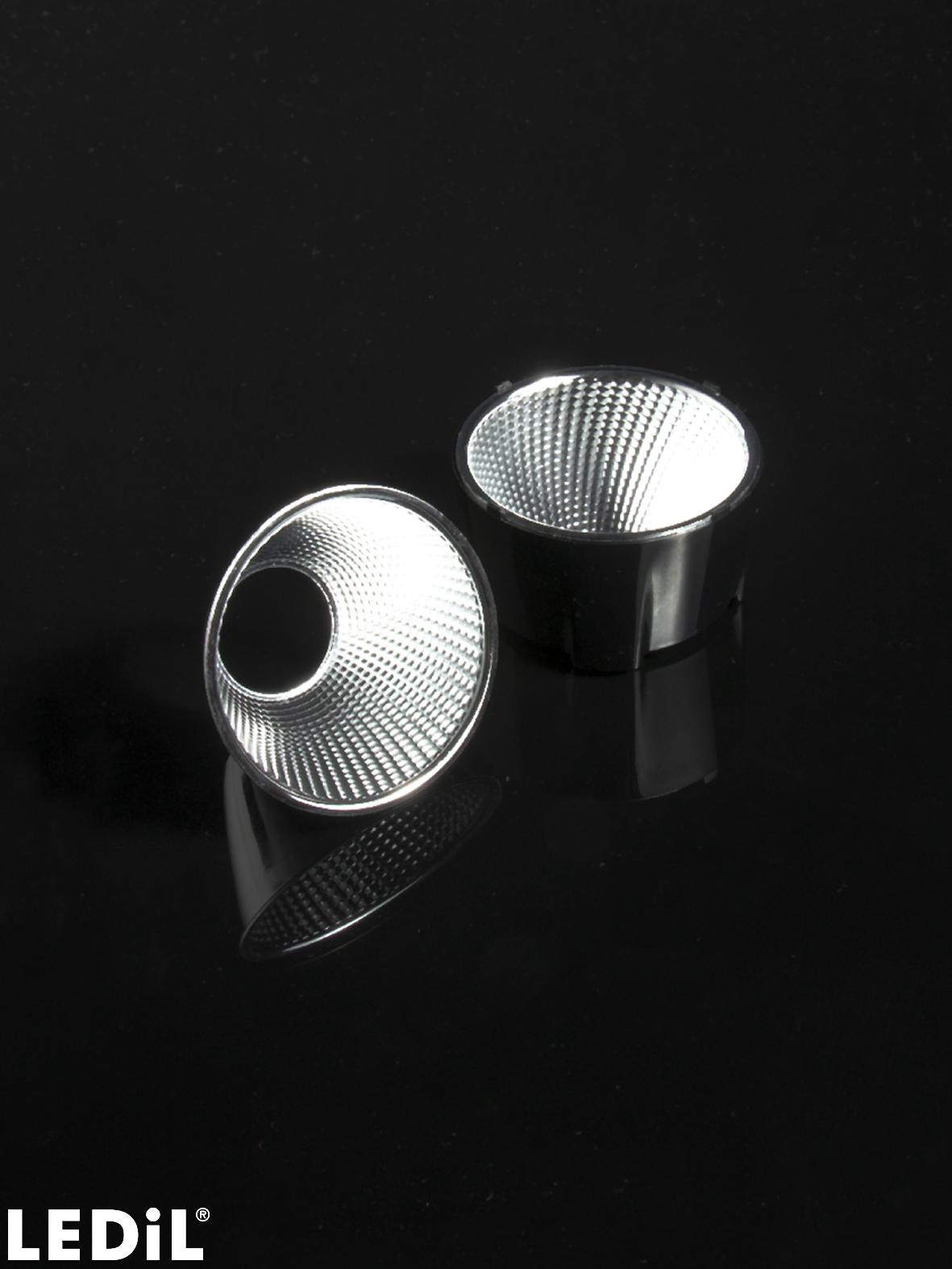

    ADELY-50-W

    Print

    ~36° wide beam

    Parts may have different packaging information. Contact us for details.

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      50 mm
    • Height:
      28.10 mm
    • Fastening:
      clips, socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Reflector
      1 pcs
    • Holder
      1 pcs
    • Reflector
    • C18893_ADELY-50-W
      metal
    • Quantity in box:
      1600 pcs
    • Box size:
      370 x 300 x 310 mm
    • Box weight:
      13.10 kg
    • MPQ:
      80 pcs
    • MOQ:
      80 pcs
    • MOQ Size:
      310 x 230 x 100 mm
    • MOQ Weight:
      0.80 kg
    • Holder
    • C18691_YASMEEN-50-HLD2-C
      black
    • C18694_YASMEEN-50-HLD2-B
      black
    • Quantity in box:
      500 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      3.70 kg
    • MPQ:
      10 pcs
    • MOQ:
      60 pcs
    • MOQ Size:
      320 x 230 x 70 mm
    • MOQ Weight:
      0.70 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18893_ADELY-50-W
      C18691_YASMEEN-50-HLD2-C
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Compatibility guide

    LEDiL connector and socket compatibility guide

    News

    New products – December, 2023

    News

    ADELY – premium reflector for easy and adaptable luminaire designs

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA sockets and HEKLA-G2 and -G2B connectors

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    HEKLA-G2B-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2B-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-I2

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-I3

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-TW1

    Version compatible with tunable white COBs of 15.8 x 15.8 mm packages

    HEKLA-G2B-TW2

    Version compatible with tunable white COBs of 18.8 x 18.8 mm packages

    HEKLA-SOCKET-RZ

    Version with integrated RZ mixing dome for RGBW LEDs

    HEKLA-KONNTAKT-C

    Version compatible with COBs of 13.5 x 13.5 mm packages. The final installation requires two KONNTAKT parts per connector.

    KONNTAKT-1

    KONNTAKT parts for HEKLA-KONNTAKT connectors. Two pieces are needed for one HEKLA-KONNTAKT.

    HEKLA-KONNTAKT-I

    Version compatible with COBs of 19 x 19 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-I2

    Version compatible with COBs of 19 x 19 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-I3

    Version compatible with COBs of 19 x 19 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-A

    Version compatible with COBs of 12.5 x 12.5 mm packages. The final installation requires two KONNTAKT parts per connector.

    Optical results

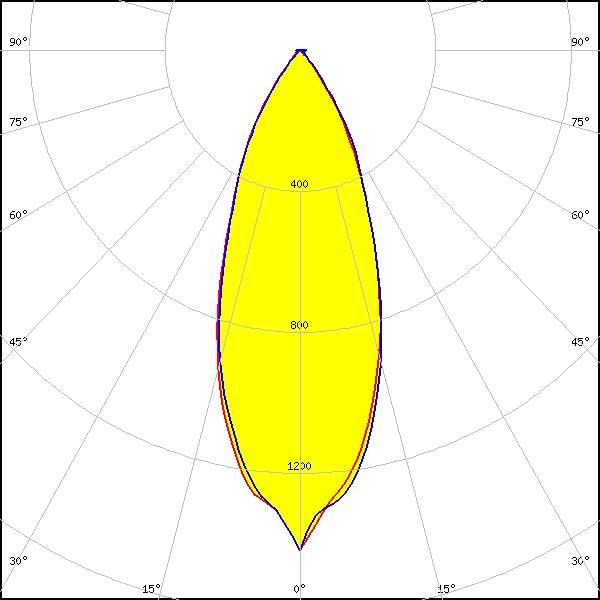

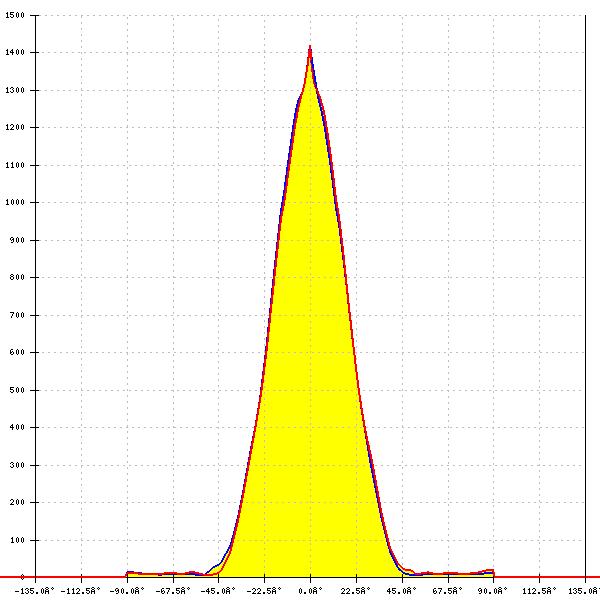

    LED: BXRV-D13-RGBW3000-A3
    LES size: 13.0 mm
    Required components:
    C19950_HEKLA-SOCKET-RZ
    FWHM: 38°
    FWTM: 72°
    Peak intensity: 1.419 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 48
    Light colour/type: RGBW

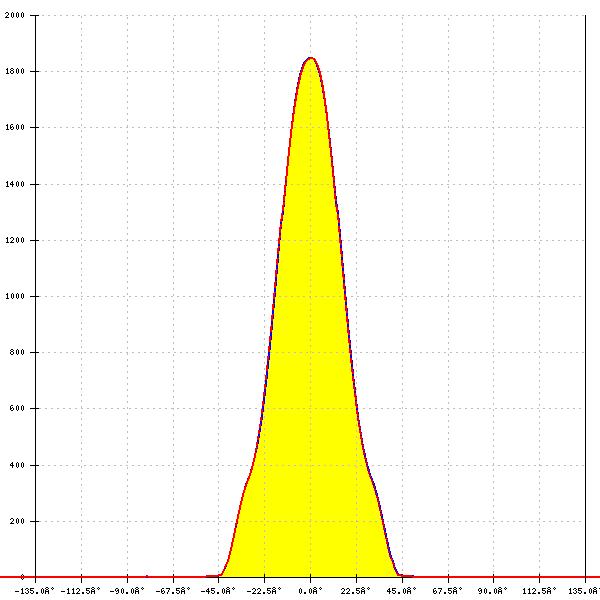

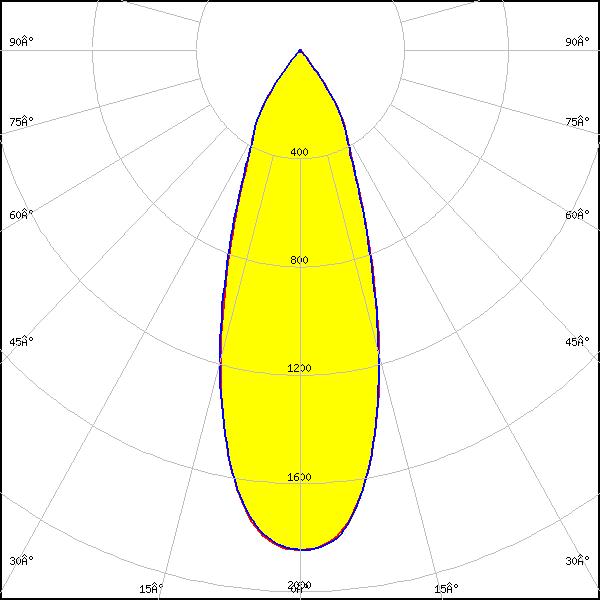

    LED: V10 Gen 8-9
    LES size: 10.0 mm
    Required components:
    F19857_HEKLA-G2B-C2
    FWHM: 37°
    FWTM: 73°
    Peak intensity: 1.847 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

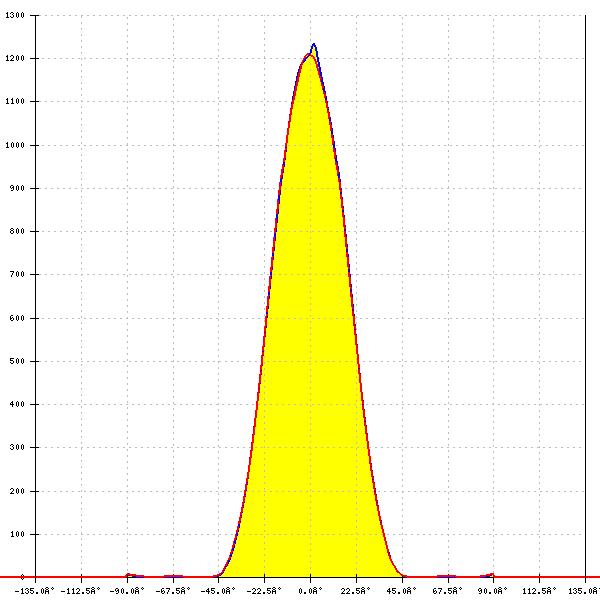

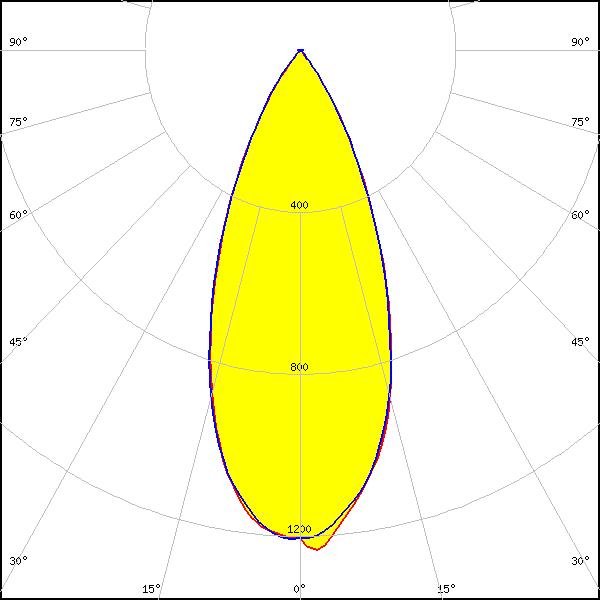

    LED: CLU03Q Type-F
    LES size: 14.5 mm
    FWHM: 42°
    FWTM: 70°
    Peak intensity: 1.246 cd/lm
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour/type: White

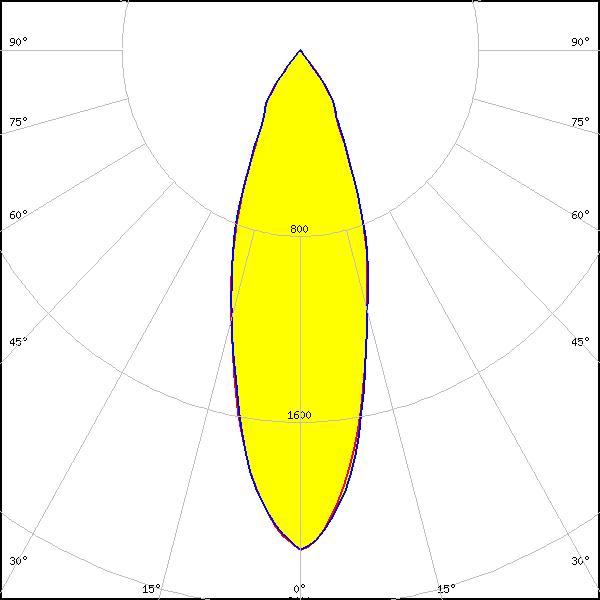

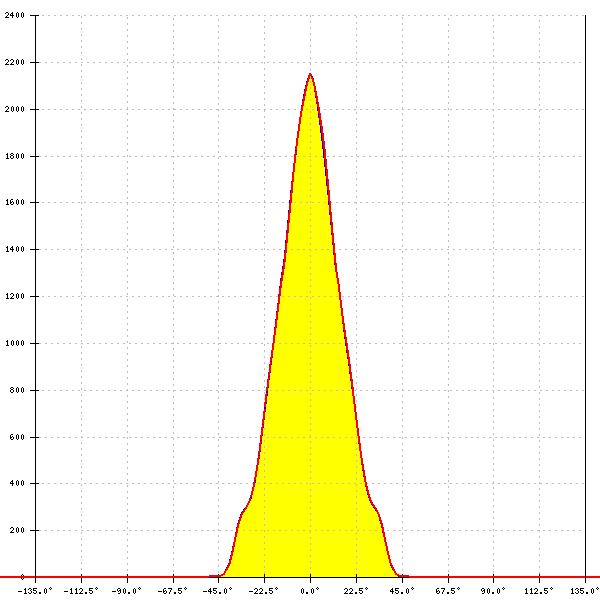

    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 33°
    FWTM: 72°
    Peak intensity: 2.158 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

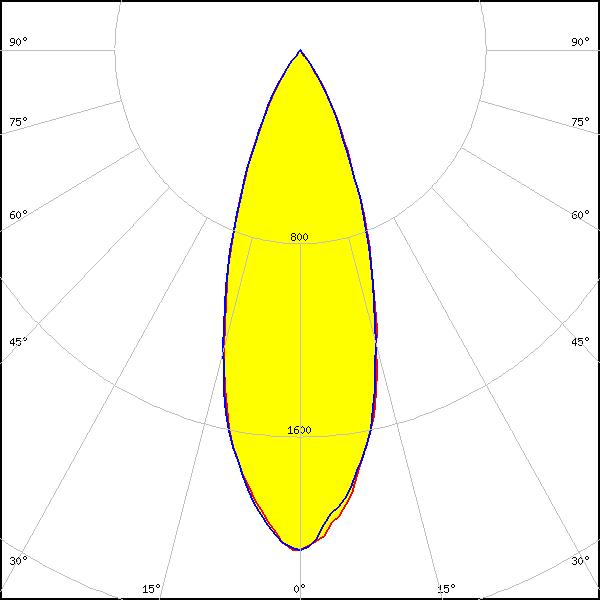

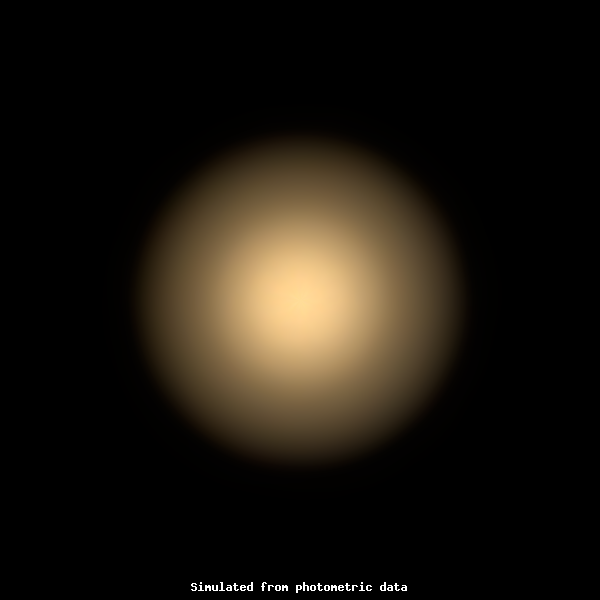

    LED: CxM-11 (19x19)
    LES size: 11.7 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 36°
    FWTM: 66°
    Peak intensity: 2.113 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

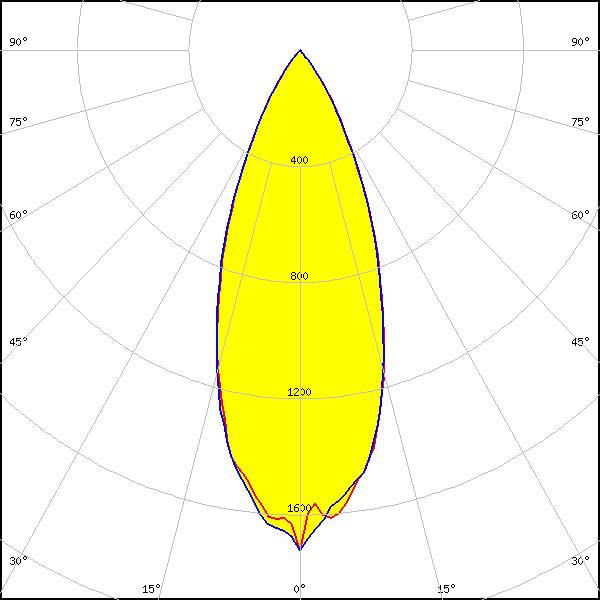

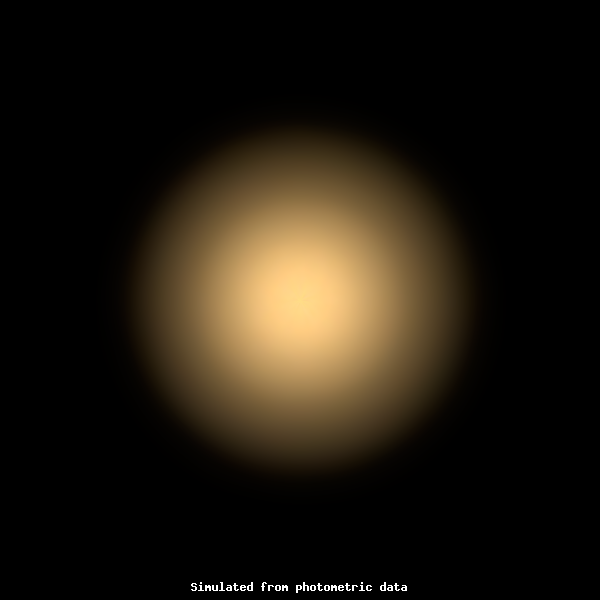

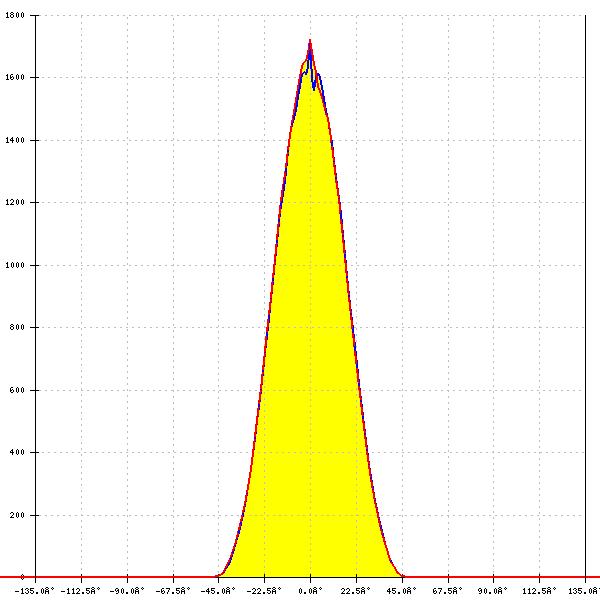

    LED: CxM-14 (19x19)
    LES size: 14.3 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 40°
    FWTM: 69°
    Peak intensity: 1.722 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

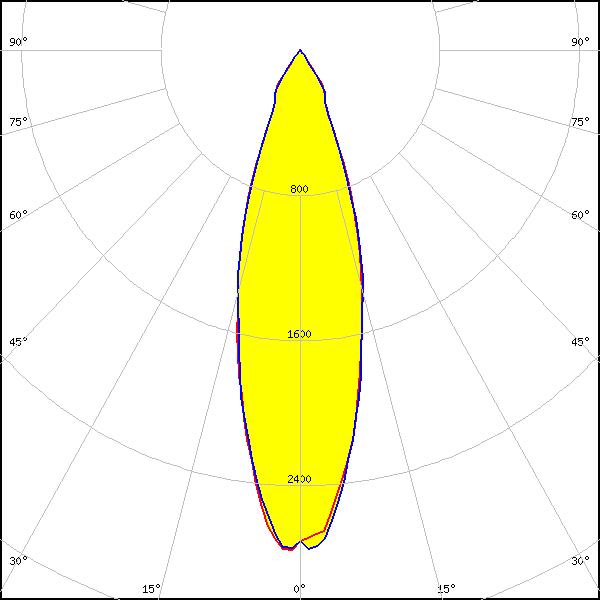

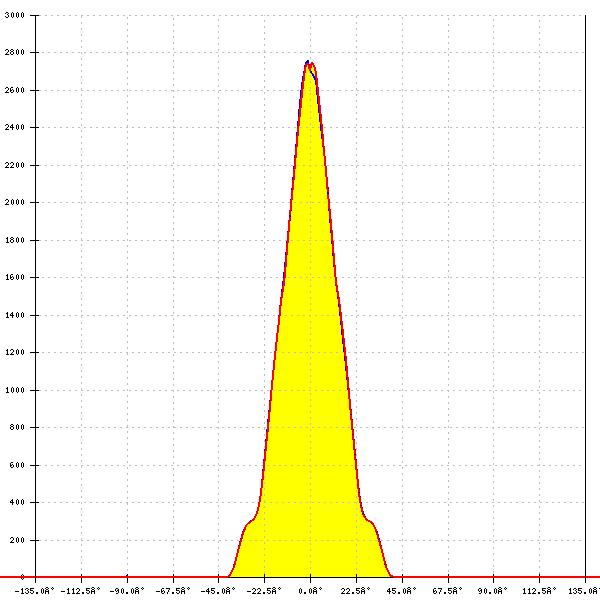

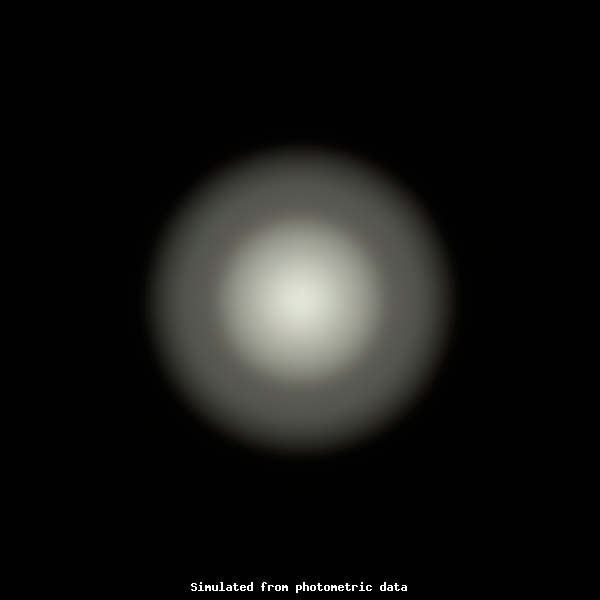

    LED: NF1202EFC-V5
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 30°
    FWTM: 62°
    Peak intensity: 2.773 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

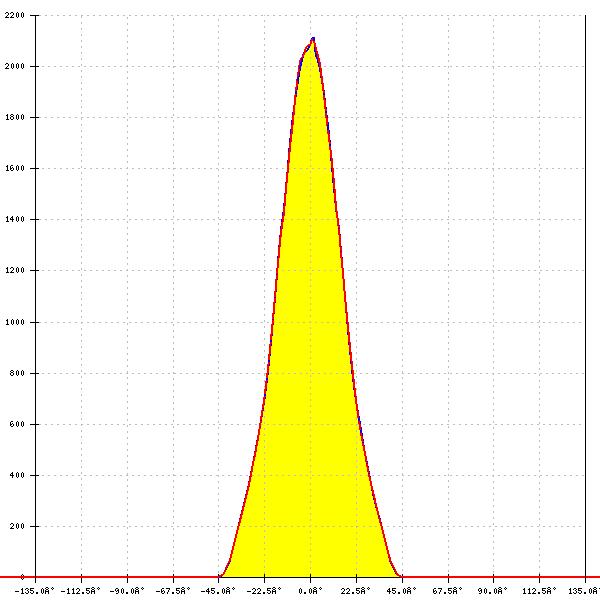

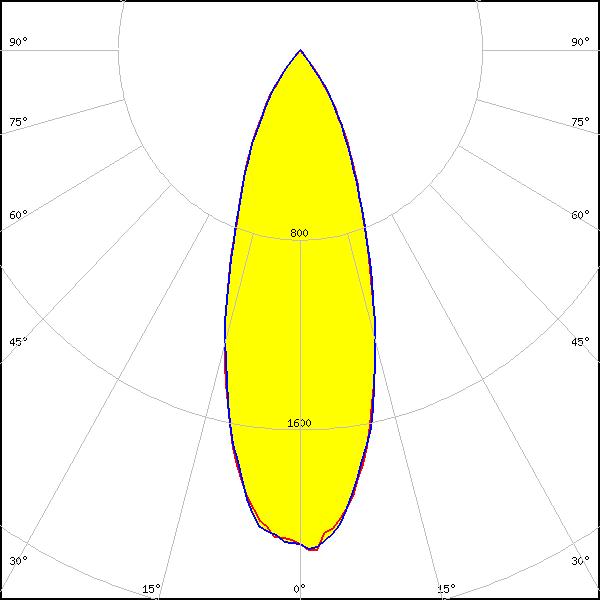

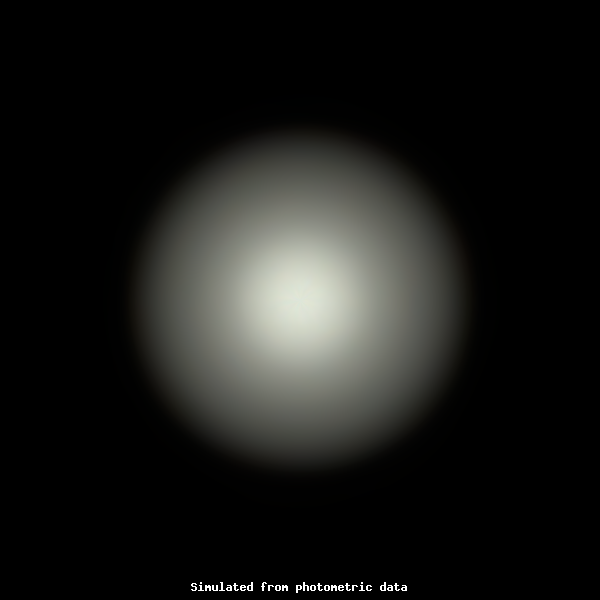

    LED: NF1203EJC-V5
    LES size: 9.0 mm
    Required components:
    L20109_SOCKET-B-25-C
    FWHM: 35° + 36°
    FWTM: 70° + 70°
    Peak intensity: 2.129 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NF1206JLC-V5
    LES size: 14.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 38°
    FWTM: 68°
    Peak intensity: 1.811 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
