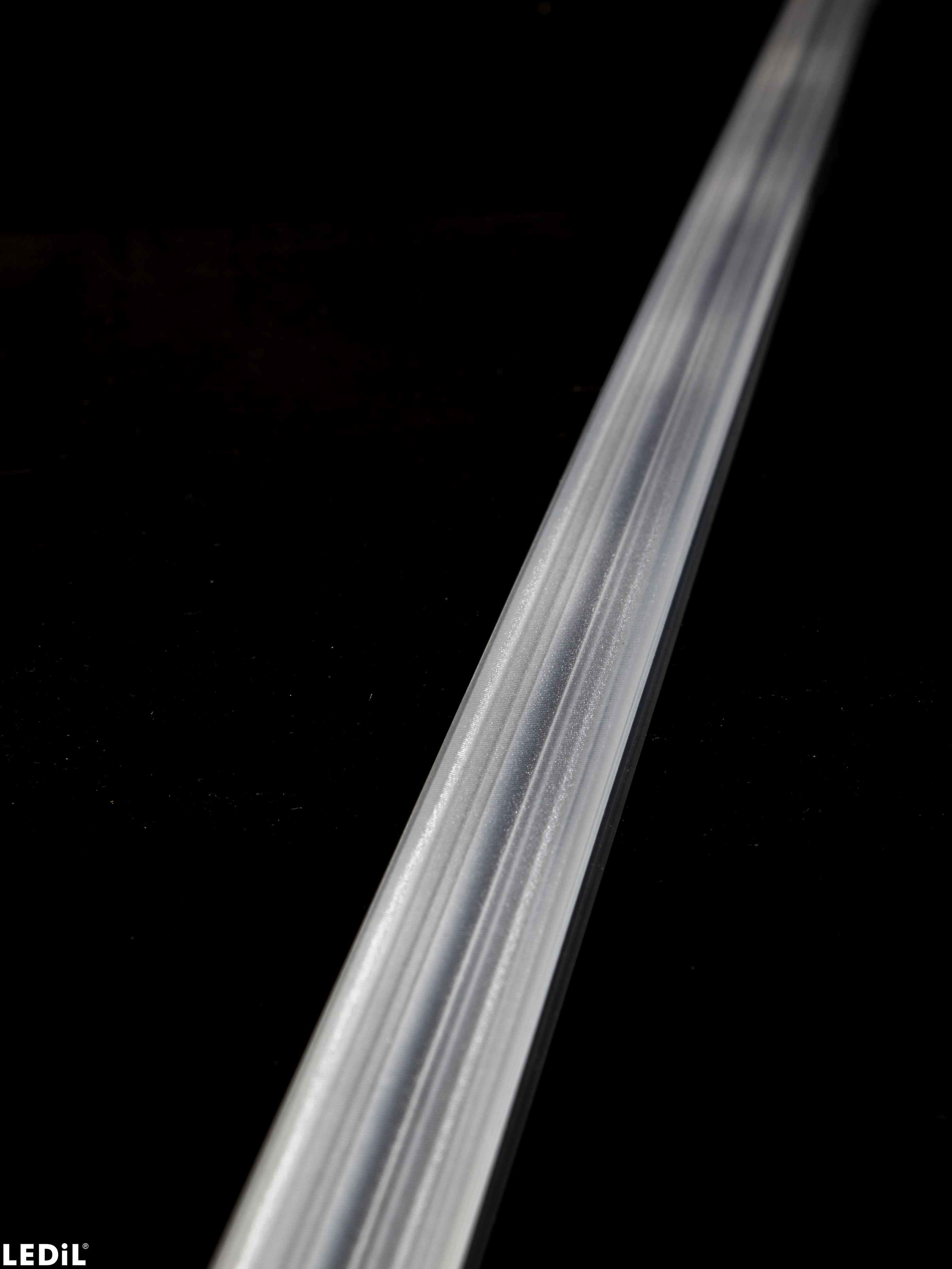

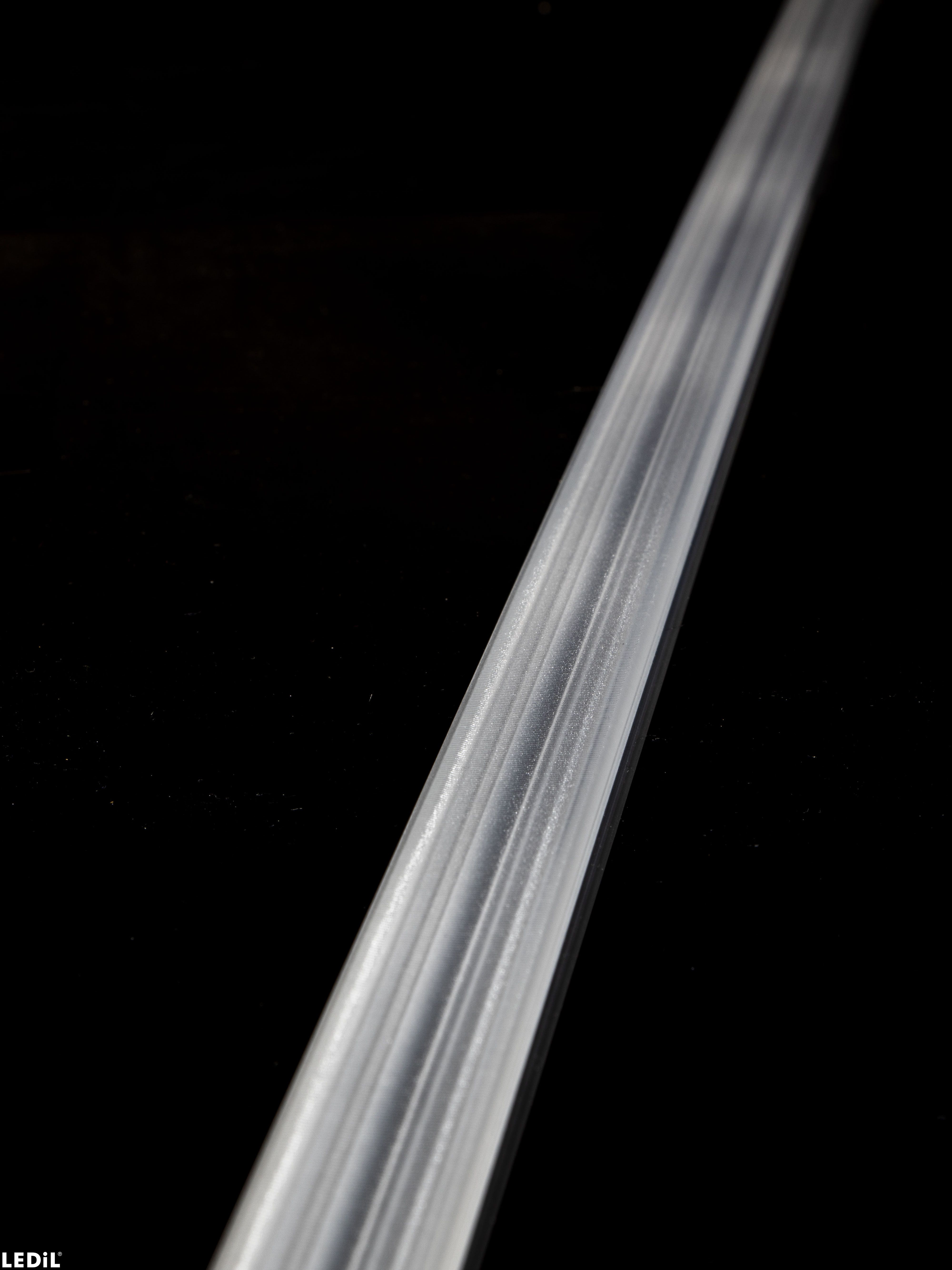

F16636_LINDA-W60

Print

~60° + 90° beam

Specification
  • Dimensions:
    24 x  1140 mm
  • Height:
    6.34 mm
  • Colour:
    milky
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    120 pcs
  • Box size:
    1185 x 150 x 115 mm
  • Box weight:
    9.0 kg
  • MPQ:
    120 pcs
  • MOQ:
    120 pcs
  • MOQ size:
    1185 x 150 x 115 mm
  • MOQ weight:
    9.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F16636_LINDA-W60

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Other variants: F17126_LINDA-W60-48in (North American 48 inch length
F17321_LINDA-W60-3m (3.01 m length) and other custom lengths available

Optical results

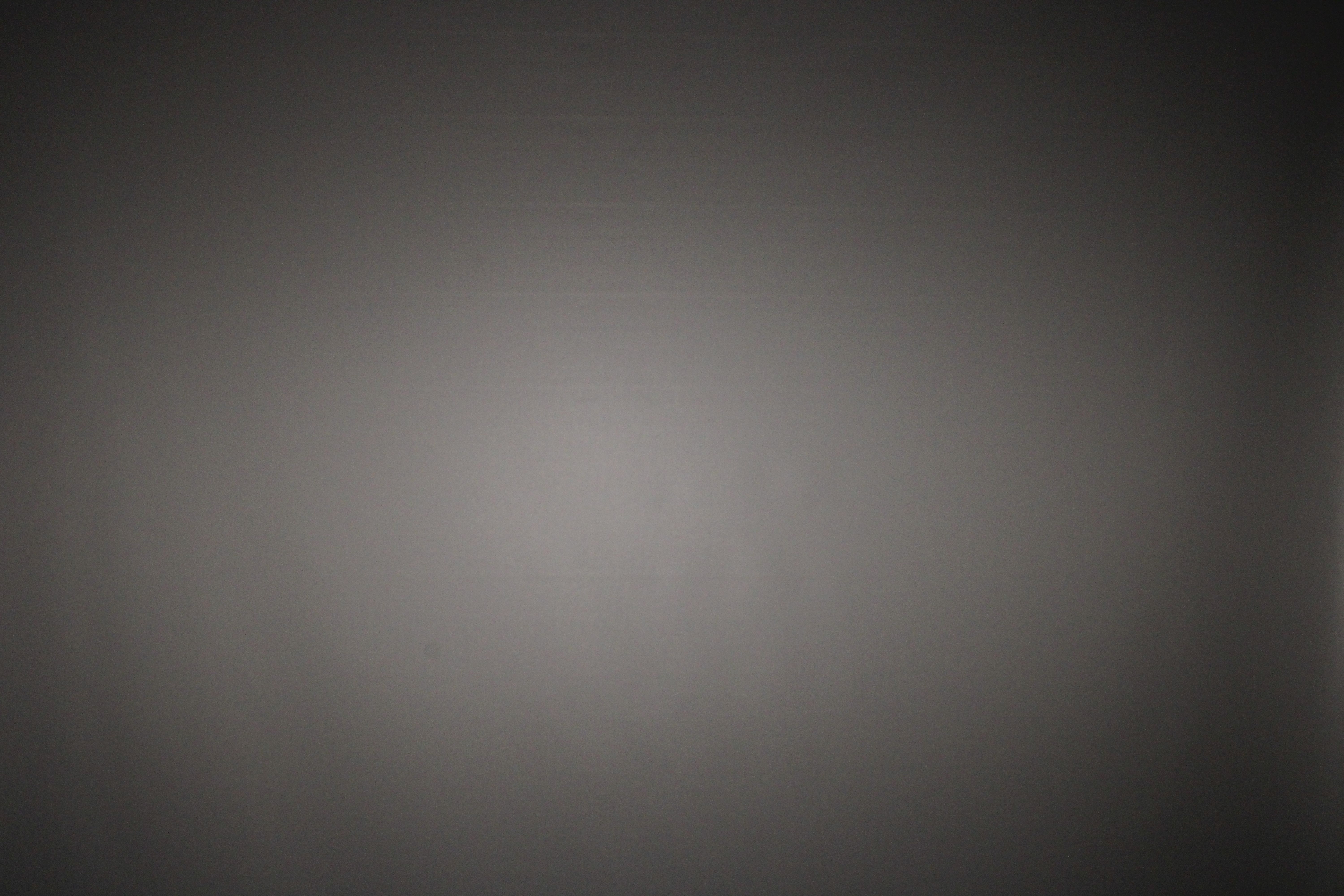

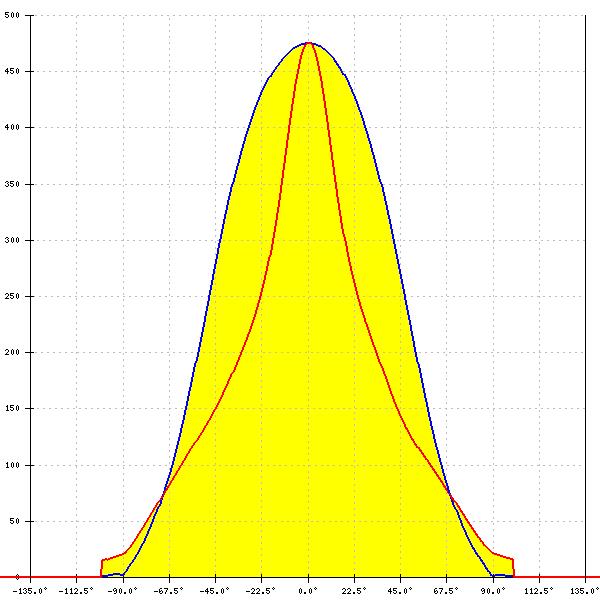

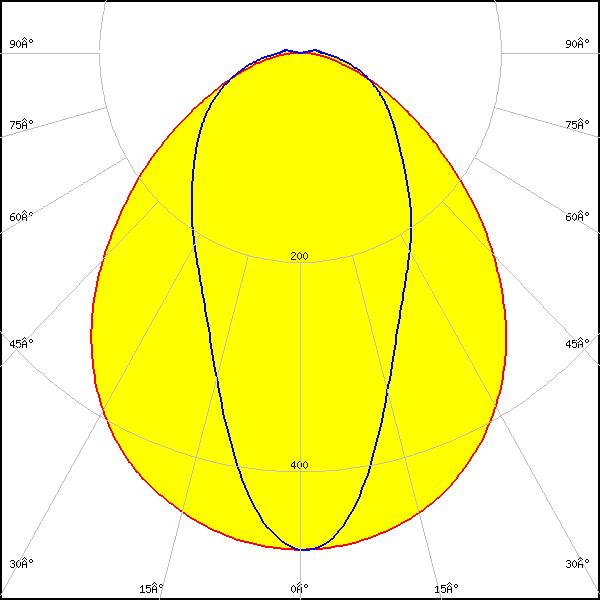

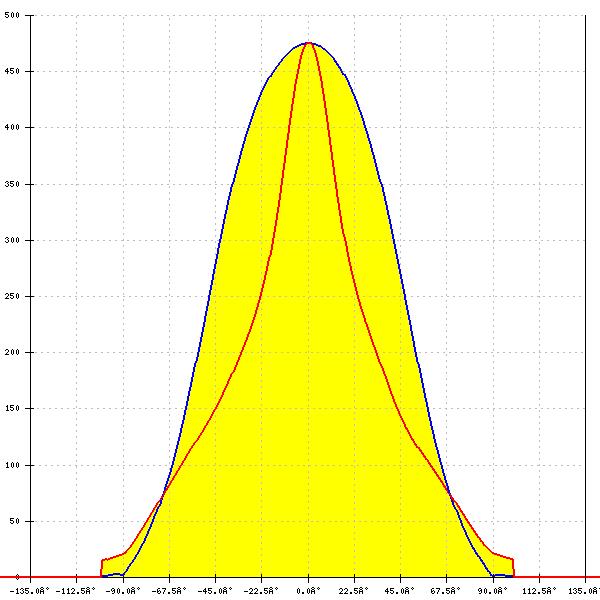

LED: SMD 3030 (BXEM)
FWHM: 98° + 51°
FWTM: 151° + 158°
Peak intensity: 0.476 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: Tunable White

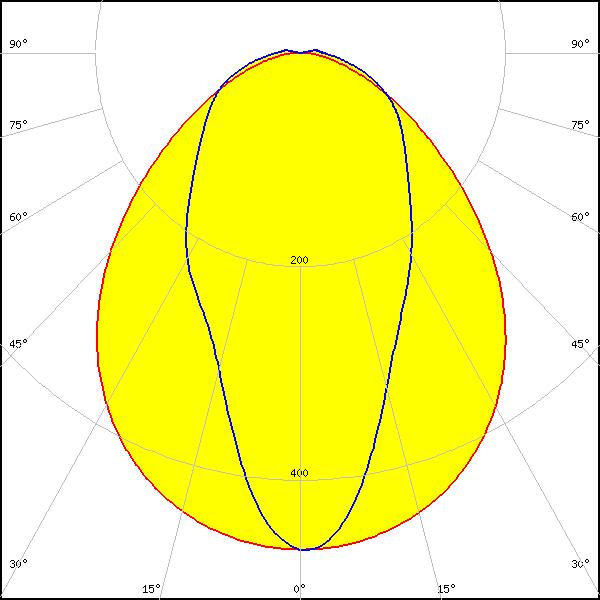

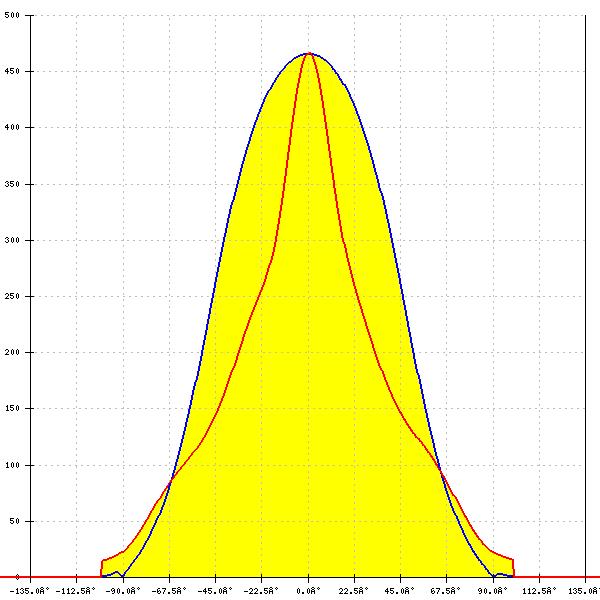

LED: CLUC11
FWHM: 97° + 55°
FWTM: 149° + 159°
Peak intensity: 0.466 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

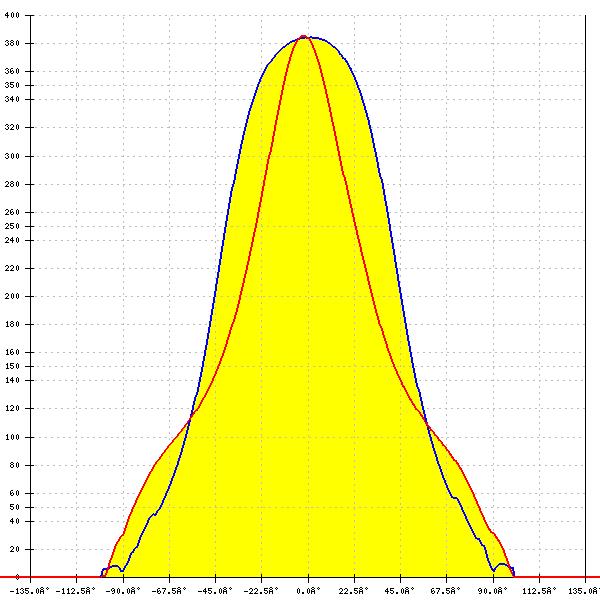

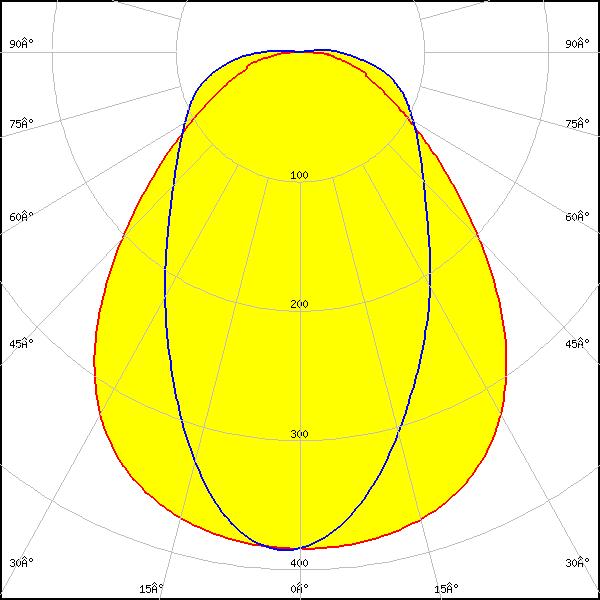

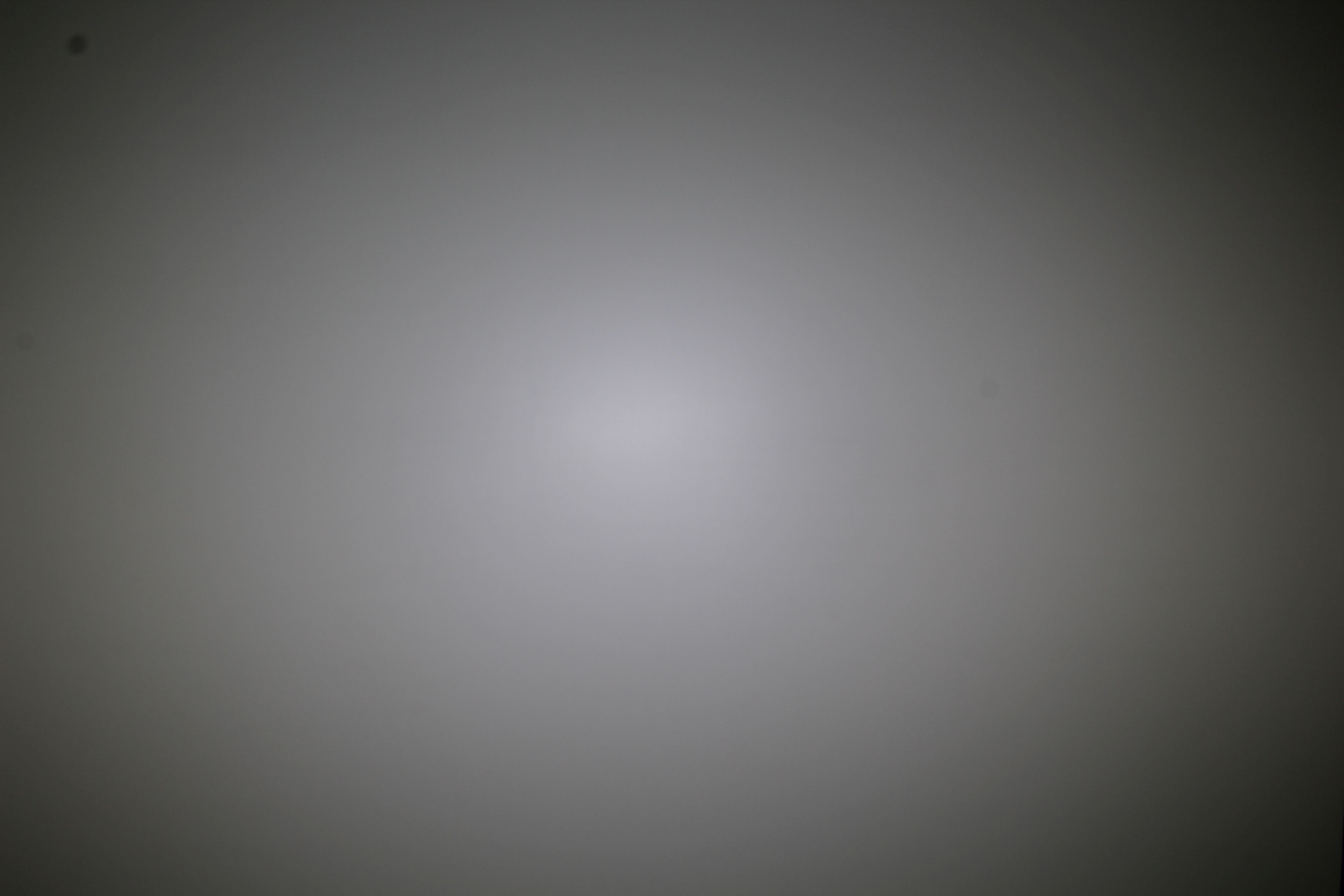

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.385 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

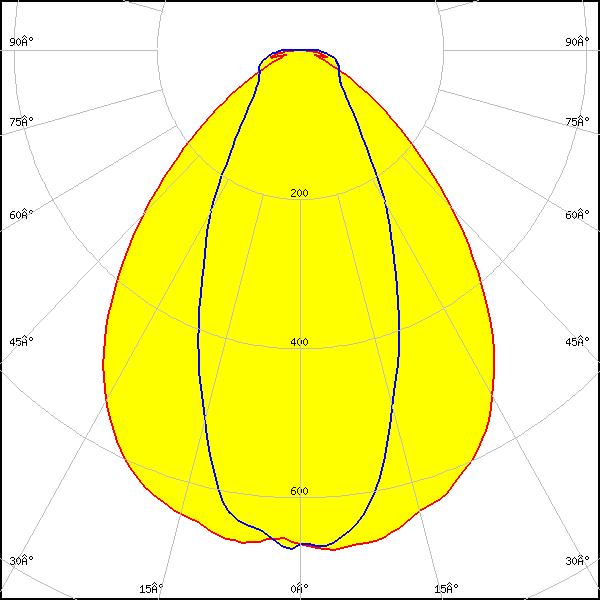

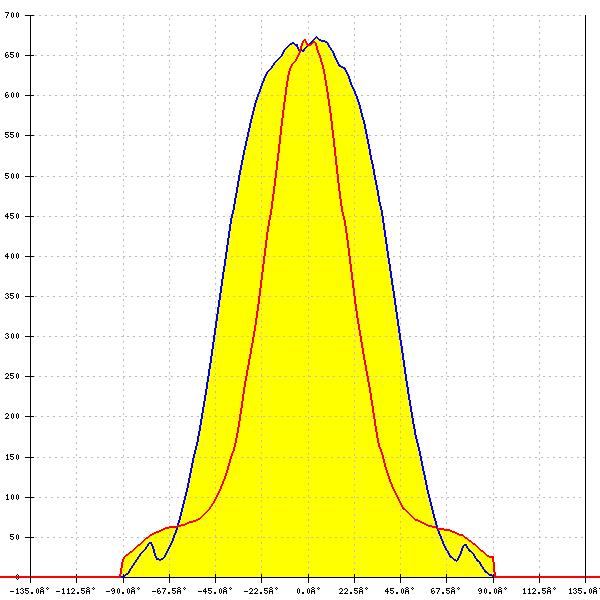

LED: LUXEON CSP HL1
FWHM: 86° + 48°
FWTM: 126° + 114°
Peak intensity: 0.683 cd/lm
Efficiency: 88 %
LEDs/each optic: 5
Light colour: White

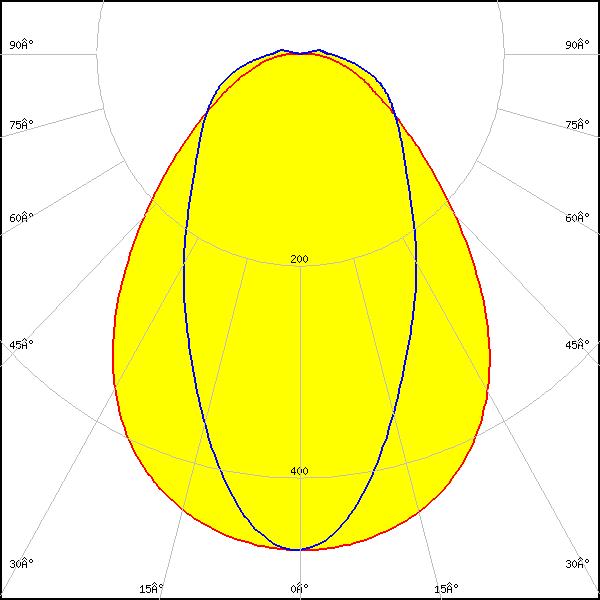

LED: NF2W757G-MT (Tunable White)
FWHM: 87° + 58°
FWTM: 147° + 164°
Peak intensity: 0.469 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: Tunable White

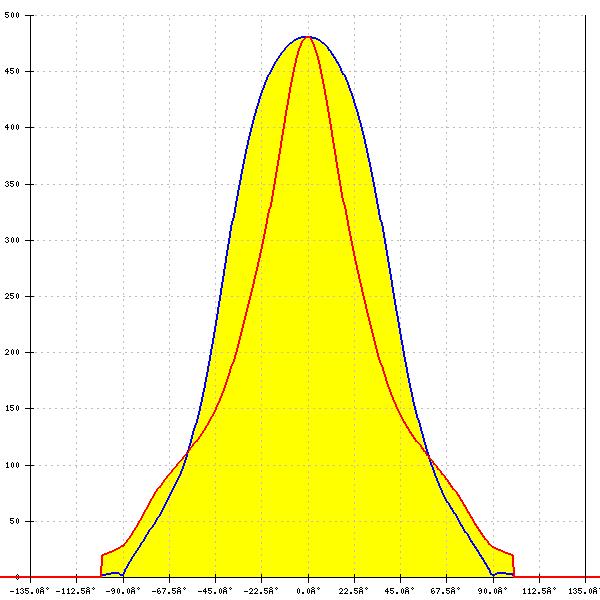

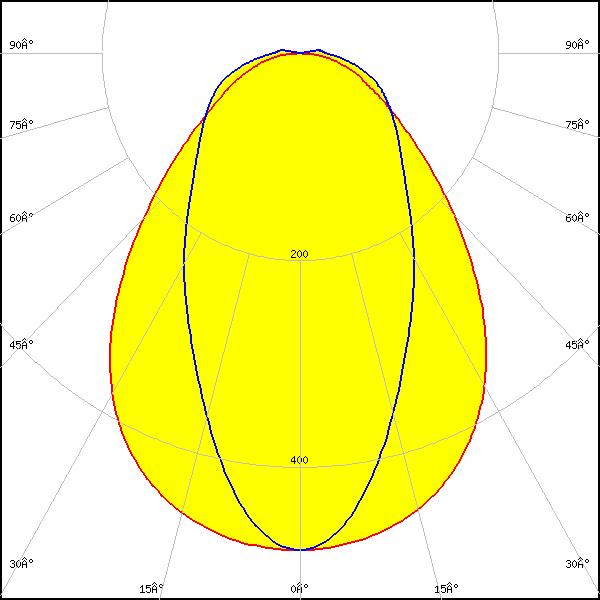

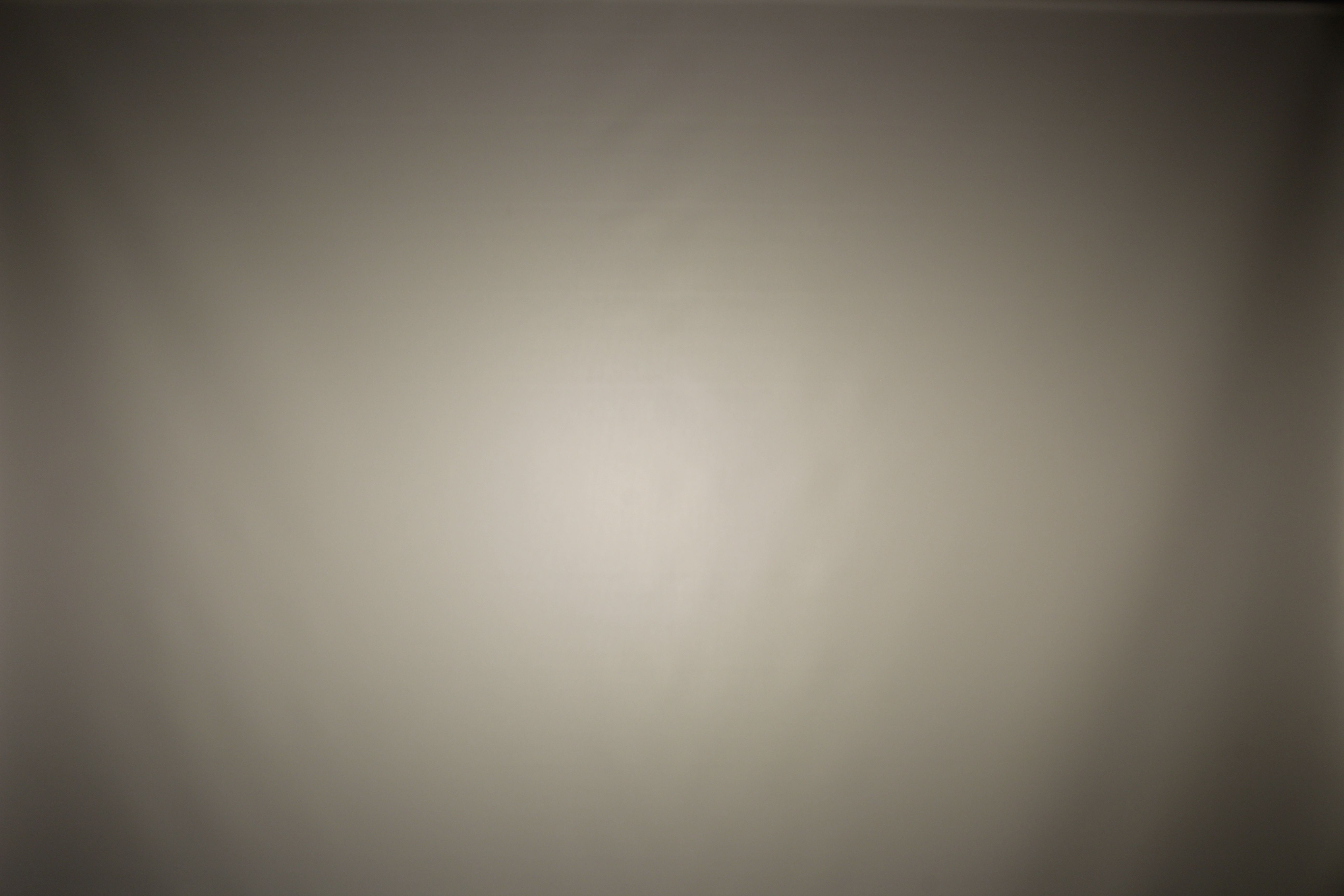

LED: NFSW757H
FWHM: 86° + 57°
FWTM: 148° + 164°
Peak intensity: 0.481 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

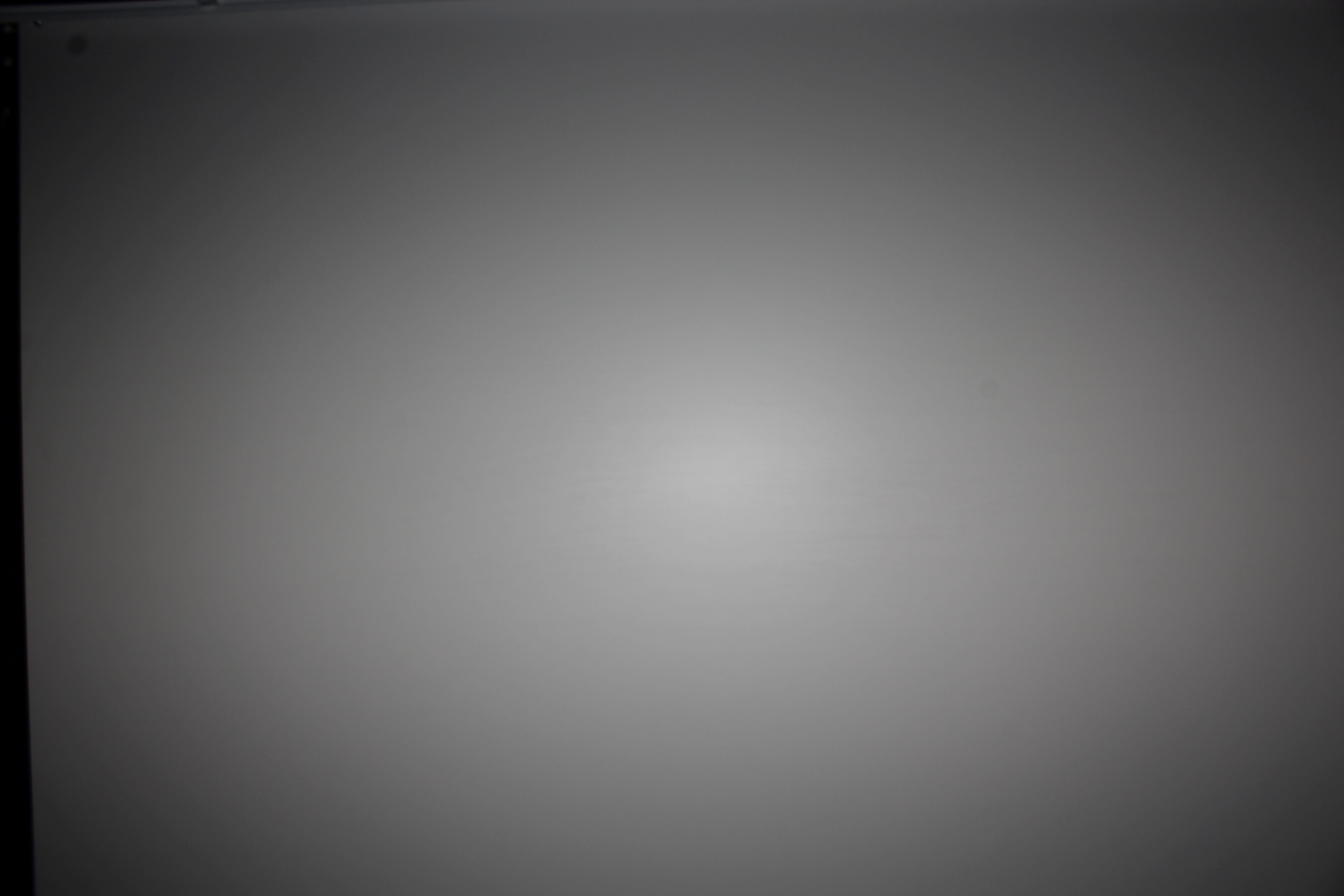

LED: PL-LIN-Z5 1100 280x20
FWHM: 86° + 57°
FWTM: 148° + 157°
Peak intensity: 0.452 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White
LED: PL-LIN-Z5 2000 280x20
FWHM: 85° + 56°
FWTM: 149° + 157°
Peak intensity: 0.441 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

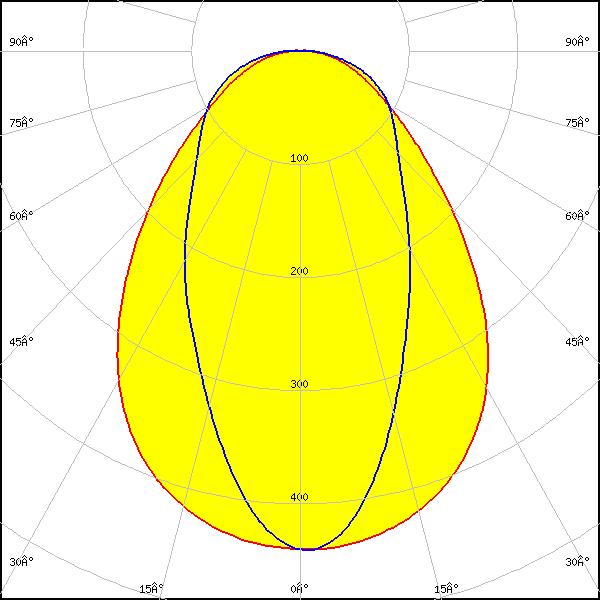

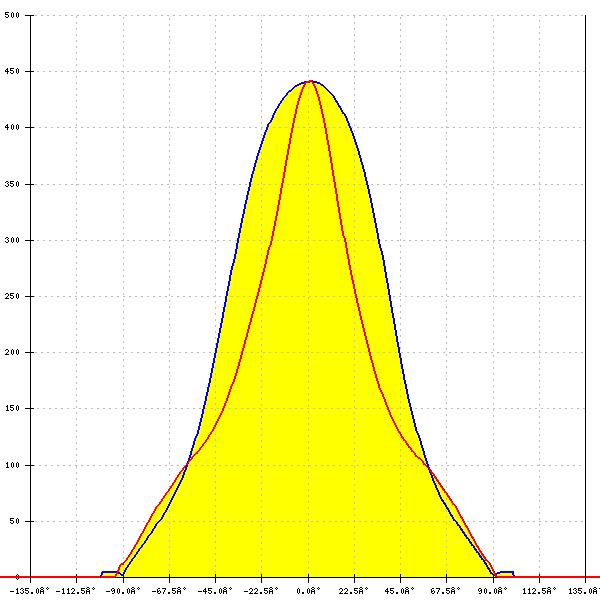

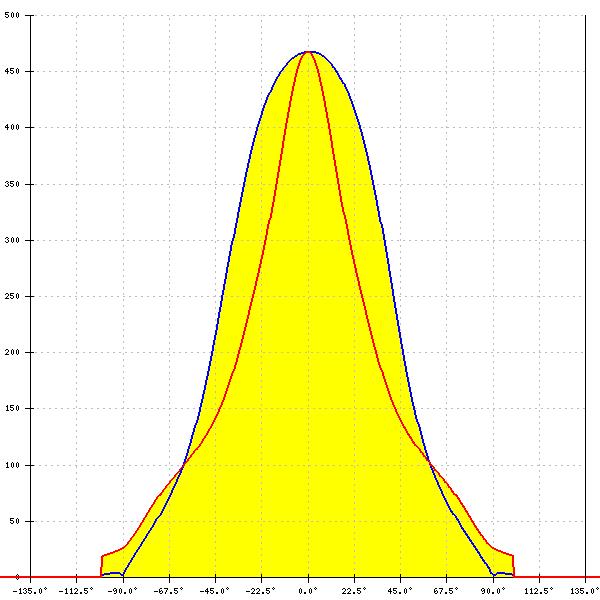

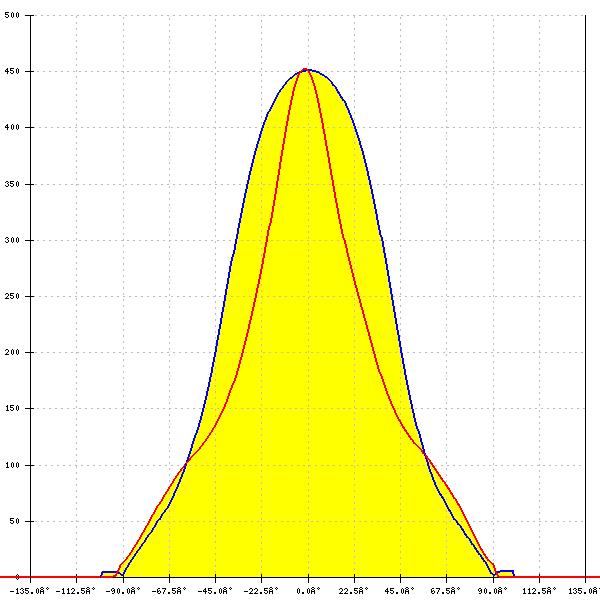

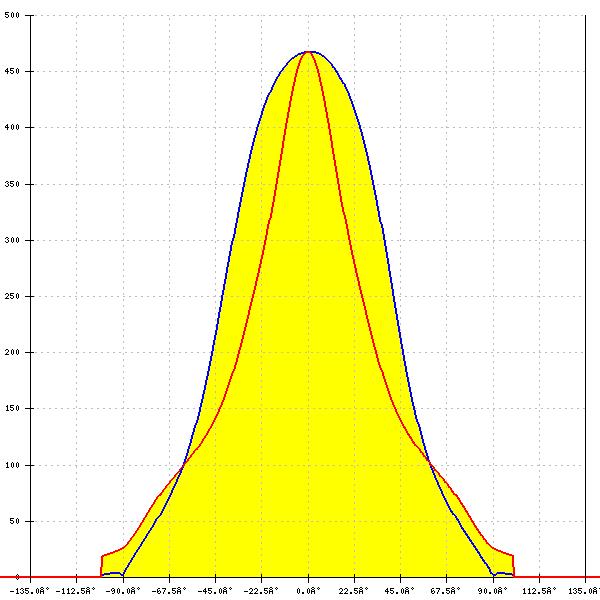

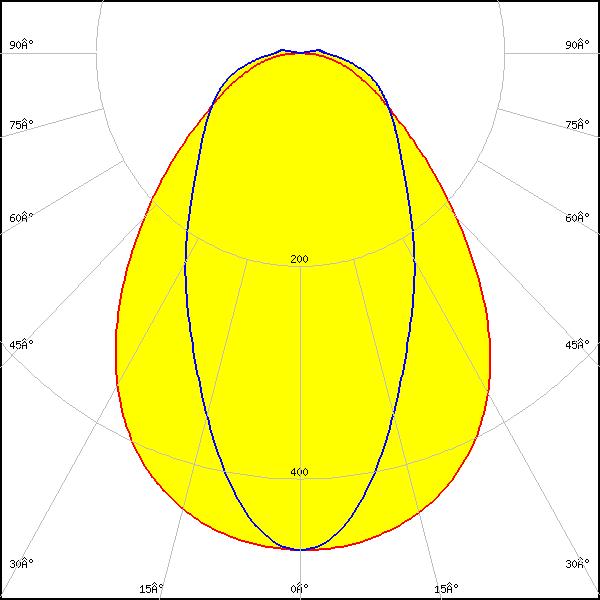

LED: Duris E 2835
FWHM: 85° + 56°
FWTM: 149° + 157°
Peak intensity: 0.441 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

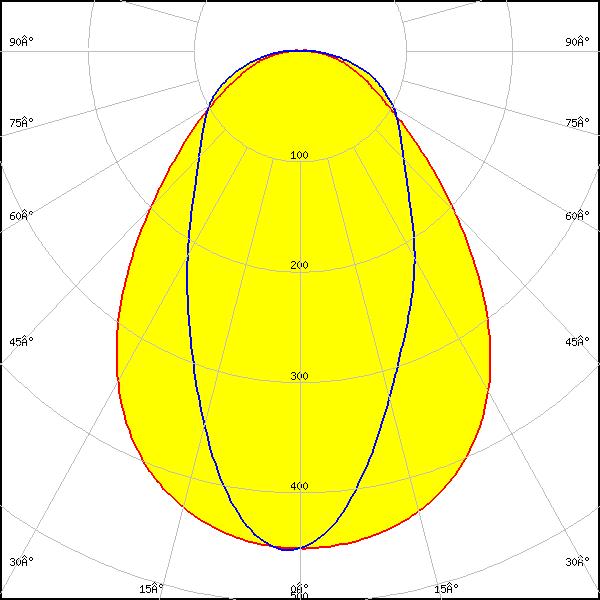

LED: Duris E 2835
FWHM: 86° + 57°
FWTM: 148° + 157°
Peak intensity: 0.452 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

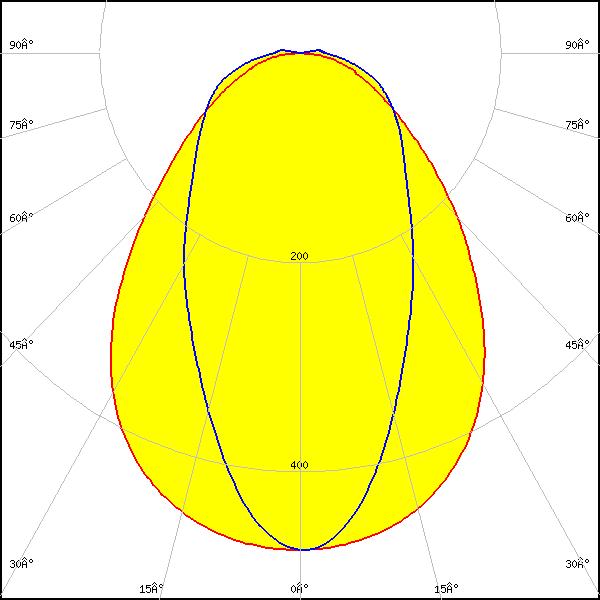

LED: Duris E 2835
FWHM: 87° + 58°
FWTM: 151° + 164°
Peak intensity: 0.476 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
FWHM: 85° + 56°
FWTM: 148° + 157°
Peak intensity: 0.458 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

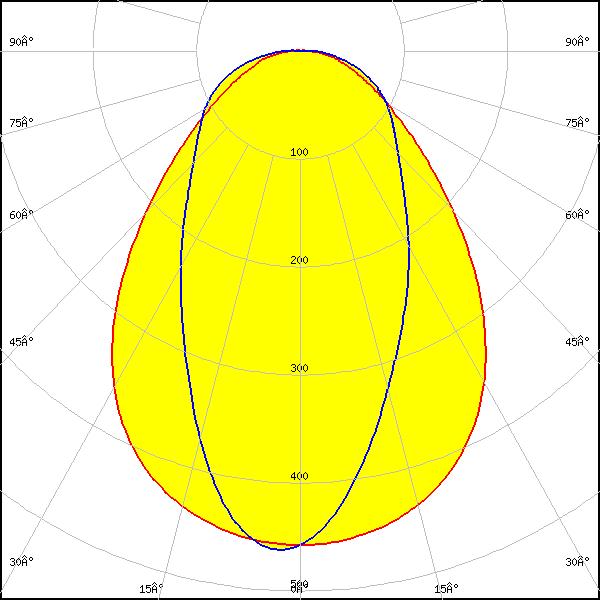

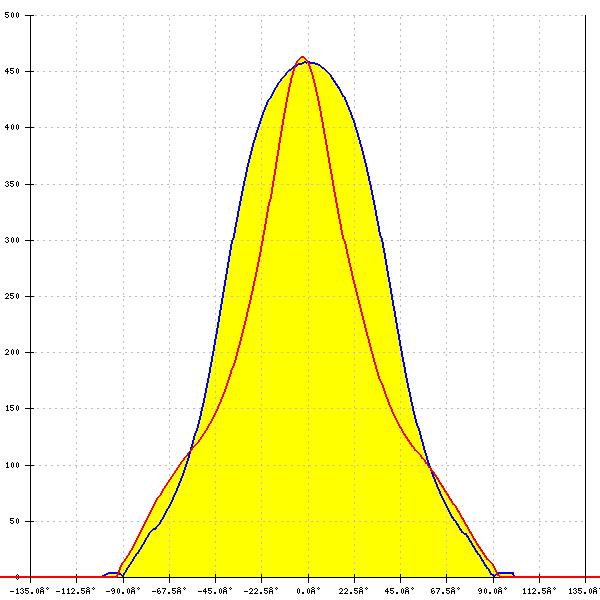

LED: Fortimo LED Strip 1ft 650lm FC HV4 & LV4
FWHM: 86° + 57°
FWTM: 146° + 157°
Peak intensity: 0.463 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Strip 1ft 650lm FC HV5 & LV5
FWHM: 86° + 58°
FWTM: 149° + 164°
Peak intensity: 0.472 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

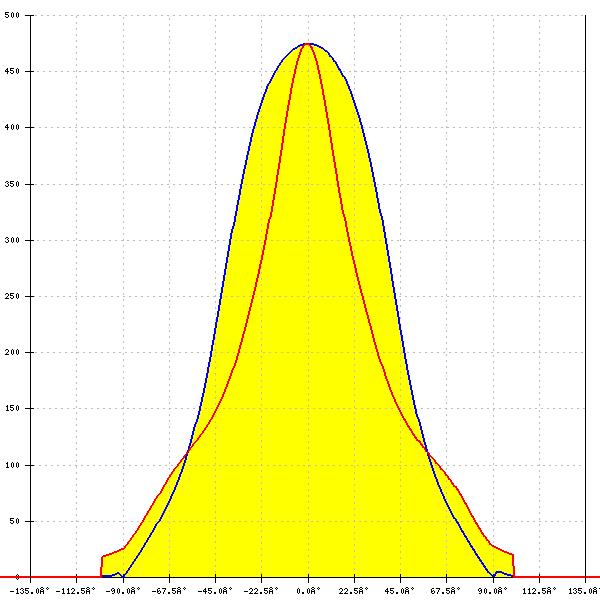

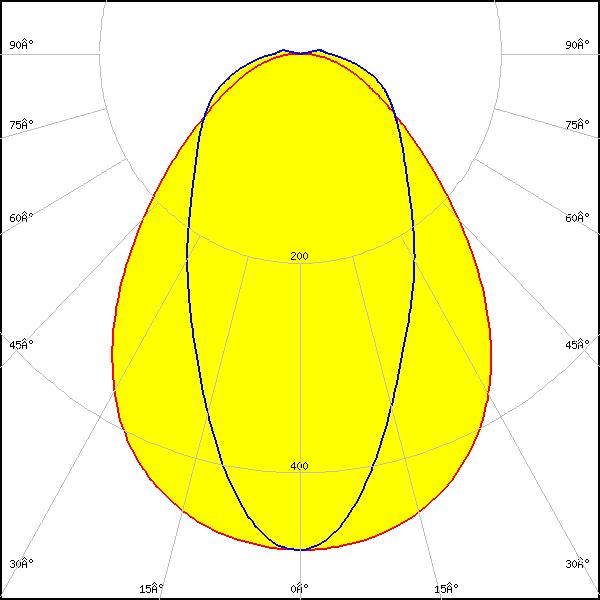

LED: LM28xB Series
FWHM: 87° + 57°
FWTM: 146° + 163°
Peak intensity: 0.470 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

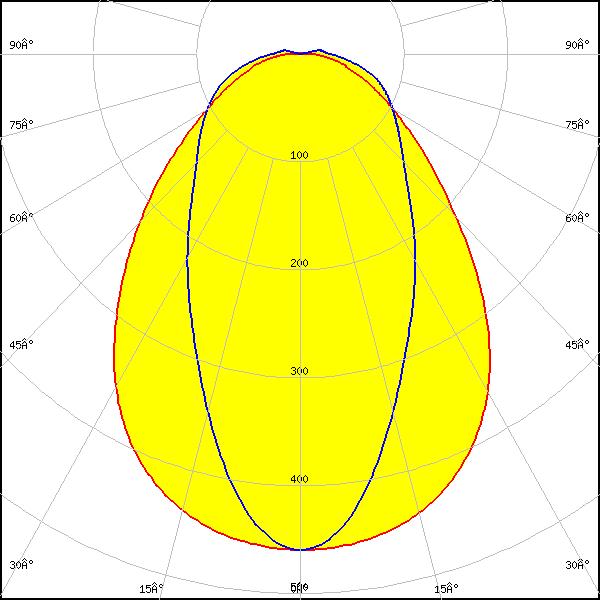

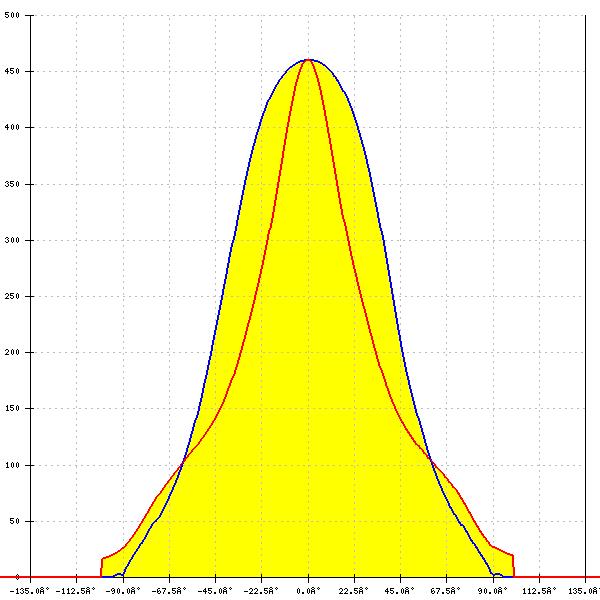

LED: LM301B
FWHM: 87° + 57°
FWTM: 151° + 164°
Peak intensity: 0.460 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: LM561C
FWHM: 96° + 43°
FWTM: 146° + 138°
Peak intensity: 0.580 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

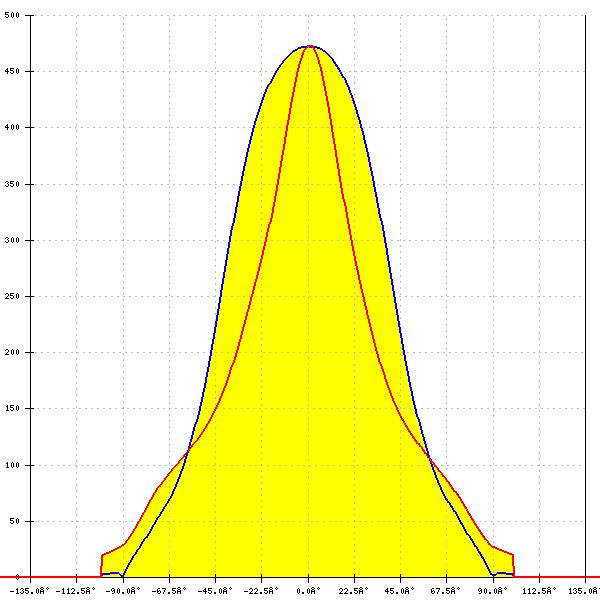

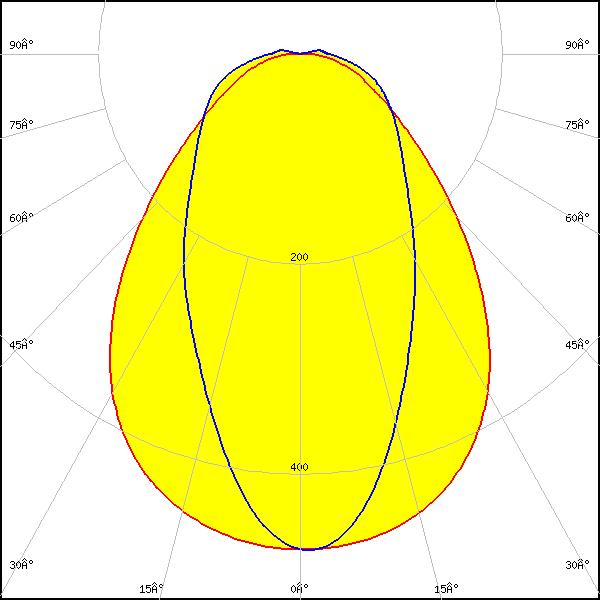

LED: LT-H282C
FWHM: 87° + 58°
FWTM: 149° + 164°
Peak intensity: 0.473 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

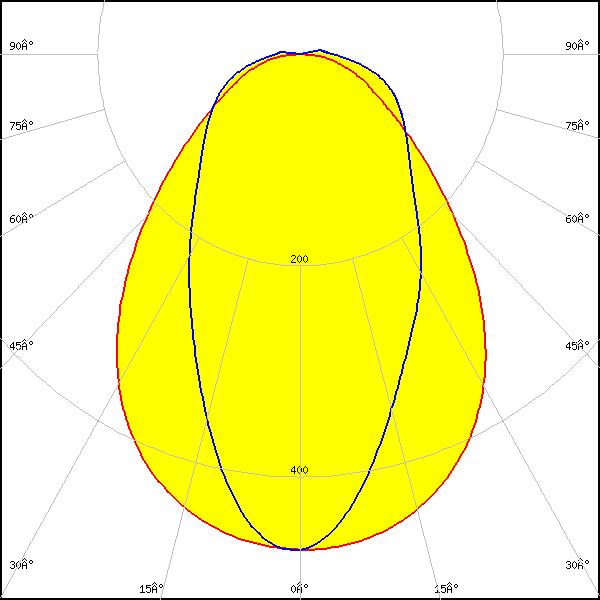

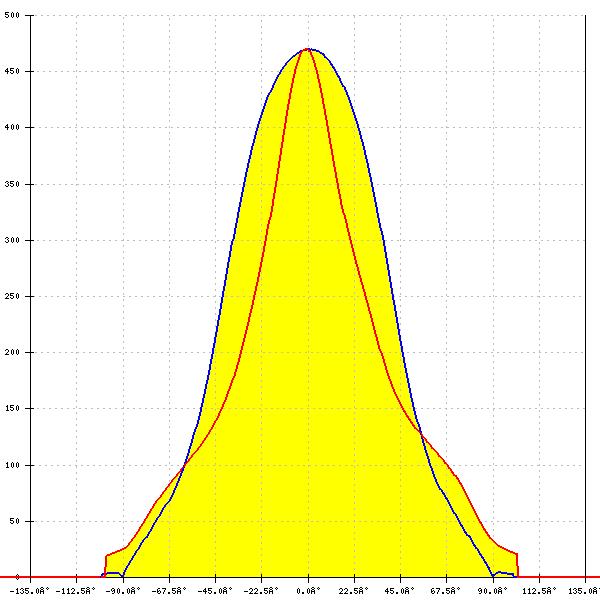

LED: LT-Q282B
FWHM: 85° + 58°
FWTM: 149° + 165°
Peak intensity: 0.470 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

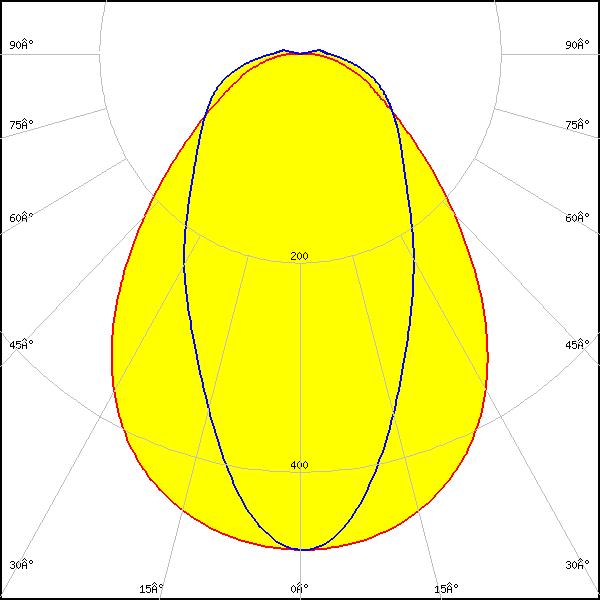

LED: LT-S282H
FWHM: 86° + 57°
FWTM: 148° + 163°
Peak intensity: 0.475 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

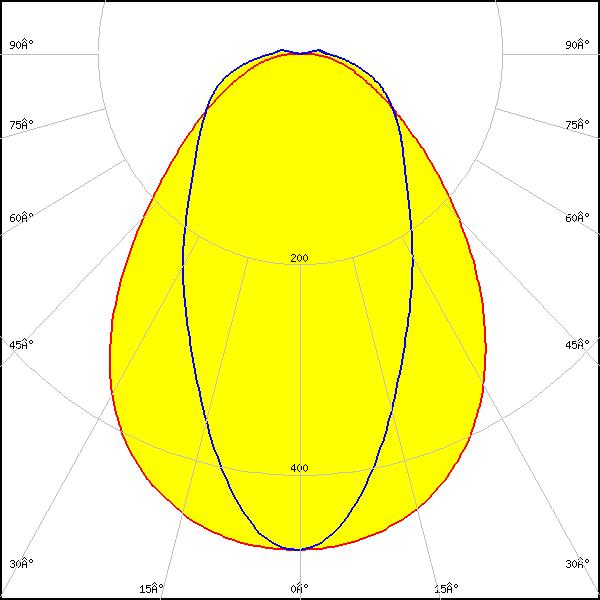

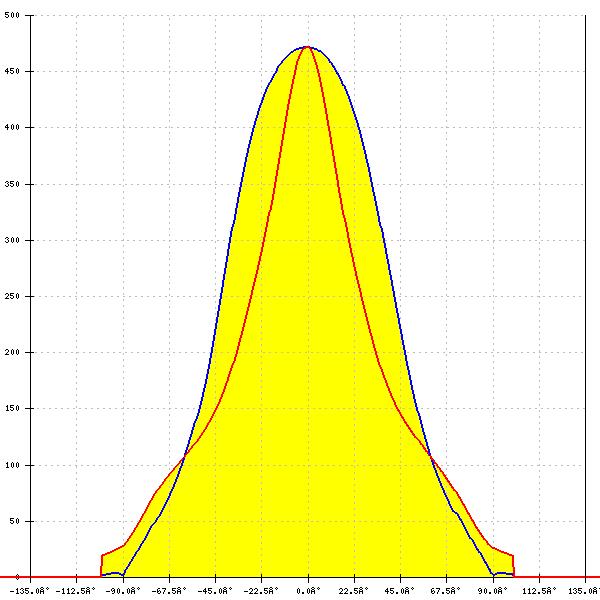

LED: SEOUL DC 3528
FWHM: 87° + 58°
FWTM: 150° + 164°
Peak intensity: 0.470 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

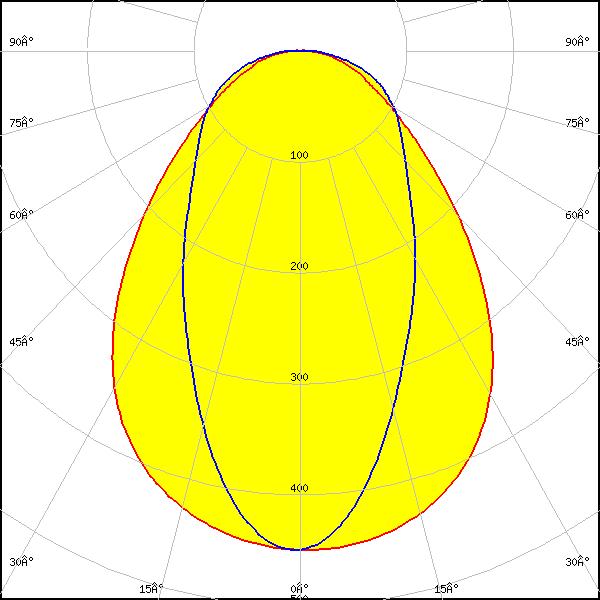

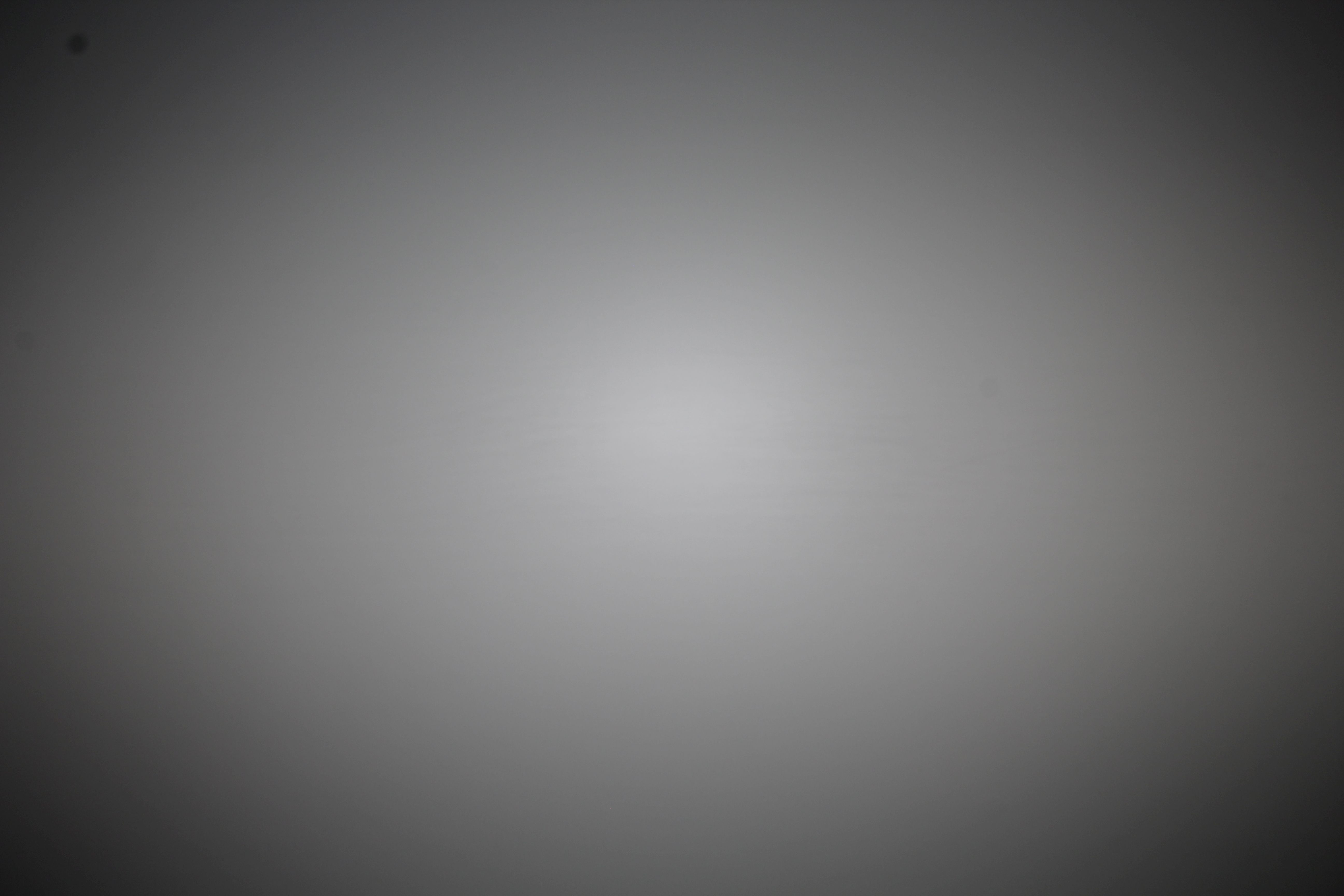

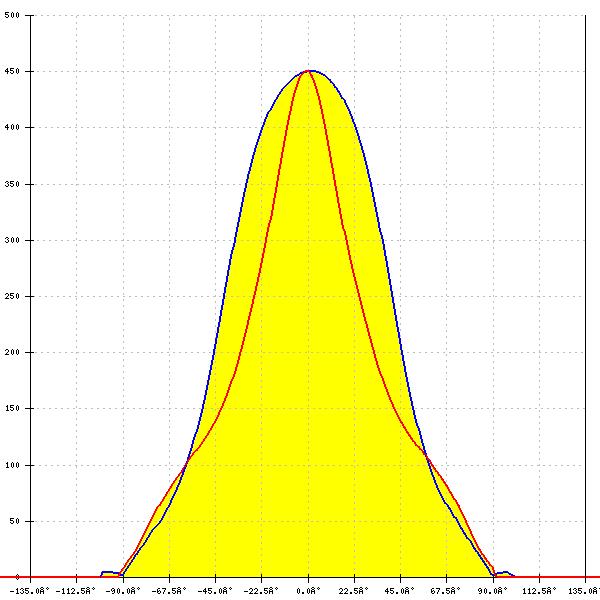

LED: LLE 24x280mm 1250lm HV ADV5
FWHM: 87° + 58°
FWTM: 148° + 156°
Peak intensity: 0.451 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

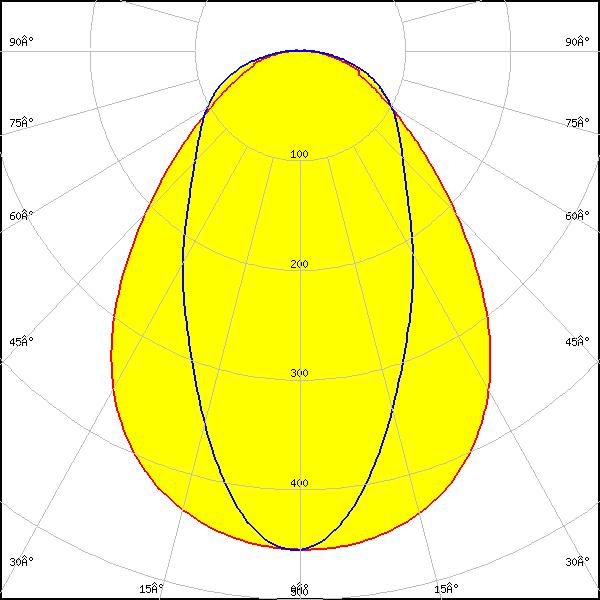

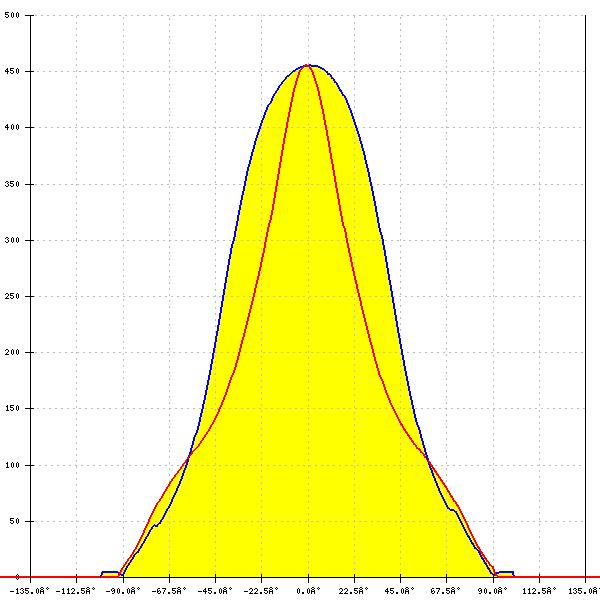

LED: LLE 24x280mm 650lm HV ADV5
FWHM: 87° + 58°
FWTM: 151° + 156°
Peak intensity: 0.456 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: LLE FLEX CC 14mm 1250lm ADV1
FWHM: 87° + 57°
FWTM: 150° + 164°
Peak intensity: 0.460 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
