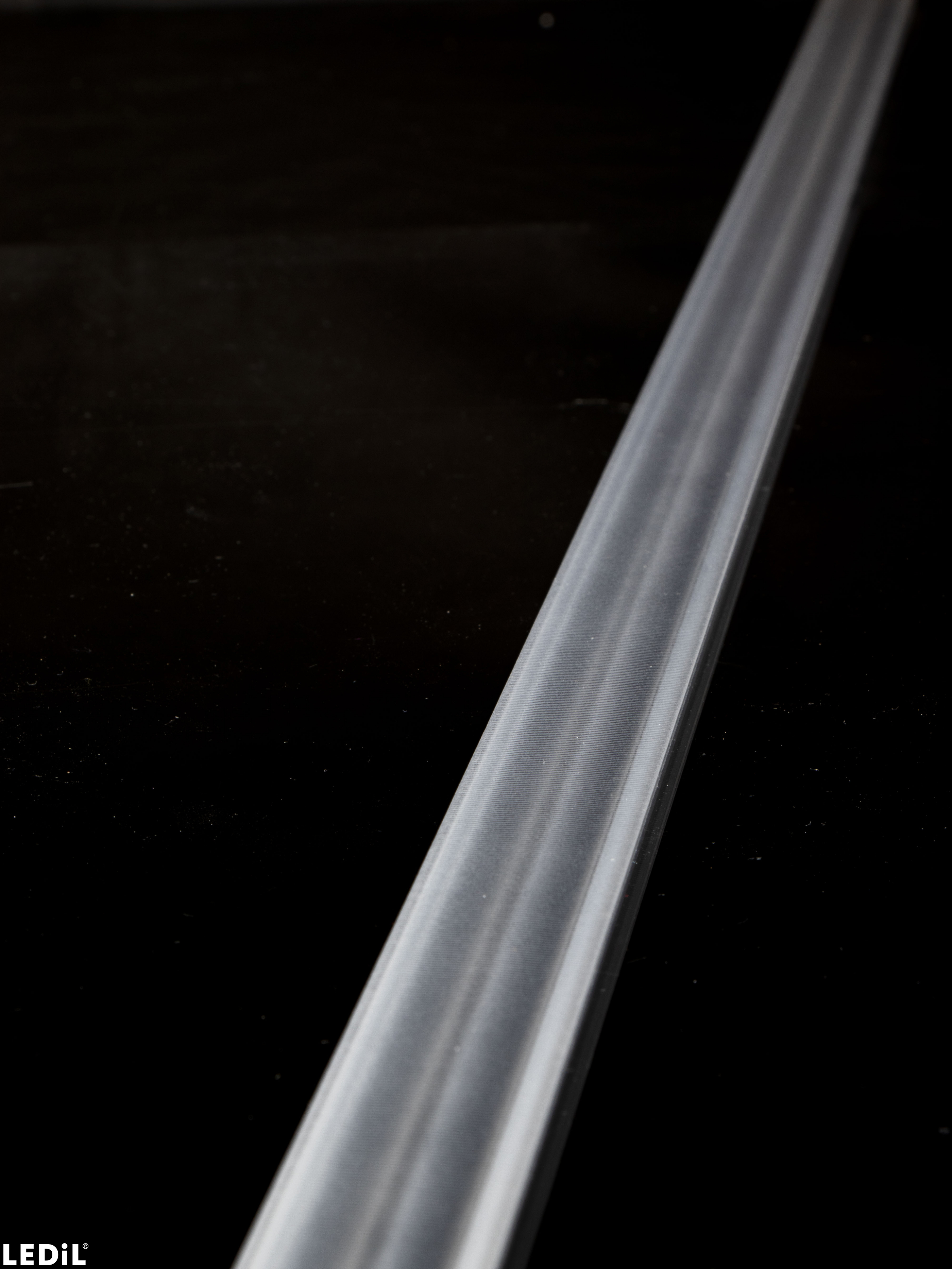

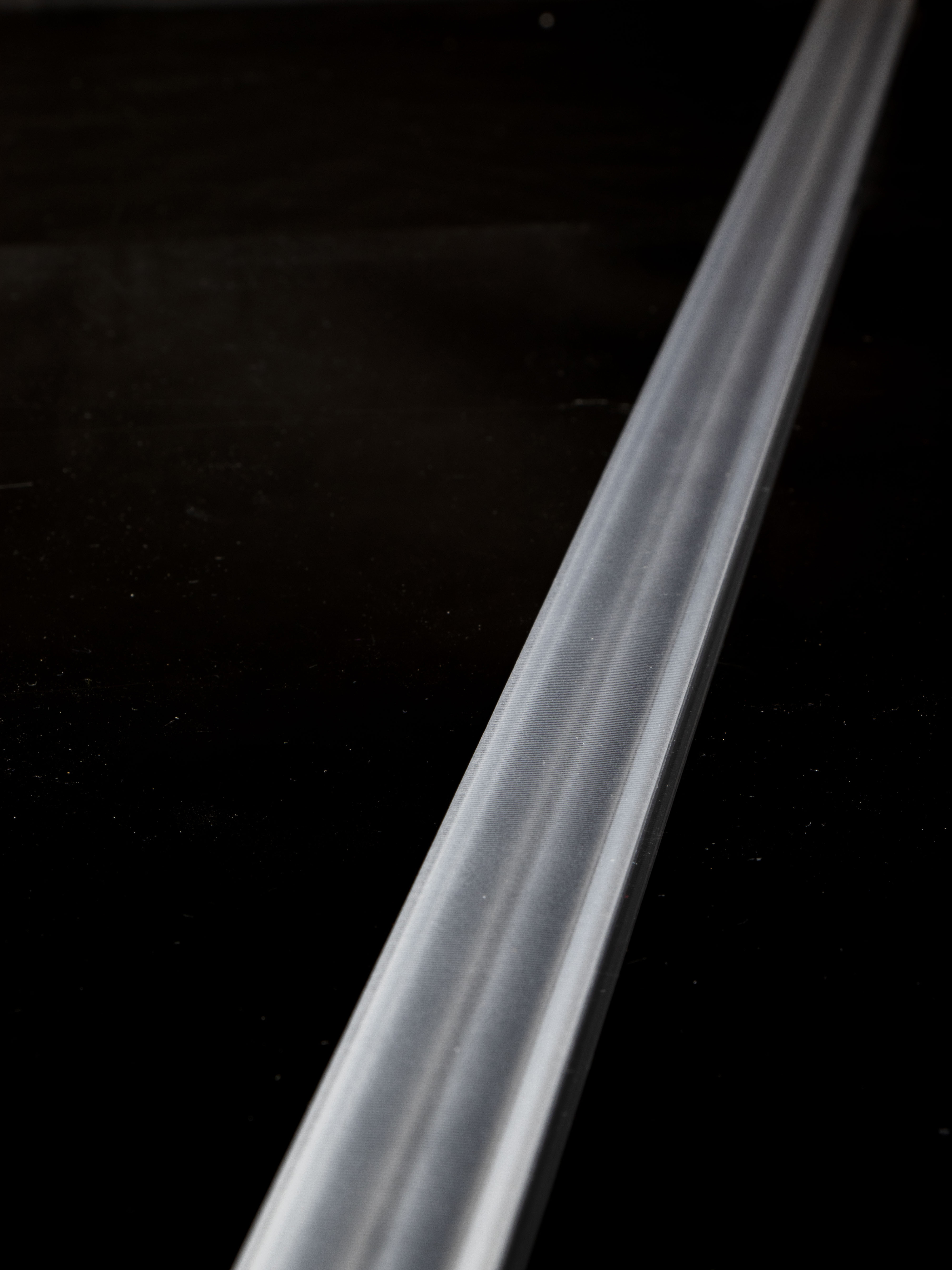

F16747_LINDA-WWW
Print~110° + 100° wide beam
Specification
-
Dimensions:26 x 1140 mm
-
Height:6.34 mm
-
Colour:milky
-
RoHS and REACH compliant:Yes
Component Materials
Ordering information
-
Quantity in box:130 pcs
-
Box size:1200x160x120 mm
-
Box weight:11.4 kg
-
MPQ:130 pcs
-
MOQ:130 pcs
-
MOQ size:1200x160x120 mm
-
MOQ weight:11.4 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
Related Content
Optical results

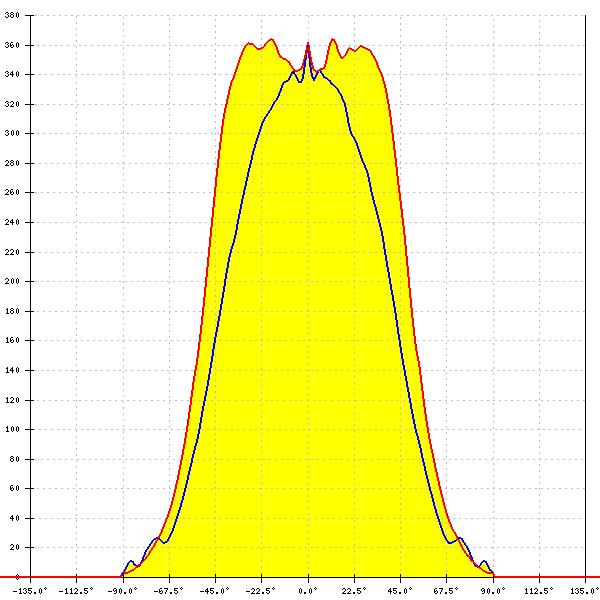

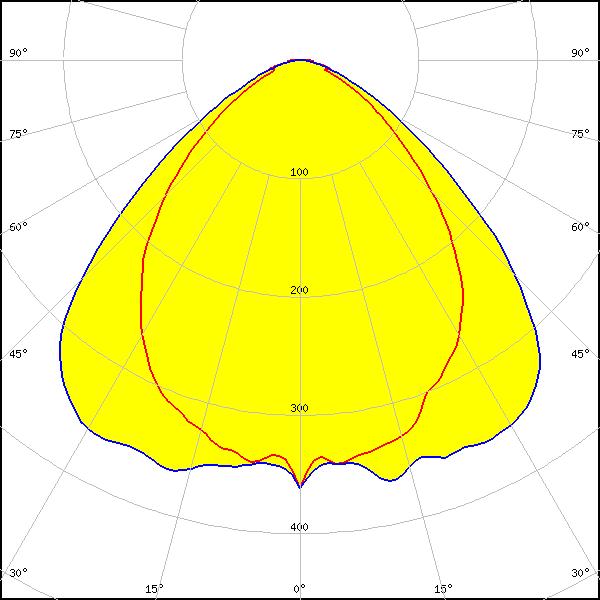

LED:
Bridgelux SMD 5050
FWHM:
84° + 102°
FWTM:
130° + 140°
Peak intensity:
0.364 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

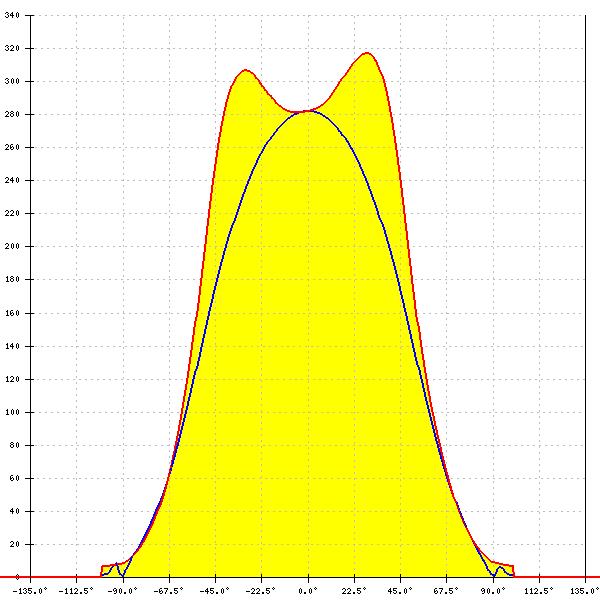

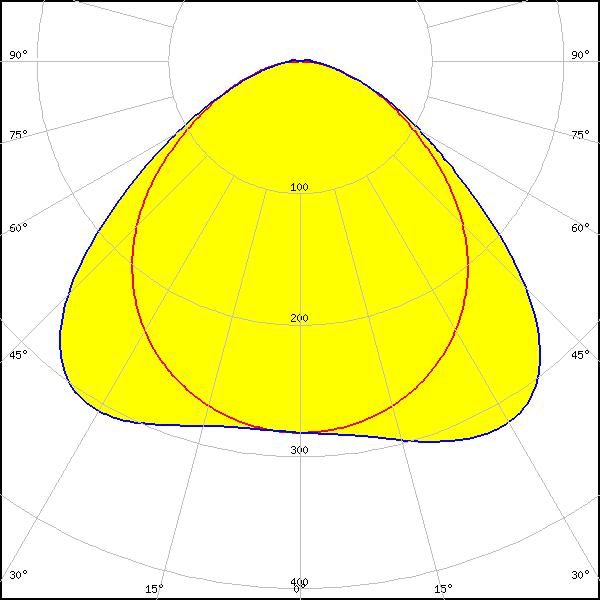

LED:
CLUC11
FWHM:
103° + 107°
FWTM:
156° + 152°
Peak intensity:
0.317 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

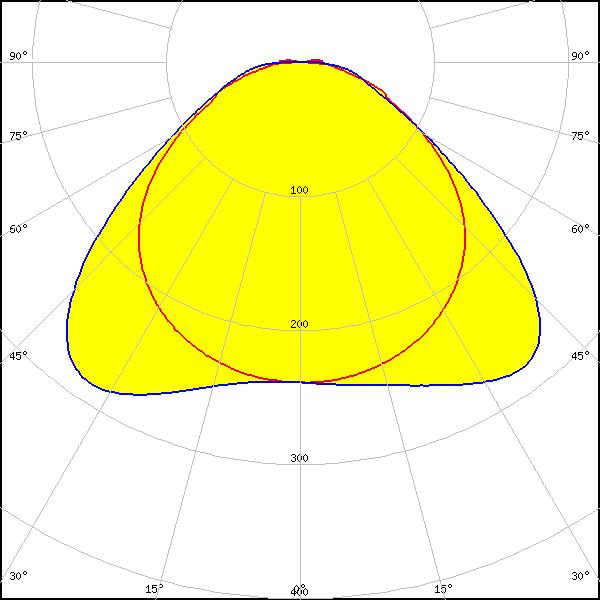

LED:

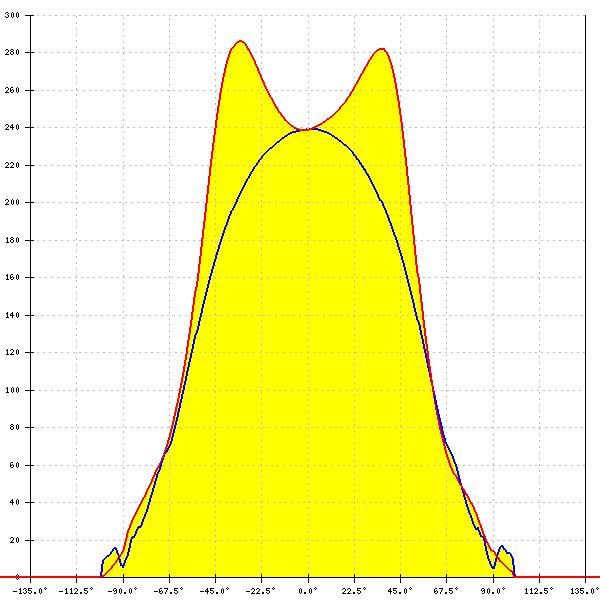

XP-G3
FWHM:
114° + 117°
FWTM:
167° + 173°
Peak intensity:
0.286 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

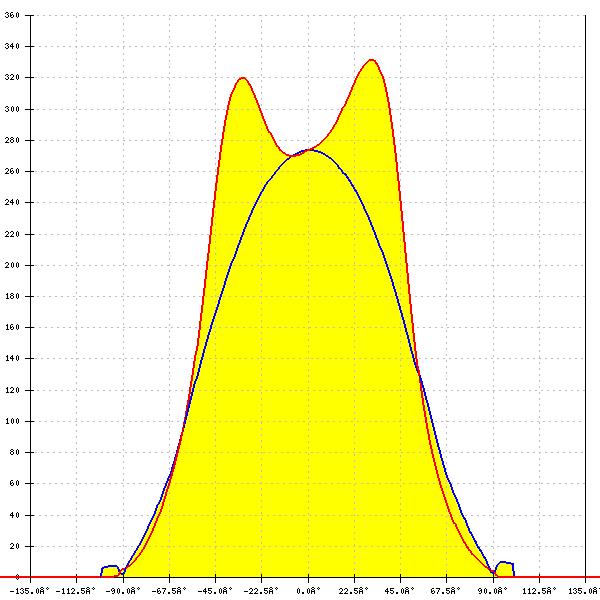

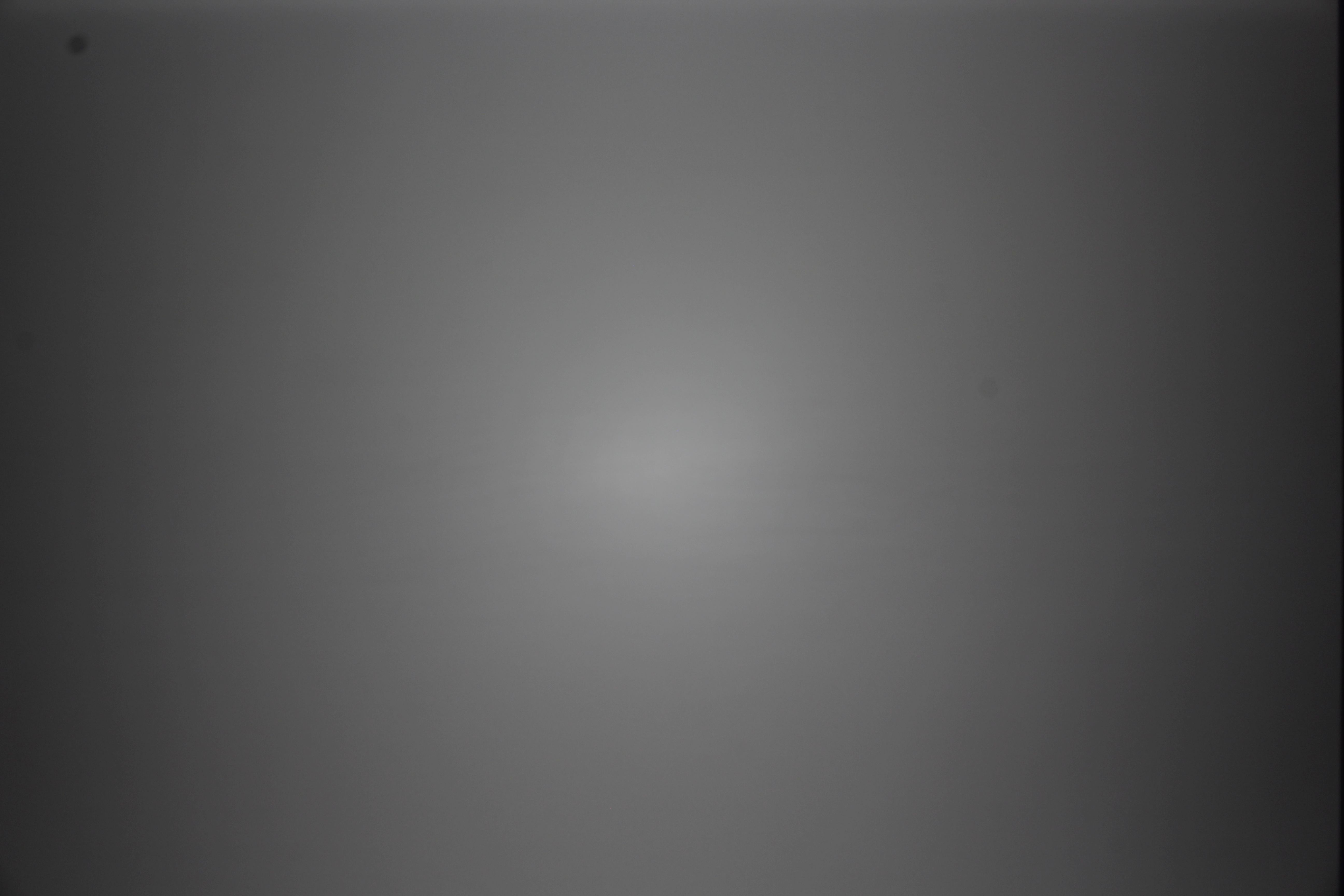

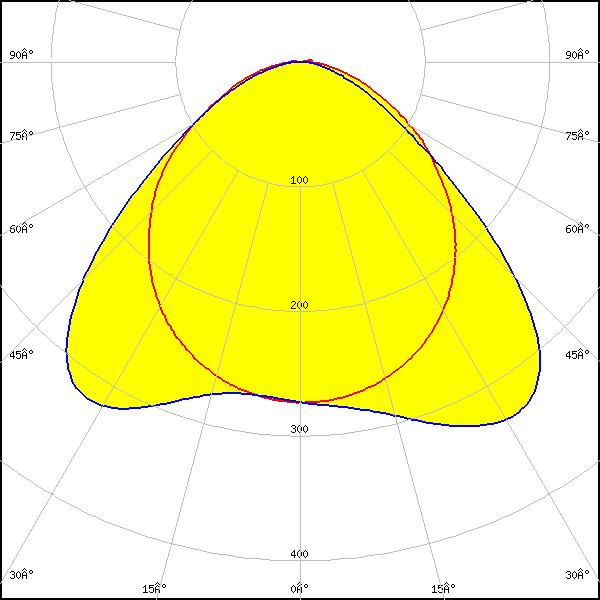

PL-LIN-Z5 1100 280x20
FWHM:
105° + 103°
FWTM:
159° + 146°
Peak intensity:
0.331 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

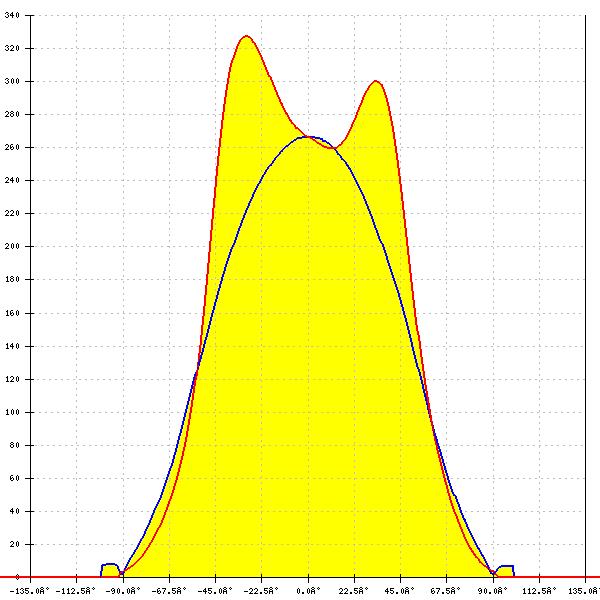

LED:

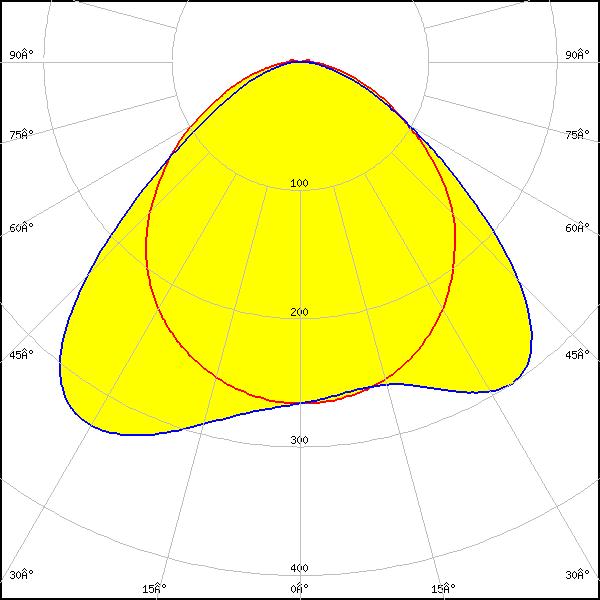

PL-LIN-Z5 2000 280x20
FWHM:
105° + 103°
FWTM:
159° + 145°
Peak intensity:
0.327 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

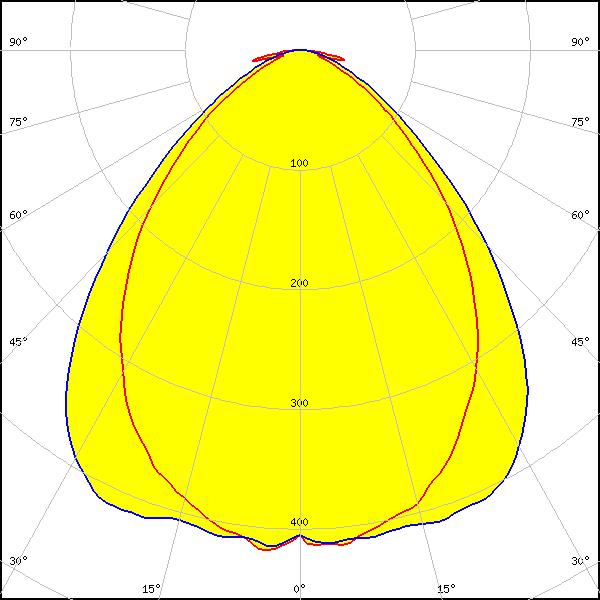

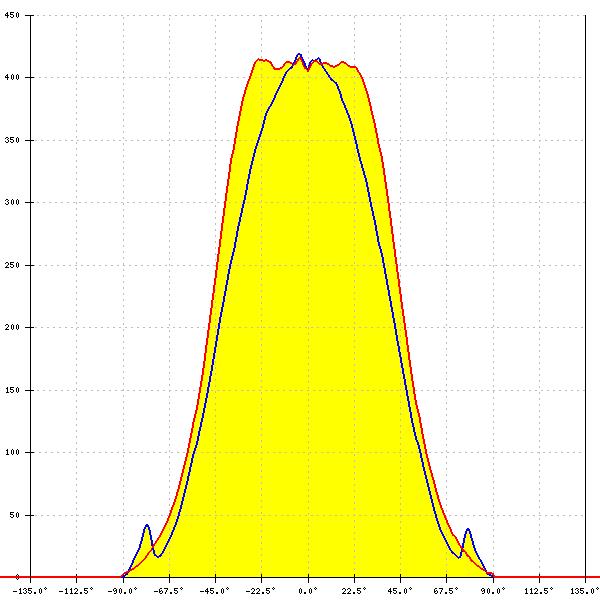

LUXEON CSP HL1
FWHM:
84° + 94°
FWTM:
142° + 138°
Peak intensity:
0.425 cd/lm
Efficiency:
88 %
LEDs/each optic:
5
Light colour/type:
White
LED:
NCSxE17A
FWHM:
88° + 98°
FWTM:
130° + 167°
Peak intensity:
0.388 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

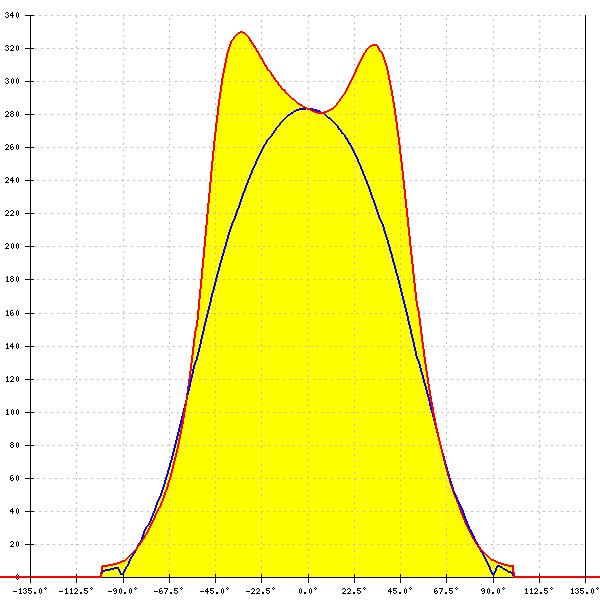

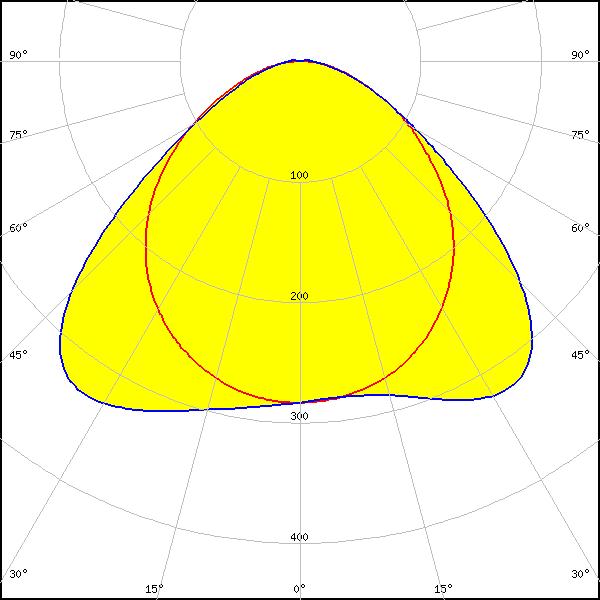

LED:
NF2W757G-MT (Tunable White)
FWHM:
104° + 106°
FWTM:
158° + 152°
Peak intensity:
0.330 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
Tunable White

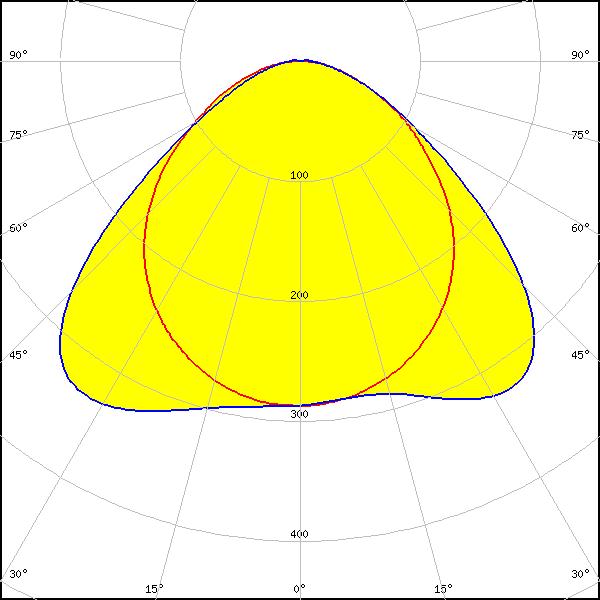

LED:

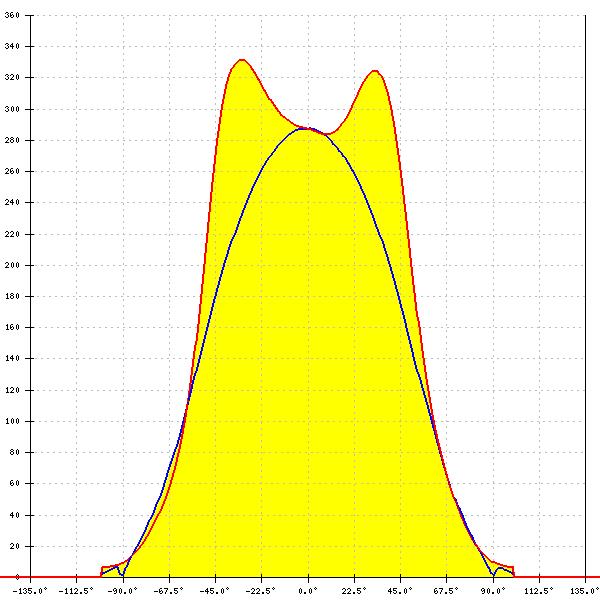

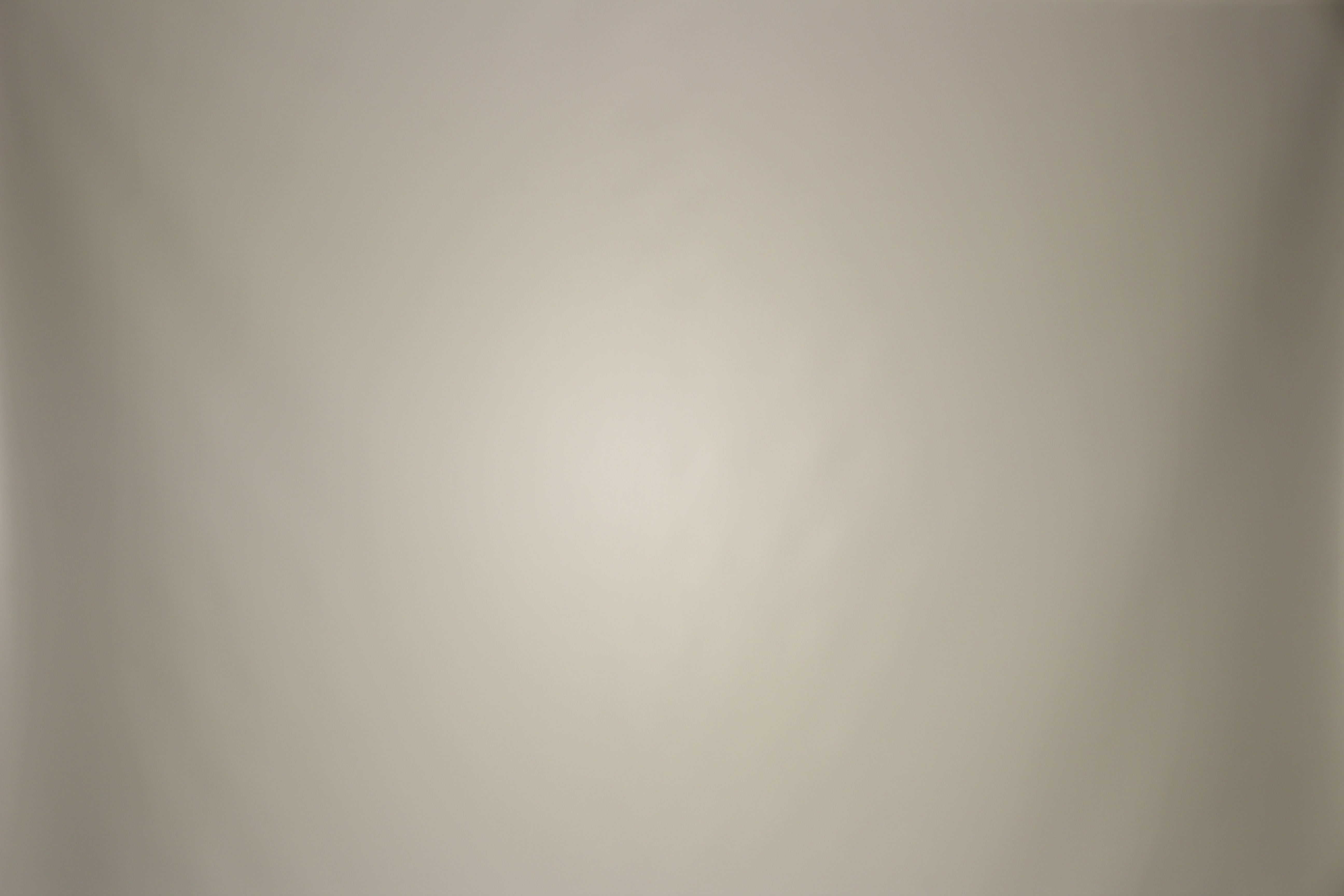

NFSW757H
FWHM:
103° + 105°
FWTM:
158° + 151°
Peak intensity:
0.331 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

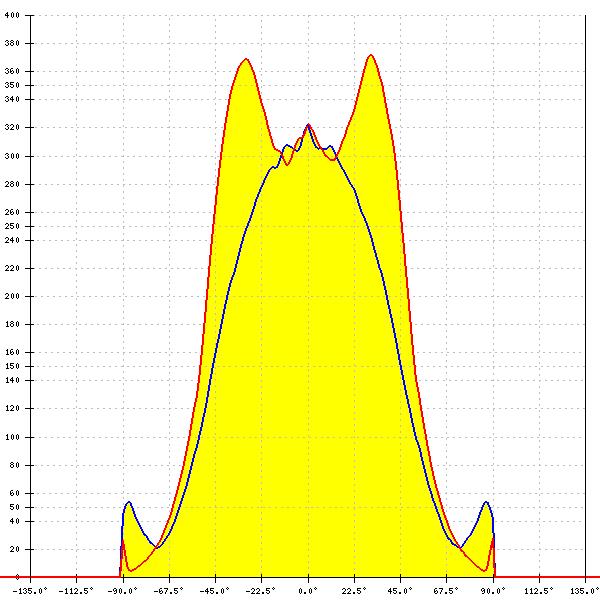

LED:

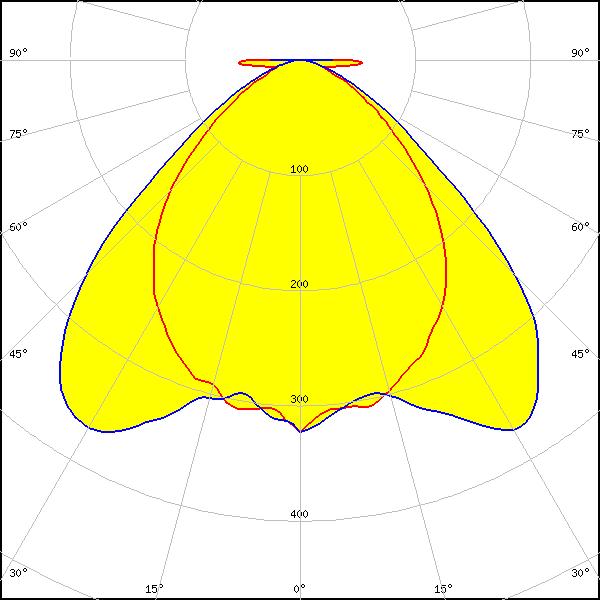

NFSWE11A
FWHM:
89° + 100°
FWTM:
180° + 138°
Peak intensity:
0.373 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM:
87° + 98°
FWTM:
130° + 167°
Peak intensity:
0.392 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

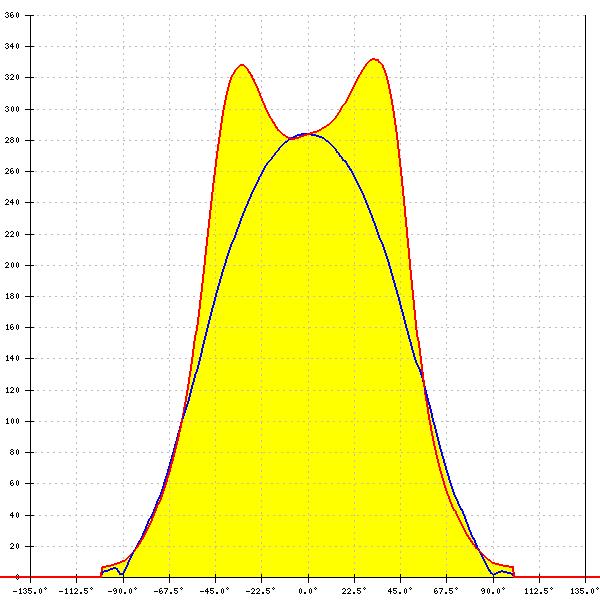

LED:

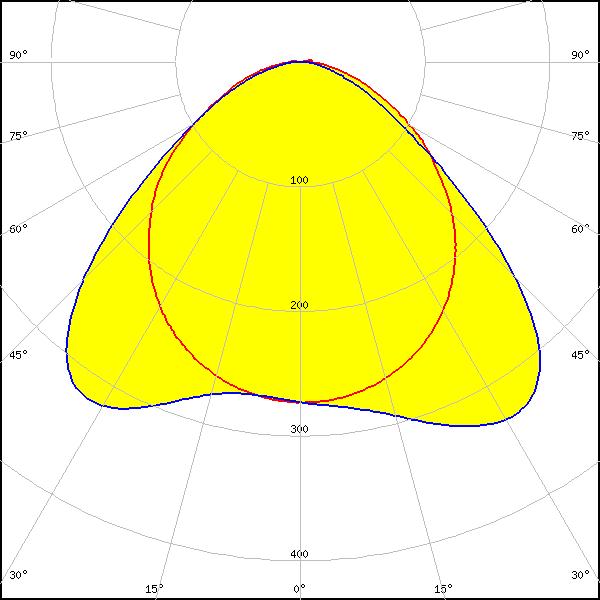

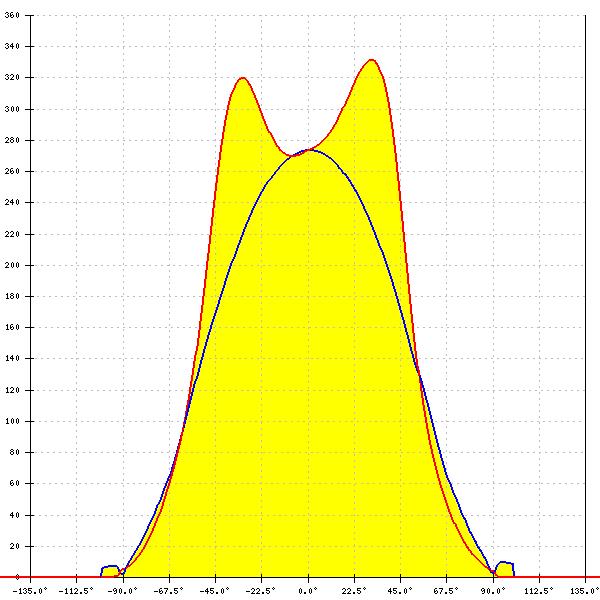

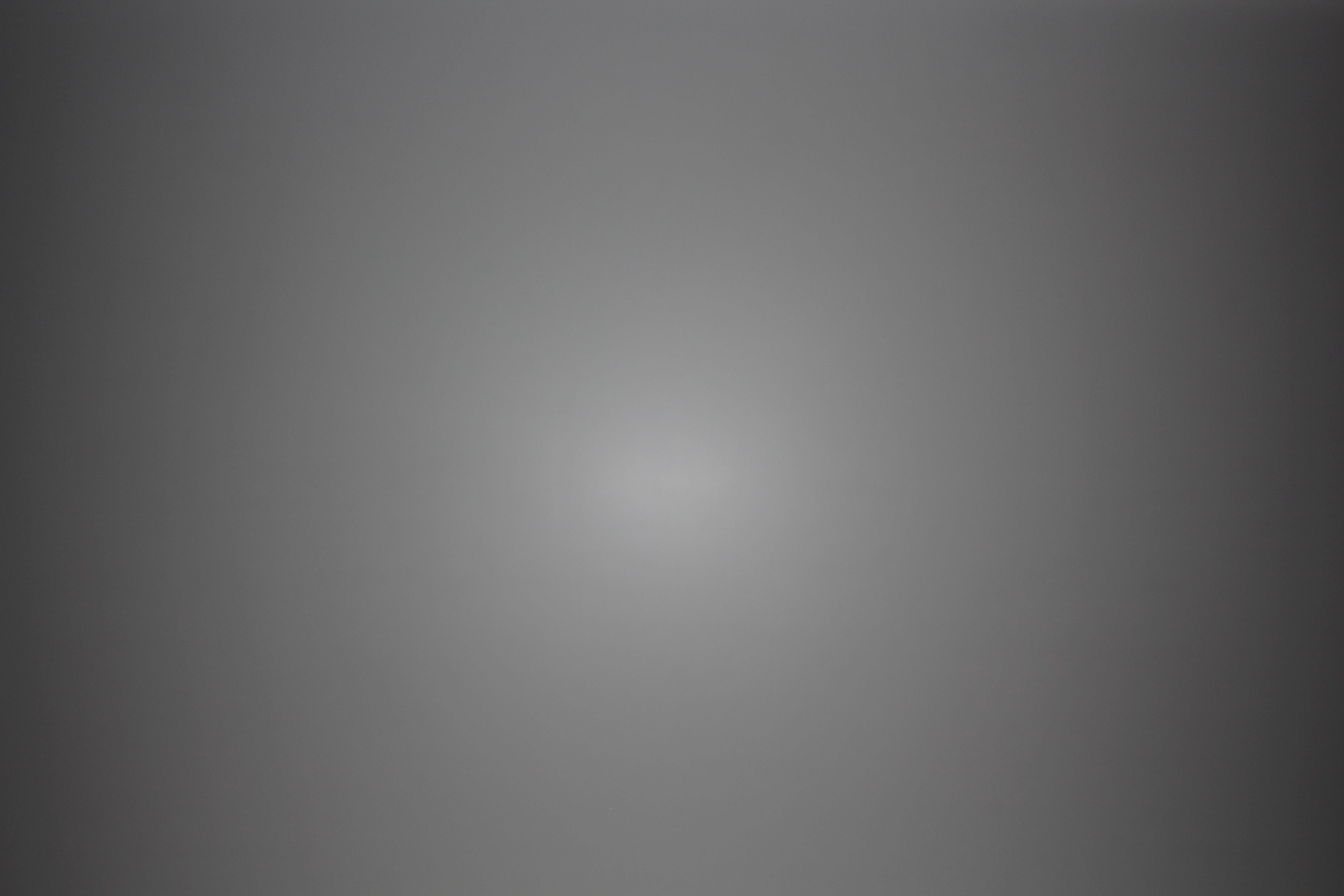

Duris E 2835
FWHM:
105° + 103°
FWTM:
159° + 145°
Peak intensity:
0.327 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

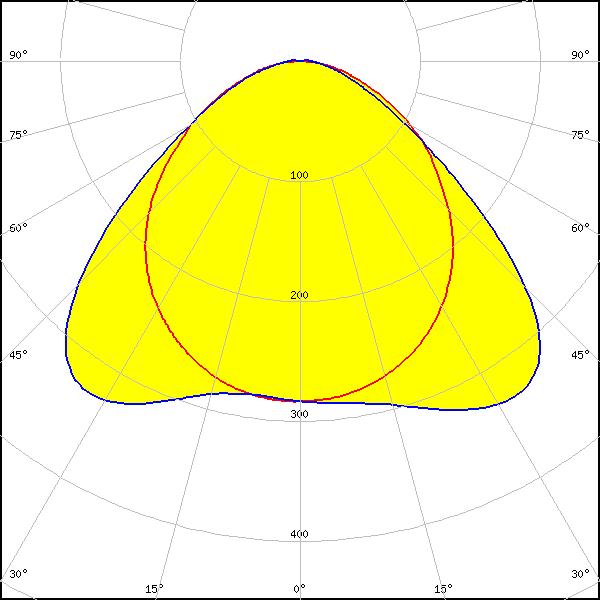

Duris E 2835
FWHM:
105° + 103°
FWTM:
159° + 146°
Peak intensity:
0.331 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

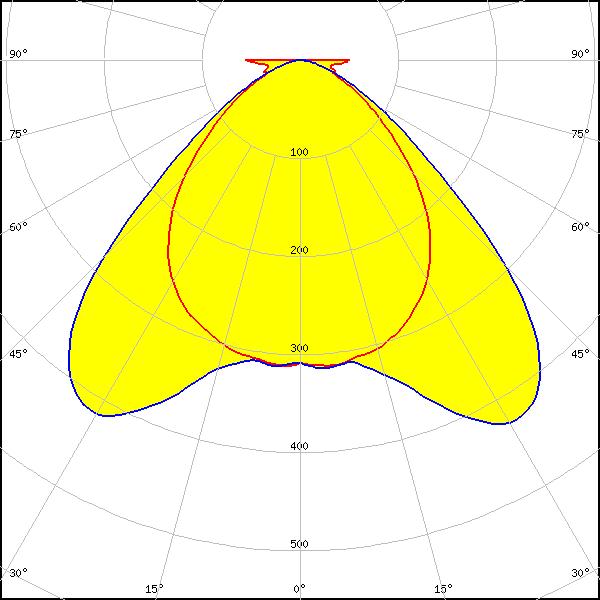

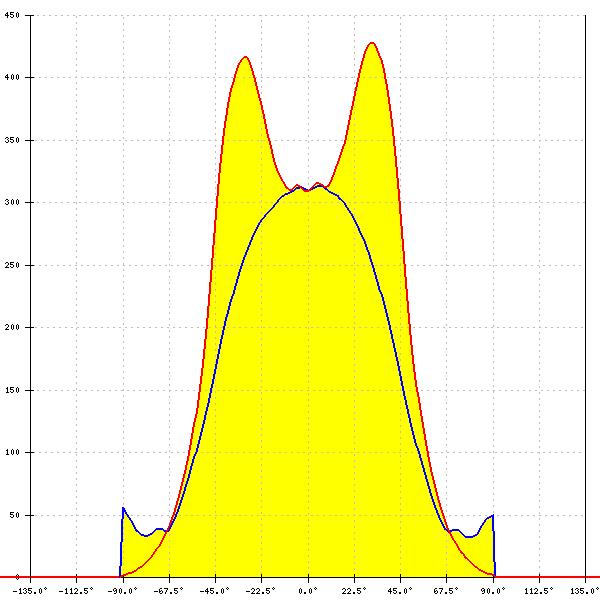

LED:
OSCONIQ P 3030
FWHM:
92° + 97°
FWTM:
180° + 135°
Peak intensity:
0.233 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
Hyper Red

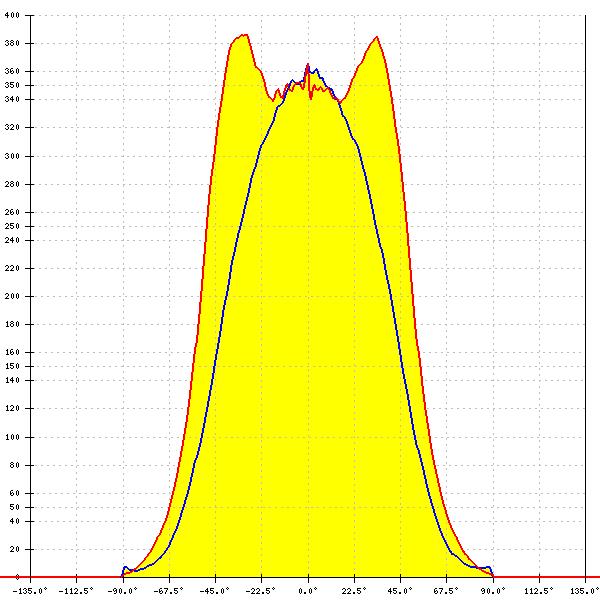

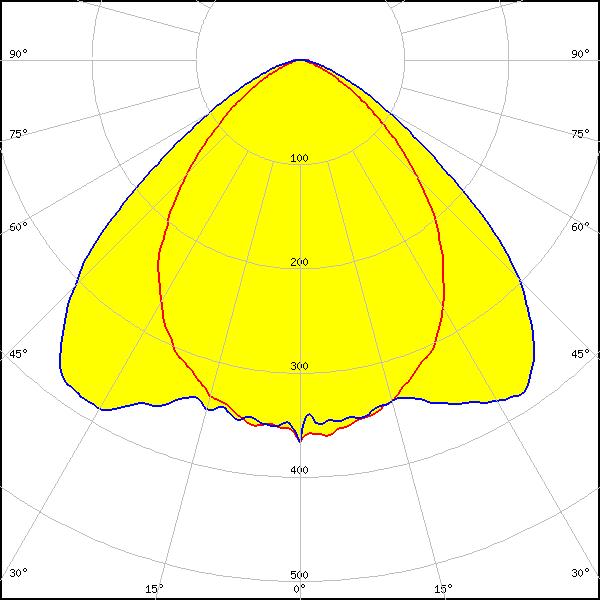

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
84° + 104°
FWTM:
128° + 139°
Peak intensity:
0.387 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

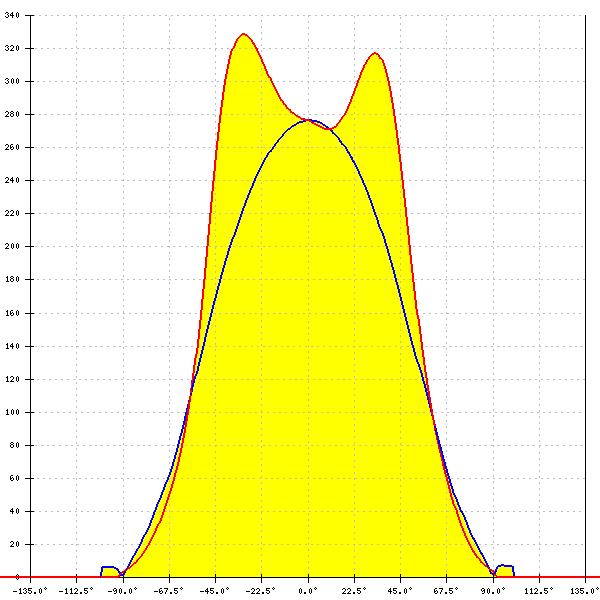

LED:

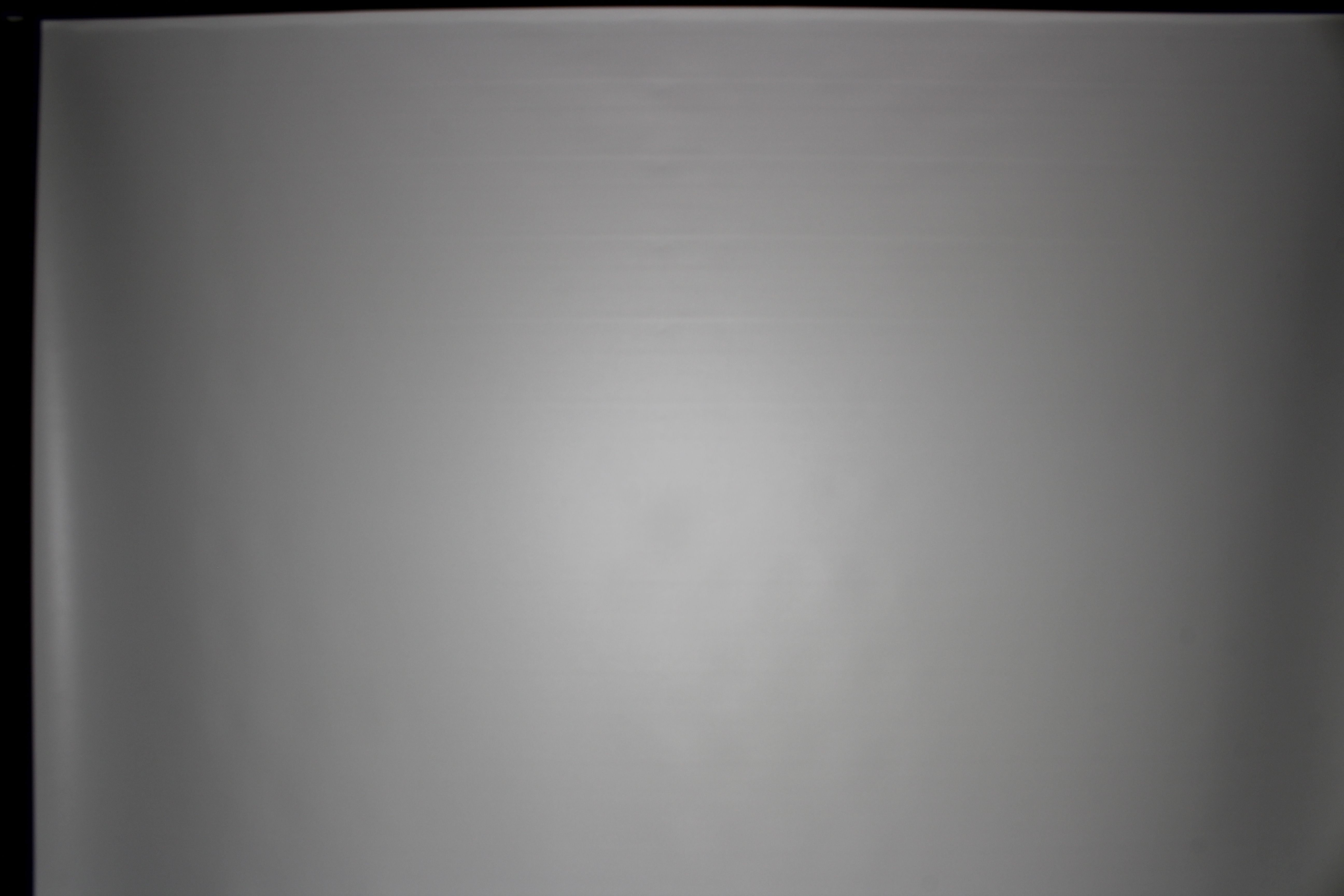

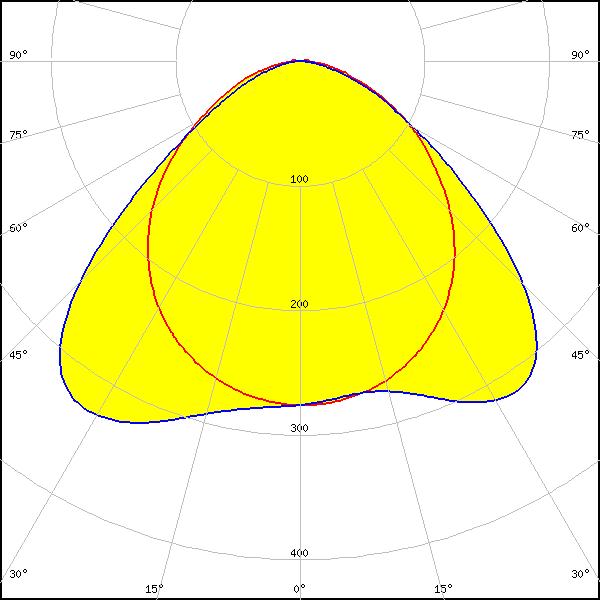

Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
FWHM:
103° + 105°
FWTM:
157° + 147°
Peak intensity:
0.328 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Strip 1ft 1100lm FC HV5 & LV5
FWHM:
105° + 108°
FWTM:
159° + 157°
Peak intensity:
0.319 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

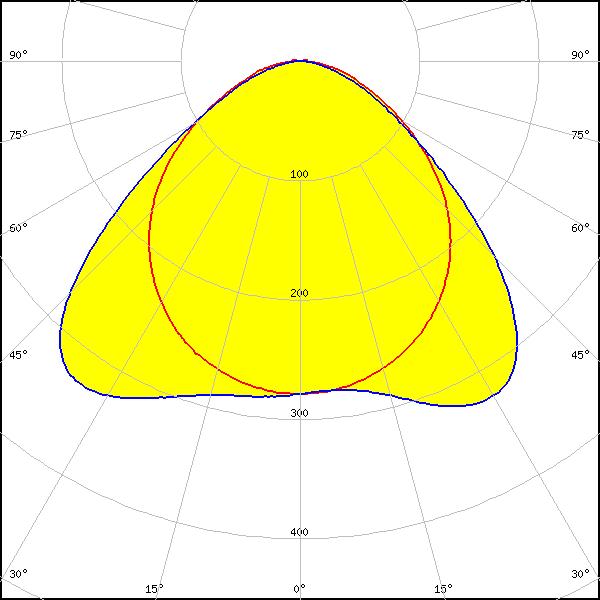

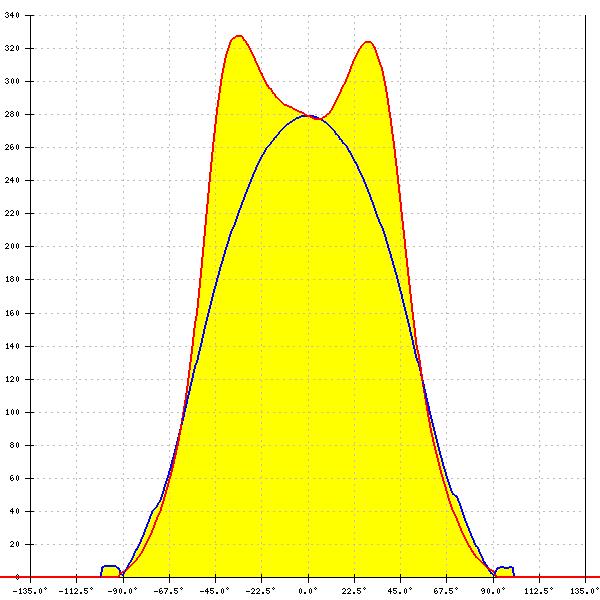

LED:
Fortimo LED Strip 1ft 650lm FC HV4 & LV4
FWHM:
104°
FWTM:
158°
Peak intensity:
0.328 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Strip 1ft 650lm FC HV5 & LV5
FWHM:
104° + 107°
FWTM:
159° + 156°
Peak intensity:
0.324 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

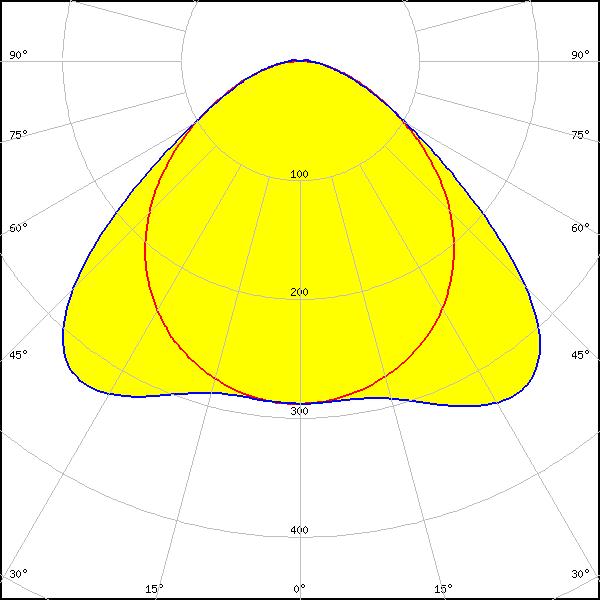

LED:

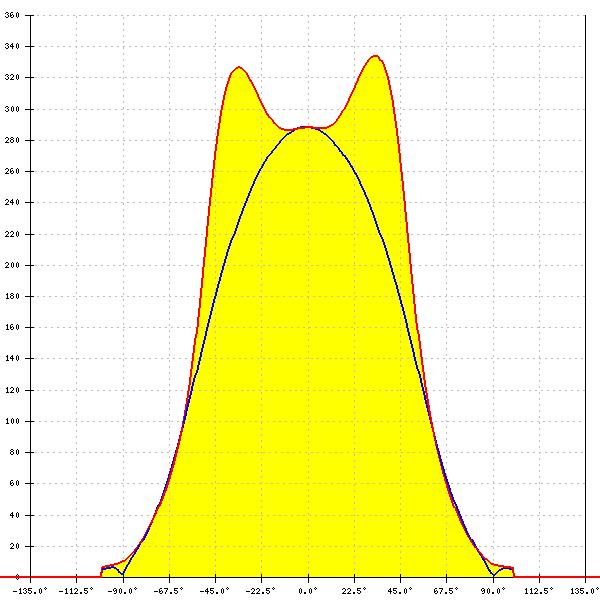

LM28xB Series
FWHM:
110° + 103°
FWTM:
155° + 155°
Peak intensity:
0.330 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

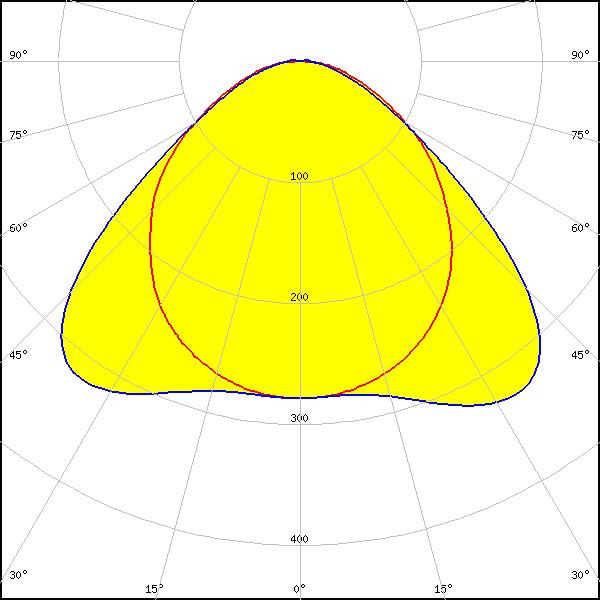

LM301B
FWHM:
105° + 110°
FWTM:
160° + 155°
Peak intensity:
0.328 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

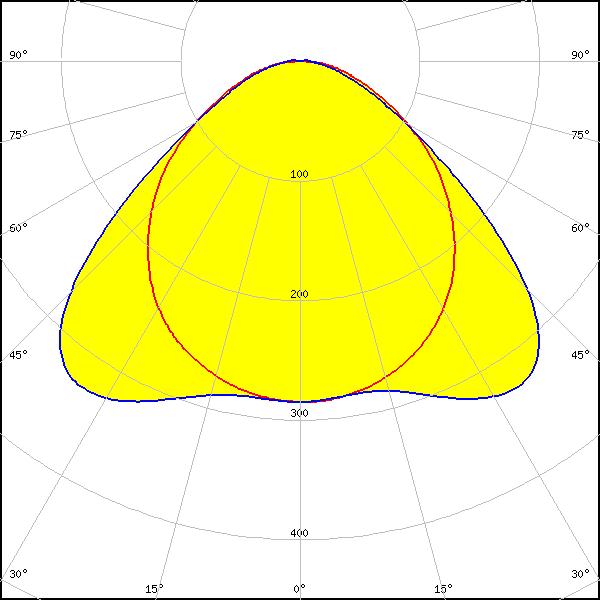

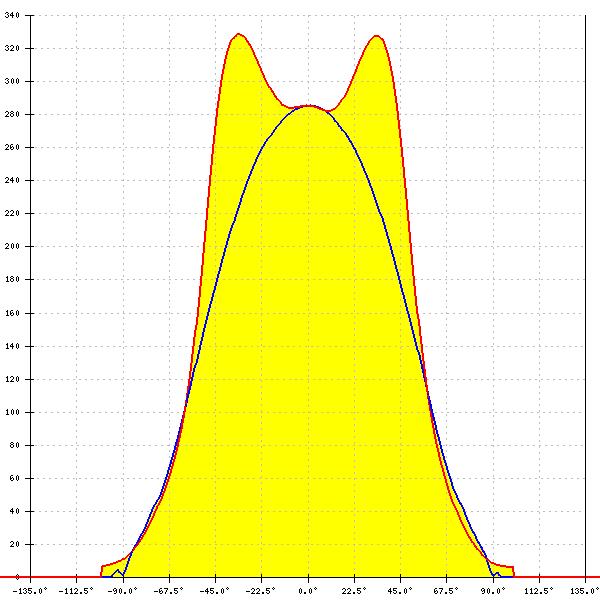

LED:
LM561C
FWHM:
110° + 105°
FWTM:
155° + 159°
Peak intensity:
0.330 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

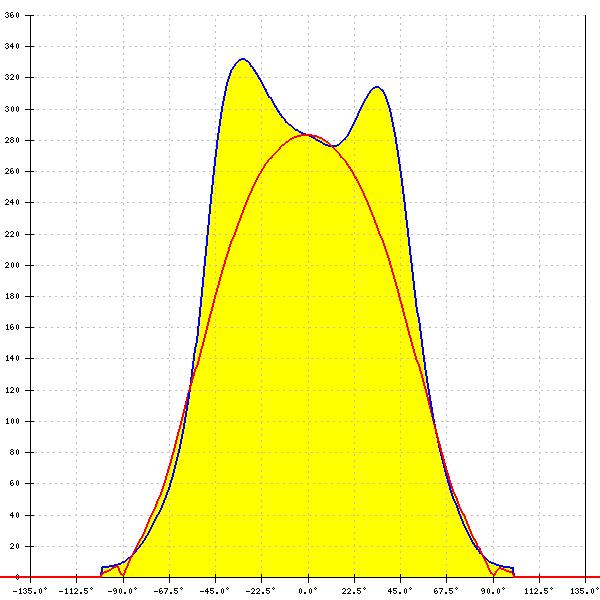

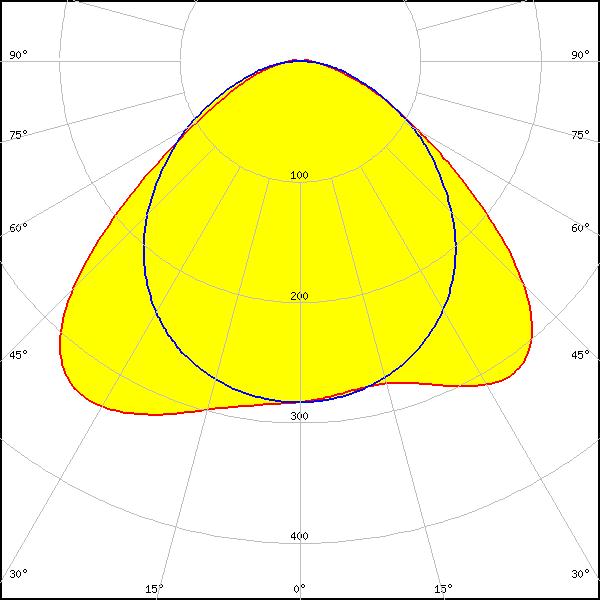

LED:
LT-H282C
FWHM:
107° + 105°
FWTM:
151° + 159°
Peak intensity:
0.332 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

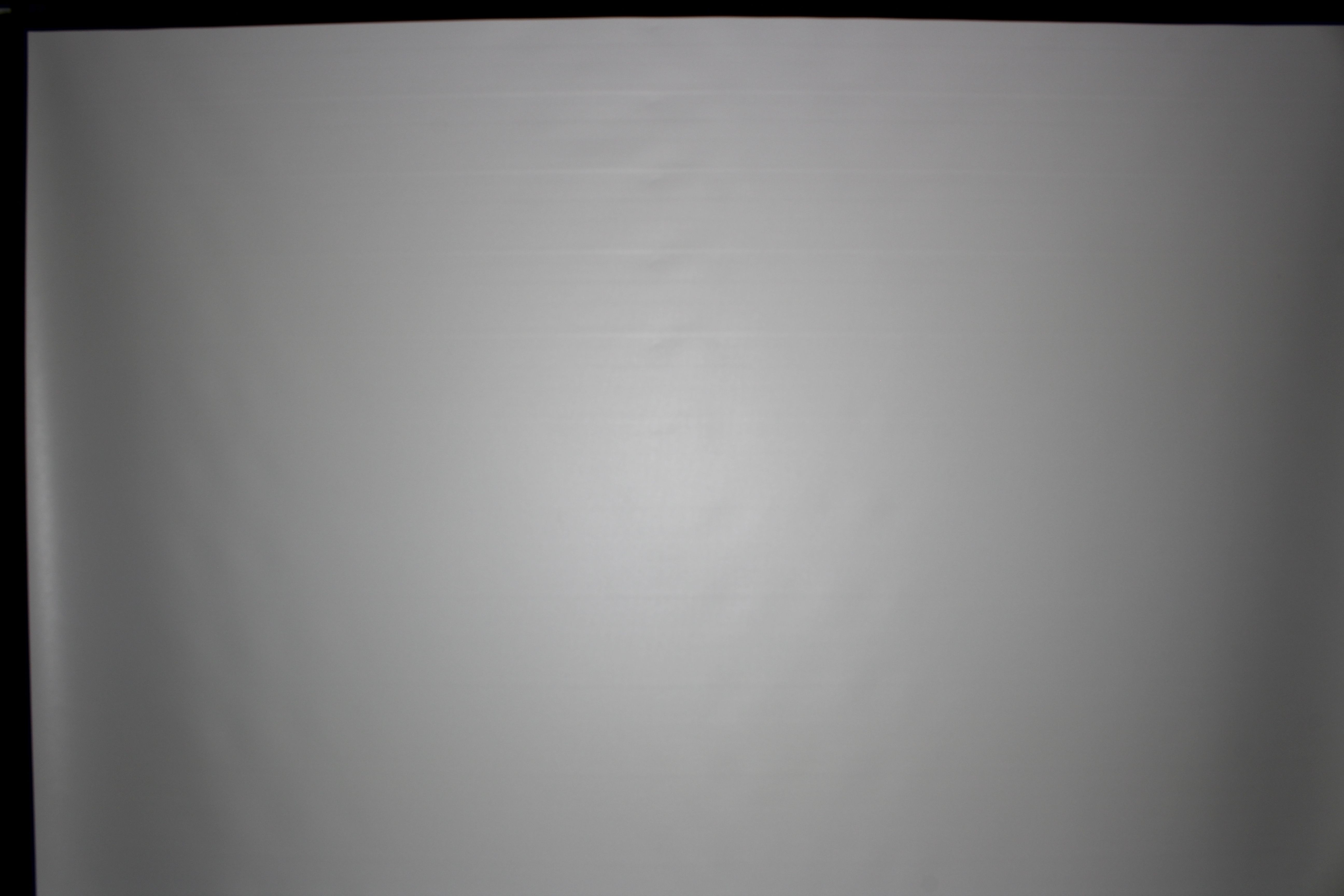

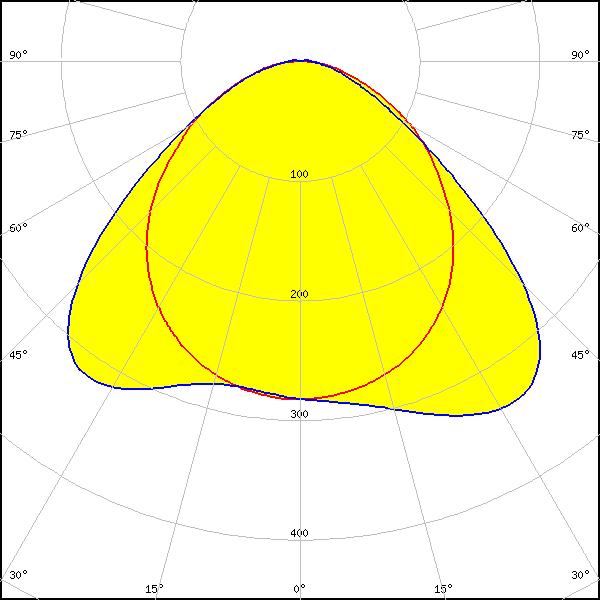

LED:

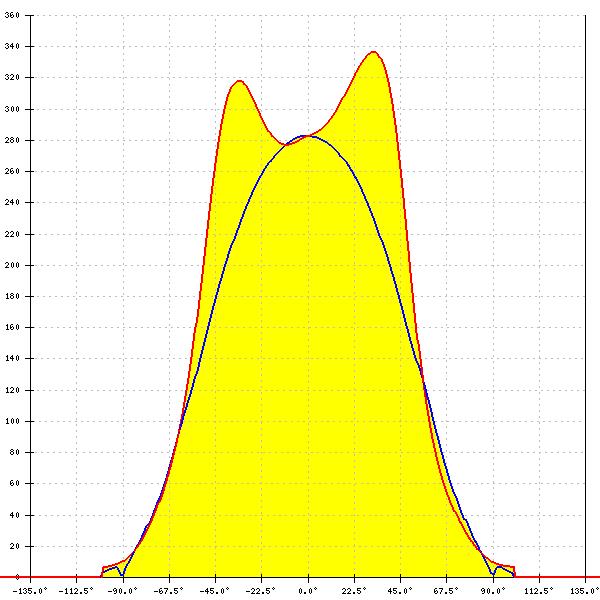

LT-Q282B
FWHM:
104° + 106°
FWTM:
159° + 151°
Peak intensity:
0.336 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

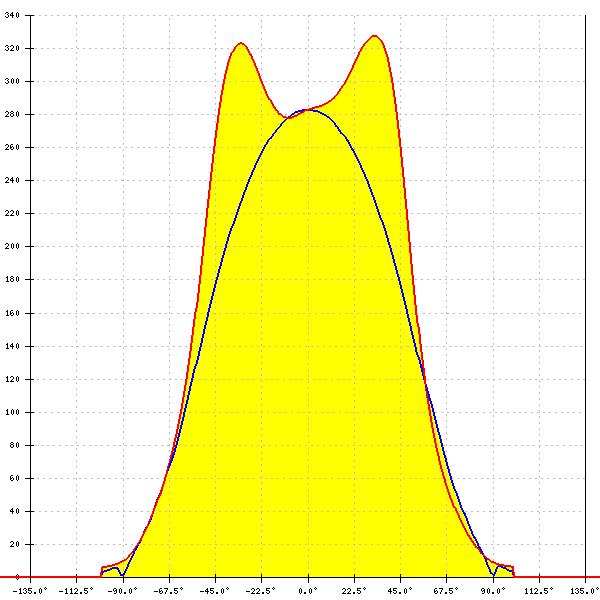

LED:

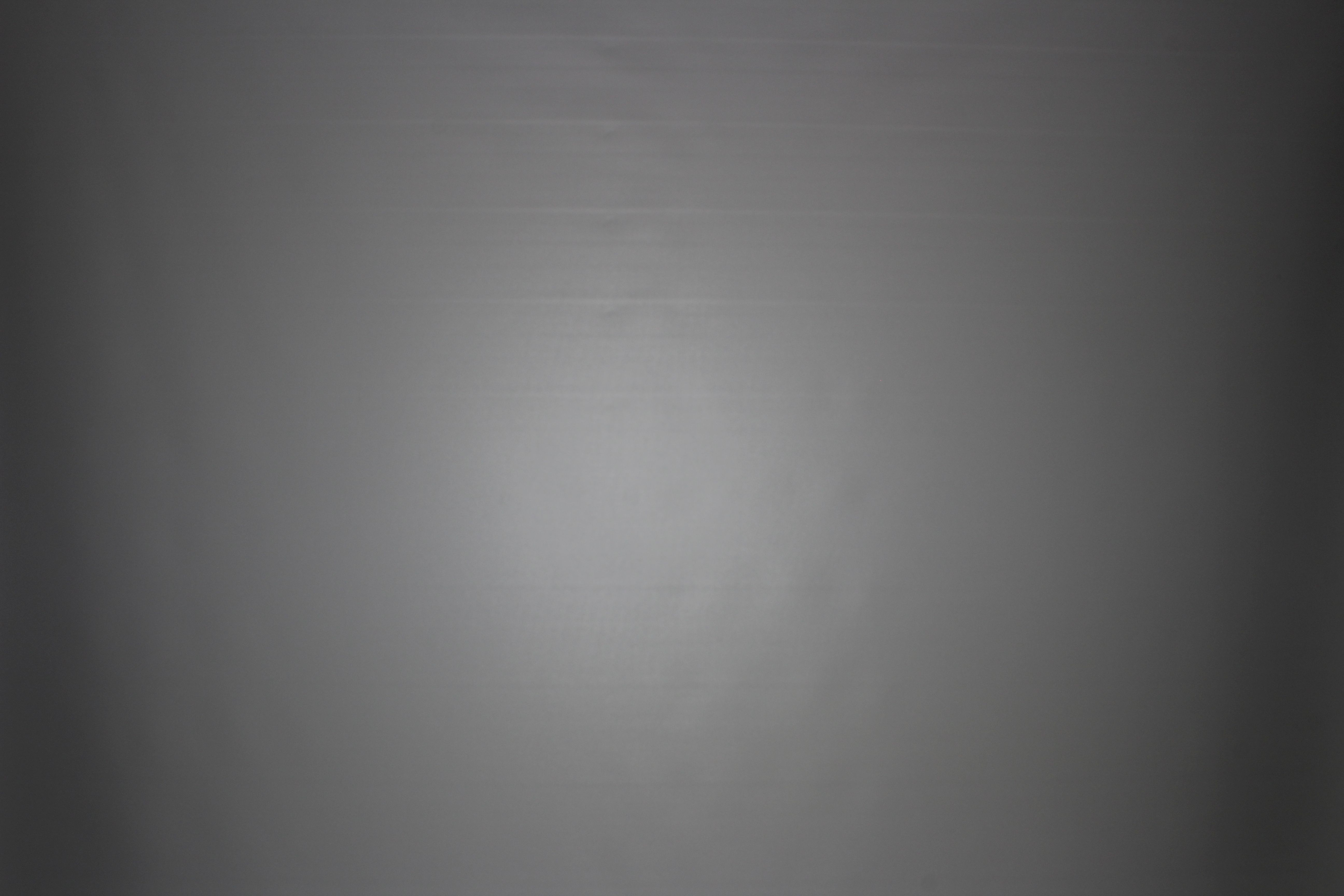

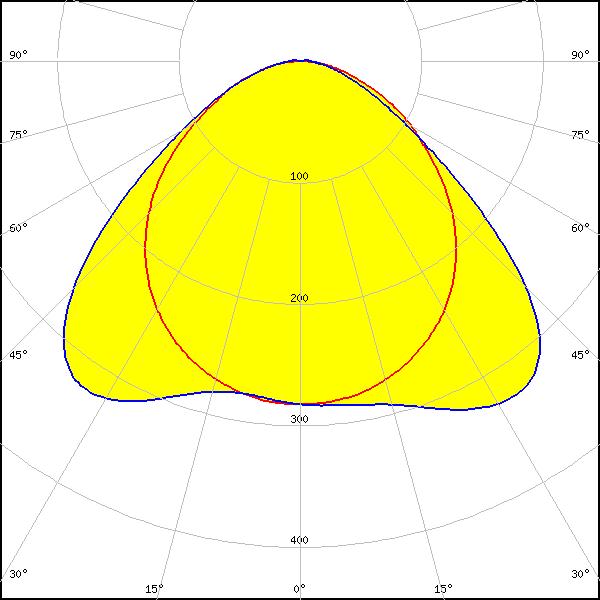

LT-S282H
FWHM:
104° + 107°
FWTM:
158° + 152°
Peak intensity:
0.327 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

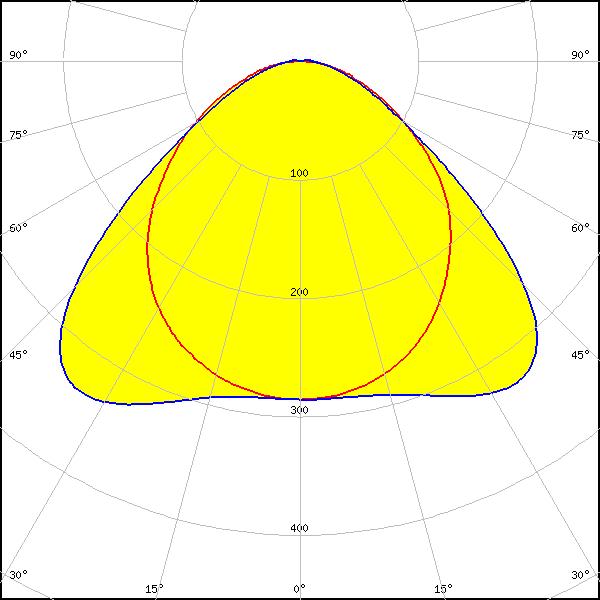

LED:

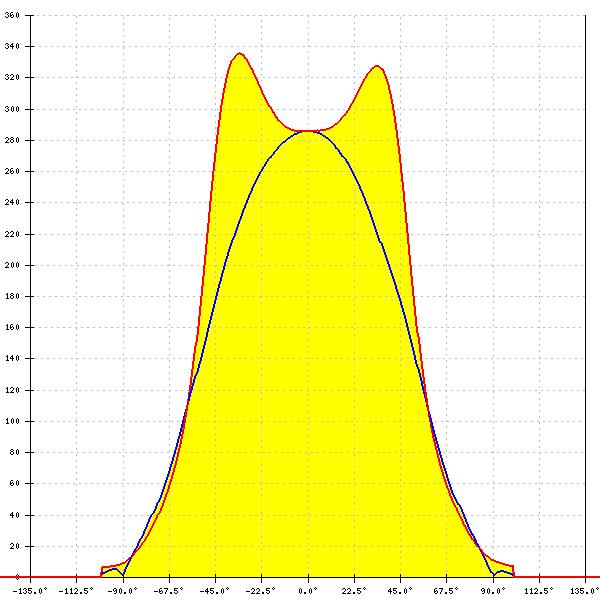

SEOUL DC 3528
FWHM:
104° + 110°
FWTM:
159° + 155°
Peak intensity:
0.340 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

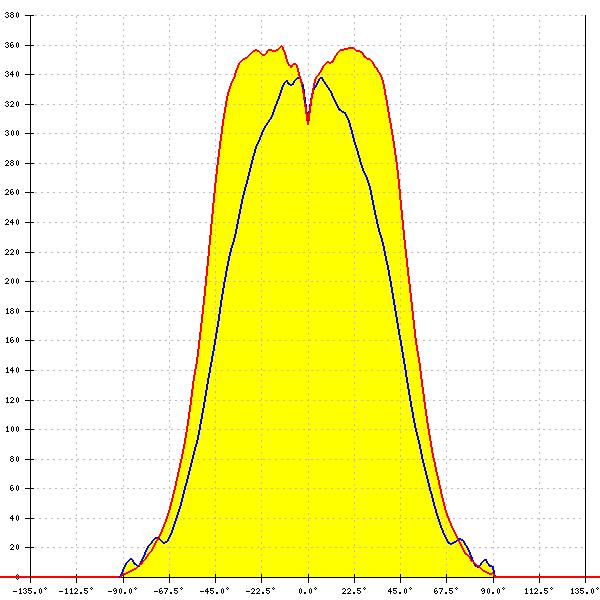

LED:

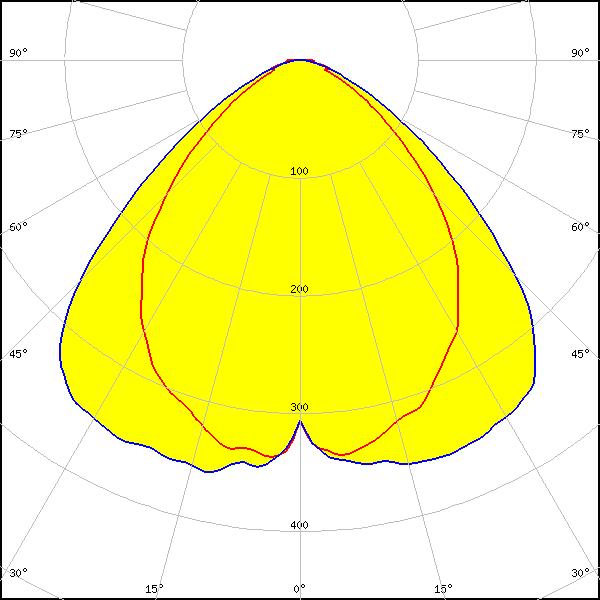

SEOUL DC 5050 6V
FWHM:
88° + 102°
FWTM:
130° + 140°
Peak intensity:
0.362 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

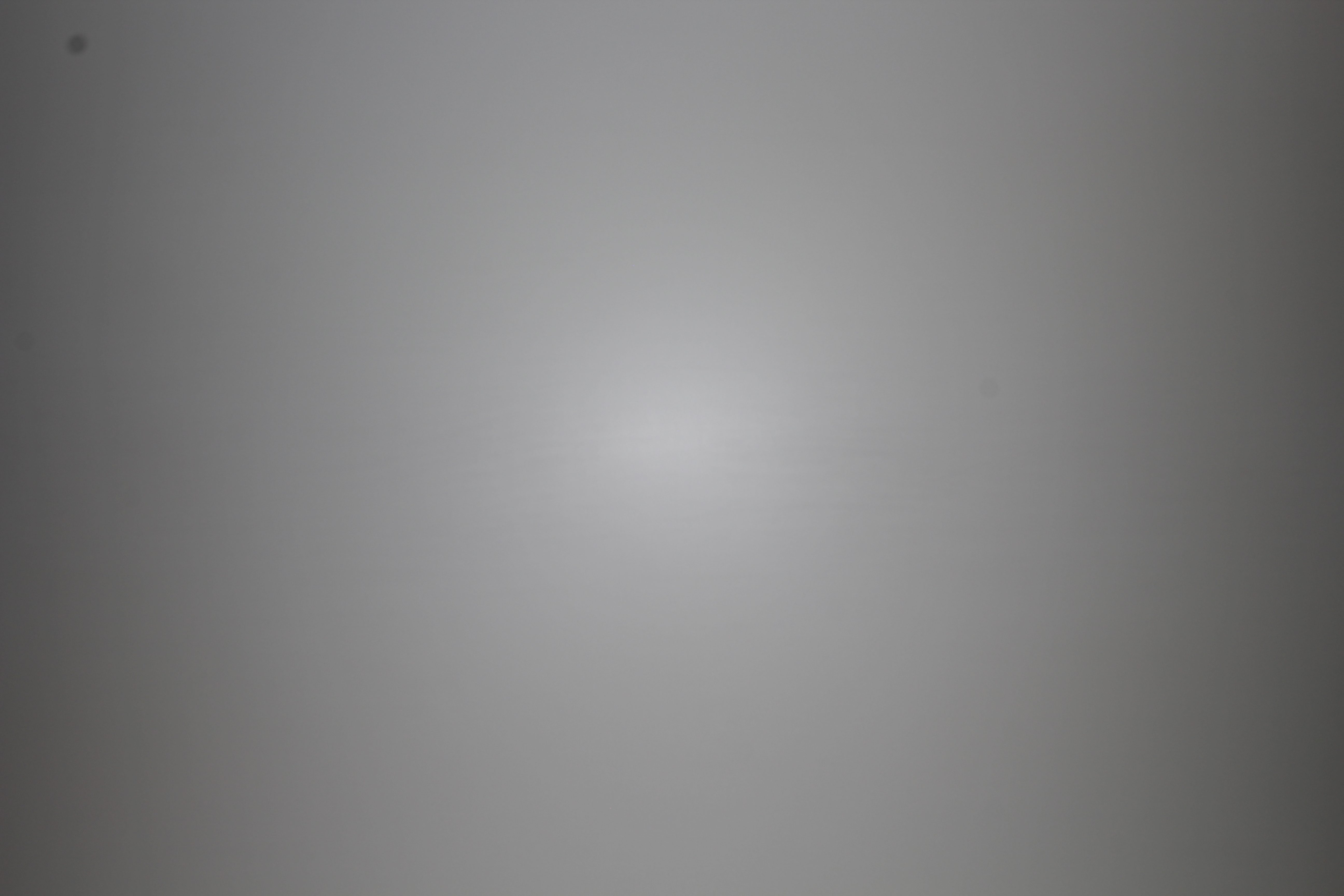

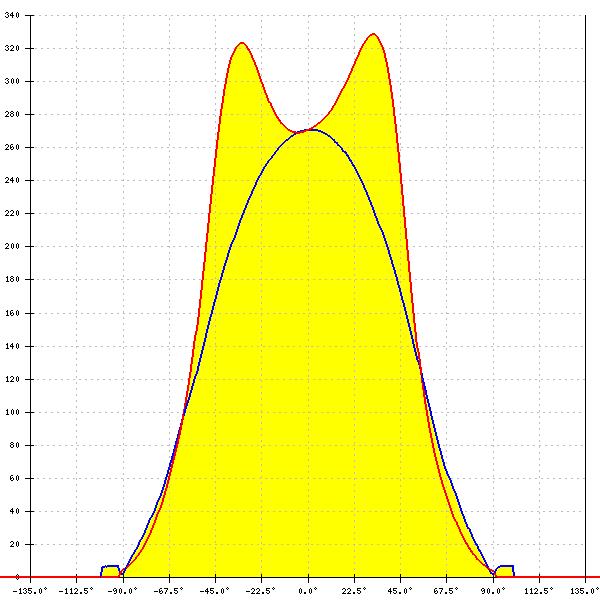

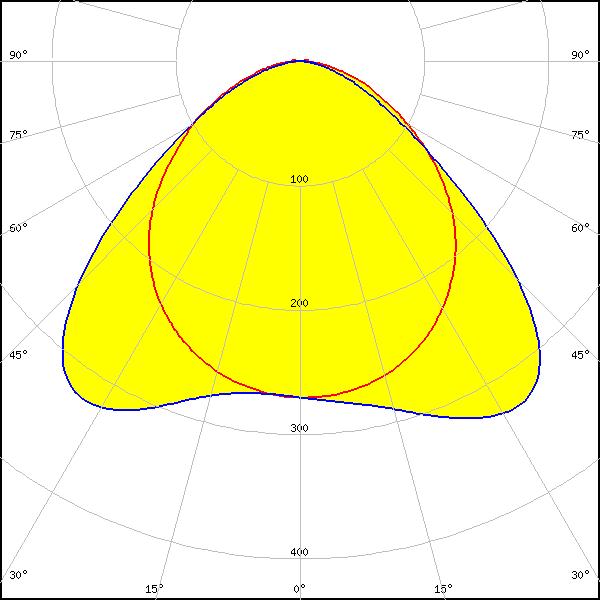

LLE 24x280mm 1250lm HV ADV5
FWHM:
104°
FWTM:
159°
Peak intensity:
0.328 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

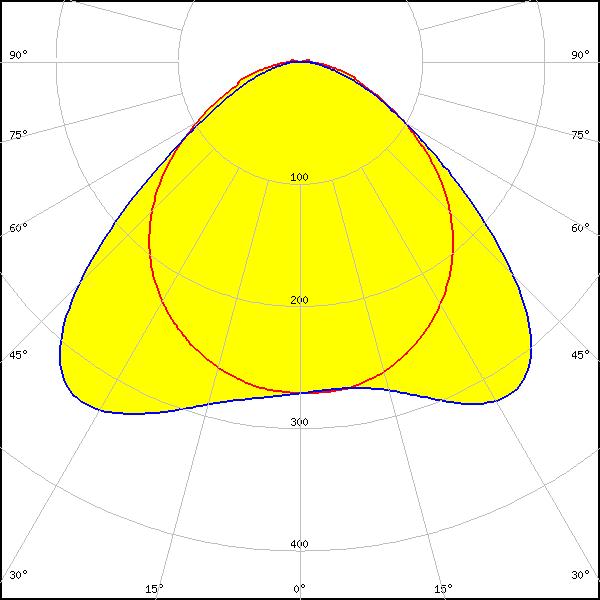

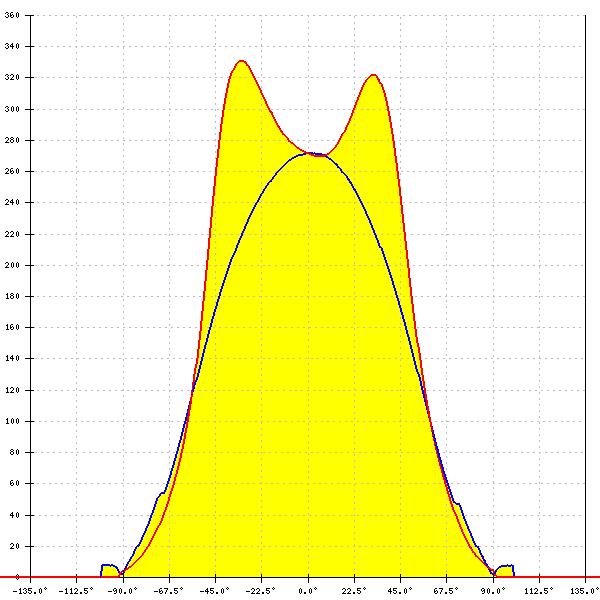

LED:
LLE 24x280mm 650lm HV ADV5
FWHM:
106° + 104°
FWTM:
159° + 147°
Peak intensity:
0.331 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LLE FLEX CC 14mm 1250lm ADV1
FWHM:
103° + 106°
FWTM:
160° + 151°
Peak intensity:
0.333 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
