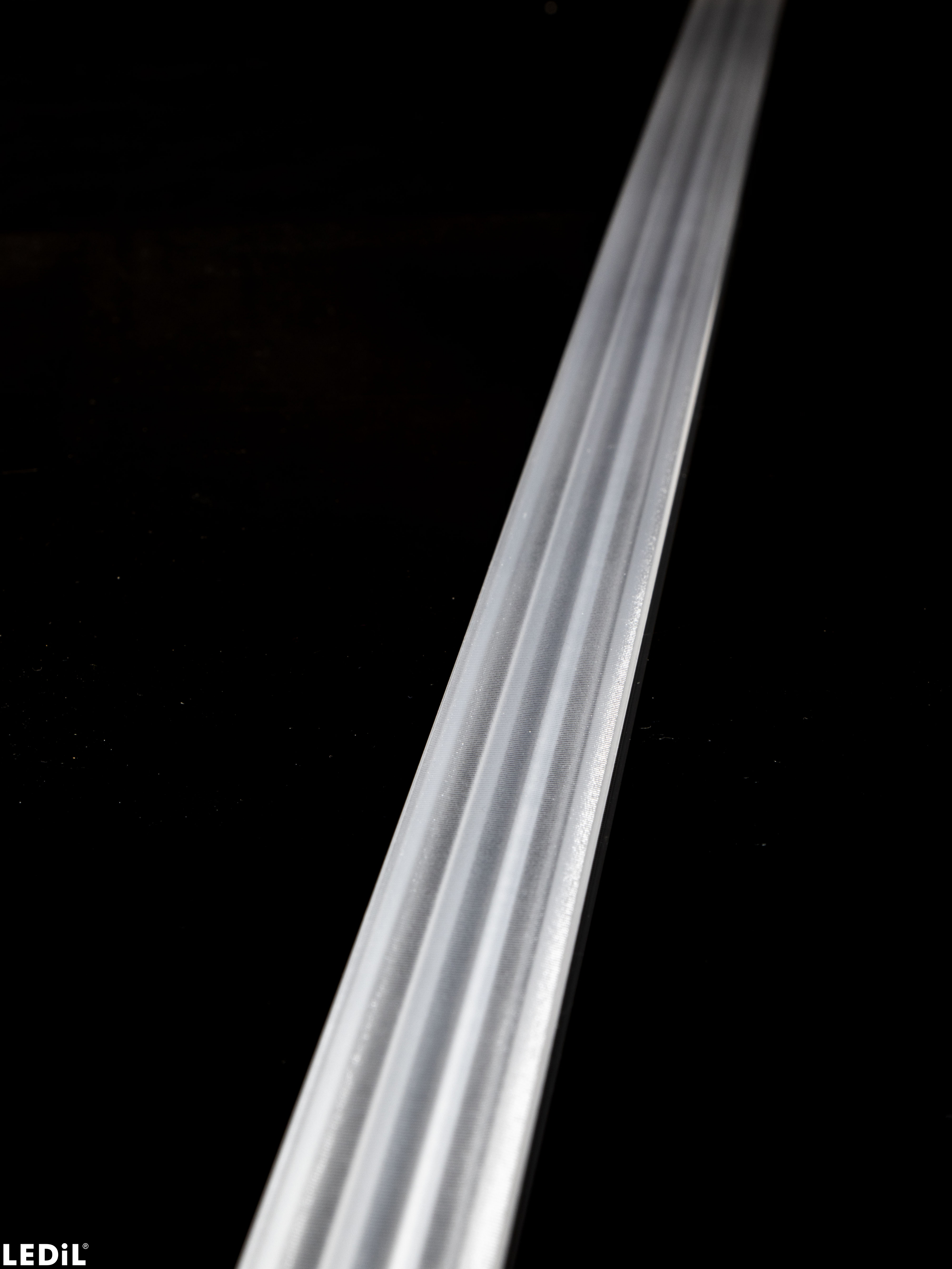

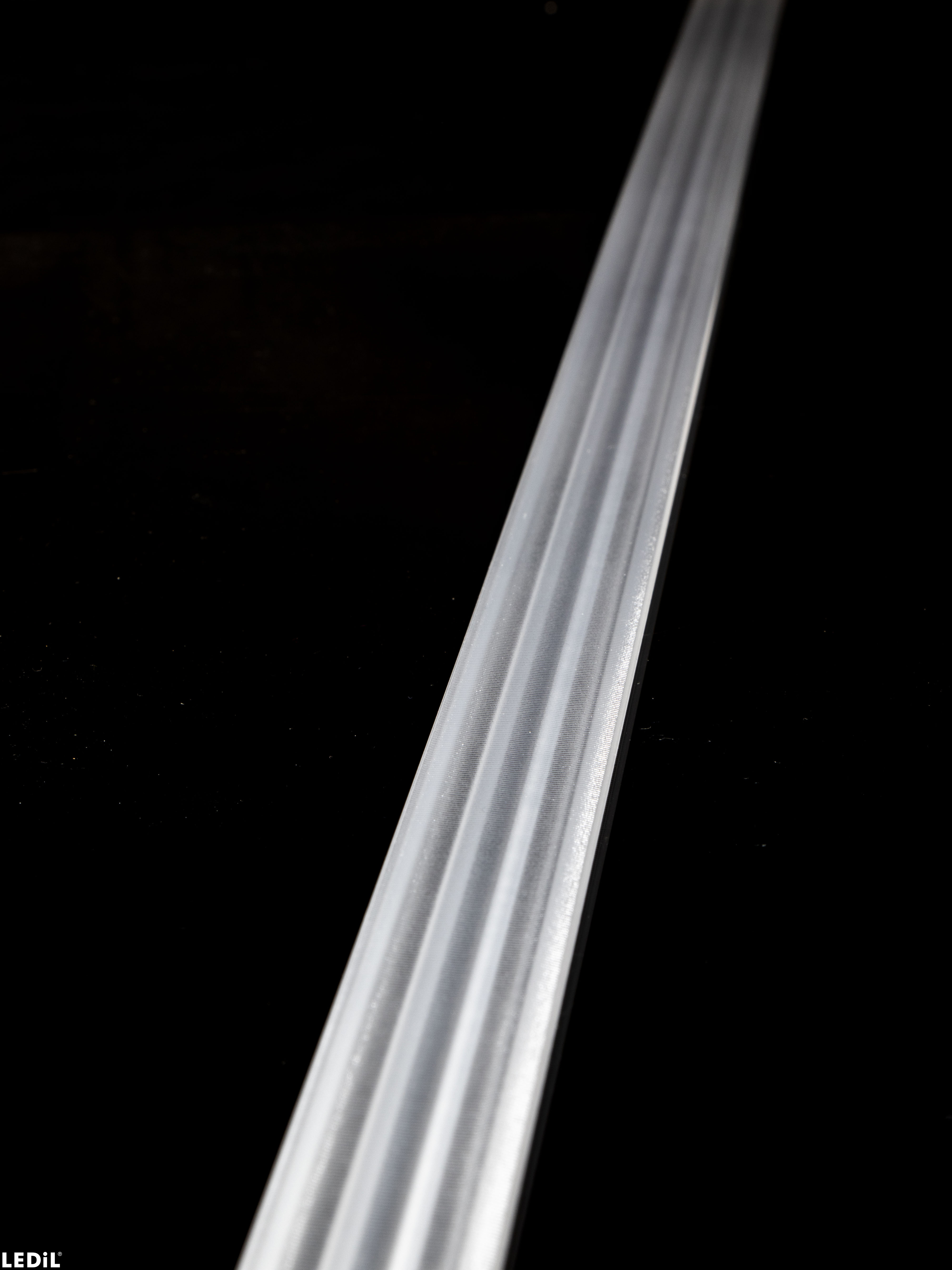

F16748_LINDA-O

Print

~40° + 100° oval beam

Specification
  • Dimensions:
    26 x  1140 mm
  • Height:
    4.98 mm
  • Fastening:
    snaps
  • Colour:
    milky
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    150 pcs
  • Box size:
    1185 x 150 x 115 mm
  • Box weight:
    13.1 kg
  • MPQ:
    150 pcs
  • MOQ:
    150 pcs
  • MOQ size:
    1185 x 150 x 115 mm
  • MOQ weight:
    13.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F16748_LINDA-O

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Other variants: F17128_LINDA-O-48in (North American 48 inch length)
F17316_LINDA-O-3m (3.01 m length) and other custom lengths available

Optical results

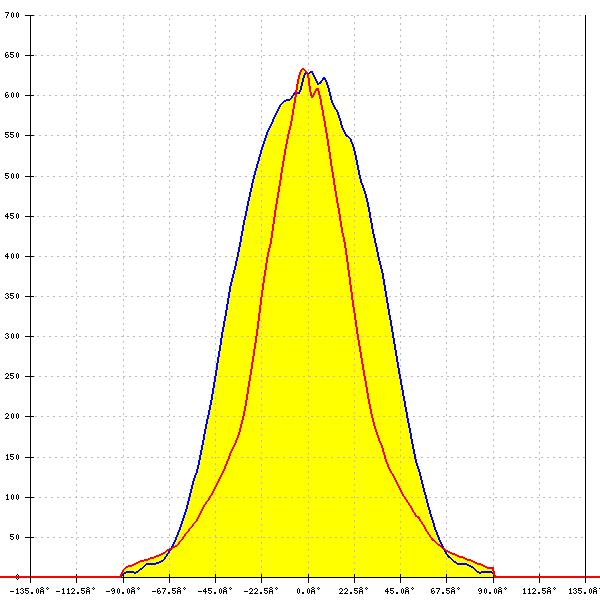

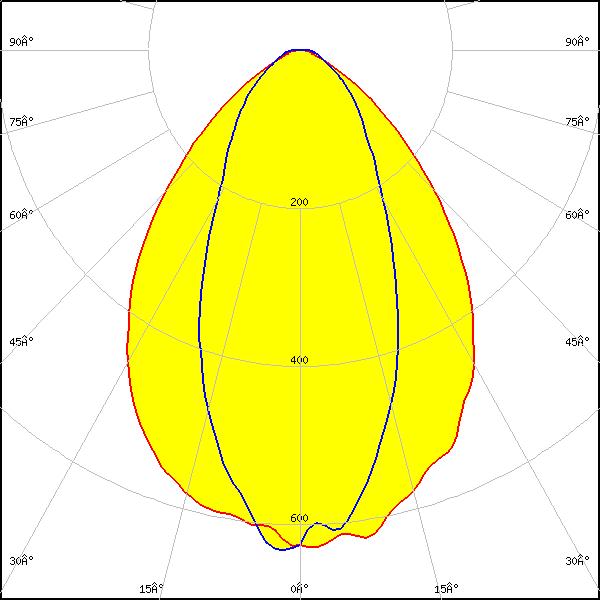

LED: Bridgelux SMD 5050
FWHM: 82° + 47°
FWTM: 124° + 113°
Peak intensity: 0.648 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

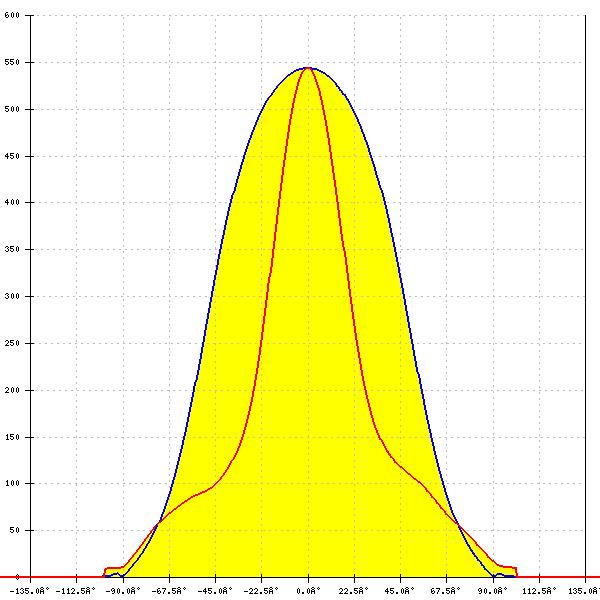

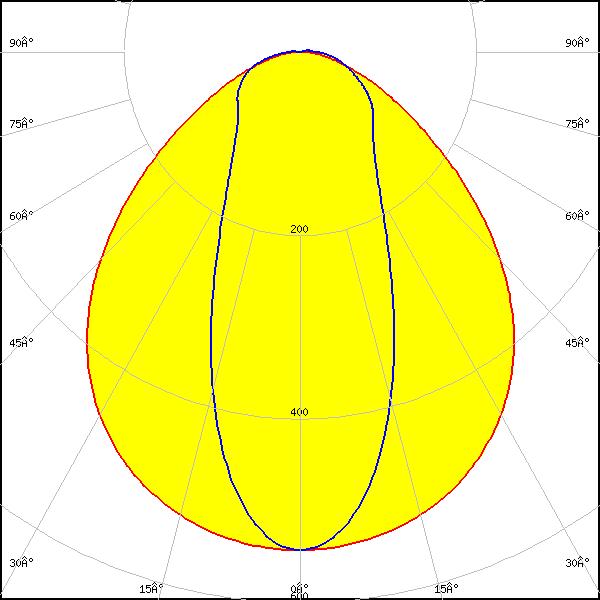

LED: CLUC11
FWHM: 99° + 44°
FWTM: 147° + 148°
Peak intensity: 0.543 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

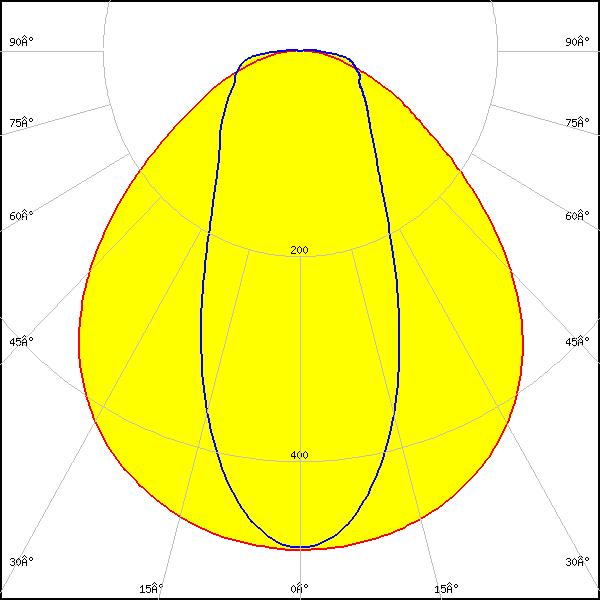

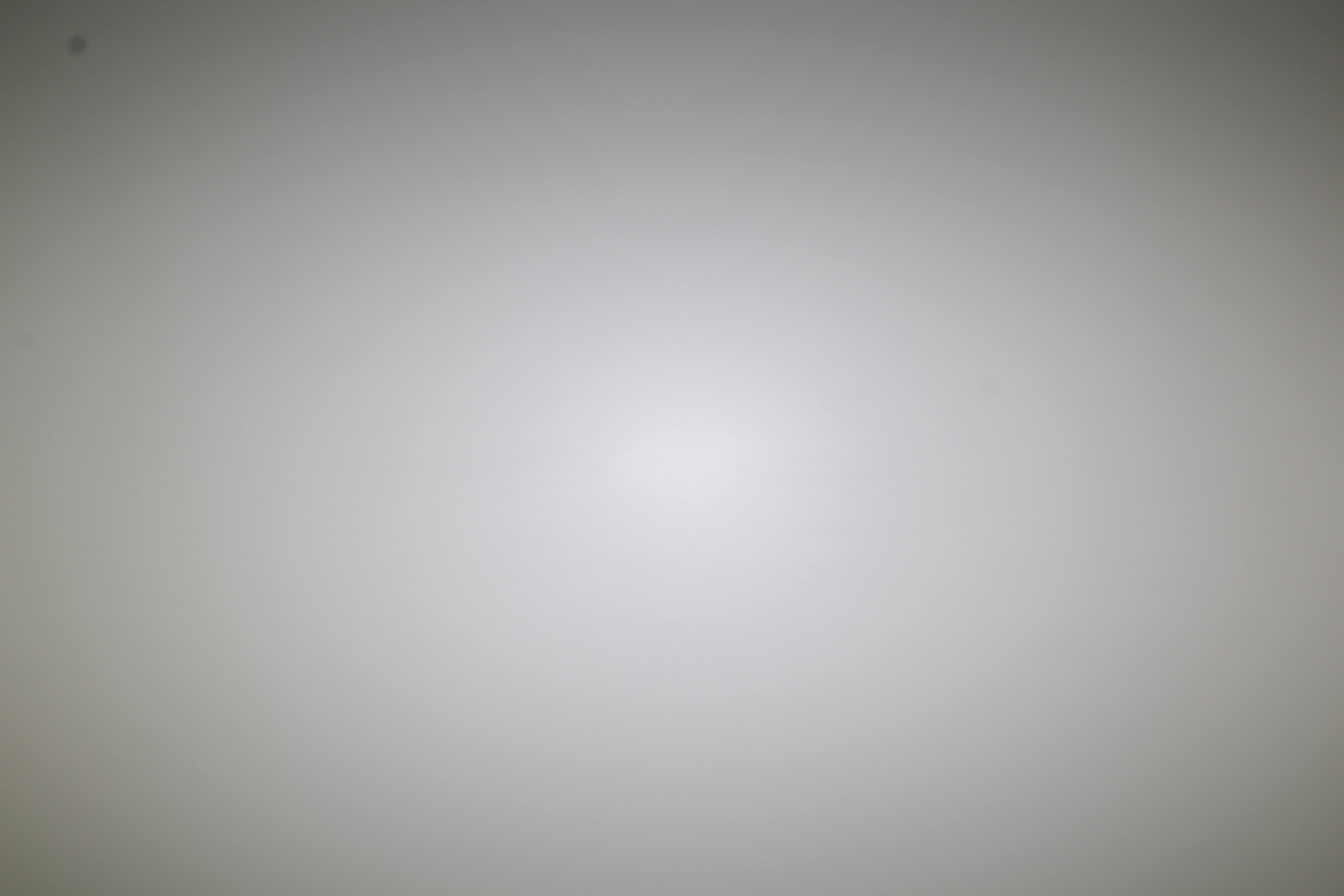

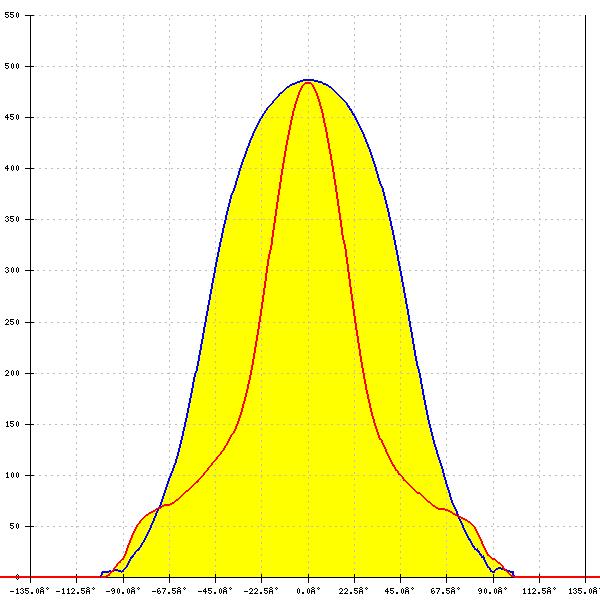

LED: XP-G3
FWHM: 101° + 48°
FWTM: 152° + 165°
Peak intensity: 0.486 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

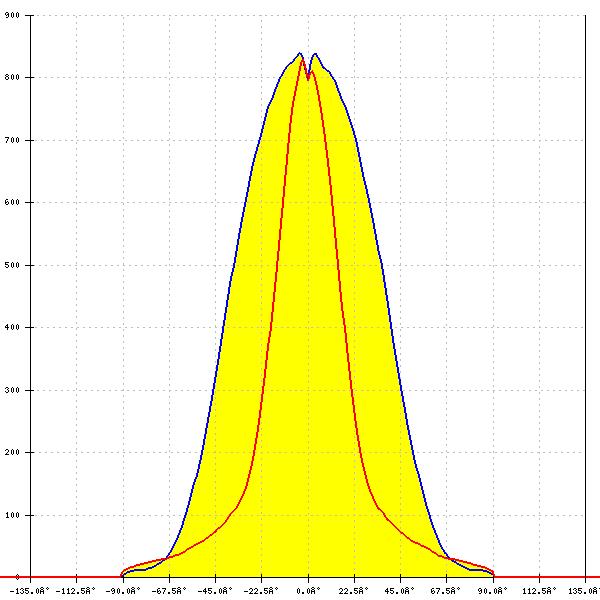

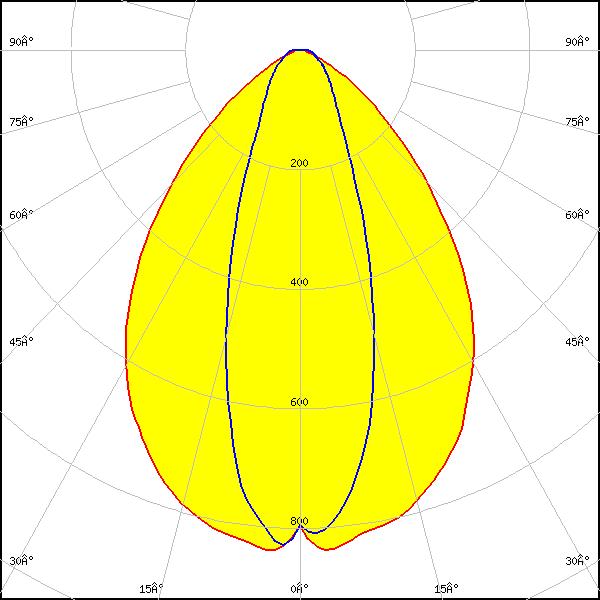

LED: LUXEON 3030 2D (Round LES)
FWHM: 80° + 36°
FWTM: 122° + 83°
Peak intensity: 0.854 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

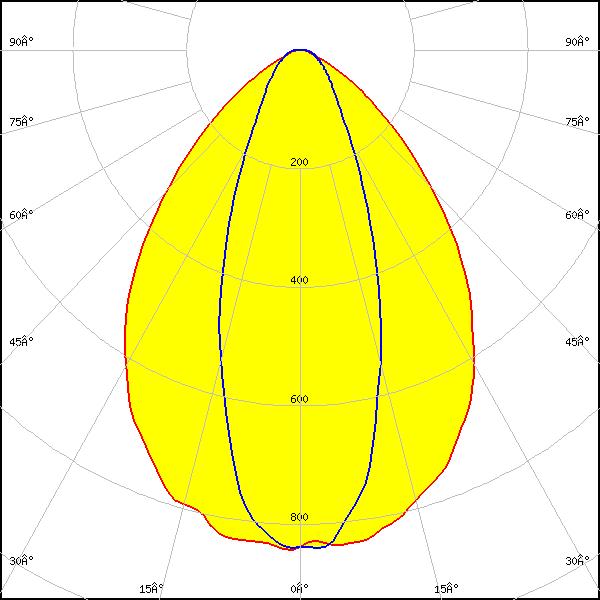

LED: LUXEON 3535L HE PLUS
FWHM: 80° + 38°
FWTM: 122° + 86°
Peak intensity: 0.862 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

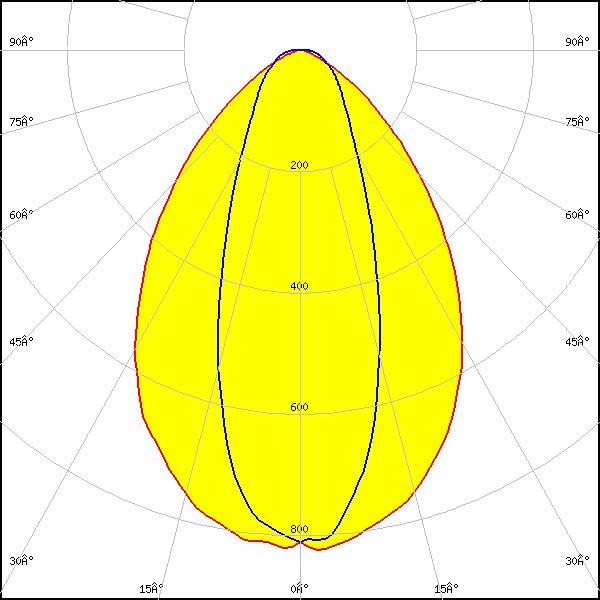

LED: LUXEON CSP HL1
FWHM: 77° + 39°
FWTM: 122° + 104°
Peak intensity: 0.836 cd/lm
Efficiency: 89 %
LEDs/each optic: 5
Light colour: White

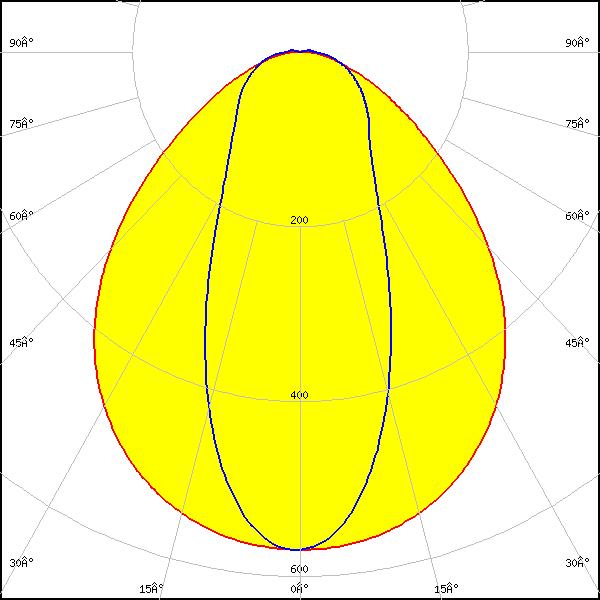

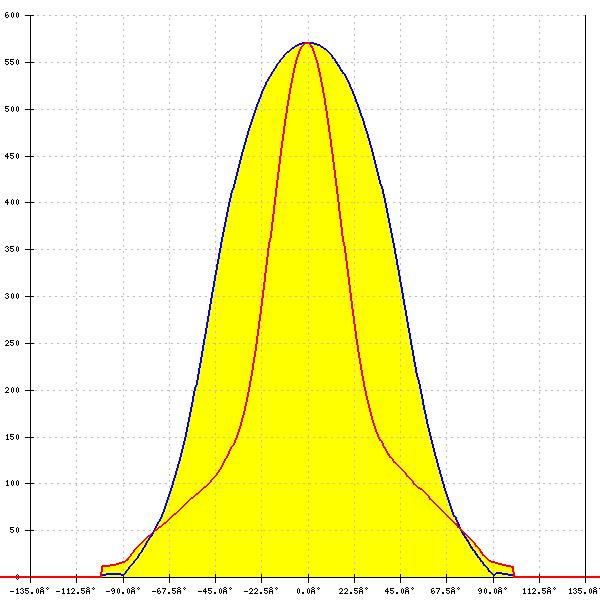

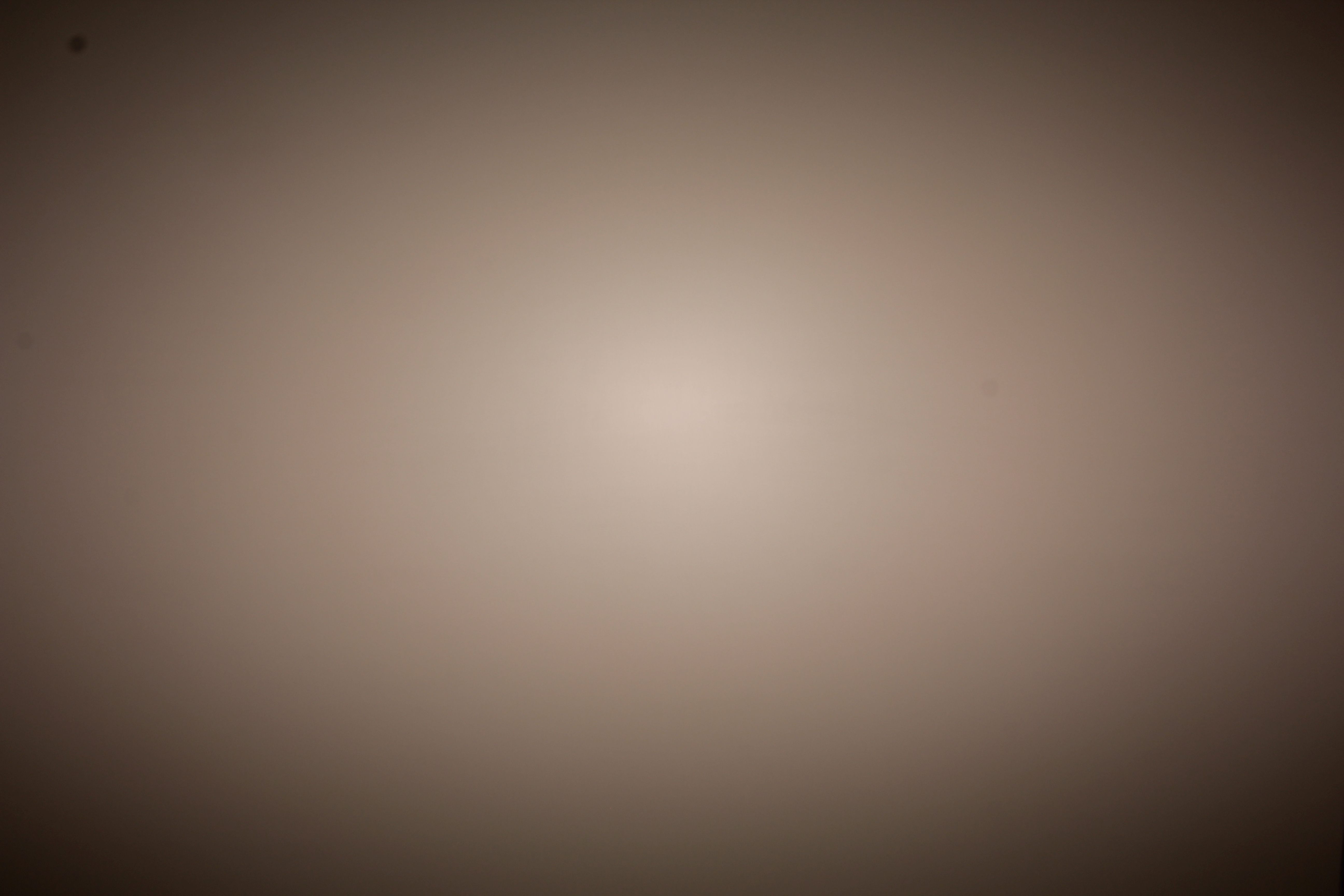

LED: NF2W757G-MT (Tunable White)
FWHM: 96° + 45°
FWTM: 146° + 142°
Peak intensity: 0.571 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: Tunable White

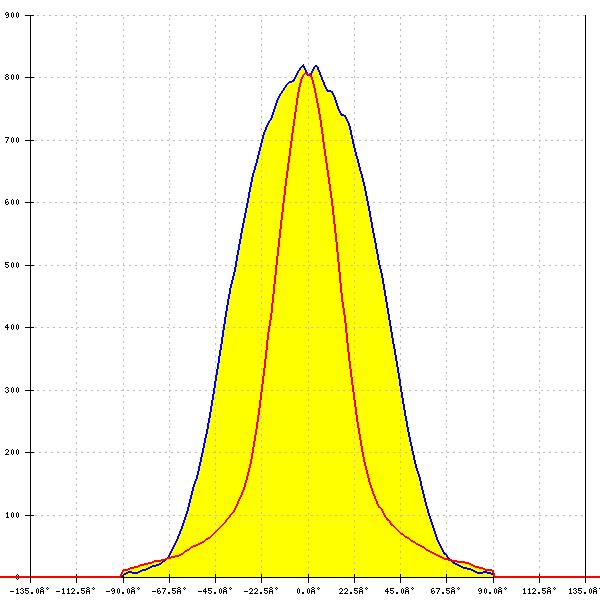

LED: NF2x757G
FWHM: 80° + 36°
FWTM: 122° + 84°
Peak intensity: 0.838 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

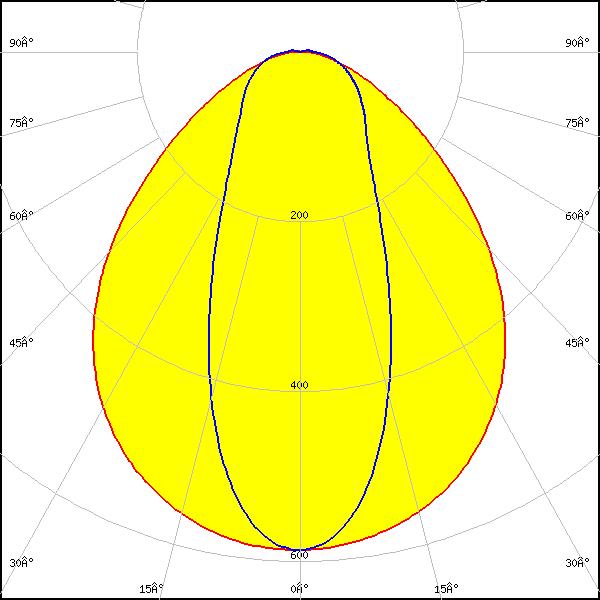

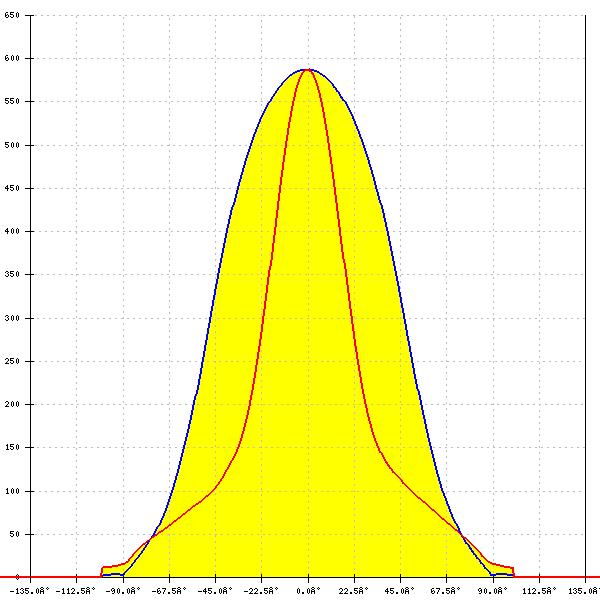

LED: NFSW757H
FWHM: 95° + 43°
FWTM: 145° + 138°
Peak intensity: 0.587 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

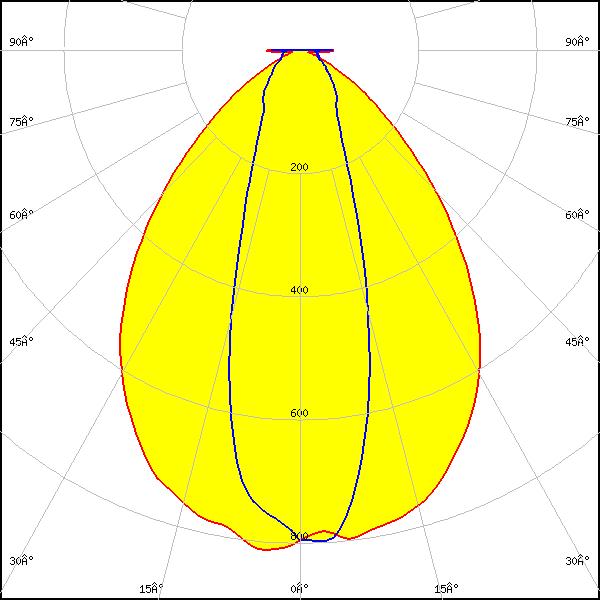

LED: NFSWE11A
FWHM: 82° + 32°
FWTM: 124° + 90°
Peak intensity: 0.816 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

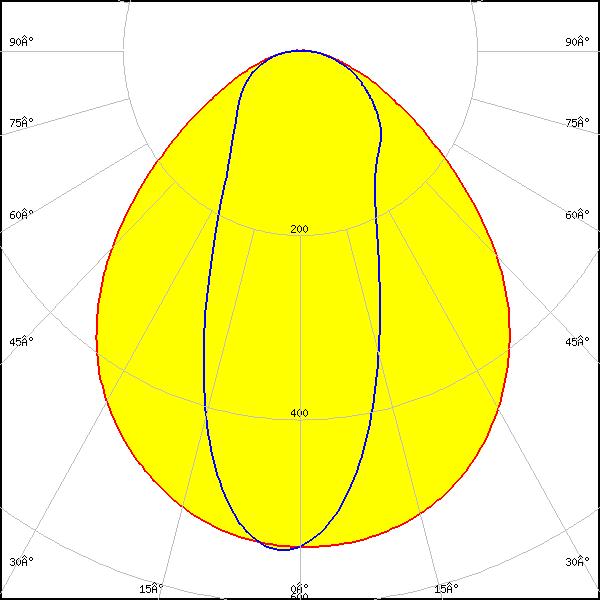

LED: PL-LIN-Z5 1100 280x20
FWHM: 97° + 42°
FWTM: 147° + 140°
Peak intensity: 0.542 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

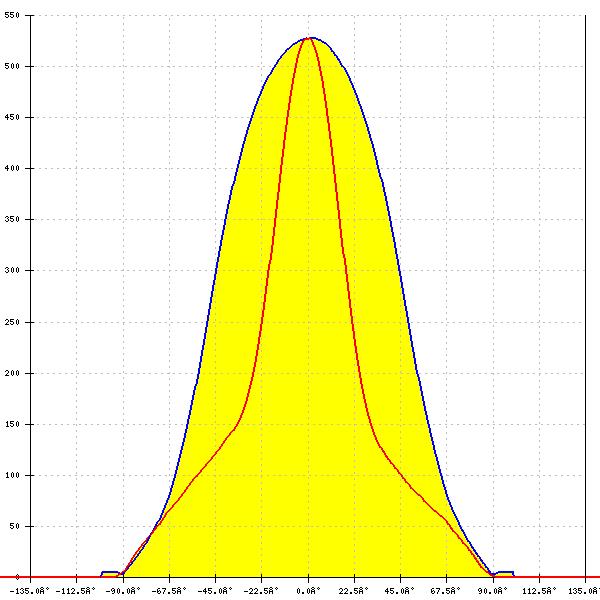

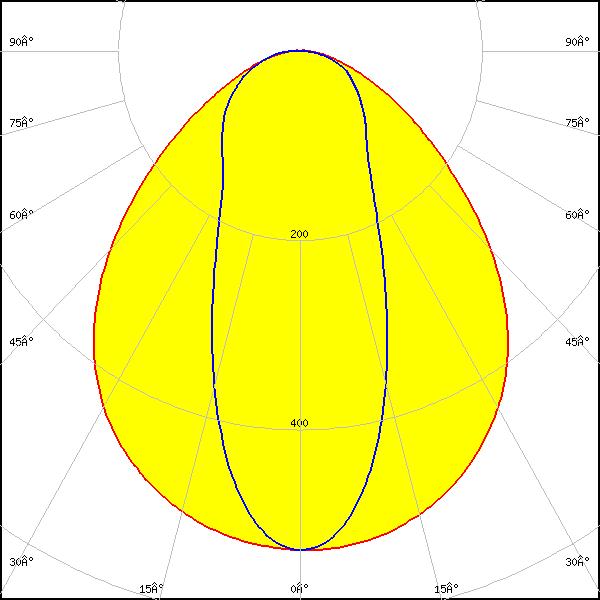

LED: PL-LIN-Z5 2000 280x20
FWHM: 96° + 42°
FWTM: 147° + 141°
Peak intensity: 0.527 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

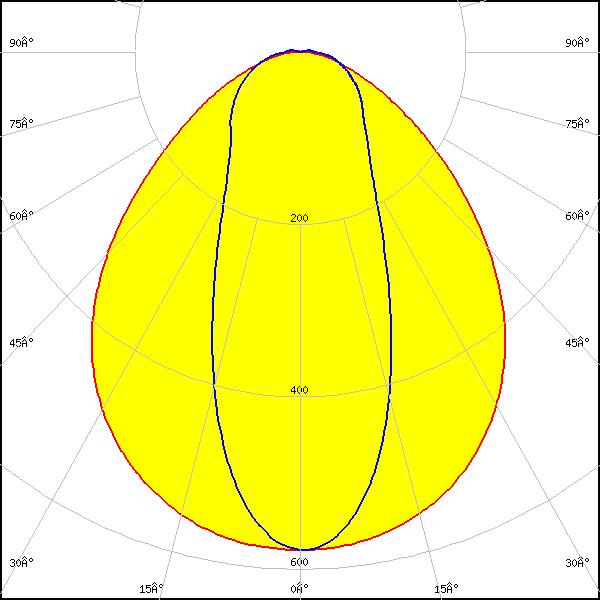

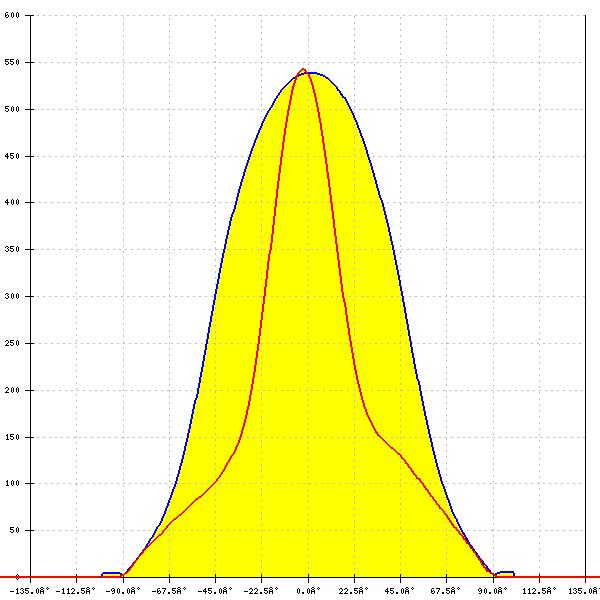

LED: Duris E 2835
FWHM: 96° + 42°
FWTM: 147° + 141°
Peak intensity: 0.527 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

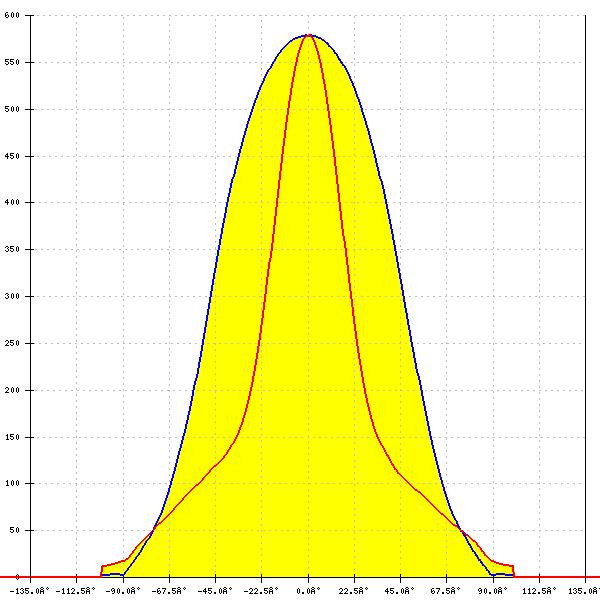

LED: Duris E 2835
FWHM: 97° + 42°
FWTM: 147° + 140°
Peak intensity: 0.542 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: Duris E 2835
FWHM: 96° + 43°
FWTM: 146° + 142°
Peak intensity: 0.578 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

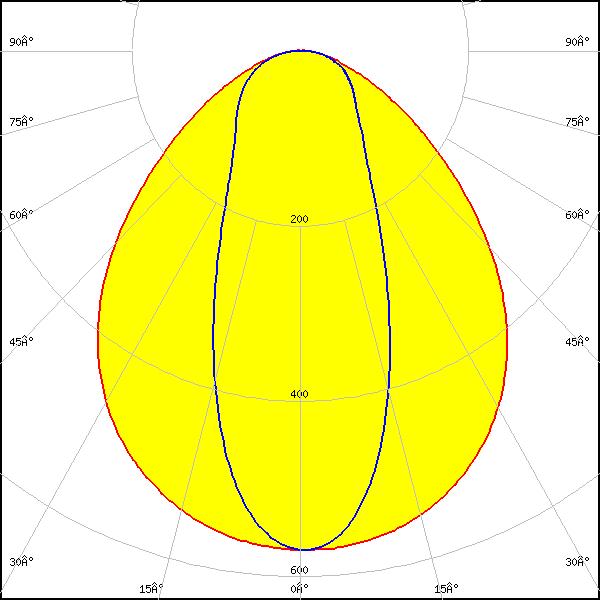

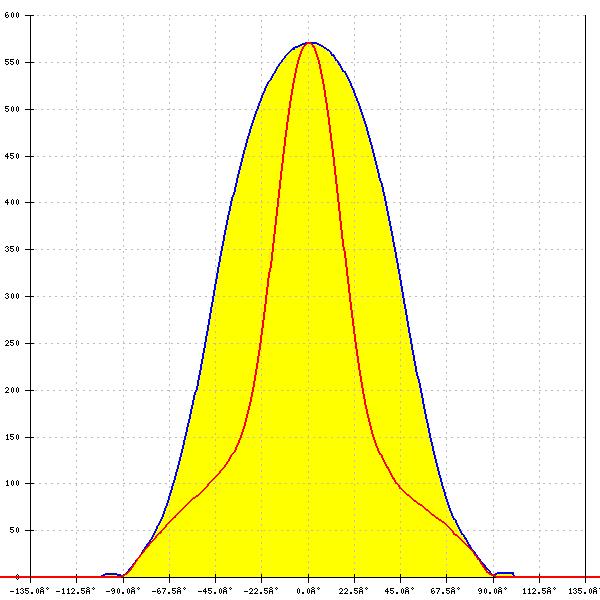

LED: Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
FWHM: 95° + 42°
FWTM: 145° + 135°
Peak intensity: 0.571 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

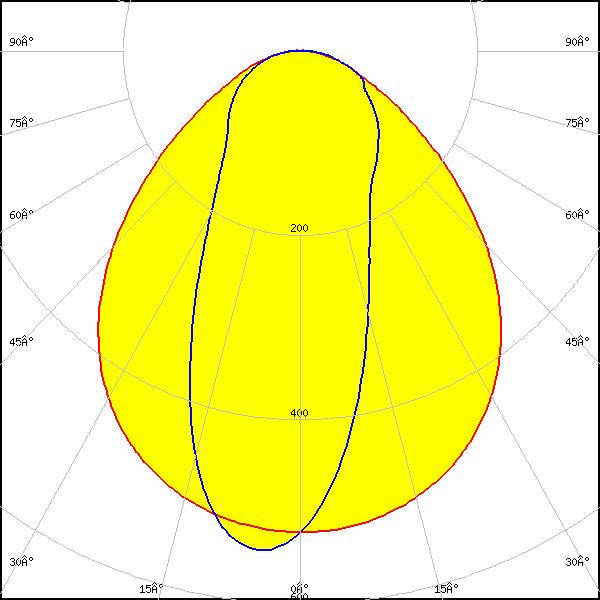

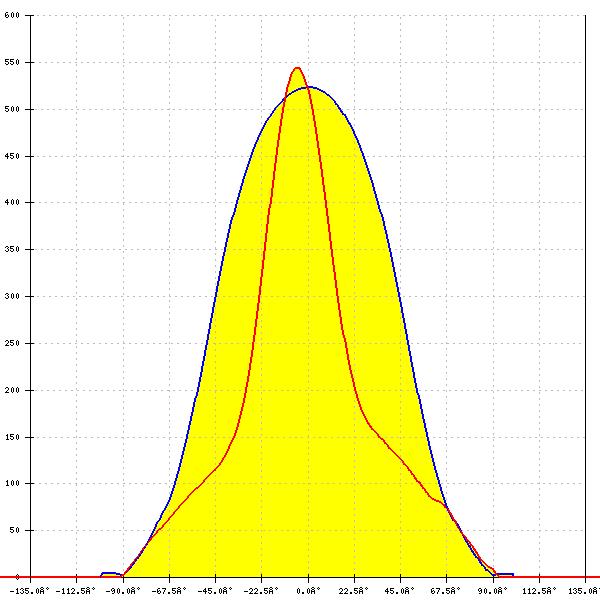

LED: Fortimo LED Strip 1ft 650lm FC HV4 & LV4
FWHM: 94° + 42°
FWTM: 147° + 144°
Peak intensity: 0.544 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Strip 1ft 650lm FC HV5 & LV5
FWHM: 94° + 42°
FWTM: 145° + 134°
Peak intensity: 0.599 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

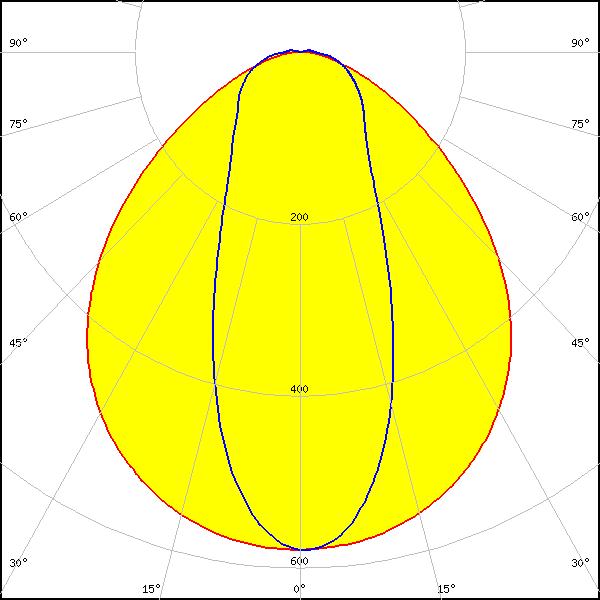

LED: LM28xB Series
FWHM: 99° + 43°
FWTM: 147° + 143°
Peak intensity: 0.580 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

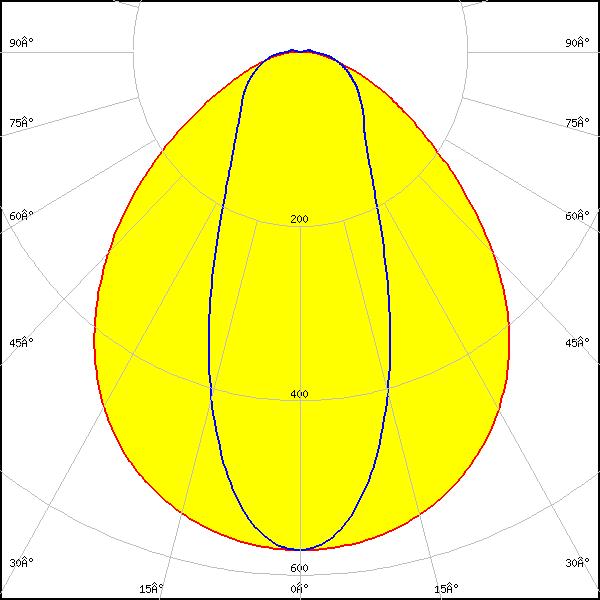

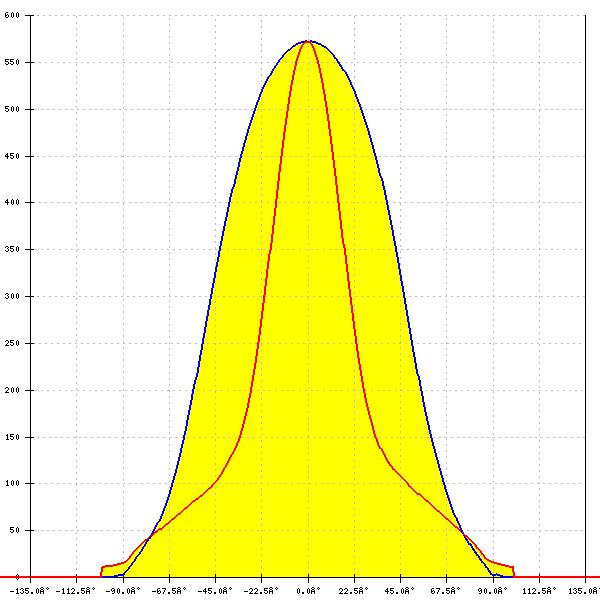

LED: LM301B
FWHM: 96° + 43°
FWTM: 146° + 139°
Peak intensity: 0.572 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

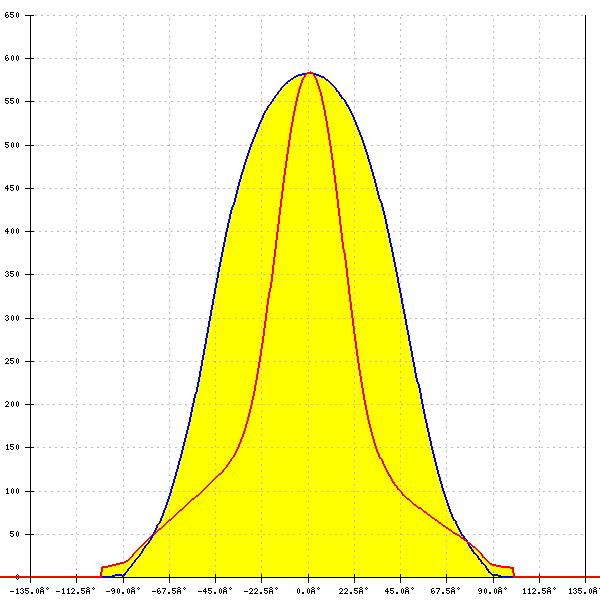

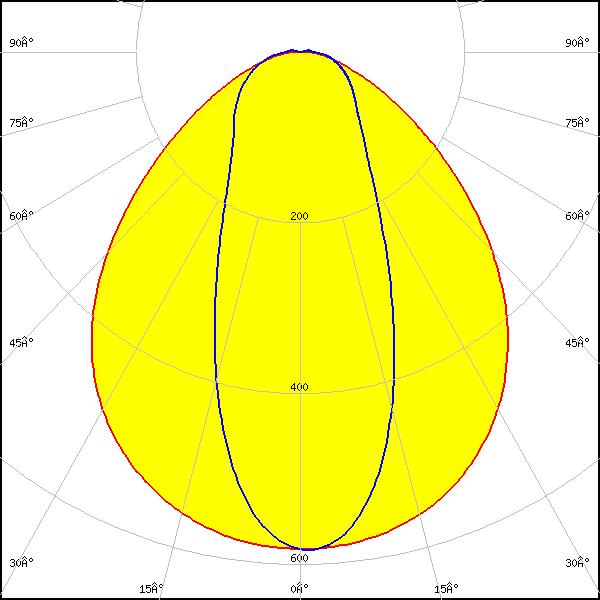

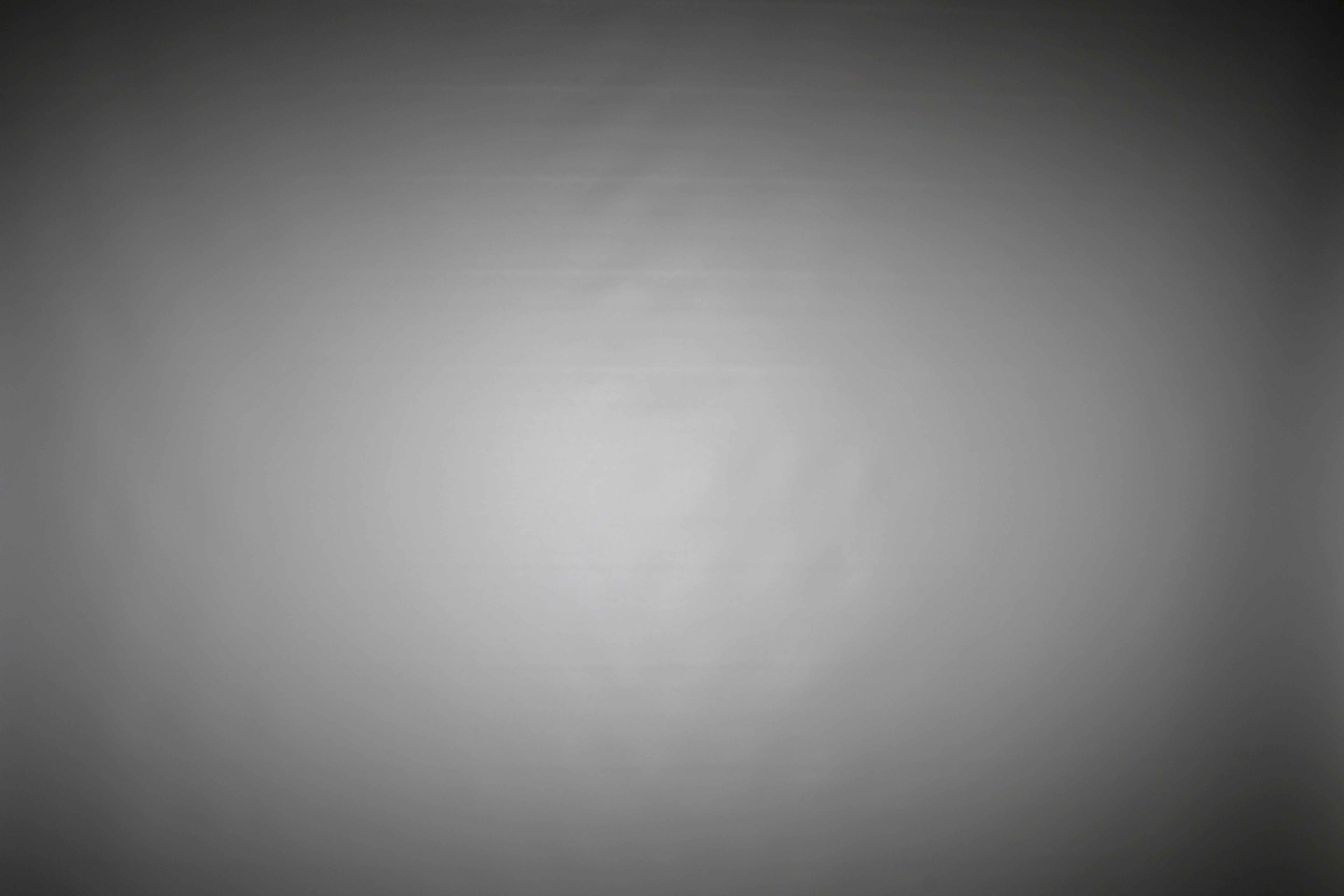

LED: LM561C
FWHM: 96° + 43°
FWTM: 146° + 138°
Peak intensity: 0.580 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

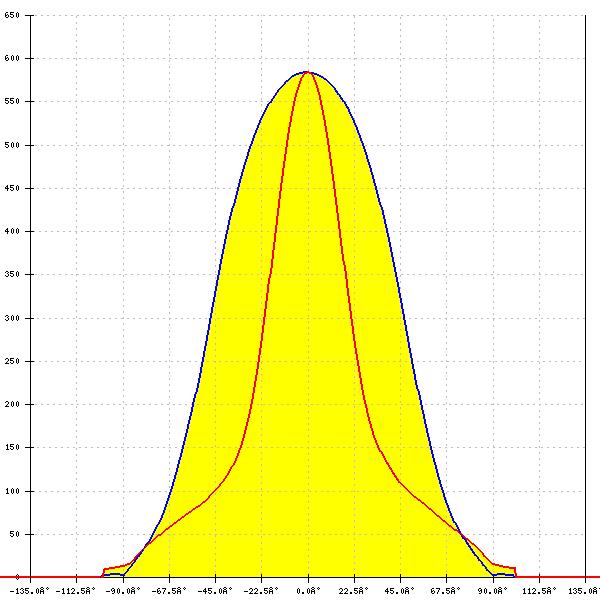

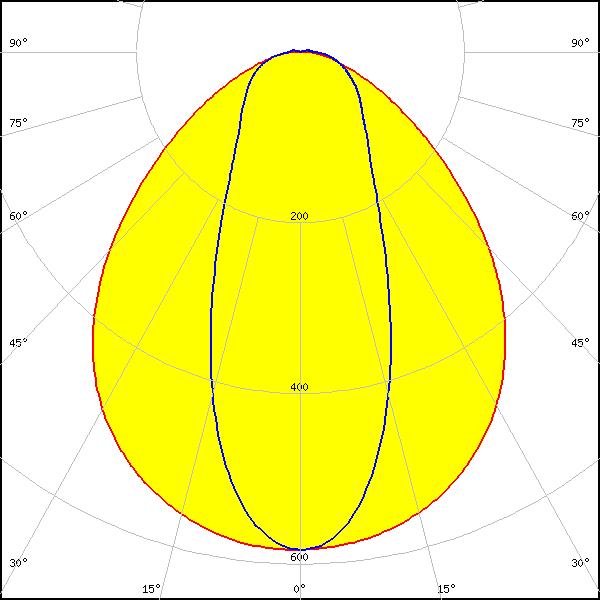

LED: LT-H282C
FWHM: 95° + 42°
FWTM: 145° + 136°
Peak intensity: 0.584 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

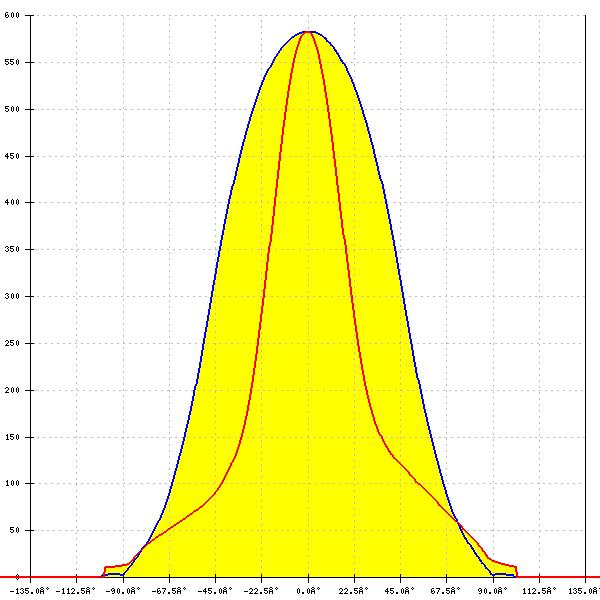

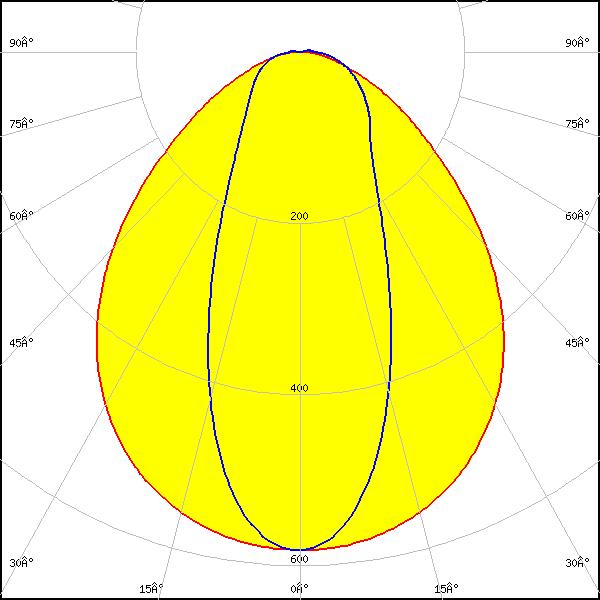

LED: LT-Q282B
FWHM: 95° + 43°
FWTM: 146° + 136°
Peak intensity: 0.582 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: LT-S282H
FWHM: 95° + 42°
FWTM: 145° + 135°
Peak intensity: 0.590 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

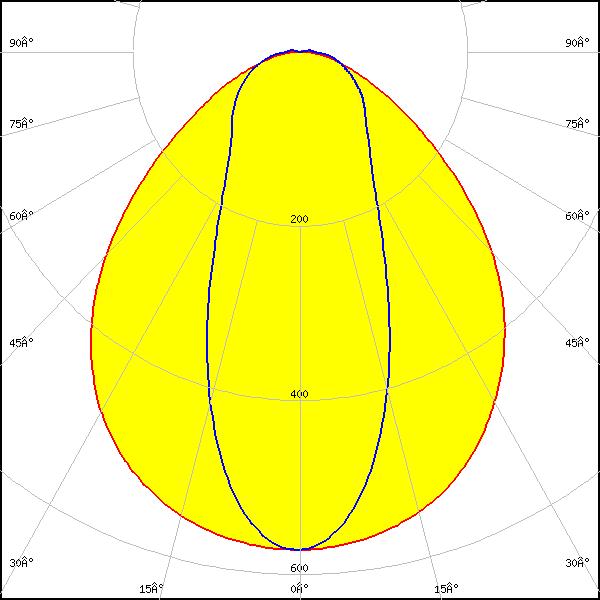

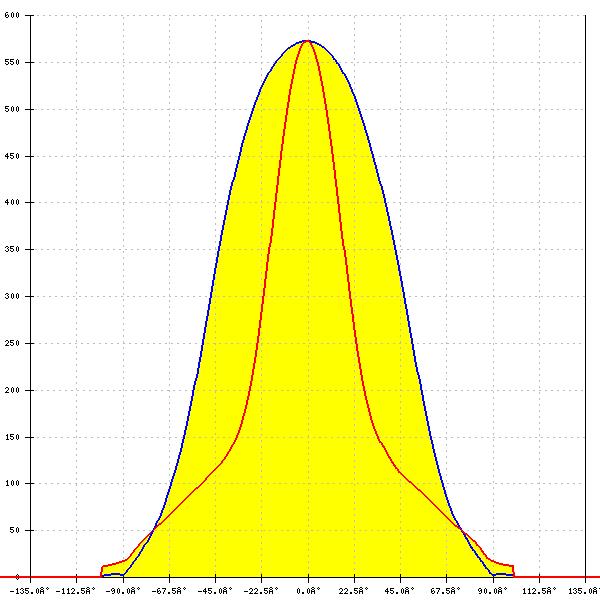

LED: SEOUL DC 3528
FWHM: 96° + 43°
FWTM: 146° + 143°
Peak intensity: 0.570 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

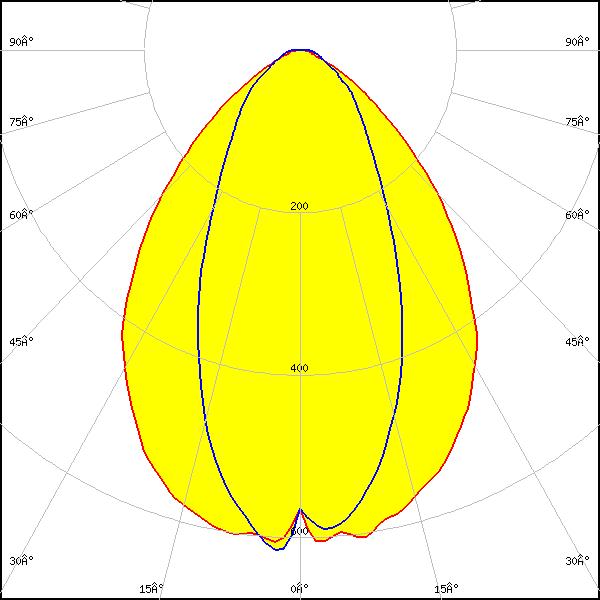

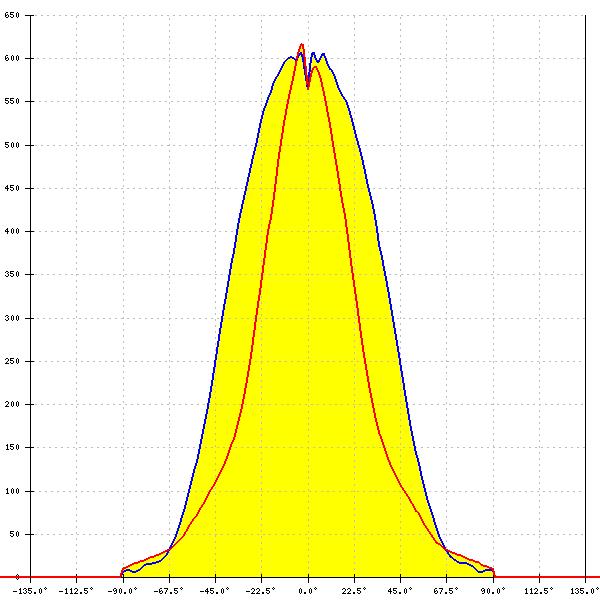

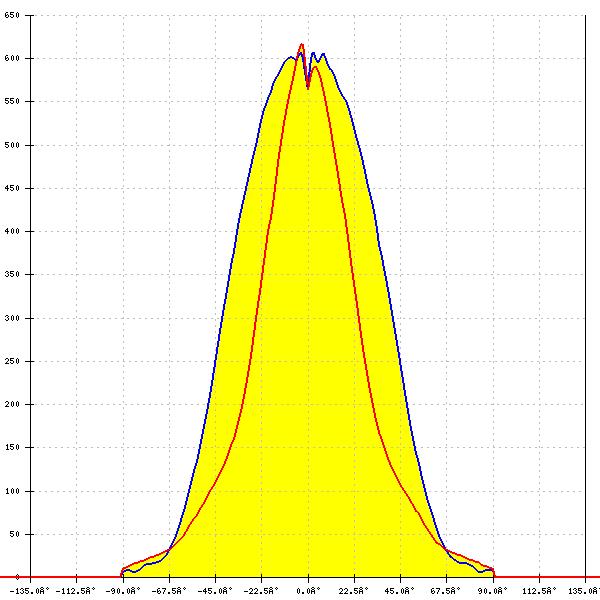

LED: SEOUL DC 5050 6V
FWHM: 82° + 48°
FWTM: 124° + 114°
Peak intensity: 0.630 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

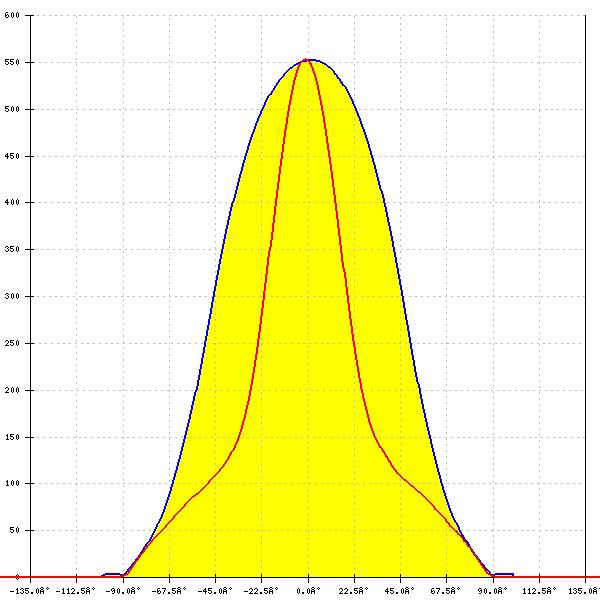

LED: LLE 24x280mm 1250lm HV ADV5
FWHM: 96° + 43°
FWTM: 146° + 139°
Peak intensity: 0.553 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

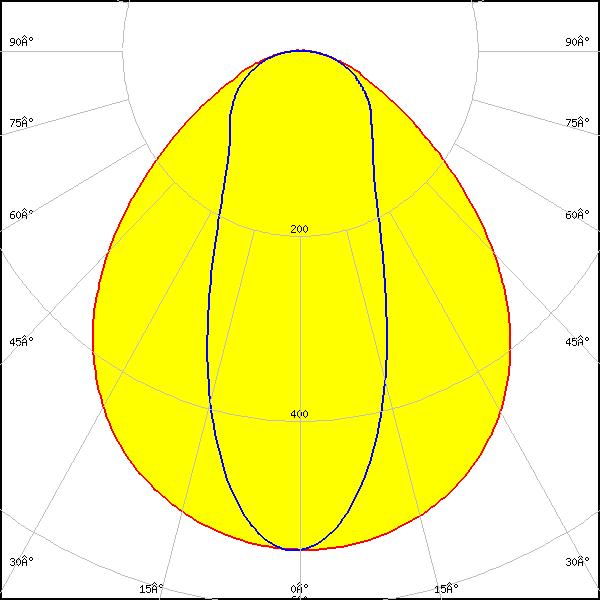

LED: LLE 24x280mm 650lm HV ADV5
FWHM: 96° + 43°
FWTM: 148° + 141°
Peak intensity: 0.541 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: LLE FLEX CC 14mm 1250lm ADV1
FWHM: 95° + 43°
FWTM: 145° + 133°
Peak intensity: 0.583 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
