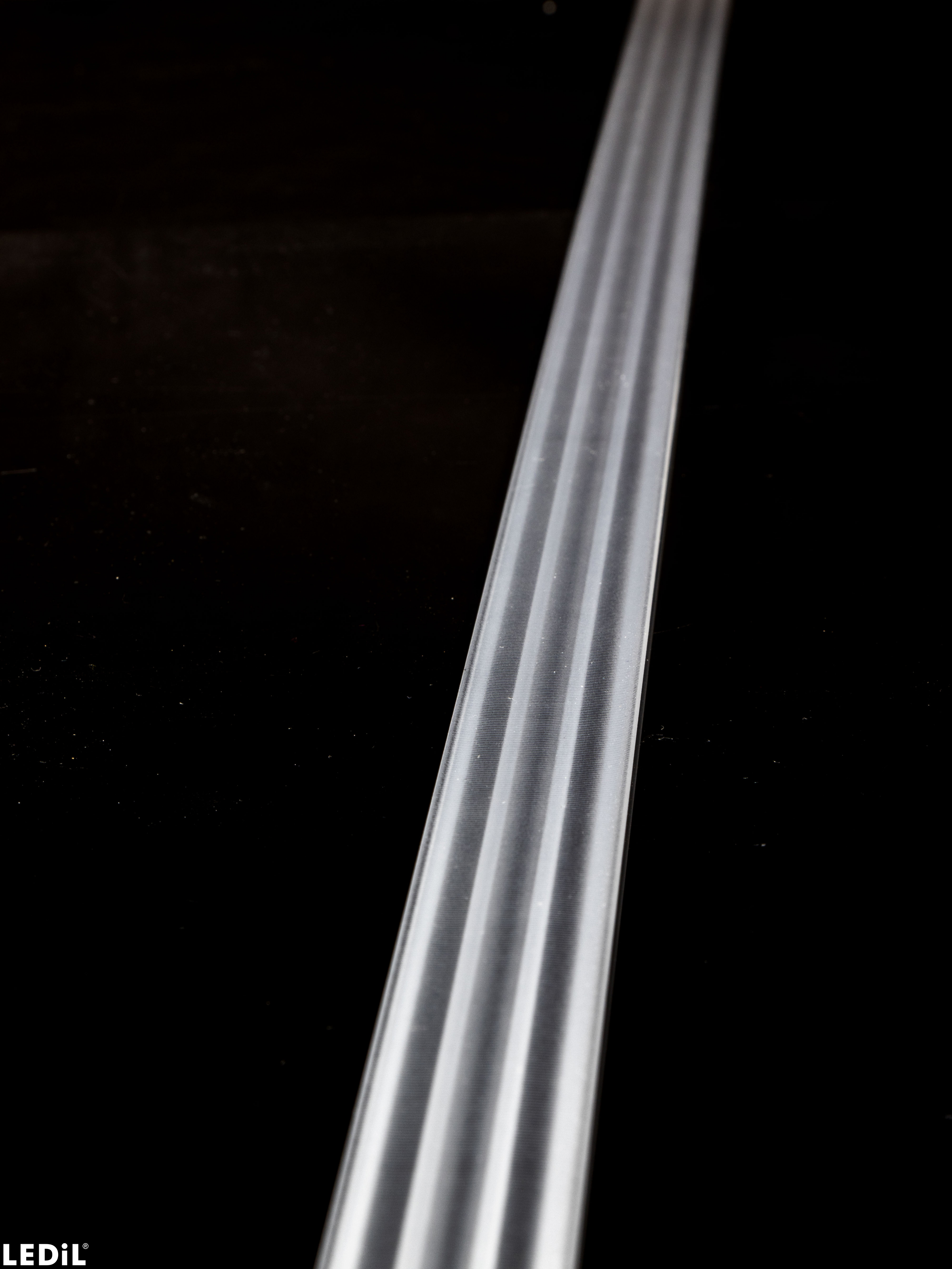

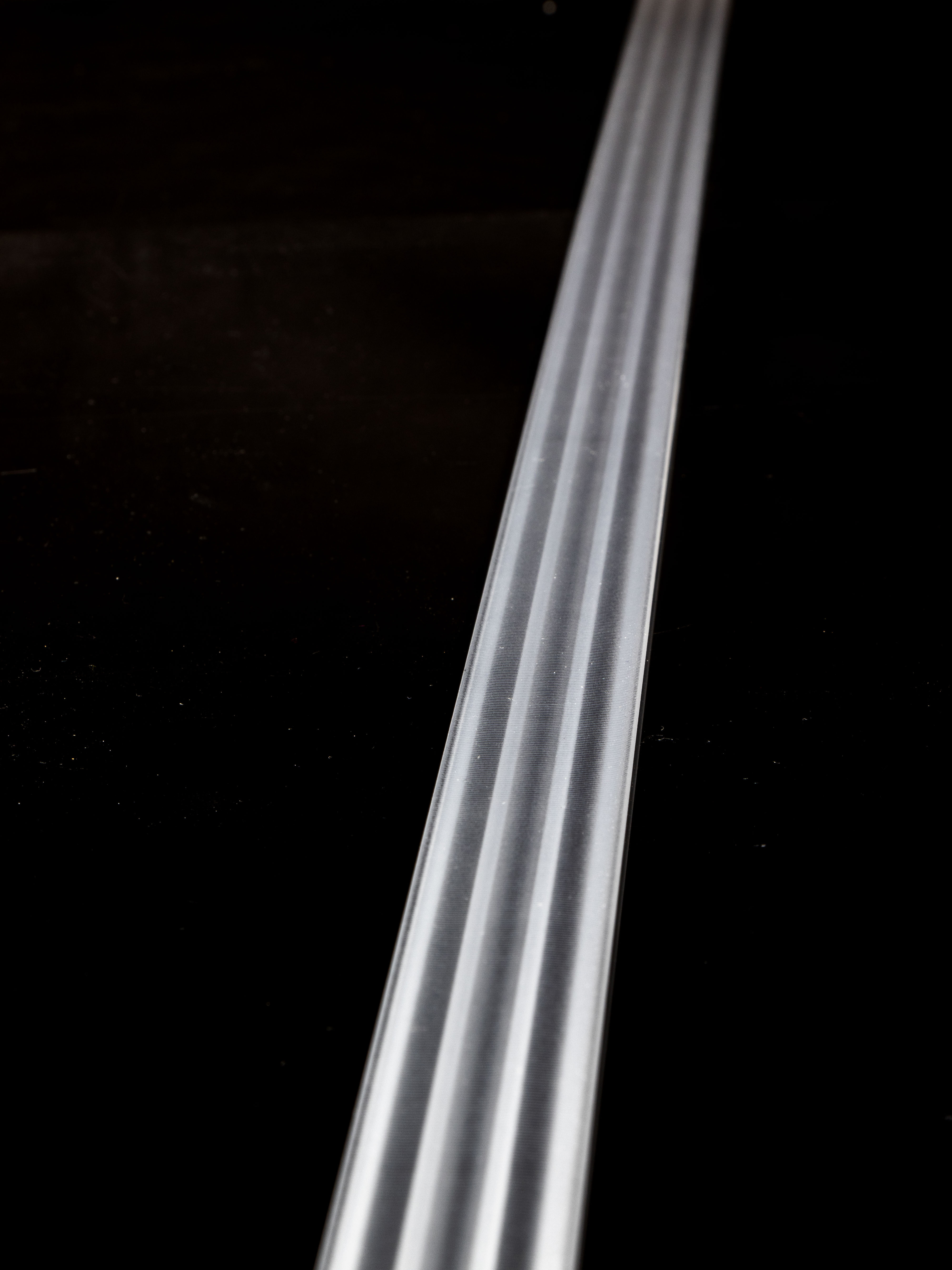

F16749_LINDA-WW

Print

~70° + 100° beam

Specification
  • Dimensions:
    26 x  1140 mm
  • Height:
    5.30 mm
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    150 pcs
  • Box size:
    1185 x 150 x 115 mm
  • Box weight:
    12.5 kg
  • MPQ:
    150 pcs
  • MOQ:
    150 pcs
  • MOQ size:
    1185 x 150 x 115 mm
  • MOQ weight:
    12.5 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F16749_LINDA-WW

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Other variants: F17129_LINDA-WW-48in (North American 48 inch length)
F17317_LINDA-WW-3m (3.01 m length) and other custom lengths available

Optical results

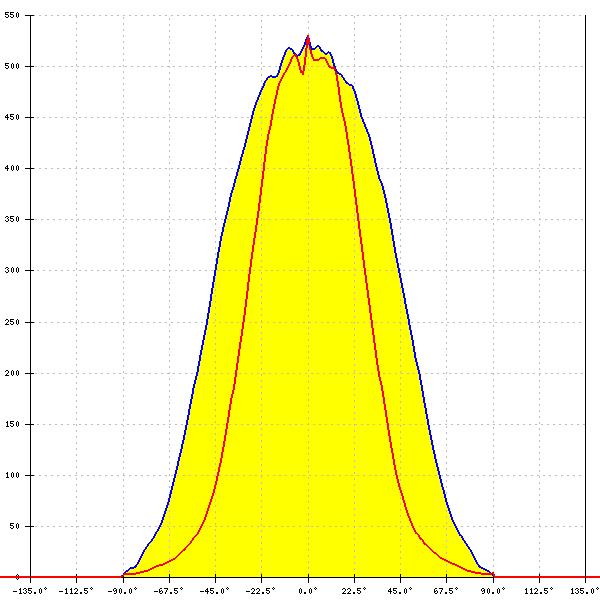

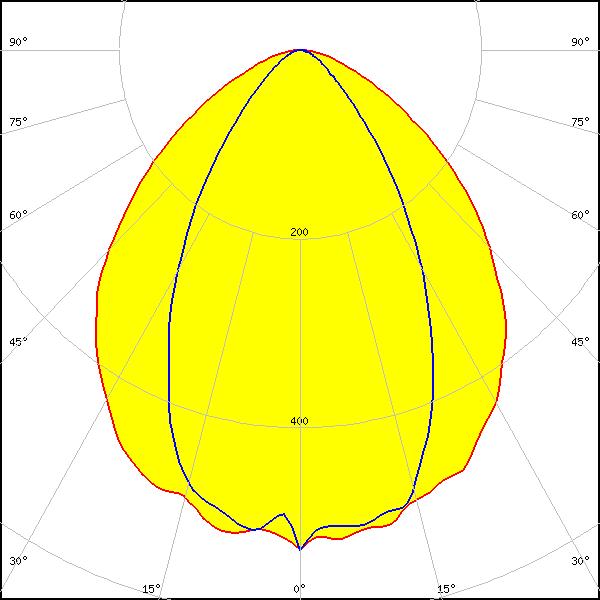

LED: Bridgelux SMD 5050
FWHM: 96° + 60°
FWTM: 142° + 102°
Peak intensity: 0.538 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

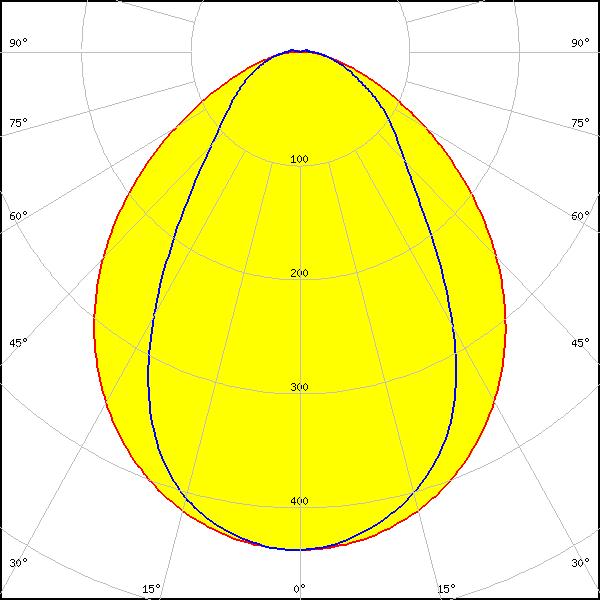

LED: CLUC11
FWHM: 99° + 69°
FWTM: 149° + 140°
Peak intensity: 0.438 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

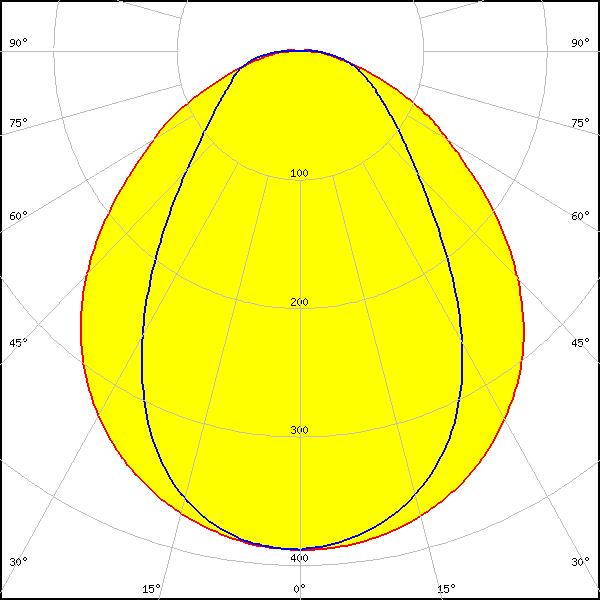

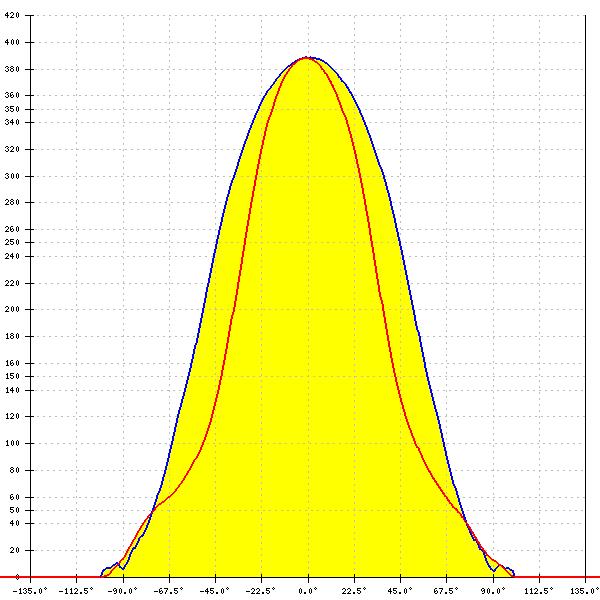

LED: XP-G3
FWHM: 104° + 74°
FWTM: 156° + 159°
Peak intensity: 0.388 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

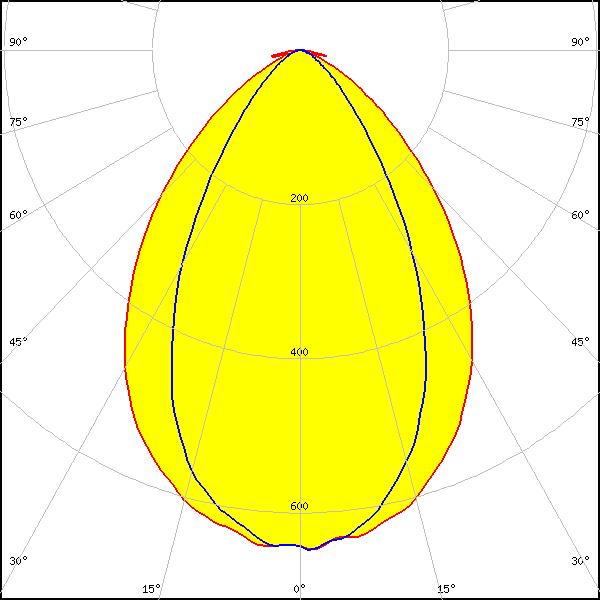

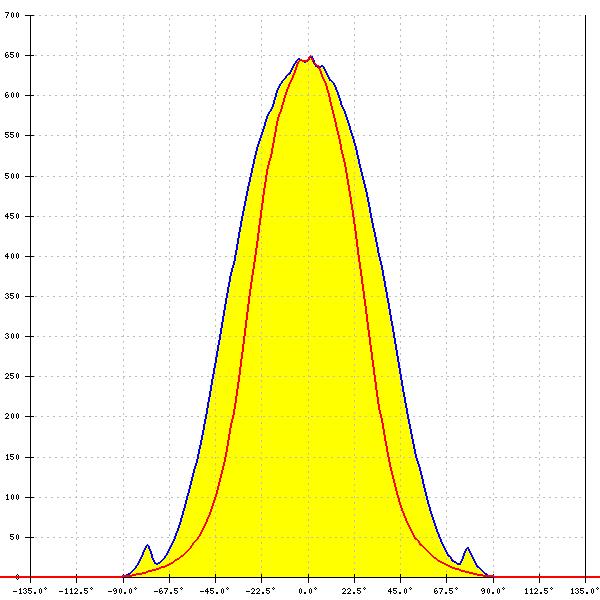

LED: LUXEON CSP HL1
FWHM: 81° + 59°
FWTM: 124° + 99°
Peak intensity: 0.662 cd/lm
Efficiency: 88 %
LEDs/each optic: 5
Light colour: White

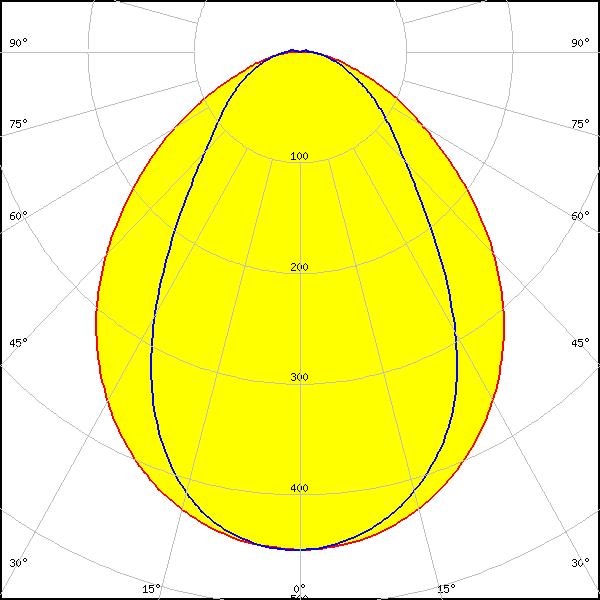

LED: NF2W757G-MT (Tunable White)
FWHM: 98° + 70°
FWTM: 151° + 141°
Peak intensity: 0.450 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: Tunable White

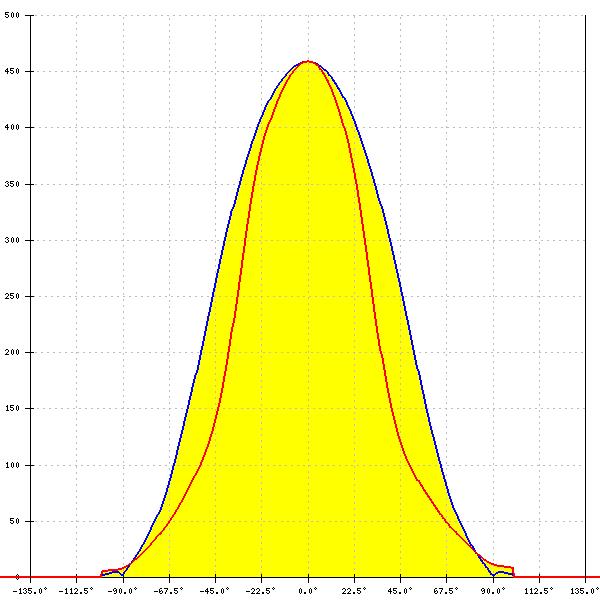

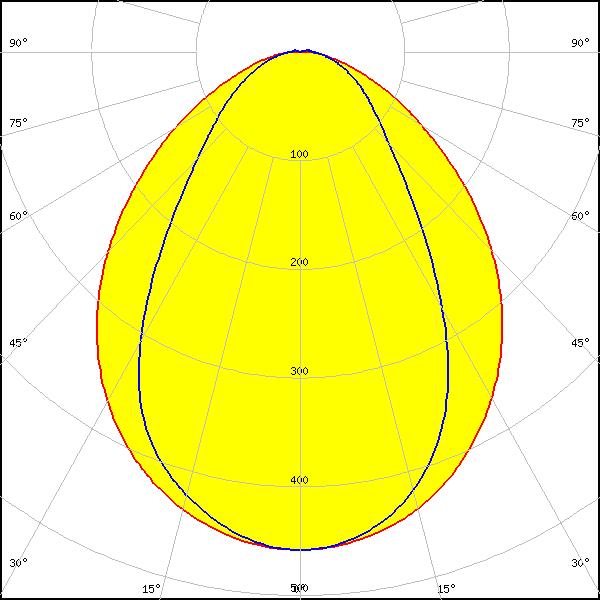

LED: NFSW757H
FWHM: 97° + 69°
FWTM: 150° + 138°
Peak intensity: 0.459 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

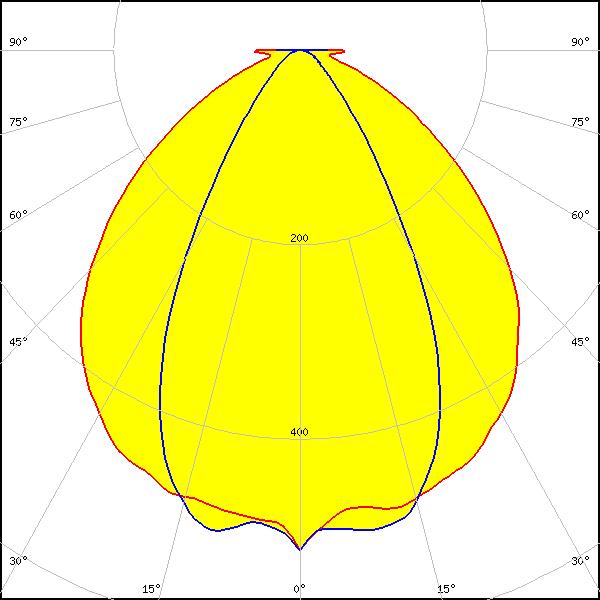

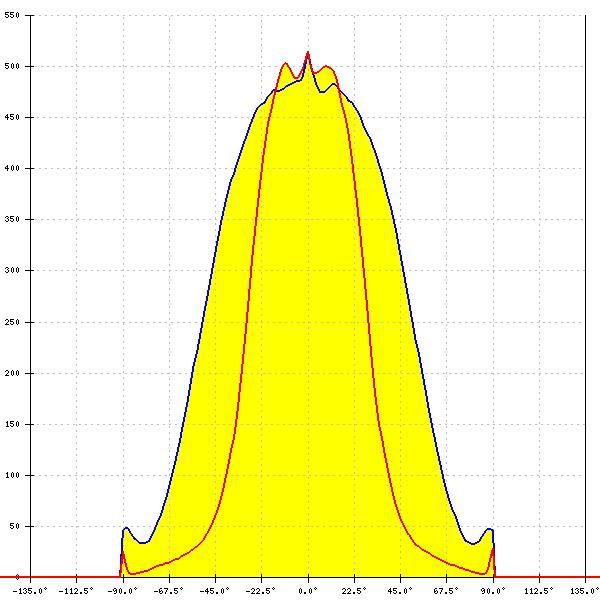

LED: NFSWE11A
FWHM: 102° + 58°
FWTM: 146° + 94°
Peak intensity: 0.515 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: PL-LIN-Z5 1100 280x20
FWHM: 100° + 71°
FWTM: 151° + 141°
Peak intensity: 0.418 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

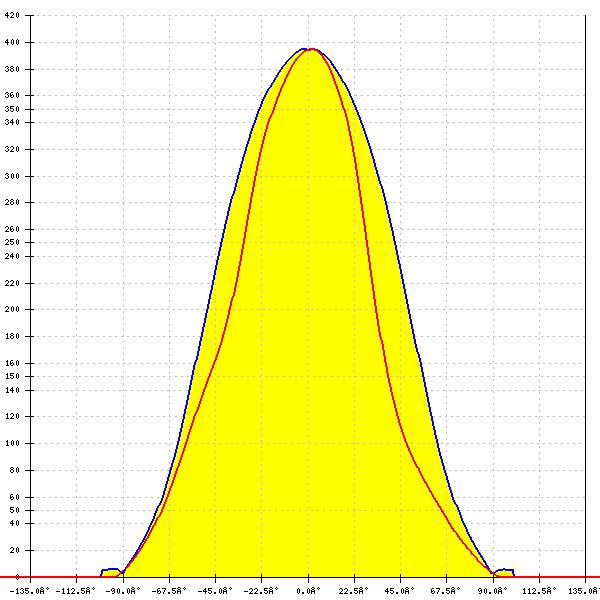

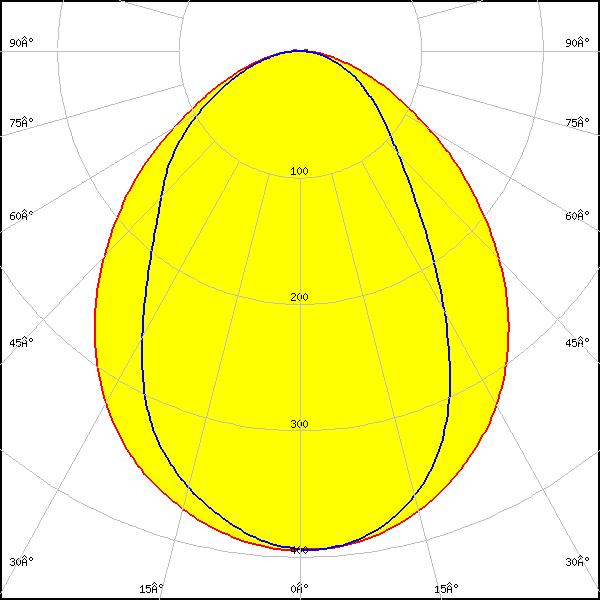

LED: PL-LIN-Z5 2000 280x20
FWHM: 99° + 72°
FWTM: 152° + 144°
Peak intensity: 0.395 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

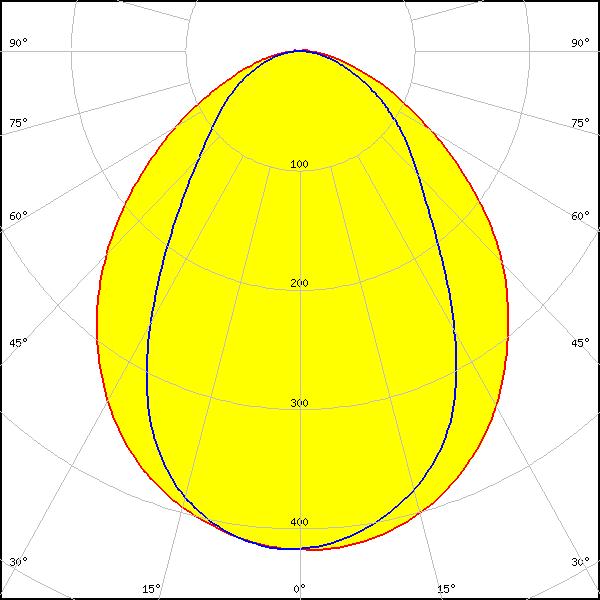

LED: Duris E 2835
FWHM: 99° + 72°
FWTM: 152° + 144°
Peak intensity: 0.395 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: Duris E 2835
FWHM: 100° + 71°
FWTM: 152° + 141°
Peak intensity: 0.418 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: Duris E 2835
FWHM: 98° + 69°
FWTM: 151° + 141°
Peak intensity: 0.451 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

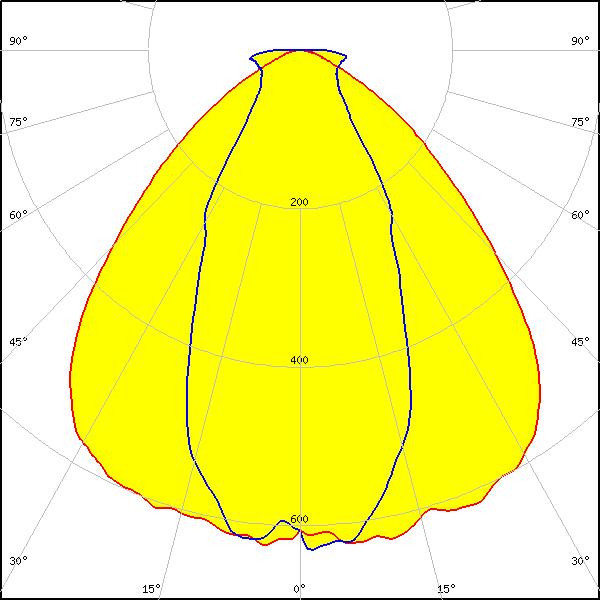

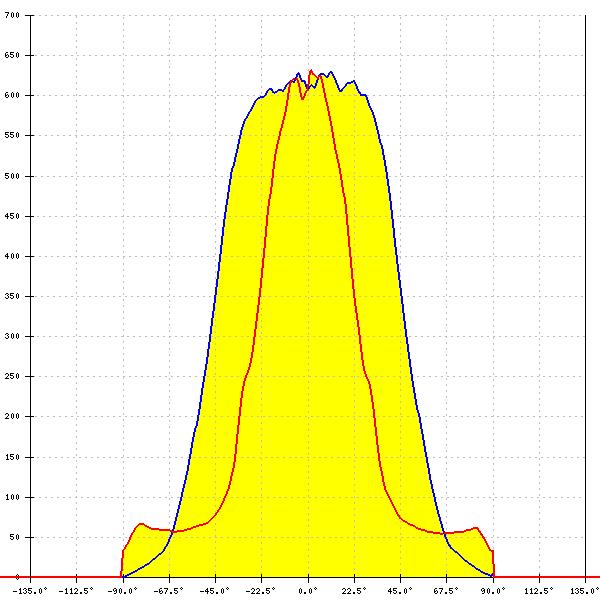

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 94° + 50°
FWTM: 131° + 135°
Peak intensity: 0.649 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

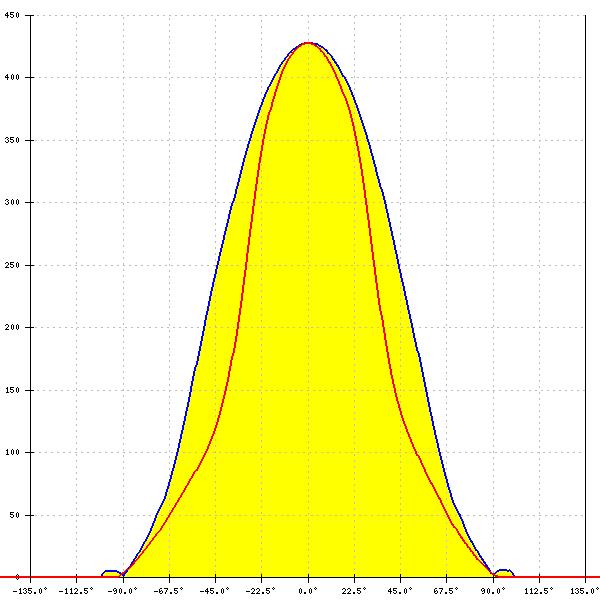

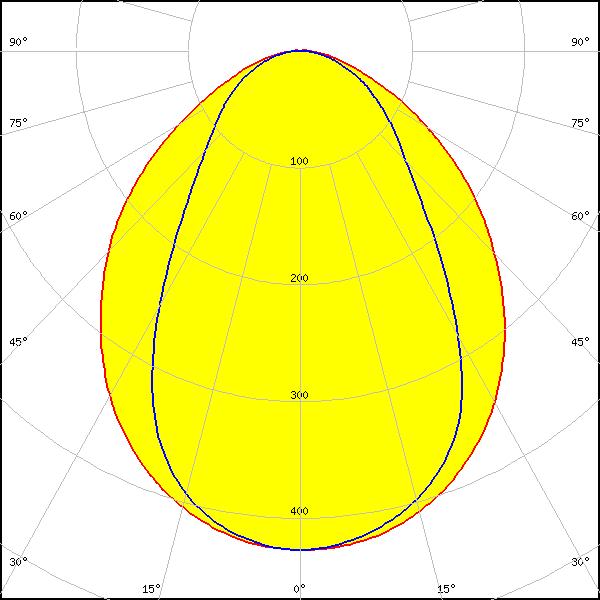

LED: Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
FWHM: 98° + 69°
FWTM: 151° + 141°
Peak intensity: 0.428 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

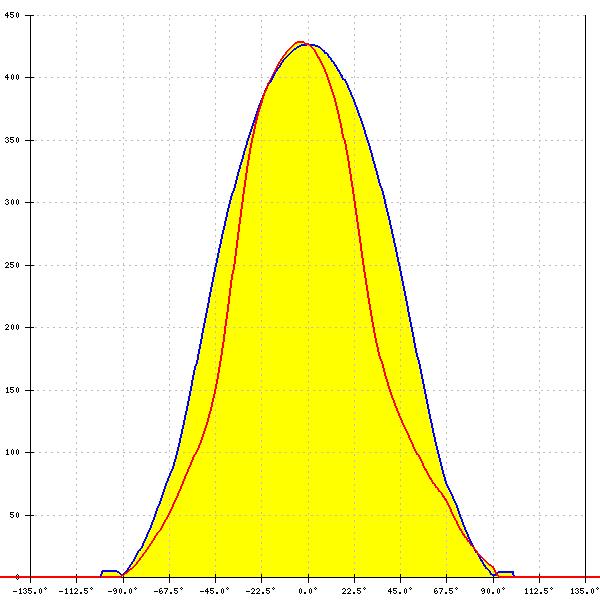

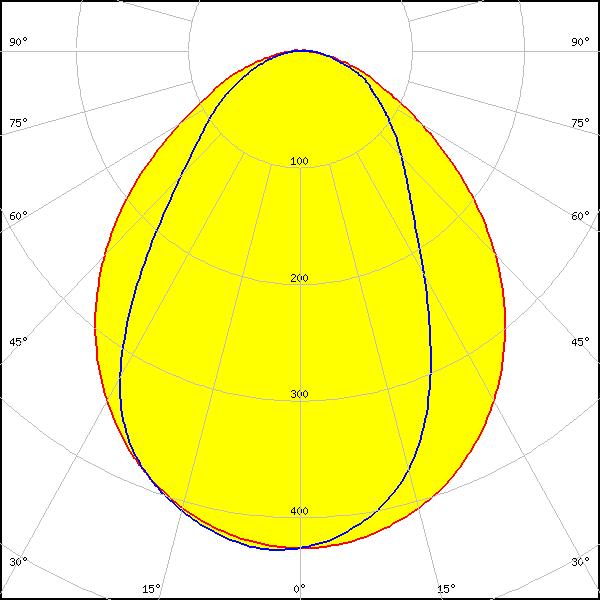

LED: Fortimo LED Strip 1ft 650lm FC HV4 & LV4
FWHM: 98° + 69°
FWTM: 151° + 143°
Peak intensity: 0.429 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Strip 1ft 650lm FC HV5 & LV5
FWHM: 97° + 69°
FWTM: 151° + 137°
Peak intensity: 0.455 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

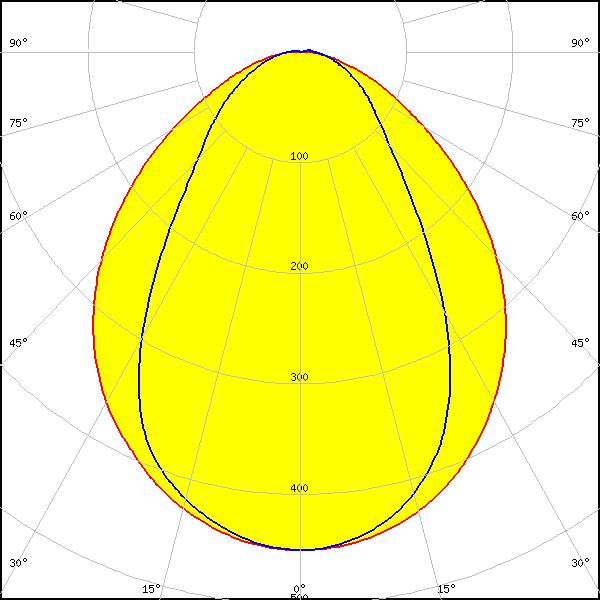

LED: LM28xB Series
FWHM: 99° + 69°
FWTM: 151° + 140°
Peak intensity: 0.450 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

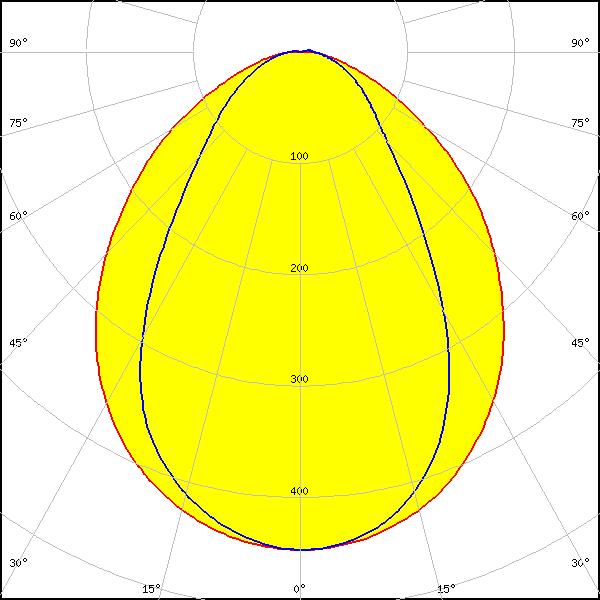

LED: LM301B
FWHM: 98° + 69°
FWTM: 151° + 138°
Peak intensity: 0.448 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

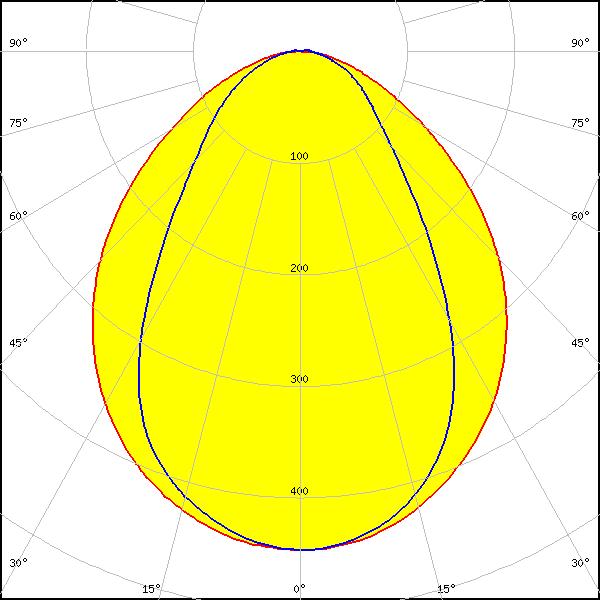

LED: LM561C
FWHM: 100° + 70°
FWTM: 152° + 139°
Peak intensity: 0.450 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

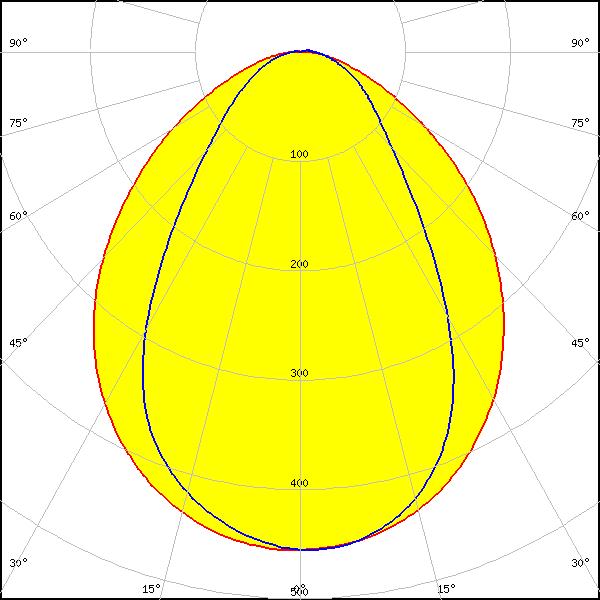

LED: LT-H282C
FWHM: 98° + 69°
FWTM: 150° + 135°
Peak intensity: 0.456 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

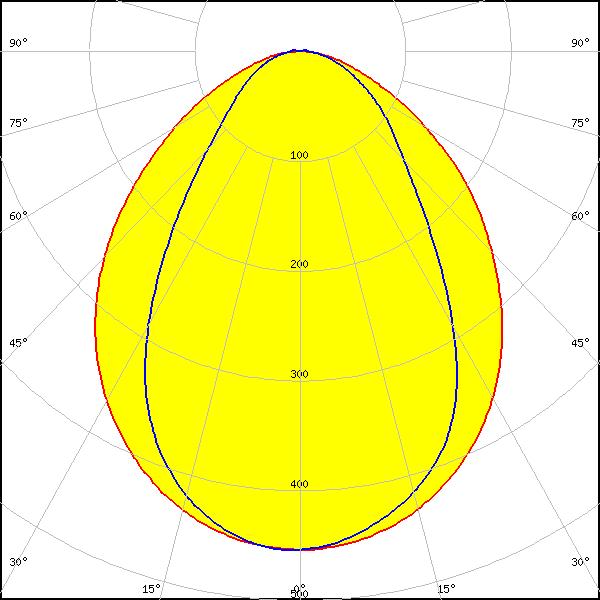

LED: LT-Q282B
FWHM: 98° + 69°
FWTM: 150° + 136°
Peak intensity: 0.454 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

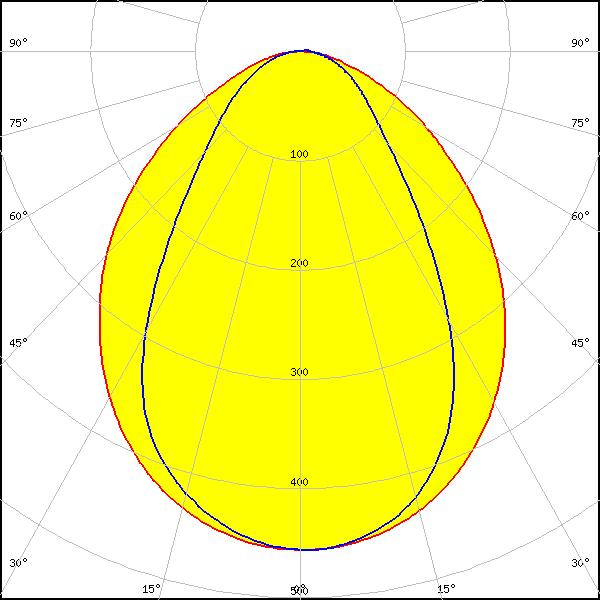

LED: LT-S282H
FWHM: 98° + 68°
FWTM: 150° + 134°
Peak intensity: 0.457 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

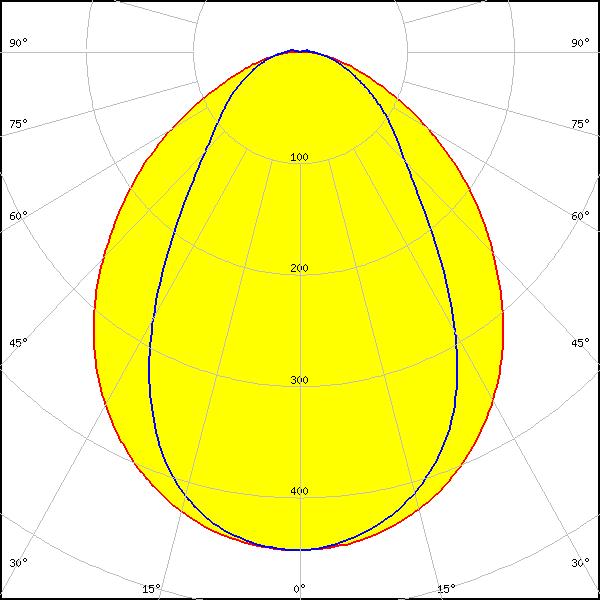

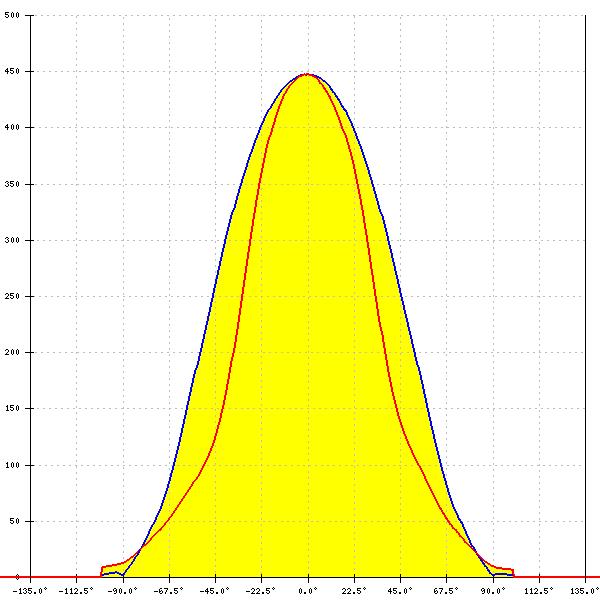

LED: SEOUL DC 3528
FWHM: 99° + 70°
FWTM: 152° + 141°
Peak intensity: 0.450 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

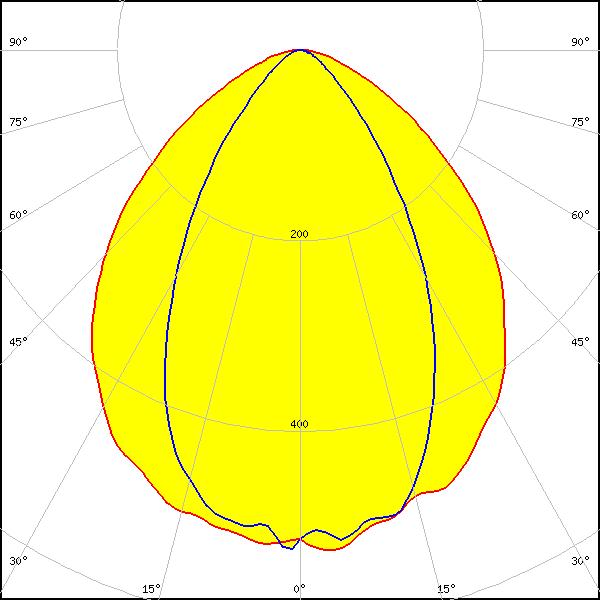

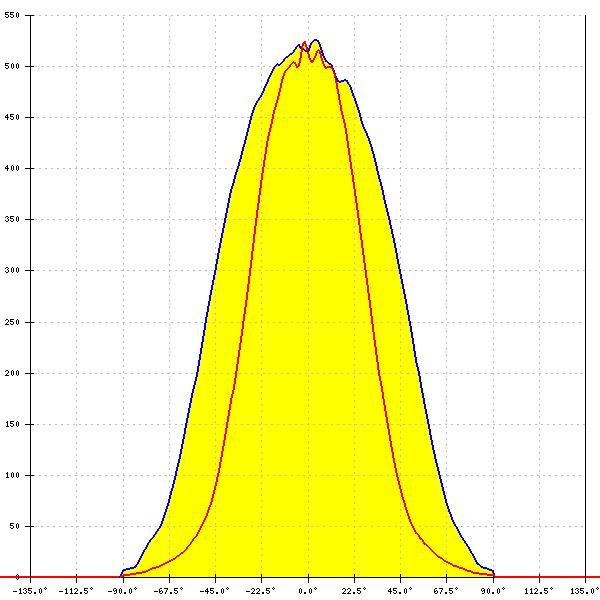

LED: SEOUL DC 5050 6V
FWHM: 97° + 61°
FWTM: 142° + 102°
Peak intensity: 0.534 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

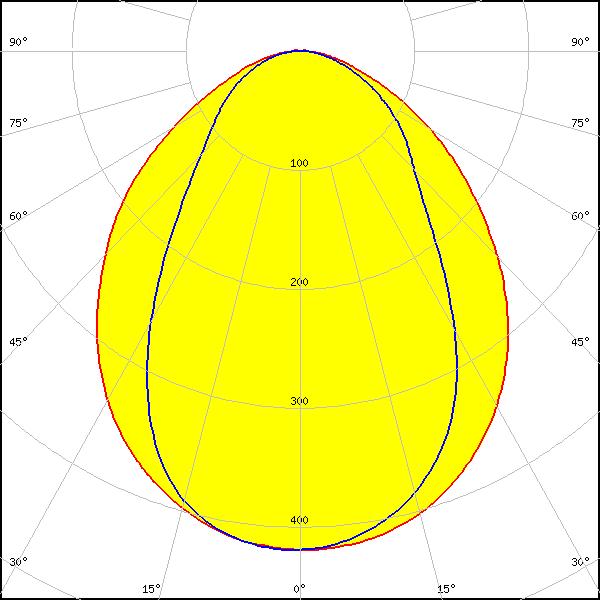

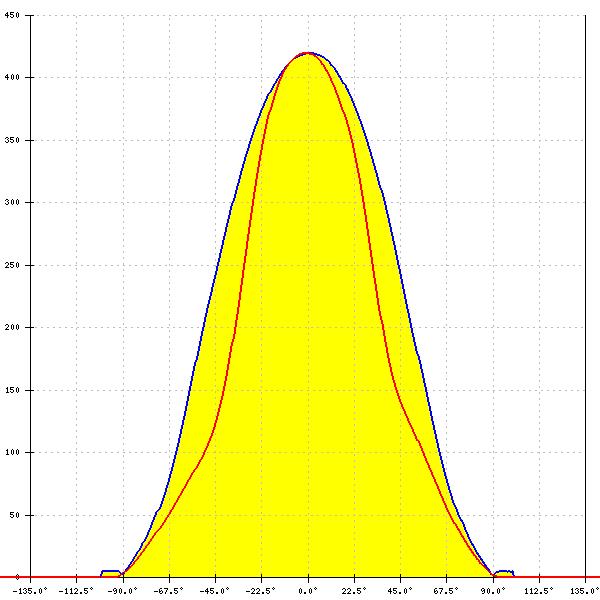

LED: LLE 24x280mm 1250lm HV ADV5
FWHM: 99° + 70°
FWTM: 152° + 143°
Peak intensity: 0.420 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

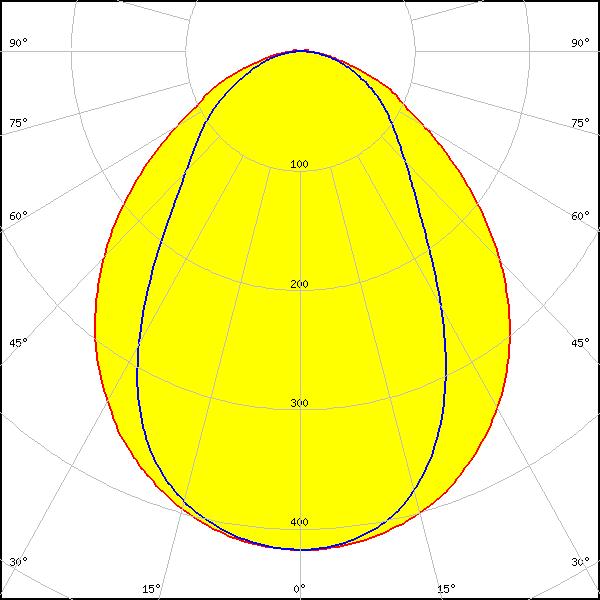

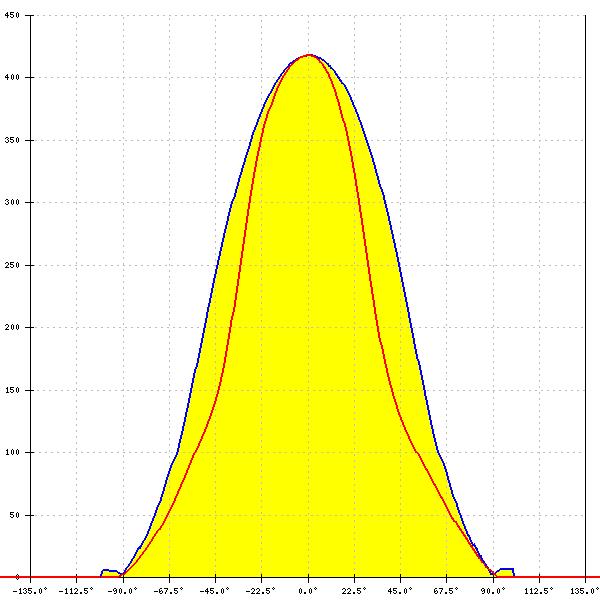

LED: LLE 24x280mm 650lm HV ADV5
FWHM: 99° + 70°
FWTM: 152° + 144°
Peak intensity: 0.418 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
LED: LLE FLEX CC 14mm 1250lm ADV1
FWHM: 98° + 69°
FWTM: 151° + 135°
Peak intensity: 0.453 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
