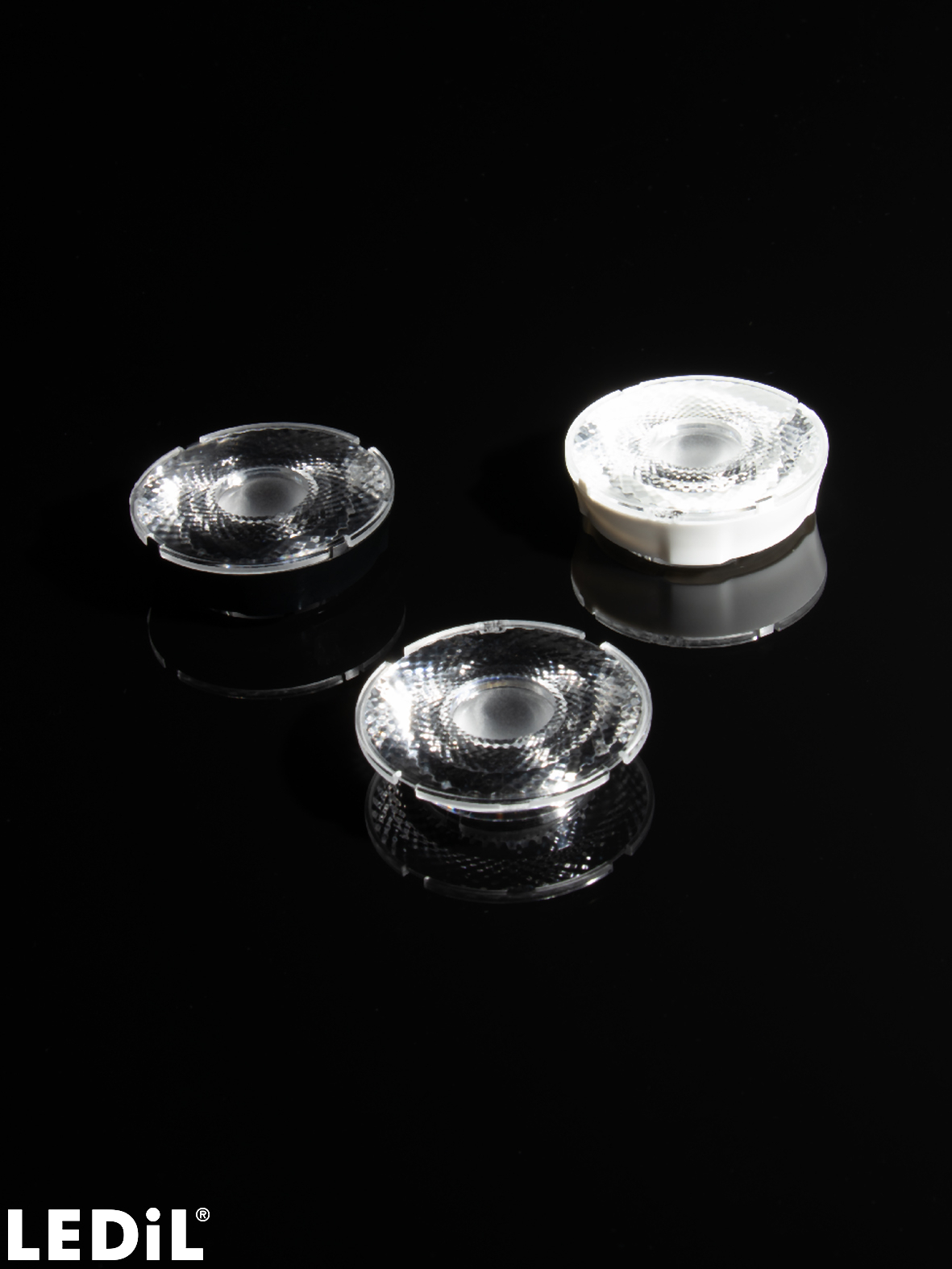

    AMY-45-S

    Print

    ~18° spot beam

    This product consists of multiple buying options. See ordering information.

    Specification
    • Dimensions:
      0 mm
    • Fastening:
      screw
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • AMY-45-S
      PMMA
    • AMY-45-HLD2-B-WHT
      PC
    • AMY-45-HLD2-B
      PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C17790_AMY-45-S
    • Quantity in box:
      1035 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.20 kg
    • MPQ:
      45 pcs
    • MOQ:
      180 pcs
    • MOQ Size:
      480 x 280 x 80 mm
    • MOQ Weight:
      2.00 kg
    • Assembly
    • Quantity in box:
      900 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      11.80 kg
    • MPQ:
      45 pcs
    • MOQ:
      180 pcs
    • MOQ Size:
      480 x 280 x 80 mm
    • MOQ Weight:
      2.40 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C17790_AMY-45-S

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New products – February 2024

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Luminaire, example

    Track light luminaire with AMY family

    News

    LEDiL AMY, the perfect choice for slim, elegant luminaire designs

    Application guide

    LEDiL guide for retail lighting optics

    News

    AMY oval – the smart choice for aisle lighting

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

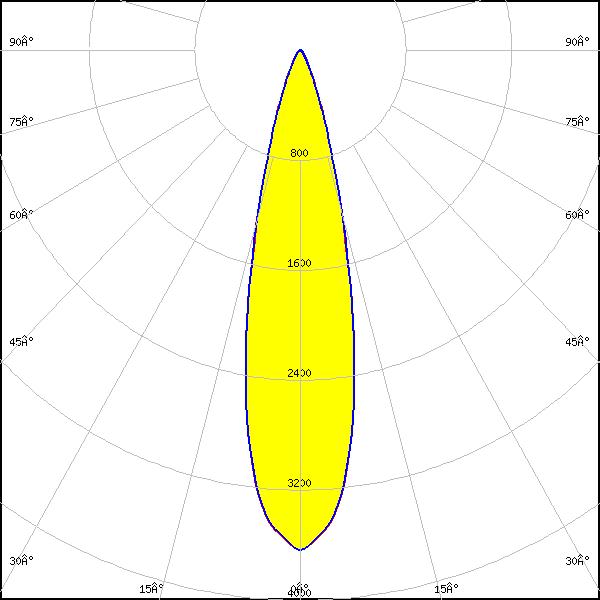

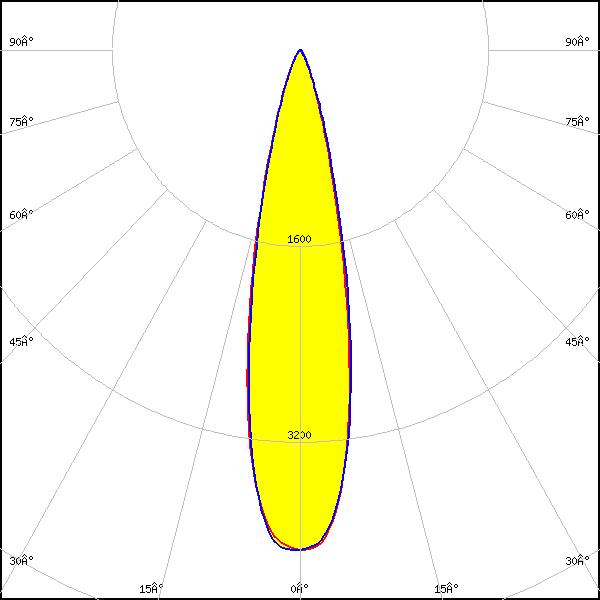

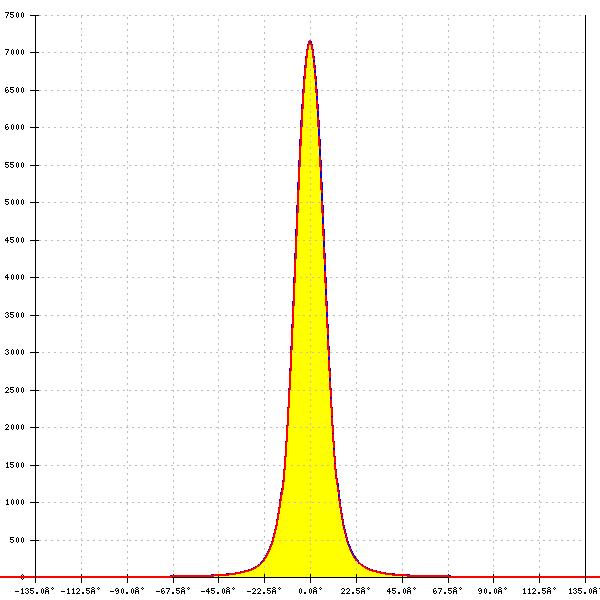

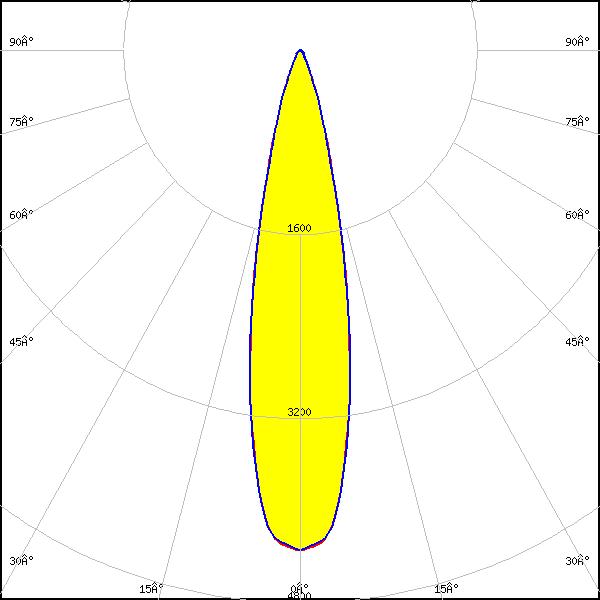

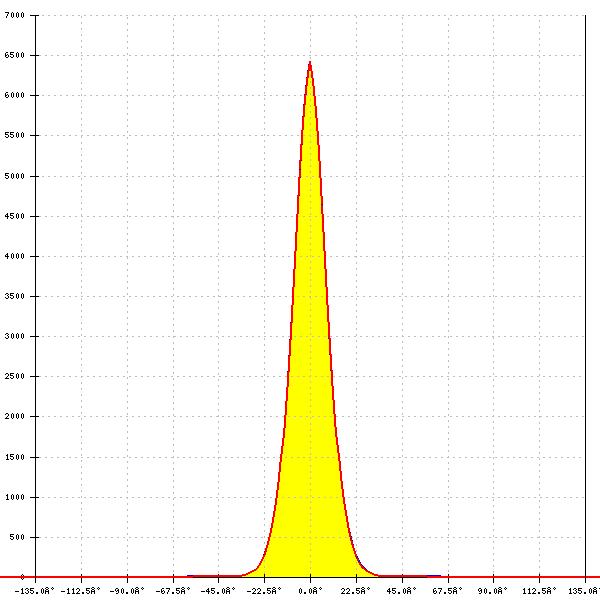

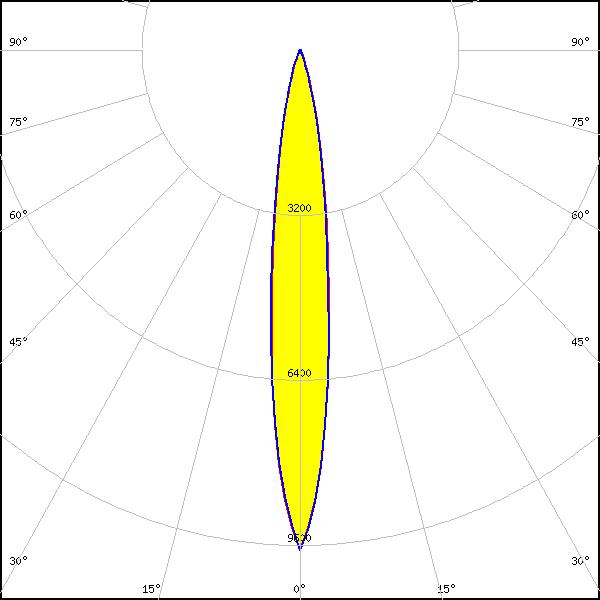

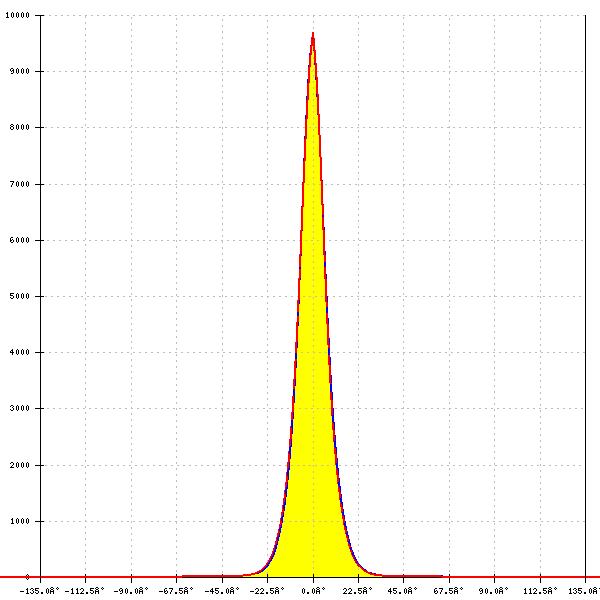

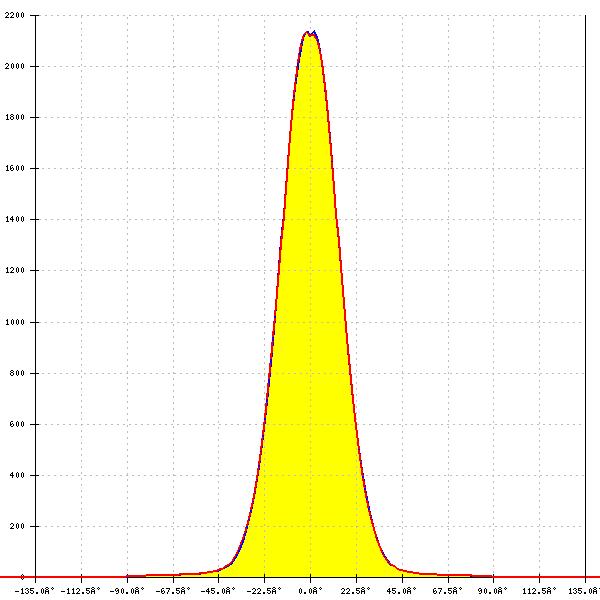

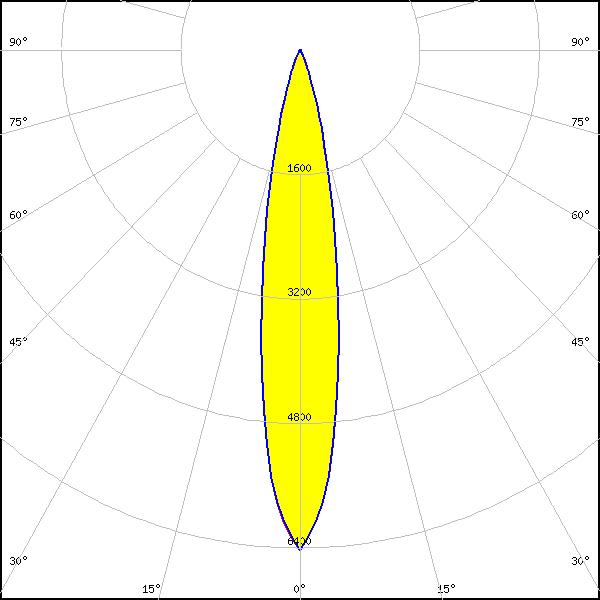

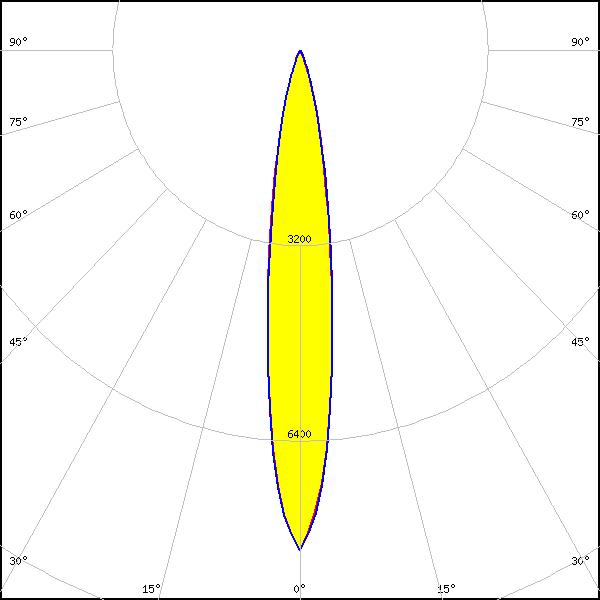

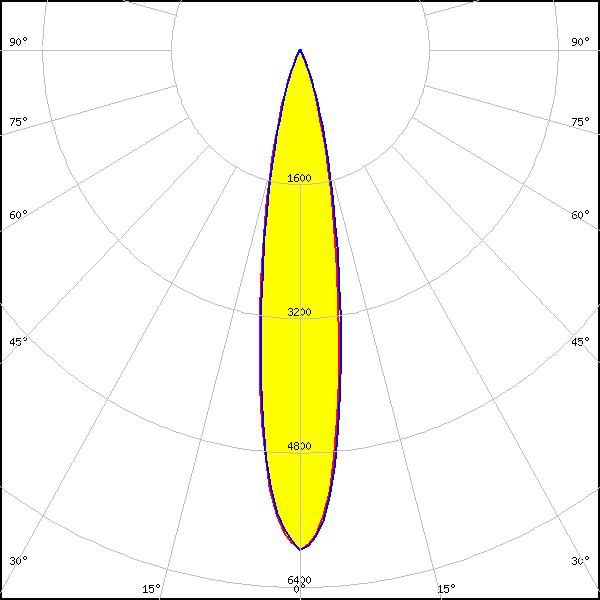

    Optical results

    LED: V11 HD Gen 8
    Ordering code: C17790_AMY-45-S
    LES size: 11.3 mm
    Required components:
    Bender Wirth: 633d Hekla
    FWHM: 25°
    FWTM: 46°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

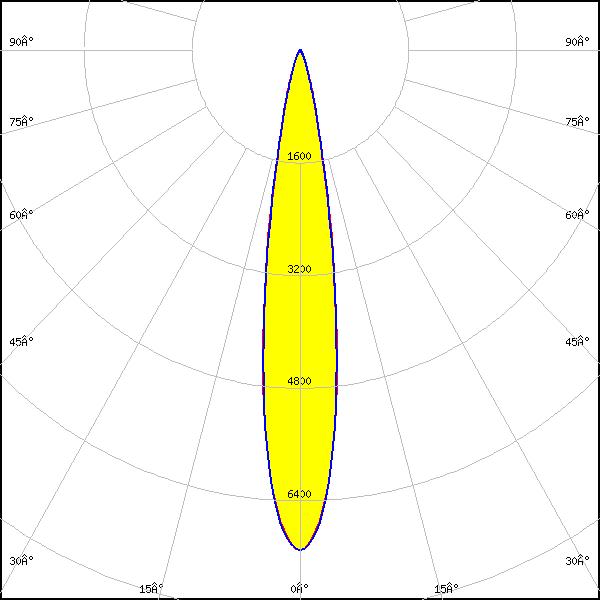

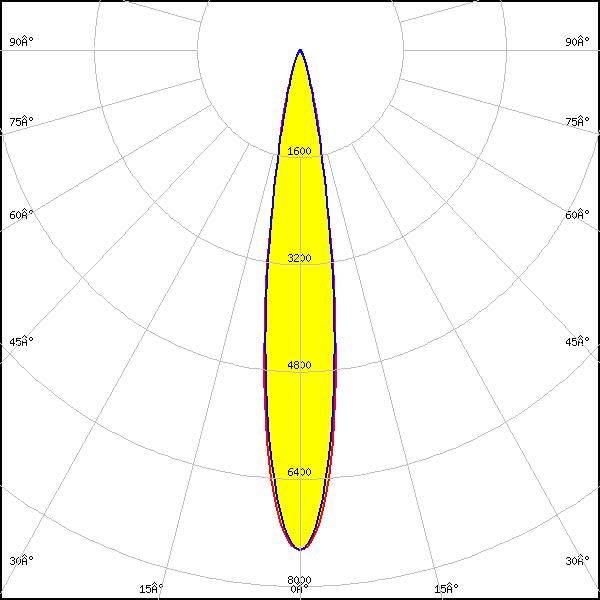

    LED: V6 HD Gen 7
    Ordering code: C17790_AMY-45-S
    LES size: 7.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 17°
    FWTM: 32°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

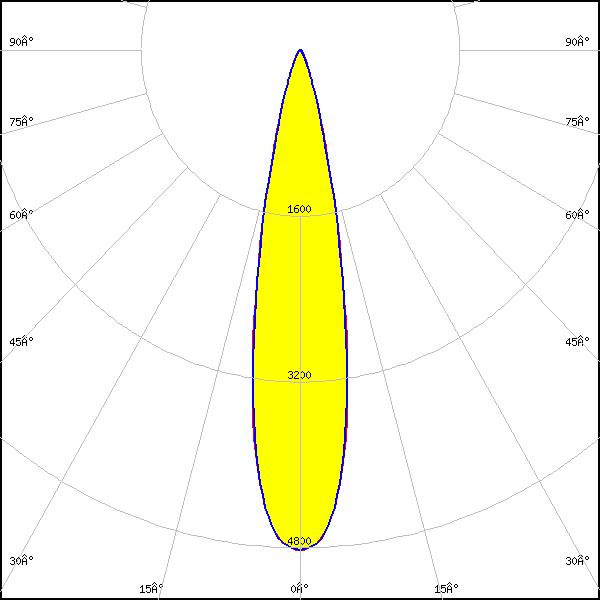

    LED: V9 HD Gen7
    Ordering code: C17790_AMY-45-S
    LES size: 9.2 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 21°
    FWTM: 39°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

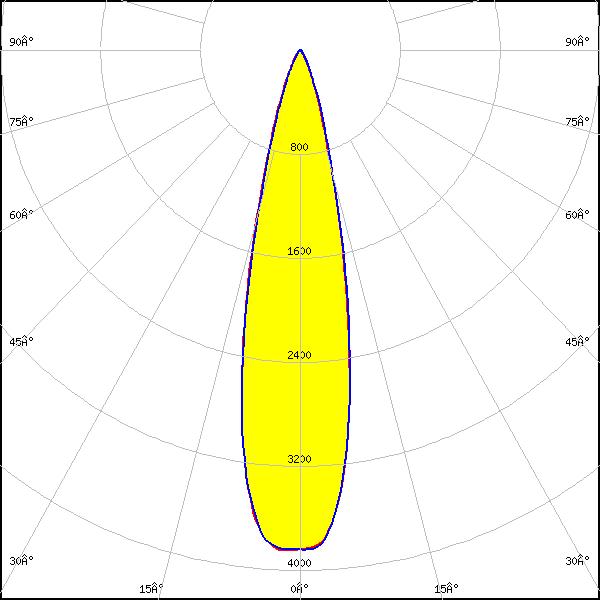

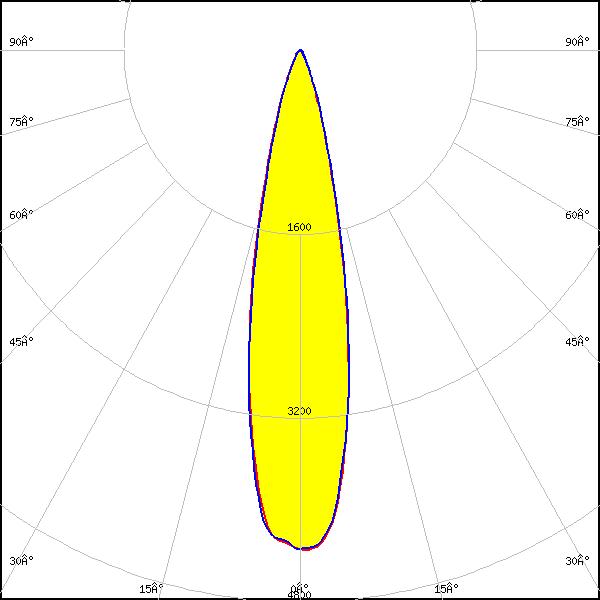

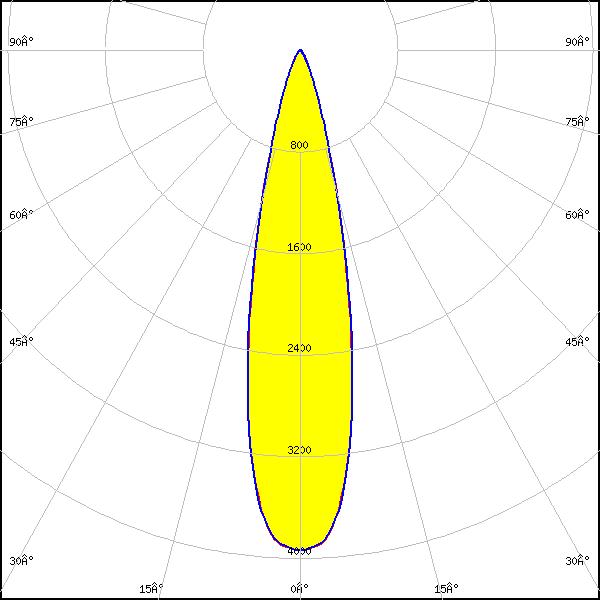

    LED: CLL02x/CLU02x (LES10)
    Ordering code: C17790_AMY-45-S
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 43°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

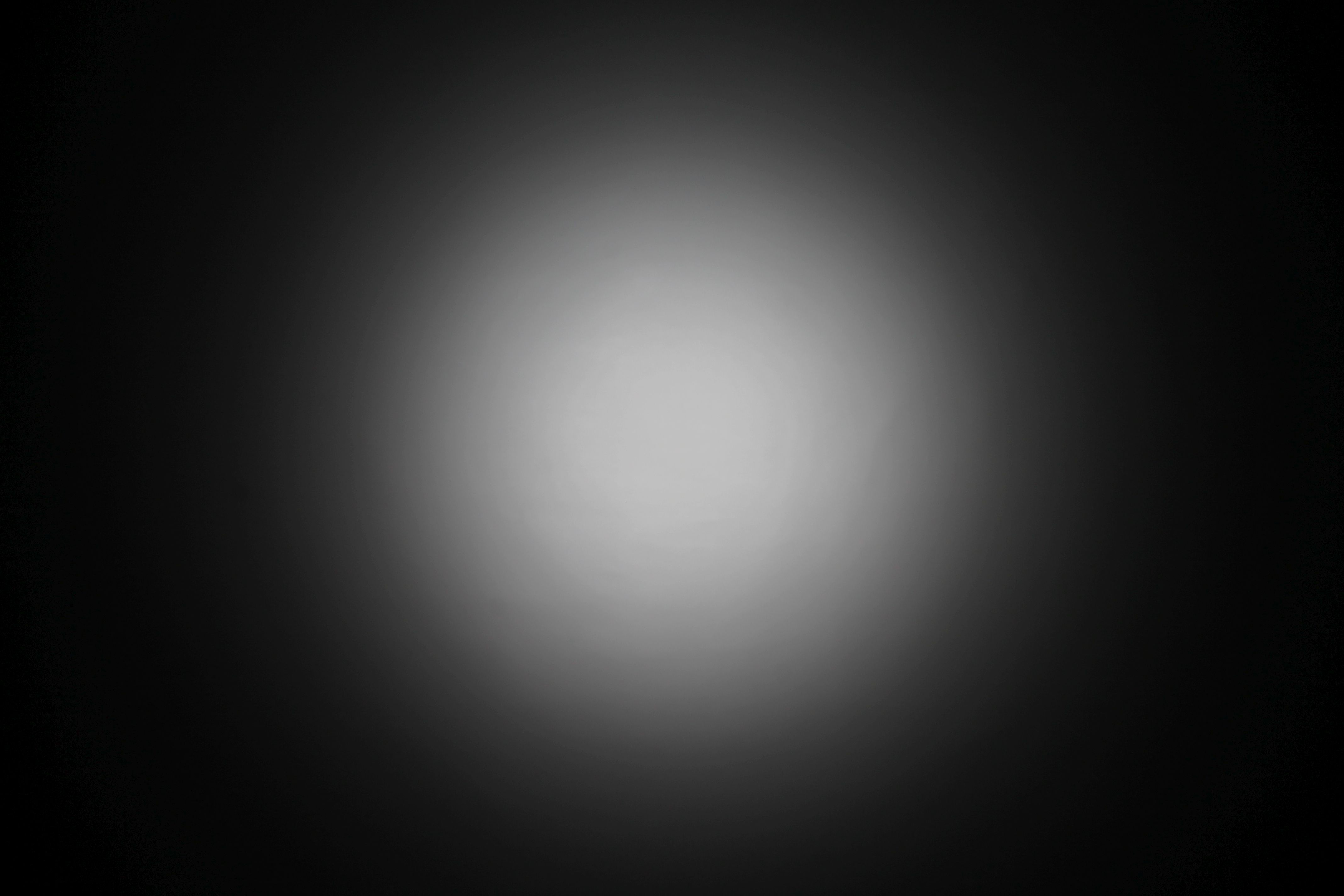

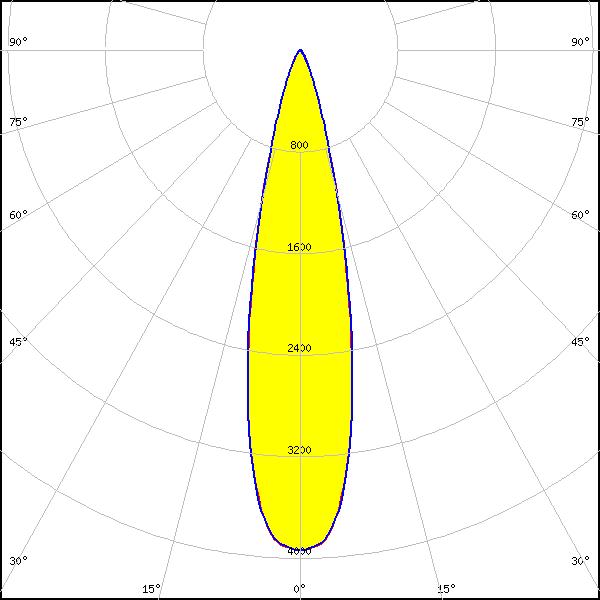

    LED: CLL02x/CLU02x (LES10)
    Ordering code: C17790_AMY-45-S
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 43°
    Peak intensity: 3.946 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

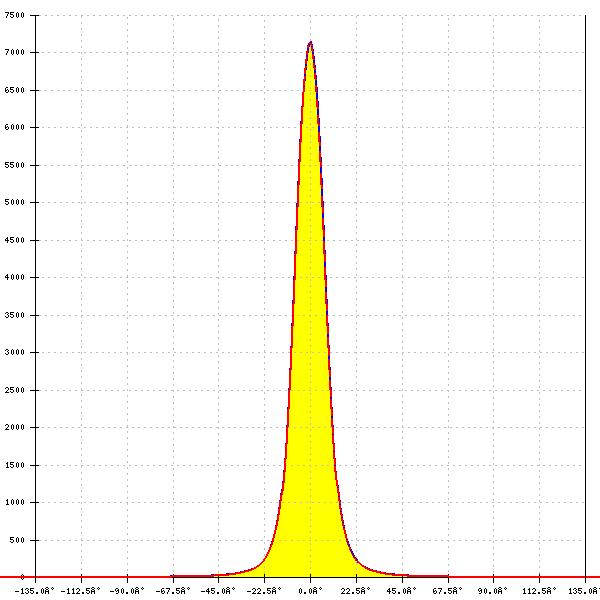

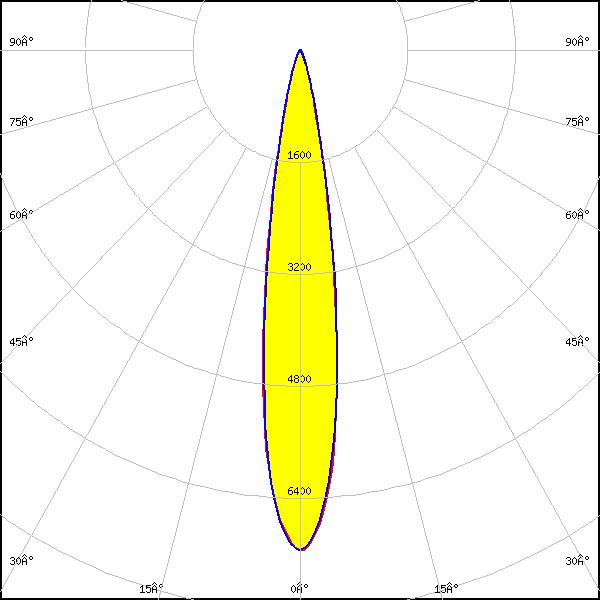

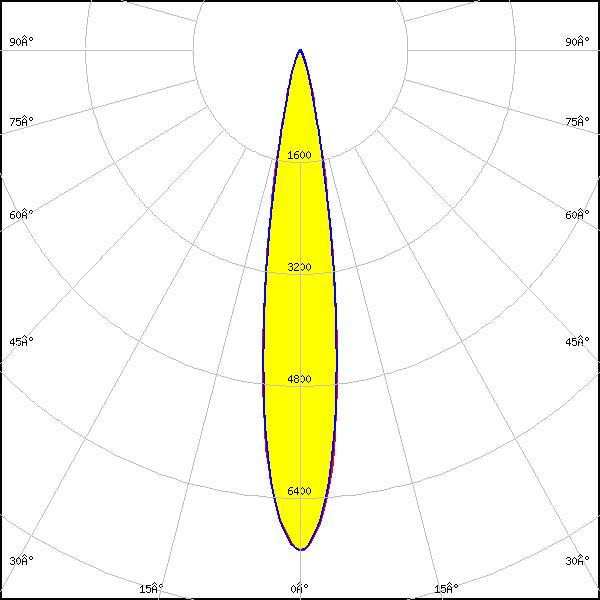

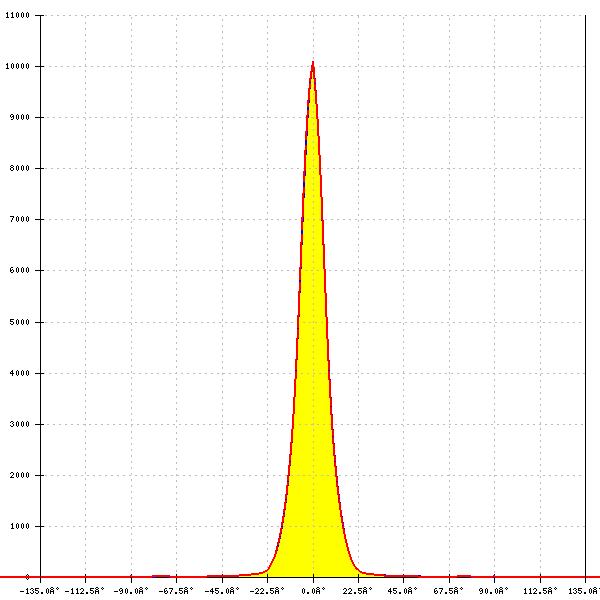

    LED: CLU700/701/702/703
    Ordering code: C17790_AMY-45-S
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 17°
    FWTM: 32°
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    Ordering code: C17790_AMY-45-S
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 17°
    FWTM: 32°
    Peak intensity: 7.144 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

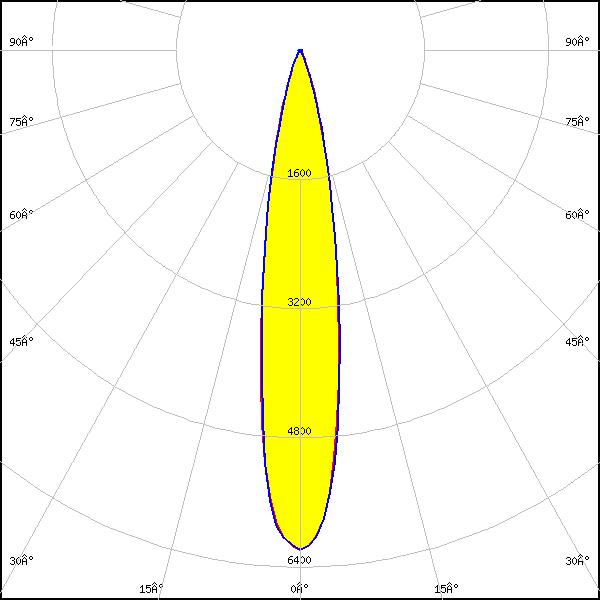

    LED: CLU712/713
    Ordering code: C17790_AMY-45-S
    LES size: 8.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 18°
    FWTM: 38°
    Peak intensity: 6.235 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

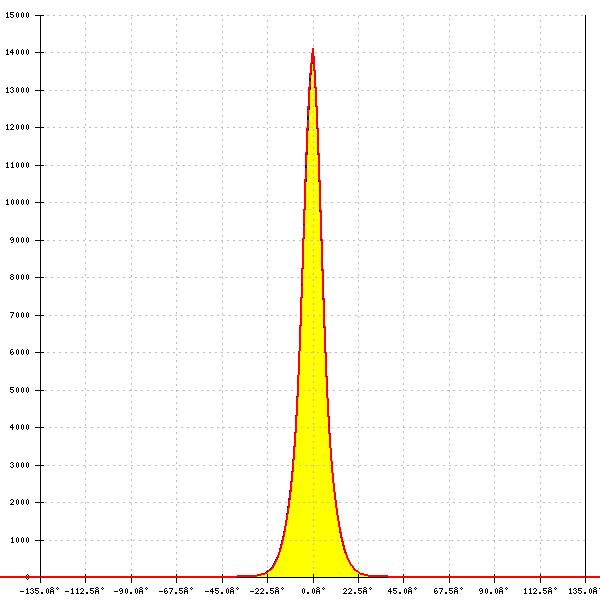

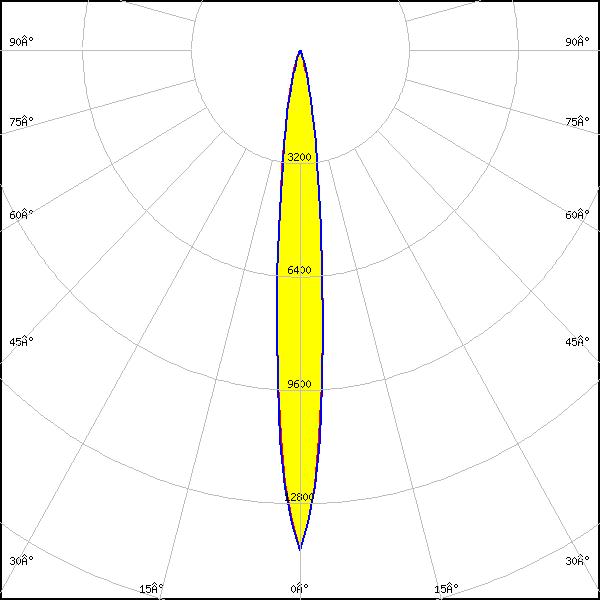

    LED: CHA0410
    Ordering code: C17790_AMY-45-S
    LES size: 4.2 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 12°
    FWTM: 26°
    Peak intensity: 14.113 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

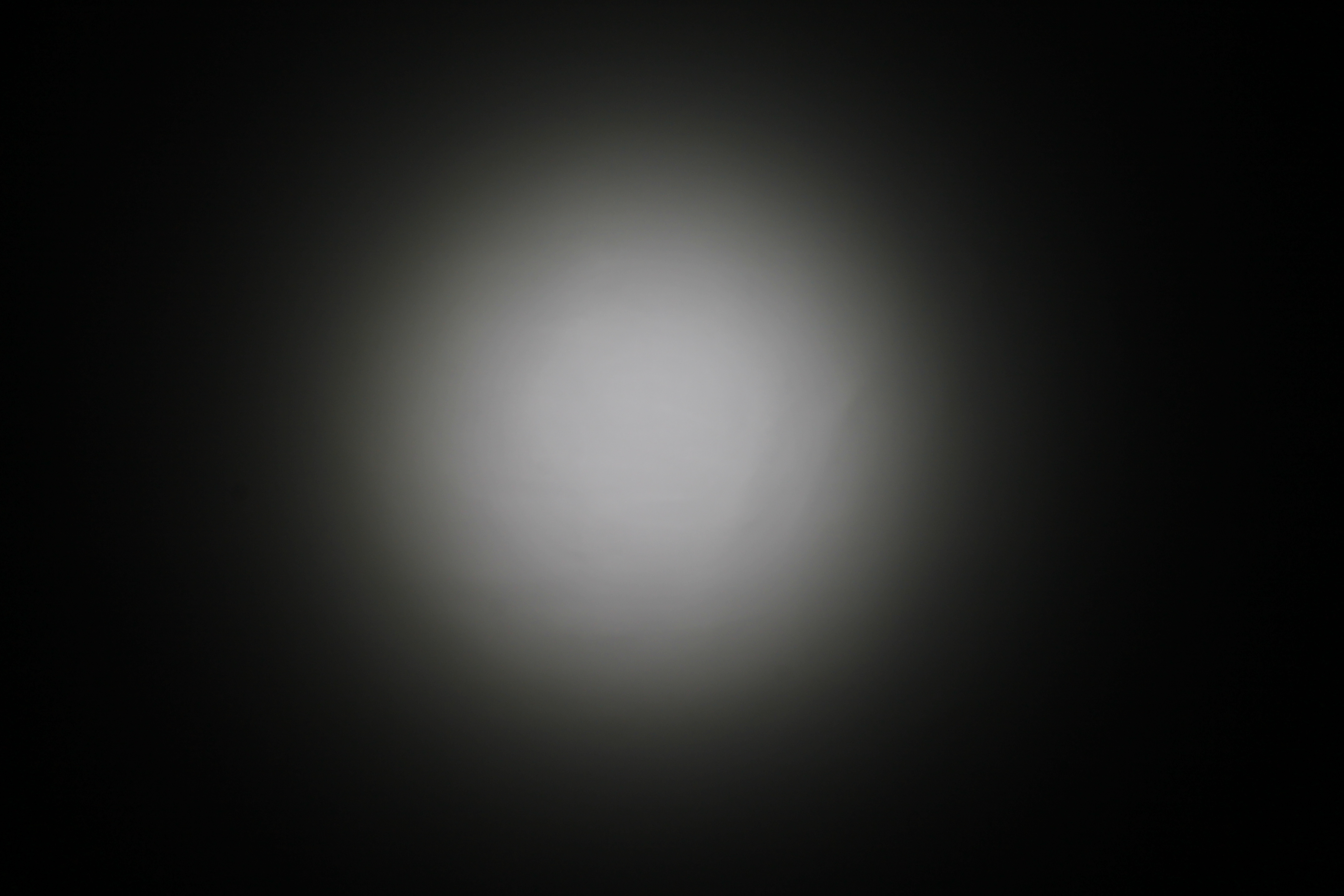

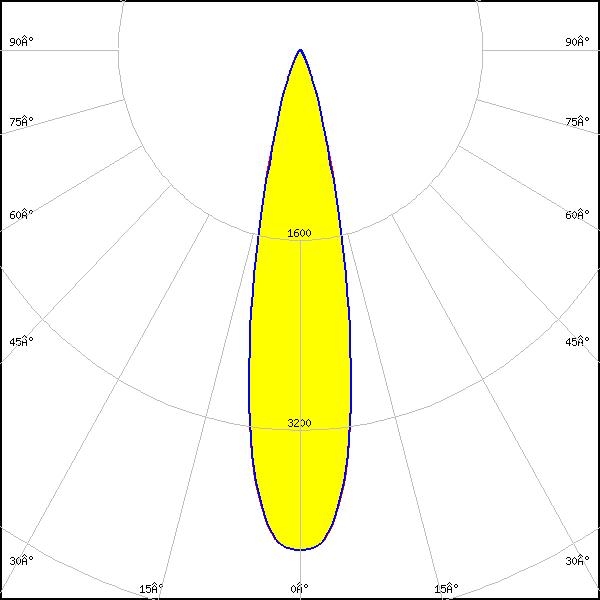

    LED: CMA1516
    Ordering code: C17790_AMY-45-S
    LES size: 9.0 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 23°
    FWTM: 42°
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1825
    Ordering code: C17790_AMY-45-S
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 25°
    FWTM: 51°
    Peak intensity: 3.356 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

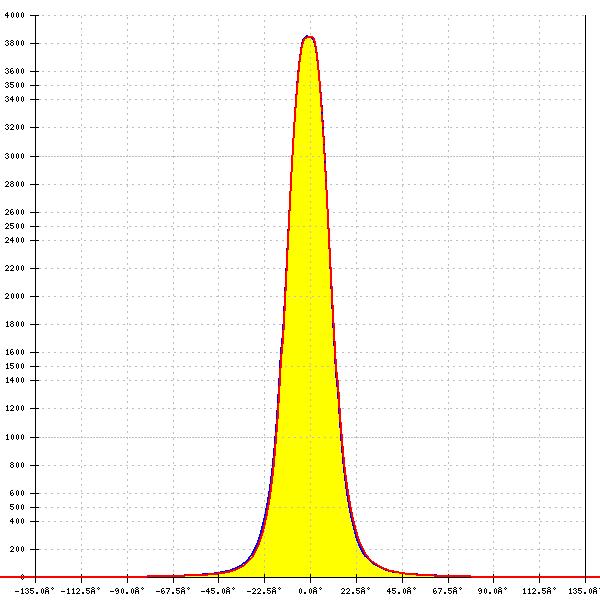

    LED: CMT14xx
    Ordering code: C17790_AMY-45-S
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 44°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

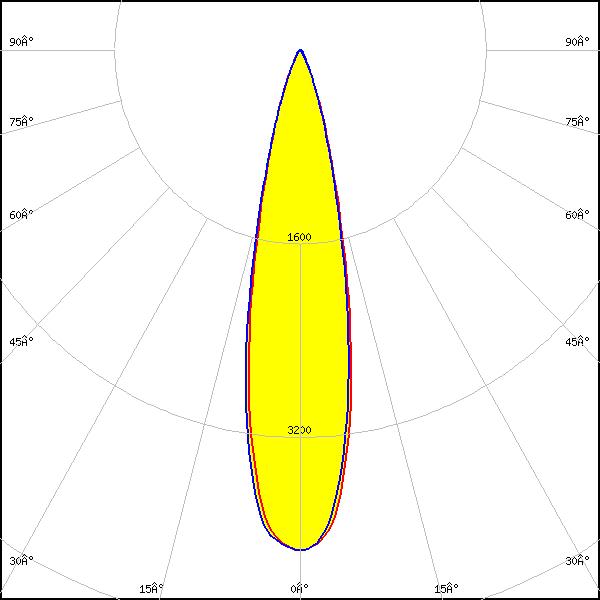

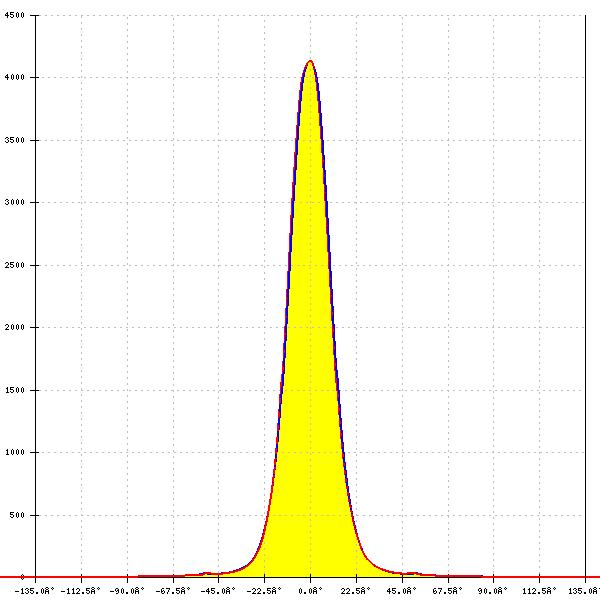

    LED: CMU10xx
    Ordering code: C17790_AMY-45-S
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 23°
    FWTM: 43°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

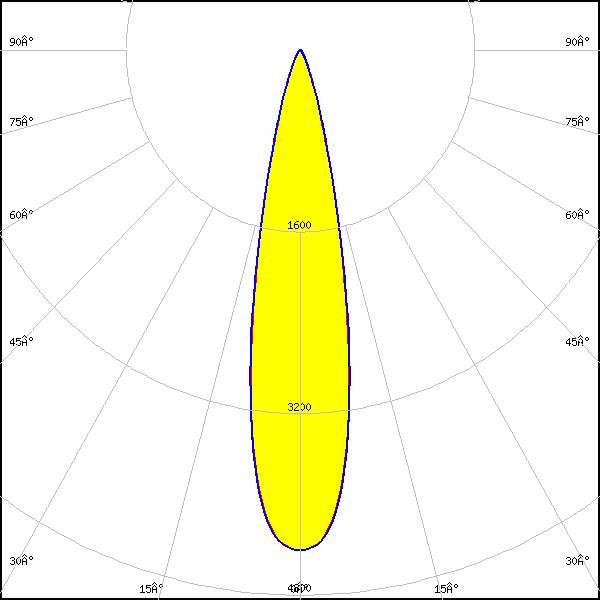

    LED: LUXEON CoB 1202/1203
    Ordering code: C17790_AMY-45-S
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 22°
    FWTM: 40°
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

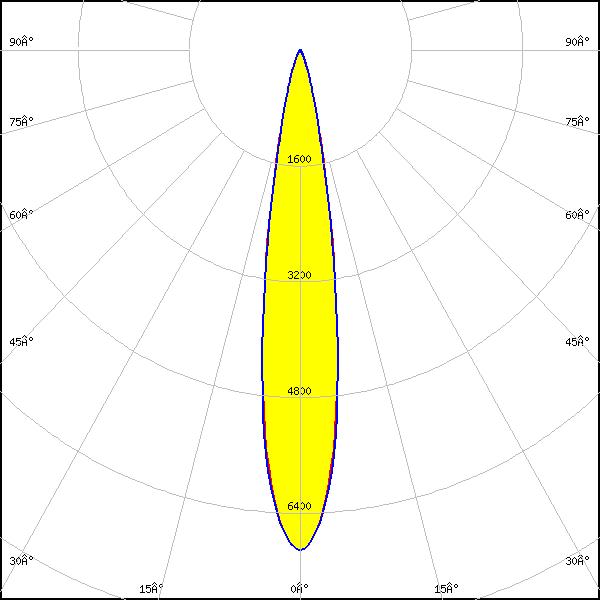

    LED: LUXEON CoB 1202s
    Ordering code: C17790_AMY-45-S
    LES size: 6.5 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 17°
    FWTM: 33°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

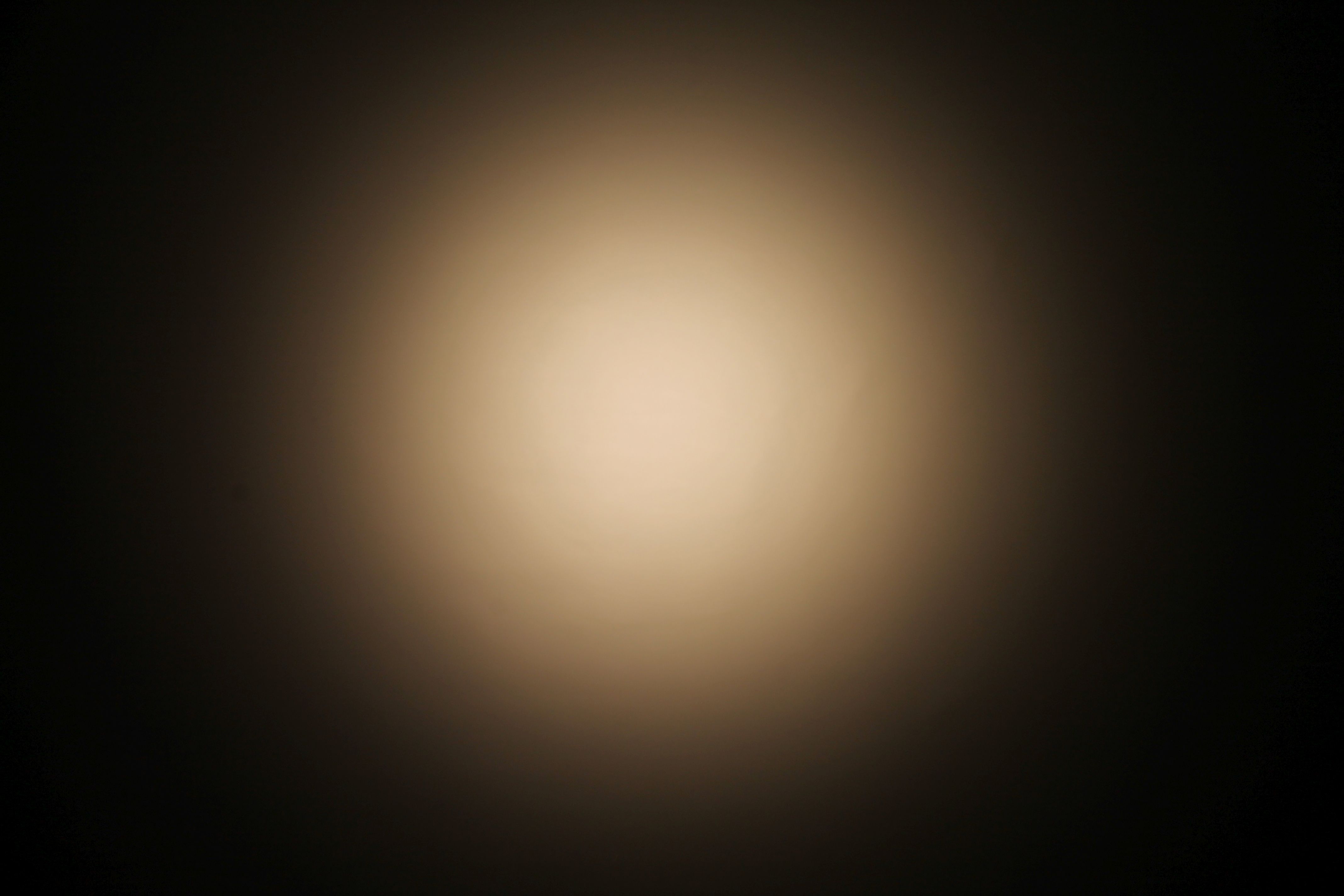

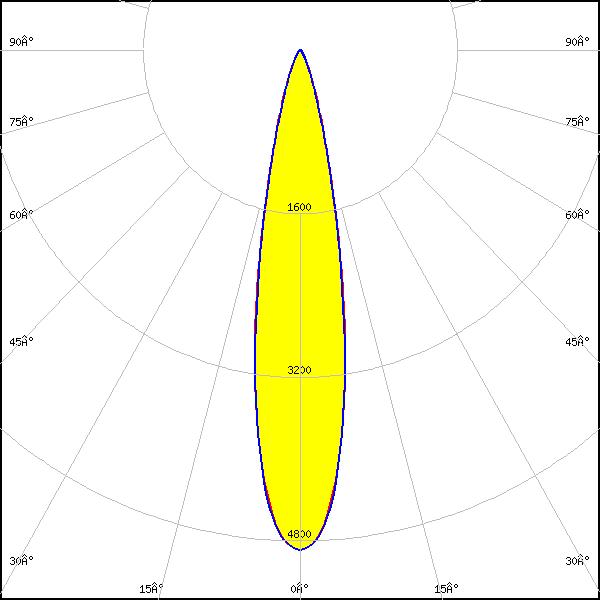

    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    Ordering code: C17790_AMY-45-S
    LES size: 9.0 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 21°
    FWTM: 40°
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

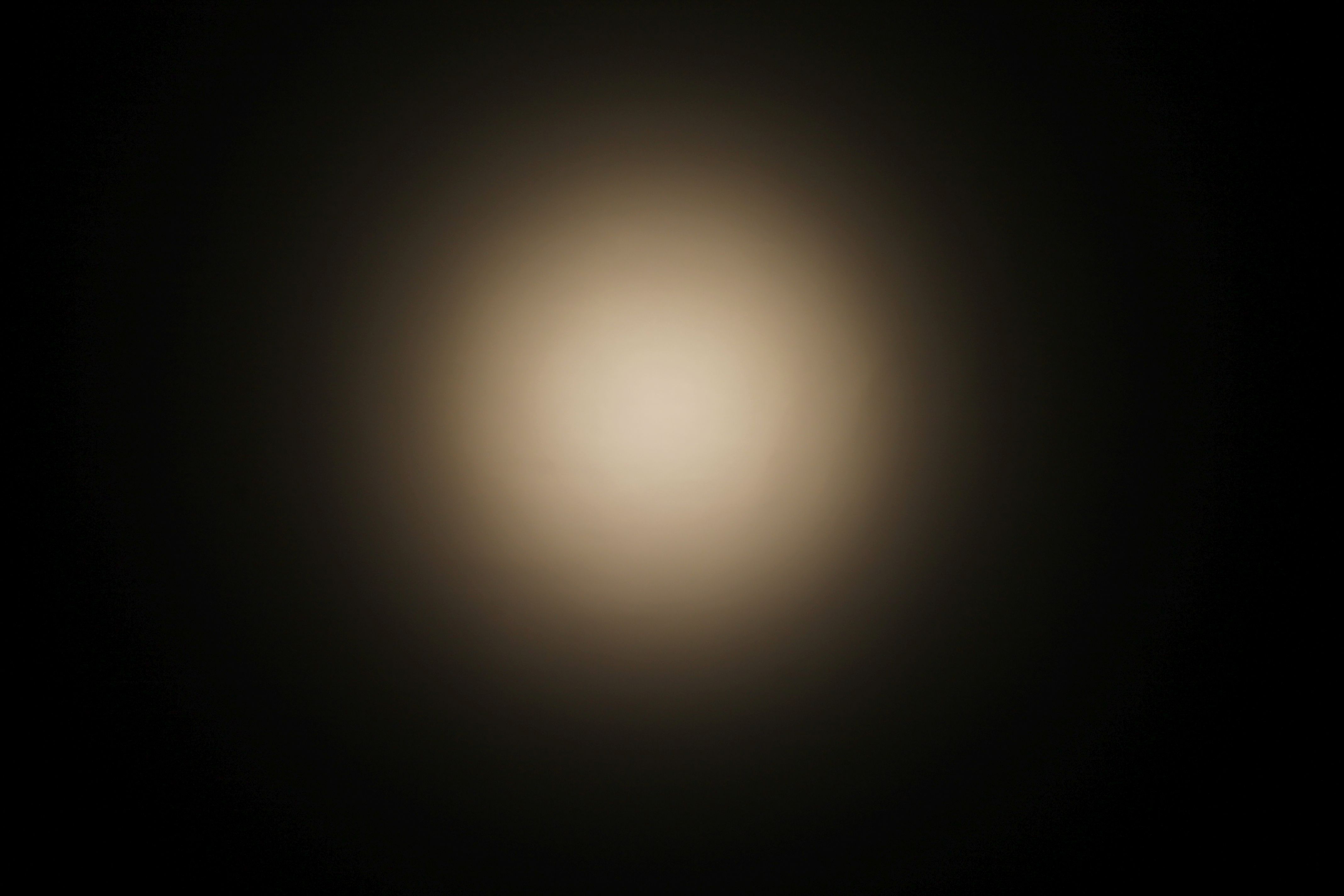

    LED: LUXEON CX Plus CoB S01 (Gen2)
    Ordering code: C17790_AMY-45-S
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: 16°
    FWTM: 32°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

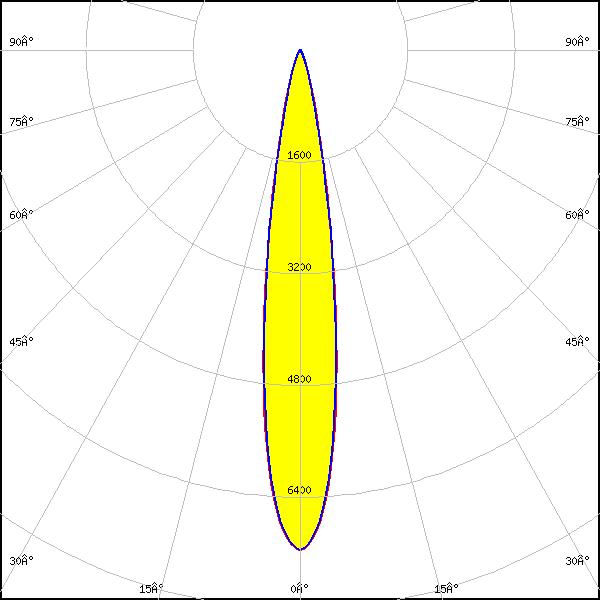

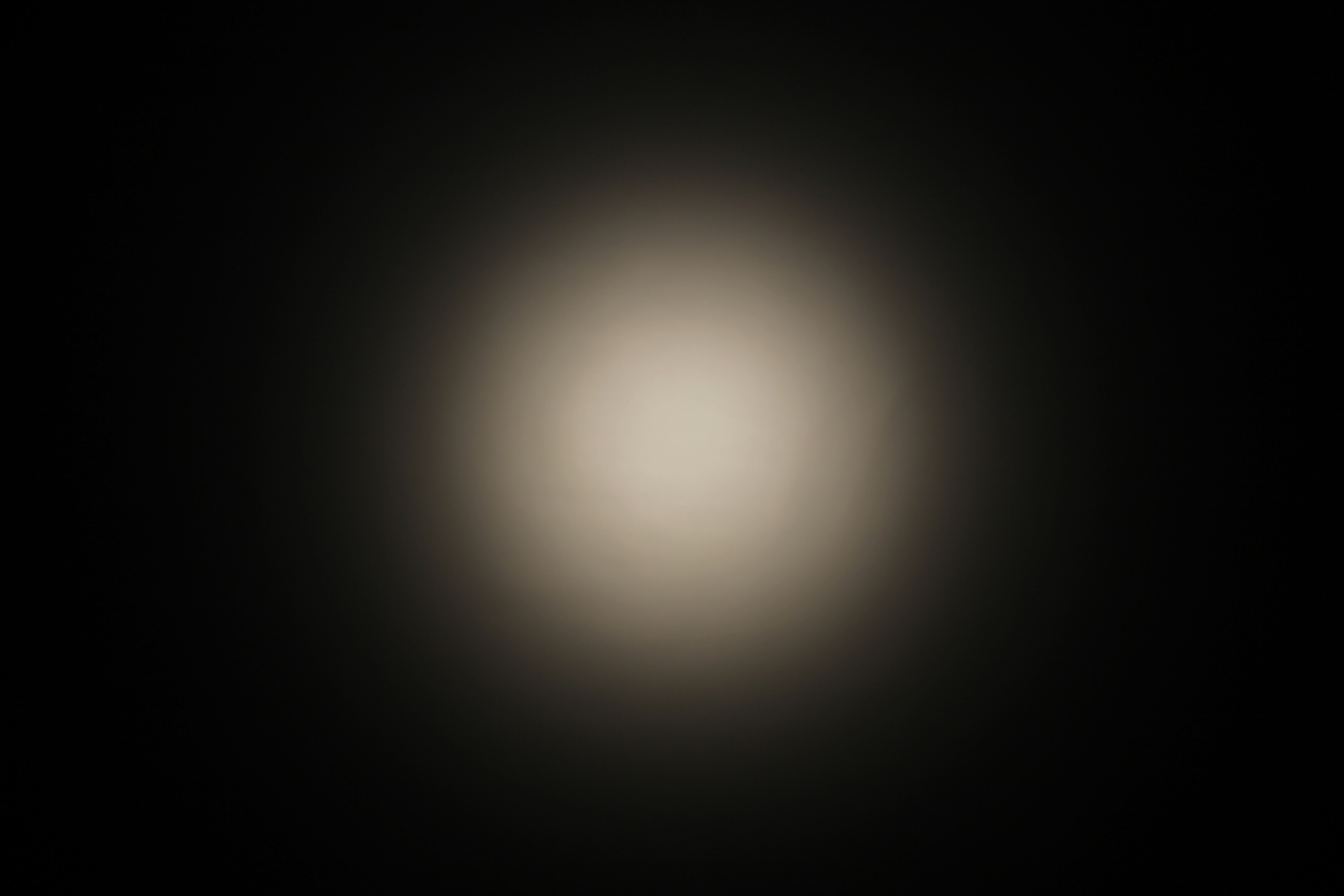

    LED: CxM-6 (13.5x13.5)
    Ordering code: C17790_AMY-45-S
    LES size: 6.3 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 17°
    FWTM: 32°
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-9 (13.5x13.5)
    Ordering code: C17790_AMY-45-S
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 23°
    FWTM: 43°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

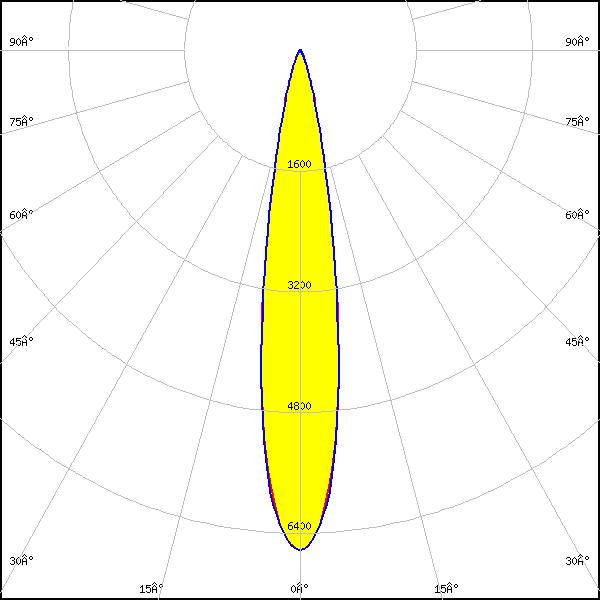

    LED: COB S-Type (LES 7)
    Ordering code: C17790_AMY-45-S
    LES size: 6.7 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 18°
    FWTM: 35°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

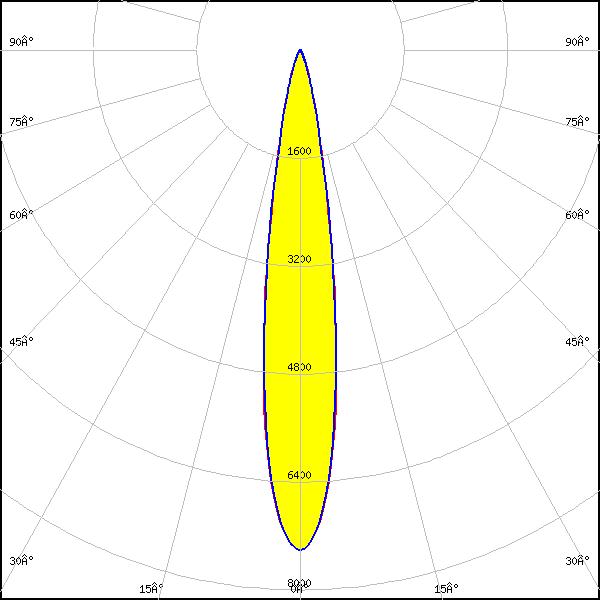

    LED: COB T-Type
    Ordering code: C17790_AMY-45-S
    LES size: 5.9 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 17°
    FWTM: 33°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: C17790_AMY-45-S
    LES size: 9.8 mm
    FWHM: 23°
    FWTM: 43°
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: C17790_AMY-45-S
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 23°
    FWTM: 43°
    Peak intensity: 4.351 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

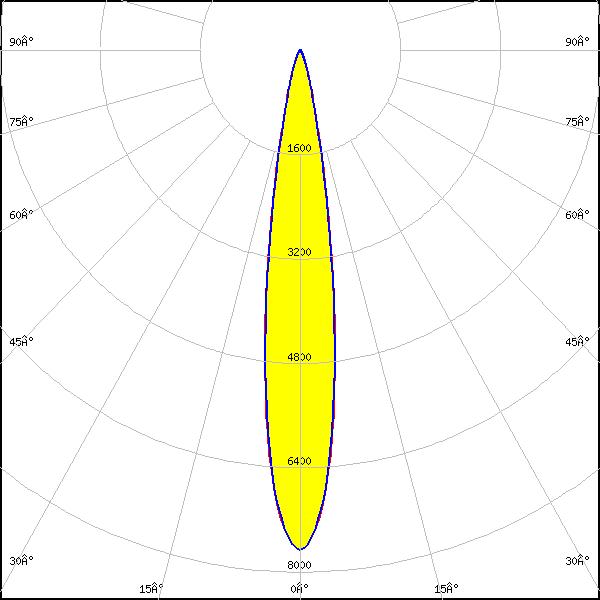

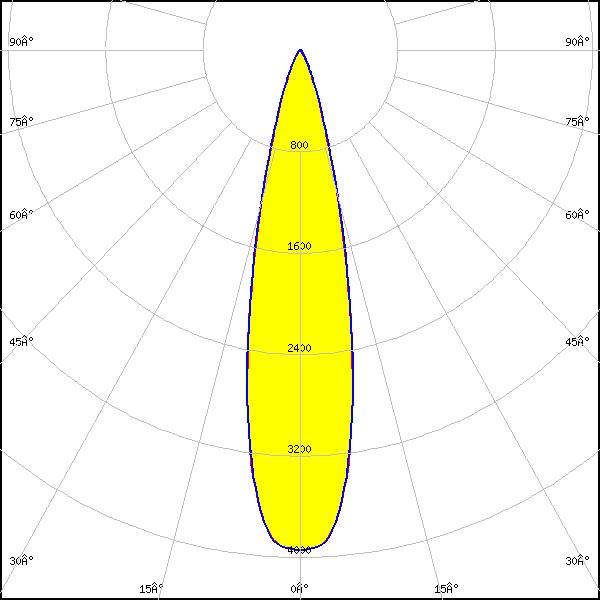

    LED: MJT COB LES 6
    Ordering code: C17790_AMY-45-S
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 16°
    FWTM: 31°
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 9.8
    Ordering code: C17790_AMY-45-S
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 44°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
