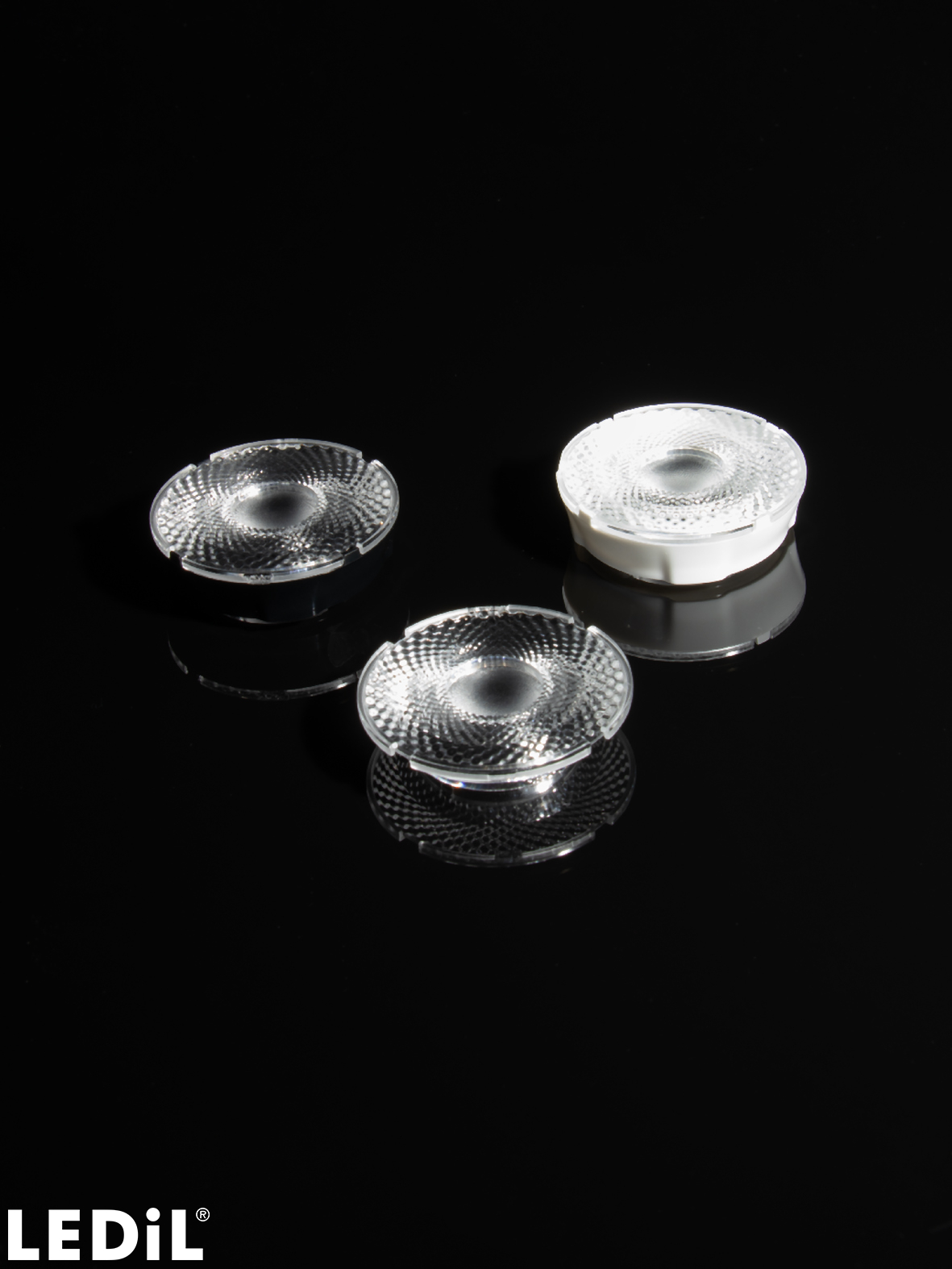

AMY-45-M
Print~24° medium beam
This product consists of multiple buying options, and different options may have different packaging information. Check the product datasheet for more details.
Specification
-
Dimensions:0 mm
-
Fastening:screw
-
RoHS and REACH compliant:Yes
Component Materials
- AMY-45-MSingle lensPMMA
- AMY-45-HLD2-B-WHTHolderPC
- AMY-45-HLD2-BHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
- Single lens
- C17791_AMY-45-Mclear
- Assembly
(single lens, holder)
- CP19624_AMY-45-M-B
black,Holder B- CP19629_AMY-45-M-B-WHT
white,Holder B- Packaging information in the product datasheet
- Assembly
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

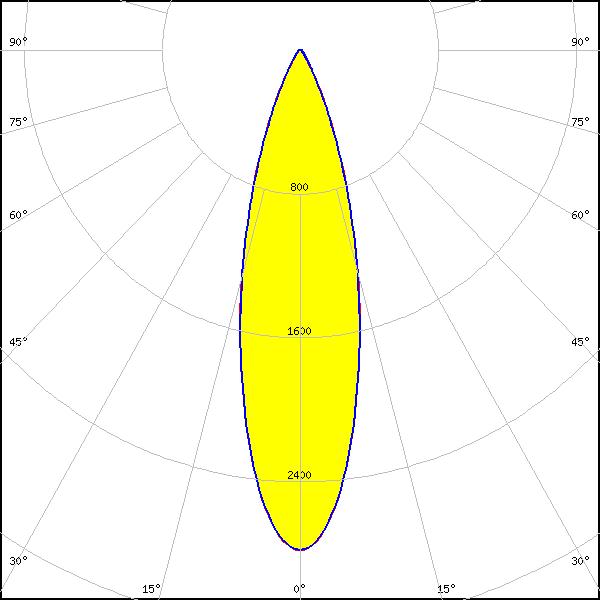

LED:
V11 HD Gen 8

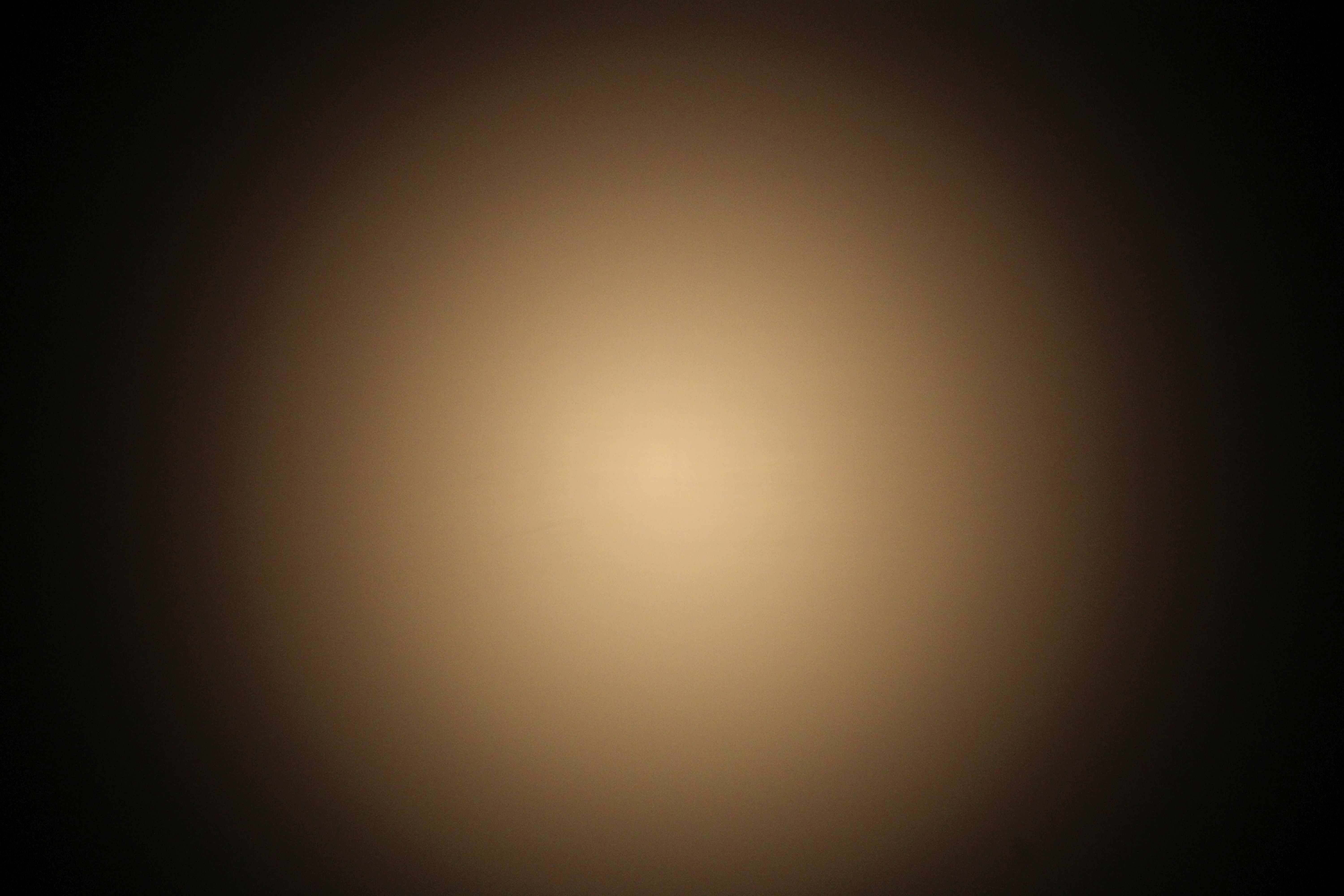

Ordering code: C17791_AMY-45-M
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM:
29°
FWTM:
54°
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

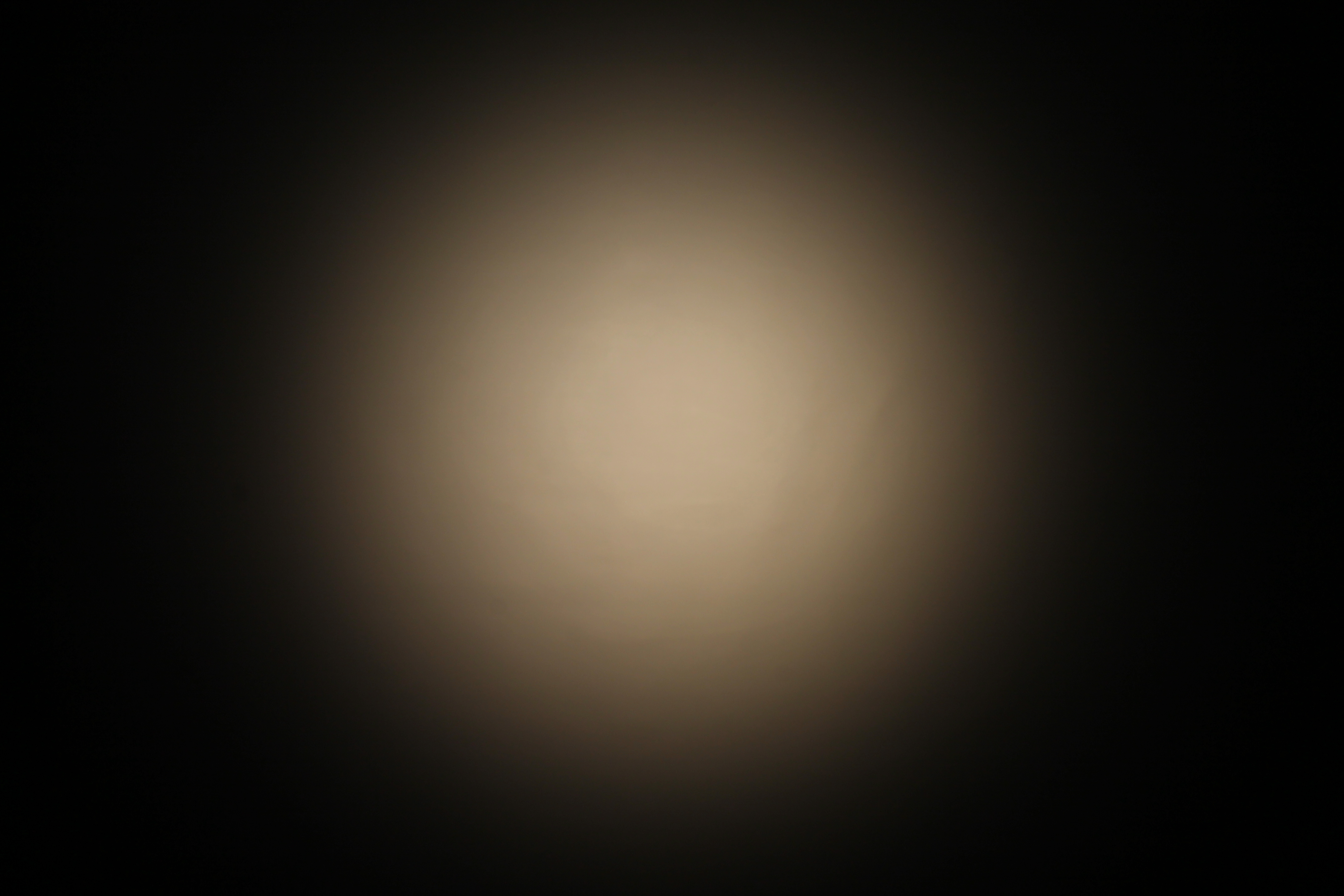

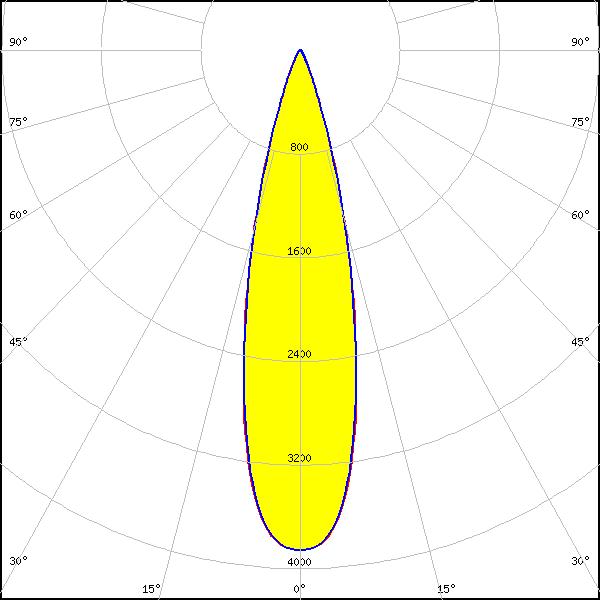

V6 HD Gen 7
Ordering code: C17791_AMY-45-M
LES size: 7.0 mm
Required components:
FWHM:
26°
FWTM:
44°
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 HD Gen 8

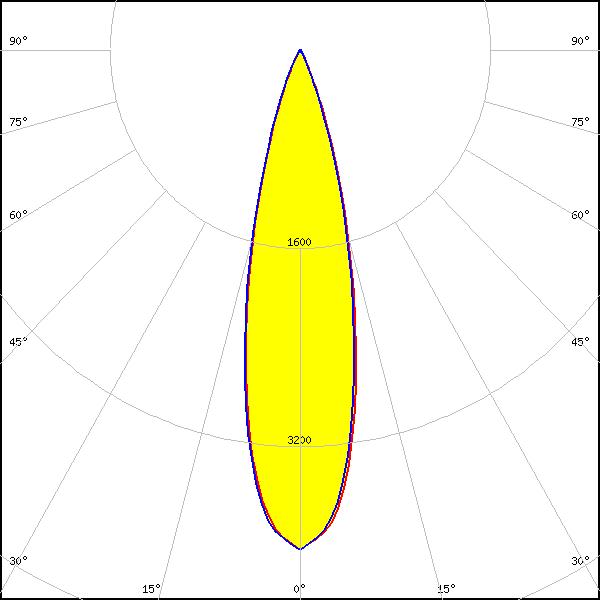

Ordering code: CP19624_AMY-45-M-B
LES size: 6.6 mm
Required components:
FWHM:
26°
FWTM:
46°
Peak intensity:
4.038 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 HD Gen 8

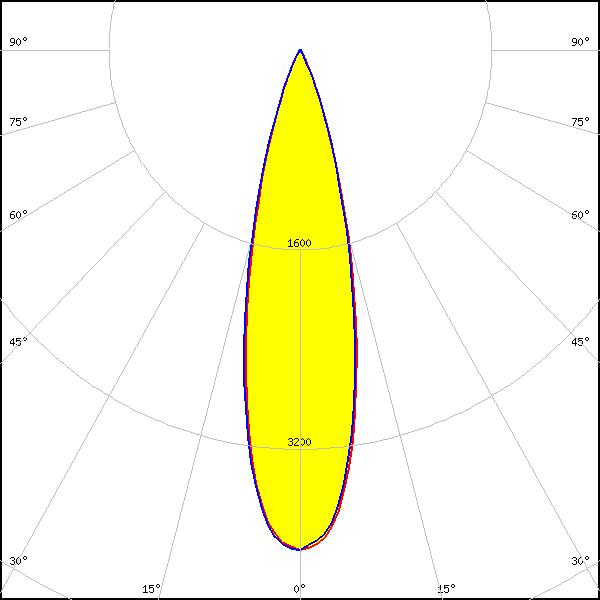

Ordering code: CP19629_AMY-45-M-B-WHT
LES size: 6.6 mm
Required components:
FWHM:
26°
FWTM:
46°
Peak intensity:
4.029 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

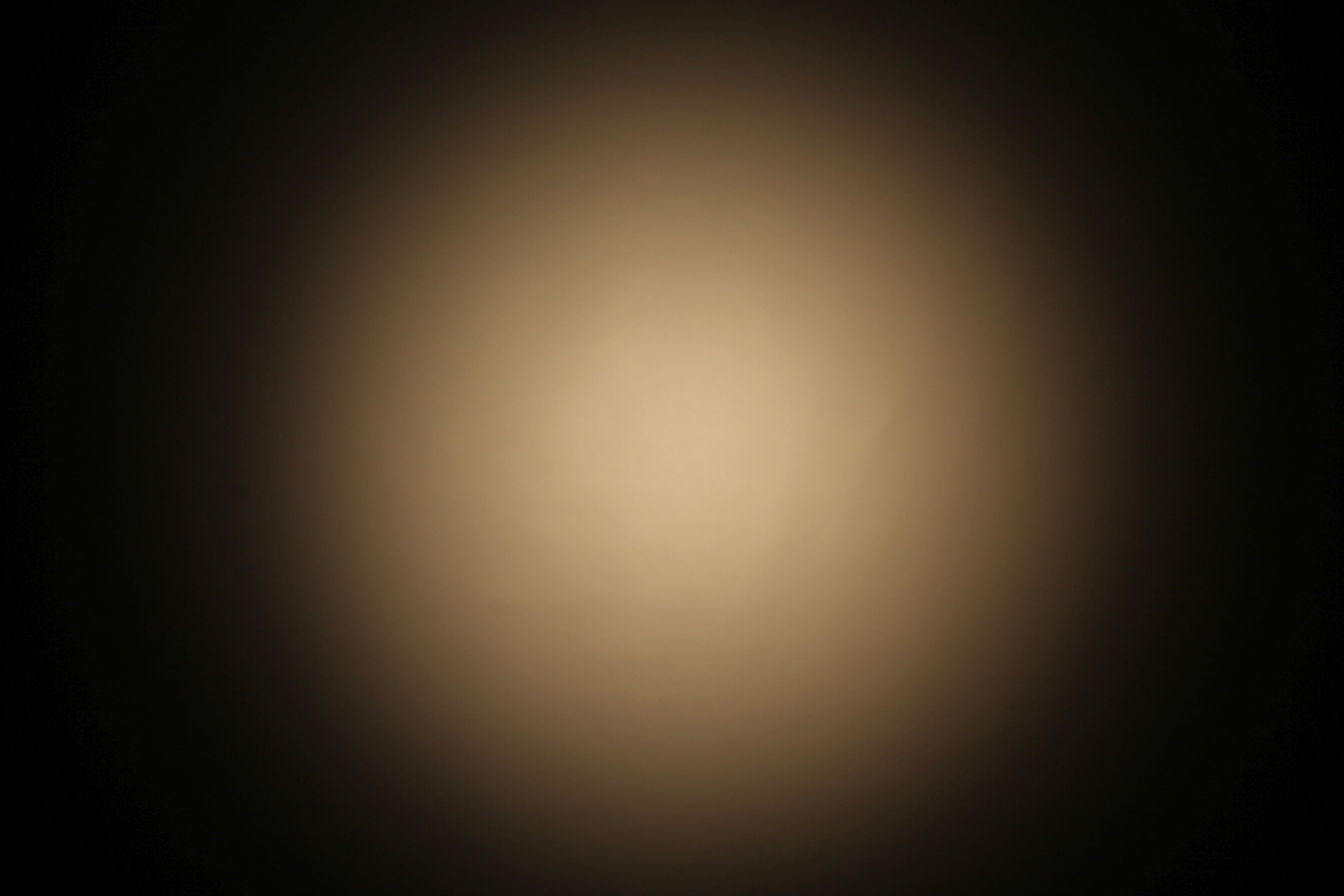

LED:

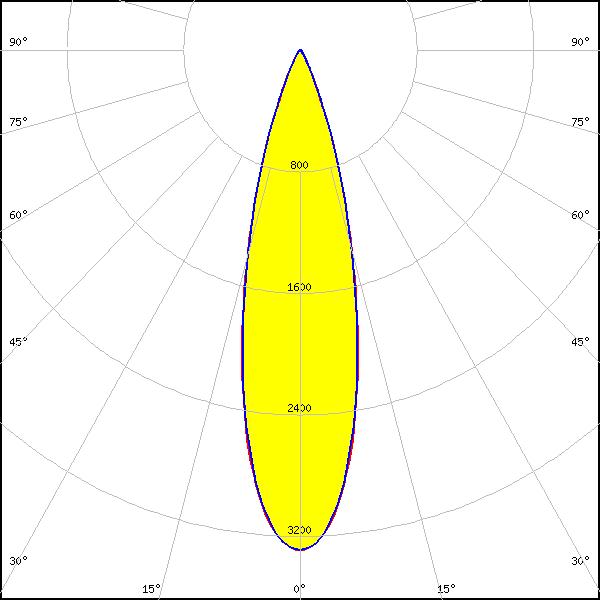

V9 HD Gen7
Ordering code: C17791_AMY-45-M
LES size: 9.2 mm
Required components:
FWHM:
27°
FWTM:
48°
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

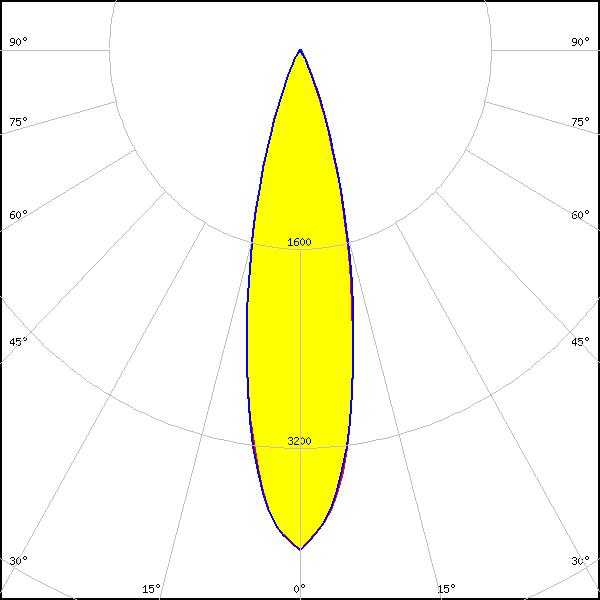

LED:
Vesta DTW 6mm
LES size: 6.8 mm
Required components:
Bender Wirth: 652b Bayonet35
FWHM:
26°
FWTM:
46°
Peak intensity:
4.022 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

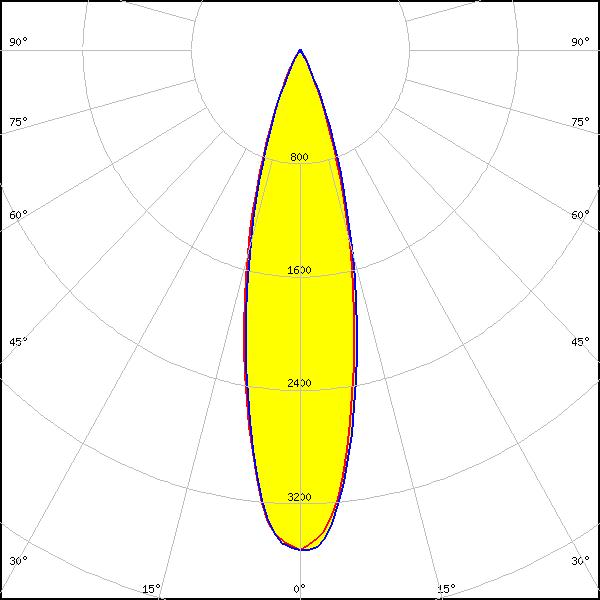

LED:
Vesta DTW 9mm (4W/6W/12W)
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Bayonet35
FWHM:
26°
FWTM:
49°
Peak intensity:
3.543 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

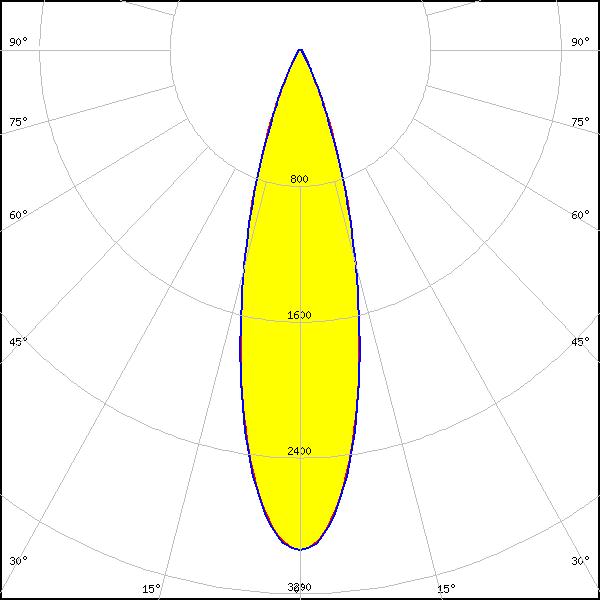

LED:
CLU02x (LES10)
Ordering code: C17791_AMY-45-M
LES size: 9.8 mm
Required components:
FWHM:
28°
FWTM:
51°
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
Ordering code: C17791_AMY-45-M
LES size: 9.8 mm
Required components:
FWHM:
28°
FWTM:
51°
Peak intensity:
2.945 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

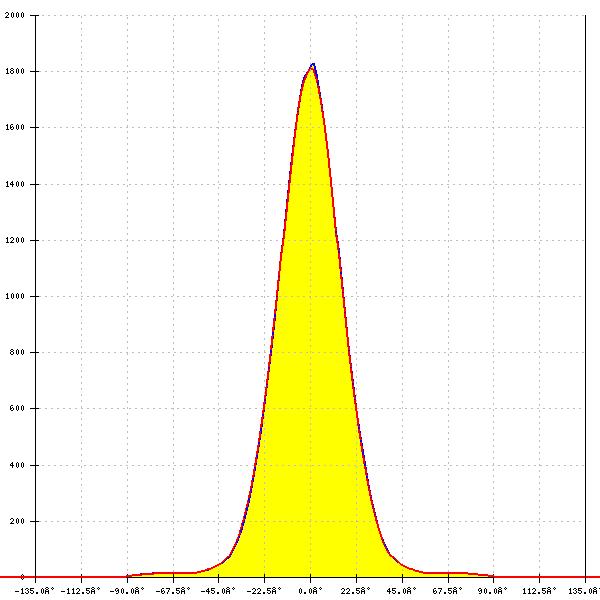

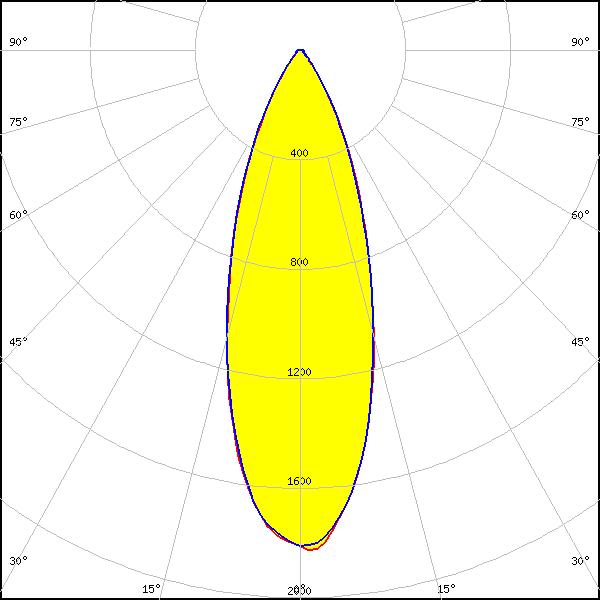

LED:
CLU03x
Ordering code: CP19624_AMY-45-M-B
LES size: 14.5 mm
Required components:
FWHM:
35°
FWTM:
67°
Peak intensity:
1.829 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
Ordering code: C17791_AMY-45-M
LES size: 6.0 mm
Required components:
FWHM:
25°
FWTM:
43°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

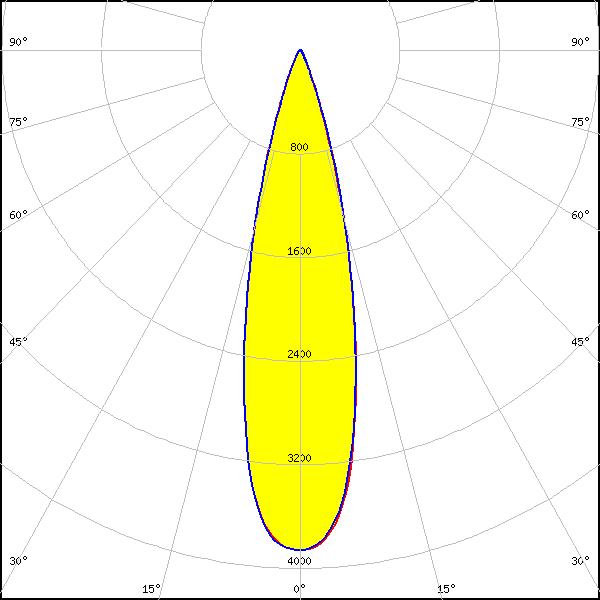

CLU700/701/702/703
Ordering code: C17791_AMY-45-M
LES size: 6.0 mm
Required components:
FWHM:
25°
FWTM:
43°
Peak intensity:
3.866 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

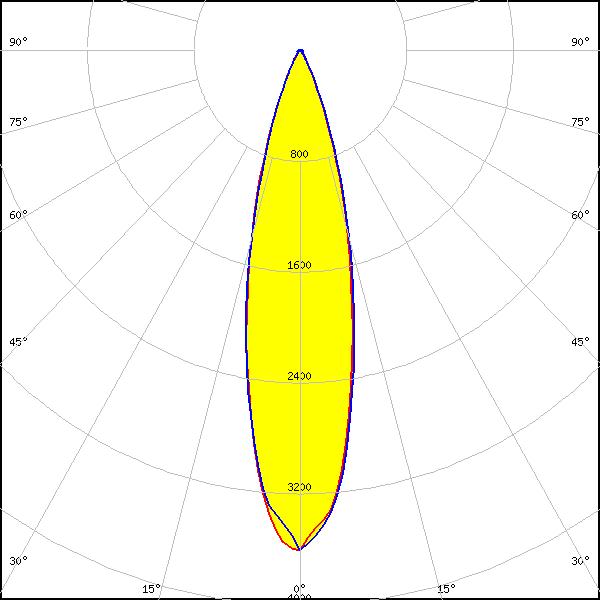

CLU712/713
Ordering code: C17791_AMY-45-M
LES size: 8.5 mm
Required components:
FWHM:
26°
FWTM:
48°
Peak intensity:
3.643 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

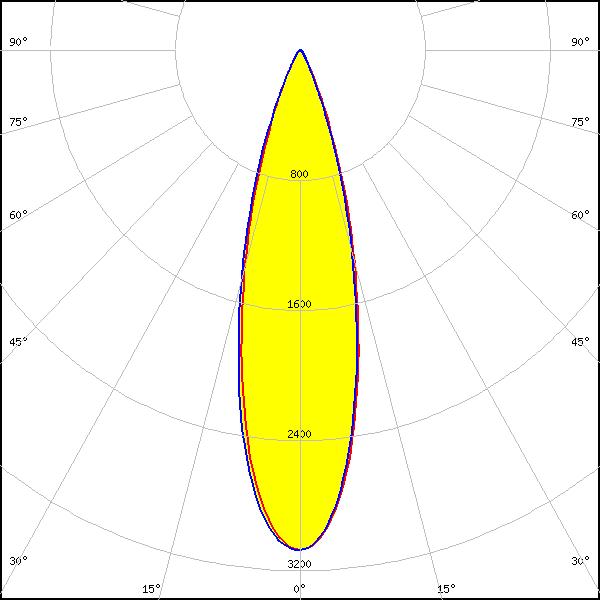

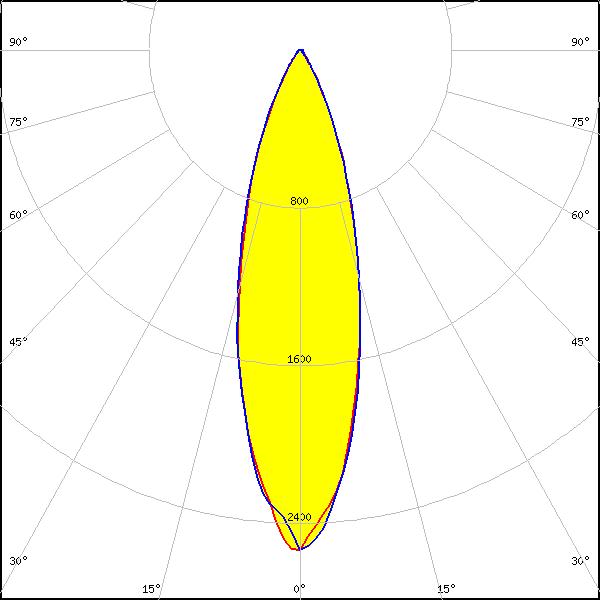

CMA1516
Ordering code: C17791_AMY-45-M
LES size: 9.0 mm
Required components:
FWHM:
28°
FWTM:
50°
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

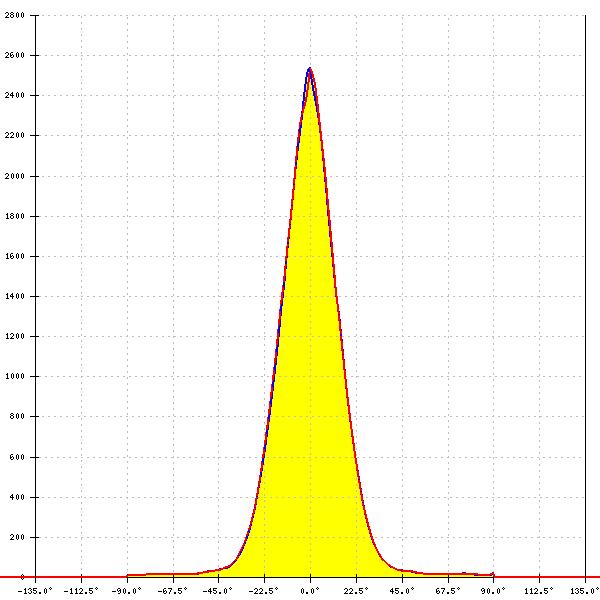

CMA1825
Ordering code: C17791_AMY-45-M
LES size: 12.0 mm
Required components:
FWHM:
29°
FWTM:
59°
Peak intensity:
2.539 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

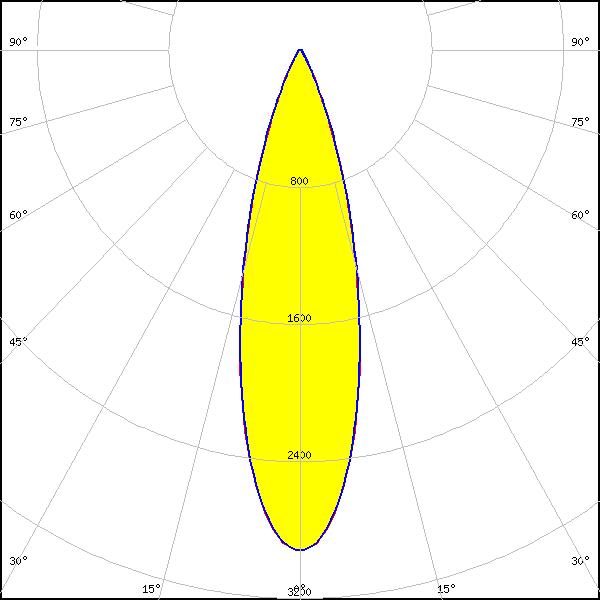

CMT14xx
Ordering code: C17791_AMY-45-M
LES size: 9.8 mm
Required components:
FWHM:
28°
FWTM:
51°
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

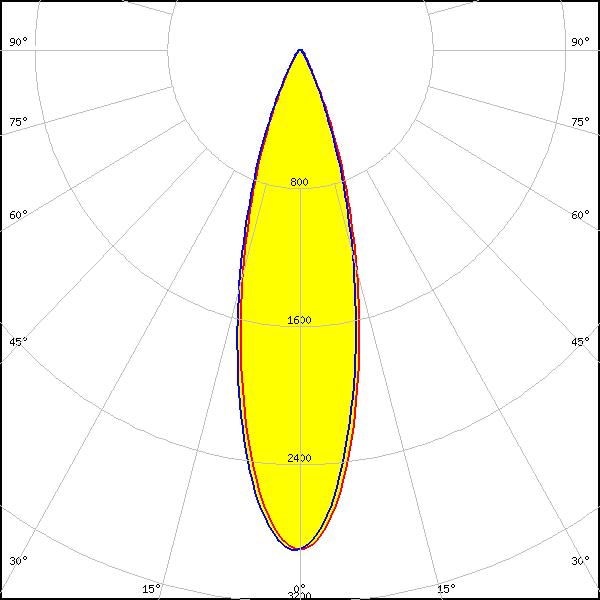

LED:

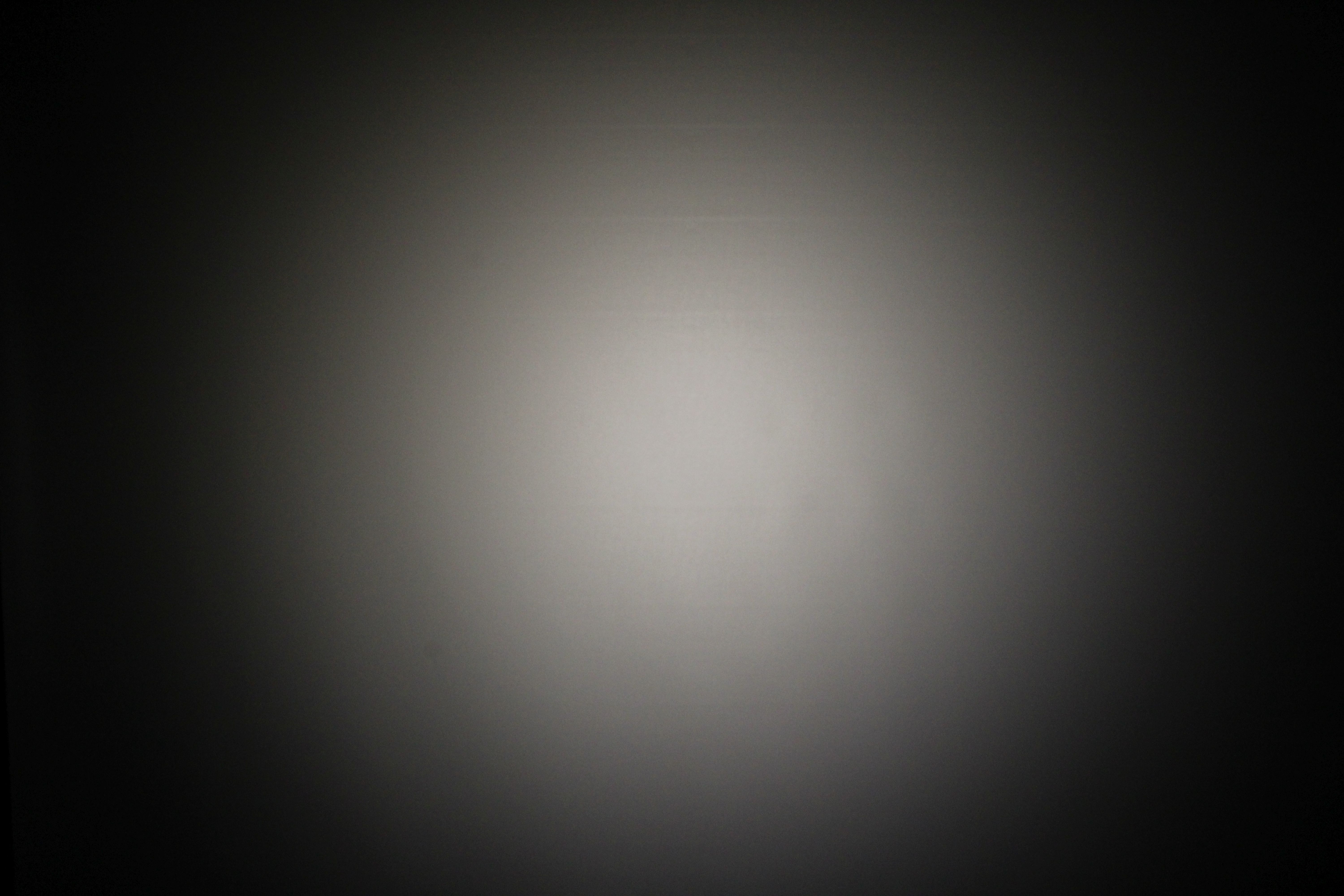

CMU10xx
Ordering code: C17791_AMY-45-M
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
28°
FWTM:
53°
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx

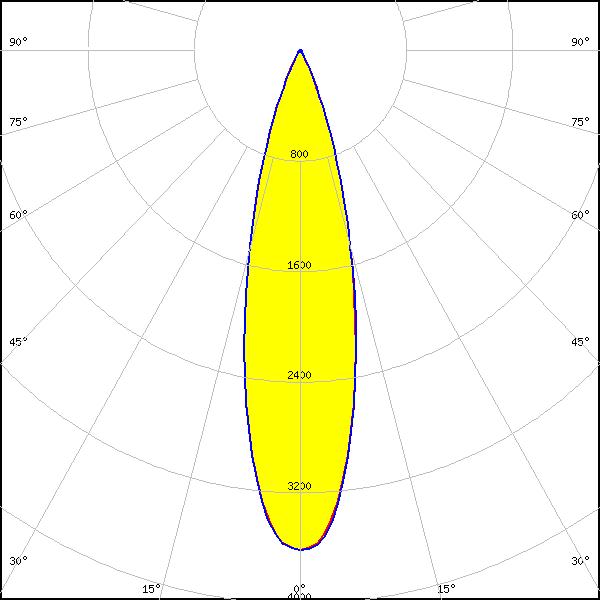

Ordering code: CP19624_AMY-45-M-B
LES size: 8.9 mm
Required components:
BJB: 47.360.1030
C19577_AMY-45-HLD2-B
C19577_AMY-45-HLD2-B
FWHM:
26°
FWTM:
48°
Peak intensity:
3.631 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

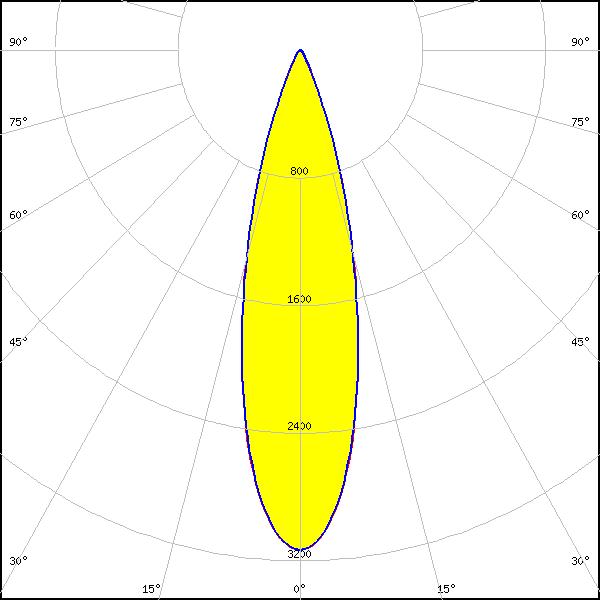

LED:
LUXEON CoB 1202/1203
Ordering code: C17791_AMY-45-M
LES size: 9.0 mm
Required components:
FWHM:
27°
FWTM:
49°
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

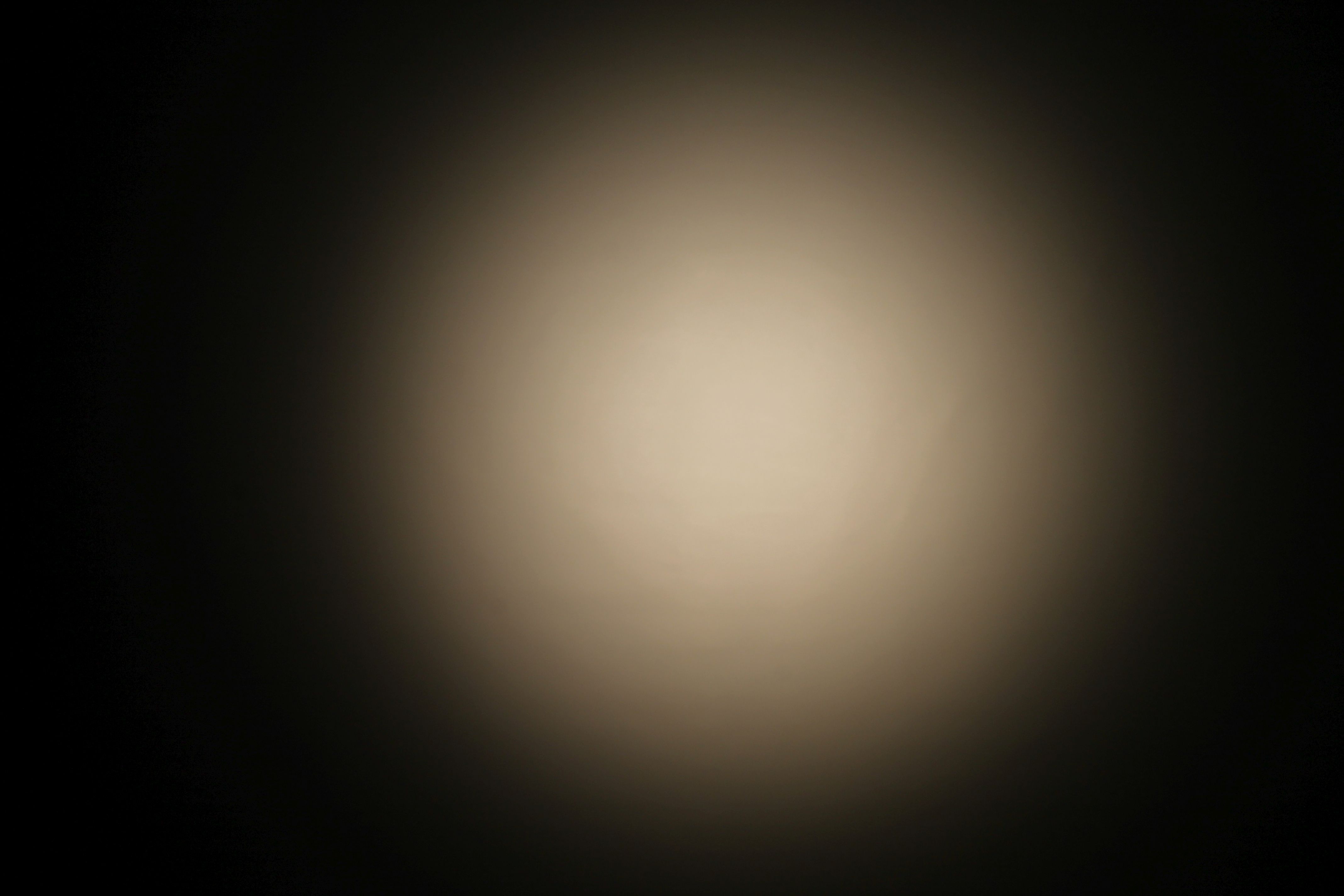

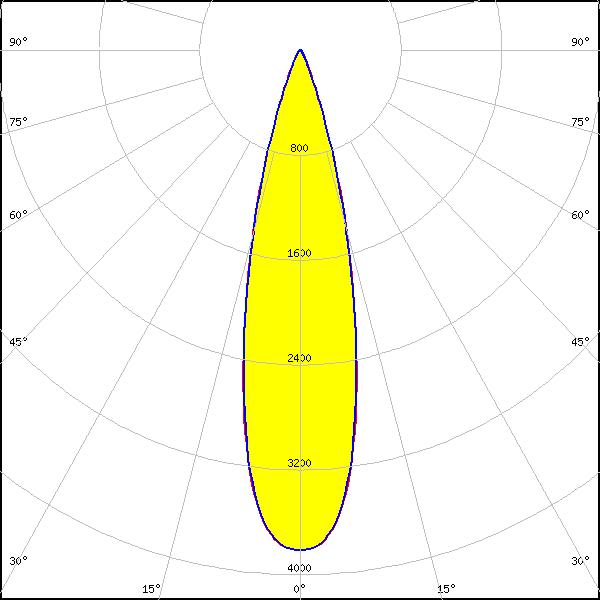

LUXEON CoB 1202s
Ordering code: C17791_AMY-45-M
LES size: 6.5 mm
Required components:
FWHM:
26°
FWTM:
44°
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

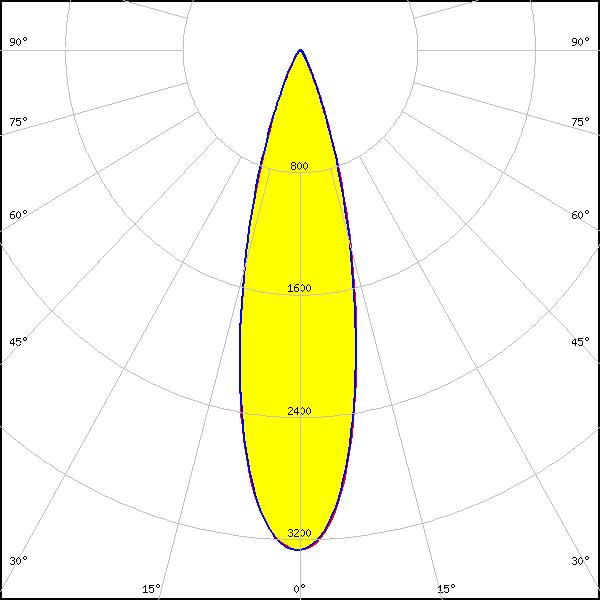

LED:
LUXEON CX Plus CoB M02 / M03 (Gen2)
Ordering code: C17791_AMY-45-M
LES size: 9.0 mm
Required components:
FWHM:
27°
FWTM:
49°
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

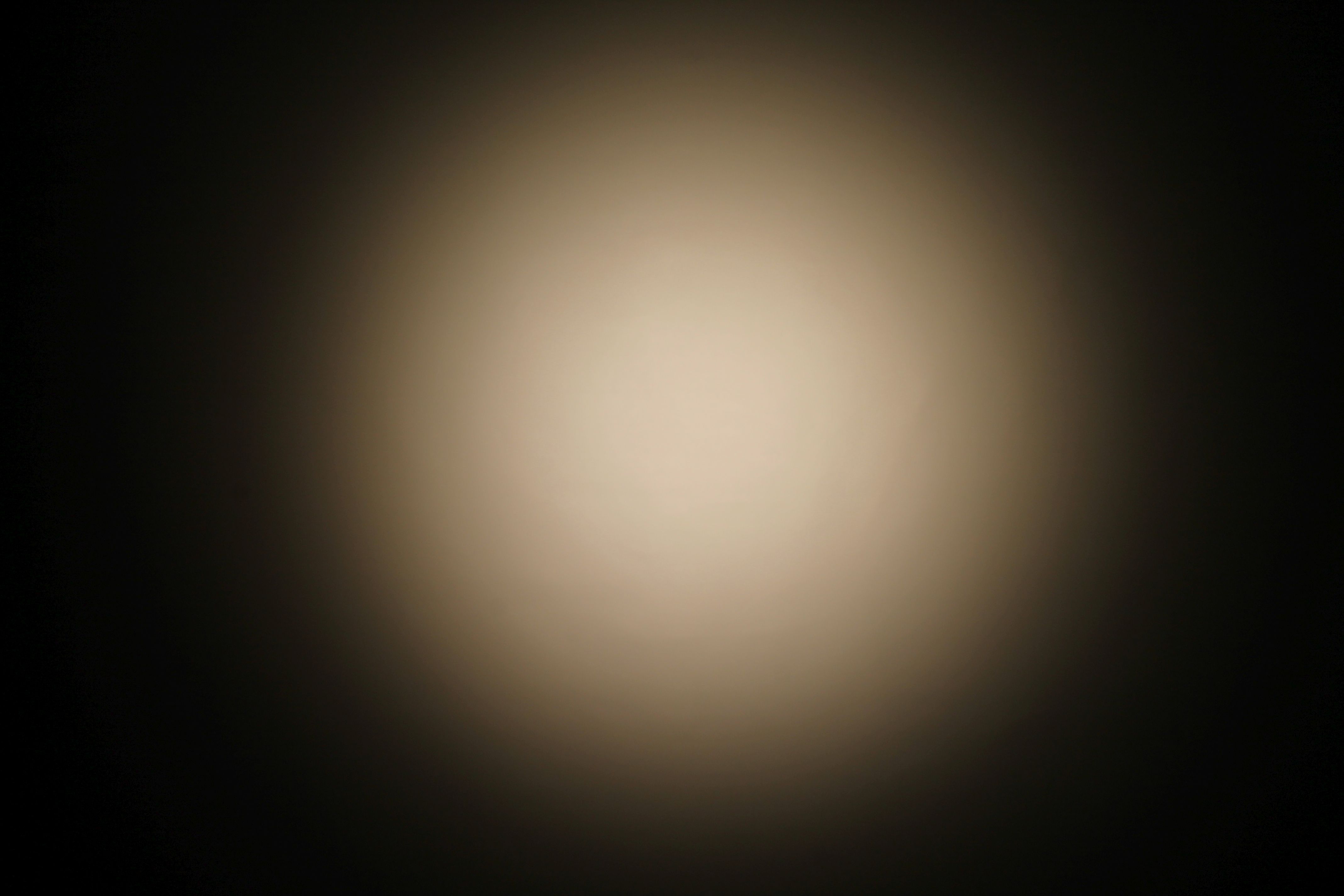

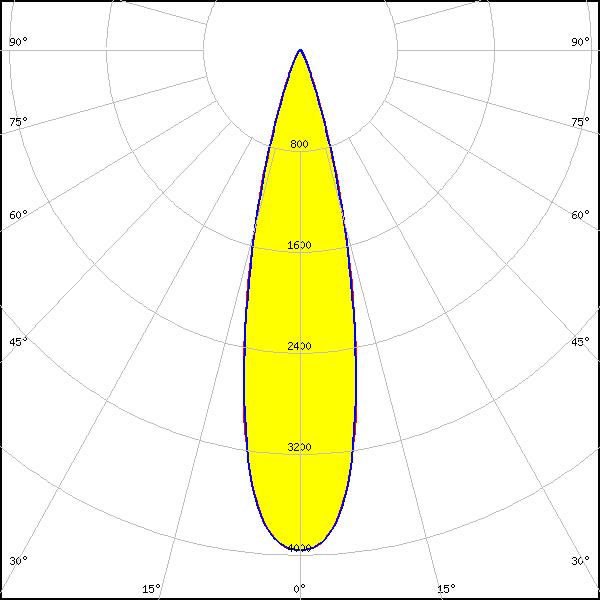

LUXEON CX Plus CoB S01 (Gen2)
Ordering code: C17791_AMY-45-M
LES size: 6.0 mm
Required components:
FWHM:
26°
FWTM:
44°
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

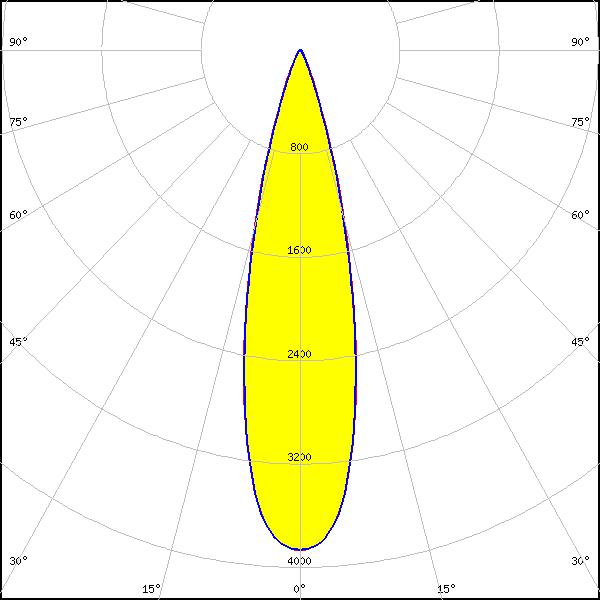

CxM-6 (13.5x13.5)
Ordering code: C17791_AMY-45-M
LES size: 6.3 mm
Required components:
FWHM:
25°
FWTM:
44°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

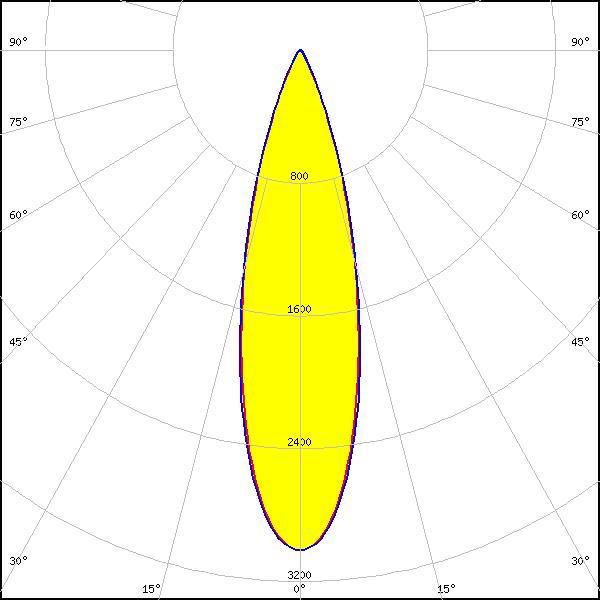

CxM-9 (13.5x13.5)
Ordering code: C17791_AMY-45-M
LES size: 9.6 mm
Required components:
FWHM:
28°
FWTM:
50°
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

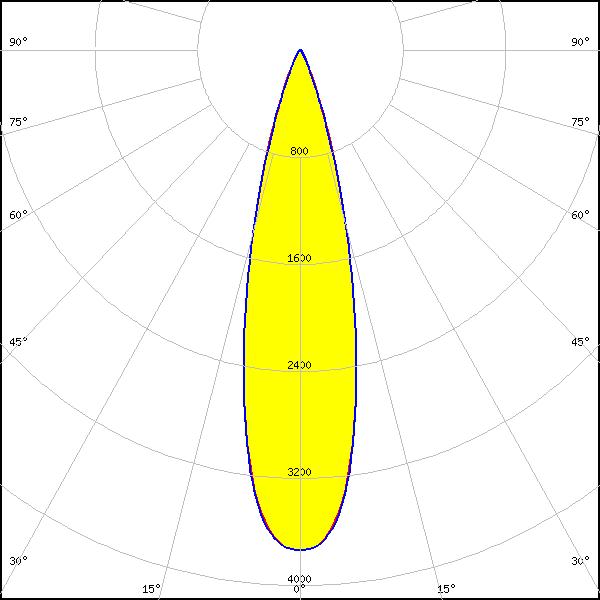

COB S-Type (LES 7)
Ordering code: C17791_AMY-45-M
LES size: 6.7 mm
Required components:
FWHM:
26°
FWTM:
45°
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

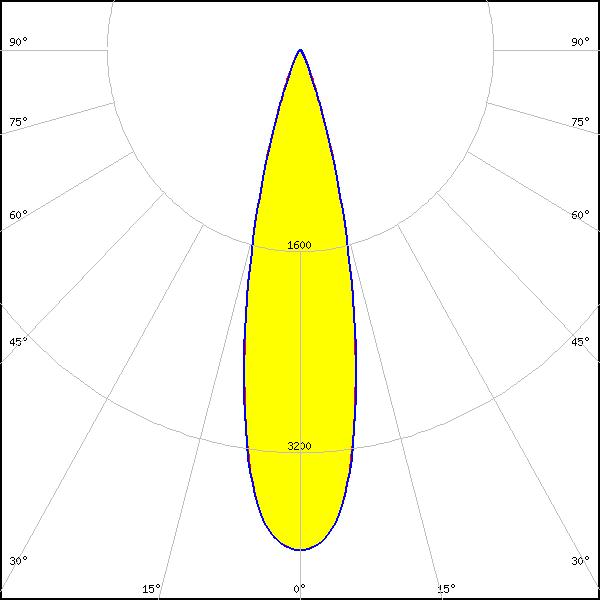

COB T-Type
Ordering code: C17791_AMY-45-M
LES size: 5.9 mm
Required components:
FWHM:
25°
FWTM:
43°
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

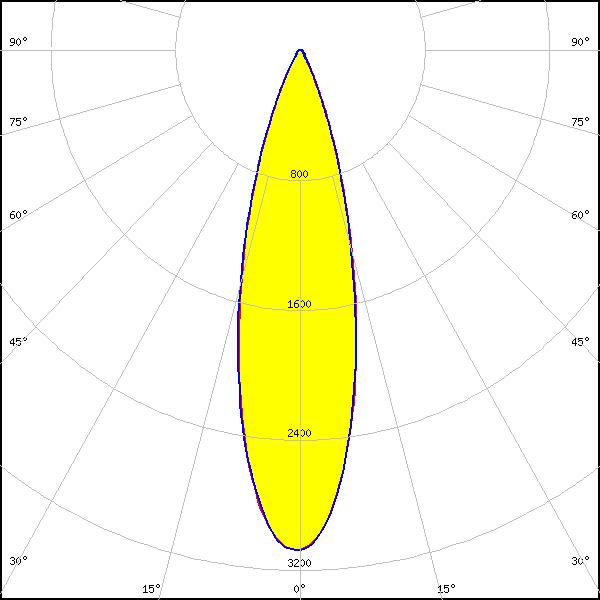

LC003D / LC006D / LC009D / LC013D
Ordering code: C17791_AMY-45-M
LES size: 9.8 mm
FWHM:
28°
FWTM:
52°
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

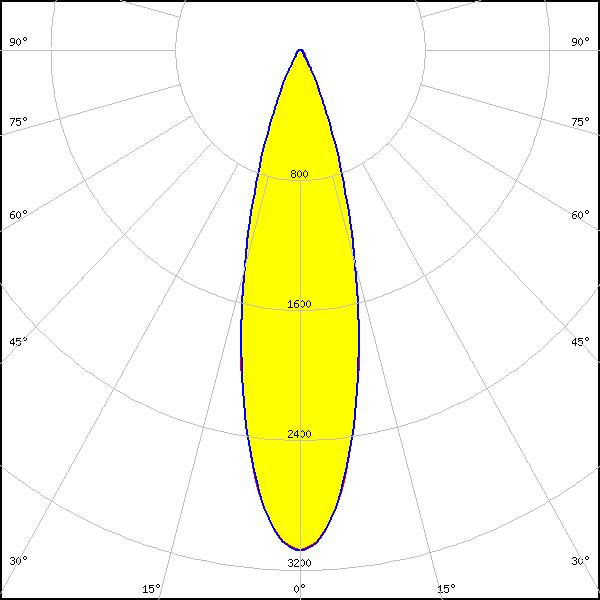

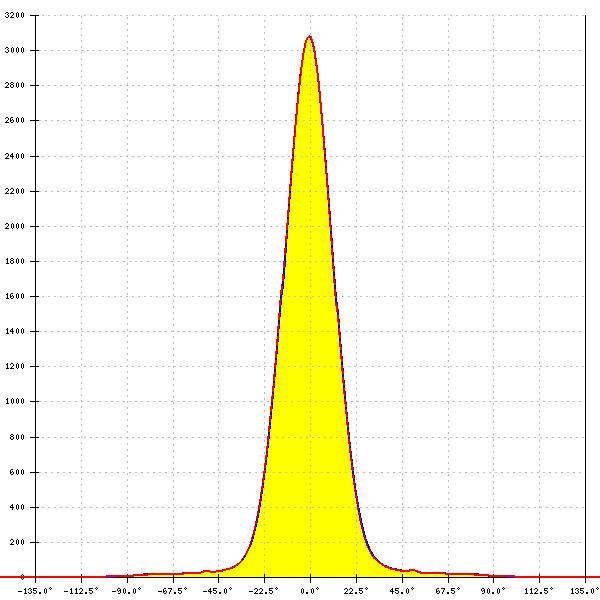

LC003D / LC006D / LC009D / LC013D
Ordering code: C17791_AMY-45-M
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
28°
FWTM:
52°

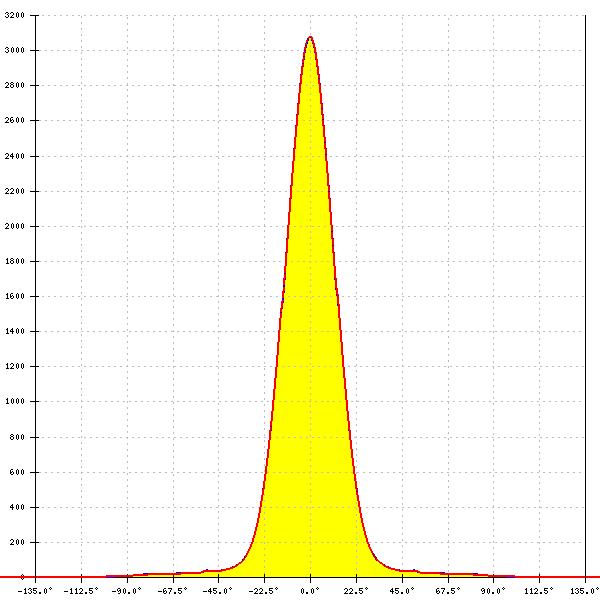

Peak intensity:
3.078 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

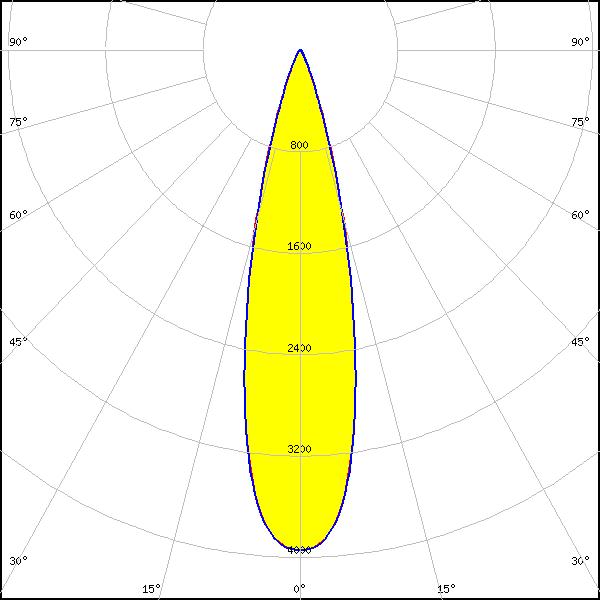

MJT COB LES 6
Ordering code: C17791_AMY-45-M
LES size: 6.0 mm
Required components:
FWHM:
25°
FWTM:
43°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

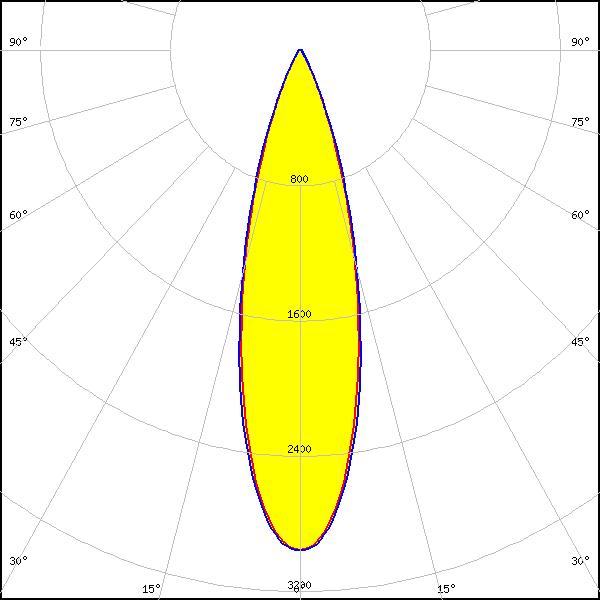

MJT COB LES 9.8
Ordering code: C17791_AMY-45-M
LES size: 9.8 mm
Required components:
FWHM:
28°
FWTM:
51°
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
