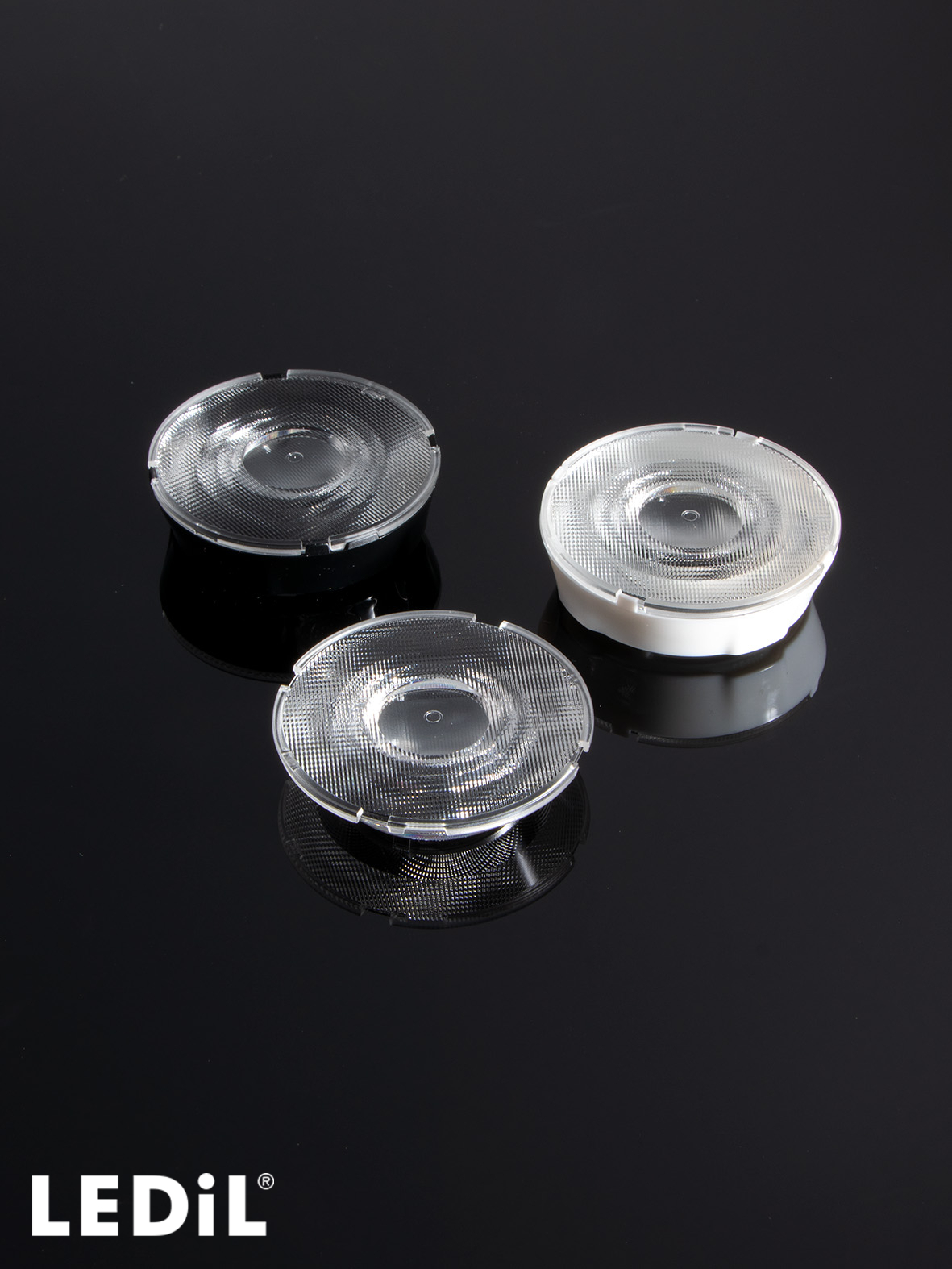

    AMY-45-O

    Print

    ~20 + 50° oval beam

    This product consists of multiple buying options, and different options may have different packaging information. Check the product datasheet for more details.

    Variants made from polycarbonate (PC) may have a higher Minimum Order Quantity (MOQ) than listed below. Contact us for details.

    Specification
    • Dimensions:
      45 mm
    • Height:
      10.00 mm
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • L20503_AMY-45-O
      clear
    • Assembly

      (single lens, holder)

    • LP20504_AMY-45-O-B
      black,Holder B
    • LP20505_AMY-45-O-B-WHT
      white
    • Packaging information in the product datasheet
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      L20503_AMY-45-O
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New beams and products – October 2026

    News

    AMY oval – the smart choice for aisle lighting

    Compatibility guide

    LEDiL connector and socket compatibility guide

    Catalogue

    LEDiL Latest products catalogue 2026

    News

    Illuminate with elegance – discover the versatility of AMY

    News

    New products – February 2024

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Luminaire, example

    Track light luminaire with AMY family

    News

    LEDiL AMY, the perfect choice for slim, elegant luminaire designs

    Application guide

    Guide for Architectural lighting optics

    Application guide

    Guide for Office Lighting Optics

    Application guide

    Guide for Retail Lighting Optics

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

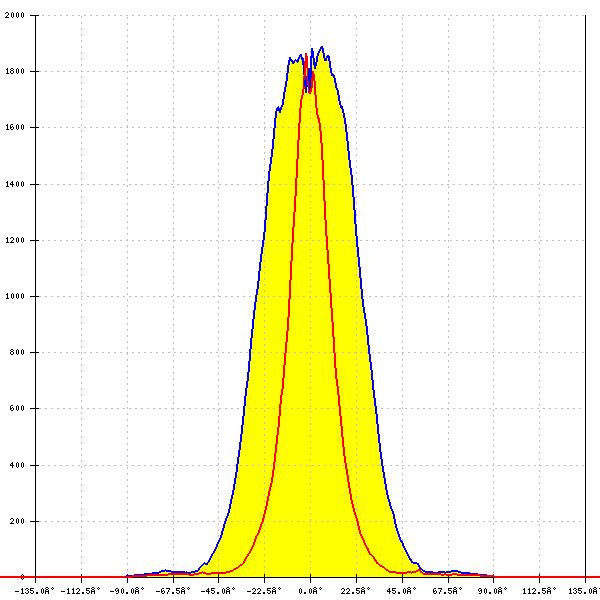

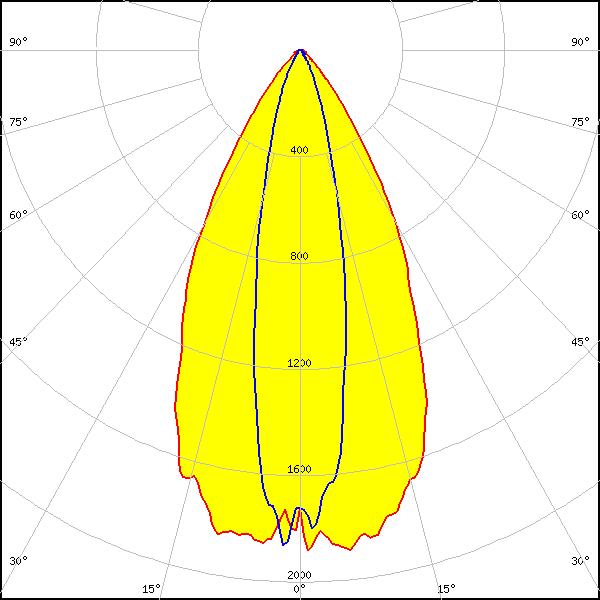

    Optical results

    LED: CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    C18968_SOCKET-B-35-C
    L20518_AMY-45-HLD2-B-ASYM
    FWHM: 54° + 22°
    FWTM: 84° + 48°
    Peak intensity: 1.925 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

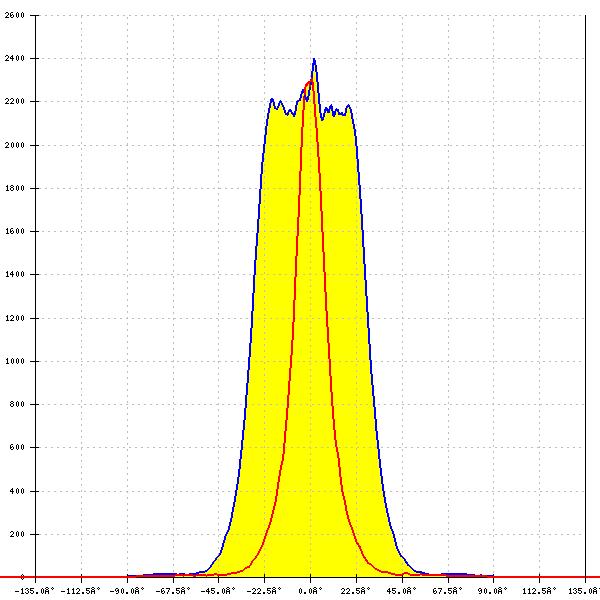

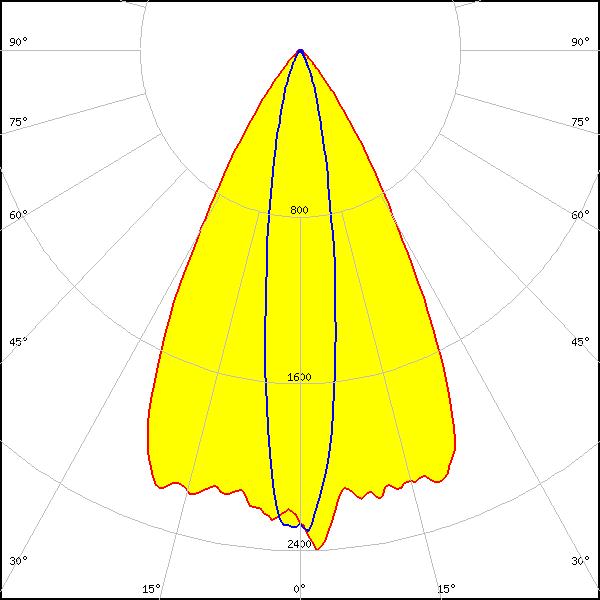

    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    C18968_SOCKET-B-35-C
    L20518_AMY-45-HLD2-B-ASYM
    FWHM: 57° + 18°
    FWTM: 79° + 40°
    Peak intensity: 2.527 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
