AMY-110-S
Print
~18° spot beam
B variants fit ∅50 mm B+W and BJB connectors.
This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.
Component Materials
- AMY-110-SSingle lensPMMA
- AMY-110-HLD-C-WHTHolderPC
- AMY-110-HLD-CHolderPC
- AMY-110-HLD-B-WHTHolderPC
- AMY-110-HLD-BHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:
V10 Gen 8-9
Ordering code: CP18557_AMY-110-S-C
LES size: 10.0 mm
Required components:
FWHM:
12°
FWTM:
30°
Peak intensity:
11.230 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V11 HD Gen 8
Ordering code: CP18557_AMY-110-S-C
LES size: 11.3 mm
Required components:
FWHM:
12°
FWTM:
32°
Peak intensity:
9.857 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V8 Gen 8-9
Ordering code: CP18557_AMY-110-S-C
LES size: 8.5 mm
Required components:
FWHM:
12°
FWTM:
28°
Peak intensity:
12.611 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V9 HD Gen 8
Ordering code: CP18557_AMY-110-S-C
LES size: 8.8 mm
Required components:
FWHM:
10°
FWTM:
28°
Peak intensity:
12.998 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

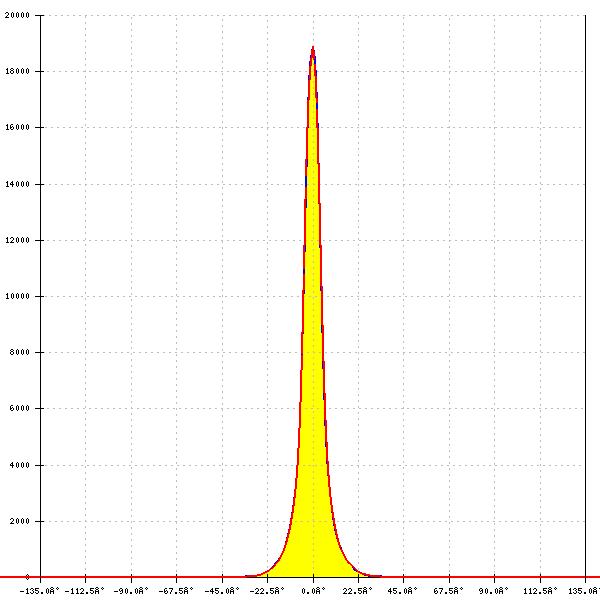

LED:
CLU7A2/7A3
Ordering code: CP18557_AMY-110-S-C
LES size: 4.2 mm
Required components:
FWHM:
10°
FWTM:
22°
Peak intensity:
18.882 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7A3 Type-F
Ordering code: CP18557_AMY-110-S-C
LES size: 4.2 mm
Required components:
FWHM:
10°
FWTM:
27°
Peak intensity:
13.368 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTW0910
Ordering code: CP18557_AMY-110-S-C
LES size: 9.0 mm
Required components:
FWHM:
10°
FWTM:
26°
Peak intensity:
13.394 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
LUXEON CoB 1205HD
Ordering code: CP18557_AMY-110-S-C
LES size: 11.0 mm
Required components:
FWHM:
12°
FWTM:
32°
Peak intensity:
9.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB M02 / M03 (Gen2)
Ordering code: CP18557_AMY-110-S-C
LES size: 9.0 mm
Required components:
FWHM:
12°
FWTM:
29°
Peak intensity:
11.706 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
