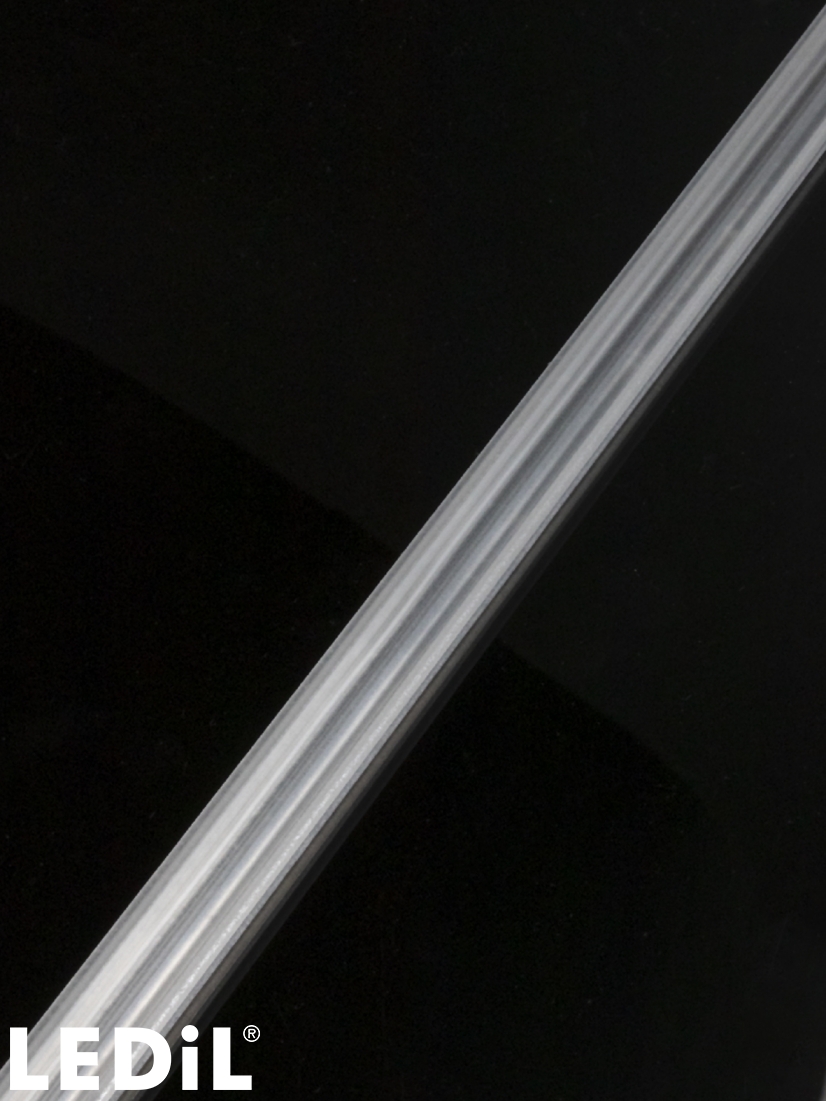

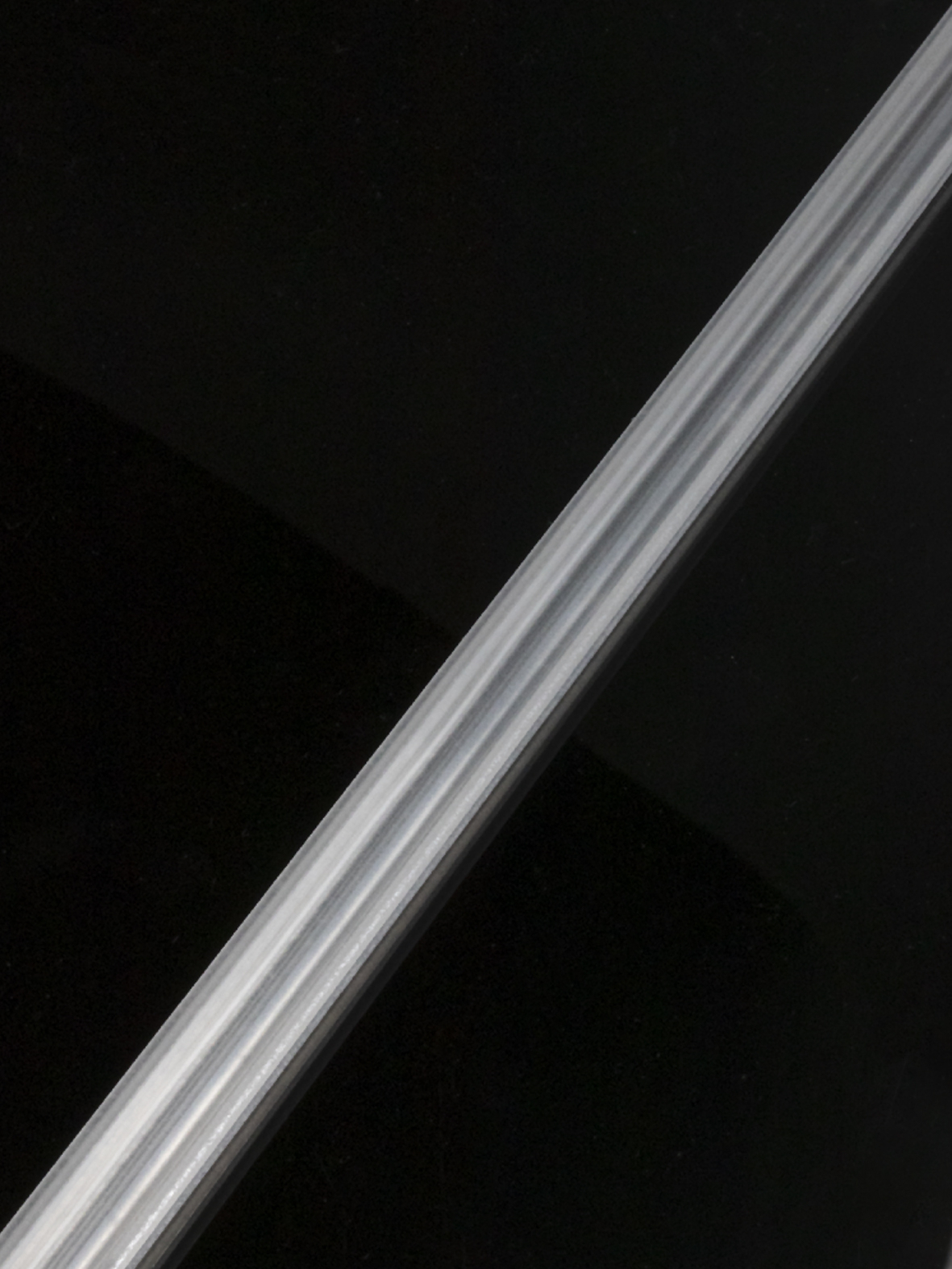

C18074_LINDA-10-M

Print

~40° + 85° wide beam

Specification
  • Dimensions:
    13 x  1140 mm
  • Height:
    5.10 mm
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    150 pcs
  • Box size:
    1185 x 150 x 80 mm
  • Box weight:
    8.2 kg
  • MPQ:
    150 pcs
  • MOQ:
    150 pcs
  • MOQ size:
    1185 x 150 x 80 mm
  • MOQ weight:
    8.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C18074_LINDA-10-M

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

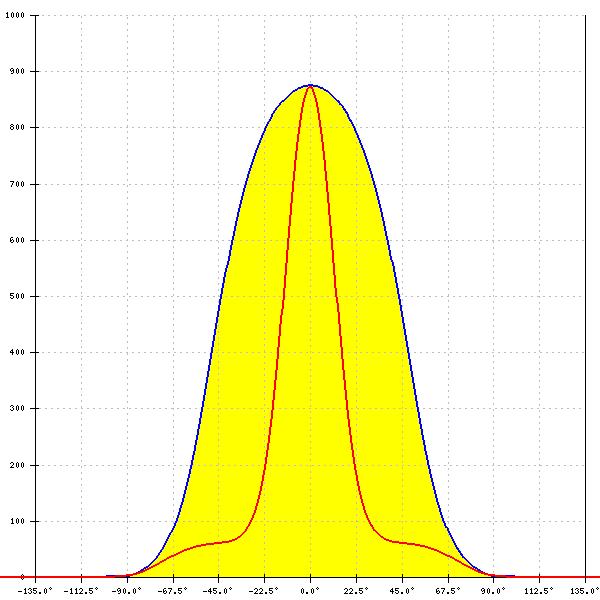

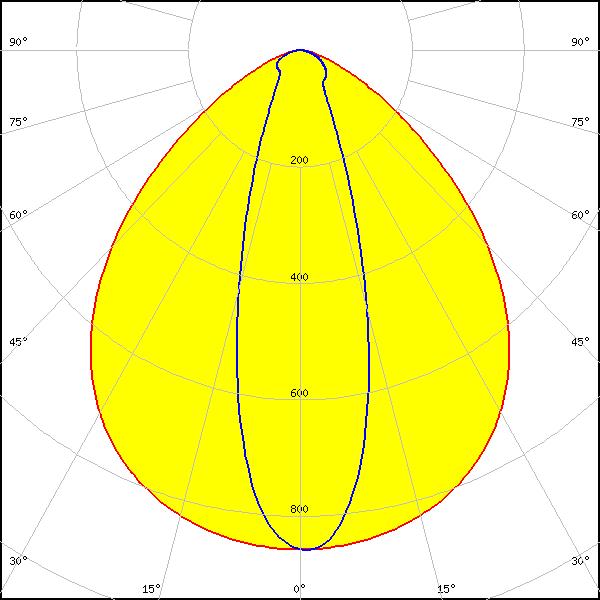

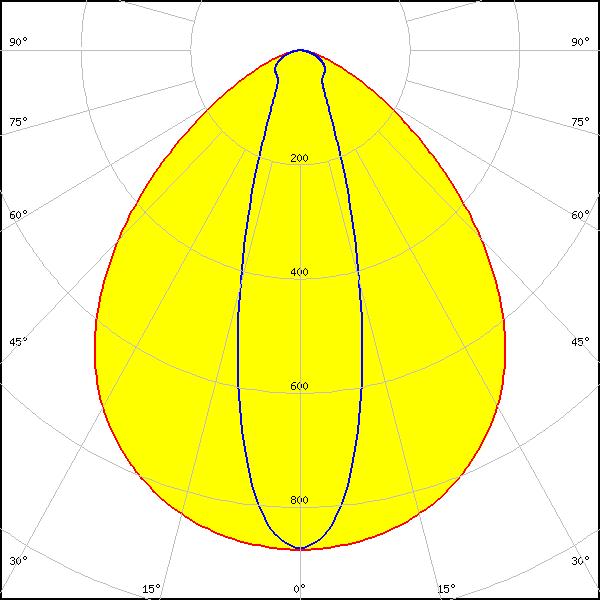

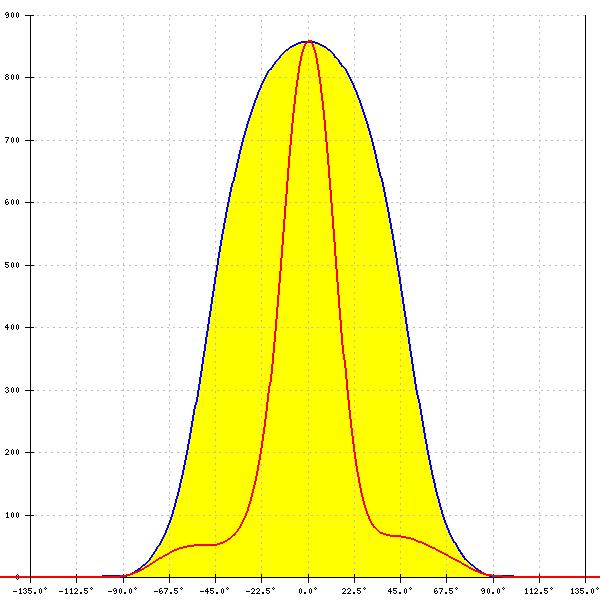

LED: LUXEON 3014
FWHM: 95° + 31°
FWTM: 135° + 64°
Peak intensity: 0.859 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 3014
FWHM: 93° + 30°
FWTM: 135° + 62°
Peak intensity: 0.875 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

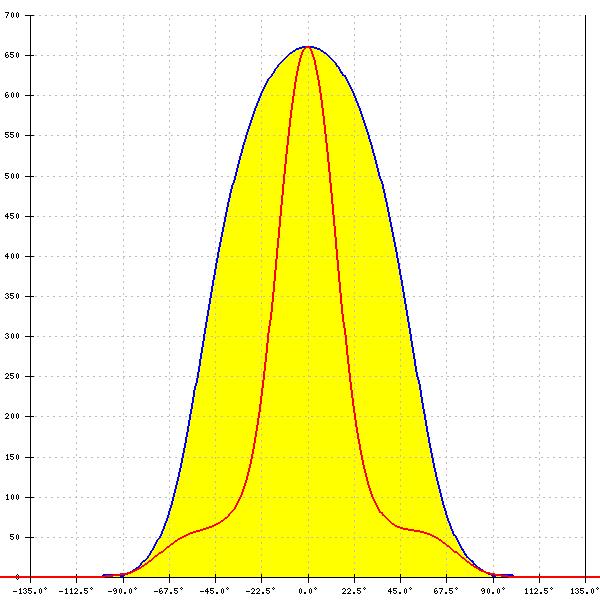

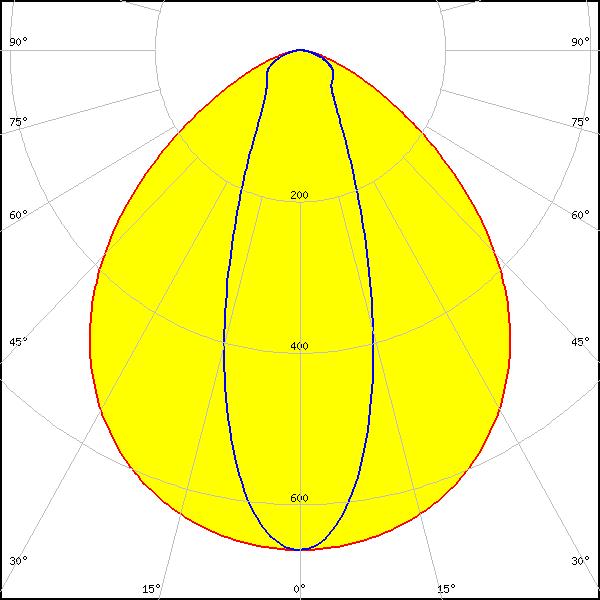

LED: LUXEON 3030 2D (Round LES)
FWHM: 35° + 97°
FWTM: 85° + 139°
Peak intensity: 0.661 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

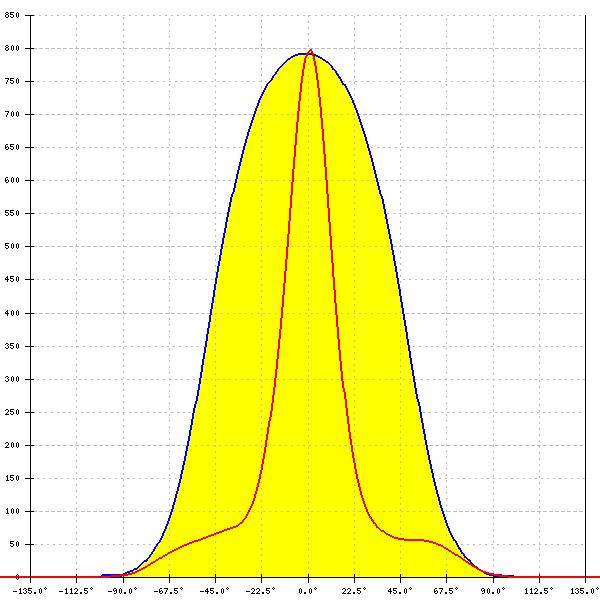

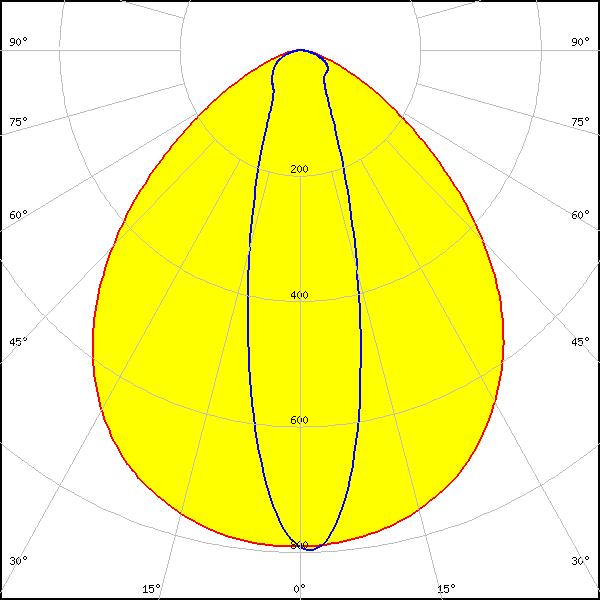

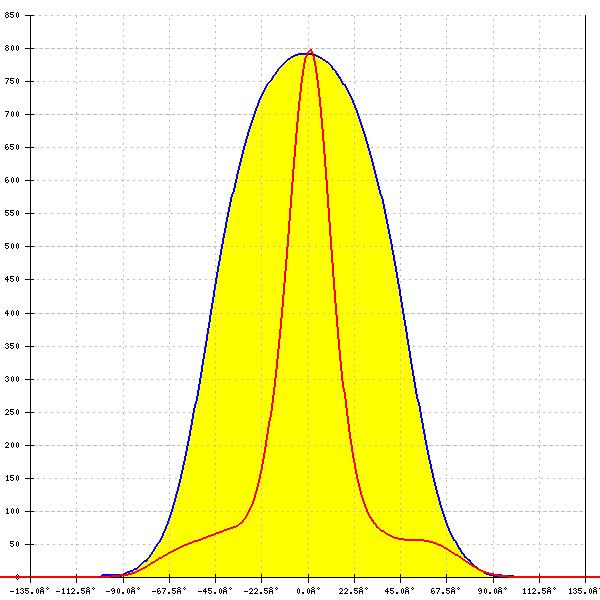

LED: MP-2016
FWHM: 95° + 27°
FWTM: 137° + 67°
Peak intensity: 0.797 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

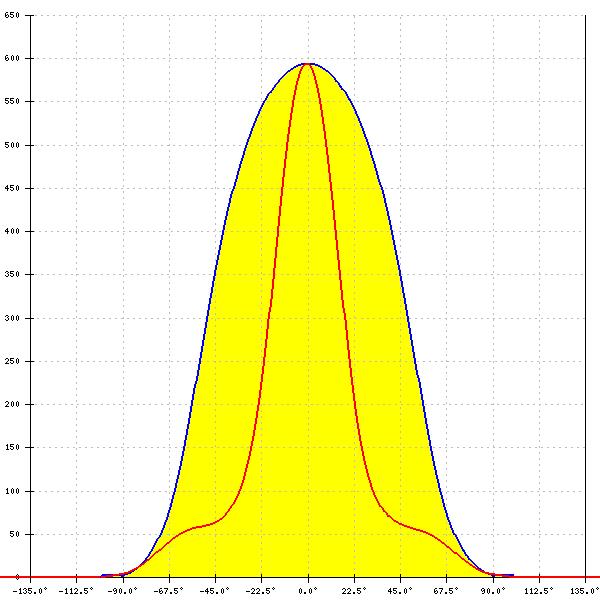

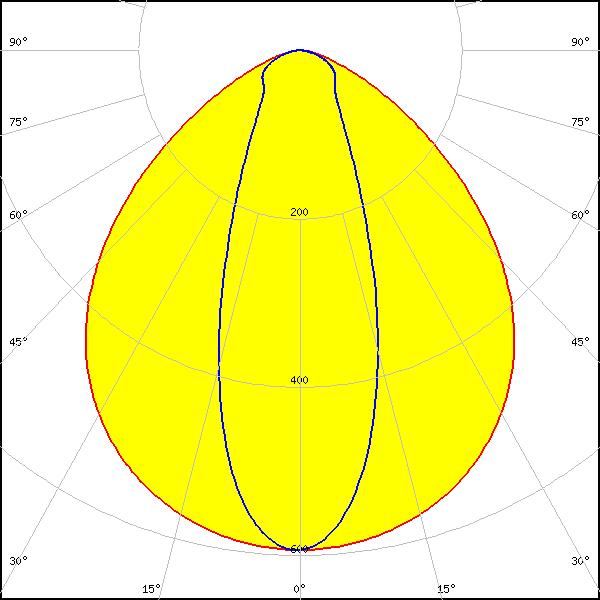

LED: NF2x757G
FWHM: 98° + 37°
FWTM: 140° + 97°
Peak intensity: 0.594 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White

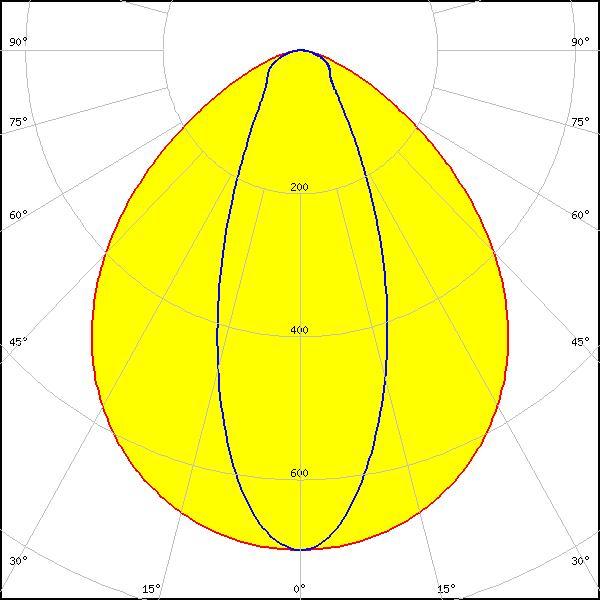

LED: NFSW757H
FWHM: 97° + 41°
FWTM: 139° + 89°
Peak intensity: 0.699 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

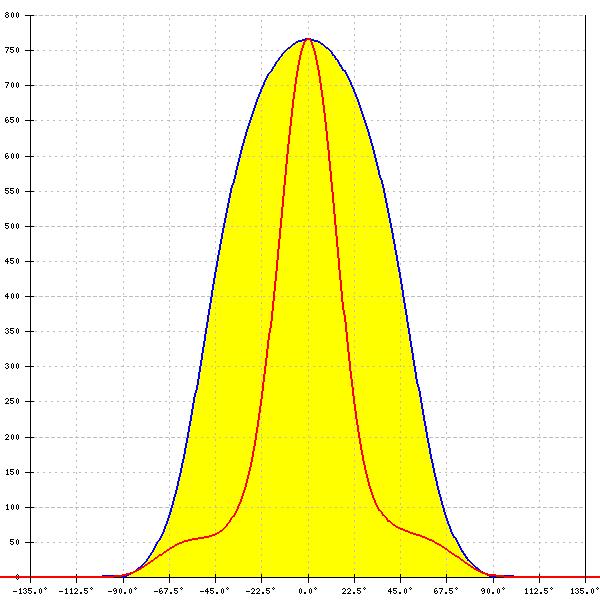

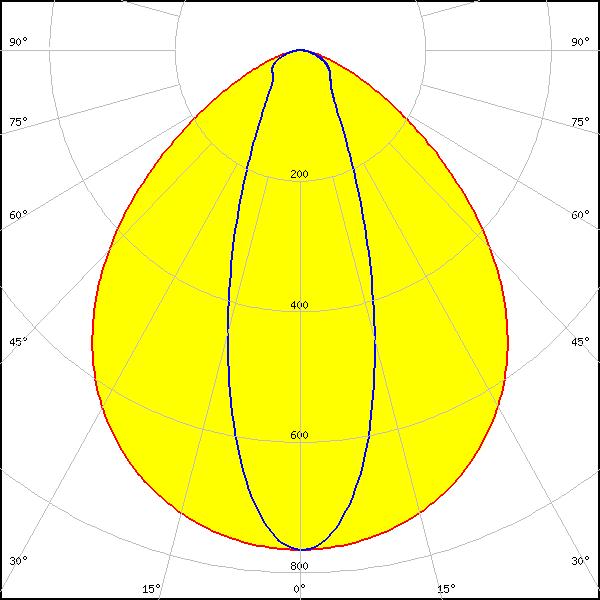

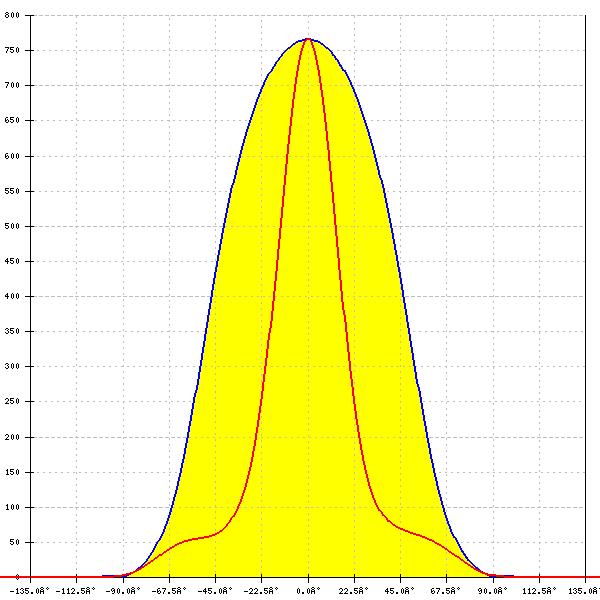

LED: Duris S5 (Single chip)
FWHM: 96° + 35°
FWTM: 138° + 79°
Peak intensity: 0.766 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

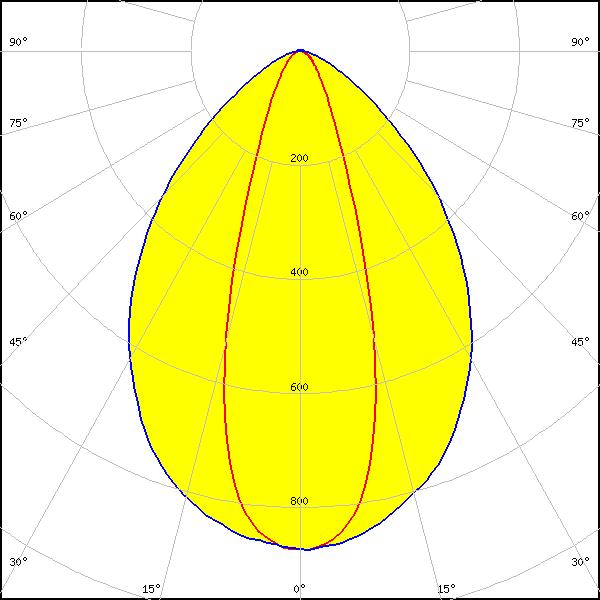

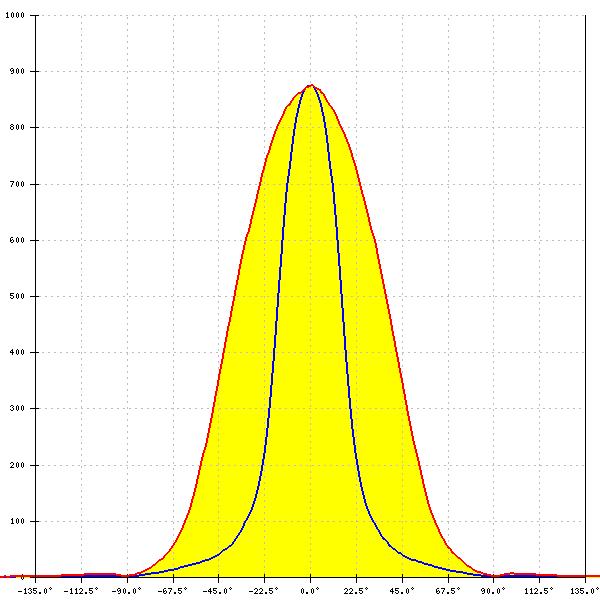

LED: LM28xB Series
FWHM: 34° + 80°
FWTM: 66° + 125°
Peak intensity: 0.876 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

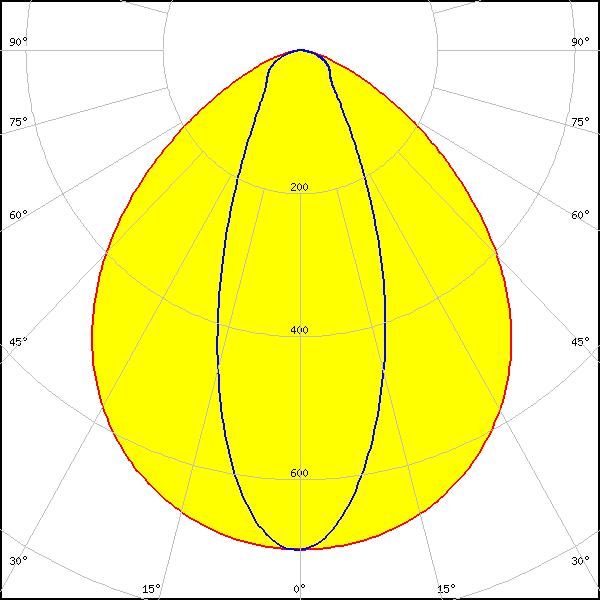

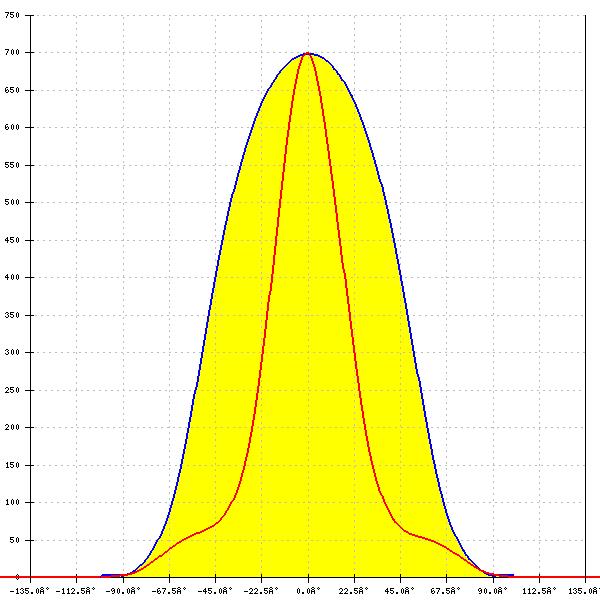

LED: LM301B
FWHM: 97° + 40°
FWTM: 140° + 89°
Peak intensity: 0.699 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL 3030
FWHM: 96° + 36°
FWTM: 138° + 79°
Peak intensity: 0.732 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

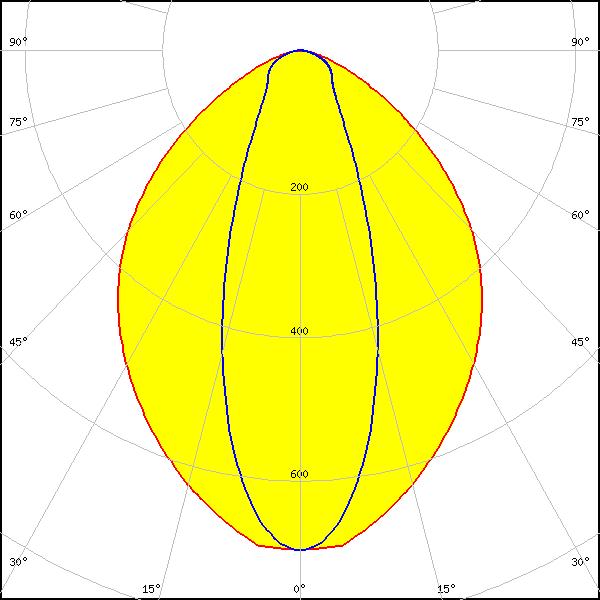

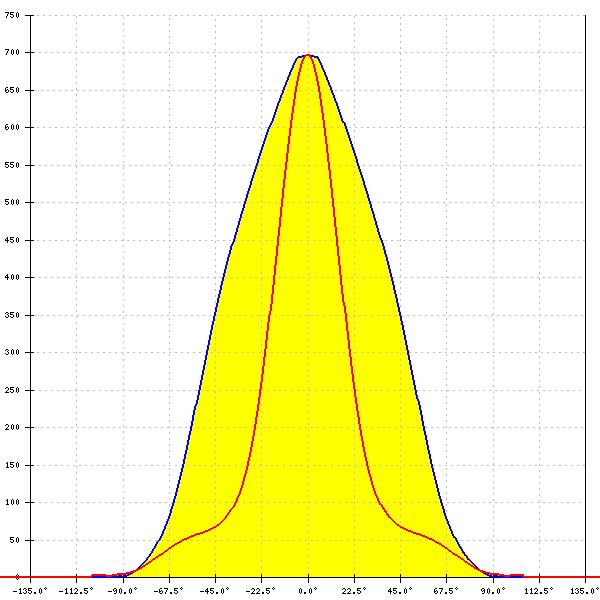

LED: LLE FLEX 8mm EXC3
FWHM: 91° + 37°
FWTM: 138° + 88°
Peak intensity: 0.697 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
