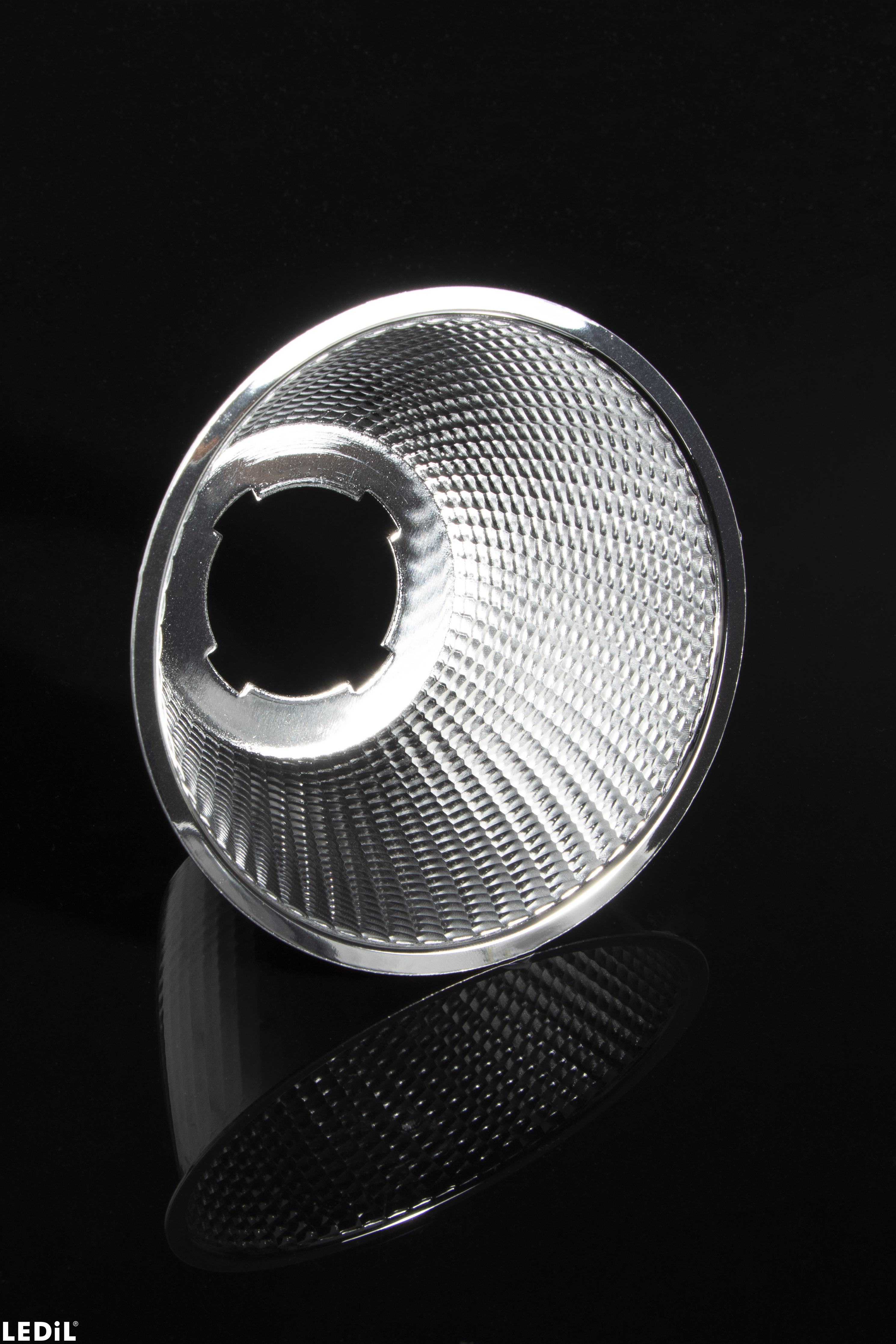

    C18658_ADELIA-110-WW

    Print

    ~55° wide beam

    Specification
    • Dimensions:
      110 mm
    • Height:
      57.90 mm
    • Fastening:
      snaps
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      300 pcs
    • Box size:
      400 x 280 x 280 mm
    • Box weight:
      11.6 kg
    • MPQ:
      50 pcs
    • MOQ:
      50 pcs
    • MOQ size:
      320 x 230 x 150 mm
    • MOQ weight:
      2.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18658_ADELIA-110-WW

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New products – June 29, 2022

    Application example

    Track light example with ADELIA

    Luminaire, example

    Track light luminaire with ADELIA

    News

    ADELIA – visual perfection

    Compatible product

    B+W 630 Hekla datasheet

    Application guide

    LEDiL guide for retail lighting optics

    News

    New products – January, 2023

    Article

    Explore new retail lighting opportunities

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    ADELIA-110-ADAPTER-C

    Adapter for ADELIA reflectors. Compatible with HEKLA interface.

    VERO29SE-ADAPTER

    Adapter for ADELIA-110 and AMY-110. Compatible with Bridgelux VERO 29 SE interface.

    ADELIA-110-ADAPTER-B

    Adapter for ADELIA reflectors. Compatible with BJB and B+W connectors.

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    Optical results

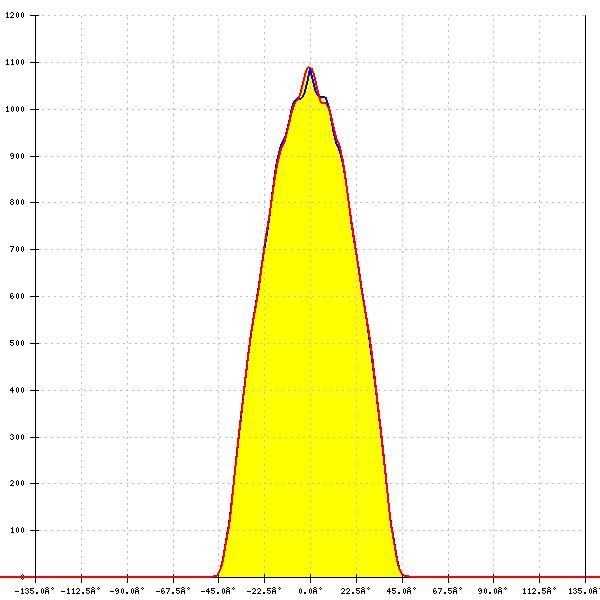

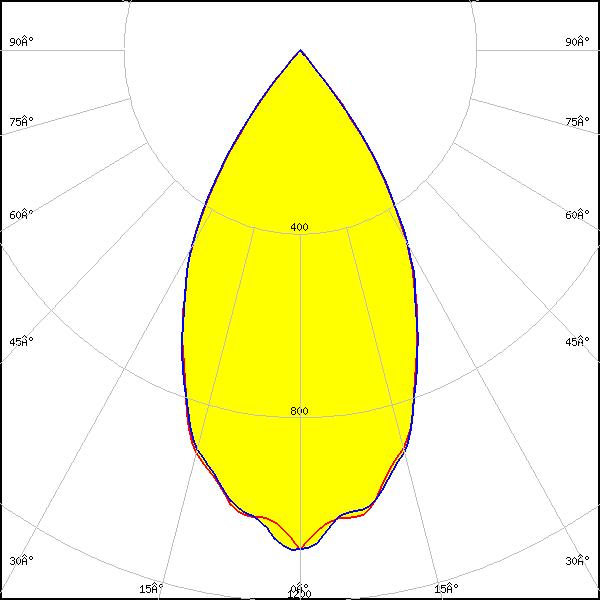

    LED: V18 Gen 8-9
    LES size: 19.6 mm
    Required components:
    Bender Wirth: 639b Hekla XL
    C18323_ADELIA-110-ADAPTER-C
    FWHM: 56°
    FWTM: 80°
    Peak intensity: 1.099 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

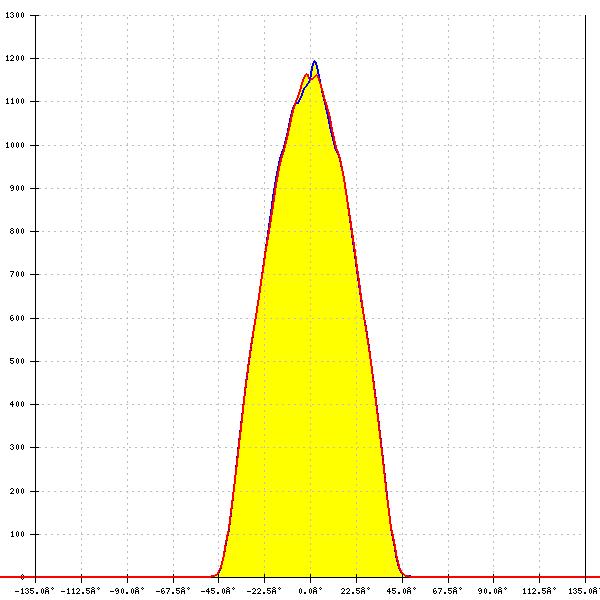

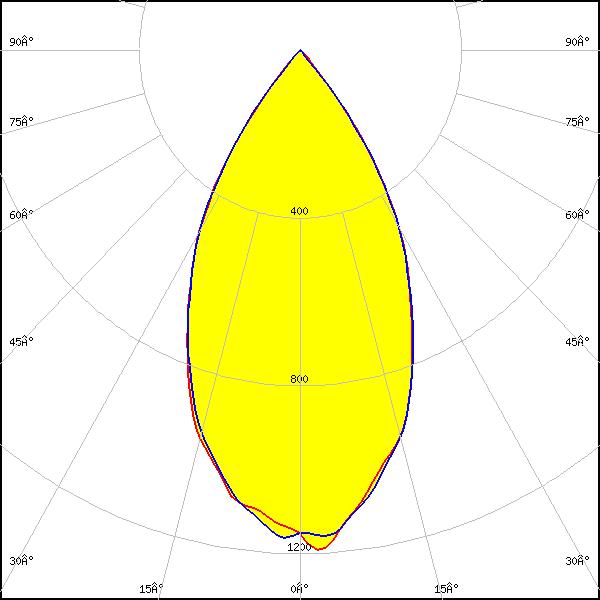

    LED: V22 Gen 8-9
    LES size: 23.3 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    C18323_ADELIA-110-ADAPTER-C
    FWHM: 54°
    FWTM: 80°
    Peak intensity: 1.202 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

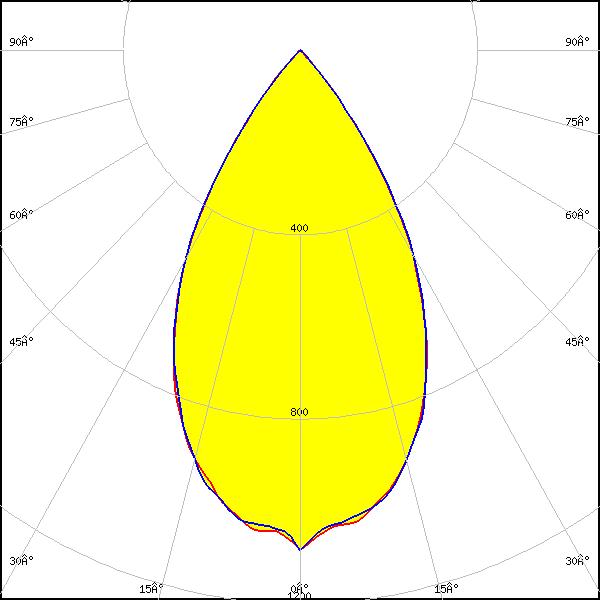

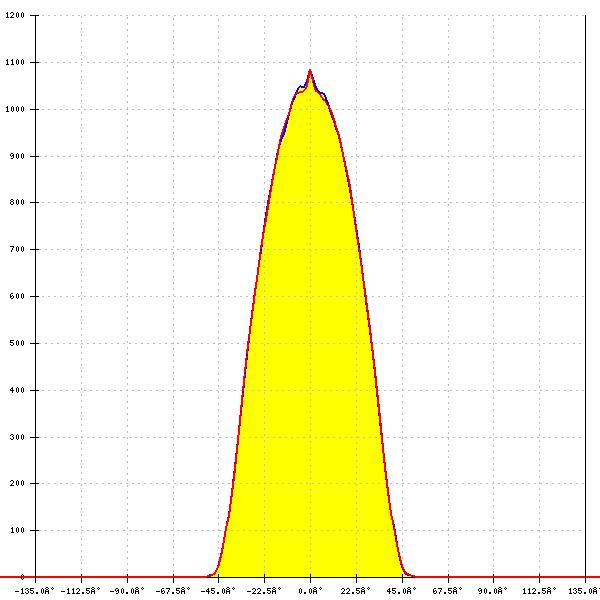

    LED: Vero SE 29
    LES size: 29.2 mm
    FWHM: 58°
    FWTM: 82°
    Peak intensity: 1.100 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

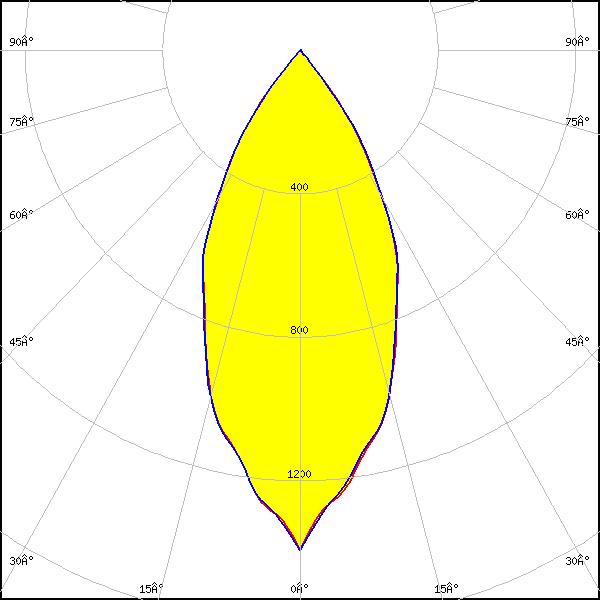

    LED: VERO13
    LES size: 13.4 mm
    Required components:
    C18264_HEKLA-SOCKET-VERO18
    C18323_ADELIA-110-ADAPTER-C
    FWHM: 48°
    FWTM: 78°
    Peak intensity: 1.395 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

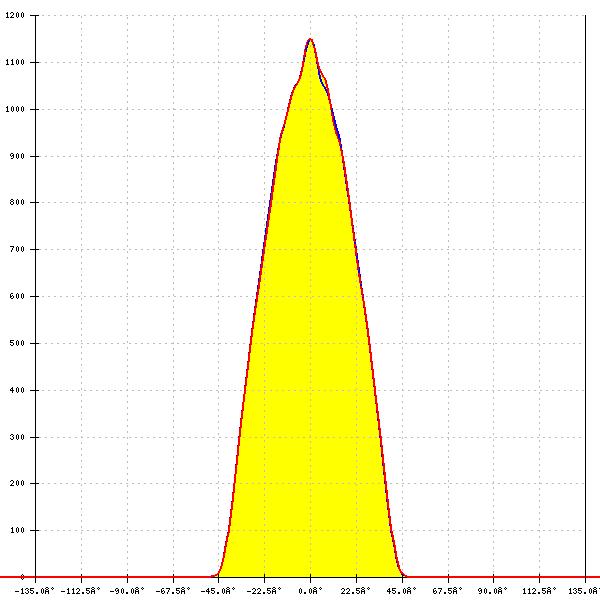

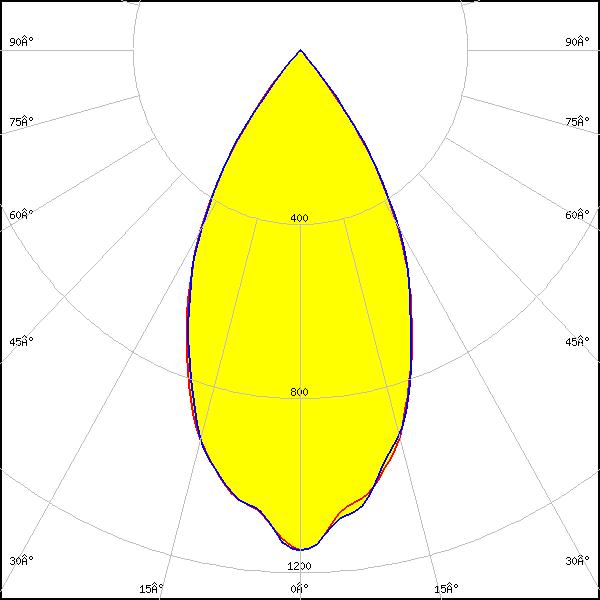

    LED: VERO18
    LES size: 18.6 mm
    Required components:
    C18264_HEKLA-SOCKET-VERO18
    C18323_ADELIA-110-ADAPTER-C
    FWHM: 54°
    FWTM: 80°
    Peak intensity: 1.151 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
