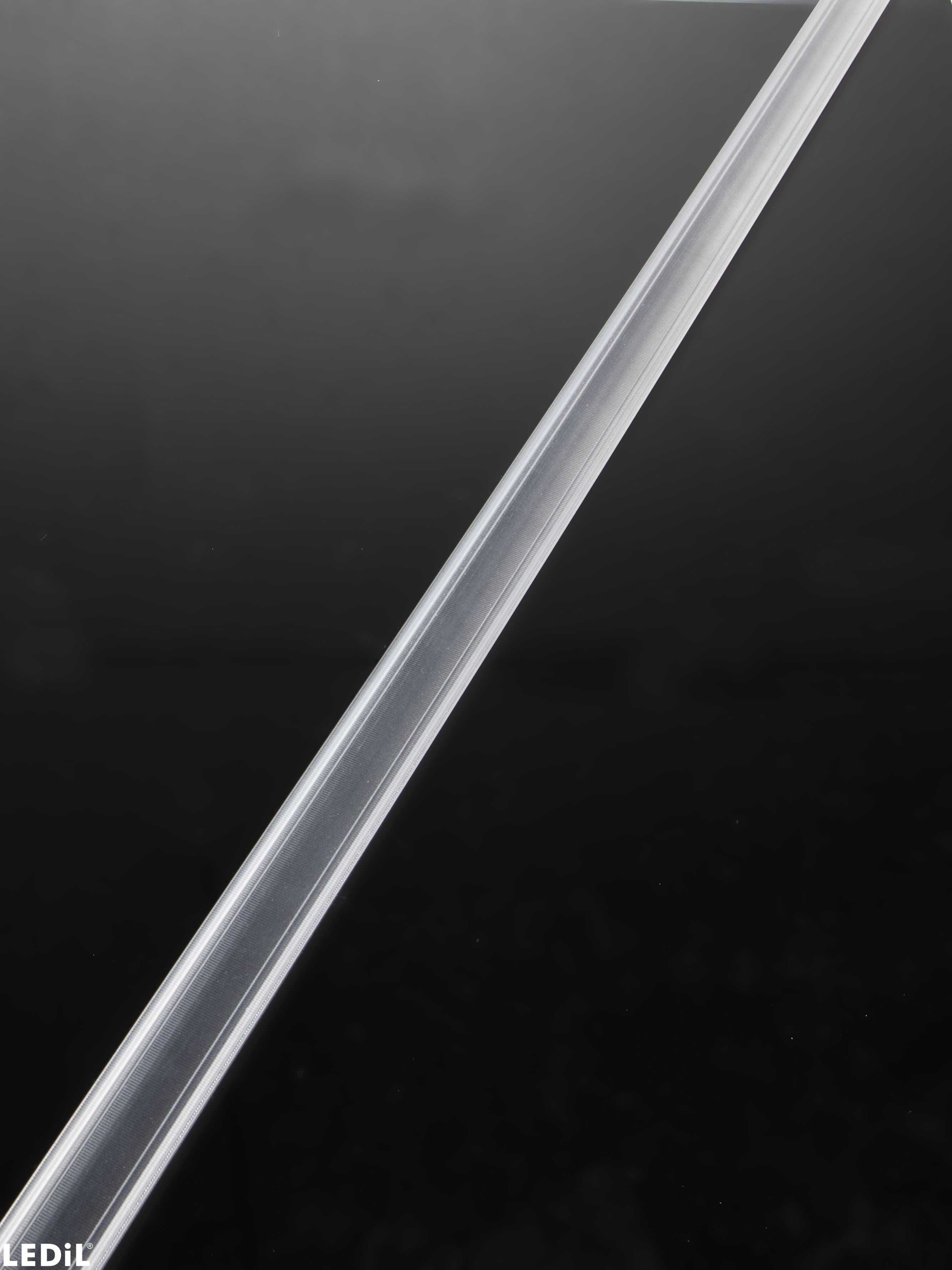

F17194_LINDA-WW2

Print

~90° + 100° wide beam

Specification
  • Dimensions:
    26 x  1140 mm
  • Height:
    5.30 mm
  • Colour:
    milky
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    160 pcs
  • Box size:
    1200x160x120 mm
  • Box weight:
    11.4 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    1200x160x120 mm
  • MOQ weight:
    11.4 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    F17194_LINDA-WW2
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Other variants: F17450_LINDA-WW2-48in (North American 48 inch length)
F17322_LINDA-WW2-3m (3.01 m length) and other custom lengths available

Optical results

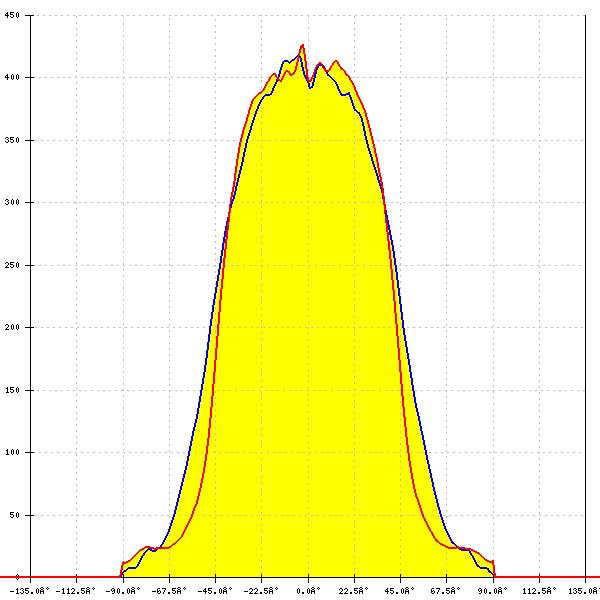

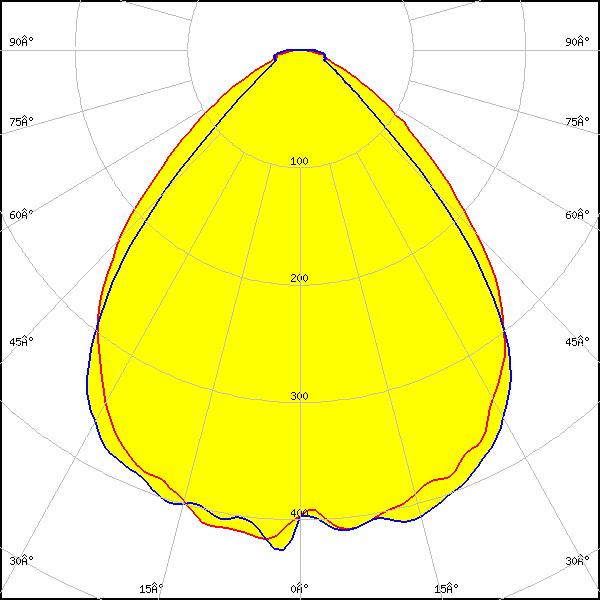

LED: Bridgelux SMD 5050
FWHM: 93° + 86°
FWTM: 134° + 116°
Peak intensity: 0.426 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

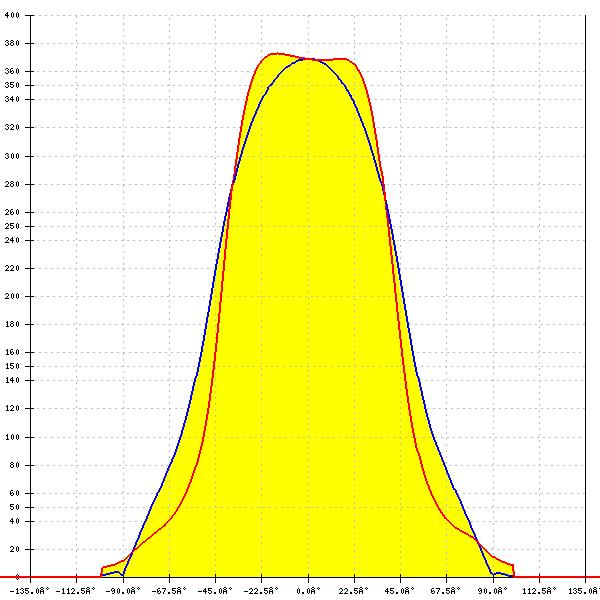

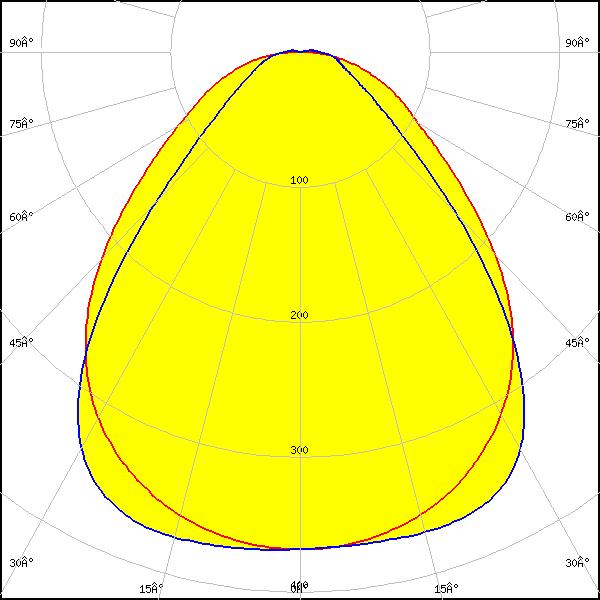

LED: SMD 3030 (BXEM)
FWHM: 98° + 87°
FWTM: 160° + 140°
Peak intensity: 0.373 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: Tunable White

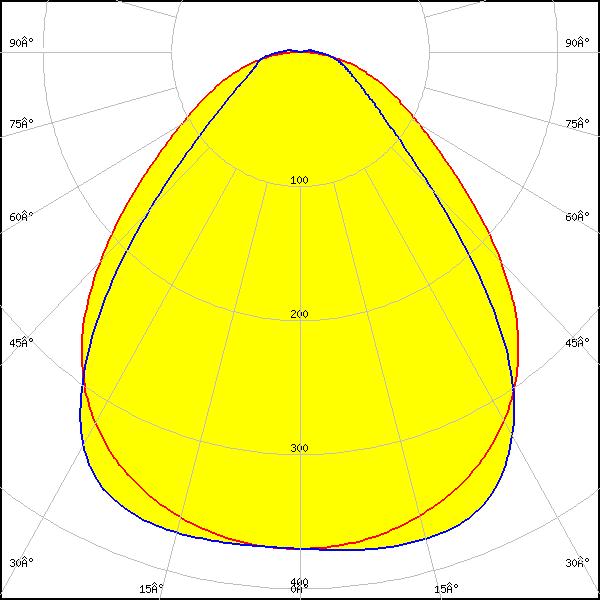

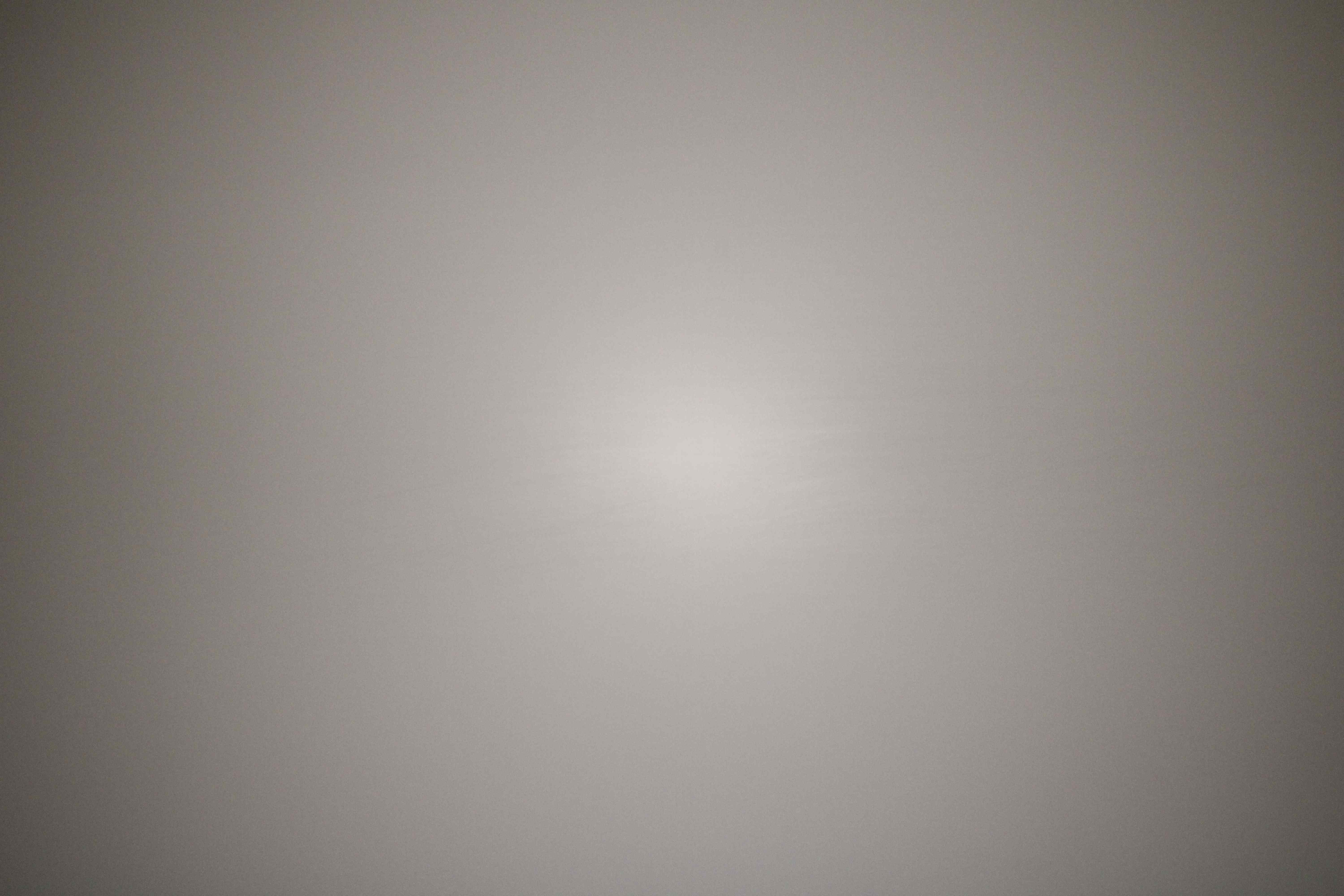

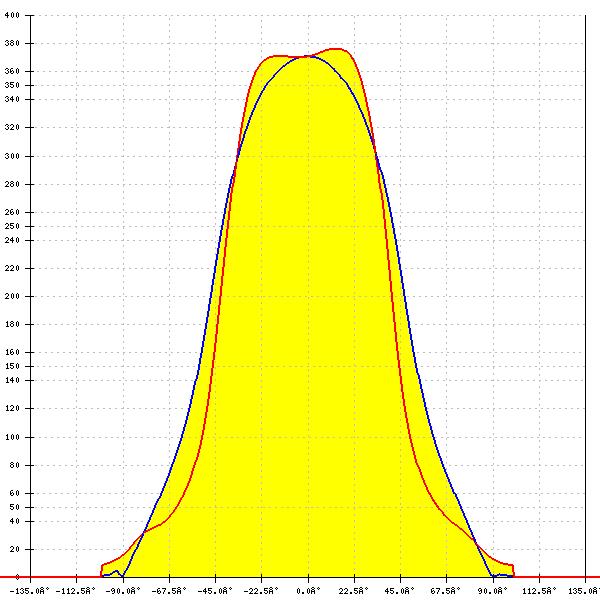

LED: CLUC11
FWHM: 98° + 85°
FWTM: 156° + 143°
Peak intensity: 0.376 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

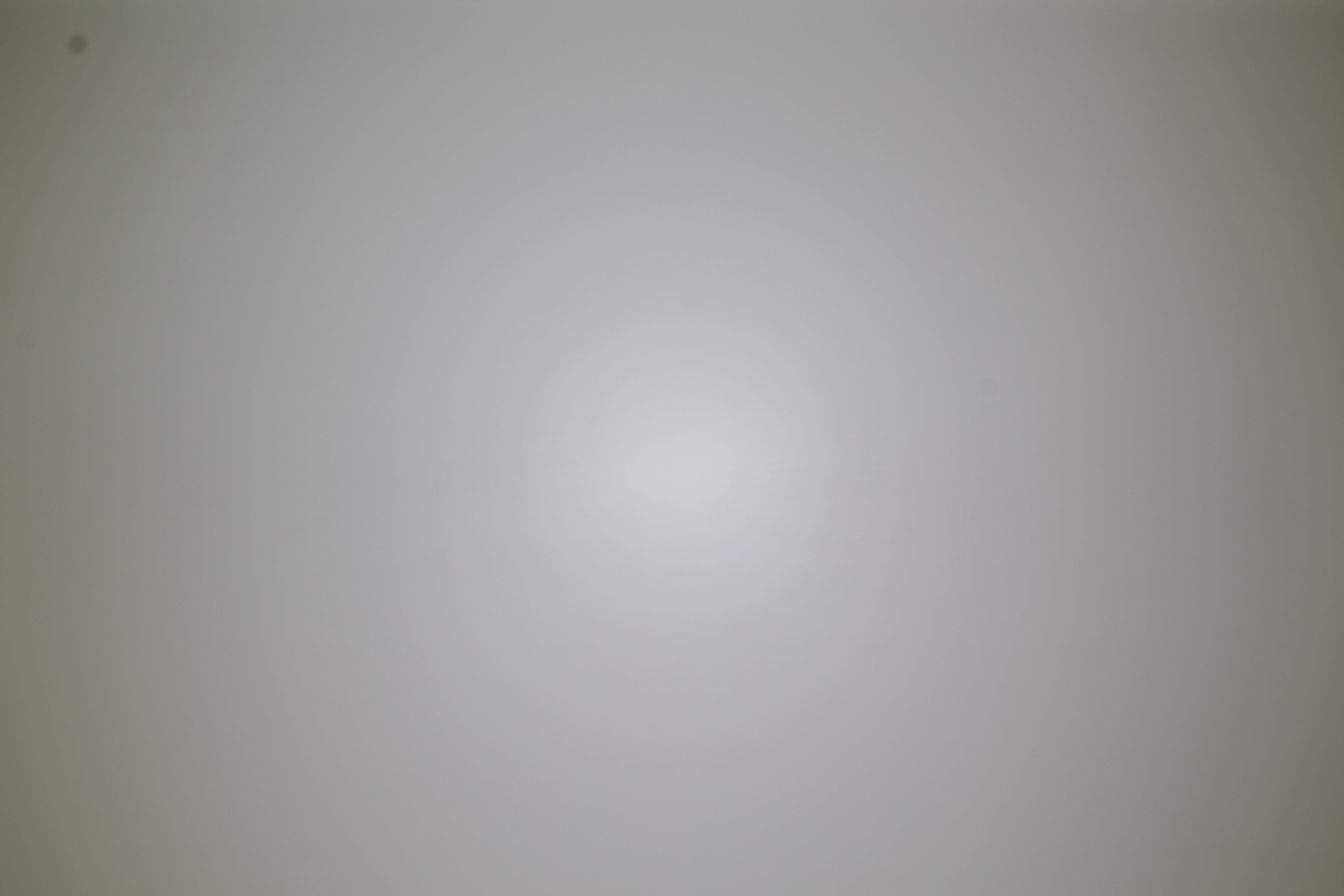

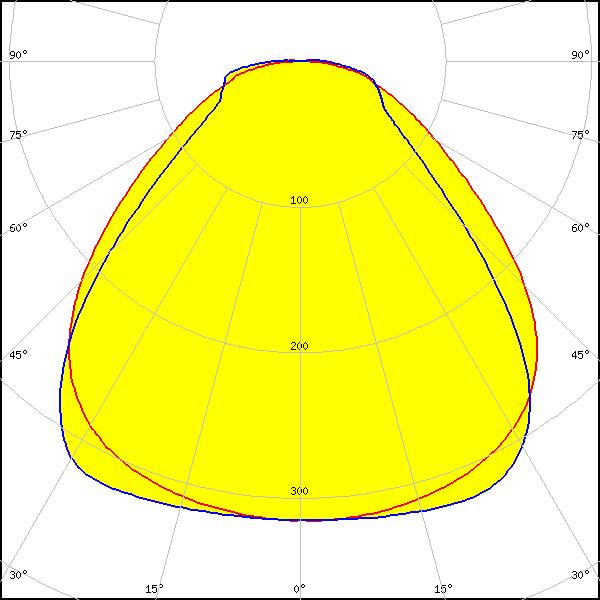

LED: XP-G3
FWHM: 104° + 92°
FWTM: 163° + 170°
Peak intensity: 0.322 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

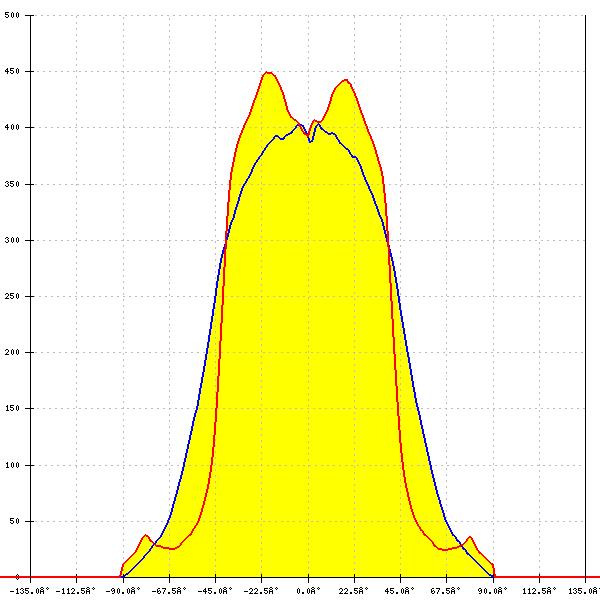

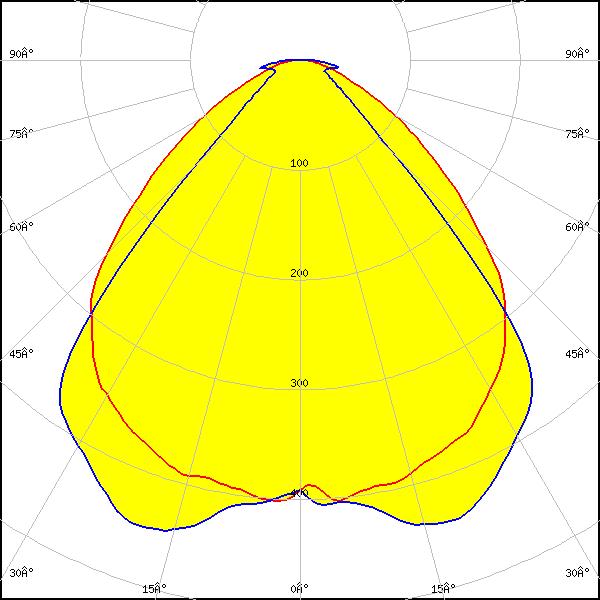

LED: LUXEON CSP HL1
FWHM: 98° + 83°
FWTM: 140° + 109°
Peak intensity: 0.450 cd/lm
Efficiency: 88 %
LEDs/each optic: 5
Light colour/type: White

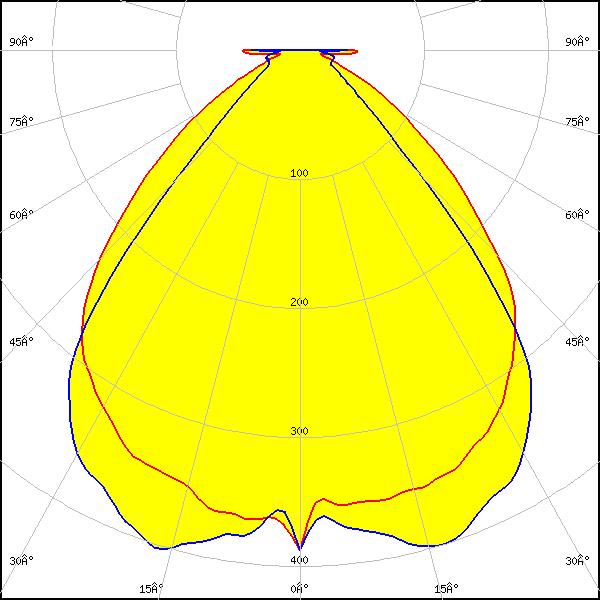

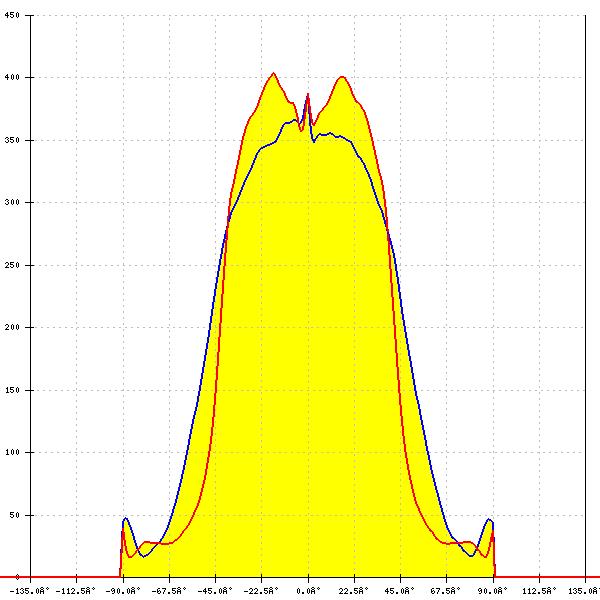

LED: NFSWE11A
FWHM: 96° + 84°
FWTM: 180° + 117°
Peak intensity: 0.403 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: PL-LIN-Z5 1100 280x20
FWHM: 97° + 86°
FWTM: 159° + 135°
Peak intensity: 0.368 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

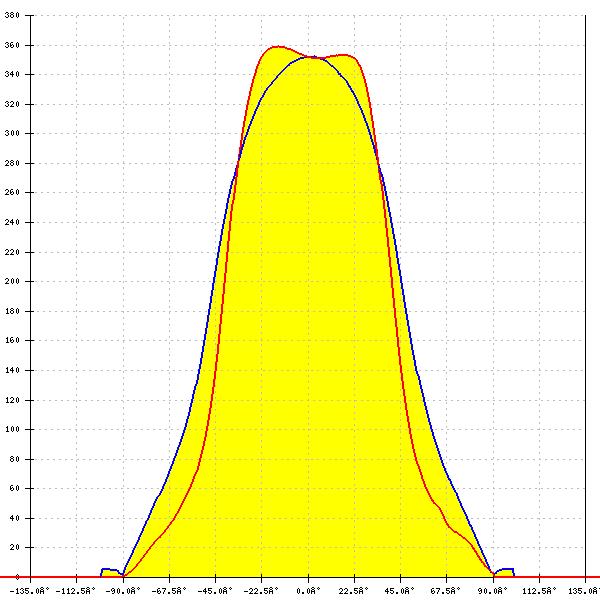

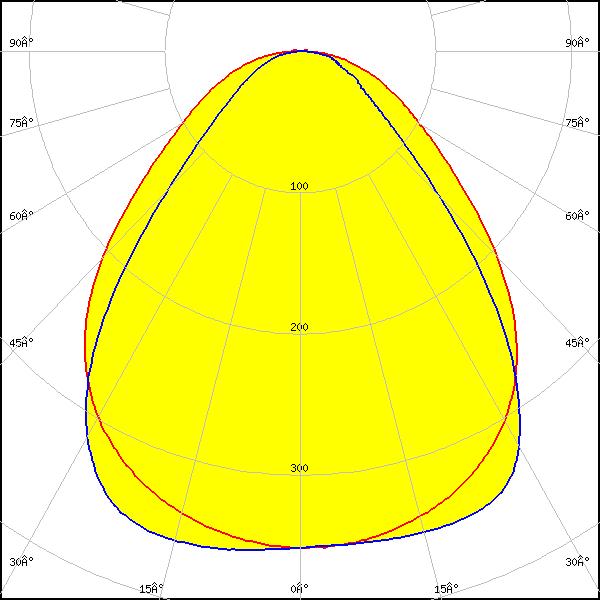

LED: PL-LIN-Z5 2000 280x20
FWHM: 97° + 84°
FWTM: 158° + 135°
Peak intensity: 0.359 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

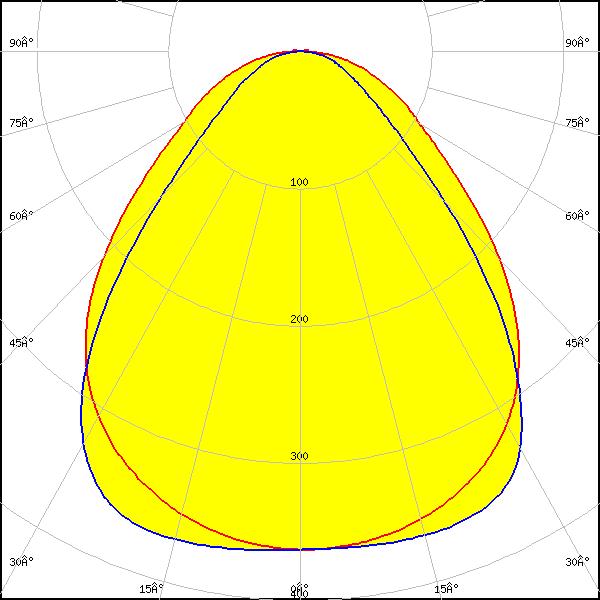

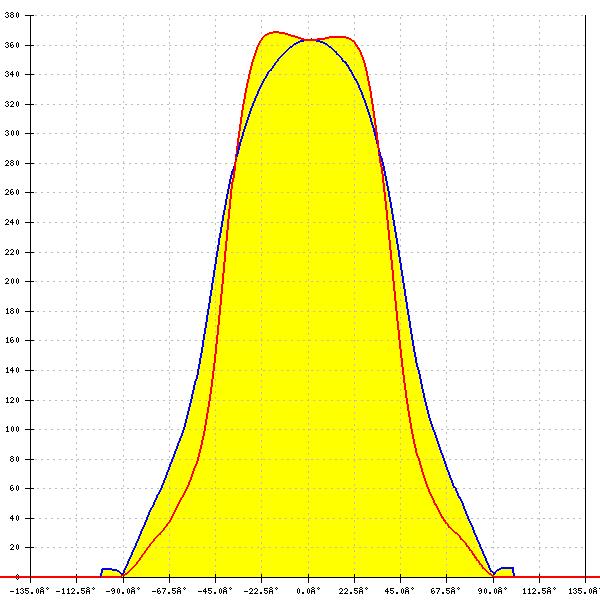

LED: Duris E 2835
FWHM: 97° + 84°
FWTM: 158° + 135°
Peak intensity: 0.359 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris E 2835
FWHM: 97° + 86°
FWTM: 159° + 135°
Peak intensity: 0.368 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

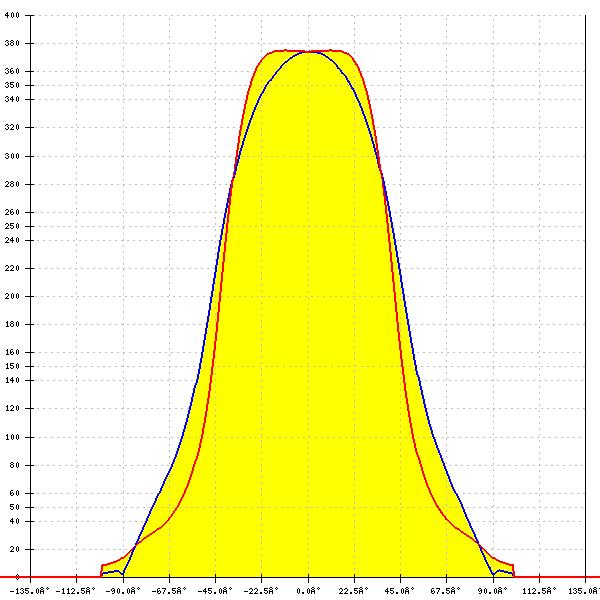

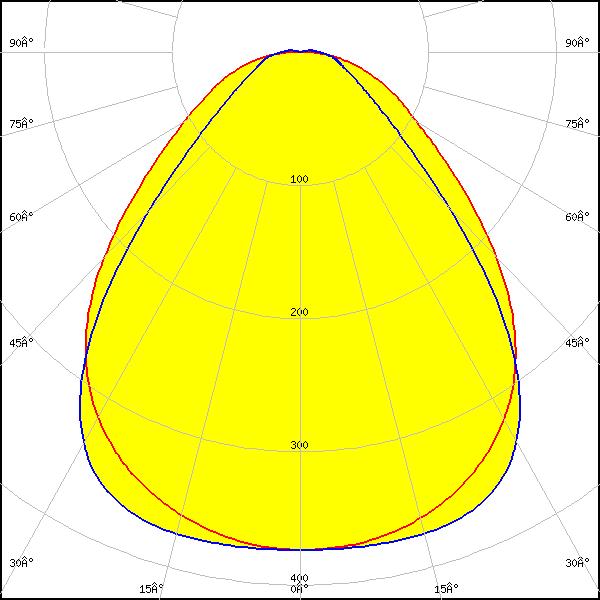

LED: OSCONIQ E 2835
FWHM: 97° + 87°
FWTM: 158° + 140°
Peak intensity: 0.375 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: Tunable White

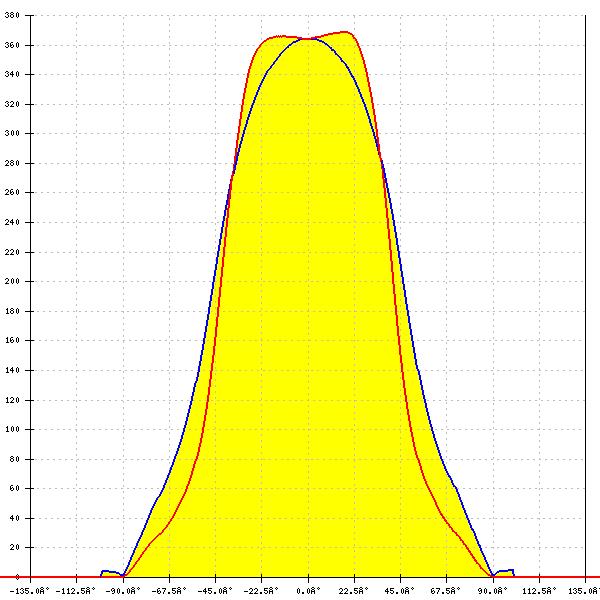

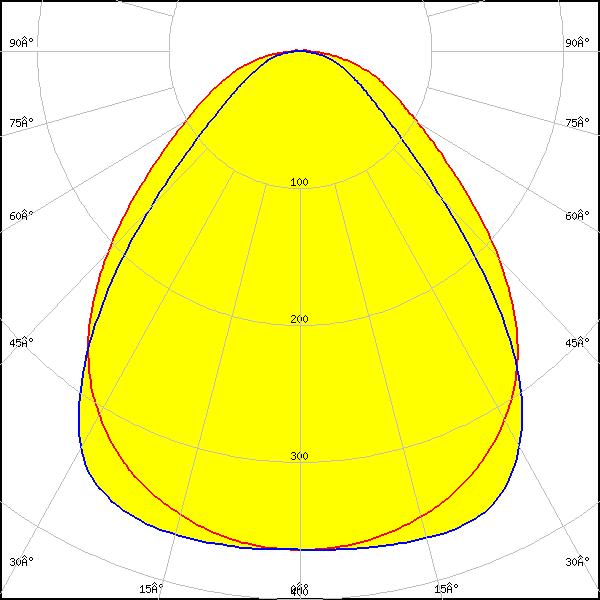

LED: Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
FWHM: 97° + 86°
FWTM: 158° + 136°
Peak intensity: 0.369 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo LED Strip 1ft 1100lm FC HV5 & LV5
FWHM: 97° + 86°
FWTM: 159° + 143°
Peak intensity: 0.379 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

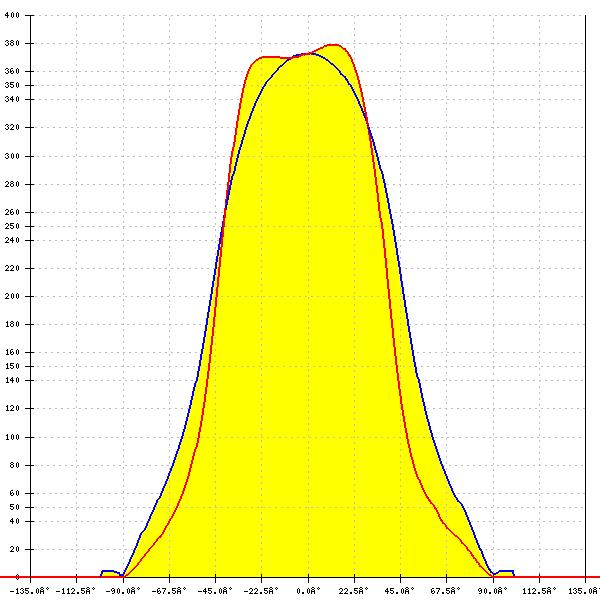

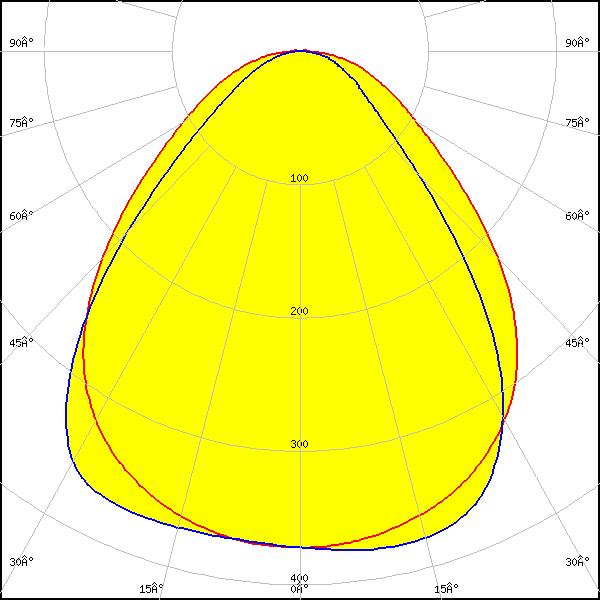

LED: Fortimo LED Strip 1ft 650lm FC HV4 & LV4
FWHM: 97° + 86°
FWTM: 158° + 135°
Peak intensity: 0.379 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo LED Strip 1ft 650lm FC HV5 & LV5
FWHM: 97° + 86°
FWTM: 158° + 142°
Peak intensity: 0.384 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

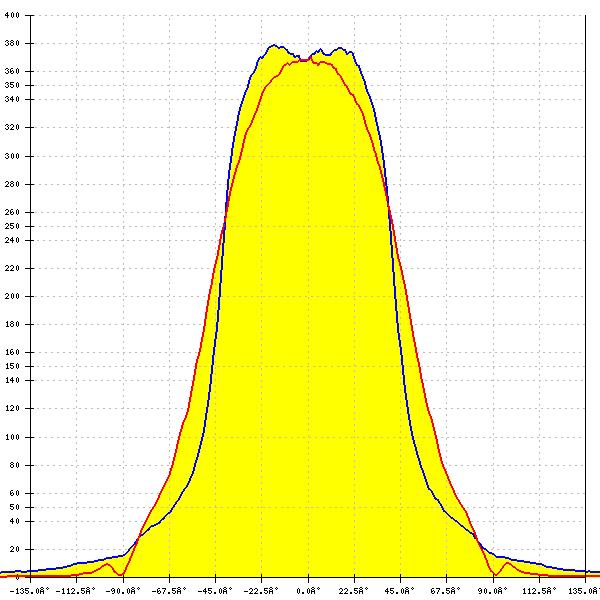

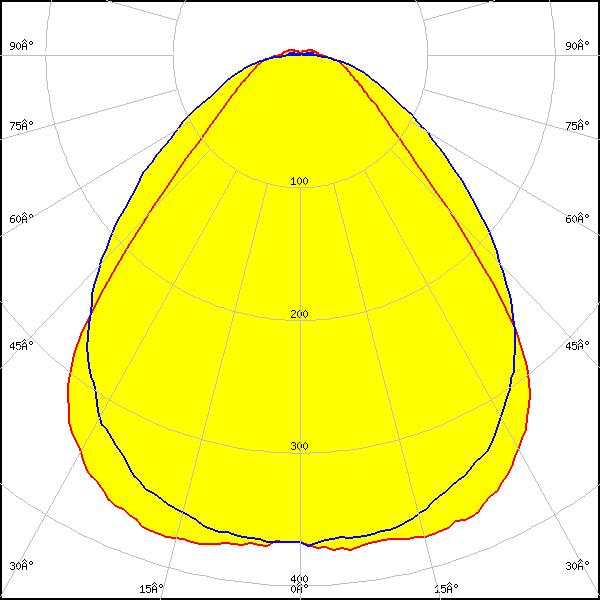

LED: LM561B Plus
FWHM: 87° + 100°
FWTM: 147° + 159°
Peak intensity: 0.380 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

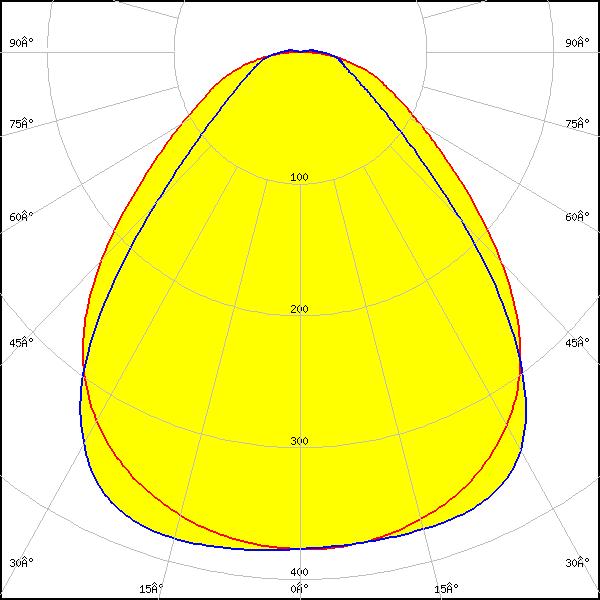

LED: LT-H282C
FWHM: 98° + 87°
FWTM: 158° + 143°
Peak intensity: 0.383 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

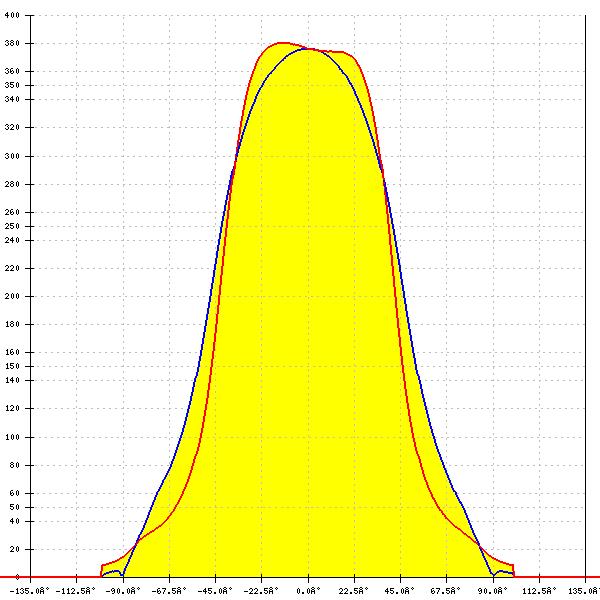

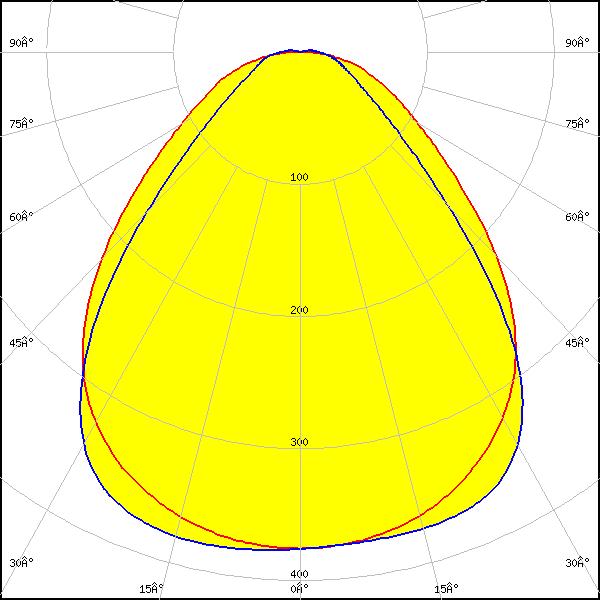

LED: LT-Q282A
FWHM: 97° + 87°
FWTM: 158° + 141°
Peak intensity: 0.380 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

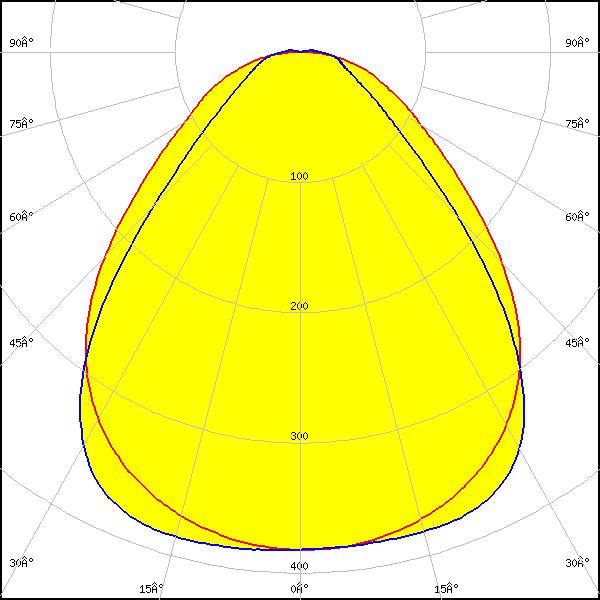

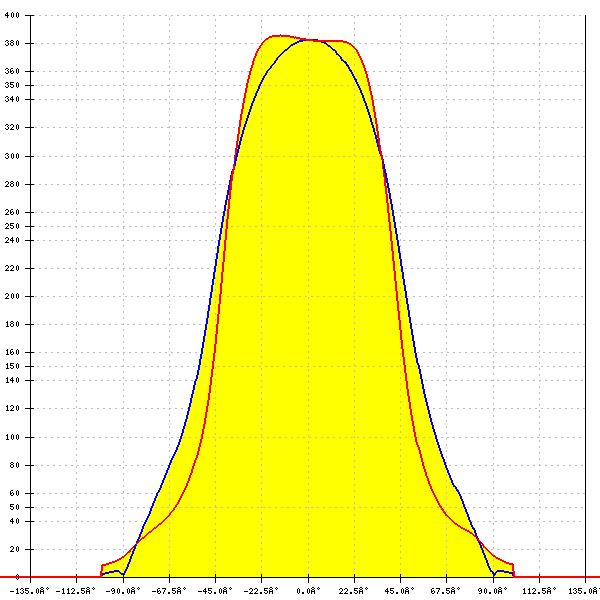

LED: LT-S282H
FWHM: 97° + 87°
FWTM: 159° + 143°
Peak intensity: 0.385 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 3030
FWHM: 94° + 86°
FWTM: 134° + 114°
Peak intensity: 0.422 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

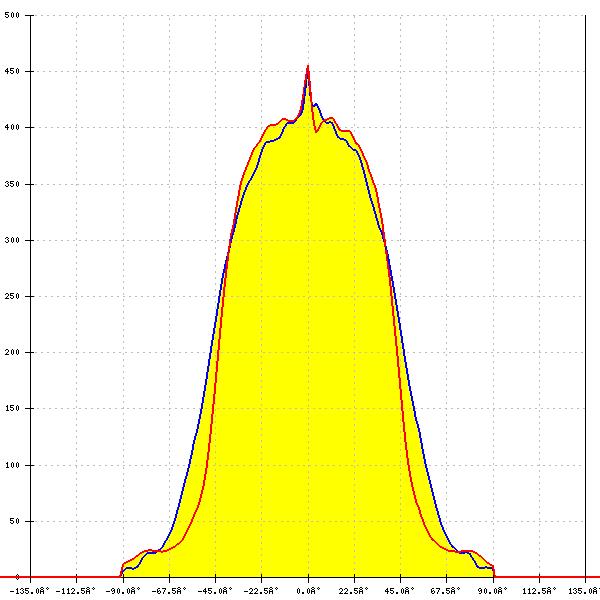

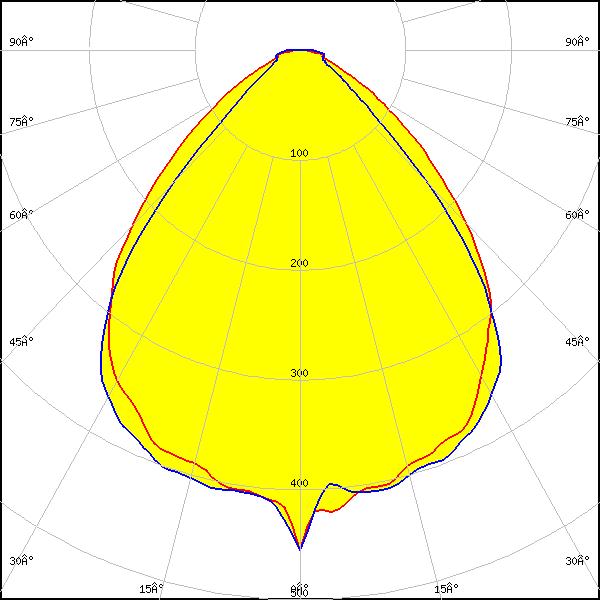

LED: SEOUL DC 5050 6V
FWHM: 90° + 84°
FWTM: 132° + 114°
Peak intensity: 0.455 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

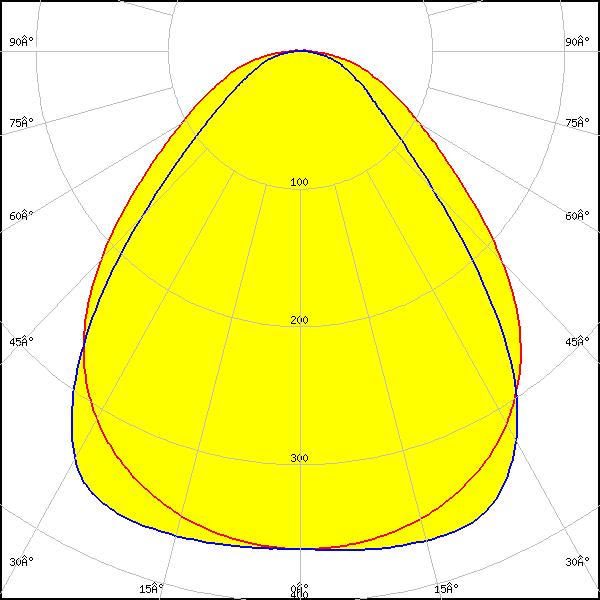

LED: LLE 24x280mm 1250lm HV ADV5
FWHM: 98° + 86°
FWTM: 158° + 138°
Peak intensity: 0.368 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

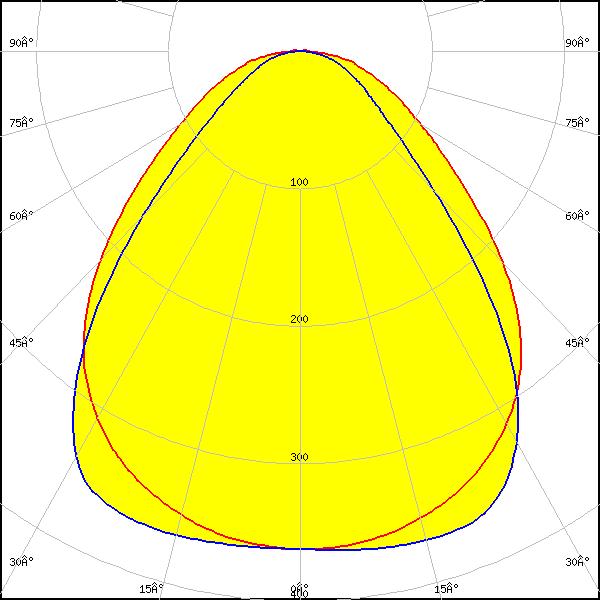

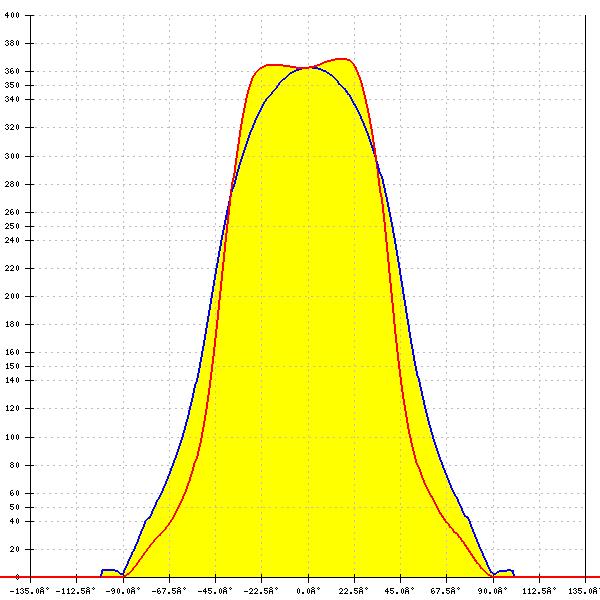

LED: LLE 24x280mm 650lm HV ADV5
FWHM: 98° + 86°
FWTM: 159° + 137°
Peak intensity: 0.369 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
