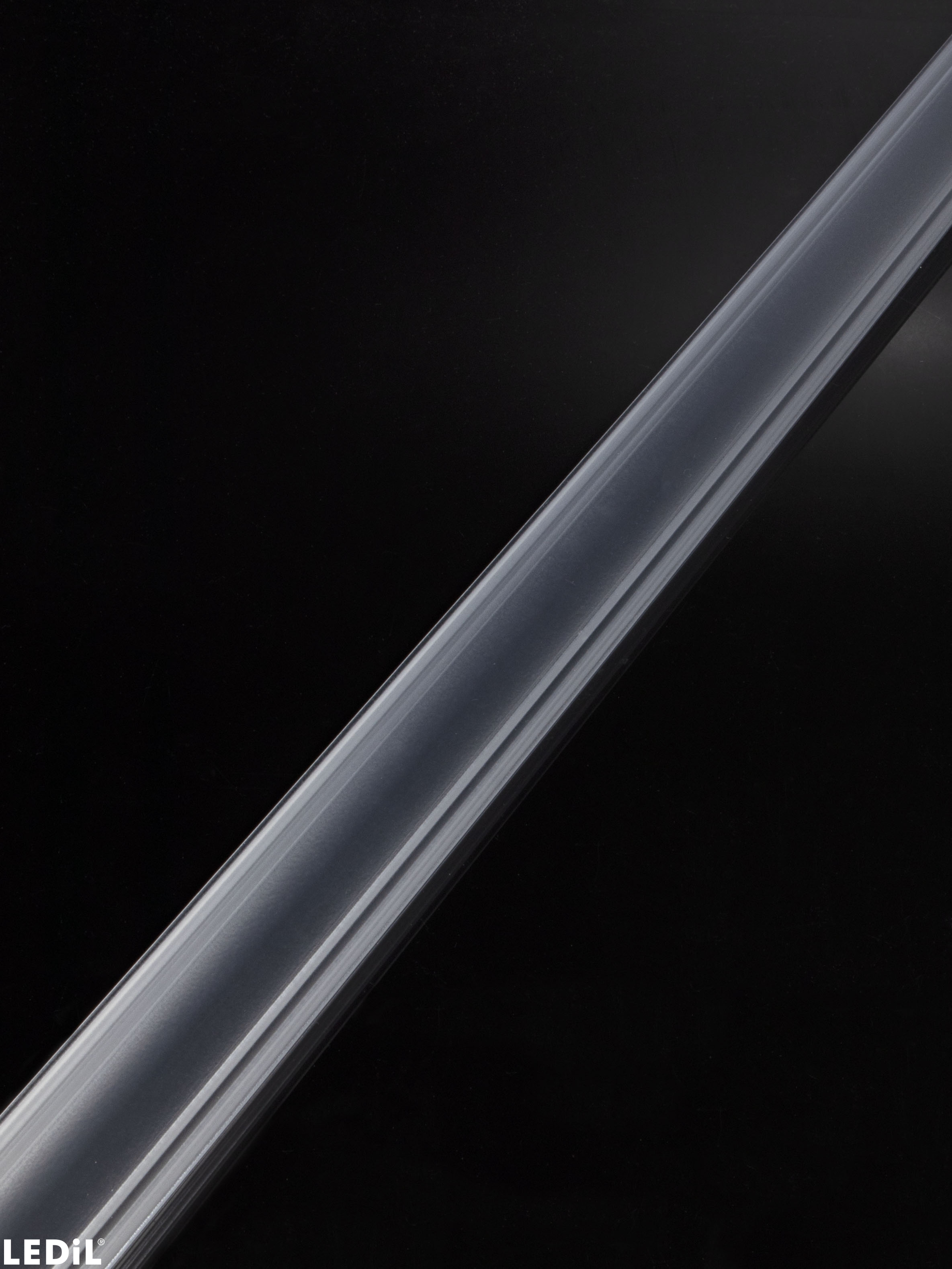

F17599_LINDA-40-WW

~90° + 110° wide beam

Specification

Dimensions:

40 x 1140 mm
Height:

8.80 mm
Colour:

milky
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

PMMA
Request material files from Tech Support

Ordering information

Quantity in box:

64 pcs
Box size:

1200x190x167 mm
Box weight:

12.1 kg
MPQ:

64 pcs
MOQ:

64 pcs
MOQ size:

1200x190x167 mm
MOQ weight:

12.1 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
3D mechanical model

Request a 3D mechanical model: F17599_LINDA-40-WW

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PCB drawing

PRODUCT NAME(S):

F17599_LINDA-40-WW

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

News

New products – December 2, 2021

Application guide

Guide for Office Lighting Optics

Application guide

Guide for Retail Lighting Optics

News

LINDA-40 – versatile 40 mm free pitch extrusion

Case story

Badia di Pomaio resort

Article

Top 3 areas where retailers lose customers due to bad lighting

News

New Products 2019-11-07

News

Effective fashion retail lighting

Application example

Retail lighting with LINDA and ELISE (low contrast)

Article

Illuminating supermarkets with LEDiL optics

Application example

Supermarket lighting with LINDA and ALISE

News

LINDA industrial scale extrusion optic for precise retail lighting

Application area

Indoor Architectural Lighting

Application area

Industrial Lighting

Application area

Office Lighting

Optical results

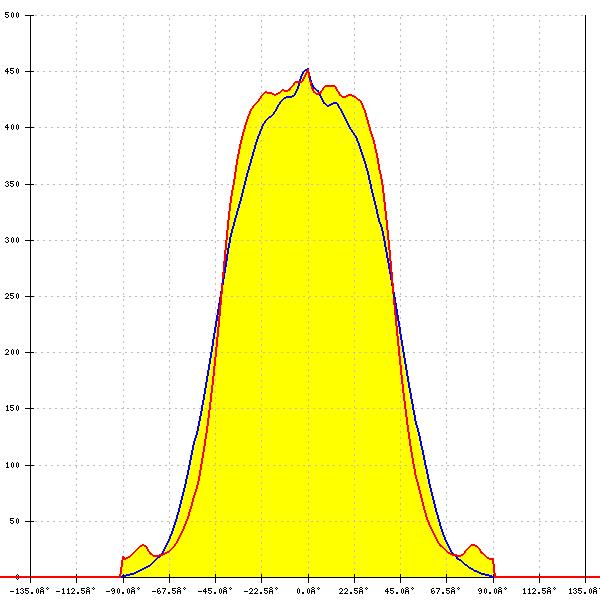

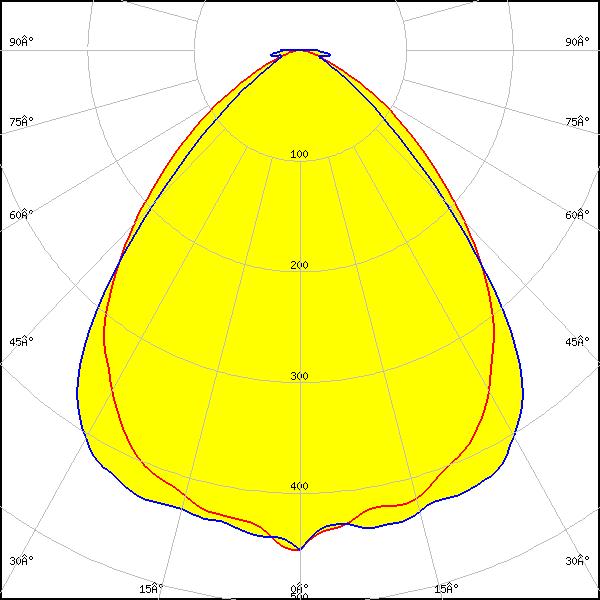

LED: J Series 2835

FWHM: 88° + 86°

FWTM: 130° + 120°

Peak intensity: 0.453 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

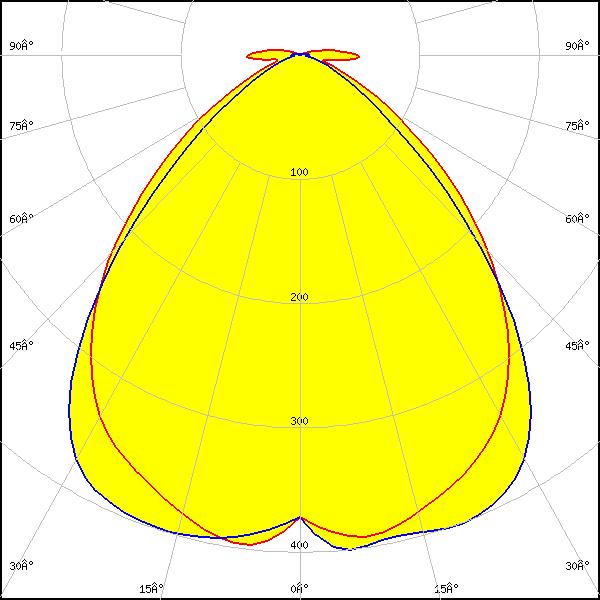

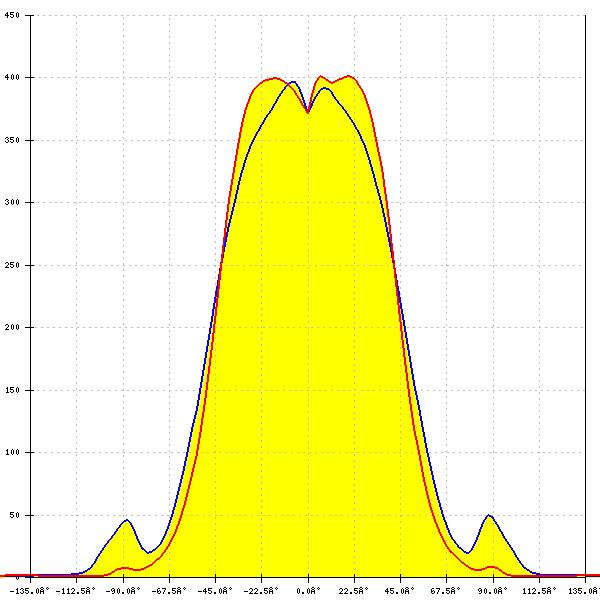

LED: XP-G3

FWHM: 96° + 92°

FWTM: 184° + 128°

Peak intensity: 0.403 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

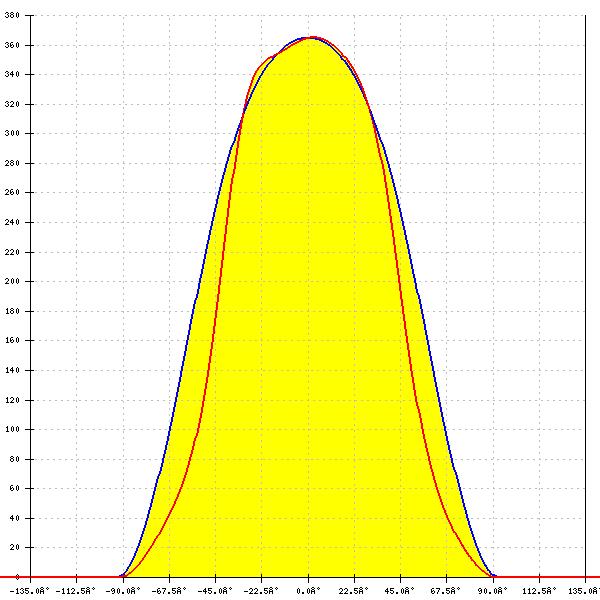

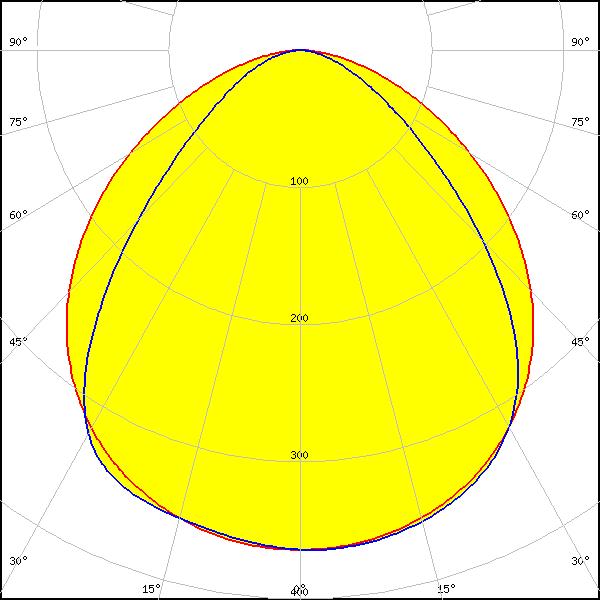

LED: Basic Linear Z3 2200 560x20mm

FWHM: 110° + 90°

FWTM: 157° + 139°

Peak intensity: 0.366 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

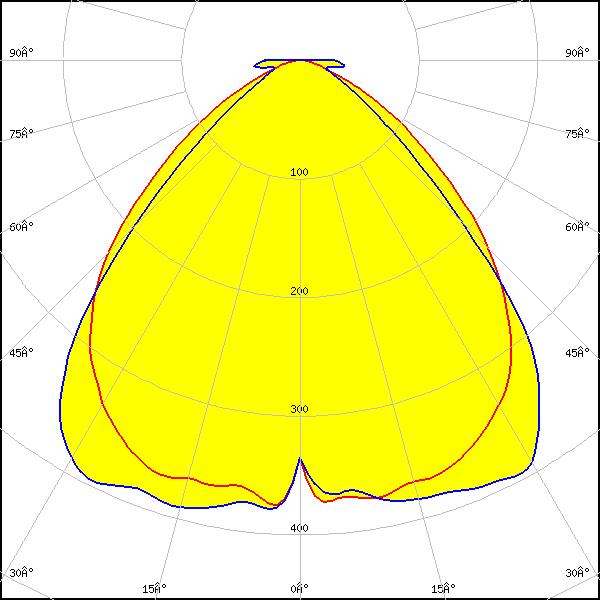

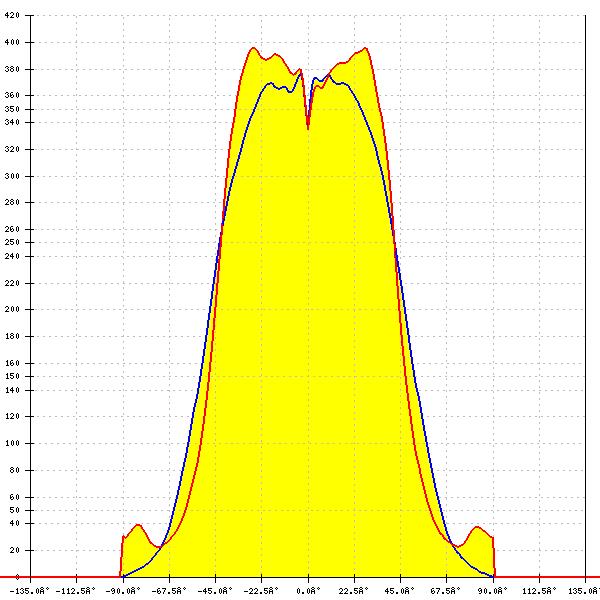

LED: OSCONIQ P 3030

FWHM: 98° + 90°

FWTM: 134° + 124°

Peak intensity: 0.396 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: Red

Datasheet

Light distribution files

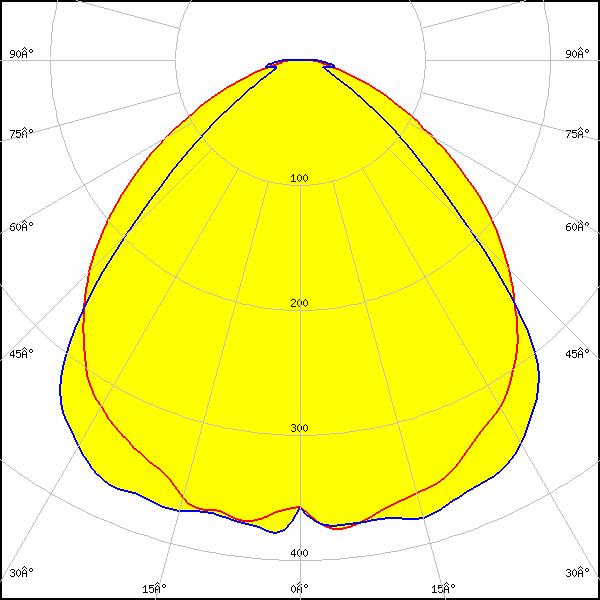

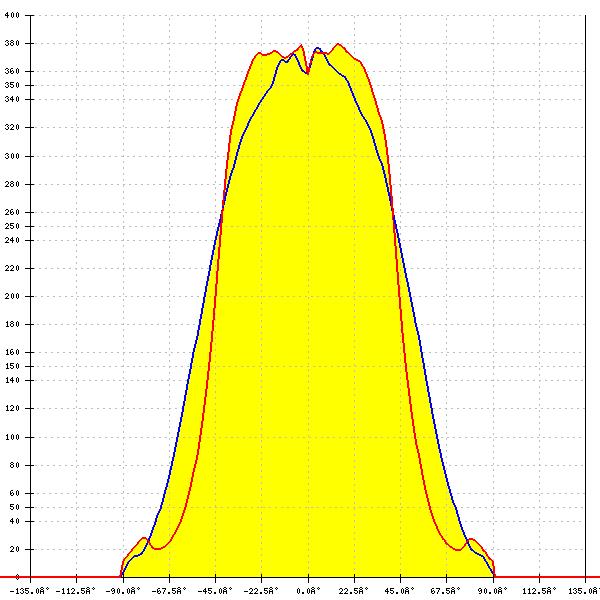

LED: LM28xB Series

FWHM: 104° + 90°

FWTM: 148° + 124°

Peak intensity: 0.385 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

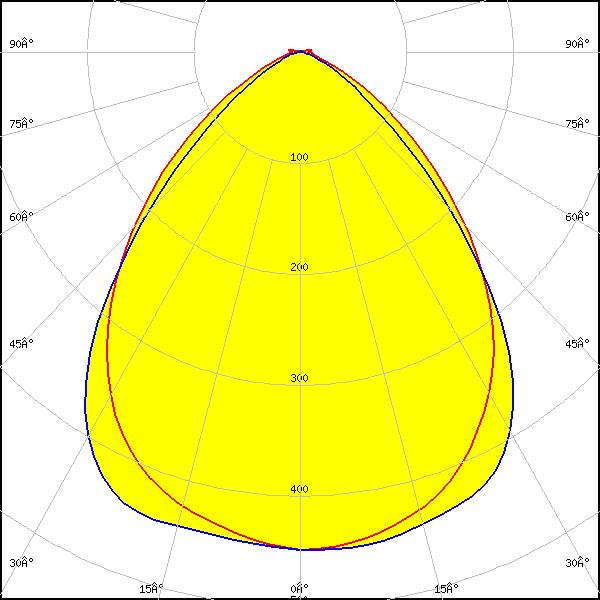

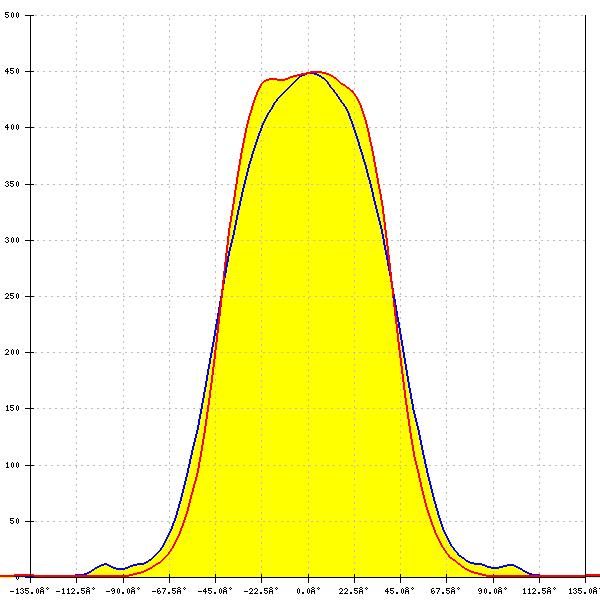

LED: LM301B

FWHM: 88°

FWTM: 132°

Peak intensity: 0.453 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
