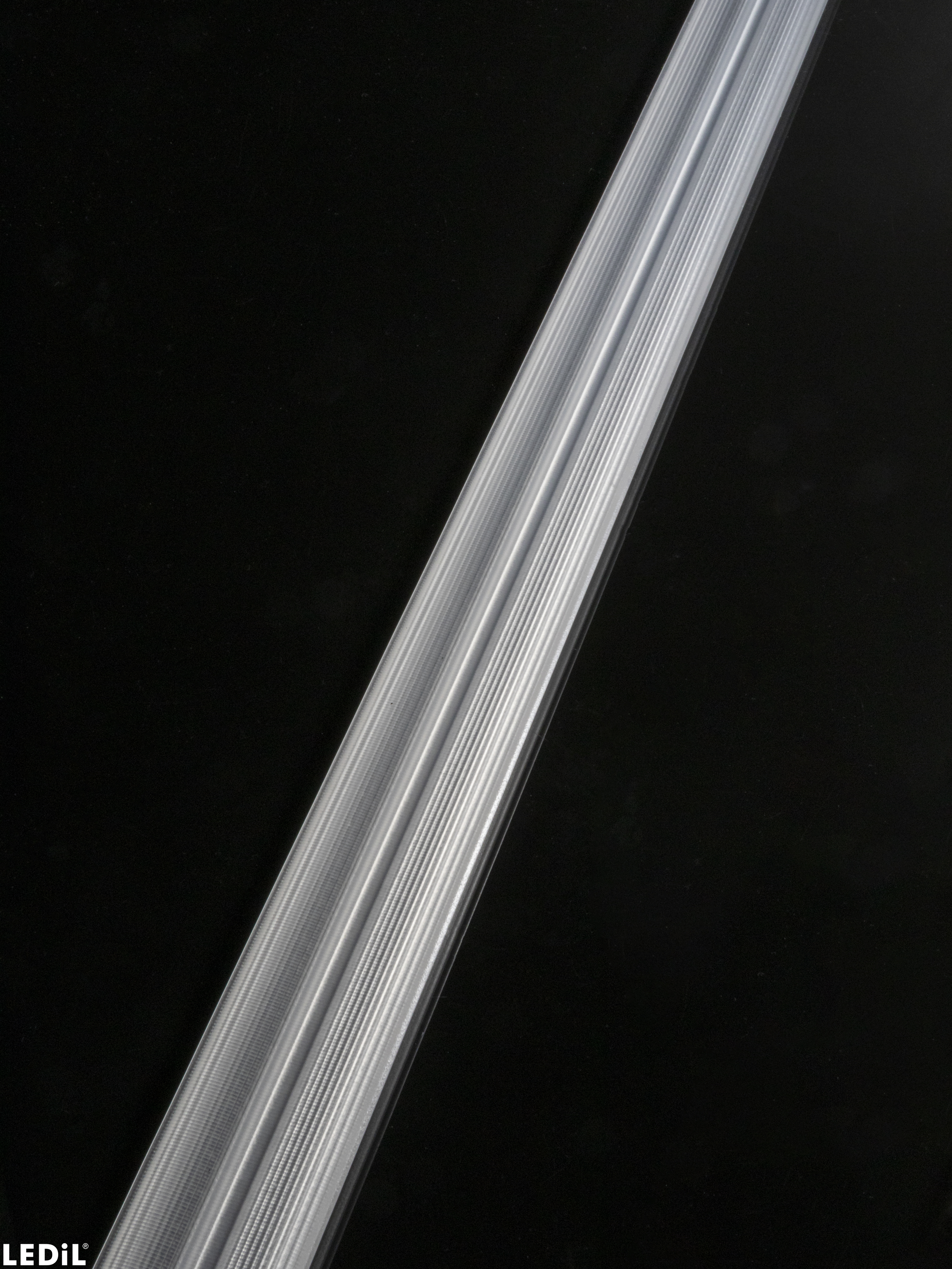

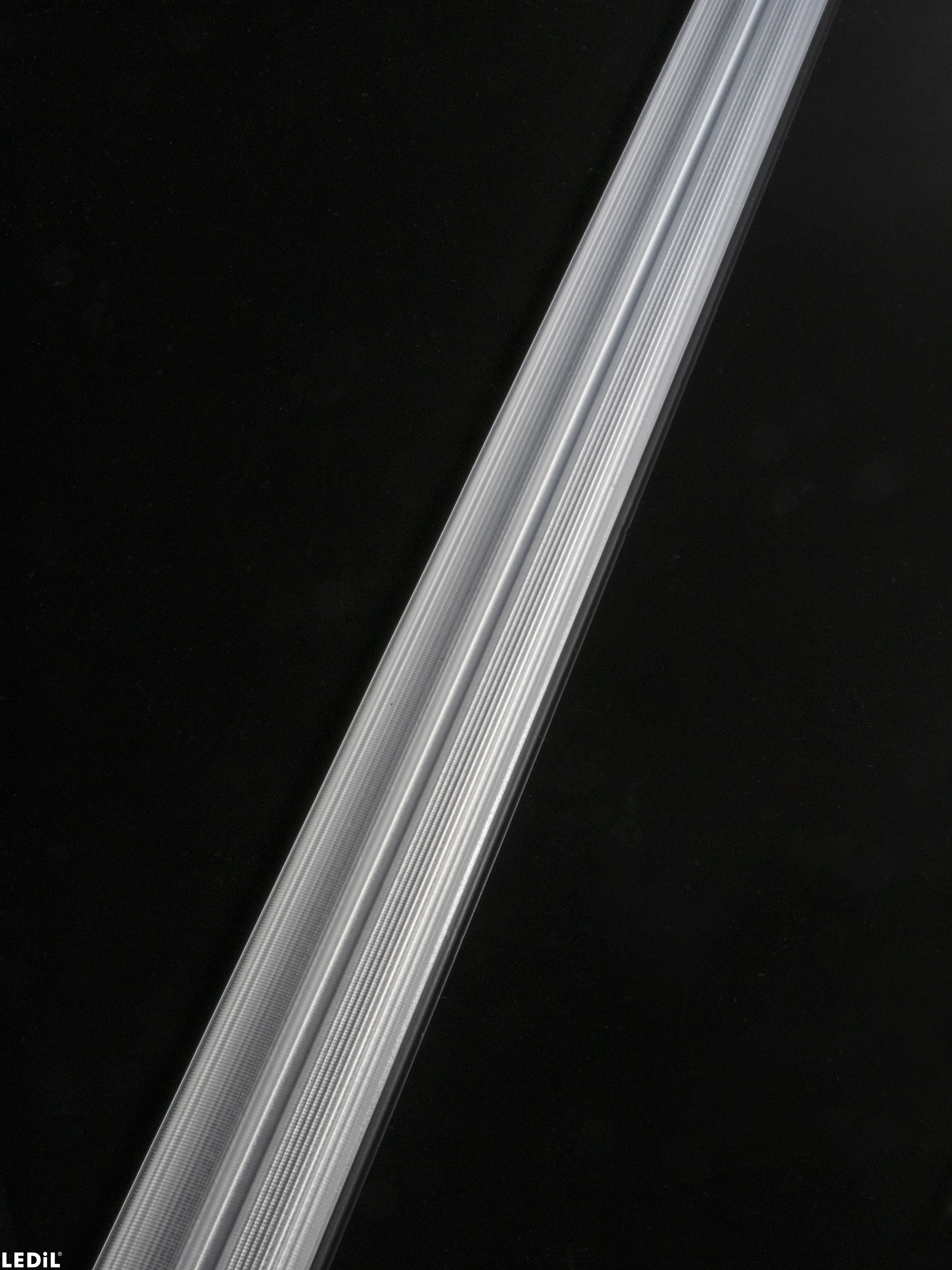

F17602_LINDA-40-ZT25

Print

Asymmetric beam for wall-washing

Specification
  • Dimensions:
    40 x  1140 mm
  • Height:
    8.80 mm
  • Fastening:
    snaps
  • Colour:
    milky
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    64 pcs
  • Box size:
    1190 x 182 x 165 mm
  • Box weight:
    12.3 kg
  • MPQ:
    64 pcs
  • MOQ:
    64 pcs
  • MOQ size:
    1190 x 182 x 165 mm
  • MOQ weight:
    12.3 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    F17602_LINDA-40-ZT25

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Other variants: F17131_LINDA-ZT25-48in (North American 48 inch length)
F17319_LINDA-ZT25-3m (3.01 m length) and other custom lengths available

Optical results

LED: Fortimo LED Strip 1ft 1100lm FC HV5 & LV5
FWHM: asymmetric
Peak intensity: 0.578 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

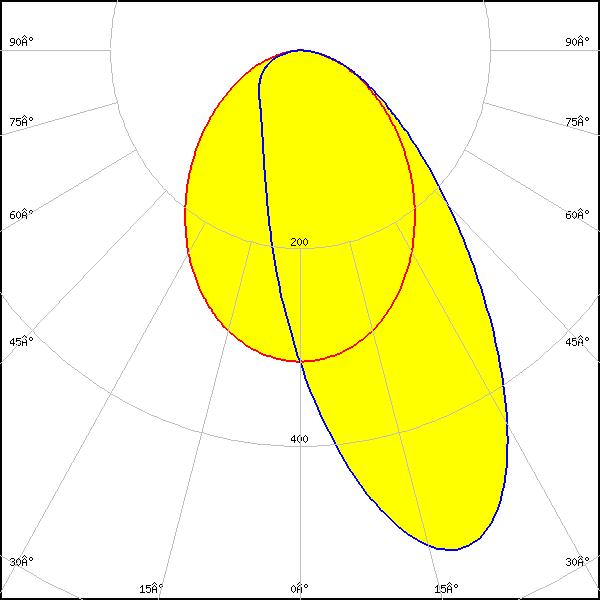

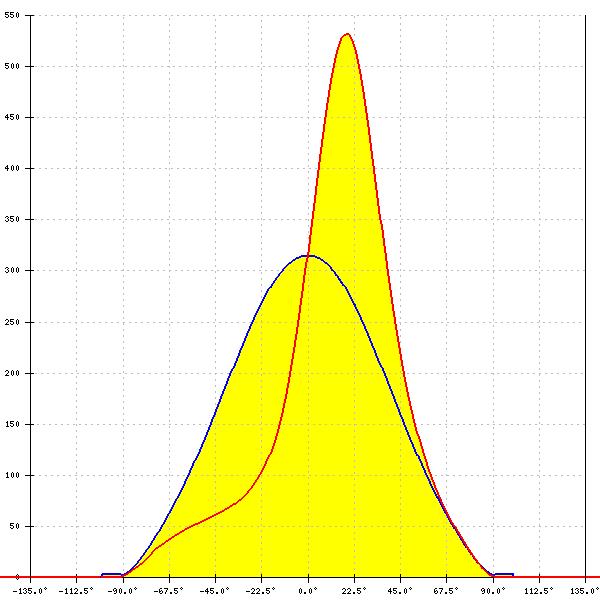

LED: Fortimo LED Strip 1ft 2000lm FC HV6
FWHM: asymmetric
Peak intensity: 0.533 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Strip 1ft 650lm FC HV5 & LV5
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

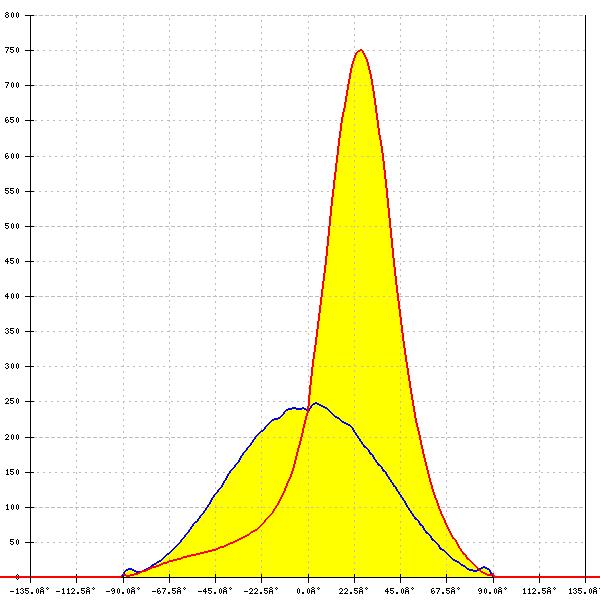

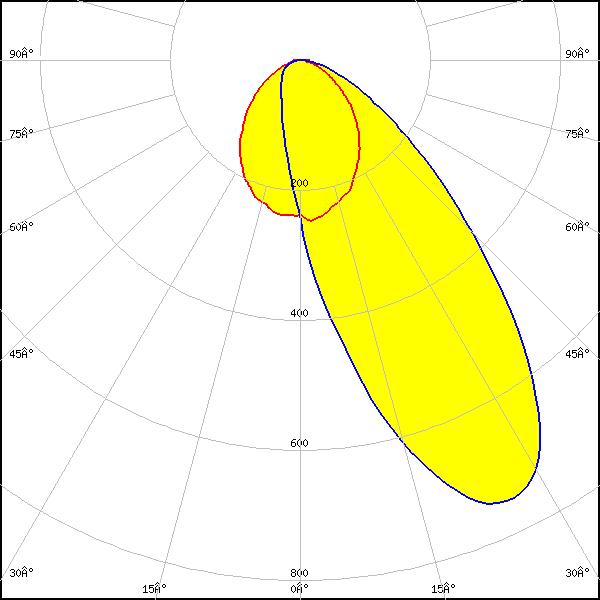

LED: LM28xB Series
FWHM: asymmetric
Peak intensity: 0.750 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

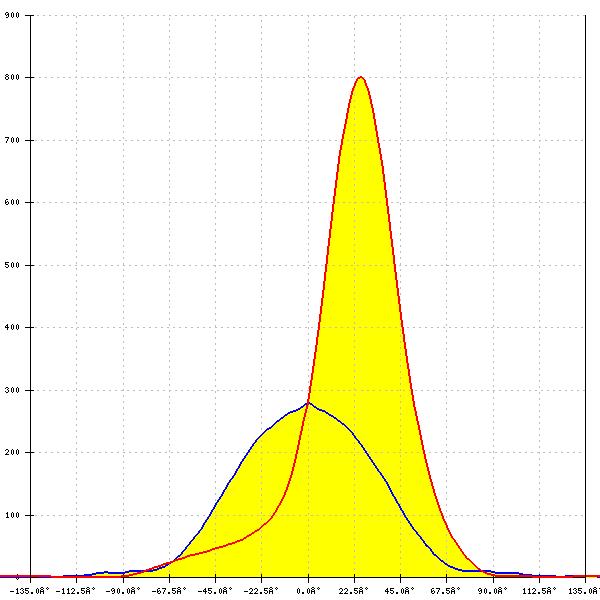

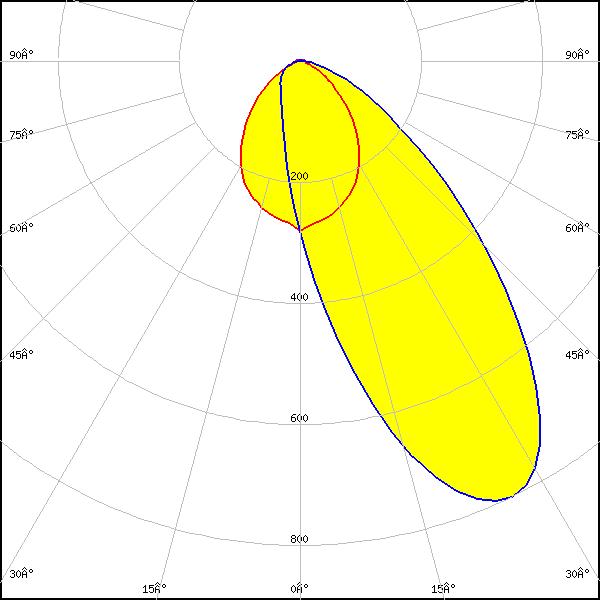

LED: LM301B
FWHM: 80° + 40°
FWTM: 128° + 90°
Peak intensity: 0.801 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
