    FP15072_ZORYA-SC-C

    Print

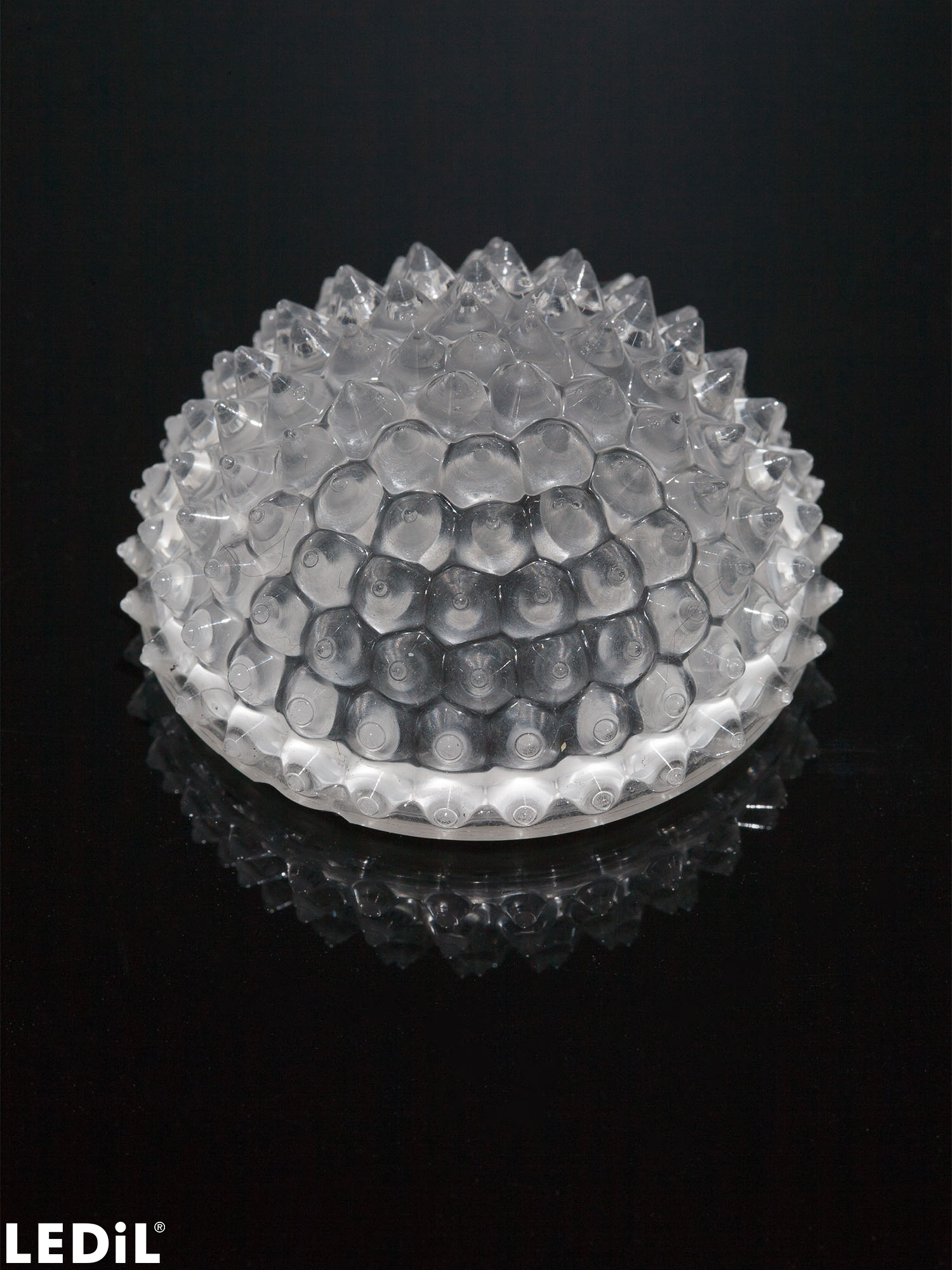

    ~340° omnidirectional decorative beam. Assembly with HEKLA adapter.

    Specification
    • Dimensions:
      55 mm
    • Height:
      35.00 mm
    • Fastening:
      socket
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      140 pcs
    • Box size:
      398 x 298 x 140 mm
    • Box weight:
      3.0 kg
    • MPQ:
      35 pcs
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FP15072_ZORYA-SC-C
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Compatible product

    B+W 630 Hekla datasheet

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    News

    PRODUCT NEWS - ZORYA

    PCN

    Product change notification NR142 - Zorya name change

    PCN

    Product change notification NR130.b - Change of product ordering codes 301116

    PCN

    Product change notification NR128.b - Change of assembly components 241016

    Compatibility guide

    LEDiL C interface HEKLA compatibility guide

    News

    HEKLA-SOCKET-RZ ‒ Your effortless entry to the RGBW world

    Case story

    Catellani&Smith ceiling lamp

    Case story

    Bicycle traffic park in Athens

    Case story

    Estonia 100 lighting installation

    News

    HEKLA - Innovative family of sockets and solderless connectors

    Application area

    Outdoor Special Applications

    Application area

    Indoor Architectural Lighting

    Case story

    The Luneur amusement park

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA sockets and HEKLA-G2 and -G2B connectors

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    HEKLA-G2B-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2B-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-I2

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-I3

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-TW1

    Version compatible with tunable white COBs of 15.8 x 15.8 mm packages

    HEKLA-G2B-TW2

    Version compatible with tunable white COBs of 18.8 x 18.8 mm packages

    HEKLA-KONNTAKT-C

    Version compatible with COBs of 13.5 x 13.5 mm packages. The final installation requires two KONNTAKT parts per connector.

    KONNTAKT-1

    KONNTAKT parts for HEKLA-KONNTAKT connectors. Two pieces are needed for one HEKLA-KONNTAKT.

    HEKLA-KONNTAKT-I

    Version compatible with COBs of 19 x 19 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-I2

    Version compatible with COBs of 19 x 19 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-I3

    Version compatible with COBs of 19 x 19 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-A

    Version compatible with COBs of 12.5 x 12.5 mm packages. The final installation requires two KONNTAKT parts per connector.

    Optical results

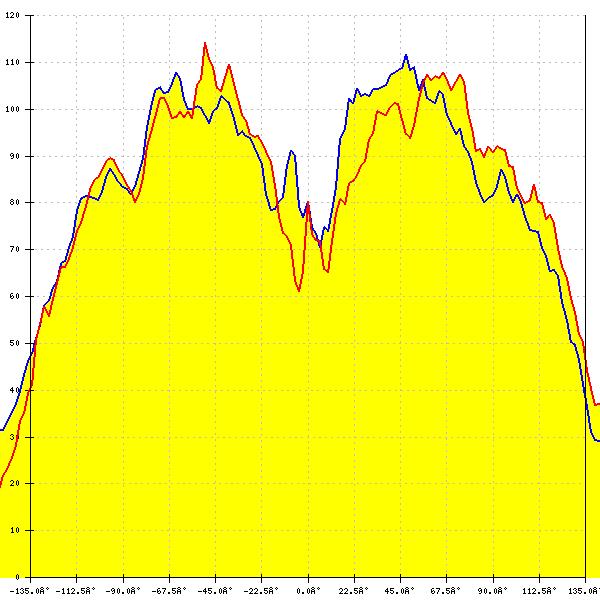

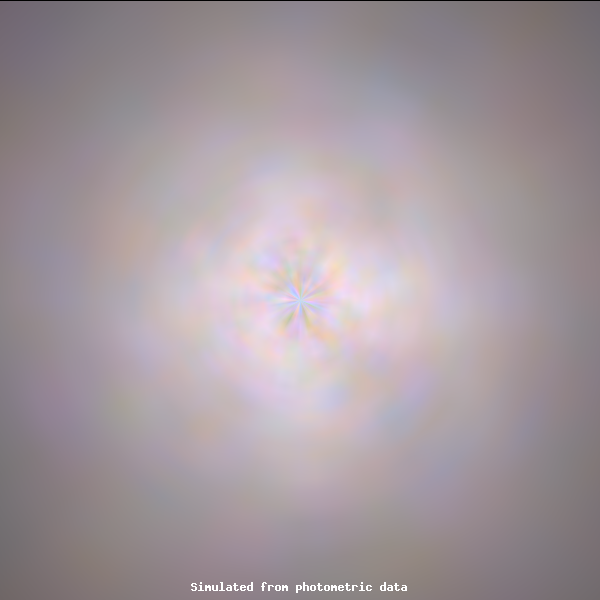

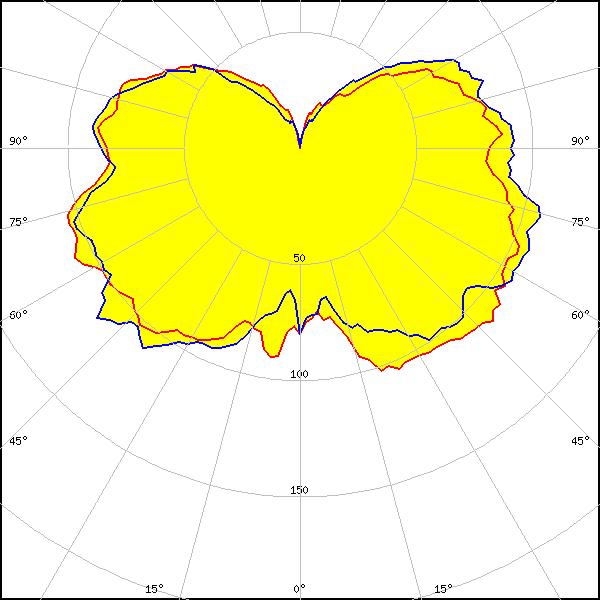

    LED: BXRV-D13-RGBW3000-A3
    LES size: 13.0 mm
    Required components:
    C19950_HEKLA-SOCKET-RZ
    FWHM: 257°
    FWTM: 330°
    Peak intensity: 0.114 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 48
    Light colour/type: RGBW

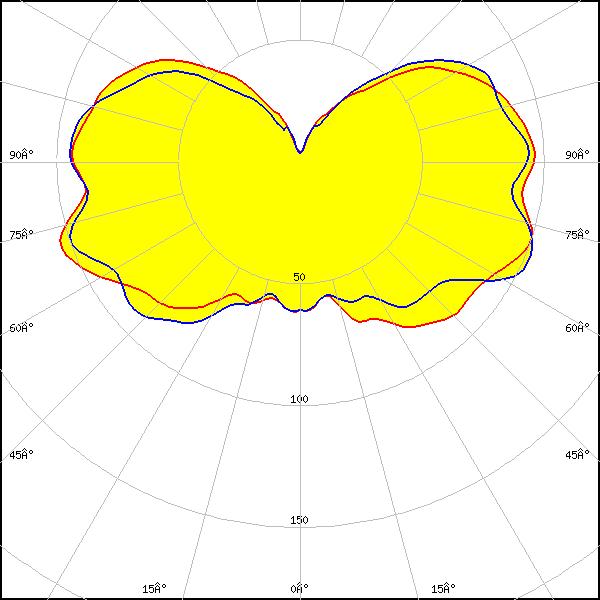

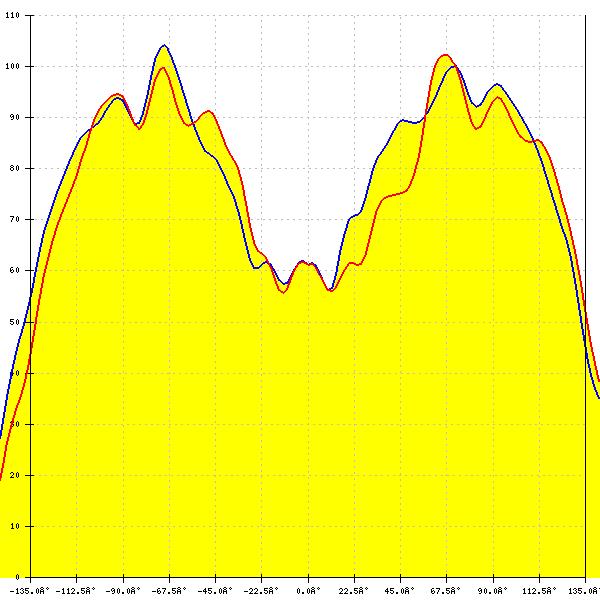

    LED: V6 Gen 8-9
    LES size: 6.3 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 268°
    FWTM: 327°
    Peak intensity: 0.105 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

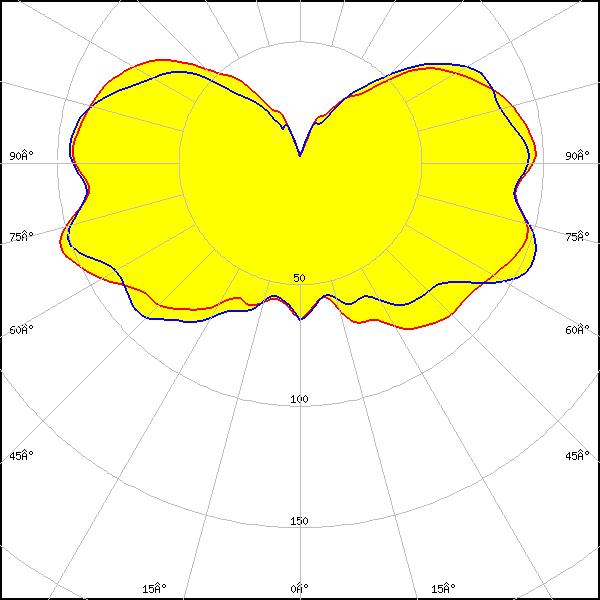

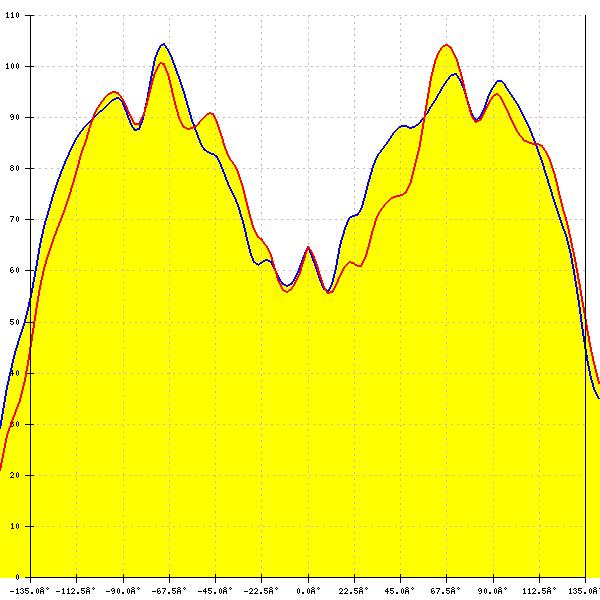

    LED: V6 HD Gen 7
    LES size: 7.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 267°
    FWTM: 330°
    Peak intensity: 0.105 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

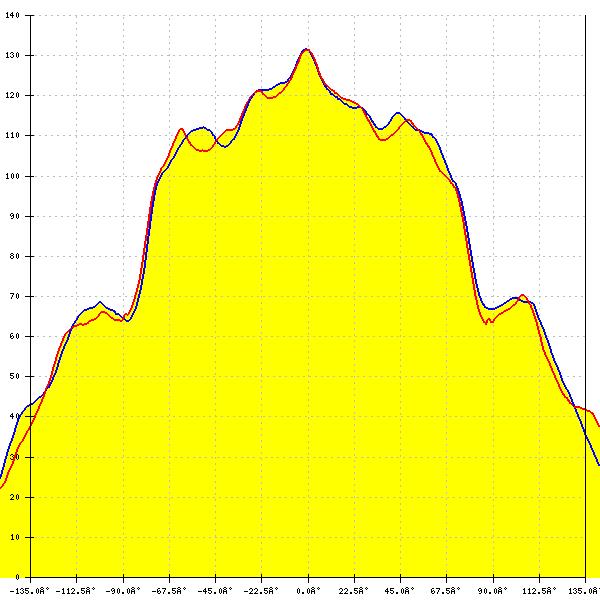

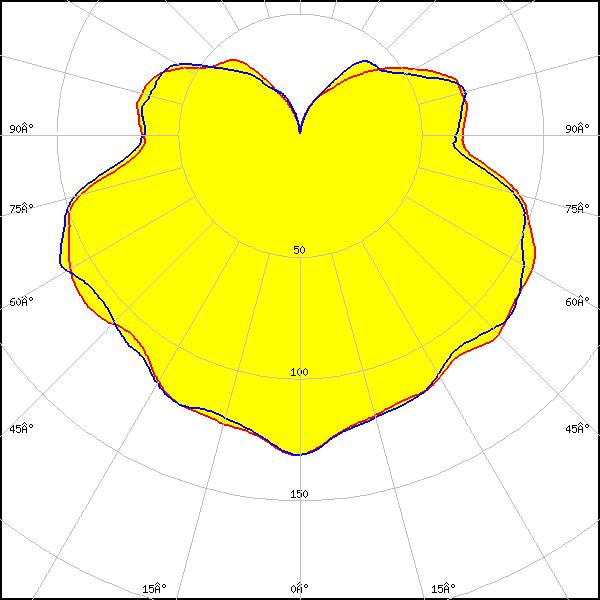

    LED: VERO13
    LES size: 13.4 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 232°
    FWTM: 325°
    Peak intensity: 0.130 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

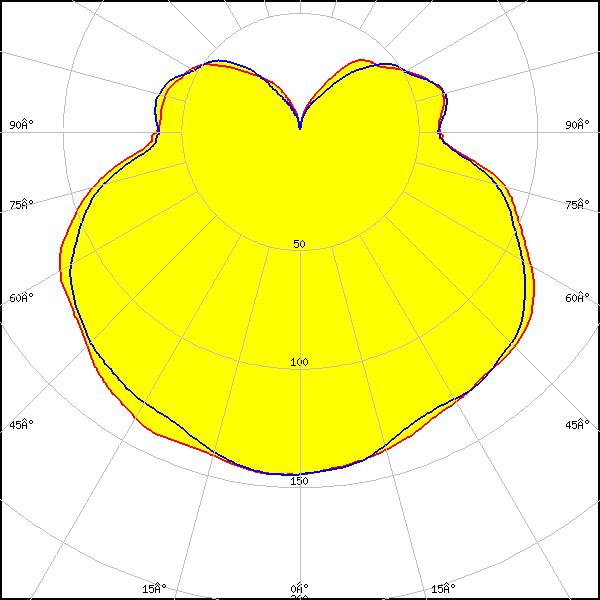

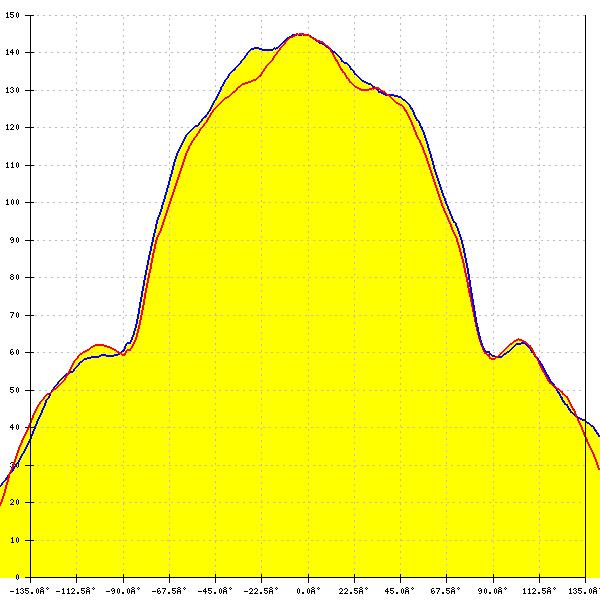

    LED: VERO18
    LES size: 18.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 161°
    FWTM: 316°
    Peak intensity: 0.150 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

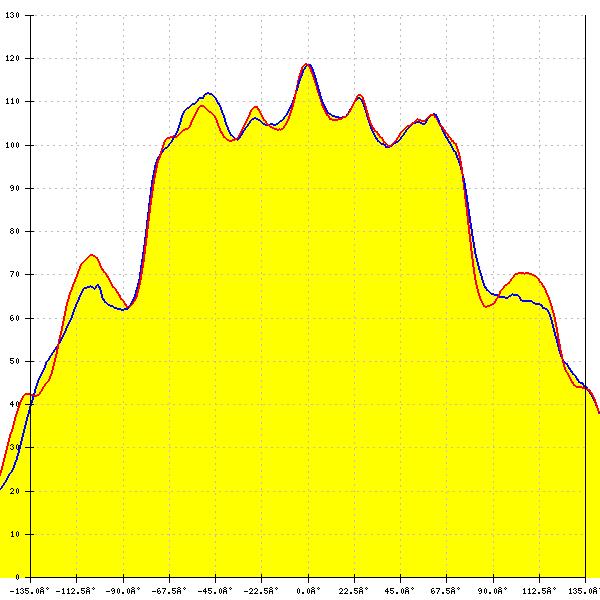

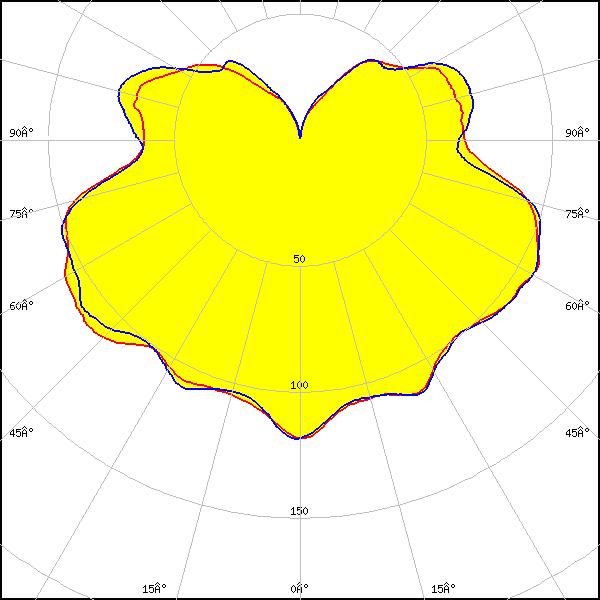

    LED: Vesta TW 9mm (12W) CSP
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 241°
    FWTM: 324°
    Peak intensity: 0.120 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

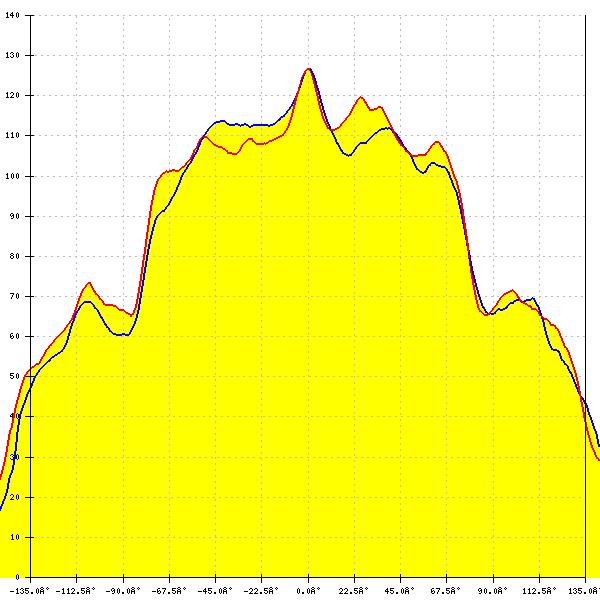

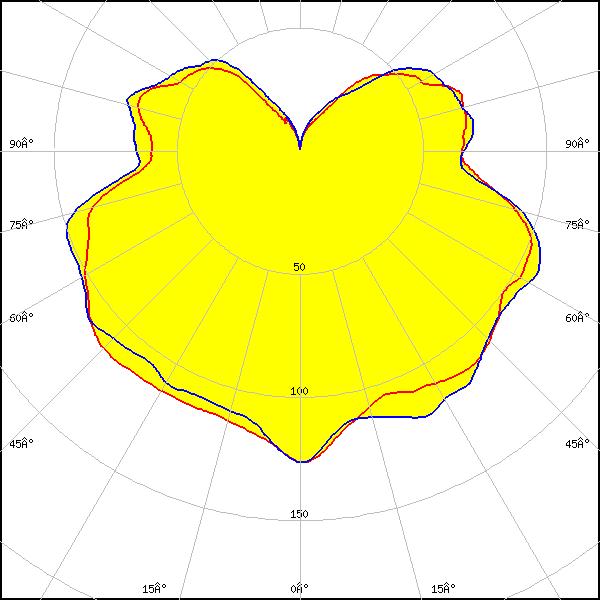

    LED: CLC020 Series (Dim-To-Warm)
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 235°
    FWTM: 322°
    Peak intensity: 0.130 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

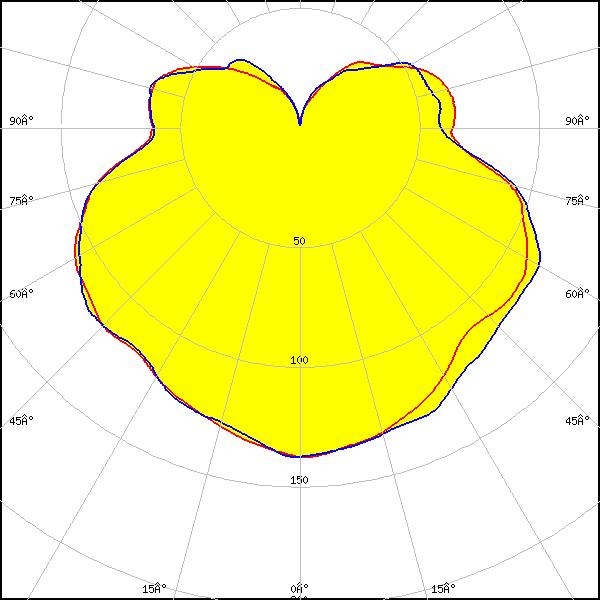

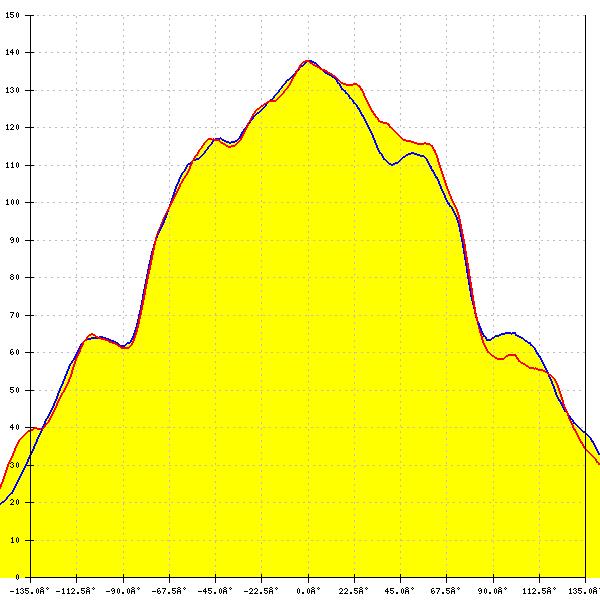

    LED: CLC030 Series (Dim-To-Warm)
    LES size: 15.2 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 163°
    FWTM: 317°
    Peak intensity: 0.140 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

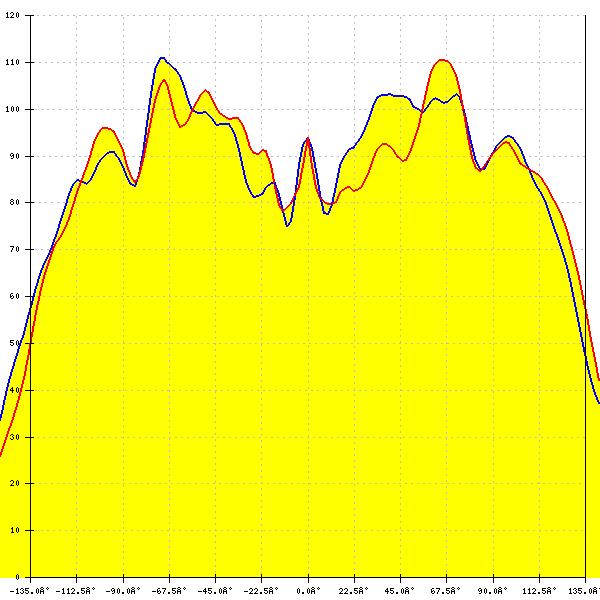

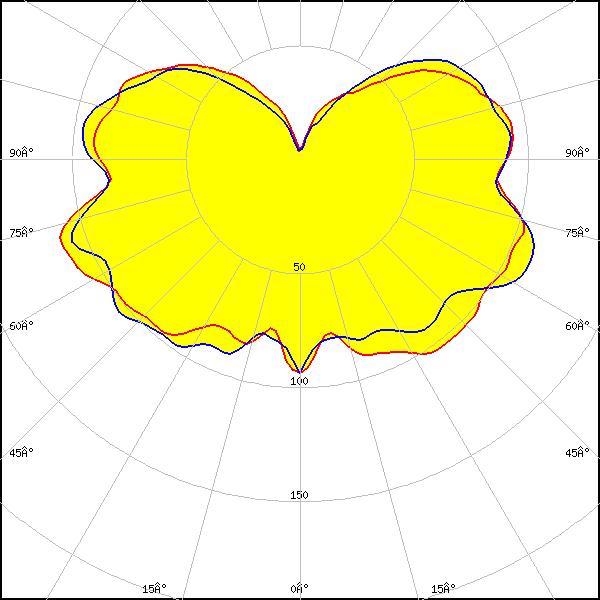

    LED: CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 262°
    FWTM: 332°
    Peak intensity: 0.125 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

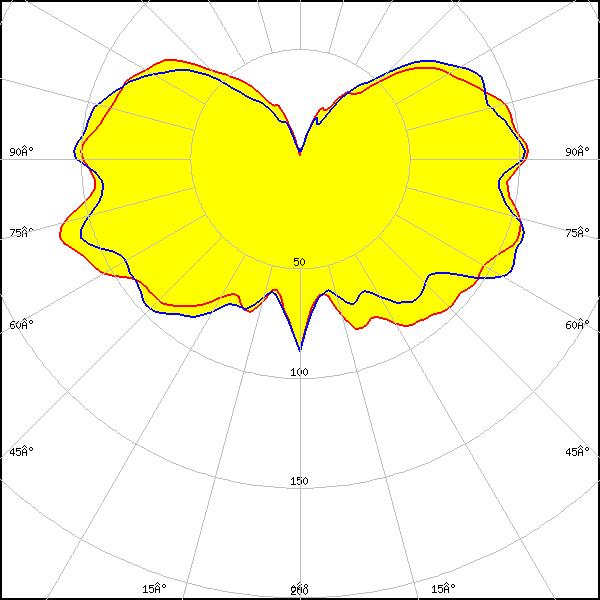

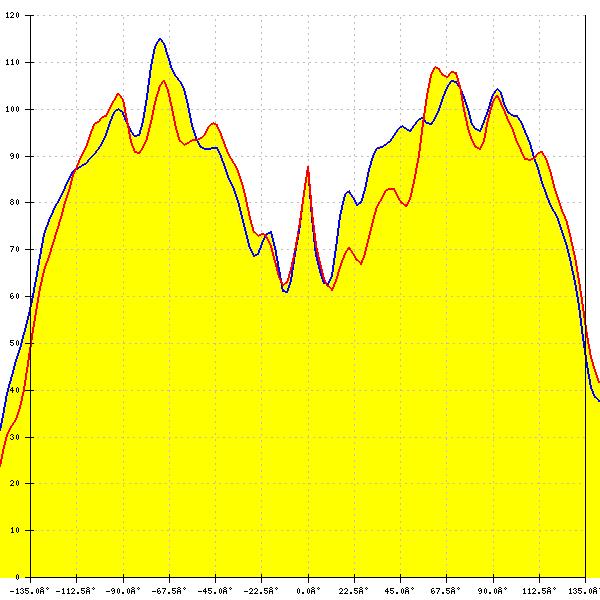

    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 265°
    FWTM: 330°
    Peak intensity: 0.116 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

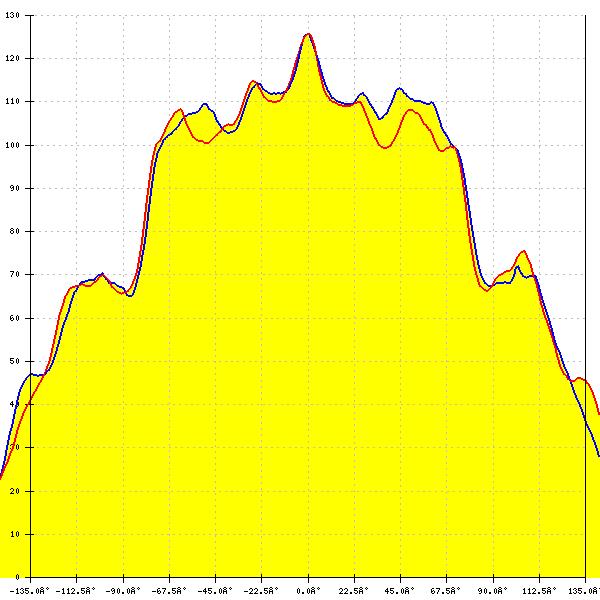

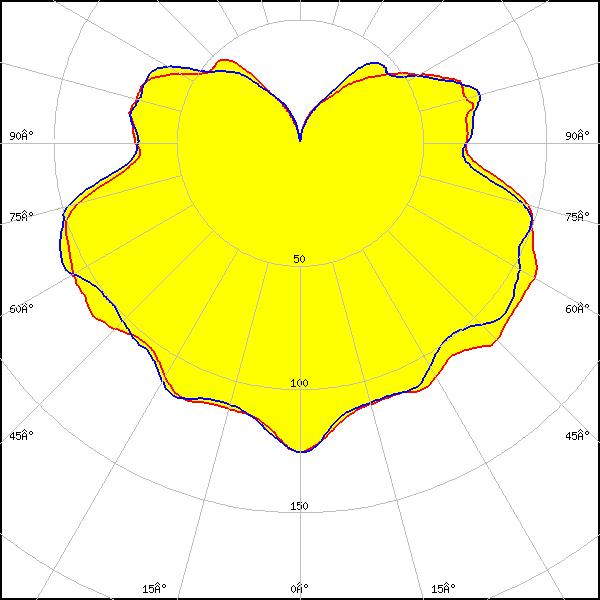

    LED: LCN-C01B (Tunable White)
    LES size: 10.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 231°
    FWTM: 322°
    Peak intensity: 0.130 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

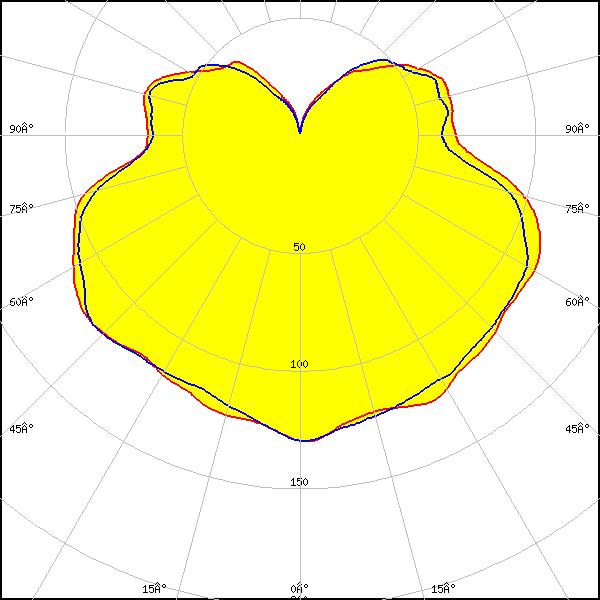

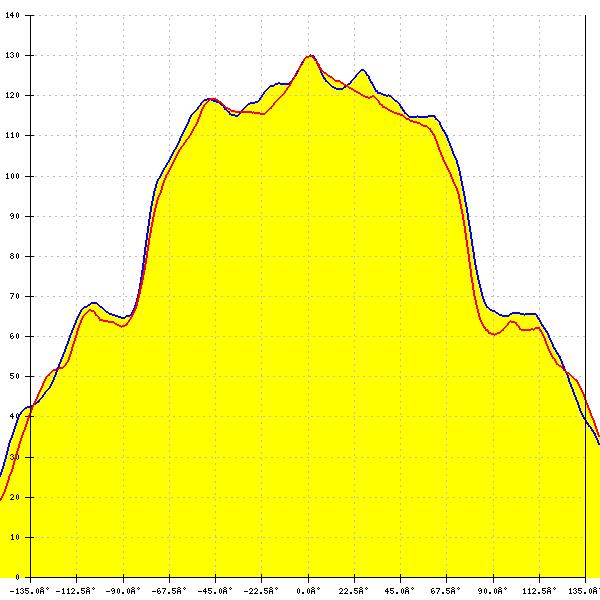

    LED: LCN-C02B (Tunable White)
    LES size: 14.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 224°
    FWTM: 326°
    Peak intensity: 0.130 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

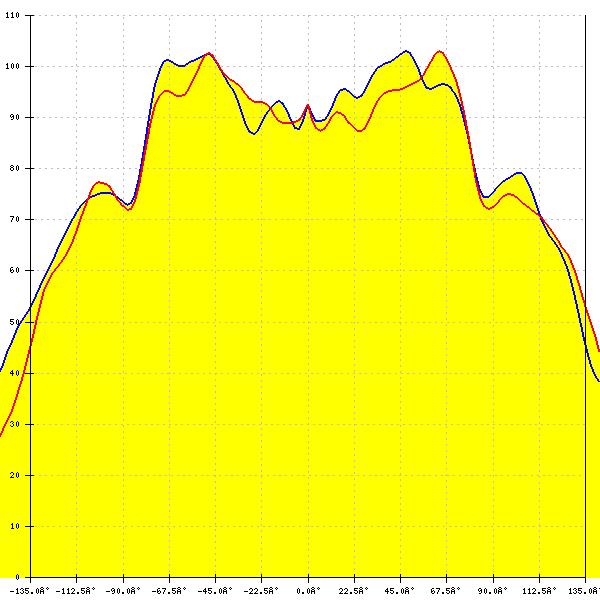

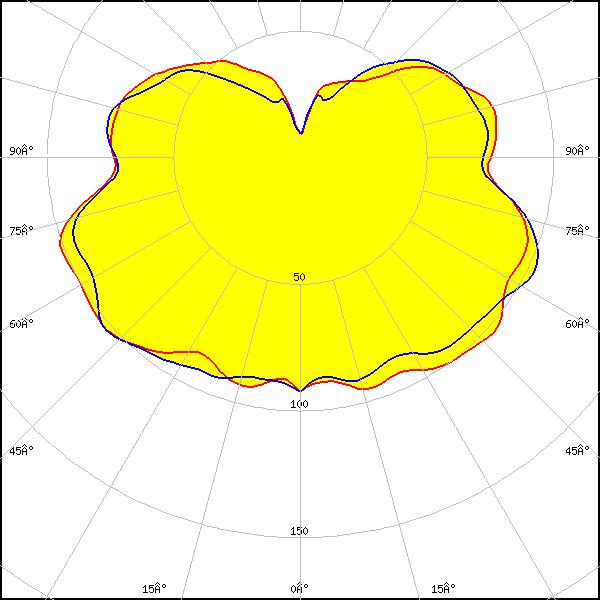

    LED: CMT19xx
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 268°
    FWTM: 353°
    Peak intensity: 0.105 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

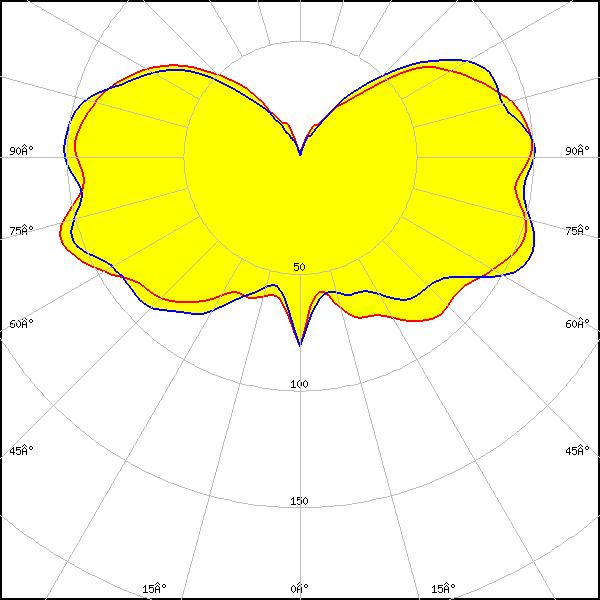

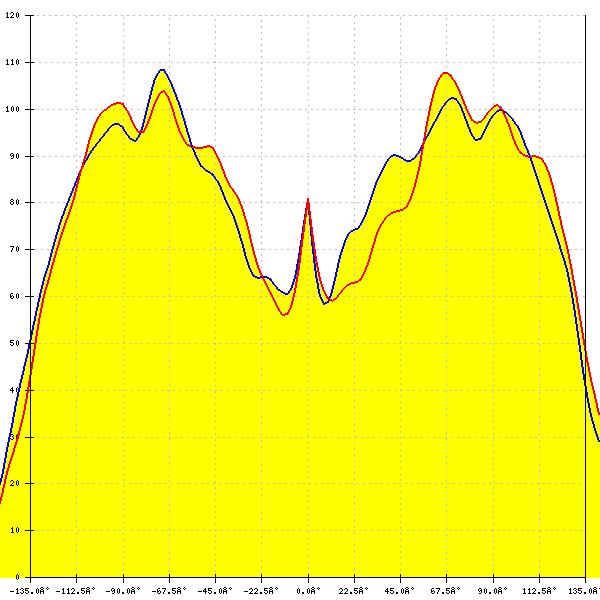

    LED: CXA/B 13xx
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: 264°
    FWTM: 324°
    Peak intensity: 0.110 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

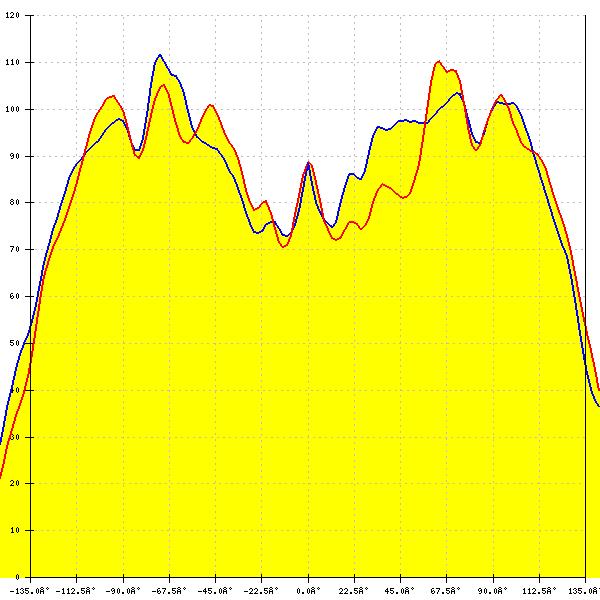

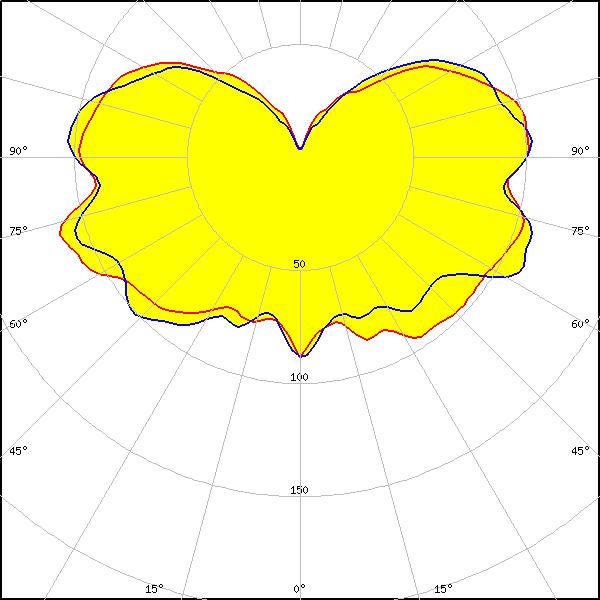

    LED: CXA/B 15xx
    LES size: 8.9 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 263°
    FWTM: 327°
    Peak intensity: 0.113 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

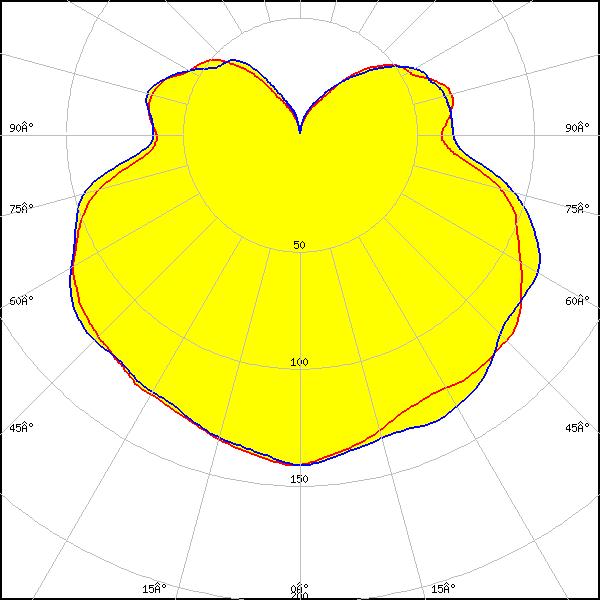

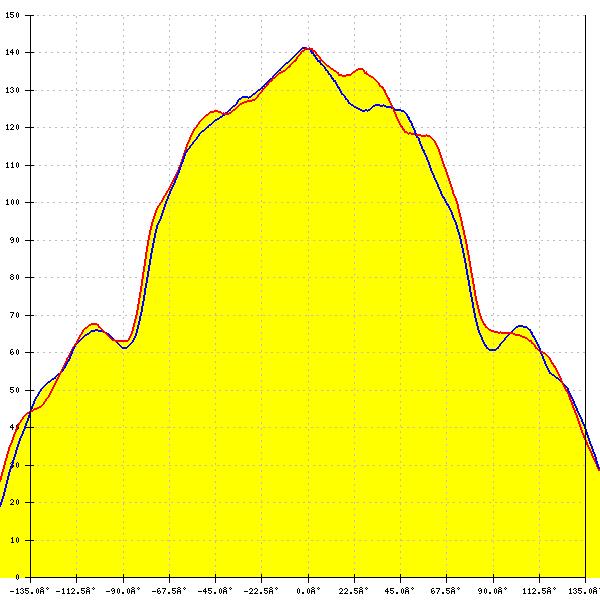

    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 164°
    FWTM: 313°
    Peak intensity: 0.141 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

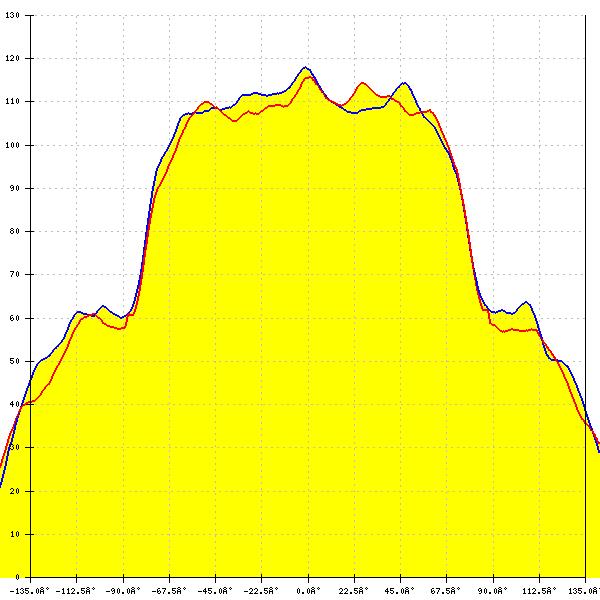

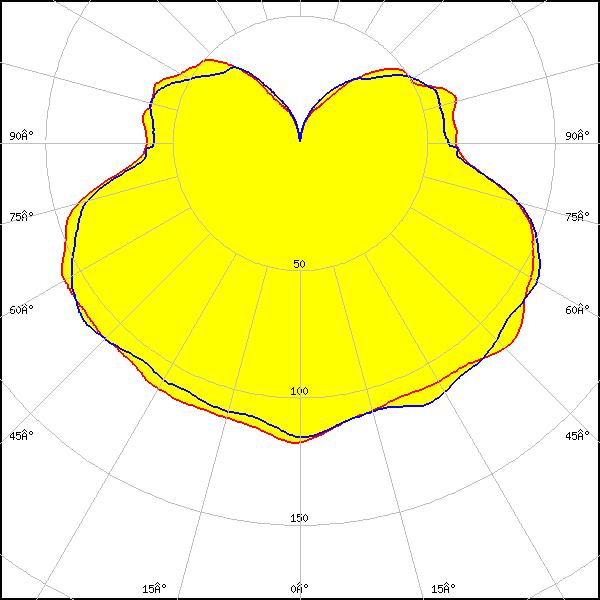

    LED: CDM-14 (Dim-To-Warm)
    LES size: 15.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 491 Typ L8
    FWHM: 220°
    FWTM: 330°
    Peak intensity: 0.120 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

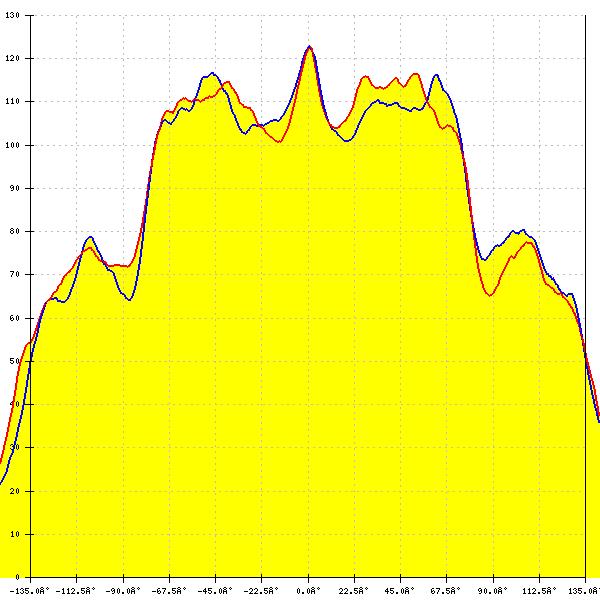

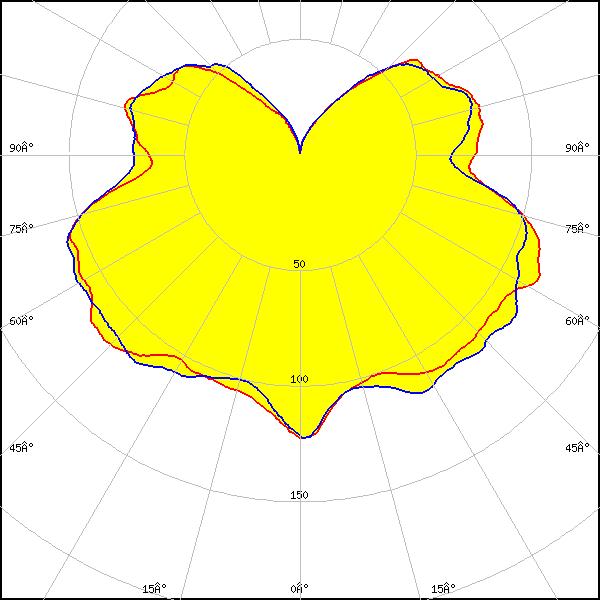

    LED: CDM-6 (Dim-To-Warm)
    LES size: 6.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 490 Typ L8
    FWHM: 240°
    FWTM: 330°
    Peak intensity: 0.120 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

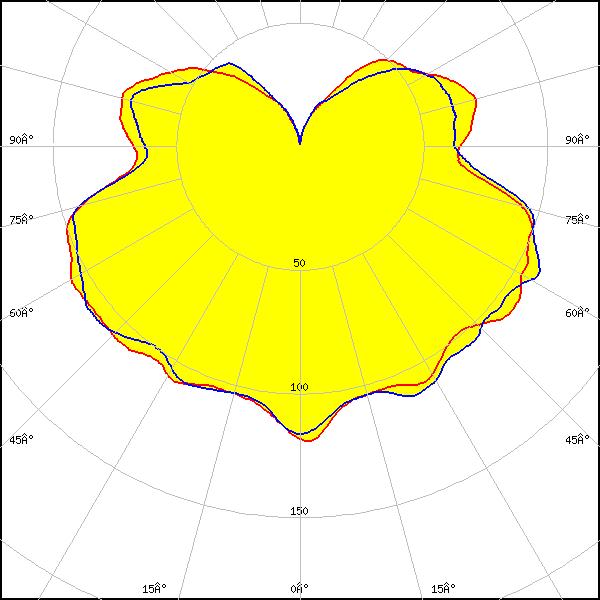

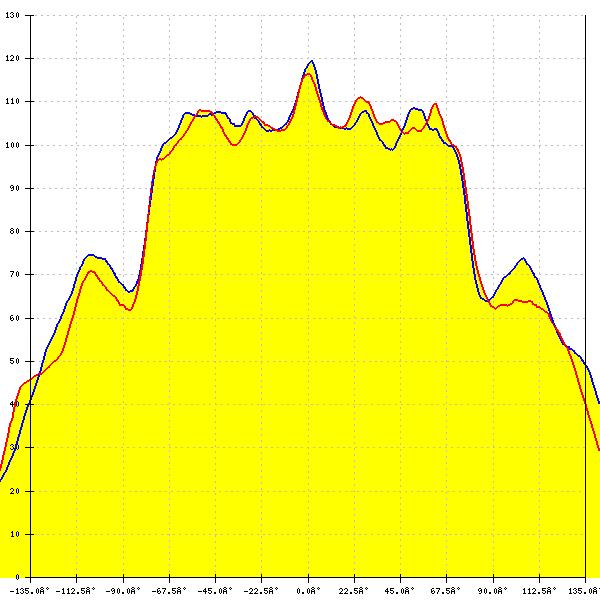

    LED: CDM-9 (Dim-To-Warm)
    LES size: 9.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 490 Typ L8
    FWHM: 240°
    FWTM: 300°
    Peak intensity: 0.120 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-14 (Tunable White)
    LES size: 14.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: 236°
    FWTM: 325°
    Peak intensity: 0.130 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

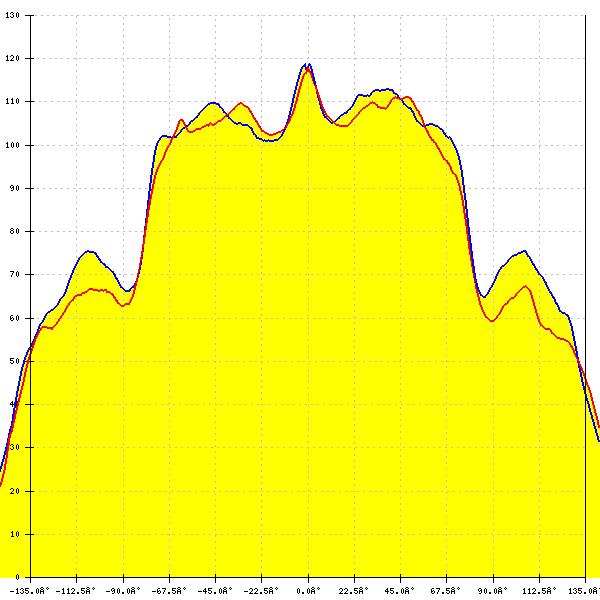

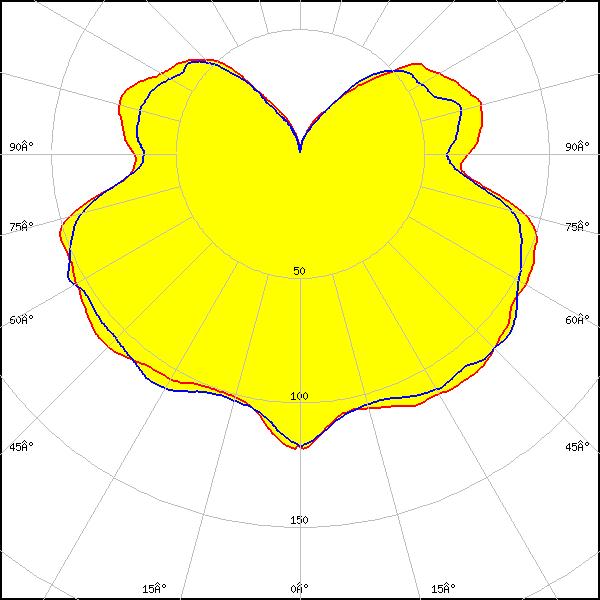

    LED: CTM-9 (Tunable White)
    LES size: 9.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 254°
    FWTM: 320°
    Peak intensity: 0.120 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

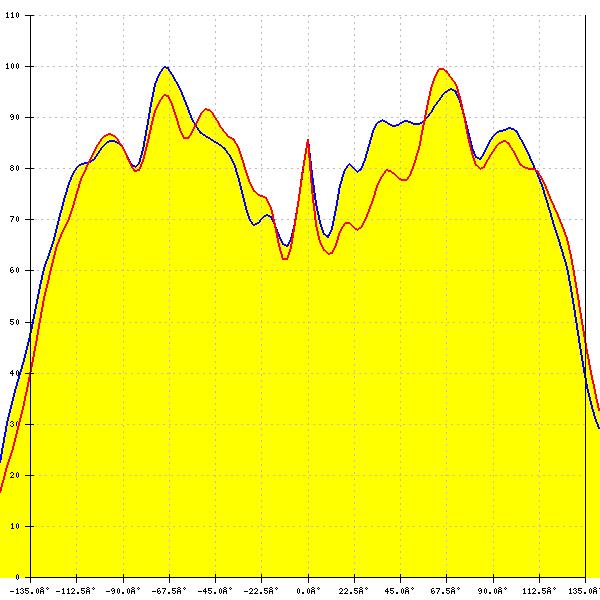

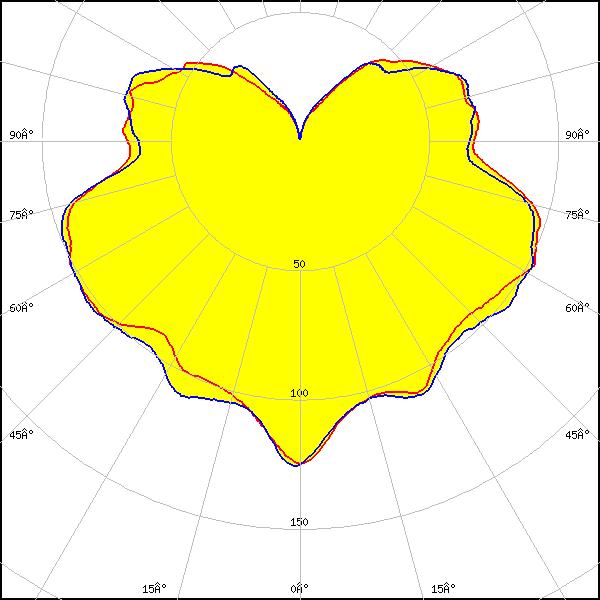

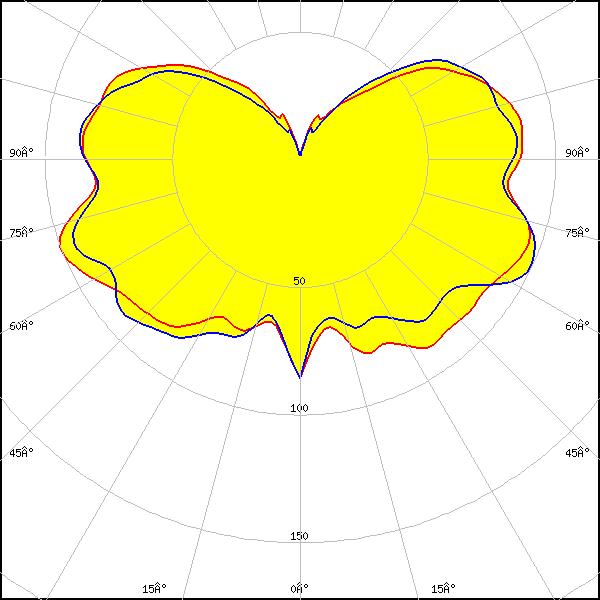

    LED: COB L-Type (LES 9)
    LES size: 8.7 mm
    Required components:
    Bender Wirth: 638a Hekla
    FWHM: 264°
    FWTM: 328°
    Peak intensity: 0.101 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

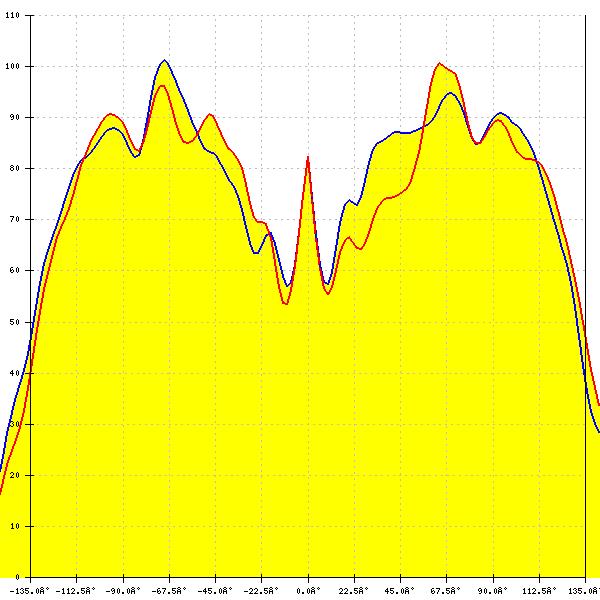

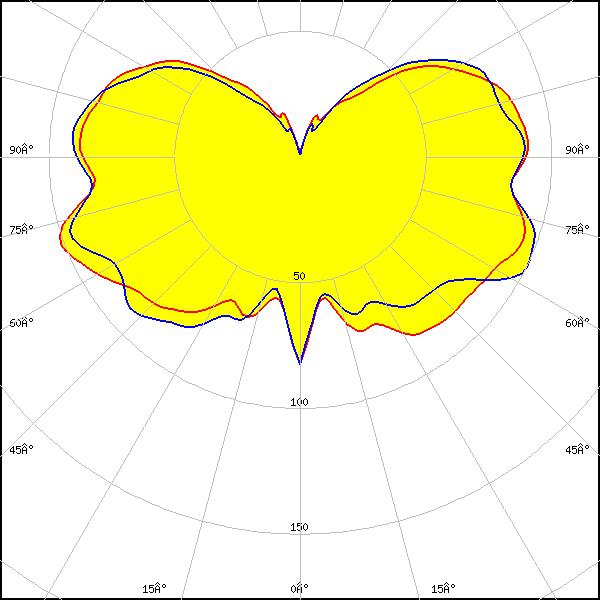

    LED: COB S-Type (LES 7)
    LES size: 6.7 mm
    Required components:
    Bender Wirth: 652a Hekla
    FWHM: 263°
    FWTM: 327°
    Peak intensity: 0.101 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

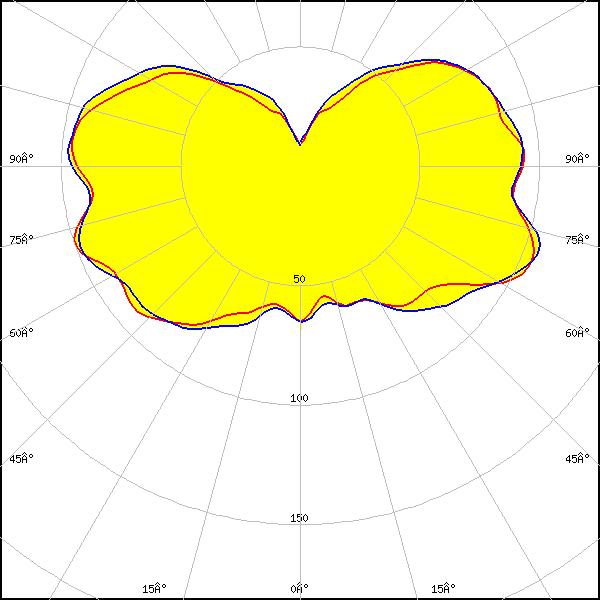

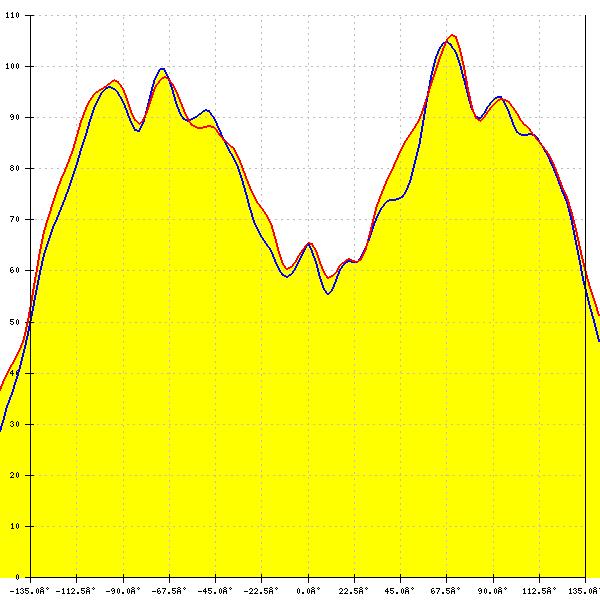

    LED: COB T-Type
    LES size: 5.9 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    LEDs/each optic: 1
    Light colour/type: White

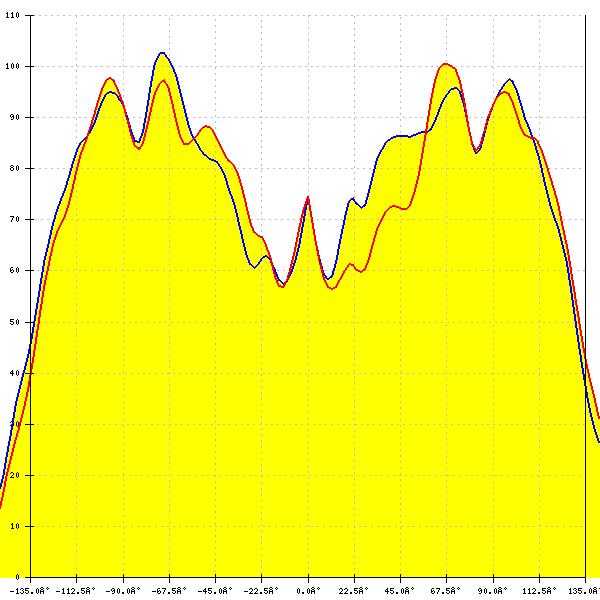

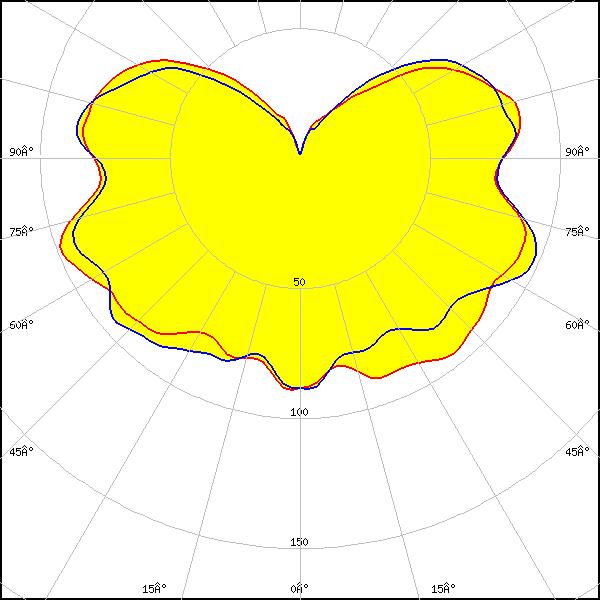

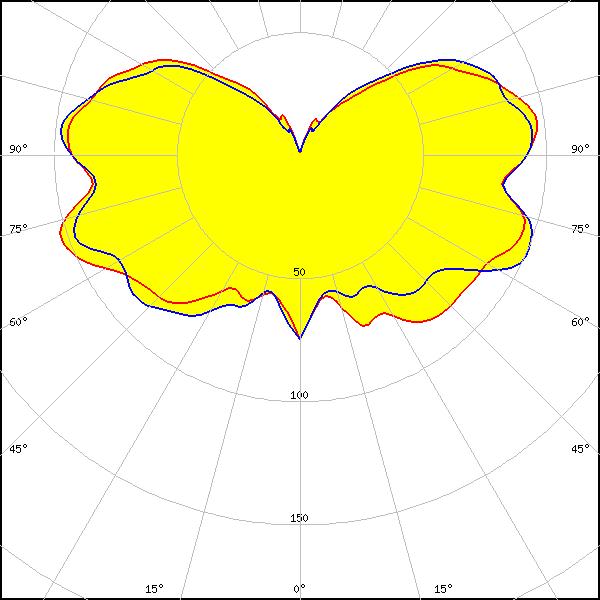

    LED: NF2x757G
    LES size: 0.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 262°
    FWTM: 322°
    Peak intensity: 0.103 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White

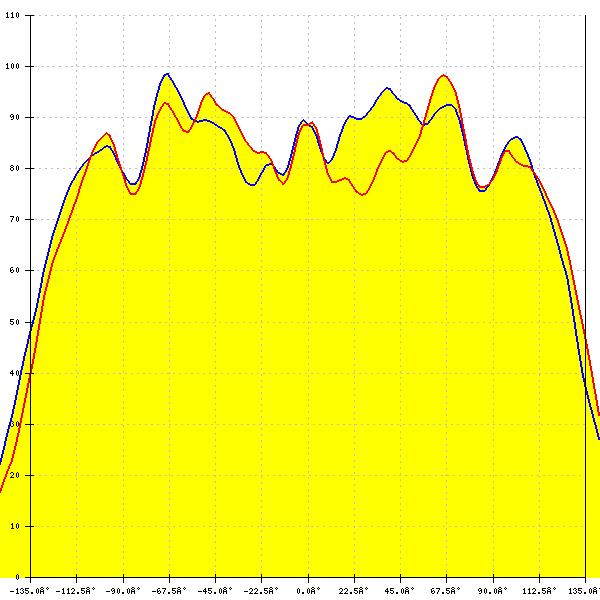

    LED: NF2x757G
    LES size: 0.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 264°
    FWTM: 326°
    Peak intensity: 0.100 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 9
    Light colour/type: White

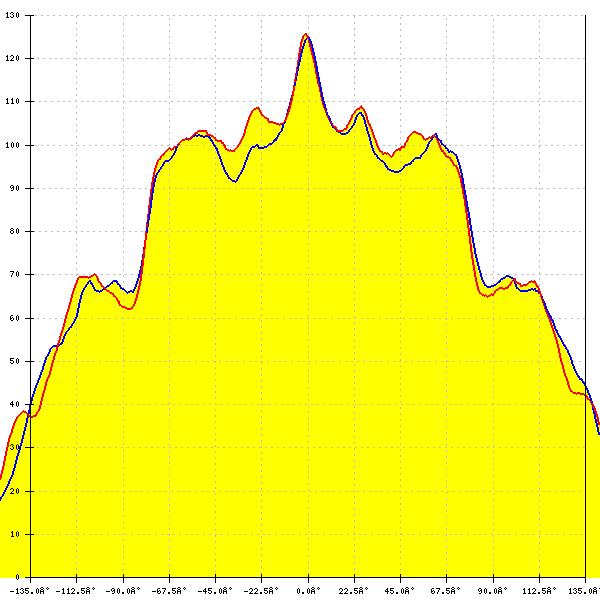

    LED: NJCWL024Z-V1MT: COB L-Type Tunable White
    LES size: 7.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 497 Typ L8
    FWHM: 234°
    FWTM: 321°
    Peak intensity: 0.300 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

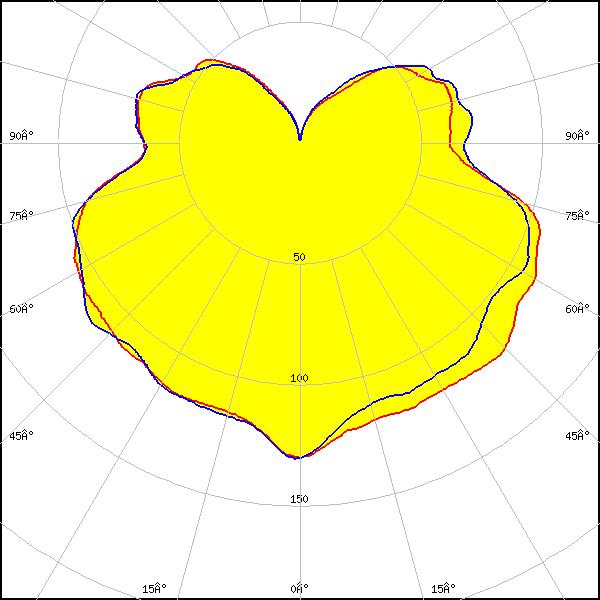

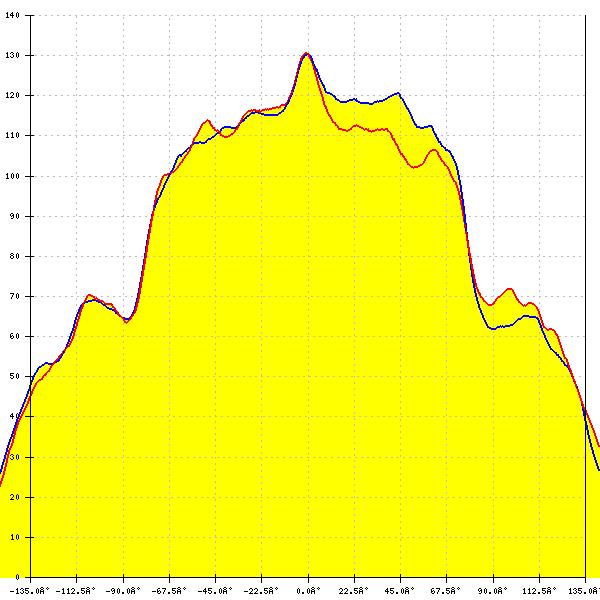

    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    LES size: 10.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 498 Typ L8
    FWHM: 224°
    FWTM: 322°
    Peak intensity: 0.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

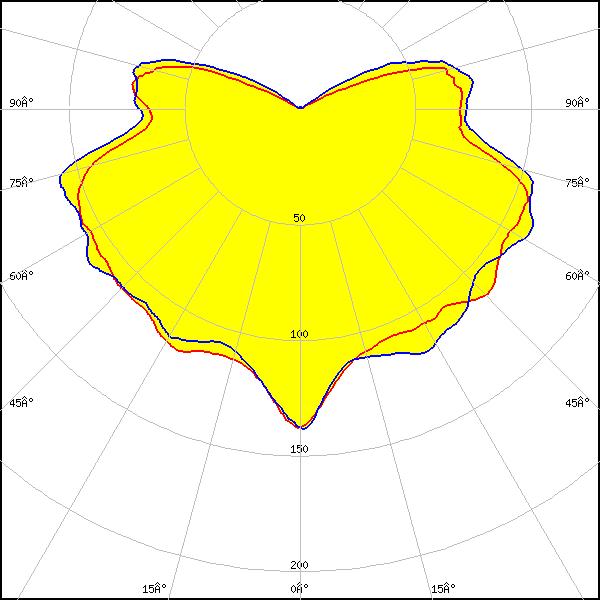

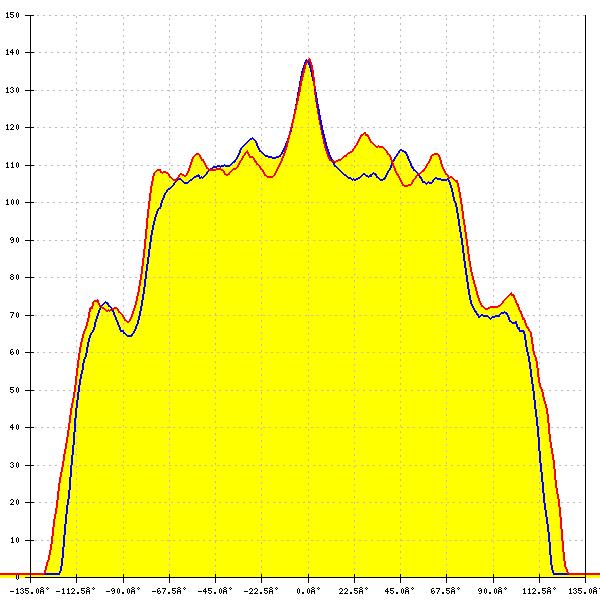

    LED: LC010C G2
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 210°
    FWTM: 235°
    Peak intensity: 0.140 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
