YASMEEN-70-W

Print

~36° wide beam

This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

Specification
  • Dimensions:
    70 mm
  • Height:
    37.70 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials
  • YASMEEN-70-W
    PMMA
  • YASMEEN-70-HLD2-C-WHT
    PC
  • YASMEEN-70-HLD2-C
    PC
  • YASMEEN-70-HLD2-B50-WHT
    PC
  • YASMEEN-70-HLD2-B50
    PC
  • YASMEEN-70-HLD2-B-WHT
    PC
  • YASMEEN-70-HLD2-B
    PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Single lens
  • C17240_YASMEEN-70-W
    clear
  • Quantity in box:
    105 pcs
  • Box size:
    476 x 273 x 305 mm
  • Box weight:
    8.40 kg
  • MPQ:
    15 pcs
  • MOQ:
    105 pcs
  • MOQ Size:
    476 x 273 x 305 mm
  • MOQ Weight:
    8.40 kg
  • Assembly
  • CP18763_YASMEEN-70-W-C2
    black,Holder C
  • CP18770_YASMEEN-70-W-B2
    black,Holder B
  • CP18777_YASMEEN-70-W-C2-WHT
    white,Holder C
  • CP18784_YASMEEN-70-W-B2-WHT
    white,Holder B
  • CP19958_YASMEEN-70-W-B50
    black,Holder B
  • CP19965_YASMEEN-70-W-B50-WHT
    white,Holder B
  • Quantity in box:
    105 pcs
  • Box size:
    476 x 273 x 305 mm
  • Box weight:
    9.70 kg
  • MPQ:
    15 pcs
  • MOQ:
    105 pcs
  • MOQ Size:
    476 x 273 x 305 mm
  • MOQ Weight:
    9.70 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C17240_YASMEEN-70-W
    CP18763_YASMEEN-70-W-C2
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

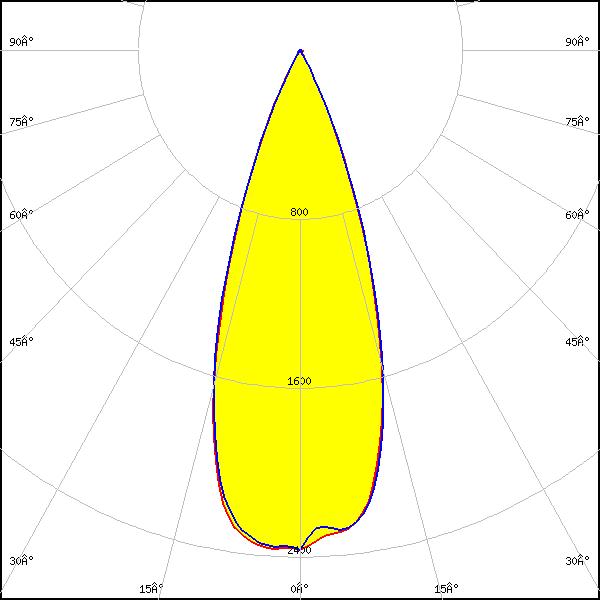

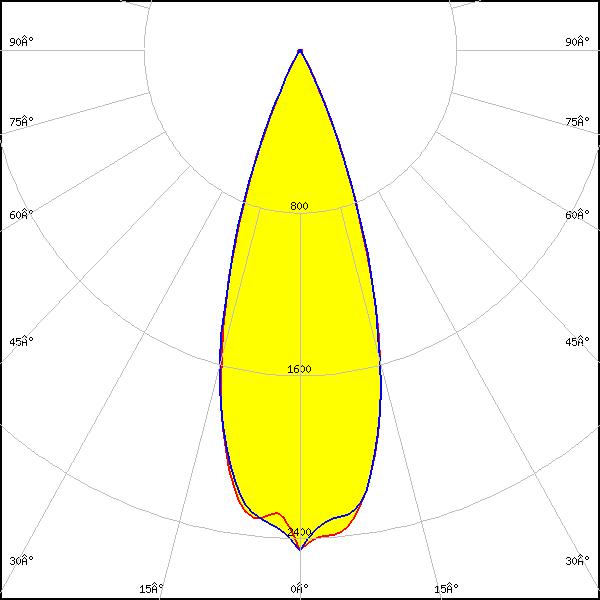

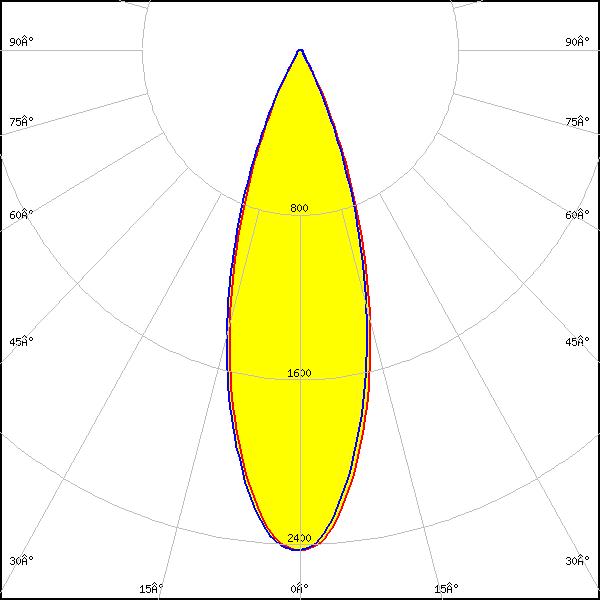

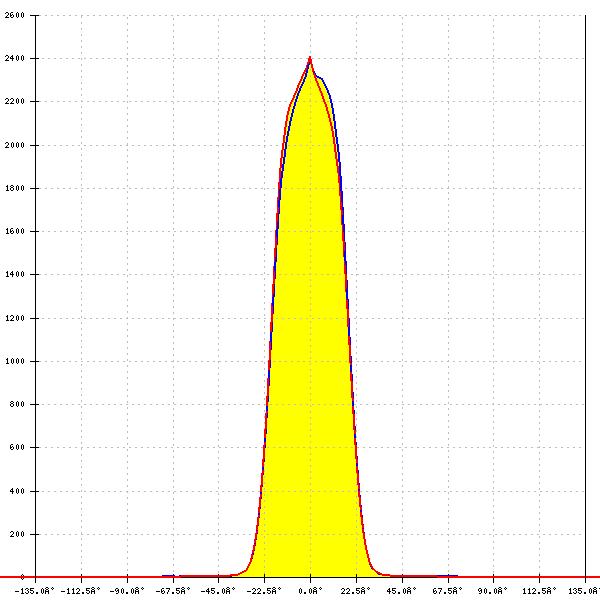

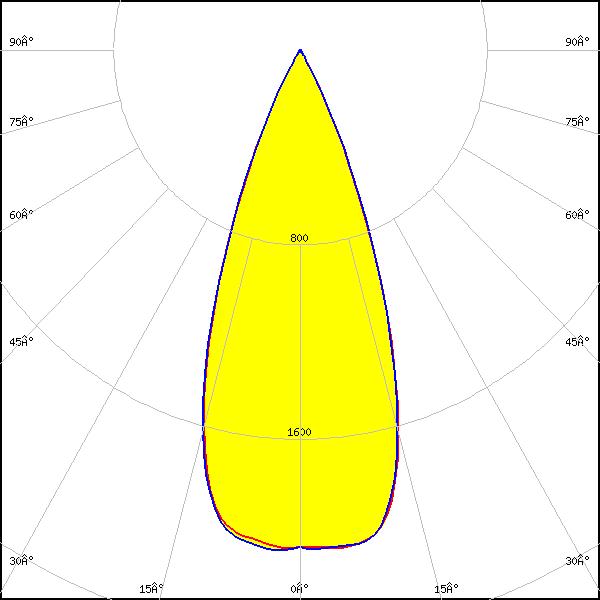

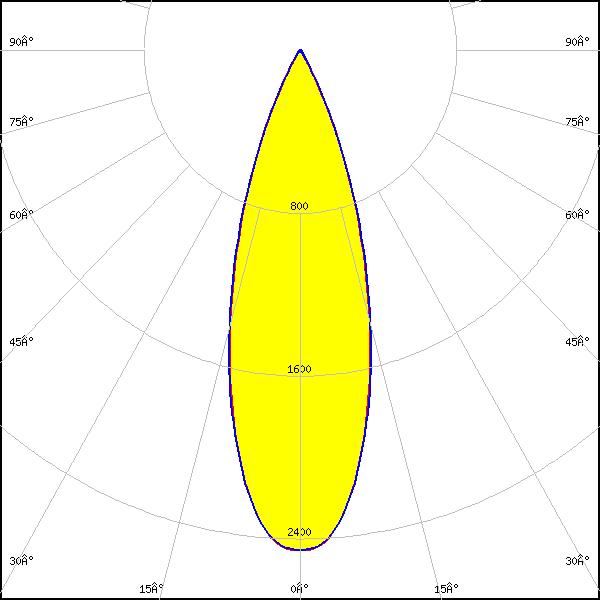

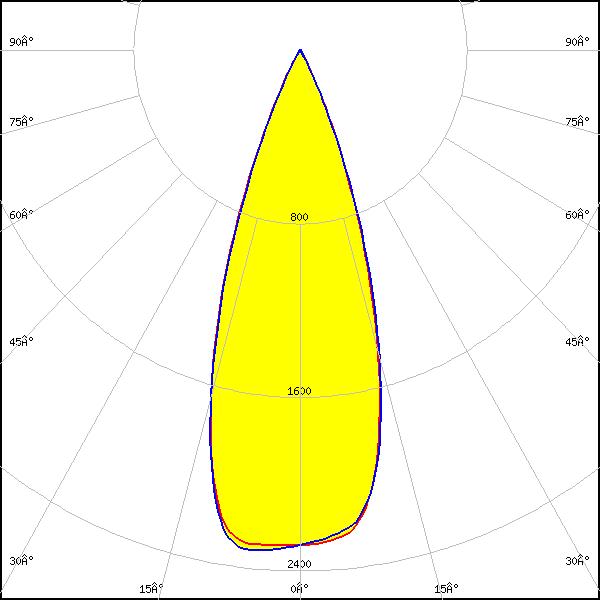

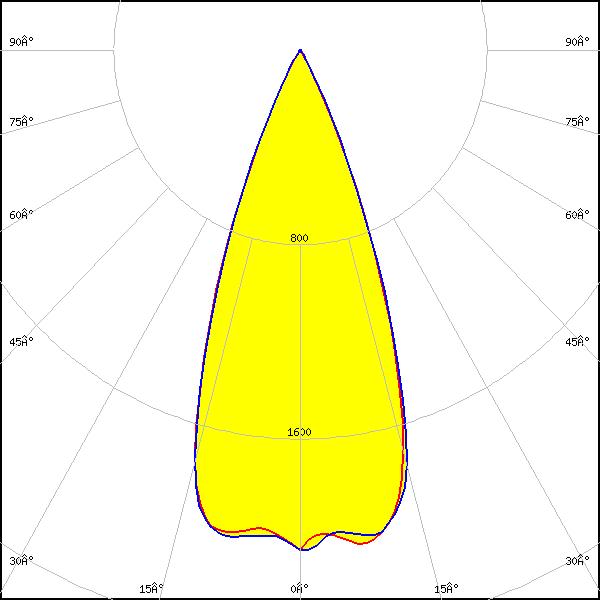

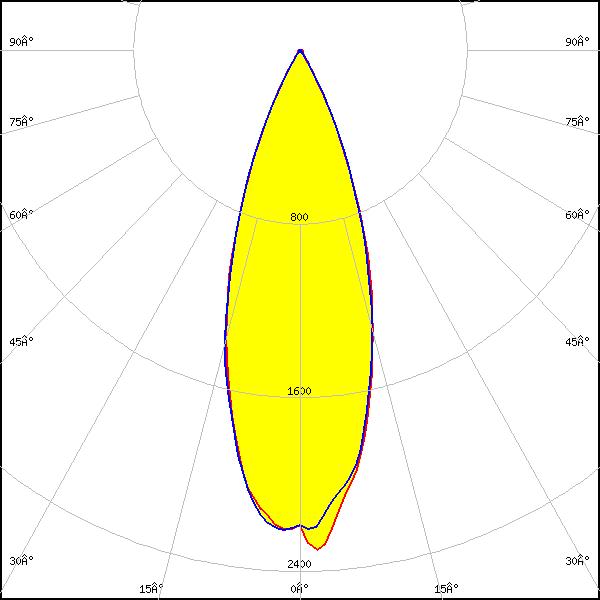

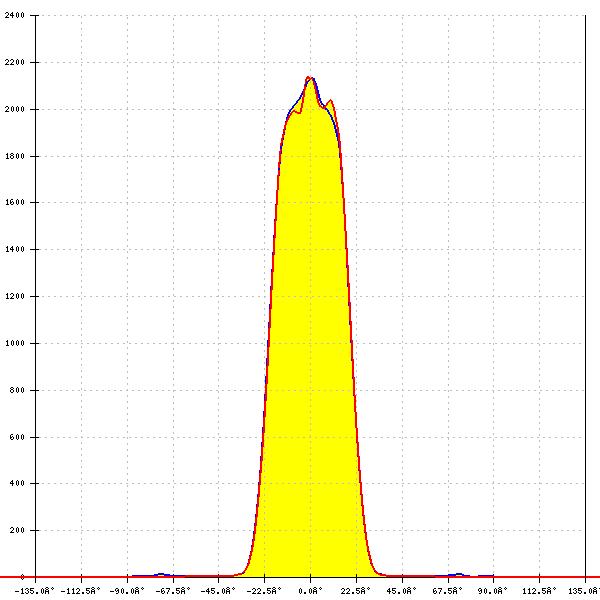

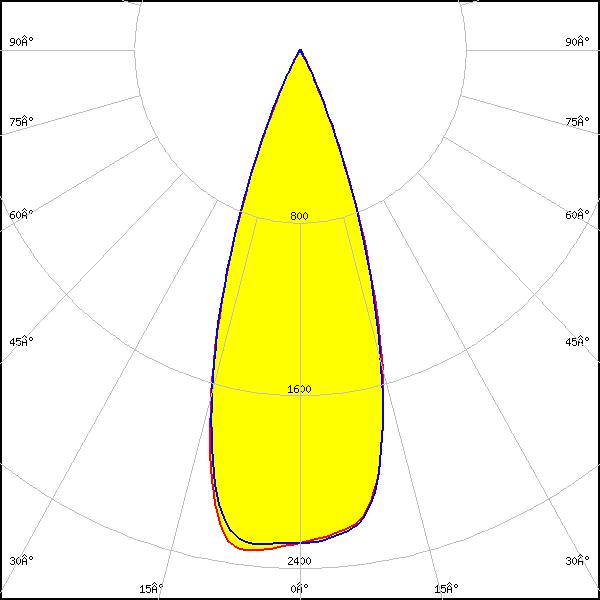

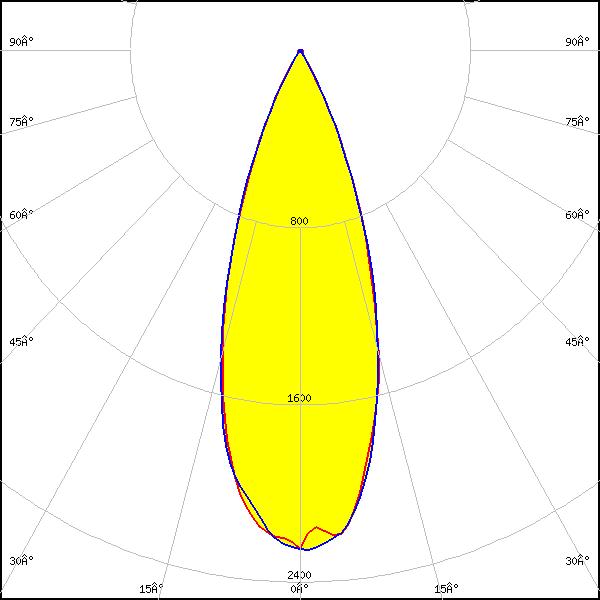

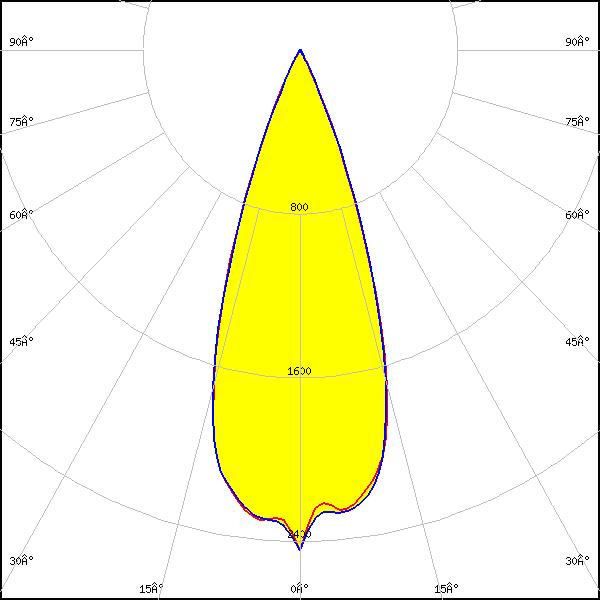

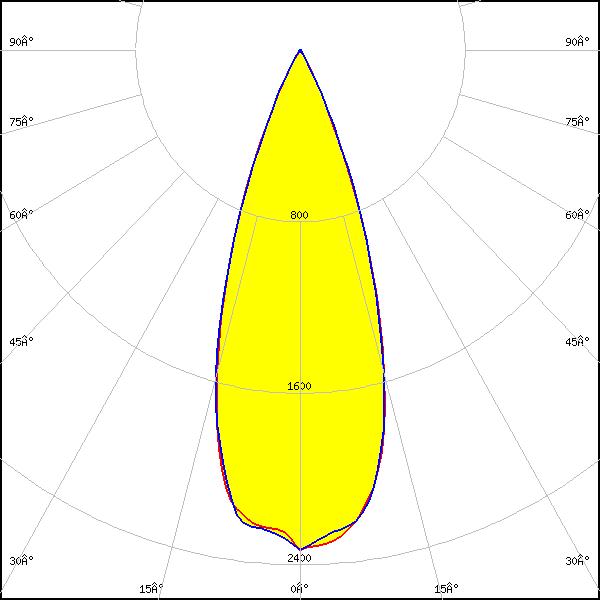

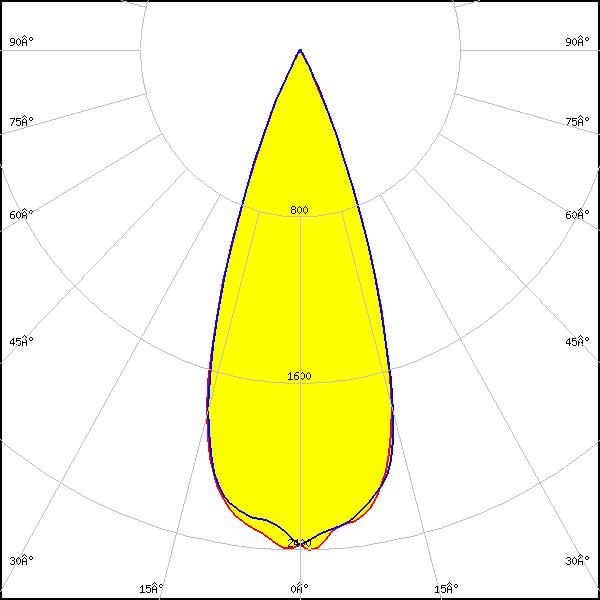

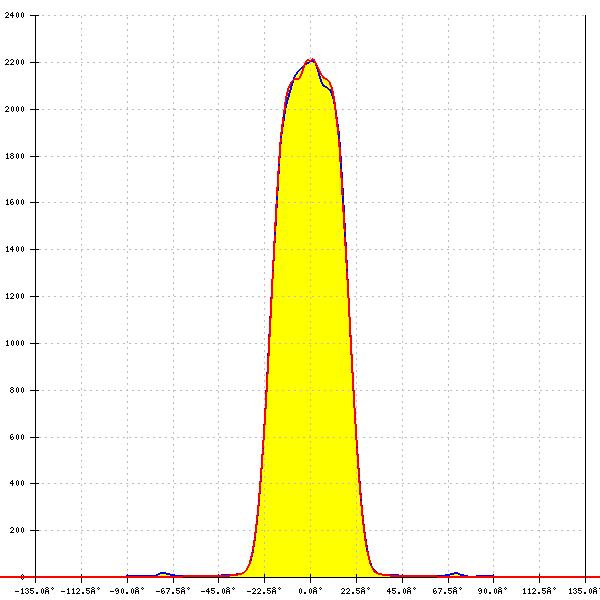

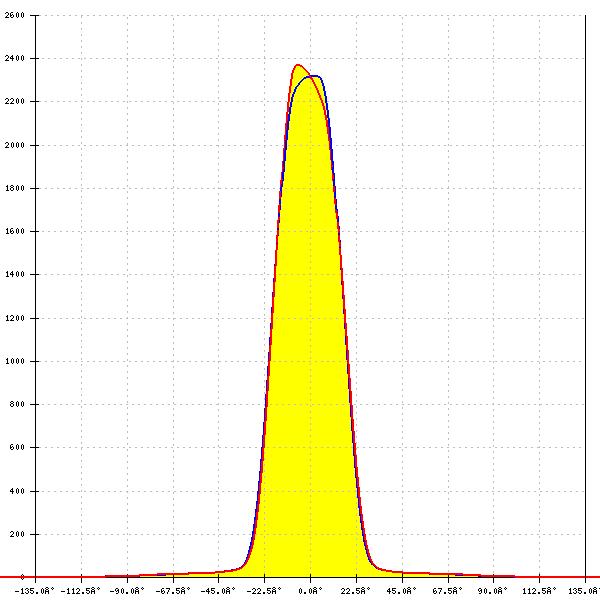

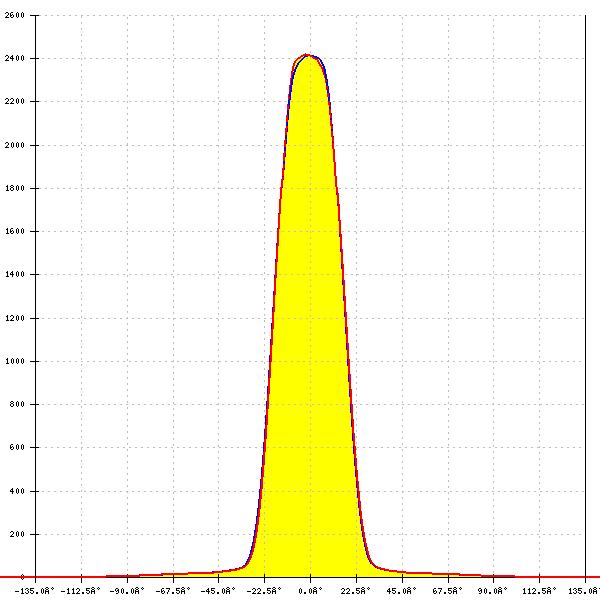

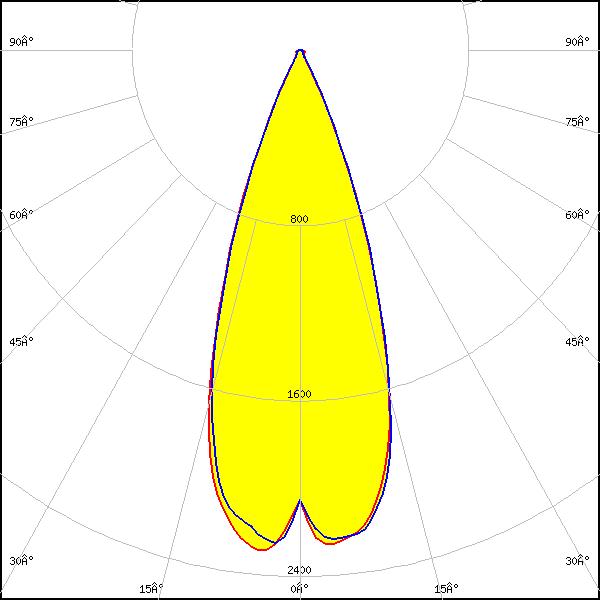

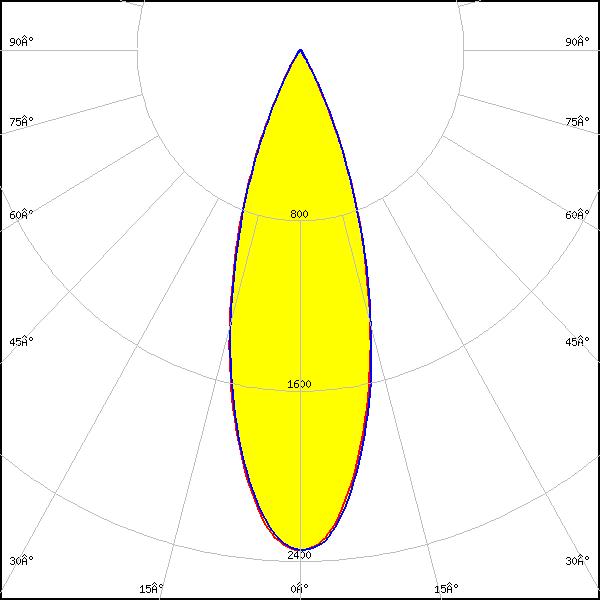

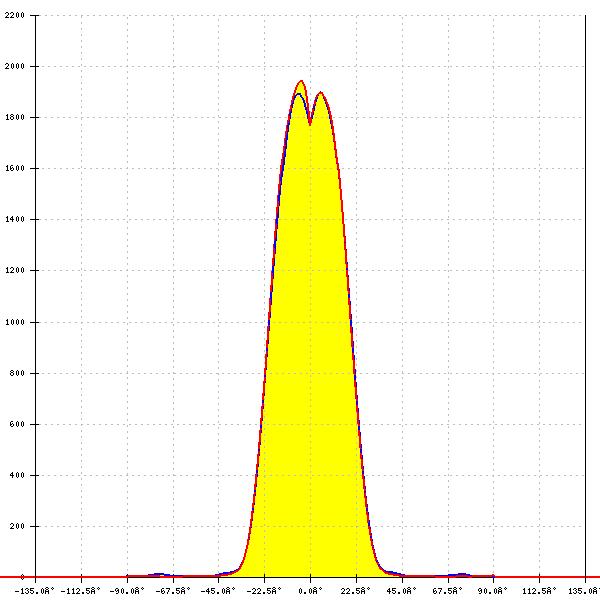

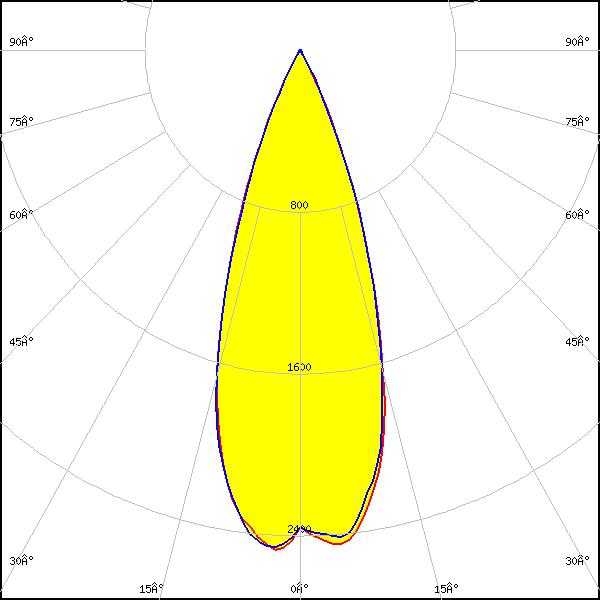

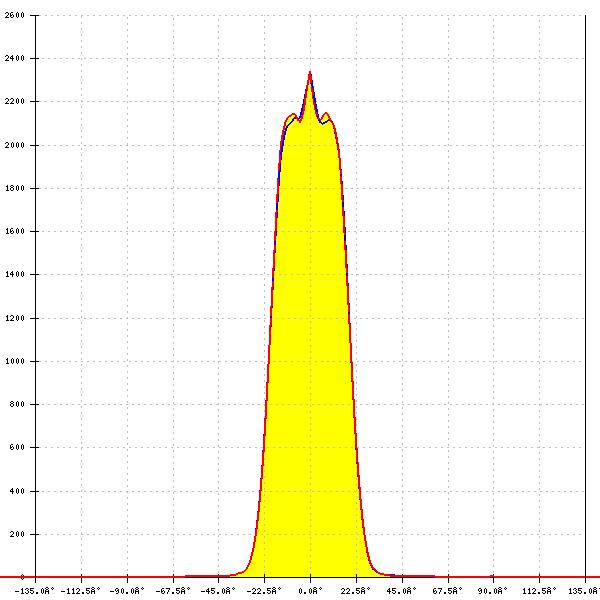

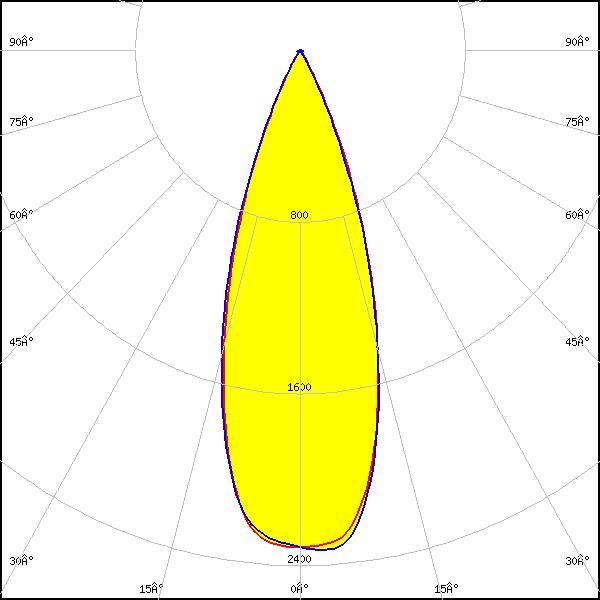

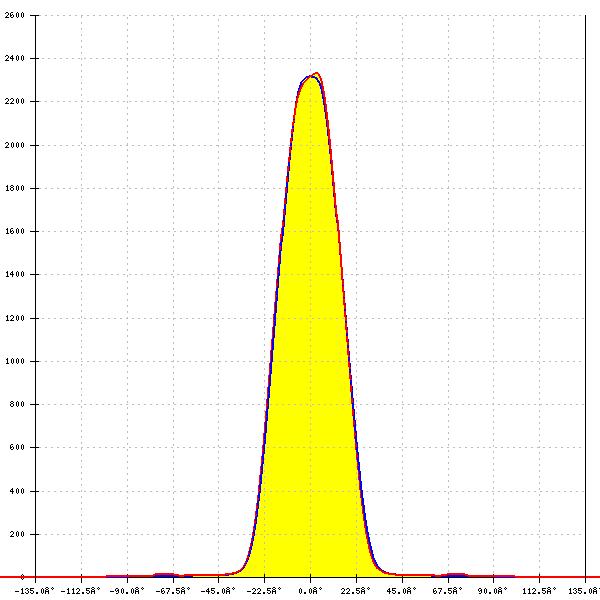

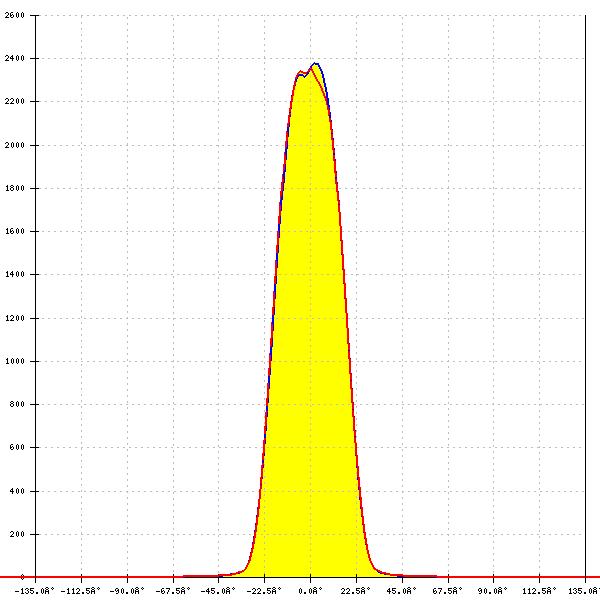

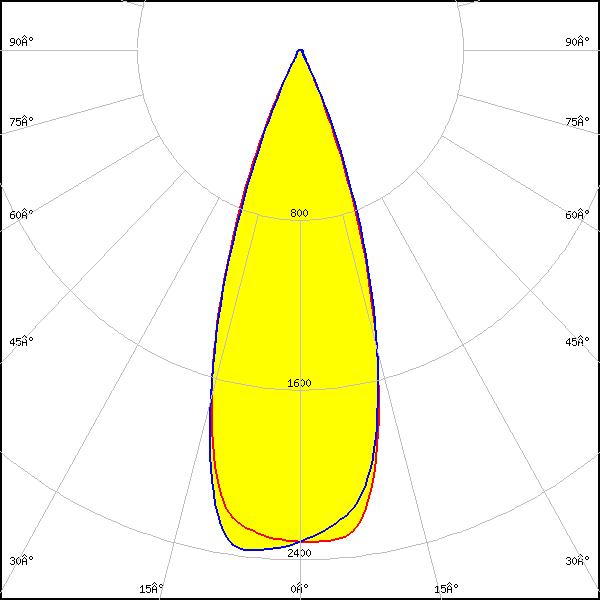

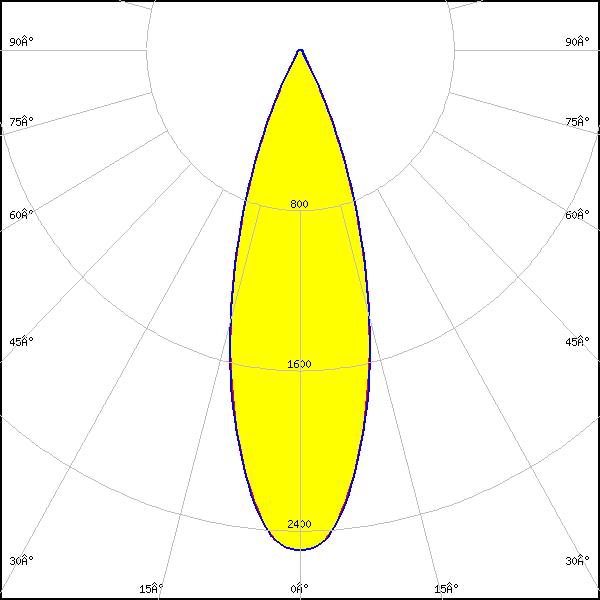

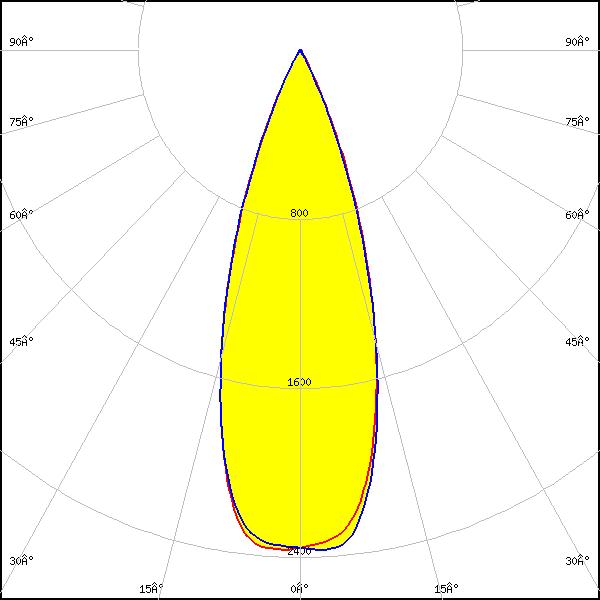

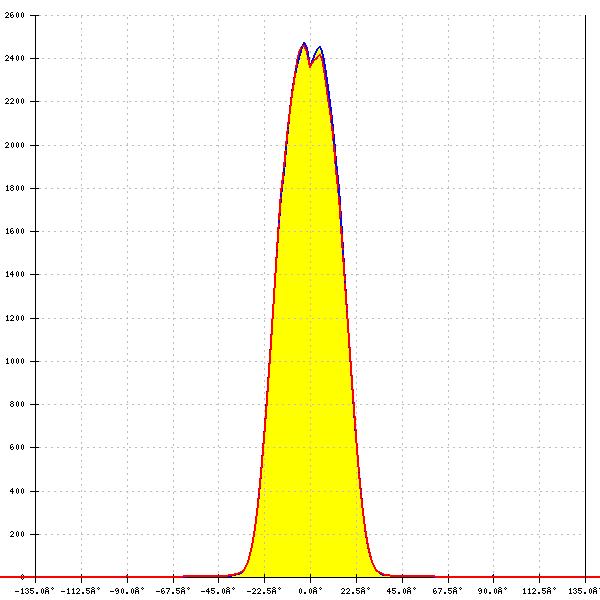

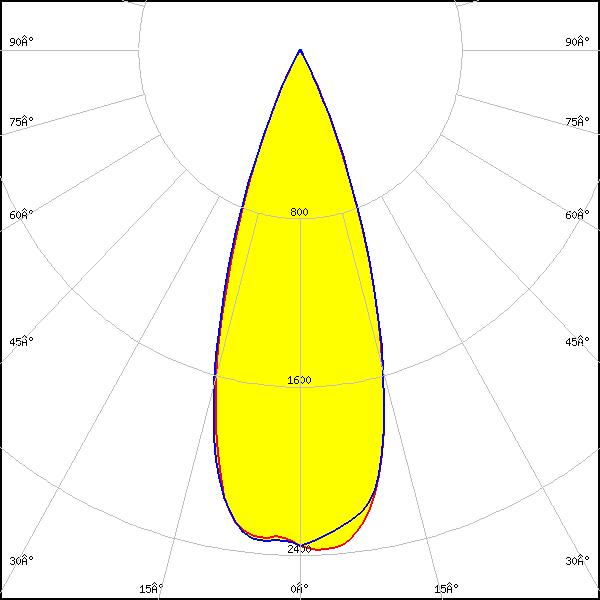

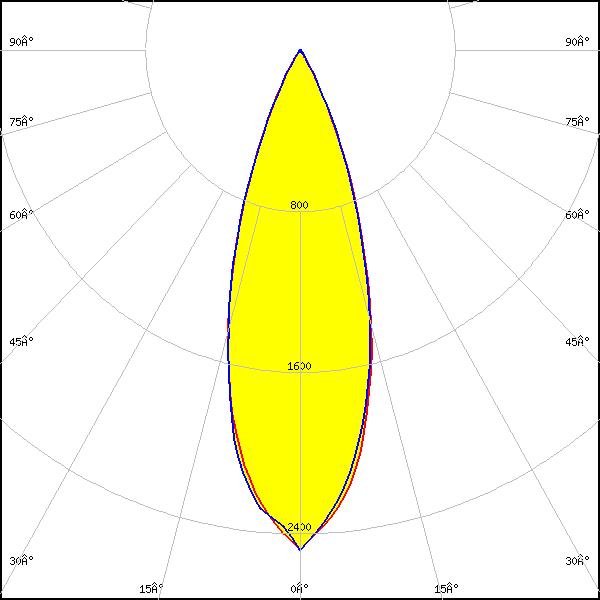

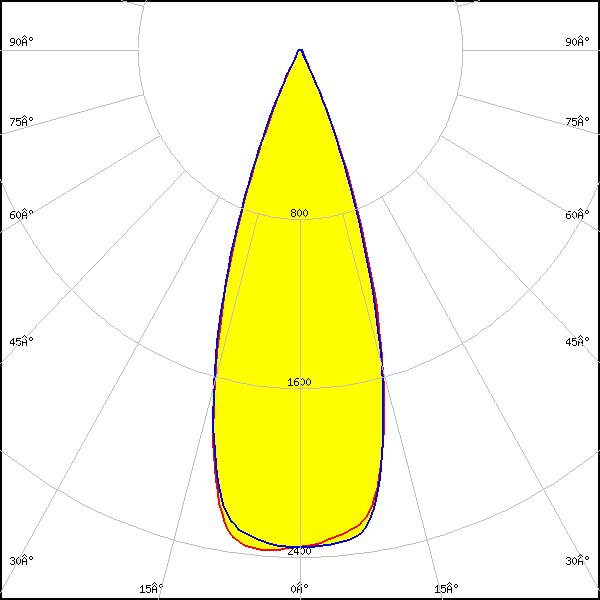

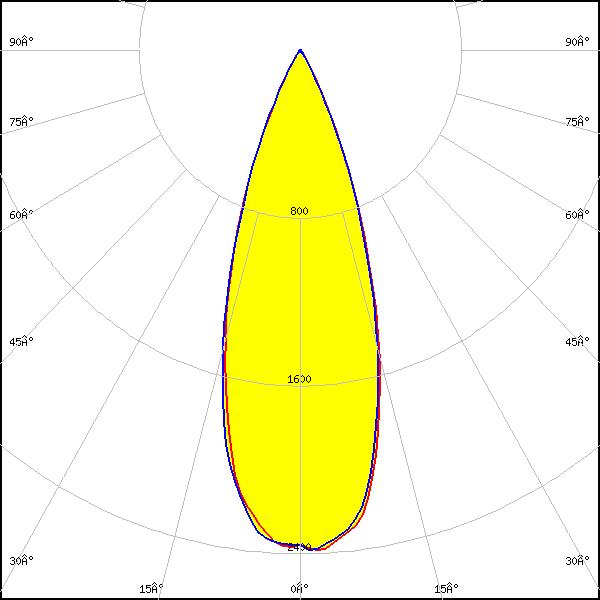

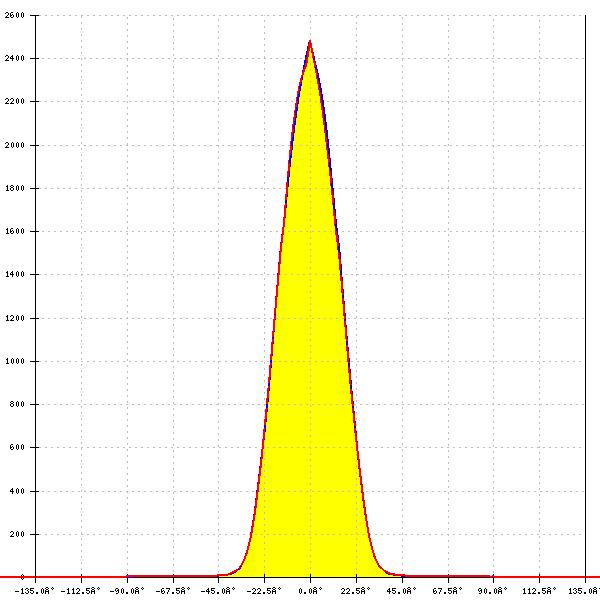

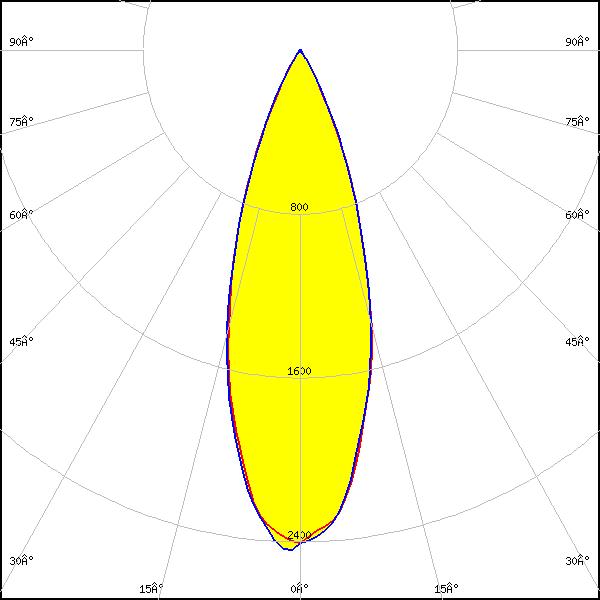

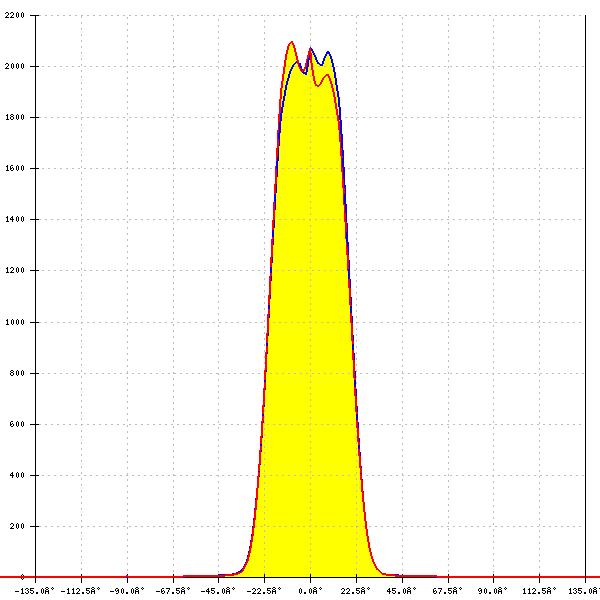

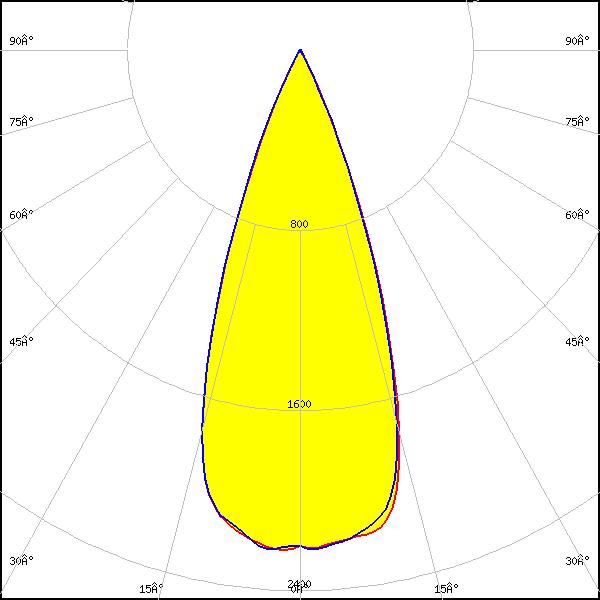

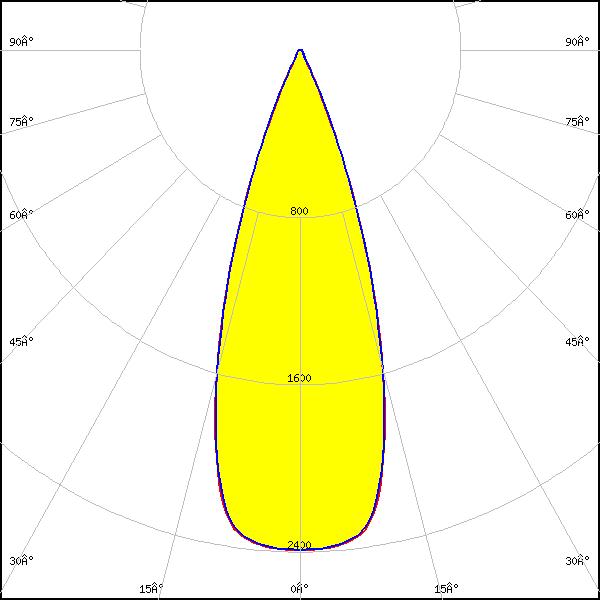

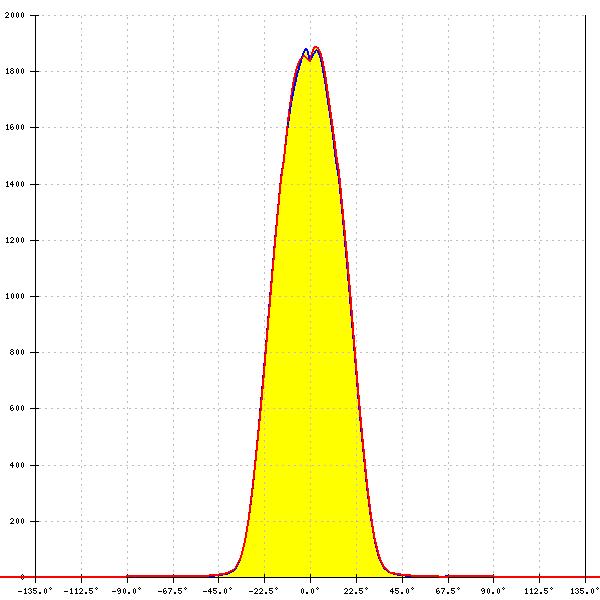

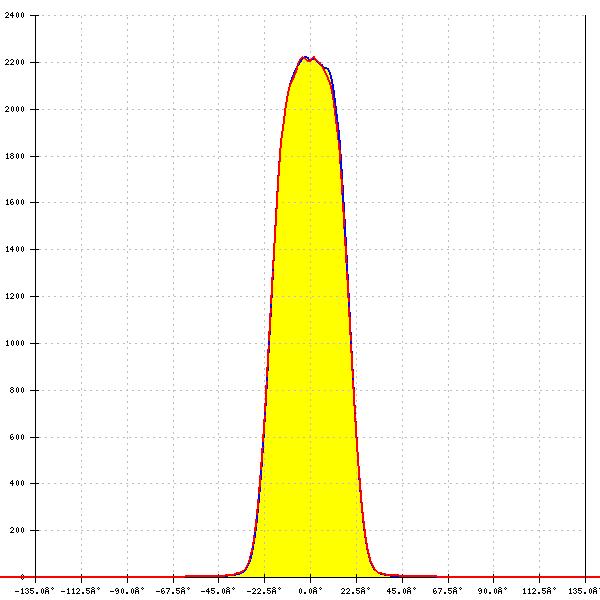

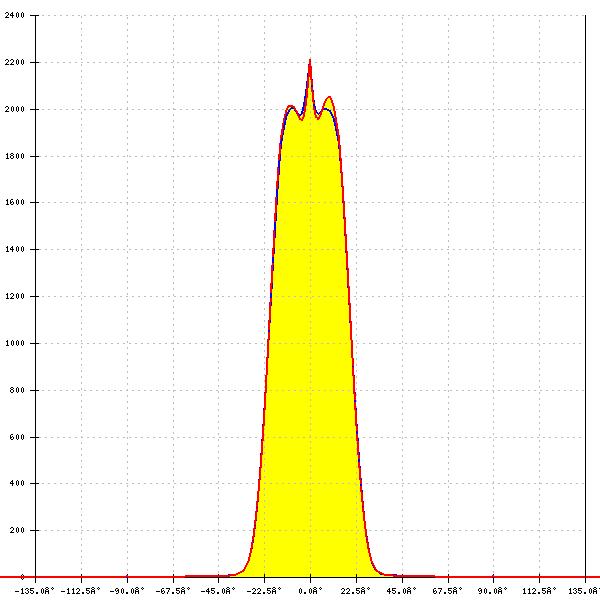

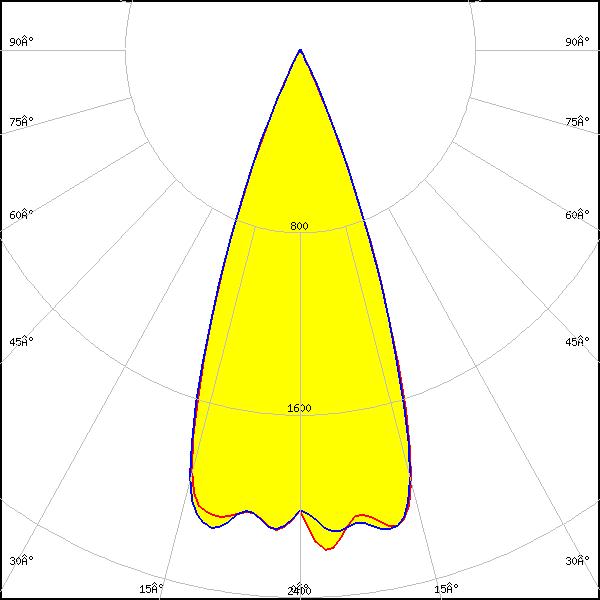

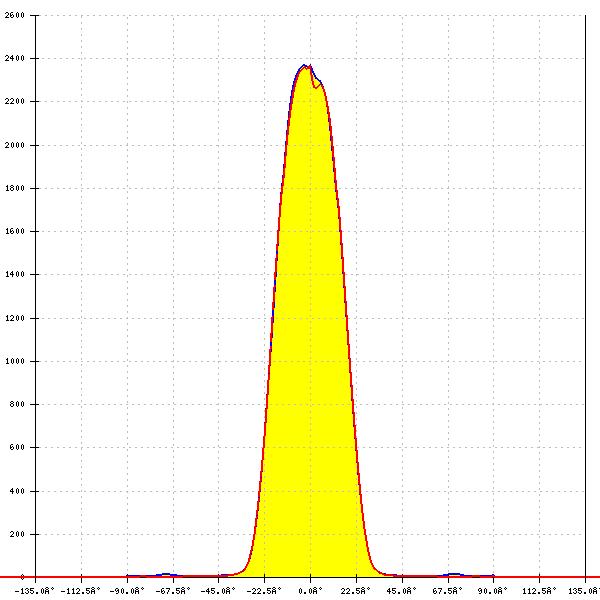

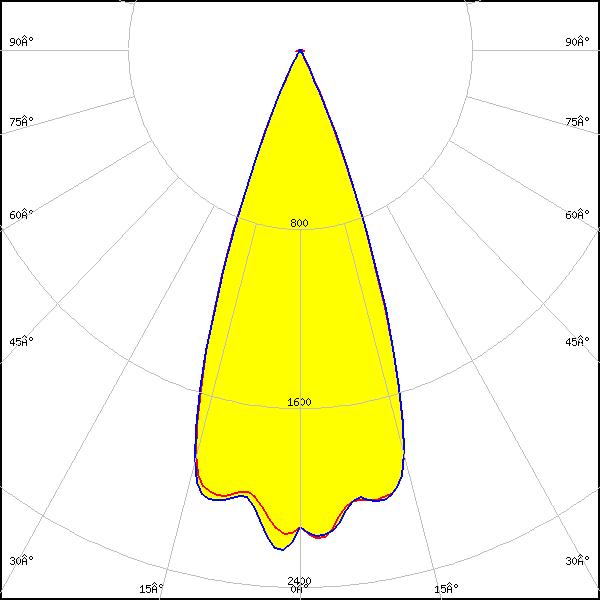

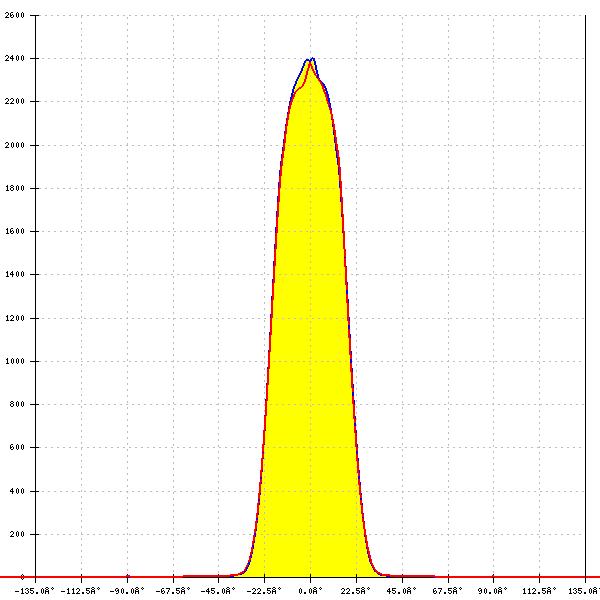

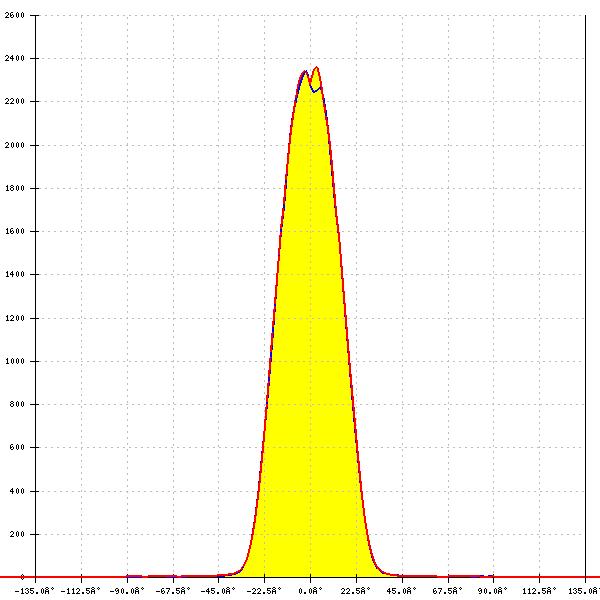

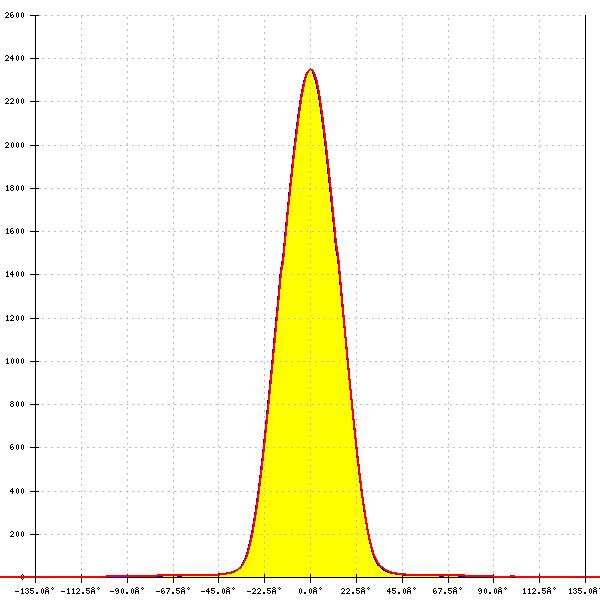

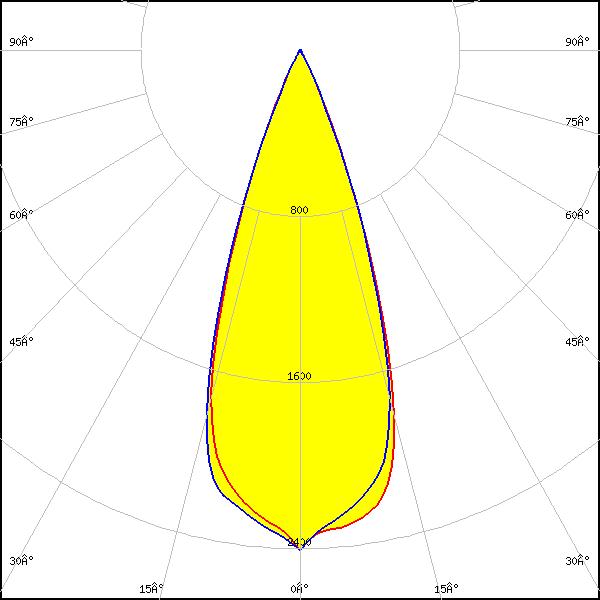

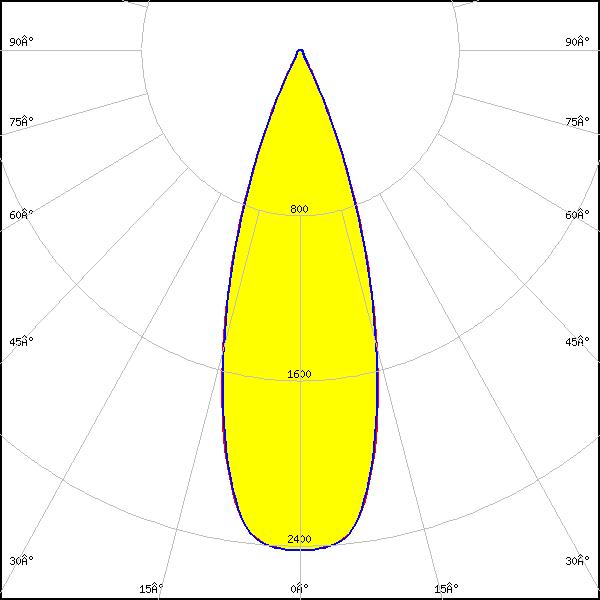

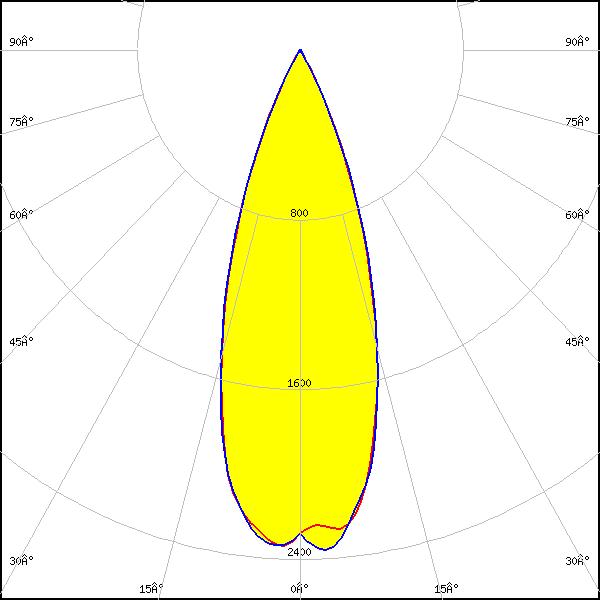

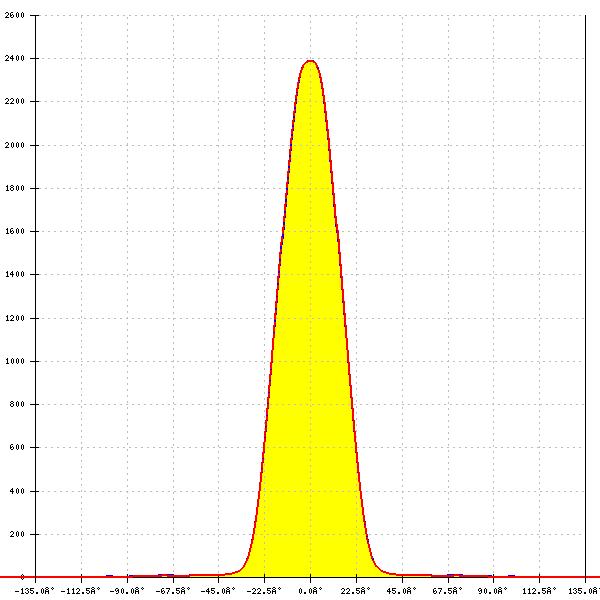

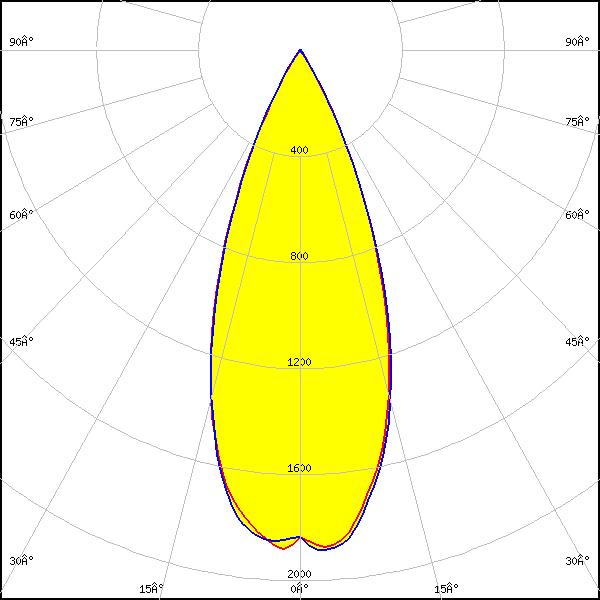

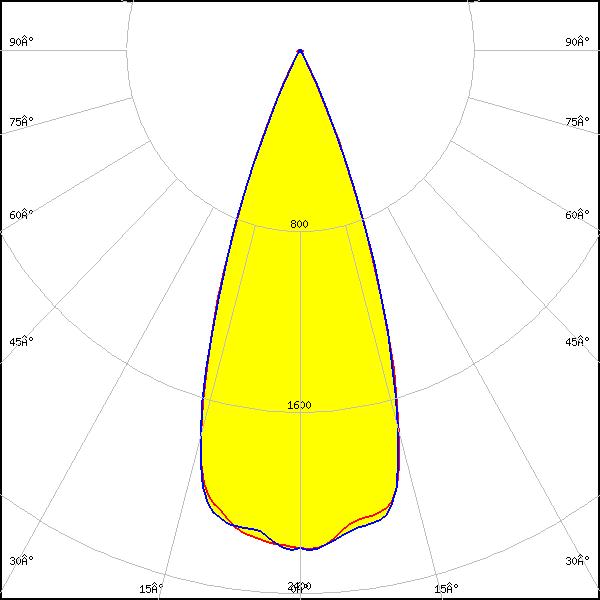

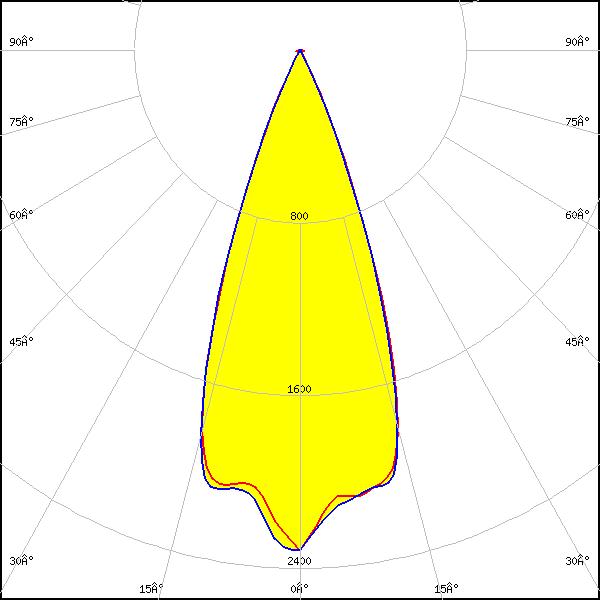

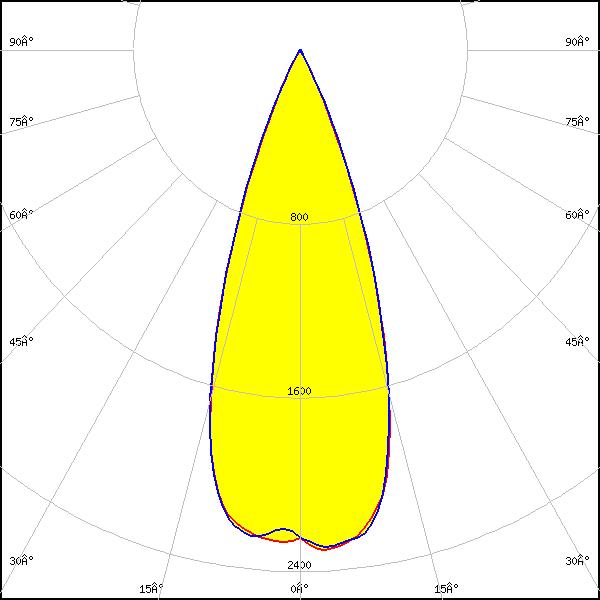

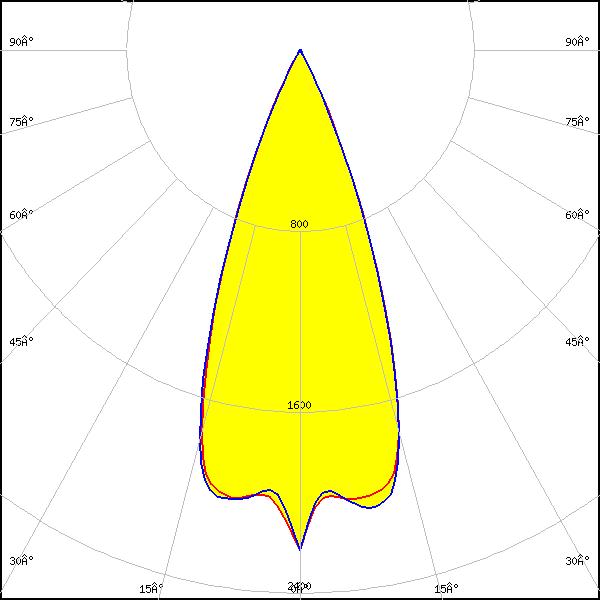

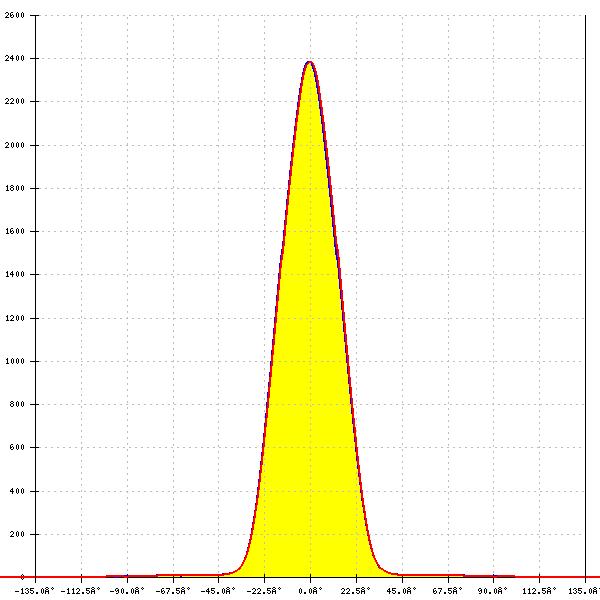

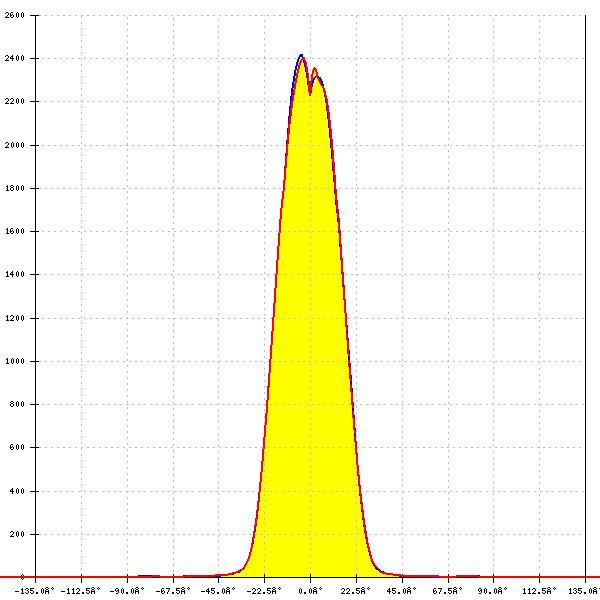

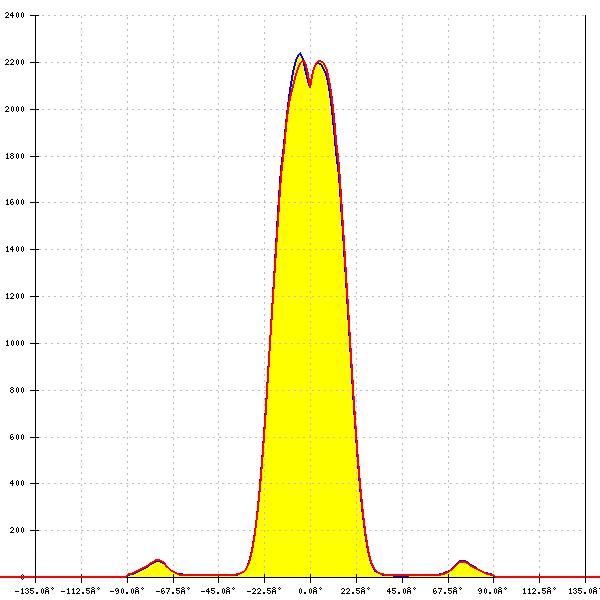

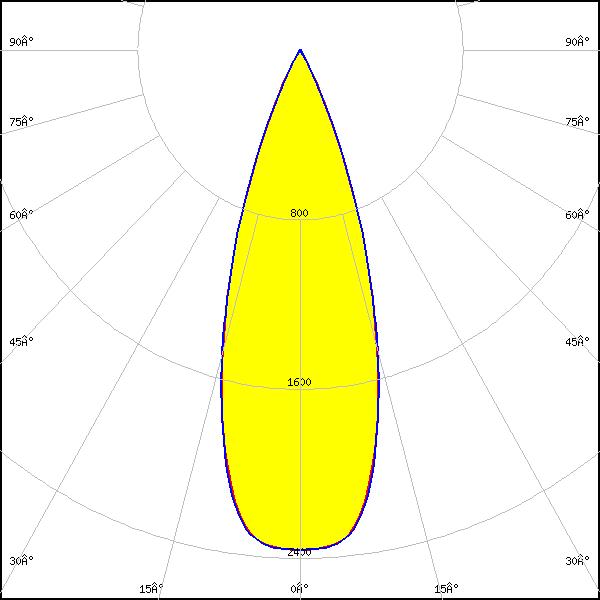

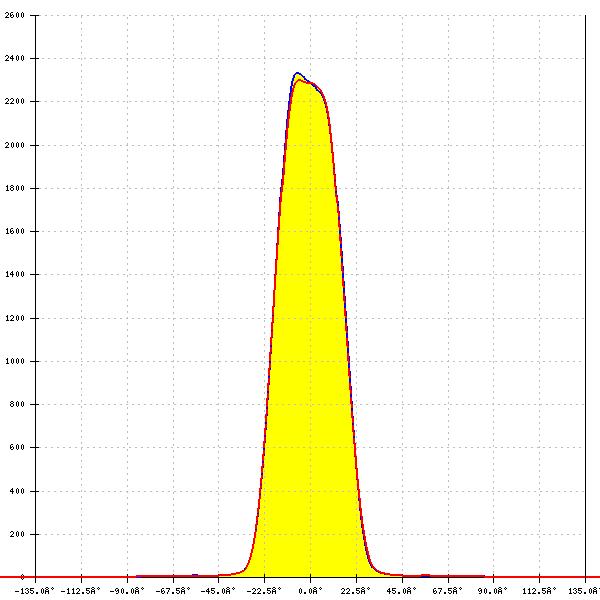

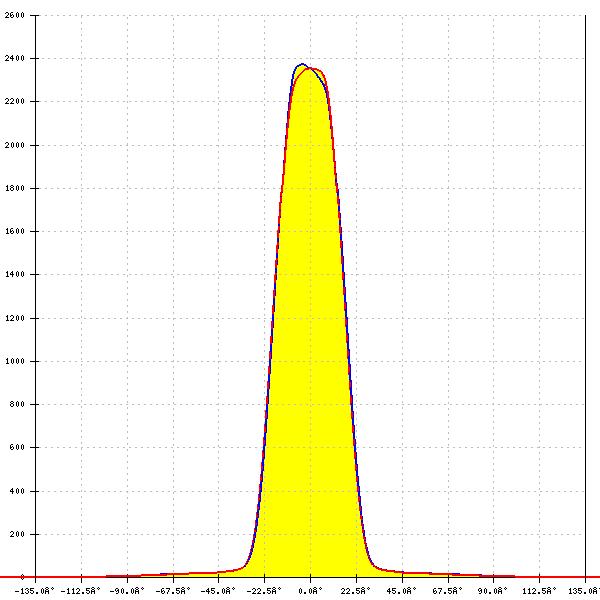

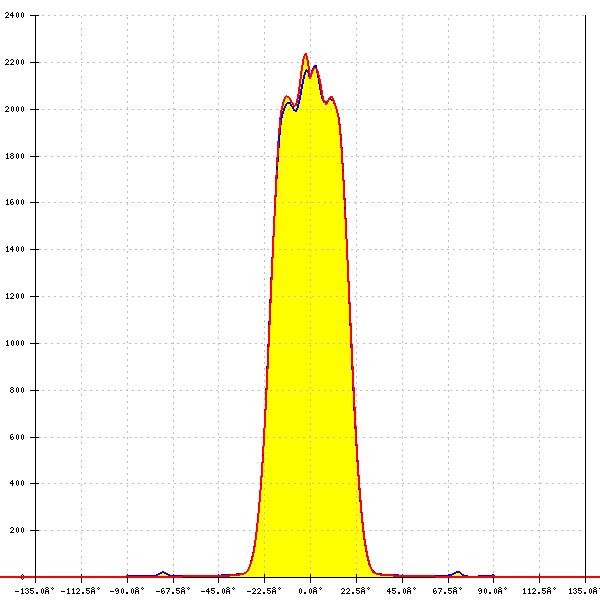

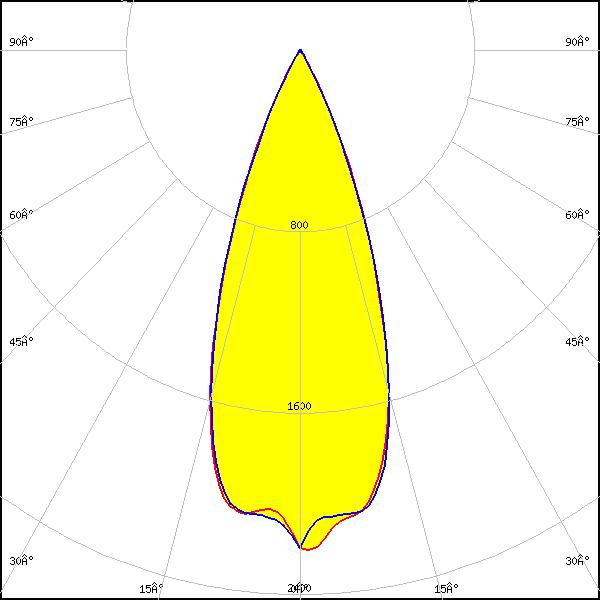

Optical results

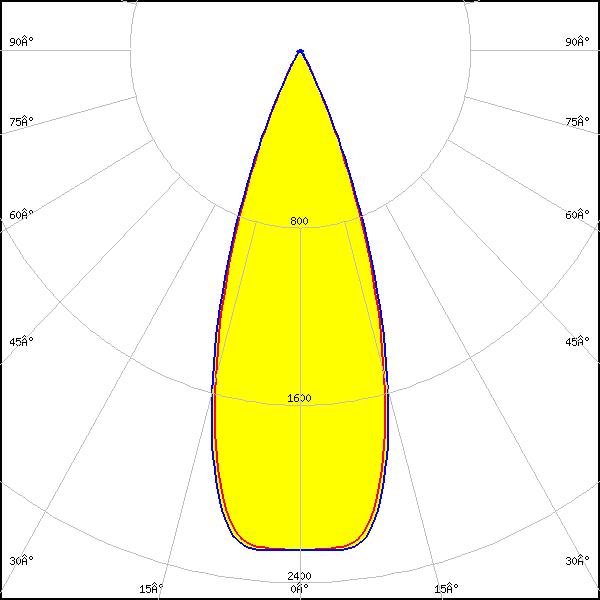

LED: V10 Gen 8-9
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 10.0 mm
Required components:
FWHM: 37°
FWTM: 54°
Peak intensity: 2.300 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: V11 HD Gen 8
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM: 34°
FWTM: 54°
Peak intensity: 2.486 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: V11 HD Gen 8
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM: 35°
FWTM: 53°
Peak intensity: 2.432 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

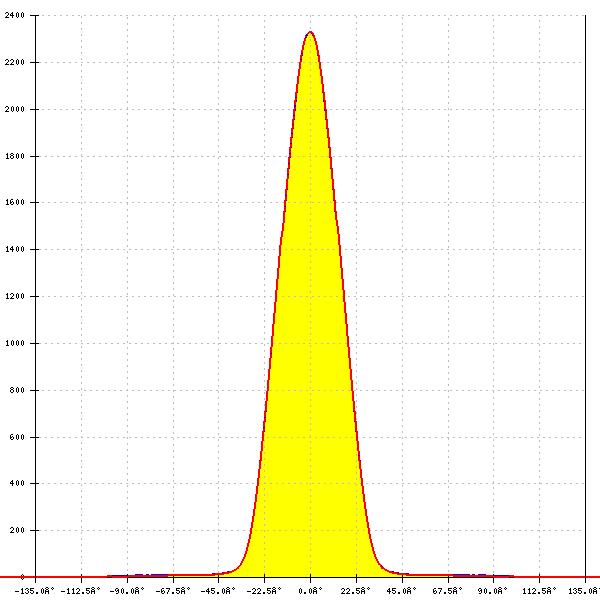

LED: V13 Gen 8-9
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 14.8 mm
Required components:
FWHM: 34°
FWTM: 57°
Peak intensity: 2.328 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: V3 HD Gen 8
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 3.8 mm
Required components:
FWHM: 39°
FWTM: 52°
Peak intensity: 2.358 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

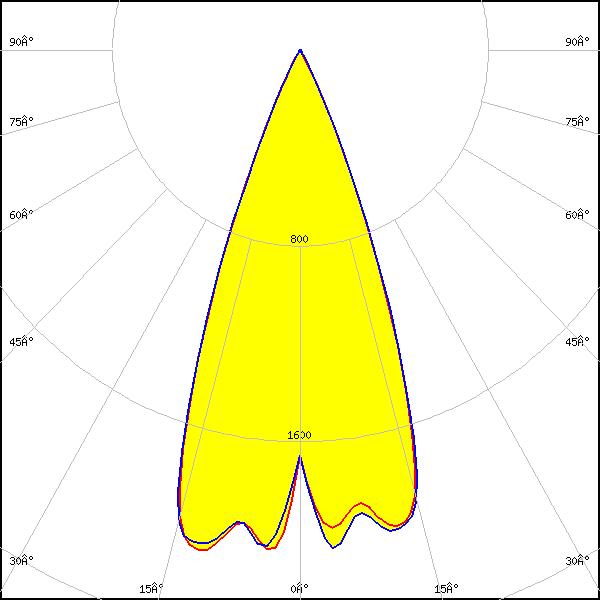

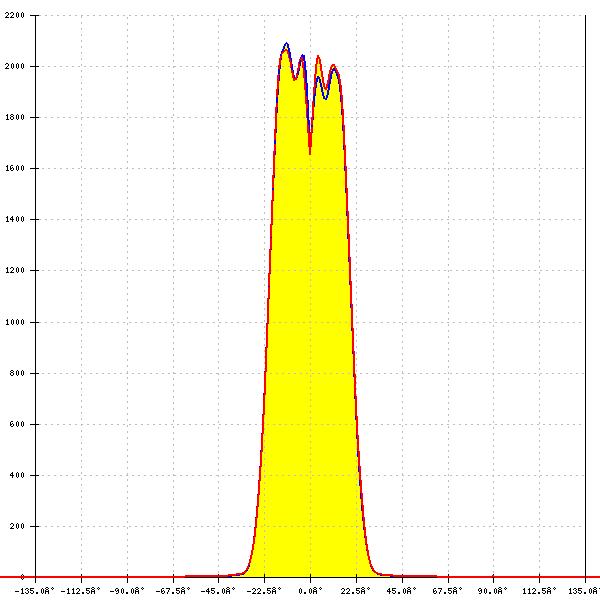

LED: V3 HD Gen 8 FC
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 2.9 mm
Required components:
FWHM: 41°
FWTM: 54°
Peak intensity: 2.091 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

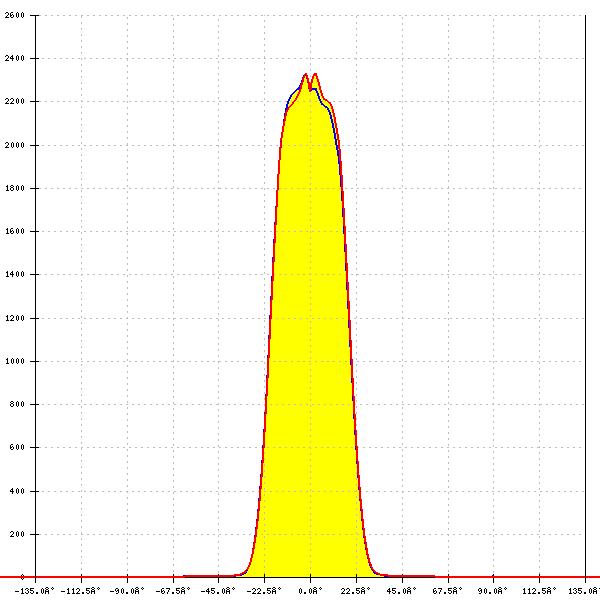

LED: V4 HD Gen 8
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 4.8 mm
Required components:
FWHM: 39°
FWTM: 52°
Peak intensity: 2.350 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

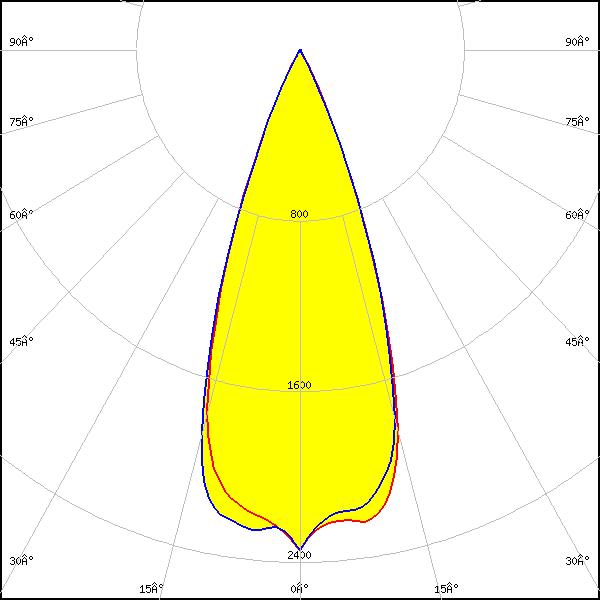

LED: V6 Gen 8-9
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 6.3 mm
Required components:
FWHM: 38°
FWTM: 54°
Peak intensity: 2.344 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

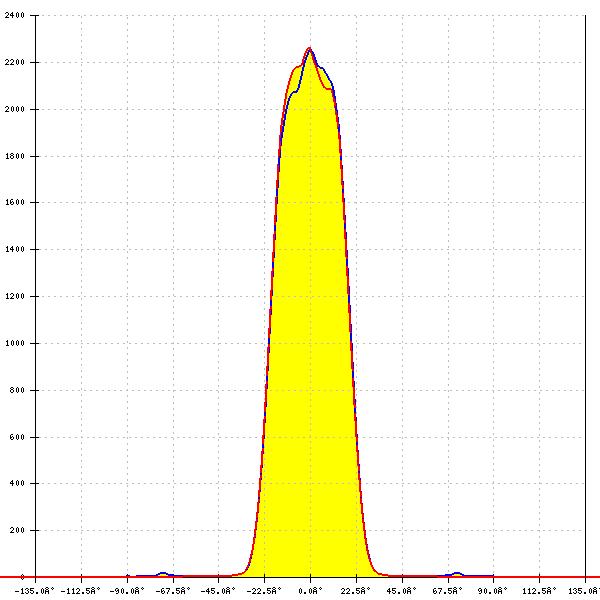

LED: V6 HD Gen 7
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 7.0 mm
Required components:
FWHM: 38°
FWTM: 52°
Peak intensity: 2.318 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

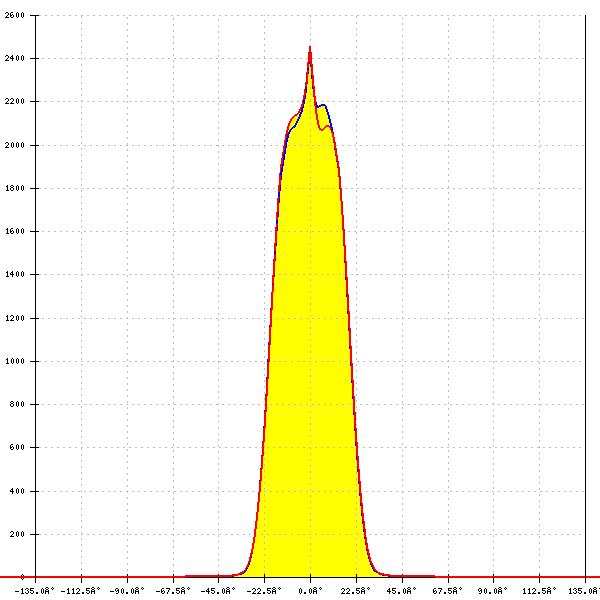

LED: V6 HD Gen 8
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 6.6 mm
Required components:
FWHM: 38°
FWTM: 52°
Peak intensity: 2.458 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

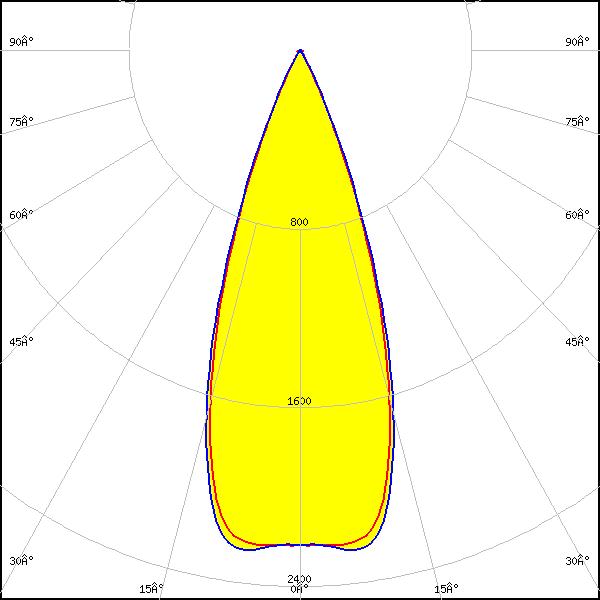

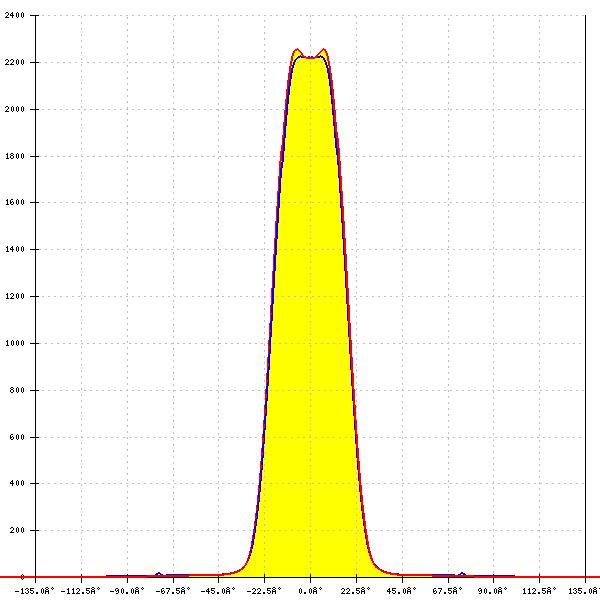

LED: V8 Gen 8-9
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 8.5 mm
Required components:
FWHM: 37°
FWTM: 54°
Peak intensity: 2.320 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

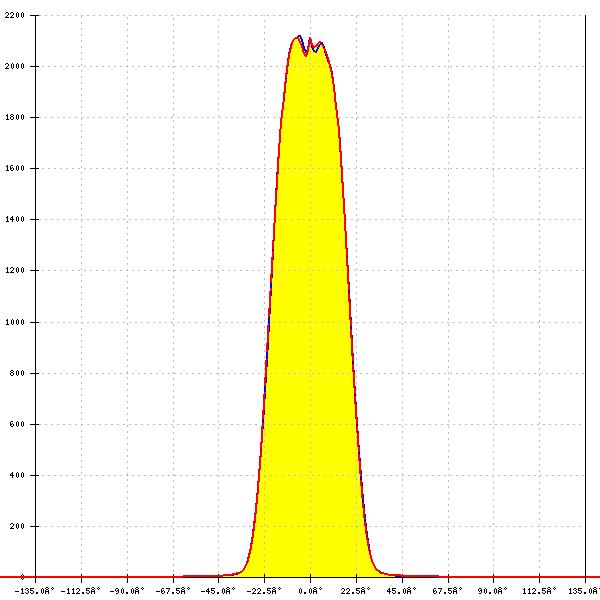

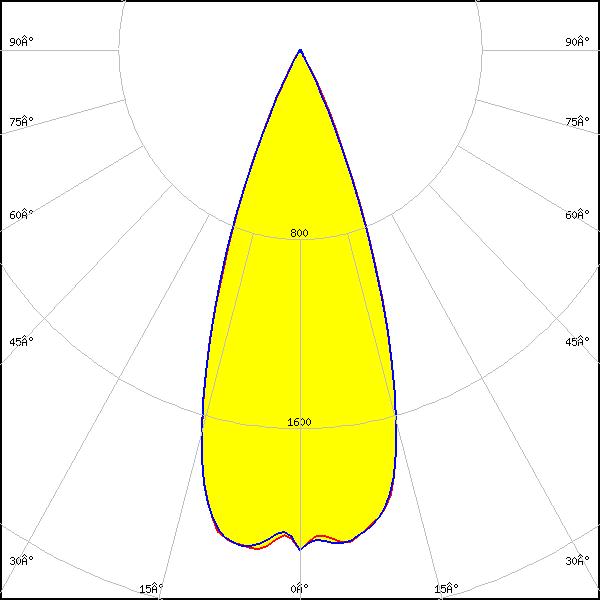

LED: V9 HD Gen 8
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 8.8 mm
Required components:
FWHM: 39°
FWTM: 54°
Peak intensity: 2.176 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

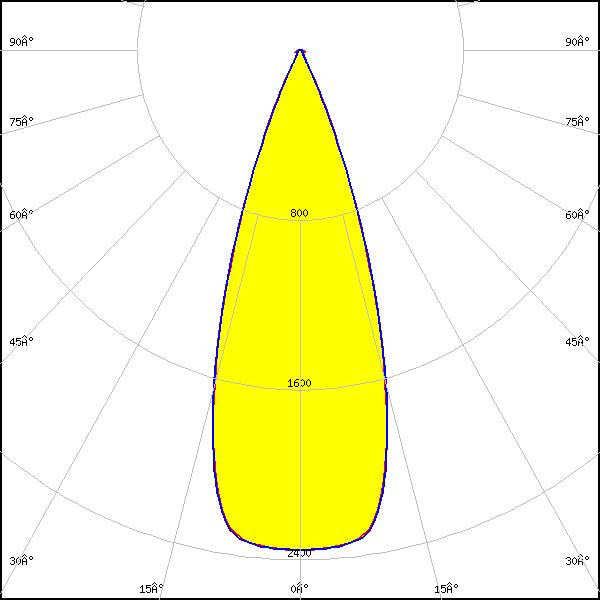

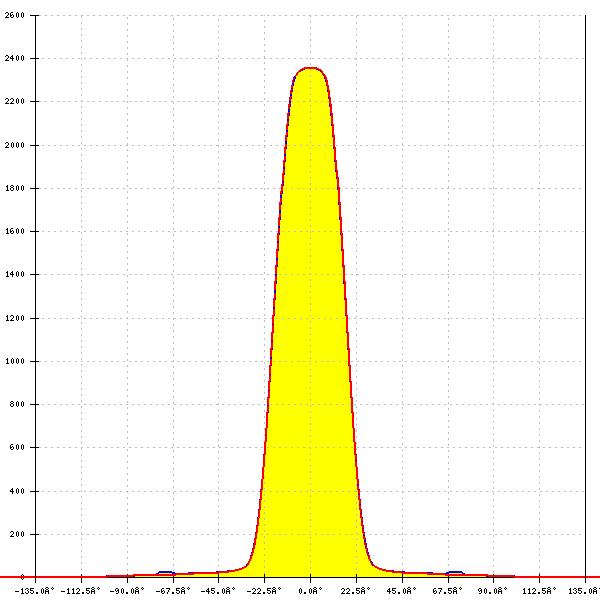

LED: V9 HD Gen7
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 9.2 mm
Required components:
FWHM: 36°
FWTM: 52°
Peak intensity: 2.364 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

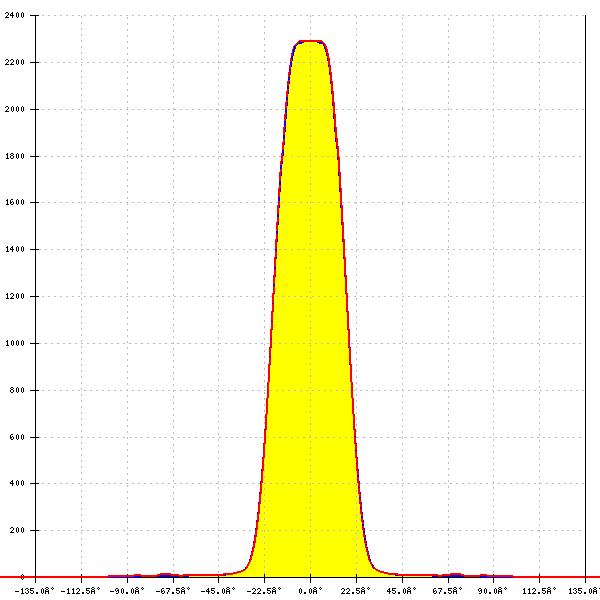

LED: V9 HD Gen7
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.2 mm
Required components:
FWHM: 36°
FWTM: 51°
Peak intensity: 2.325 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

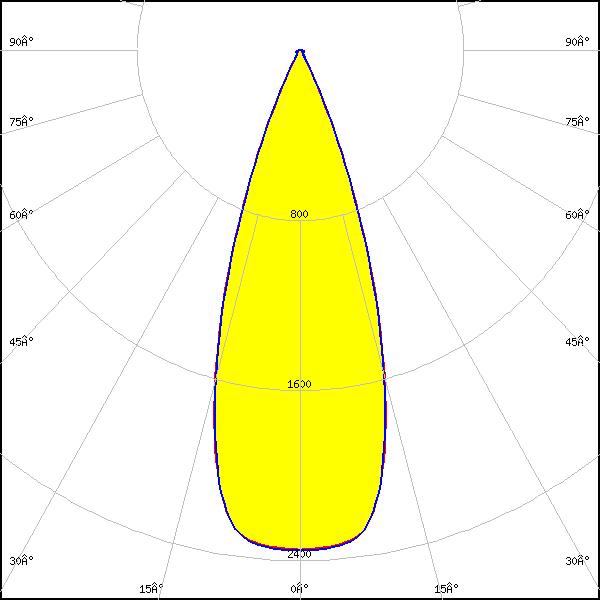

LED: VERO10
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 9.9 mm
Required components:
FWHM: 36°
FWTM: 52°
Peak intensity: 2.392 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO10
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 9.9 mm
Required components:
FWHM: 36°
FWTM: 52°
Peak intensity: 2.392 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO10
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.9 mm
Required components:
FWHM: 37°
FWTM: 53°
Peak intensity: 2.324 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

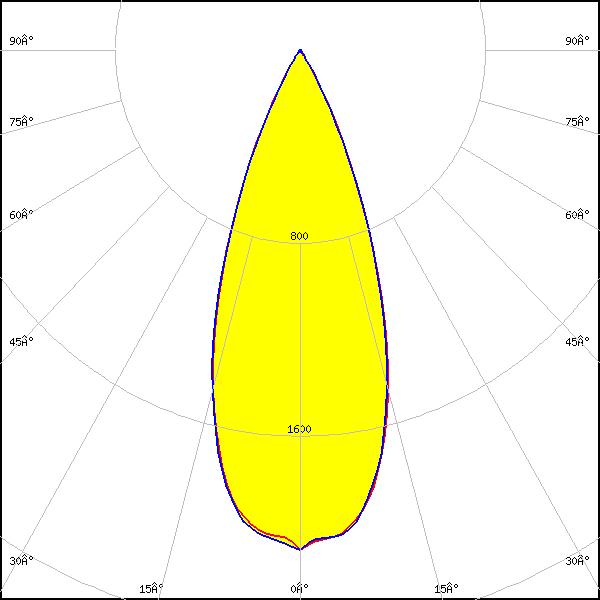

LED: VERO13
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 13.4 mm
Required components:
FWHM: 39°
FWTM: 58°
Peak intensity: 2.082 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

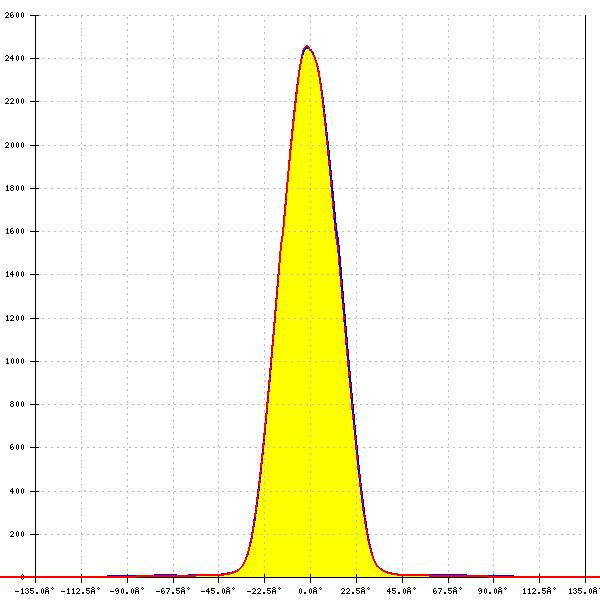

LED: Vesta DTW 13mm (21W)
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 632b Hekla XL
FWHM: 34°
FWTM: 55°
Peak intensity: 2.458 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

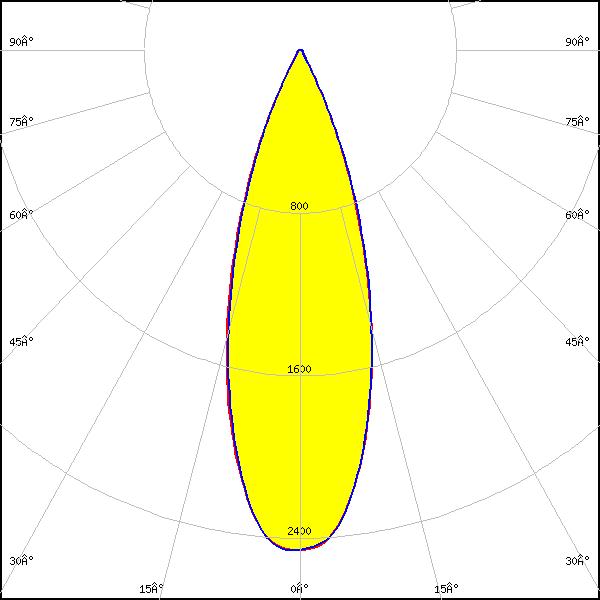

LED: Vesta DTW 13mm (21W)
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 14.0 mm
Required components:
Bender Wirth: 632a Hekla
FWHM: 34°
FWTM: 56°
Peak intensity: 2.460 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

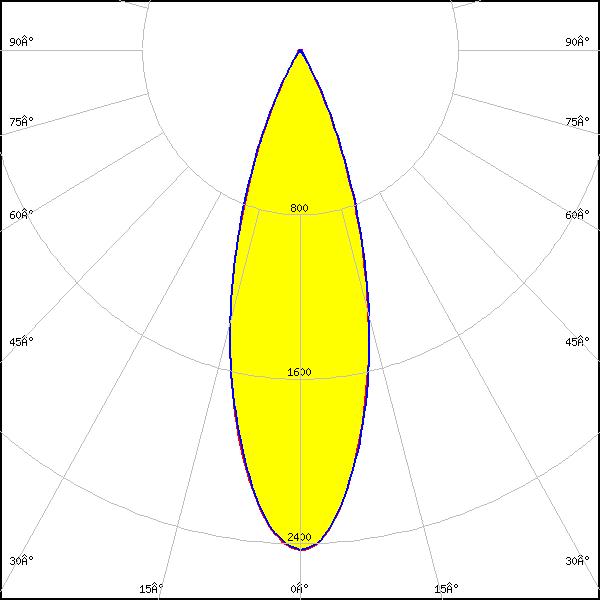

LED: Vesta DTW 15mm (33W)
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 16.2 mm
Required components:
Bender Wirth: 632b Hekla XL
FWHM: 33°
FWTM: 56°
Peak intensity: 2.448 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

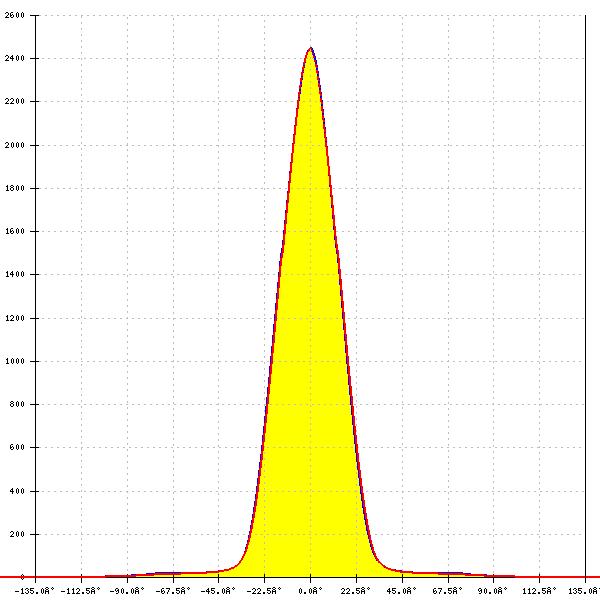

LED: Vesta DTW 15mm (33W)
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 16.2 mm
Required components:
Bender Wirth: 632b Hekla XL
FWHM: 33°
FWTM: 56°
Peak intensity: 2.448 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta DTW 6mm
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 6.8 mm
Required components:
Bender Wirth: 652b Hekla
FWHM: 38°
FWTM: 53°
Peak intensity: 2.284 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

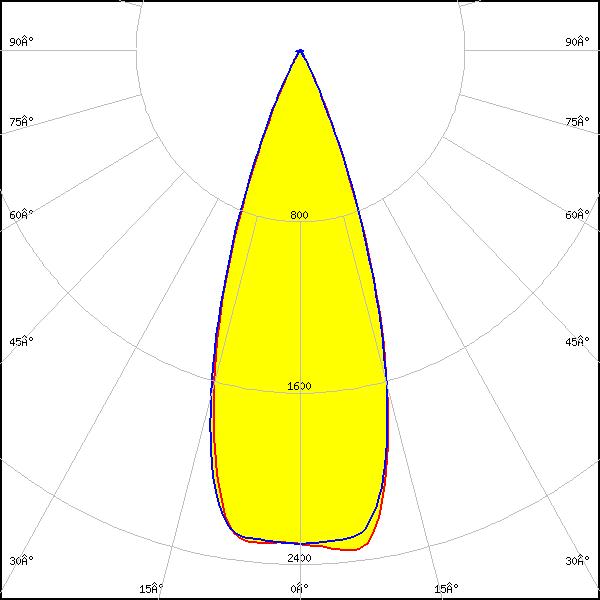

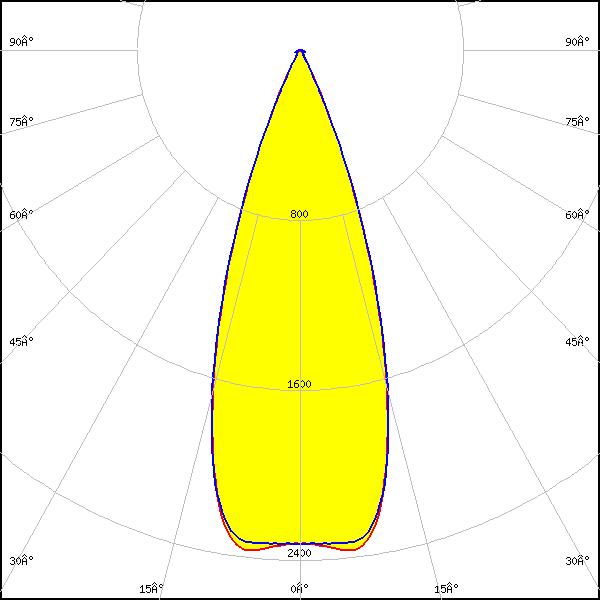

LED: Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Hekla
FWHM: 37°
FWTM: 53°
Peak intensity: 2.375 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Hekla
FWHM: 37°
FWTM: 53°
Peak intensity: 2.375 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

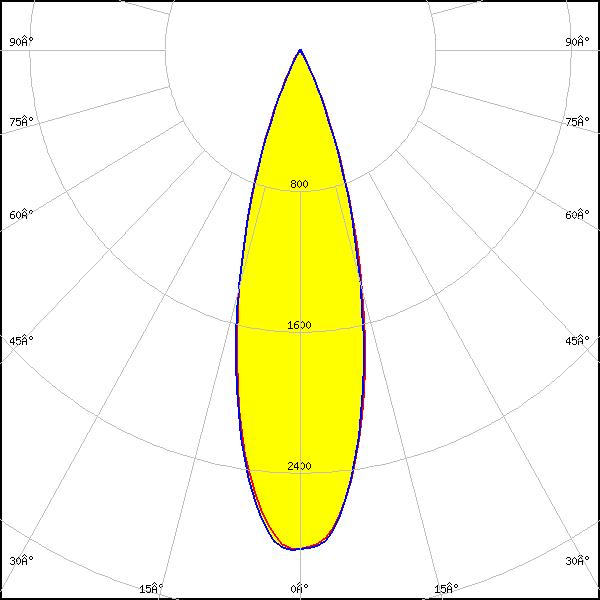

LED: Vesta SE 13mm TW
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 14.3 mm
Required components:
FWHM: 30°
FWTM: 50°
Peak intensity: 2.863 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Vesta TW 13mm (18W) DP
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 14.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 492 Typ L8
FWHM: 33°
FWTM: 53°
Peak intensity: 2.671 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: Tunable White

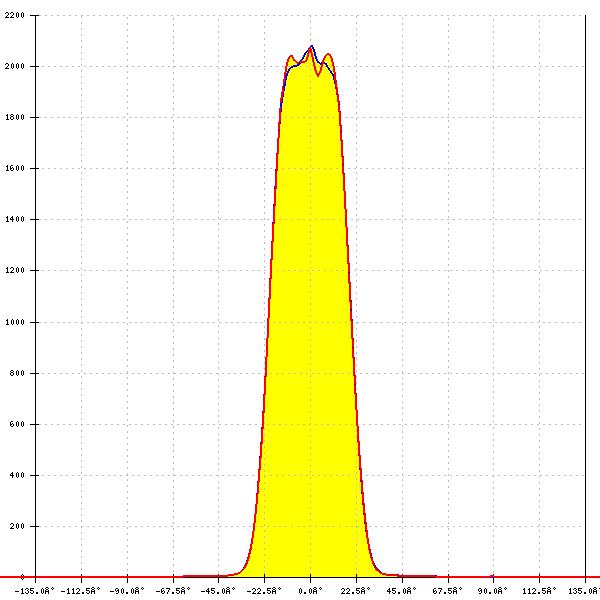

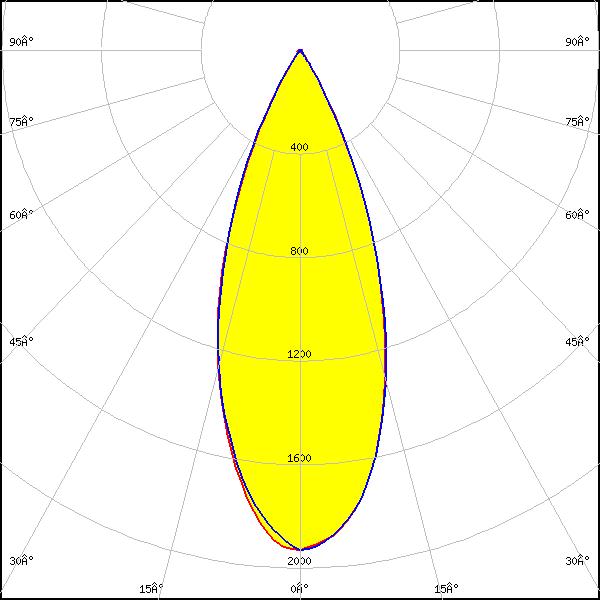

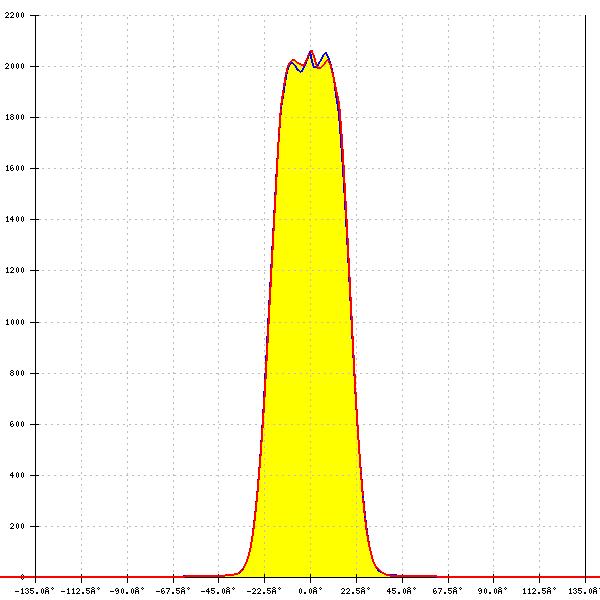

LED: Vesta TW 15mm DP
Ordering code: C17240_YASMEEN-70-W
LES size: 16.3 mm
FWHM: 39°
FWTM: 62°
Peak intensity: 1.950 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta TW 15mm DP
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 16.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 482 Typ L8
FWHM: 32°
FWTM: 55°
Peak intensity: 2.623 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Vesta TW 9mm (9W) DP
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 10.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 489 Typ L8
FWHM: 44°
FWTM: 60°
Peak intensity: 1.768 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: CLL02x/CLU02x (LES10)
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.8 mm
Required components:
FWHM: 36°
FWTM: 52°
Peak intensity: 2.302 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

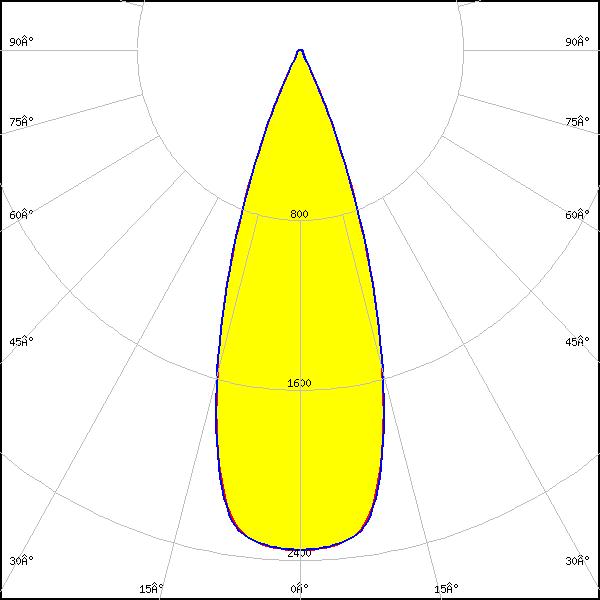

LED: CLL02x/CLU02x (LES10)
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 9.8 mm
Required components:
FWHM: 36°
FWTM: 53°
Peak intensity: 2.368 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

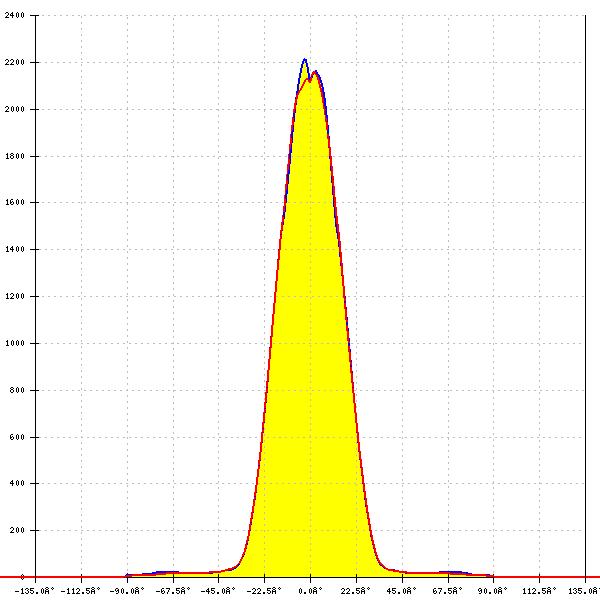

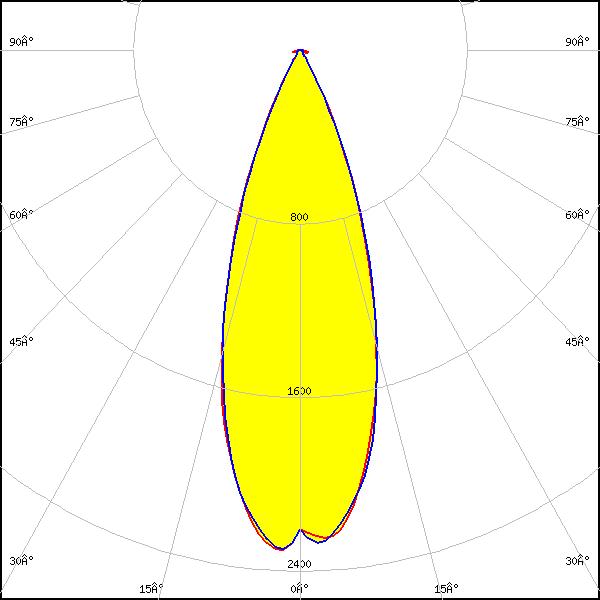

LED: CLL03x/CLU03x
Ordering code: CP18784_YASMEEN-70-W-B2-WHT
LES size: 14.5 mm
Required components:
BJB: 47.360.1010
FWHM: 36°
FWTM: 56°
Peak intensity: 2.334 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL03x/CLU03x
Ordering code: CP18770_YASMEEN-70-W-B2
LES size: 14.5 mm
Required components:
BJB: 47.360.1010
FWHM: 36°
FWTM: 56°
Peak intensity: 2.308 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

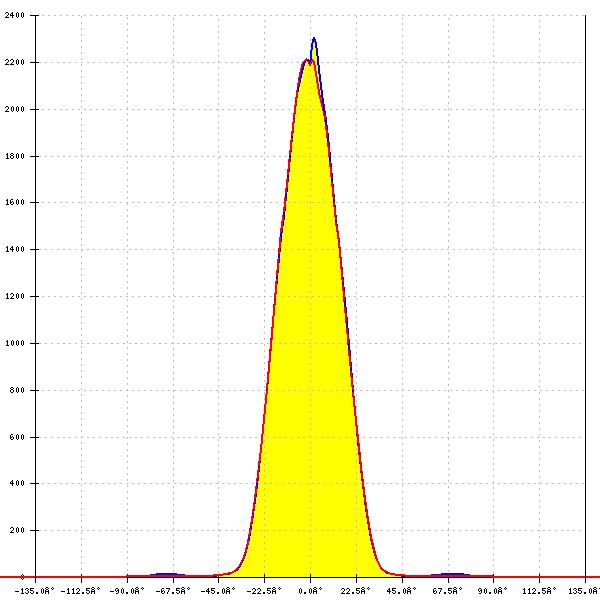

LED: CLL03x/CLU03x
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 14.5 mm
Required components:
FWHM: 33°
FWTM: 55°
Peak intensity: 2.504 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL03x/CLU03x
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 14.5 mm
Required components:
FWHM: 33°
FWTM: 55°
Peak intensity: 0.000 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU03Q Type-F
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 14.5 mm
Required components:
FWHM: 35° + 36°
FWTM: 60° + 60°
Peak intensity: 2.161 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU700/701/702/703
Ordering code: CP18770_YASMEEN-70-W-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM: 39°
FWTM: 54°
Peak intensity: 2.153 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU712/713
Ordering code: CP18784_YASMEEN-70-W-B2-WHT
LES size: 8.5 mm
Required components:
BJB: 47.360.1010
FWHM: 38°
FWTM: 54°
Peak intensity: 2.311 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU712/713

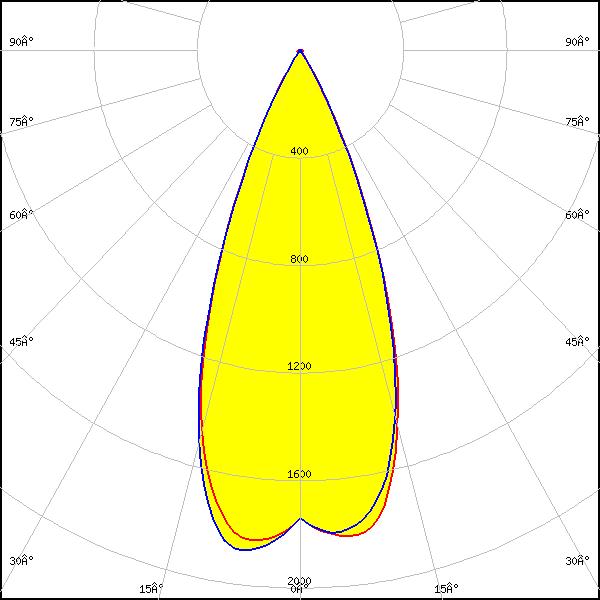

Ordering code: C17240_YASMEEN-70-W
LES size: 8.5 mm
FWHM: 38°
FWTM: 54°
Peak intensity: 2.256 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU712/713
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 8.5 mm
Required components:
FWHM: 38°
FWTM: 54°
Peak intensity: 2.301 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

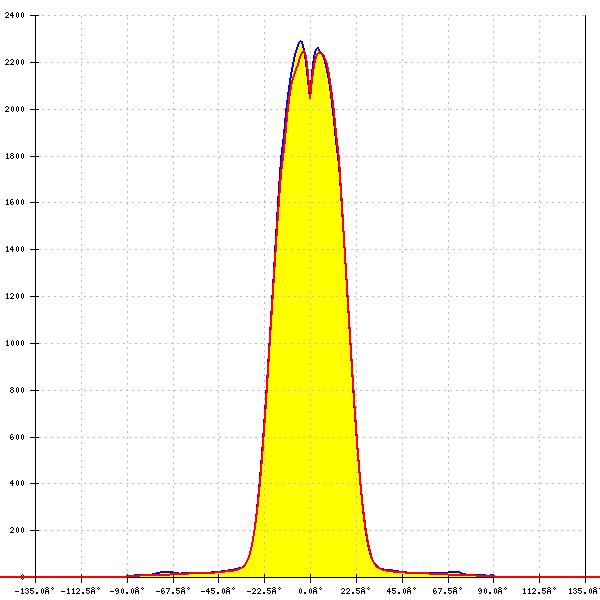

LED: CLU712/713

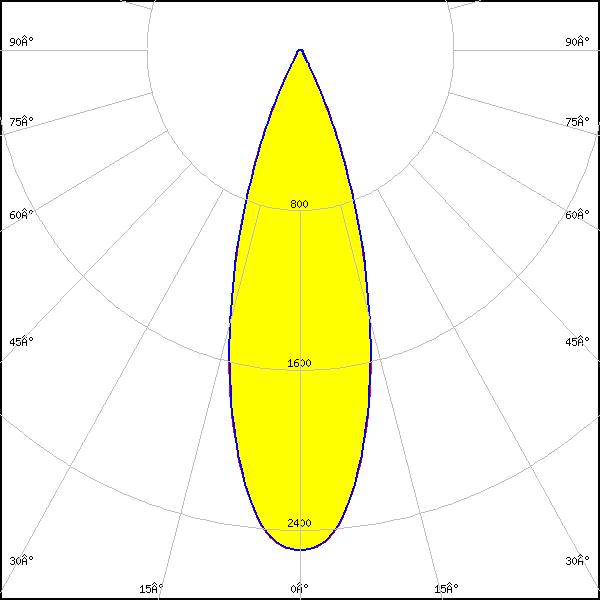

Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 8.5 mm
Required components:
FWHM: 38°
FWTM: 54°
Peak intensity: 2.295 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CHA0304
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 3.3 mm
Required components:
FWHM: 40°
FWTM: 52°
Peak intensity: 2.243 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CHA0410
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 4.2 mm
Required components:
FWHM: 38°
FWTM: 52°
Peak intensity: 2.322 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CHA0612
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 6.0 mm
Required components:
FWHM: 38°
FWTM: 52°
Peak intensity: 2.256 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CMA1516
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.0 mm
Required components:
FWHM: 36°
FWTM: 52°
Peak intensity: 2.373 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: CMA1516
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 9.0 mm
Required components:
FWHM: 36°
FWTM: 52°
Peak intensity: 2.373 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CMA1825
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 12.0 mm
Required components:
FWHM: 35°
FWTM: 55°
Peak intensity: 2.332 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CMT14xx
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.8 mm
Required components:
FWHM: 36°
FWTM: 53°
Peak intensity: 2.370 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: CMT14xx
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 9.8 mm
Required components:
FWHM: 36°
FWTM: 53°
Peak intensity: 2.370 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

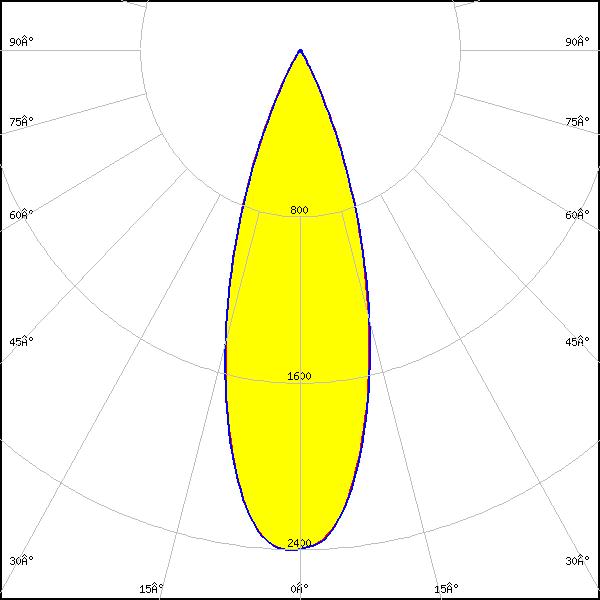

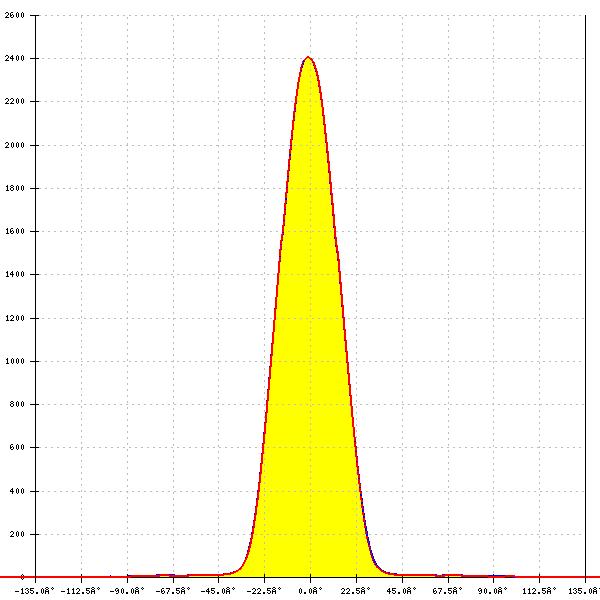

LED: CMT19xx
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 14.5 mm
Required components:
FWHM: 33°
FWTM: 54°
Peak intensity: 2.407 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

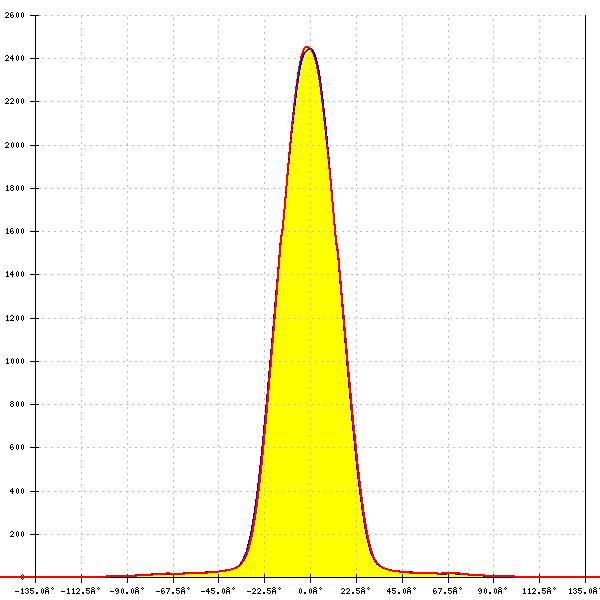

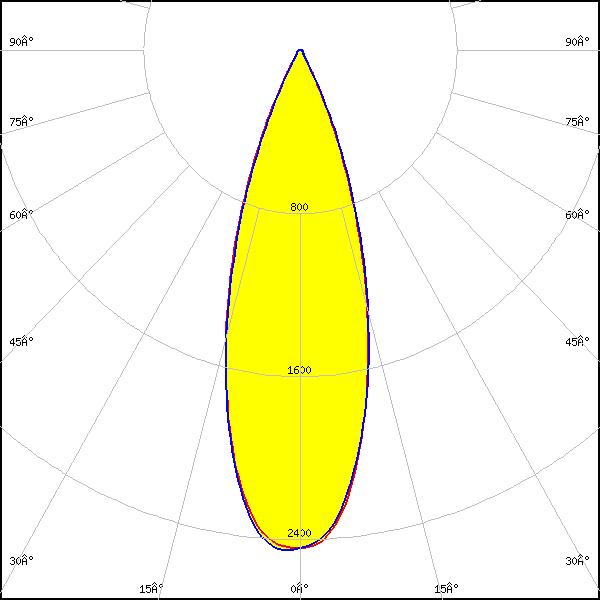

LED: CMT19xx
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 14.5 mm
Required components:
FWHM: 33°
FWTM: 55°
Peak intensity: 2.453 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: CMU10xx
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.8 mm
Required components:
FWHM: 36°
FWTM: 54°
Peak intensity: 2.401 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CMU15xx
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 14.5 mm
Required components:
FWHM: 33°
FWTM: 56°
Peak intensity: 2.348 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 13xx
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 6.0 mm
Required components:
FWHM: 40°
FWTM: 54°
Peak intensity: 2.142 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

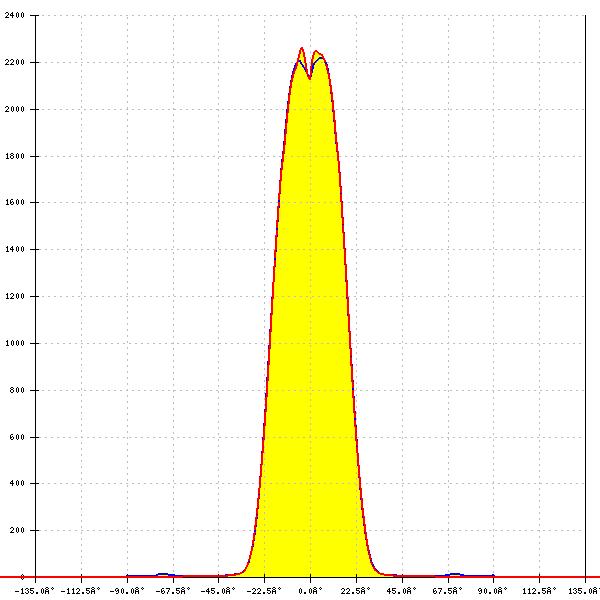

LED: CXA/B 15xx
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 8.9 mm
Required components:
FWHM: 38°
FWTM: 54°
Peak intensity: 2.350 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 1830
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 637b Hekla
FWHM: 36°
FWTM: 56°
Peak intensity: 2.315 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB L08 (Gen2)
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM: 34°
FWTM: 56°
Peak intensity: 2.442 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202/1203
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 9.0 mm
Required components:
FWHM: 35°
FWTM: 51°
Peak intensity: 2.451 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

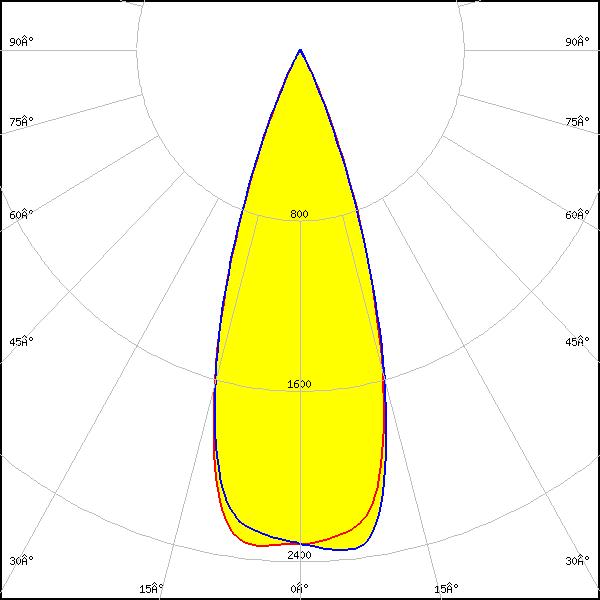

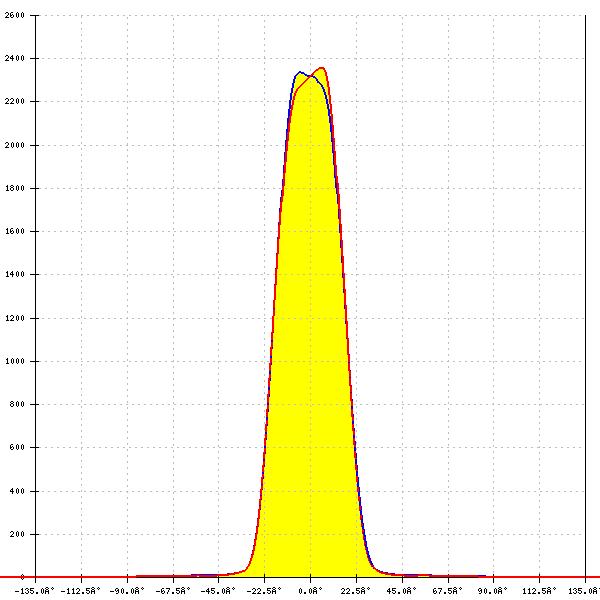

LED: LUXEON CoB 1202/1203
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.0 mm
Required components:
FWHM: 36°
FWTM: 52°
Peak intensity: 2.370 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202HD
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 6.5 mm
Required components:
FWHM: 38°
FWTM: 53°
Peak intensity: 2.398 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

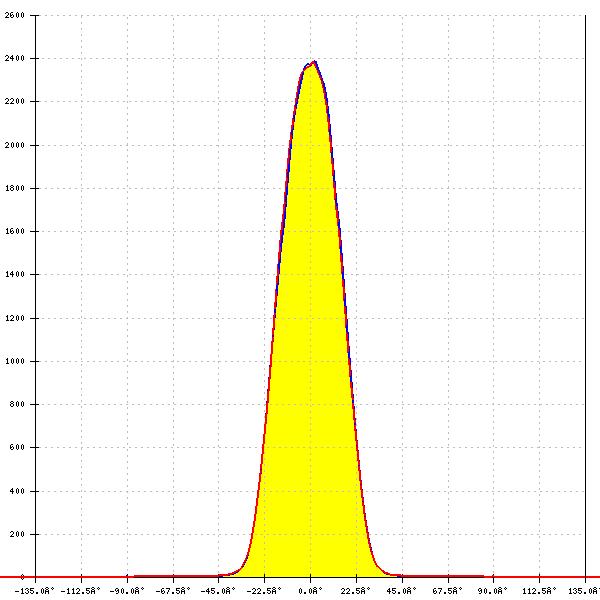

LED: LUXEON CoB 1204/1205
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 13.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM: 35°
FWTM: 56°
Peak intensity: 2.455 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1204HD
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.0 mm
Required components:
FWHM: 38°
FWTM: 54°
Peak intensity: 2.246 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1208
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 15.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM: 34°
FWTM: 56°
Peak intensity: 2.483 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB - HD S02H6
Ordering code: CP18770_YASMEEN-70-W-B2
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 40°
FWTM: 55°
Peak intensity: 2.098 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

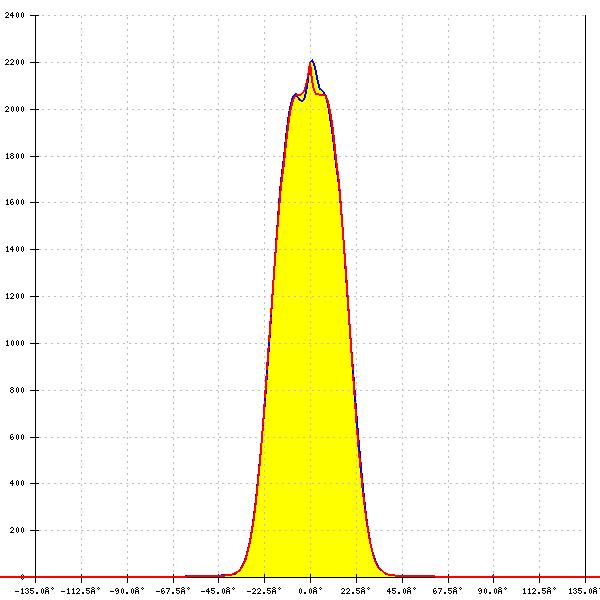

LED: LUXEON CX Plus CoB - HD S04H9
Ordering code: CP18770_YASMEEN-70-W-B2
LES size: 9.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 38°
FWTM: 56°
Peak intensity: 2.206 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 12.0 mm
Required components:
FWHM: 36°
FWTM: 56°
Peak intensity: 2.399 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.0 mm
Required components:
FWHM: 36°
FWTM: 54°
Peak intensity: 2.537 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB S01 (Gen2)
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 6.0 mm
Required components:
FWHM: 38°
FWTM: 53°
Peak intensity: 2.461 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CHM-9 XH (19x19)
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.0 mm
Required components:
FWHM: 38°
FWTM: 54°
Peak intensity: 2.384 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CTM-14 (Tunable White) Gen2
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 13.9 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 442 Typ L8
FWHM: 33°
FWTM: 55°
Peak intensity: 2.457 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: CTM-9 (Tunable White) Gen2
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.5 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 495 Typ L8
FWHM: 36°
FWTM: 52°
Peak intensity: 2.377 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: CxM-14 (19x19)
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 14.5 mm
Required components:
FWHM: 34°
FWTM: 56°
Peak intensity: 2.396 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: CXM-3
Ordering code: CP18770_YASMEEN-70-W-B2
LES size: 3.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 40°
FWTM: 52°
Peak intensity: 2.215 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CXM-4
Ordering code: CP18770_YASMEEN-70-W-B2
LES size: 4.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 38°
FWTM: 52°
Peak intensity: 2.343 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-6 (13.5x13.5)
Ordering code: CP18770_YASMEEN-70-W-B2
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
FWHM: 36°
FWTM: 52°
Peak intensity: 2.558 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

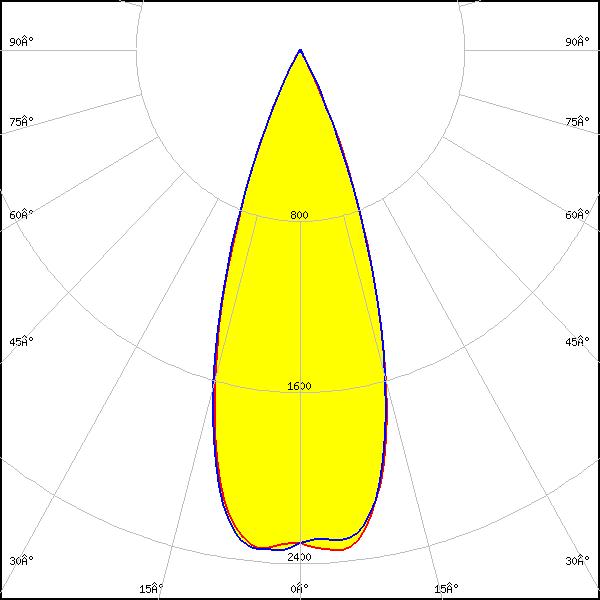

LED: CxM-9 (13.5x13.5)
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.8 mm
Required components:
FWHM: 36°
FWTM: 54°
Peak intensity: 2.369 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 11.5 mm
Required components:
FWHM: 34°
FWTM: 53°
Peak intensity: 2.452 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 8.7 mm
Required components:
FWHM: 38°
FWTM: 54°
Peak intensity: 2.186 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 6)
Ordering code: CP18770_YASMEEN-70-W-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 40°
FWTM: 54°
Peak intensity: 2.211 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 7)
Ordering code: CP18770_YASMEEN-70-W-B2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 40°
FWTM: 55°
Peak intensity: 2.072 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 7)
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 6.7 mm
Required components:
FWHM: 34°
FWTM: 54°
Peak intensity: 2.417 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: COB T-Type
Ordering code: CP18770_YASMEEN-70-W-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 40°
FWTM: 54°
Peak intensity: 2.100 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

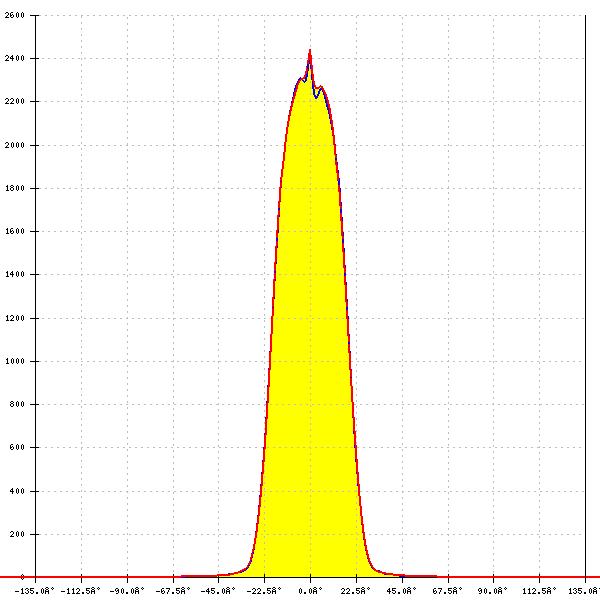

LED: NJCWL024Z-V1MT: COB L-Type Tunable White
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 7.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 497 Typ L8 HV
FWHM: 36°
FWTM: 52°
Peak intensity: 2.444 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: Tunable White

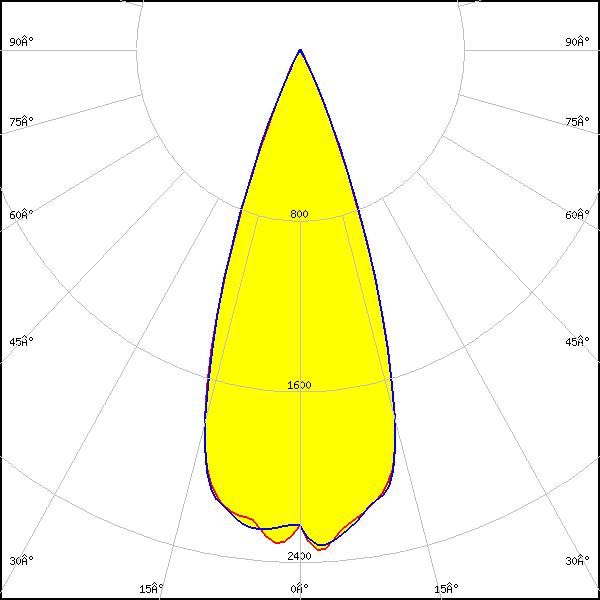

LED: NJNWS012Z-V1MT: COB S-Type Tunable White
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 5.9 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 495 Typ L8 HV
FWHM: 38°
FWTM: 52°
Peak intensity: 2.350 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: Tunable White

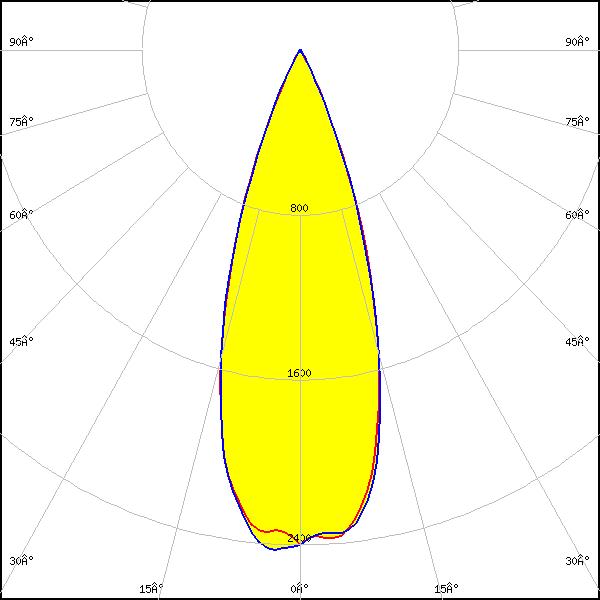

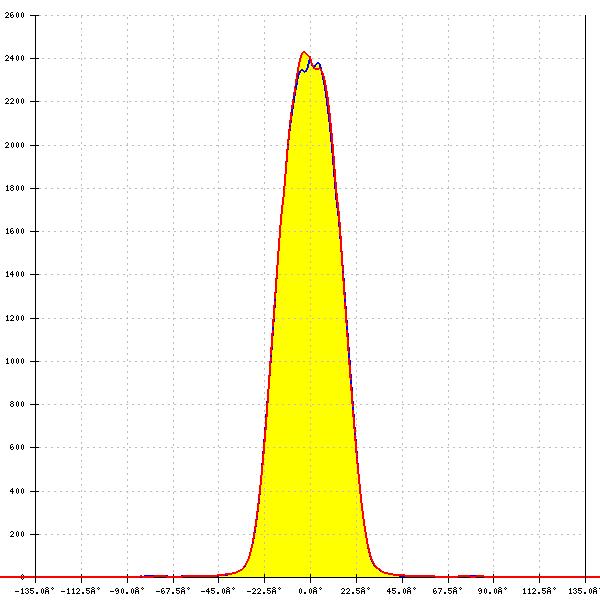

LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 10.6 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 498 Typ L8 HV
FWHM: 36°
FWTM: 54°
Peak intensity: 2.430 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 10.6 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 498 Typ L8 HV
FWHM: 41°
FWTM: 58°
Peak intensity: 1.956 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L09 CoB
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.0 mm
Required components:
FWHM: 36°
FWTM: 52°
Peak intensity: 2.360 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L09 CoB
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 9.0 mm
Required components:
FWHM: 35°
FWTM: 51°
Peak intensity: 2.417 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LC003D / LC006D / LC009D / LC013D
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.8 mm
Required components:
FWHM: 36°
FWTM: 54°
Peak intensity: 2.353 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: LC003D / LC006D / LC009D / LC013D
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.8 mm
Required components:
FWHM: 36°
FWTM: 54°
Peak intensity: 2.459 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: LC010C G2
Ordering code: CP18770_YASMEEN-70-W-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM: 38°
FWTM: 52°
Peak intensity: 2.471 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: LC010T (Tunable White)
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.8 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 36°
FWTM: 52°
Peak intensity: 2.531 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: Tunable White

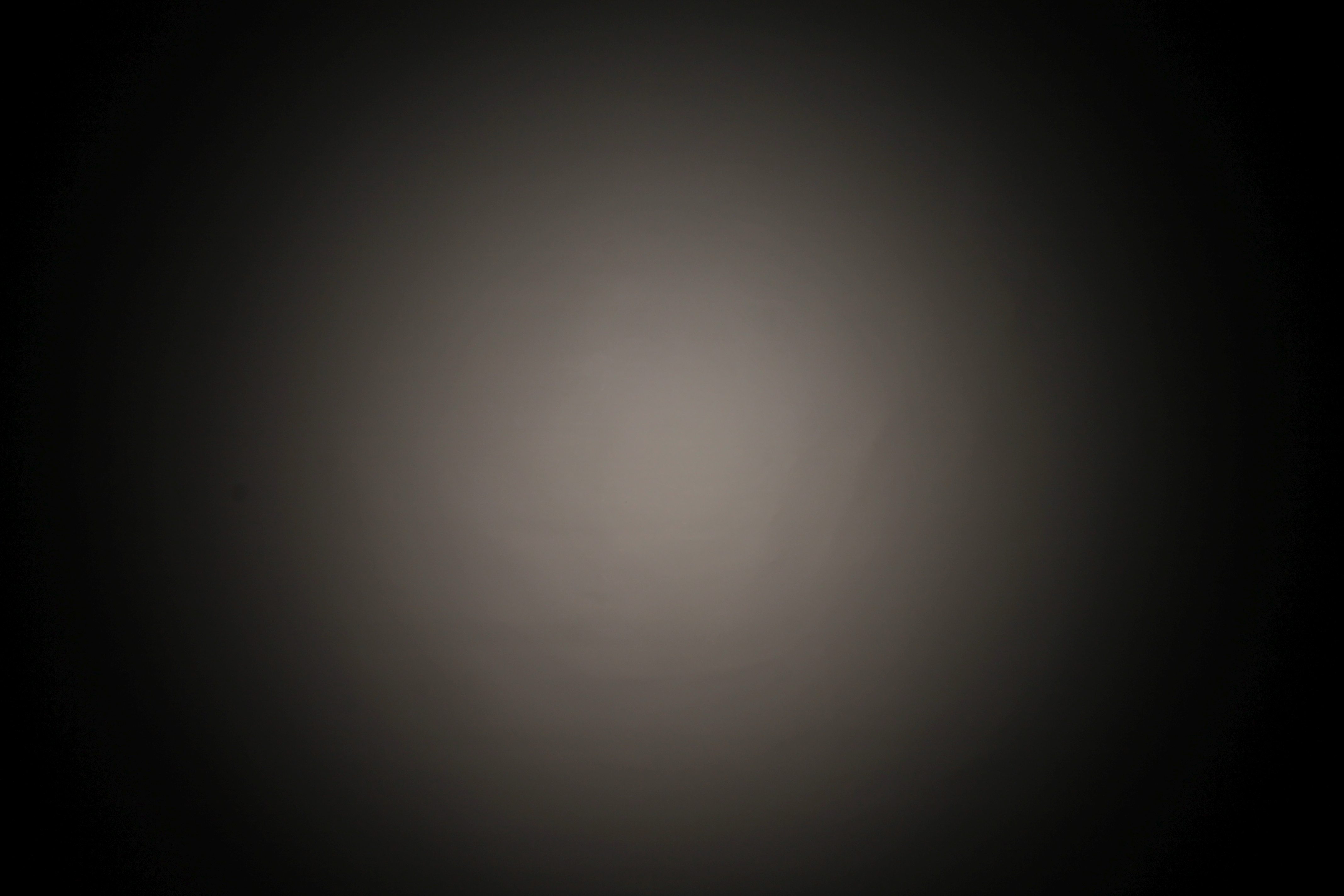

LED: LC016D / LC019D / LC026D / LC033D
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 14.5 mm
Required components:
FWHM: 33°
FWTM: 56°
Peak intensity: 2.432 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LC016D / LC019D / LC026D / LC033D
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 14.5 mm
Required components:
FWHM: 33°
FWTM: 55°
Peak intensity: 2.384 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

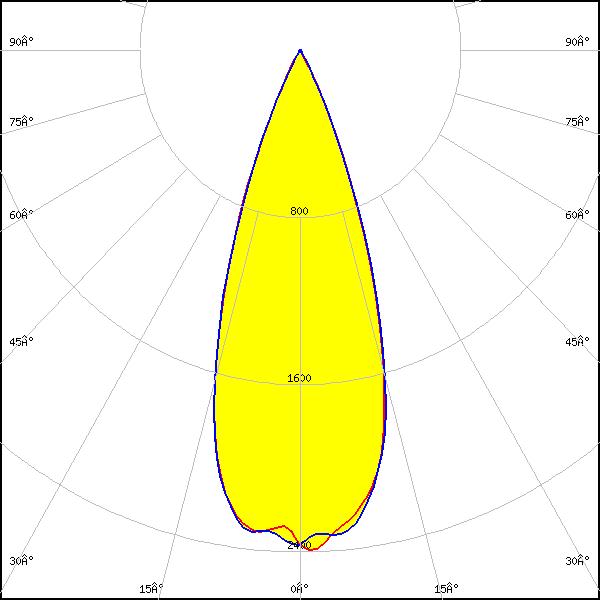

LED: LC020C G2
Ordering code: CP18770_YASMEEN-70-W-B2
LES size: 8.5 mm
Required components:
BJB: 47.360.1010
FWHM: 36°
FWTM: 53°
Peak intensity: 2.404 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: LC020T (Tunable white)
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 13.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 35°
FWTM: 54°
Peak intensity: 2.450 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: Tunable White

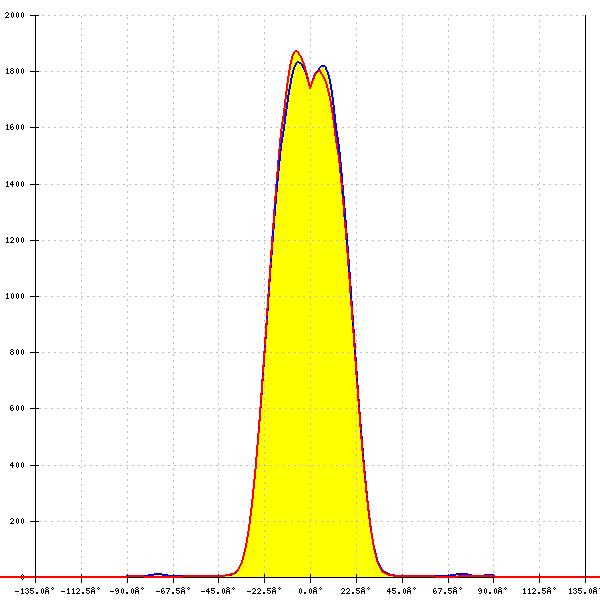

LED: LC020T (Tunable white)
Ordering code: C17240_YASMEEN-70-W
LES size: 13.0 mm
FWHM: 42°
FWTM: 60°
Peak intensity: 1.879 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

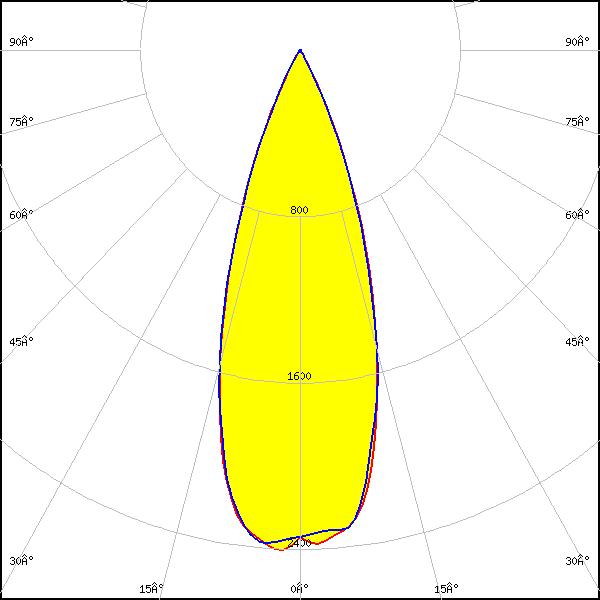

LED: LC030C/040C G2
Ordering code: CP18770_YASMEEN-70-W-B2
LES size: 11.5 mm
Required components:
BJB: 47.360.1010
FWHM: 35°
FWTM: 54°
Peak intensity: 2.486 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

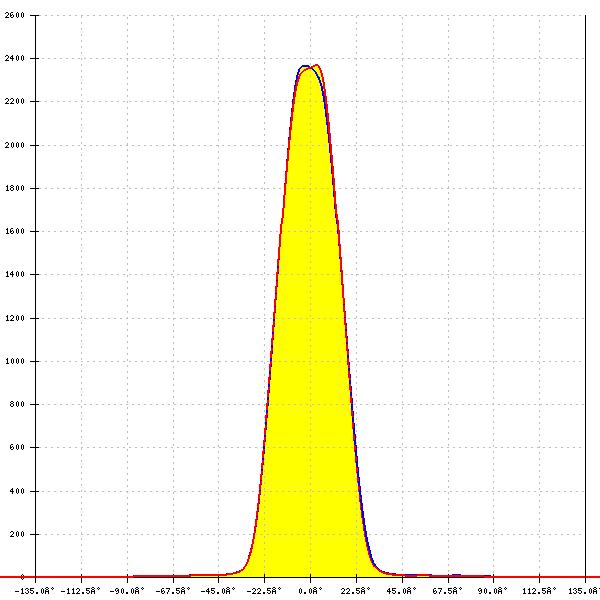

LED: LC030C/040C G2
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 11.5 mm
Required components:
FWHM: 34°
FWTM: 53°
Peak intensity: 2.434 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: LC030C/040C G2
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 11.5 mm
Required components:
FWHM: 34°
FWTM: 53°
Peak intensity: 2.434 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT COB LES 14.5
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 14.5 mm
Required components:
FWHM: 33°
FWTM: 55°
Peak intensity: 2.449 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT COB LES 14.5
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 14.5 mm
Required components:
FWHM: 33°
FWTM: 55°
Peak intensity: 2.449 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT COB LES 6
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 6.0 mm
Required components:
FWHM: 38°
FWTM: 52°
Peak intensity: 2.507 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT COB LES 9.8
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.8 mm
Required components:
FWHM: 34°
FWTM: 54°
Peak intensity: 2.718 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: SLE G7 LES13
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 13.0 mm
Required components:
FWHM: 35°
FWTM: 56°
Peak intensity: 2.371 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: SLE G7 LES15
Ordering code: CP18777_YASMEEN-70-W-C2-WHT
LES size: 15.0 mm
Required components:
FWHM: 33°
FWTM: 55°
Peak intensity: 2.504 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: SLE G7 LES15
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 15.0 mm
Required components:
FWHM: 33°
FWTM: 55°
Peak intensity: 2.504 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: XOB 14.5 mm
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 14.5 mm
Required components:
FWHM: 37°
FWTM: 58°
Peak intensity: 2.154 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: XOB 6 mm
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 6.0 mm
Required components:
Bender Wirth: 634b Hekla
FWHM: 37°
FWTM: 52°
Peak intensity: 2.408 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: XOB 9.8 mm
Ordering code: CP18763_YASMEEN-70-W-C2
LES size: 9.8 mm
Required components:
FWHM: 40°
FWTM: 56°
Peak intensity: 2.068 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
