    YASMEEN-70-WWW

    Print

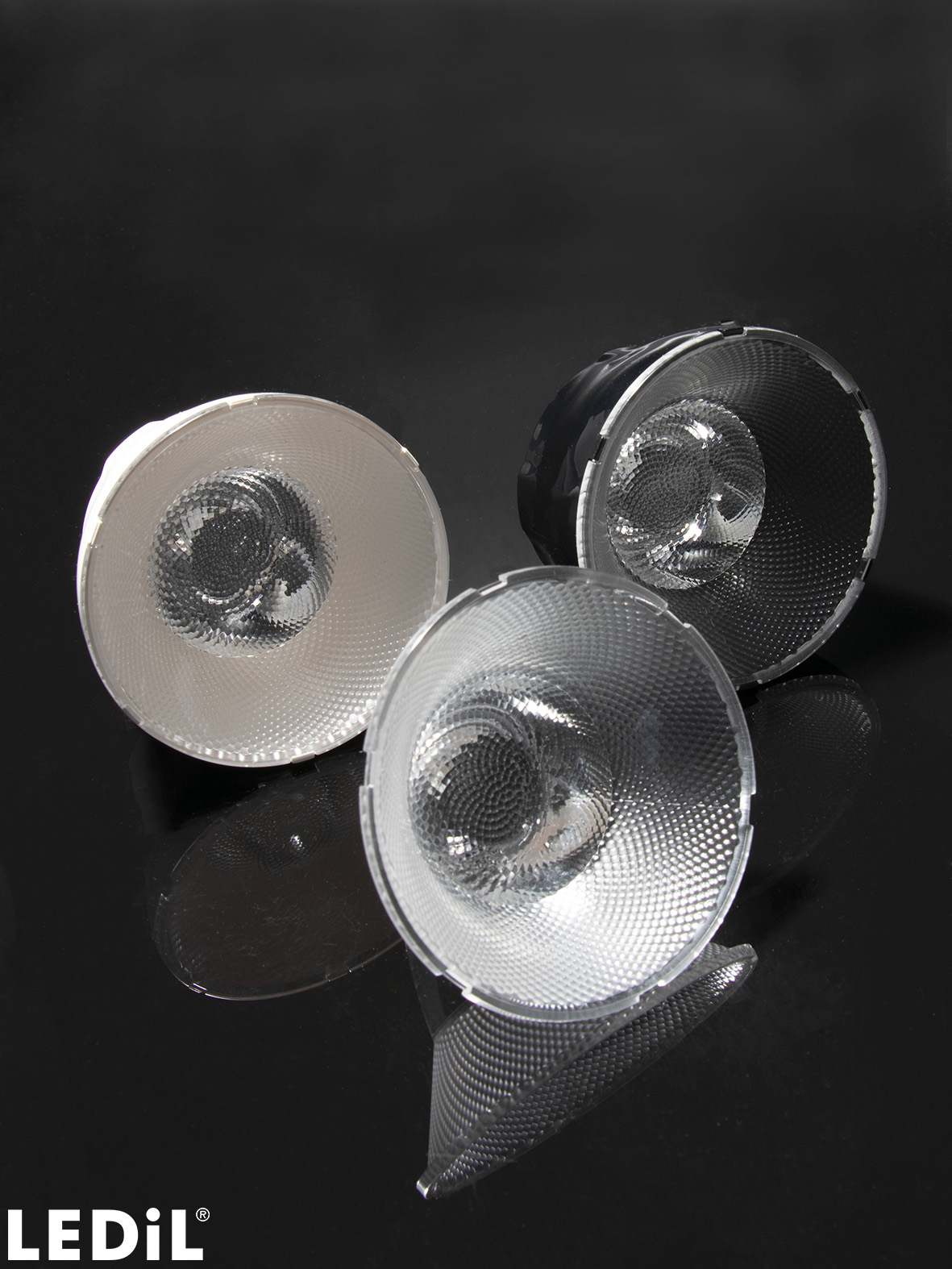

    ~80° wide beam. Assembly with holder C (LEDiL HEKLA) and B (BJB and B+W). Black and white versions.

    This product consists of multiple buying options. See ordering information.

    Specification
    • Dimensions:
      70 mm
    • Height:
      37.70 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • YASMEEN-70-WWW
      PMMA
    • YASMEEN-70-HLD2-C-WHT
      PC
    • YASMEEN-70-HLD2-C
      PC
    • YASMEEN-70-HLD2-B-WHT
      PC
    • YASMEEN-70-HLD2-B
      PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C18699_YASMEEN-70-WWW
    • Quantity in box:
      105 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      4.10 kg
    • MPQ:
      15 pcs
    • MOQ:
      105 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      4.10 kg
    • Assembly
    • CP18702_YASMEEN-70-WWW-C2
      black,Holder C
    • CP18703_YASMEEN-70-WWW-B2
      black,Holder B
    • CP18704_YASMEEN-70-WWW-C2-WHT
      white,Holder C
    • CP18705_YASMEEN-70-WWW-B2-WHT
      white,Holder B
    • Quantity in box:
      105 pcs
    • Box size:
      476 x 273 x 305 mm
    • Box weight:
      5.70 kg
    • MPQ:
      15 pcs
    • MOQ:
      105 pcs
    • MOQ Size:
      476 x 273 x 305 mm
    • MOQ Weight:
      5.70 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18699_YASMEEN-70-WWW
      CP18702_YASMEEN-70-WWW-C2

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    YASMEEN - The best optic in class

    Product video

    YASMEEN - Supreme light quality LED optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    Case story

    Regiolux Changy luminaire

    News

    New products – May, 2023

    PCN

    Product change notification NR192 - Change of YASMEEN-50 and -70 holder design

    News

    Our bright star YASMEEN now features a new, improved holder

    Compatible product

    B+W 630 Bayonet35 datasheet

    News

    YASMEEN zoom optics receive BrightStar Award

    News

    YASMEEN zoom optics win Design Plus award

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Compatible product

    B+W 630 Hekla datasheet

    Application example

    Track light luminaires with YASMEEN

    Application example

    Spot lighting with YASMEEN

    News

    YASMEEN – supreme light quality and beam control

    Application area

    Indoor Architectural Lighting

    Application guide

    LEDiL guide for retail lighting optics

    Article

    Explore new retail lighting opportunities

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA-SOCKETS and HEKLA-G2 connectors

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

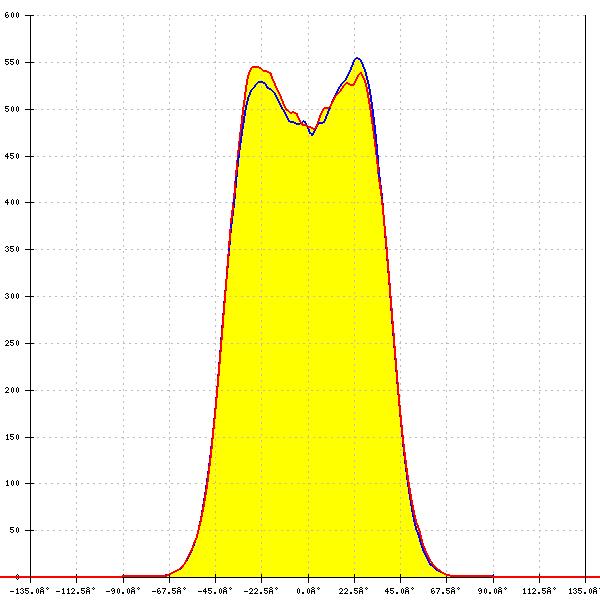

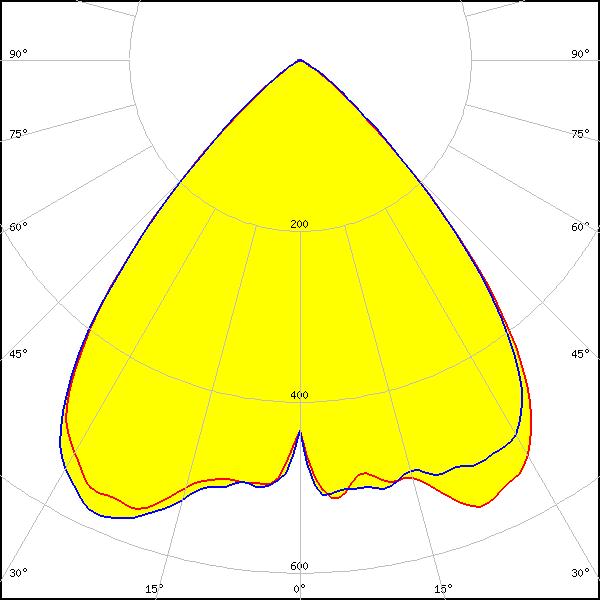

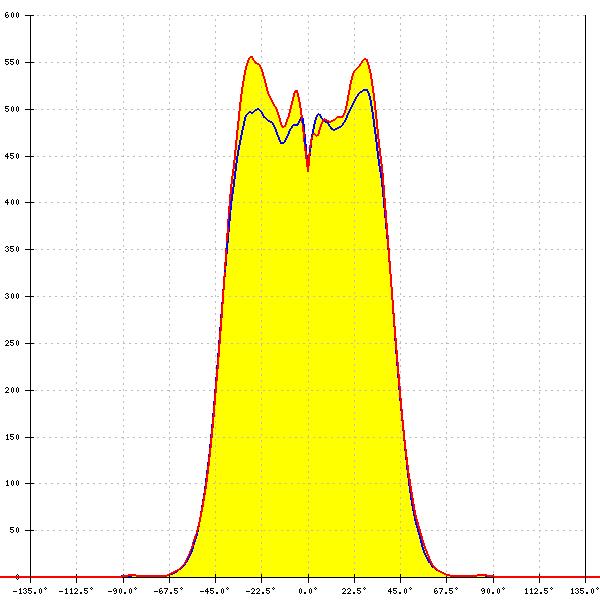

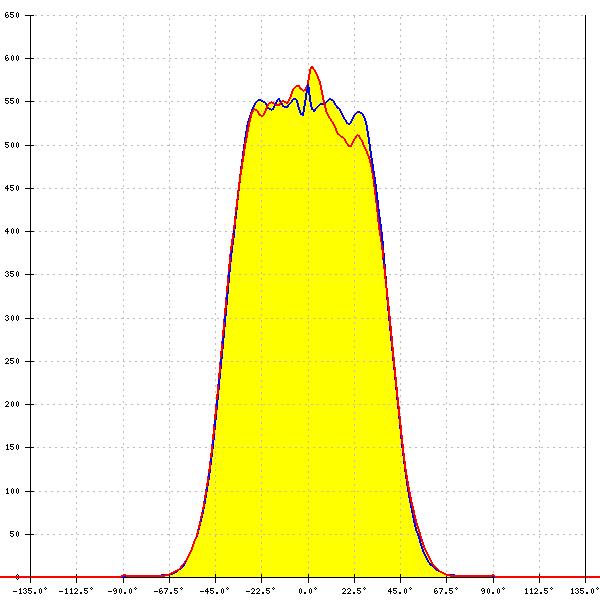

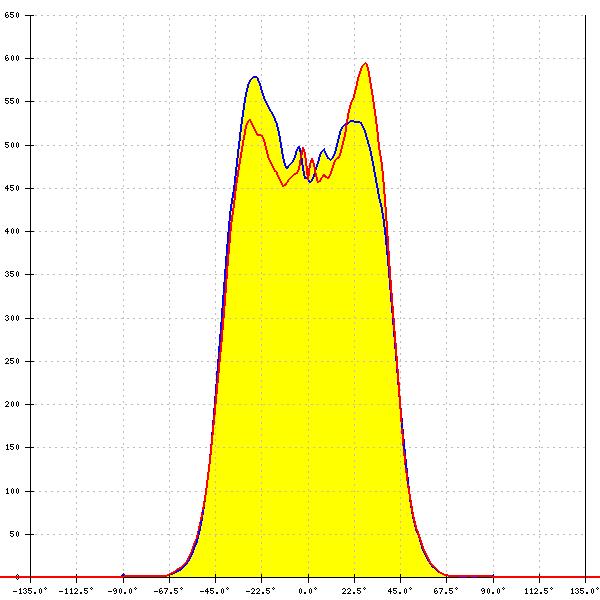

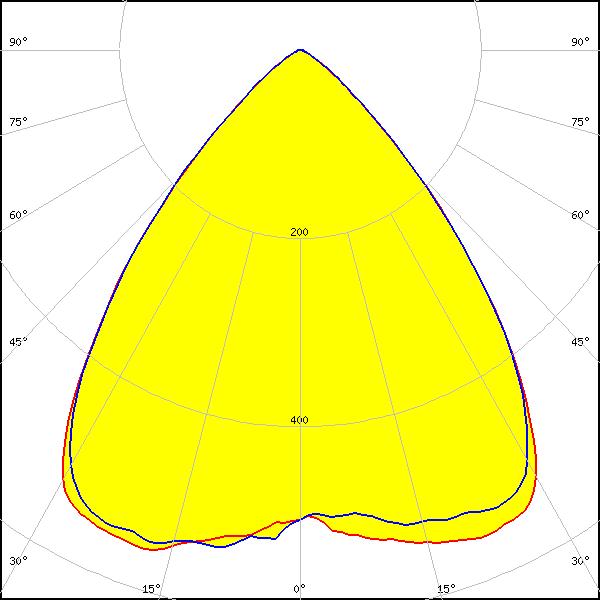

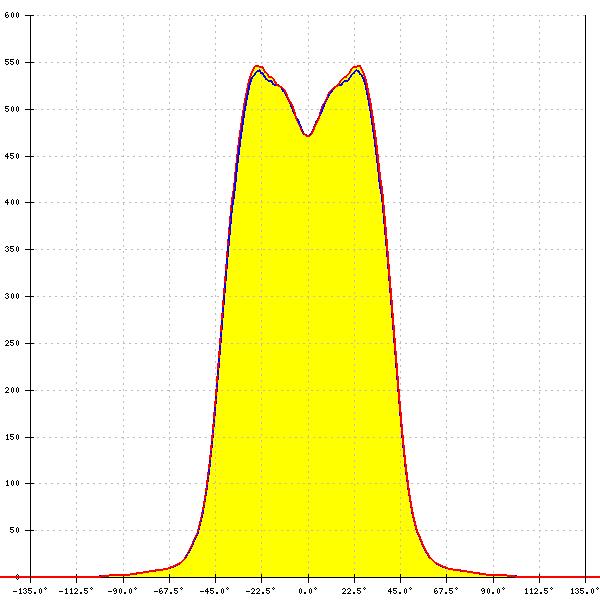

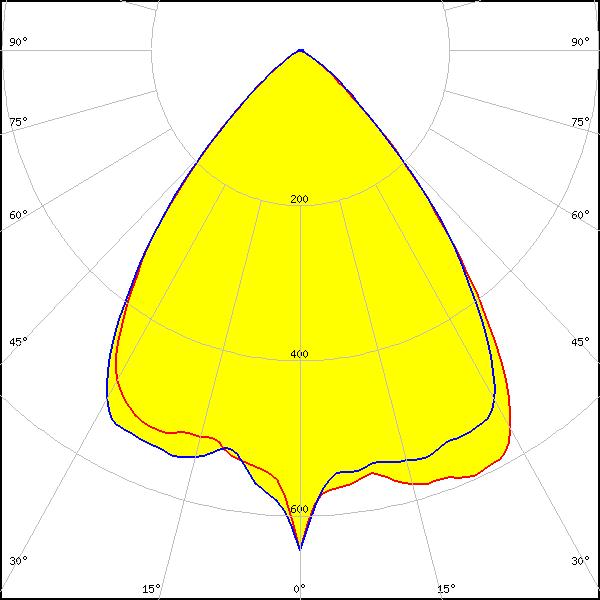

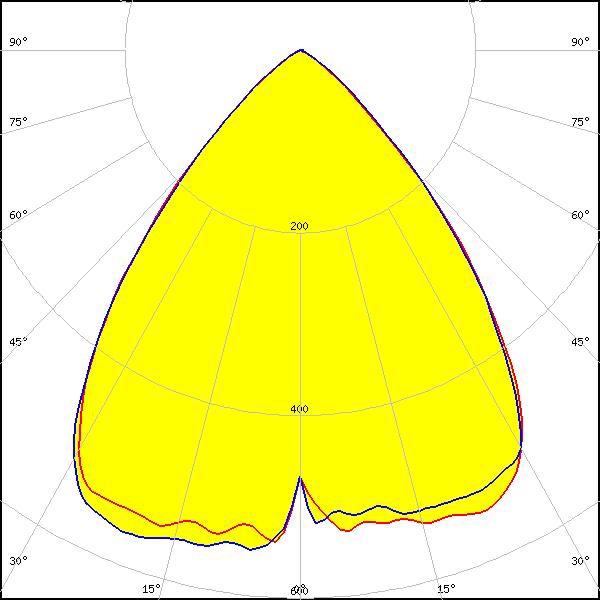

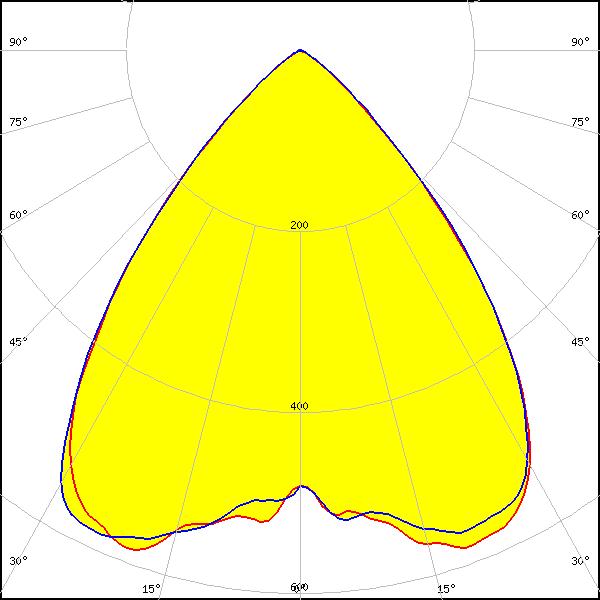

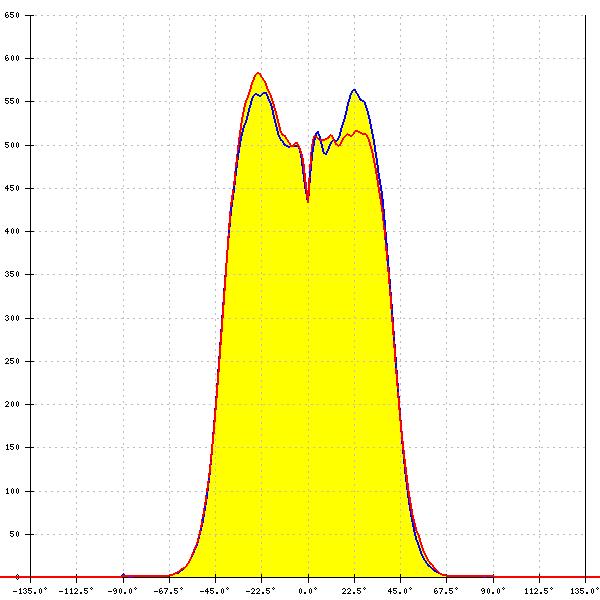

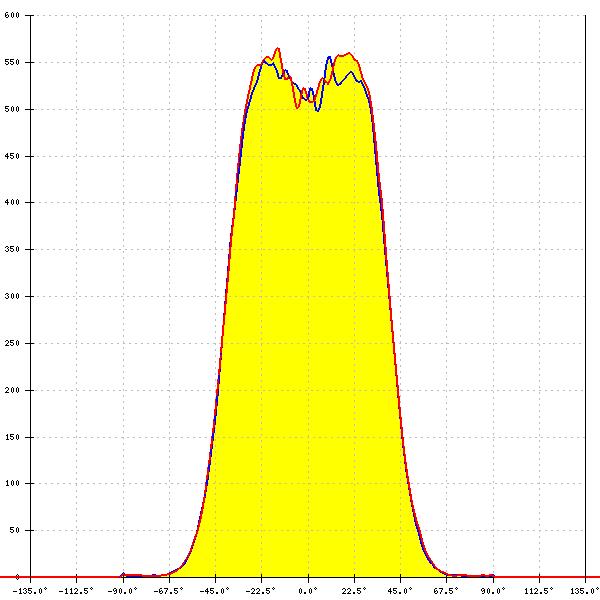

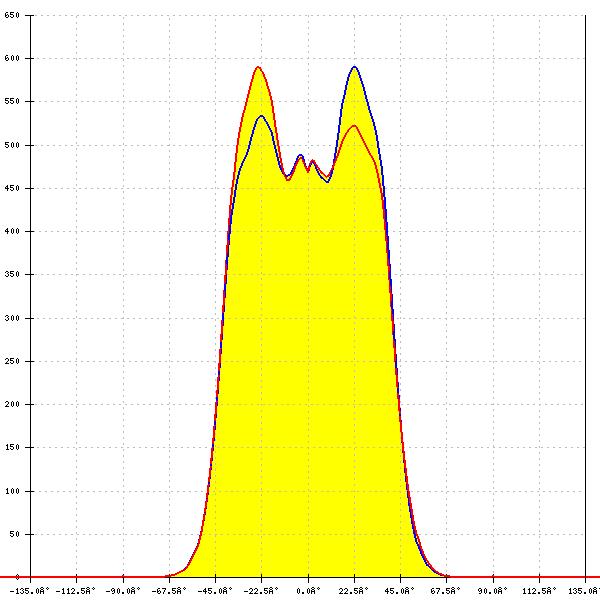

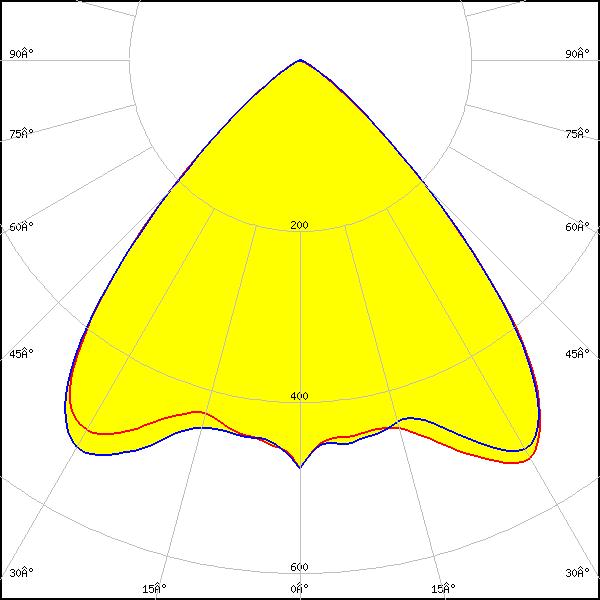

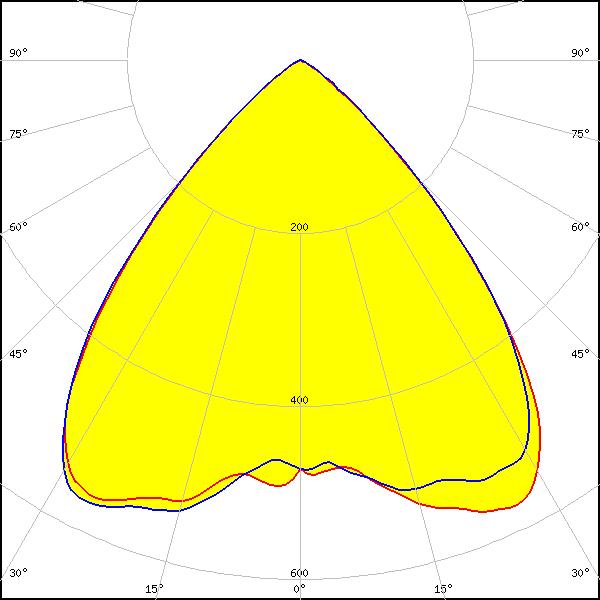

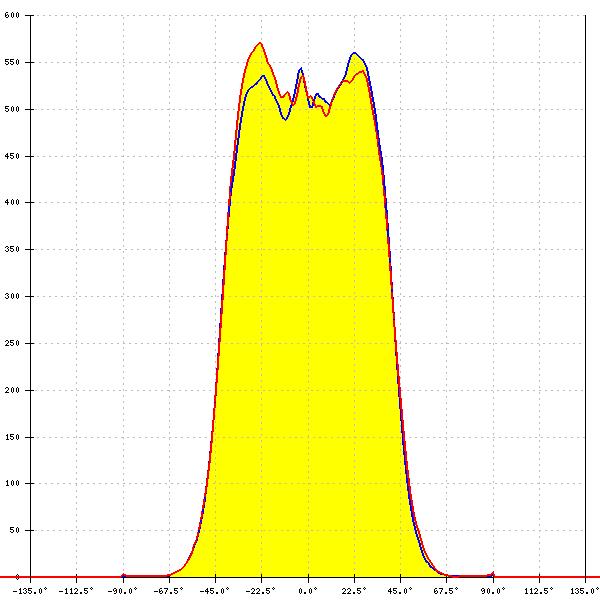

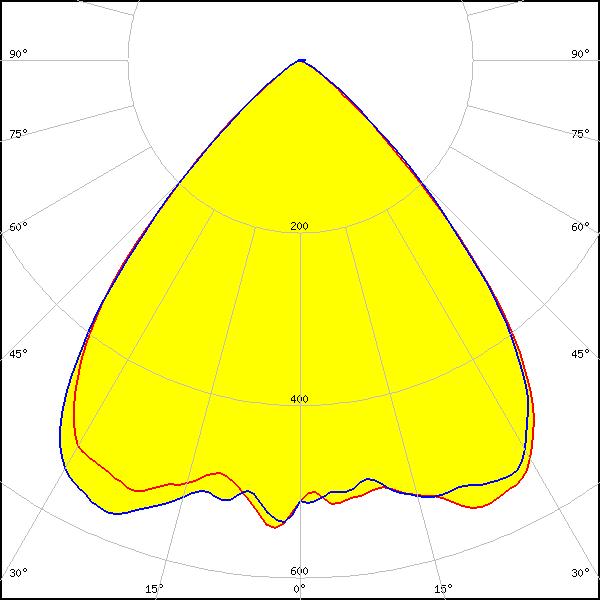

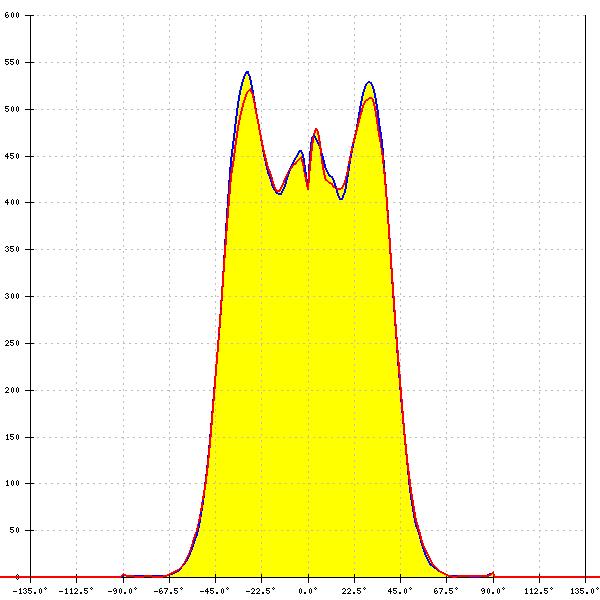

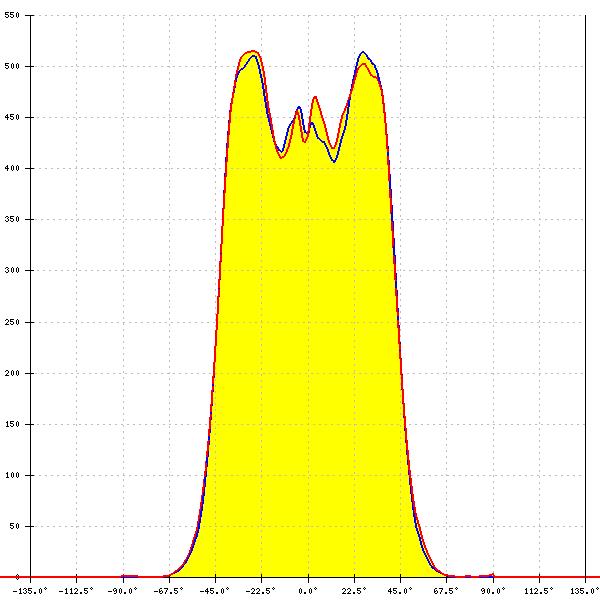

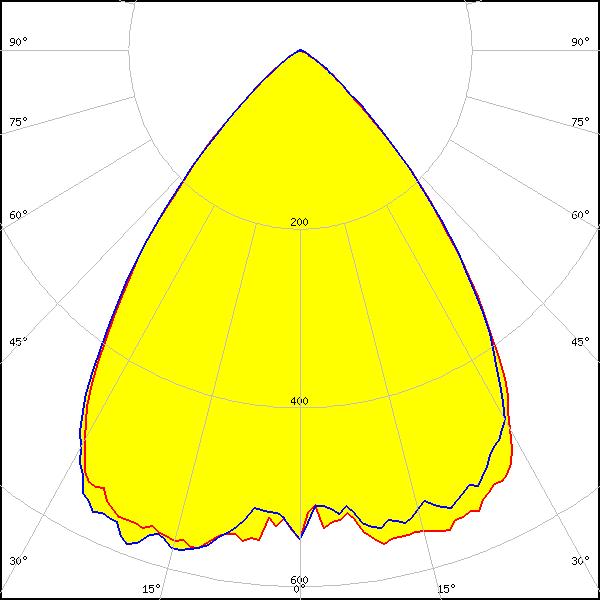

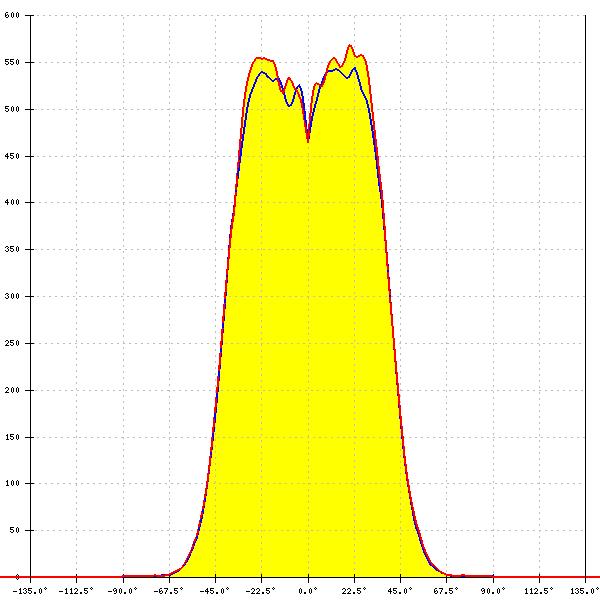

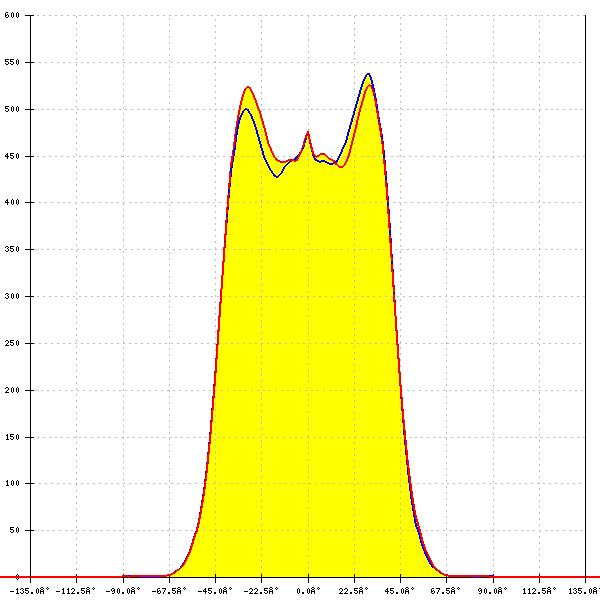

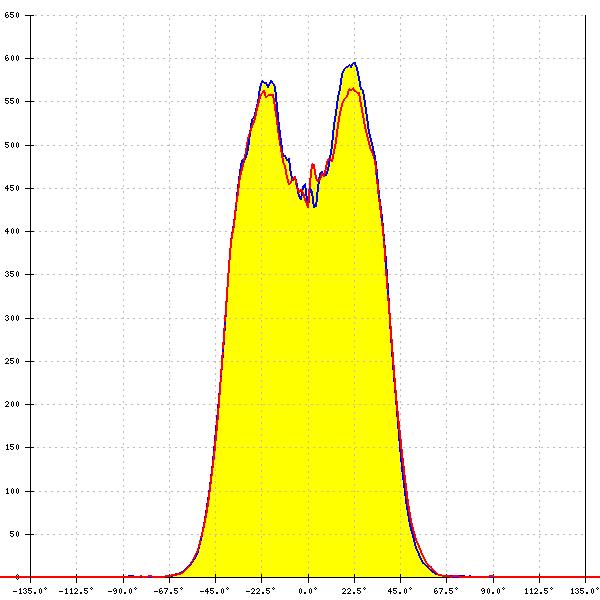

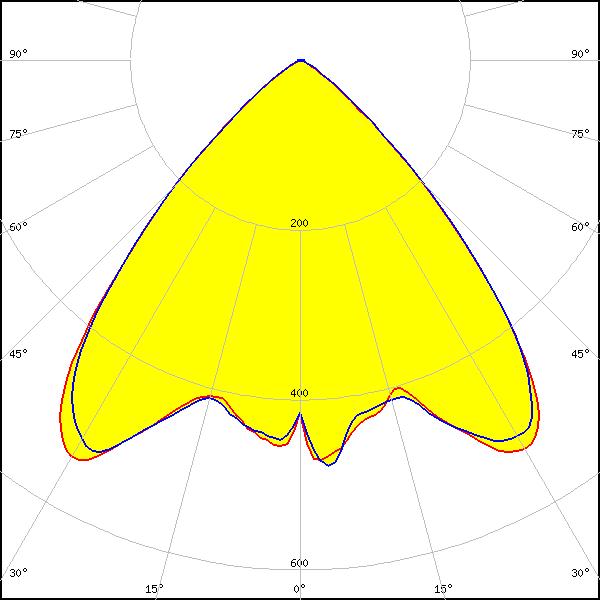

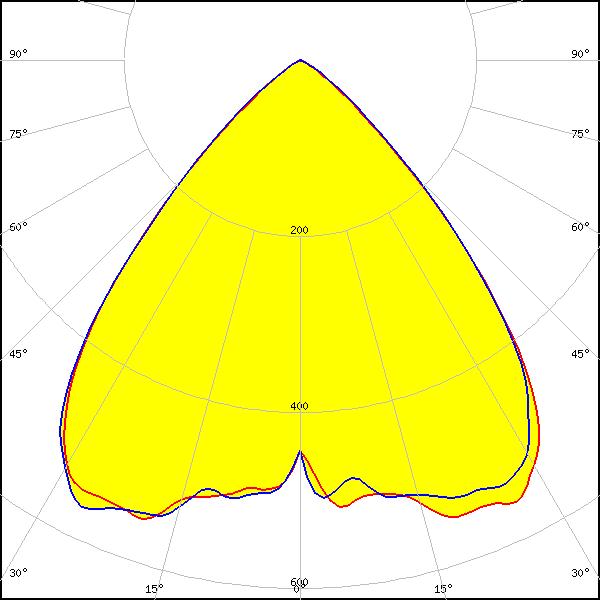

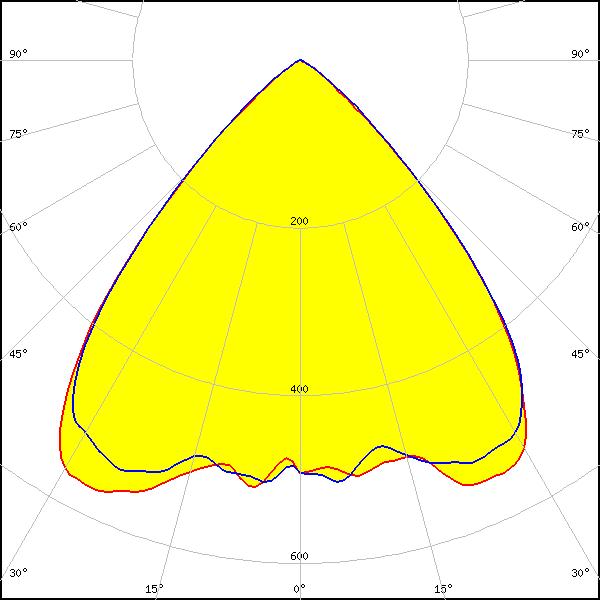

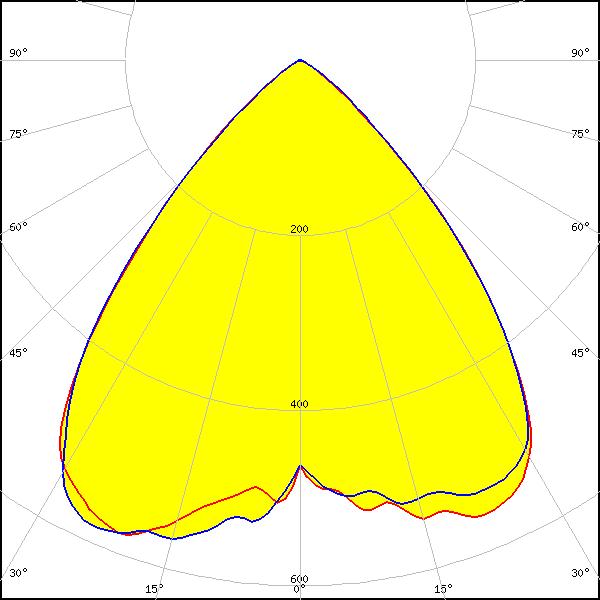

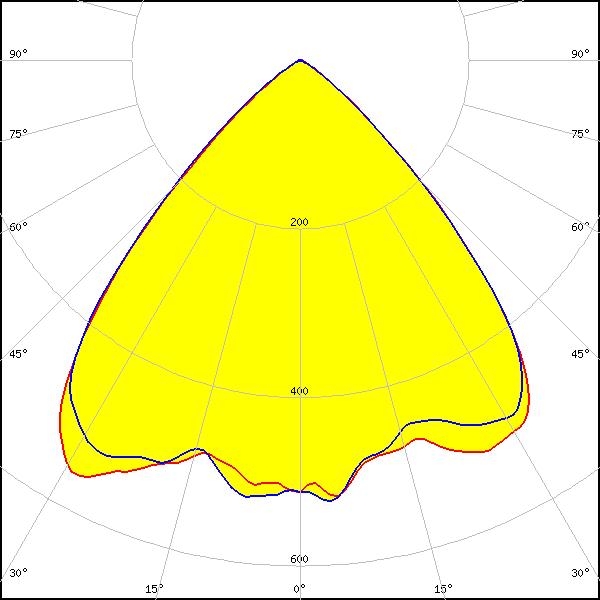

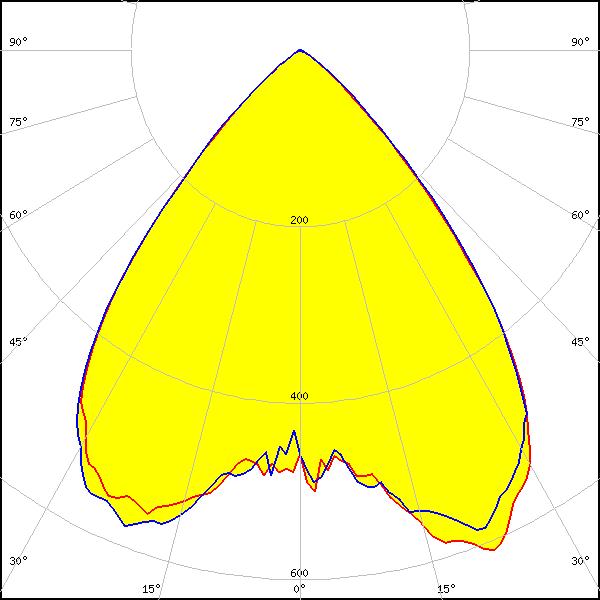

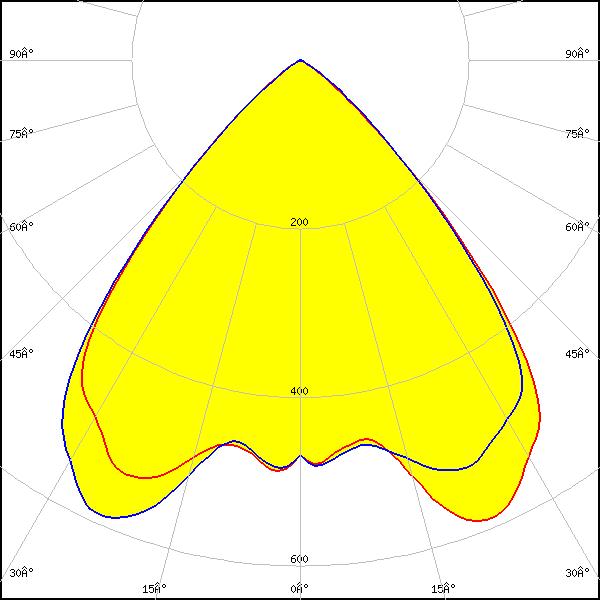

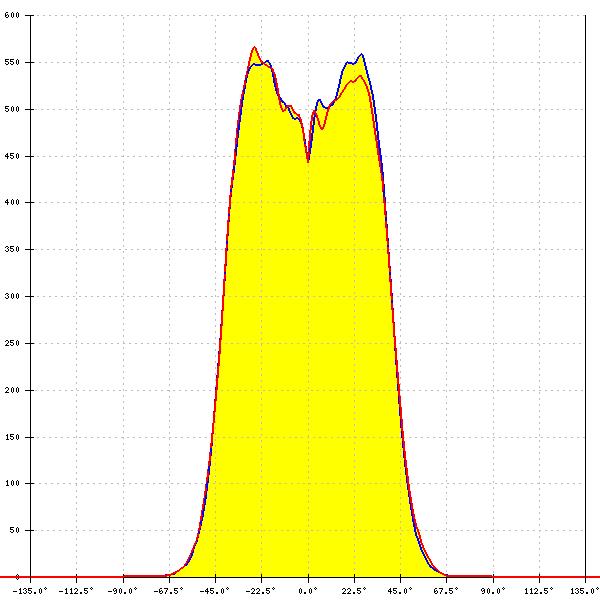

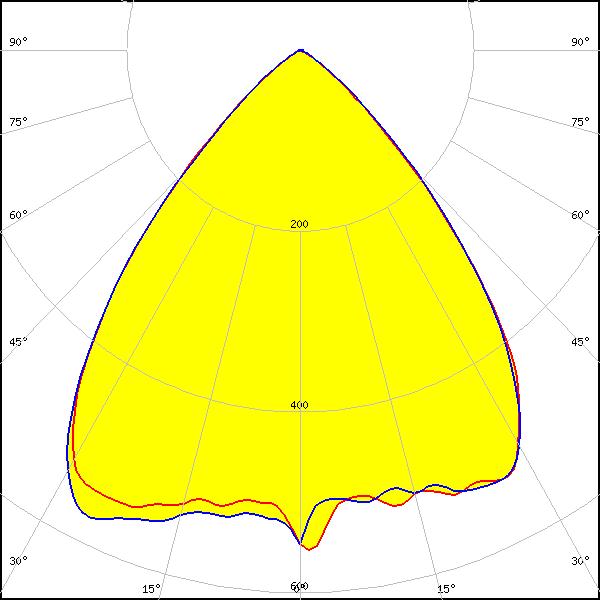

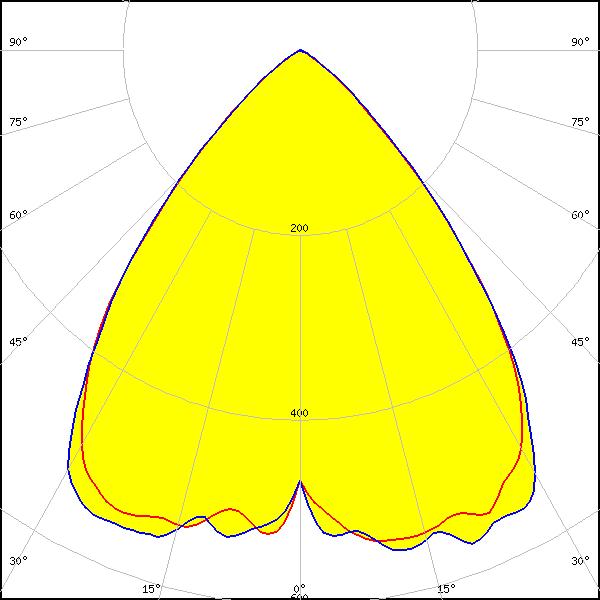

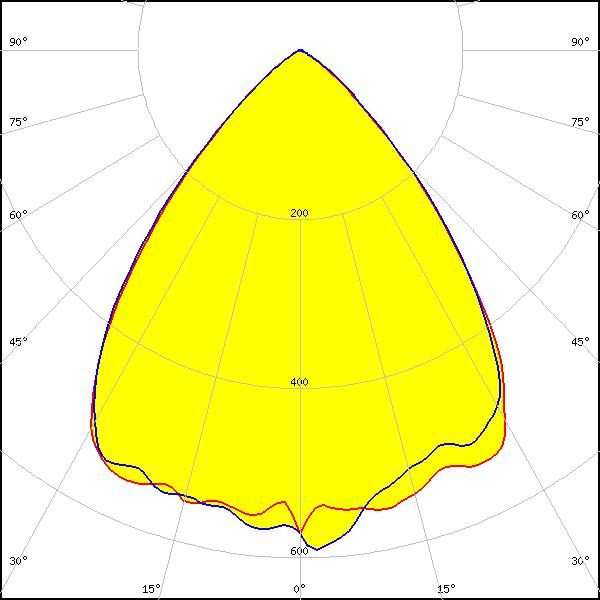

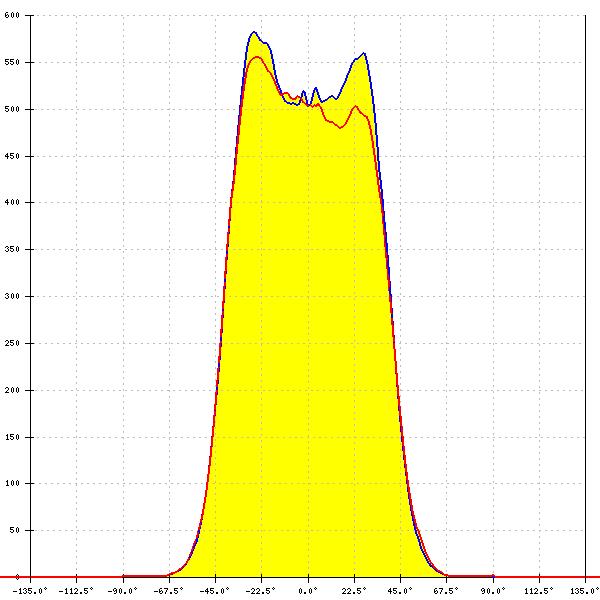

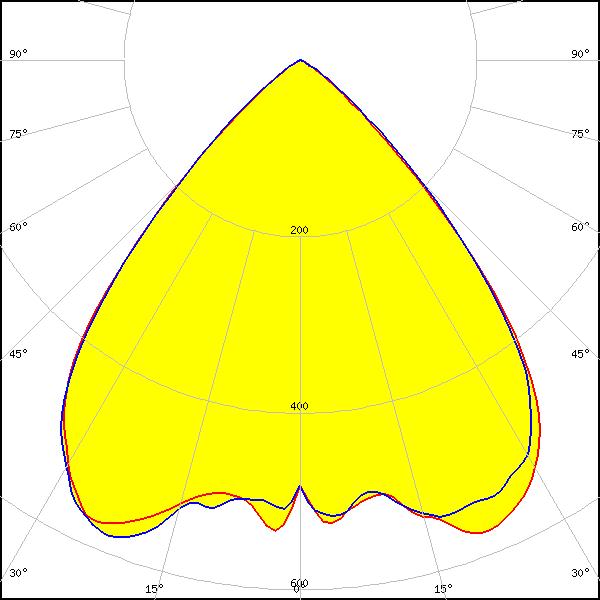

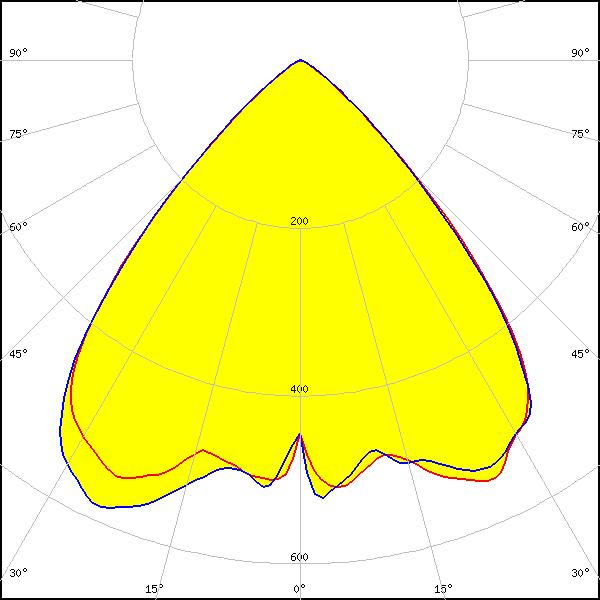

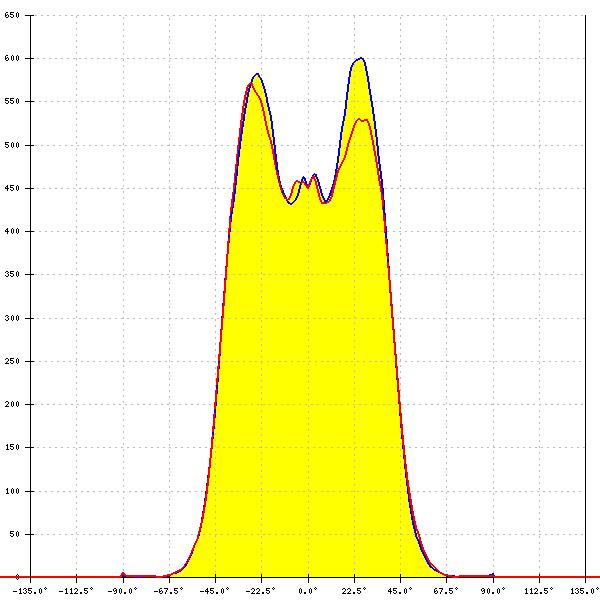

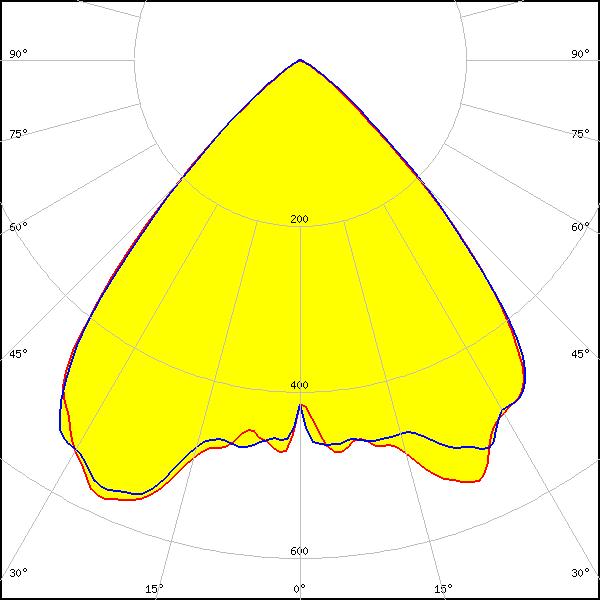

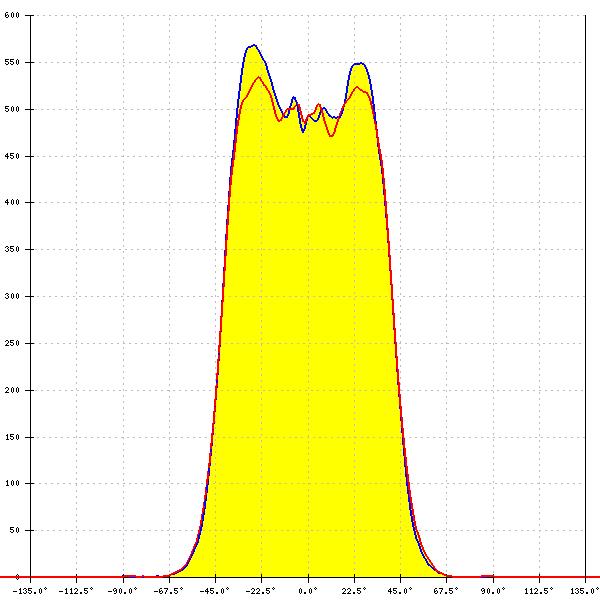

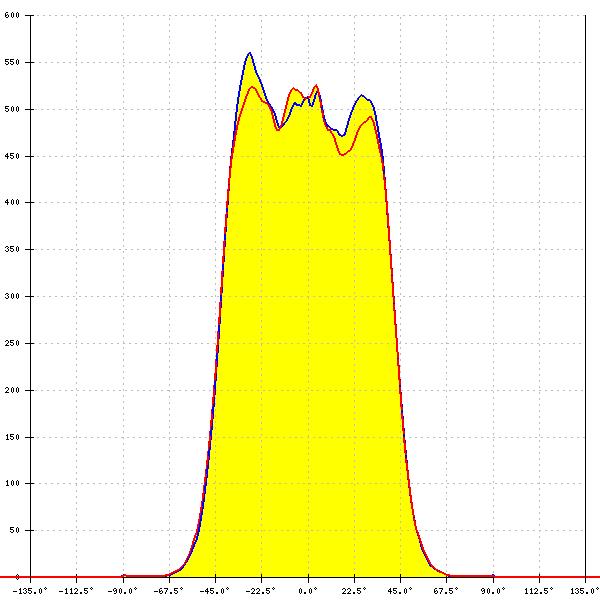

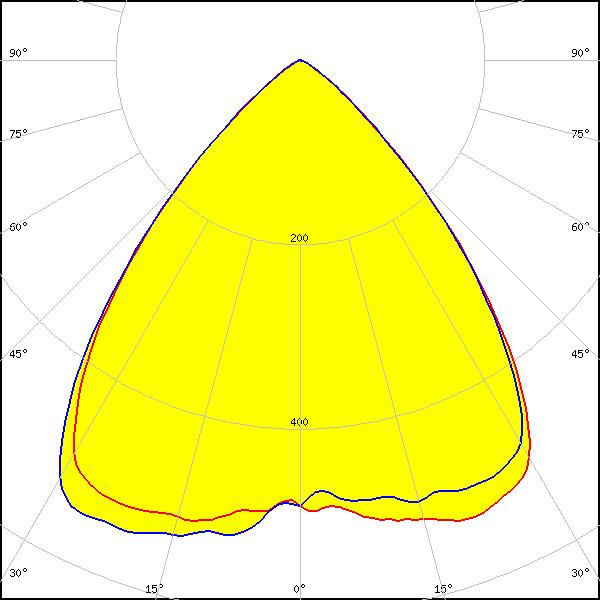

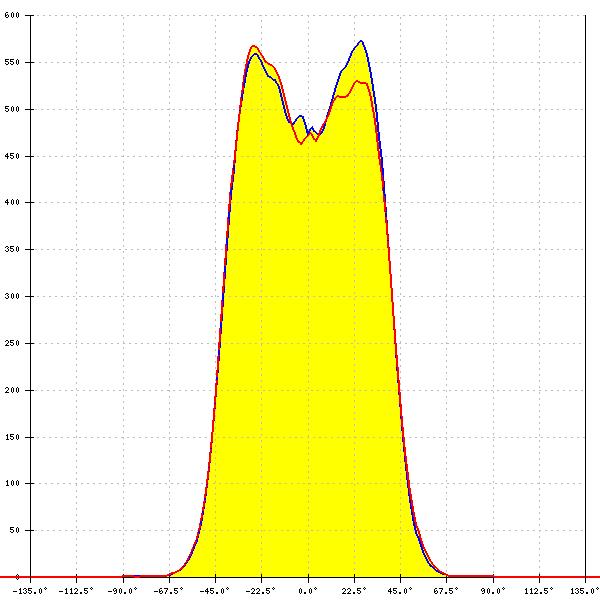

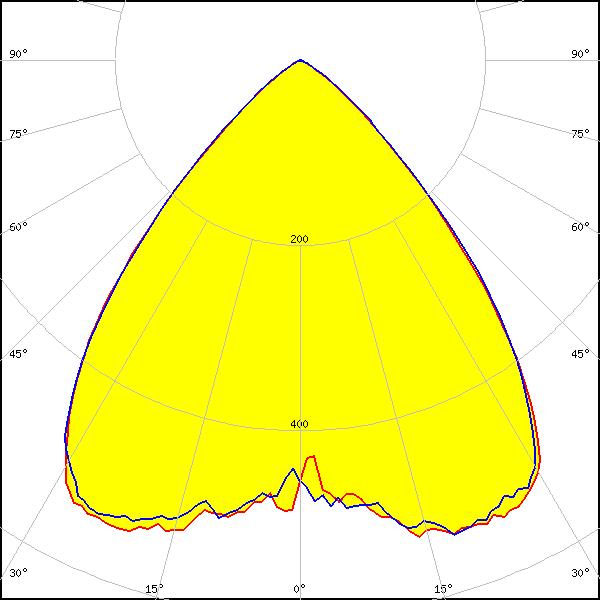

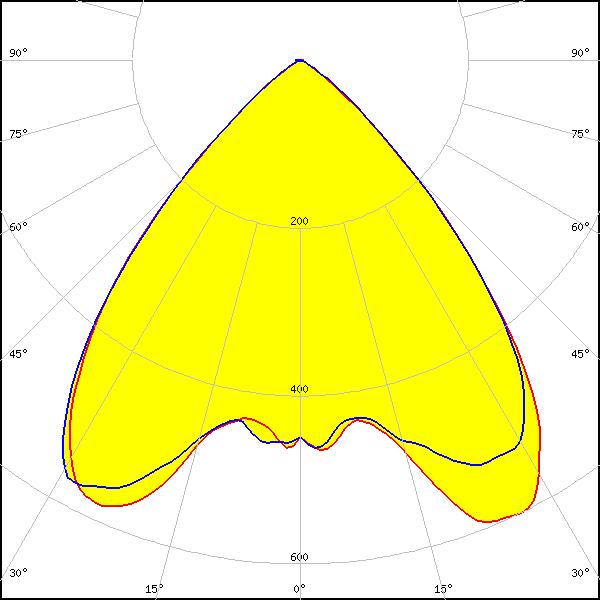

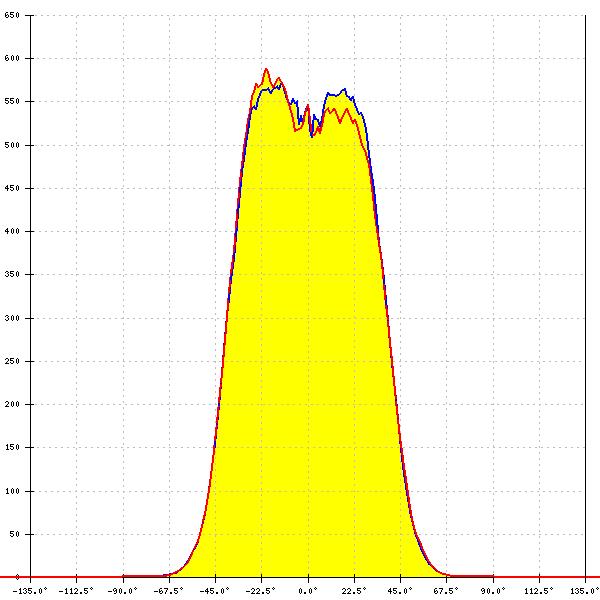

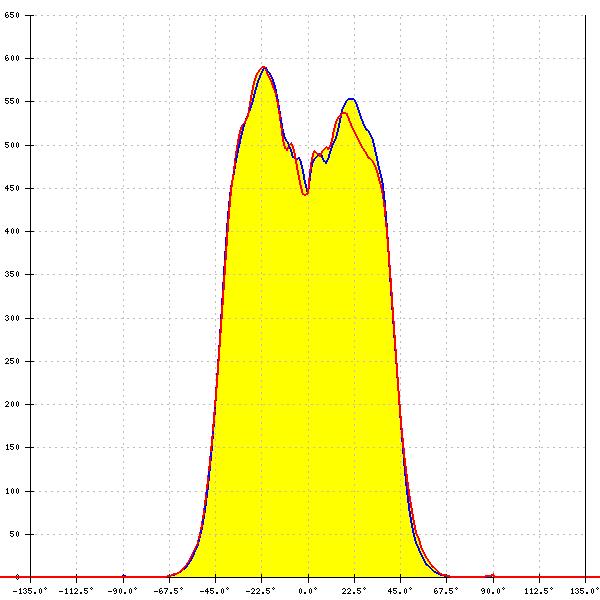

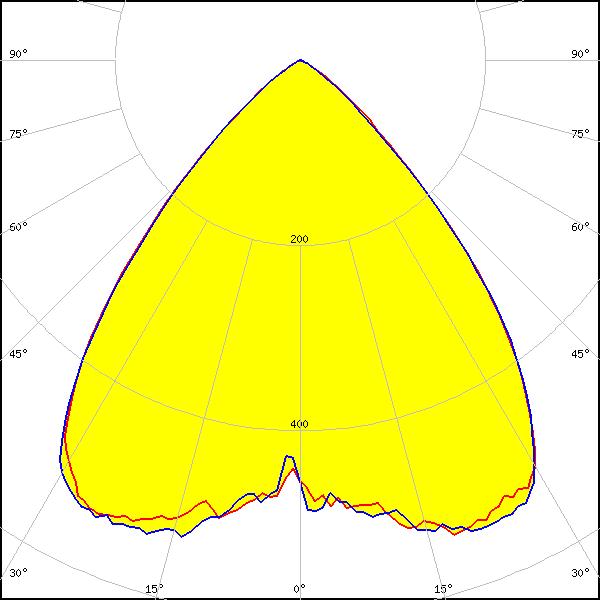

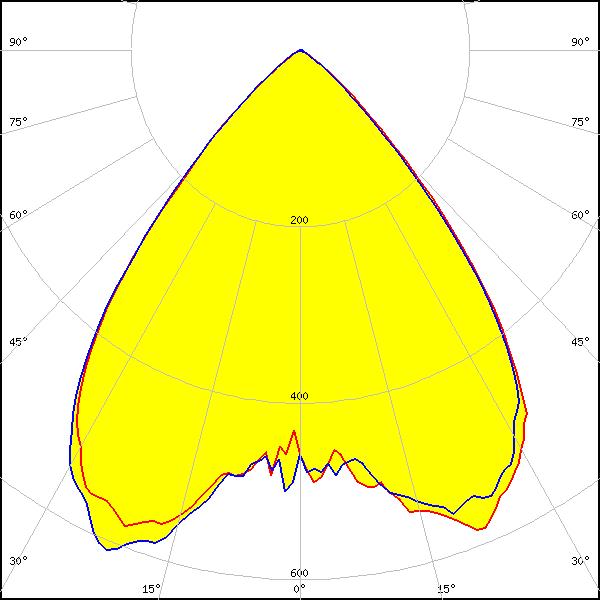

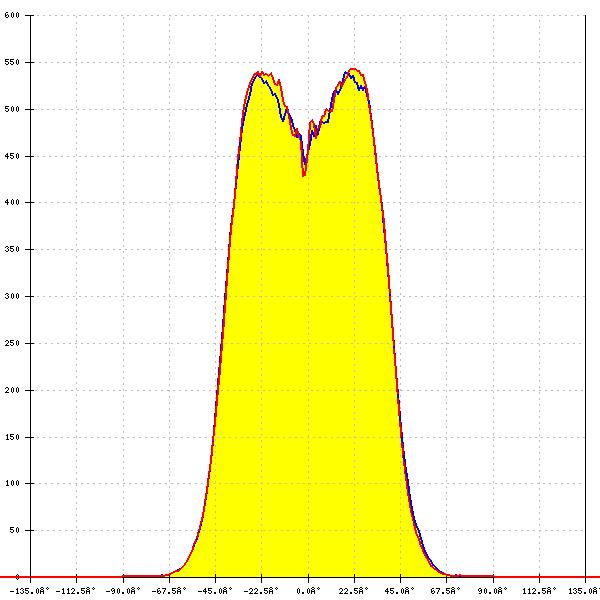

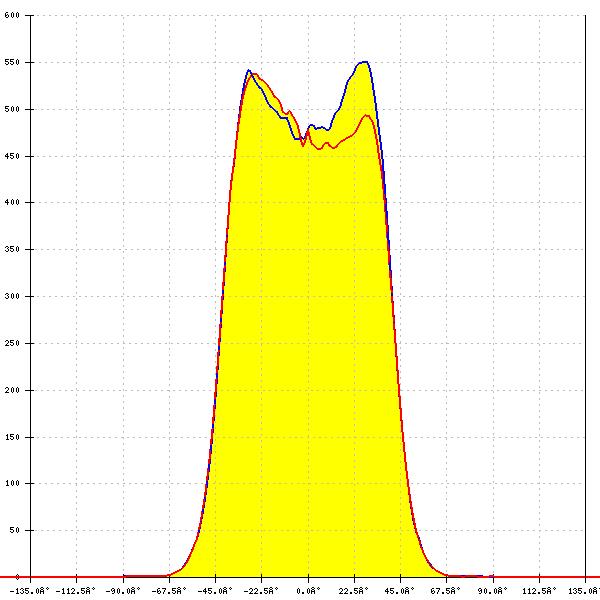

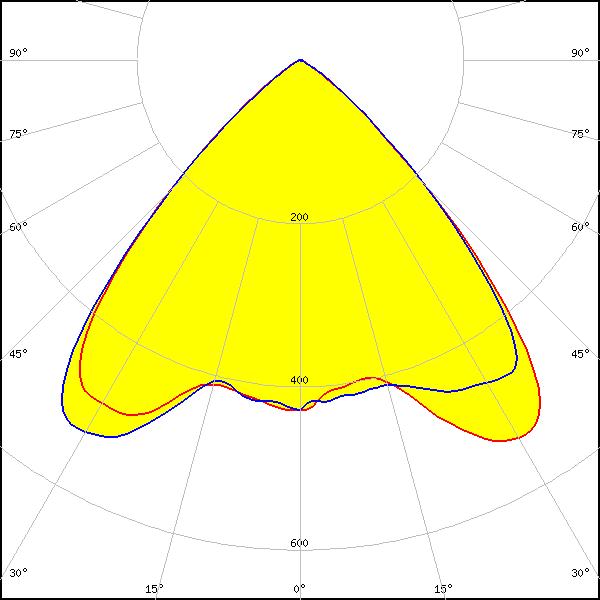

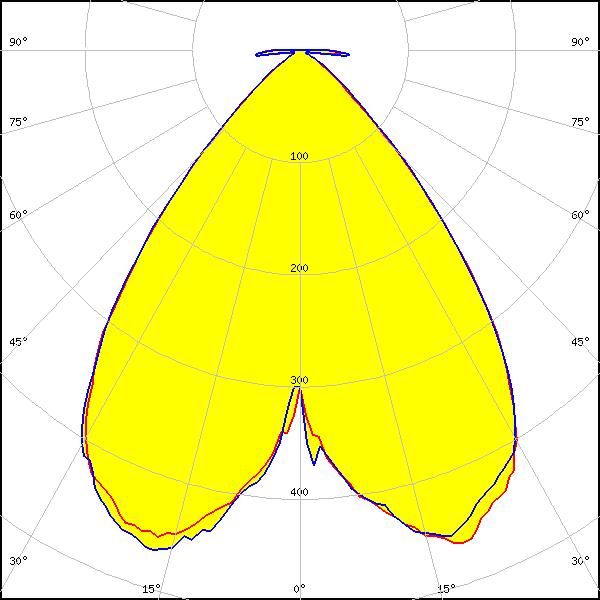

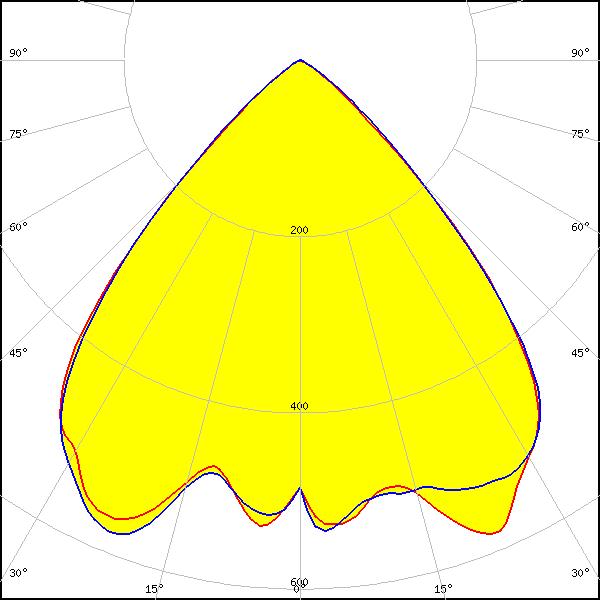

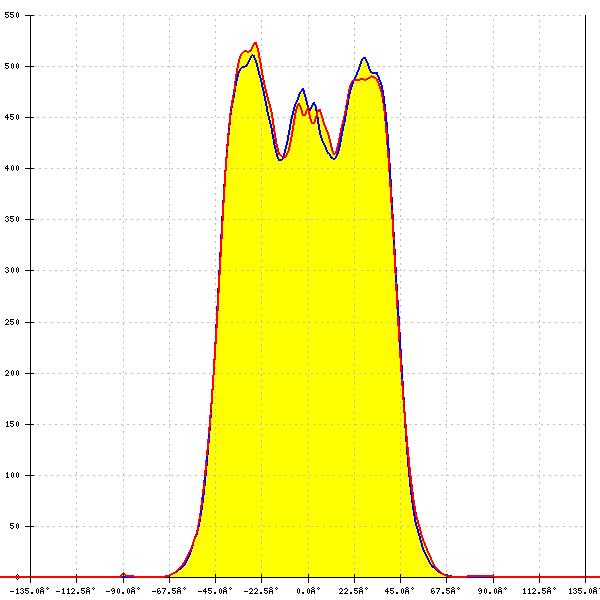

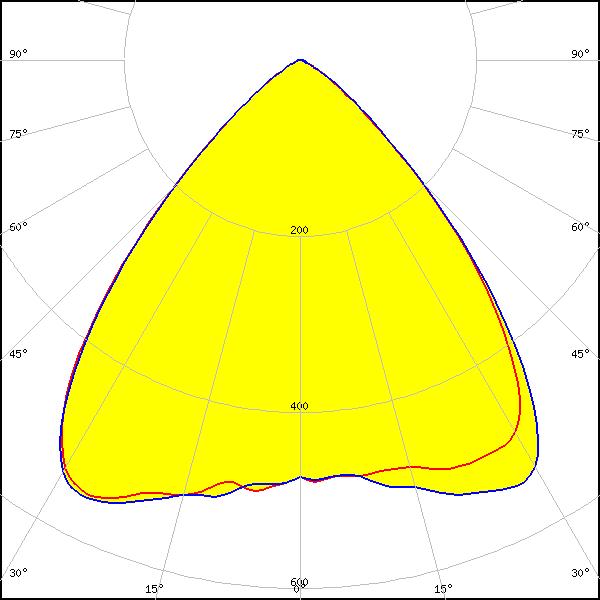

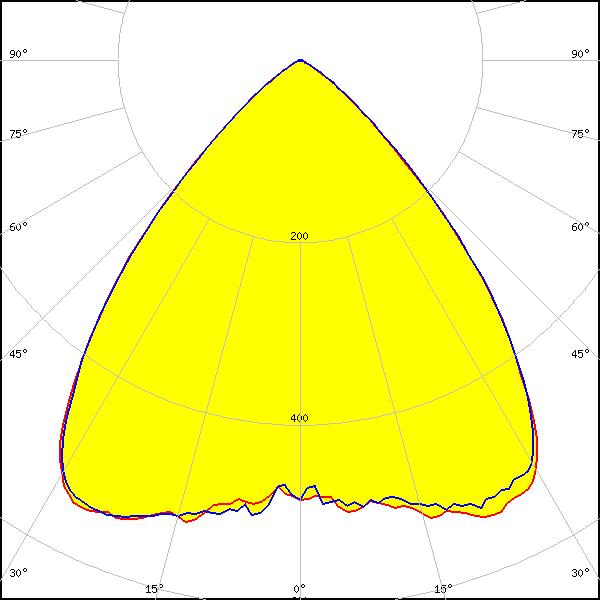

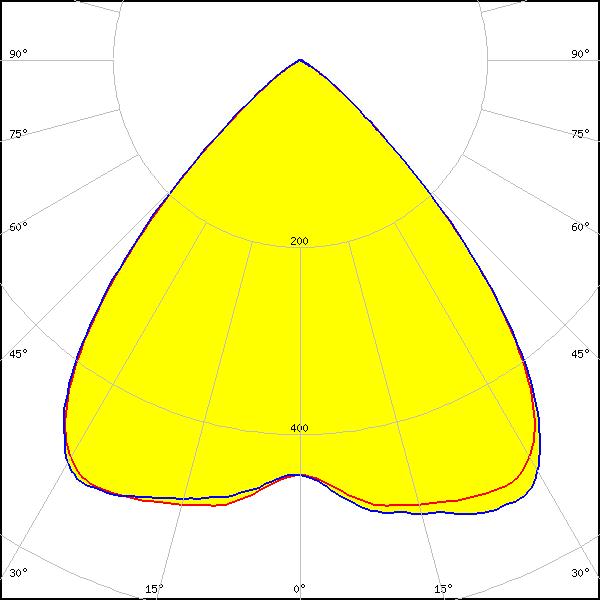

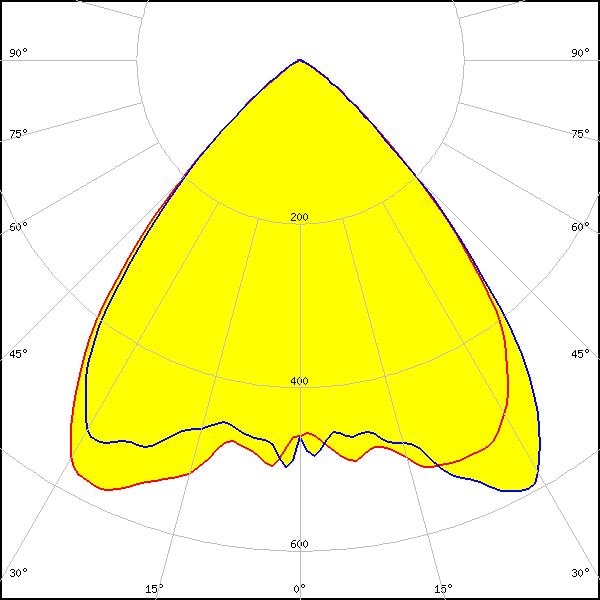

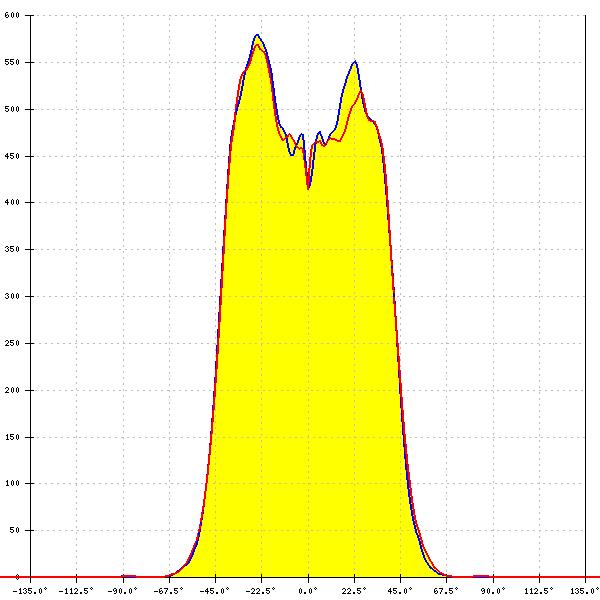

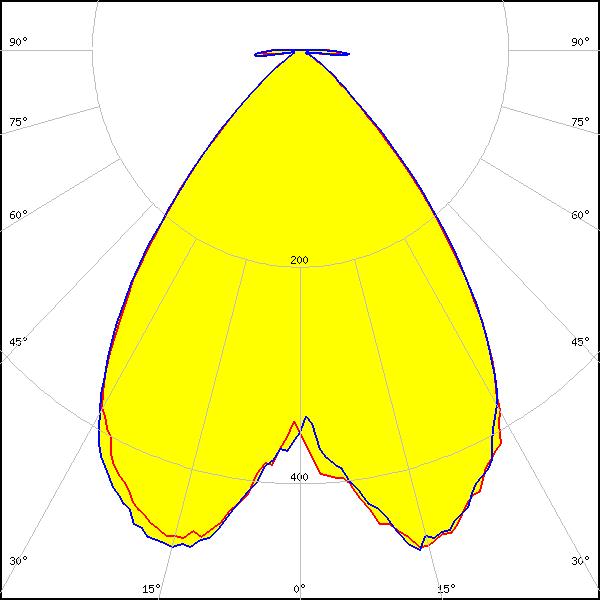

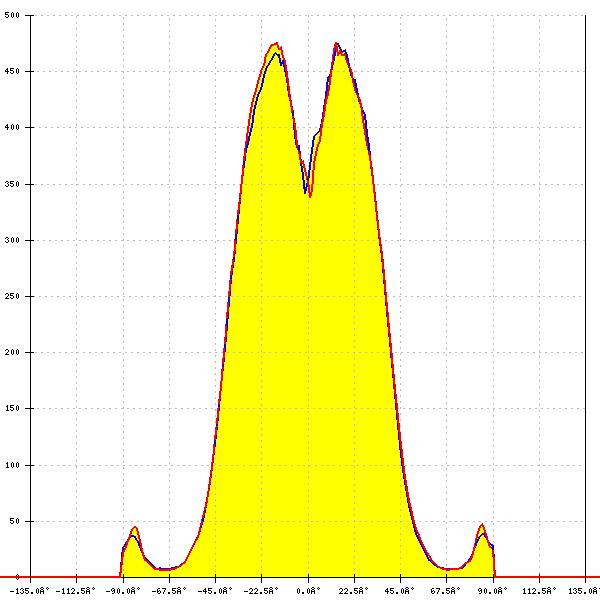

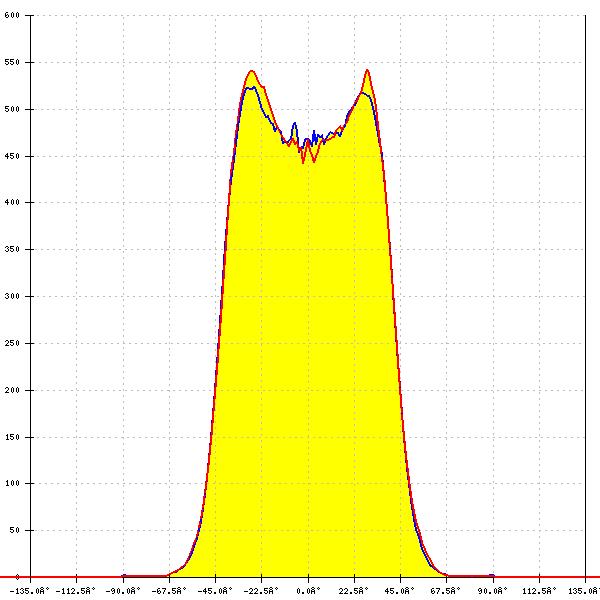

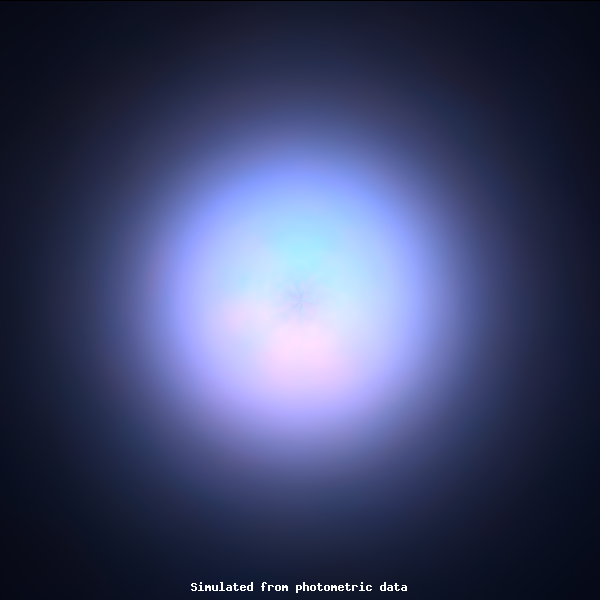

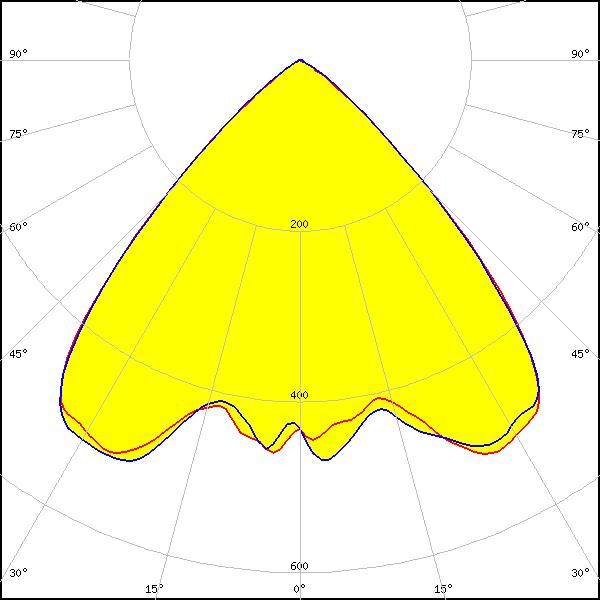

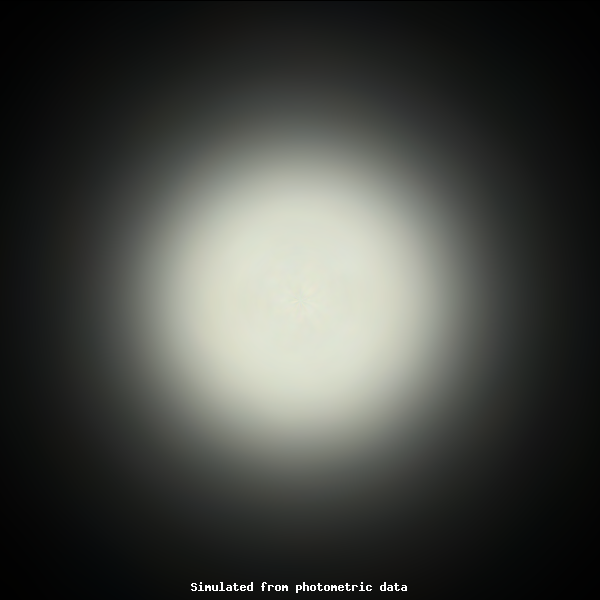

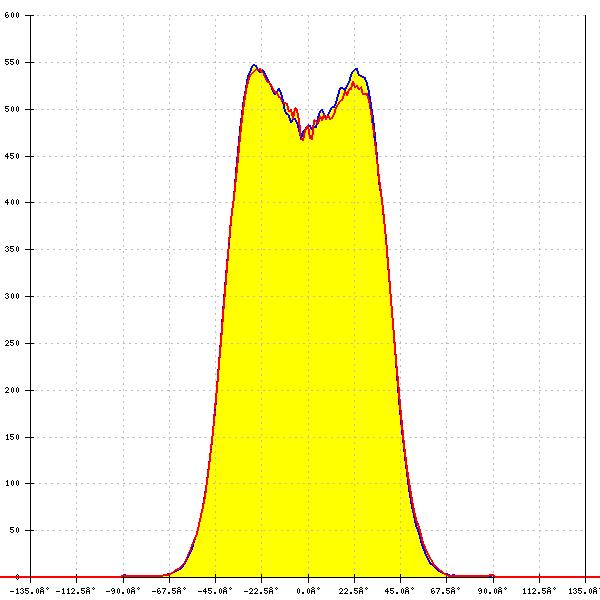

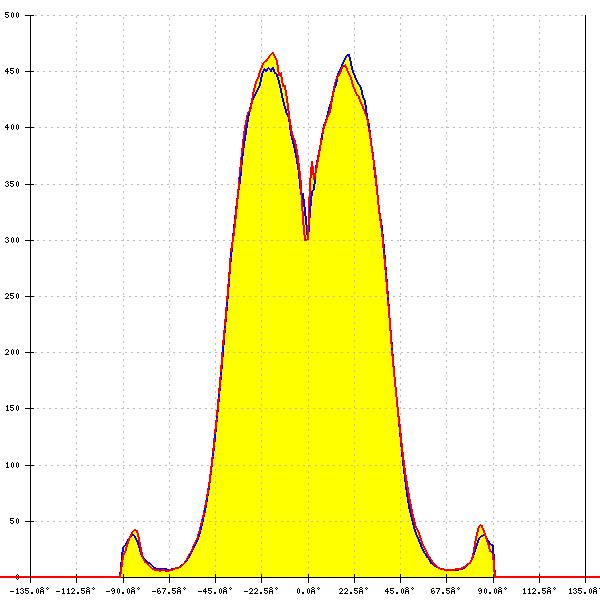

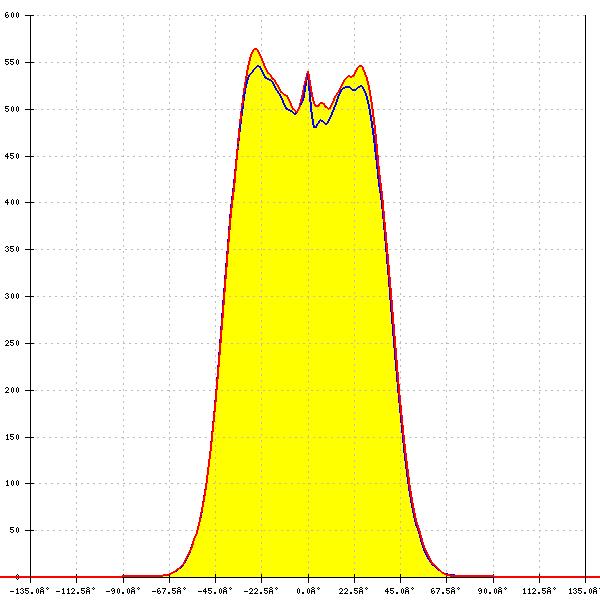

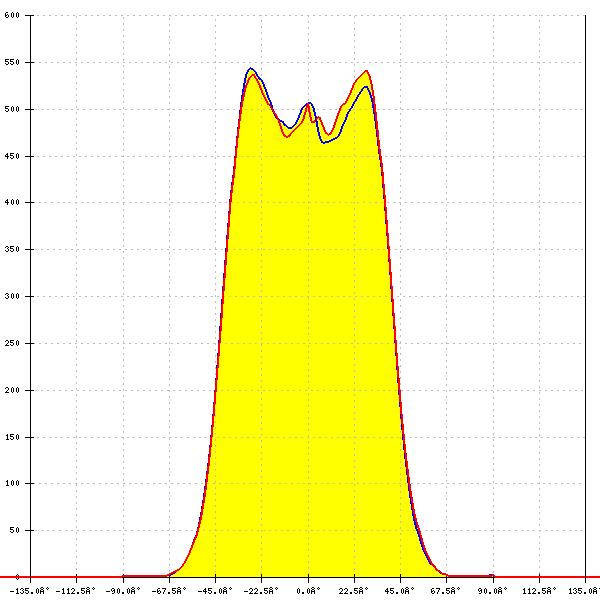

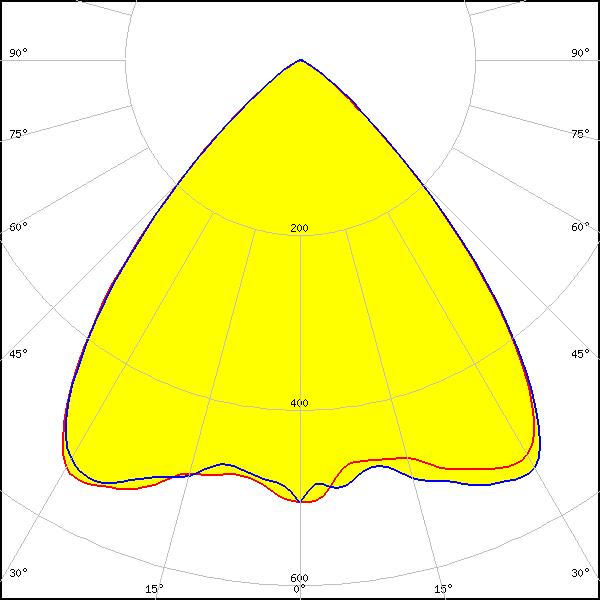

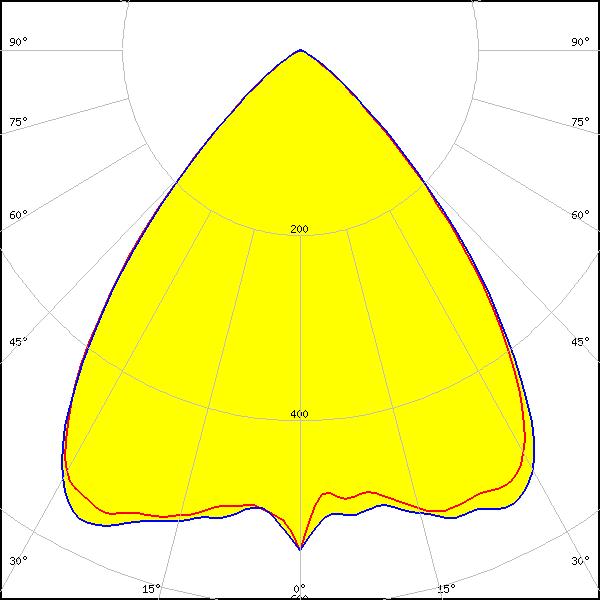

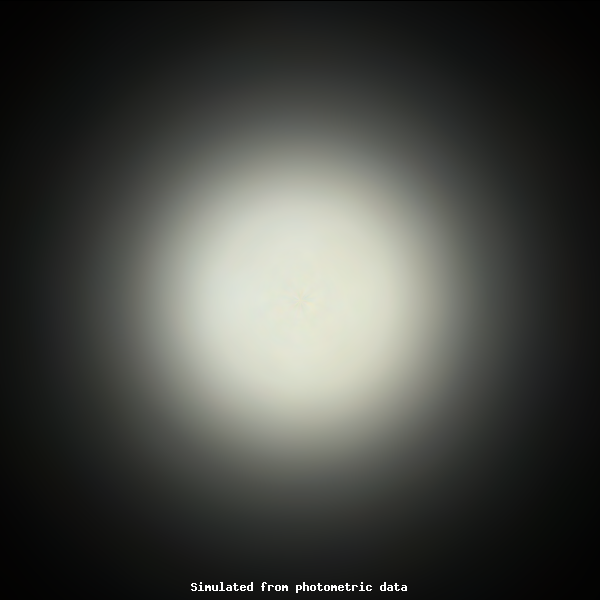

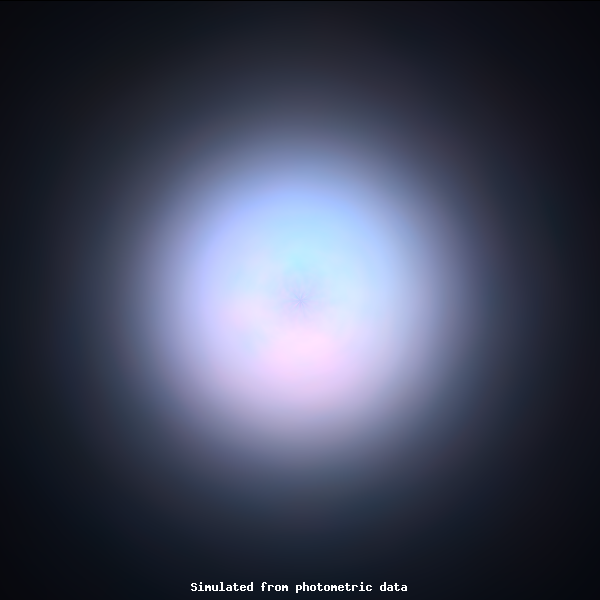

    Optical results

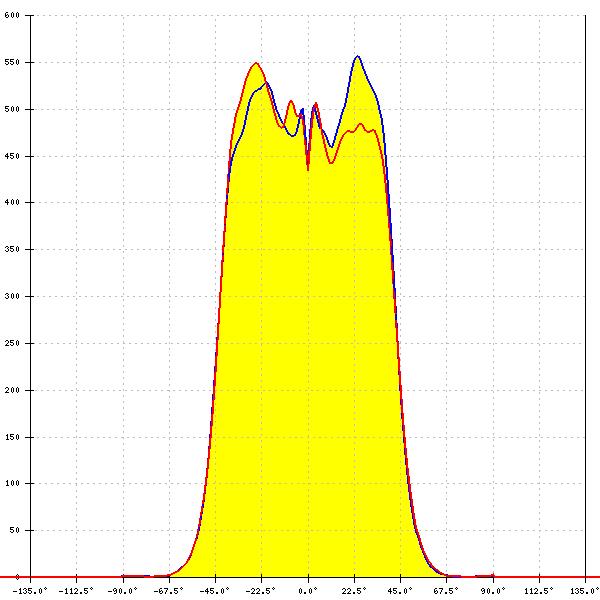

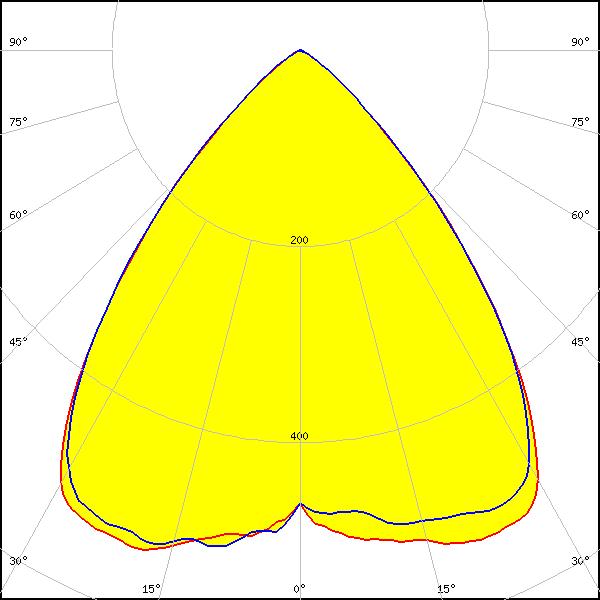

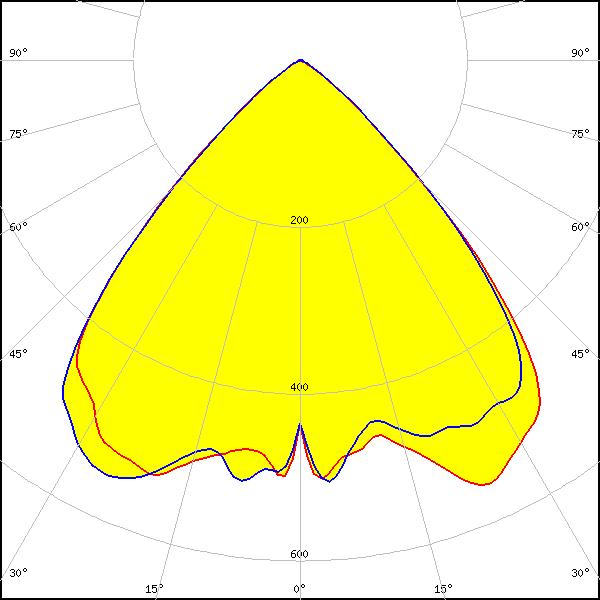

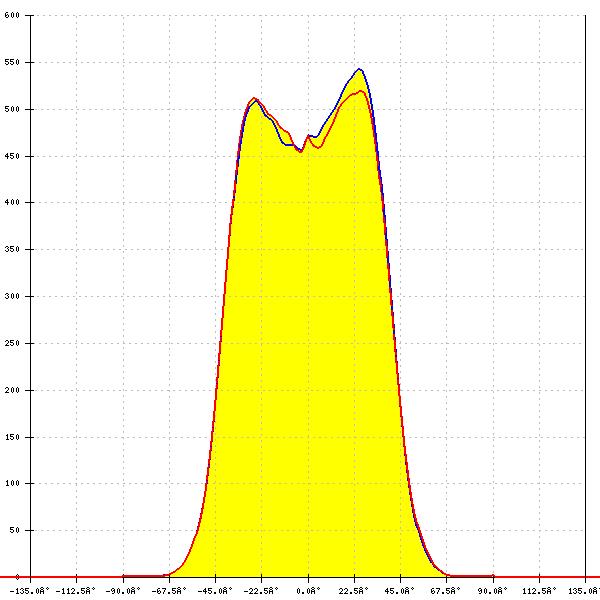

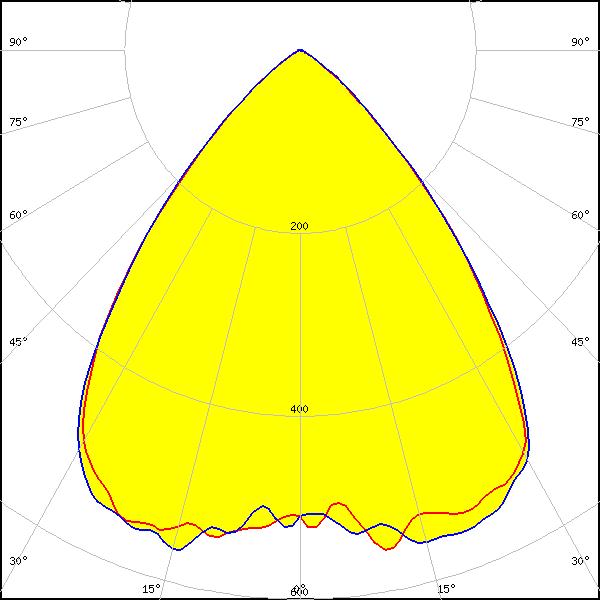

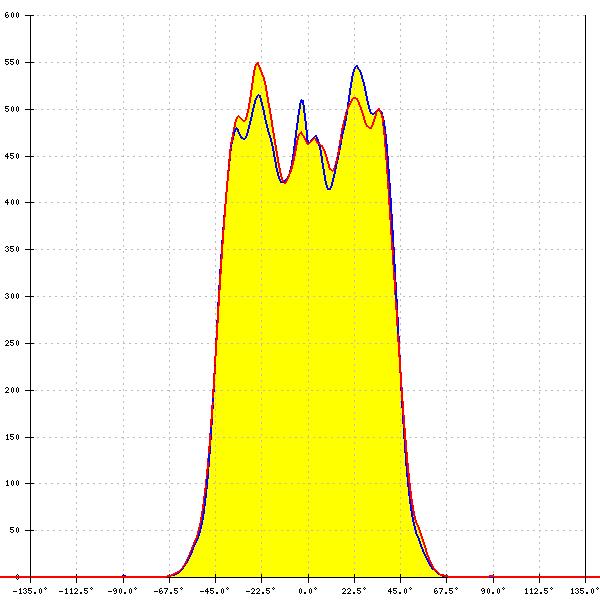

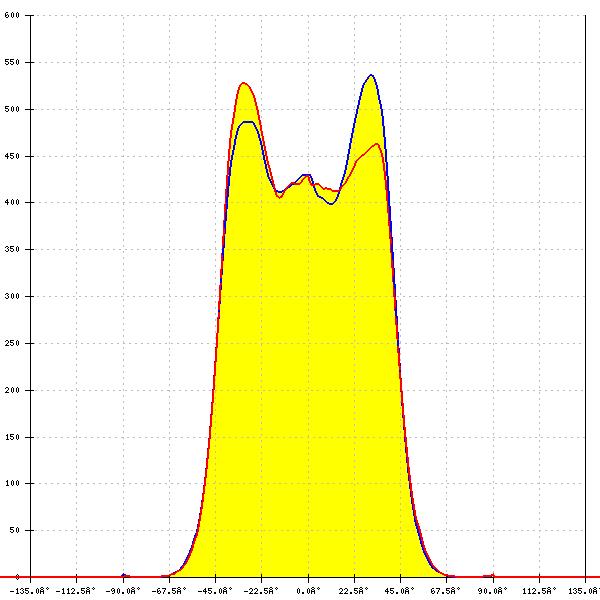

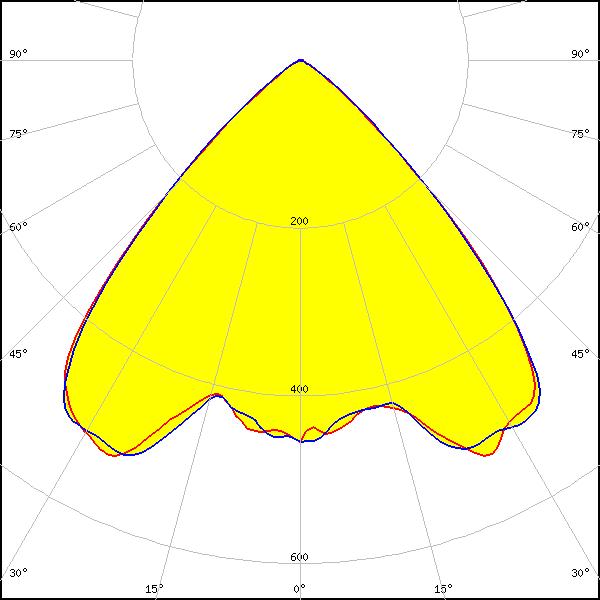

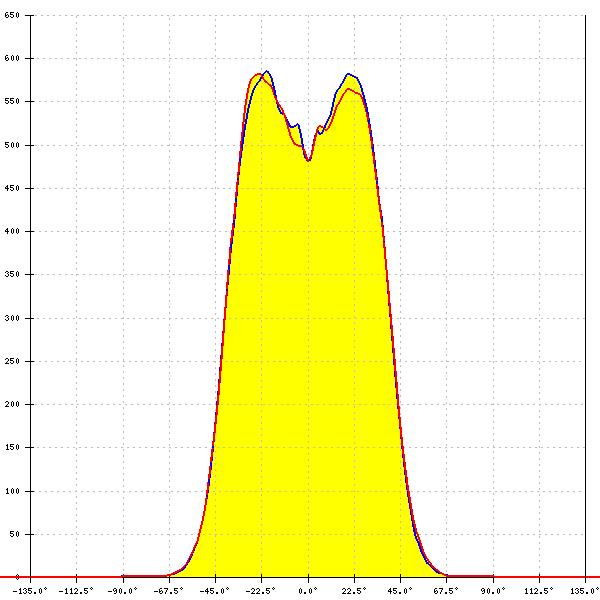

    LED: V6 HD Gen 8

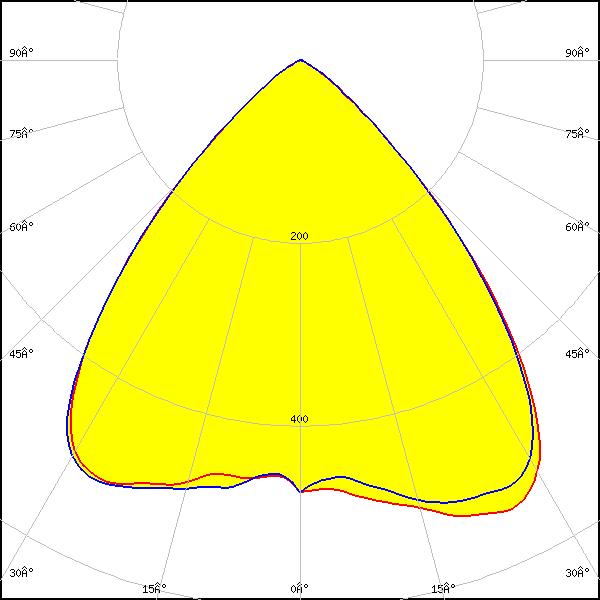

    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 6.6 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 86°
    FWTM: 106°
    Peak intensity: 0.559 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V9 HD Gen 8
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 8.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 85°
    FWTM: 107°
    Peak intensity: 0.560 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

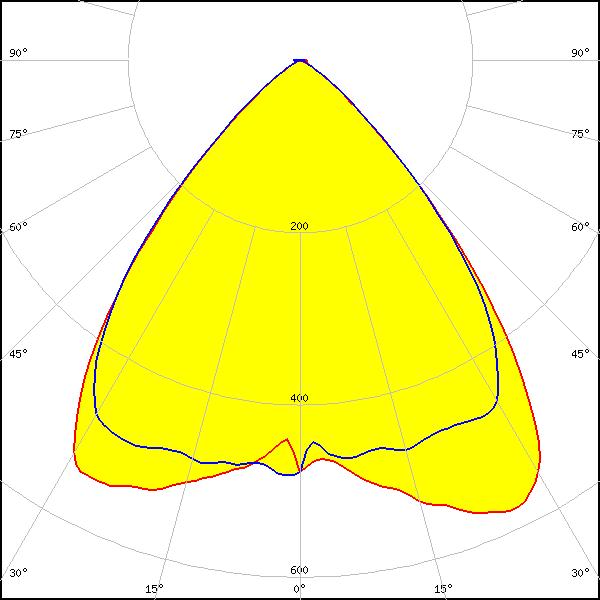

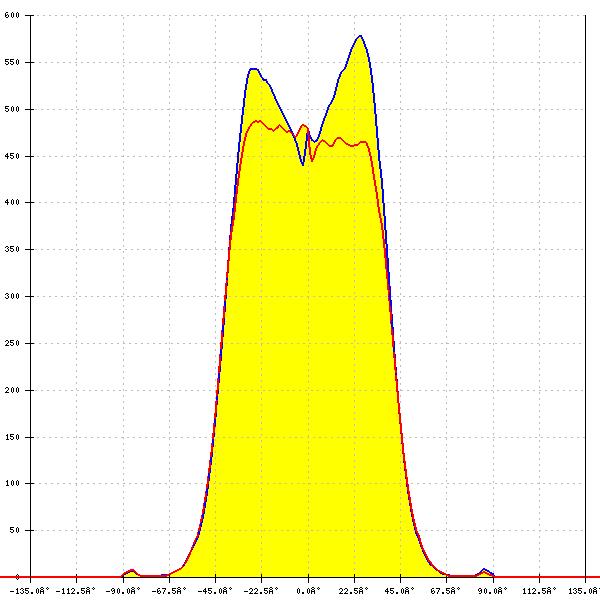

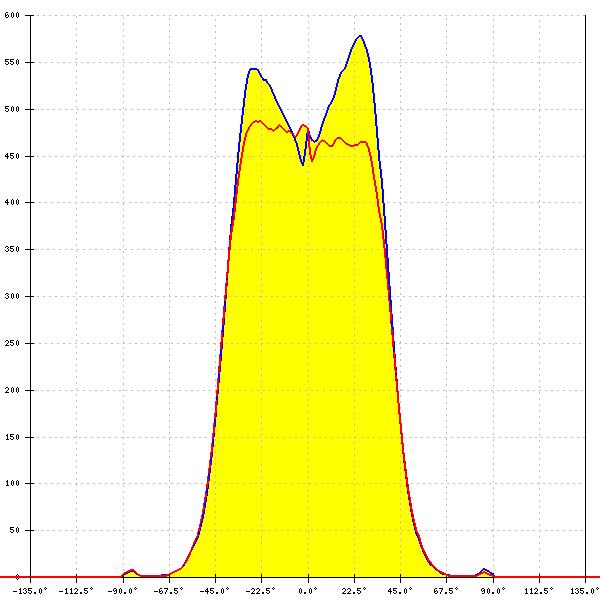

    LED: Vesta TW 13mm (18W) DP
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 14.0 mm
    FWHM: 82°
    FWTM: 105°
    Peak intensity: 0.579 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

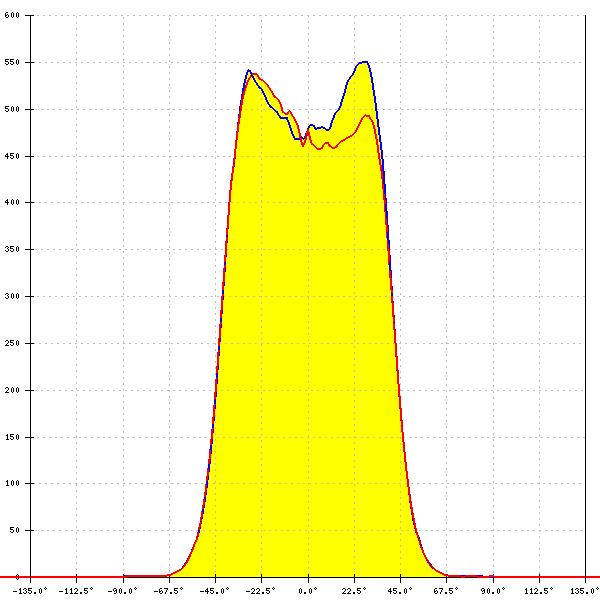

    LED: CLL02x/CLU02x (LES10)
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 9.8 mm
    FWHM: 84°
    FWTM: 105°
    Peak intensity: 0.568 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

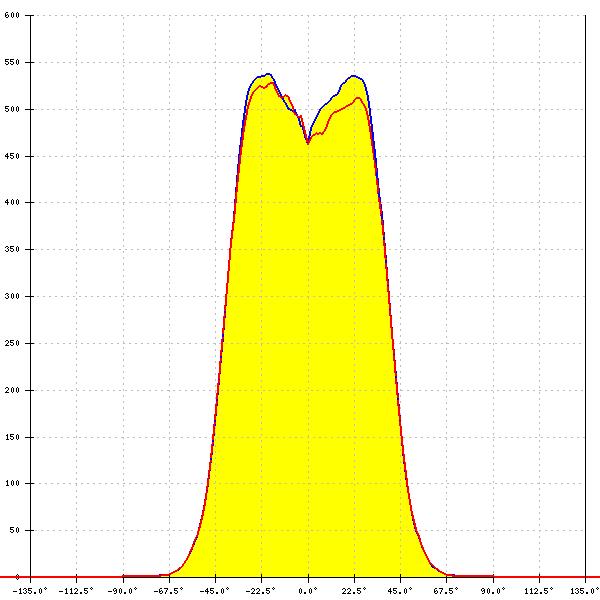

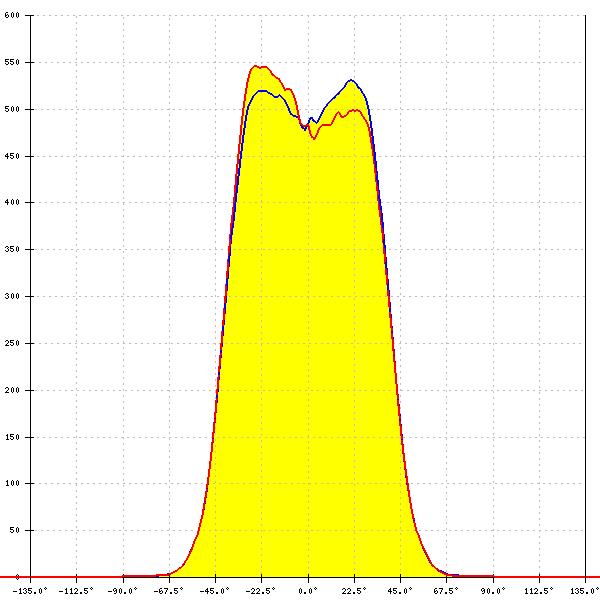

    LED: CLL03x/CLU03x
    Ordering code: CP18703_YASMEEN-70-WWW-B2
    LES size: 14.5 mm
    FWHM: 82°
    FWTM: 106°
    Peak intensity: 0.540 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

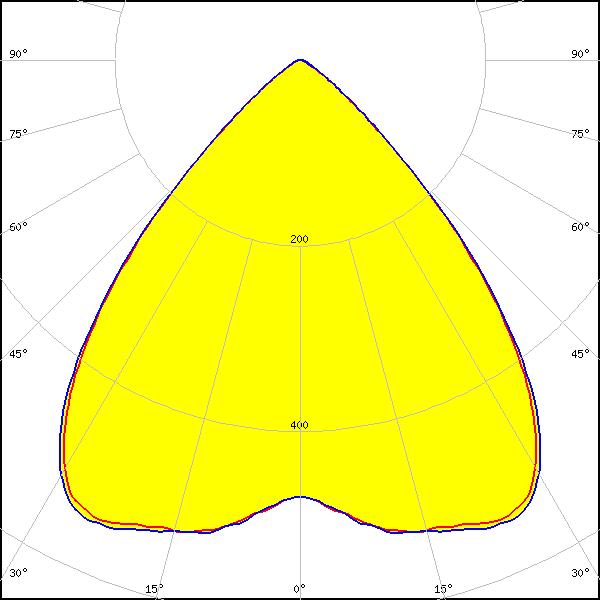

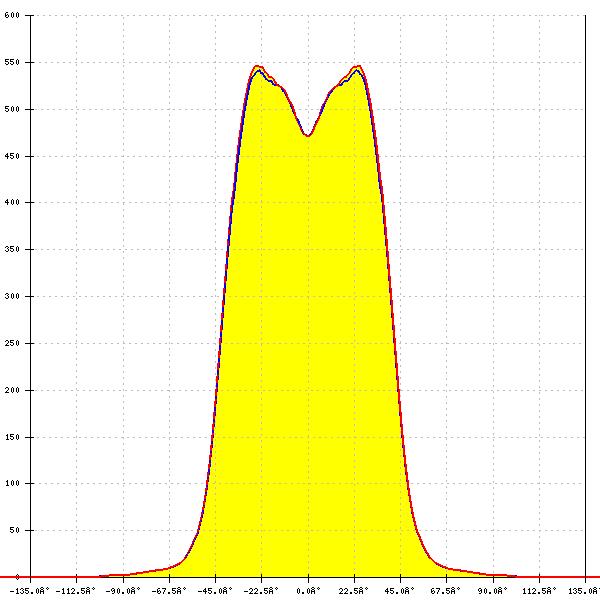

    LED: CLL03x/CLU03x
    Ordering code: CP18705_YASMEEN-70-WWW-B2-WHT
    LES size: 14.5 mm
    FWHM: 82°
    FWTM: 107°
    Peak intensity: 0.563 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1

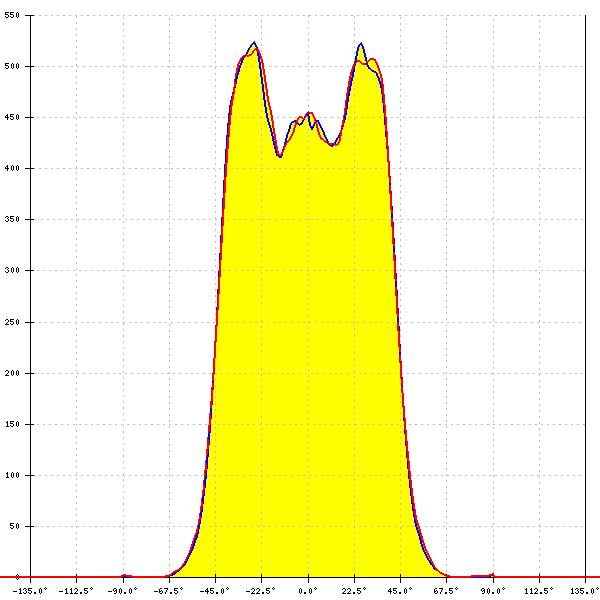

    Light colour/type: White
    LED: LUXEON CX Plus CoB L08 (Gen2)
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 80°
    FWTM: 107°
    Peak intensity: 0.608 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

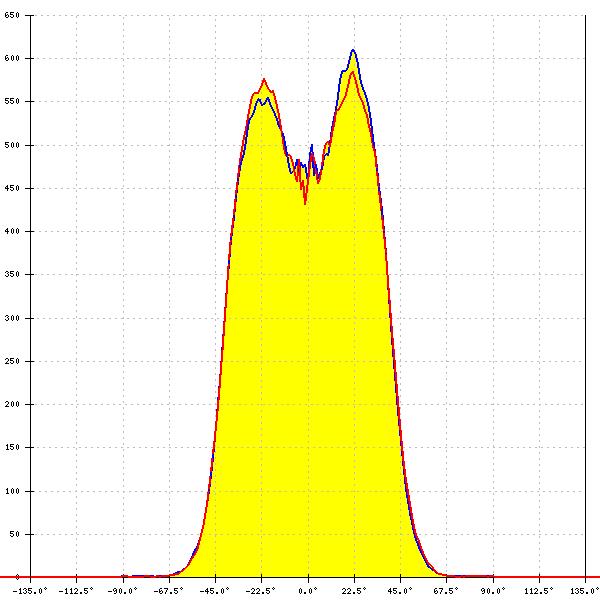

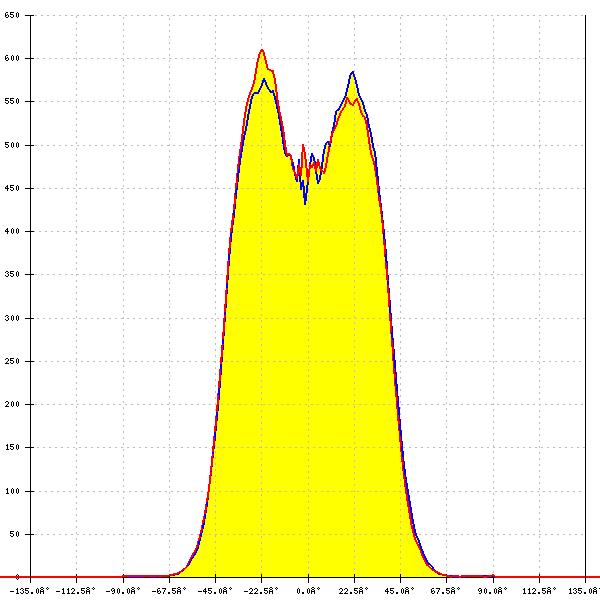

    LED: LUXEON CoB 1202/1203
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 9.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 480 Typ L8
    FWHM: 81°
    FWTM: 103°
    Peak intensity: 0.611 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202HD
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 6.5 mm
    FWHM: 85°
    FWTM: 105°
    Peak intensity: 0.599 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

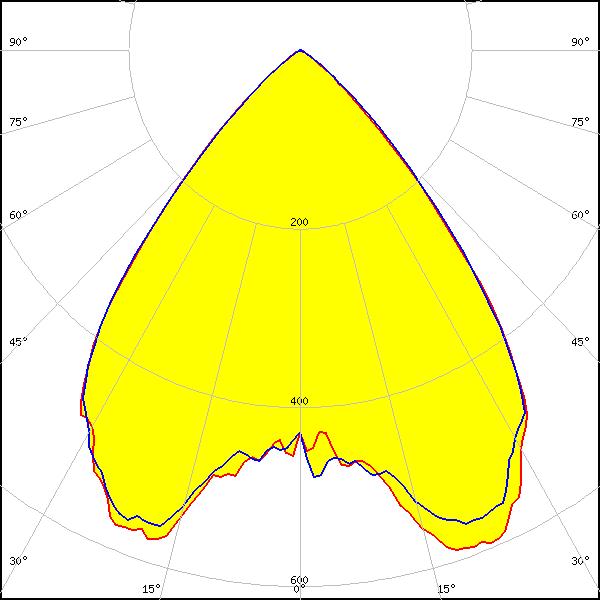

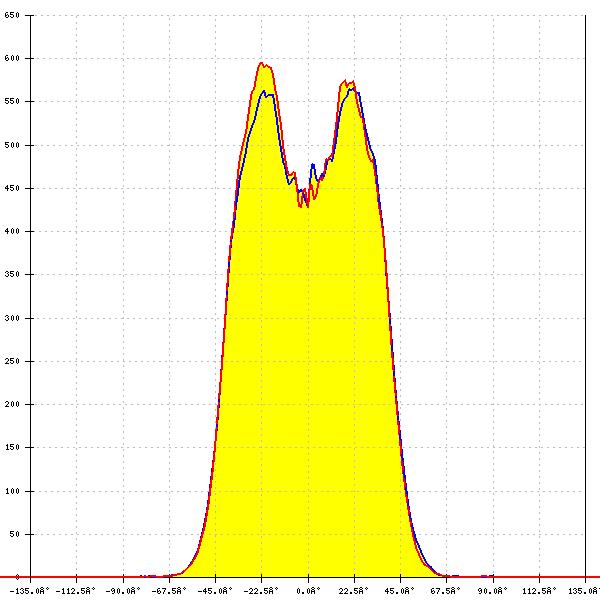

    LED: LUXEON CoB 1202s
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 6.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 452 Typ L8
    FWHM: 81°
    FWTM: 102°
    Peak intensity: 0.608 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

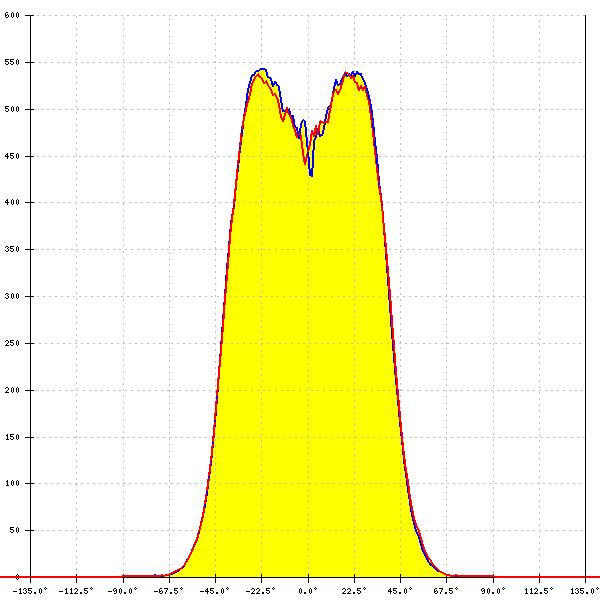

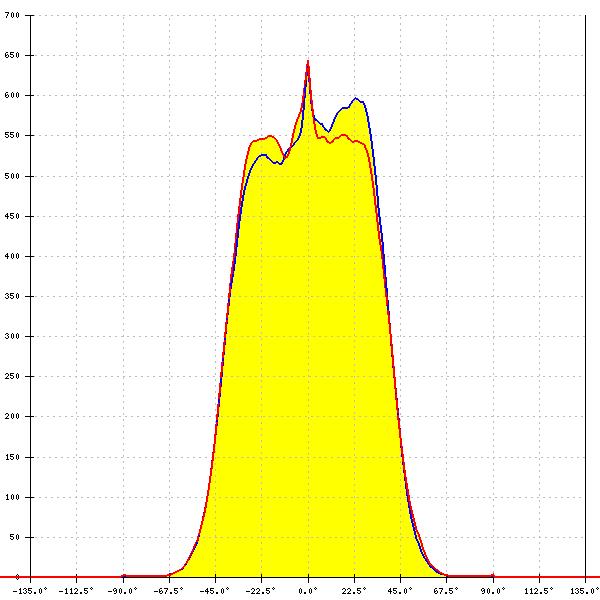

    LED: LUXEON CoB 1204/1205
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 13.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 79°
    FWTM: 105°
    Peak intensity: 0.644 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204/1205
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 432 Typ L8
    FWHM: 82°
    FWTM: 105°
    Peak intensity: 0.555 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204HD
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 9.0 mm
    FWHM: 85°
    FWTM: 107°
    Peak intensity: 0.547 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1205HD
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 11.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 84°
    FWTM: 107°
    Peak intensity: 0.567 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1208
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 15.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 432 Typ L8
    FWHM: 79°
    FWTM: 104°
    Peak intensity: 0.589 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S02H6
    Ordering code: CP18703_YASMEEN-70-WWW-B2
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 88°
    FWTM: 107°
    Peak intensity: 0.561 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: CP18703_YASMEEN-70-WWW-B2
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 86°
    FWTM: 107°
    Peak intensity: 0.546 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

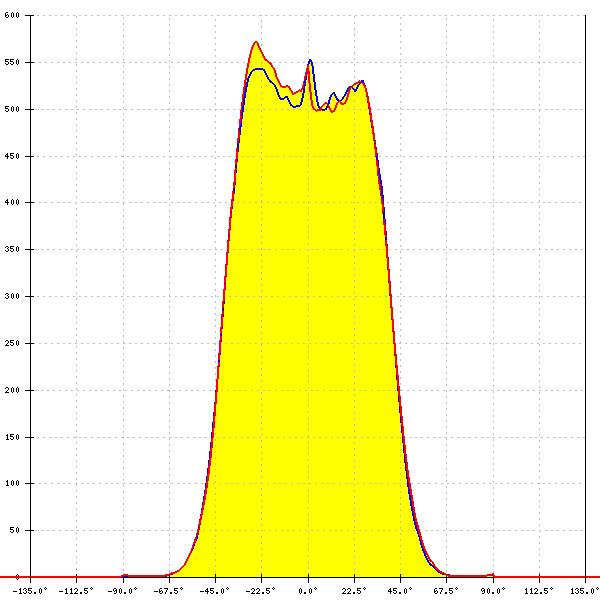

    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 82°
    FWTM: 106°
    Peak intensity: 0.573 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 9.0 mm
    FWHM: 83°
    FWTM: 105°
    Peak intensity: 0.606 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB S01 (Gen2)
    Ordering code: CP18703_YASMEEN-70-WWW-B2
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 88°
    FWTM: 107°
    Peak intensity: 0.540 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHM-9 XH (19x19)
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 9.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 84°
    FWTM: 105°
    Peak intensity: 0.572 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

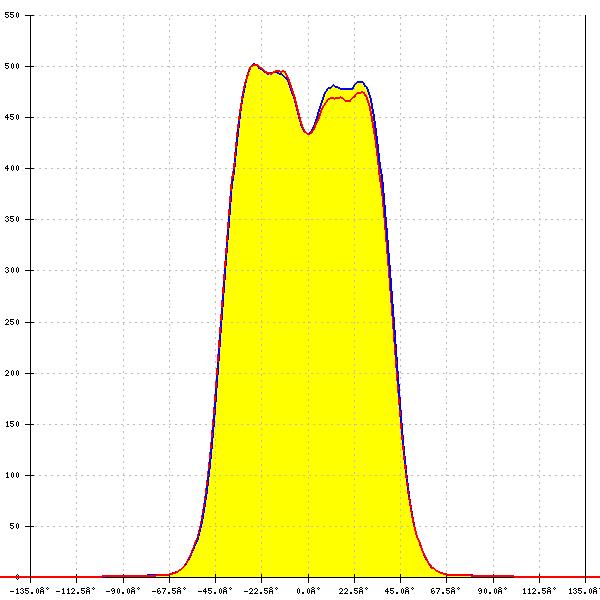

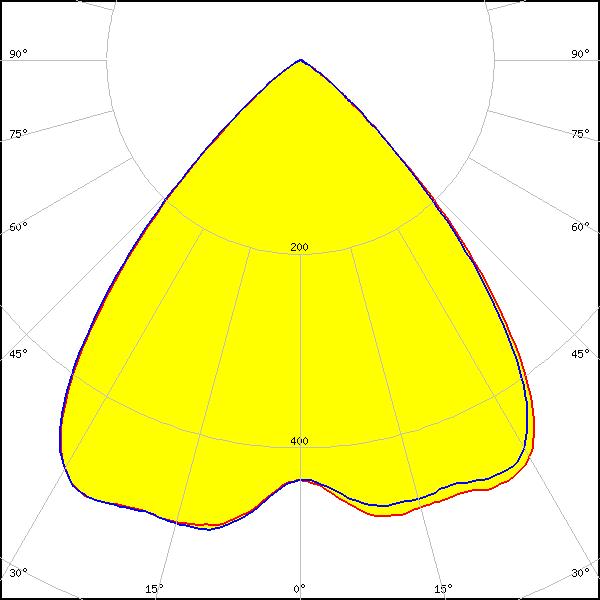

    LED: CTM-14 (Tunable White) Gen2
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 13.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: 82°
    FWTM: 106°
    Peak intensity: 0.569 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

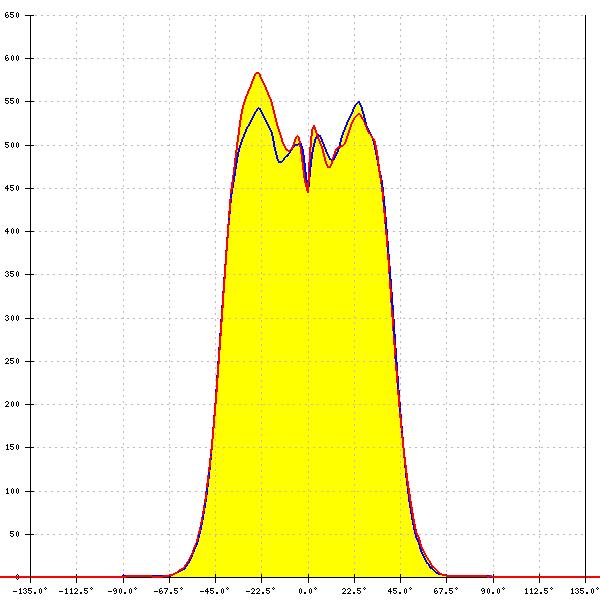

    LED: CTM-6 (Tunable White) Gen2
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 6.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 84°
    FWTM: 105°
    Peak intensity: 0.585 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CTM-9 (Tunable White) Gen2
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 9.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 83°
    FWTM: 105°
    Peak intensity: 0.571 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

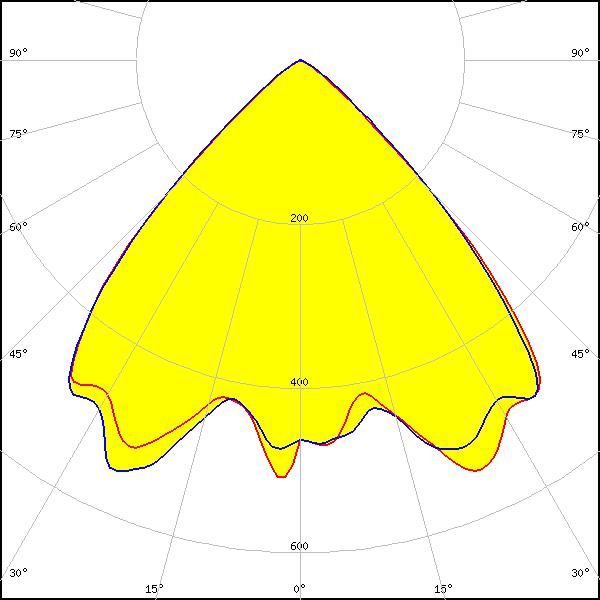

    LED: CXM-3
    Ordering code: CP18703_YASMEEN-70-WWW-B2
    LES size: 3.5 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 88°
    FWTM: 106°
    Peak intensity: 0.558 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

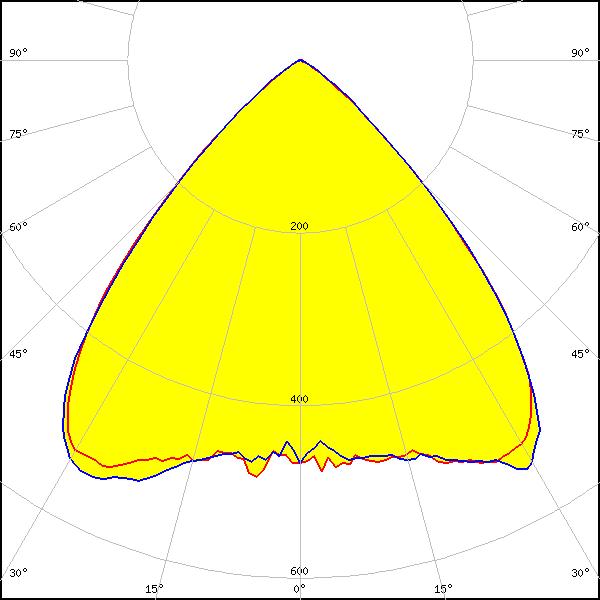

    LED: CxM-9 (13.5x13.5)
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 84°
    FWTM: 105°
    Peak intensity: 0.576 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

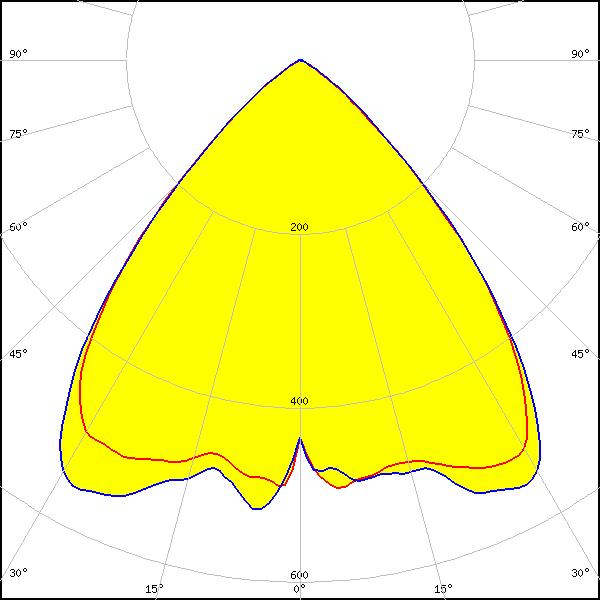

    LED: COB L-Type (LES 11)
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 11.5 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 85°
    FWTM: 107°
    Peak intensity: 0.563 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

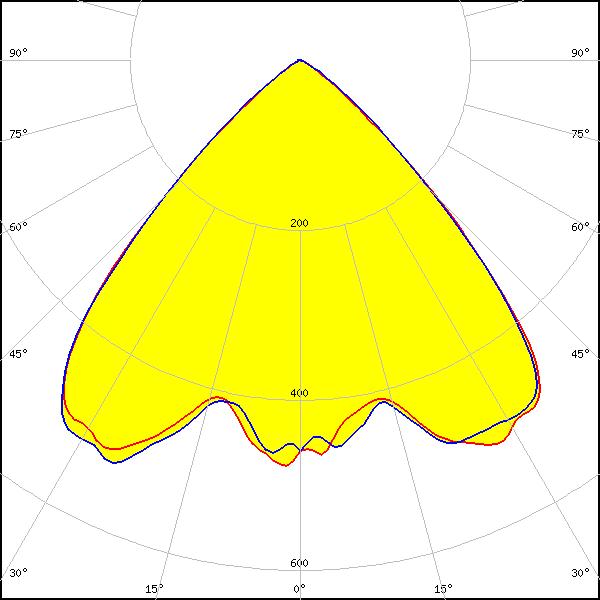

    LED: COB S-Type (LES 6)
    Ordering code: CP18703_YASMEEN-70-WWW-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 88°
    FWTM: 107°
    Peak intensity: 0.528 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB T-Type
    Ordering code: CP18703_YASMEEN-70-WWW-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 88°
    FWTM: 107°
    Peak intensity: 0.527 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

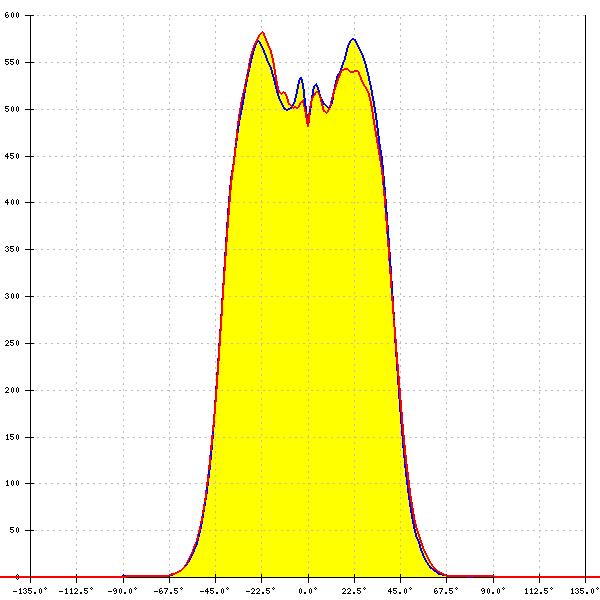

    LED: NJCWL024Z-V1MT: COB L-Type Tunable White
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 7.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 497 Typ L8 HV
    FWHM: 83°
    FWTM: 105°
    Peak intensity: 0.583 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

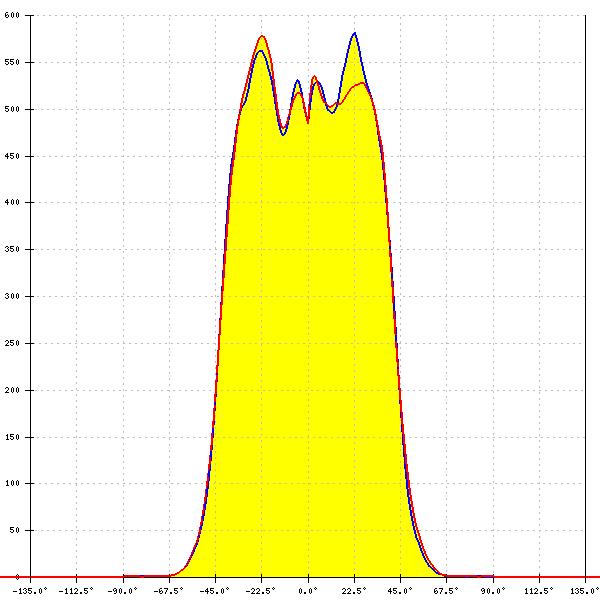

    LED: NJNWS012Z-V1MT: COB S-Type Tunable White
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 5.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8 HV
    FWHM: 84°
    FWTM: 104°
    Peak intensity: 0.587 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 10.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 498 Typ L8 HV
    FWHM: 81°
    FWTM: 105°
    Peak intensity: 0.586 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

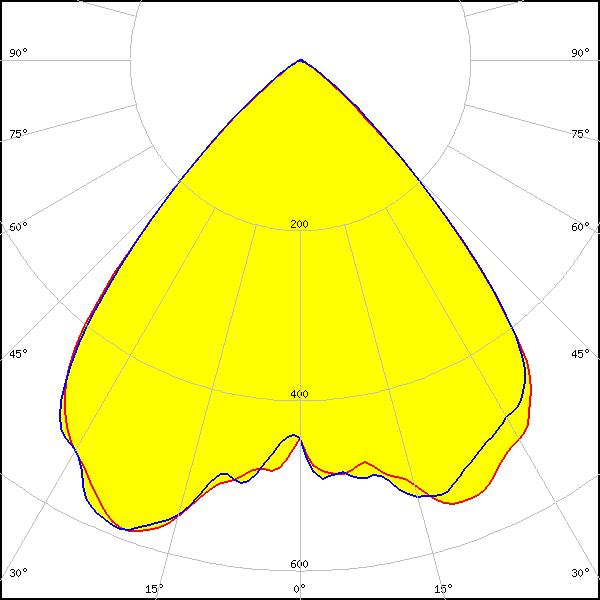

    LED: LC010C G2
    Ordering code: CP18703_YASMEEN-70-WWW-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 84°
    FWTM: 103°
    Peak intensity: 0.606 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010T (Tunable White)
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 84°
    FWTM: 105°
    Peak intensity: 0.585 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 82°
    FWTM: 106°
    Peak intensity: 0.571 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020C G2
    Ordering code: CP18703_YASMEEN-70-WWW-B2
    LES size: 8.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 84°
    FWTM: 104°
    Peak intensity: 0.573 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020T (Tunable white)
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 82°
    FWTM: 105°
    Peak intensity: 0.587 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

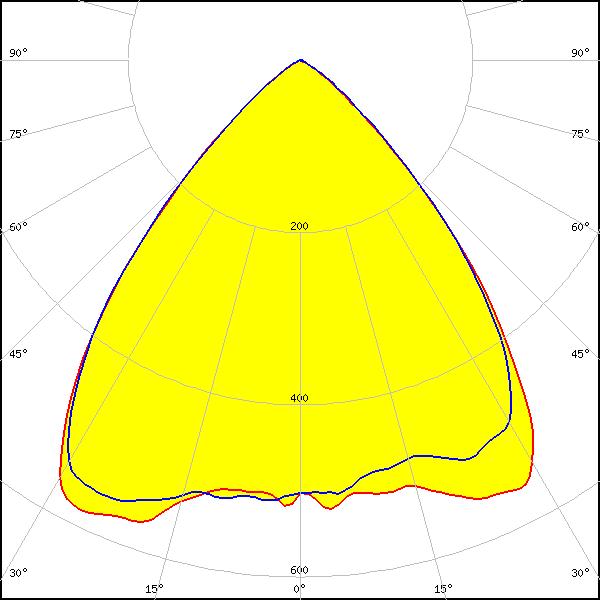

    LED: LC030C/040C G2
    Ordering code: CP18703_YASMEEN-70-WWW-B2
    LES size: 11.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 82°
    FWTM: 105°
    Peak intensity: 0.593 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 81°
    FWTM: 107°
    Peak intensity: 0.568 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 6
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 85°
    FWTM: 105°
    Peak intensity: 0.594 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 9.8
    Ordering code: CP18702_YASMEEN-70-WWW-C2
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 84°
    FWTM: 106°
    Peak intensity: 0.597 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

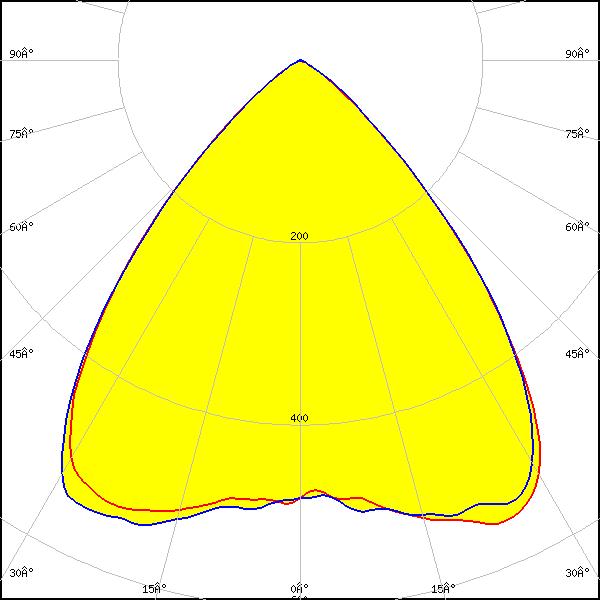

    LED: SLE G7 LES15
    Ordering code: CP18703_YASMEEN-70-WWW-B2
    LES size: 15.0 mm
    FWHM: 82°
    FWTM: 106°
    Peak intensity: 0.548 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES15
    Ordering code: CP18705_YASMEEN-70-WWW-B2-WHT
    LES size: 15.0 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 82°
    FWTM: 105°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
