YASMEEN-50-W
Print
~36° wide beam
This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.
Component Materials
- YASMEEN-50-WSingle lensPMMA
- YASMEEN-50-HLD2-C-WHTHolderPC
- YASMEEN-50-HLD2-CHolderPC
- YASMEEN-50-HLD2-B-WHTHolderPC
- YASMEEN-50-HLD2-BHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

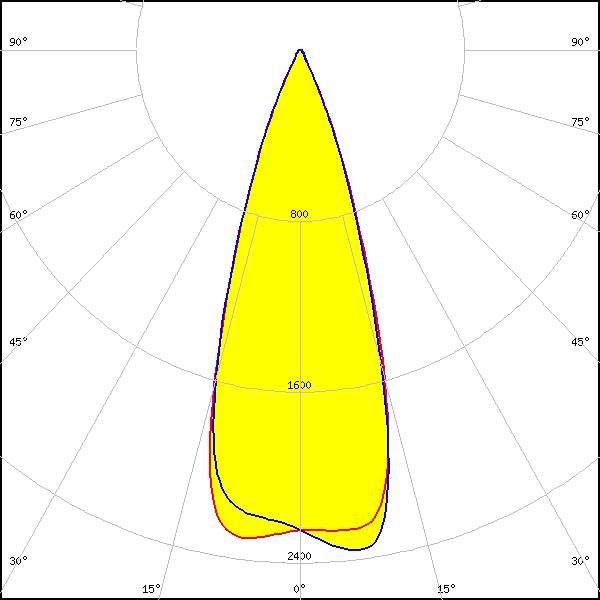

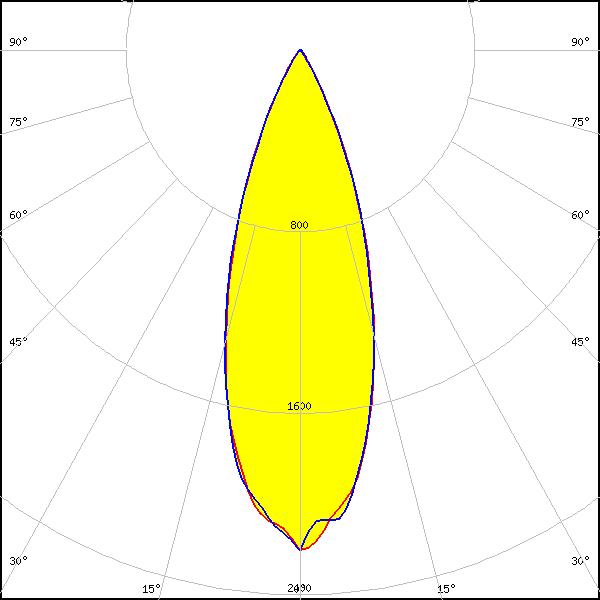

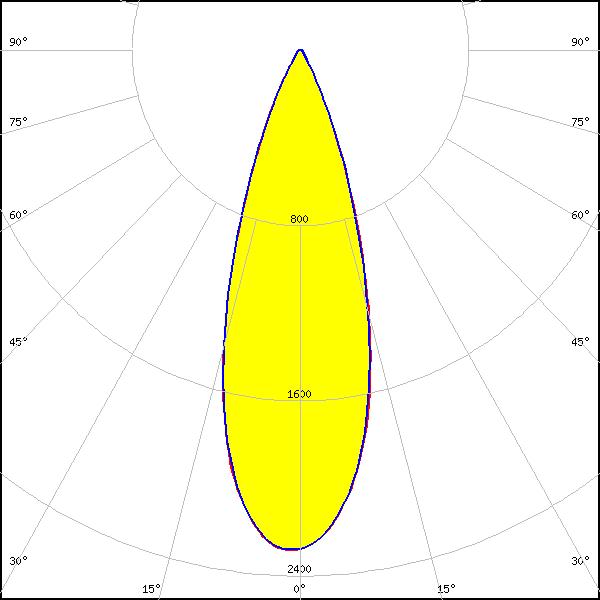

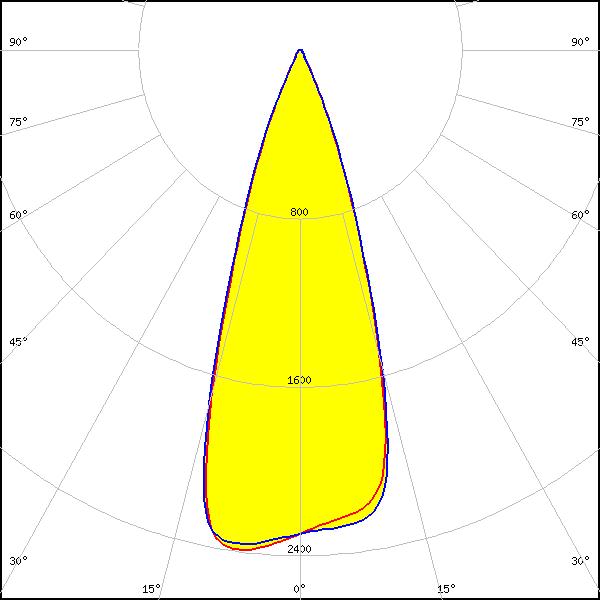

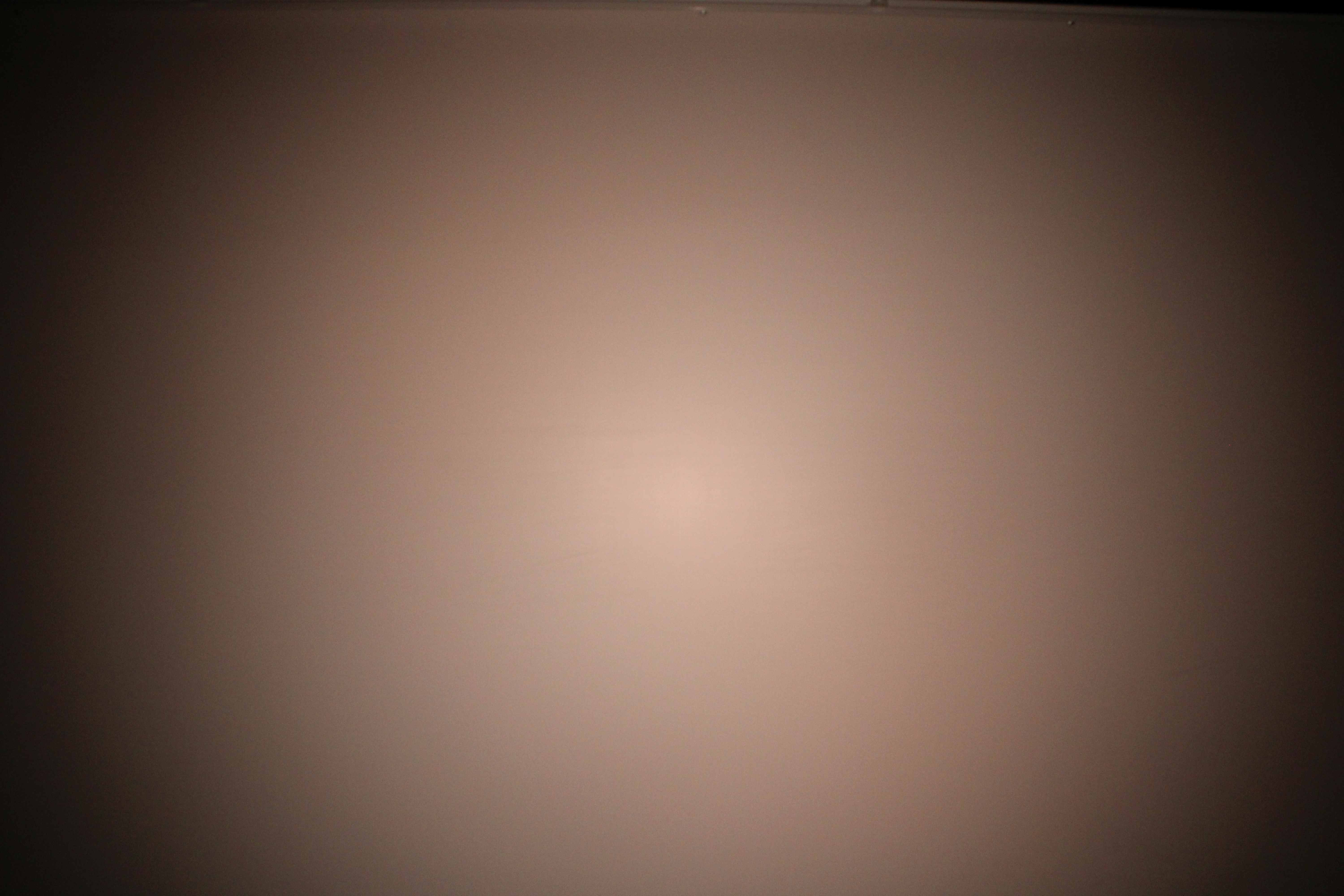

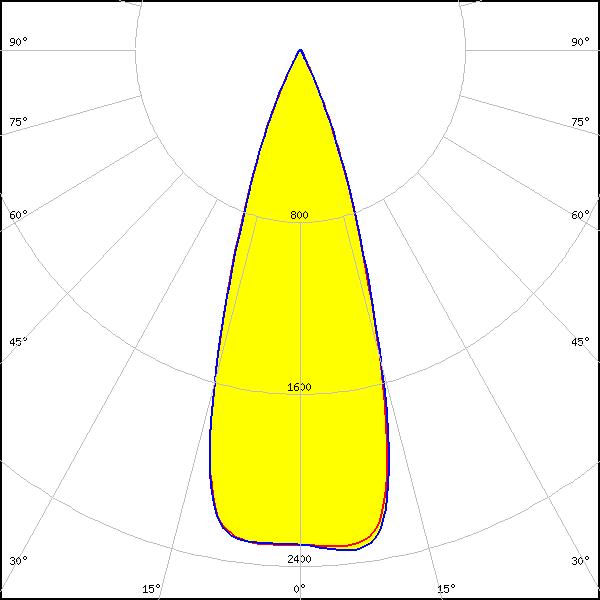

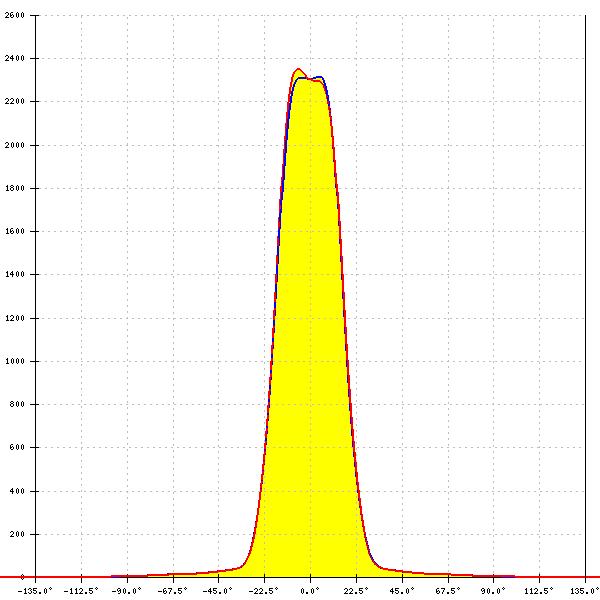

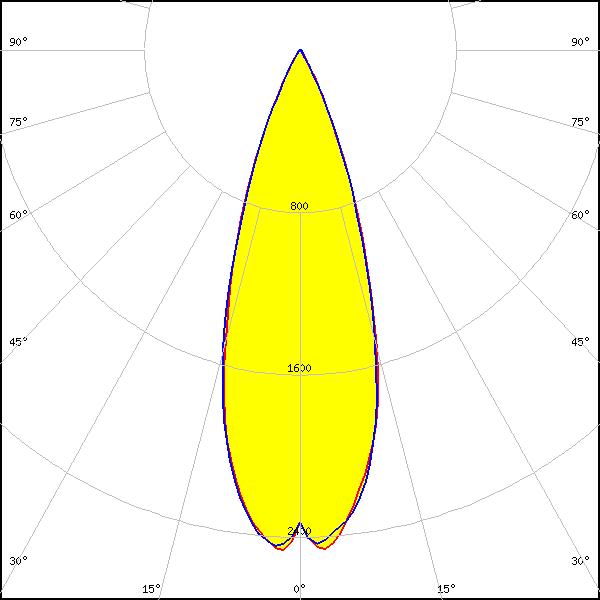

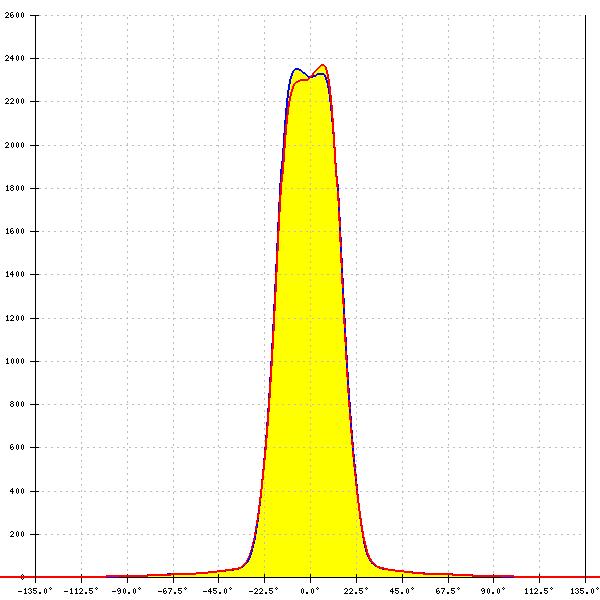

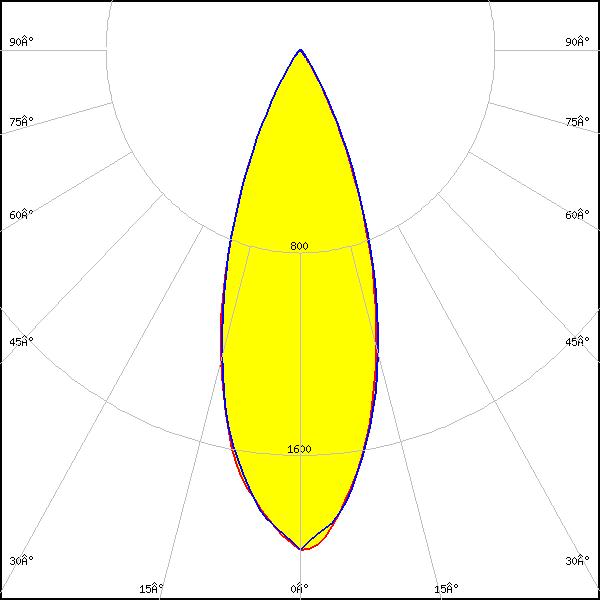

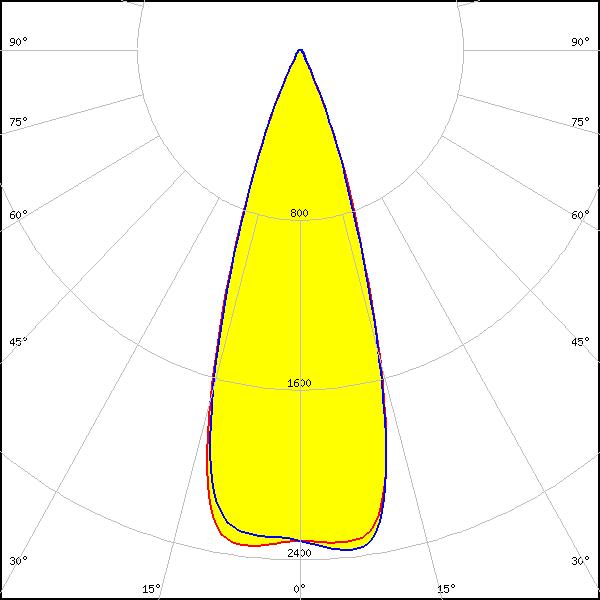

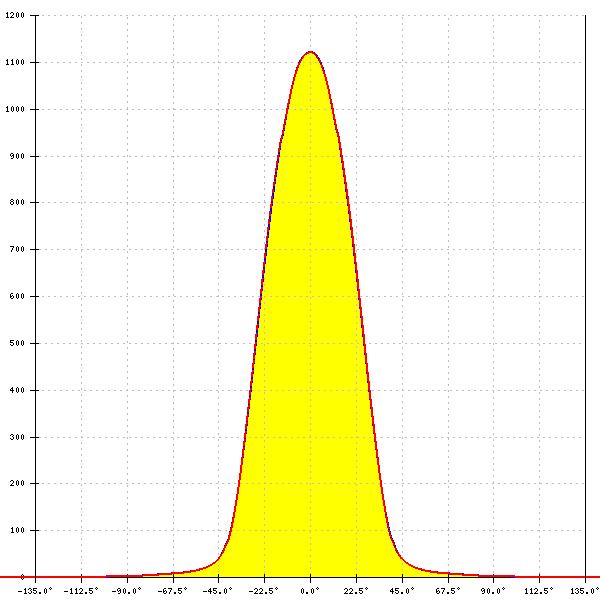

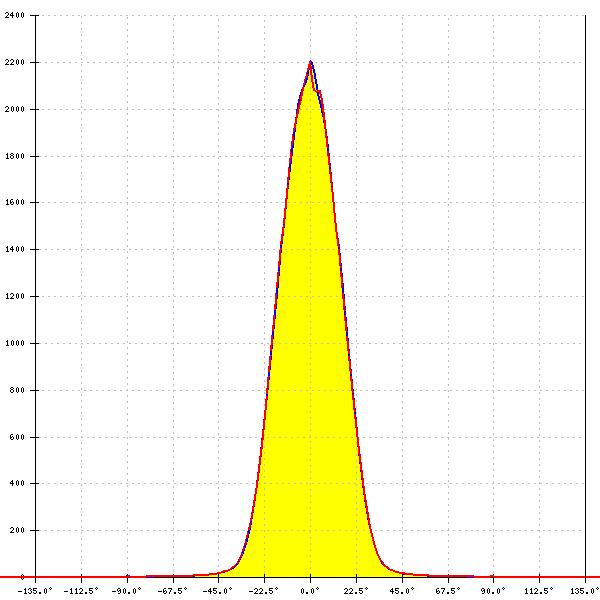

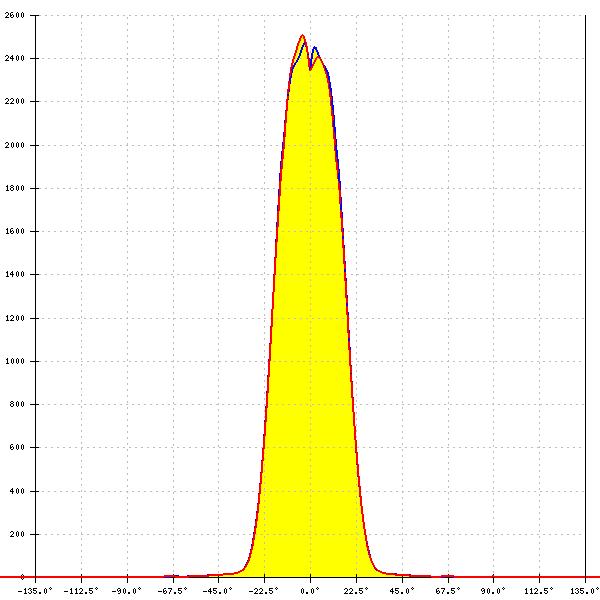

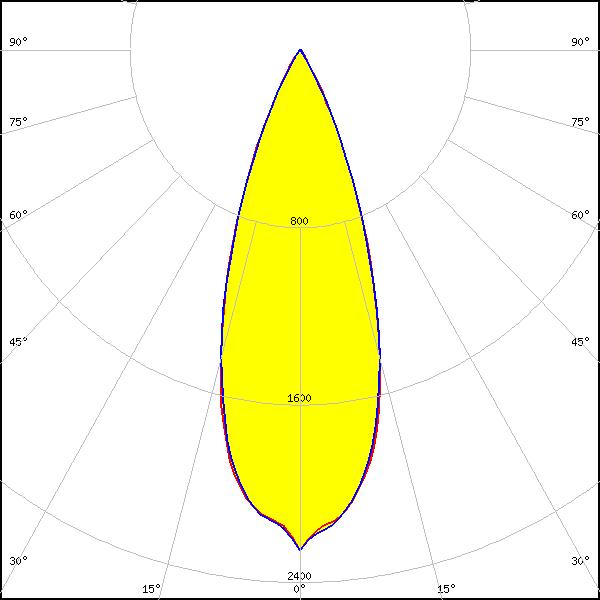

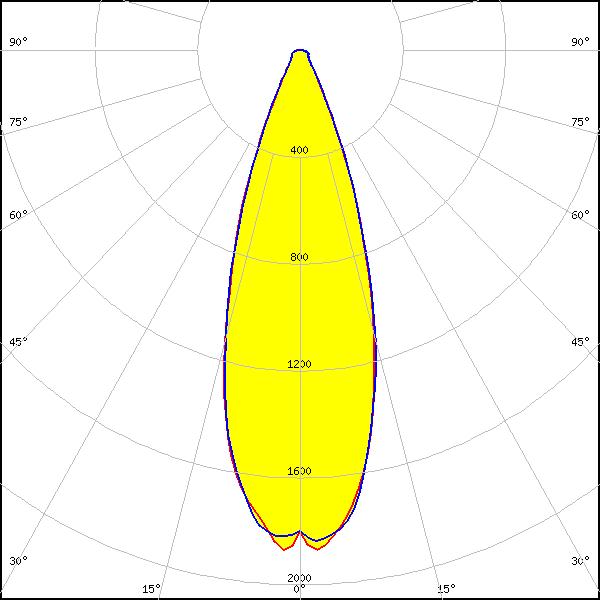

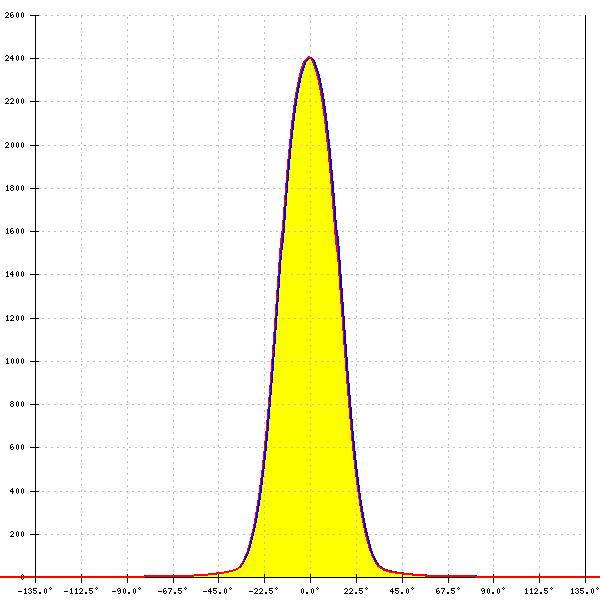

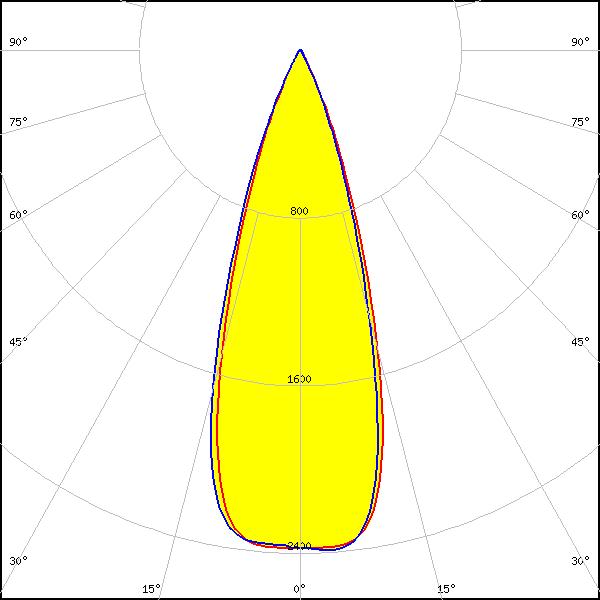

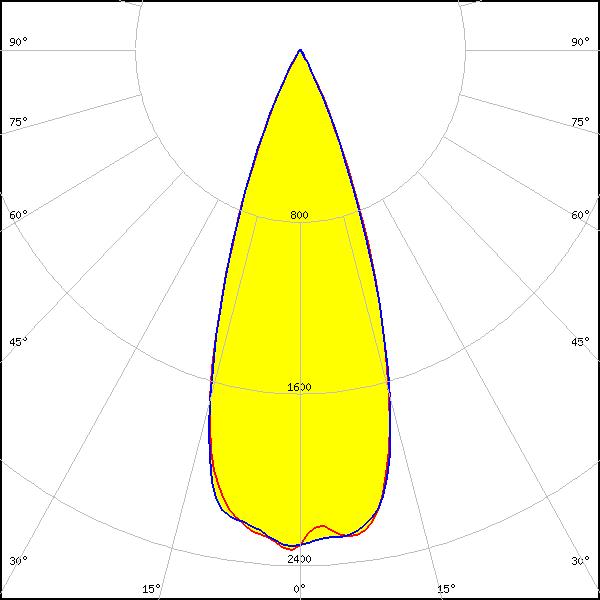

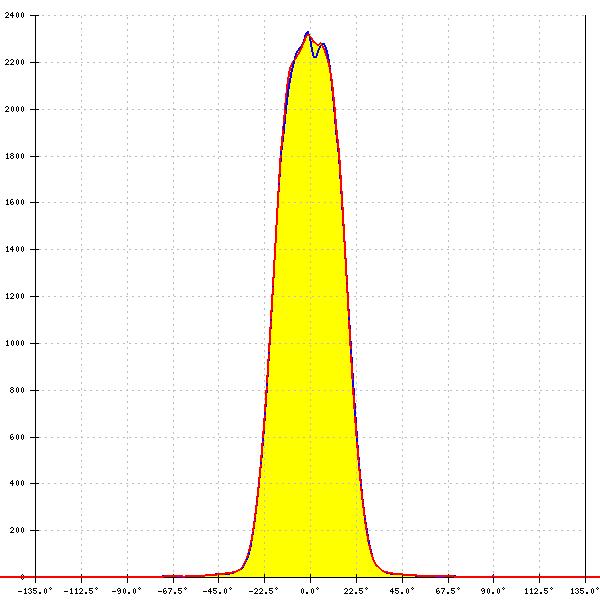

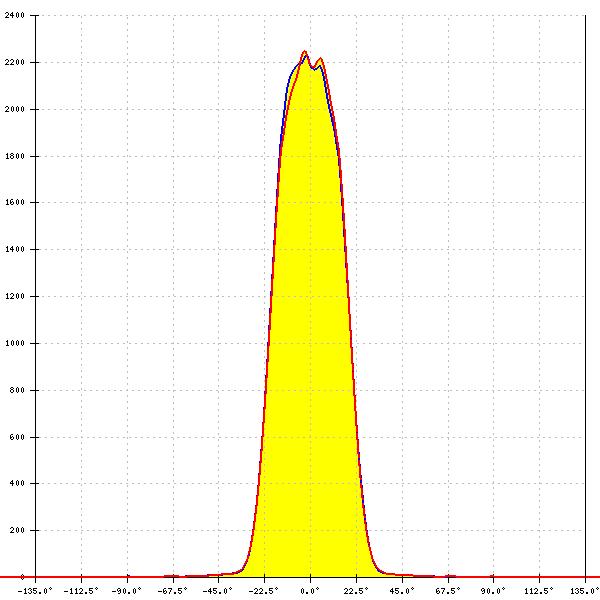

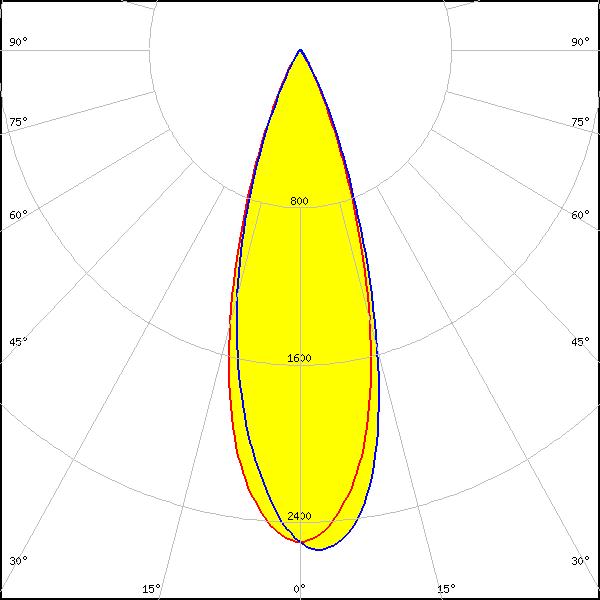

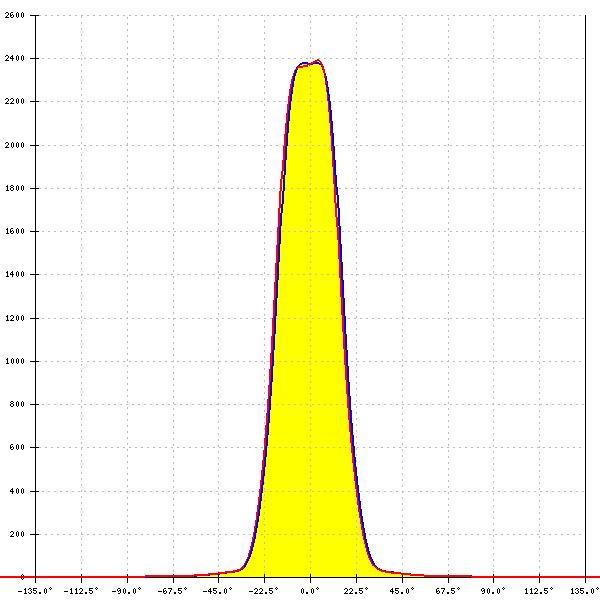

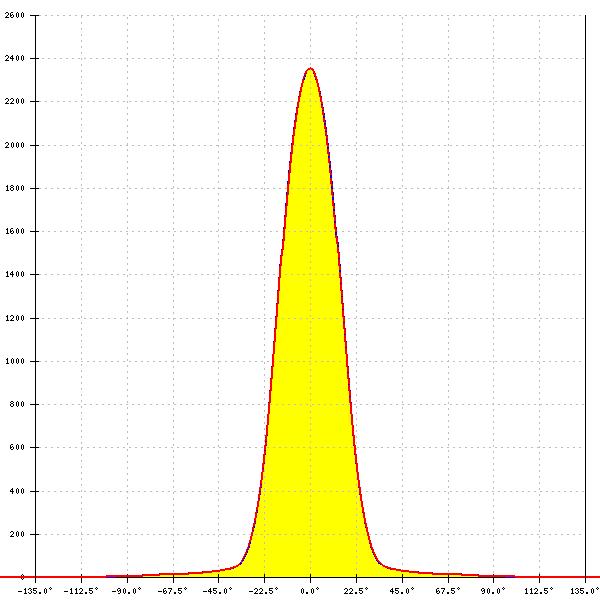

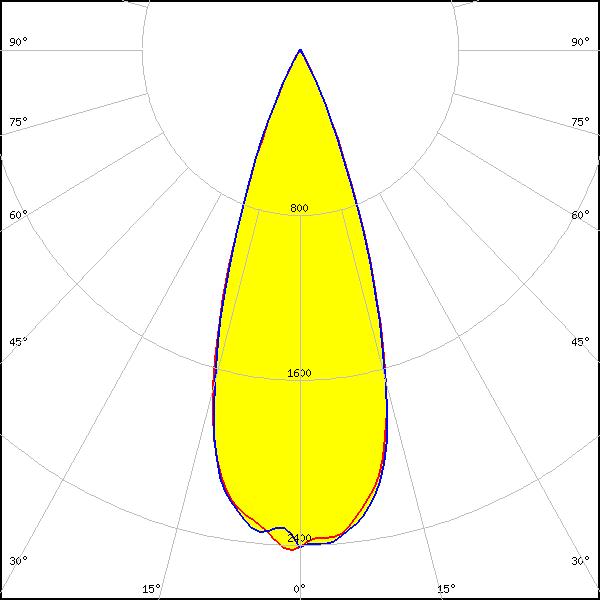

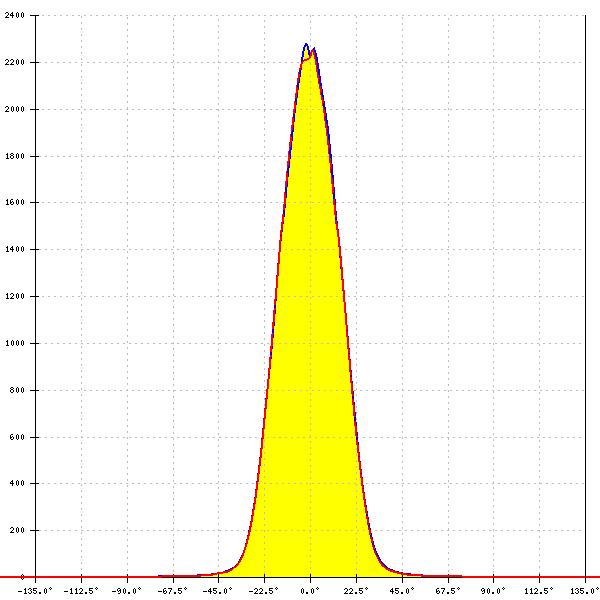

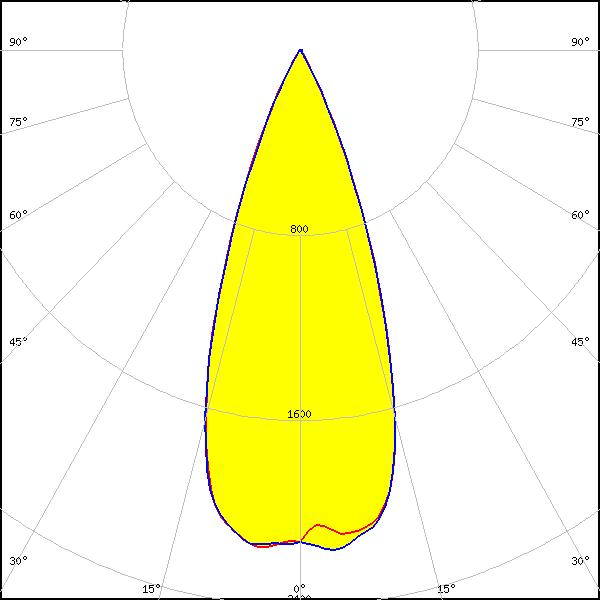

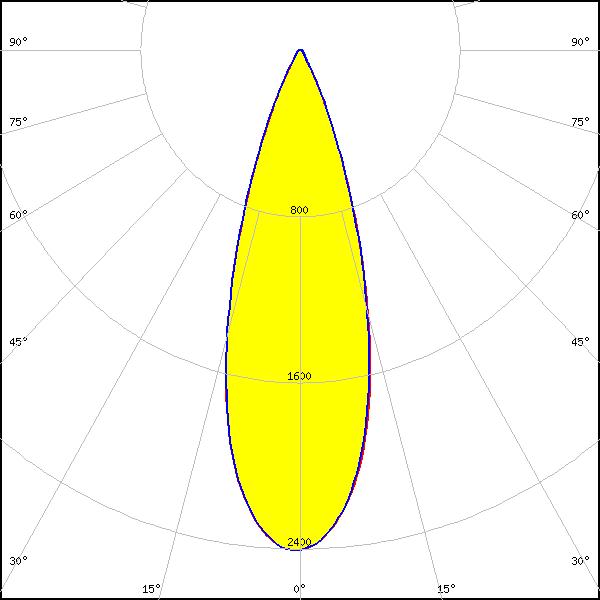

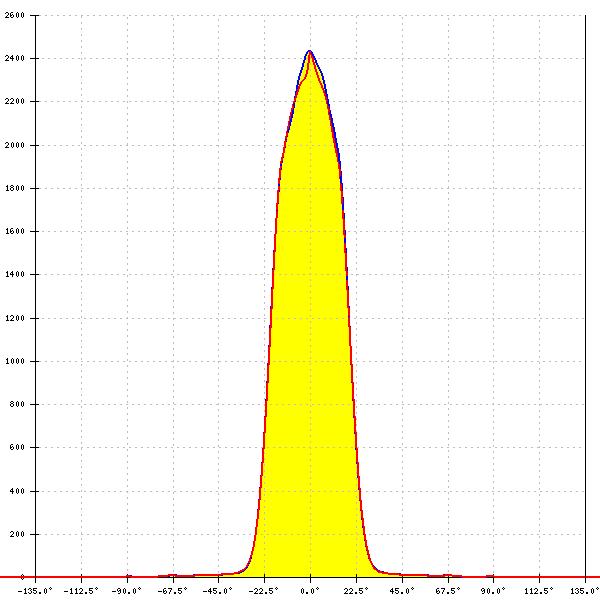

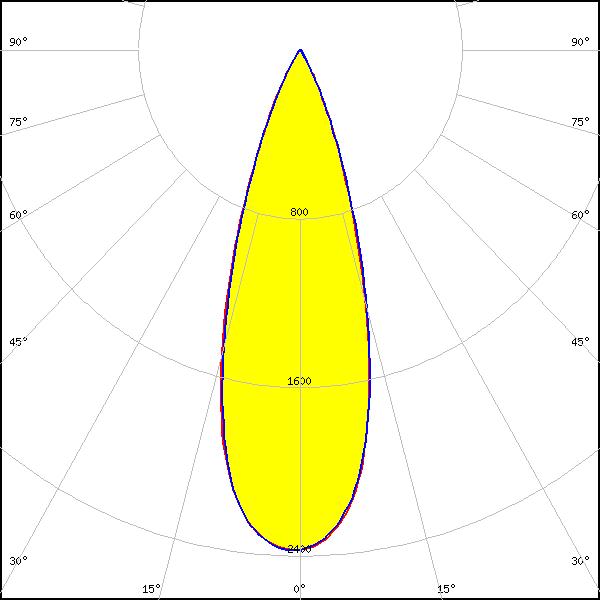

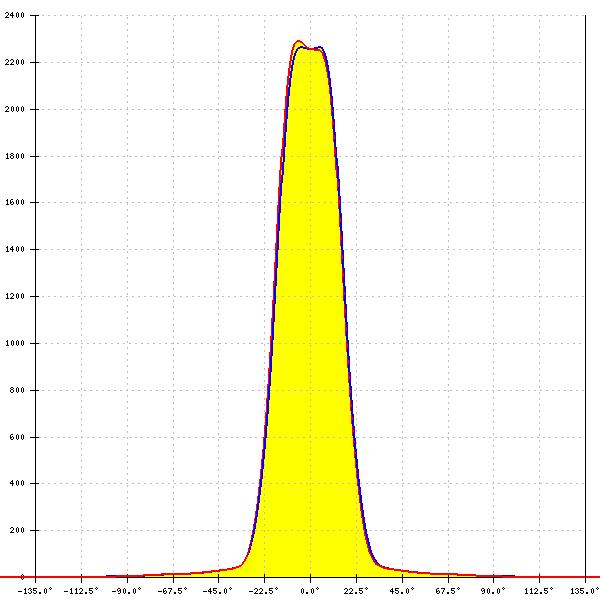

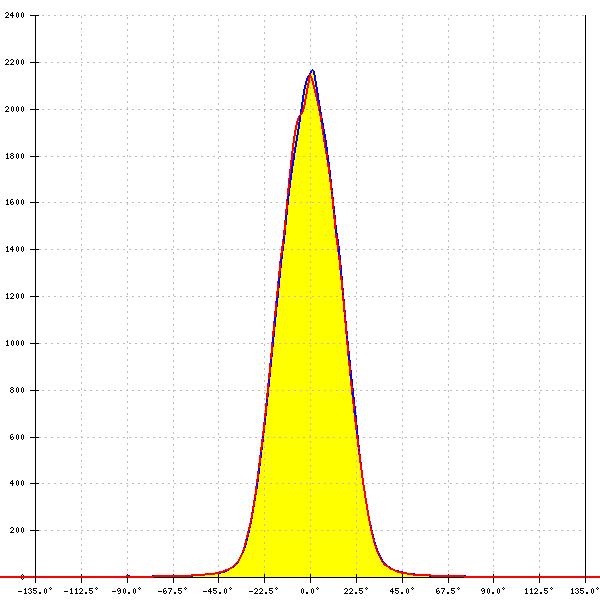

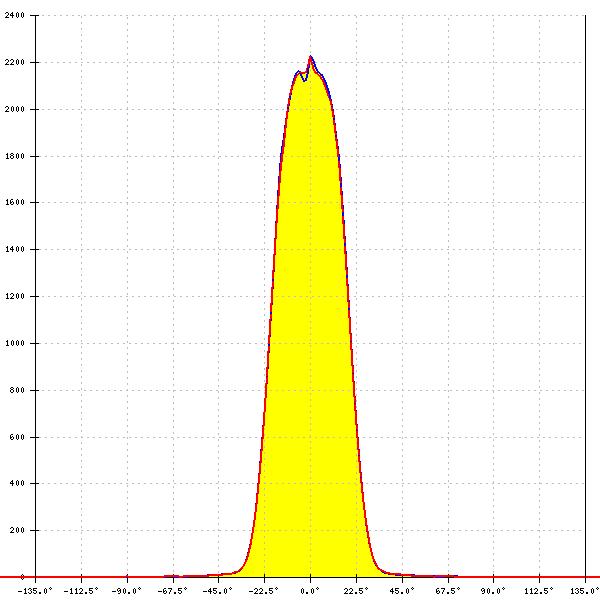

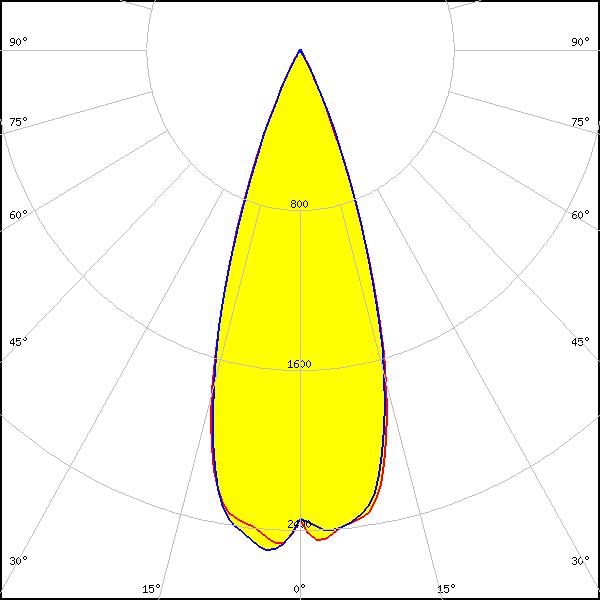

Optical results

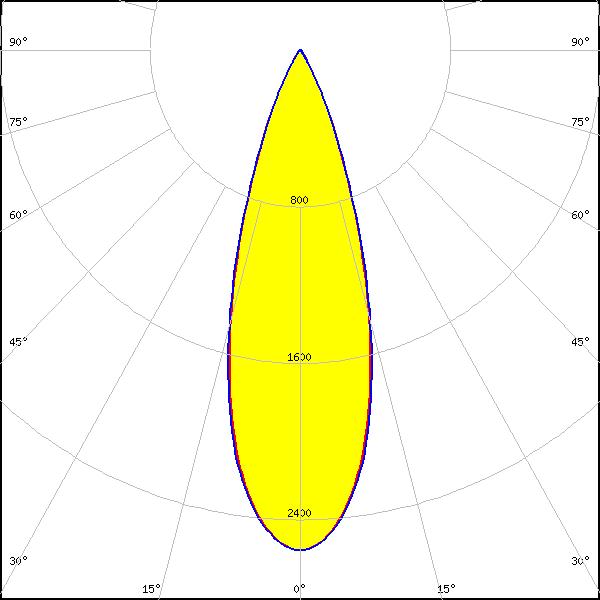

LED:
V10 Gen 8-9
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 10.0 mm
Required components:
FWHM:
32°
FWTM:
55°
Peak intensity:
2.556 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V11 HD Gen 8
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM:
32°
FWTM:
56°
Peak intensity:
2.510 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

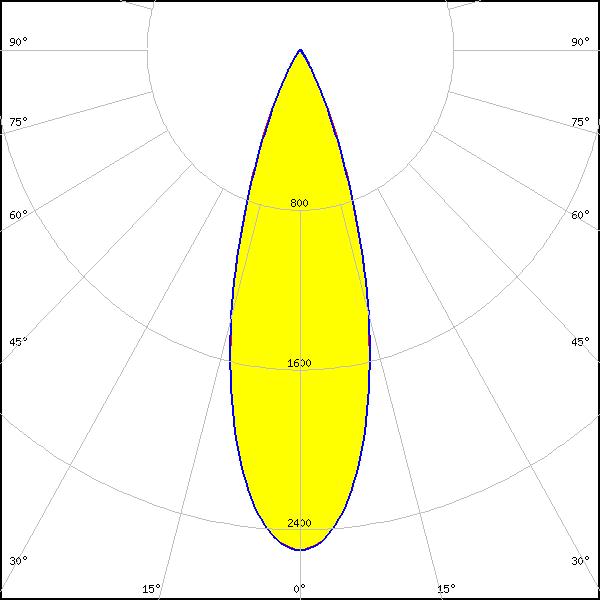

LED:
V11 HD Gen 8
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM:
32°
FWTM:
55°
Peak intensity:
2.503 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen 8-9
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 14.8 mm
Required components:
FWHM:
37°
FWTM:
62°
Peak intensity:
1.806 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

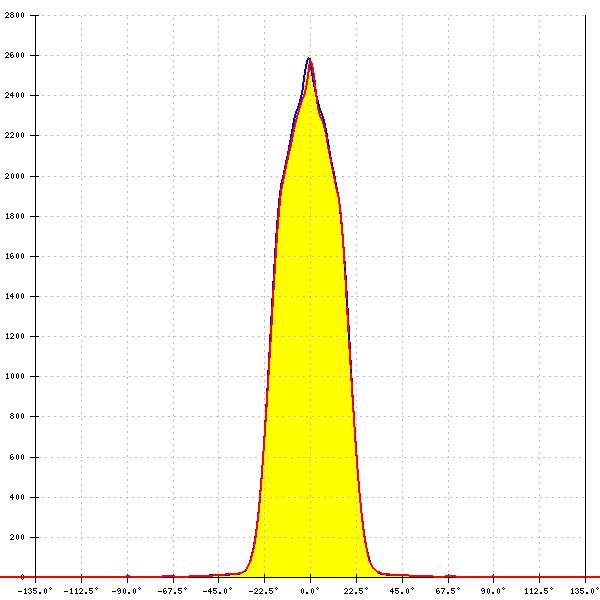

LED:
V3 HD Gen 8
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 3.8 mm
Required components:
FWHM:
38°
FWTM:
52°
Peak intensity:
2.585 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

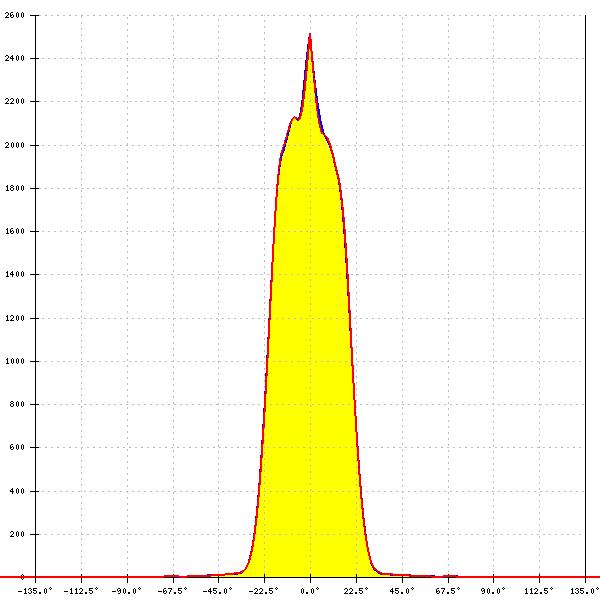

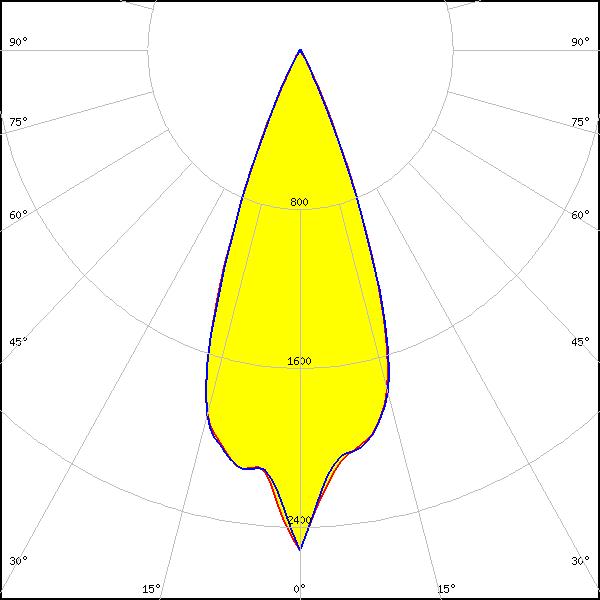

LED:
V3 HD Gen 8 FC
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 2.9 mm
Required components:
FWHM:
38°
FWTM:
54°
Peak intensity:
2.517 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

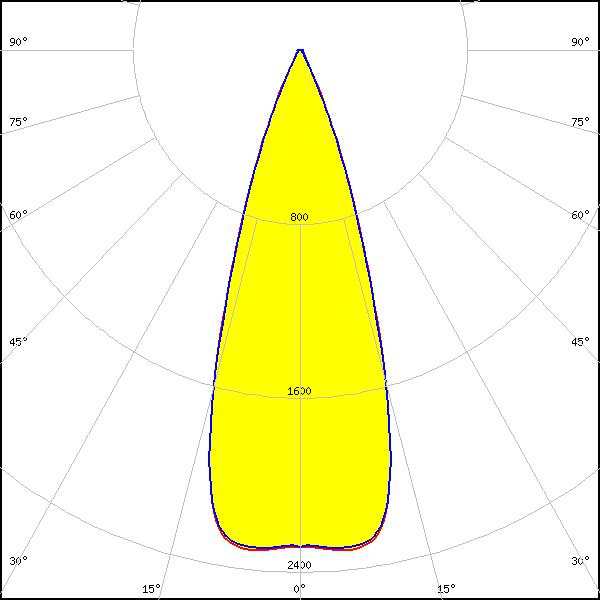

LED:
V4 HD Gen 7
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 5.2 mm
Required components:
FWHM:
34°
FWTM:
52°
Peak intensity:
2.351 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

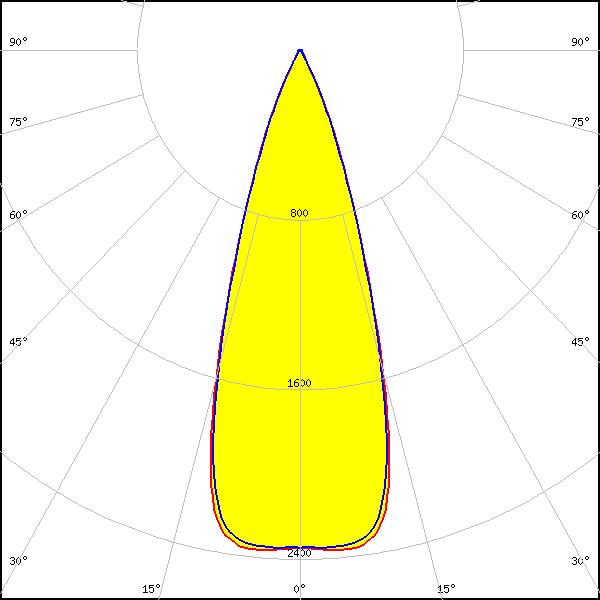

LED:
V4 HD Gen 7
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 5.2 mm
Required components:
FWHM:
34°
FWTM:
52°
Peak intensity:
2.351 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V4 HD Gen 8
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 4.8 mm
Required components:
FWHM:
38°
FWTM:
52°
Peak intensity:
2.478 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 Gen 8-9
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 6.3 mm
Required components:
FWHM:
38°
FWTM:
54°
Peak intensity:
2.358 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

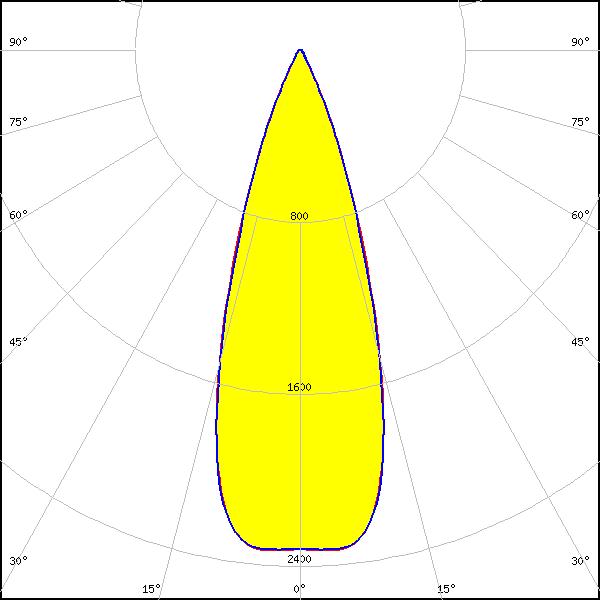

LED:
V6 HD Gen 7
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 7.0 mm
Required components:
FWHM:
34°
FWTM:
53°
Peak intensity:
2.384 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

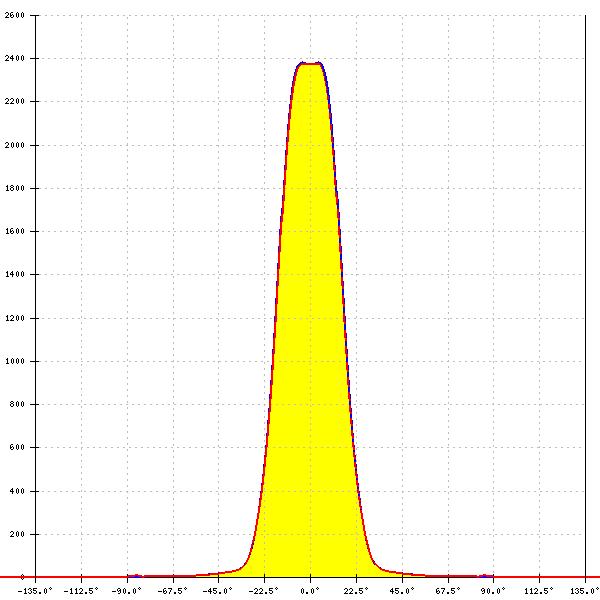

LED:
V6 HD Gen 7
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 7.0 mm
Required components:
FWHM:
33°
FWTM:
52°
Peak intensity:
2.424 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

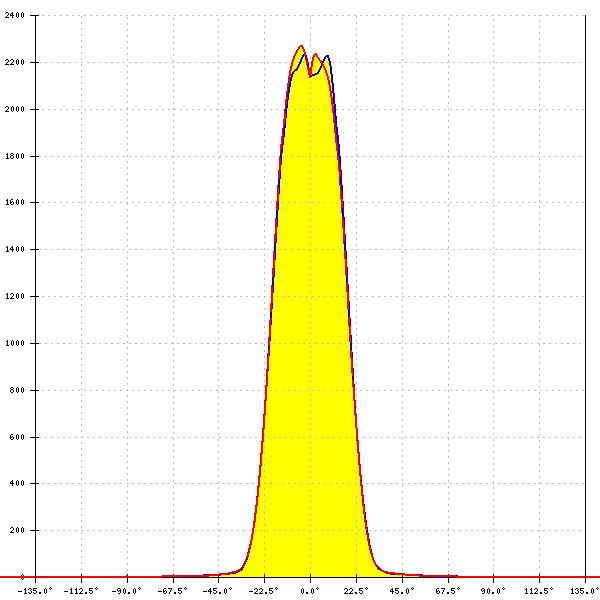

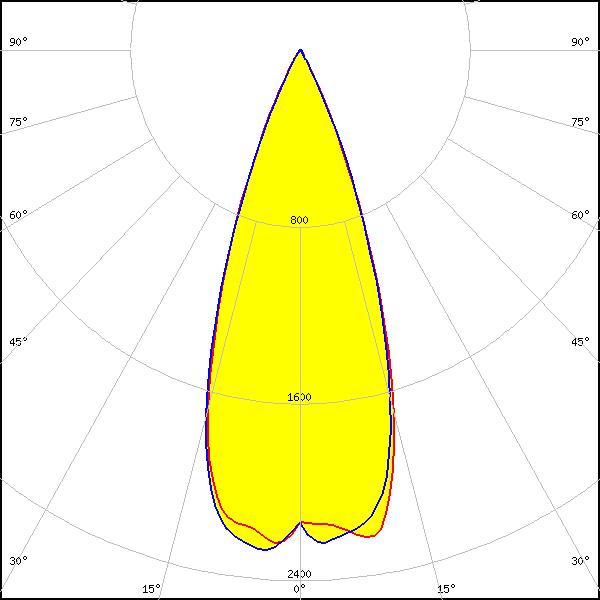

LED:
V6 HD Gen 8
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 6.6 mm
Required components:
FWHM:
38°
FWTM:
55°
Peak intensity:
2.291 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

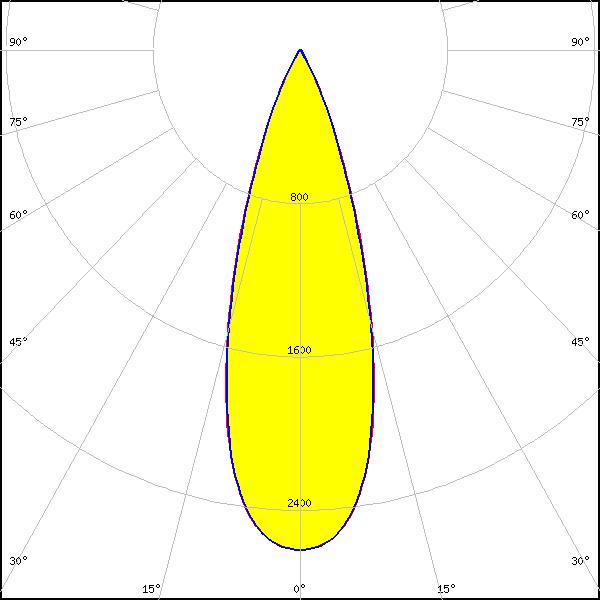

LED:
V8 Gen 8-9
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 8.5 mm
Required components:
FWHM:
33°
FWTM:
54°
Peak intensity:
2.623 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

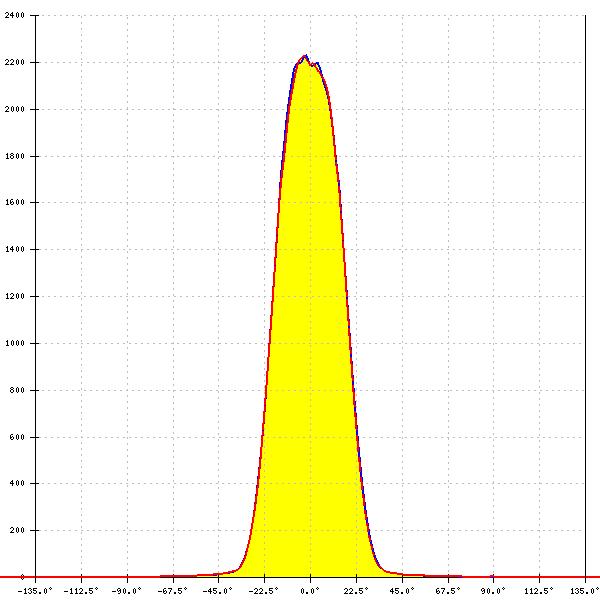

LED:
V9 HD Gen 8
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 8.8 mm
Required components:
FWHM:
38°
FWTM:
56°
Peak intensity:
2.262 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

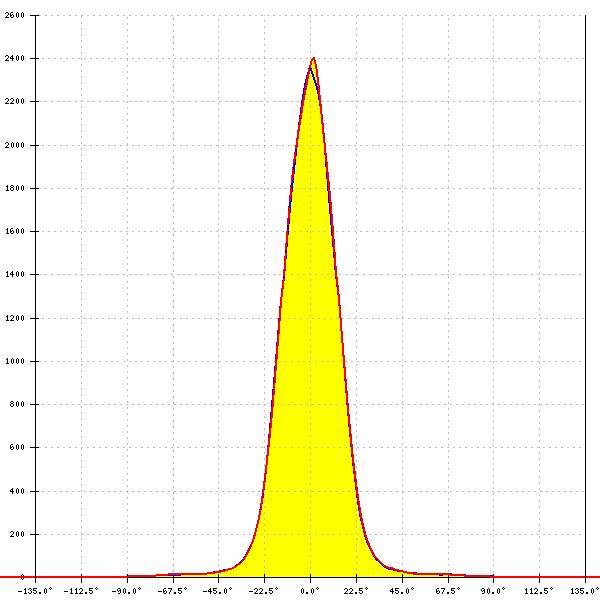

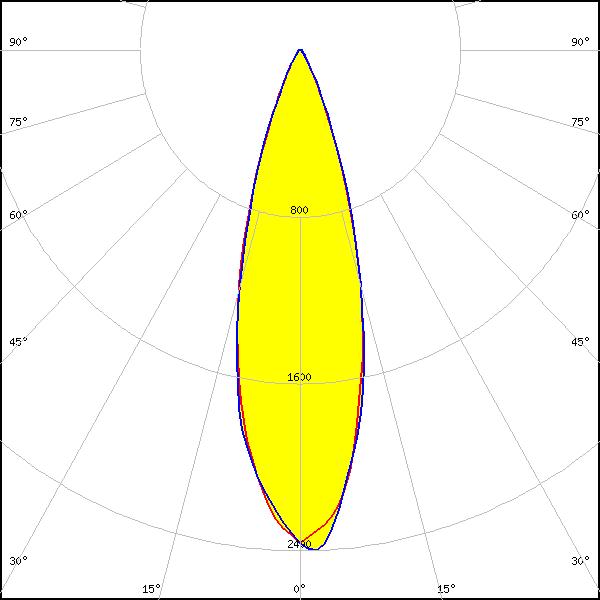

LED:
Vero SE 13
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 13.4 mm
Required components:
FWHM:
30°
FWTM:
52°
Peak intensity:
2.400 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

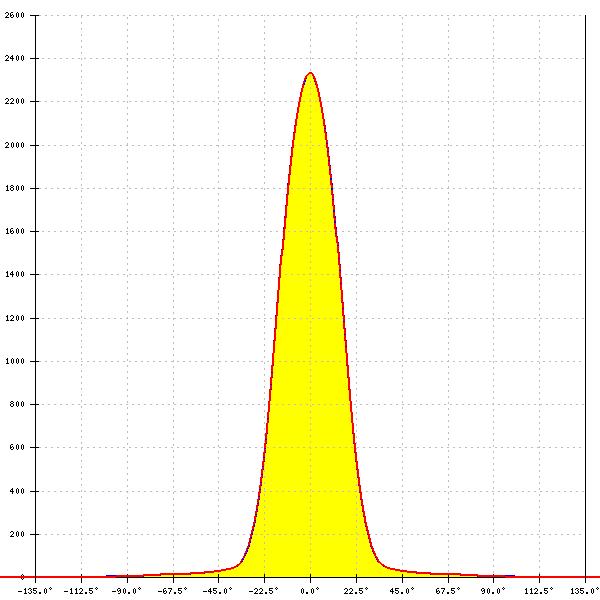

LED:
VERO10
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 9.9 mm
Required components:
FWHM:
33°
FWTM:
56°
Peak intensity:
2.334 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

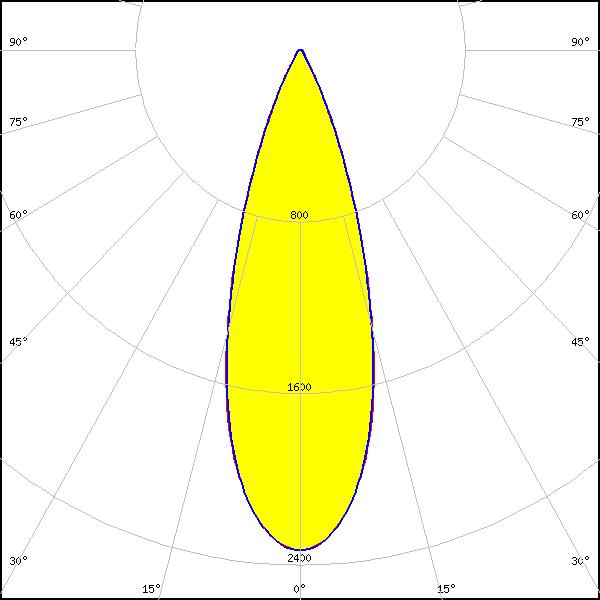

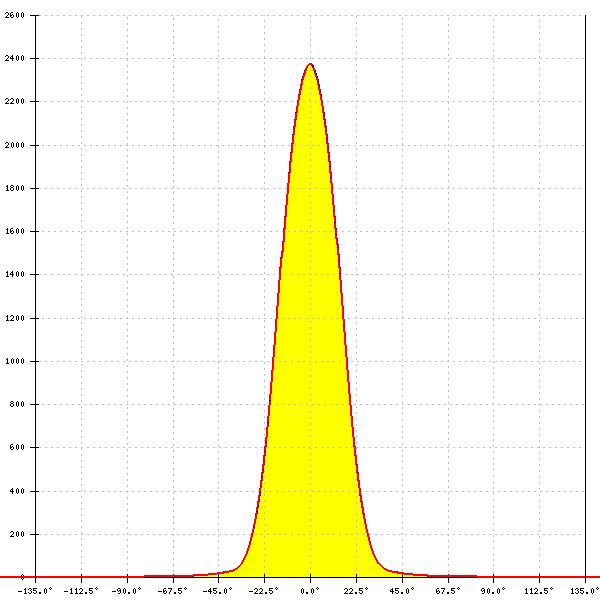

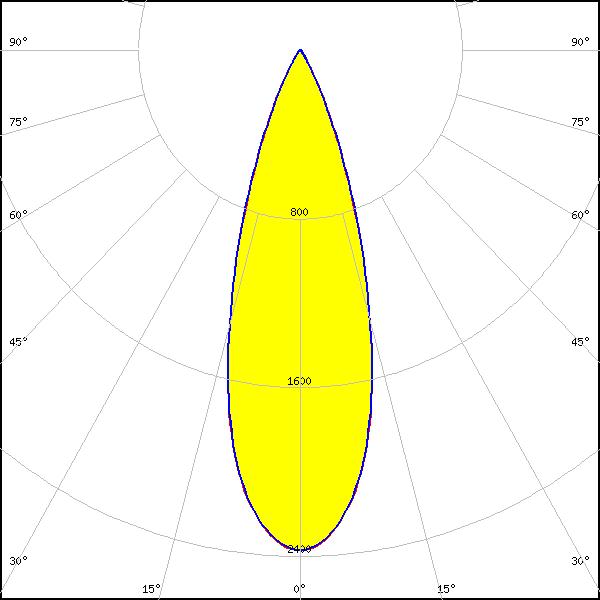

LED:
VERO10
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.9 mm
Required components:
FWHM:
33°
FWTM:
55°
Peak intensity:
2.374 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

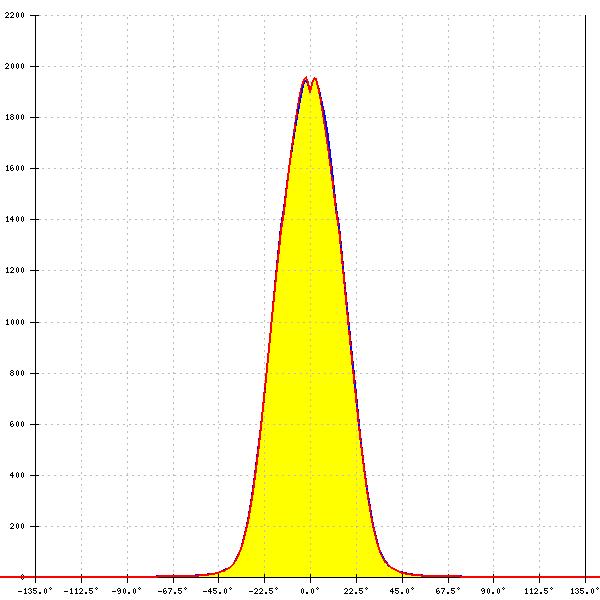

LED:
VERO13
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 13.4 mm
Required components:
FWHM:
38°
FWTM:
62°
Peak intensity:
1.987 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

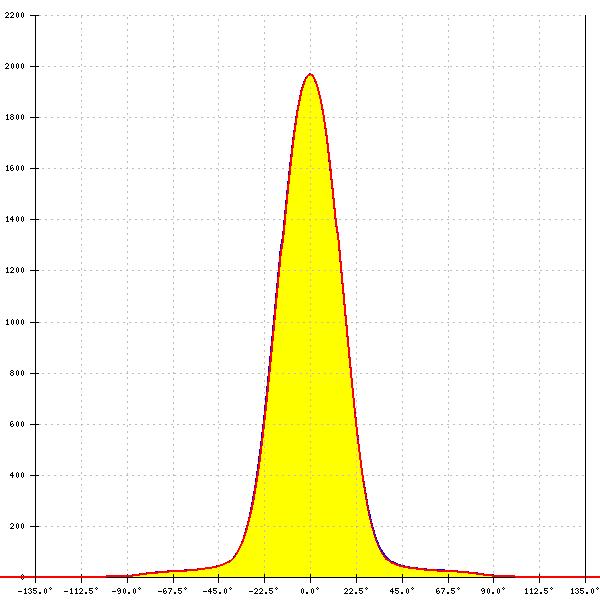

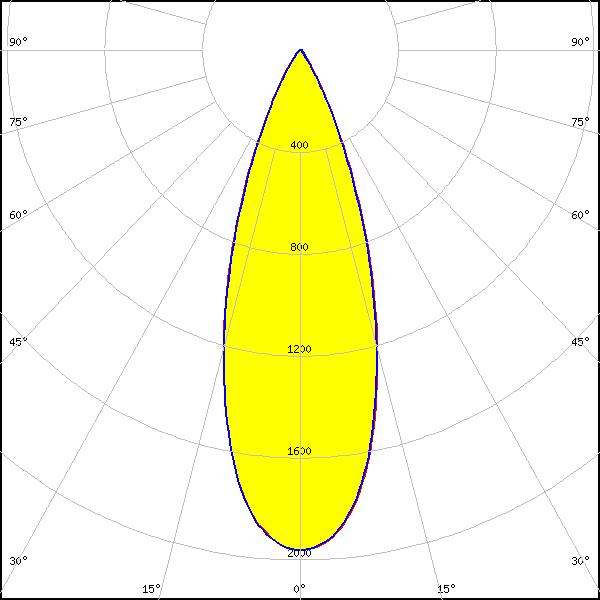

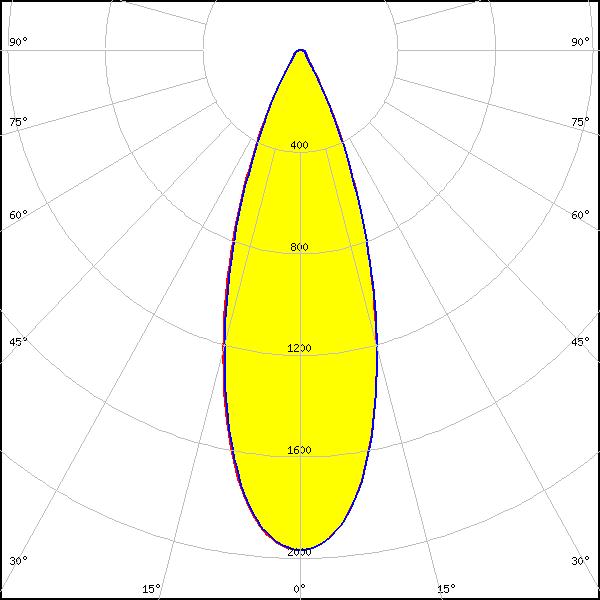

LED:
Vesta DTW 13mm (21W)
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 14.0 mm
Required components:
Bender Wirth: 632b Hekla XL
FWHM:
36°
FWTM:
62°
Peak intensity:
1.968 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

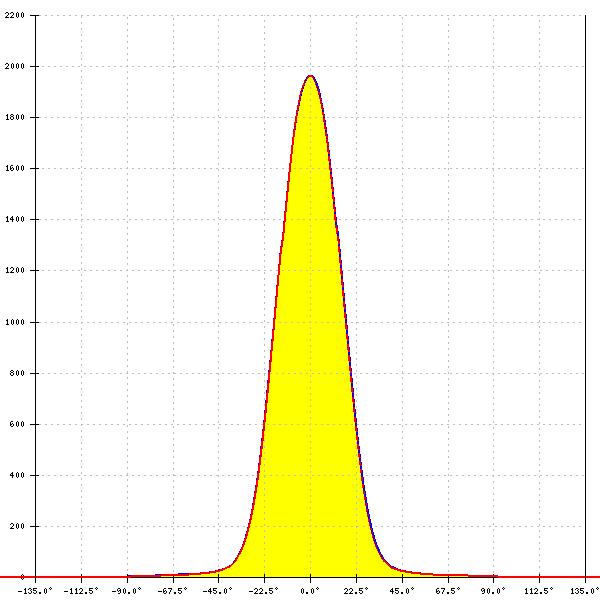

LED:
Vesta DTW 13mm (21W)
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 632b Hekla XL
FWHM:
35°
FWTM:
60°
Peak intensity:
1.964 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

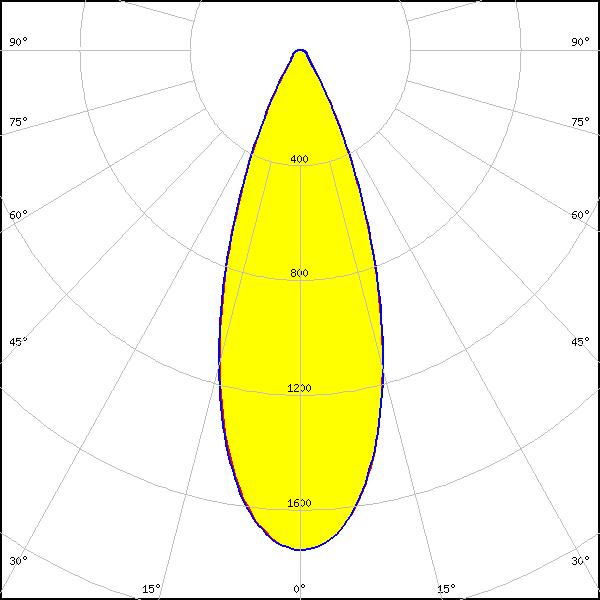

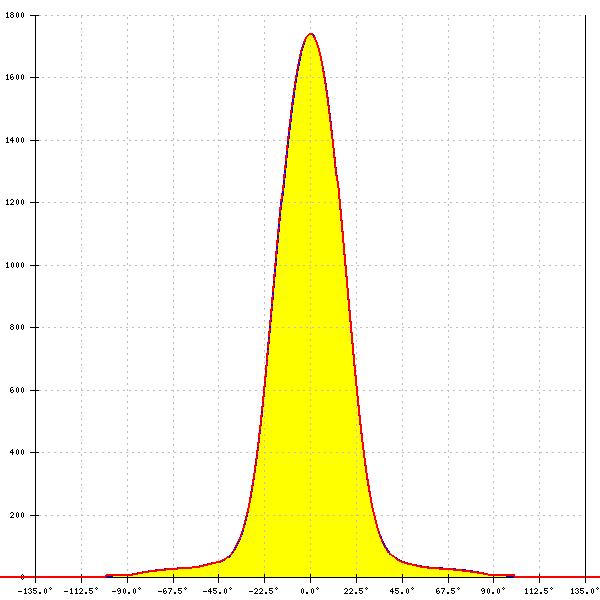

LED:
Vesta DTW 15mm (33W)
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 16.2 mm
Required components:
Bender Wirth: 632b Hekla XL
FWHM:
38°
FWTM:
65°
Peak intensity:
1.741 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta DTW 15mm (33W)
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 16.2 mm
Required components:
Bender Wirth: 632b Hekla XL
FWHM:
37°
FWTM:
63°
Peak intensity:
1.761 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta DTW 6mm
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 6.8 mm
Required components:
Bender Wirth: 652b Hekla
FWHM:
38°
FWTM:
54°
Peak intensity:
2.352 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

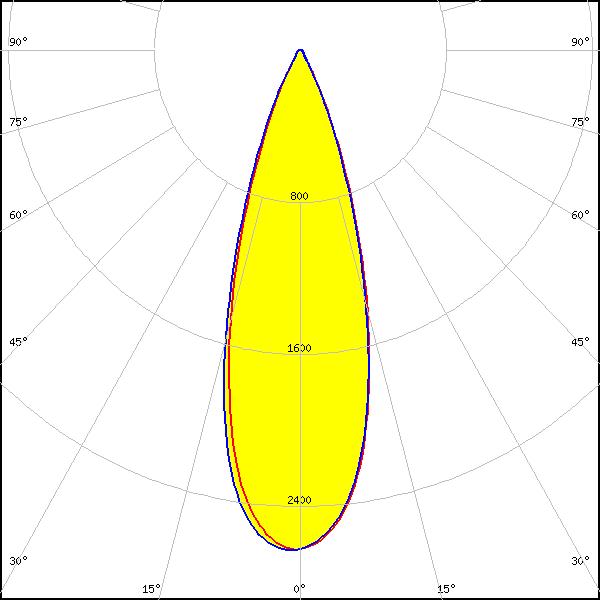

Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Hekla
FWHM:
32°
FWTM:
55°
Peak intensity:
2.632 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

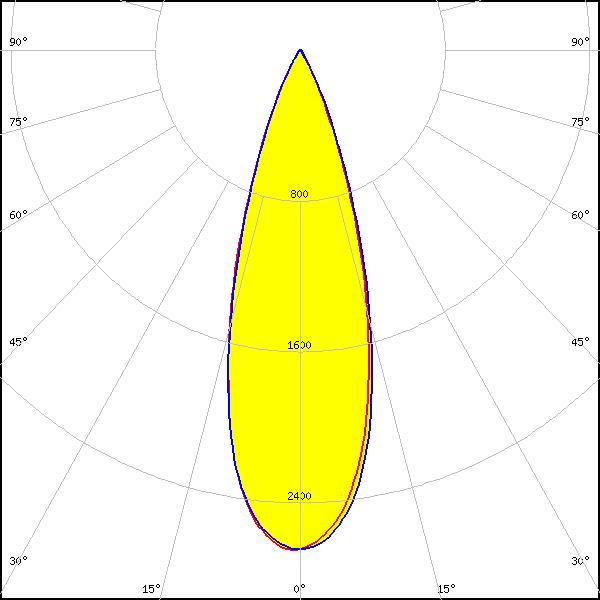

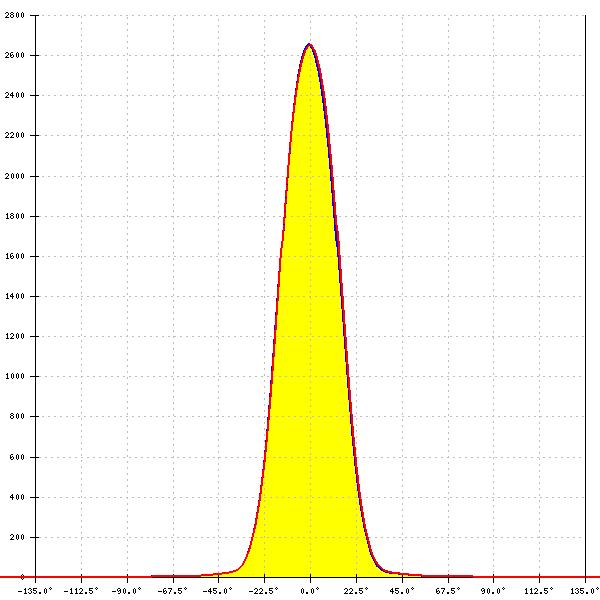

LED:
Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Hekla
FWHM:
32°
FWTM:
54°
Peak intensity:
2.654 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta RGBW 10mm CSP
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 10.0 mm
Required components:
FWHM:
34°
FWTM:
58°
Peak intensity:
1.876 cd/lm
Efficiency:
74 %
LEDs/each optic:
28
Light colour/type:
RGBW
LED:

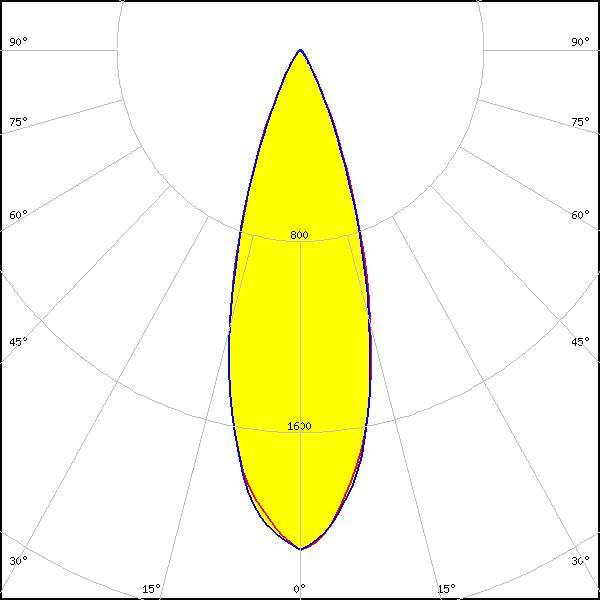

Vesta SE 13mm TW
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 14.3 mm
Required components:
FWHM:
32°
FWTM:
56°
Peak intensity:
2.093 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 13mm (18W) DP
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 14.0 mm
Required components:
FWHM:
35°
FWTM:
59°
Peak intensity:
2.139 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 15mm DP
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 16.3 mm
Required components:
FWHM:
37°
FWTM:
62°
Peak intensity:
1.821 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 9mm (9W) DP
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 10.3 mm
Required components:
FWHM:
43°
FWTM:
64°
Peak intensity:
1.761 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CLU02Q Type-F
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.7 mm
Required components:
FWHM:
38°
FWTM:
62°
Peak intensity:
2.011 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

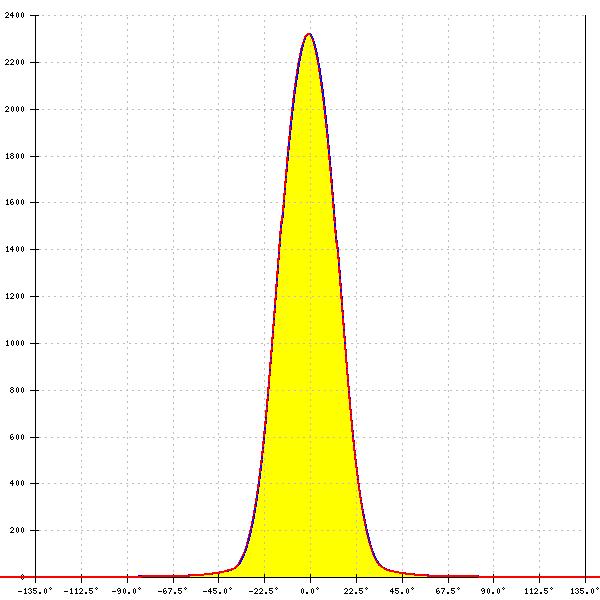

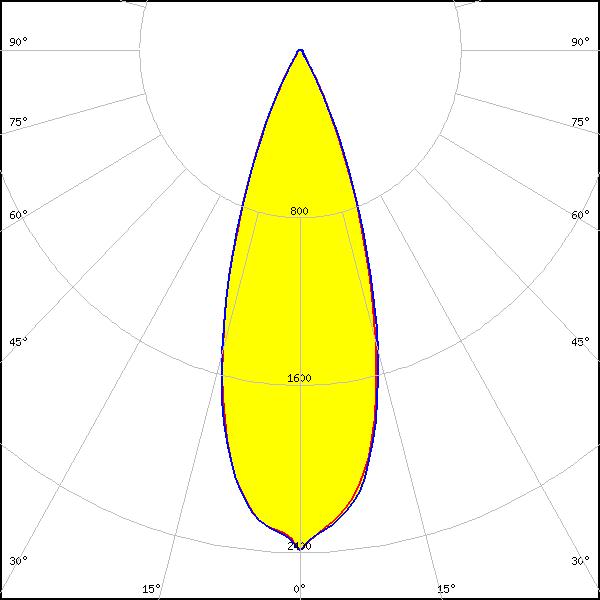

LED:
CLU02x (LES10)
Ordering code: CP18746_YASMEEN-50-W-B2-WHT
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
36°
FWTM:
56°
Peak intensity:
2.389 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
Ordering code: CP18732_YASMEEN-50-W-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
36°
FWTM:
56°
Peak intensity:
2.336 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 9.8 mm
Required components:
FWHM:
33°
FWTM:
56°
Peak intensity:
2.309 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

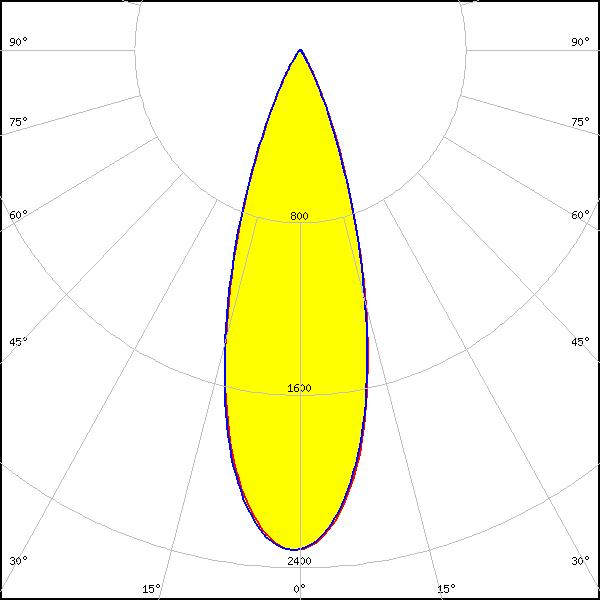

LED:
CLU02x (LES10)
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.8 mm
Required components:
FWHM:
32°
FWTM:
55°
Peak intensity:
2.532 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

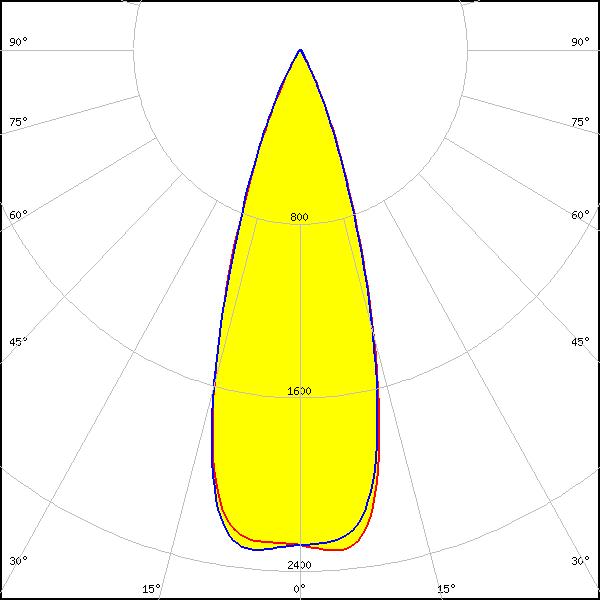

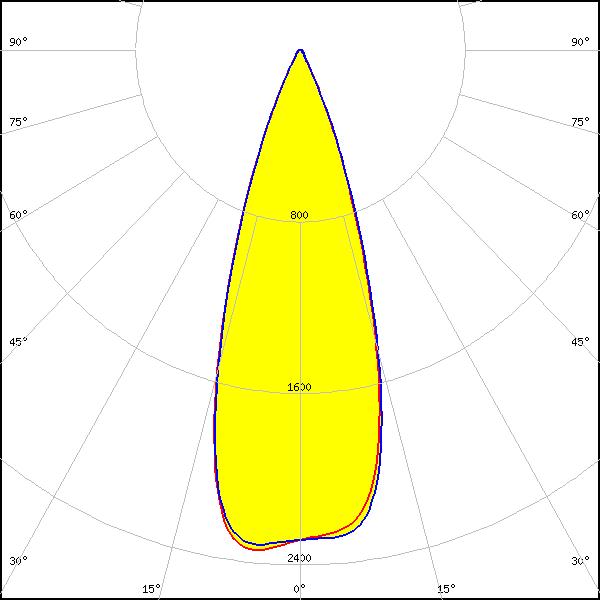

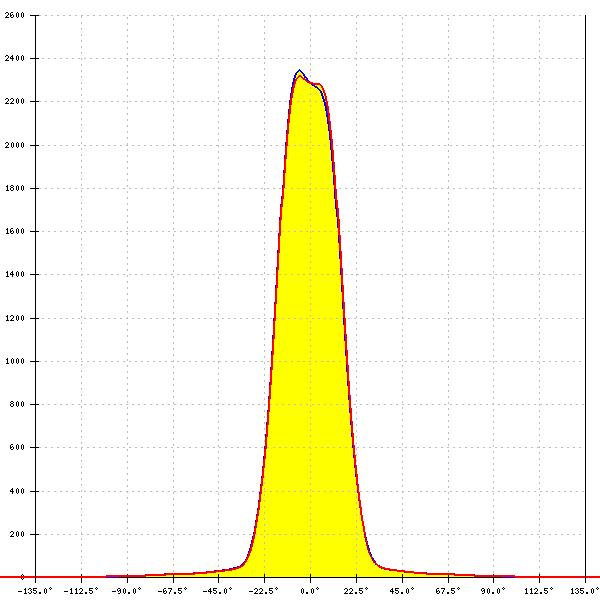

LED:
CLU700/701/702/703
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 6.0 mm
Required components:
FWHM:
34°
FWTM:
53°
Peak intensity:
2.355 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

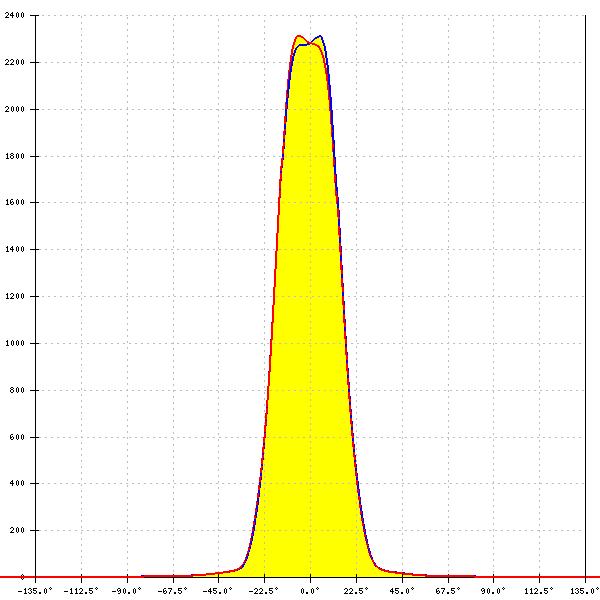

LED:
CLU700/701/702/703
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 6.0 mm
Required components:
FWHM:
34°
FWTM:
53°
Peak intensity:
2.355 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

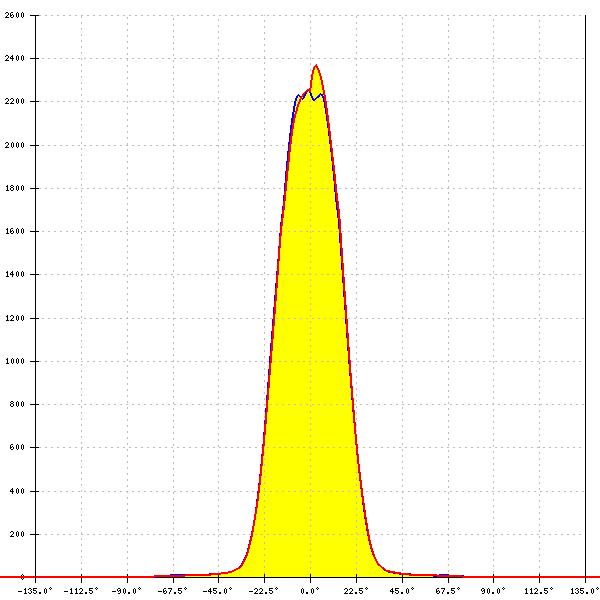

LED:

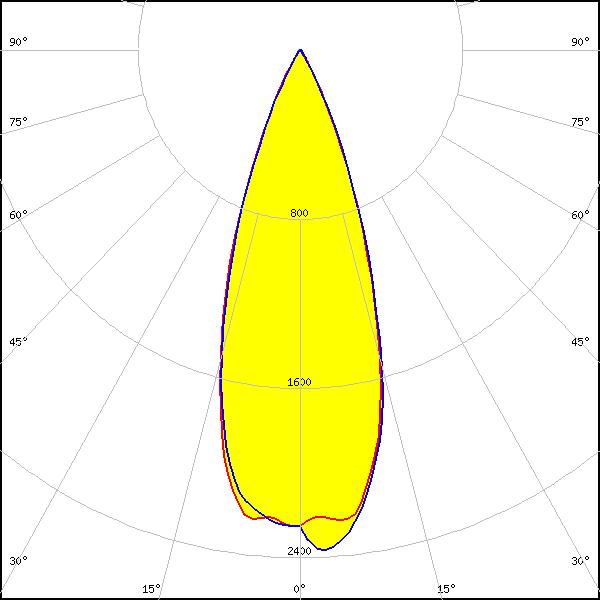

CLU712/713
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 8.5 mm
Required components:
FWHM:
36°
FWTM:
56°
Peak intensity:
2.385 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

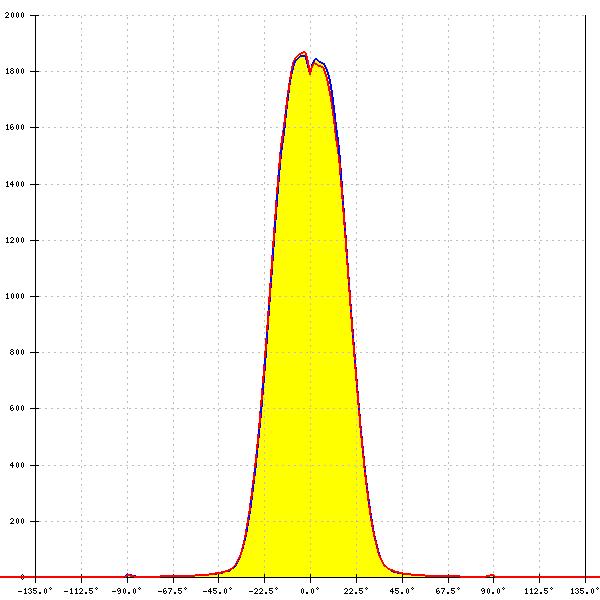

LED:
CLU713 Type-F
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 8.5 mm
Required components:
FWHM:
40°
FWTM:
62°
Peak intensity:
1.876 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

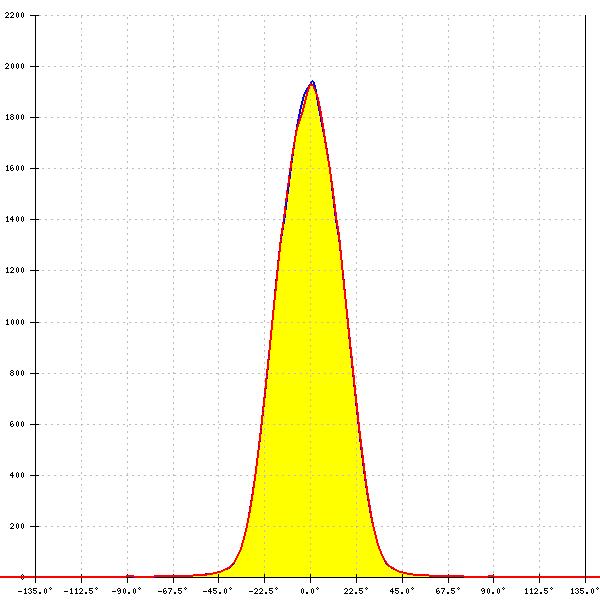

LED:
CLU723 Type-F
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 11.0 mm
Required components:
FWHM:
38°
FWTM:
62°
Peak intensity:
1.944 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7A2/7A3
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 4.2 mm
Required components:
FWHM:
35°
FWTM:
52°
Peak intensity:
2.363 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7A2/7A3
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 4.2 mm
Required components:
FWHM:
34°
FWTM:
52°
Peak intensity:
2.363 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7B2
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 3.3 mm
Required components:
FWHM:
34°
FWTM:
51°
Peak intensity:
2.414 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7B2
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 3.3 mm
Required components:
FWHM:
34°
FWTM:
51°
Peak intensity:
2.414 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

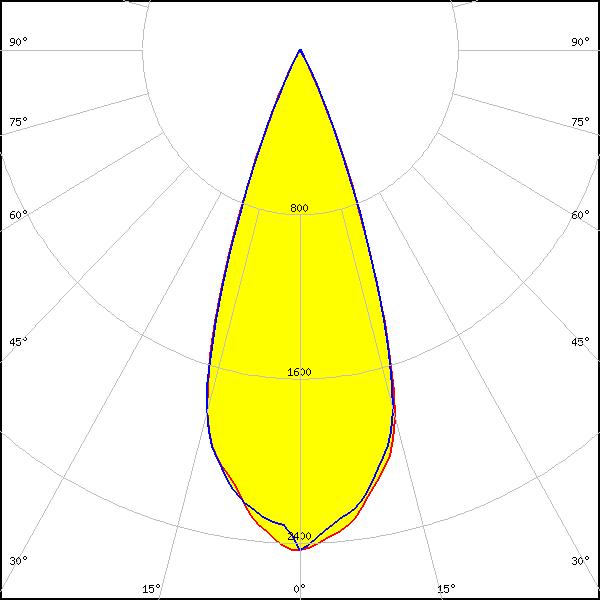

LED:
CHA0304
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 3.3 mm
Required components:
FWHM:
38°
FWTM:
52°
Peak intensity:
2.462 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

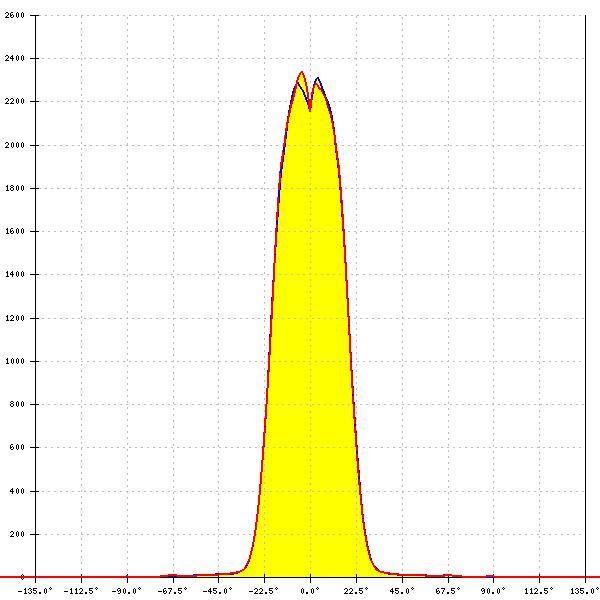

CHA0410
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 4.2 mm
Required components:
FWHM:
38°
FWTM:
54°
Peak intensity:
2.362 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

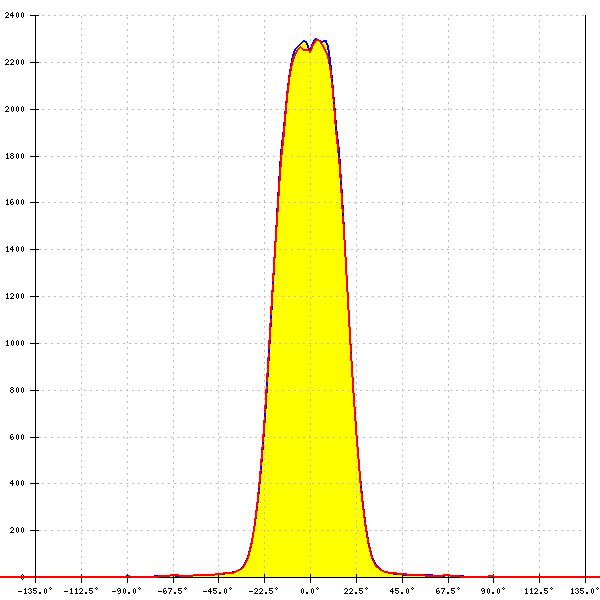

LED:
CHA0612
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 6.0 mm
Required components:
FWHM:
38°
FWTM:
54°
Peak intensity:
2.322 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

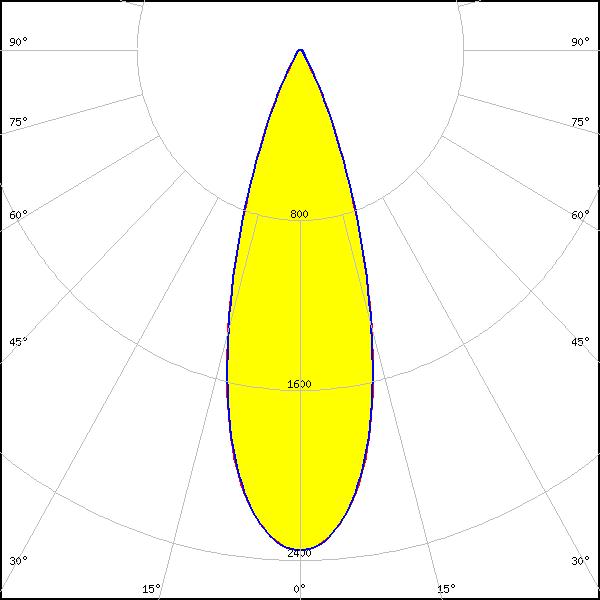

LED:
CMA1516
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 9.0 mm
Required components:
FWHM:
33°
FWTM:
55°
Peak intensity:
2.355 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

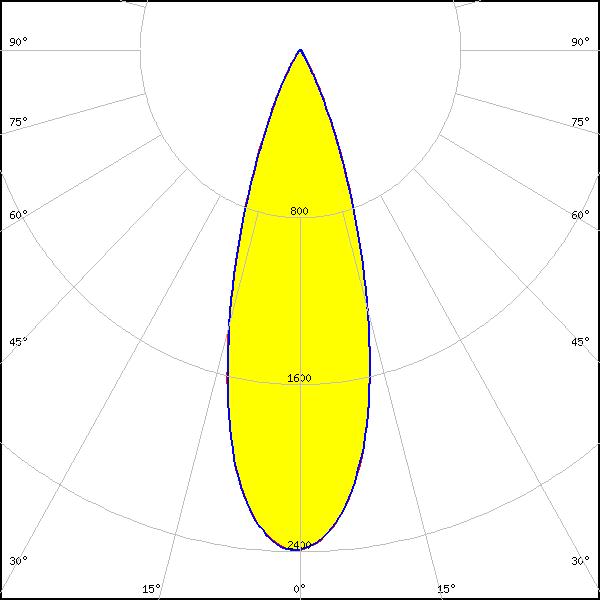

LED:
CMA1516
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.0 mm
Required components:
FWHM:
32°
FWTM:
54°
Peak intensity:
2.393 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

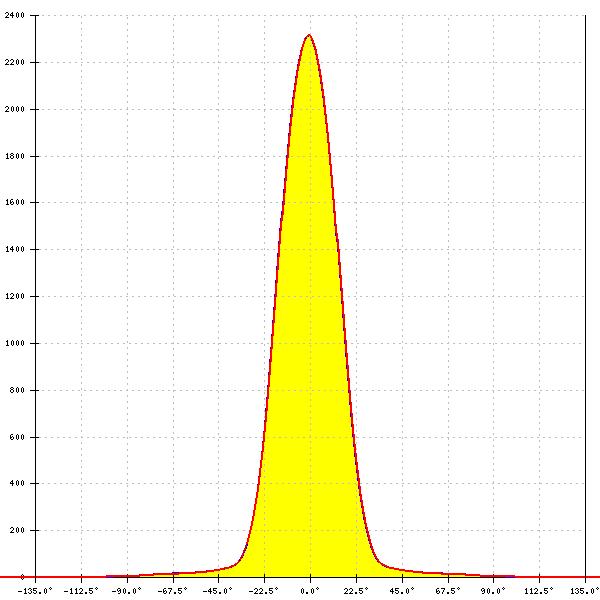

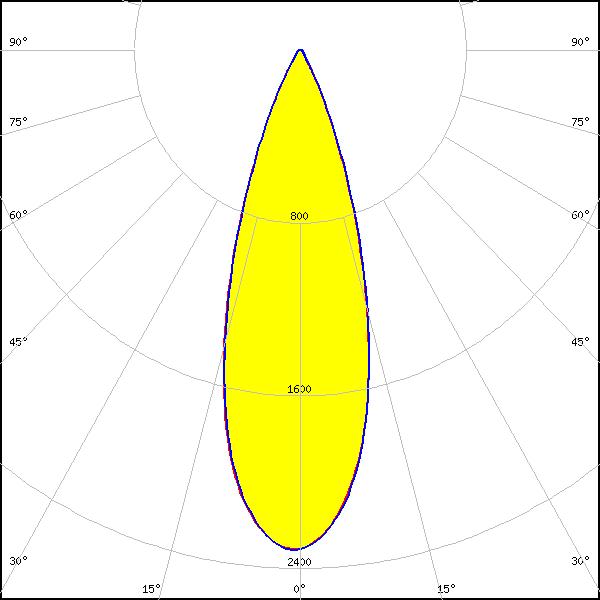

LED:
CMT14xx
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 9.8 mm
Required components:
FWHM:
33°
FWTM:
56°
Peak intensity:
2.316 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

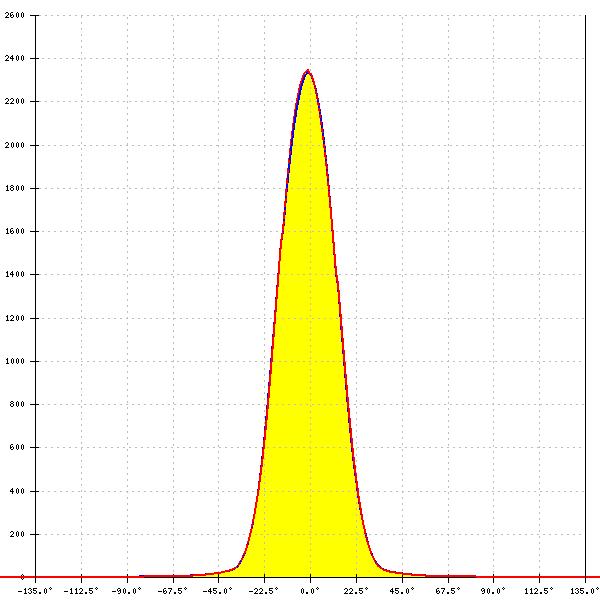

LED:
CMT14xx
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.8 mm
Required components:
FWHM:
32°
FWTM:
55°
Peak intensity:
2.351 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMU10xx
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.8 mm
Required components:
FWHM:
32°
FWTM:
54°
Peak intensity:
2.573 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 13xx
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 6.0 mm
Required components:
FWHM:
34°
FWTM:
53°
Peak intensity:
2.351 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 13xx
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 6.0 mm
Required components:
FWHM:
34°
FWTM:
52°
Peak intensity:
2.401 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 8.9 mm
Required components:
FWHM:
33°
FWTM:
55°
Peak intensity:
2.351 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 8.9 mm
Required components:
FWHM:
33°
FWTM:
54°
Peak intensity:
2.375 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

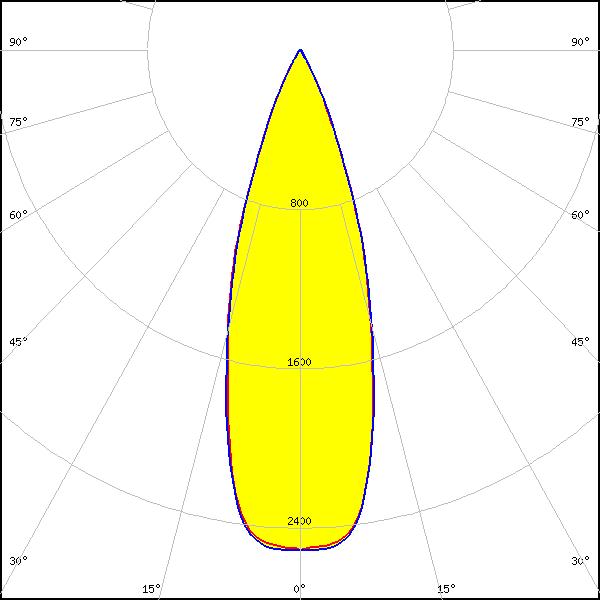

LED:
LEDIM/C6
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 8.0 mm
Required components:
FWHM:
33°
FWTM:
54°
Peak intensity:
2.529 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L08 (Gen2)
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
36°
FWTM:
62°
Peak intensity:
1.964 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

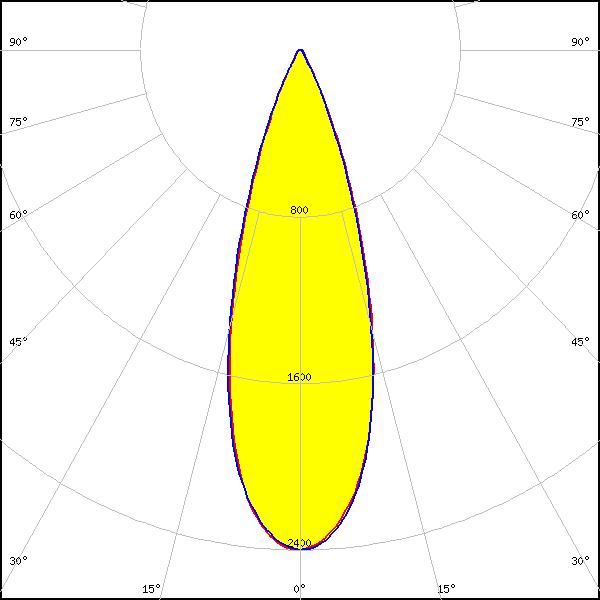

LED:
LUXEON CoB 1202/1203
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 9.0 mm
Required components:
FWHM:
33°
FWTM:
55°
Peak intensity:
2.402 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

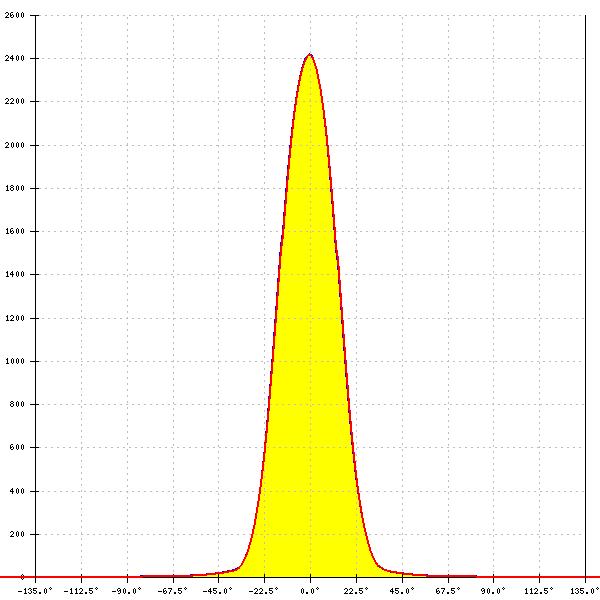

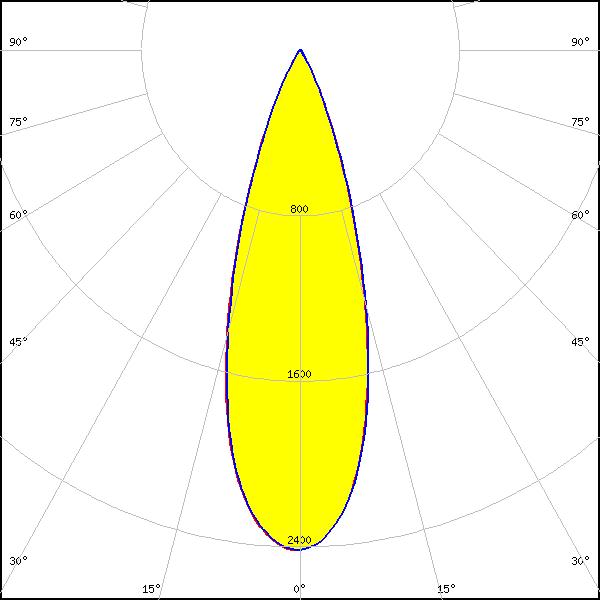

LED:
LUXEON CoB 1202/1203
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.0 mm
Required components:
FWHM:
32°
FWTM:
54°
Peak intensity:
2.417 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202HD
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 6.5 mm
Required components:
FWHM:
37°
FWTM:
54°
Peak intensity:
2.383 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 13.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
34°
FWTM:
60°
Peak intensity:
2.166 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204HD
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 9.0 mm
Required components:
FWHM:
32°
FWTM:
54°
Peak intensity:
2.407 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

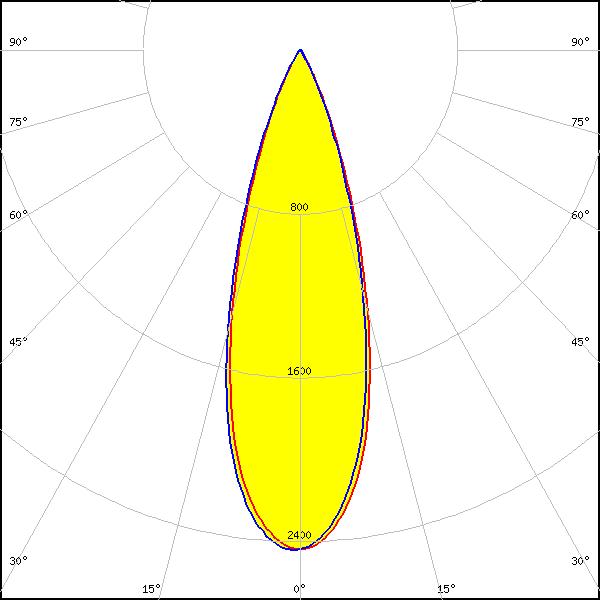

LED:
LUXEON CoB 1204HD
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.0 mm
Required components:
FWHM:
31°
FWTM:
53°
Peak intensity:
2.447 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1205HD
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 11.0 mm
Required components:
FWHM:
33°
FWTM:
58°
Peak intensity:
2.480 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 15.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
38°
FWTM:
62°
Peak intensity:
1.860 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

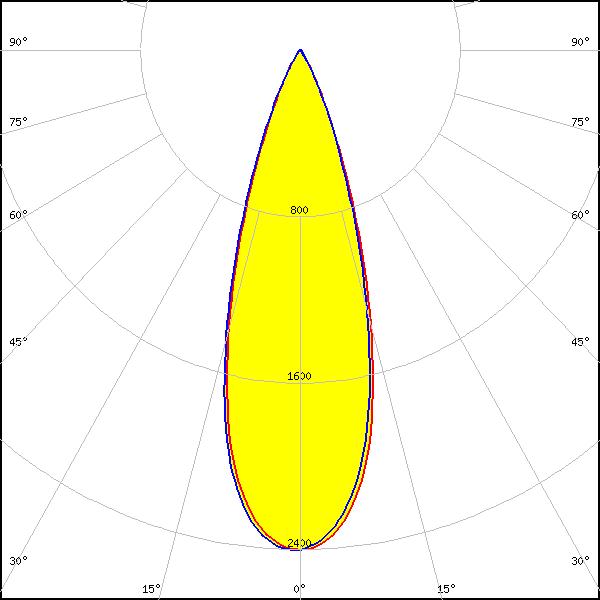

LUXEON CoB M02/M03
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 8.5 mm
Required components:
FWHM:
33°
FWTM:
54°
Peak intensity:
2.378 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB M02/M03
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 8.5 mm
Required components:
FWHM:
32°
FWTM:
54°
Peak intensity:
2.378 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

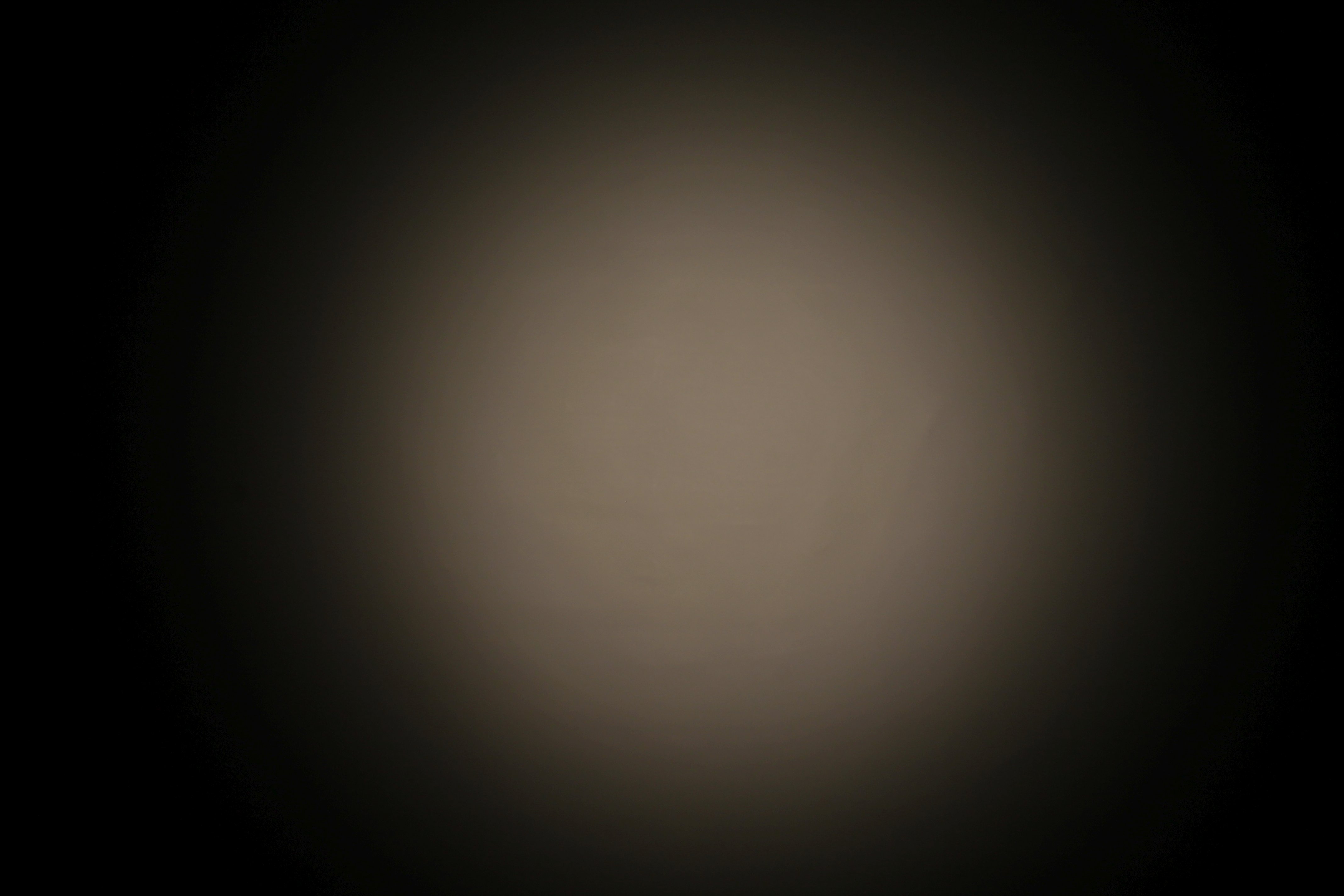

LED:
LUXEON CoB S01
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 5.5 mm
Required components:
FWHM:
34°
FWTM:
52°
Peak intensity:
2.382 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB S01
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 5.5 mm
Required components:
FWHM:
34°
FWTM:
52°
Peak intensity:
2.382 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S01H4
Ordering code: CP18732_YASMEEN-50-W-B2
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
38°
FWTM:
54°
Peak intensity:
2.283 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

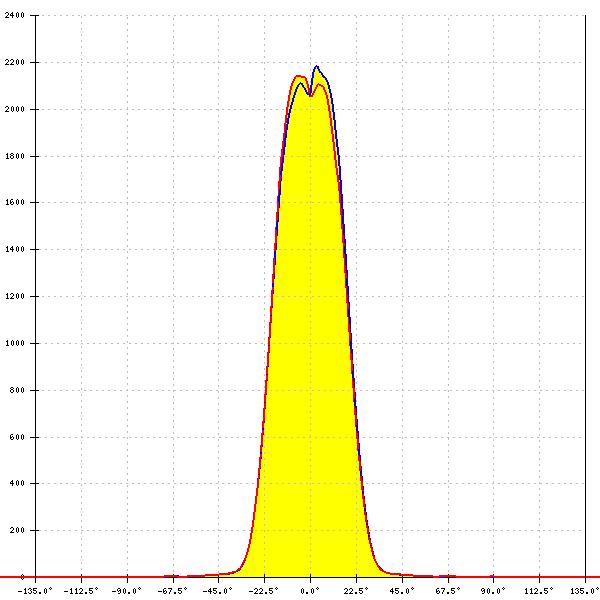

LED:
LUXEON CX Plus CoB - HD S02H6
Ordering code: CP18732_YASMEEN-50-W-B2
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
38°
FWTM:
56°
Peak intensity:
2.215 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S04H9
Ordering code: CP18732_YASMEEN-50-W-B2
LES size: 9.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
36°
FWTM:
58°
Peak intensity:
2.258 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 12.0 mm
Required components:
FWHM:
34°
FWTM:
59°
Peak intensity:
2.207 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB M02 / M03 (Gen2)
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.0 mm
Required components:
FWHM:
36°
FWTM:
56°
Peak intensity:
2.372 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

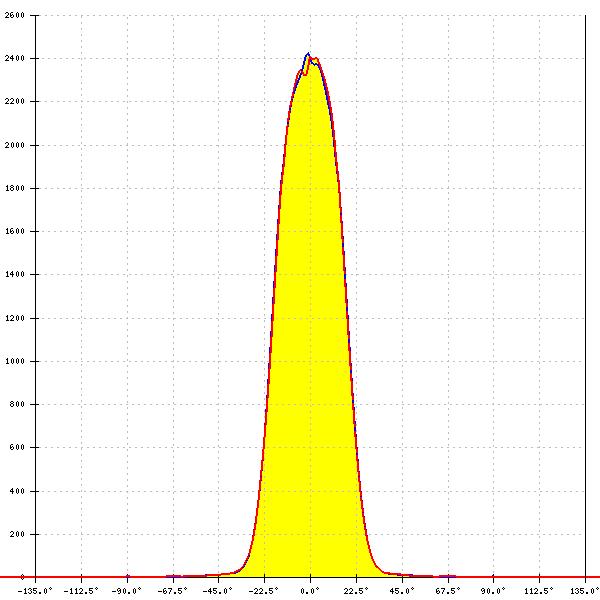

LED:
LUXEON CX Plus CoB S01 (Gen2)
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 6.0 mm
Required components:
FWHM:
36°
FWTM:
54°
Peak intensity:
2.452 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHM-9 XH (19x19)
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.0 mm
Required components:
FWHM:
35°
FWTM:
54°
Peak intensity:
2.506 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 (Tunable White) Gen2
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 13.9 mm
Required components:
FWHM:
51°
FWTM:
77°
Peak intensity:
1.124 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
Tunable White

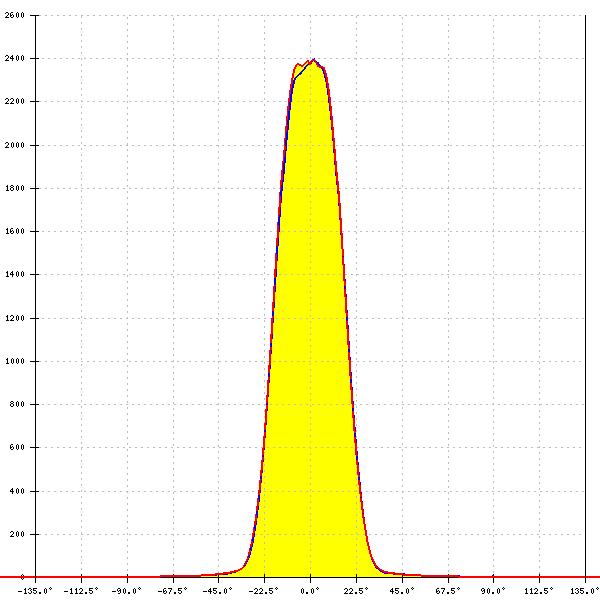

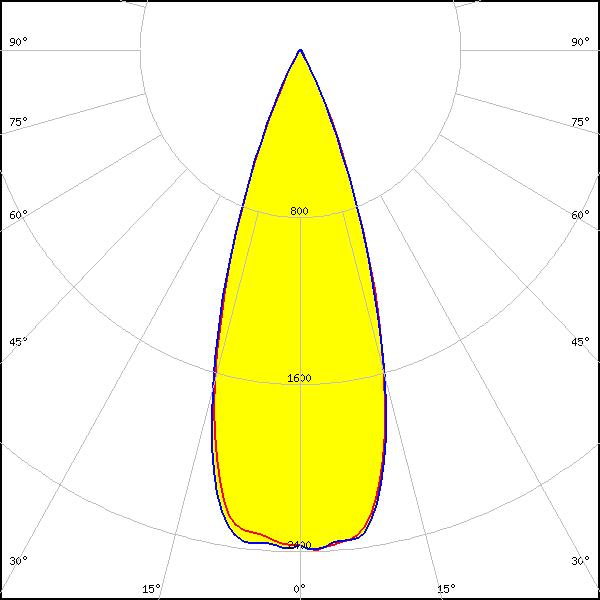

LED:
CTM-6 (Tunable White) Gen2
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 6.8 mm
Required components:
FWHM:
36°
FWTM:
54°
Peak intensity:
2.468 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CTM-9 (Tunable White) Gen2
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.5 mm
Required components:
FWHM:
34°
FWTM:
54°
Peak intensity:
2.497 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

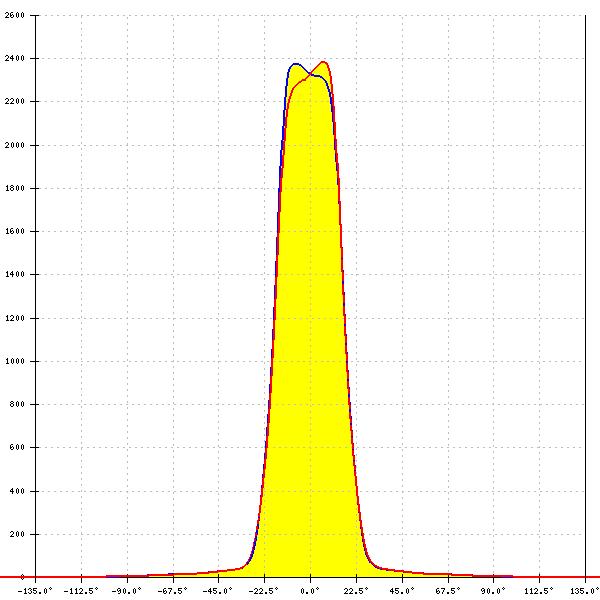

CXM-3
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 3.5 mm
Required components:
FWHM:
34°
FWTM:
50°
Peak intensity:
2.386 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

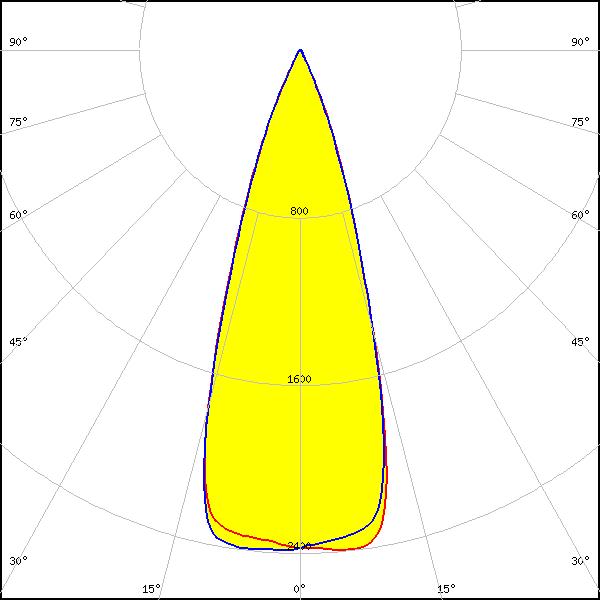

LED:
CXM-3
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 3.5 mm
Required components:
FWHM:
33°
FWTM:
51°
Peak intensity:
2.399 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-4
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 4.5 mm
Required components:
FWHM:
34°
FWTM:
51°
Peak intensity:
2.374 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

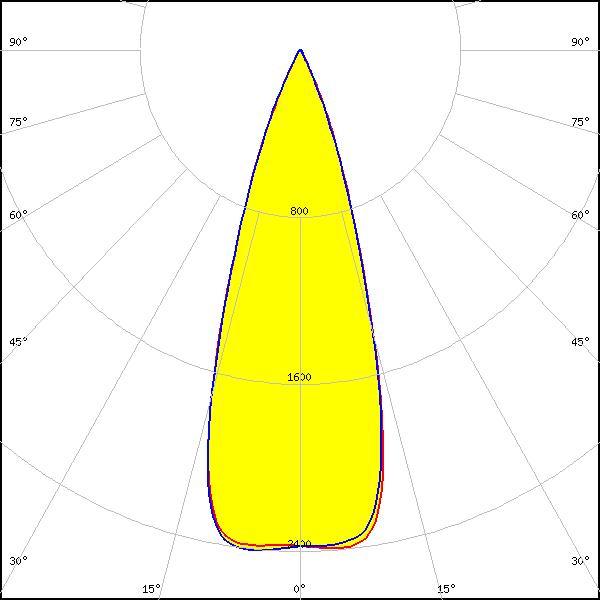

LED:

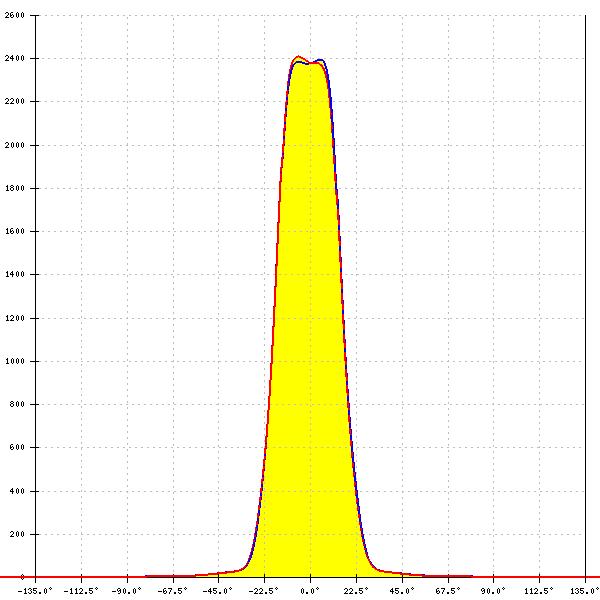

CXM-4
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 4.5 mm
Required components:
FWHM:
33°
FWTM:
51°
Peak intensity:
2.374 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-6 (13.5x13.5)
Ordering code: CP18732_YASMEEN-50-W-B2
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
FWHM:
36°
FWTM:
52°
Peak intensity:
2.563 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.8 mm
Required components:
FWHM:
34°
FWTM:
56°
Peak intensity:
2.370 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 11.5 mm
Required components:
FWHM:
36°
FWTM:
59°
Peak intensity:
2.228 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

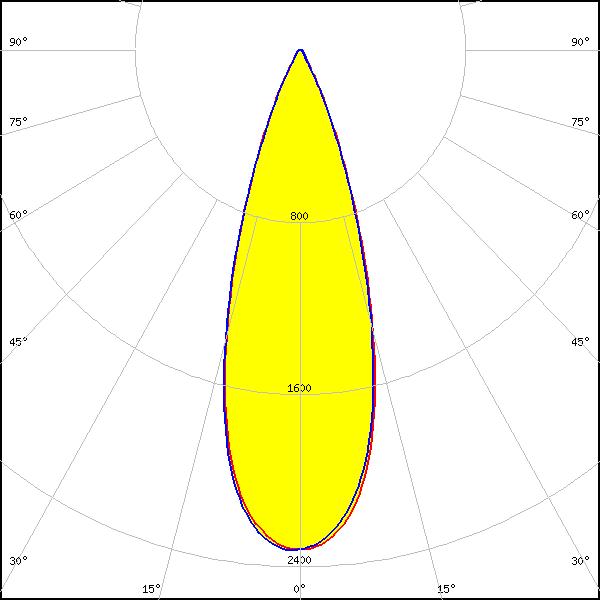

LED:
COB L-Type (LES 9)
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 8.7 mm
Required components:
FWHM:
33°
FWTM:
54°
Peak intensity:
2.324 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 6)
Ordering code: CP18732_YASMEEN-50-W-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
38°
FWTM:
56°
Peak intensity:
2.230 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
Ordering code: CP18732_YASMEEN-50-W-B2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
38°
FWTM:
56°
Peak intensity:
2.218 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

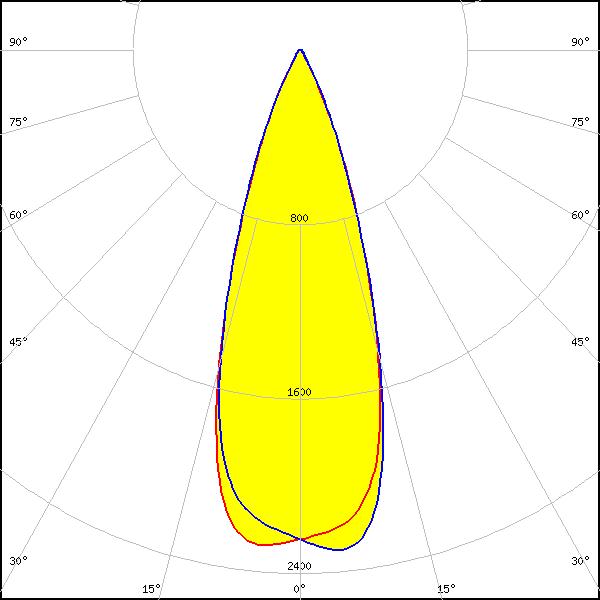

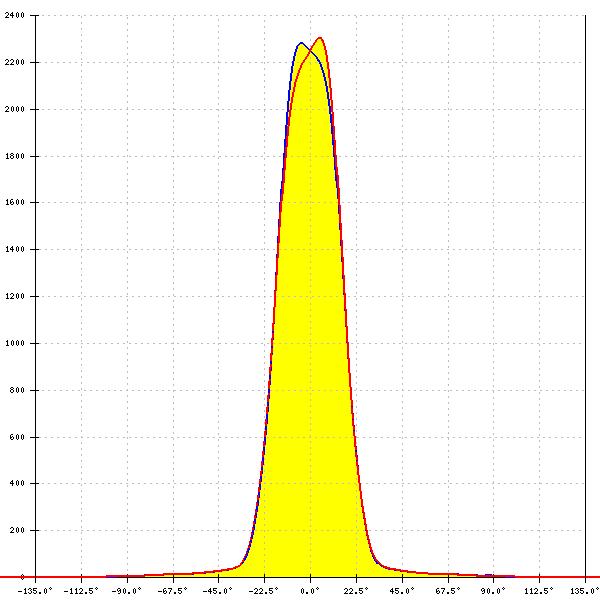

COB S-Type (LES 7)
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 6.7 mm
Required components:
FWHM:
34°
FWTM:
54°
Peak intensity:
2.315 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB T-Type
Ordering code: CP18732_YASMEEN-50-W-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
38°
FWTM:
56°
Peak intensity:
2.188 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

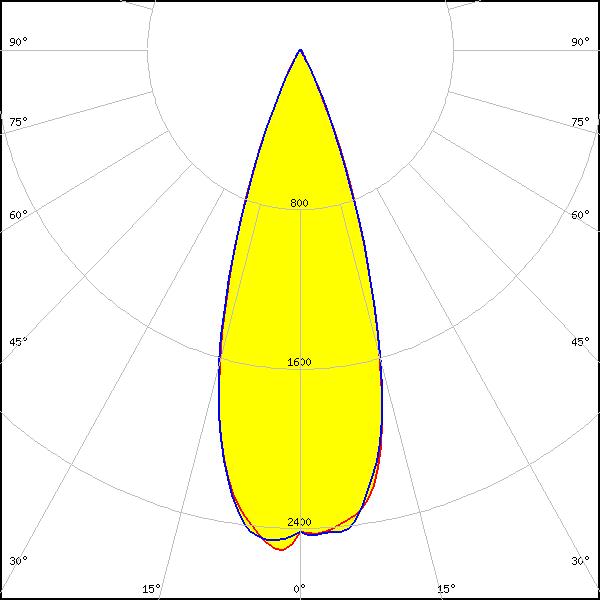

LED:

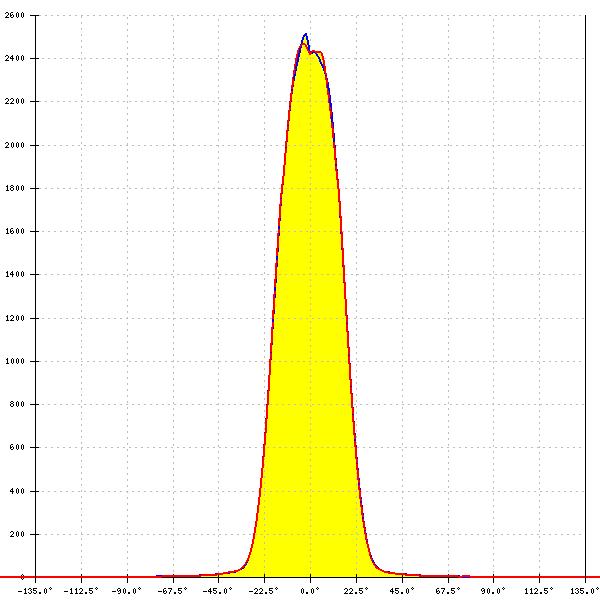

NJCWL024Z-V1MT: COB L-Type Tunable White
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 7.0 mm
Required components:
FWHM:
35°
FWTM:
53°
Peak intensity:
2.516 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

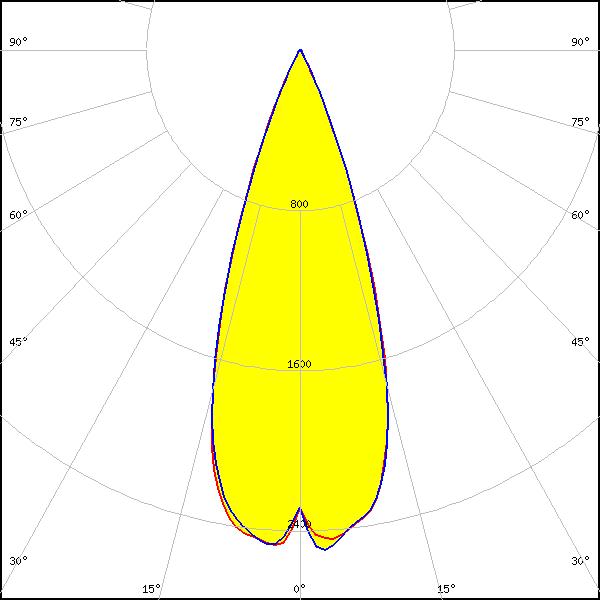

NJNWS012Z-V1MT: COB S-Type Tunable White
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 5.9 mm
Required components:
FWHM:
36°
FWTM:
52°
Peak intensity:
2.514 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 10.6 mm
Required components:
FWHM:
32°
FWTM:
56°
Peak intensity:
2.497 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Fortimo SLM C TW L06A 1313 G7N
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 6.5 mm
Required components:
FWHM:
34°
FWTM:
52°
Peak intensity:
2.628 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM C TW L09A 1919 G7N
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.3 mm
Required components:
FWHM:
33°
FWTM:
54°
Peak intensity:
2.606 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

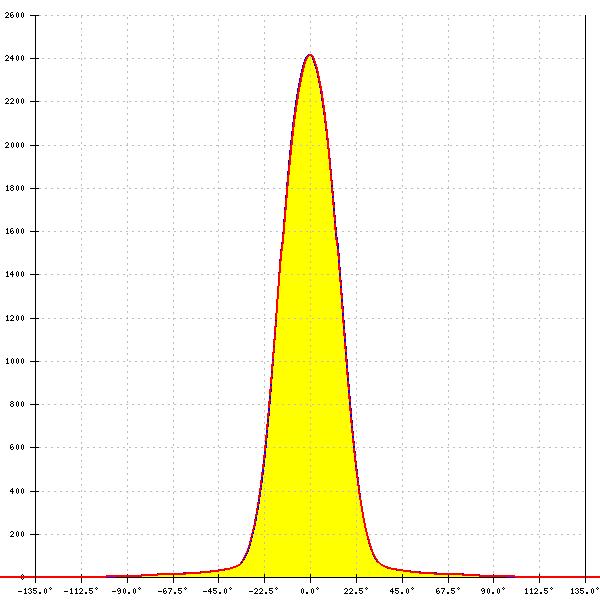

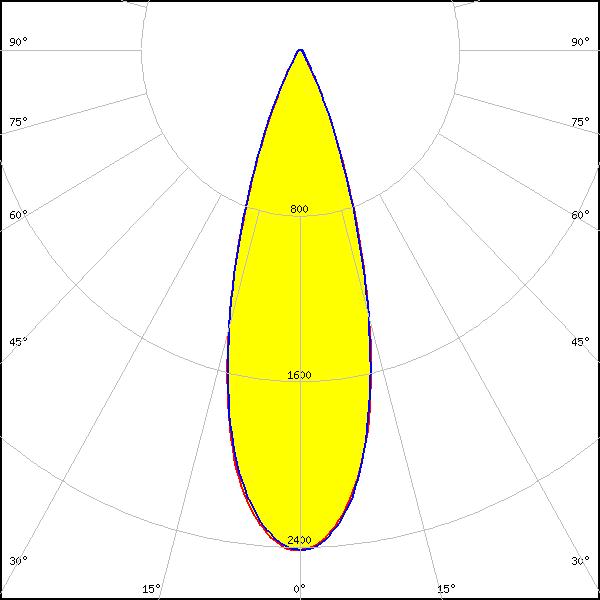

Fortimo SLM L09 CoB
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 9.0 mm
Required components:
FWHM:
32°
FWTM:
54°
Peak intensity:
2.416 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L09 CoB
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.0 mm
Required components:
FWHM:
32°
FWTM:
53°
Peak intensity:
2.440 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 13.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
32°
FWTM:
56°
Peak intensity:
2.220 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

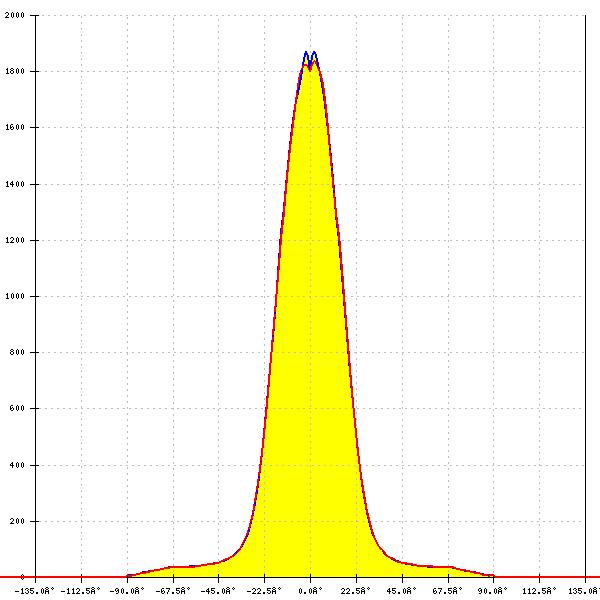

Fortimo SLM L15 CoB
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 15.0 mm
Required components:
Bender Wirth: 632a Hekla
FWHM:
34°
FWTM:
59°
Peak intensity:
1.877 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

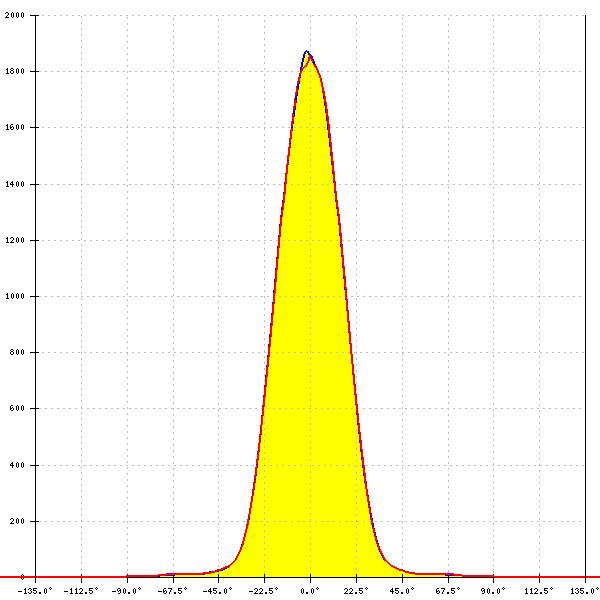

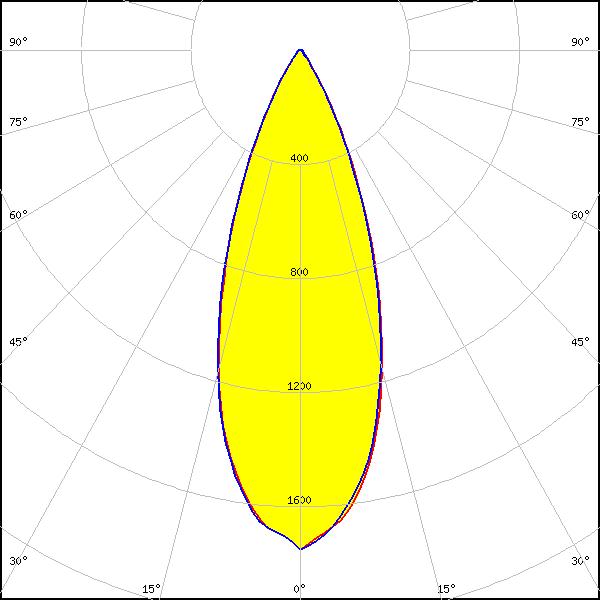

Fortimo SLM L15 CoB
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 15.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
37°
FWTM:
62°
Peak intensity:
1.876 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

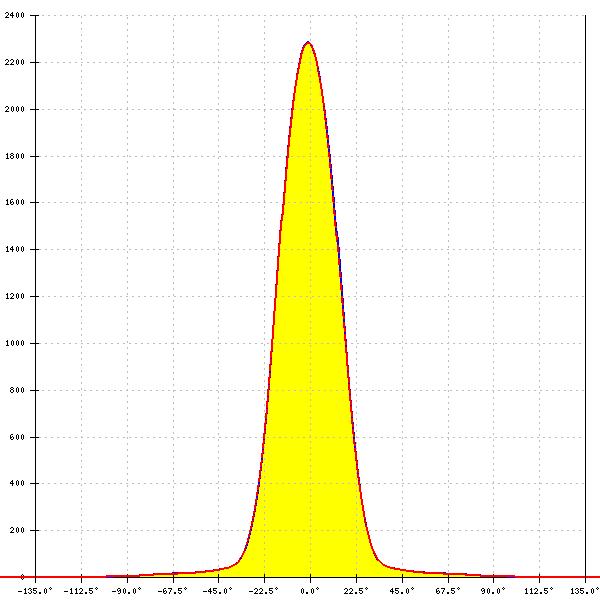

LC003D / LC006D / LC009D / LC013D
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 9.8 mm
Required components:
FWHM:
33°
FWTM:
56°
Peak intensity:
2.287 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.8 mm
Required components:
FWHM:
32°
FWTM:
55°
Peak intensity:
2.331 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C G2
Ordering code: CP18732_YASMEEN-50-W-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
36°
FWTM:
53°
Peak intensity:
2.505 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

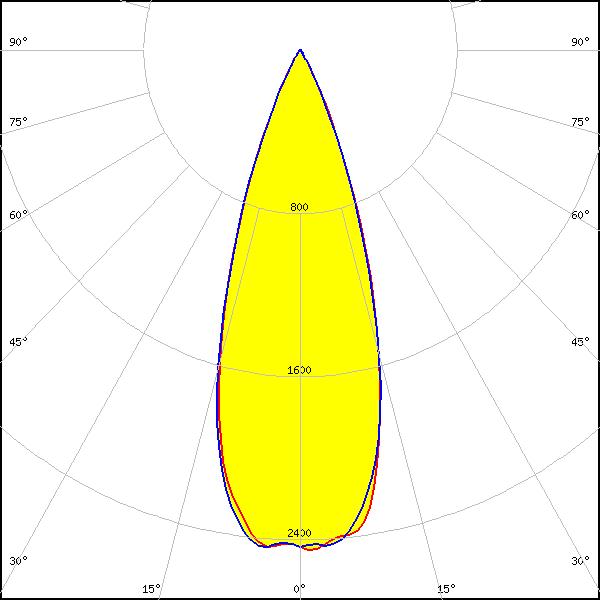

LC010T (Tunable White)
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.8 mm
Required components:
FWHM:
36°
FWTM:
54°
Peak intensity:
2.503 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
LC016D / LC019D / LC026D / LC033D
Ordering code: CP18732_YASMEEN-50-W-B2
LES size: 14.5 mm
Required components:
BJB: 47.360.1010
FWHM:
40°
FWTM:
64°
Peak intensity:
1.663 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C G2
Ordering code: CP18732_YASMEEN-50-W-B2
LES size: 8.5 mm
Required components:
BJB: 47.360.1010
FWHM:
36°
FWTM:
56°
Peak intensity:
2.394 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC030C/040C G2
Ordering code: CP18732_YASMEEN-50-W-B2
LES size: 11.5 mm
Required components:
BJB: 47.360.1010
FWHM:
34°
FWTM:
58°
Peak intensity:
2.280 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 14.5
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 14.5 mm
Required components:
FWHM:
38°
FWTM:
64°
Peak intensity:
1.832 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 6
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 6.0 mm
Required components:
FWHM:
35°
FWTM:
54°
Peak intensity:
2.289 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

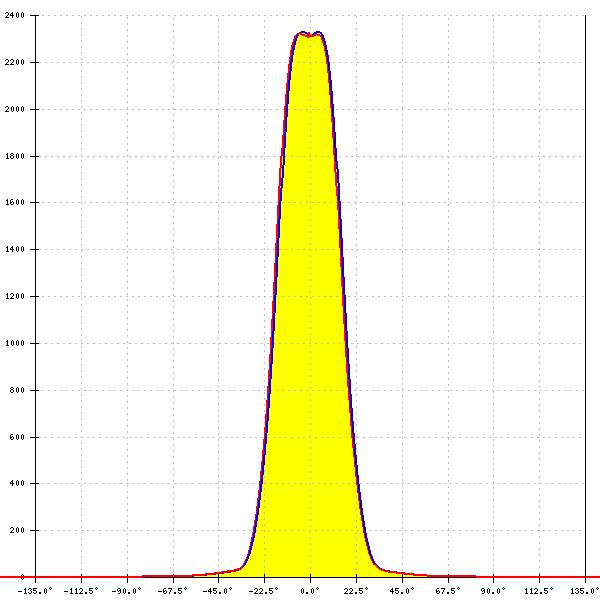

MJT COB LES 6
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 6.0 mm
Required components:
FWHM:
34°
FWTM:
53°
Peak intensity:
2.347 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

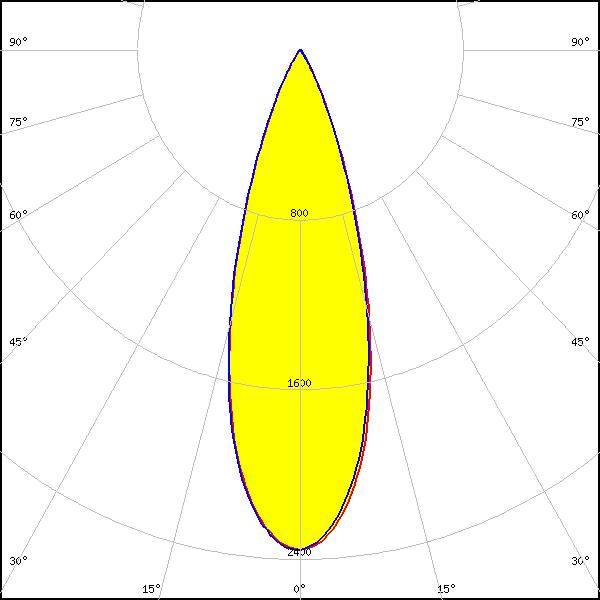

LED:
MJT COB LES 9.8
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 9.8 mm
Required components:
FWHM:
33°
FWTM:
56°
Peak intensity:
2.309 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 9.8
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.8 mm
Required components:
FWHM:
32°
FWTM:
55°
Peak intensity:
2.358 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE 09mm 1200lm xxx R ADV8
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 9.0 mm
Required components:
FWHM:
36°
FWTM:
56°
Peak intensity:
2.275 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

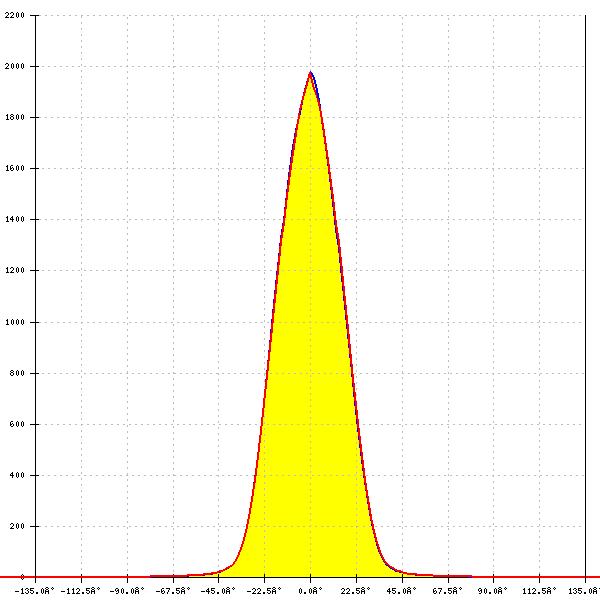

SLE 13mm 3000lm xxx R ADV8
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 13.0 mm
Required components:
FWHM:
37°
FWTM:
62°
Peak intensity:
1.975 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES09
Ordering code: CP18739_YASMEEN-50-W-C2-WHT
LES size: 9.0 mm
Required components:
FWHM:
33°
FWTM:
55°
Peak intensity:
2.368 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES13
Ordering code: CP18725_YASMEEN-50-W-C2
LES size: 13.0 mm
Required components:
FWHM:
36°
FWTM:
60°
Peak intensity:
2.095 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
