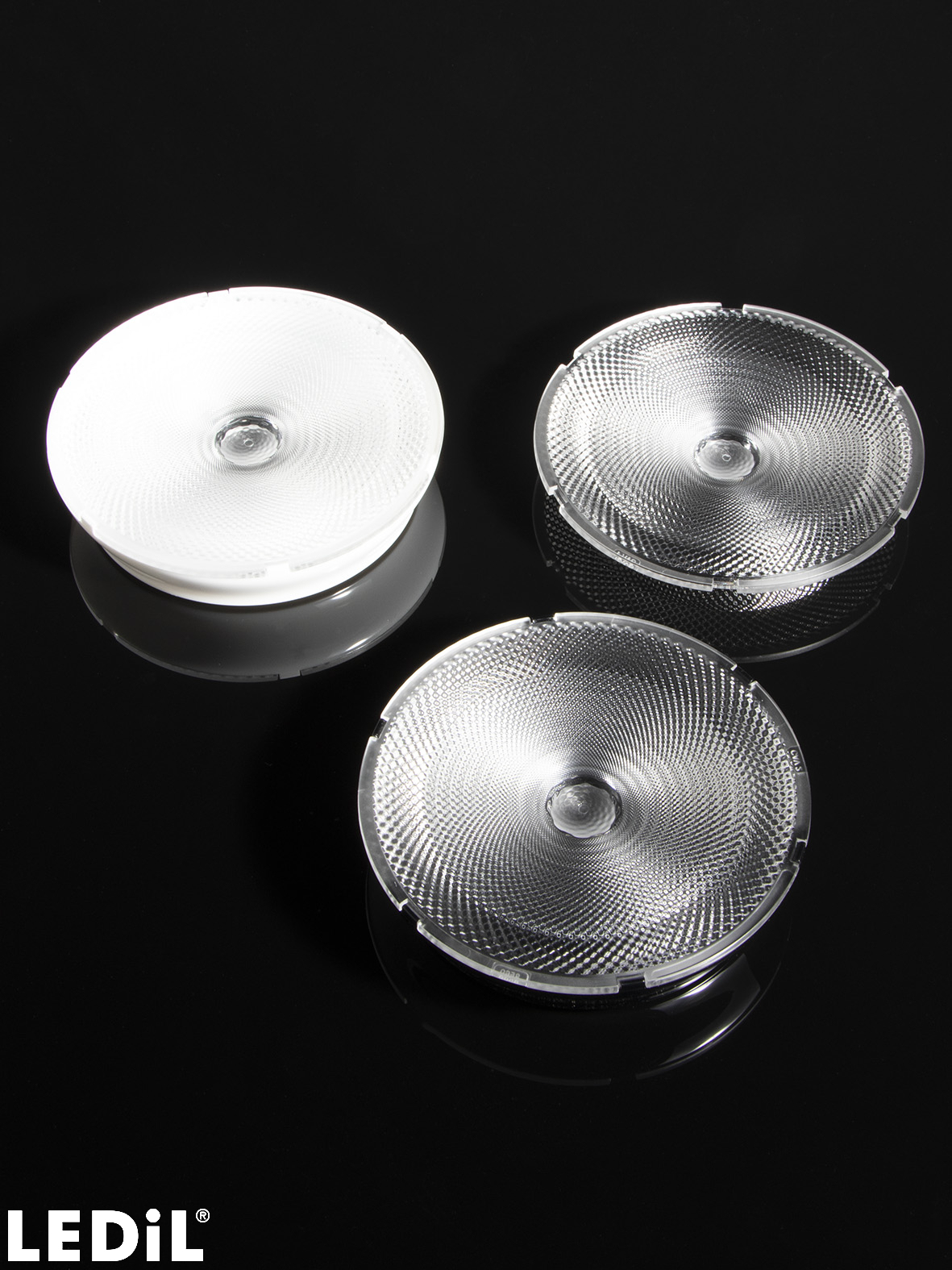

AMY-110-W

Print

~36° wide beam

This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

Specification
  • Dimensions:
    110 mm
  • Height:
    17.25 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials
  • AMY-110-W
    PMMA
  • AMY-110-HLD-C-WHT
    PC
  • AMY-110-HLD-C
    PC
  • AMY-110-HLD-B-WHT
    PC
  • AMY-110-HLD-B
    PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Single lens
  • C18569_AMY-110-W
    clear
  • Quantity in box:
    128 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    11.30 kg
  • MPQ:
    8 pcs
  • MOQ:
    128 pcs
  • MOQ Size:
    480 x 280 x 300 mm
  • MOQ Weight:
    11.30 kg
  • Assembly
  • CP18573_AMY-110-W-C
    black,Holder C
  • CP18577_AMY-110-W-B
    black,Holder B
  • CP19030_AMY-110-W-C-WHT
    white,Holder C
  • CP19034_AMY-110-W-B-WHT
    white,Holder B
  • Quantity in box:
    77 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.60 kg
  • MPQ:
    7 pcs
  • MOQ:
    77 pcs
  • MOQ Size:
    480 x 280 x 300 mm
  • MOQ Weight:
    8.60 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C18569_AMY-110-W
    CP18573_AMY-110-W-C
    CP18577_AMY-110-W-B
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

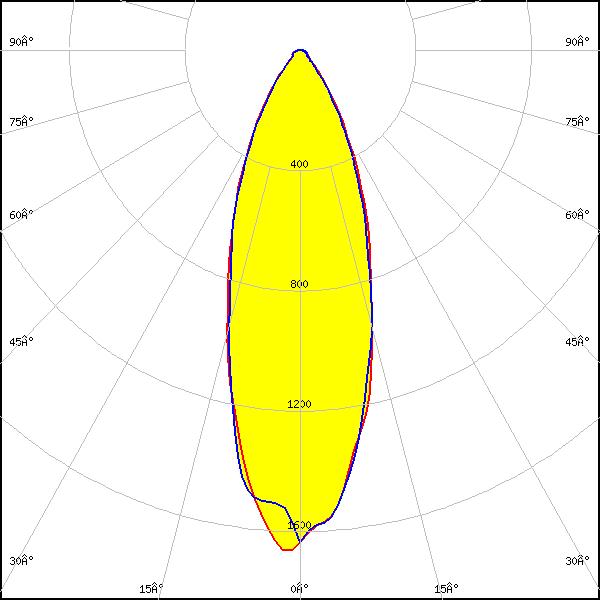

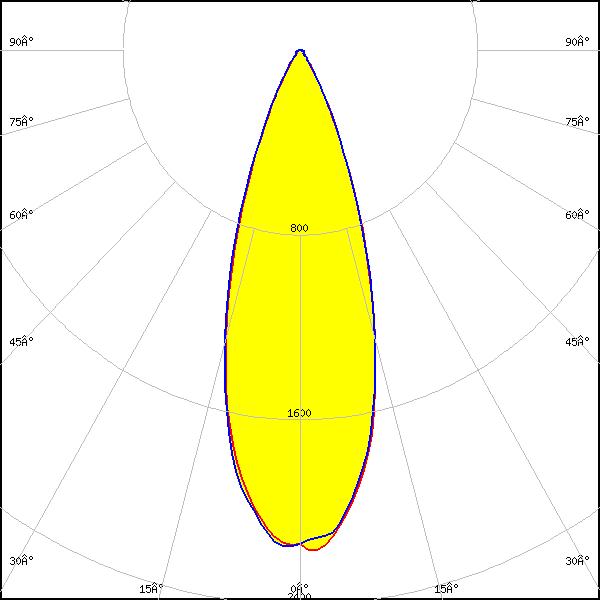

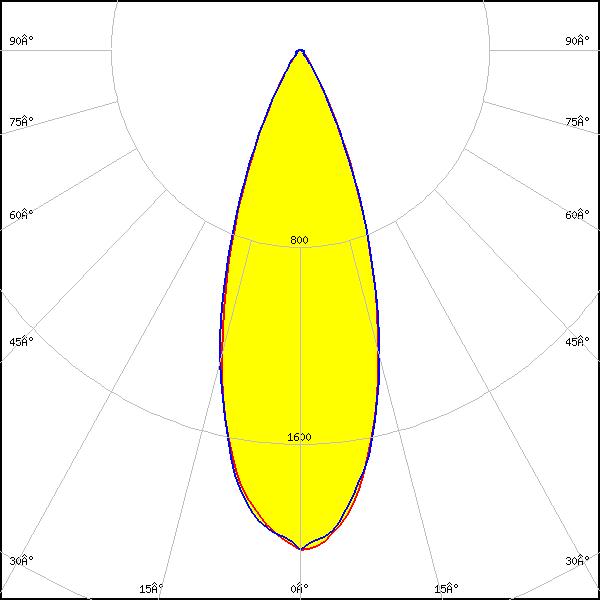

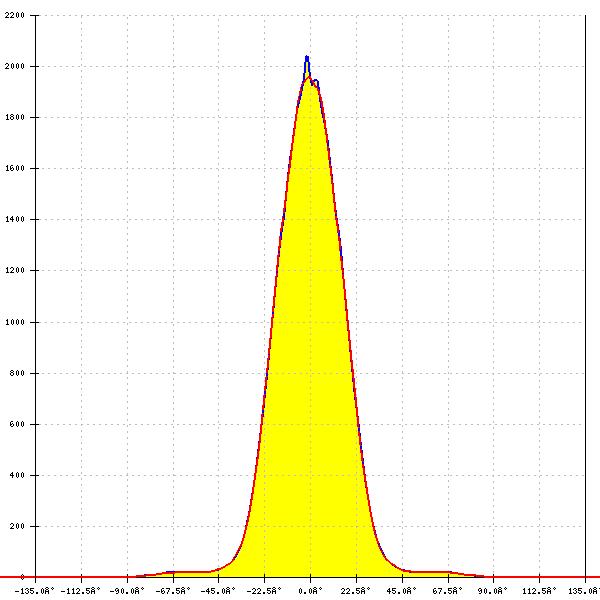

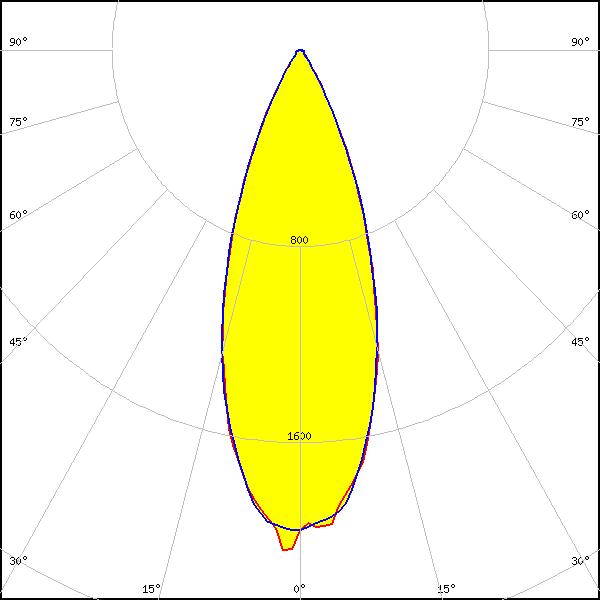

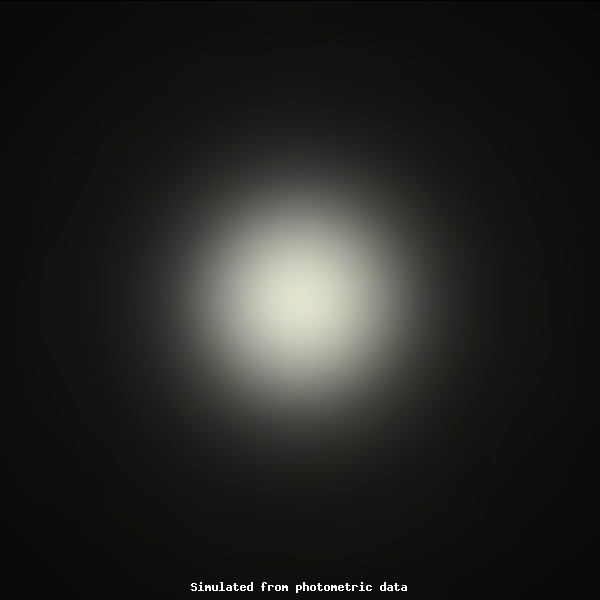

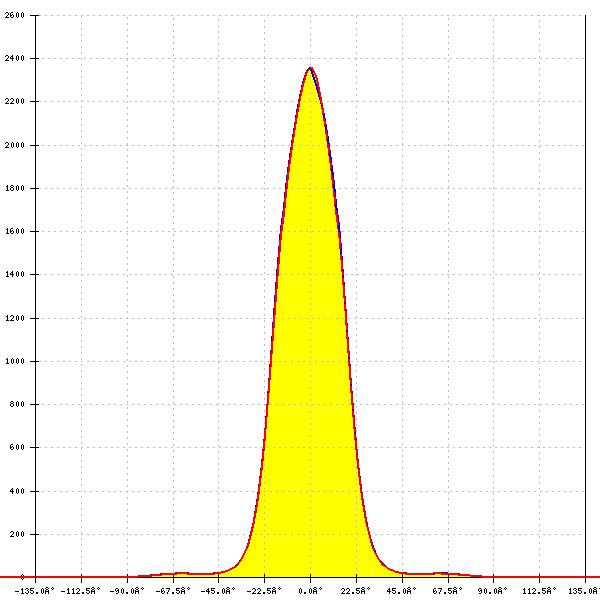

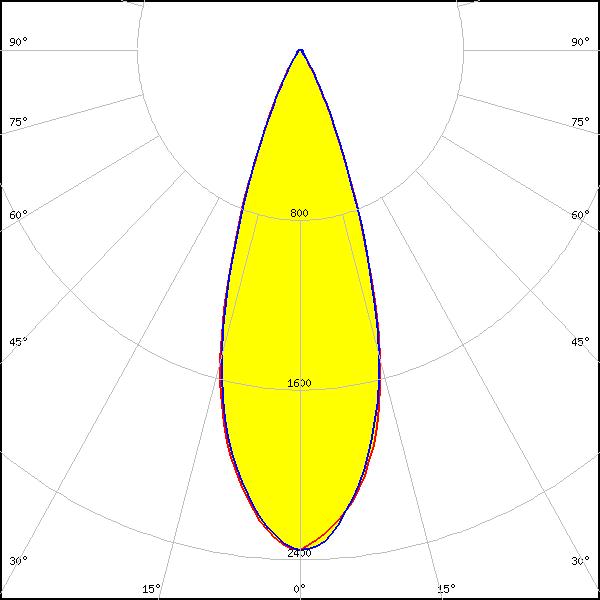

Optical results

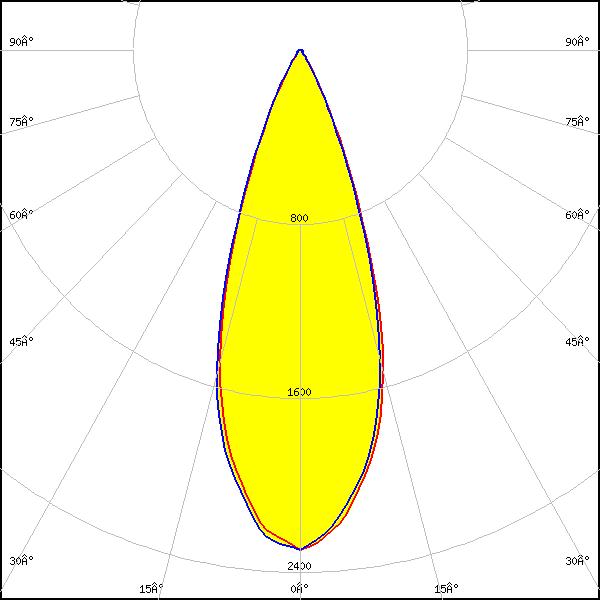

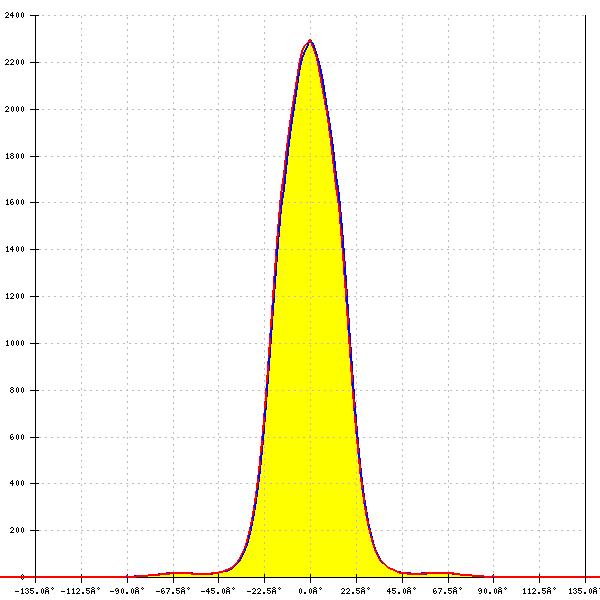

LED: V10 Gen 8-9
Ordering code: CP18573_AMY-110-W-C
LES size: 10.0 mm
Required components:
FWHM: 36°
FWTM: 58°
Peak intensity: 2.302 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

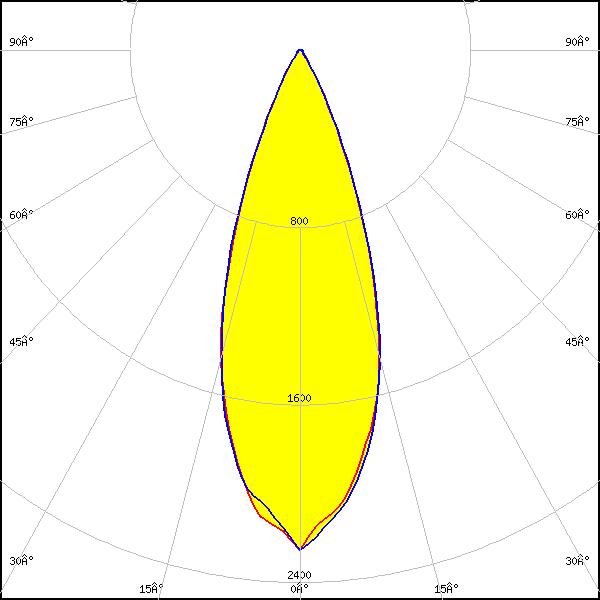

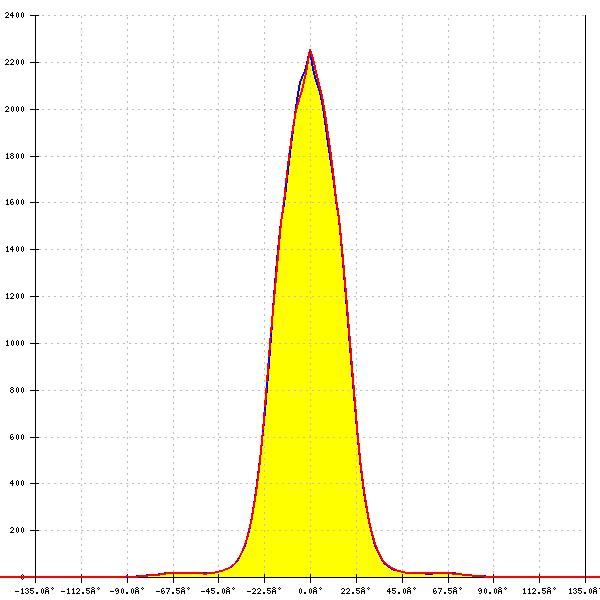

LED: V11 HD Gen 8
Ordering code: CP18573_AMY-110-W-C
LES size: 11.3 mm
Required components:
FWHM: 36°
FWTM: 59°
Peak intensity: 2.256 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

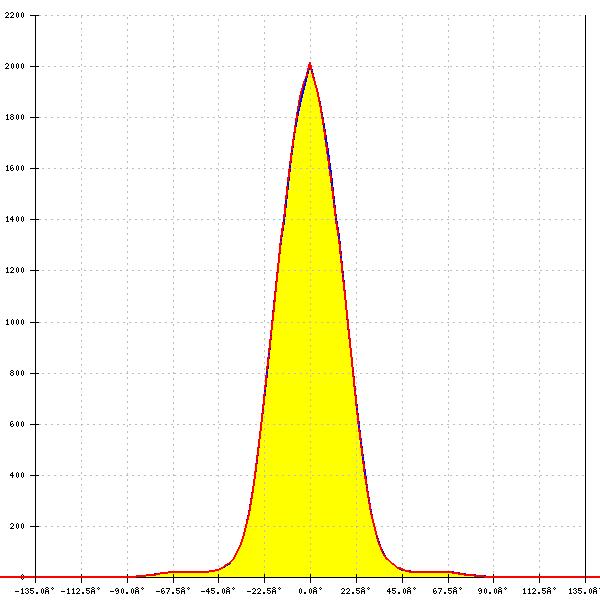

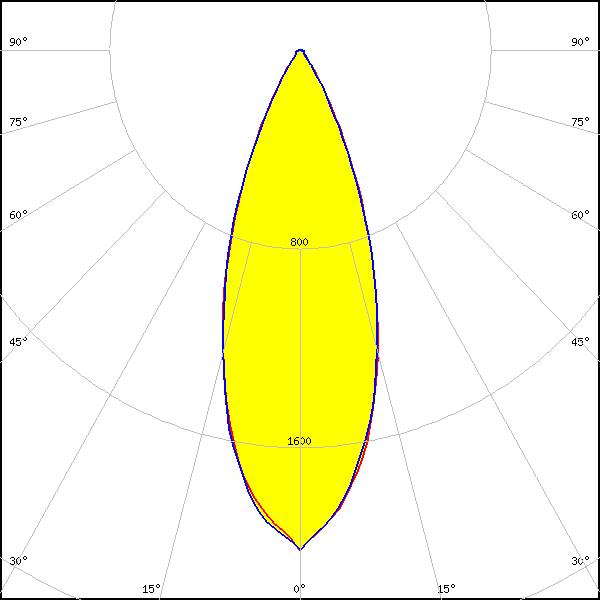

LED: V13 Gen 8-9
Ordering code: CP18573_AMY-110-W-C
LES size: 14.8 mm
Required components:
FWHM: 36°
FWTM: 63°
Peak intensity: 2.015 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

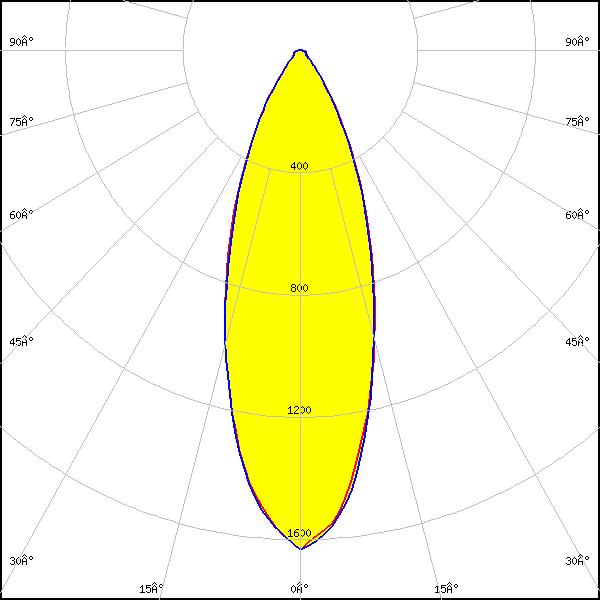

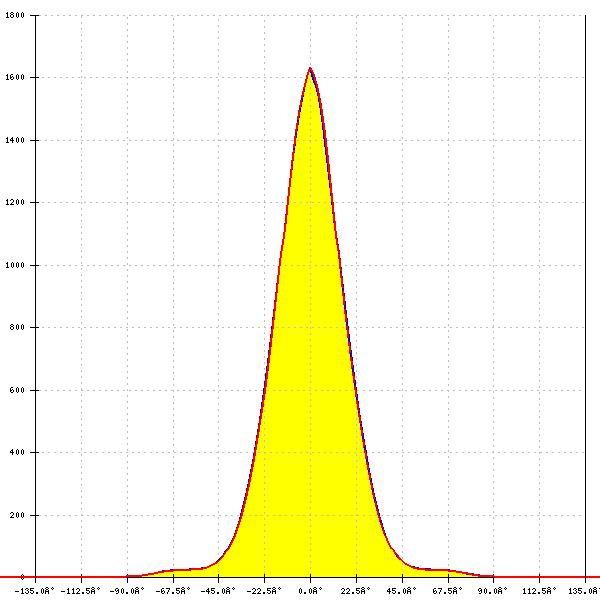

LED: V18 Gen 8-9
Ordering code: CP18573_AMY-110-W-C
LES size: 19.6 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 462 Typ L8
FWHM: 36°
FWTM: 71°
Peak intensity: 1.635 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

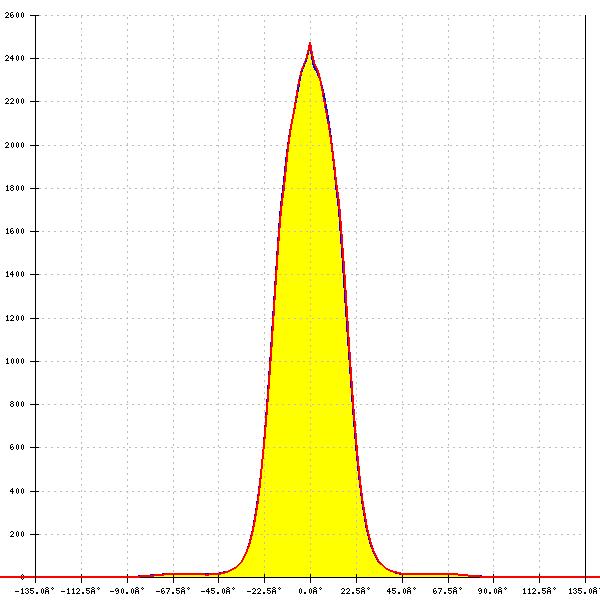

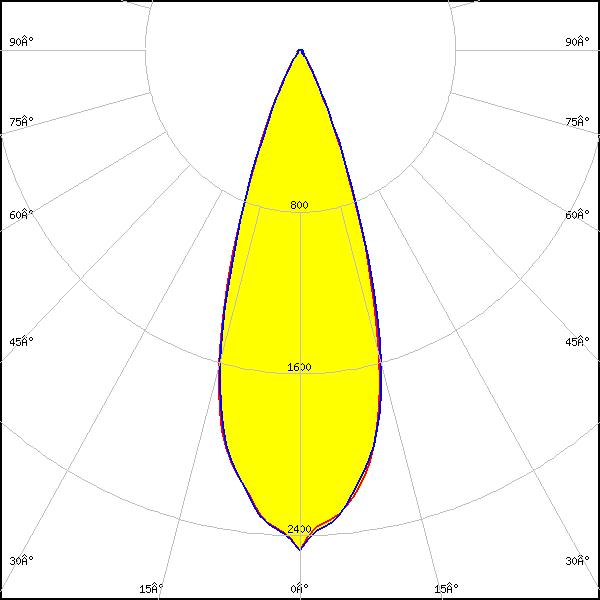

LED: V8 Gen 8-9
Ordering code: CP18573_AMY-110-W-C
LES size: 8.5 mm
Required components:
FWHM: 36°
FWTM: 55°
Peak intensity: 2.473 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

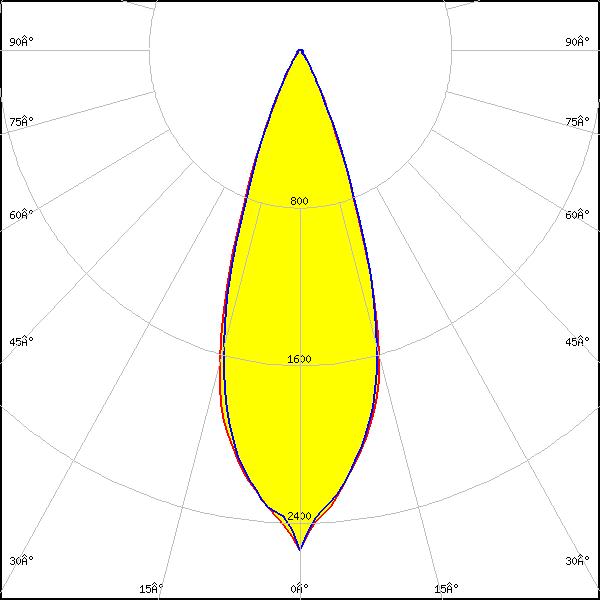

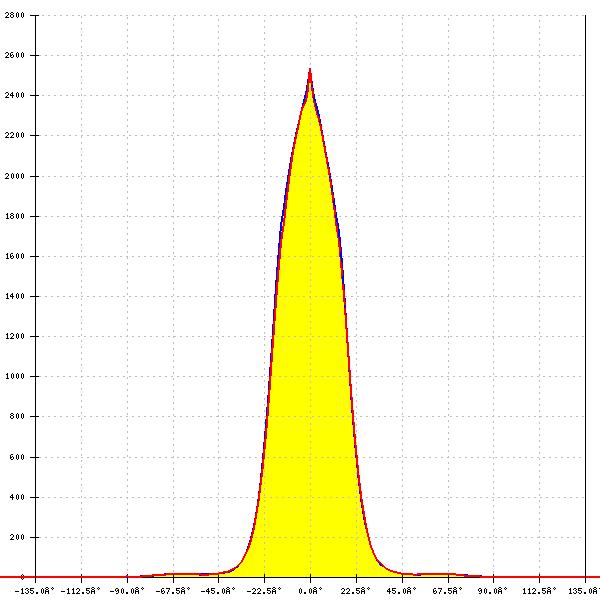

LED: V9 HD Gen 8
Ordering code: CP18573_AMY-110-W-C
LES size: 8.8 mm
Required components:
FWHM: 36°
FWTM: 55°
Peak intensity: 2.538 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

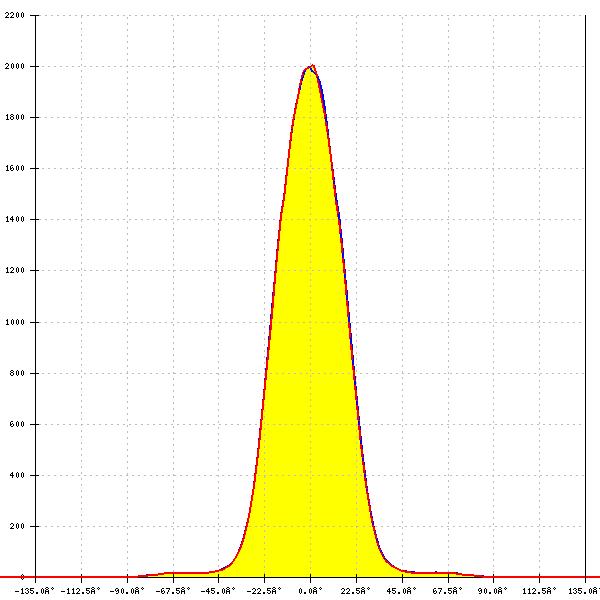

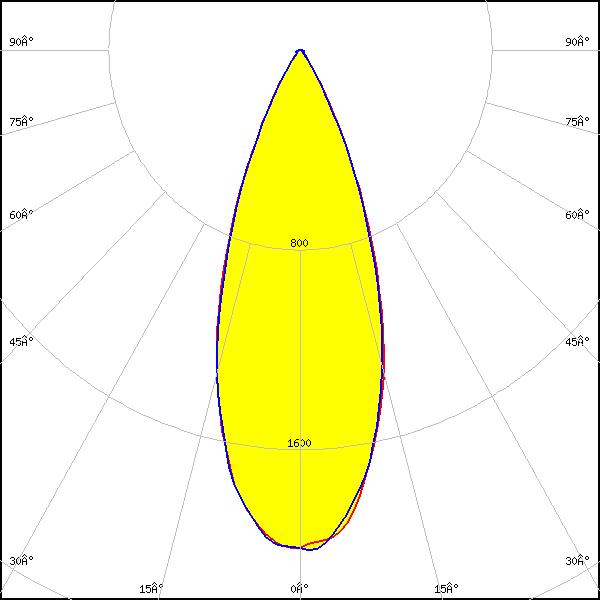

LED: Vero SE 10
Ordering code: CP18573_AMY-110-W-C
LES size: 9.9 mm
Required components:
FWHM: 38°
FWTM: 62°
Peak intensity: 2.035 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

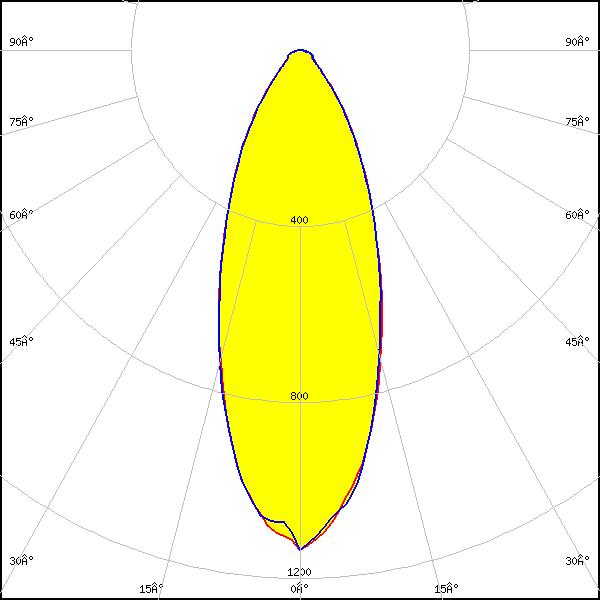

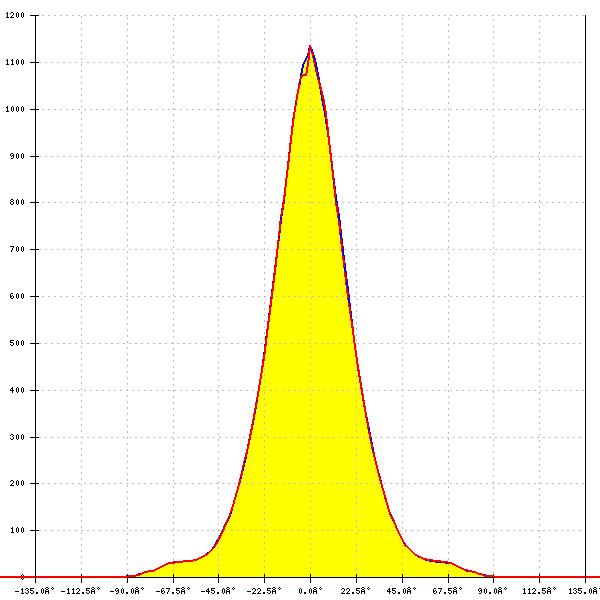

LED: Vero SE 29
Ordering code: CP18573_AMY-110-W-C
LES size: 29.2 mm
FWHM: 40°
FWTM: 83°
Peak intensity: 1.100 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

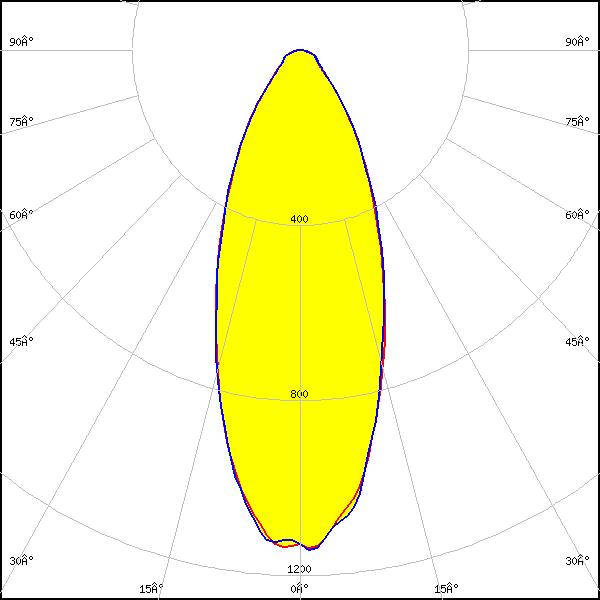

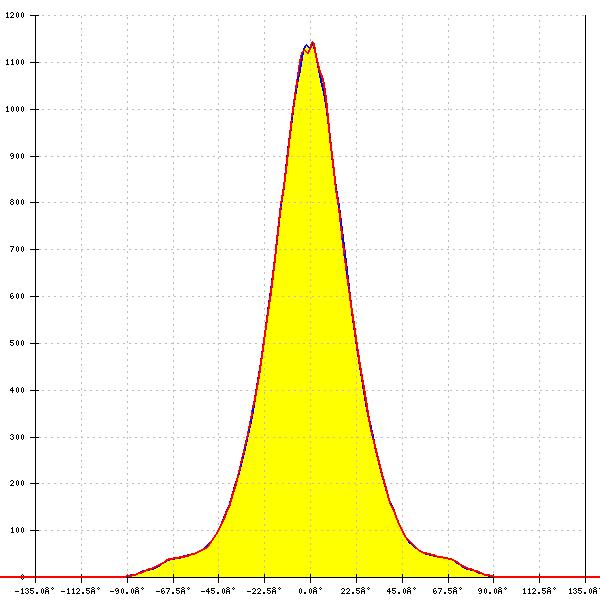

LED: Vero SE 29
Ordering code: CP19030_AMY-110-W-C-WHT
LES size: 29.2 mm
FWHM: 40°
FWTM: 86°
Peak intensity: 1.200 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

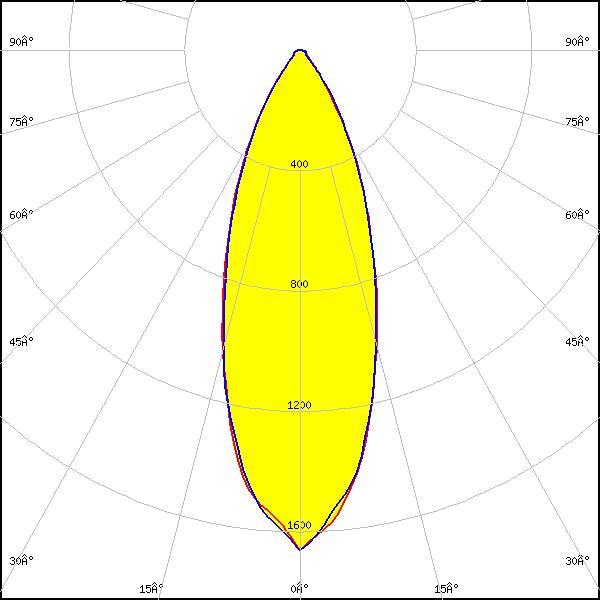

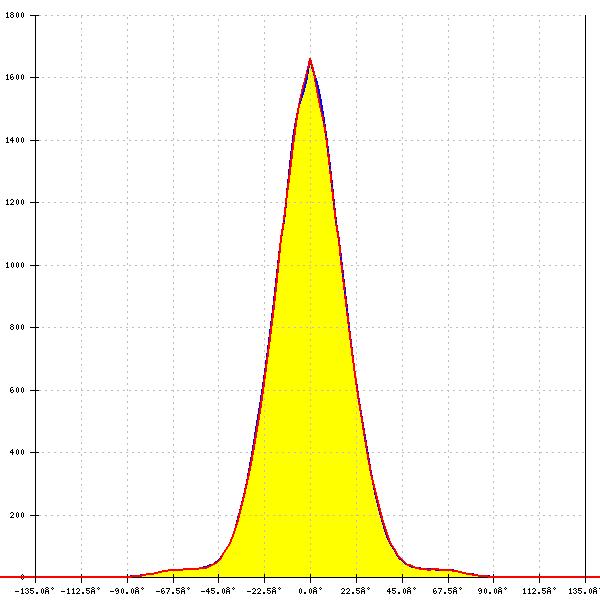

LED: VERO18
Ordering code: CP18573_AMY-110-W-C
LES size: 18.6 mm
Required components:
FWHM: 37°
FWTM: 73°
Peak intensity: 1.672 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

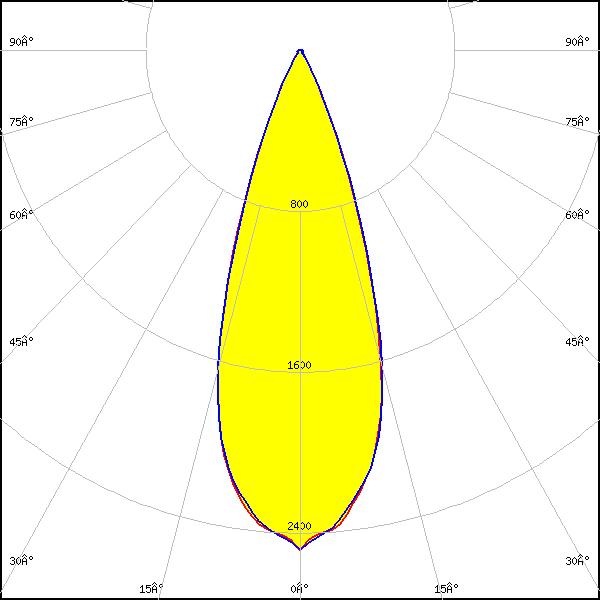

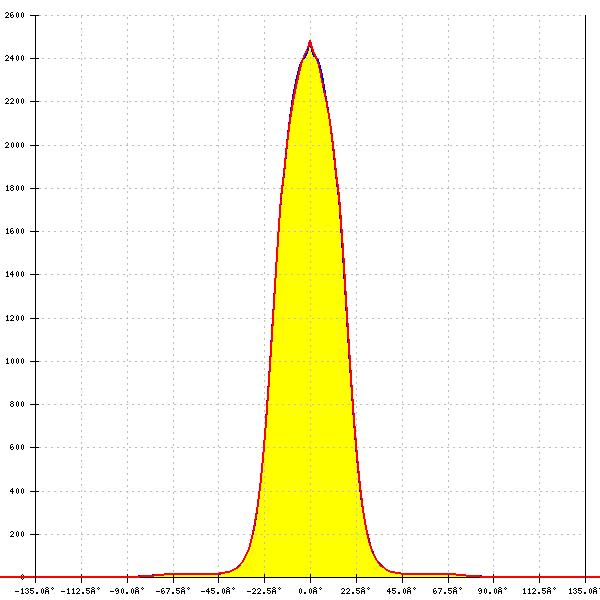

LED: Vesta DTW 13mm (21W)
Ordering code: CP18573_AMY-110-W-C
LES size: 14.0 mm
Required components:
Bender Wirth: 632b Hekla XL
FWHM: 36°
FWTM: 54°
Peak intensity: 2.486 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

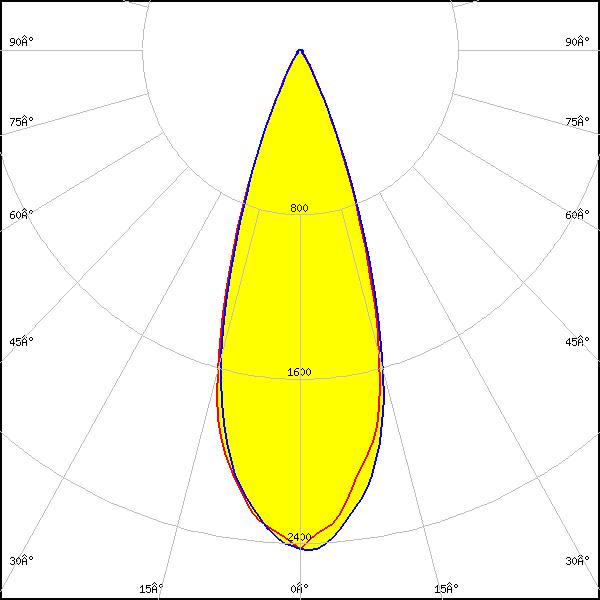

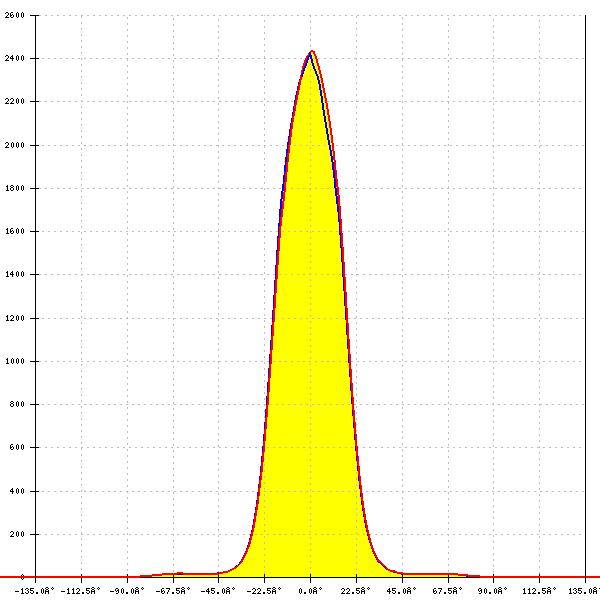

LED: Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP18573_AMY-110-W-C
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Hekla
FWHM: 36°
FWTM: 55°
Peak intensity: 2.434 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

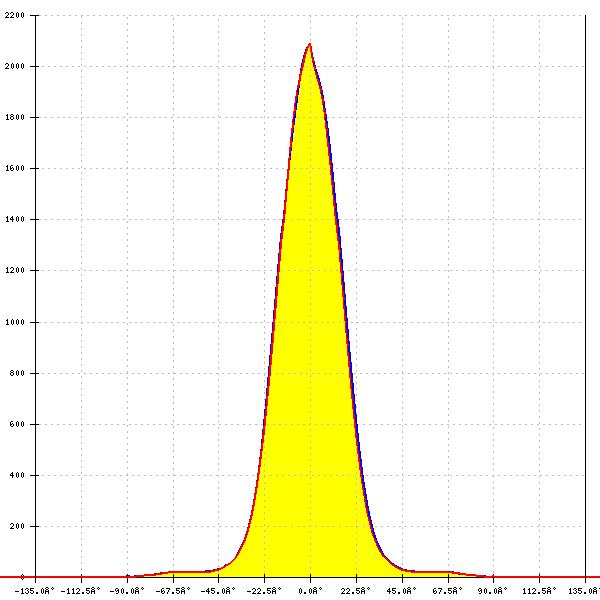

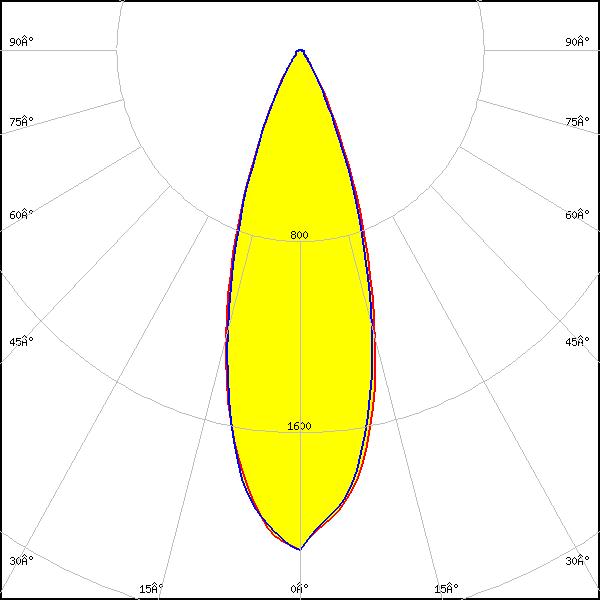

LED: Vesta SE 13mm TW
Ordering code: CP18573_AMY-110-W-C
LES size: 14.3 mm
Required components:
FWHM: 34°
FWTM: 60°
Peak intensity: 2.101 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: Tunable White

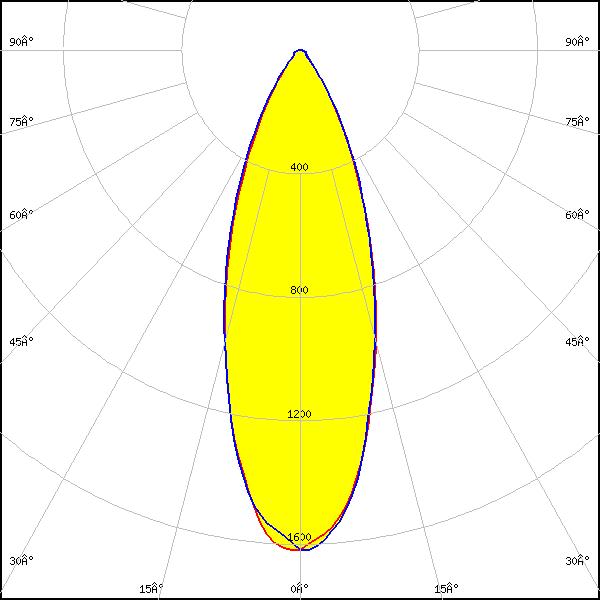

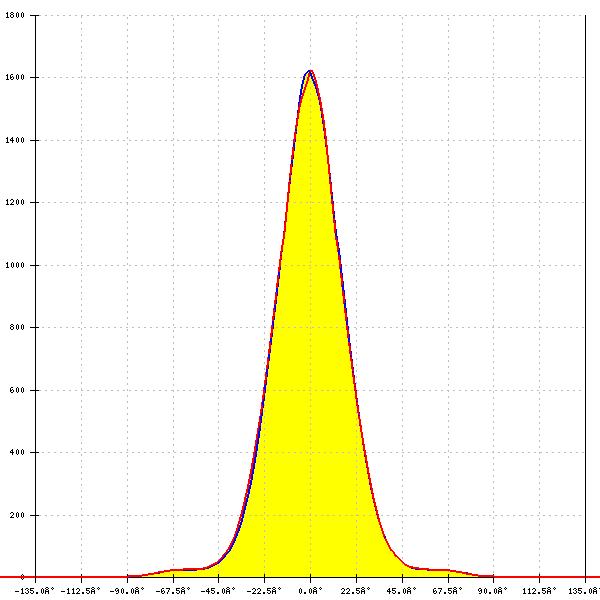

LED: Vesta TW 18mm (31W) DP
Ordering code: CP18573_AMY-110-W-C
LES size: 19.7 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 483 Typ L8
FWHM: 36°
FWTM: 71°
Peak intensity: 1.625 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

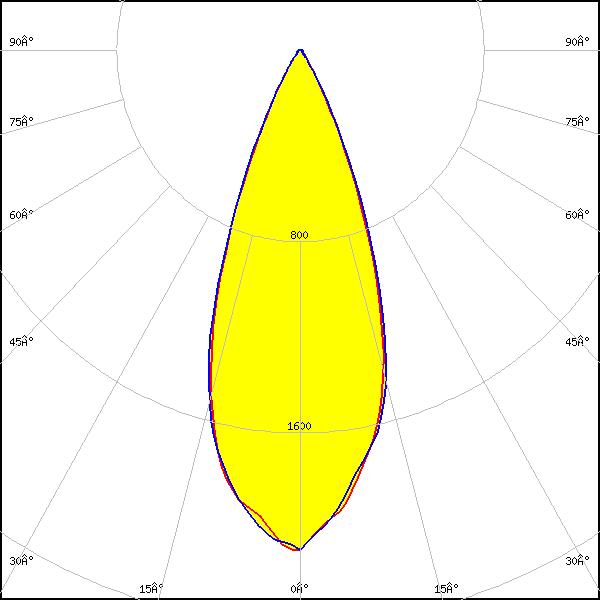

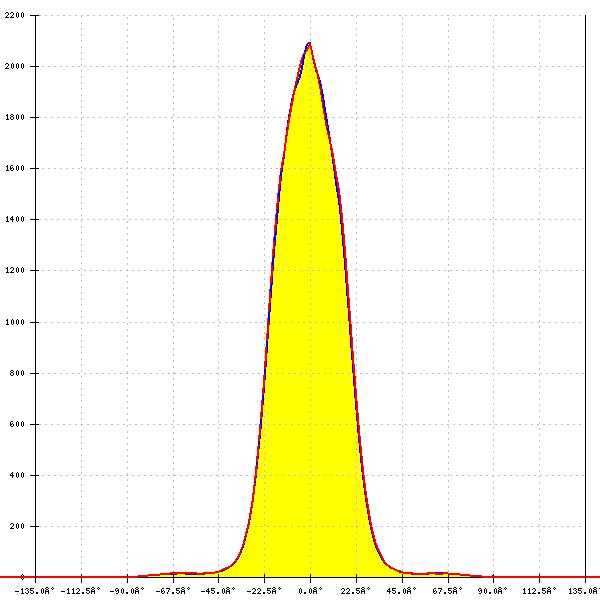

LED: Vesta TW 9mm (9W) DP
Ordering code: CP18573_AMY-110-W-C
LES size: 10.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 489 Typ L8
FWHM: 39°
FWTM: 60°
Peak intensity: 2.107 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

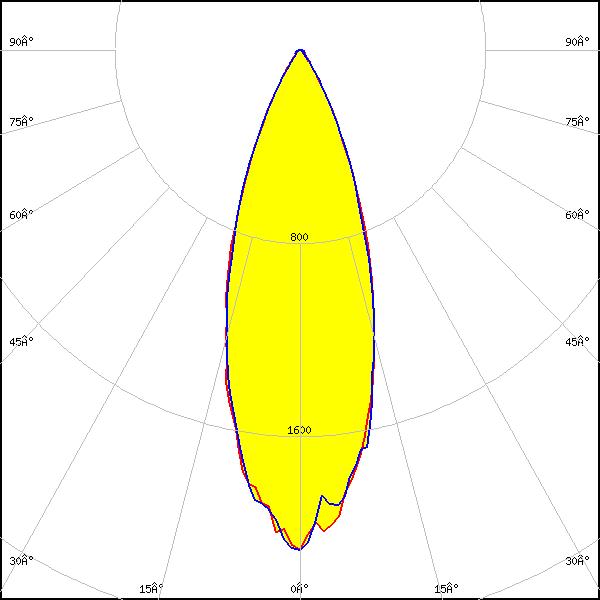

LED: CLL03x/CLU03x
Ordering code: CP18573_AMY-110-W-C
LES size: 14.5 mm
Required components:
FWHM: 35°
FWTM: 62°
Peak intensity: 2.141 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

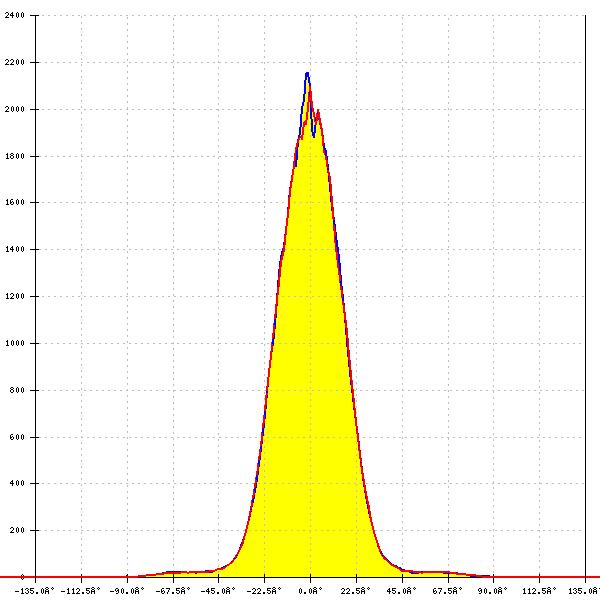

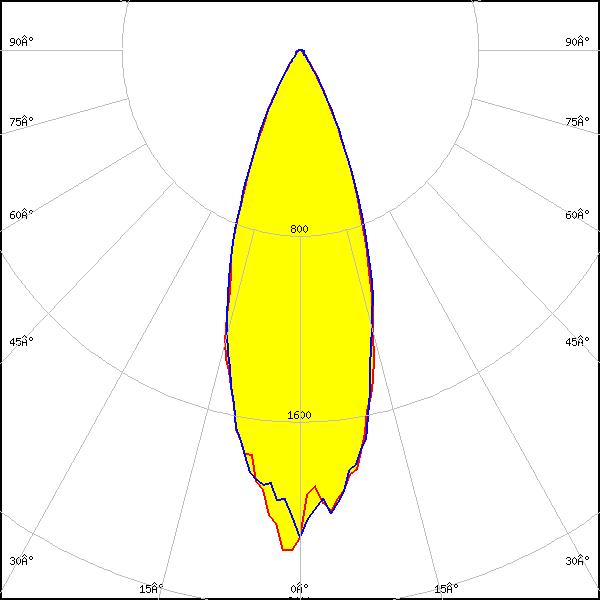

LED: CLL03x/CLU03x
Ordering code: CP18577_AMY-110-W-B
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM: 35°
FWTM: 62°
Peak intensity: 2.266 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

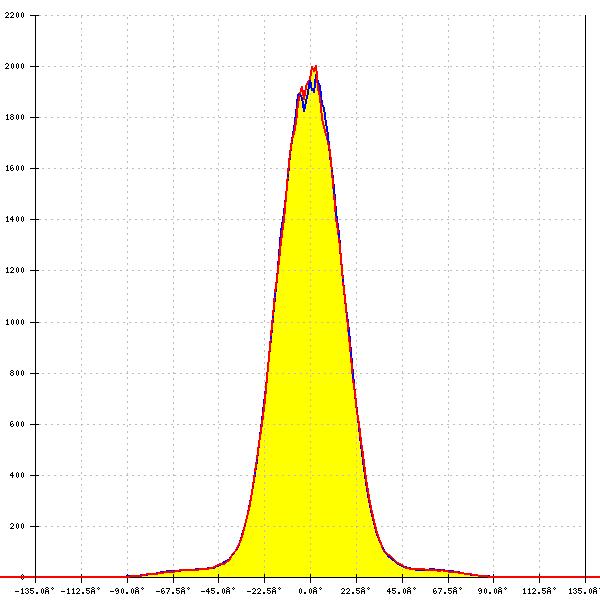

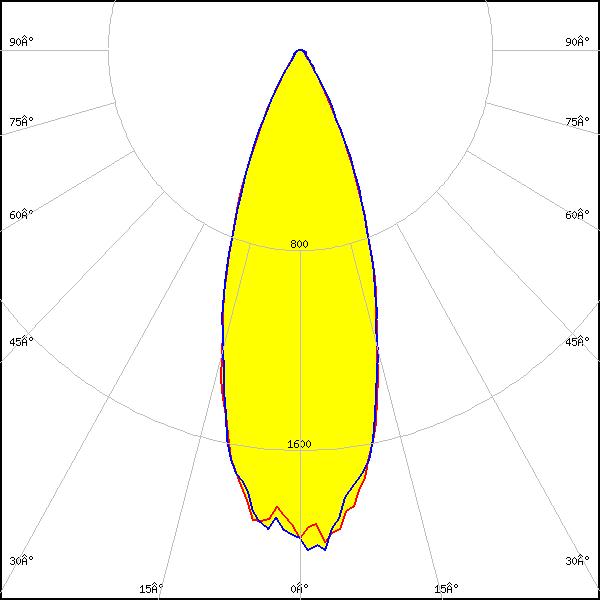

LED: CLL03x/CLU03x
Ordering code: CP19030_AMY-110-W-C-WHT
LES size: 14.5 mm
Required components:
FWHM: 37°
FWTM: 64°
Peak intensity: 2.138 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

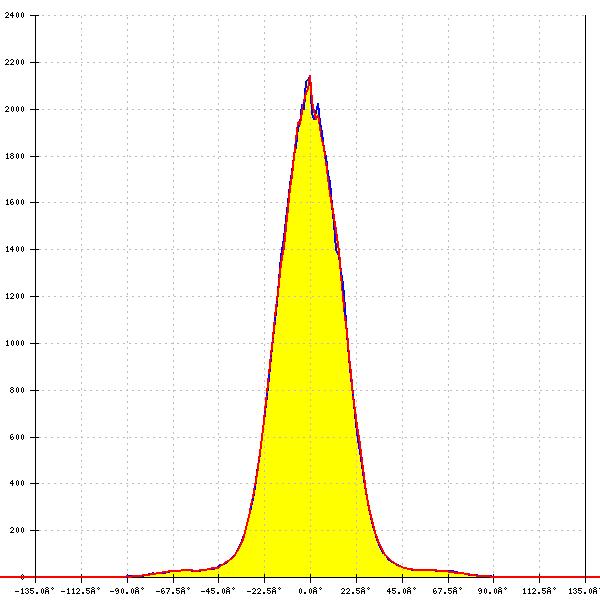

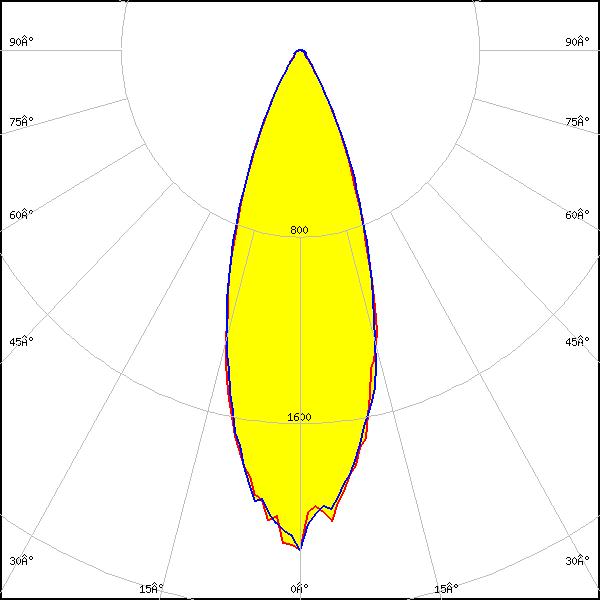

LED: CLL03x/CLU03x
Ordering code: CP19034_AMY-110-W-B-WHT
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM: 35°
FWTM: 62°
Peak intensity: 2.206 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

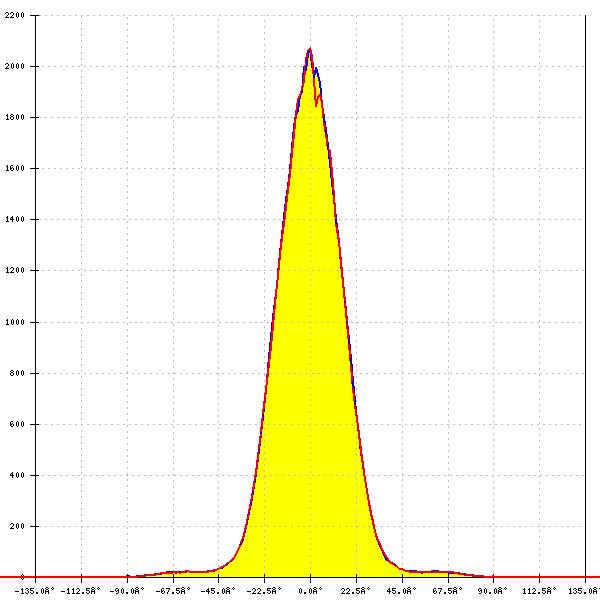

LED: CLL03x/CLU03x
Ordering code: C18569_AMY-110-W
LES size: 14.5 mm
Required components:
FWHM: 35°
FWTM: 62°
Peak intensity: 2.141 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

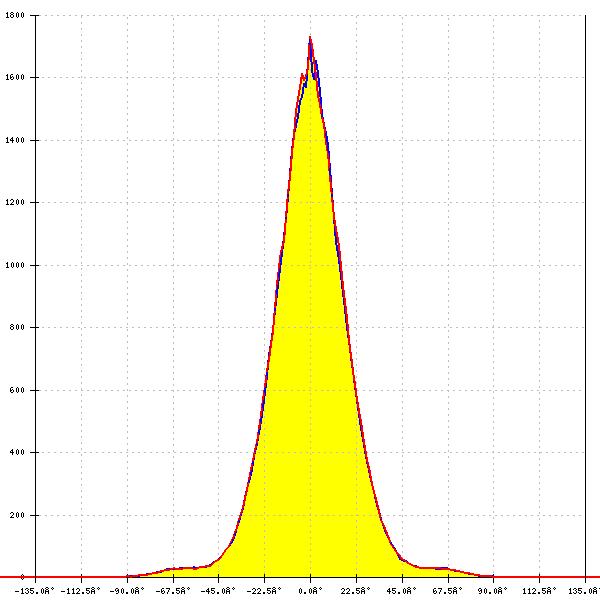

LED: CLL04x/CLU04x
Ordering code: CP18577_AMY-110-W-B
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM: 34°
FWTM: 71°
Peak intensity: 1.807 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

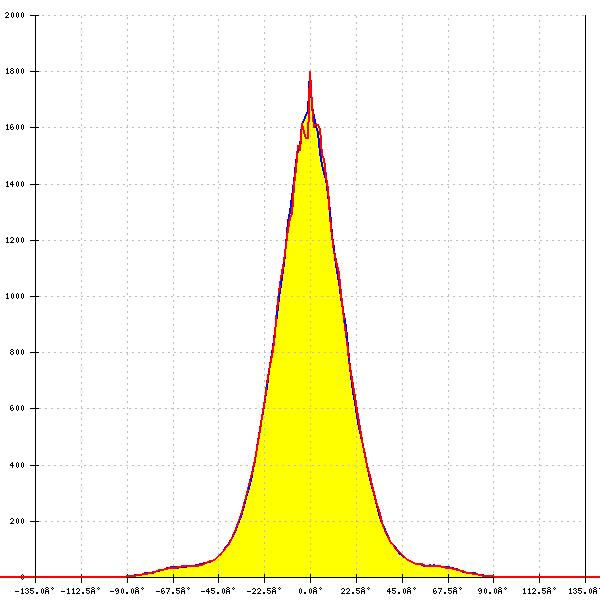

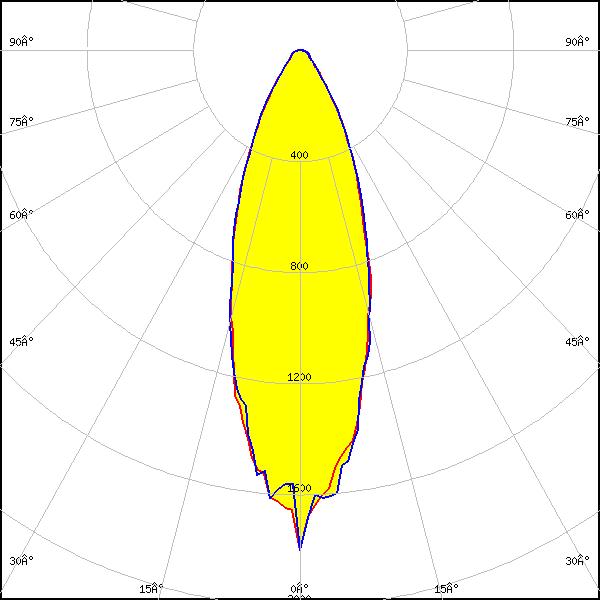

LED: CLL04x/CLU04x
Ordering code: CP19034_AMY-110-W-B-WHT
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM: 34°
FWTM: 72°
Peak intensity: 1.834 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

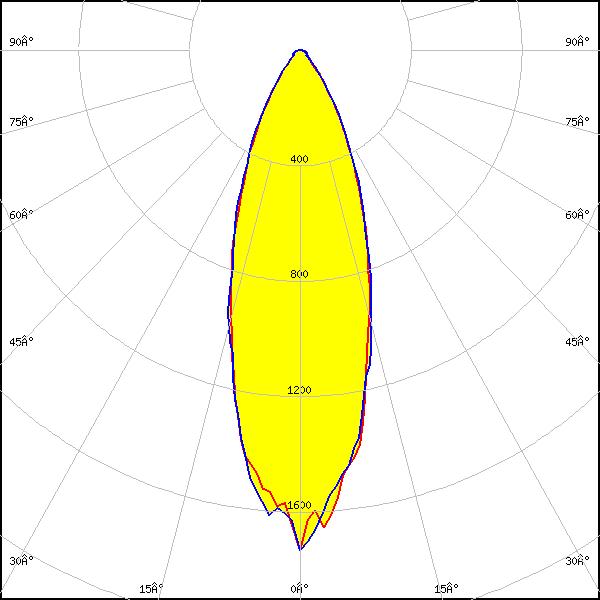

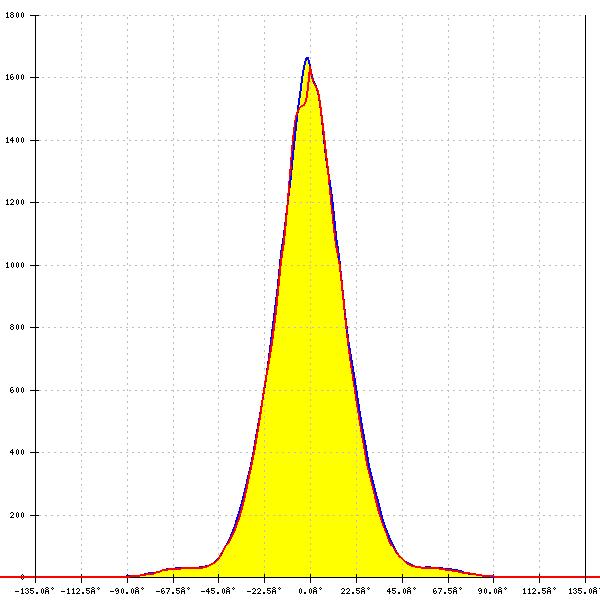

LED: CLL04x/CLU04x
Ordering code: C18569_AMY-110-W
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM: 34°
FWTM: 71°
Peak intensity: 1.807 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

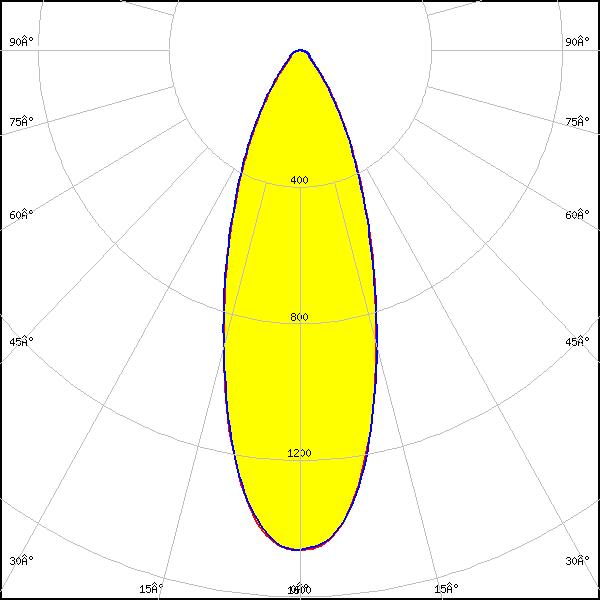

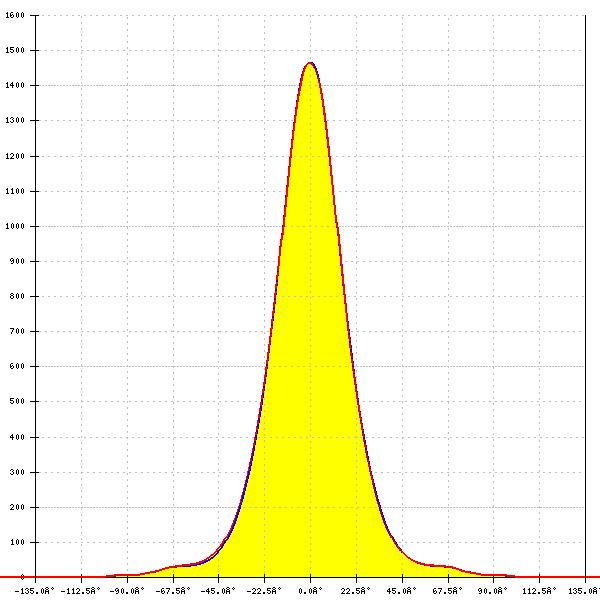

LED: LCN-C07A
Ordering code: C18569_AMY-110-W
LES size: 24.0 mm
FWHM: 37°
FWTM: 76°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: LCN-C08A
Ordering code: C18569_AMY-110-W
LES size: 31.0 mm
FWHM: 38°
FWTM: 84°
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

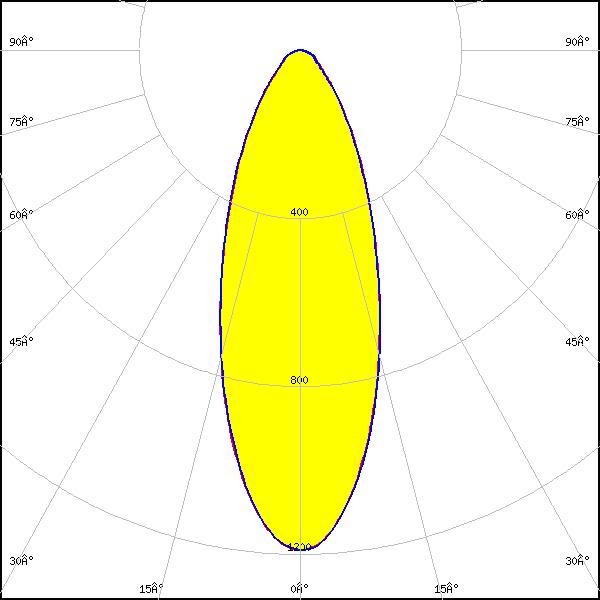

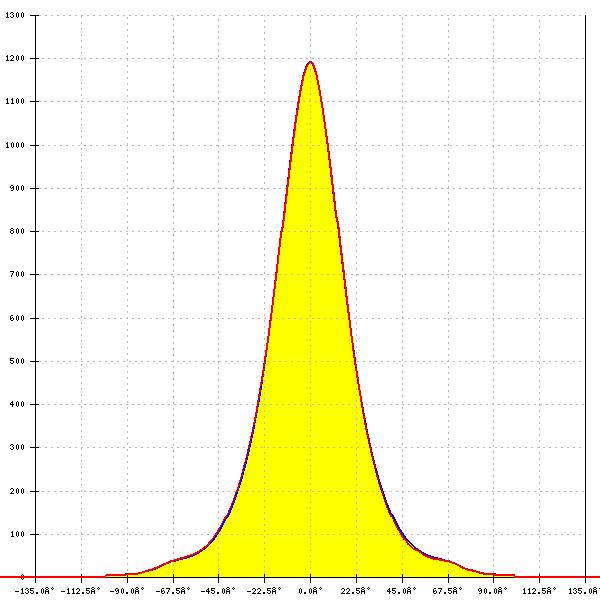

LED: LCN-C09A
Ordering code: C18569_AMY-110-W
LES size: 32.0 mm
FWHM: 38°
FWTM: 86°
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

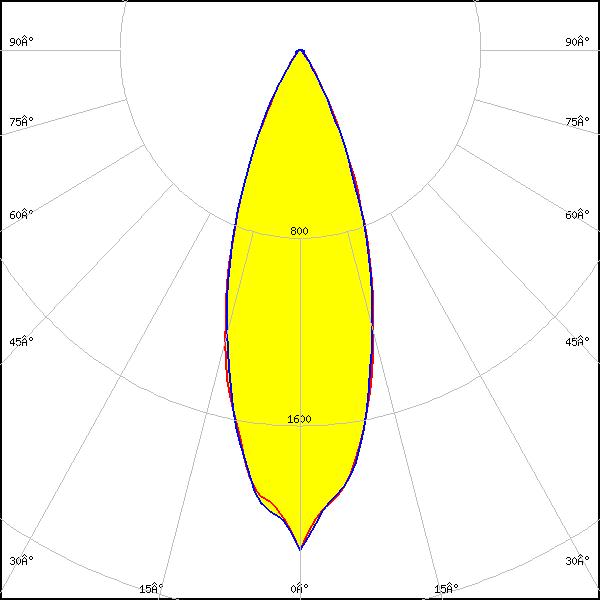

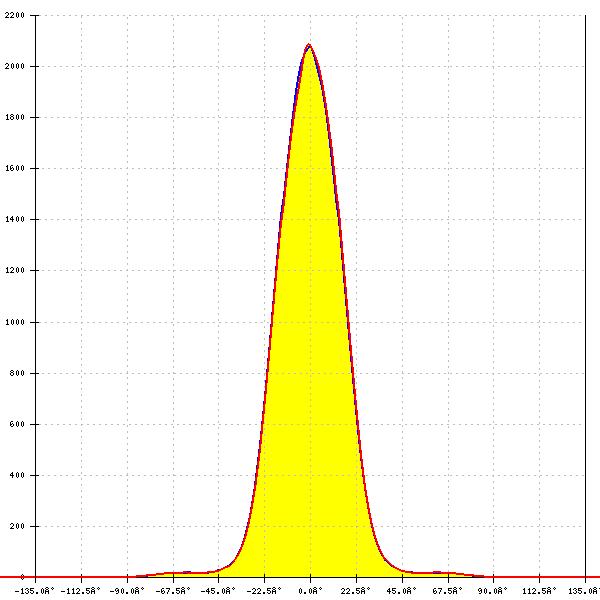

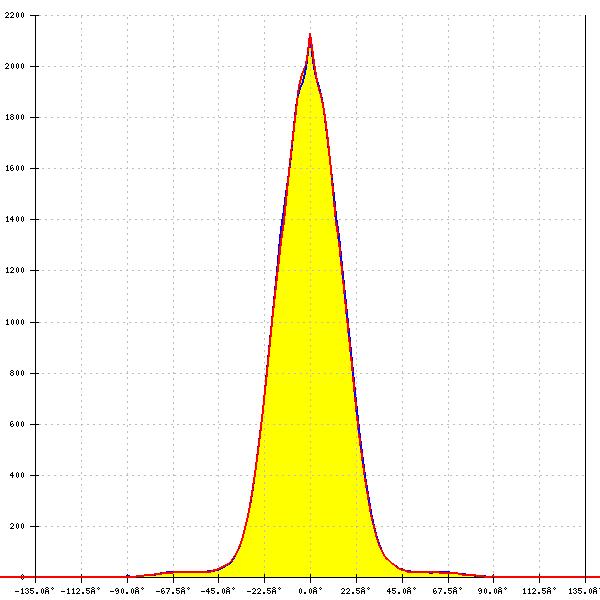

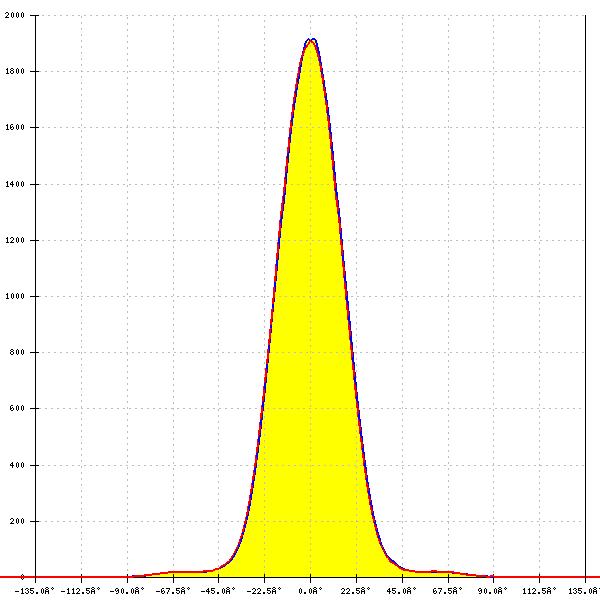

LED: LUXEON CX Plus CoB L08 (Gen2)
Ordering code: CP18573_AMY-110-W-C
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM: 36°
FWTM: 62°
Peak intensity: 2.130 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

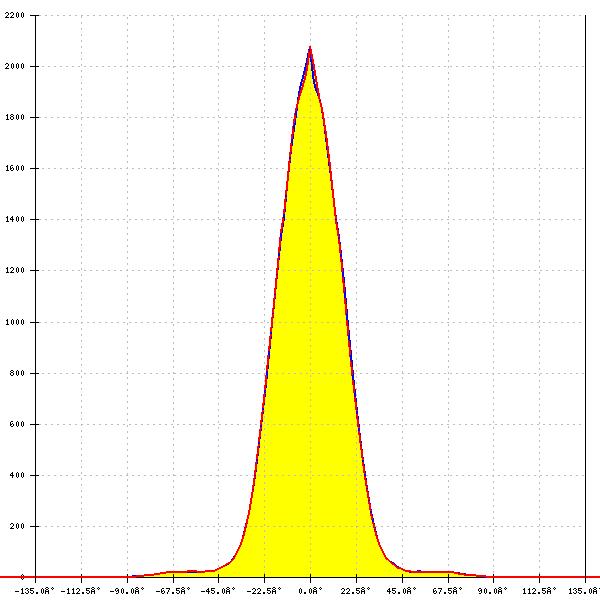

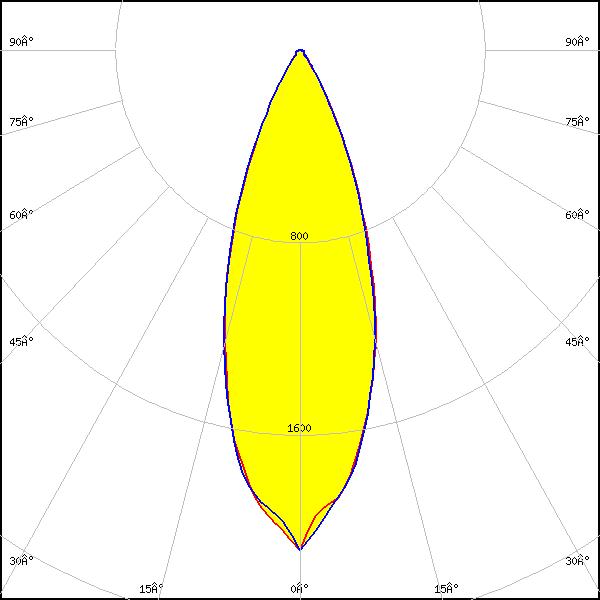

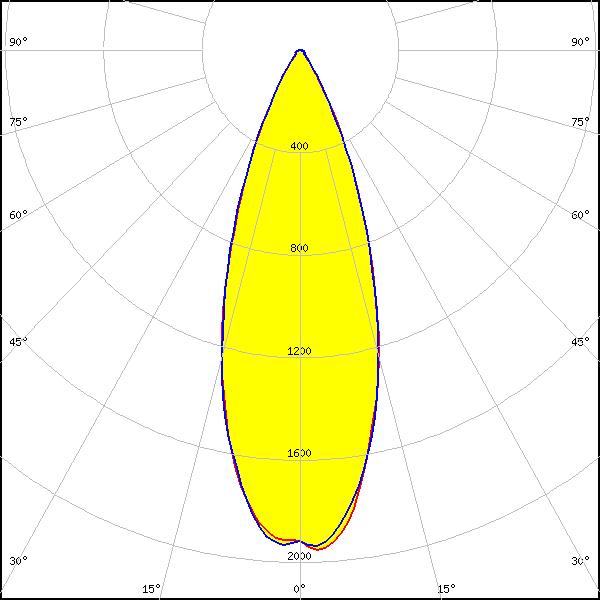

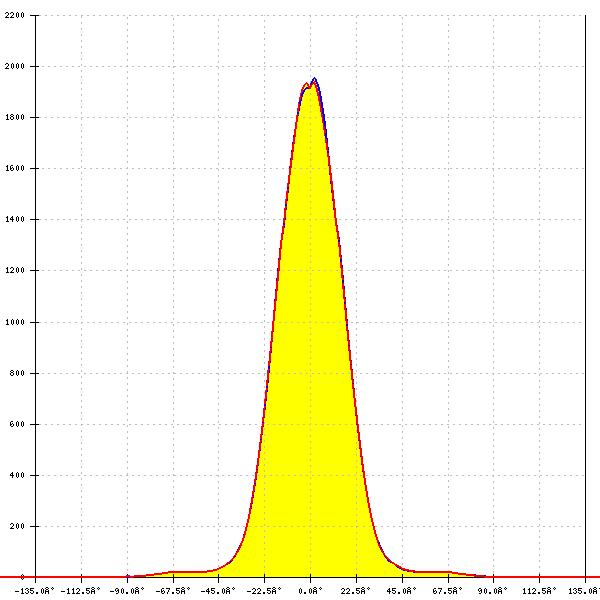

LED: LUXEON CoB 1208
Ordering code: CP18573_AMY-110-W-C
LES size: 15.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM: 36°
FWTM: 62°
Peak intensity: 2.079 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

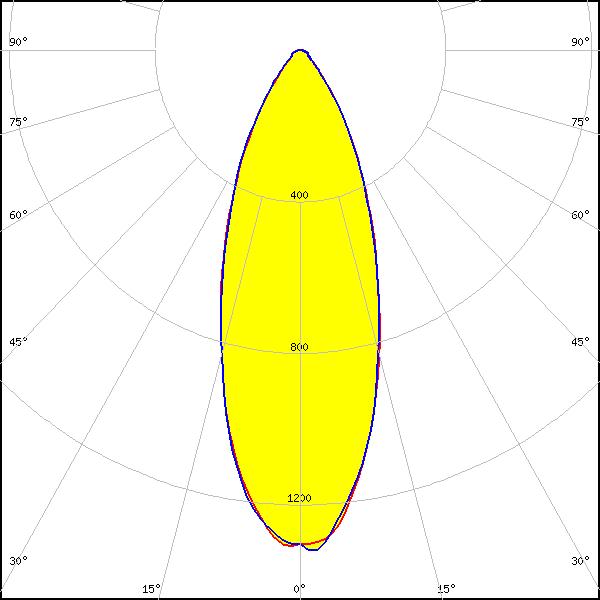

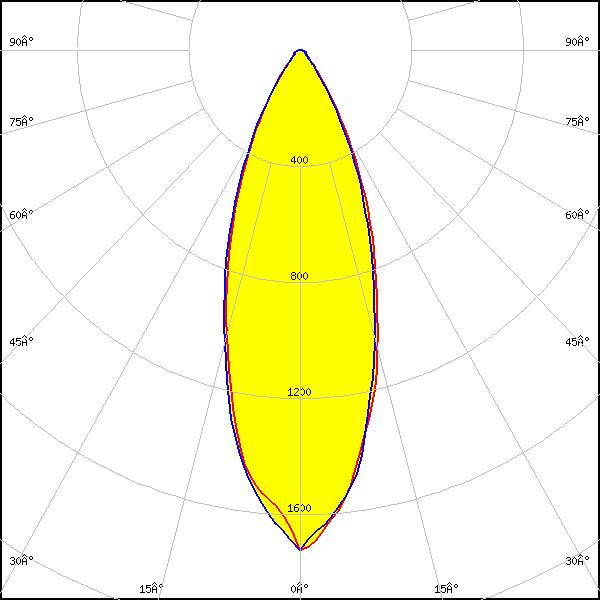

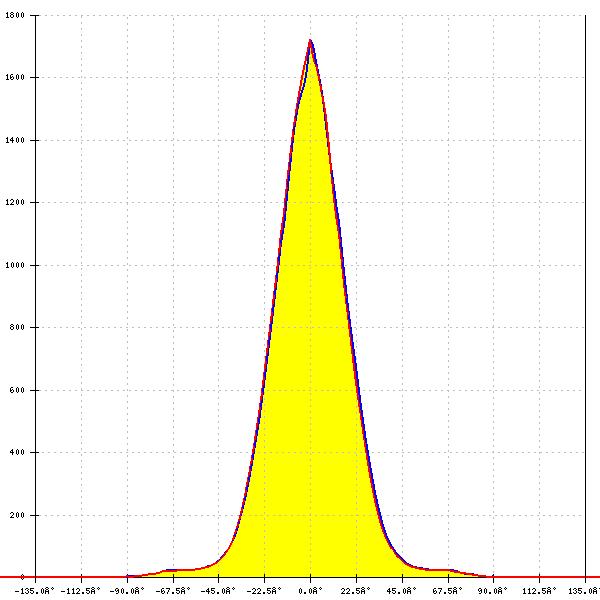

LED: LUXEON CoB 1211
Ordering code: CP18573_AMY-110-W-C
LES size: 18.5 mm
Required components:
Bender Wirth: 631b Hekla XL
FWHM: 37°
FWTM: 71°
Peak intensity: 1.727 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

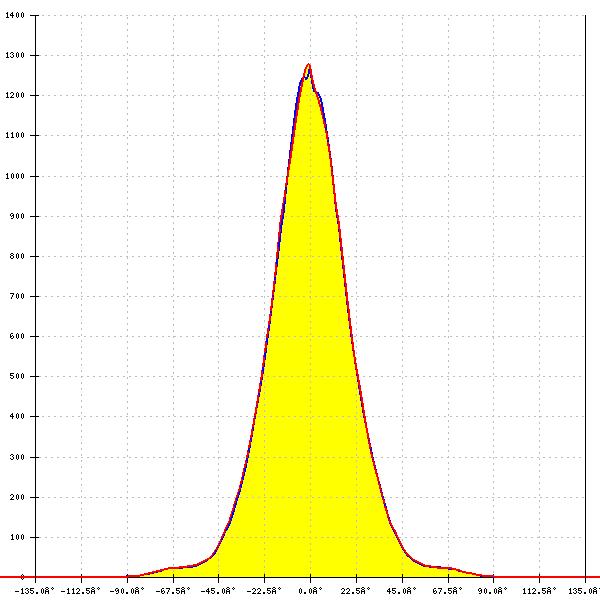

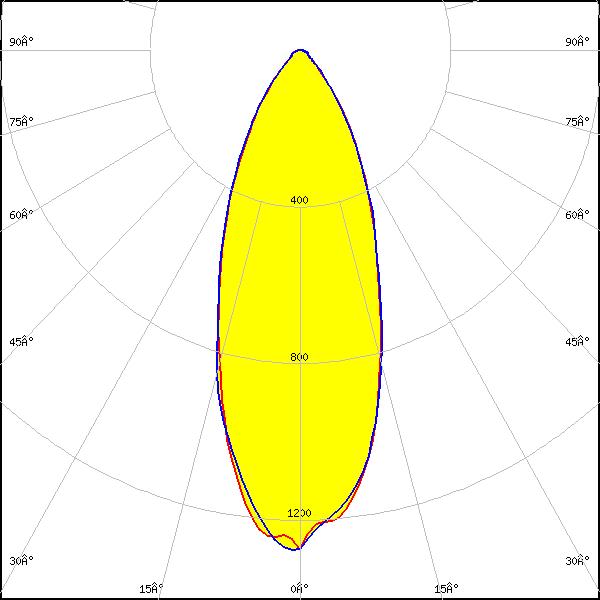

LED: LUXEON CoB 1213/1216/1812
Ordering code: CP18573_AMY-110-W-C
LES size: 23.0 mm
Required components:
Bender Wirth: 631b Hekla XL
FWHM: 39°
FWTM: 81°
Peak intensity: 1.305 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

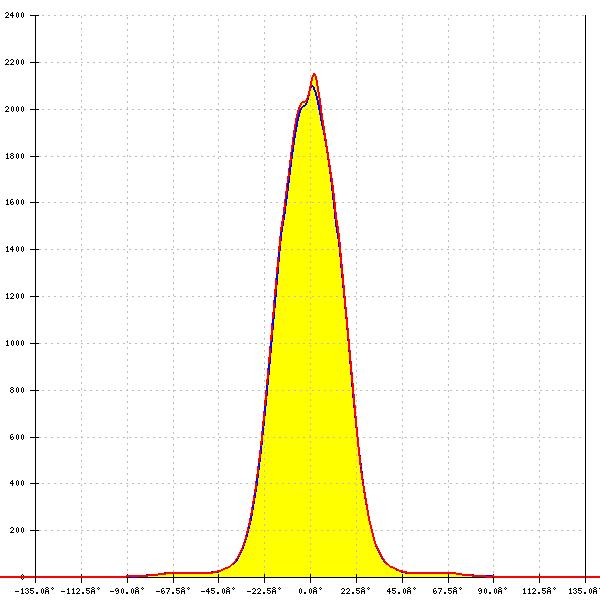

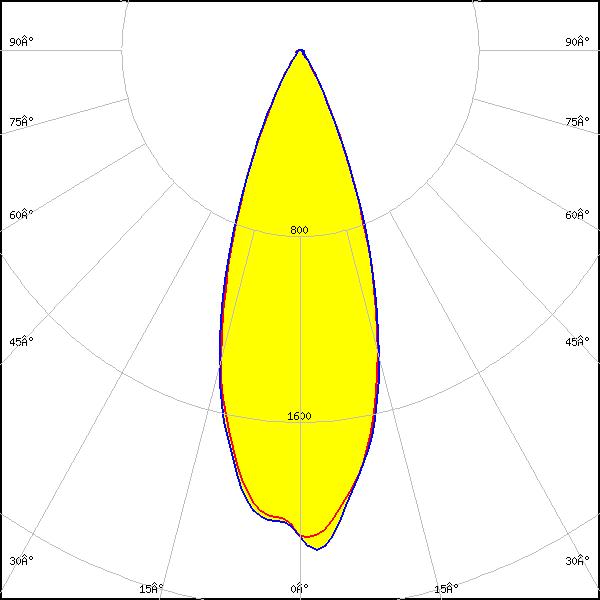

LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Ordering code: CP18573_AMY-110-W-C
LES size: 12.0 mm
Required components:
FWHM: 36°
FWTM: 60°
Peak intensity: 2.181 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

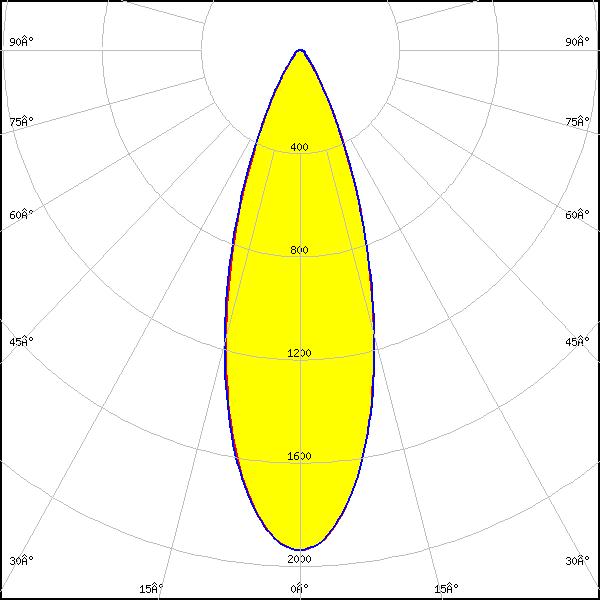

LED: CTM-14 (Tunable White) Gen2
Ordering code: CP18573_AMY-110-W-C
LES size: 13.9 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 442 Typ L8
FWHM: 35°
FWTM: 64°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: COB J-Type
Ordering code: CP18573_AMY-110-W-C
LES size: 14.6 mm
Required components:
Bender Wirth: 663a Hekla XL
FWHM: 38°
FWTM: 64°
Peak intensity: 1.993 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

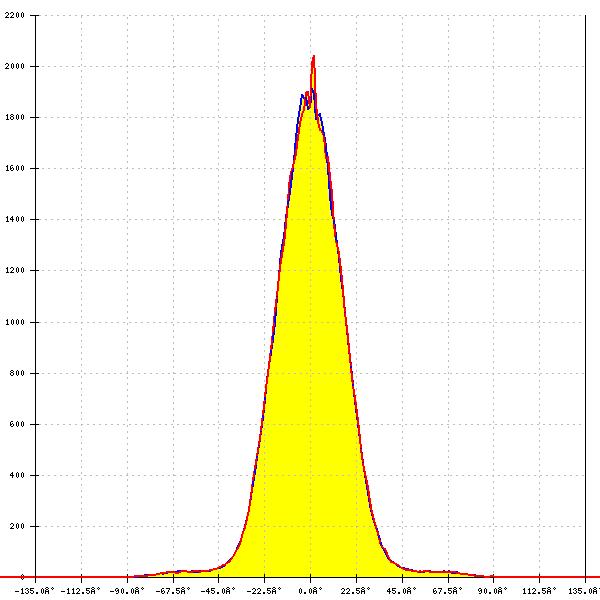

LED: LC016D / LC019D / LC026D / LC033D
Ordering code: CP18573_AMY-110-W-C
LES size: 14.5 mm
Required components:
FWHM: 35°
FWTM: 65°
Peak intensity: 2.076 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

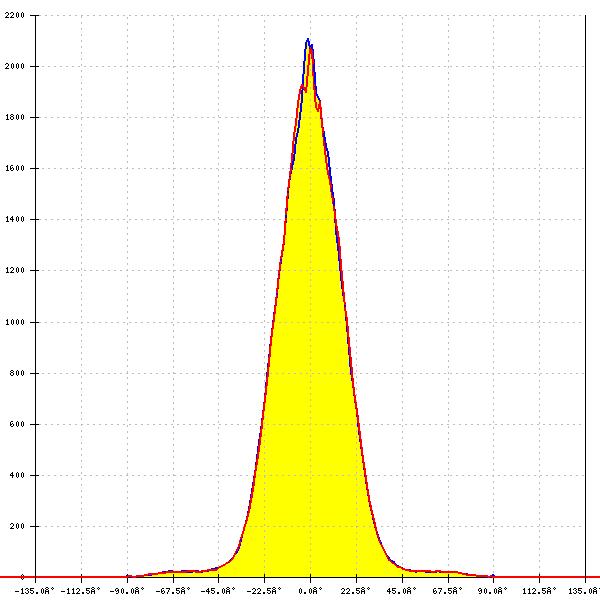

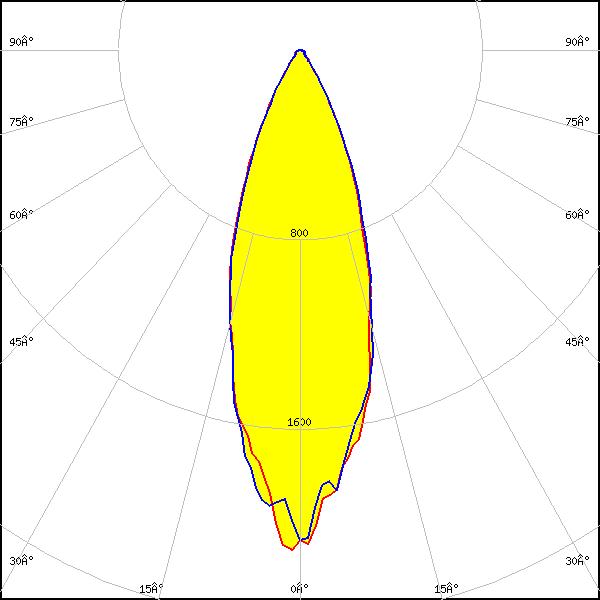

LED: LC016D / LC019D / LC026D / LC033D
Ordering code: CP18577_AMY-110-W-B
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM: 34°
FWTM: 64°
Peak intensity: 2.121 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

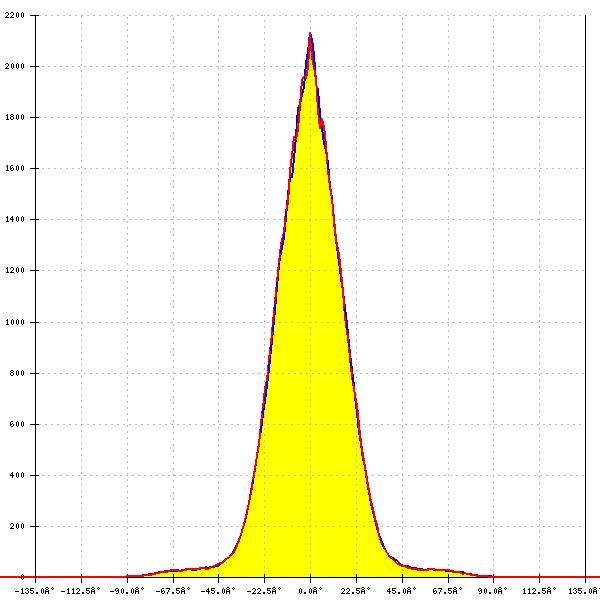

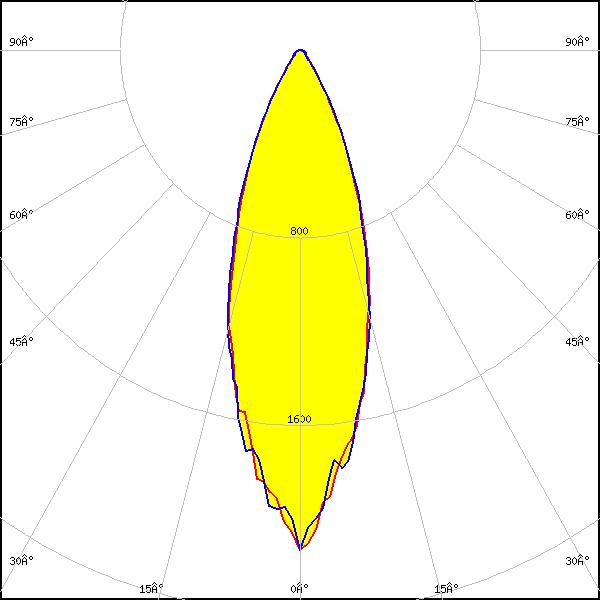

LED: LC016D / LC019D / LC026D / LC033D
Ordering code: CP19030_AMY-110-W-C-WHT
LES size: 14.5 mm
Required components:
FWHM: 34°
FWTM: 65°
Peak intensity: 2.151 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

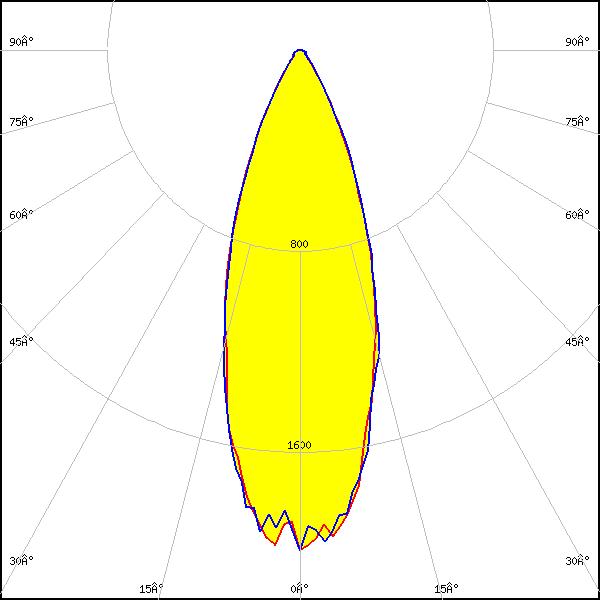

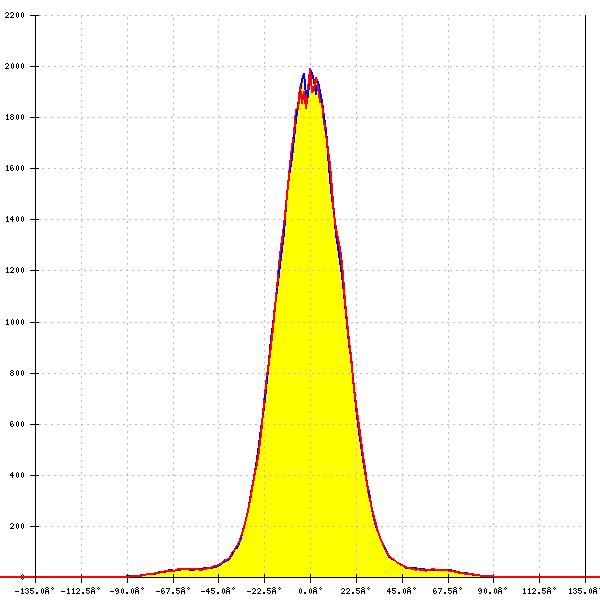

LED: LC016D / LC019D / LC026D / LC033D
Ordering code: CP19034_AMY-110-W-B-WHT
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM: 36°
FWTM: 66°
Peak intensity: 2.112 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

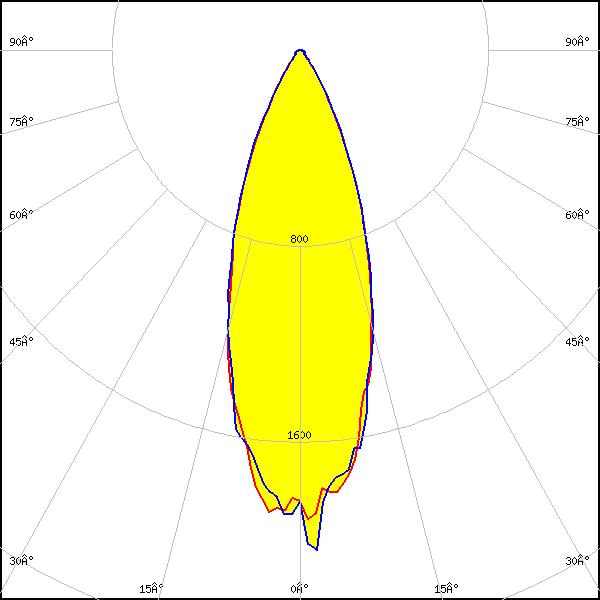

LED: LC016D / LC019D / LC026D / LC033D
Ordering code: C18569_AMY-110-W
LES size: 14.5 mm
Required components:
FWHM: 35°
FWTM: 65°
Peak intensity: 2.076 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

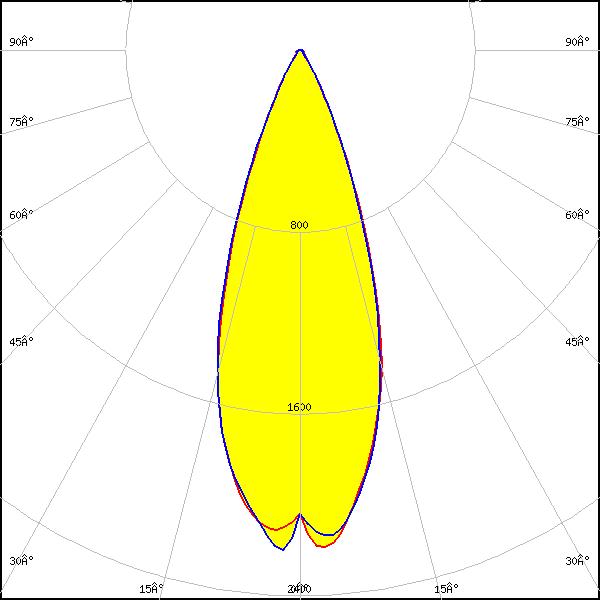

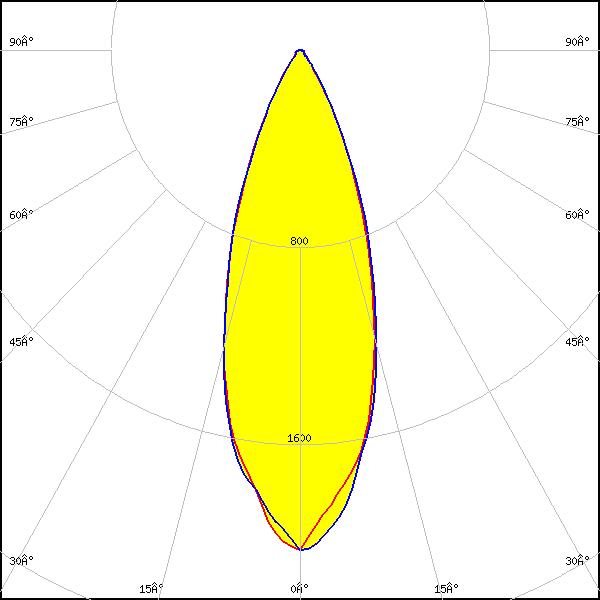

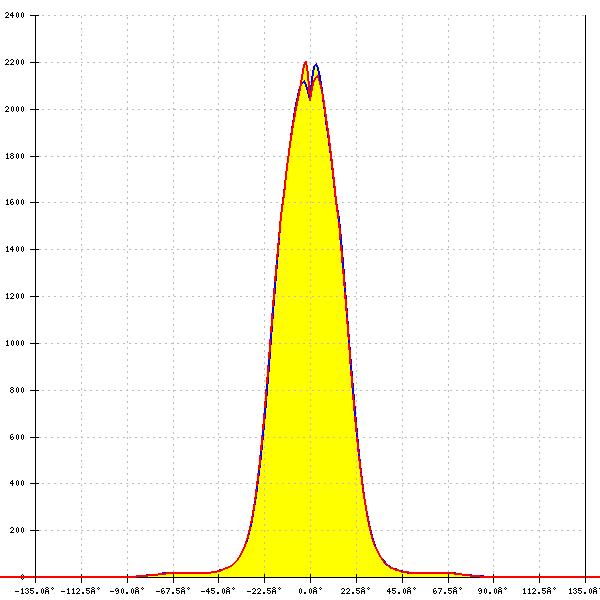

LED: LC020T (Tunable white)
Ordering code: CP18573_AMY-110-W-C
LES size: 13.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 37°
FWTM: 58°
Peak intensity: 2.210 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Tunable White

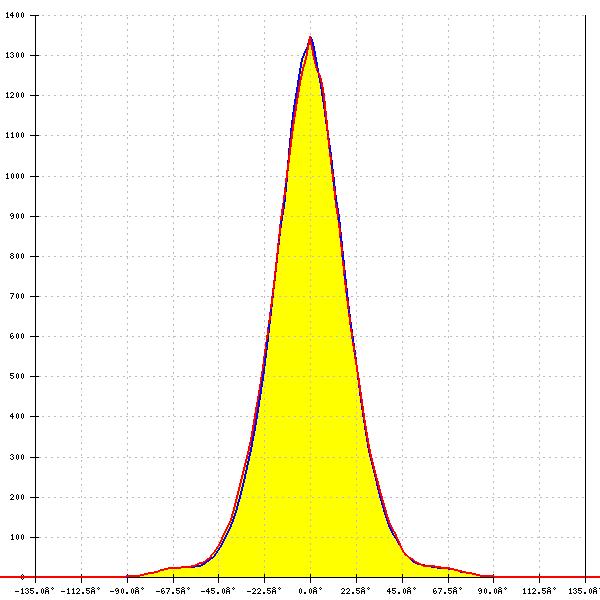

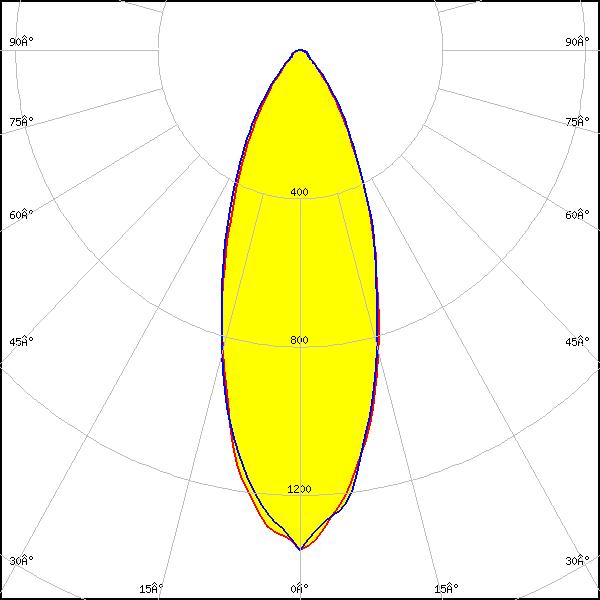

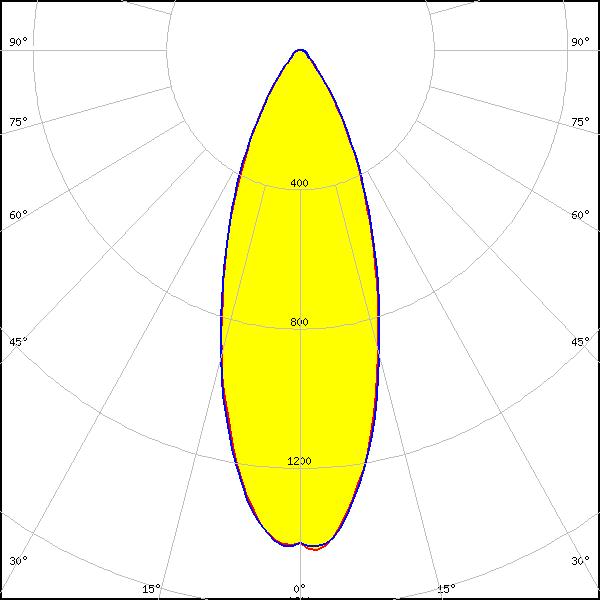

LED: LC040D / LC060D / LC080D
Ordering code: CP18573_AMY-110-W-C
LES size: 22.0 mm
Required components:

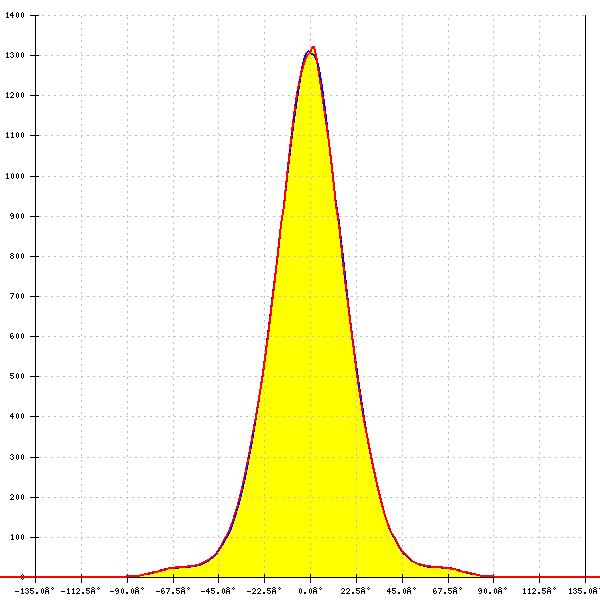

Bender Wirth: 631b Hekla XL
FWHM: 38°
FWTM: 79°
Peak intensity: 1.365 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT COB LES 14.5
Ordering code: CP18573_AMY-110-W-C
LES size: 14.5 mm
Required components:
FWHM: 36°
FWTM: 64°
Peak intensity: 2.032 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT COB LES 22
Ordering code: CP18577_AMY-110-W-B
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM: 35°
FWTM: 73°
Peak intensity: 1.680 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

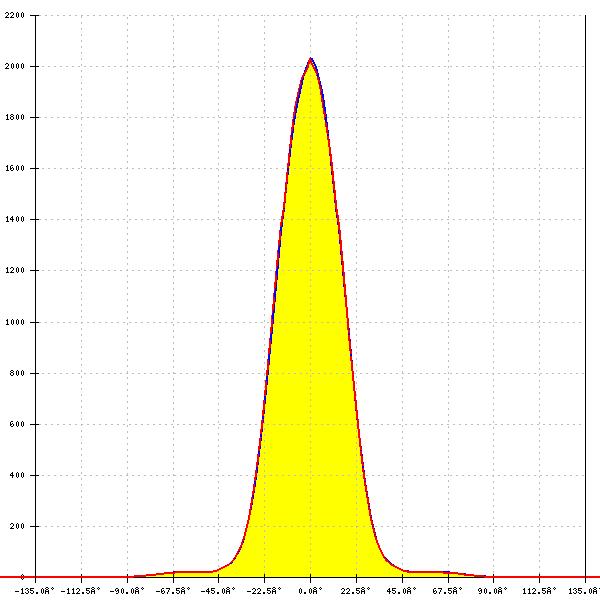

LED: SLE G7 LES13
Ordering code: CP18573_AMY-110-W-C
LES size: 13.0 mm
Required components:
FWHM: 36°
FWTM: 62°
Peak intensity: 2.045 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

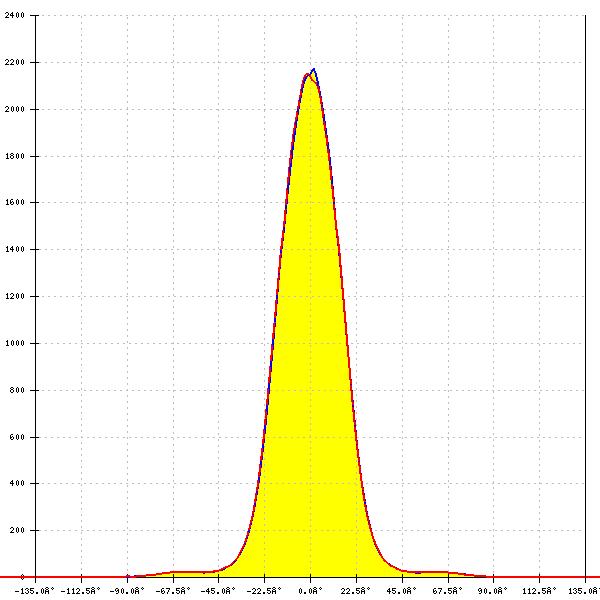

LED: SLE G7 LES13 H
Ordering code: CP18577_AMY-110-W-B
FWHM: 34°
FWTM: 60°
Peak intensity: 2.176 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
