    AMY-110-WAS

    Print

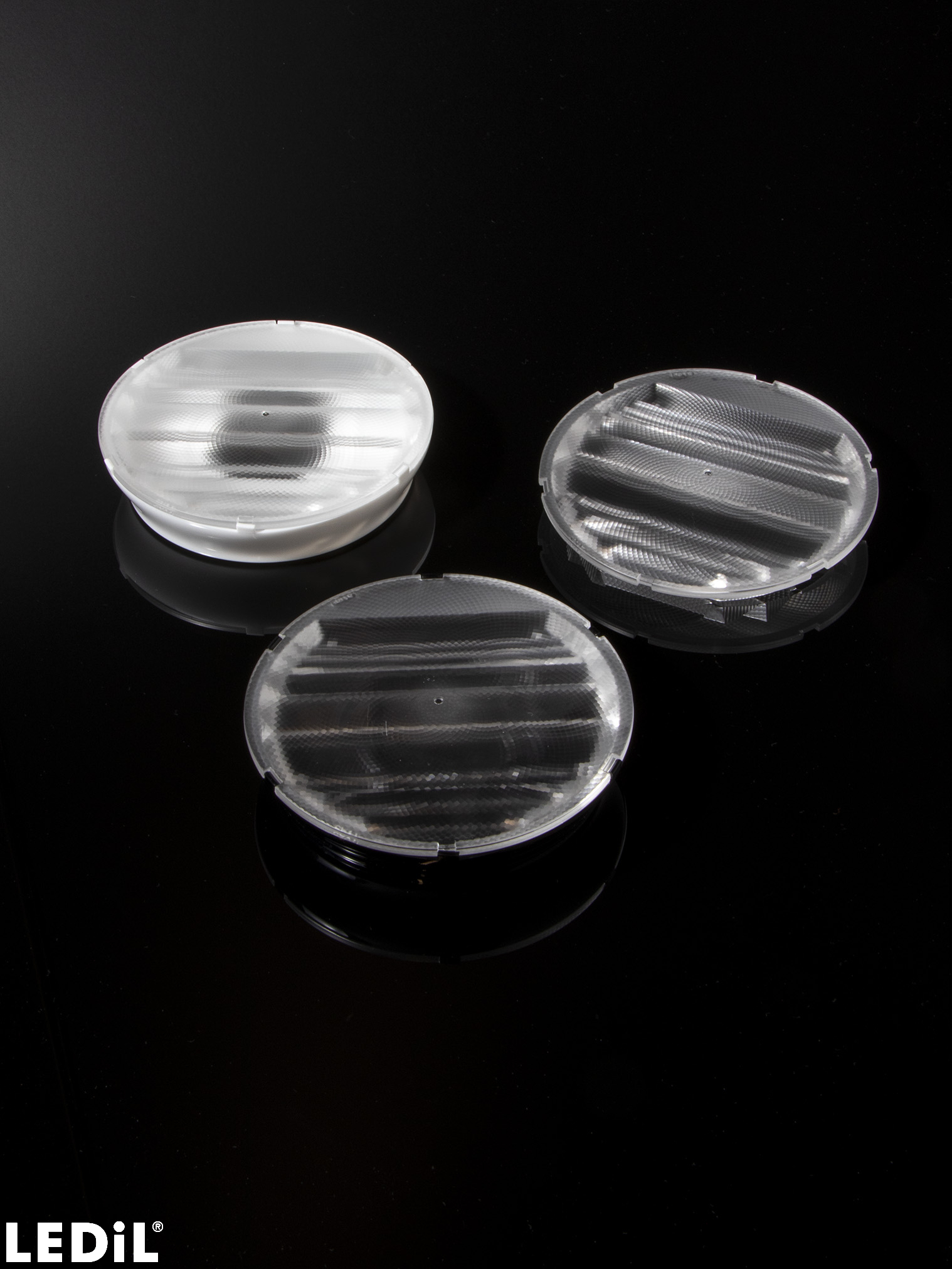

    Asymmetric beam for wall-washing

    B variants fit ∅50 mm B+W and BJB connectors.

    This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

    Specification
    • Dimensions:
      110 mm
    • Height:
      22.10 mm
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C19785_AMY-110-WAS
    • Quantity in box:
      128 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      13.10 kg
    • MPQ:
      8 pcs
    • MOQ:
      128 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      13.10 kg
    • Assembly

      (single lens, holder)

    • CP19788_AMY-110-WAS-B
      black,Holder B
    • CP19789_AMY-110-WAS-B-WHT
      white,Holder B
    • CP19786_AMY-110-WAS-C
      black,Holder C
    • CP19787_AMY-110-WAS-C-WHT
      white,Holder C
    • Quantity in box:
      77 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.10 kg
    • MPQ:
      7 pcs
    • MOQ:
      77 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      10.10 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C19785_AMY-110-WAS
      CP19786_AMY-110-WAS-C
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New beams and products - August 2024, part 2

    News

    AMY WAS - The best COB wall-washer optics on the market

    News

    HEKLA-SOCKET-RZ ‒ Your effortless entry to the RGBW world

    Catalogue

    LEDiL Latest products catalogue

    Compatibility guide

    LEDiL connector and socket compatibility

    News

    Illuminate with elegance – discover the versatility of AMY

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    News

    New products – December 13, 2022

    News

    AMY-110 – for slim and elegant wide diameter downlights

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Architectural lighting optics

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    HEKLA-G2B-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2B-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-I2

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-I3

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-TW1

    Version compatible with tunable white COBs of 15.8 x 15.8 mm packages

    HEKLA-G2B-TW2

    Version compatible with tunable white COBs of 18.8 x 18.8 mm packages

    HEKLA-SOCKET-RZ

    Version with integrated RZ mixing dome for RGBW LEDs

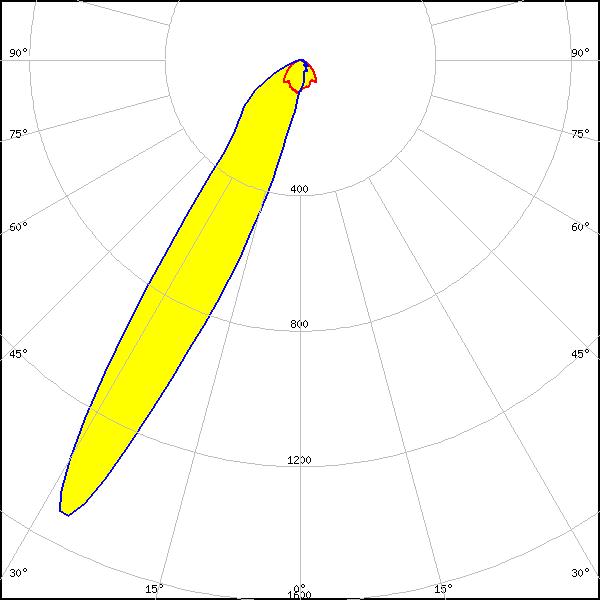

    Optical results

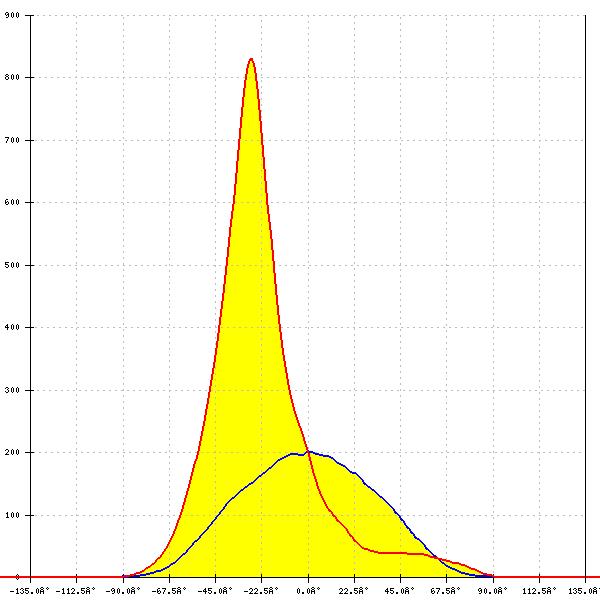

    LED: V22 Gen 8-9
    Ordering code: CP19786_AMY-110-WAS-C
    LES size: 23.3 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    FWHM: asymmetric
    Peak intensity: 0.830 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

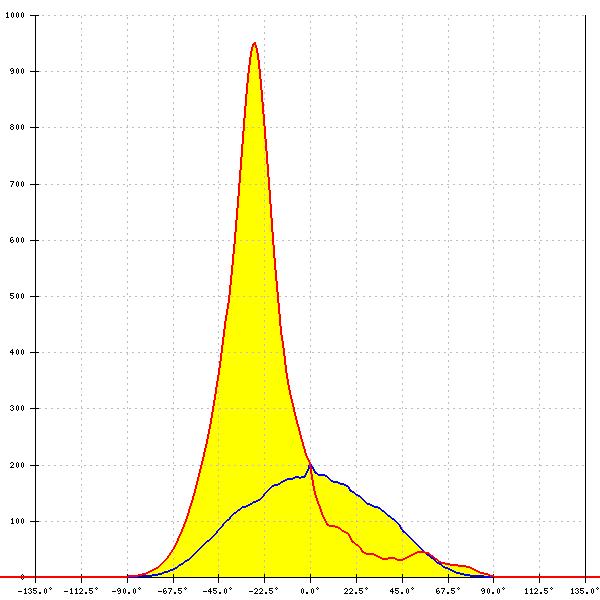

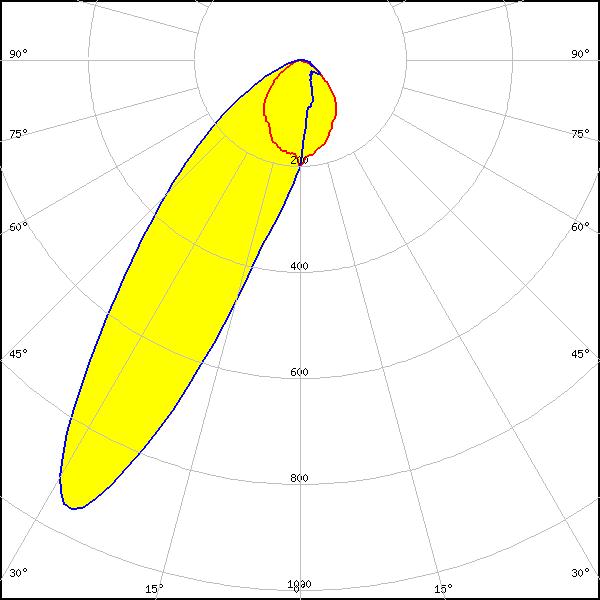

    LED: Vesta TW 18mm (31W) DP
    LES size: 19.7 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 483 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.950 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

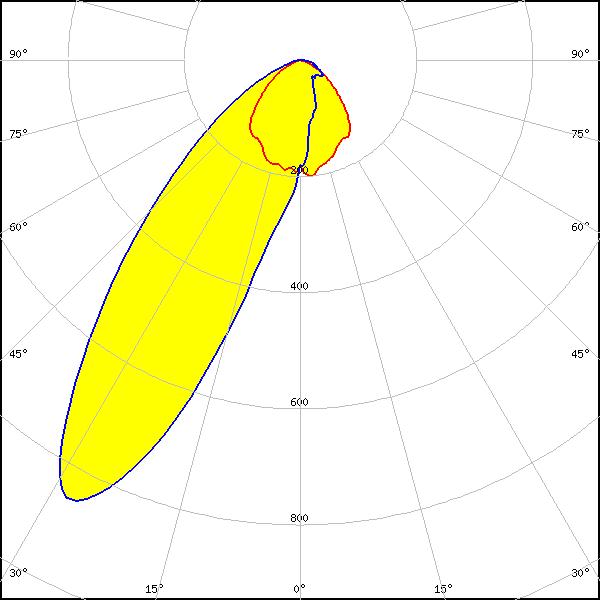

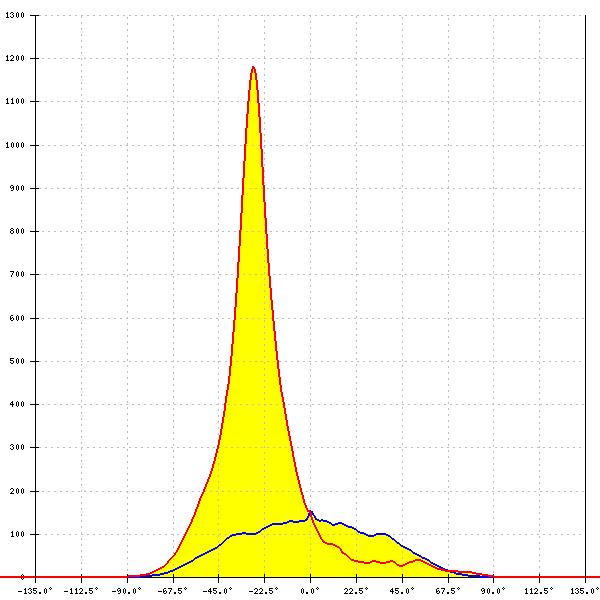

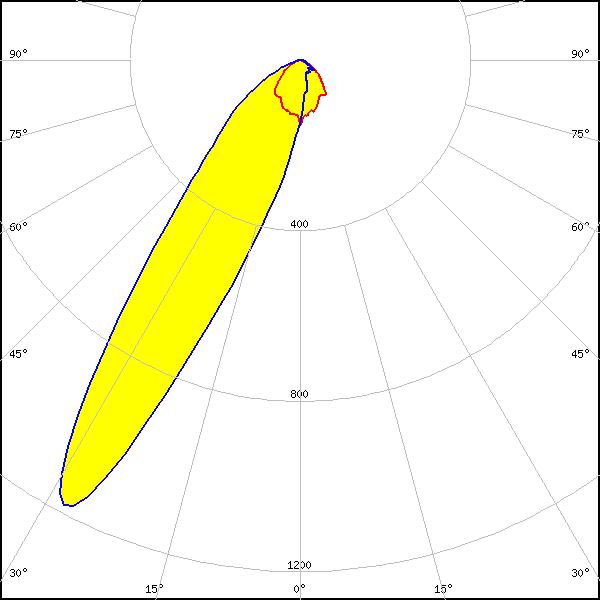

    LED: CLU03x
    Ordering code: CP19786_AMY-110-WAS-C
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: asymmetric
    Peak intensity: 1.180 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

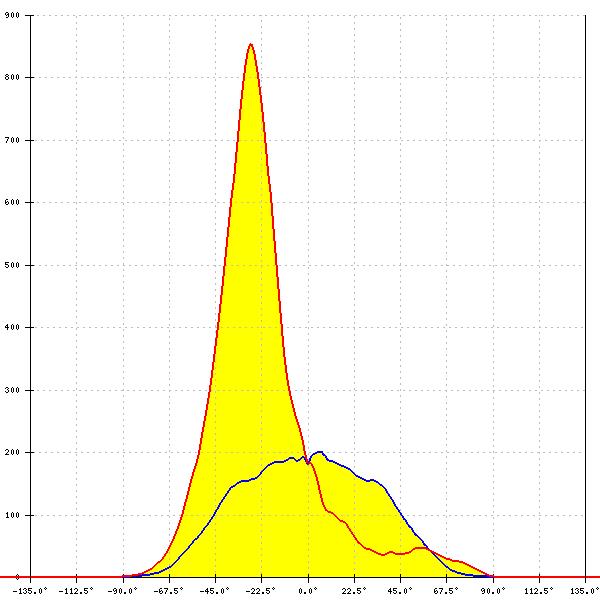

    LED: CLU04x
    Ordering code: CP19788_AMY-110-WAS-B
    LES size: 22.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: asymmetric
    Peak intensity: 0.850 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

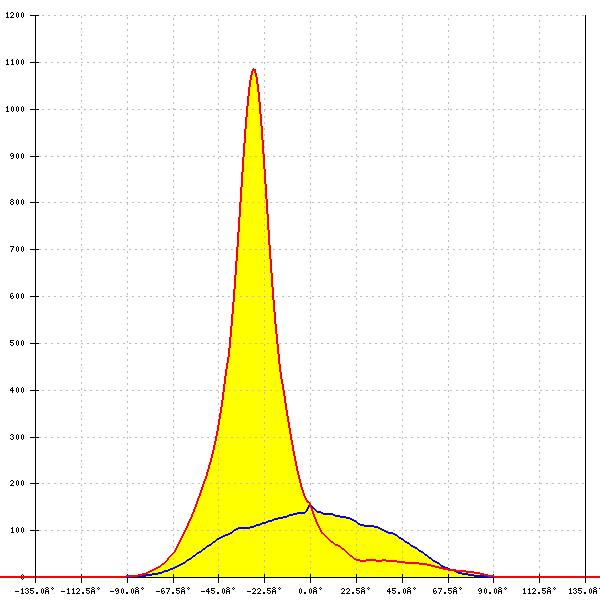

    LED: CMA1840
    Ordering code: CP19786_AMY-110-WAS-C
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: asymmetric
    Peak intensity: 1.085 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

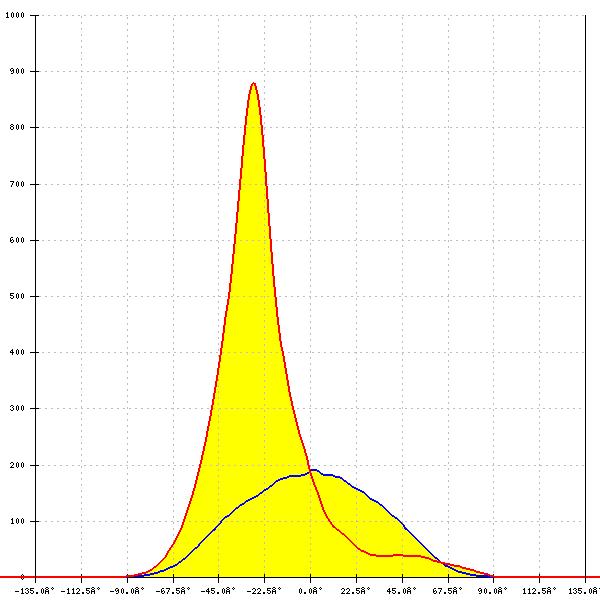

    LED: CMA2550
    Ordering code: CP19786_AMY-110-WAS-C
    LES size: 19.0 mm
    Required components:
    Bender Wirth: 639a Hekla XL
    FWHM: asymmetric
    Peak intensity: 0.880 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMB1818-25
    Ordering code: CP19786_AMY-110-WAS-C
    LES size: 12.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: asymmetric
    Peak intensity: 1.165 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

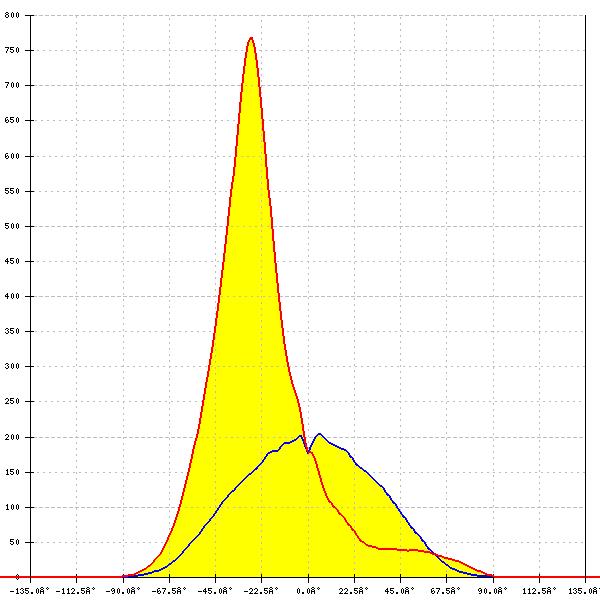

    LED: CMU22xx
    Ordering code: CP19786_AMY-110-WAS-C
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    FWHM: asymmetric
    Peak intensity: 0.768 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

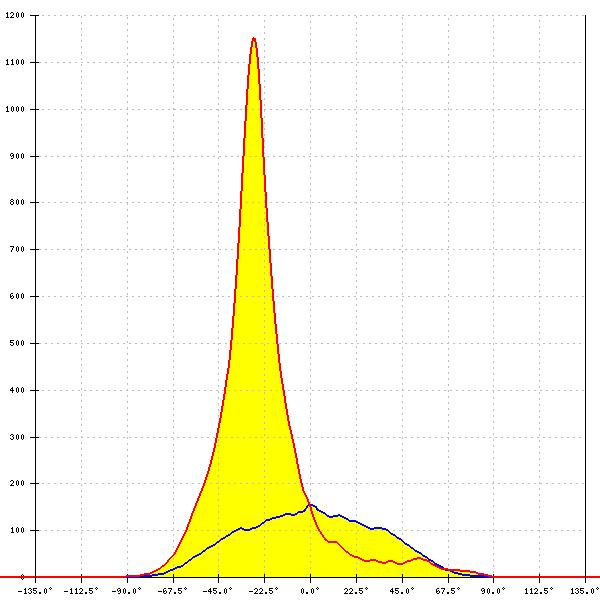

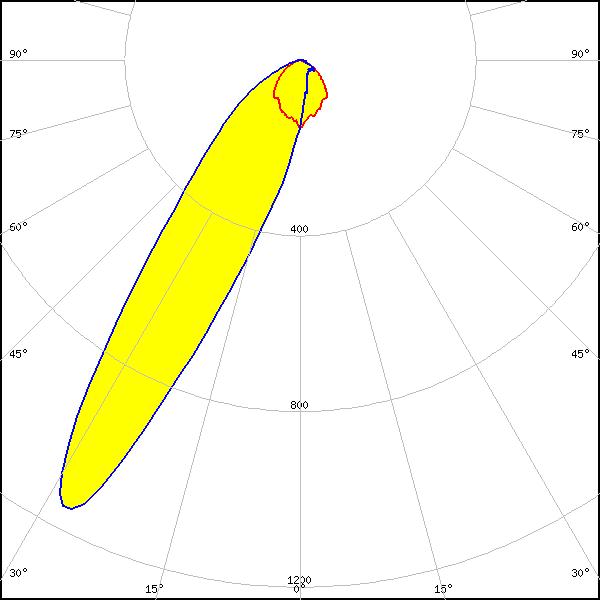

    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP19786_AMY-110-WAS-C
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: asymmetric
    Peak intensity: 1.150 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

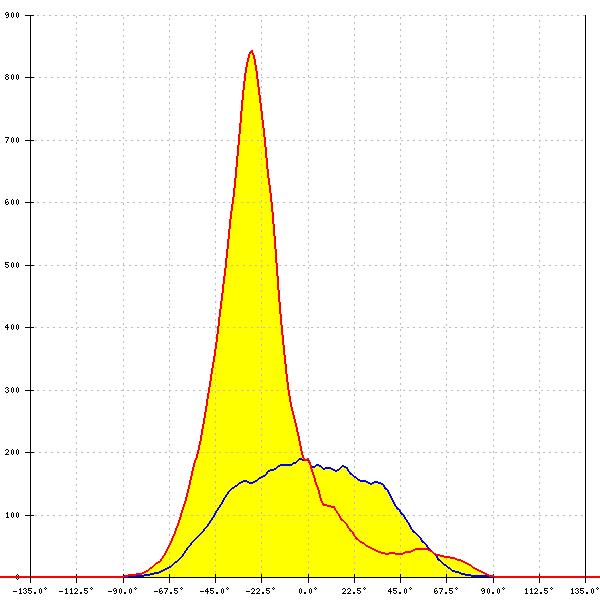

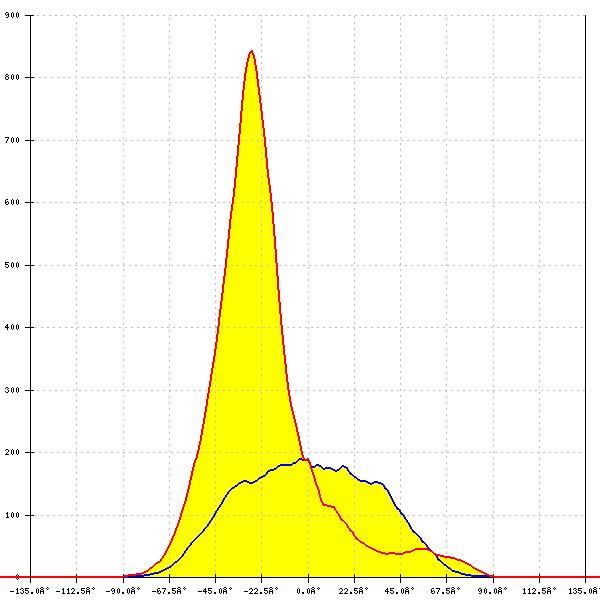

    LED: LC040D / LC060D / LC080D
    Ordering code: CP19788_AMY-110-WAS-B
    LES size: 22.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: asymmetric
    Peak intensity: 0.840 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
