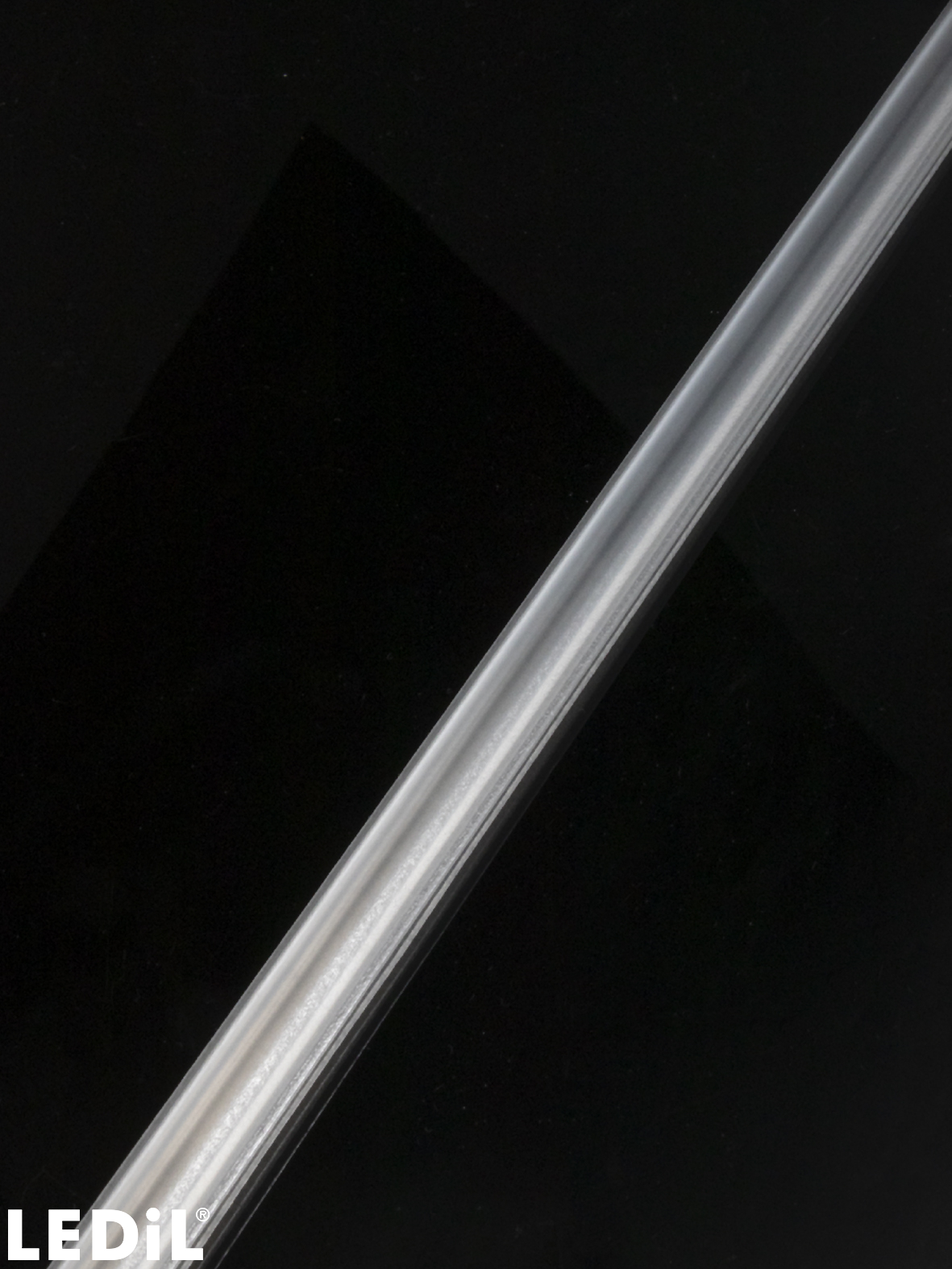

C18073_LINDA-10-O

~35° + 85° oval beam

Specification

Dimensions:

13 x 1140 mm
Height:

7.17 mm
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

PMMA
Request material files from Tech Support

Ordering information

Quantity in box:

110 pcs
Box size:

1185 x 150 x 80 mm
Box weight:

9.2 kg
MPQ:

110 pcs
MOQ:

110 pcs
MOQ size:

1185 x 150 x 80 mm
MOQ weight:

9.2 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: C18073_LINDA-10-O

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

C18073_LINDA-10-O

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

Application guide

Guide for Architectural lighting optics

Compatible product

Aluminium profile by Light and Smart

Compatible product

Aluminium profile by DG Light

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

Application example

Retail lighting with LINDA-10

News

New products – May, 2023

News

LINDA-10 – Linear light control in a pure and compact form

Application guide

LEDiL Guide for Retail Lighting Optics

Application guide

Guide for Office Lighting Optics

News

LINDA-40 – versatile 40 mm free pitch extrusion

Case story

Badia di Pomaio resort

Article

Top 3 areas where retailers lose customers due to bad lighting

News

New Products 2019-11-07

News

Effective fashion retail lighting

Application example

Retail lighting with LINDA and ELISE (low contrast)

Article

Illuminating supermarkets with LEDiL optics

Application example

Supermarket lighting with LINDA and ALISE

News

LINDA industrial scale extrusion optic for precise retail lighting

Application area

Indoor Architectural Lighting

Application area

Industrial Lighting

Application area

Office Lighting

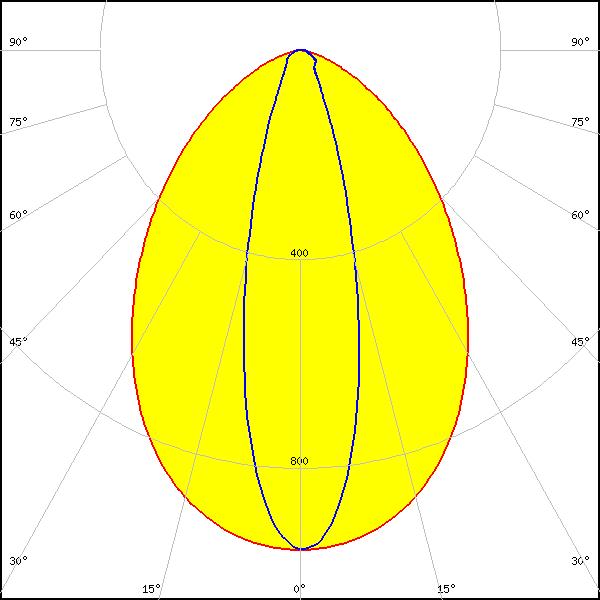

Optical results

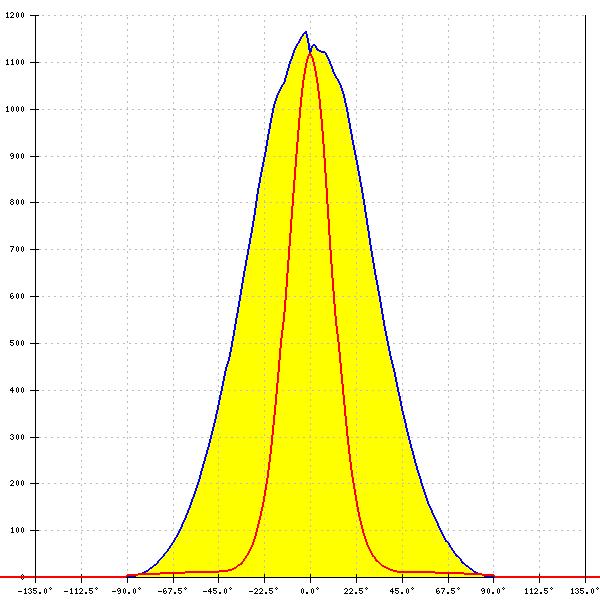

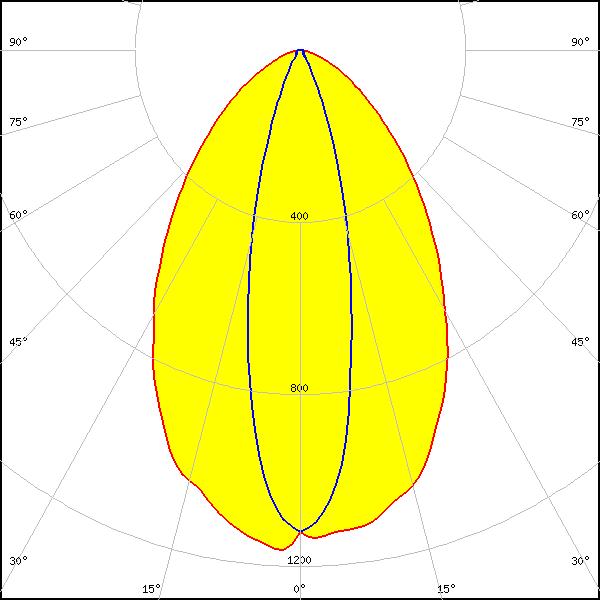

LED: J Series 2835

FWHM: 70° + 26°

FWTM: 125° + 50°

Peak intensity: 1.165 cd/lm

Efficiency: 80 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

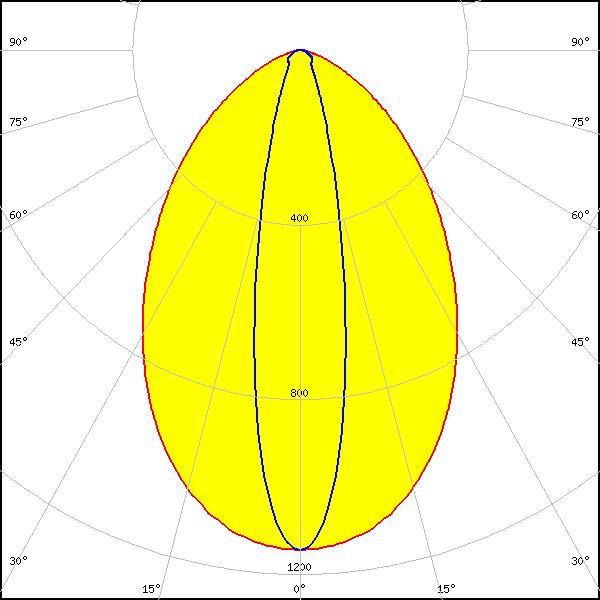

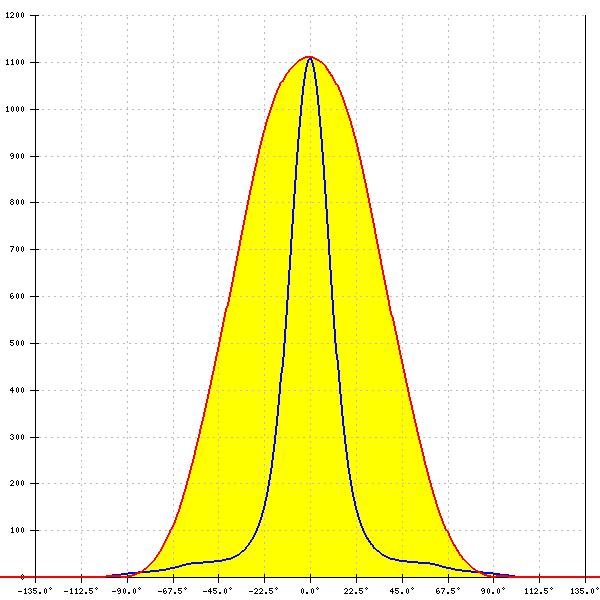

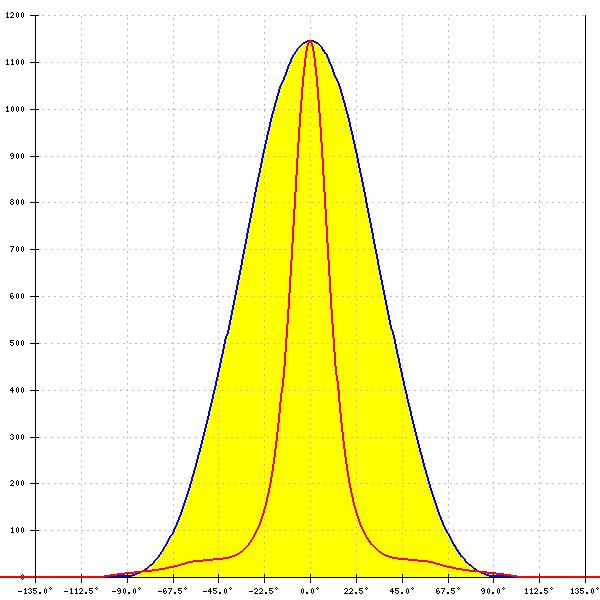

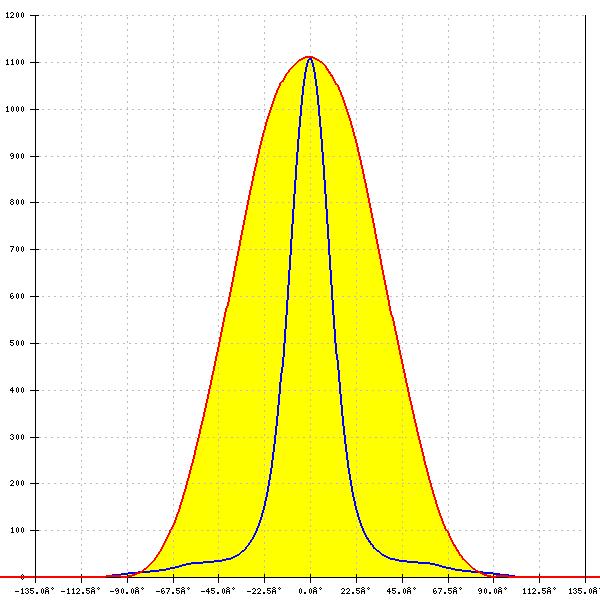

LED: LUXEON 3014

FWHM: 23° + 83°

FWTM: 50° + 134°

Peak intensity: 1.156 cd/lm

Efficiency: 81 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

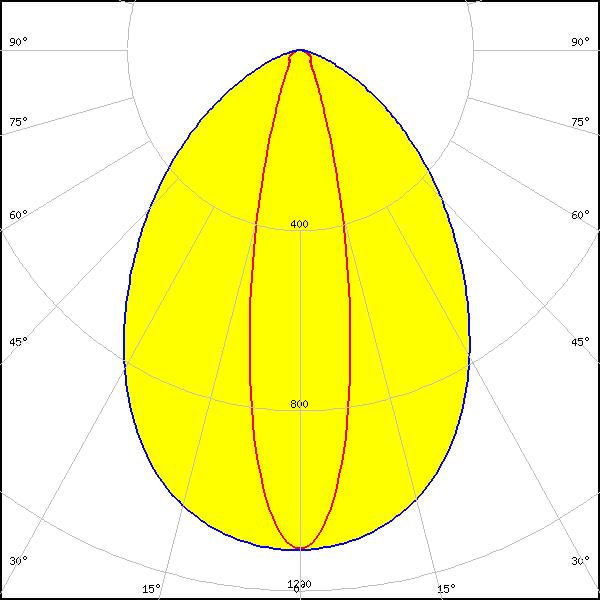

LED: LUXEON 3014

FWHM: 76° + 22°

FWTM: 131° + 49°

Peak intensity: 1.145 cd/lm

Efficiency: 79 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

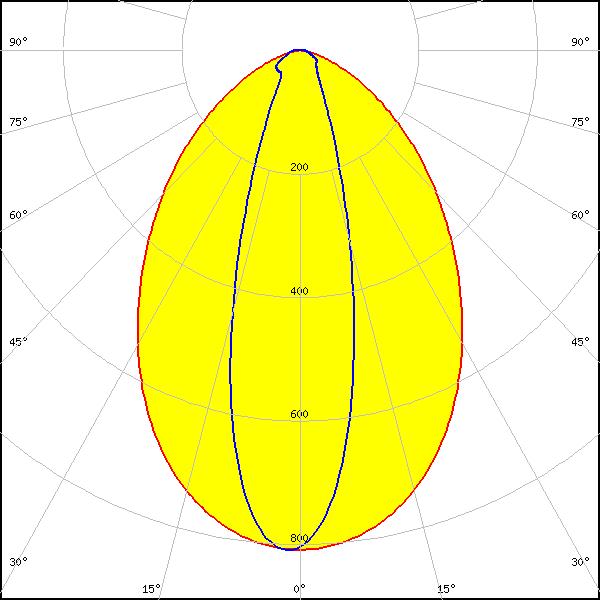

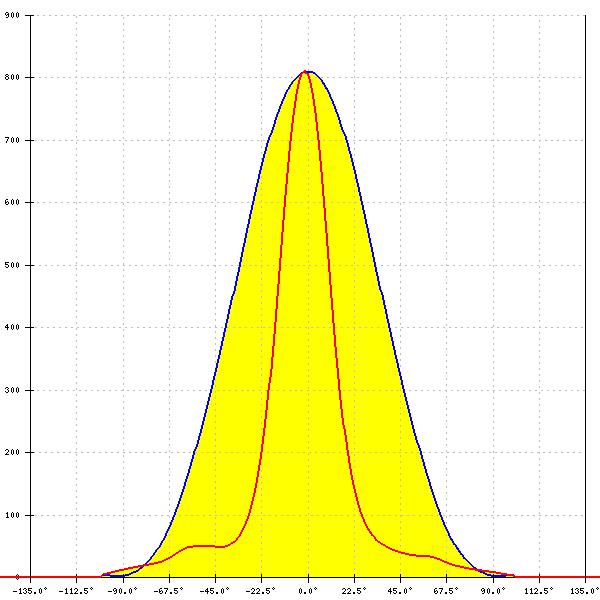

LED: LUXEON 3030 2D (Round LES)

FWHM: 79° + 29°

FWTM: 134° + 60°

Peak intensity: 0.811 cd/lm

Efficiency: 73 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

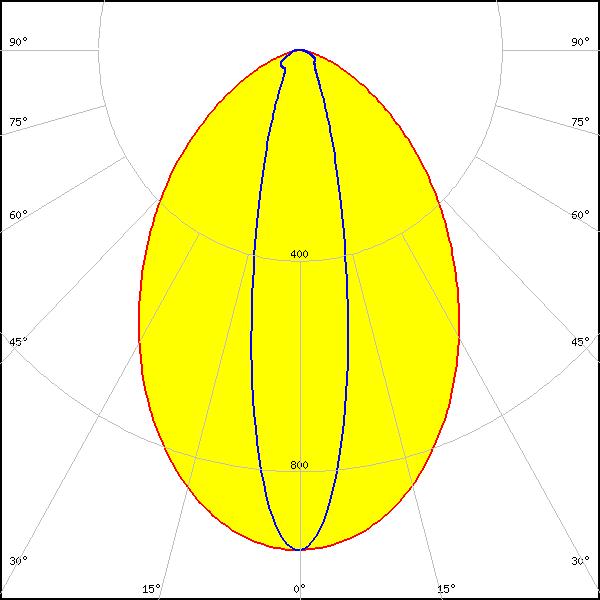

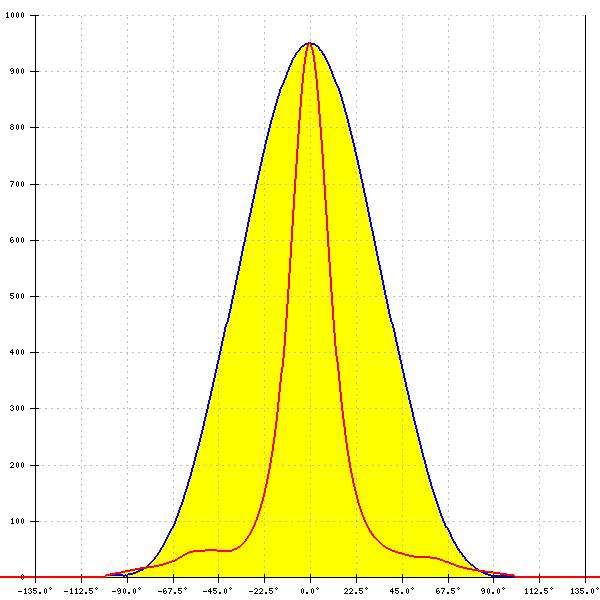

LED: MP-2016

FWHM: 79° + 23°

FWTM: 134° + 55°

Peak intensity: 0.950 cd/lm

Efficiency: 73 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

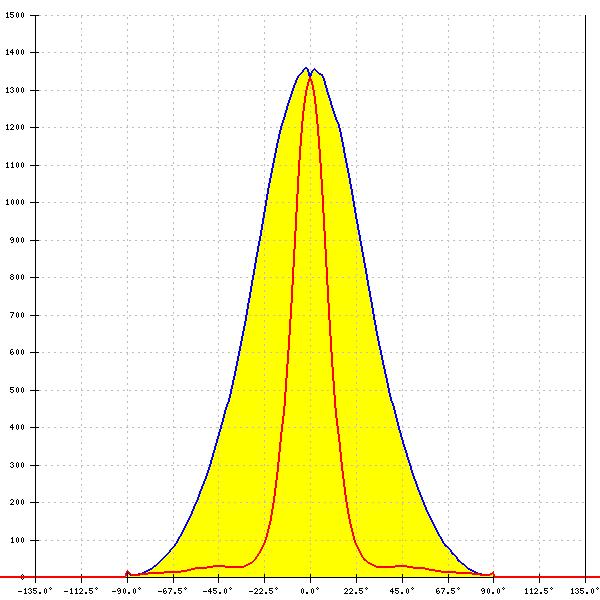

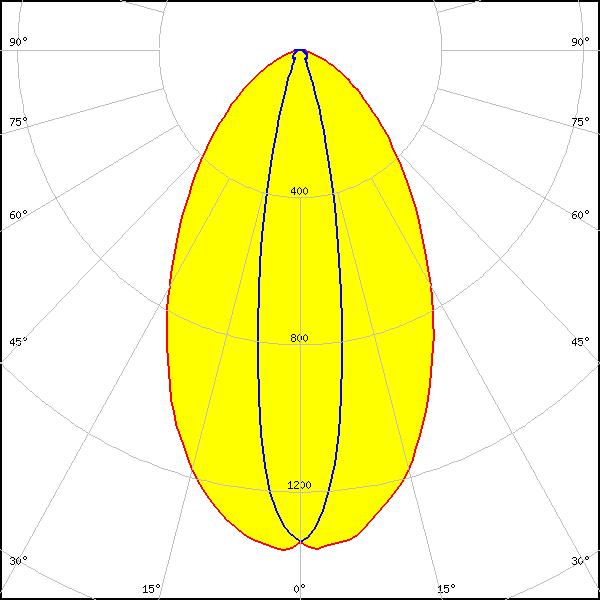

LED: NCSxE17A

FWHM: 64° + 20°

FWTM: 122° + 40°

Peak intensity: 1.366 cd/lm

Efficiency: 80 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

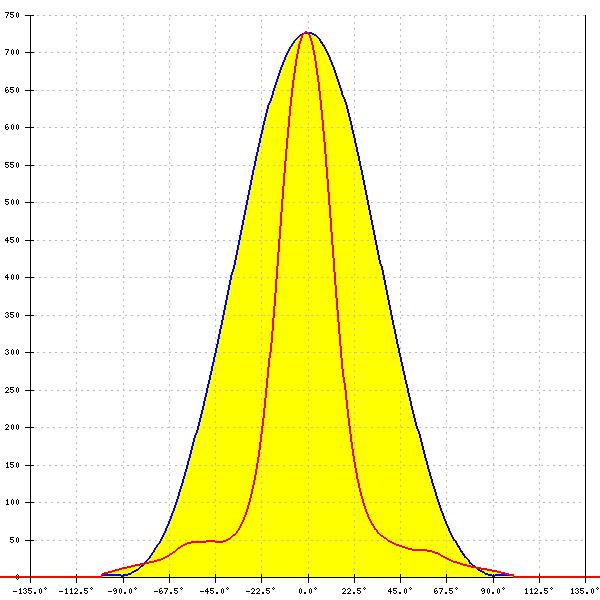

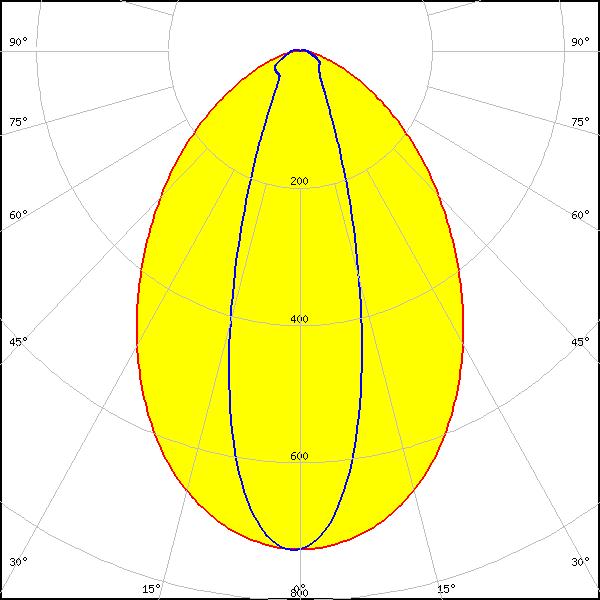

LED: NF2x757G

FWHM: 80° + 31°

FWTM: 135° + 63°

Peak intensity: 0.728 cd/lm

Efficiency: 69 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

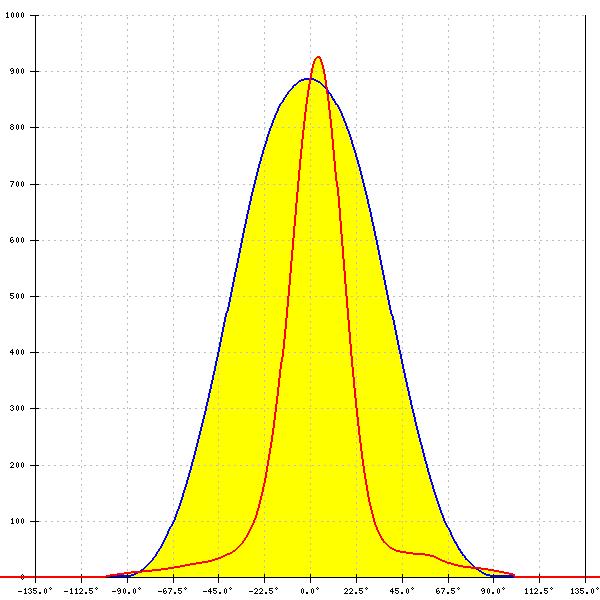

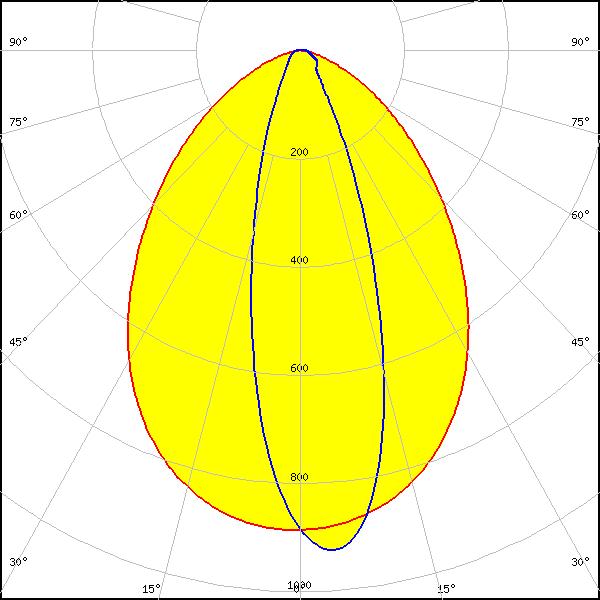

LED: NFSW757H

FWHM: 84° + 30°

FWTM: 136° + 61°

Peak intensity: 0.926 cd/lm

Efficiency: 84 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

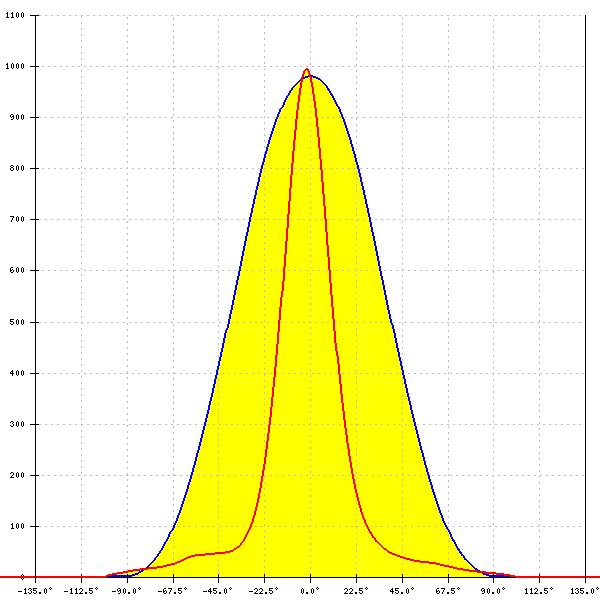

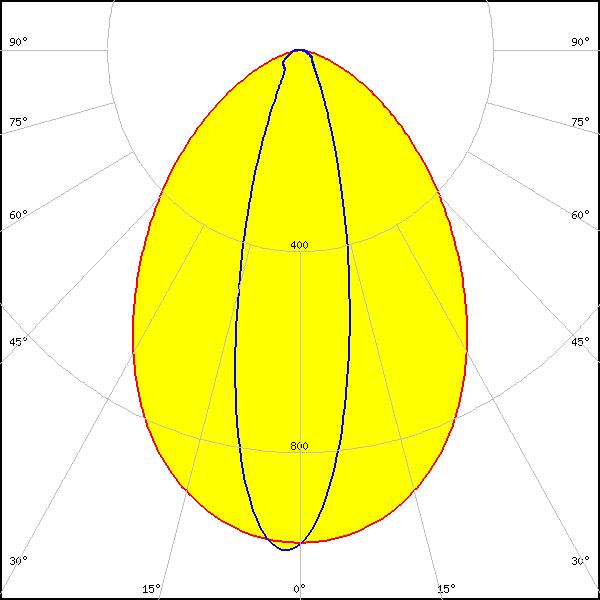

LED: DURIS S5 (Single chip)

FWHM: 81° + 27°

FWTM: 134° + 57°

Peak intensity: 0.995 cd/lm

Efficiency: 83 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

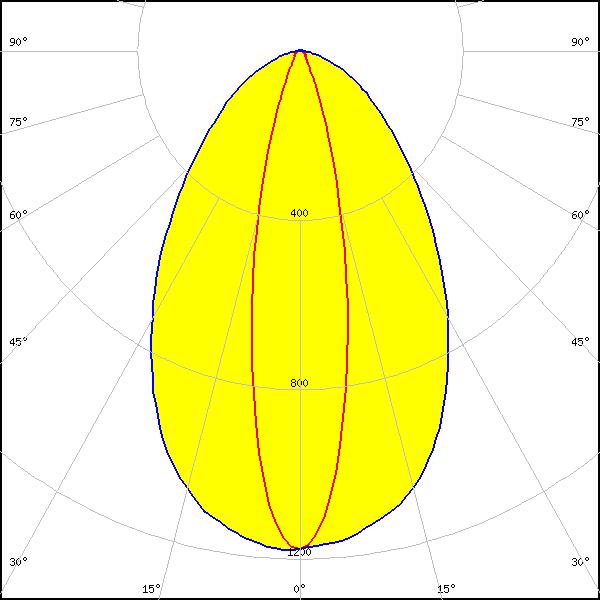

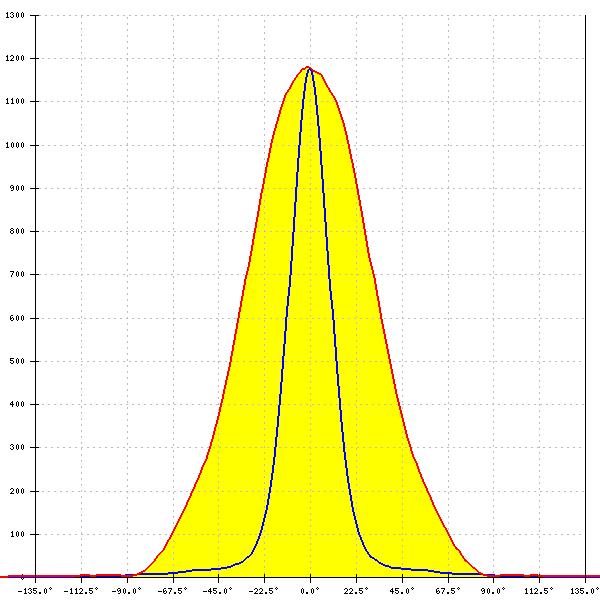

LED: LM28xB Series

FWHM: 22° + 70°

FWTM: 46° + 131°

Peak intensity: 1.181 cd/lm

Efficiency: 80 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

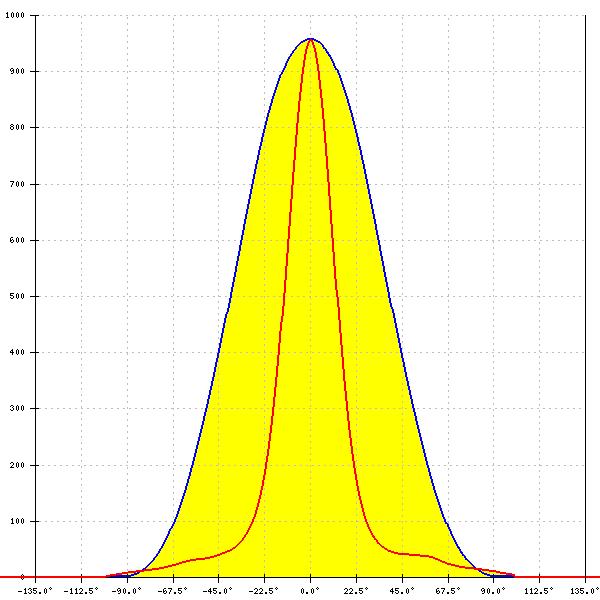

LED: SEOUL 3030

FWHM: 81° + 28°

FWTM: 135° + 57°

Peak intensity: 0.958 cd/lm

Efficiency: 80 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

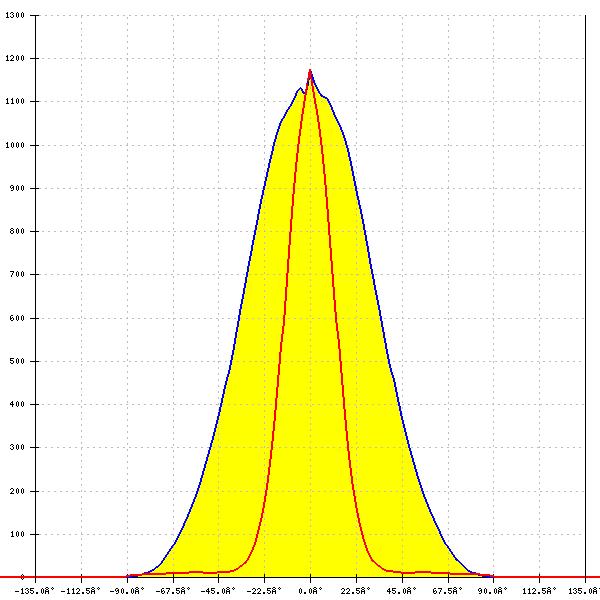

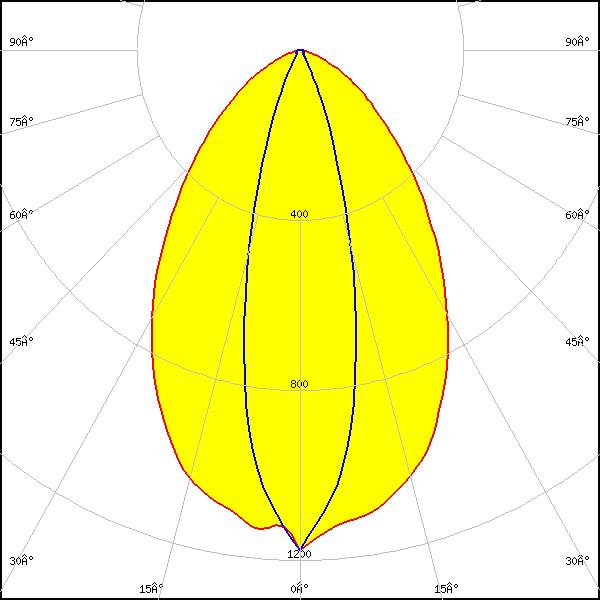

LED: SEOUL DC 3528

FWHM: 70° + 26°

FWTM: 125° + 50°

Peak intensity: 1.176 cd/lm

Efficiency: 81 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

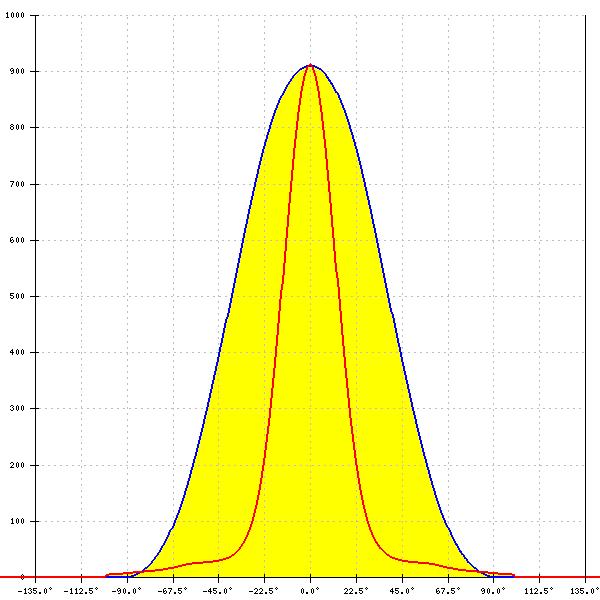

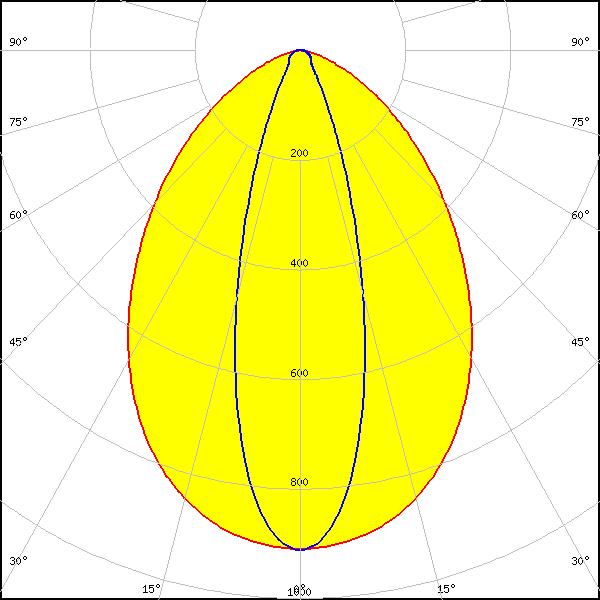

LED: LLE FLEX 8mm EXC3

FWHM: 82° + 29°

FWTM: 135° + 58°

Peak intensity: 0.935 cd/lm

Efficiency: 80 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
