    DAISY-MINI-M

    Print

    ~30° wide beam

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      280 x  21 mm
    • Height:
      13.30 mm
    • Fastening:
      pin, screw
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

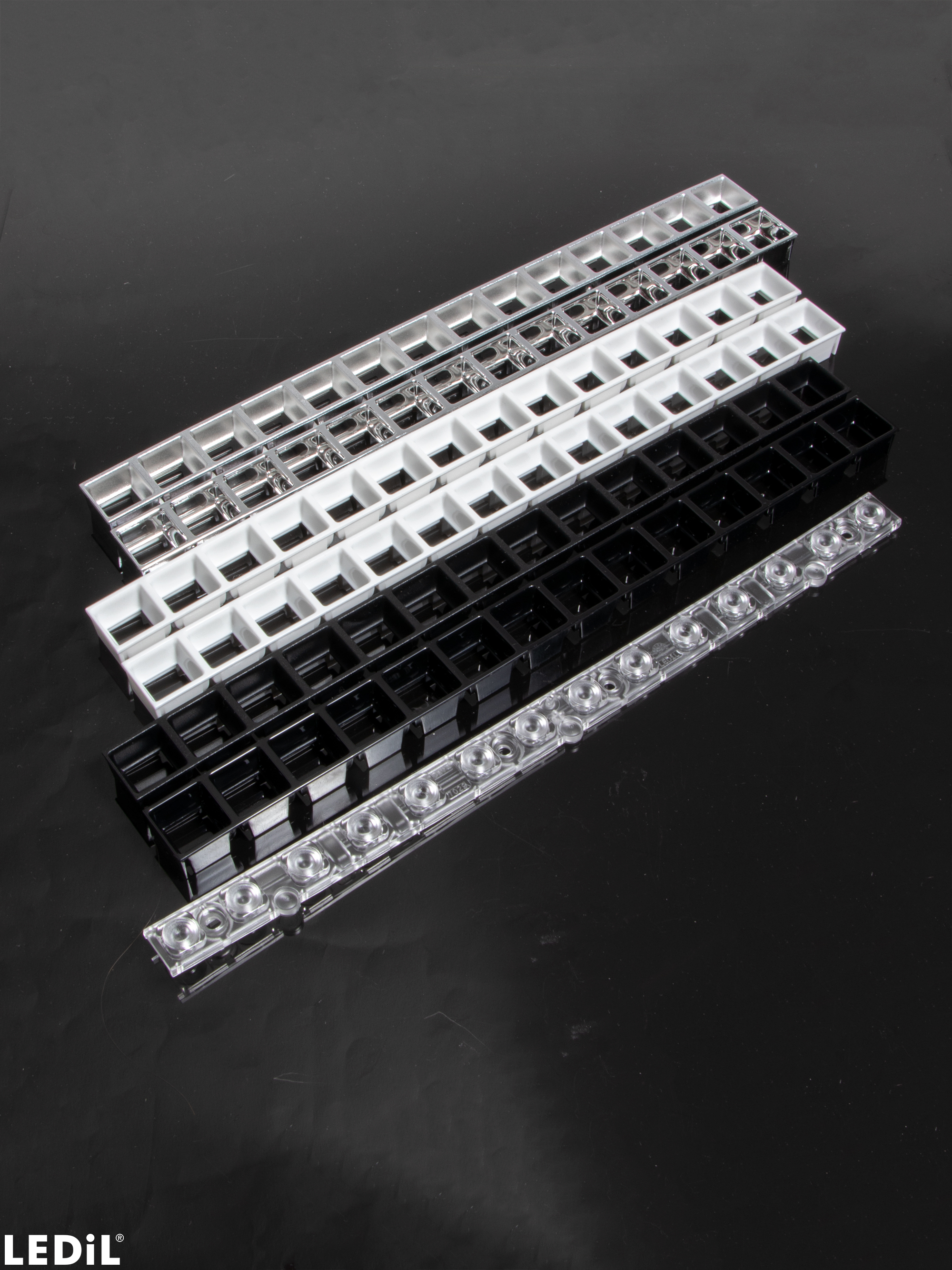

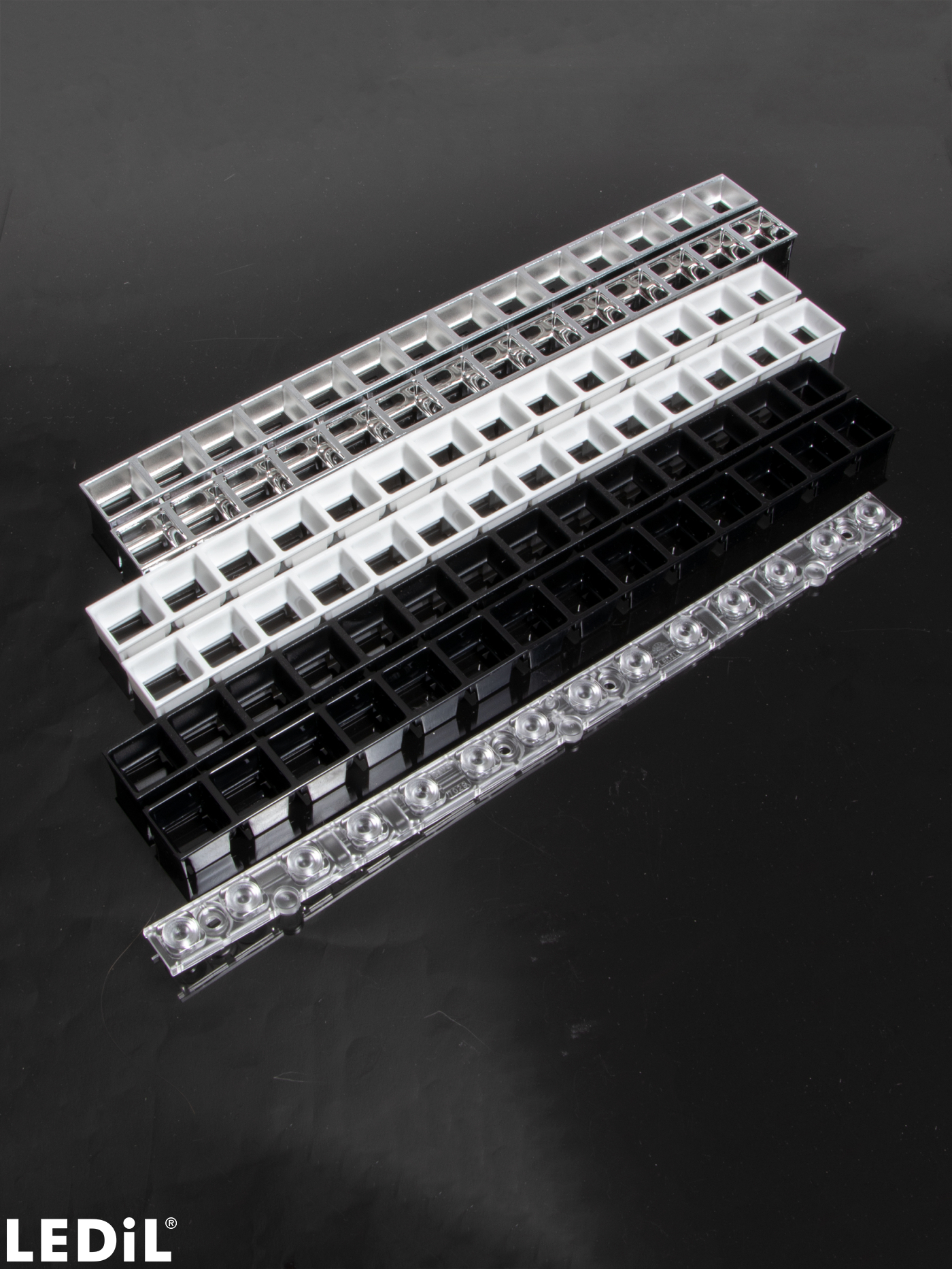

    Component Materials
    • DAISY-MINI-SHD
      Shade
      PC
    • DAISY-MINI-M
      Linear lens
      PMMA
    • DAISY-MINI-SHD-WHT
      Shade
      PC
    • DAISY-MINI-SHD-MATT
      Shade
      PC
    • DAISY-MINI-SHD-WHT-MATT
      Shade
      PC
    • DAISY-MINI-SHD-MET
      Shade
      PC
    • DAISY-MINI-SHD-MET-MATT
      Shade
      PC
    • Request material files from Tech Support

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Linear lens
      1 pcs
    • Shade
      1 pcs
    • Linear lens
    • F17029_DAISY-MINI-M
      clear
    • Quantity in box:
      252 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      5.80 kg
    • MPQ:
      12 pcs
    • MOQ:
      252 pcs
    • MOQ Size:
      398 x 298 x 265 mm
    • MOQ Weight:
      5.80 kg
    • Shade
    • F17028_DAISY-MINI-SHD
      black,gloss
    • F17033_DAISY-MINI-SHD-WHT
      white,gloss
    • F17034_DAISY-MINI-SHD-MATT
      black,matt
    • F17465_DAISY-MINI-SHD-WHT-MATT
      white,matt
    • F17666_DAISY-MINI-SHD-MET
      metal,gloss
    • F17667_DAISY-MINI-SHD-MET-MATT
      metal,matt
    • Quantity in box:
      252 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      5.90 kg
    • MPQ:
      4 pcs
    • MOQ:
      252 pcs
    • MOQ Size:
      398 x 298 x 265 mm
    • MOQ Weight:
      5.90 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      F17029_DAISY-MINI-M
      F17028_DAISY-MINI-SHD
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    NEW PRODUCTS – OCTOBER 22, 2020

    Application example

    Restaurant table lighting with DAISY-MINI-M

    Luminaire, example

    Linear luminaire with DAISY-MINI

    Luminaire, example

    Track light luminaire with DAISY-MINI

    Compatible product

    Aluminium profiles by Topmet

    News

    Transforming workspaces with DAISY

    Reference product

    SG Armaturen Yggdrasil luminaire

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    News

    Meet DAISY-MINI – the smallest LEDiL Dark Light optic in the world

    Application guide

    Guide for Office Lighting Optics

    Application guide

    Guide for Retail Lighting Optics

    Catalogue

    LEDiL Latest products catalogue 2026

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    Application example

    Wall-washing with DAISY-7X1-WAS

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

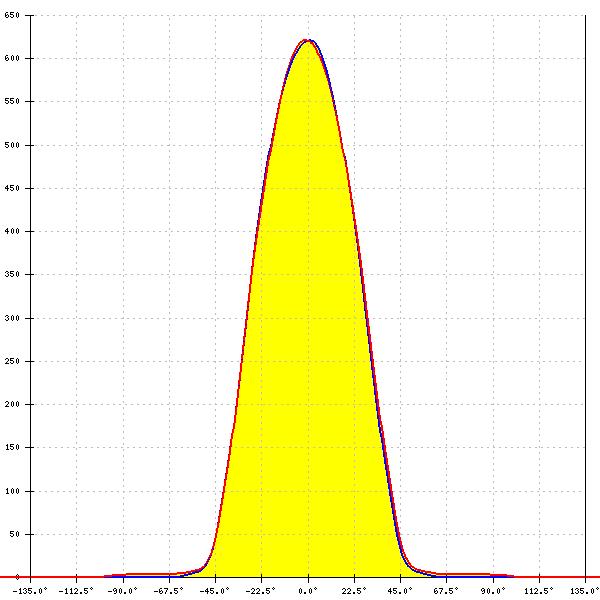

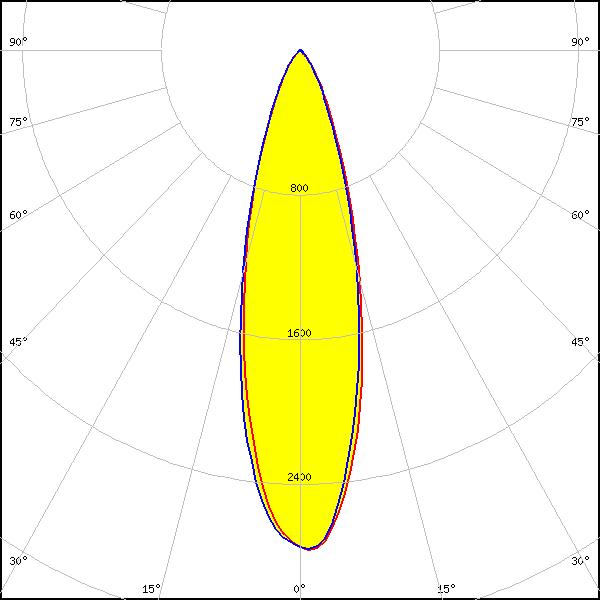

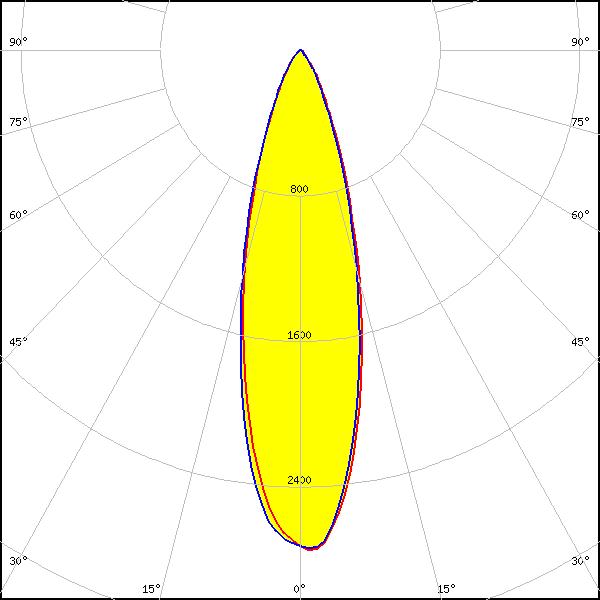

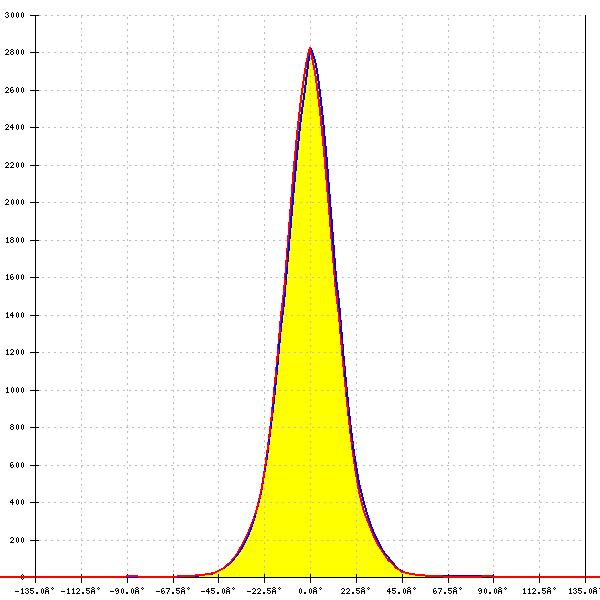

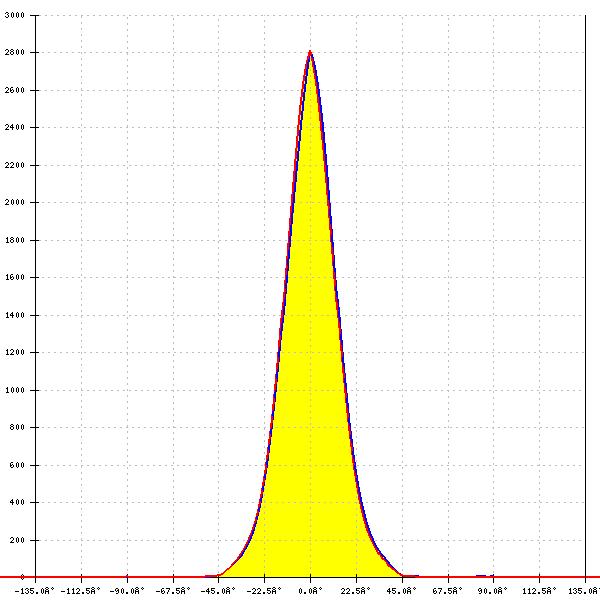

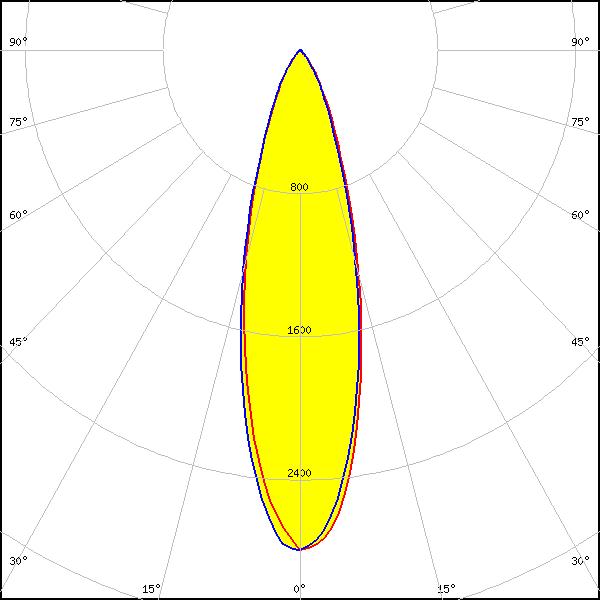

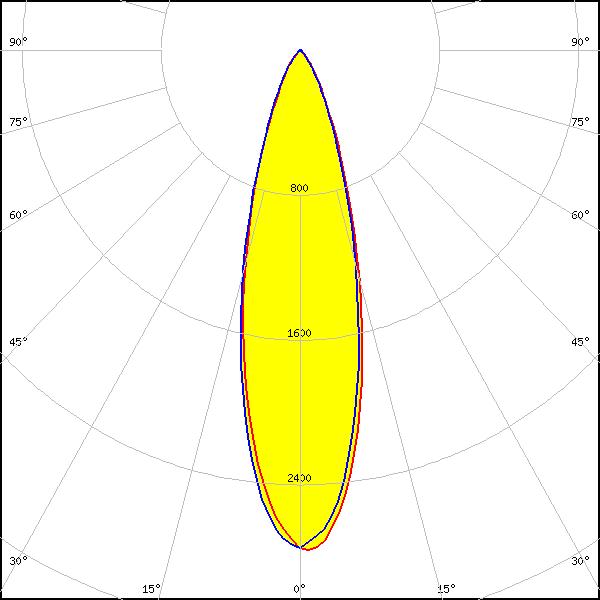

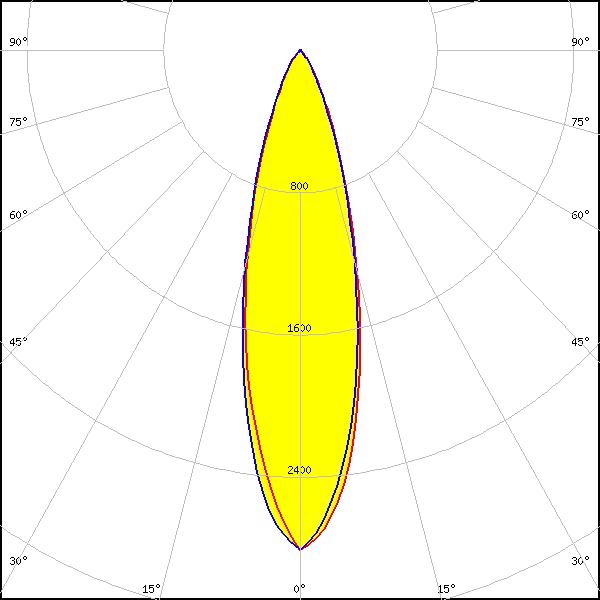

    Optical results

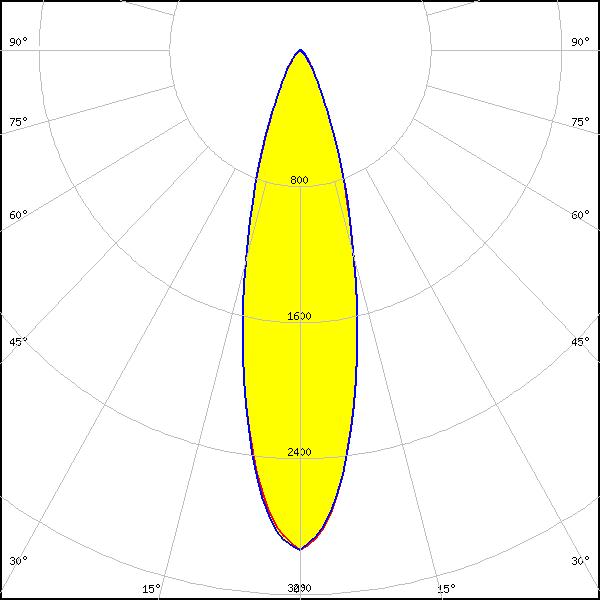

    LED: J Series 2835
    FWHM: 28°
    FWTM: 54°
    Peak intensity: 2.939 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

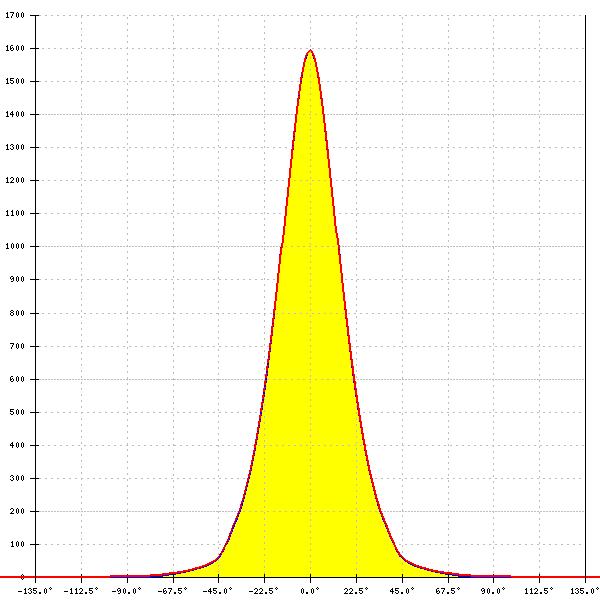

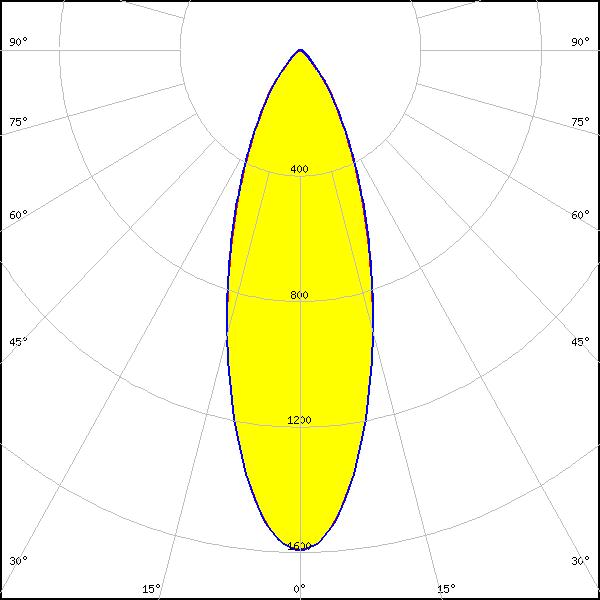

    LED: J Series 2835
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 35°
    FWTM: 75°
    Peak intensity: 1.594 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

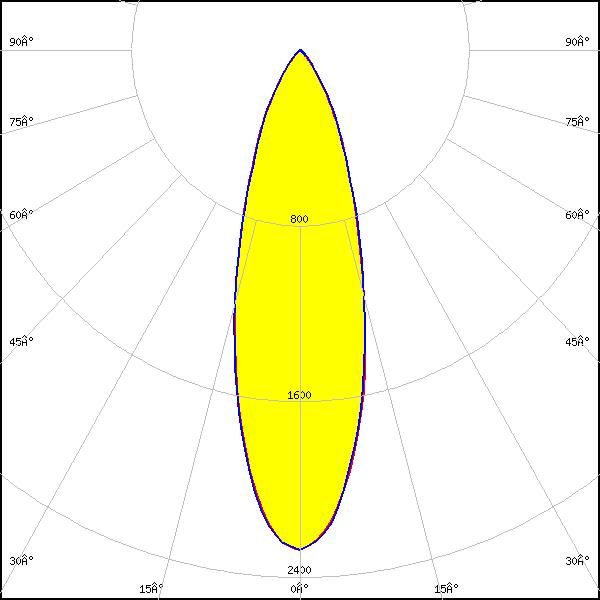

    LED: JB3030 HE B Class
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 31°
    FWTM: 65°
    Peak intensity: 2.277 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

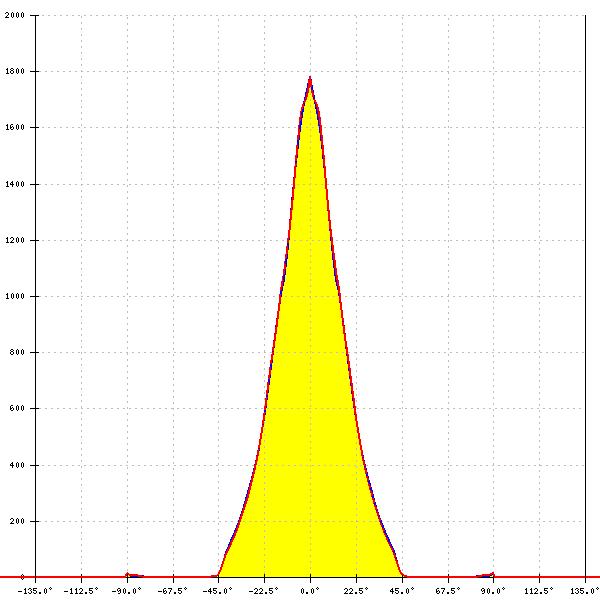

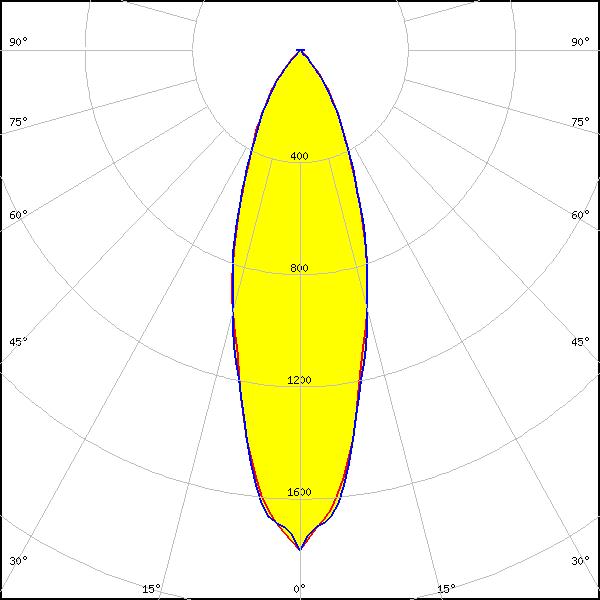

    LED: XQ-E HI
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 32°
    FWTM: 72°
    Peak intensity: 1.783 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

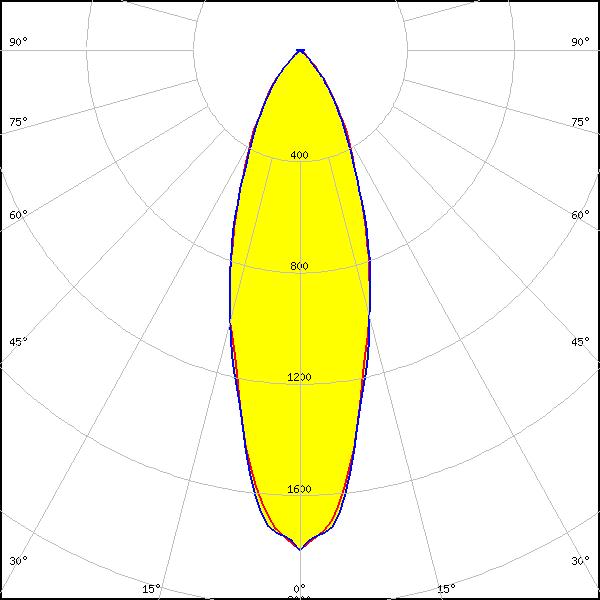

    LED: XQ-E HI
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 34°
    FWTM: 75°
    Peak intensity: 1.804 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

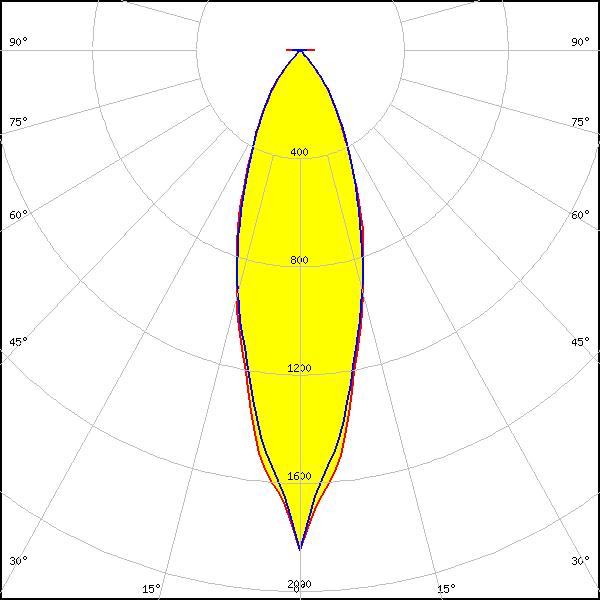

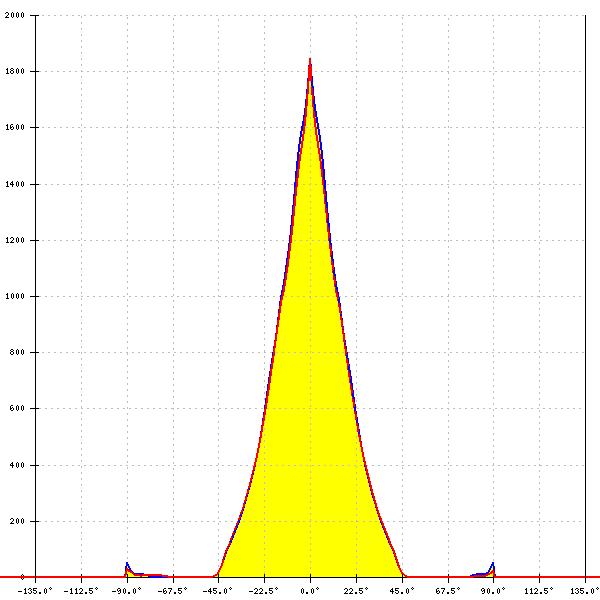

    LED: XQ-E HI
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 30°
    FWTM: 72°
    Peak intensity: 1.849 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

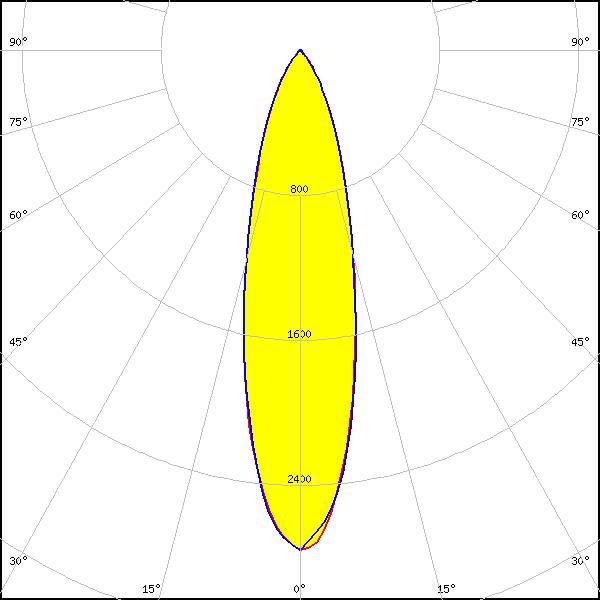

    LED: LUXEON 2835 Architectural
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 26°
    FWTM: 60°
    Peak intensity: 2.764 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

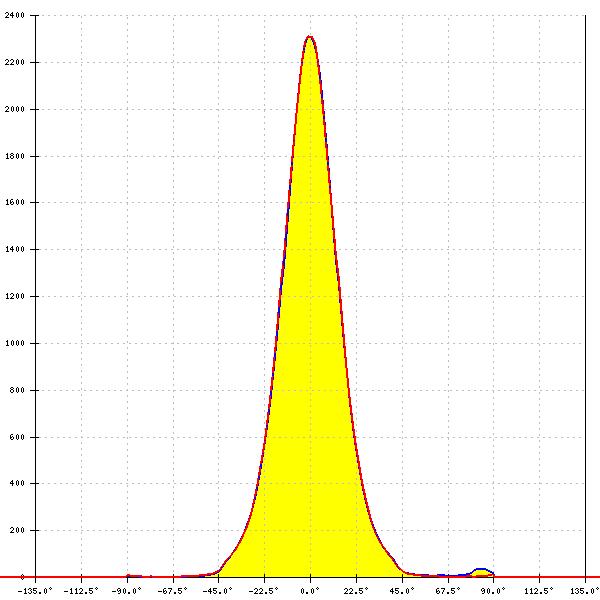

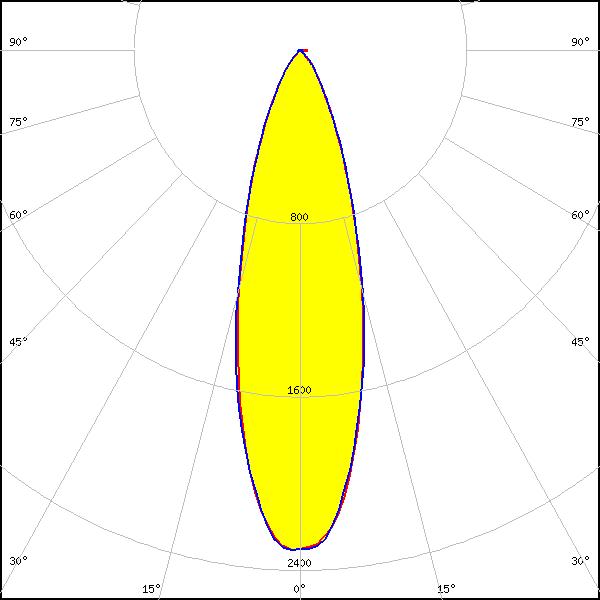

    LED: LUXEON HL1Z (White)
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 30°
    FWTM: 62°
    Peak intensity: 2.319 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

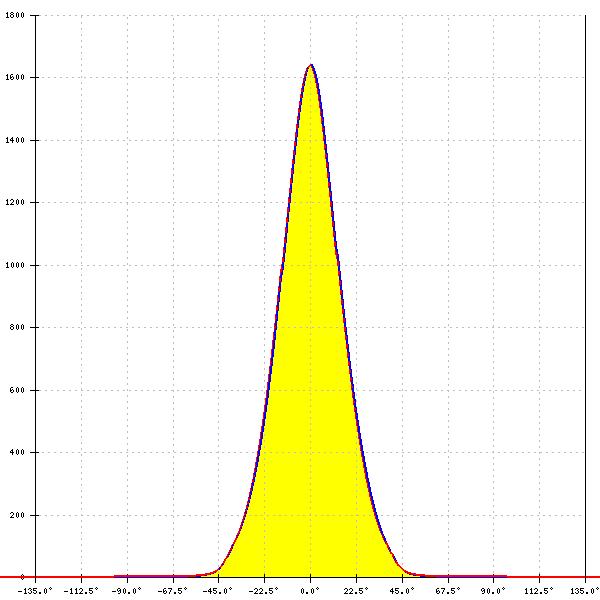

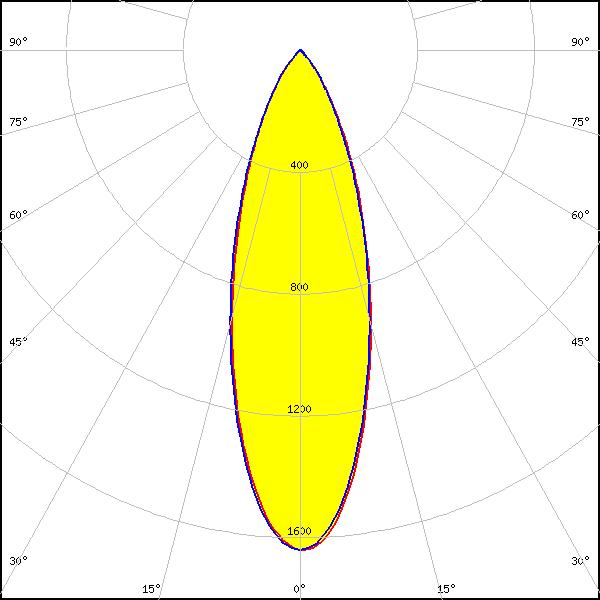

    LED: Opticus Daisy Mini M L28W2
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 34°
    FWTM: 68°
    Peak intensity: 1.641 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White

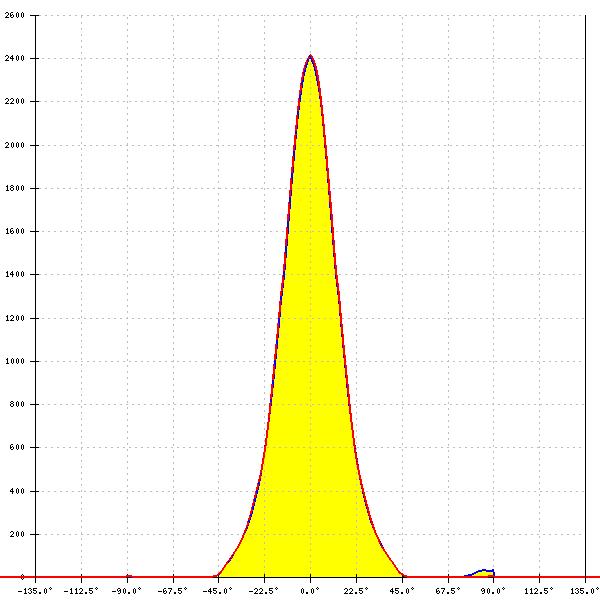

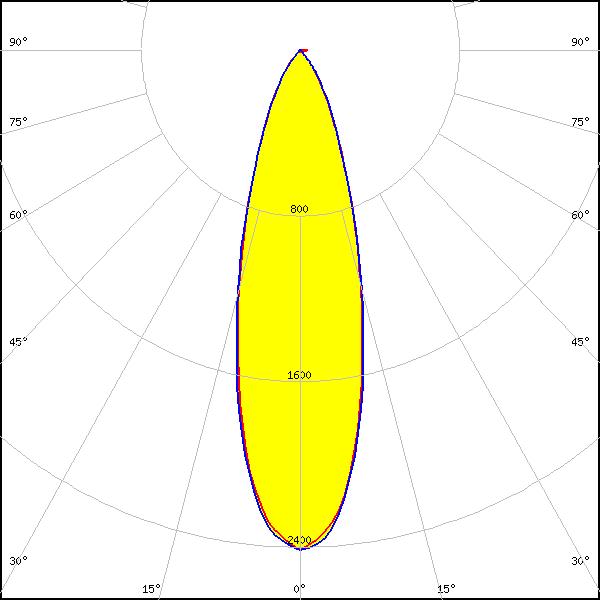

    LED: NCSxE17A
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 30°
    FWTM: 62°
    Peak intensity: 2.423 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

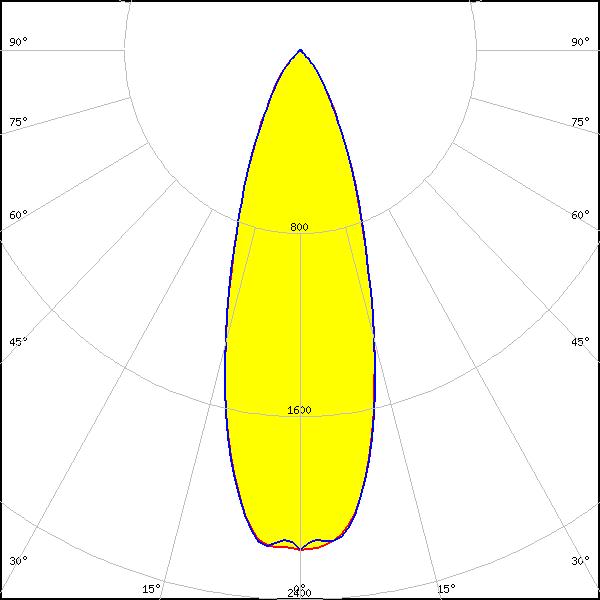

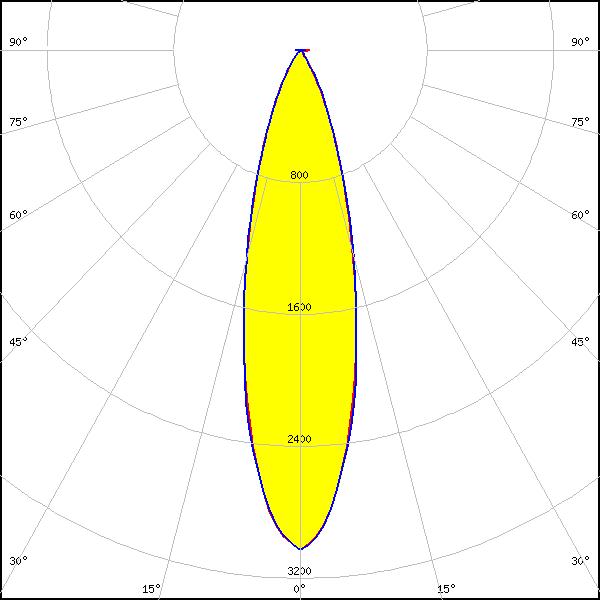

    LED: NFSWE11A
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 26°
    FWTM: 55°
    Peak intensity: 3.031 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFSWE11A
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 34°
    FWTM: 68°
    Peak intensity: 1.722 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 4
    Light colour/type: White

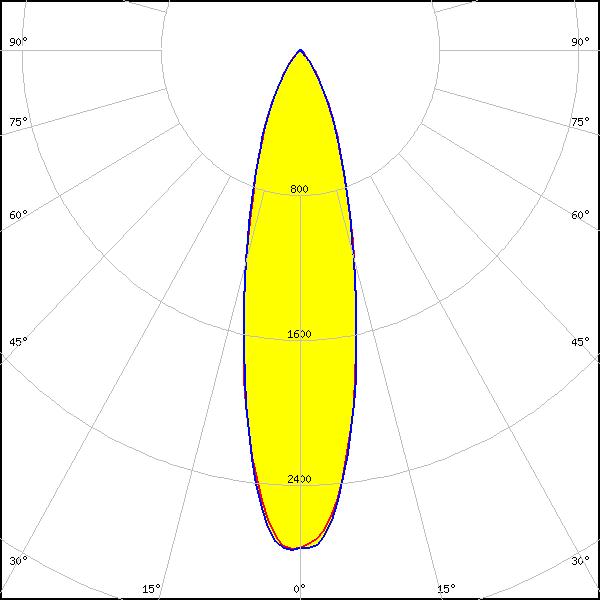

    LED: Duris E 2835
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 26°
    FWTM: 62°
    Peak intensity: 2.811 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

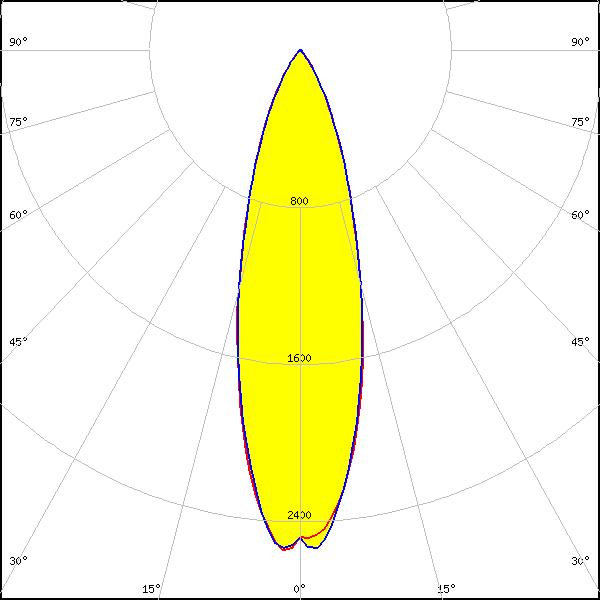

    LED: OSCONIQ E 3030 (GW QSLPS1.EM)
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 30°
    FWTM: 60°
    Peak intensity: 2.568 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

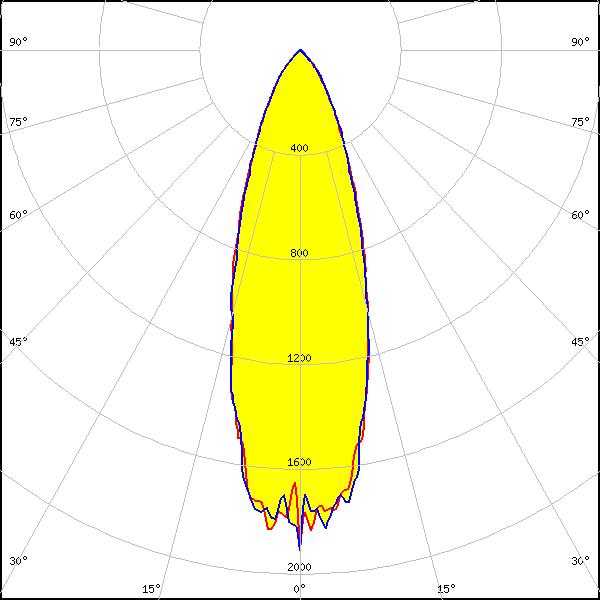

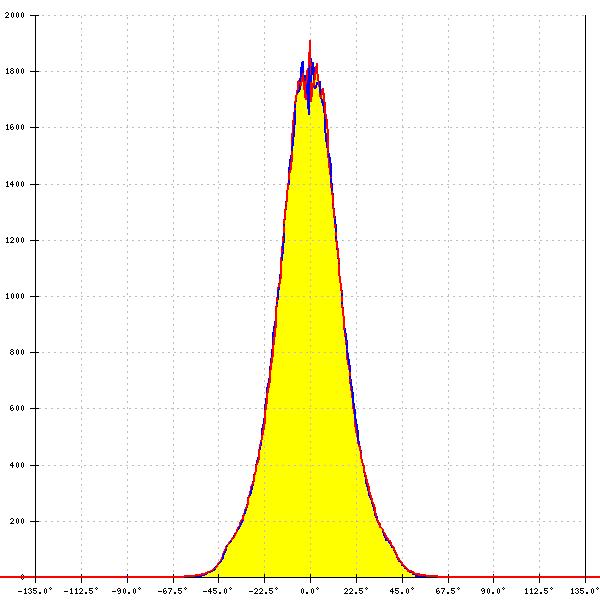

    LED: LM28xB Series
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 33°
    FWTM: 68°
    Peak intensity: 2.049 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

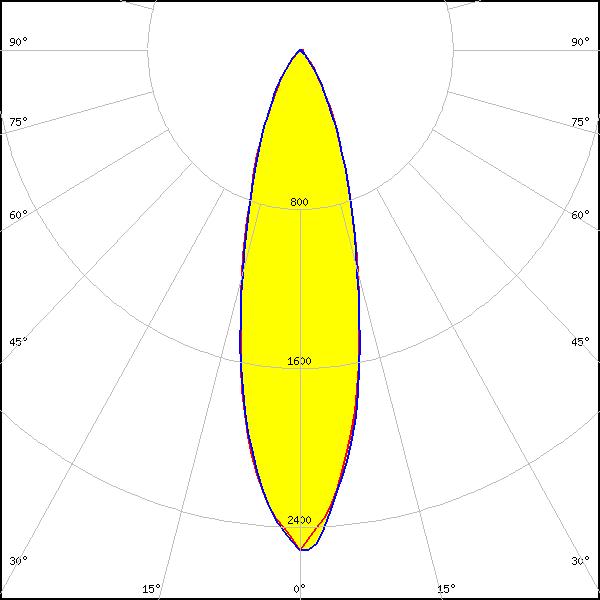

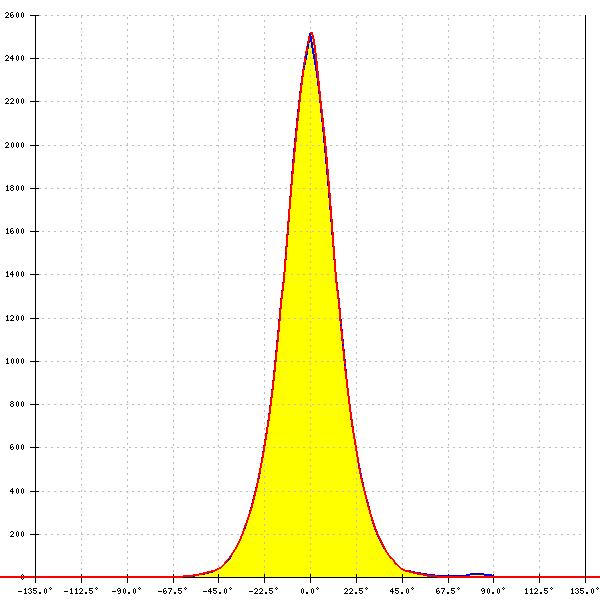

    LED: LM302D
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 28°
    FWTM: 62°
    Peak intensity: 2.521 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

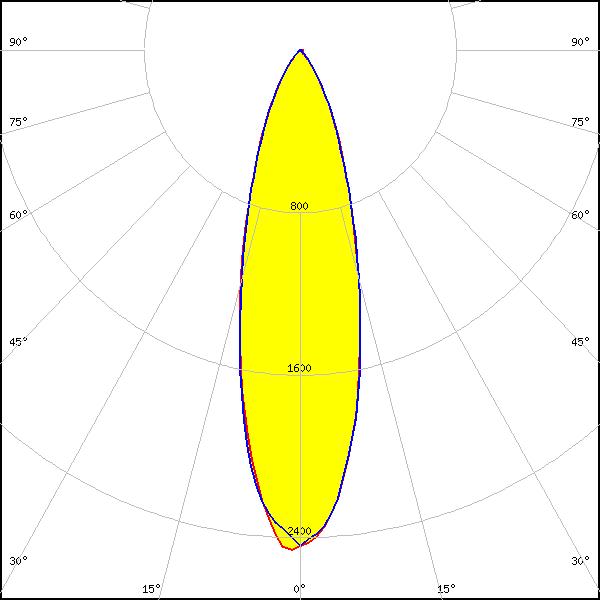

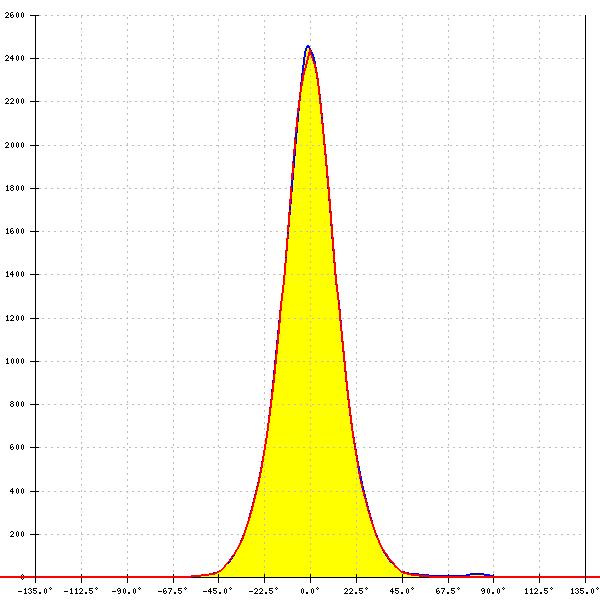

    LED: LM302D
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 28°
    FWTM: 62°
    Peak intensity: 2.463 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

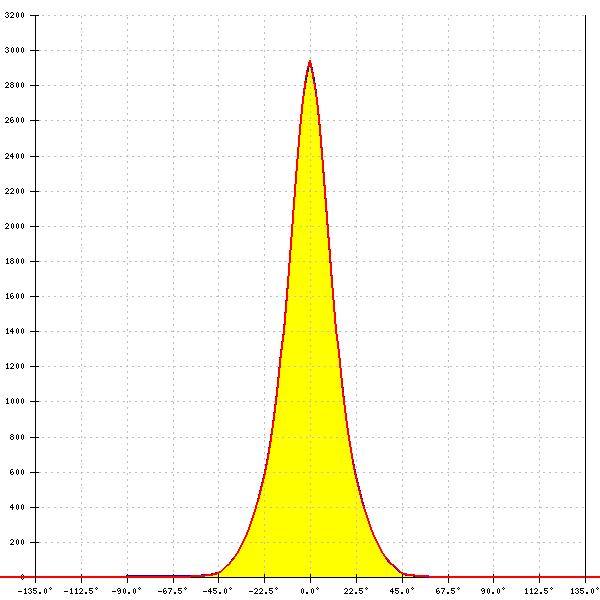

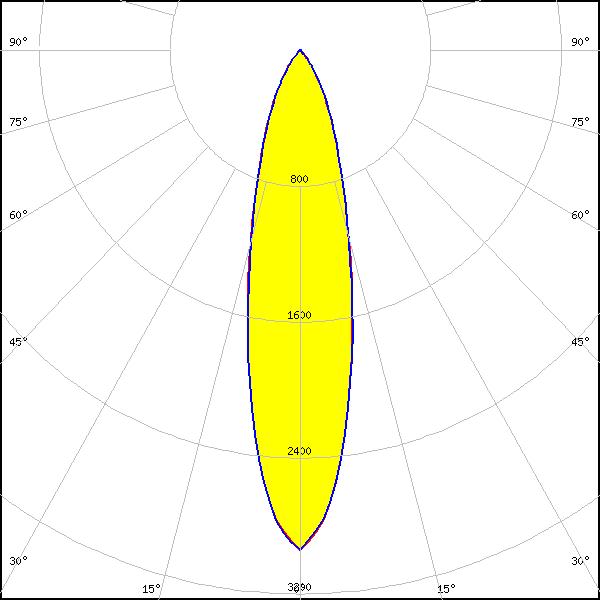

    LED: SEOUL 3030
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 26°
    FWTM: 60°
    Peak intensity: 2.944 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

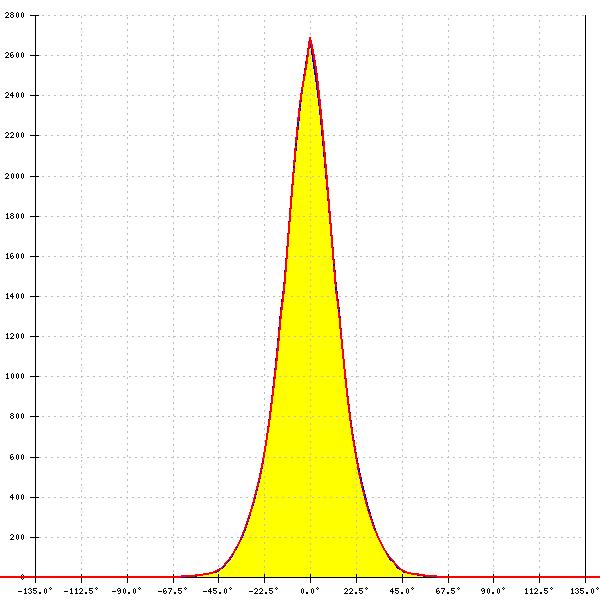

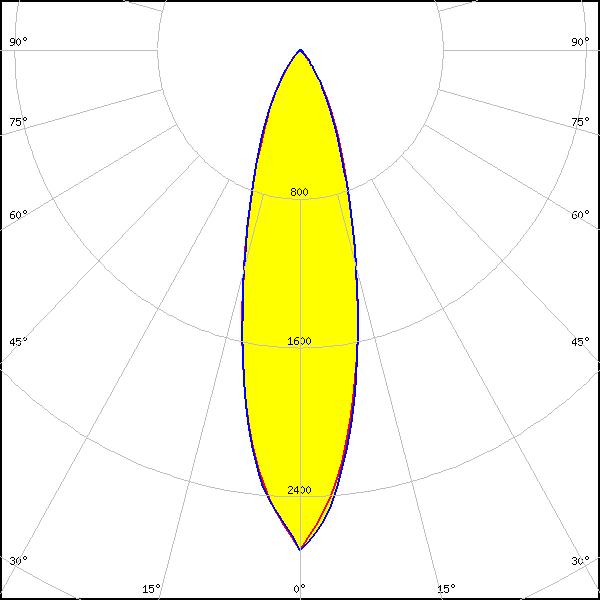

    LED: SEOUL DC 3528
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 28°
    FWTM: 62°
    Peak intensity: 2.689 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
