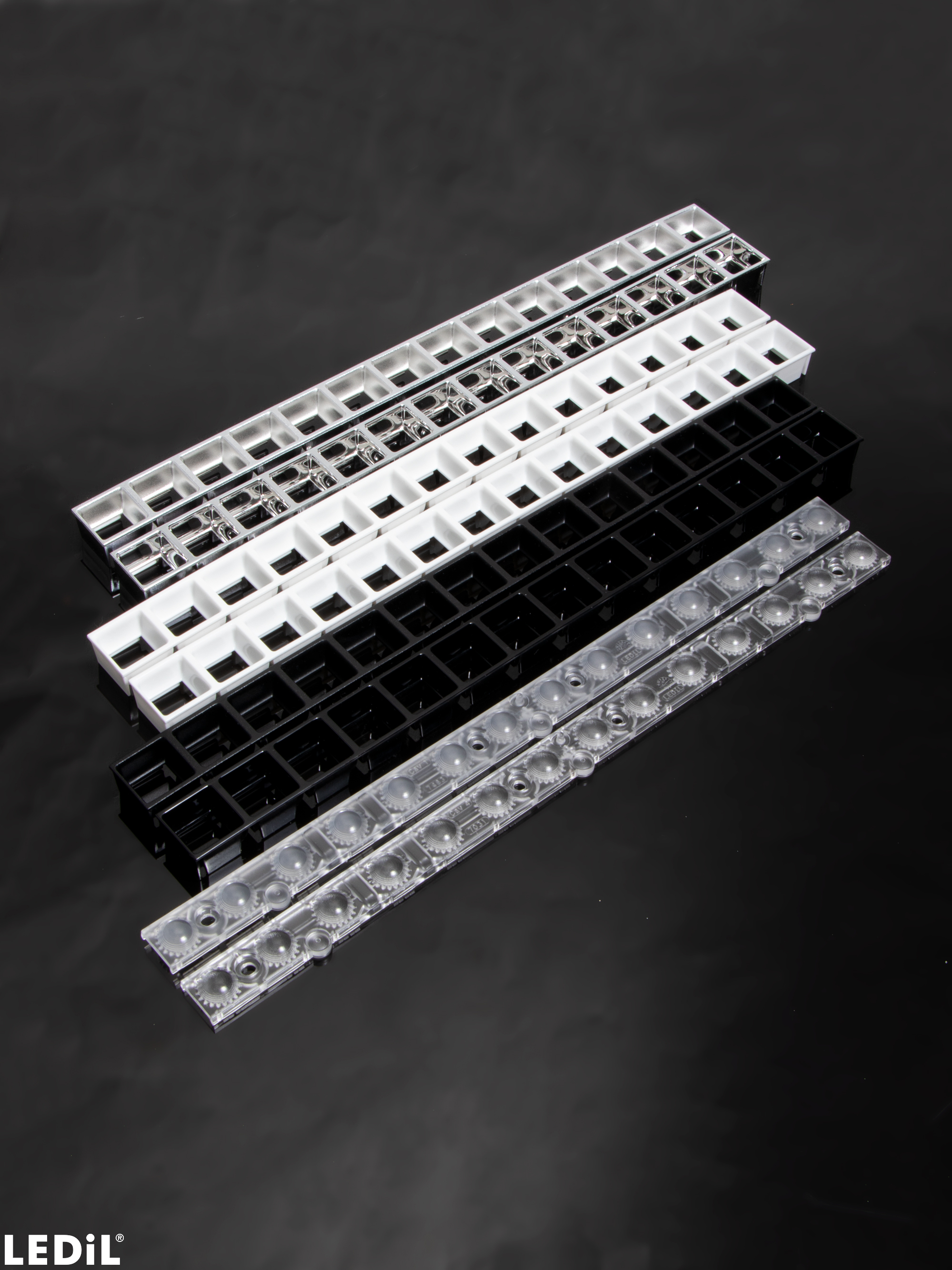

    DAISY-MINI-WW

    Print

    ~65° wide beam

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Fastening:
      pin, screw, snaps
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Linear lens
      1 pcs
    • Shade
      1 pcs
    • Linear lens
    • F17031_DAISY-MINI-WW
      clear
    • Quantity in box:
      252 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      5.90 kg
    • MPQ:
      12 pcs
    • MOQ:
      252 pcs
    • MOQ Size:
      398 x 298 x 265 mm
    • MOQ Weight:
      5.90 kg
    • Shade
    • F17028_DAISY-MINI-SHD
      black,gloss
    • F17033_DAISY-MINI-SHD-WHT
      white,gloss
    • F17034_DAISY-MINI-SHD-MATT
      black,matt
    • F17465_DAISY-MINI-SHD-WHT-MATT
      white,matt
    • F17666_DAISY-MINI-SHD-MET
      metal,gloss
    • F17667_DAISY-MINI-SHD-MET-MATT
      metal,matt
    • Quantity in box:
      252 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      5.90 kg
    • MPQ:
      4 pcs
    • MOQ:
      252 pcs
    • MOQ Size:
      398 x 298 x 265 mm
    • MOQ Weight:
      5.90 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      F17031_DAISY-MINI-WW
      F17028_DAISY-MINI-SHD

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Luminaire, example

    Linear luminaire with DAISY-MINI

    Luminaire, example

    Track light luminaire with DAISY-MINI

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    News

    Meet DAISY-MINI – the smallest LEDiL Dark Light optic in the world

    Application guide

    LEDiL guide for retail lighting optics

    Application guide

    LEDiL guide for office lighting optics

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    News

    DAISY-MINI-3X1 – where modularity and flexibility meet

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    Application example

    Wall-washing with DAISY-7X1-WAS

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

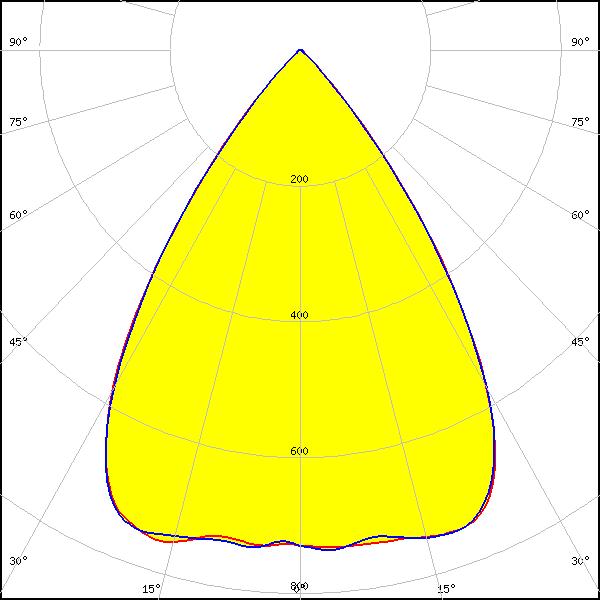

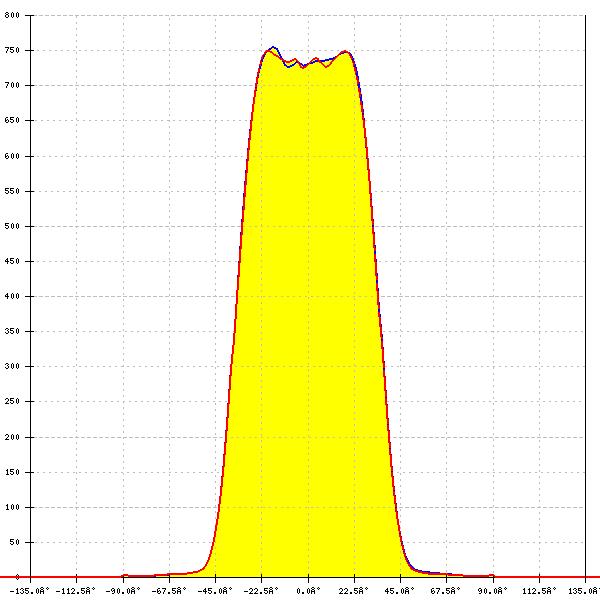

    Optical results

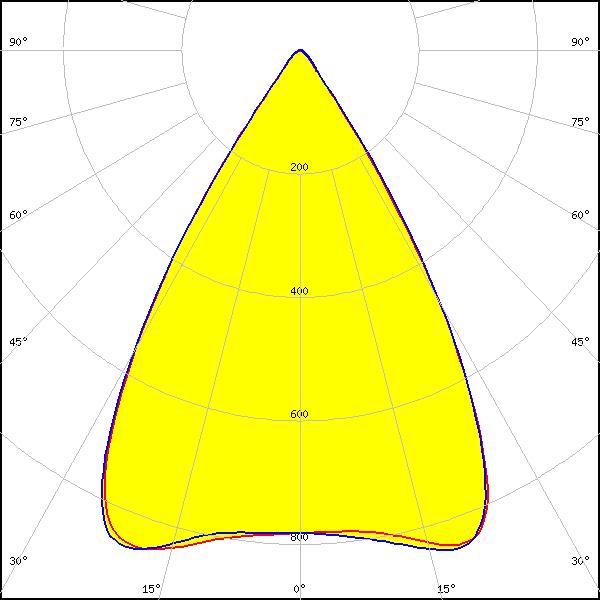

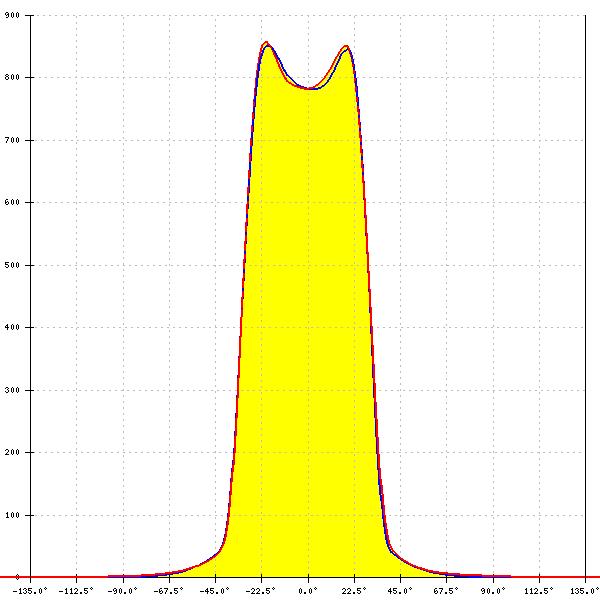

    LED: J Series 2835
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 63°
    FWTM: 76°
    Peak intensity: 0.857 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

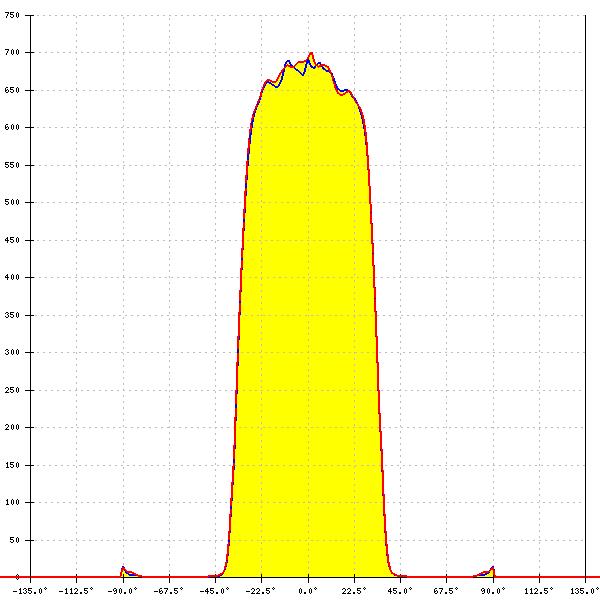

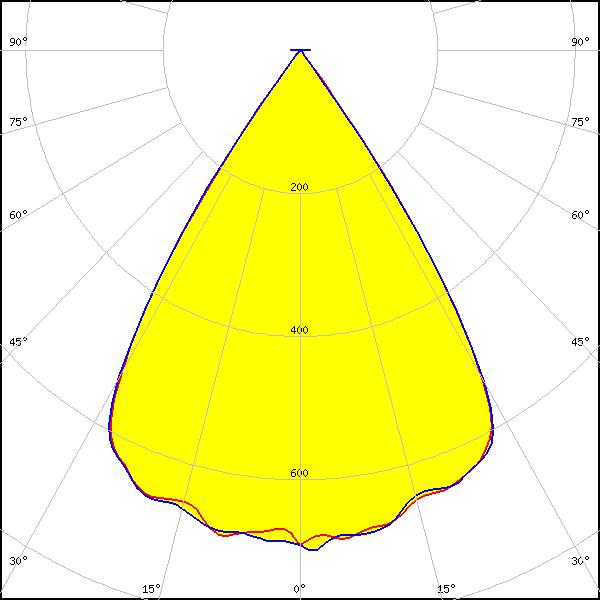

    LED: XQ-E HI
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 66°
    FWTM: 76°
    Peak intensity: 0.715 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

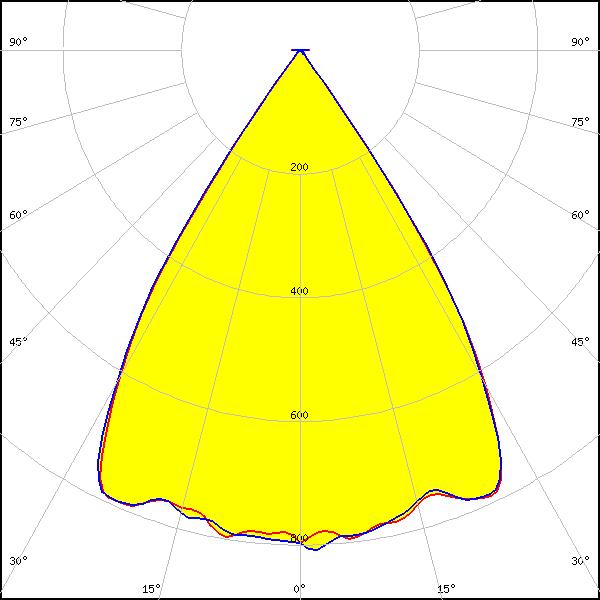

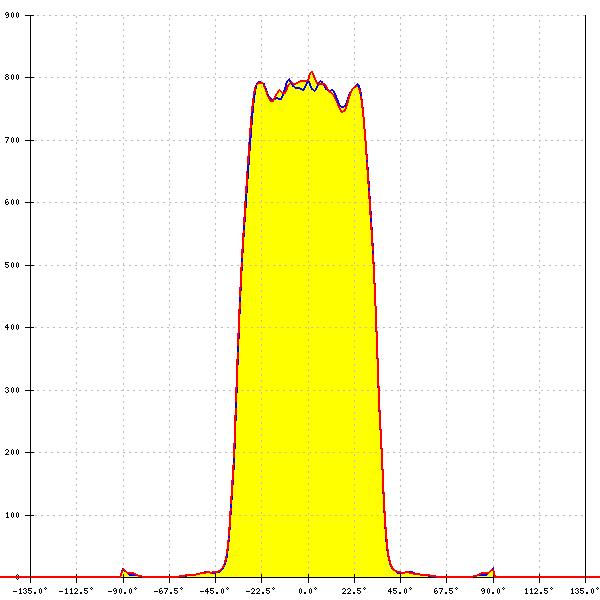

    LED: XQ-E HI
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 68°
    FWTM: 76°
    Peak intensity: 0.824 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

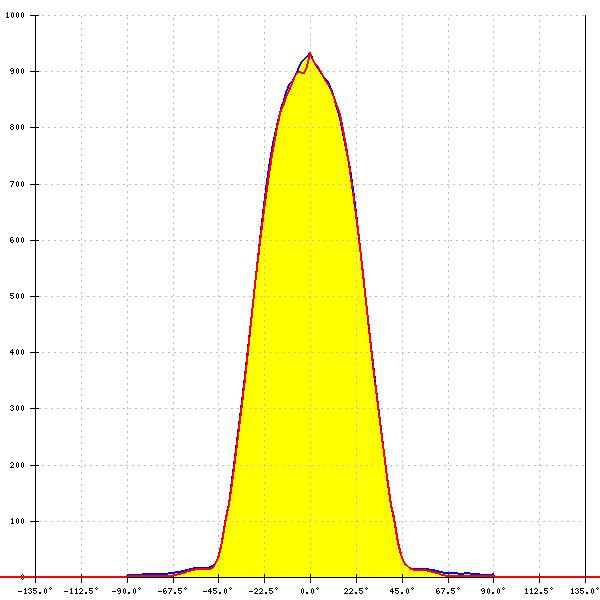

    LED: LUXEON 2835 Line
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 57°
    FWTM: 84°
    Peak intensity: 0.935 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 2
    Light colour/type: White

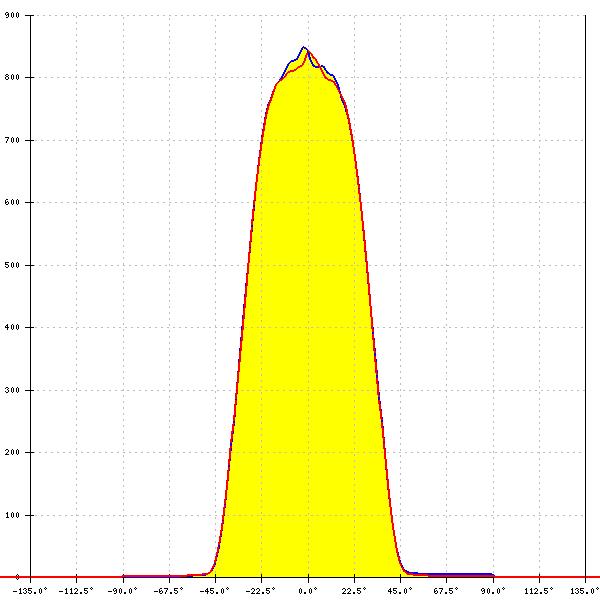

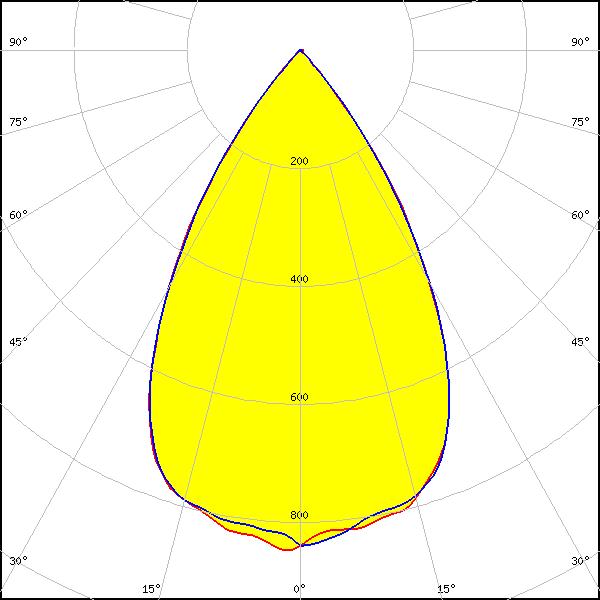

    LED: LUXEON 5050 HE
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 62°
    FWTM: 82°
    Peak intensity: 0.855 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

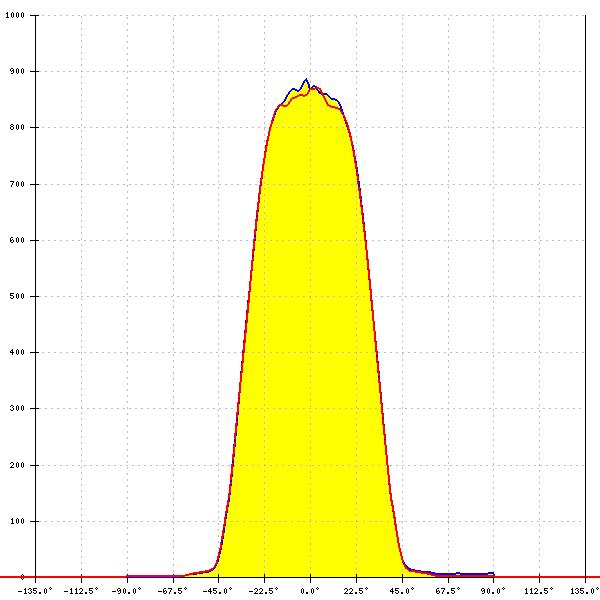

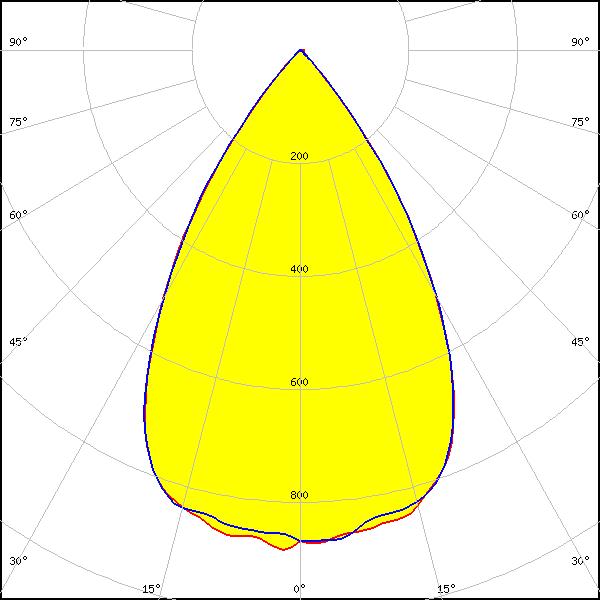

    LED: LUXEON 5050 HE
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 64°
    FWTM: 84°
    Peak intensity: 0.896 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

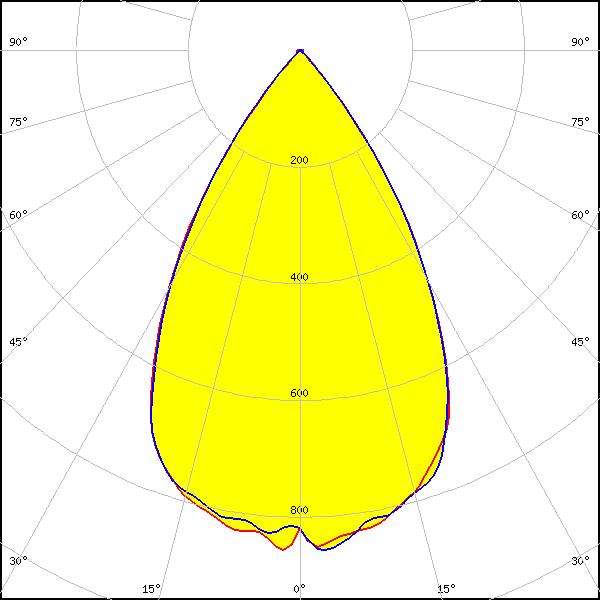

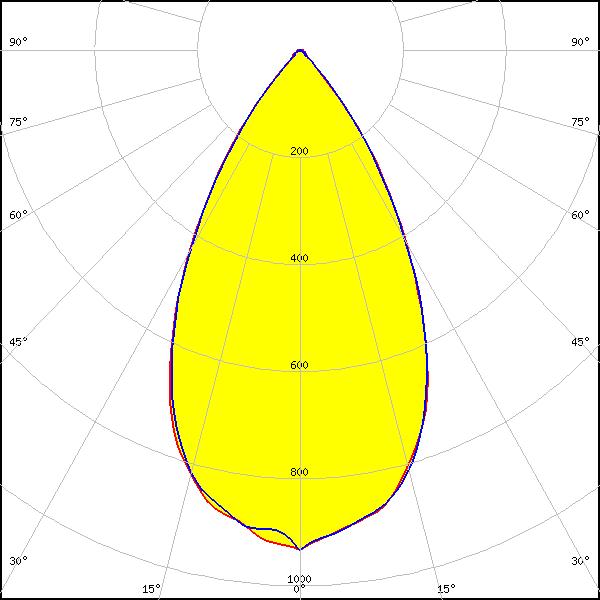

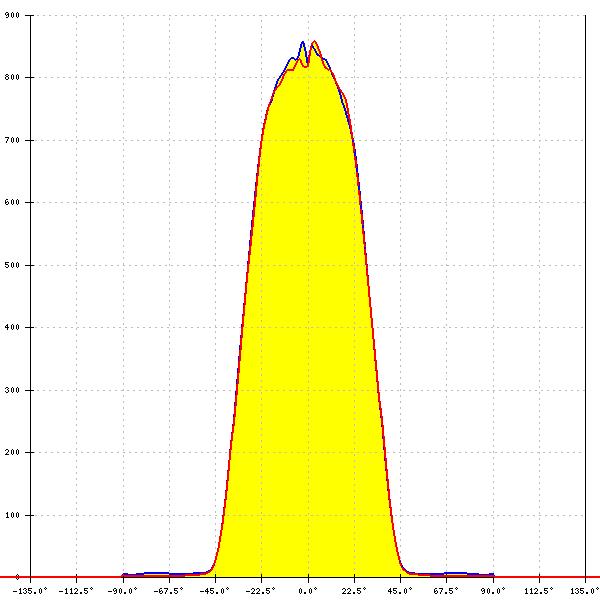

    LED: LUXEON 5050 HE
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 62°
    FWTM: 82°
    Peak intensity: 0.868 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

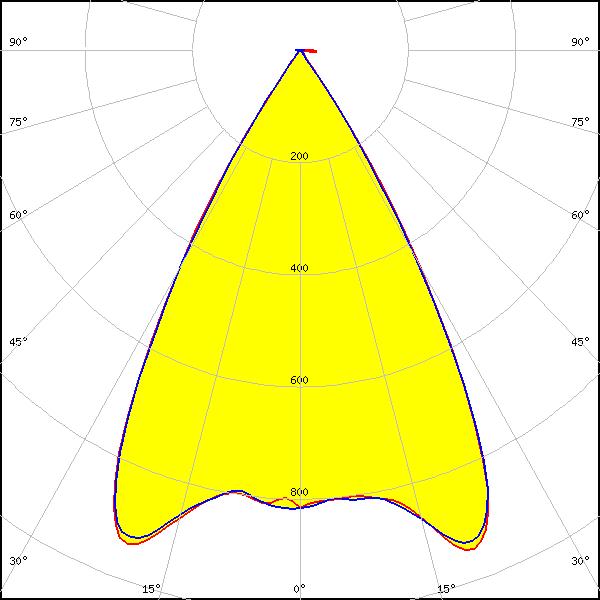

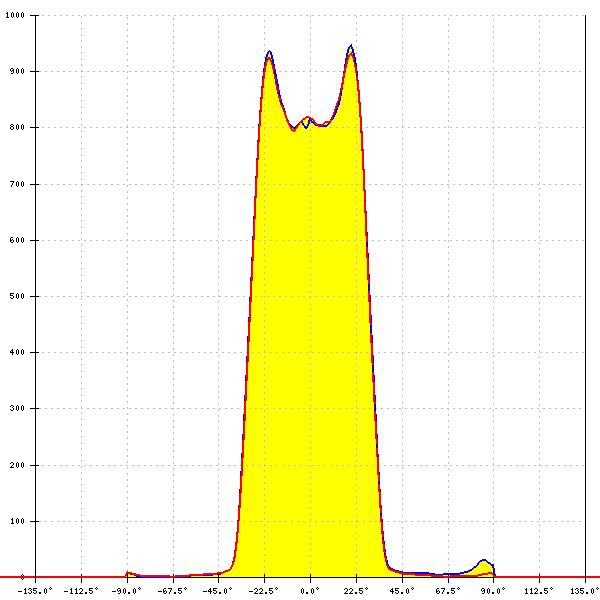

    LED: LUXEON HL1Z
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 60°
    FWTM: 70°
    Peak intensity: 0.946 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

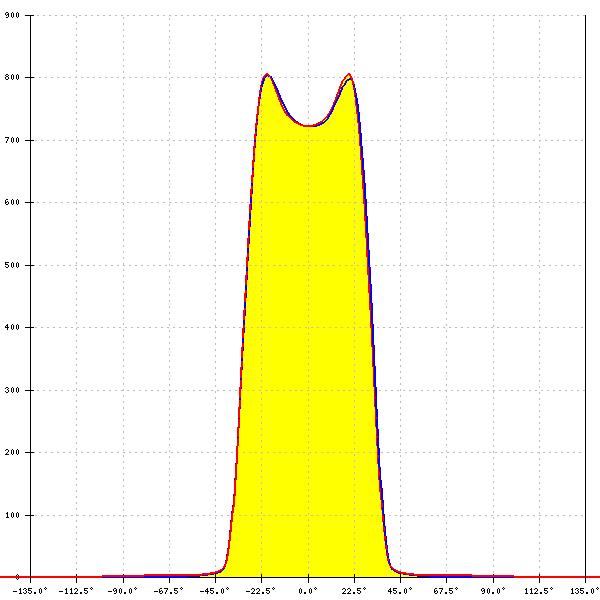

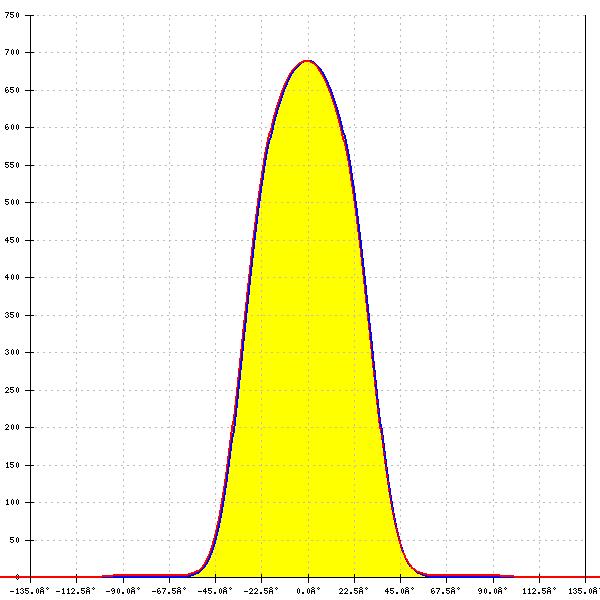

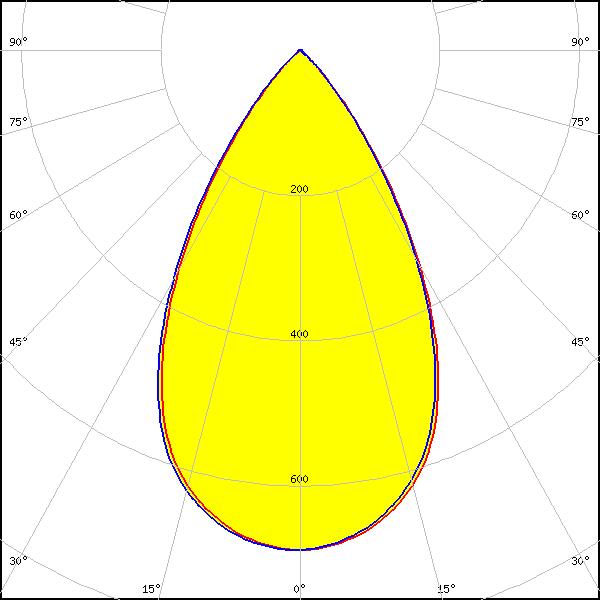

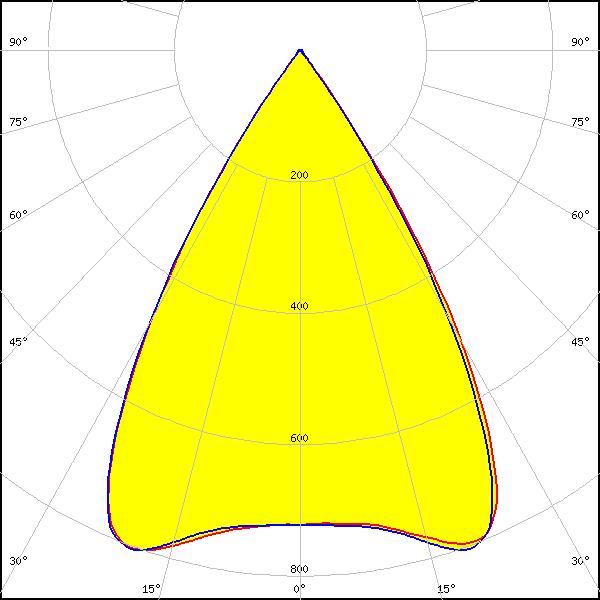

    LED: Opticus Daisy Mini M L28W2
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 63°
    FWTM: 74°
    Peak intensity: 0.811 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

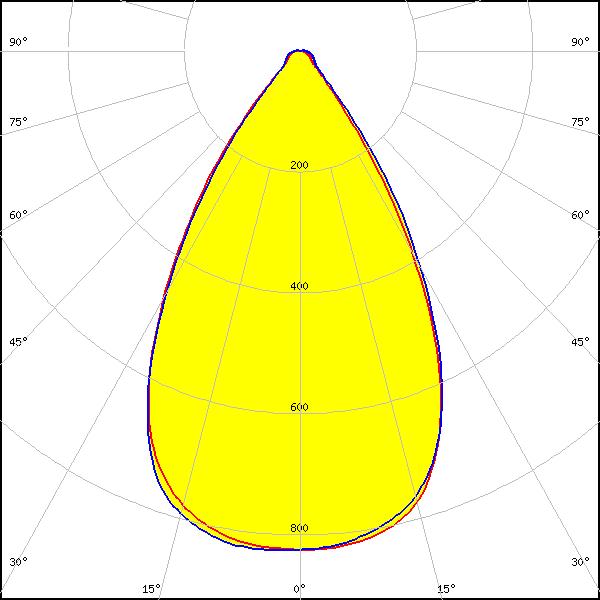

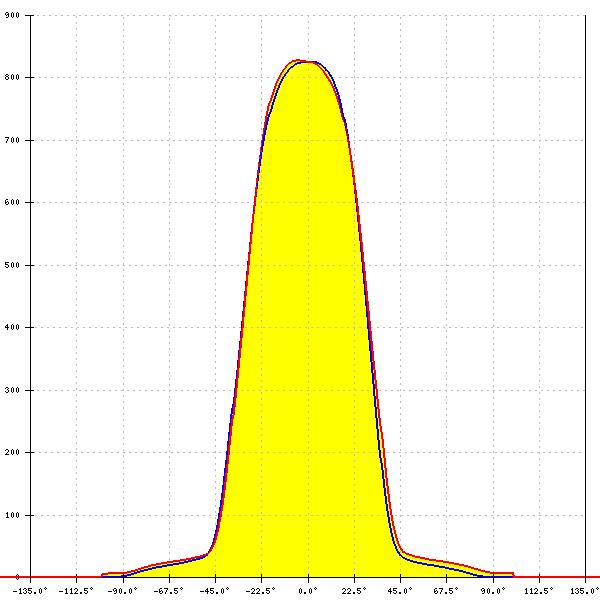

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 61°
    FWTM: 84°
    Peak intensity: 0.828 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 2
    Light colour/type: White

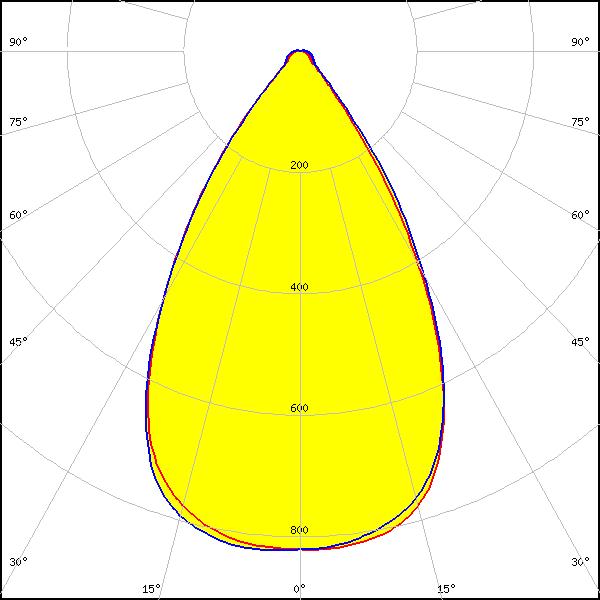

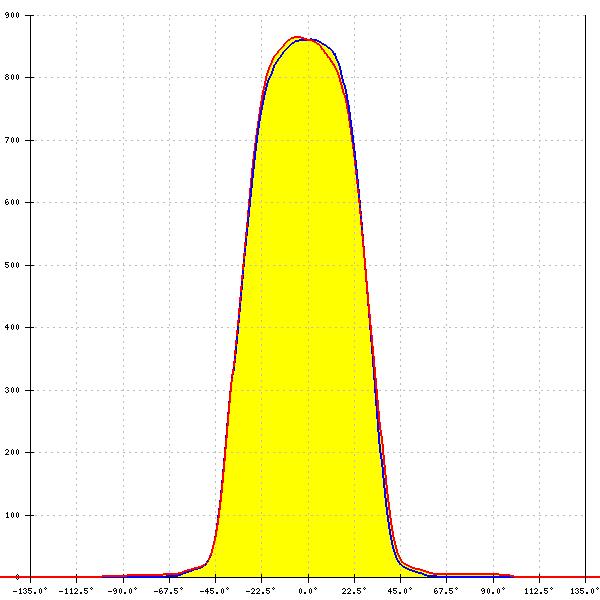

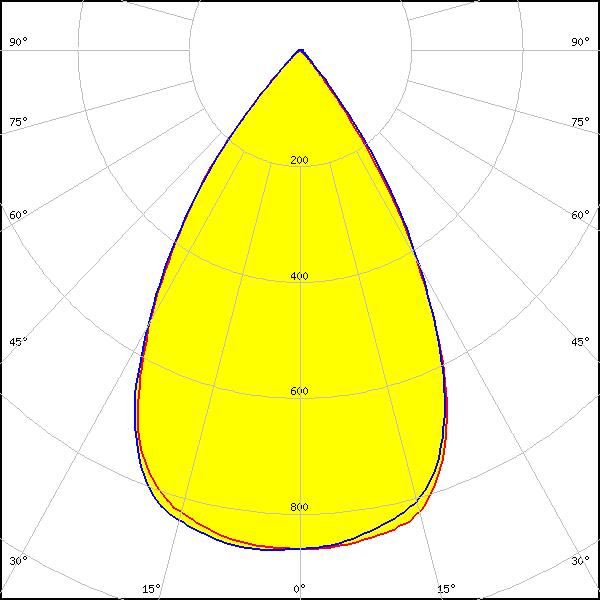

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 63°
    FWTM: 84°
    Peak intensity: 0.865 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 2
    Light colour/type: White

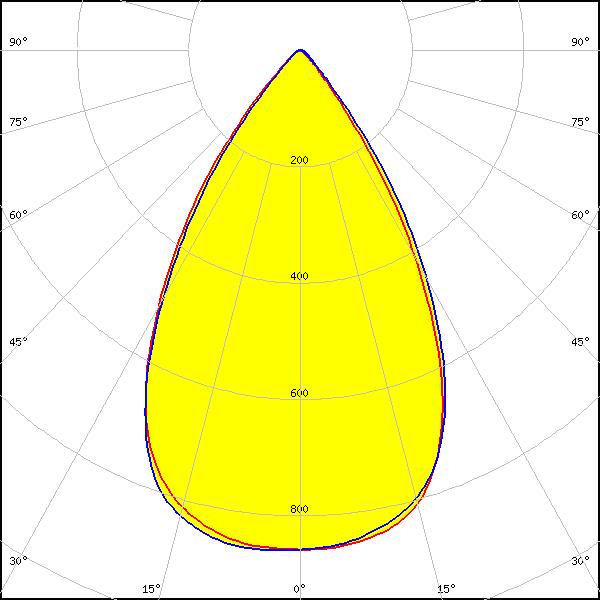

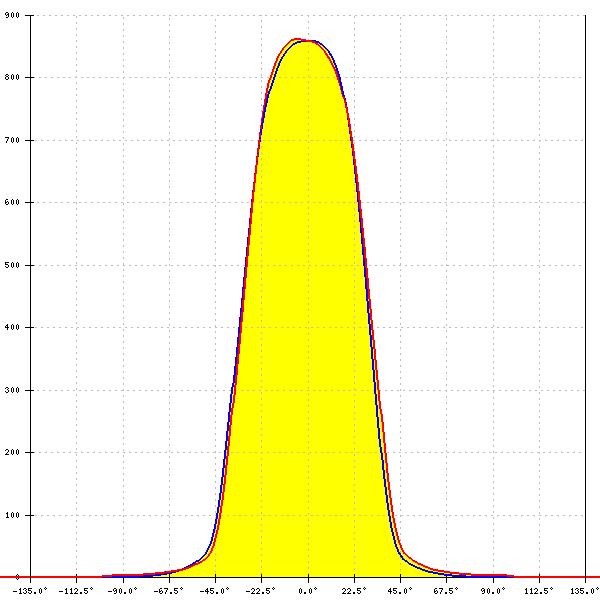

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 62°
    FWTM: 85°
    Peak intensity: 0.862 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 2
    Light colour/type: White

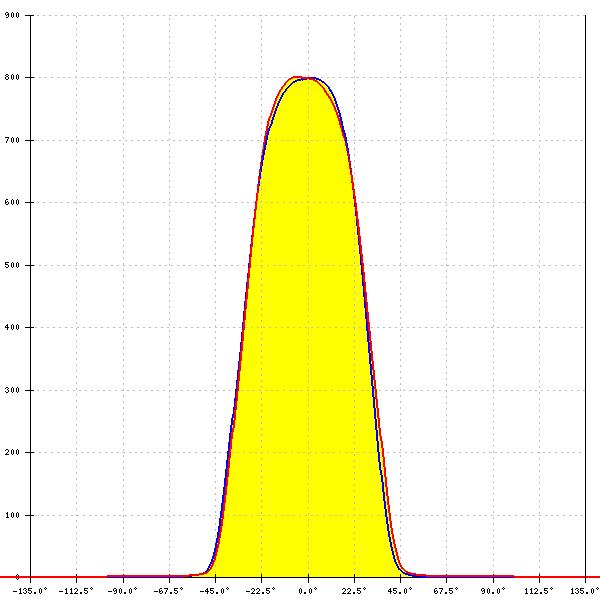

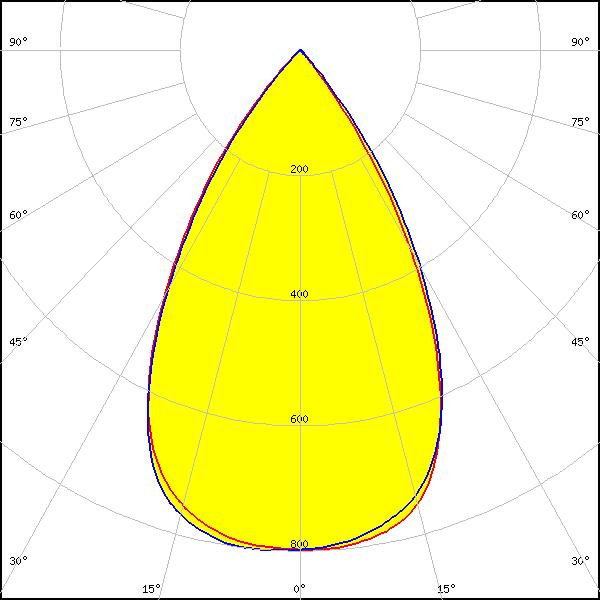

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 61°
    FWTM: 82°
    Peak intensity: 0.802 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: White

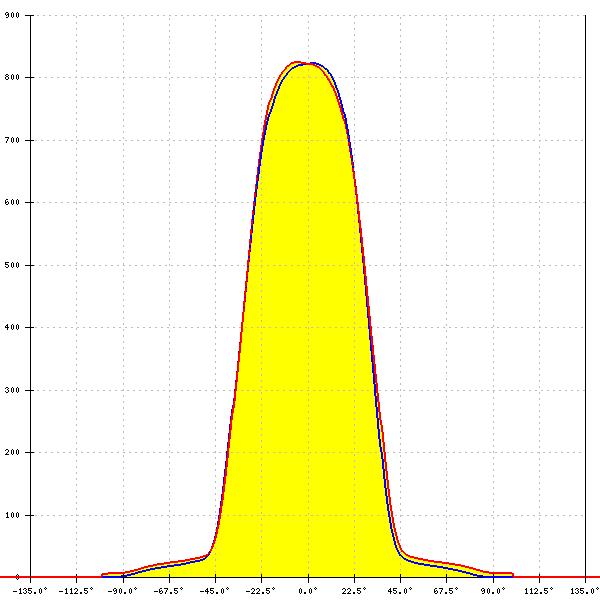

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 62°
    FWTM: 85°
    Peak intensity: 0.826 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 2
    Light colour/type: White

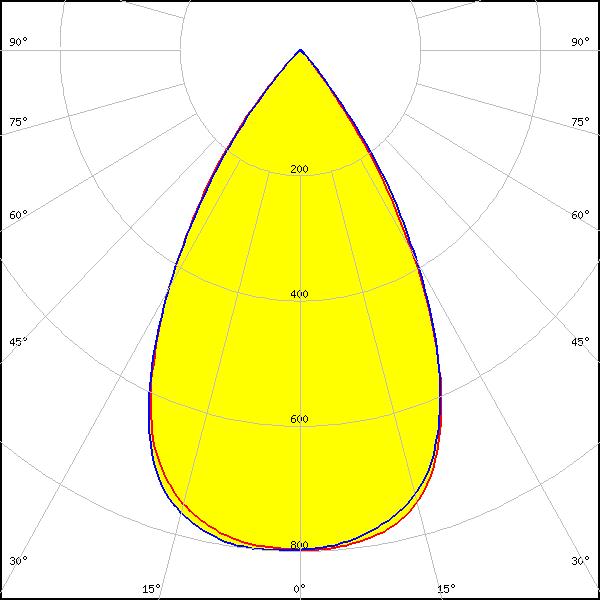

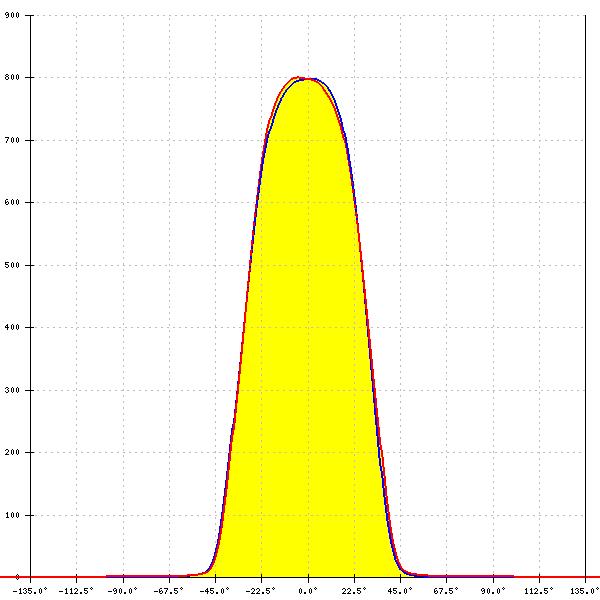

    LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 60°
    FWTM: 82°
    Peak intensity: 0.801 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 2
    Light colour/type: White

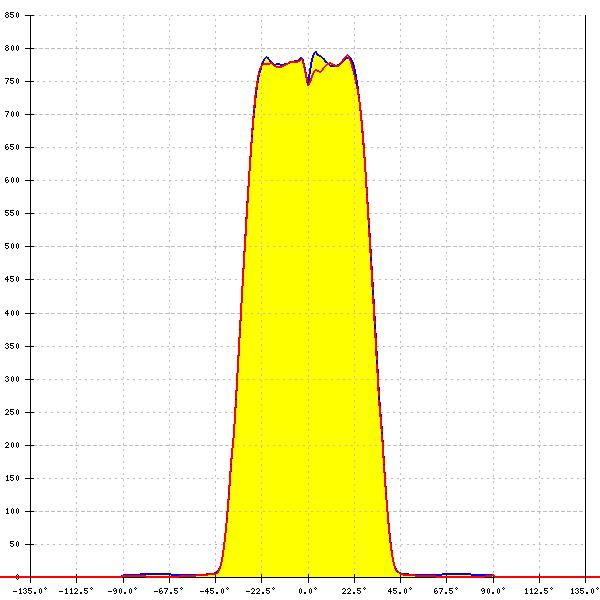

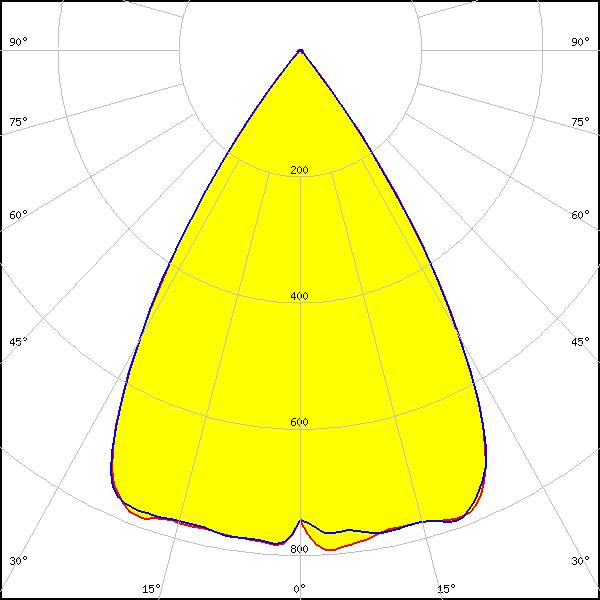

    LED: NF2W757G-MT (Tunable White)
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 66°
    FWTM: 78°
    Peak intensity: 0.807 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

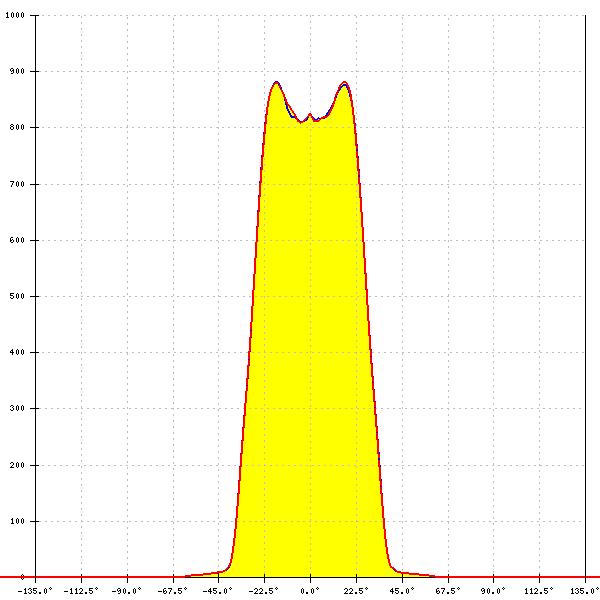

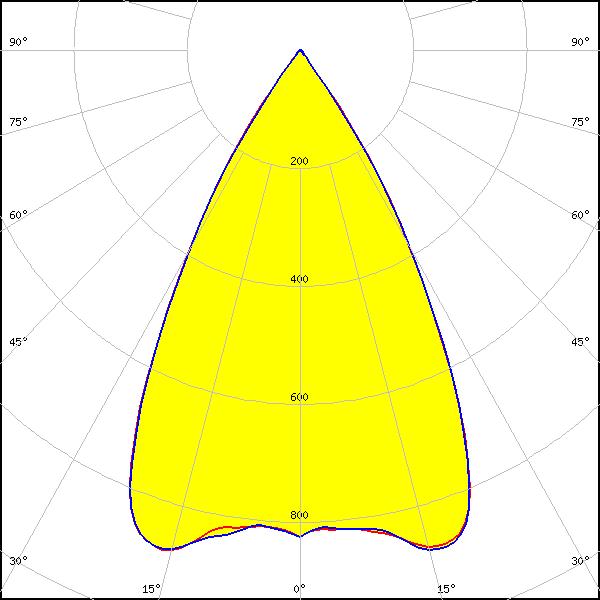

    LED: NFSWE11A
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 58°
    FWTM: 74°
    Peak intensity: 0.884 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 4
    Light colour/type: White

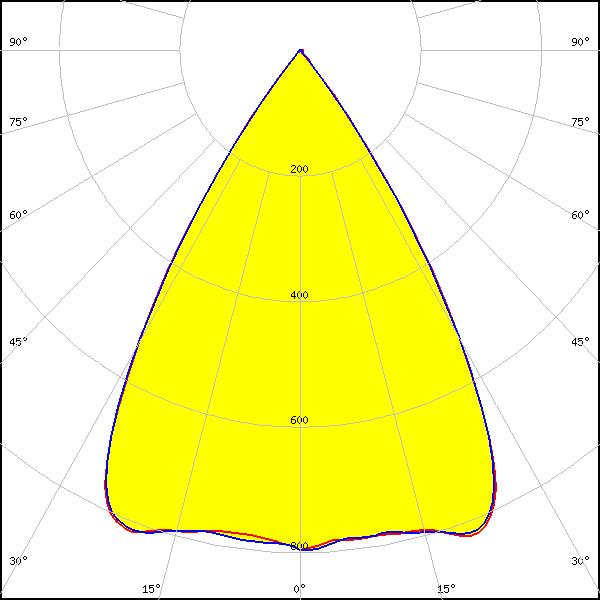

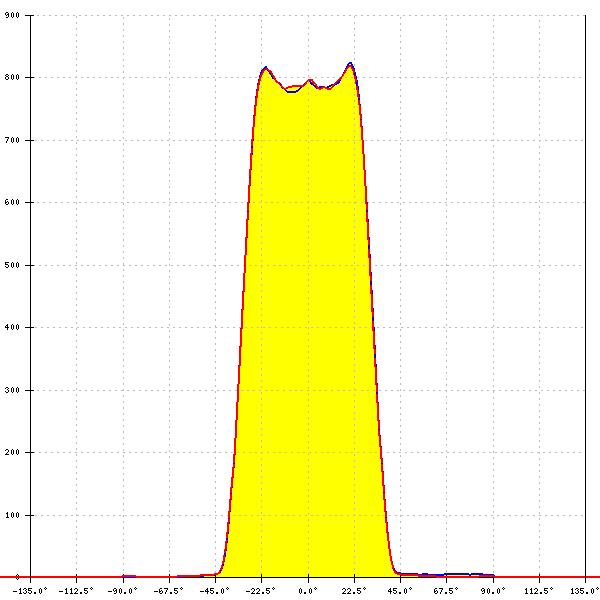

    LED: NFSx757G
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 64°
    FWTM: 76°
    Peak intensity: 0.825 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

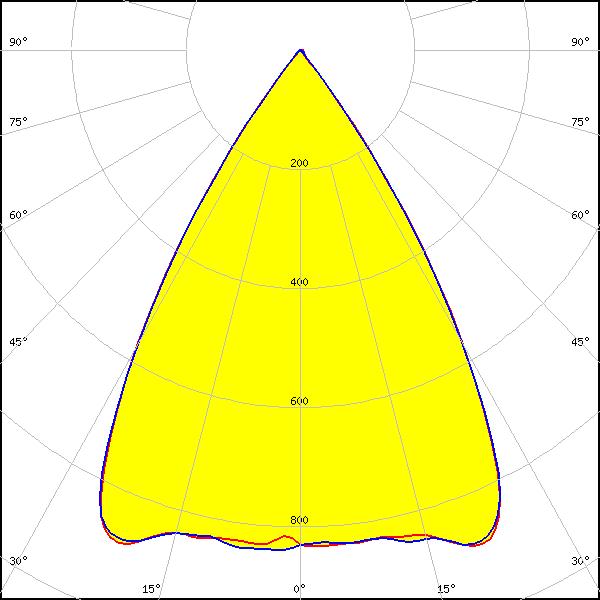

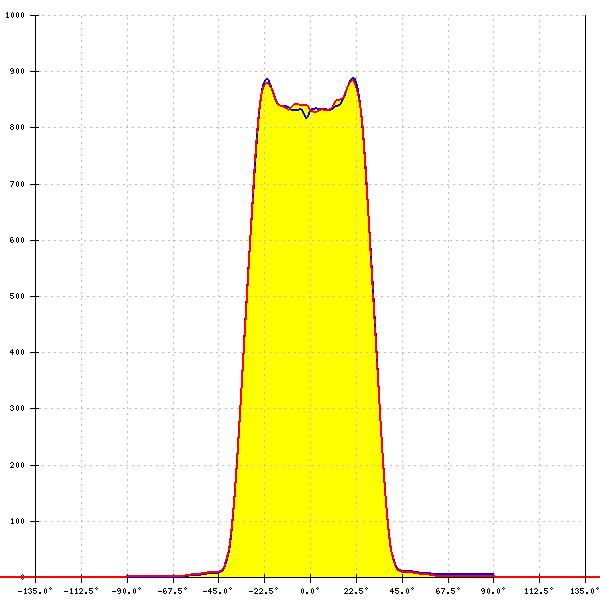

    LED: NFSx757G
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 64°
    FWTM: 78°
    Peak intensity: 0.889 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

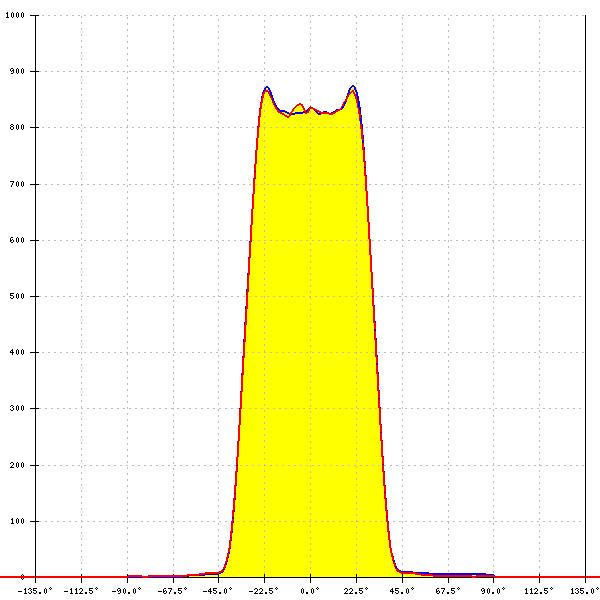

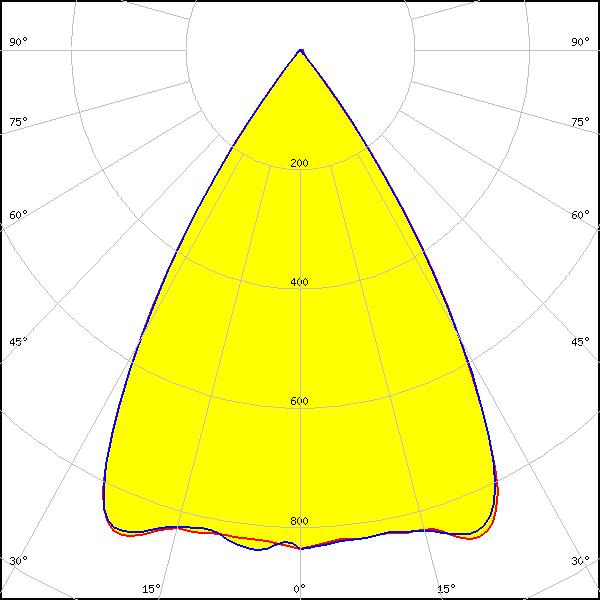

    LED: NFSx757G
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 64°
    FWTM: 78°
    Peak intensity: 0.874 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

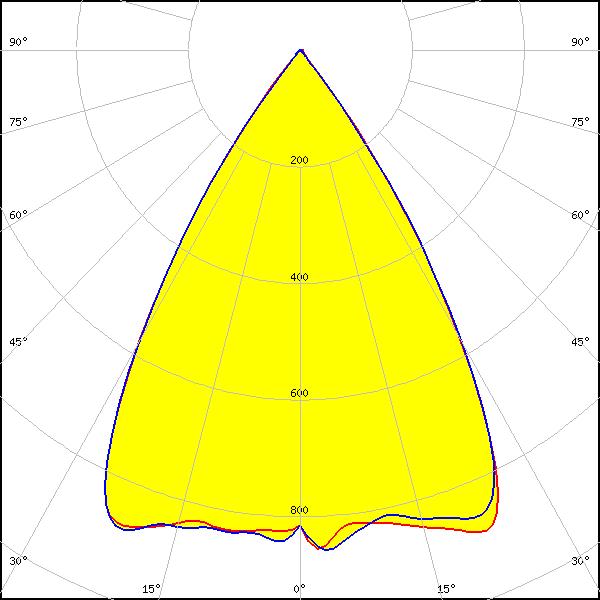

    LED: Duris E 2835
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 64°
    FWTM: 78°
    Peak intensity: 0.889 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

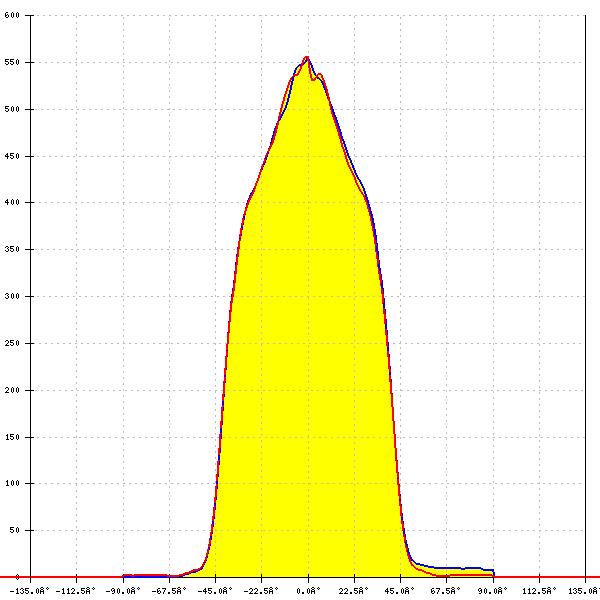

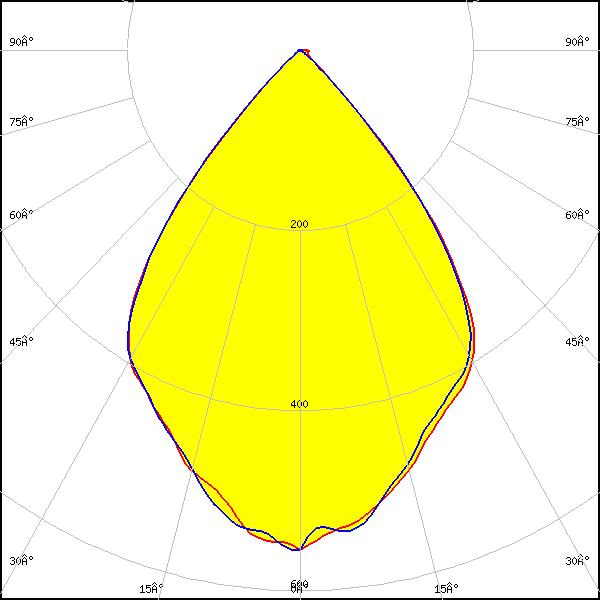

    LED: LM28xB Series
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 76°
    FWTM: 93°
    Peak intensity: 0.557 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 2
    Light colour/type: White

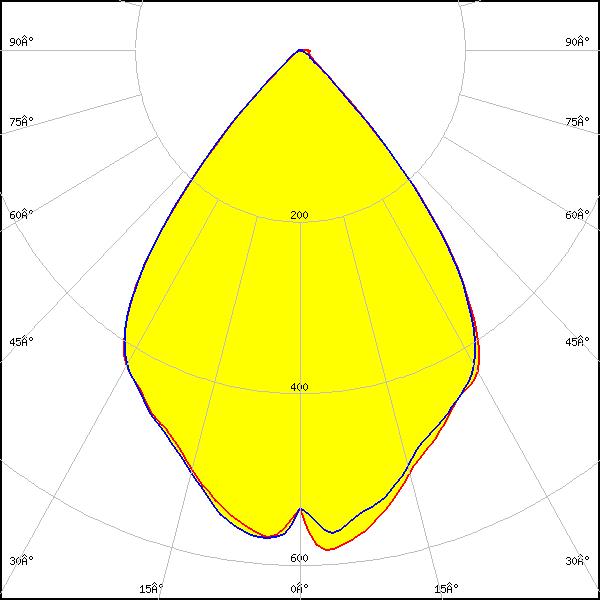

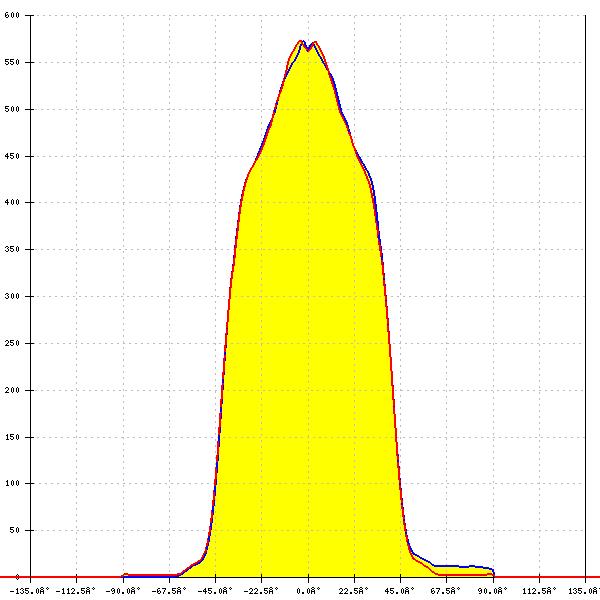

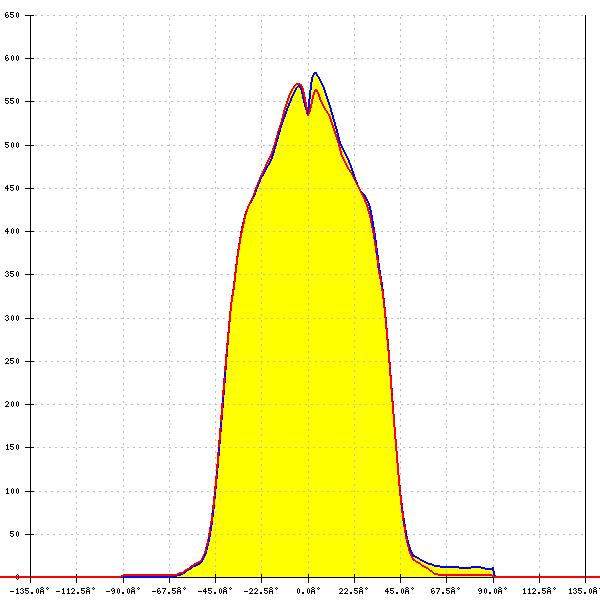

    LED: LM28xB Series
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 76°
    FWTM: 94°
    Peak intensity: 0.583 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 2
    Light colour/type: White

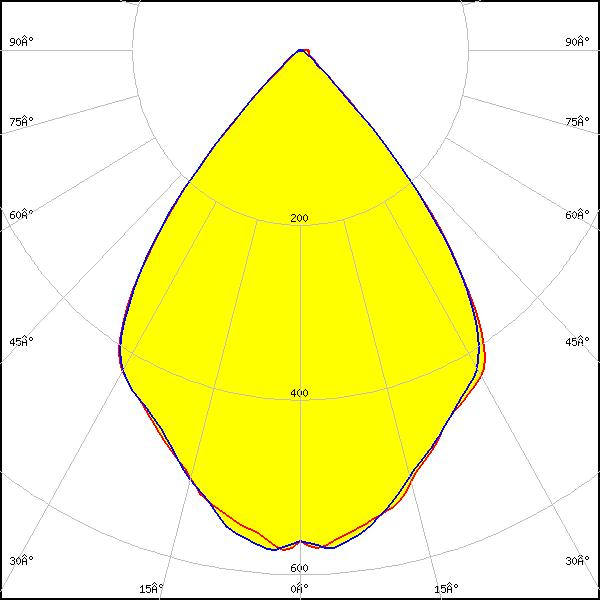

    LED: LM28xB Series
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 76°
    FWTM: 94°
    Peak intensity: 0.586 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 2
    Light colour/type: White

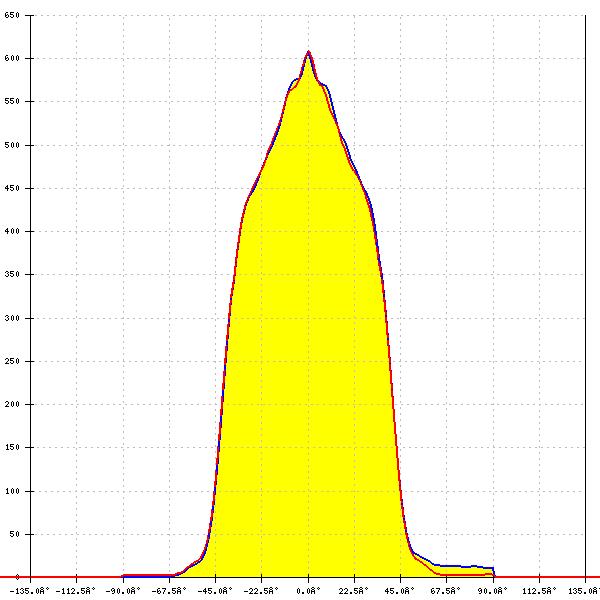

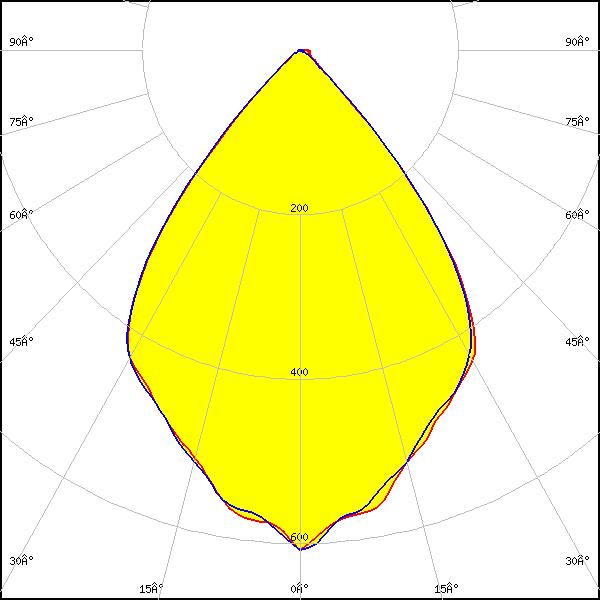

    LED: LM28xB Series
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 76°
    FWTM: 97°
    Peak intensity: 0.611 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 2
    Light colour/type: White

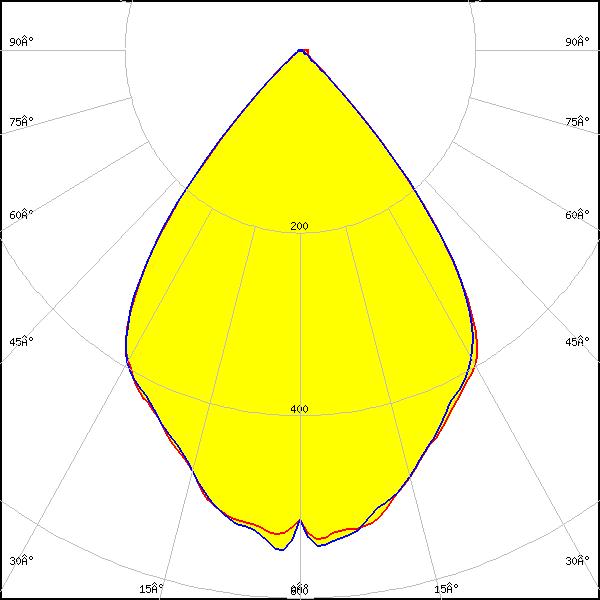

    LED: LM28xB Series
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 76°
    FWTM: 93°
    Peak intensity: 0.551 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 2
    Light colour/type: White

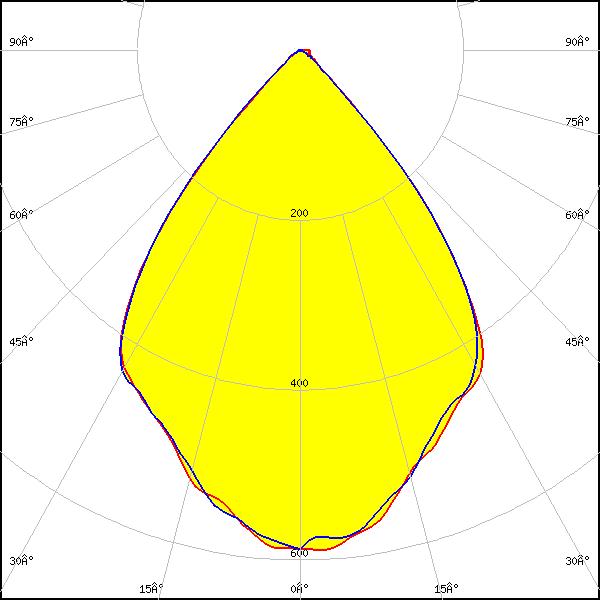

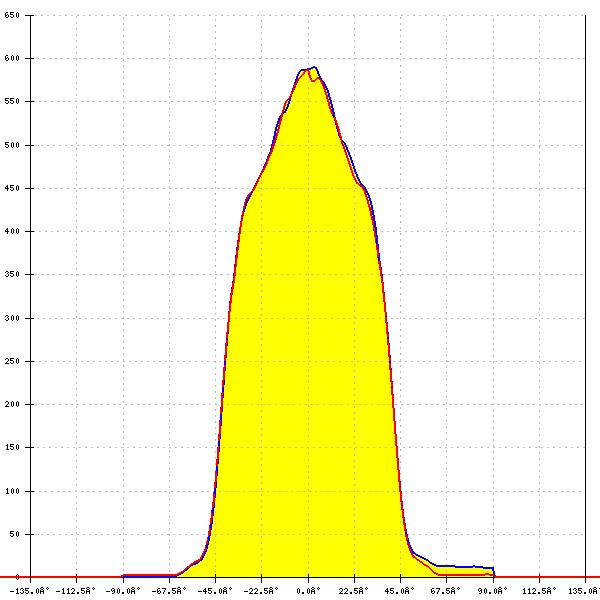

    LED: LM28xB Series
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 76°
    FWTM: 94°
    Peak intensity: 0.592 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 2
    Light colour/type: White

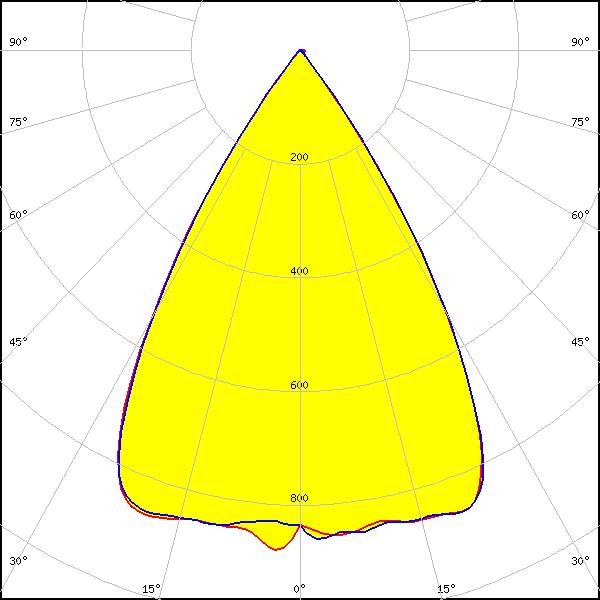

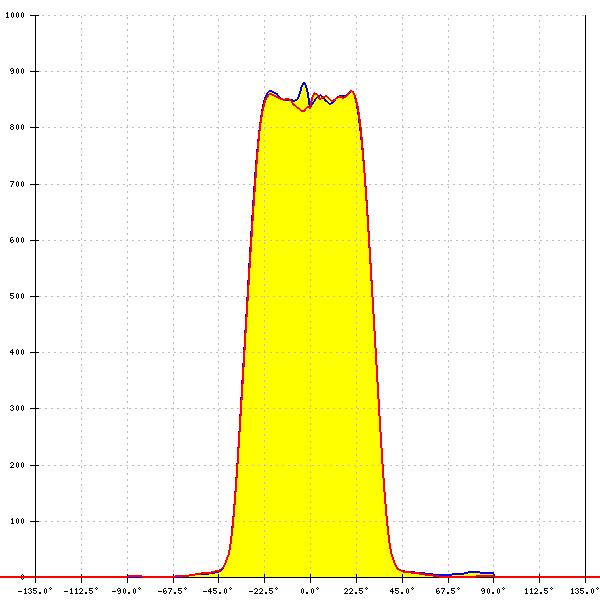

    LED: LM302D
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 64°
    FWTM: 76°
    Peak intensity: 0.882 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

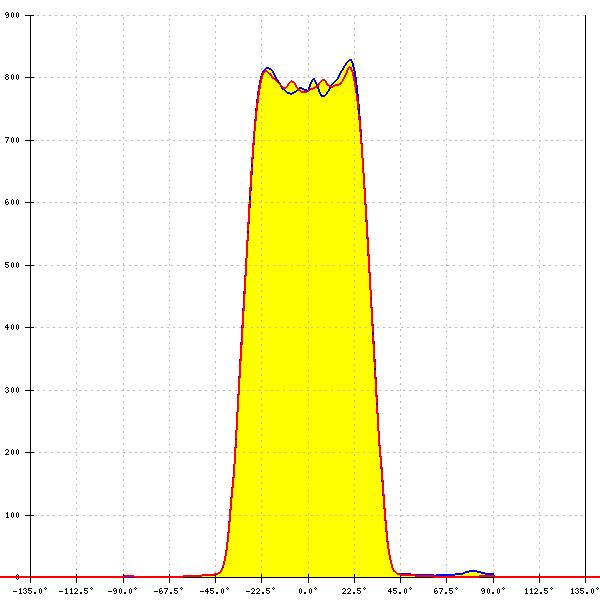

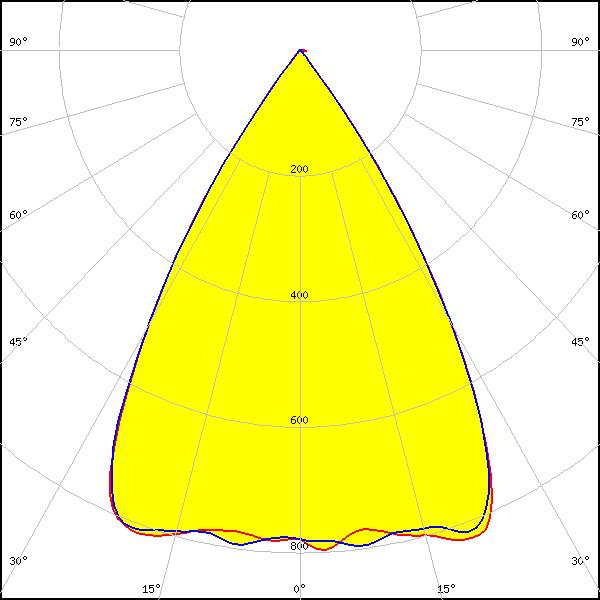

    LED: LM302D
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 64°
    FWTM: 76°
    Peak intensity: 0.827 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

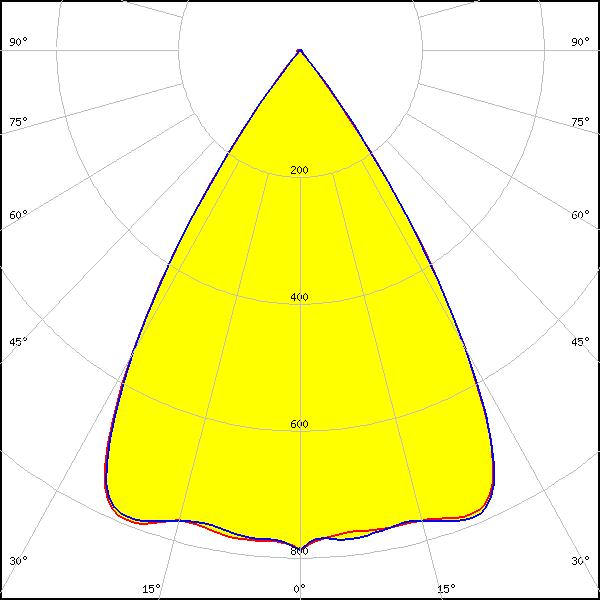

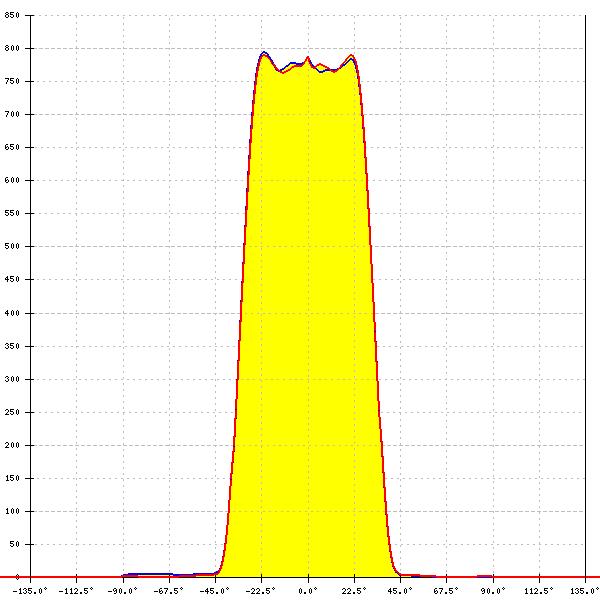

    LED: SEOUL 3030
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 66°
    FWTM: 78°
    Peak intensity: 0.794 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

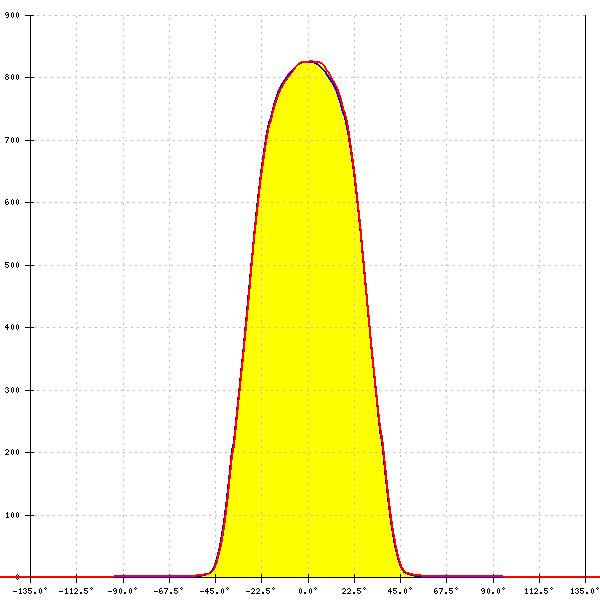

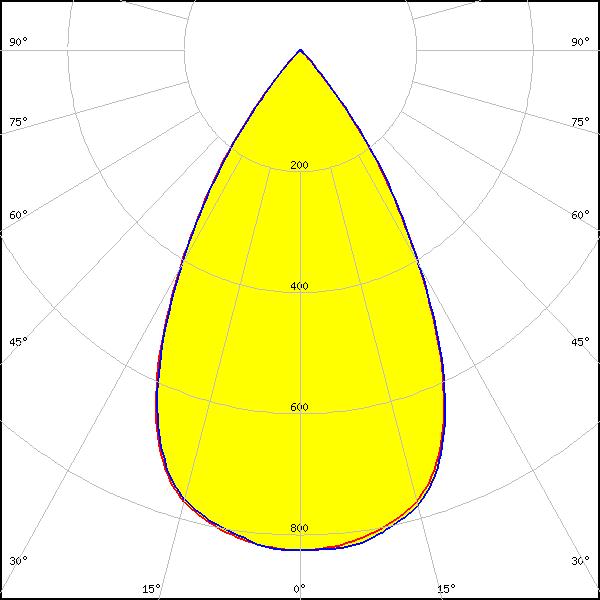

    LED: LLE 20x280mm 750lm 827-865 LV MD ADV1
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 60°
    FWTM: 82°
    Peak intensity: 0.828 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

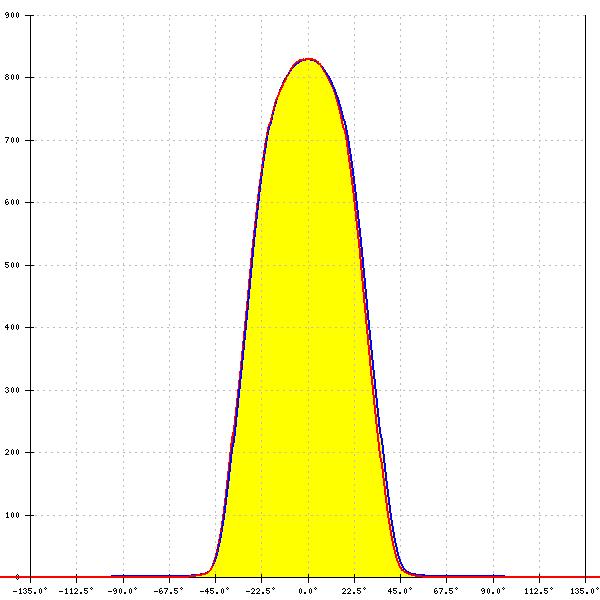

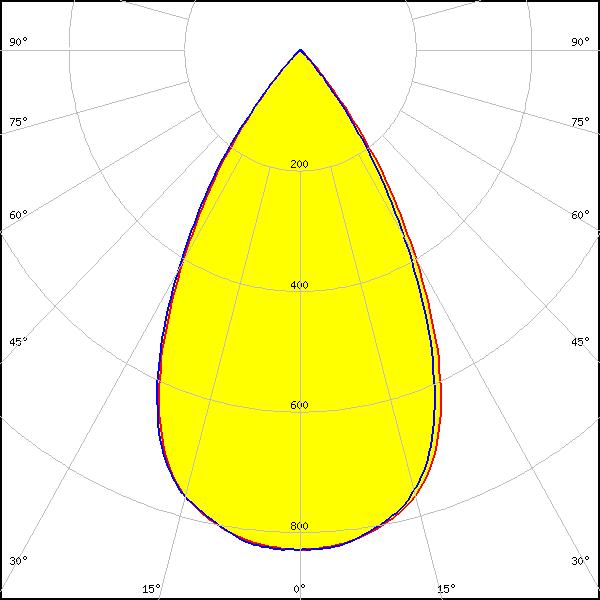

    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17028_DAISY-MINI-SHD
    FWHM: 59°
    FWTM: 82°
    Peak intensity: 0.830 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 2
    Light colour/type: White

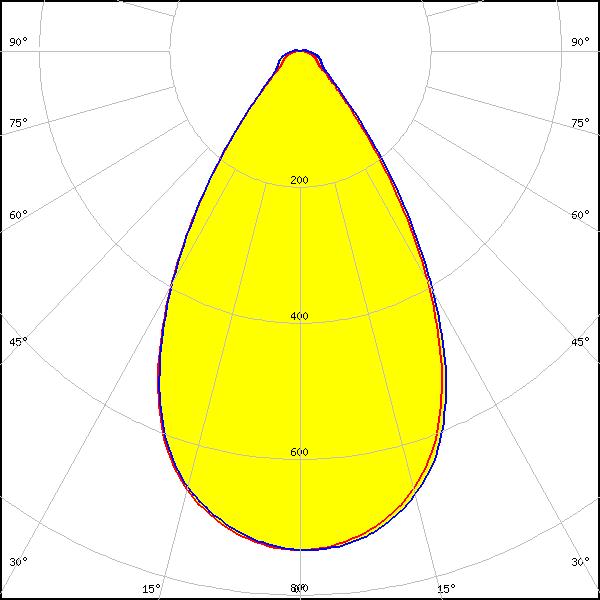

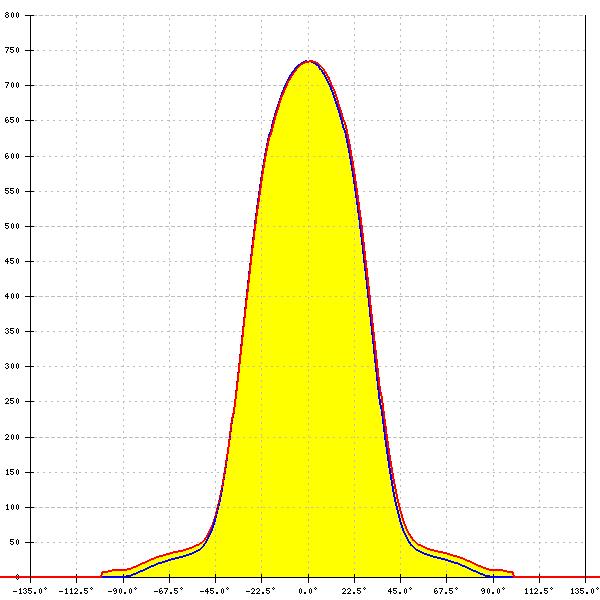

    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17033_DAISY-MINI-SHD-WHT
    FWHM: 62°
    FWTM: 93°
    Peak intensity: 0.734 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 2
    Light colour/type: White

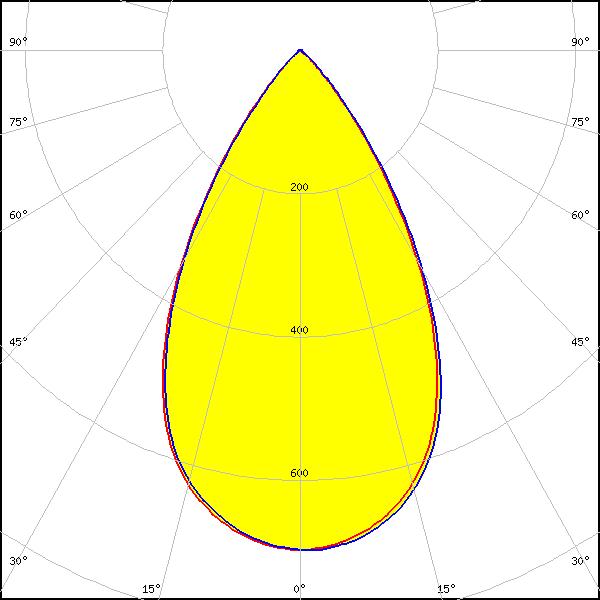

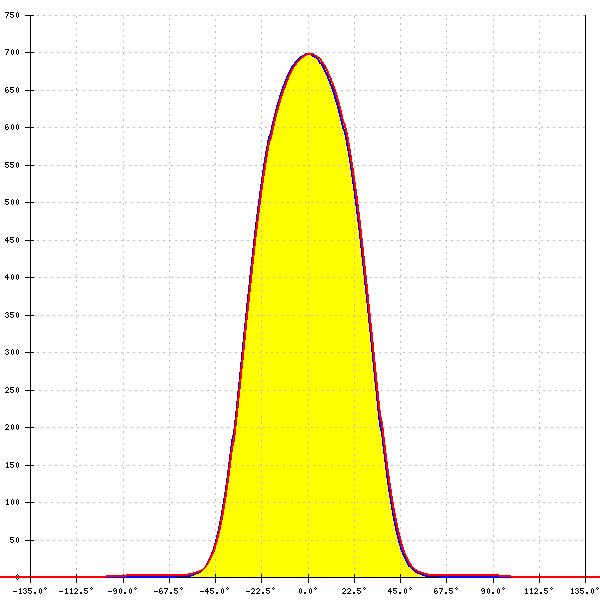

    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17034_DAISY-MINI-SHD-MATT
    FWHM: 60°
    FWTM: 86°
    Peak intensity: 0.698 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 2
    Light colour/type: White

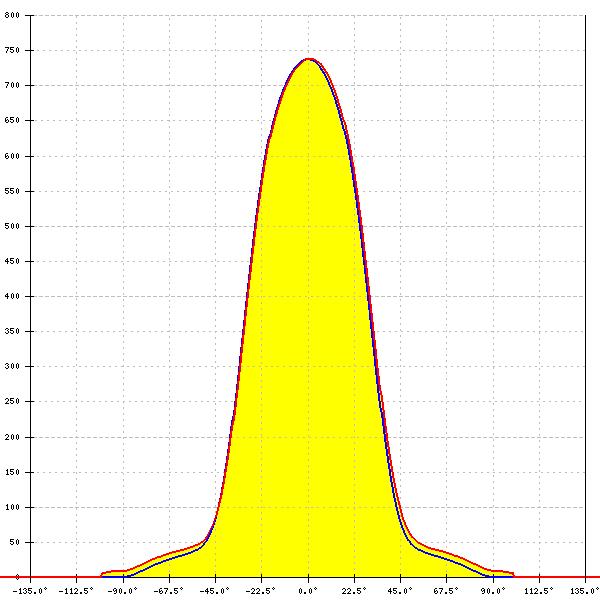

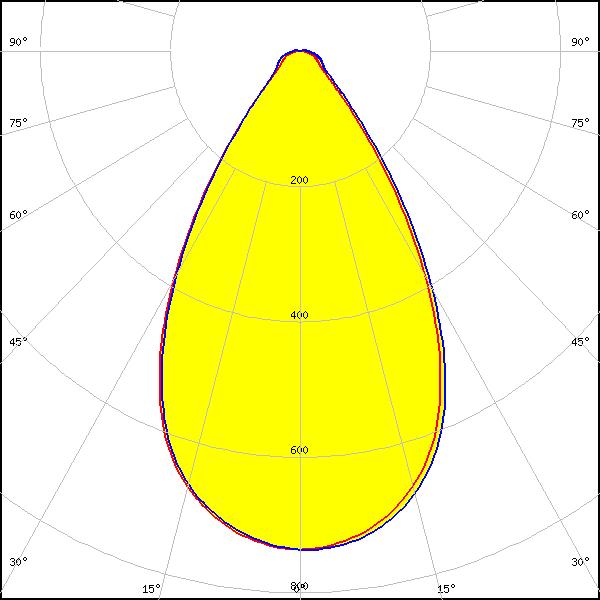

    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17465_DAISY-MINI-SHD-WHT-MATT
    FWHM: 62°
    FWTM: 92°
    Peak intensity: 0.738 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 2
    Light colour/type: White

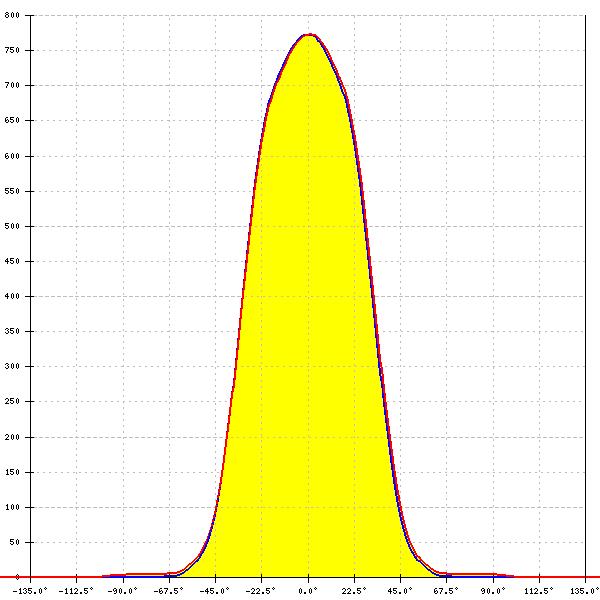

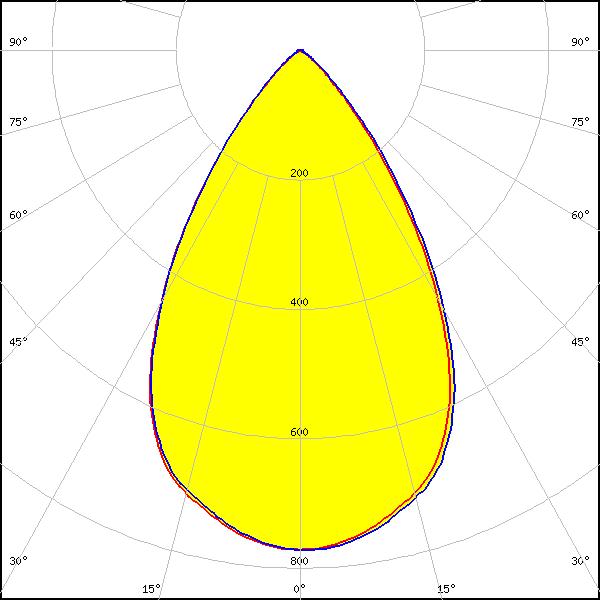

    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17666_DAISY-MINI-SHD-MET
    FWHM: 65°
    FWTM: 92°
    Peak intensity: 0.773 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 2
    Light colour/type: White

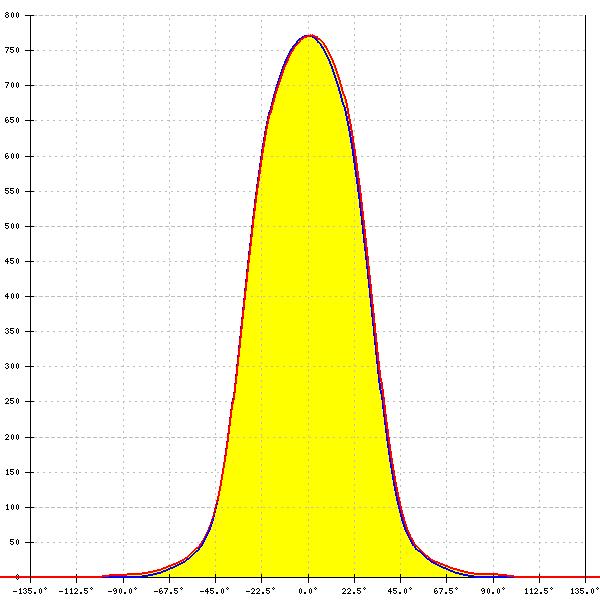

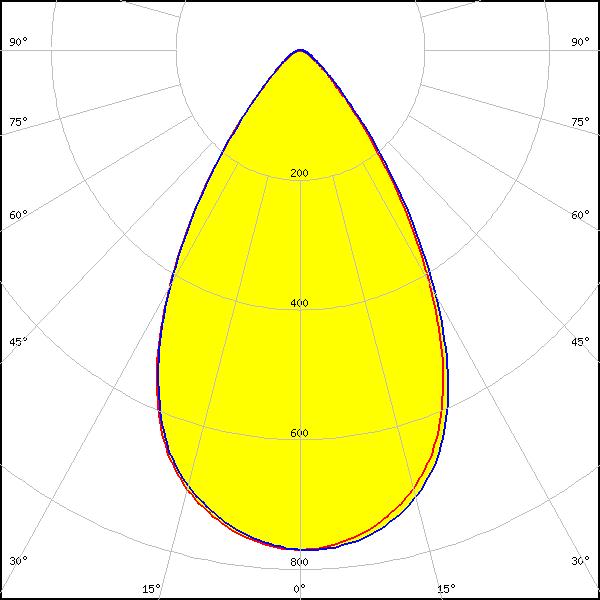

    LED: LLE 20x280mm 750lm 840 LV MD ADV1
    Required components:
    F17667_DAISY-MINI-SHD-MET-MATT
    FWHM: 63°
    FWTM: 94°
    Peak intensity: 0.771 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 2
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
