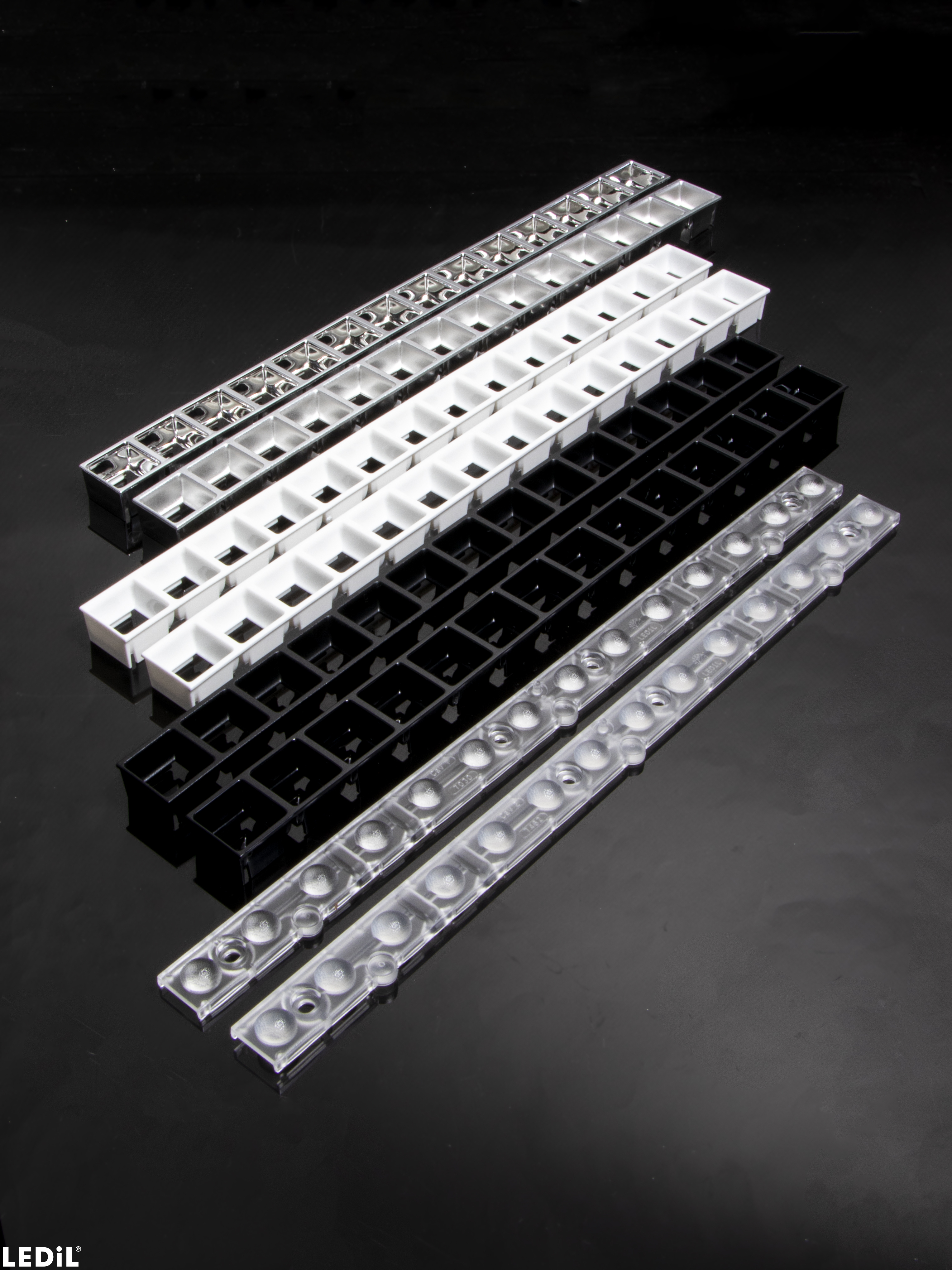

DAISY-MINI-W-D

Print

~55° wide beam. Variant with diffused lenses.

Note! This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
  • Dimensions:
    280 x  21 mm
  • Height:
    13.3 mm
  • Fastening:
    pin, screw, snaps
  • RoHS and REACH compliant:
    Yes
Materials
  • Linear lens
  • F17462_DAISY-MINI-W-D
    PMMA
  • Shade
  • F17028_DAISY-MINI-SHD
    PC
  • F17033_DAISY-MINI-SHD-WHT
    PC
  • F17034_DAISY-MINI-SHD-MATT
    PC
  • F17465_DAISY-MINI-SHD-WHT-MATT
    PC
  • F17666_DAISY-MINI-SHD-MET
    PC
  • F17667_DAISY-MINI-SHD-MET-MATT
    PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Linear lens
    1 pcs
  • Shade
    1 pcs
  • Linear lens
  • F17462_DAISY-MINI-W-D
    milky
  • Quantity in box:
    252 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    5.80 kg
  • MPQ:
    12 pcs
  • MOQ:
    252 pcs
  • MOQ Size:
    398 x 298 x 265 mm
  • MOQ Weight:
    5.80 kg
  • Shade
  • F17028_DAISY-MINI-SHD
    black,gloss
  • F17033_DAISY-MINI-SHD-WHT
    white,gloss
  • F17034_DAISY-MINI-SHD-MATT
    black,matt
  • F17465_DAISY-MINI-SHD-WHT-MATT
    white,matt
  • F17666_DAISY-MINI-SHD-MET
    metal,gloss
  • F17667_DAISY-MINI-SHD-MET-MATT
    metal,matt
  • Quantity in box:
    252 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    5.90 kg
  • MPQ:
    4 pcs
  • MOQ:
    252 pcs
  • MOQ Size:
    398 x 298 x 265 mm
  • MOQ Weight:
    5.90 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    F17462_DAISY-MINI-W-D
    F17028_DAISY-MINI-SHD

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

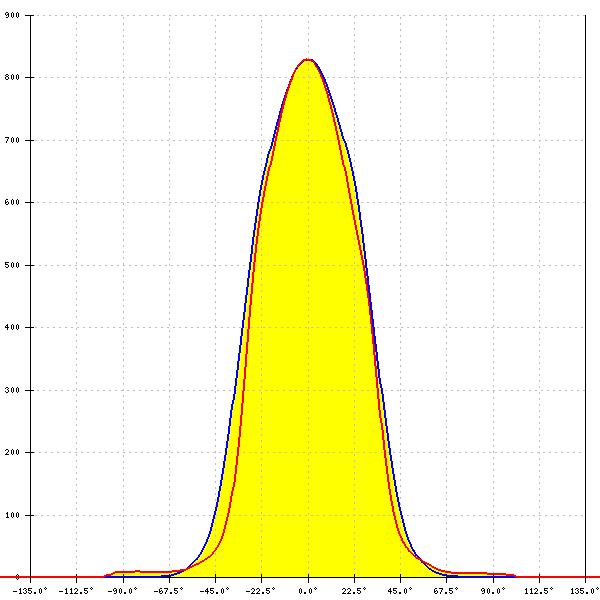

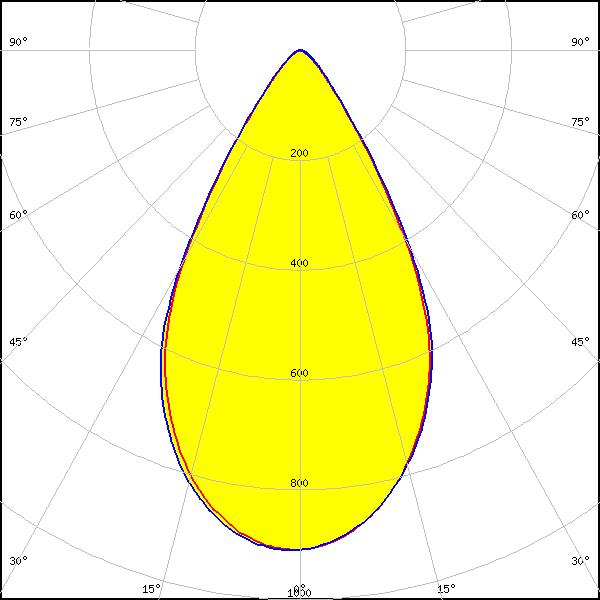

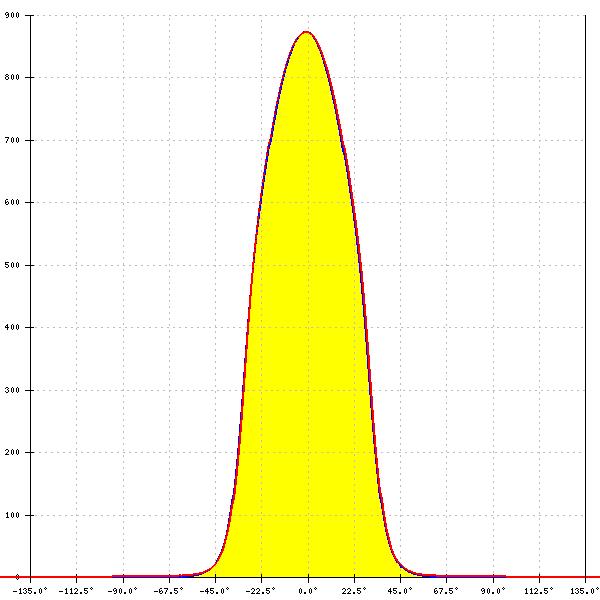

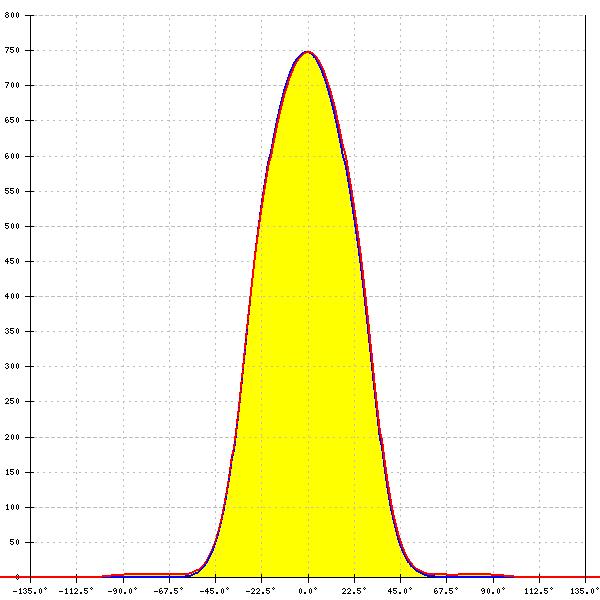

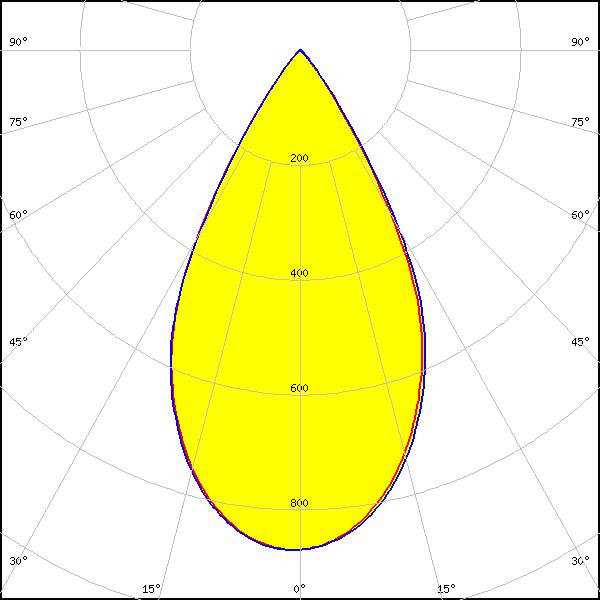

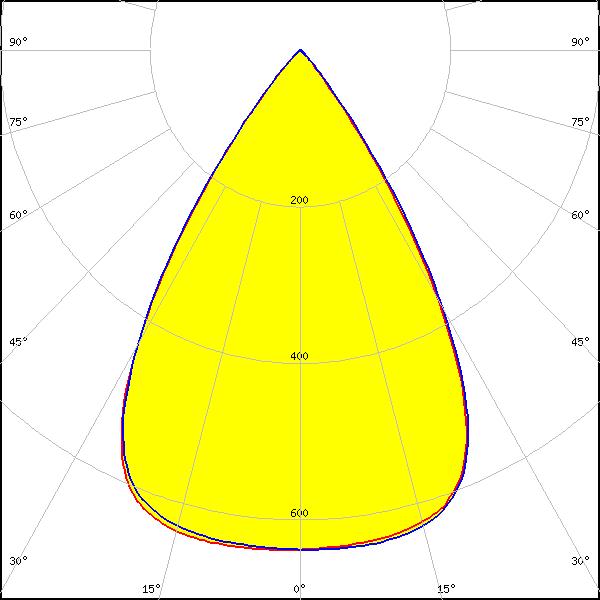

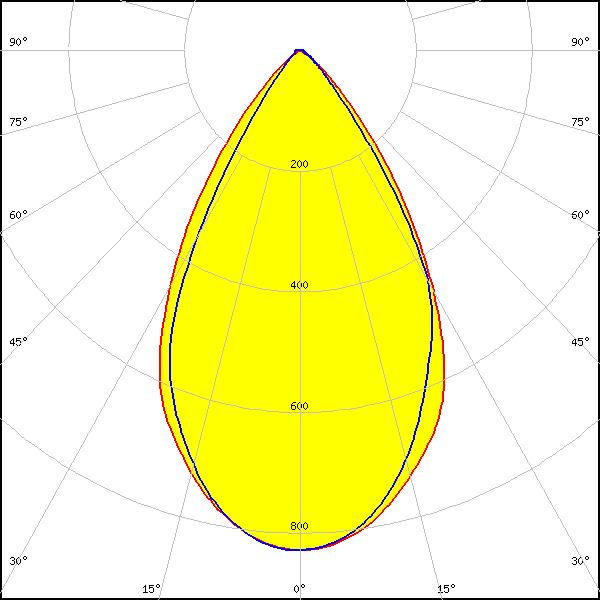

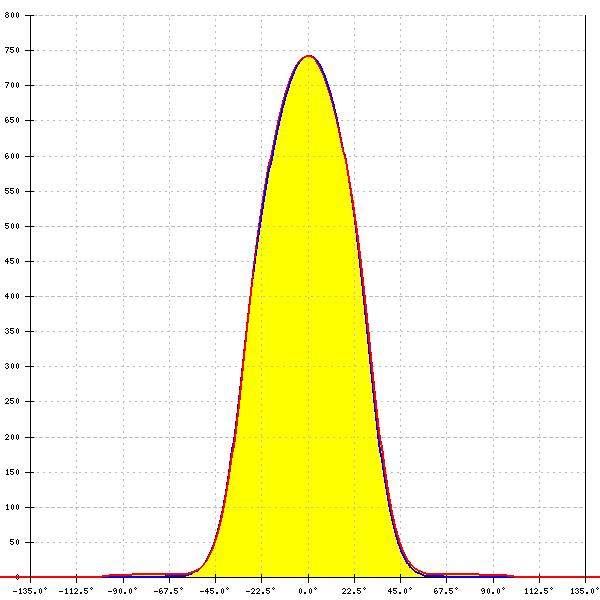

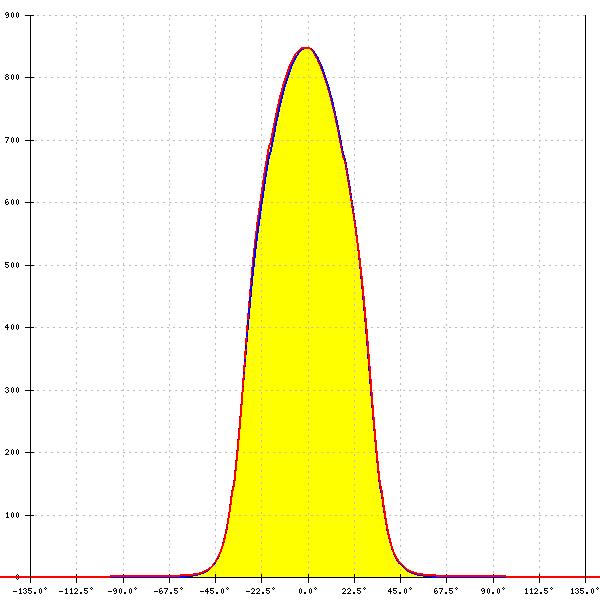

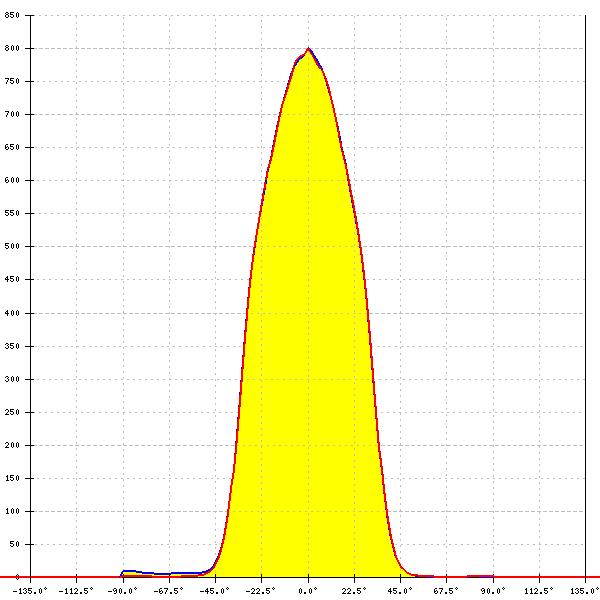

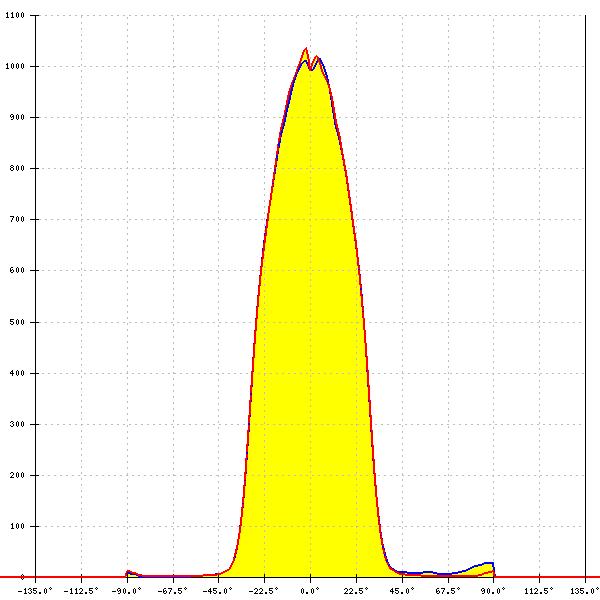

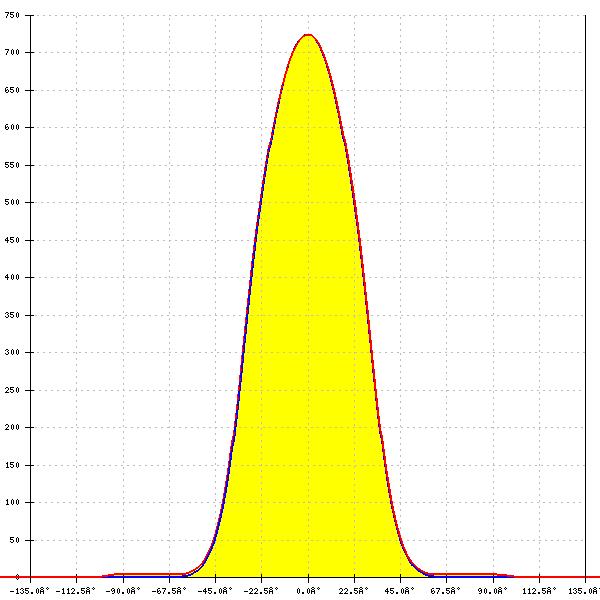

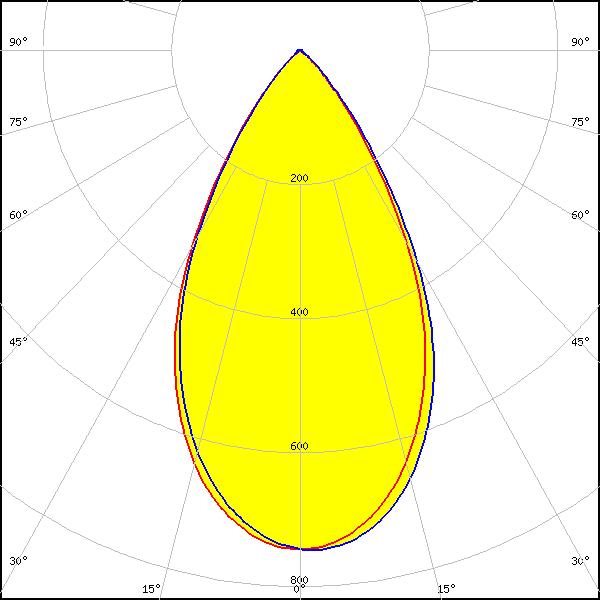

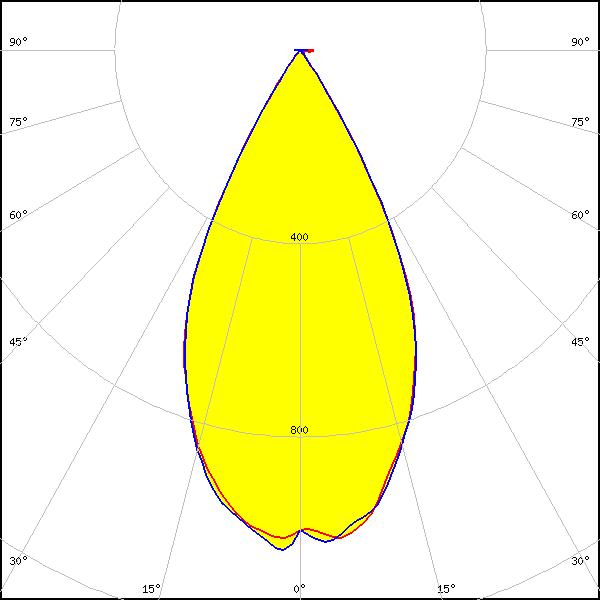

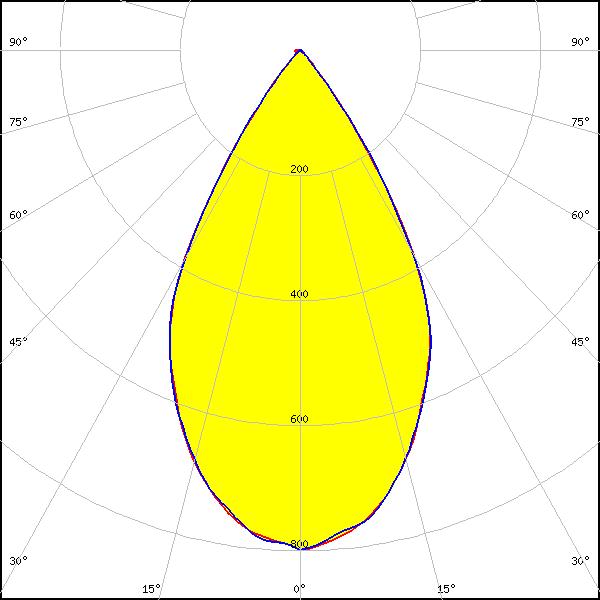

Optical results

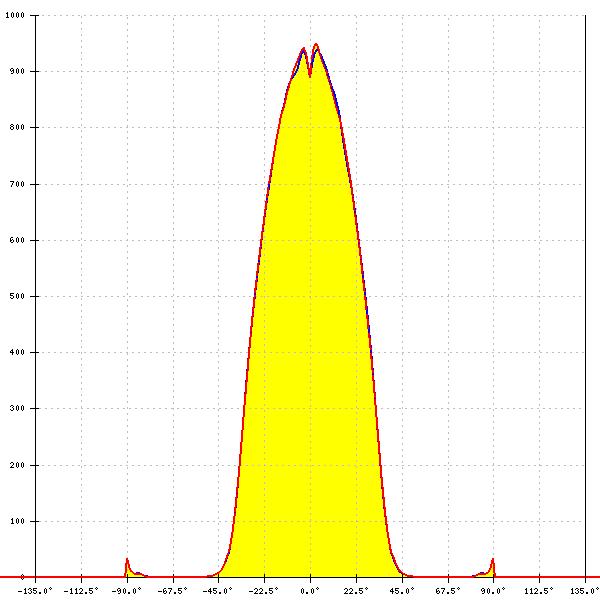

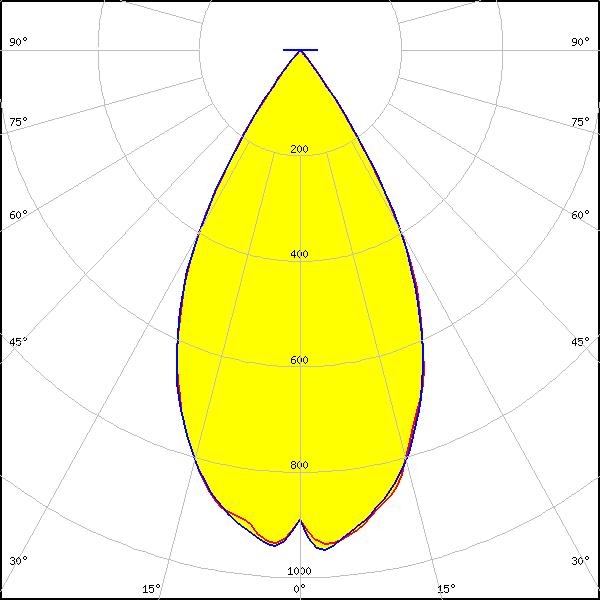

LED: XQ-E HI
Required components:
F17034_DAISY-MINI-SHD-MATT
FWHM: 56°
FWTM: 76°
Peak intensity: 1.0 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

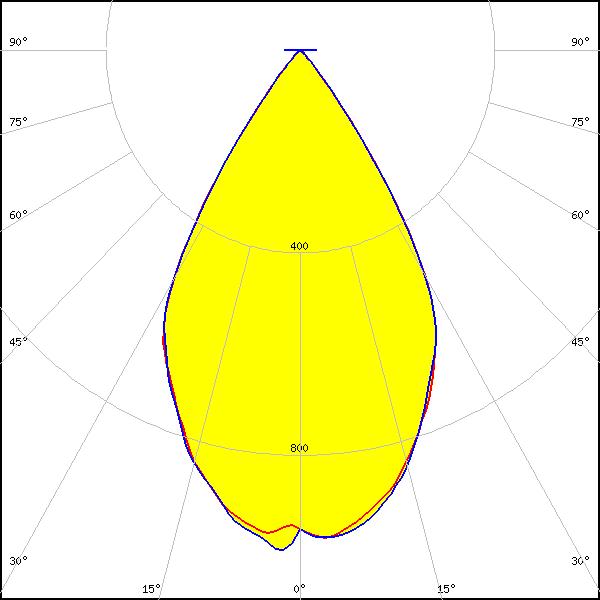

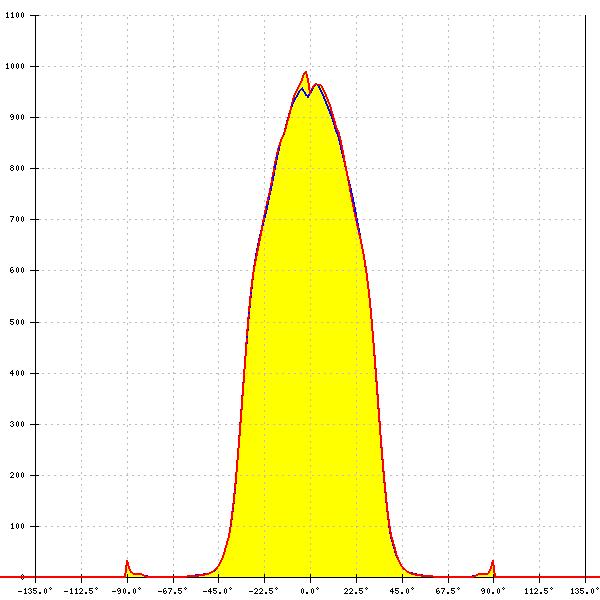

LED: XQ-E HI
Required components:
F17666_DAISY-MINI-SHD-MET
FWHM: 62°
FWTM: 78°
Peak intensity: 1.0 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: LED-Modul 279,65x20 mm 14 LEDs Mini Daisy
Required components:
F17028_DAISY-MINI-SHD
FWHM: 56°
FWTM: 76°
Peak intensity: 0.9 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White
LED: LED-Modul 279,65x20 mm 14 LEDs Mini Daisy
Required components:
F17033_DAISY-MINI-SHD-WHT
FWHM: 57°
FWTM: 80°
Peak intensity: 0.9 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

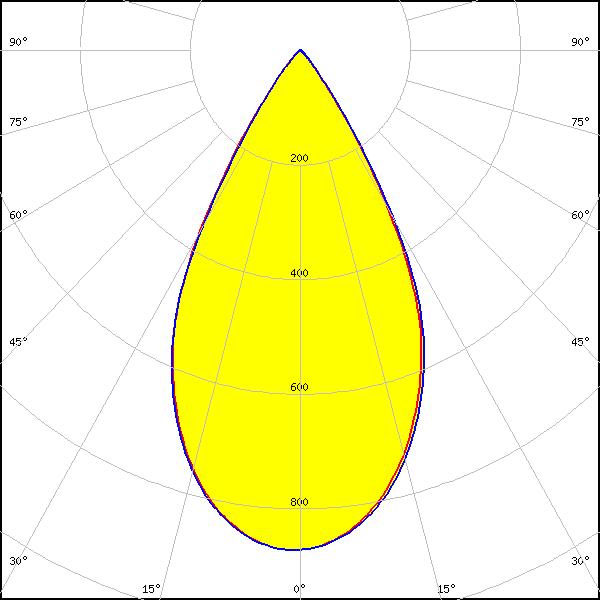

LED: LED-Modul 279,65x20 mm 14 LEDs Mini Daisy
Required components:
F17034_DAISY-MINI-SHD-MATT
FWHM: 56°
FWTM: 76°
Peak intensity: 0.9 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White
LED: LED-Modul 279,65x20 mm 14 LEDs Mini Daisy
Required components:
F17465_DAISY-MINI-SHD-WHT-MATT
FWHM: 57°
FWTM: 80°
Peak intensity: 0.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

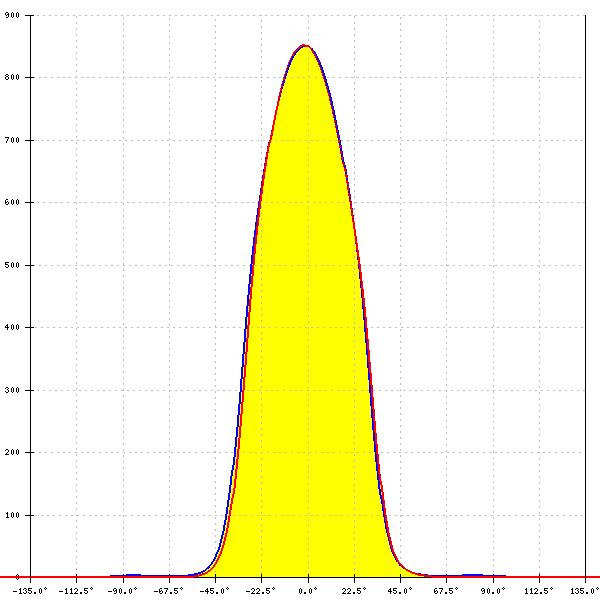

LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
Required components:
F17028_DAISY-MINI-SHD
FWHM: 57°
FWTM: 78°
Peak intensity: 0.9 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: Tunable White
LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
Required components:
F17033_DAISY-MINI-SHD-WHT
FWHM: 58°
FWTM: 81°
Peak intensity: 0.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: Tunable White
LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
Required components:
F17034_DAISY-MINI-SHD-MATT
FWHM: 57°
FWTM: 78°
Peak intensity: 0.8 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: Tunable White

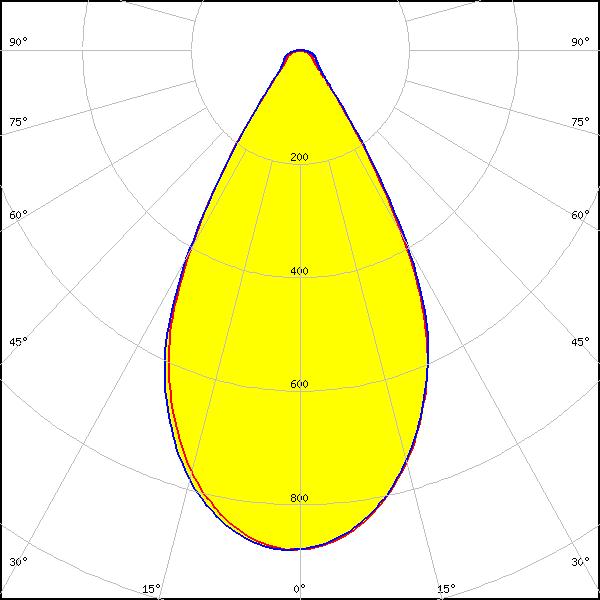

LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
Required components:
F17465_DAISY-MINI-SHD-WHT-MATT
FWHM: 58°
FWTM: 82°
Peak intensity: 0.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

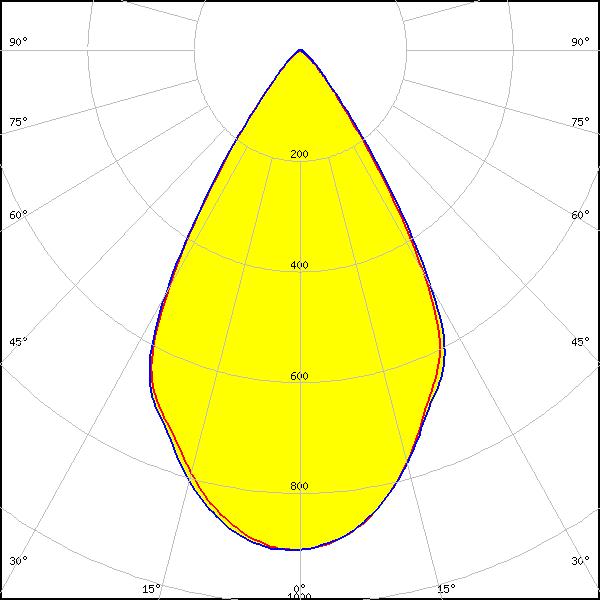

LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
Required components:
F17666_DAISY-MINI-SHD-MET
FWHM: 62°
FWTM: 83°
Peak intensity: 0.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: Tunable White
LED: LED-Modul 279,65x20 mm 14 LEDs TW Mini Daisy
Required components:
F17667_DAISY-MINI-SHD-MET-MATT
FWHM: 59°
FWTM: 84°
Peak intensity: 0.9 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: Tunable White

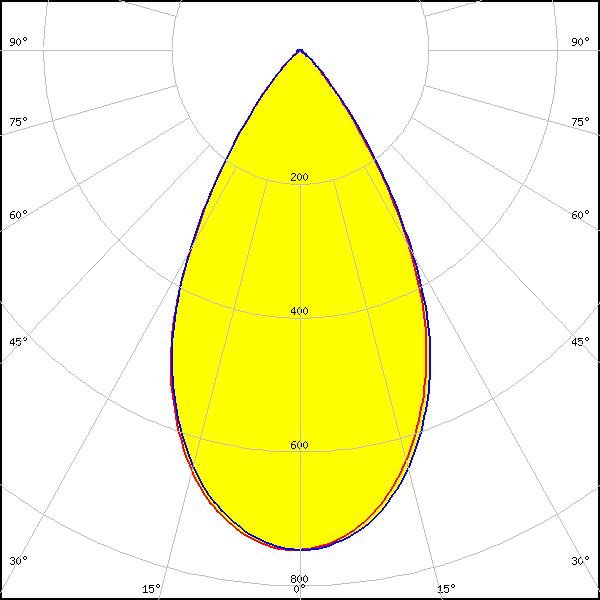

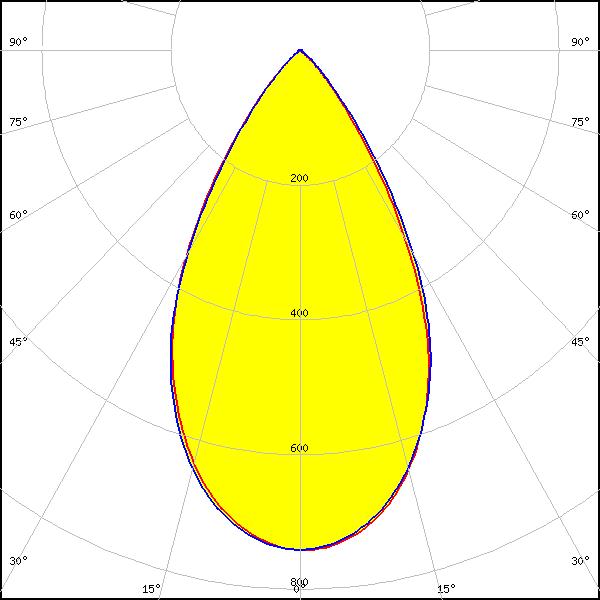

LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
F17028_DAISY-MINI-SHD
FWHM: 58°
FWTM: 85°
Peak intensity: 0.7 cd/lm
Efficiency: 69 %
LEDs/each optic: 2
Light colour: White

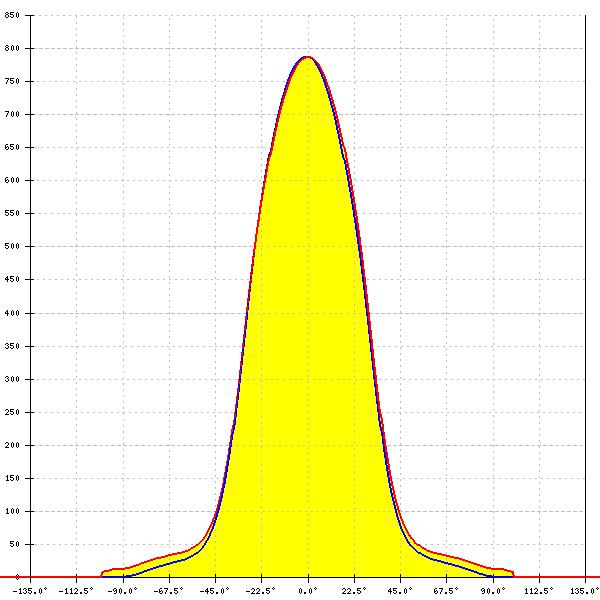

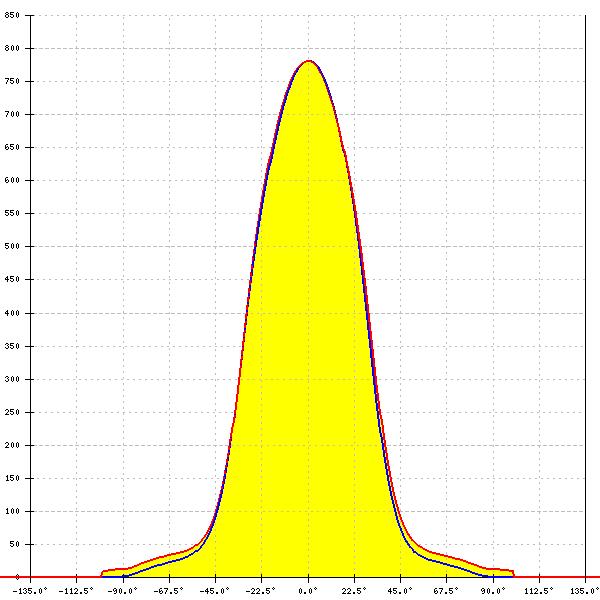

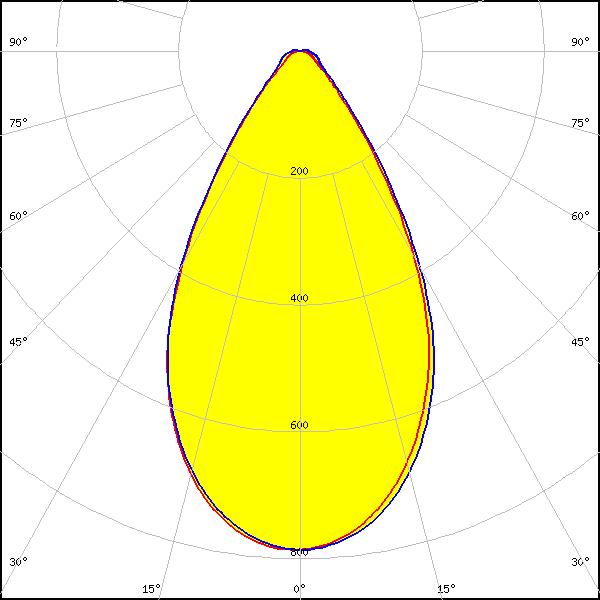

LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
F17033_DAISY-MINI-SHD-WHT
FWHM: 60°
FWTM: 92°
Peak intensity: 0.8 cd/lm
Efficiency: 87 %
LEDs/each optic: 2
Light colour: White

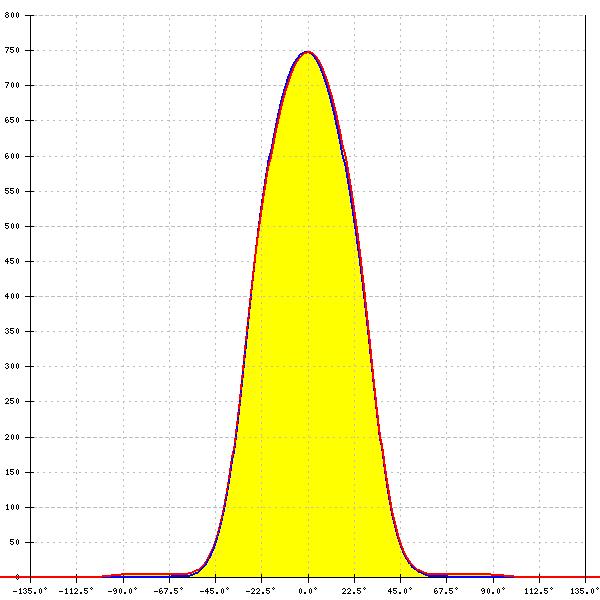

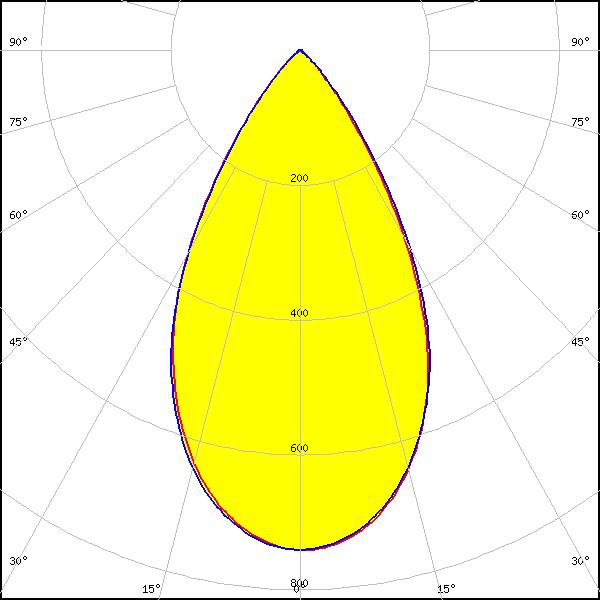

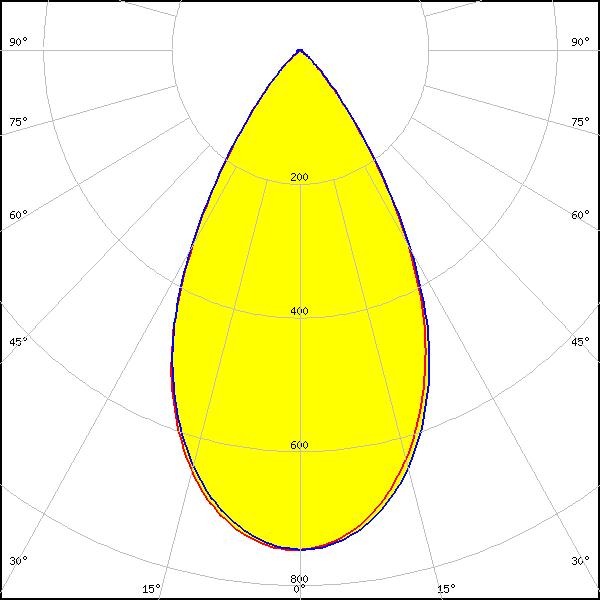

LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
F17034_DAISY-MINI-SHD-MATT
FWHM: 58°
FWTM: 85°
Peak intensity: 0.7 cd/lm
Efficiency: 68 %
LEDs/each optic: 2
Light colour: White

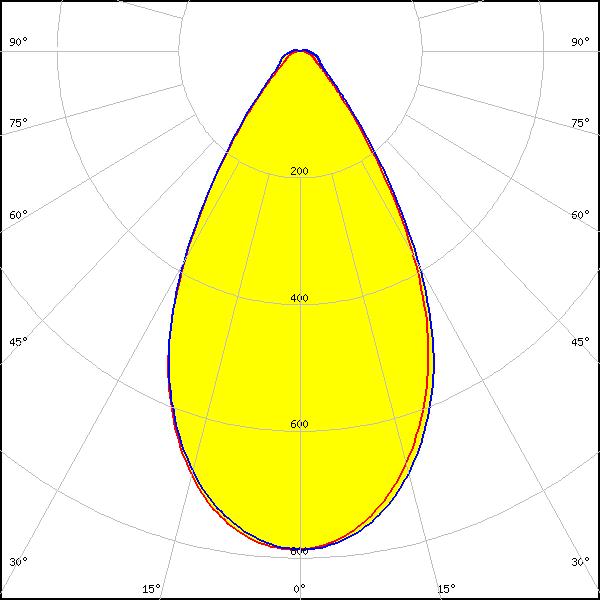

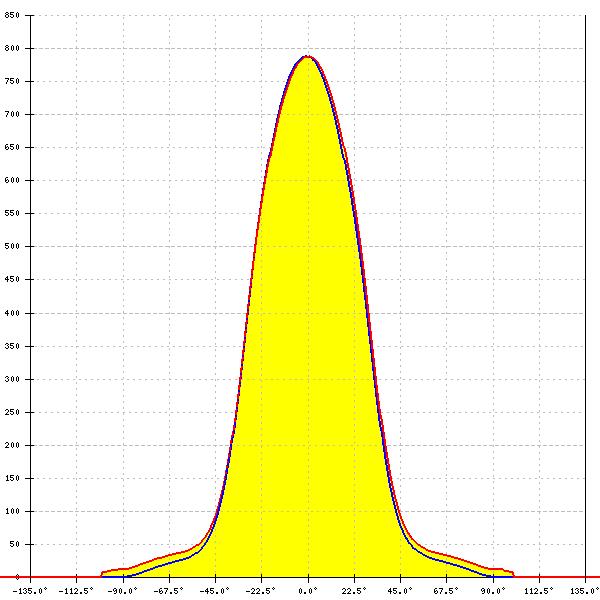

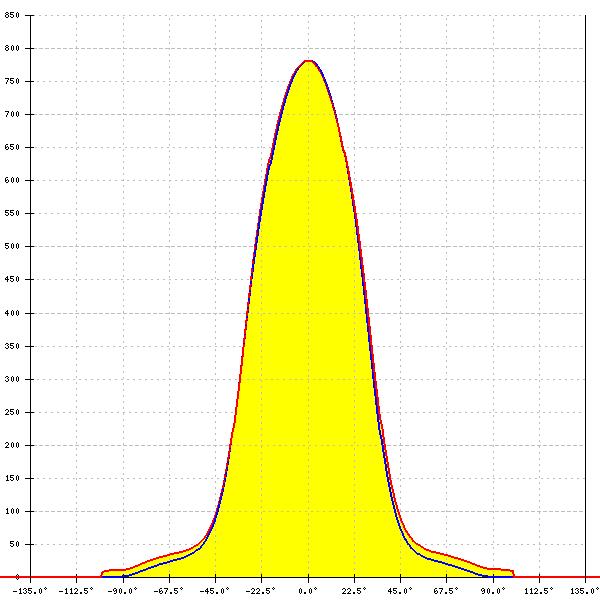

LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
F17465_DAISY-MINI-SHD-WHT-MATT
FWHM: 59°
FWTM: 92°
Peak intensity: 0.8 cd/lm
Efficiency: 87 %
LEDs/each optic: 2
Light colour: White
LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
F17666_DAISY-MINI-SHD-MET
FWHM: 62°
FWTM: 92°
Peak intensity: 0.8 cd/lm
Efficiency: 86 %
LEDs/each optic: 2
Light colour: White

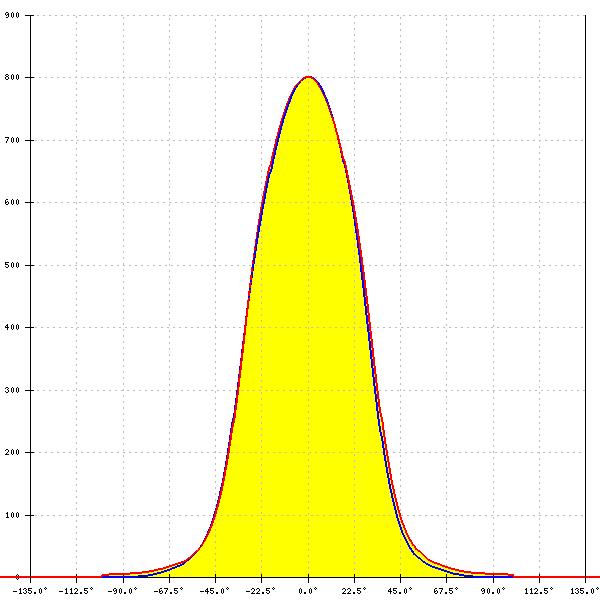

LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
F17667_DAISY-MINI-SHD-MET-MATT
FWHM: 60°
FWTM: 93°
Peak intensity: 0.8 cd/lm
Efficiency: 85 %
LEDs/each optic: 2
Light colour: White
LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
F17028_DAISY-MINI-SHD
FWHM: 58°
FWTM: 85°
Peak intensity: 0.7 cd/lm
Efficiency: 69 %
LEDs/each optic: 2
Light colour: White
LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
F17033_DAISY-MINI-SHD-WHT
FWHM: 60°
FWTM: 92°
Peak intensity: 0.8 cd/lm
Efficiency: 88 %
LEDs/each optic: 2
Light colour: White
LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
F17034_DAISY-MINI-SHD-MATT
FWHM: 57°
FWTM: 85°
Peak intensity: 0.7 cd/lm
Efficiency: 68 %
LEDs/each optic: 2
Light colour: White

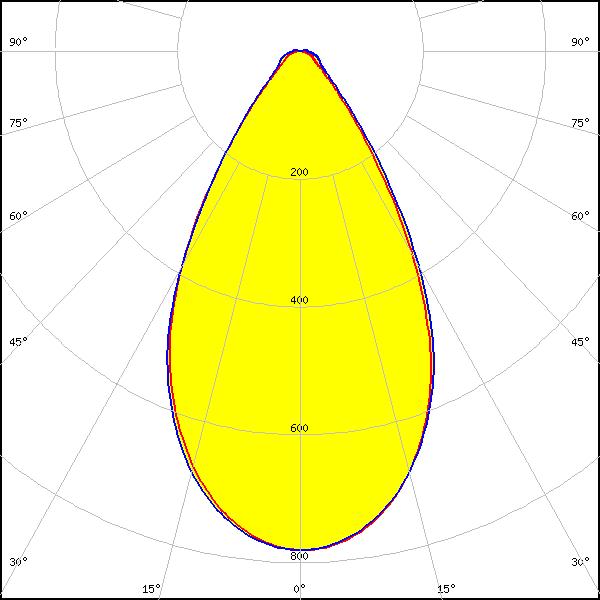

LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
F17465_DAISY-MINI-SHD-WHT-MATT
FWHM: 59°
FWTM: 92°
Peak intensity: 0.8 cd/lm
Efficiency: 87 %
LEDs/each optic: 2
Light colour: White

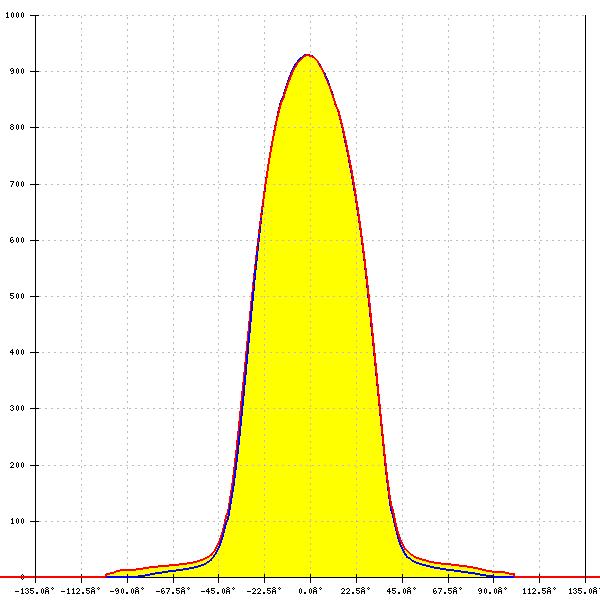

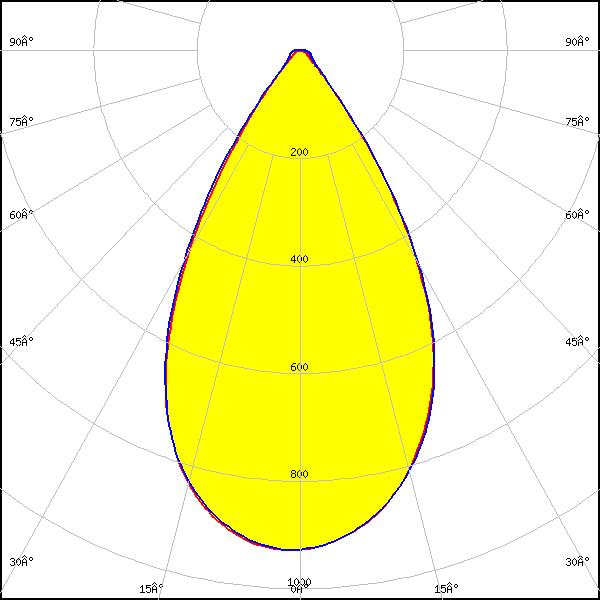

LED: LinLED 280x20mm 2x550lm 827-865 2x2C 42V DAISY-MINI G1
Required components:
F17033_DAISY-MINI-SHD-WHT
FWHM: 59°
FWTM: 83°
Peak intensity: 0.9 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: Tunable White

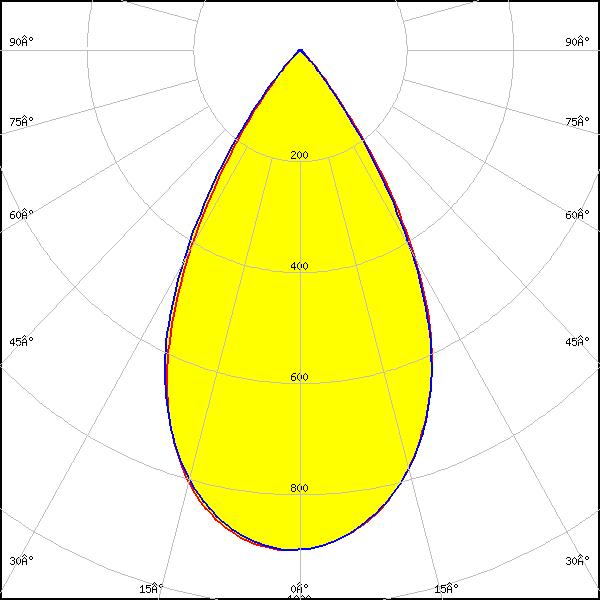

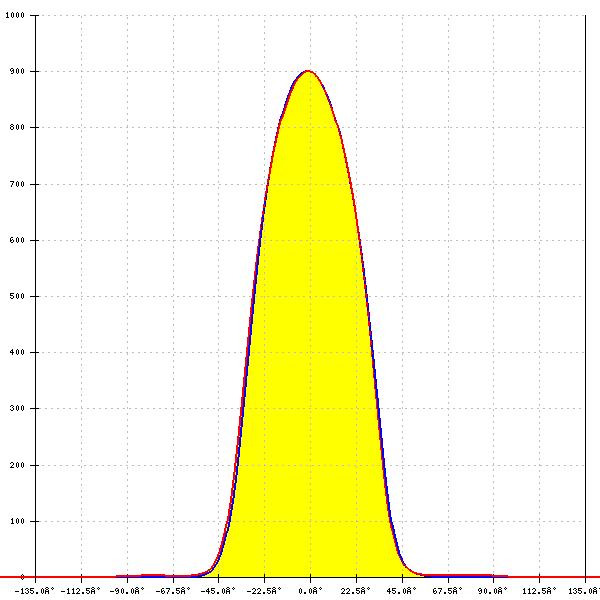

LED: LinLED 280x20mm 2x550lm 827-865 2x2C 42V DAISY-MINI G1
Required components:
F17034_DAISY-MINI-SHD-MATT
FWHM: 58°
FWTM: 81°
Peak intensity: 0.9 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: Tunable White

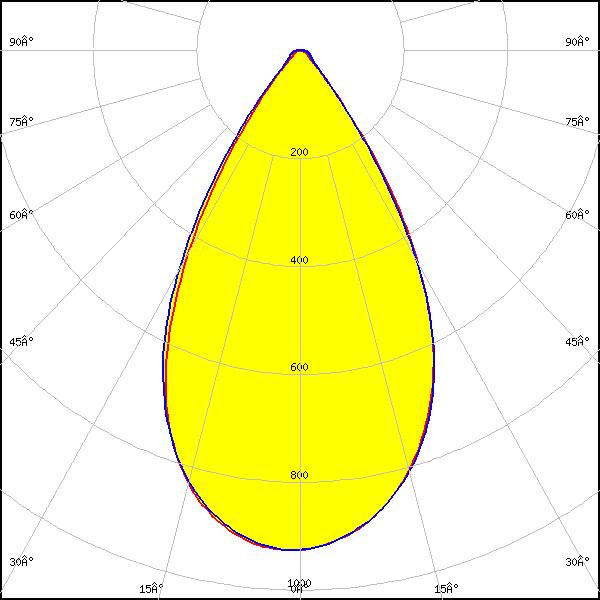

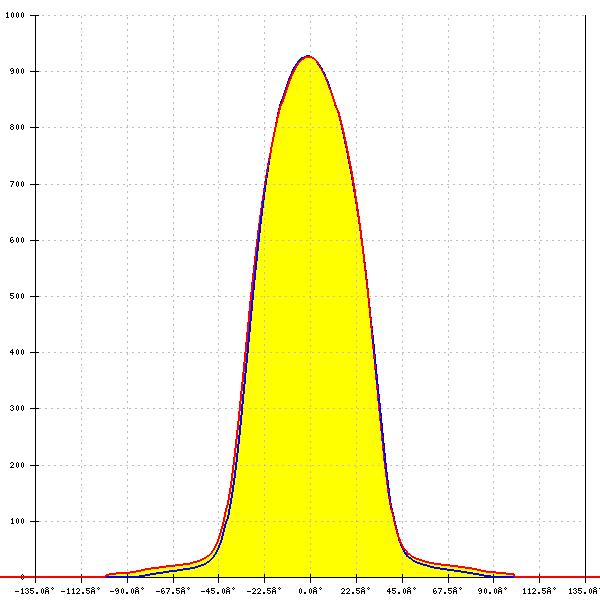

LED: LinLED 280x20mm 2x550lm 827-865 2x2C 42V DAISY-MINI G1
Required components:
F17465_DAISY-MINI-SHD-WHT-MATT
FWHM: 59°
FWTM: 84°
Peak intensity: 0.9 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: Tunable White

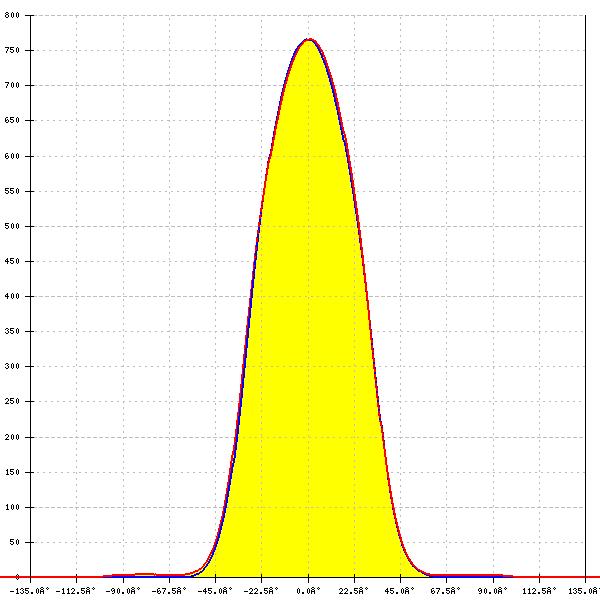

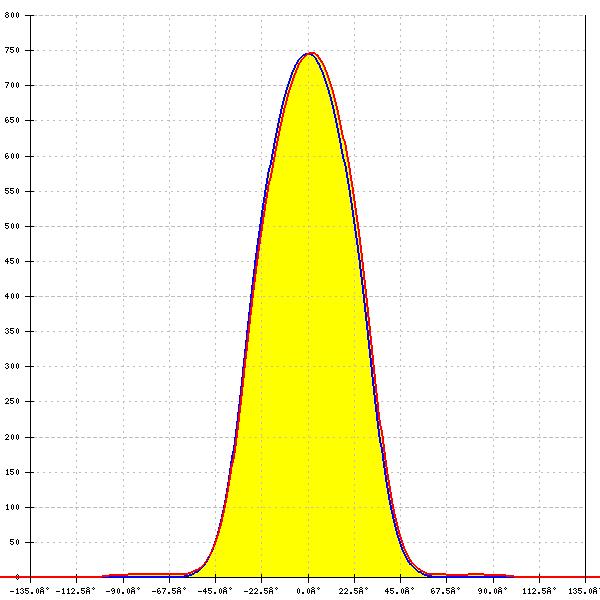

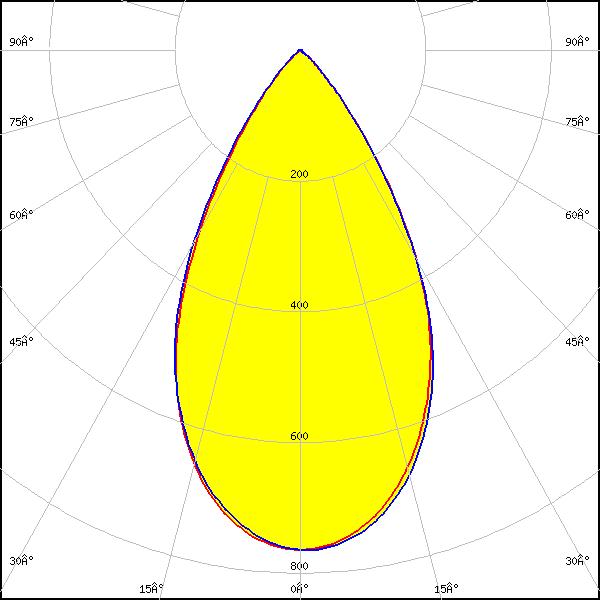

LED: LinLED 280x20mm 2x550lm 827-865 2x2C 42V DAISY-MINI G1
Required components:
F17028_DAISY-MINI-SHD
FWHM: 58°
FWTM: 85°
Peak intensity: 0.8 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour: Tunable White

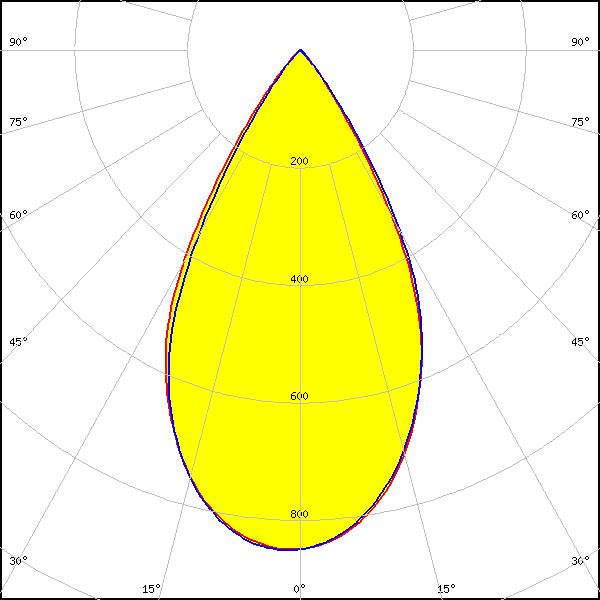

LED: NF2W757G-MT (Tunable White)
Required components:
F17028_DAISY-MINI-SHD
FWHM: 57°
FWTM: 78°
Peak intensity: 0.9 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: Tunable White

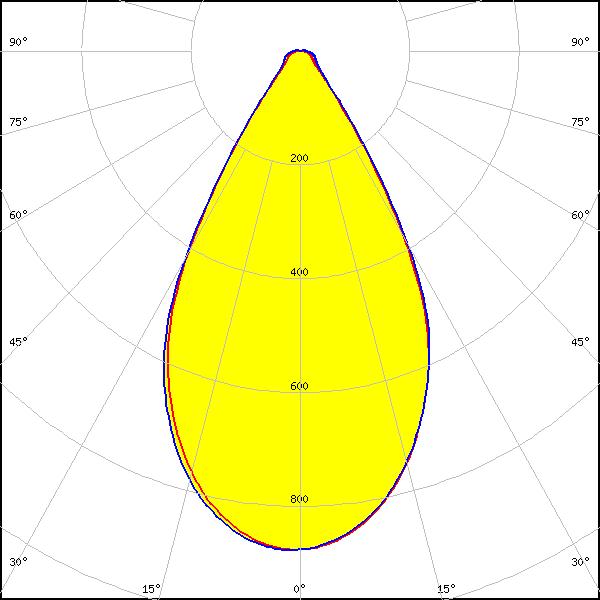

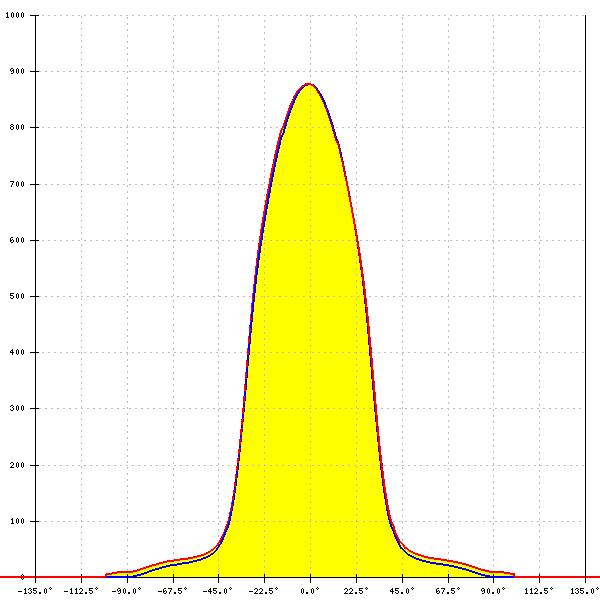

LED: NF2W757G-MT (Tunable White)
Required components:
F17033_DAISY-MINI-SHD-WHT
FWHM: 58°
FWTM: 81°
Peak intensity: 0.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: Tunable White

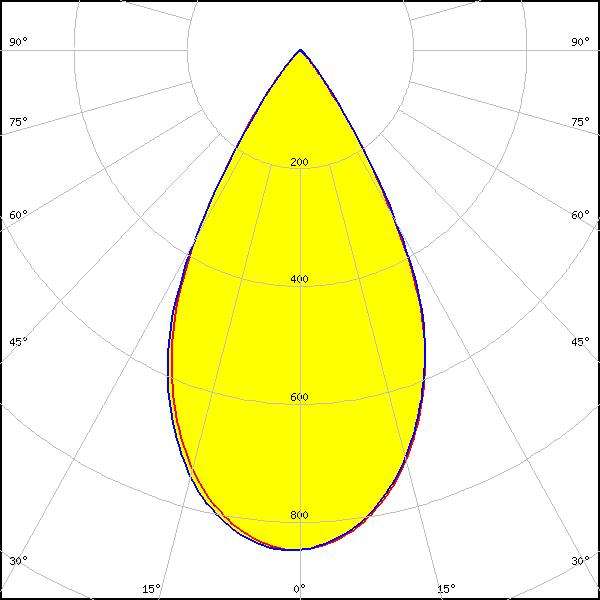

LED: NF2W757G-MT (Tunable White)
Required components:
F17034_DAISY-MINI-SHD-MATT
FWHM: 57°
FWTM: 78°
Peak intensity: 0.8 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: Tunable White

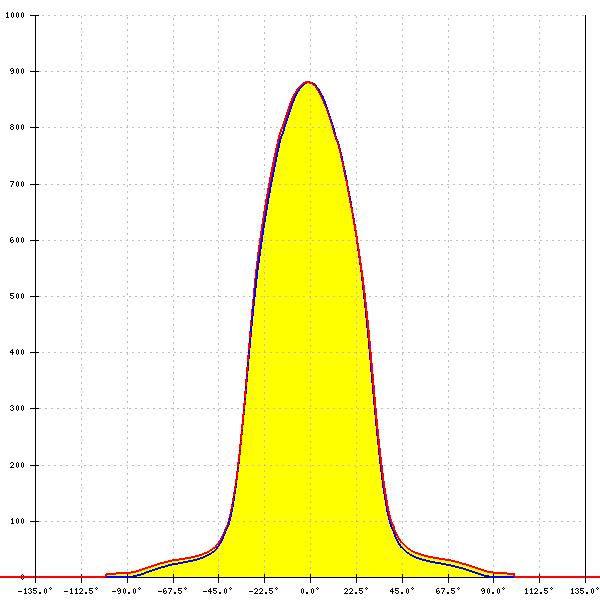

LED: NF2W757G-MT (Tunable White)
Required components:
F17465_DAISY-MINI-SHD-WHT-MATT
FWHM: 58°
FWTM: 82°
Peak intensity: 0.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: Tunable White

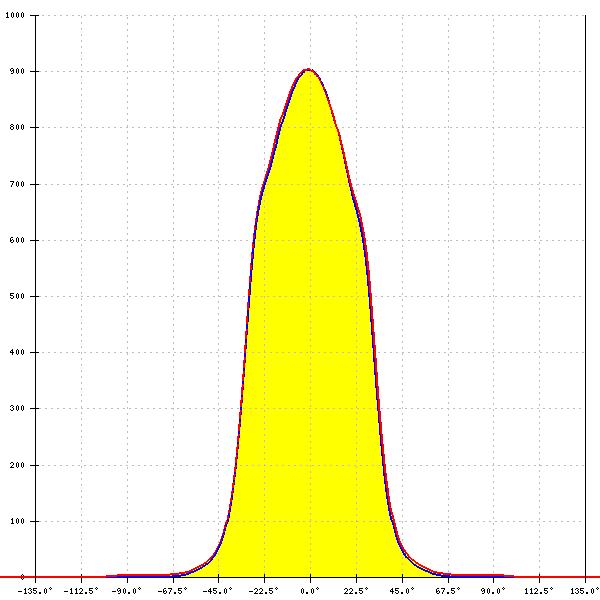

LED: NF2W757G-MT (Tunable White)
Required components:
F17666_DAISY-MINI-SHD-MET
FWHM: 62°
FWTM: 83°
Peak intensity: 0.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: Tunable White

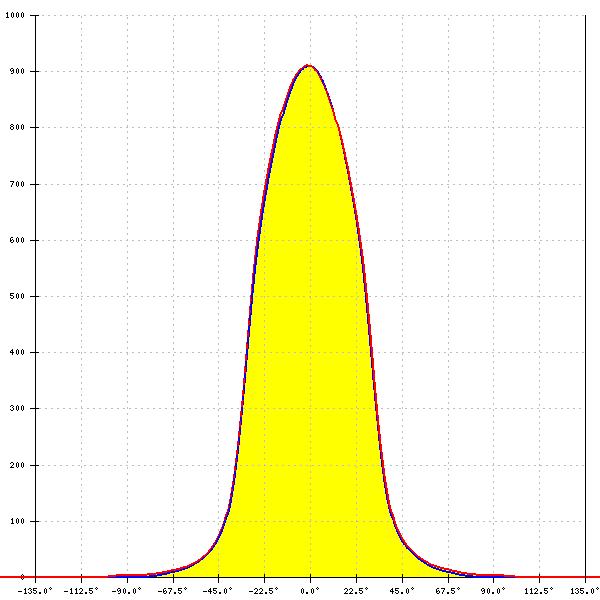

LED: NF2W757G-MT (Tunable White)
Required components:
F17667_DAISY-MINI-SHD-MET-MATT
FWHM: 59°
FWTM: 84°
Peak intensity: 0.9 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: Tunable White

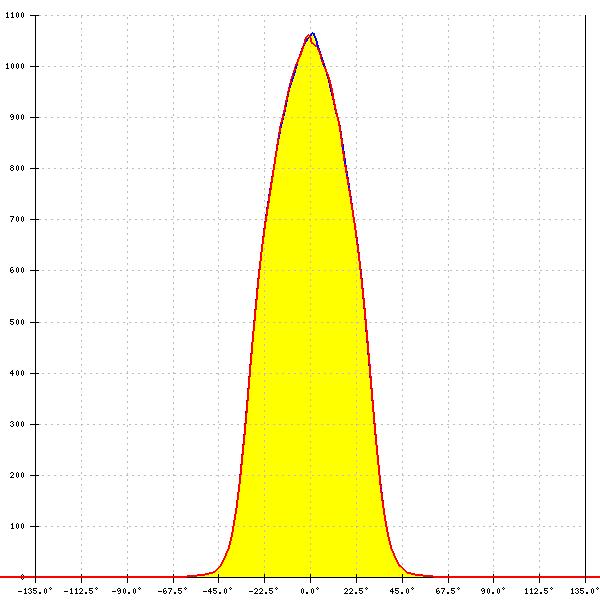

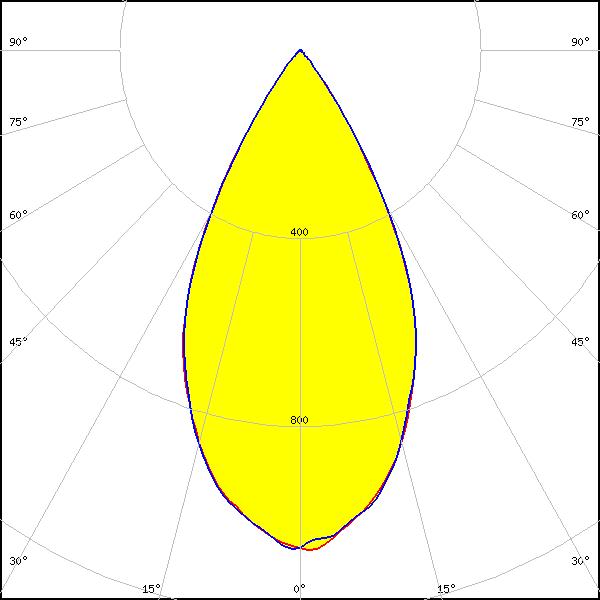

LED: NFSWE11A
Required components:
F17028_DAISY-MINI-SHD
FWHM: 54°
FWTM: 74°
Peak intensity: 1.1 cd/lm
Efficiency: 77 %
LEDs/each optic: 4
Light colour: White

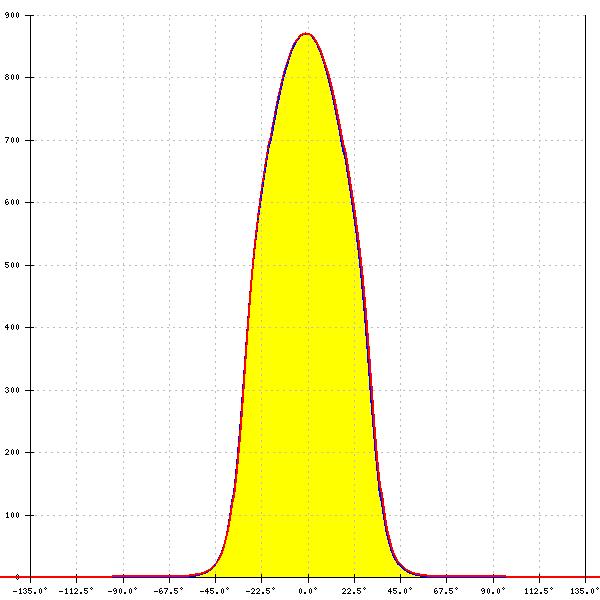

LED: NFSx757G
Required components:
F17028_DAISY-MINI-SHD
FWHM: 56°
FWTM: 76°
Peak intensity: 0.9 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White

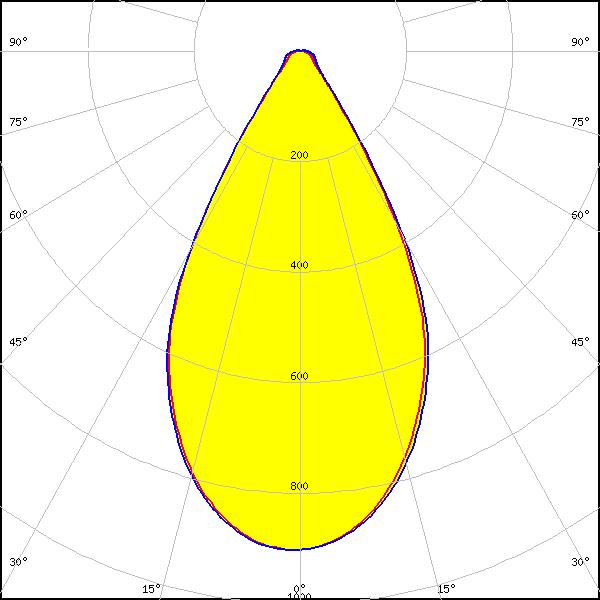

LED: NFSx757G
Required components:
F17033_DAISY-MINI-SHD-WHT
FWHM: 57°
FWTM: 81°
Peak intensity: 0.9 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: NFSx757G
Required components:
F17034_DAISY-MINI-SHD-MATT
FWHM: 56°
FWTM: 76°
Peak intensity: 0.9 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White

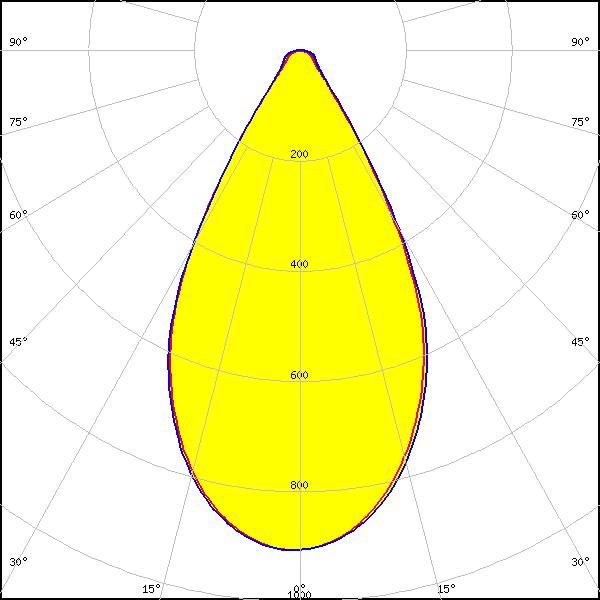

LED: NFSx757G
Required components:
F17465_DAISY-MINI-SHD-WHT-MATT
FWHM: 57°
FWTM: 80°
Peak intensity: 0.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

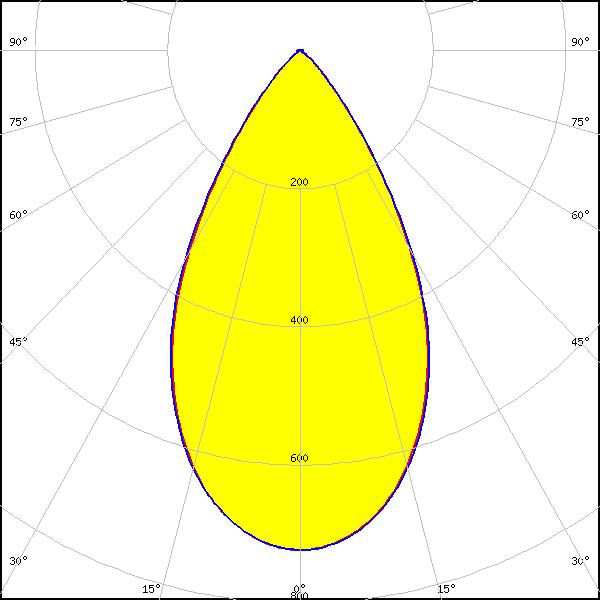

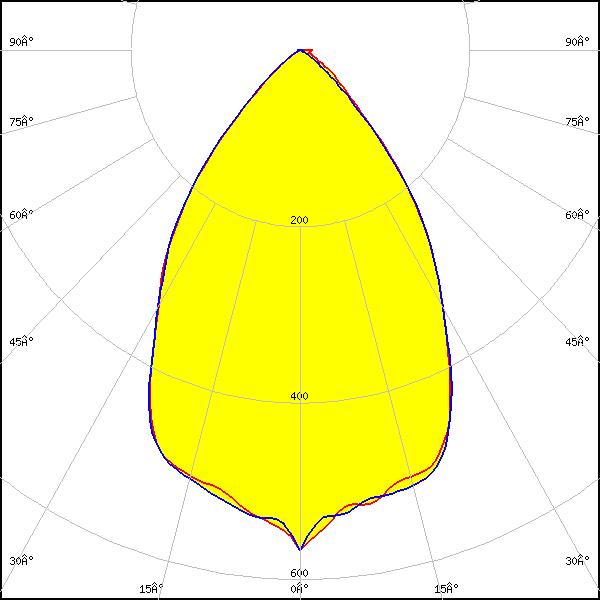

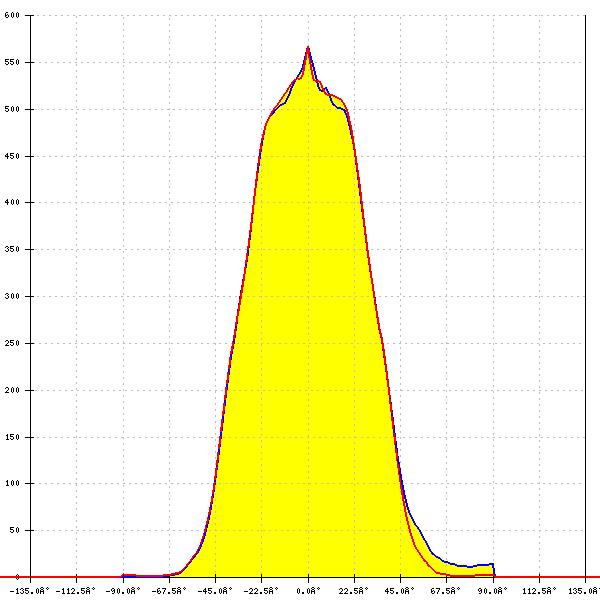

LED: LM28xB Series
Required components:
F17666_DAISY-MINI-SHD-MET
FWHM: 68°
FWTM: 101°
Peak intensity: 0.6 cd/lm
Efficiency: 72 %
LEDs/each optic: 2
Light colour: White

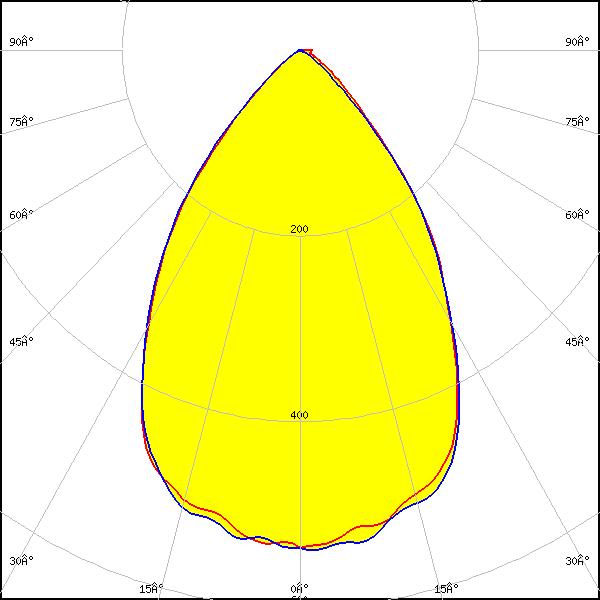

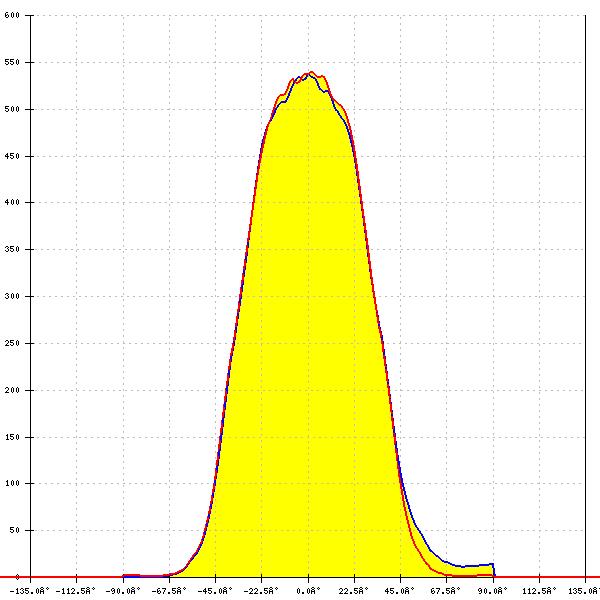

LED: LM28xB Series
Required components:
F17667_DAISY-MINI-SHD-MET-MATT
FWHM: 70°
FWTM: 102°
Peak intensity: 0.6 cd/lm
Efficiency: 72 %
LEDs/each optic: 2
Light colour: White

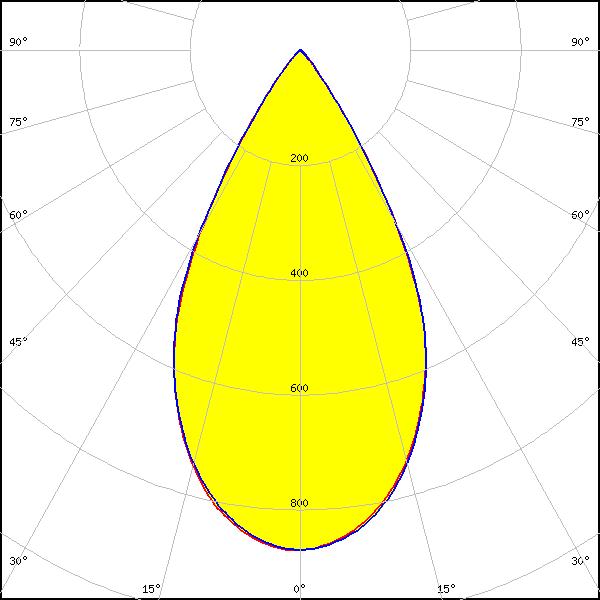

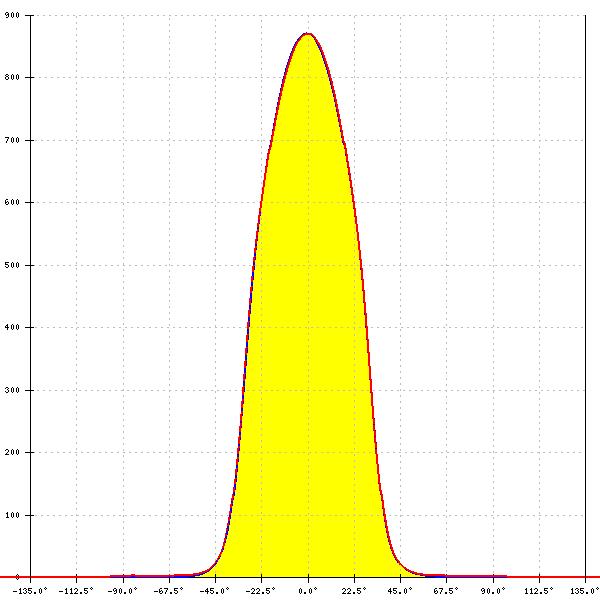

LED: LM28xB Series
Required components:
F17034_DAISY-MINI-SHD-MATT
FWHM: 56°
FWTM: 76°
Peak intensity: 0.9 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White

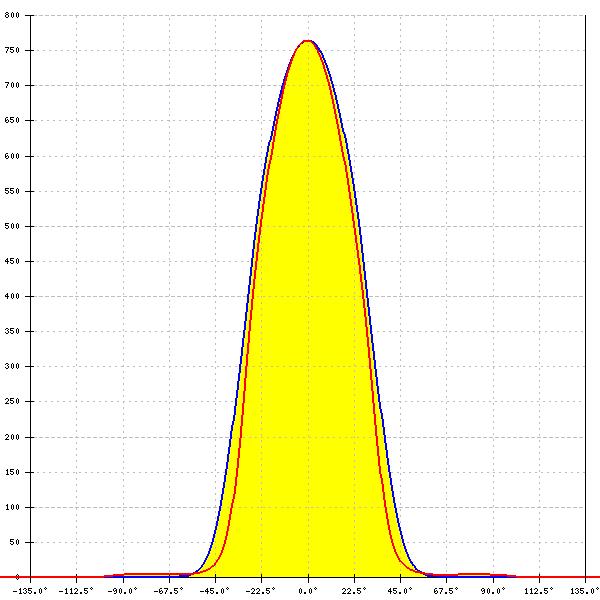

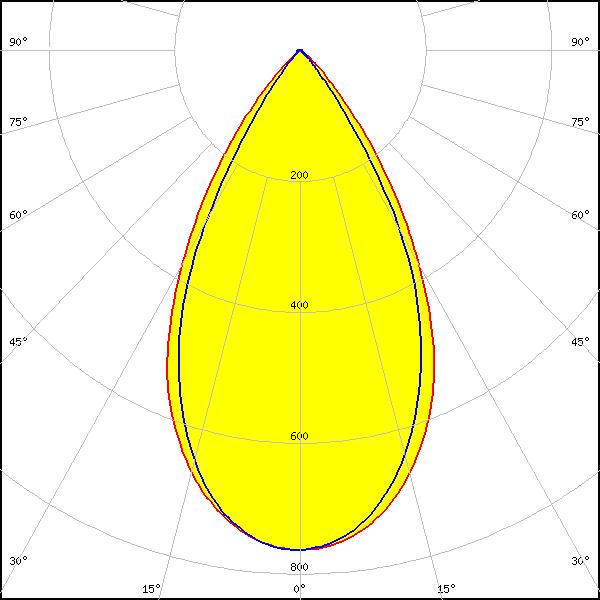

LED: PassivePAQ-L-1F20-SA2-1K-827-1.1K-865-3-TW
Required components:
F17028_DAISY-MINI-SHD
FWHM: 60° + 55°
FWTM: 89° + 77°
Peak intensity: 0.8 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour: Tunable White

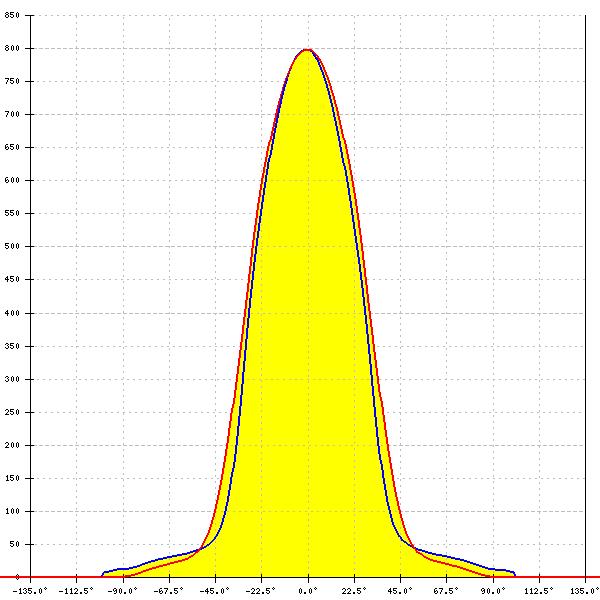

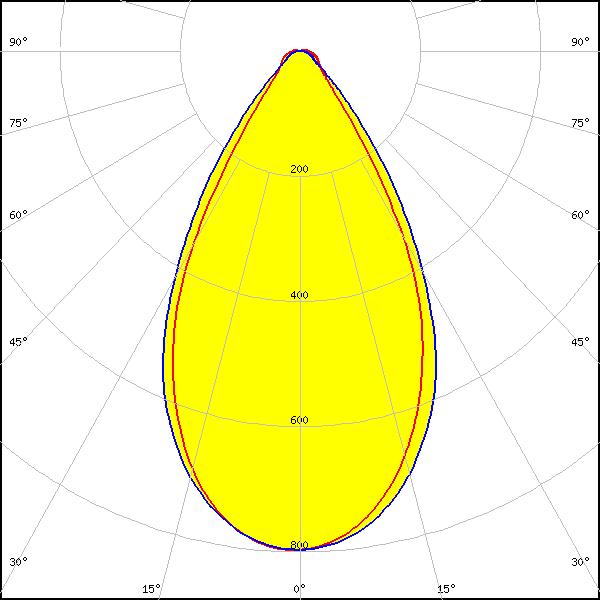

LED: PassivePAQ-L-1F20-SA2-1K-827-1.1K-865-3-TW
Required components:
F17033_DAISY-MINI-SHD-WHT
FWHM: 57° + 61°
FWTM: 83° + 94°
Peak intensity: 0.8 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: Tunable White

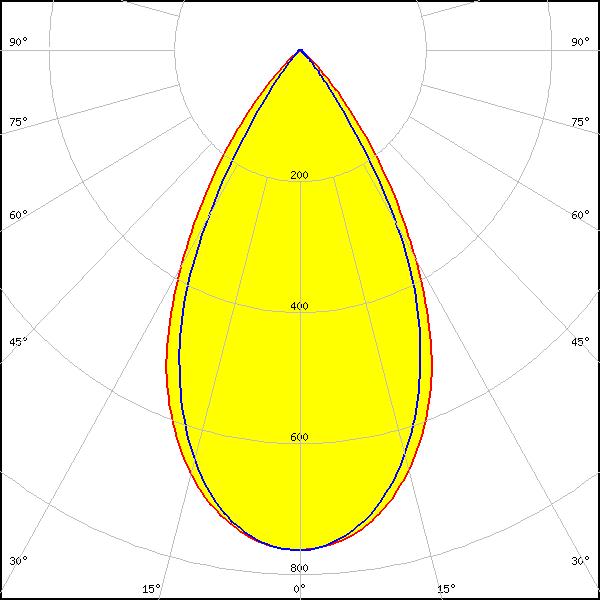

LED: PassivePAQ-L-1F20-SA2-1K-827-1.1K-865-3-TW
Required components:
F17034_DAISY-MINI-SHD-MATT
FWHM: 59° + 55°
FWTM: 88° + 77°
Peak intensity: 0.8 cd/lm
Efficiency: 68 %
LEDs/each optic: 1
Light colour: Tunable White

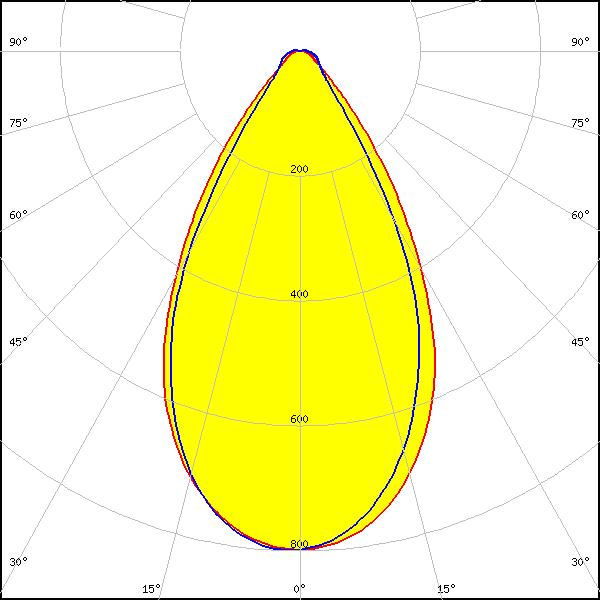

LED: PassivePAQ-L-1F20-SA2-1K-827-1.1K-865-3-TW
Required components:
F17465_DAISY-MINI-SHD-WHT-MATT
FWHM: 61° + 57°
FWTM: 94° + 84°
Peak intensity: 0.8 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: Tunable White
LED: PassivePAQ-L-1F20-SA2-1K-827-1.1K-865-3-TW
Required components:
F17666_DAISY-MINI-SHD-MET
FWHM: 63° + 60°
FWTM: 94° + 84°
Peak intensity: 0.8 cd/lm
Efficiency: 85 %
LEDs/each optic: 2
Light colour: Tunable White

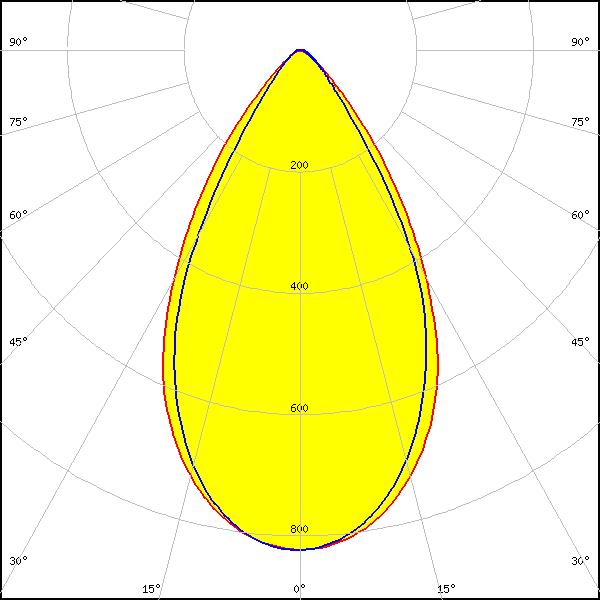

LED: PassivePAQ-L-1F20-SA2-1K-827-1.1K-865-3-TW
Required components:
F17667_DAISY-MINI-SHD-MET-MATT
FWHM: 62° + 57°
FWTM: 95° + 85°
Peak intensity: 0.8 cd/lm
Efficiency: 84 %
LEDs/each optic: 2
Light colour: Tunable White

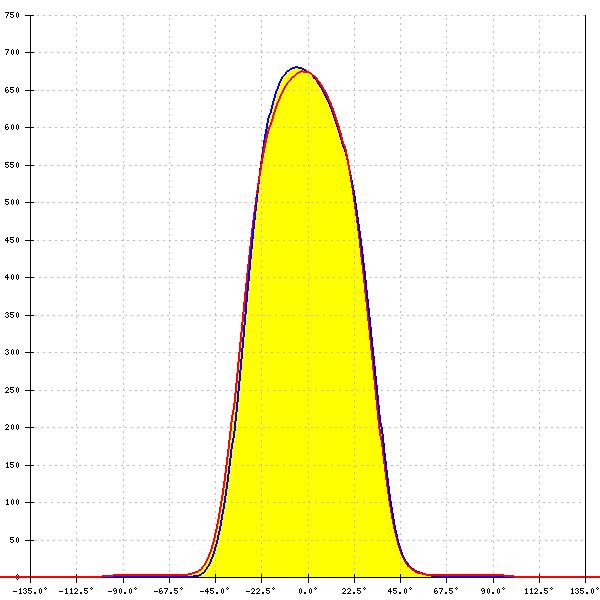

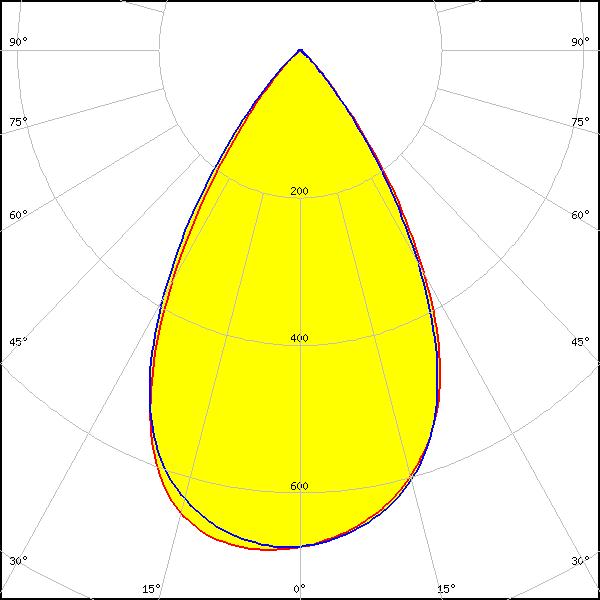

LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
Required components:
F17028_DAISY-MINI-SHD
FWHM: 61° + 62°
FWTM: 85° + 86°
Peak intensity: 0.7 cd/lm
Efficiency: 69 %
LEDs/each optic: 2
Light colour: White

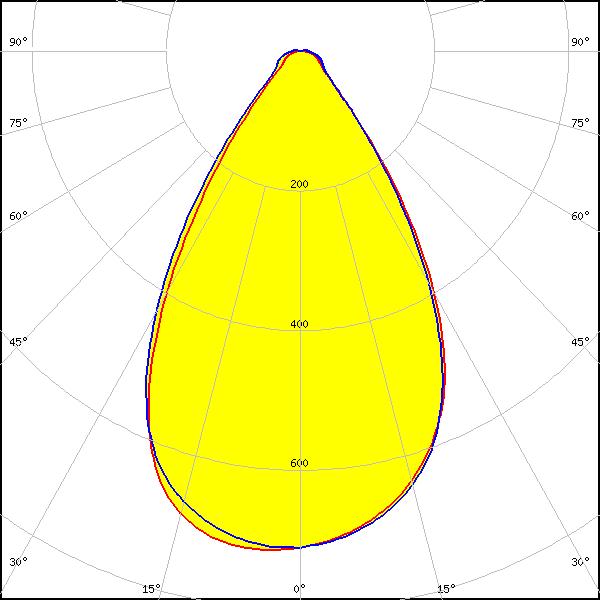

LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
Required components:
F17033_DAISY-MINI-SHD-WHT
FWHM: 63° + 64°
FWTM: 91° + 95°
Peak intensity: 0.7 cd/lm
Efficiency: 89 %
LEDs/each optic: 2
Light colour: White
LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
Required components:
F17034_DAISY-MINI-SHD-MATT
FWHM: 61° + 62°
FWTM: 85° + 86°
Peak intensity: 0.7 cd/lm
Efficiency: 68 %
LEDs/each optic: 2
Light colour: White

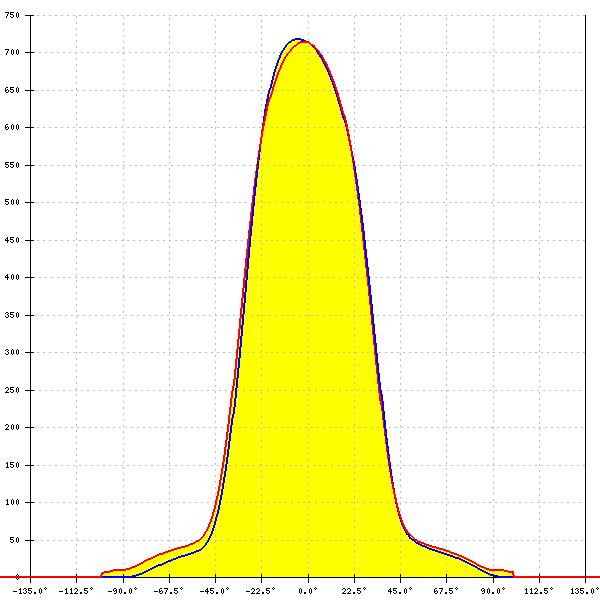

LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
Required components:
F17465_DAISY-MINI-SHD-WHT-MATT
FWHM: 63° + 64°
FWTM: 91° + 94°
Peak intensity: 0.7 cd/lm
Efficiency: 88 %
LEDs/each optic: 2
Light colour: White

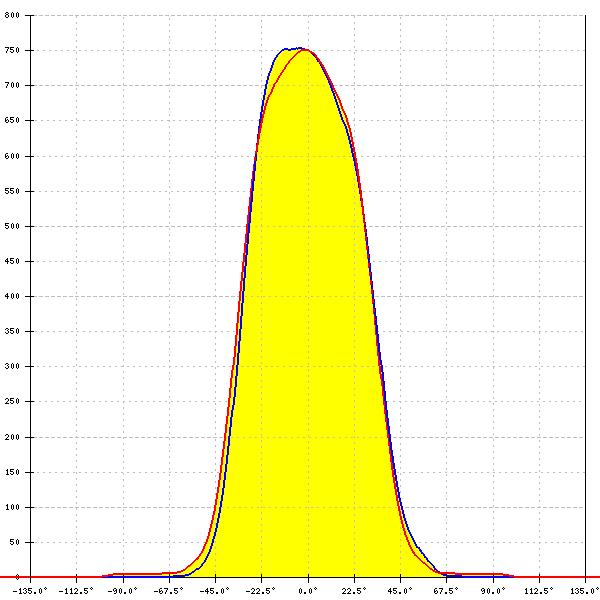

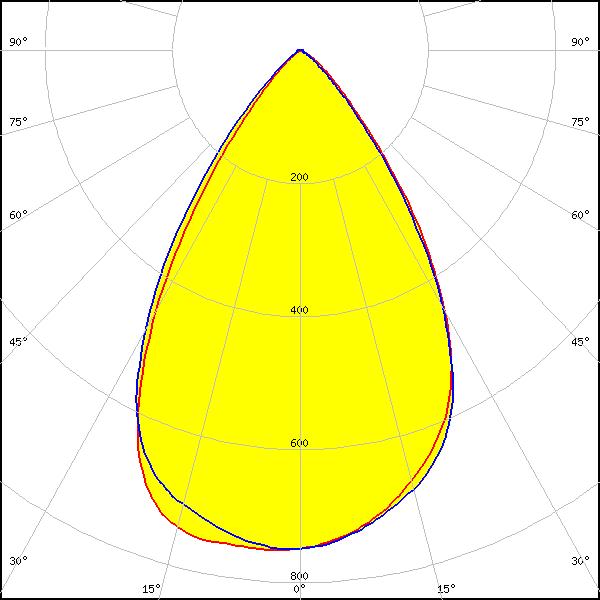

LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
Required components:
F17666_DAISY-MINI-SHD-MET
FWHM: 65° + 67°
FWTM: 93° + 94°
Peak intensity: 0.8 cd/lm
Efficiency: 88 %
LEDs/each optic: 2
Light colour: White

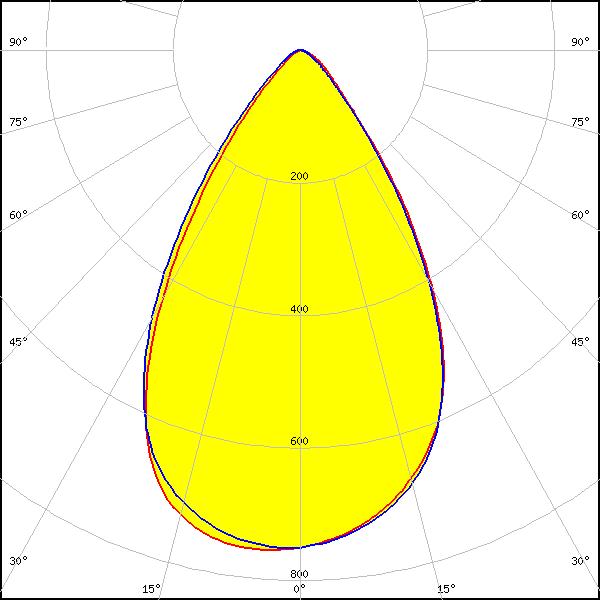

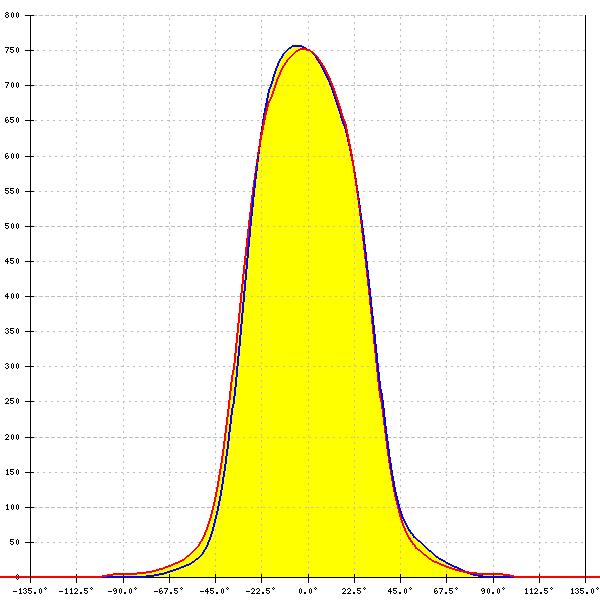

LED: PassivePAQ-L-1F20-SA2-2.4K-840-4
Required components:
F17667_DAISY-MINI-SHD-MET-MATT
FWHM: 63° + 64°
FWTM: 94° + 95°
Peak intensity: 0.8 cd/lm
Efficiency: 87 %
LEDs/each optic: 2
Light colour: White

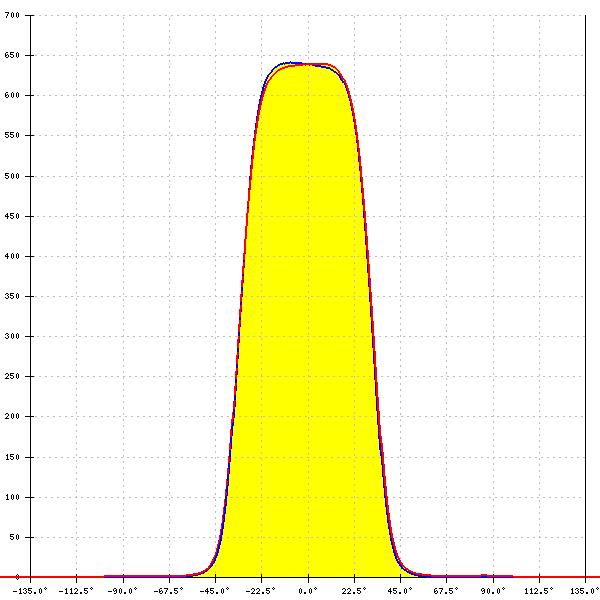

LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
Required components:
F17028_DAISY-MINI-SHD
FWHM: 65°
FWTM: 81°
Peak intensity: 0.6 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White

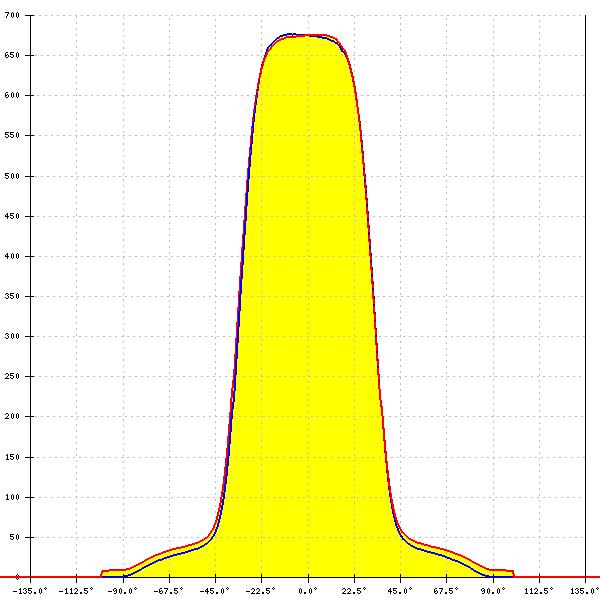

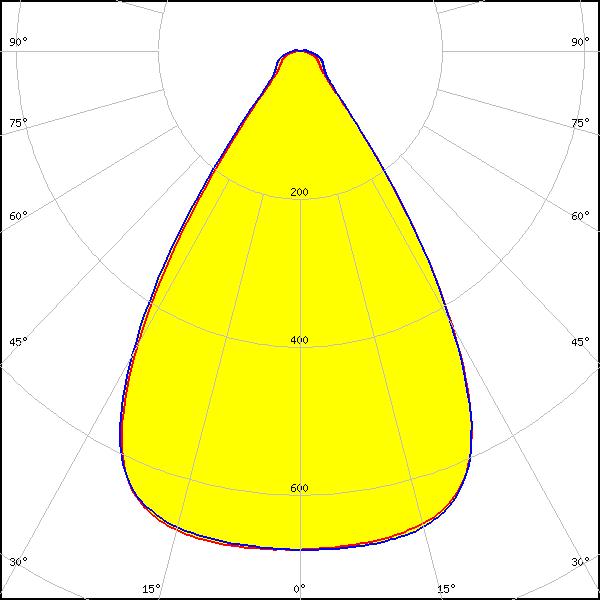

LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
Required components:
F17033_DAISY-MINI-SHD-WHT
FWHM: 66°
FWTM: 87°
Peak intensity: 0.7 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

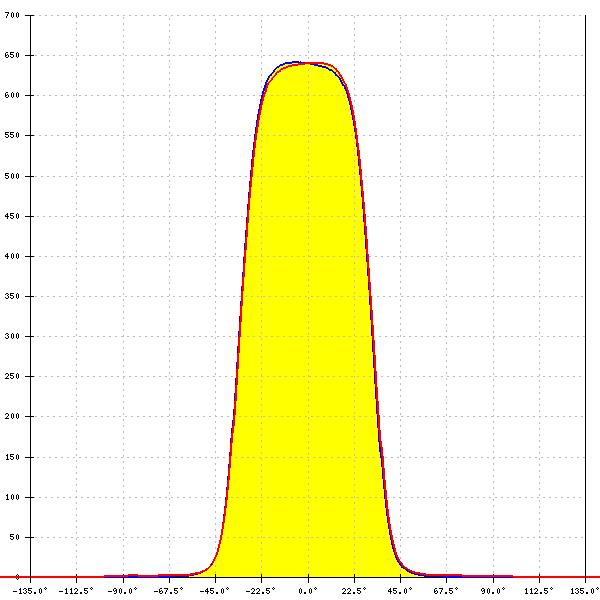

LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
Required components:
F17034_DAISY-MINI-SHD-MATT
FWHM: 64°
FWTM: 81°
Peak intensity: 0.6 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White

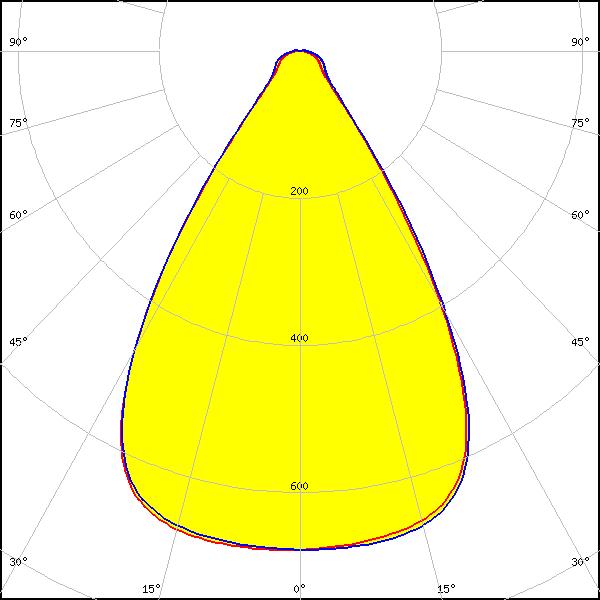

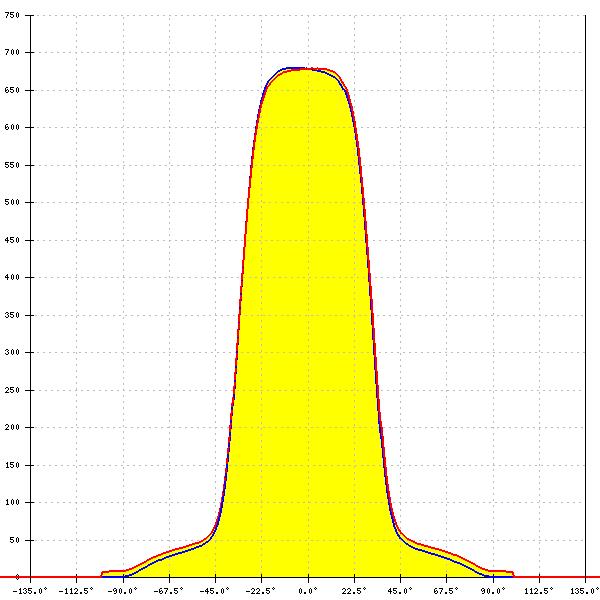

LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
Required components:
F17465_DAISY-MINI-SHD-WHT-MATT
FWHM: 65°
FWTM: 87°
Peak intensity: 0.7 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

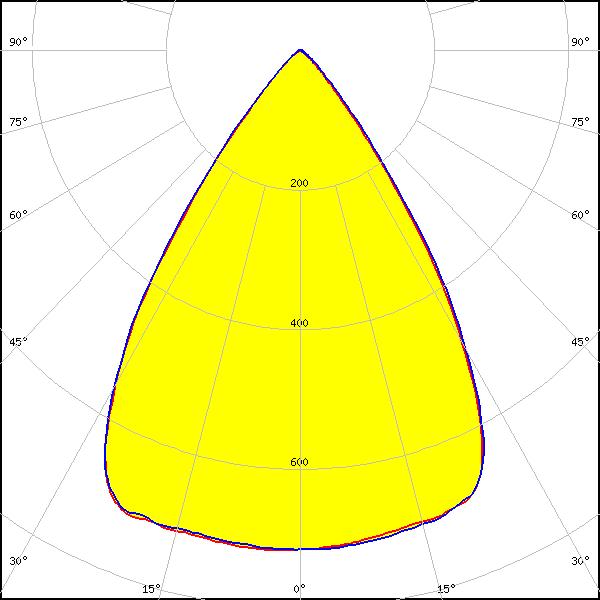

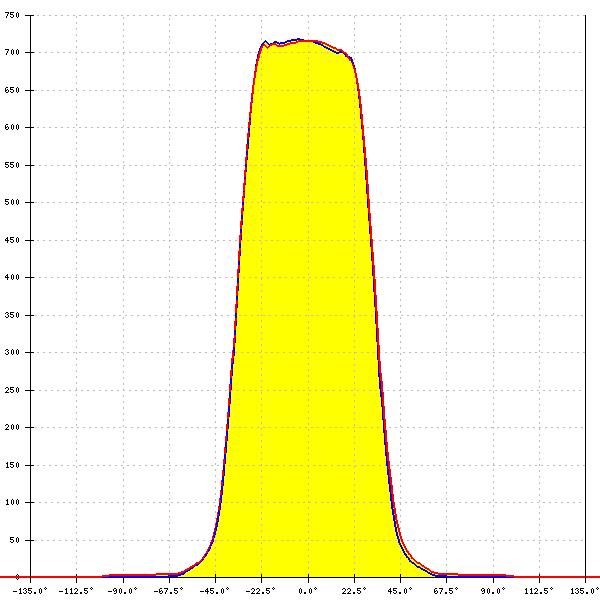

LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
Required components:
F17666_DAISY-MINI-SHD-MET
FWHM: 69°
FWTM: 87°
Peak intensity: 0.7 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

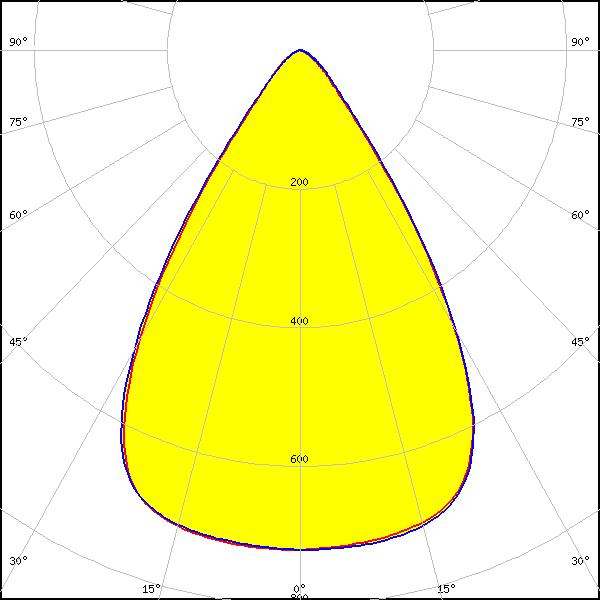

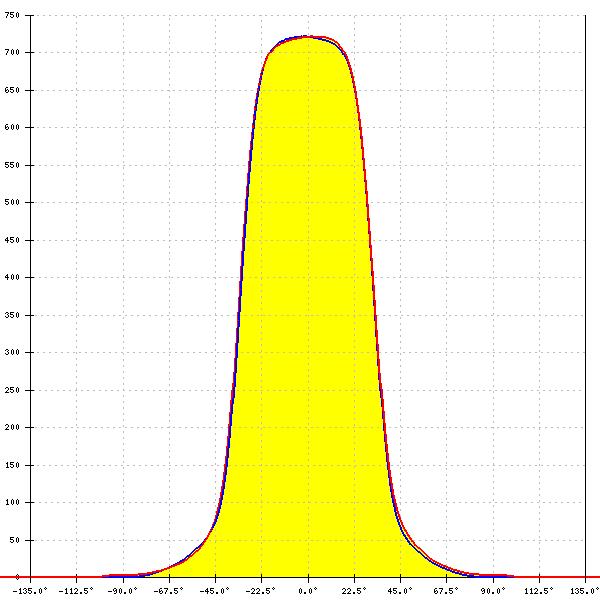

LED: PassivePAQ-L-1F20-SA3-1.3K-840-3-M2
Required components:
F17667_DAISY-MINI-SHD-MET-MATT
FWHM: 66°
FWTM: 90°
Peak intensity: 0.7 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

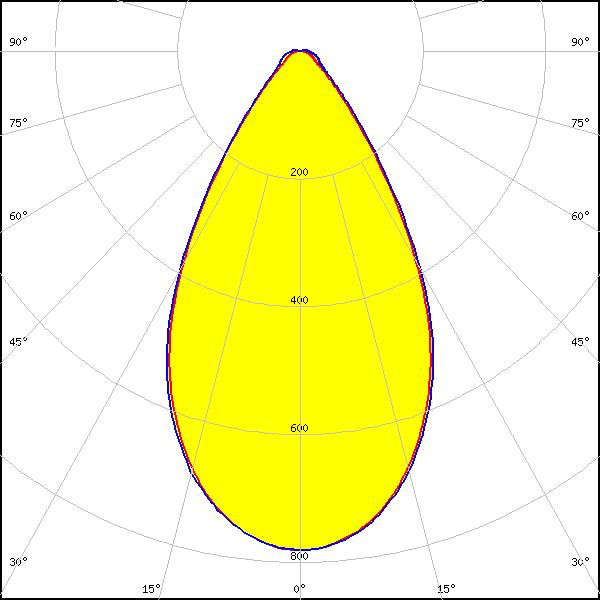

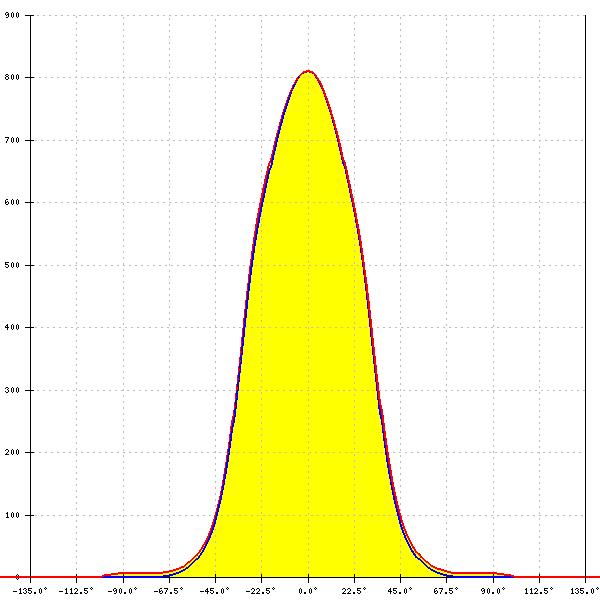

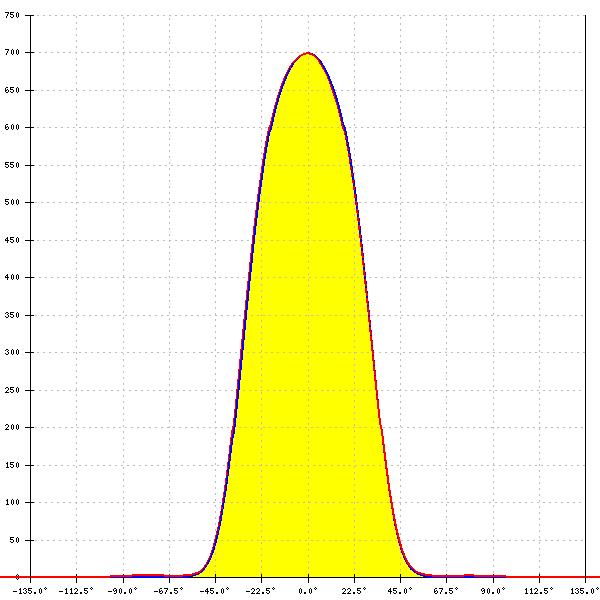

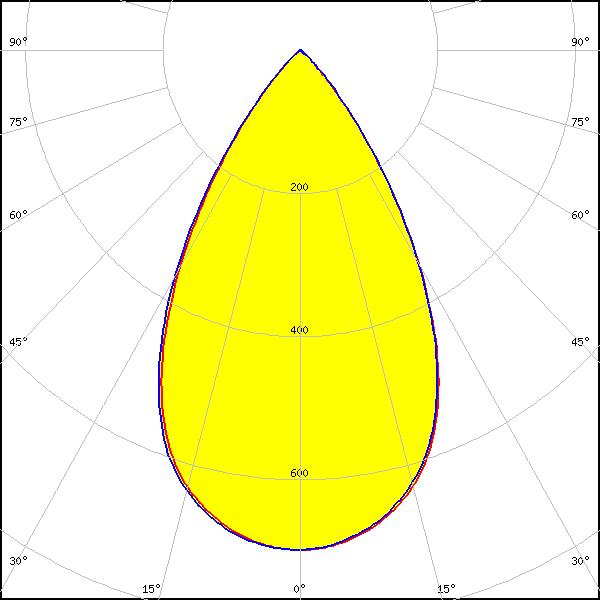

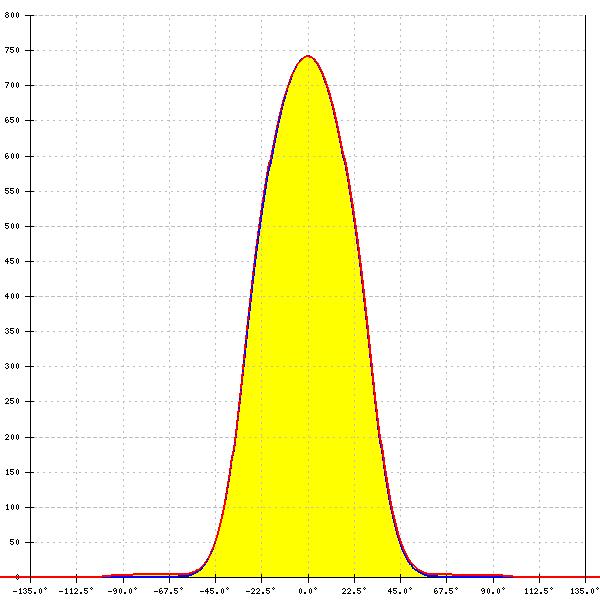

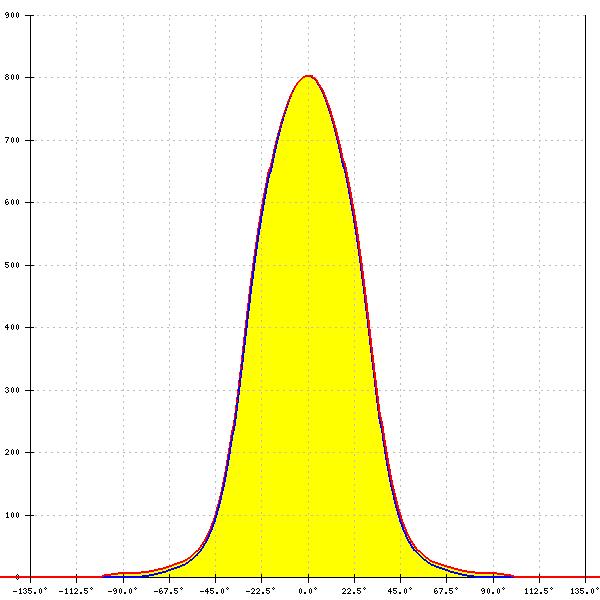

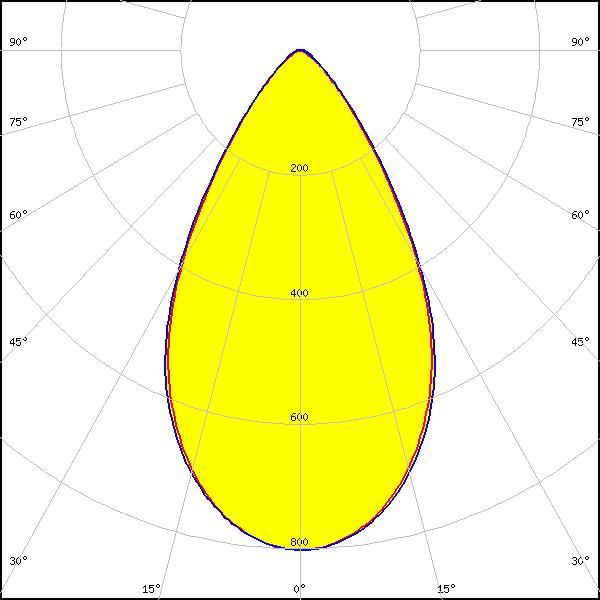

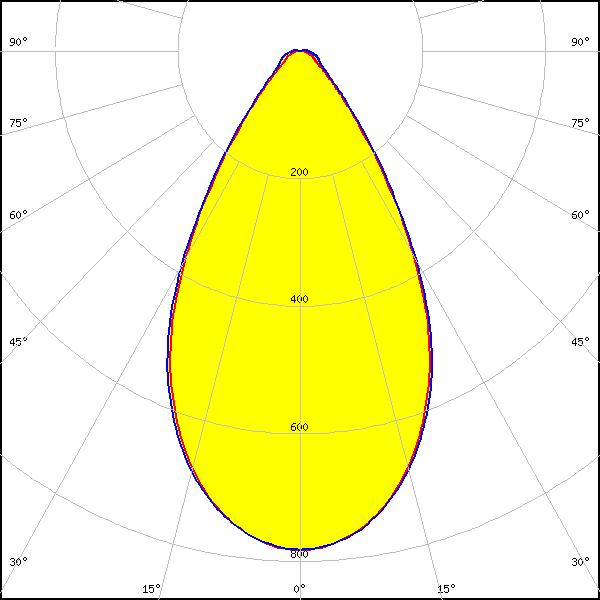

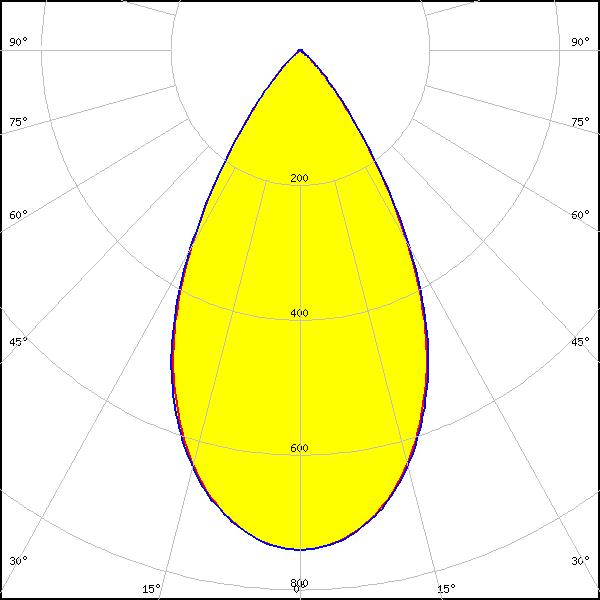

LED: LLE 20x280mm 750lm 827-865 LV MD ADV1
Required components:
F17028_DAISY-MINI-SHD
FWHM: 60°
FWTM: 86°
Peak intensity: 0.7 cd/lm
Efficiency: 69 %
LEDs/each optic: 2
Light colour: Tunable White

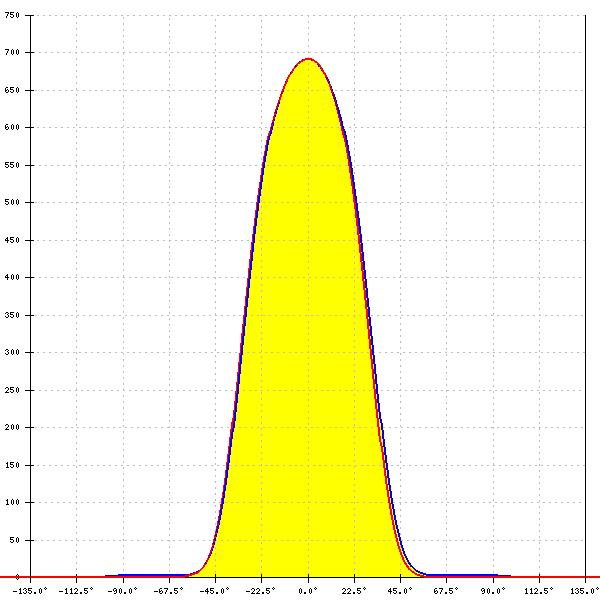

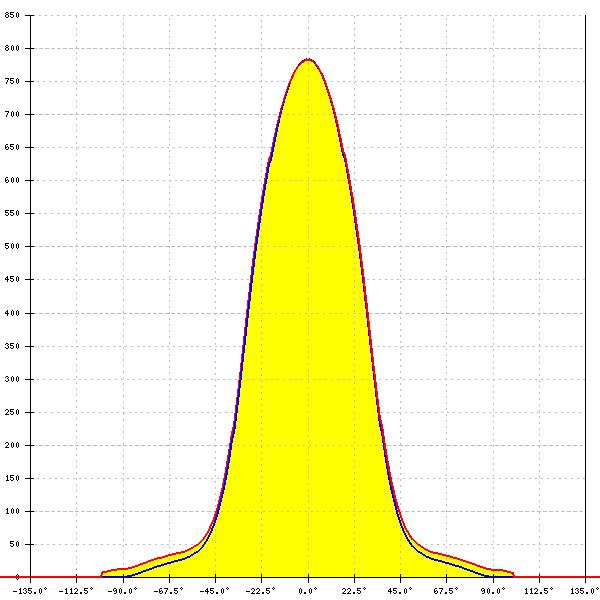

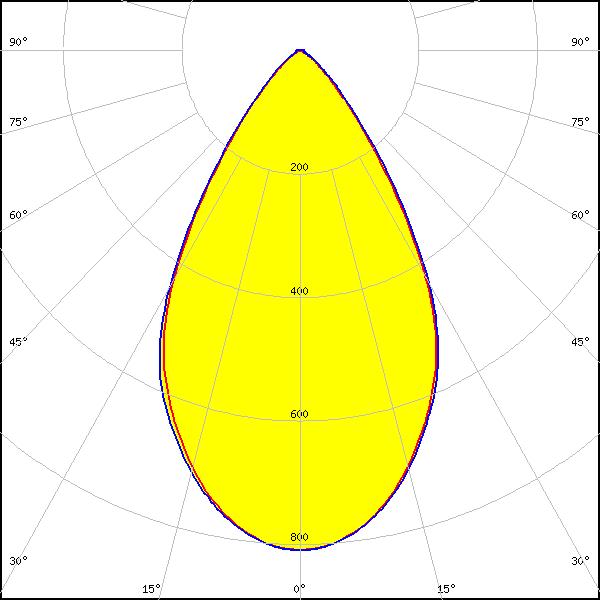

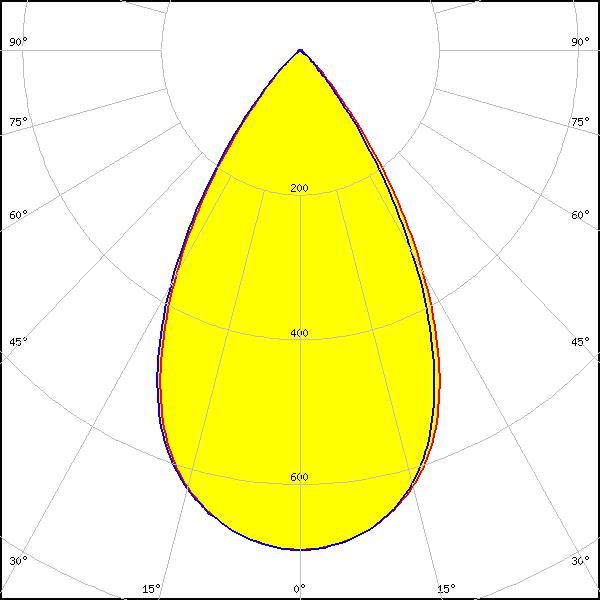

LED: LLE 20x280mm 750lm 840 LV MD ADV1
Required components:
F17028_DAISY-MINI-SHD
FWHM: 61°
FWTM: 86°
Peak intensity: 0.7 cd/lm
Efficiency: 69 %
LEDs/each optic: 2
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
