DAISY-MINI-WW-D

Print

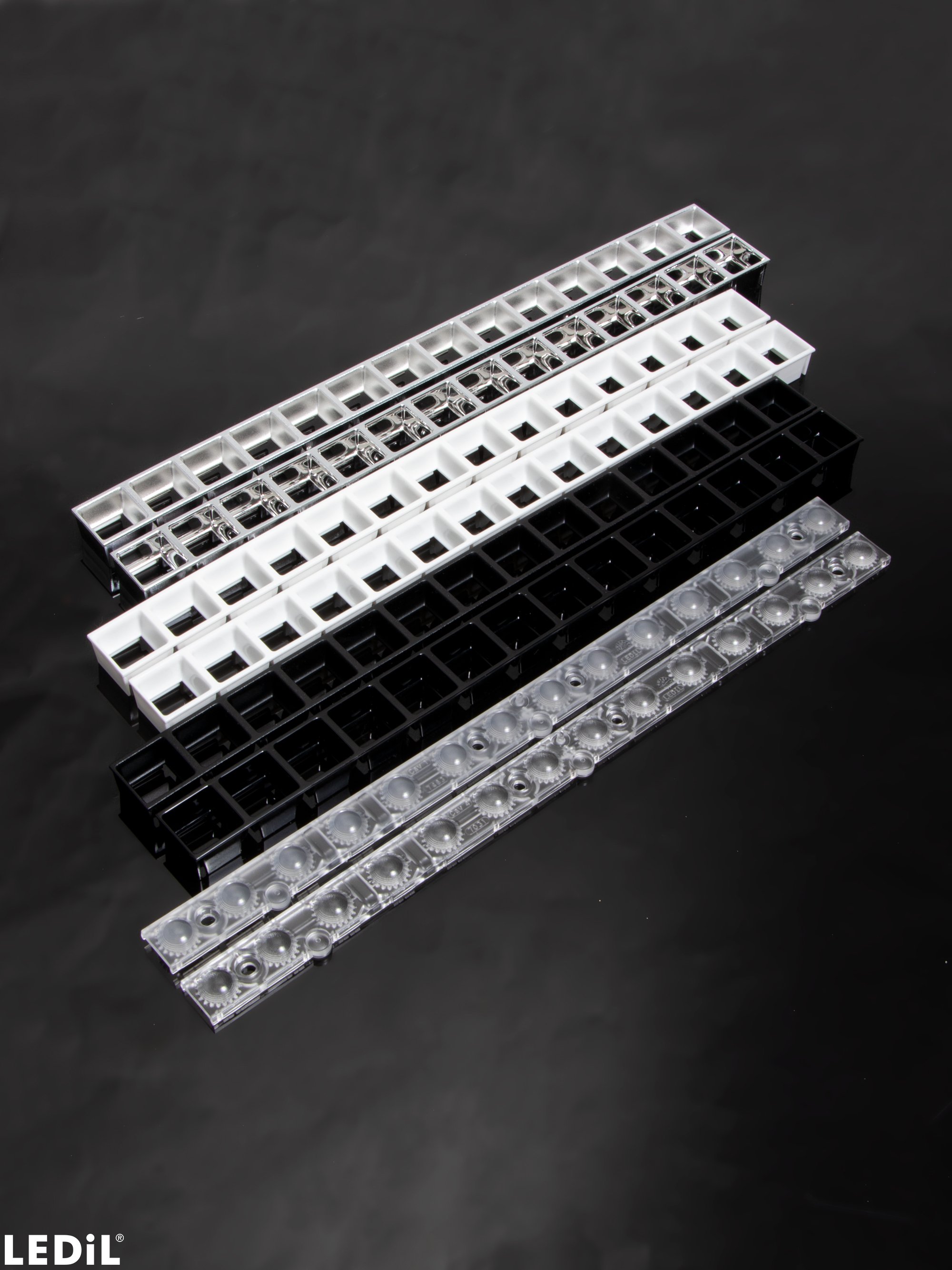

~65° wide beam. Variant with diffused lenses.

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    280 x  21 mm
  • Height:
    13.30 mm
  • Fastening:
    pin, screw, snaps
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Linear lens
    1 pcs
  • Shade
    1 pcs
  • Linear lens
  • F17463_DAISY-MINI-WW-D
    milky
  • Quantity in box:
    252 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    5.90 kg
  • MPQ:
    12 pcs
  • MOQ:
    252 pcs
  • MOQ Size:
    398 x 298 x 265 mm
  • MOQ Weight:
    5.90 kg
  • Shade
  • F17028_DAISY-MINI-SHD
    black,gloss
  • F17033_DAISY-MINI-SHD-WHT
    white,gloss
  • F17034_DAISY-MINI-SHD-MATT
    black,matt
  • F17465_DAISY-MINI-SHD-WHT-MATT
    white,matt
  • F17666_DAISY-MINI-SHD-MET
    metal,gloss
  • F17667_DAISY-MINI-SHD-MET-MATT
    metal,matt
  • Quantity in box:
    252 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    5.90 kg
  • MPQ:
    4 pcs
  • MOQ:
    252 pcs
  • MOQ Size:
    398 x 298 x 265 mm
  • MOQ Weight:
    5.90 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    F17463_DAISY-MINI-WW-D
    F17028_DAISY-MINI-SHD

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Related Content

Optical results

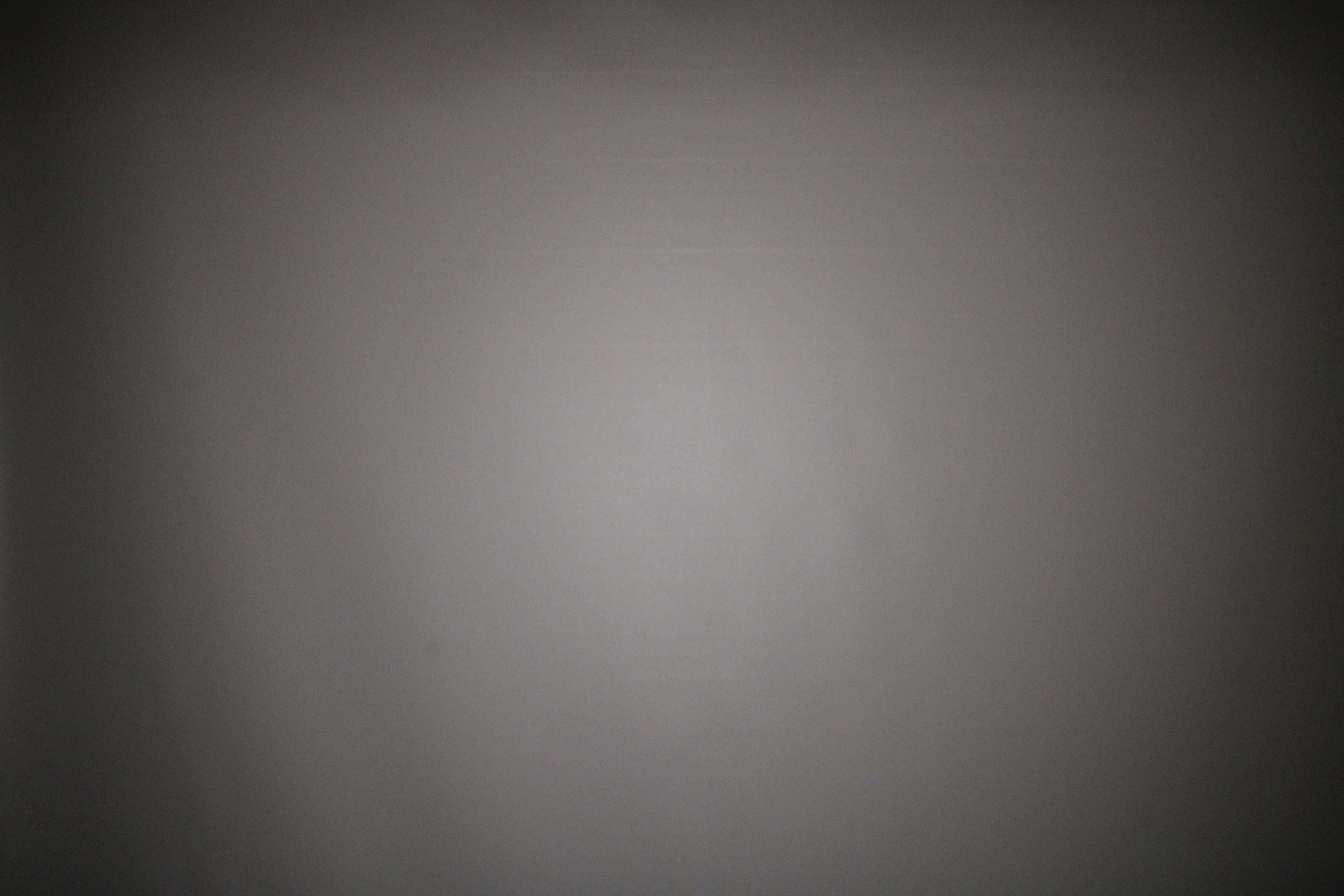

LED: J Series 2835
Required components:

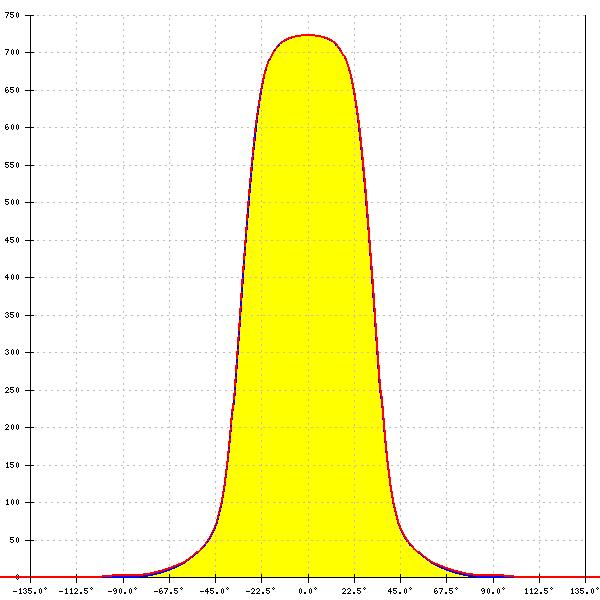

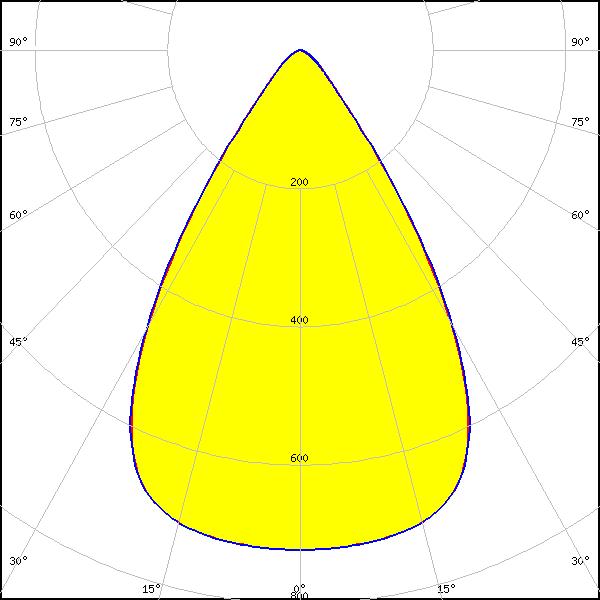

F17667_DAISY-MINI-SHD-MET-MATT
FWHM: 65°
FWTM: 89°
Peak intensity: 0.724 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

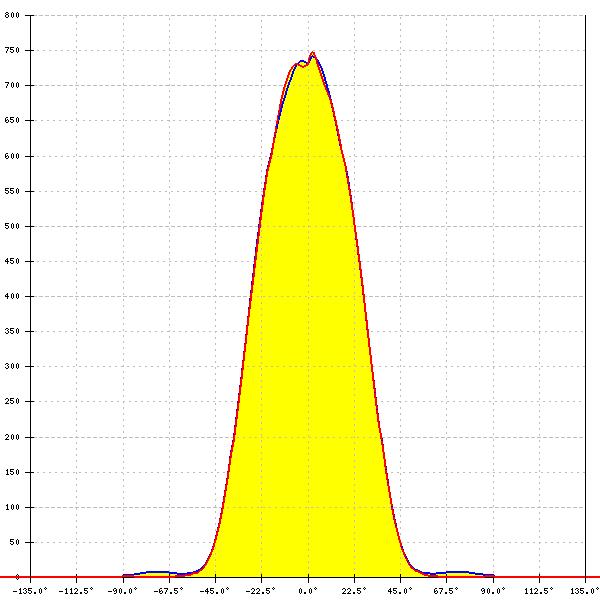

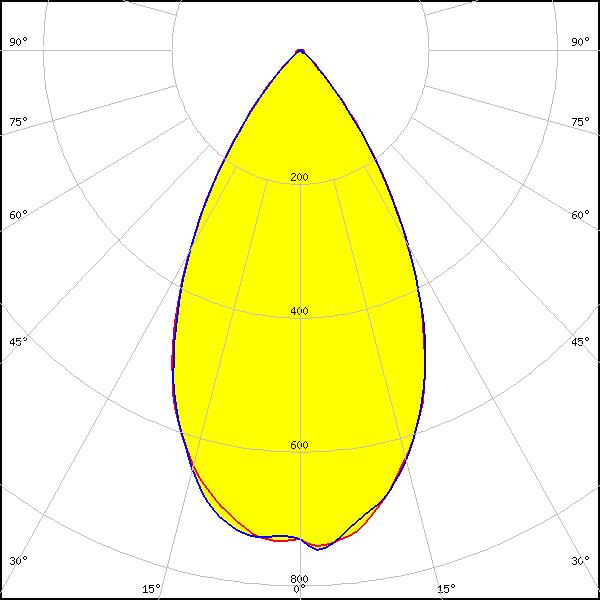

LED: LUXEON 2835 Line
Required components:
F17034_DAISY-MINI-SHD-MATT
FWHM: 58°
FWTM: 86°
Peak intensity: 0.750 cd/lm
Efficiency: 68 %
LEDs/each optic: 2
Light colour/type: White

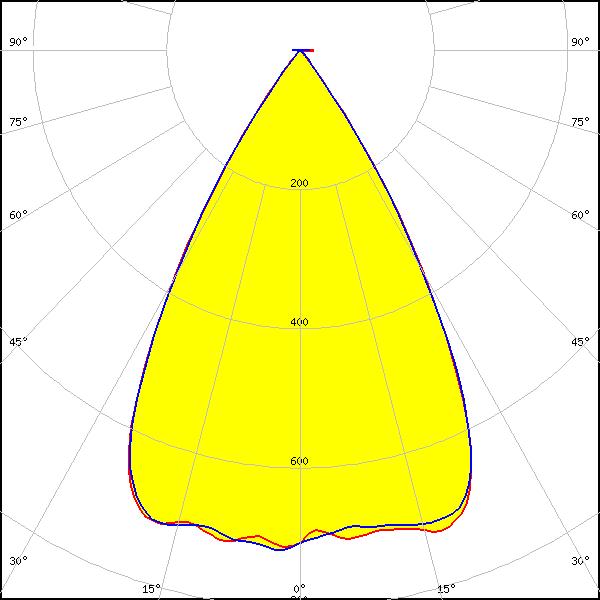

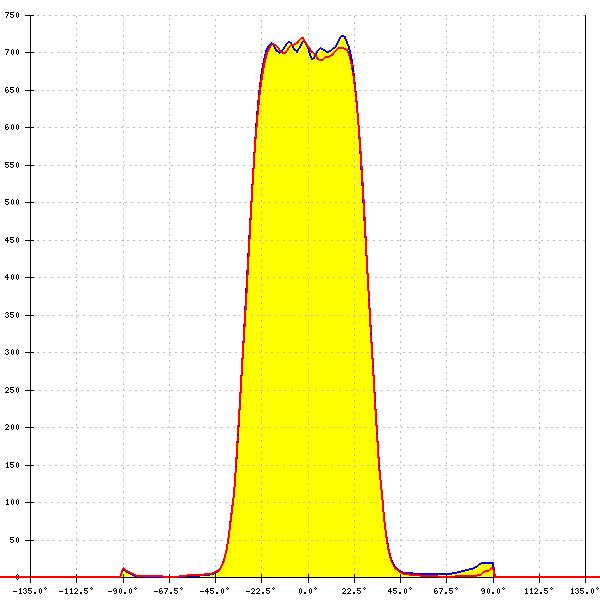

LED: LUXEON HL1Z
Required components:
F17028_DAISY-MINI-SHD
FWHM: 60°
FWTM: 74°
Peak intensity: 0.732 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: White

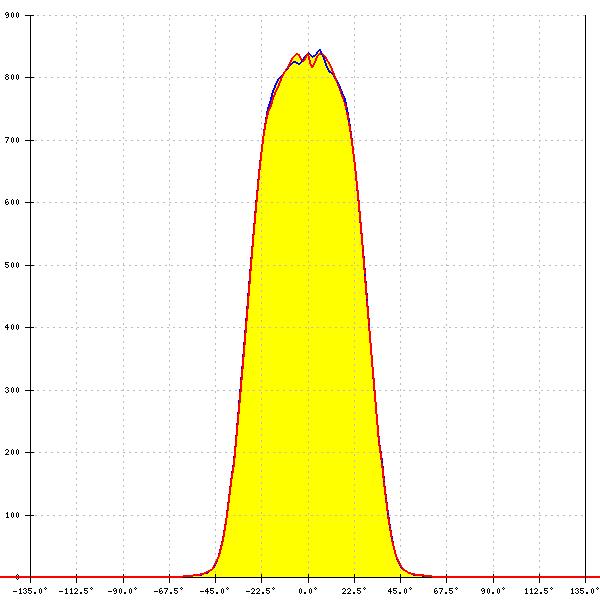

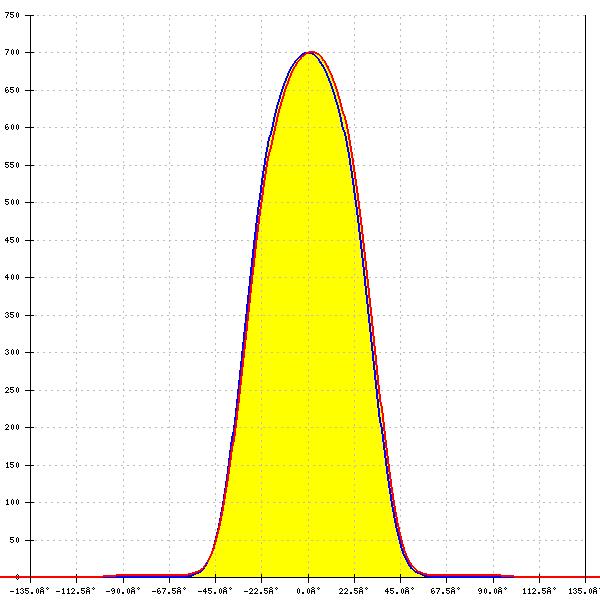

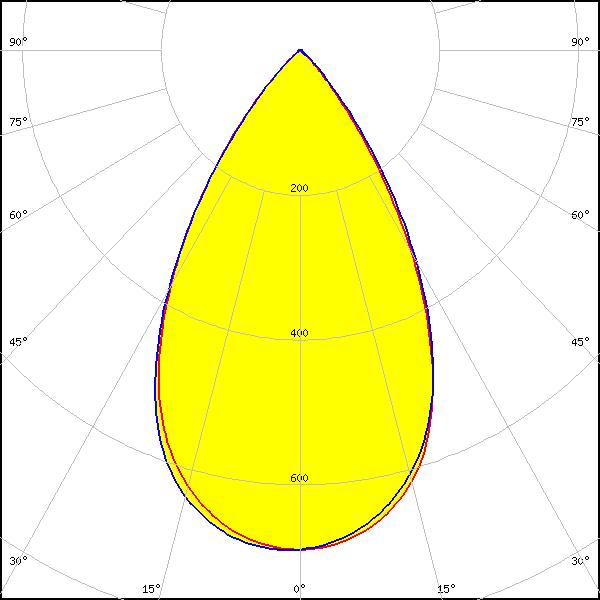

LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
F17028_DAISY-MINI-SHD
FWHM: 60°
FWTM: 86°
Peak intensity: 0.691 cd/lm
Efficiency: 69 %
LEDs/each optic: 2
Light colour/type: White

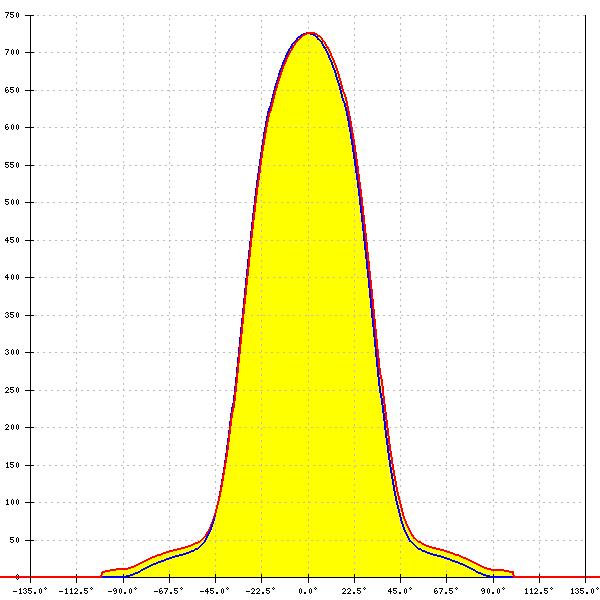

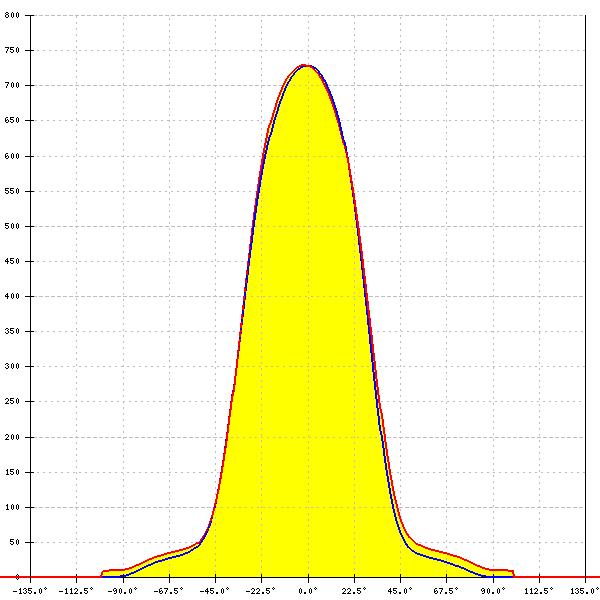

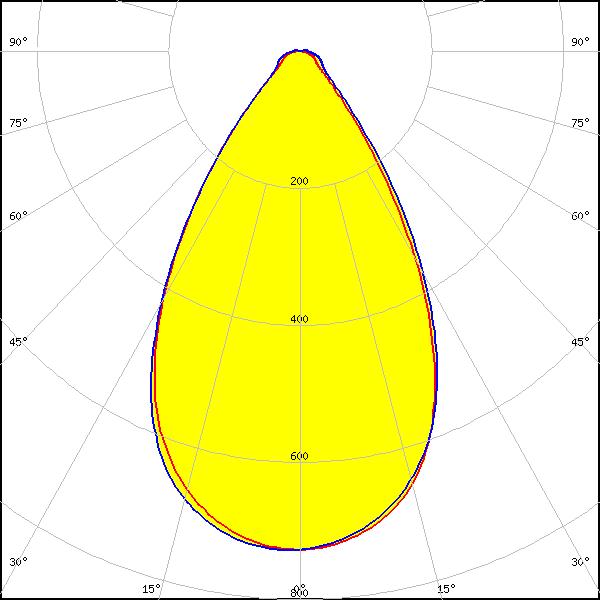

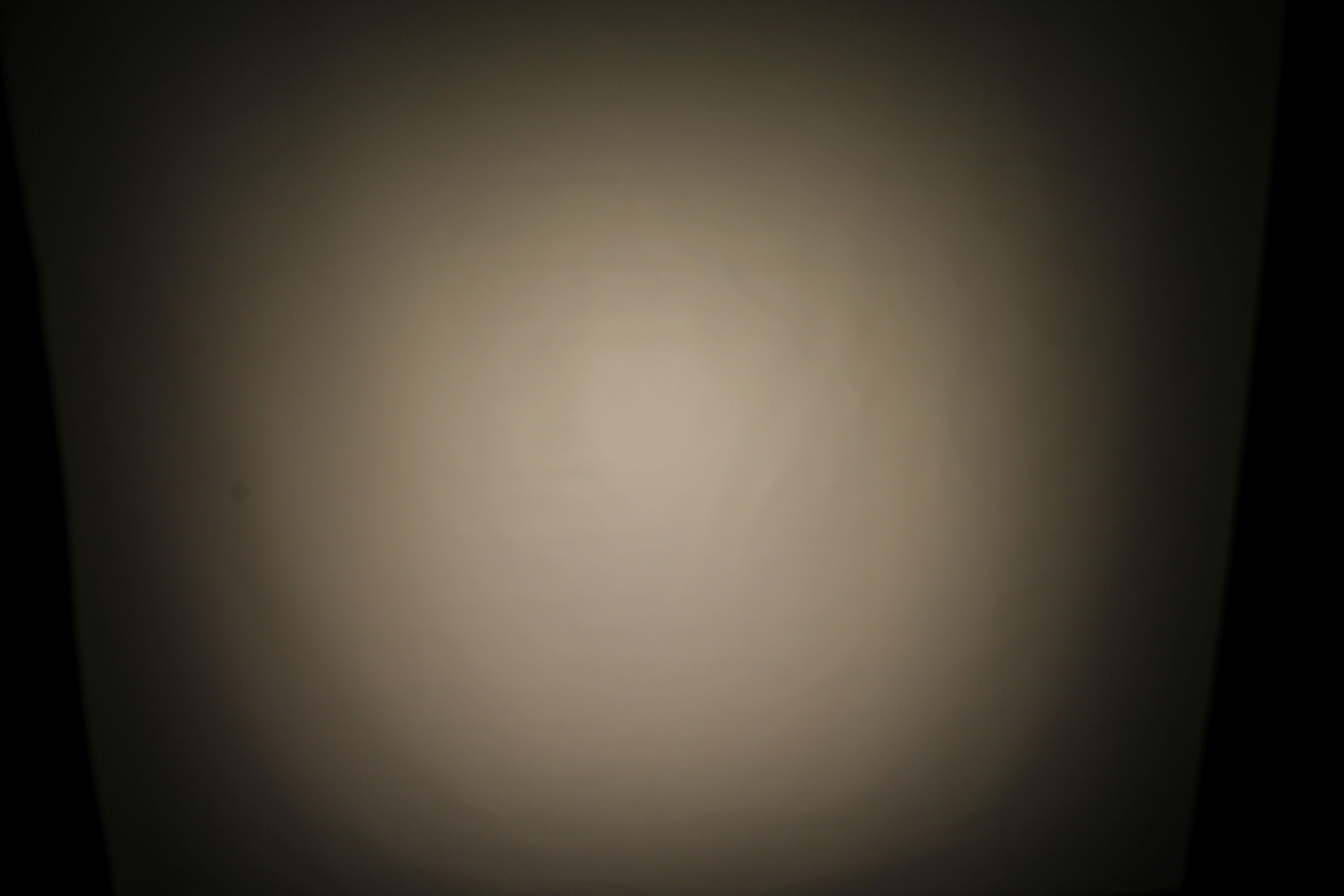

LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
F17033_DAISY-MINI-SHD-WHT
FWHM: 62°
FWTM: 93°
Peak intensity: 0.729 cd/lm
Efficiency: 88 %
LEDs/each optic: 2
Light colour/type: White

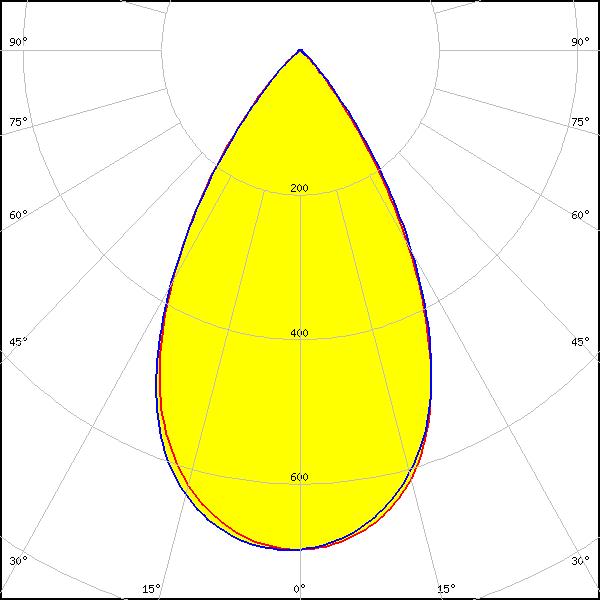

LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:

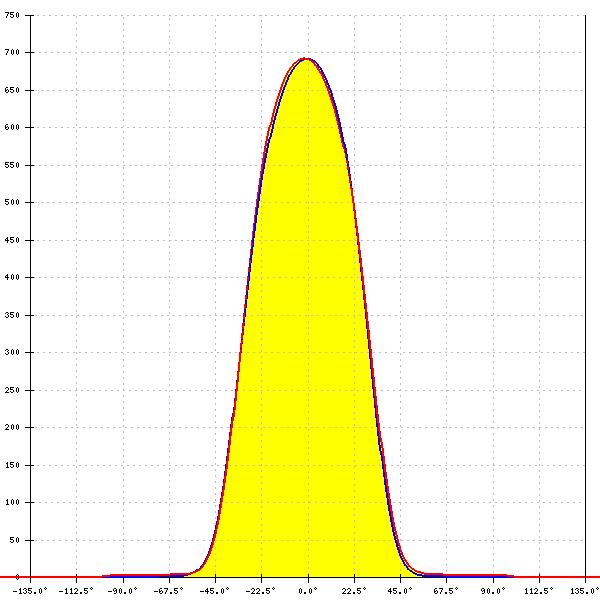

F17034_DAISY-MINI-SHD-MATT
FWHM: 60°
FWTM: 86°
Peak intensity: 0.692 cd/lm
Efficiency: 68 %
LEDs/each optic: 2
Light colour/type: White

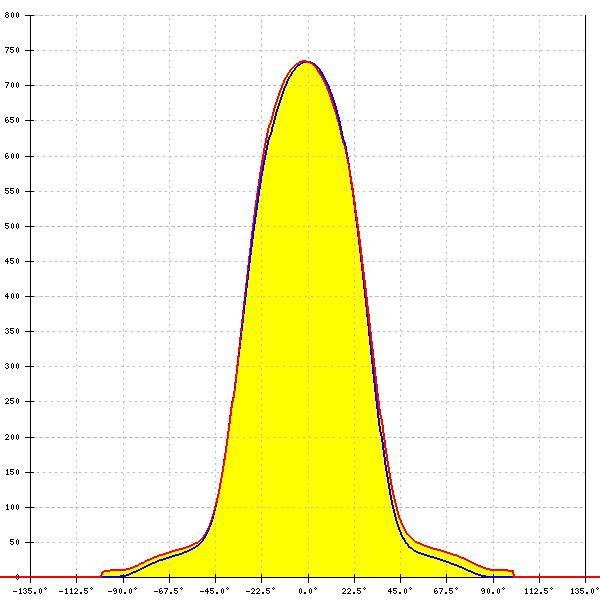

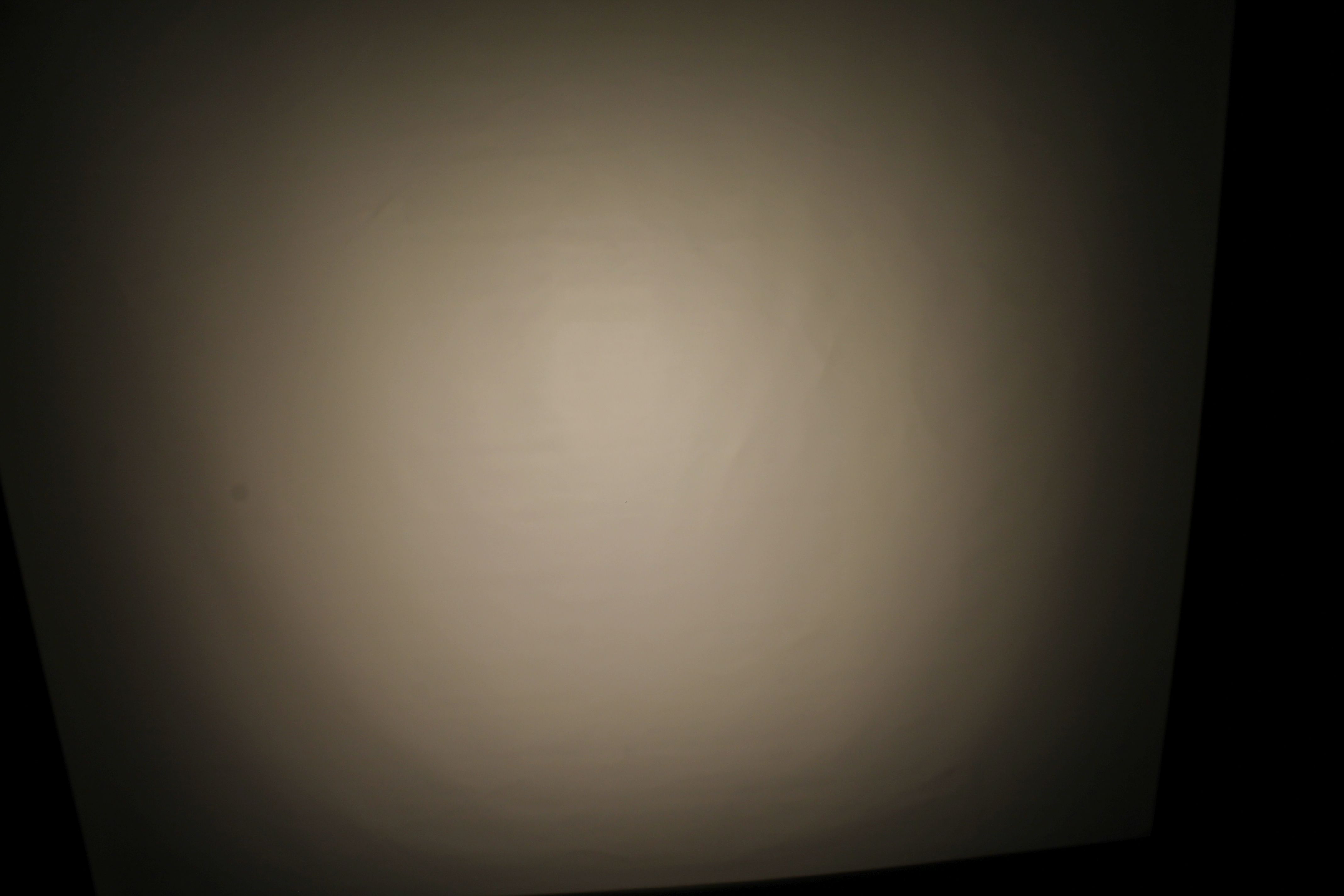

LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:
F17465_DAISY-MINI-SHD-WHT-MATT
FWHM: 61°
FWTM: 93°
Peak intensity: 0.734 cd/lm
Efficiency: 88 %
LEDs/each optic: 2
Light colour/type: White

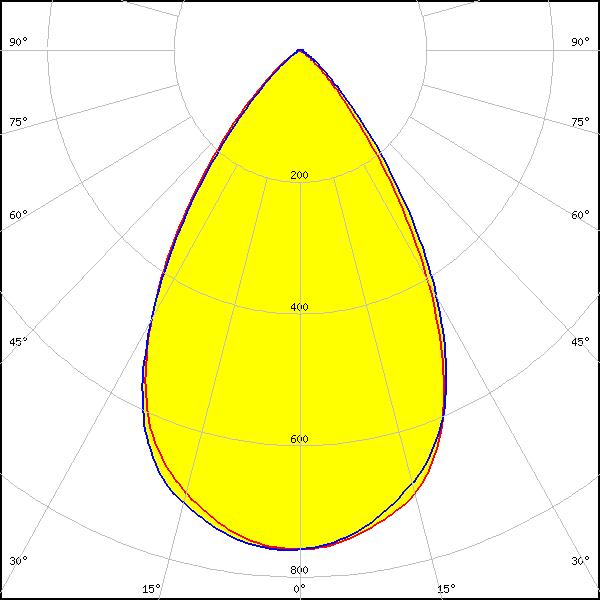

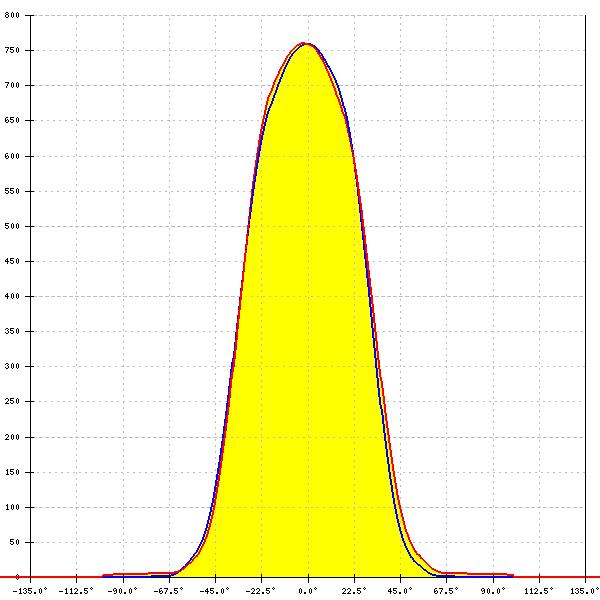

LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:

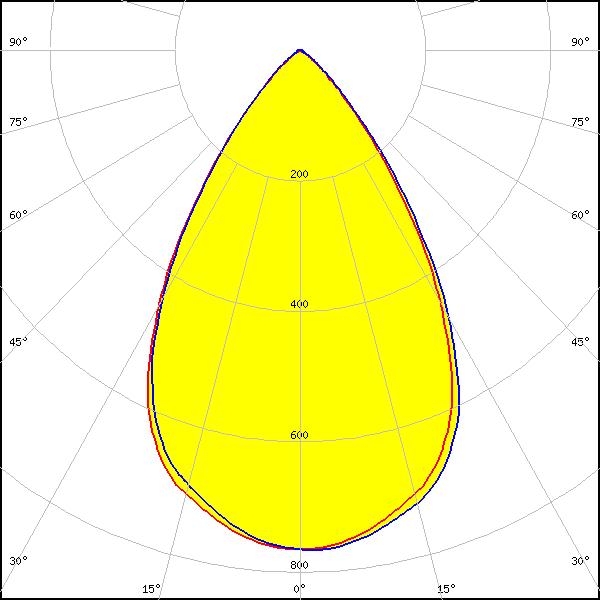

F17666_DAISY-MINI-SHD-MET
FWHM: 65°
FWTM: 94°
Peak intensity: 0.760 cd/lm
Efficiency: 88 %
LEDs/each optic: 2
Light colour/type: White

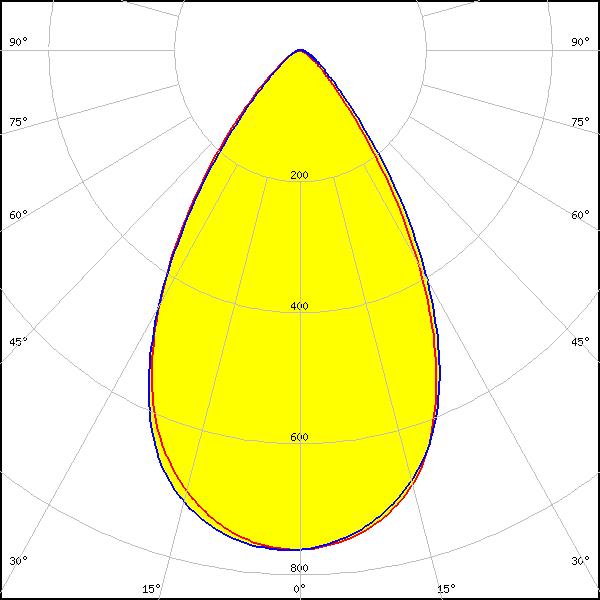

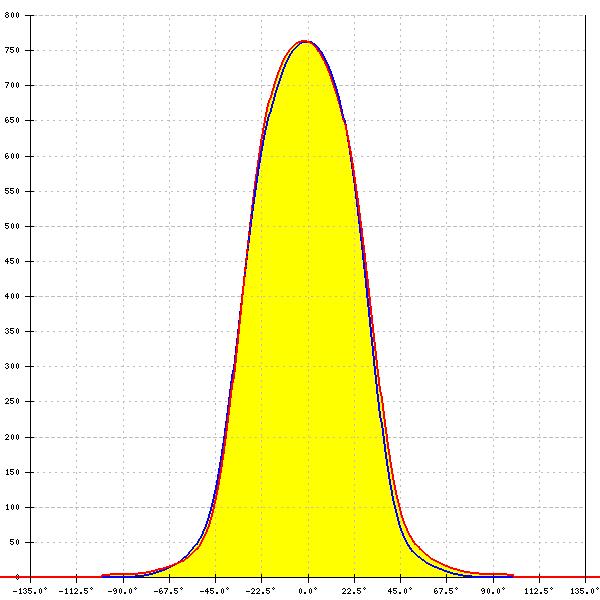

LED: LinLED 280x20mm 1100lm 8x0 2C 42V Opt G1
Required components:

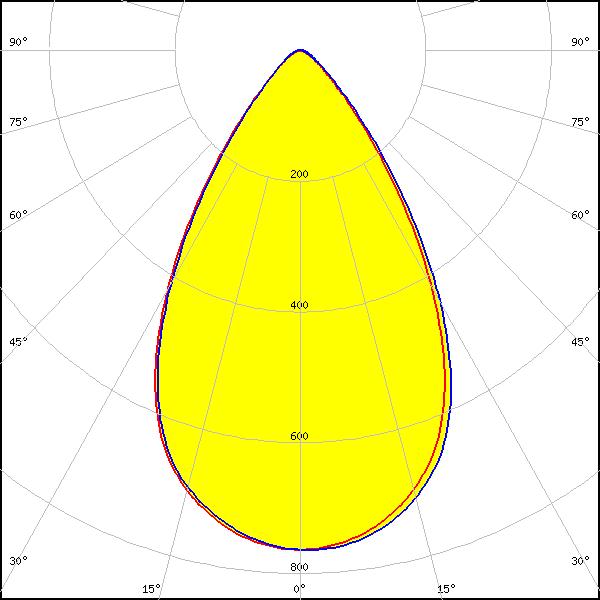

F17667_DAISY-MINI-SHD-MET-MATT
FWHM: 63°
FWTM: 94°
Peak intensity: 0.763 cd/lm
Efficiency: 87 %
LEDs/each optic: 2
Light colour/type: White

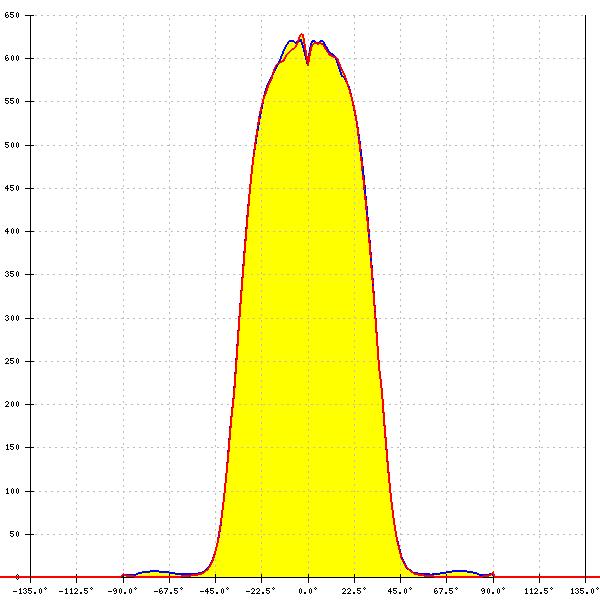

LED: NF2W757G-MT (Tunable White)
Required components:

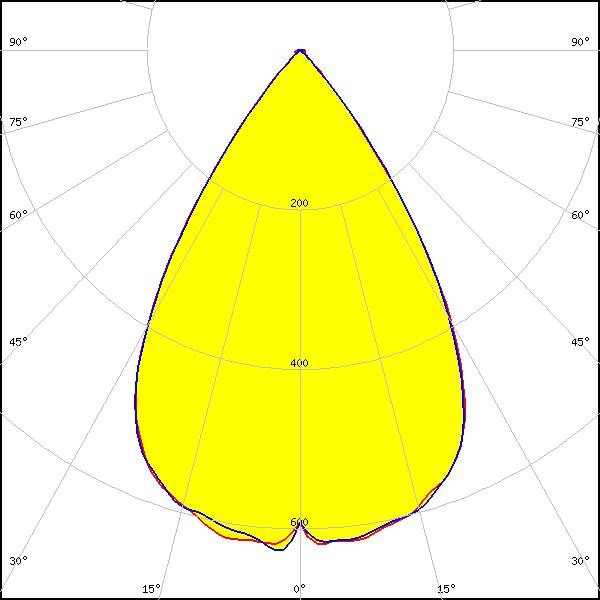

F17034_DAISY-MINI-SHD-MATT
FWHM: 66°
FWTM: 84°
Peak intensity: 0.636 cd/lm
Efficiency: 68 %
LEDs/each optic: 1
Light colour/type: Tunable White

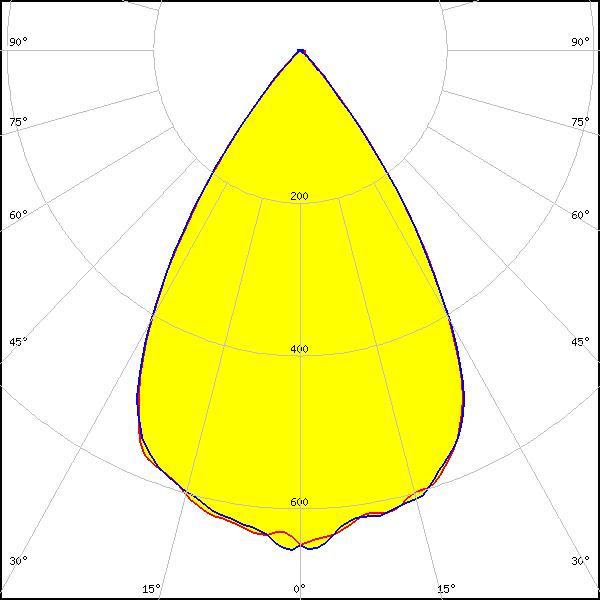

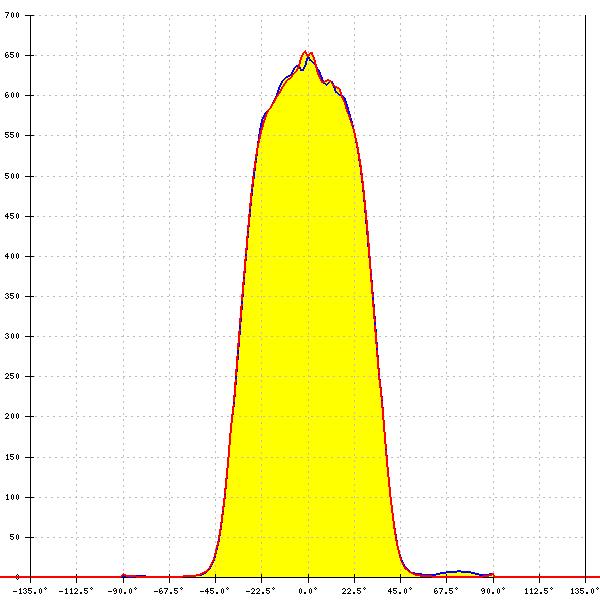

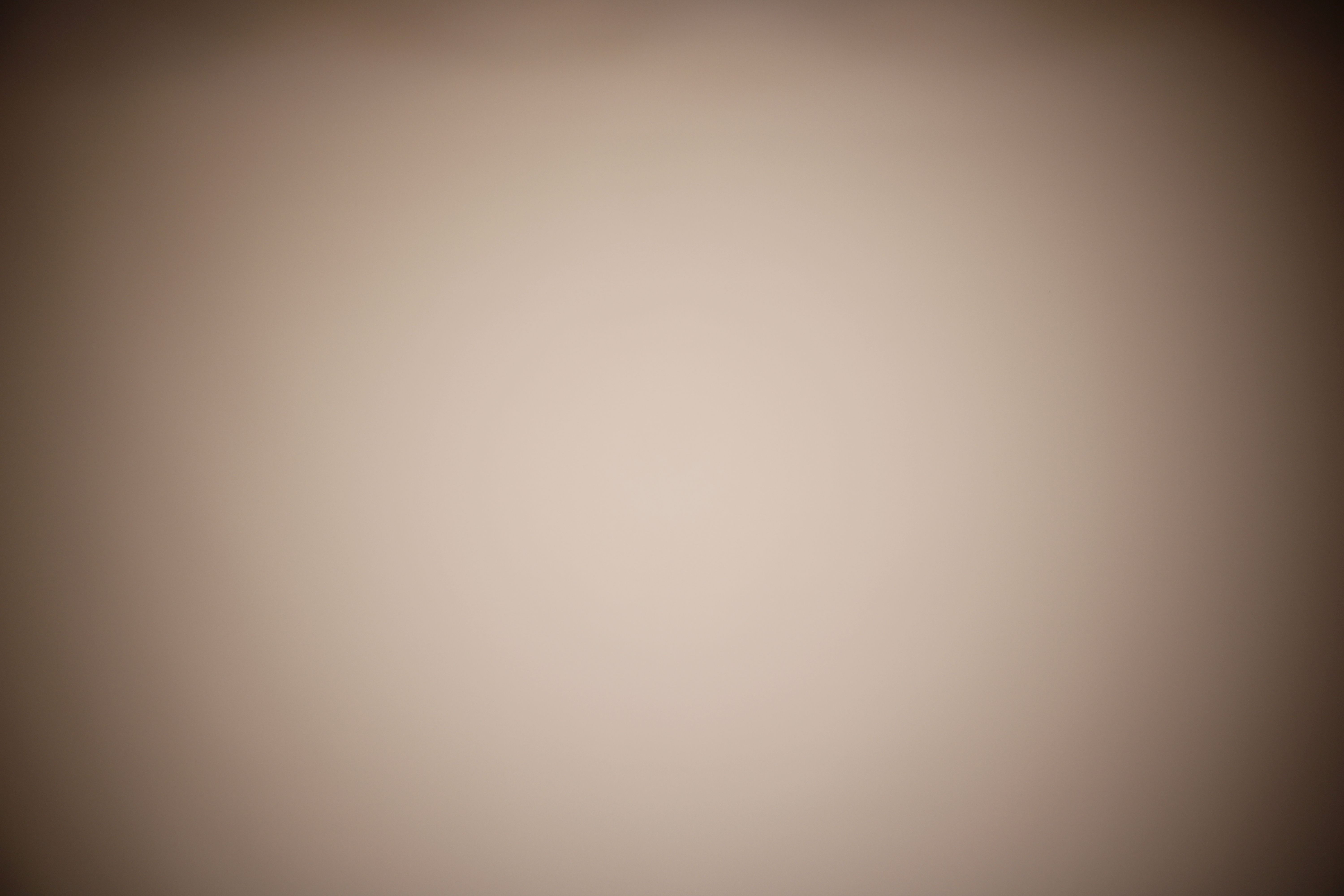

LED: NF2W757G-MT (Tunable White)
Required components:
F17028_DAISY-MINI-SHD
FWHM: 66°
FWTM: 84°
Peak intensity: 0.658 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: Tunable White

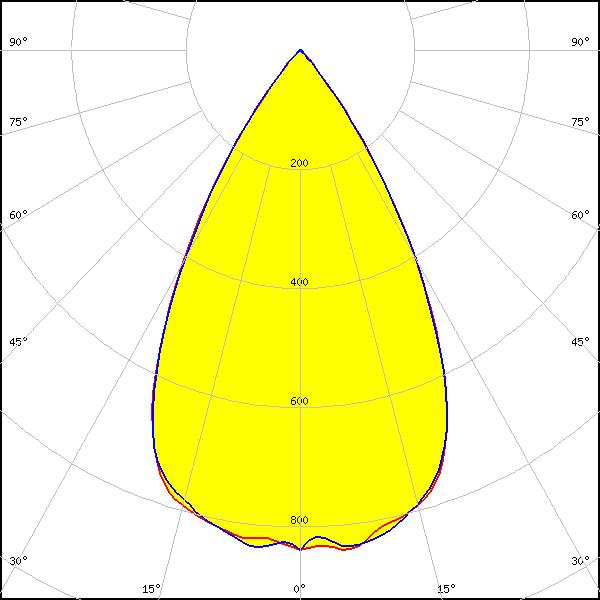

LED: NFSWE11A
Required components:
F17028_DAISY-MINI-SHD
FWHM: 60°
FWTM: 80°
Peak intensity: 0.852 cd/lm
Efficiency: 77 %
LEDs/each optic: 4
Light colour/type: White

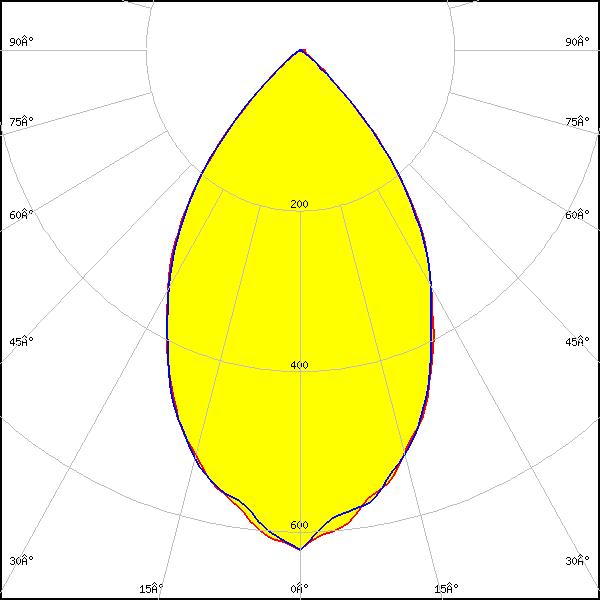

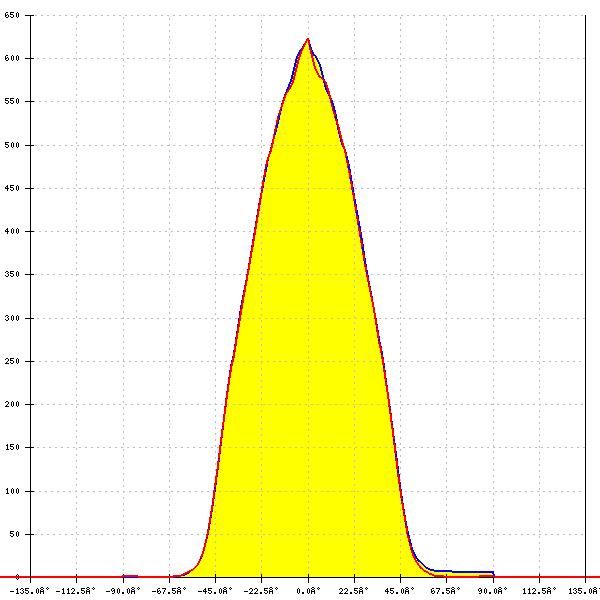

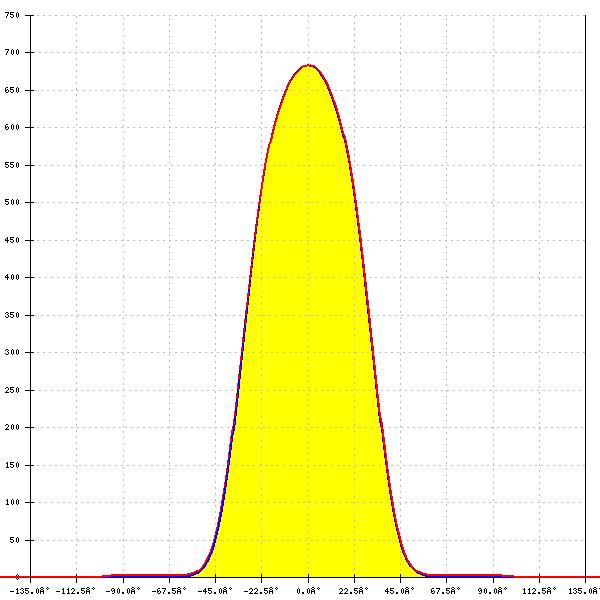

LED: LM28xB Series
Required components:
F17028_DAISY-MINI-SHD
FWHM: 64°
FWTM: 96°
Peak intensity: 0.623 cd/lm
Efficiency: 68 %
LEDs/each optic: 2
Light colour/type: White

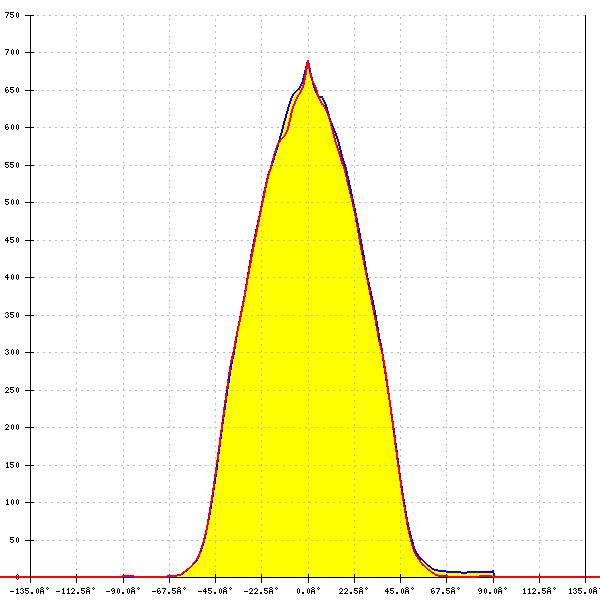

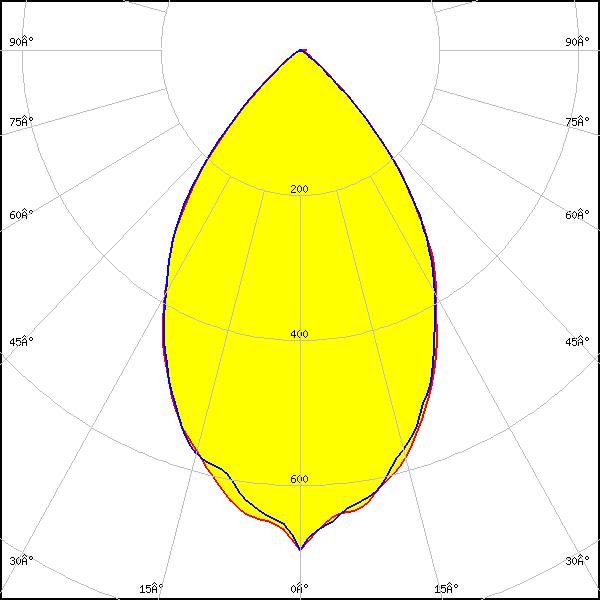

LED: LM28xB Series
Required components:
F17033_DAISY-MINI-SHD-WHT
FWHM: 67°
FWTM: 98°
Peak intensity: 0.698 cd/lm
Efficiency: 78 %
LEDs/each optic: 2
Light colour/type: White

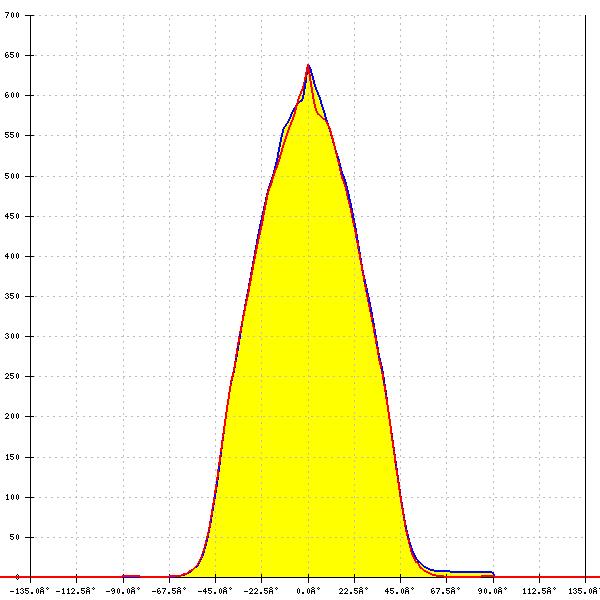

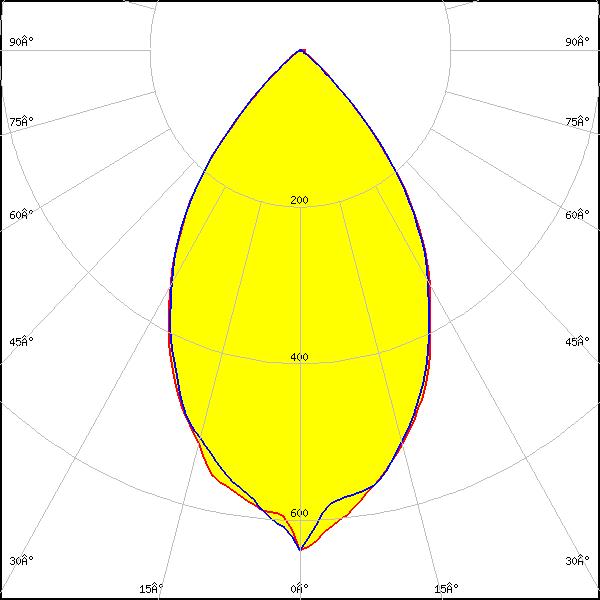

LED: LM28xB Series
Required components:
F17034_DAISY-MINI-SHD-MATT
FWHM: 64°
FWTM: 96°
Peak intensity: 0.638 cd/lm
Efficiency: 68 %
LEDs/each optic: 2
Light colour/type: White

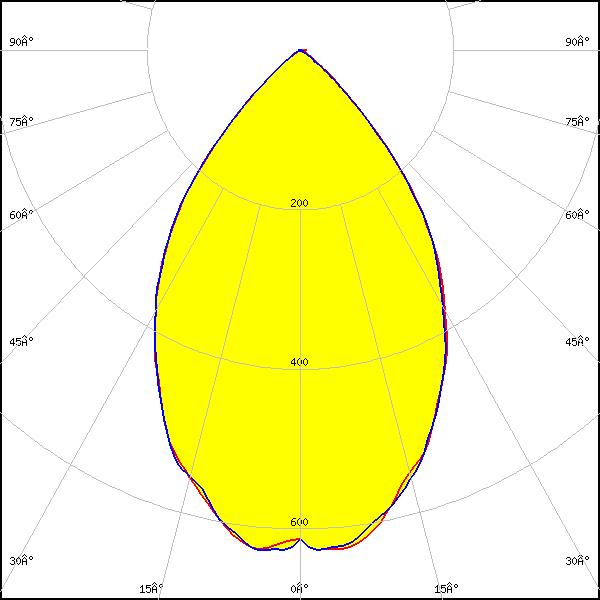

LED: LM28xB Series
Required components:
F17465_DAISY-MINI-SHD-WHT-MATT
FWHM: 69°
FWTM: 99°
Peak intensity: 0.649 cd/lm
Efficiency: 76 %
LEDs/each optic: 2
Light colour/type: White

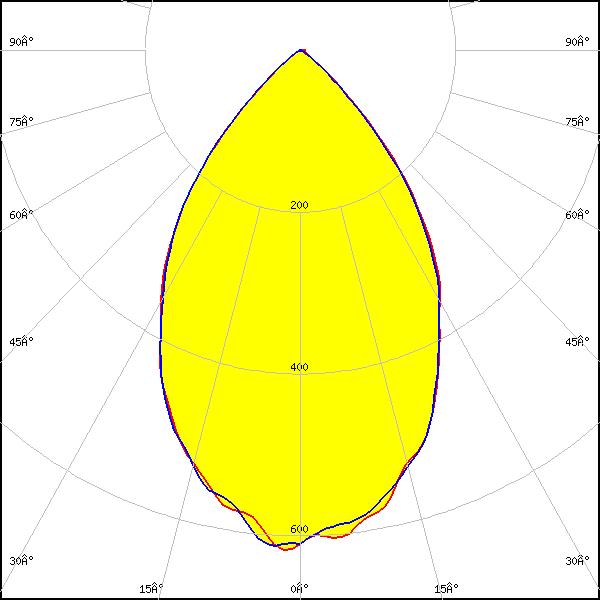

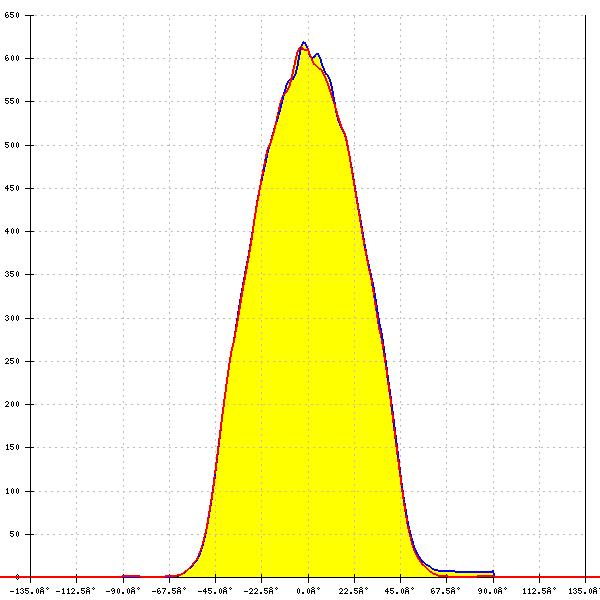

LED: LM28xB Series
Required components:
F17666_DAISY-MINI-SHD-MET
FWHM: 68°
FWTM: 98°
Peak intensity: 0.622 cd/lm
Efficiency: 72 %
LEDs/each optic: 2
Light colour/type: White

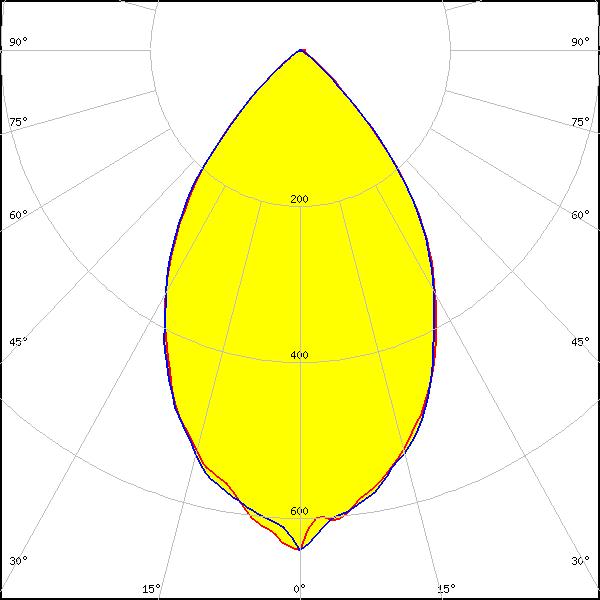

LED: LM28xB Series
Required components:
F17667_DAISY-MINI-SHD-MET-MATT
FWHM: 66°
FWTM: 98°
Peak intensity: 0.641 cd/lm
Efficiency: 72 %
LEDs/each optic: 2
Light colour/type: White

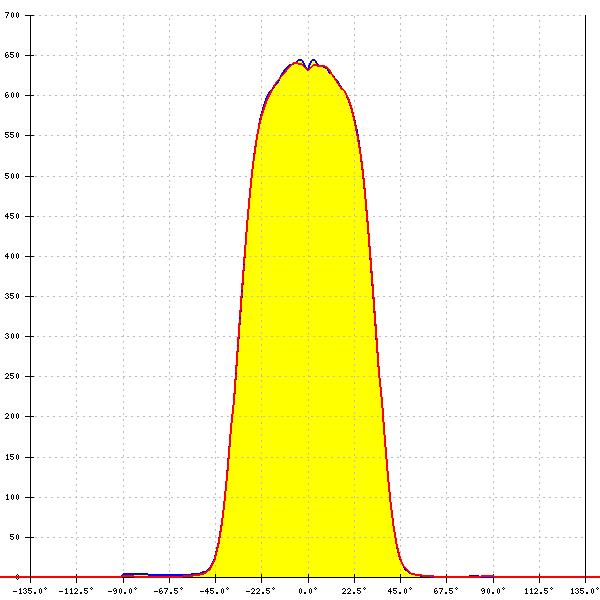

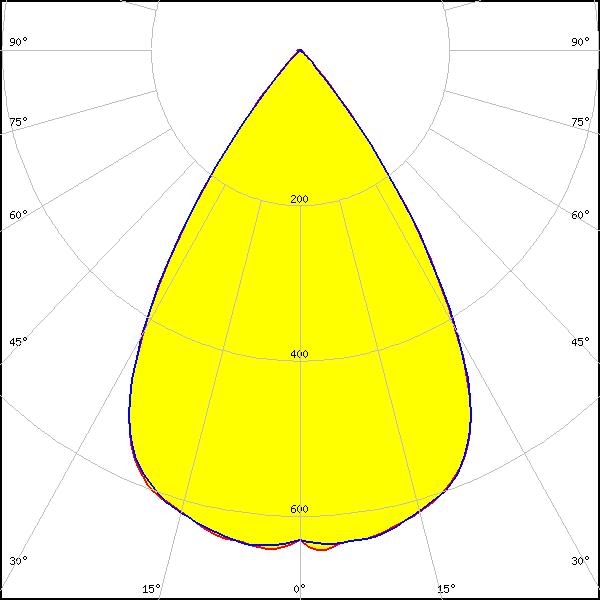

LED: SEOUL 3030
Required components:
F17028_DAISY-MINI-SHD
FWHM: 66°
FWTM: 84°
Peak intensity: 0.651 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: White

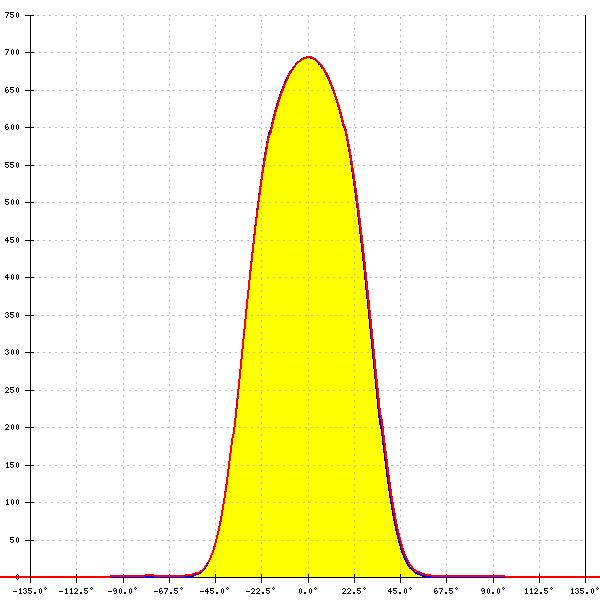

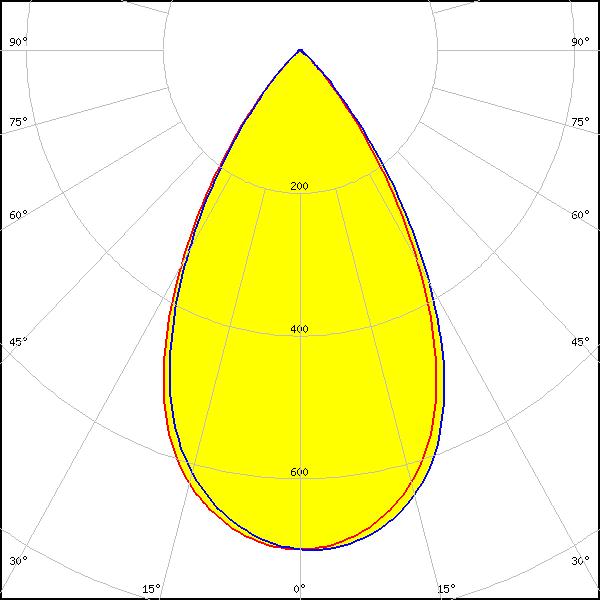

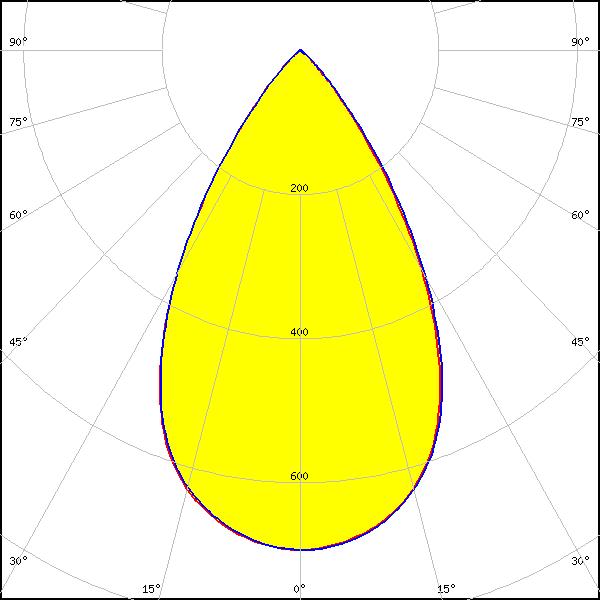

LED: LLE 20x280mm 750lm 827-865 LV MD ADV1
Required components:
F17028_DAISY-MINI-SHD
FWHM: 61°
FWTM: 86°
Peak intensity: 0.694 cd/lm
Efficiency: 69 %
LEDs/each optic: 2
Light colour/type: Tunable White

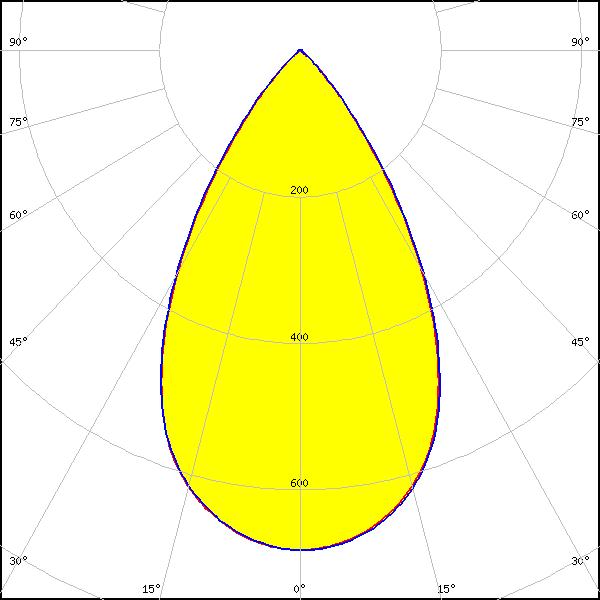

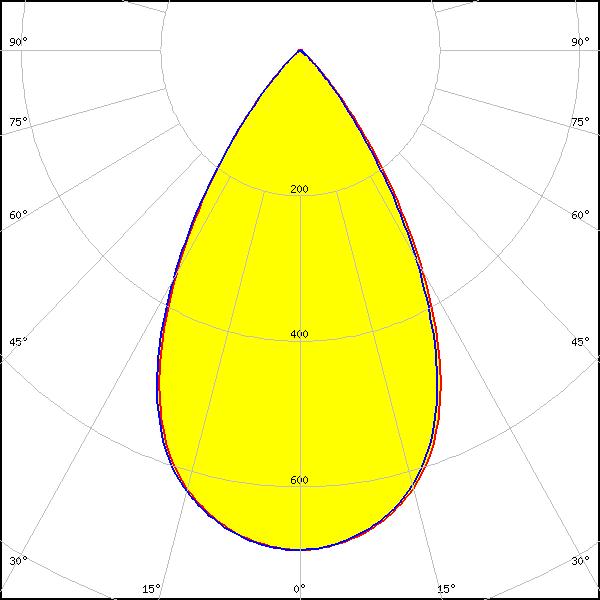

LED: LLE 20x280mm 750lm 840 LV MD ADV1
Required components:
F17028_DAISY-MINI-SHD
FWHM: 61°
FWTM: 87°
Peak intensity: 0.689 cd/lm
Efficiency: 69 %
LEDs/each optic: 2
Light colour/type: White

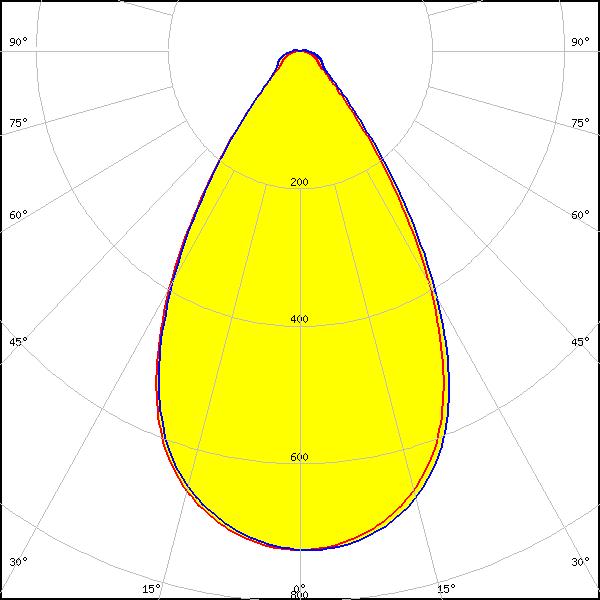

LED: LLE 20x280mm 750lm 840 LV MD ADV1
Required components:
F17033_DAISY-MINI-SHD-WHT
FWHM: 63°
FWTM: 93°
Peak intensity: 0.727 cd/lm
Efficiency: 90 %
LEDs/each optic: 2
Light colour/type: White

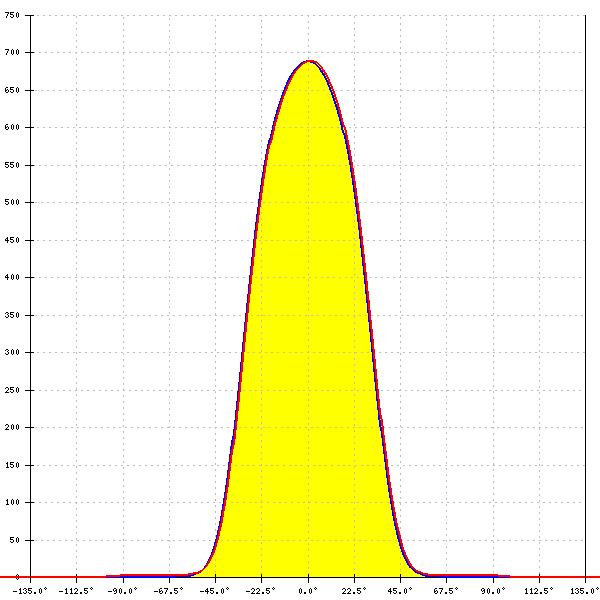

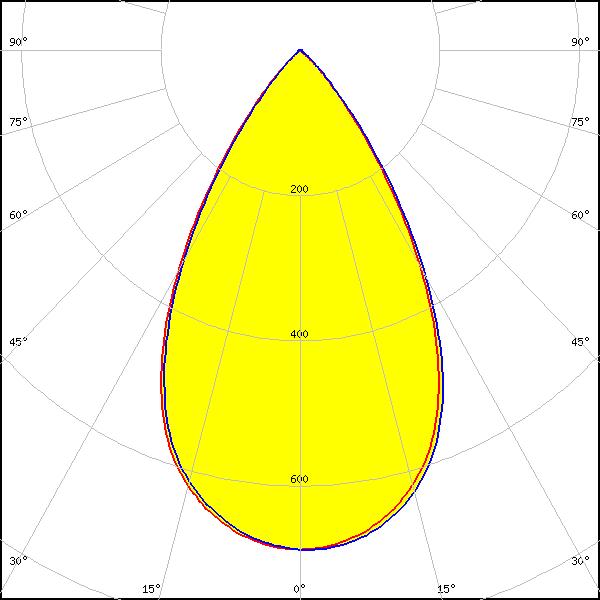

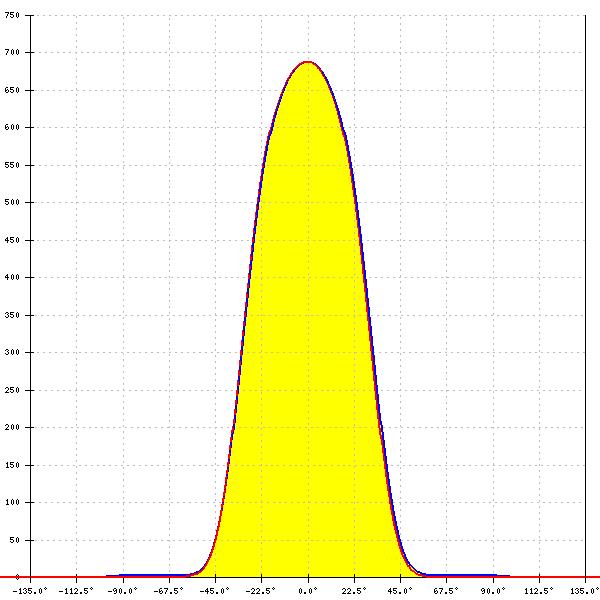

LED: LLE 20x280mm 750lm 840 LV MD ADV1
Required components:
F17034_DAISY-MINI-SHD-MATT
FWHM: 60°
FWTM: 86°
Peak intensity: 0.690 cd/lm
Efficiency: 69 %
LEDs/each optic: 2
Light colour/type: White

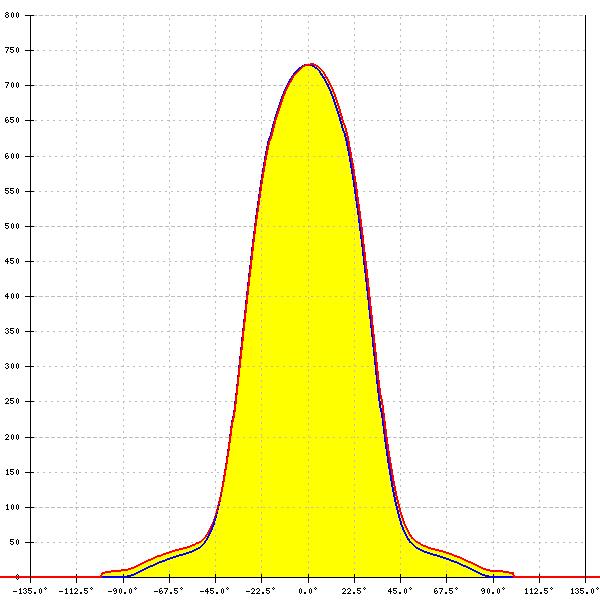

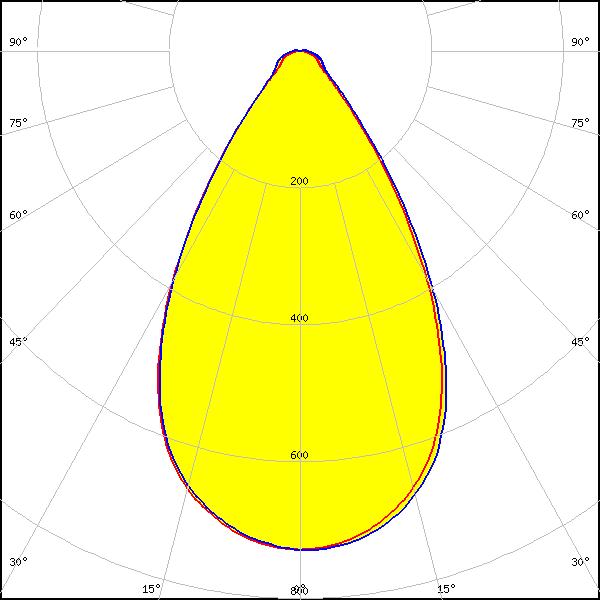

LED: LLE 20x280mm 750lm 840 LV MD ADV1
Required components:
F17465_DAISY-MINI-SHD-WHT-MATT
FWHM: 62°
FWTM: 93°
Peak intensity: 0.730 cd/lm
Efficiency: 89 %
LEDs/each optic: 2
Light colour/type: White

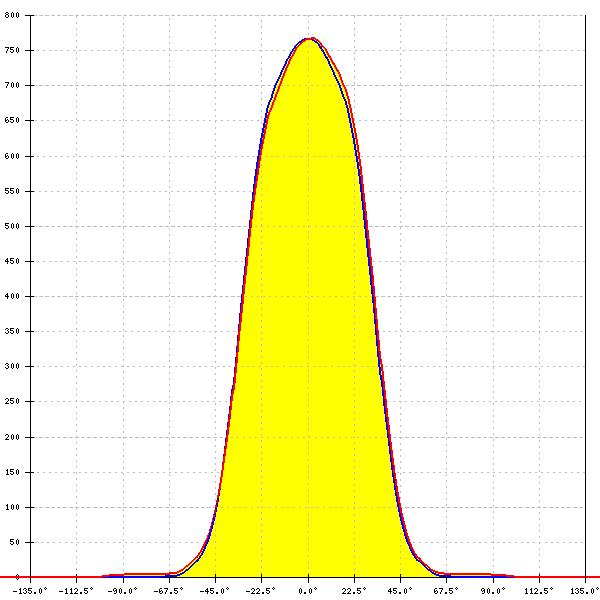

LED: LLE 20x280mm 750lm 840 LV MD ADV1
Required components:
F17666_DAISY-MINI-SHD-MET
FWHM: 65°
FWTM: 93°
Peak intensity: 0.768 cd/lm
Efficiency: 89 %
LEDs/each optic: 2
Light colour/type: White

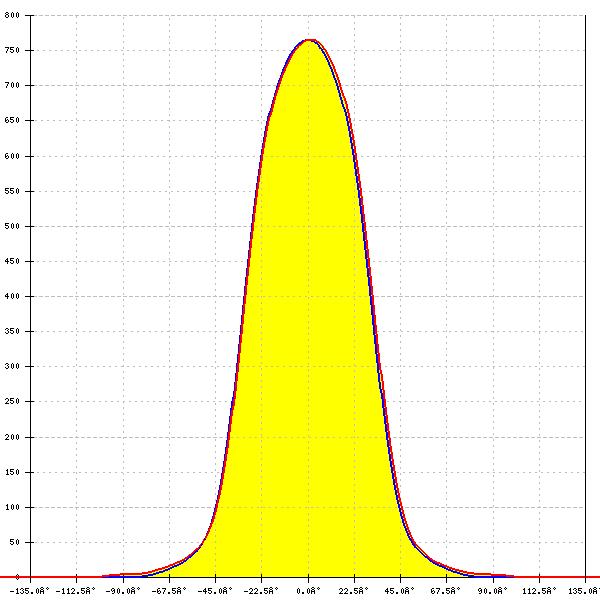

LED: LLE 20x280mm 750lm 840 LV MD ADV1
Required components:
F17667_DAISY-MINI-SHD-MET-MATT
FWHM: 63°
FWTM: 94°
Peak intensity: 0.766 cd/lm
Efficiency: 88 %
LEDs/each optic: 2
Light colour/type: White
