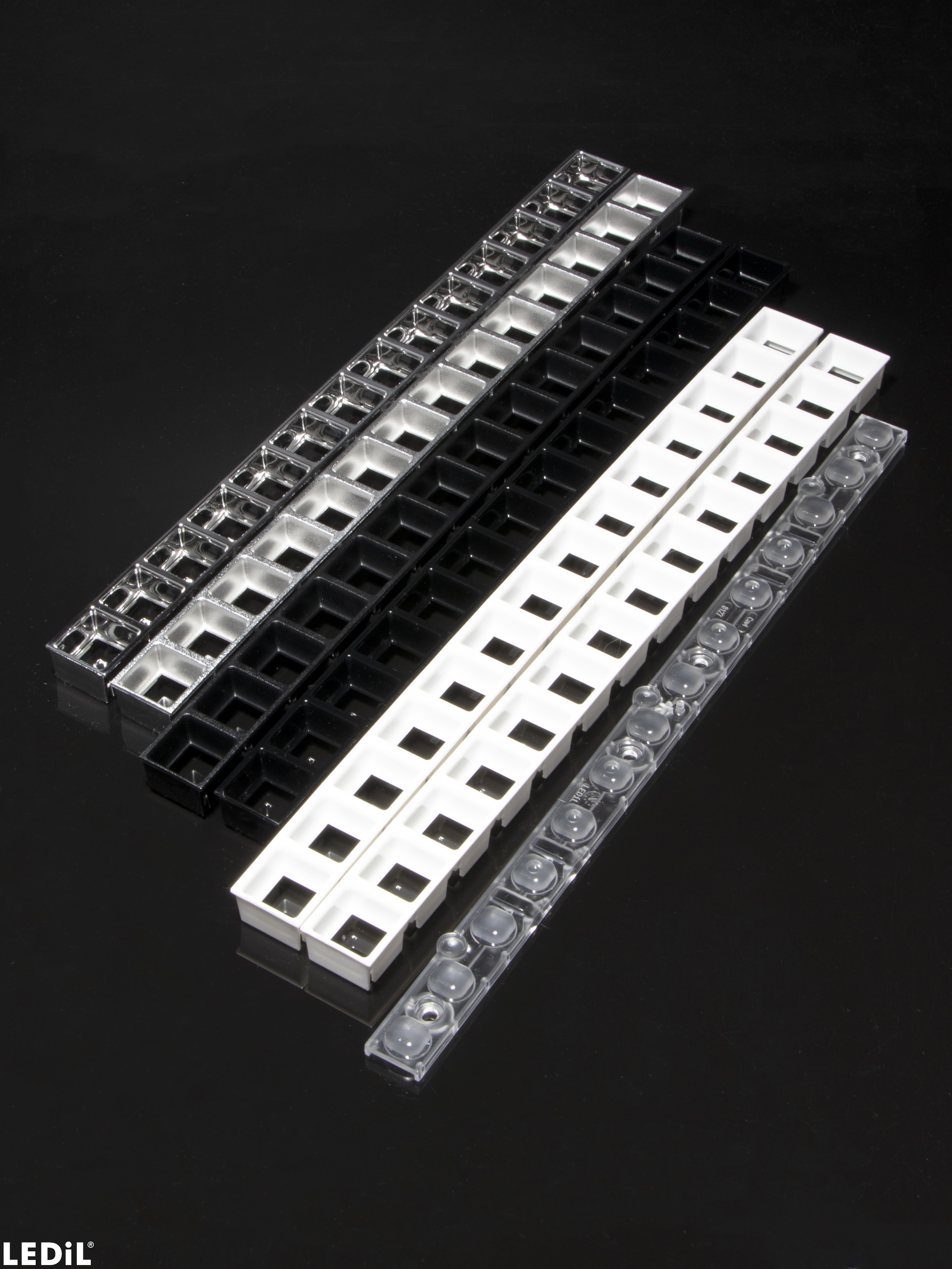

DAISY-MINI-WWW-D
Print
~65° extra wide beam. Variant with diffused lenses.
This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
-
Dimensions:280 x 21 mm
-
Height:13.30 mm
-
Fastening:pin, screw, snaps
-
RoHS and REACH compliant:Yes
Component Materials
- DAISY-MINI-SHDShadePC
- DAISY-MINI-SHD-WHTShadePC
- DAISY-MINI-SHD-MATTShadePC
- DAISY-MINI-SHD-WHT-MATTShadePC
- DAISY-MINI-SHD-METShadePC
- DAISY-MINI-SHD-MET-MATTShadePC
- DAISY-MINI-WWW-DLinear lensPMMA
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
- Quantities for one set:
- Linear lens1 pcs
- Shade1 pcs
- Linear lens
- F18127_DAISY-MINI-WWW-Dmilky
- Quantity in box:252 pcs
- Box size:398 x 298 x 265 mm
- Box weight:6.10 kg
- MPQ:12 pcs
- MOQ:252 pcs
- MOQ Size:398 x 298 x 265 mm
- MOQ Weight:6.10 kg
- Shade
- F17028_DAISY-MINI-SHDblack,gloss
- F17033_DAISY-MINI-SHD-WHTwhite,gloss
- F17034_DAISY-MINI-SHD-MATTblack,matt
- F17465_DAISY-MINI-SHD-WHT-MATTwhite,matt
- F17666_DAISY-MINI-SHD-METmetal,gloss
- F17667_DAISY-MINI-SHD-MET-MATTmetal,matt
- Quantity in box:252 pcs
- Box size:398 x 298 x 265 mm
- Box weight:5.90 kg
- MPQ:4 pcs
- MOQ:252 pcs
- MOQ Size:398 x 298 x 265 mm
- MOQ Weight:5.90 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
- PCB drawing
Related Content

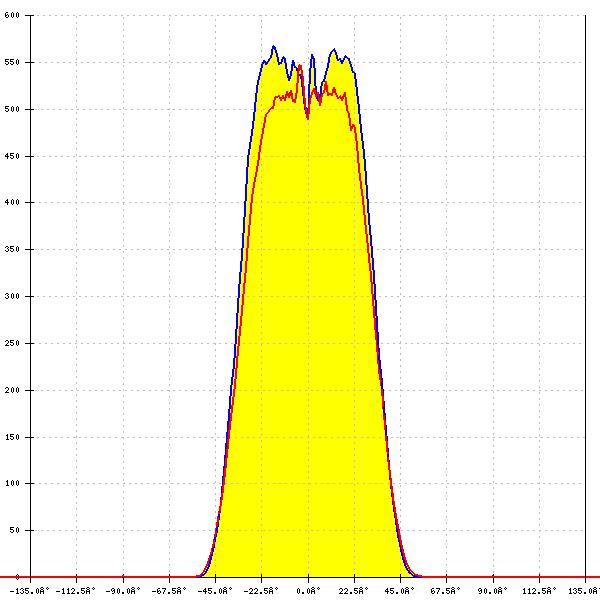

Optical results

LED:

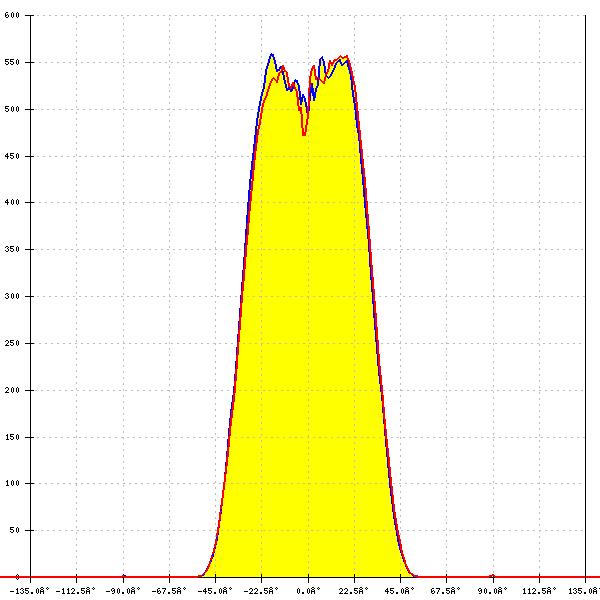

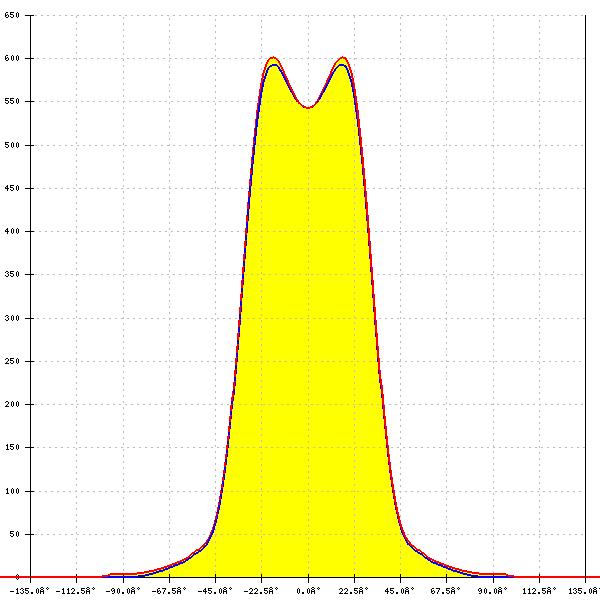

J Series 2835
Required components:

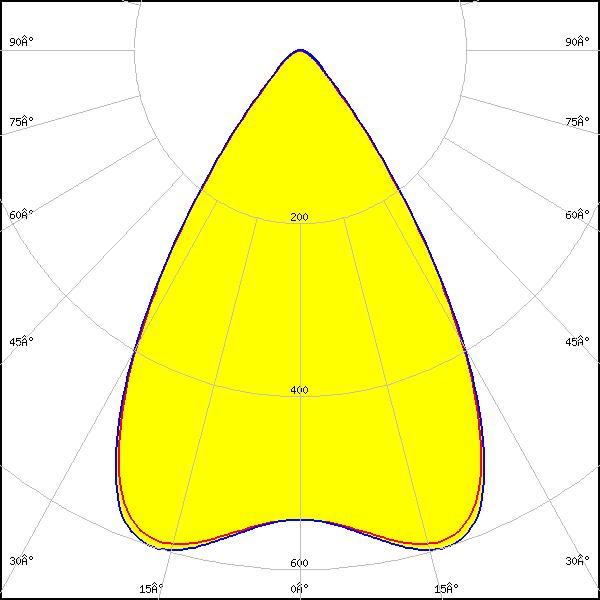

F17667_DAISY-MINI-SHD-MET-MATT
FWHM:
67°
FWTM:
91°
Peak intensity:
0.663 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

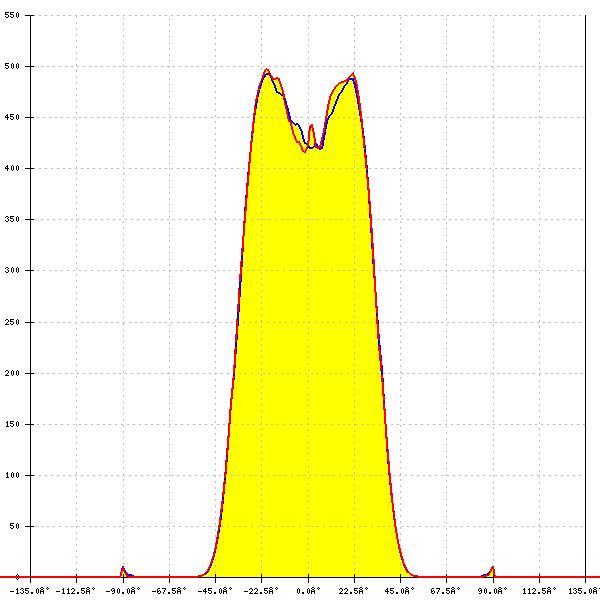

LED:
XQ-E HI
Required components:

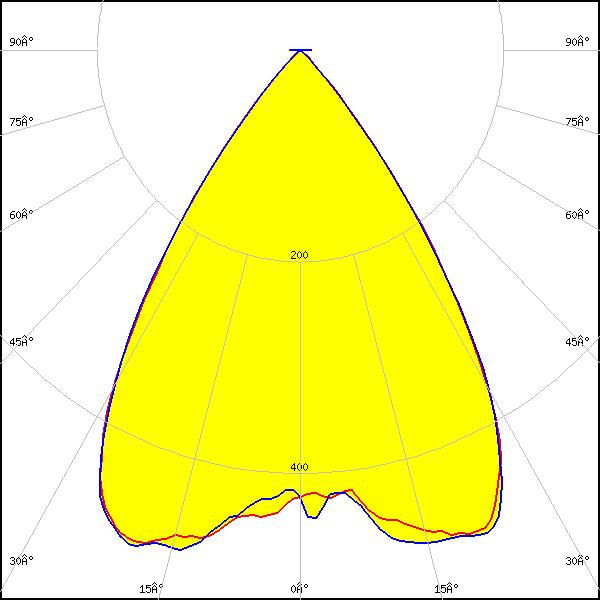

F17028_DAISY-MINI-SHD
FWHM:
68°
FWTM:
-
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White

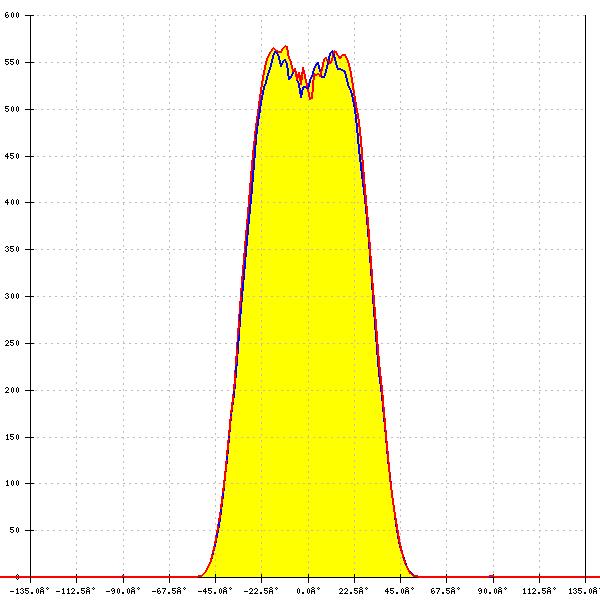

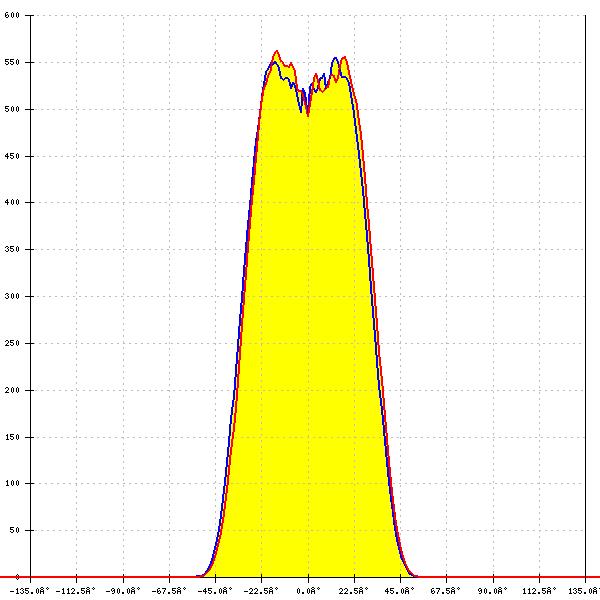

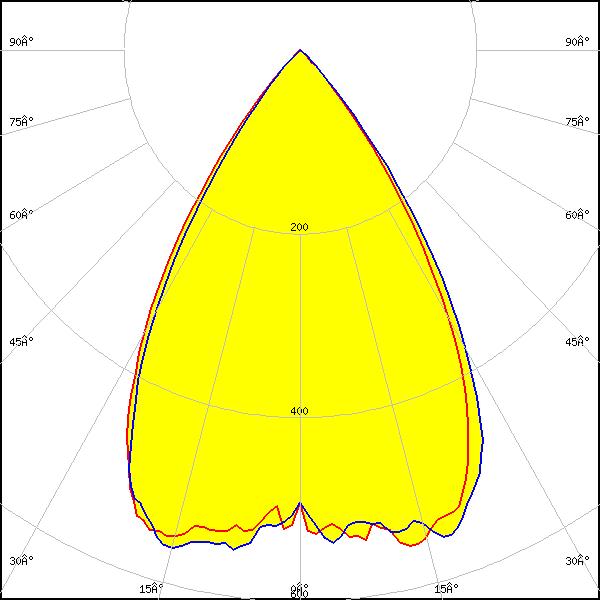

LED:
LUXEON 3030 2D (Round LES)
Required components:
F17028_DAISY-MINI-SHD
FWHM:
63°
FWTM:
-
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON HL1Z
Required components:
F17028_DAISY-MINI-SHD
FWHM:
60°
FWTM:
76°
Peak intensity:
0.731 cd/lm
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White

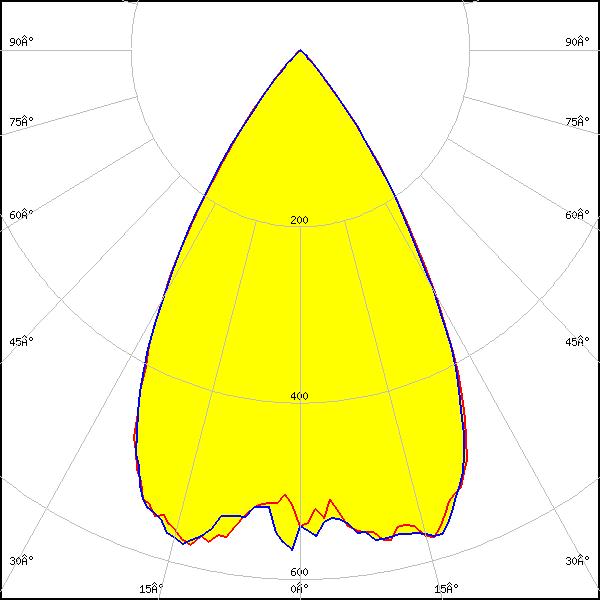

LED:
NCSxE17A
Required components:
F17028_DAISY-MINI-SHD
FWHM:
62°
FWTM:
-
Efficiency:
65 %
LEDs/each optic:
1
Light colour/type:
White

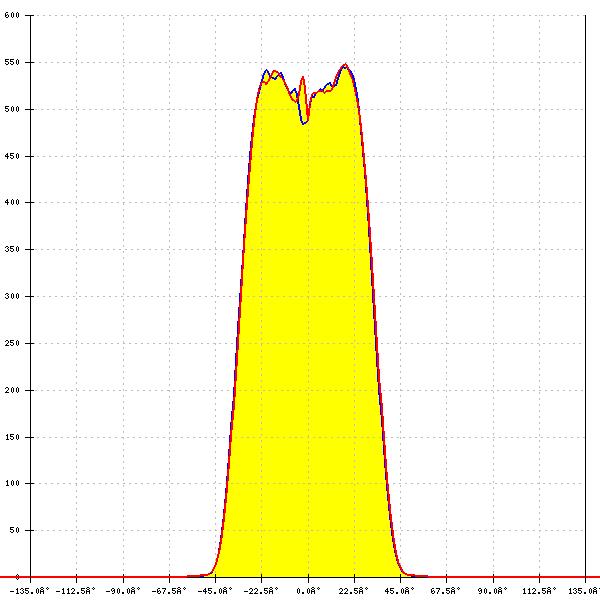

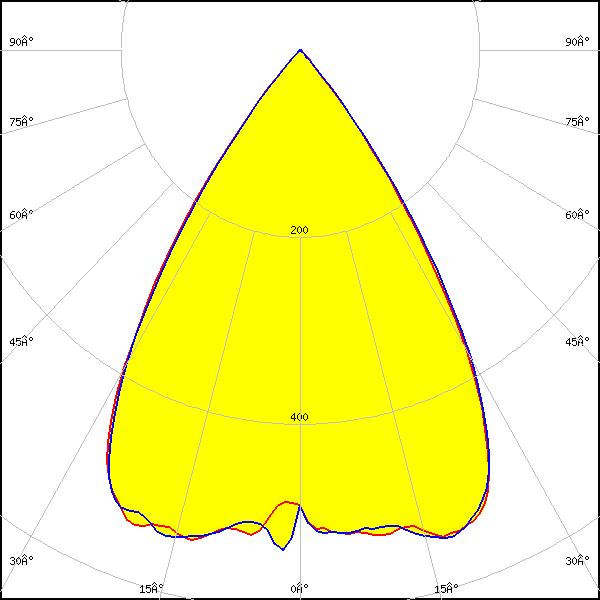

LED:
NFSx757G
Required components:
F17028_DAISY-MINI-SHD
FWHM:
65°
FWTM:
-
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White

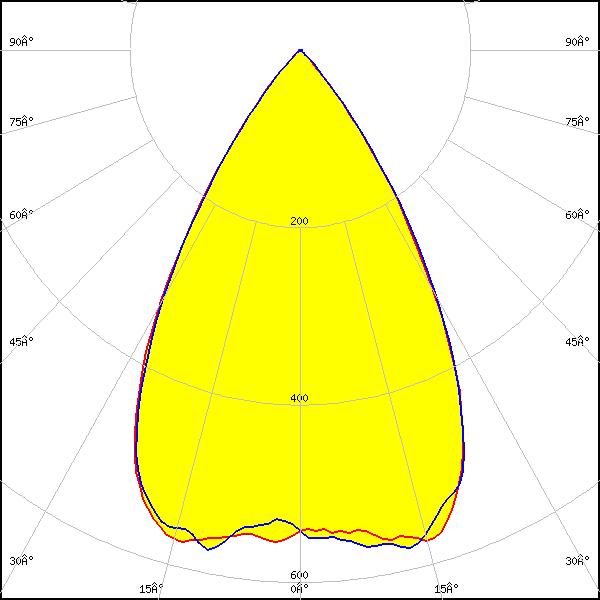

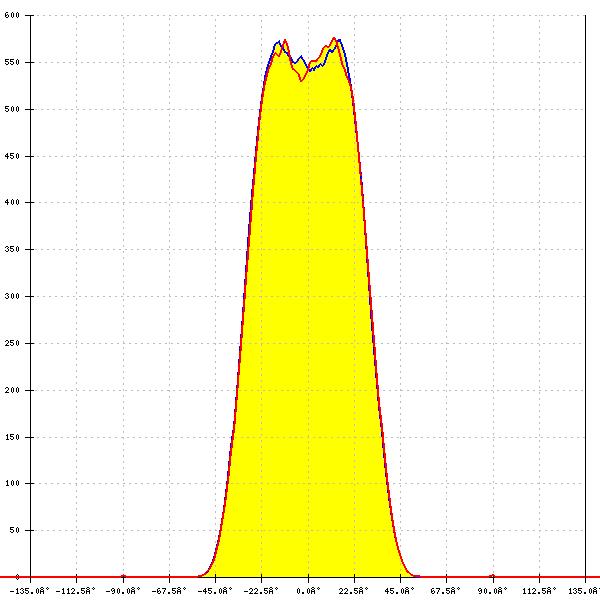

LED:
NVSxE21A
Required components:
F17028_DAISY-MINI-SHD
FWHM:
62°
FWTM:
-
Efficiency:
64 %
LEDs/each optic:
1
Light colour/type:
White

LED:

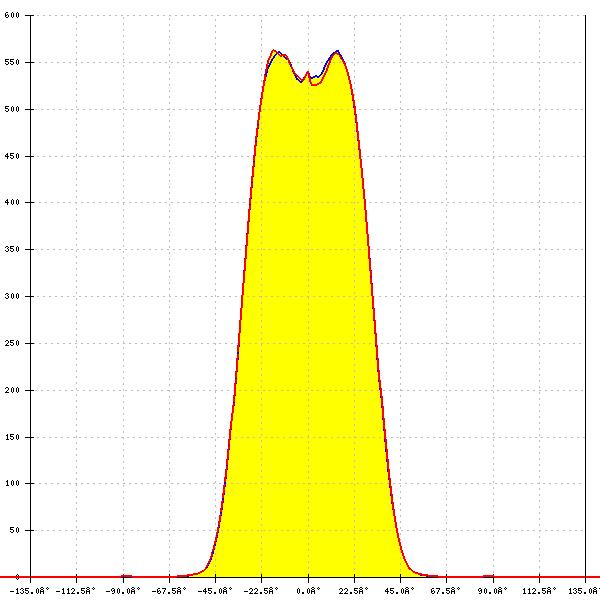

LH231B
Required components:

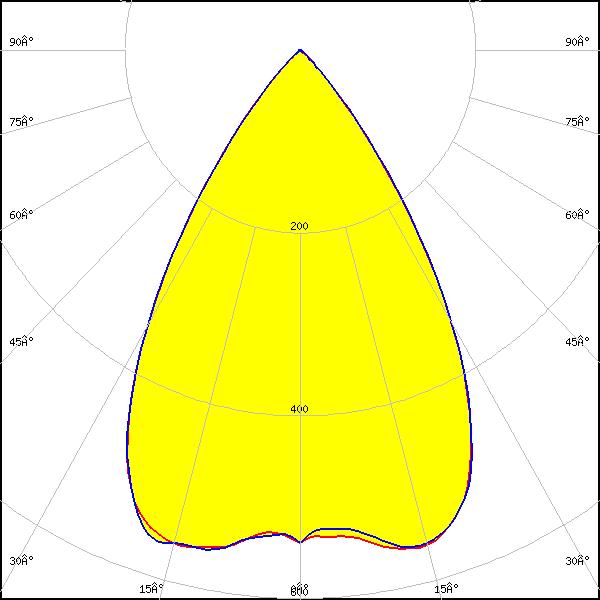

F17034_DAISY-MINI-SHD-MATT
FWHM:
65°
FWTM:
86°
Peak intensity:
0.585 cd/lm
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White

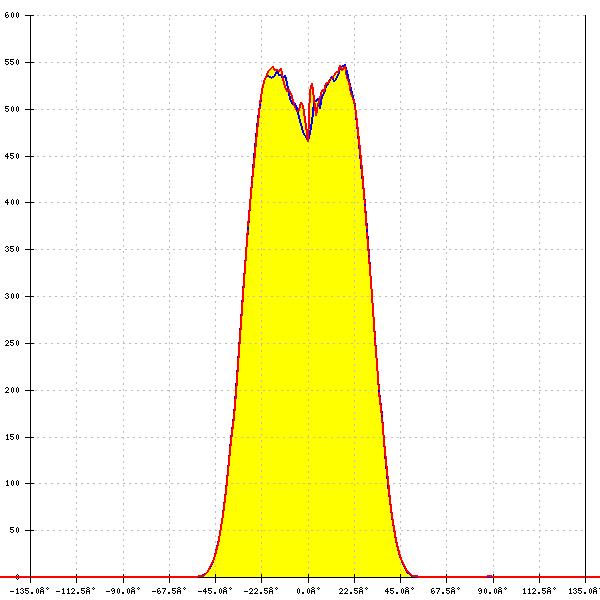

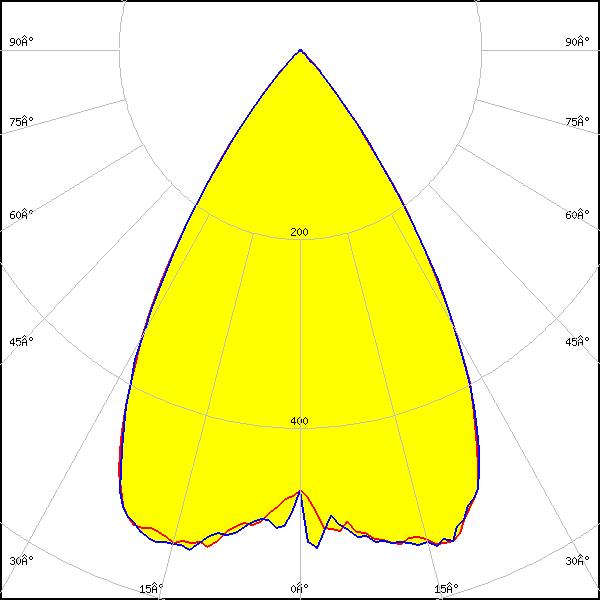

LED:
LM101B
Required components:
F17028_DAISY-MINI-SHD
FWHM:
63°
FWTM:
-
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White

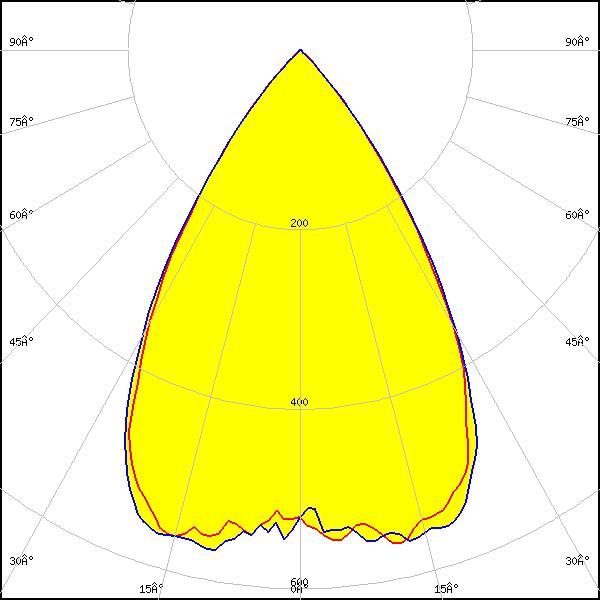

LED:
LM28xB Series
Required components:
F17028_DAISY-MINI-SHD
FWHM:
64°
FWTM:
-
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White

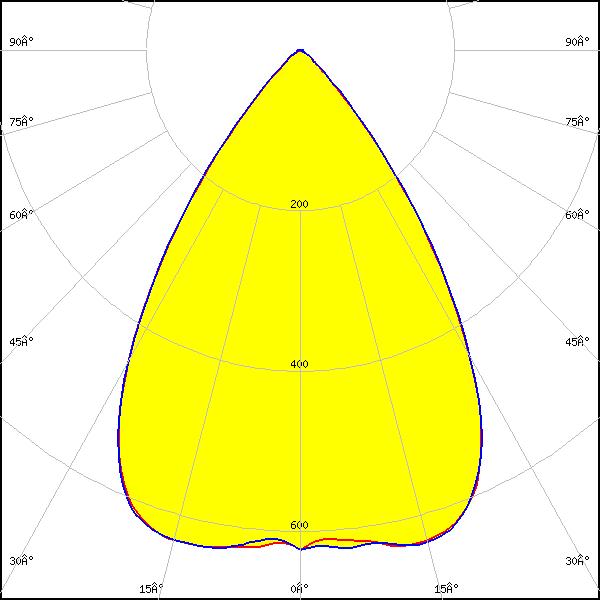

LED:
LM301B EVO
Required components:

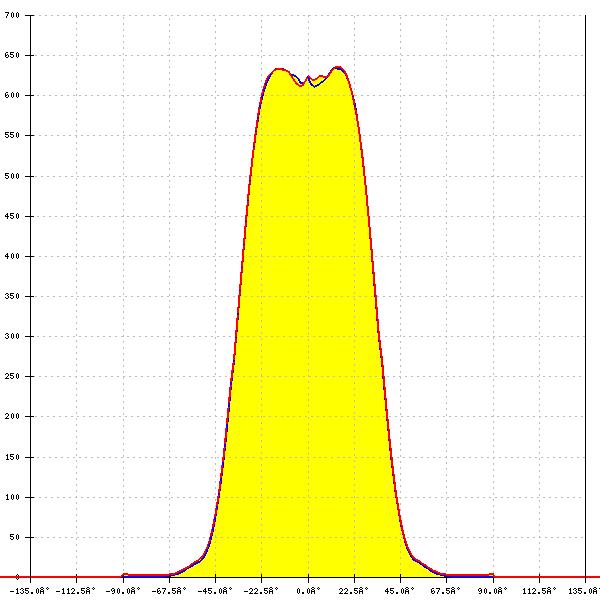

F17034_DAISY-MINI-SHD-MATT
FWHM:
68°
FWTM:
92°
Peak intensity:
0.658 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

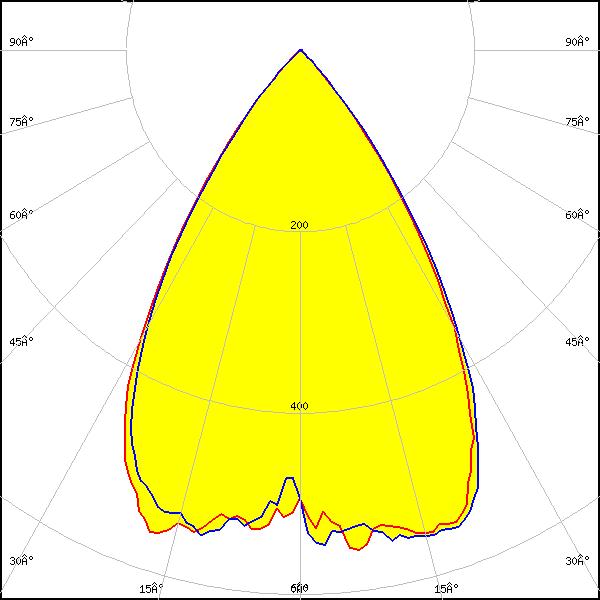

LED:
LM302Z plus
Required components:
F17028_DAISY-MINI-SHD
FWHM:
65°
FWTM:
-
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White

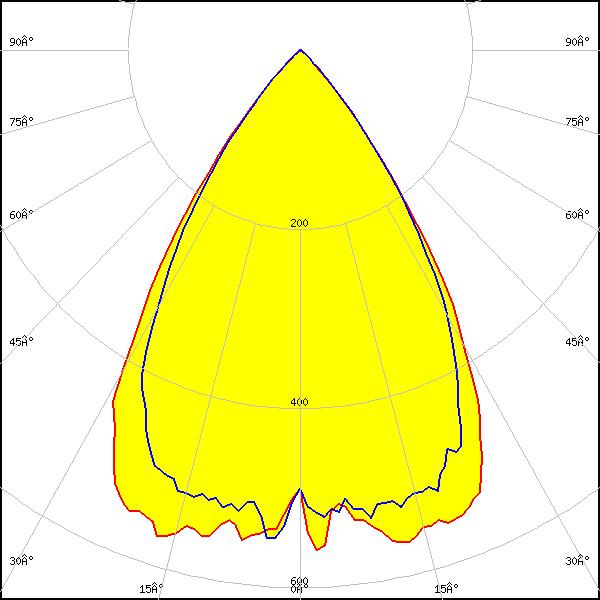

LED:
LM561B
Required components:

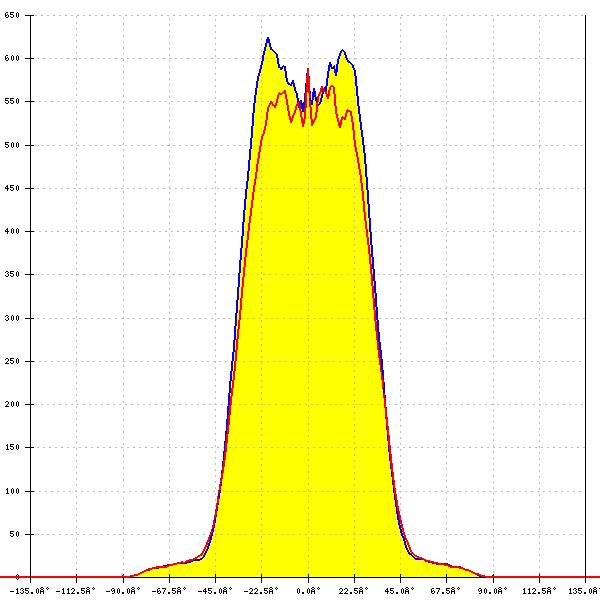

F17033_DAISY-MINI-SHD-WHT
FWHM:
69° + 65°
FWTM:
0° + 0°
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

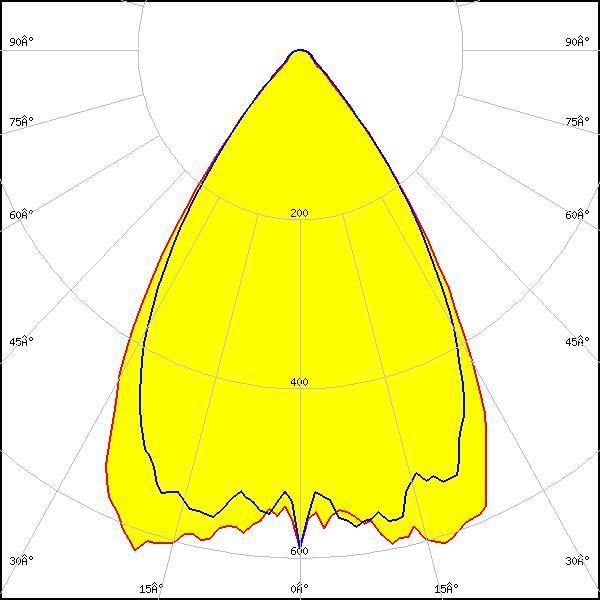

LED:
LM561B
Required components:
F17465_DAISY-MINI-SHD-WHT-MATT
FWHM:
69° + 65°
FWTM:
0° + 0°
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LM561B
Required components:
F17028_DAISY-MINI-SHD
FWHM:
68° + 64°
FWTM:
0° + 0°
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LM561B
Required components:

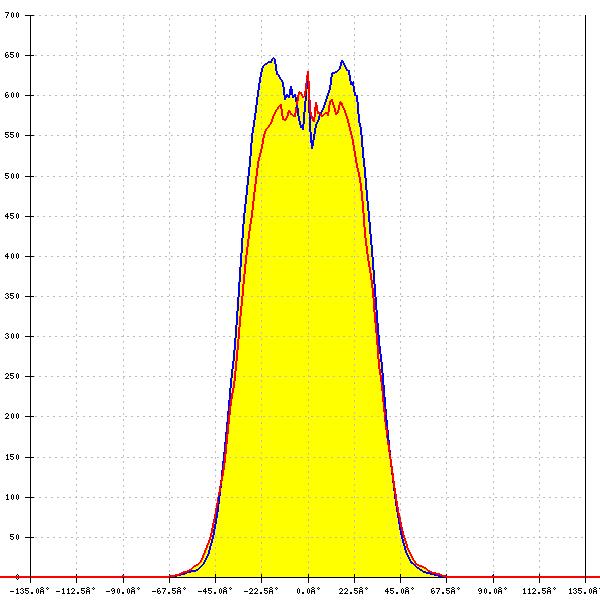

F17666_DAISY-MINI-SHD-MET
FWHM:
69° + 65°
FWTM:
0° + 0°
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

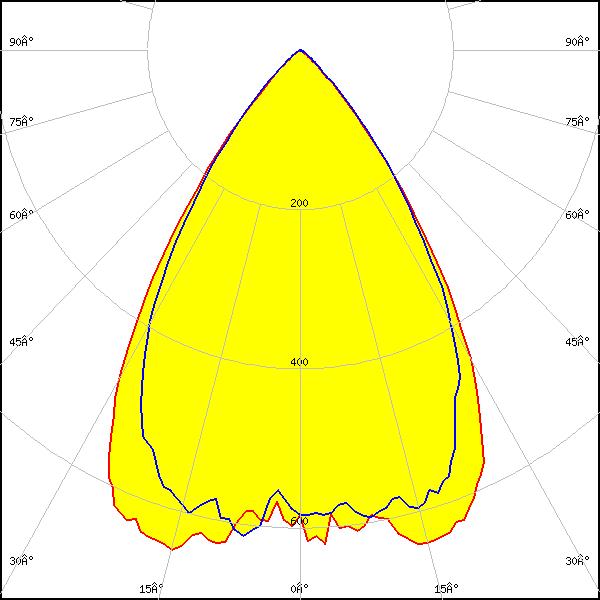

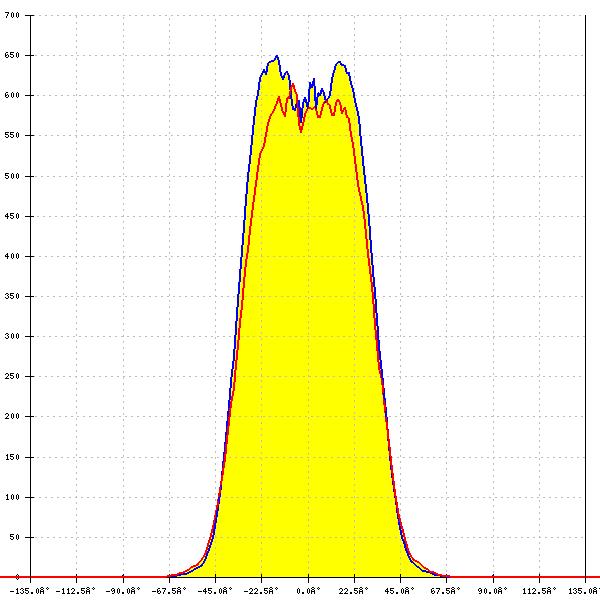

LED:
LM561B
Required components:

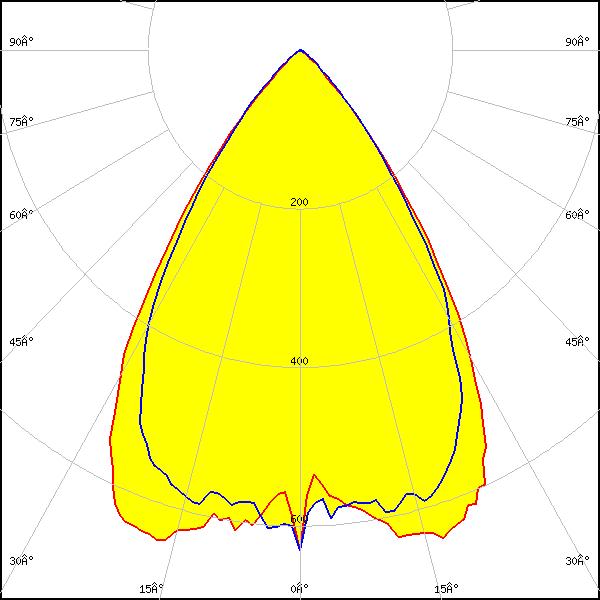

F17667_DAISY-MINI-SHD-MET-MATT
FWHM:
72° + 70°
FWTM:
0° + 0°
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

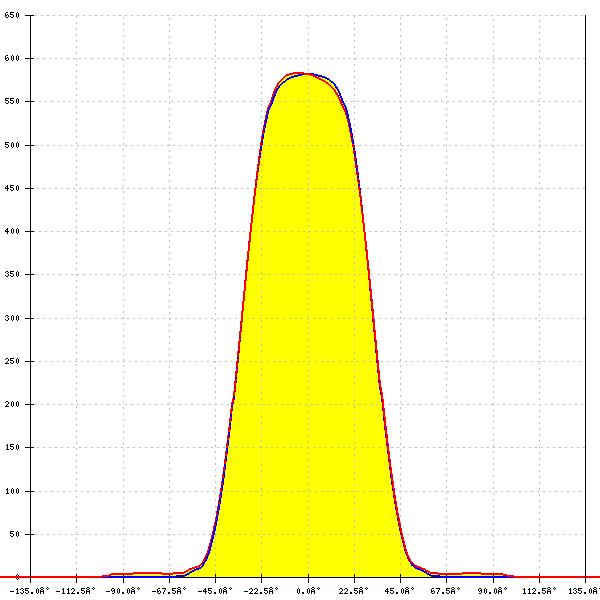

LED:
LED-St-L28W2-840-C010-06 (Daisy-Mini)
Required components:

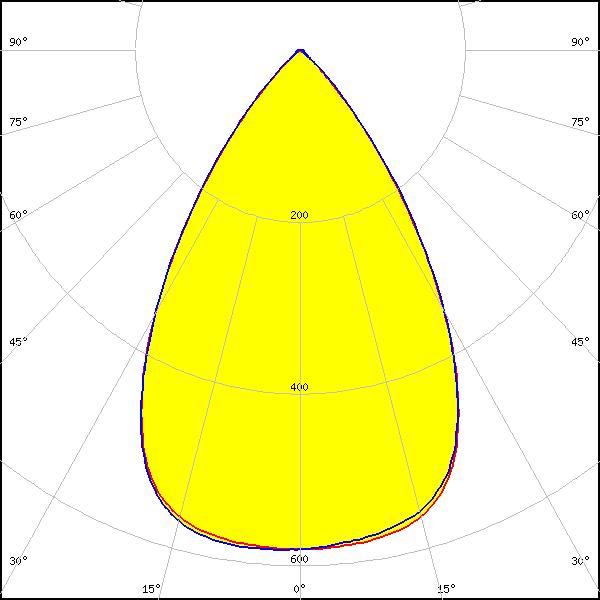

F17028_DAISY-MINI-SHD
FWHM:
65°
FWTM:
90°
Peak intensity:
0.586 cd/lm
Efficiency:
66 %
LEDs/each optic:
2
Light colour/type:
White

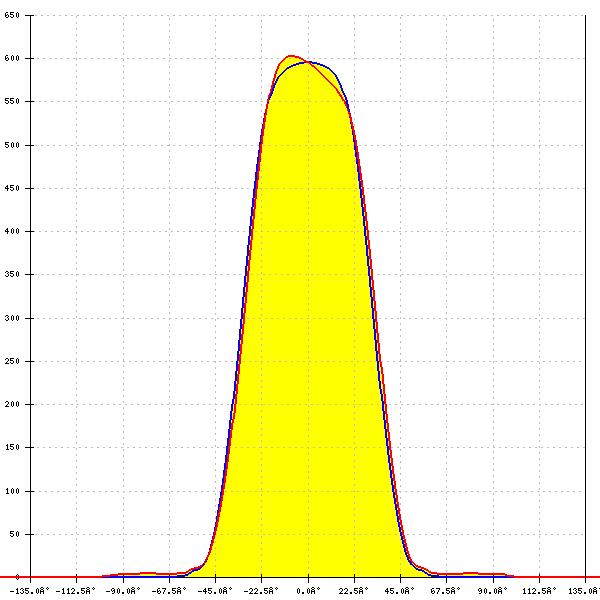

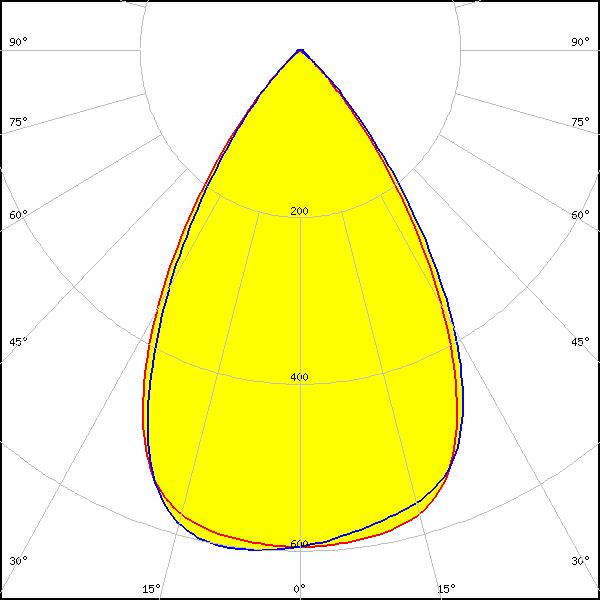

LED:
LED-St-L28W2-927-C010-965-C010-07 (Daisy-Mini)
Required components:
F17028_DAISY-MINI-SHD
FWHM:
65°
FWTM:
90°
Peak intensity:
0.603 cd/lm
Efficiency:
67 %
LEDs/each optic:
2
Light colour/type:
Tunable White

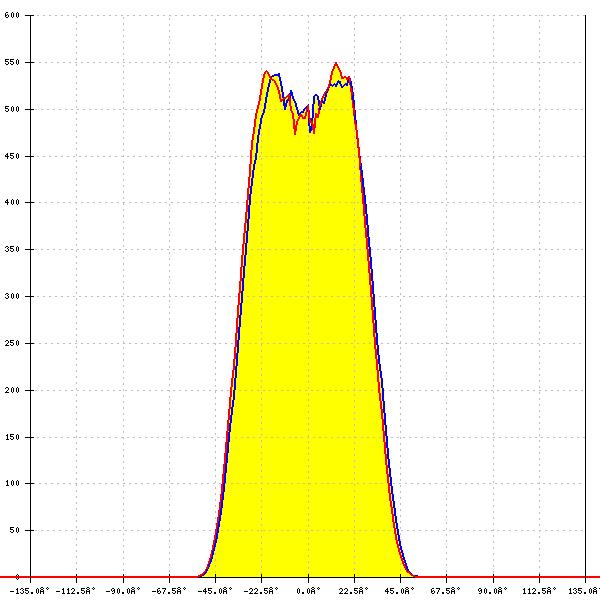

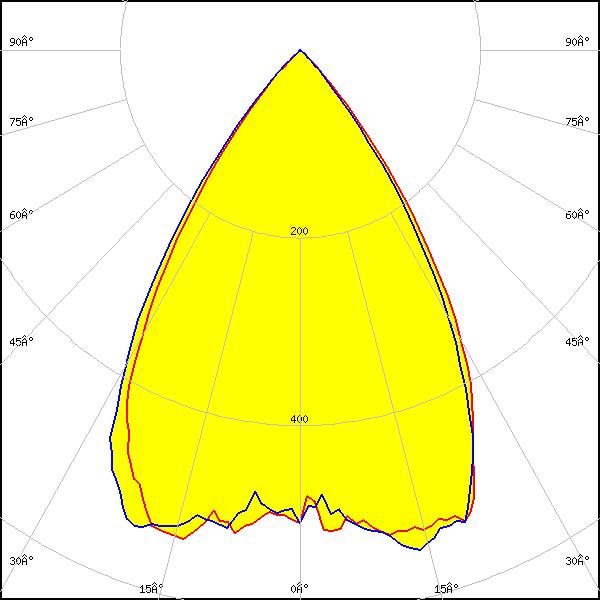

LED:
SEOUL 3030
Required components:
F17028_DAISY-MINI-SHD
FWHM:
66°
FWTM:
-
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White

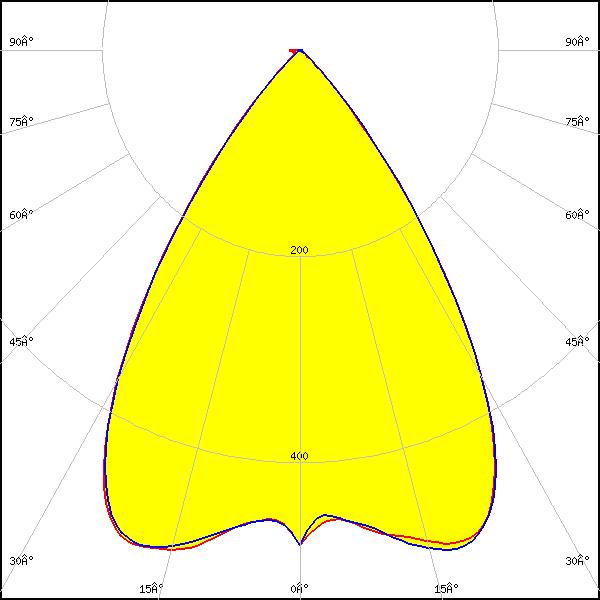

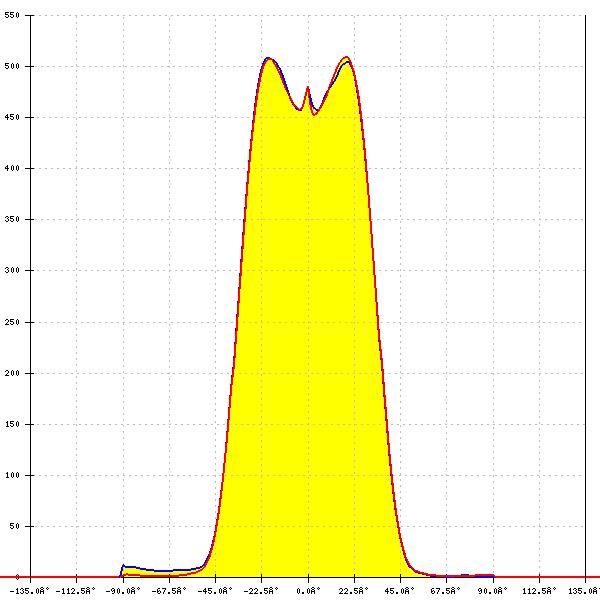

LED:
SEOUL 3030
Required components:
F17028_DAISY-MINI-SHD
FWHM:
68°
FWTM:
88°
Peak intensity:
0.554 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
