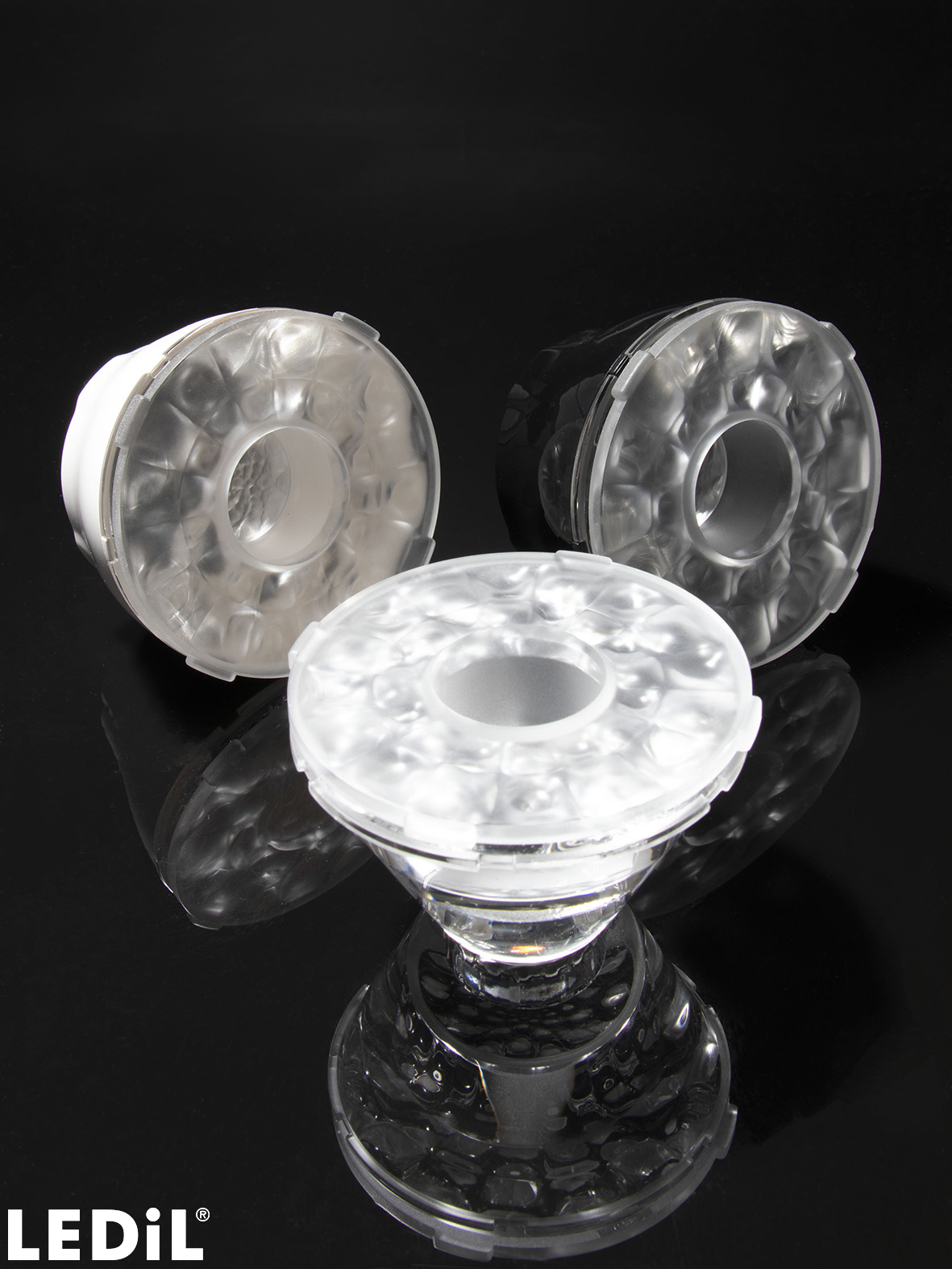

    YASMEEN-70-ZOOM

    Print

    Infinitely adjustable beam from 15 to 45 degrees

    This product consists of multiple buying options, and different options may have different packaging information. Check the product datasheet for more details.

    The sublens is a mandatory component that must be ordered separately. In addition to the sublens, you must choose either a single lens or an assembly.

    Specification
    • Dimensions:
      70 mm
    • Height:
      38.98 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    • YASMEEN-70-ZOOM
      Single lens
      PMMA
    • YASMEEN-70-HLD2-C-WHT
      Holder
      PC
    • YASMEEN-70-HLD2-C
      Holder
      PC
    • YASMEEN-70-HLD2-B50-WHT
      Holder
      PC
    • YASMEEN-70-HLD2-B50
      Holder
      PC
    • YASMEEN-70-HLD2-B-WHT
      Holder
      PC
    • YASMEEN-70-HLD2-B
      Holder
      PC
    • Request material files from Tech Support

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Sublens
    • C17736_YASMEEN-70-ZOOM-SUB
      clear
    • Single lens
    • C17741_YASMEEN-70-ZOOM
      clear
    • Assembly

      (single lens, holder)

    • CP18772_YASMEEN-70-ZOOM-B2
      black,Holder B
    • CP18786_YASMEEN-70-ZOOM-B2-WHT
      white,Holder B
    • CP19961_YASMEEN-70-ZOOM-B50
      black,Holder B
    • CP19968_YASMEEN-70-ZOOM-B50-WHT
      white,Holder B
    • CP18765_YASMEEN-70-ZOOM-C2
      black,Holder C
    • CP18779_YASMEEN-70-ZOOM-C2-WHT
      white,Holder C
    • Packaging information in the product datasheet
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C17741_YASMEEN-70-ZOOM
      C17736_YASMEEN-70-ZOOM-SUB
      CP18765_YASMEEN-70-ZOOM-C2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    YASMEEN - The best optic in class

    News

    YASMEEN ZOOM – always optimised lighting

    Compatibility guide

    LEDiL connector and socket compatibility guide

    News

    HEKLA-SOCKET-RZ ‒ Your effortless entry to the RGBW world

    News

    New beams and products – December 2024

    News

    YASMEEN – redefining track lighting

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    Case story

    Regiolux Changy luminaire

    News

    New products – May, 2023

    PCN

    Product change notification NR192 - Change of YASMEEN-50 and -70 holder design

    News

    Our bright star YASMEEN now features a new, improved holder

    Compatible product

    B+W 630 Bayonet35 datasheet

    News

    YASMEEN zoom optics receive BrightStar Award

    News

    YASMEEN zoom optics win Design Plus award

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Compatible product

    B+W 630 Hekla datasheet

    Application example

    Track light luminaires with YASMEEN

    Application example

    Spot lighting with YASMEEN

    News

    YASMEEN – supreme light quality and beam control

    Application area

    Indoor Architectural Lighting

    Application guide

    Guide for Architectural lighting optics

    Application guide

    Guide for Retail Lighting Optics

    Article

    Explore new retail lighting opportunities

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA sockets and HEKLA-G2 and -G2B connectors

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    HEKLA-G2B-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2B-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-I2

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-I3

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-TW1

    Version compatible with tunable white COBs of 15.8 x 15.8 mm packages

    HEKLA-G2B-TW2

    Version compatible with tunable white COBs of 18.8 x 18.8 mm packages

    HEKLA-SOCKET-RZ

    Version with integrated RZ mixing dome for RGBW LEDs

    HEKLA-KONNTAKT-C

    Version compatible with COBs of 13.5 x 13.5 mm packages. The final installation requires two KONNTAKT parts per connector.

    KONNTAKT-1

    KONNTAKT parts for HEKLA-KONNTAKT connectors. Two pieces are needed for one HEKLA-KONNTAKT.

    HEKLA-KONNTAKT-I

    Version compatible with COBs of 19 x 19 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-I2

    Version compatible with COBs of 19 x 19 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-I3

    Version compatible with COBs of 19 x 19 mm packages. The final installation requires two KONNTAKT parts per connector.

    HEKLA-KONNTAKT-A

    Version compatible with COBs of 12.5 x 12.5 mm packages. The final installation requires two KONNTAKT parts per connector.

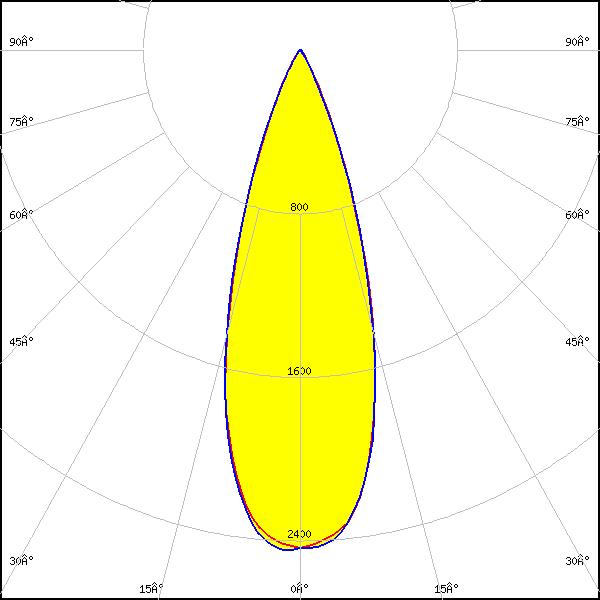

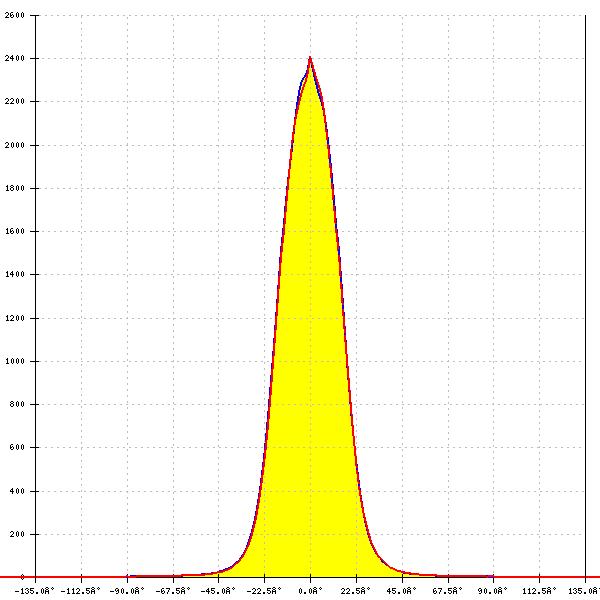

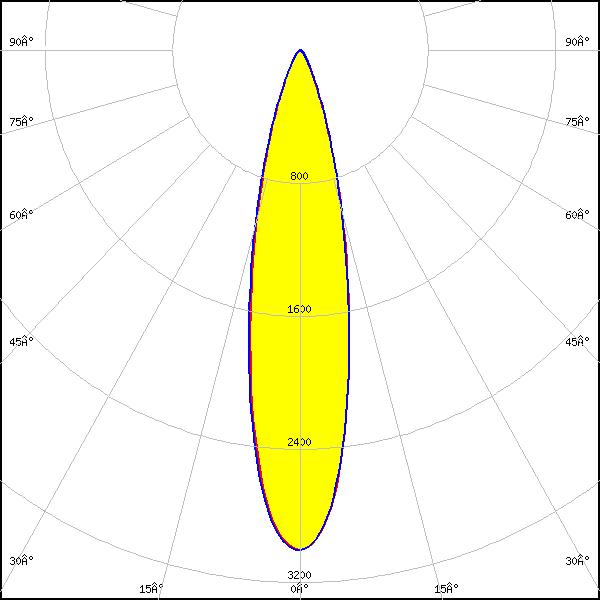

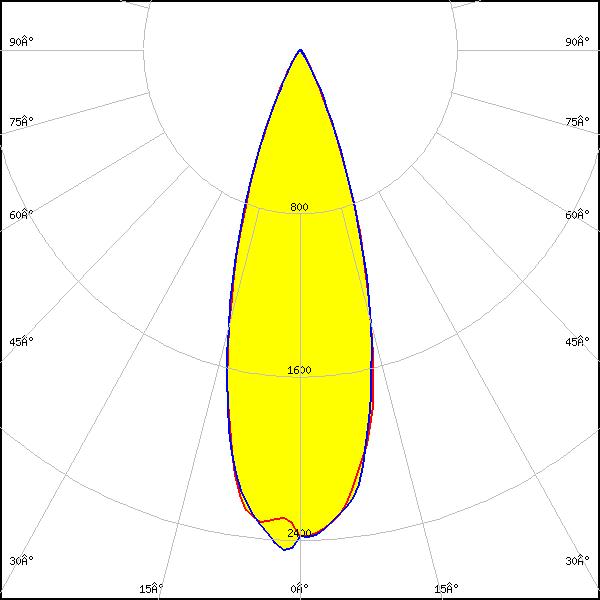

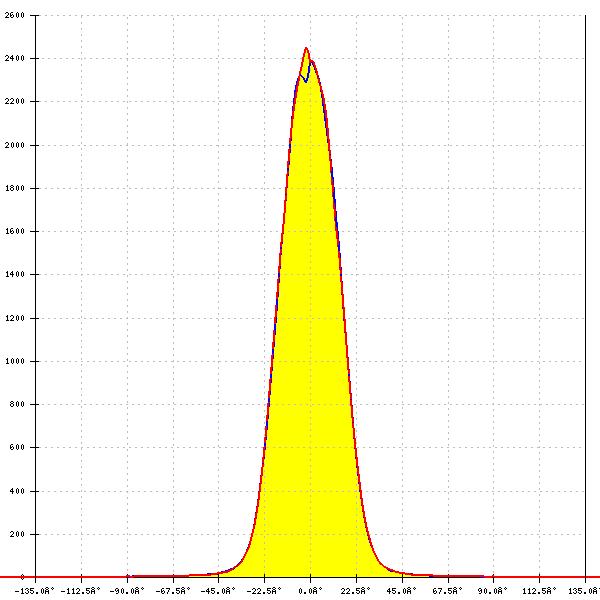

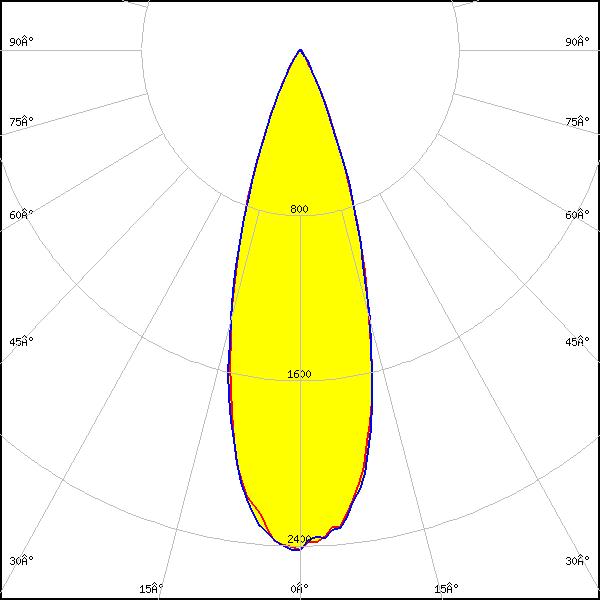

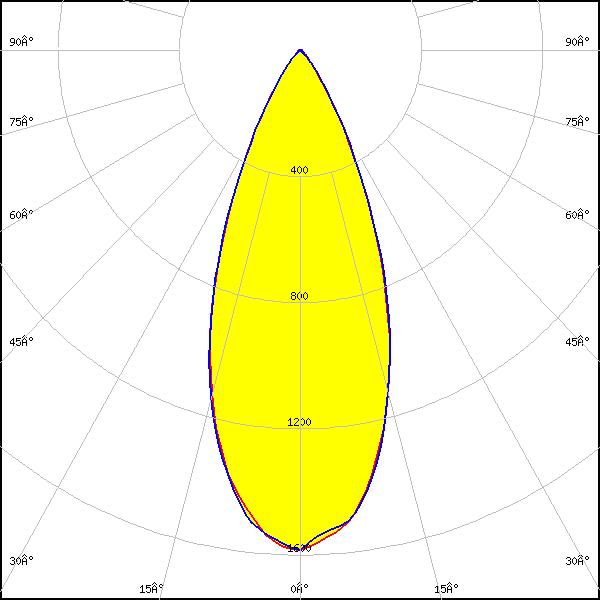

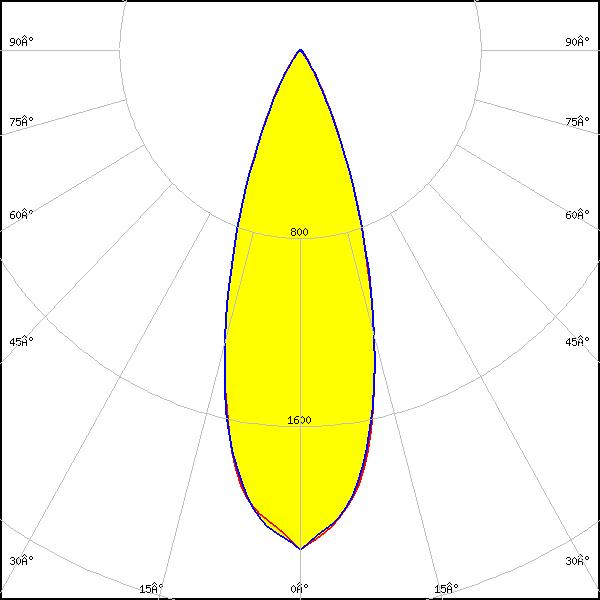

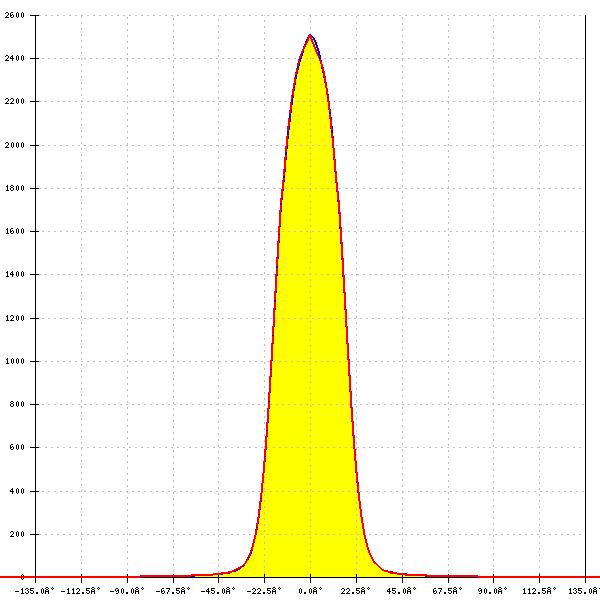

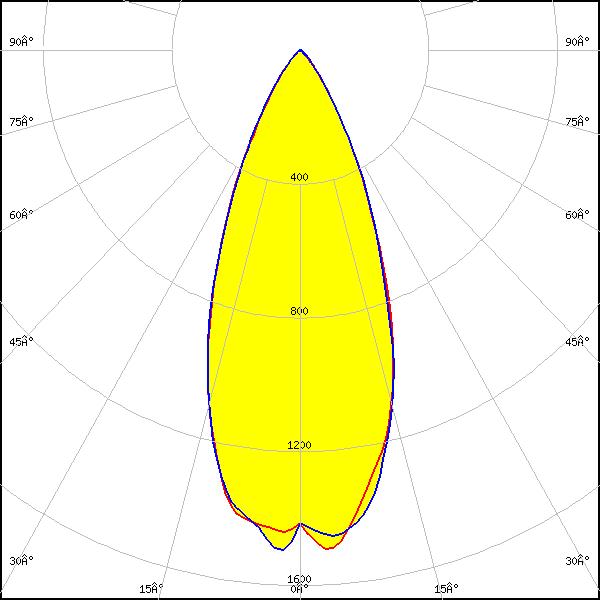

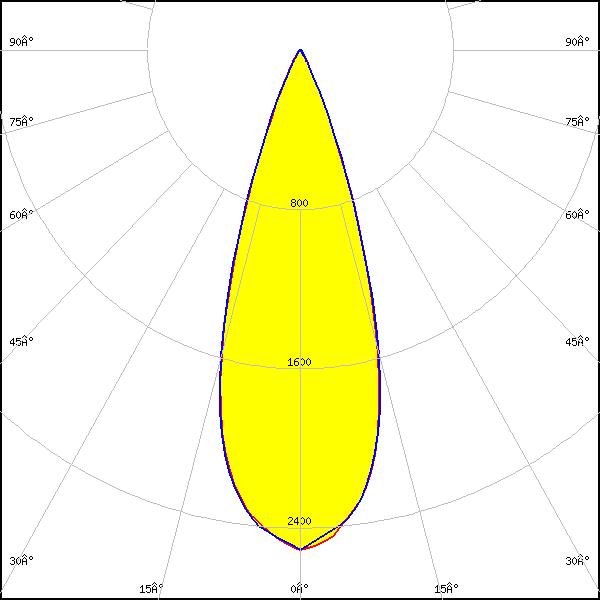

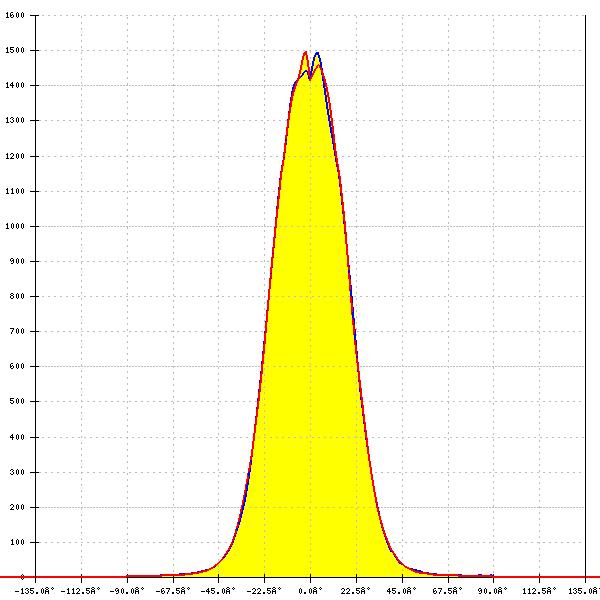

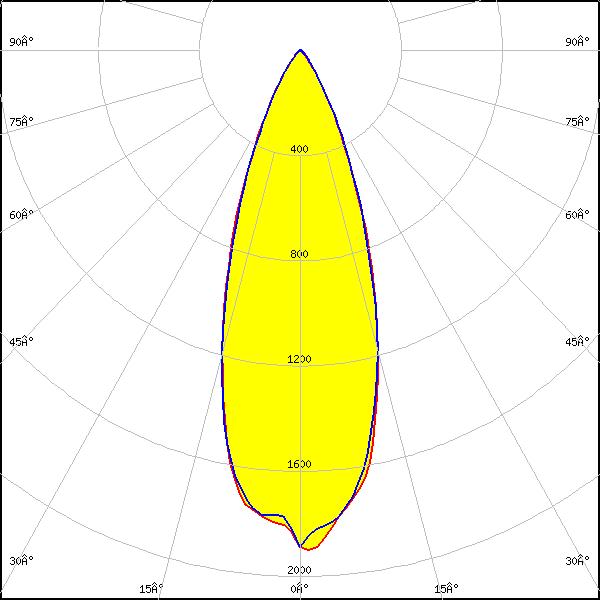

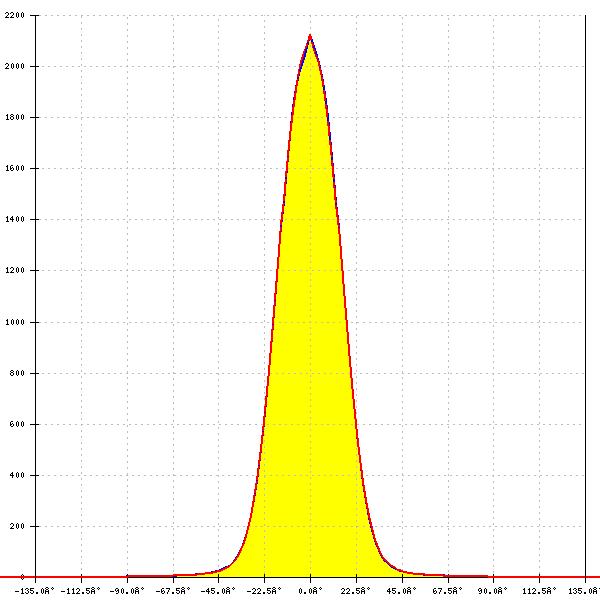

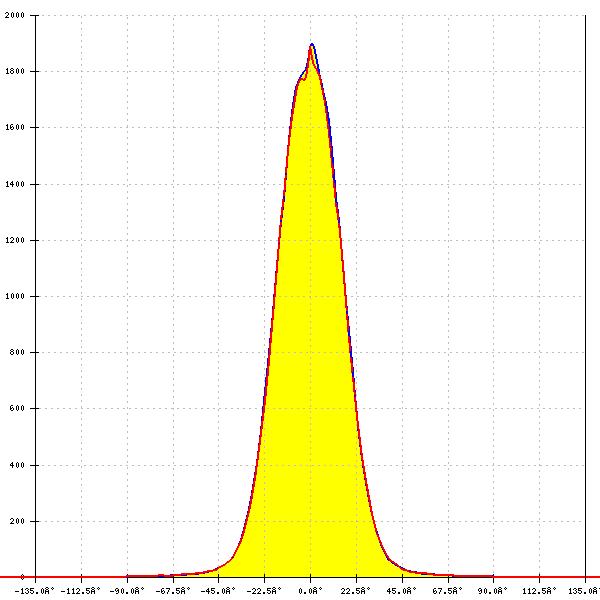

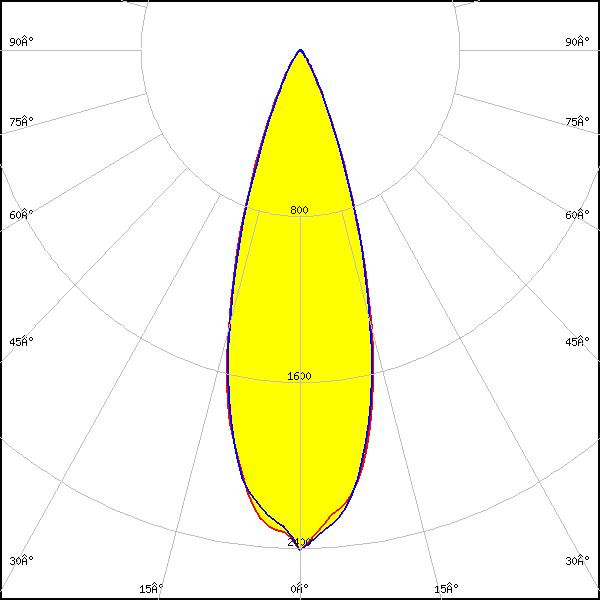

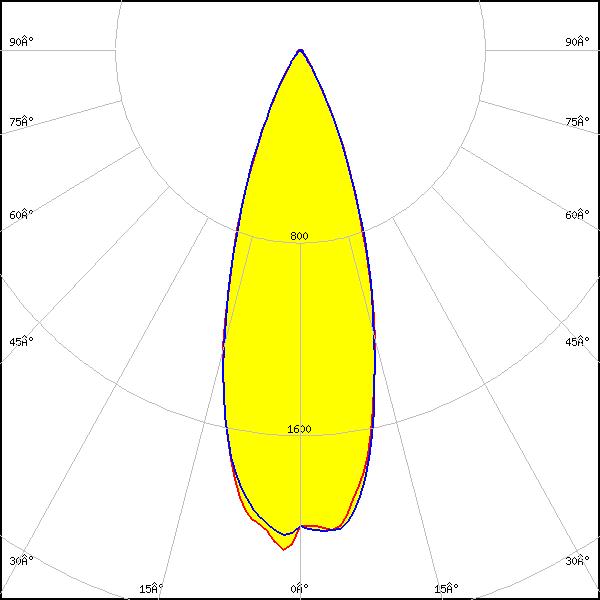

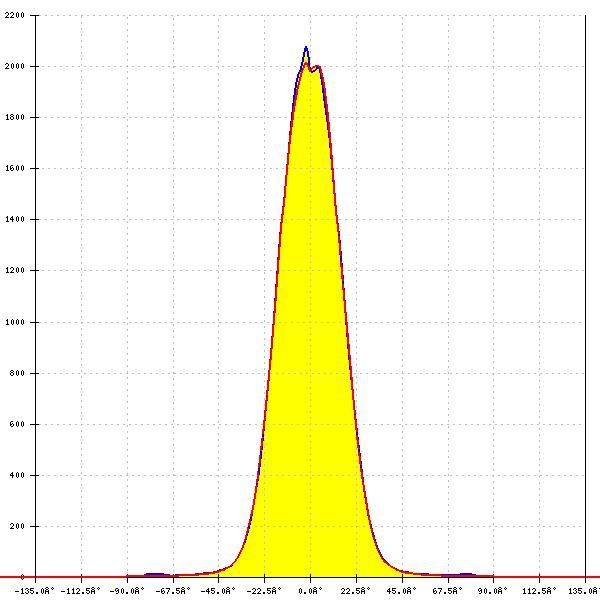

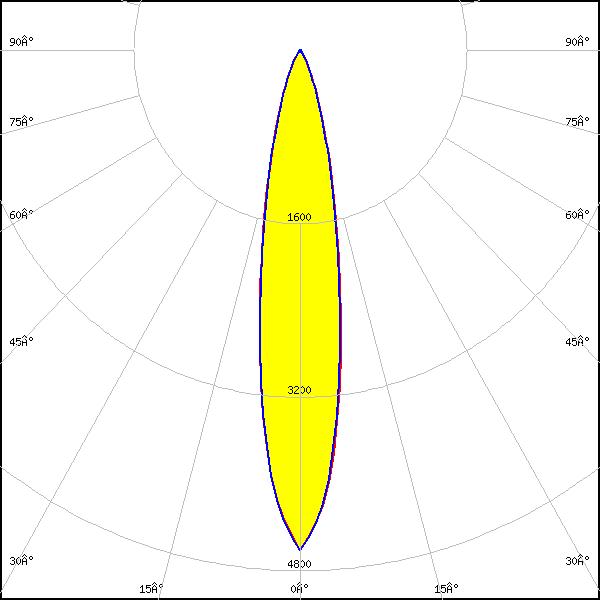

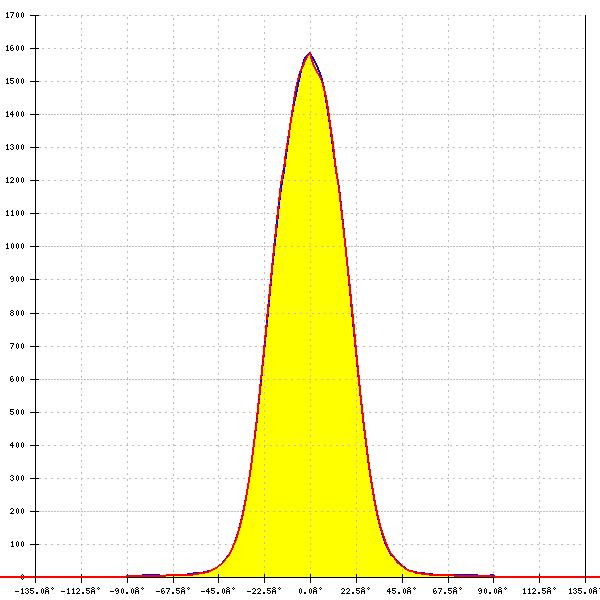

    Optical results
