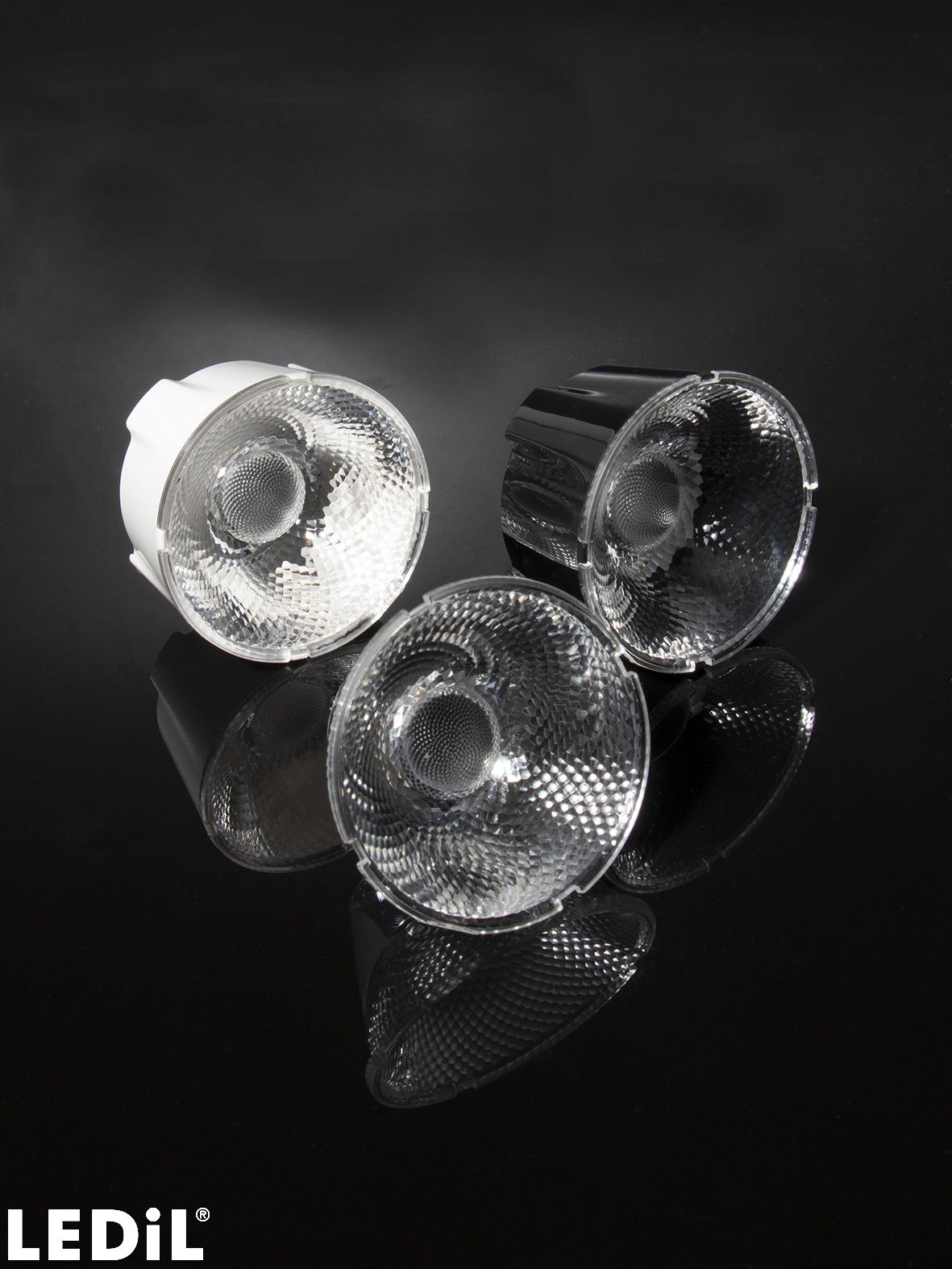

YASMEEN-50-S
Print
~15° spot beam
This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.
Component Materials
- YASMEEN-50-SSingle lensPMMA
- YASMEEN-50-HLD2-C-WHTHolderPC
- YASMEEN-50-HLD2-CHolderPC
- YASMEEN-50-HLD2-B-WHTHolderPC
- YASMEEN-50-HLD2-BHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

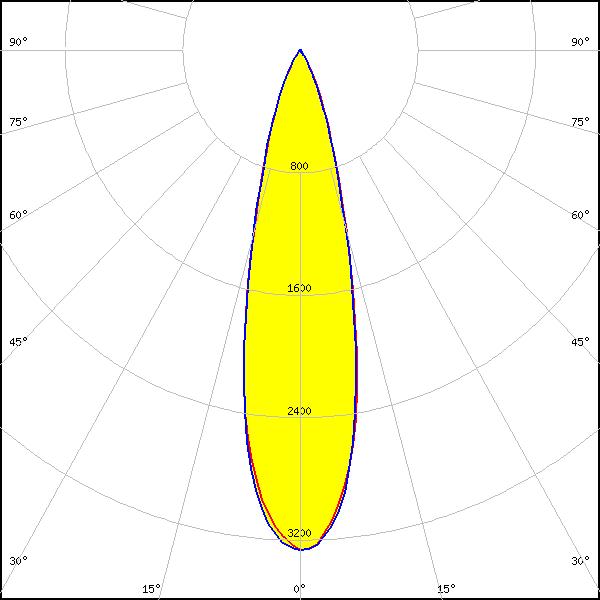

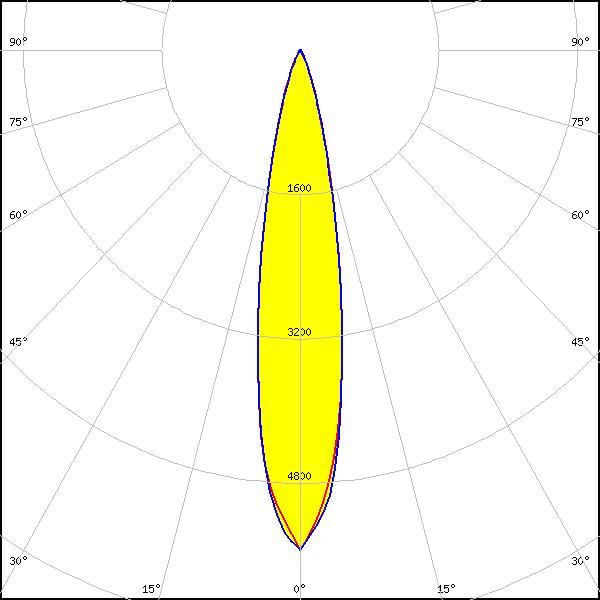

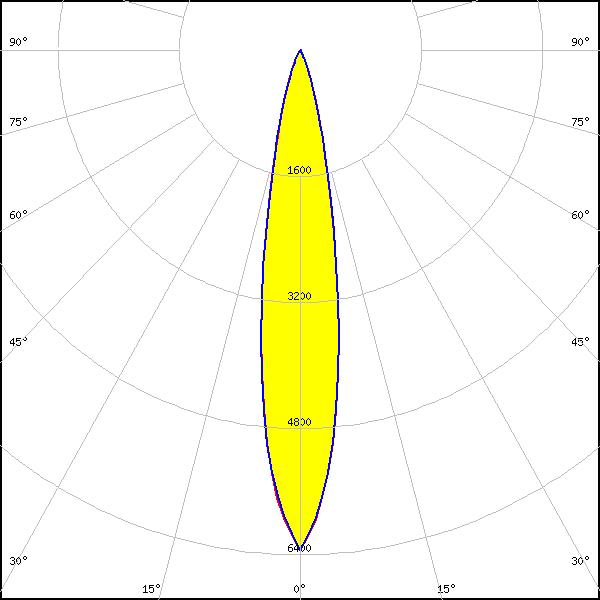

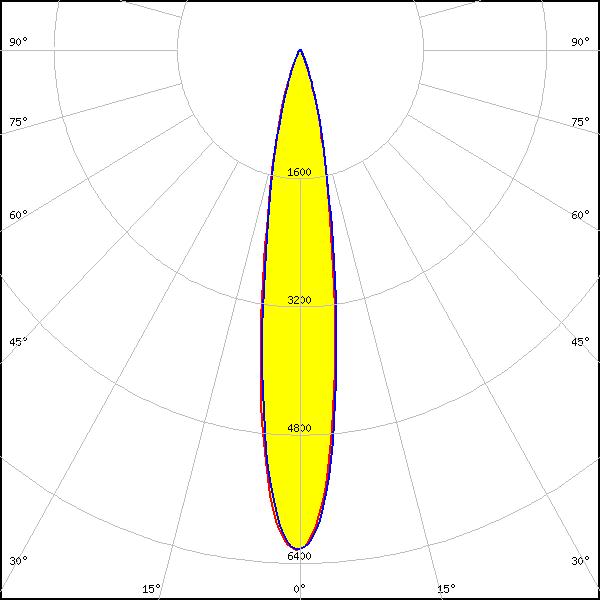

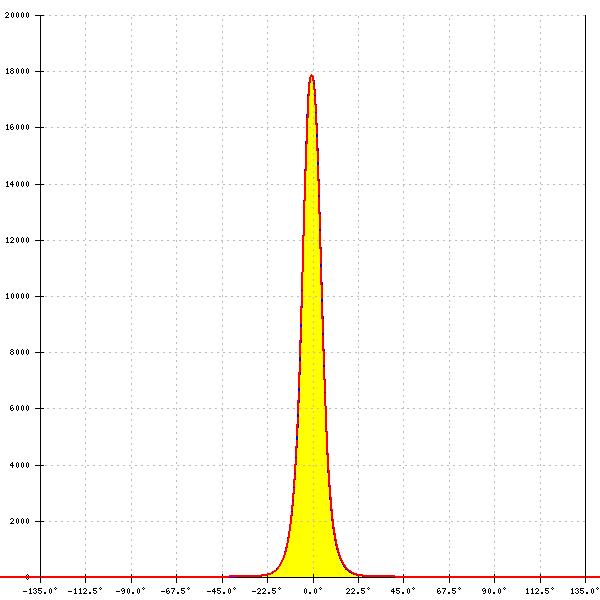

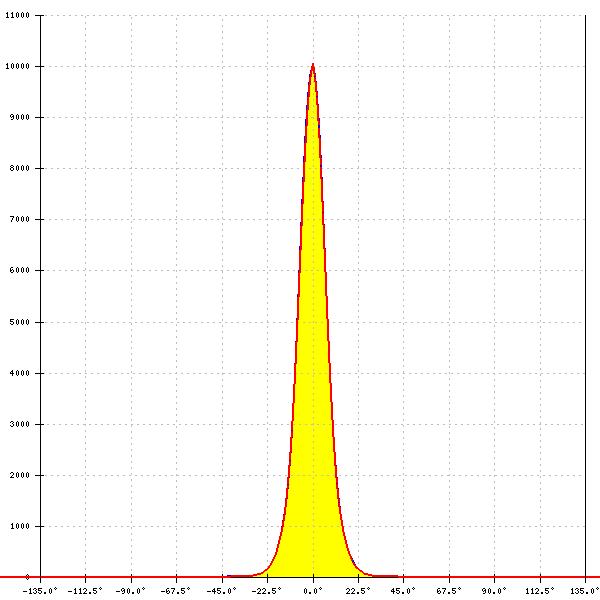

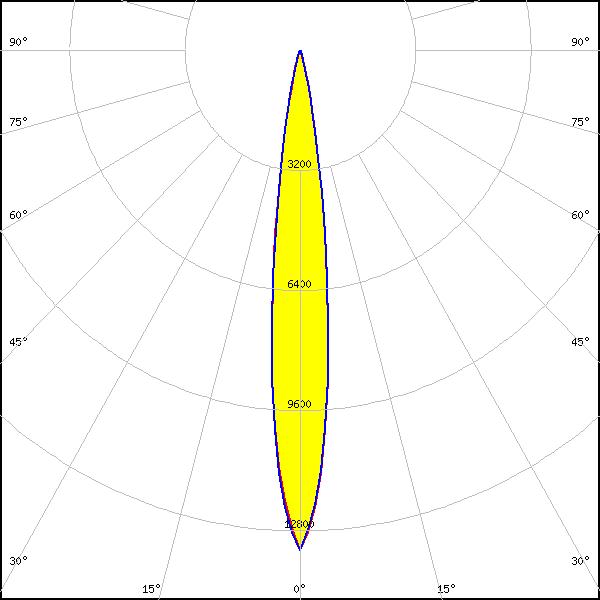

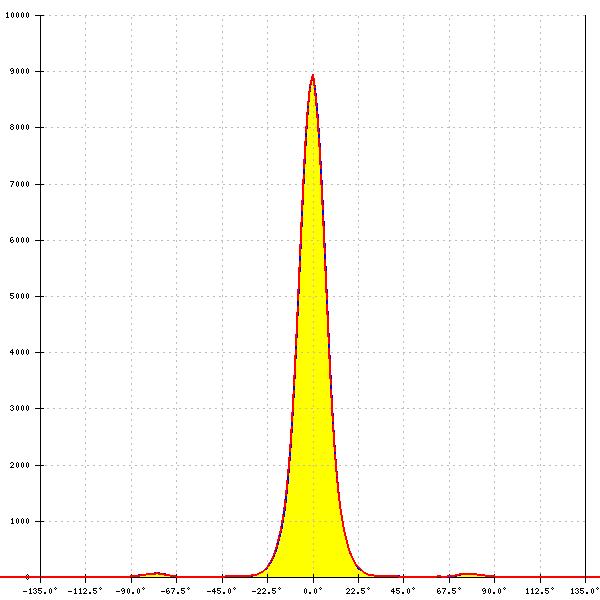

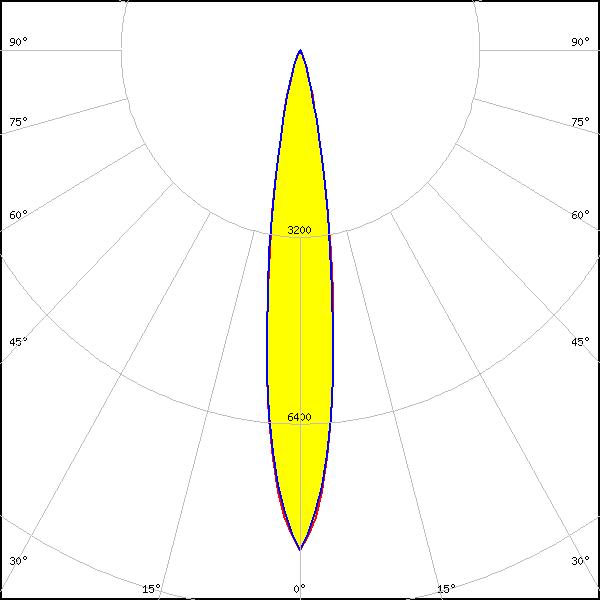

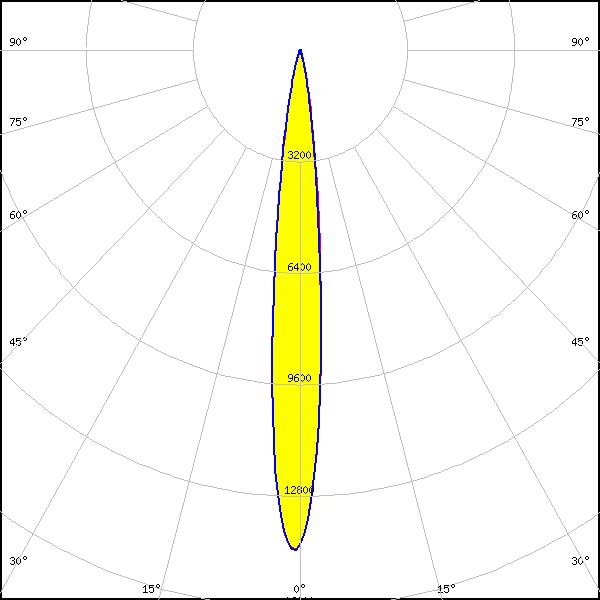

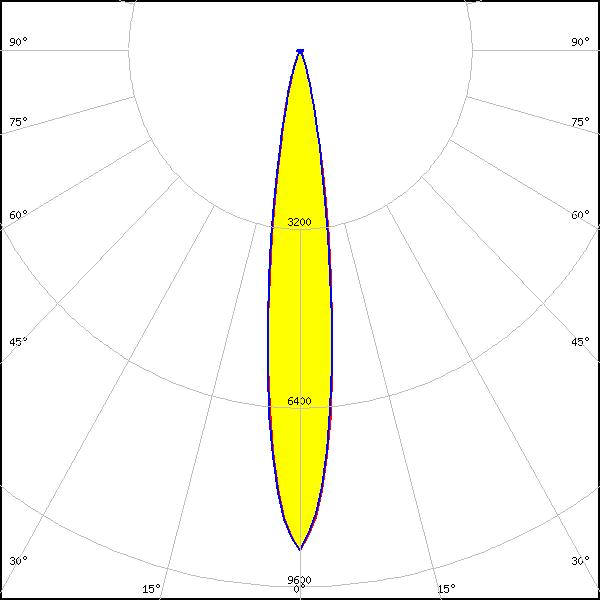

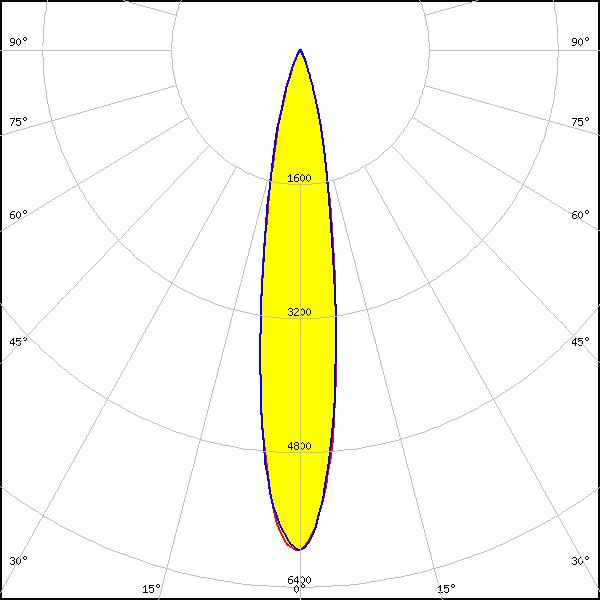

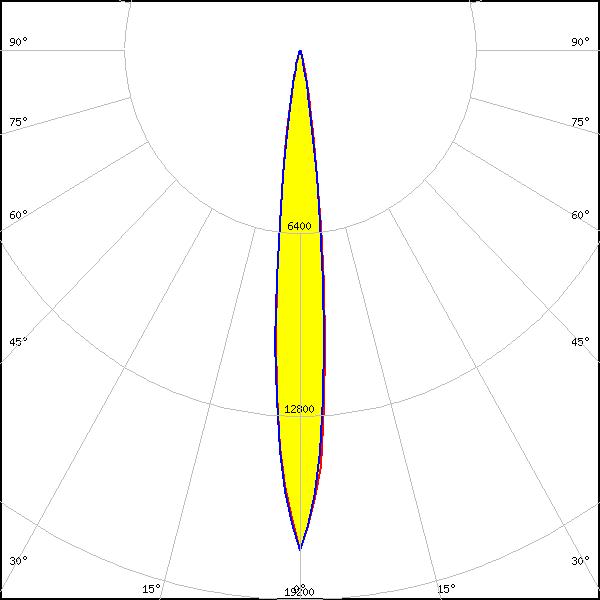

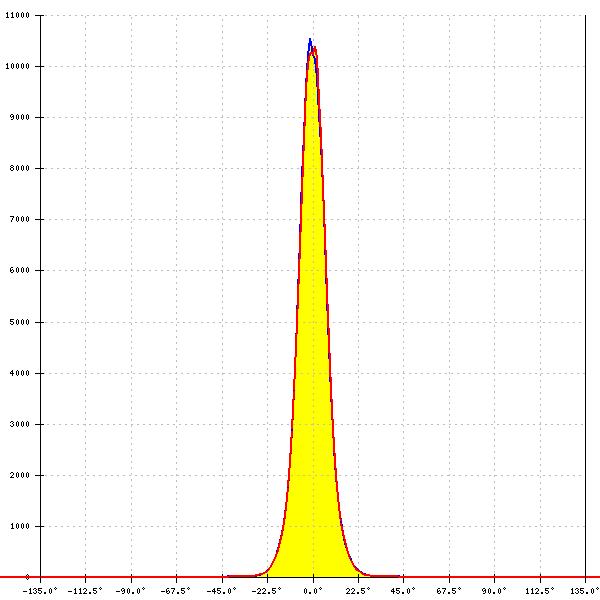

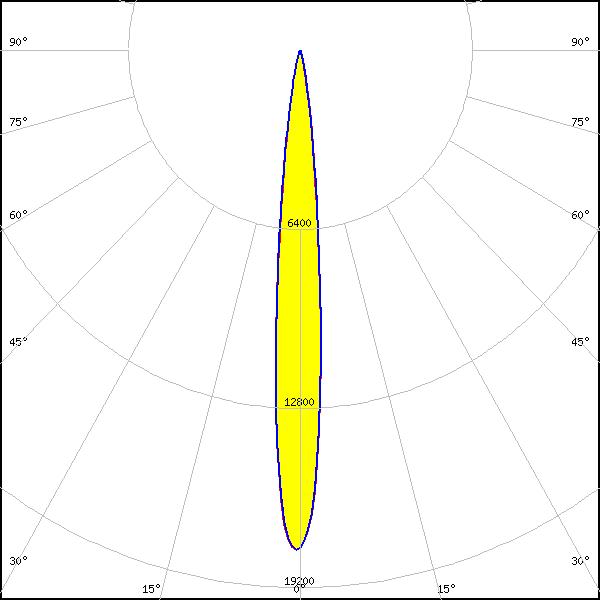

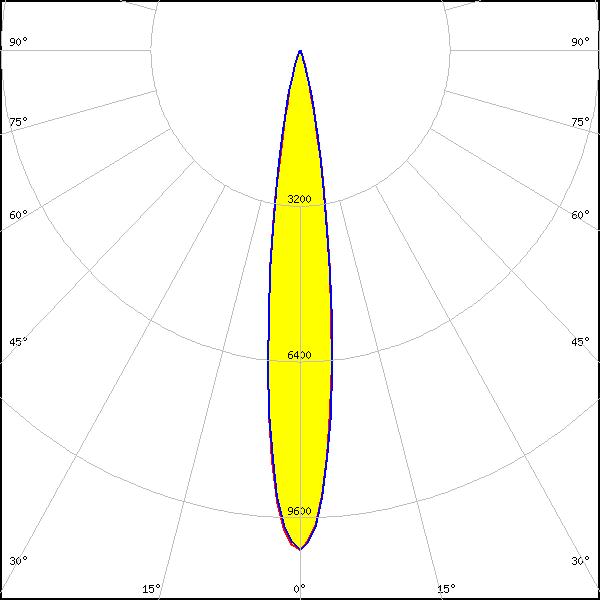

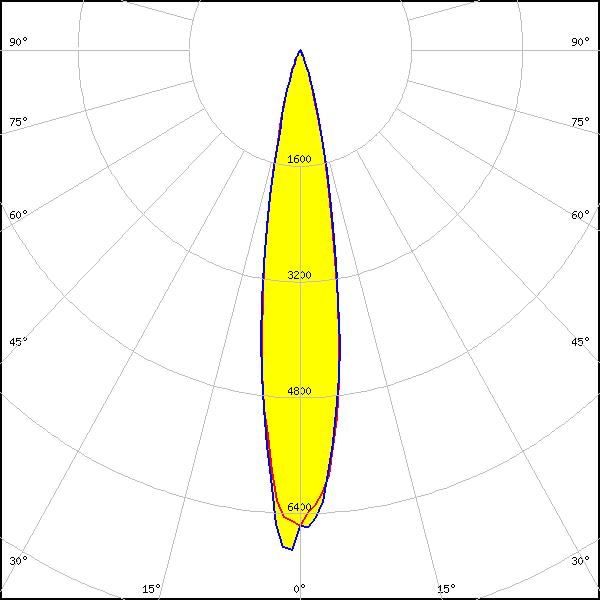

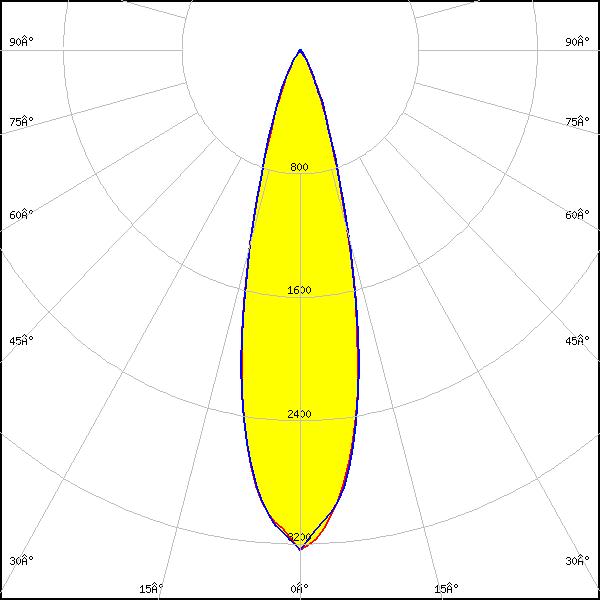

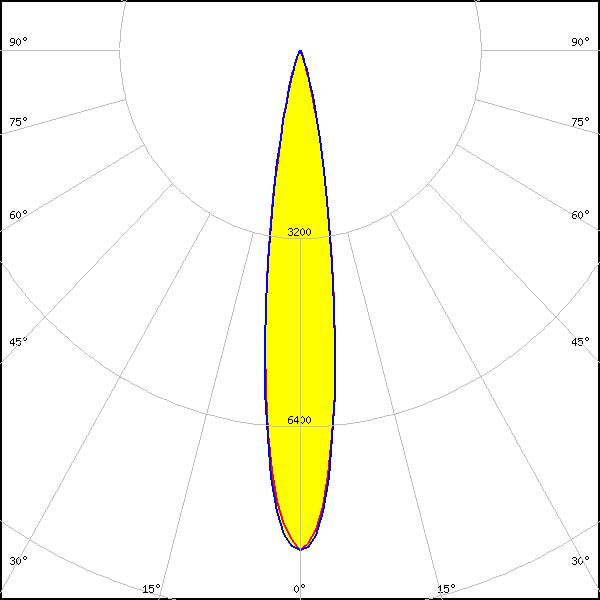

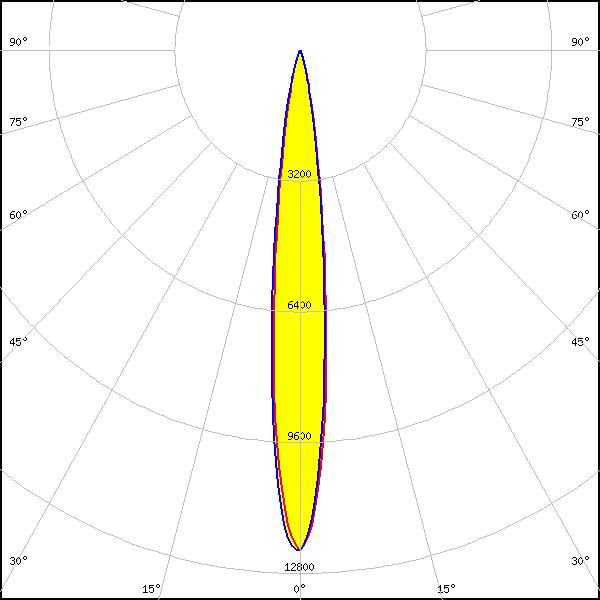

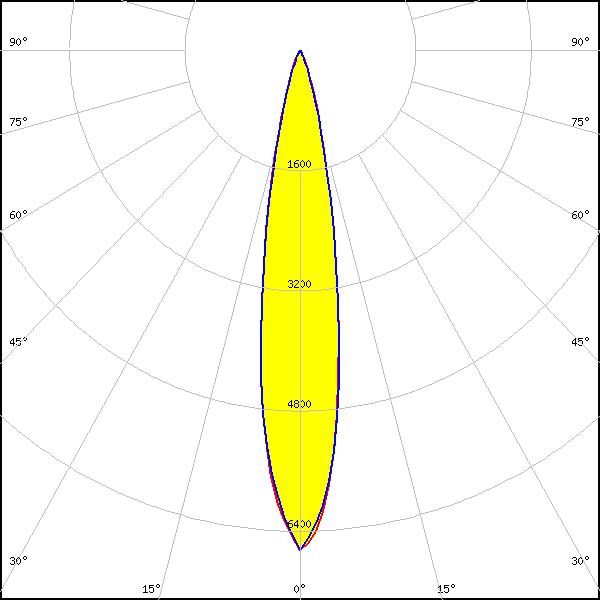

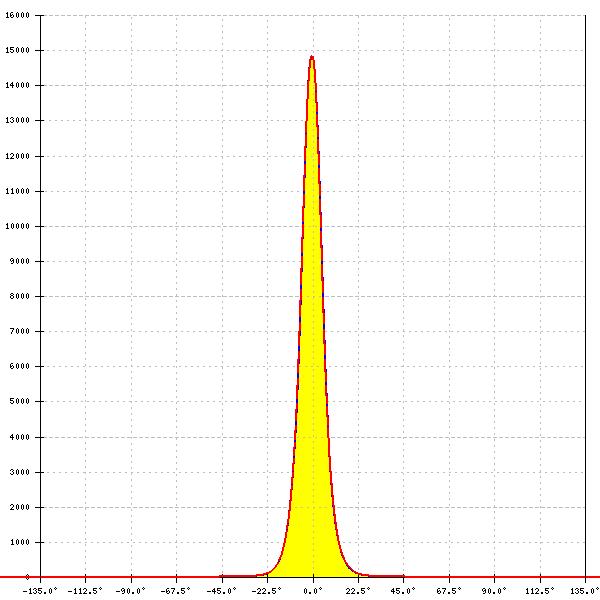

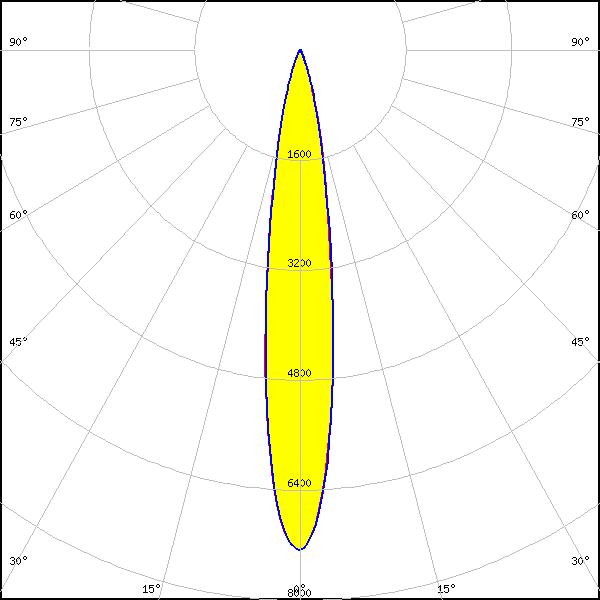

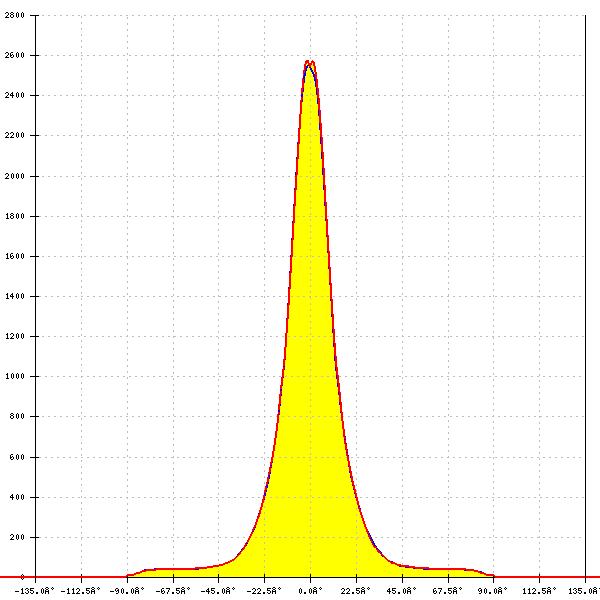

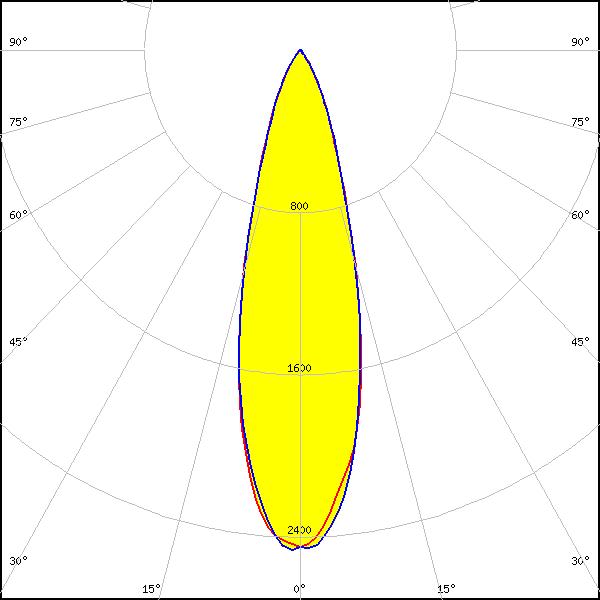

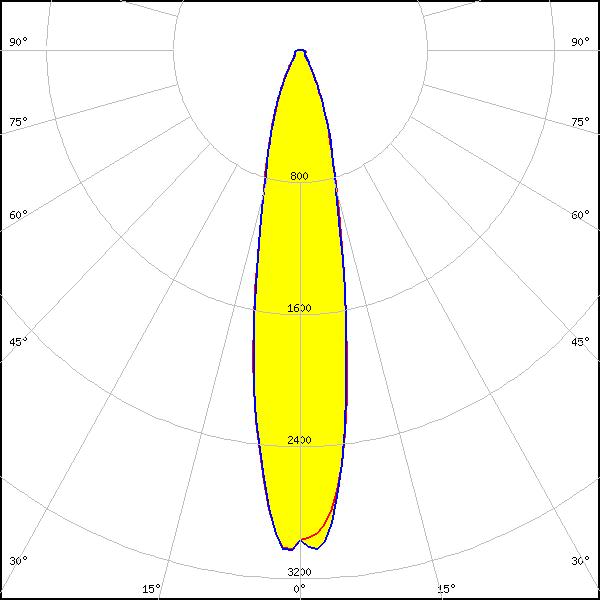

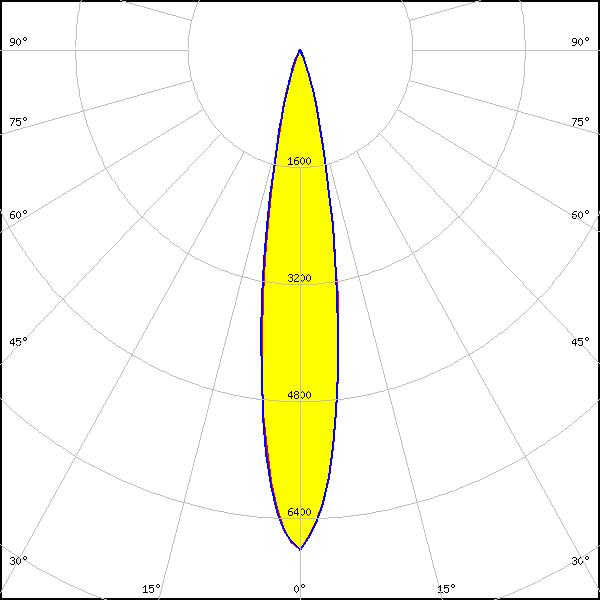

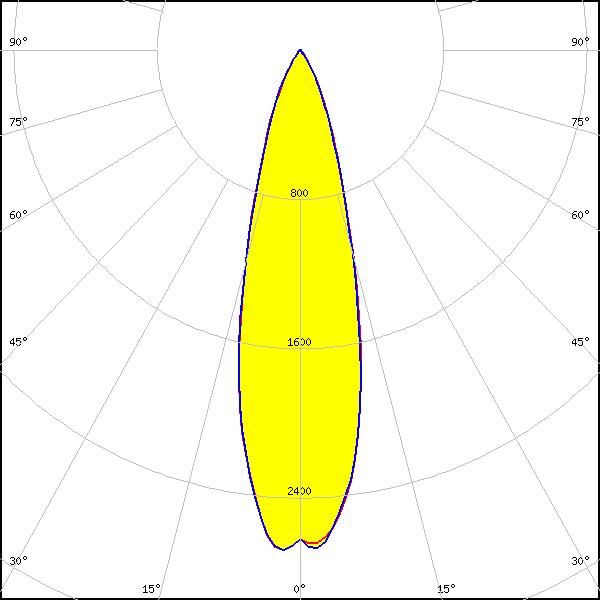

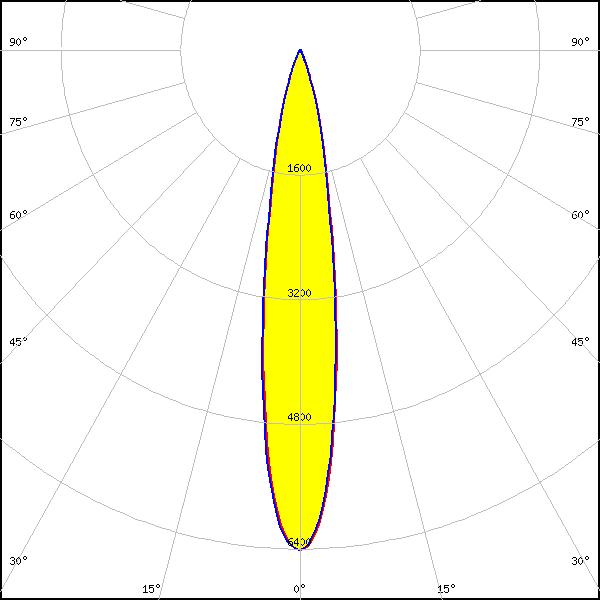

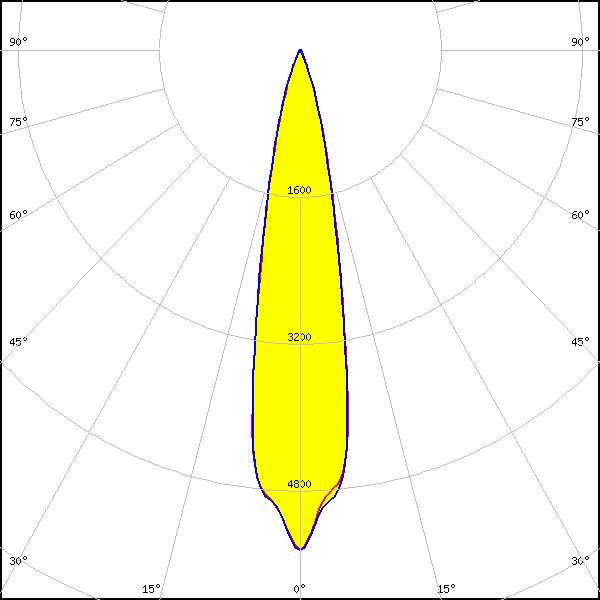

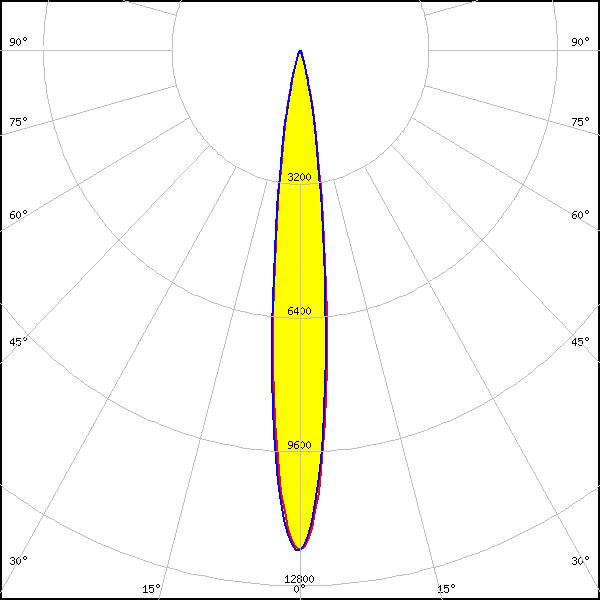

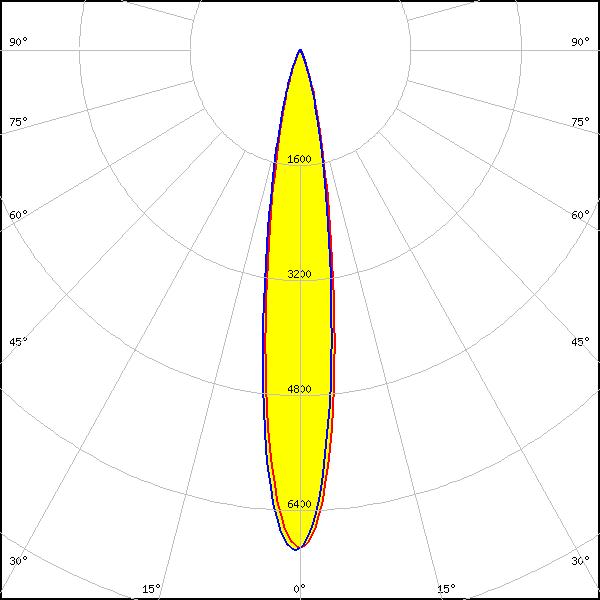

Optical results

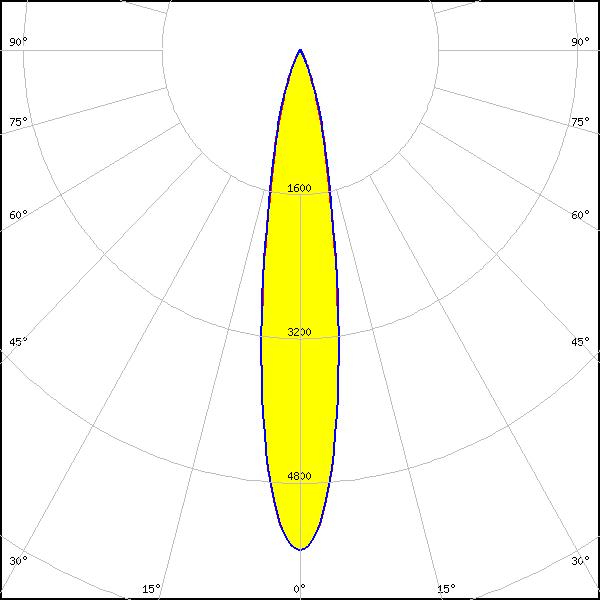

LED:
V10 Gen 8-9
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 10.0 mm
Required components:
FWHM:
18°
FWTM:
40°
Peak intensity:
5.546 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

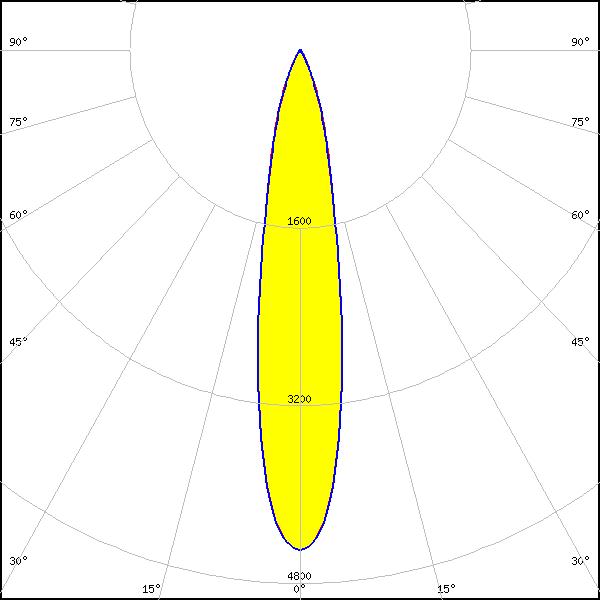

LED:
V11 HD Gen 8
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM:
20°
FWTM:
43°
Peak intensity:
4.697 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

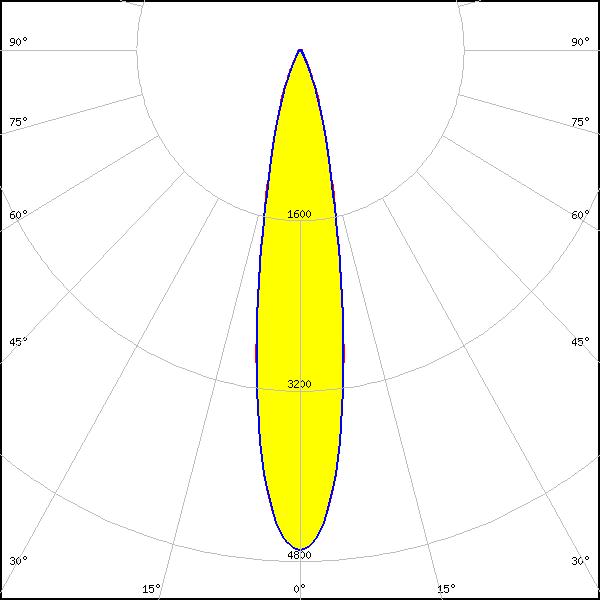

LED:
V11 HD Gen 8
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM:
20°
FWTM:
43°
Peak intensity:
4.697 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

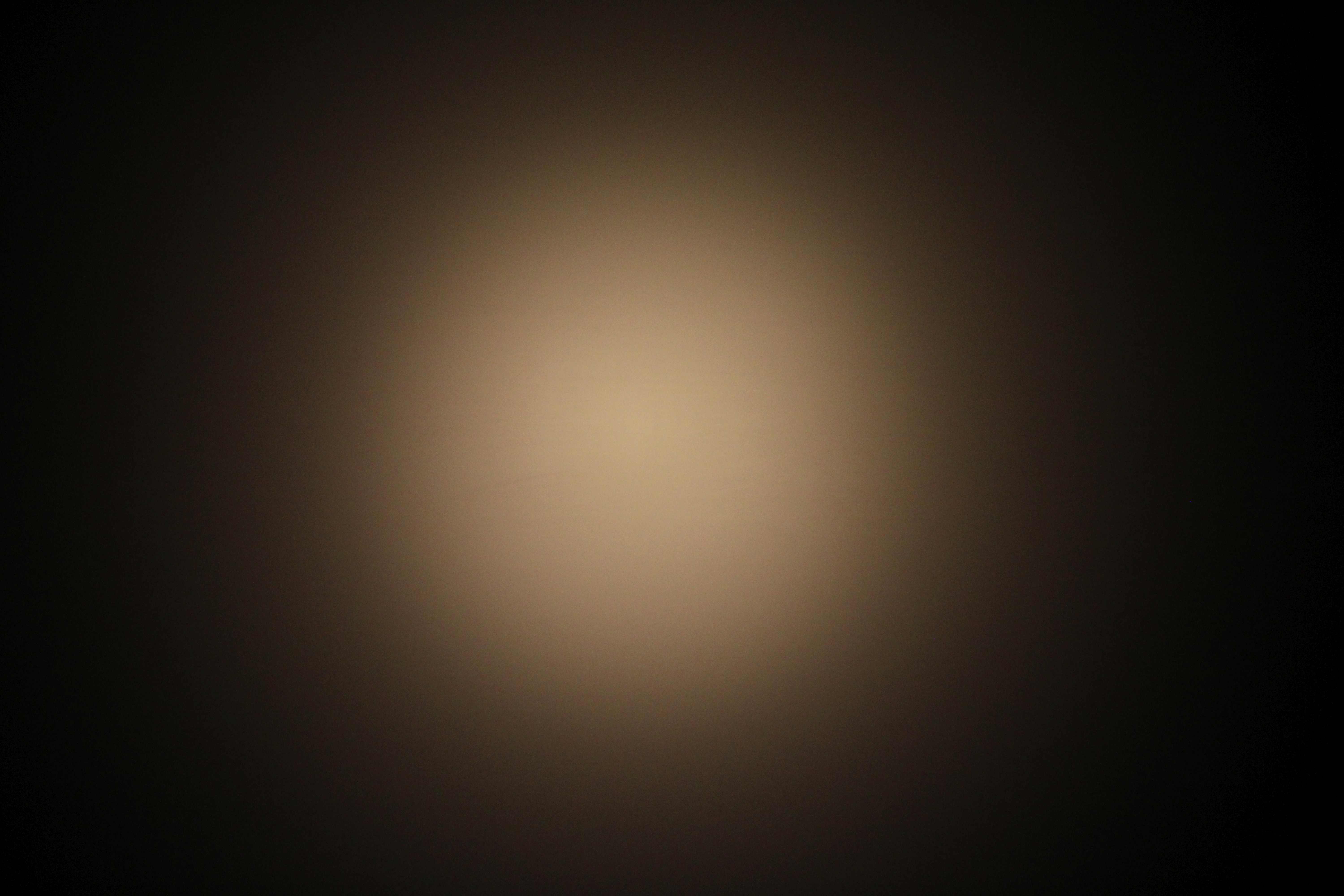

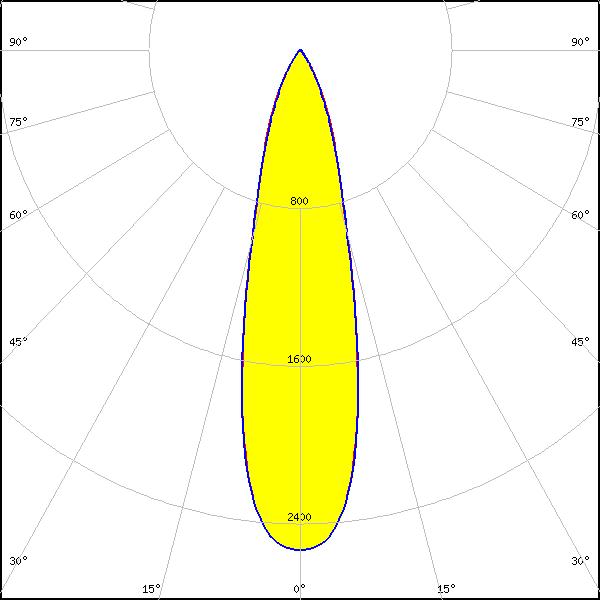

LED:
V13 Gen 8-9
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 14.8 mm
Required components:
FWHM:
26°
FWTM:
55°
Peak intensity:
2.535 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

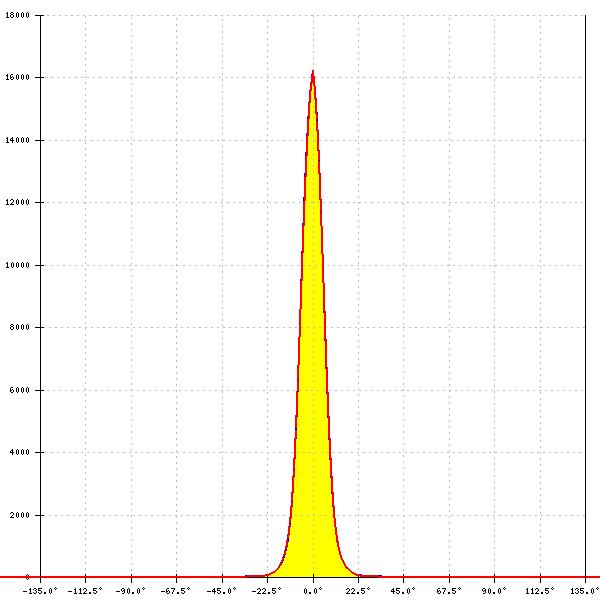

LED:

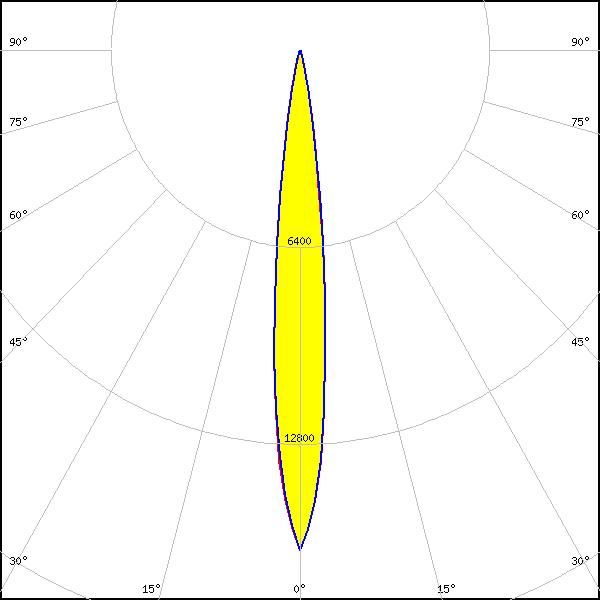

V3 HD Gen 8
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 3.8 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
16.242 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

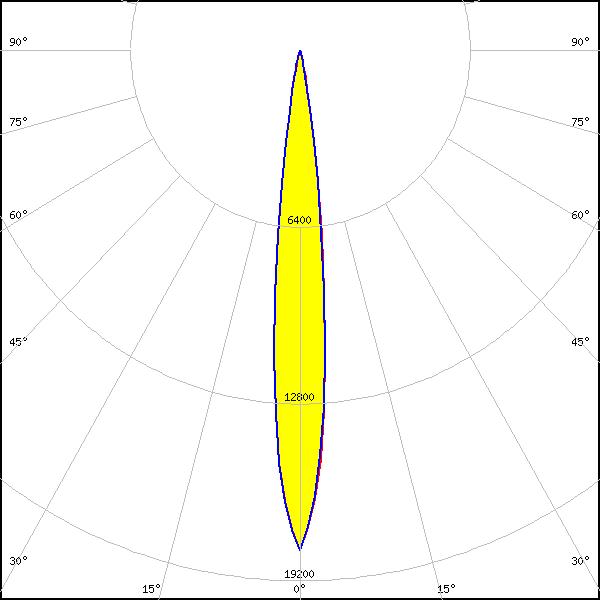

LED:

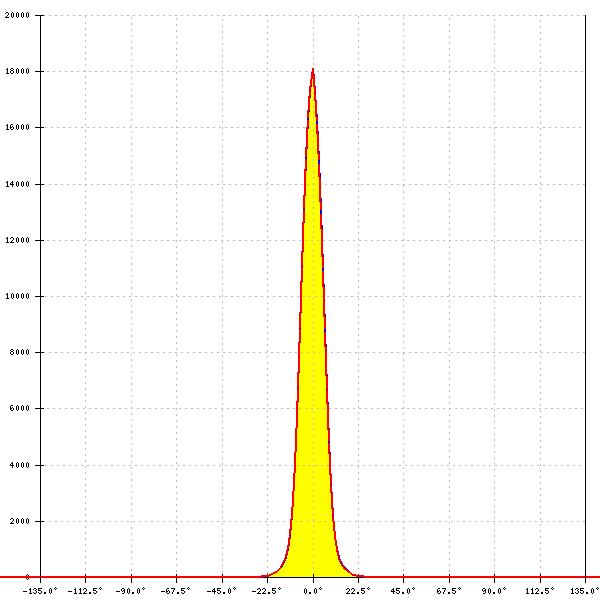

V3 HD Gen 8 FC
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 2.9 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
18.098 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

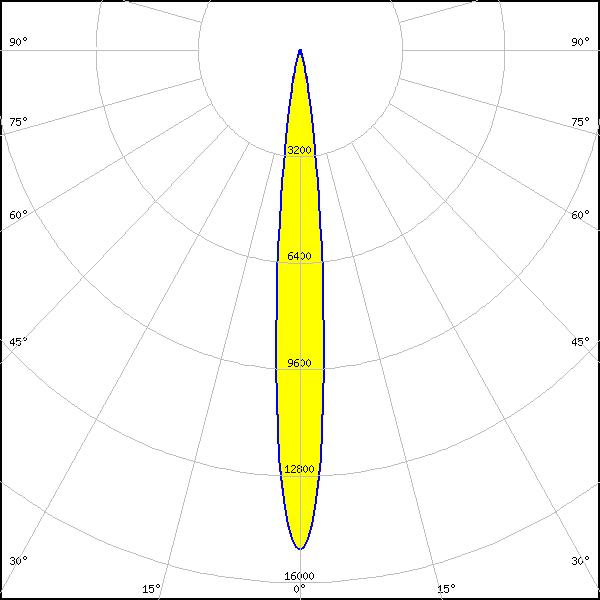

LED:

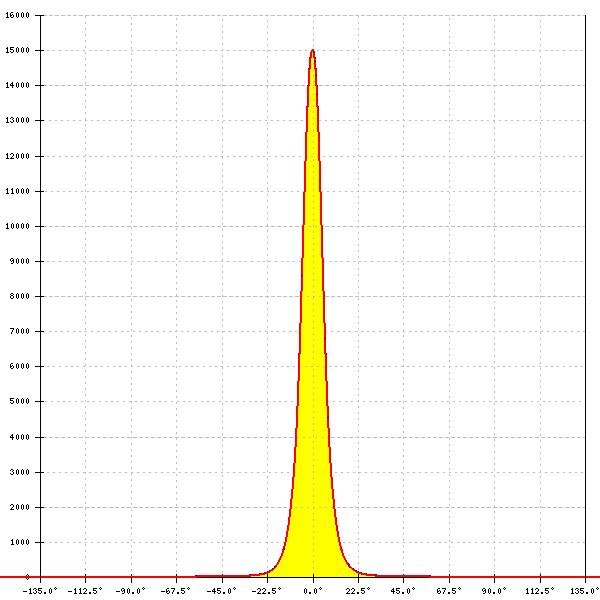

V4 HD Gen 7
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 5.2 mm
Required components:
FWHM:
11°
FWTM:
23°
Peak intensity:
15.028 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

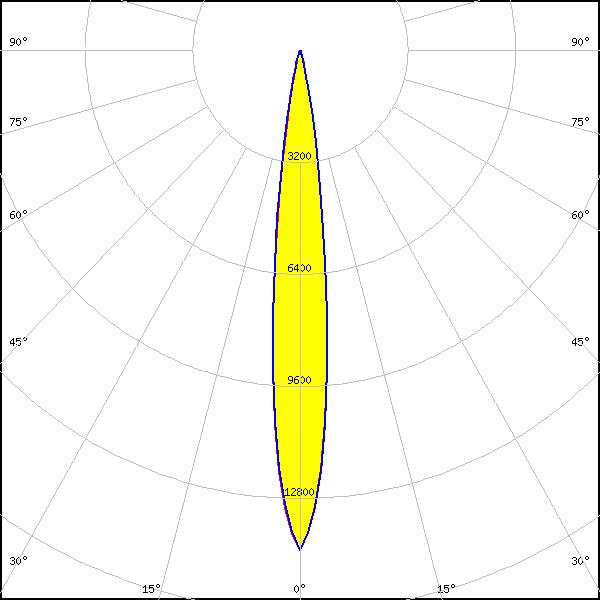

LED:

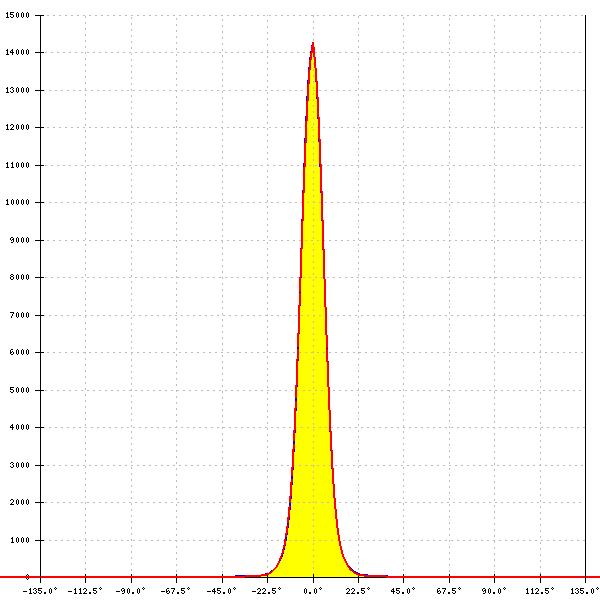

V4 HD Gen 8
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 4.8 mm
Required components:
FWHM:
12°
FWTM:
24°
Peak intensity:
14.284 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

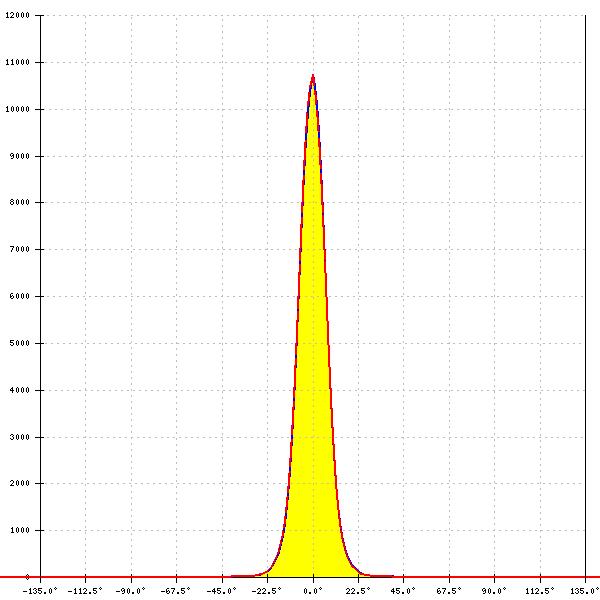

LED:
V6 Gen 8-9
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 6.3 mm
Required components:
FWHM:
14°
FWTM:
28°
Peak intensity:
10.733 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 HD Gen 7
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 7.0 mm
Required components:
FWHM:
13°
FWTM:
28°
Peak intensity:
10.738 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

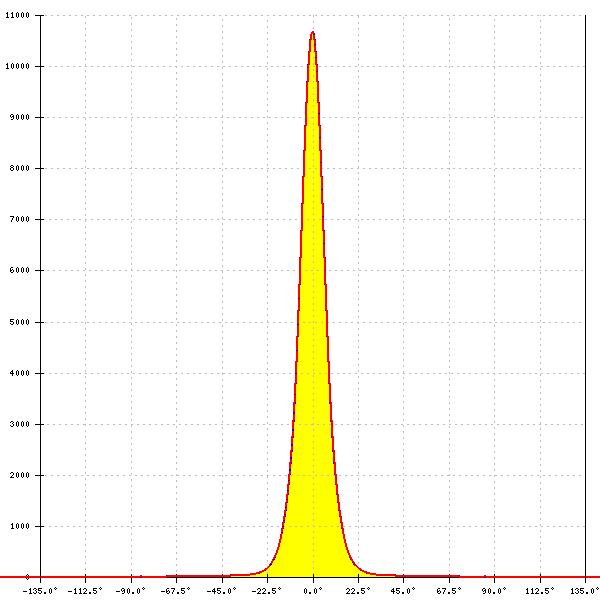

LED:
V6 HD Gen 7
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 7.0 mm
Required components:
FWHM:
13°
FWTM:
28°
Peak intensity:
10.738 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

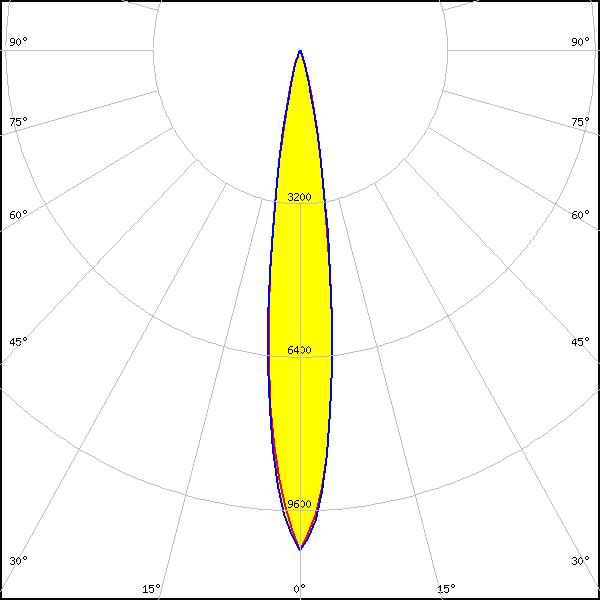

LED:

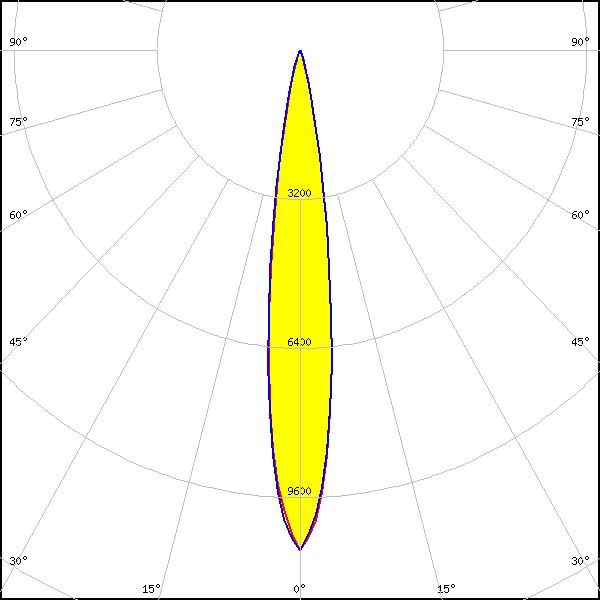

V6 HD Gen 8
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 6.6 mm
Required components:
FWHM:
14°
FWTM:
28°
Peak intensity:
10.427 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

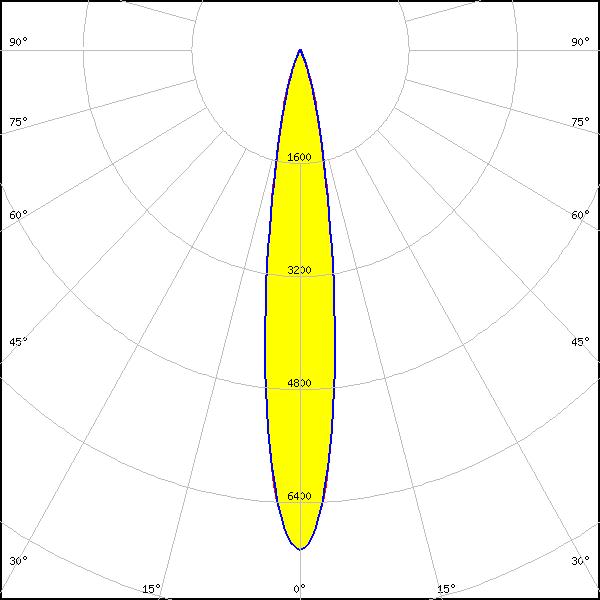

LED:
V8 Gen 8-9
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 8.5 mm
Required components:
FWHM:
17°
FWTM:
35°
Peak intensity:
7.084 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

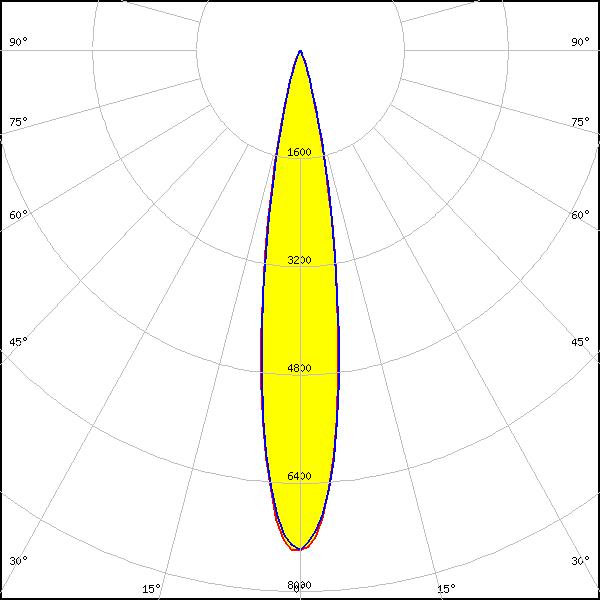

LED:
V9 HD Gen 8
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 8.8 mm
Required components:
FWHM:
18°
FWTM:
34°
Peak intensity:
7.454 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

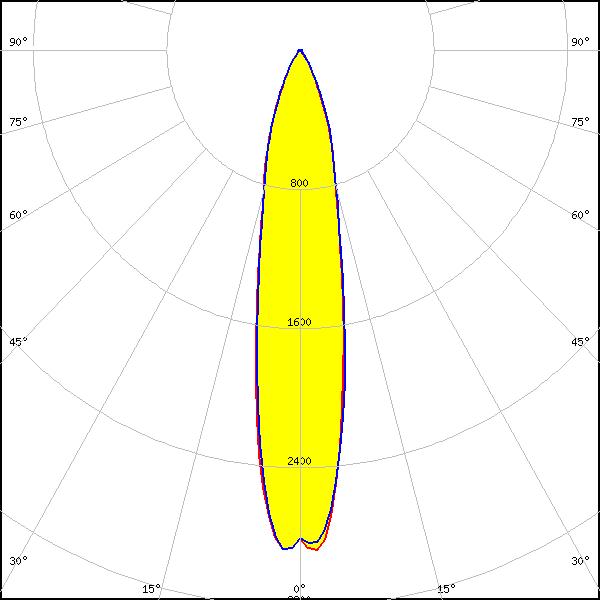

Vero SE 13
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 13.4 mm
Required components:
FWHM:
20°
FWTM:
50°
Peak intensity:
2.975 cd/lm
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White
LED:

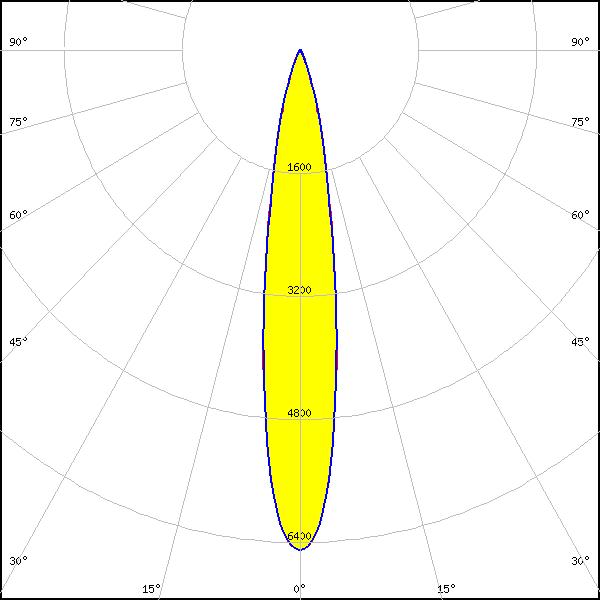

VERO10
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.9 mm
Required components:
FWHM:
17°
FWTM:
37°
Peak intensity:
6.401 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO10
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 9.9 mm
Required components:
FWHM:
17°
FWTM:
37°
Peak intensity:
6.401 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO13
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 13.4 mm
Required components:
FWHM:
26°
FWTM:
48°
Peak intensity:
3.631 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

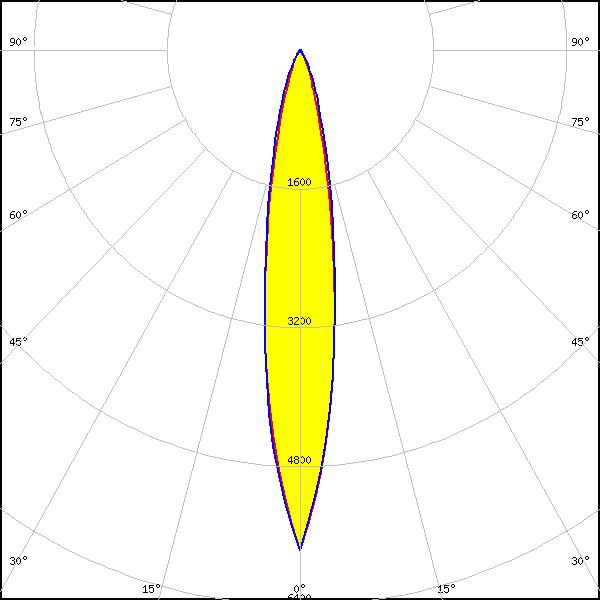

LED:
Vesta DTW 13mm (21W)
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 14.0 mm
Required components:
FWHM:
16°
FWTM:
39°
Peak intensity:
5.767 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta DTW 13mm (21W)
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 632b Hekla XL
FWHM:
25°
FWTM:
53°
Peak intensity:
2.886 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:

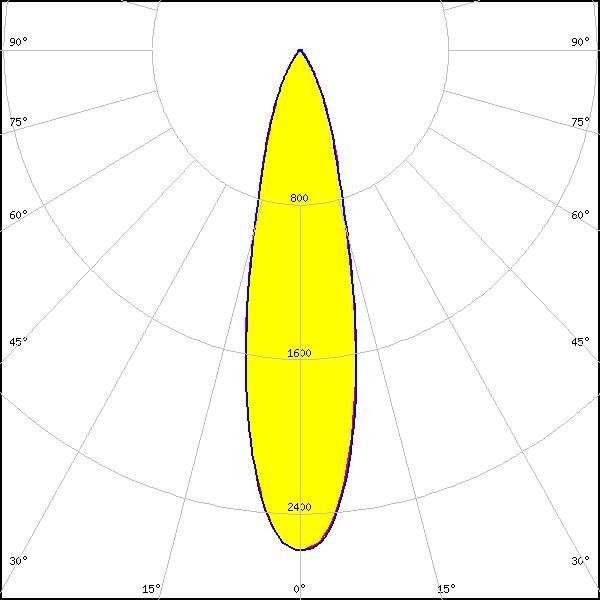

Vesta DTW 15mm (33W)
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 16.2 mm
Required components:
Bender Wirth: 632b Hekla XL
FWHM:
26°
FWTM:
55°
Peak intensity:
2.589 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

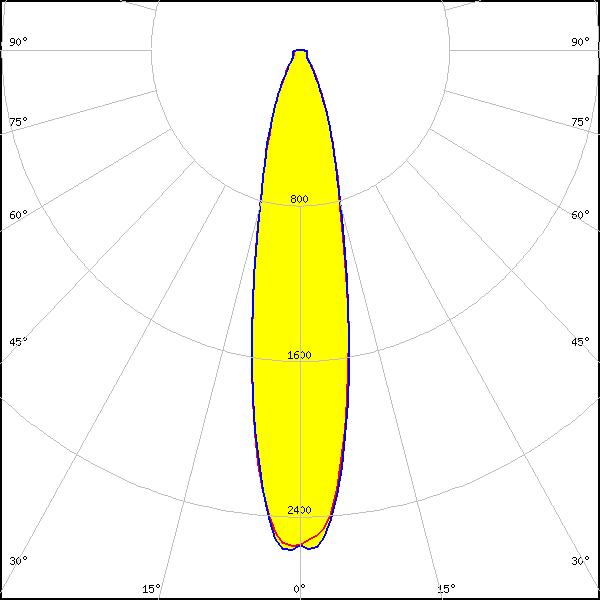

LED:
Vesta DTW 15mm (33W)
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 16.2 mm
Required components:
Bender Wirth: 632b Hekla XL
FWHM:
26°
FWTM:
56°
Peak intensity:
2.603 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta DTW 6mm
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 6.8 mm
Required components:
Bender Wirth: 652b Hekla
FWHM:
16°
FWTM:
30°
Peak intensity:
9.694 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

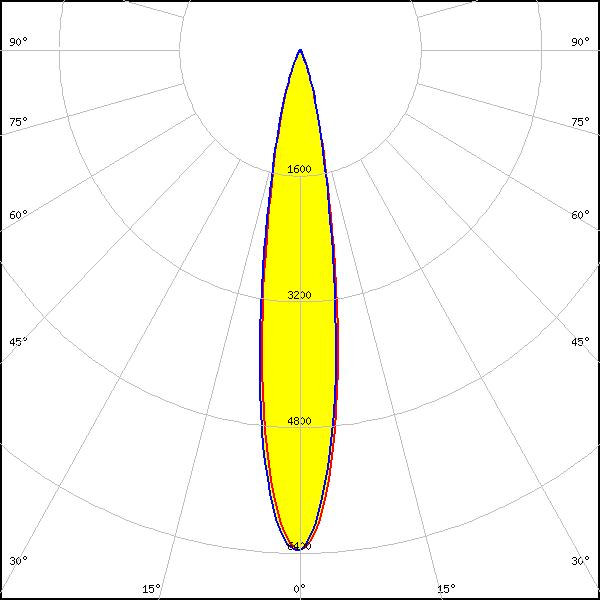

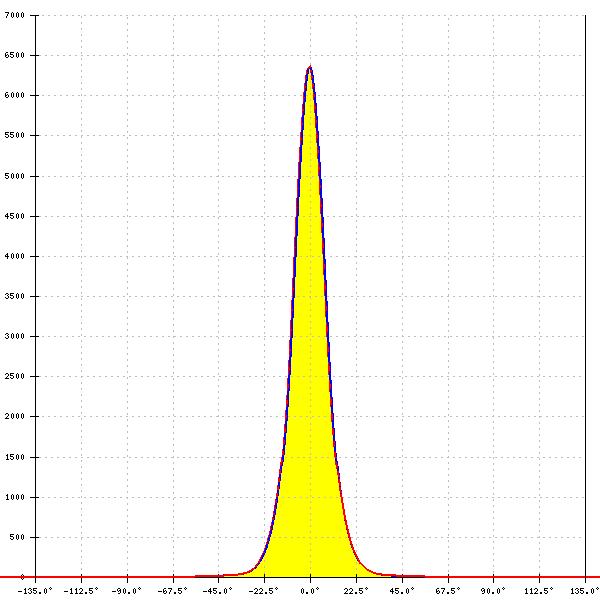

LED:
Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Hekla
FWHM:
18°
FWTM:
37°
Peak intensity:
6.479 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta RGBW 10mm CSP
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 10.0 mm
Required components:
FWHM:
19°
FWTM:
43°
Peak intensity:
3.697 cd/lm
Efficiency:
70 %
LEDs/each optic:
28
Light colour/type:
RGBW

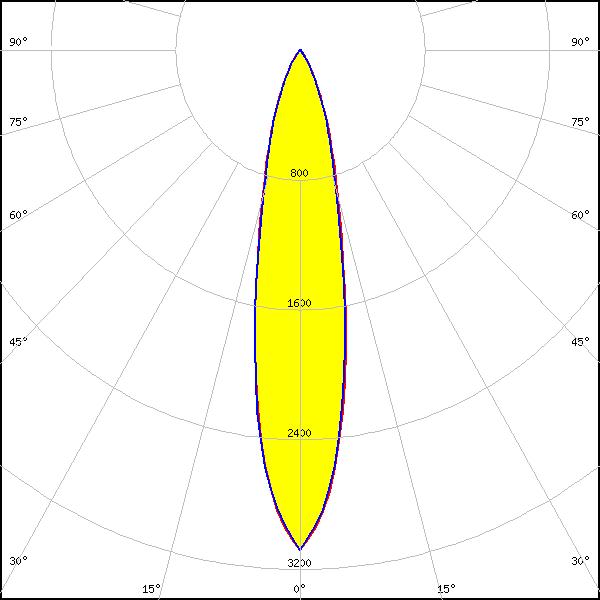

LED:
Vesta SE 13mm TW
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 14.3 mm
Required components:
FWHM:
22°
FWTM:
50°
Peak intensity:
3.083 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 13mm (18W) DP
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 14.0 mm
Required components:
FWHM:
24°
FWTM:
50°
Peak intensity:
3.349 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 15mm DP
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 16.3 mm
Required components:
FWHM:
28°
FWTM:
56°
Peak intensity:
2.351 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 6mm DP
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 6.3 mm
Required components:
FWHM:
16°
FWTM:
36°
Peak intensity:
6.487 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:

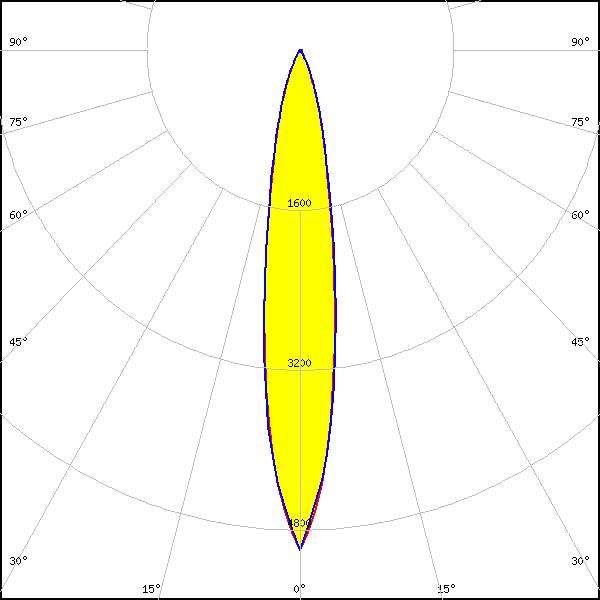

Vesta TW 9mm (9W) DP
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 10.3 mm
Required components:
FWHM:
22°
FWTM:
38°
Peak intensity:
5.656 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 9mm (9W) DP
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 10.3 mm
Required components:
FWHM:
18°
FWTM:
40°
Peak intensity:
5.003 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

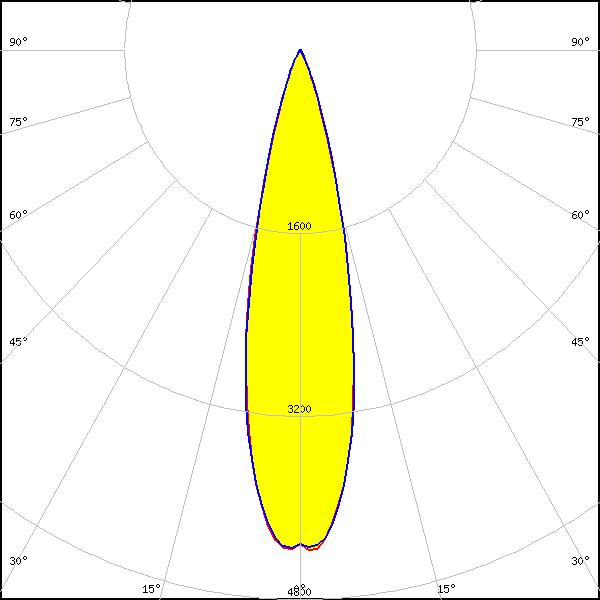

LED:
CLU02Q Type-F
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.7 mm
Required components:
FWHM:
24°
FWTM:
42°
Peak intensity:
4.379 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

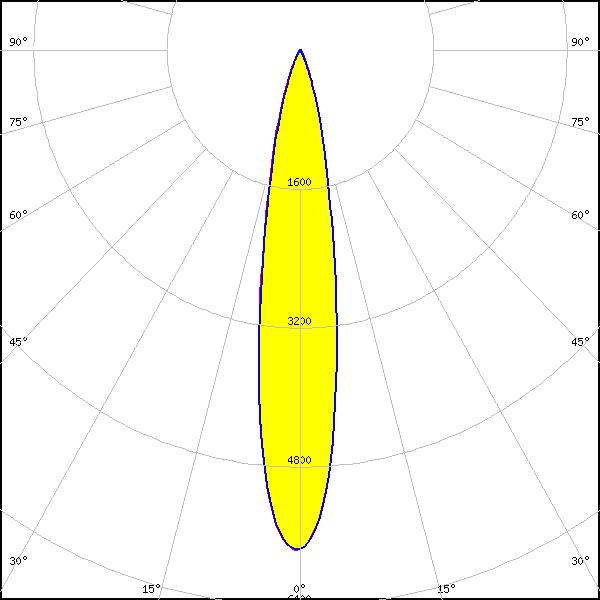

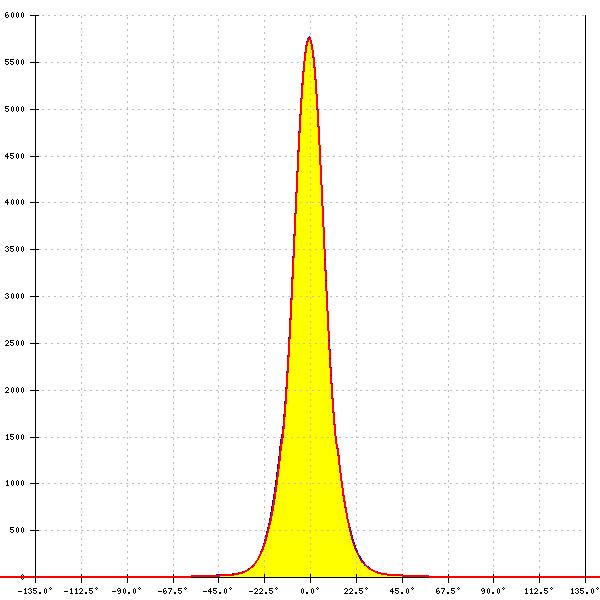

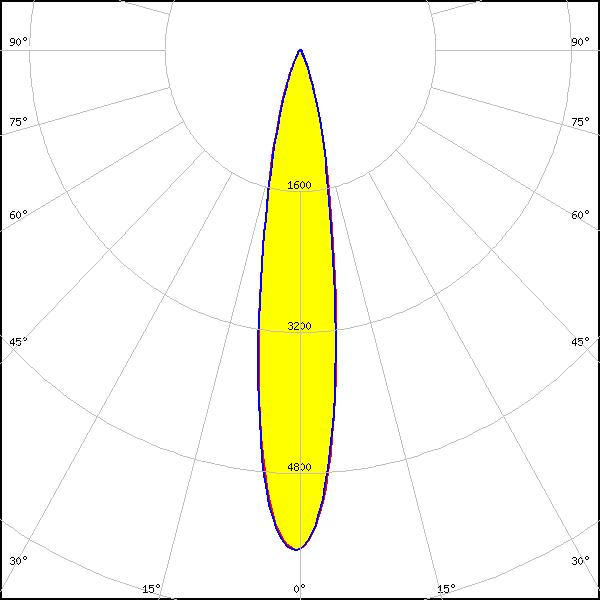

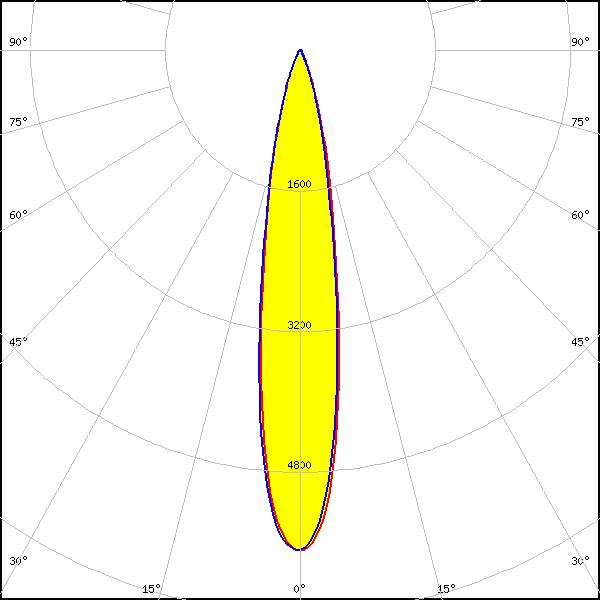

CLU02x (LES10)
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.8 mm
Required components:
FWHM:
18°
FWTM:
38°
Peak intensity:
5.760 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 9.8 mm
Required components:
FWHM:
18°
FWTM:
39°
Peak intensity:
5.673 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

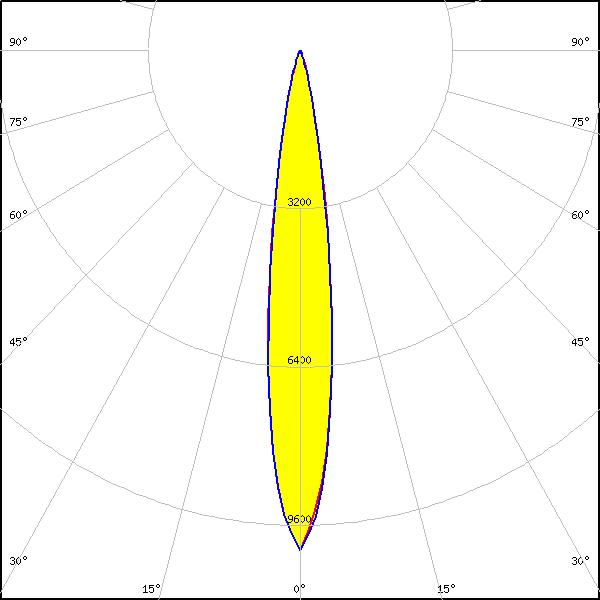

LED:
CLU700/701/702/703
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 6.0 mm
Required components:
FWHM:
13°
FWTM:
27°
Peak intensity:
11.012 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

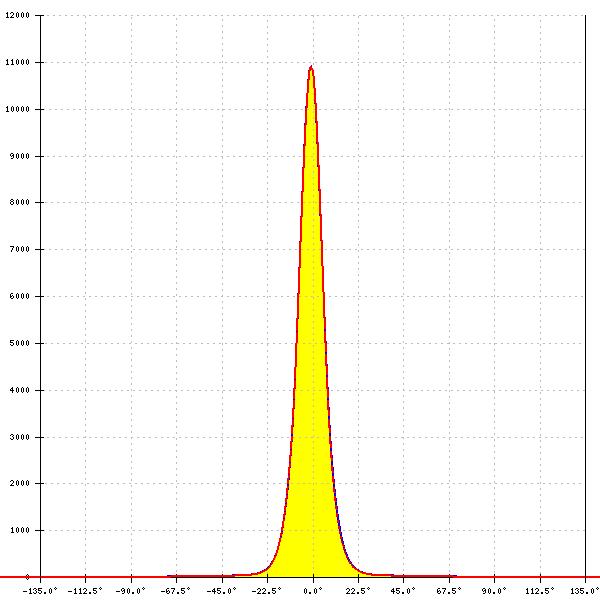

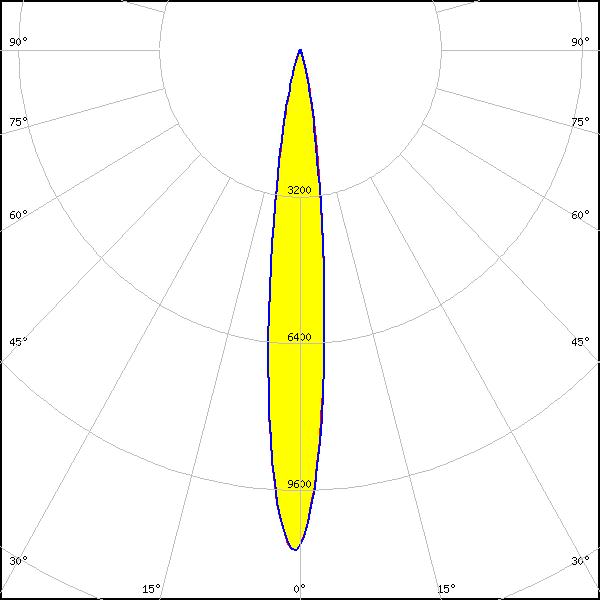

LED:
CLU700/701/702/703
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 6.0 mm
Required components:
FWHM:
13°
FWTM:
27°
Peak intensity:
11.012 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

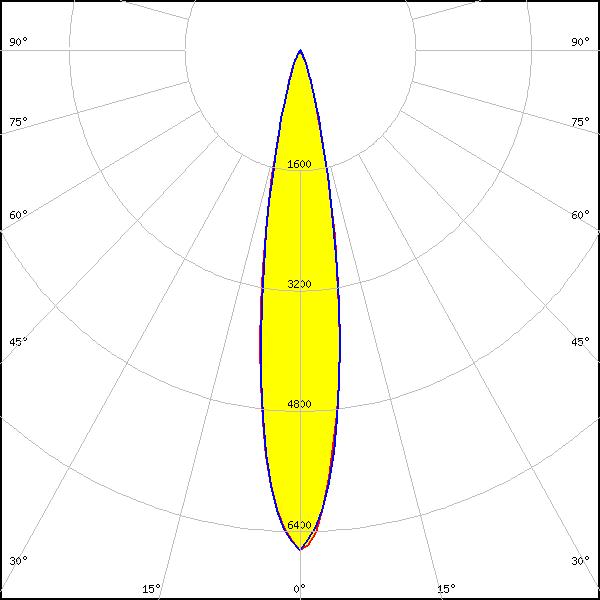

LED:
CLU712/713
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 8.5 mm
Required components:
FWHM:
18°
FWTM:
36°
Peak intensity:
6.653 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

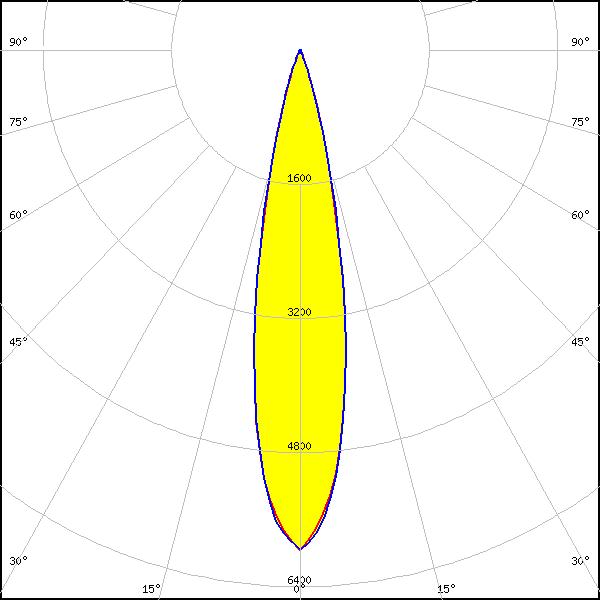

CLU713 Type-F
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 8.5 mm
Required components:
FWHM:
22°
FWTM:
36°
Peak intensity:
5.967 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU723 Type-F
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 11.0 mm
Required components:
FWHM:
26°
FWTM:
46°
Peak intensity:
3.650 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

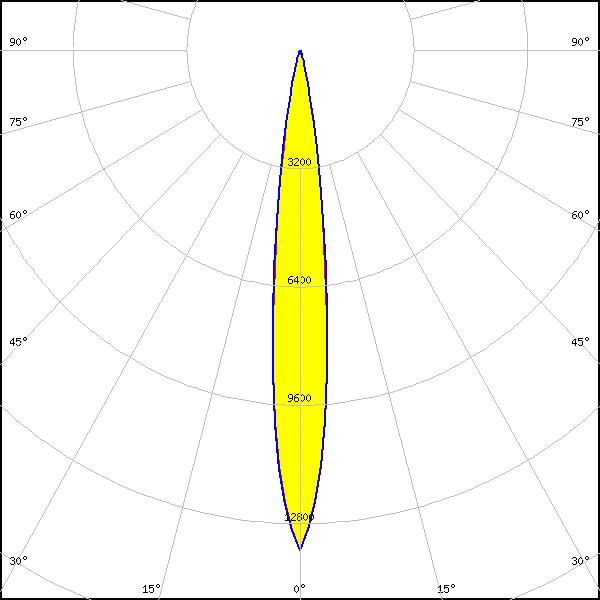

LED:
CLU7A2/7A3
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 4.2 mm
Required components:
FWHM:
11°
FWTM:
23°
Peak intensity:
15.105 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

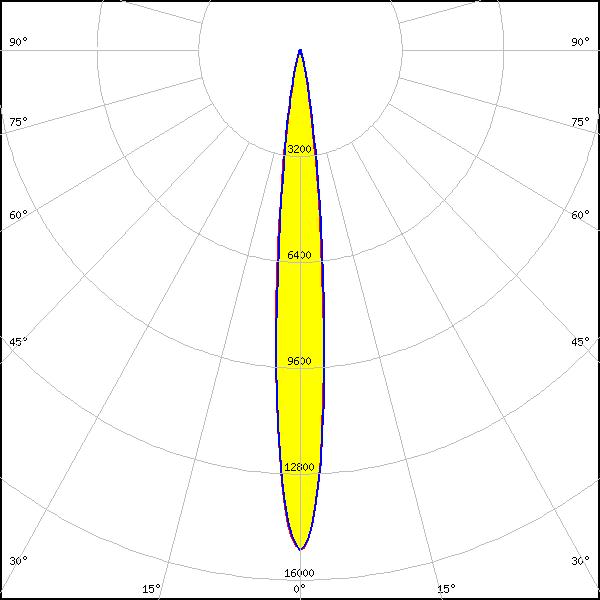

CLU7A2/7A3
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 4.2 mm
Required components:
FWHM:
11°
FWTM:
23°
Peak intensity:
15.105 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

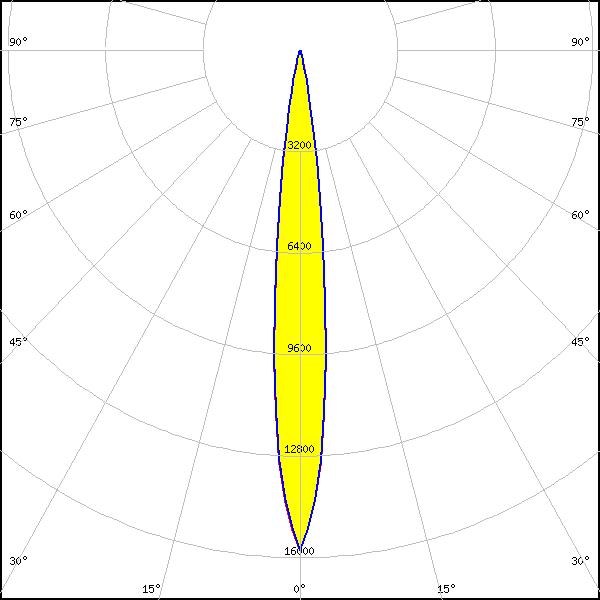

LED:

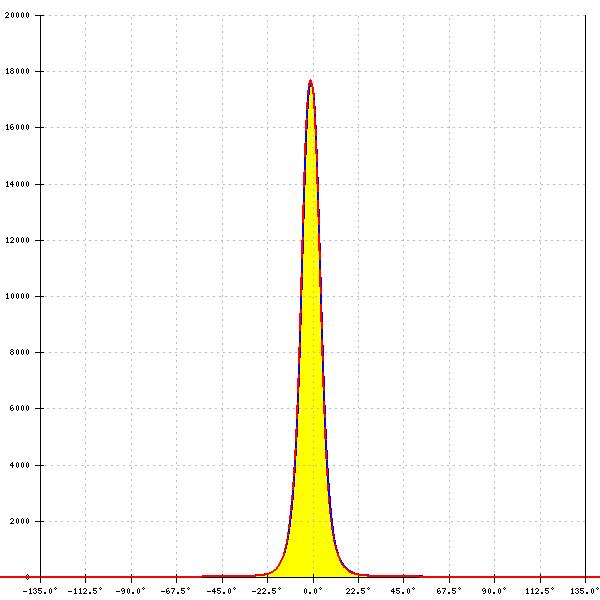

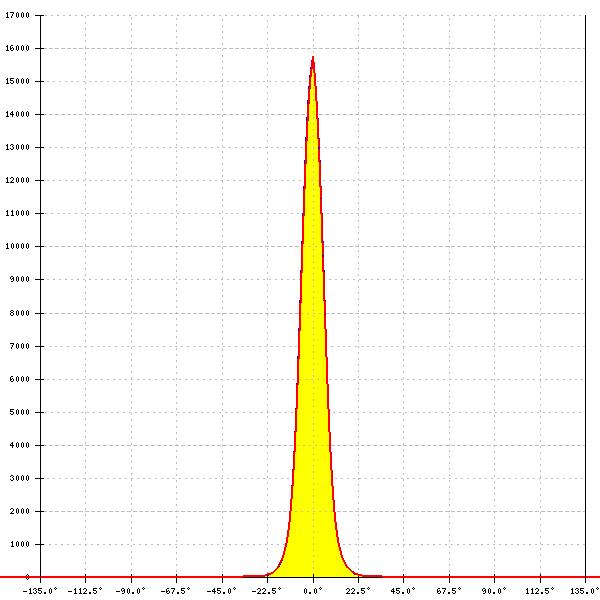

CLU7B2
Ordering code: CP18730_YASMEEN-50-S-B2
LES size: 3.3 mm
Required components:
BJB: 47.360.1020
FWHM:
12°
FWTM:
22°
Peak intensity:
15.766 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7B2
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 3.3 mm
Required components:
FWHM:
10°
FWTM:
21°
Peak intensity:
17.799 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7B2
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 3.3 mm
Required components:
FWHM:
10°
FWTM:
21°
Peak intensity:
17.799 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

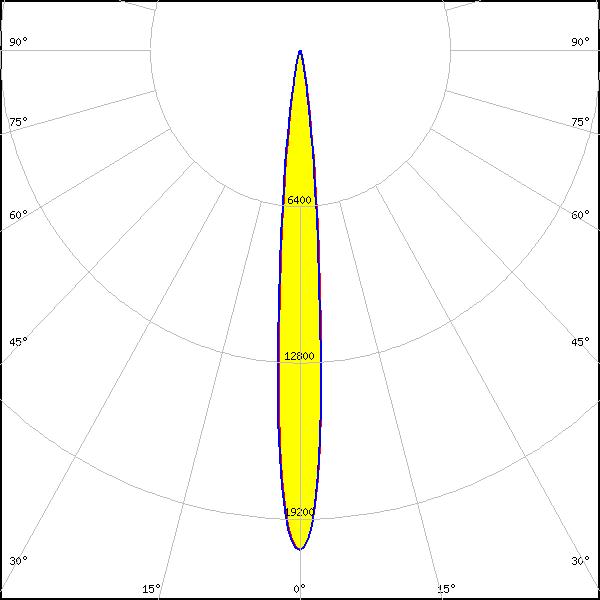

CLU7L3
Ordering code: CP18730_YASMEEN-50-S-B2
LES size: 2.4 mm
Required components:
FWHM:
10°
FWTM:
20°
Peak intensity:
20.556 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

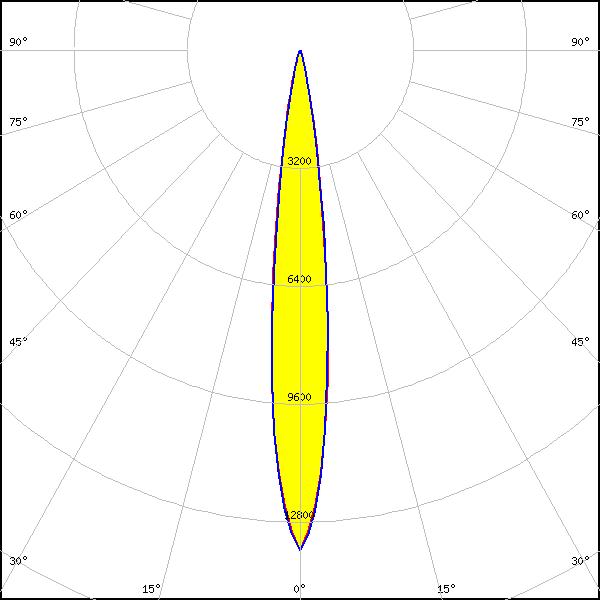

CHA0304
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 3.3 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
17.491 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHA0410
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 4.2 mm
Required components:
FWHM:
13°
FWTM:
25°
Peak intensity:
13.567 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

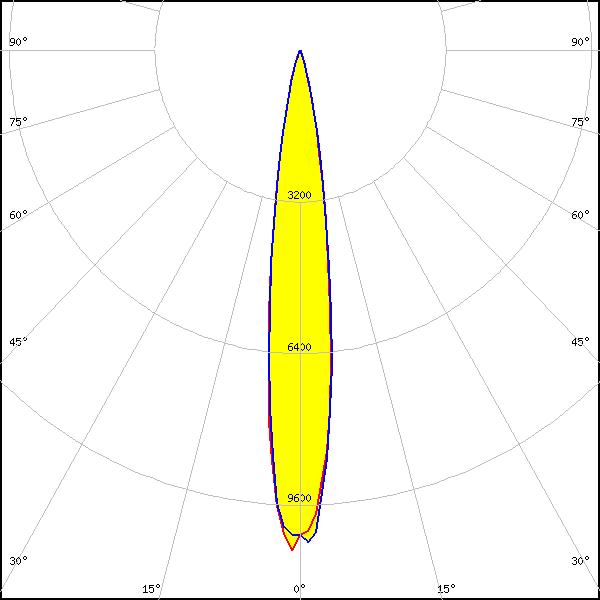

LED:
CHA0612
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 6.0 mm
Required components:
FWHM:
14°
FWTM:
28°
Peak intensity:
10.712 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

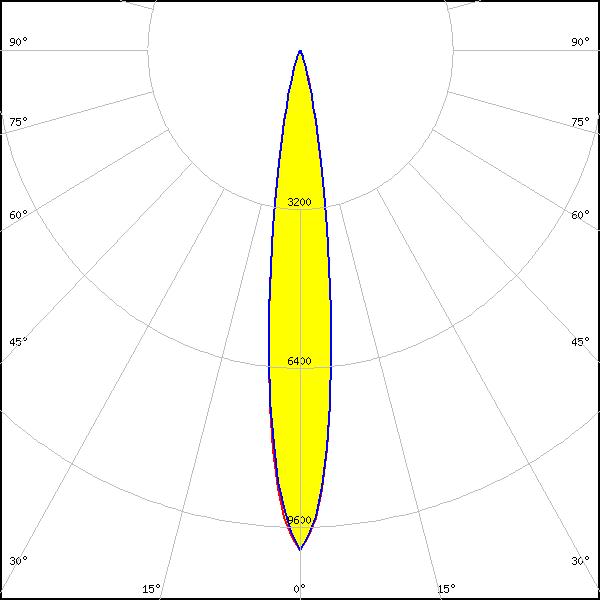

CHA0825
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 8.5 mm
Required components:
FWHM:
18°
FWTM:
36°
Peak intensity:
6.910 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

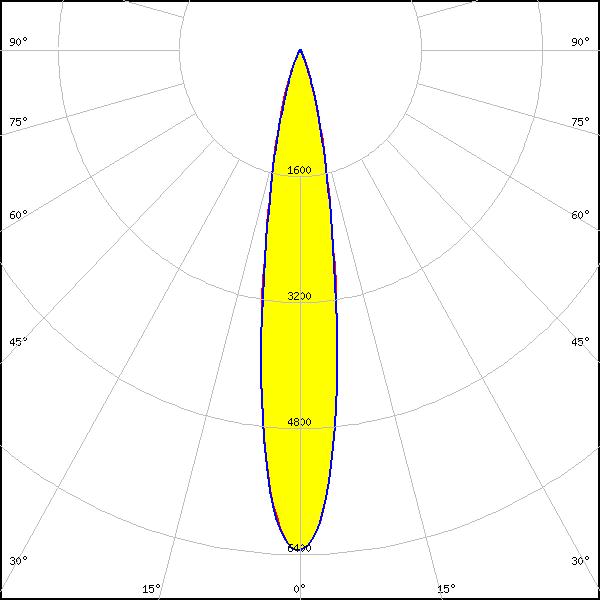

CMA1306
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 6.0 mm
Required components:
FWHM:
14°
FWTM:
30°
Peak intensity:
10.067 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA1516
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.0 mm
Required components:
FWHM:
17°
FWTM:
36°
Peak intensity:
6.346 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA1516
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 9.0 mm
Required components:
FWHM:
17°
FWTM:
37°
Peak intensity:
6.239 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

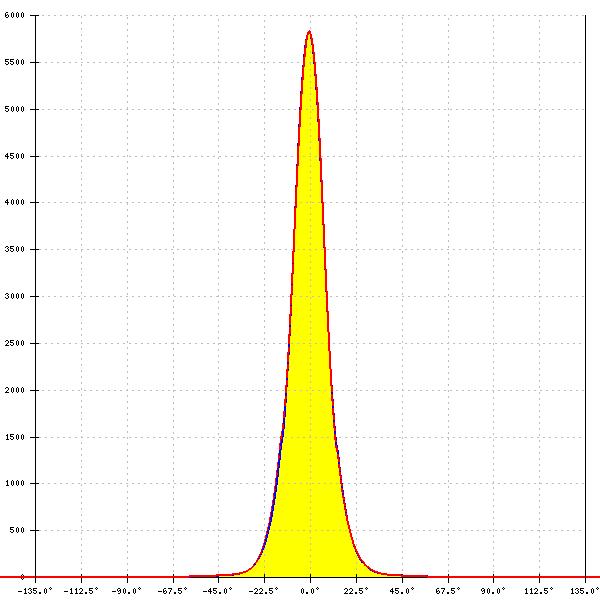

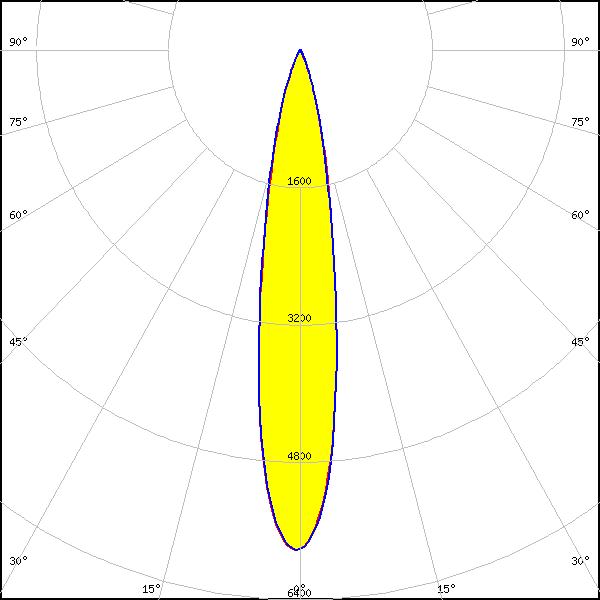

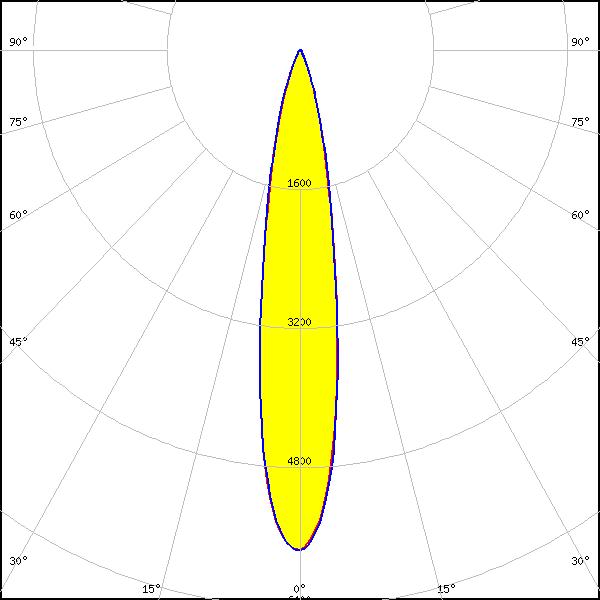

LED:
CMT14xx
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.8 mm
Required components:
FWHM:
18°
FWTM:
38°
Peak intensity:
5.754 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT14xx
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 9.8 mm
Required components:
FWHM:
18°
FWTM:
38°
Peak intensity:
5.754 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMU10xx
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.8 mm
Required components:
FWHM:
18°
FWTM:
39°
Peak intensity:
5.686 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

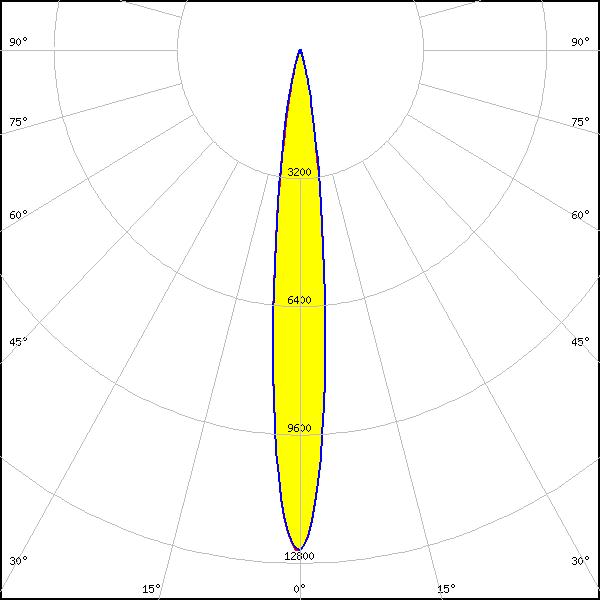

CXA/B 13xx
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 6.0 mm
Required components:
FWHM:
12°
FWTM:
26°
Peak intensity:
12.481 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 13xx
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 6.0 mm
Required components:
FWHM:
12°
FWTM:
26°
Peak intensity:
12.481 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

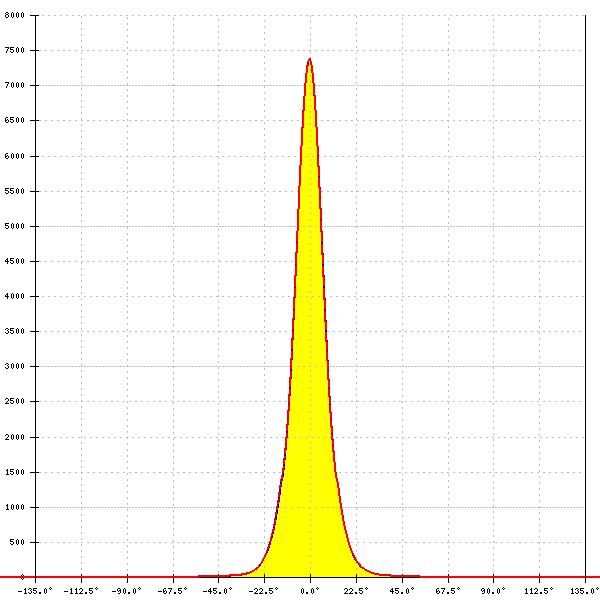

LED:
CXA/B 15xx
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 8.9 mm
Required components:
FWHM:
15°
FWTM:
34°
Peak intensity:
7.275 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

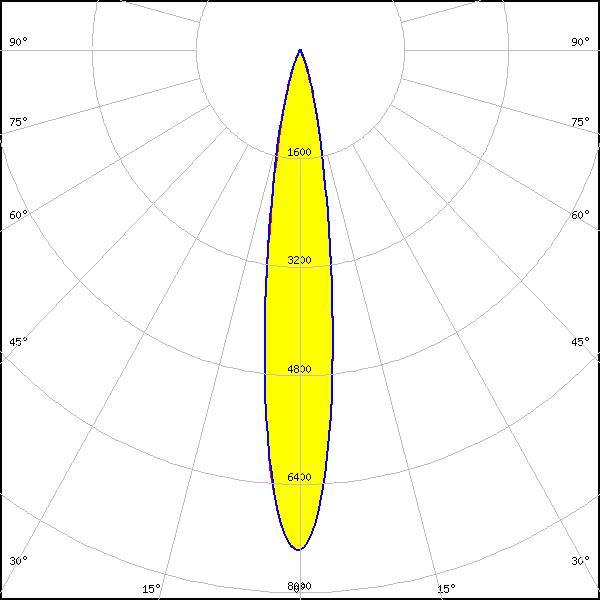

LED:
CXA/B 15xx
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 8.9 mm
Required components:
FWHM:
16°
FWTM:
34°
Peak intensity:
7.275 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LEDIM/C6
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 8.0 mm
Required components:
FWHM:
20°
FWTM:
38°
Peak intensity:
5.446 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

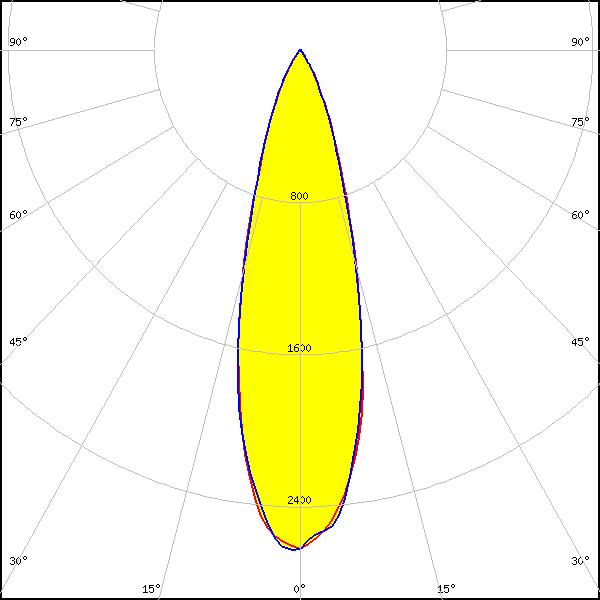

LED:
LUXEON CX Plus CoB L08 (Gen2)
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
28°
FWTM:
54°
Peak intensity:
2.650 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 7070
LES size: 0.0 mm
FWHM:
15°
FWTM:
30°
Peak intensity:
8.949 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

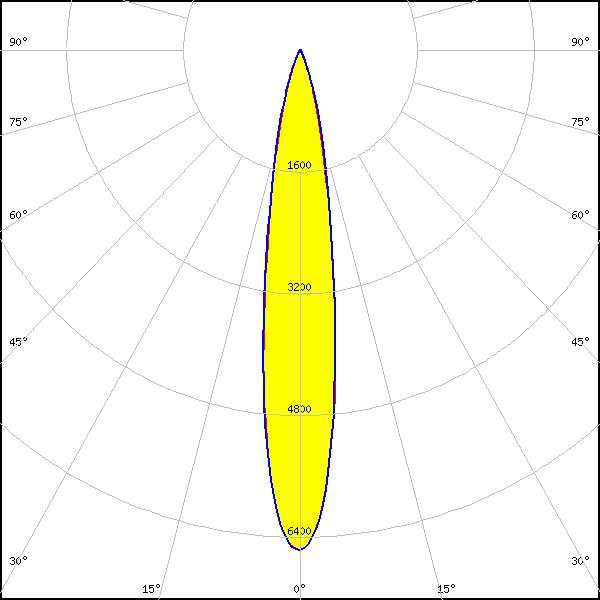

LUXEON CoB 1202/1203
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.0 mm
Required components:
FWHM:
17°
FWTM:
36°
Peak intensity:
6.571 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 9.0 mm
Required components:
FWHM:
17°
FWTM:
37°
Peak intensity:
6.491 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202HD
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 6.5 mm
Required components:
FWHM:
16°
FWTM:
30°
Peak intensity:
9.490 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 13.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
26°
FWTM:
50°
Peak intensity:
3.310 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204HD
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.0 mm
Required components:
FWHM:
17°
FWTM:
36°
Peak intensity:
6.418 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204HD
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 9.0 mm
Required components:
FWHM:
17°
FWTM:
37°
Peak intensity:
6.328 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1205HD
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 11.0 mm
Required components:
FWHM:
24°
FWTM:
44°
Peak intensity:
4.304 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 15.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
28°
FWTM:
54°
Peak intensity:
2.730 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:

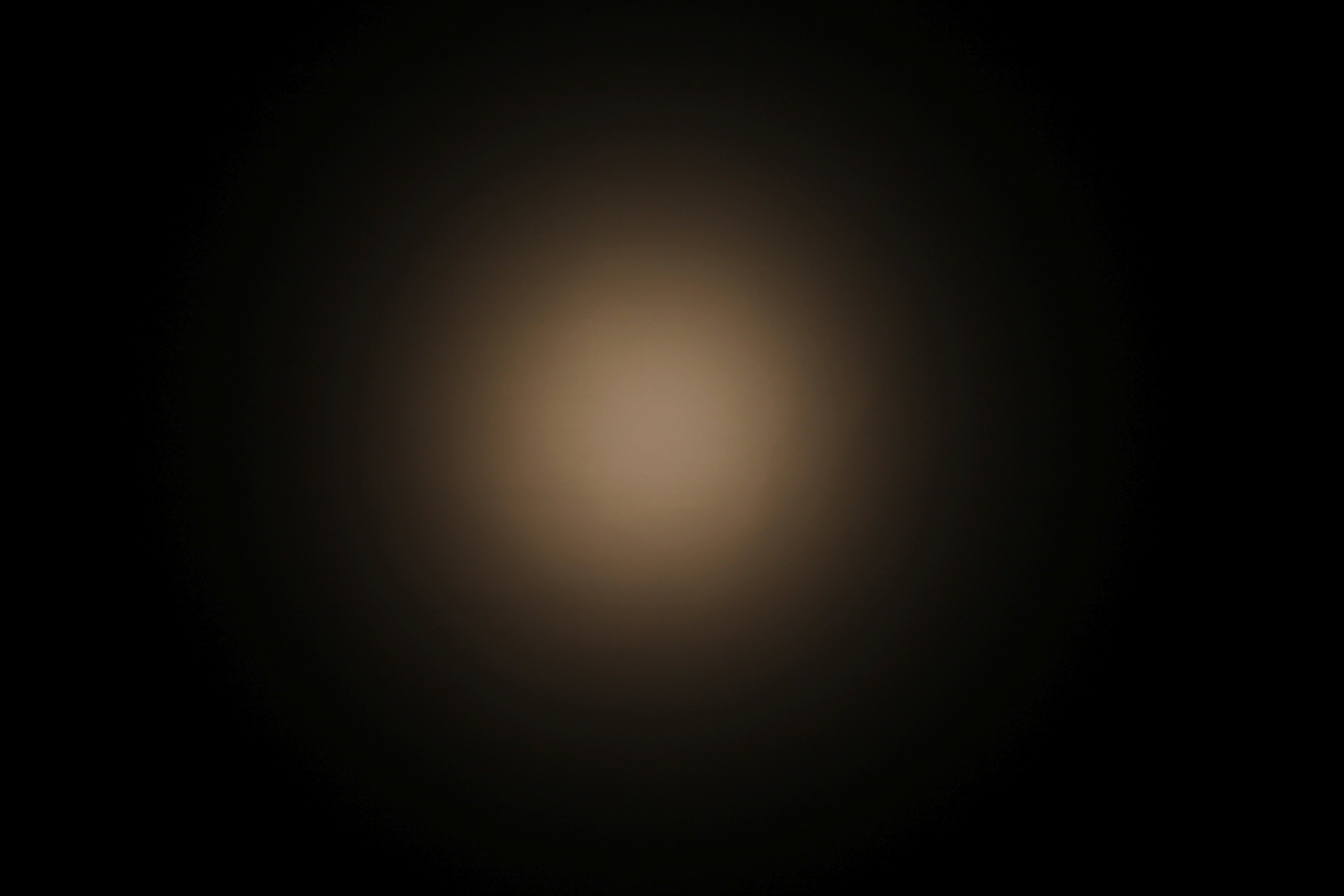

LUXEON CoB M02/M03
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 8.5 mm
Required components:
FWHM:
16°
FWTM:
34°
Peak intensity:
7.227 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

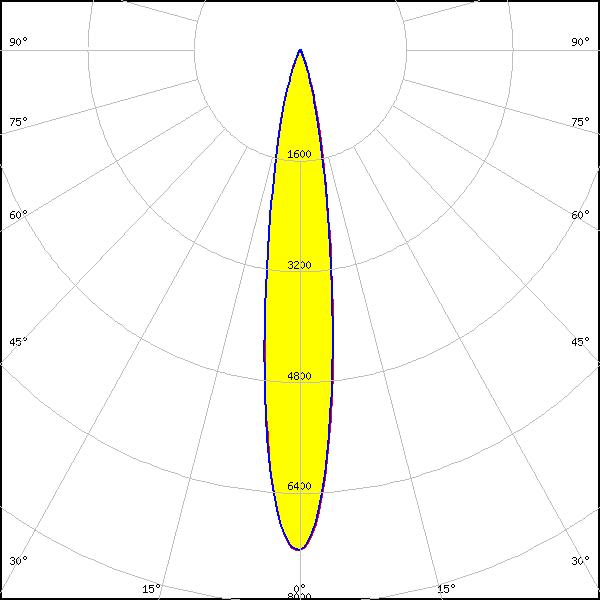

LED:
LUXEON CoB M02/M03
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 8.5 mm
Required components:
FWHM:
16°
FWTM:
35°
Peak intensity:
7.111 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB S01
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 5.5 mm
Required components:
FWHM:
12°
FWTM:
26°
Peak intensity:
12.010 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

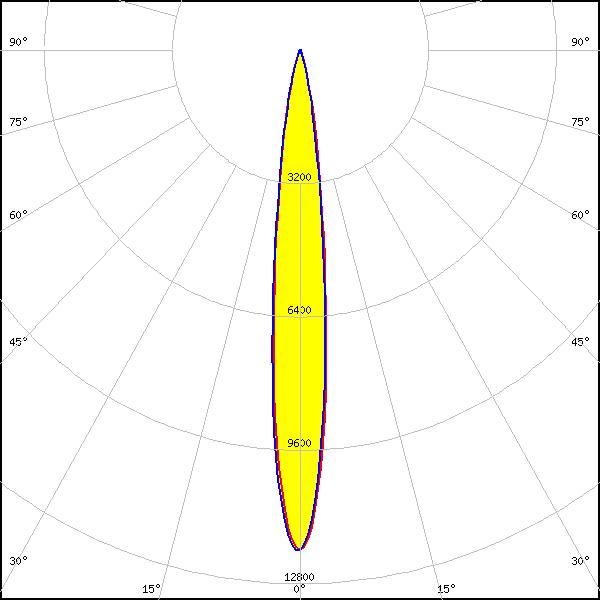

LED:
LUXEON CoB S01
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 5.5 mm
Required components:
FWHM:
12°
FWTM:
26°
Peak intensity:
12.010 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

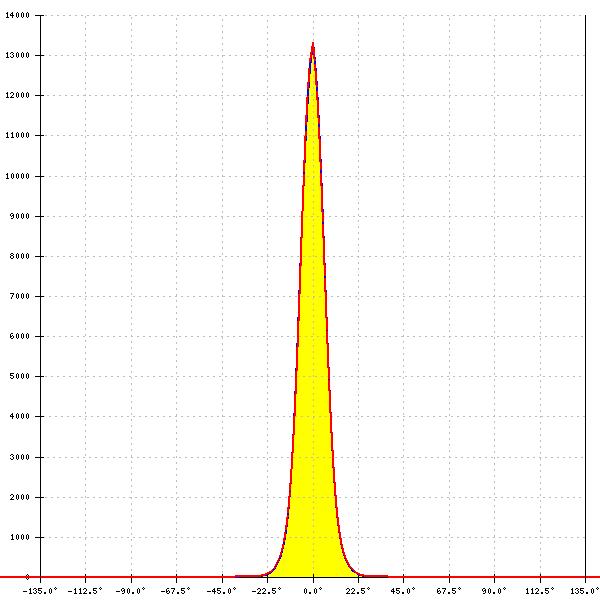

LUXEON CX Plus CoB - HD S01H4
Ordering code: CP18730_YASMEEN-50-S-B2
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
14°
FWTM:
26°
Peak intensity:
13.323 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

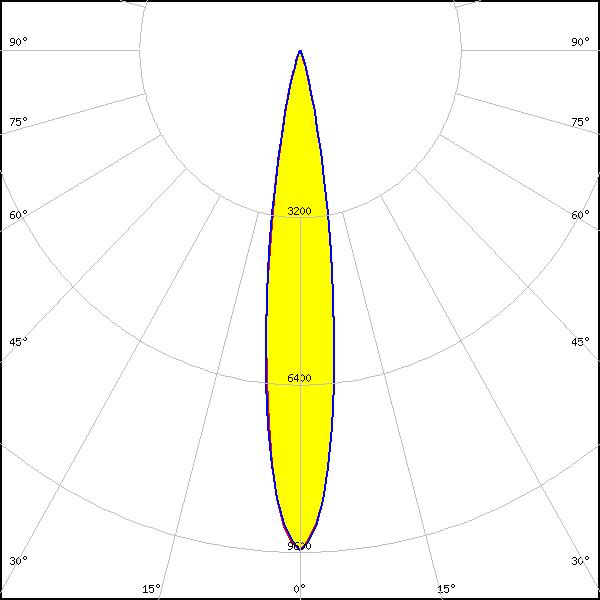

LUXEON CX Plus CoB - HD S02H6
Ordering code: CP18730_YASMEEN-50-S-B2
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
16°
FWTM:
30°
Peak intensity:
9.561 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

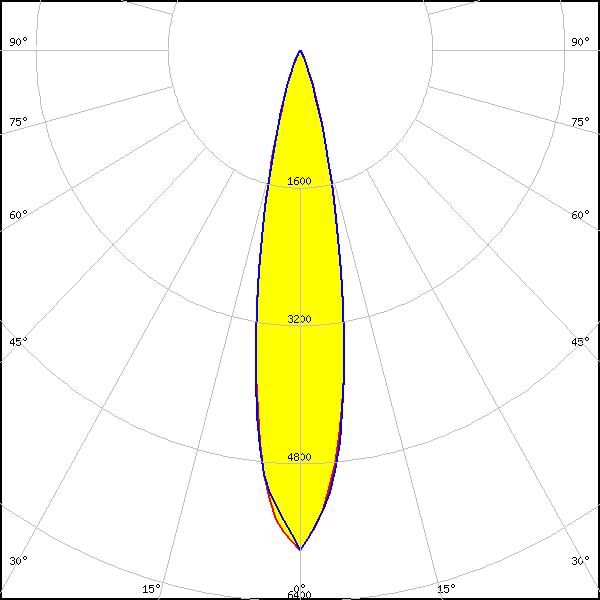

LED:
LUXEON CX Plus CoB - HD S04H9
Ordering code: CP18730_YASMEEN-50-S-B2
LES size: 9.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
20°
FWTM:
38°
Peak intensity:
5.807 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

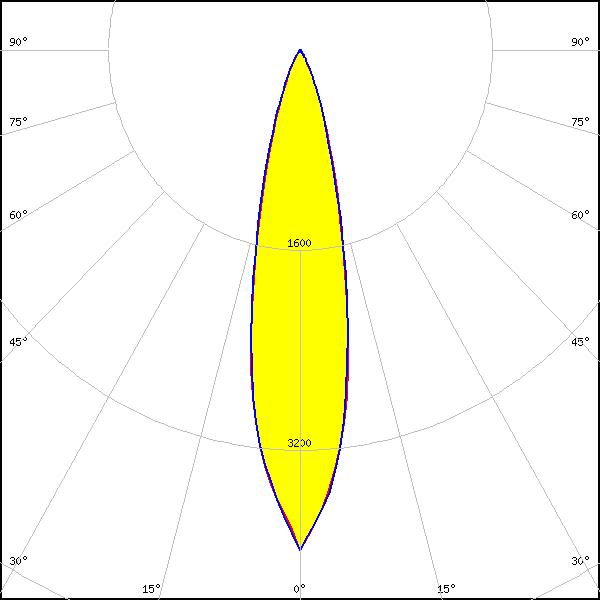

LUXEON CX Plus CoB L04 / L05 (Gen2)
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 12.0 mm
Required components:
FWHM:
22°
FWTM:
46°
Peak intensity:
4.002 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB M02 / M03 (Gen2)
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.0 mm
Required components:
FWHM:
20°
FWTM:
37°
Peak intensity:
6.084 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB S01 (Gen2)
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 6.0 mm
Required components:
FWHM:
14°
FWTM:
28°
Peak intensity:
10.271 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHM-9 XH (19x19)
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.0 mm
Required components:
FWHM:
18°
FWTM:
36°
Peak intensity:
6.833 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 (Tunable White) Gen2
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 13.9 mm
Required components:
FWHM:
24°
FWTM:
54°
Peak intensity:
2.681 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CTM-6 (Tunable White) Gen2
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 6.8 mm
Required components:
FWHM:
16°
FWTM:
32°
Peak intensity:
8.501 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CTM-9 (Tunable White) Gen2
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.5 mm
Required components:
FWHM:
18°
FWTM:
37°
Peak intensity:
6.344 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CXM-3
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 3.5 mm
Required components:
FWHM:
11°
FWTM:
21°
Peak intensity:
17.686 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

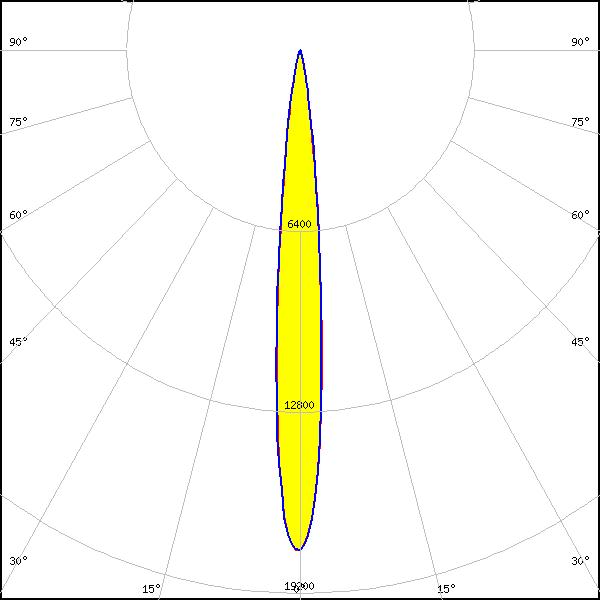

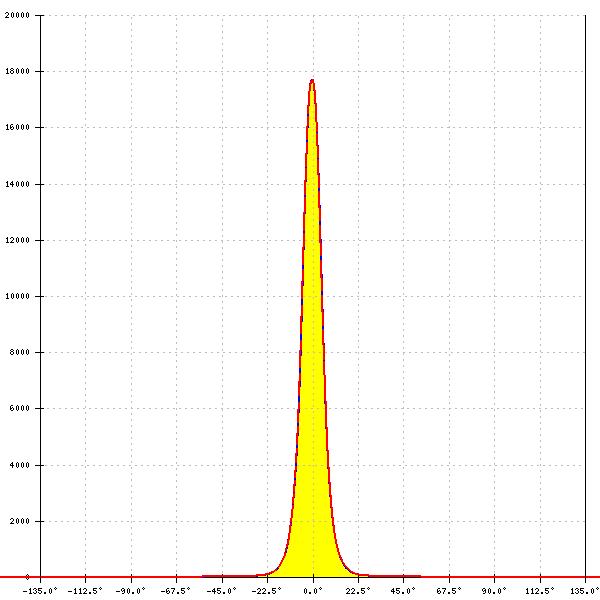

CXM-3
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 3.5 mm
Required components:
FWHM:
10°
FWTM:
21°
Peak intensity:
17.686 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

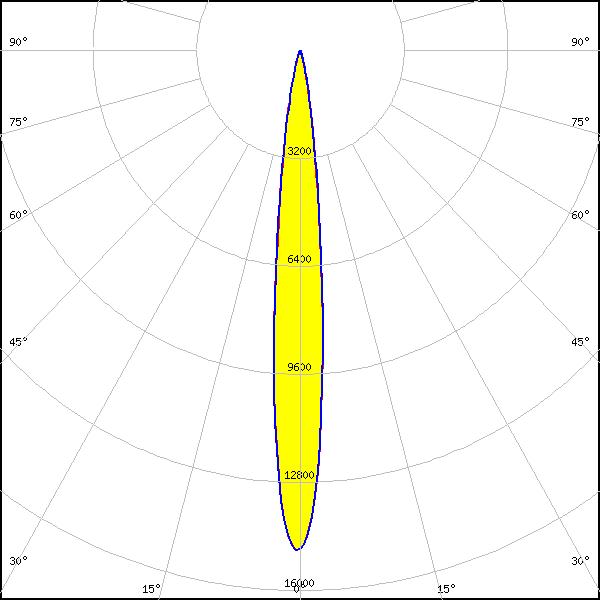

CXM-4
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 4.5 mm
Required components:
FWHM:
12°
FWTM:
24°
Peak intensity:
14.438 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

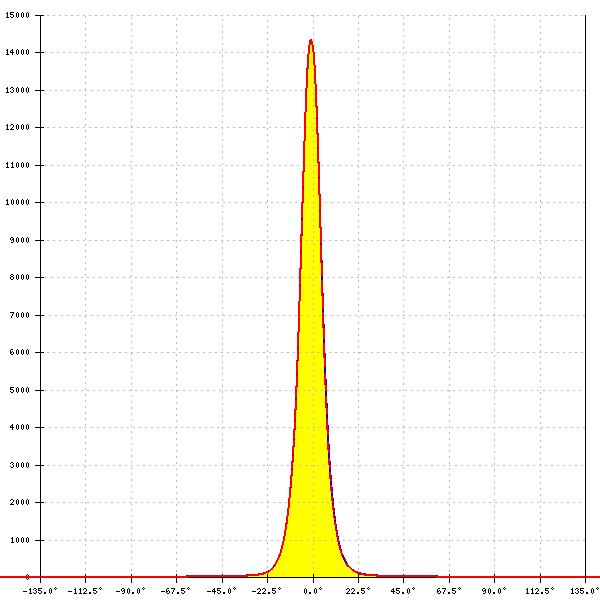

LED:
CXM-4
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 4.5 mm
Required components:
FWHM:
11°
FWTM:
24°
Peak intensity:
14.438 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-6 (13.5x13.5)
Ordering code: CP18730_YASMEEN-50-S-B2
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
FWHM:
14°
FWTM:
28°
Peak intensity:
10.209 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 11.5 mm
Required components:
FWHM:
22°
FWTM:
43°
Peak intensity:
4.418 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 8.7 mm
Required components:
FWHM:
16°
FWTM:
35°
Peak intensity:
6.960 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 6)
Ordering code: CP18730_YASMEEN-50-S-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
14°
FWTM:
28°
Peak intensity:
11.188 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
Ordering code: CP18730_YASMEEN-50-S-B2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
16°
FWTM:
30°
Peak intensity:
9.443 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

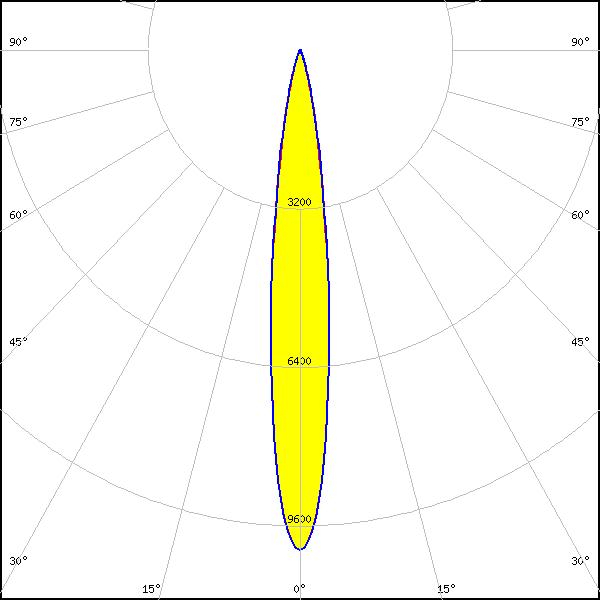

COB S-Type (LES 7)
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 6.7 mm
Required components:
FWHM:
14°
FWTM:
29°
Peak intensity:
10.138 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB T-Type
Ordering code: CP18730_YASMEEN-50-S-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
15°
FWTM:
28°
Peak intensity:
10.525 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NJCWL024Z-V1MT: COB L-Type Tunable White
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 7.0 mm
Required components:
FWHM:
16°
FWTM:
32°
Peak intensity:
8.566 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
NJNWS012Z-V1MT: COB S-Type Tunable White
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 5.9 mm
Required components:
FWHM:
14°
FWTM:
28°
Peak intensity:
11.182 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

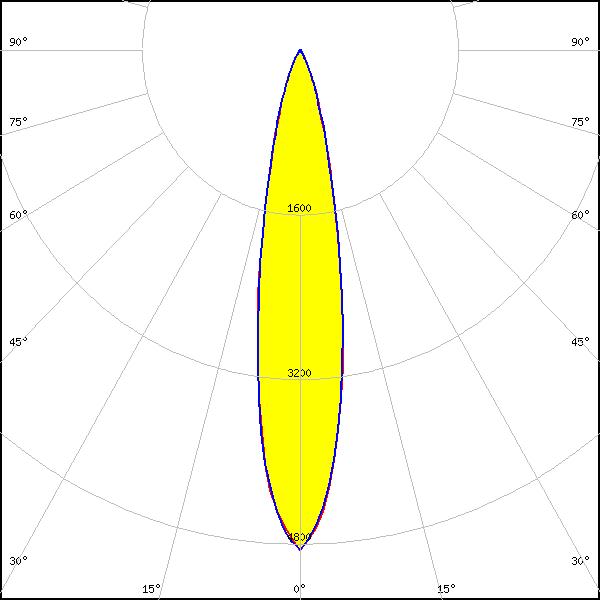

NVCWJ024Z-V1MT: COB J-Type Tunable White
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 10.6 mm
Required components:
FWHM:
20°
FWTM:
42°
Peak intensity:
4.861 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Fortimo SLM C TW L06A 1313 G7N
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 6.5 mm
Required components:
FWHM:
14°
FWTM:
32°
Peak intensity:
8.385 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM C TW L09A 1919 G7N
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.3 mm
Required components:
FWHM:
18°
FWTM:
40°
Peak intensity:
5.196 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

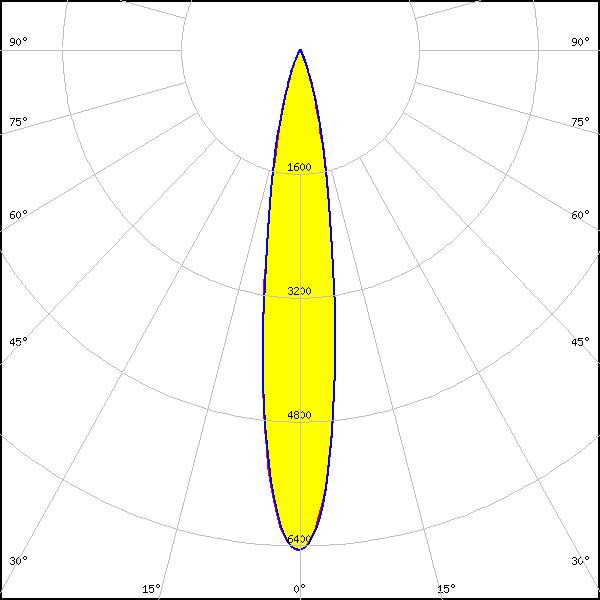

Fortimo SLM L09 CoB
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.0 mm
Required components:
FWHM:
16°
FWTM:
36°
Peak intensity:
6.459 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

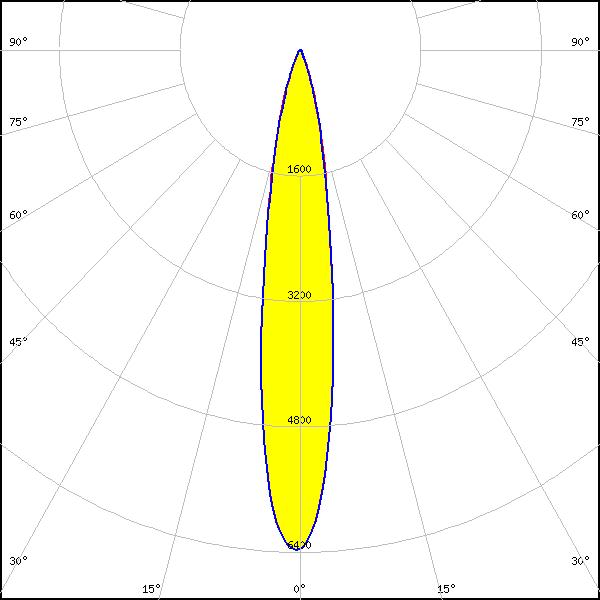

Fortimo SLM L09 CoB
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 9.0 mm
Required components:
FWHM:
17°
FWTM:
37°
Peak intensity:
6.377 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 13.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
22°
FWTM:
51°
Peak intensity:
3.094 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 CoB
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 15.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
22°
FWTM:
54°
Peak intensity:
2.586 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.8 mm
Required components:
FWHM:
17°
FWTM:
38°
Peak intensity:
5.841 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

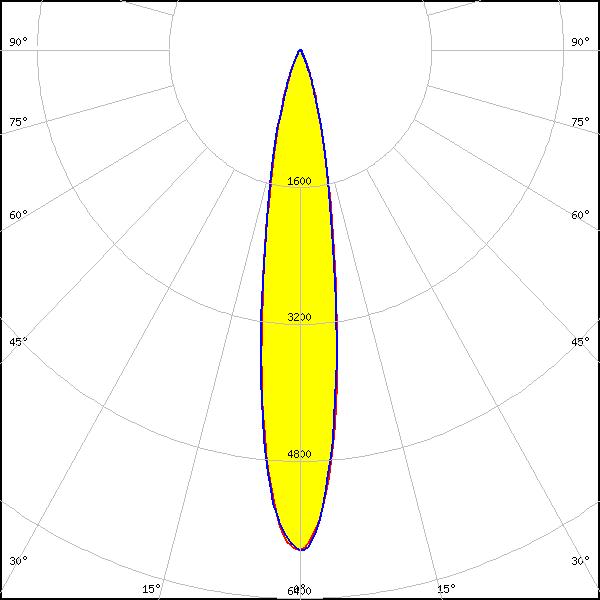

LC003D / LC006D / LC009D / LC013D
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 9.8 mm
Required components:
FWHM:
17°
FWTM:
38°
Peak intensity:
5.841 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C G2
Ordering code: CP18730_YASMEEN-50-S-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
14°
FWTM:
28°
Peak intensity:
10.366 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

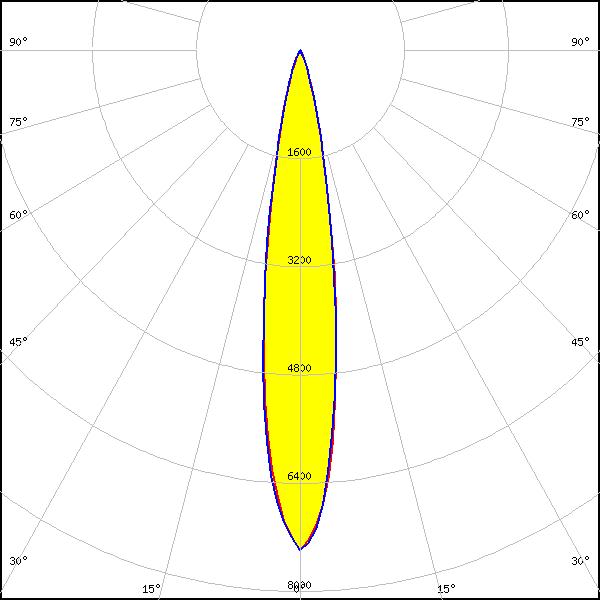

LC010T (Tunable White)
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.8 mm
Required components:
FWHM:
17°
FWTM:
34°
Peak intensity:
7.392 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
LC016D / LC019D / LC026D / LC033D
Ordering code: CP18730_YASMEEN-50-S-B2
LES size: 14.5 mm
Required components:
BJB: 47.360.1010
FWHM:
28°
FWTM:
54°
Peak intensity:
2.466 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C G2
Ordering code: CP18730_YASMEEN-50-S-B2
LES size: 8.5 mm
Required components:
BJB: 47.360.1010
FWHM:
18°
FWTM:
36°
Peak intensity:
6.655 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

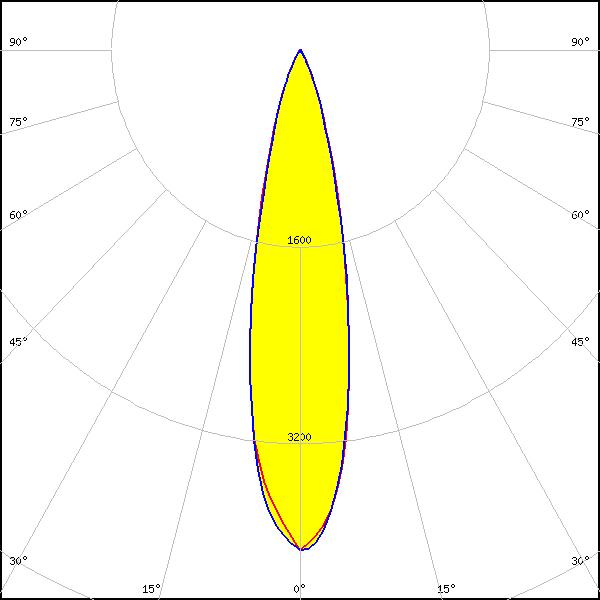

LC030C/040C G2
Ordering code: CP18730_YASMEEN-50-S-B2
LES size: 11.5 mm
Required components:
BJB: 47.360.1010
FWHM:
23°
FWTM:
45°
Peak intensity:
4.079 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 14.5
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 14.5 mm
Required components:
FWHM:
28°
FWTM:
54°
Peak intensity:
2.651 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 6
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 6.0 mm
Required components:
FWHM:
12°
FWTM:
26°
Peak intensity:
11.968 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

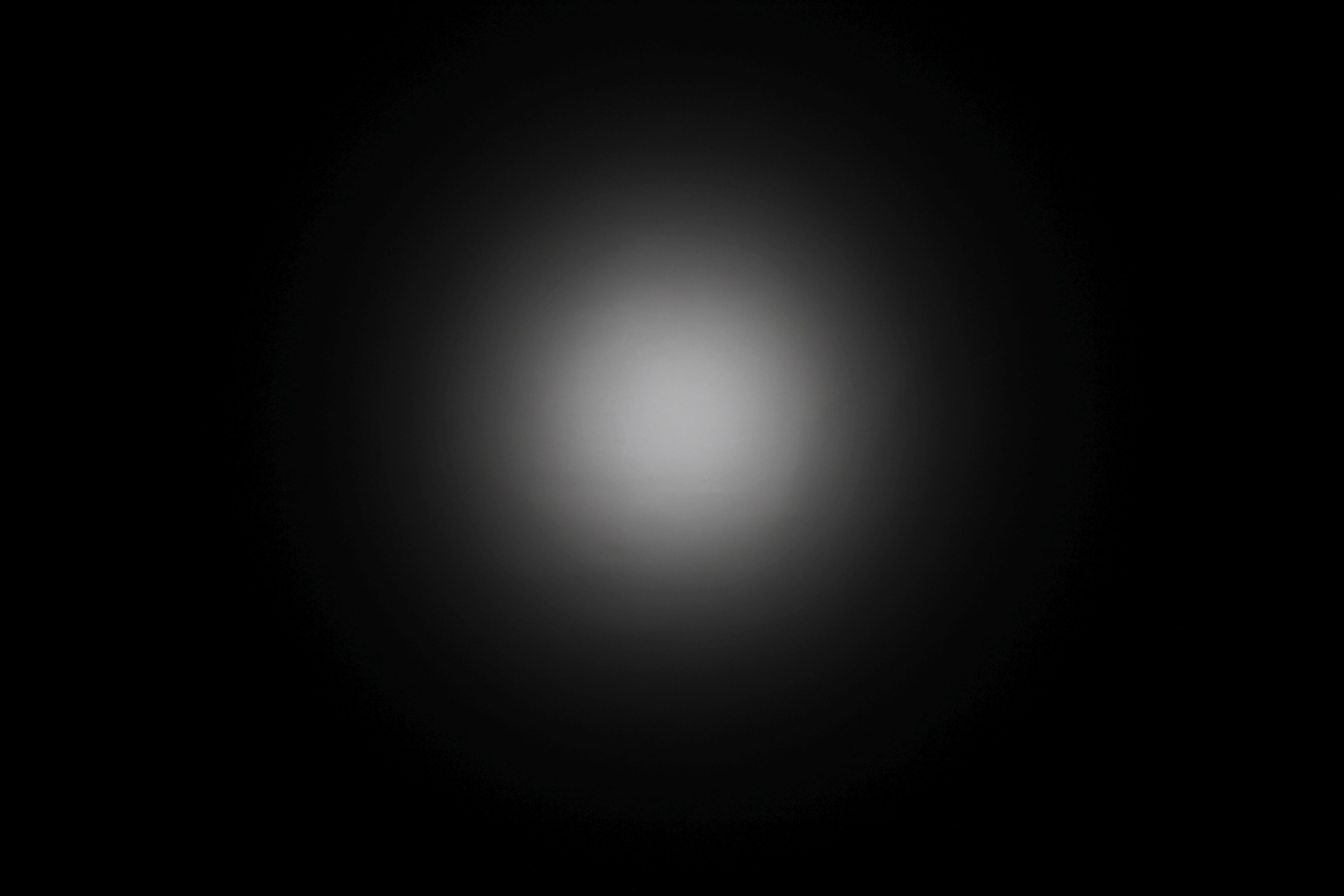

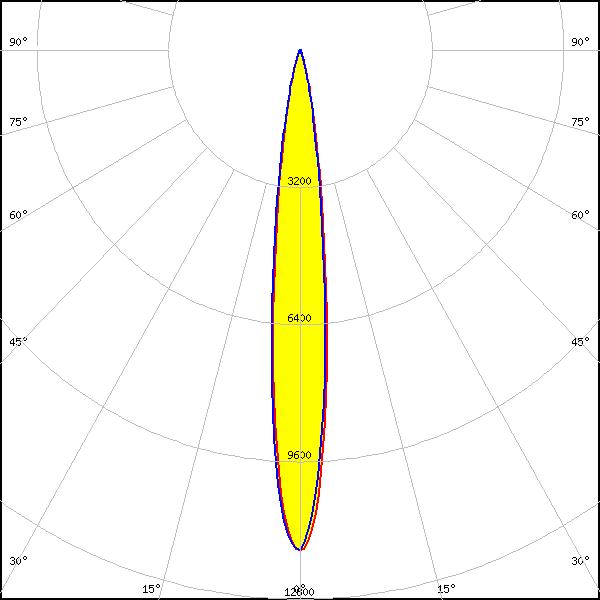

LED:
MJT COB LES 6
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 6.0 mm
Required components:
FWHM:
12°
FWTM:
27°
Peak intensity:
11.675 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 9.8
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.8 mm
Required components:
FWHM:
18°
FWTM:
38°
Peak intensity:
5.795 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 9.8
Ordering code: CP18737_YASMEEN-50-S-C2-WHT
LES size: 9.8 mm
Required components:
FWHM:
18°
FWTM:
39°
Peak intensity:
5.696 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

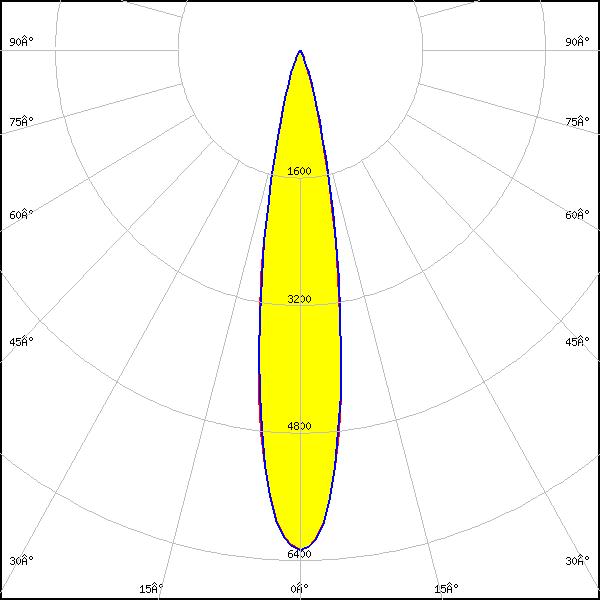

SLE 09mm 1200lm xxx R ADV8
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 9.0 mm
Required components:
FWHM:
19°
FWTM:
36°
Peak intensity:
6.272 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE 13mm 3000lm xxx R ADV8
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 13.0 mm
Required components:
FWHM:
26°
FWTM:
50°
Peak intensity:
3.241 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES13
Ordering code: CP18723_YASMEEN-50-S-C2
LES size: 13.0 mm
Required components:
FWHM:
25°
FWTM:
50°
Peak intensity:
3.322 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
