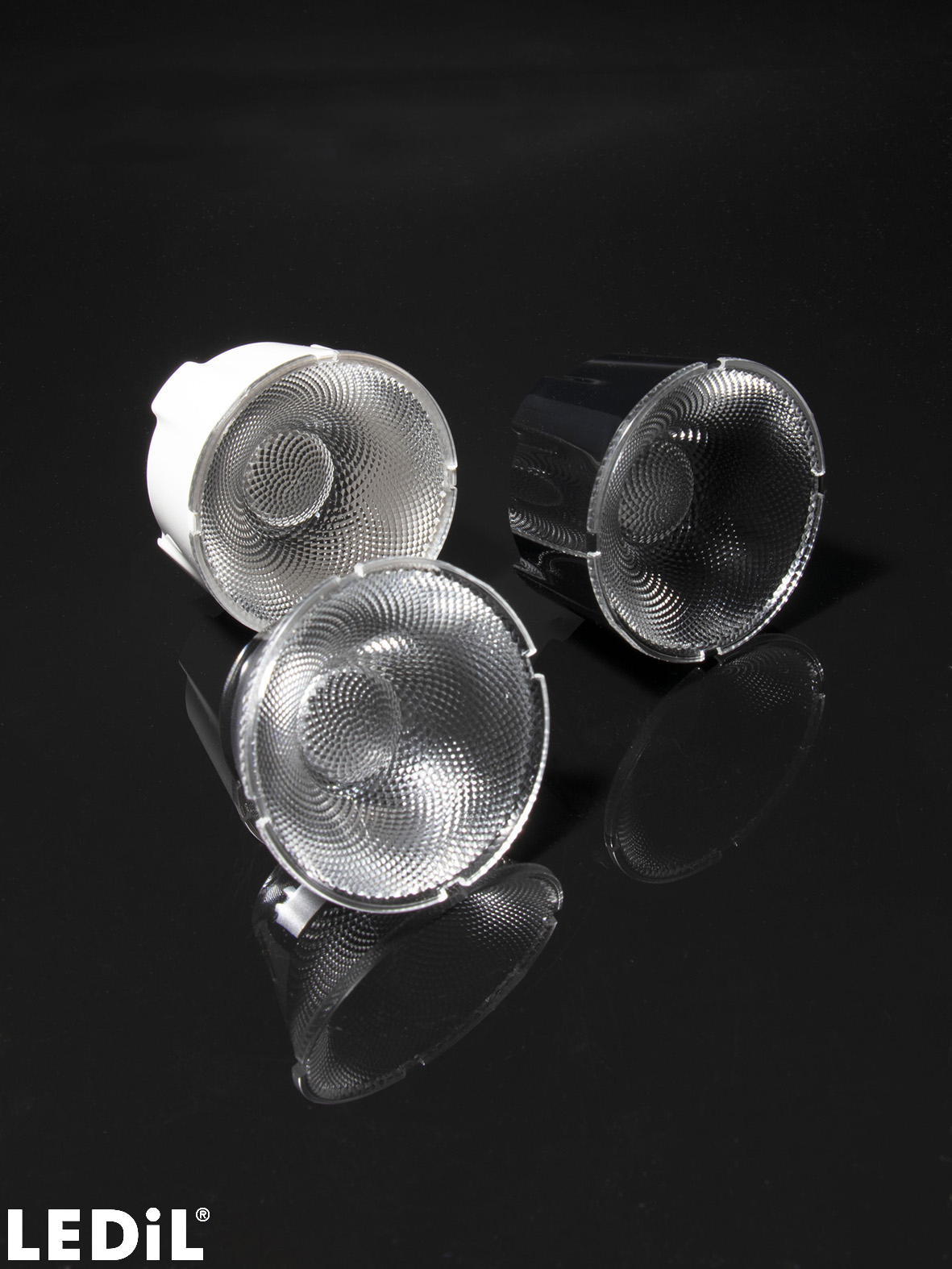

    YASMEEN-50-M

    Print

    ~26° medium beam

    This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

    Specification
    • Dimensions:
      50 mm
    • Height:
      27.56 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • YASMEEN-50-M
      PMMA
    • YASMEEN-50-HLD2-C-WHT
      PC
    • YASMEEN-50-HLD2-C
      PC
    • YASMEEN-50-HLD2-B-WHT
      PC
    • YASMEEN-50-HLD2-B
      PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C17235_YASMEEN-50-M
      clear
    • Quantity in box:
      252 pcs
    • Box size:
      476 x 273 x 305 mm
    • Box weight:
      7.80 kg
    • MPQ:
      28 pcs
    • MOQ:
      112 pcs
    • MOQ Size:
      480 x 280 x 150 mm
    • MOQ Weight:
      3.60 kg
    • Assembly
    • CP18724_YASMEEN-50-M-C2
      black,Holder C
    • CP18724_YASMEEN-50-M-C2
      clear
    • CP18731_YASMEEN-50-M-B2
      black,Holder B
    • CP18731_YASMEEN-50-M-B2
      clear
    • CP18738_YASMEEN-50-M-C2-WHT
      white,Holder C
    • CP18738_YASMEEN-50-M-C2-WHT
      clear
    • CP18745_YASMEEN-50-M-B2-WHT
      white,Holder B
    • CP18745_YASMEEN-50-M-B2-WHT
      clear
    • Quantity in box:
      252 pcs
    • Box size:
      476 x 273 x 305 mm
    • Box weight:
      9.00 kg
    • MPQ:
      28 pcs
    • MOQ:
      112 pcs
    • MOQ Size:
      480 x 280 x 150 mm
    • MOQ Weight:
      4.10 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C17235_YASMEEN-50-M
      CP18724_YASMEEN-50-M-C2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA-SOCKETS and HEKLA-G2 connectors

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    HEKLA-G2B-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2B-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-I2

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-I3

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-TW1

    Version compatible with tunable white COBs of 15.8 x 15.8 mm packages

    HEKLA-G2B-TW2

    Version compatible with tunable white COBs of 18.8 x 18.8 mm packages

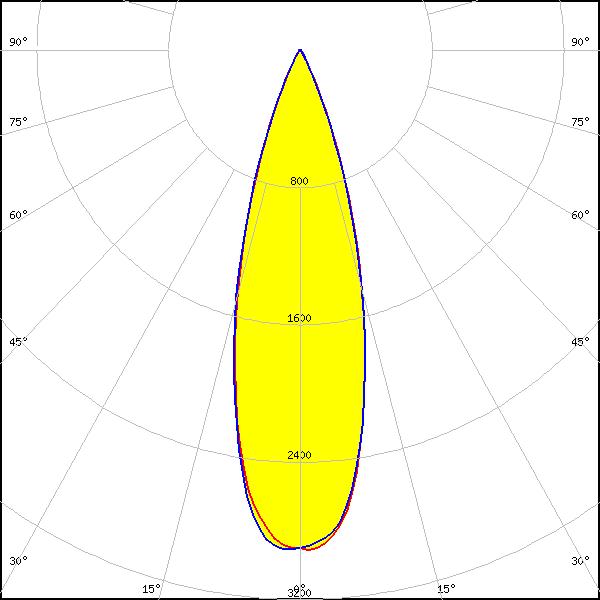

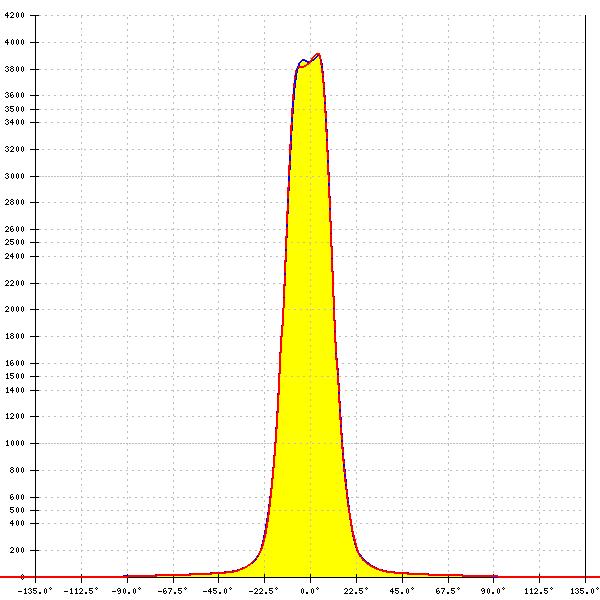

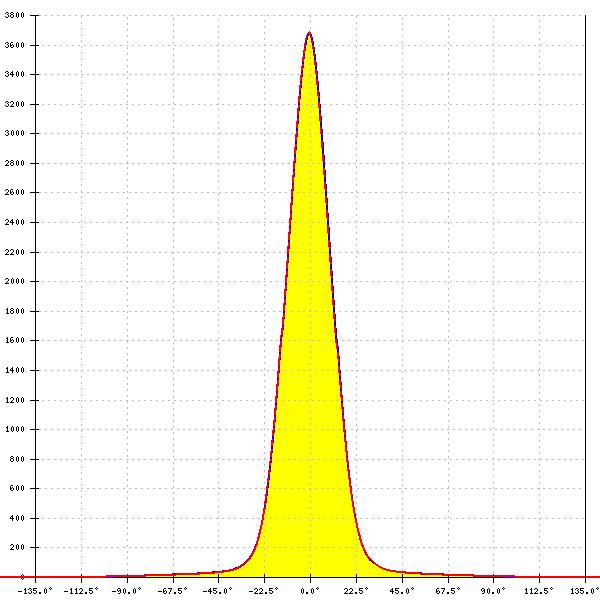

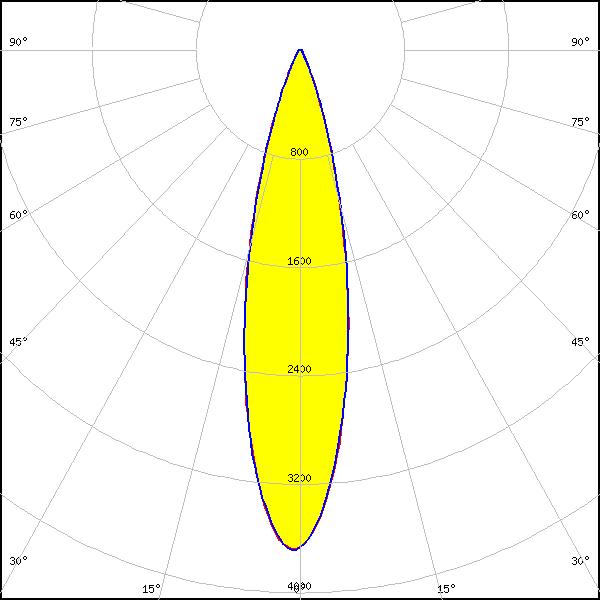

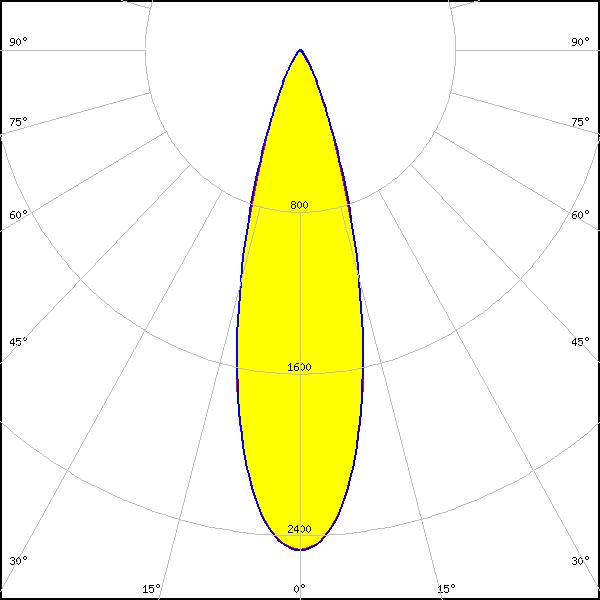

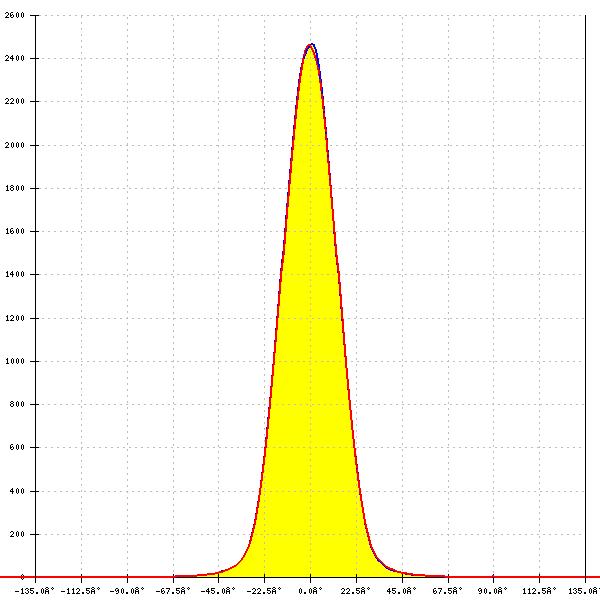

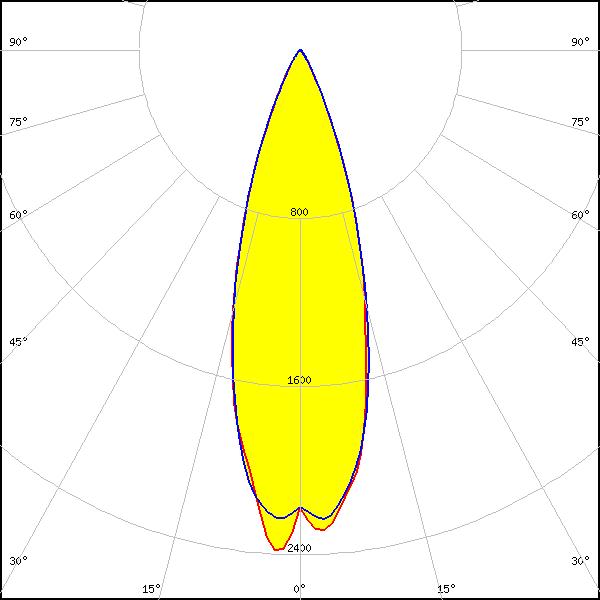

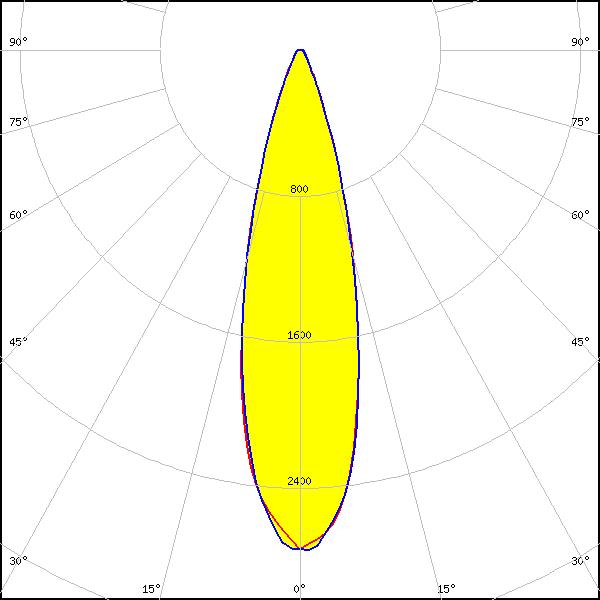

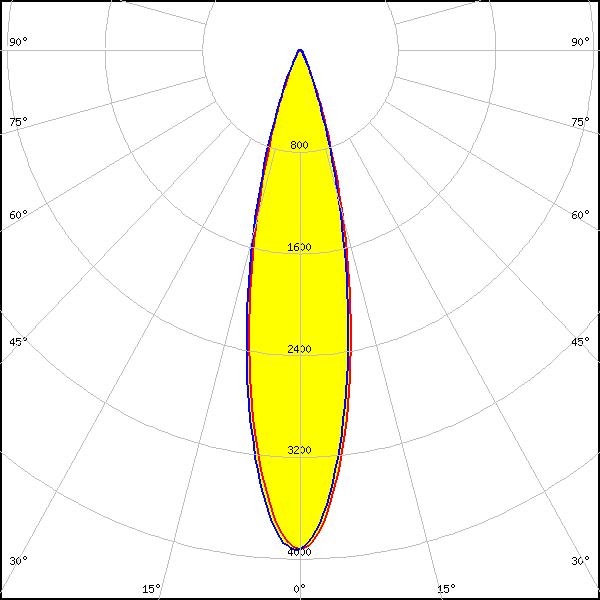

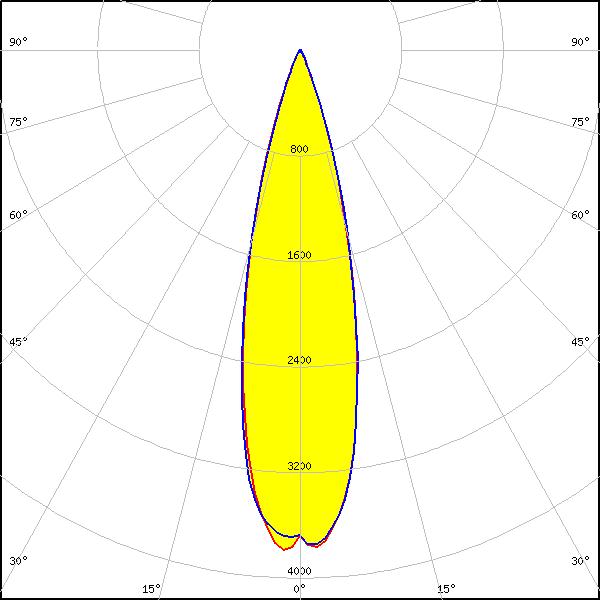

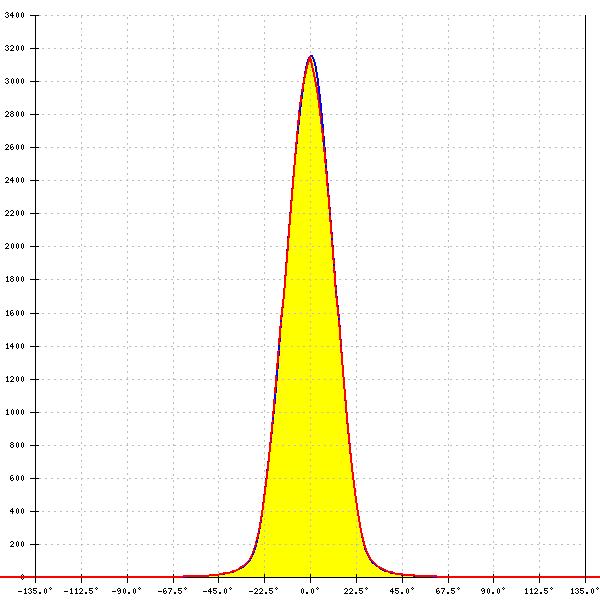

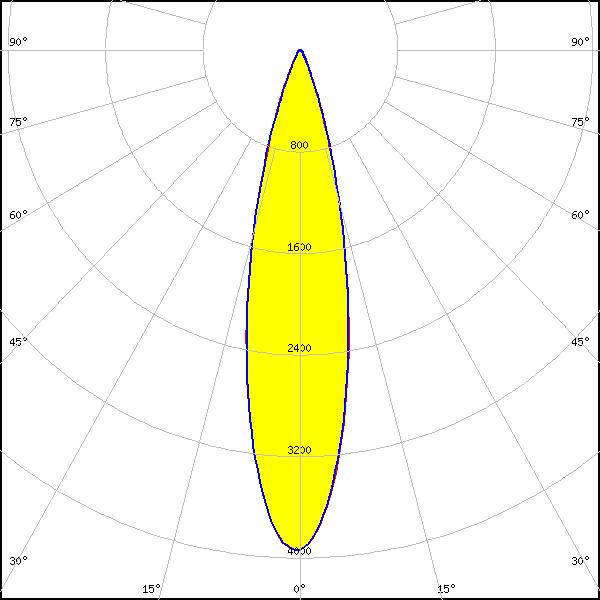

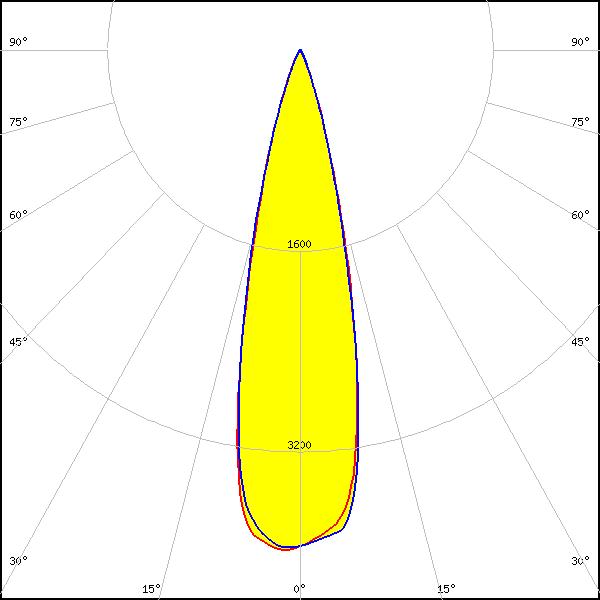

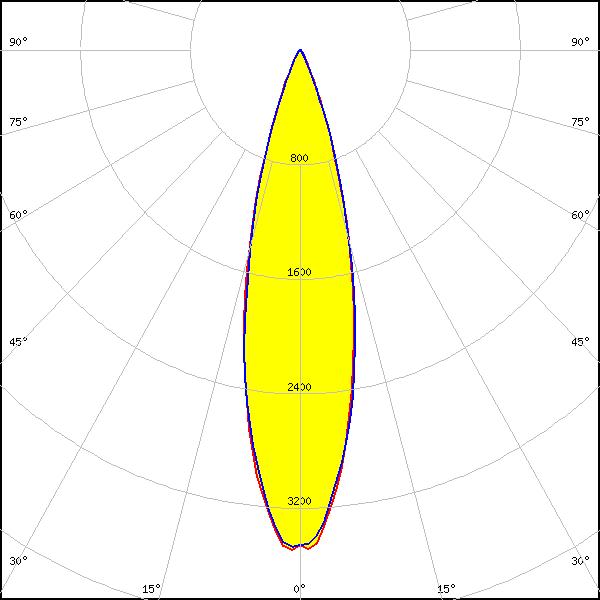

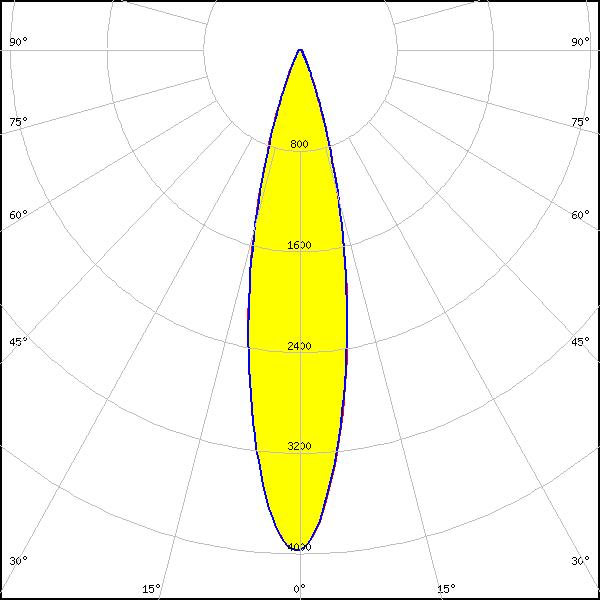

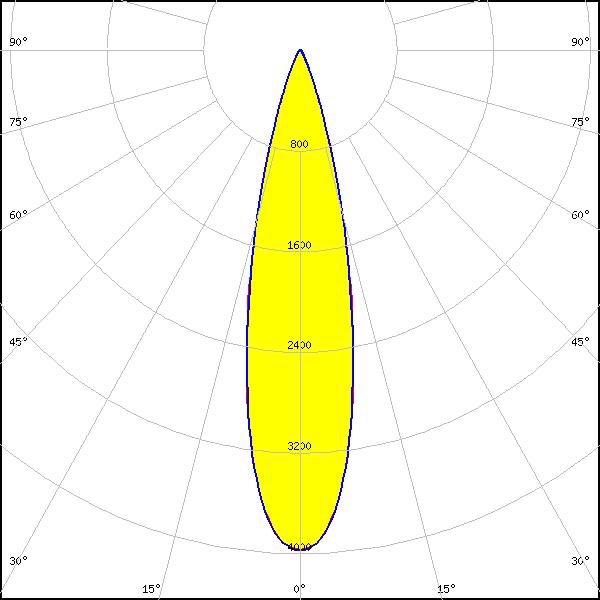

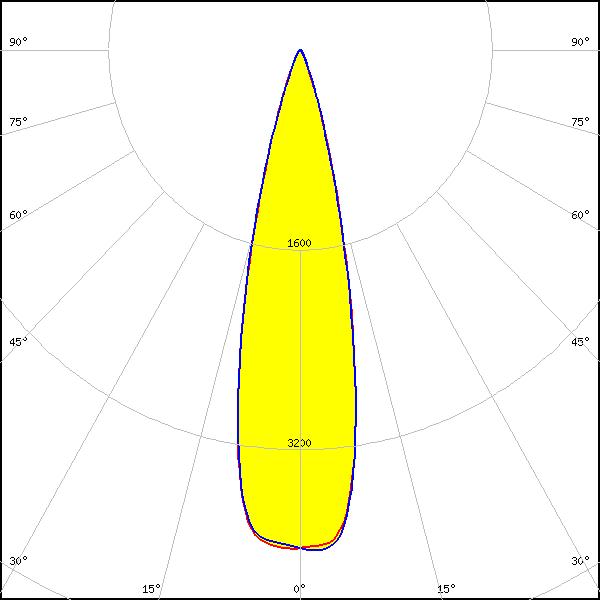

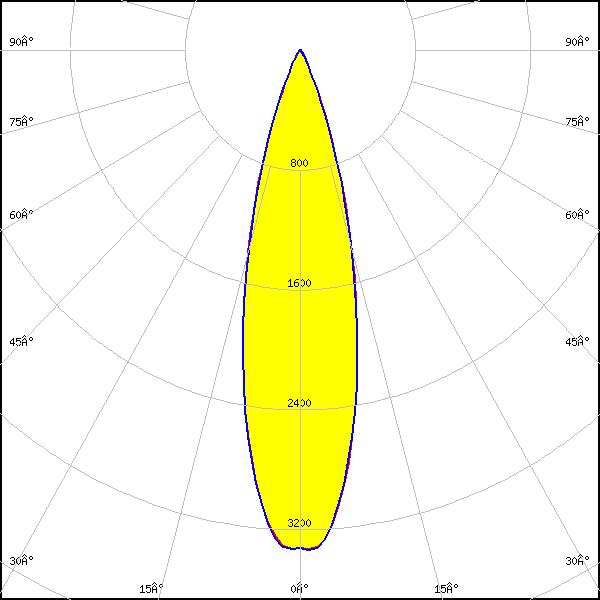

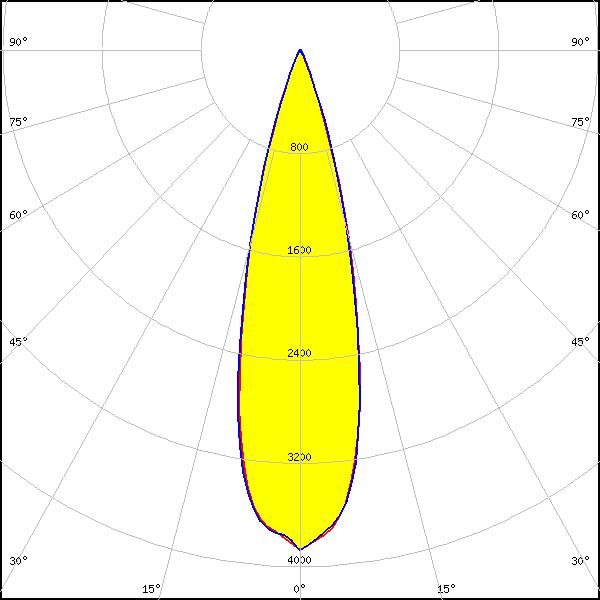

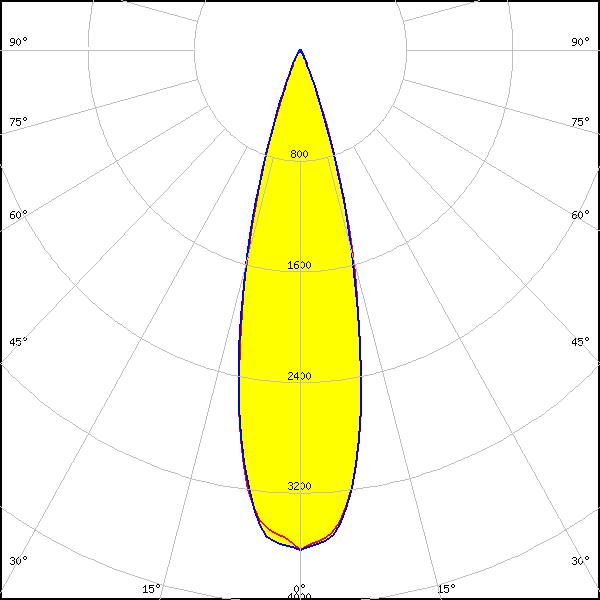

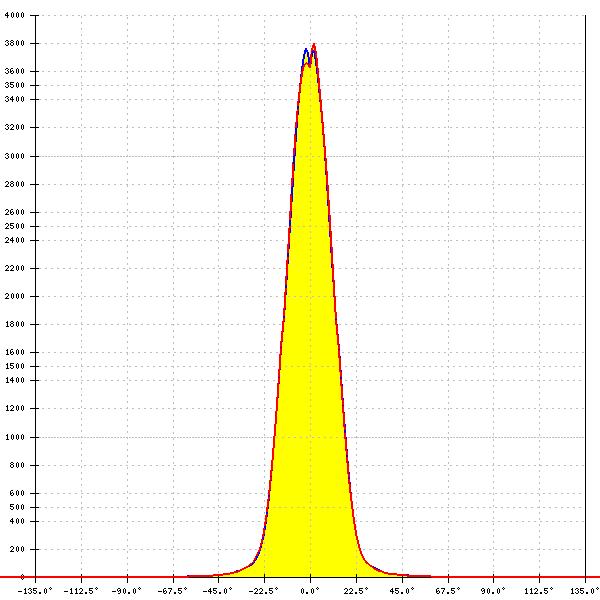

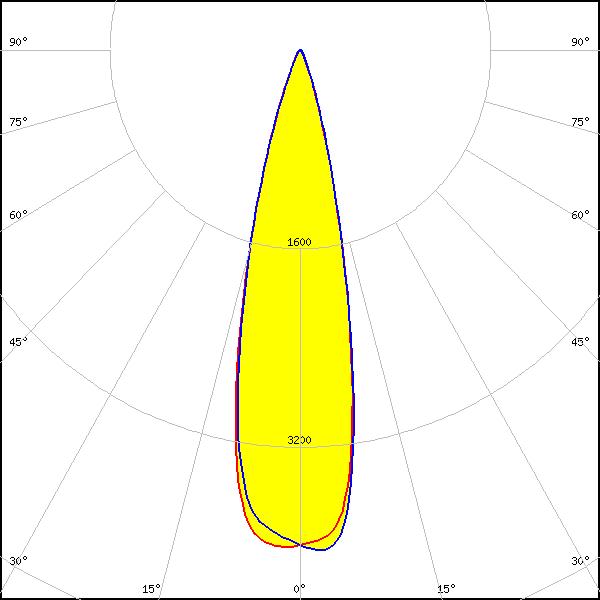

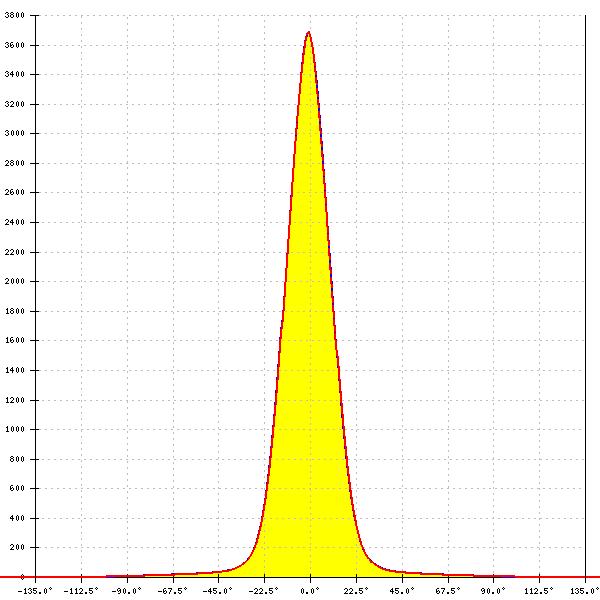

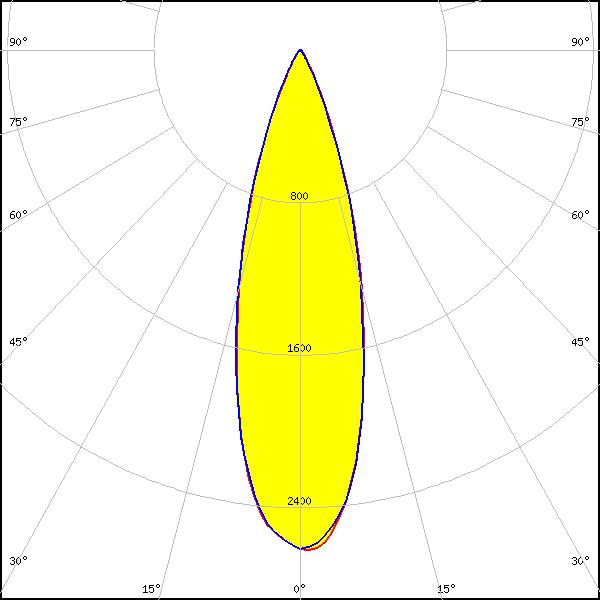

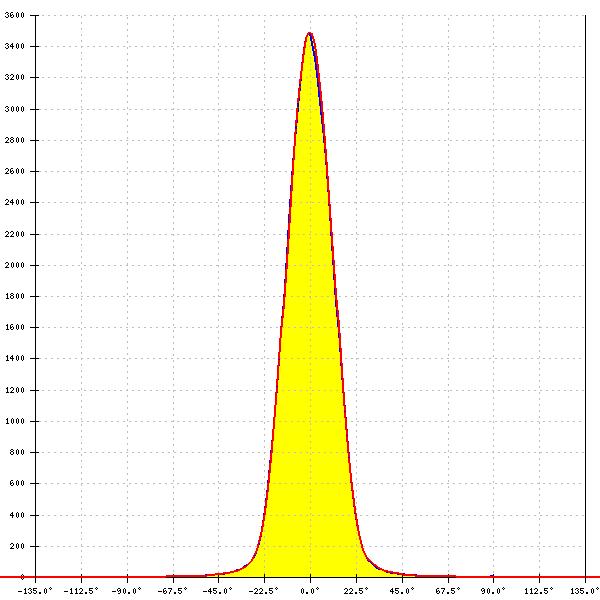

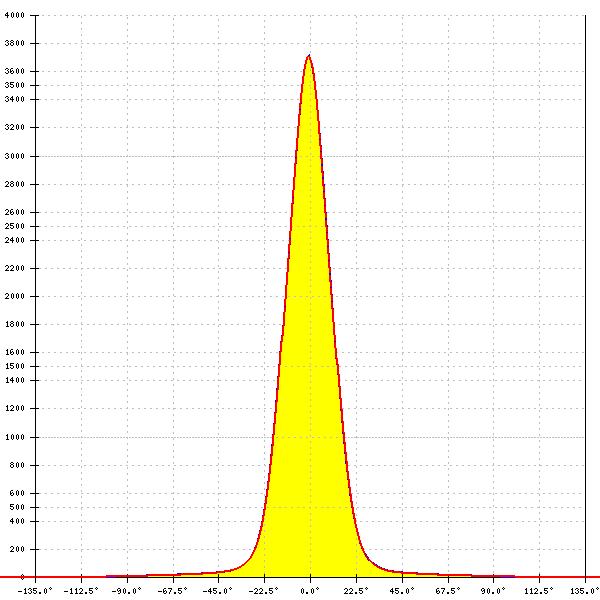

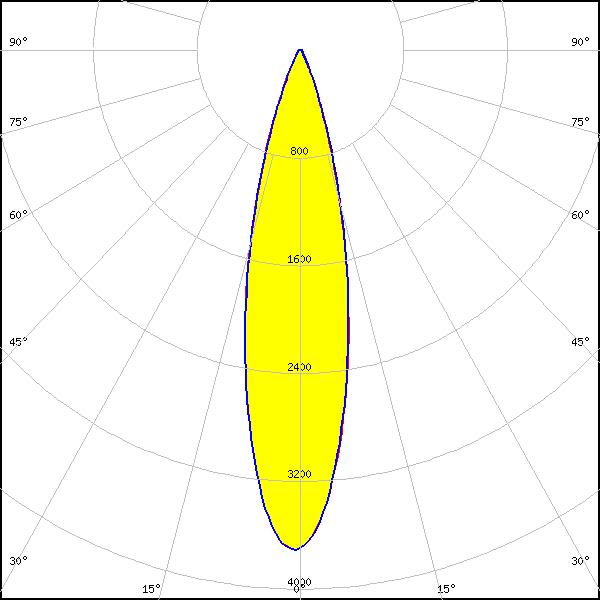

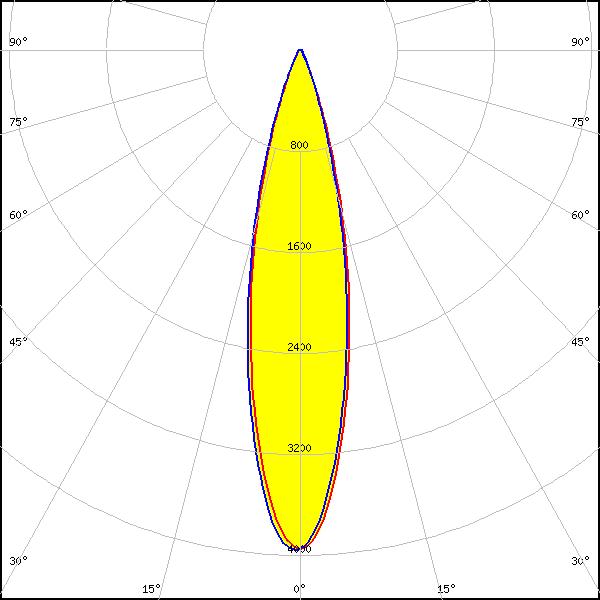

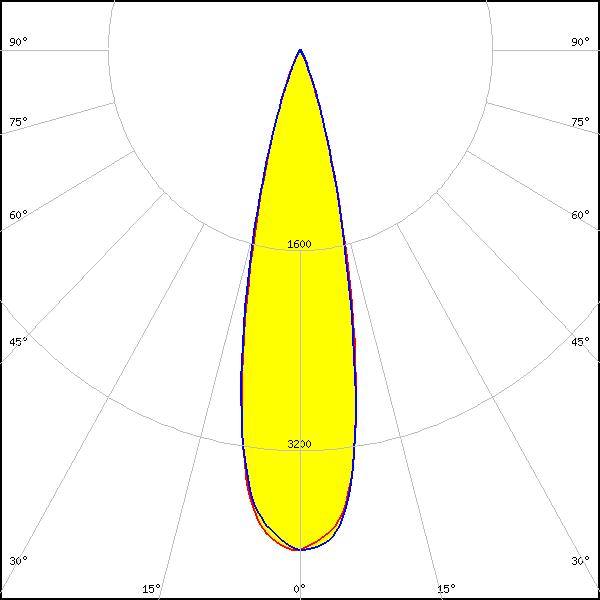

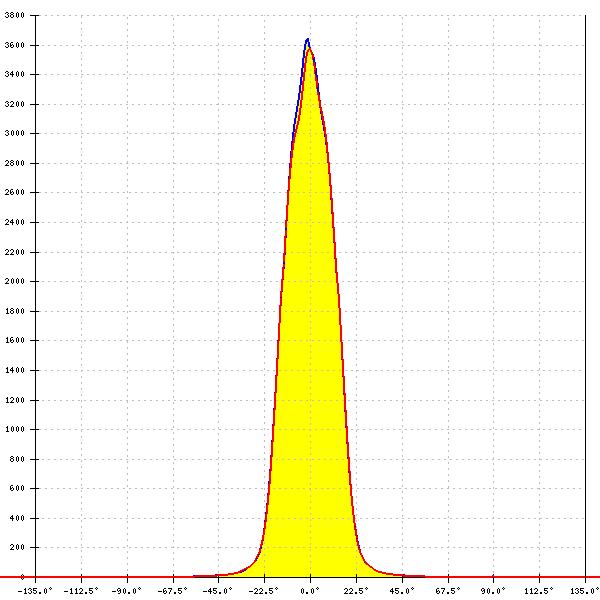

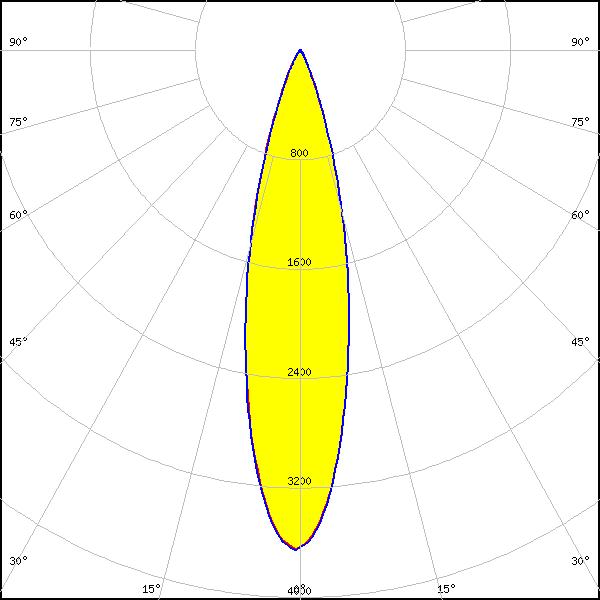

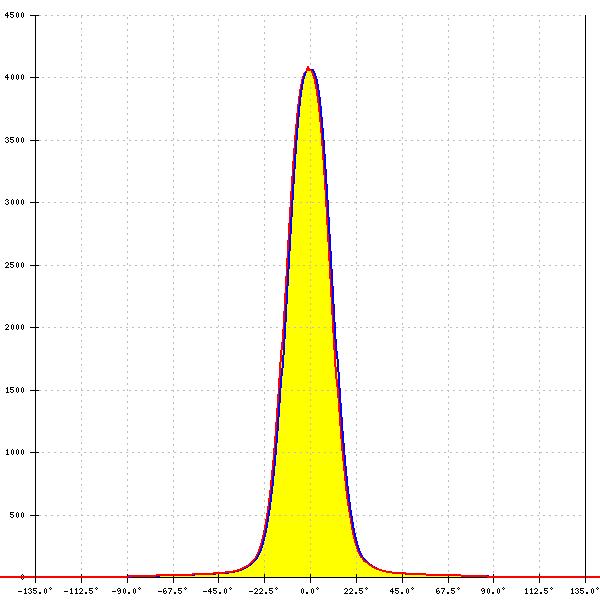

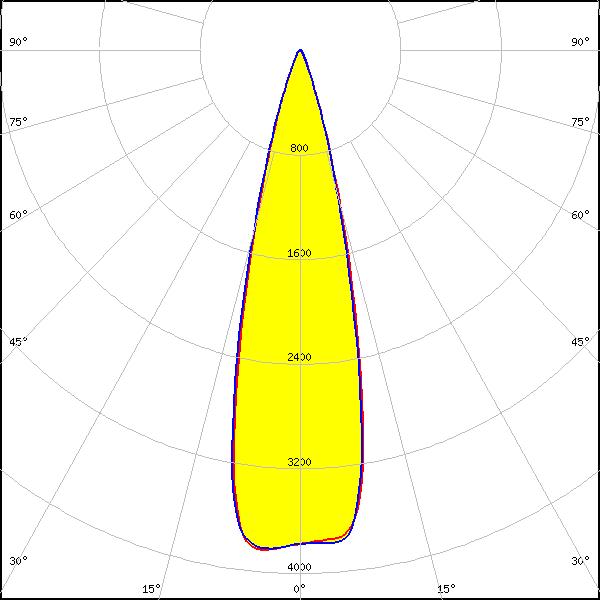

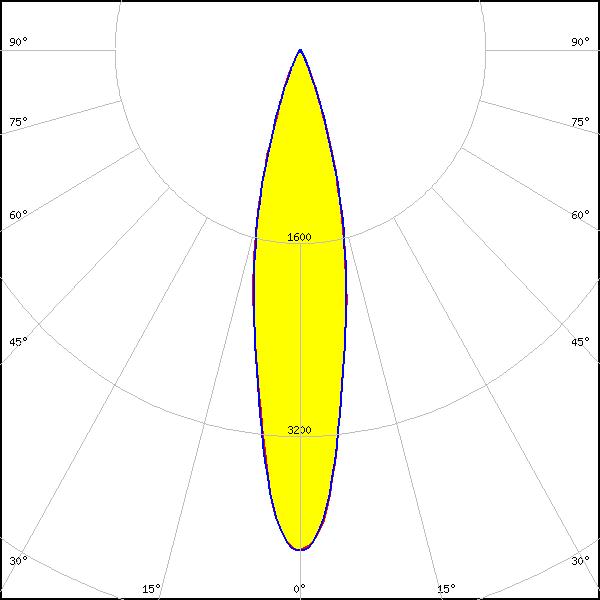

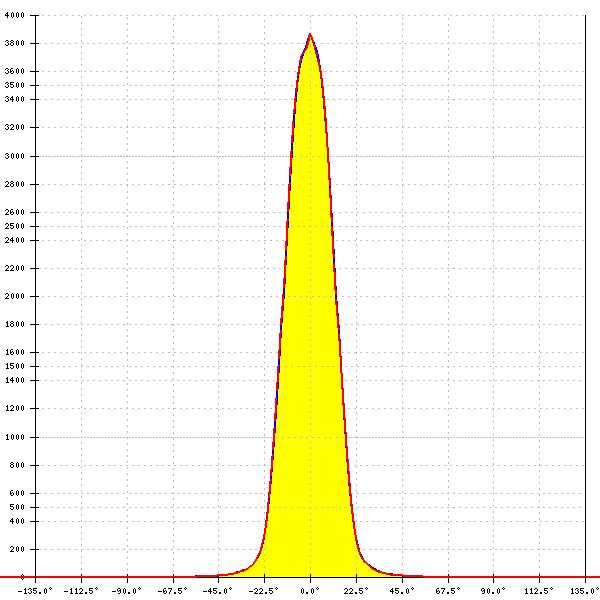

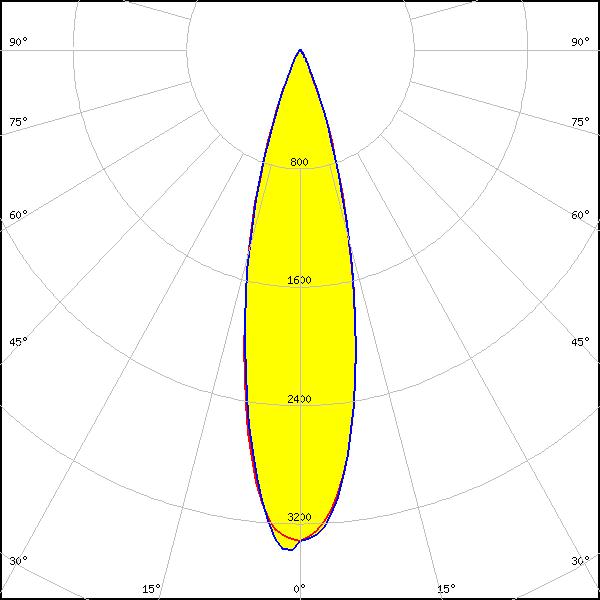

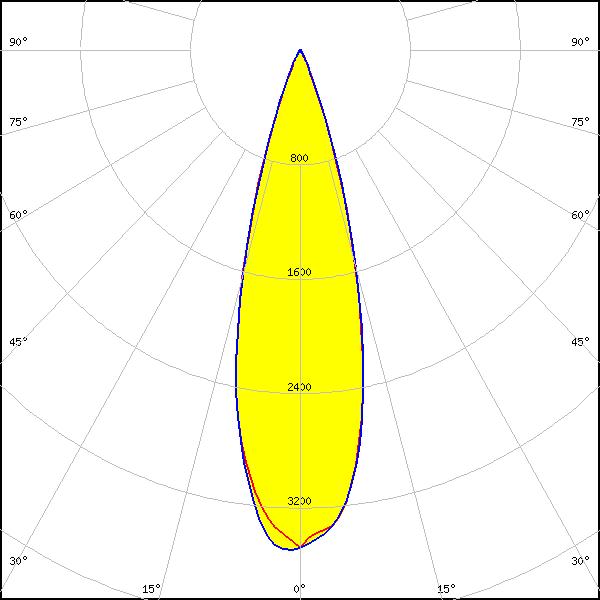

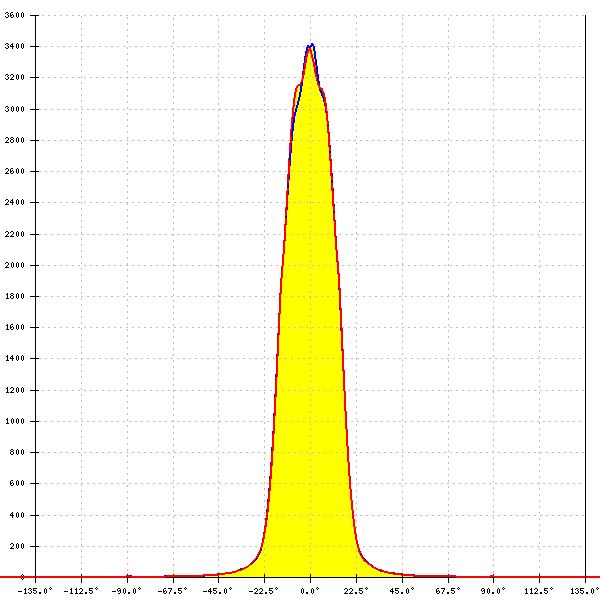

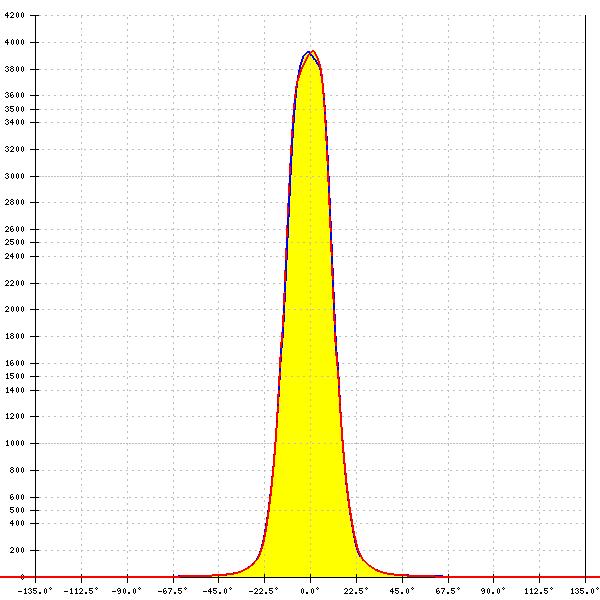

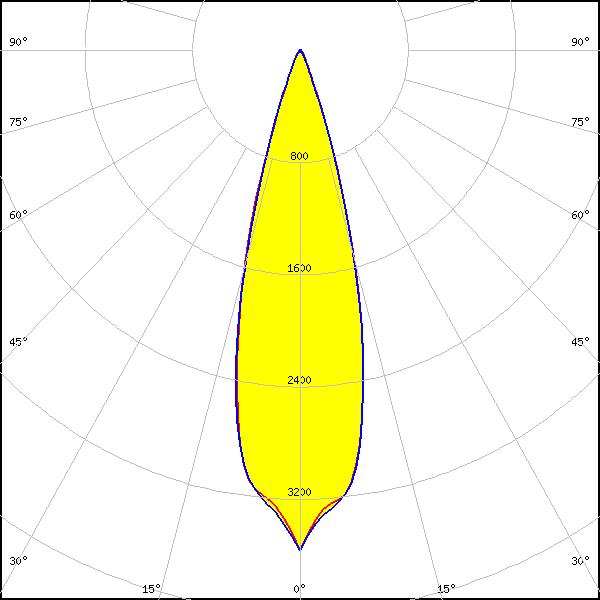

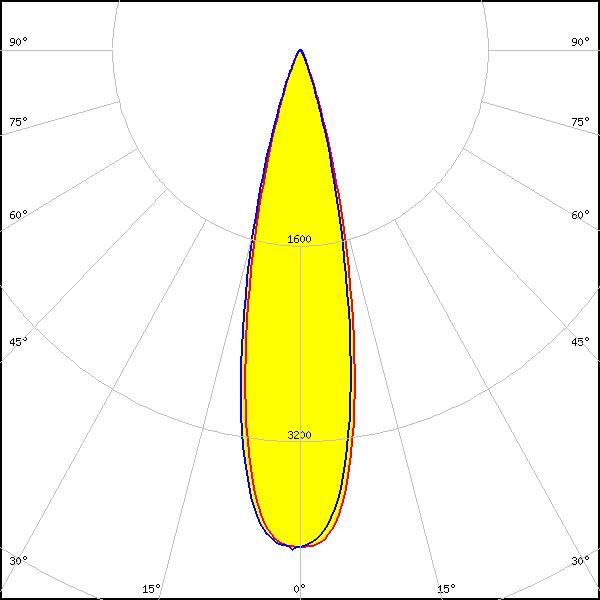

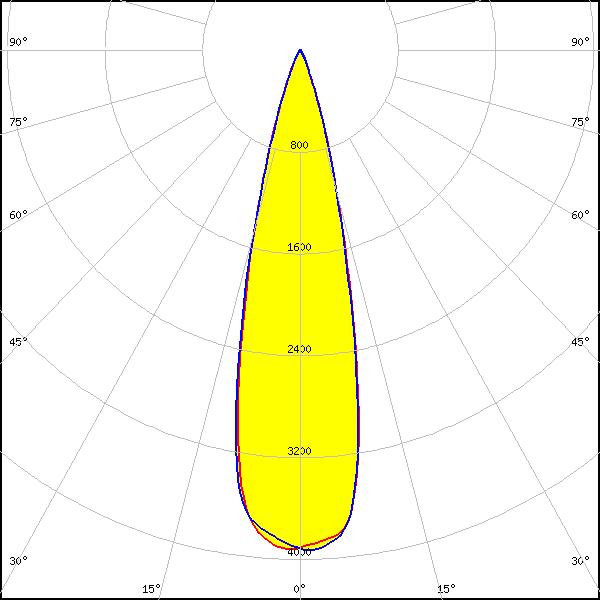

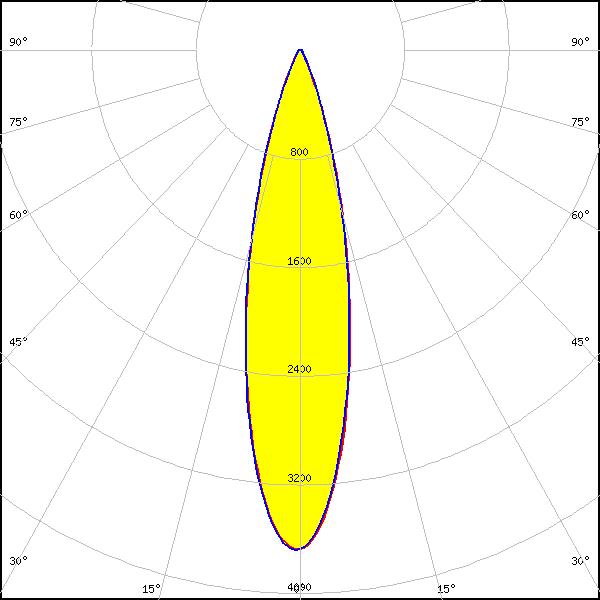

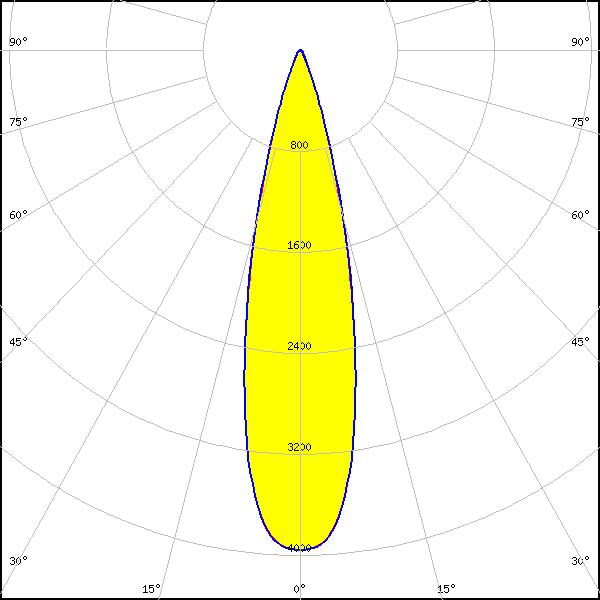

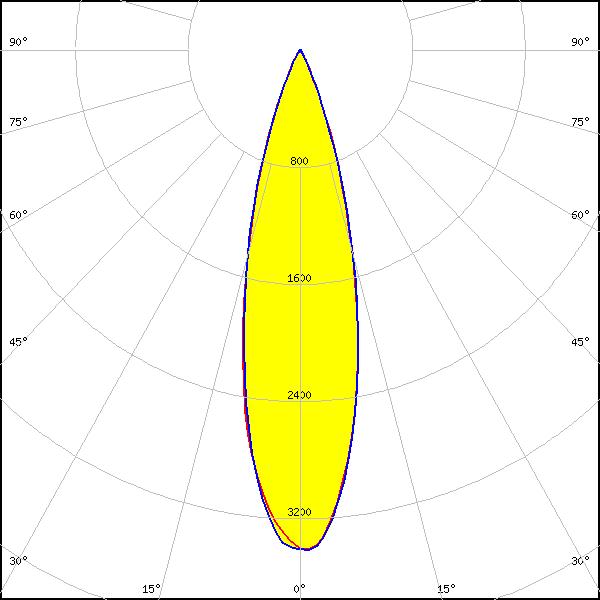

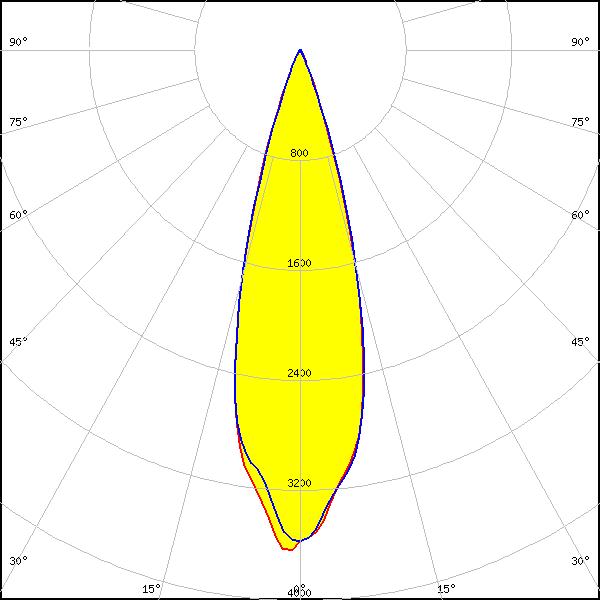

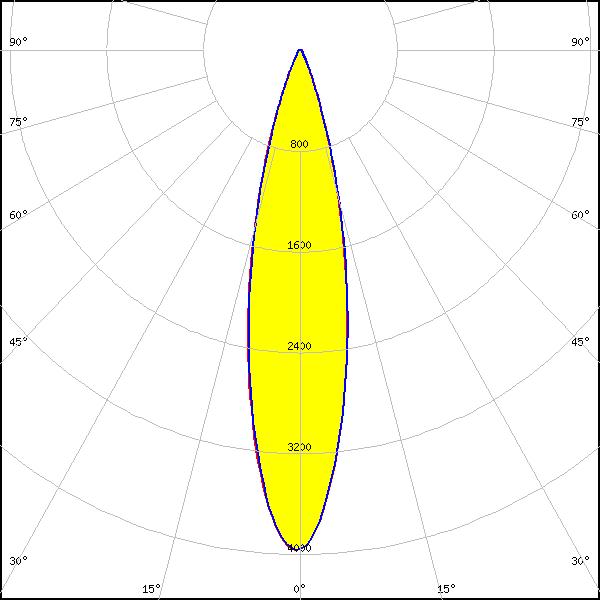

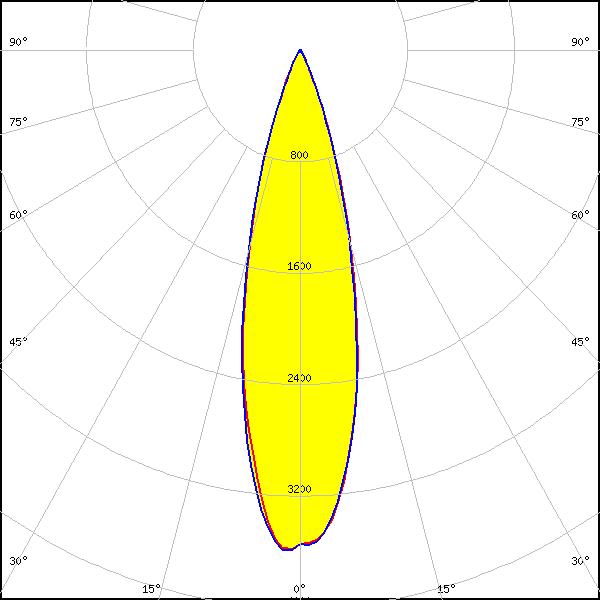

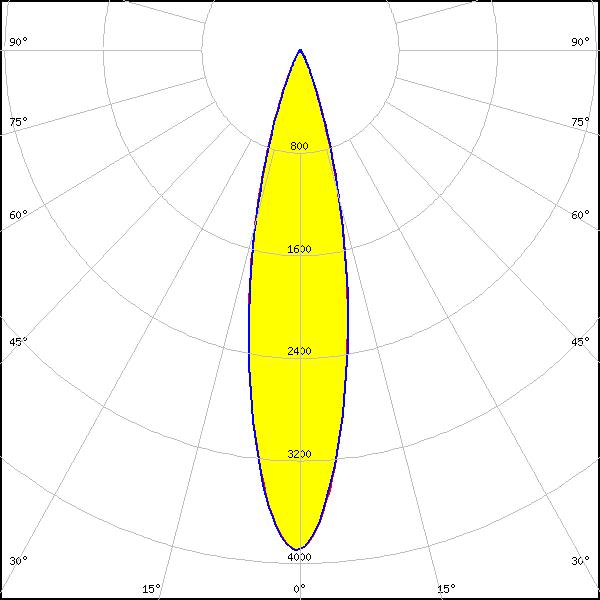

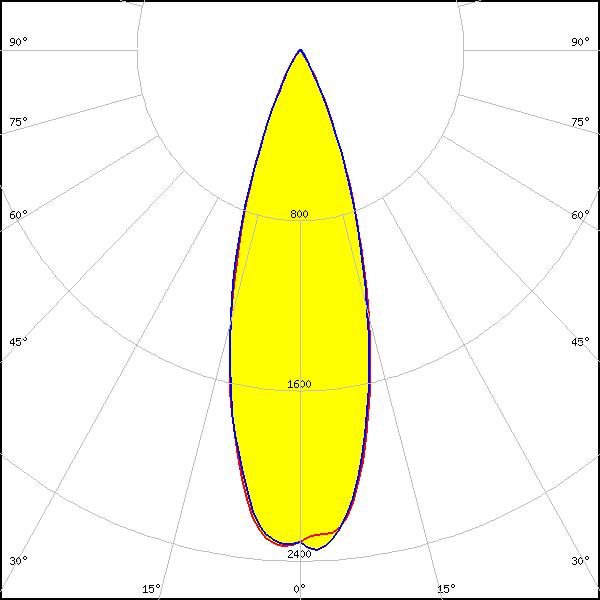

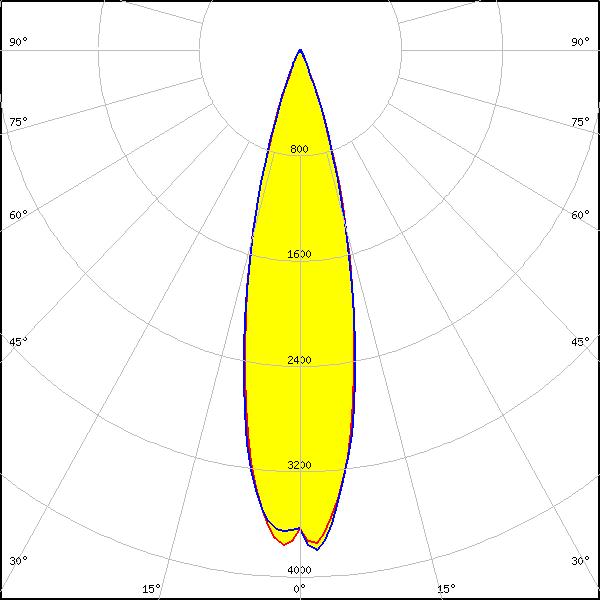

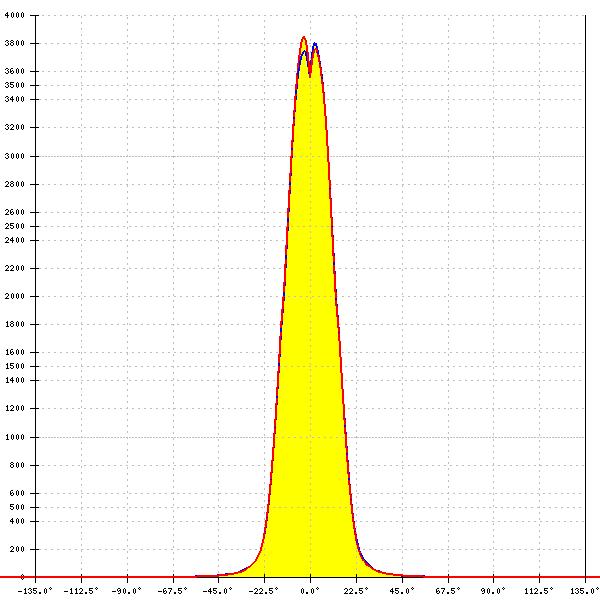

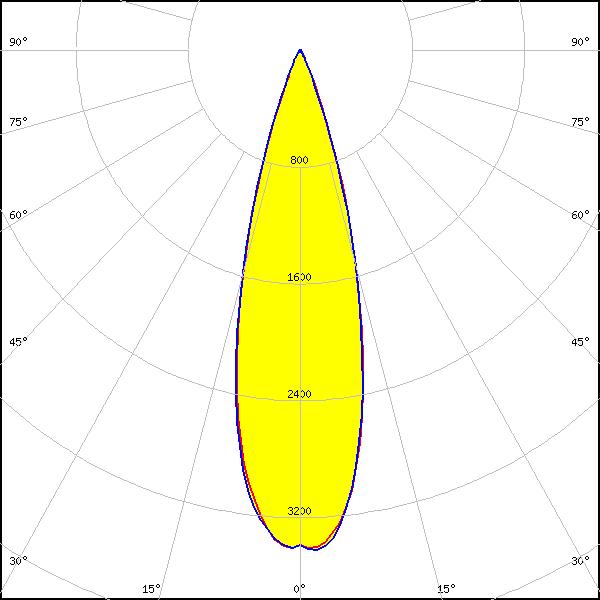

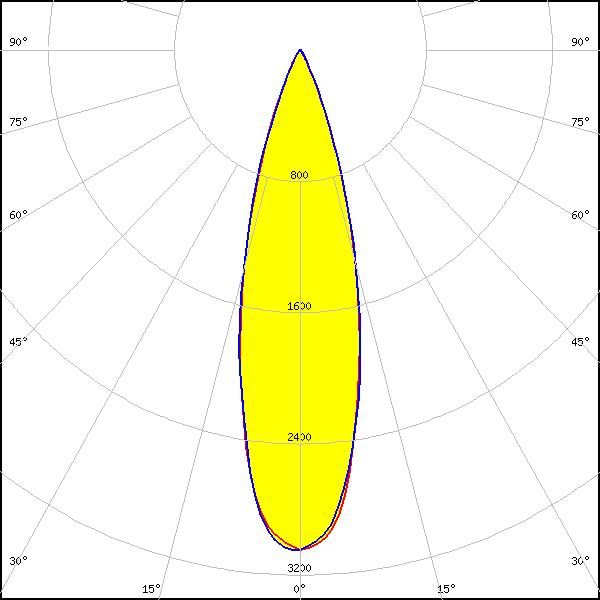

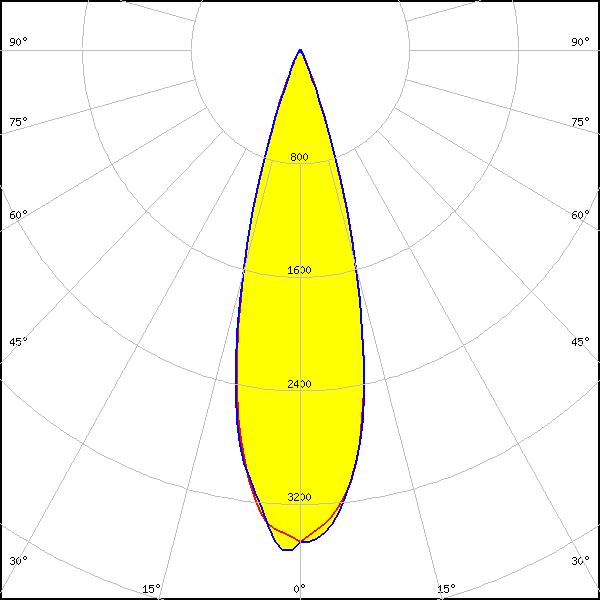

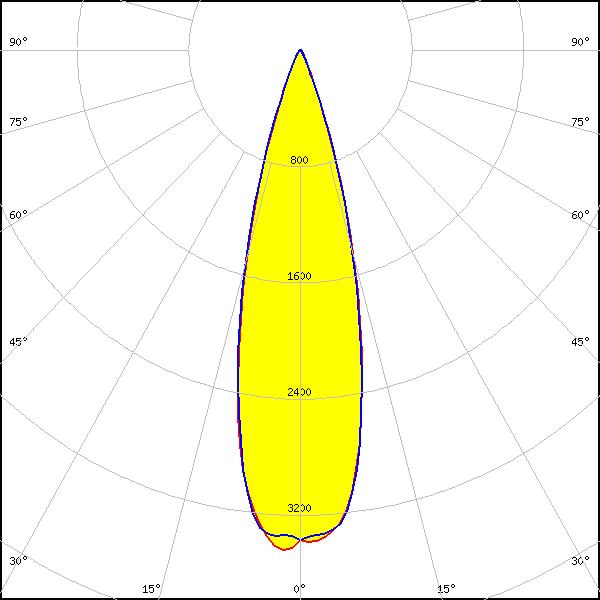

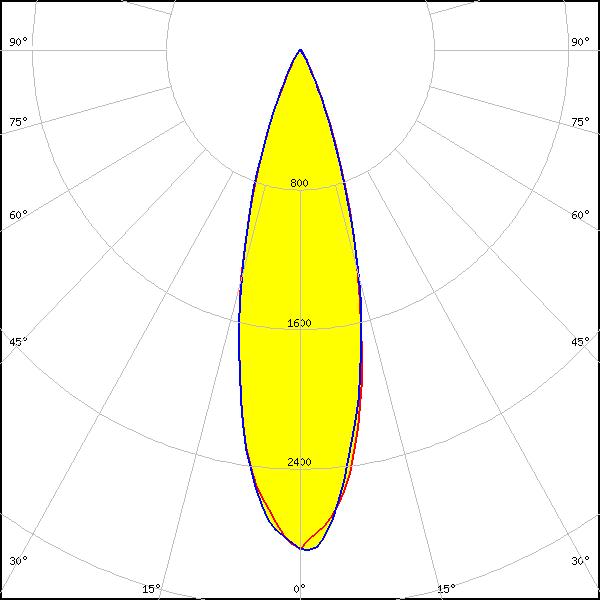

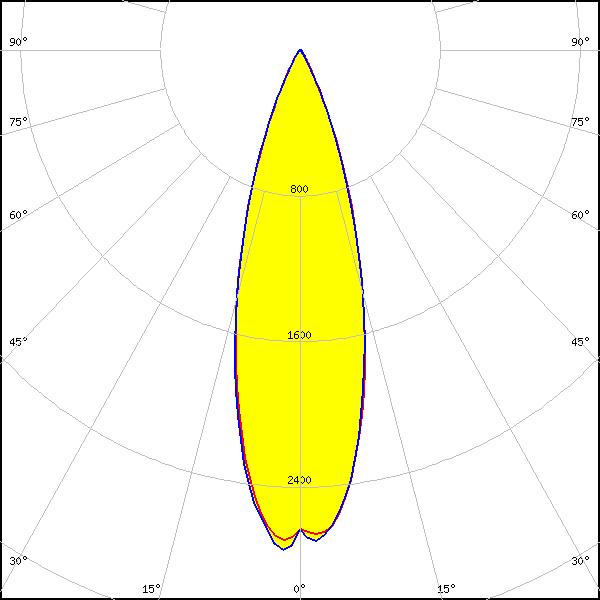

    Optical results

    LED: V10 Gen 8-9
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 10.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 25°
    FWTM: 46°
    Peak intensity: 3.644 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V11 HD Gen 8
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 11.3 mm
    Required components:
    Bender Wirth: 633d Hekla
    FWHM: 26°
    FWTM: 48°
    Peak intensity: 3.363 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

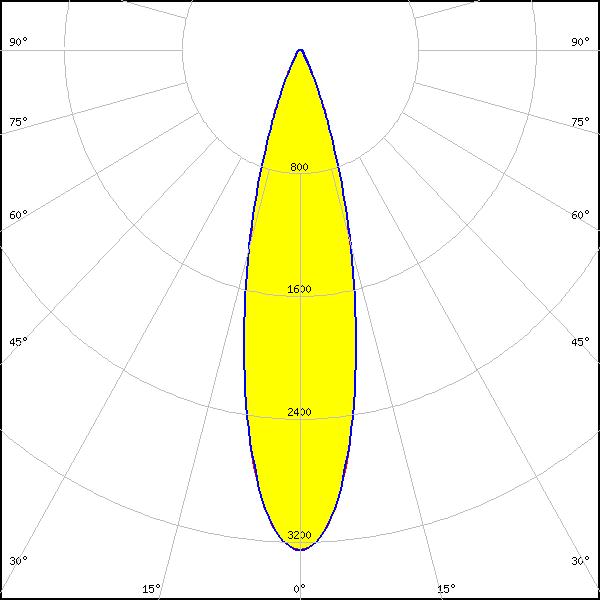

    LED: V11 HD Gen 8
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 11.3 mm
    Required components:
    Bender Wirth: 633d Hekla
    FWHM: 27°
    FWTM: 50°
    Peak intensity: 3.254 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V13 Gen 8-9
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 14.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 32°
    FWTM: 56°
    Peak intensity: 2.252 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

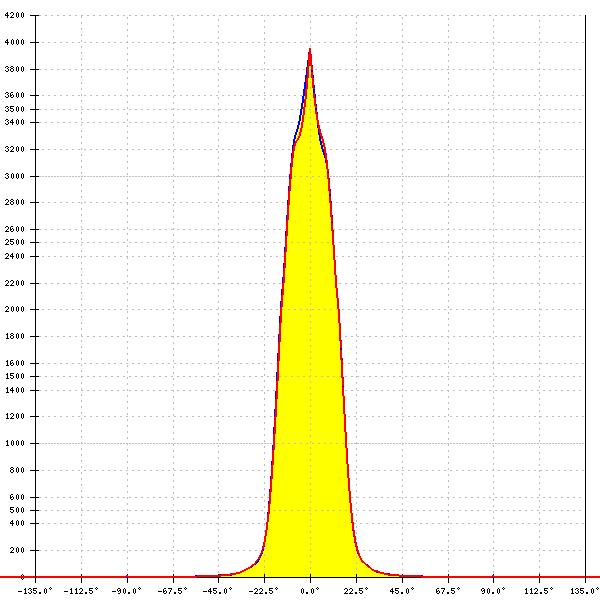

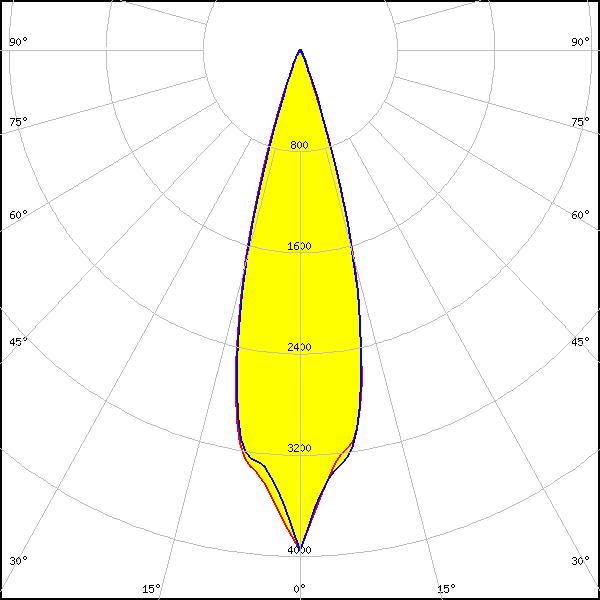

    LED: V3 HD Gen 8
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 3.8 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 28°
    FWTM: 42°
    Peak intensity: 3.952 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

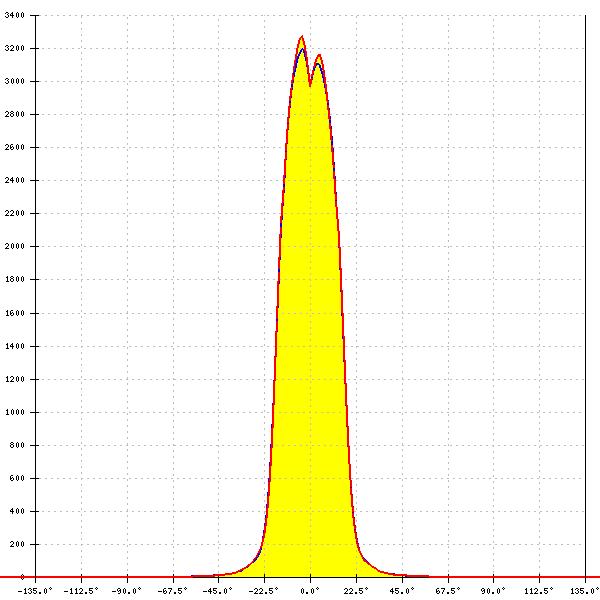

    LED: V3 HD Gen 8 FC
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 2.9 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 32°
    FWTM: 44°
    Peak intensity: 3.284 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

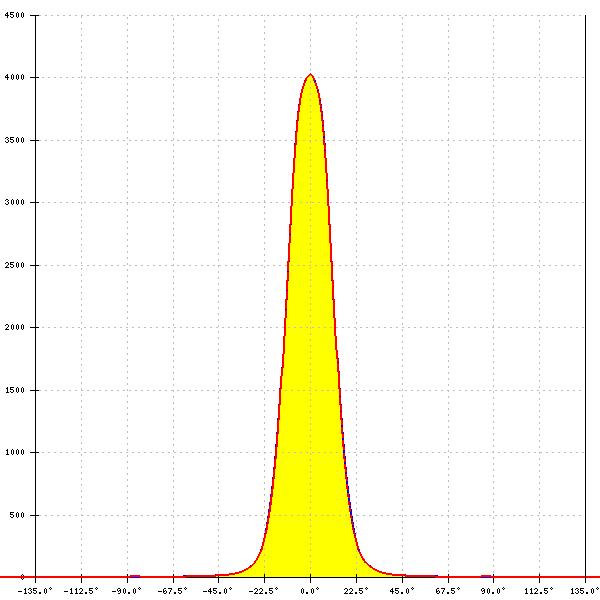

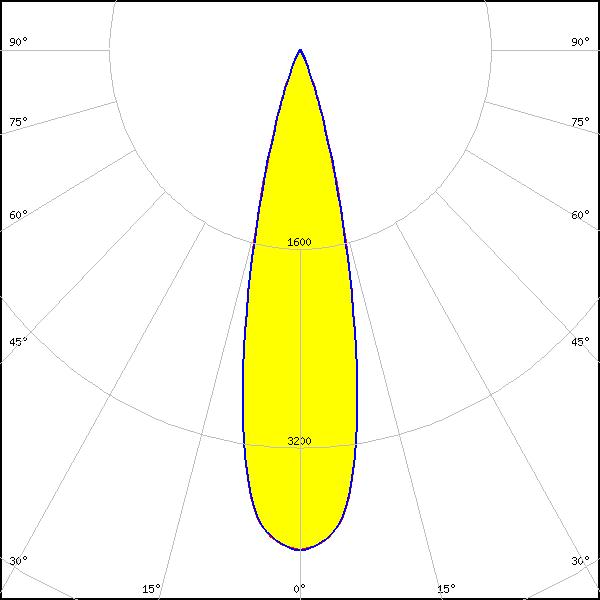

    LED: V4 HD Gen 7
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 5.2 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 25°
    FWTM: 42°
    Peak intensity: 3.996 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

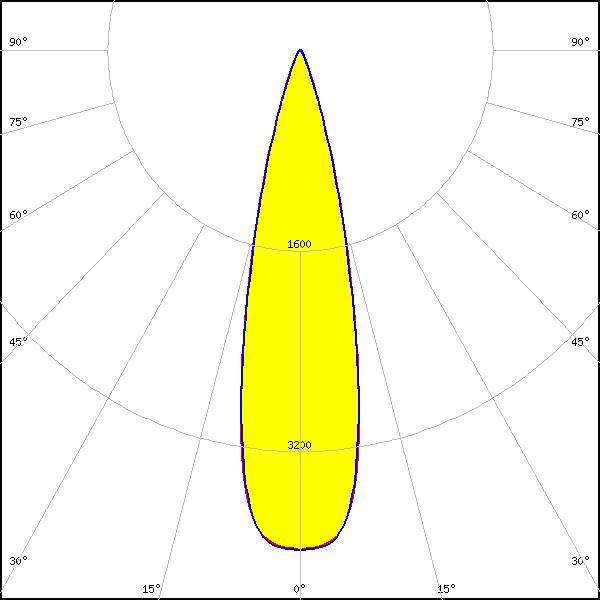

    LED: V4 HD Gen 7
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 5.2 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 25°
    FWTM: 42°
    Peak intensity: 3.996 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

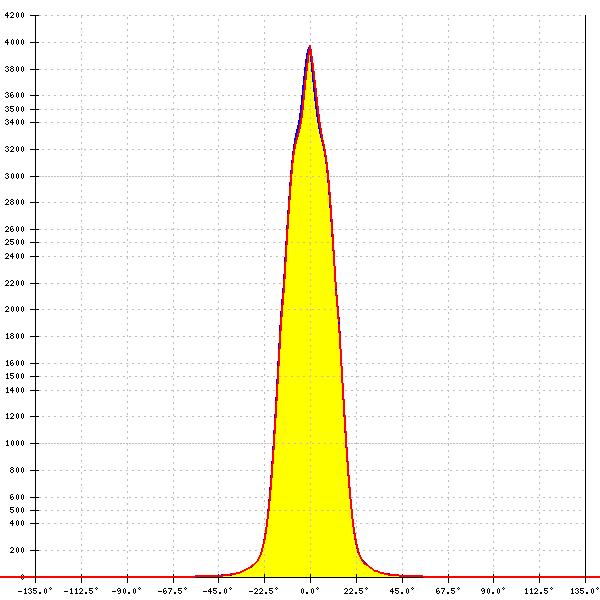

    LED: V4 HD Gen 8
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 4.8 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 28°
    FWTM: 42°
    Peak intensity: 3.973 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V6 Gen 8-9
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 6.3 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 27°
    FWTM: 44°
    Peak intensity: 3.780 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

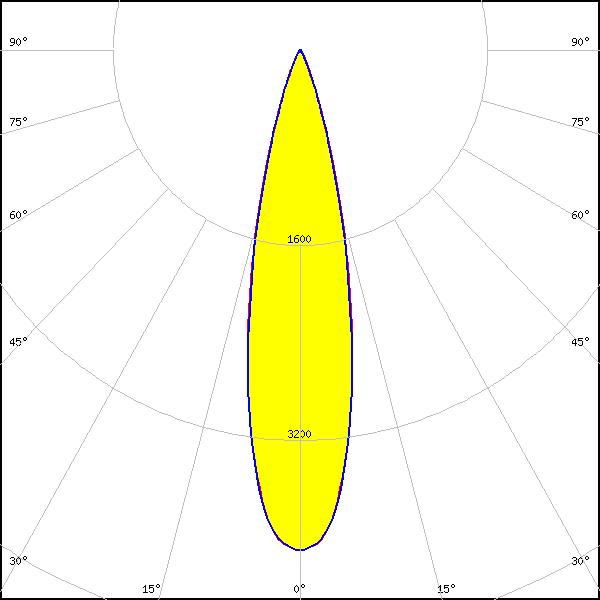

    LED: V6 HD Gen 7
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 7.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 24°
    FWTM: 43°
    Peak intensity: 4.103 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

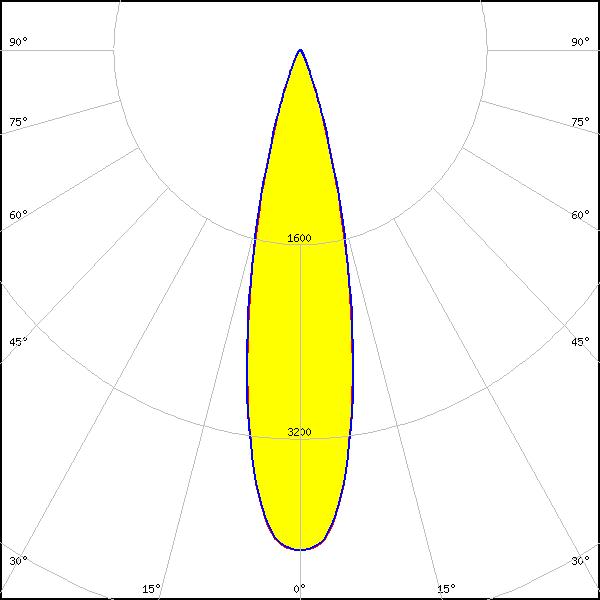

    LED: V6 HD Gen 7
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 7.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.124 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

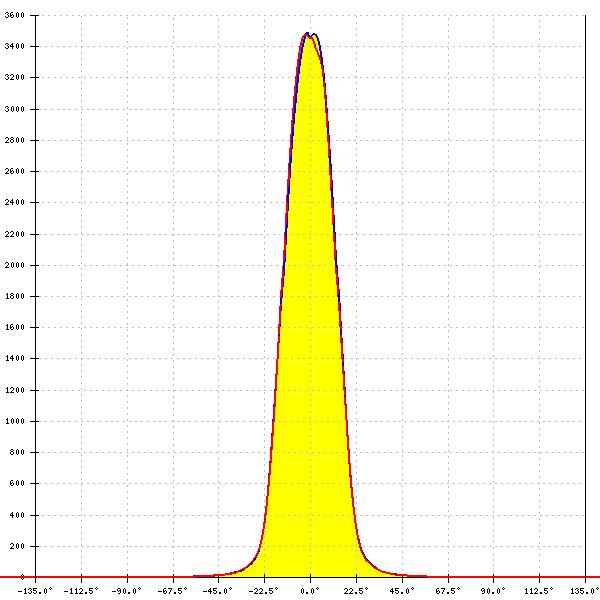

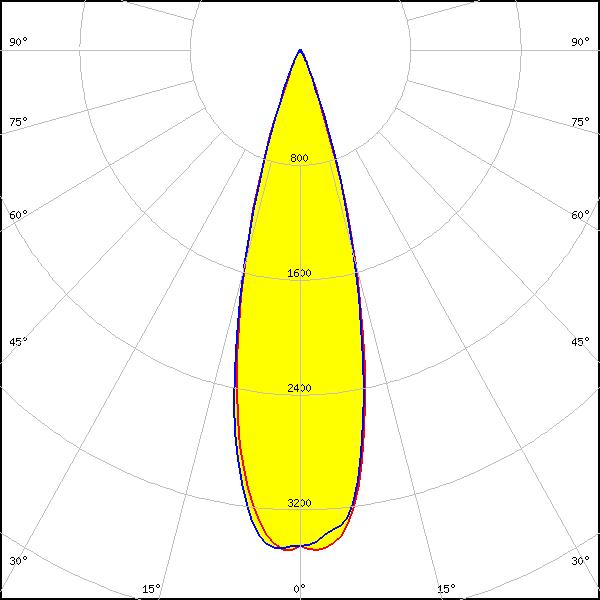

    LED: V6 HD Gen 8
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 6.6 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 28°
    FWTM: 44°
    Peak intensity: 3.590 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

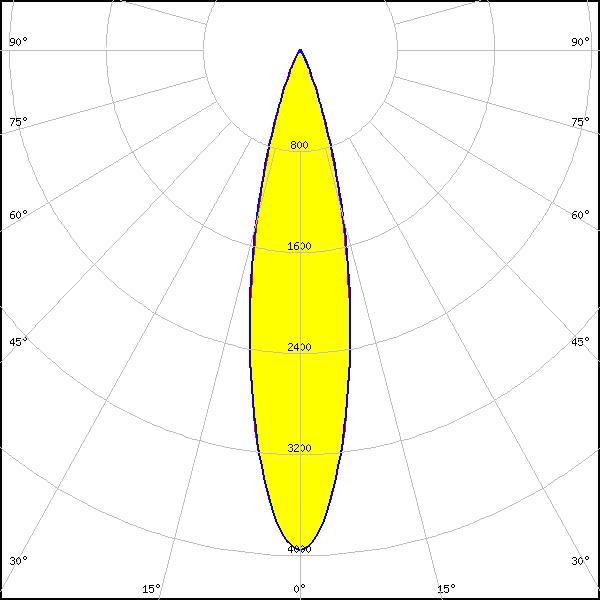

    LED: V8 Gen 8-9
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 8.5 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 24°
    FWTM: 45°
    Peak intensity: 3.959 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V9 HD Gen 8
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 8.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 28°
    FWTM: 46°
    Peak intensity: 3.456 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vero SE 13
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 13.4 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 26°
    FWTM: 48°
    Peak intensity: 2.918 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White

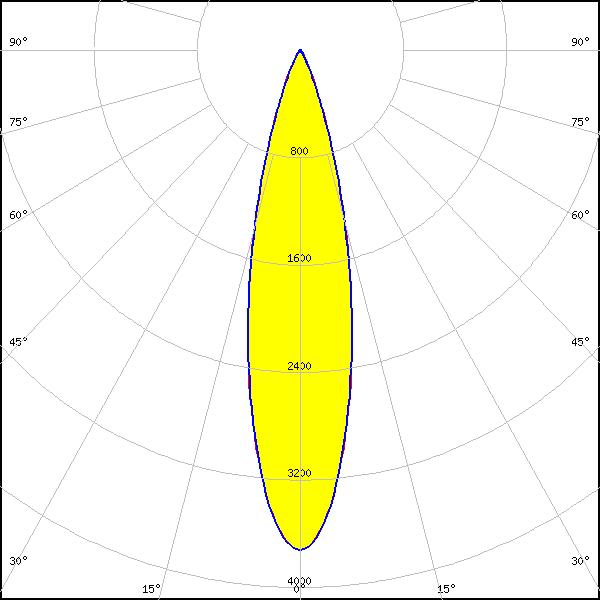

    LED: VERO10
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 9.9 mm
    Required components:
    F15616_HEKLA-SOCKET-F
    FWHM: 25°
    FWTM: 46°
    Peak intensity: 3.766 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

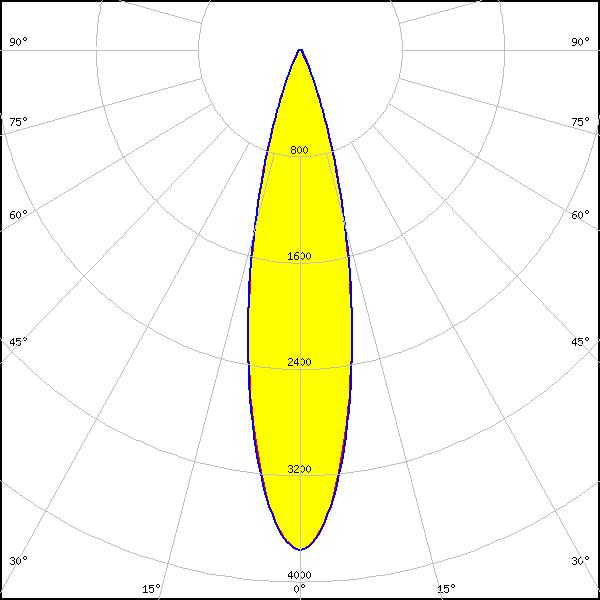

    LED: VERO10
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 9.9 mm
    Required components:
    F15616_HEKLA-SOCKET-F
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 3.766 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

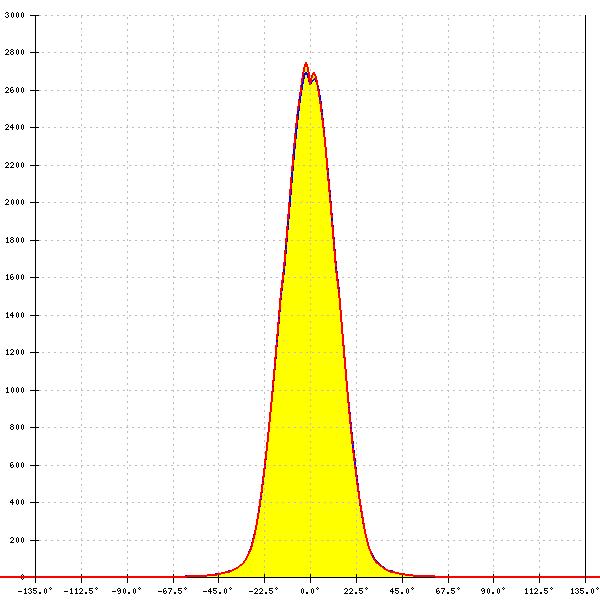

    LED: VERO13
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 13.4 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 30°
    FWTM: 53°
    Peak intensity: 2.751 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

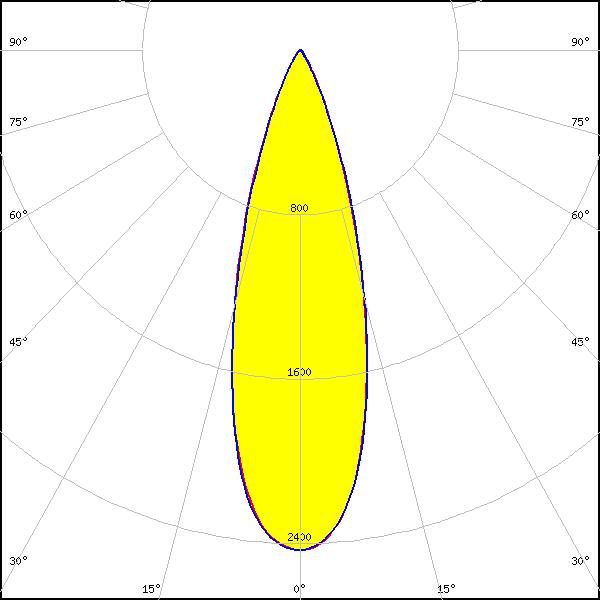

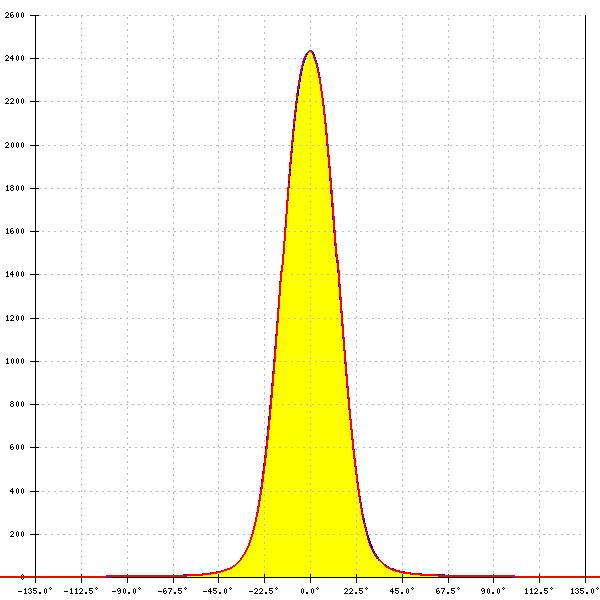

    LED: Vesta DTW 13mm (21W)
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 31°
    FWTM: 54°
    Peak intensity: 2.433 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

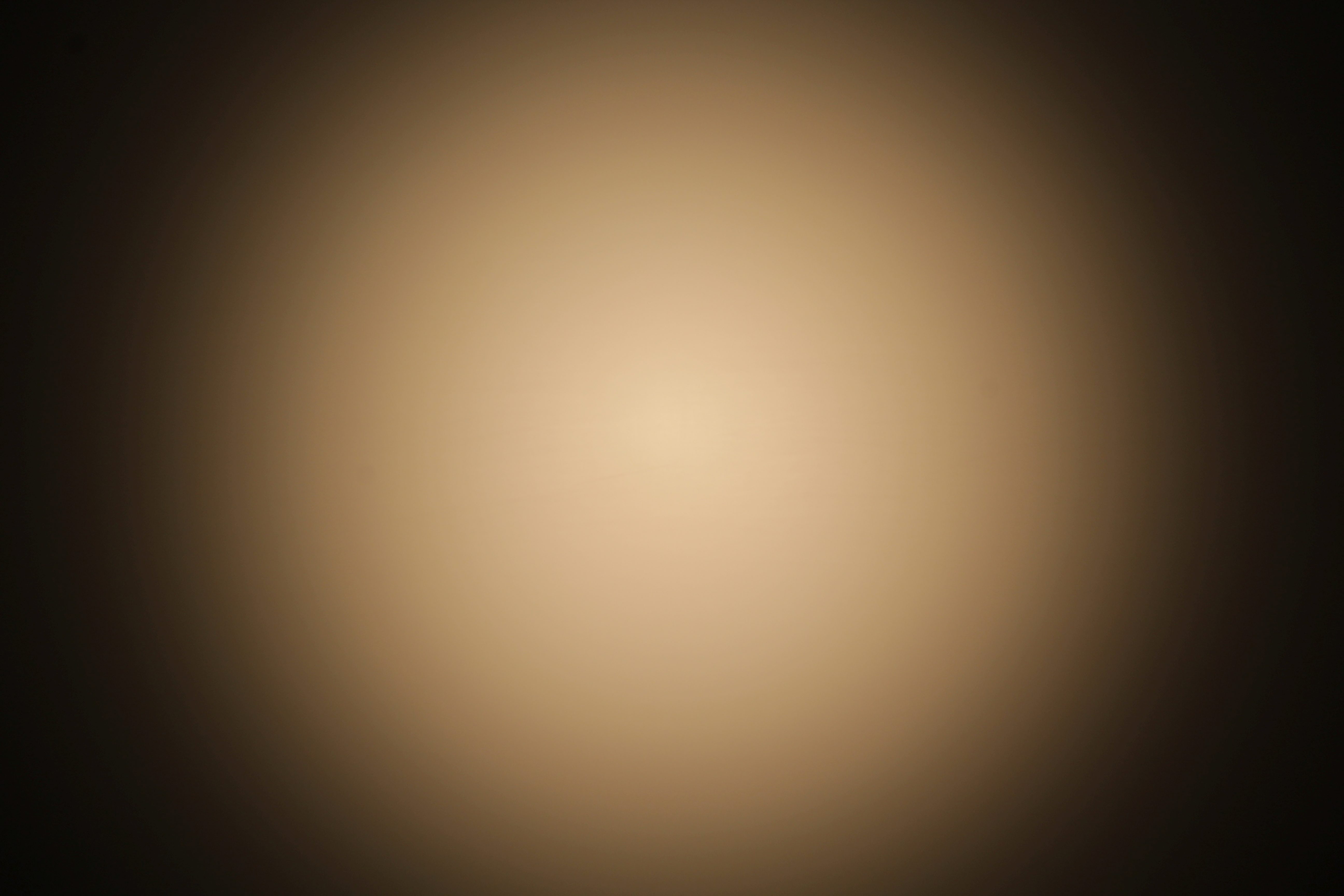

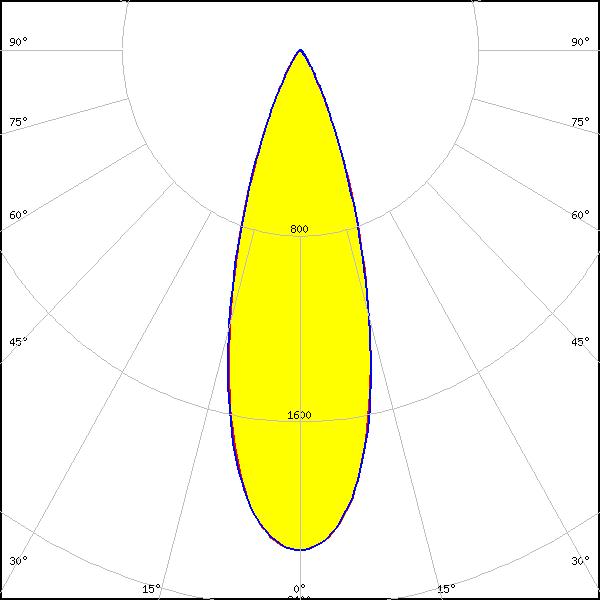

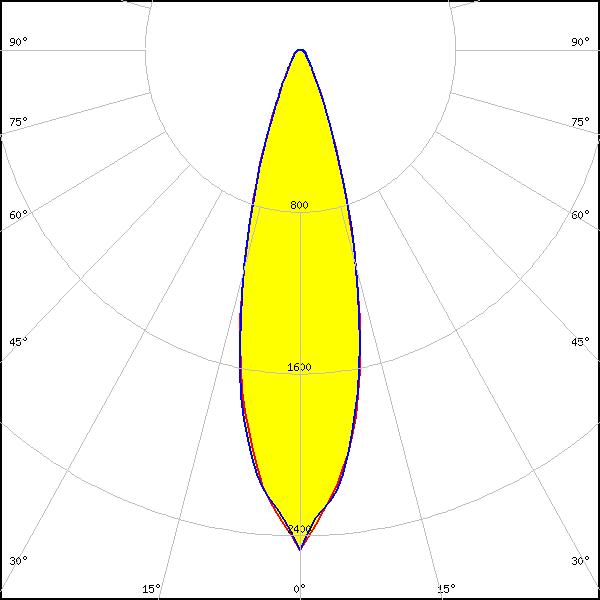

    LED: Vesta DTW 15mm (33W)
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 16.2 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 33°
    FWTM: 57°
    Peak intensity: 2.155 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

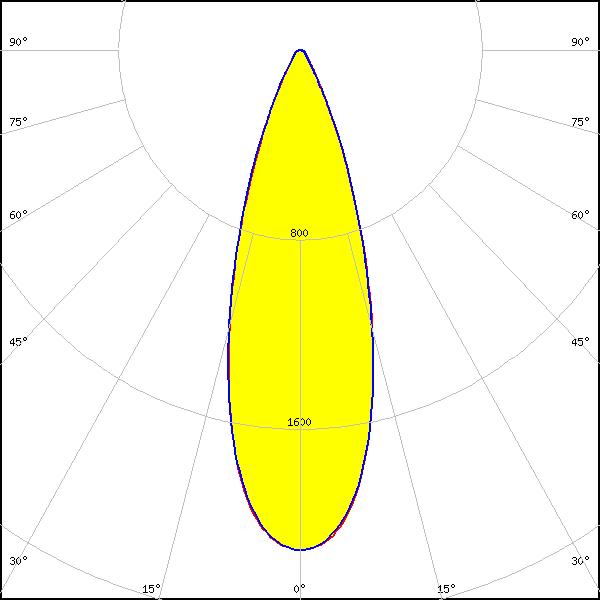

    LED: Vesta DTW 15mm (33W)
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 16.2 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 33°
    FWTM: 59°
    Peak intensity: 2.112 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 6mm
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 6.8 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: 28°
    FWTM: 44°
    Peak intensity: 3.620 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

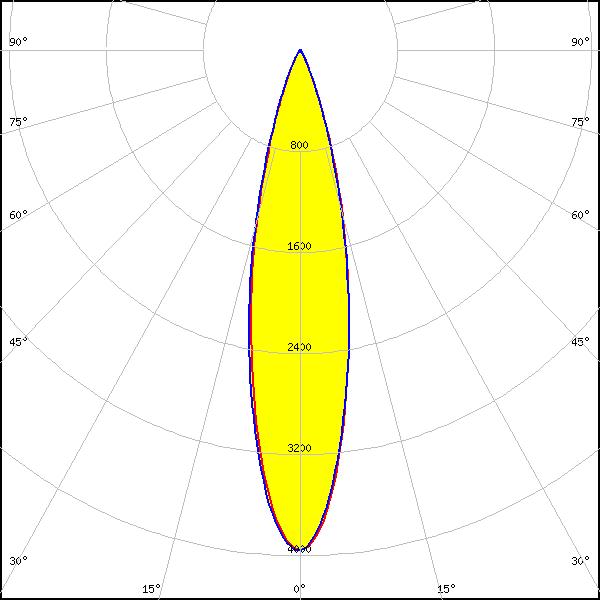

    LED: Vesta DTW 9mm (4W/6W/12W)
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 9.3 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: 23°
    FWTM: 45°
    Peak intensity: 3.957 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

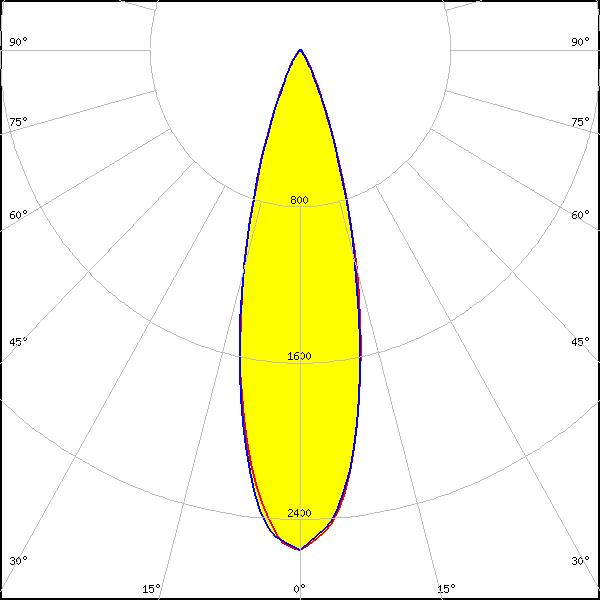

    LED: Vesta SE 13mm TW
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 14.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 28°
    FWTM: 52°
    Peak intensity: 2.562 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 13mm (18W) DP
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 14.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 492 Typ L8
    FWHM: 28°
    FWTM: 50°
    Peak intensity: 2.894 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 15mm DP
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 16.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 482 Typ L8
    FWHM: 32°
    FWTM: 54°
    Peak intensity: 2.293 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 9mm (9W) DP
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 10.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 489 Typ L8
    FWHM: 32°
    FWTM: 53°
    Peak intensity: 2.681 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

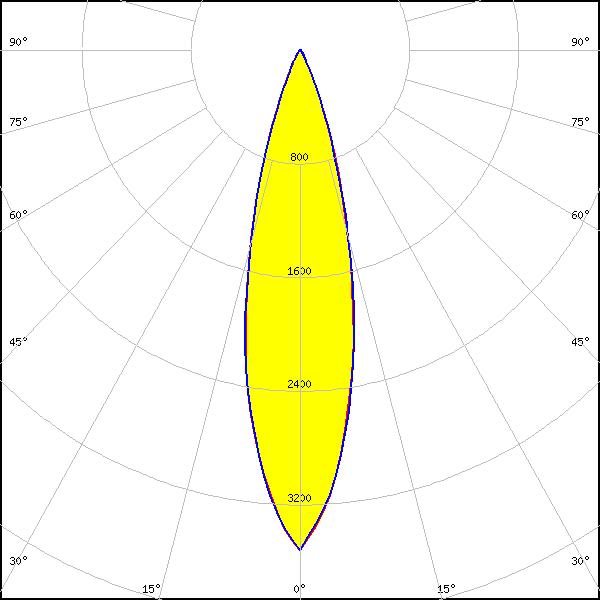

    LED: CLL02x/CLU02x (LES10)
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 3.682 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL02x/CLU02x (LES10)
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 25°
    FWTM: 46°
    Peak intensity: 3.682 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

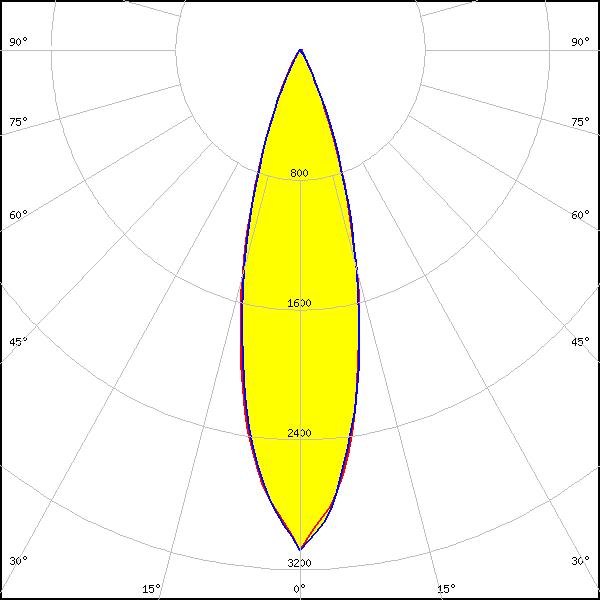

    LED: CLU02Q Type-F
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 9.7 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 28°
    FWTM: 50°
    Peak intensity: 3.081 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 43°
    Peak intensity: 4.015 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

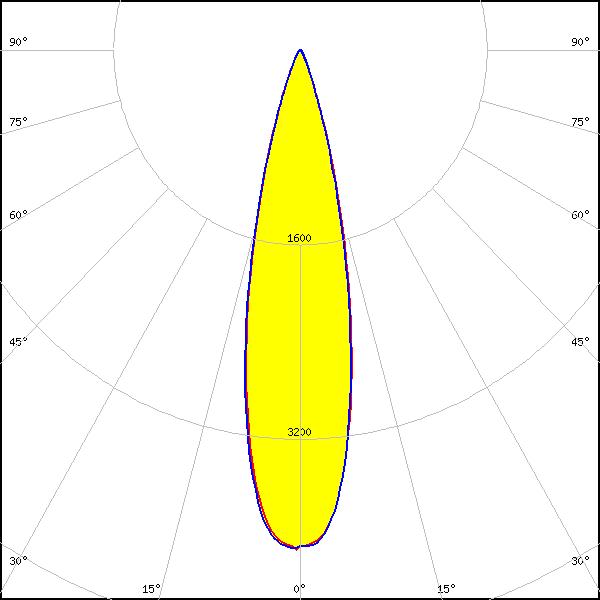

    LED: CLU700/701/702/703
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.114 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU712/713
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 8.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 26°
    FWTM: 46°
    Peak intensity: 3.560 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7A2/7A3
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 4.2 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 25°
    FWTM: 42°
    Peak intensity: 3.999 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7A2/7A3
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 4.2 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 25°
    FWTM: 42°
    Peak intensity: 4.046 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7B2
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 3.3 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 25°
    FWTM: 42°
    Peak intensity: 3.836 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

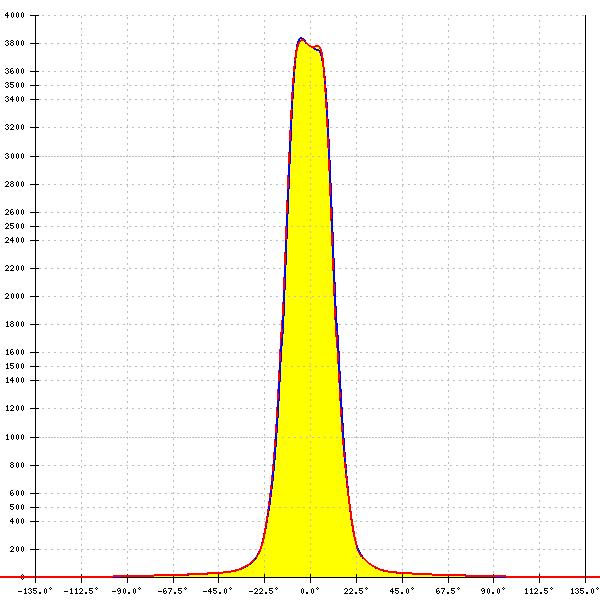

    LED: CLU7B2
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 3.3 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 26°
    FWTM: 42°
    Peak intensity: 3.836 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHA0304
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 3.3 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 30°
    FWTM: 44°
    Peak intensity: 3.426 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHA0410
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 4.2 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 28°
    FWTM: 44°
    Peak intensity: 3.565 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHA0612
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 28°
    FWTM: 44°
    Peak intensity: 3.443 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

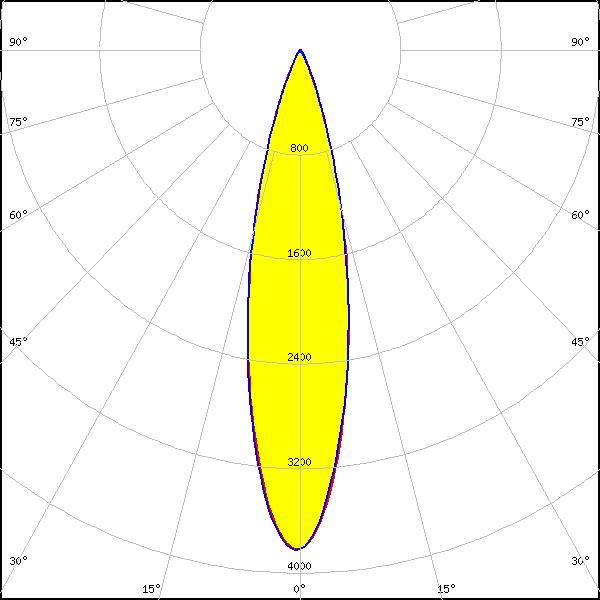

    LED: CMA1516
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 9.0 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 24°
    FWTM: 45°
    Peak intensity: 3.905 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

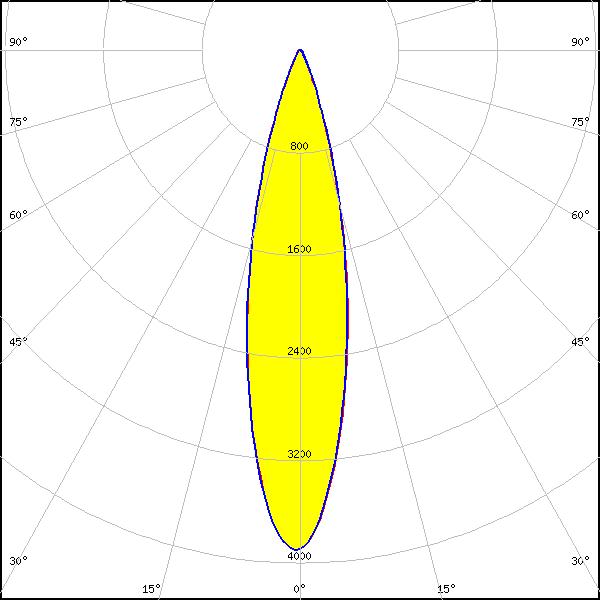

    LED: CMA1516
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 9.0 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 24°
    FWTM: 45°
    Peak intensity: 3.905 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT14xx
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 3.721 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT14xx
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 3.721 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMU10xx
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 25°
    FWTM: 47°
    Peak intensity: 3.549 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

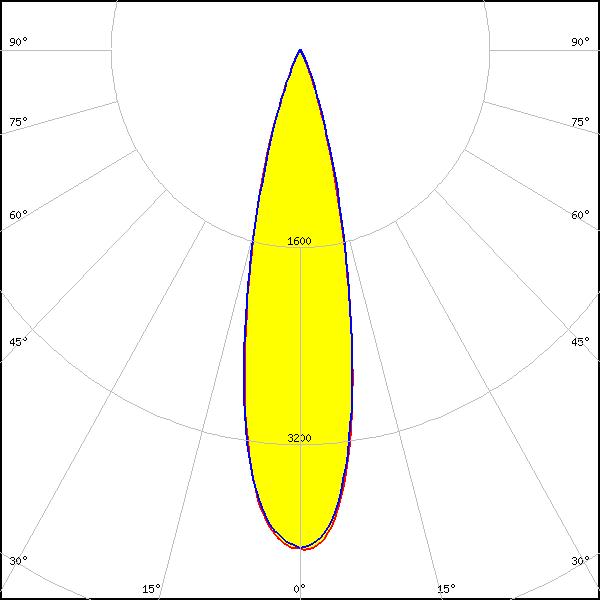

    LED: CXA/B 13xx
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 6.0 mm
    Required components:
    F17439_HEKLA-G2-J
    FWHM: 25°
    FWTM: 43°
    Peak intensity: 4.039 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 13xx
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 6.0 mm
    Required components:
    F17439_HEKLA-G2-J
    FWHM: 25°
    FWTM: 43°
    Peak intensity: 4.039 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 15xx
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 8.9 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 24°
    FWTM: 45°
    Peak intensity: 3.940 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 15xx
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 8.9 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 24°
    FWTM: 45°
    Peak intensity: 3.940 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LEDIM/C6
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 8.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 22°
    FWTM: 44°
    Peak intensity: 4.150 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L08 (Gen2)
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 32°
    FWTM: 56°
    Peak intensity: 2.419 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

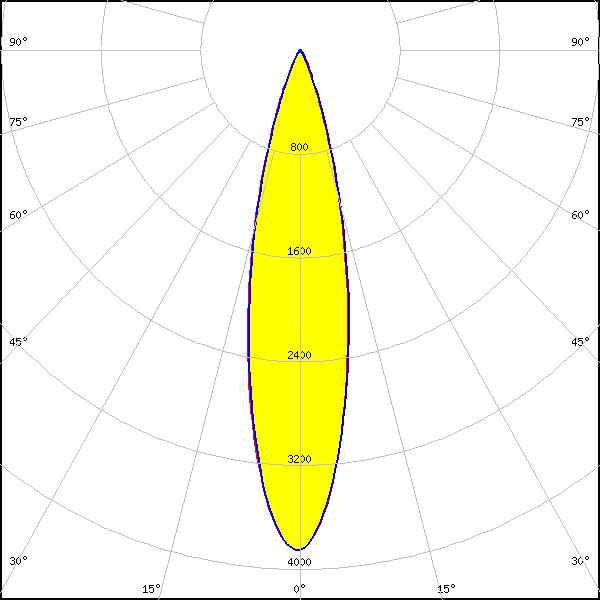

    LED: LUXEON CoB 1202/1203
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 24°
    FWTM: 45°
    Peak intensity: 3.855 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202/1203
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 24°
    FWTM: 44°
    Peak intensity: 3.968 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202HD
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 6.5 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 28°
    FWTM: 44°
    Peak intensity: 3.688 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204/1205
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 13.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 28°
    FWTM: 50°
    Peak intensity: 2.870 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

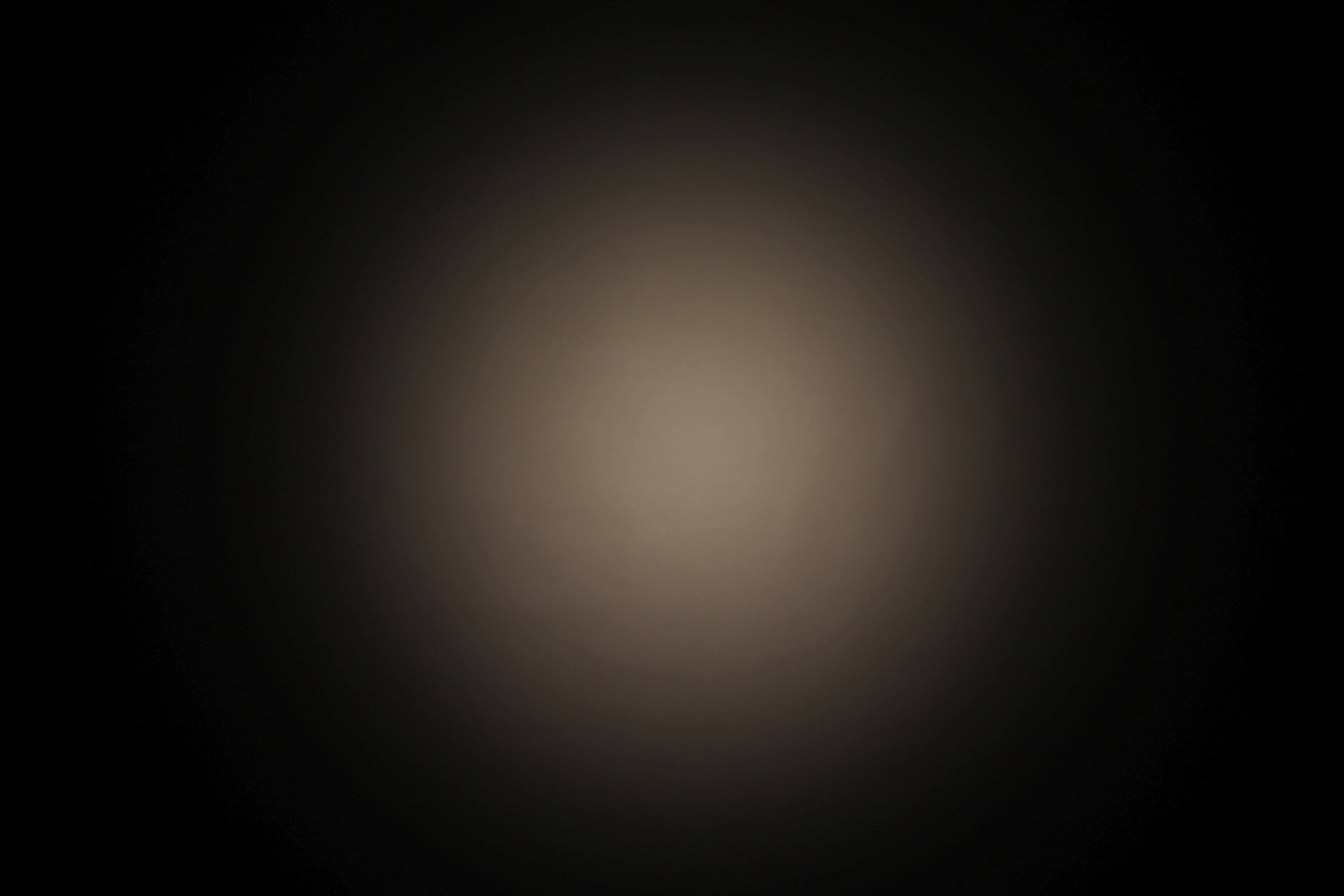

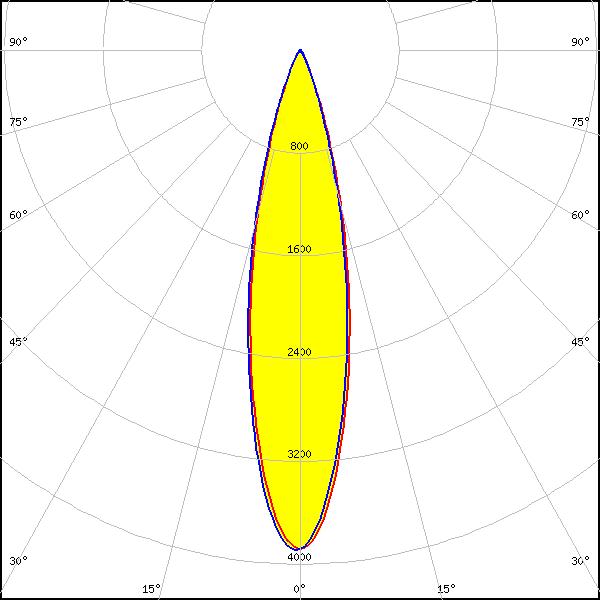

    LED: LUXEON CoB 1204HD
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 23°
    FWTM: 45°
    Peak intensity: 3.960 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204HD
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 23°
    FWTM: 45°
    Peak intensity: 3.960 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1205HD
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 11.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 26°
    FWTM: 48°
    Peak intensity: 3.381 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

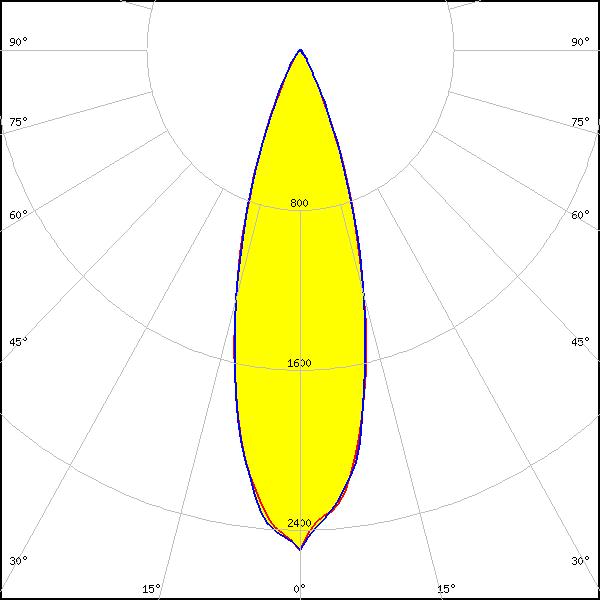

    LED: LUXEON CoB 1208
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 30°
    FWTM: 54°
    Peak intensity: 2.519 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB M02/M03
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 8.5 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 24°
    FWTM: 45°
    Peak intensity: 3.936 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB M02/M03
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 8.5 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 24°
    FWTM: 45°
    Peak intensity: 3.936 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB S01
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 5.5 mm
    Required components:
    F17439_HEKLA-G2-J
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.090 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB S01
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 5.5 mm
    Required components:
    F17439_HEKLA-G2-J
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.090 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S01H4
    Ordering code: CP18731_YASMEEN-50-M-B2
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 28°
    FWTM: 44°
    Peak intensity: 3.641 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

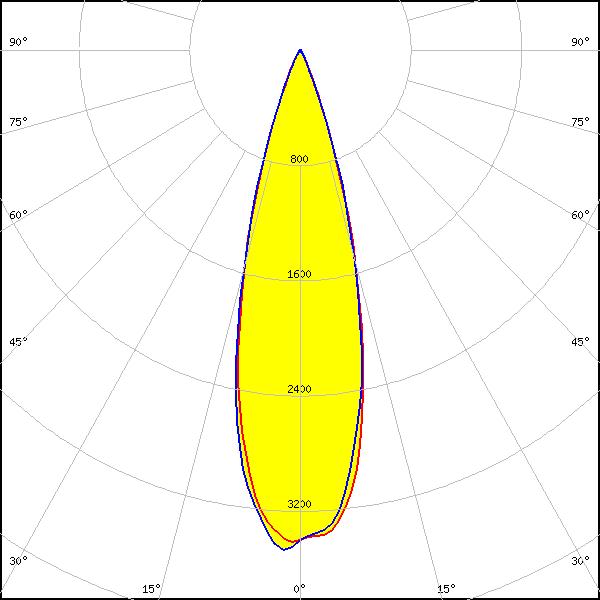

    LED: LUXEON CX Plus CoB - HD S02H6
    Ordering code: CP18731_YASMEEN-50-M-B2
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 28°
    FWTM: 46°
    Peak intensity: 3.480 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: CP18731_YASMEEN-50-M-B2
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 27°
    FWTM: 48°
    Peak intensity: 3.457 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 28°
    FWTM: 50°
    Peak intensity: 3.023 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 9.0 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 26°
    FWTM: 46°
    Peak intensity: 3.641 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB S01 (Gen2)
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: 28°
    FWTM: 44°
    Peak intensity: 3.747 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHM-9 XH (19x19)
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 9.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 26°
    FWTM: 44°
    Peak intensity: 3.846 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-14 (Tunable White) Gen2
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 13.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: 29°
    FWTM: 53°
    Peak intensity: 2.472 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CTM-6 (Tunable White) Gen2
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 6.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 26°
    FWTM: 44°
    Peak intensity: 3.795 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CTM-9 (Tunable White) Gen2
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 9.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 26°
    FWTM: 44°
    Peak intensity: 3.770 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

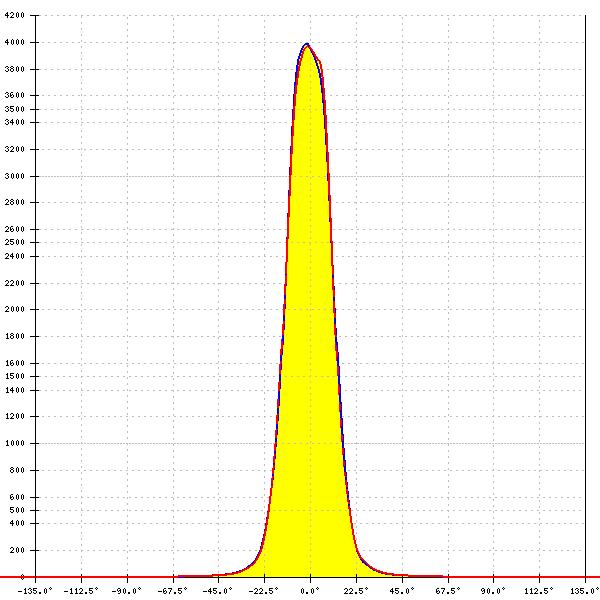

    LED: CXM-3
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 3.5 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 25°
    FWTM: 42°
    Peak intensity: 3.992 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXM-3
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 3.5 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 25°
    FWTM: 41°
    Peak intensity: 3.915 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXM-4
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 4.5 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.011 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXM-4
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 4.5 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 25°
    FWTM: 42°
    Peak intensity: 4.011 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-6 (13.5x13.5)
    Ordering code: CP18731_YASMEEN-50-M-B2
    LES size: 6.3 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 26°
    FWTM: 42°
    Peak intensity: 3.892 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 11)
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 11.5 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 28°
    FWTM: 50°
    Peak intensity: 3.216 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 9)
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 8.7 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 24°
    FWTM: 44°
    Peak intensity: 3.901 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 6)
    Ordering code: CP18731_YASMEEN-50-M-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 28°
    FWTM: 44°
    Peak intensity: 3.528 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    Ordering code: CP18731_YASMEEN-50-M-B2
    LES size: 6.7 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 28°
    FWTM: 46°
    Peak intensity: 3.462 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 6.7 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 24°
    FWTM: 44°
    Peak intensity: 3.975 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 6.7 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 25°
    FWTM: 44°
    Peak intensity: 3.975 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB T-Type
    Ordering code: CP18731_YASMEEN-50-M-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 28°
    FWTM: 45°
    Peak intensity: 3.530 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NJCWL024Z-V1MT: COB L-Type Tunable White
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 7.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 497 Typ L8 HV
    FWHM: 26°
    FWTM: 42°
    Peak intensity: 3.871 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

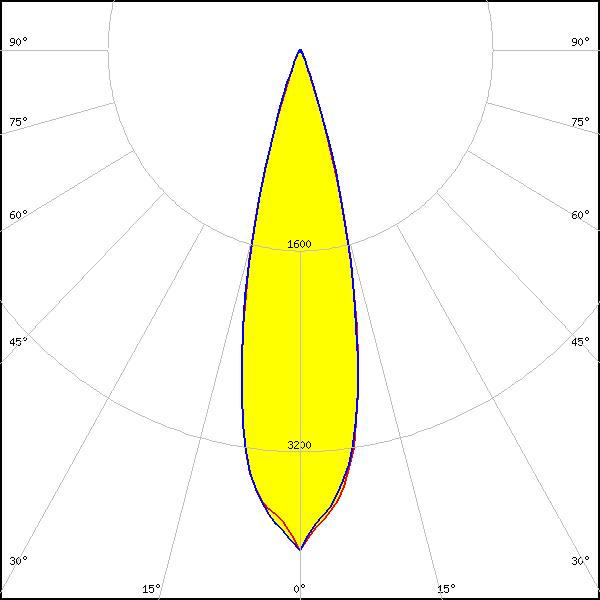

    LED: NJNWS012Z-V1MT: COB S-Type Tunable White
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 5.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8 HV
    FWHM: 26°
    FWTM: 42°
    Peak intensity: 3.989 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 10.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 498 Typ L8 HV
    FWHM: 26°
    FWTM: 46°
    Peak intensity: 3.379 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Fortimo SLM L09 CoB
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 23°
    FWTM: 45°
    Peak intensity: 3.897 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L09 CoB
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 23°
    FWTM: 44°
    Peak intensity: 3.972 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 3.699 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 3.699 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010C G2
    Ordering code: CP18731_YASMEEN-50-M-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 26°
    FWTM: 42°
    Peak intensity: 3.874 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010T (Tunable White)
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 26°
    FWTM: 44°
    Peak intensity: 3.812 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

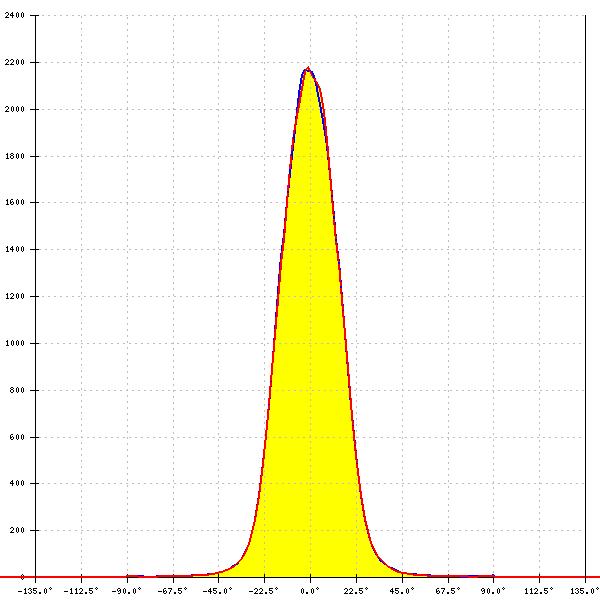

    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP18731_YASMEEN-50-M-B2
    LES size: 14.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 34°
    FWTM: 56°
    Peak intensity: 2.225 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020C G2
    Ordering code: CP18731_YASMEEN-50-M-B2
    LES size: 8.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 26°
    FWTM: 44°
    Peak intensity: 3.726 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC030C/040C G2
    Ordering code: CP18731_YASMEEN-50-M-B2
    LES size: 11.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 28°
    FWTM: 49°
    Peak intensity: 3.125 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 32°
    FWTM: 55°
    Peak intensity: 2.390 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

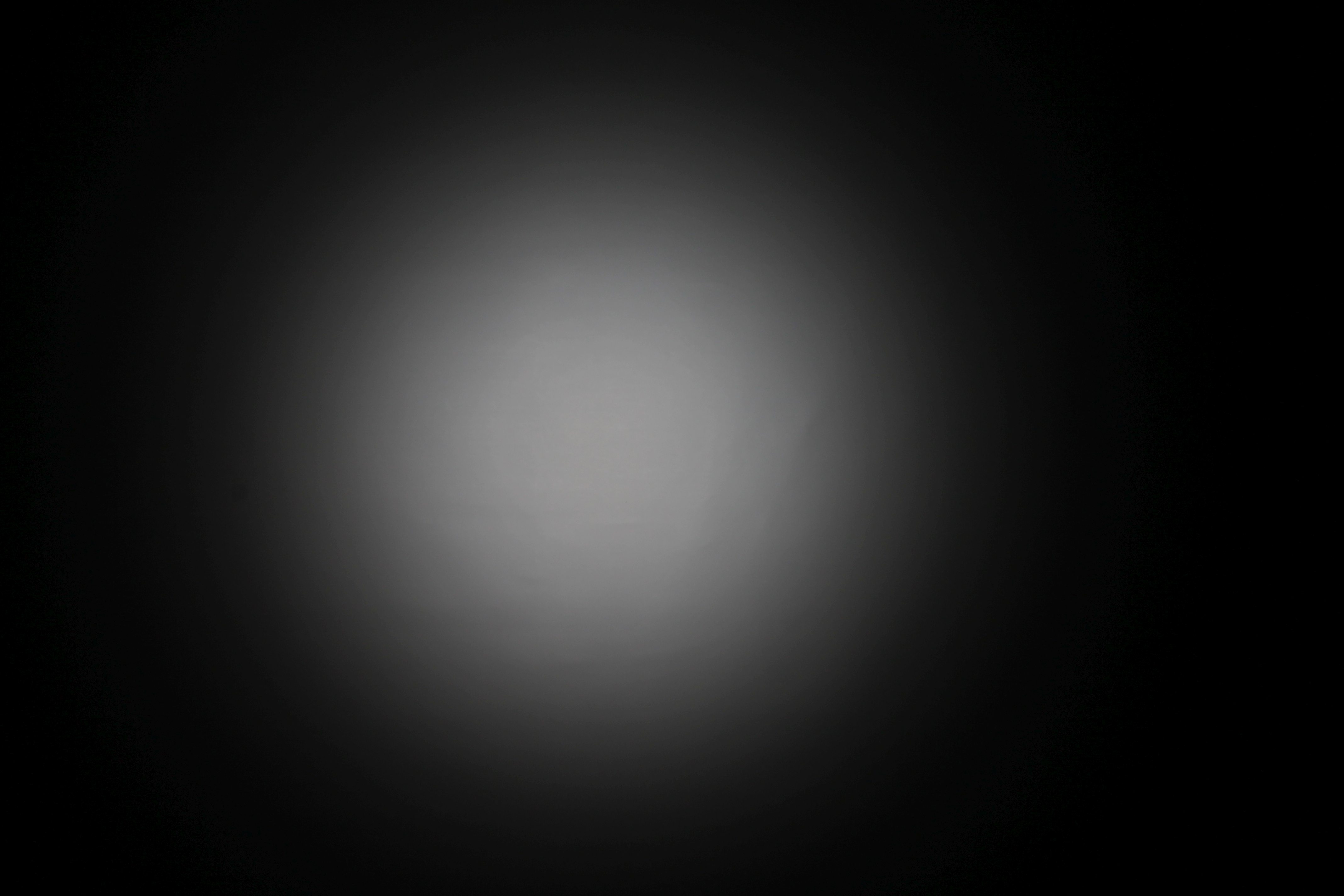

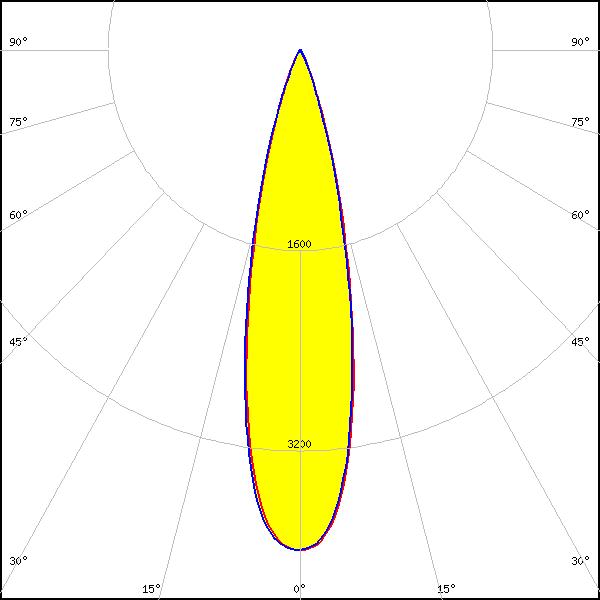

    LED: MJT COB LES 6
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 43°
    Peak intensity: 3.969 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

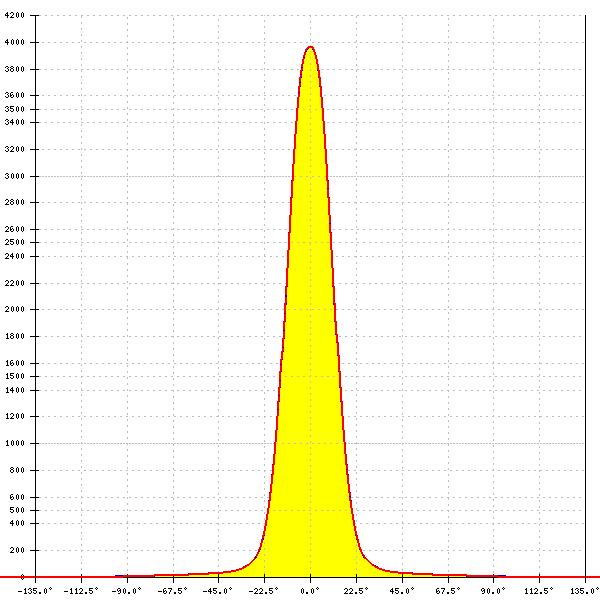

    LED: MJT COB LES 6
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 25°
    FWTM: 43°
    Peak intensity: 3.969 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

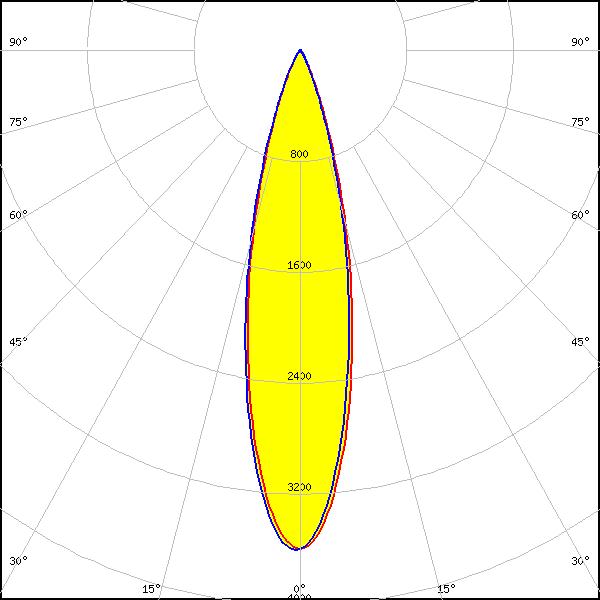

    LED: MJT COB LES 9.8
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 25°
    FWTM: 46°
    Peak intensity: 3.705 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

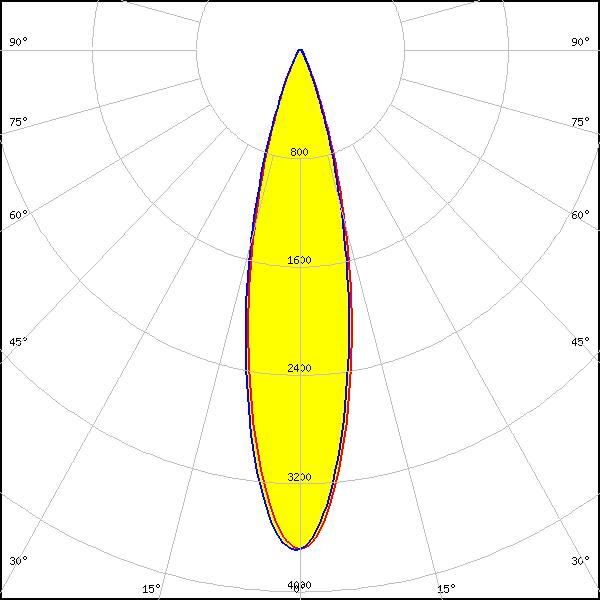

    LED: MJT COB LES 9.8
    Ordering code: CP18738_YASMEEN-50-M-C2-WHT
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 3.705 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE 09mm 1200lm xxx R ADV8
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 9.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 26°
    FWTM: 48°
    Peak intensity: 3.349 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

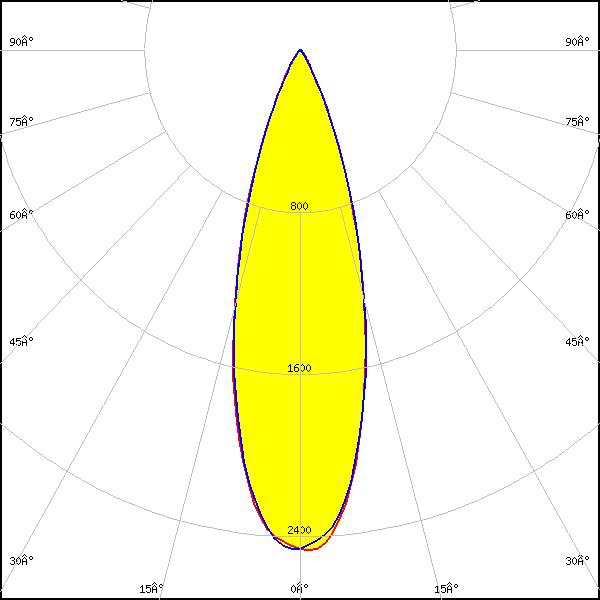

    LED: SLE 13mm 3000lm xxx R ADV8
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 13.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 31°
    FWTM: 54°
    Peak intensity: 2.480 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES13
    Ordering code: CP18724_YASMEEN-50-M-C2
    LES size: 13.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 30°
    FWTM: 52°
    Peak intensity: 2.655 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
