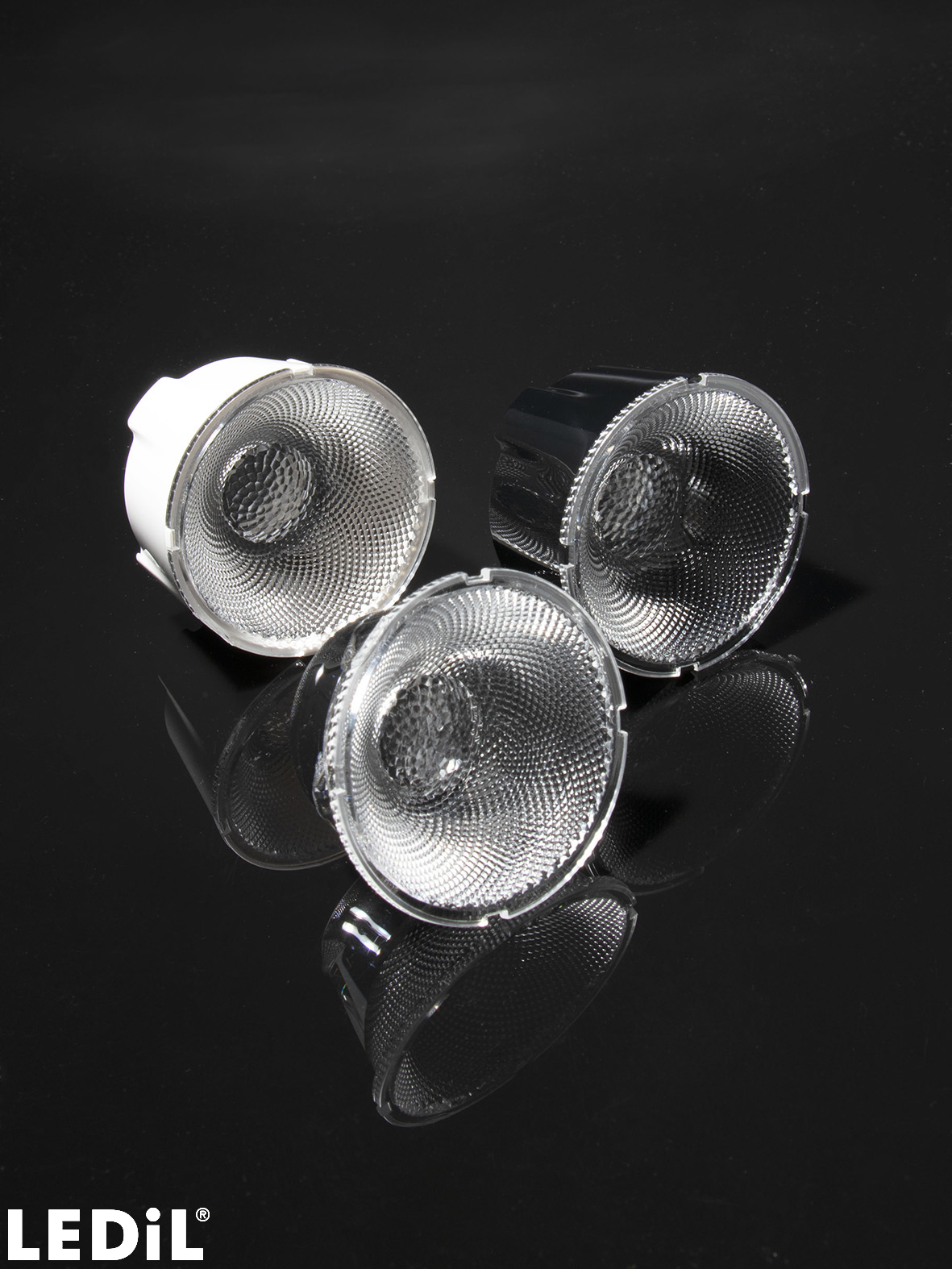

    YASMEEN-50-WW

    Print

    ~60° wide beam

    This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

    Specification
    • Dimensions:
      50 mm
    • Height:
      28.06 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C17237_YASMEEN-50-WW
      clear
    • Quantity in box:
      252 pcs
    • Box size:
      476 x 273 x 305 mm
    • Box weight:
      7.90 kg
    • MPQ:
      28 pcs
    • MOQ:
      112 pcs
    • MOQ Size:
      480 x 280 x 150 mm
    • MOQ Weight:
      3.70 kg
    • Assembly

      (single lens, holder)

    • CP18733_YASMEEN-50-WW-B2
      black,Holder B
    • CP18747_YASMEEN-50-WW-B2-WHT
      white,Holder B
    • CP18726_YASMEEN-50-WW-C2
      black,Holder C
    • CP18740_YASMEEN-50-WW-C2-WHT
      white,Holder C
    • Quantity in box:
      252 pcs
    • Box size:
      476 x 273 x 305 mm
    • Box weight:
      9.30 kg
    • MPQ:
      28 pcs
    • MOQ:
      112 pcs
    • MOQ Size:
      480 x 280 x 150 mm
    • MOQ Weight:
      4.20 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C17237_YASMEEN-50-WW
      CP18726_YASMEEN-50-WW-C2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    YASMEEN - The best optic in class

    News

    HEKLA-SOCKET-RZ ‒ Your effortless entry to the RGBW world

    Compatibility guide

    LEDiL connector and socket compatibility

    News

    YASMEEN – redefining track lighting

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    News

    New products – May, 2023

    PCN

    Product change notification NR192 - Change of YASMEEN-50 and -70 holder design

    News

    Our bright star YASMEEN now features a new, improved holder

    Compatible product

    B+W 630 Bayonet35 datasheet

    News

    YASMEEN zoom optics receive BrightStar Award

    News

    YASMEEN zoom optics win Design Plus award

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Compatible product

    B+W 630 Hekla datasheet

    Application example

    Track light luminaires with YASMEEN

    Application example

    Spot lighting with YASMEEN

    News

    YASMEEN – supreme light quality and beam control

    Application area

    Indoor Architectural Lighting

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Architectural lighting optics

    Article

    Explore new retail lighting opportunities

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA sockets and HEKLA-G2 and -G2B connectors

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    HEKLA-G2B-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2B-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-I2

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-I3

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-TW1

    Version compatible with tunable white COBs of 15.8 x 15.8 mm packages

    HEKLA-G2B-TW2

    Version compatible with tunable white COBs of 18.8 x 18.8 mm packages

    HEKLA-SOCKET-RZ

    Version with integrated RZ mixing dome for RGBW LEDs

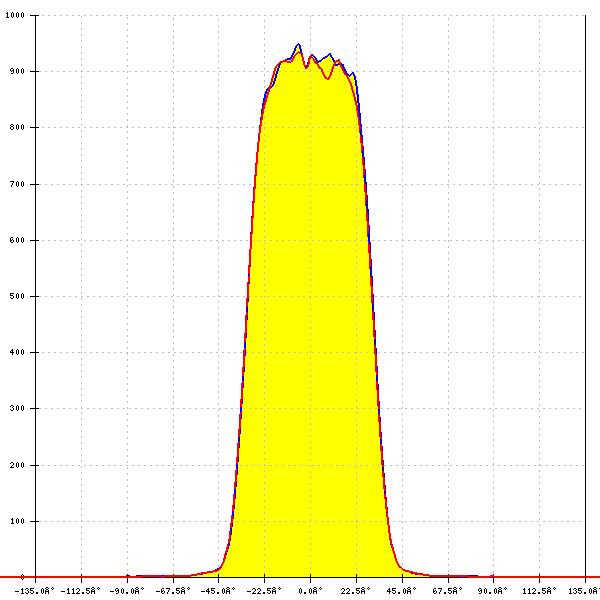

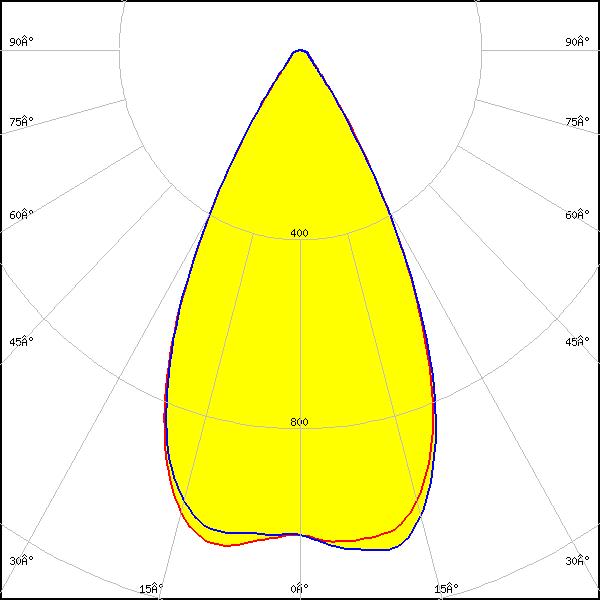

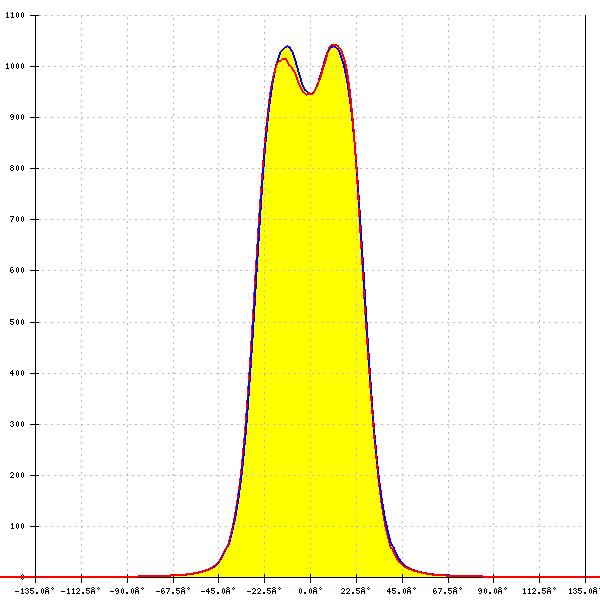

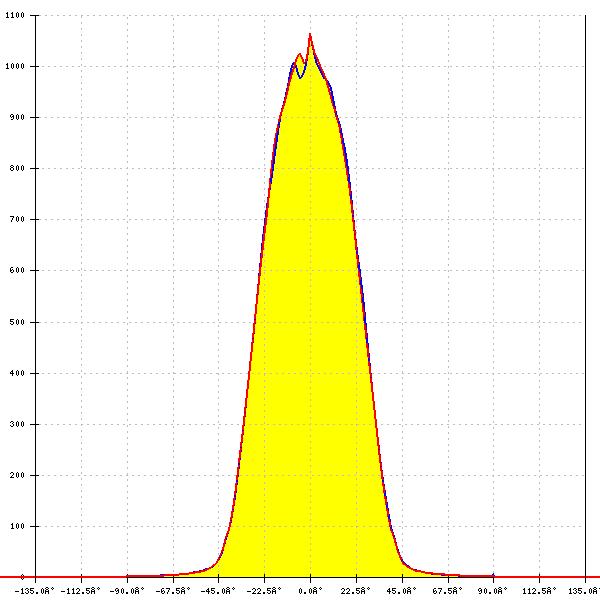

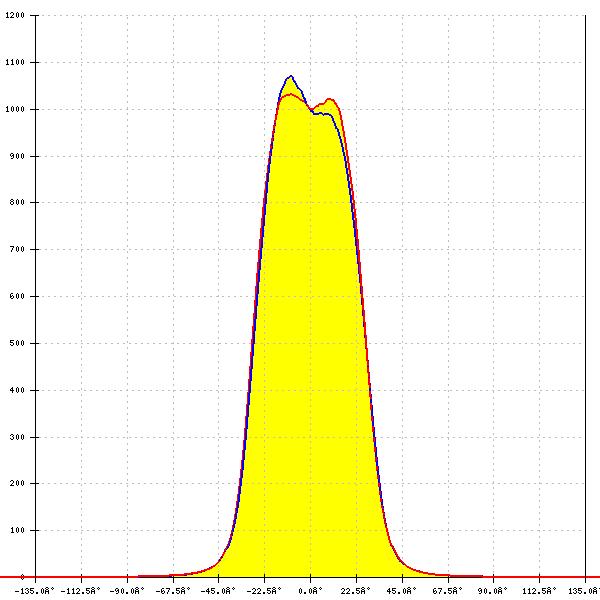

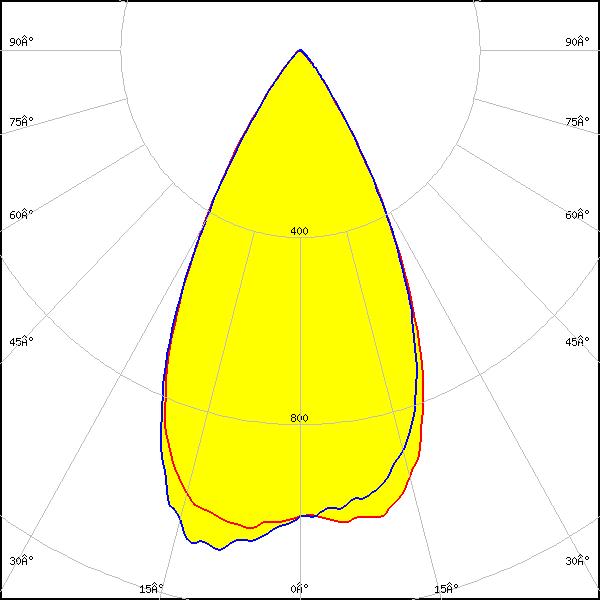

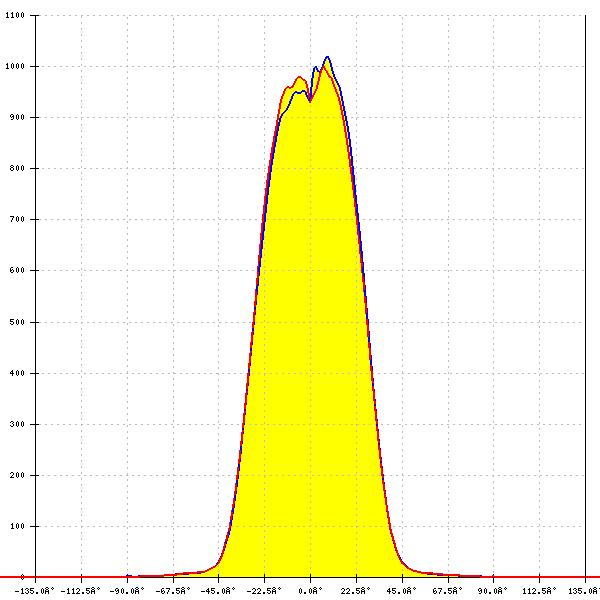

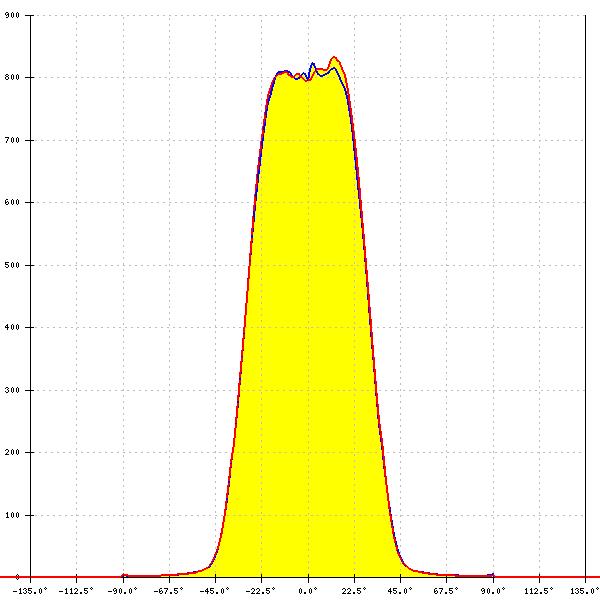

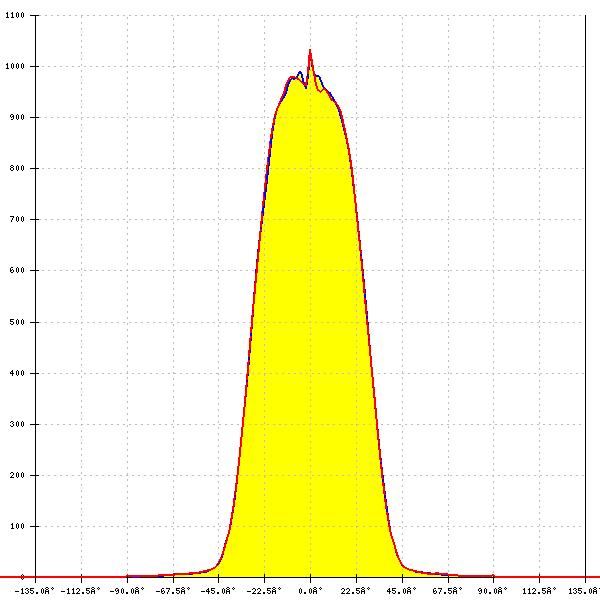

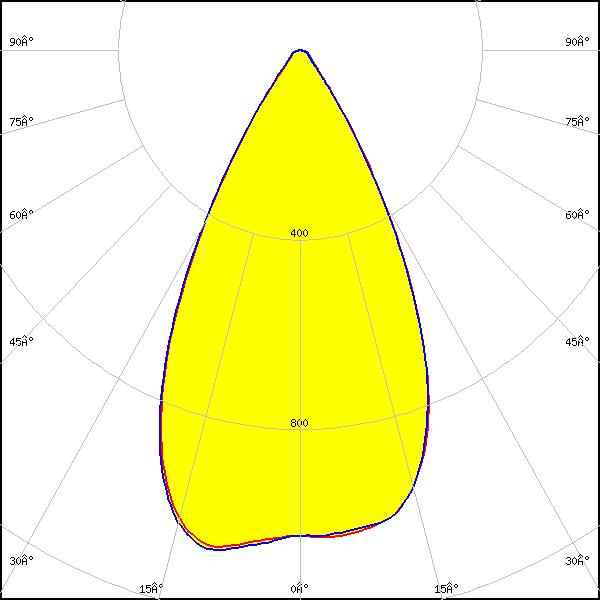

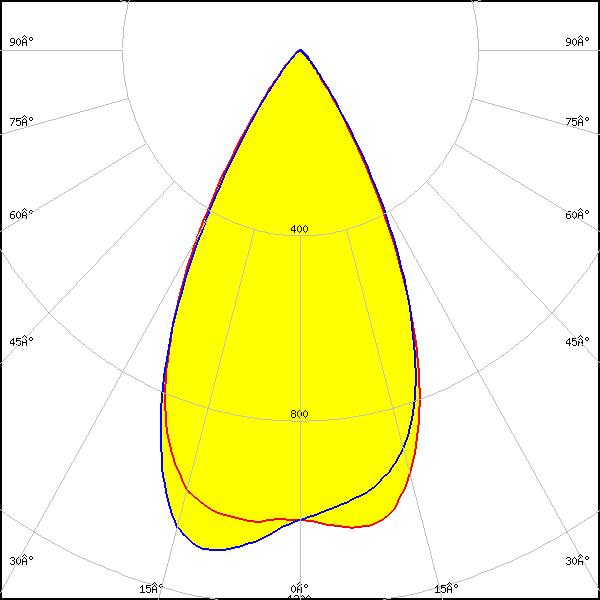

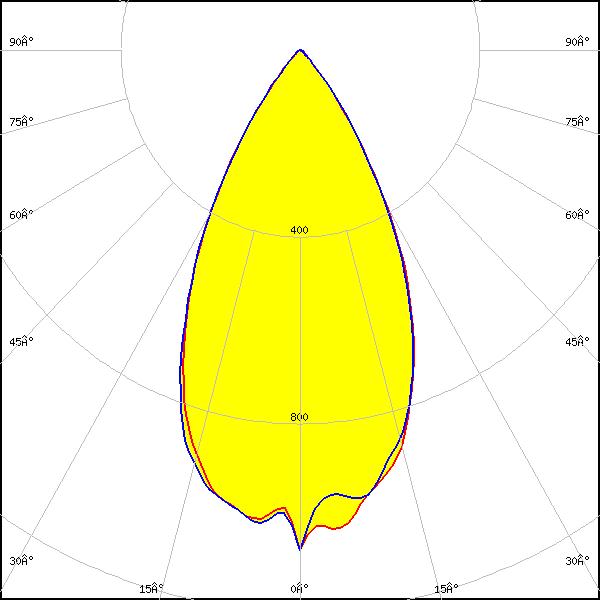

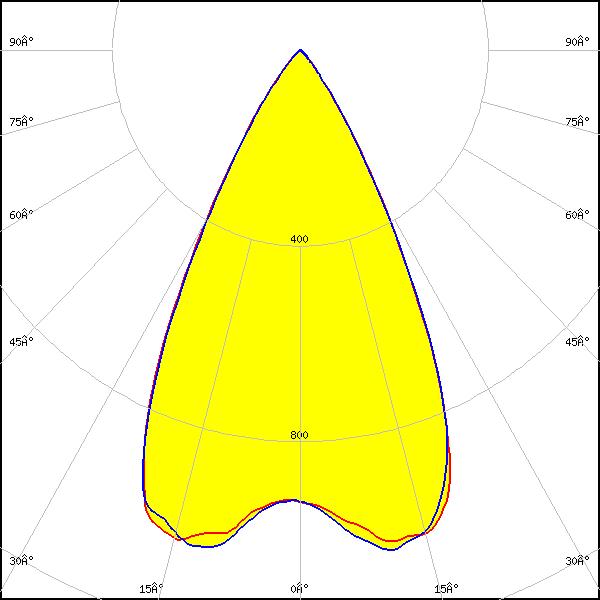

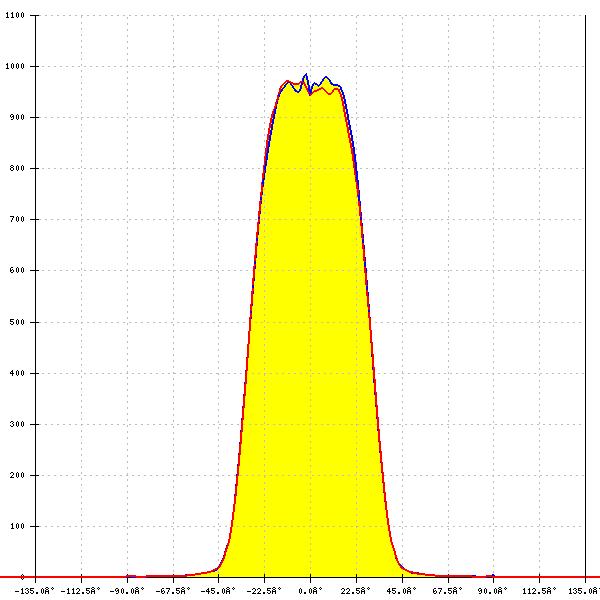

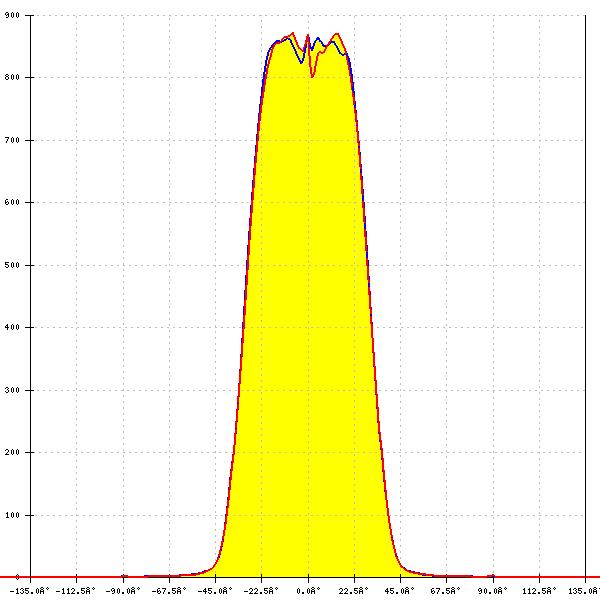

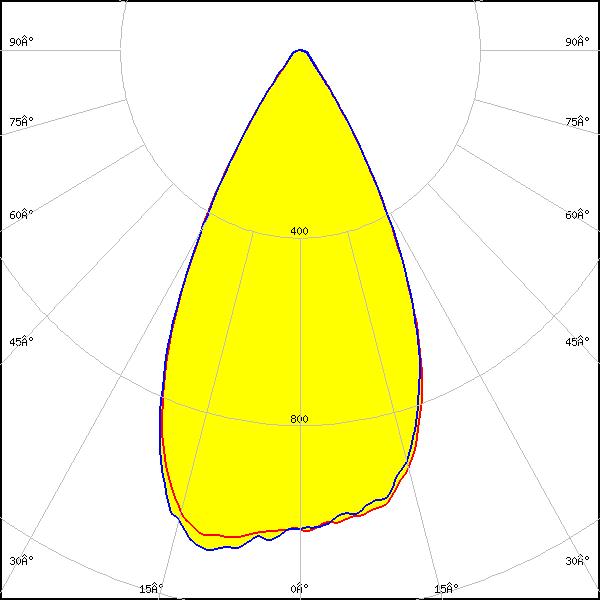

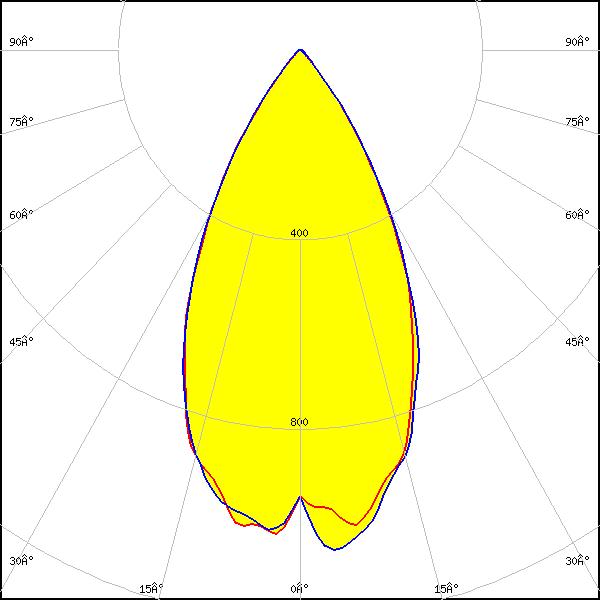

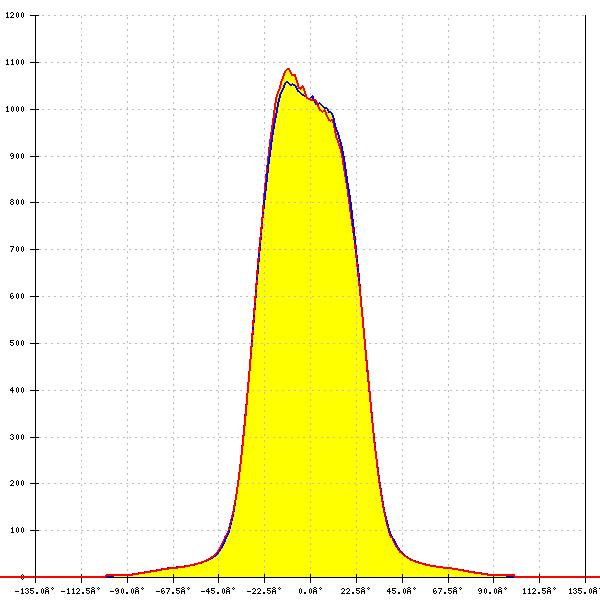

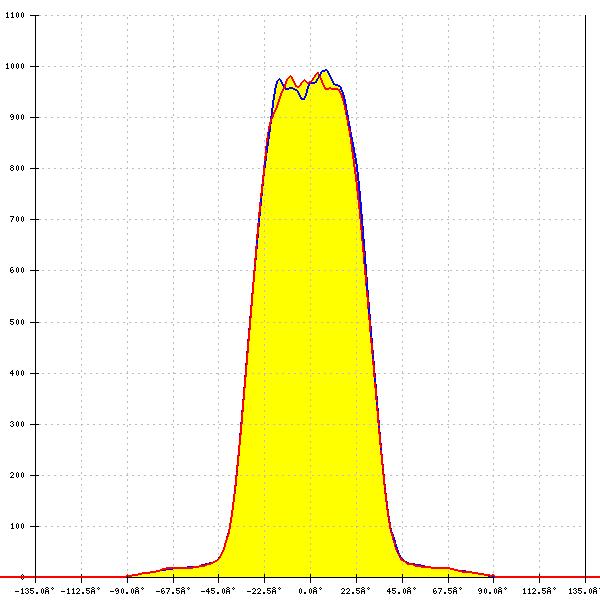

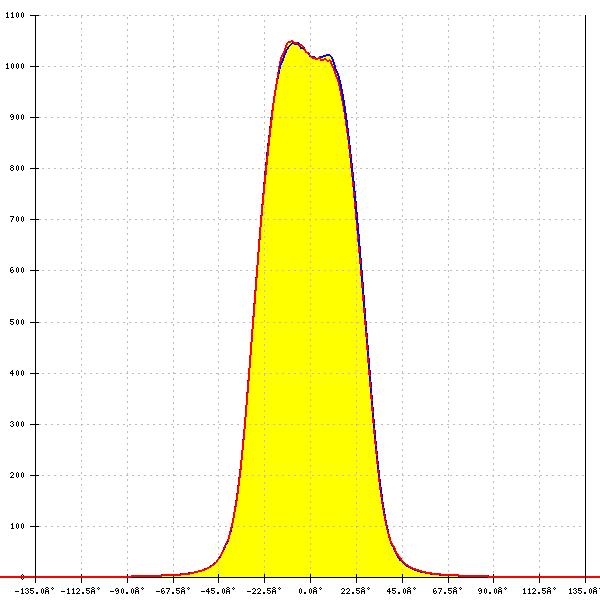

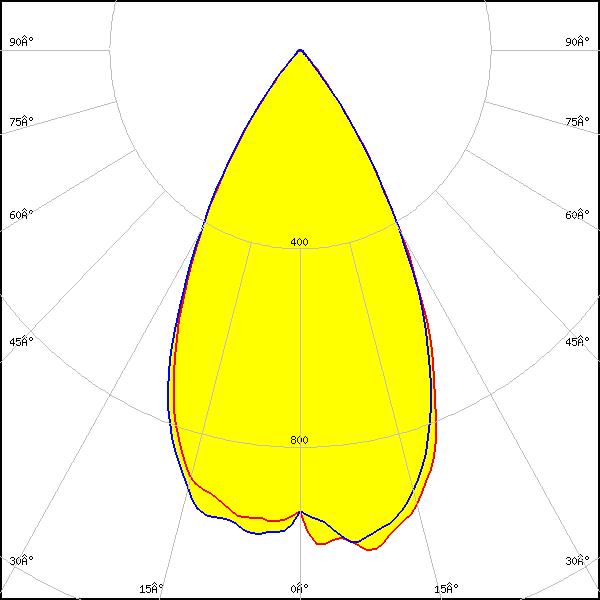

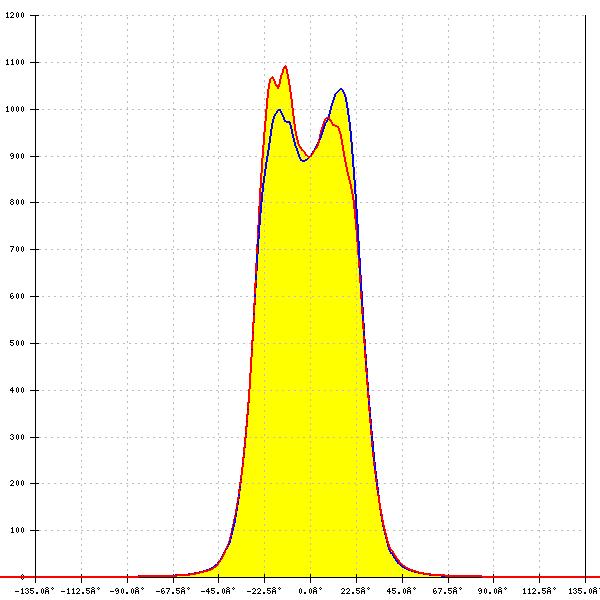

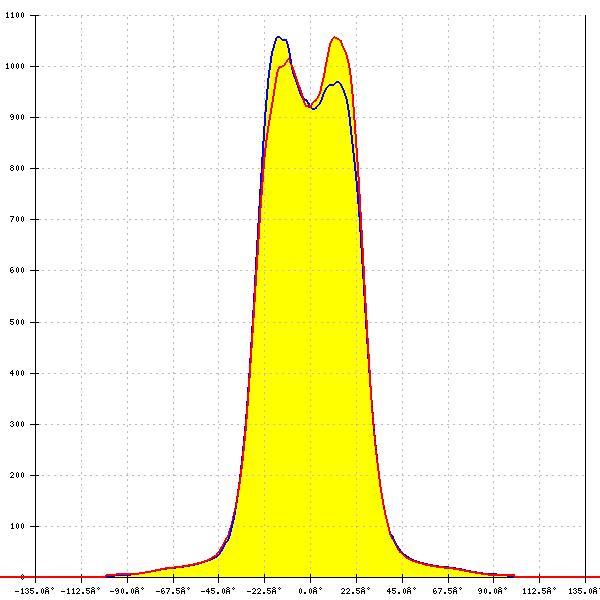

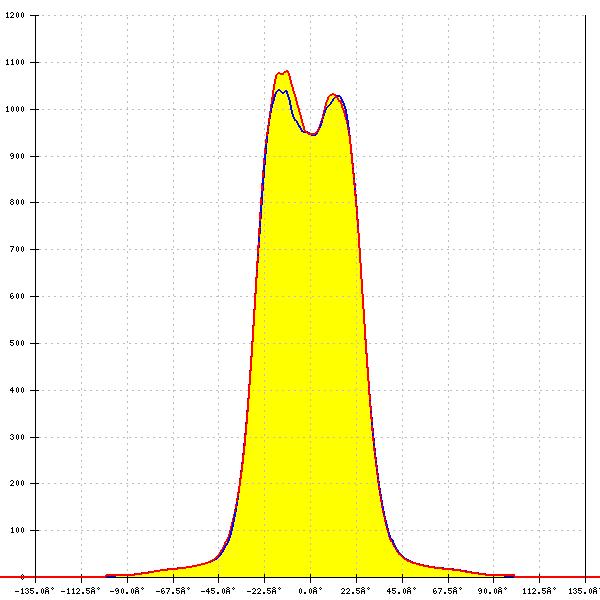

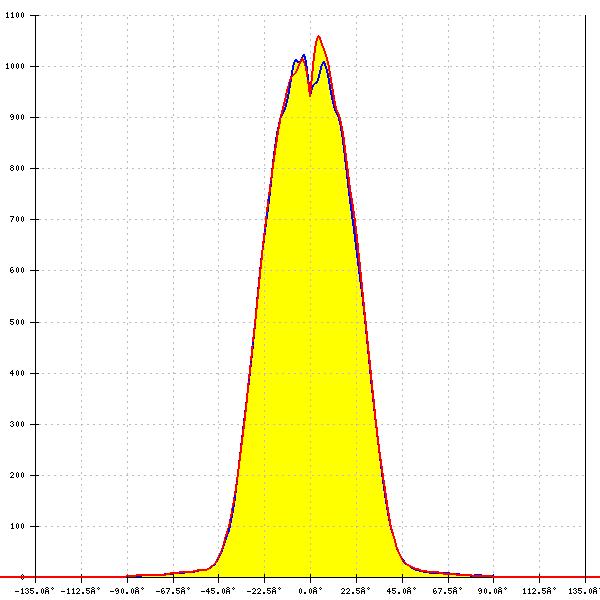

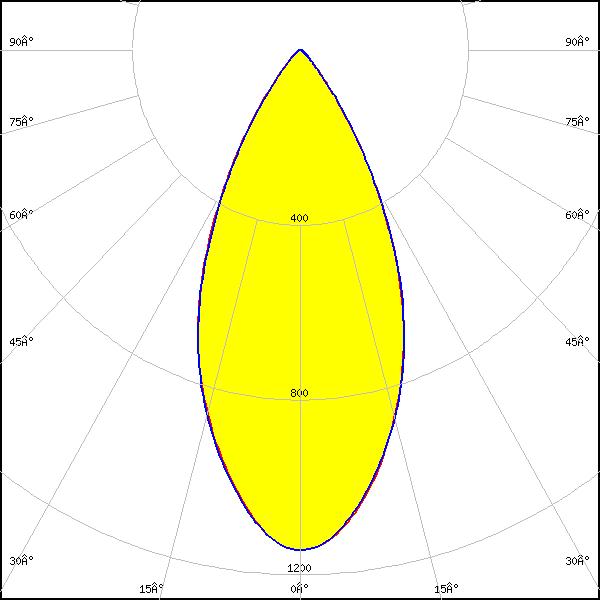

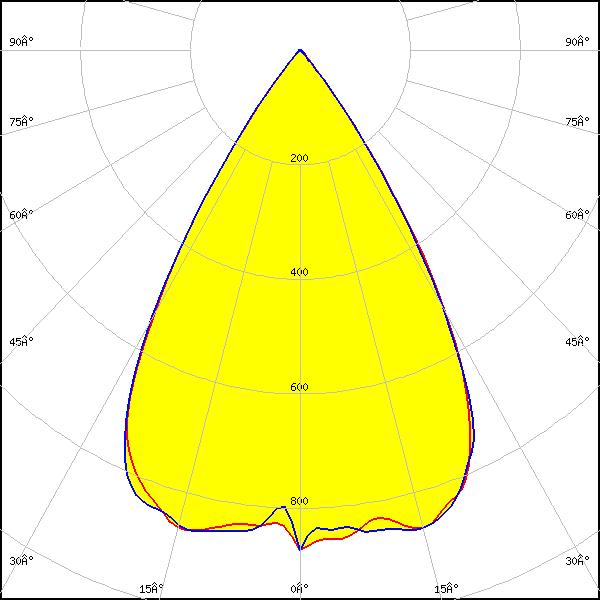

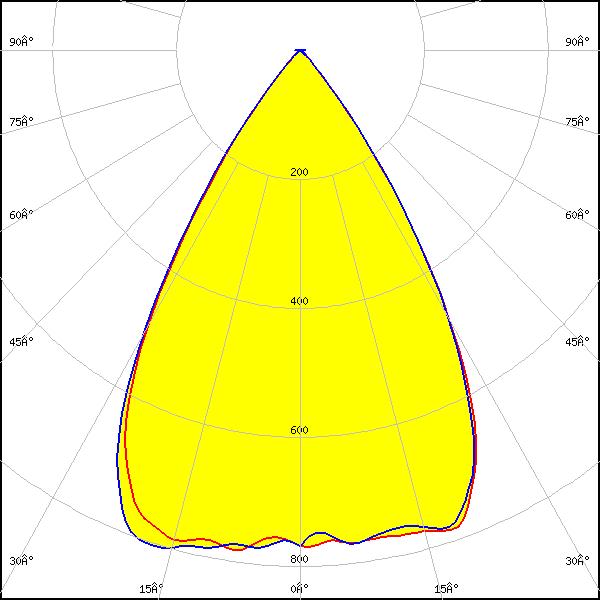

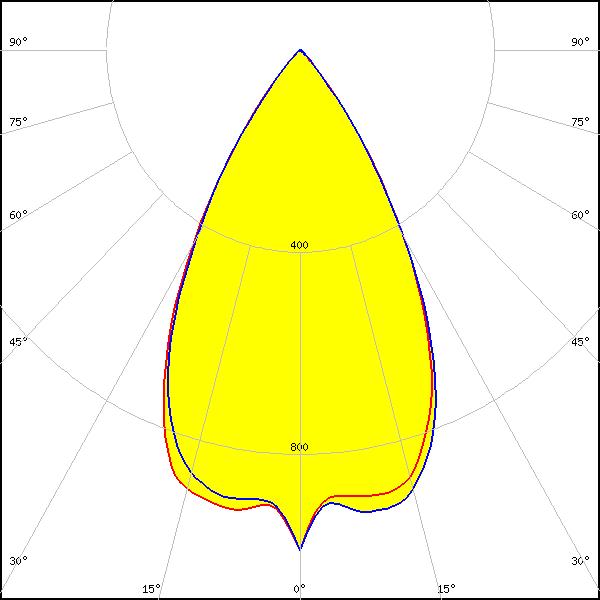

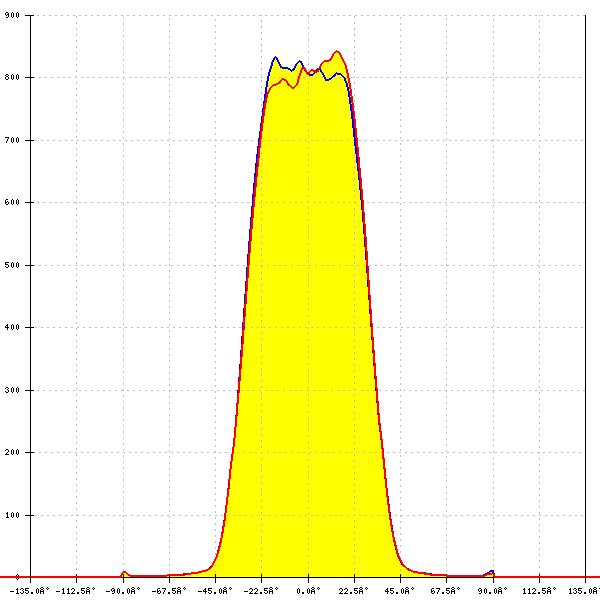

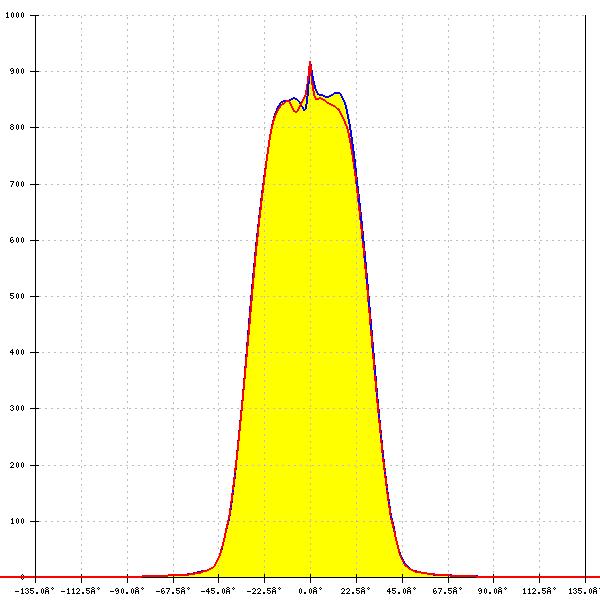

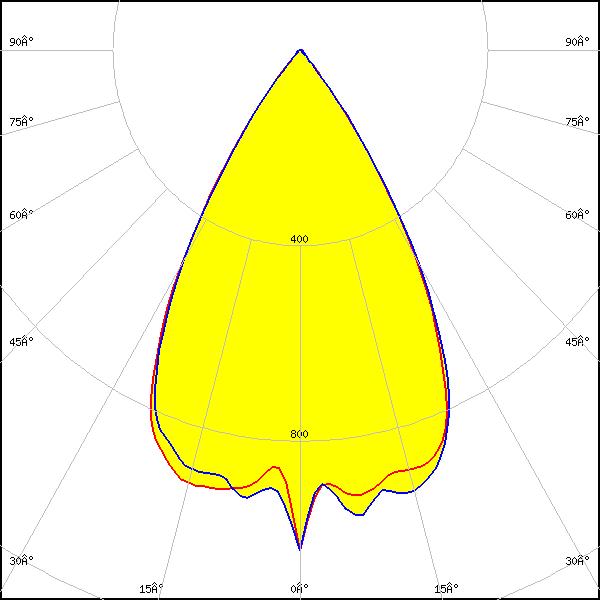

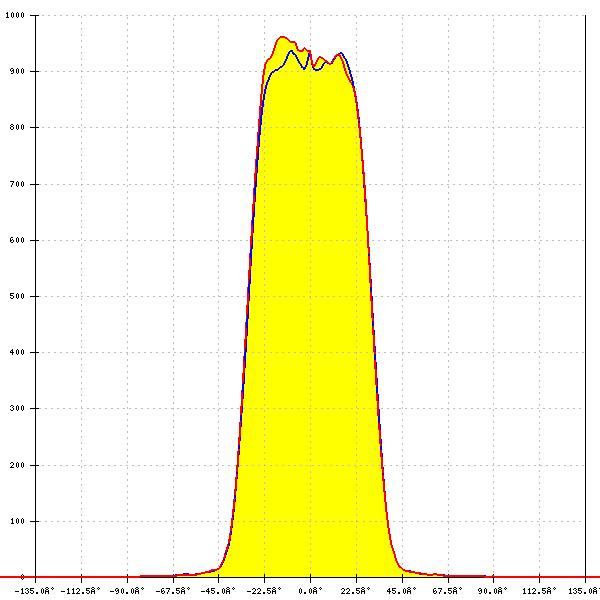

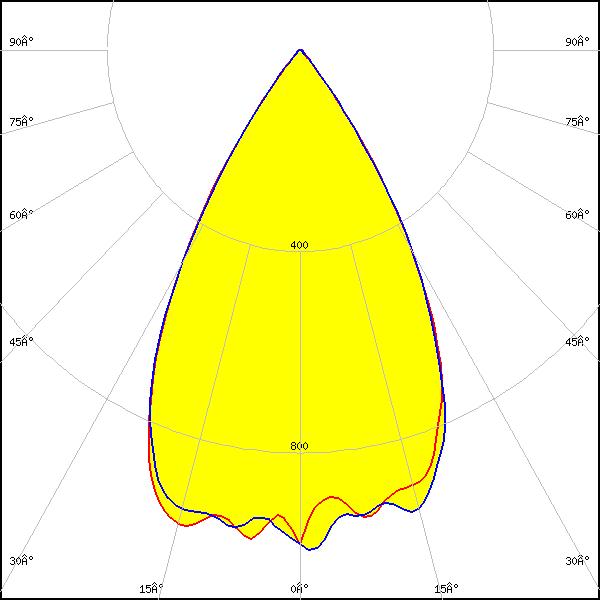

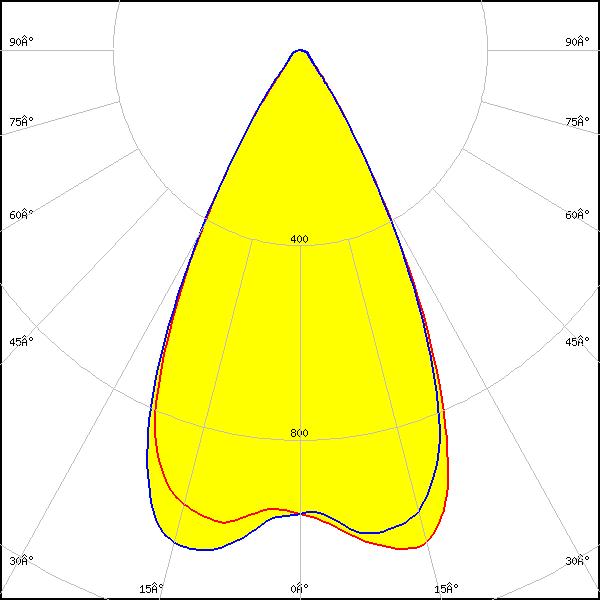

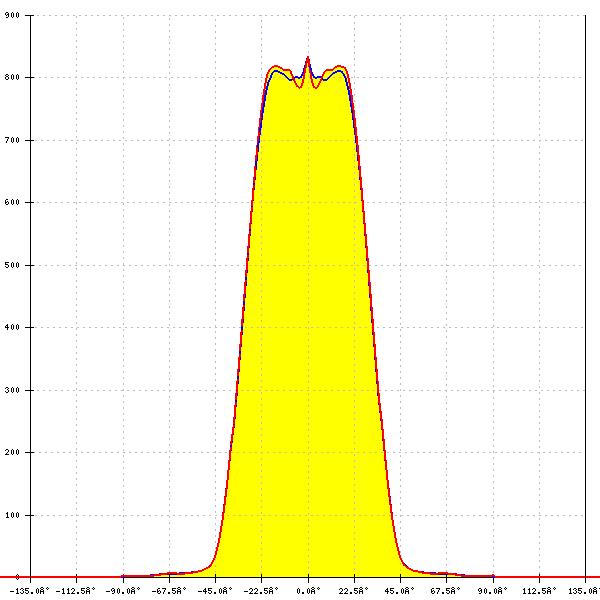

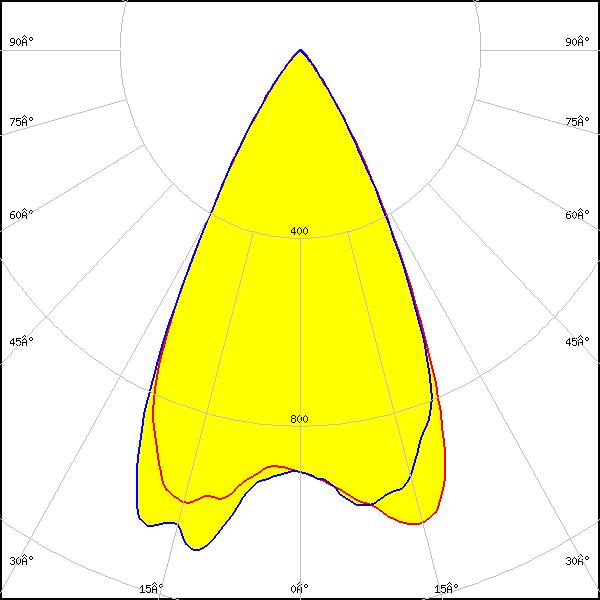

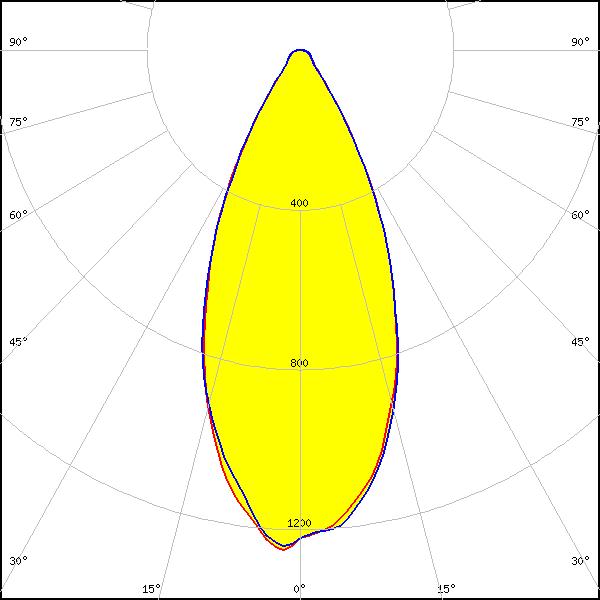

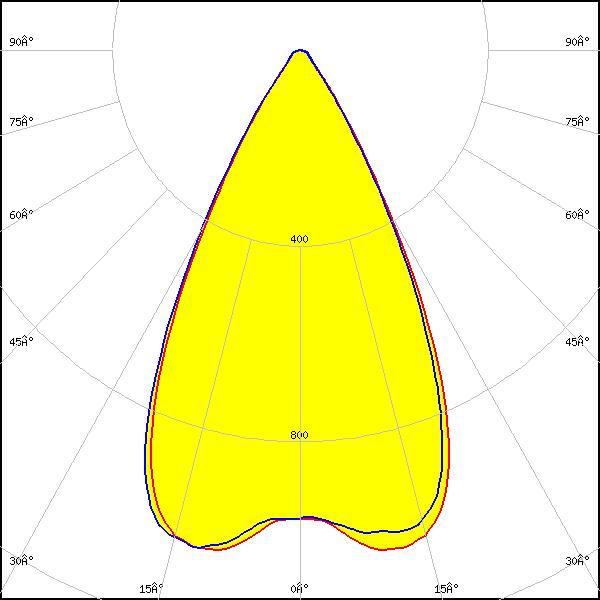

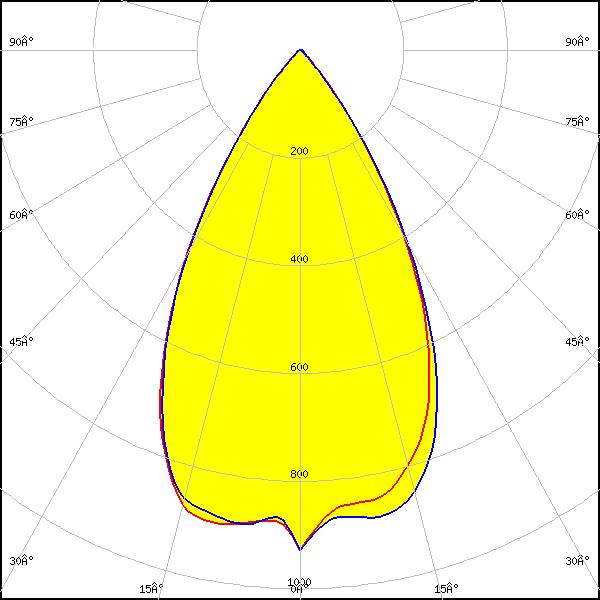

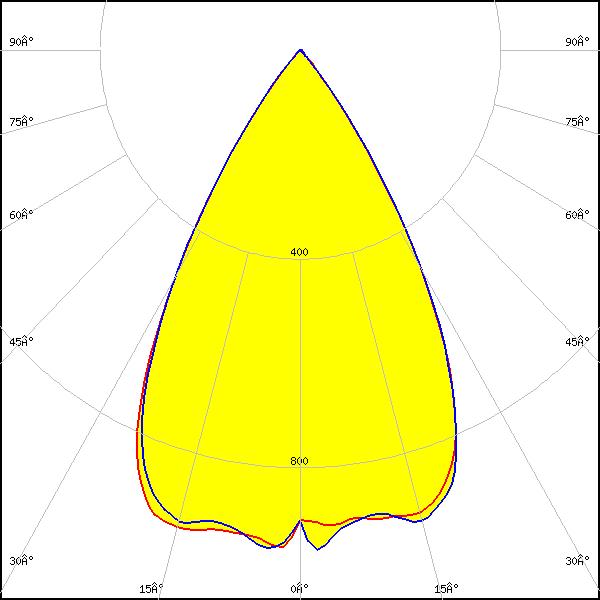

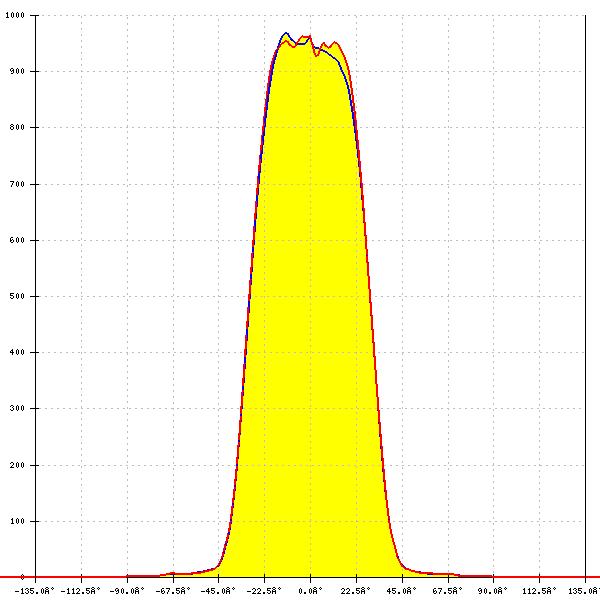

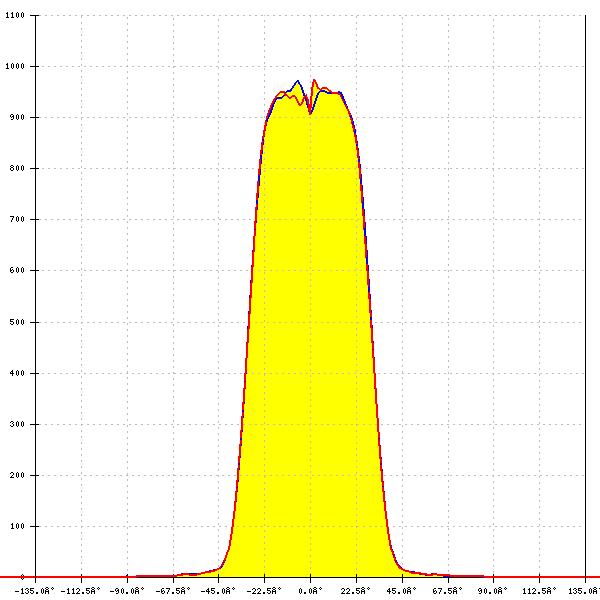

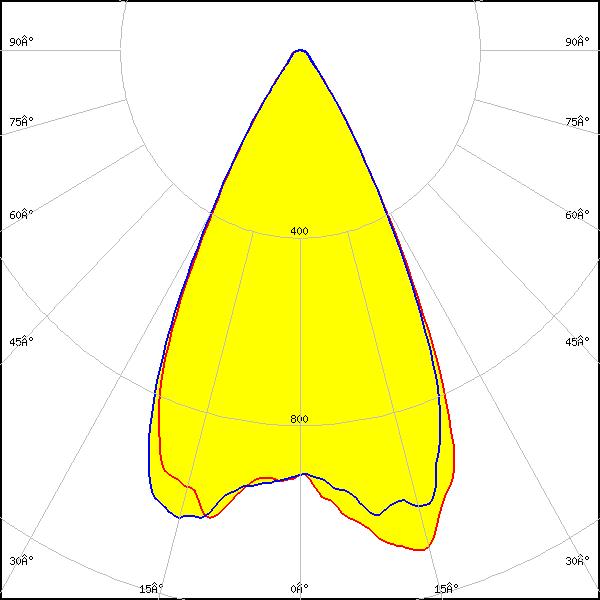

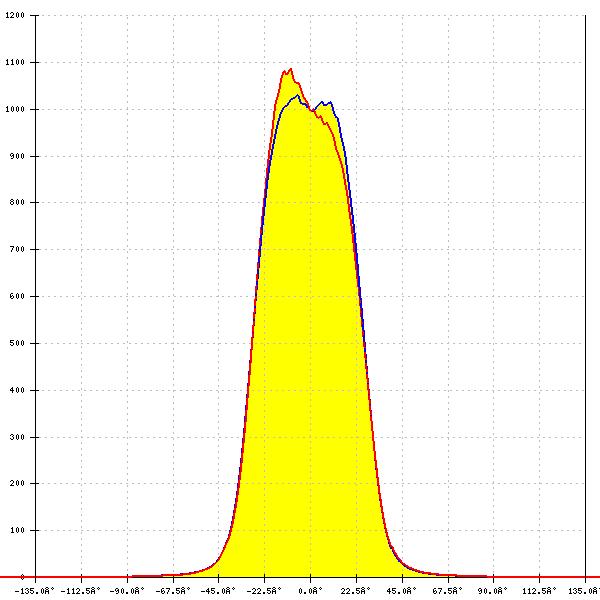

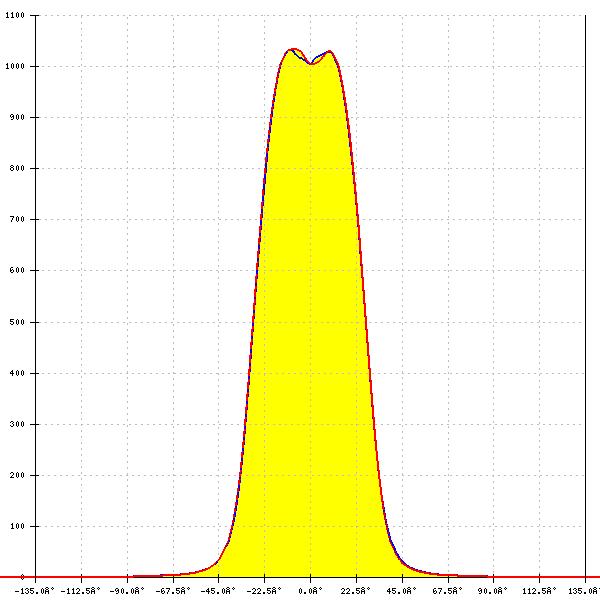

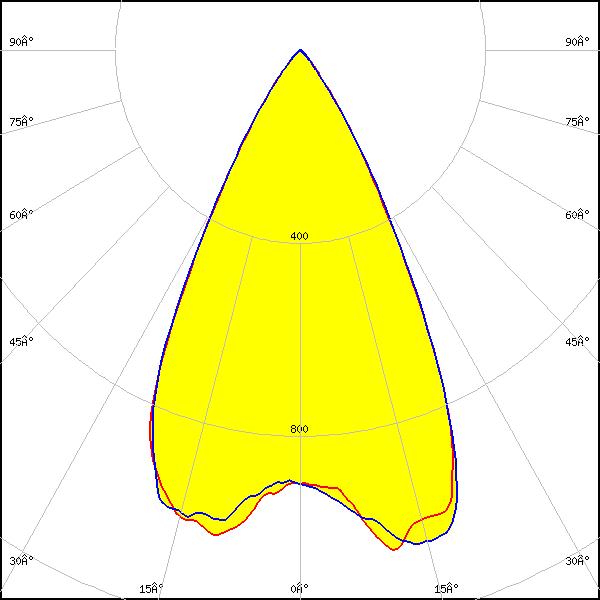

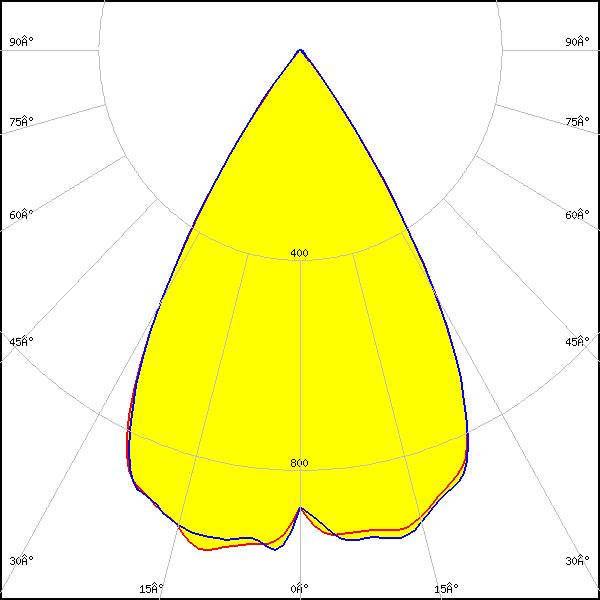

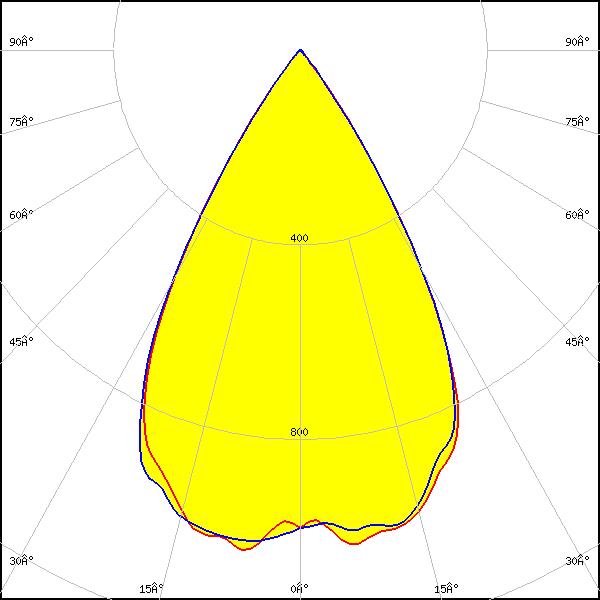

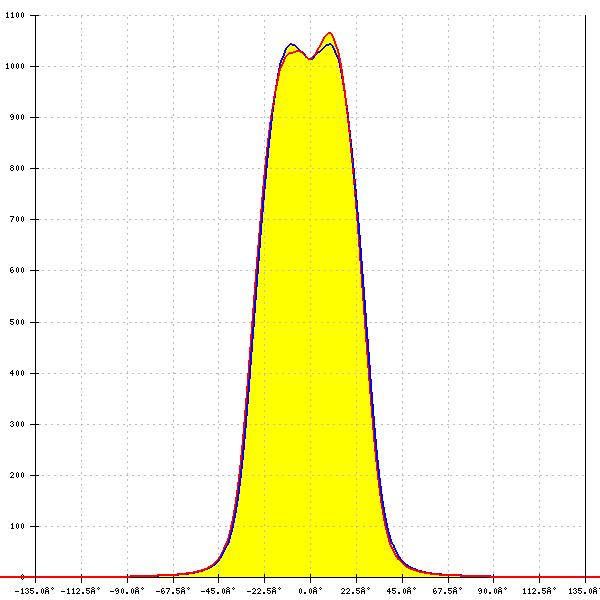

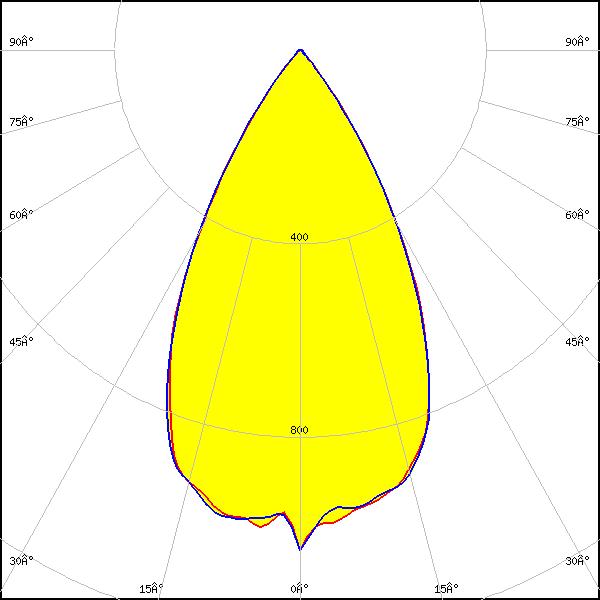

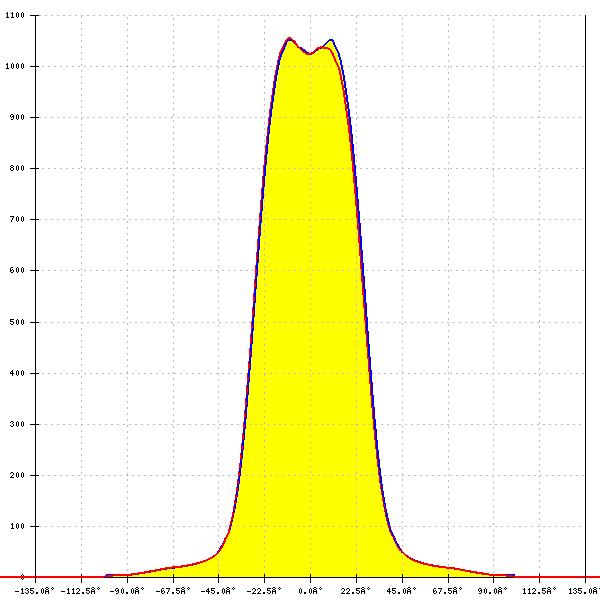

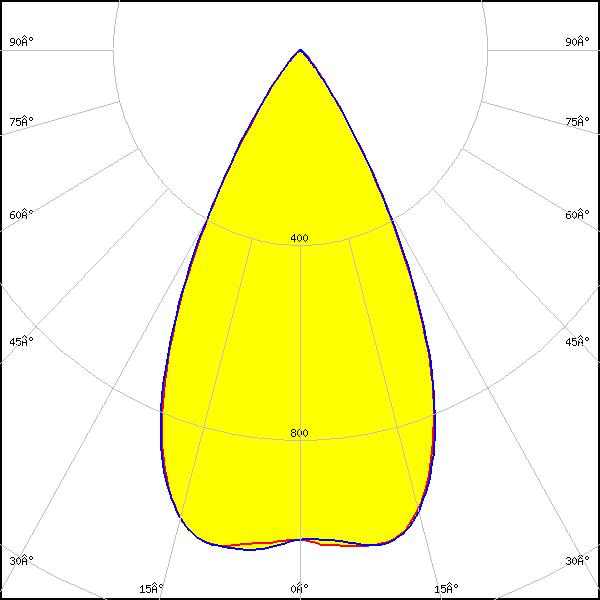

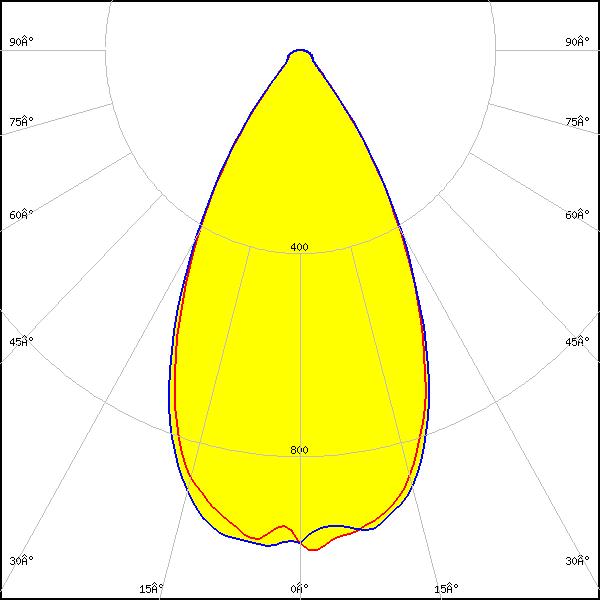

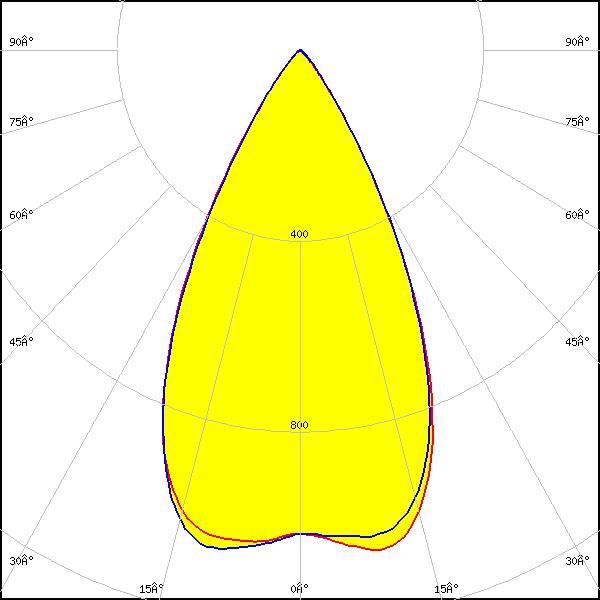

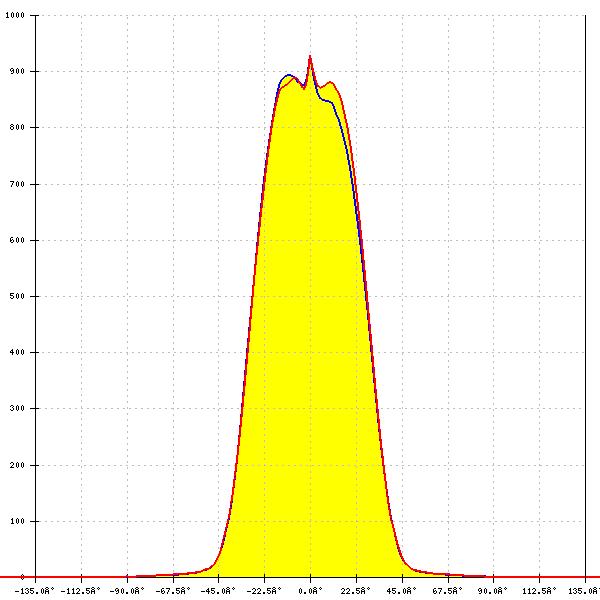

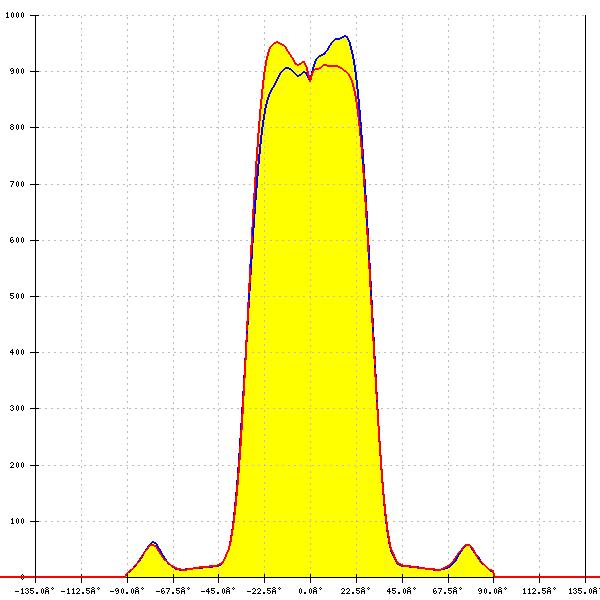

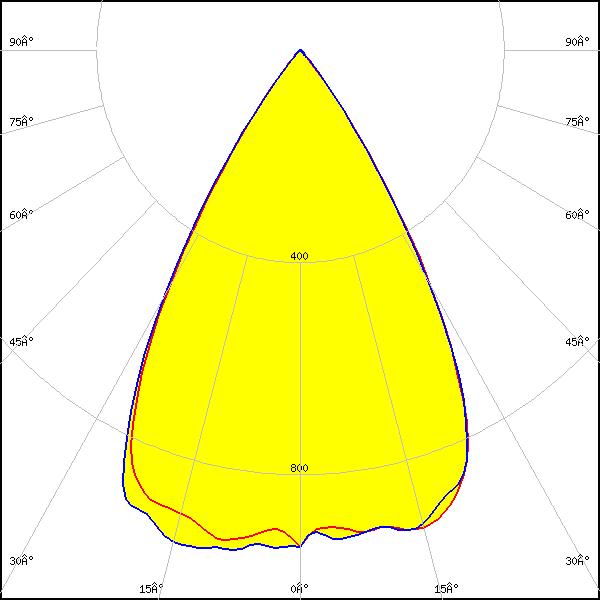

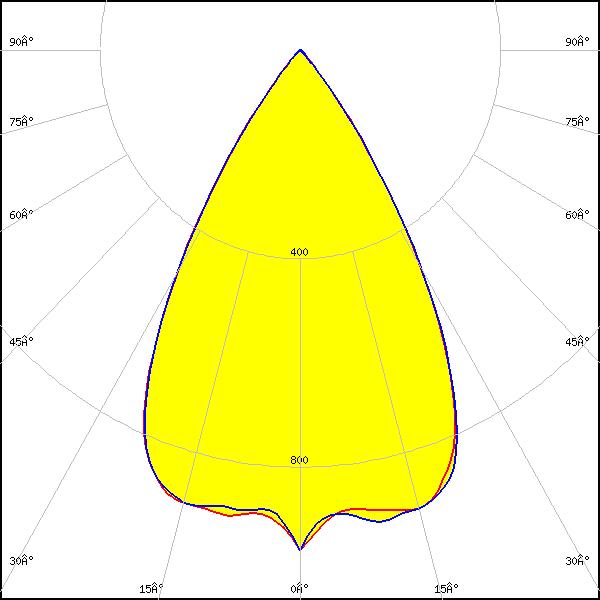

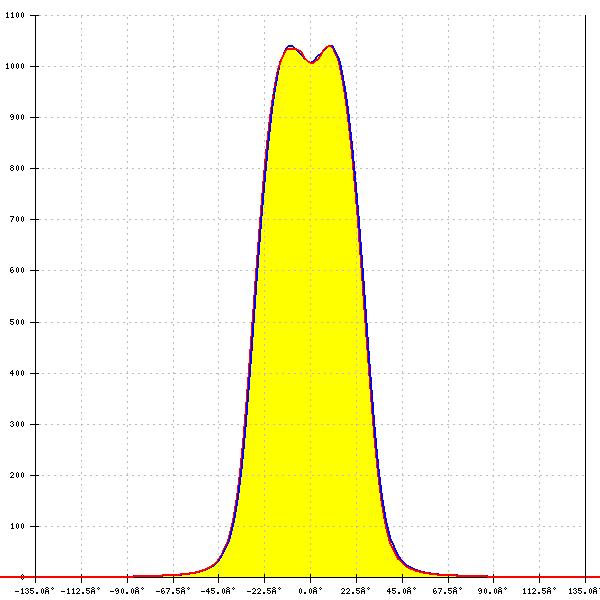

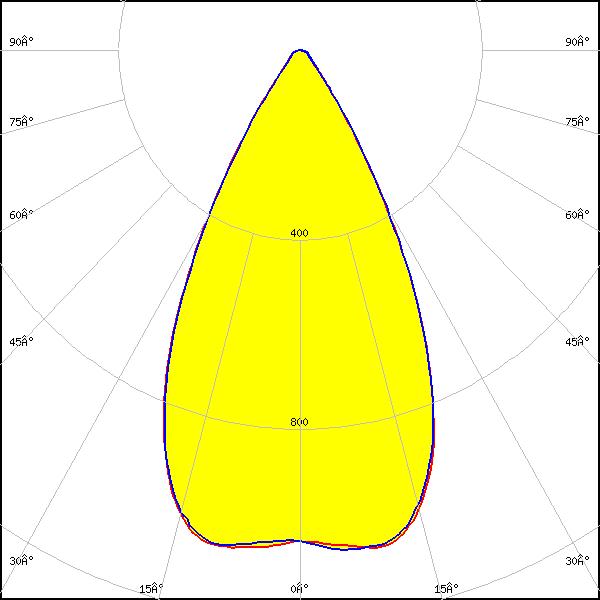

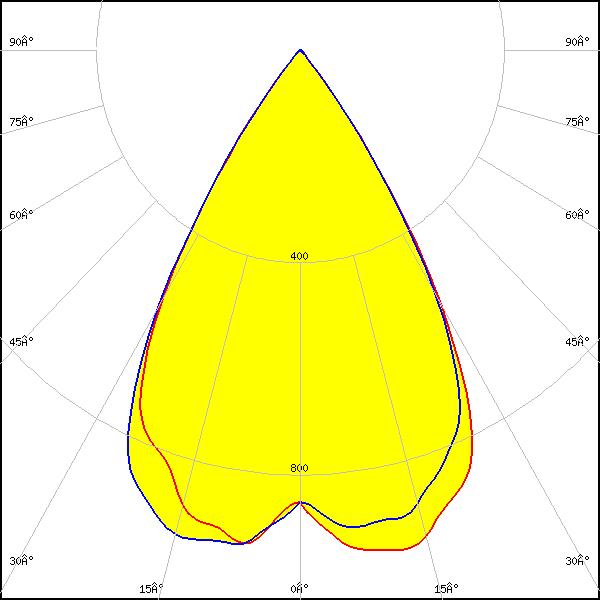

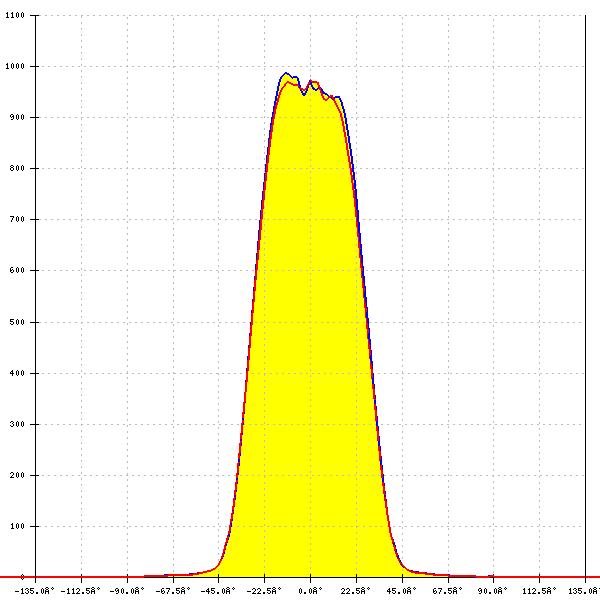

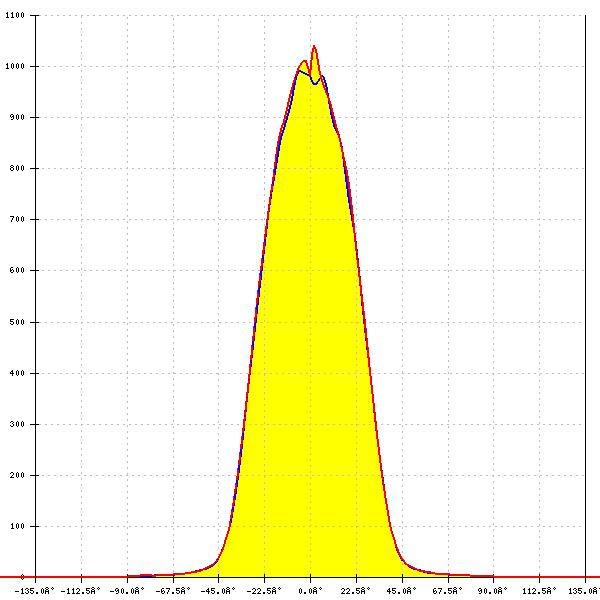

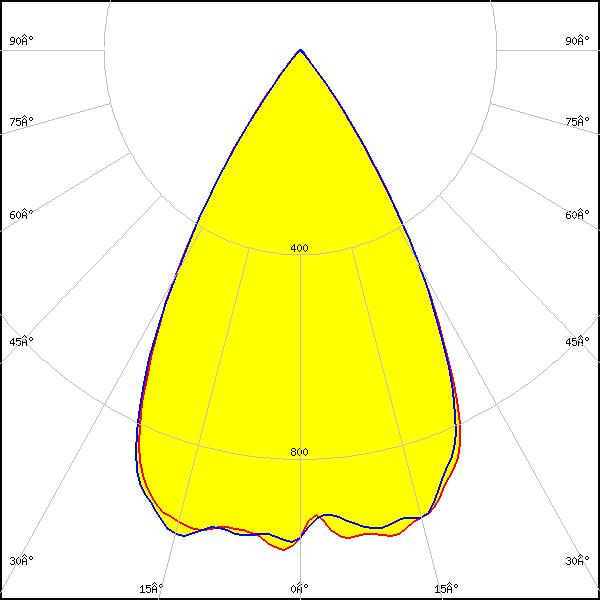

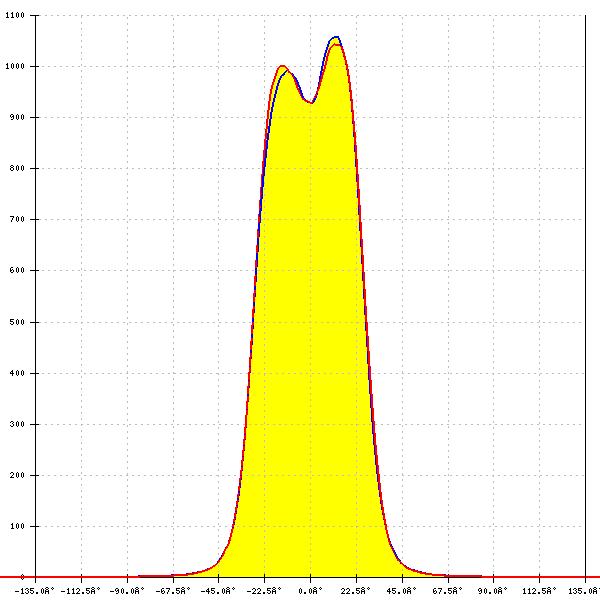

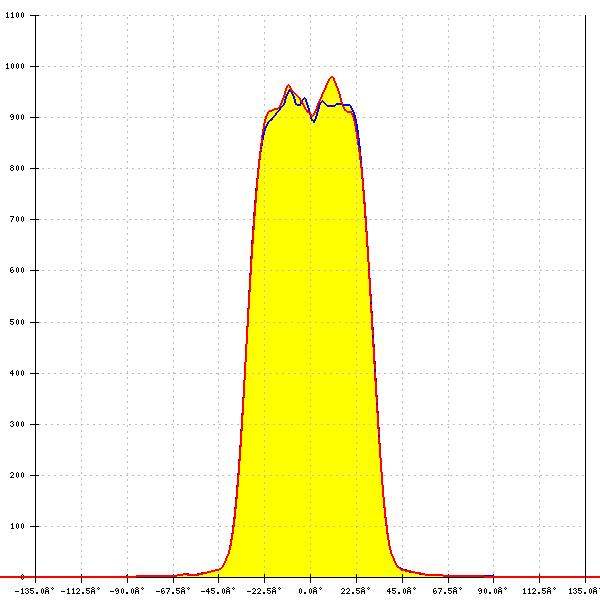

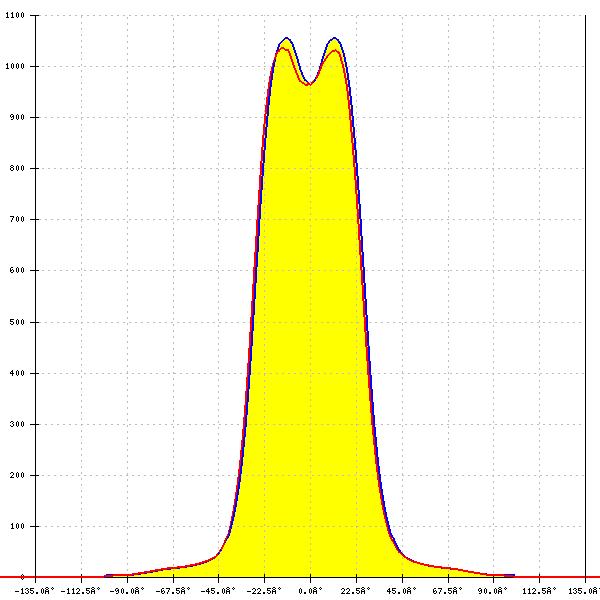

    Optical results

    LED: BXRV-D10-RGBW2000-A3
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 10.0 mm
    Required components:
    C19950_HEKLA-SOCKET-RZ
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 0.868 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 28
    Light colour/type: RGBW

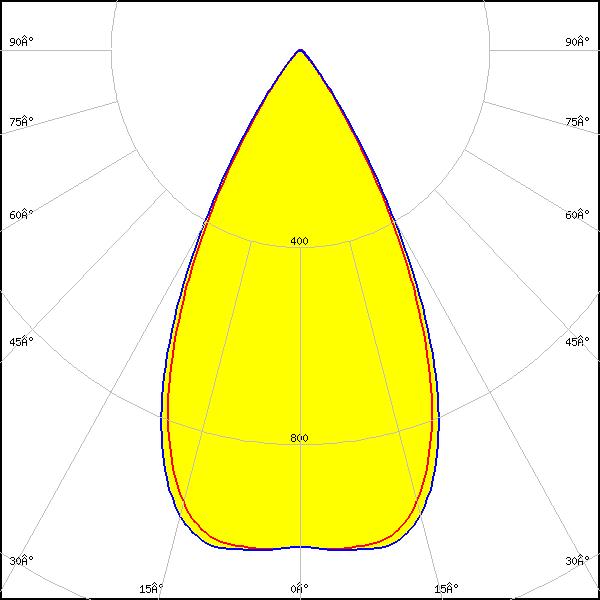

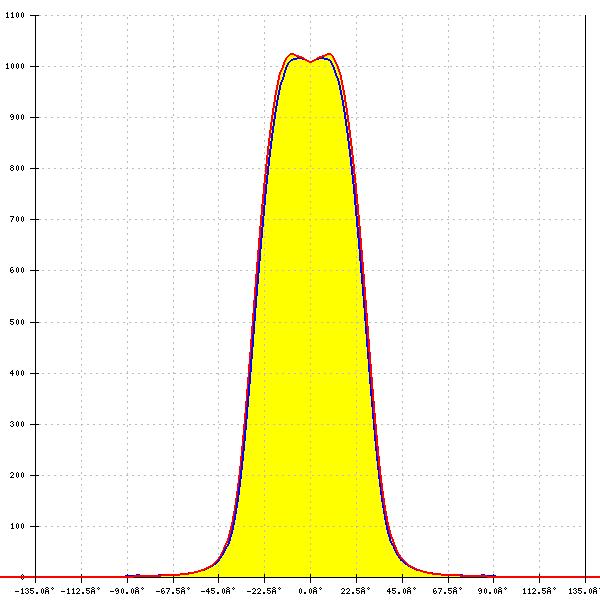

    LED: V10 Gen 8-9
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 10.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 55°
    FWTM: 77°
    Peak intensity: 1.054 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

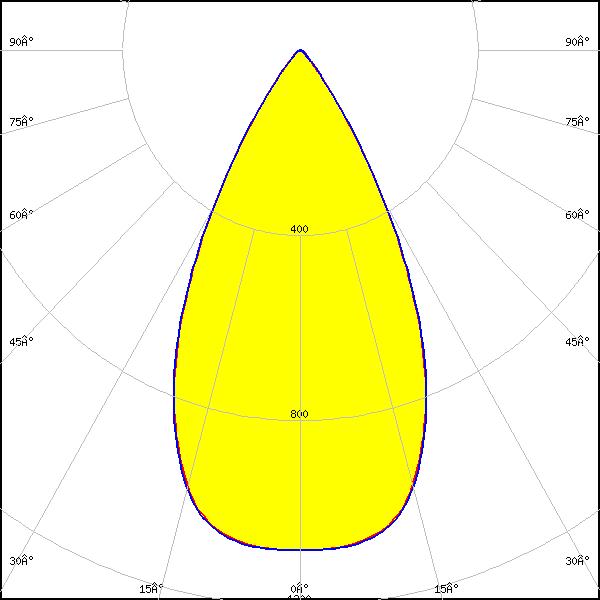

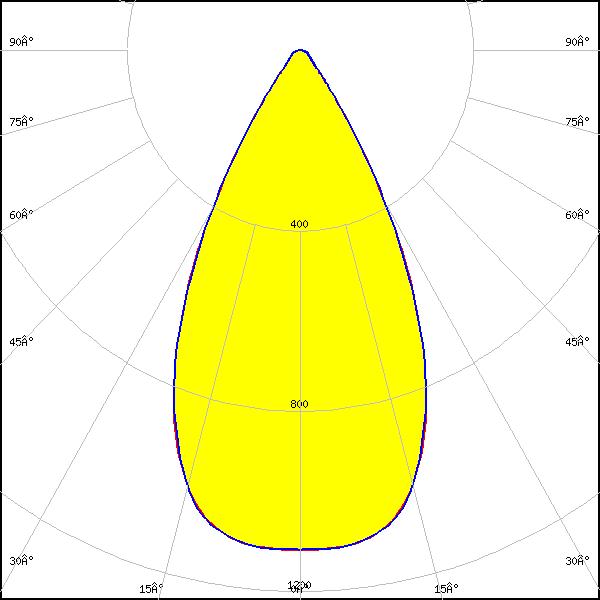

    LED: V11 HD Gen 8
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 11.3 mm
    Required components:
    Bender Wirth: 633d Hekla
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.098 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V11 HD Gen 8
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 11.3 mm
    Required components:
    Bender Wirth: 633d Hekla
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 1.129 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

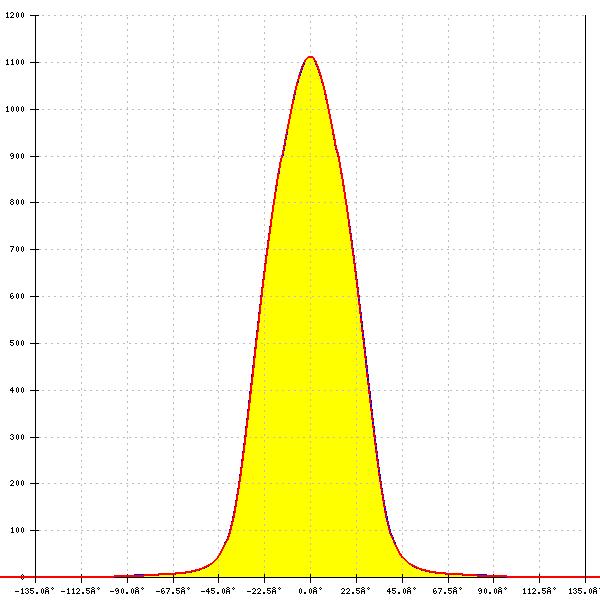

    LED: V13 Gen 8-9
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 14.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 50°
    FWTM: 77°
    Peak intensity: 1.111 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

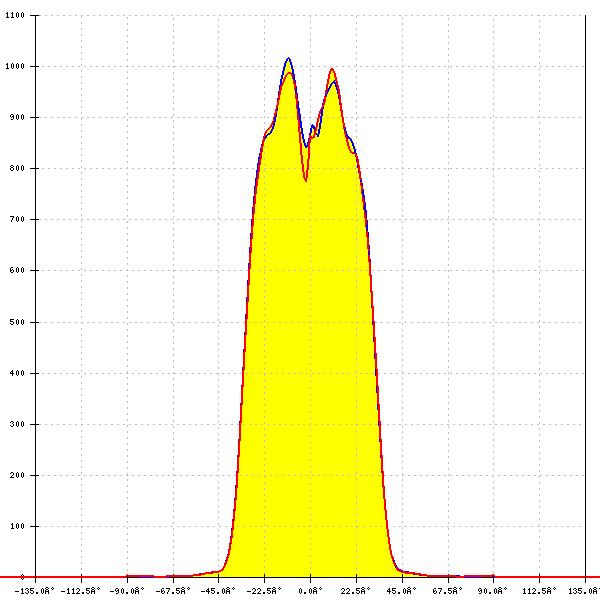

    LED: V3 HD Gen 8
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 3.8 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 62°
    FWTM: 76°
    Peak intensity: 1.028 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

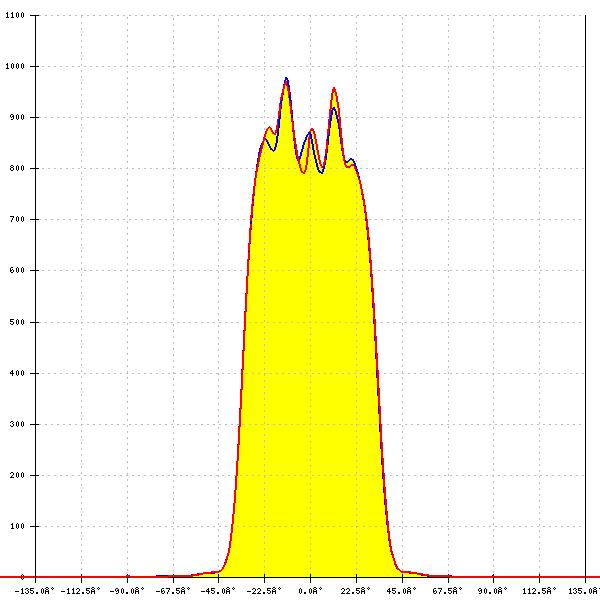

    LED: V3 HD Gen 8 FC
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 2.9 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 64°
    FWTM: 77°
    Peak intensity: 0.985 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V4 HD Gen 7
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 5.2 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.089 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V4 HD Gen 8
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 4.8 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 62°
    FWTM: 76°
    Peak intensity: 1.011 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V6 Gen 8-9
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 6.3 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 62°
    FWTM: 78°
    Peak intensity: 0.966 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

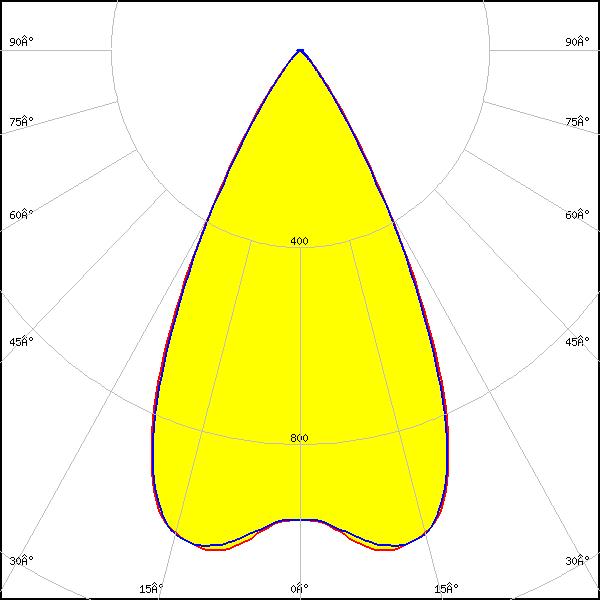

    LED: V6 HD Gen 7
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 7.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 55°
    FWTM: 75°
    Peak intensity: 1.049 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

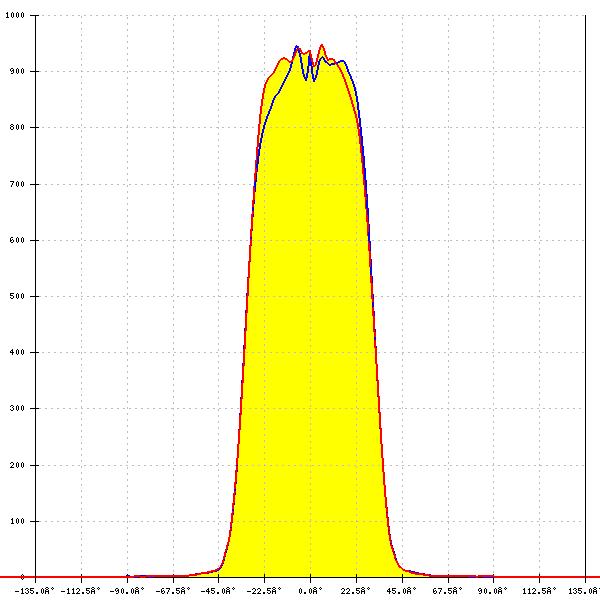

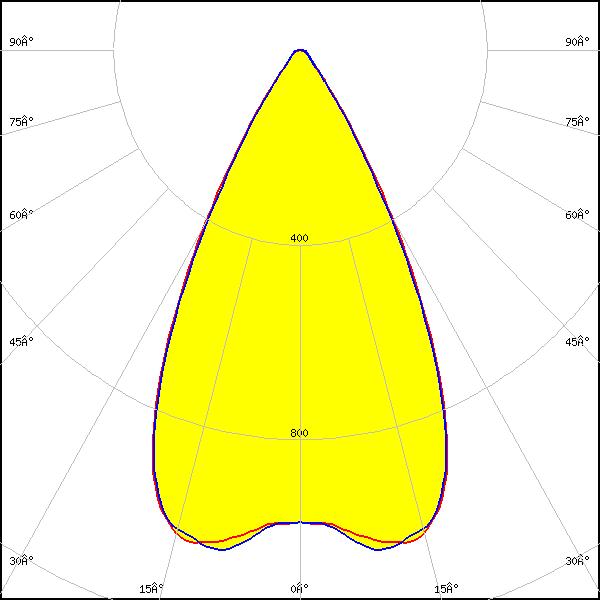

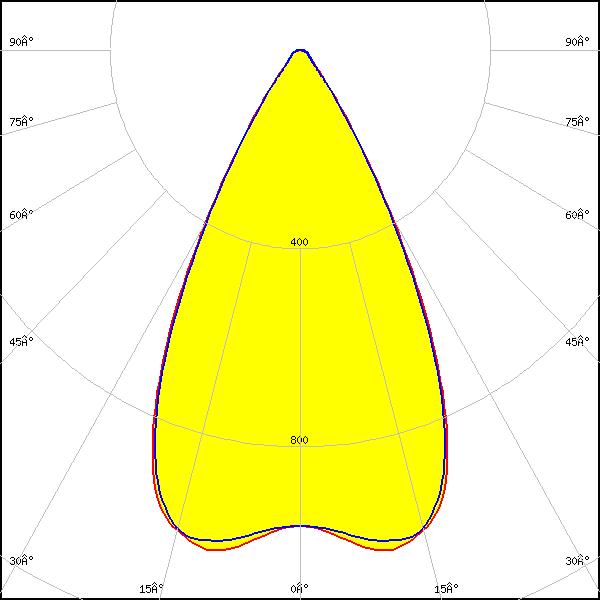

    LED: V6 HD Gen 7
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 7.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 55°
    FWTM: 77°
    Peak intensity: 1.064 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

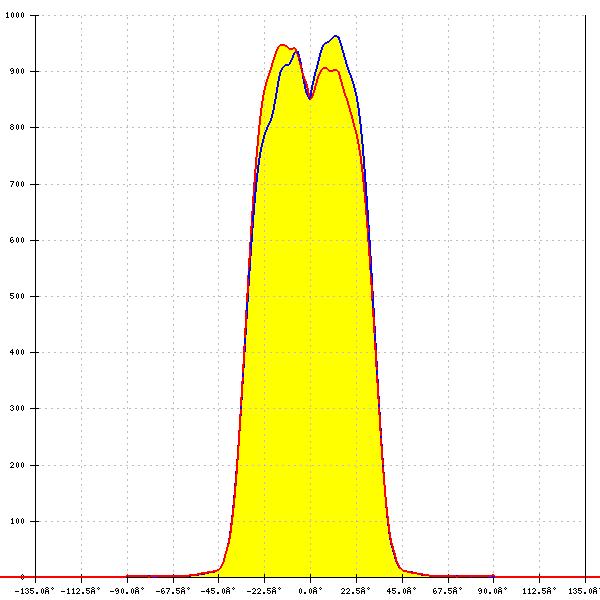

    LED: V6 HD Gen 8
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 6.6 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 62°
    FWTM: 78°
    Peak intensity: 0.964 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V8 Gen 8-9
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 8.5 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 55°
    FWTM: 76°
    Peak intensity: 1.045 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

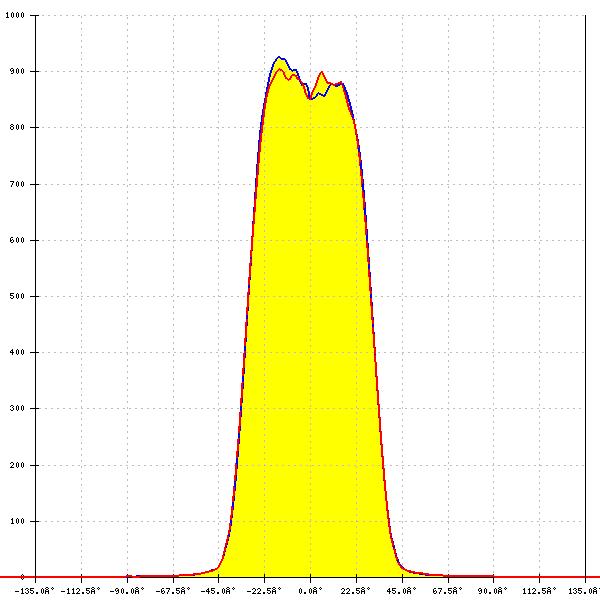

    LED: V9 HD Gen 8
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 8.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 62°
    FWTM: 79°
    Peak intensity: 0.931 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

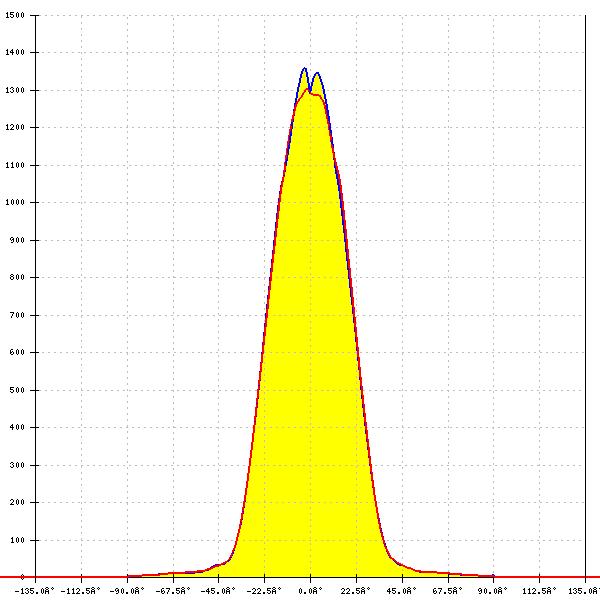

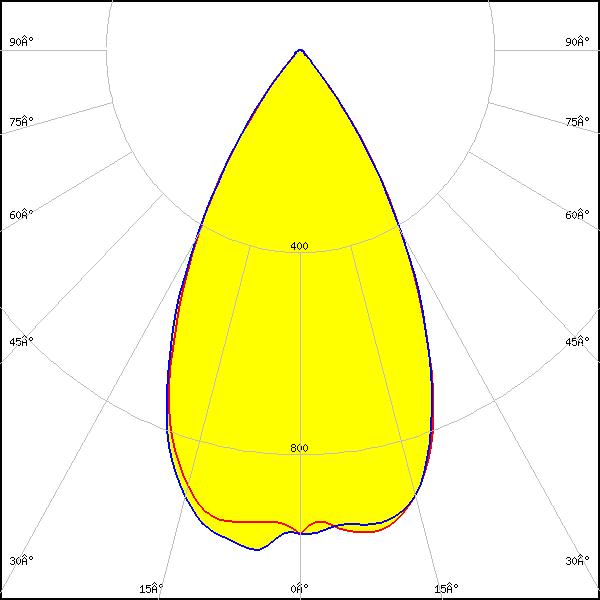

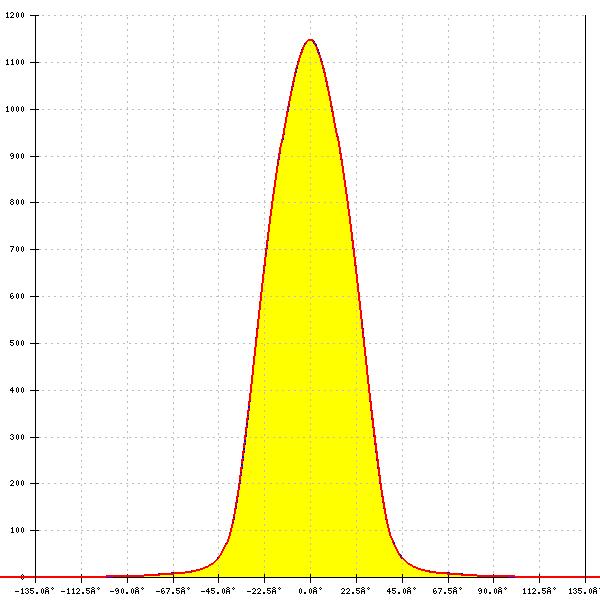

    LED: Vero SE 13
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 13.4 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 44°
    FWTM: 69°
    Peak intensity: 1.388 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO10
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.9 mm
    Required components:
    F15616_HEKLA-SOCKET-F
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.062 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

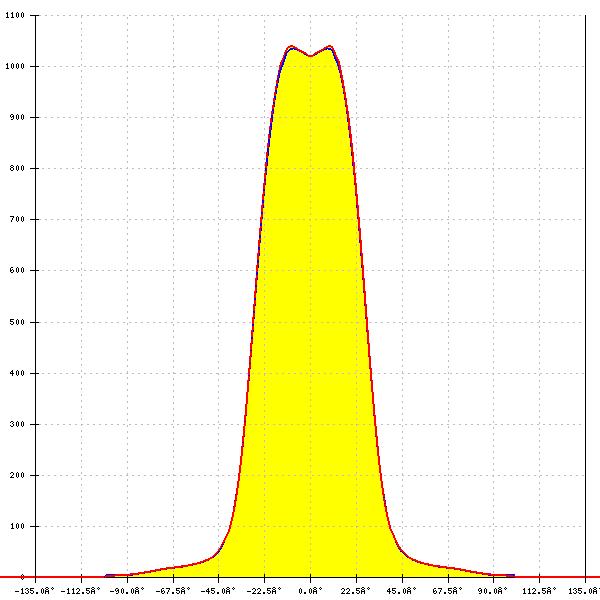

    LED: VERO10
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 9.9 mm
    Required components:
    F15616_HEKLA-SOCKET-F
    FWHM: 55°
    FWTM: 78°
    Peak intensity: 1.079 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO13
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 13.4 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 60°
    FWTM: 82°
    Peak intensity: 0.918 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

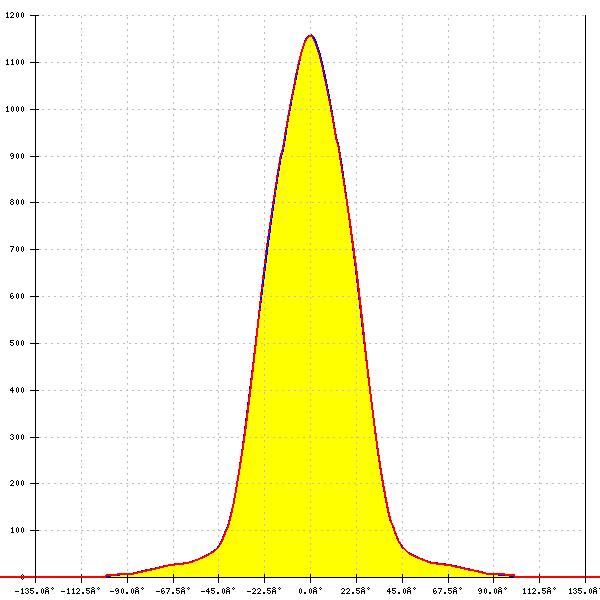

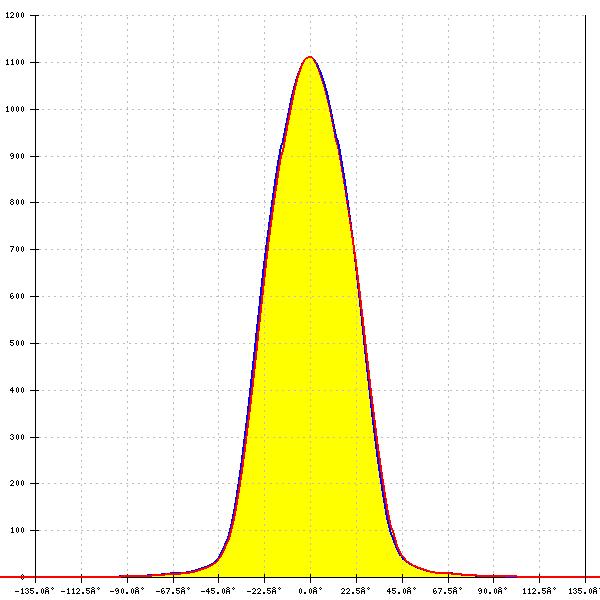

    LED: Vesta DTW 13mm (21W)
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 51°
    FWTM: 78°
    Peak intensity: 1.111 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

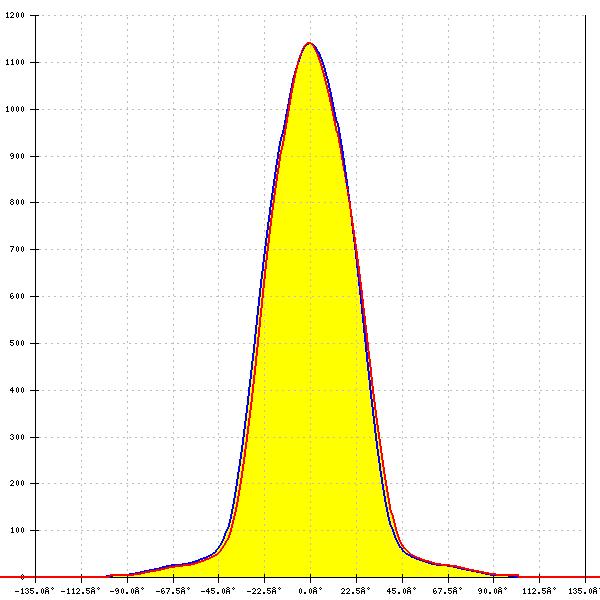

    LED: Vesta DTW 13mm (21W)
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 51°
    FWTM: 80°
    Peak intensity: 1.141 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

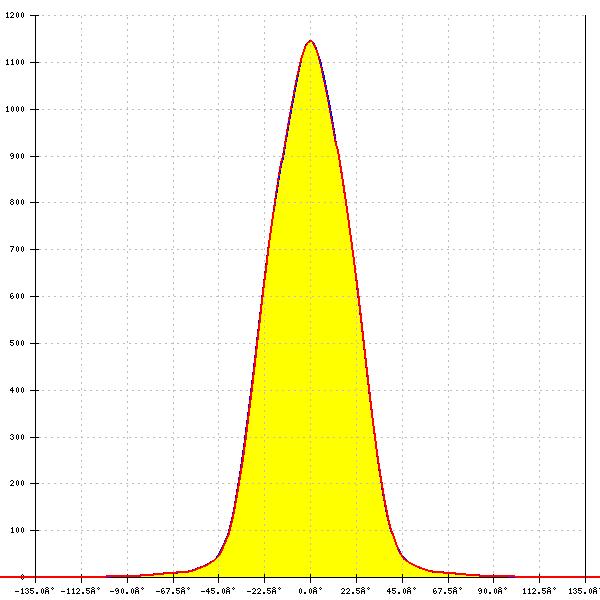

    LED: Vesta DTW 15mm (33W)
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 16.2 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 49°
    FWTM: 78°
    Peak intensity: 1.144 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 15mm (33W)
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 16.2 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 49°
    FWTM: 80°
    Peak intensity: 1.156 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 6mm
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 6.8 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: 62°
    FWTM: 78°
    Peak intensity: 0.969 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 9mm (4W/6W/12W)
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.3 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: 55°
    FWTM: 76°
    Peak intensity: 1.069 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

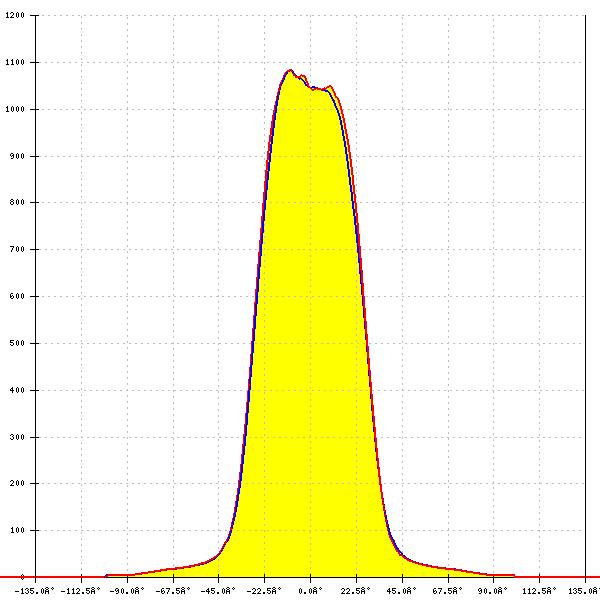

    LED: Vesta DTW 9mm (4W/6W/12W)
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 9.3 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: 55°
    FWTM: 77°
    Peak intensity: 1.101 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta SE 13mm TW
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 14.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 49°
    FWTM: 74°
    Peak intensity: 1.171 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 13mm (18W) DP
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 14.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 492 Typ L8
    FWHM: 53°
    FWTM: 76°
    Peak intensity: 1.142 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 15mm DP
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 16.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 482 Typ L8
    FWHM: 50°
    FWTM: 78°
    Peak intensity: 1.136 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 9mm (9W) DP
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 10.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 489 Typ L8
    FWHM: 64°
    FWTM: 83°
    Peak intensity: 0.811 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CLU02Q Type-F
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.7 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 62°
    FWTM: 82°
    Peak intensity: 0.852 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

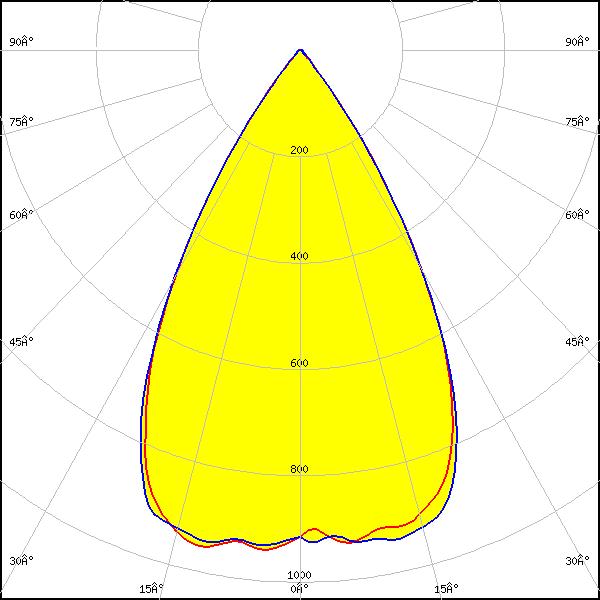

    LED: CLU02x (LES10)
    Ordering code: CP18733_YASMEEN-50-WW-B2
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 60°
    FWTM: 78°
    Peak intensity: 0.979 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

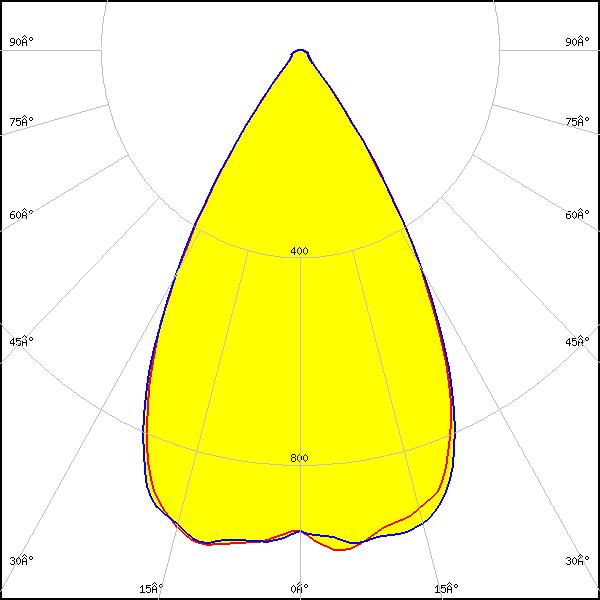

    LED: CLU02x (LES10)
    Ordering code: CP18747_YASMEEN-50-WW-B2-WHT
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 60°
    FWTM: 80°
    Peak intensity: 0.976 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU02x (LES10)
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.075 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU02x (LES10)
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 1.072 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 75°
    Peak intensity: 1.033 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 77°
    Peak intensity: 1.060 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU712/713
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 8.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 60°
    FWTM: 78°
    Peak intensity: 1.024 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU713 Type-F
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 8.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 64°
    FWTM: 82°
    Peak intensity: 0.806 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU723 Type-F
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 11.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 61°
    FWTM: 82°
    Peak intensity: 0.834 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7A2/7A3
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 4.2 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 75°
    Peak intensity: 1.050 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7A2/7A3
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 4.2 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 76°
    Peak intensity: 1.087 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

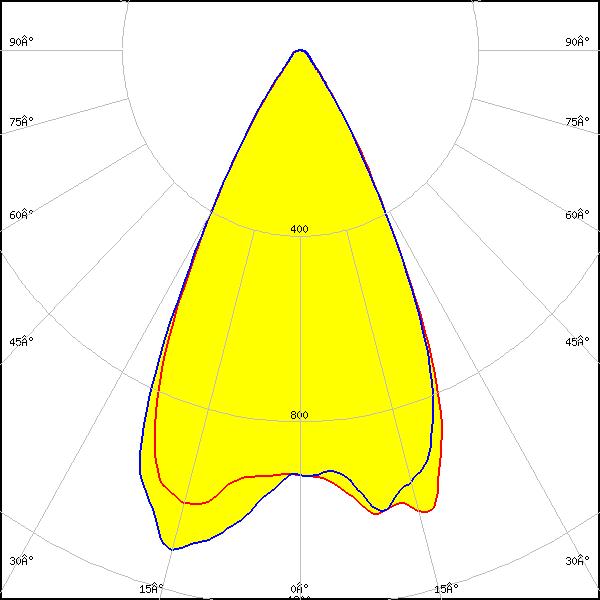

    LED: CLU7B2
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 3.3 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 54°
    FWTM: 74°
    Peak intensity: 1.091 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7B2
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 3.3 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 76°
    Peak intensity: 1.116 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1516
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.0 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.038 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1516
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 9.0 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 1.077 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMB1818-25
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 12.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 57°
    FWTM: 80°
    Peak intensity: 0.991 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

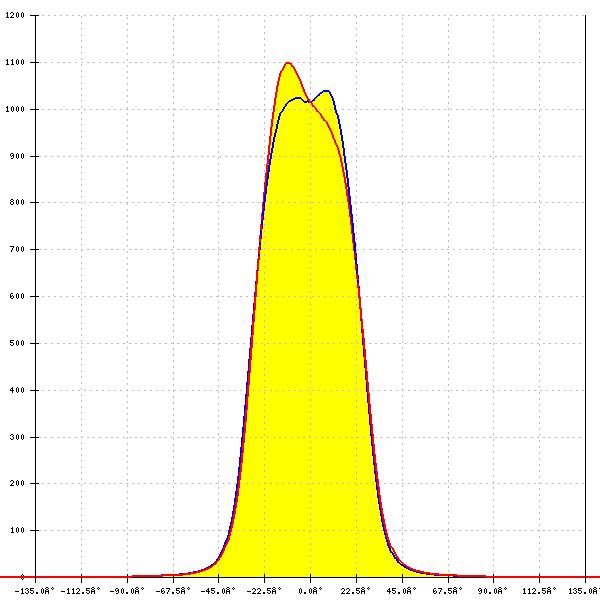

    LED: CMT14xx
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.102 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT14xx
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 1.085 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMU10xx
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 48°
    FWTM: 72°
    Peak intensity: 1.340 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 13xx
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 6.0 mm
    Required components:
    F17439_HEKLA-G2-J
    FWHM: 55°
    FWTM: 74°
    Peak intensity: 1.057 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

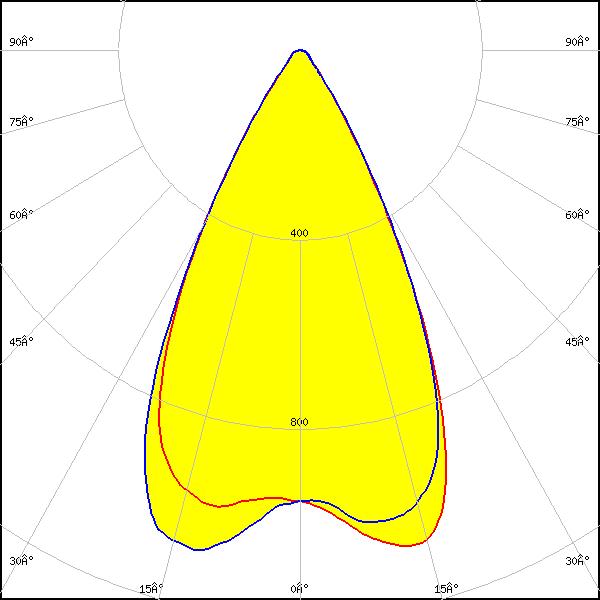

    LED: CXA/B 13xx
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 6.0 mm
    Required components:
    F17439_HEKLA-G2-J
    FWHM: 55°
    FWTM: 77°
    Peak intensity: 1.081 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 15xx
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 8.9 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 54°
    FWTM: 75°
    Peak intensity: 1.060 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

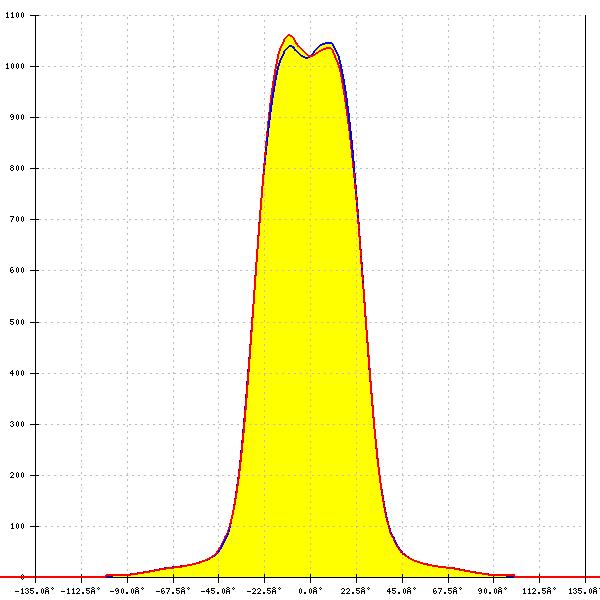

    LED: CXA/B 15xx
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 8.9 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 55°
    FWTM: 78°
    Peak intensity: 1.062 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LEDIM/C6
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 8.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 57°
    FWTM: 78°
    Peak intensity: 1.023 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L08 (Gen2)
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 52°
    FWTM: 79°
    Peak intensity: 1.070 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 7070
    LES size: 0.0 mm
    FWHM: 60°
    FWTM: 76°
    Peak intensity: 0.970 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202/1203
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 54°
    FWTM: 75°
    Peak intensity: 1.053 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202/1203
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 54°
    FWTM: 77°
    Peak intensity: 1.074 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202HD
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 6.5 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 62°
    FWTM: 78°
    Peak intensity: 0.990 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204/1205
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 13.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 56°
    FWTM: 79°
    Peak intensity: 1.026 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204HD
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 53°
    FWTM: 75°
    Peak intensity: 1.097 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

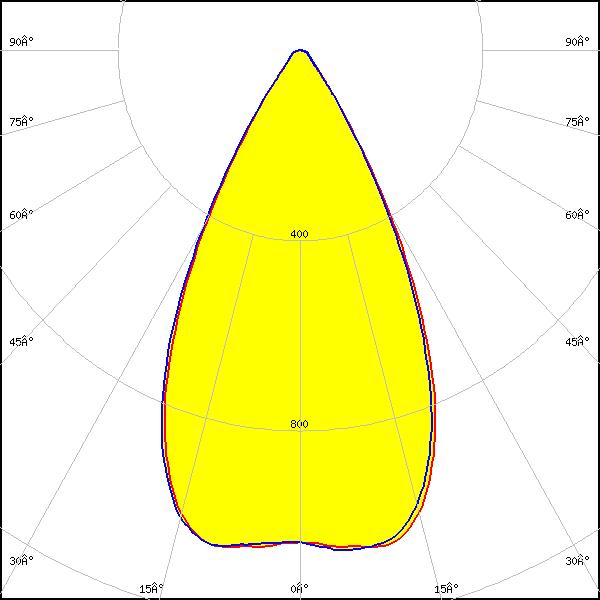

    LED: LUXEON CoB 1204HD
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 54°
    FWTM: 77°
    Peak intensity: 1.102 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1205HD
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 11.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 58°
    FWTM: 79°
    Peak intensity: 1.012 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

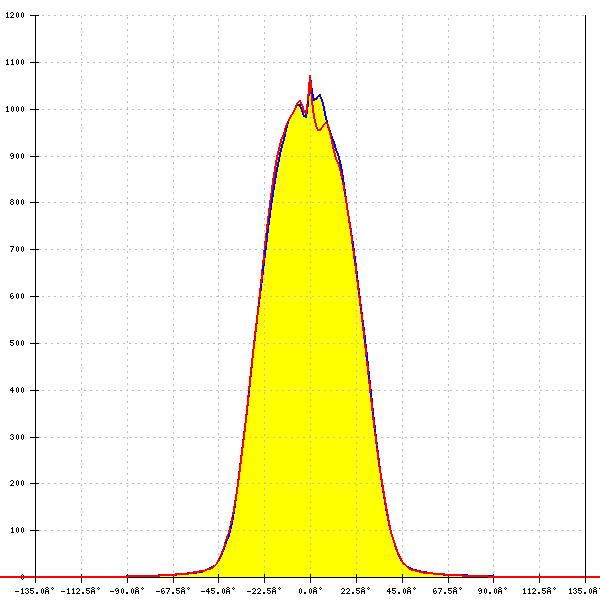

    LED: LUXEON CoB 1208
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 52°
    FWTM: 78°
    Peak intensity: 1.071 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB M02/M03
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 8.5 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 54°
    FWTM: 75°
    Peak intensity: 1.085 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB M02/M03
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 8.5 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 54°
    FWTM: 77°
    Peak intensity: 1.089 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

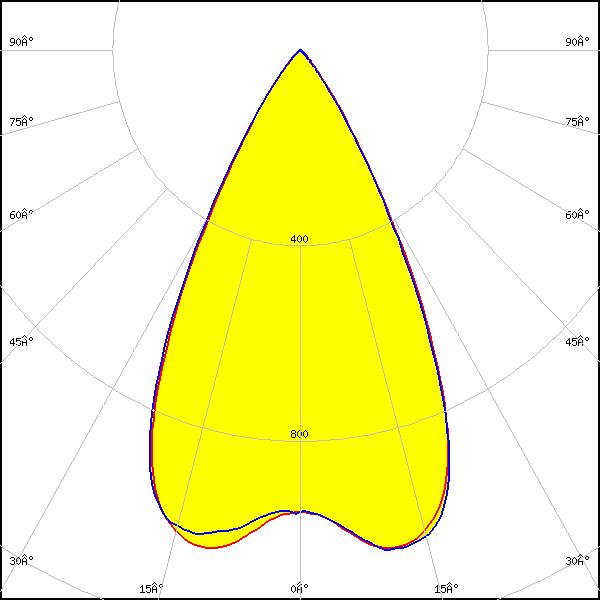

    LED: LUXEON CoB S01
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 5.5 mm
    Required components:
    F17439_HEKLA-G2-J
    FWHM: 55°
    FWTM: 75°
    Peak intensity: 1.060 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB S01
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 5.5 mm
    Required components:
    F17439_HEKLA-G2-J
    FWHM: 55°
    FWTM: 77°
    Peak intensity: 1.111 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

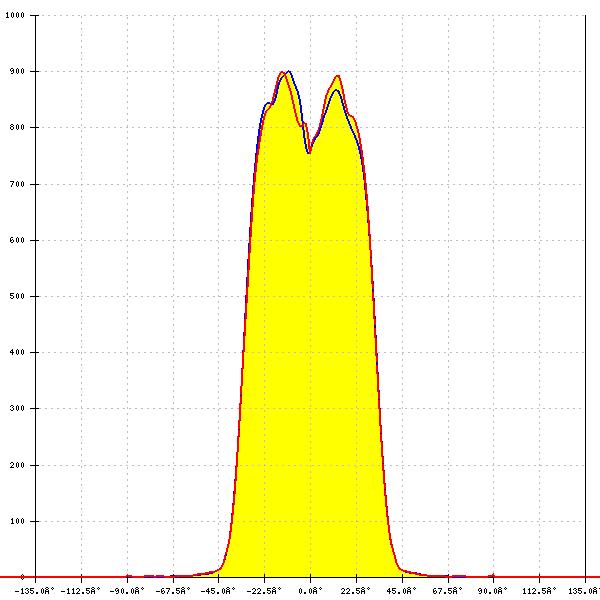

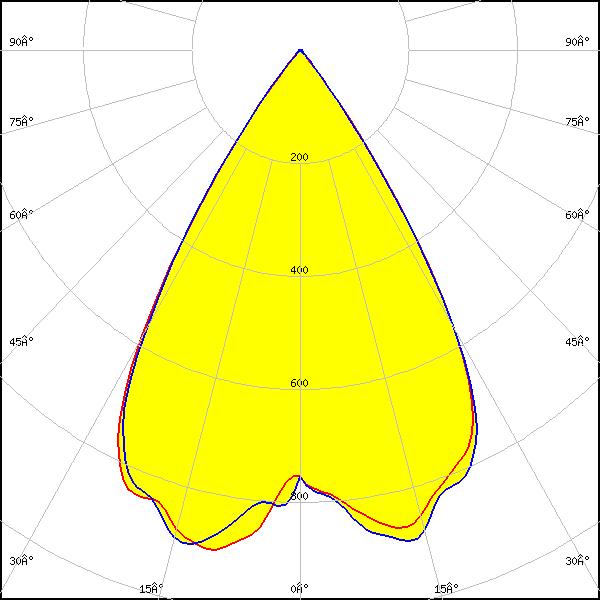

    LED: LUXEON CX Plus CoB - HD S01H4
    Ordering code: CP18733_YASMEEN-50-WW-B2
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 64°
    FWTM: 78°
    Peak intensity: 0.919 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

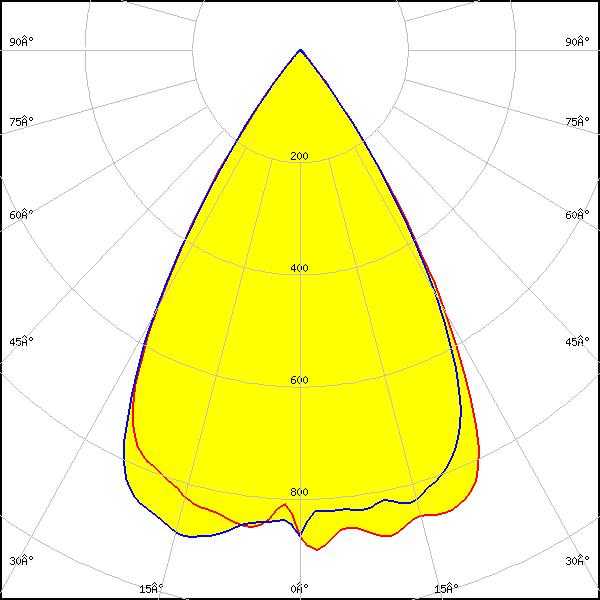

    LED: LUXEON CX Plus CoB - HD S02H6
    Ordering code: CP18733_YASMEEN-50-WW-B2
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 63°
    FWTM: 78°
    Peak intensity: 0.912 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: CP18733_YASMEEN-50-WW-B2
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 62°
    FWTM: 80°
    Peak intensity: 0.886 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.034 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.0 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 60°
    FWTM: 78°
    Peak intensity: 1.005 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB S01 (Gen2)
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: 62°
    FWTM: 77°
    Peak intensity: 0.982 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHM-9 XH (19x19)
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 60°
    FWTM: 78°
    Peak intensity: 0.997 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

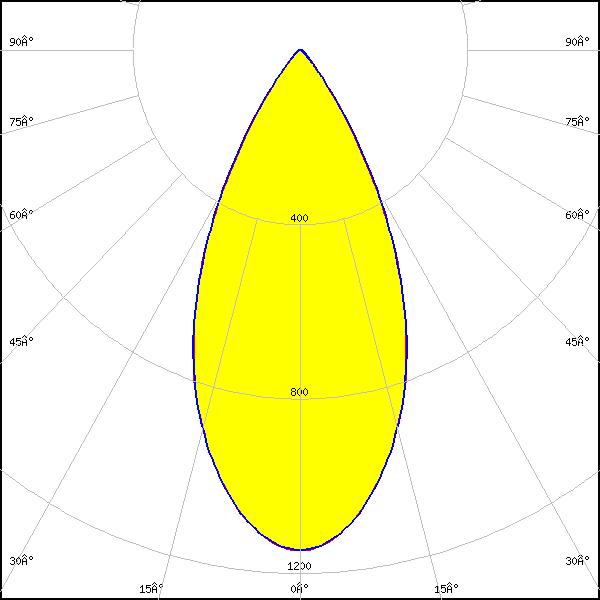

    LED: CTM-14 (Tunable White) Gen2
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 13.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: 50°
    FWTM: 76°
    Peak intensity: 1.149 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CTM-6 (Tunable White) Gen2
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 6.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 62°
    FWTM: 78°
    Peak intensity: 0.967 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

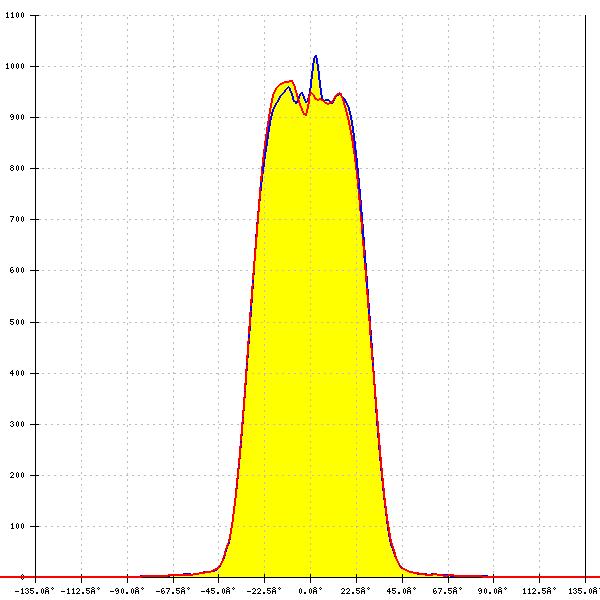

    LED: CTM-9 (Tunable White) Gen2
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 59°
    FWTM: 78°
    Peak intensity: 1.022 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CXM-3
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 3.5 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 75°
    Peak intensity: 1.056 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

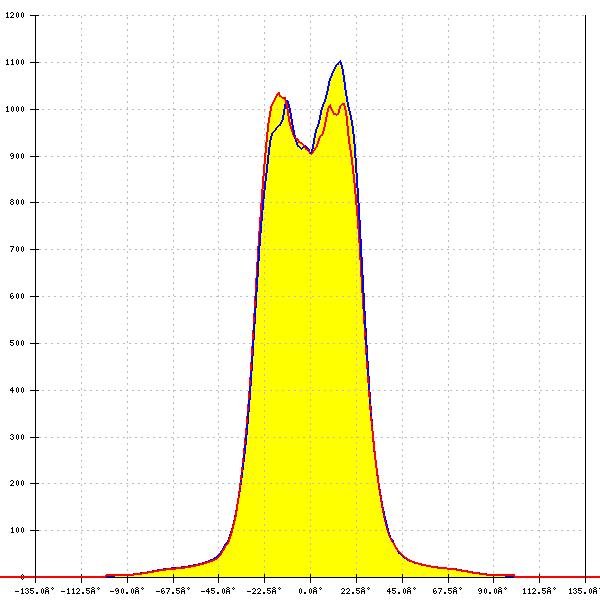

    LED: CXM-3
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 3.5 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 76°
    Peak intensity: 1.101 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXM-4
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 4.5 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 75°
    Peak intensity: 1.052 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXM-4
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 4.5 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 77°
    Peak intensity: 1.081 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-6 (13.5x13.5)
    Ordering code: CP18733_YASMEEN-50-WW-B2
    LES size: 6.3 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 60°
    FWTM: 76°
    Peak intensity: 1.046 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 11)
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 11.5 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 58°
    FWTM: 80°
    Peak intensity: 0.965 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 9)
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 8.7 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 55°
    FWTM: 78°
    Peak intensity: 1.067 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 6)
    Ordering code: CP18733_YASMEEN-50-WW-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 64°
    FWTM: 78°
    Peak intensity: 0.883 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    Ordering code: CP18733_YASMEEN-50-WW-B2
    LES size: 6.7 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 64°
    FWTM: 78°
    Peak intensity: 0.883 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 6.7 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 55°
    FWTM: 77°
    Peak intensity: 1.046 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB T-Type
    Ordering code: CP18733_YASMEEN-50-WW-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 64°
    FWTM: 78°
    Peak intensity: 0.896 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NJCWL024Z-V1MT: COB L-Type Tunable White
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 7.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 497 Typ L8 HV
    FWHM: 60°
    FWTM: 76°
    Peak intensity: 0.978 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

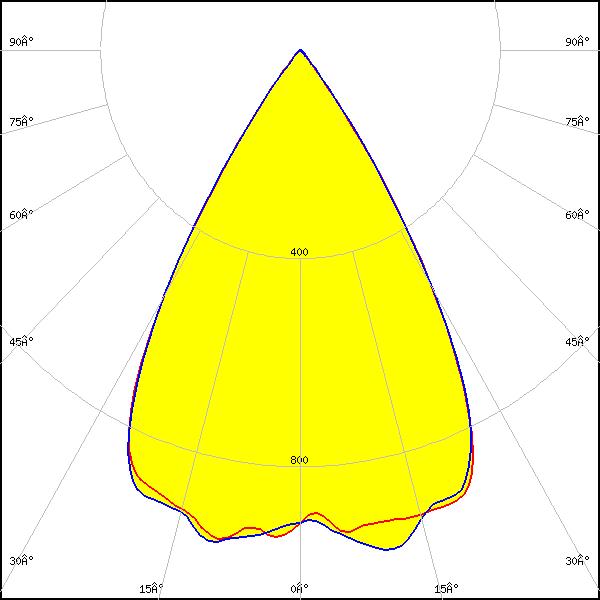

    LED: NJNWS012Z-V1MT: COB S-Type Tunable White
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 5.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8 HV
    FWHM: 62°
    FWTM: 76°
    Peak intensity: 0.978 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 10.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 498 Typ L8 HV
    FWHM: 63°
    FWTM: 84°
    Peak intensity: 0.835 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 10.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 498 Typ L8 HV
    FWHM: 58°
    FWTM: 78°
    Peak intensity: 1.025 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Soleriq S15
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 14.7 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 56°
    FWTM: 84°
    Peak intensity: 0.990 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM C TW L06A 1313 G7N
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 6.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 508 Typ L8
    FWHM: 54°
    FWTM: 75°
    Peak intensity: 1.122 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM C TW L09A 1919 G7N
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 54°
    FWTM: 75°
    Peak intensity: 1.085 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Fortimo SLM L09 CoB
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 54°
    FWTM: 75°
    Peak intensity: 1.062 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

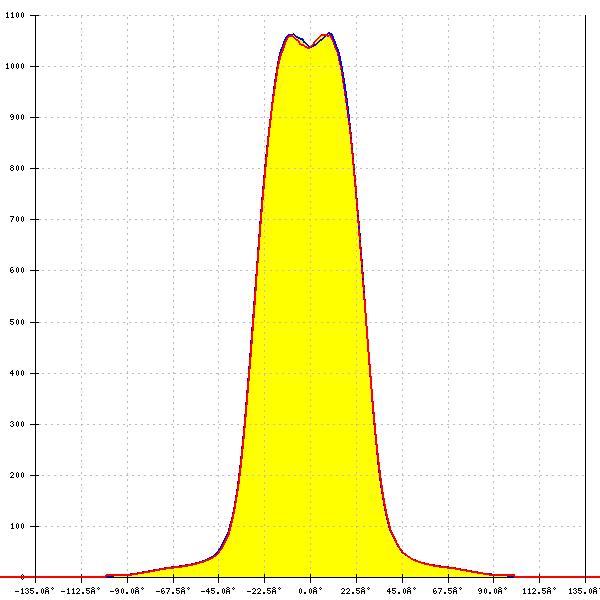

    LED: Fortimo SLM L09 CoB
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 54°
    FWTM: 77°
    Peak intensity: 1.066 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L13 CoB
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 13.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 48°
    FWTM: 74°
    Peak intensity: 1.239 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

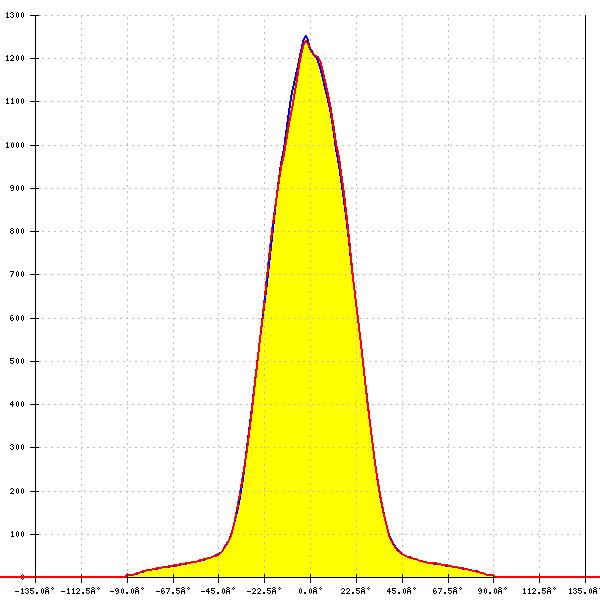

    LED: Fortimo SLM L15 CoB
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 46°
    FWTM: 75°
    Peak intensity: 1.273 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

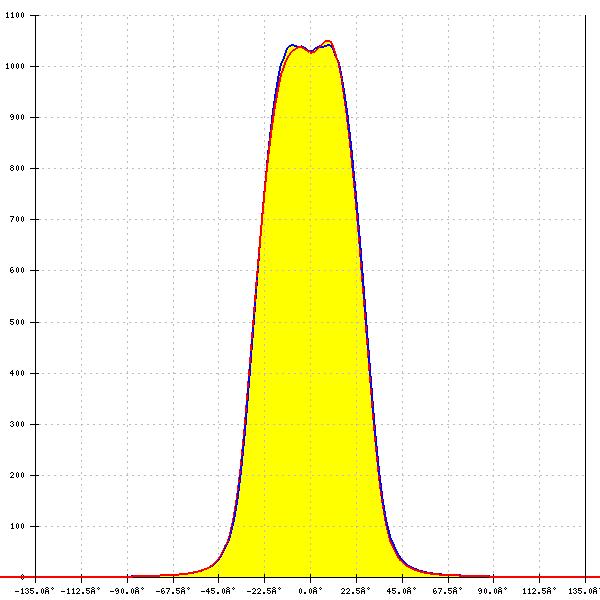

    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.086 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

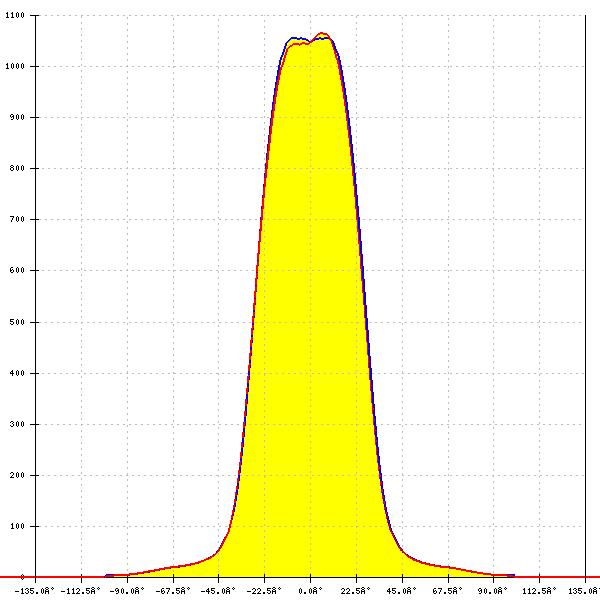

    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 1.087 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

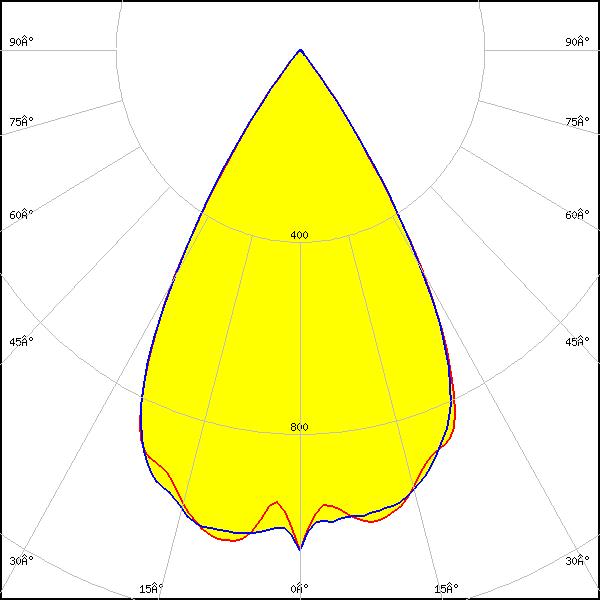

    LED: LC010C G2
    Ordering code: CP18733_YASMEEN-50-WW-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 60°
    FWTM: 76°
    Peak intensity: 1.042 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010T (Tunable White)
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 60°
    FWTM: 78°
    Peak intensity: 1.004 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP18733_YASMEEN-50-WW-B2
    LES size: 14.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 53°
    FWTM: 80°
    Peak intensity: 1.041 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

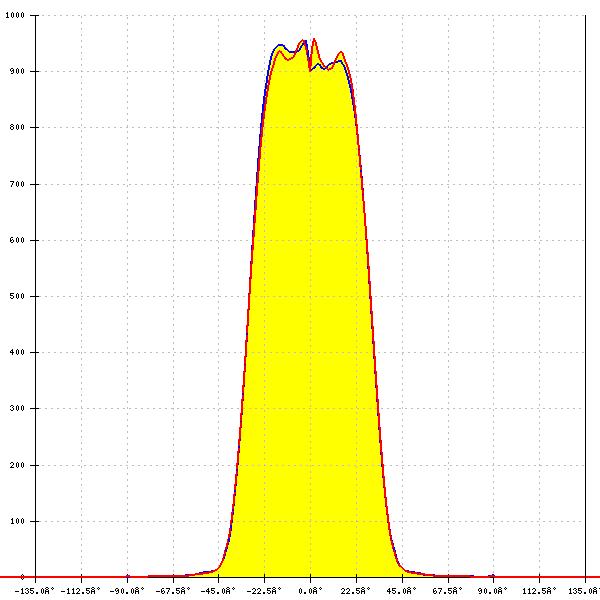

    LED: LC020C G2
    Ordering code: CP18733_YASMEEN-50-WW-B2
    LES size: 8.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 60°
    FWTM: 78°
    Peak intensity: 0.969 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

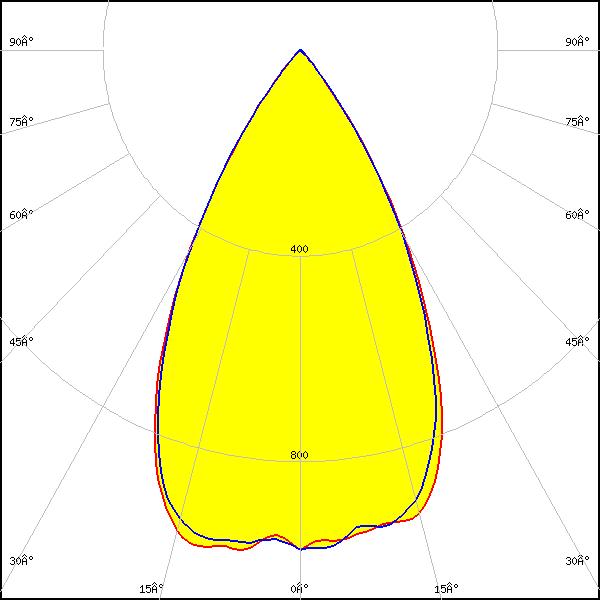

    LED: LC030C/040C G2
    Ordering code: CP18733_YASMEEN-50-WW-B2
    LES size: 11.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 58°
    FWTM: 78°
    Peak intensity: 1.028 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 54°
    FWTM: 80°
    Peak intensity: 1.060 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

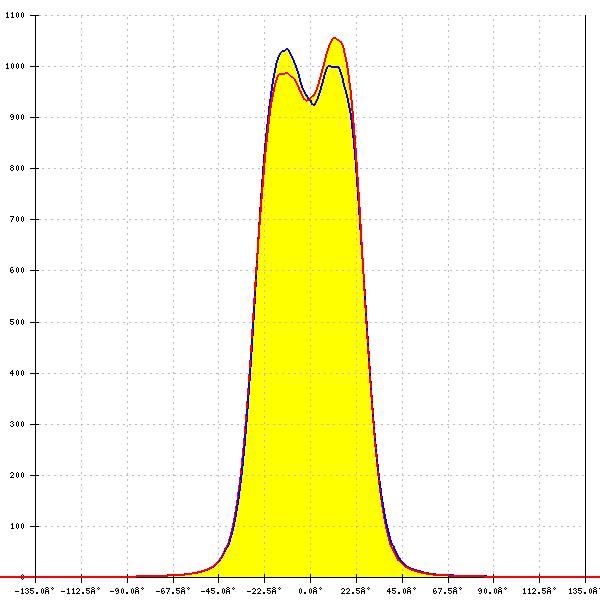

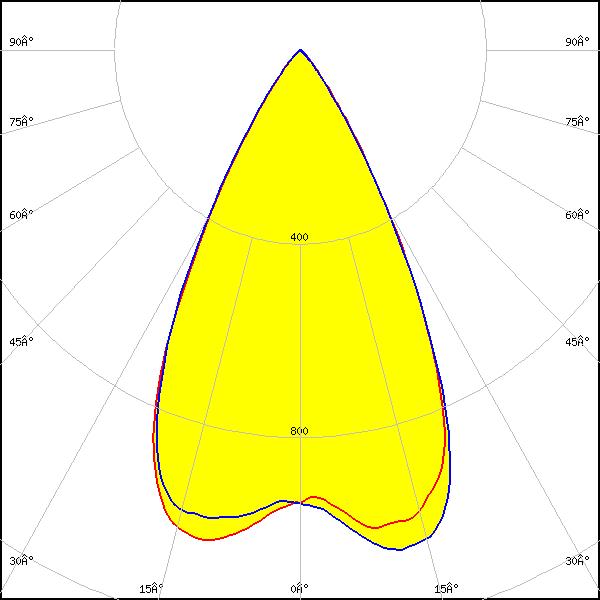

    LED: MJT COB LES 6
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 75°
    Peak intensity: 1.056 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

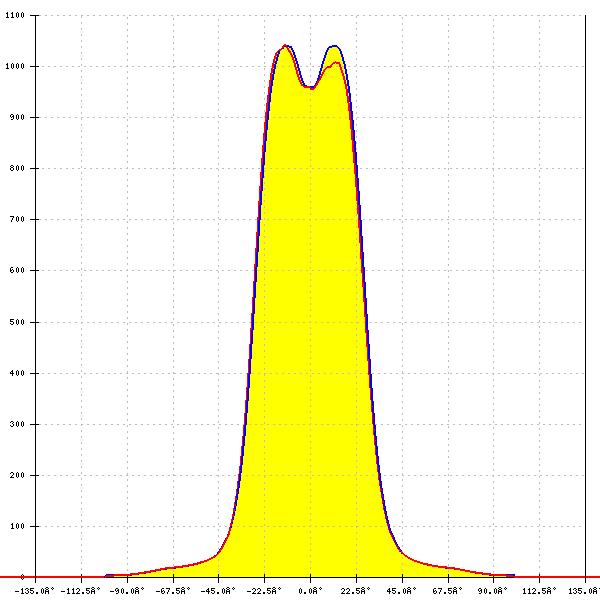

    LED: MJT COB LES 6
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 77°
    Peak intensity: 1.074 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

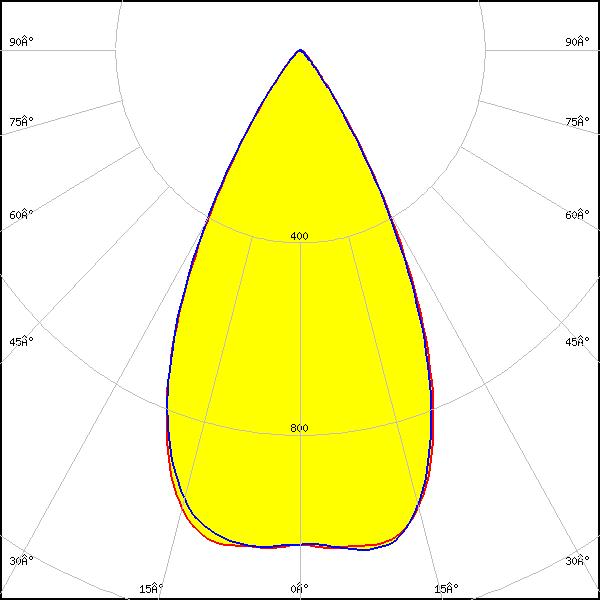

    LED: MJT COB LES 9.8
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.049 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 9.8
    Ordering code: CP18740_YASMEEN-50-WW-C2-WHT
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 1.068 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE 09mm 1200lm xxx R ADV8
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 9.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 60°
    FWTM: 78°
    Peak intensity: 0.960 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE 13mm 3000lm xxx R ADV8
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 13.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 58°
    FWTM: 82°
    Peak intensity: 0.929 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

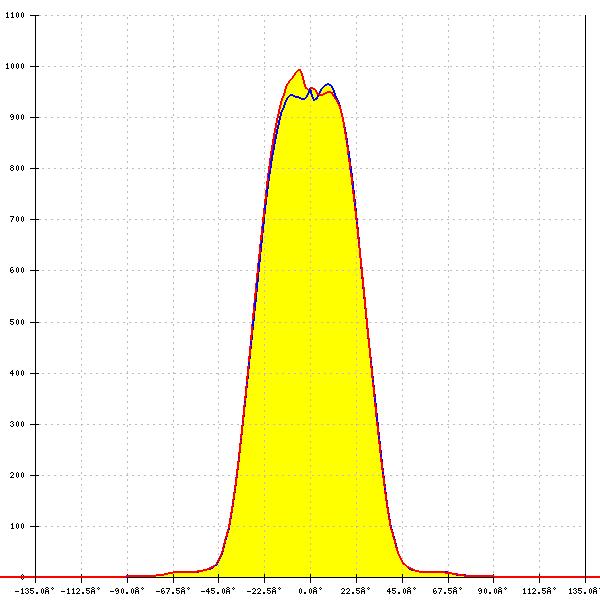

    LED: SLE G7 LES13
    Ordering code: CP18726_YASMEEN-50-WW-C2
    LES size: 13.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 56°
    FWTM: 80°
    Peak intensity: 0.994 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
