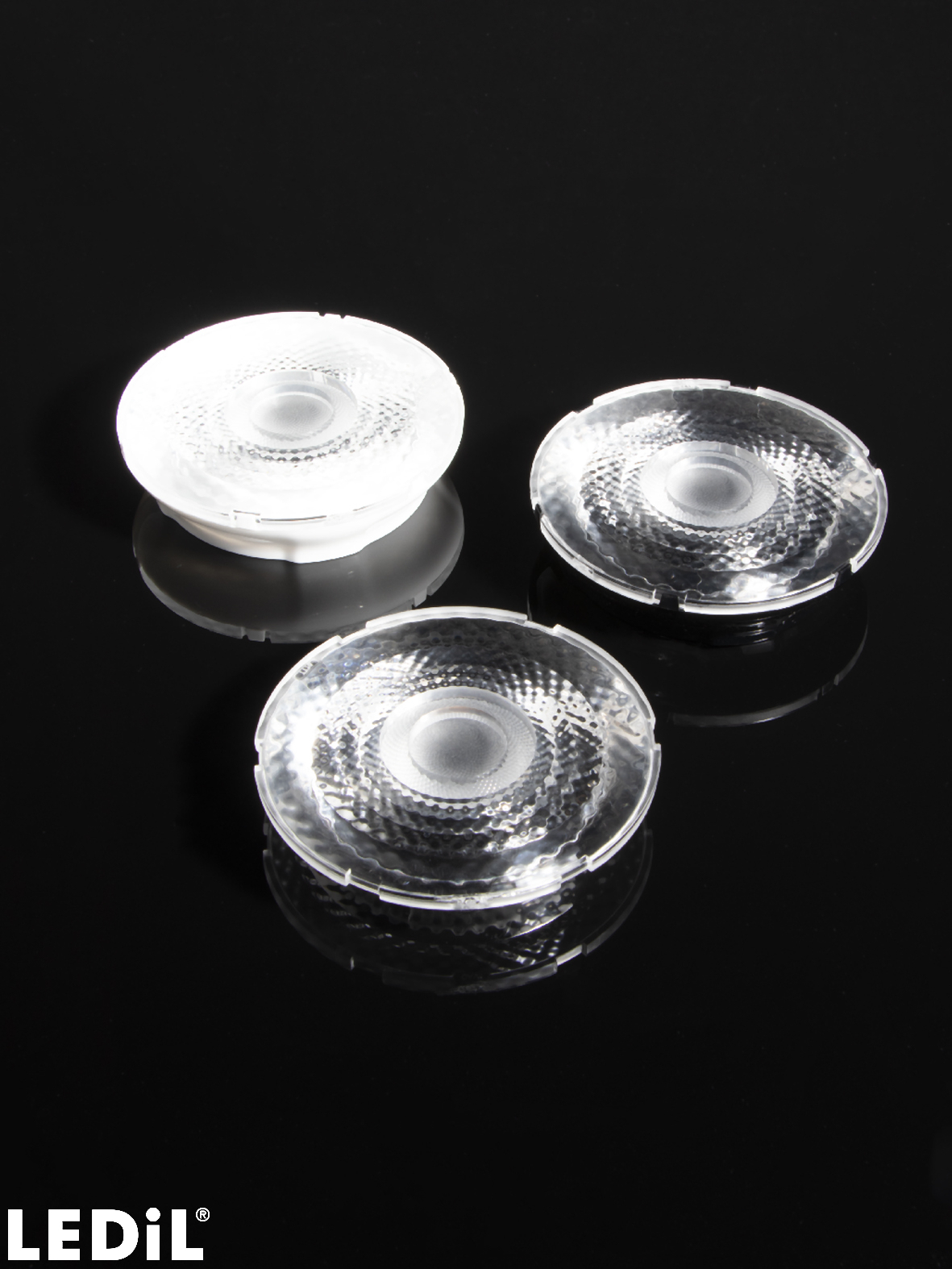

    AMY-70-S

    Print

    ~18° spot beam

    This product consists of multiple buying options. See ordering information

    Specification
    • Dimensions:
      70 mm
    • Height:
      12.68 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • AMY-70-S
      PMMA
    • AMY-70-HLD2-C-WHT
      PC
    • AMY-70-HLD2-C
      PC
    • AMY-70-HLD2-B-WHT
      PC
    • AMY-70-HLD2-B
      PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C17776_AMY-70-S
    • Quantity in box:
      285 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.20 kg
    • MPQ:
      15 pcs
    • MOQ:
      285 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      9.20 kg
    • Assembly
    • CP19037_AMY-70-S-C2
      black,Holder C
    • CP19052_AMY-70-S-B2
      black,Holder B
    • CP19107_AMY-70-S-C2-WHT
      white,Holder C
    • CP19115_AMY-70-S-B2-WHT
      white,Holder B
    • Quantity in box:
      210 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.40 kg
    • MPQ:
      15 pcs
    • MOQ:
      210 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      8.40 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C17776_AMY-70-S
      CP19037_AMY-70-S-C2

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    Case story

    Alteme Lior luminaire

    PCN

    Product change notification NR194 - Change of AMY-35-50 and -70 holder design

    Compatible product

    B+W 630 Bayonet35 datasheet

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Luminaire, example

    Track light luminaire with AMY family

    News

    LEDiL AMY, the perfect choice for slim, elegant luminaire designs

    Application guide

    LEDiL guide for retail lighting optics

    News

    AMY oval – the smart choice for aisle lighting

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA-SOCKETS and HEKLA-G2 connectors

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

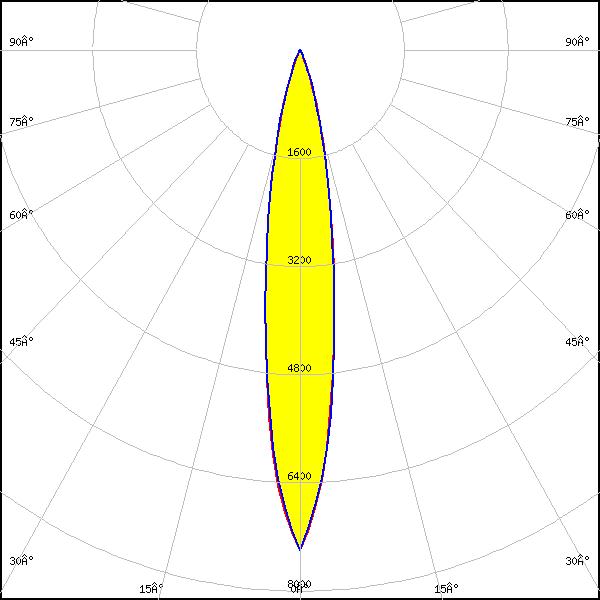

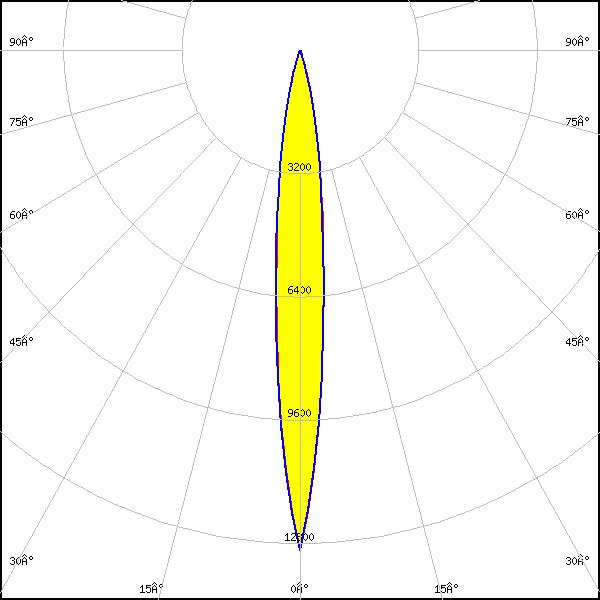

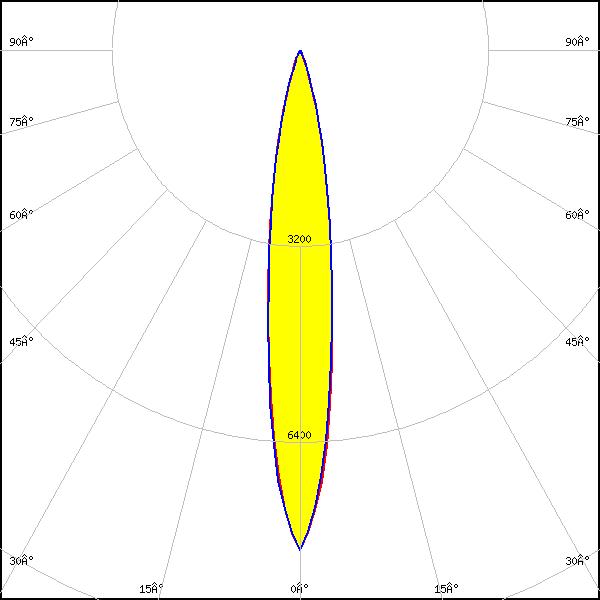

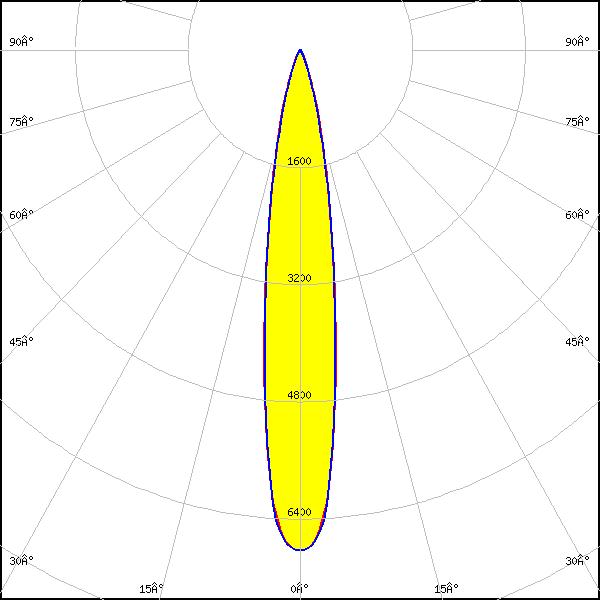

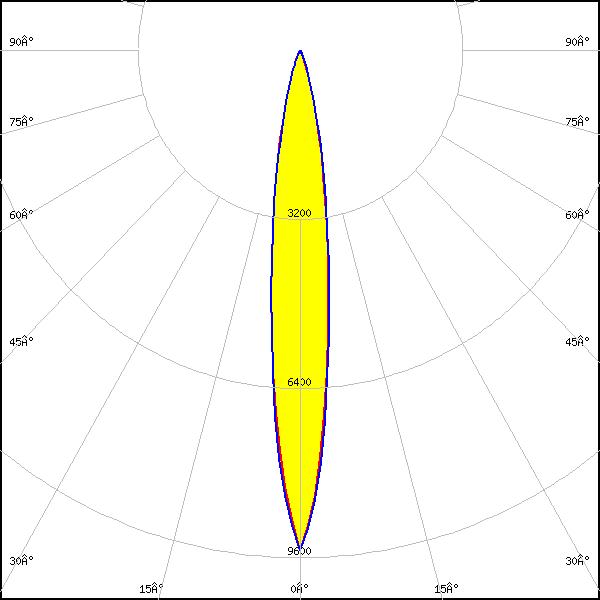

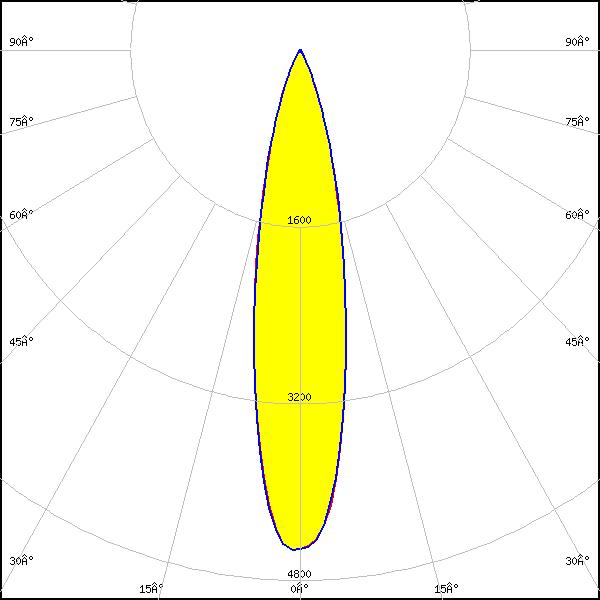

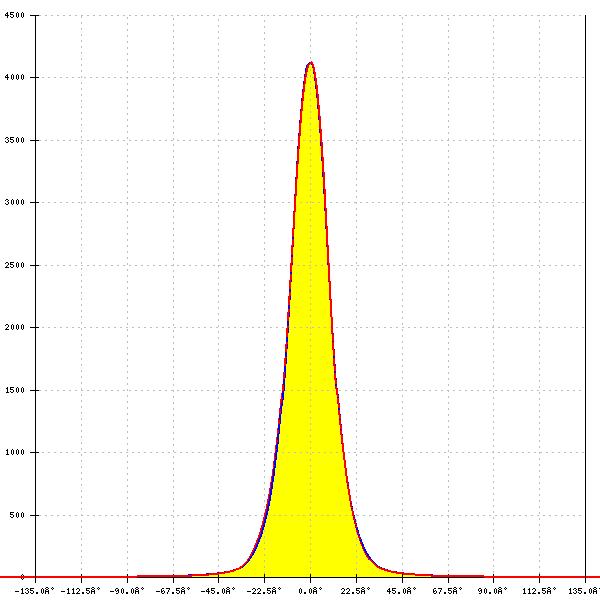

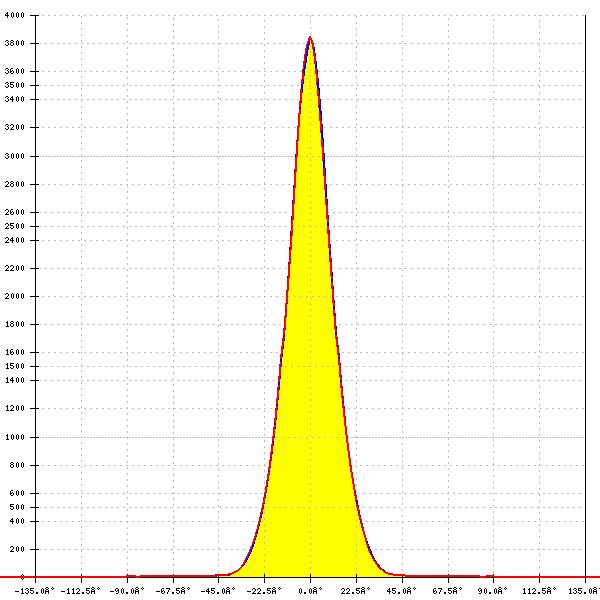

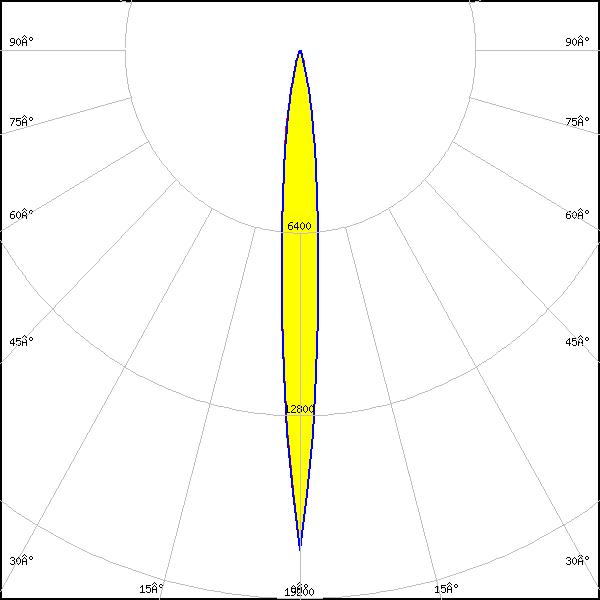

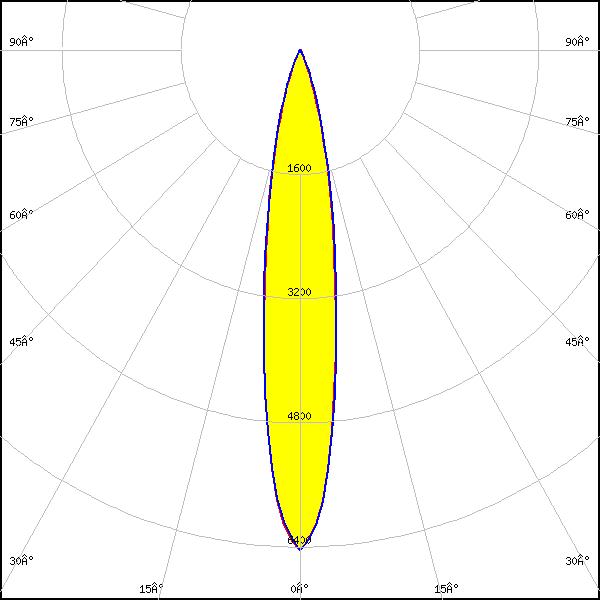

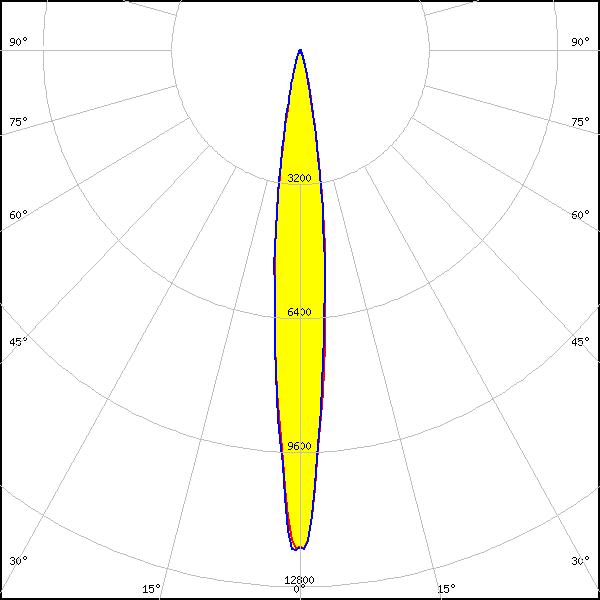

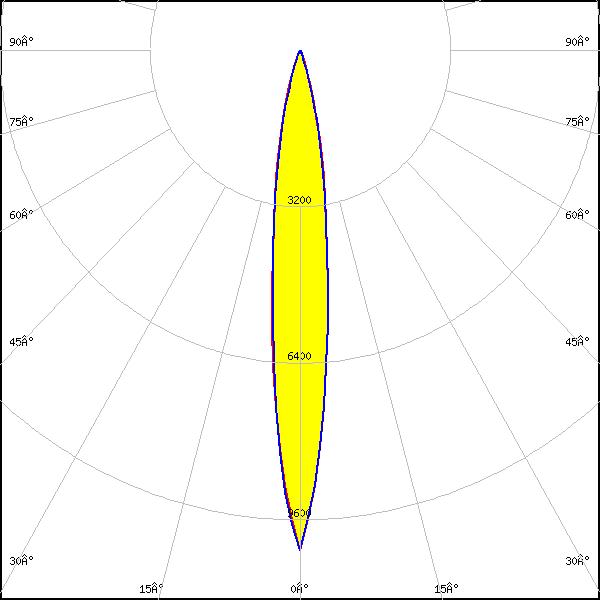

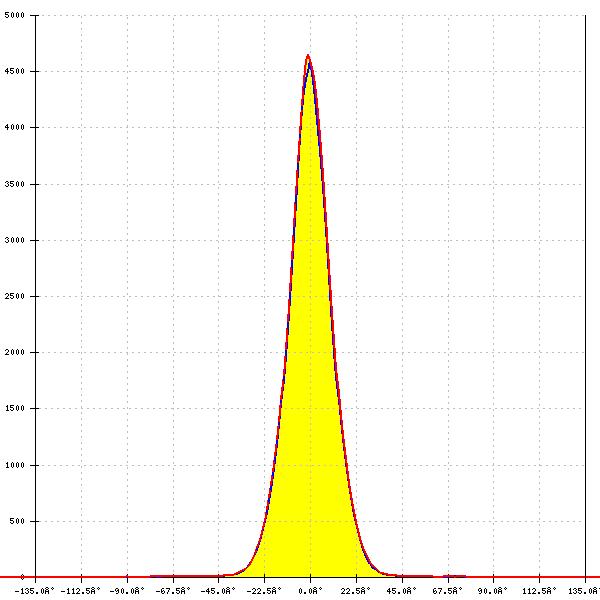

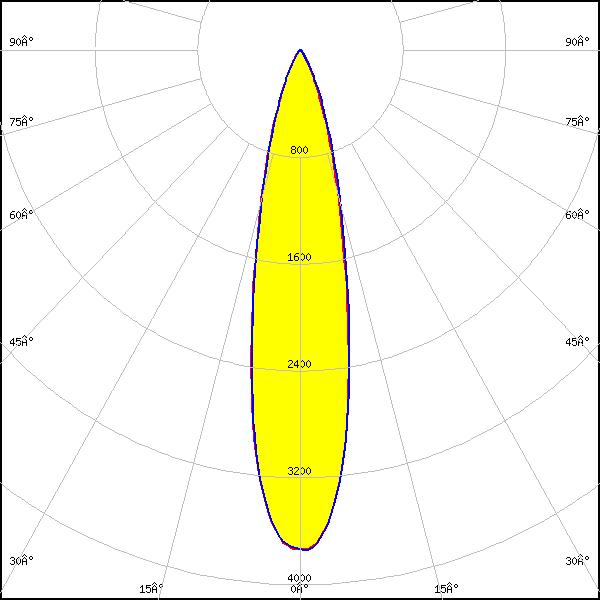

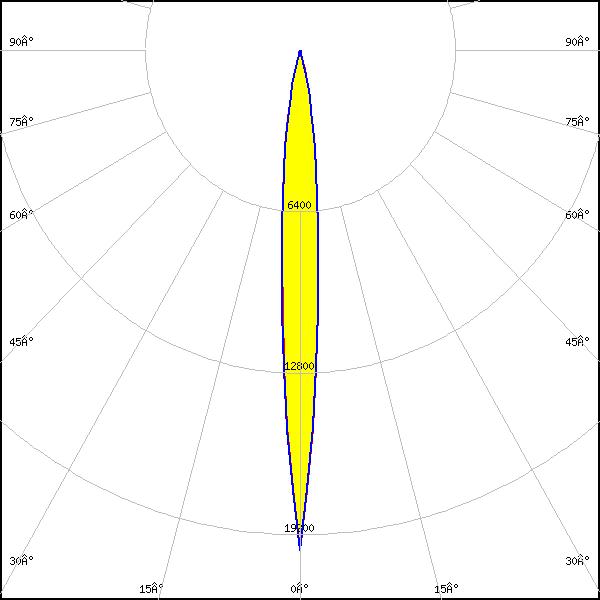

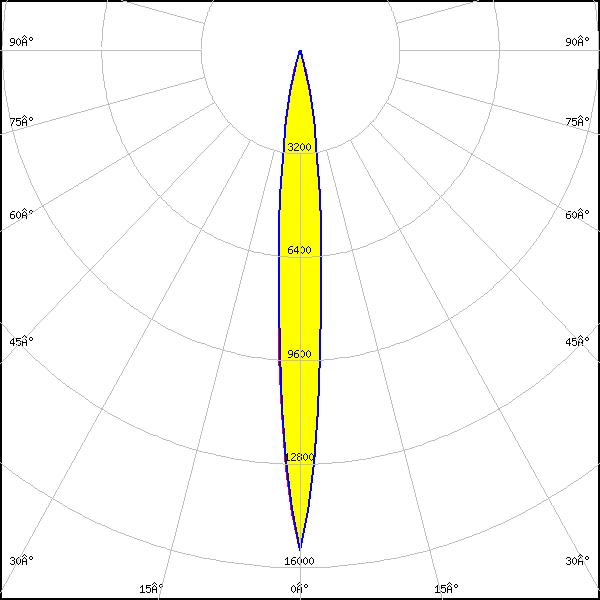

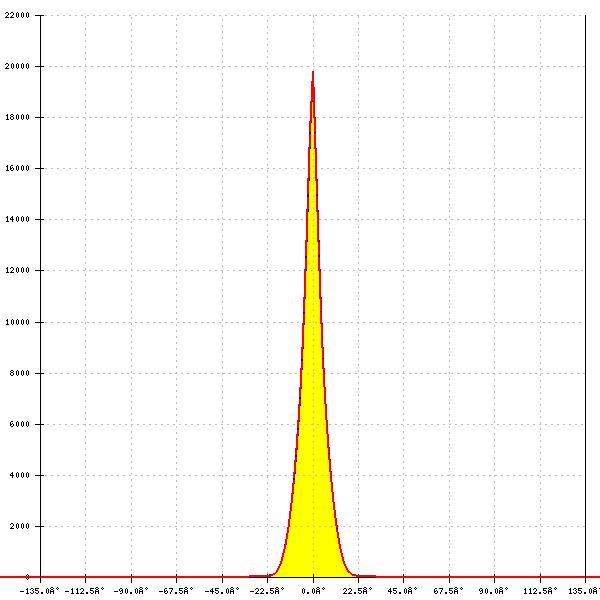

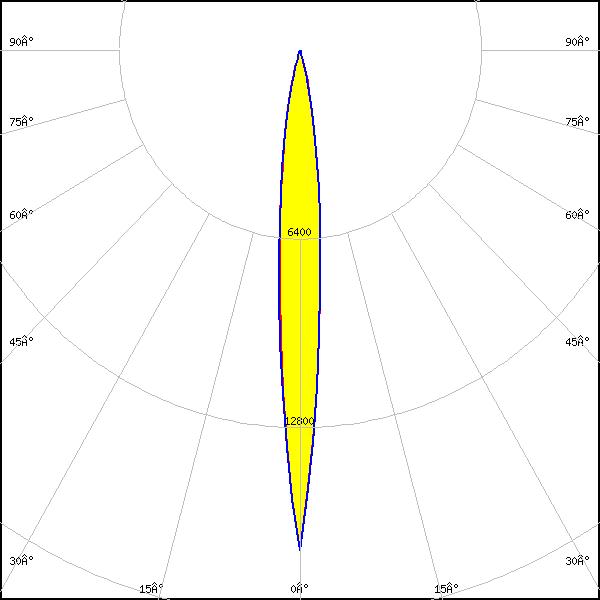

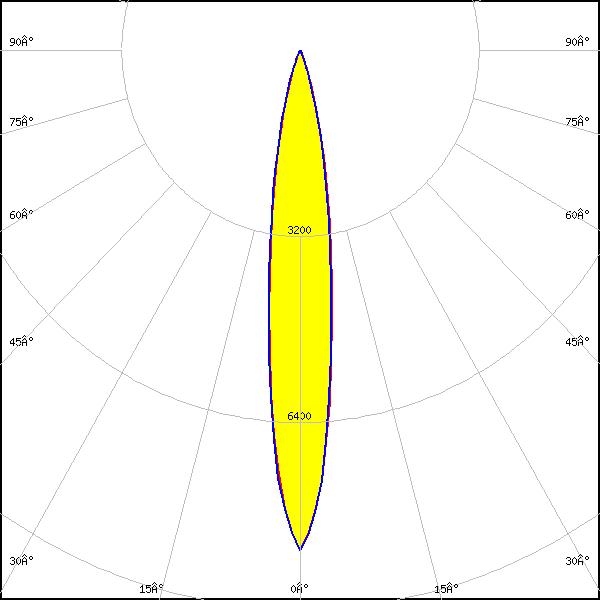

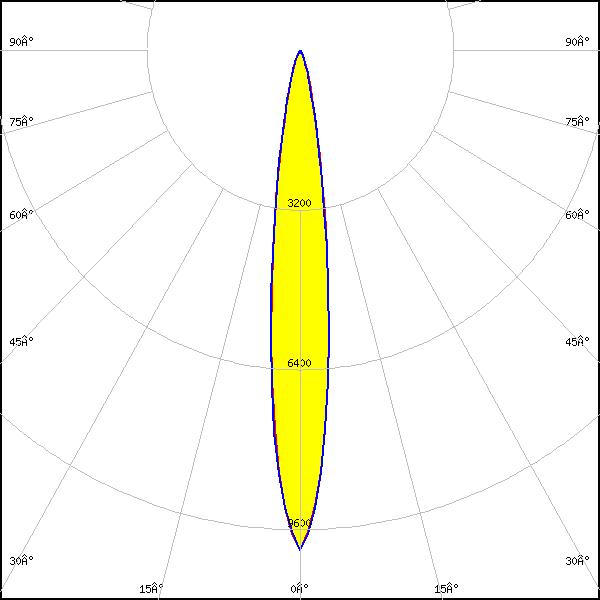

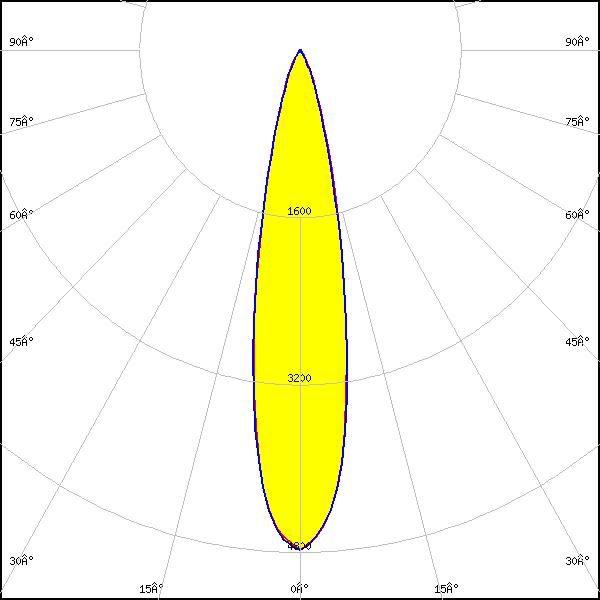

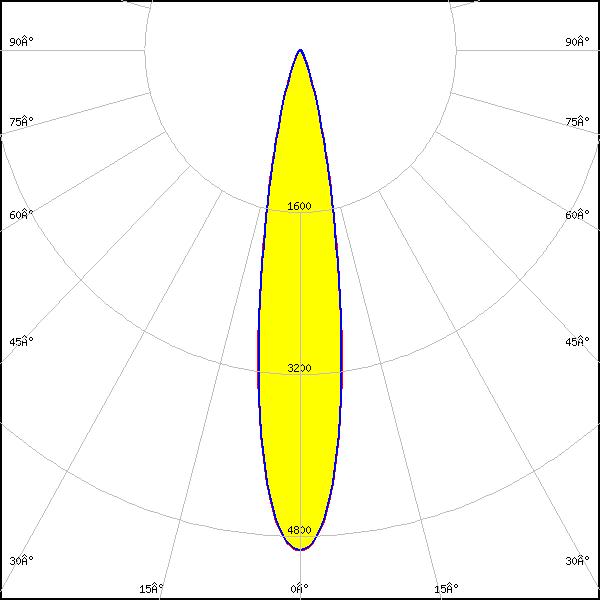

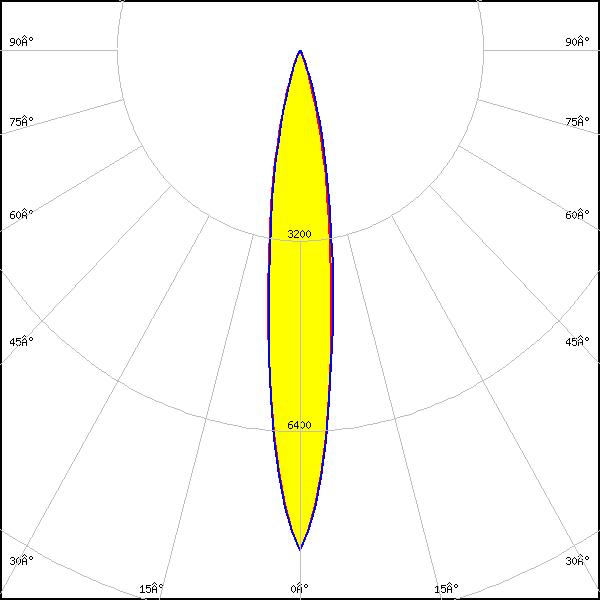

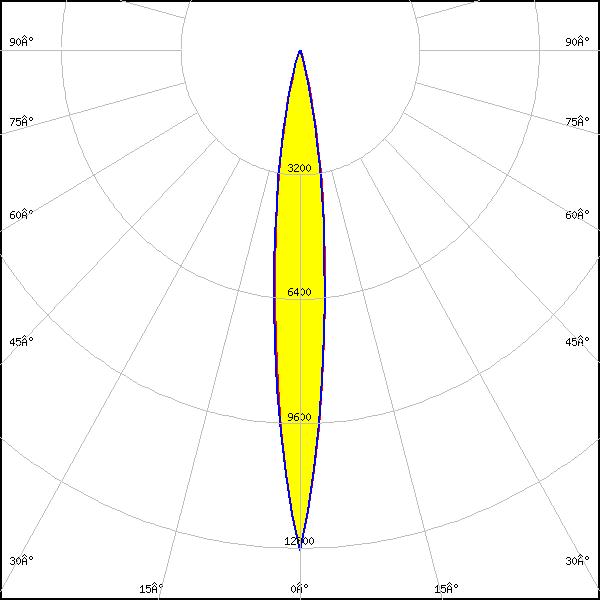

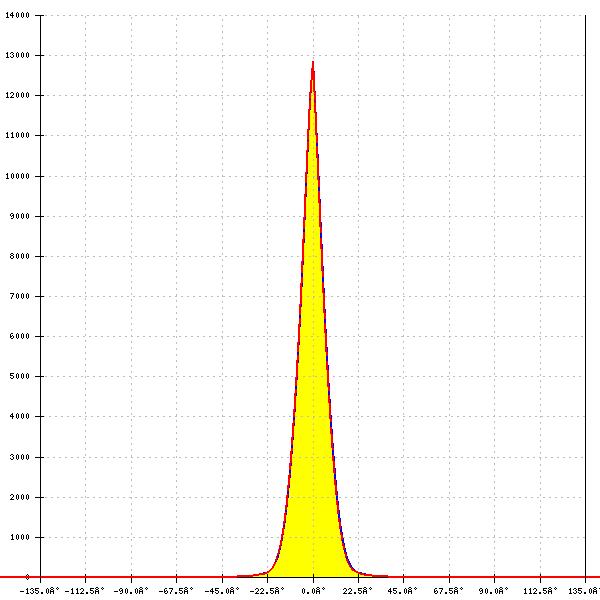

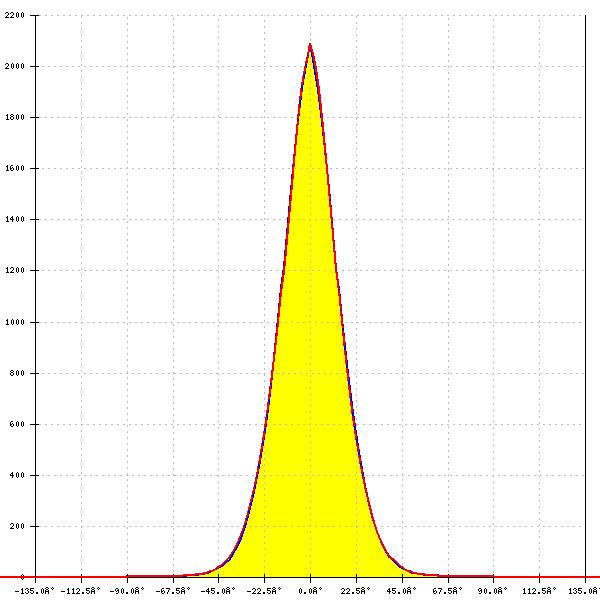

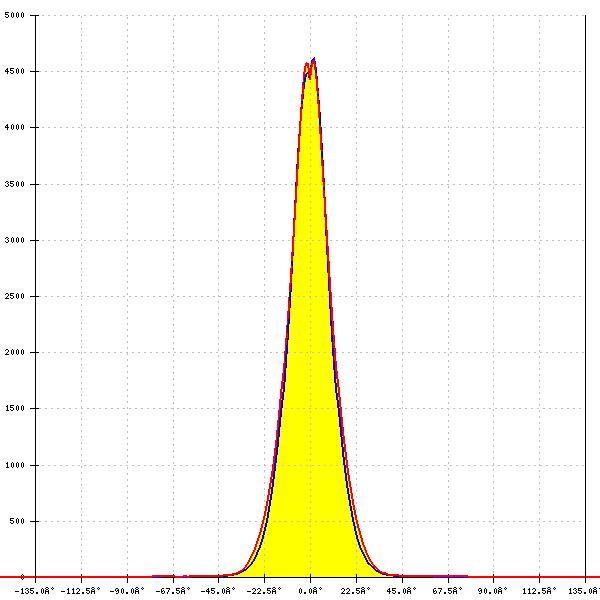

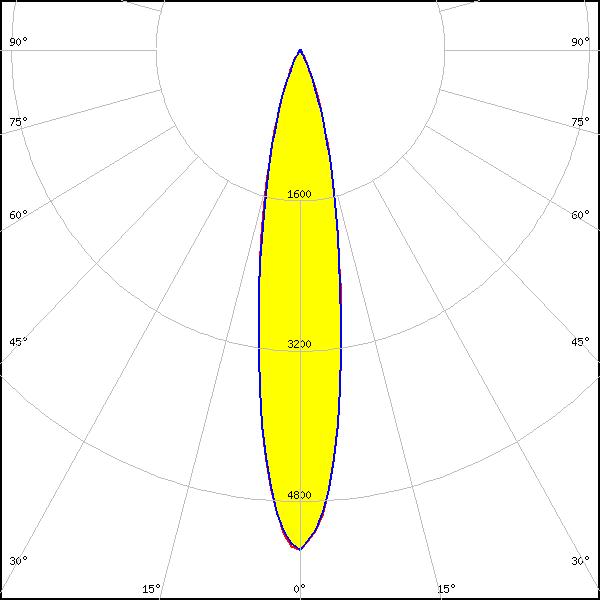

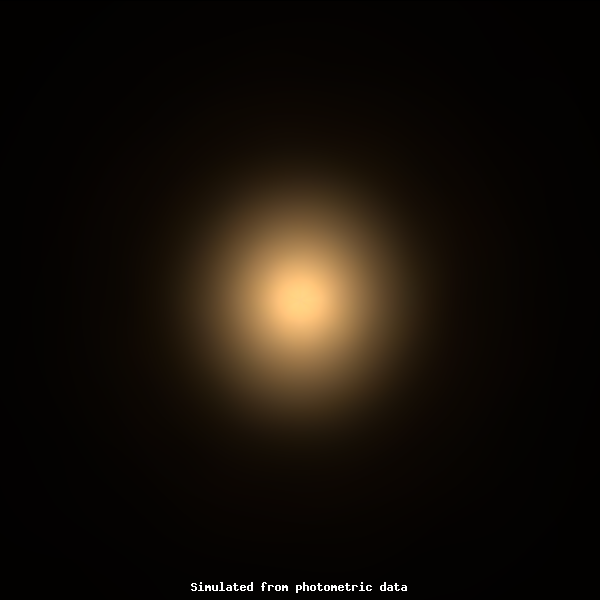

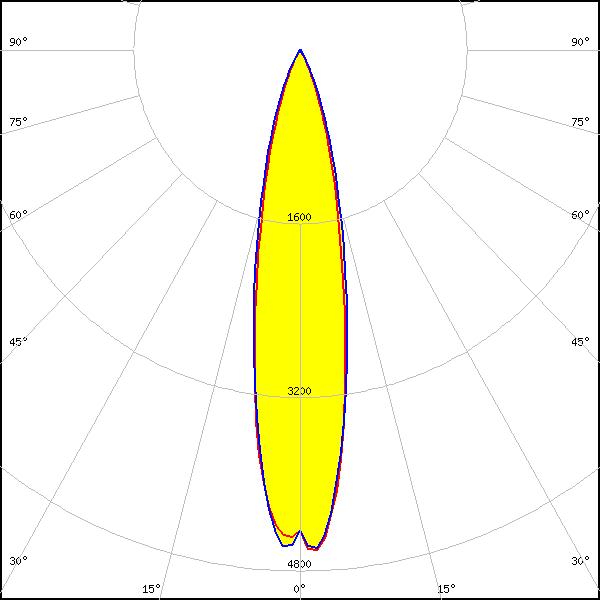

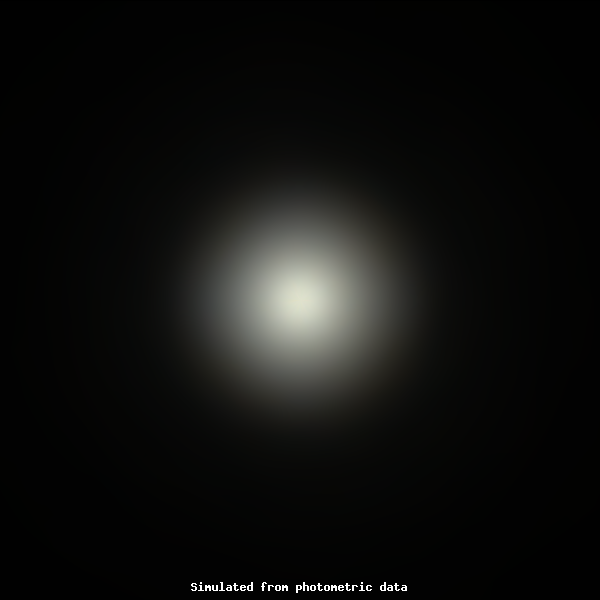

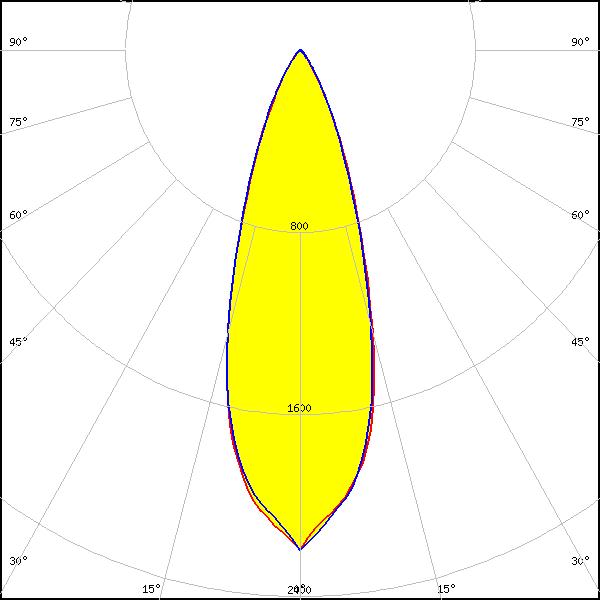

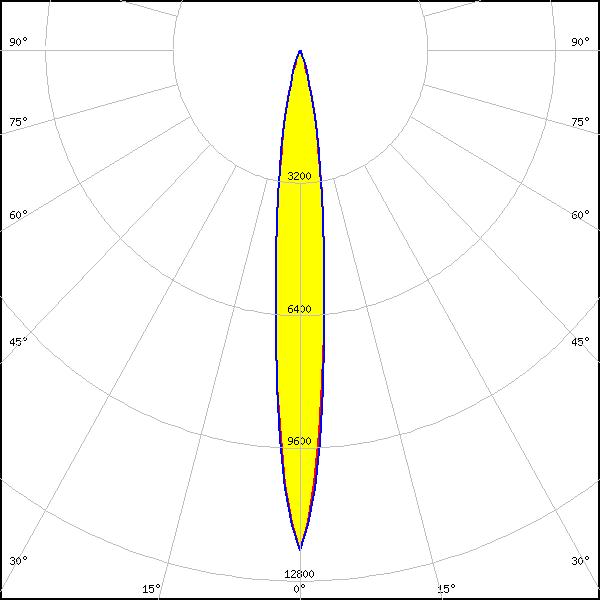

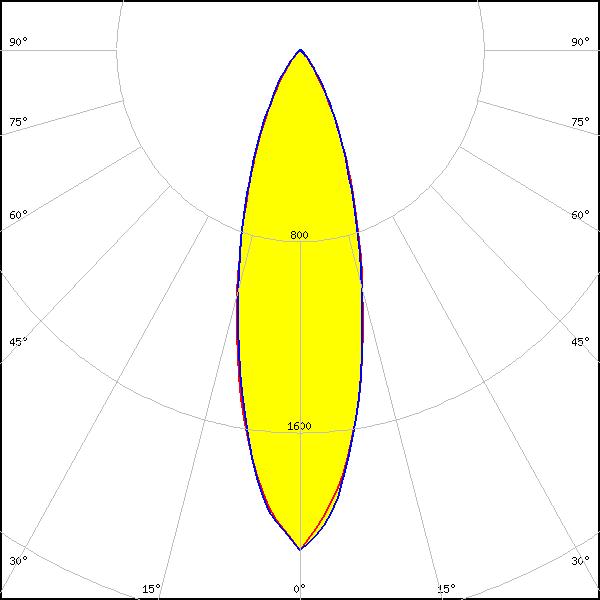

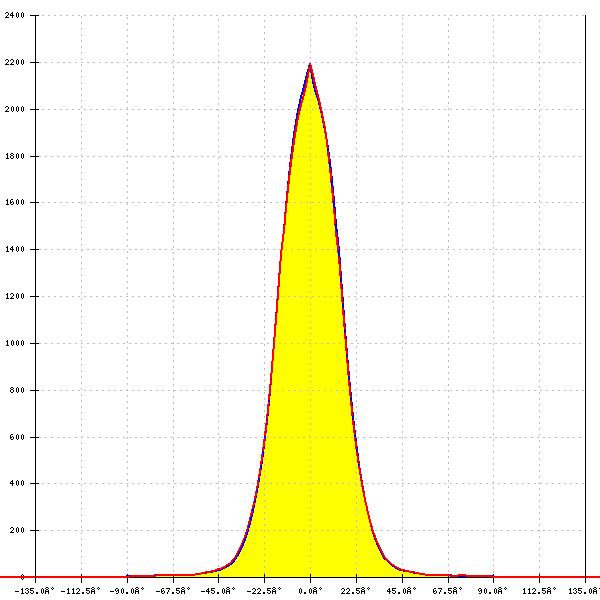

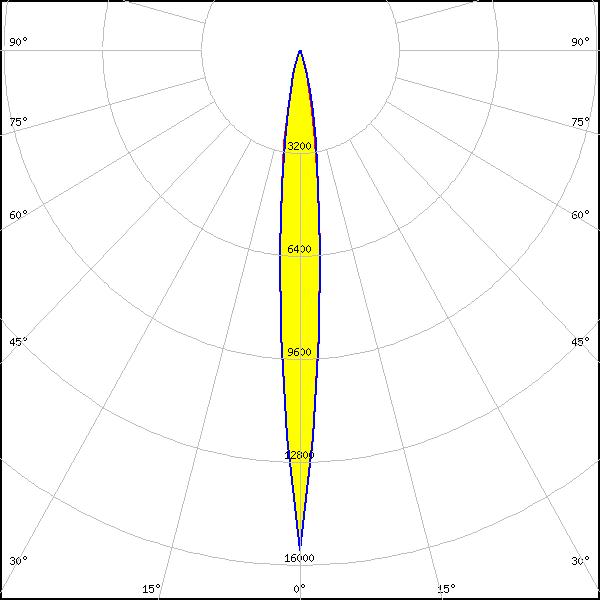

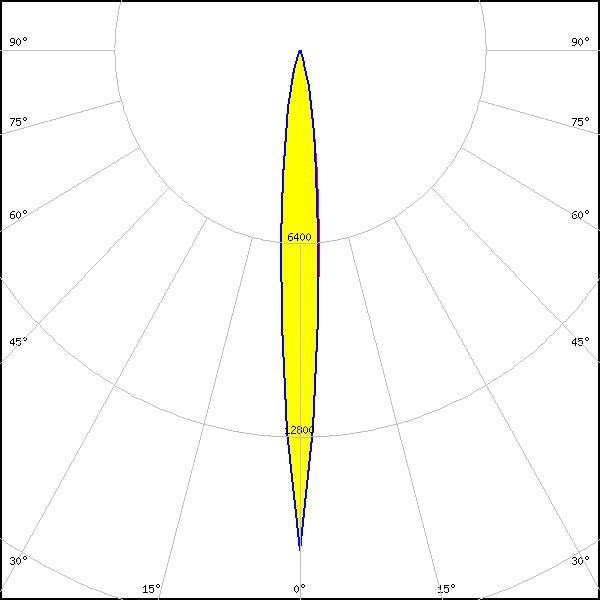

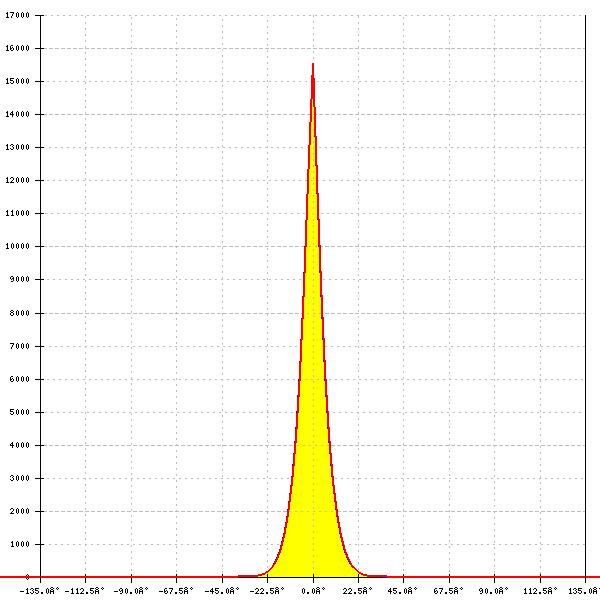

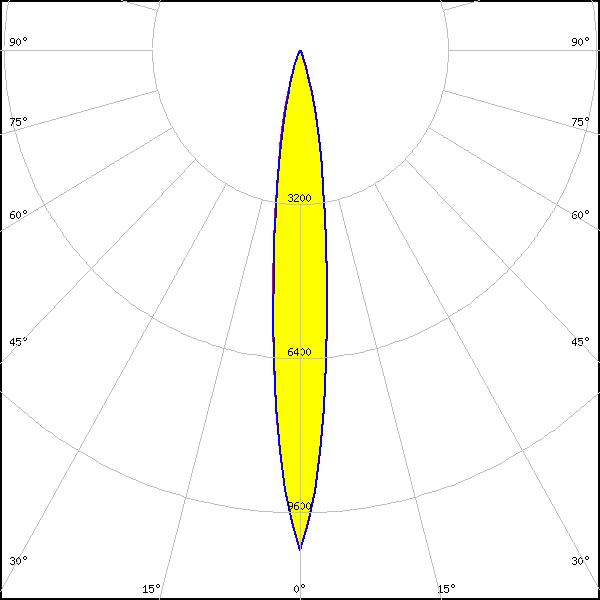

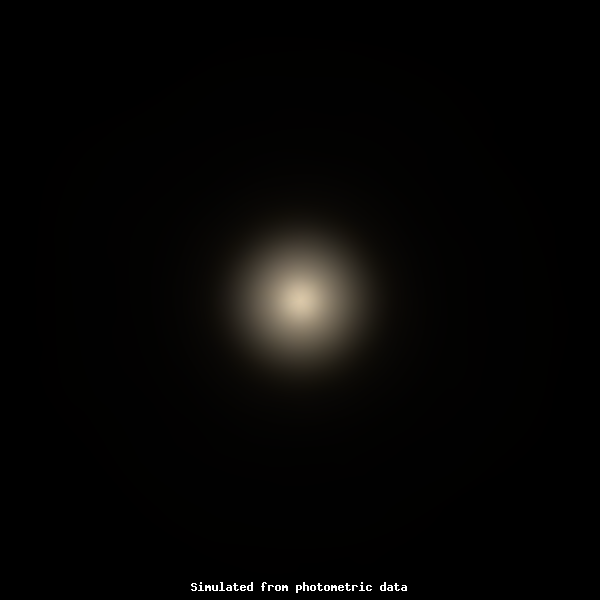

    Optical results

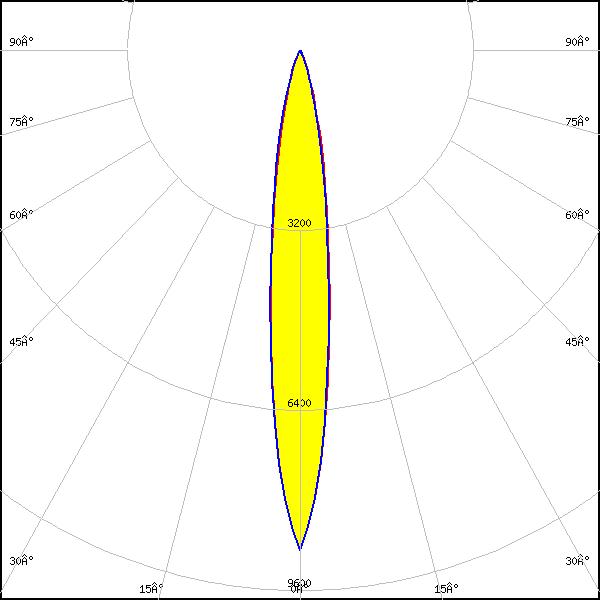

    LED: V10 Gen 8-9
    Ordering code: CP19052_AMY-70-S-B2
    LES size: 10.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 14°
    FWTM: 33°
    Peak intensity: 8.891 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

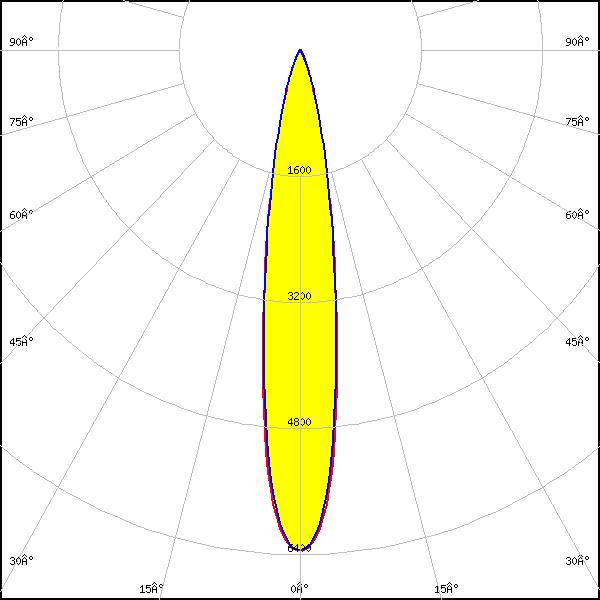

    LED: V10 Gen 8-9

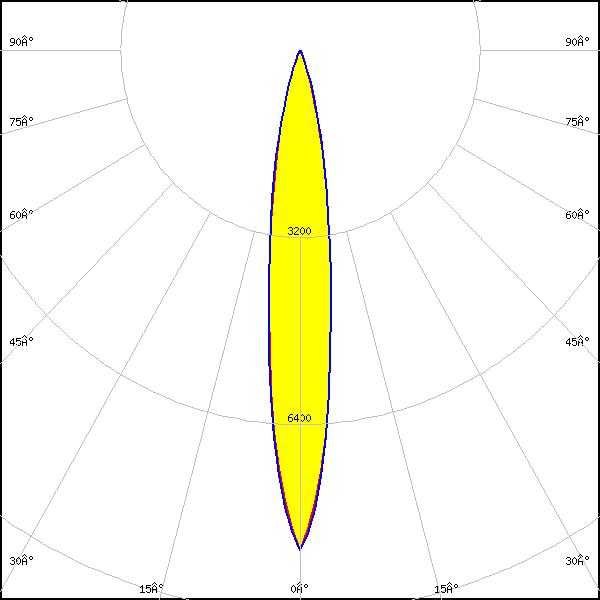

    Ordering code: CP19037_AMY-70-S-C2
    LES size: 10.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 17°
    FWTM: 37°
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

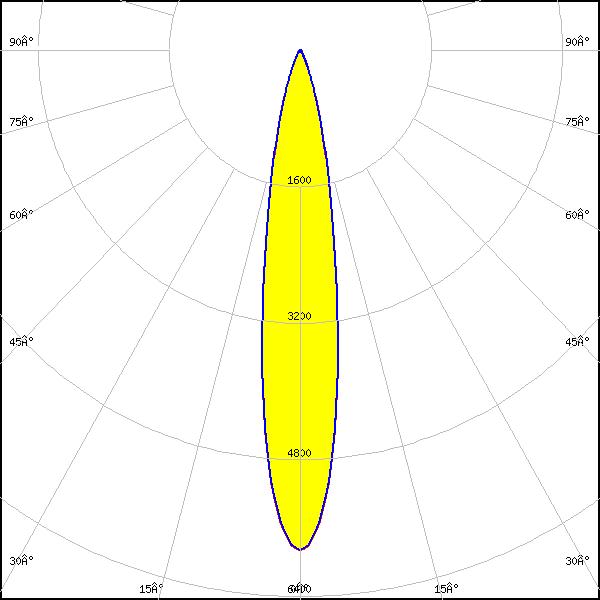

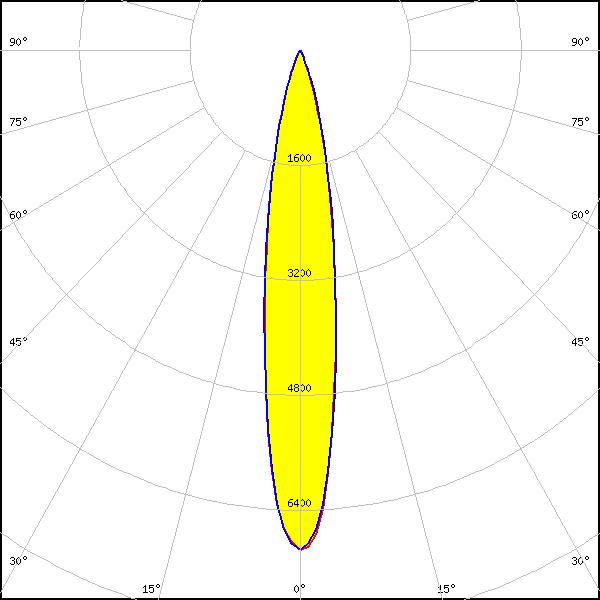

    LED: V11 HD Gen 8
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 11.3 mm
    Required components:
    Bender Wirth: 633d Hekla
    FWHM: 18°
    FWTM: 38°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

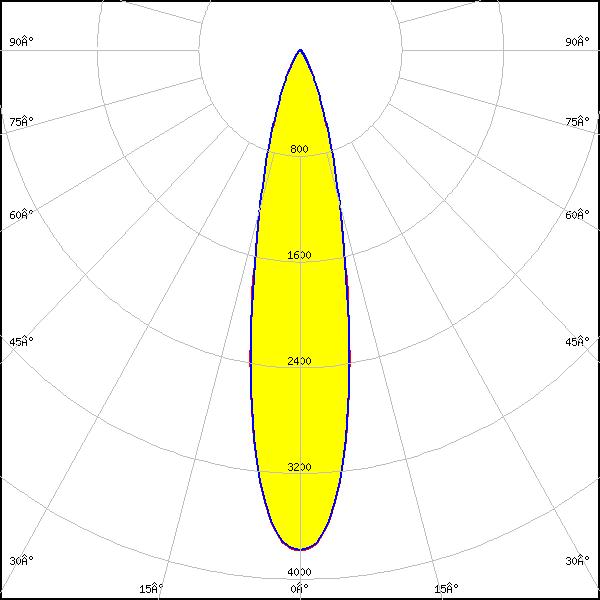

    LED: V13 Gen 8-9
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 14.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 23°
    FWTM: 48°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

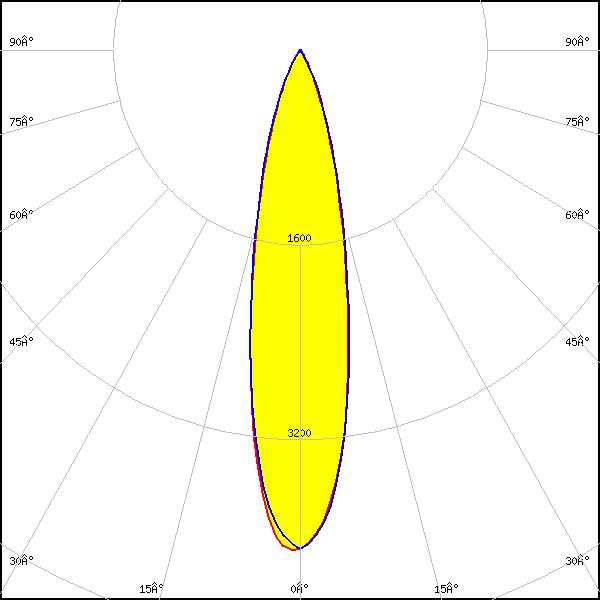

    LED: V13 Gen7
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 14.0 mm
    FWHM: 23°
    FWTM: 48°
    Peak intensity: 4.128 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V8 Gen 8-9
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 8.5 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 17°
    FWTM: 36°
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V8 Gen7
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 8.1 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 14°
    FWTM: 32°
    Peak intensity: 9.460 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

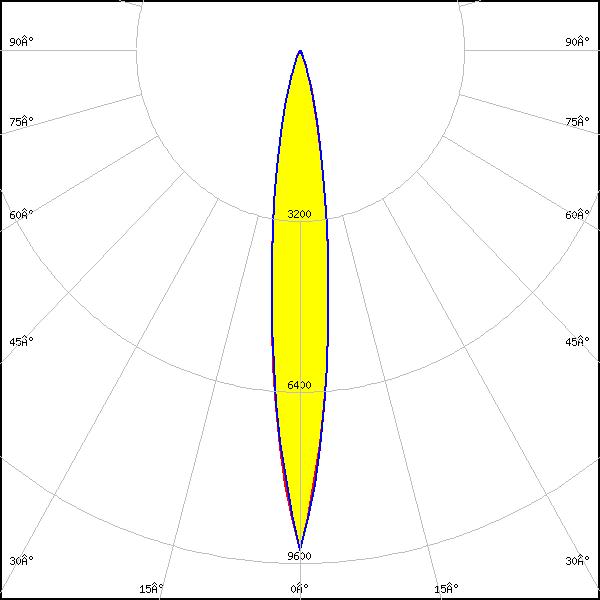

    LED: VERO10
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 9.9 mm
    Required components:
    F15616_HEKLA-SOCKET-F
    FWHM: 14°
    FWTM: 32°
    Peak intensity: 9.359 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

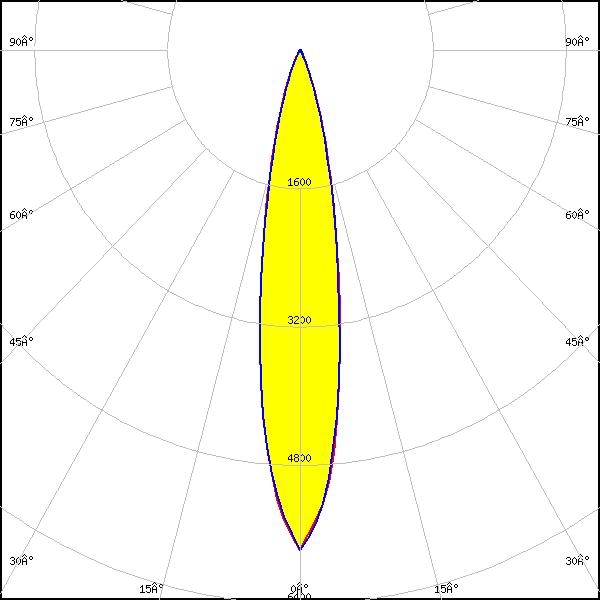

    LED: VERO13
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 13.4 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 18°
    FWTM: 40°
    Peak intensity: 5.784 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

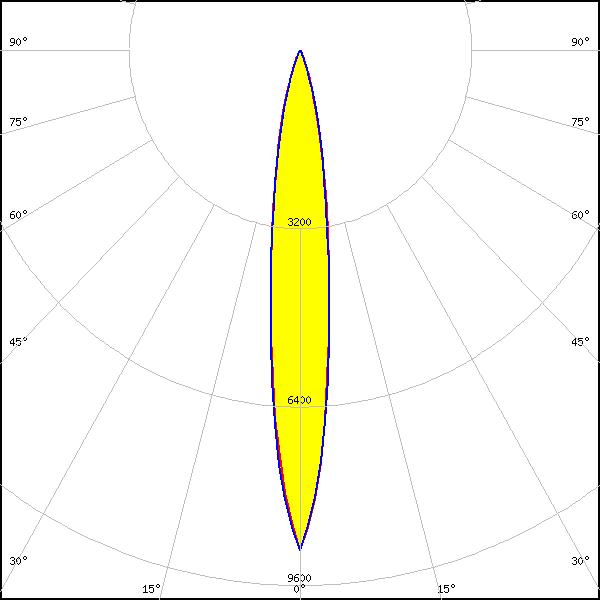

    LED: Vesta DTW 9mm (4W/6W/12W)
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 9.3 mm
    Required components:
    Bender Wirth: 652b Hekla
    F18158_HEKLA-RZ-LENS
    FWHM: 18°
    FWTM: 36°
    Peak intensity: 6.680 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

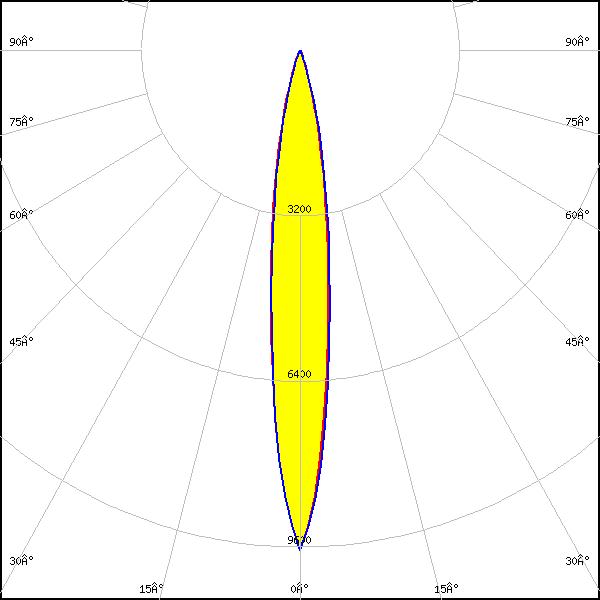

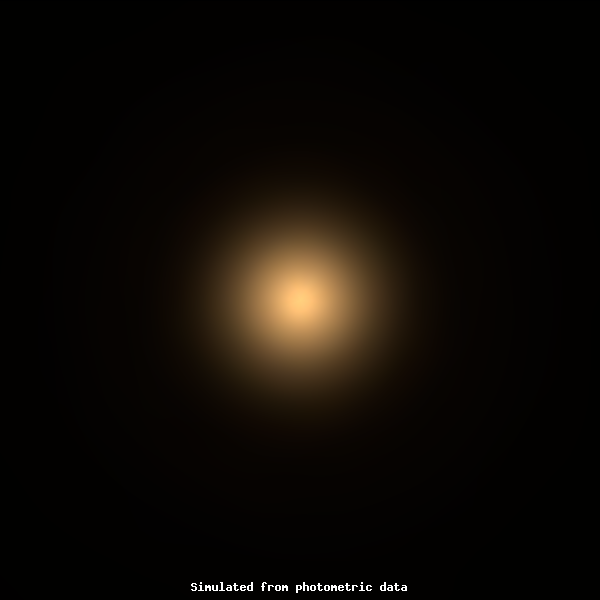

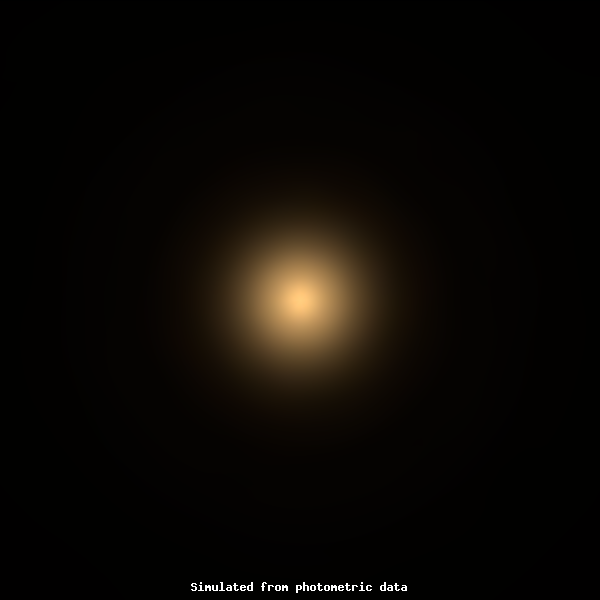

    LED: Vesta DTW 9mm (4W/6W/12W)
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 9.3 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: 14°
    FWTM: 32°
    Peak intensity: 9.669 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

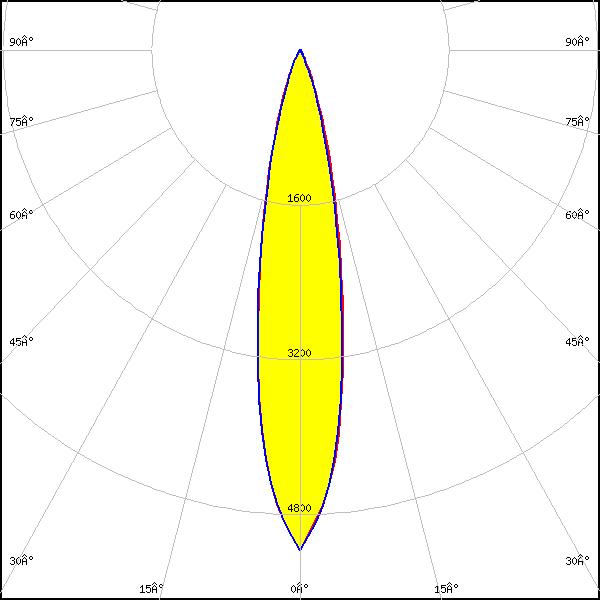

    LED: Vesta SE 13mm TW
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 14.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 20°
    FWTM: 41°
    Peak intensity: 5.170 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

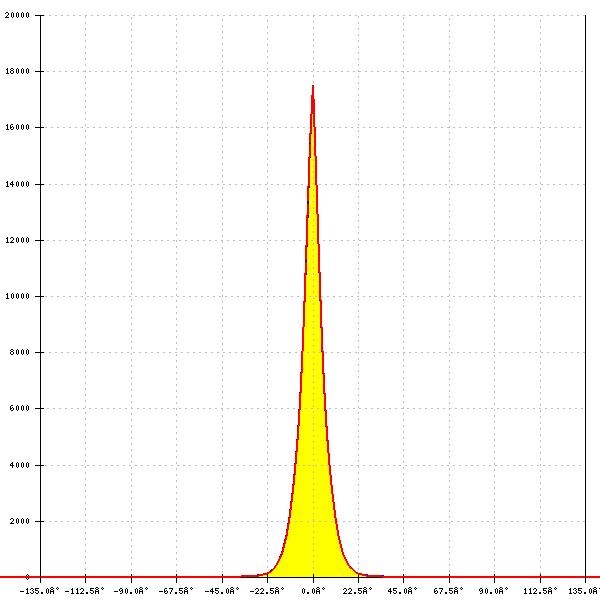

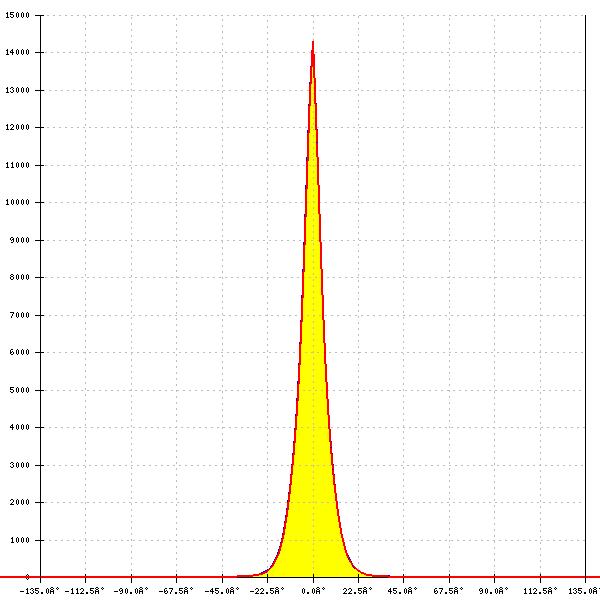

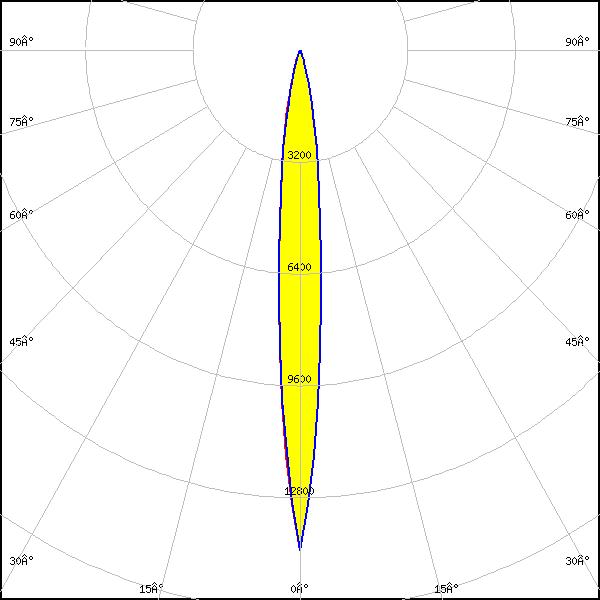

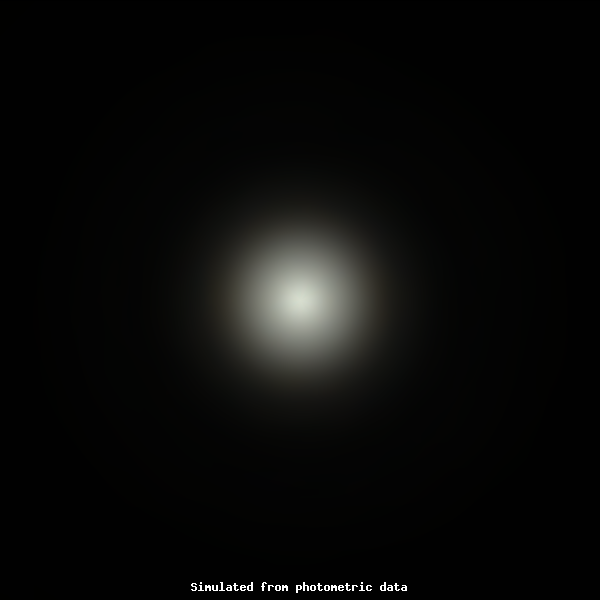

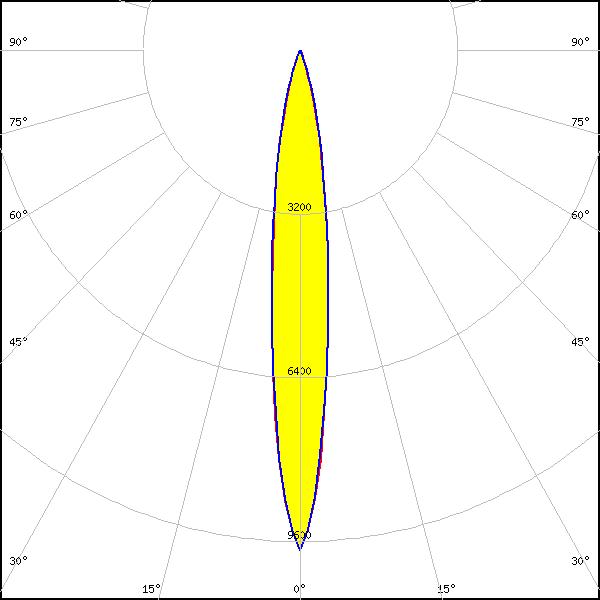

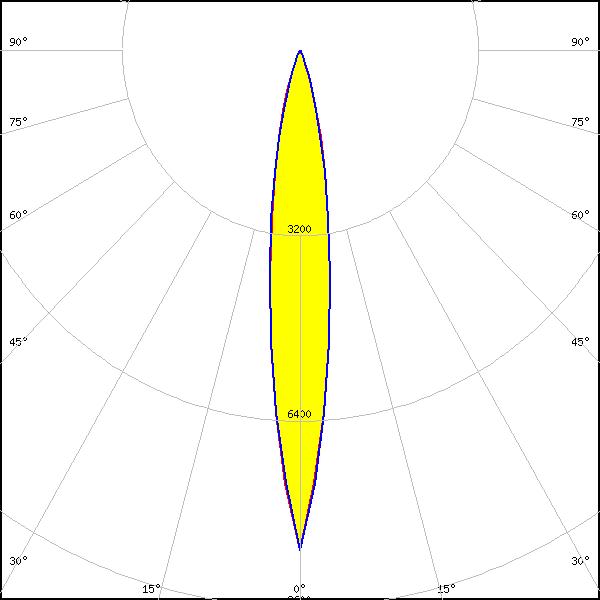

    LED: CLL02x/CLU02x (LES10)
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 17°
    FWTM: 36°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL03x/CLU03x
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 22°
    FWTM: 42°
    Peak intensity: 4.786 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

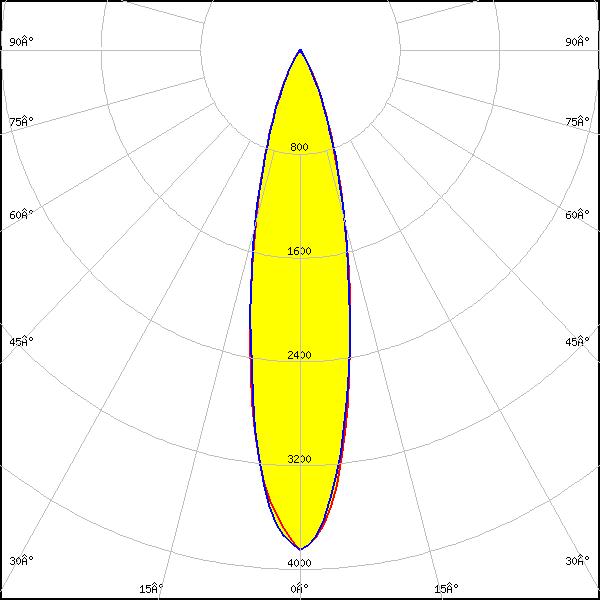

    LED: CLU03Q Type-F
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 24°
    FWTM: 50°
    Peak intensity: 3.852 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

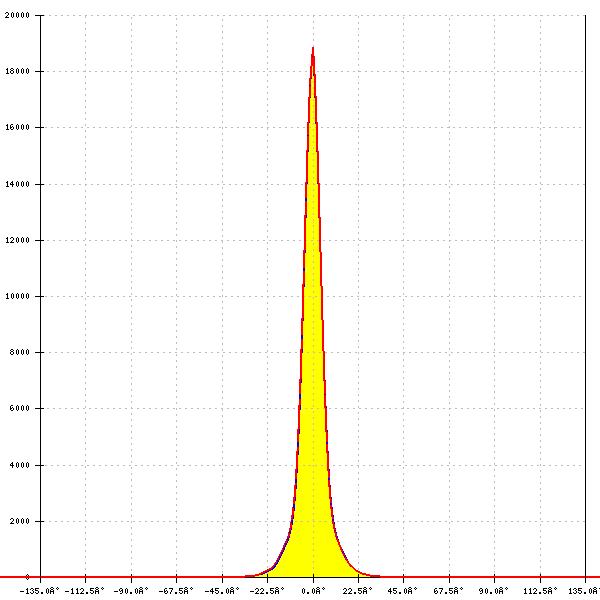

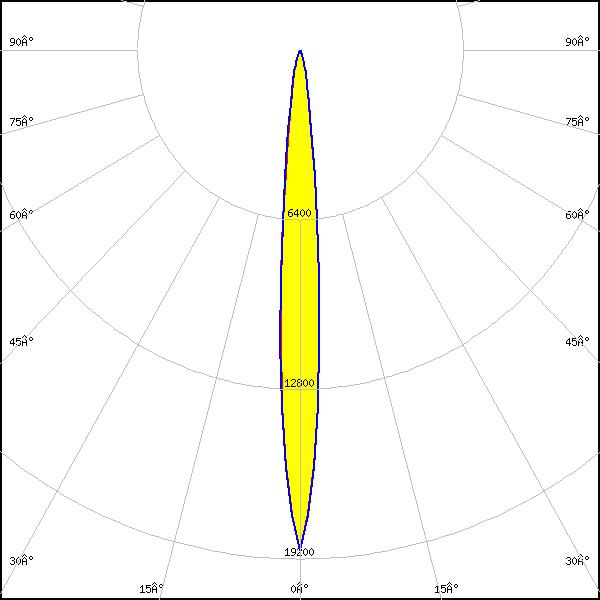

    LED: CLU700/701/702/703
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 18.878 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 17.217 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

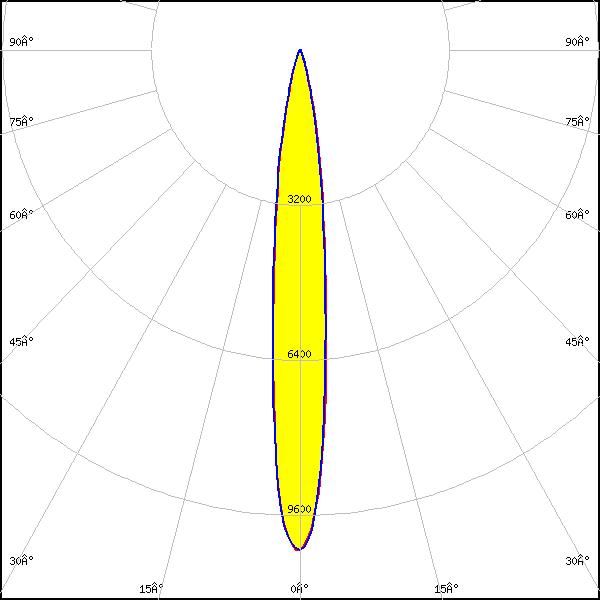

    LED: CLU700/701/702/703
    Ordering code: CP19052_AMY-70-S-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 13°
    FWTM: 29°
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

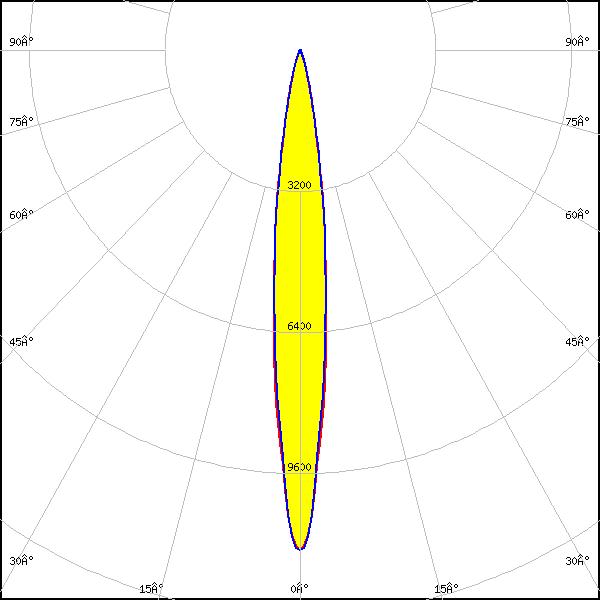

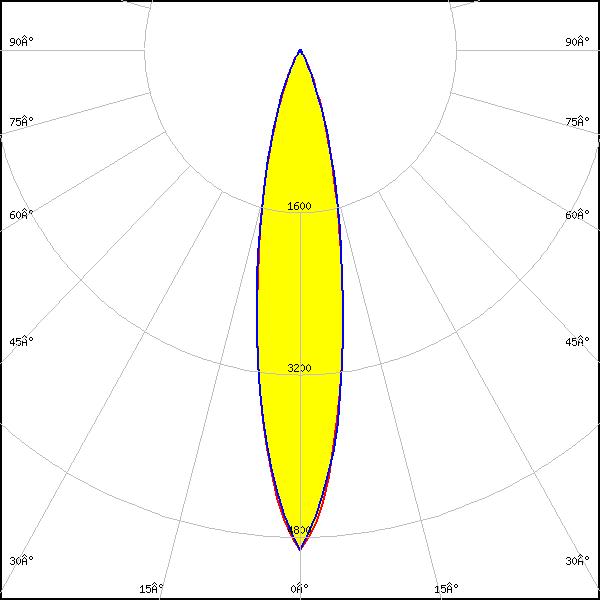

    LED: CLU7S3
    Ordering code: CP19052_AMY-70-S-B2
    LES size: 3.5 mm
    Required components:
    Bender Wirth: 667a Bayonet35
    FWHM: 12°
    FWTM: 28°
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

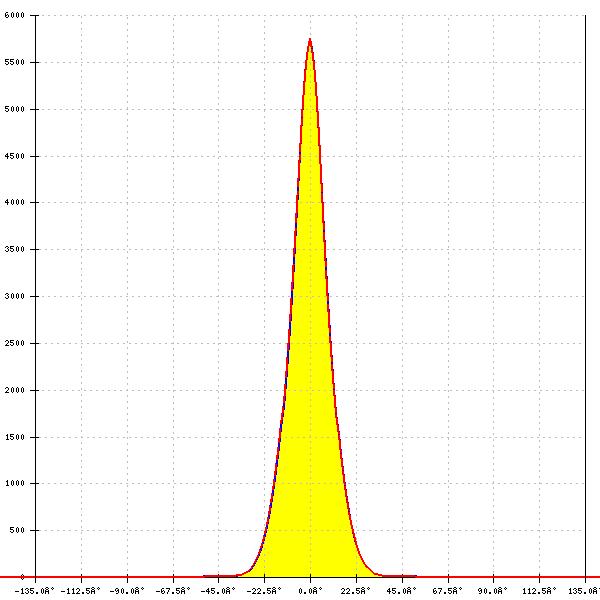

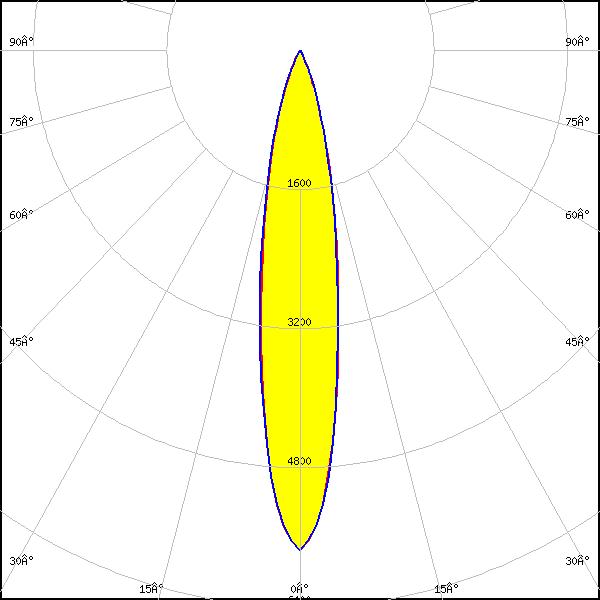

    LED: CMA1825
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 18°
    FWTM: 41°
    Peak intensity: 5.751 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

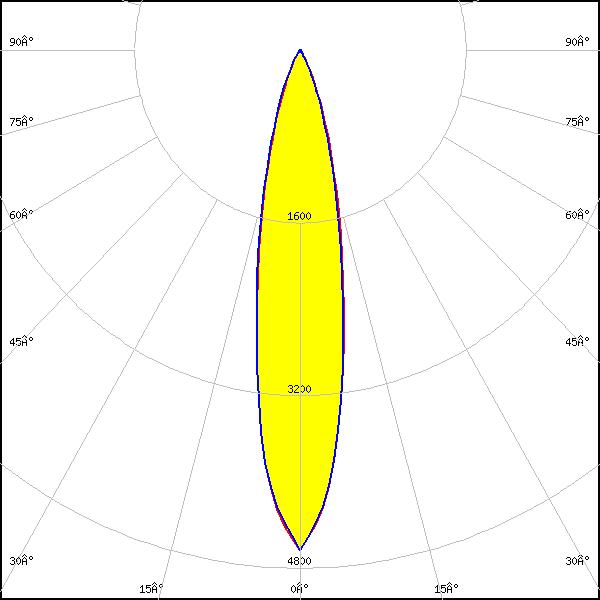

    LED: CMA1840
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 21°
    FWTM: 45°
    Peak intensity: 4.635 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT14xx
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 15°
    FWTM: 34°
    Peak intensity: 8.600 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

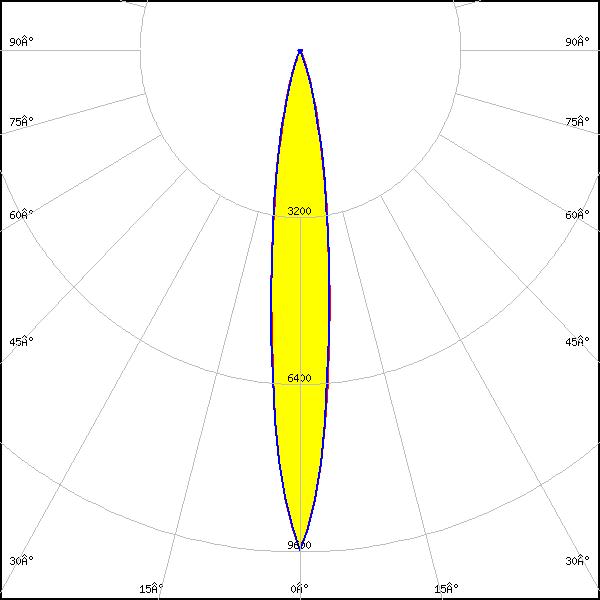

    LED: CMT14xx
    Ordering code: C17776_AMY-70-S
    LES size: 9.8 mm
    FWHM: 14°
    FWTM: 32°
    Peak intensity: 9.573 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMU10xx
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 14°
    FWTM: 34°
    Peak intensity: 8.553 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

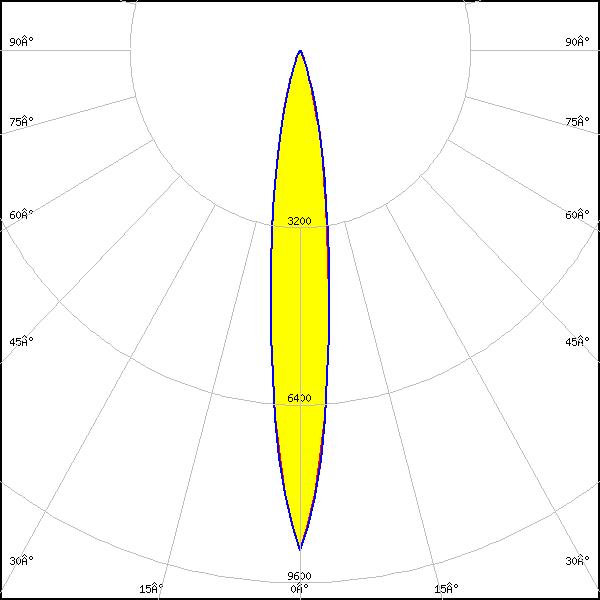

    LED: CMU10xx
    Ordering code: CP19052_AMY-70-S-B2
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 14°
    FWTM: 34°
    Peak intensity: 9.019 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMU15xx
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 23°
    FWTM: 48°
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

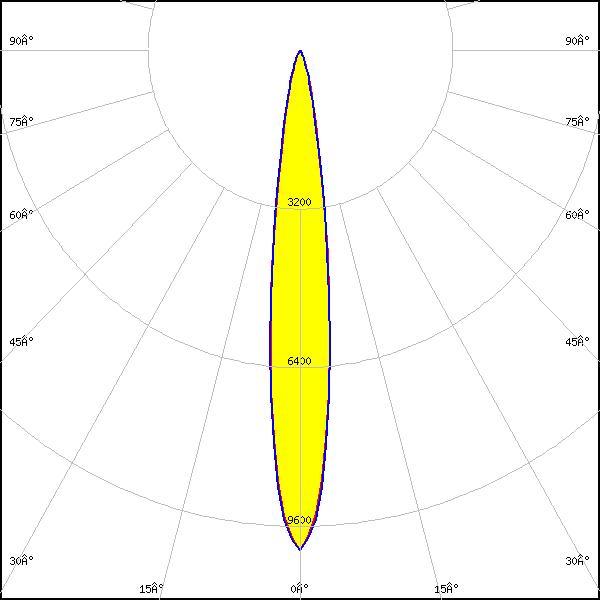

    LED: CXA/B 15xx
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 8.9 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 14°
    FWTM: 29°
    Peak intensity: 10.082 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

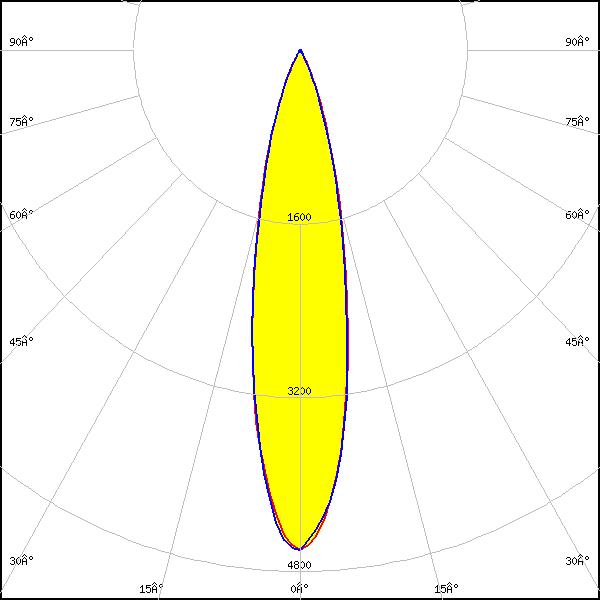

    LED: LUXEON CX Plus CoB L08 (Gen2)
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 22°
    FWTM: 46°
    Peak intensity: 4.606 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

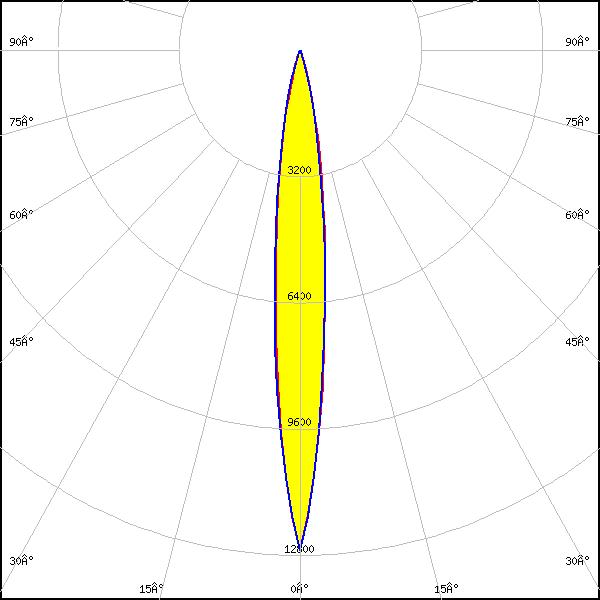

    LED: LUXEON CX Plus CoB - HD S02H6
    Ordering code: CP19052_AMY-70-S-B2
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 12°
    FWTM: 29°
    Peak intensity: 12.669 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

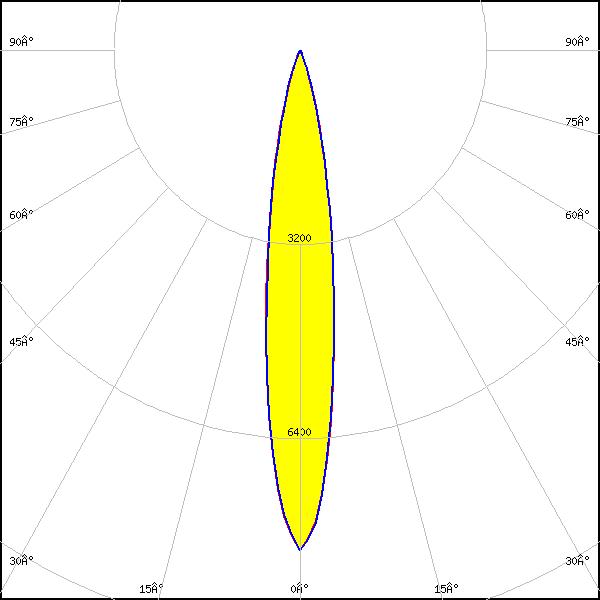

    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 9.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 16°
    FWTM: 34°
    Peak intensity: 8.165 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

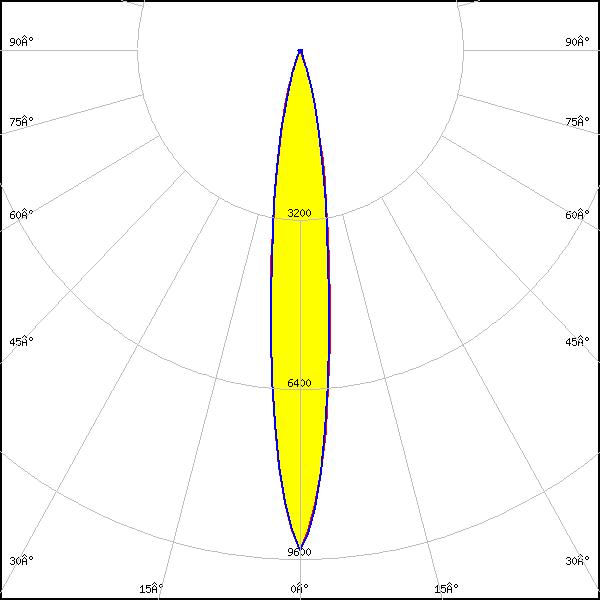

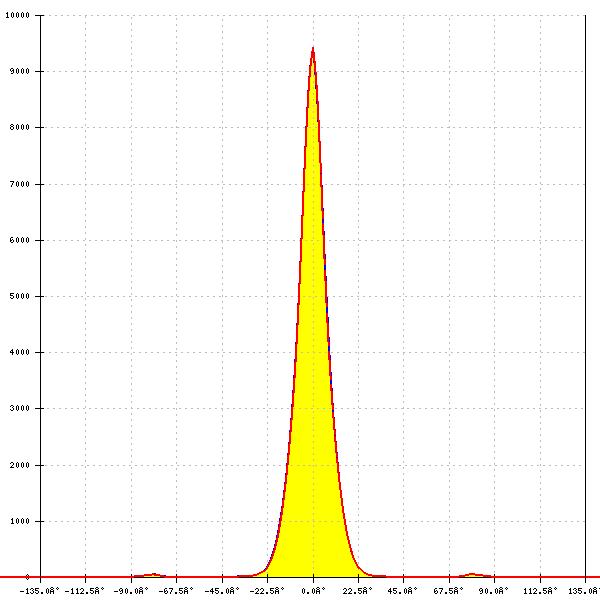

    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: C17776_AMY-70-S
    LES size: 9.0 mm
    FWHM: 14°
    FWTM: 32°
    Peak intensity: 9.431 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: CP19052_AMY-70-S-B2
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 16°
    FWTM: 34°
    Peak intensity: 8.243 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

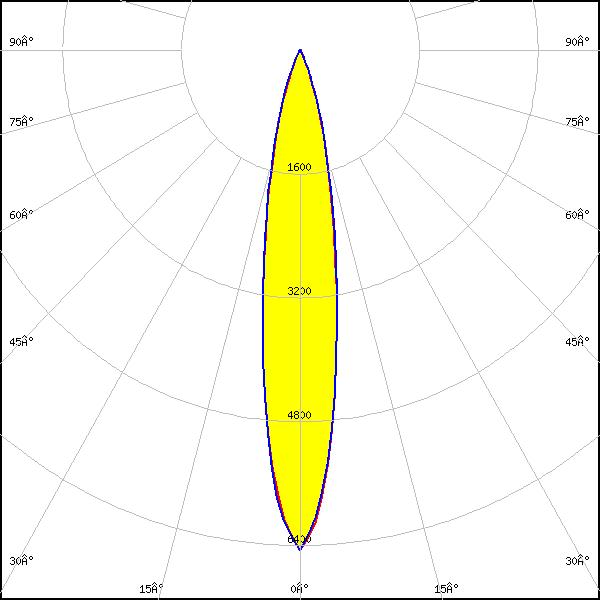

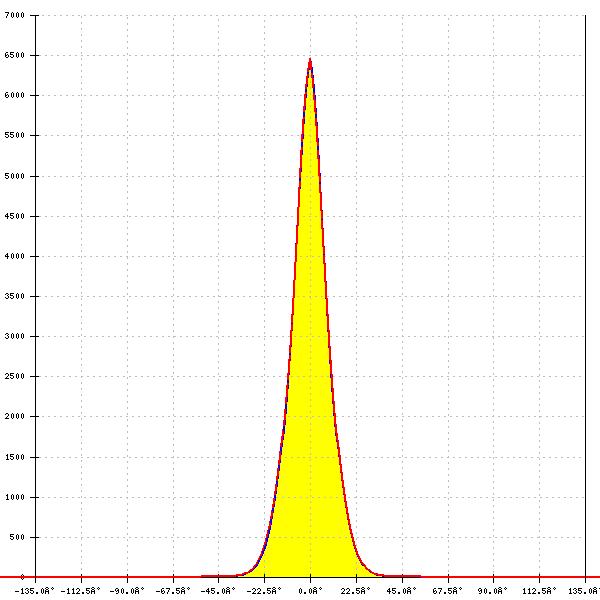

    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 18°
    FWTM: 39°
    Peak intensity: 6.464 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

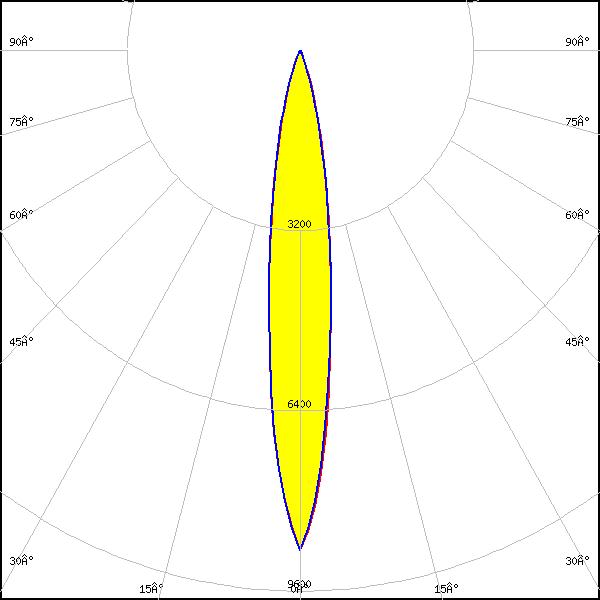

    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 9.0 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 15°
    FWTM: 34°
    Peak intensity: 8.878 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

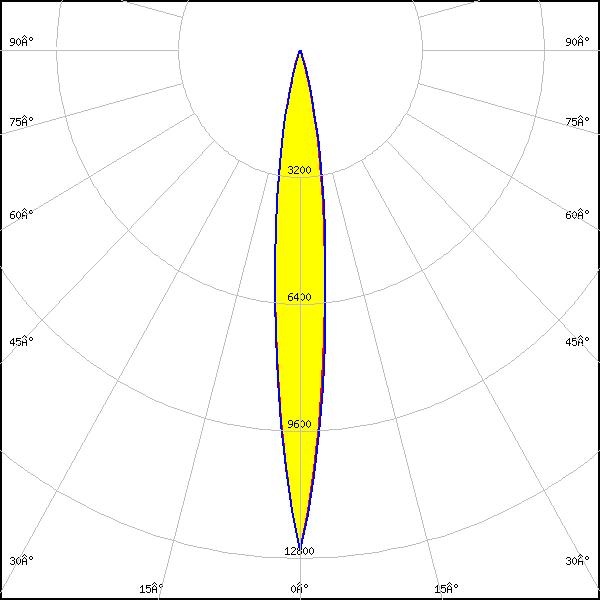

    LED: LUXEON CX Plus CoB S01 (Gen2)
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: 12°
    FWTM: 29°
    Peak intensity: 12.604 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

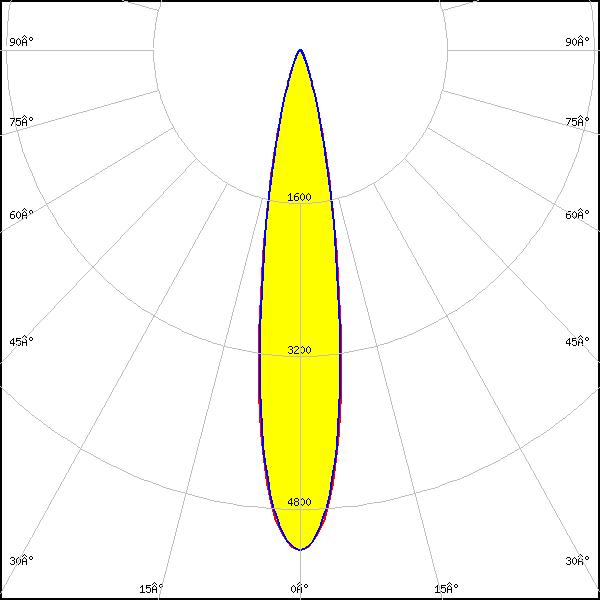

    LED: LUXEON Fusion 12-up (20x24)
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 7.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    F18158_HEKLA-RZ-LENS
    FWHM: 19°
    FWTM: 38°
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Fusion 21-up (20x24)
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 7.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    F18158_HEKLA-RZ-LENS
    FWHM: 19°
    FWTM: 38°
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

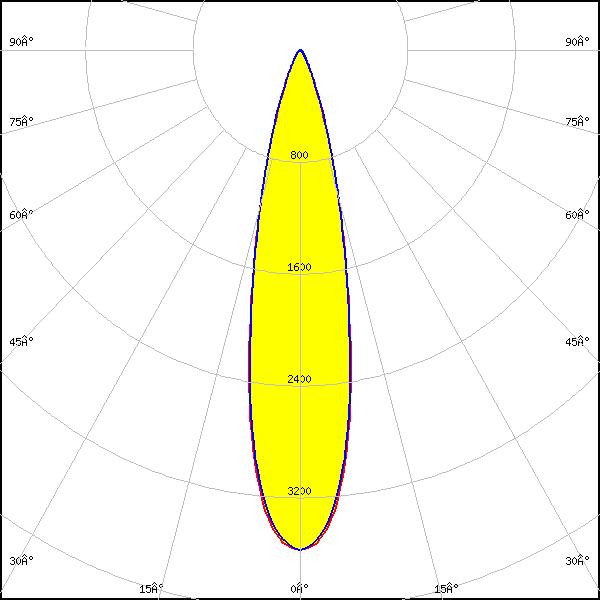

    LED: LUXEON Fusion 27-up (20x24)
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 10.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    F18158_HEKLA-RZ-LENS
    FWHM: 23°
    FWTM: 45°
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

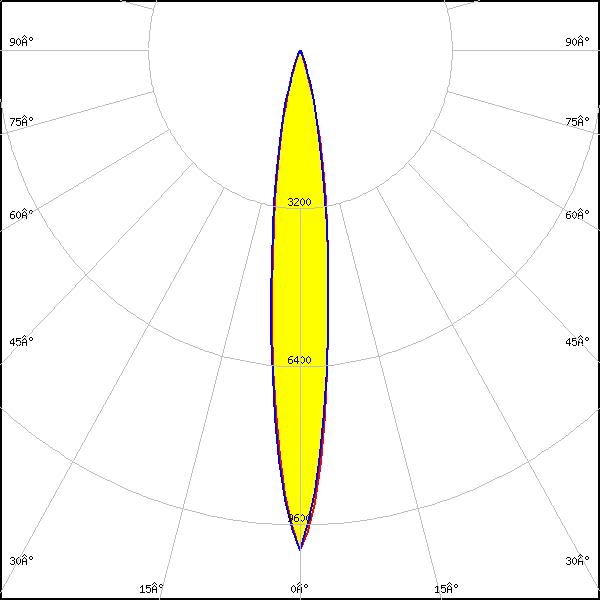

    LED: CHM-9 XH (19x19)
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 9.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 14°
    FWTM: 32°
    Peak intensity: 10.117 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

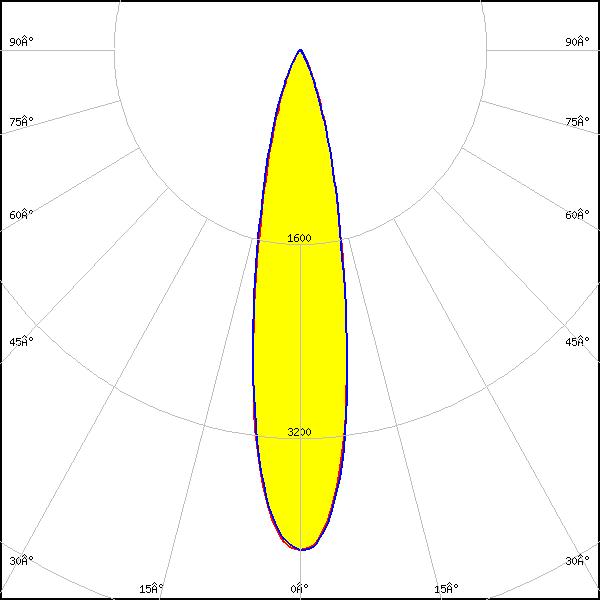

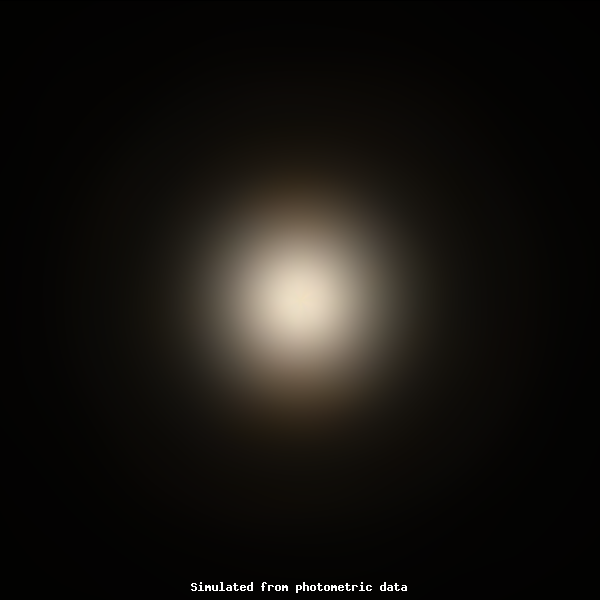

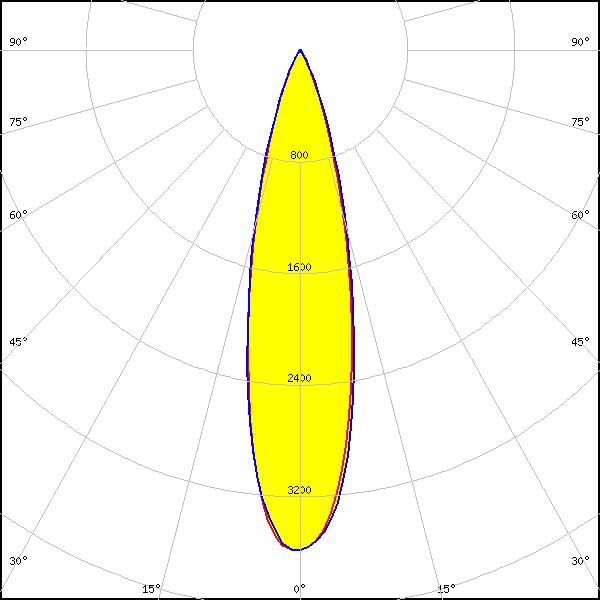

    LED: CTM-14 (Tunable White) Gen2
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 13.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: 22°
    FWTM: 46°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

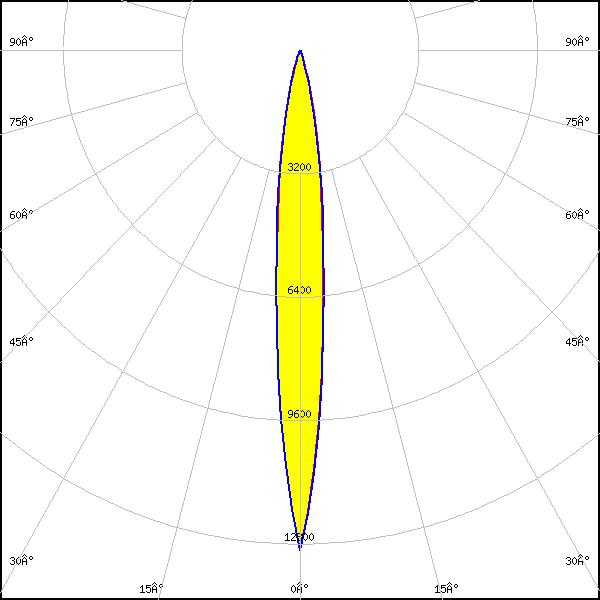

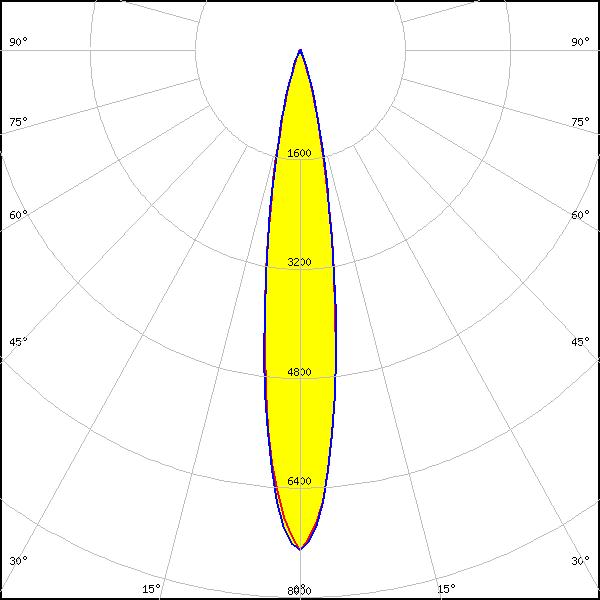

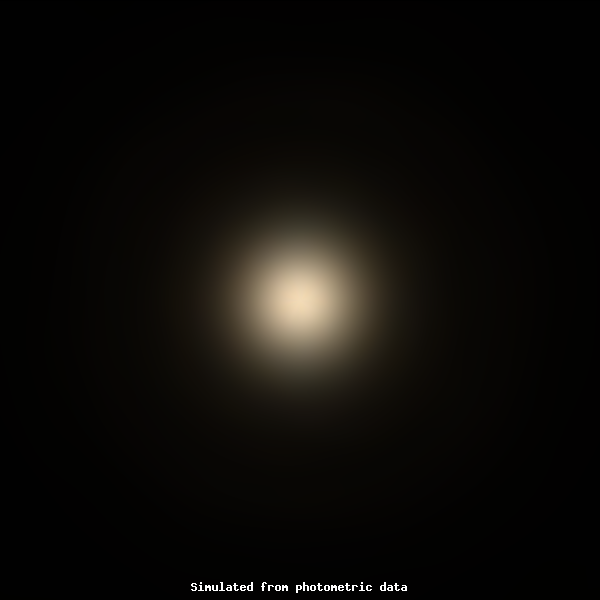

    LED: CTM-6 (Tunable White) Gen2
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 6.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 12°
    FWTM: 28°
    Peak intensity: 12.964 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

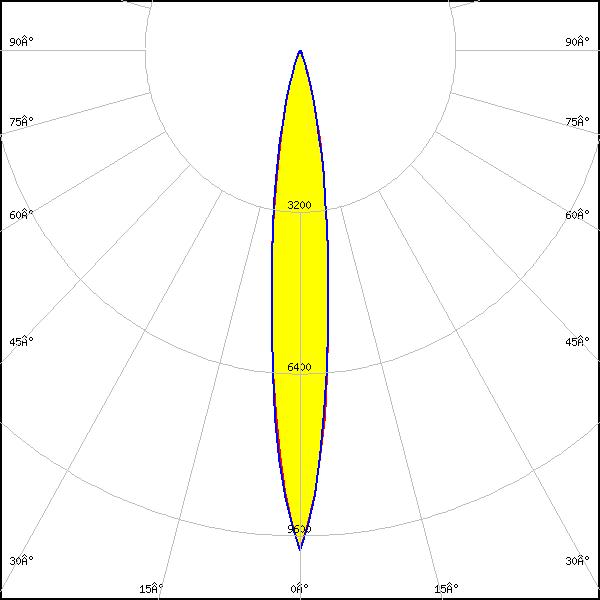

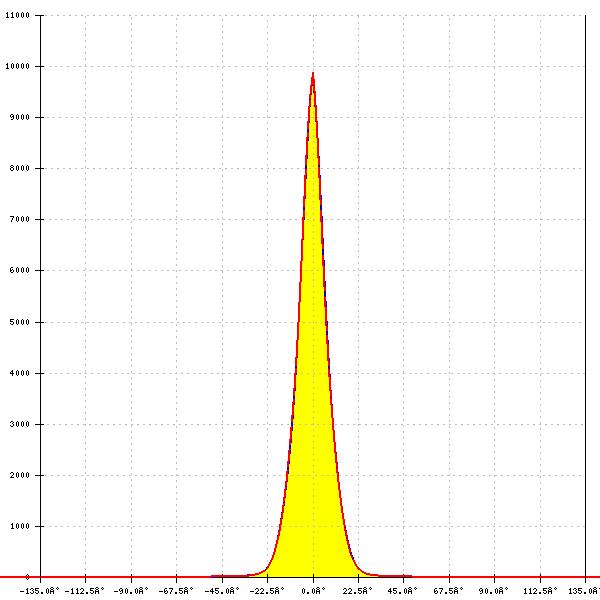

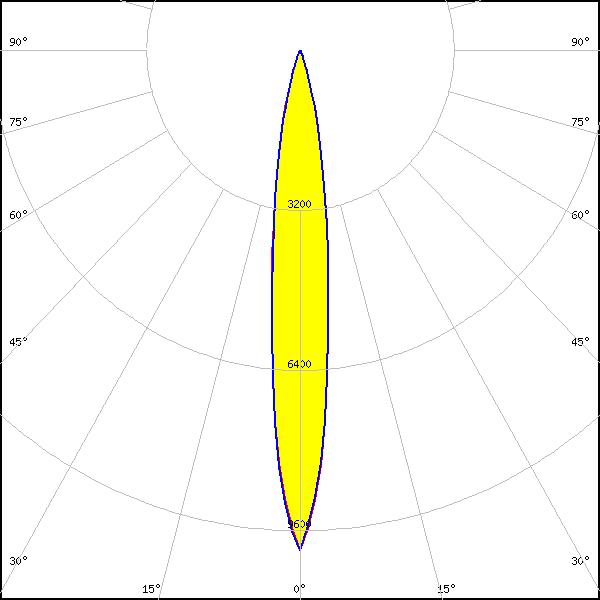

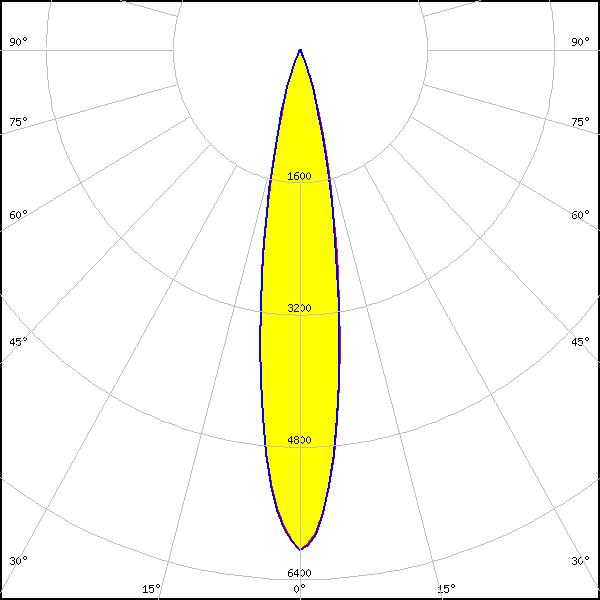

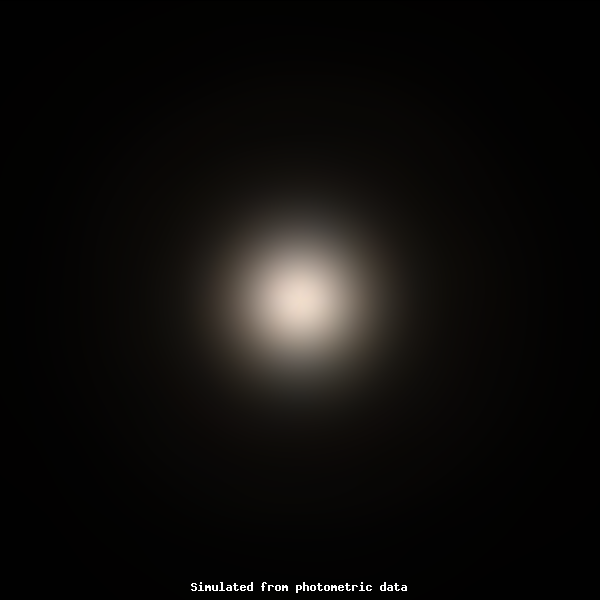

    LED: CTM-9 (Tunable White) Gen2
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 9.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 14°
    FWTM: 32°
    Peak intensity: 9.887 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CXM-3
    Ordering code: CP19052_AMY-70-S-B2
    LES size: 3.5 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 8°
    FWTM: 24°
    Peak intensity: 19.823 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXM-4
    Ordering code: CP19052_AMY-70-S-B2
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 10°
    FWTM: 26°
    Peak intensity: 16.965 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

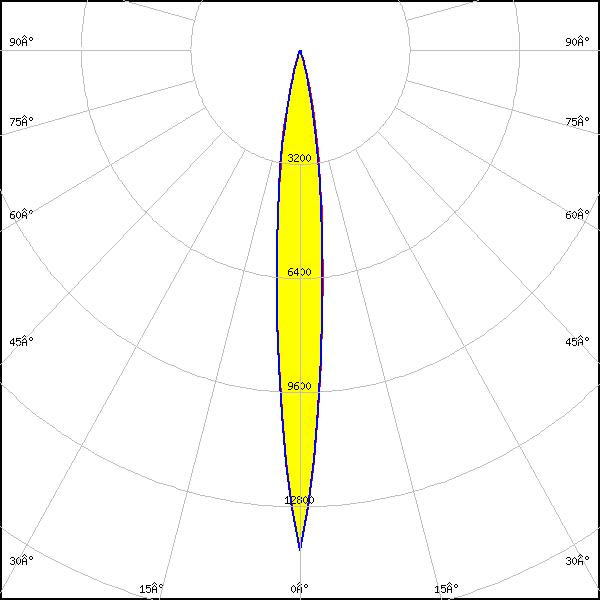

    LED: CxM-6 (13.5x13.5)
    Ordering code: CP19052_AMY-70-S-B2
    LES size: 6.3 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 11°
    FWTM: 28°
    Peak intensity: 14.022 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

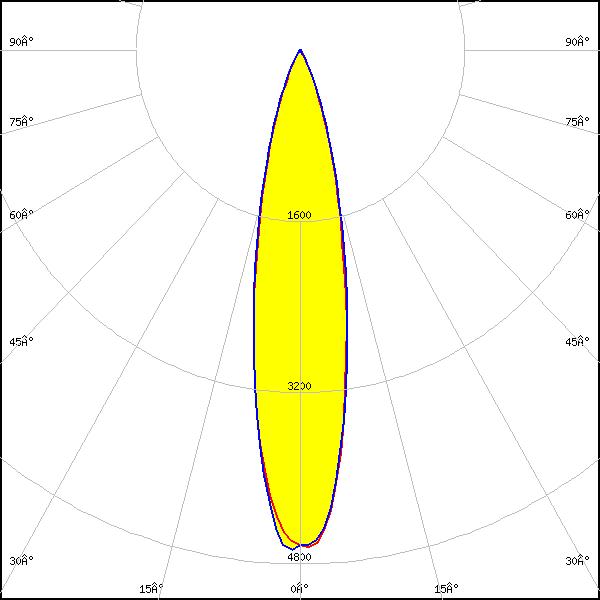

    LED: COB J-Type
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 14.6 mm
    Required components:
    Bender Wirth: 663a Hekla XL
    FWHM: 22°
    FWTM: 45°
    Peak intensity: 4.741 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 11)
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 11.5 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 18°
    FWTM: 38°
    Peak intensity: 6.444 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 6)
    Ordering code: CP19052_AMY-70-S-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 12°
    FWTM: 28°
    Peak intensity: 13.528 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

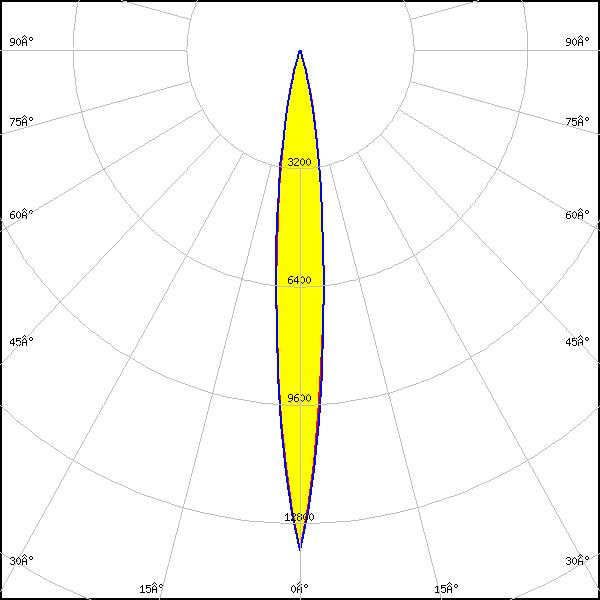

    LED: COB S-Type (LES 7)
    Ordering code: CP19052_AMY-70-S-B2
    LES size: 6.7 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 12°
    FWTM: 30°
    Peak intensity: 11.855 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

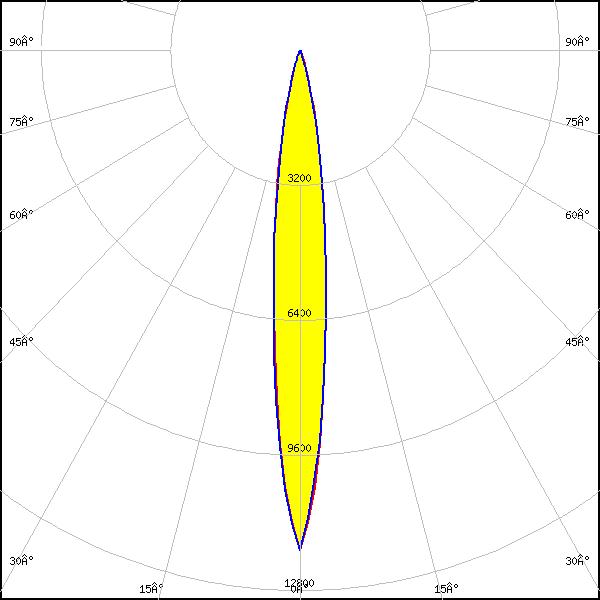

    LED: COB T-Type
    Ordering code: CP19052_AMY-70-S-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 12°
    FWTM: 28°
    Peak intensity: 12.830 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

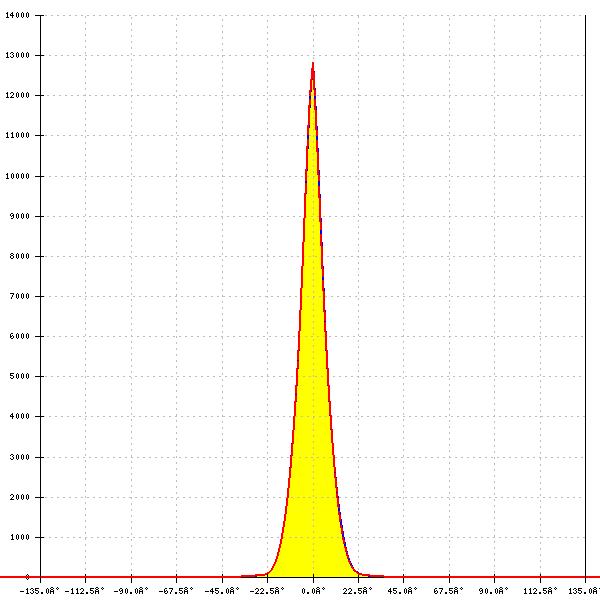

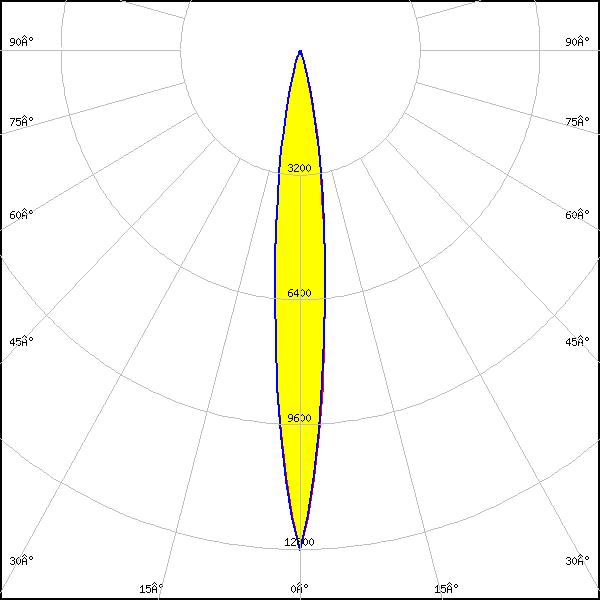

    LED: NJCWL024Z-V1MT: COB L-Type Tunable White
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 7.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 497 Typ L8 HV
    FWHM: 12°
    FWTM: 28°
    Peak intensity: 12.978 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

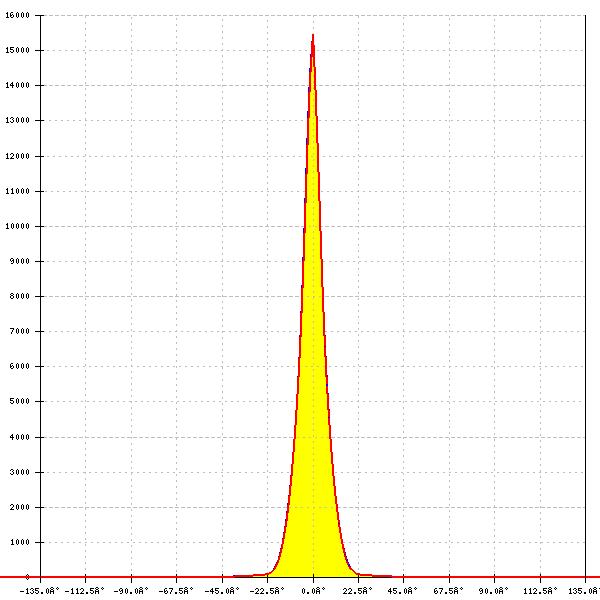

    LED: NJNWS012Z-V1MT: COB S-Type Tunable White
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 5.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8 HV
    FWHM: 10°
    FWTM: 26°
    Peak intensity: 15.465 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

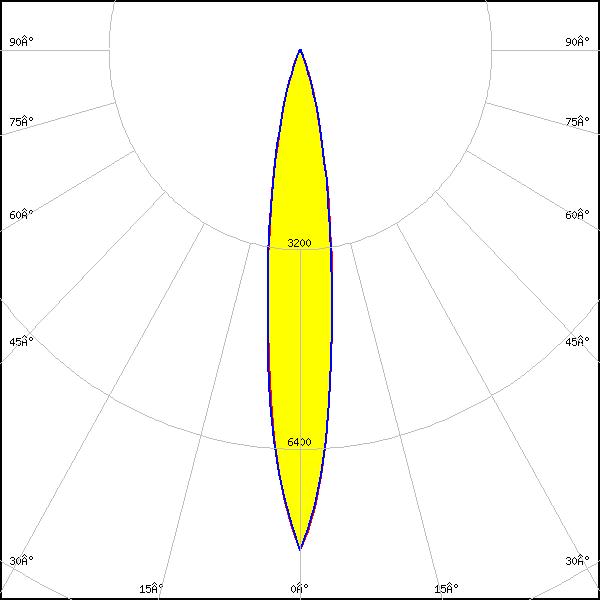

    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 10.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 498 Typ L8 HV
    FWHM: 16°
    FWTM: 36°
    Peak intensity: 8.023 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Fortimo SLM L15 CoB
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 22°
    FWTM: 44°
    Peak intensity: 4.534 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 14°
    FWTM: 30°
    Peak intensity: 10.015 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

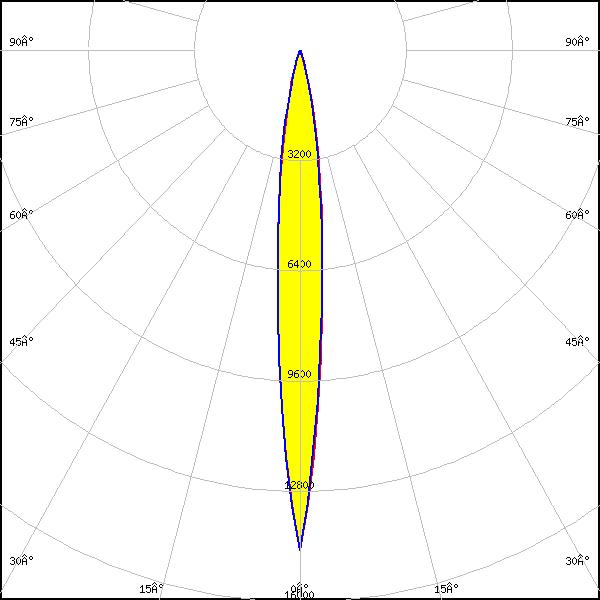

    LED: LC010C G2
    Ordering code: CP19052_AMY-70-S-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 10°
    FWTM: 28°
    Peak intensity: 14.511 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

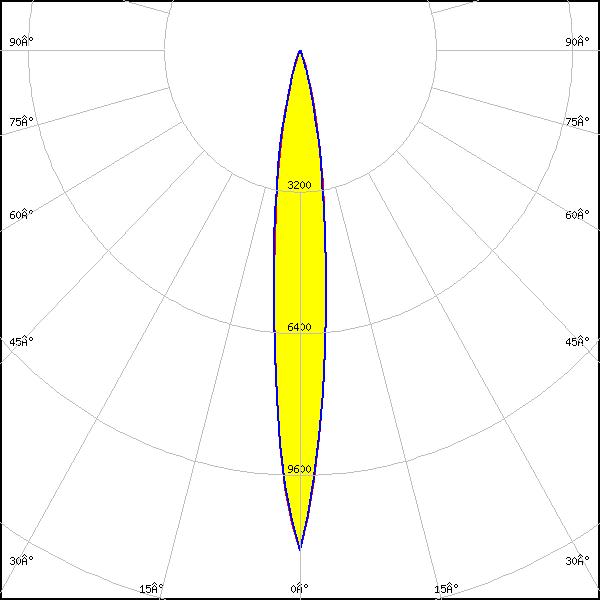

    LED: LC010T (Tunable White)
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 12°
    FWTM: 30°
    Peak intensity: 11.293 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

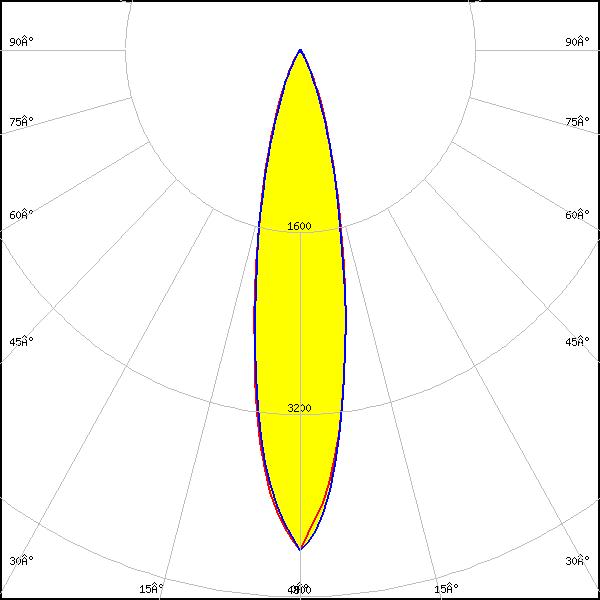

    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP19052_AMY-70-S-B2
    LES size: 14.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 22°
    FWTM: 46°
    Peak intensity: 4.393 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

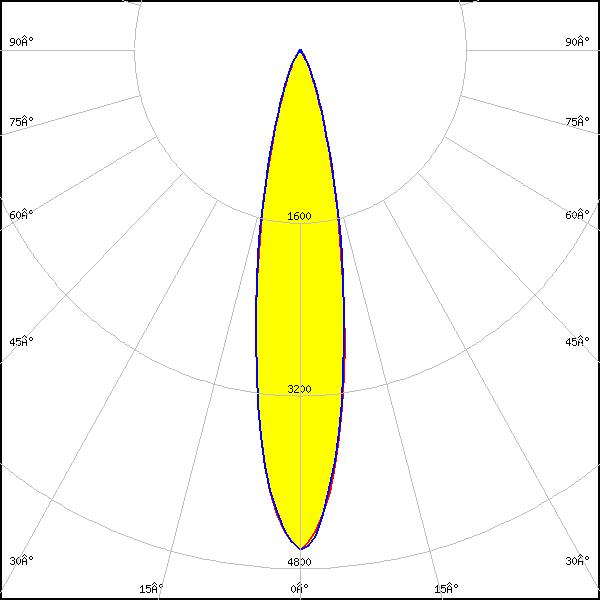

    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 14.5 mm
    FWHM: 23°
    FWTM: 49°
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

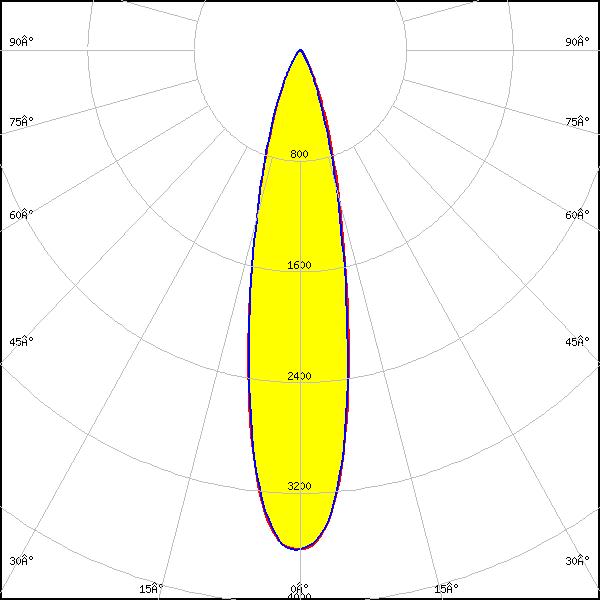

    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: C17776_AMY-70-S
    LES size: 14.5 mm
    FWHM: 23°
    FWTM: 49°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020C G2
    Ordering code: CP19052_AMY-70-S-B2
    LES size: 8.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 14°
    FWTM: 32°
    Peak intensity: 10.226 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

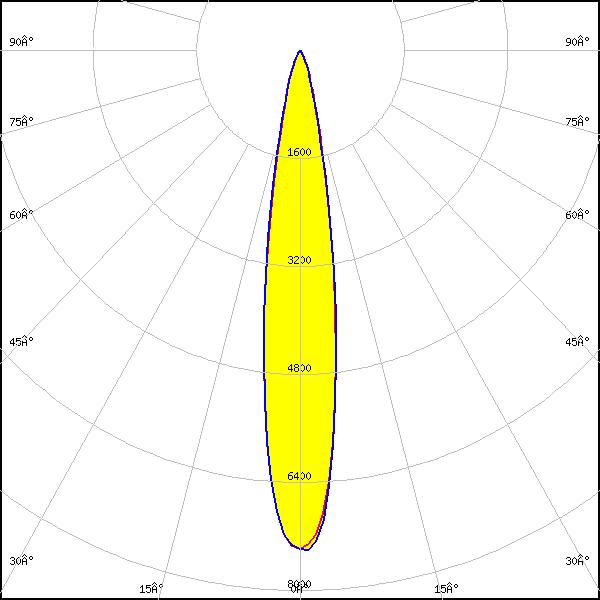

    LED: LC020T (Tunable white)
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 13.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 16°
    FWTM: 34°
    Peak intensity: 7.427 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020T (Tunable white)
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 16°
    FWTM: 37°
    Peak intensity: 7.399 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

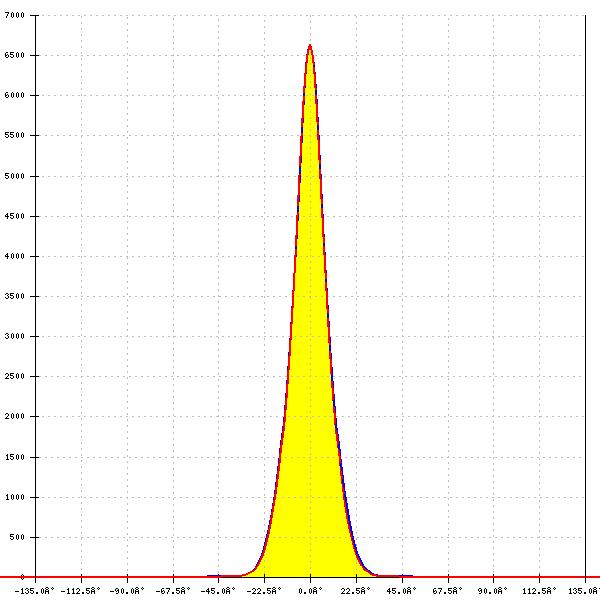

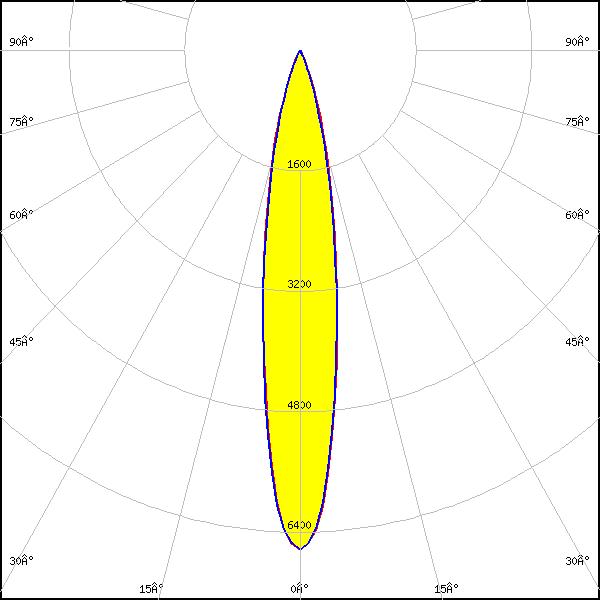

    LED: LC030C/040C G2
    Ordering code: CP19052_AMY-70-S-B2
    LES size: 11.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 18°
    FWTM: 39°
    Peak intensity: 6.640 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 22°
    FWTM: 46°
    Peak intensity: 4.651 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

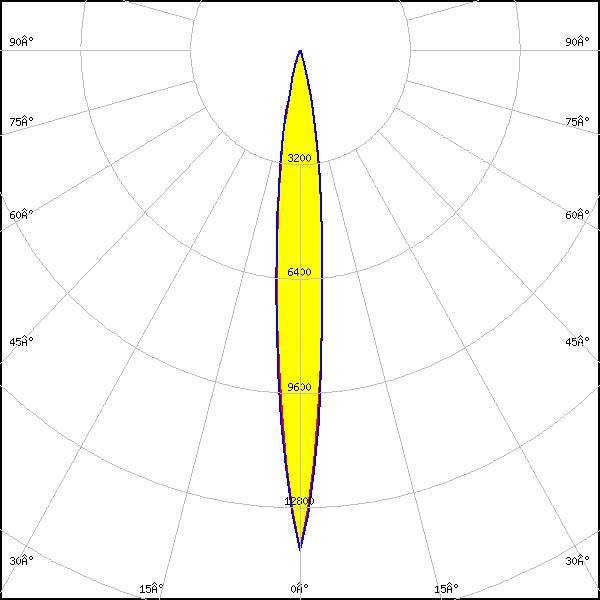

    LED: MJT COB LES 6
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 11°
    FWTM: 27°
    Peak intensity: 13.987 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 9.8
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 16°
    FWTM: 35°
    Peak intensity: 8.394 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

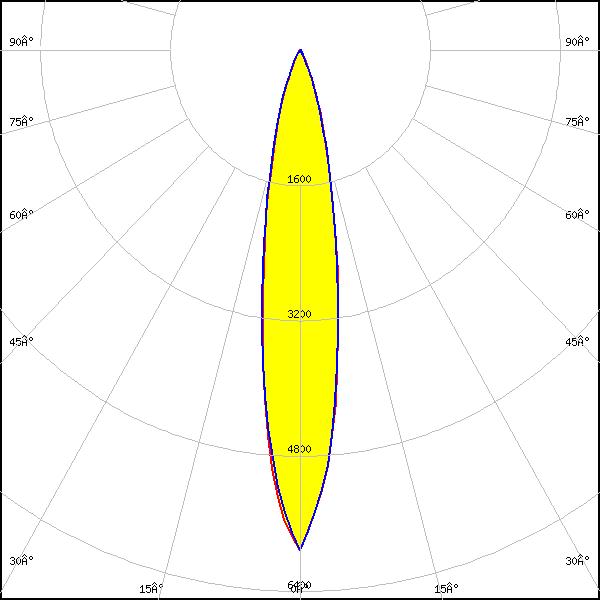

    LED: SLE G7 LES13
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 13.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 18°
    FWTM: 40°
    Peak intensity: 5.915 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

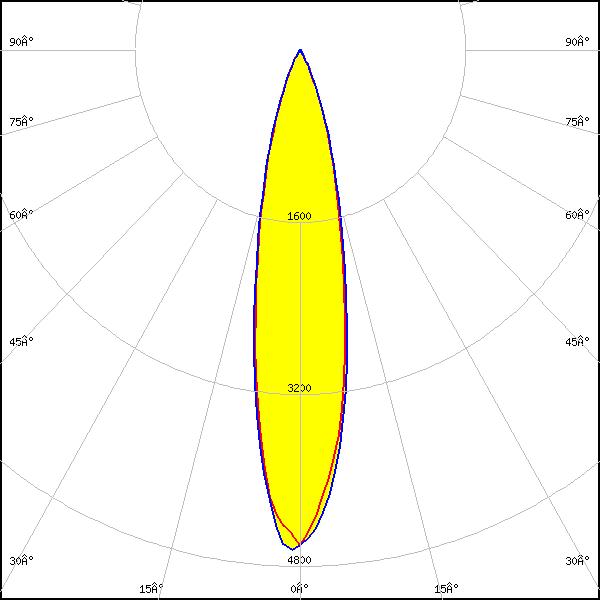

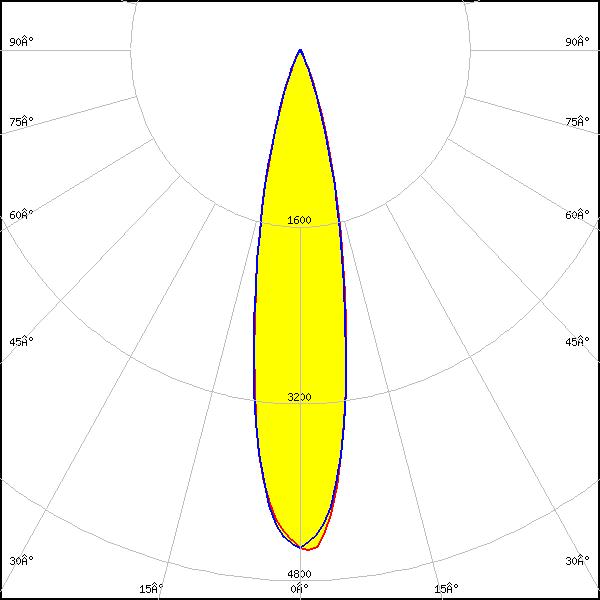

    LED: XOB 14.5 mm
    Ordering code: CP19037_AMY-70-S-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 22°
    FWTM: 42°
    Peak intensity: 4.556 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
