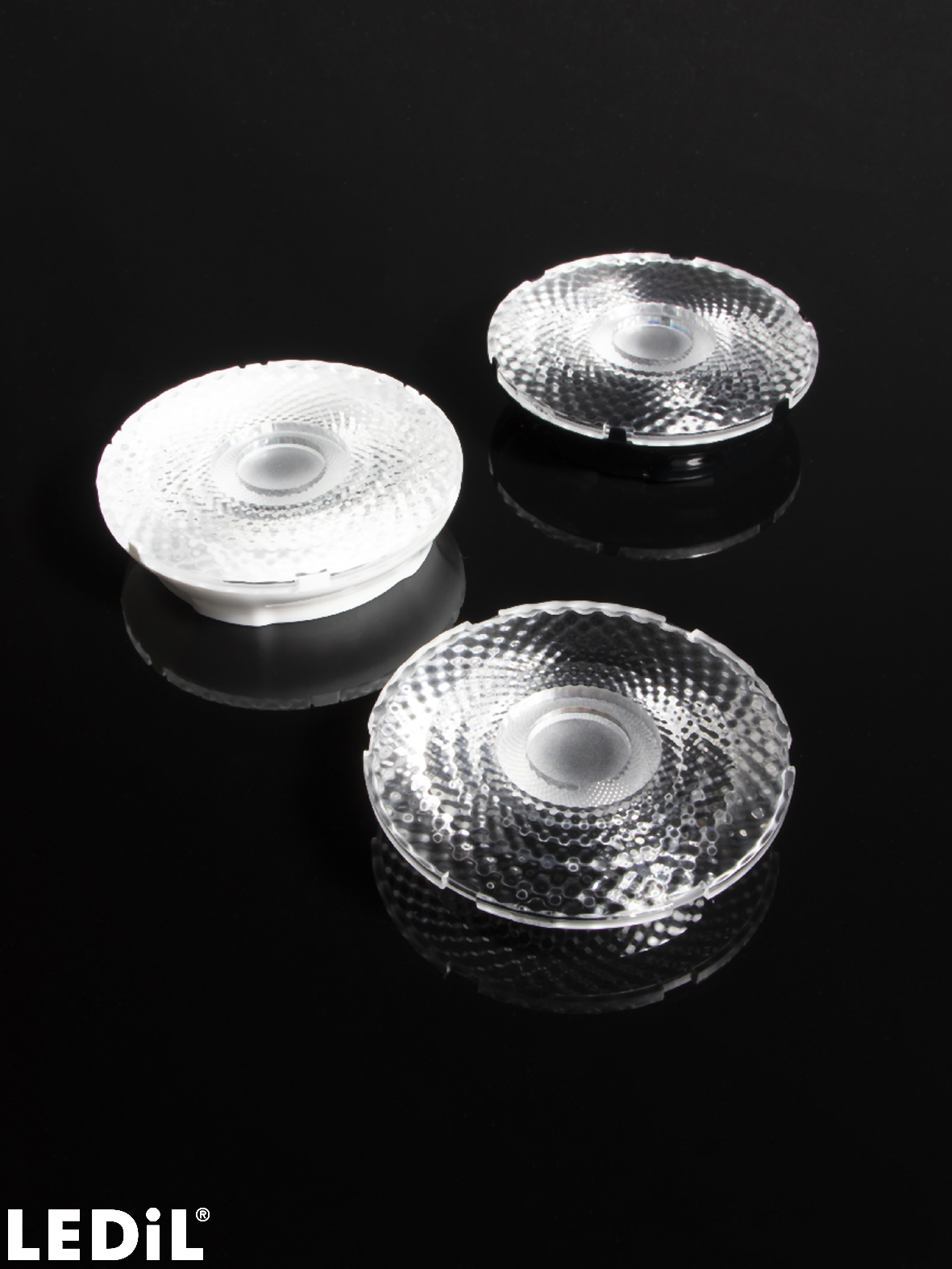

    AMY-70-M

    Print

    ~24° medium beam

    B2 variants fit ∅35 mm B+W and BJB connectors as well as SOCKET-B-35. B50 variants fit ∅50 mm B+W and BJB connectors. Variants in PC are also available.

    This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

    Specification
    • Dimensions:
      70 mm
    • Height:
      12.79 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    • AMY-70-M
      Single lens
      PMMA
    • AMY-70-HLD2-C-WHT
      Holder
      PC
    • AMY-70-HLD2-C
      Holder
      PC
    • AMY-70-HLD2-B50-WHT
      Holder
      PC
    • AMY-70-HLD2-B50
      Holder
      PC
    • AMY-70-HLD2-B-WHT
      Holder
      PC
    • AMY-70-HLD2-B
      Holder
      PC
    • Request material files from Tech Support

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C17777_AMY-70-M
      clear
    • Quantity in box:
      285 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.20 kg
    • MPQ:
      15 pcs
    • MOQ:
      285 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      9.20 kg
    • Assembly

      (single lens, holder)

    • CP19091_AMY-70-M-B2
      black,Holder B
    • CP19116_AMY-70-M-B2-WHT
      white,Holder B
    • CP19644_AMY-70-M-B50
      black,Holder B
    • CP19652_AMY-70-M-B50-WHT
      white,Holder B
    • CP19038_AMY-70-M-C2
      black,Holder C
    • CP19108_AMY-70-M-C2-WHT
      white,Holder C
    • Quantity in box:
      210 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.70 kg
    • MPQ:
      15 pcs
    • MOQ:
      210 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      8.70 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C17777_AMY-70-M
      CP19038_AMY-70-M-C2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    HEKLA-SOCKET-RZ ‒ Your effortless entry to the RGBW world

    Catalogue

    LEDiL Latest products catalogue

    Compatibility guide

    LEDiL connector and socket compatibility

    News

    New beams and products – December 2024

    News

    Illuminate with elegance – discover the versatility of AMY

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    Case story

    Alteme Lior luminaire

    PCN

    Product change notification NR194 - Change of AMY-35-50 and -70 holder design

    Compatible product

    B+W 630 Bayonet35 datasheet

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Luminaire, example

    Track light luminaire with AMY family

    News

    LEDiL AMY, the perfect choice for slim, elegant luminaire designs

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Architectural lighting optics

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA sockets and HEKLA-G2 and -G2B connectors

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    HEKLA-G2B-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2B-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-I2

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-I3

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-TW1

    Version compatible with tunable white COBs of 15.8 x 15.8 mm packages

    HEKLA-G2B-TW2

    Version compatible with tunable white COBs of 18.8 x 18.8 mm packages

    HEKLA-SOCKET-RZ

    Version with integrated RZ mixing dome for RGBW LEDs

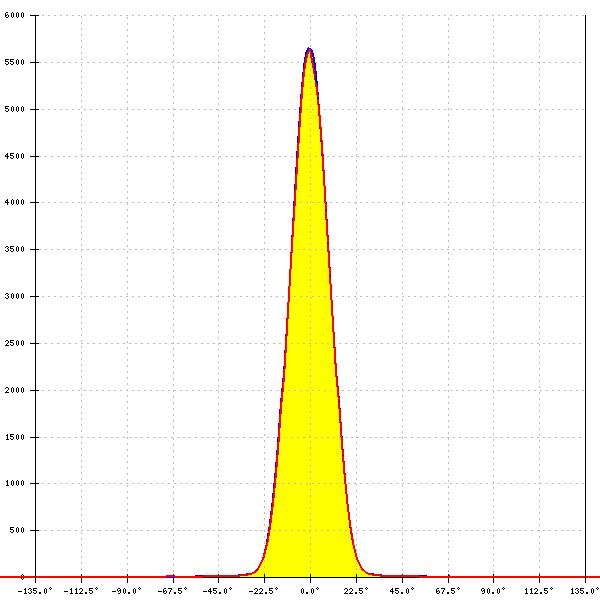

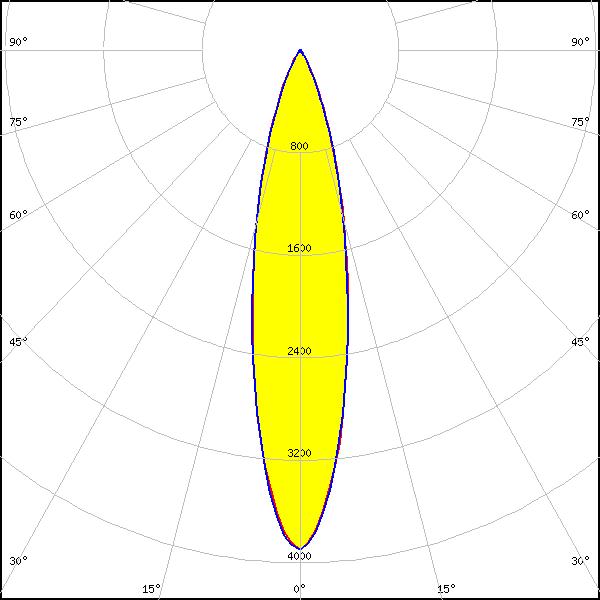

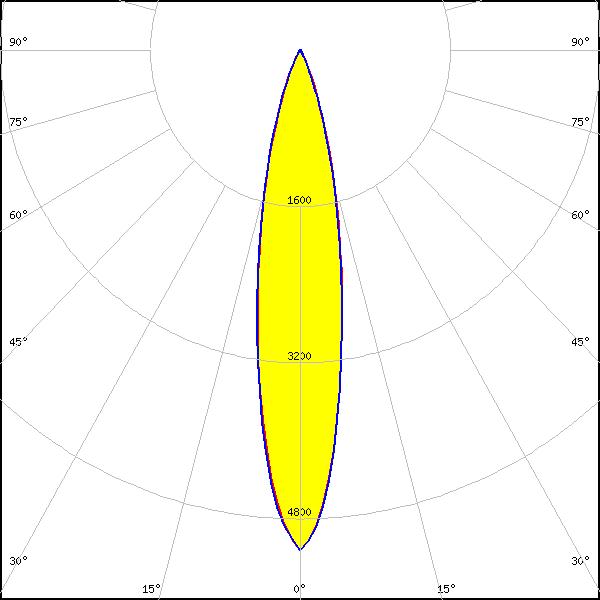

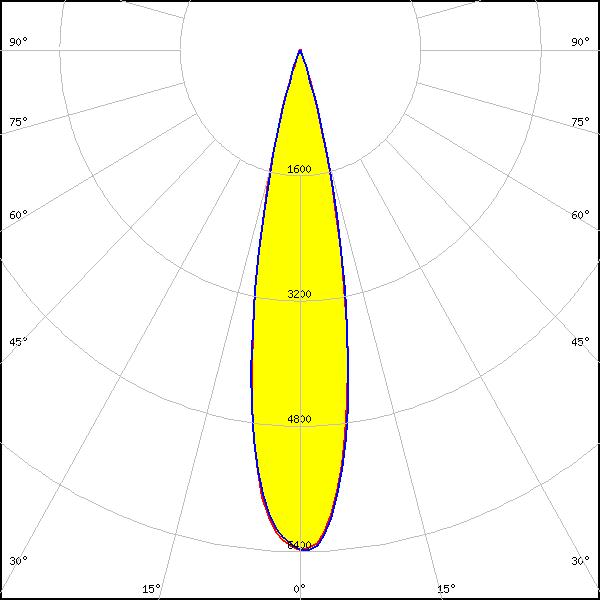

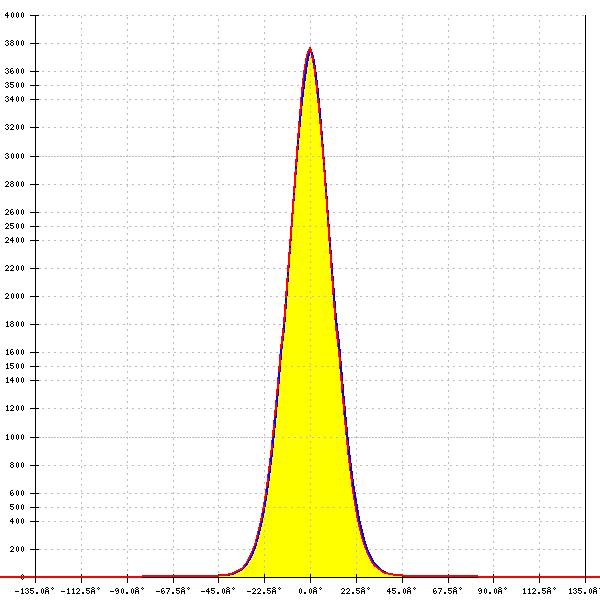

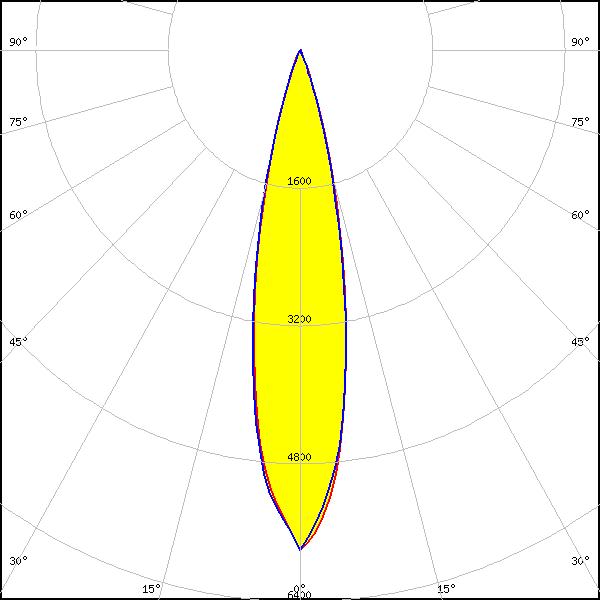

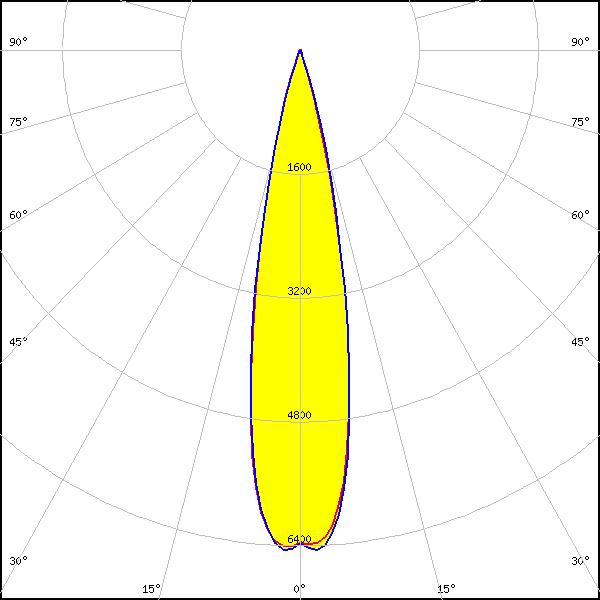

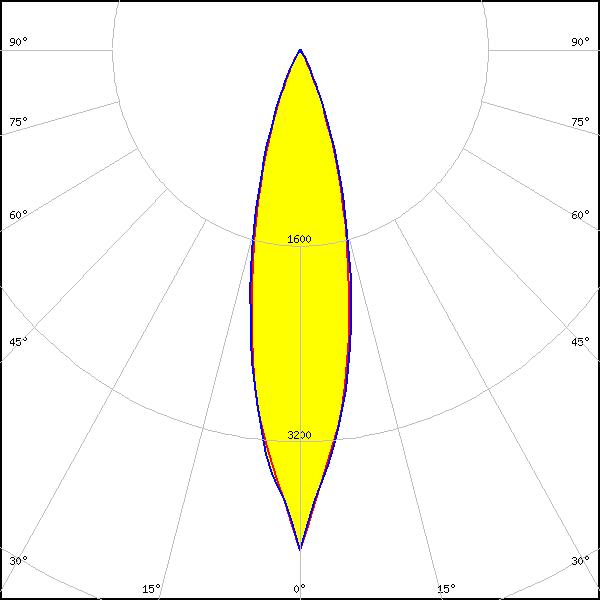

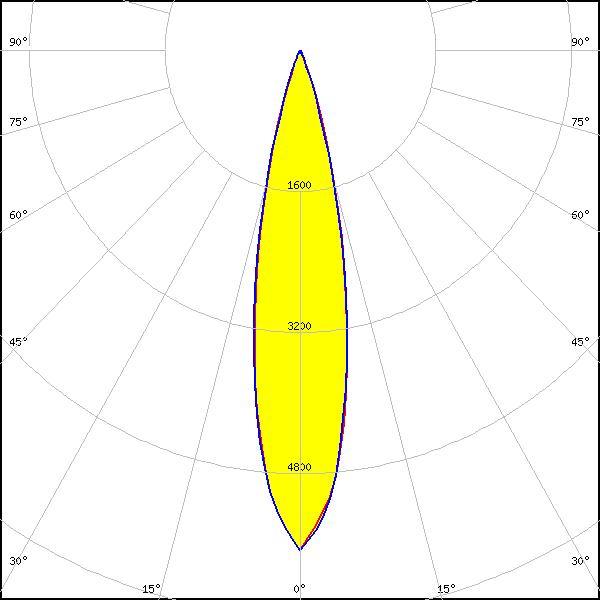

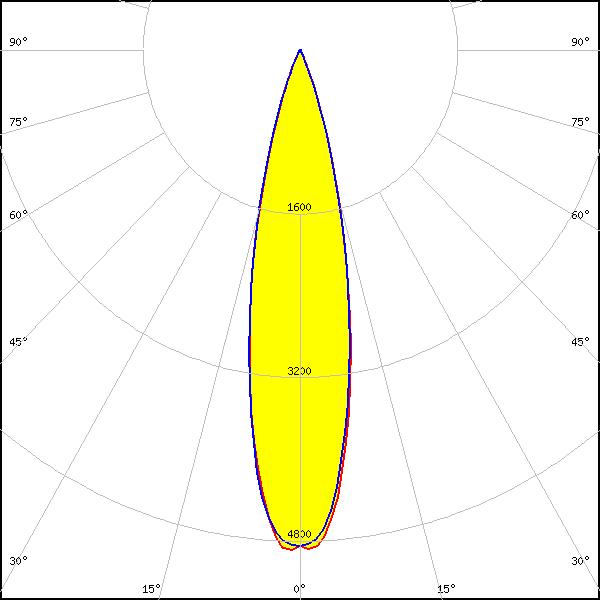

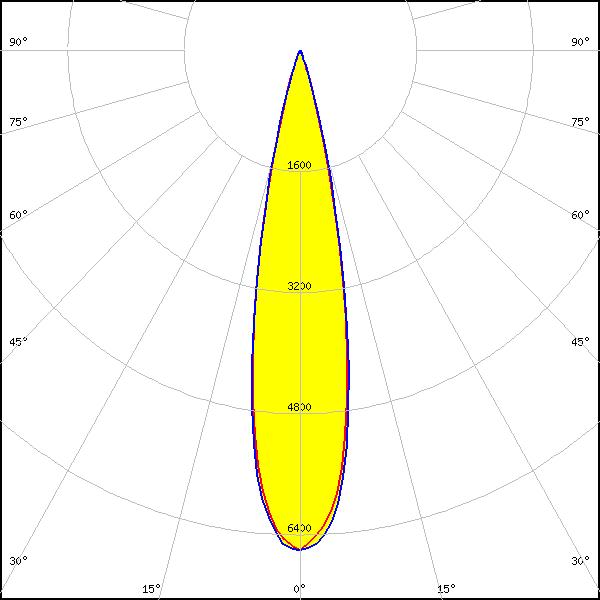

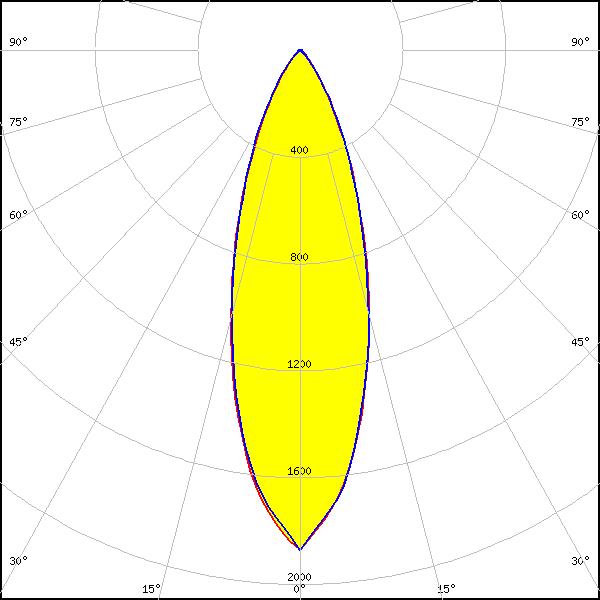

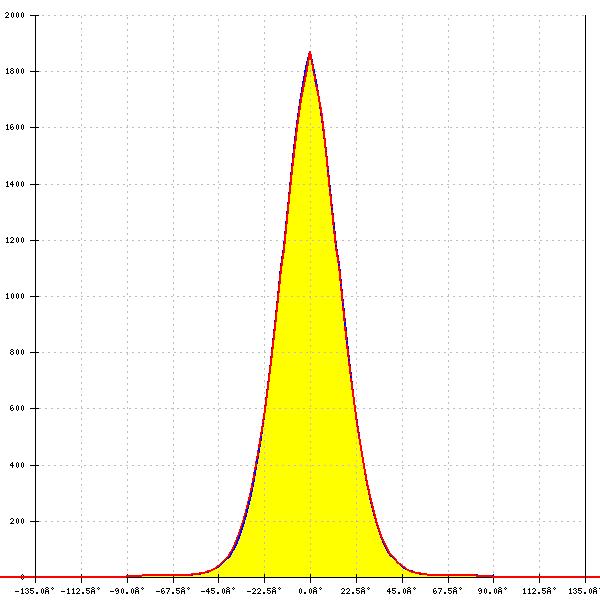

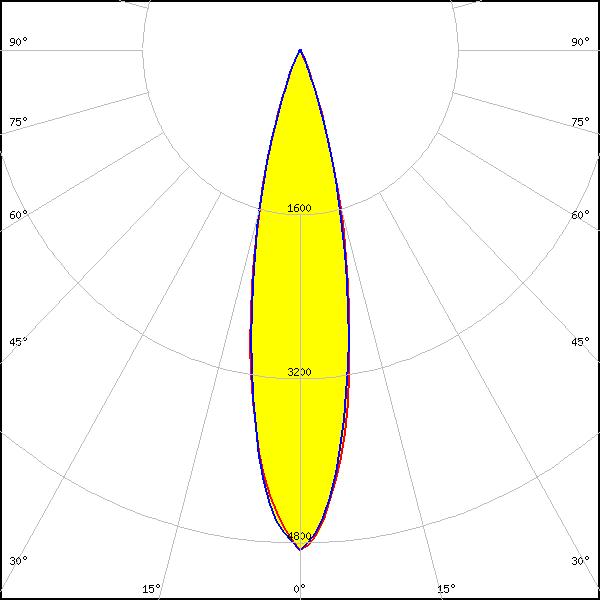

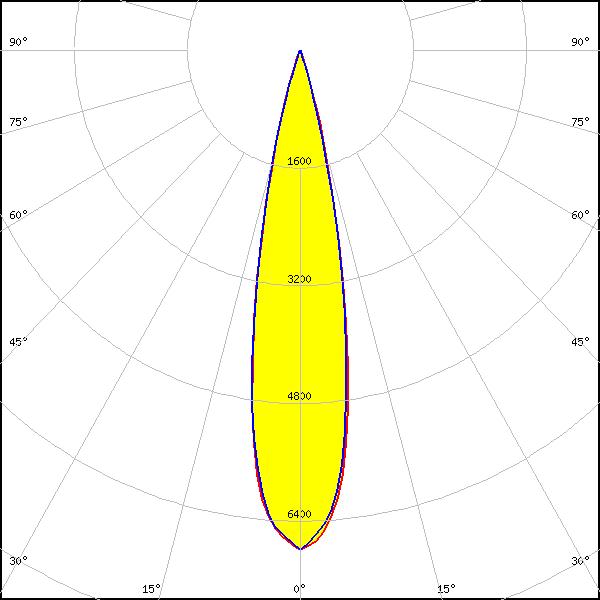

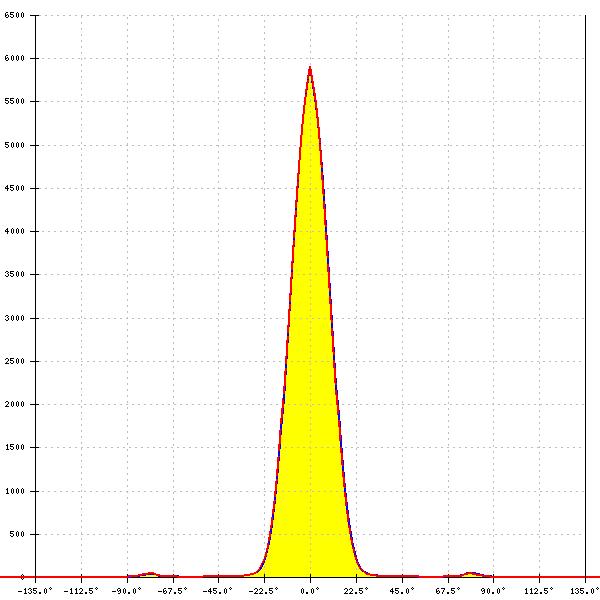

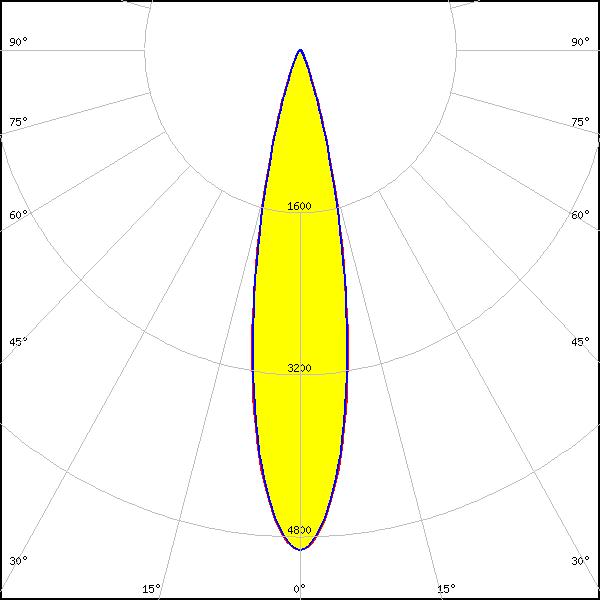

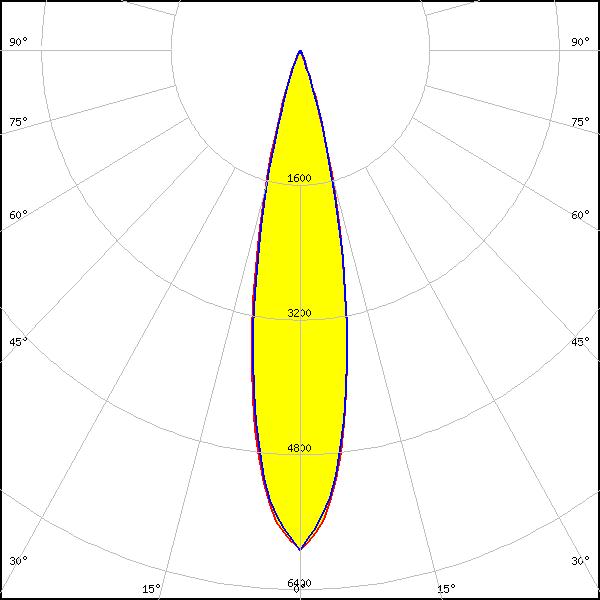

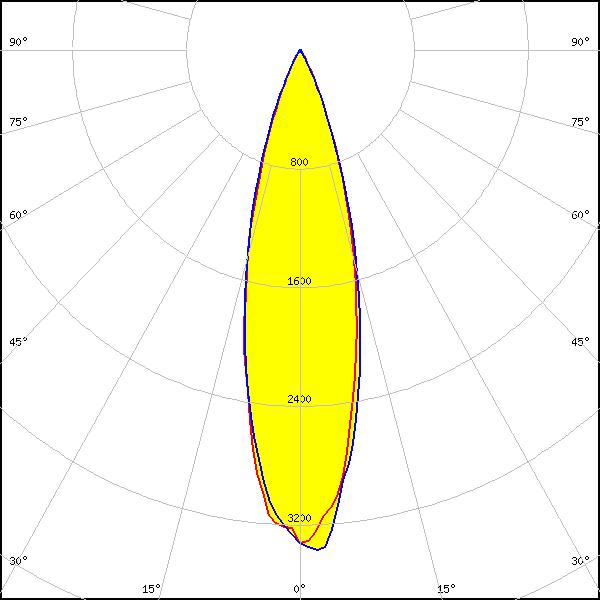

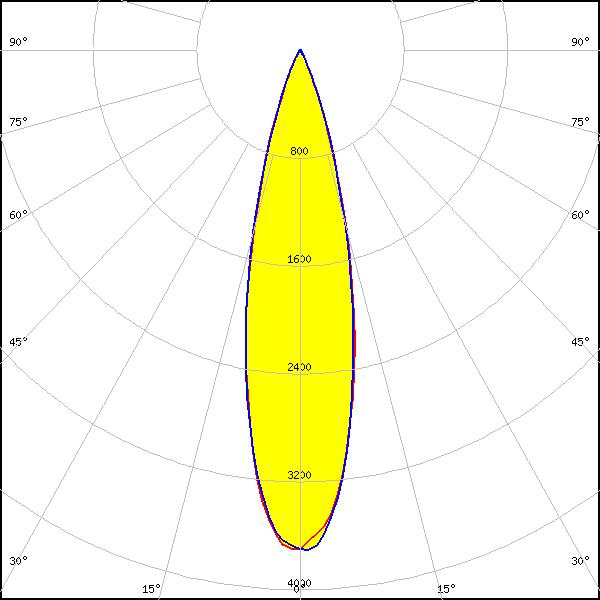

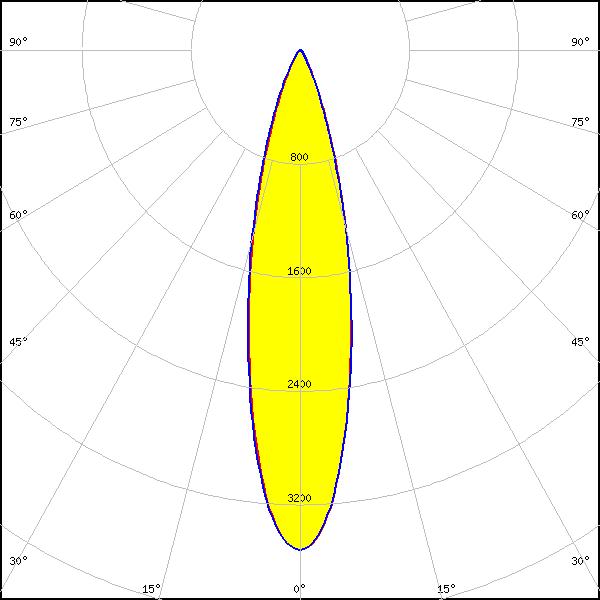

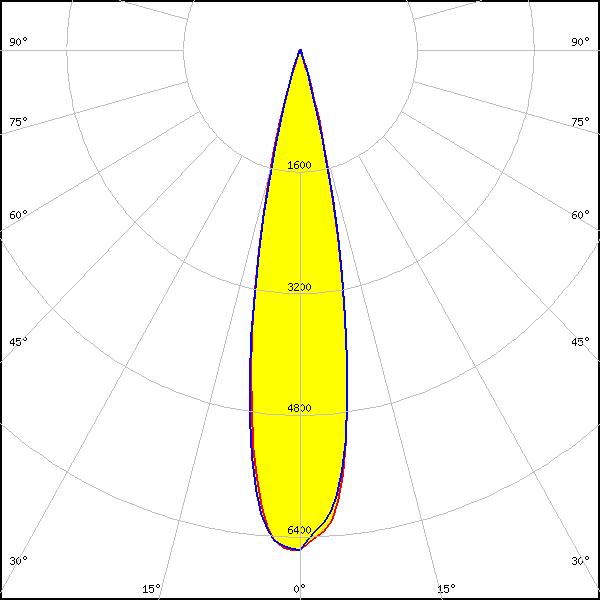

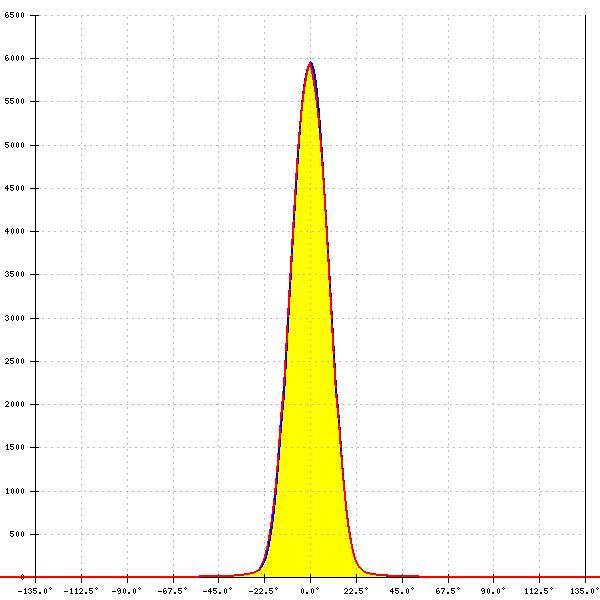

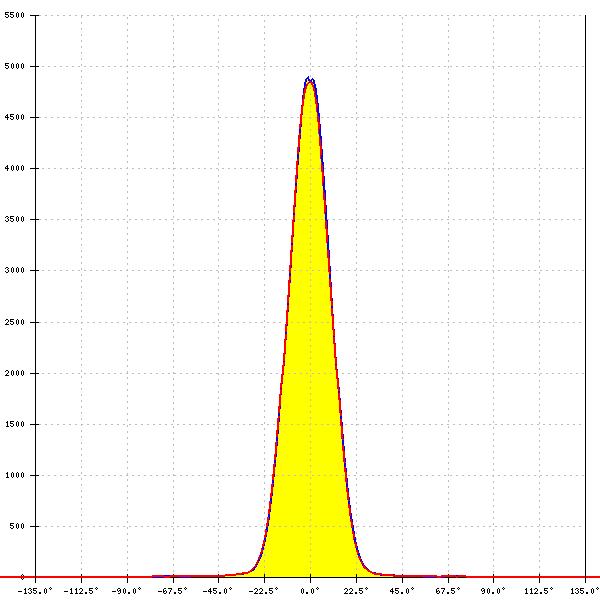

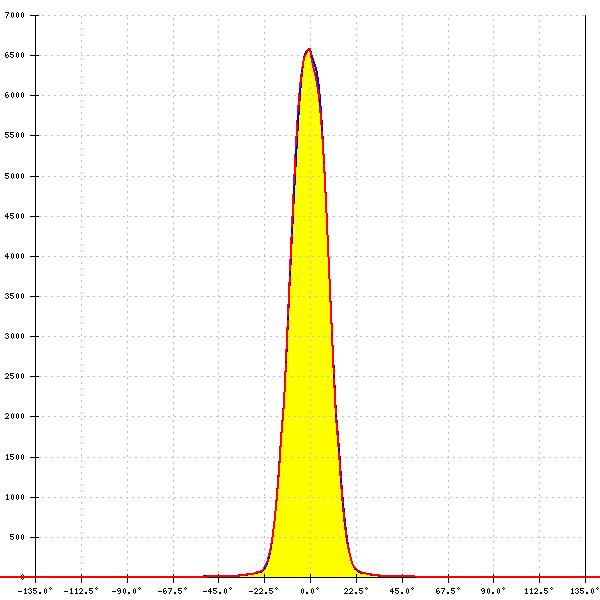

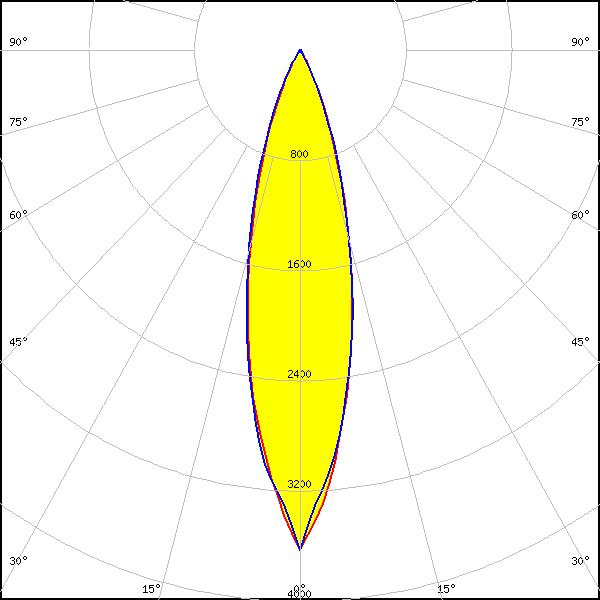

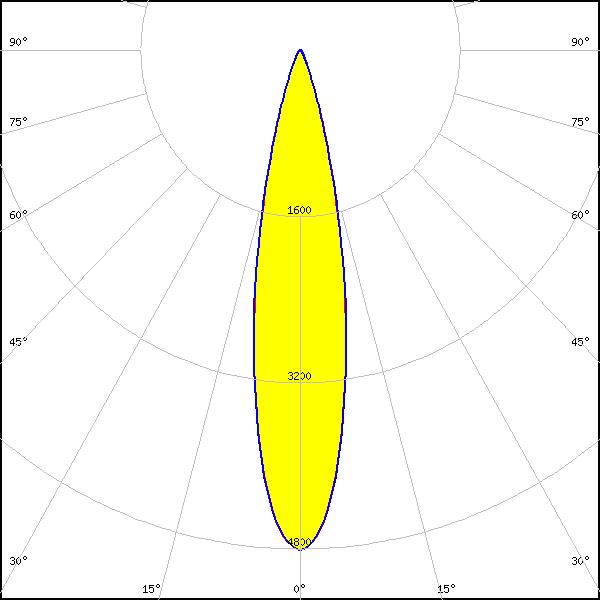

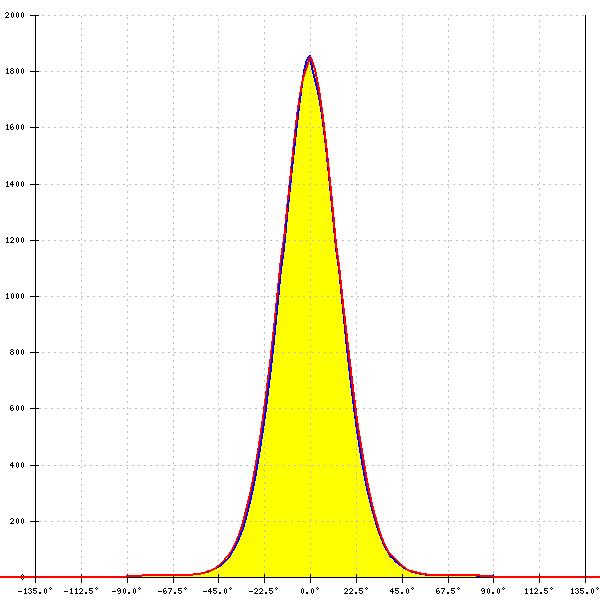

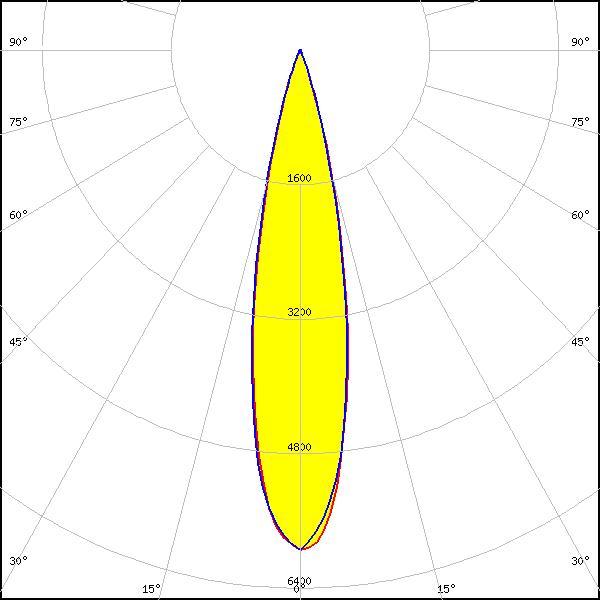

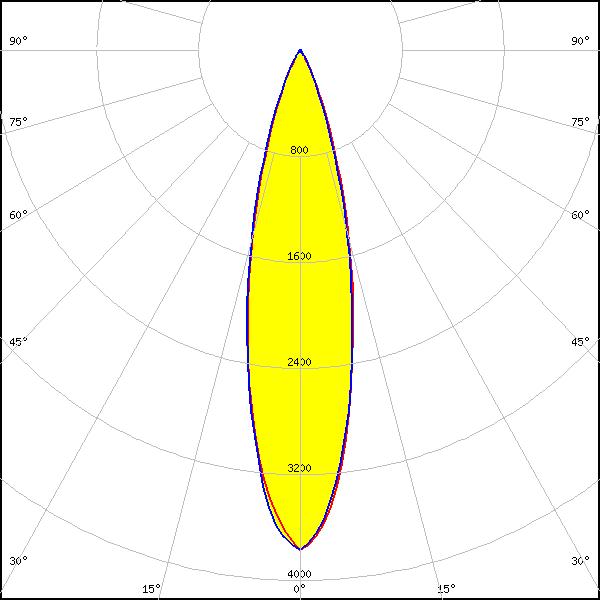

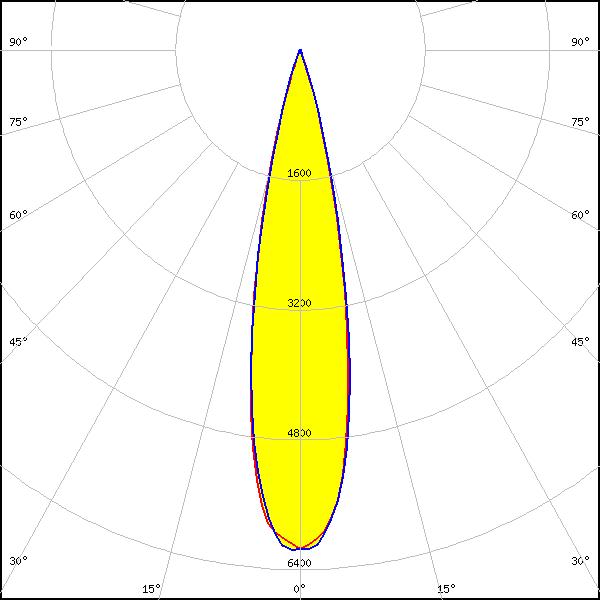

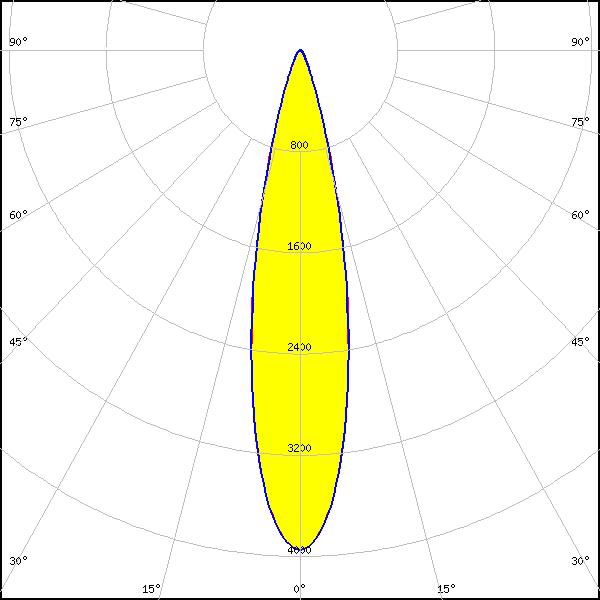

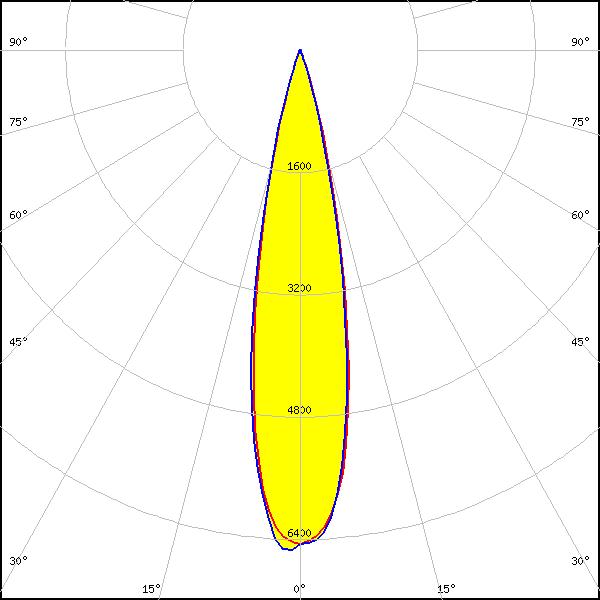

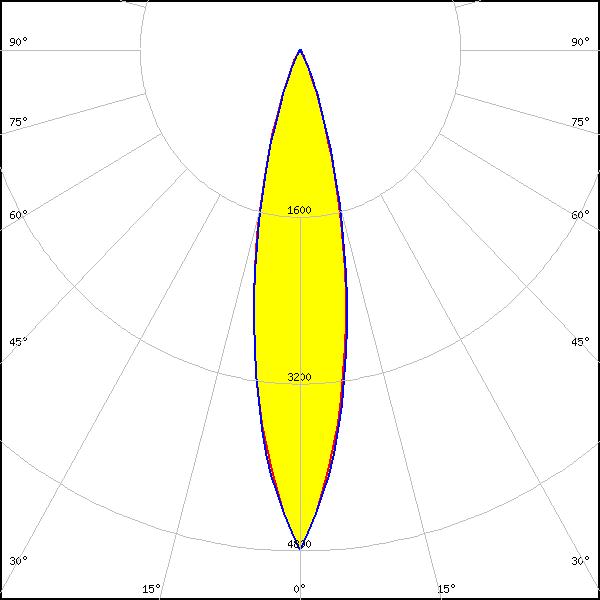

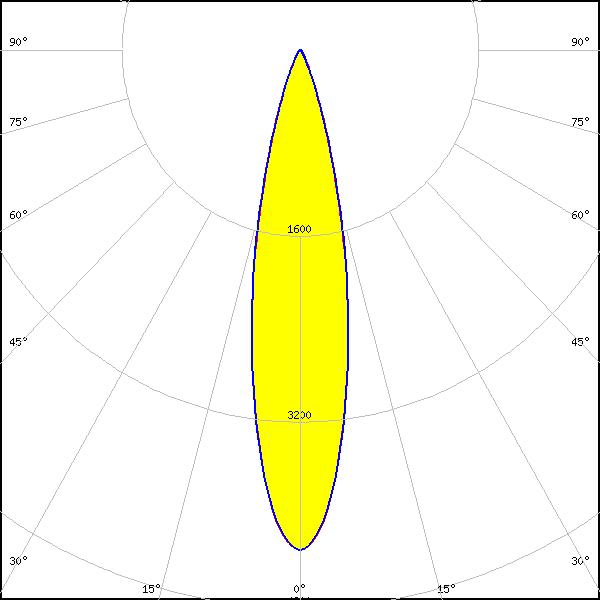

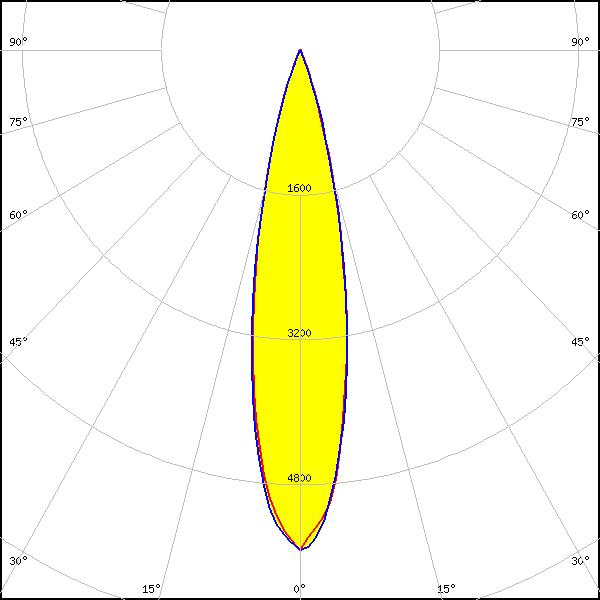

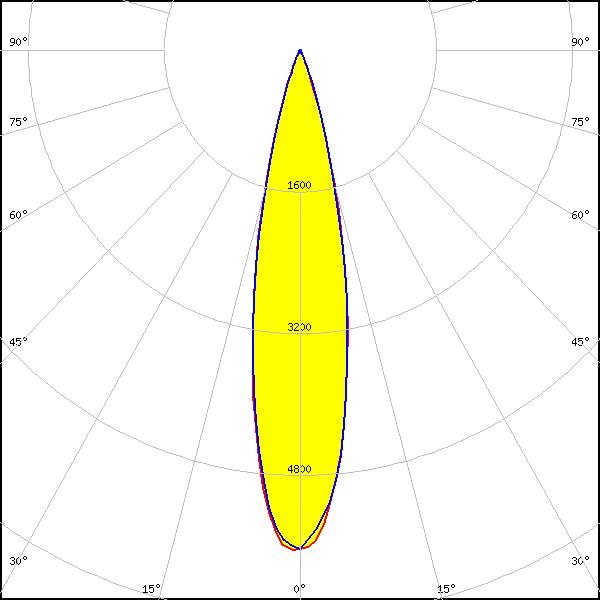

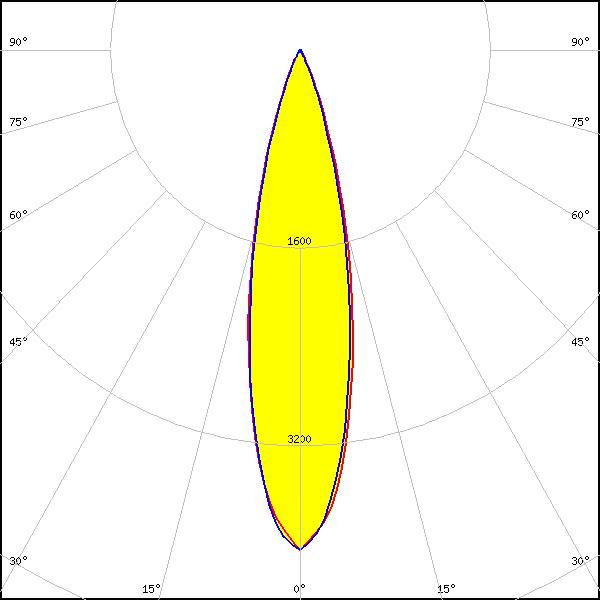

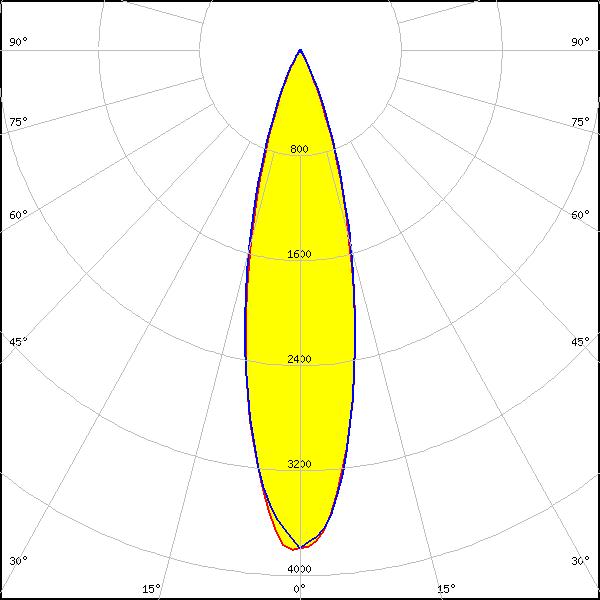

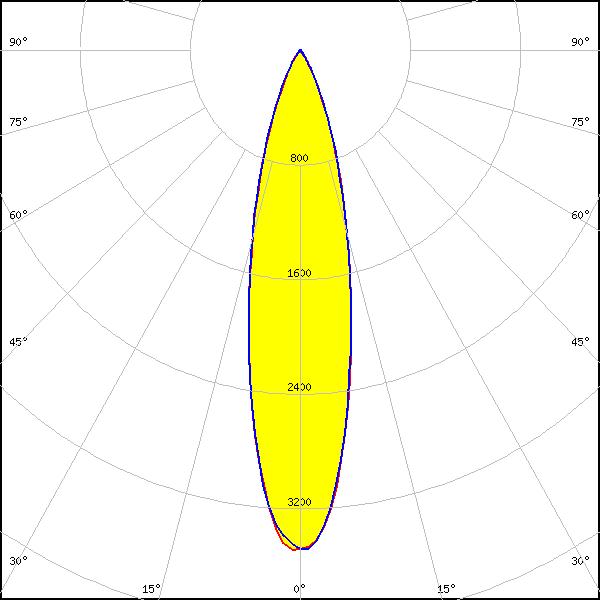

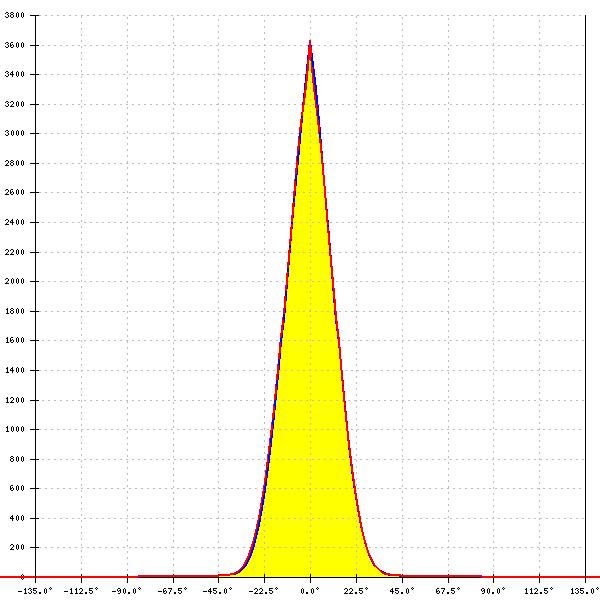

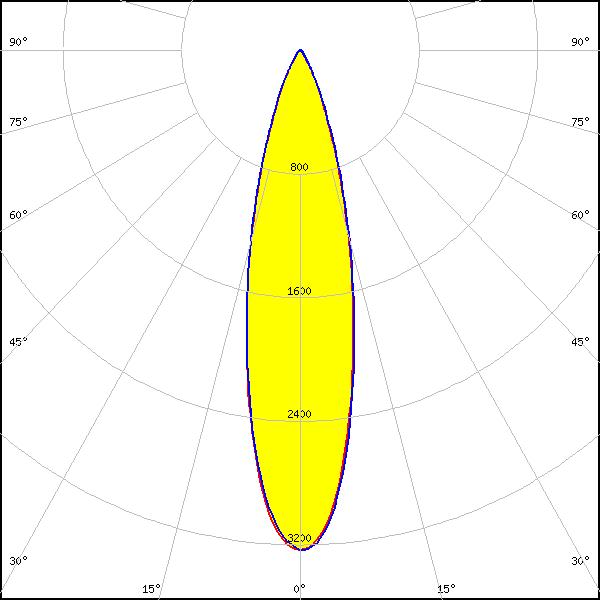

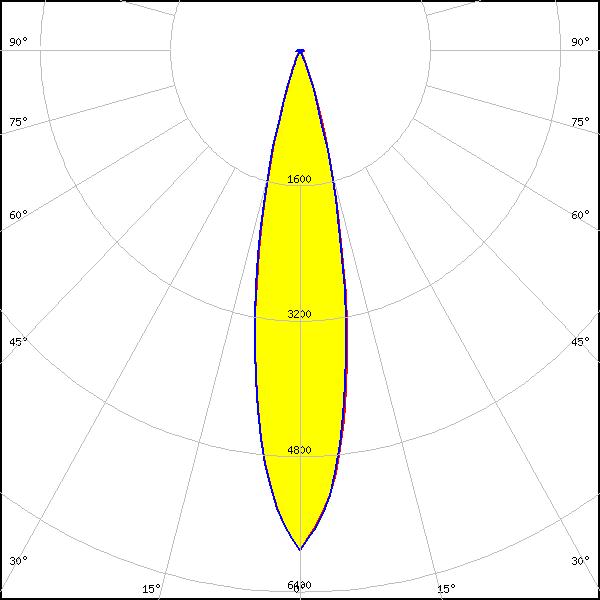

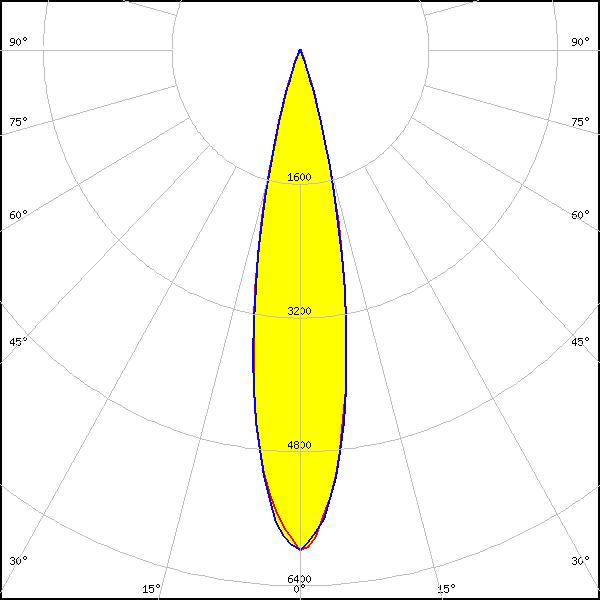

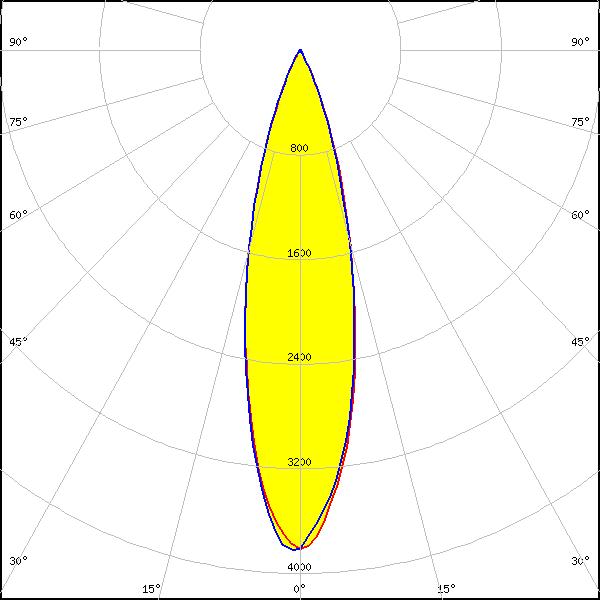

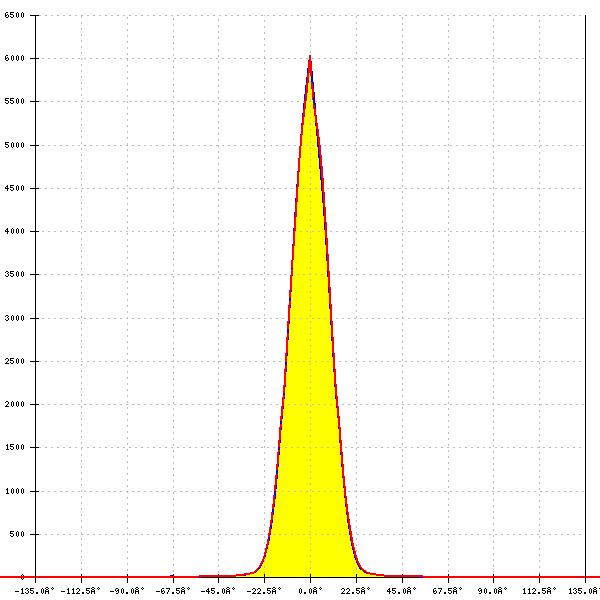

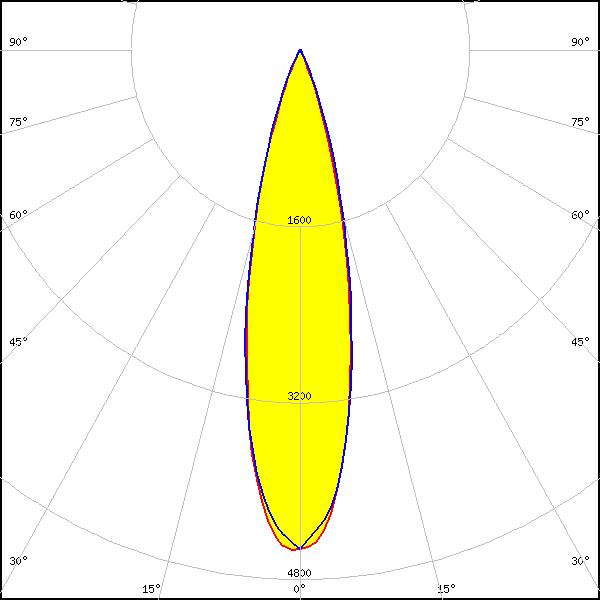

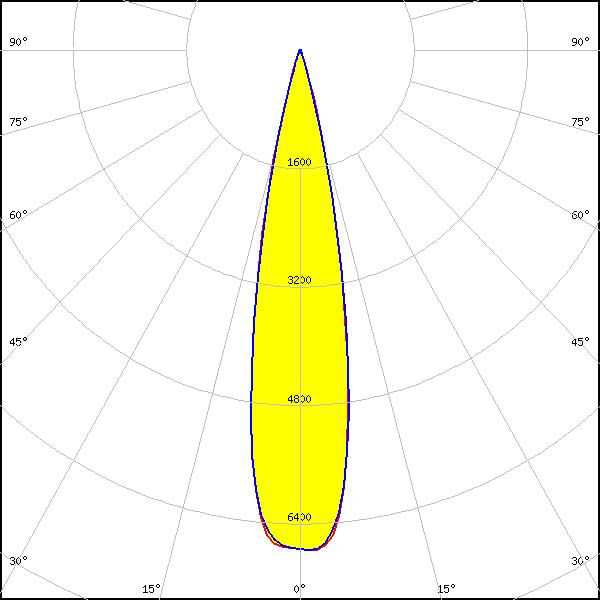

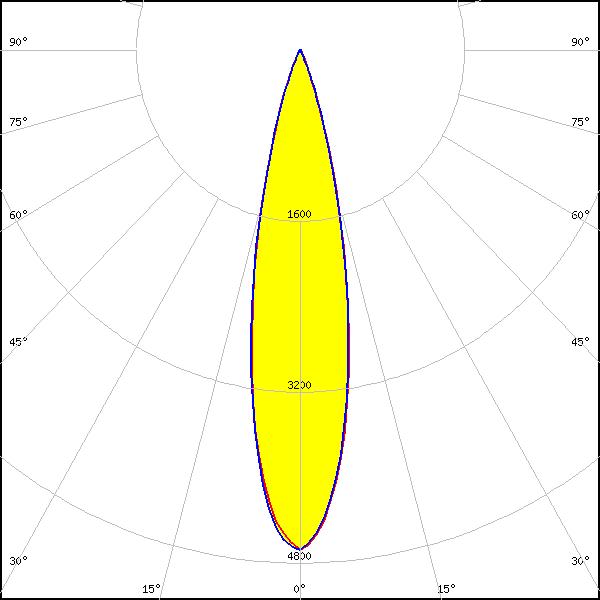

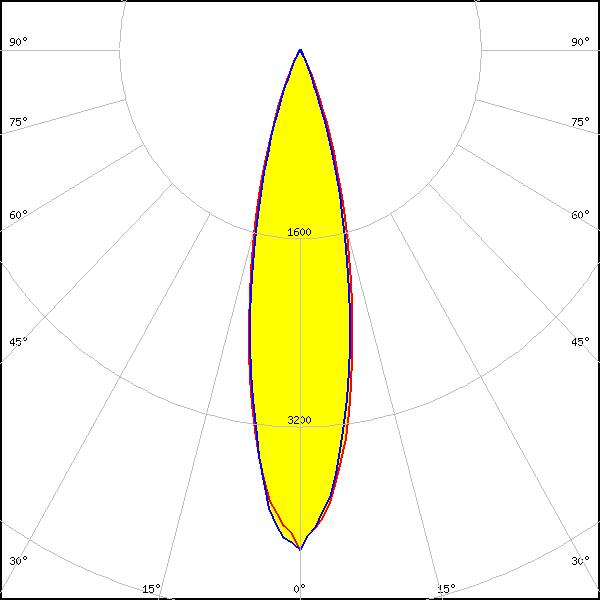

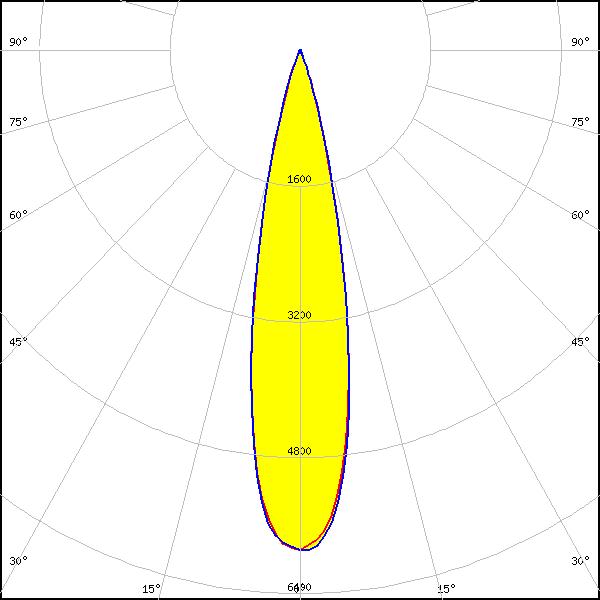

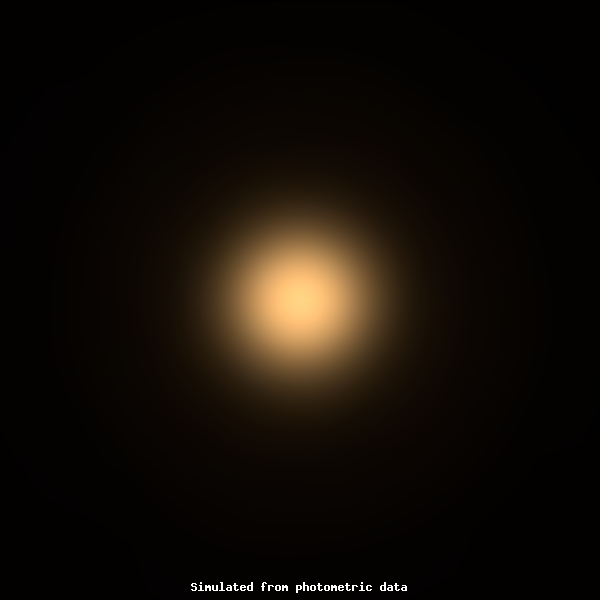

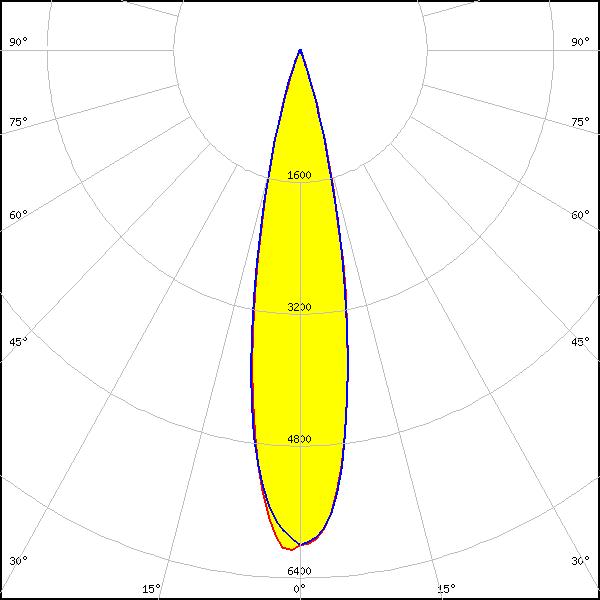

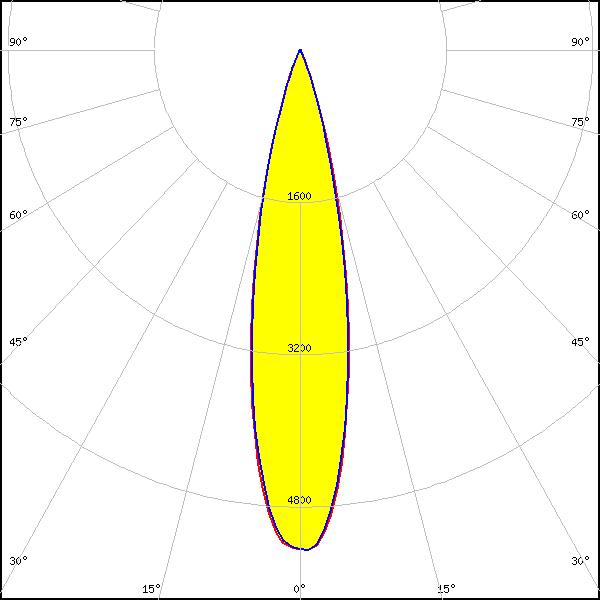

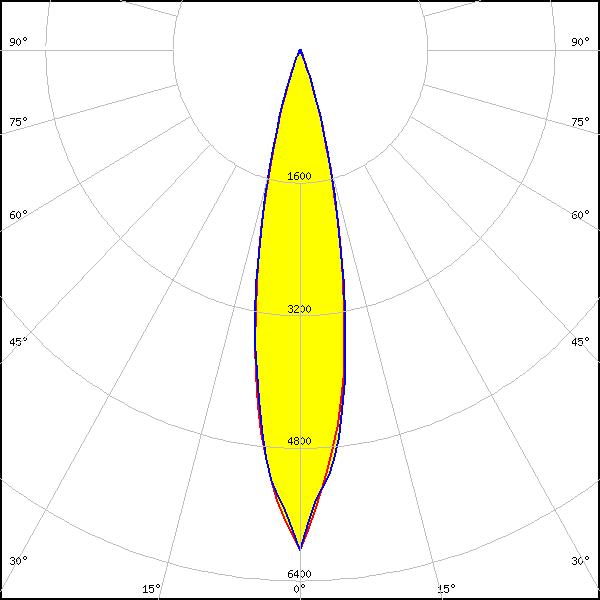

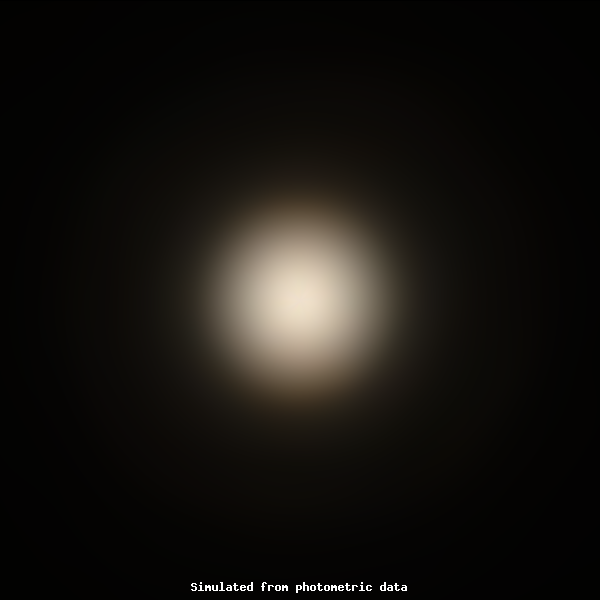

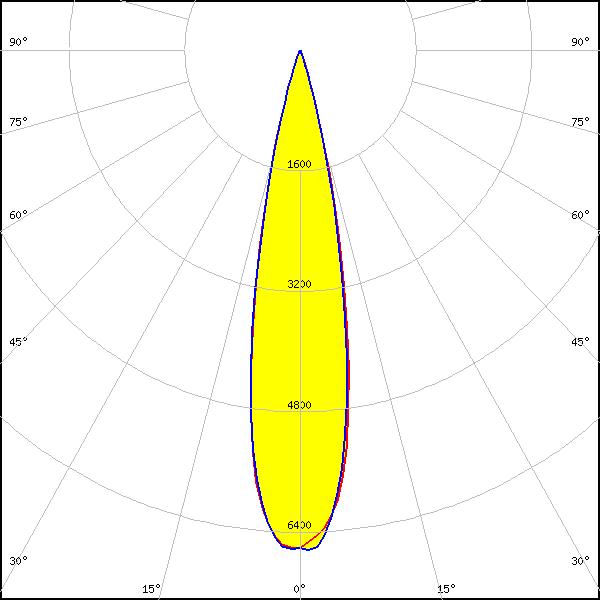

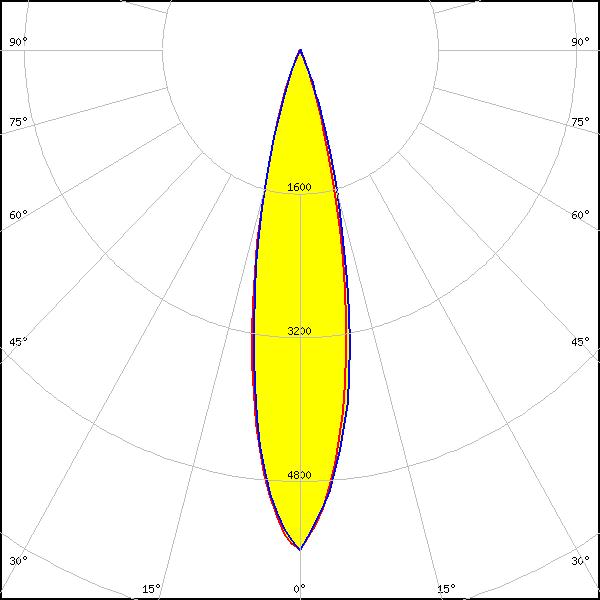

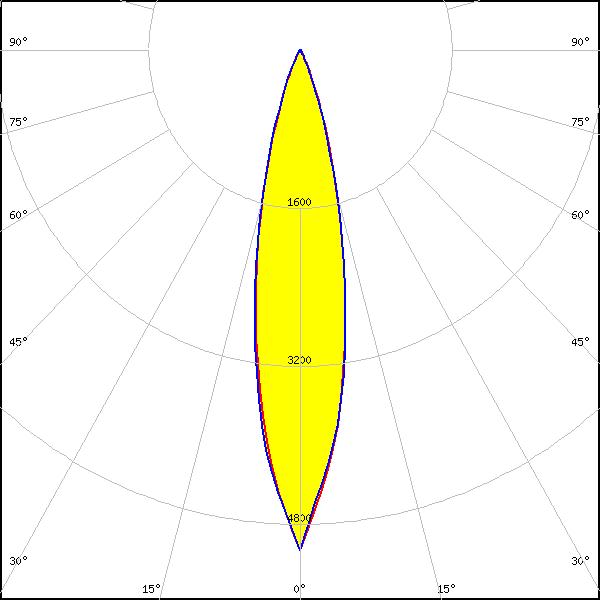

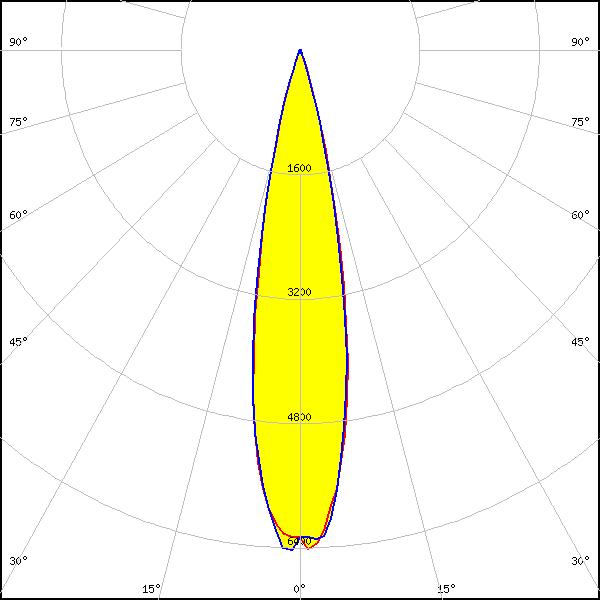

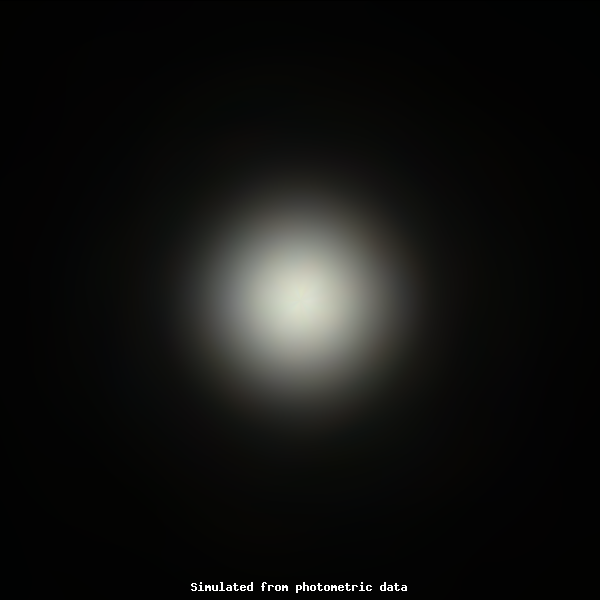

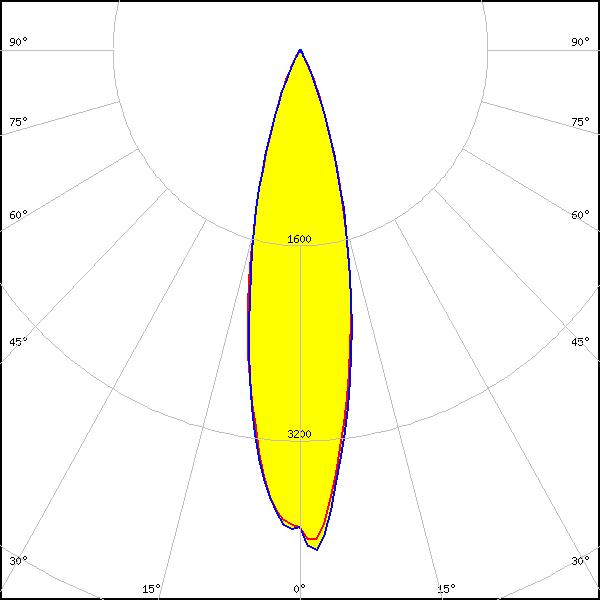

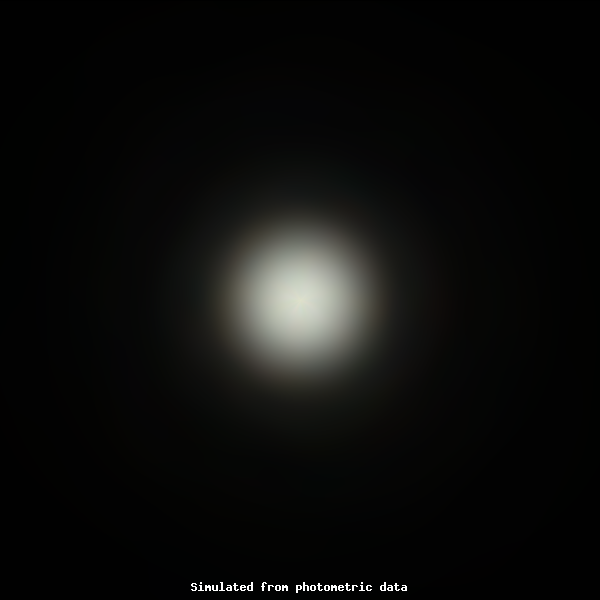

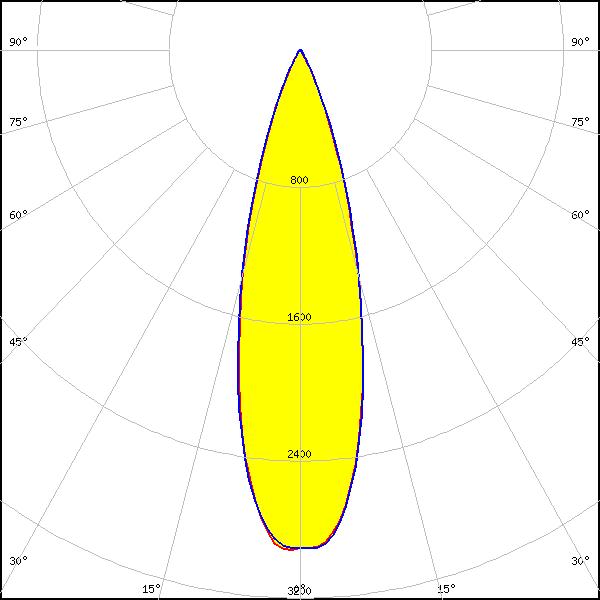

    Optical results

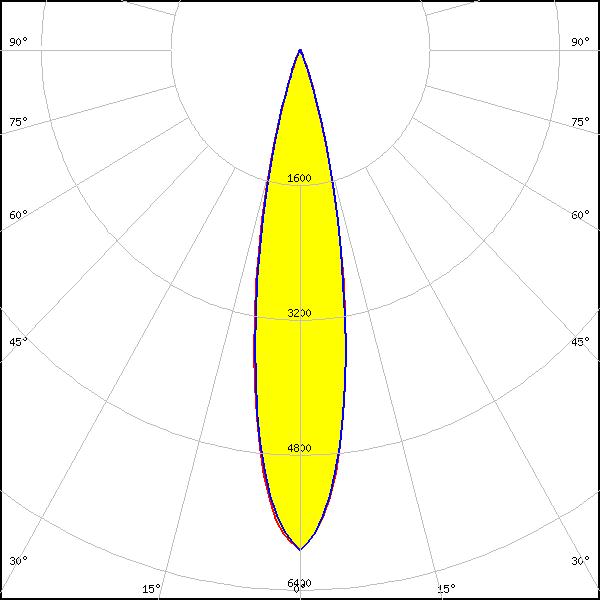

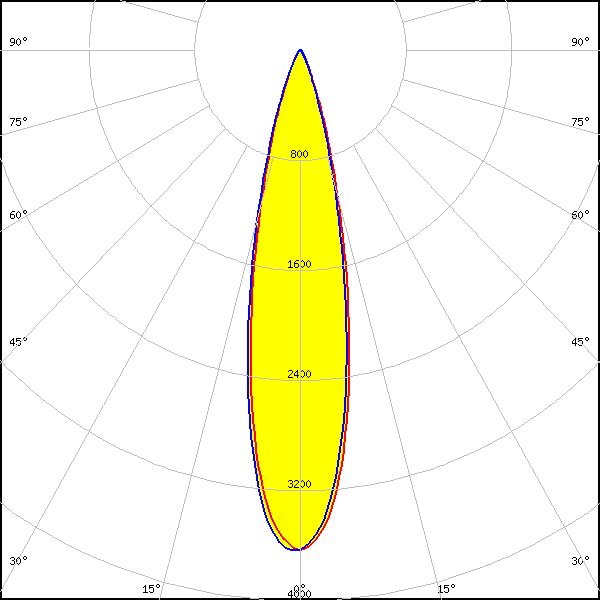

    LED: BXRV-D10-RGBW2000-A3
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 10.0 mm
    Required components:
    C19950_HEKLA-SOCKET-RZ
    FWHM: 23°
    FWTM: 44°
    Peak intensity: 3.636 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 28
    Light colour/type: RGBW

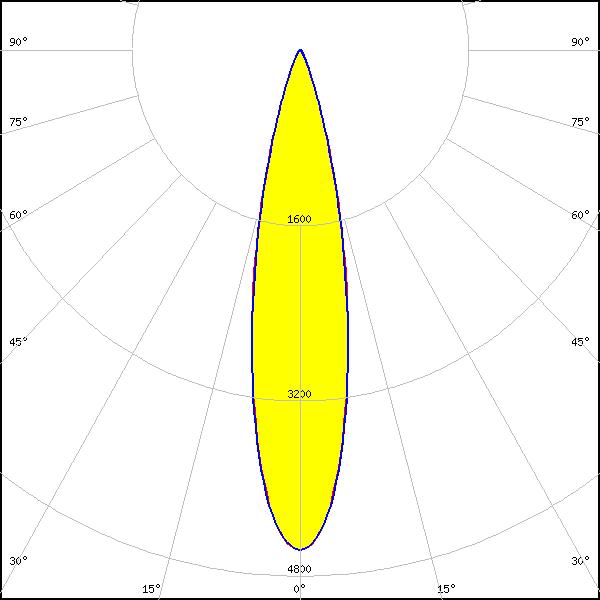

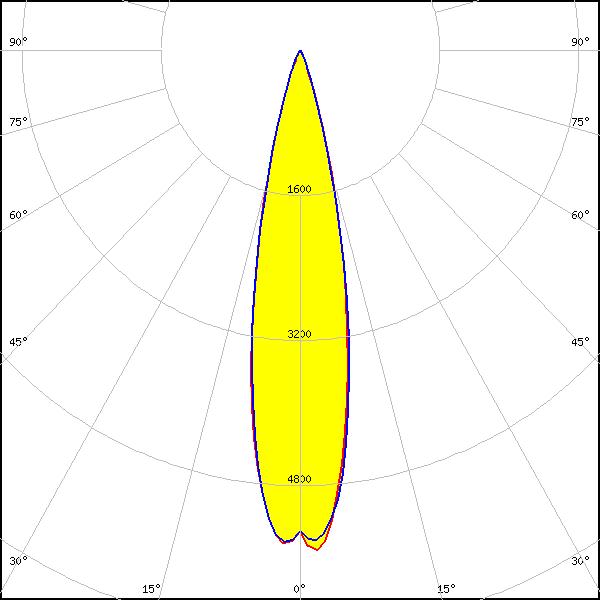

    LED: V10 Gen 8-9
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 10.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 23°
    FWTM: 42°
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

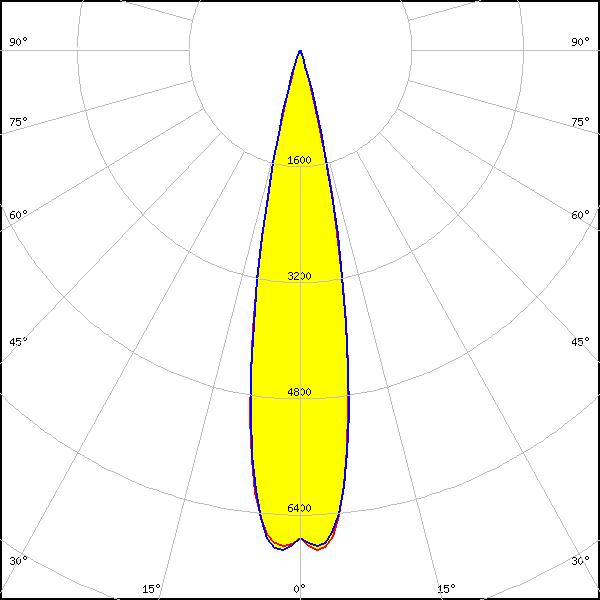

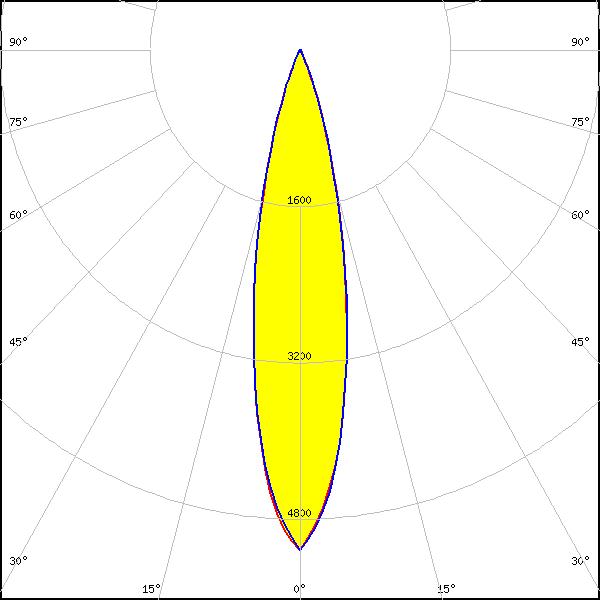

    LED: V11 HD Gen 8
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 11.3 mm
    Required components:

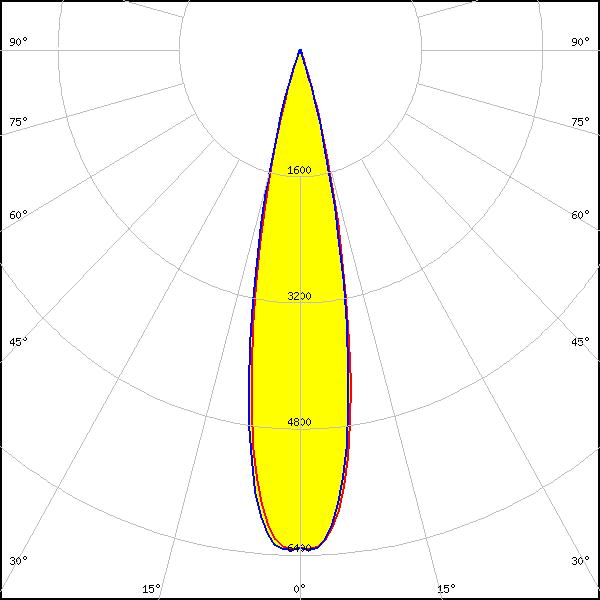

    Bender Wirth: 633d Hekla
    FWHM: 23°
    FWTM: 44°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

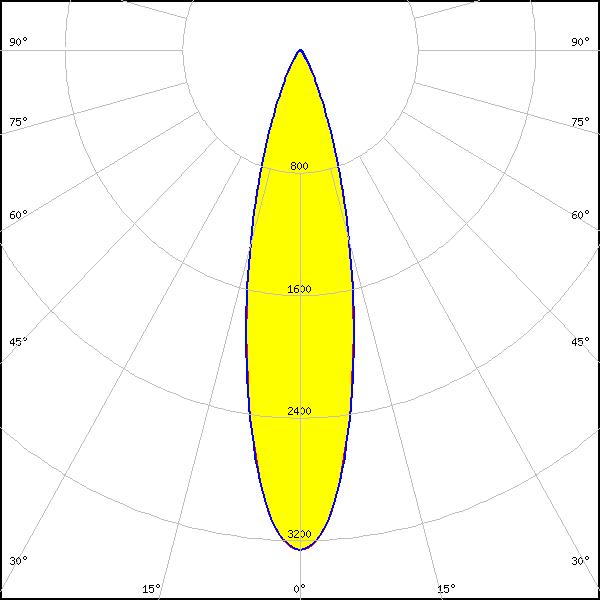

    LED: V13 Gen 8-9
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 14.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 26°
    FWTM: 51°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

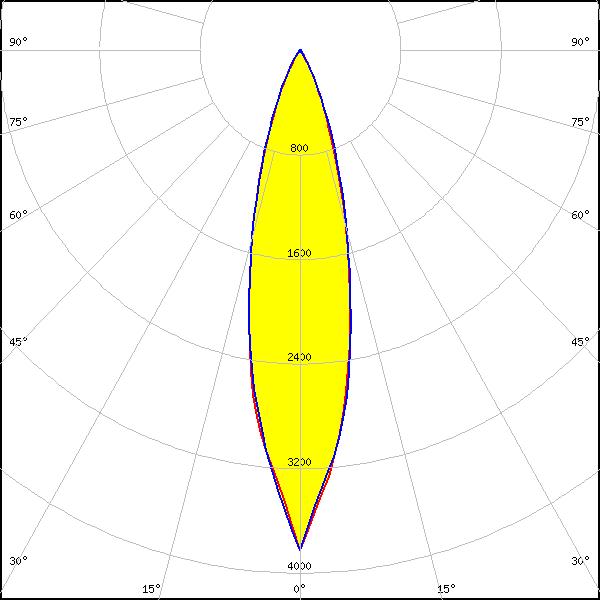

    LED: V13 Gen7
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 14.0 mm
    FWHM: 24°
    FWTM: 51°
    Peak intensity: 3.827 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

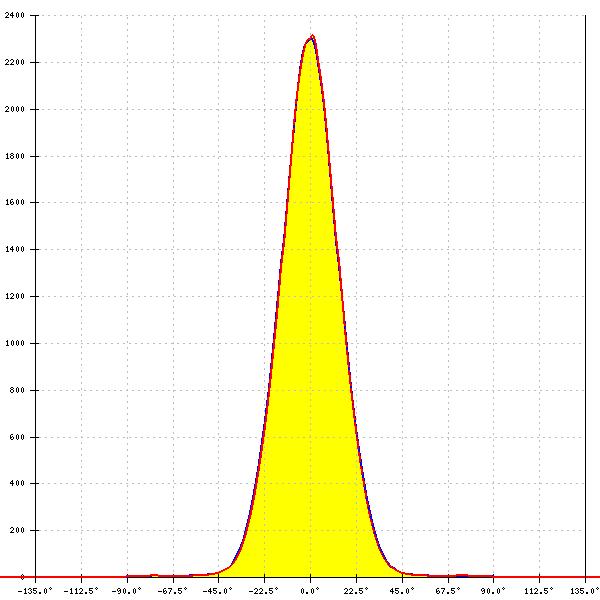

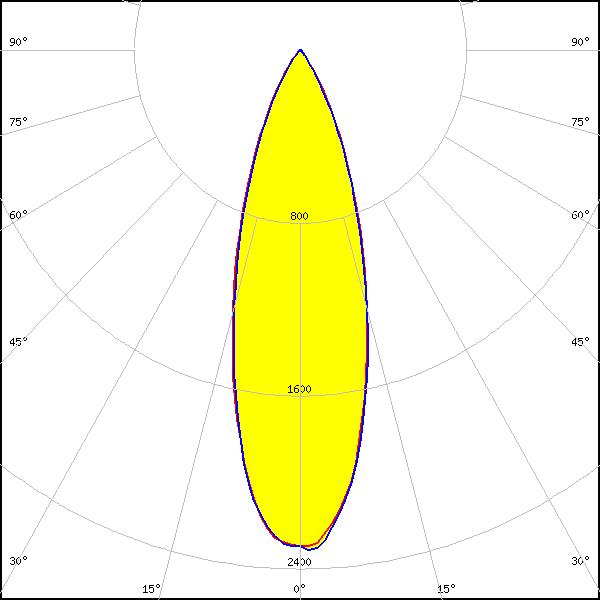

    LED: V18 Gen 8-9
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 19.6 mm
    Required components:
    Bender Wirth: 639b Hekla XL
    FWHM: 32°
    FWTM: 61°
    Peak intensity: 2.351 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

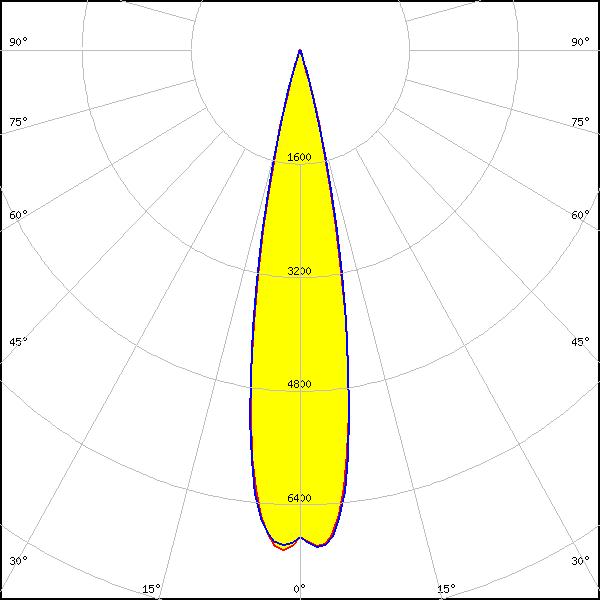

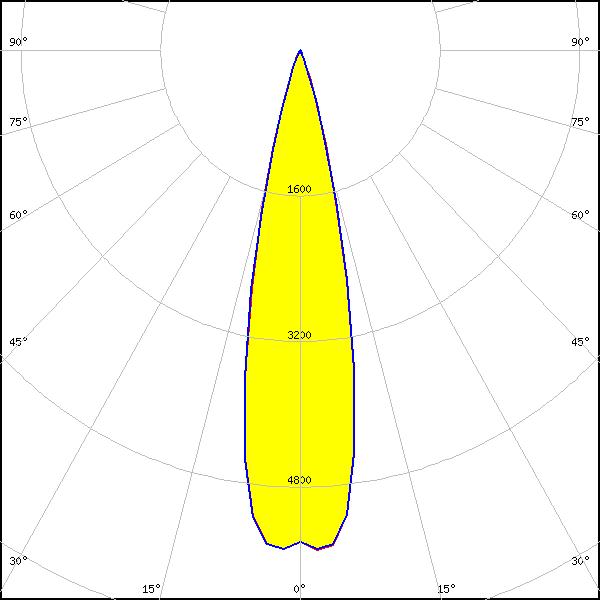

    LED: V3 HD Gen 8
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 3.8 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 22°
    FWTM: 32°
    Peak intensity: 7.135 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

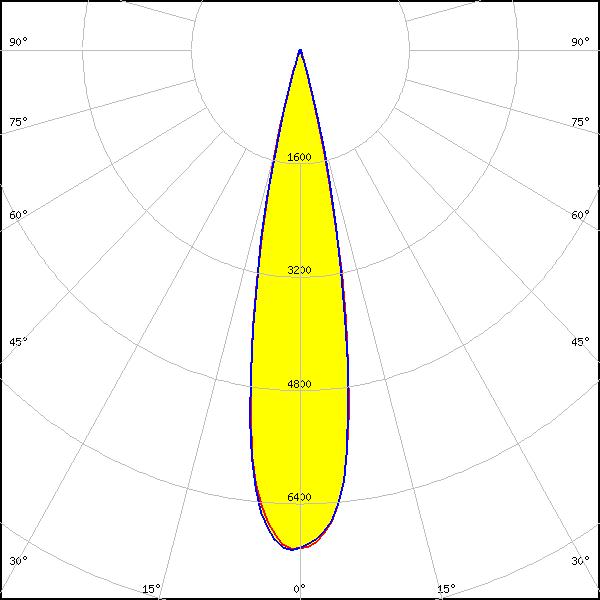

    LED: V3 HD Gen 8 FC
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 2.9 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 22°
    FWTM: 32°
    Peak intensity: 7.086 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

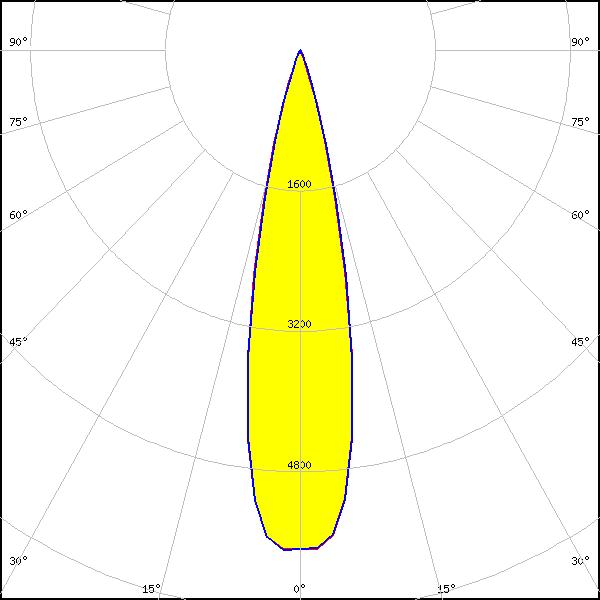

    LED: V4 HD Gen 8
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 4.8 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 22°
    FWTM: 34°
    Peak intensity: 6.971 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V6 Gen 8-9
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 6.3 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 22°
    FWTM: 35°
    Peak intensity: 6.376 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V6 Gen 8-9
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 6.3 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 22°
    FWTM: 35°
    Peak intensity: 6.399 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

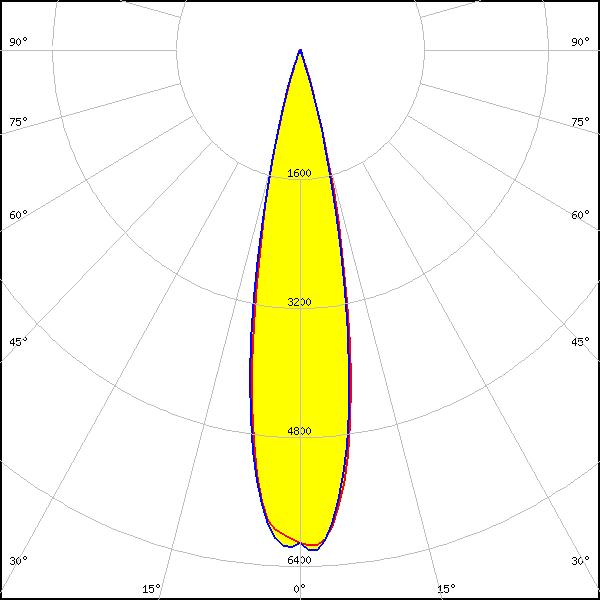

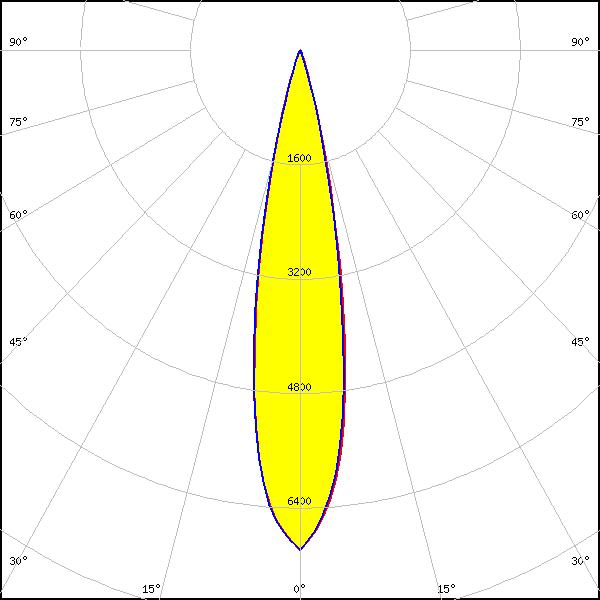

    LED: V6 HD Gen 8
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 6.6 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 20°
    FWTM: 34°
    Peak intensity: 6.992 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V6 HD Gen 8
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 6.6 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 22°
    FWTM: 36°
    Peak intensity: 6.226 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V8 Gen 8-9
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 8.5 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 22°
    FWTM: 40°
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V8 Gen7
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 8.1 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 22°
    FWTM: 38°
    Peak intensity: 5.605 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

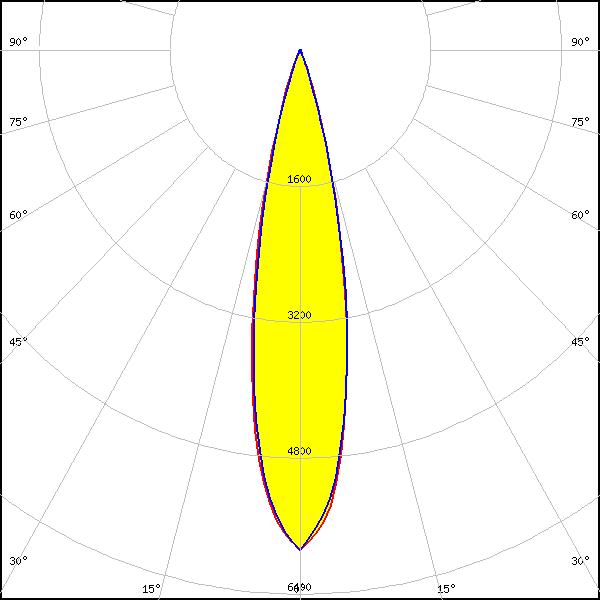

    LED: V9 HD Gen 8
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 8.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 22°
    FWTM: 38°
    Peak intensity: 5.898 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

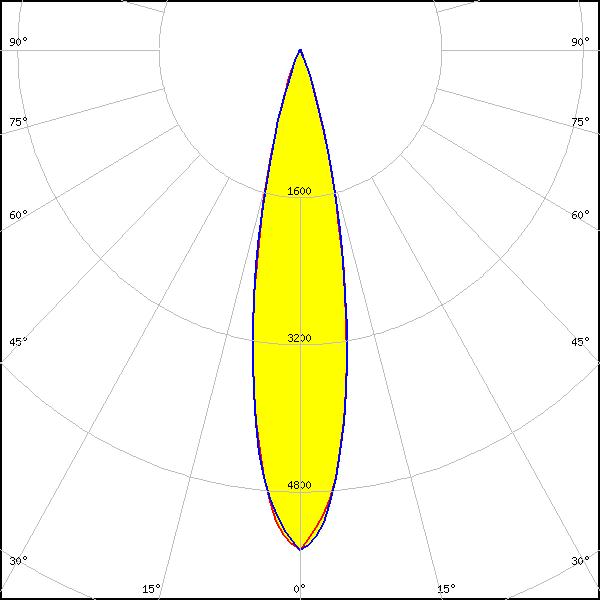

    LED: VERO10
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 9.9 mm
    Required components:
    F15616_HEKLA-SOCKET-F
    FWHM: 22°
    FWTM: 39°
    Peak intensity: 5.435 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

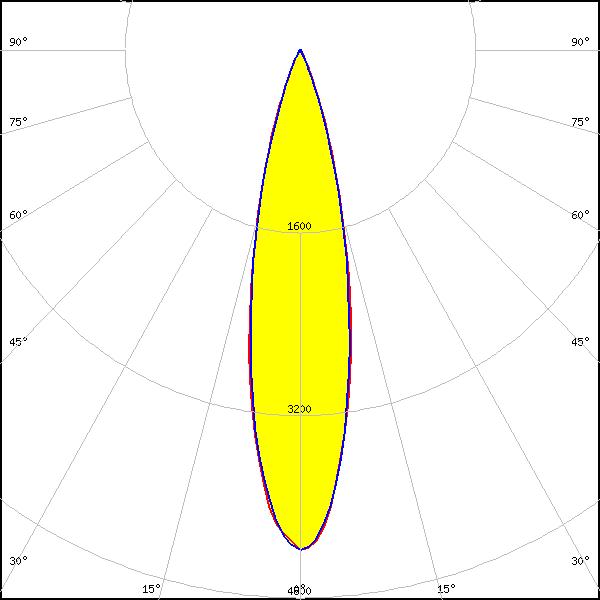

    LED: VERO13
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 13.4 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 24°
    FWTM: 44°
    Peak intensity: 4.429 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

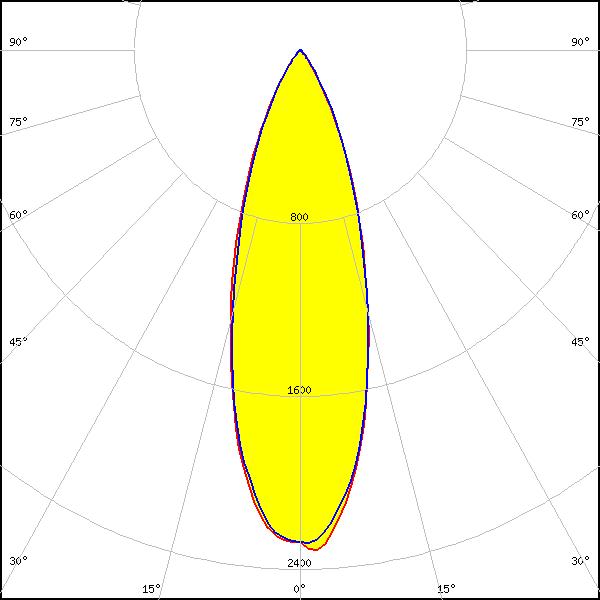

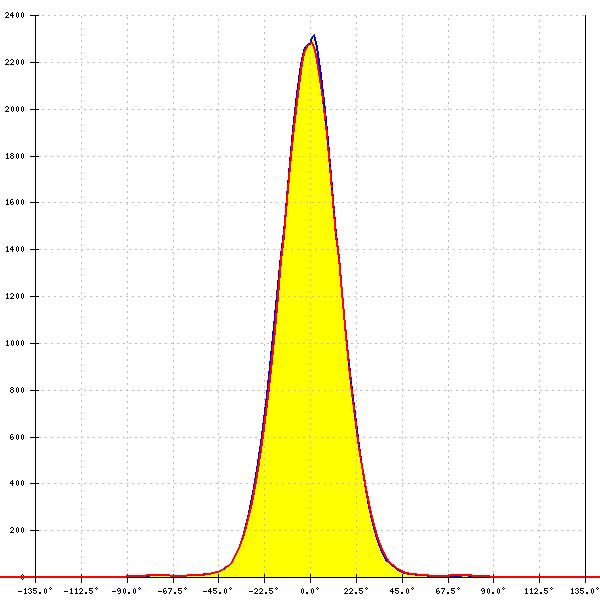

    LED: VERO18
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 18.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 33°
    FWTM: 62°
    Peak intensity: 2.328 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

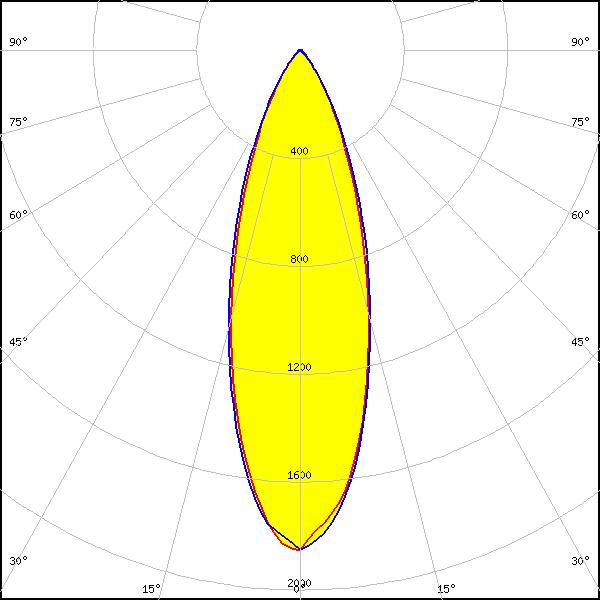

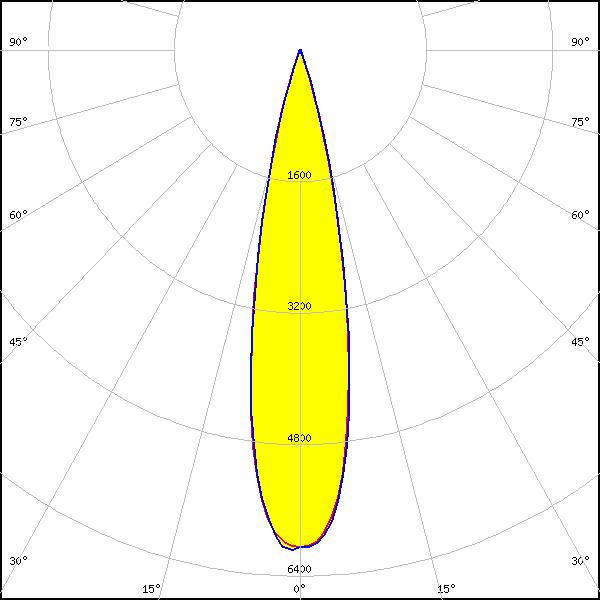

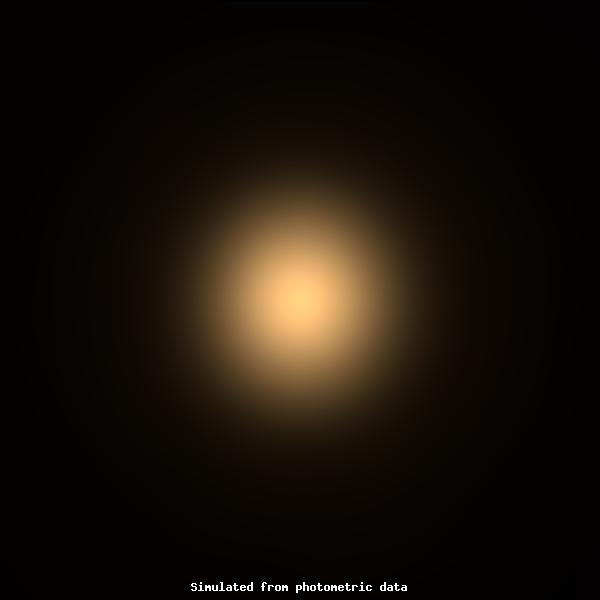

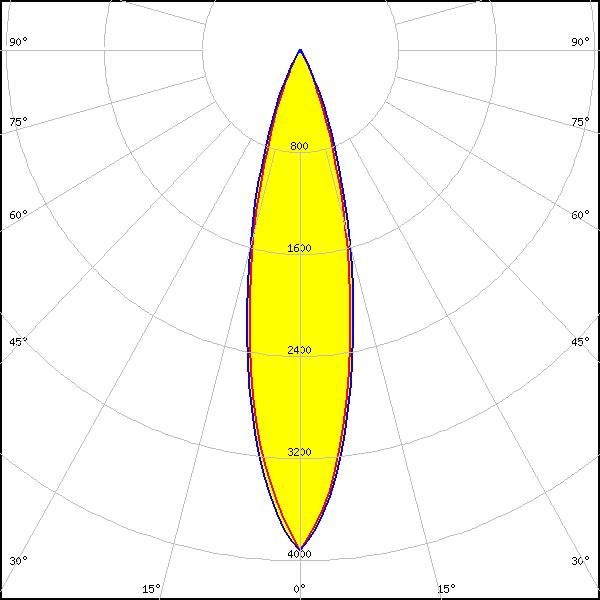

    LED: Vesta DTW 13mm (21W)
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 22°
    FWTM: 36°
    Peak intensity: 6.093 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

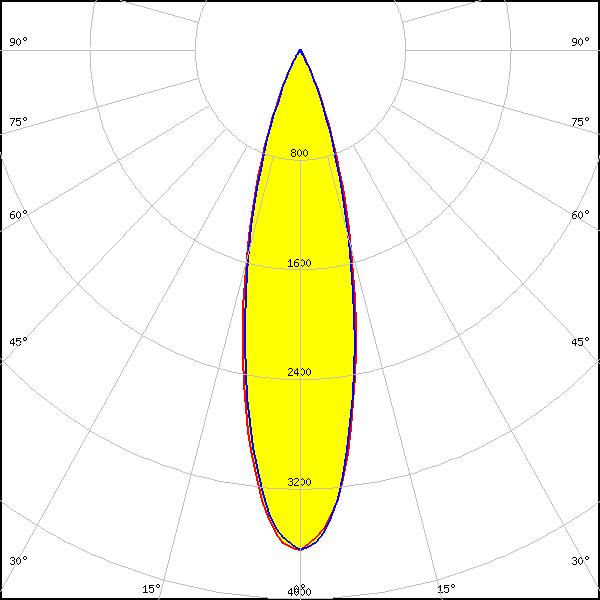

    LED: Vesta DTW 15mm (33W)
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 16.2 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 27°
    FWTM: 50°
    Peak intensity: 3.648 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

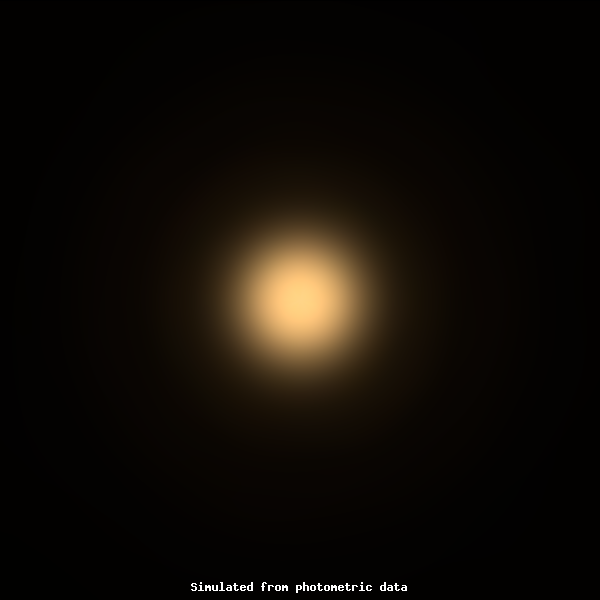

    LED: Vesta DTW 6mm
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 6.8 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: 22°
    FWTM: 36°
    Peak intensity: 6.240 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

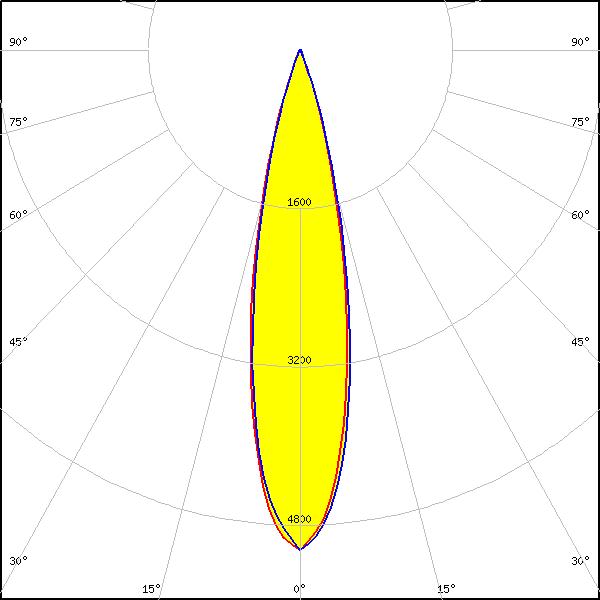

    LED: Vesta DTW 9mm (4W/6W/12W)
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 9.3 mm
    Required components:
    Bender Wirth: 652b Hekla
    F18158_HEKLA-RZ-LENS
    FWHM: 23°
    FWTM: 39°
    Peak intensity: 5.052 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 9mm (4W/6W/12W)
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 9.3 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: 22°
    FWTM: 37°
    Peak intensity: 5.962 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta SE 13mm TW
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 14.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 24°
    FWTM: 45°
    Peak intensity: 4.049 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 13mm (18W) DP
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 14.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 492 Typ L8
    FWHM: 24°
    FWTM: 45°
    Peak intensity: 4.281 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

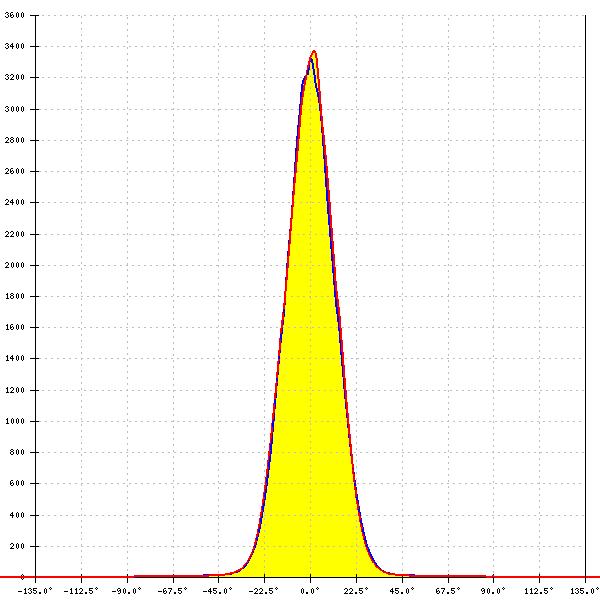

    LED: Vesta TW 15mm DP
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 16.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 482 Typ L8
    FWHM: 27°
    FWTM: 50°
    Peak intensity: 3.406 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 9mm (9W) DP
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 10.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 489 Typ L8
    FWHM: 25°
    FWTM: 44°
    Peak intensity: 4.557 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

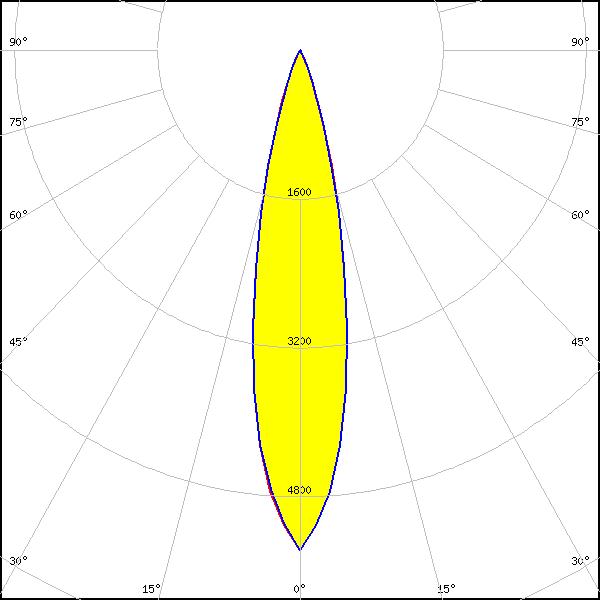

    LED: CLU02x (LES10)
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 22°
    FWTM: 41°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

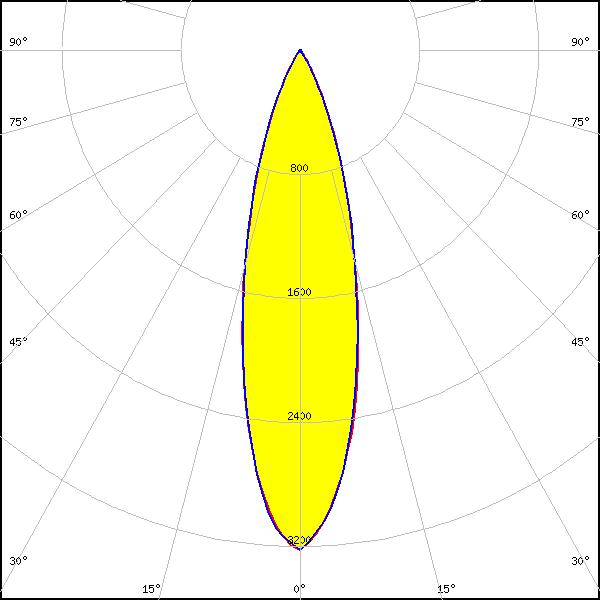

    LED: CLU03Q Type-F
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 28°
    FWTM: 54°
    Peak intensity: 3.225 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 23°
    FWTM: 49°
    Peak intensity: 3.903 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU04x
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 631a Hekla XL
    FWHM: 33°
    FWTM: 66°
    Peak intensity: 1.853 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

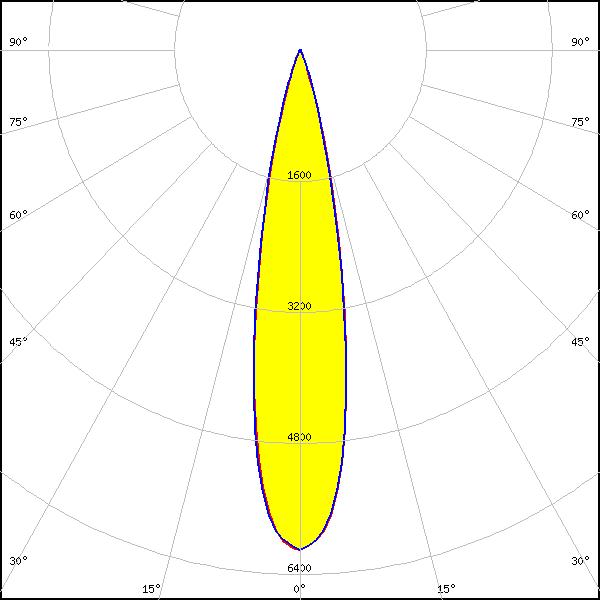

    LED: CLU700/701/702/703
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 21°
    FWTM: 37°
    Peak intensity: 6.123 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 6.149 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

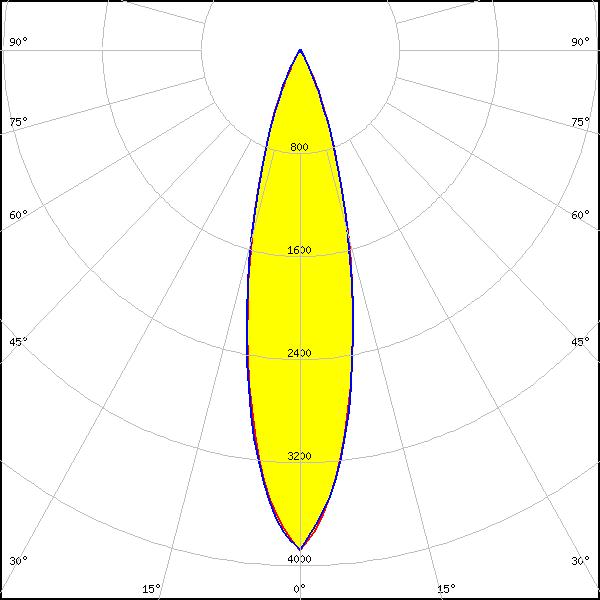

    LED: CLU733 Type-F
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 13.0 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    FWHM: 26°
    FWTM: 50°
    Peak intensity: 3.880 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

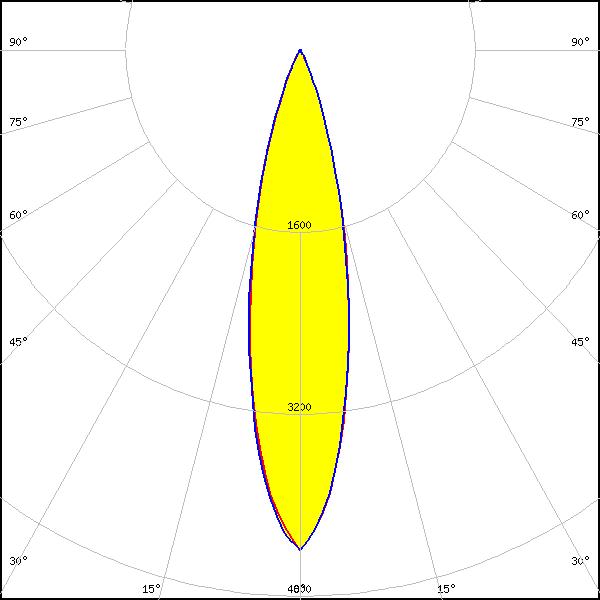

    LED: CMA1825
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 24°
    FWTM: 45°
    Peak intensity: 4.398 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1840
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 25°
    FWTM: 49°
    Peak intensity: 3.772 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

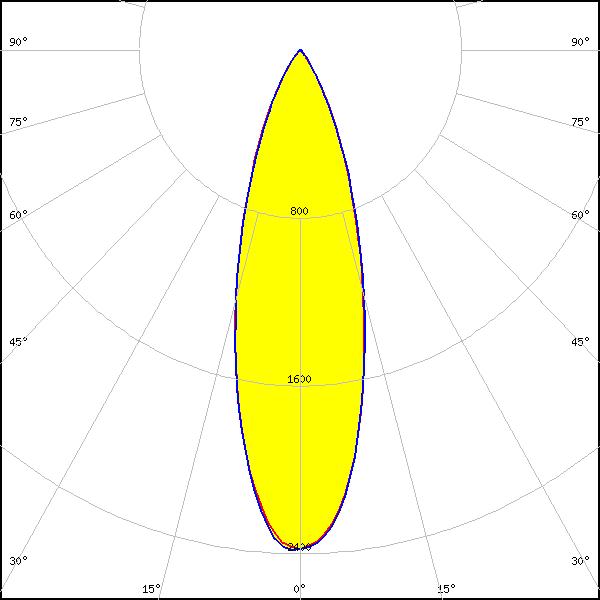

    LED: CMA2550
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 19.0 mm
    Required components:
    Bender Wirth: 639a Hekla XL
    FWHM: 30°
    FWTM: 60°
    Peak intensity: 2.397 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMB1818-25
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 12.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 22°
    FWTM: 44°
    Peak intensity: 4.796 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT14xx
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 22°
    FWTM: 39°
    Peak intensity: 5.670 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT14xx
    Ordering code: C17777_AMY-70-M
    LES size: 9.8 mm
    FWHM: 22°
    FWTM: 38°
    Peak intensity: 5.909 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMU10xx
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 22°
    FWTM: 40°
    Peak intensity: 5.527 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMU15xx
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 26°
    FWTM: 51°
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMU22xx
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    FWHM: 33°
    FWTM: 67°
    Peak intensity: 1.873 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

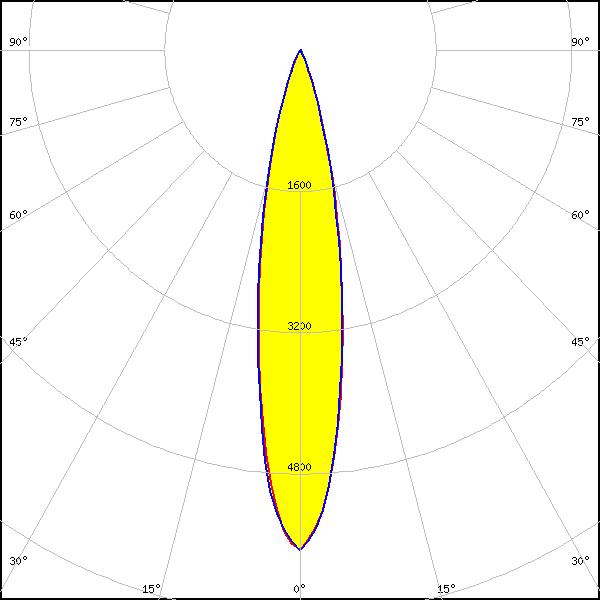

    LED: CXA/B 15xx
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 8.9 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 20°
    FWTM: 40°
    Peak intensity: 5.664 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L08 (Gen2)
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 26°
    FWTM: 49°
    Peak intensity: 3.853 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

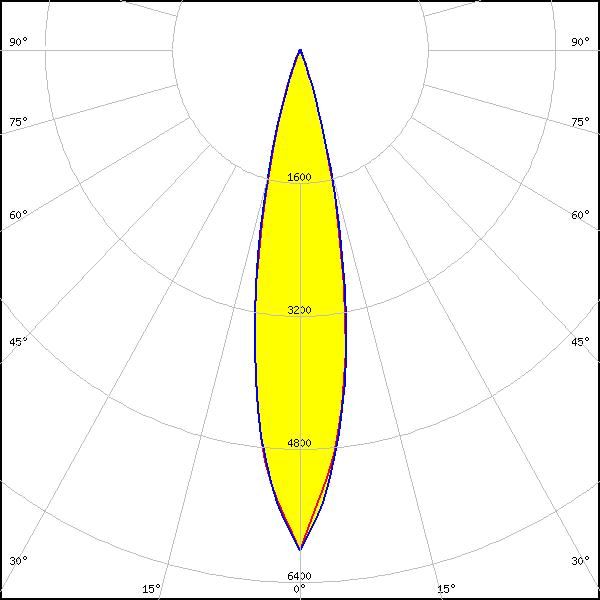

    LED: LUXEON CoB 1202/1203
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 9.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 22°
    FWTM: 38°
    Peak intensity: 6.015 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

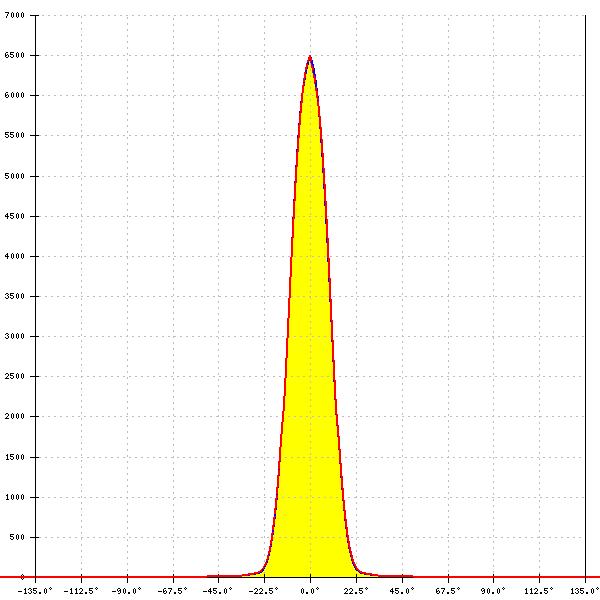

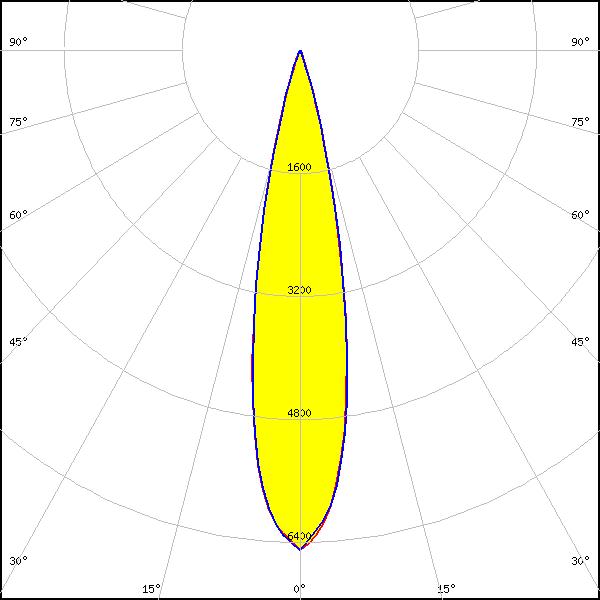

    LED: LUXEON CoB 1202HD
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 6.5 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 22°
    FWTM: 36°
    Peak intensity: 6.503 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

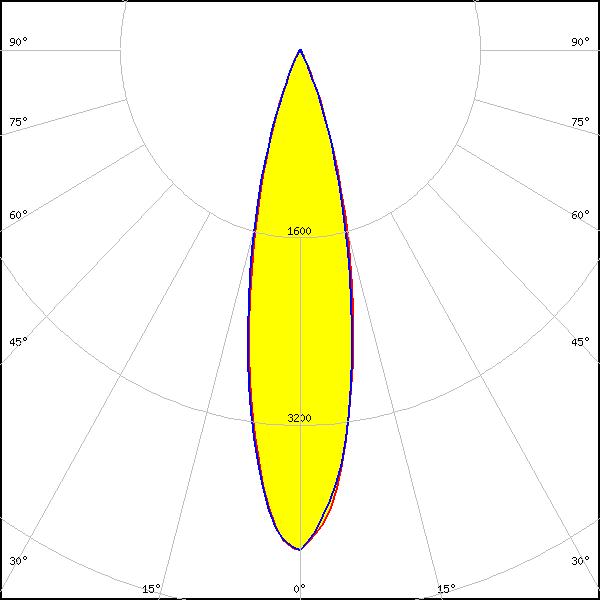

    LED: LUXEON CoB 1204/1205
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 13.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 25°
    FWTM: 46°
    Peak intensity: 4.291 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

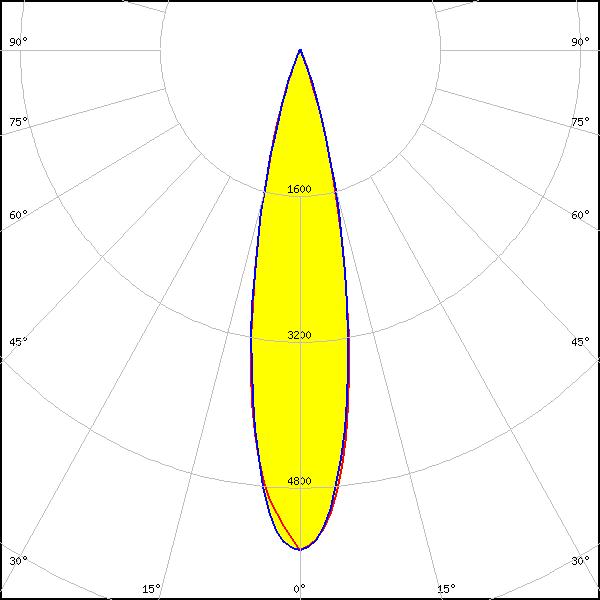

    LED: LUXEON CoB 1204HD
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 9.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 22°
    FWTM: 40°
    Peak intensity: 5.534 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1205HD
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 11.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.872 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

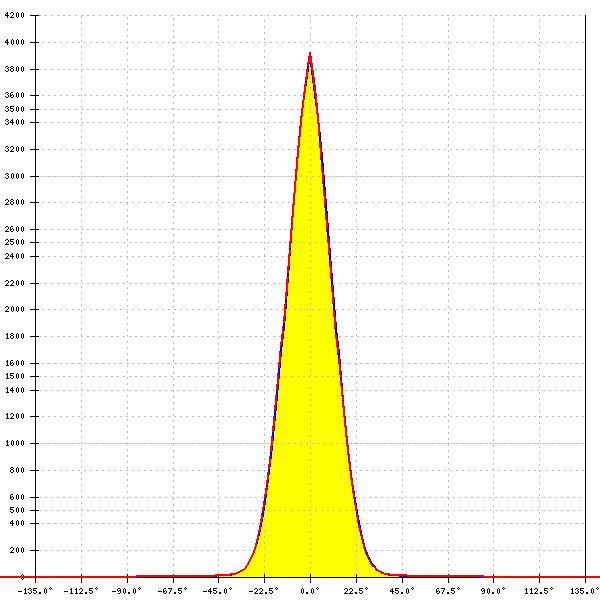

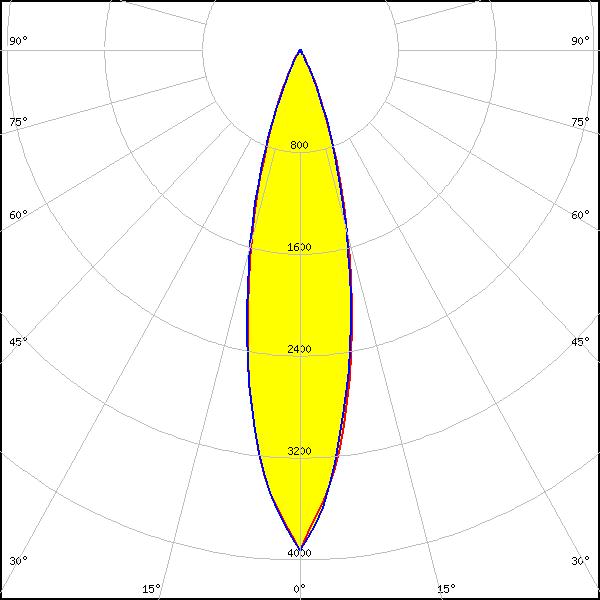

    LED: LUXEON CoB 1208
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 25°
    FWTM: 48°
    Peak intensity: 3.926 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S02H6
    Ordering code: CP19091_AMY-70-M-B2
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 22°
    FWTM: 35°
    Peak intensity: 6.562 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 9.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 22°
    FWTM: 40°
    Peak intensity: 5.445 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

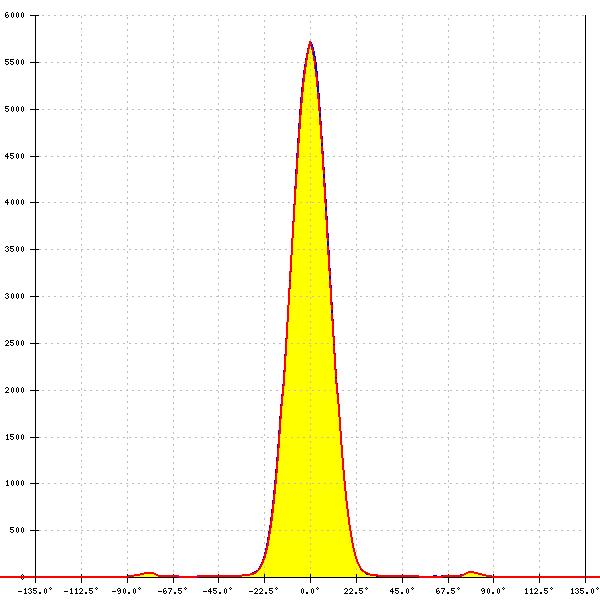

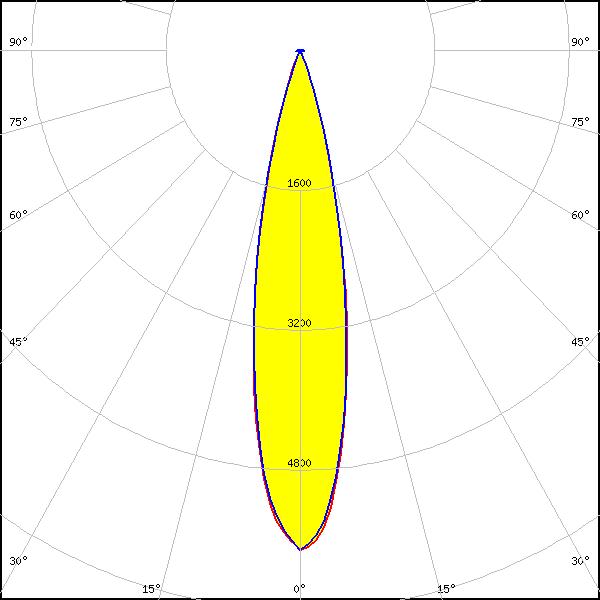

    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: C17777_AMY-70-M
    LES size: 9.0 mm
    FWHM: 22°
    FWTM: 38°
    Peak intensity: 5.719 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: CP19091_AMY-70-M-B2
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 22°
    FWTM: 40°
    Peak intensity: 5.649 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

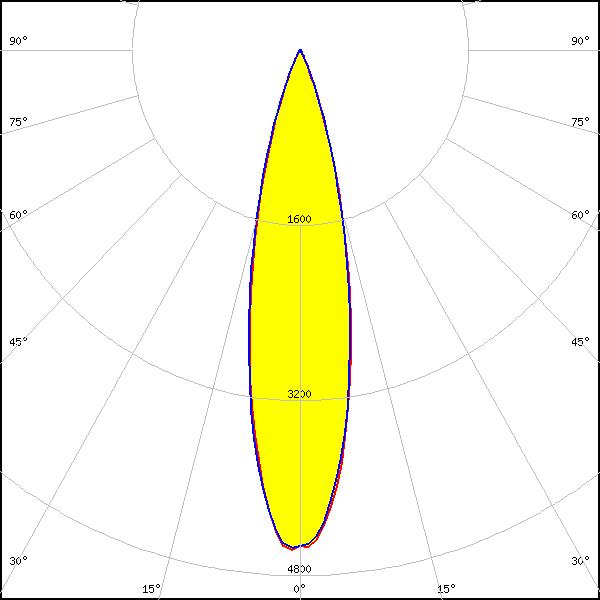

    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 24°
    FWTM: 44°
    Peak intensity: 4.616 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 9.0 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 22°
    FWTM: 38°
    Peak intensity: 5.807 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB S01 (Gen2)
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: 22°
    FWTM: 35°
    Peak intensity: 6.631 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

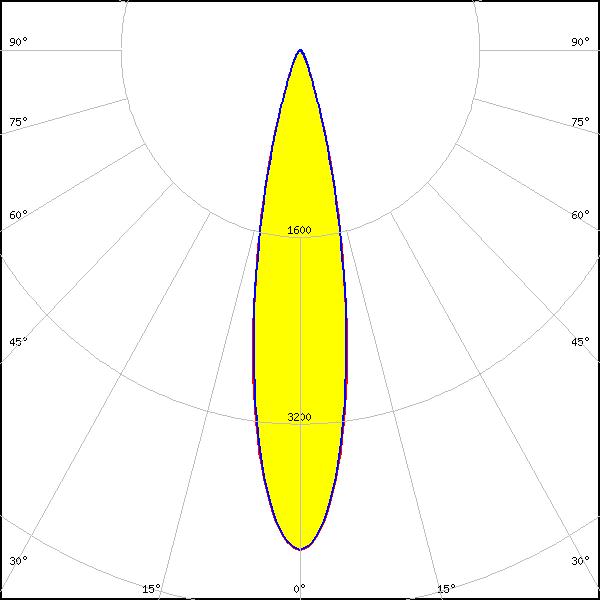

    LED: LUXEON Fusion 12-up (20x24)
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 7.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    F18158_HEKLA-RZ-LENS
    FWHM: 22°
    FWTM: 41°
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Fusion 21-up (20x24)
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 7.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    F18158_HEKLA-RZ-LENS
    FWHM: 23°
    FWTM: 42°
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

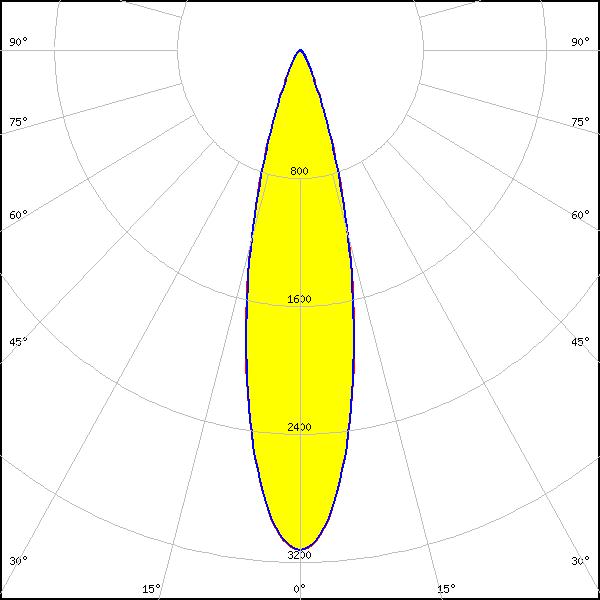

    LED: LUXEON Fusion 27-up (20x24)
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 10.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    F18158_HEKLA-RZ-LENS
    FWHM: 26°
    FWTM: 48°
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHM-9 XH (19x19)
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 9.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 22°
    FWTM: 38°
    Peak intensity: 5.951 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

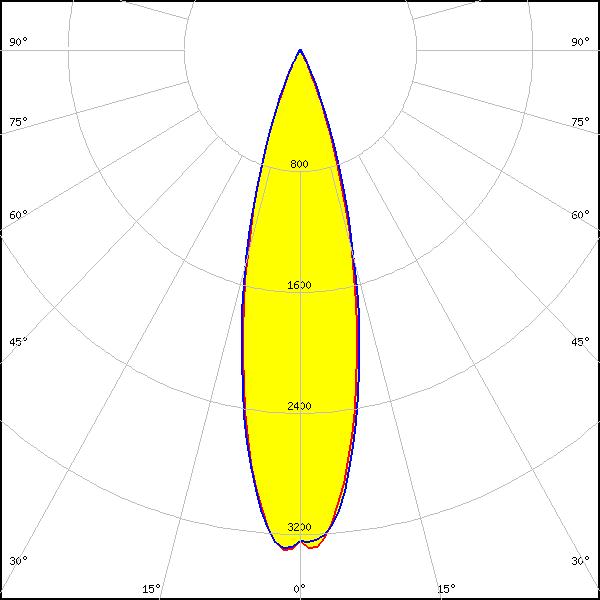

    LED: CTM-14 (Tunable White) Gen2
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 13.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: 25°
    FWTM: 48°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

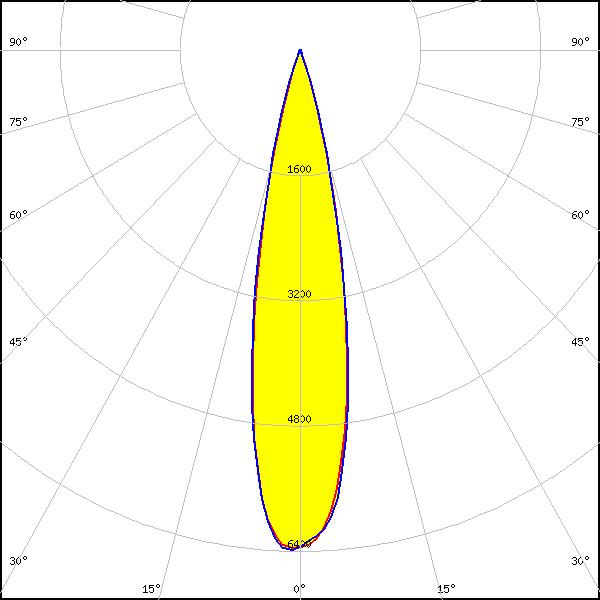

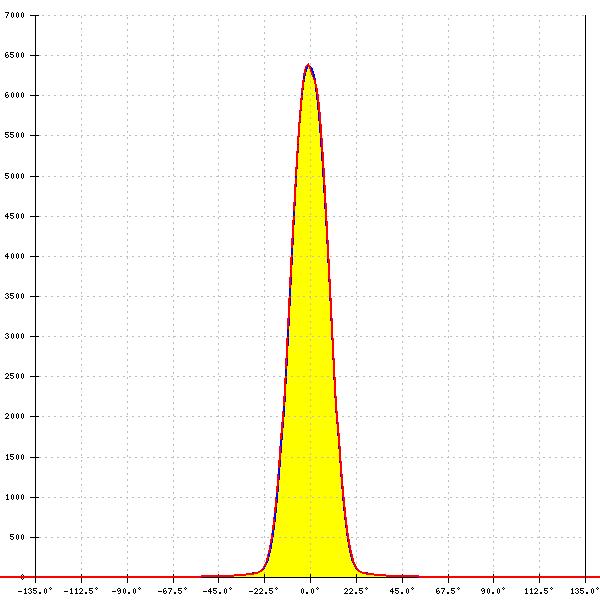

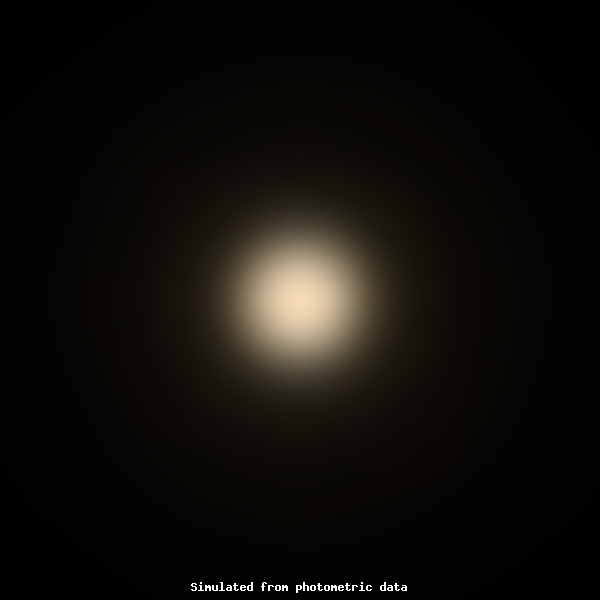

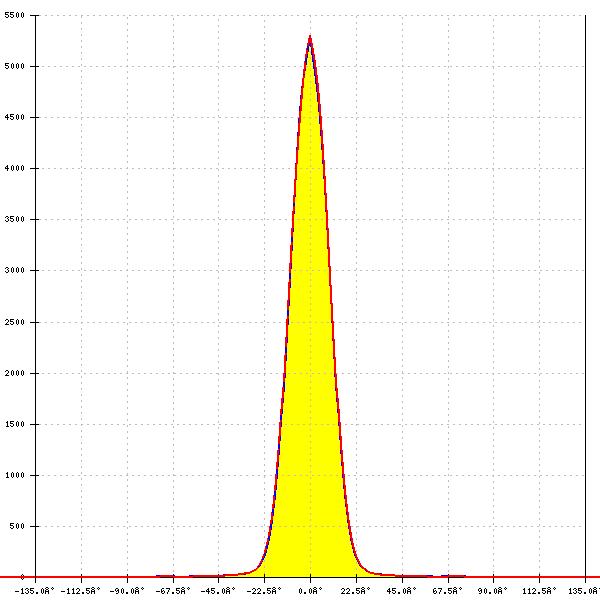

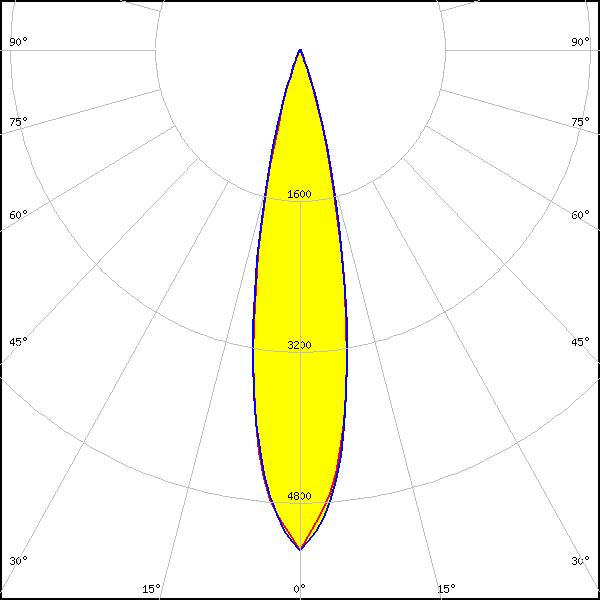

    LED: CTM-6 (Tunable White) Gen2
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 6.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 22°
    FWTM: 36°
    Peak intensity: 6.411 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

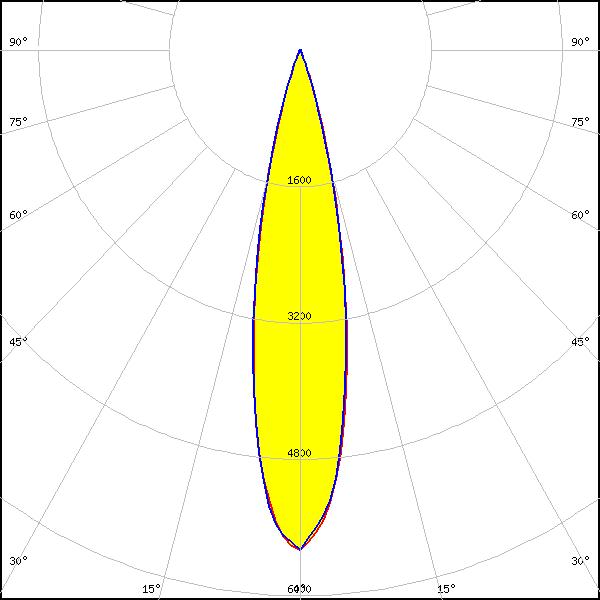

    LED: CTM-9 (Tunable White) Gen2
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 9.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 22°
    FWTM: 38°
    Peak intensity: 5.868 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

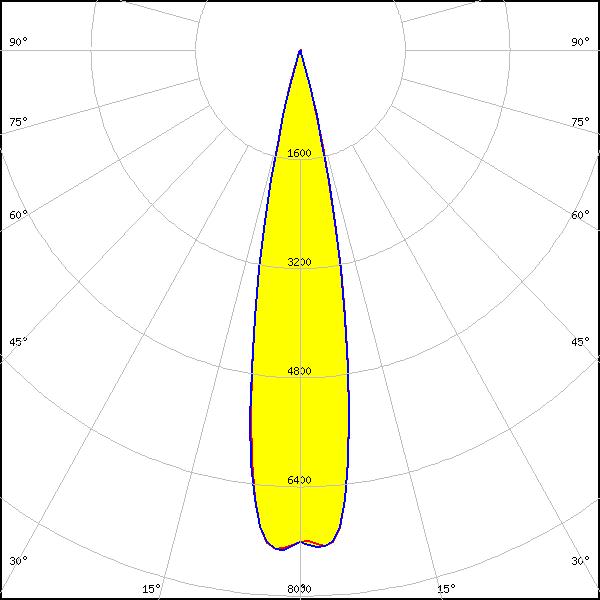

    LED: CXM-3
    Ordering code: CP19091_AMY-70-M-B2
    LES size: 3.5 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 20°
    FWTM: 32°
    Peak intensity: 7.427 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

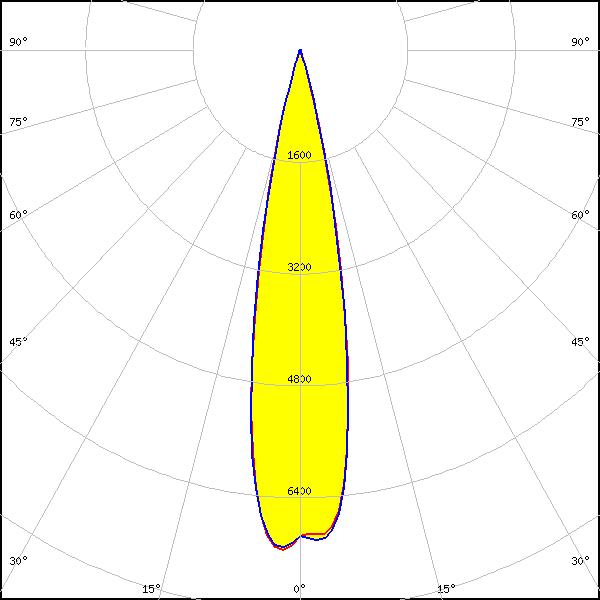

    LED: CXM-4
    Ordering code: CP19091_AMY-70-M-B2
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 21°
    FWTM: 32°
    Peak intensity: 7.226 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-6 (13.5x13.5)
    Ordering code: CP19091_AMY-70-M-B2
    LES size: 6.3 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 22°
    FWTM: 34°
    Peak intensity: 6.677 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

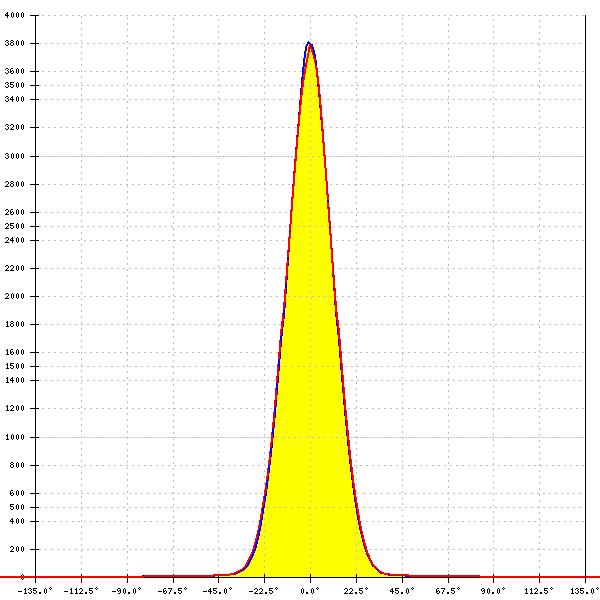

    LED: COB J-Type
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 14.6 mm
    Required components:
    Bender Wirth: 663a Hekla XL
    FWHM: 26°
    FWTM: 49°
    Peak intensity: 3.836 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

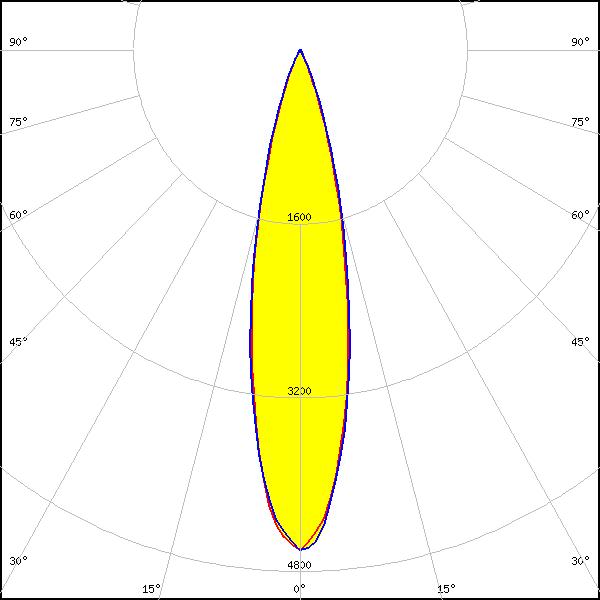

    LED: COB L-Type (LES 11)
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 11.5 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 23°
    FWTM: 43°
    Peak intensity: 4.605 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 6)
    Ordering code: CP19091_AMY-70-M-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 22°
    FWTM: 34°
    Peak intensity: 6.607 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    Ordering code: CP19091_AMY-70-M-B2
    LES size: 6.7 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 22°
    FWTM: 36°
    Peak intensity: 6.410 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

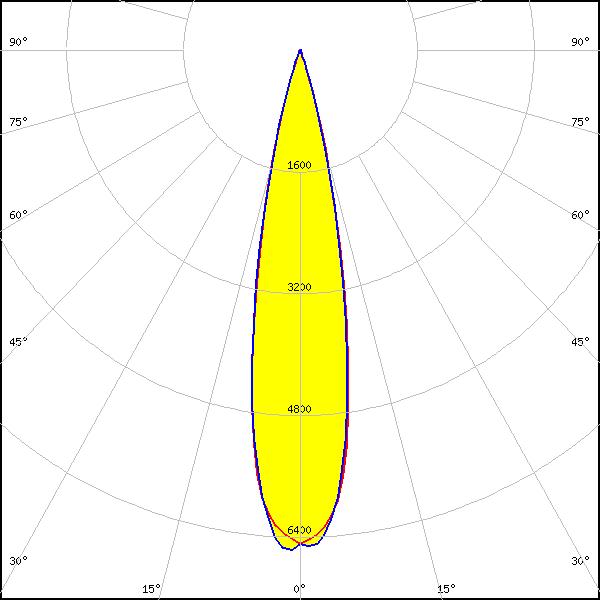

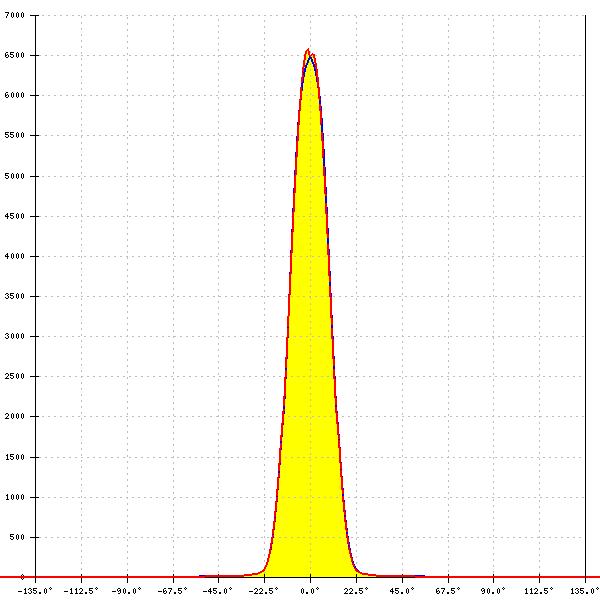

    LED: COB T-Type
    Ordering code: CP19091_AMY-70-M-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 22°
    FWTM: 35°
    Peak intensity: 6.642 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

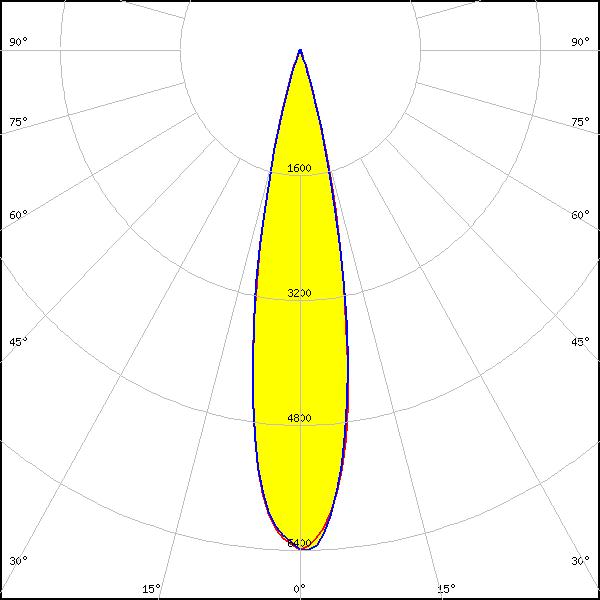

    LED: NJCWL024Z-V1MT: COB L-Type Tunable White
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 7.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 497 Typ L8 HV
    FWHM: 22°
    FWTM: 36°
    Peak intensity: 6.405 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NJNWS012Z-V1MT: COB S-Type Tunable White
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 5.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8 HV
    FWHM: 22°
    FWTM: 34°
    Peak intensity: 6.823 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

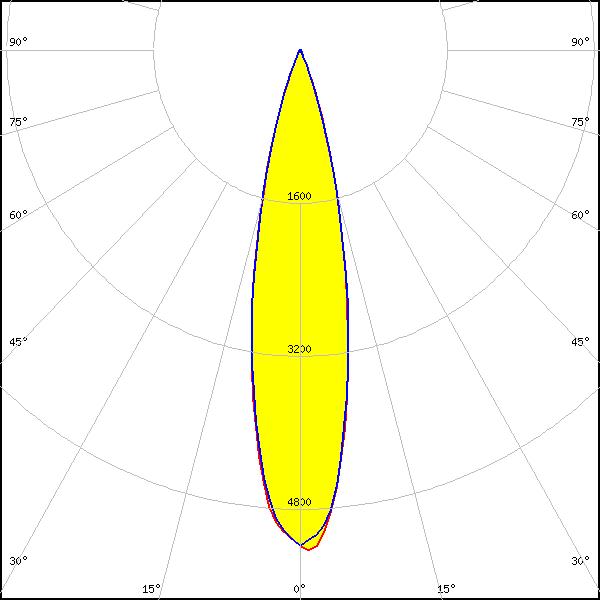

    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 10.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 498 Typ L8 HV
    FWHM: 22°
    FWTM: 41°
    Peak intensity: 5.235 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Fortimo SLM C TW L06A 1313 G7N
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 6.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 508 Typ L8
    FWHM: 22°
    FWTM: 36°
    Peak intensity: 5.559 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM C TW L09A 1919 G7N
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 9.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 22°
    FWTM: 41°
    Peak intensity: 4.858 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

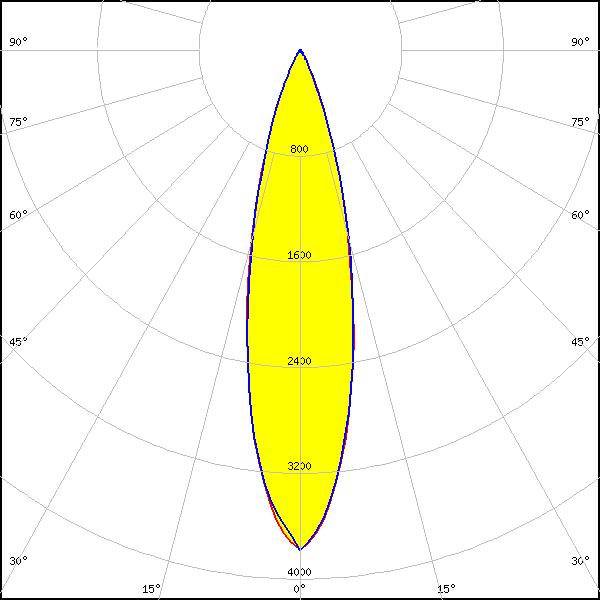

    LED: Fortimo SLM L15 CoB
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 26°
    FWTM: 48°
    Peak intensity: 3.784 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

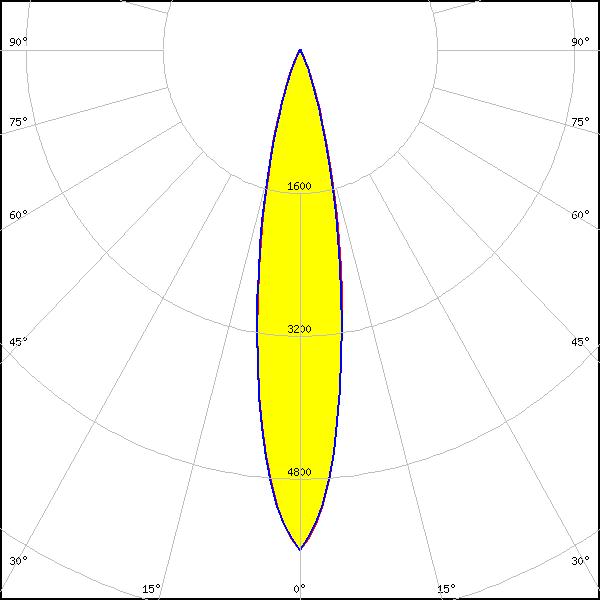

    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 20°
    FWTM: 40°
    Peak intensity: 5.598 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010C G2
    Ordering code: CP19091_AMY-70-M-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 22°
    FWTM: 34°
    Peak intensity: 6.799 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010T (Tunable White)
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 9.8 mm
    Required components:
    Bender Wirth: 501 Typ L8
    FWHM: 22°
    FWTM: 37°
    Peak intensity: 6.097 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 27°
    FWTM: 53°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

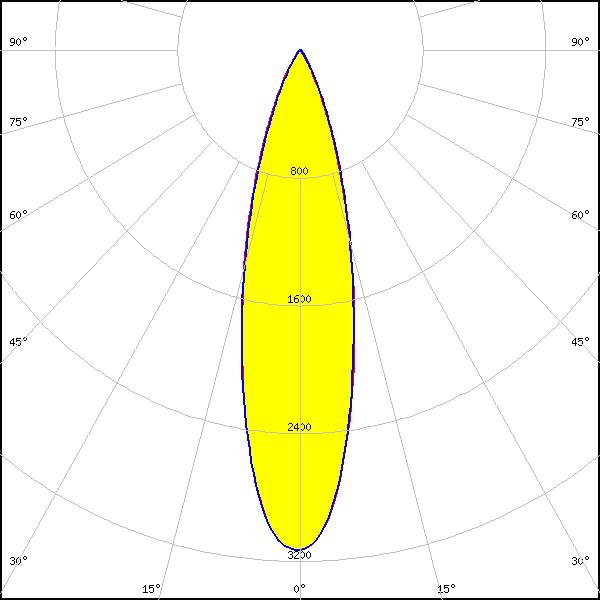

    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: C17777_AMY-70-M
    LES size: 14.5 mm
    FWHM: 27°
    FWTM: 53°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020C G2
    Ordering code: CP19091_AMY-70-M-B2
    LES size: 8.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 22°
    FWTM: 38°
    Peak intensity: 5.935 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020T (Tunable white)
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 13.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 20°
    FWTM: 43°
    Peak intensity: 5.123 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020T (Tunable white)
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 5.016 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

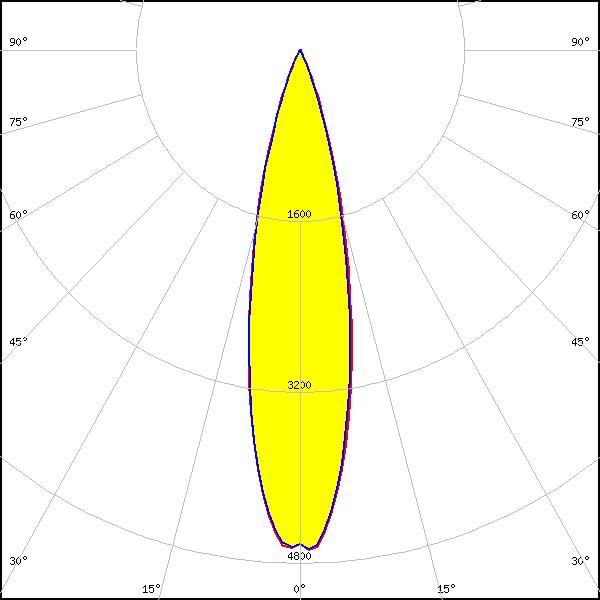

    LED: LC030C/040C G2
    Ordering code: CP19091_AMY-70-M-B2
    LES size: 11.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 24°
    FWTM: 44°
    Peak intensity: 4.813 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 24°
    FWTM: 48°
    Peak intensity: 4.088 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 26°
    FWTM: 51°
    Peak intensity: 3.631 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 6
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 22°
    FWTM: 34°
    Peak intensity: 6.680 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 9.8
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 23°
    FWTM: 40°
    Peak intensity: 5.568 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

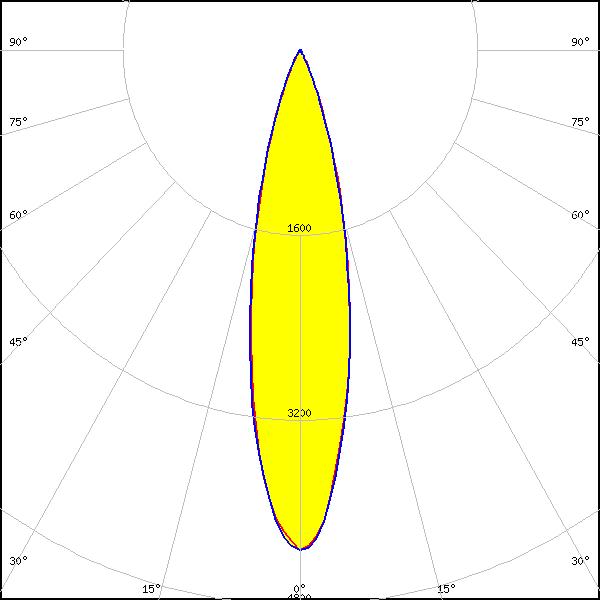

    LED: SLE G7 LES13
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 13.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 4.327 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XOB 14.5 mm
    Ordering code: CP19038_AMY-70-M-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 26°
    FWTM: 45°
    Peak intensity: 3.762 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
